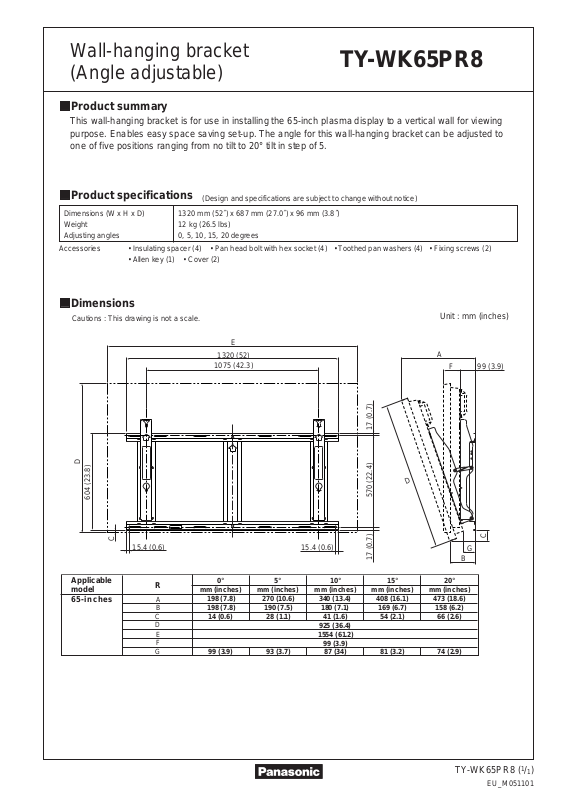

Wall-hanging bracket (Angle adjustable)
TY-WK65PR8
Product summary
This wall-hanging bracket is for use in installing the 65-inch plasma display to a vertical wall for viewing purpose. Enables easy space saving set-up. The angle for this wall-hanging bracket can be adjusted to one of five positions ranging from no tilt to 20° tilt in step of 5.
Product specifications (Design and specifications are subject to change without notice)
Dimensions (W x H x D) |
1320 mm (52˝) x 687 mm (27.0˝) x 96 mm (3.8˝) |
Weight |
12 kg (26.5 lbs) |
Adjusting angles |
0, 5, 10, 15, 20 degrees |
|
|
Accessories |
• Insulating spacer (4) • Pan head bolt with hex socket (4) • Toothed pan washers (4) • Fixing screws (2) |
|
• Allen key (1) • Cover (2) |
Dimensions
Cautions : This drawing is not a scale. Unit : mm (inches)
|
|
E |
|
|
|
|
|
|
|
|
1320 (52) |
|
|
|
|
A |
|
|
|
1075 (42.3) |
|
|
|
|
F |
99 (3.9) |
|
|
|
|
|
17 (0.7) |
|
|
|
D (23.8)604 |
|
|
|
|
570(22.4) |
D |
|
|
|
|
|
|
|
|
|
|
|
C |
15.4 (0.6) |
|
|
15.4 (0.6) |
(0.7) |
|
G |
C |
|
|
|
17 |
|
|
|||
|
|
|
|
|
|
B |
|
|
|
|
|
|
|
|
|
|
|
Applicable |
R |
0° |
5° |
10° |
|
15° |
20° |
|
model |
mm (inches) |
mm (inches) |
mm (inches) |
mm (inches) |
mm (inches) |
|
||
|
|
|||||||
65-inches |
A |
198 (7.8) |
270 (10.6) |
340 (13.4) |
|
408 (16.1) |
473 (18.6) |
|
|
B |
198 (7.8) |
190 (7.5) |
180 (7.1) |
|
169 (6.7) |
158 (6.2) |
|
|
C |
14 (0.6) |
28 (1.1) |
41 (1.6) |
|
54 (2.1) |
66 (2.6) |
|
|
D |
|
|
925 (36.4) |
|
|
|
|
|
E |
|
|
1554 (61.2) |
|
|
|
|
|
F |
|
93 (3.7) |
99 (3.9) |
|
|
|
|
|
G |
99 (3.9) |
87 (34) |
|
81 (3.2) |
74 (2.9) |
|
|
TY-WK65PR8 (1/1)
