Panasonic TY-LA1000 User Manual

WARNING:

The lamp may be hot. Be careful when handling.

CAUTION:

• High-pressure lamp may explode if improperly
handled.

• Danger of injury due to glass fragments.

■

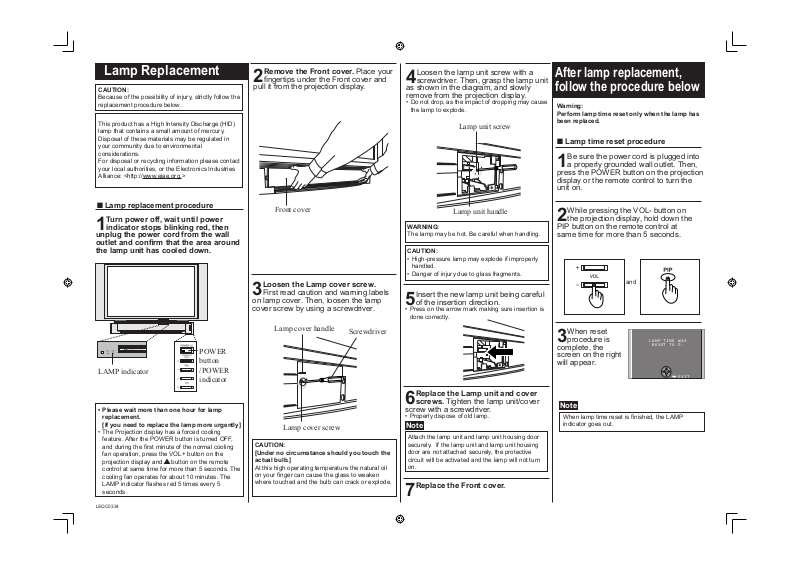

Lamp replacement procedure

1

Turn power off, wait until power

indicator stops blinking red, then
unplug the power cord from the wall
outlet and confi rm that the area around
the lamp unit has cooled down.

• Please wait more than one hour for lamp
replacement.

[If you need to replace the lamp more urgently]

• The Projection display has a forced cooling
feature. After the POWER button is turned OFF,
and during the fi rst minute of the normal cooling
fan operation, press the VOL+ button on the
projection display and button on the remote
control at same time for more than 5 seconds. The
cooling fan operates for about 10 minutes. The
LAMP indicator fl ashes red 5 times every 5
seconds.

POWER
button
/POWER
indicator

Lamp Re place ment

3

Loosen the Lamp cover screw.

First read caution and warn ing labels
on lamp cover. Then, loosen the lamp
cover screw by using a screwdriver.

Lamp unit screw

Screwdriver

4

Loosen the lamp unit screw with a

screwdriver. Then, grasp the lamp unit
as shown in the diagram, and slowly
remove from the projection display.

• Do not drop, as the impact of dropping may cause

the lamp to explode.

2

Remove the Front cover. Place your

fi ngertips under the Front cover and

pull it from the projection display.

Lamp unit handle

Lamp cover handle

6

Replace the Lamp unit and cover
screws. Tighten the lamp unit/cover

screw with a screwdriver.

• Properly dispose of old lamp.

Attach the lamp unit and lamp unit housing door
securely. If the lamp unit and lamp unit housing
door are not attached securely, the protective
circuit will be activated and the lamp will not turn
on.

Note

7

Replace the Front cover.

5

Insert the new lamp unit being careful
of the insertion direction.

• Press on the arrow mark making sure insertion is
done correctly.

■

Lamp time reset procedure

1

Be sure the power cord is plugged into

a properly grounded wall outlet. Then,
press the POWER button on the projection
display or the remote control to turn the
unit on.

Warning:
Perform lamp time reset only when the lamp has
been replaced.

When lamp time reset is fi nished, the LAMP
indicator goes out.

Note

After lamp re place ment,
follow the pro ce dure below

3

When reset

procedure is

complete, the
screen on the right
will appear.

and

Lamp cover screw

LAMP indicator

2

While pressing the VOL- button on

the projection display, hold down the

PIP button on the remote control at
same time for more than 5 seconds.

LSQC0334

CAUTION:
[Under no circumstance should you touch the
actual bulb.]

At this high operating temperature the natural oil
on your fi nger can cause the glass to weaken
where touched and the bulb can crack or explode.

This product has a High Intensity Discharge (HID)
lamp that contains a small amount of mercury.
Disposal of these materials may be regulated in
your community due to environmental
considerations.
For disposal or recycling information please contact
your local authorities, or the Electronics Industries
Alliance: <http://www.eiae.org.>

CAUTION:

Because of the possibility of injury, strictly follow the
replacement procedure below.

Front cover

LAMP TIME WAS
RESET TO 0.

EXIT

Limited Warranty Coverage (LAMP Only)

If your Lamp unit does not work properly because of a defect in materials
or workmanship, Panasonic Consumer Electronics Company or Panasonic
Sales Company (collectively referred to as “the warrantor”) will, for the length
of the period indicated below, which starts with the date of original purchase
(“warranty period”), replace it with a new lamp unit.

For ninety (90) days – In exchange for defective Lamp Unit

You must Mail-In your Lamp unit during the warranty period. This warranty
only applies to products purchased and serviced in the United States or
Puerto Rico. This warranty is extended only to the original purchaser of a
new product which was not sold “as is”.

Mail-In Service

For assistance in obtaining service in the United States please contact:
Panasonic Services Company Panasonic Plus Department
20421 84th Avenue South
Kent, WA 98032
Phone: [phone]
Fax: [phone]

If a Lamp unit defect occurs during the warranty period the purchaser will
be required to furnish a sales receipt/proof of purchase indicating date of
purchase.
Also, purchaser will be responsible for shipping the Lamp unit to the above
address.

For assistance in Puerto Rico call Panasonic Sales Company
(787)-750-4300 or fax [phone].

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred
in shipment, or failures which are caused by products not supplied by the
warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation, set-up adjustments,
misadjustment of consumer controls, improper maintenance, power line surge,
lightning damage, modifi cation, or commercial use (such as in a hotel, offi ce,
restaurant, or other business), rental use of the product, service by anyone
other than a Factory Servicenter or other Authorized Servicer, or damage that
is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY. (As examples, this excludes damages for lost time,

travel to and from the servicer. The items listed are not exclusive, but are for
illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING

THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts,
so the exclusions may not apply to you.

This warranty gives you specifi c legal rights and you may also have
others rights which vary from state to state. If a problem with this product
develops during or after the warranty period, you may contact your dealer or
Servicenter. If the problem is not handled to your satisfaction, then write to
the warrantor’s Consumer Affairs Department at the addresses listed for the
warrantor.

PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY ARE YOUR RESPONSIBILITY.

Panasonic Lamp Unit Limited Warranty

PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION
OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA
One Panasonic Way
Secaucus, New Jersey 07094

PANASONIC SALES COMPANY, DIVISION OF MATSUSHITA
ELECTRIC OF PUERTO RICO, INC.,
Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park Carolina, Puerto Rico 00985
