Operating Instructions
3D Eyewear
Model No.
TY-EW3D3LU
TY-EW3D3MU
TY-EW3D3SU
ENGLISH
FRANÇAIS
ESPAÑOL
TQZJ386
Page 2
Thank you for purchasing a Panasonic
product.
Before operating this product, please read the instructions
carefully, and save this manual for future use.
Before using this product, be sure to read “Safety Precautions”
and “Using Precautions” ( pages 2 - 6).
This 3D Eyewear can be used for Panasonic HDTVs
supporting 3D.
For the latest information on applicable models, visit
our web site.
http://panasonic.net/
This product cannot be used as sunglasses.
Safety Precautions
Danger
About Prohibition of Heating
NGLISH
Do not put 3D Eyewear in re, heat it or leave it in
E
places that can get hot.
3D Eyewear contains a lithium-ion polymer rechargeable battery, so
heating may result in combustion or rupture that may cause burns or re.
Warning
About Prevention of Accidental Ingestion
Do not store any 3D Eyewear parts in places where
small children can reach.
There is a danger small children could swallow such parts by mistake.
• If a child accidentally swallows such parts, seek immediate medical
attention.
About Prohibition of Disassembly
Do not disassemble or modify the 3D Eyewear.
When disposing this product, refer “Disposal”
disassemble properly for removing the rechargeable battery.
( pages 9)
and
2
Page 3
About Charging
Charge by connecting the included charging cable to
the USB terminal of a Panasonic TV supporting 3D.
Charging with other devices may result in battery leakage, heating or
rupture.
Do not use the included charging cable for uses other
than charging 3D Eyewear.
Doing so may result in heating, combustion or damage.
Caution
About 3D Eyewear
Do not drop, exert pressure on, or step on the
3D Eyewear.
Doing so may damage the glass section, which may result in injury.
Be careful of the tips of the frame when putting on the
3D Eyewear.
Accidentally inserting the tip of the frame into the eye may cause injury.
Always keep the 3D Eyewear in a cool, dry place.
Failure to do so may cause re or electric shock.
Be careful not to trap a nger in the hinge section of
the 3D Eyewear.
Doing so may result in injury.
• Pay special attention when children are using this product.
About Use of 3D Eyewear
Parents/guardians should monitor children’s viewing
habits to avoid their prolonged use without rest
periods.
Only use the 3D Eyewear for the specied purpose.
Do not move around while wearing the 3D Eyewear.
The surrounding area appears dark, which may result in falling or other
accidents that may cause injury.
E
NGLISH
About Viewing of 3D Images
In the event that you experience dizziness, nauses, or
other discomfort while viewing 3D images discontinue
use and rest your eyes.
Do not use if the 3D Eyewear is cracked or broken.
3
Page 4
FCC STATEMENT
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the Panasonic Service Center or an experienced radio/
TV technician for help.
FCC Caution:
To assure continued compliance, follow the attached
installation instructions and use only shielded USB interface
NGLISH
cable when connecting to computer or TV. Any changes or
E
modications not expressly approved by Panasonic Corp.
of North America could void the user’s authority to operate
this device.
Models: TY-EW3D3LU/TY-EW3D3MU/
Responsible Party: Panasonic Corporation of North America
Contact Source: Panasonic Consumer Electronics Company
email: consumerproducts@panasonic.com
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Declaration of Conformity
TY-EW3D3SU
One Panasonic Way, Secaucus, NJ 07094
1-877-95-VIERA (958-4372)
CANADIAN NOTICE:
For Model TY-EW3D3LU/TY-EW3D3MU/TY-EW3D3SU
This Class B digital apparatus complies with Canadian ICES-003.
4
Page 5
Using Precautions
Lens
Do not apply pressure to the liquid crystal shutter. Also, do
not drop or bend the 3D Eyewear.
Do not scratch the surface of the liquid crystal shutter with
a pointed instrument etc. Doing so may cause damage to
the 3D Eyewear, and reduce the quality of the 3D image.
Infra-red receiver section
Do not soil the infra-red receiver section or attach stickers
etc. to it.
Doing so may prevent the receiver from receiving signals from
the television, which may prevent the 3D Eyewear from operating
normally.
If the 3D Eyewear is affected by other infra-red data
communication equipment, the 3D images may not be
displayed correctly.
Cautions during viewing
Do not use devices that emit strong electromagnetic waves
(such as cellular phones or personal transceivers) near
the 3D Eyewear. Doing so may cause the 3D Eyewear to
malfunction.
The 3D Eyewear cannot operate fully at high or low
temperatures. Please use within the specied usage
temperature range ( page 14).
If the 3D Eyewear is used in a room in which uorescent
lights (50 Hz) are used, the light within the room may
appear to be ickering. In this case, either darken or switch
off the uorescent lights when using the 3D Eyewear.
Wear the 3D Eyewear correctly. 3D images will not be
correctly visible if the 3D Eyewear is worn upside down or
back-to-front.
Other kinds of displays (such as computer screens, digital
clocks, or calculators etc.) may be difcult to see while
wearing the 3D Eyewear. Do not wear the 3D Eyewear
when watching anything other than 3D images.
E
NGLISH
(continued overleaf)
5
Page 6
For comfortable viewing
View the screen at a distance at least 3 times further than
the effective height of the screen.
Using the 3D Eyewear at a distance closer than the
recommended distance may cause eyesight fatigue.
When the top and bottom area of the screen is blackened,
such as movies, view the screen at a distance 3 times of
the height of the actual image.
(That makes the viewing distance closer than above
recommended distance.)
Stop using the 3D Eyewear immediately if your skin feels
unusual.
In rare cases, the paint or materials used in the 3D Eyewear
may cause an allergic reaction.
Stop using the 3D Eyewear immediately if you experience
any redness, pain, or itching on the nose or temples.
Prolonged use may cause such symptoms due to excess
pressure, which may result in the user feeling unwell.
Viewing 3D images
When watching 3D movies, take an appropriate length
break after watching a movie.
When watching 3D content on interactive devices such as
3D games or computers, take an appropriate length break
NGLISH
E
after using for 30 - 60 minutes.
Prolonged use may cause eyesight fatigue.
Accessories
Charging cable ··························································· <1>
< > indicates the quantity.
(K2KYYYY00164)
6
Page 7
Identifying Controls
Power switch
Indicator lamp
Infra-red receiver
Charging port (DC IN)
Power switch
ON/OFF Slide the tab to the ON/OFF position to switch
3D/2D Slide the tab once to the 3D/2D position to
Indicator lamp
Lights or ashes during use or charging to show the status of
the rechargeable battery.
Infra-red receiver
Receives infra-red signals from the television.
• Do not soil the infra-red receiver section or attach stickers etc.
Charging port
Connect the charging cable.
• Charge by connecting the included charging cable.
the power on/off.
change the mode between 3D and 2D.
• 2D: View a 3D image in 2D.
to it.
7
E
NGLISH
Page 8
Indicator lamp status
Indicator lamp Status
Lights for 2 seconds when turned on Sufcient battery level
Flashes 5 times when turned on Low battery level
Flashes once every 2 seconds when
in use
Flashes twice every 4 seconds when
in use
3D mode is selected.
2D mode is selected.
Charging
Charging the 3D Eyewear
Connect the 3D Eyewear with the included charging cable to
the television, then switch on the television.
• When the indicator lamp turns off, charging is complete.
Approximately 30 minutes required.
NOTE
• Charge the 3D Eyewear before using the rst time after purchase or
after long periods of disuse.
NGLISH
• Be sure to turn the television power on when charging. The battery will
E
not be charged when the television power is off.
Storage and Cleaning
Clean using a soft, dry cloth.
Wiping the 3D Eyewear with a soft cloth that is covered in dust
or dirt may scratch the eyewear. Shake off any dust from the
cloth before use.
Do not use benzene, thinner, or wax on the 3D Eyewear, as
doing so may cause the paint to peel off.
Do not dunk the 3D Eyewear in liquid such as water when
cleaning.
Avoid storing the 3D Eyewear in hot or highly humid locations.
During the long period of disuse, full charge the 3D Eyewear
once every 6 months to keep the battery performance.
As the liquid crystal shutters (lens) are fragile and easily
broken, be very careful when cleaning them.
8
Page 9
Disposal
A lithium-ion polymer rechargeable battery is built in
to the 3D Eyewear. Please discard according to local
regulations.

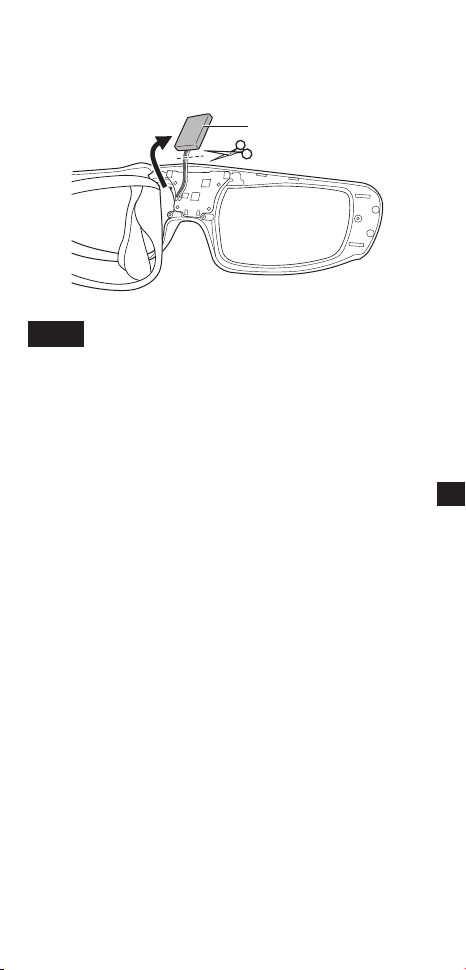

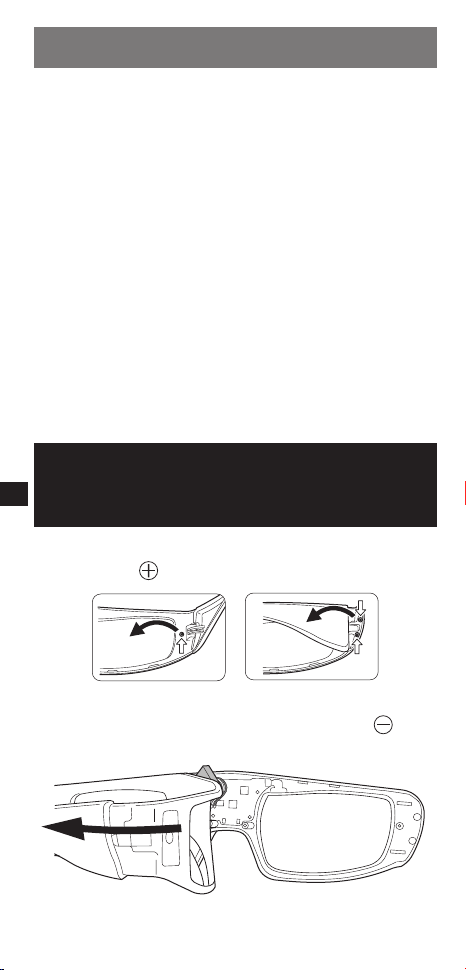

When disposing this product, disassemble properly by
following the procedure on the next page, and remove
the internal rechargeable battery.
Do not disassemble this product except when disposing
of it.
Danger
As the rechargeable battery is specically for this
product, do not use it for any other device.
Do not charge the removed battery.
Do not throw the battery in a re, or apply heat to it.
Do not pierce the battery with a nail, subject it to an impact,
or dismantle or modify it.
Do not let the wires touch any other metal or each other.
Do not carry or store the battery with a necklace, hair pin,
or the like.
Do not charge, use, or leave the battery in a hot location
such as near a re or under the hot sun.
Doing so may cause the battery to generate heat, ignite, or
rupture.
E
NGLISH
(continued overleaf)
9
Page 10
Warning
Do not place the removed battery, screws, and other
items within reach of infants.
Accidental swallowing of such an item may have an adverse
effect on the body.
In the event that you think such an item has been
swallowed, consult a doctor immediately.
In the event of uid leaking from the battery, take the
following measure, and do not touch the uid with
bare hands.
Fluid entering into an eye may cause loss of eyesight.
Wash the eye with water immediately without rubbing it,
and then consult a doctor.
Fluid getting on your body or clothes may cause inammation of
the skin or injury.
Sufciently rinse with clean water, and then consult a
doctor.
How to remove the battery
Disassemble this product after the battery has run out of
power.
The following gures are intended to explain how to
NGLISH
E
dispose of the product, not for describing how to repair.
The product cannot be repaired once it has been
disassembled.
1. Remove the screws of the 3D Eyewear with a precision
Phillips (plus
2. Bend the frame inwards and pull it off from the side cover.
If it is difcult to pull off, insert a at-blade (minus
screwdriver and pry open it.
) screwdriver.
10
)
Page 11
3. Pull off the battery and separate it from the 3D Eyewear by
cutting off the wires, one by one, with scissors.
Insulate the wire parts of the removed battery with
cellophane tape.
Battery
NOTE
• Take sufcient care when performing this work so as not to injure
yourself.
• Do not damage or dismantle the battery.
E
NGLISH
11
Page 12
Troubleshooting/Q&A
Check the followings rst. If they do not solve the problem,
please contact the place of purchase.
Images are not 3D.
► Is the 3D Eyewear mode set to 3D?
Slide the tab once to the 3D/2D position to change the mode between
3D and 2D.
► Are the image settings switched to 3D images?
Refer the television operating instructions.
► Is there a sticker or other such item blocking the infra-
red reception section on the 3D Eyewear?
If the eyewear stops receiving infra-red signal from the television, the
power automatically switches off after 5 minutes.
► Individual differences may occur in which the 3D images
are difcult to see, or cannot be seen, especially in users
that have a different level of eyesight between the left
and right eyes.
Take the necessary steps (wearing glasses etc.) to correct your
eyesight before use.
NGLISH
The power of the 3D Eyewear turns off by itself.
E
► Are there any objects between the eyewear and
television?
► Is there a sticker or other such item blocking the infra-
red reception section on the 3D Eyewear?
If the eyewear stops receiving infra-red signal from the television, the
power automatically switches off after 5 minutes.
The indicator lamp does not light when the power
switch is set to “ON”.
► Is the 3D Eyewear sufciently charged?
If the indicator lamp does not light at all, the battery is completely at.
Perform the battery charging operation.
12
Page 13
The battery does not charge, or operation time is
short when charged.
► Is the charging cable connected properly?
Make sure the charging cable is properly connected.
► Is the television power off?
Switch the television power on, then charging will start.
► The battery has reached the end of its lifespan.
If operation time is very short even when the battery is charged, the
battery has reached the end of its lifespan. Please consult with the
place of purchase.
E
NGLISH
13
Page 14
Specications
Usage temperature range
0 °C - 40 °C (32°F - 104°F)
Charging power supply
DC 5 V ( supplied by USB terminal of a Panasonic TV)
Battery
Lithium-ion polymer rechargeable battery
DC 3.7 V, 40 mAh
Operation time*
Charging time*1: Approx. 30 minutes
Quick charge ( 2 minutes charge enables approx. 3 hours use)
Viewing range*
Transmitter for 3D Eyewear
Within 10.5' (3.2 m) from front surface
(Within ± 35° horizontal, ± 20° vertical)
Materials
NGLISH
Main body: Resin
E
Lens section: Liquid crystal glass
Dimensions (not including nose pad part)
Models TY-EW3D3LU TY-EW3D3MU TY-EW3D3SU
Width
Height
Overall length
Mass
*1 Operation time/Charging time
• The battery deteriorates after repeated use, and the operation time
eventually becomes short. The gures above are at shipping from the
factory, and are not a guarantee of performance.
*2 Viewing range
• The location of the 3D Eyewear transmitter differs depending on the
model of television.
• There are differences in the viewing range of the 3D Eyewear among
individuals.
• The 3D Eyewear may not operate correctly at the outside of the viewing
range.
1
:Approx. 25 hours
2
6.72"
(170.6 mm)
1.67"
(42.2 mm)
6.73"
(170.7 mm)
Approx. 0.96 lb
(Approx. 27 g)
6.61"
(167.7 mm)
1.67"
(42.2 mm)
6.73"
(170.7 mm)
Approx. 0.92 lb
(Approx. 26 g)
(160.5 mm)
(42.2 mm)
(167.6 mm)
Approx. 0.92 lb
(Approx. 26 g)
6.32"
1.67"
6.60"
14
Page 15
Limited Warranty
(for U.S.A. and Puerto Rico only)
ONLY FOR U.S.A. AND PUERTO RICO
Panasonic Accessory Limited Warranty
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way,
Secaucus, New Jersey 07094
Limited Warranty Coverage
(For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company (referred to as
“the warrantor”) will, for the length of the period on the chart below, which
starts with the date of original purchase (“warranty period”), at its option
either (a) repair your product with new or refurbished parts, (b) replace it
with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by
the warrantor.
Product Parts Labor
3D Eyewear 1 (ONE) Year Not applicable
During the “Parts” warranty period, there will be no charge for parts. This
Limited Warranty excludes both parts and labor for non-rechargeable
batteries, antennas, and cosmetic parts (cabinet). This warranty only
applies to products purchased and serviced in U.S.A. or Puerto Rico. This
warranty is extended only to the original purchaser of a new product which
was not sold “as is”.
Mail-In Service
For assistance in the U.S.A. and Puerto Rico in obtaining
replacement, please ship the product prepaid to:
Panasonic Exchange Center
4900 George McVay Drive
Suite B
McAllen, TX 78503
panacare@us.panasonic.com
When shipping the unit, carefully pack, include all accessories, and send it
prepaid, adequately insured and preferably in the original carton. If Lithium
Ion batteries are shipped by air the package must be labeled “Contains
Lithium Ion Battery (No lithium metal)”. Damaged batteries are prohibited
from shipment by US Mail. Batteries must be securely packed in a manner
to prevent short-circuiting and a package cannot contain more than 3
Lithium Ion batteries. Include a letter detailing the complaint, a return
address and provide a daytime phone number where you can be reached.
A valid registered receipt is required under the Limited Warranty.
E
NGLISH
(continued overleaf)
15
Page 16
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD,
THE PURCHASER WILL BE REQUIRED TO FURNISH A
SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE
OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY
UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied
by the warrantor, or failures which result from accidents, misuse, abuse,
neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance,
power line surge, lightning damage, modication, introduction of sand,
humidity or liquids, commercial use such as hotel, ofce, restaurant, or
other business or rental use of the product, or service by anyone other than
a Factory Service Center or other Authorized Servicer, or damage that is
attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS
LISTED UNDER “LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGE RESULTING FROM THE USE
OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
NGLISH
THIS WARRANTY.
E
(As examples, this excludes damages for lost time, travel to and from the
servicer, loss of or damage to media or images, data or other memory or
recorded content. The items listed are not exclusive, but for illustration
only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING
THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO
THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty
lasts, so the exclusions may not apply to you.
This warranty gives you specic legal rights and you may also have other
rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Service
Center. If the problem is not handled to your satisfaction, then write to the
warrantor’s Consumer Affairs Department at the addresses listed for the
warrantor.
16
Page 17
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS
LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
Customer Services Directory
(United States and Puerto Rico)
Obtain Product Information and Operating Assistance;
locate your nearest Dealer or Service Center; purchase
Parts and Accessories; or make Customer Service and
Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm, Saturday-Sunday 10am-7pm EST
For hearing or speech impaired TTY users, TTY:
1-877-833-8855
Accessory Purchases
(United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at: http://www.pstc.
panasonic.com
Or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic Service and Technology Company
20421 84th Avenue South, Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express, and
Personal Checks)
For hearing or speech impaired TTY users, TTY:
1-866-605-1277
As of February 2010
E
NGLISH
17
Page 18
Limited Warranty
(for Canada)
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
Panasonic Canada Inc.
PANASONIC PRODUCT – LIMITED WARRANTY
EXCHANGE PROGRAM
Panasonic Canada Inc. warrants this product to be free from
defects in material and workmanship under normal use and
for a period as stated below from the date of original purchase
agrees to, at its option either (a) repair your product with new
or refurbished parts, (b) replace it with a new or a refurbished
equivalent value product, or (c) refund your purchase price. The
decision to repair, replace or refund will be made by Panasonic
Canada Inc.
Accessories including rechargeable batteries
One (1) year
This warranty is given only to the original purchaser, or the person for whom
it was purchased as a gift, of a Panasonic brand product mentioned above
NGLISH
sold by an authorized Panasonic dealer in Canada and purchased and
E
used in Canada, which product was not sold “as is”, and which product was
delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY
SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER
PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING
AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials
or workmanship, and DOES NOT COVER normal wear and tear or
cosmetic damage. The warranty ALSO DOES NOT COVER damages
which occurred in shipment, or failures which are caused by products not
supplied by Panasonic Canada Inc., or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls,
improper maintenance, power line surge, lightning damage, modication,
introduction of sand, humidity or liquids, commercial use such as hotel,
ofce, restaurant, or other business or rental use of the product, or service
by anyone other than an Authorized Servicer, or damage that is attributable
to acts of God.
Dry cell batteries are also excluded from coverage under this warranty.
18
Page 19
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL
PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL,
INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING
FROM THE USE OF THIS PRODUCT OR ARISING OUT OF
ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY.
(As examples, this warranty excludes damages for lost time,
travel to and from the Authorized Servicer, loss of or damage
to media or images, data or other memory or recorded content.
This list of items is not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages, or the exclusion of implied
warranties, so the above limitations and exclusions may not be applicable.
This warranty gives you specic legal rights and you may have other rights
which vary depending on your province or territory.
CONTACT INFORMATION
For product information and operation assistance, please
contact:
Our Customer Care Centre:
Telephone #: 1-800-561-5505
Fax #: (905) 238-2360
Email link:
“Support → contact us → email” on www.panasonic.ca
For defective product exchange within the warranty period,
please contact the original dealer or our Customer Care Centre.
E
NGLISH
19
Page 20
Information on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please
contact your local authorities or dealer and ask
for the correct method of disposal.
NGLISH
E
Panasonic Corporation
Web Site : http://panasonic.net/
© Panasonic Corporation 2011
Loading...
