Page 1
ORDER NO.PCZ1105103CE
Plasma Television
Model No. TX-P65VT30E
TX-P65VT30J
GPF14D-E Chassis
© Panasonic Corporation 2011.
Unauthorized copying and distribution is a violation
of law.
Page 2
TABLE OF CONTENTS
1 Safety Precautions -----------------------------------------------3
1.1. General Guidelines ----------------------------------------3
1.2. Touch-Current Check--------------------------------------3
2Warning--------------------------------------------------------------4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices ----------4
2.2. About lead free solder (PbF) ----------------------------5
3 Service Navigation------------------------------------------------6
3.1. PCB Layout --------------------------------------------------6
3.2. Applicable signals ------------------------------------------7
4 Specifications ------------------------------------------------------8
5 Technical Descriptions---------------------------------------- 10
5.1. Specification of KEY for CI Plus, DTCP-IP,
WIDEVINE and One-to-One -------------------------- 10
5.2. USB HDD Recording ------------------------------------ 10

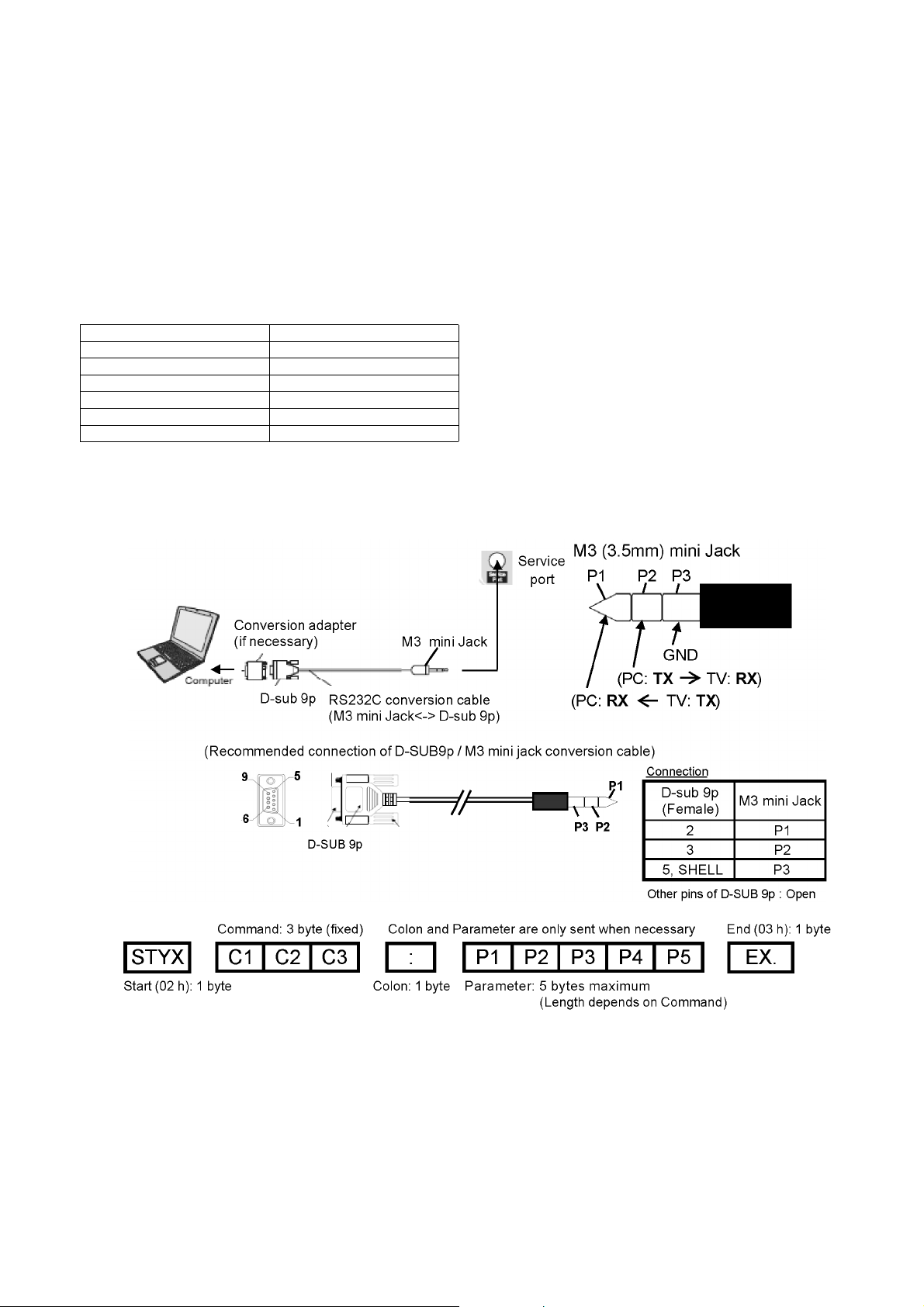

5.3. Service port (M3 mini Jack) Specifications -------- 11
6 Service Mode ----------------------------------------------------- 14

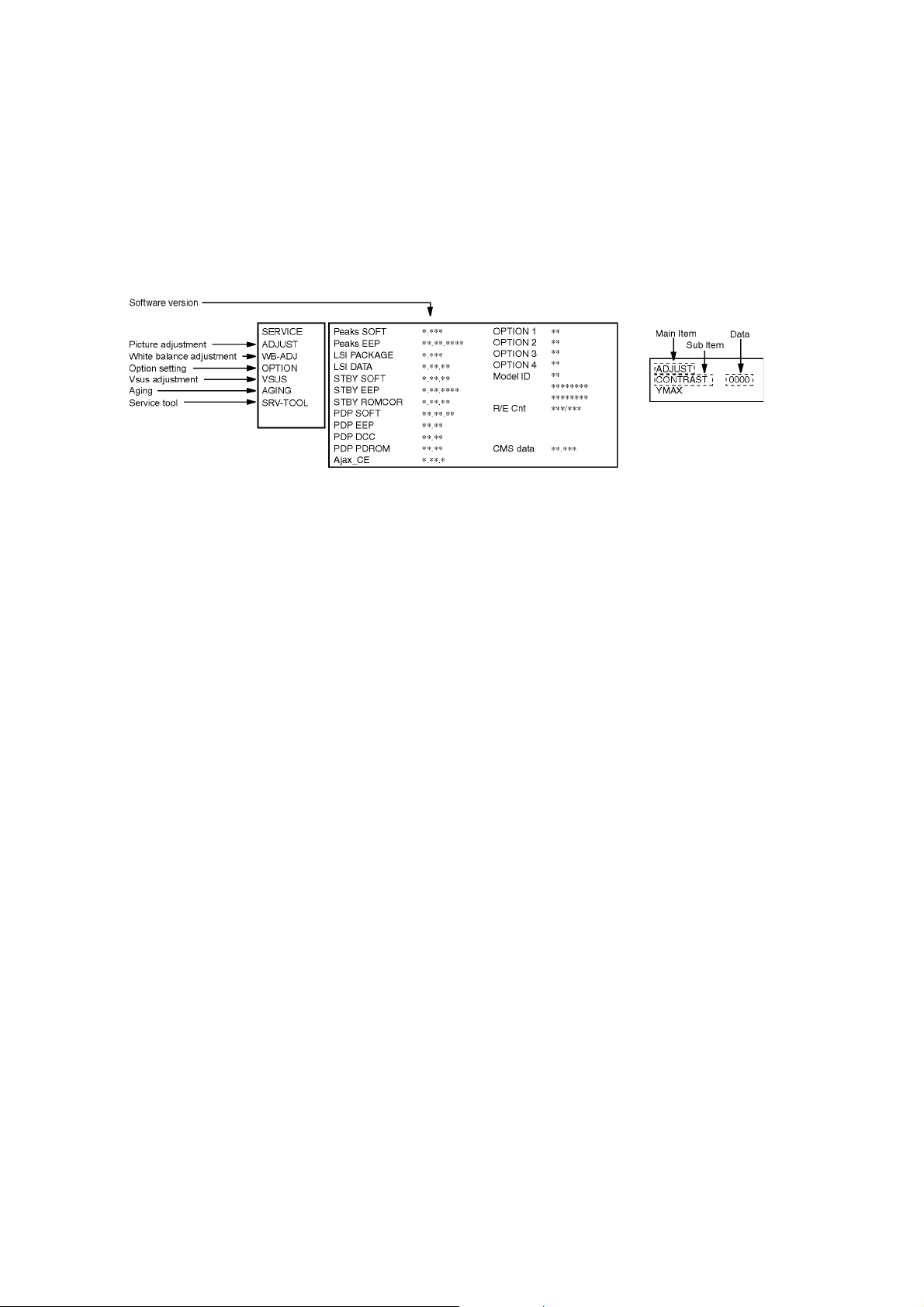

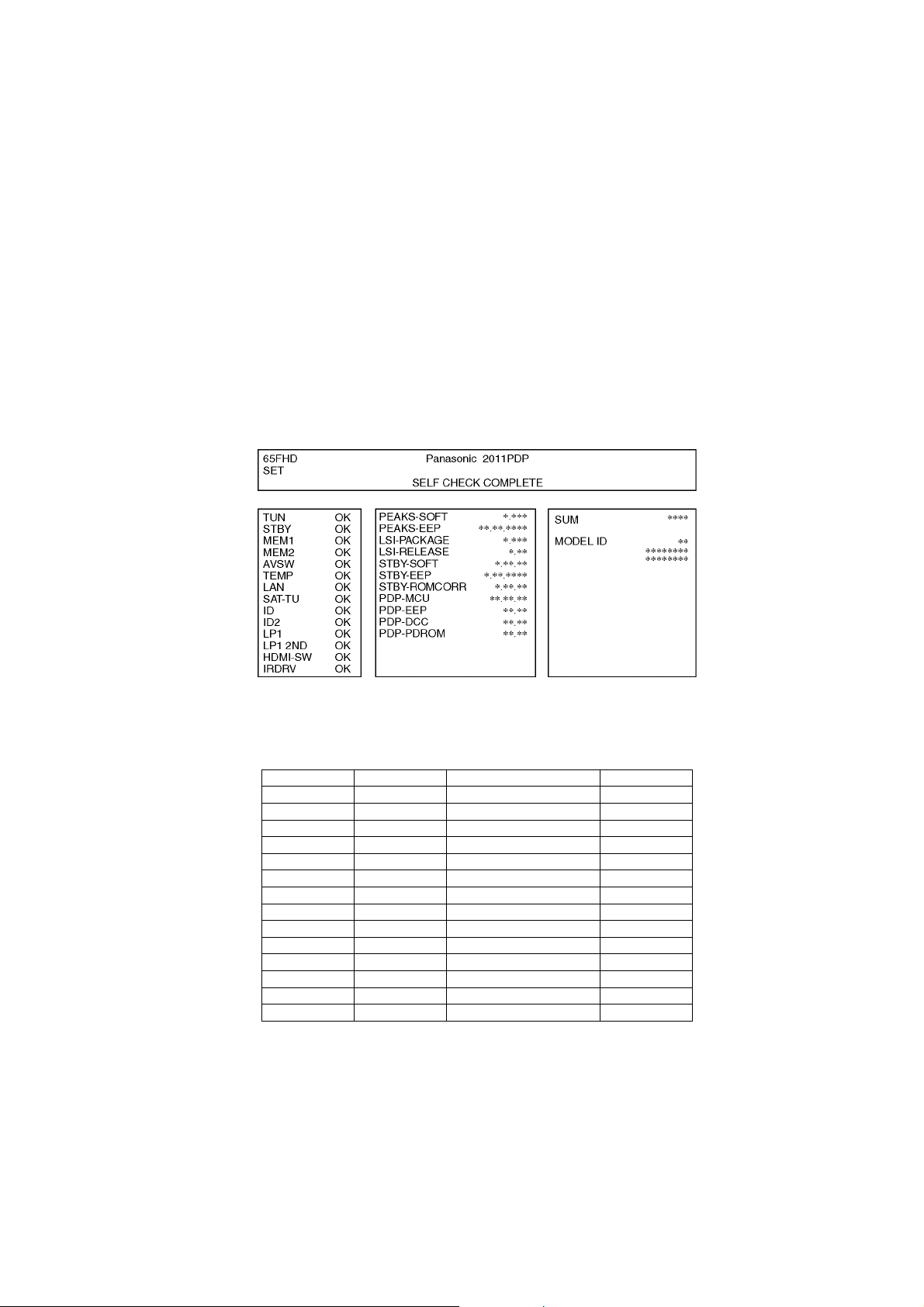

6.1. How to enter into Service Mode ---------------------- 14

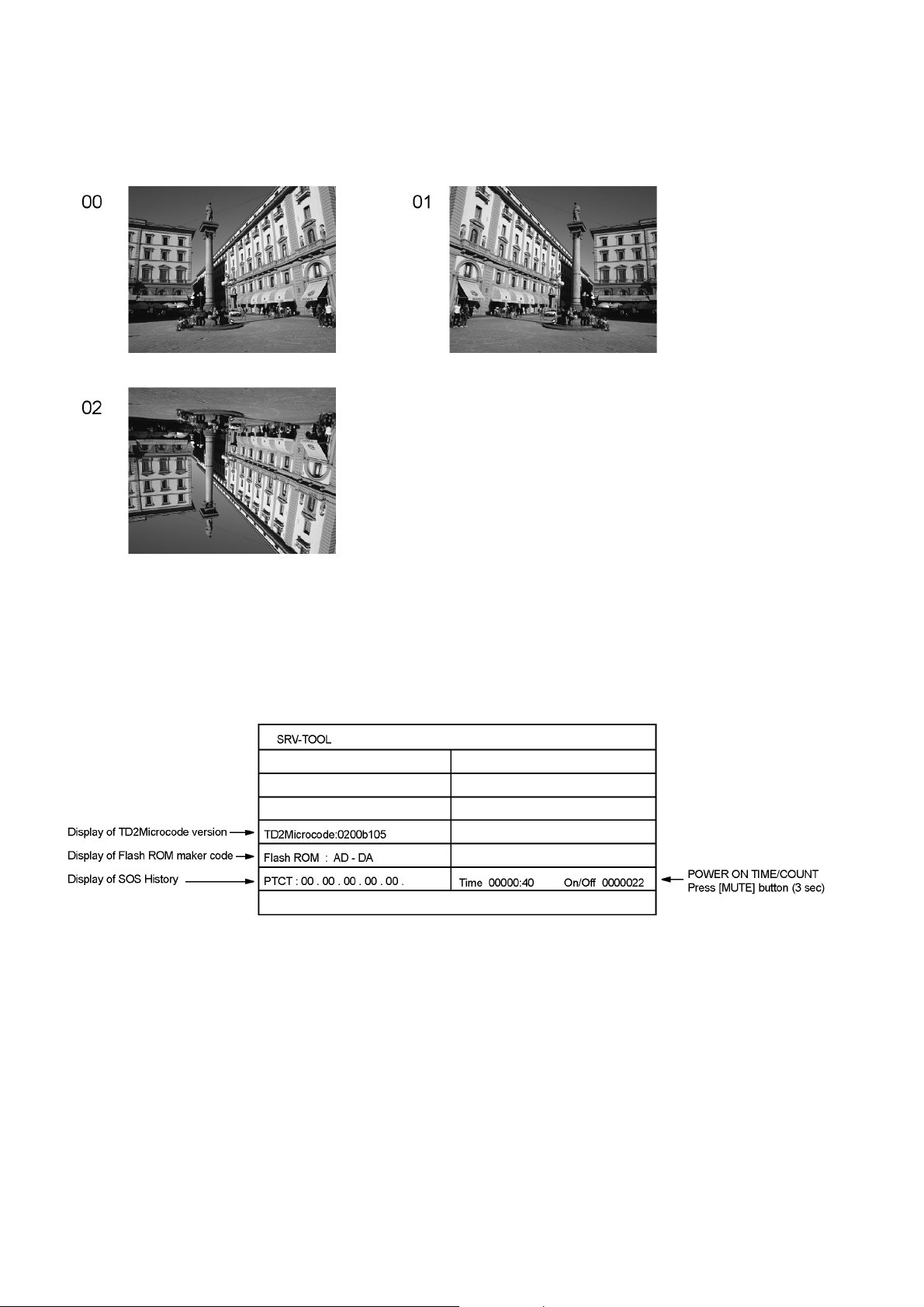

6.2. Option - Mirror--------------------------------------------- 16
6.3. Service tool mode ---------------------------------------- 16

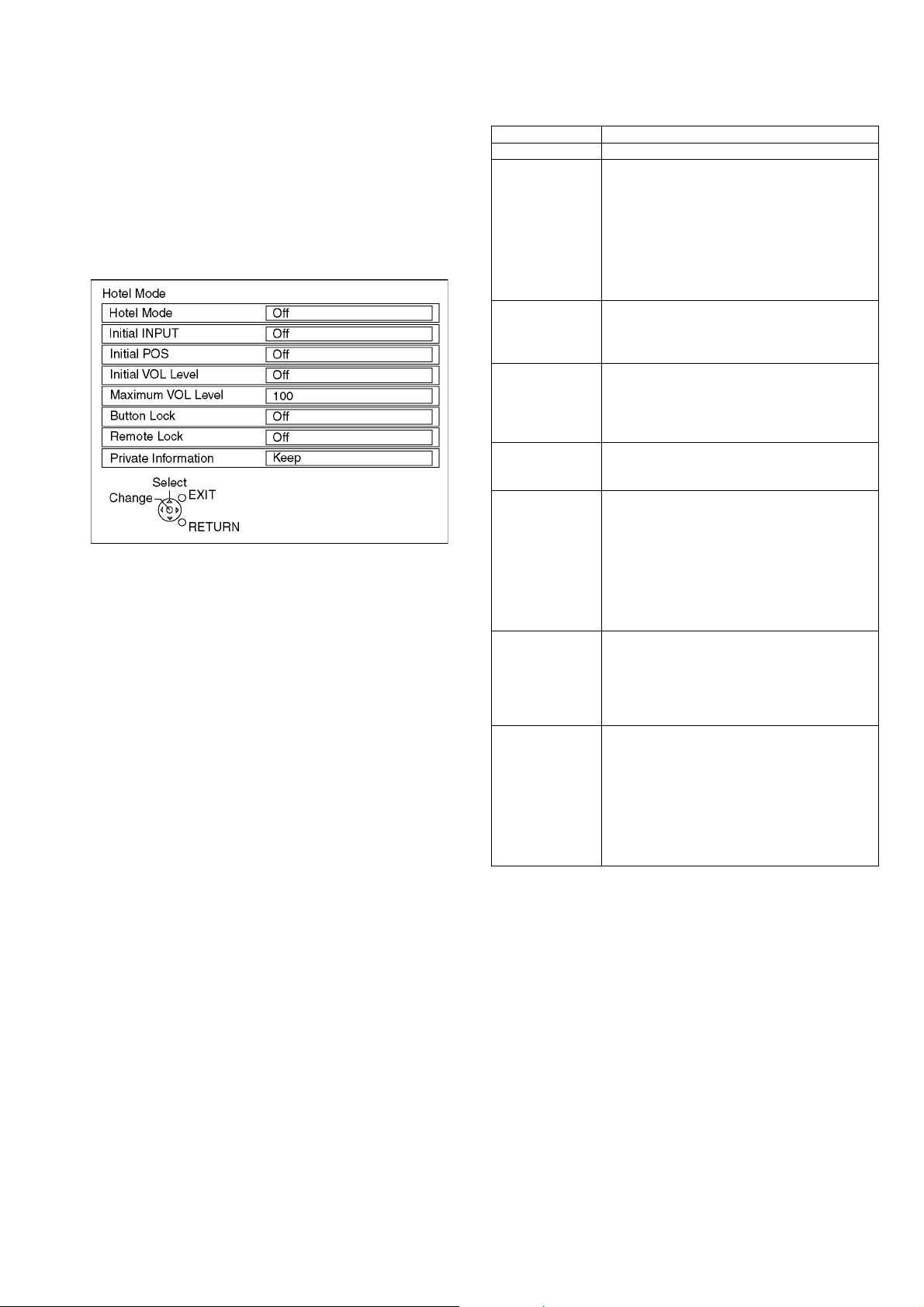

6.4. Hotel mode------------------------------------------------- 17

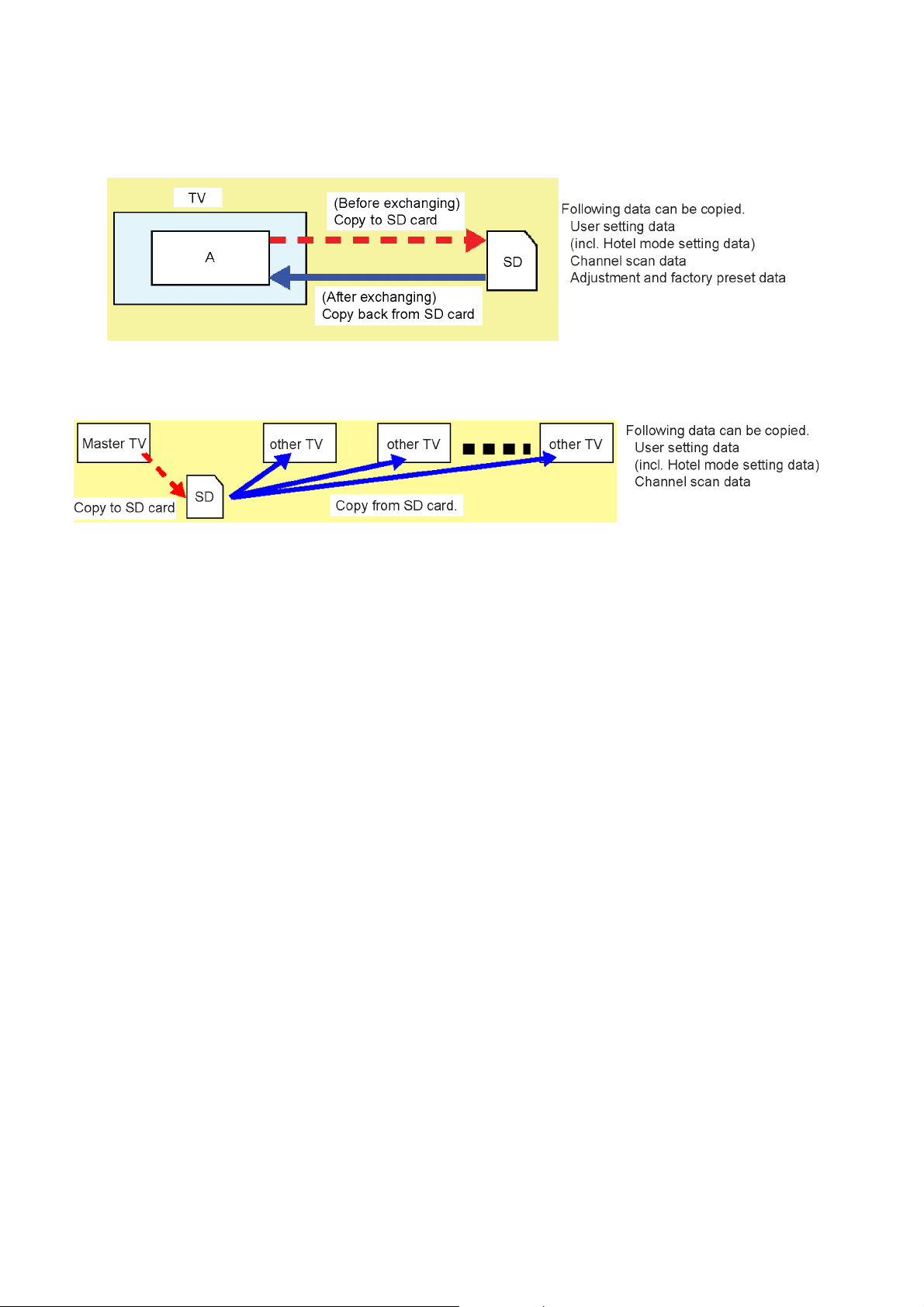

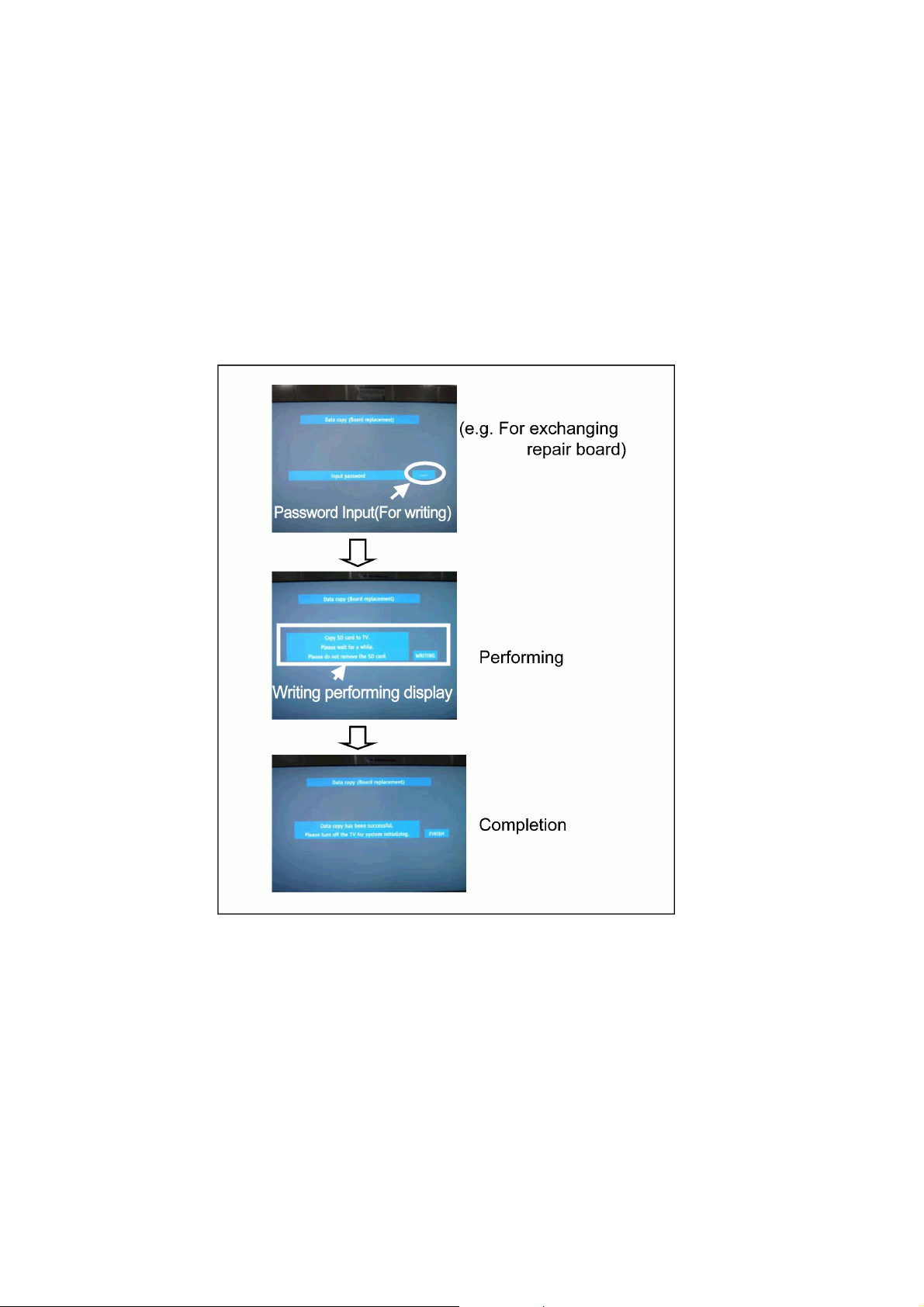

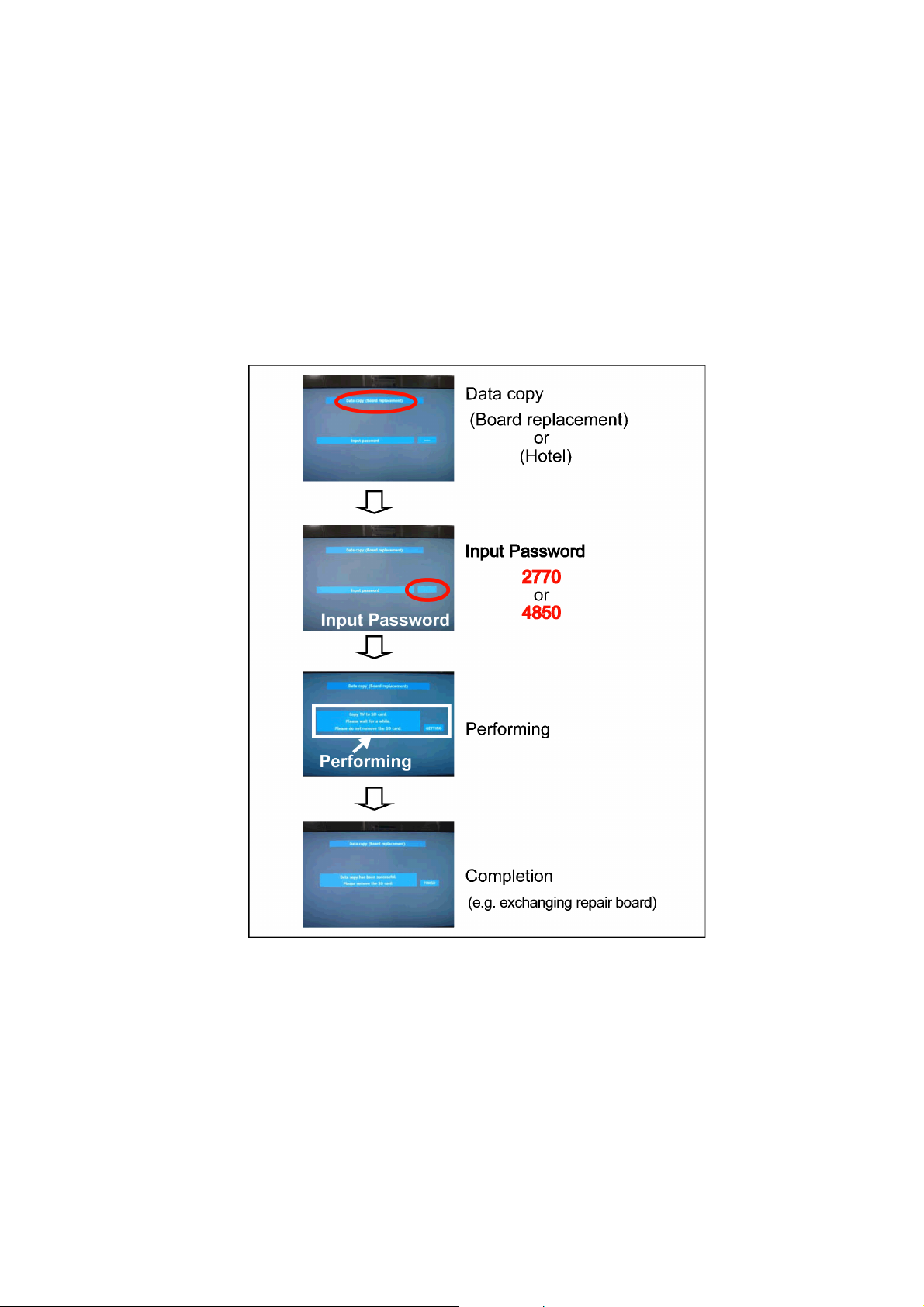

6.5. Data Copy by SD Card --------------------------------- 18
7 Troubleshooting Guide---------------------------------------- 21
7.1. Check of the IIC bus lines------------------------------ 21
7.2. Power LED Blinking timing chart --------------------- 22

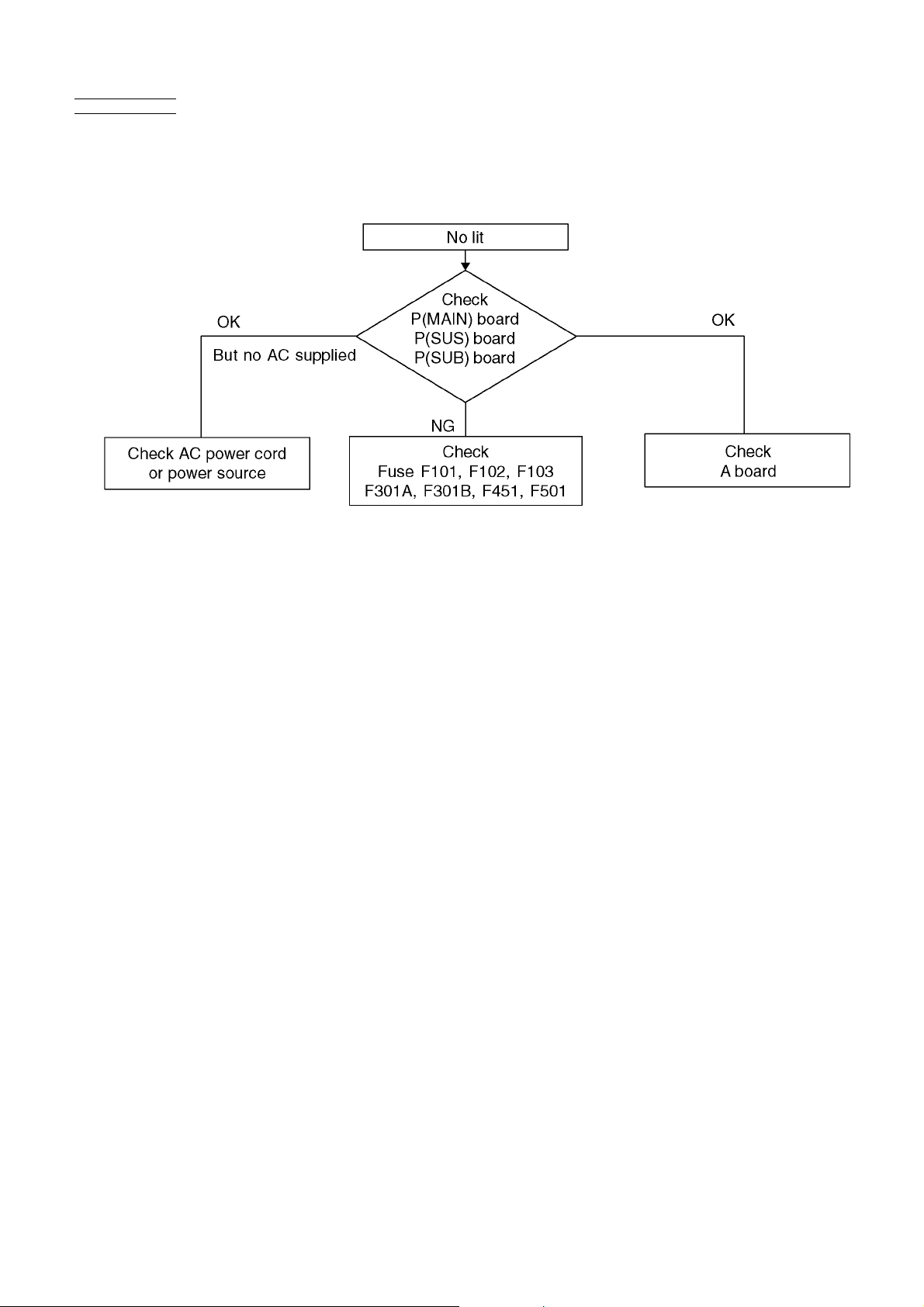

7.3. No Power--------------------------------------------------- 23

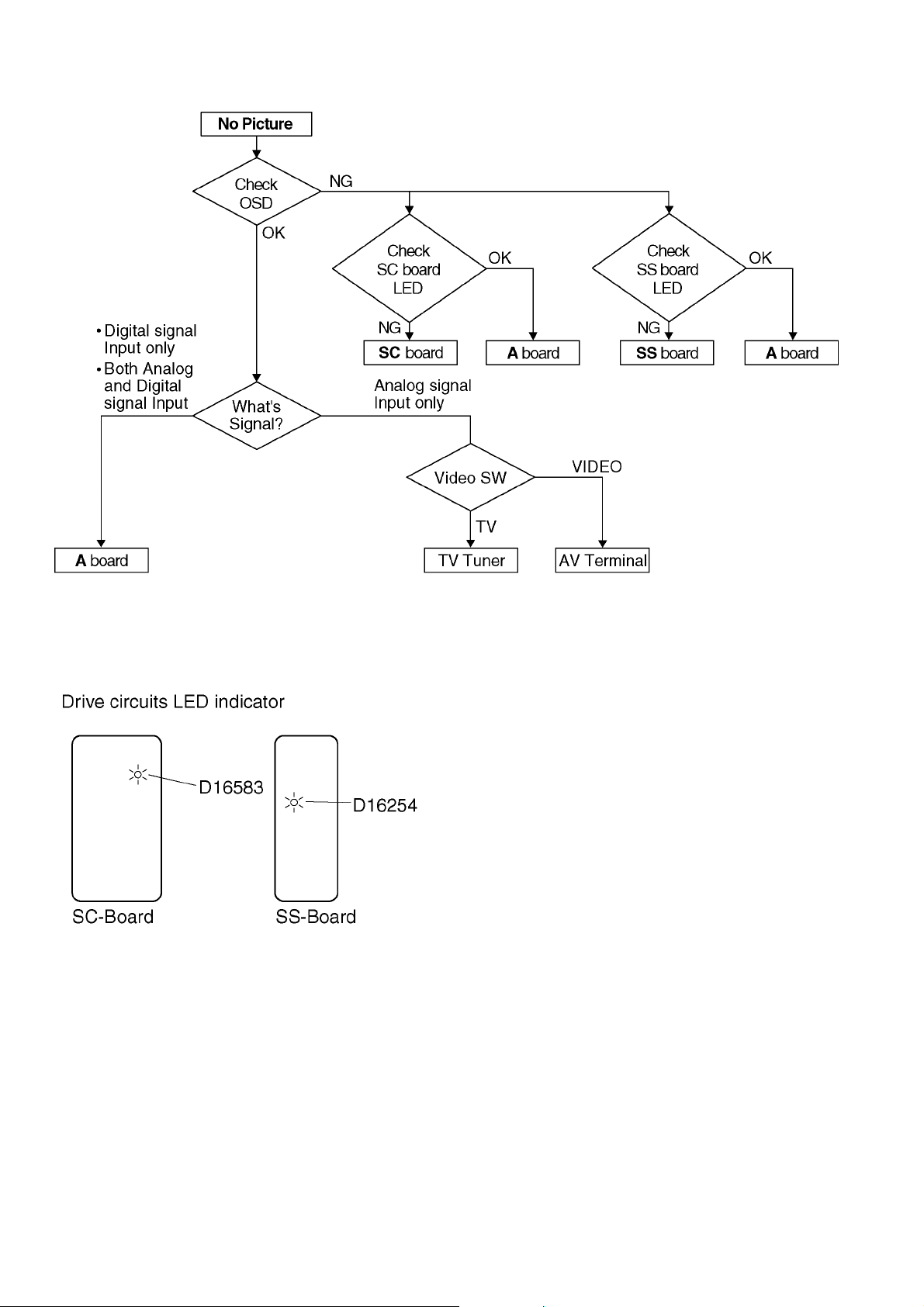

7.4. No Picture -------------------------------------------------- 24

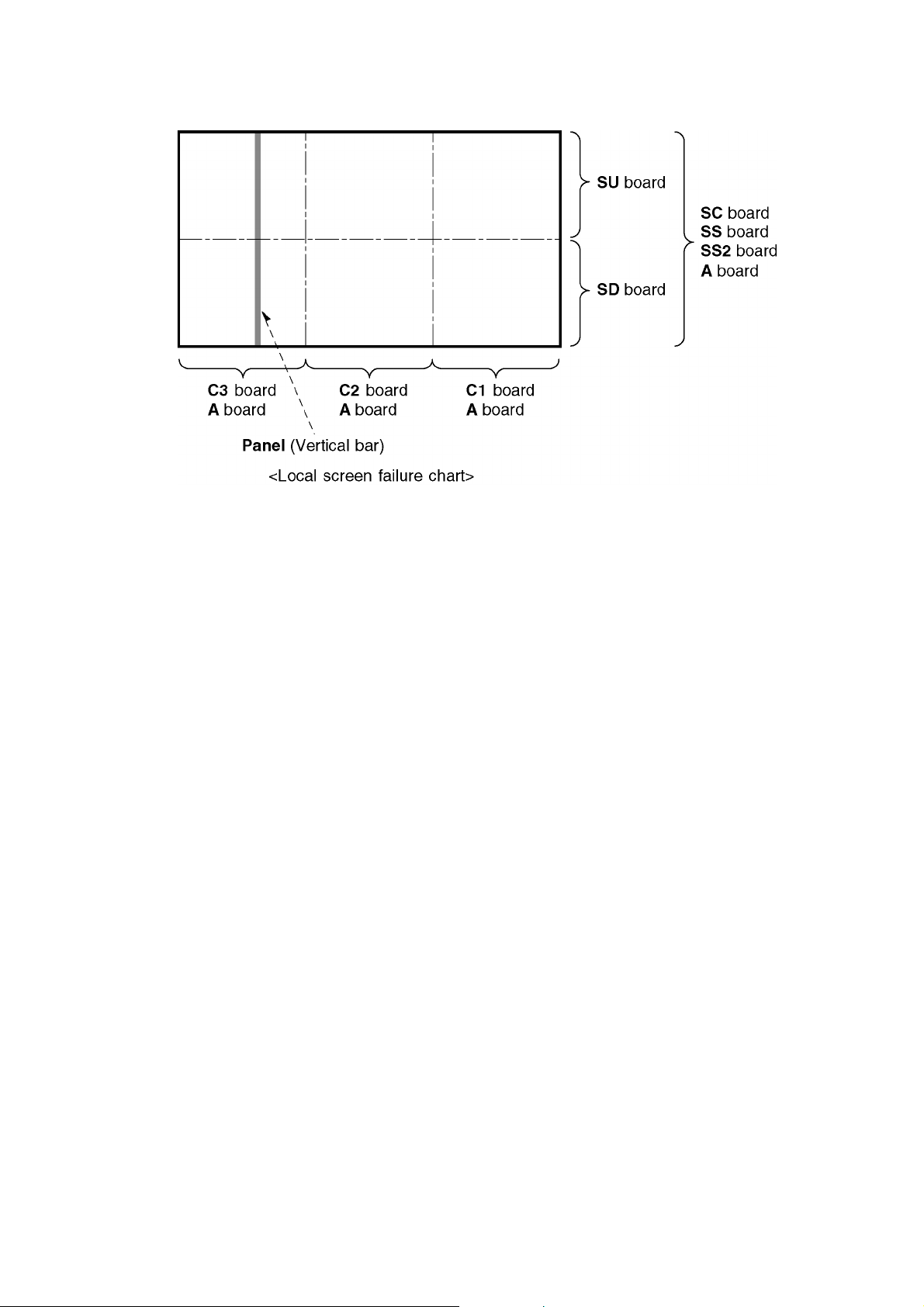

7.5. Local screen failure -------------------------------------- 25
8 Service Fixture & Tools --------------------------------------- 26
8.1. SC jig -------------------------------------------------------- 26
9 Disassembly and Assembly Instructions --------------- 27

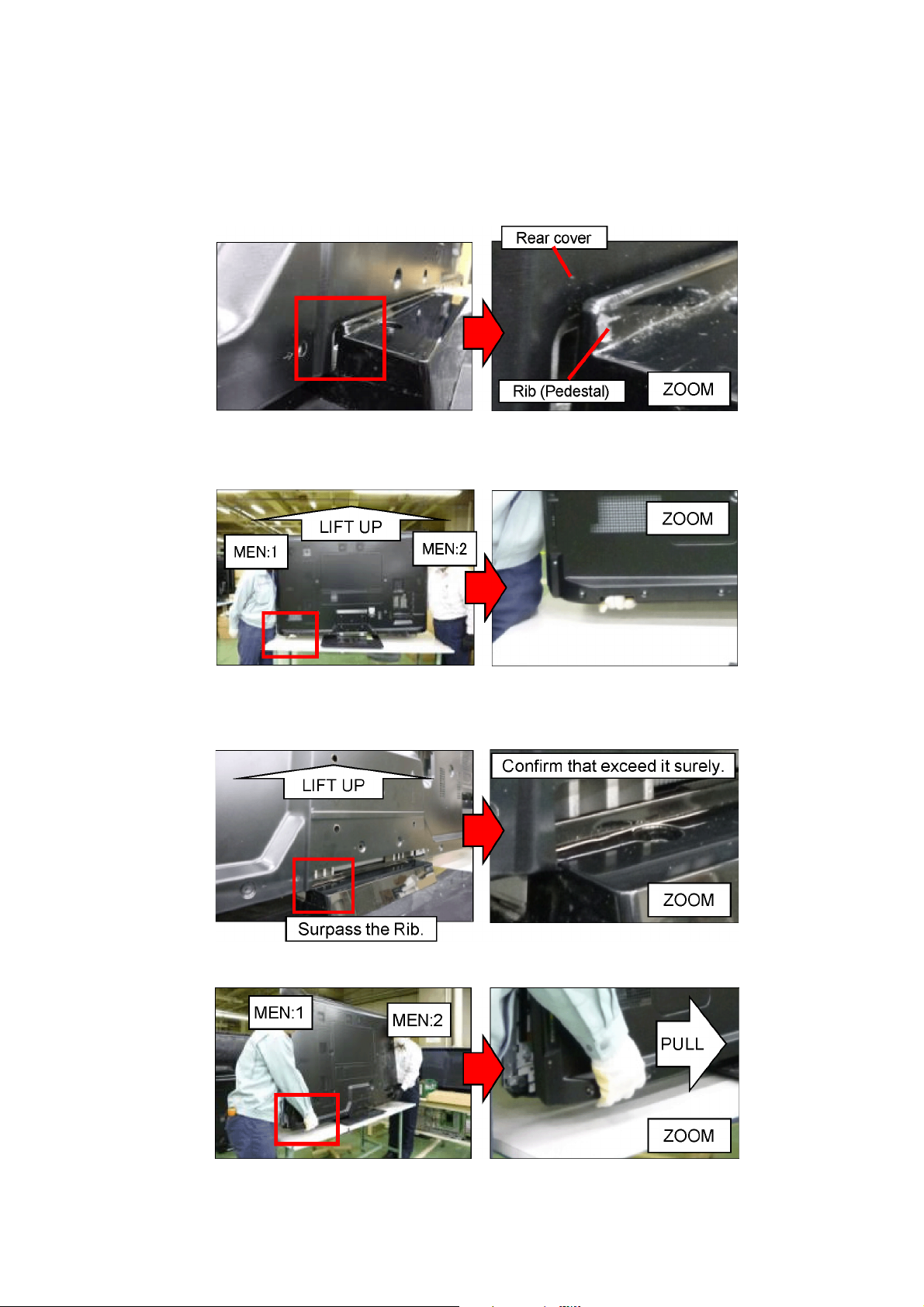

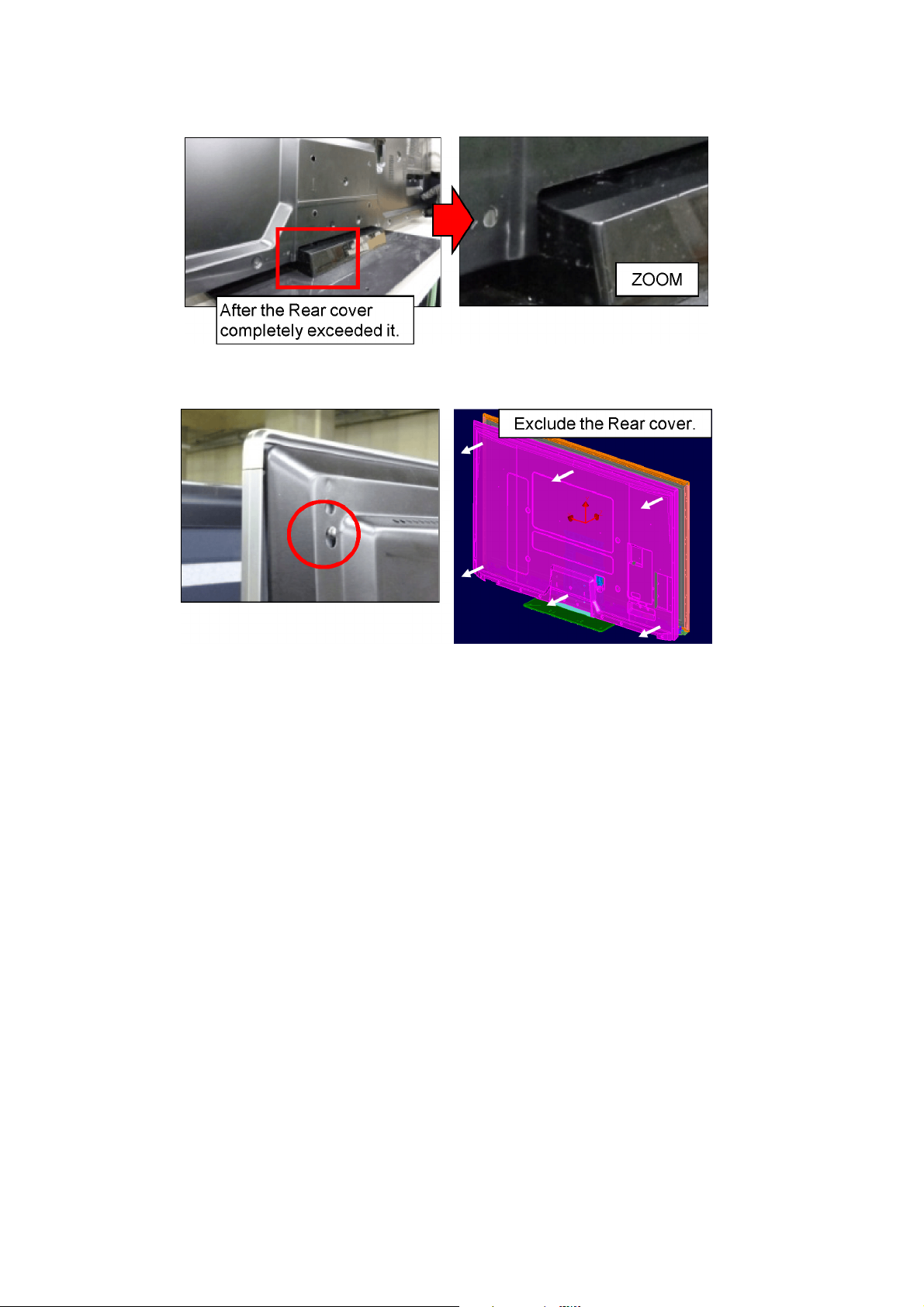

9.1. Remove the Rear cover -------------------------------- 27

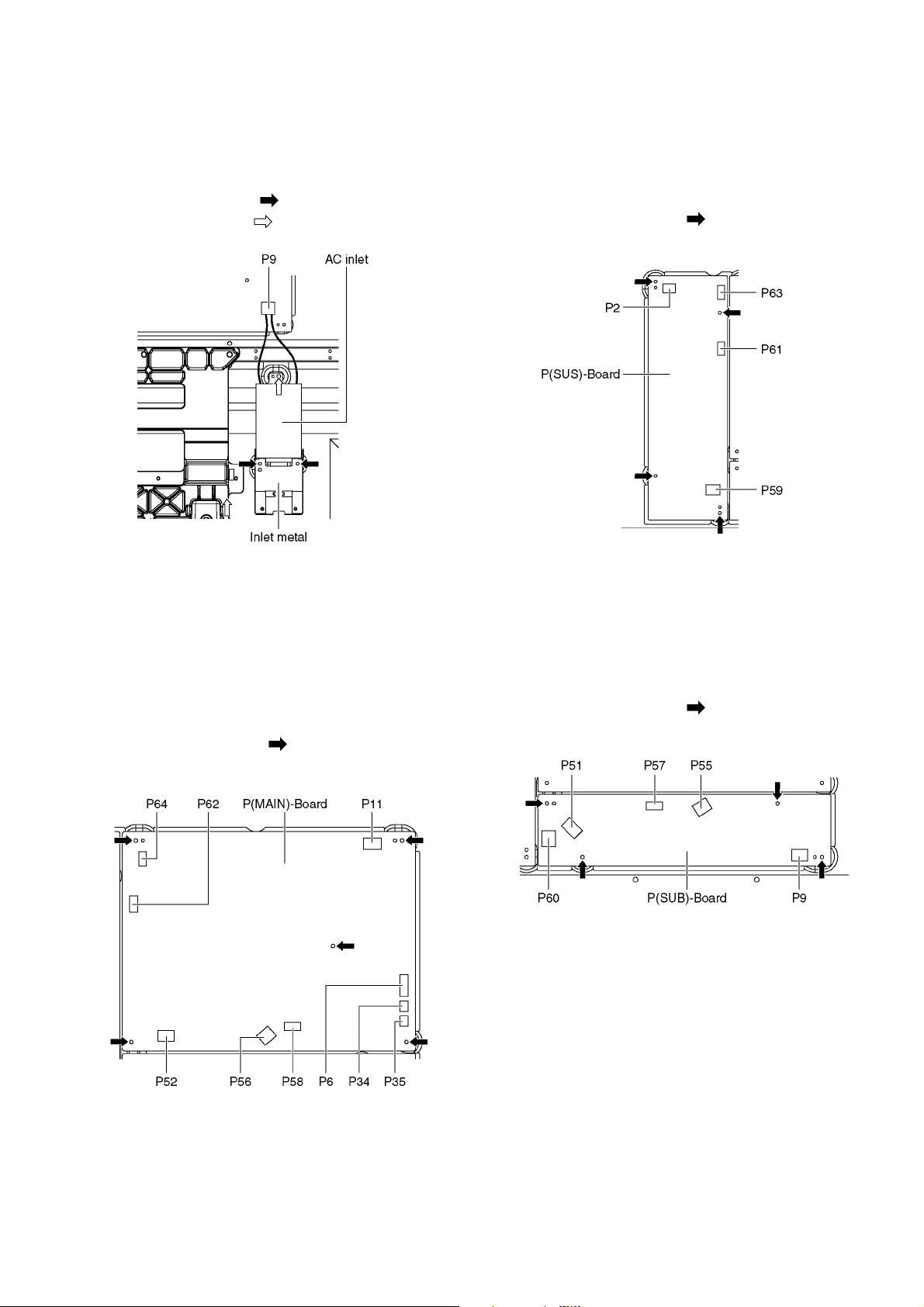

9.2. Remove the AC inlet ------------------------------------ 29
9.3. Remove the P(MAIN)-Board -------------------------- 29
9.4. Remove the P(SUS)-Board---------------------------- 29
9.5. Remove the P(SUB)-Board---------------------------- 29
9.6. Remove the Terminal covers and the shield
metals ------------------------------------------------------- 30

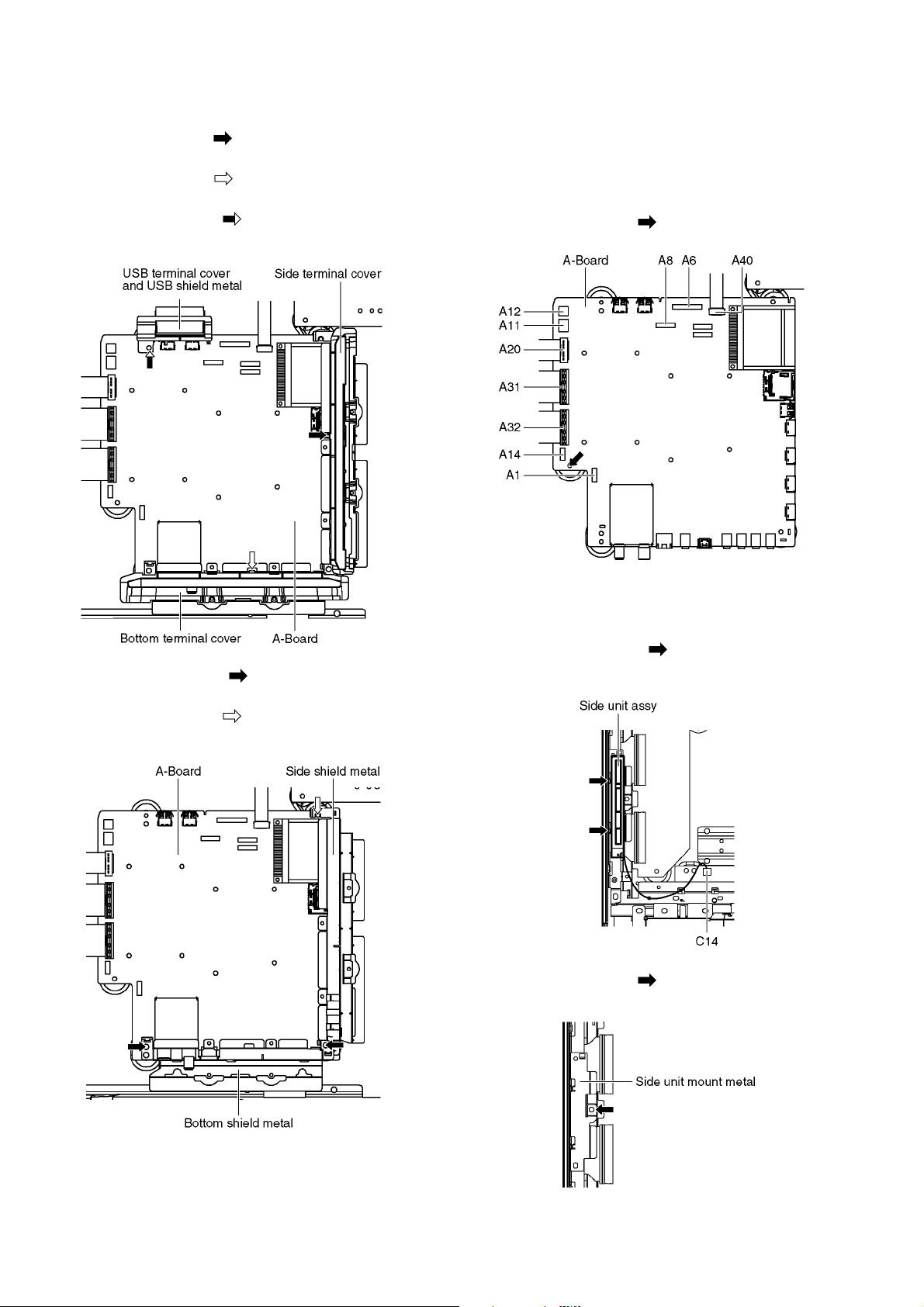

9.7. Remove the A-Board ------------------------------------ 30
9.8. Remove the Side unit assy ---------------------------- 30
9.9. Remove the SU-Board---------------------------------- 31
9.10. Remove the SD-Board---------------------------------- 31
9.11. Remove the SC-Board---------------------------------- 31
9.12. Remove the SS-Board ---------------------------------- 31

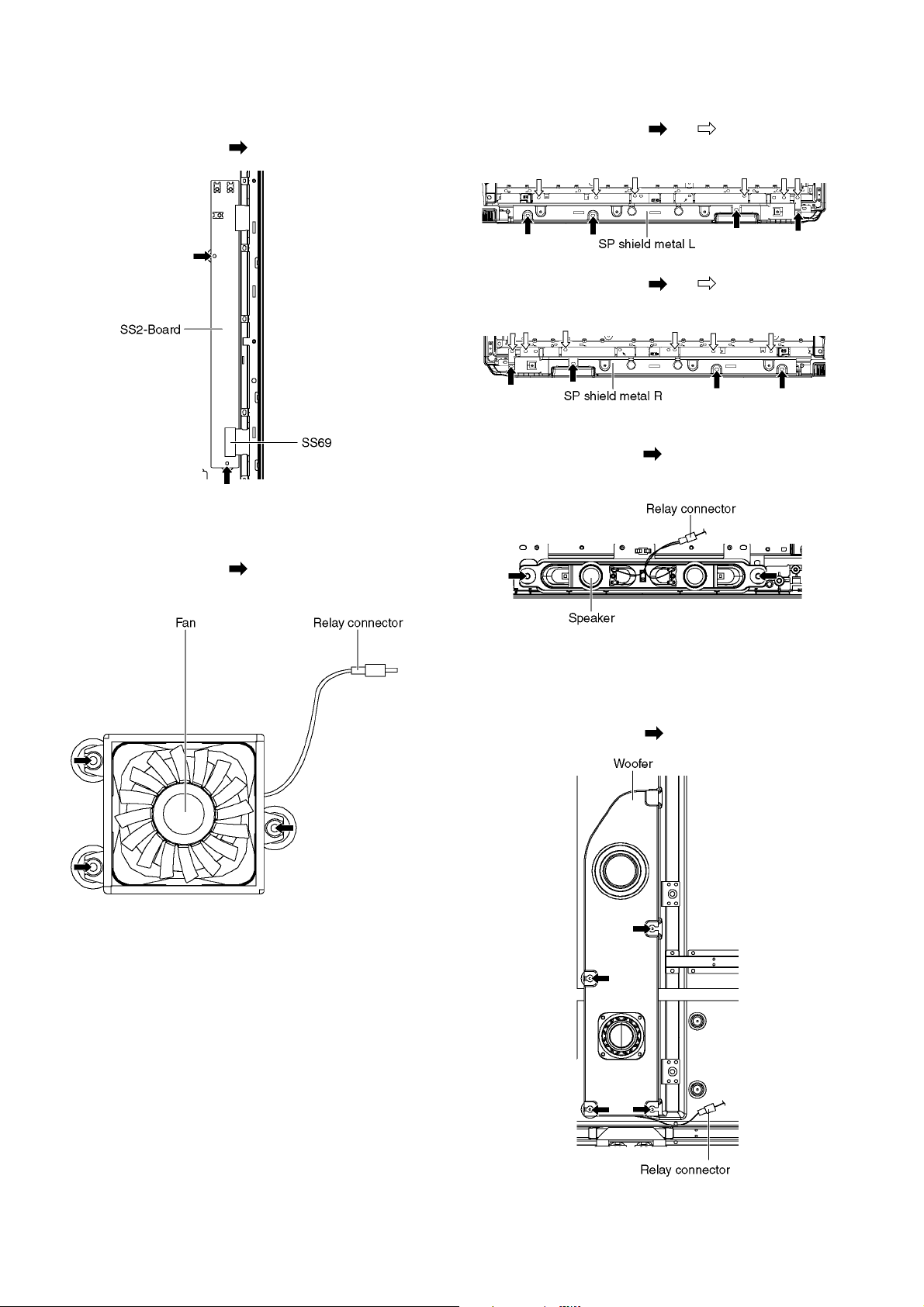

9.13. Remove the SS2-Board -------------------------------- 32
9.14. Remove the Fan------------------------------------------ 32
9.15. Remove the Speakers ---------------------------------- 32
9.16. Remove the Woofer -------------------------------------32

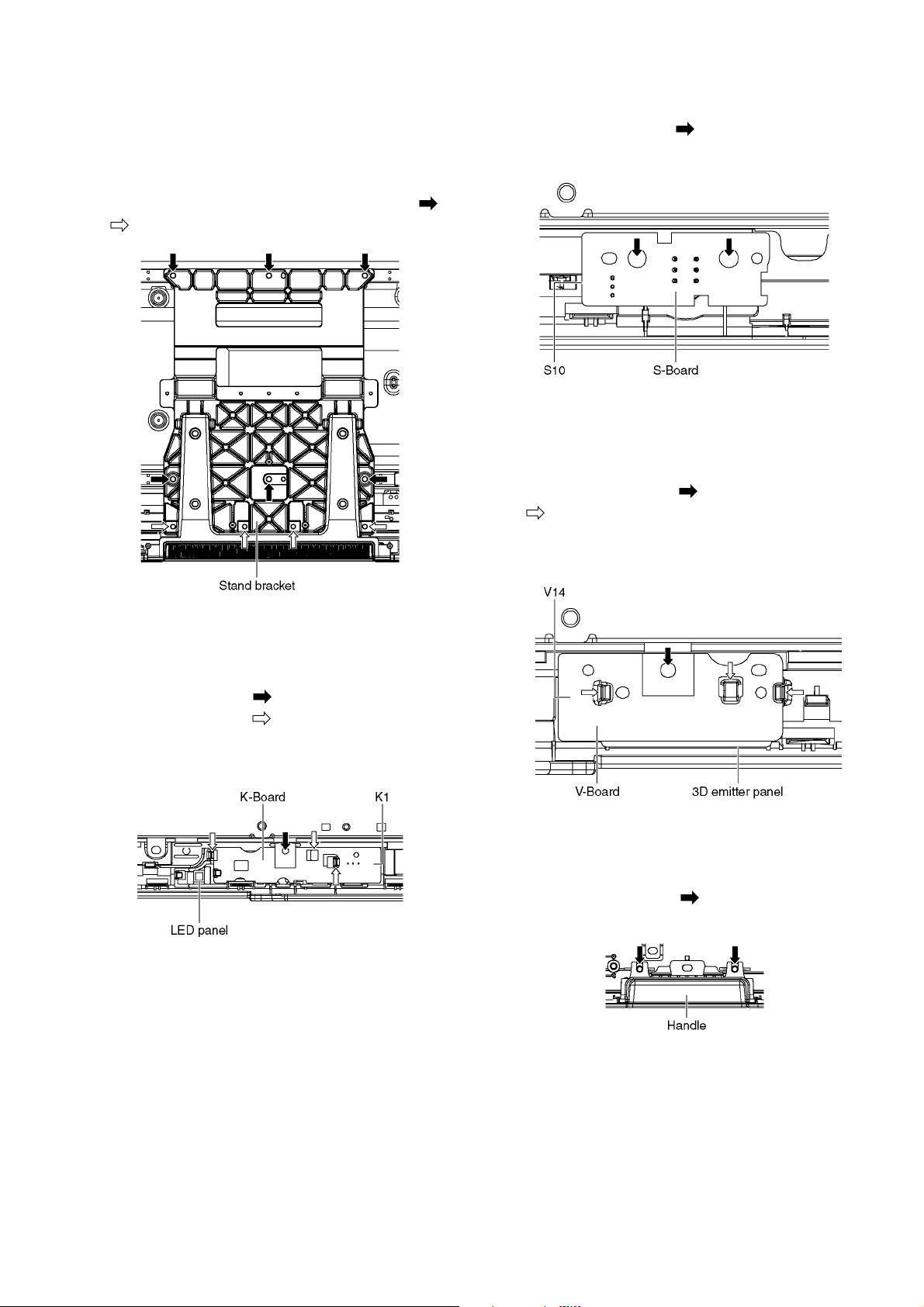

9.17. Remove the Stand bracket----------------------------- 33
9.18. Remove the K-Board ------------------------------------ 33
9.19. Remove the S-Board ------------------------------------ 33
9.20. Remove the V-Board ------------------------------------ 33
9.21. Remove the Handles ------------------------------------ 33

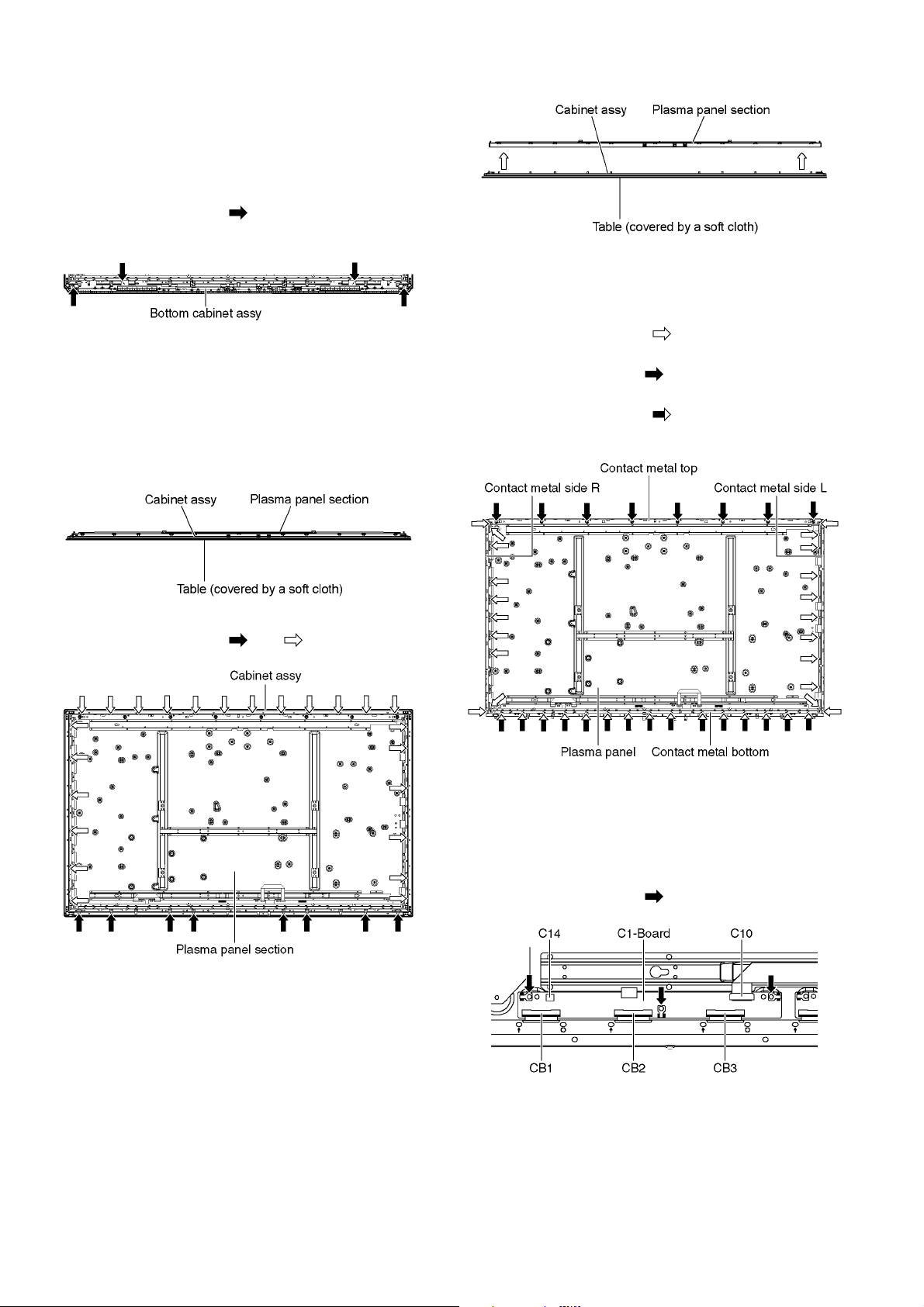

9.22. Remove the Bottom cabinet assy -------------------- 34
9.23. Remove the Plasma panel section from the
Cabinet assy----------------------------------------------- 34
9.24. Remove the Contact metals --------------------------- 34
9.25. Remove the C1-Board ---------------------------------- 34
PAG E PAG E

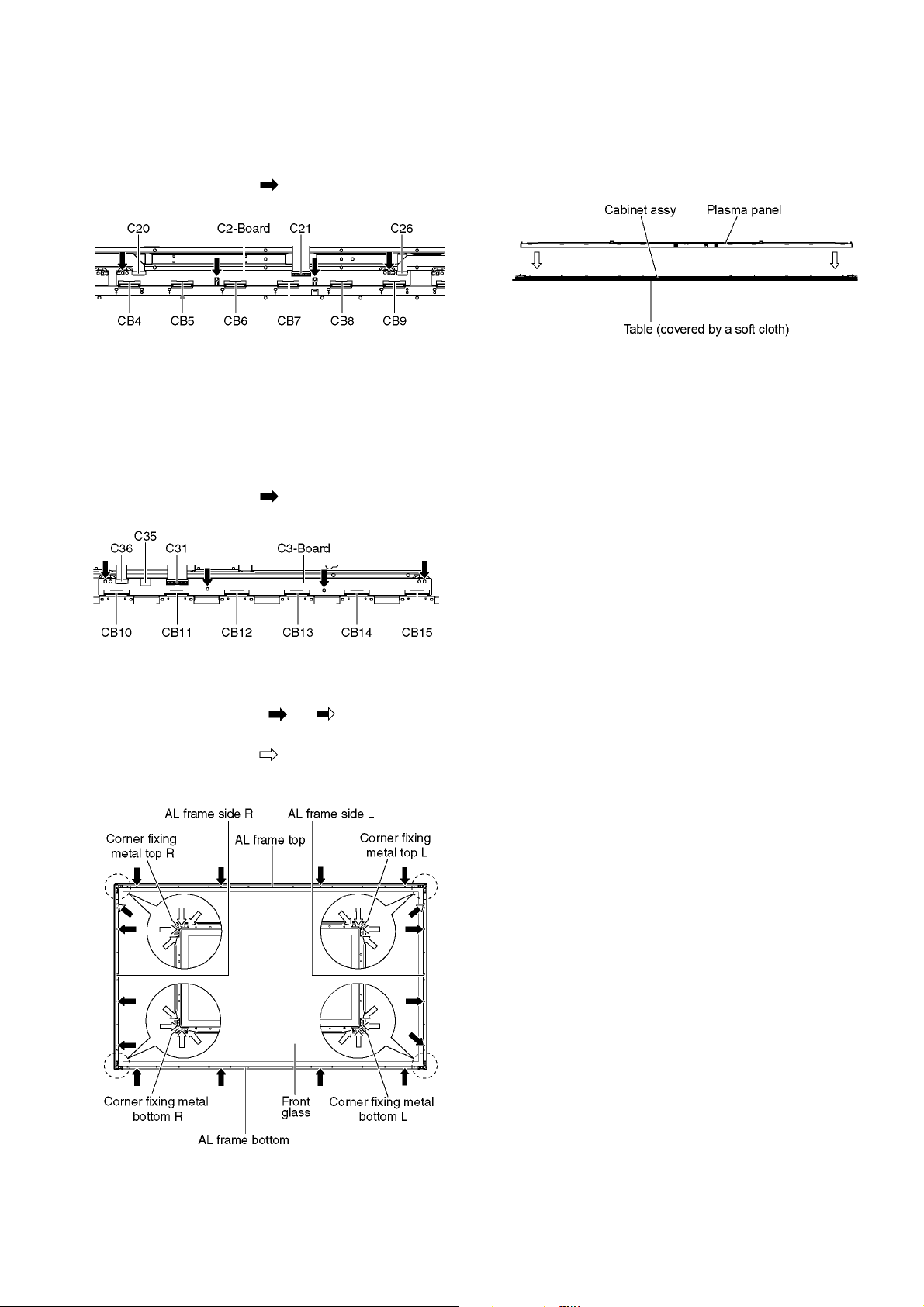

9.26. Remove the C2-Board --------------------------------- 35
9.27. Remove the C3-Board --------------------------------- 35
9.28. Remove the AL frames--------------------------------- 35
9.29. Replace the Plasma panel ---------------------------- 35

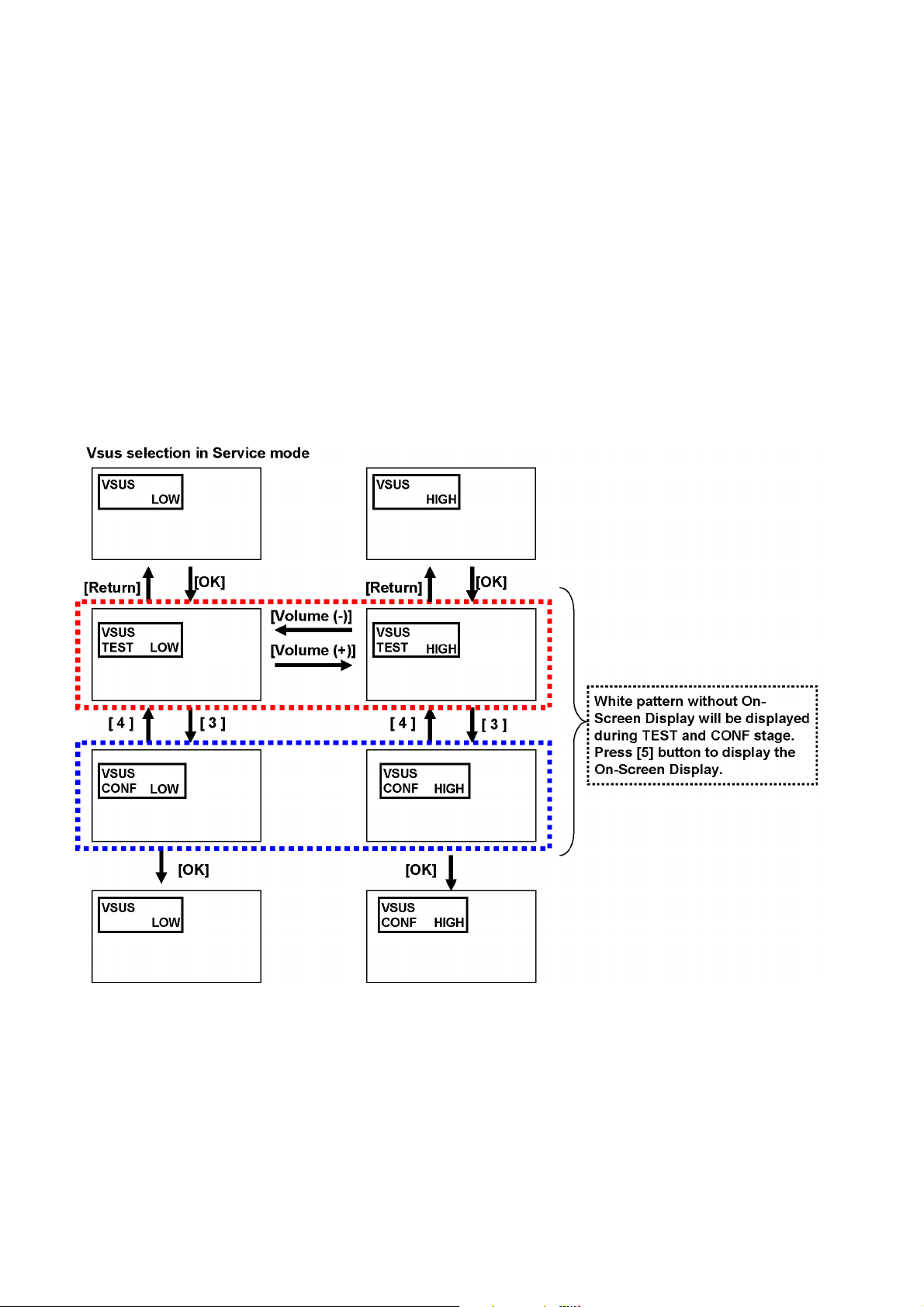

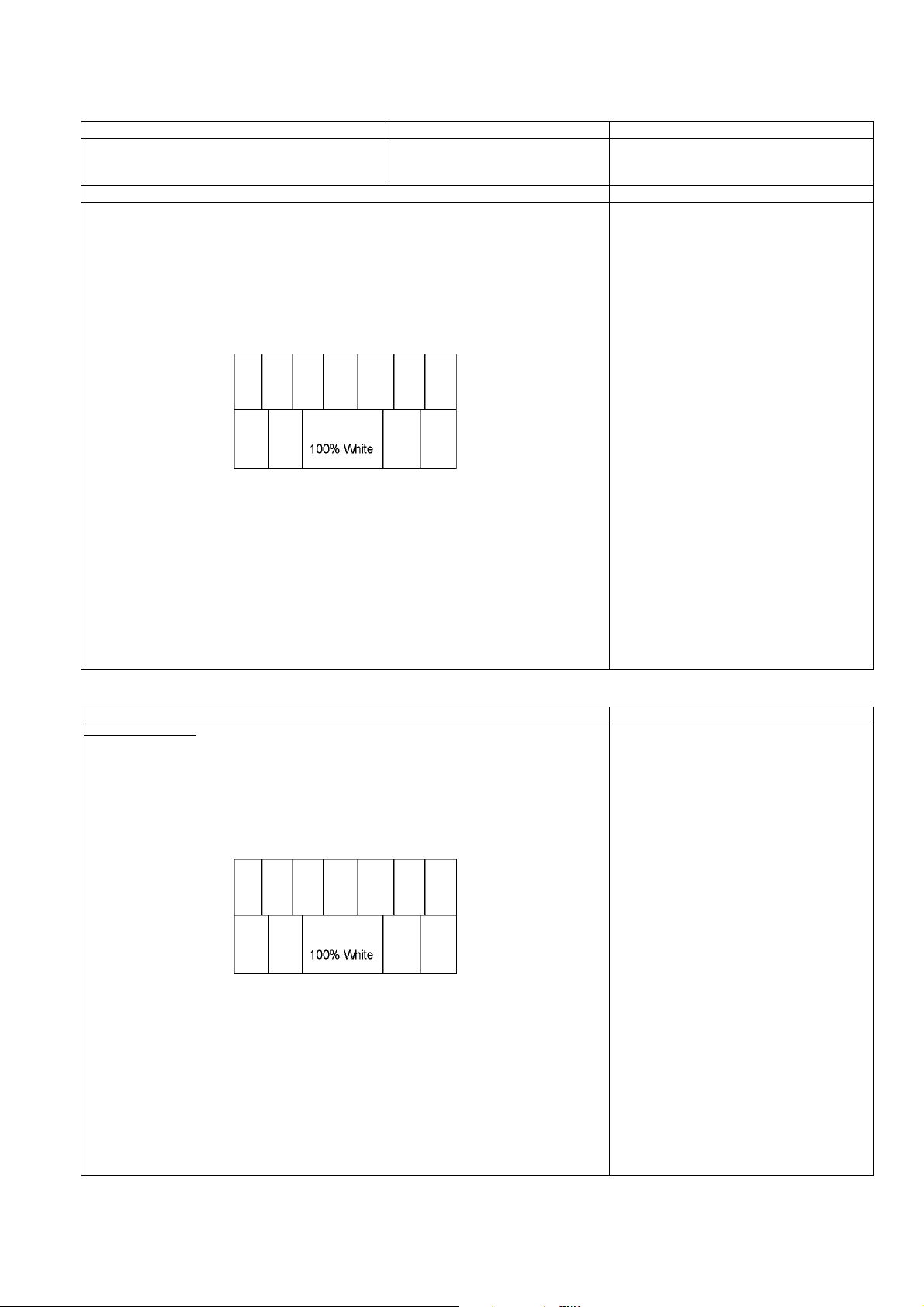

10 Measurements and Adjustments -------------------------- 36

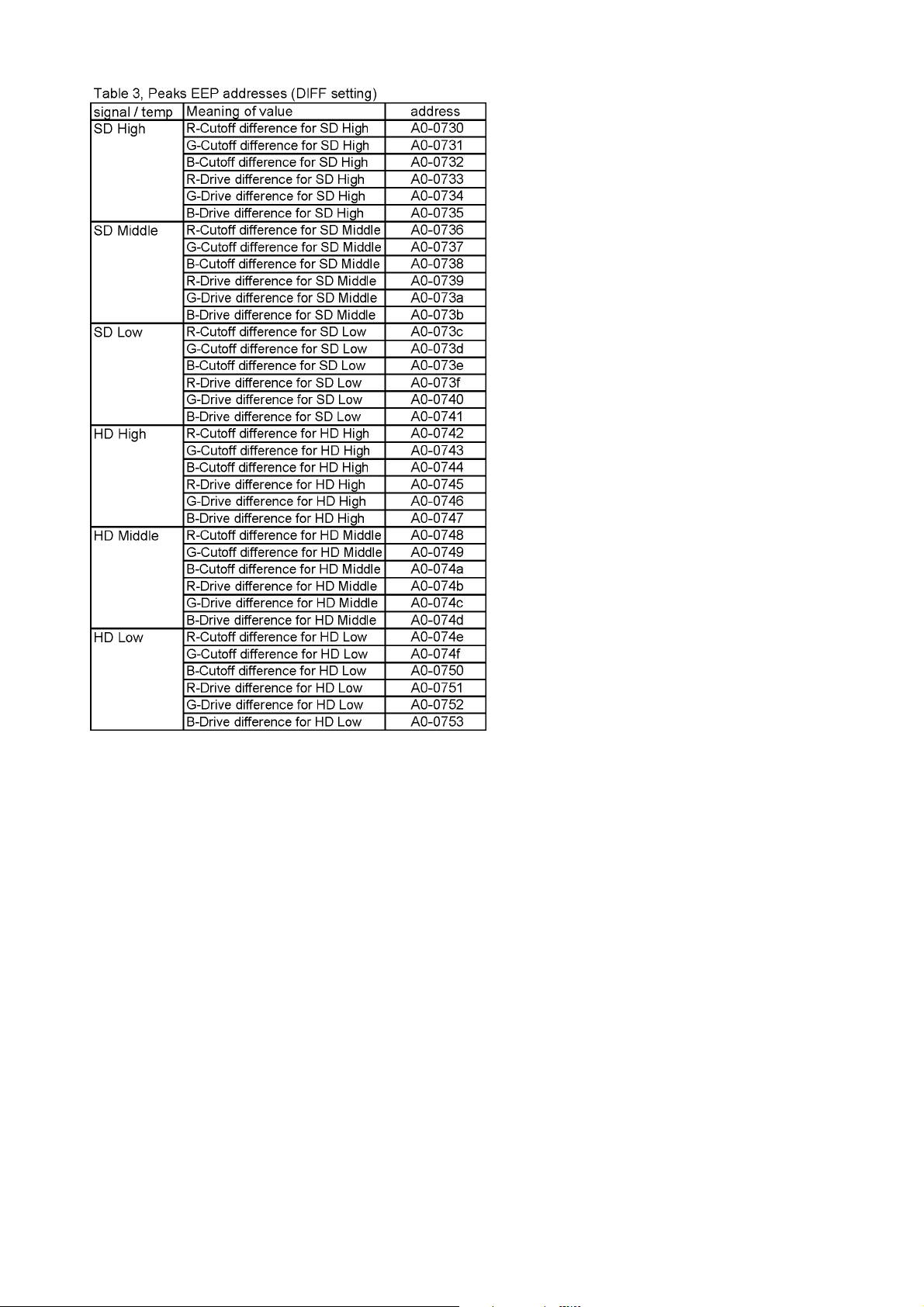

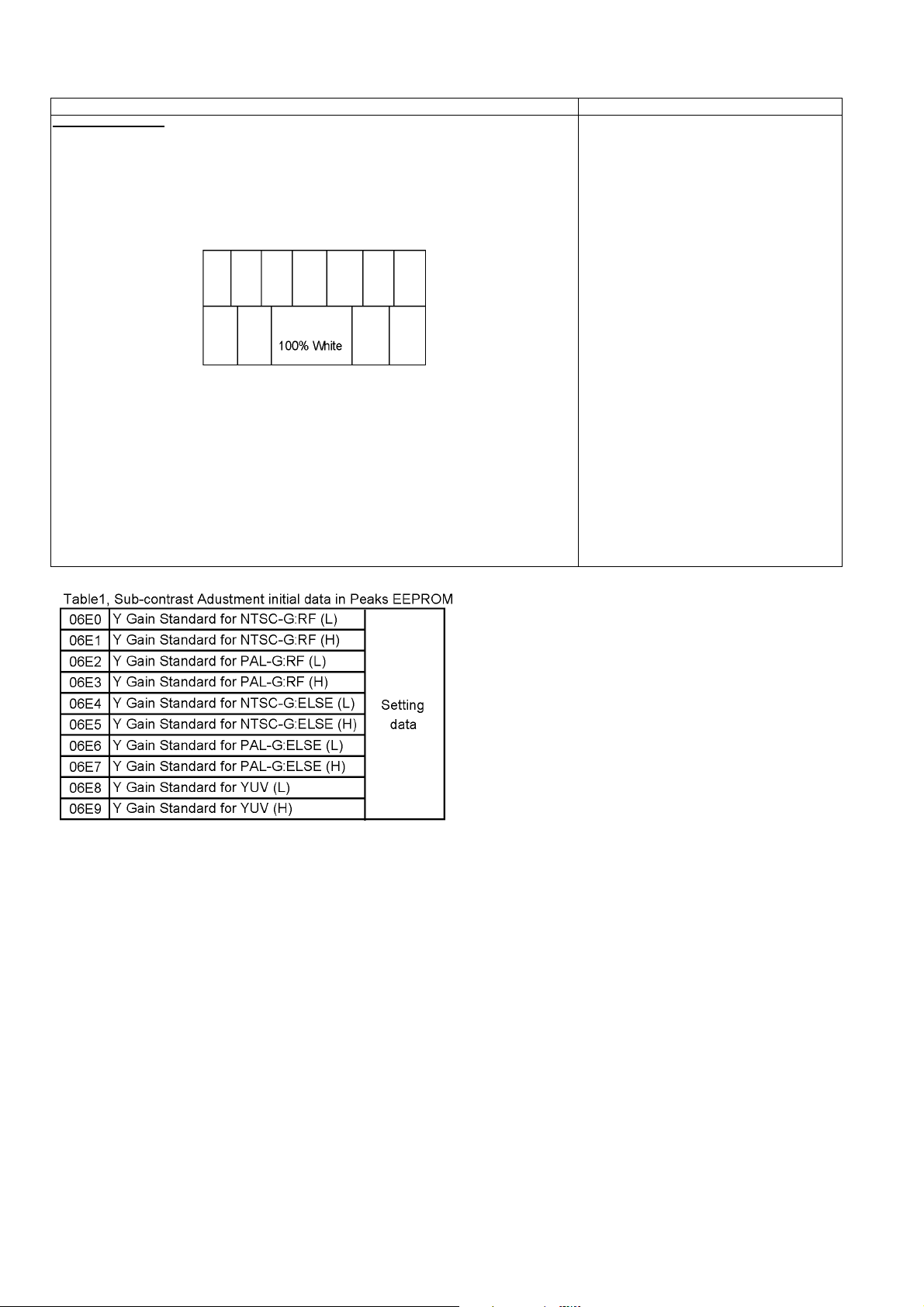

10.1. Adjustment ------------------------------------------------ 36

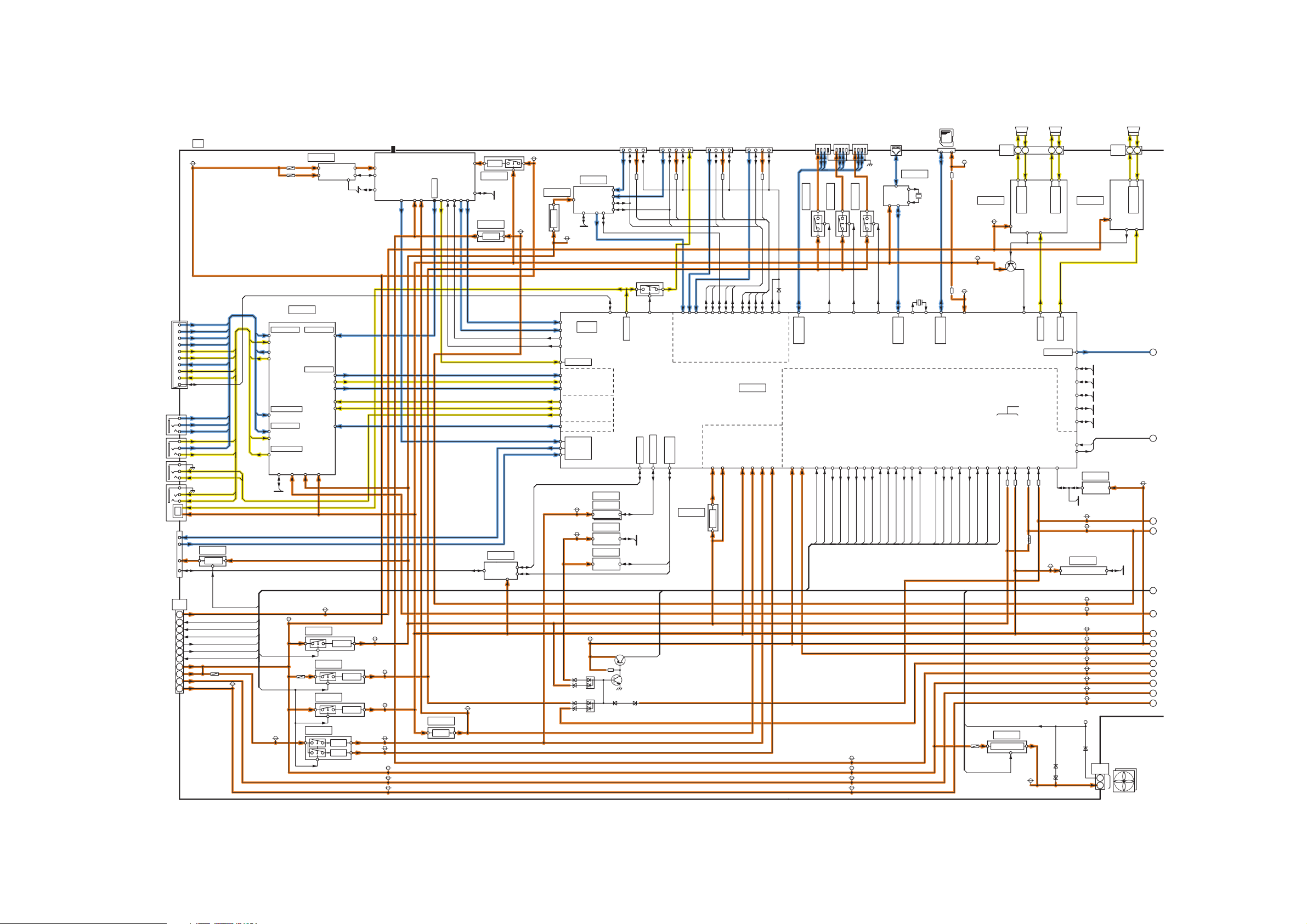

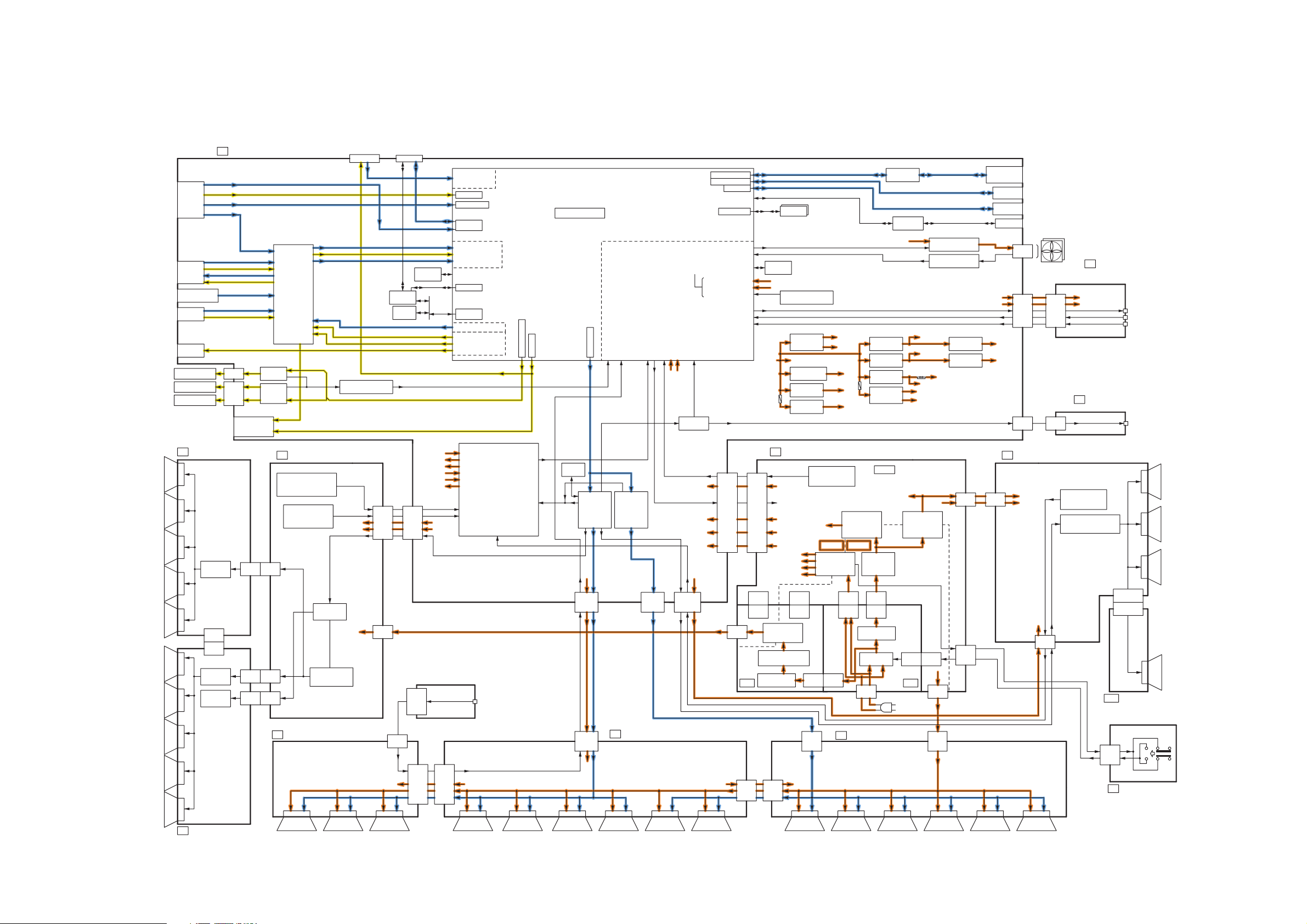

11 Block Diagram--------------------------------------------------- 45
11.1. Main Block Diagram------------------------------------- 45
11.2. Block (1/4) Diagram ------------------------------------- 46
11.3. Block (2/4) Diagram ------------------------------------- 47
11.4. Block (3/4) Diagram ------------------------------------- 48
11.5. Block (4/4) Diagram ------------------------------------- 49

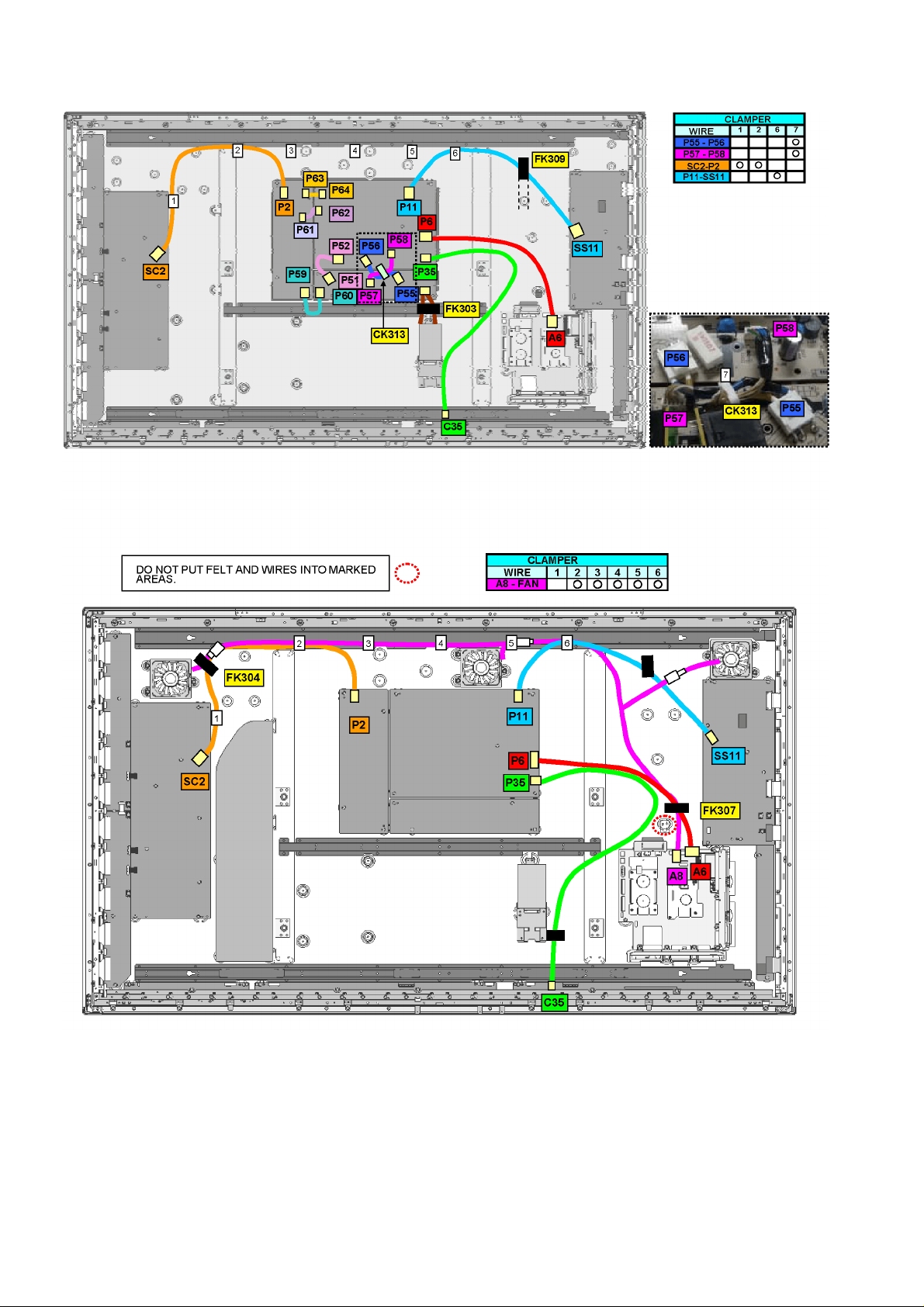

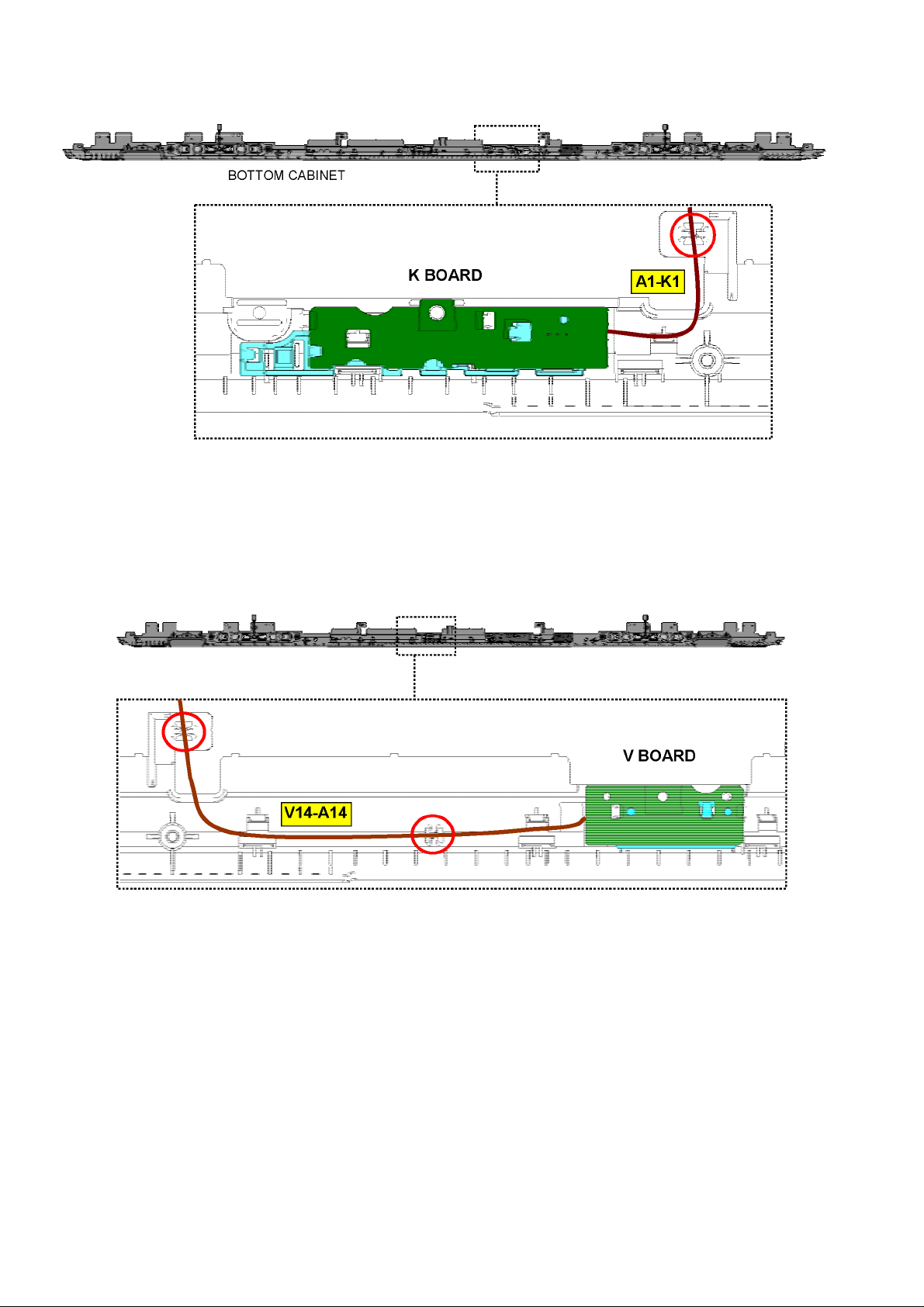

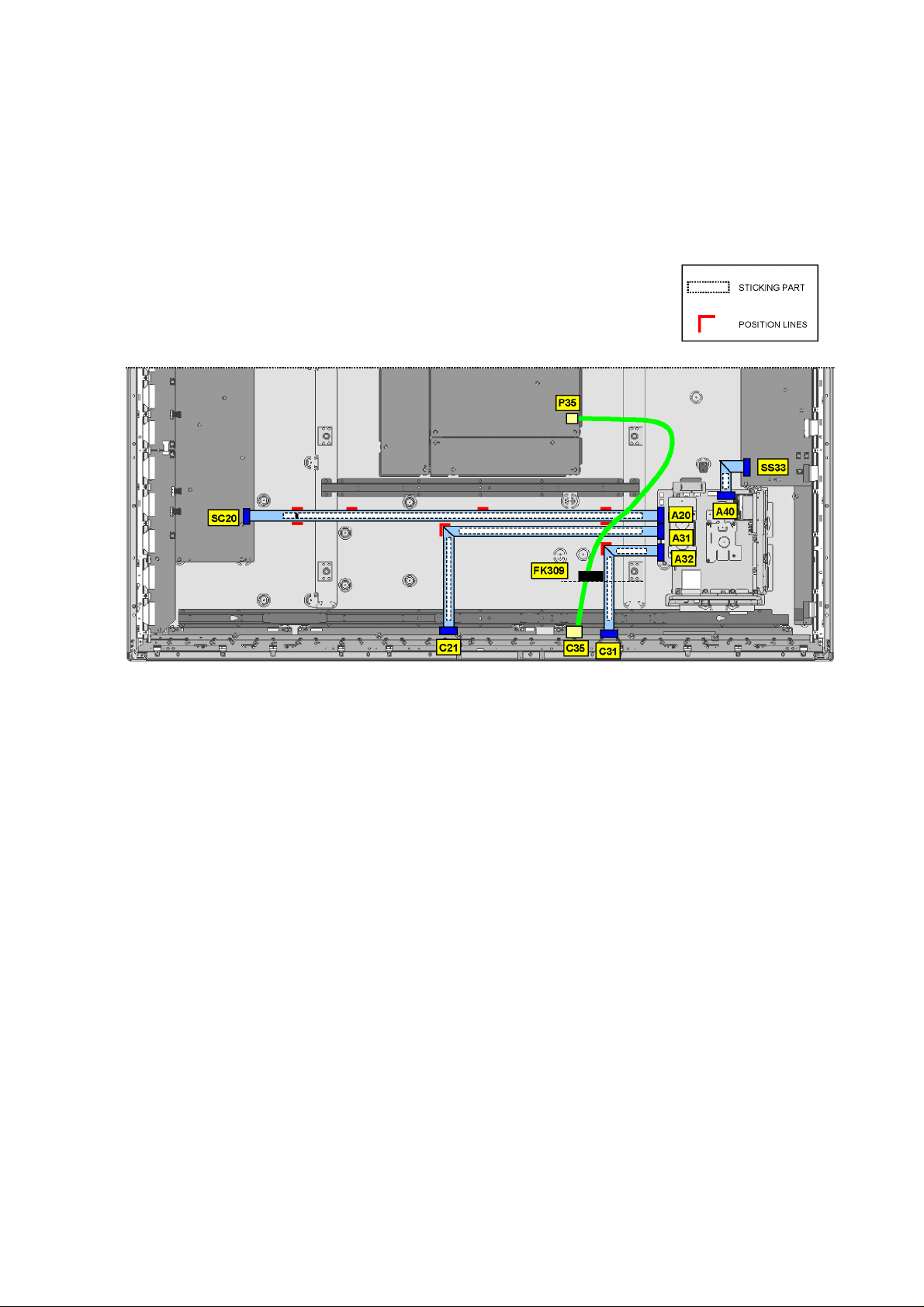

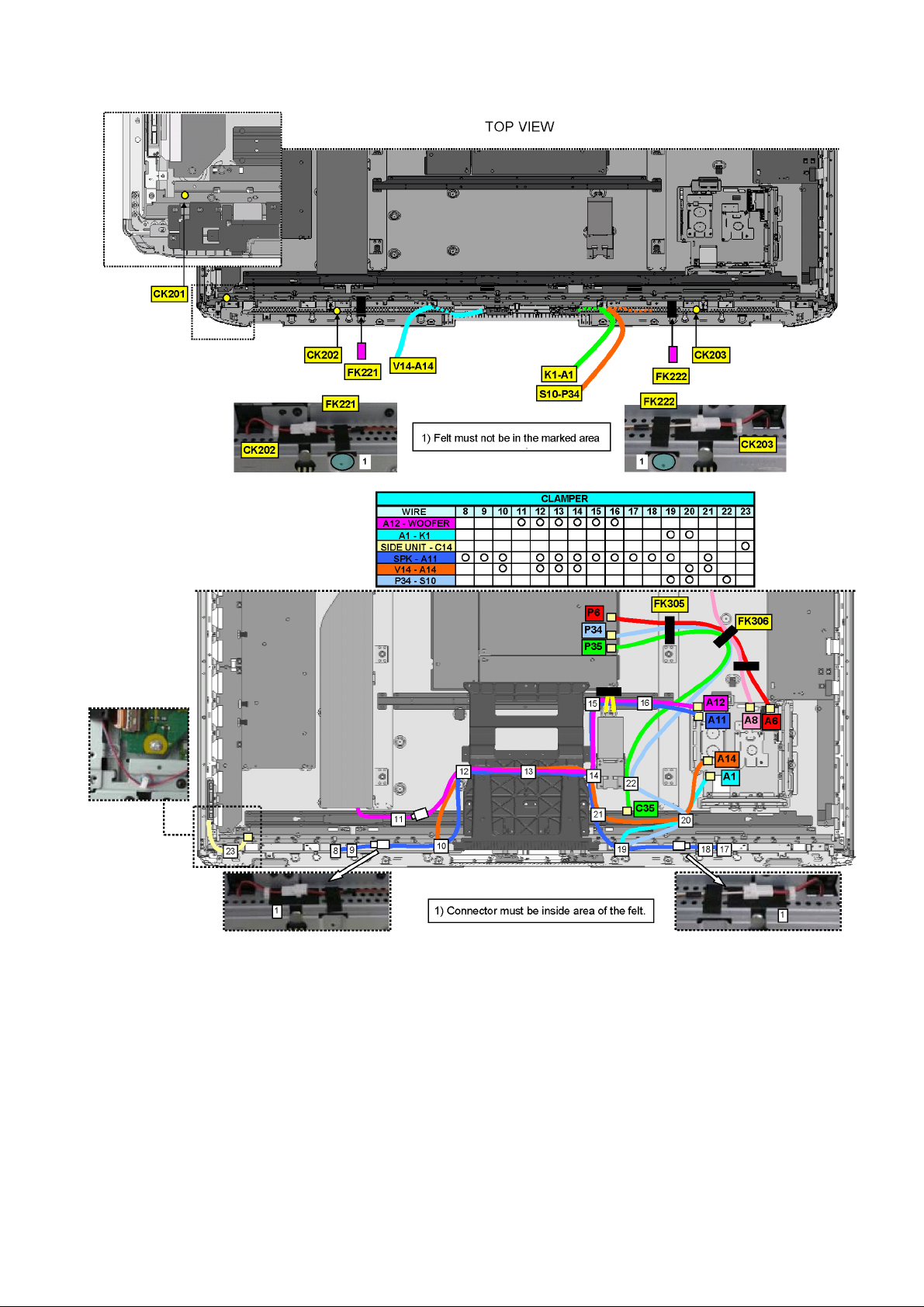

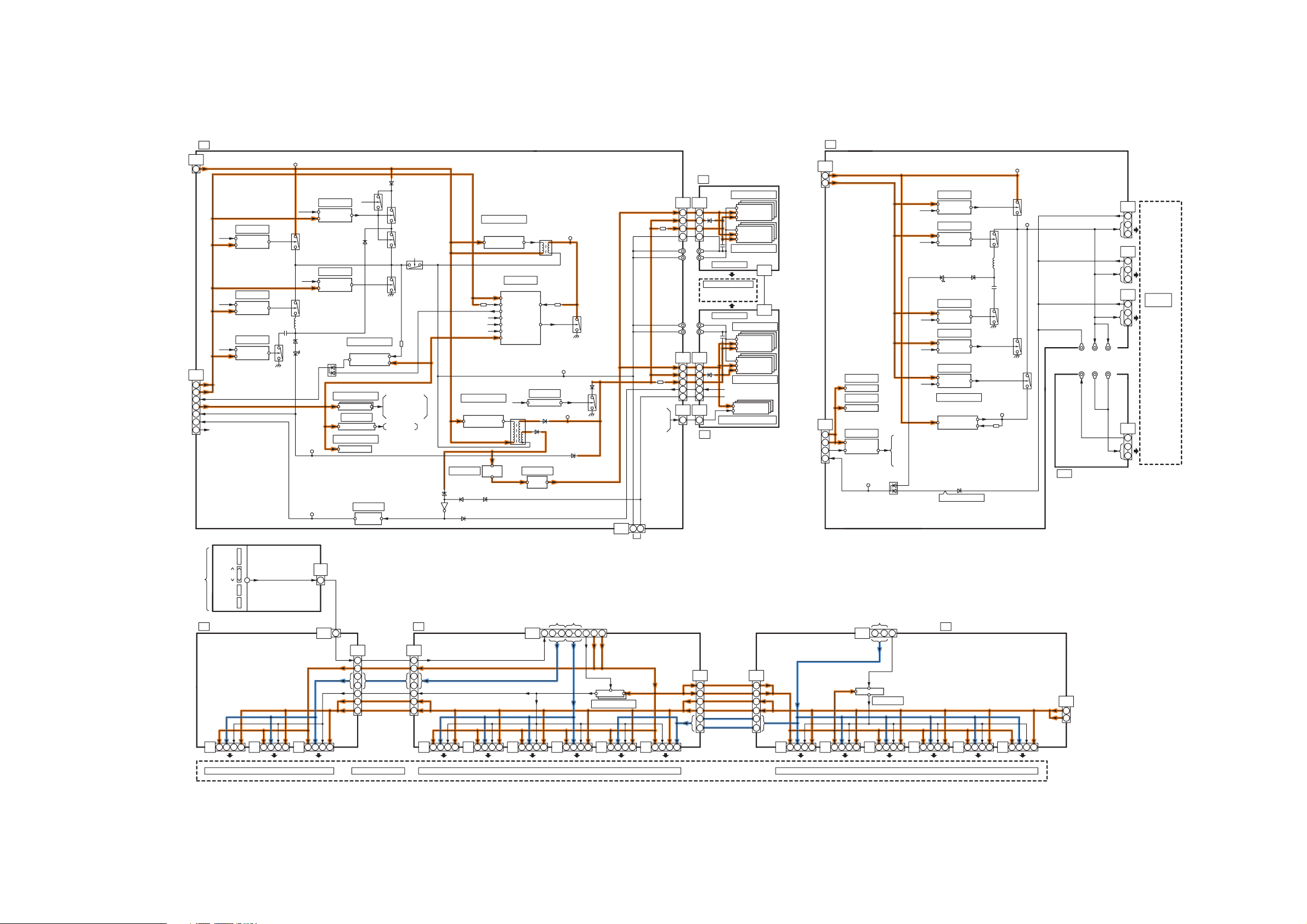

12 Wiring Connection Diagram -------------------------------- 51
12.1. Caution statement. -------------------------------------- 51
12.2. Wiring (1) -------------------------------------------------- 51
12.3. Wiring (2) -------------------------------------------------- 52
12.4. Wiring (3) -------------------------------------------------- 53
12.5. Wiring (4) -------------------------------------------------- 54

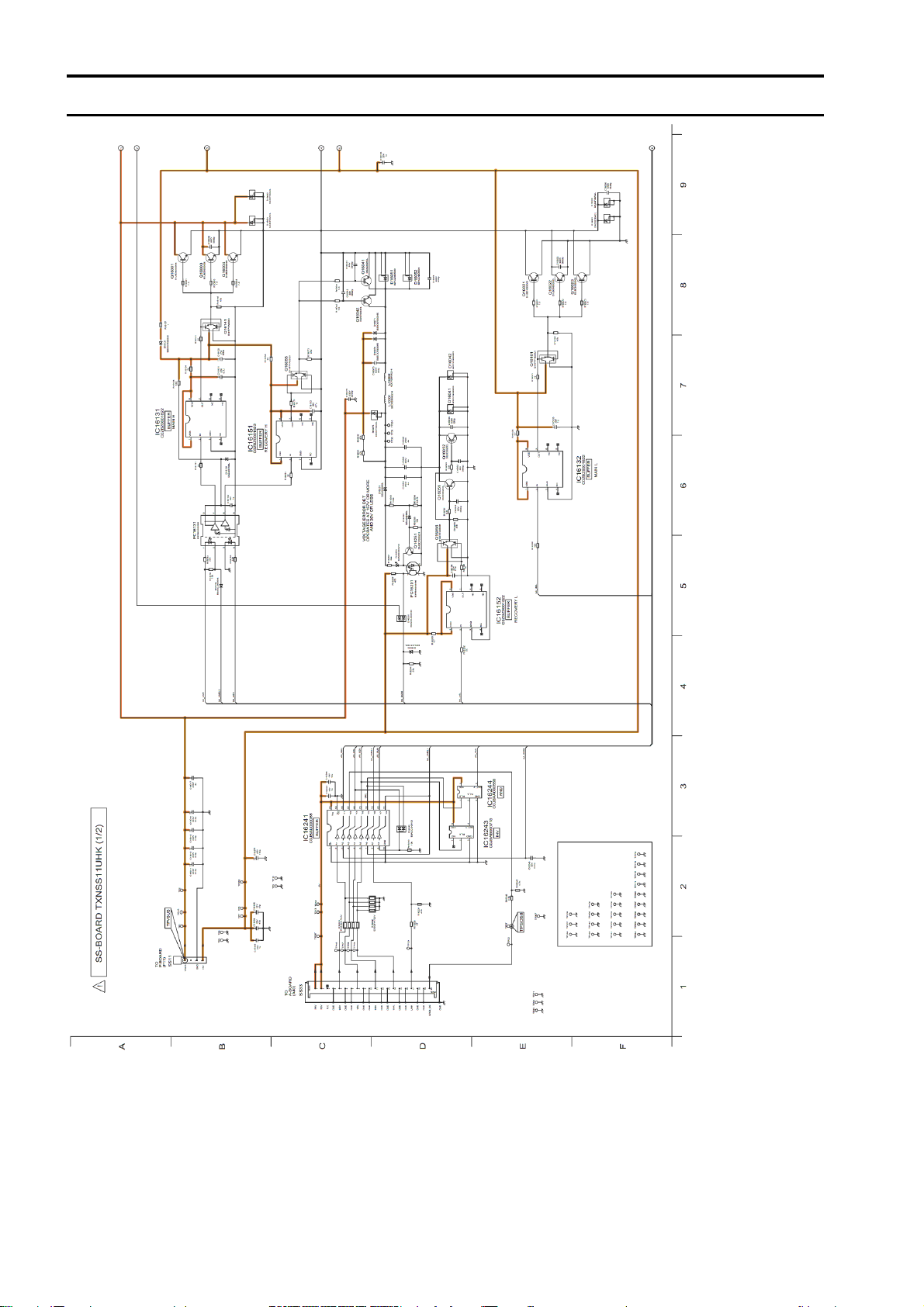

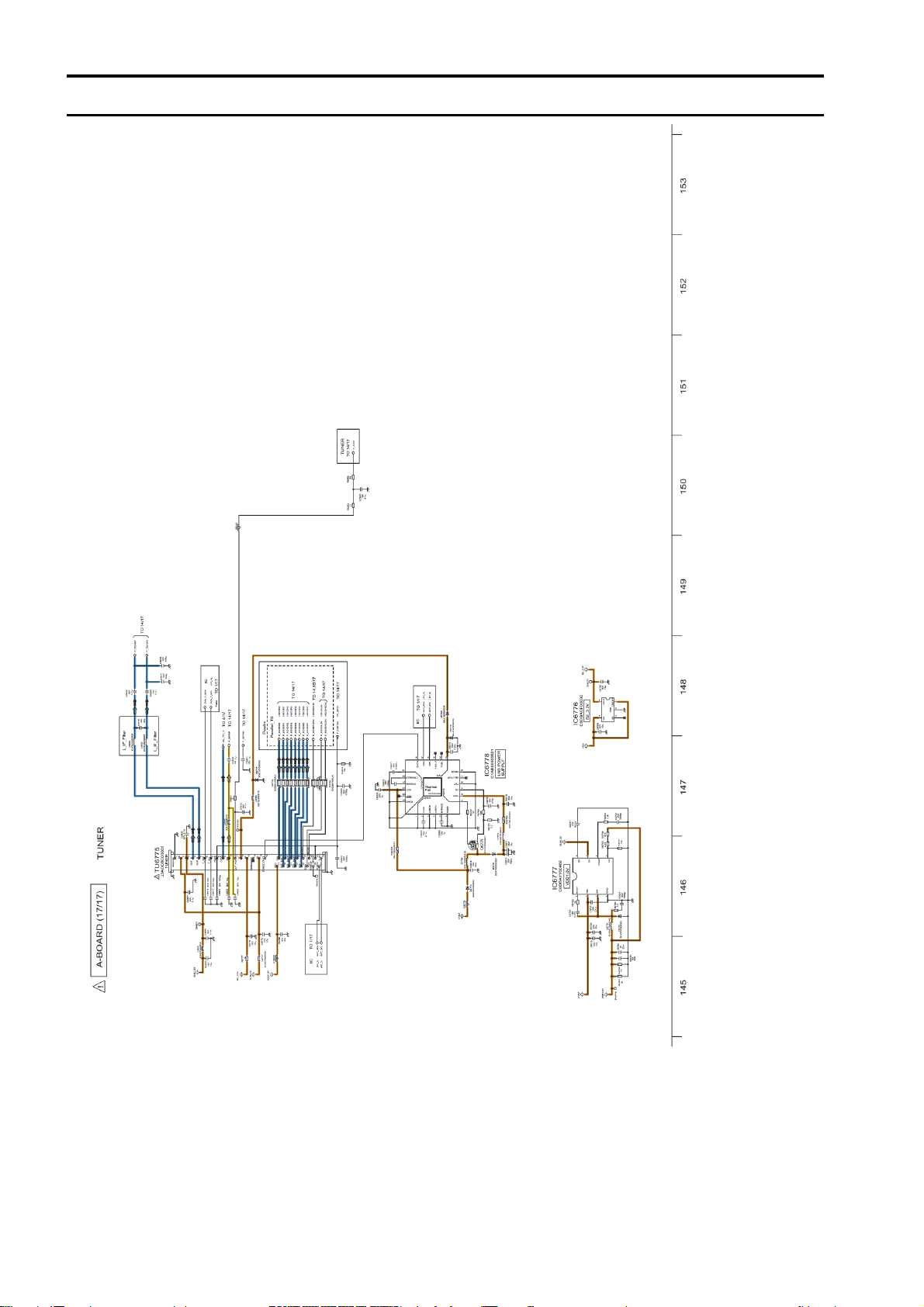

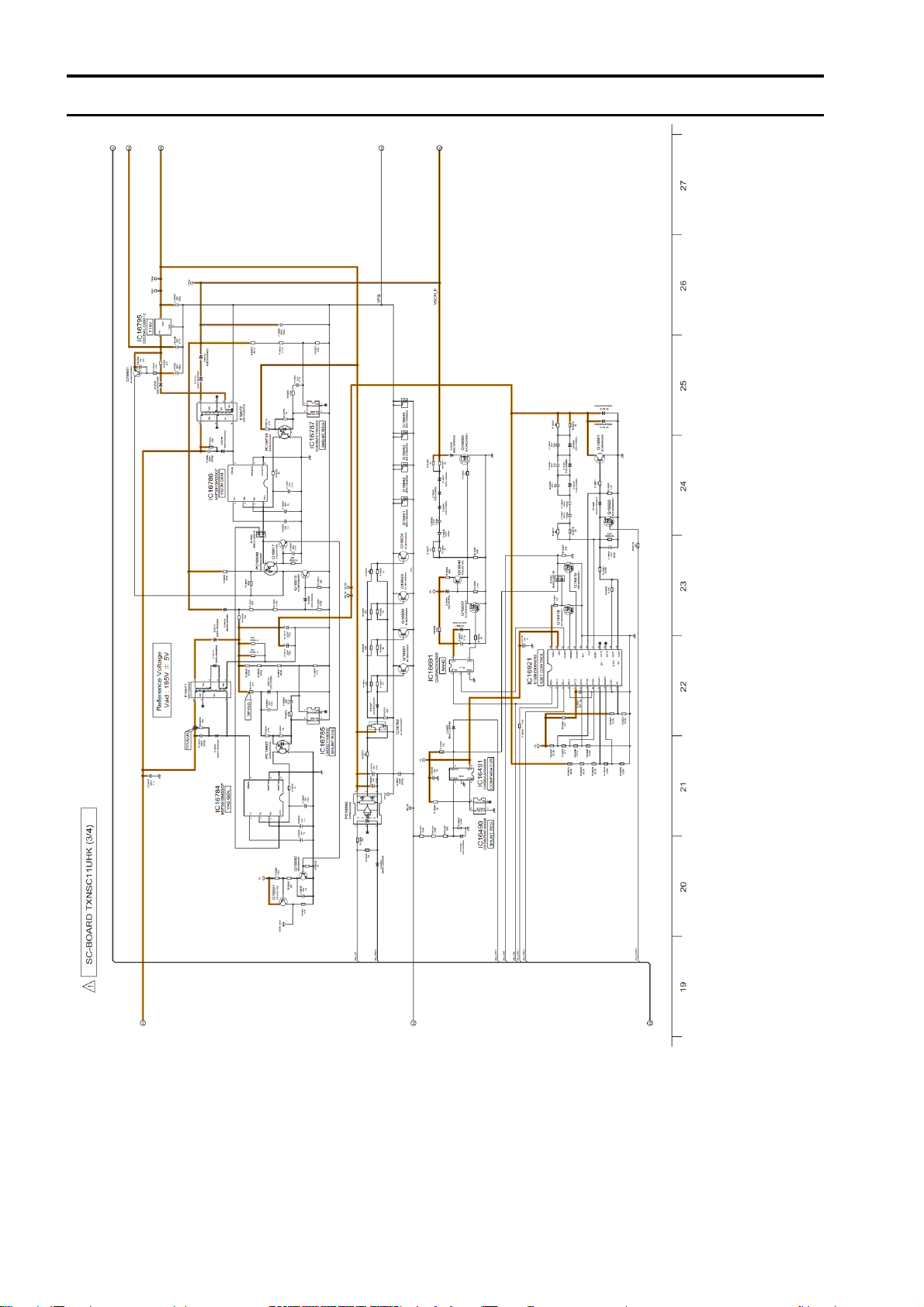

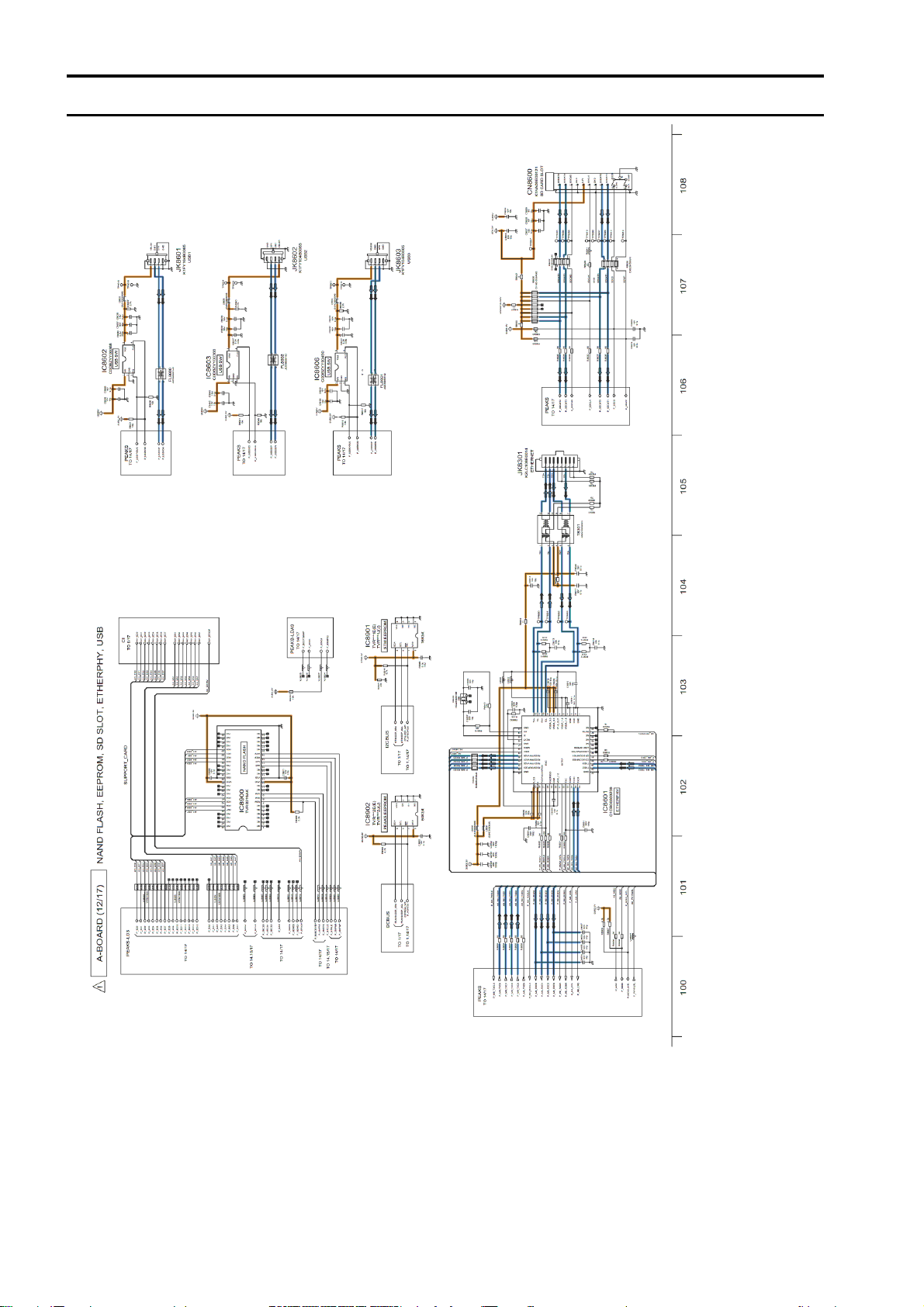

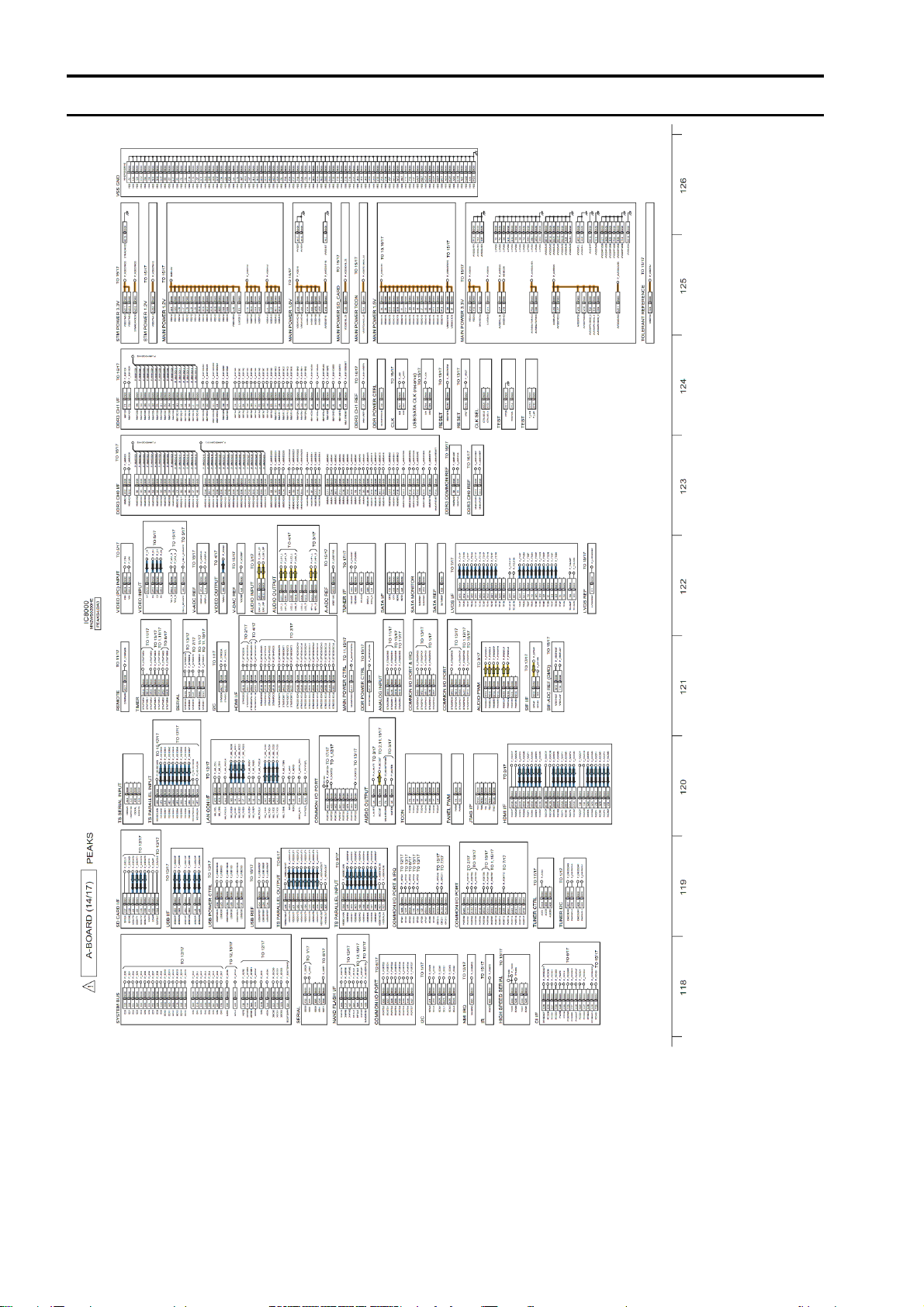

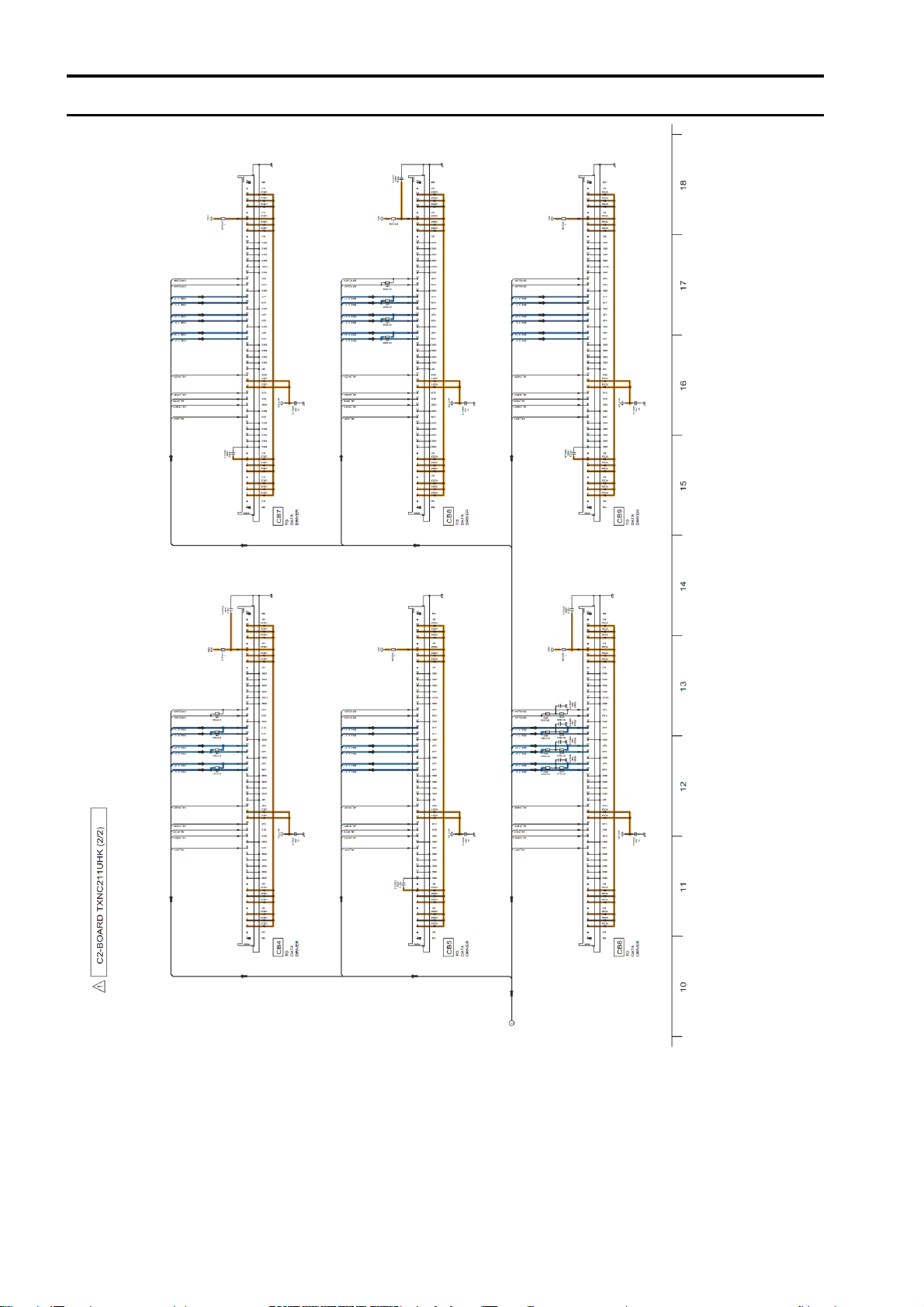

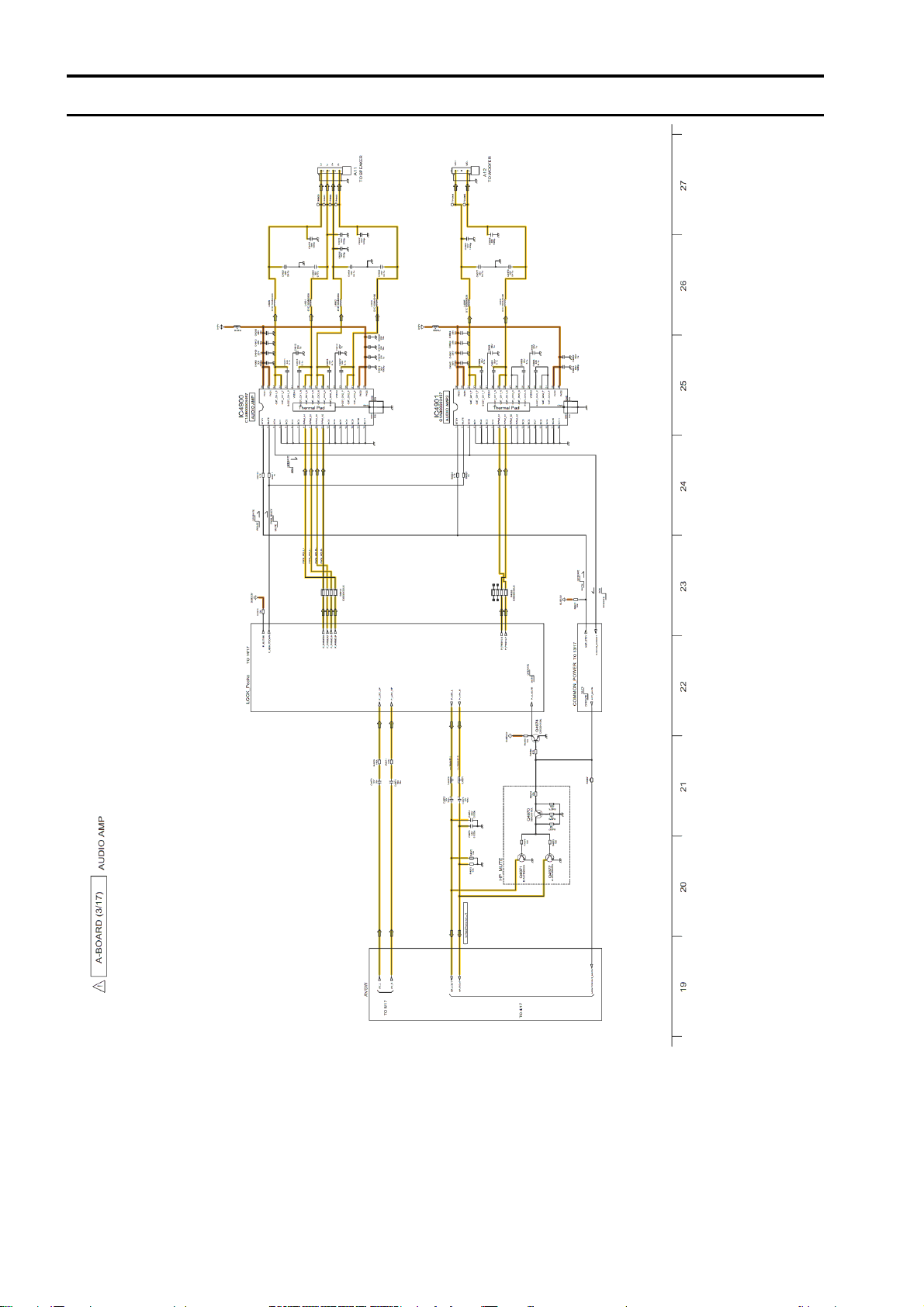

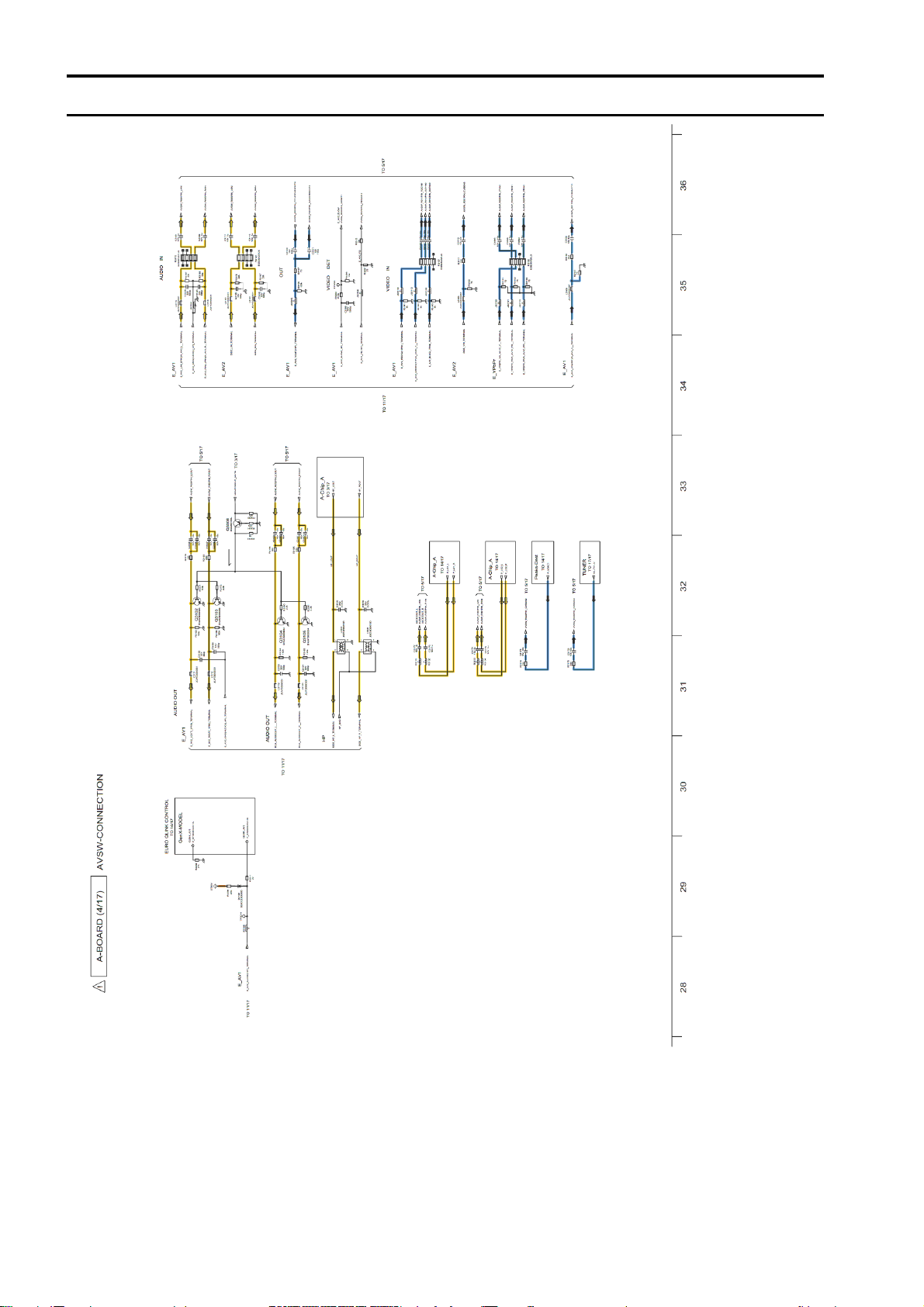

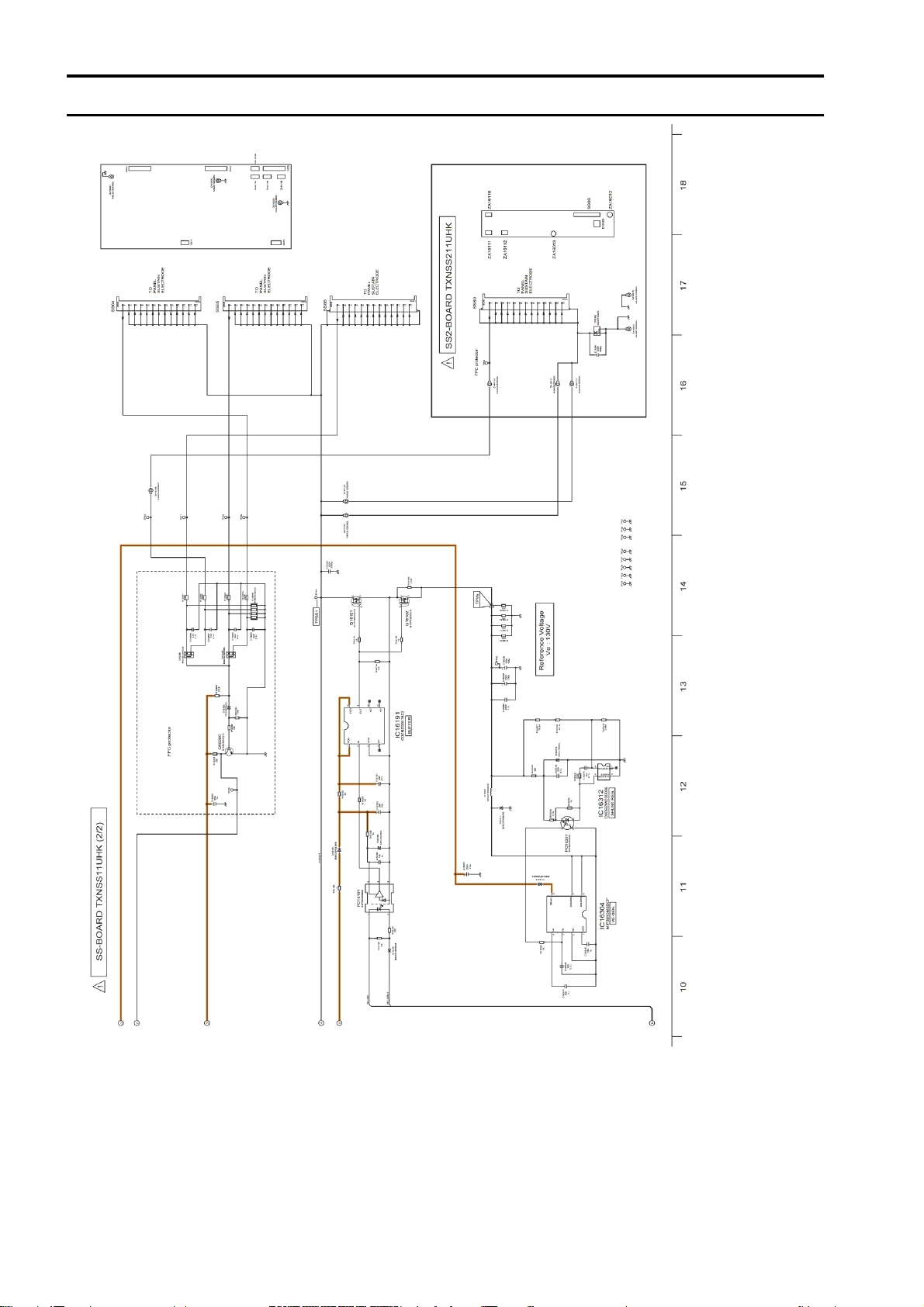

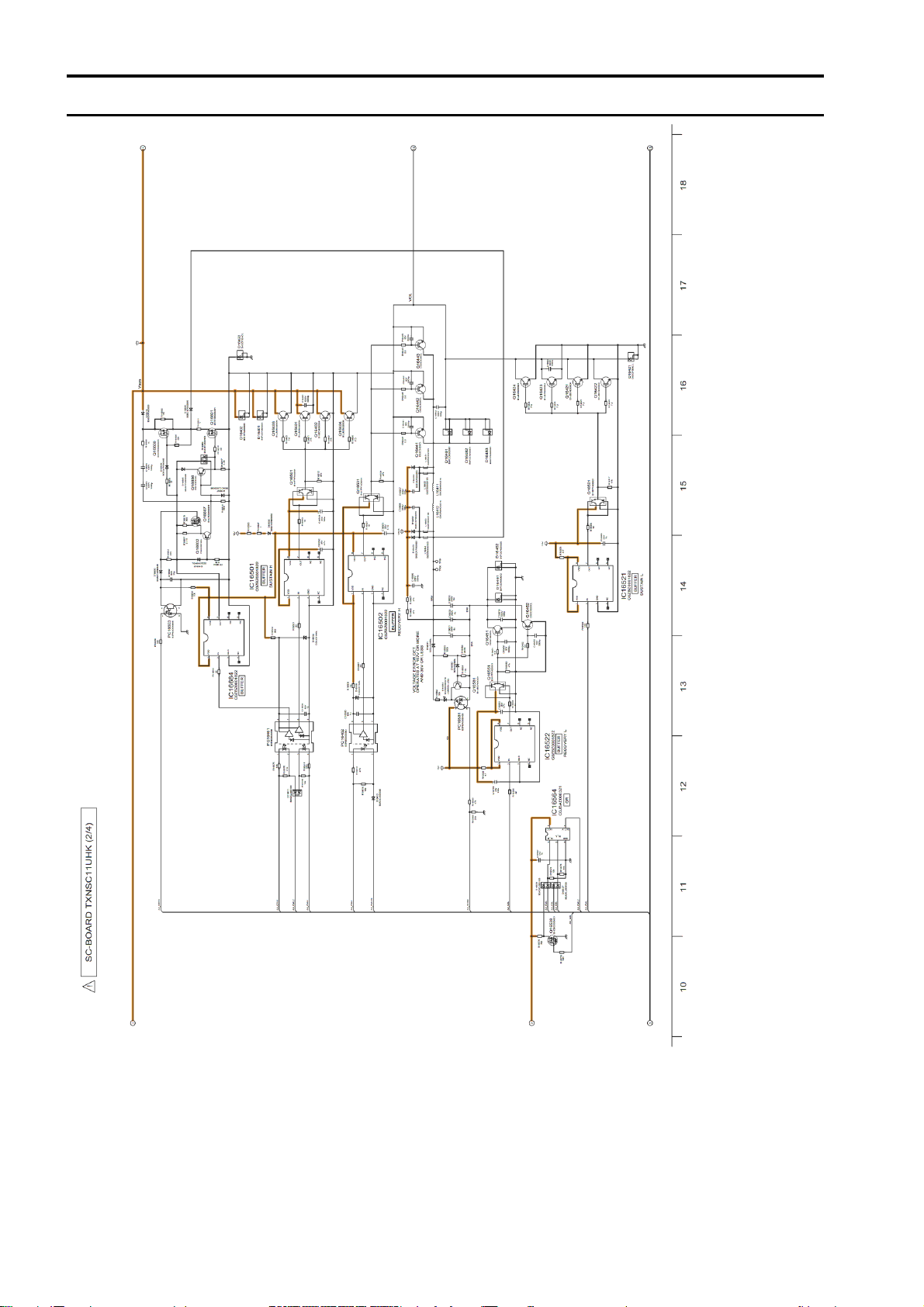

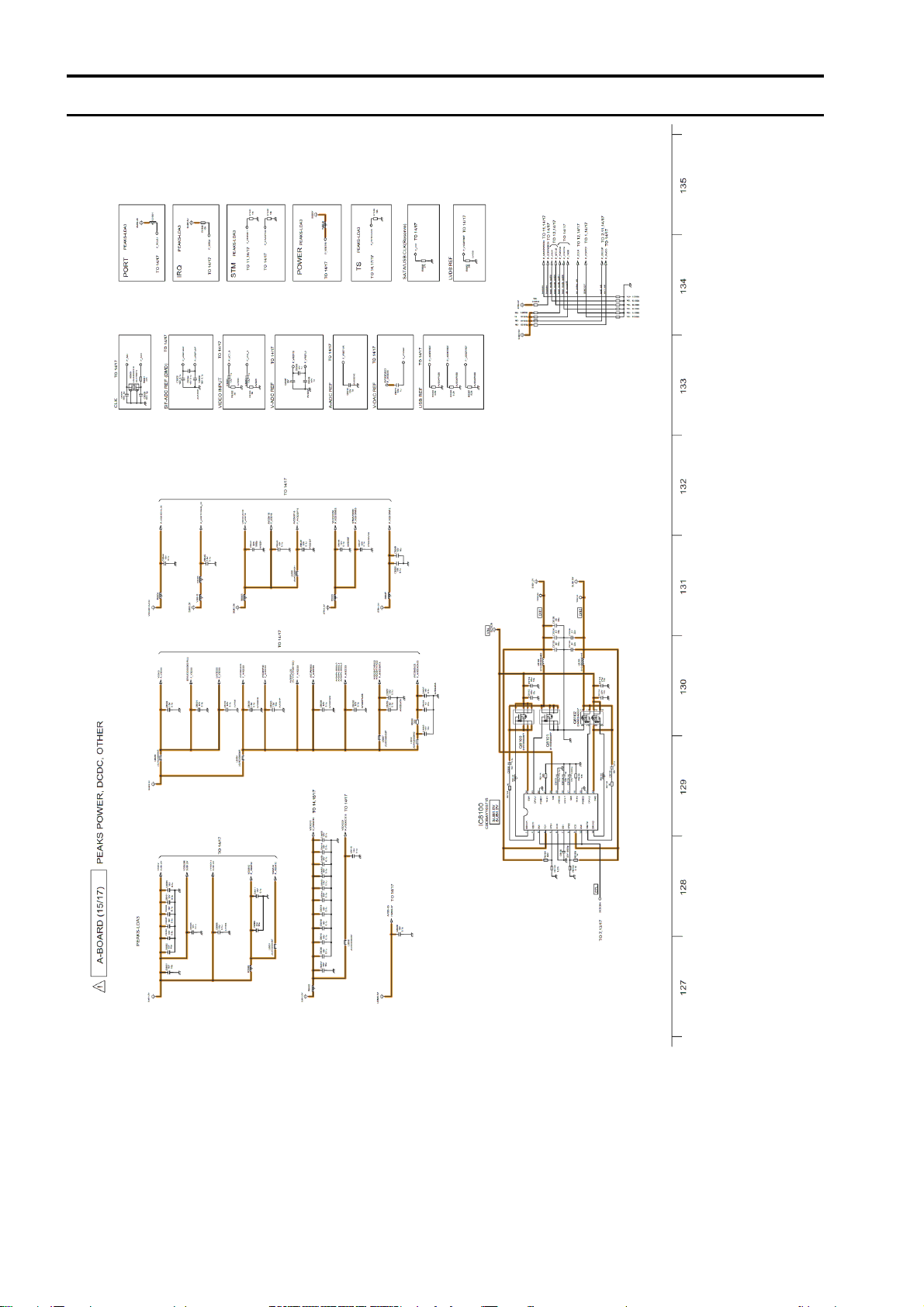

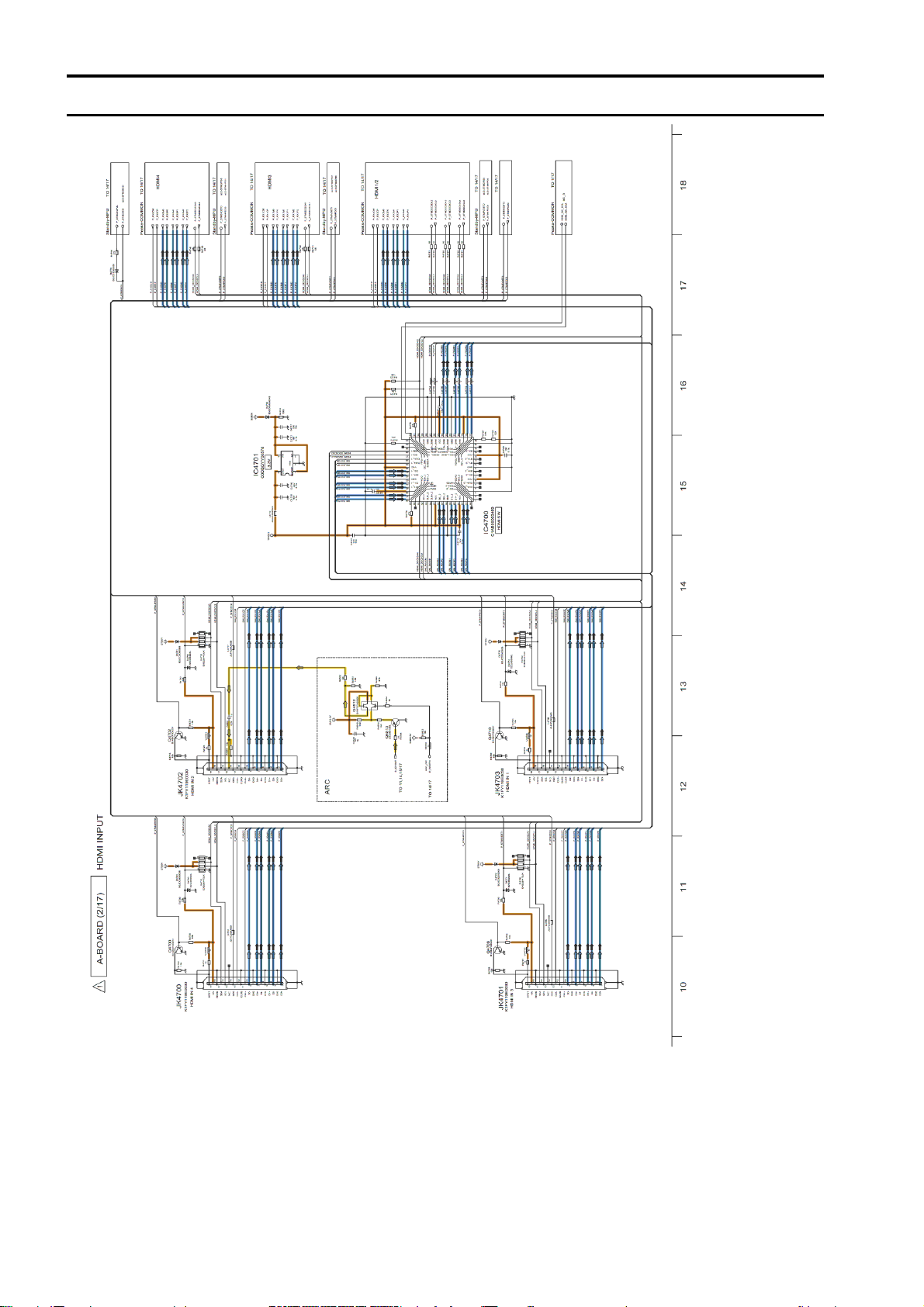

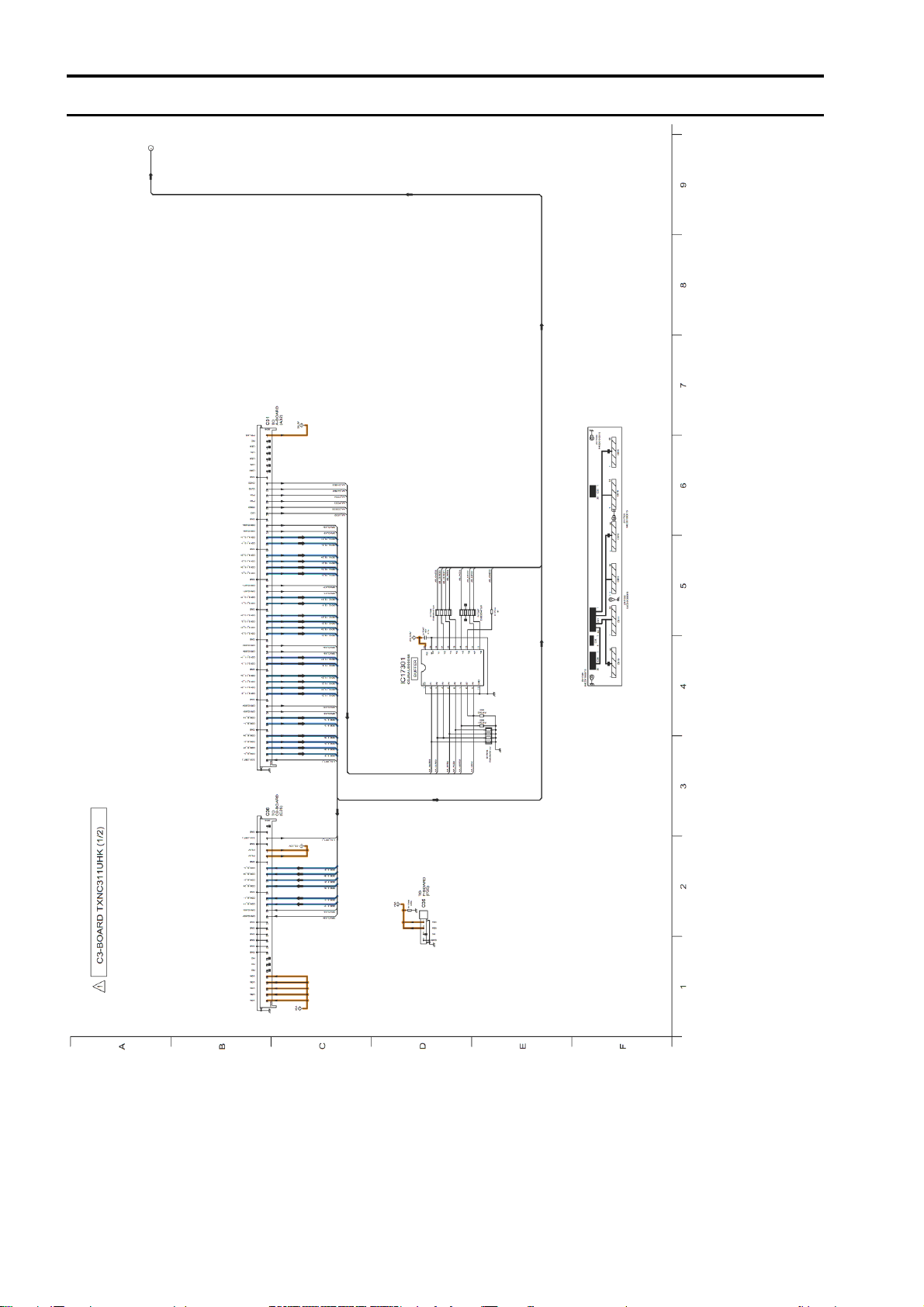

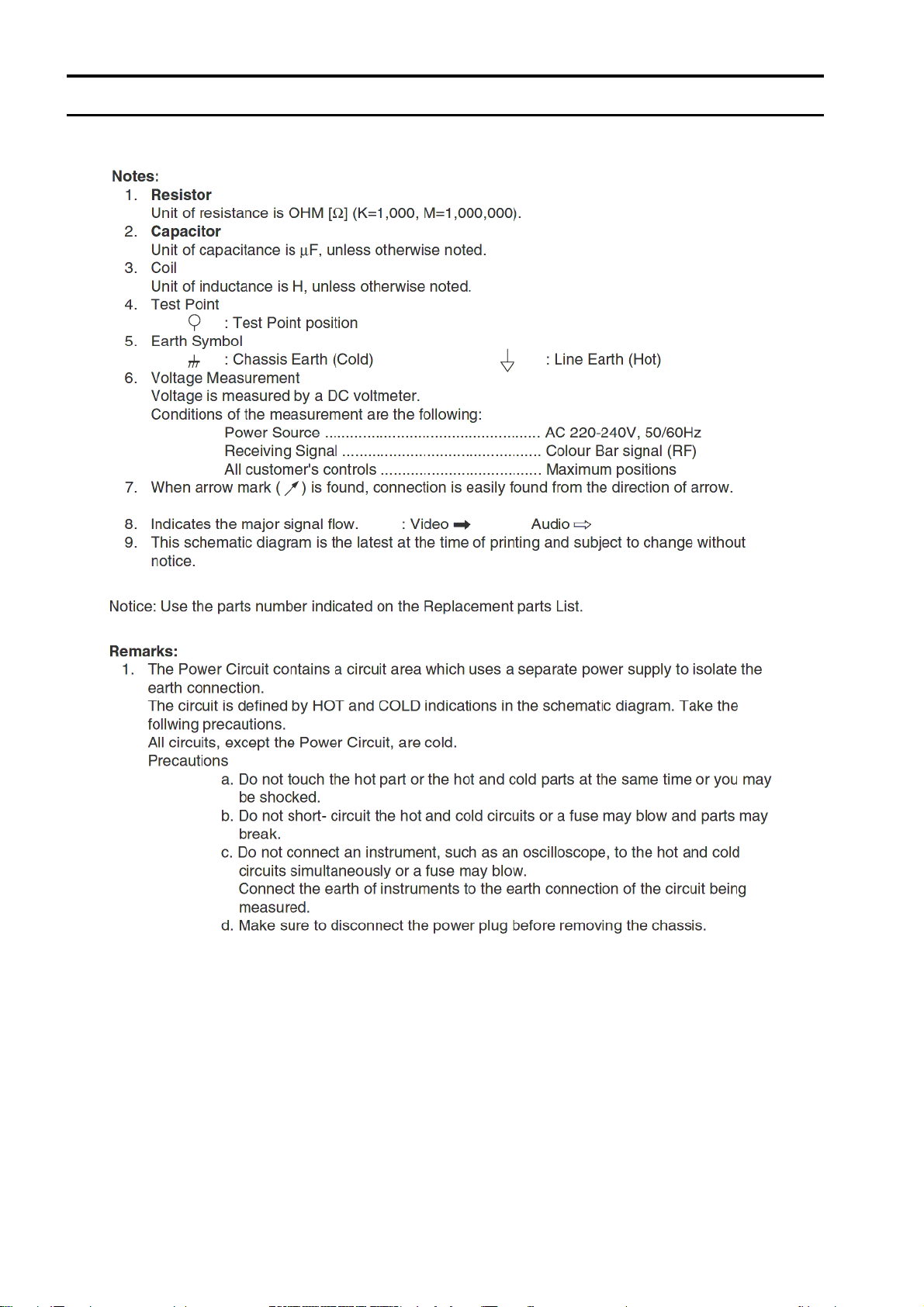

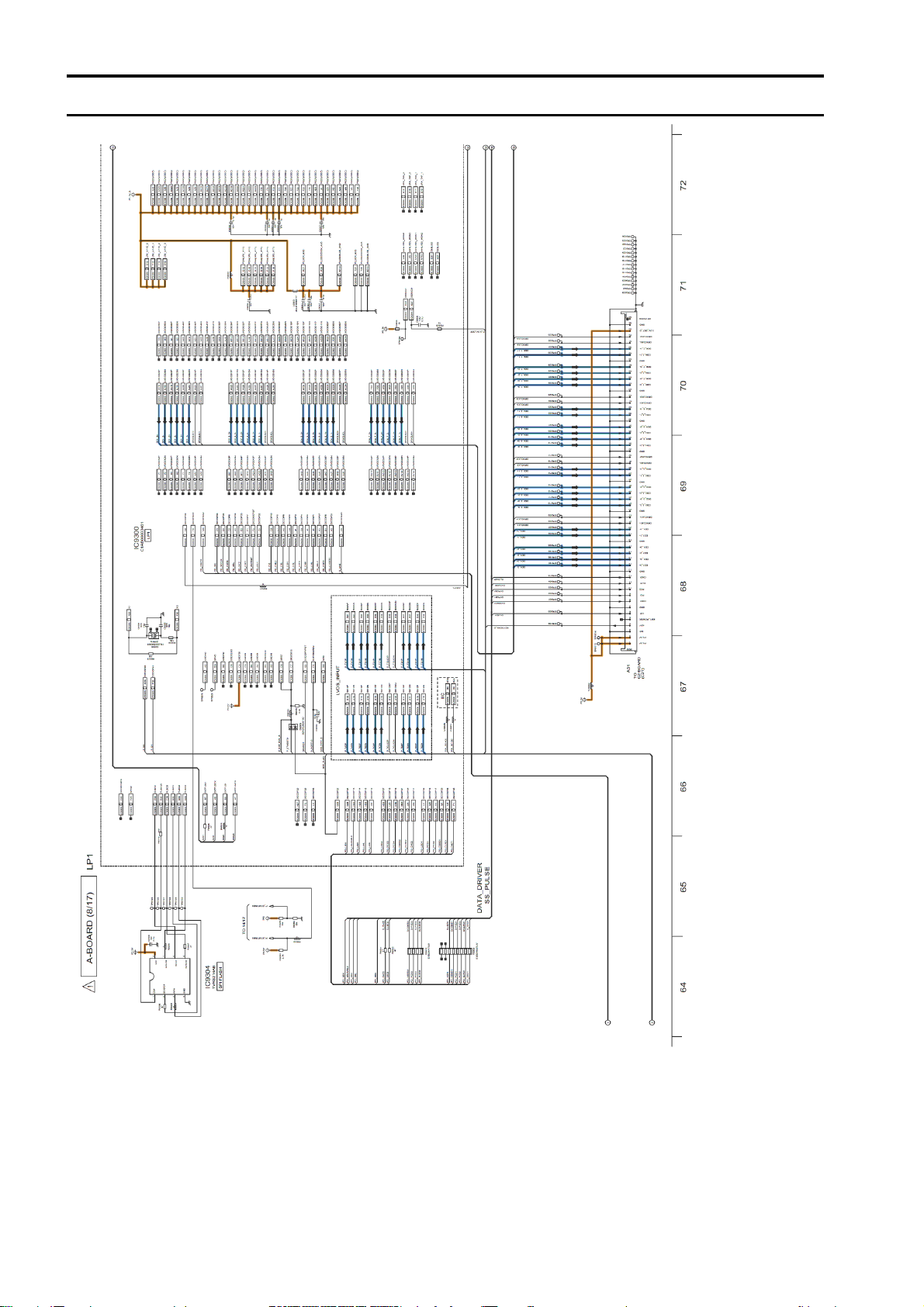

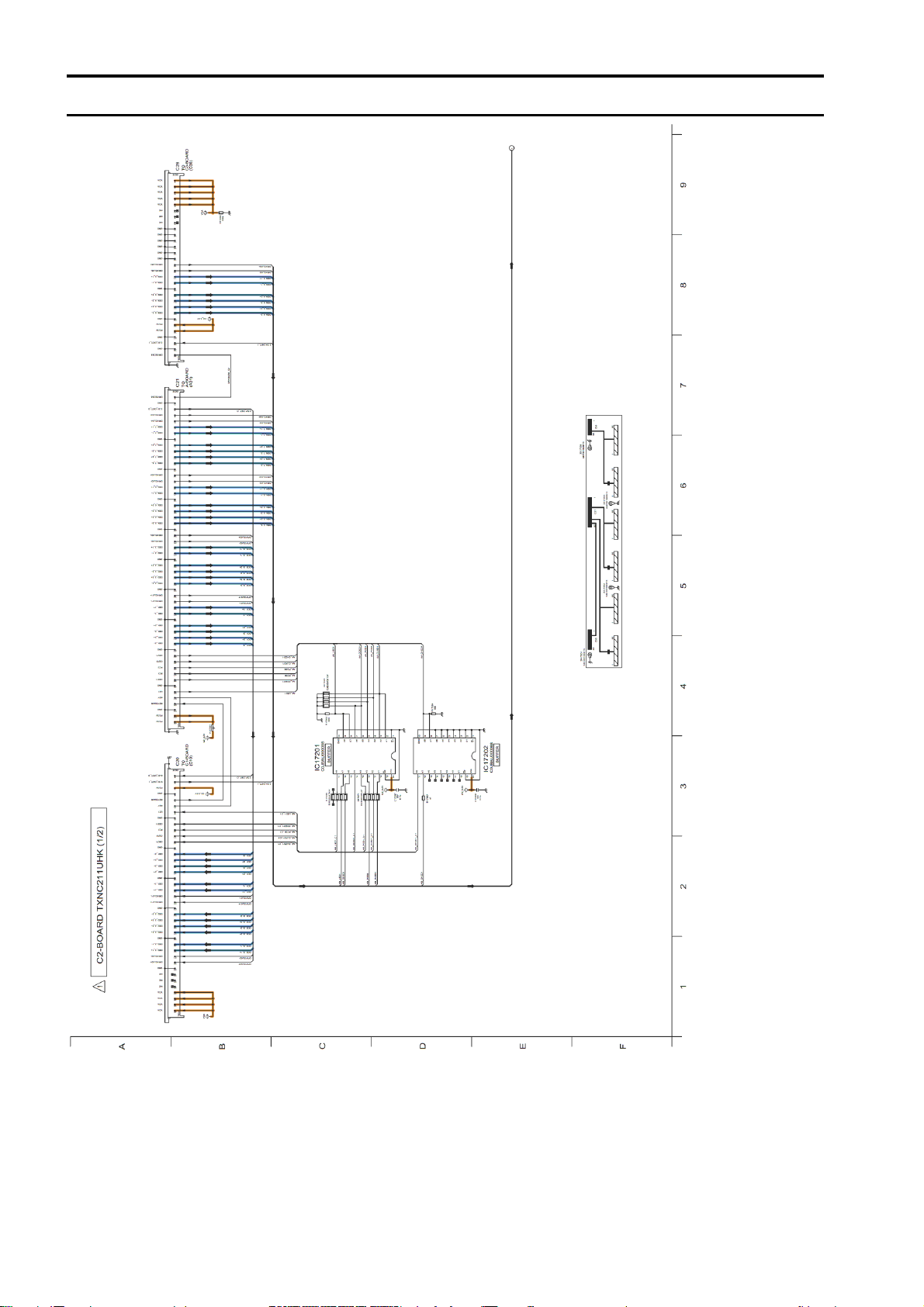

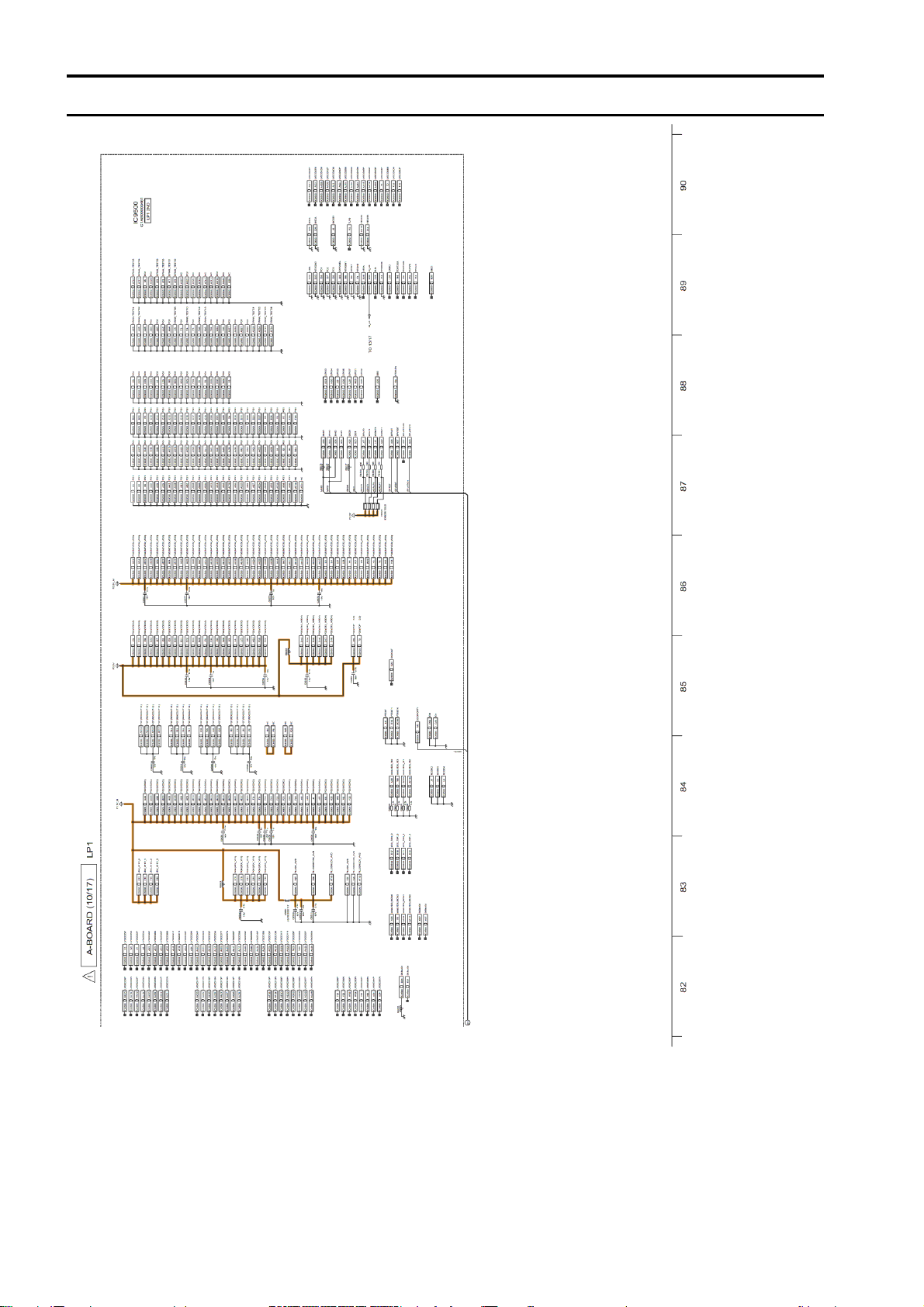

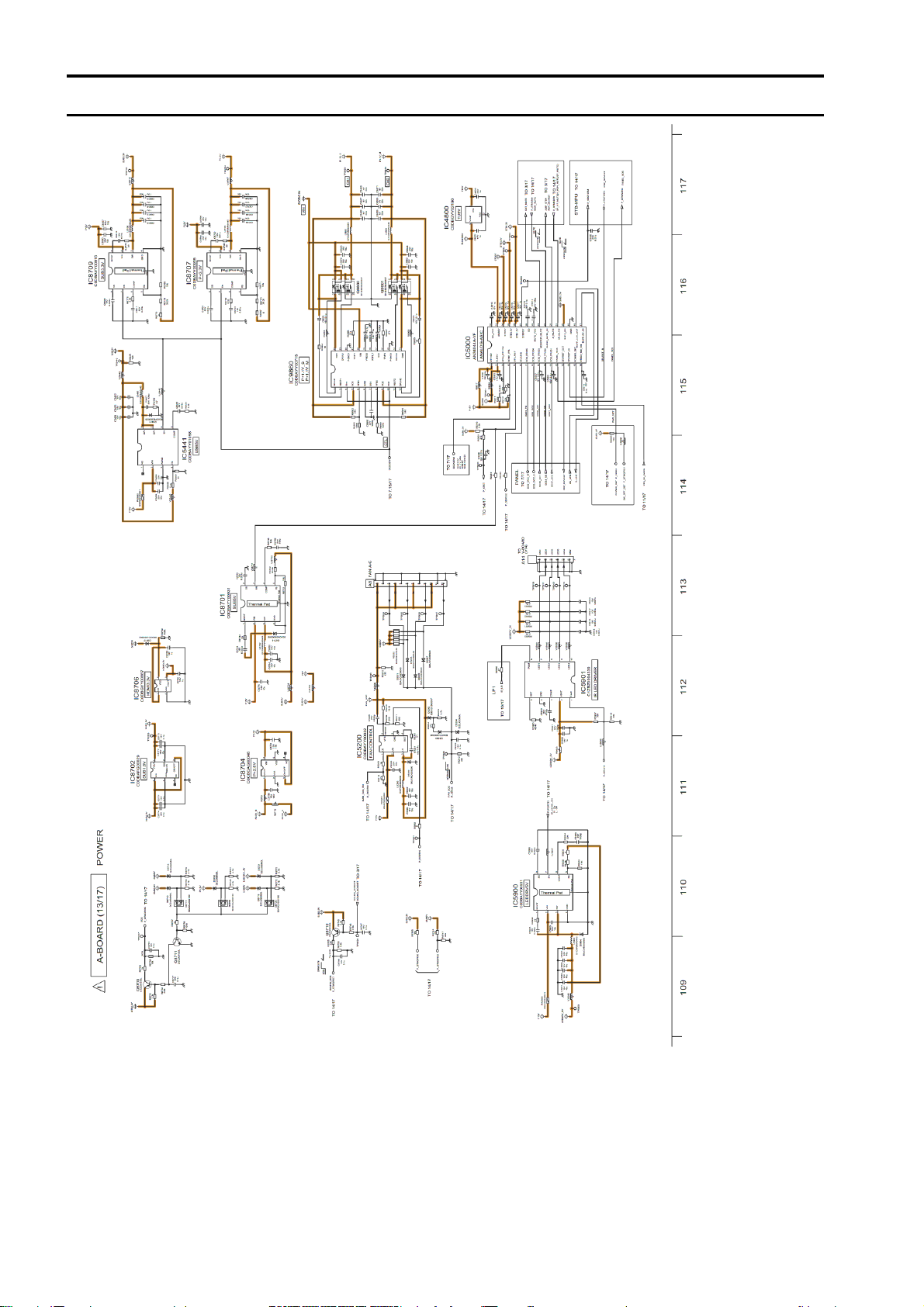

13 Schematic Diagram

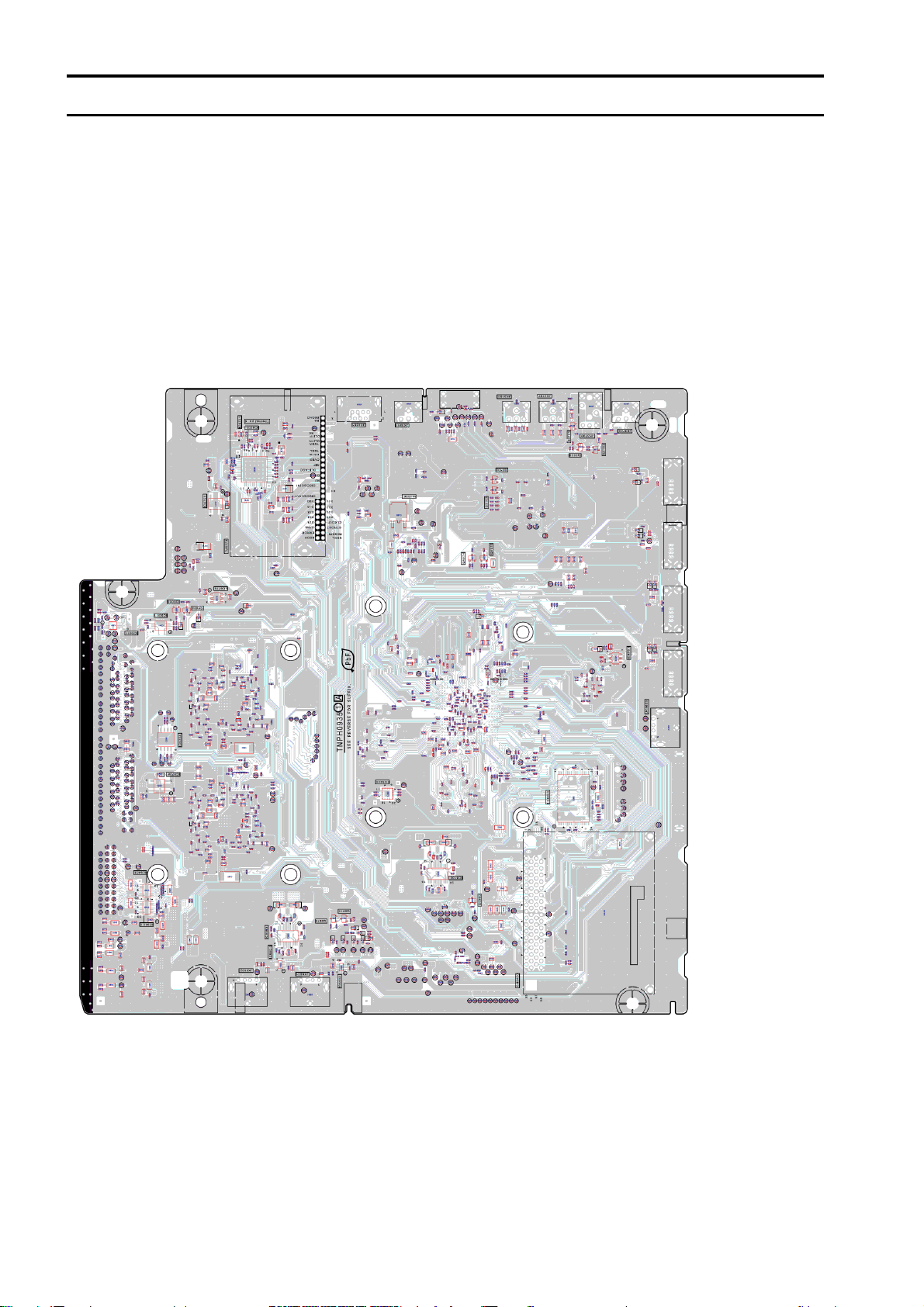

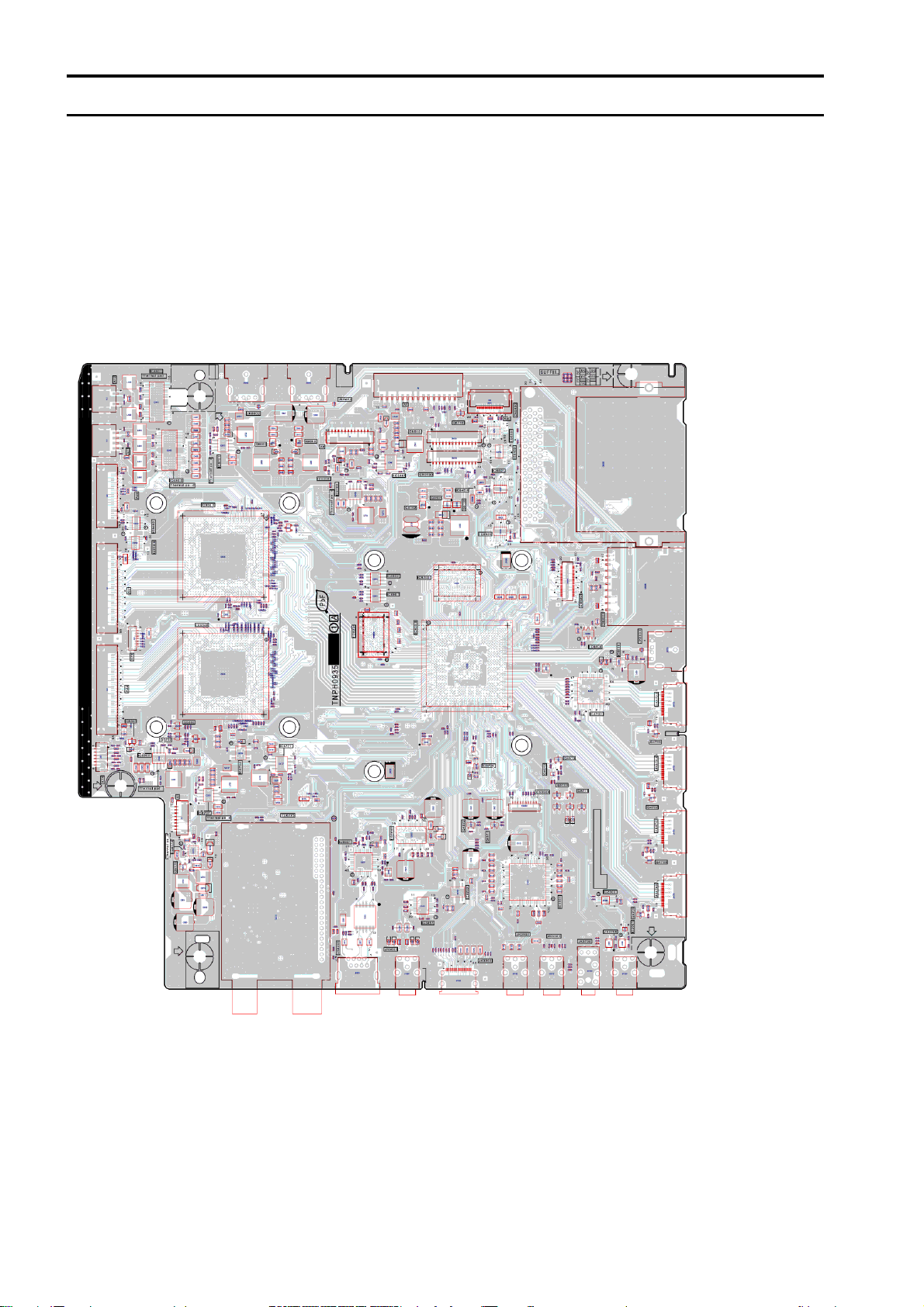

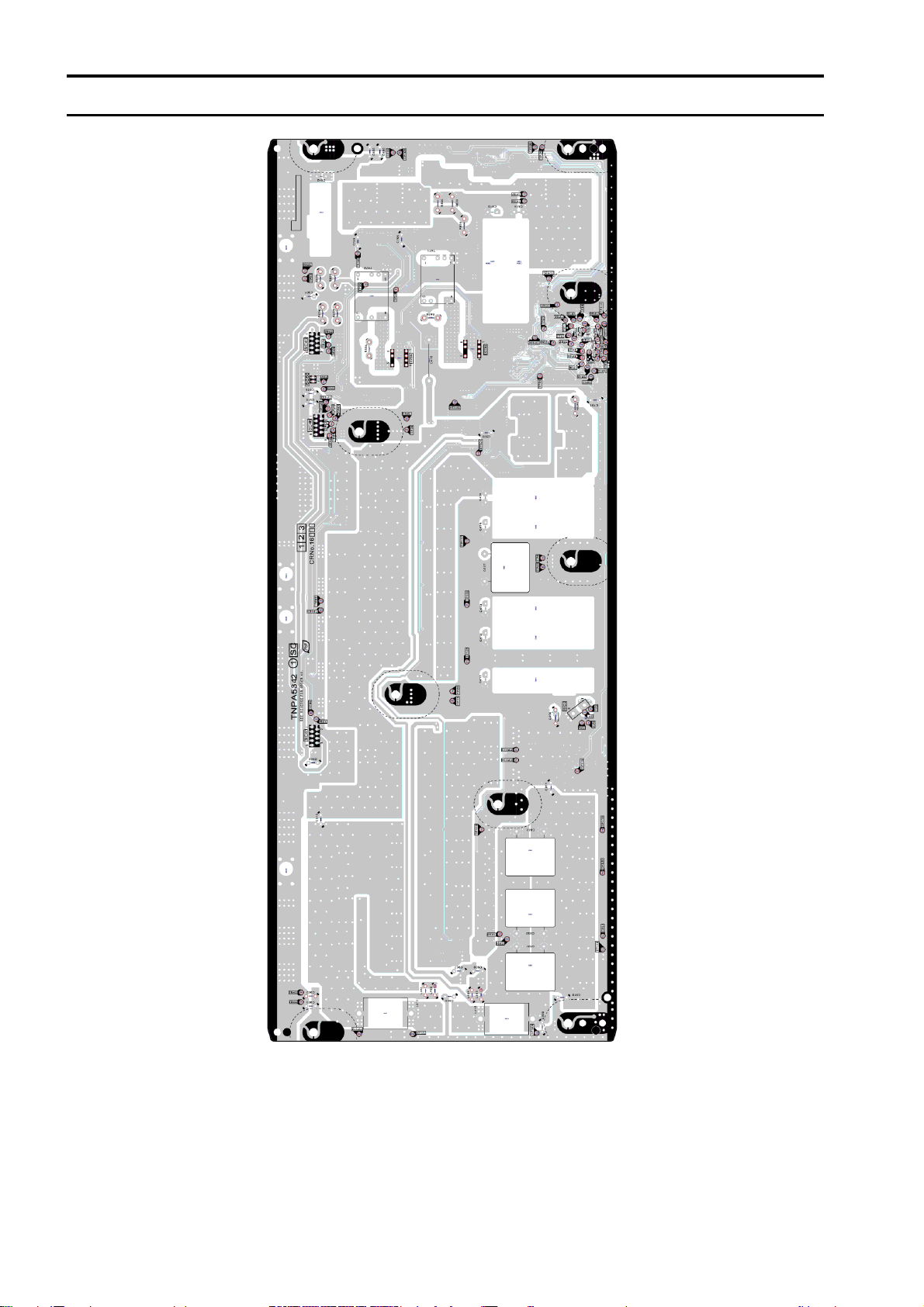

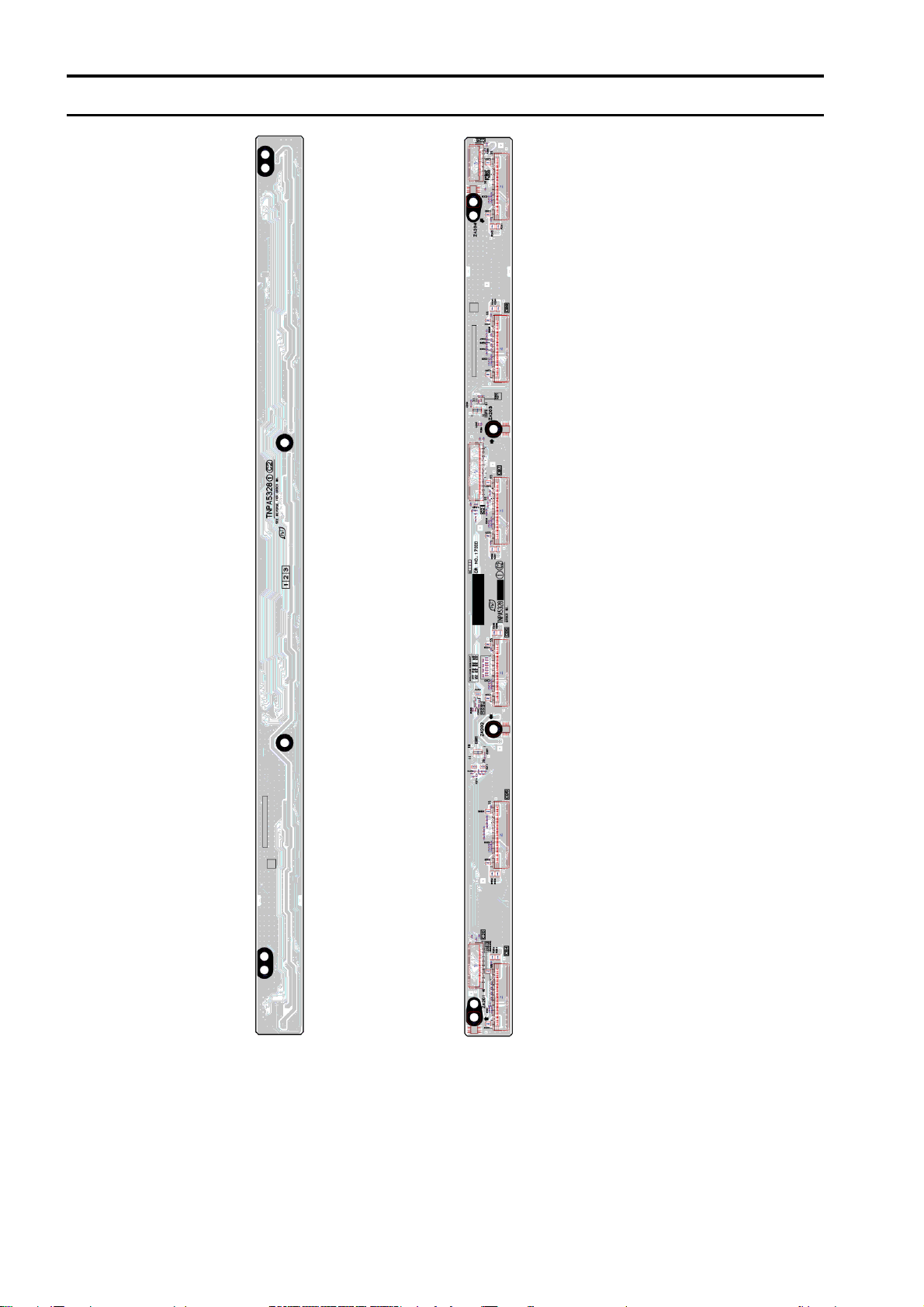

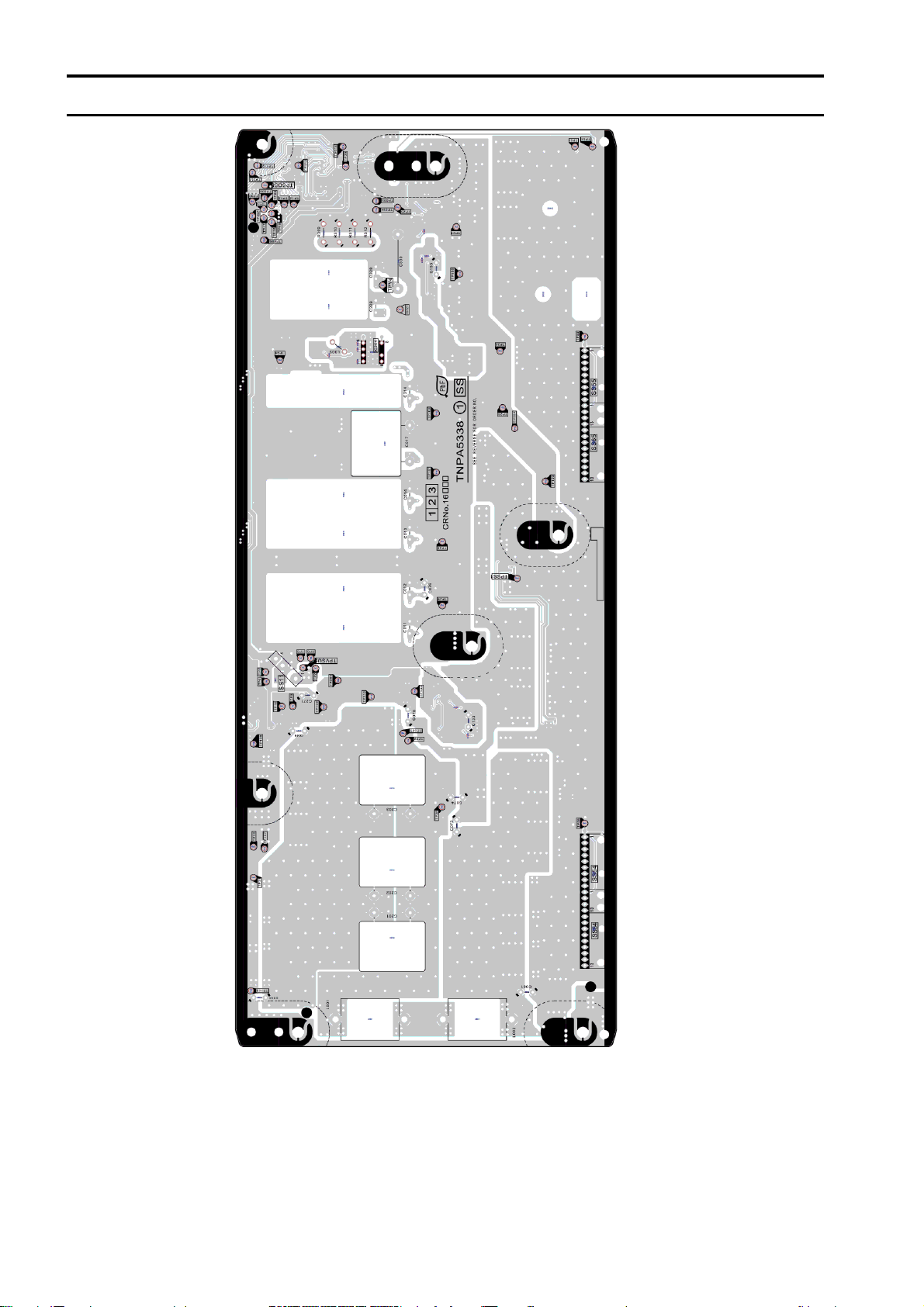

14 Printed Circuit Board
15 Exploded View
2
Page 3
1 Safety Precautions
1.1. General Guidelines
1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.
2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight
out.
4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
1.2. Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

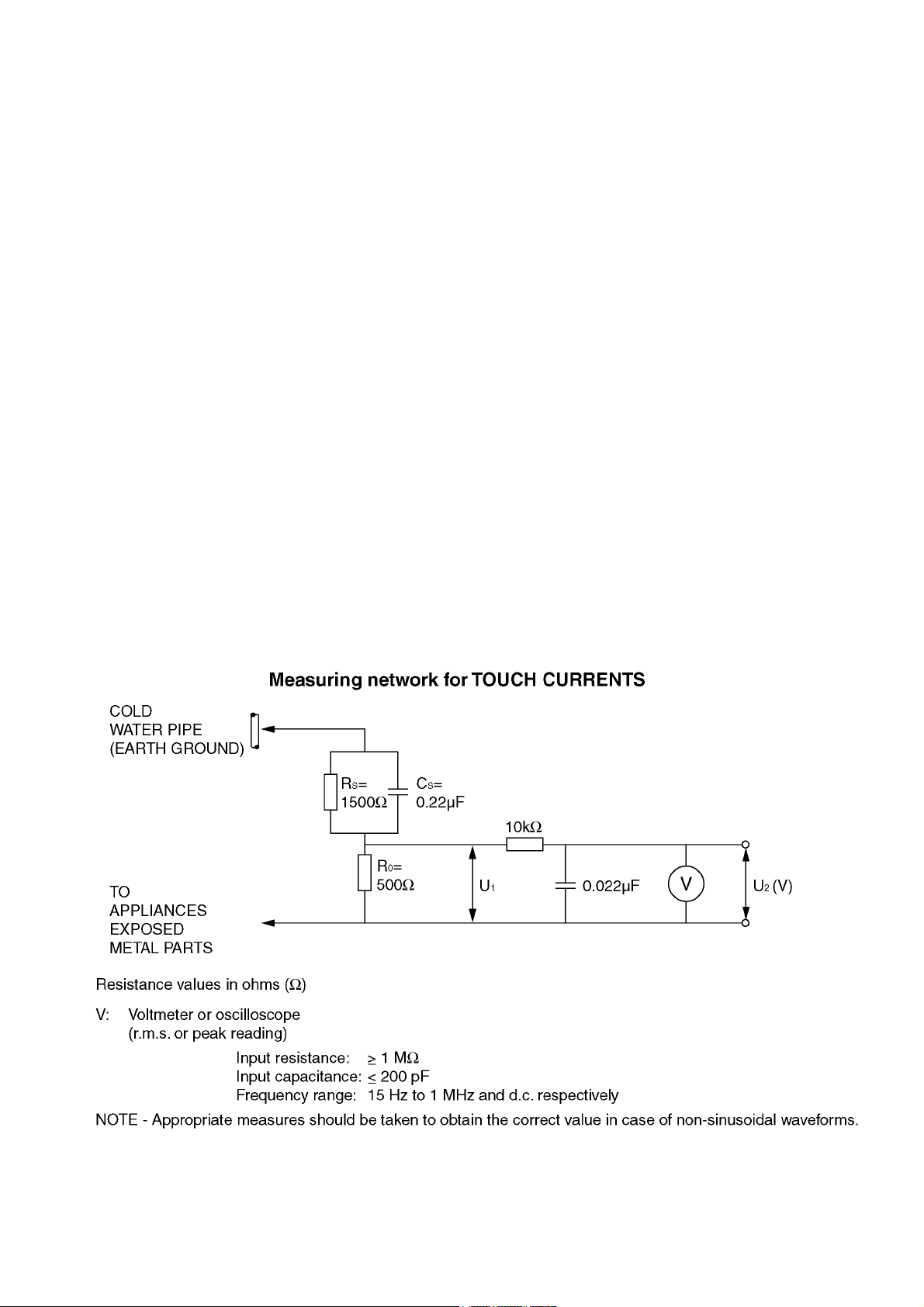

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground
such as a water pipe, as shown in Figure 1.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUCH CURRENT) expressed as voltage U
For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For d. c.: U
Note:
The limit value of U
mA d. c.
The limit value U
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be
repaired and rechecked before it is returned to the customer.
= 1.0 V,
1
= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0
2
= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.
1
and U2, does not exceed the following values:
1
Figure 1
3
Page 4
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called ElecÂtrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumiÂnum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparaÂble conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brushÂing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient
to damage an ES device).
4
Page 5
2.2. About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solÂder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

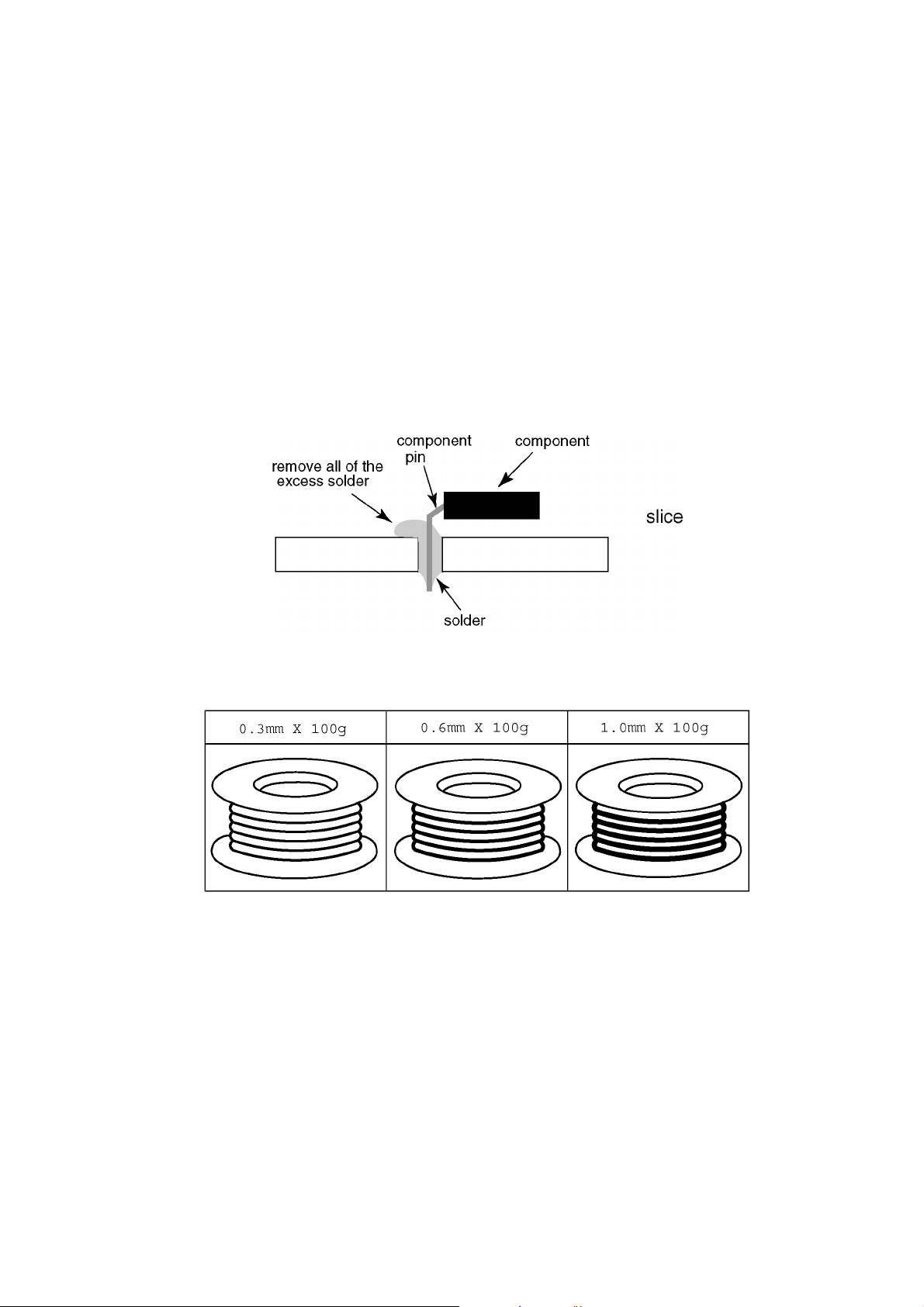

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. HowÂever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.
5
Page 6
3 Service Navigation

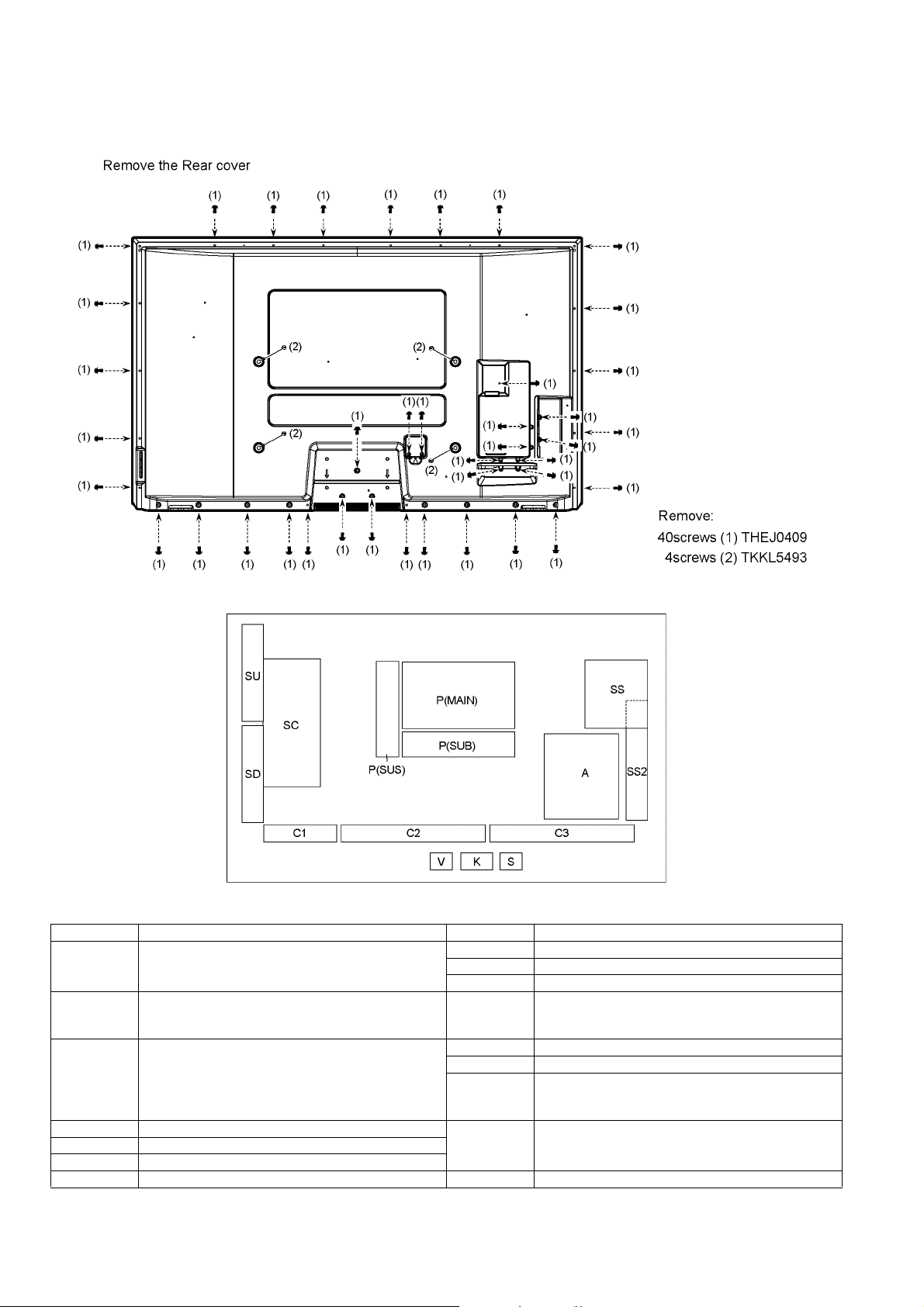

3.1. PCB Layout
Board Name Function Board Name Function
P(MAIN) Power Supply
Non serviceable.
P(MAIN)-Board should be exchange for service.
P(SUS) Power Supply
Non serviceable.
P(SUS)-Board should be exchange for service.
P(SUB) Power Supply
Non serviceable
P(SUB)-Board should be exchange for service.
A Main AV input, processing SD Scan out (Lower)
K Remote receiver, Power LED, C.A.T.S sensor
S Power Switch
V 3D Eyewear transmitter
C1 Data Driver (Lower Right)
C2 Data Driver (Lower Center)
C3 Data Driver (Lower Left)
SC Scan Drive
SS Sustain Drive
SS2 Sustain out (Lower)
SU Scan out (Upper)
Non serviceable.
SU-Board should be exchanged for service.
Non serviceable.
SD-Board should be exchanged for service.
6
Page 7
3.2. Applicable signals
COMPONENT (Y, PB, PR), HDMI
* Mark: Applicable input signal
Signal name COMPONENT HDMI
525 (480) / 60i, 60p * *
625 (576) / 50i, 50p * *
750 (720) / 60p, 50p * *
1,125 (1,080) / 60i, 50i * *
1,125 (1,080) / 60p, 50p, 24p *
PC (from HDMI terminal)
Applicable input signal for PC is basically compatible to HDMI standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 480 @60 Hz 31.47 60.00
1,280 × 720 @60 Hz 45.00 60.00
1,920 × 1,080 @60 Hz 67.50 60.00
Note
• Signals other than above may not be displayed properly.
• The above signals are reformatted for optimal viewing on your display.
• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.
7
Page 8
4 Specifications
Q TV
Power Source AC 220-240 V, 50 / 60 Hz
Power Consumption
Rated Power Consumption 500 W
On mode Average Power
Consumption
Standby Power Consumption 0.30 W
Display panel
Aspect Ratio 16:9
Visible screen size 165 cm (diagonal)
Number of pixels 2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]
Sound
Speaker
Audio Output 22 W (6 W + 6 W + 10 W)
Headphones M3 (3.5 mm) stereo mini Jack × 1
Receiving Systems / Band name
Satellite dish input Female F-type 75 Ω
Aerial input VHF / UHF
Operating Conditions
Connection Terminals
AV1 (SCART) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
AV2 input VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
COMPONENT input Y: 1.0 V [p-p] (including synchronization)
HDMI1 / 2 / 3 / 4 input TYPE A Connectors
Card slot SD CARD slot × 1
ETHERNET RJ45, IEEE802.3 10BASE-T / 100BASE-TX
USB 1 / 2 / 3 USB2.0 DC 5 V, Max. 500mA
AUDIO OUT RCA PIN Type × 2 0.5 V [rms] (high impedance)
311 W
(based on IEC 62087 Ed.2 measurement method)
30.00 W (With monitor out recording)
1,434 mm (W) × 806 mm (H)
Front speaker (180 mm × 25 mm) × 2, Woofer ( 80 mm) × 1
PAL B, G, H, I, SECAM B, G, SECAM L, L
VHF E2 - E12 VHF H1 - H2 (ITALY)
VHF A - H (ITALY) UHF E21 - E69
CATV (S01 - S05) CATV S1 - S10 (M1 - M10)
CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)
PAL D, K, SECAM D, K
VHF R1 - R2 VHF R3 - R5
VHF R6 - R12 UHF E21 - E69
PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR)
M.NTSC Playback from M. NTSC Video recorders (VCR)
NTSC (AV input only) Playback from NTSC Video recorders (VCR)
DVB-T Digital terrestrial services (MPEG2 and MPEG4-AVC(H.264))
DVB-C Digital cable services (MPEG2 and MPEG4-AVC(H.264))
DVB-S / S2 Digital satellite services (MPEG2 and MPEG4-AVC(H.264))
• Check the latest information on the available services at the following website. (English only)
http://panasonic.jp/support/global/cs/tv/
Temperature: 0 °C- 35 °C
Humidity: 20 % - 80 % RH (non-condensing)
AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]
, PR: ±0.35 V [p-p]
P
B
HDMI1 / 3 / 4 : 3D, Content Type, Deep Colour, x.v.Colourâ„¢
HDMI2 : 3D, Content Type, Audio Return Channel, Deep Colour,
• This TV supports "HDAVI Control 5" function.
Common Interface slot (complies with Cl PLus) × 1
'
Receiver frequency range - 950 MHz to 2,150 MHz
LNB Power and Polarisation - Vertical: +13 V
Horizontal: +18 V
Current: Max. 500 mA
(overload protection)
22 kHz Tone - Frequency: 22 kHz ± 2 kHz
Amplitude: 0.6 V ± 0.2 V
Symbol Rate - Max. 30 MS/s
FEC Mode - 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Demodulation - QPSK, 8PSK
DiSEqC - Version 1.0
x.v.Colourâ„¢
8
Page 9
DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fiber optic
Dimensions (W × H × D) 1,570 mm × 994 mm × 400 mm (With Pedestal)
1,570 mm × 956 mm × 60 mm (TV only)
Mass 63.0 kg Net (With Pedestal)
56.0 kg Net (TV only)
Q 3D Eyewear
Dimensions (W × H × D) 170.1 mm × 41.2 mm × 169.8 mm (Without nose pad)
Mass 39 g Net
Lens type Liquid Crystal Shutter
Usage temperature range 0 °C - 40 °C
Charging power supply DC 5 V (supplied by USB terminal of a Panasonic TV)
Battery Lithium-ion polymer rechargeable battery
DC 3.7 V, 70 mAh
Operation time*: Approx. 30 hours
Charging time*: Approx. 2 hours
Materials Main body: Resin
Lens section: Liquid crystal glass
* The battery deteriorates after repeated use, and the operation time eventually becomes short. The figures above are at shipping from the facÂtory, and are not a guarantee of performance.
Q Wireless LAN Adaptor
Power supply DC 5 V (USB powered) 500 mA
Dimensions (W × H × D) 30.00 mm × 10.72 mm × 94.85 mm
Mass 25 g Net
Antenna Tx 1, Rx 2
Interface USB 2.0
Standard Compliance IEEE802.11n / IEEE802.11a / IEEE802.11g / IEEE802.11b
Transmission system MISO-OFDM system, OFDM system, DSSS system
Frequency Range IEEE802.11n / IEEE802.11a: 5.150 GHz - 5.725 GHz
IEEE802.11g / IEEE802.11b / IEEE802.11n: 2.412 GHz - 2.472 GHz
Transfer rate (standard)* IEEE802.11n: Tx Max. 150 Mbps, Rx Max. 300 Mbps
IEEE802.11g / IEEE802.11a: Max. 54 Mbps
IEEE802.11b: Max. 11 Mbps
Access Mode Infrastructure mode
Security WPA2-PSK (TKIP/AES)
WPA-PSK (TKIP/AES)
WEP (64 bit / 128 bit)
*Transfer rates are theoretical values; however, actual communication rate will vary according to communication environment or
connected equipment.
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
• This equipment complies with the EMC standards listed below.
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024
9
Page 10
5 Technical Descriptions
5.1. Specification of KEY for CI Plus, DTCP-IP, WIDEVINE and One-to-One
5.1.1. General information:
1. EEPROM (IC8902) for spare parts has the seed of KEY for each.
2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC
(IC8000) and EEPROM (IC8902).
Three KEY are not generated for all models.
The necessary KEY are only generated and stored depend on the feature of models.
5.1.2. Replacement of ICs:
When Peaks IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time.
When EEPROM (IC8902) is replaced, Peaks IC (IC8000) is not necessary to be replaced the same time.
After the replacement of IC, SELF CHECK should be done to generate the final KEY data.
How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more
than 3 seconds.
TV will be forced to the factory shipment setting after this SELF CHECK.
5.1.3. Model and Keys:
Model No. Keys
One-to-One
(For USB Rec.)
TX-P65VT30E Yes Yes Yes Yes
TX-P65VT30J Yes Yes Yes Yes
CI Plus DTCP-IP WIDEVINE
5.2. USB HDD Recording
5.2.1. General information:
Digital TV programmes can be recorded in USB HDD.
A One-to-One key generated in A-board by SELF CHECK binds TV and USB-HDD for communication.
That key is only one key for them. If the key is difference, TV can not access USB-HDD.
Caution:
New key will be generated by following SELF CHECK and previous TV programmes recorded in USB HDD will not be
viewed.
SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for
more than 3 seconds.
10
Page 11
5.3. Service port (M3 mini Jack) Specifications
The Service port (M3 mini Jack) on the following TVs can use as the RS232C terminal which is a standard computer SERIAL interÂface.
*This operation system should be used by the certified professional dealer.
PC Control of the TV
• The TV can be controlled by a personal computer when connected through an RS232C/ M3 mini jack conversion cable (not supÂplied).
• The computer will require software which allows sending and receiving of control data through its SERIAL port.
Please see required parameters and commands below.
Communication parameters
Signal level RS-232C compliant
Synchronization method Asynchronous
Baud rate 9600 bps
Parity None
Character length 8 bits
Stop bit 1 bit
Flow control -
Basic format for control data
The transmission of control data from the PC starts with a STX signal, followed by the command, the parameters, and lastly an
EXT signal in that order. If there are no parameters, then the parameter signal does not need to be sent.
*Please see other side regarding Commands and Parameters.
Connection
Notes:
• With standby mode, this TV responds to "PON" and "QPW" commands only.
• Wait for the response of the first command to come from this unit before sending the next command.
• If multiple commands are transmitted, be sure to keep intervals of 250 m sec.
Send the command again when the call back command is unusual.
• If an incorrect command is sent by mistake, this TV will send an "ER401" or "ER402" command back to the computer.
• This TV does not respond for 15 seconds when "PON" or "POF" commands are transmitted.
• Send "EXT" commands before sending "IMS:**" commands.
• MUTE commands ("AMT: 0" and "AMT: 1") and "AVL: ***" command are invalid in case of HDMI (CECIL) cooperation.
However AMT, AUK, AUDI commands is effective. (MUTE rotation (toggle), VOLUME UP and VOLUME DOWN controls are
possible.)
11
Page 12
Main, Input & Picture Control Command
STANDARD
CONTROL
INPUT
SELECT
MODE
Control
Command
POWER ON PON QPW QPW : * "0"(OFF)/ "1"(ON)
POWER OFF POF
VOL (level) AVL: *** QAV QAV : *** "000" - "100"
(up) AUU
(down) AUD
MUTE AMT (Toggle) QAM QAM : * "0"(NO MUTED)
AMT: *
ASPECT DAM: **** QAS QAS : **** "ZOOM"/"FULL"/
DAM (Tog-
gle)
CH UP CHU -- -- -ÂCH DOWN CHD -- -- -ÂTV IMS : TV QMI QMI : ** "TV" TV network (Toggle)
Analogue TV IMS : TVA "TVA"
DVB-T IMS : TVD "TVD"
DVB-S/Other Sat IMS : BS1 "BS1"
Freesat IMS : BS2 "BS2"
DVB-C IMS : CAB "CAB"
Component 1 IMS : C1 "C1"
Component2 IMS : C2 "C2"
Video 1 IMS : V1 "V1"
Video 2 IMS : V2 "V2"
Video 3 IMS : V3 "V3"
S-Video 1 IMS : S1 "S1" SCART Cable
S-Video 2 IMS : S2 "S2" SCART Cable
HDMI 1 IMS : H1 "H1"
HDMI 2 IMS : H2 "H2"
HDMI 3 IMS : H3 "H3"
HDMI 4 IMS : H4 "H4"
PC IMS : PC "PC"
SD (photo viewer) IMS : SP "SP"
VIERA CAST IMS : VC "VC"
Vivid (Dynamic) VPC : VVT QPC QPC : *** "VVT"
Standard VPC : STD "STD"
THX/ True Cinema VPC : THX "THX" THX : Except PC, JPEG, MOVIE & VIERA CAST
Cinema VPC : CNM "CNM"
Game VPC : GAM "GAM"
Photo VPC : CST "CST" Only HDMI, JPEG, MOVIE & VIERA CAST
Pro1 VPC : PR1 "PR1" When Advance (isfccc) menu is On.
Pro2 VPC : PR2 "PR2"
Inquiry
Command
Call back
Command
Parameter note
/ "1"(MUTED)
Except SD mode
"JUST"/"NORM"/
"SELF"/"ZOM2"/
"ZOM3"/"SFUL"/
"14:9"
Except VIERA CAST
12
Page 13
Else & Remote Controller Key Command
DIRECT CH
INPUT
MENU
FUNCTION
Control
Command
Information INF
-- QIF QIF : ***** 480i
0 ICH : 0 - - Â1 ICH : 1 - - Â2 ICH : 2 - - Â3 ICH : 3 - - Â4 ICH : 4 - - Â5 ICH : 5 - - Â6 ICH : 6 - - Â7 ICH : 7 - - Â8 ICH : 8 - - Â9 ICH : 9 - - ÂMENU MEN - - ÂSELECT SEL - - ÂRETURN RTN - - ÂEXIT EXT - - ÂARROW LEFT ARL - - ÂARROW RIGHT ARR - - ÂARROW UP ARU - - ÂARROW DOWN ARD - - ÂOPTION (SUB MENU) SUB - - ÂRED RED - - ÂGREEN GRN - - ÂYELLOW YEL - - ÂBLUE BLU - - ÂVIERA TOOLS VTL - - -
Inquiry
Command
Call back
Command
Parameter note
480p
576i
576p
720p
1080i
1080p
13
Page 14
6 Service Mode
6.1. How to enter into Service Mode
6.1.1. Purpose
After exchange parts, check and adjust the contents of adjustment mode.
While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds.
Note:
Service Mode can not be entered when 3D signal input.
Input 2D signal to enter Service Mode.
6.1.2. Key command
[1] button...Main items Selection in forward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in forward direction
[4] button...Sub items Selection in reverse direction
[RED] button...All Sub items Selection in reverse direction
[GREEN] button...All Sub items Selection in forward direction
[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )
6.1.3. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
14
Page 15
6.1.4. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample Data Remark
ADJUST CONTRAST 000
COLOR 3D
TINT 00
SUB-BRT 800
H-POS 0
H-AMP 0
V-POS 0
V-AMP 0
WB-ADJ R-CUT 80
G-CUT 80
B-CUT 80
R-DRV D6
G-DRV FF
B-DRV 7D
ALL-CUT 80
ALL-DRV FF
OPTION Panel-Type 65FHD Factory Preset
Boot ROM
STBY-SET 00
EMERGENCY OFF
Y/C Delay
OPT 1 00110100
OP T 2 1110 111 0
OPT 3 00000001
OPT 4 01010000
EDID-CLK MID
MIRROR 00 (See Option-Mirror)
AMR-SELECT OFF
VSUS LOW See Vsus selection

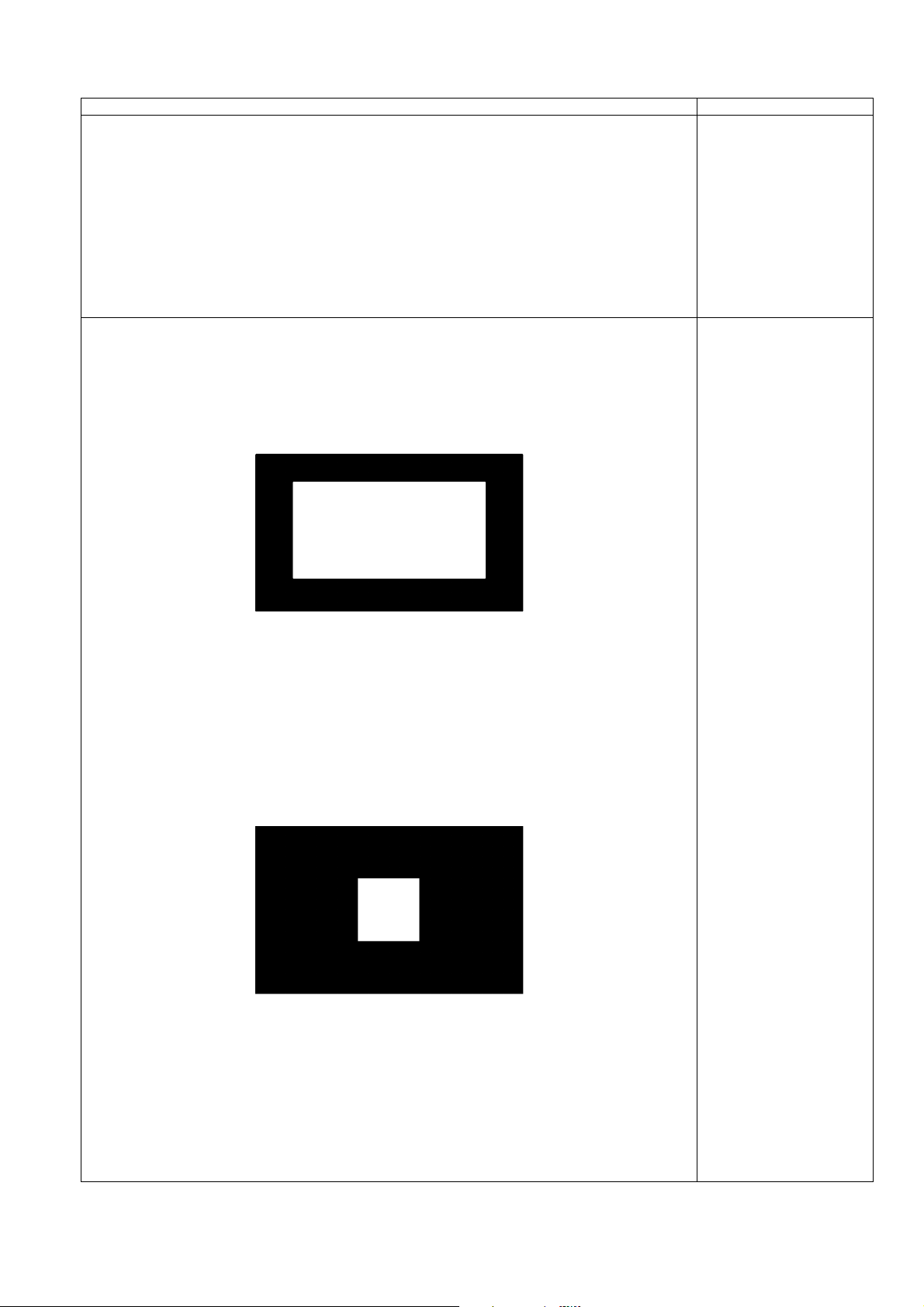

AGING ALL WHITE Built-in test patterns can be
ALL BLUE WITH WHITE OUTSIDE FRAME
ALL GREEN
ALL RED
LOW STEP WHITE
LOW STEP BLUE
LOW STEP GREEN
LOW STEP RED
WHITE DIAGONAL STRIPE
RED DIAGONAL STRIPE
GREEN DIAGONAL STRIPE
BLUE DIAGONAL STRIPE
A-ZONE & B-ZONE
1% WINDOW
COLOR BAR
9 POINTS BRIGHT MEASURE
2 DOT OUTSIDE FRAME
ALL BLUE
DOUBLE FIXED 1% WINDOW
VERTICAL LINE SCROLL
ON/OFF OR WHITE
R/G/B/W ROTATION
HALF FIXED ALL WHITE
ALL WHITE WITH COUNT DISPLAY
SRV-TOOL See Service tool mode
displayed.
Destination TX-P65VT30E TX-P65VT30J
Check sum 9071 90e3
15
Page 16
6.2. Option - Mirror
Picture can be reversed left and right or up and down.
00 : Default (Normal picture is displayed)
01 : Picture is reversed left and right.
02 : Picture is reversed up and down.
Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in
A-board.
6.3. Service tool mode
6.3.1. How to access
1. Select [SRV-TOOL] in Service Mode.
2. Press [OK] button on the remote control.
6.3.2. Display of SOS History
SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication will be cleared by [Self-check indication and forced to factory shipment setting].
6.3.3. POWER ON Time, On/Off
Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec.
Time : Cumulative power on time, indicated hour : minute by decimal
On/Off : Number of On/Off switching by decimal
Note : This indication will not be cleared by either of the self-checks or any other command.
6.3.4. Exit
1. Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.
16
Page 17
6.4. Hotel mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu
In order to display the Hotel mode setup menu:
While pressing [VOLUME (-)] button of the main unit,
press [AV] button of the remote control three times within
2 seconds.
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu
Item Function
Hotel Mode Select hotel mode On/Off
Initial INPUT Select input signal modes.
Set the input, when each time power is switched
on.
Selection :
Off/Analogue/DVB-S/DVB-C/DVB-T/AV1/AV2/
COMPONENT/HDMI1/HDMI2/HDMI3/HDMI4
• Off: give priority to a last memory. However,
Euro model is compulsorily set to TV.
• AVnS/AVnC: only Euro model selectable
Initial POS Select programme number.
Selection :
Off/0 to 99
• Off: give priority to a last memory
Initial VOL Level Adjust the volume when each time power is
switched on.
Selection/Range :
Off/0 to 100
• Off: give priority to a last memory
Maximum VOL
Level
Button Lock Select local key conditions.
Remote Lock Select remote control key conditions.
Private Information Select private information for VIERA Cast is Keep
Adjust maximum volume.
Range :
0 to 100
Selection :
Off/SETUP/MENU/ALL
• Off: altogether valid
• SETUP: only F-key is invalid
(Tuning guide (menu) can not be selected.)
• MENU: only F-key is invalid
(only Volume/Mute can be selected.)
• ALL: altogether invalid.
Selection :
Off/SETUP/MENU
• Off: altogether valid
• SETUP: only Setup menu is invalid
• MENU: Picture/Sound/Setup menu are invalid
or Reset if Hotel mode is set to [On] when TV
power on.
Selection :
Keep/Reset
• Keep: private information for VIERA Cast is
keep
• Reset: private information for VIERA Cast is
reset
17
Page 18
6.5. Data Copy by SD Card
6.5.1. Purpose
(a) Board replacement (Copy the data when exchanging A-board):
When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.
(b) Hotel (Copy the data when installing a number of units in hotel or any facility):
When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other
TVs.
6.5.2. Preparation
Make pwd file as startup file for (a) or (b) in a empty SD card.
1. Insert a empty SD card to your PC.
2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default
(New Text Document.txt).
3. Right-click the new text document that you just created and select rename, and then change the name and extension of the
file to the following file name for (a) or (b) and press ENTER.
File name:
(a) For Board replacement : boardreplace.pwd
(b) For Hotel : hotel.pwd
Note:
Please make only one file to prevent the operation error.
No any other file should not be in SD card.
18
Page 19
6.5.3. Data copy from TV set to SD Card
1. Turn on the TV set.
2. Insert SD card with a startup file (pwd file) to SD slot.
On-screen Display will be appeared according to the startup file automatically.
3. Input a following password for (a) or (b) by using remote control.
(a) For Board replacement : 2770
(b) For Hotel : 4850
Data will be copied from TV set to SD card.
It takes around 2 to 6 minutes maximum for copying.
4. After the completion of copying to SD card, remove SD card from TV set.
5. Turn off the TV set.
Note:
Following new folder will be created in SD card for data from TV set.
(a) For Board replacement : user_setup
(b) For Hotel : hotel
19
Page 20
6.5.4. Data copy from SD Card to TV set
1. Turn on the TV set.
2. Insert SD card with Data to SD slot.
On-screen Display will be appeared according to the Data folder automatically.
3. Input a following password for (a) or (b) by using remote control.
(a) For Board replacement : 2771
(b) For Hotel : 4851
Data will be copied from SD card to TV set.
4. After the completion of copying to SD card, remove SD card from TV set.
(a) For Board replacement : Data will be deleted after copying (Limited one copy).
(b) For Hotel : Data will not be deleted and can be used for other TVs.
5. Turn off the TV set.
Note:
1. Depending on the failure of boards, function of Data copy for board replacement does not work.
2. This function can be effective among the same model numbers.
20
Page 21
7 Troubleshooting Guide
Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
7.1. Check of the IIC bus lines
7.1.1. How to access
7.1.1.1. Self-check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
7.1.1.2. Self-check indication and forced to factory shipment setting:
Caution:
New key will be generated and previous TV programmes recorded in USB HDD will not be viewed. (See Chap.5)
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote conÂtrol for more than 3 seconds.
7.1.2. Screen display
7.1.3. Check Point
Confirm the following parts if NG was displayed.
DISPLAY Check Ref. No. Description Check P.C.B.
TUN TU6775 TUNER A-BOARD
STBY IC8000 PEAKS-LDA3 (STM) A-BOARD
MEM1 IC8902 PEAKS EEPROM A-BOARD
MEM2 IC8901 STM EEPROM A-BOARD
AVSW IC3001 AUDIO/VIDEO SW A-BOARD
TEMP IC2001 TEMP SENSOR A-BOARD
LAN IC8601 ETHERPHY A-BOARD
SAT-TU TU6775 SAT TUNER A-BOARD
ID A-BOARD
ID2 A-BOARD
LP1 IC9300 LP1 A-BOARD
LP1 2ND IC9500 LP1 2ND A-BOARD
HDMI-SW IC4700 HDMI SW A-BOARD
IRDRV IC5901 IR LED DRIVER A-BOARD
7.1.4. Exit
Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.
21
Page 22
7.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.
Blinking Times Contents Check point
1 Panel information SOS
LP1 Start SOS
3 P+ 3.3V SOS A-Board
4 Power SOS P(MAIN)-Board
5 P+ 5V SOS A-Board
6Driver SOS1
(SC Energy recovery circuit)
(A-SC FPC DET)
7Driver SOS2
(SU/SD Connector DET)
(SU/SD Scan and Logic IC)
8Driver SOS3
(SS FPC DET)
(SS Energy recovery circuit)
9 Discharge Control SOS A-Board
10 Sub 5V SOS
Sub 3.3V SOS
Tuner power SOS
11 FAN SOS A-Board
12 Sound SOS A-Board
13 Emergency SOS A-Board
14 IROM SOS (ROM in Peaks IC) A-Board
-
P(SUS)-Board
P(SUB)-Board
SC-Board
A-SC FPC
SU-Board
SD-Board
*
SS-Board
SS2-Board
SS FPC
SS2 FPC
A-Board
SC-Board
SS-Board
P(MAIN)-Board
P(SUS)-Board
P(SUB)-Board
FAN
Speaker
Woofer
P(MAIN)-Board
P(SUS)-Board
P(SUB)-Board
*Use SC jig to isolate the board.
22
Page 23
7.3. No Power
First check point
There are following 3 states of No Power indication by power LED.
1. No lit
2. Green is lit then turns red blinking a few seconds later. (See 7.2.)
3. Only red is lit.
23
Page 24
7.4. No Picture
24
Page 25
7.5. Local screen failure
Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.
Fig-1
25
Page 26
8 Service Fixture & Tools

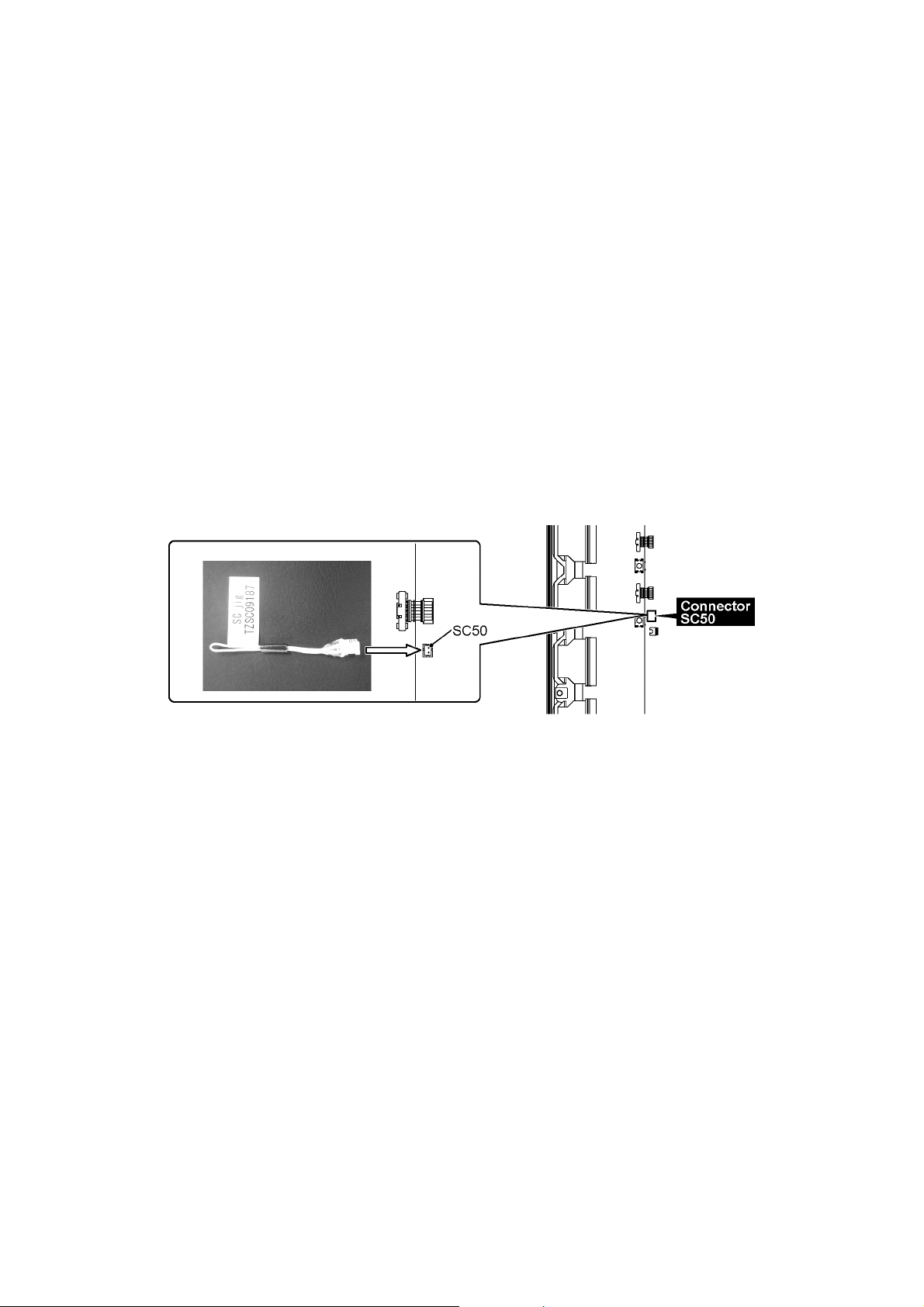

8.1. SC jig
Purpose:
To find the failure board (SC or SU/SD) when the power LED is blinking 7 times.
SC jig:
Jumper connector to connect to SC50 connector on SC board
Part number:
TZSC09187
How to use:
Caution: Remove SC jig from SC board after inspection.
1. Remove all connector between SC board and SU/SD board to isolate SC board from both SU and SD board electrically.
Note: The board will be damaged if all connector is not removed (for example; remove connector only for SU board and stay
connecting with SD board. The board will be damaged.)
2. Connect SC jig to connector SC50 at left bottom side of SC board
3. Turn on the TV/Display Unit and confirm the power LED blinking.
LED blinking: Possible cause of failure is in SC board
No LED blinking (Lighting or no lighting): Possible cause of failure is in SU or SD board
4. After inspection, turn off the TV/Display Unit and wait a few minutes to discharge.
5. Remove SC jig from SC board.
Remark: This SC jig can be used for all 2011 Plasma TV and Plasma Display.
26
Page 27
9 Disassembly and Assembly Instructions
9.1. Remove the Rear cover
1. See PCB Layout (Section 3)
9.1.1. Rib of the pedestal
Cannot exclude at the Rear cover because interfere with rib of the pedestal.
9.1.2. Exclude the Rear cover from the Set & the Pedestal
1. Lifting of the Set. (Work in two people)
MEN:1 Left hand (in Handle point)
MEN:2 Right hand (in Handle point)
2. Surpass the Rib (Pedestal)
3. Pull the Rear cover bottom (From the Set)
MEN:1 Right hand (Pull the Rear cover)
MEN:2 Left hand (Pull the Rear cover)
27
Page 28
4. Take down the Set
Caution:
At that time, attention not to sandwich the finger.
5. Exclude the Rear cover (From the Set)
Take it off hook in spite of being lifting.
9.1.3. Attach the Rear cover to the Set & the Pedestal
1. The work that is reverse to exclude. [5]→[4]→[3]→[2]→[1]
28
Page 29
9.2. Remove the AC inlet
Caution:
To remove P.C.B. wait 1 minute after power was off for disÂcharge from electrolysis capacitors.
1. Unlock the cable clampers to free the cable.
2. Disconnect the connector (P9).
3. Remove the screws (×2 ) and remove the Inlet metal.
4. Remove the screw (×1 ) and remove the AC inlet.
9.4. Remove the P(SUS)-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for disÂcharge from electrolysis capacitors.
1. Unlock the cable clampers to free the cable
2. Disconnect the connectors (P59, P61 and P63)
3. Disconnect the connector (P2).
4. Remove the screws (×4 ) and remove the P(SUS)ÂBoard.
9.3. Remove the P(MAIN)-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for disÂcharge from electrolysis capacitors.
1. Unlock the cable clampers to free the cable
2. Disconnect the connectors (P52, P56, P58, P62 and
P64).
3. Disconnect the connectors (P6, P11, P34 and P35).
4. Remove the screws (×5 ) and remove the P(MAIN)ÂBoard.
9.5. Remove the P(SUB)-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for disÂcharge from electrolysis capacitors.
1. Unlock the cable clampers to free the cable.
2. Disconnect the connectors (P51, P55, P57 and P60).
3. Disconnect the connector (P9).
4. Remove the screws (×4 ) and remove the P(SUB)ÂBoard.
29
Page 30
9.6. Remove the Terminal covers and the shield metals
1. Remove the claw (×1 ).
2. Remove the Side terminal cover.
3. Remove the claw (×1 ).
4. Remove the Bottom terminal cover.
5. Remove the screw (×1 ).
6. Remove the USB terminal cover and USB shield metal.
9.7. Remove the A-Board
1. Remove the Terminal covers and the Shield metals. (See
section 9.6.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connectors (A1, A6, A8, A11, A12 and
A14).
4. Disconnect the flexible cables (A20, A31, A32 and A40).
5. Remove the screw (×1 ) and remove the A-Board.
7. Remove the screws (×2 ).
8. Remove the Bottom shield metal.
9. Remove the screw (×1 ).
10. Remove the Side shield metal.
9.8. Remove the Side unit assy
1. Disconnect the connector (C14).
2. Remove the claws (×2 ) and remove the Side unit
assy.
3. Remove the screw (×1 ).
4. Remove the Side unit mount metal.
30
Page 31

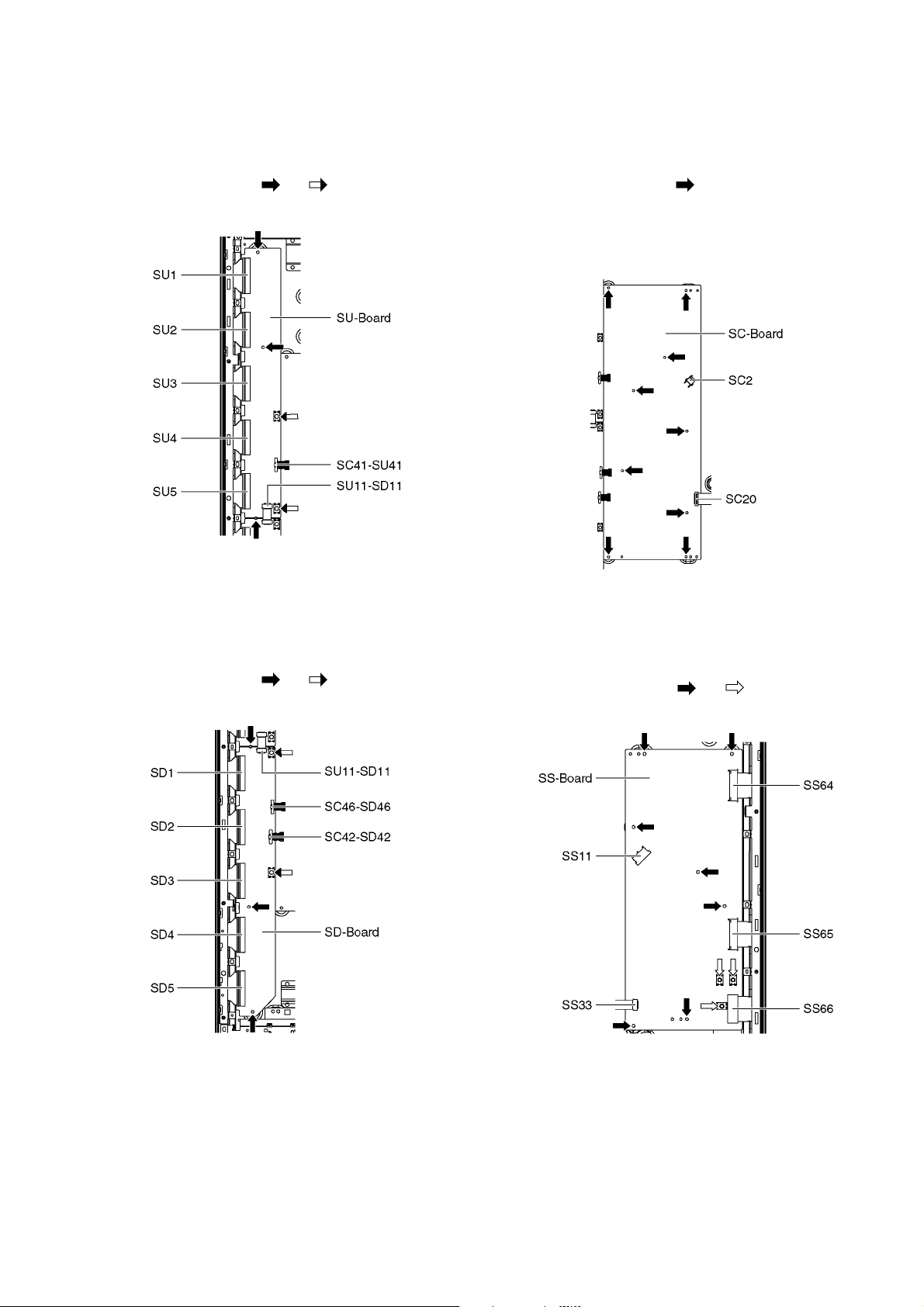

9.9. Remove the SU-Board
1. Disconnect the flexible cables (SU1, SU2, SU3, SU4 and
SU5) connected to the SU-Board.
2. Disconnect the flexible cable (SU11-SD11) and the bridge
connector (SC41-SU41).
3. Remove the screws (×3 , ×2 ) and remove the SU-
Board.
9.11. Remove the SC-Board
1. Remove the SU-Board and SD-Board. (See section 9.9.
and 9.10.)
2. Disconnect the connector (SC2).
3. Disconnect the flexible cable (SC20).
4. Remove the screws (×9 ) and remove the SC-Board.
Caution:
THERMAL CONDUCTIVE SHEET between Plasma DisÂplay Panel and SC-board should not be removed when
replacing SC-board.
9.10. Remove the SD-Board
1. Disconnect the flexible cables (SD1, SD2, SD3, SD4 and
SD5) connected to the SD-Board.
2. Disconnect the flexible cable (SU11-SD11) and the bridge
connectors (SC42-SD42 and SC46-SD46).
3. Remove the screws (×3 , ×2 ) and remove the SD-
Board.
9.12. Remove the SS-Board
1. Disconnect the connector (SS11).
2. Disconnect the flexible cable (SS33).
3. Disconnect the flexible cables (SS64, SS65 and SS66).
4. Remove the screws (×7 , ×3 ) and remove the SS-
Board.
31
Page 32
9.13. Remove the SS2-Board
1. Remove the SS-Board. (See section 9.12.)
2. Disconnect the flexible cable (SS69).
3. Remove the screws (×2 ) and remove the SS2-Board.
9.14. Remove the Fan
1. Unlock the cable clampers to free the cable.
2. Remove the screws (×3 ).
3. Remove the Relay connector and remove the Fan.
9.15. Remove the Speakers
1. Unlock the cable clampers to free the cable.
2. Remove the screws (×4 , ×6 ) and remove the SP
shield metal L.
3. Remove the screws (×4 , ×6 ) and remove the SP
shield metal R.
4. Disconnect the Relay connector.
5. Remove the screws (×2 each) and remove the SpeakÂers (L, R).
9.16. Remove the Woofer
1. Unlock the cable clampers to free the cable.
2. Disconnect the Relay connector.
3. Remove the screws (×4 ) and remove the Woofer.
32
Page 33
9.17. Remove the Stand bracket
1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
2. Unlock the cable clampers to free cable.
3. Remove the Stand bracket fastening screws (×6 , ×4
) and the Stand bracket.
9.19. Remove the S-Board
1. Remove the SP shield metal L. (See section 9.15.)
2. Remove the screws (×2 ).
3. Disconnect the connector (S10) and remove the S-Board.
9.20. Remove the V-Board
1. Remove the SP shield metal R. (See section 9.15.)
2. Remove the Stand bracket. (See section 9.17.)
3. Remove the screw (×1 ) and remove the claws (×3
).
4. Disconnect the connector (V14) and remove the V-Board
from the 3D emitter panel.
9.18. Remove the K-Board
1. Remove the SP shield metal L. (See section 9.15.)
2. Remove the Stand bracket. (See section 9.17.)
3. Remove the screw (×1 ).
4. Remove the claws (×3 ).
5. Disconnect the connector (K1) and remove the K-Board
from the LED panel.
9.21. Remove the Handles
1. Remove the SP shield metal (L, R). (See section 9.15.)
2. Remove the screws (×2 each) and remove the HanÂdles (L, R).
33
Page 34
9.22. Remove the Bottom cabinet assy
1. Remove the Speakers. (See section 9.15.)
2. Remove the Stand bracket. (See section 9.17.)
3. Remove the K, S and V-Board. (See section 9.18 - 20.)
4. Remove the Handles. (See section 9.21.)
5. Remove the screws (×4 ) and remove the Bottom cabÂinet assy.
9.23. Remove the Plasma panel secÂtion from the Cabinet assy
1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
4. Remove the Plasma panel section from the Cabinet assy.
9.24. Remove the Contact metals
1. Remove the Cabinet assy. (See section 9.23.)
2. Remove the Tape from the Contact metals.
3. Remove the screws (×21 ).
4. Remove the Contact metal side (L, R).
5. Remove the screws (×8 ).
6. Remove the Contact metal top.
7. Remove the screws (×15 ).
8. Remove the Contact metal bottom.
2. Remove the Bottom cabinet assy. (See section 9.22.)
3. Remove the screws (×8 , ×24 ).
9.25. Remove the C1-Board
1. Remove the Contact metal bottom. (See section 9.24.)
2. Disconnect the flexible cables (CB1, CB2 and CB3).
3. Disconnect the flexible cable (C10).
4. Disconnect the connector (C14).
5. Remove the screws (×3 ) and remove the C1-Board.
34
Page 35
9.26. Remove the C2-Board
1. Remove the Contact metal bottom. (See section 9.24.)
2. Disconnect the flexible cables (CB4, CB5, CB6, CB7,
CB8 and CB9).
3. Disconnect the flexible cables (C20, C21 and C26).
4. Remove the screws (×4 ) and remove the C2-Board.
9.27. Remove the C3-Board
1. Remove the Contact metal bottom. (See section 9.24.)
2. Disconnect the flexible cables (CB10, CB11, CB12,
CB13, CB14 and CB15).
3. Disconnect the flexible cables (C31 and C36).
4. Disconnect the connector (C35).
5. Remove the screws (×4 ) and remove the C3-Board.
9.29. Replace the Plasma panel
Caution:
Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
A new Plasma panel itself without Contact metals is fragile.
To avoid the damage to new Plasma panel, carry a new
Plasma panel taking hold of the Contact metals.
1. Place a carton box packed a new Plasma panel on the
flat surface of the work bench.
2. Open a box and without taking a new Plasma panel.
3. Attach the Cabinet assy and each P.C.Board and so on,
to the new Plasma panel.
*When fitting the Cabinet assy, be careful not to allow any
debris, dust or handling residue to remain between the
Front glass and Plasma panel.
9.28. Remove the AL frames
1. Remove the screws (×14 , ×2 ) and remove the AL
frames.
2. Remove the screws (×4 each) and remove the Corner
fixing metals.
35
Page 36
10 Measurements and Adjustments
10.1. Adjustment
10.1.1. Vsus selection
Caution:
When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH.
Procedure
1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed.
2. Press [OK] button to go to TEST stage.
White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the
On-Screen Display.
3. Press [VOL (-)] button to set to LOW.
4. In LOW setting
a. If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage.
b. If the several dead pixels are visible remarkably in white pattern, Set to HIGH by press [VOL (+)] button. Press [3] button
to go to CONF stage if the symptom is improved.
5. Press [OK] button in CONF stage to store LOW or HIGH.
6. Exit Service Mode by pressing [Power] button.
36
Page 37
10.1.2. Sub-Contrast adjustment
Name of measuring instrument Connection Remarks
RF generator
Base Band signal generator
HD signal generator
Steps Remarks
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
Adjustment of TV (RF system)
Note:
In adjustment, you must setting to modulation of signal at 90%.
1. Receive a RF PAL 100% Full White or Split Colour bar shown as below.
2. Goes into service mode.
3. Push a [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].
Note:
Sub-contrast adjustment is unadjusted
for AV/ HD input.
But, when needing the adjustment choÂsen manually, please refer to [ alternaÂtive method ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
When [NG] is displayed, adjustment failure.
4. End.
Steps Remarks
Another procedure
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
Adjustment of AV system
1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below.
2. Goes into service mode.
3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
When [NG] is displayed, adjustment failure.
4. End.
37
Page 38
Steps Remarks
Another procedure
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
Adjustment of HD system
1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below.
2. Goes into service mode.
3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
When [NG] is displayed, adjustment failure.
4. End.
38
Page 39
10.1.3. THX white balance adjustment
The adjusting method is different according to the PEAKS EEPROM version.
[copy adjustment] : Peaks EEPROM ver.1.00Â[Differential (Normal) + copy + WARM adjustment] : Peaks EEPROM ver.1.**-
Name of measuring instrument Connection Remarks
W/ B pattern
Color analyzer
(Minolta CA-100 or equivalent)
Steps Remarks
[copy adjustment]
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
• Make sure the front panel to be used on the final set is fitted.
• Make sure a color signal is not being shown before adjustment.
• Put the color analyzer where there is little color variation.
Note:
Copy Adjustment method in service mode.
When you push [OK] key in each item,
Adjustment data is copied between HD data and SD data.
Panel surface
Picture menu : Dynamic
ASPECT : 16:9
Condition is same at
alternative method too.
39
Page 40
Steps Remarks
1. Enter the Service mode.
Please receive the Analog-RF.
Or, please select CVBS/YUV/HDMI. (No inputting is possible.).
(Forbid Analog-RF with no signal.)
2. A number key [1] or [2] are operated and [WB-ADJ] is displayed.
Check that the color temp is [COOL].
3. A number key [0] is operated and select [METHOD 01].
4. A number key [5] is operated and [INNER PATTERN] is displayed.

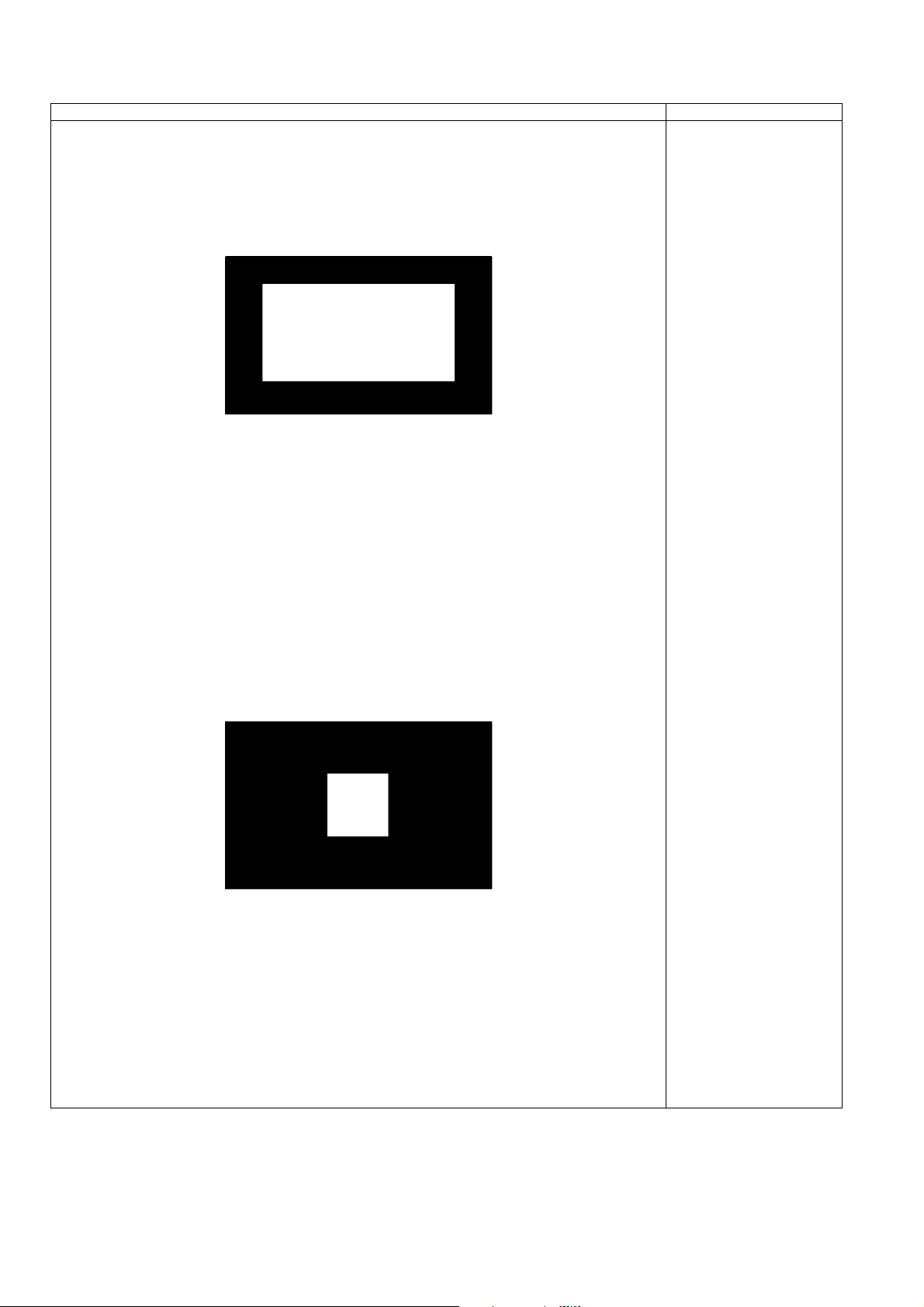

[INNER PATTERN]
5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-].
Also, [B-CUTOFF] and [R-CUTOFF] set to [80].
6. Set [G-DRIVE] at [D0].
7. Touch the signal receiver of color analyzer to the INNER PATTERN's center, and adjust B drive and R

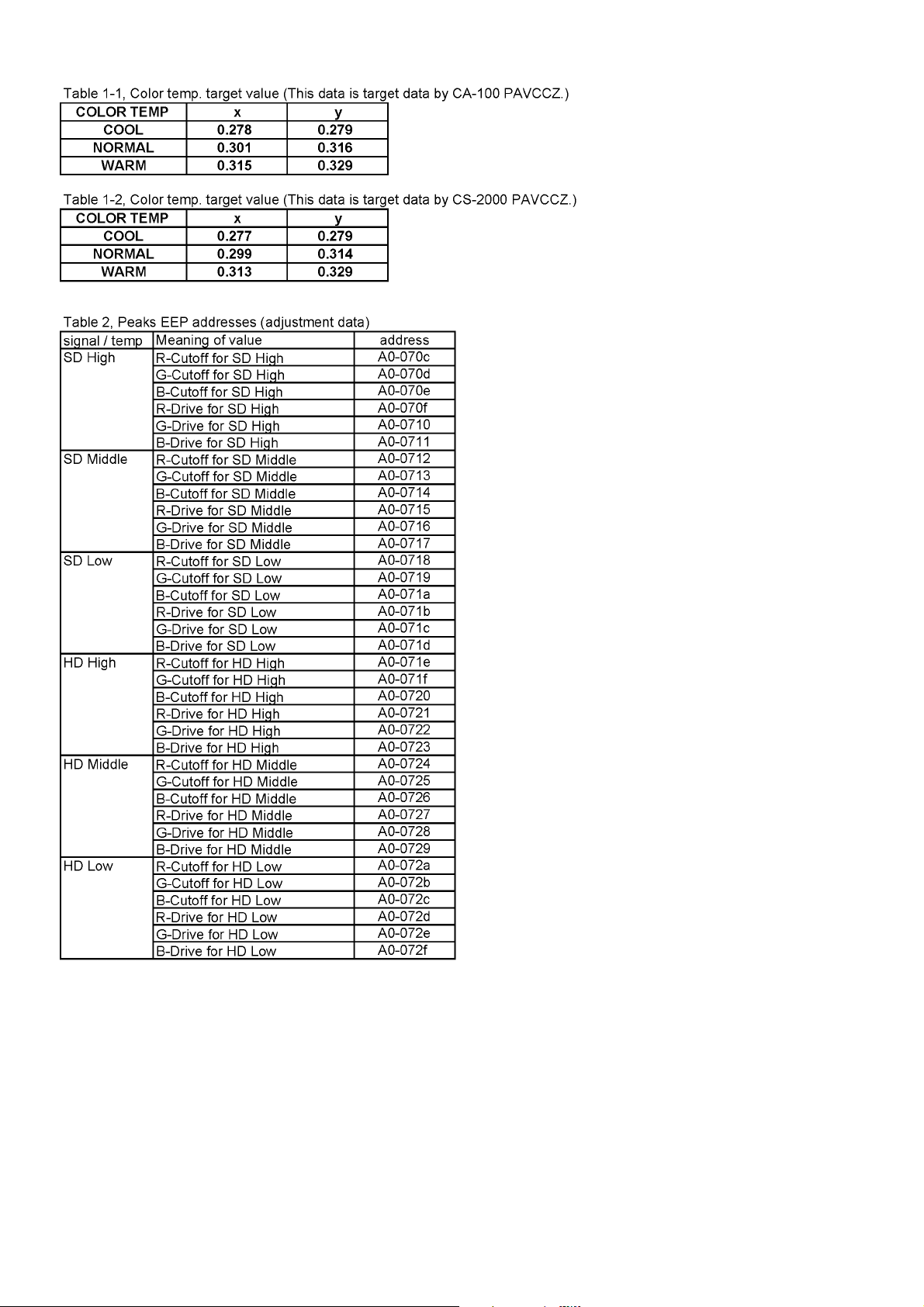

drive so x, y become the [COLOR TEMP COOL] in the below table1.
8. All RGB drive increase so that the maximum drive value of RGB may become [FF].
([ALL-DRIVE] set to [FF].)
9. Set color balance to [NORMAL] using [7] key.
10. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].
11. Set [G-DRIVE] at [D0].
12. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN's x, y become the [COLOR TEMP NORMAL] in
the table 1.
13. All RGB drive increase so that the maximum drive value of RGB may become [FF].
([ALL-DRIVE] set to [FF].)
14. Set color balance to [WARM] using [7] key.
15. Set Picture menu to [CINEMA] using [9] key.
16. A number key [5] is operated and [INNER PATTERN] is displayed.
METHOD=01
copy adjustments
[INNER PATTERN]
17. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].
18. Set [G-DRIVE] at [D0].
19. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN's x, y become the [COLOR TEMP WARM] in the
table 1.
20. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to
[FF].)
21. Confirm [METHOD=01].
Please refer table2-3 to address.
22. Asking matter to execute white balance difference adjustment.
Please feed back the DAC value in the adjusted each color temperature in an internal pattern.
40
Page 41
Steps Remarks
[Differential (Normal) + copy + WARM adjustment]
Adjustment of [COOL], [WARM] by data shift from [NORMAL] adjust.
And only [WARM] is readjusted.
Execute adjustment for color temp. [NORMAL], and set data for color temp. [COOL], [WARM] by data shift WB
of HD (or PAL) copies the adjustment data from an adjusted format side.
Note:
The adjustment does color temp. [NORMAL] first.
A adjustment value difference from [NORMAL] is written to EEPROM as for [COOL] and [WARM] by
operating a [OK] key.
As for WB of HD (or RF), the adjustment data from an adjusted format side is copied simultaneously.
Text color of the adjusted value changes into red -> black at the same time too. And only [WARM] is
readjusted.
1. Enter the Service mode.
Please receive the Analog-RF.
Or, please select CVBS/YUV/HDMI. (No inputting is possible.).
(Forbid Analog-RF with no signal.)
2. A number key [1] or [2] are operated and [WB-ADJ] is displayed.
Check that the color balance is [NORMAL].
3. A number key [0] is operated and select [METHOD=03].
4. A number key [5] is operated and [INNER PATTERN] is displayed.
METHOD=03
Differential (Normal) + copy +
WARM adjustment
[INNER PATTERN]
5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-].
Also, [B-CUTOFF] and [R-CUTOFF] set to [80].
6. Set [G-DRIVE] at [D0].
7. Touch the signal receiver of color analyzer to the highlight window center, and adjust B drive and R drive
so x, y become the [COLOR TEMP NORMAL] in the table 1.
8. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to
[FF].)
9. A number key [0] is operated and select [METHOD=01].
10. Set color balance to [WARM] using [7] key.
11. Set Picture menu to [CINEMA] using [9] key.
12. A number key [5] is operated and [INNER PATTERN] is displayed.
[INNER PATTERN]
13. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].
14. Set [G-DRIVE] at [D0].
15. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN's x, y become the [COLOR TEMP WARM] in the
table 1.
16. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to
[FF].)
17. Confirm [METHOD=01].
METHOD=01
copy adjustment
Please refer table2-3 to address.
41
Page 42
424344
Page 43
Page 44
Page 45

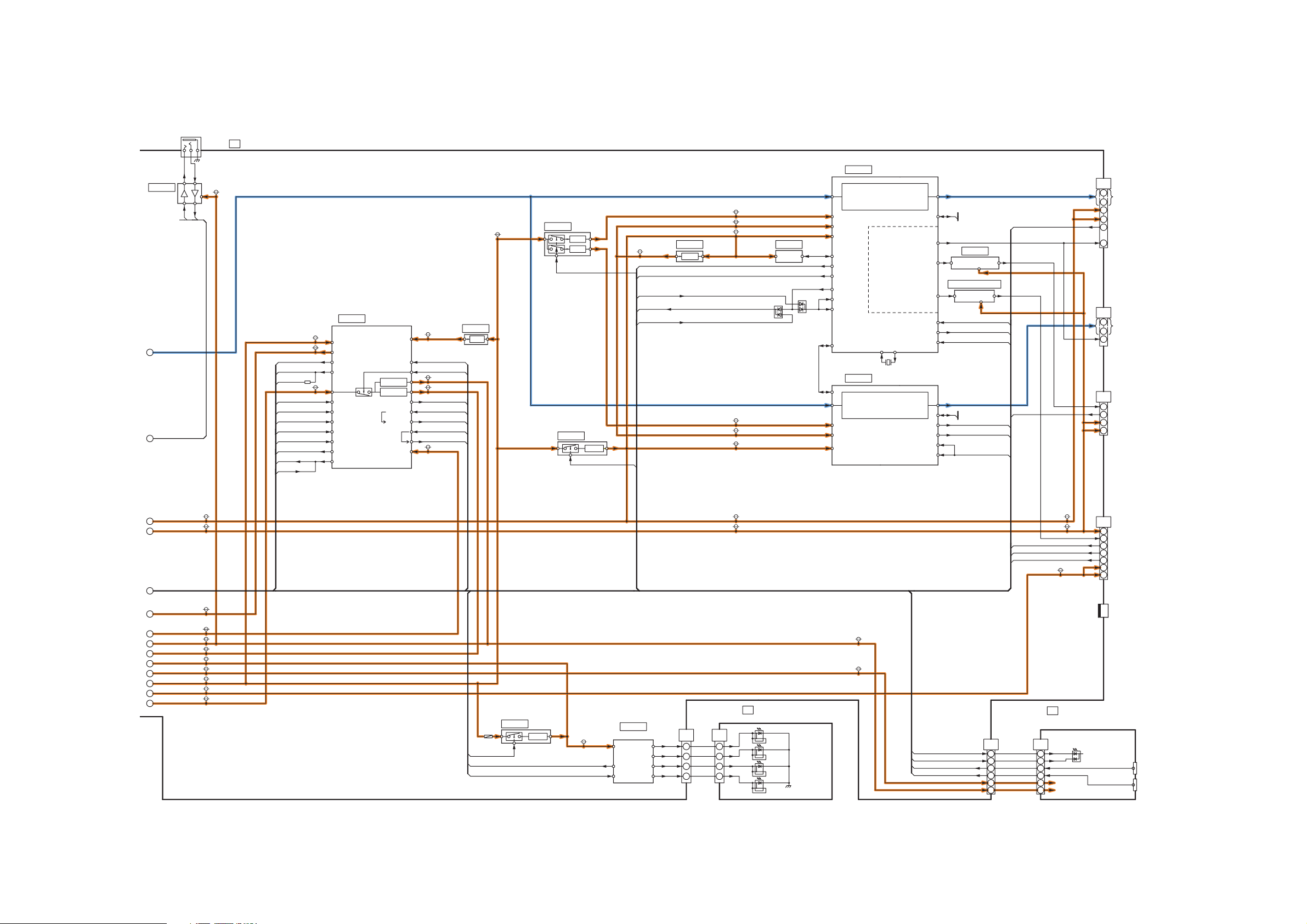

11 Block Diagram
11.1. Main Block Diagram
MAIN AV INPUT,PROCESSING
A
Parallel_
TS(SAT)
SIF_OUT
TUNER
IFD_OUT
V
V/R/G/B
L/R
V OUT
AV1
L/R OUT
COMPONENT
AV2
HEAD_
PHONE
WOOFER
SPEAKER(L)
SPEAKER(R)
SU
Y/PB/PR
V
L/R
HP L/R
A12
A11
SCAN OUT (UPPER)
SCAN
DRIVER
SU11
SD11
SCAN
DRIVER
LOGIC
WO
L
R
AUDIO OUT
DIGITAL
AUDIO OUT
SU41
SD42
SD46
AUDIO
AMP2
AUDIO
SC41
SC42
SC46
AMP
L/R OUT
C1
AV SW
PWMW
PWMS
SC
SCAN DRIVE
SC-BOARD
ENERGY RECOVERY
SOS DETECT
(LED:6 TIMES)
SC-BOARD
FLOATING PART
SOS DETECT
(LED:7 TIMES)
CONTROL
PULSE
VSCAN GEN.
VAD GEN.
DATA DRIVER (RIGHT)
ARC
(HDMI2)
Y/PR/PB
L/R
RGB_CVBS
SOS6_SC1
SOS7_SC2
SCAN CONTROL
HDMI1-4
TMDS DATA
SOUND_SOS DET
(LED:12TIMES)
P+5V
P+15V
VSUS
SC20
SC2
P+3.3V
CI SLOT
CI
BUFFER
NAND
FLASH
C14
Parallel_
TS(CI)
PEAKS
EEPROM
CI DATA
CPU BUS
DVB_CVBS
LO1_L/R
LO2_L/R
HP_L/R
STB5V
STB1.2V
STB3.3V
TUNER5V
SUB9V
SOS6_SC1
SOS7_SC2
A20
SIDE UNIT ASSY
C10
F15V
P+5V
P+15V
SCAN CONTROL
C20
HDMI I/F
RECEIVER
SIF I/F
TUNER I/F
TS I/F
Y/PR/PB
L/R
AV IN
V
CI I/F
CPU BUS
I/F
VDAC
VIDEO OUT
LO1_L/R
AUDIO
LO2_L/R
OUT
HP_L/R
DIGITAL_AUDIO_OUT
ANALOG-ASIC
(LED:9TIMES)
SOS6_SC1
SOS7_SC2
(LED:8TIMES)
OPERATION KEYS
KEY1
P+3.3V
ARC
(HDMI2)
PWMS/PWMW
(LED:6TIMES)
(LED:7TIMES)
SOS8_SS
PWMS/PWMW
SOS_DCC
VIDEO DATA
IECOUT
VDA
PEAKS-LDA3
SPI
FLASH
KEY1
A31
KEY1
C21
LVDS I/F
LVDS DATA
LP1
VIDEO
DATA
P+3.3V
VIDEO DATA
P+3.3V
P+3.3V
(LED:12TIMES)
KEY1
SOUND_SOS
IR_LR
PANEL_SOS
LP1 2ND
DATA DRIVER (CENTER)
C2
VIDEO DATA
STM
VIDEO DATA
A32
(LED:4TIMES)
SOS4_PS
PANEL_SOS
PANEL_MAIN_ON
SUSTAIN
CONTROL
(LED:10TIMES)
(LED:3TIMES)
(LED:5TIMES)
P+3.3V_DET
P+5V_DET
P+5V
P+3.3V
IR LED
DRIVER
SOS4_PS
STB5V
PANEL_MAIN_ON
SOUND15V
P+15V
F15V
SOS8_SS
A40
LAN CON I/F
SD CARD I/F
DDR3 I/F
(LED:11TIMES)
SUB5V_SENSE
SUB3.3V_SENSE
TUNER_POWER_SOS
C.A.T.S_SENSOR
IR_LED_SOS
LED1-4
A6
P+5V
P+5V
SOS8_SS
SUSTAIN CONTROL
VIDEO DATA
P+3.3V
USB I/F
SBO1/SBI1
FAN ON
FAN SOS
LED_R/G
REMOTE_IN
P2
VSUS
SUS
C26
STM
EEPROM
F15V
P6
P64
P63
SUSTAIN
VOLTAGE
CONVERTER
POWER FACTOR
CONTROL
RECTIFIER
C36
DDR3
SUB5V
SUB3.3V
TUNER_POWER_SOS
(LED:10TIMES)
P+1.1V_M
P+1.1V_S
F15V
LEDDRV_5V
USB5V
POWER SUPPLY
P
SOS4_PS
STB5V
PANEL MAIN ON
SOUND15V
P+15V
F15V
STB5V
P+15V
F15V
SOUND15V
P62
P61
P+3.3V
RS232C SBO1/SBI1
DCDC
DCDC
DCDC
TU5V
DCDC
P-BOARD
SOS DETECT
(LED:4TIMES)
Vda
STANDBY
VOLTAGE
CONVERTER
P59
C31
P+1.1V_M
P+1.1V_S
LEDDRV_5V
TUNER5V
USB5V
P60
C3
PROCESS
VOLTAGE
CONVERTER
P56
P55
ETHERPHY
DCDC
SUB3.3V
DCDC
P+3.3V
DCDC
SUB5V
DCDC
SUB1.5V
DCDCIN
SUB1.2V
MAIN
HOTCOLD
POWER
FACTOR
CONTROL
P52
P51
RECTIFIER
RELAY
P9
AC CORD
DATA DRIVER (LEFT)
Vda
VIDEO DATA
RS-232C
DRIVER
FAN ON
SUSTAIN
VOLTAGE
CONVERTER
P57
SUB
F15V
VSUS
SUB3.3V
P+3.3V
P
SUB5V
SUB1.5V
SUB1.2V
P58
ETHERNET DATA
SD CARD DATA
FAN CONT.
FAN_SOS DET
(LED:11TIMES)
SUB1.8V
P+2.5V
P+5V
VSUS
P+15V
VDA
P35
C35
VDA
TXD/RXD
DCDC
DCDC
P11
P34
USB
SUB3.3V
STB3.3V
SUB1.8V
P+2.5V
MAIN SW1
MAIN SW2
ETHERNET
SD CARD
USB_1-3
RS-232C
SS
SS11
A8
FAN_A-C
A1
A14
SUSTAIN DRIVE
VSUS
P+15V
SOS8_SS
P+5V
SS33
K1
V
V14
SS-BOARD
SOS DETECT
(LED:8 TIMES)
VSUS GEN.
VE GEN.
ENERGY RECOVERY
SUSTAIN CONTROL
K
POWER LED
REMOTE RECEIVER
C.A.T.S. SENSOR
SUB3.3V
STB3.3V
3D EYEWEAR
TRANSMITTER
S10
SS2
S
ZA16101
ZA16102
ZA16111
ZA16112
LED_R/G
REMOTE_RECEIVER
C.A.T.S_SENSOR
3D EYEWEAR
TRANSMITTER
SUSTAIN
OUT
(LOWER)
POWER SW
ON
POWER SWITCH
SCAN OUT (LOWER)
SD
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
45
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
Page 46
11.2. Block (1/4) Diagram
JK3003
JK3100
COMPONENT
JK3707
AV2
JK3708
HEADPHONE
JK3709
AUDIO OUT
DIGITAL
AUDIO OUT
SOUND15V
PANEL_MAIN_ON
STB5V_SW_ON
TUNER_SUB_ON
AV1
CN8400
CI SLOT
SOS4_PS
P+15V
STB5V
P_S1
P_S0
F15V
F15V
A
MAIN AV INPUT,PROCESSING
F15V
AV1_VIN
AV1_RED
AV1_GREEN
AV1_BLUE
AV1_LIN
AV1_RIN
AV1_VOUT
AV1_LOUT
AV1_ROUT
AV1_QLINK
PR
PB
Y
RIN
V
LIN
HP_R
HP_L
LOUT
ROUT
DIGITAL AUDIO OUT
Parallel_TS(CI_IN)
Parallel_TS(CI_OUT)
IC8404
CI_5V
A6
15
1
2
3
4
5
7
10
PA2005
11
13
6
CI_POWER_ON
PANEL_MAIN_ON
SOS4_PS
STB5V_SW_ON
TUNER_SUB_ON
STB5V
P_S1
P_S0
V/R/G/B
L/R
VOUT
L/ROUT
COMPONENT
Y/PB/PR
V
L/R
AUDIO OUT
L/ROUT
IIC3
DCDCEN2
DCDCEN
DCDCIN
PA6779
PA6780
AV1
AV2
IC3001
AV SW
9V
F15V
PA5440
DVB_CVBS
5V
SOUND15V
IC8701
IC8100
IC6778
TUNER
RF_CVBS
MAIN
Y/PR/PB
LO1_L/R
LO2_L/R
3.3V
IC5441
IC8709
VCC
VSW
L/R
V
+1.5V
+1.2V
LNB POWER
SUPPLY
SUB5V
+5V
USB5V
+5V
SUB3.3V
+3.3V
SUB1.5V
SUB1.2V
JK4700JK4701
HDMI IN 4HDMI IN 3
HDMI_CEC
5VDET1
TMDS DATA
CLOCK
DDC_IIC0
+5V
HDMI_CEC
HDMI_
5VDET0
+5V
HDMI_
+5V
DDC_IIC3
HDMI_
5VDET3
HDMI_CEC
TMDS DATA
JK4702
HDMI IN 2
CLOCK
ARC
+5V
HDMI_CEC
TMDS DATA
CLOCK
DDC_IIC1
HDMI_
5VDET2
JK4703
HDMI IN 1
TMDS DATA
CLOCK
DDC_IIC2
TMDS DATA CLOCK
DDC_IIC4
Parallel_TS
TU6775
TUNER
1.8V
B2_3.3V
RF
VIDEO
VDD1.0V
FE_XRST
SIF_OUT
IF_AGC
IFD_OUT2
IFD_OUT1
1.0V
IC6777
VDD1.0V
DMD_
IIC0
IC6776
3.3V
P+5V
F15V
IC4701
3.3V
SUB5V
IC4700
HDMI SW
IIC3
ANT IN
B1
DISEQC
IIC3
Q4512
IFD2
TUNER
I/F
RGB_CVBS
DVB_CVBS
Parallel_TS(SAT)
IFD1
IF_AGC
FE_XRST
SIF I/F
Y/PR/PB
L/R
V
LO1_L/R
LO2_L/R
HP_L/R
VDAC
TS I/F
SUB1.5V
VIDEO OUT
AV IN
CI DATA
AUDIO
OUT
IC8200
IC8201
QLINK1
IECOUT
CI I/F
ARC_OFF
DDR3 I/F
DDR3
IC8902
SUB3.3V
PEAKS
EEPROM
D8712
D8713
D8719
D8721
D8711
D8720
IC8900
NAND
FLASH
STB3.3V
IC8403
CI
BUFFER
SUB5V
USB5V
SUB3.3V
SUB5V
SUB3.3V
SUB1.8V
USB5V
IC8702
SUB1.5V
SUB1.2V
F15V
P+15V
STB5V STB5V
+1.8V
TUNER_
POWER_SOS
Q8709
OVERVOLTAGE
DETECTION
Q8711
D8709 D8708
LEDDRV_5V
IIC1
CPU BUS
P+3.3V
CPU BUS
I/F
HDMI3.3V
RX2
IC8706
RX1
RX0
DDC_IIC2
DDC_IIC1
DDC_IIC3
DDC_IIC4
HDMI I/F RECEIVER
VCC
SUB5V
HDMI3.3V
AVDDH
DDC_IIC0
HDMI_5VDET2
HDMI_5VDET3
IC8000
PEAKS-LDA3
SUB3.3V
HDMI_5VDET0
HDMI_5VDET1
SUB1.5V
SUB1.8V
USB I/F
HDMI_CEC
HDMI_CEC_
PULL_ON
SUB1.2VP6STB3.3V
JK8601
IC8602
STM
STB1.2V
USB1
USB SW
XRST
XRSTSTM
XRST
JK8602
USB2
IC8603
USB1VBUS
XRSTSTM
DRVRST
DRVRST
B2_3.3V
F15V
P+15V
JK8603
USB3
USB SW
IC8606
USB2VBUS
LP1_XRSTSYS
TUNER_SUB_ON
LP1_XRSTSYS
TUNER_SUB_ON
SDVOLC
USB SW
SDVOLC
R_LED_ON
R_LED_ON
USB0VBUS
C.A.T.S_SENSOR
G_LED_ON
C.A.T.S
G_LED_ON
JK8301
ETHERNET
REMOTE_IN
REMOTE_IN
PANEL_SOS
IC8601
ETHERPHY
X8600
25MHz
X8300
24.576MHz
AXO
LAN CON
I/F
PANEL_SOS
CI_POWER_ON
PANEL_MAIN_ON
CI_POWER_ON
PANEL_MAIN_ON
KEY1
KEY1
AXI
POWER_DET
POWER_DET
SD DATA:4bit
SD CARD
I/F
SW_OFF_DET
IR_DCDC_ON
SW_OFF_DET
IR_DCDC_ON
CN8600
SD CARD
SD3.3V
SUB3.3V
VDDSD
18V33V
VDDSD1.8V3.3V
IR_LED_SOS
IR_LED_SOS
PA5201
AUDIO AMP
FAN_ON
FAN_ON
FAN_SOS
FAN SOS
FAN ON
IC4900
SOUND15V
SOS4_PS
FAN_SOS
(LED:4TIMES)
(LED:11TIMES)
SOS4_PS
(LED:11TIMES)
FAN CONT.
SPEAKER_L
4
3
A11
L(+)
L(-)
L_OUT
SPEAKER
15V
Q8710
(LED:10TIMES)
SUB5V_SENSE
SUB3.3V_SENSE
TUNER_POWER_SOS
TUNER_POWER_SOS
VJ8702
IC5200
FANVCC
SPEAKER_R
SOS
PWMS L/R
PWMS
SOUND SOS
(LED:12TIMES)
P+5V_DET
P+3.3V_DET
(LED:5TIMES)
P
SUB3.3V
OVER
VOLTAGE
2
1
R(-)
R(+)
R_OUT
SPEAKER
PWMW
LVDS I/F
IIC0
IIC1
IIC3
DMD_
IIC0
SBI0
SBO0
RS-232C
STM
IIC
(LED:3TIMES)
LEDDRV_5V
SOS DET
FAN STOP
D5203
D5202
IC4901
AUDIO AMP2
PWMW
LVDS DATA
SBI1
SBO1
IC8901
STM
EEPROM
STB
IIC
P+3.3V
P+5V
IC2001
TEMP SENSOR
P+5V
SUB9V
SUB3.3V
STB3.3V
STB1.2V
B2_3.3V
F15V
P+15V
STB5V
TP5600
D5201
D5205
D5206
D5207
IIC0
IIC1
IIC3
DMD_
IIC0
SBI0
SBO0
A8
A12
15V
IIC3
FAN A-C
WOOFER
RS-232C
3
WO(+)
SOS
1
WO(-)
OUT
WOOFER
STB3.3V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
46
Page 47
11.3. Block (2/4) Diagram
JK3851
RS-232C
MAIN AV INPUT,PROCESSING
A
RXD
TXD
RS-232C
SBI1
SBO1
STB3.3V
IC3851
RS232C
DRIVER
1
2
LVDS DATA
RS-232C
SUB9V
DCDCEN0
DCDCEN2
XRST
STB5V
SOS6_SC1
SOS7_SC2
SOS8_SS
SOS_DCC_M
SOS_DCC_S
PANEL_SOS
POWER_DET
SW_OFF_DET
F15V
IC5000
DTV15V
SUB9V
DCDC_CTL
DTV_RST
SOS6_SC1
(LED:6TIMES)
SOS7_SC2
(LED:7TIMES)
SOS8_SS
(LED:8TIMES)
SOS_DCC_M
(LED:9TIMES)
SOS_DCC_S
(LED:9TIMES)
PANEL_SOS
POWER_DET
ANALOG-ASIC
SD_UHS
STB+3.3V
STB+1.2V
STBRST
DRVRST_
IN
DRVRST_
OUT
UHZ
BUFF_EN
SUB5V
TUNER5V
SDVOLC
STB5V_SW_ON
STB3.3V
STB1.2V
XRSTSTM
DRVRST
PDP_DRVRST
SC_UHZ
D_UHZ
SUB3.3V
IC4800
TU5V
F15V
IC9860
DCDCEN
IC8707
P+1.1V_S
P+1.1V_M
+1.1V
+1.1V
DCDCEN
P+3.3V
+3.3V
P+2.5V
P_S0
P_S1
LP1_XRSTSYS
DCDCEN
DCDCEN0
IC8704
+2.5V
P+1.1V_S
P+2.5V
P+3.3V
P+1.1V_M
P+2.5V
P+3.3V
D9807
IC9304
SPI
FLASH
LVDS DATA
D9806
LVDS DATA
SI/SO
SBI1
SBO1
IC9300
PLASMA AI
CPG
H/V Sync Control
Sub Filed Processor
1.1V_S
2.5V
3.3V
FLASH I/F
P_S0
P_S1
OFF_FLAG
XRST
XRSTSYS
IC9500
PLASMA AI
CPG
H/V Sync Control
Sub Filed Processor
1.1V_M
2.5V
3.3V
LP1
DISCHARGE CONTROL
DATA DRIVER CONTROL
SUSTAIN CONTROL
X1X0
X9300
LP1 2ND
SCAN CONTROL
SOS_DCC_S
PDP_DRVRST
DCC_SOS_M
XRSTSYS
IR_LR
XRST
C21
A31
VIDEO DATA
IIC0
IC9501
SUSTAIN DATA
BUFFER
KEY1
14
VIDEO DATA
52
1
P+3.3V
2
P+3.3V
4
KEYSCAN
DATA DRIVER CONTROL
IC9400,01,02
SCAN DATA
BUFFER
A32
C31
2
VIDEO DATA
40
DATA DRIVER CONTROL
A40
SS33
SUSTAIN CONTROL
1
SOS8_SS
19
P+5V
20
P+5V
IIC0
D_UHZ
SOS_DCC_S
PDP_DRVRST
SOS8_SS
IR_LR
SOS_DCC_M
LP1_XRSTSYS
UHZ
VIDEO DATA
3
4
5
6
7
8
9
10
11
12
13
14
P+3.3V
SUB9V
SUB3.3V
STB3.3V
STB1.2V
LEDDRV_5V
B2_3.3V
P+15V
STB5V
P+5V
F15V
PA5900
IR_DCDC_ON
IR_LED_SOS
IR_LR
IC5900
LEDDRV5V
+5V
LEDDRV_5V
IC5901
IR LED DRIVER
VBAT
FAULT
PWM
LED1
LED2
LED3
LED4
A14
LED1
2
LED2
3
LED3
4
LED4
5
P+3.3V
P+5V
STB3.3V
B2_3.3V
V
3D EYEWEAR
TRANSMITTER
V14
2
3
4
5
D2850
D2851
D2852
D2853
3D EYEWEAR
TRANSMITTER
G_LED_ON
R_LED_ON
C.A.T.S
REMOTE_IN
A1
8
6
2
5
1
3
G_LED_ON
R_LED_ON
C.A.T.S
REMOTE_IN
SUB_AI3.3V
STB3.3V
SC_UHZ
SOS6_SC1
SOS7_SC2
P+3.3V
P+5V
K
K1
8
6
2
5
1
3
P+15V
CN0100
IIC0
IIC1
STM_IIC
SBO0/SBI0
POWER LED
REMOTE RECEIVER
C.A.T.S. SENSOR
D2820
POWER LED
G
R
A20
1
18
15
16
29
30
SC20
P+5V
SCAN CONTROL
UHZ
SOS6_SC1
SOS7_SC2
P+15V
P+15V
FOR
FACTORY
USE
SN2810
C.A.T.S SENSOR
RM2810
REMOTE
RECEIVER
47
Page 48

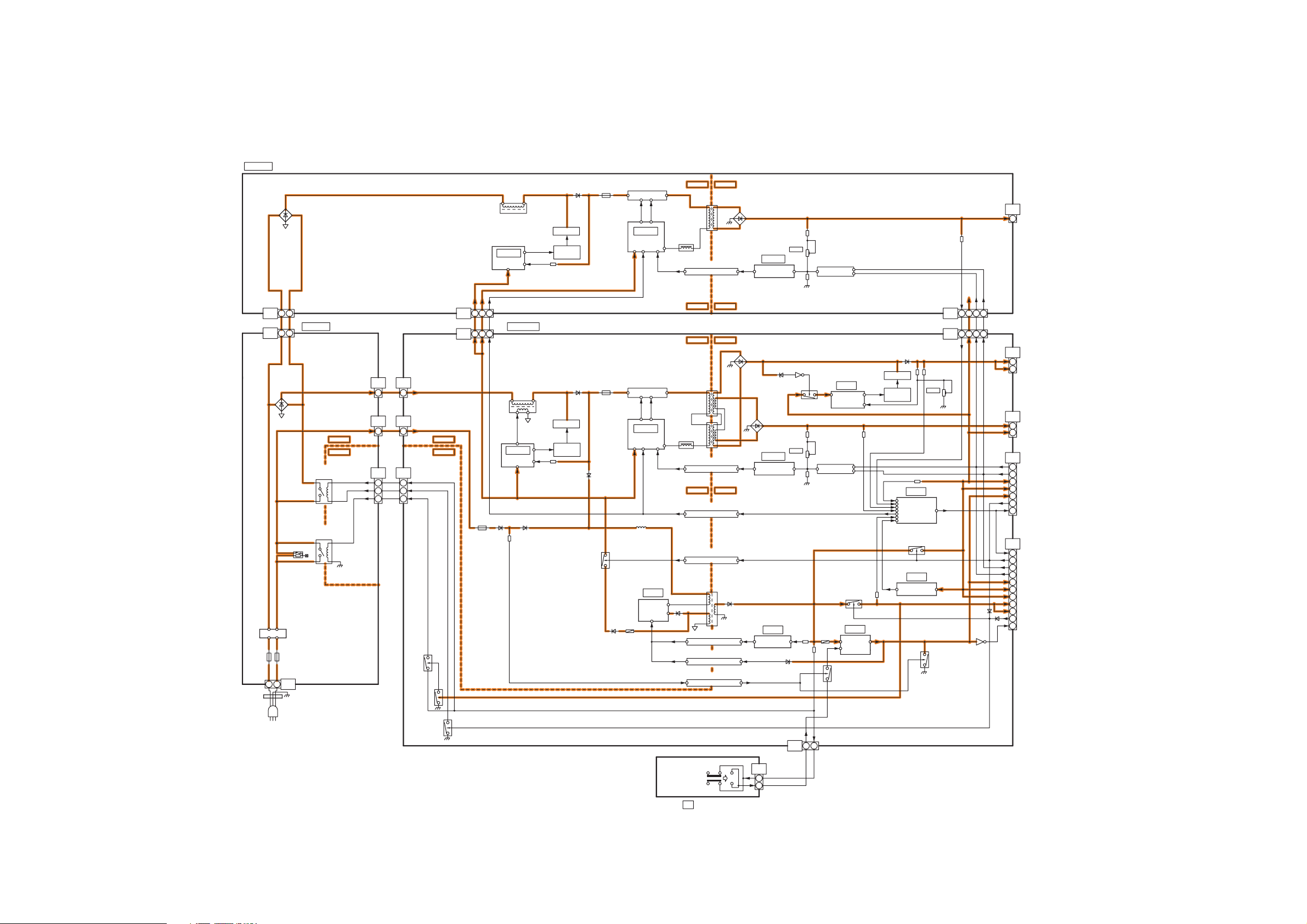

11.4. Block (3/4) Diagram
P(SUS)
RECTIFIER
POWER SUPPLY
I201B
PFC
L201B
Q201B
Q202B
Q203B
CONTROL
FET
DRIVER
D201B
F301B
Q301B,Q302B
RESONANCE
VGH
I301B
RESONANCE
CONTROL
VCC
COLDHOT
T301B
VGL
L301B
CSS
FB
I302B
PHOTO COUPLER
D351B
RECTIFIER
Vsus
ERROR DET
I351B
Vsus
VR951
Q701B,Q702B
Vsus Adj
P2
SC2
1
Vsus
F102
NEUTRAL
NEUTRAL
P59
P60
FILTER
RECTIFIER
1
1
F101
LIVE
2
AC CORD
LIVE
3
P(SUB)
RELAY
S101
234
1
RELAY
S102
POWER SUPPLY
HOT
COLD
4
P52
P51
3
P56
P55
3
3
P57
P58
1
1
2
2
4
4
HOT
COLD
331
2
3
1
P61
P(MAIN)
23
1
P62
I201A
F103
L201A
L202A
PFC
POWER SUPPLY
D201A
D202A
Q201A
Q202A
CONTROL
Q203A
Q204A
FET
DRIVER
F301A
Q301A,Q302A
RESONANCE
VGH
I301A
RESONANCE
CONTROL
VCC
L401
VGL
L301A
FB
CSS
R103
123
Q501
COLDHOT
COLDHOT
T301A
T302
I302A
PHOTO COUPLER
COLD
HOT
I602
PHOTO COUPLER
I501
PHOTO COUPLER
D352
RECTIFIER
ZD352
D351A
RECTIFIER
I351A
Vsus
ERROR DET
Q374
Vsus
VR251
Q354
Vda
CONTROL
Q701A,Q702A
Vsus Adj
I352
Q376
Q377
Q375
CONTROL
FET
DRIVER
D354
I651
ERROR DET
P+15V
Q454
VR600
Vda
I453
D404
AC DET
T401
I402
PHOTO COUPLER
I603
PHOTO COUPLER
I101
PHOTO COUPLER
D451
D459
F_STBY
ERROR DET
STB+5V DET
I451
ZD652
I401
STB
CONTROL
F501
L101
L103
D501
Q565
P9
F_STBY(F15V)
F451
Q451
I455
STB+5V
Q457
ERROR DET
Q459,60
P+15V
3
2
P63
443
211
P64
C35
P35
1
Vda
2
Vda
P11
SS11
1
Vsus
4
P+15V
NO USE
P25
7
S0
8
S1
1
P+15V
2
P+15V
5
STB+5V
9
PANEL_MAIN_ON
10
SOS_PS
A6
P6
4
SOS4_PS
1
PANEL_MAIN_ON
2
S1
3
S0
6
STB+5V
13
P+15V
15
SOUND+15V
10
F+15V
11
F+15V
7
F_STABY_ON
5
Q458
STBY5V_ON
Q555
Q462
3
1
P34
48
SW2890
POWER SWITCH
S
ON
POWER SWITCH
S10
MAIN SW1
3
MAIN SW2
1
Page 49
11.5. Block (4/4) Diagram
SC
SCAN DRIVE
P2
SC2
1
Vsus
IC16501
CMH
BUFFER
SUSTAIN H
IC16502
CSH
BUFFER
RECOVERY H
IC16522
CSL
BUFFER
RECOVERY L
SCAN
CONTROL
SIDE UNIT ASSY
F
+
-+-
TV
AV
DATA DRIVER (RIGHT)
CB1
CB2
Q16451
Q16452
SCAN CONTROL
OPERATION KEYS
A20
P+15V
P+15V
P+5V
SOS6
SOS7
SC
20
7
6
18
UHZ
35
21
20
C1
TPVSUS
CPH1
MID
(LED:6 TIMES)
(LED:7 TIMES)
CB3
Q16401
Q16402
Q16403
Q16404
CML
Q16441
Q16442
Q16443
D16583
LED(G)
TPSOS6
TPSOS7
IC16684
BUFFER
VOL
IC16521
BUFFER
SUSTAIN L
D16493
C14
IC16561,62
BUFFER
IC16563
INVERTER
IC16564,65
2
D16618
Q16607
CERS
IC16490,91
VSET DET
OR
IC16471
SHUNT
REG
C10
36
38
27
VIDEO DATA
9
CONTROL DATA
4
1
Q16421
Q16422
Q16423
Q16424
KEY1
P+3.3V
SS
SUSTAIN DRIVE
CML
CMH
CSH
CSL
CRC1
Q16600
Q16601
Q16621
Q16622
Q16623
Q16624
CPH1
CIS
CERS
CEL
CRC2
CIS
SEPA
SIU
OC1
OC2
CLK
SEL
Q16471
C2
VFG
D16791
CRC1
CRC2
CEL
IC16786,87
PC16723
IPD CIRCUIT
VSCN GEN.
SHUNT REG
IC16795
D16475
D16476
D16473
SCNR_PRO
DATA DRIVER (CENTER)
IC16784,85
PC16897
IPD CIRCUIT
VAD GEN.
SHUNT REG
IGBT CONTROL
F15V
IC16921
CEL
T16472
T16471
IC16691
D16713
D16714
D16728
IC16724
+5V
(SC)
A31
C21
NAND
VFG
KEYSCAN
52
42
TPVAD
Q16661
TPVFG
Q16660
TPSC1
D16825
5V_F
VIDEO DATA
24
22
VIDEO DATA
CONTROL DATA
4
SS
P11
11
1
SU
SCAN OUT (UPPER)
SC
SU
41
ZA16422
ZA16421
ZA16412
ZA16411
VFO
41
2
2
6
6
8
8
1
1
SD
SC
42
42
6
6
2
2
1
1
8
8
9
9
SD
SC
46
46
SD
VF5V
VSCN-F
VFO
CHA
VF5V
VSCN_F
SIU
OC1
OC2
CLK
SEL
CHA
VFG
SC
1
2
50
SC JIG
P+3.3V
P+3.3V
55
54
IC14601-03
ZA14901
IC14604-06
ZA14902
SU1-SU5
PLASMA PANEL
PANEL SCAN
ELECTRODE
SD1-SD5
ZA14951
ZA14952
IC14801-03
IC14804-06
SCNR_PRO
CHA
LOGIC IC
IC14901,02,04
SCAN OUT (LOWER)
PDP SCAN
DRIVER
PDP SCAN
DRIVER
PDP SCAN
DRIVER
PDP SCAN
DRIVER
SU
11
SD
11
SUSTAIN CONTROL
P+15V
SOS8_SS
Vsus
A40
P+5V
P+5V
4
UMH
MAIN H
IC16131
BUFFER
IC16151
BUFFER
USH
RECOVERY H
D16254
LED(G)
RECOVERY L
IC16152
BUFFER
USL
IC16132
BUFFER
UML
MAIN L
IC16191
IC16243
INV
IC16244
AND
SS
33
IC16241
1
2
BUFFER
20
D16255
TPSOS8
(LED:8 TIMES)
VIDEO DATA
A32
16
54
C31
UEH
USL
USH
UML
UMH
CONTROL DATA
UEH
BUFFER
IC16304,12
PC16301
IPD CIRCUIT
VE GEN.
SHUNT REG
D16282
FPC PROTECTOR
C3
DATA DRIVER (LEFT)
Q16001
Q16003
Q16004
Q16041
Q16042
MID
Q16051
Q16052
Q16021
Q16022
Q16023
Q16101
Q16102
TPVE
TPVSUS
TPSS1
SS2
ZA16106
ZA16116
SUSTAIN OUT
(LOWER)
ZA16102
ZA16112
ZA16101ZA16111
SS
64
1
2
13
SS
65
1
2
13
SS
66
PLASMA
PANEL
1
PANEL
2
SUSTAIN
ELECTRODE
13
SS
69
1
2
13
C20
5
3
14
32
VDA
37
VDA
40
CB4
CB5
CB6
CB7
BUFFER
IC17201,02
CB8
CB9
C26
P+3.3V
26
P+3.3V
25
5
1
VIDEO DATA
15
VIDEO DATA
23
C36
5
6
VDA
26
VDA
30
16
8
CB
10
CB
11
BUFFER
CB
12
IC17301
P35
C35
1
VDA
2
VDA
CB
13
CB
14
CB
15
DATA DRIVER
PLASMA PANEL
DATA DRIVER
DATA DRIVER
49
Page 50
50
Page 51
12 Wiring Connection Diagram
12.1. Caution statement.
Caution:
Please confirm that all flexible cables are assembled correctly.
Also make sure that they are locked in the connectors.
Verify by giving the flexible cables a very slight pull.
12.2. Wiring (1)
51
Page 52
12.3. Wiring (2)
52
Page 53
12.4. Wiring (3)
53
Page 54
12.5. Wiring (4)
54
Page 55
Model No. : TX-P65VT30E/J Schematic Diagram Note
S-1
Page 56

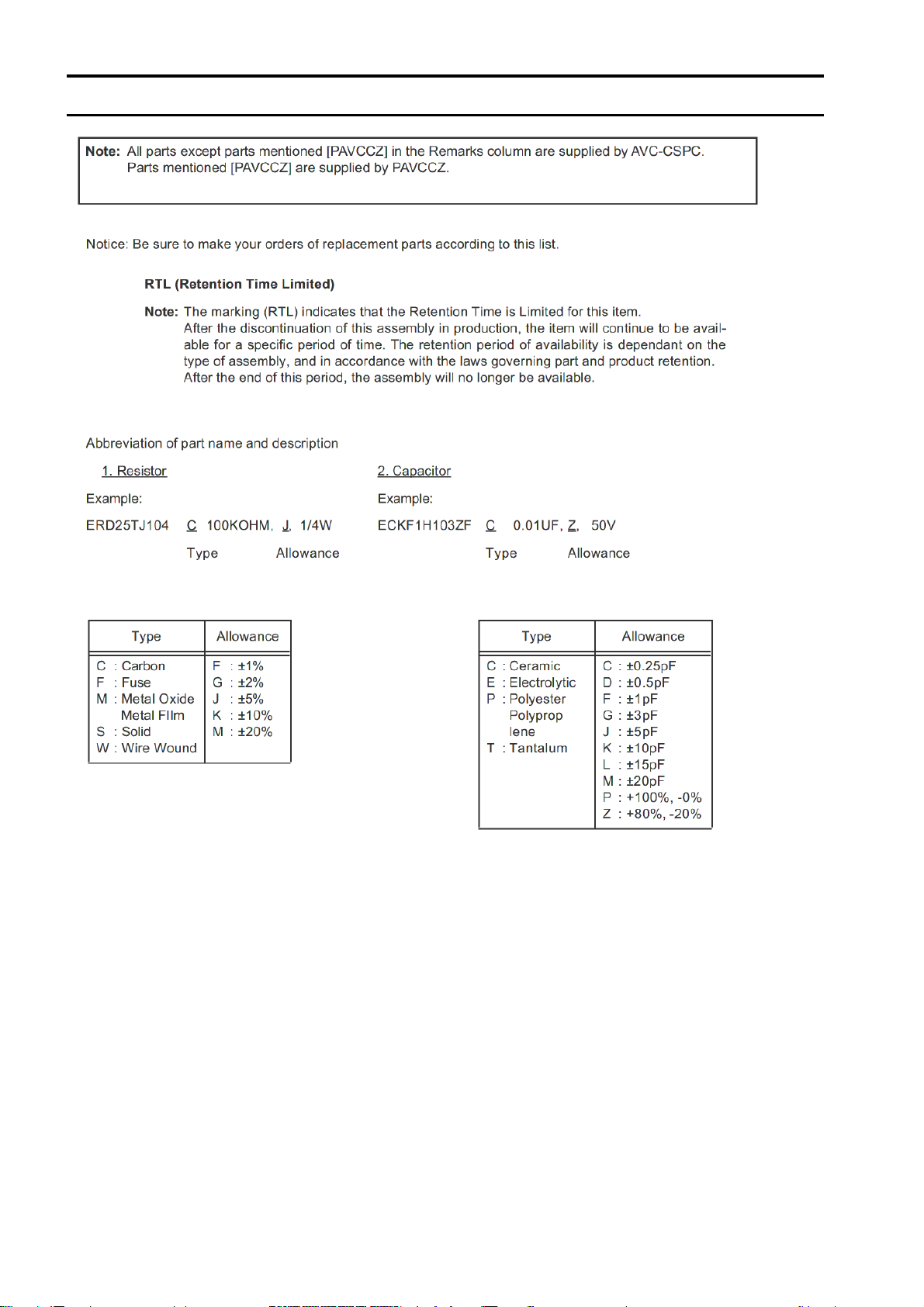

Model No. : TX-P65VT30E/J Replacement Parts List Note
S-2
Page 57

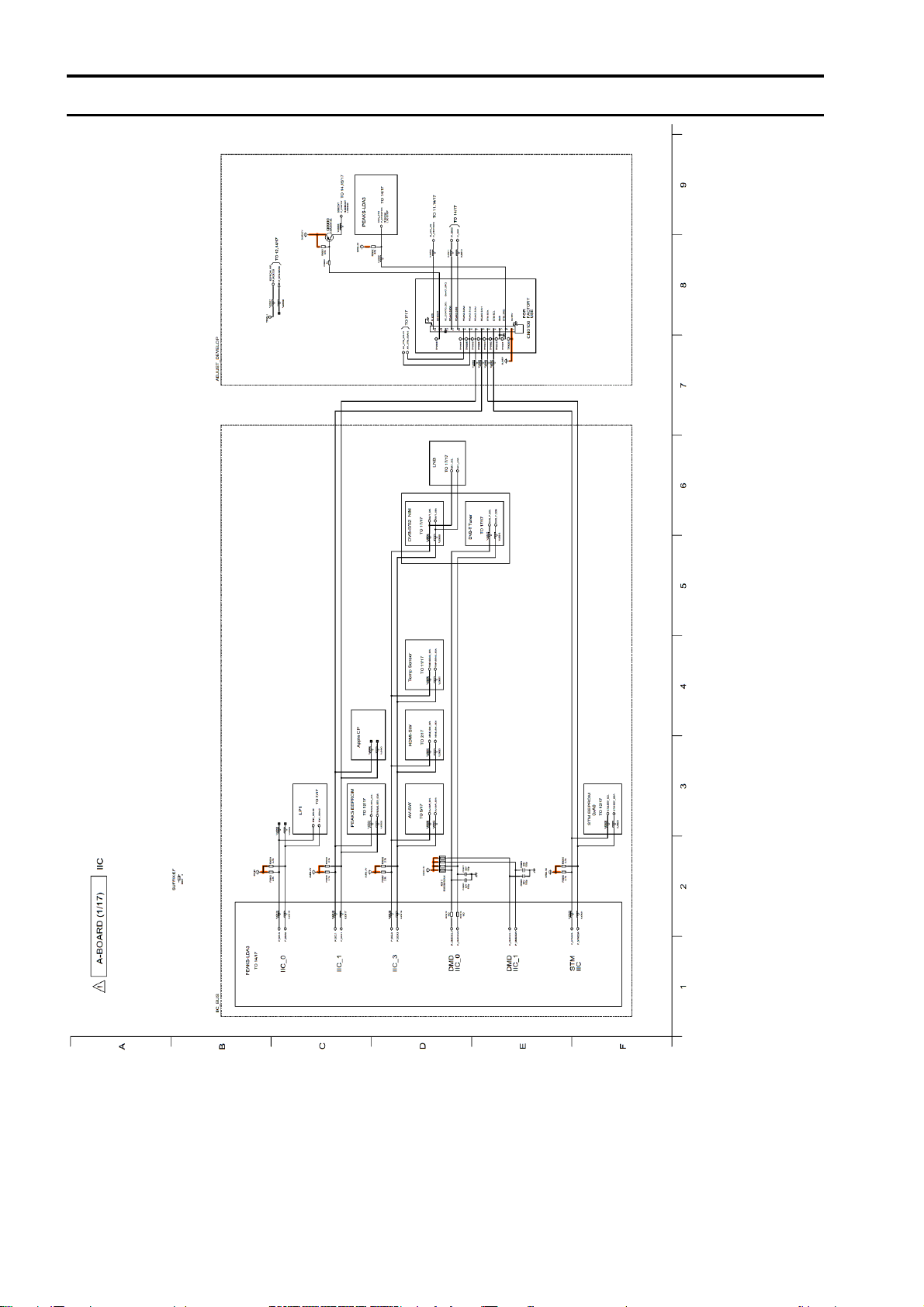

Model No. : TX-P65VT30E/J A-Board (1/17)
S-3
Page 58
Model No. : TX-P65VT30E/J A-Board (2/17)
S-4
Page 59
Model No. : TX-P65VT30E/J A-Board (3/17)
S-5
Page 60
Model No. : TX-P65VT30E/J A-Board (4/17)
S-6
Page 61

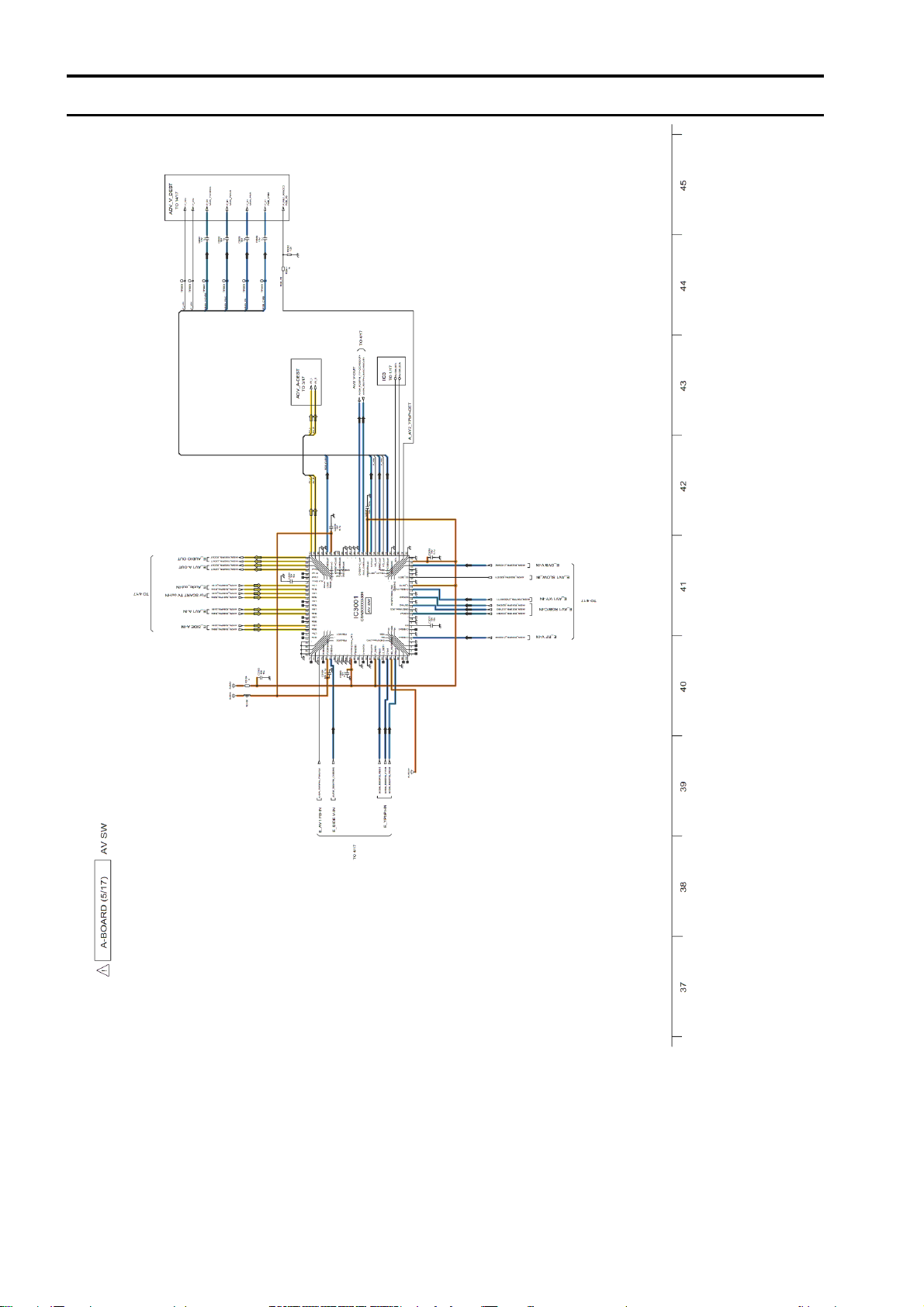

Model No. : TX-P65VT30E/J A-Board (5/17)
S-7
Page 62
Model No. : TX-P65VT30E/J A-Board (6/17)
S-8
Page 63

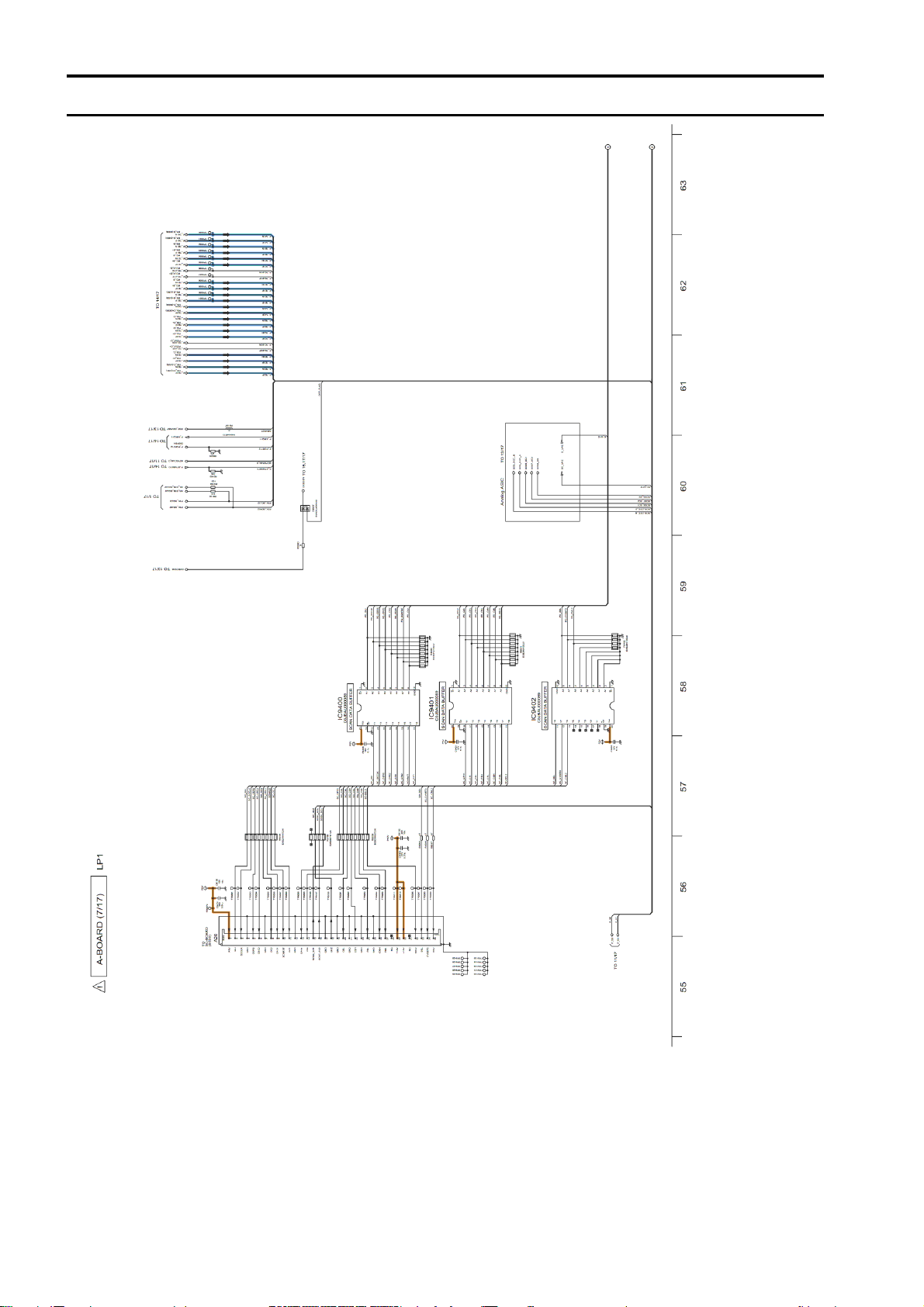

Model No. : TX-P65VT30E/J A-Board (7/17)
S-9
Page 64

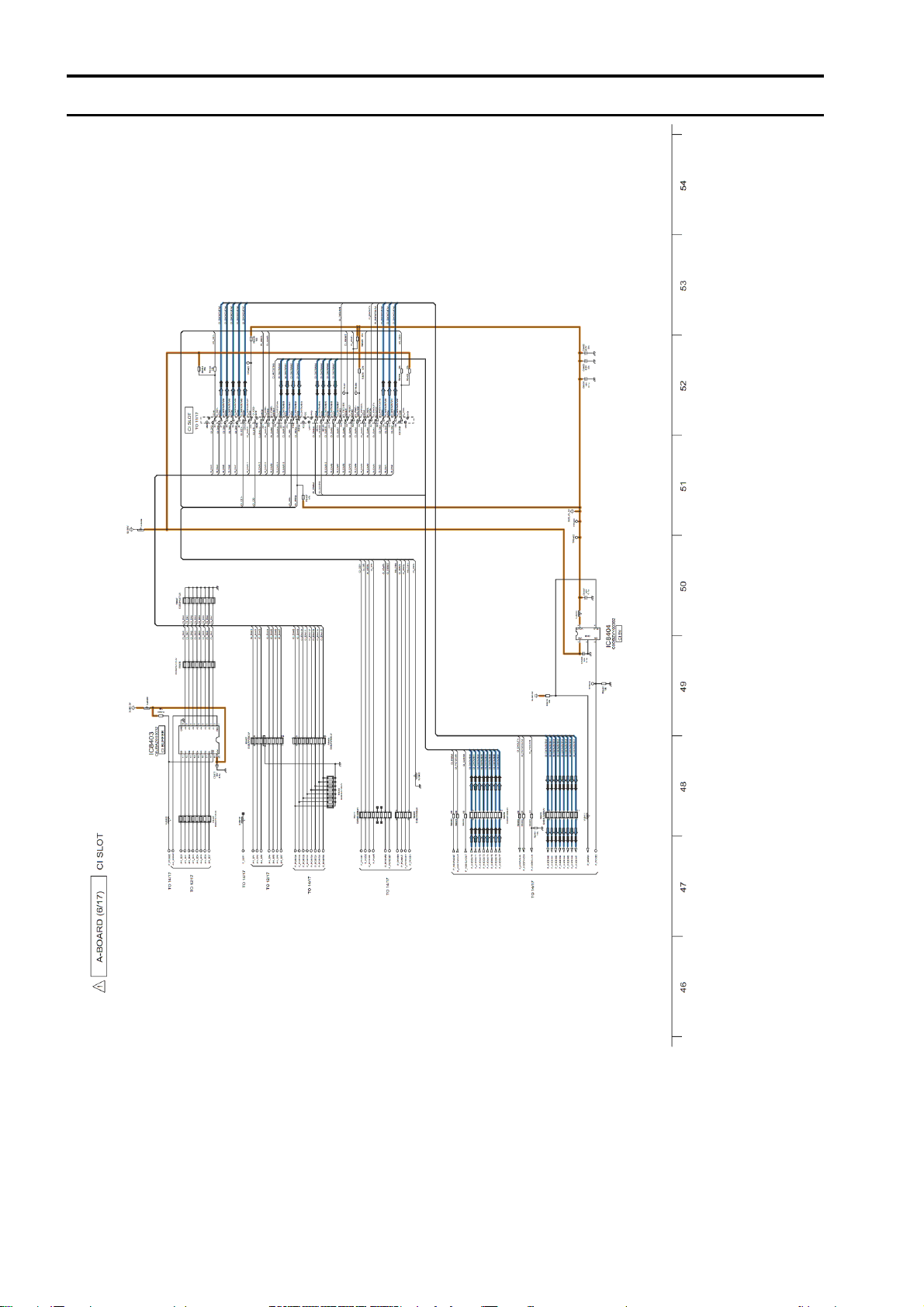

Model No. : TX-P65VT30E/J A-Board (8/17)
S-10
Page 65

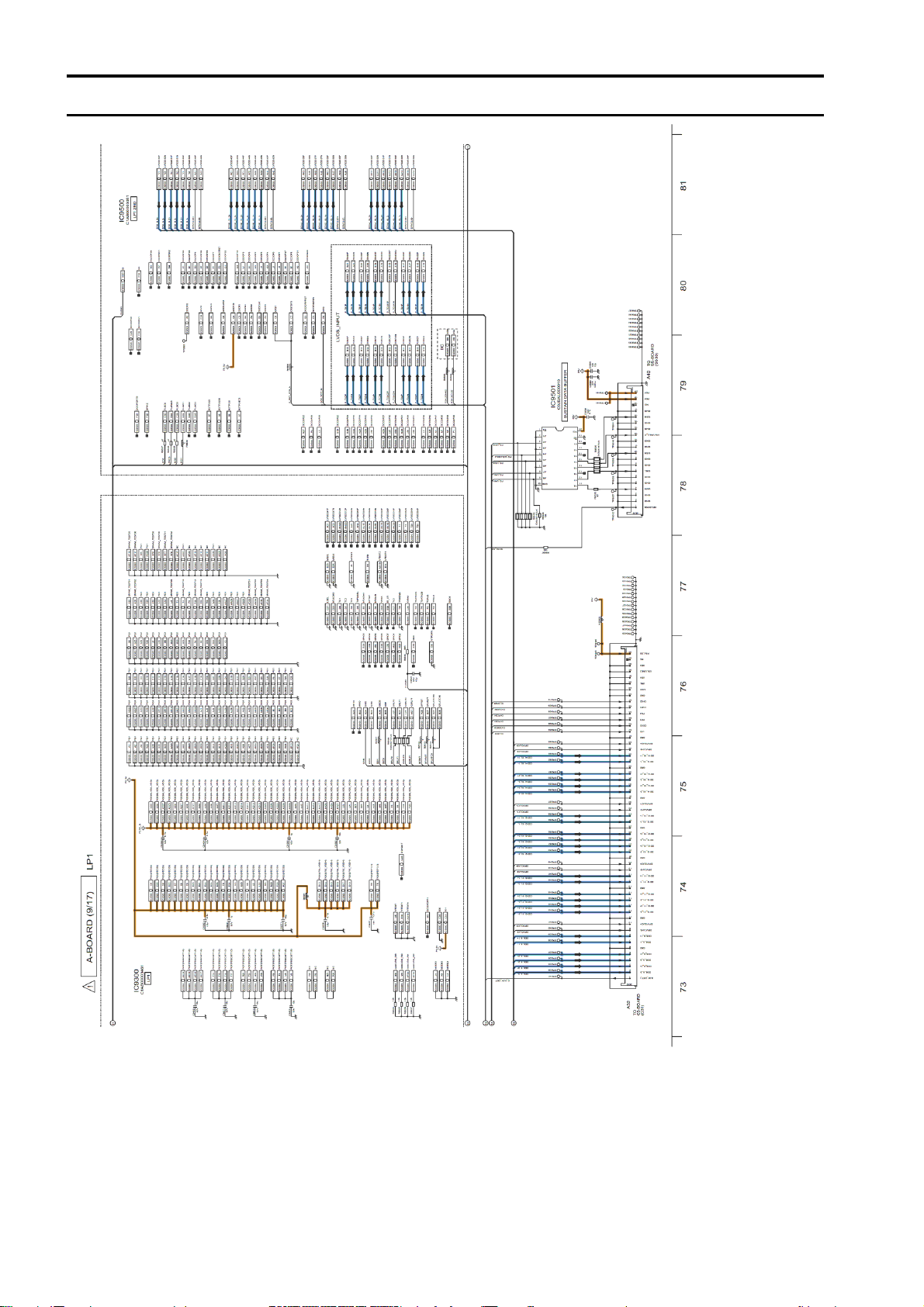

Model No. : TX-P65VT30E/J A-Board (9/17)
S-11
Page 66
Model No. : TX-P65VT30E/J A-Board (10/17)
S-12
Page 67

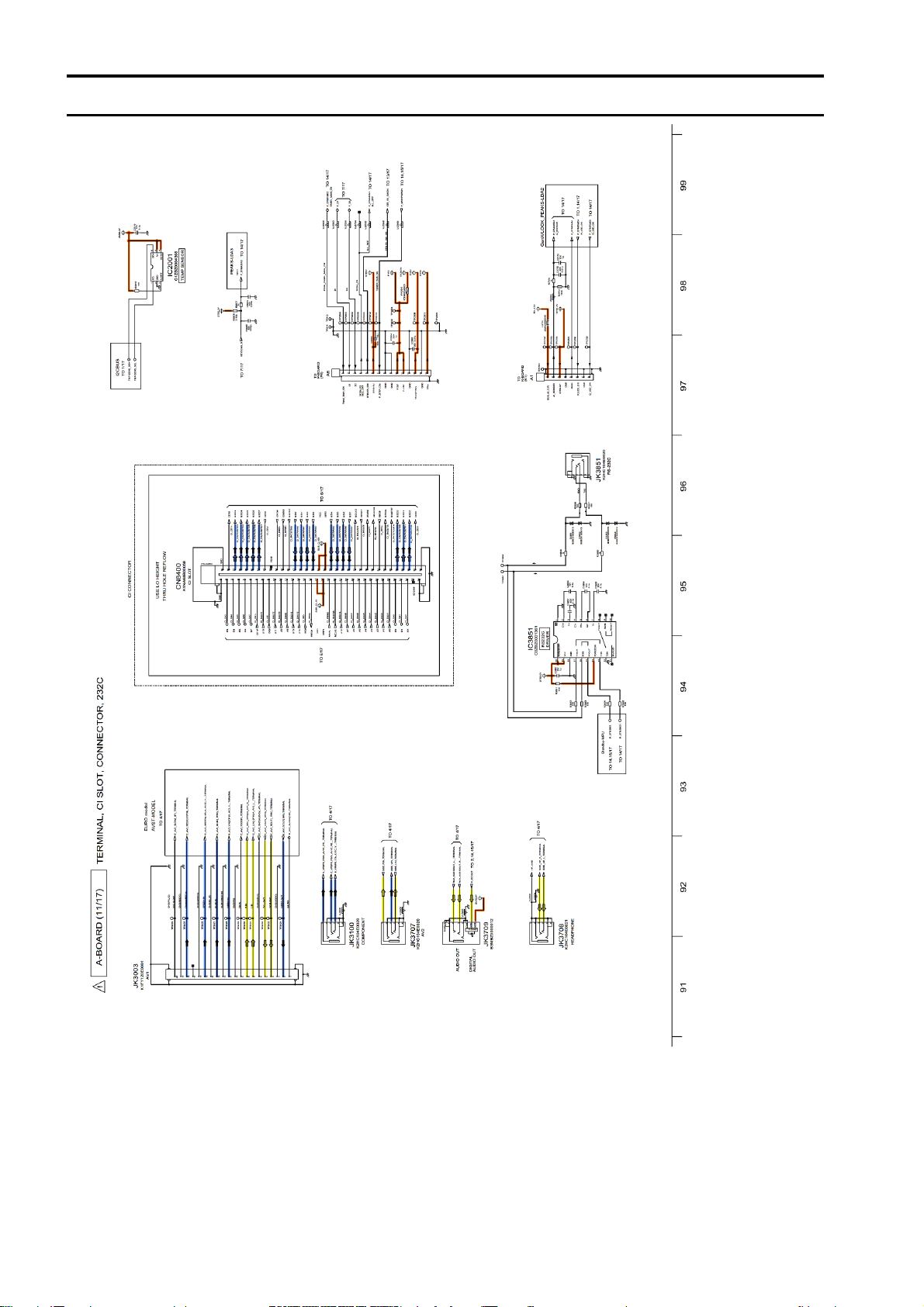

Model No. : TX-P65VT30E/J A-Board (11/17)
S-13
Page 68
Model No. : TX-P65VT30E/J A-Board (12/17)
S-14
Page 69
Model No. : TX-P65VT30E/J A-Board (13/17)
S-15
Page 70
Model No. : TX-P65VT30E/J A-Board (14/17)
S-16
Page 71
Model No. : TX-P65VT30E/J A-Board (15/17)
S-17
Page 72

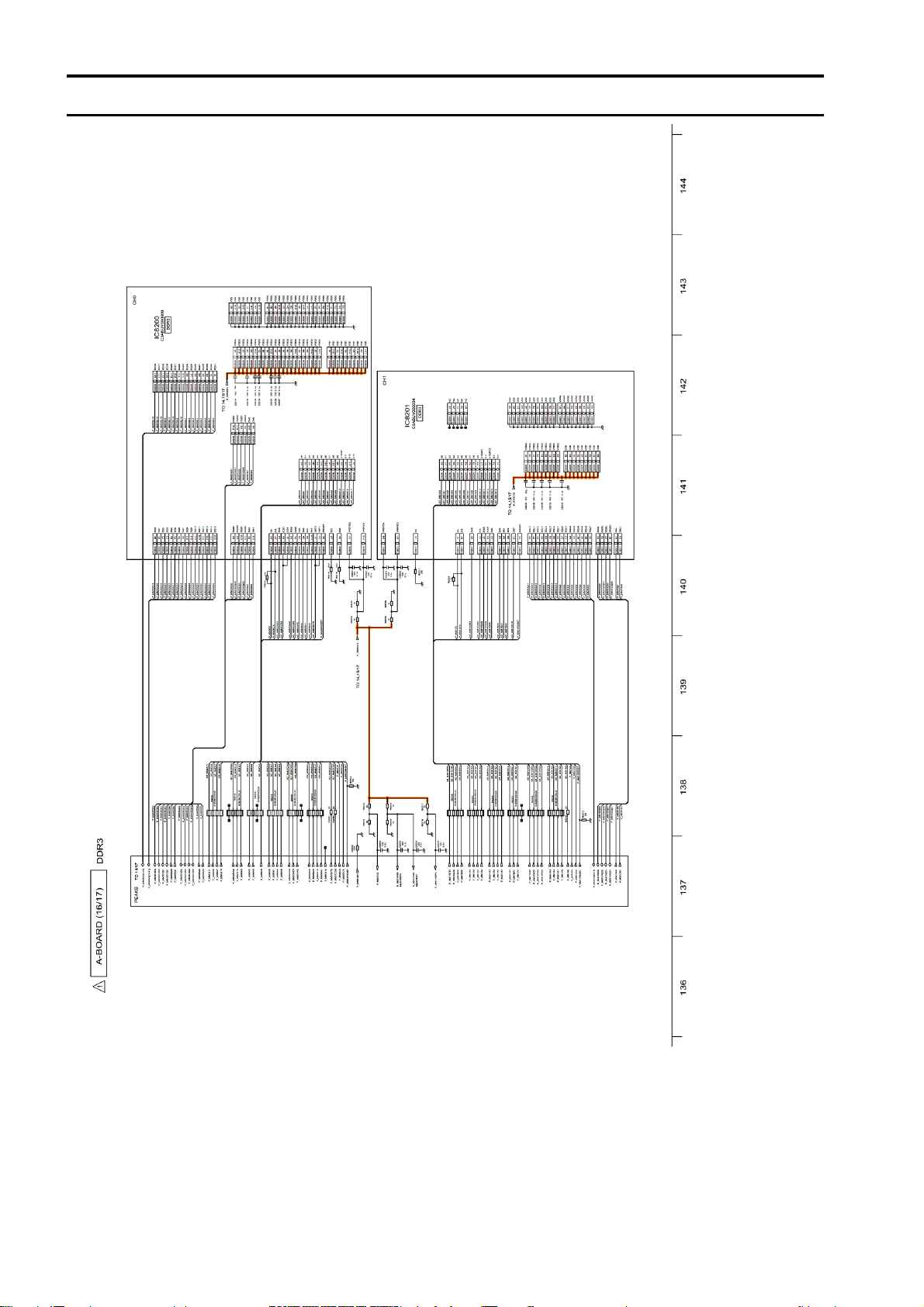

Model No. : TX-P65VT30E/J A-Board (16/17)
S-18
Page 73
Model No. : TX-P65VT30E/J A-Board (17/17)
S-19
Page 74

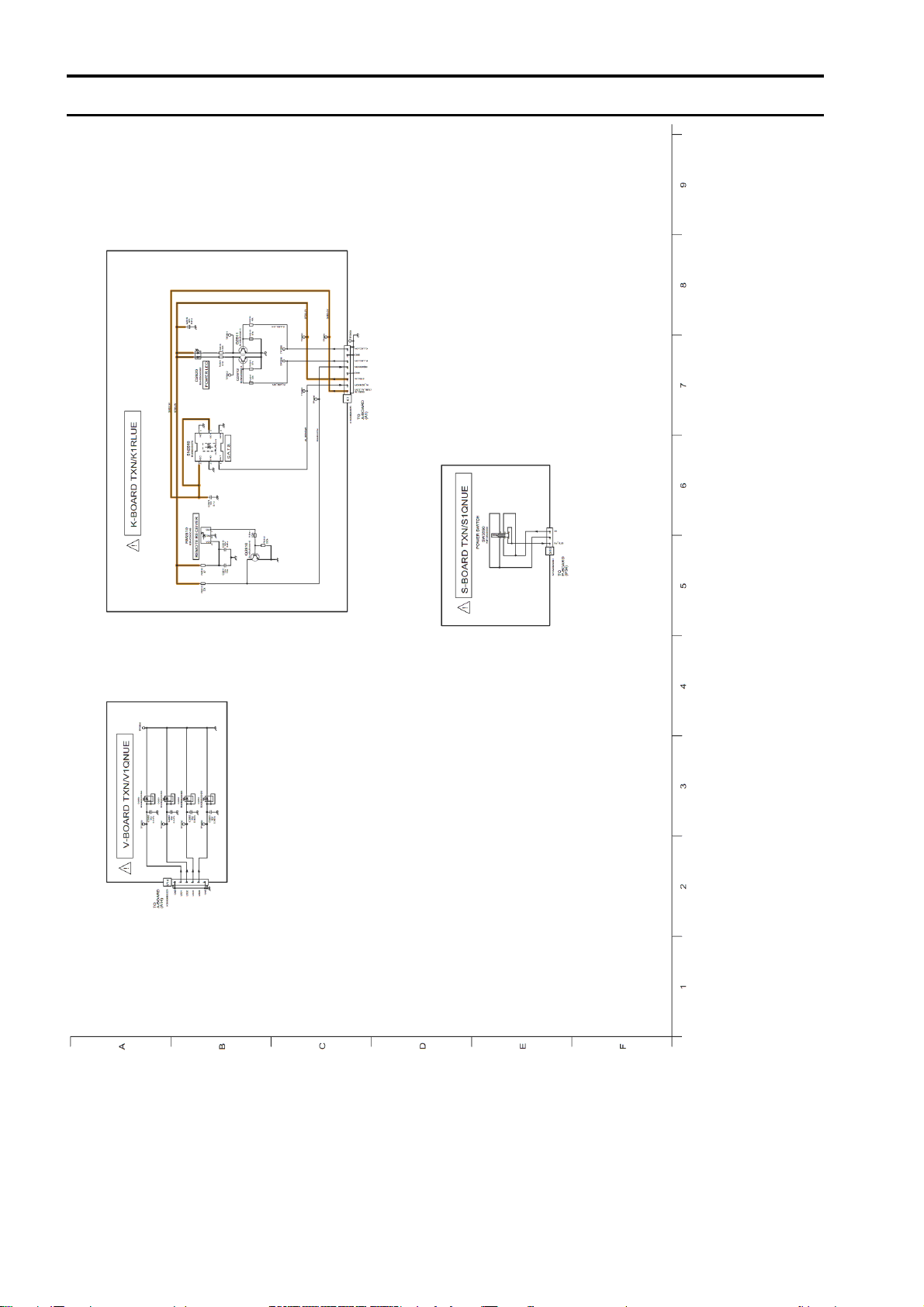

Model No. : TX-P65VT30E/J K, S and V-Board
S-20
Page 75

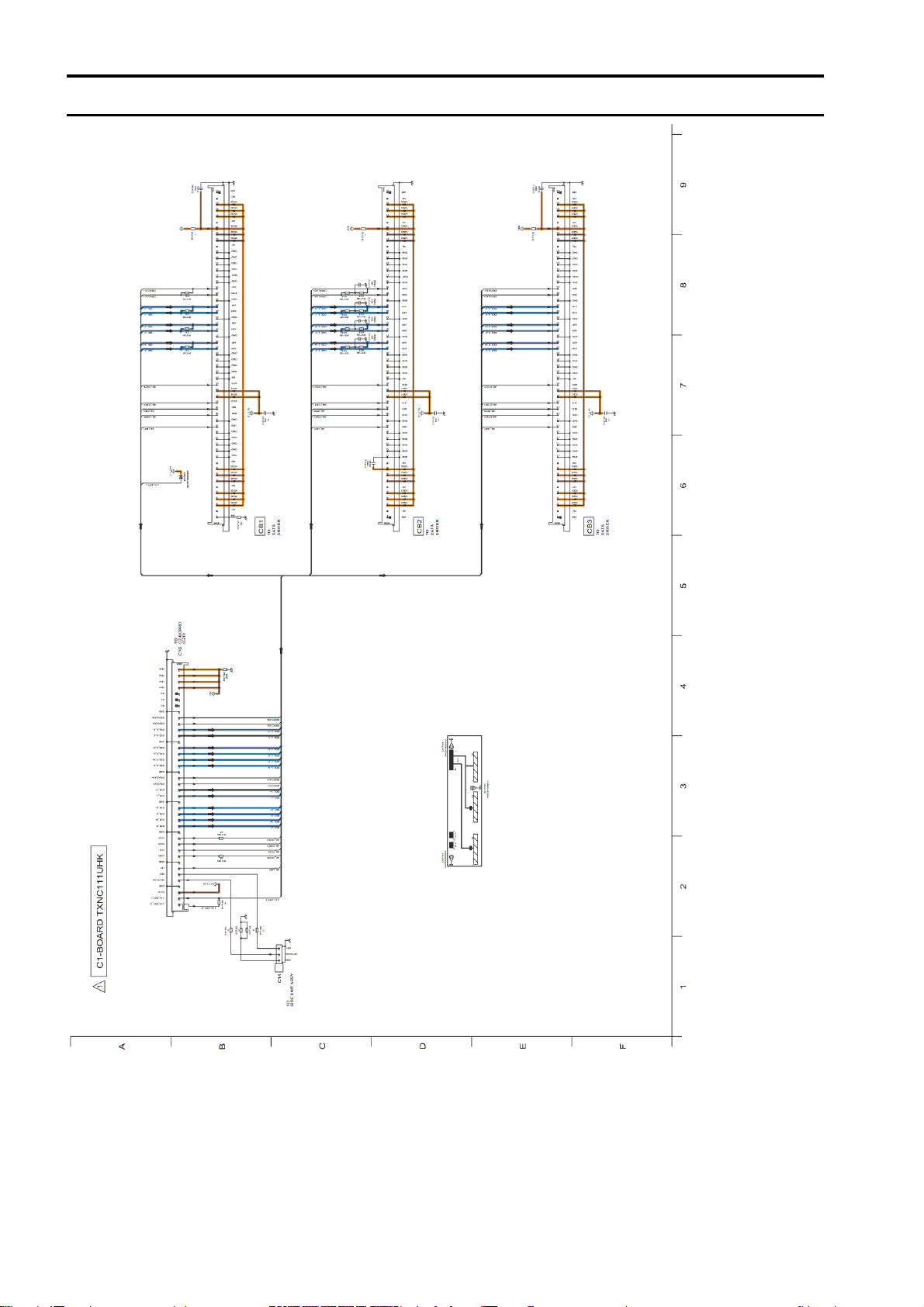

Model No. : TX-P65VT30E/J C1-Board
S-21
Page 76
Model No. : TX-P65VT30E/J C2-Board (1/2)
S-22
Page 77
Model No. : TX-P65VT30E/J C2-Board (2/2)
S-23
Page 78
Model No. : TX-P65VT30E/J C3-Board (1/2)
S-24
Page 79

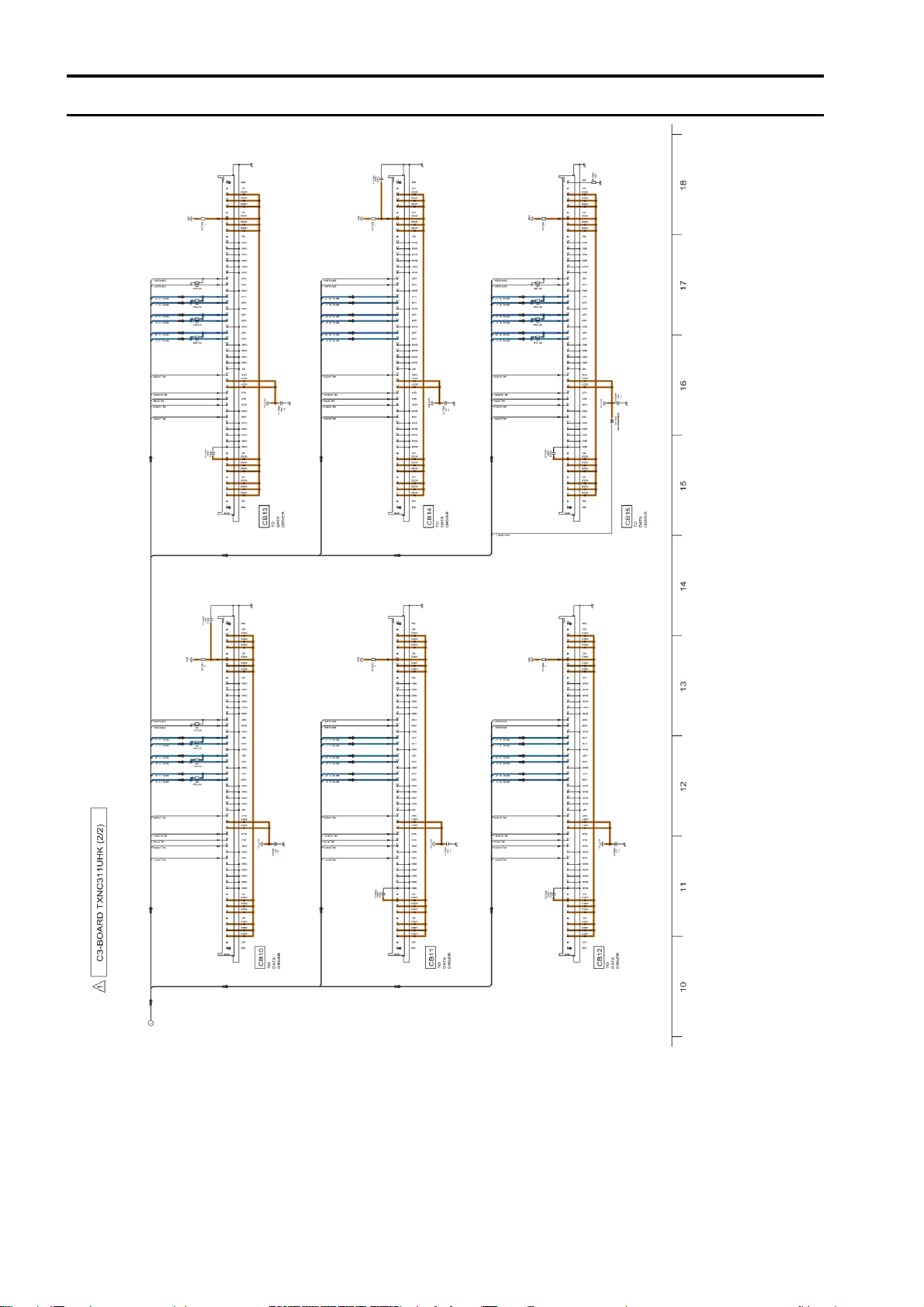

Model No. : TX-P65VT30E/J C3-Board (2/2)
S-25
Page 80

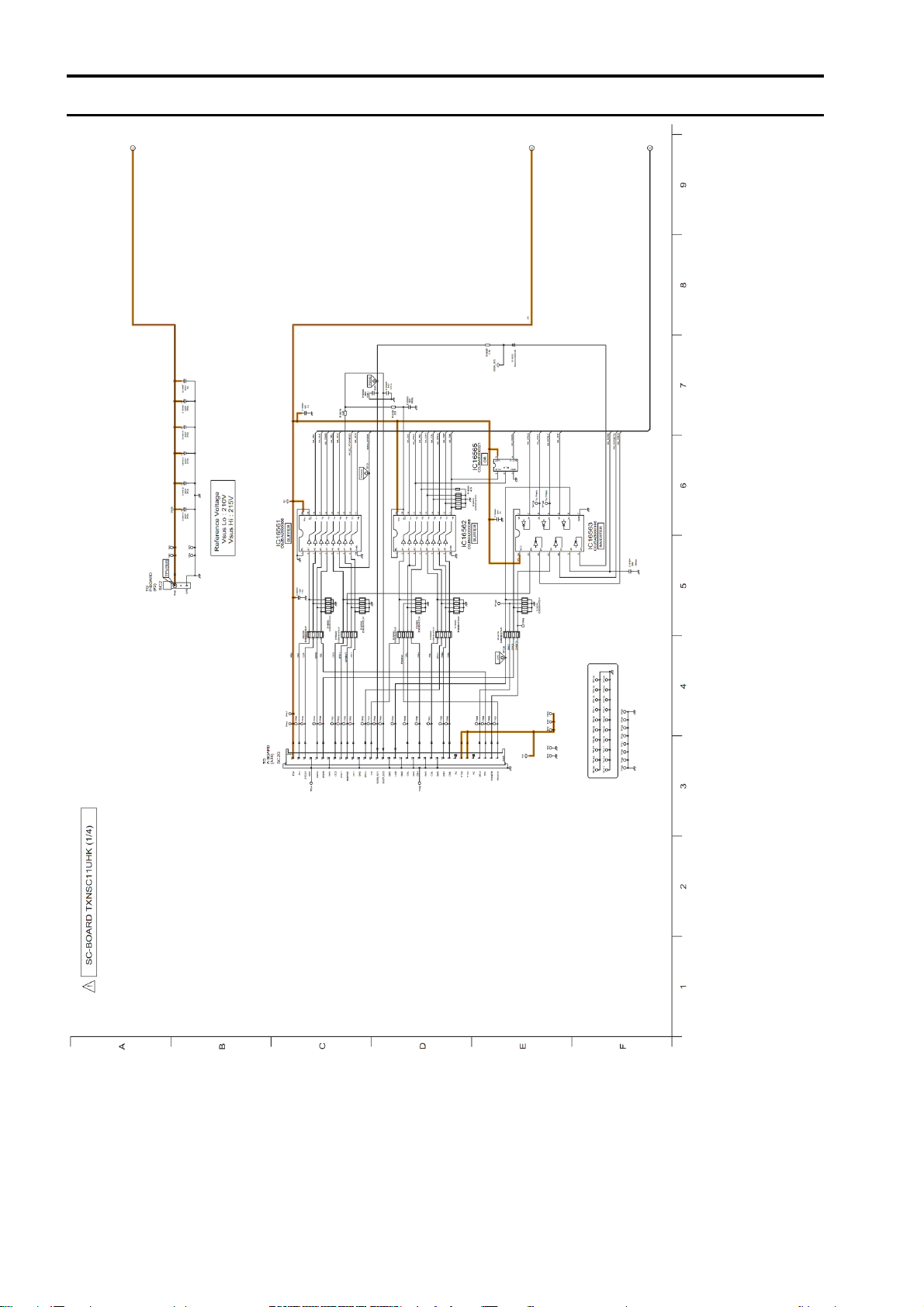

Model No. : TX-P65VT30E/J SC-Board (1/4)
S-26
Page 81
Model No. : TX-P65VT30E/J SC-Board (2/4)
S-27
Page 82
Model No. : TX-P65VT30E/J SC-Board (3/4)
S-28
Page 83

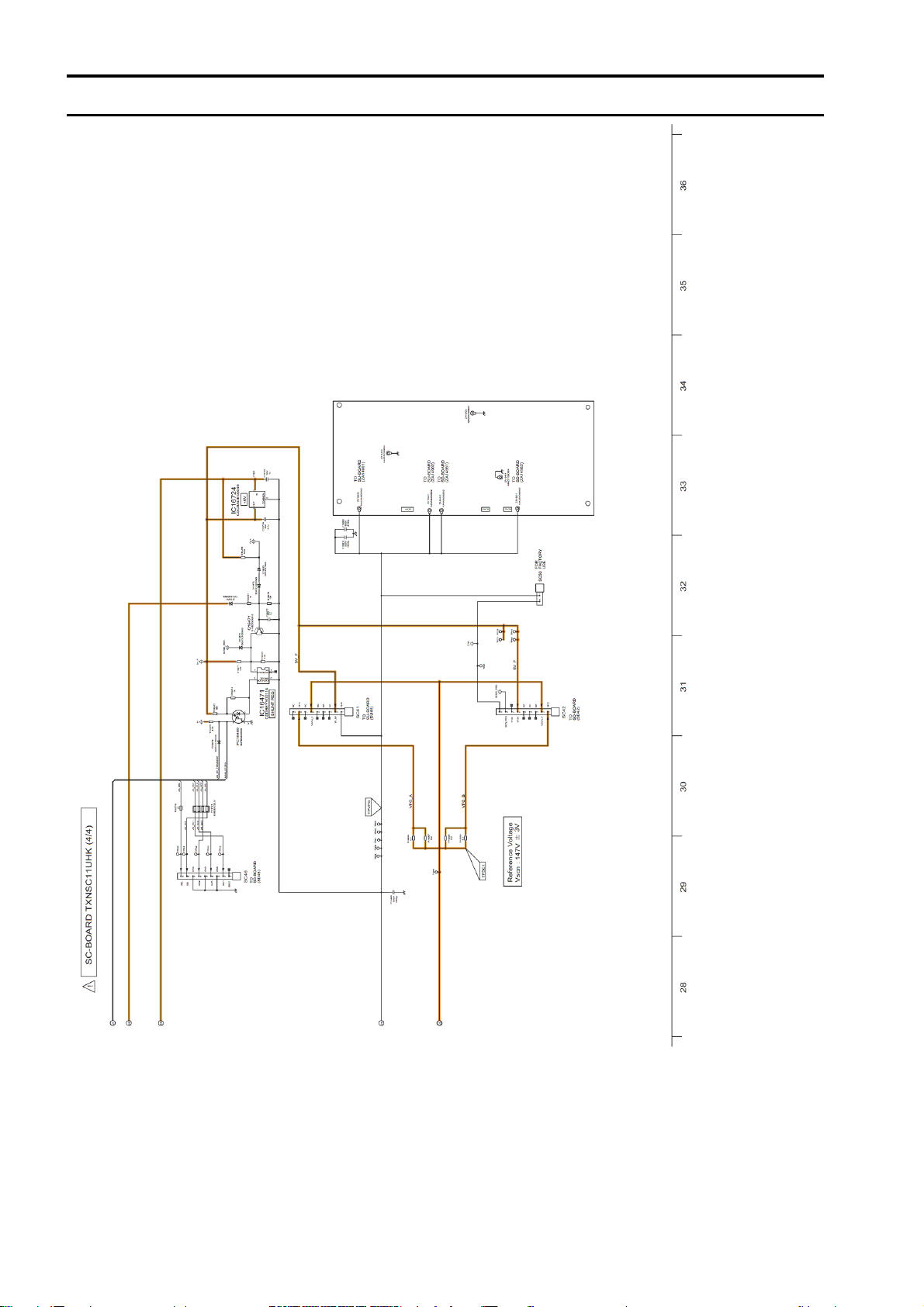

Model No. : TX-P65VT30E/J SC-Board (4/4)
S-29
Page 84
Model No. : TX-P65VT30E/J SS-Board (1/2)
S-30
Page 85
Model No. : TX-P65VT30E/J SS-Board (2/2) and SS2-Board
S-31
Page 86
Model No. : TX-P65VT30E/J A-Board (Foil side)
S-32
Page 87
Model No. : TX-P65VT30E/J A-Board (Component side)
S-33
Page 88

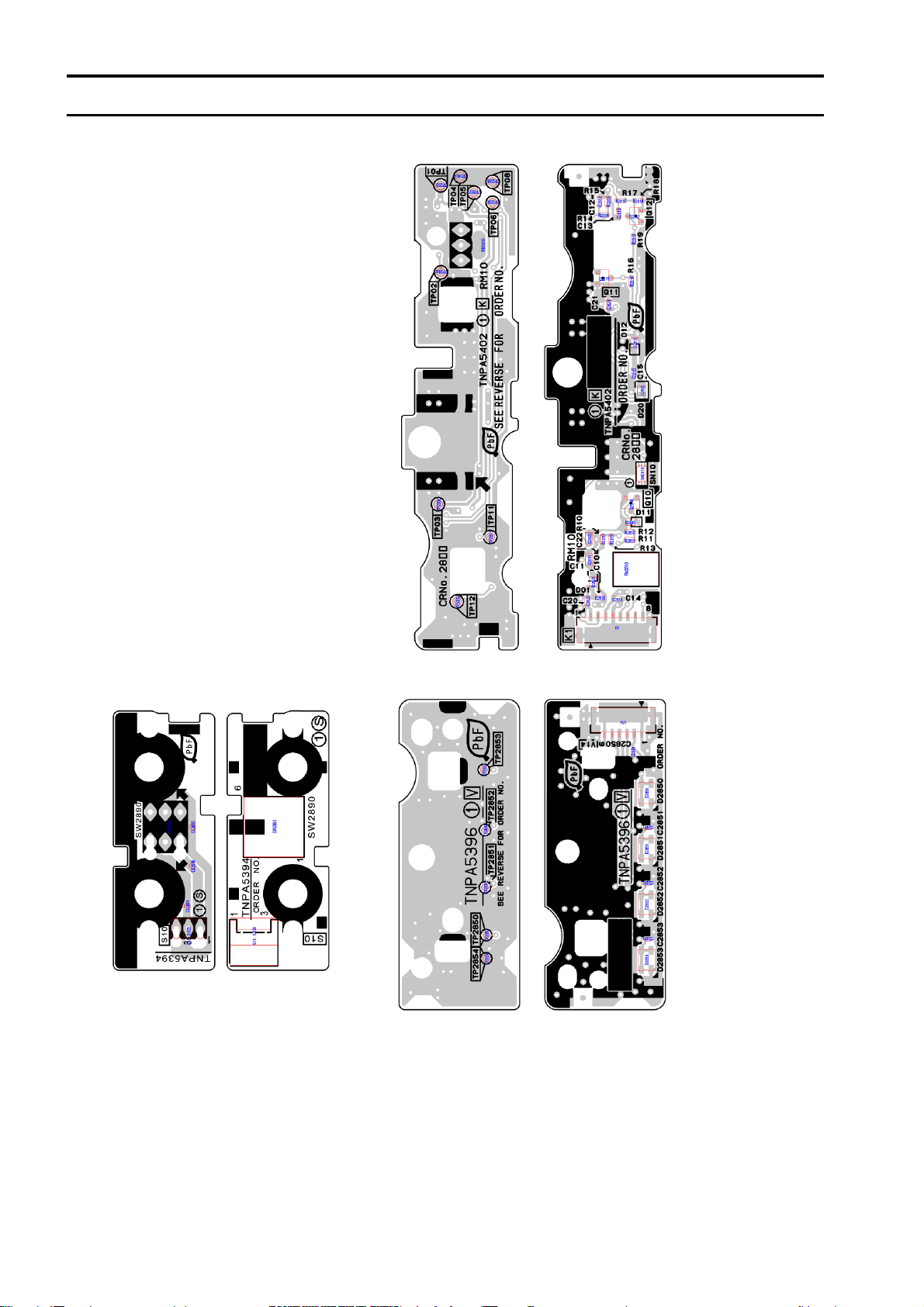

Model No. : TX-P65VT30E/J K, S and V-Board
S-34
Page 89

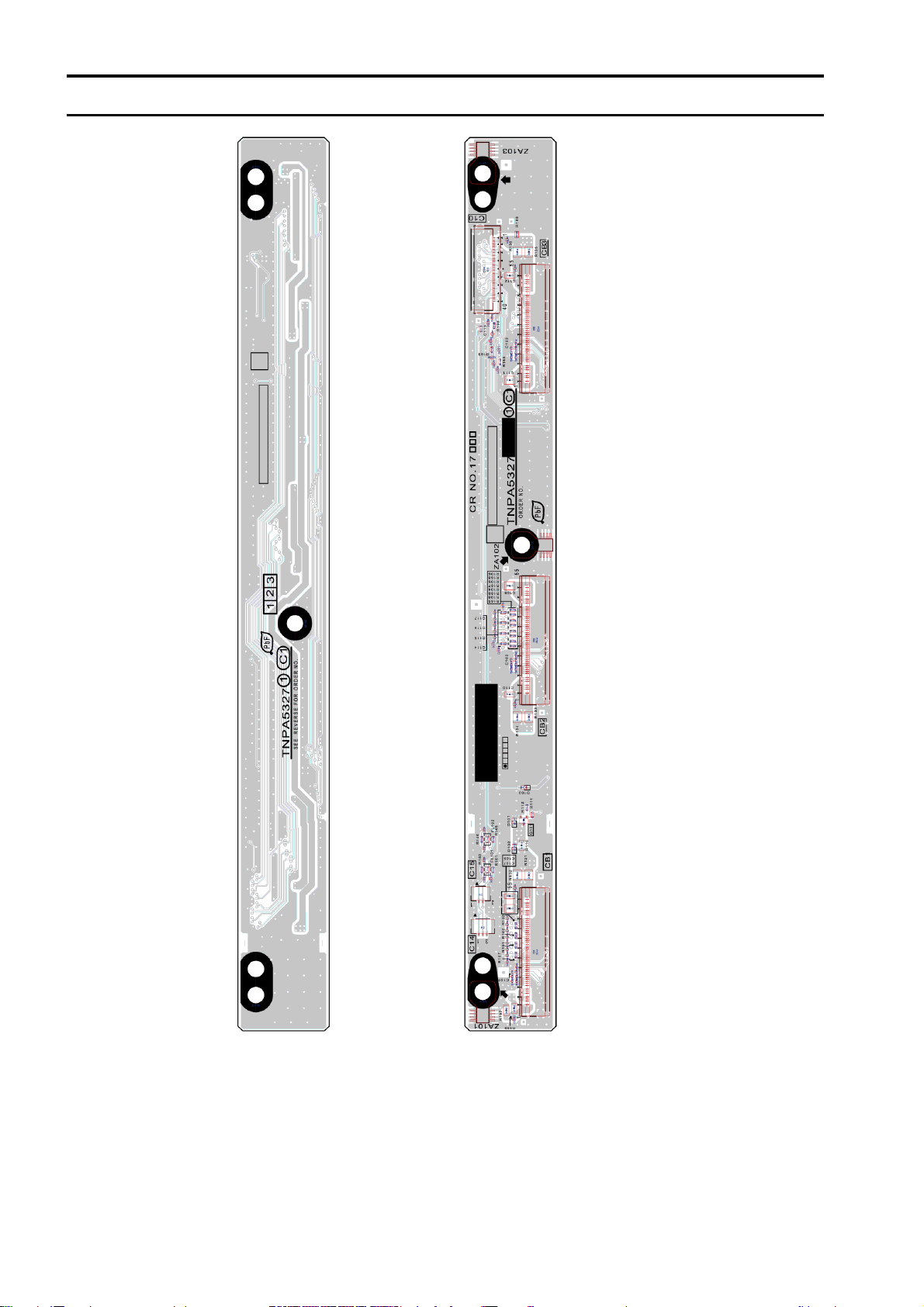

Model No. : TX-P65VT30E/J C1-Board
S-35
Page 90
Model No. : TX-P65VT30E/J C2-Board
S-36
Page 91

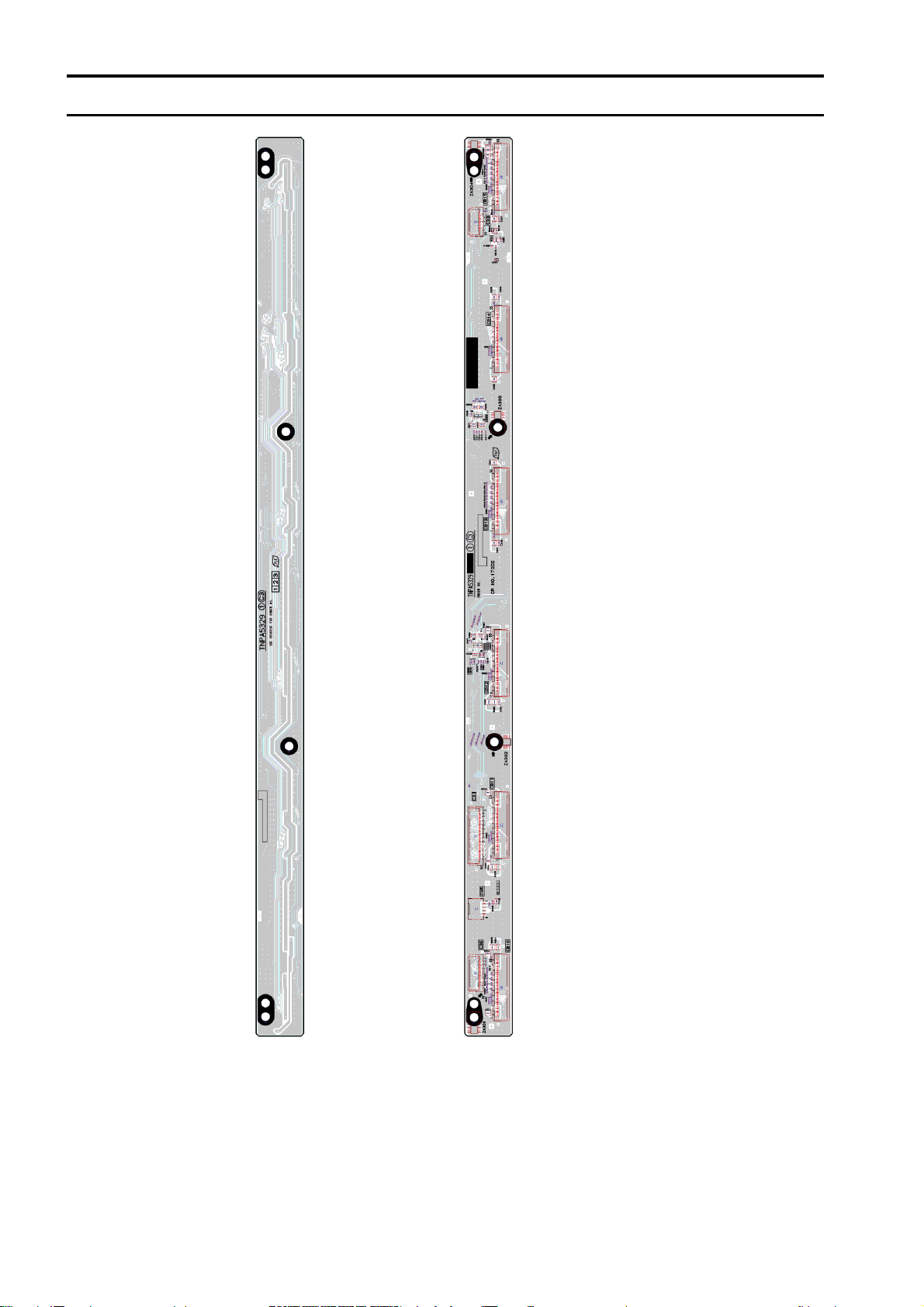

Model No. : TX-P65VT30E/J C3-Board
S-37
Page 92
Model No. : TX-P65VT30E/J SC-Board (Foil side)
S-38
Page 93

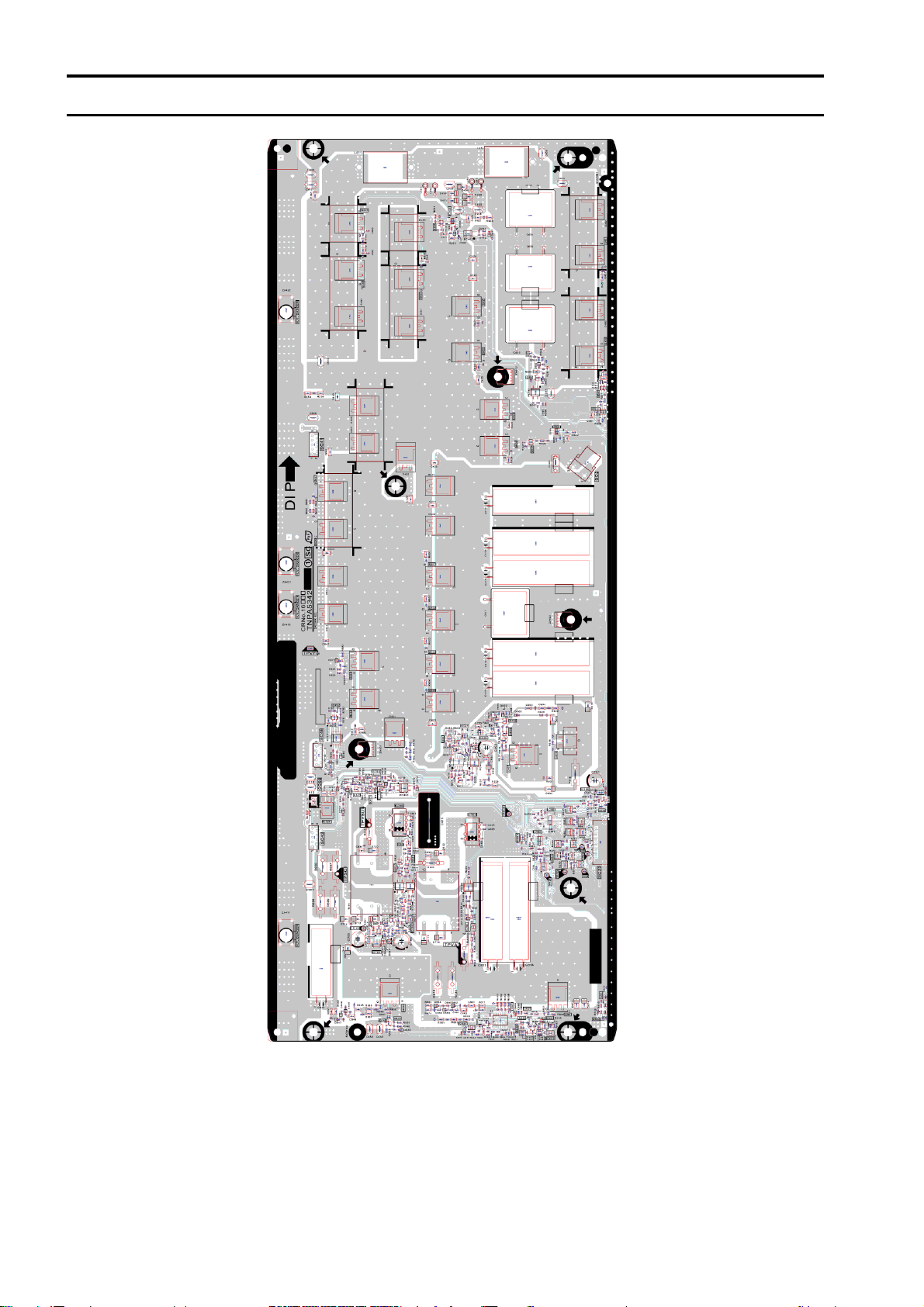

Model No. : TX-P65VT30E/J SC-Board (Component side)
S-39
Page 94
Model No. : TX-P65VT30E/J SS-Board (Foil side)
S-40
Page 95

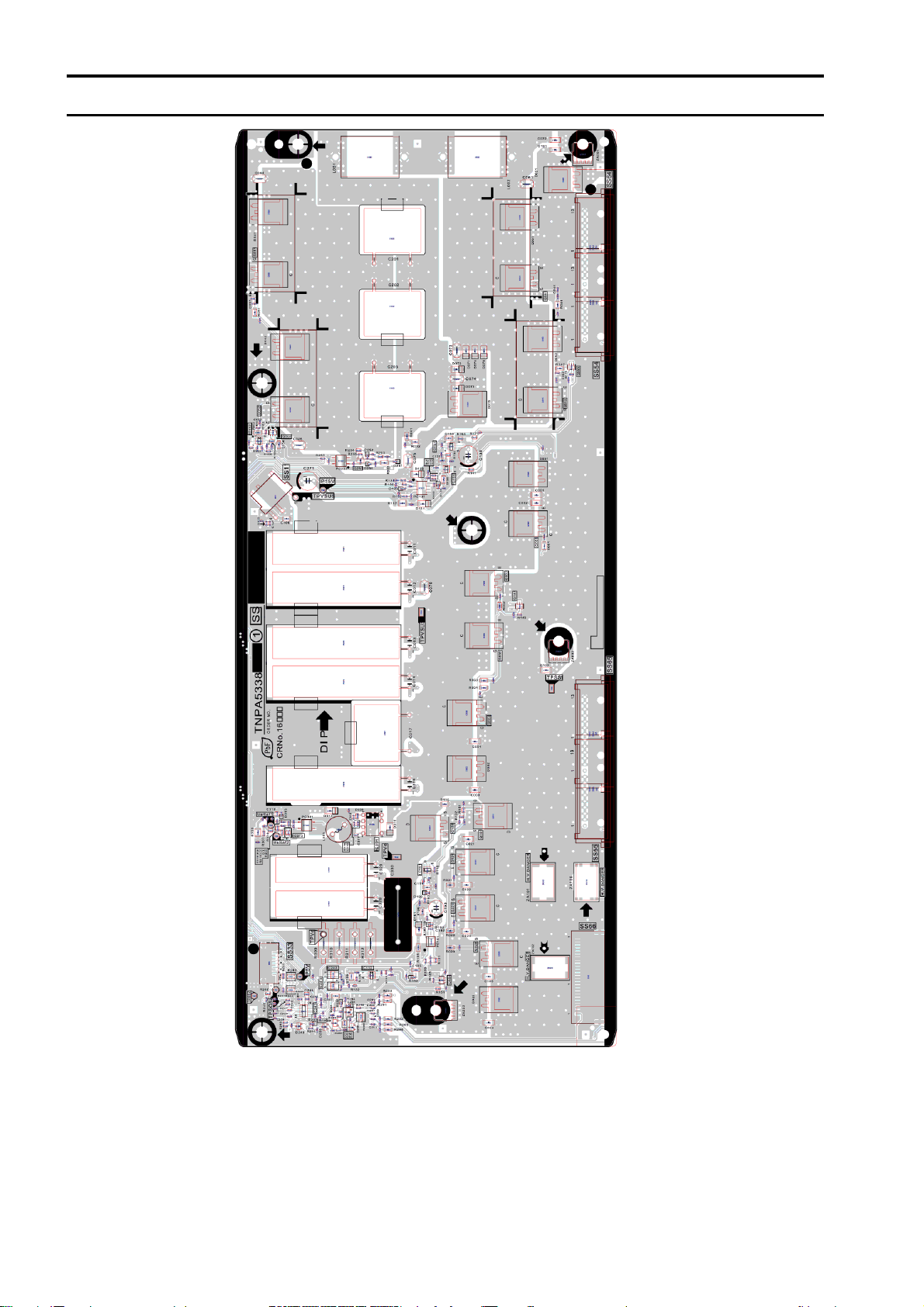

Model No. : TX-P65VT30E/J SS-Board (Component side)
S-41
Page 96

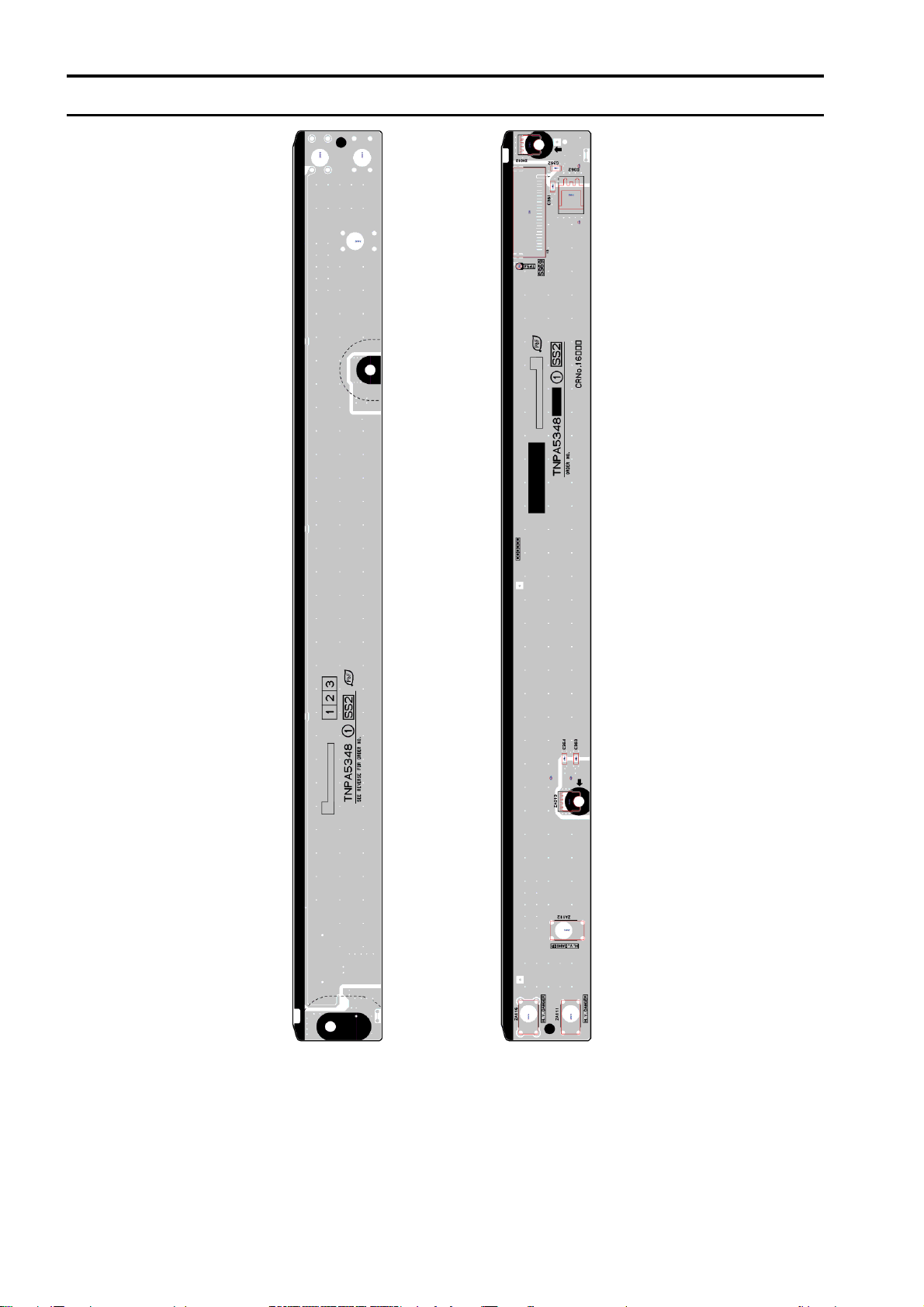

Model No. : TX-P65VT30E/J SS2-Board
S-42
Page 97
Model No. : TX-P65VT30E/J Parts List
S-43
Safety
Ref.
No.
PCB N0AE6KM00008 POWER SUPPLY UNIT(MAIN) 1 PAVCCZ
PCB N0AE6KM00004 POWER SUPPLY UNIT(SUS) 1 PAVCCZ
PCB N0AE6KM00005 POWER SUPPLY UNIT(SUB) 1 PAVCCZ
PCB A-P65VT30E CIRCUIT BOARD A 1 (E) (RTL)PAVCCZ
PCB A-P65VT30J CIRCUIT BOARD A 1 (J) (RTL)PAVCCZ
PCB TXN/K1RLUE CIRCUIT BOARD K 1 (RTL)PAVCCZ
PCB TXN/S1QNUE CIRCUIT BOARD S 1 (RTL)PAVCCZ
PCB TXN/V1QNUE CIRCUIT BOARD V 1 (RTL)PAVCCZ
PCB TXNC111UHK CIRCUIT BOARD C1 1 (RTL)PAVCCZ
PCB TXNC211UHK CIRCUIT BOARD C2 1 (RTL)PAVCCZ
PCB TXNC311UHK CIRCUIT BOARD C3 1 (RTL)PAVCCZ
PCB TXNSC11UHK CIRCUIT BOARD SC 1 (RTL)PAVCCZ
PCB TXNSD11UHK CIRCUIT BOARD SD 1 PAVCCZ
PCB TXNSS11UHK CIRCUIT BOARD SS 1 (RTL)PAVCCZ
PCB TXNSS211UHK CIRCUIT BOARD SS2 1 (RTL)PAVCCZ
PCB TXNSU11UHK CIRCUIT BOARD SU 1 PAVCCZ
A1 K1KY08AA0719 8P CONNECTOR 1
A6 K1KY15B00006 15P CONNECTOR 1
A8 K1KY12AA0719 12P CONNECTOR 1
A11 K1KY04B00013 4P CONNECTOR 1
A12 K1KY02B00018 2P CONNECTOR 1
A14 K1KY06AA0719 6P CONNECTOR 1
A20 K1MY35BA0345 35P CONNECTOR 1
A31 K1MY55BA0345 55P CONNECTOR 1
A32 K1MY55BA0345 55P CONNECTOR 1
A40 K1MN20BA0231 20P CONNECTOR 1
C0900 F1G1H101A565 C 100PF 50V 1
C0901 F1G1H101A565 C 100PF 50V 1
C0902 F1G1H101A565 C 100PF 50V 1
C0903 F1G1H101A565 C 100PF 50V 1
C2000 F1G1E1030005 C 0.01UF 25V 1
C2003 F1J1A106A087 C 10UF, 10V 1
C2004 F1J1E105A231 C 1 UF 25V 1
C2010 F1G1C104A077 C 0.1UF 16V 1
C2752 F1G1E1030005 C 0.01UF 25V 1
C2753 F1G1A105A047 C 1UF 10V 1
C2810 ECJ1VB1H103K C 0.01UF, 50V 1
C2811 F1J1A106A087 C 10UF, 10V 1
C2815 ECJ1VB1H103K C 0.01UF, 50V 1
C2821 ECJ1XB1C104K C 0.1UF, Z, 16V 1
C2850 F1G1A473A032 C0.047UF, 10V 1
C2851 F1G1A473A032 C0.047UF, 10V 1
C2852 F1G1A473A032 C0.047UF, 10V 1
C2853 F1G1A473A032 C0.047UF, 10V 1
C3001 F1G1A105A047 C 1UF 10V 1
C3002 F1G1A105A047 C 1UF 10V 1
C3003 F1G1C104A077 C 0.1UF 16V 1
C3004 F1G1C104A077 C 0.1UF 16V 1
C3005 F1G1A105A047 C 1UF 10V 1
C3006 F1G1A105A047 C 1UF 10V 1
C3011 F1J1A106A043 C 10UF, 10V 1
C3016 F1G1C104A077 C 0.1UF 16V 1
C3018 F1G1C104A077 C 0.1UF 16V 1
C3019 F1G1C104A077 C 0.1UF 16V 1
C3020 F1J1A106A043 C 10UF, 10V 1
C3084 F1J1A106A043 C 10UF, 10V 1
C3085 F1J1A106A043 C 10UF, 10V 1
C3086 F1J1A106A043 C 10UF, 10V 1
C3105 F1G1H5610004 C 560 pF 50 V 1
C3106 F1G1H5610004 C 560 pF 50 V 1
Part No. Part Name & Description Q'ty Remarks
Page 98
Model No. : TX-P65VT30E/J Parts List
S-44
Safety
Ref.
No.
C3108 F1G1E333A091 C 0.033UF 25V 1
C3109 F1G1E333A091 C 0.033UF 25V 1
C3111 F1G1A105A047 C 1UF 10V 1
C3112 F1G1A105A047 C 1UF 10V 1
C3113 F1J1A106A043 C 10UF, 10V 1
C3120 F2H1A101A040 C 100UF, 10V 1
C3121 F2H1A101A040 C 100UF, 10V 1
C3124 F1J1A106A087 C 10UF, 10V 1
C3130 F1J1A106A043 C 10UF, 10V 1
C3131 F1J1A106A043 C 10UF, 10V 1
C3132 F1J1A106A043 C 10UF, 10V 1
C3135 F1G1H5610004 C 560 pF 50 V 1
C3136 F1G1H5610004 C 560 pF 50 V 1
C3139 F1G1H5610004 C 560 pF 50 V 1
C3140 F1G1H5610004 C 560 pF 50 V 1
C3145 F1J1A106A043 C 10UF, 10V 1
C3146 F1J1A106A043 C 10UF, 10V 1
C3147 F1J1A106A043 C 10UF, 10V 1
C3148 F1J1A106A043 C 10UF, 10V 1
C3151 F1G1A105A047 C 1UF 10V 1
C3152 F1G1A105A047 C 1UF 10V 1
C3153 F1G1H5610004 C 560 pF 50 V 1
C3154 F1G1H5610004 C 560 pF 50 V 1
C3159 F1J1A106A043 C 10UF, 10V 1
C3160 F1J1A106A043 C 10UF, 10V 1
C3161 F1J1A106A043 C 10UF, 10V 1
C3162 F1J1A106A043 C 10UF, 10V 1
C3163 F1J1A106A043 C 10UF, 10V 1
C3166 F1G1H1020008 C 1000PF 50V 1
C3172 F1G1A105A047 C 1UF 10V 1
C3173 F1G1A105A047 C 1UF 10V 1
C3174 F1G1A105A047 C 1UF 10V 1
C3175 F1G1A105A047 C 1UF 10V 1
C3178 F1J1A106A043 C 10UF, 10V 1
C3179 F1J1A106A043 C 10UF, 10V 1
C3851 ECJ1VB1A105K C 1UF, 10V 1
C3852 F1G1C104A077 C 0.1UF 16V 1
C3853 F1G1C104A077 C 0.1UF 16V 1
C3854 F1G1C104A077 C 0.1UF 16V 1
C3855 F1G1C104A077 C 0.1UF 16V 1
C4546 F1G1A105A047 C 1UF 10V 1
C4551 ECJ1VB0J105K C 1UF, 6.3V 1
C4713 F1G1C104A077 C 0.1UF 16V 1
C4716 F1G1C104A077 C 0.1UF 16V 1
C4717 F1J1A106A087 C 10UF, 10V 1
C4718 F1J1A475A087 C 4.7UF, 10V 1
C4719 F1G1C104A077 C 0.1UF 16V 1
C4721 F1G1C104A077 C 0.1UF 16V 1
C4722 F1G1C104A077 C 0.1UF 16V 1
C4723 F1G1C104A077 C 0.1UF 16V 1
C4727 F1J1A106A087 C 10UF, 10V 1
C4800 F1G1A105A047 C 1UF 10V 1
C4801 F1G1A105A047 C 1UF 10V 1
C4804 F1G1C104A077 C 0.1UF 16V 1
C4805 F1G1C104A077 C 0.1UF 16V 1
C4808 F1G1C104A077 C 0.1UF 16V 1
C4809 F1J1A106A043 C 10UF, 10V 1
C4813 F1G1C104A077 C 0.1UF 16V 1
C4816 F1G1H220A565 C 22PF, 50V 1
C4817 F1G1H330A565 C 33PF, 50V 1
C4818 F1G1H330A565 C 33PF, 50V 1
C4820 F1J1E105A231 C 1 UF 25V 1
Part No. Part Name & Description Q'ty Remarks
Page 99
Model No. : TX-P65VT30E/J Parts List
S-45
Safety
Ref.
No.
C4821 ECJ1VB1A105K C 1UF, 10V 1
C4822 F1G1H1020008 C 1000PF 50V 1
C4830 F1G1H101A565 C 100PF 50V 1
C4831 F1G1H101A565 C 100PF 50V 1
C4898 F1G1H150A565 C 15PF, 50V 1
C4899 F1G1H150A565 C 15PF, 50V 1
C4900 ECJ1XC1H102J C 1000PF, J, 50V 1
C4901 F1G1C104A077 C 0.1UF 16V 1
C4902 F1G1H1020008 C 1000PF 50V 1
C4903 F1G1C104A077 C 0.1UF 16V 1
C4908 F1G1H1020008 C 1000PF 50V 1
C4909 F1J1E105A231 C 1 UF 25V 1
C4910 F1K1E106A136 C 10UF, 25V 1
C4911 F1H1H104A970 C 0.1UF, , 50V 1
C4912 F1J1E105A231 C 1 UF 25V 1
C4913 F1H1H104A970 C 0.1UF, , 50V 1
C4914 F1J1E105A231 C 1 UF 25V 1
C4915 F1H1H104A970 C 0.1UF, , 50V 1
C4916 F1K1E106A136 C 10UF, 25V 1
C4917 F1H1H104A970 C 0.1UF, , 50V 1
C4918 F1J1E105A231 C 1 UF 25V 1
C4919 F1G1H1020008 C 1000PF 50V 1
C4921 F1J1E4740001 C 0.47UF, 25V 1
C4922 F1J1E4740001 C 0.47UF, 25V 1
C4924 F1J1E4740001 C 0.47UF, 25V 1
C4925 F1J1E4740001 C 0.47UF, 25V 1
C4934 F1G1H1020008 C 1000PF 50V 1
C4935 F1G1H1020008 C 1000PF 50V 1
C4936 F1G1H1020008 C 1000PF 50V 1
C4937 F1G1H1020008 C 1000PF 50V 1
C4938 F1K1E106A136 C 10UF, 25V 1
C4939 F1K1E106A136 C 10UF, 25V 1
C4942 F1G1H1020008 C 1000PF 50V 1
C4943 F1J1E105A231 C 1 UF 25V 1
C4944 F1K1E106A136 C 10UF, 25V 1
C4948 F1J1E105A231 C 1 UF 25V 1
C4949 F1H1H104A970 C 0.1UF, , 50V 1
C4951 F1H1H104A970 C 0.1UF, , 50V 1
C4952 F1J1E105A231 C 1 UF 25V 1
C4953 F1G1H1020008 C 1000PF 50V 1
C4970 F1J1A106A087 C 10UF, 10V 1
C4971 F1J1A106A087 C 10UF, 10V 1
C4972 F2H1A101A040 C 100UF, 10V 1
C4973 F2H1A101A040 C 100UF, 10V 1
C4974 F1G1E333A091 C 0.033UF 25V 1
C4975 F1G1E333A091 C 0.033UF 25V 1
C4977 F1J1E4740001 C 0.47UF, 25V 1
C4978 F1J1E4740001 C 0.47UF, 25V 1
C4983 F1G1H1020008 C 1000PF 50V 1
C4984 F1G1H1020008 C 1000PF 50V 1
C4986 F1K1E106A136 C 10UF, 25V 1
C4988 F1J1E105A231 C 1 UF 25V 1
C4989 F1H1H104A970 C 0.1UF, , 50V 1
C4990 F1H1H104A970 C 0.1UF, , 50V 1
C5000 F1G1E1030005 C 0.01UF 25V 1
C5002 F1K1E106A136 C 10UF, 25V 1
C5003 F1H1C105A145 C 1 uF 16 V 1
C5007 F1G1C104A077 C 0.1UF 16V 1
C5009 F1G1C104A077 C 0.1UF 16V 1
C5011 F1G1C104A077 C 0.1UF 16V 1
C5012 EEEHB1C101UP C 100PF, J, 16V 1
C5013 ECJ1VB1A105K C 1UF, 10V 1
Part No. Part Name & Description Q'ty Remarks
Page 100
Model No. : TX-P65VT30E/J Parts List
S-46
Safety
Ref.
No.
C5014 ECJ1VB1A105K C 1UF, 10V 1
C5015 ECJ1VB1A105K C 1UF, 10V 1
C5016 ECJ1VB1A105K C 1UF, 10V 1
C5017 ECJ1VB1A105K C 1UF, 10V 1
C5018 F1G1C104A077 C 0.1UF 16V 1
C5020 F1G1E1030005 C 0.01UF 25V 1
C5200 F1K1E106A136 C 10UF, 25V 1
C5201 F1G1C104A077 C 0.1UF 16V 1
C5202 F1J1A106A043 C 10UF, 10V 1
C5203 F1G1C104A077 C 0.1UF 16V 1
C5204 F1J1A106A043 C 10UF, 10V 1
C5205 F1G1E6820007 C 6800pF 25V 1
C5449 F1G1H103A509 C 0.01PF, 50V 1
C5452 F1J1A106A043 C 10UF, 10V 1
C5453 F1J1A106A043 C 10UF, 10V 1
C5454 F1J1A106A043 C 10UF, 10V 1
C5455 F1K1E106A136 C 10UF, 25V 1
C5456 F1K1E106A136 C 10UF, 25V 1
C5457 F1G1H821A459 C 820 pF 50 V 1
C5900 F1J1A106A043 C 10UF, 10V 1
C5901 F1J1A106A043 C 10UF, 10V 1
C5902 F1J1A106A043 C 10UF, 10V 1
C5905 F1G1C223A081 C 0.022UF, 16V 1
C5906 F1K1E106A136 C 10UF, 25V 1
C5908 F1G1A333A032 C0.033UF, 10V 1
C5909 F1G1H1020008 C 1000PF 50V 1
C5911 F1J1A106A043 C 10UF, 10V 1
C5912 F1G1E472A086 C 4700pF 25V 1
C5913 F1G1A473A032 C0.047UF, 10V 1
C5915 F1G1A473A032 C0.047UF, 10V 1
C5917 F1G1A473A032 C0.047UF, 10V 1
C5919 F1G1A473A032 C0.047UF, 10V 1
C5921 F1G1H1020008 C 1000PF 50V 1
C5923 ECJ1VB1A105K C 1UF, 10V 1
C6776 F1J1A106A087 C 10UF, 10V 1
C6778 F1J1A106A087 C 10UF, 10V 1
C6780 F1J1A106A087 C 10UF, 10V 1
C6781 F1J0G2260001 C 22 UF 4 V 1
C6782 F1J0G2260001 C 22 UF 4 V 1
C6787 F1J1A106A087 C 10UF, 10V 1
C6788 F1J1A106A087 C 10UF, 10V 1
C6789 F1G1C1030008 C 0.01UF 16V 1
C6790 F1K1E106A136 C 10UF, 25V 1
C6791 F1G1C1030008 C 0.01UF 16V 1
C6792 F1G1E392A123 C 3900pF 25V 1
C6793 ECJ1VB1E104K C 0.1 UF, 25V 1
C6808 F1J1E105A171 C 1 UF 25V 1
C6809 ECJ1VB1A105K C 1UF, 10V 1
C6810 F1G1H152A571 C 1500PF, 50V 1
C6811 F1H1H473A918 C 0.047UF, 50V 1
C6812 F1G1C104A077 C 0.1UF 16V 1
C6813 F1J1E2240015 C 0.22UF, 25V 1 PAVCCZ
C6814 F2G1E1010028 E 100PF, 25V 1 PAVCCZ
C6815 EEEFPE101XAP C 100UF, Z, 25V 1 PAVCCZ
C6816 F1G1H471A731 C 470PF, 50V 1
C6817 F1K1E106A136 C 10UF, 25V 1
C6818 F1K1E106A136 C 10UF, 25V 1
C6819 F1K1E106A136 C 10UF, 25V 1
C6830 ECJ1XC1H102J C 1000PF, J, 50V 1
C6925 F1G1C104A077 C 0.1UF 16V 1
C8001 F1G1C104A077 C 0.1UF 16V 1
C8002 F1J1A106A087 C 10UF, 10V 1
Part No. Part Name & Description Q'ty Remarks
Loading...
