panasonic tx_p65v10b_e, TX-P65V10E Datasheet

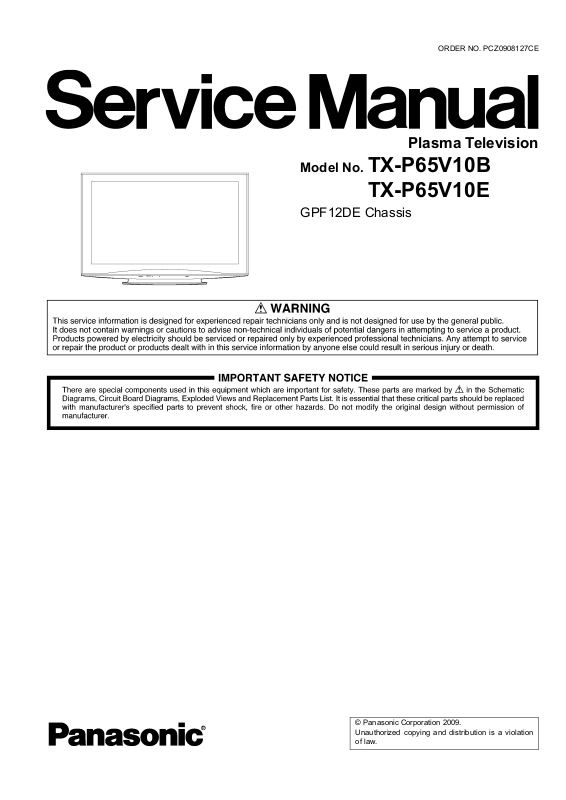

ORDER NO. PCZ0908127CE

Plasma Television

Model No. TX-P65V10B

TX-P65V10E

GPF12DE Chassis

© Panasonic Corporation 2009.
Unauthorized copying and distribution is a violation
of law.

TABLE OF CONTENTS

1 Safety Precautions --------------------------------------------------- 3

1.1. General Guidelines -------------------------------------------- 3

1.2. Touch-Current Check ----------------------------------------- 3

2 Warning------------------------------------------------------------------- 4

2.1. Prevention of Electrostatic Discharge (ESD) to
Electrostatically Sensitive (ES) Devices -----------------

2.2. About lead free solder (PbF) -------------------------------- 5

3 Service Navigation---------------------------------------------------- 6

3.1. Service Hint ----------------------------------------------------- 6

3.2. Applicable signals --------------------------------------------- 7

4 Specifications ---------------------------------------------------------- 8
5 Service Mode --------------------------------------------------------- 10

5.1. How to enter into Service Mode-------------------------- 10

5.2. Service tool mode ------------------------------------------- 12

5.3. Hotel mode ---------------------------------------------------- 13

6 Troubleshooting Guide-------------------------------------------- 14

6.1. Check of the IIC bus lines --------------------------------- 14

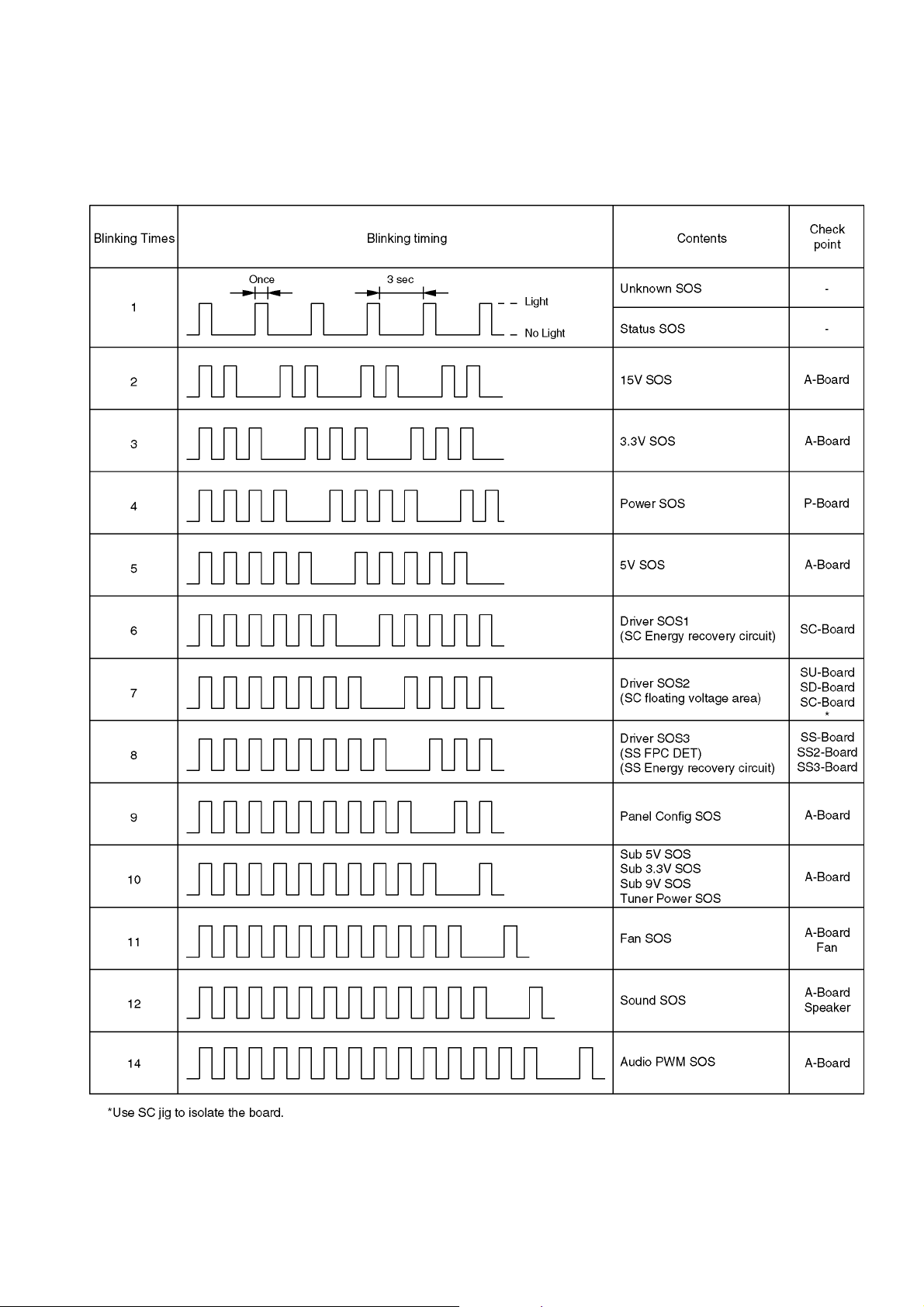

6.2. Power LED Blinking timing chart------------------------- 15

6.3. No Power ------------------------------------------------------ 16

6.4. No Picture ----------------------------------------------------- 17

6.5. Local screen failure ----------------------------------------- 18

7 Service Fixture & Tools ------------------------------------------- 19

7.1. SC jig ----------------------------------------------------------- 19

8 Disassembly and Assembly Instructions ------------------- 20

8.1. Remove the Rear cover ------------------------------------ 20

8.2. Remove the Fan --------------------------------------------- 20

8.3. Remove the P-Board --------------------------------------- 20

8.4. Remove the Side terminal cover and Rear
terminal cover-------------------------------------------------

8.5. Remove the Tuner unit ------------------------------------- 21

8.6. Remove the XS-Board ------------------------------------- 21

8.7. Remove the A-Board --------------------------------------- 22

8.8. Remove the D-Board --------------------------------------- 22

8.9. Remove the Speakers -------------------------------------- 22

8.10. Remove the Control button unit -------------------------- 23

8.11. Remove the GK-Board ------------------------------------- 23

8.12. Remove the SU-Board ------------------------------------- 23

8.13. Remove the SD-Board ------------------------------------- 24

8.14. Remove the SC-Board ------------------------------------- 24

8.15. Remove the SS2-Board ------------------------------------ 24

8.16. Remove the SS3-Board ------------------------------------ 25

8.17. Remove the SS-Board ------------------------------------- 25

8.18. Remove the Support metal (C) --------------------------- 25

8.19. Remove the Support metals (L, R) ---------------------- 25

8.20. Remove the Vertical bar-down assy -------------------- 26

8.21. Remove the C1-Board-------------------------------------- 26

8.22. Remove the C2-Board-------------------------------------- 26

8.23. Remove the C3-Board-------------------------------------- 27

8.24. Remove the Plasma panel section from the
Cabinet assy (glass) ----------------------------------------

8.25. Remove the Glass holders -------------------------------- 27

8.26. Remove the Rear cover fix holders --------------------- 28

8.27. Remove the S-Board --------------------------------------- 28

8.28. Remove the K-Board --------------------------------------- 29

8.29. Remove the GL-Board ------------------------------------- 29

8.30. Replace the plasma panel --------------------------------- 29

9 Measurements and Adjustments ------------------------------ 30

9.1. Adjustment Procedure -------------------------------------- 30

9.2. Adjustment ---------------------------------------------------- 33

10 Block Diagram ------------------------------------------------------- 39

10.1. Main Block Diagram----------------------------------------- 39

10.2. Block (1/5) Diagram ---------------------------------------- 40

10.3. Block (2/5) Diagram ----------------------------------------- 41

10.4. Block (3/5) Diagram ----------------------------------------- 42

10.5. Block (4/5) Diagram ----------------------------------------- 43

10.6. Block (5/5) Diagram ----------------------------------------- 44

PAG E PAG E

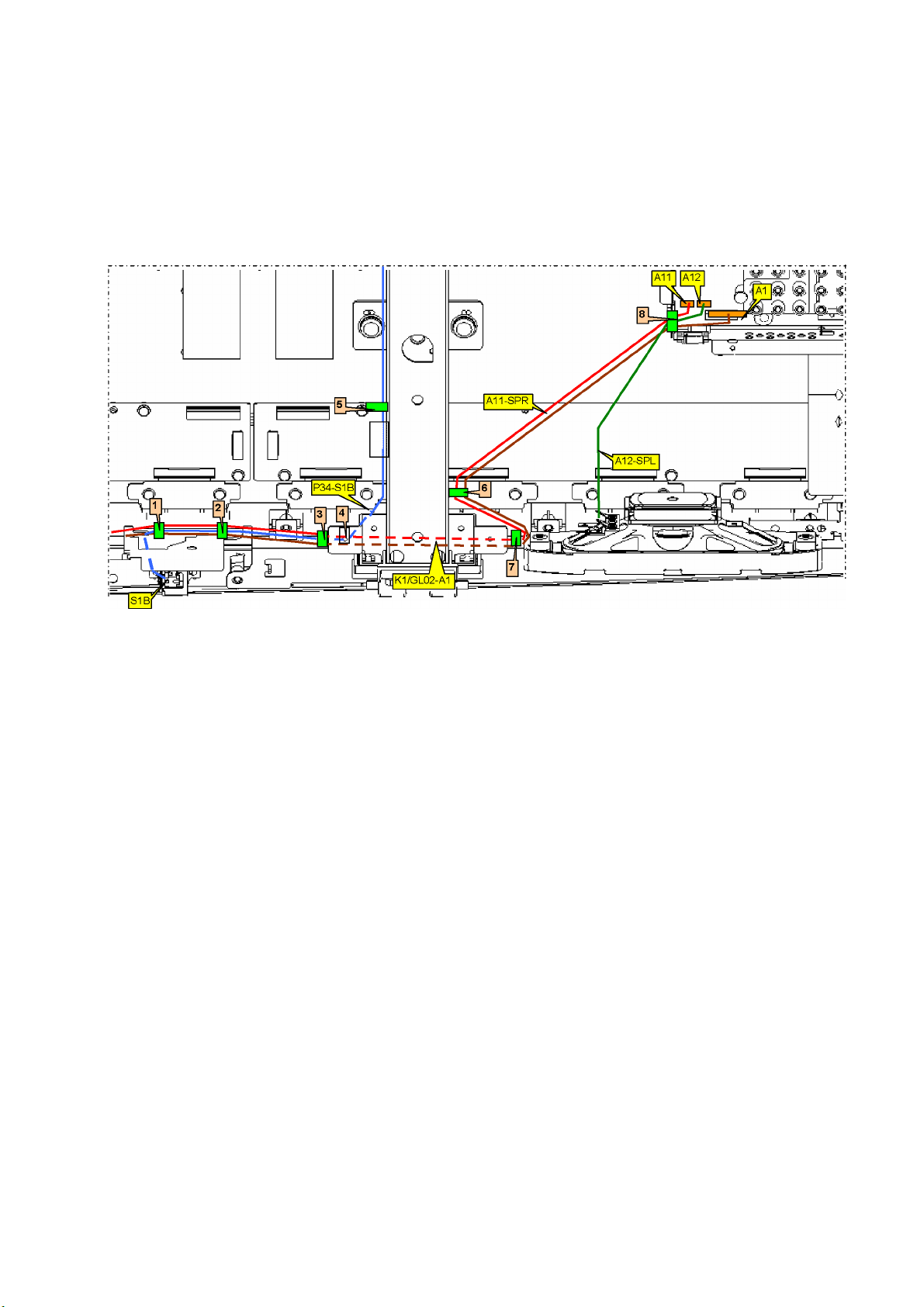

11 Wiring Connection Diagram ------------------------------------- 45

11.1. Caution statement.-------------------------------------------45

11.2. Wiring (1)------------------------------------------------------- 45

11.3. Wiring (2)------------------------------------------------------- 46

11.4. Wiring (3)------------------------------------------------------- 47

4

20

27

11.5. Wiring (4)------------------------------------------------------- 48

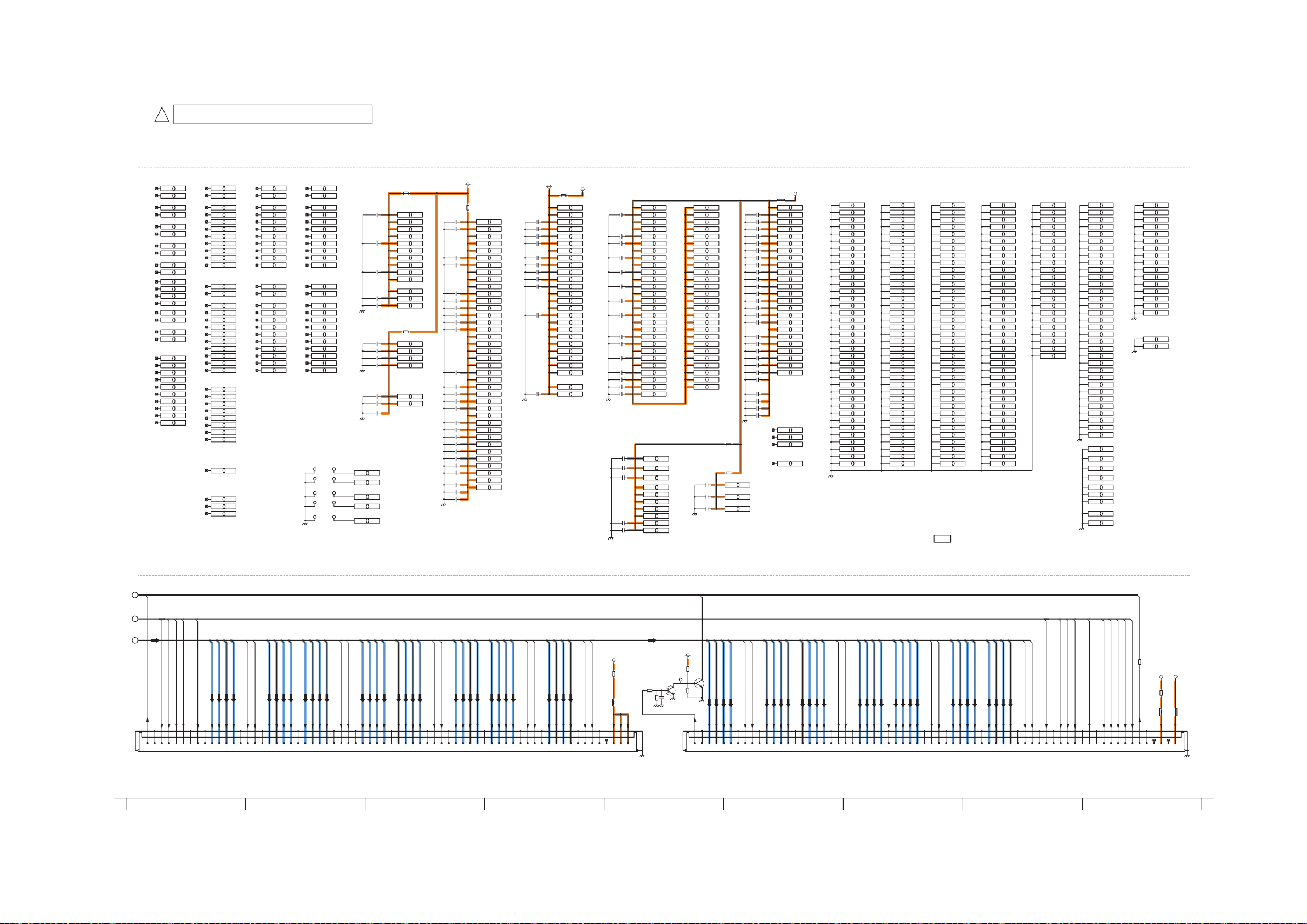

12 Schematic Diagram ------------------------------------------------ 49

12.1. Schematic Diagram Note ----------------------------------49

12.2. P(MULTI)-Board Schematic Diagram -------------------50

12.3. P(SUS)-Board Schematic Diagram---------------------- 51

12.4. GK, GL, K, S and XS-Board Schematic Diagram----52

12.5. A-Board (1/22) Schematic Diagram ---------------------53

12.6. A-Board (2/22) Schematic Diagram ---------------------54

12.7. A-Board (3/22) Schematic Diagram ---------------------55

12.8. A-Board (4/22) Schematic Diagram ---------------------56

12.9. A-Board (5/22) Schematic Diagram ---------------------57

12.10. A-Board (6/22) Schematic Diagram ---------------------58

12.11. A-Board (7/22) Schematic Diagram --------------------- 59

12.12. A-Board (8/22) Schematic Diagram ---------------------60

12.13. A-Board (9/22) Schematic Diagram ---------------------61

12.14. A-Board (10/22) Schematic Diagram ------------------- 62

12.15. A-Board (11/22) Schematic Diagram-------------------- 63

12.16. A-Board (12/22) Schematic Diagram ------------------- 64

12.17. A-Board (13/22) Schematic Diagram ------------------- 65

12.18. A-Board (14/22) Schematic Diagram ------------------- 66

12.19. A-Board (15/22) Schematic Diagram ------------------- 67

12.20. A-Board (16/22) Schematic Diagram ------------------- 68

12.21. A-Board (17/22) Schematic Diagram ------------------- 69

12.22. A-Board (18/22) Schematic Diagram ------------------- 70

12.23. A-Board (19/22) Schematic Diagram ------------------- 71

12.24. A-Board (20/22) Schematic Diagram ------------------- 72

12.25. A-Board (21/22) Schematic Diagram ------------------- 73

12.26. A-Board (22/22) Schematic Diagram ------------------- 74

12.27. D-Board (1/4) Schematic Diagram-----------------------75

12.28. D-Board (2/4) Schematic Diagram-----------------------76

12.29. D-Board (3/4) Schematic Diagram-----------------------77

12.30. D-Board (4/4) Schematic Diagram-----------------------78

12.31. C1-Board (1/2) Schematic Diagram --------------------- 79

12.32. C1-Board (2/2) Schematic Diagram --------------------- 80

12.33. C2-Board (1/2) Schematic Diagram --------------------- 81

12.34. C2-Board (2/2) Schematic Diagram --------------------- 82

12.35. C3-Board (1/2) Schematic Diagram --------------------- 83

12.36. C3-Board (2/2) Schematic Diagram --------------------- 84

12.37. SC-Board (1/4) Schematic Diagram--------------------- 85

12.38. SC-Board (2/4) Schematic Diagram--------------------- 86

12.39. SC-Board (3/4) Schematic Diagram--------------------- 87

12.40. SC-Board (4/4) Schematic Diagram--------------------- 88

12.41. SS-Board (1/2) Schematic Diagram--------------------- 89

12.42. SS-Board (2/2), SS2-Board and SS3-Board
Schematic Diagram------------------------------------------

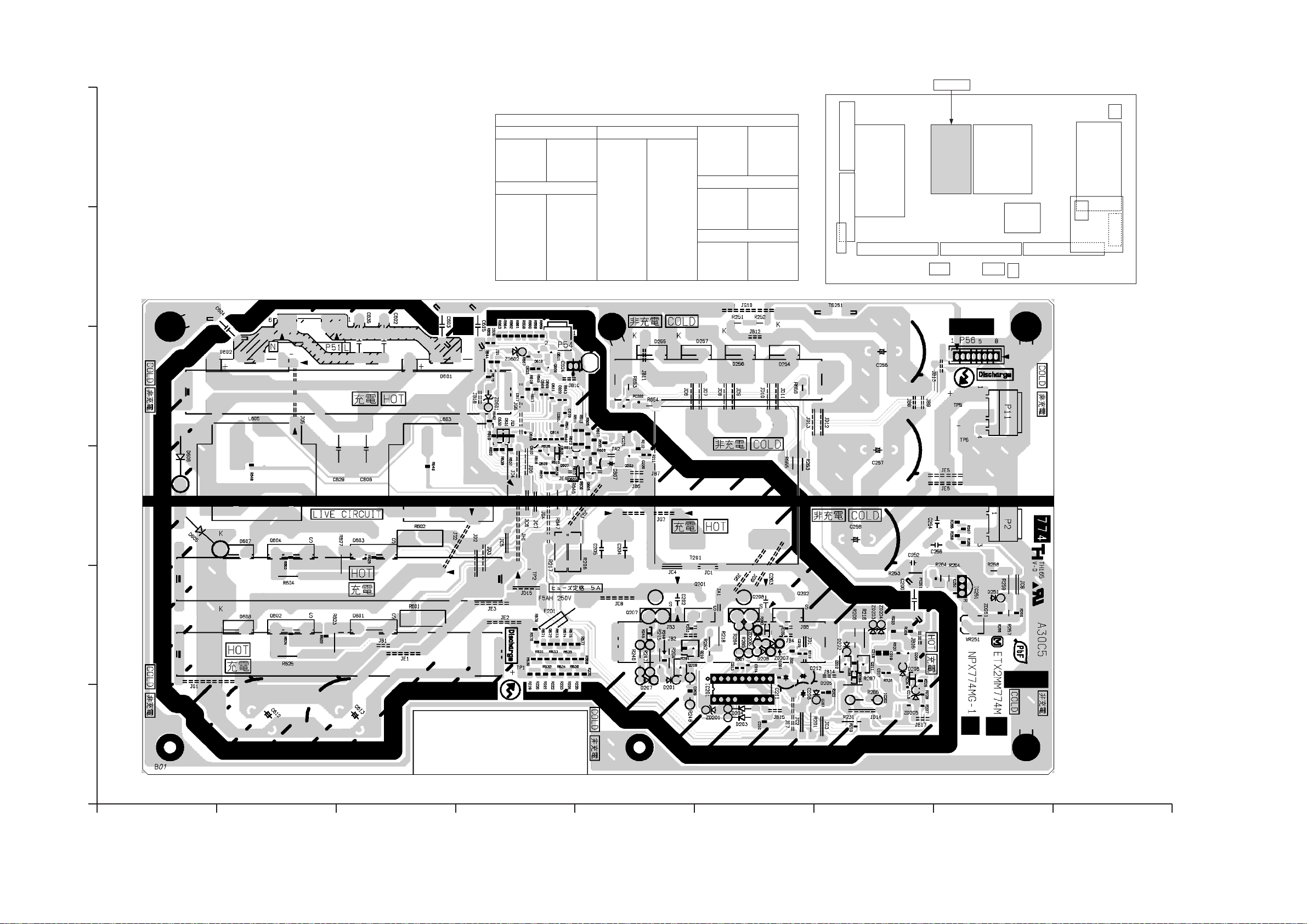

13 Printed Circuit Board-----------------------------------------------91

13.1. P(MULTI)-Board ---------------------------------------------- 91

13.2. P(SUS)-Board------------------------------------------------- 94

13.3. GK, K and S-Board ------------------------------------------ 96

13.4. GL and XS-Board -------------------------------------------- 97

13.5. A-Board --------------------------------------------------------- 98

13.6. D-Board ------------------------------------------------------- 100

13.7. C1-Board ----------------------------------------------------- 102

13.8. C2-Board ----------------------------------------------------- 103

13.9. C3-Board ----------------------------------------------------- 104

13.10. SC-Board ----------------------------------------------------- 105

13.11. SS-Board----------------------------------------------------- 107

13.12. SS2 and SS3-Board--------------------------------------- 109

14 Exploded View and Replacement Parts List-------------- 111

14.1. Exploded View and Mechanical Replacement
Parts List -----------------------------------------------------

90

111

2

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

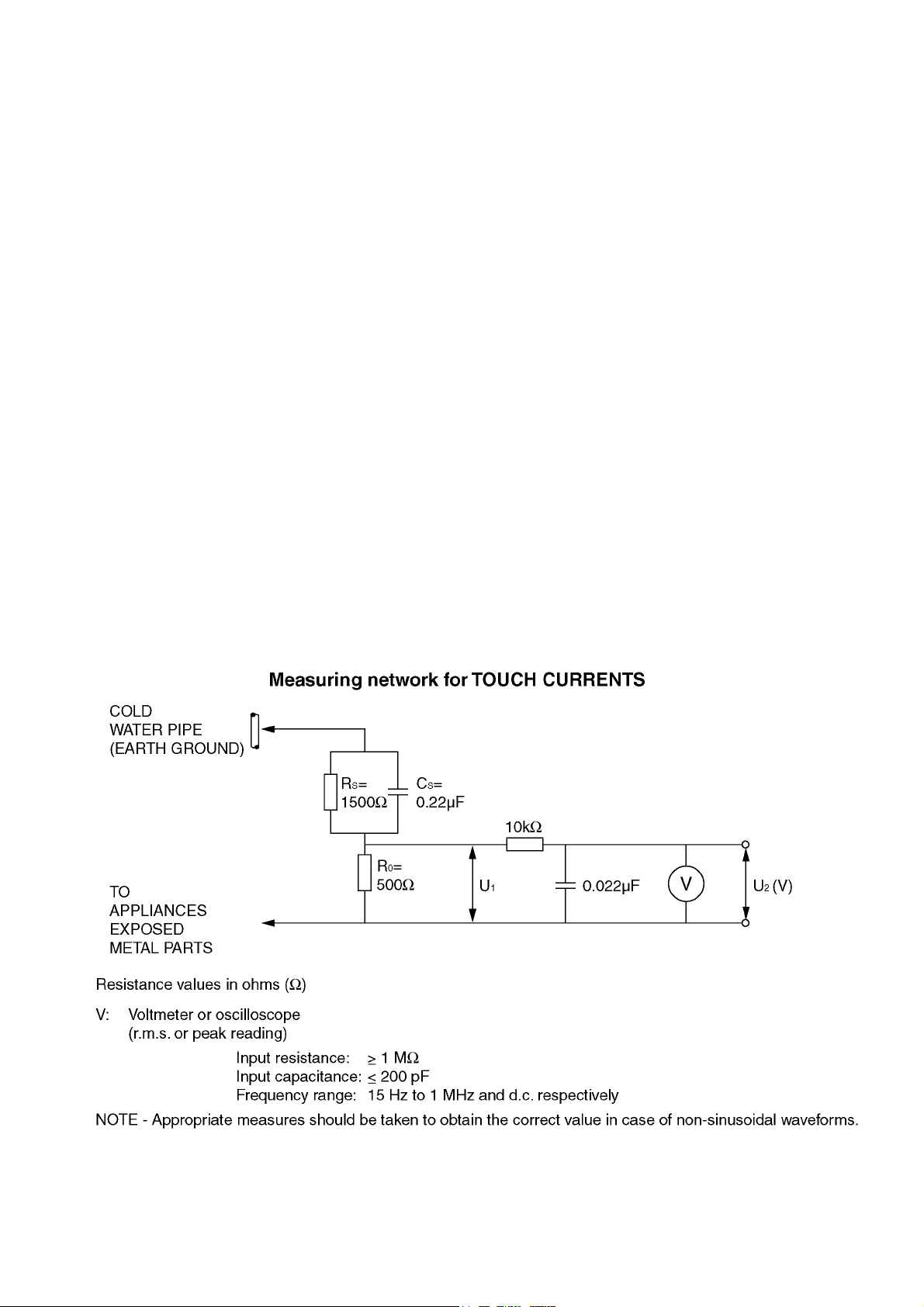

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground
such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUGH CURRENT) expressed as voltage U

For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);

For d. c.: U

Note:

The limit value of U

mA d. c.
The limit value U

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be
repaired and rechecked before it is returned to the customer.

= 1.0 V,

1

= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

2

= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

1

and U2, does not exceed the following values:

1

Figure 1

3

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec­trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi­num foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara­ble conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush­ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient
to damage an ES device).

4

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb sol­der. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

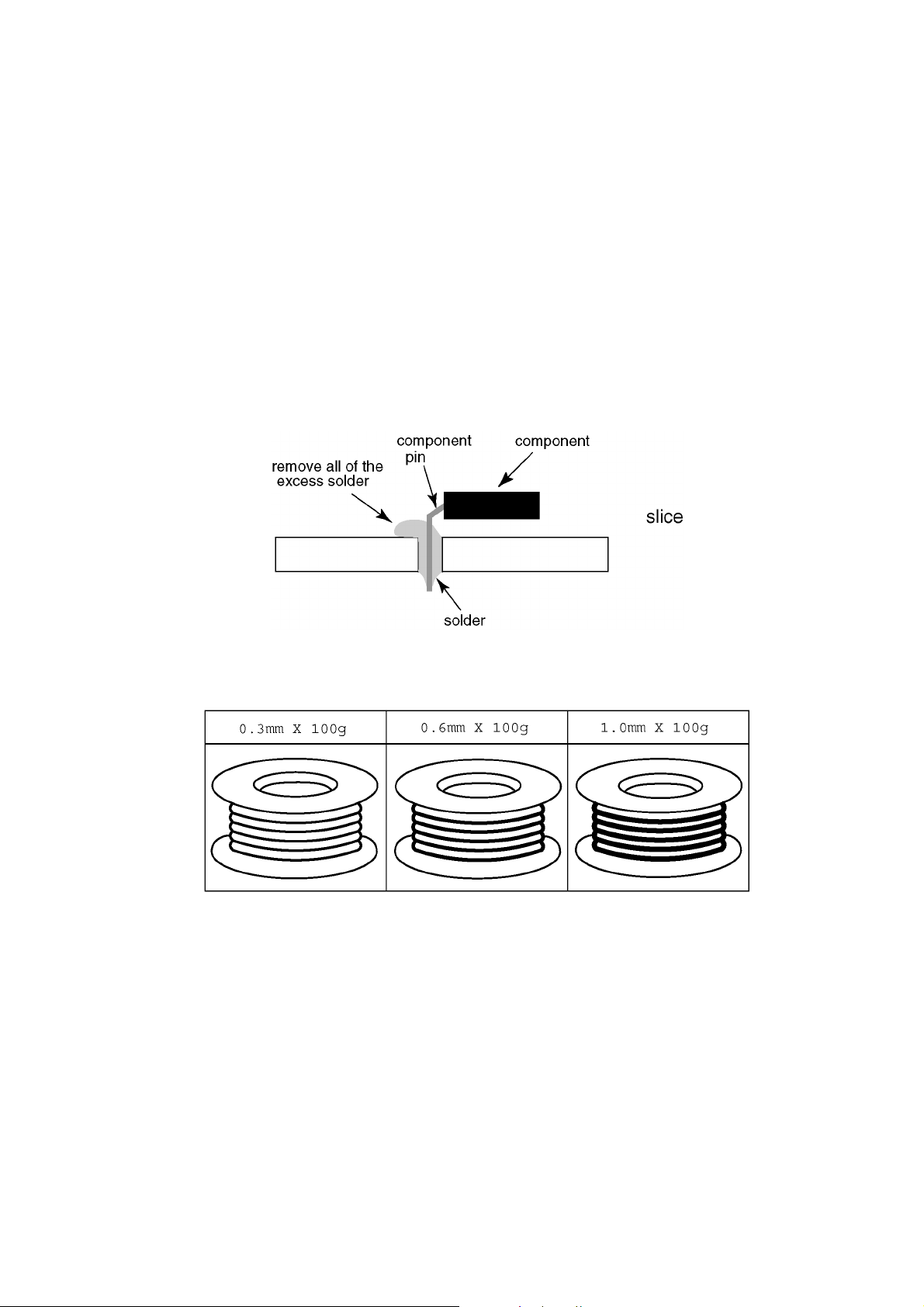

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How­ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

5

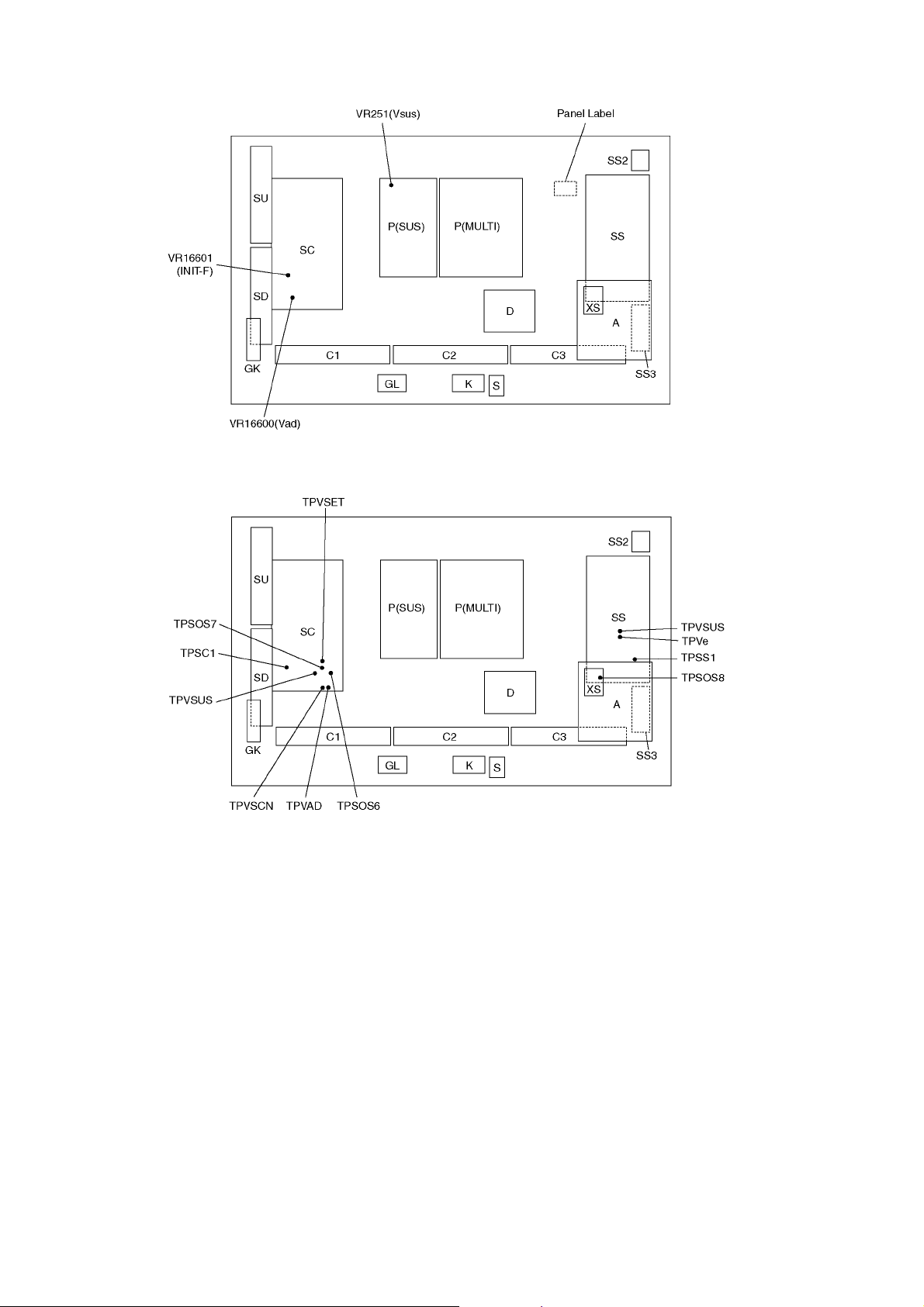

3 Service Navigation

3.1. Service Hint

Board Name Function Board Name Function

P Power Supply C1 Data Driver (Lower Right)
A DC-DC Converter, Tuner

Speaker out, AV Terminal, AV Switch, PC
Digital Signal Processor, SYSTEM MPU, HDMI Switch
Peaks-AVC, Ethernet

D Format Converter, Plasma AI, Sub-Field Processor SS Sustain Drive
XS Sat Tuner SS2 Sustain out (Upper)
GL SD LED SS3 Sustain out (Lower)

K Remote receiver, Power LED, C.A.T.S sensor SU Scan out (Upper)

S Power Switch
GK Key Switch

C2 Data Driver (Lower Center)
C3 Data Driver (Lower Left)
SC Scan Drive

Non-serviceable.
SU-Board should be exchanged for service.

SD Scan out (Lower)

Non-serviceable.
SD-Board should be exchanged for service.

6

3.2. Applicable signals

COMPONENT (Y, PB, PR), HDMI

* Mark: Applicable input signal for Component (Y, PB, PR) and HDMI

Signal name COMPONENT HDMI
525 (480) / 60i * *
525 (480) / 60p * *
625 (576) / 50i * *
625 (576) / 50p * *
750 (720) / 60p * *
750 (720) / 50p * *
1,125 (1,080) / 60i * *
1,125 (1,080) / 50i * *
1,125 (1,080) / 60p *
1,125 (1,080) / 50p *
1,125 (1,080) / 24p *

PC (D-sub 15P)

Applicable input signal for PC is basically compatible to VESA standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 400 @70 Hz 31.47 70.07
640 × 480 @60 Hz 31.47 59.94
640 × 480 @75 Hz 37.50 75.00
800 × 600 @60 Hz 37.88 60.32
800 × 600 @75 Hz 46.88 75.00
800 × 600 @85 Hz 53.67 85.06
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,024 × 768 @70 Hz 56.48 70.07
1,024 × 768 @75 Hz 60.02 75.03
1,024 × 768 @85 Hz 68.68 85.00
1,280 × 768 @60 Hz 47.70 60.00
1,280 × 1,024 @60 Hz 63.98 60.02
1,366 × 768 @60 Hz 48.39 60.04
Macintosh13 inch (640 × 480) 35.00 66.67
Macintosh16 inch (832 × 624) 49.73 74.55
Macintosh21 inch (1,152 × 870) 68.68 75.06

PC (from HDMI terminal)

Applicable input signal for PC is basically compatible to HDMI standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00

Note

• Signals other than above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.

7

4 Specifications

Power Source AC 220-240 V, 50 / 60 Hz
Power Consumption 595 W
Power Consumption in Standby condition 0.6 W (Without monitor out recording)

35 W (With monitor out recording)

Display panel

Aspect Ratio 16:9
Visible screen size 165 cm (diagonal) 1,434 mm (W) × 806 mm (H)
Number of pixels 2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]

Sound

Speaker 160 mm × 40 mm × 2 pcs, 6 Ω
Audio Output 20 W ( 10 W + 10 W ), 10 % THD
Headphones M3 (3.5 mm) stereo mini Jack × 1

PC signals VGA, SVGA, WVGA, XGA

SXGA, WXGA ...... (compressed)

Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz

Receiving Systems / Band name
(B only) DVB-S / S2

(freesat Other Sat.) :

DVB-T : Digital terrestrial services via UHF aerial input.
PAL I : UHF E21-68
PAL 525/60 : Playback of NTSC tape from some PAL Video recorders (VCR)

M.NTSC : Playback from M.NTSC Video recorders (VCR).
NTSC (AV input only) : Playback from NTSC Video recorders (VCR).

Receiving Systems / Band name
(E only) PAL B, G, H, I,

SECAM B, G, SECAM L, L’ :

PAL D, K, SECAM D, K : VHF R1 - R2

PAL 525/60 : Playback of NTSC tape from some PAL Video recorders (VCR)
DVB-T : Digital terrestrial services
DVB-C : Digital cable services
DVB-S / S2 : Digital satellite services

M.NTSC : Playback from M.NTSC Video recorders (VCR).
NTSC (AV input only) : Playback from NTSC Video recorders (VCR).

O TV signals may not be received in some areas.

Satellite dish input Female F-type 75 Ω

freesat services via Satellite dish input.
Receiver frequency range - 950 MHz to 2,150 MHz
LNB Power and Polarization - Vertical: +13 V
Horizontal: +18 V
Current: Max. 500 mA
(overload protection)
22 kHz Tone - Frequency: 22 kHz ± 2 kHz
Amplitude: 0.6 V ±0.2 V
Symbol Rate - Max. 30 MS/s
FEC Mode - 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Demodulation - QPSK, 8PSK
Not available for DiSEqC control.

or NTSC disc playback from DVD player and recorder.

VHF E2 - E12
VHF H1 - H2 (ITALY)
VHF A - H (ITALY)
UHF E21 - E69
CATV (S01 - S05)
CATV S1 - S10 (M1 - M10)
CATV S11 - S20 (U1 - U10)
CATV S21 - S41 (Hyperband)

VHF R3 - R5
VHF R6 - R12
UHF E21 - E69

Receiver frequency range - 950 MHz to 2,150 MHz
LNB Power and Polarization - Vertical: +13 V
Horizontal: +18 V
Current: Max. 500 mA
(overload protection)
22 kHz Tone - Frequency: 22 kHz ± 2 kHz
Amplitude: 0.6 V ± 0.2 V
Symbol Rate - Max. 30 MS/s
FEC Mode - 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Demodulation - QPSK, 8PSK
DisEqC - Version 1.0

8

Aerial input UHF (B only), VHF/UHF (E only)
Operating Conditions

Temperature: 0 °C - 35 °C
Humidity: 20 % - 80 % RH (non-condensing)

Connection Terminals

AV1 (Scart terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
AV2 (Scart terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)
AV3

VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
S-VIDEO Mini DIN 4-pin Y:1.0 V [p-p] (75 Ω) C:0.286 V [p-p] (75 Ω)
AUDIO L - R RCA PIN Type × 2 0.5 V [rms]

COMPONENT

VIDEO Y 1.0 V [p-p] (including synchronization)

, P

P

B

R

± 0.35 V [p-p]

AUDIO L - R RCA PIN Type × 2 0.5 V [rms]

Others

HDMI1 / 2 / 3 / 4 TYPE A Connectors HDMI™ (Version 1.3a with Deep Colour, x.v.Colour™)

O This TV supports [HDAVI Control 4] function.

PC HIGH-DENSITY D-SUB 15PIN R, G, B/ 0.7 V [p-p] (75 Ω)

HD, VD/TTL Level 2.0 - 5.0 V [p-p] (high impedance)

Card slot SD Card slot × 1
ETHERNET RJ45, IEEE802.3 10BASE-T / 100BASE-TX

Output

AUDIO L - R RCA PIN Type × 2 0.5 V [rms] (high impedance)
DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber optic

Dimensions (W × H × D) 1,572 mm × 1,016 mm × 415 mm (With Pedestal)

1,572 mm × 964 mm × 97 mm (TV only)

Mass 68.0 kg Net (With Pedestal)

62.0 kg Net (TV only)

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

• This equipment complies with the EMC standards listed below.
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024.

9

5 Service Mode

5.1. How to enter into Service Mode

While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds.

5.1.1. Key command

[1] button...Main items Selection in forward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in forward direction
[4] button...Sub items Selection in reverse direction
[RED] button...All Sub items Selection in forward direction
[GREEN] button...All Sub items Selection in reverse direction
[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

10

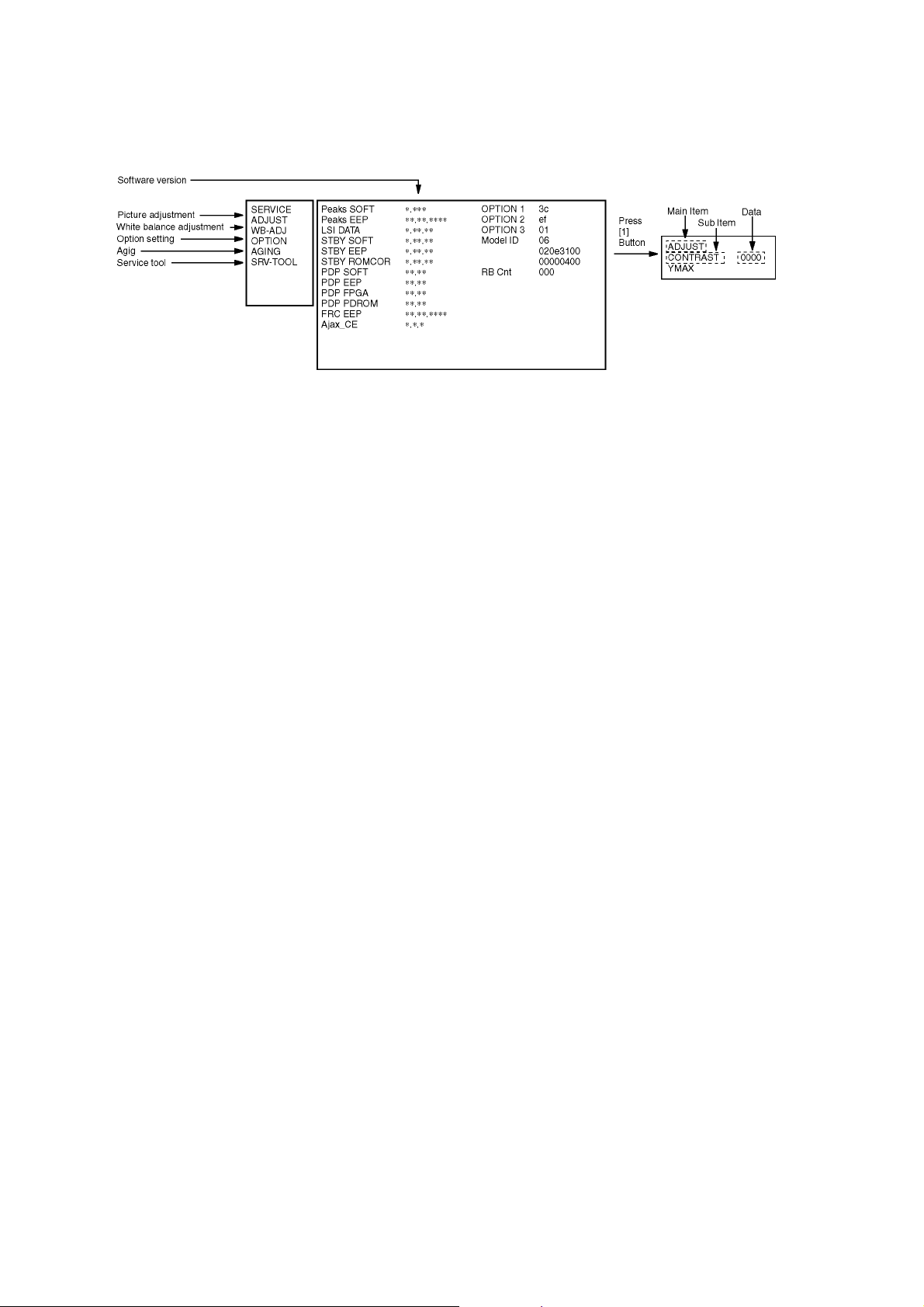

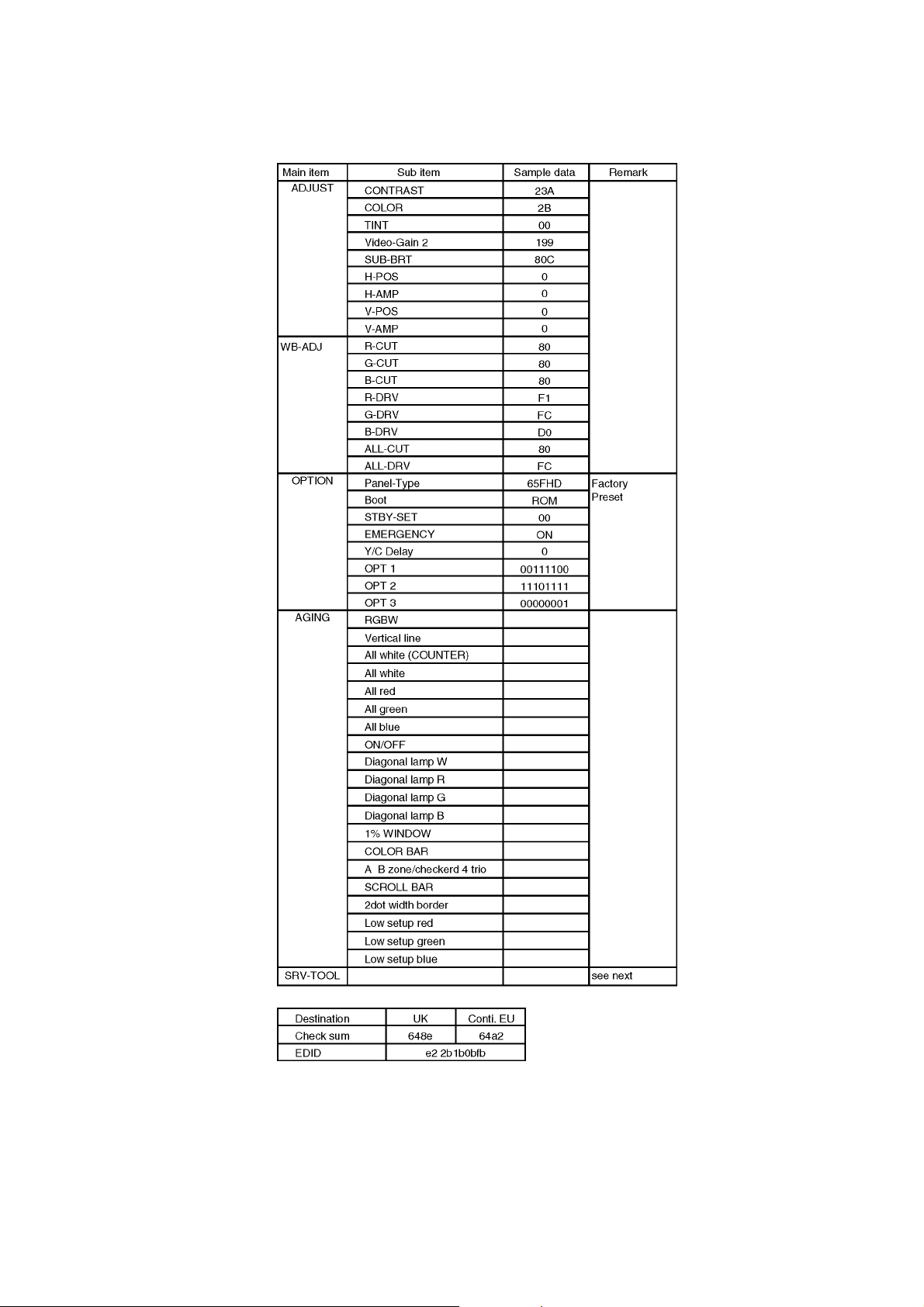

5.1.2. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

5.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

11

5.2. Service tool mode

5.2.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

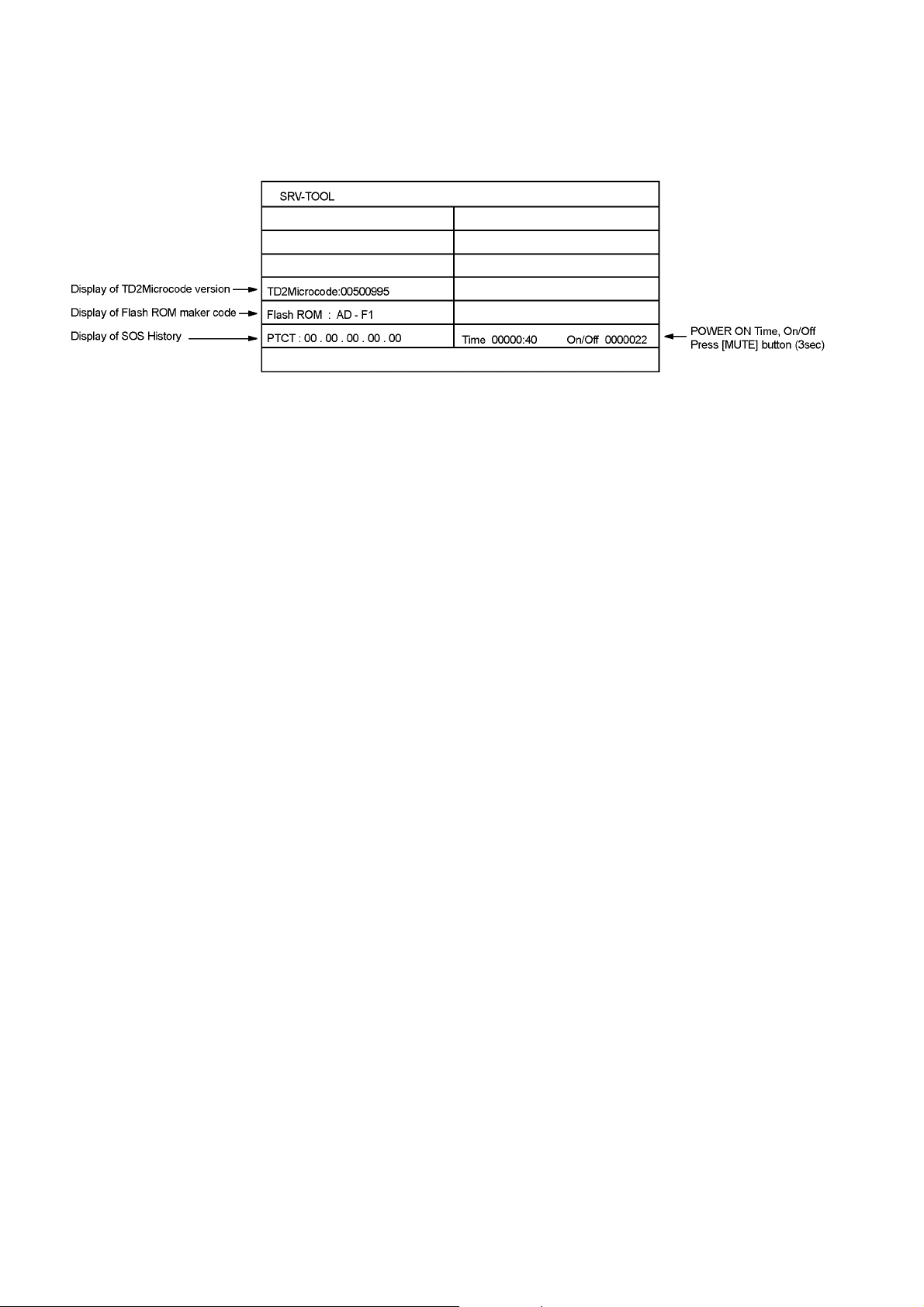

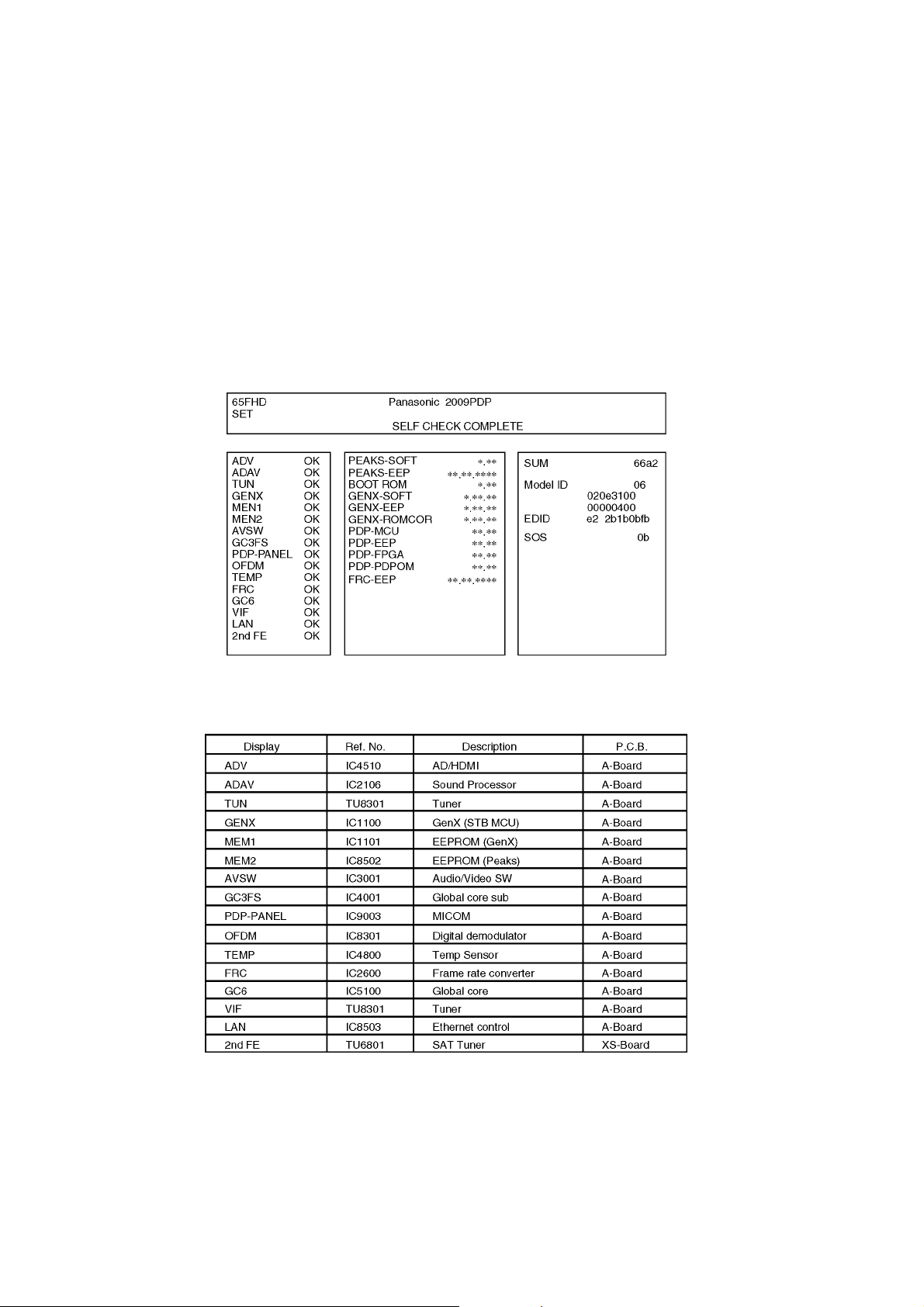

5.2.2. Display of SOS History

SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication will be cleared by [Self-check indication and forced to factory shipment setting].

5.2.3. POWER ON Time, On/Off

Note : To display Time, On/Off menu, highlight position, then press MUTE for 3sec.
Time : Cumulative power on time, indicated hour : minute by decimal
On/Off : Number of On/Off switching by decimal
Note : This indication will not be cleared by either of the self-checks or any other command.

5.2.4. Exit

1. Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

12

5.3. Hotel mode

1. Purpose
Restrict a function for hotels.

2. Access command to the Hotel mode setup menu
In order to display the Hotel mode setup menu, please
enter the following command (within 2 second).
[TV] : Vol. [Down] + [REMOTE] : AV (3 times)

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

item Function
Hotel Mode Select hotel mode ON/OFF
Initial INPUT Select input signal modes.

Set the input, when each time power is switched
on.
Selection :
Off/Analogue/DVB-S/DVB-T/AV1/AV2/AV2S/AV3/
AV3S/COMPONENT/PC/HDMI1/HDMI2/HDMI3/
HDMI4

• Off: give priority to a last memory. However,
Euro model is compulsorily set to TV.

• AVnS/AVnC: only Euro model selectable

• PC: selectable with VGA option

Initial POS Select programme number.

Initial VOL level Adjust the volume when each time power is

Maximum VOL
level

Button lock Select local key conditions.

Remote lock Select remote control key conditions.

Selection :
Off/0 to 99

• Off: give priority to a last memory

switched on.
Selection/Range :
Off/0 to 63

• Off: give priority to a last memory

Adjust maximum volume.
Range :
0 to 63

Selection :
Off/SETUP/MENU/ALL

• Off: altogether valid

• SETUP: only F-key is invalid
(Tuning guide (menu) can not be selected.)

• MENU: only F-key is invalid
(only Volume/Mute can be selected.)

• ALL: altogether invalid.

Selection :
Off/SETUP/MENU

• Off: altogether valid

• SETUP: only Setup menu is invalid

• MENU: Picture/Sound/Setup menu are invalid

13

6 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

6.1. Check of the IIC bus lines

6.1.1. How to access

Self-check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
Self-check indication and forced to factory shipment setting:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote con-

trol for more than 3 seconds.

6.1.2. Screen display

6.1.3. Check Point

Confirm the following parts if NG was displayed.

6.1.4. Exit

Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

14

6.2. Power LED Blinking timing chart

1. Subject
Information of LED Flashing timing chart.

2. Contents
When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

15

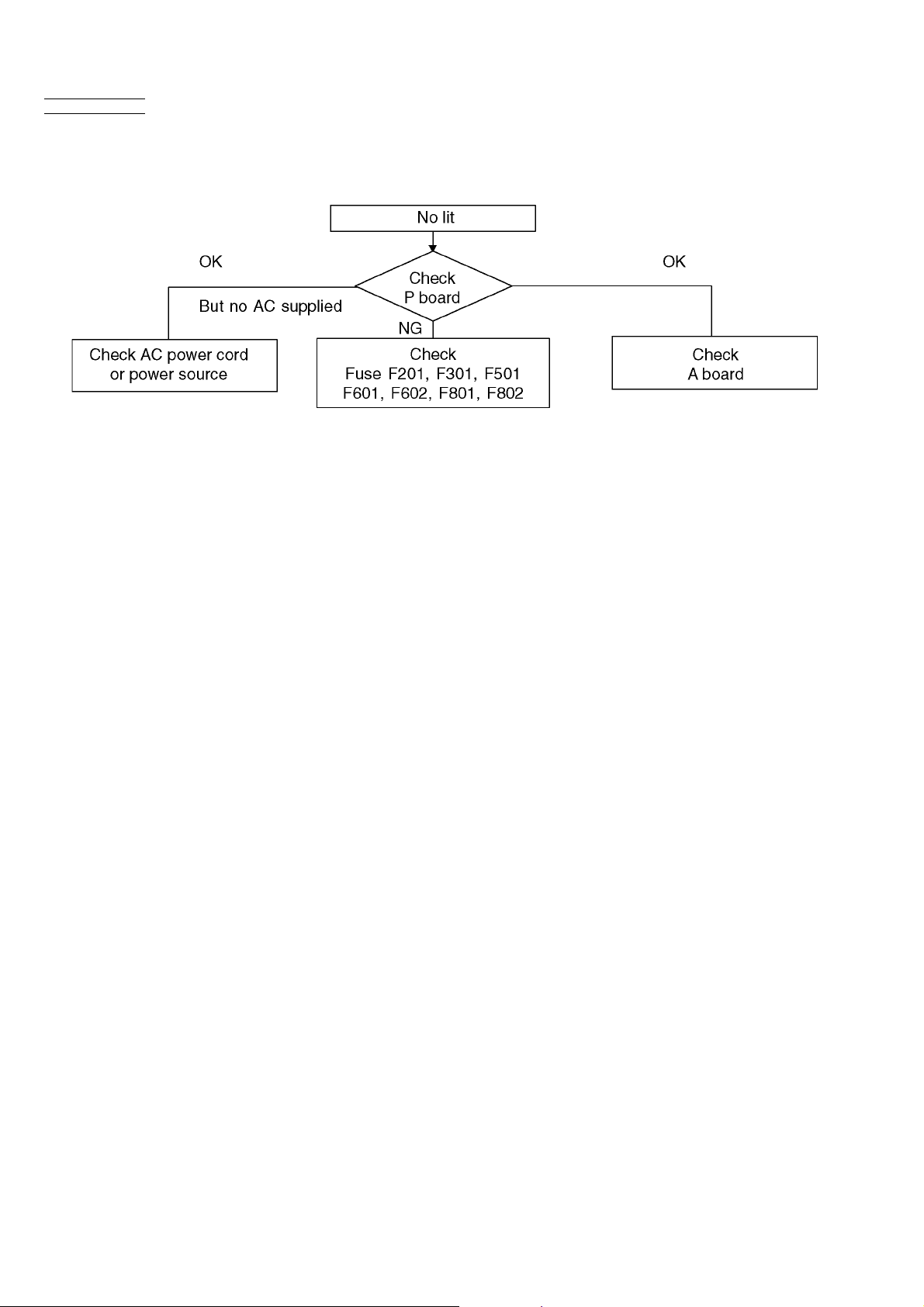

6.3. No Power

First check point
There are following 2 states of No Power indication by power LED.

1. No lit

2. Red is lit then turns red blinking a few seconds later. (See 6.2.)

16

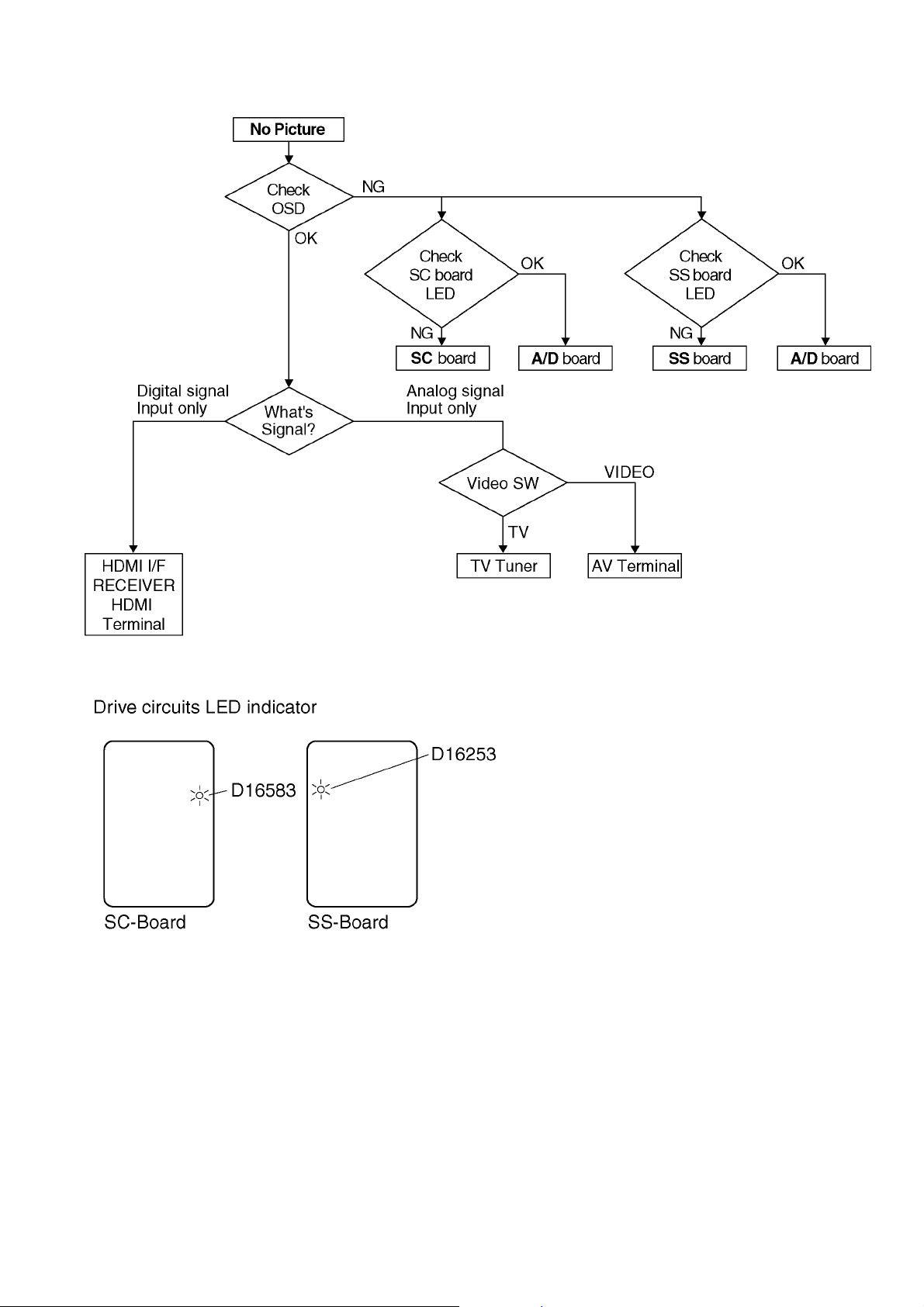

6.4. No Picture

17

6.5. Local screen failure

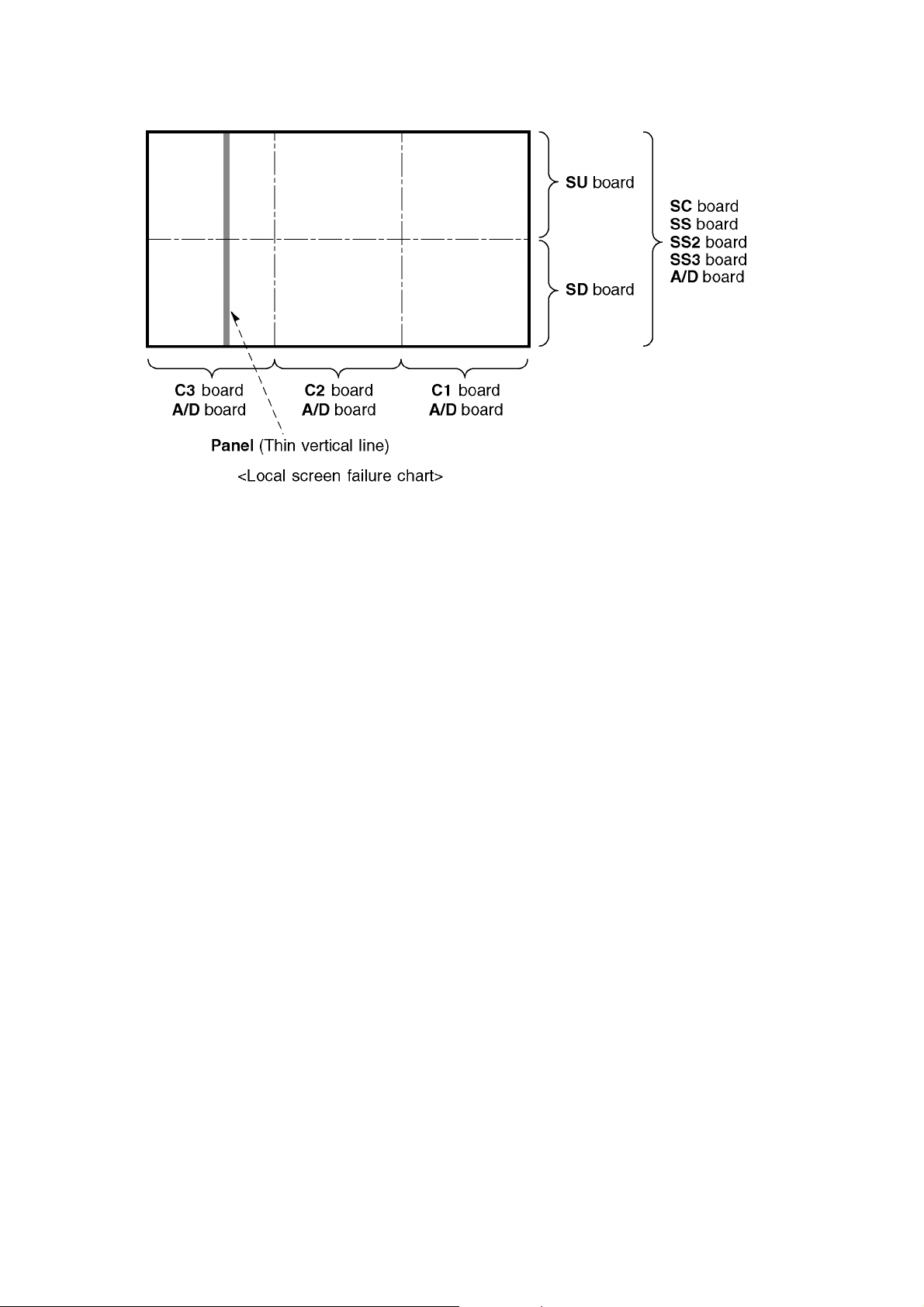

Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.

Fig-1

18

7 Service Fixture & Tools

7.1. SC jig

Purpose:

To find the failure board (SC or SU/SD) when the power LED is blinking 7 times.

SC jig:

Jumper connector to connect to SC50 connector on SC board

Part number:

TZSC09187

How to use:
Caution: Remove SC jig from SC board after inspection.

1. Remove all connector between SC board and SU/SD board to isolate SC board from both SU and SD board electrically.
Note: The board will be damaged if all connector is not removed (for example; remove connector only for SU board and stay
connecting with SD board. The board will be damaged.)

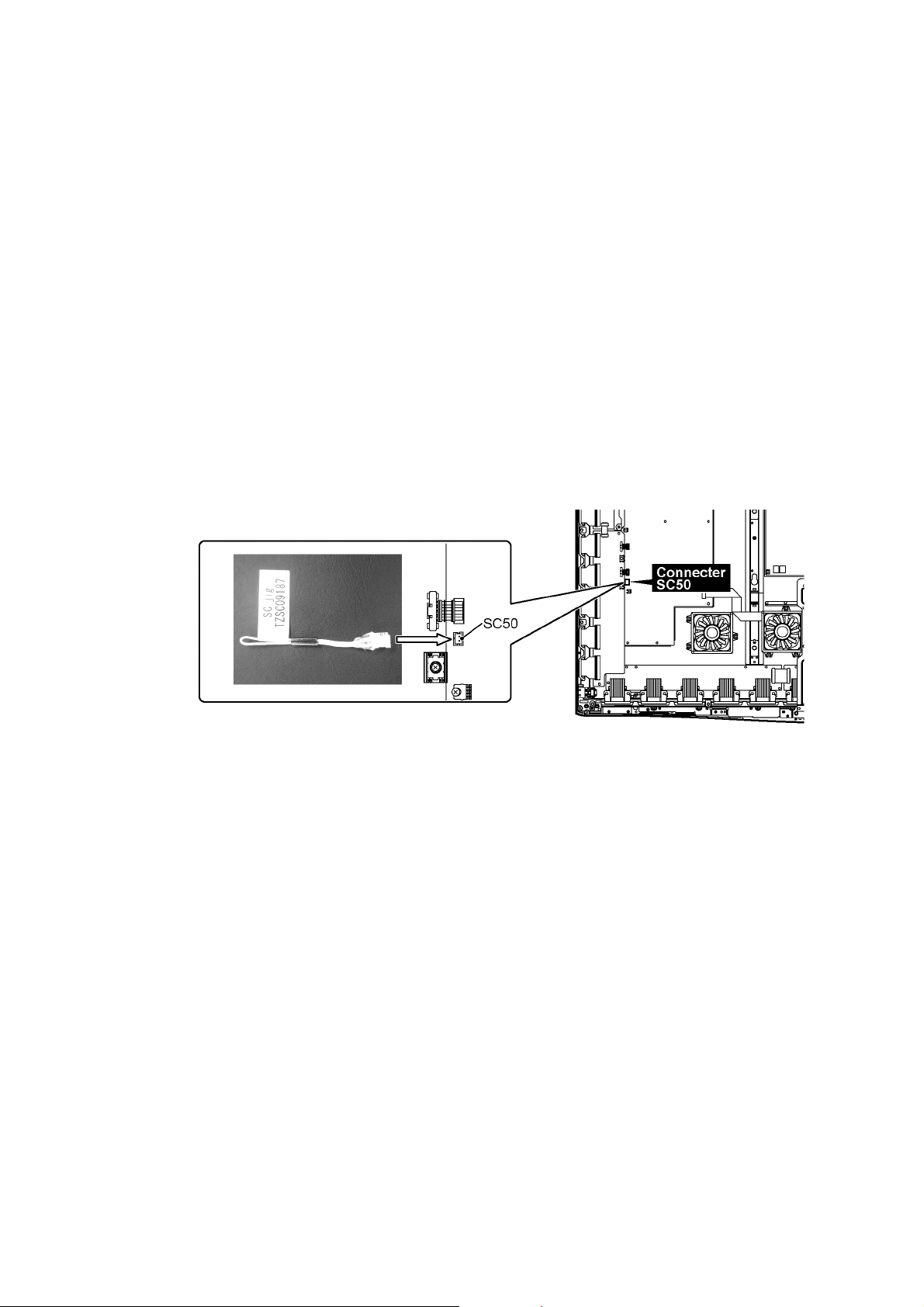

2. Connect SC jig to connector SC50 at left bottom side of SC board

3. Turn of the TV/Display Unit and confirm the power LED blinking.
LED blinking: Possible cause of failure is in SC board
No LED blinking (Lighting or no lighting): Possible cause of failure is in SU or SD board

4. After inspection, turn off the TV/Display Unit and wait a few minutes to discharge.

5. Remove SC jig from SC board.

Remark: This SC jig can be used for all 2009 Plasma TV and Plasma Display.

19

8 Disassembly and Assembly Instructions

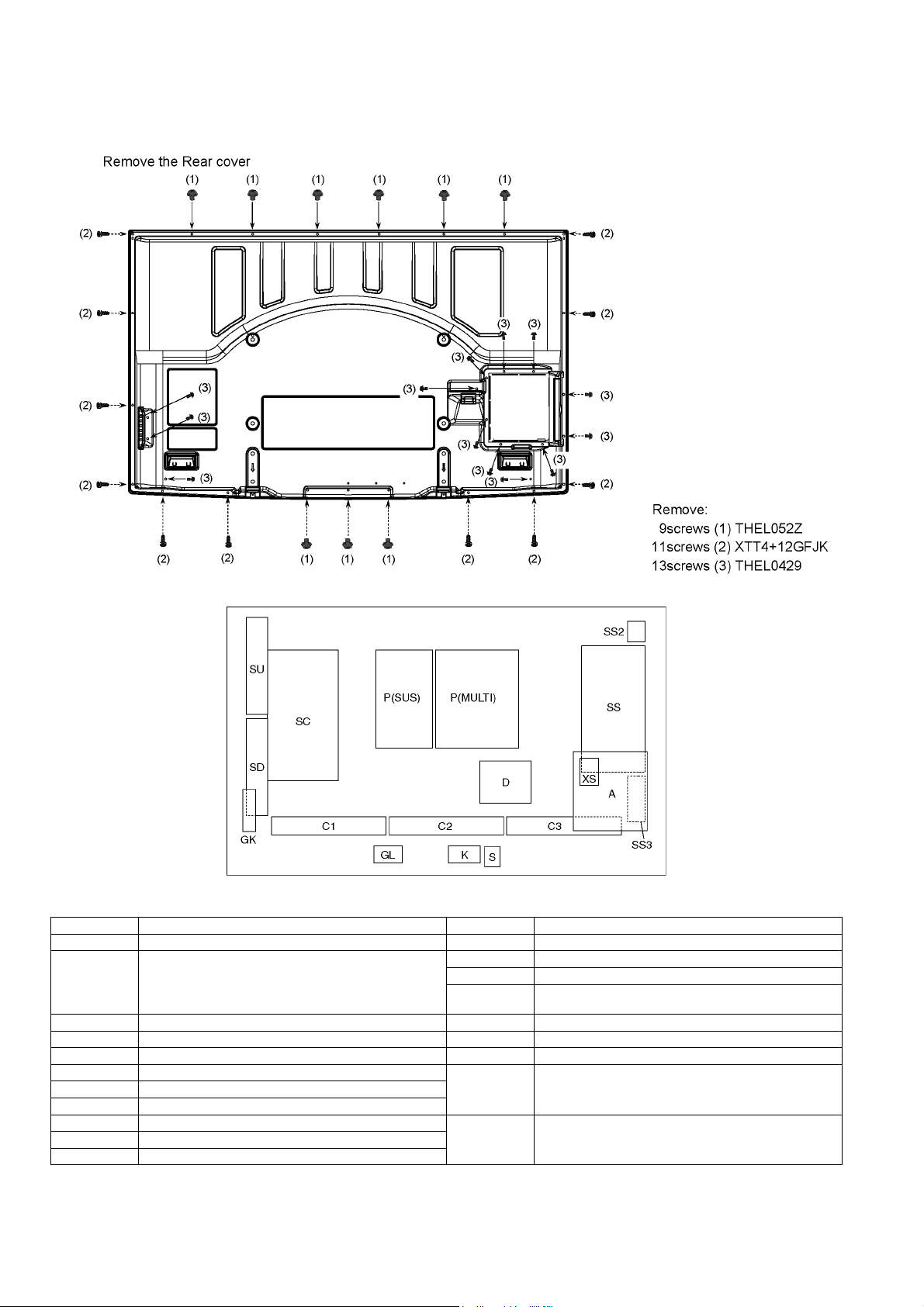

8.1. Remove the Rear cover

1. See Service Hint (Section 3)

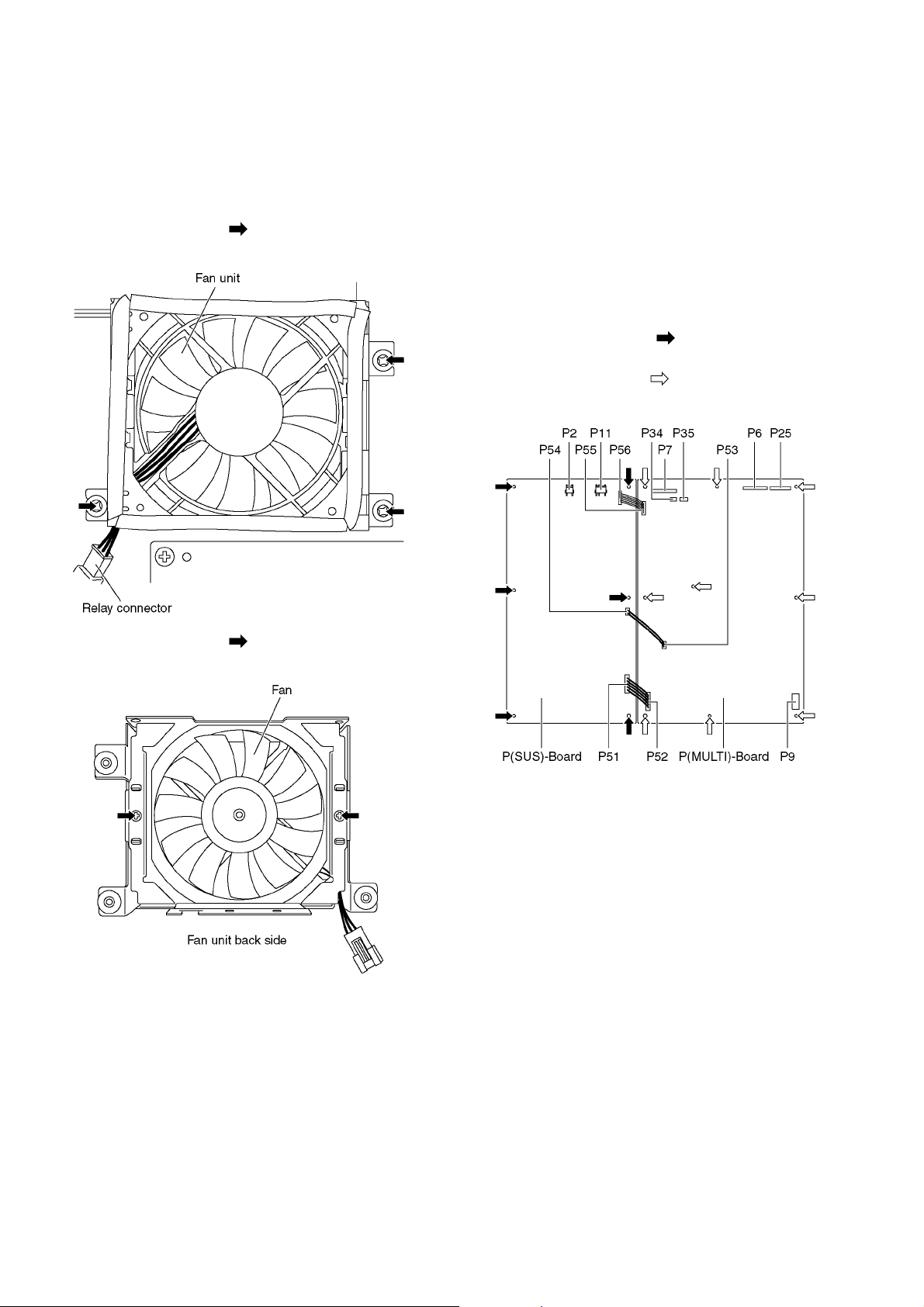

8.2. Remove the Fan

1. Unlock the cable clampers to free the cable.

2. Remove the screws (×3 ).

3. Remove the relay connectors and remove the Fan unit.

8.3. Remove the P-Board

Caution:

To remove P.C.B. wait 1 minute after power was off for dis­charge from electrolysis capacitors.

1. Unlock the cable clampers to free the cable

2. Disconnect the connectors (P51-P52, P53-P54 and P55­P56).

3. Disconnect the connectors (P2, P6, P7, P9, P11, P25 and
P35).

4. Remove a short-jumper connector P34 and re-use for
new P-Board.

5. Remove the screws (×6 ) and remove the P(SUS)­Board.

6. Remove the screws (×9 ) and remove the P(MULTI)­Board.

4. Remove the screws (×2 ) on the back side.

5. Remove the Fan.

20

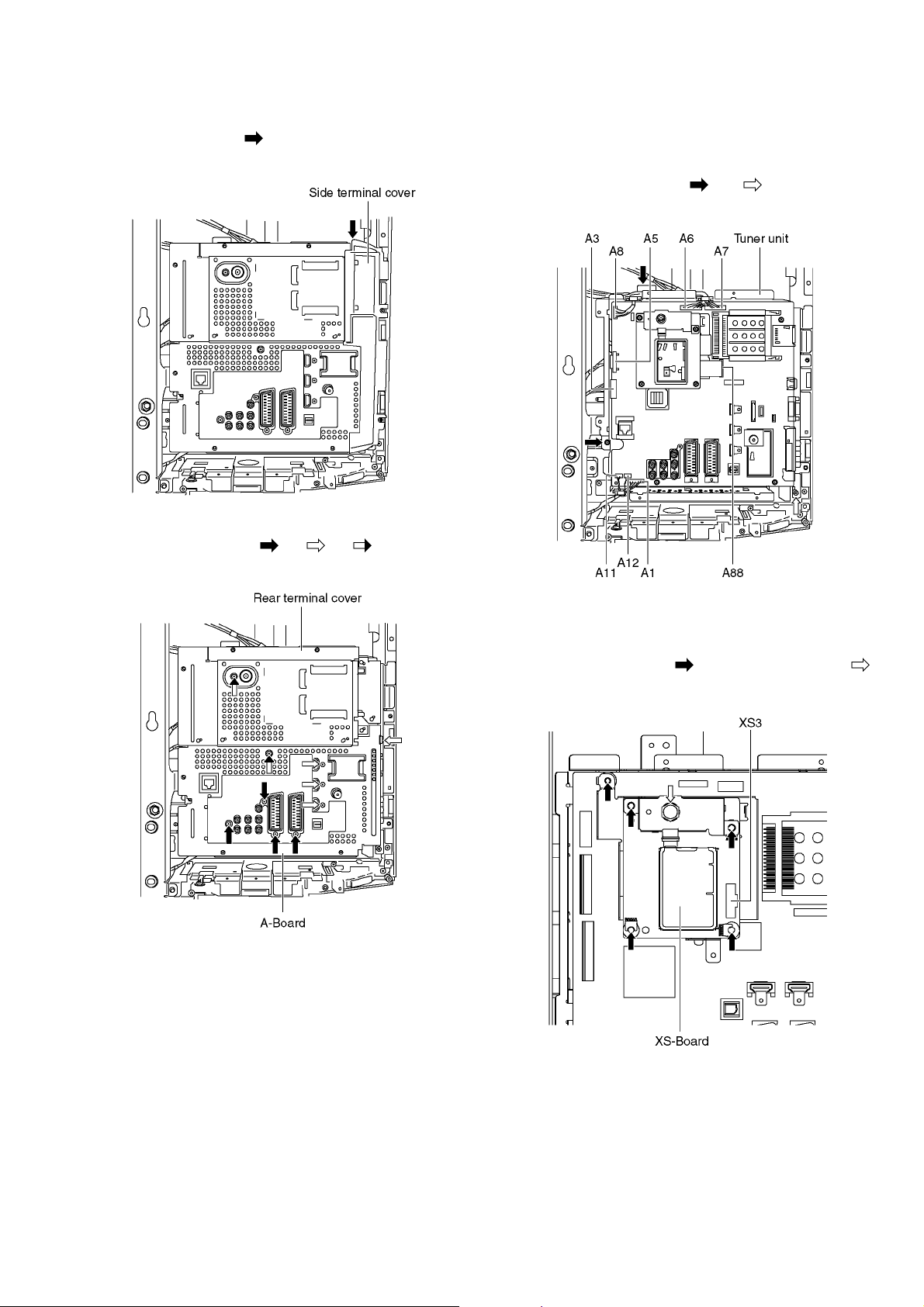

8.4. Remove the Side terminal cover and Rear terminal cover

1. Remove the claw (×1 ).

2. Remove the Side terminal cover.

3. Remove the Adjustment cover.

4. Remove the screws (×4 , ×4 , ×2 ).

5. Remove the Rear terminal cover.

8.5. Remove the Tuner unit

1. Unlock the cable clampers to free the cable.

2. Disconnect the connectors (A1, A3, A5, A6, A7, A8, A11
and A12).

3. Disconnect the flexible cables (A88).

4. Remove the screws (×2 , ×1 ) and remove the
Tuner unit.

8.6. Remove the XS-Board

1. Disconnect the flexible cable (XS3).

2. Remove the screws (×5 ) and remove the nut (×1 ).

3. Remove the XS-Board.

21

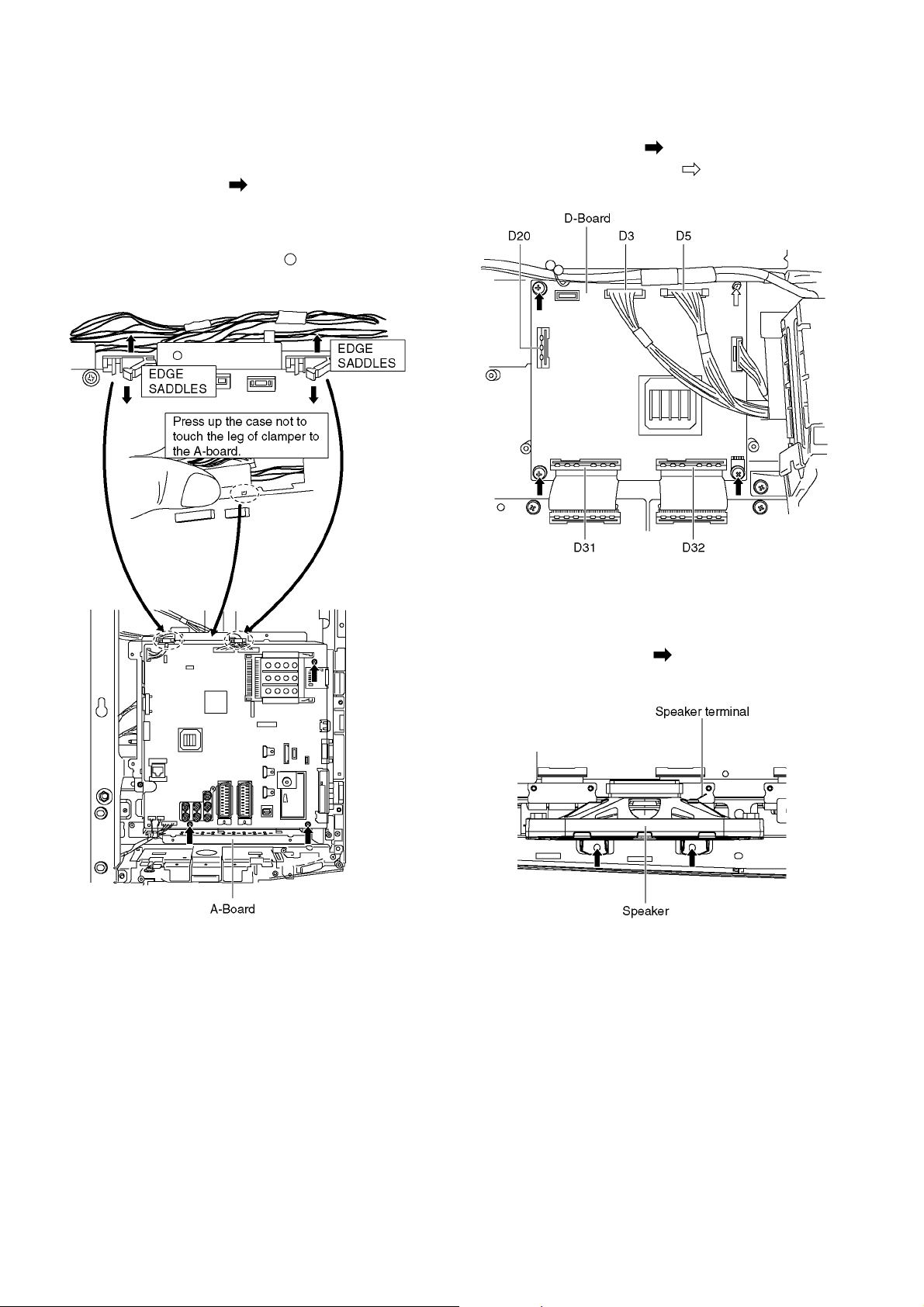

8.7. Remove the A-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Remove two EDGE SADDLES at top of case.
Twist the EDGE SADDLE to press up at the back and pull
down the front side.

3. Remove the screws (×3 ) and remove the A-Board.

Caution :

Press up the case not to touch the leg of clamper to the A­board.

Pay attention two metal projection from back side when
removal and assemble.

8.8. Remove the D-Board

1. Disconnect the connectors. (D3 and D5)

2. Disconnect the flexible cables. (D20, D31 and D32)

3. Remove the screws (×3 ).

4. Remove the molding prop (×1 ).

5. Remove the D-Board.

8.9. Remove the Speakers

1. Unlock the cable clampers to free the cable.

2. Disconnect the Speaker terminal.

3. Remove the screws (×2 ) and remove the Speakers
(L, R).

22

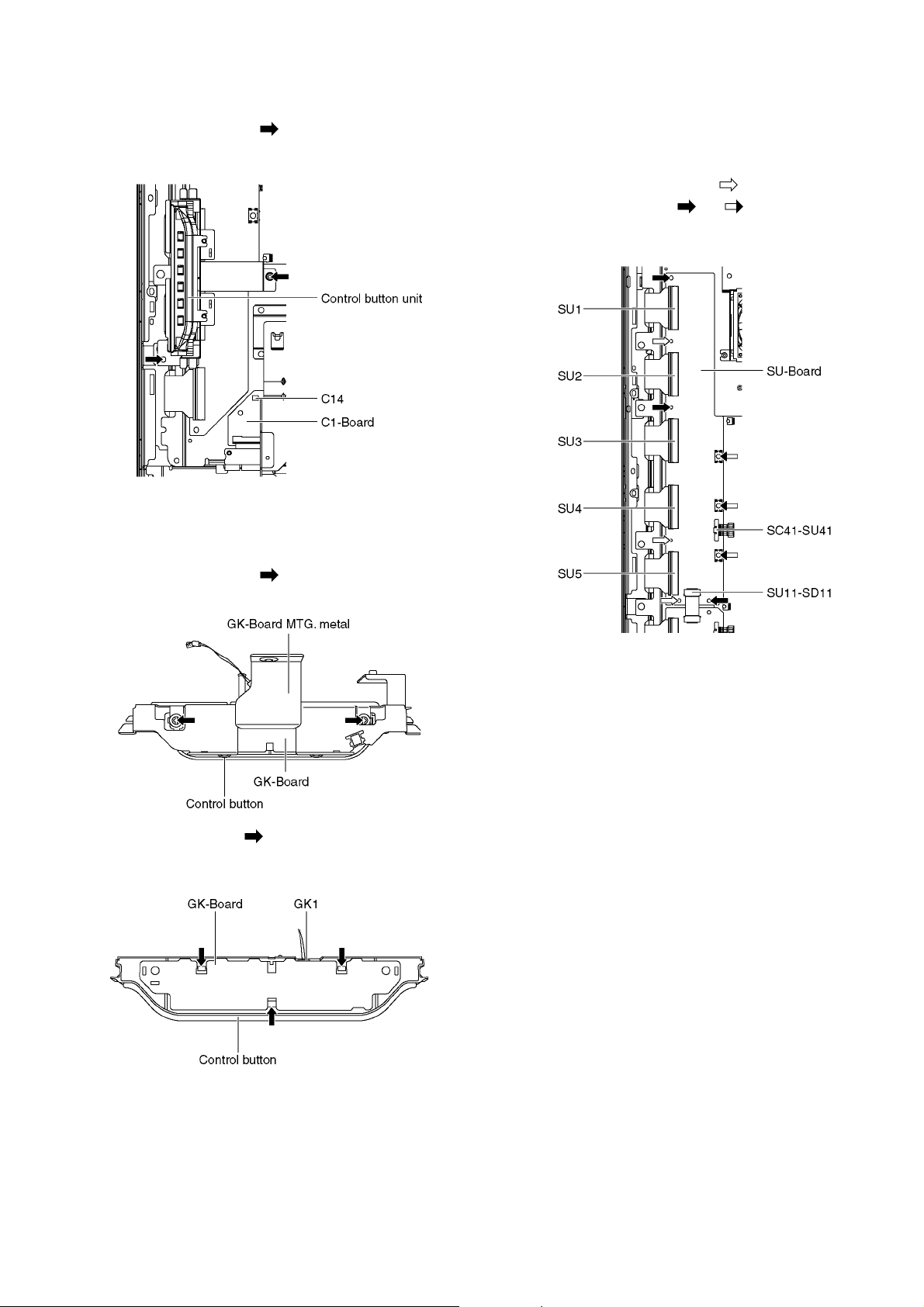

8.10. Remove the Control button unit

1. Disconnect the connector (C14).

2. Remove the screws (×2 ).

3. Remove the Control button unit.

8.11. Remove the GK-Board

1. Remove the Control button unit. (See section 8.10.)

2. Remove the screws (×2 ).

3. Remove the GK-Board MTG. metal.

8.12. Remove the SU-Board

1. Remove the flexible cables (SU1, SU2, SU3, SU4 and
SU5) connected to the SU-Board.

2. Remove the flexible cable (SU11-SD11) and the bridge
connector (SC41-SU41).

3. Remove the molding props (×3 ).

4. Remove the screws (×3 , ×3 ) and remove the SU-
Board.

4. Remove the claw (×3 ).

5. Disconnect the connector (GK1).

6. Remove the GK-Board from Control button.

23

8.13. Remove the SD-Board

1. Remove the Control button unit. (See section 8.10.)

2. Remove the flexible cables (SD1, SD2, SD3, SD4 and
SD5) connected to the SD-Board.

3. Remove the flexible cable (SU11-SD11) and the bridge
connectors (SC42-SD42 and SC46-SD46).

4. Remove the molding props (×3 ).

5. Remove the screws (×3 , ×3 ) and remove the SD-
Board.

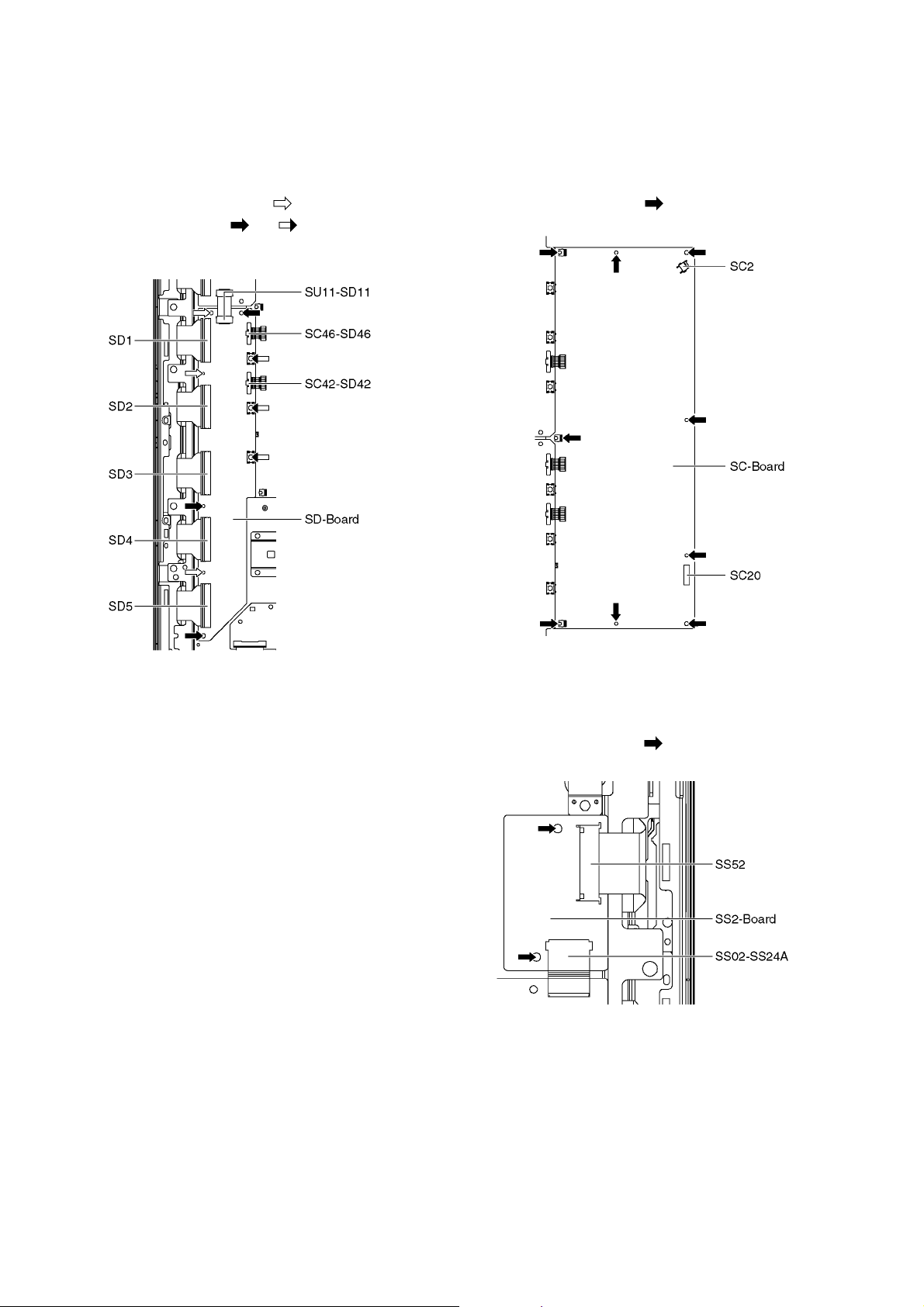

8.14. Remove the SC-Board

1. Remove the SU-Board and SD-Board. (See section 8.12.
and 8.13.)

2. Unlock the cable clampers to free the cable.

3. Disconnect the connector (SC2).

4. Disconnect the flexible cable (SC20).

5. Remove the screws (×9 ) and remove the SC-Board.

8.15. Remove the SS2-Board

1. Disconnect the bridge connector (SS02-SS24A) and dis­connect the flexible cable (SS52).

2. Remove the screws (×2 ) and remove the SS2-Board.

24

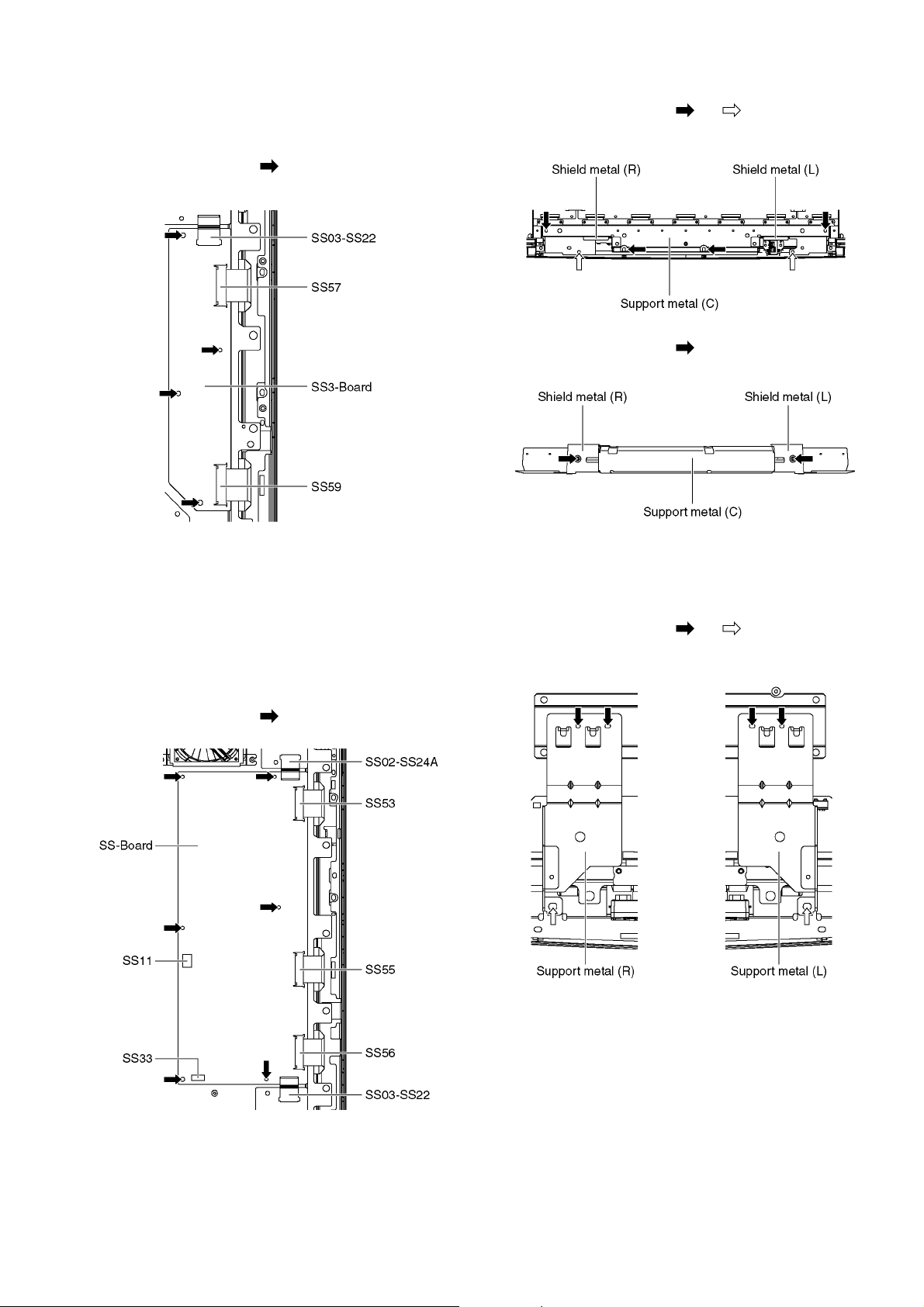

8.16. Remove the SS3-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Disconnect the bridge connector (SS03-SS22) and dis­connect the flexible cables (SS57 and SS59).

3. Remove the screws (×4 ) and remove the SS3-Board.

8.18. Remove the Support metal (C)

1. Remove the screws (×4 , ×2 ).

2. Remove the Support metal (C).

3. Remove the screws (×2 ).

4. Remove the Shield metals (L, R).

8.17. Remove the SS-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Unlock the cable clampers to free the cable.

3. Disconnect the connectors (SS11 and SS33).

4. Disconnect the flexible cables (SS53, SS55 and SS56).

5. Disconnect the bridge connectors (SS02-SS24A and
SS03-SS22).

6. Remove the screws (×6 ) and remove the SS-Board.

8.19. Remove the Support metals (L, R)

1. Remove the Tuner unit. (See section 8.5.)

2. Remove the screws (×2 , ×1 each).

3. Remove the Support metals (L, R).

25

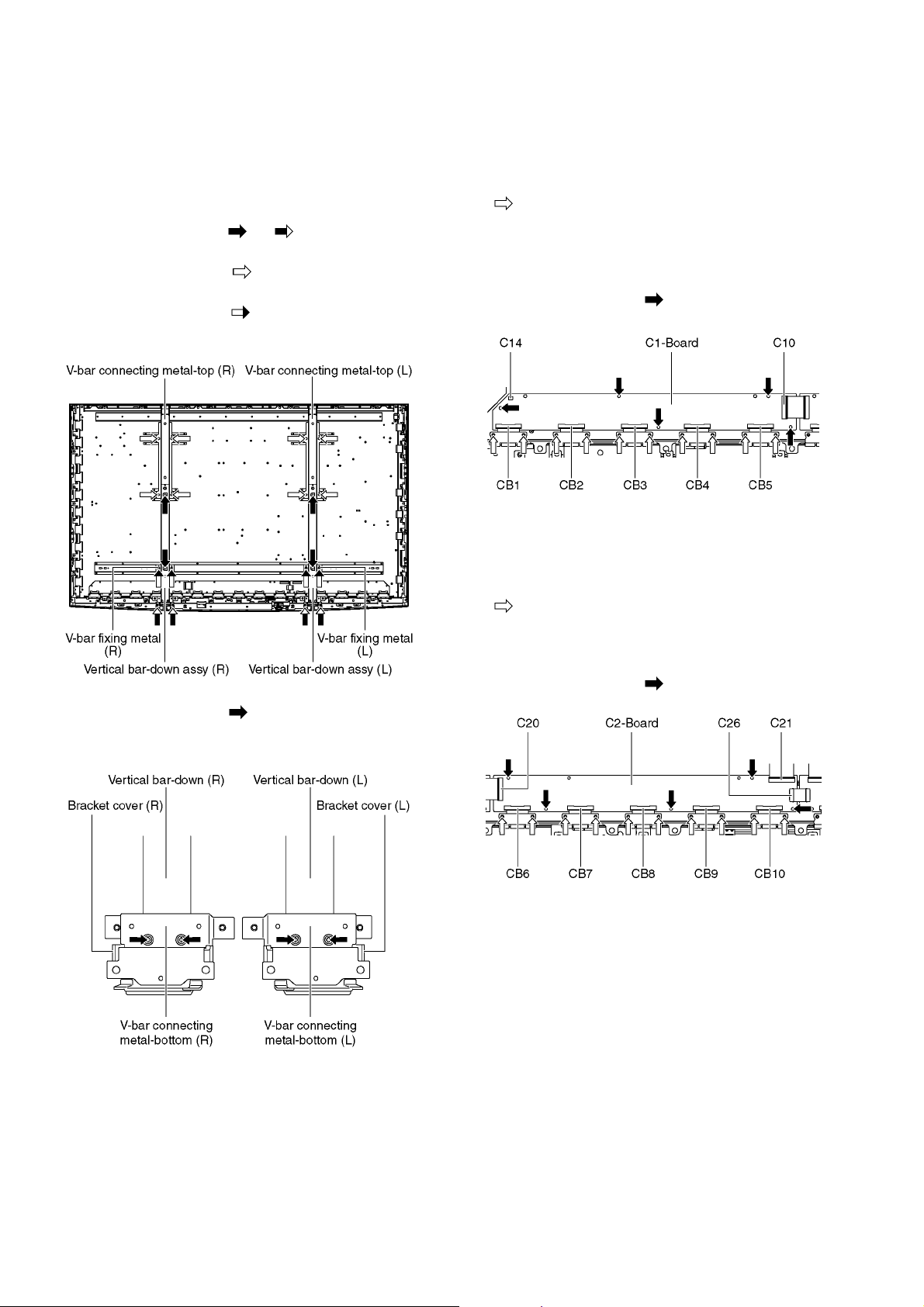

8.20. Remove the Vertical bar-down assy

1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.

2. Remove the Support metal (C). (See section 8.18.)

3. Remove the screws (×2 , ×2 each) and remove the
Vertical bar-down assy (L, R).

4. Remove the screws (×4 each) and remove the V-bar
connecting metal-top (L, R).

5. Remove the screws (×2 ) and remove the V-bar fixing
metals (L, R).

8.21. Remove the C1-Board

1. Remove the Control button unit. (See section 8.10.)

2. Remove the Support metal (C). (See section 8.18.)

3. Remove the Support metal (R). (See section 8.19.)

4. Remove the Vertical bar-down assy. (See section 8.20.)

5. Remove the flexible cables holder fastening screws (×10

).

6. Disconnect the flexible cables (CB1, CB2, CB3, CB4 and
CB5).

7. Disconnect the flexible cable (C10).

8. Disconnect the connector (C14).

9. Remove the screws (×5 ) and remove the C1-Board.

6. Remove the screws (×2 each) and remove V-bar con­necting metal-bottom (L, R) and the Bracket covers (L,
R).

8.22. Remove the C2-Board

1. Remove the Support metal (C). (See section 8.18.)

2. Remove the flexible cables holder fastening screws (×10

).

3. Disconnect the flexible cables (CB6, CB7, CB8, CB9 and
CB10).

4. Disconnect the flexible cables (C20, C21 and C26).

5. Remove the screws (×5 ) and remove the C2-Board.

26

8.23. Remove the C3-Board

1. Remove the Tuner unit. (See section 8.10.)

2. Remove the Support metal (C). (See section 8.18.)

3. Remove the Support metal (L). (See section 8.19.)

4. Remove the Vertical bar-down assy. (See section 8.20.)

5. Remove the flexible cables holder fastening screws (×10

).

6. Disconnect the flexible cables (CB11, CB12, CB13, CB14
and CB15).

7. Disconnect the flexible cables (C31 and C36).

8. Disconnect the connectors (C33 and C35).

9. Remove the screws (×5 ) and remove the C3-Board.

8.24. Remove the Plasma panel sec­tion from the Cabinet assy
(glass)

1. Remove the cabinet assy and the plasma panel fastening

screws (×12 , ×4 ).

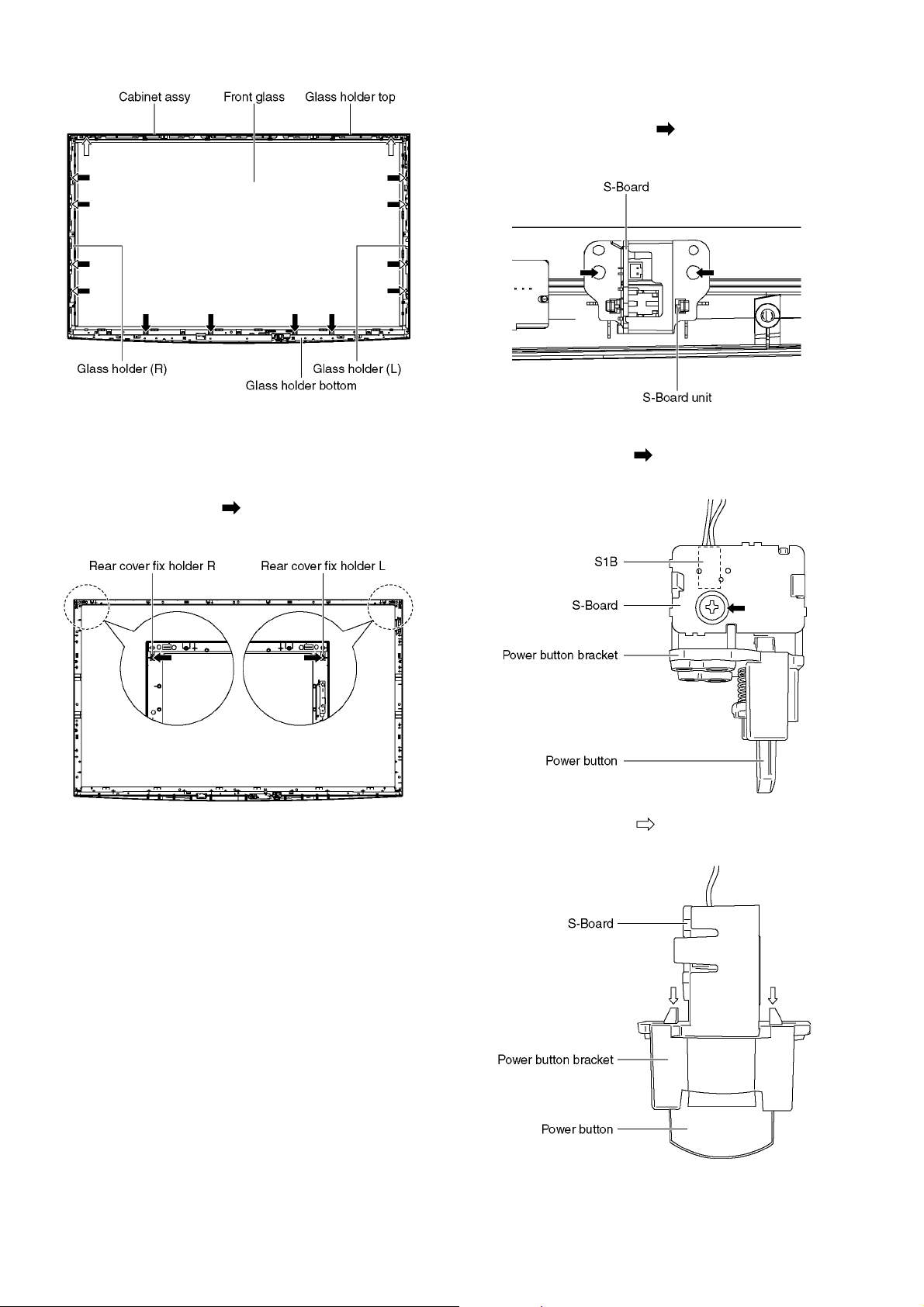

8.25. Remove the Glass holders

1. Remove the Cabinet assy. (See section 8.22.)

2. Unlock the cable clampers to free the cable.

3. Remove the screws (×4 , ×4 ).

4. Remove the Joint metal top (×4) and the Joint metal bot­tom (×4).

2. For leaving the plasma panel from the front frame, pull the
bottom of the cabinet assy forward, lift, and remove.

5. Remove the screws (×4 ).

6. Remove the Glass holder bottom.

7. Remove the screws (×2 ).

8. Remove the Glass holder top.

9. Remove the screws (×8 ).

10. Remove the Glass holders (L, R).

27

8.27. Remove the S-Board

1. Remove the Glass holder bottom. (See section 8.25.)

2. Remove the screws (×2 ) and remove the S-Board
unit.

8.26. Remove the Rear cover fix holders

1. Remove the Glass holders. (See section 8.25.)

2. Remove the screw (×1 each).

3. Remove the Rear cover fix holders (L, R).

3. Disconnect the connector (S1B).

4. Remove the screw (×1).

5. Remove the S-Board from the Power button bracket.

6. Remove the claws (×2 ).

7. Remove the Power button from the Power button bracket.

28

8.28. Remove the K-Board

1. Remove the Glass holder bottom. (See section 8.25.)

2. Remove the screws (×2 ).

3. Remove the claw (×1 ).

4. Disconnect the connector (K1) and remove the K-Board
from LED Panel.

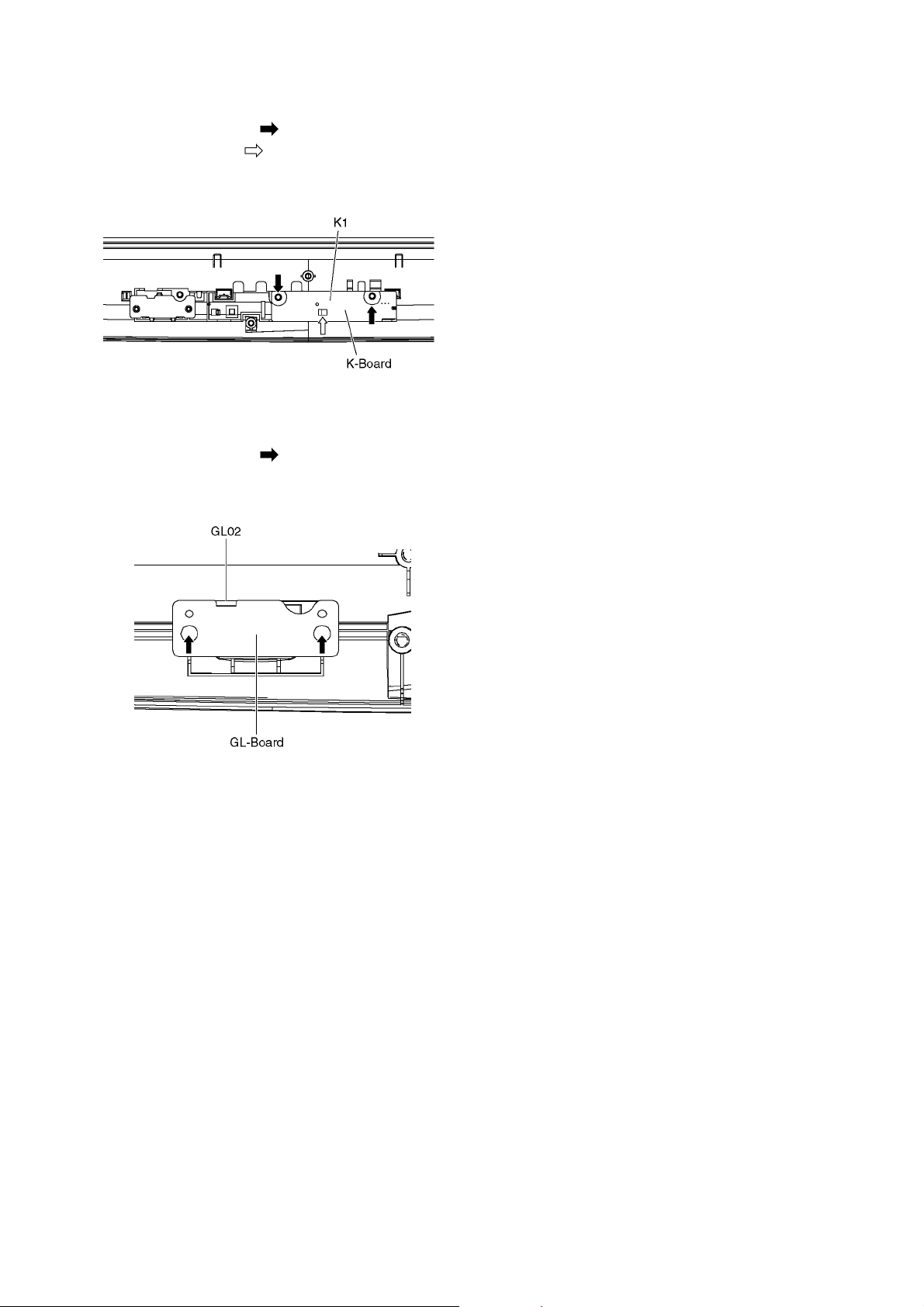

8.29. Remove the GL-Board

1. Remove the Glass holder bottom. (See section 8.25.)

2. Remove the screws (×2 ).

3. Disconnect the connector (GL02) and remove the GL­Board.

8.30. Replace the plasma panel

Caution:

A new plasma panel itself without Hanger metals is
fragile.
To avoid the damage to new plasma panel, carry a new
plasma panel taking hold of the Hanger metals after
assembling the Hanger metals and the Stand brackets.

1. Place a carton box packed a new plasma panel on the flat
surface of the work bench.

2. Open a box and without taking a new plasma panel;
Attach the C1-Board, C2-Board and the C3-Board, con­nect the flexible cables from the plasma panel to the C1­Board, C2-Board and the C3-Board, and fit the flexible
cable holders.

3. Attach the Hanger metals and the Stand brackets to the
new plasma panel.

4. Place the plasma panel on the servicing stand taking hold
of the Hanger metals.

5. Attach the cabinet assy and each P.C.Board and so on, to
the new plasma panel.

*When fitting the cabinet assy, be careful not to allow any
debris, dust or handling residue to remain between the
front glass and plasma panel.

29

9 Measurements and Adjustments

9.1. Adjustment Procedure

9.1.1. Driver Set-up

9.1.1.1. Item / Preparation

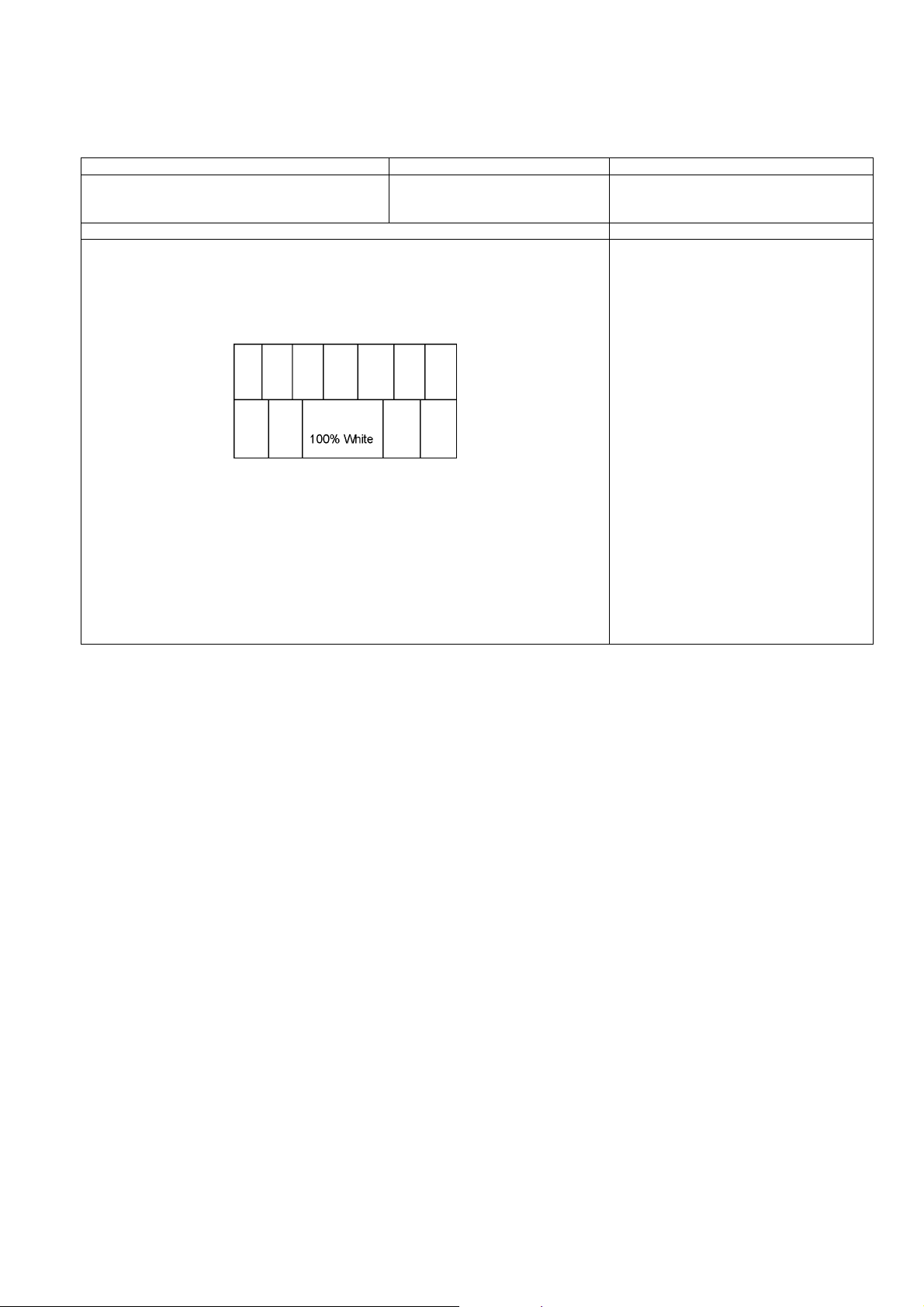

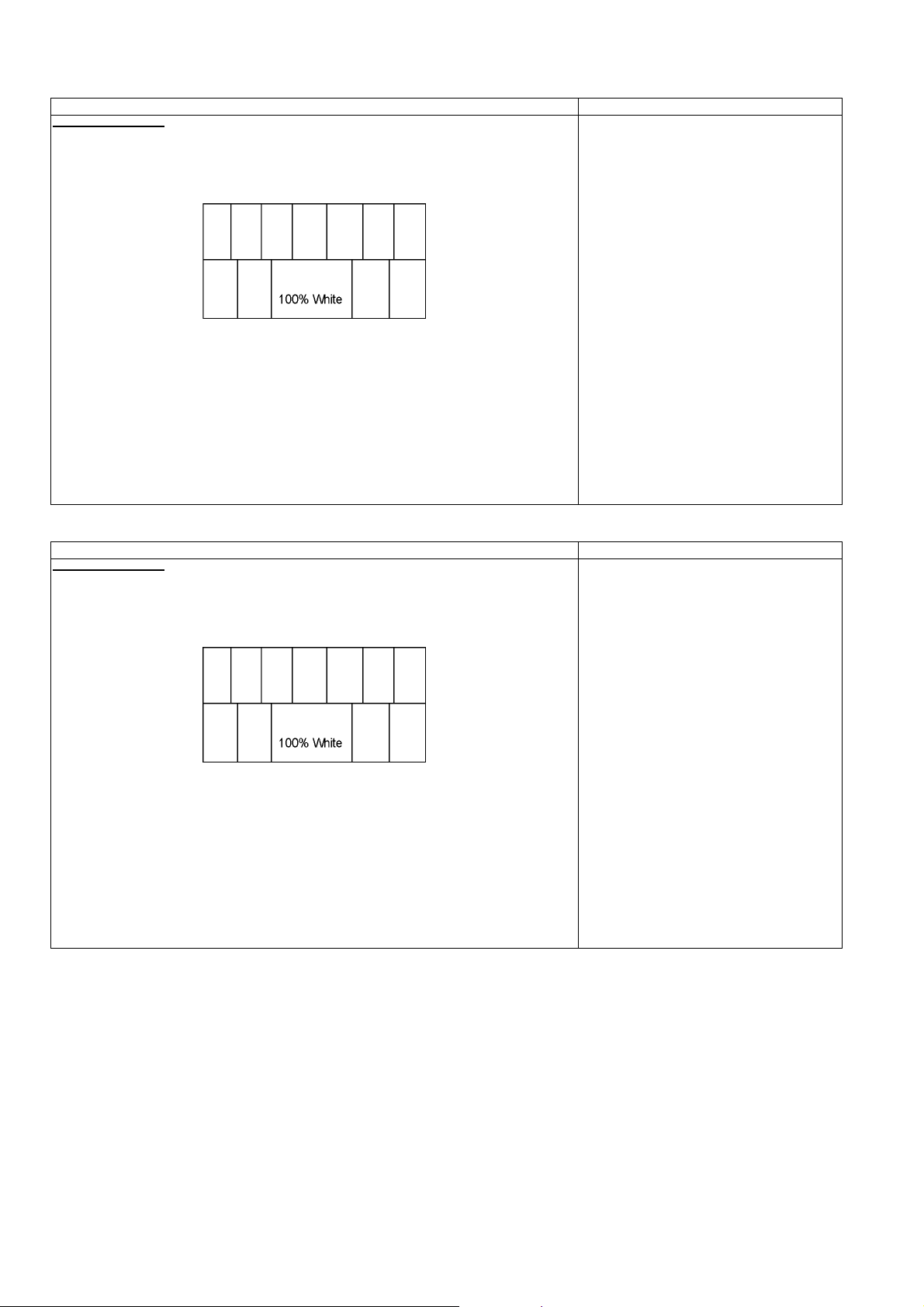

1. Input a white signal to plasma video input.

2. Set the picture controls as follows.
Picture menu : Dynamic
PNR : Min
Aspect : 16:9

Caution

1. First perform Vsus adjustment.

2. The Vscn voltages are measured from the Vad (Vad_base), but may be measured from the GND (GND_base) in an
unavoidable case.

9.1.1.2. Adjustments

Adjust driver section voltages referring the panel data on the panel data label.
Check or adjust the following voltages with the multimeter.

Name Test Point Voltage Volume Remarks
Vsus TPVSUS (SS) Vsus ± 2V VR251 (P) *
Ve TPV E (S S ) Ve ± 2 .5V Fix ed *
Vset TPVSET (SC) 290V ± 9V Fixed
Vad TPVAD (SC) - 155V ± 2V VR16600 (SC)
Vscn TPVSCN (SC) Vad_base : 145V ± 4V

GND_base : - 10V ± 6V

Fixed

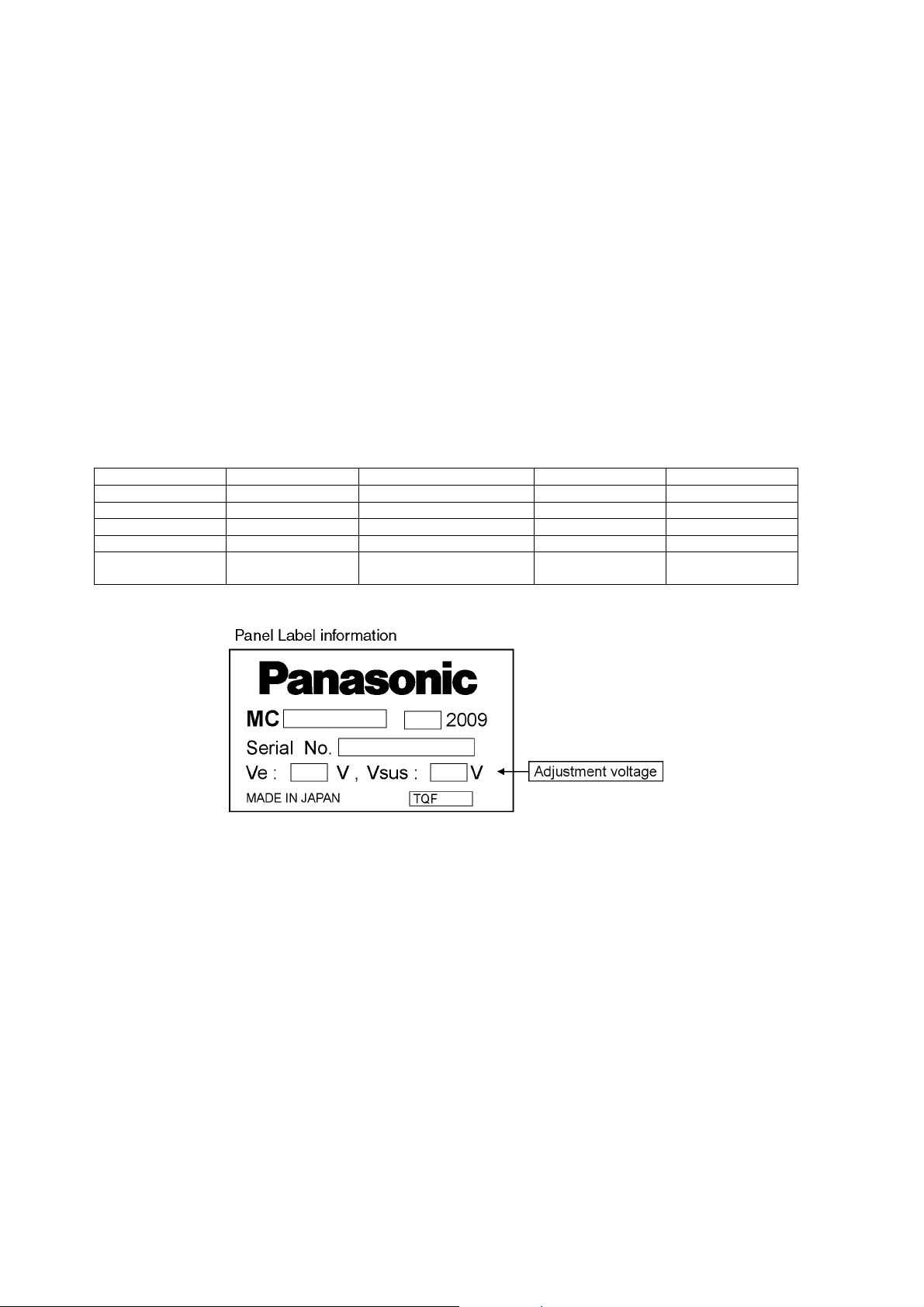

*See the Panel label.

30

9.1.2. Initialization Pulse Adjust

1. Input the White signal to plasma video input.

2. Set the picture controls as follows.
Picture menu : Dynamic
PNR : Min
Aspect : 16:9

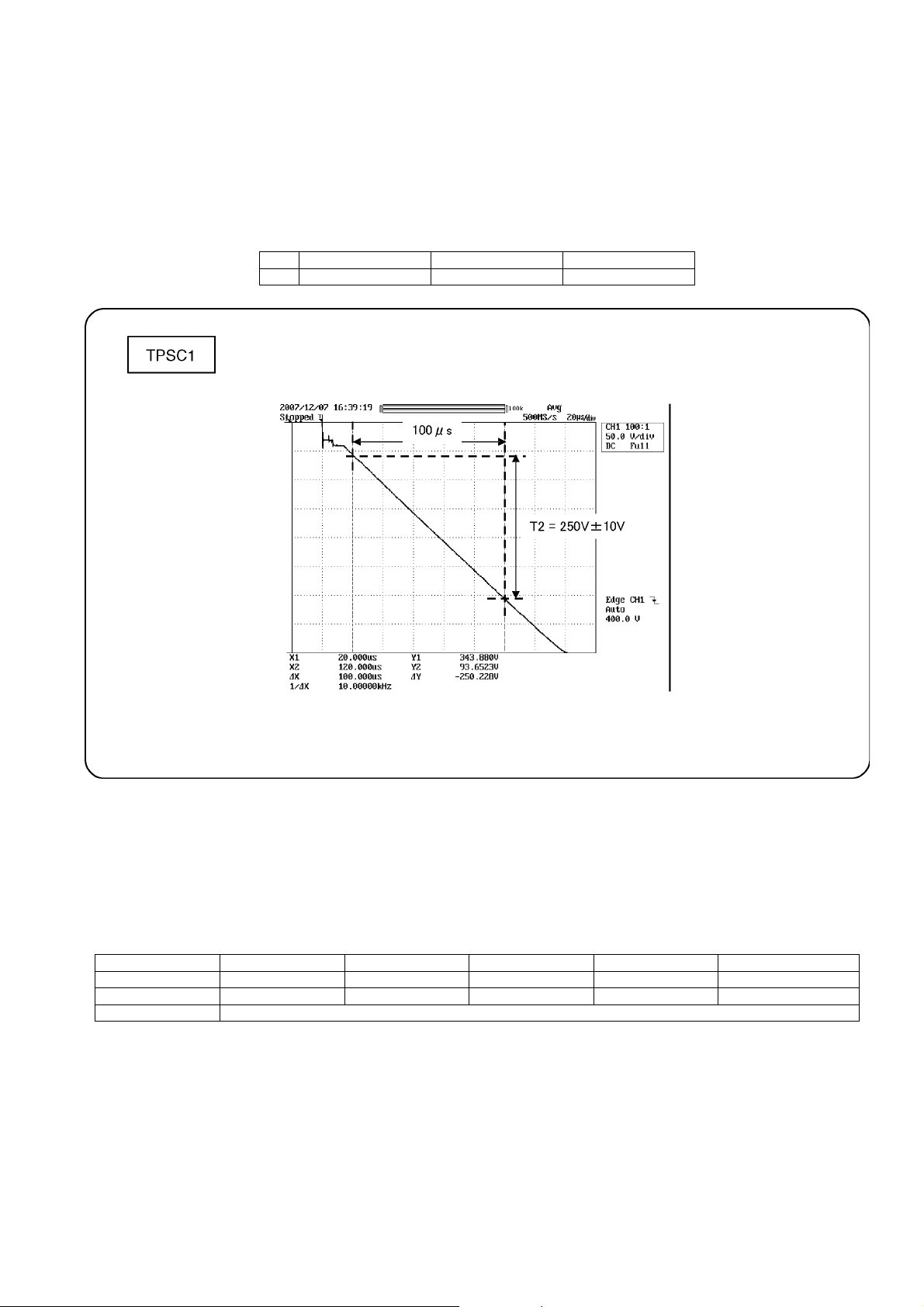

3. Connect Oscilloscope to TPSC1 (SC).
Check the voltage (T2) at 100μs period on the down slop.

Test point Volume Level

T2 TPSC1 (SC) VR16601 (SC) 250 V ± 10 V

9.1.3. P.C.B. (Printed Circuit Board) exchange

9.1.3.1. Caution

1. To remove P.C.B., wait 1 minute after power was off for discharge from electrolysis capacitors.

9.1.3.2. Quick adjustment after P.C.B. exchange

Adjust the following voltages with the multimeter.

P.C.B. Name Test Point Voltage Volume Remarks
P Board Vsus TPVSUS (SS) Vsus ± 2V VR251 (P) *
SC Board Vad TPVAD (SC) - 155V ± 2V VR16600 (SC)
A/D Board White balance and Sub brightness for NTSC, PAL, HD, PC and 625i signals

*See the Panel label.

Caution:

Absolutely do not reduce Vsus below Ve not to damage the P.C.B.

31

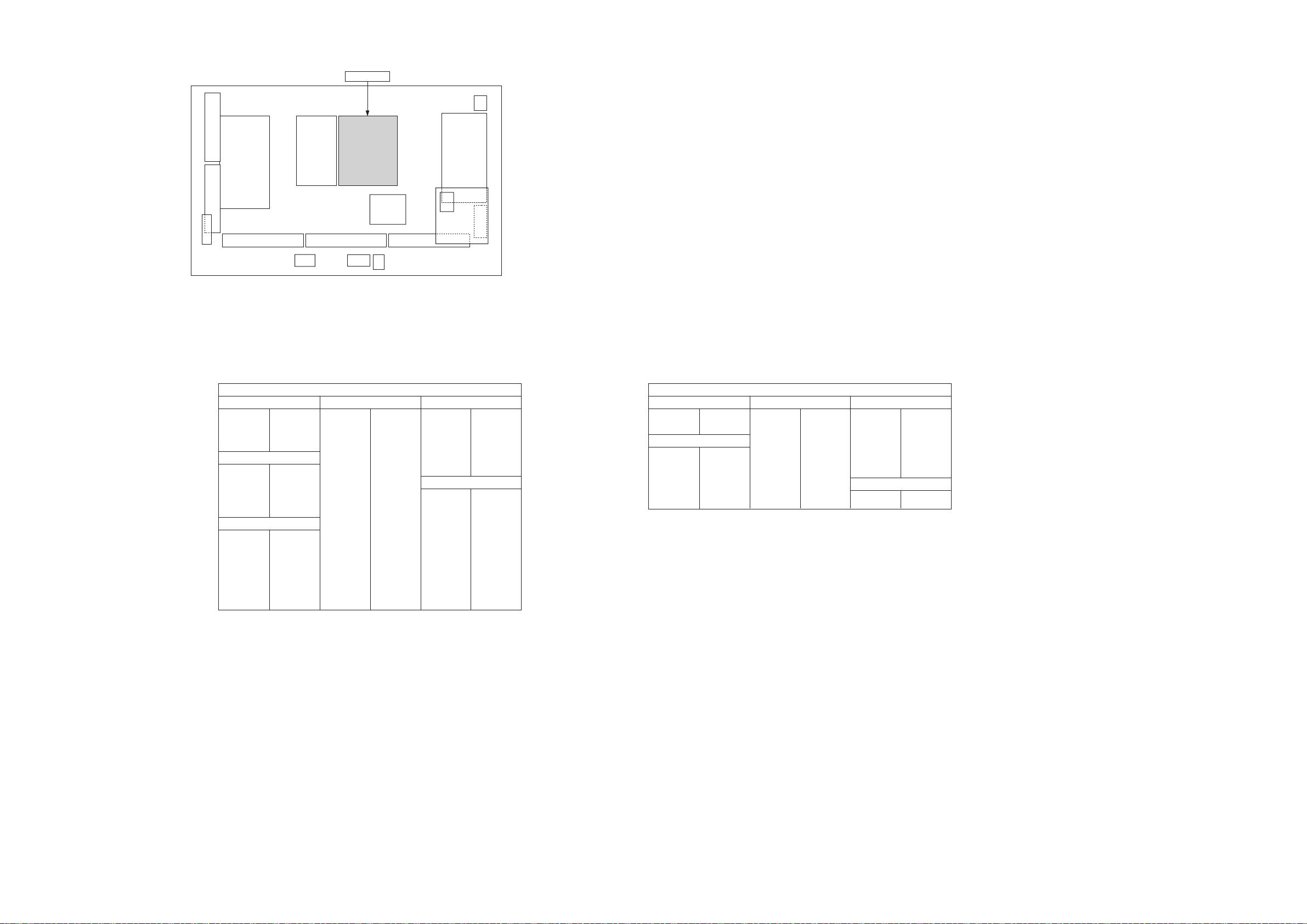

9.1.4. Adjustment Volume Location

9.1.5. Test Point Location

32

9.2. Adjustment

9.2.1. Sub-Contrast adjustment

Name of measuring instrument Connection Remarks
RF generator
Base Band signal generator
HD signal generator

Steps Remarks

Adjustment of TV (RF system)

Note:

In adjustment, you must setting to modulation of signal at 85%.

Ref.:

RF signal modulation spec.
UK models: 80%
Other models: 90%

1. Receive a RF PAL 100% Full White or Split Colour bar shown as below.

2. Goes into service adjustment mode.

3. Push a [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black.

4. End.

Note:

Sub-contrast adjustment is unadjusted
for AV/ HD input.
But, when needing the adjustment cho­sen manually, please refer to [ alterna­tive method ].

33

Steps Remarks

Another procedure

Adjustment of AV system

1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below.

2. Goes into service adjustment mode.

3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black.

4. End.

Steps Remarks

Another procedure

Adjustment of HD system

1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below.

2. Goes into service adjustment mode.

3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black.

4. End.

34

9.2.2. RF white balance adjustment

Name of measuring instrument Connection Remarks
W/ B pattern
Color analyzer
(Minolta CA-100 or equivalent)

Steps Remarks

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where there is little colour variation.
Adjustment Remarks

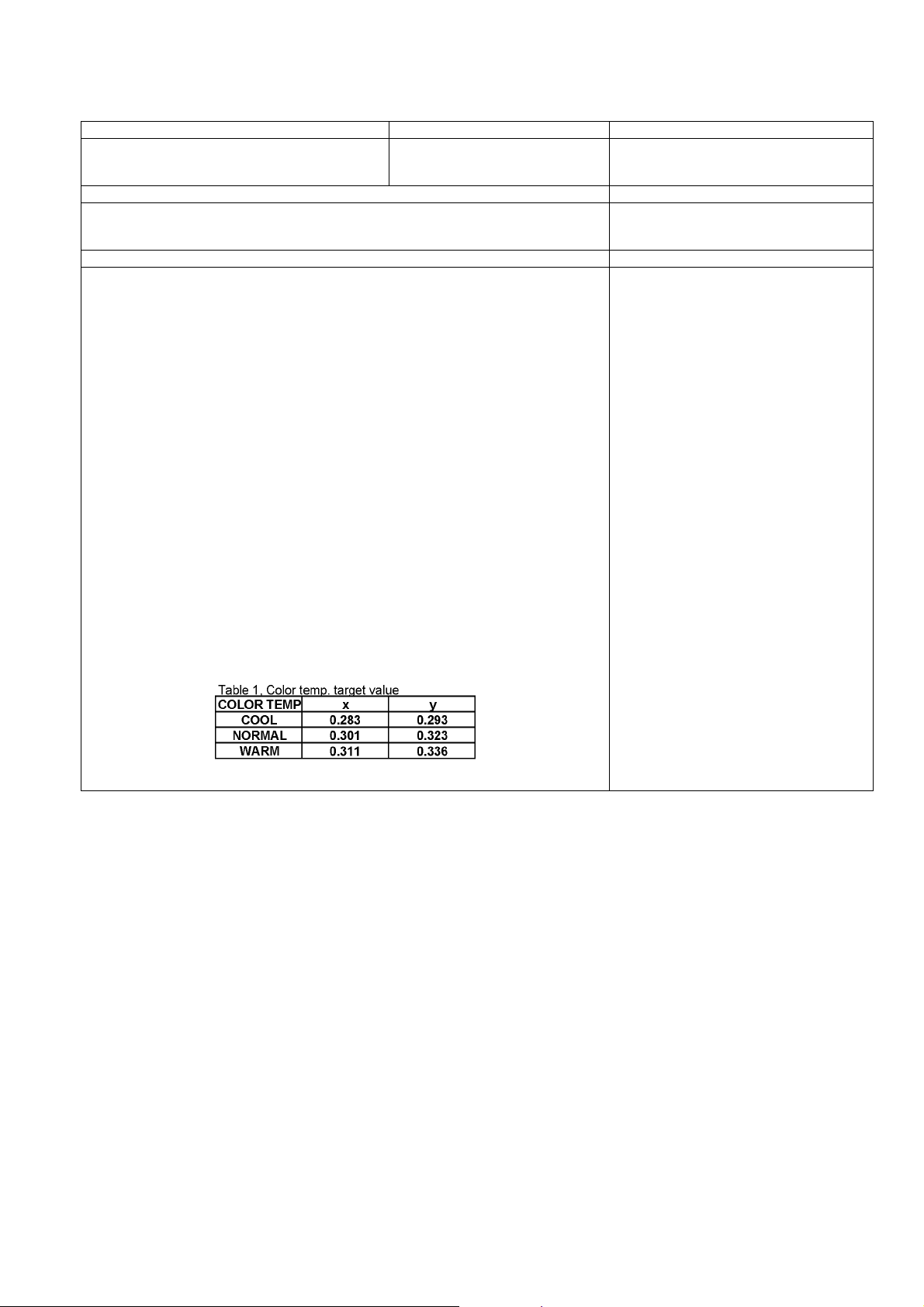

1. Display the white balance pattern.

2. Enter the service adjustment mode.

3. A number key [ 1 ] or [ 2 ] are operated and [ WB-ADJ ] is displayed.
Check that the color balance is [ COOL ].

4. Select [ G-CUTOFF ] item, using the number-key [ 3 ] or [ 4 ], and set to [ 80 ], using the
volume-key [ + ] or [ - ].
Also, [ B-CUTOFF ] and [ R-CUTOFF ] set to [ 80 ]

5. Set [ G-DRIVE ] at [ E0 ](37 inch / 42 inch), [ D0 ](50 inch).

6. Touch the signal receiver of color analyzer to the highlight window's center, and adjust B
drive and R drive so x, y become the [ COLOR TEMP COOL ] in the below table.

7. All RGB drive increase so that the maximum drive value of RGB may become [ FC ].
([ ALL-DRIVE ] set to [ FC ].)

8. Set colorbalance to [ NORMAL ] using [ 7 ] key.

9. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [ 80 ].

10. Fix G drive at [ E0 ] (37 inch / 42inch), [ D0 ] (50 inch).

11. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [ COLOR TEMP
NORMAL ] in the below table.

12. All RGB drive increase so that the maximum drive value of RGB may become [ FC ].
([ ALL-DRIVE ] set to [ FC ].)

13. Set colorbalance to [ WARM ] using [ 7 ] key.

14. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [ 80 ].

15. Fix G drive at [ E0 ] (37 inch / 42 inch), [ D0 ] (50 inch).

16. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [ COLOR TEMP
WARM ] in the below table.

17. All RGB drive increase so that the maximum drive value of RGB may become [ FC ].
([ ALL-DRIVE ] set to [ FC ].)

RF input
Panel surface

Picture menu : Dynamic
ASPECT : 16:9

Highlight section Signal amplitude 75% Value is
Hex.

35

9.2.3. 1080i white balance adjustment

Name of measuring instrument Connection Remarks

1080i W/ B pattern
Color analyzer
(Minolta CA-100 or equivalent)

Steps Remarks

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where there is little colour variation.
Adjustment Remarks

1. Display the white balance pattern.

2. Enter the service adjustment mode.

3. A number key [ 1 ] or [ 2 ] are operated and [ WB-ADJ ] is displayed.
Check that the color balance is [ COOL ].

4. Select [ G-CUTOFF ] item, using the number-key [ 3 ] or [ 4 ], and set to [ 80 ], using the
volume-key [ + ] or [ - ].
Also, [ B-CUTOFF ] and [ R-CUTOFF ] set to [ 80 ]

5. Set [ G-DRIVE ] at [ E0 ](37 inch / 42 inch), [ D0 ](50 inch).

6. Touch the signal receiver of color analyzer to the highlight window's center, and adjust B
drive and R drive so x, y become the [ COLOR TEMP COOL ] in the below table.

7. All RGB drive increase so that the maximum drive value of RGB may become [ FC ].
([ ALL-DRIVE ] set to [ FC ].)

8. Set colorbalance to [ NORMAL ] using [ 7 ] key.

9. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [ 80 ].

10. Fix G drive at [ E0 ] (37 inch / 42inch), [ D0 ] (50 inch).

11. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [ COLOR TEMP
NORMAL ] in the below table.

12. All RGB drive increase so that the maximum drive value of RGB may become [ FC ].
([ ALL-DRIVE ] set to [ FC ].)

13. Set colorbalance to [ WARM ] using [ 7 ] key.

14. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [ 80 ].

15. Fix G drive at [ E0 ] (37 inch / 42 inch), [ D0 ] (50 inch).

16. Adjust B-DRIVE and R-DRIVE so the highlight window’s x, y become the [ COLOR TEMP
WARM ] in the below table.

17. All RGB drive increase so that the maximum drive value of RGB may become [ FC ].
([ ALL-DRIVE ] set to [ FC ].)

Component input
Panel surface

Picture menu : Dynamic
ASPECT : 16:9

Highlight section Signal amplitude 75% Value is
Hex.

36

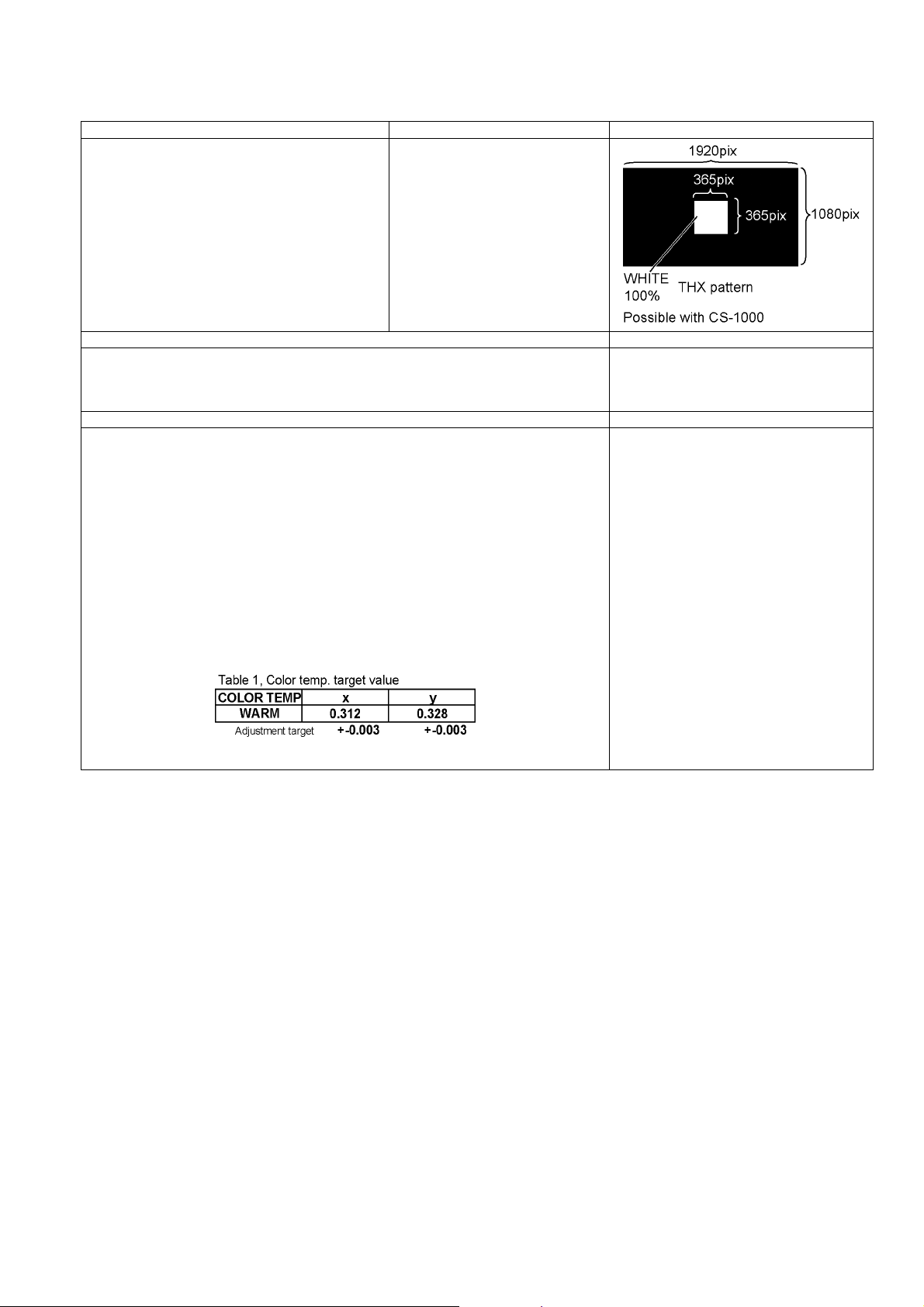

9.2.4. THX white balance adjustment

Name of measuring instrument Connection Remarks
1080i/60 WB pattern (Refer to Remarks)
Color analyzer (Periodic calibrated CA-100)
Signal Generator/Design Team recommend : VG859(A)

Steps Remarks

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where panel centre (white 100%).

• With keeping to output WB pattern, don't leave set alone w/o this adjustment.
Adjustment Remarks

1. [AV] key are operated and set [HDMI1] input mode. And display the white balance pat­tern.

2. Enter the service adjustment mode.

3. A number key [1] or [2] are operated and [WB-ADJ] is displayed.
Set that the color balance is [WARM] and picture menu is [Cinema].

4. A number key [1] or [2] are operated and set [METHOD] to [01].

5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the vol­ume-key [+] or [-].
Also, [B-CUTOFF] and [R-CUTOFF] set to [80].

6. Set [G-DRIVE] at [C0].

7. Touch the signal receiver of color analyzer to the highlight window's center and adjust B
drive and R drive so x, y become the [COLOR TEMP WARM] in the below table.

8. All RGB drive increase so that the maximum drive value of RGB may become [FC]. ([ALL­DRIVE] set to [FC].)

9. A number key [1] or [2] are operated and set [METHOD] to [03].

HDMI1 input
Panel surface

Picture menu: Cinema

Condition is same at alternative method too.

Refer to above pattern

37

38

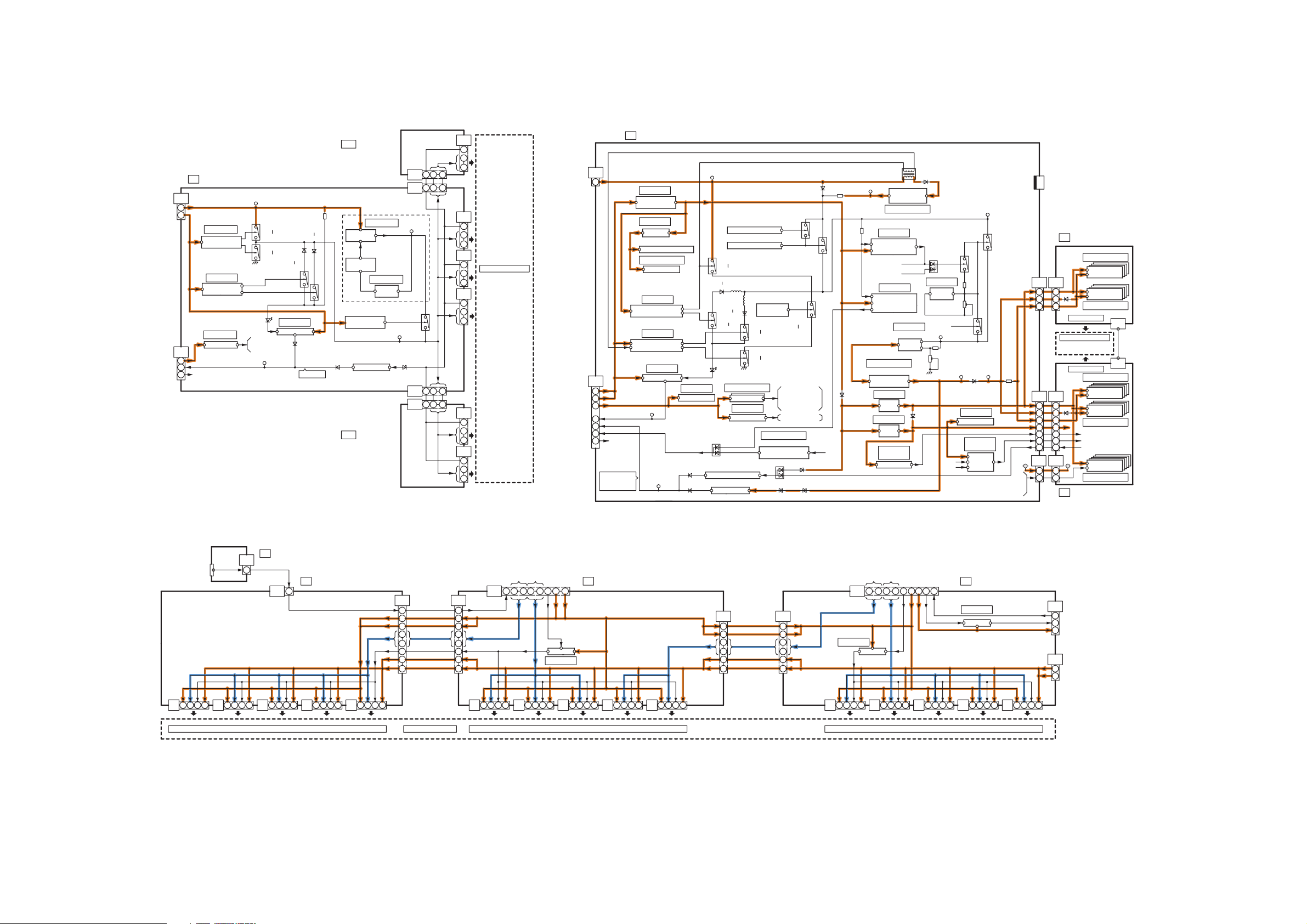

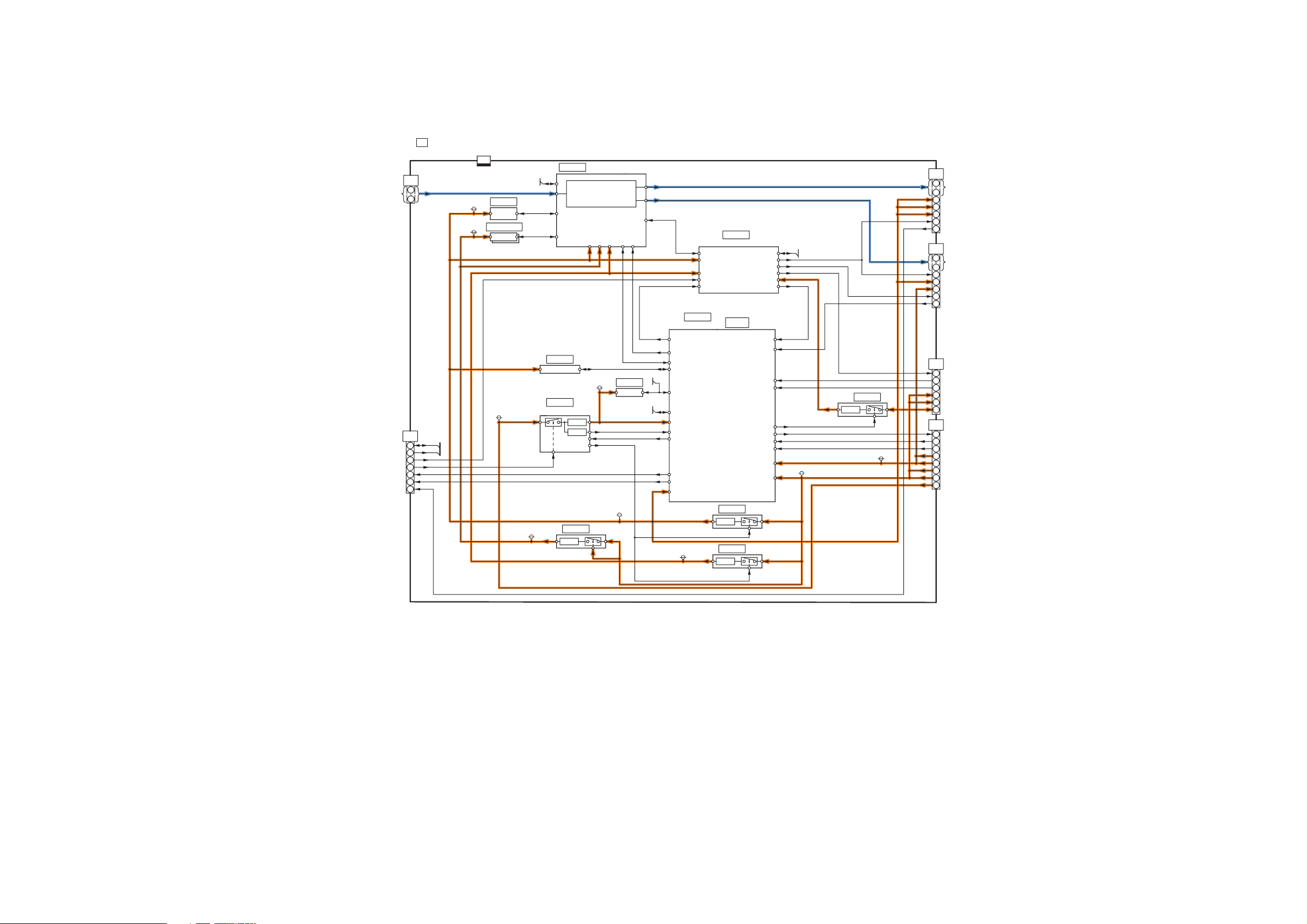

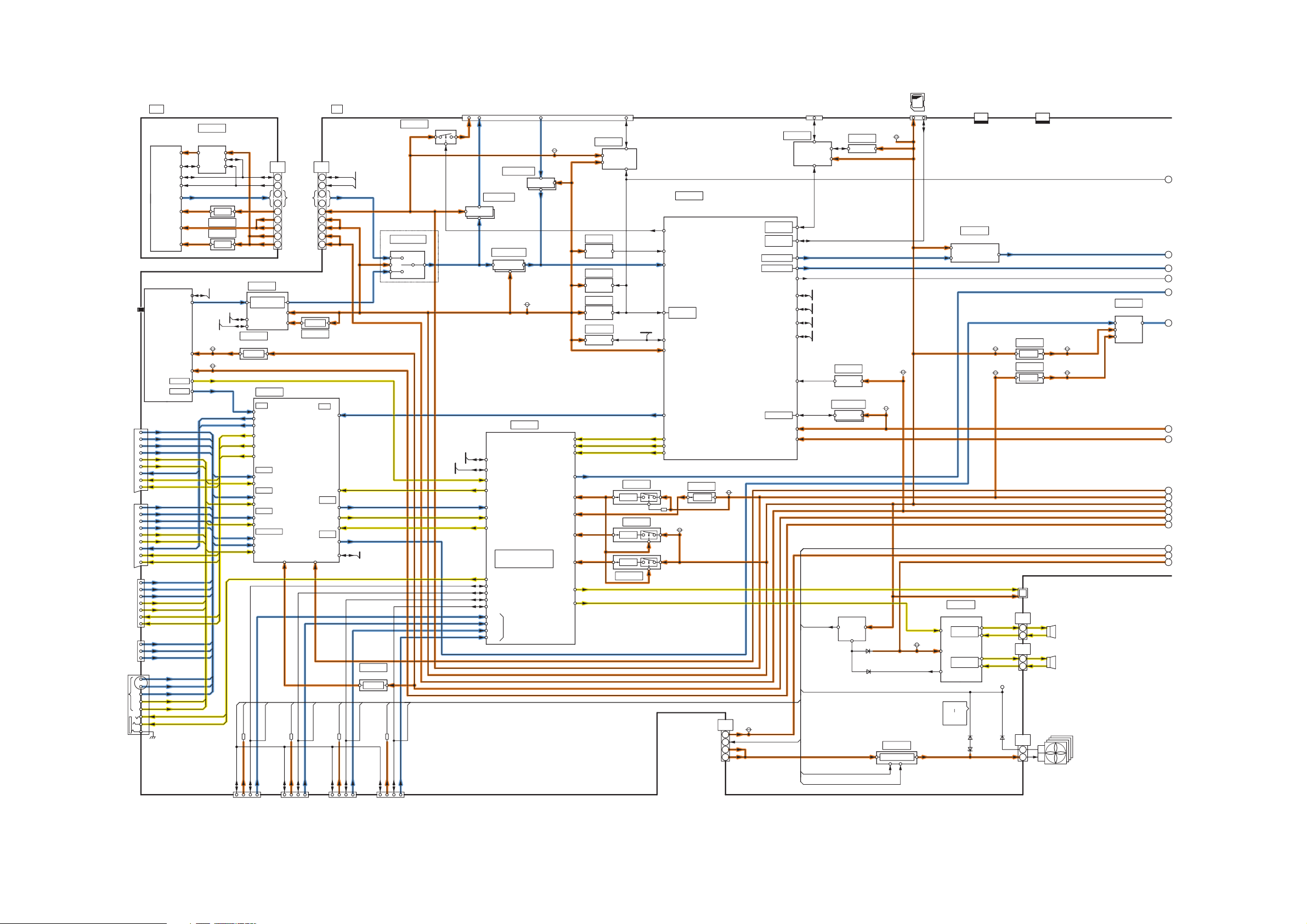

10 Block Diagram

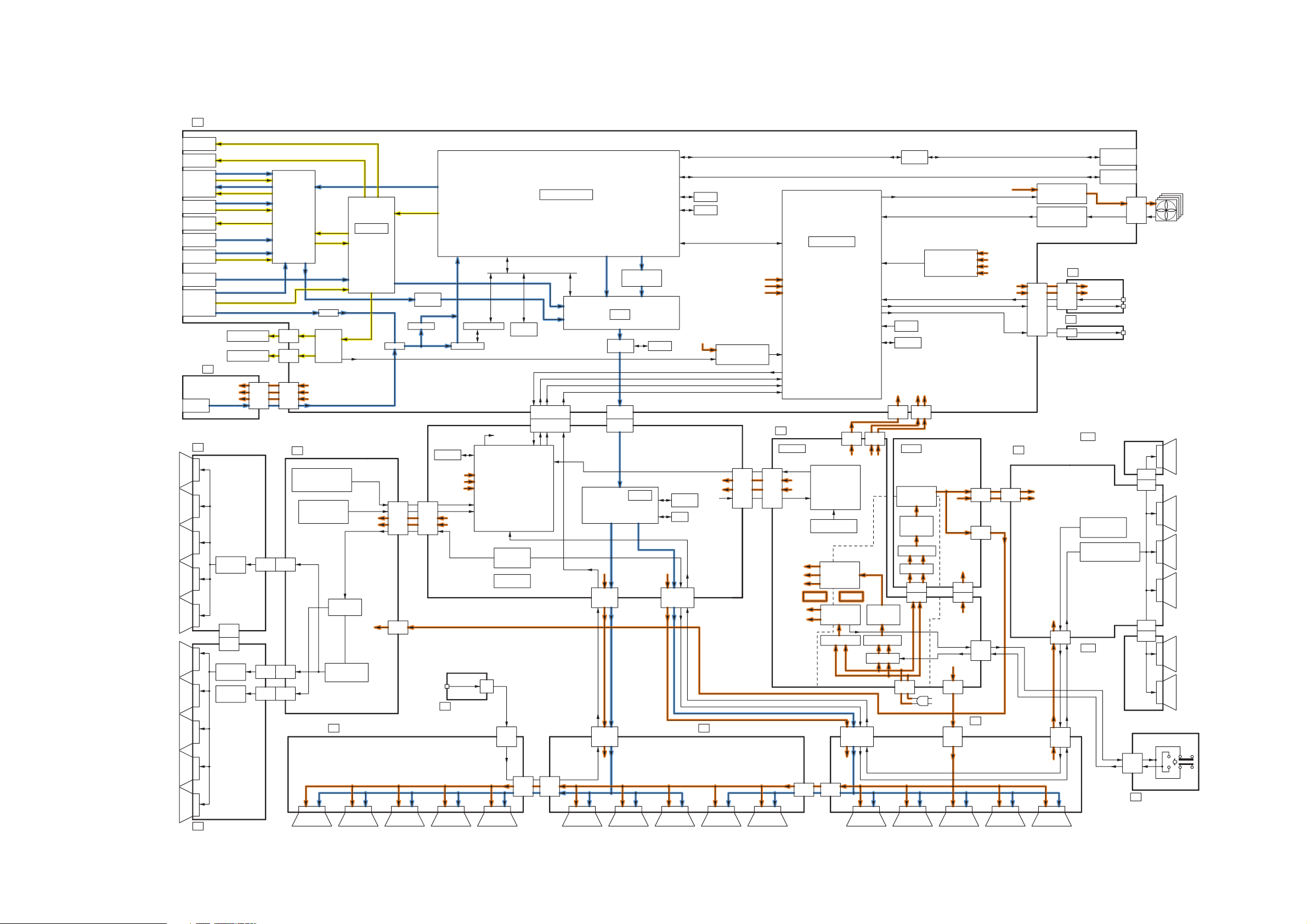

10.1. Main Block Diagram

A

DIGITAL SIGNAL PROCESSOR

AV1
AV2

PC

AV3

SAT TUNER

XS

+3.3V(S)

+5V(S)

+15V(F)

SU

SCAN OUT (UPPER)

SCAN
DRIVER

SU11

SD11

SCAN
DRIVER

BUFFER

OPT OUT

HP L/R

Y,C,V

L,R

CVBS OUT

L,R OUT

Y,PB,PR

L,R

MONITOR L,R

R,G,B

Y,C,V

L,R

RF

SIF

IF

SPEAKER(L)

SPEAKER(R)

XS3

SU41

SD42

SD46

DIGITAL
AUDIO

HEADPHONE

COMP

AUDIO
OUT

HDMI

1,2,3,4

Tuner

Free­SAT

VIDEO SW

AUDIO SW

A12

A11

A88A

SC

SC-BOARD
ENERGY RECOVERY
SOS DETECT

(LED:6TIMES)

SC-BOARD
FLOATING PART
SOS DETECT

SC41

SC42

SC46

M-OUT

A-OUT

OFDM

L

AUDIO
AMP

R

+3.3V(S)

+5V(S)

+15V(F)

SCAN DRIVE

(LED:7TIMES)

VSCAN GEN.
VSET GEN.
VAD GEN.

ADV7470

HDMI I/F
RECEIVER

10bit A/D
SOUND

PROCESSOR

PWM

SOS6_SC1

SOS7_SC2

+5V(P)

+15V(P)

SCAN CONTROL

CONTROL
PULSE

DATA DRIVER (RIGHT)

C1

VSUS

TS SW

SC20

SC2

I2S

GC3FS
next

BUFFER

KEY SWITCH

PCI BUS

Peaks AVC

(MAIN MPU+VIDEO PROCESSOR)

HSDIN
TS Parallel

CUP-BUS

LOSD_OUT

OSD_16bit

LVDS_I/F

LVDS DATA

LVDS RX

DIGITAL
VIDEO DATA

CONTROLLER

CI

NOR
FLASH

A3

POWER SOS

SUSTAIN
CONTROL

D3

CONTROL
SIGNAL

+5V(P)

+15V(P)

SCAN CONTROL

PANEL MICOM

(LED:4TIMES)

+15V(P) DET

+3.3V(P) DET

+5V(P) DET

SOS6_SC1

SOS7_SC2

(LED:2TIMES)

(LED:3TIMES)

(LED:5TIMES)

(LED:6TIMES)

(LED:7TIMES)

SOS8_SS

(LED:8TIMES)

DISCHARGE
CONTROL

Temp
sensor

EEPROM

+15V(P)

+3.3V(P)

+5V(P)

SOS6_SC1

SOS7_SC2

D20

LOSD

GC6

LVDS DATA

FRC-Q

A5

D5

LVDS DATA

PLASMA AI
CPG with SS
H/V Sync Control
Sub Filed Processor
Plasma AI

+3.3V(P)

PD3-H

DDR2

VIDEO DATA

+5V(P)

+3.3V(P)

Y/UV_16bit

PEAKS IN

D31

KEYSCAN1

KEY SWITCH

GK

GK1

C14

KEYSCAN1

C20

C10

+3.3V(P)

KEYSCAN1

C21

C21

+3.3V(P)

VIDEO DATA

VIDEO DATA

Vda

VIDEO DATA

FLASH
MEMORY

DDR

D32

DDR2

CLKGEN

SBO2
SBI2

SOUND15V

SOUND SOS DET
CIRCUIT

(LED:12TIMES)

+5V(P)

+15V(P)

PANEL
MAIN ON

SOS8_SS

VSUS

SOS8_SS

SUSTAIN CONTROL

VIDEO DATA

+3.3V,+5V(P)

DATA DRIVER (CENTER)

C2

Vda

VIDEO DATA

D25

+9V(S)

+5V(S)

+3.3V(S)

P25

SUB+9V DET

SUB+5V DET

SUB+3.3V DET

SOUND SOS
(LED:12TIMES)

PANEL STB_ON

PANEL SOS

PANEL STATUS

KEYSCAN1

POWER SUPPLY

P

+5V(P)

+15V(P)

Vda

+15V(P)

+5V(P)

F15V

STB5V

C26

SYSTEM MPU

PS SOS4
(LED:4TIME)

POWER MICOM

ON/OFF CONTROL

P-BOARD
SOS DETECT

PROCESS
VOLTAGE
RECTIFIER

STANDBY
VOLTAGE
RECTIFIER

RECTIFIER

C36

FAN MAX

FAN SOS

(LED:11TIMES)

TUNER SOS

(LED:10TIMES)

REMOTE

R/G_LED_ON

SD_LED_ON

P7

STB5V

HOTCOLD

C31

+5V(P)

+3.3V(P)

RESET

IIC1

P6

POWER
FACTOR
CONTROL

RECTIFIER

F15V

SOUND15V

RELAY

TUNER SOS

RESET

EEPROM

STB5V

A7

SUSTAIN
VOLTAGE
RECTIFIER

RECTIFIER

P9

ETHER
NET IF

A6

SUSMULTI

POWER
FACTOR
CONTROL

RELAY

P51

P52

AC CORD

TUNER SOS DET
CIRCUIT

(LED:10TIMES)

F15V

SOUND15V

MAIN SW2

MAIN SW1

VSUS

+15V(P)

VSUS

Vda

P35

C35

Vda

ETHERNET DATA

SD CARD DATA

F15V

SUB9V

SUB5V

BT30V

+3.3V(STB)

P11

P2

+15V(P)

P56

P55

+15V(P)

P34

C3

DATA DRIVER (LEFT)

SOS8_SS

SUSTAIN CONTROL

Vda

VIDEO DATA

FAN MAX

FAN SOS

+5V(S)

SS11

F15V

FAN SOS DET
CIRCUIT

(LED:11TIMES)

A1

SS

SUSTAIN DRIVE

VSUS

+15V(P)

FAN POWER

K1

GL02

SOS8_SS

+5V(P)

SS33

C33

+5V(P)

K

GL

SUSTAIN CONTROL

10BASE-T/

100BASE-TX

ETHERNET

SD CARD

SLOT

+9/7.2V

LED/RMT

+3.3V(STB)

+5V(S)

SD LED

SS2

SUSTAIN
CONNECTOR
(UPPER)

SS-BOARD
SOS DETECT

(LED:8TIME)

VSUS GEN.
VE GEN.
ENERGY RECOVERY

SS3

SUSTAIN
CONNECTOR
(LOWER)

MAIN SW2

MAIN SW1

A8

REMOTE

LED

SD LED

S1B

S

SS02

SS24A

SS22

SS03

FAN_A-D

POWER SW

ON

POWER SWITCH

SCAN OUT (LOWER)

SD

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

39

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

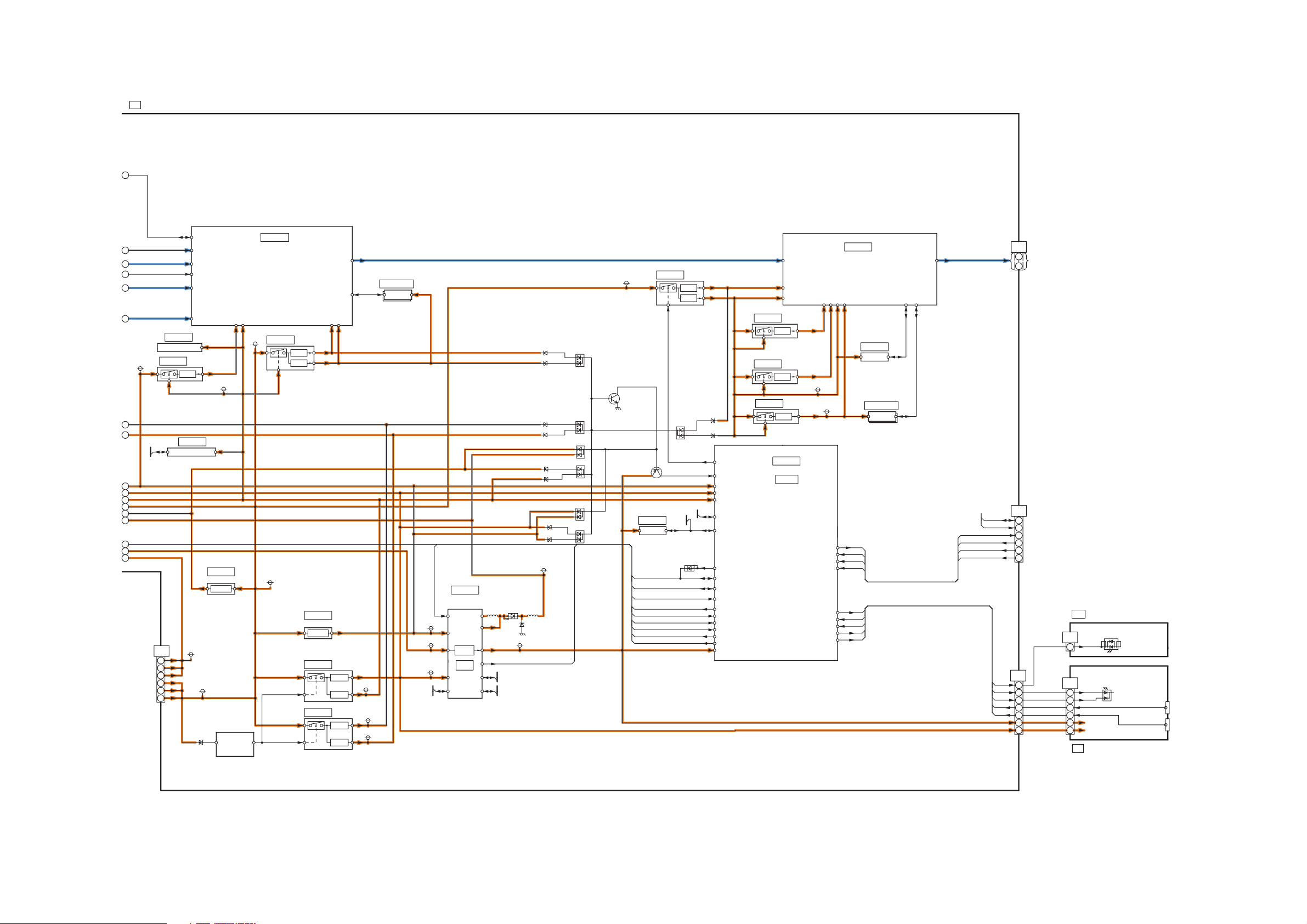

10.2. Block (1/5) Diagram

XS

B1

SDA

SCL

B2

B3

VDD

BT30V

AUDIO

VIDEO

AV1_V

AV1_RED

AV1_BLUE

AV1_LIN

AV1_RIN

AV1_VOUT

AV1_LOUT

AV1_ROUT

AV2_V_Y

AV2_BLUE

AV2_LIN

AV2_RIN

AV2_VOUT

AV2_LOUT

AV2_ROUT

LNB SUPPLY
CONTOL

IIC_TU

5V

SIF,AM

RF

AV3_Y

AV3_C

AV3_V

AV3_L

AV3_R

HP_L

HP_R

IC6801

TUNER5V

BT30V

VCC

SDA

SCL

+3.3V

IC6802

IC6803

+1V

IIC2

IIC_TU

IC2960

TUNER+5V

HDMI_CEC

JK4700
HDMI 4

ANT IN

JK3002

JK3003

JK3100A

JK3707

HEADPHONE

AV1

AV2

YPBPR

AUDIO
IN/OUT

JK3001

PC IN

AV3

TU6801

Sat Tuner

DISEQC

TS IF

TU2901

TUNER

IFD_OUT1/2

LIN

RIN

LOUT

ROUT

R

G

B

AV1_GREEN

AV2_RED_C

AV2_GREEN

Y

PB

PR

IC8301

DIGITAL
DEMODULATOR

+5V

IC3001

TV

RF

AV1_VOUT

AV2_VOUT

AV1_L,ROUT

AV2_L,ROUT

L,ROUT

AV1

V,R,G,B

L,R

AV2

V,Y,C,R,G,B

L,R

AV3

V,Y,C

L,R

COMP/PC

Y,PB,PR

R,G,B

L,R

DDC0_IIC

+5V

DDC IIC

TMDS DATA

XS3

18

FE SDA

FE SCL

20

7

TS DATA

16

24

+5V(S)

26

+3.3V(S)

27

+3.3V(S)

29

+15V(F)

30

+15V(F)

OFDM

3.3V

1.8V

IC8302

AV SW

CVBS/S/YUV
/RGB(PC)

MONITOR L,R

+5V

DDC3_IIC

HDMI 5V DET0

+5V

HDMI_CEC

CLOCK

DDC IIC

JK4502

HDMI 3 HDMI 1HDMI 2

A88A

13

11

24

15

7

5

4

2

1

+1.8V

DVB

DVB_CVBS

L,R(TV)

MAIN

L,R(AV)

SUB V

+9V

HDMI 5V DET3

TMDS DATA

CLOCK

JK8301

10BASE-T/

A

DIGITAL SIGNAL PROCESSORSAT TUNER

JK8401

CI SLOT

100BASE-TX

ETHERNET

IC8403

CI 5V

SUB5V

IC8401

CI ASIC

IIC2

IC8408,9

IC8503

ETHERNET
CONTROL

BUFFER

IC8001

Peaks AVC

(MAIN MPU+VIDEO SIGNAL PROCESSOR)

CI POWER ON

CLOCK

PARALLEL TS

CPU BUS
I/F

IIC3

3.3V

PCI BUS
I/F

SD CARD
I/F

LVDS_I/F

LOSD_OUT

GC6 RST

OSD_16bit

IIC0

IIC1

IIC2

SBI2
SBO2

LVDS DATA

B ONLY

IC8303,4,5

TS SW

BUFFER

IC8404,5

IC8410,11

BUFFER

SUB3.3V

IC8004

CLOCK
GEN

IC8581

NAND
FLASH

IC8580

BOOT
ROM

IC8502

EEPROM

IIC3

IC5470

RESET

RESET

IC8002,03

IC4510

DVB_CVBS

IECOUT

IIC1

IIC2

SIF,AM

L,R(TV OUT)

MAIN Y/U/V

L,R(AV IN)

SUB

IIC2

IC3003

AVSW+5V

+5V

JK4500

+5V

HDMI_CEC

DDC2_IIC

DDC IIC

TMDS DATA

HDMI 5V DET2

CLOCK

JK4501

+5V

HDMI_CEC

DDC1_IIC

DDC IIC

TMDS DATA

HDMI 5V DET1

CLOCK

L,R(MONITOR)

HDMI I/F RECEIVER
10bit A/D
SOUND PROCESSOR

HP OUT

DDCD_IIC

DDCC_IIC

DDCB_IIC

DDCA_IIC

RXD

RXC

HDMI IN

RXB

RXA

DAUDIO

DMIX0

DIGTAL
VIDEO OUT

+3.3V

+3.3V

+1.8V

+1.8V

DIGITAL
SOUND OUT

SP OUT

R/G/B_36bit

IC4511

+3.3V

IC4512

+1.8V

+1.8V

IC4513

IECOUT

DAUDIO

DMIX0

SUB3.3V

TUNER_SUB_ON

IC2008

3.3V

+15Vc_FAN

+15Vc_FAN

STB5V

SUB5V

P7

A7

5

6

1

2

STB5V

DDR I/F

TV SUB ON

DDR2

1.8V

1.2V

SOUND SOS

(LED:12 TIMES)

SOUND SOS

FAN SOS

FAN MAX

FAN ON

Q2022

SOUND
SOS
DET

IC8504

EEPROM

D2014

D2017

FAN15V

JK8302

SD CARD SLOT

SUB3.3V

SUB1.8V

IC2801

FAN CONT.

F15V

PWM L/R

SOUND15V

FOR FACTORY USE FOR FACTORY USE

IC5110

LVDS RX

3.3V

SUB3.3V

SUB5V

OPTICAL AUDIO OUT

IC2301

AUDIO AMP

SPEAKER

L_OUT

+15V

SPEAKER

R_OUT

SOS

SOS DET

FAN A

FAN STOP

OVER

FAN D

D2810

D2809

VOLTAGE

D2805
D2806
D2807
D2808

+9/7.2V

(LED:11TIMES)

L(+)

L(-)

R(+)

R(-)

TP2802

Y/UV_16bit

IC4002

1.8V

IC4005

3.3V

A12

1

2

A11

1

3

A8

CN0101CN0100

D3015

OPTICAL

AUDIO

OUT

3

1

FAN A-D

SUB_FS_1.8V

SUB_FS_3.3V

SPEAKER_L

SPEAKER_R

IC4001

GC3FS next

+1.8V

+3.3V

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

40

10.3. Block (2/5) Diagram

A

DIGITAL SIGNAL PROCESSOR

1

CPU BUS

Y/UV_16bit

2

OSD_16bit

3

4

R/G/B_36bit

5

6

CLK BUFFER

IC5300

SUB5V

7

8

IIC1

9

10

11

12

13

14

15

16

17

P6

A6

1

+15V_S

3

+15V_S

5

+15V_S

7

F+15V

8

F+15V

9

F+15V

IC5320

GC6+3.3V

+3.3V

IC1000

TEMP SENSOR

S_15V

EXB BUS

PORT-C

LOSD

GC6 RST

PORT-A

PORT-B

F15V

D5612

(+5.6V)

SUB3.3V

IC2802

SUB+6V

+6V

Q5605,06

OVER
CURRENT
PROTECT

+3.3V

+3.3V

F15V

IC5100

GC6

IC5312

F15V

GC6+1.8V
GC6+1.2V

+1.2V

+1.8V

IC5481

SUB+9V

+9V

IC5600

IC5601

DDR I/F

+3.3V

+1.8V

+1.2V

+1.2V

+5V

LVDS

+1.8V

LVDS DATA

SUB3.3V

SUB1.8V

SUB1.2V

IC5001,02

DDR2

PANEL
IIC1

SUB9V

STB5V

SUB5V

TV SUB ON

ANALOG ASIC

IC5480

STB3.3V

STB_RESET

DTV5V

STB
+3.3V

MUTE

IC2600

RMIN

+2.5V

+1.05V

+3.3V

FRC-Q

+1.8V

IC2605

EEPROM

IC2611,12

DDR2

Dual 10bit LVDS

FRC 1.05V

IC2601

FRC 3.3V

+1.0V

+3.3V

GC6_1.2V

GC6_1.8V

D5446

D5445

F15V

D5435

Q5432

EEP_
IIC1

D5436

D1107

D5448

D5447

TV MAIN ON

TUNER SOS

(LED:10TIMES)

SUB9V DET

SUB5V DET

SUB3.3V DET

IIC3

IIC3

IIC1

HDMI_CEC_
PU_ON

HDMI_CEC

DDC_IIC

DDC_IIC

+5V(HDMI)
DET 0,1,2,3

TV SUB ON

SOUND SOS

(LED:12TIMES)

STB RESET

FAN SOS

(LED:11TIMES)

FAN MAX

FAN ON

STB3.3V

D5434

SUB9V

SUB5V

L5421

D5421
D5422

D5443

D5444

D5582

D5449

D5442

D5441

BT30V

STB_RESET

D5431

D5437

D5432

D5433

Q5431

IC1101

EEPROM

HDMI_CEC

DDC0,1,2,3_IIC

+5V(HDMI)DET 0,1,2,3

TV SUB ON

SOUND SOS

STB RESET

FAN SOS

FAN MAX

FAN ON

SUB1.8V

SUB1.2V

SUB6V
BT30V

SUB6V

SUB3.3V

D5423

L5544

DRV

STB3.3V

IIC0

EEP_
IIC1

IC2607

IC2606

IC2604

SYSTEM MPU

+2.5V

+1.0V

+1.8V

IC1100

GenX8

Rx

+1.05V

+3.3V

FRC 2.5V

FRC A1.05V

FRC 1.8V

PANEL STB_ON

PANEL STATUS

FRC_3.3V

FRC_1.8V

PANEL SOS

KEYSCAN

SD_LED_ON

AI_SENSOR

G_LED_ON

R_LED_ON

LVDS DATA

Tx

DDR I/F

IIC

IIC0

PANEL STB_ON

PANEL SOS

PANEL STATUS

KEY_SCAN

D5A5

1

31

IIC_DATA1

7

IIC_CLK1

8

PANEL_STBY_ON

2

ALARM

4

READY

3

KEY_SCAN

15

A1

12

2

3

AI_SENSOR

9

1

4

11

LVDS Dual 10bit

D3A3

SD_LED

G_LED_ON

R_LED_ON

RMIN

STB+3.3V

SUB+5V

GL
02

K1

11

1

2

3

9

1

4

GL

K

SD LED

D7800

SD LED

D2520

POWER LED

G

R

RMT/LED/AI

PC2511

AI SENSOR

RM2501

REMOTE

41

10.4. Block (3/5) Diagram

LVDS Dual 10bit

IIC_DATA1

IIC_CLK1

DISPEN

PANEL_STBY_ON

ALARM

READY

KEY_SCAN

D

FORMAT CONV., PLASMA AI

FOR FACTORY USE

IC9300

*PLASMA AI
*CPG with SS
*H/V Sync Control
*Sub Filed Processor

FLASH I/F

DDR I/F

+3.3V

RESET

IC9807

+1.8V

PD3H

+3.3V

STB_D3.3V

+1.8V

+1.2V

P3.3V

OSD I/F

IC9001

EEPROM

VIDEO DATA

VIDEO DATA

Config(CCLK,DDTATA,PROGB),
FPCLK,FPDATA[1:0],FVSEL

DRVRST
FPGARST
XRST

XRST,
XRSTSYS

IIC2

IIC1

PANEL MICOM

OSD I/F

IIC3

IIC2

IIC1

+3.3V(STB)

RESET

POWER ON/OFF

PANEL SOS

PANEL STATUS

+3.3V(P) DET

(LED:3 TIMES)

P1.2V

IC9003

+3.3V

+1.2V

DISPEN

IC9500

DISCHARGE CONTROL

CONTROL DATA

SUSTAIN CONTROL

SCAN CONTROL

Config(DONE)

GenX7

SOS8_SS

(LED:8 TIMES)

(LED:6 TIMES)

SOS6_SC1

SOS7_SC2

(LED:7 TIMES)

AUX_ON/OFF

PANEL MAIN ON

VDATA_DET

POWER SOS

(LED:4 TIMES)

+5V(P) DET

(LED:5 TIMES)

+15V(P) DET

(LED:2 TIMES)

IC9805

+3.3V

IC9806

+1.2V

+2.5V

C21

D31

10

VIDEO DATA

60

66

+3.3V(P)

67

+3.3V(P)

68

+3.3V(P)

CONTROL DATA

1

KEYSCAN

IIC2

IC9808

+2.5V

P5V

P15V

C31

D32

3

VIDEO DATA

45

CONTROL DATA

66

+3.3V(P)

68

+5V(P)

SUSTAIN CONTROL

63

SOS8_SS

D20

SC20

SCAN CONTROL

14

SOS6_SC1

15

SOS7_SC2

29

+15V(P)

30

+15V(P)

1

+5V(P)

P25

D25

11

PANEL_MAIN_ON

13

VDATA_DET

12

SOS4_PS

5

+5V

6

+5V

1

+15V

2

+15V

9

STBY5V

D5

D6

A5

1

31

P3.3V

P1.8V

IC9303

FLASH
MEMORY

IC9902,3

DDR

IIC2

ADDR/DATA

IC9002

TEMP SENSOR

IC9004

STB5V_M

D3

A3

IIC1

7

8

1

2

4

3

15

STB+3.3V/RESET

P1.8V

42

10.5. Block (4/5) Diagram

SUS

D601,602

RECTIFIER

MULTI

L601
L602

P

POWER SUPPLY

HOT

5A 250V

L603,L605

Q601-Q604

F201

Q201,Q202

RESONANCE

IC202

F301

COMPARATOR

D206

Q301,Q302

RESONANCE

IC301

MULTI
POWER
CONTROL

IC601

Q605-Q608

PFC CONTROL

Q611

12

56

P51

65

21

P52

2

P54

2

P53

L805

LIVE

NEUTRAL

D806

RECTIFIER

LIVE

NEUTRAL

IC201

Vsus
POWER
CONTROL

Q203

Q801

MC801

Q802,Q803

PFC CONTROL

5A 250V

Q303

Q502

2A 250V

F501

LIVE

NEUTRAL

RECTIFIER

LIVE

RF601

NEUTRAL

D501

K602

K601

K603

BIAS1_ON

BIAS2(+)

BIAS1(+)

IC501

STB
CONTROL

RUSH RELAY2

MAIN RELAY2

COLD

T201

PC201

PHOTO COUPLER

PC202

PHOTO COUPLER

PC231

PHOTO COUPLER

HOT COLD

T301

PC301

PHOTO COUPLER

PC302

PHOTO COUPLER

PC501

PHOTO COUPLER

T501

D500

D505

PC502

PHOTO COUPLER

D551

D254-D257

D401

D402

D352

IC352

+15V
ERROR DET

IC555

STB
ERROR DET

IC251

Vsus
ERROR DET

Vsus

VR251

MULTI_ON

BIAS1_ON

RUSH RELAY2_ON

MAIN RELAY2_ON

PC401

COUPLER

Vda_ON

Vda_OUT

MC701

POWER MICOM

RUSH RELAY1_ON

MAIN RELAY1_ON

AC DET

MC401

Vda
CONTROL

MAIN SW_ON

+5V

Q401

Q353

15V_ON

15V_OUT

PANEL_MAIN_ON

STB_ON

Vsus_ON

BIAS2_ON

Vda

VR401

BIAS2_ON

Vsus_ON

Vsus_OUT

15V_OCL

(LED:4TIMES)

POWER SOS

ALL_OFF

TV SUB ON

STB_OUT

Q402
Q403

5V_ON

P2

Vsus

+15V(P)

Vsus_OUT

54

54

117

7

Vda

15V

+15V(P)

P56

P55

SC2

1

Vsus

P11

SS11

1

Vsus

4

+15V(P)

C35

P35

1

Vda

2

Vda

Q351

D25

P25

1

+15V(P)

2

+15V(P)

5

+5V(P)

6

+5V(P)

9

+5V(STB)

12

SOS4_PS

11

PANEL_MAIN_ON

MC451

Q354

+5V(P)

+5V(P)

+5V

K803

FILTER

Q551

NEUTRAL

RF801

LIVE

FILTER

F602F601

10A 250V10A 250V

L802

F801

10A 250V

F802

10A 250V

NEUTRAL

LIVE

3

1

P9

LIVE

NEUTRAL

HOT

MC501

AC DET

K801

K802

COLD

RUSH RELAY1

MAIN RELAY2

FSTB+15V

3

1

P34

1

7

9

P6

A6

AC CORD

SW2500
POWER

SWITCH

S1B

ON

MAIN SW1

1

MAIN SW2

3

FSTB+15V

FSTB+15V

+15V(SND)

+15V(SND)

+15V(SND)

+5V(STB)

P7

A7

2

110

+15V(P)

+15V(P)

+5V(P)

53

+5V(STB)

6

8

TV SUB ON

ALL_OFF

POWER SWITCH

S

43

10.6. Block (5/5) Diagram

SUSTAIN DRIVE

SS

SS

P11

11

1

Vsus

+15V

4

UMH

DRIVER

UML

ENERGY

BUFFER

SOS8_SS

SUSTAIN CONTROL

C33

+5V(P)

SS
33

1

12

IC16131

VSUS Gen.

IC16151

RECOVERY

IC16241

SUSTAIN CONTROL

TPVSUS

USH

USL

D16253
LED(G)

UEH
UML
UMH

TPSOS8

(LED:8TIMES)

Q16001

Q16005

Q16021

Q16025

USL
USH

D16041

D16043

Q16041
Q16042

Q16051
Q16052

IC16251

ERROR DET

D16051

D16053

D16255

FPC DET

D16280

SS2

VE GEN.

COUPLER

SS3

SUSTAIN
CONNECTOR
(UPPER)

IC16304

PC16301

PC16191

VE Gen.
DRIVER

Q16280

ERROR DET

SUSTAIN
CONNECTOR
(LOWER)

IPD CIRCUIT

IC16312

SHUNT

REG.

UEH

TPSS1

D16282

Q16101
Q16102

TPVE

SC

SCAN
CONTROL

VSCN

15V_F

SCAN DRIVE

IC16791

DC/DC

CONVERTER

IC16771

Vad+5V

PC16461

PHOTO COUPLER

IC16464,65

INVERTER

IC16501

CSH/CMH GATE
DRIVE CIRCUIT

IC16521

CSL/CML GATE
DRIVE CIRCUIT

IC16581

ERROR DET

TPSOS6

(LED:6TIMES)

TPSOS7

(LED:7TIMES)

16V-F

CMH

CSH

IC16691

NAND GATE

D16480

D16820

TPVSUS

CSL

CML

D16493

UHZ

PHOTO COUPLER

Q16401

Q16406

D16461

D16464

D16481

D16484

Q16441

Q16444

D16583
LED(G)

IC16561,62

PC16480

Q16876

ERROR DET

PC16603

PHOTO COUPLER

PC16684

PHOTO COUPLER

PC16685

COUPLER

Q16451

Q16454

Q16421

Q16426

BUFFER

IC16563

INVERTER

IC16490,91

SEPA PROTECT
CIRCUIT

VOH

VOL

Q16490

D16473

D16821

Q16607

CERS

CPH1

CML
CMH
CSH
CSL

CIS

CIS

Q16621

Q16623

CPH1
CPH2
CERS
CEL

CRC1

D16791

D16871

Q16601

SIU
OC1
OC2
CLK
SEL

CRC2

CERS

15V_F

SCNR_PRO

Vscn

D16721

(15V_F)

TPVSET

COMPARATOR

COMPARATOR

IC16786,87

IPD CIRCUIT

VSCN GEN.
SHUNT REG

IC16661

IC16920

IC16724

+5V

(SC1)

IC16725

+5V

(SC2)

IC16792
IC16793

VHIZ GEN.

VSET GEN.
SHUNT REG

IC16788,89

CRC1

CRC2

IC16784

IPD CIRCUIT

VAD

GEN.

D16725

IPD CIRCUIT

Q16608

D16901

IC16692

SHUNT

REG.

VR16601

(INIT-F)

TPVAD

VR16600

(VAD)

CML
CSL

Q16818

TPVSCN

Q16661

CEL

D16859
D16860

IC16773

INVERTER

IC16564
IC16801

VSET23
GEN.

VF_GND

TPSC1

F_5V_A

F_5V_B

VSCN-F

VSET23

FOR
FACTORY

SC50

USE

SU

SCAN OUT (UPPER)

IC14901-04

SCAN

IC14905-08

SU1-SU5

PLASMA PANEL

PANEL SCAN
ELECTRODES

SD1-SD5

DRIVER

SCAN

DRIVER

SU
11

SD
11

SU

SC

41

41

8

8

4

4

Vfo

2

2

IC14951-54

SCAN

DRIVER

SCAN

DRIVER

IC14955-58

VHIZ

VSET23

SCNR_PRO

5V

LOGIC IC

IC14961-65

SCAN OUT (LOWER)

VHIZ

SIU
OC1
OC2
CLK
SEL

SC

SD

42

42

3

3

8

Vfo

8

9

9

5

5

6

6

4

4

2

2

SD

SC

5V

46

46

1

1

SD

SS
52

1

2

SS

9

02

SS

981

24A

SS

22

SS

03

13

81

SS
53

1

2

13

SS
55

1

PLASMA PANEL

2

PANEL SUSTAIN
ELECTRODE

13

SS
56

1

2

13

234

234

SS
57

1

2

13

SS
59

1

2

13

+15V(P)

+15V(P)

SOS6_SC1

SOS7_SC2

SCAN CONTROL

P2

Vsus

D20

+5V(P)

SC2

1

SC
20

7

6

35

22

21

19

UHZ

VOLTAGE

DROP
ERROR DET

MAIN_STOP

KEY SWITCH

CB1

CB2

GK1

1

GK

KEY SWITCH

KEYSCAN1

C14

CB3

PANEL DRIVER

C1

1

CB4

DATA DRIVER (RIGHT)

CB5

C10

KEYSCAN1

55

+5V(P)

51 5

+5V(P)

41

VIDEO DATA

12

CONTROL DATA

Vda

4

Vda

1

PLASMA PANEL

VIDEO DATA

KEYSCAN1

30

59

25

VIDEO DATA

CONTROL DATA

9

+3.3V(P)

3

1

D31

68

C21

+3.3V(P)

C2

DATA DRIVER (CENTER)

D32

C31

C20

1

650

15

44

52

55

CB6

CB7

BUFFER

IC17201

CB8

CB9

CB

10

C26

+3.3V(P)

+3.3V(P)

27 4

25

VIDEO DATA

12

Vda

5

Vda

C36

328

6

19

26

301

IC17301

CB

11

PANEL DRIVER

66

BUFFER

VIDEO DATA

55

CB

12

53

VIDEO DATA

CONTROL DATA

24

+5V(P)

+3.3V(P)

SUSTAIN CONTROL

3

16

CB

13

PANEL DRIVER

SOS8_SS

DATA DRIVER (LEFT)

C3

IC17302

BUFFER

CB
14

SS33

C33

12

SOS8_SS

SUSTAIN CONTROL

1

+5V(P)

P35

C35

1

Vda

2

Vda

CB
15

44

11 Wiring Connection Diagram

11.1. Caution statement.

Caution:

Please confirm that all flexible cables are assembled correctly.
Also make sure that they are locked in the connectors.
Verify by giving the flexible cables a very slight pull.

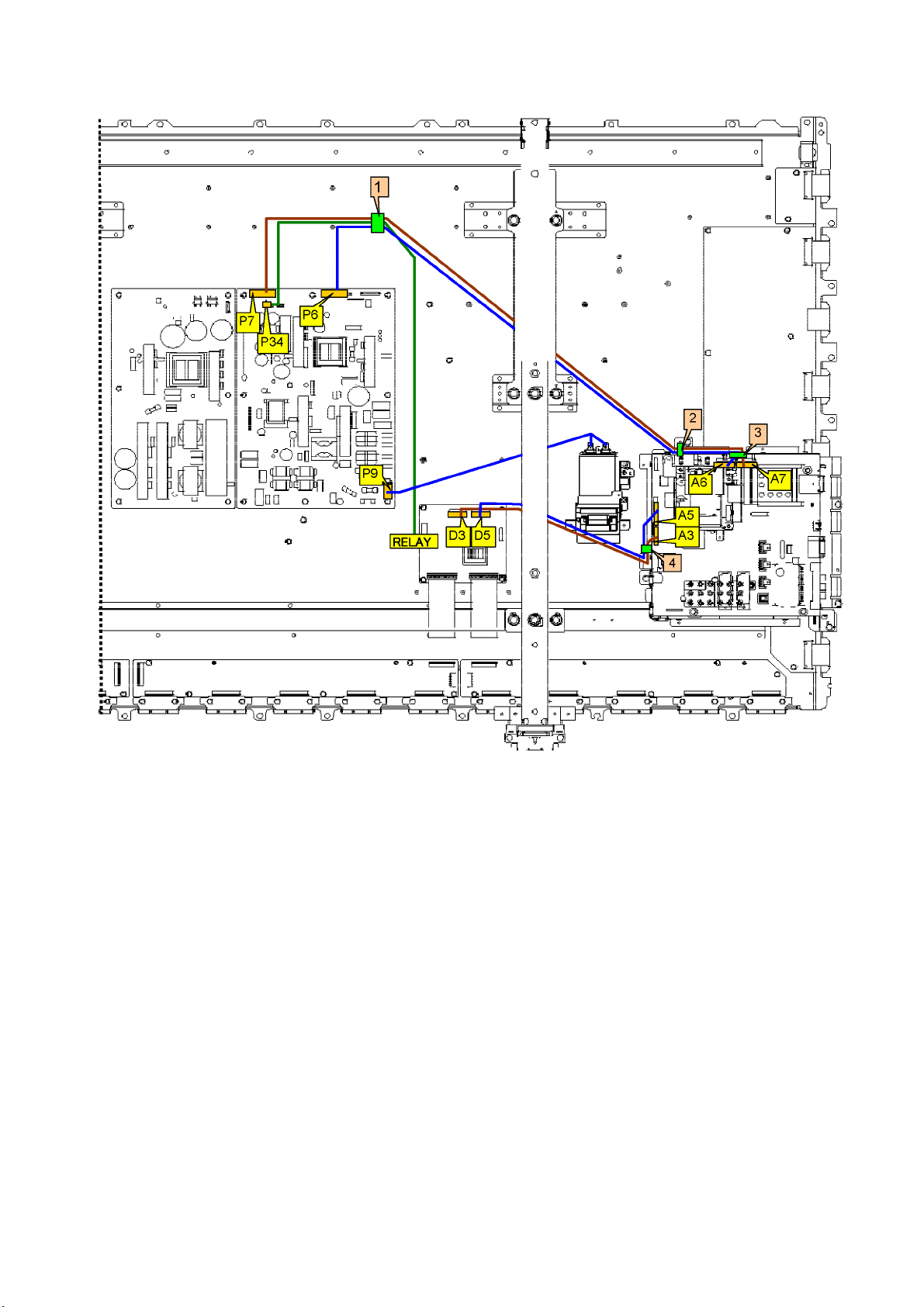

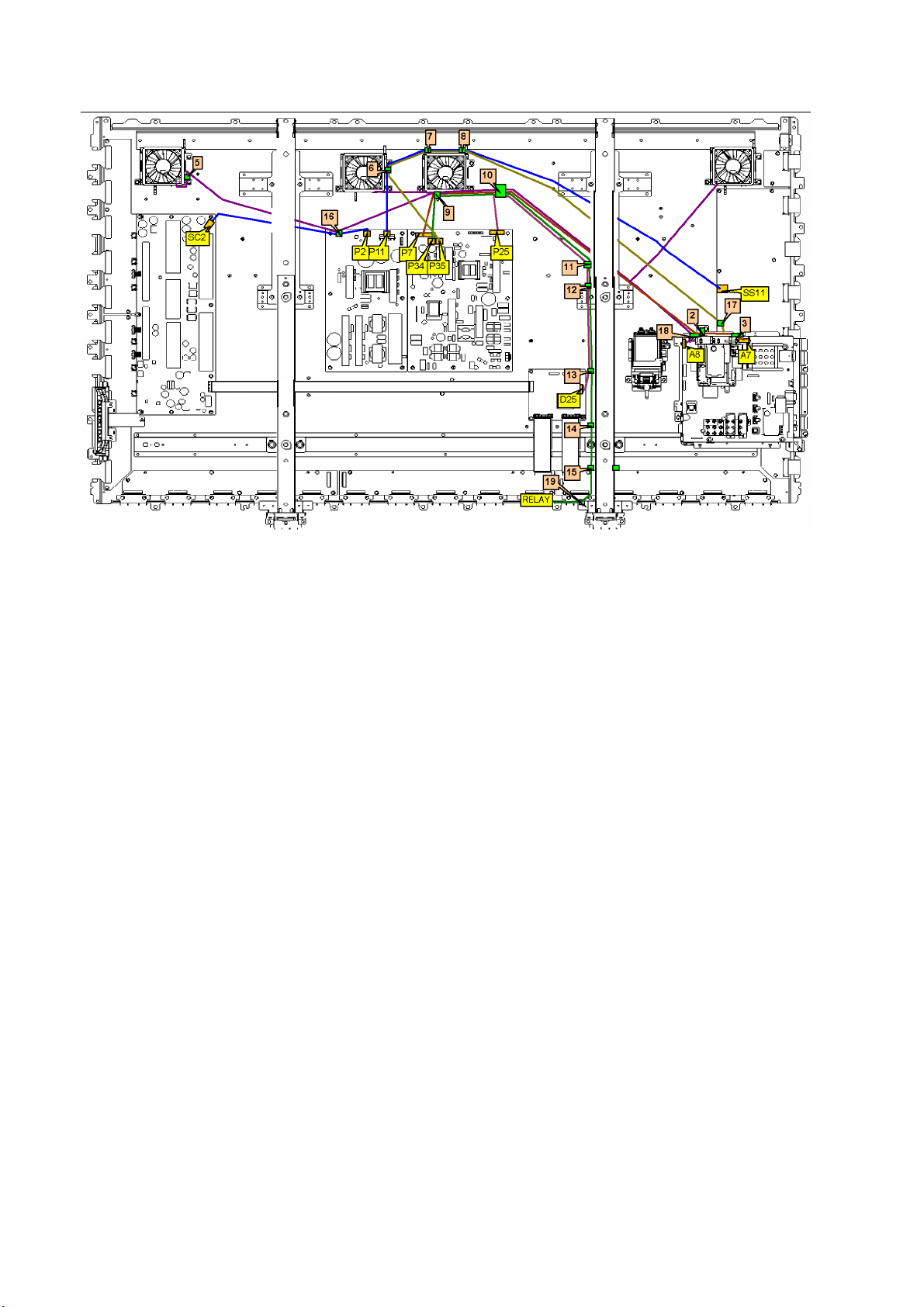

11.2. Wiring (1)

45

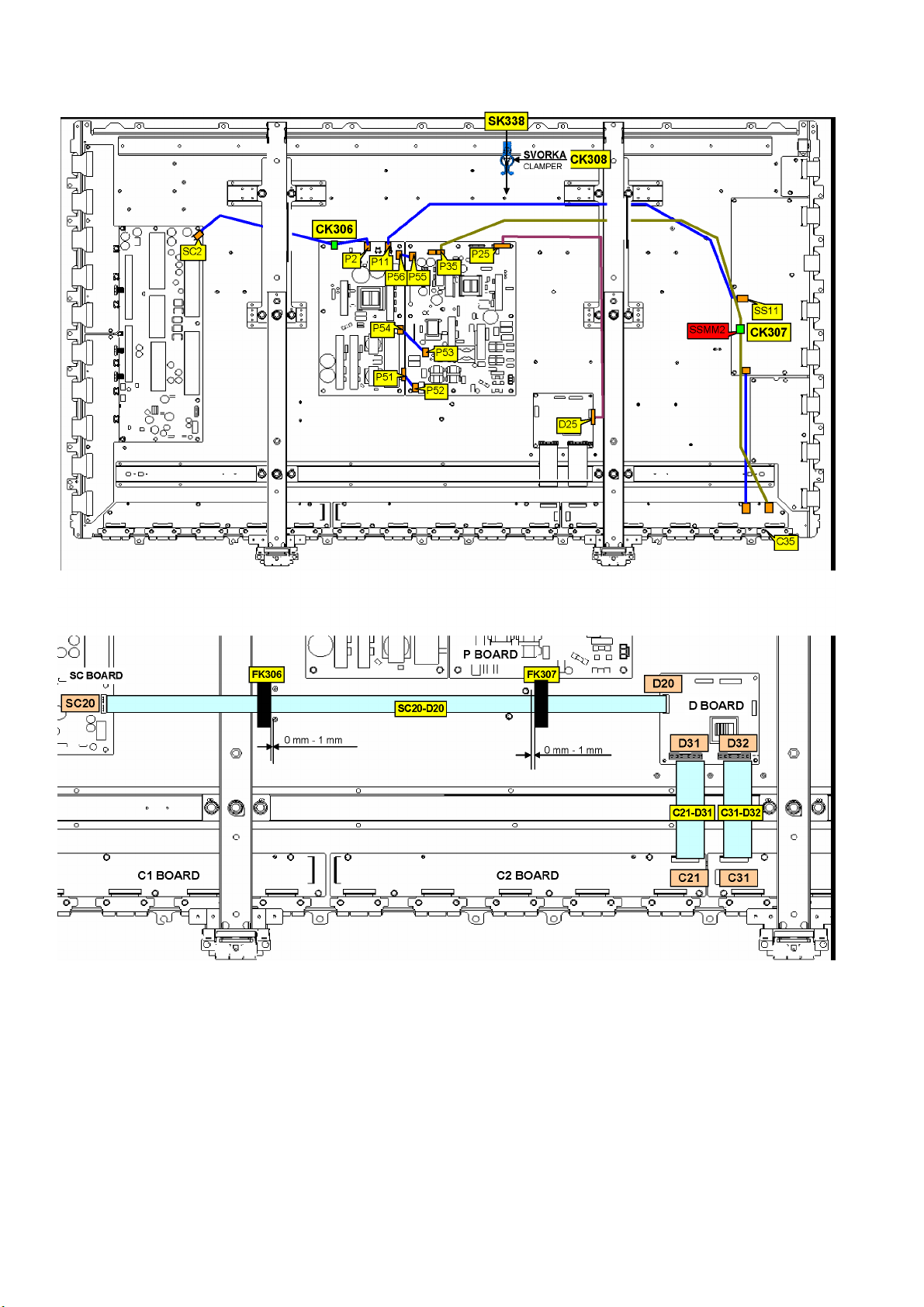

11.3. Wiring (2)

46

11.4. Wiring (3)

47

11.5. Wiring (4)

48

12 Schematic Diagram

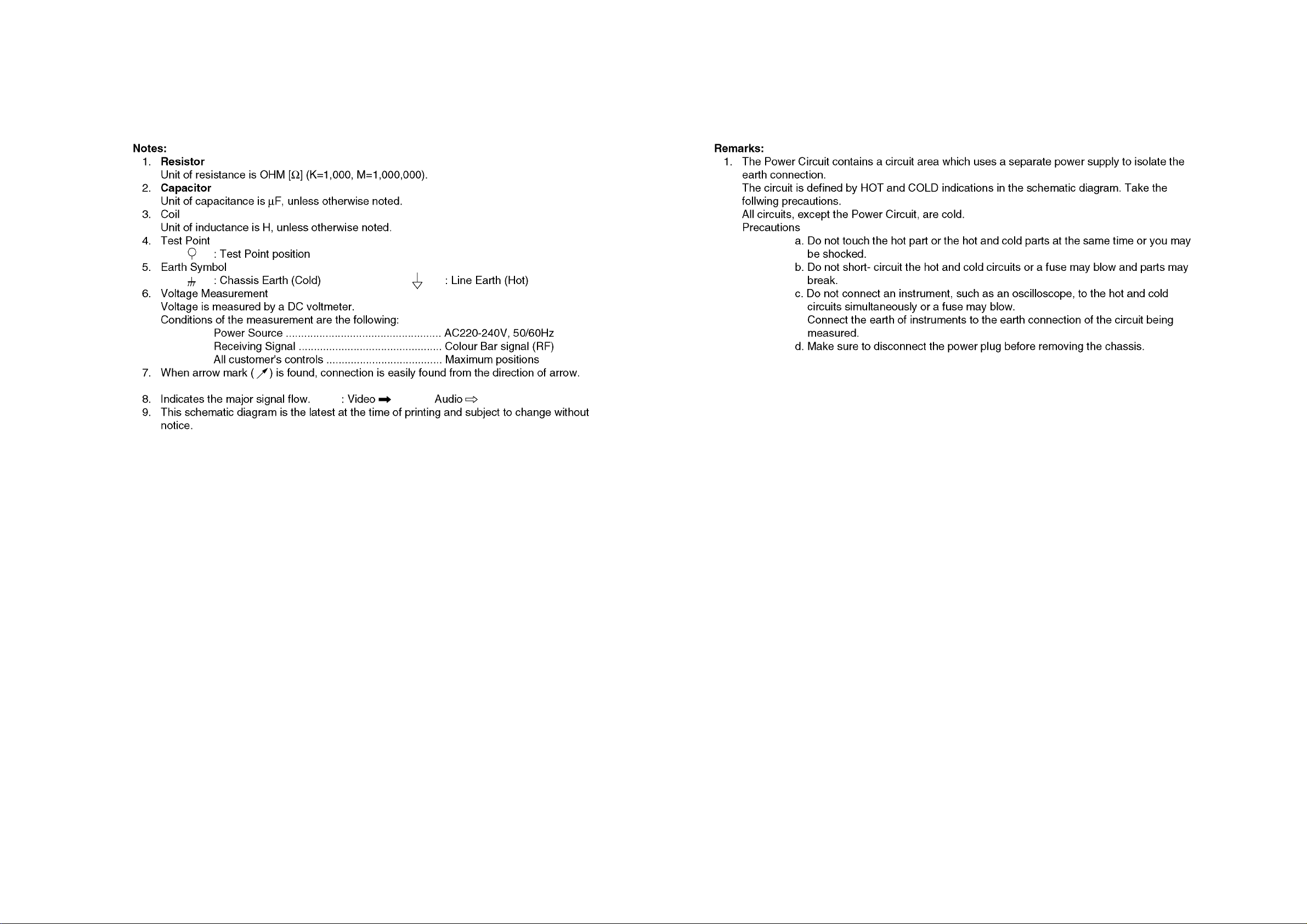

12.1. Schematic Diagram Note

49

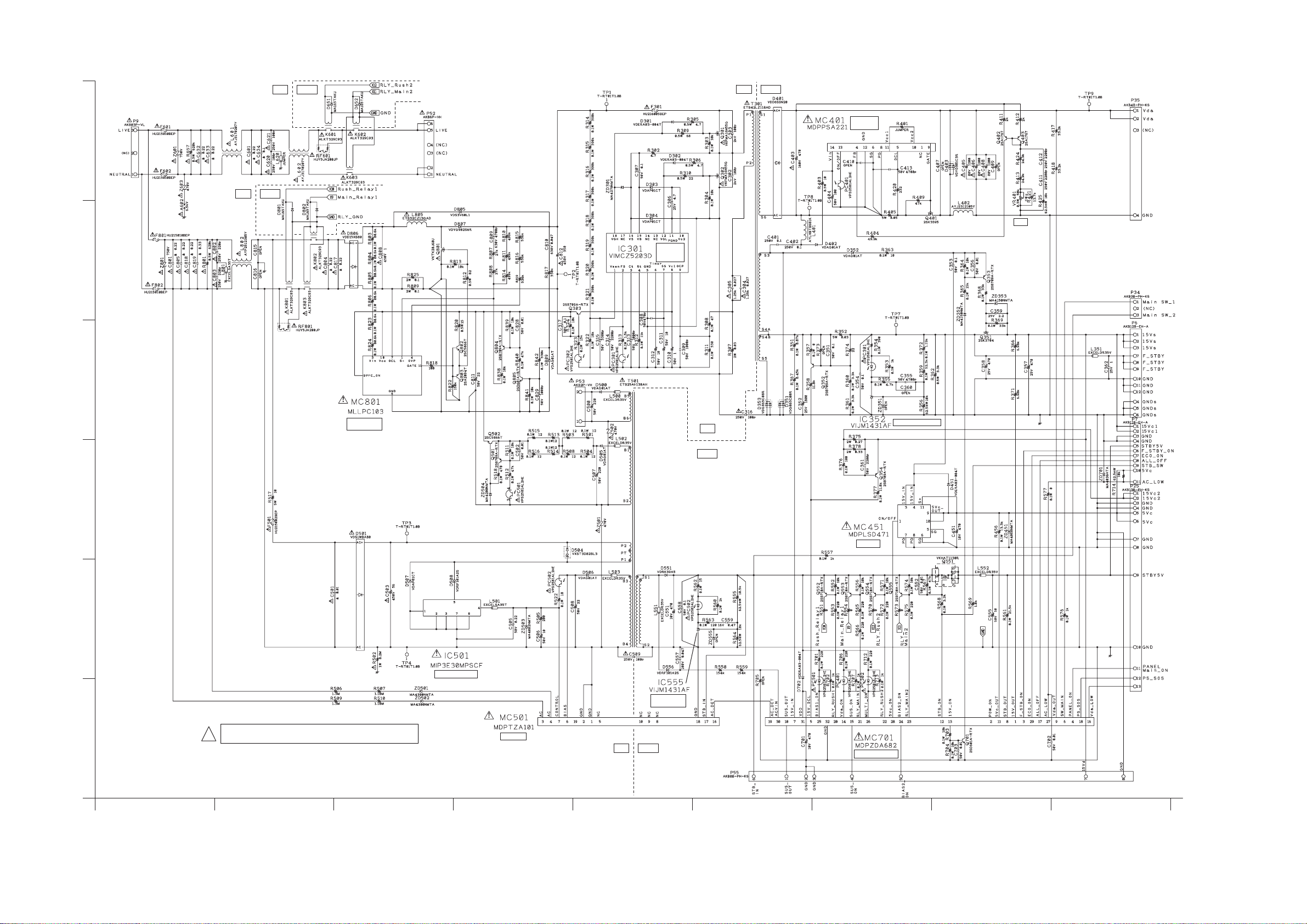

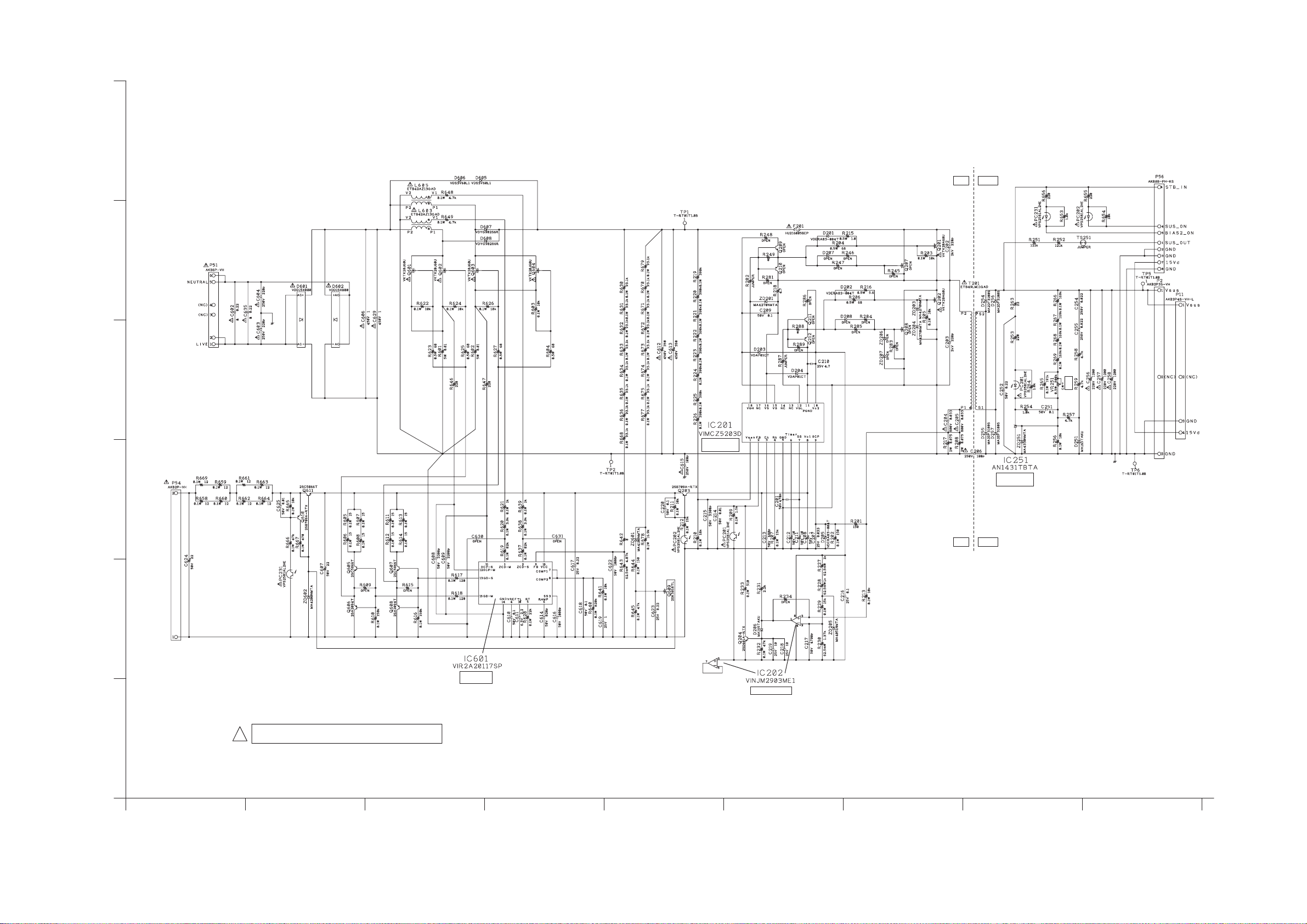

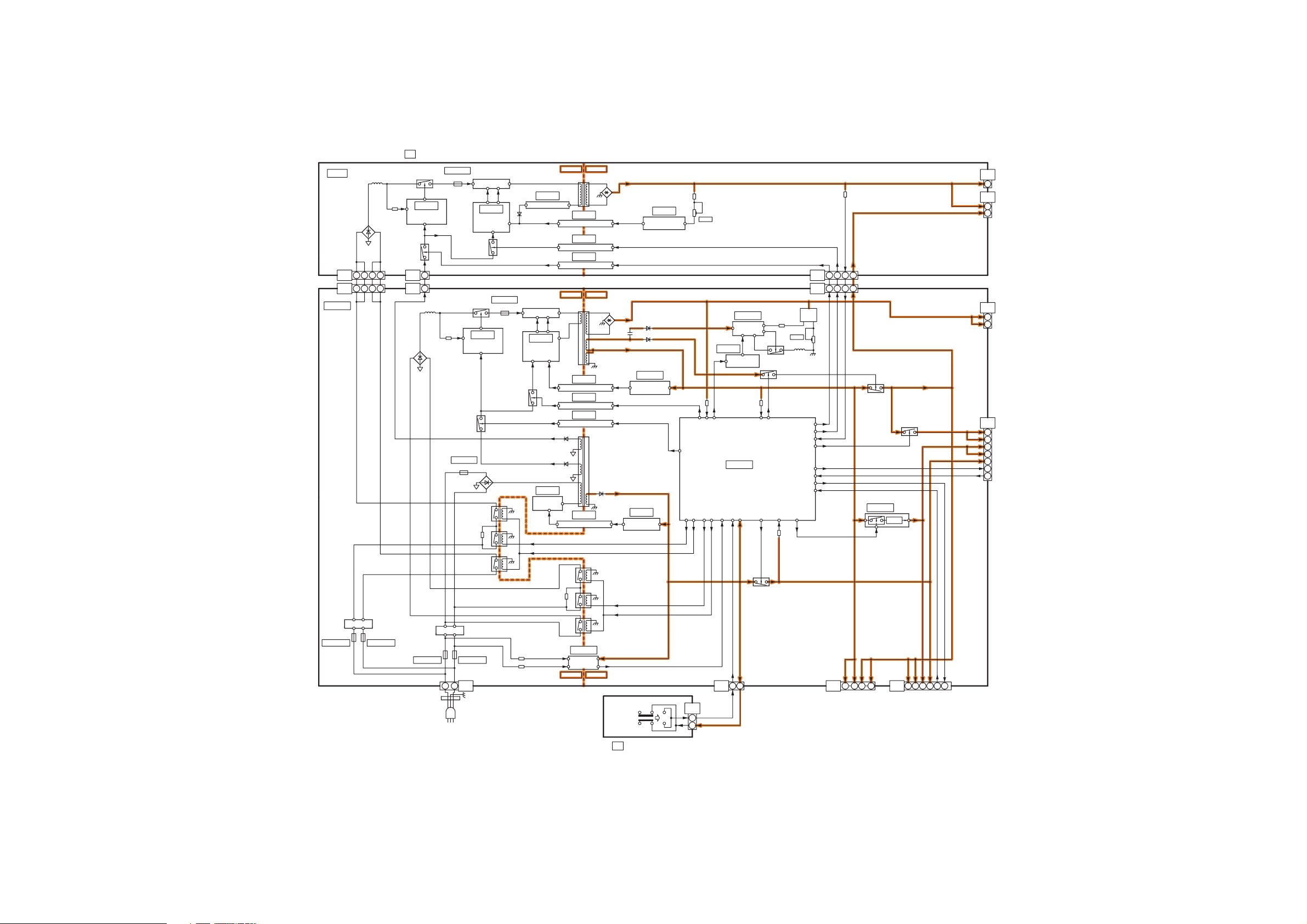

12.2. P(MULTI)-Board Schematic Diagram

COLD

HOT

TO
P(SUS)-BOARD
(P51)

A

AC IN

COLD

HOT

MULTI
POWER

B

CONTROL

HOT

COLD

Vda
CONTROL

TO
C3-BOARD
(C35)

Vda

TO
S-BOARD
(S1B)

TO
A-BOARD
(A6)

C

TO

PFC
CONTROL

P(SUS)-BOARD
(P54)

HOT

COLD

+15V ERROR DET

D

+5V(P)

TO
A-BOARD
(A7)

TO
D-BOARD
(D25)

E

STB CONTROL

STB
ERROR DET

P(MULTI)-BOARD ETX2MM774MA

F

!

2 896

AC DET

4

HOT

COLD

TO
P(SUS)-BOARD
(P56)

5

POWER MICOM

731

50

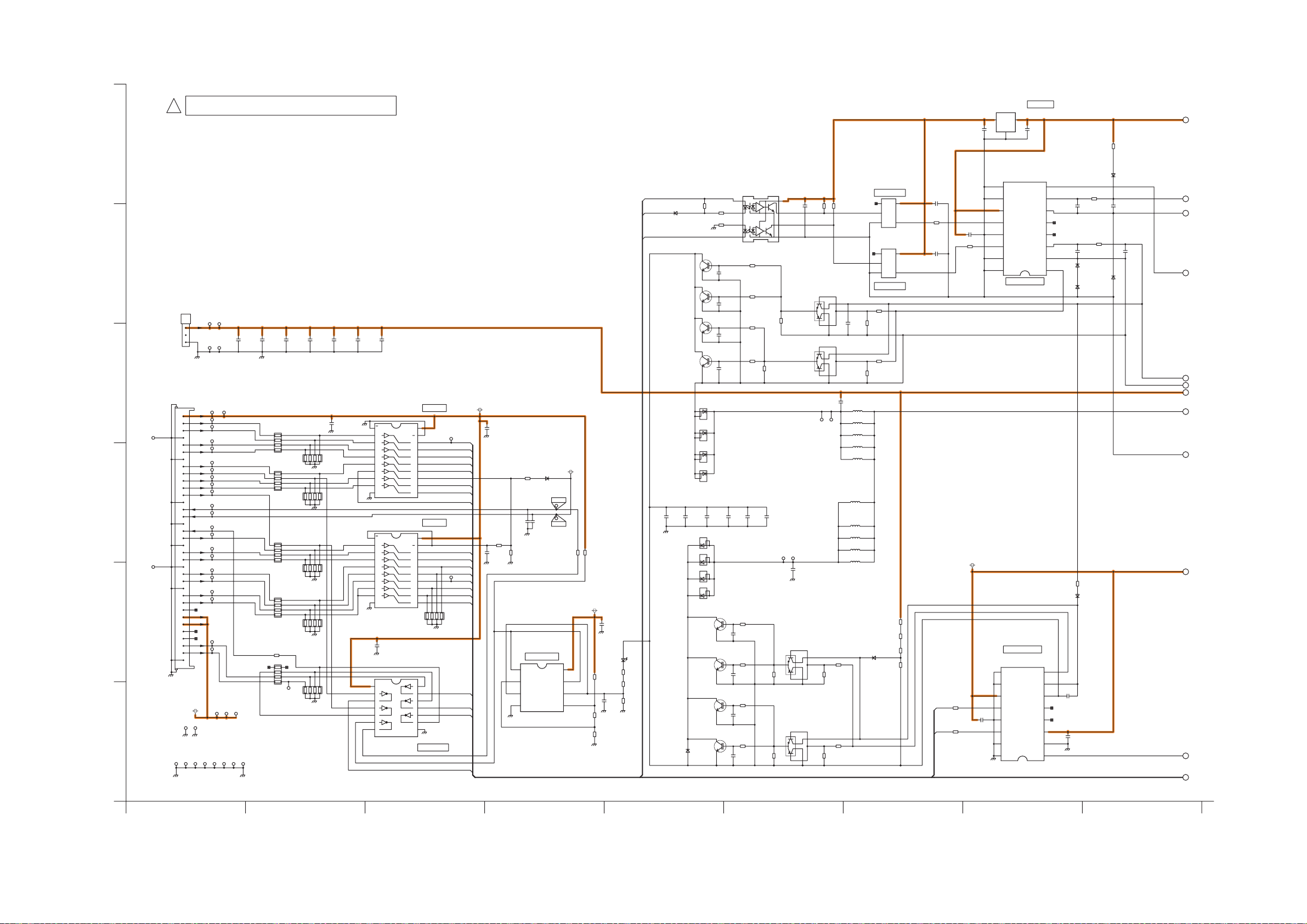

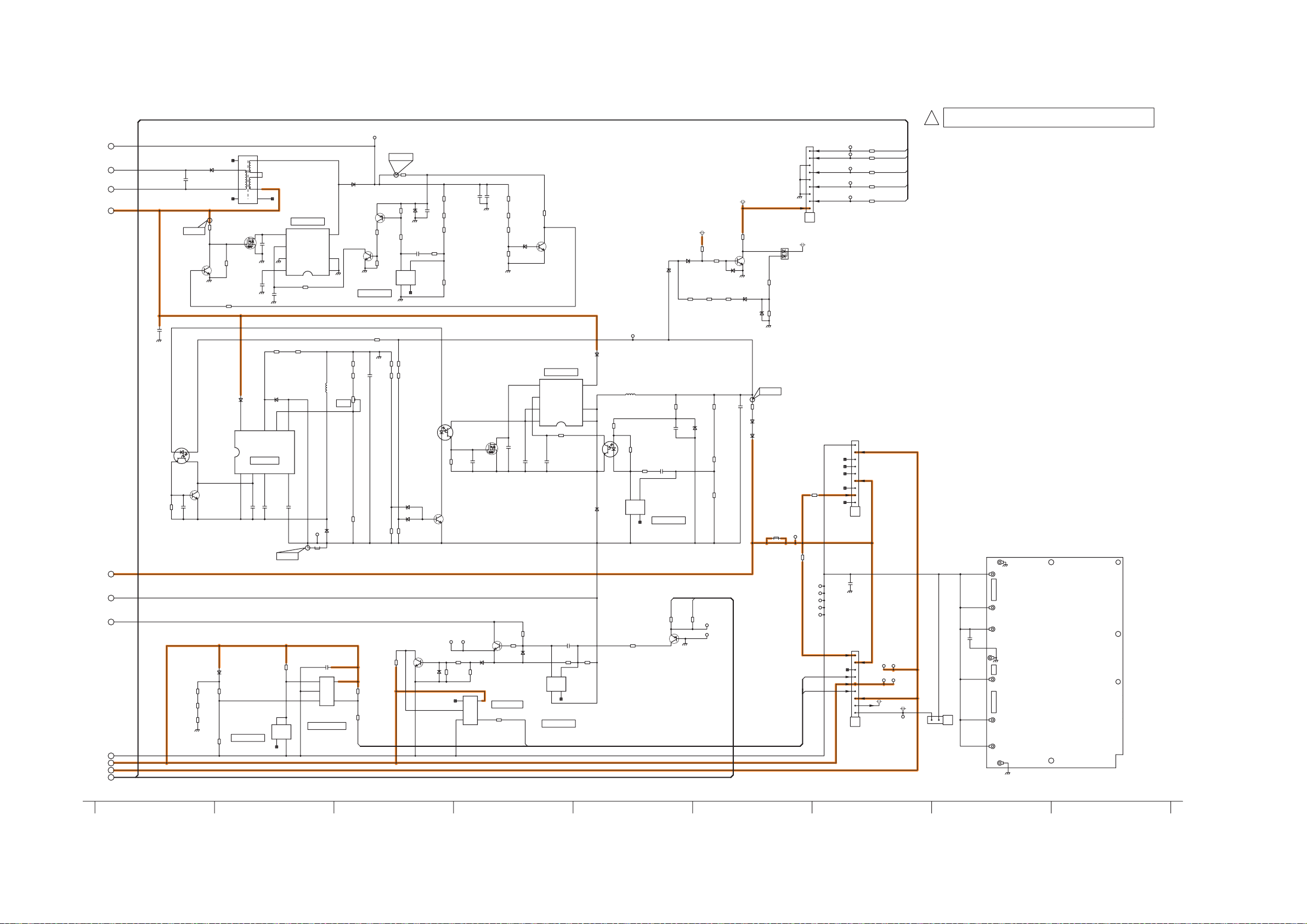

12.3. P(SUS)-Board Schematic Diagram

A

HOT

COLD

TO
P(MULTI)-BOARD
(P55)

B

C

TO
P(MULTI)-BOARD
(P52)

TO
P(MULTI)-BOARD
(P53)

Vsus POWER
CONTROL

Vsus
ERROR DET

Vsus

TO
SC-BOARD
(SC2)

TO
SS-BOARD
(SS11)

D

COLD

HOT

E

PFC
CONTROL

P(SUS)-BOARD ETX2MM774MG

F

!

2 896

4

5

COMPARATOR

731

51

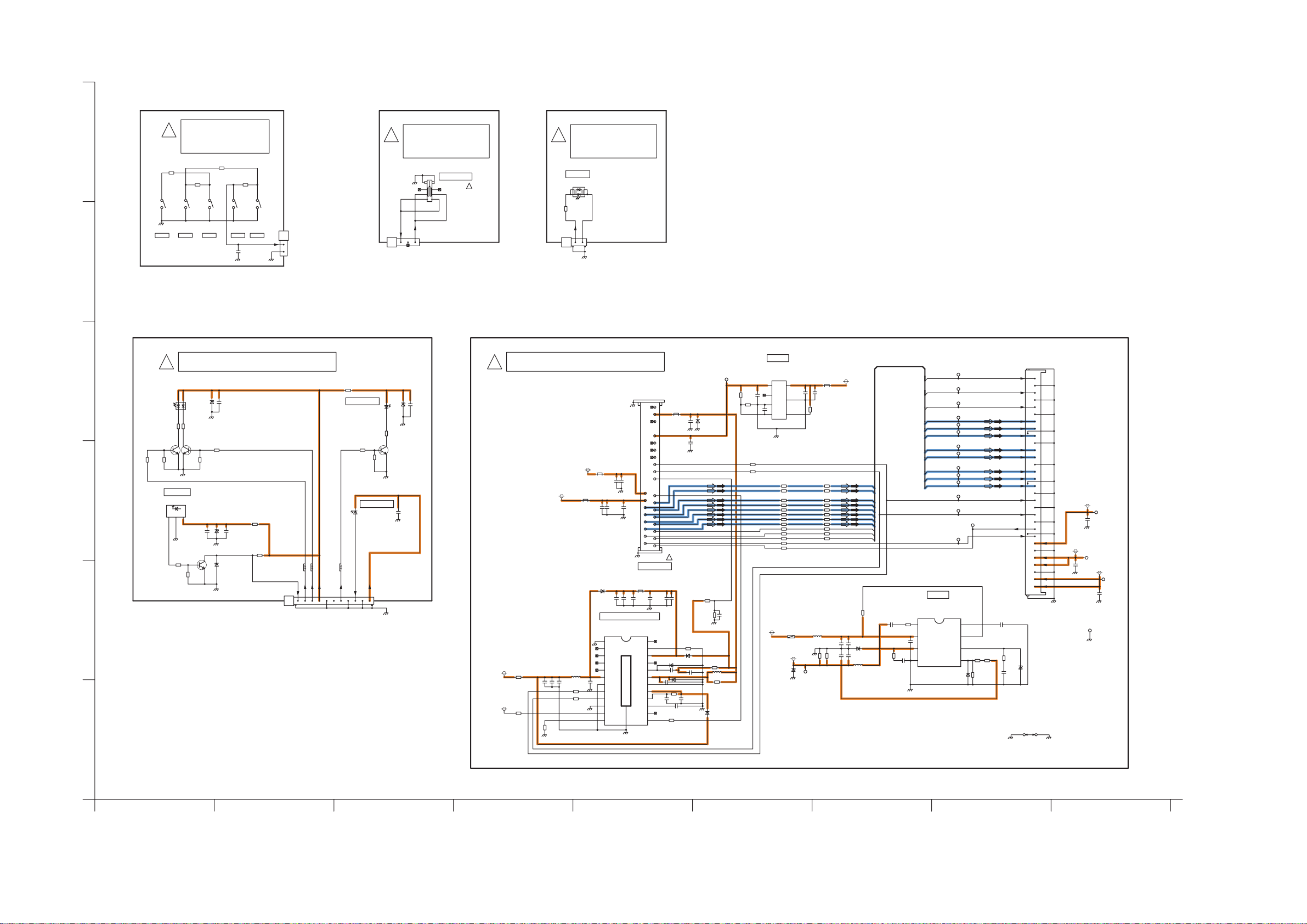

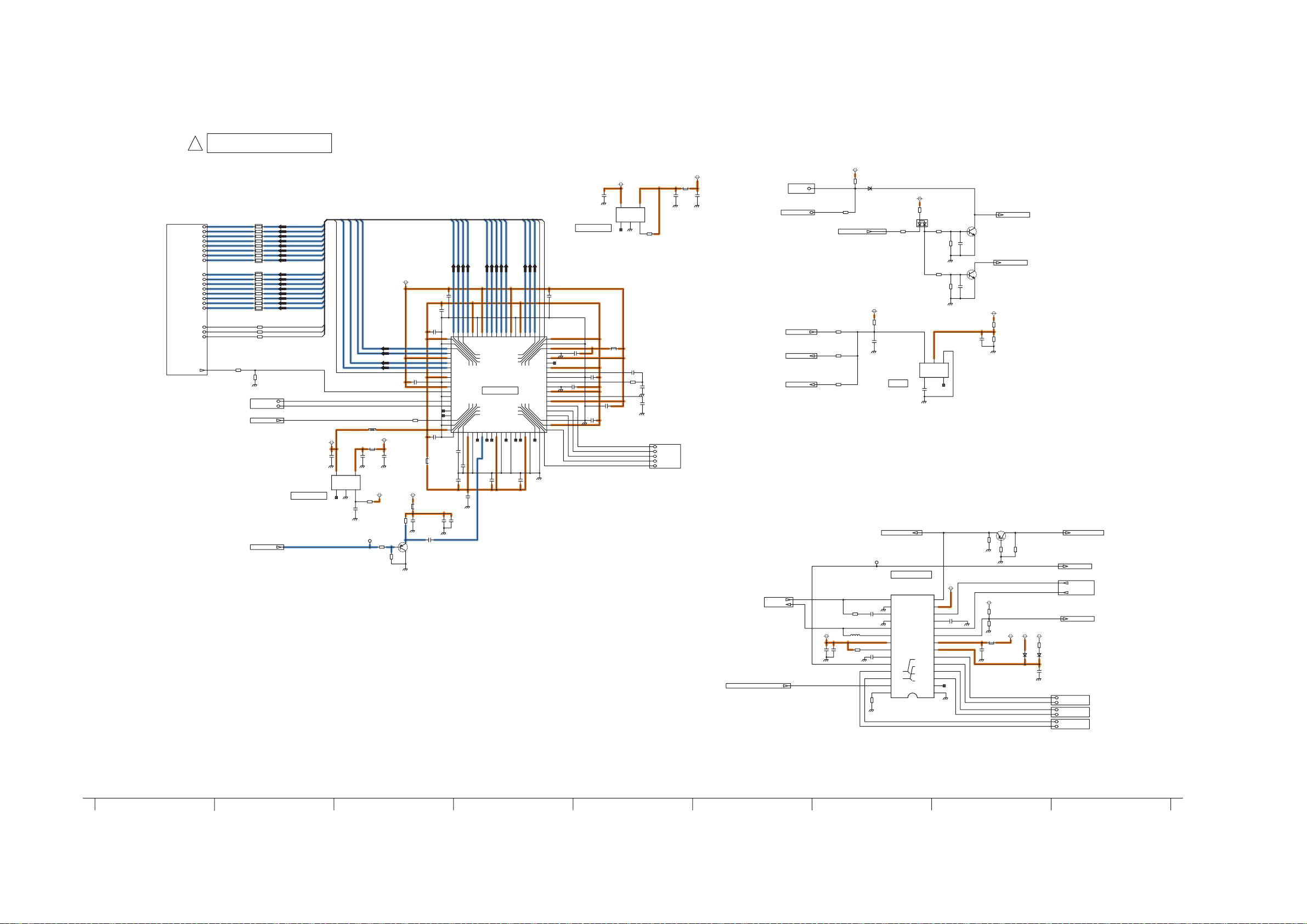

12.4. GK, GL, K, S and XS-Board Schematic Diagram

!

GK-BOARD

A

R3770

14.3k

1%

EVQ11G05R

SW3759

F

+/ TV AV-/

TXNGK1EQUE

R3775

7.15k

1%

R3771

6.65k

EVQ11G05R

SW3761

1%

EVQ11G05R

SW3760

R3772

1.74k

EVQ11G05R

KEYSCAN

C3752

50V

1000p

SW3762

1%

EVQ11G05R

SW3763

TO
C1-BOARD

GK1

(C14)

1

KEYSCAN

2

B

TO
P-BOARD
(P34)

!

S-BOARD
TXN/S1DTUE

123

S1B

12V

STB_PS

PUSH

POWER SW

SW2500

K0F162B00002

!

GL-BOARD
TXNGL1EBUE

SD LED

D7800

R7800

TO
A-BOARD
(A1)

B3AEB0000107

0

GL02

1

2

!

1%

C6823

6.3V

2.2u

R6818
120k

R6812

47

R6813

47

IF3.3V

IC6802

C0CBCBE00001

1

VIN

VOUT

2

NC

SUB

3

GND

4

CNCONT

C6822

50V

470p

R6846 120

R6844 120

R6845

R6842 120

R6843 120

R6840 120

R6841 120

R6821 120

R6822 120

R6823 120

R6824 120

R6825

R6826 47

DTV12V

K5H1022A0031

D6813

B0BC4R700007

SUB5V

L6816

J0JGC0000020

7

+

C6824

C6825

6.3V

6.3V

1u

100u

6

R6815

10k

5

CH0CLK

CH0VAL

CH0SYNC

MDO0

MDO1

MDO2

MDO3

MDO4

MDO5

MDO6

MDO7

0

R6848

0

R6849

0

R6850

120

47

0

R6851

0

R6852

0

R6853

0

R6854

0

R6855

0

R6856

0

R6857

0

R6858

TP6804

TP6803

TP6802

TP6821

IS0DATA

TP6820

TP6819

MDO4

MDO3

MDO2

MDO1

MDO0

TP6818

TP6817

TP6816

TP6815

TP6801

TP6805

TP6806

TP6807

TP6808

VDD1V

R6827

100k

C6829

C6827

L6806

PA6802

G1C100MA0291

VDD1.0V

R6834

TP6812

25V

25V

10u

10u

D6808
B0JCPD000021

C6828

C6830

6.3V

6.3V
22u

22u

L6807

R6833

G1C4R7ZA0083

10

10

C6831

50V

0.01u

R6863

2.2

IC6803

C0DBAYY00462

R6829

100

1

BOOT

2

VIN

C6832

25V

0.1u
3

SW

4

GND

C6866

50V

1000p

B0BC4R700007

SS

EN

COMP

FB

D6809

C6842

8

7

6

5

0.015u

R6831

R6832

470

2.2k

1%

1%

R6830

10k

1%

!

K-BOARD TXN/K1EQUE

S

VJ2

G_LED_ON

S

R_LED_ON

STBY3.3V

*R2581

0

*Q2519

2SD0601A0L

*D2526

MAZ80560ML

C2517
50V

0.01u

C2511

16V

0.1u

Modem_LED

*D2525

B3ACB0000225

<

*R2565

2k

1%

*R2561

5.6k

*R2562

3.3k

AI_SENSOR

PC2511

B3JB00000046

S

VJ3

10

11

GND

PSM_LEDR

Modem_LED

GND(D_PCB_MODE)

AI_SENSOR

GND

SUB5V

C

C2515

D2524

MAZ80560ML

*D2520

G

Q2513

2SD0601A0L

R2556
10k

*R2531

210

1%

R2530
47k

REMOCON

RM2501

B3RAD0000160

OUT

123

R2542

R

*R2525

1.27k

1%

Q2511

2SD0601A0L

VCC

GND

Q2510

2SD0601A0L

47k

R2520

220k

B3AGB0000057

D

E

50V

0.01u

R2557

22k

*R2524

47k

D2512

MAZ80560ML

C2512

10V
10u

MAZ80560ML

R2517

47

C2521

50V

0.01u

R2516

D2530

22k

TO
A-BOARD
(A1)

K1

VJ1

123456789

REMOCON

!

XS-BOARD TXNXS1EBUB

VDD1.0V

J0JJC0000015

C6851

25V

1u

C6802

PA6801

K5H252YA0023

R6801

10k

C6801

220u

L6801

25V

25V

G1C220MA0291

0.1u

+

C6852

R6803

R6804 47

R6802

10k

DTV12V

SUB3.3V

SUB3.3V

J0JGC0000020

L6814

C6805

6.3V
220u

B0JCPD000021

50V
1000p

47

L6815

+

C6808

4V

220u

+

C6848

6.3V

=

1u

C6806

D6803

50V

0.47u

+

C6804

35V

100u

LNB SUPPLY/CONTOL

IC6801

C1AB00002948

1

DETIN

2

VCTRL

3

NC

4

NC

5

NC

6

LX

7

P-GND

8

SDA

9

SCL

10

ADDR

11

DSQOUT

12

DSQIN

TP6814

R6817

75k

NC

L6817

1

J0JHC0000116

B1

2

C6821

NC

3

B2

4

NC

5

NC

6

NC

7

SDA

8

SCL

9

DISEQCIN1

C6815

16V

10

0.1u

B3

DISEQCOUT1
11

VDD

12

D03

13

C6807

D13

14

D23

16V

15

0.01u
D33 TP6809

16

D43

17

D53 18

D63

19

D73

20

CLK_OUT

21

22

D/PN

STROUT

23

24

ERROR

RESETB

25

26

TU6801

!

J3BBCBC00004

SAT TUNER

C6849

50V

0.1u

Thermal Pad

L6802

J0JJC0000015

C6809

A-GND

Vcc-l

C6816

50V

0.47u

+

35V

100u

24

NC

23

ISEL

22

Vup

D6804

21

B0JCMD000010

NC

C6818

20

VoTX

25V

10u

19

VoRX

18

C6813

0.22u

25V

17

Vcc

C6817

16

25V

0.22u

15

BYP

14

TTX

13

EXTM

R6808

D6805

B0JCMD000010

C6814

25V

0.22u

0

50V
180p

C6812

16V

0.1u

C6850

50V

0.1u

R6807

D6806

B0ECKM000019

C6819

50V

R6809

100

C6820

0.1u

D6811

B0ECKM000019

16k

0.01u

25V

1%

R6859

2.2k

C6864

R6860

50V

2.2k
8200p

R6814

4.7

L6813
220u

R6811
15

1/2W

D6812

B0ECKM000019

F

25V

CH0SYNCCH0SYNC

CH0VALCH0VAL

CH0CLKCH0CLK

IRQ

D6810

B0BC4R700007

R6835

3.9k

C6843

50V

3900p

XS3

K1KY30B00006

<

TO

SIDE

A-BOARD
(A88A)

1

2

3

4

5

6

MDO7MDO7

7

MDO6MDO6

8

MDO5MDO5

G1

9

10

MDO4

11

MDO3

12

13

MDO2

14

MDO1

15

MDO0

G2

16

17

SDA

18

19

SCL

20

21

RESET

22

G3

23

24

25

26

27

28

29

30

TERM

SUFFIX

AB

JS6801

SUB3.3V

SUB5V

C6845

16V

0.1u

TP6810

C6846

25V

0.1u
DTV12V

TP6811

C6847
25V

0.1u

TP6813

1 7

4

5

52

932 68

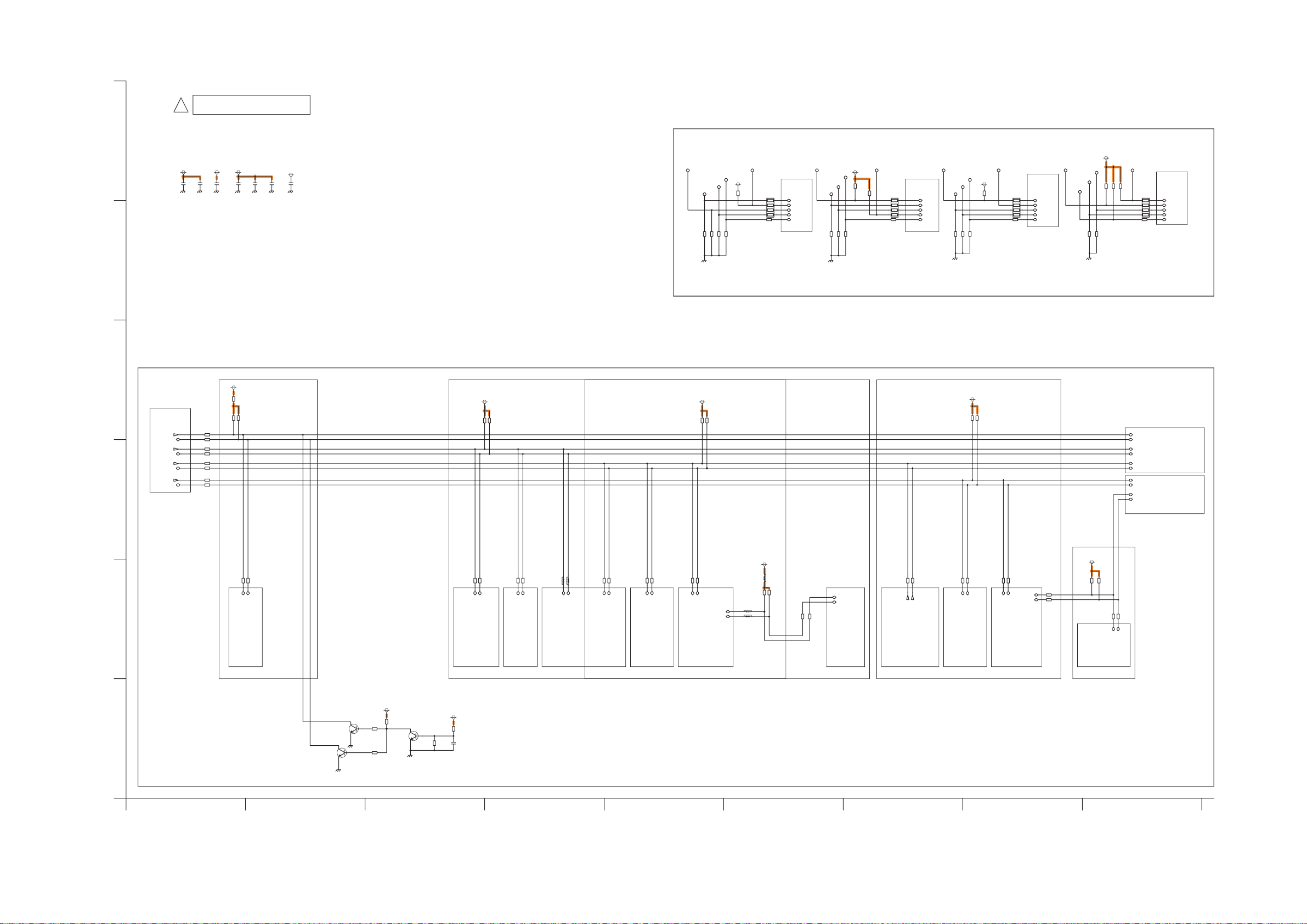

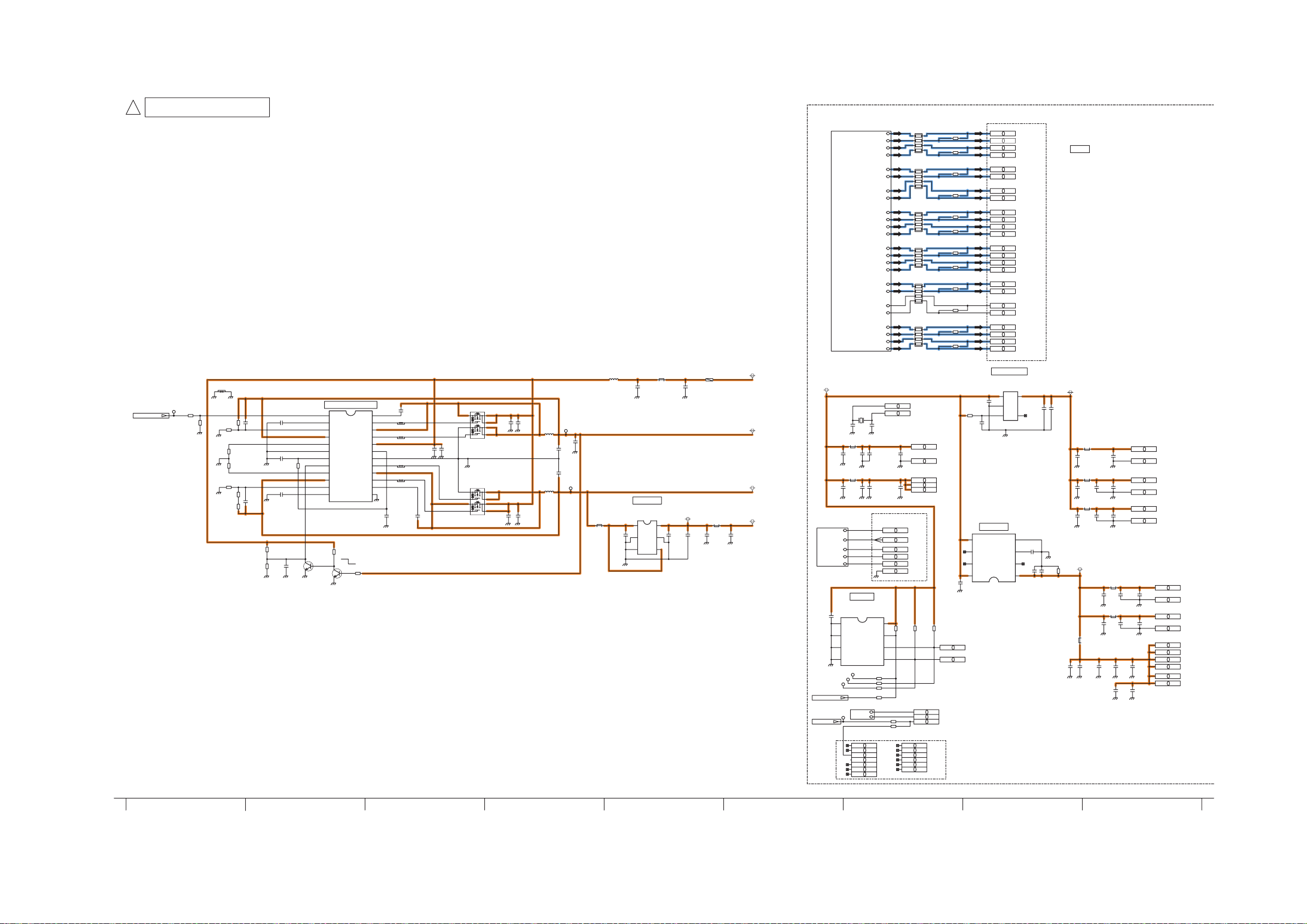

12.5. A-Board (1/22) Schematic Diagram

!

A-BOARD (1/22)

IIC

A

REF No. 0900-0999

1.8V_GCDDR

SUB5V

C1017

C1011

0.1u

C1012

16V

16V

16V

0.1u

0.1u

SUB3.3V

SUB5V_CI_SW

C1013

C1014

16V

16V

0.1u

0.1u

C1015

C1016

16V

16V

0.1u

0.1u

B

PDP-FHD(AVC31/GC6/FRCQ/PD3H)

TP0901

TDI

TCK TCK

TP0904

TRST

10k

10k

R0907

R0902

TP0905

TDO

TP0902

TMS

SUB3.3V

TP0903

R0990
10k

EXB28V680JX

47k

10k

R0905

R0906

FRC_3.3V

TP0907

TDI

IC8001

R0901

AVC

TRST

TDO

TDI

TMS

R0900

68

TP0908

TP0906

TRST TRST

10k

R0970

TP0910

SUB3.3V

TDO

TP0909

TMS

R0967

10k

R0991

R0904

10k

EXB28V680JX

R0903

10k

47k

R0969

R0968

68

TO 16/22TO 2/22

IC5100

GC6

GC6-TRST

GC6-TCK

GC6-TDO

GC6-TMS

TP0912

TDI

TP0913

TCK

TP0911

10k

*R0983

TP0915

TDO

TP0914

TMS

SUB_FS_3.3V

*R0984

*R0982

10k

EXB28V680JX

*R0981

10k

47k

*R0985

*R0986

68

TO 18/22

IC4100

GC3FS

GC3FS_TDI

GC3FS_TDO

GC3FS_TRST

GC3FS_TCKTCK

GC3FS_TMS

TP0917

TDI

TP0918

TCK

TP0916

TRST

TP0919

TMS

*R0971

10k

TP0920

TDO

2.7k

10k

10k

*R0987

*R0993

*R0988

*R0989

10k

*R0944

EXB28V680JX

*R0908

TO 19/22

IC2600

FRC-Q

FRCQ_TDOGC6-TDI

FRCQ_TDI

FRCQ_TCK

FRCQ_TRST

FRCQ_TMS

68

JTAG

C

TO 2/22

IC8001

AVC31

SCL0

SDA0

SCL1

SDA1

SBT2

SCL2

SBT0

SDA2

SCL3

XECS5

XECS3

SDA3

D

E

FRC_3.3V

R0962

4.7k

PEAKS_SCL3

R0946

22

IC8601

Peaks EEP
16k

TO 6/22

SUB3.3V

PEAKS_SDA3

R0945
22

LITE2-EEP_SDA

LITE2-EEP_SCL

R0961

4.7k

PEAKS_SDA3

PEAKS_SCL3

R0912

R0911

22

22

GENX_SDA0

GENX_SCL0

GENX_SCL1

GENX_SDA1

R0913

22

22

R0914

IC1100

GenX8

TO 8/22

STB3.3V

R0916

4.7k

IC1101

GenX EEP
8k

TO 8/22

R0915

4.7k

R0918

R0917

22

22

GENX-EEP_SCL

GENX-EEP_SDA

CN0101

PEAKS_SCL0

PEAKS_SDA0

PEAKS_SCL1

PEAKS_SDA1

PEAKS_SCL2

PEAKS_SDA2

PEAKS_SCL3

PEAKS_SDA3

ADJ-GENX_SCL

ADJ_GENX_SDA

Development Connector

TO 18/22

TO 22/22

TO 22/22

TO 22/22

(Lite2 E2PROM)

TO 18,22/22

(GenX4 Loarder/E2PROM)

Adjustment Connector

CN0100

*R0996

0

R0955

R0956

4.7k

4.7k

68

R0948

68

R0947

68

R0950

68

R0949

68

R0952

68

R0951

68

R0954

68

R0953

*R0932

IC2600

FRC-Q

TO 19/22

68

PEAKS_SCL0

PEAKS_SDA0

FRCQ_SCL

PEAKS_SCL0

PEAKS_SDA0

*R0931

68

FRCQ_SDA

PEAKS_SCL1

PEAKS_SDA1

PEAKS_SCL2

PEAKS_SDA2

PEAKS_SCL3

PEAKS_SDA3

SUB3.3V

R0958

4.7k

PEAKS_SCL1

PEAKS_SDA1

R0909

22

TMP-SENS_SCL

IC1000

TEMP SENSOR

TO 22/22

R0910
22

TMP-SENS_SDA

R0957

4.7k

PEAKS_SCL1

R0963

22

IC4001

TO 18/22

GC3FS_SCL

GC3FS

R0964
22

GC3FS_SDA

R0933

IC4510

ADV7470

(ADV)

TO 9/22

PEAKS_SDA1

VJUMP1005-S

S

ADV_SCL

ADV_SDA

R0934

S

VJUMP1005-S

R0920

22

ADAV_SCL

IC4510

ADV7470

ADAV4622

TO 9/22

PEAKS_SDA2

PEAKS_SCL2

R0919

ADAV_SDA

PEAKS_SCL2

PEAKS_SDA2

R0929

R0930

22

IC3001

AV-SW

AV-SW_SCL

22

AV-SW_SDA

22

TO 13/22

SUB3.3V

R0960

R0959

4.7k

4.7k

PEAKS_SCL2

PEAKS_SDA2

SUB5V

P

*R0940

*R0939

0

0

FE_SCL

FE_SDA

FE-OUT_SCL

FE-OUT_SDA

IC8301

FE

TO 4/22

VJUMP1005-P

R0941

VJUMP1005-S

R0942

VJUMP1005-S

R0943

*R0937

*R0938

4.7k

4.7k

S

S

*R0928

22

TUNER_SCL

TUNER_SDA

*R0927

TU2901

22

TUNER

TO 15/22

PEAKS_SCL2

*R0936

22

TO TU-PWB IIC

Free-SAT NIM
HK digital FE

TO 6/22

PEAKS_SDA2

*R0935

FE1_SCL

FE1_SDA

22

STB3.3V

*R0974

*R0972

47k

*Q0903

2SD0601ASL

F

*Q0904

2SD0601ASL

10k

*R0977

10k

*Q0905

2SD0601ASL

FRC_3.3V

*R0979

10k

*C0901

*R0975

10V

47k

4.7u

IIC

1

4

5

53

73 96

82

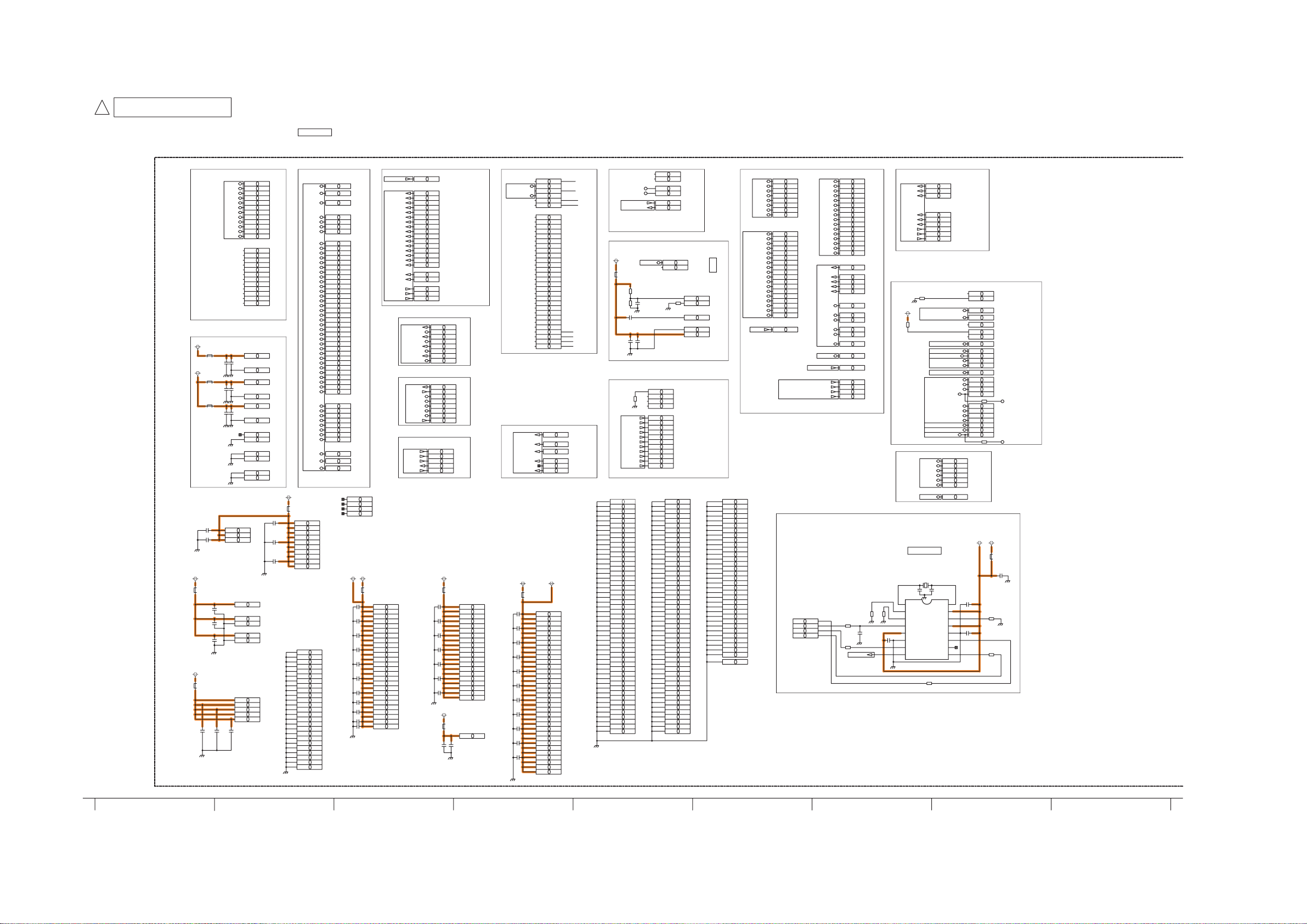

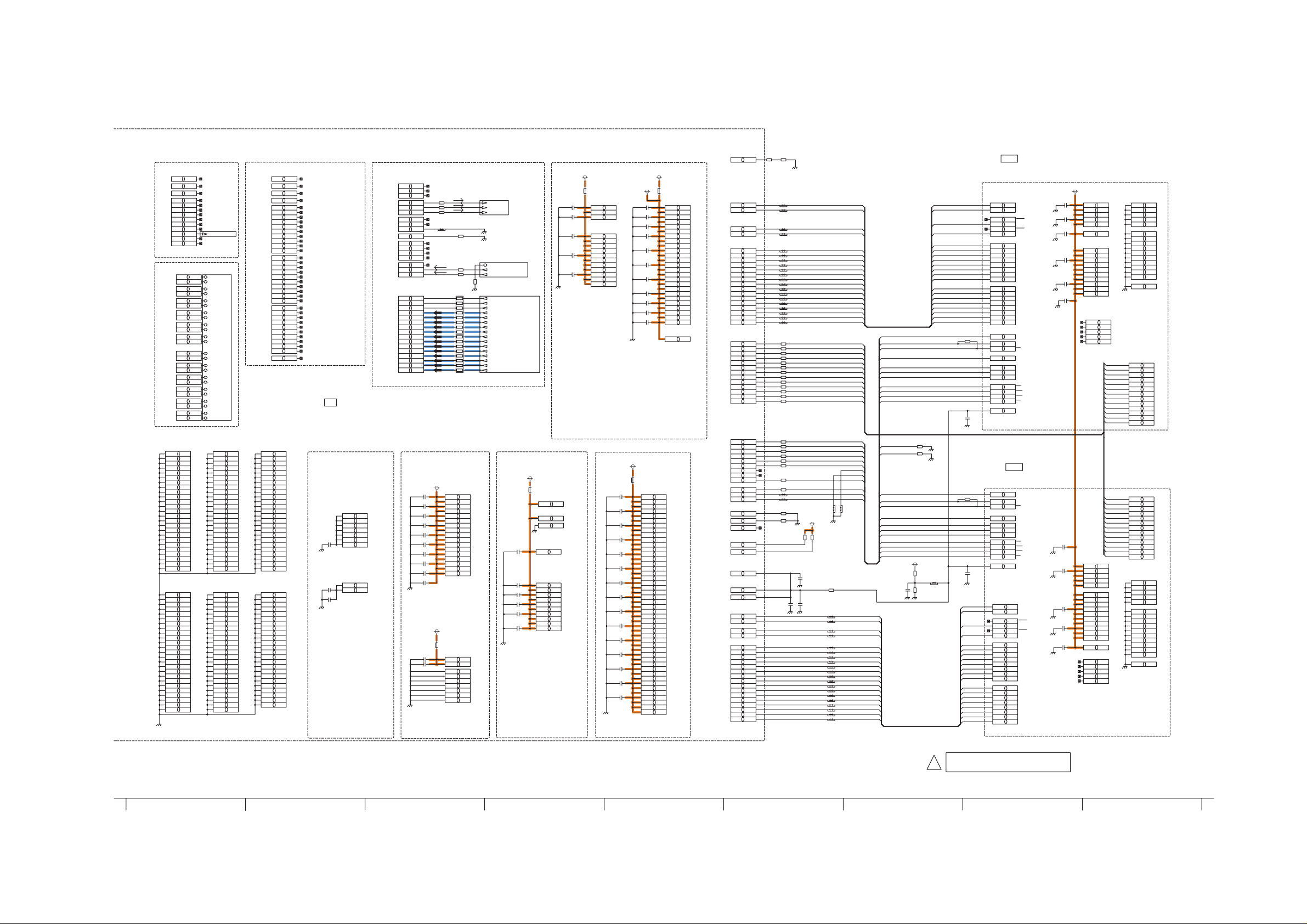

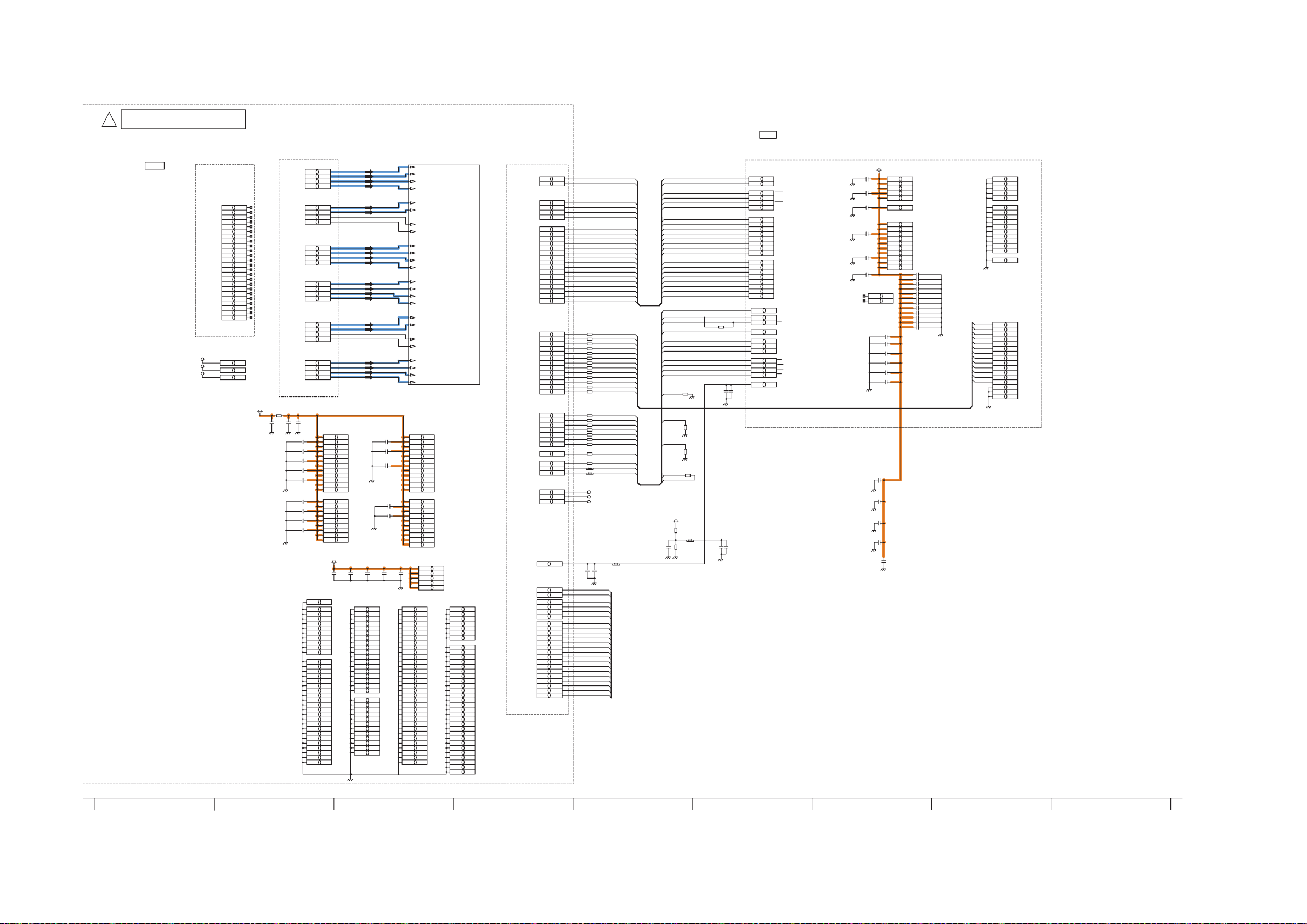

12.6. A-Board (2/22) Schematic Diagram

!

A-BOARD (2/22)

Peaks-COMMON

REF No. 8000-8999

SUB3.3V

SUB3.3V

C8070

SUB1.2V

SUB3.3V

0.1u

16V

LVDS I/F

USB I/F

L8011

J0JHC0000045

L8012

J0JHC0000045

L8013

J0JHC0000045

C8006

16V

C8009

10V

L8009

J0JHC0000045

C8072

16V

0.1u

C8073

16V

0.1u

C8074

16V

0.1u

L8008
J0JHC0000045

C8071

0.1u

C8083

C8067

C8081

0.1u

10u

16V

TO 16/22

TA1N

TA1P

TB1N

TB1P

TC1N

TC1P

TCLK1N

TCLK1P

TD1N

TD1P

TE1N

TE1P

16V

0.1u

16V

0.1u

16V

0.1u

*IC8001 P19 VDDA

*IC8001 V19 VDDA

*IC8001 W17 VDDA

C8085

16V

0.1u

MN2WS0058

*IC8001

*IC8001 A27 TA1P

*IC8001 B28 TB1N

*IC8001 A28 TB1P

*IC8001 B29 TC1N

*IC8001 B30 TC1P

*IC8001 C29 TCLK1N

*IC8001 C30 TCLK1P

*IC8001 D29 TD1N

*IC8001 D30 TD1P

*IC8001 E29 TE1N

*IC8001 E30 TE1P

*IC8001 F29 TA2N

*IC8001 F30 TA2P

*IC8001 G29 TB2N

*IC8001 G30 TB2P

*IC8001 H29 TC2N

*IC8001 H30 TC2P

*IC8001 J29 TCLK2N

*IC8001 J30 TCLK2P

*IC8001 K29 TD2N

*IC8001 K30 TD2P

*IC8001 L29 TE2N

*IC8001 L30 TE2P

*IC8001 F14 VDDUSB

C8084
50V

1000p

*IC8001 E14 VSSUSB

*IC8001 F11 VDDAUSB

C8069
50V
1000p

*IC8001 E11 VSSAUSB

*IC8001 C11 VDDPUSB

C8082
50V
1000p

*IC8001 B13 XO

*IC8001 A13 XI

*IC8001 A10 USBDP

*IC8001 B10 USBDN

*IC8001 A11 USBATEST

*IC8001 B11 USBRREF

*IC8001 T18 DPAVDD

*IC8001 V2 M1A1AVDD

*IC8001 U6 M1A1AVSS

*IC8001 M25 V2AVDD

*IC8001 N25 V2AVSS

*IC8001 G25 LVVDD33

*IC8001 H25 LVVDD33

*IC8001 J25 LVVDD33

*IC8001 K25 LVVDD33

*IC8001 L25 LVVDD33

B27 TA1N

J0JHC0000045

Peaks AVC

IC8002

MN2WS0058

PCI BUS I/F

TO 7/22

*IC8001 E16 PCRST

PCRST

*IC8001 B16 PCIDSELA

PCIDSELA

PCCLKO0

*IC8001 C17 PCCLKO0 *IC8001 C25 SBI2

PCCXBE0

*IC8001 F17 PCCXBE0

*IC8001 B17 PCCXBE1

PCCXBE1

PCCXBE2

*IC8001 E17 PCCXBE2

*IC8001 A17 PCCXBE3

PCCXBE3

PCAD0

*IC8001 A25 PCAD0

*IC8001 E24 PCAD1

PCAD1

*IC8001 C24 PCAD2

PCAD2

PCAD3

*IC8001 B24 PCAD3

PCAD4

*IC8001 F23 PCAD4

PCAD5

*IC8001 A24 PCAD5

*IC8001 C23 PCAD6

PCAD6

PCAD7

*IC8001 B23 PCAD7

PCAD8

*IC8001 E23 PCAD8

*IC8001 A23 PCAD9

PCAD9

*IC8001 F22 PCAD10

PCAD10

*IC8001 C22 PCAD11

PCAD11

PCAD12

*IC8001 B22 PCAD12

PCAD13

*IC8001 A22 PCAD13

*IC8001 E22 PCAD14

PCAD14

*IC8001 C21 PCAD15

PCAD15

*IC8001 F21 PCAD16

PCAD16

PCAD17

*IC8001 B21 PCAD17

PCAD18

*IC8001 E21 PCAD18

PCAD19

*IC8001 A21 PCAD19

*IC8001 F20 PCAD20

PCAD20

PCAD21

*IC8001 C20 PCAD21

*IC8001 E20 PCAD22

PCAD22

*IC8001 B20 PCAD23

PCAD23

*IC8001 A20 PCAD24

PCAD24

PCAD25

*IC8001 C19 PCAD25

PCAD26

*IC8001 B19 PCAD26

*IC8001 F19 PCAD27

PCAD27

*IC8001 A19 PCAD28

PCAD28

*IC8001 E19 PCAD29

PCAD29

*IC8001 B18 PCAD30 XIRQ1

PCAD30

*IC8001 F18 PCAD31

PCAD31

PCXSERR

*IC8001 F15 PCXSERR

PCXPERR

*IC8001 B15 PCXPERR

PCXSTOP

*IC8001 C15 PCXSTOP

PCXFRAME

*IC8001 A15 PCXFRAME

*IC8001 A14 PCXTRDY

PCXTRDY

PCXIRDY

*IC8001 E15 PCXIRDY

PCDEVSEL

*IC8001 C16 PCDEVSEL

PCPAR

*IC8001 A16 PCPAR

*IC8001 F16 PCIRQ0

PCIRQ0

PCBRQ0

*IC8001 E18 PCBRQ0

*IC8001 A18 PCBGT0

PCBGT0

SUB1.2V

L8004

C8007

16V

0.1u
*IC8001 R19 VDDR

*IC8001 U19 VDDR

*IC8001 V17 VDDR

*IC8001 W18 VDDR

C8008

16V

0.1u
*IC8001 AE18 VDDR

*IC8001 AF18 VDDR

*IC8001 AG18 VDDR

*IC8001 AH18 VDDR

C8010

10u

10V

*IC8001 AJ18 VDDR

*IC8001 AK18 VDDR

*IC8001 A29 LVVSS

*IC8001 A30 LVVSS

*IC8001 C28 LVVSS

*IC8001 D27 LVVSS

*IC8001 D28 LVVSS

*IC8001 E27 LVVSS

*IC8001 E28 LVVSS

*IC8001 F26 LVVSS

*IC8001 F27 LVVSS

*IC8001 F28 LVVSS

*IC8001 G26 LVVSS

*IC8001 G27 LVVSS

*IC8001 G28 LVVSS

*IC8001 H26 LVVSS

*IC8001 H27 LVVSS

*IC8001 H28 LVVSS

*IC8001 J26 LVVSS

*IC8001 J27 LVVSS

*IC8001 J28 LVVSS

*IC8001 K26 LVVSS

*IC8001 K27 LVVSS

*IC8001 K28 LVVSS

*IC8001 L26 LVVSS

*IC8001 L27 LVVSS

*IC8001 L28 LVVSS

*IC8001 C27 TSTAIO

*IC8001 U18 DTCPOUT

*IC8001 M26 V2TCPOUT

*IC8001 V3 M1A1TCPOUT

1.8V_DDRI/F

C8011

16V

0.1u

C8012

16V

0.1u

C8013

16V

0.1u

C8014

16V

0.1u

C8015

6.3V
1u

C8016

6.3V
1u

C8017

10V

10u

C8077

16V

0.1u

C8078

16V

0.1u

C8079

16V

0.1u

SUB1.8V

C8080

16V

0.1u

L8003
J0JHC0000045

*IC8001 P27 VDDIO

*IC8001 P30 VDDIO

*IC8001 T25 VDDIO

*IC8001 T27 VDDIO

*IC8001 U28 VDDIO

*IC8001 V29 VDDIO

*IC8001 W25 VDDIO

*IC8001 Y29 VDDIO

*IC8001 AA28 VDDIO

*IC8001 AB26 VDDIO

*IC8001 AB27 VDDIOCK

*IC8001 AC30 VDDIO

*IC8001 AD28 VDDIO

*IC8001 AE25 VDDIO

*IC8001 AF23 VDDIO

*IC8001 AF26 VDDIO

*IC8001 AF29 VDDIO

*IC8001 AG22 VDDIO

*IC8001 AG25 VDDIOCK

*IC8001 AG27 VDDIO

*IC8001 AH21 VDDIO

*IC8001 AH26 VDDIO

*IC8001 AJ20 VDDIO

*IC8001 AJ25 VDDIO

*IC8001 AK24 VDDIO

*IC8001 AK30 VDDIO

LOSD OUT--> PIO

TO 5/22

VOUTENB

TO 17/22

VI2P1

VI2P0

VI1CK208F

VI1CK204F

VI1CVBS0

VI1CVBS1

VI1CVBS2

VI1CVBS3

LCSCK

LCSID

ADIN

ADCCK

DSRCK

VI2P5

SLRCK

VI2P6

VI2P2

VI2P3

VI2P7

VI2P8

VI2P9

IIC I/F

TO 1/22

SCL2

SDA2

SCL3

SDA3

SD CARD I/F

TO 6/22

JTAG

TO 1/22

*IC8001 M30 VOUTENB

*IC8001 E4 VI2P1

*IC8001 C4 VI2P0

*IC8001 D5 VI1CK208F

*IC8001 D6 VI1CK204F

*IC8001 F7 VI1CVBS0

*IC8001 E7 VI1CVBS1

*IC8001 C7 VI1CVBS2

*IC8001 E8 VI1CVBS3

*IC8001 B14 LCSCK

*IC8001 C14 LCSID

*IC8001 E13 ADIN

*IC8001 D13 ADCCK

*IC8001 F13 DSRCK

*IC8001 G5 VI2P5

*IC8001 D14 SLRCK

*IC8001 J5 VI2P6

*IC8001 F5 VI2P2

*IC8001 F4 VI2P3

*IC8001 J6 VI2P7

*IC8001 G2 VI2P8

*IC8001 J3 VI2P9

*IC8001 T2 SCL0

SCL0

*IC8001 T3 SDA0

SDA0

SCL1

*IC8001 T6 SCL1

*IC8001 U1 SDA1

SDA1

SBT2

*IC8001 AK7 SBT2

*IC8001 AH8 SBT0

SBT0

XECS5

*IC8001 AE4 XECS5

XECS3

*IC8001 AH1 XECS3

*IC8001 AK16 SDCLK

SDCLK

SDCD

*IC8001 AF15 SDCD

*IC8001 AH16 SDCMD

SDCMD

SDDAT0

*IC8001 AE15 SDDAT0

SDDAT1

*IC8001 AK15 SDDAT1

SDDAT2

*IC8001 AF16 SDDAT2

*IC8001 AE16 SDDAT3

SDDAT3

*IC8001 AJ15 SDWP

SDWP*IC8001 D11 VSSPUSB

*IC8001 W1 TMS

TMS

*IC8001 W2 TRST

TRST

TCK

*IC8001 V5 TCK

*IC8001 W3 TDO

TDO

*IC8001 V6 TDI

TDI

16V

0.1u

C8019

16V

0.1u

C8020

16V

0.1u

C8021

16V

0.1u

C8022

6.3V
1u

C8023

10V

10u

C8024

10V

10u

C8076

0.1u

SUB1.2V

SUB1.2V

16V

LOSDOUT0

LOSDOUT1

LOSDOUT2

LOSDOUT3

LOSDOUT4

LOSDOUT5

LOSDOUT6

LOSDOUT7

LOSDOUT8

LOSDOUT9

LOSDOUT10

LOSDOUT11

LOSDOUT12

LOSDOUT13

LOSDOUT14

LOSDOUT15

LOSDOUT_CLK_O

LOSDOUT_H_O

LOSDOUT_V_I

LOSDOUT_CLK_I

LOSDOUT_H_I

L8002
J0JHC0000045

*IC8001 AE17 VDD12

*IC8001 AF17 VDD12

*IC8001 AG17 VDD12

*IC8001 AH17 VDD12

*IC8001 AJ17 VDD12

*IC8001

*IC8001 R12 VDD12

*IC8001 T12 VDD12

*IC8001 U12 VDD12

*IC8001 U13 VDD12

*IC8001 U14 VDD12

*IC8001 U15 VDD12

*IC8001 V12 VDD12

*IC8001 V13 VDD12

*IC8001 V14 VDD12

*IC8001 V15 VDD12

*IC8001 W12 VDD12

*IC8001 W13 VDD12

*IC8001 W14 VDD12

*IC8001 W15 VDD12

L8010
J0JHC0000045

*IC8001 M19 LVVDD12

C8075
10V

10u

AK17 VDD12

FOR ADV7470

TO 11/22

VI1CKOUT

VI1CLK

AUDIO IF

TO 5/22

DAUDIO

SRCK0

DMIX0

LRCK0

IECOUT0

SUB3.3V

C8025

16V

0.1u

C8026

16V

0.1u

C8027

16V

0.1u

C8028

16V

0.1u

C8029

16V

0.1u

C8030

6.3V
1u

C8031

6.3V
1u

C8032

10V
10u

C8063

6.3V
1u

C8064

6.3V
1u

C8065

16V

0.1u

*IC8001 H1 VI1ENB

*IC8001 A5 VI1CKOUT

*IC8001 J2 VI1CLK2

*IC8001 C6 VI1CLK

*IC8001 G1 VI1VSYNC

*IC8001 H2 VI1HSYNC

*IC8001 A6 VI1P22

*IC8001 B6 VI1P23

*IC8001 B5 VI1P24

*IC8001 C5 VI1P25

*IC8001 A4 VI1P26

*IC8001 E6 VI1P4

*IC8001 B4 VI1P5

*IC8001 C2 VI1P6

*IC8001 C1 VI1P7

*IC8001 D3 VI1P27

*IC8001 D2 VI1P8

*IC8001 E3 VI1P9

*IC8001 D1 VI1P28

*IC8001 E2 VI1P29

*IC8001 E1 VI1P12

*IC8001 F3 VI1P13

*IC8001 F2 VI1P14

*IC8001 H5 VI1P15

*IC8001 H6 VI1P16

*IC8001 F1 VI1P17

*IC8001 G3 VI1P18

*IC8001 H3 VI1P19

*IC8001 A7 VI1P2

*IC8001 B7 VI1P3

*IC8001 K6 VI1P0

*IC8001 K1 VI1P21

*IC8001 K2 VI1P10

*IC8001 J1 VI1P11

L8001
J0JHC0000045

*IC8001 A26 VDD33

*IC8001 AC4 VDD33

*IC8001 AD4 VDD33

*IC8001 AE8 VDD33

*IC8001 AF7 VDD33

*IC8001 AG6 VDD33

*IC8001 AG11 VDD33

*IC8001 AG12 VDD33

*IC8001 AG15 VDD33

*IC8001 AG16 VDD33

*IC8001 AH5 VDD33

*IC8001 AJ4 VDD33

*IC8001 AK3 VDD33

*IC8001 B26 VDD33

*IC8001 C26 VDD33

*IC8001 D7 VDD33

*IC8001 D8 VDD33

*IC8001 D15 VDD33

*IC8001 D16 VDD33

*IC8001 D19 VDD33

*IC8001 D20 VDD33

*IC8001 D23 VDD33

*IC8001 D24 VDD33

*IC8001 D26 VDD33

*IC8001 F25 VDD33

*IC8001 G4 VDD33

*IC8001 H4 VDD33

*IC8001 M4 VDD33

*IC8001 L4 VDD33

*IC8001 R4 VDD33

*IC8001 T4 VDD33

*IC8001 W4 VDD33

*IC8001 Y4 VDD33

*IC8001 E26 VDD33

*IC8001 E12 DAUDIO

*IC8001 B12 SRCK0

*IC8001 A12 DMIX0

*IC8001 F12 LRCK0

*IC8001 C12 DACCK0

*IC8001 F8 IECOUT0

VDD3.3V

VI1P0

VI1P1

VI1P10

VI1P11

VI1VSYNC

VI1HSYNC

VI1P21

VI1P20

SRCK0

DMIX0

SERIAL I/F

SBI1

TP8406

TP8405

SBO1

TO 8/22

GenX8

Analog Video I/F

VDD3.3V

L8007

J0JHC0000045

R8004

24k

R8005

10k

C8005

6.3V
1u

C8033

16V

0.1u

CH,IS IF

R8412

10k

TO 5/22

XRTS0

XDTR0

XDSR0

XDCD0

XCTS0

XRI0

TXD0

RXD0

SMTCLK1

SMTD1

SMTRST1

*IC8001 A1 VSS

*IC8001 A2 VSS

*IC8001 A3 VSS

*IC8001 A8 VSS

*IC8001 AA4 VSS

*IC8001 AA27 VSS

*IC8001 AB4 VSS

*IC8001 AB29 VSS

*IC8001 AC25 VSS

*IC8001 AC28 VSS

*IC8001 AD27 VSS

*IC8001 AE6 VSS

*IC8001 AE7 VSS

*IC8001 AE19 VSS

*IC8001 AE22 VSS

*IC8001 AE26 VSS

*IC8001 AE29 VSS

*IC8001 AF6 VSS

*IC8001 AF13 VSS

*IC8001 AF14 VSS

*IC8001 AF19 VSS

*IC8001 AF21 VSS

*IC8001 AF25 VSS

*IC8001 AF27 VSS

*IC8001 AG5 VSS

*IC8001 AG9 VSS

*IC8001 AG10 VSS

*IC8001 AG13 VSS

*IC8001 AG14 VSS

*IC8001 AG19 VSS

*IC8001 AG20 VSS

*IC8001 AG24 VSS

*IC8001 AG29 VSS

*IC8001 AH4 VSS

*IC8001 AH11 VSS

*IC8001 AH13 VSS

*IC8001 AH15 VSS

*IC8001 AH19 VSS

*IC8001 AH23 VSS

*IC8001 AH27 VSS

*IC8001 AH30 VSS

*IC8001 AJ3 VSS

*IC8001 AJ29 VSS

*IC8001 AK1 VSS

*IC8001 AK2 VSS

*IC8001 AJ13 VSS

*IC8001 AJ16 VSS

*IC8001 AJ19 VSS

*IC8001 AJ22 VSS

SBI2

SBO2

TO 5/22

MVDACO1

C8003

6.3V

1u

C8034

16V

0.1u

*IC8001 AK14 CH0CLK

*IC8001 AE14 CH0VAL

*IC8001 AH14 CH0PSYNC

*IC8001 AJ14 CH0DATA

*IC8001 AJ8 XRTS0

*IC8001 AE9 XDTR0

*IC8001 AK8 XDSR0

*IC8001 AF9 XDCD0

*IC8001 AH9 XCTS0

*IC8001 AE10 XRI0

*IC8001 AJ9 TXD0

*IC8001 AK9 RXD0

*IC8001 AH10 SMTCLK1

*IC8001 AJ10 SMTD1

*IC8001 AF10 SMTRST1

*IC8001 F24 SBI0

*IC8001 B25 SBO0

*IC8001 AK6 IS1VAL

*IC8001 AG8 IS1PSYNC

*IC8001 E25 SBO2

*IC8001 E10 MVDACO1

*IC8001 D9 MVDACO2

*IC8001 B9 VVREF

*IC8001 F10 MVIREF

R8006

24k

*IC8001 C9 VCOMP

*IC8001 A9 DAAVSS1

*IC8001 E9 DAAVDD1

*IC8001 AJ26 VSS

*IC8001 AK13 VSS

*IC8001 AK19 VSS

*IC8001 AK25 VSS

*IC8001 AK28 VSS

*IC8001 B1 VSS

*IC8001 B2 VSS

*IC8001 B3 VSS

*IC8001 B8 VSS

*IC8001 C3 VSS

*IC8001 C8 VSS

*IC8001 C10 VSS

*IC8001 C13 VSS

*IC8001 C18 VSS

*IC8001 D4 VSS

*IC8001 D10 VSS

*IC8001 D12 VSS

*IC8001 D17 VSS

*IC8001 D18 VSS

*IC8001 D21 VSS

*IC8001 D22 VSS

*IC8001 E5 VSS

*IC8001 F6 VSS

*IC8001 F9 VSS

*IC8001 G7 VSS

*IC8001 J4 VSS

*IC8001 K4 VSS

*IC8001 M5 VSS

*IC8001 M12 VSS

*IC8001 M13 VSS

*IC8001 M14 VSS

*IC8001 M15 VSS

*IC8001 M16 VSS

*IC8001 M17 VSS

*IC8001 M18 VSS

*IC8001 M27 VSS

*IC8001 N4 VSS

*IC8001 N12 VSS

*IC8001 N13 VSS

*IC8001 N14 VSS

*IC8001 N15 VSS

*IC8001 N16 VSS

*IC8001 N17 VSS

*IC8001 N18 VSS

*IC8001 N19 VSS

*IC8001 N29 VSS

*IC8001 P4 VSS

*IC8001 P12 VSS

*IC8001 P13 VSS

Y

C

Serial

Parallel

Cmp

Cmp

*IC8001 P14 VSS

*IC8001 P15 VSS

*IC8001 P16 VSS

*IC8001 P17 VSS

*IC8001 P18 VSS

*IC8001 R13 VSS

*IC8001 R14 VSS

*IC8001 R15 VSS

*IC8001 R16 VSS

*IC8001 R17 VSS

*IC8001 R18 VSS

*IC8001 R26 VSS

*IC8001 R28 VSS

*IC8001 T13 VSS

*IC8001 T14 VSS

*IC8001 T15 VSS

*IC8001 T16 VSS

*IC8001 T17 VSS

*IC8001 T19 VSS

*IC8001 T29 VSS

*IC8001 U4 VSS

*IC8001 U16 VSS

*IC8001 U17 VSS

*IC8001 U26 VSS

*IC8001 V4 VSS

*IC8001 V16 VSS

*IC8001 V18 VSS

*IC8001 V27 VSS

*IC8001 W16 VSS

*IC8001 W19 VSS

*IC8001 W28 VSS

*IC8001 W30 VSS

*IC8001 Y26 VSS

*IC8001 AH29 FPENF

CPU BUS I/F

TO 5/22

EA0

EA1

EA2

EA3

EA4

EA5

EA6

EA7

TO 6/22

VI2P12

EA08

EA09

VI2P13

VI2P14

EA10

VI2P15

EA11

VI2P16

EA12

EA13

VI2P17

VI2P18

EA14

VI2P19

EA15

VI2P22

EA16

EA17

VI2P23

VI2P24

EA18

VI2P25

EA19

EA20

VI2P26

VI2P27

EA21

VI2P28

EA22

VI2P29

EA23

EA24

VI2P4

VI2CLK2

EA25

TO 18/22

XRST

*IC8001 Y1 EA0

*IC8001 W6 EA1

*IC8001 W5 EA2

*IC8001 Y2 EA3

*IC8001 Y5 EA4

*IC8001 Y3 EA5

*IC8001 AA1 EA6

*IC8001 AA2 EA7

*IC8001 M3 VI2P12

*IC8001 M6 VI2P13

*IC8001 M2 VI2P14

*IC8001 N5 VI2P15

*IC8001 N6 VI2P16

*IC8001 N3 VI2P17

*IC8001 P6 VI2P18

*IC8001 N2 VI2P19

*IC8001 P2 VI2P22

*IC8001 R6 VI2P23

*IC8001 P1 VI2P24

*IC8001 R3 VI2P25

*IC8001 R2 VI2P26

*IC8001 R5 VI2P27

*IC8001 R1 VI2P28

*IC8001 T1 VI2P29

*IC8001 G6 VI2P4

*IC8001 N1 VI2CLK2

*IC8001 D25 XRST

TO 5/22

SCARD_IRQ

PORT15[1]

PORT15[2]

PORT15[3]

CLOCK GEN

TO 5,16/22

TO 5/22

FE0_IRQ

HDMI_IRQ

*IC8001AH28CK33IN

*IC8001N26VC27

*IC8001M29CK74

*IC8001P25CK27A

TO 6/22

TO 5/22

BOOTSWAP

XNMIRQ

ED0

ED1

ED2

ED3

ED4

ED5

ED6

ED7

ED8

ED9

ED10

ED11

ED12

ED13

ED14

ED15

ECLK

XECS0

XECS1

XECS2

XECS4

ERXW

XEWE0

XEWE1

ESZ0

ESZ1

XERE

XEDK

XIRQ2

XIRQ3

*IC8001 Y6 ED0

*IC8001 AA3 ED1

*IC8001 AB1 ED2

*IC8001 AA5 ED3

*IC8001 AB2 ED4

*IC8001 AB3 ED5

*IC8001 AC1 ED6

*IC8001 AA6 ED7

*IC8001 AB5 ED8

*IC8001 AB6 ED9

*IC8001 AC2 ED10

*IC8001 AD1 ED11

*IC8001 AC3 ED12

*IC8001 AD2 ED13

*IC8001 AE1 ED14

*IC8001 AE2 ED15

*IC8001 AF1 ECLK

*IC8001 AD5 XECS0

*IC8001 AG2 XECS1

*IC8001 AD6 XECS2

*IC8001 AG3 XECS4

*IC8001 AF2 ERXW

*IC8001 AE3 XEWE0

*IC8001 AF3 XEWE1

*IC8001 AD3 ESZ0

*IC8001 AG1 ESZ1

*IC8001 AC5 XERE

*IC8001 AC6 XEDK

*IC8001 AG28 BOOTSWAP

*IC8001 U2 XNMIRQ

*IC8001 U5 XIRQ1

*IC8001 U3 XIRQ2

*IC8001 V1 XIRQ3

10k

R8088

R8086

C8052

100k

6.3V
1u

R8091

47

AX_CLKLAN

TO 7/22

10k

R8090

C8053

16V

0.01u

POD,CI I/F

TO 5/22

*IC8001 AH2 XECS6

XECS6

XEXDMK0

*IC8001 AE5 XEXDMK0

XEXDMR0

*IC8001 AF4 XEXDMR0

*IC8001 AE11 SMTSEL1

SMTSEL1

*IC8001 AK10 SMTCMD1

SMTCMD1

SMTRST0

*IC8001 AF12 SMTRST0

*IC8001 AF11 SMTD0

SMTD0

*IC8001 AK11 SMTCMD0

SMTCMD0

SMTSEL0

*IC8001 AE12 SMTSEL0

COMMON PORT .etc

R2832

47k

TO 5/22

SUB3.3V

CI POWER ON

R8109

2.2k
DDR_SEL

GC6_XRST

TO 16/22

(OSD_FLAG)

TO 17/22

DISPEN

TO 15/22

TO 5/22

EEPROM_WP

TO 6/22

TO 6/22

TO 5/22

NANDRYBY

CLOCK GEN

IC8004

C0ZBZ0001567

H0J270500120

C8054

50V

12p

1

X1

2

S0

3

S1

4

VIN

5

VDD1

6

GND1

7

CLK1

74.25MHz

8

CLK2

25MHz

R8096

INT_PANEL_CEC

NFALE

NFCLE

XNFWP

XNFCE

XNFRE

XNFWE

X8001

W_HDMI_INT

FE_XRST

TO 5/22

TO 18/22
TO 5/22
TO 4,6/22

NAND IF

SDBOOT

AUDCLK

SMTCLK0

VI2CLK

IS0CLK

IS0VAL

IS0PSYNC

XETS_CI

XEAB

IS0DATA

XECS7

VI1P20

GC6_IRQ1

VI1P1

(USB_OCP)

VI2ENB

FE_SW

VI2P20

GC6_IRQ0

VI2P11

VI2P10

IS1CLK

CI OCP

IS1DATA

CI_XRST

POWER_DET

RMCO

CH1VAL

CI IRQ

VI2P21

*IC8001 AK4 NFALE

*IC8001 AH6 NFCLE

*IC8001 AJ1 XNFWP

*IC8001 AG4 XNFCE

*IC8001 AF5 XNFRE

*IC8001 AJ2 XNFWE

*IC8001 AG7 NANDRYBY

C8055
50V

0.5p

16

X2

15

VDD3

14

S2

13

VDD2

12

GND2

11

CLK4

33.3MHz
10

CLK3

24MHz

9

REFOUT

27MHz

82

XPDCE2

XPDOE

XPDWE

XPDIOWR

XPDIORD

XEDBA

XPDWT

XPDCD1

XPDCD2

*IC8001 AH12 CH1PSYNC

*IC8001 AK12 CH1CLK

*IC8001 M28 AUDCLK

*IC8001 AJ11 SMTCLK0

*IC8001 AJ12 CH1DATA

*IC8001 L3 VI2HSYNC

*IC8001 L6 VI2VSYNC

*IC8001 M1 VI2CLK

*IC8001 AJ5 IS0CLK

*IC8001 AH7 IS0VAL

*IC8001 AK5 IS0PSYNC

*IC8001 AJ6 IS0DATA

*IC8001 AH3 XECS7

*IC8001 K3 VI1P20

*IC8001 K5 VI1P1

*IC8001 L1 VI2ENB

*IC8001 P3 VI2P20

R8960

*IC8001 L5 VI2P11

*IC8001 L2 VI2P10

*IC8001 AF8 IS1CLK

*IC8001 AJ7 IS1DATA

*IC8001 T5 RMCO

*IC8001 AE13 CH1VAL

*IC8001 P5 VI2P21

R8959

SUB_XO_3.3V

C8057

0.1u

16V

C8056

0.1u

16V

PWM1

PWM2

PORT0[0]

PORT5[4]

PORT5[7]

PORT6[4]

PORT6[5]

PORT6[7]

PORT7[3]

PORT7[4]

PORT7[5]

PORT7[6]

PORT14[2]

PORT15[4]

PORT15[5]

PORT15[6]

PORT15[7]

TP8000

68

SDRAM_CHK1

PORT16[1]

PORT16[2]

PORT16[3]

PORT16[4]

PORT16[5]

PORT16[6]

PORT16[7]

TP8001

68

SDRAM_CHK2

SUB3.3V

L8005
J0JHC0000045

C8058

10V
10u

*R8095

10k

R8093

47

54

16131210 14 1711 15 18

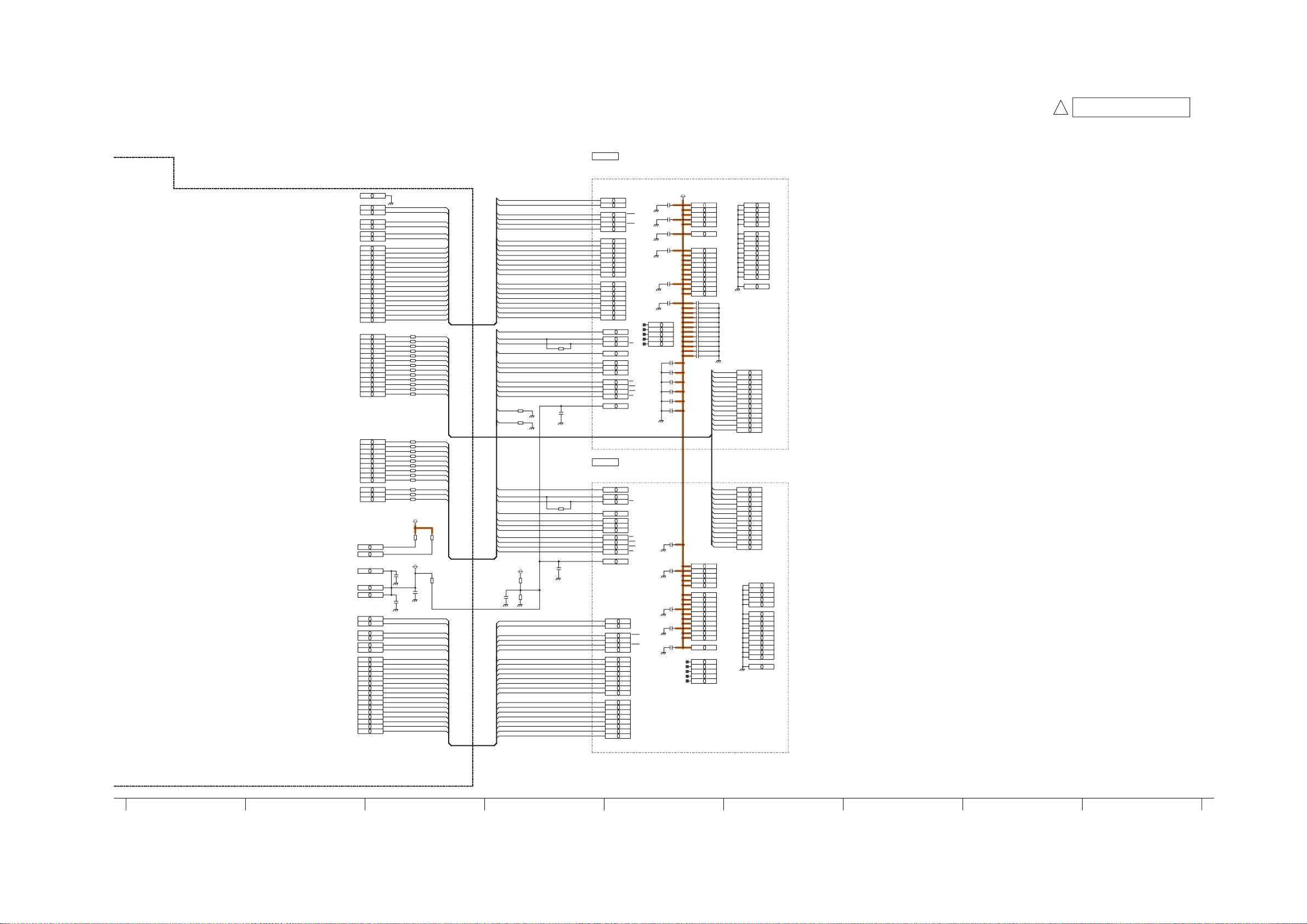

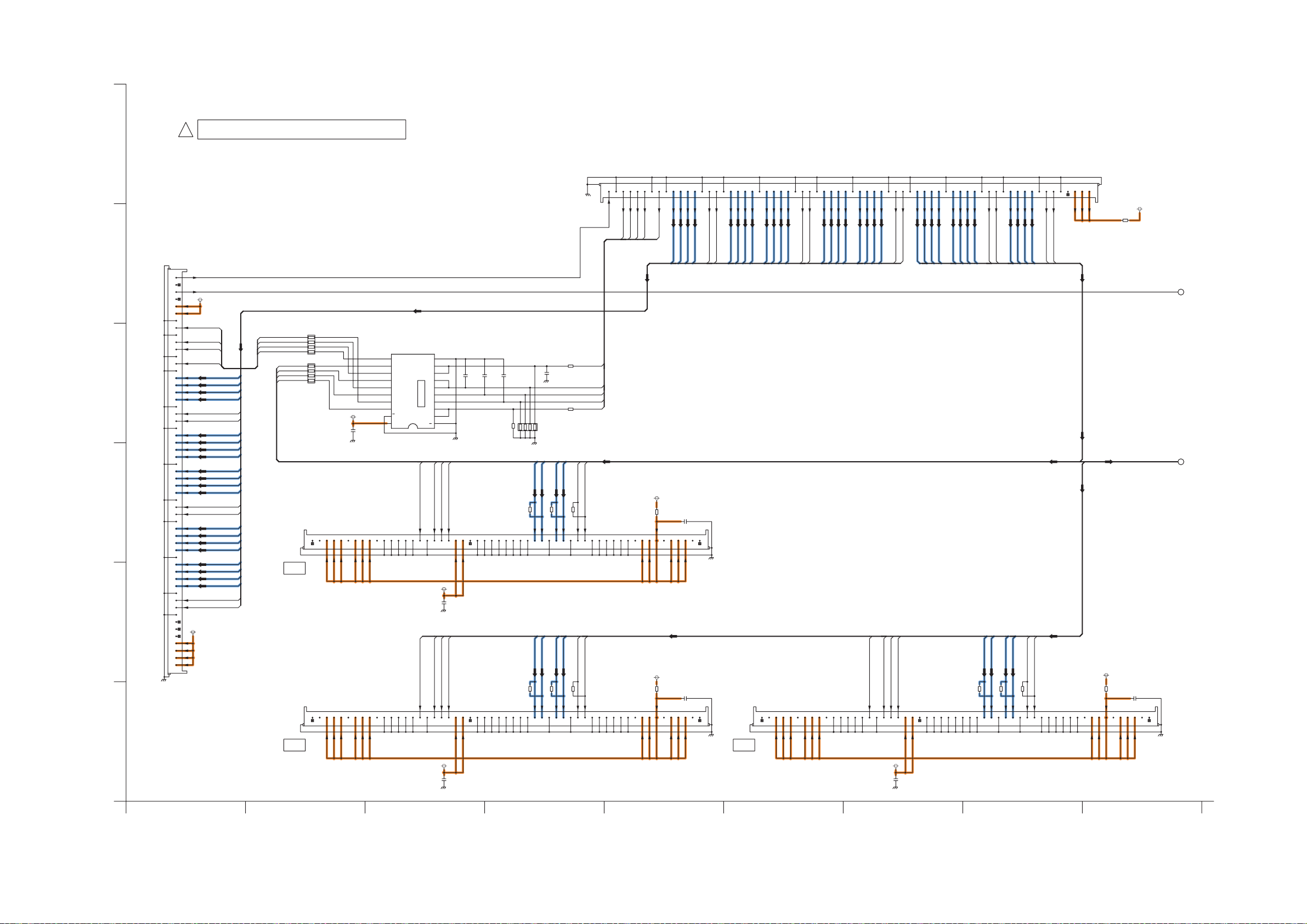

12.7. A-Board (3/22) Schematic Diagram

IC8002

MN2WS0058

*IC8001AK29TSTSEL

*IC8001R30MMDM0

*IC8001U29MMDM1

*IC8001R29MMDQS0

*IC8001U30MMDQS1

*IC8001T28MMXDQS0

*IC8001T30MMXDQS1

*IC8001R27MMDQ0

*IC8001R25MMDQ1

*IC8001P29MMDQ2

*IC8001P28MMDQ3

*IC8001P26MMDQ4

*IC8001N27MMDQ5

*IC8001N30MMDQ6

*IC8001N28MMDQ7

*IC8001U25MMDQ8

*IC8001U27MMDQ9

*IC8001V28MMDQ10

*IC8001V30MMDQ11

*IC8001V25MMDQ12

*IC8001V26MMDQ13

*IC8001Y30MMDQ14

*IC8001W29MMDQ15

*IC8001AE27MMA0

*IC8001AB28MMA1

*IC8001AF28MMA2

*IC8001AA26MMA3

*IC8001AE30MMA4

*IC8001Y25MMA5

*IC8001AF30MMA6

*IC8001AB30MMA7

*IC8001AG30MMA8

*IC8001AC29MMA9

*IC8001AA29MMA10

*IC8001AJ30MMA11

*IC8001AA25MMA12

*IC8001W26MMBA0

*IC8001AA30MMBA1

*IC8001Y27MMBA2

*IC8001Y28MMXWE

*IC8001AC26MMXRAS

*IC8001AD26MMXCAS

*IC8001AE28MMXCS1

*IC8001AC27MMXCS0

*IC8001W27MMCKE

*IC8001AB25MMODT

*IC8001AD30MMCK

*IC8001AD29MMXCK

*IC8001AJ28MMRDRV

*IC8001AD25MMRODT

*IC8001AG26MMVCAL

*IC8001T26MMVREF0

*IC8001AF22MMVREF1

*IC8001AH24MMDM2

*IC8001AH22MMDM3

*IC8001AJ24MMDQS2

*IC8001AK22MMDQS3

*IC8001AJ23MMXDQS2

*IC8001AK23MMXDQS3

*IC8001AF24MMDQ16

*IC8001AG23MMDQ17

*IC8001AH25MMDQ18

*IC8001AK26MMDQ19

*IC8001AE23MMDQ20

*IC8001AE24MMDQ21

*IC8001AK27MMDQ22

*IC8001AJ27MMDQ23

*IC8001AE21MMDQ24

*IC8001AG21MMDQ25

*IC8001AJ21MMDQ26

*IC8001AK21MMDQ27 IC8003 H9 DQ5

*IC8001AF20MMDQ28

*IC8001AE20MMDQ29

*IC8001AH20MMDQ30

*IC8001AK20MMDQ31

!

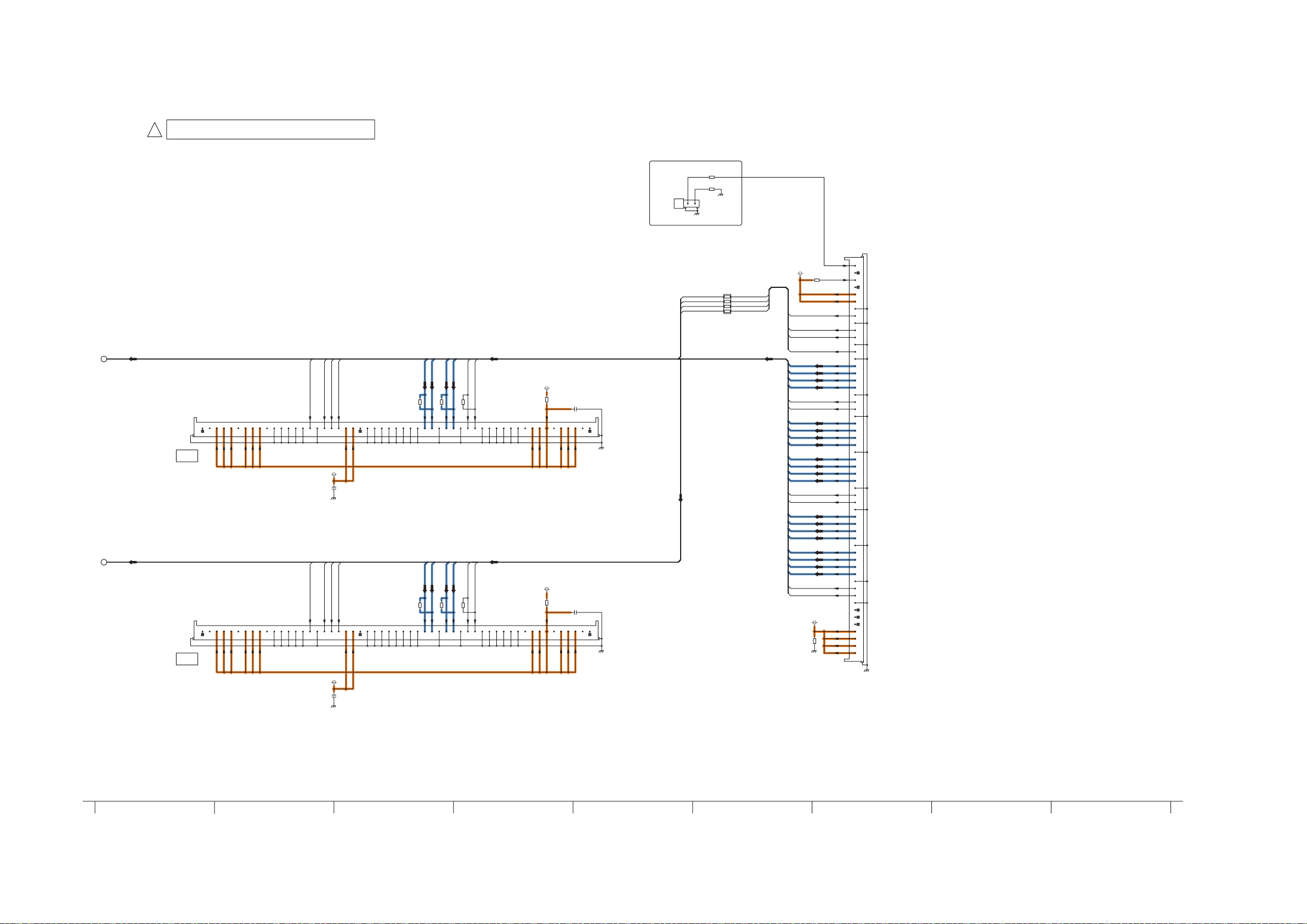

A-BOARD (3/22)

Peaks-COMMON

REF No. 8000-8999

DDR2_0

IC8002

C3ABTG000007

CH0DM0

CH0DM0

CH0DM1

CH0DQS0

CH0DQS1

CH0XDQS0

CH0XDQS1

CH0DQ0

CH0DQ1

CH0DQ2

CH0DQ3

CH0DQ4

CH0DQ5

CH0DQ6

CH0DQ7

CH0DQ8

CH0DQ9

CH0DQ10

CH0DQ11

CH0DQ12

CH0DQ13

CH0DQ14

CH0DQ15

1.8V_DDRI/F

R8082

CH0A0

47

CH0A1

47

CH0A2

47

CH0A3

47

CH0A4

47

CH0A5

47

CH0A6

47

CH0A7

47

CH0A8

47

CH0A9

47

CH0A10

47

CH0A11

47

CH0A12

47

CH0BA0

47

CH0BA1

47

CH0BA2

47

CH0XWE

47

CH0XRAS

47

CH0XCAS

47

CH0XCS1

47

CH0XCS0

47

CH0CKE

47

CH0ODT

47

CH0CK

0

CH0XCK

0

R8083
300

75

VREF

R8030

100

C8037

0.1u
16V

CH0DM2

CH0DM3

CH0DQS2

CH0DQS3

CH0XDQS2

CH0XDQS3

CH0DQ16

CH0DQ17

CH0DQ18

CH0DQ19

CH0DQ20

CH0DQ21

CH0DQ22

CH0DQ23

CH0DQ24

CH0DQ25

CH0DQ26

CH0DQ27

CH0DQ28

CH0DQ29

CH0DQ30

CH0DQ31

R8056

R8057

R8058

R8059

R8060

R8061

R8062

R8063

R8064

R8065

R8066

R8067

R8068

R8069

R8070

R8071

R8072

R8073

R8075

R8076

R8100

R8077

R8078

R8026

R8027

C8051
16V

0.1u

C8038
16V

0.1u

CH0DM1

CH0XDQS0

CH0DQS0

CH0XDQS1

CH0DQS1

CH0DQ5

CH0DQ7

CH0DQ1

CH0DQ3

CH0DQ2

CH0DQ0

CH0DQ6

CH0DQ4

CH0DQ8

CH0DQ11

CH0DQ12

CH0DQ15

CH0DQ14

CH0DQ13

CH0DQ10

CH0DQ9

CH0ODT

CH0CK

CH0XCK

CH0CKE

CH0BA0

CH0BA1

CH0BA2

CH0XWE

CH0XRAS

CH0XCAS

CH0XCS0

CH0CKE

CH0ODT

CH0CK

CH0XCK

CH0CKE

CH0BA0

CH0BA1

CH0BA2

CH0XWE

CH0XRAS

CH0XCAS

CH0XCS1

1.8V_DDRI/F

R8031

1k

1%

R8032

C8039

1k

0.1u
16V

1%

CH0DM3

CH0DM2

CH0XDQS3

CH0DQS3

CH0XDQS2

CH0DQS2

CH0DQ30

CH0DQ28

CH0DQ27

CH0DQ25

CH0DQ24

CH0DQ26

CH0DQ29

CH0DQ31

CH0DQ18

CH0DQ17

CH0DQ22

CH0DQ21

CH0DQ16

CH0DQ23

CH0DQ20

CH0DQ19

R8074

220

R8101

10k

C8040

R8081

10k

16V

0.1u

220

R8097

C8041

16V

0.1u

IC8002 B3 UDM

IC8002 F3 LDM

IC8002 A8 UDQS

IC8002 B7 UDQS

IC8002 E8 LDQS

IC8002 F7 LDQS

IC8002 B9 DQ15

IC8002 B1 DQ14

IC8002 D9 DQ13

IC8002 D1 DQ12

IC8002 D3 DQ11

IC8002 D7 DQ10

IC8002 C2 DQ9

IC8002 C8 DQ8

IC8002 F9 DQ7

IC8002 F1 DQ6

IC8002 H9 DQ5

IC8002 H1 DQ4

IC8002 H3 DQ3

IC8002 H7 DQ2

IC8002 G2 DQ1

IC8002 G8 DQ0

IC8002 K9 ODT

IC8002 J8 CK

IC8002 K8 CK

IC8002 K2 CKE

IC8002 L2 BA0

IC8002 L3 BA1

IC8002 L1 BA2

IC8002 K3 WE

IC8002 K7 RAS

IC8002 L7 CAS

IC8002 L8 CS

IC8002 J2 VREF

DDR2_1

IC8003

C3ABTG000007

IC8003 K9 ODT

IC8003 J8 CK

IC8003 K8 CK

IC8003 K2 CKE

IC8003 L2 BA0

IC8003 L3 BA1

IC8003 L1 BA2

IC8003 K3 WE

IC8003 K7 RAS

IC8003 L7 CAS

IC8003 L8 CS

IC8003 J2 VREF

IC8003 B3 UDM

IC8003 F3 LDM

IC8003 A8 UDQS

IC8003 B7 UDQS

IC8003 E8 LDQS

IC8003 F7 LDQS

IC8003 B9 DQ15

IC8003 B1 DQ14

IC8003 D9 DQ13

IC8003 D1 DQ12

IC8003 D3 DQ11

IC8003 D7 DQ10

IC8003 C2 DQ9

IC8003 C8 DQ8

IC8003 F9 DQ7

IC8003 F1 DQ6

IC8003 H1 DQ4

IC8003 H3 DQ3

IC8003 H7 DQ2

IC8003 G2 DQ1

IC8003 G8 DQ0

C8046

16V

C8042

4V

C8043

16V

C8047

16V

C8048

16V

C8036

10V

IC8002 A2 NC

IC8002 E2 NC

IC8002 R3 NC

IC8002 R7 NC

IC8002 R8 NC

C8201

16V

C8202

16V

C8099

16V

C8100

16V

C8101

16V

C8102

16V

C8035

10V

C8044

16V

C8049

16V

C8050

16V

C8045

16V

0.1u

+

68u

0.1u

0.1u

0.1u

10u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

10u

0.1u

0.1u

0.1u

0.1u

1.8V_DDRI/F

IC8002

IC8002 E1 VDD

IC8002 M9 VDD

IC8002 J9 VDD

IC8002 R1 VDD

IC8002 J1 VDDL

IC8002 A9 VDDQ

IC8002 C1 VDDQ

IC8002 C3 VDDQ

IC8002 C7 VDDQ

IC8002 C9 VDDQ

IC8002 E9 VDDQ

IC8002 G1 VDDQ

IC8002 G3 VDDQ

IC8002 G7 VDDQ

IC8002 G9 VDDQ

16V

C8086

16V

C8087

16V

C8088

16V

C8089

16V

C8090

16V

C8092

16V

C8093

16V

C8094

16V

C8095

16V

C8096

16V

C8097

16V

C8098

IC8003

IC8003 E1 VDD

IC8003 M9 VDD

IC8003 J9 VDD

IC8003 R1 VDD

IC8003 A9 VDDQ

IC8003 C1 VDDQ

IC8003 C3 VDDQ

IC8003 C7 VDDQ

IC8003 C9 VDDQ

IC8003 E9 VDDQ

IC8003 G1 VDDQ

IC8003 G3 VDDQ

IC8003 G7 VDDQ

IC8003 G9 VDDQ

IC8003 J1 VDDL

IC8003 A2 NC

IC8003 E2 NC

IC8003 R3 NC

IC8003 R7 NC

IC8003 R8 NC

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

A1 VDD

CH0A0

CH0A1

CH0A2

CH0A3

CH0A4

CH0A5

CH0A6

CH0A7

CH0A8CH0ODT

CH0A9

CH0A10

CH0A11

CH0A12

CH0A0

CH0A1

CH0A2

CH0A3

CH0A4

CH0A5

CH0A6

CH0A7

CH0A8

CH0A9

CH0A10

CH0A11

CH0A12

A1 VDD

IC8002 A3 VSS

IC8002 E3 VSS

IC8002 J3 VSS

IC8002 N1 VSS

IC8002 P9 VSS

IC8002 A7 VSSQ

IC8002 B2 VSSQ

IC8002 B8 VSSQ

IC8002 D2 VSSQ

IC8002 D8 VSSQ

IC8002 E7 VSSQ

IC8002 F2 VSSQ

IC8002 F8 VSSQ

IC8002 H2 VSSQ

IC8002 H8 VSSQ

IC8002 J7 VSSDL

IC8002 M8 A0

IC8002 M3 A1

IC8002 M7 A2

IC8002 N2 A3

IC8002 N8 A4

IC8002 N3 A5

IC8002 N7 A6

IC8002 P2 A7

IC8002 P8 A8

IC8002 P3 A9

IC8002 M2 A10

IC8002 P7 A11

IC8002 R2 A12

IC8003 M8 A0

IC8003 M3 A1

IC8003 M7 A2

IC8003 N2 A3

IC8003 N8 A4

IC8003 N3 A5

IC8003 N7 A6

IC8003 P2 A7

IC8003 P8 A8

IC8003 P3 A9

IC8003 M2 A10

IC8003 P7 A11

IC8003 R2 A12

IC8003 A3 VSS

IC8003 E3 VSS

IC8003 J3 VSS

IC8003 N1 VSS

IC8003 P9 VSS

IC8003 A7 VSSQ

IC8003 B2 VSSQ

IC8003 B8 VSSQ

IC8003 D2 VSSQ

IC8003 D8 VSSQ

IC8003 E7 VSSQ

IC8003 F2 VSSQ

IC8003 F8 VSSQ

IC8003 H2 VSSQ

IC8003 H8 VSSQ

IC8003 J7 VSSDL

23 262521 22 24 2719 20

55

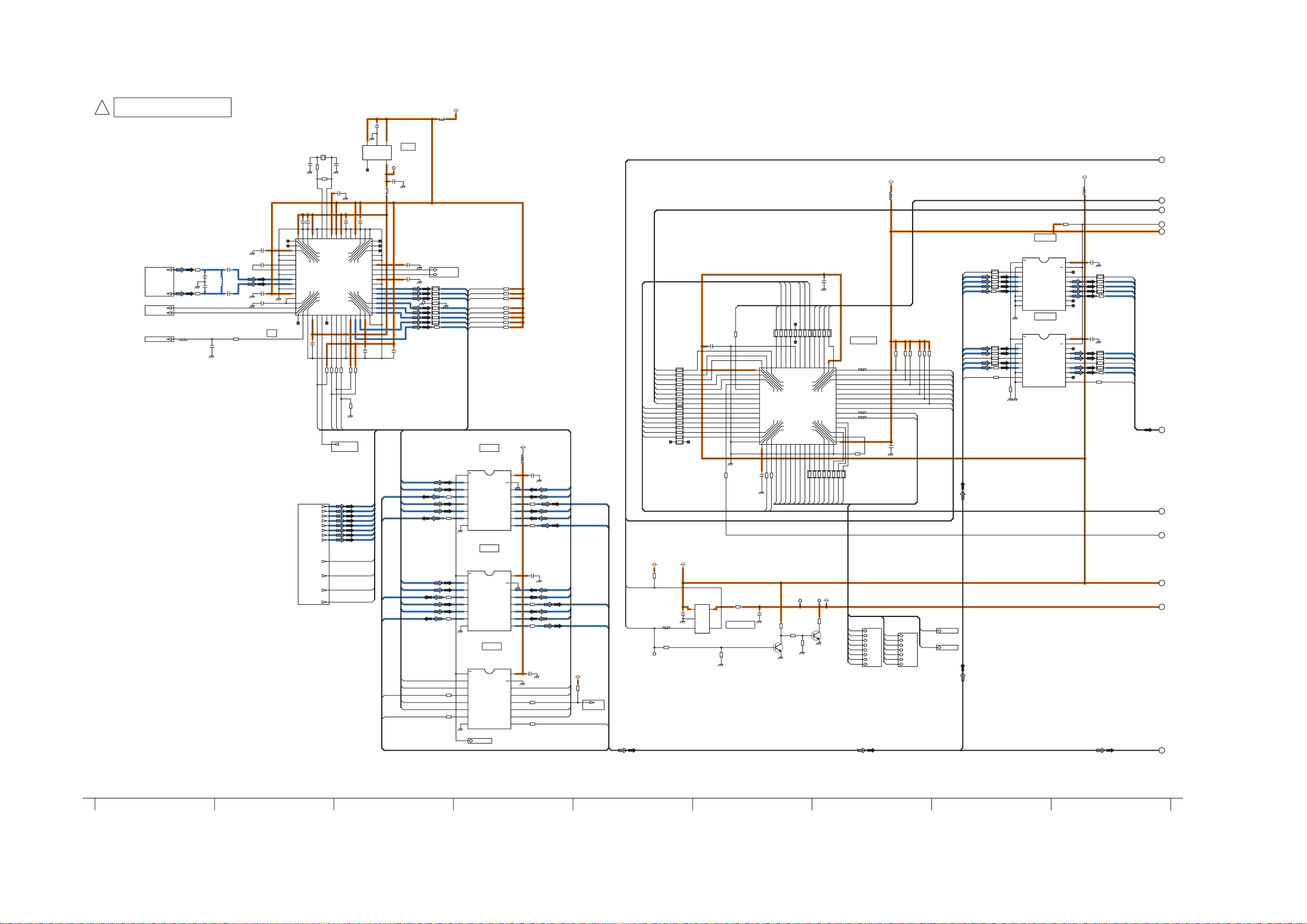

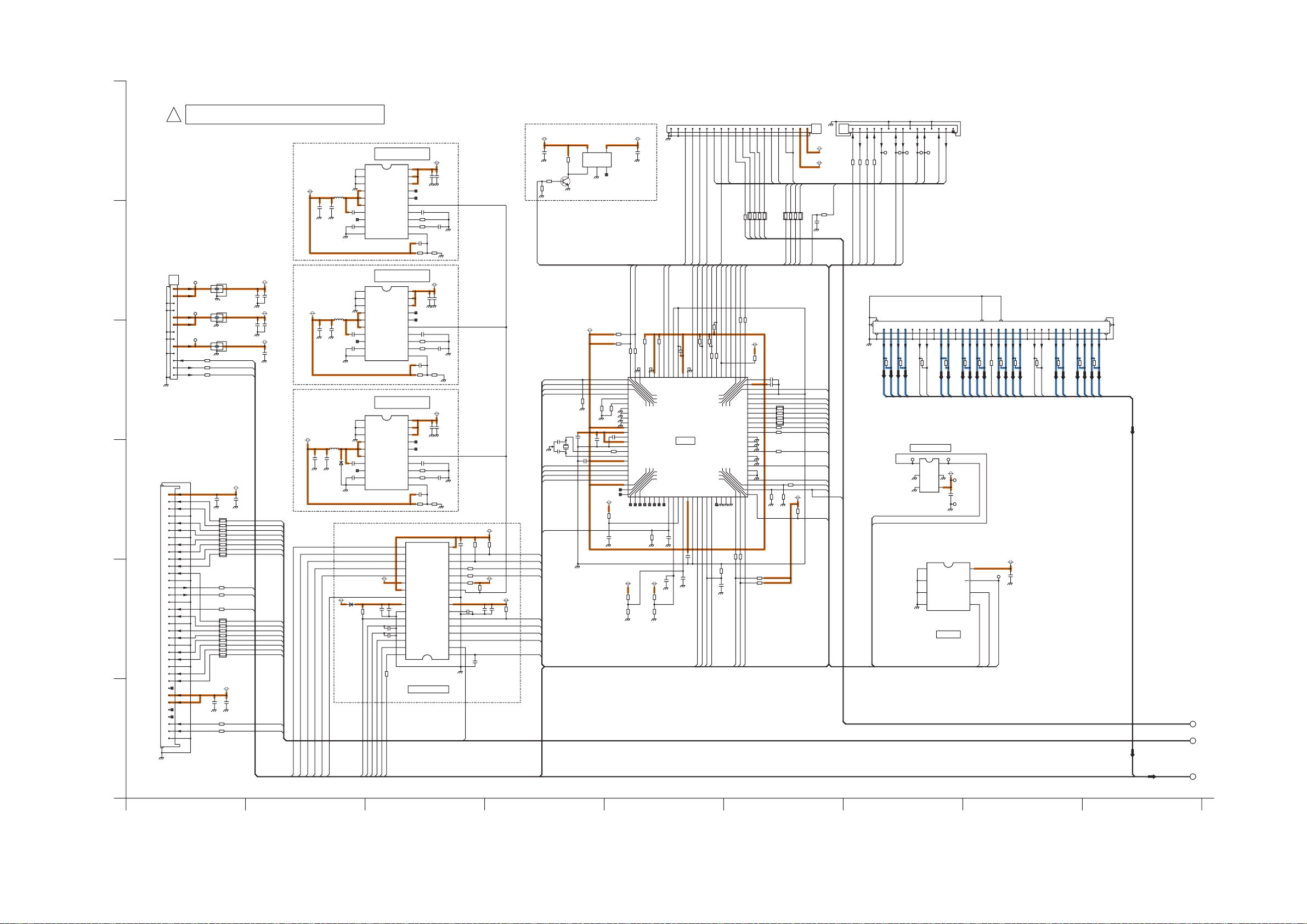

12.8. A-Board (4/22) Schematic Diagram

!

A-BOARD (4/22)

Peaks-DEST
REF No. 8000-8999

TO 15/22

TO 1/22

FE-OUT_SDA

FE-OUT_SCL

TO 15/22

SUB3.3V

FE0_MDO0

FE1_MDO0

FE0_MDO1

FE1_MDO1

J0JHC0000045

TO 1/22

*R8301

EXB2HV680JV

*R8308

*L8301

1

SUB3.3V

R8402

P

VJUMP2012-P

BUFFER

*IC8404

C0JBAZ002692

1

*R8454

EXB28V151JX

AC_XEAB

AC_IOWR

AC_IORD

AC_XPDOE

AC_XPDWE

AC_XPDCE2

AC_XEDBA

AC_REG

FE_CH0PSYNC

FE_MDO0

FE_MDO1

FE_MDO2

FE_MDO3

FE_MDO4

FE_MDO5

FE_CH0VAL

FE_MDO6

FE_MDO7

FE_CH0CLK

*R8464

*R8467

EXB28V151JX

*R8468

*R8469

FE_SDA

FE_SCL

2.2k

FE0_MDO7

FE0_MDO6

FE0_MDO5

FE0_MDO4

FE0_MDO3

FE0_MDO2

FE0_MDO1

FE0_MDO0

*IC8303

C0JBAR000305

1

A/B

2

1A

3

1B

4

1Y

5

2A

6

2B

7

2Y

8

GND

FE_SW

*R8681

2.2k

*R8680

2.2k

*R8679

*R8678

2.2k

2.2k

*R8675

*R8671

2.2k

2.2k

*R8670

2.2k

*R8322

*R8333
EXB2HV101JV

CI_DA7

CI_DA6

CI_DA5

CI_DA4

CI_DA3

CI_DA2

CI_DA1

CI_DA0

CI_EAA1

CI_EAA2

CI_EAA3

CI_EAA4

CI_EAA5

CI_EAA6

SUB3.3V

R8302
VJUMP2012-P

P

*C8322

16V

0.1u

16

Vcc

15

OE

14

4A

13

4B

12

4Y

11

3A

10

3B

9

3Y

FE0_MDO3

FE1_MDO3

*R8364

68

FE0_MDO2

FE1_MDO2

*R8363

68

FE_MDO3

FE_MDO2

CI_EAA7

*R8335

EXB2HV680JV

CI_REG-

*R8339

68

C8344

16V

0.1u

*R8338

C8345

68

EXB2HV680JV

17

18

20

21

22

23

24

25

26

27

28

29

30

16V

0.1u

*R8336

15

16

CI_RESET_5VOUT

NREG5VOUT

ED5VIO2

ED5VIO1

ED5VIO0

EA5VOUT1

EA5VOUT2

EA5VOUT3

EA5VOUT4

EA5VOUT5

33

34

68

68

*R8439

*R8442

CI_EAA8

CI_EAA13

CI_EAA12

CI_EAA10

CI_EAA11

CI_CE1-

10

13

14

NOE5V/EA10

ED5VIO7

NCE5VOUT

EA5VOUT1011EA5VOUT1212EA5VOUT11

ED5VIO6

NWE5V/EA11

ED5VIO5

VDD5V1

ED5VIO419ED5VIO3

EA5VOUT631EA5VOUT732GND

VDD5V2

EA5VOUT8

EA5VOUT13

EA3VIN137EA3VIN238EA3VIN339EA3VIN440EA3VIN541EA3VIN642EA3VIN743ED3VIO044ED3VIO145ED3VIO2

35

36

AA_EA2

AA_EA1

AA_EA3

AA_EA4

FE0_MDO7

FE0_MDO6

FE0_MDO5

FE0_MDO4

FE0_MDO3

FE0_MDO2

FE0_MDO1

FE0_MDO0

68

TS

*R8361

68

*R8362

68

AA_EA5

C8343
16V

0.1u

CI_EAA9

CI_EAA14

CI_EAA15

CI_WE-

CI_OE-

CI_IOWR-

CI_IORD-

*R8337

EXB28V680JX

CI ASIC

*IC8401

C1AB00002913

R8346

1

2

3

4

6

8

9

GND

EA5VOUT9

NIORD3V/EA13

EA5VOUT157EA5VOUT14

VDDADR

NIORD5V/EA95NIOWR5V/EA8

NOE3V/EA14

NWE3V/EA15

NOE_ADR

NREG3VIN

CI_RESET_3VIN

VDD3V50MODE51ED3VIO5

GND

ED3VIO4

ED3VIO3

AA_ED1

AA_ED0

AA_ED2

AA_EA7

AA_EA6

NCE3VIN

NOE_DAT

NIOWR3V/EA12

ED3VIO7

ED3VIO6

46

AA_ED4

AA_ED3

VJUMP1005-S

S

64

63

62

61

60

59

58

57

56

VJUMP1005-S

R8343

LE

S

55

VJUMP1005-S

R8342

RNW

S

54

53

52

49

*R8340

47

48

0

*R8332

EXB2HV101JV

AA_ED5

AA_ED7

AA_ED6

10k

10k

10k

10k

10k

R8272

*R8477

*R8479

*R8415 2.2k

C8346

16V

0.1u

AA_XEAS

AA_ERXW

*R8345

*R8476

AC_CI_RESET

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

68

9

A8

10

GND

BUFFER

*IC8405

C0JBAZ002692

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

68

9

A8

10

GND

68

*R8347

0

SUB5V

P

R8401
VJUMP3216-P

*R8512

2.2k
XCIETS

C8409

16V

0.1u

20

Vcc

19

G2

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

Vcc

G2

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

*R8470

18

EXB28V151JX

C8405

16V

0.1u

*R8463

EXB28V151JX

*R8430

CI_PKTSTINA

CI_DATAINA0

CI_DATAINA1

CI_DATAINA2

CI_DATAINA3

*R8432

150

CI_DATAINA4

CI_DATAINA5

CI_ENINA

CI_DATAINA6

CI_DATAINA7

*R8431

150

CI_CLKINA

100

17

16

15

14

13

12

11

20

19

18

17

16

15

14

13

12

11

2

3

4

5

6

SUB5V

7

8

*C8328

10V
1u

*IC8302

C0DBFYY00028

1

2

30.0MHz

*X8301

H0J300500027

*C8312

50V

*R8312

12p

1k

*R8313

*C8319

2.2M
16V

0.1u

*C8333

*C8334

16V

16V

0.1u

0.1u

40

41

42

44

45

46

47

48

*C8331

*C8309

R8356

VJUMP1005-S

*R8354

*R8353

S

IFD1

IFD2

IFAGC

16V

*C8330

0.1u

68

*C8316

16V
270p

*C8317

16V
270p

68

*C8306

10V

0.47u

*L8303

G1CR15JA0020

*C8307

16V

0.1u

*R8305

1k

16V 0.1u

*C8332

16V 0.1u

*C8336

16V 0.1u

*IC8301

C1AB00003049

49

16V

0.1u

52

AVSS_Q

53

GUARD_Q

54

DAREFP

55

DAREFM

56

GUARD_I

57

AINM_I

58

AINP_I

59

AVSS_I

60

AVDD_I

61

REFIN

62

1

XVDD

XVSS

XTALI43XTALO

DIVDD

DIVSS

PADVSS

TESTMODE

PADVDD

AINP_Q50AINM_Q51AVDD_Q

REFOUT63TUNERDAT64TUNERCLK

RF_IFAGC_Q_GPIO1

IFAGC_I

CVSS

TSDATA1

CVDD5INTRPTN6RESETN7TSERR_GPIO28TSSYNC9TSVALID10TSCLK11DVSS12DVDD13TSDATA0

2

3

4

FE

16V 0.1u

*C8329

68

10k

*R832768*R8325

*R8326

*R8395

FE0_PSYNC

FE0_XIRQ

FE0_VAL

TO 2,6/22

TO 6/22

FE1_MDO0

FE1_MDO1

FE1_MDO2

FE1_MDO3

FE1_MDO4

FE1_MDO5

FE1_MDO6

FE1_MDO7

3

VIN

CE

NC

*C8311

50V
12p

J0JHC0000045

*C8335

16V

0.1u

*C8340

16V

0.1u

34

35A036

DVDD37DVSS38CVSS39CVDD

OSCEN

TCLK

TRSTN

CVSS

CVDD

TDO31TDI32TMS

SDA

SCL

DVDD

DVSS

TSDATA7

TSDATA218TSDATA319TSDATA4

TSDATA6

CVSS

CVDD

TSDATA5

15

14

68

2.2k

2.2k

*R8324

*R8323

*R8328
10k

FE0_CLK

VI2P21

FE_XRST

FE1_MDO0

FE1_MDO1

FE1_MDO2

FE1_MDO3

FE1_MDO4

FE1_MDO5

FE1_MDO6

FE1_MDO7

1.8V

VSS

VOUT

5

4

TP8301

*C8327

2.2u

*L8304

10V

33

30

29

28

*C8320

27

16V 0.1u

26

25

*C8321

24

16V 0.1u

23

22

21

20

17

16

*C8314

*C8313

16V

16V

0.1u

0.1u

FE_MDO0

FE_MDO1

FE_SW

FE1_CLK

FE1_VAL

FE1_PSYNC

FE1_XIRQ

FE1_CLK

FE1_VAL

FE1_PSYNC

FE1_XIRQ

FE_MDO4

FE_MDO5

FE_CH0CLK

FE_CH0VAL

FE0_MDO4

FE1_MDO4

FE0_MDO5

FE1_MDO5

FE0_CLK

FE1_CLK

FE0_VAL

FE1_VAL

*IC8304

C0JBAR000305

1

A/B

2

1A

3

1B

*R8365

68

4

1Y

5

2A

6

2B

*R8366

68

7

2Y

8

GND

*C8323

16V

0.1u

16

Vcc

15

OE

14

4A

13

4B

12

4Y

11

3A

10

3B

9

3Y

FE0_MDO7

FE1_MDO7

*R8368

68

FE0_MDO6

FE1_MDO6

*R8367

68

FE_MDO7

FE_MDO6

IS1CLK

CI_OCP

CI_POWER_ON

FE_SW

*IC8305

C0JBAR000305

1

A/B

2

1A

3

1B

*R8369

68

4

1Y

5

2A

6

2B

*R8370

68

7

2Y

8

GND

TO 5/22

AA_FE_SW

*C8324

16V

0.1u

16

Vcc

15

OE

14

4A

13

4B

*R8396

68

12

4Y

11

3A

10

3B

*R8371

68

9

3Y

FE0_XIRQ

FE1_XIRQ

FE0_PSYNC

FE1_PSYNC

SUB3.3V

*R8676

10k

TO 5/22

AA_XIRQ2

FE_CH0PSYNC

SUB3.3V

TP8404

R8471
10k

R8403

VJUMP1005-S

*R8404

SUB5V_CI_SW

9

SUB_CI_5V

TP8401

2SD0601A0L

TP8403

*C8410

16V

0.1u

*R8407

*R8418

47k

680

*R8416

22k

*R8417

100k

*Q8402

2SD0601A0L

AA_ED0

AA_ED1

AA_ED2

AA_ED3

AA_ED4

AA_ED5

AA_ED6

AA_ED7

TO 5,6,16/22

AA_ED0

AA_ED1

AA_ED2

AA_ED3

AA_ED4

AA_ED5

AA_ED6

AA_ED7

AA_EA1

AA_EA2

AA_EA3

AA_EA4

AA_EA5

AA_EA6

AA_EA7

TO 5,6,16/22

AA_EA1

AA_EA2

AA_EA3

AA_EA4

AA_EA5

AA_EA6

AA_EA7

AA_XEAS

AA_ERXW

TO 5,16/22

TO 5/22

AA_XEAS

AA_ERXW

SPDATA

10

11

*R8406

5

VOUT

4

/OC

*R8405

10k

0.1

POWER_SW

*IC8403

C0ZBZ0001584

*Q8401

1

C8408

VIN

16V

0.1u
2

GND

3

S

10k

EN

28

31

3229 3530 3433 36

56

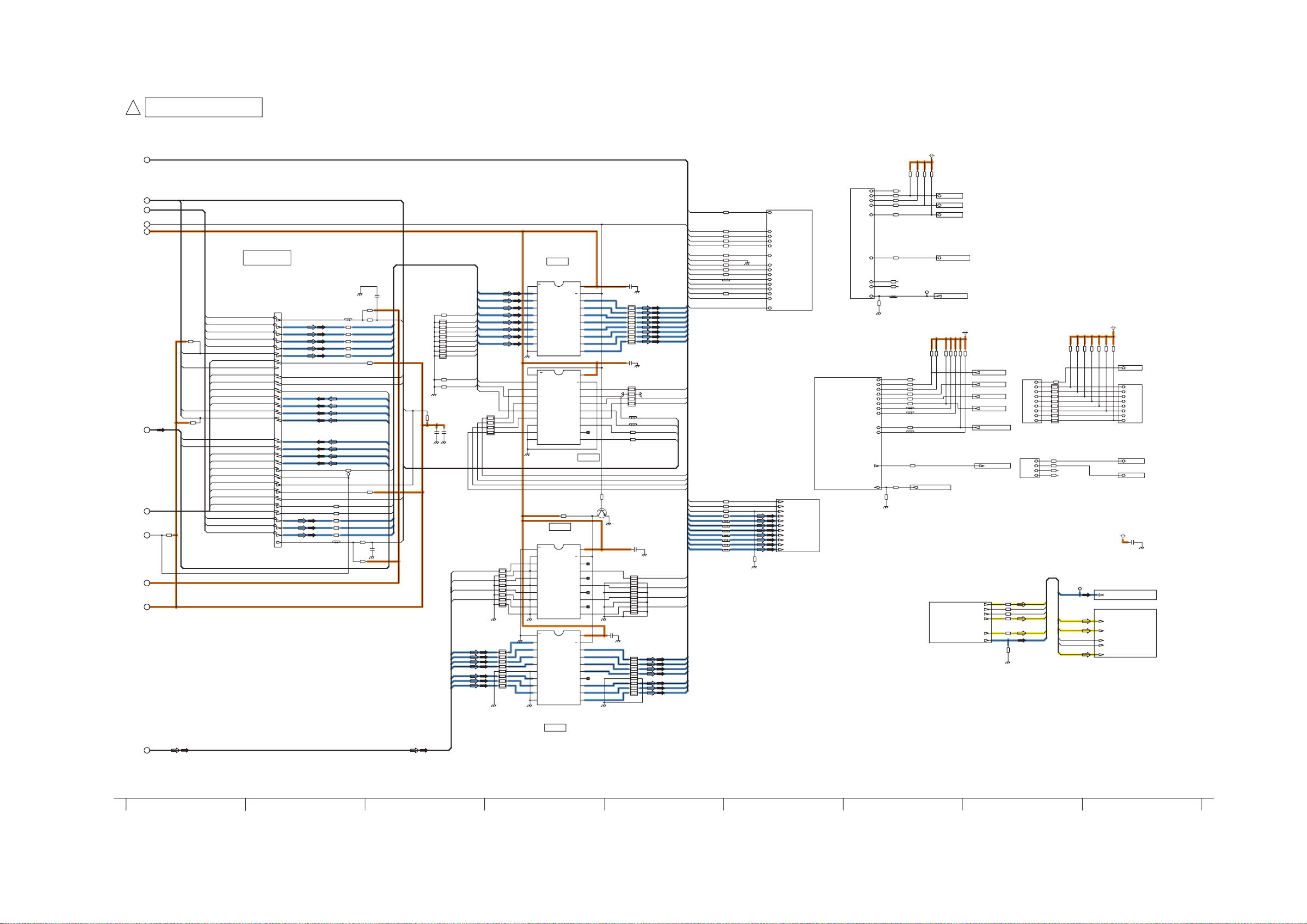

12.9. A-Board (5/22) Schematic Diagram

!

A-BOARD (5/22)

Peaks-DEST
REF No. 8000-8999

1

2

3

4

5

CI SLOT

*C8417

25V

0.01u

*R8410

CI_DA3

CI_DA4

CI_DA5

*R8450

CI_DA6

10k

CI_DA7

CI_CE1-

CI_OE-

CI_WE-

CI_IREQ-

*R8433

6

CI_ENINA

CI_CLKINA

22k

7

*R8434

47k

8

CE1#

CI_EAA11

CI_EAA12

CI_EAA10

CI_EAA9

CI_EAA14

CI_EAA15

IREQ#

VPP1

MIVAL

MCLKI

CI_EAA13

CI_EAA8

CI_EAA7

CI_EAA6

CI_EAA5

CI_EAA4

CI_EAA3

CI_EAA2

CI_EAA1

CI_DA0

CI_DA1

CI_DA2

TO 6/22

CI_DA3

CI_CD1-

CI_DA4

CI_MDO3

CI_DA5

CI_MDO4

CI_DA6

CI_MDO5

CI_DA7

CI_MDO6

CI_CE1-

CI_MDO7

CI_EAA11

A10

OE#

A11

A9

A8

A13

A14

WE#

VCC

A12

A7

A6

A5

A4

A3

A2

A1

A0

CI_EAA12

CI_EAA10

CI_EAA9

CI_EAA14

CI_EAA15

CI_IREQ-

CI_ENINA

CI_CLKINA

CI_EAA13

CI_EAA8

CI_EAA7

CI_EAA6

CI_EAA5

CI_EAA4

CI_EAA3

CI_EAA2

CI_EAA1

CI_CE2-

CI_OE-

CI_IORD-

CI_IOWR-

CI_PKTSTINA

CI_DATAINA0

CI_DATAINA1

CI_WE-

CI_DATAINA2

CI_DATAINA3

CI_DATAINA4

CI_DATAINA5

CI_DATAINA6

CI_DATAINA7

CI_MCLKO

CI_RESET

CI_WAIT-

CI_INPACK-

CI_REG-

CI_MOVAL

CI_MOSTRT

CI_DA0

CI_MDO0

CI_DA1

CI_MDO1

CI_DA2

CI_MDO2

CI_CD2-

VJUMP1005-S

*R8461

*R8421

*R8422

*R8423

*R8424

*R8459

*R8458

*R8425

*R8457

*R8456

R8462

9

10

VJUMP1005-S

CI_CE2-

S

22k

R8409

*R8465

10k

AS_CD1-

S

CI_DATAOUTA3

68

CI_DATAOUTA4

68

CI_DATAOUTA5

68

CI_DATAOUTA6

68

CI_DATAOUTA7

68

CE2#

*R8435

10k

VS1#

CI_IORD-5.0V

CI_IOWR-5.0V

CI_PKTSTINA

CI_DATAINA0

CI_DATAINA1

CI_DATAINA2

CI_DATAINA3

VCC

VPP2

CI_DATAINA4

MDI4

CI_DATAINA5

MDI5

CI_DATAINA6

MDI6

CI_DATAINA7

MDI7

*R8460

68

MCLKO

CI_CLKOUTA

TP8402

RESET

WAIT#

*R8491

22k

INPACK#

CI_REG-5.0V

REG#

CI_ENOUTA

68

CI_PKTSTOUTA

68

CI_DATAOUTA0

68

CI_DATAOUTA1

68

CI_DATAOUTA2

68

*R8466

10k

AS_CD2-

CD2#

*C8416

25V

0.01u

*R8411

22k

CI_WAIT-

BUFFER

*IC8408

C0JBAU000025

1

CI_DATAOUTA0

CI_DATAOUTA1

*R8445

100k

*R8437

EXB2HV104JV

*R8438

100k

*R8440

100k

*R8436

10k

+

*C8411

10V

100u

CI_DATAOUTA2

CI_DATAOUTA3

CI_DATAOUTA3

CI_PKTSTOUTA

CI_DATAOUTA4

CI_DATAOUTA0

CI_DATAOUTA5

CI_DATAOUTA1 AC_CHDI5

CI_DATAOUTA6

CI_DATAOUTA2

CI_DATAOUTA4

CI_DATAOUTA7

CI_DATAOUTA5

CI_DATAOUTA6

CI_DATAOUTA7

CI_CLKOUTA

CI_CLKOUTA

CI_ENOUTA

CI_ENOUTA

CI_PKTSTOUTA

*R8488

EXB28V680JX

XPDCD1

XPDCD2

*C8412

16V

0.1u

XCI_IREQ

XPDWT

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

1

1G

2

1A1

3

2Y4

4

1A2

5

2Y3

6

1A3

7

2Y2

8

1A4

9

2Y1

10

GND

*IC8409

C0JBAZ002811

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

Y8

20

VCC

19

2G

18

1Y1

17

2A4

16

1Y2

15

2A3

14

1Y3

13

2A2

12

1Y4

11

2A1

BUFFER

*R8244

*R8245

10k

10k

*Q8200

2SD0601A0L

BUFFER

*IC8410

C0JBAU000025

FE_CH0CLK

FE_CH0VAL

FE_CH0PSYNC

FE_MDO0

FE_MDO1

FE_MDO2

FE_MDO3

FE_MDO4

FE_MDO5

FE_MDO6

FE_MDO7

*R8426

EXB2HV680JV

*R8428

EXB2HV680JV

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

*IC8411

C0JBAU000025

BUFFER

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

Y8

Vcc

G2

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

C8418

16V

0.1u

20

19

18

17

16

15

14

13

12

11

C8413

16V

0.1u

*R8441

EXB2HV680JV

C8414

16V

0.1u

*R8487

EXB28V680JX

*R8453

EXB2HV680JV

*R8455

EXB2HV680JV

C8415

S

S

16V

0.1u

R8447
VJUMP1005-S

R8448
VJUMP1005-S

*R8446

68

*R8449

68

XPDCD1

XPDCD2

XPDWT

XCI_IREQ

CI_WAIT-

CI_IREQ-

AS_CD1-

AS_CD2-

AC_XETS_CI

AC_CHDI0

AC_CHDI1

AC_CHDI2

AC_CHDI3

AC_CHDI4

AC_CHDI6

AC_CHDI7

AC_CHCLK

AC_CHVAL

AC_CHSYNC

SMTCMD0

SMTSEL0

AC_XPDWT

AC_CHCLK

AC_CHVAL

AC_CHSYNC

AC_CHDI0

AC_CHDI1

AC_CHDI2

AC_CHDI3

AC_CHDI4

AC_CHDI5

AC_CHDI6

AC_CHDI7

CH1VAL

AC_CI_RESET

AC_XPDCE2

AC_XPDOE

AC_XPDWE

AC_XEAB

AC_XETS_CI

AC_REG

AC_IOWR

AC_IORD

AC_XEDBA

AC_XPDWT

SMTCMD0

SMTSEL0

CI_POWER_ON

IS1CLK

CH1VAL

AC_CHVAL

AC_CHSYNC

AC_CHCLK

AC_CHDI0

AC_CHDI1

AC_CHDI2

AC_CHDI3

AC_CHDI4

AC_CHDI5

AC_CHDI6

AC_CHDI7

SUB3.3V

10k

10k

10k

10k

R8661

R8716

R8663

TO 2/22

ECLK

XECS0

XECS1

NANDRYBY

FE_IRQ

GC6_IRQ1

USB_OCP

GC6_IRQ0

CI_OCP

CI_IRQ

XNMIRQ

XECS2

XECS4

XERE

XEDK

BOOTSWAP

AUDCLK

XNMIRQ

NANDRYBY

XIRQ0

XIRQ1

XIRQ1

XIRQ2

XIRQ2

XIRQ3HDMI_IRQ

XIRQ3

VI1P20

XIRQ4

XIRQ5

VI1P1

XIRQ6

VI2ENB

XIRQ7

XIRQ8

XIRQ9

VI2P11

VI2P10

XIRQ10

IS1CLK

XIRQ11

IS1DATA

XIRQ12

XIRQ13

RMCO

CH1VAL

XIRQ14

XIRQ15

VI2P20

FE_SW

VOUTENB

68

*R8864

R8860

68

68

*R8856

*R8857

68

*R8489

68

*R8862

68

*R8855

10k

*R8859

68

*R8858

68

*R8954

68

S

R8854

VJUMP1005-S

*R8899

68

TO 2/22

IS1DATA

XECS6

XEXDMK0

XEXDMR0

IS0DATA

IS0PSYNC

SMTSEL1

SMTCMD1

SMTRST0

SMTD0

SMTCMD0

SMTSEL0

SMTCLK0

IS1CLK

CH1VAL

CI_XRST

XPDCE2

XPDOE

XPDWE

XEAB

XETS_CI

REG

XPDIOWR

XPDIORD

XEDBA

XPDWT

XPDCD1

XPDCD2

CI POWER ON

CI OCP

CI INPACK

CI IRQ

TO 2/22

SCARD_IRQ

W_HDMI_INT

INT_PANEL_CEC

CI_INPACK

POWER_DET

*R8598

68

*R8599

68

*R8600

68

*R8601

68

S

R8602

VJUMP1005-S

S

R8603

VJUMP1005-S

S

R8604

VJUMP1005-S

S

R8605

VJUMP1005-S

S

R8701

VJUMP1005-S

S

R8635

VJUMP1005-S

S

R8712

VJUMP1005-S

R8520

TO 2/22

HSVALIN

XRTS0

HSSYNIN

XDTR0

HSBCLKIN

XDSR0

HSDIN0

XDCD0

XCTS0

HSDIN1

XRI0

HSDIN2

HSDIN3

TXD0

RXD0

HSDIN4

SMTCLK1

HSDIN5

SMTD1

HSDIN6

HSDIN7

10k

SMTRST1

R8575

R8576

R8577

R8667

R8578

R8508

R8582 68

R8585 68

R8897

R8898
10k

R8608

R8963
10k

S

VJUMP1005-S

R8637

R8653

R8638

R8639

R8683

R8652

VJ8601

VJ8600

R8493

VJ8602

*R8692

68

68

68

68

68

68

68

R8746

68

68

68

68

68

68

VJUMP1005-S

S

VJUMP1005-S

S

68

VJUMP1005-S

S

68

TO 8,16/22

G-DTV_VOUTENB

TO 6/22

AA_XECS0

TO 16/22

AA_XECS2

TO 4,16/22

AA_XEAS

TO 6,16/22

AA_XERE

TP8851

TO 8/22

G-SD_BOOT_STS

10k

R8609

R8698 10k

SUB3.3V

10k

R8642 10k

R8618

R8654 10k

TO 14/22

MVDACO1

(DVB_CVBS)

TO 9/22

DIGITAL AUDIO

with AUDIO DESCRIPTION DATA

AH_DAUDIO

MAIN AUDIO DATA

AH_DMIX0

COMMON LR/SR CLK

AH_SRCK0

AH_LRCK0

for PHOTO OUT

AH_IECOUT0

TO 6/22

AA_ERXW

TO 4,6,16/22

AA_EA0

AA_EA1

AA_EA2

AA_EA3

AA_EA4EA4

AA_EA5

AA_EA6

AA_EA7

TO 6,16/22

AA_XEWE0

TO 16/22

AA_XEWE1

SUB5V

C8510

10V
10u

R8677 2.2k

R8640 10k

TO 2/22

R8665 2.2k

R8494 2.2k

Optical_5.1ch

MAIN AUDIO DATA

COMMON LR/SR CLK

SUB3.3V

R8517 10k

R8672

EXB2HV680JV

R8619 10k

R8514

68

68

68

68

68

TP8501

MVDACO1

Comp.

AH_DAUDIO

AH_DMIX0

AH_SRCK0

AH_LRCK0

AH_IECOUT0

R8516 2.2k

R8515 2.2k

R8496 2.2k

TO 6/22

AB_NANDRYBY

TO 4/22

AA_XIRQ2

TO 9/22

AA_XIRQ3

TO 16/22

AA_GC6_IRQ1

TO 16/22

AA_GC6_IRQ0

TO 4/22

AA_FE_SW

IECOUT0

SRCK0

LRCK0

DMIX0

DMIX0

DAUDIO

MVDACO1

R8501 100

R8502 330

R8503 330

R8504 330

*R8506 330

TO 2/22

ERXW

EA0

EA1

EA2

EA3

EA5

EA6

EA7

TO 2/22

R8647

XEWE0

R8651

XEWE1

R8579

ESZ0

R8580

ESZ1

AH_IECOUT0

AH_SRCK0

AH_LRCK0

AH_DMIX0

AH_DAUDIO

MVDACO1

R8510

160

11

453937 42 43 4438 40 41

57

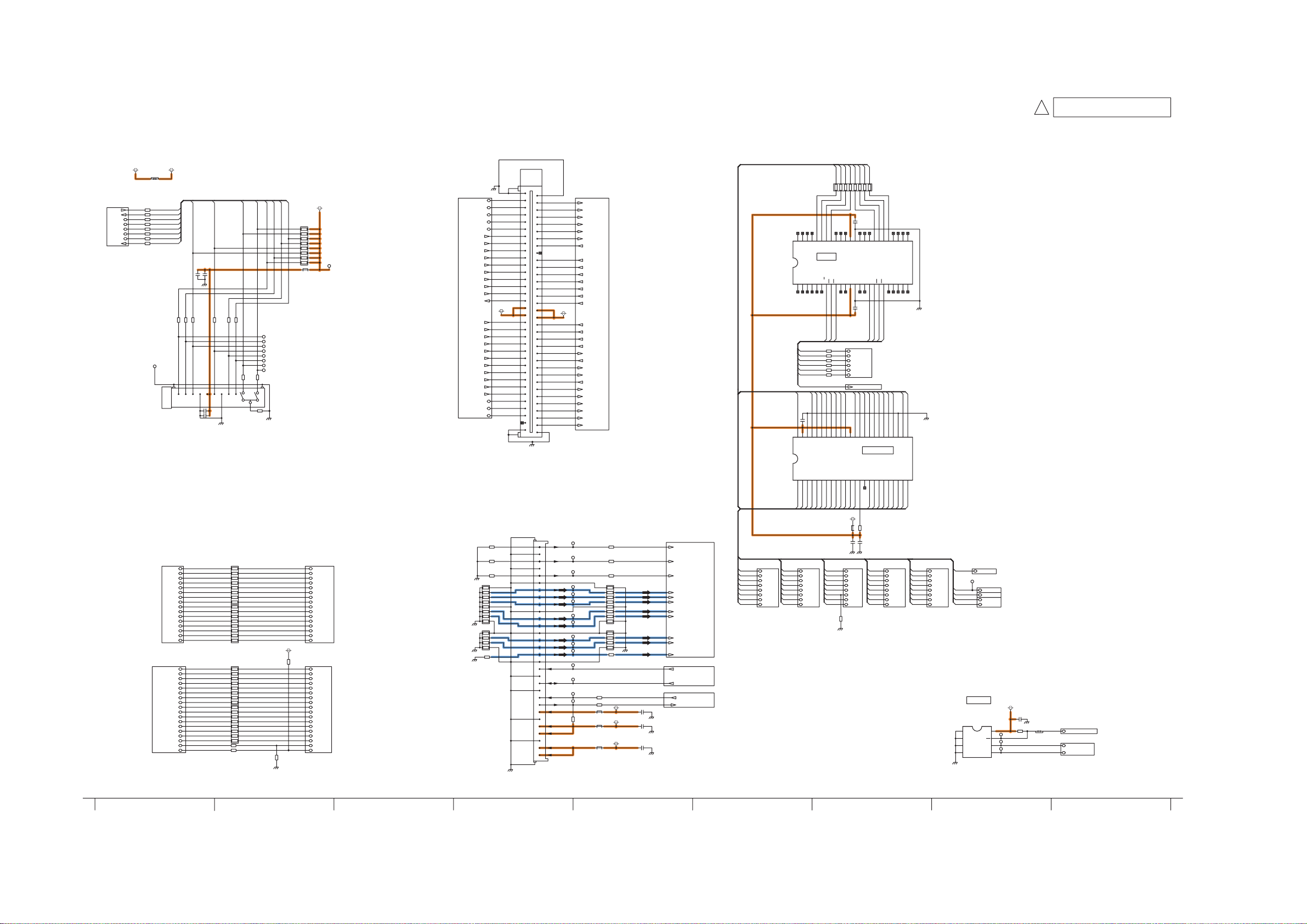

12.10. A-Board (6/22) Schematic Diagram

SUB3.3V

SUB_SD_3.3V

R8801

P

TO 2/22

SDCLK

SDCD

SDCMD

SDDAT0

SDDAT1

SDDAT2

SDDAT3

SDWP

SD/IC_CARD

AD_SDCLK

R8610

68

AD_SDCD

R8611

68

R8612

68

R8613

68

R8614

68

R8615

68

R8616

68

R8617

68

TP8565

SD

AD_SDCMD

AD_SDDAT0

AD_SDDAT1

AD_SDDAT2

AD_SDDAT3

AD_SDWP

JK8302

AD_SDCMD

C8535

C8544

16V

0.01u

68

68

R8803

R880568R8802

R8806

1234567

9

GND

SDCMD

SDDAT2

SDDAT3

C8533

16V

0.1u

C8532

16V

47u

4V
22u

3.3V

+

AD_SDCLK

68

SDCLK

AD_SDCD

AD_SDWP

AD_SDDAT2

AD_SDDAT3

68

68

R8807

R8804

GND

SDDAT0

8

SDDAT1

R880868R8703

101112

D.SW

R8660

TP8555

TP8554

TP8553

TP8552

TP8551

TP8550

TP8549

TP8548

68

W.P.

0

AD_SDDAT0

AD_SDDAT1

EXB2HV103JV

R8674

L8501

J0JHC0000045

SUB_SD_3.3V

TP8564

TO 5/22

CI_DA3

CI_DA4

CI_DA5

CI_DA6

CI_DA7

CI_CE1-

CI_EAA11

CI_OE-

CI_EAA12

CI_EAA10

CI_EAA9

CI_EAA14

CI_EAA15

CI_WE-

CI_IREQ-

CI_ENINA

CI_CLKINA

CI_EAA13

CI_EAA8

CI_EAA7

CI_EAA6

CI_EAA5

CI_EAA4

CI_EAA3

CI_EAA2

CI_EAA1

CI_DA0

CI_DA1

CI_DA2

CE1#

A10

OE#

A11

A9

A8

A13

A14

WE#

IREQ#

VCC

VPP1

MIVAL

MCLKI

A12

A7

A6

A5

A4

A3

A2

A1

A0

CI CONNECTOR

*JK8401

GND

1

35

2

36

3

37

4

38

5

39

6

40

7

41

8

42

9

43

10

44

11

45

12

46

13

47

14

48

15

49

16

50

17

SUB_CI_5V

51

18

52

19

53

20

54

21

55

22

56

23

57

24

58

25

59

26

60

27

61

28

62

29

63

30

64

31

65

32

66

33

67

IOIS16#

34

68

PC-CARD

GND

SUB_CI_5V

TO 5/22

CI_CD1­CD1#

CI_MDO3

CI_MDO4

CI_MDO5

CI_MDO6

CI_MDO7

CI_CE2­CE2#

VS1#

CI_IORD-

CI_IOWR-

CI_PKTSTINA

CI_DATAINA0

CI_DATAINA1

CI_DATAINA2

CI_DATAINA3

VCC

VPP2

CI_DATAINA4

MDI4

CI_DATAINA5

MDI5

CI_DATAINA6

MDI6

CI_DATAINA7

MDI7

CI_MCLKO

MCLKO

CI_RESET

RESET

CI_WAIT-

WAIT#

CI_INPACK­INPACK#

CI_REG-

REG#

CI_MOVAL

CI_MOSTRT

CI_MDO0

CI_MDO1

CI_MDO2

CI_CD2-

CD2#

AA_ED6

AA_ED5

AA_ED4

AA_ED7

AA_ED1

AA_ED3

AA_ED2

AA_ED0

*R8622
EXB2HVR000V

C8583
16V

0.1u

33NC34NC35NC36

45NC46NC47NC48

NC

1NC2NC3NC4NC5NC6NC7

AB_XNFCE

AB_XNFWE

AB_XNFRE

AB_NFALE

AB_NFCLE

AB_XNFWP

AB_NANDRYBY

AA_ED15

AA_EA17

C8582

16V

0.1u

46

47

48

Vss

A16

BYTE#

A152A143A134A125A116A107A98A89A1910NC11NC12NC13NC14NC15NC16A1817A1718A719A620A521A422A323A224A1

1

38NC39NC40NC41

Vss37Vcc

I/O442I/O543I/O644I/O7

FLASH

*IC8581

C3FBTC000033

R/B8RE9CE10NC11NC12Vcc13Vss14NC15NC16CLE17ALE18WE19WP20NC21NC22NC23NC24NC

C8584
16V

0.1u

40D541

AA_ED12

TO 5/22

AA_ED4

38D439

D12

TO 2/22

AB_NFCLE

AB_NFALE

XNFCE

XNFWE

XNFRE

NFALE

NFCLE

XNFWP

AB_NANDRYBY

AA_ED2

AA_ED9

AA_ED3

AA_ED11

AA_ED10

35D336

D10

D1137Vcc

BOOT ROM

*IC8580A

C3ZBM0000081

AB_XNFWE

AA_ED1

AB_NANDRYBY

AB_XNFCE

AB_XNFRE

68

*R8623

68

*R8624

*R8625

68

68

R8699

68

R8627

68

*R8655

AA_ED6

AA_ED7

AA_ED5

AA_ED13

AA_ED14

42D643

44D745

D13

D14

D15/A-1

AB_XNFWP

AA_ED8

AA_ED0

29D030D831D132D933D234

I/O030I/O131I/O232I/O3

AA_XERE

AA_XECS0

CE#27Vss28OE#

AA_EA1

!

A-BOARD (6/22)

Peaks-MODEL
REF No. 8000-8999

25NC26NC27NC28NC29

25A026

TO 2/22

EA08

EA09

EA10

EA11

EA12

EA13

EA14

EA15

EA16

EA17

EA18

EA19

EA20

EA21

EA22

EA23

EA24

EA25

TO 2/22

ED0

ED1

ED2

ED3

ED4

ED5

ED6

ED7

ED8

ED9

ED10

ED11

ED12

ED13

ED14

ED15

VI2P12

VI2P13

VI2P14

VI2P15

VI2P16

VI2P17

VI2P18

VI2P19

VI2P22

VI2P23

VI2P24

VI2P25

VI2P26

VI2P27

VI2P28

VI2P29

VI2P4

VI2CLK2

R8688

EXB2HV680JV

EXB2HV680JV

EXB2HV680JV

EXB2HV680JV

R8558

R8607

R8689

R8690

R8673

68

68

R8697

2.2k

SUB3.3V

R8691

10k

TO 4,6,16/22

AA_ED0

AA_ED1

AA_ED2

AA_ED3

AA_ED4

AA_ED5

AA_ED6

AA_ED7

AA_ED8

AA_ED9

AA_ED10

AA_ED11

AA_ED12

AA_ED13

AA_ED14

AA_ED15

TO 6/22

AA_EA8

AA_EA9

AA_EA10

AA_EA11

AA_EA12

AA_EA13

AA_EA14

AA_EA15

AA_EA16

AA_EA17

AA_EA18

AA_EA19

AA_EA20

AA_EA21

AA_EA22

AA_EA23

AA_EA24

AA_EA25

46 515049 545347 48

*R8500

EXB2HV103JV

*R8507

EXB28V103JX

AA_EA15

AA_EA14

AA_EA10

AA_EA9

AA_EA21

AA_EA20

J0JHC0000075

TO 4,6,16/22

AA_EA1

AA_EA3

AA_EA4

AA_EA5

AA_EA6

AA_EA7

AA_EA8

L8580

C8581

*R8643

AA_XEWE0

SUB3.3V

16V

0.1u

2.2k

XRST_2

AA_EA1

AA_EA2

AA_EA3

AA_EA4

AA_EA5

AA_EA6

AA_EA7

AA_EA8

AA_EA22

AA_EA11

AA_EA16

AA_EA13

AA_EA12

<

TS_PSYNC

TS_VAL

TS_CLK

FE_SDA

FE_SCL

FE_XRST

SUB3.3V

SUB3.3V

SUB5V

GND

GND

GND

MDO7

MDO6

MDO5

GND

MDO4

MDO3

GND

MDO2

MDO1

MDO0

GND

GND

GND

XIRQ

GND

GND

TOP

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

*A88A
TO
XS-BOARD
(XS3)

*R8372

TP8210

TP8211

TP8212

TP8220

TP8219

TP8218

TP8217

TP8216

TP8215

TP8214

TP8213

TP8209

TP8208

TP8207

TP8206

*R8394

68

*R8373

68

*R8374

68

*R8355
EXB2HV680JV

*R8498

EXB28V680JX

*R8499

68

*R8377

68

*R8378

68

SUB5V

SUB3.3V

F15V

25V

25V

25V

*L8355

J0JHC0000075

10k

*L8356

J0JHC0000075

*L8358

J0JHC0000075

*R8682

10k

*R8769

10k

*R8770

10k

*R8771

10k

TO 4/22

FE1_PSYNC

FE1_VAL

FE1_CLK

FE1_MDO7

FE1_MDO6

FE1_MDO5

FE1_MDO4

FE1_MDO3

FE1_MDO2

FE1_MDO1

FE1_MDO0

TO 1/22

FE1_SDA

FE1_SCL

TO 2,4/22

VI2P21

FE_XRST

PORT16[7]

*C8951

*C8952

*C8430

FE1_XIRQ

10u

10u

10u

TO 4,6,16/22

AA_ED0

AA_ED1

AA_ED2

AA_ED3

AA_ED4 XRST_2

AA_ED6

AA_ED7

TO 6,16/22 TO 6/22

AA_ED8

AA_ED0

AA_ED1

AA_ED2

AA_ED3

AA_ED5

AA_ED6

AA_ED7

AA_ED9

AA_ED10

AA_ED11

AA_ED12

AA_ED13

AA_ED14

AA_ED15

AA_ED8

AA_ED9

AA_ED10

AA_ED11

AA_ED12

AA_ED13

AA_ED14

AA_ED15

AA_EA5

AA_EA3

AA_EA8

AA_EA6

AA_EA18

AA_EA4

AA_EA7

AA_EA19

R8581
10k

C8580
16V

0.1u

AA_EA9

AA_EA10AA_EA2

AA_EA11

AA_EA12

AA_EA13

AA_EA14

AA_EA15

AA_EA16

AA_EA9

AA_EA10

AA_EA11

AA_EA12

AA_EA13AA_ED4

AA_EA14

AA_EA15

AA_EA16

AA_EA2

AA_EA17

AA_EA18

AA_EA19

AA_EA20

AA_EA21

AA_EA22AA_ED5

AA_EA23

AA_EA24

TO 6/22

AA_EA17

AA_EA18

AA_EA19

AA_EA20

AA_EA21

AA_EA22

AA_EA23

AA_EA24

AA_EA25

AA_XECS0

AA_XEWE0

AA_XERE

*IC8502

TVRQ640AA:E
TVRQ641AA:B

1

NC

2

NC

3

NC

4

VSS

TO 6/22

TP8745

EEPROM

AA_EA25

TO 18/22

XRST_2

AA_XECS0

AA_XEWE0

AA_XERE

VCC

WC

SCL

SDA

8

7

6

5

TO 5/22

TO 5,16/22

SUB3.3V

C8508

0.01u

R8511

TP8563

TP8561

TP8562

16V

R8644

TO 2/22

VJUMP1005-S

S

4.7k
XECS7

TO 1/22

LITE2-EEP_SCL

LITE2-EEP_SDA

EEPROM_WP

58

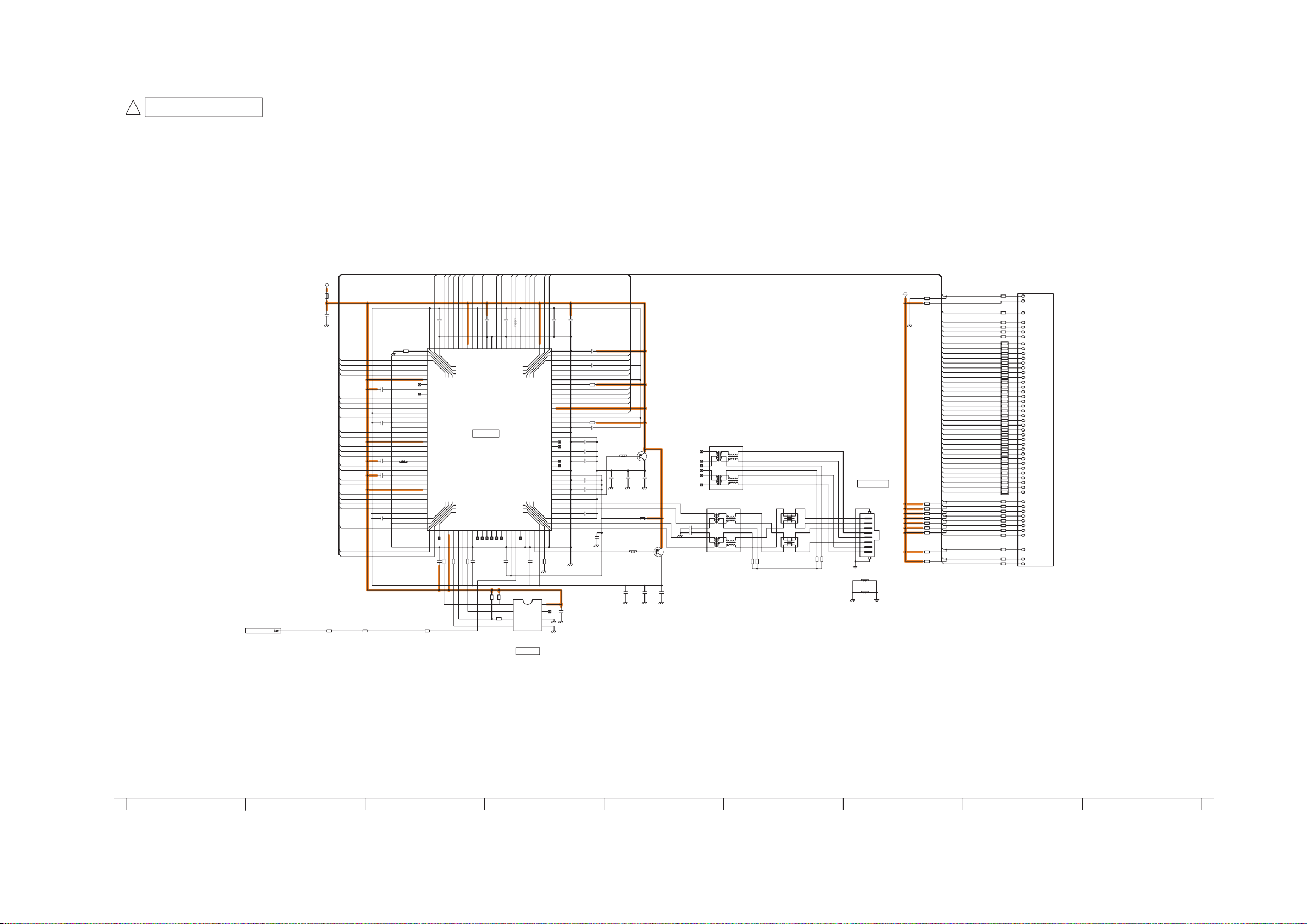

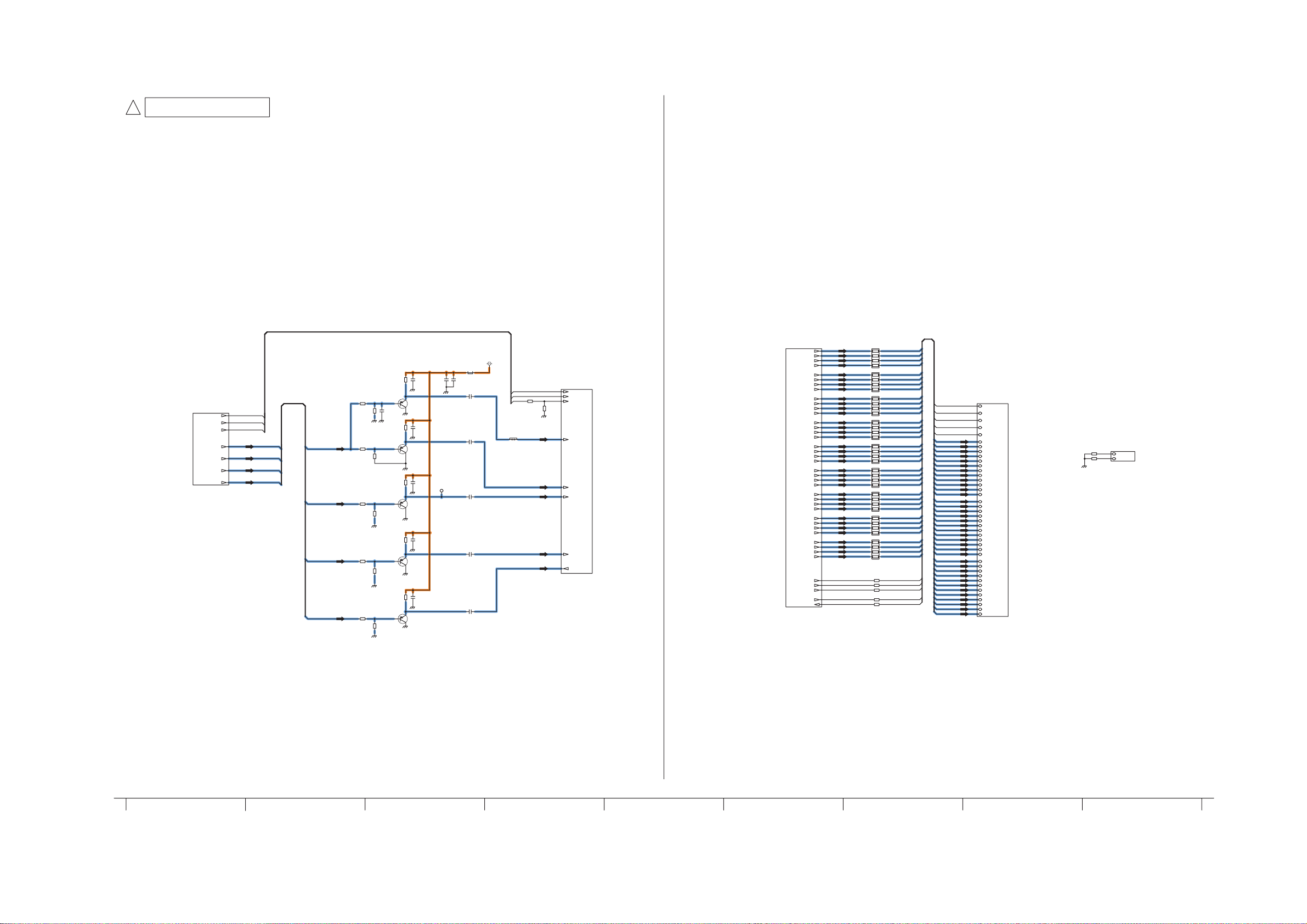

12.11. A-Board (7/22) Schematic Diagram

!

A-BOARD (7/22)

Peaks-MODEL
REF No. 8000-8999

TO 2/22

AX_CLKLAN

J0JHC0000045

SUB3.3V

AB_PCAD17

AB_PCAD18

AB_PCAD19

AB_PCAD20

AB_PCAD21

AB_PCAD22

AB_PCAD23

AB_PCAD24

AB_PCAD25

AB_PCAD26

*L8507

*C8545

10V
10u

*R8631

*C8547

16V 0.1u

*C8548

16V

*C8549

16V

*C8550

16V

*C8551

16V

10k

0.1u

P

0.1u

R8786

VJUMP1005-P

0.1u

0.1u

AB_PCXTRDY

AB_PCDEVSEL

AB_PCXSTOP

AB_PCXPERR

AB_PCXSERR

AB_PCPAR

AB_PCCXBE1

AB_PCAD15

AB_PCAD14

AB_PCAD13

AB_PCAD12

AB_PCAD11

AB_PCAD10

AB_PCAD9

AB_PCAD8

AB_PCCXBE0

AB_PCAD7

AB_PCAD6

AB_PCAD5

AB_PCAD4

AB_PCAD3

AB_PCAD2

AB_PCAD1

AB_PCAD0

*R8092

82

*L8509

J0JHC0000045

AB_PCAD16

AB_PCCXBE2

AB_PCXIRDY

AB_PCXFRAME

0.1u

16V

*C8609

54

55

56

57

60

61

62

63

64

65

66

FRAMEB

67

DEVSELB

68

STOPB

69

PERRB

70

VDD33

71

NC

72

GND

73

NC

74

SERRB

75

PAR

76

CBEB1

77

VDD15

78

PCIAD15

79

GND

80

VSSPST

81

PCIAD14

82

PCIAD13

83

VDD33

84

PCIAD12

85

PCIAD11

86

PCIAD10

87

M66EN

88

PCIAD9

89

PCIAD8

90

VSSPST

91

CBEB0

92

PCIAD7

93

VDD33

94

PCIAD6

95

PCIAD5

96

PCIAD4

97

PCIAD3

98

VDD15

99

100

101

EECS

102

103

104

105

106

0.1u

16V

*C8552

*R8694

0

TRDYB

GND

107

47

*R8754

CBEB2

VSSPST

VSSPST

VDD33

108

47

*R8755

CLKRUNB

PCIAD2

EED0

GND

IRDYB

VDD15

PCIAD1

PCIAD0

LANWAKE

EEDI

109

110

VDD15

VDD33

PCIAD19

PCIAD1858PCIAD1759PCIAD16

*IC8503

C1CB00002987

LAN I/F

VDD15

EESK

GND

LED3

111

112

113

47

*C8608

16V

0.1u

*R8756

*R8757

AB_PCAD11

0.1u

0.1u

16V

16V

*C8568

*C8569

47

48

49

51

52

53

GND

GND

VSSPST

PCIAD23

PCIAD2250PCIAD21

PCIAD20

VDD33

PCIAD26

PCIAD27

RSET

AVDD15

LED2

LED1

LED0

VSSPST

AVDD33

114

115

116NC117

118NC119

120

121

*C8617

16V

0.1u

*R8696

10k

10k

1

CS

2

SK

*R8758

47

3

DI

4

DO

*IC8504

C3EBCG000100

AB_PCAD27

AB_PCCXBE3

0.1u

44

CBEB345VDD1546IDSEL

VSSPST

MDI0+2MDI0-3AVDD18

VSS

123

0.1u

16V

16V

*C8567

*C8610

40

41

42

39

*C8561

38

16V 0.1u

AB_PCAD28

PCIAD2543PCIAD24

36

GND

35

PCIAD30

34

PCIAD31

33

VDD15

32

PMEB

REQB

PCIAD2937PCIAD28

GNTB

PCICLK

PCIRSTB

VDD33

INTAB

VDD15

ISOLATEB

VSSPST

AVDD18

AVDD18

AVDD33

AVDD33

CTRL18

AVDD18

MDI1-

MDI1+

VSS

CTRL15

124

125

126

127

8

VCC

7

NC

6

TEST

5

GND

*R8714 10k

31

30

29

28

27

26

25

24

23

GND

22

21

20

*C8560

NC

19

NC

18

*C8559

VSS

17

16V

16

*C8556

NC

15

NC

14

VSS

13

12

*C8615

VSS

11

16V

10

*C8616

VSS

9

16V

8

7

6

5

VSS

4

16V

1

128

1%

*R8702

2.49k

*C8546

16V

0.1u

*C8566

*R8657

*C8611

16V

16V

16V 0.1u

16V

*C8562

AB_PCAD29

AB_PCAD30

AB_PCAD31

AB_PCBRQ

AB_PCBGNT

AB_PCCLK0

AB_PCRST

AB_PCIRQ

10k

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

10V
10u

VJUMP1005-S

*C8557

VJUMP1005-S

VJ8789

16V

0.1u

VJ8790

*Q8503

B1ADKC000002

S

*C8558

*C8612

16V

0.1u

10V
10u

*L8508

J0JHC0000045

B1ADKC000002

S

*Q8504

*C8571

10V
10u

RX+

TX-

TX+

*C8613

*C8614

10V

10V

10u

10u

RX-

*C8570

0.01u

*C8565

0.01u

16V

16V

*T8302

G5BYC0000015

1

2

3

4

5

6

*T8301

G5BYC0000015

1

2

3

4

5

6

12

11

10

9

8

7

*L8511

J0ZZB0000101

12

11

10

9

8

7

*R8381

75

2

1

43

2

1

43

*L8512

J0ZZB0000101

*R8382

75

*R8384

*R8383

75

75

ETHERNET

*JK8301

K2LC1YYA0005

TX+

1

TX-

2

RX+

3

4

5

RX-

6

7

8

VJ8500

VJUMP1608-P

P

VJ8501

VJUMP1608-P

P

S

VJUMP1005-S

R8831

VSS

XTAL1

XTAL2

122

*C8618

16V

0.1u

SUB3.3V

AB_PCRST

10k

R8715

*R8748

10k

AB_PCCLK0

AB_PCCXBE0

AB_PCCXBE1

AB_PCCXBE2

AB_PCCXBE3

AB_PCAD0

AB_PCAD1

AB_PCAD2

AB_PCAD3

AB_PCAD4

AB_PCAD5

AB_PCAD6

AB_PCAD7

AB_PCAD8

AB_PCAD9

AB_PCAD10

AB_PCAD11

AB_PCAD12

AB_PCAD13

AB_PCAD14

AB_PCAD15

AB_PCAD16

AB_PCAD17

AB_PCAD18

AB_PCAD19

AB_PCAD20

AB_PCAD21

AB_PCAD22

AB_PCAD23

AB_PCAD24

AB_PCAD25

AB_PCAD26

AB_PCAD27

AB_PCAD28

AB_PCAD29

AB_PCAD30

AB_PCAD31

*R8752

R8751

R8750

R8768

R8629

R8628

*R8749

R8630

R8747

AB_PCXSERR

10k

AB_PCXPERR

10k

AB_PCXSTOP

10k

AB_PCXFRAME

10k

AB_PCXTRDY

10k

AB_PCXIRDY

10k

AB_PCDEVSEL

10k

AB_PCPAR

AB_PCIRQ

10k

AB_PCBRQ

10k

AB_PCBGNT

EXB2HV121JV

EXB2HV121JV

EXB2HV121JV

EXB2HV121JV

R8742

*R8743

*R8744

R8745

TO 2/22

R8724

68

PCRST

R8726

*R8727

*R8728

R8729

R8730

*R8731

R8732

R8733

R8734

R8735

R8736

*R8737

R8738

R8739

R8740

*R8741

PCIDSELA

68

PCCLKO0

120

PCCXBE0

120

PCCXBE1

120

PCCXBE2

120

PCCXBE3

PCAD0

PCAD1

PCAD2

PCAD3

PCAD4

PCAD5

PCAD6

PCAD7

PCAD8

PCAD9

PCAD10

PCAD11

PCAD12

PCAD13

PCAD14

PCAD15

PCAD16

PCAD17

PCAD18

PCAD19

PCAD20

PCAD21

PCAD22

PCAD23

PCAD24

PCAD25

PCAD26

PCAD27

PCAD28

PCAD29

PCAD30

PCAD31

120

PCXSERR

120

PCXPERR

120

PCXSTOP

120

PCXFRAME

120

PCXTRDY

120

PCXIRDY

120

PCDEVSEL

120

PCPAR

120

PCIRQ0

120

PCBRQ0

68

PCBGT0

EEPROM

55 6059 6158 636256 57

59

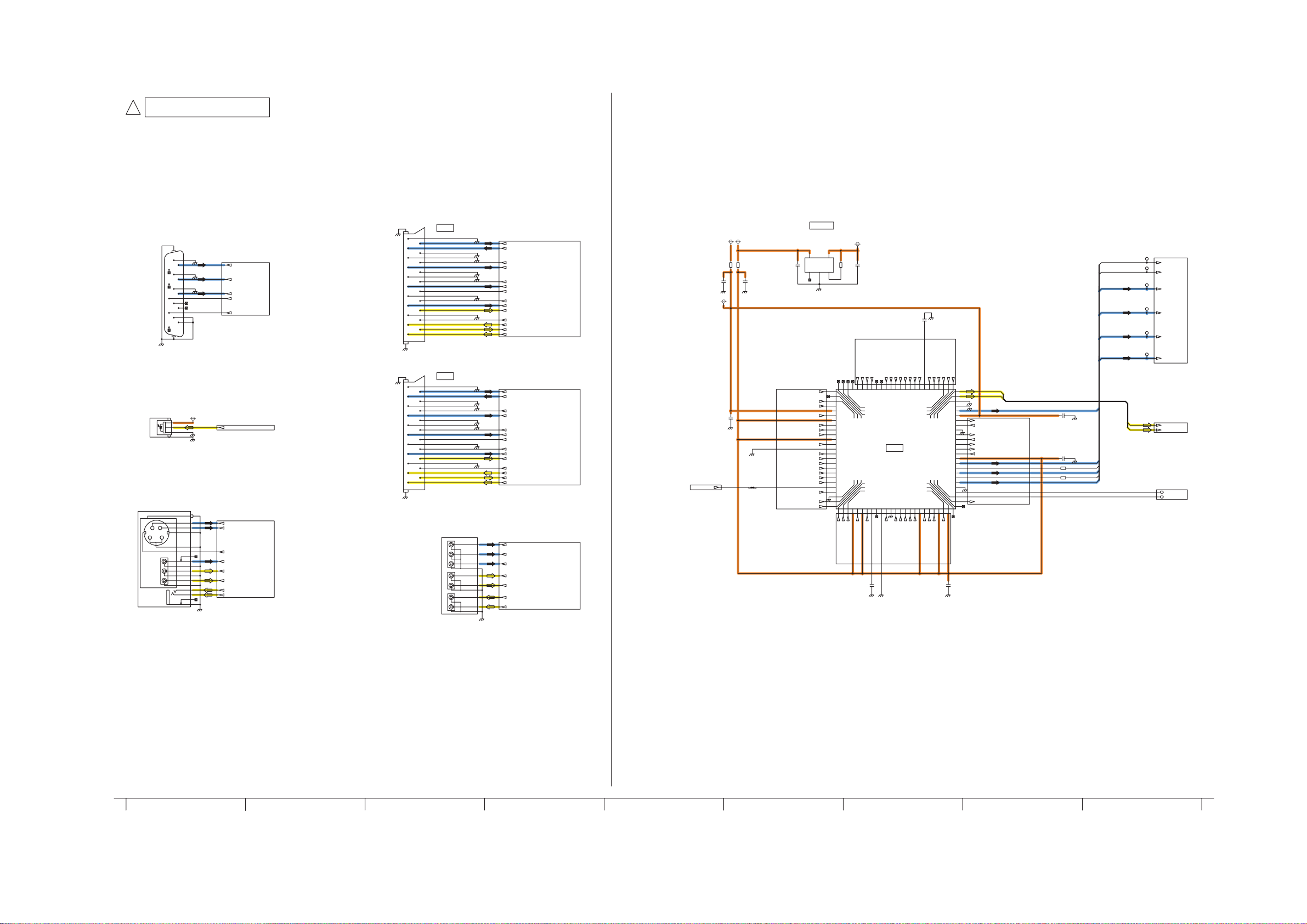

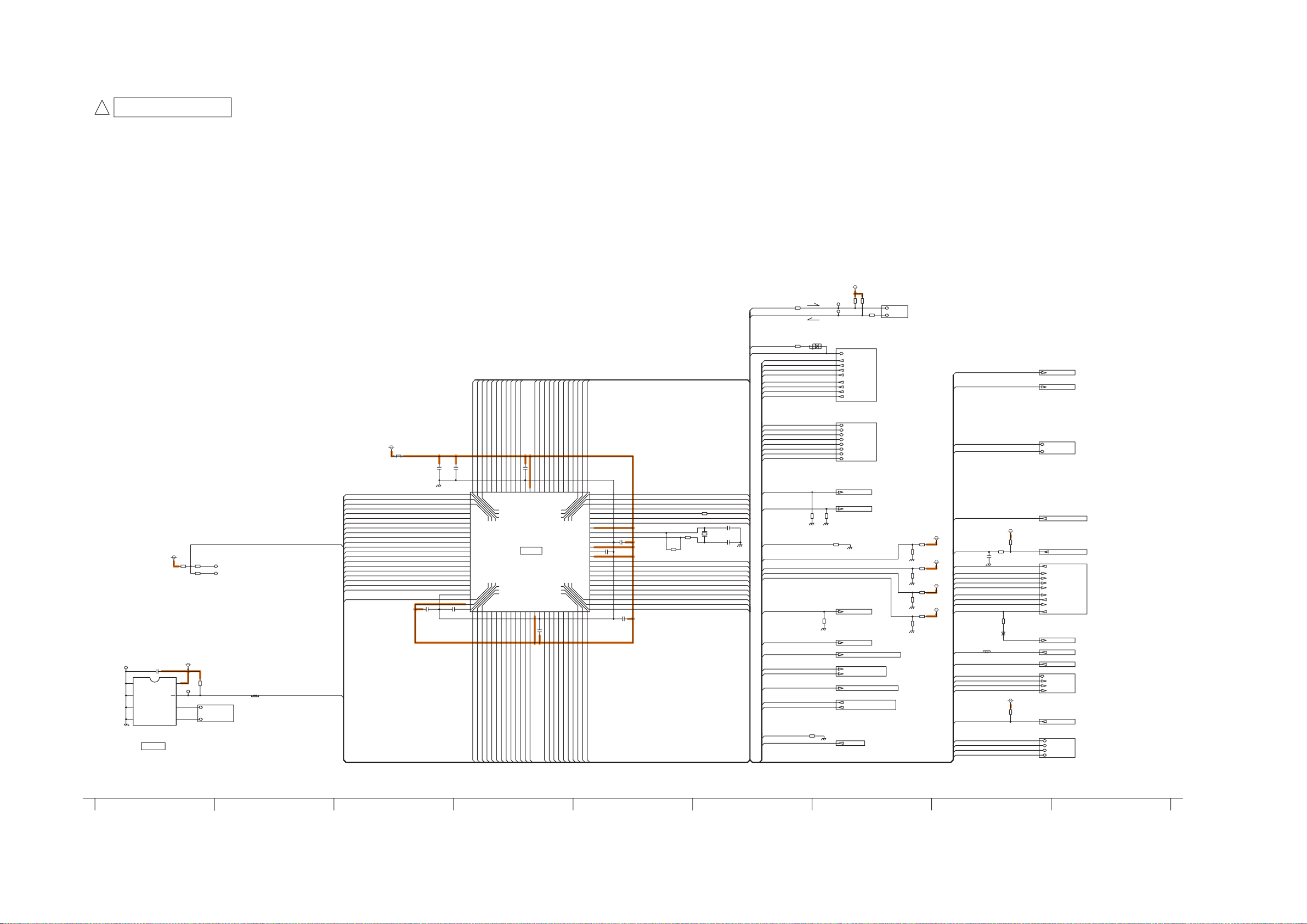

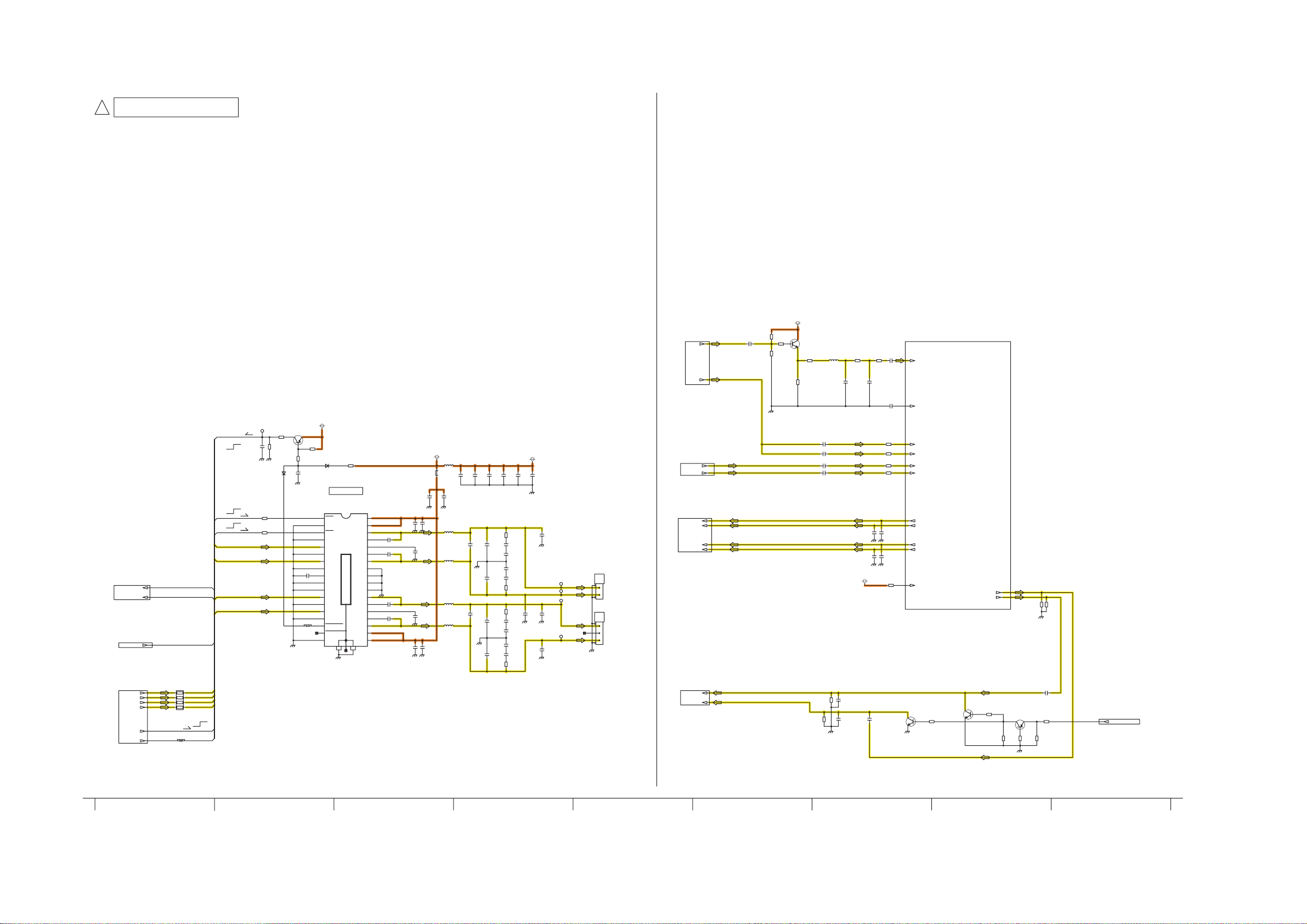

12.12. A-Board (8/22) Schematic Diagram

!

A-BOARD (8/22)

GenX
REF No. 1100-1499

G-HPD0

G-HPD1

G-HPD2

G-INV_PSU_ON

G-R_LED_ON

G-G_LED_ON

G-HDMI_5V_DET0

G-SD_LED_ON

G-ACTIVE_STBY_LED_ON

G-DDCSDA0

G-DDCSCL0

G-FACT

G-DDCSDA1

G-GENX-EEP_WP

G-DDCSCL1

G-HDMI_5V_DET1

G-DDCSDA2

G-DDCSCL2

G-PEAKS_SERIAL_SBO

G-PEAKS_SERIAL_SBI

G-MAIN3.3V_SENSE

GENX_SDA0

GENX_SCL0

G-HDMI_5V_DET2

TP1103

1

NC

2

NC

3

E2

4

VSS

*IC1101

TVRQ392

EEPROM

STB3.3V

R1243

R1236

47k

47k

STB3.3V

C1117

16V

0.1u

8

VCC

TP1102

7

WC

6

SCL

5

SDA

R1237

1k

TO 1/22

R1209

4.7k

GENX-EEP_SCL

GENX-EEP_SDA

TP1400

TP1401

R1207

VJUMP1005-S

S

STB3.3V

L1100

J0JYC0000068

P41.TMIO1

P42.TMIO2

P43,TMIO3

P44,TMIO4

P03,SBT0B

P04,SBO0B

PD0,DDCSDA0

PD1,DDCSCL0

PD2,DDCSDA1

PD3,DDCSCL1

PD4,DDCSDA2

PD5,DDCSCL2

P65,USBO2

P66,USBI2

P70,SDA0

P71,SCL0

SUB3.3V

R1225

R1224

R1181

TP1107

G-PEAKS_SERIAL_SBO

G-PEAKS_SERIAL_SBI

G-HDMI_CEC_PU_ON

G-HDMI_CEC

G-FACT

G-HPD3

G-TRCD3

G-TRCD0

G-TRCST

G-TRCD1

G-TRCD2

TRCD1 / (NC)

P40,TMIO0,SYSCLK

TRCD2 / (NC)

TRCD3 / (UND)

83

TRCD080TRCD181TRCD282TRCD3

P40_TMIO0_SYSCLK

P02

SDATA

SCLOCK

PE4_VPPEX

P3052P3153P32

P17

P15

P13

P14

P12

G-ADV_XRST

G-HQ_XRST

G-BACK_VOUTENB

G-SOURCE_XRST/PANEL_TEST_ON

G-EXTRG0

G-TRCCLK

TRCST / (N.C.)

TRCD0 / (NC)

TRCCLK / (N.C.)

77

78

79

NRST

NBOOT

PE2

PE1

IVDD

OSCXI

OSCXO

VSS

NTEST

VDD

IVDD

PE3

PE0

P37

P36

P35

P34

P33

48

49

P17

P16

P72,SDA1

GENX_SDA1

G-MID_VOUTENB

GENX_SCL1

EXTRG0 / (UND)

76

75

74

73

72

71

70

69

68

67

66

65

64

63

62

61

60

59

58

57

56

55

54

51

50

P73,SCL1

SDATA / (UND)

SCLOCK / (UND)

P02

NRST

NBOOT / (N.C.)

PE2

PE1

IVDD

OSCXI

OSCXO

C1108

16V

0.1u

VSS

C1109

1u10V

NTEST

VDD

IVDD

PE4,VPPEX / (PE4)

PE3

PE0

P37

P36

P35

P34

P33

P32

P31

P30

C1123

1u10V

R1197 0

10MHz

R1153

R1163

470

1M

G-ACTIVE_ANTENNA_ON

G-MAIN_FAN_ON

G-SD_PWR_CTRL

C1106

50V

X1100

H0J100500035

C1107

50V

G-DTV_VOUTENB

G-SD_BOOT_STS

G-GENX-EEP_WP

G-SDATA

G-SCLOCK

G-SRQ_GENX

27p

22p

G-FAN_SOS

G-FAN_MAX

G-EDID_WP

G-SW_OFF_DET

G-DTV_XRST

G-MON_MUTE

G-SP_HP_MUTE

G-TV_SUB_ON

G-NRST

G-QLINK2

G-QLINK1

G-DDCSDA3

G-DDCSCL3

G-CLK74SEL

G-HDMI_CEC

G-SIF_FIL_ON

G-HDMI_5V_DET3

G-HDMI_CEC_PU_ON

P76,CEC0

PD7,DDCSCL3

P64,SBI1

P63,SBO1

PF4

PD6,DDCSDA3

C1103

C1102

10V

16V

0.1u

10u

95

96

98

99

100

1

4

P76_CEC0

P44_TMIO4

P00

P01

PF3

PF1

P26

VSS

PF2

IVDD

C1112

VDD

0.1u

16V

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

C1111

1u10V

P63_SBO1

PD6_DDCSDA397PD7_DDCSCL3

P00

P64_SBI1

PF4

P01

PF3

P03_SBT0B

P04_SBO0B

P41_TMIO12P42_TMIO23P43_TMIO3

PD0_DDCSDA0

PD1_DDCSCL0

PD2_DDCSDA1

PD3_DDCSCL1

PF1

PD4_DDCSDA2

PD5_DDCSCL2

P65_USBO2

P66_USBI2

P26

PF224IVDD25VDD

P70_SDA0

P60_SBO0A

P61_SBT0A

P71_SCL0

P62_SBI0A

VSS

P05_IRQ630P06_IRQ731P07_IRQ832P50_RMIN_IRQ033P20_IRQ134P21_IRQ235P22_IRQ336P23_IRQ437P24_IRQ538P2539IVDD40VSS41P1042P1143P1244P1345P1446P1547P16

26

27

28

29

P05,IRQ6

P07,IRQ8

P06,IRQ7

P60,SBO0A

P62,SBI0A

P61,SBT0A

G-RMIN

G-SRQ_GENX

G-ECO_ON/INVERTER_ON

G-SOS

G-SOUND_SOS

G-TV_MAIN_ON

G-PANEL_STBY_ON/PANEL_VCC_ON

G-PANEL_LED_ON

G-ACTIVE_ANTENNA_DET

4mA

P74,CECAVL1B

PF0

P84,ADIN4

P85,ADIN5

P75,CECAVL1A

C1104

90

92

93

94

PF0

P84_ADIN491P85_ADIN5

P74_CECAVL1B

P75_CECAVL1A

IC1100

MN103SH9FPA1

GenX8

P21,IRQ2

P22,IRQ3

P23,IRQ4

P20,IRQ1

P50,RMIN,IRQ0

G-SUB3.3V_SENSE

G-PANEL_READY

G-DTV9V_SENSE

G-MAIN3.3V_SENSE

G-PANEL_ALARM/INVERTER_SOS

G-RF_AFT1

GENX-KEY1

P83,ADIN3

IVDD

VSS

P82,ADIN2

0.1u

16V

88

89

VSS

IVDD

0.1u

16V

C1114

P25

VSS

IVDD

P24,IRQ5

G-GRAB_MODULE_IIC/PWM_POW_ON

G-SUB5V_SENSE

G-AI_SENSOR

P81,ADIN1

P80,ADIN0

84

P80_ADIN085P81_ADIN186P82_ADIN287P83_ADIN3

TRCST

TRCCLK

EXTRG0

P73_SCL1

P72_SDA1

P10

P11

G-HDMI_REP_EN

G-AUDIO_XRST

0

R1182

27k

G-HDMI_5V_DET0

G-HDMI_5V_DET1

G-HDMI_5V_DET2

G-HDMI_5V_DET3

G-HPD0

G-HPD1

G-HPD2

G-HPD3

G-DDCSDA0

G-DDCSCL0

G-DDCSDA1

G-DDCSCL1

G-DDCSDA2

G-DDCSCL2

G-DDCSDA3

G-DDCSCL3

G-ADV_XRST

G-AUDIO_XRST

G-INV_PSU_ON

G-SUB3.3V_SENSE

G-DTV9V_SENSE

G-SUB5V_SENSE

G-MAIN3.3V_SENSE

G-HQ_XRST

G-TV_MAIN_ON

G-PANEL_STBY_ON/PANEL_VCC_ON

G-ECO_ON/INVERTER_ON

G-TV_SUB_ON

G-GRAB_MODULE_IIC/PWM_POW_ON

G-PANEL_ALARM/INVERTER_SOS

G-PANEL_READY

G-ACTIVE_ANTENNA_DET

G-RF_AFT1

TP1108

D1107

MA3X704A0L

R1414

R1415

10k

10k

R1413

R1416

10k

R2930

15k

10k

TO 10/22

G-HDMI_CEC

G-HDMI_5V_DET0

G-HDMI_5V_DET1

G-HDMI_5V_DET2

G-HDMI_5V_DET3

G-HPD0

G-HPD1

G-HPD2

G-HPD3

TO 10/22

G-DDCSDA0

G-DDCSCL0

G-DDCSDA1

G-DDCSCL1

G-DDCSDA2

G-DDCSCL2

G-DDCSDA3

G-DDCSCL3

TO 9,13/22

G-ADV_XRST

TO 12/22

G-AUDIO_XRST

47k

TO 18,19/22

G-HQ_XRST

TO 19/22

G-TV_MAIN_ON

TO 15/22

G-PANEL_STBY_ON/PANEL_VCC_ON

TO 22/22

G-ECO_ON/INVERTER_ON

G-TV_SUB_ON

TO 18/22

G-GRAB_MODULE_IIC/PWM_POW_ON

TO 15/22

G-PANEL_ALARM/INVERTER_SOS

G-PANEL_READY

TO 15/22

G-RF_AFT1

10k

TO 2/22

SBI2

SBO2

R1179

0

G-SD_BOOT_STS

G-DTV_VOUTENB

G-QLINK1

G-QLINK2

G-SOUND_SOS

SUB3.3V

R1410

10k

R1411
100k

R1404

68k

R1405

33k

R1407

47k

R1406
68k

*R1408

10k

R1401

100k

SUB9V

SUB5V

FRC_3.3V

GENX-KEY1

G-RMIN

G-R_LED_ON

G-G_LED_ON

G-ACTIVE_STBY_LED_ON

G-SD_LED_ON

G-FAN_MAX

G-FAN_SOS

G-MAIN_FAN_ON

G-AI_SENSOR

G-NRST

G-SOS

G-SW_OFF_DET

G-DTV_XRST

G-SP_HP_MUTE

G-MON_MUTE

G-SRQ_GENX

GENX_SDA0

GENX_SCL0

GENX_SDA1

GENX_SCL1

STB3.3V

R1221

7.15k

1%

C1122

R1255

25V

1k

0.01u

R1173

330

D1112

MA2J72800L

S

R1146

VJUMP1005-S

STB3.3V

R1203

47k

TO 5/22

G-SD_BOOT_STS

TO 5,16/22

G-DTV_VOUTENB

TO 14/22

G-QLINK1

G-QLINK2

TO 12/22

G-SOUND_SOS

TO 15,22/22

G-KEY1

G-RMIN

G-R_LED_ON

G-G_LED_ON

G-ACTIVE_STBY_LED_ON

G-SD_LED_ON

G-FAN_MAX

G-FAN_SOS

G-MAIN_FAN_ON

G-AI_SENSOR

TO 18/22

OFF_HOGO

TO 16,18/22

STB_RST

TO 21/22

G-SOS

TO 18/22

G-SW_OFF_DET

G-DTV_XRST

G-SP_HP_MUTE

G-MON_MUTE

TO 22/22

G-SRQ_GENX

TO 1/22

GENX_SDA0

GENX_SCL0

GENX_SDA1

GENX_SCL1

TO 22/22

66 68 69 70 7164 65 67 72

60

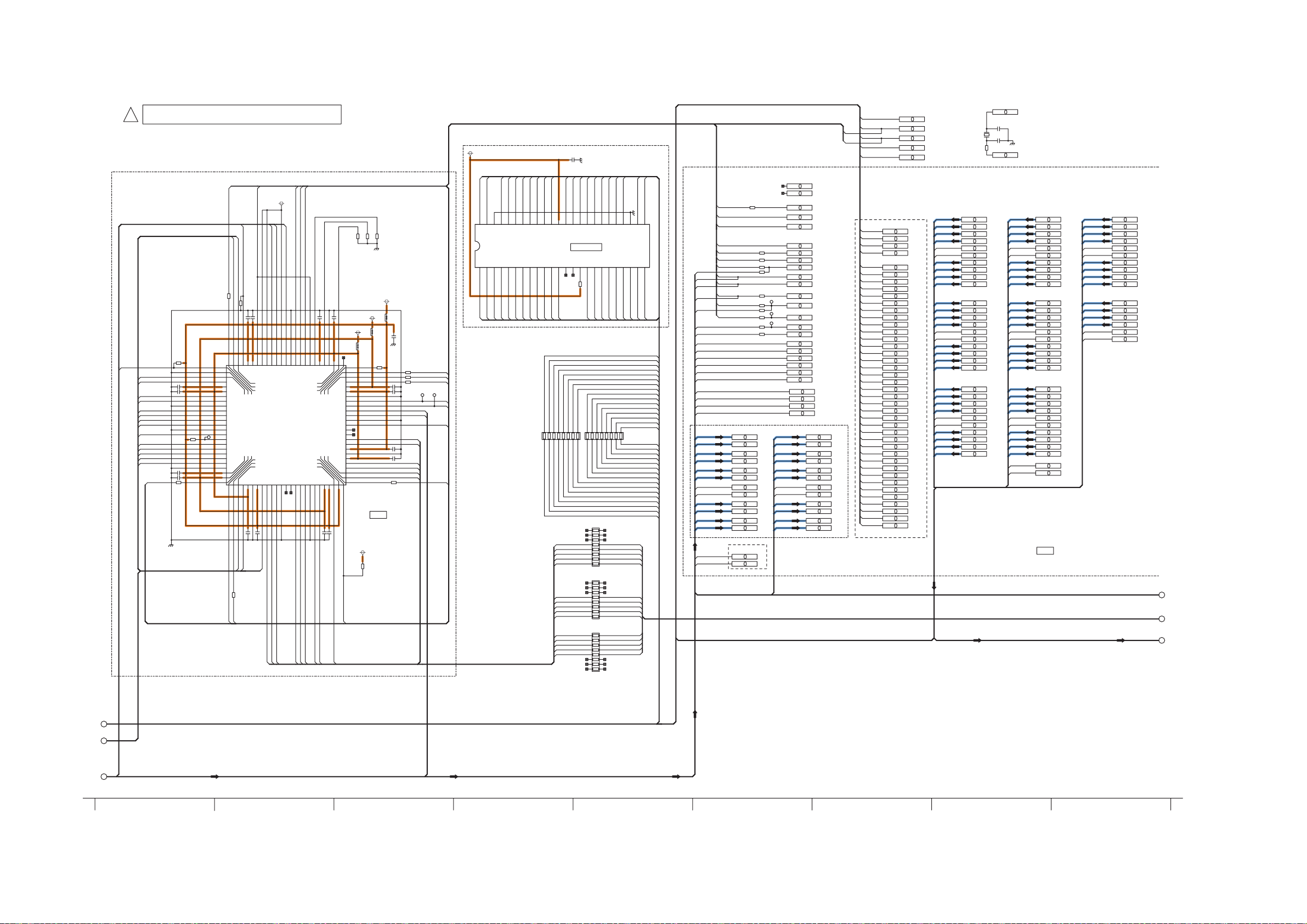

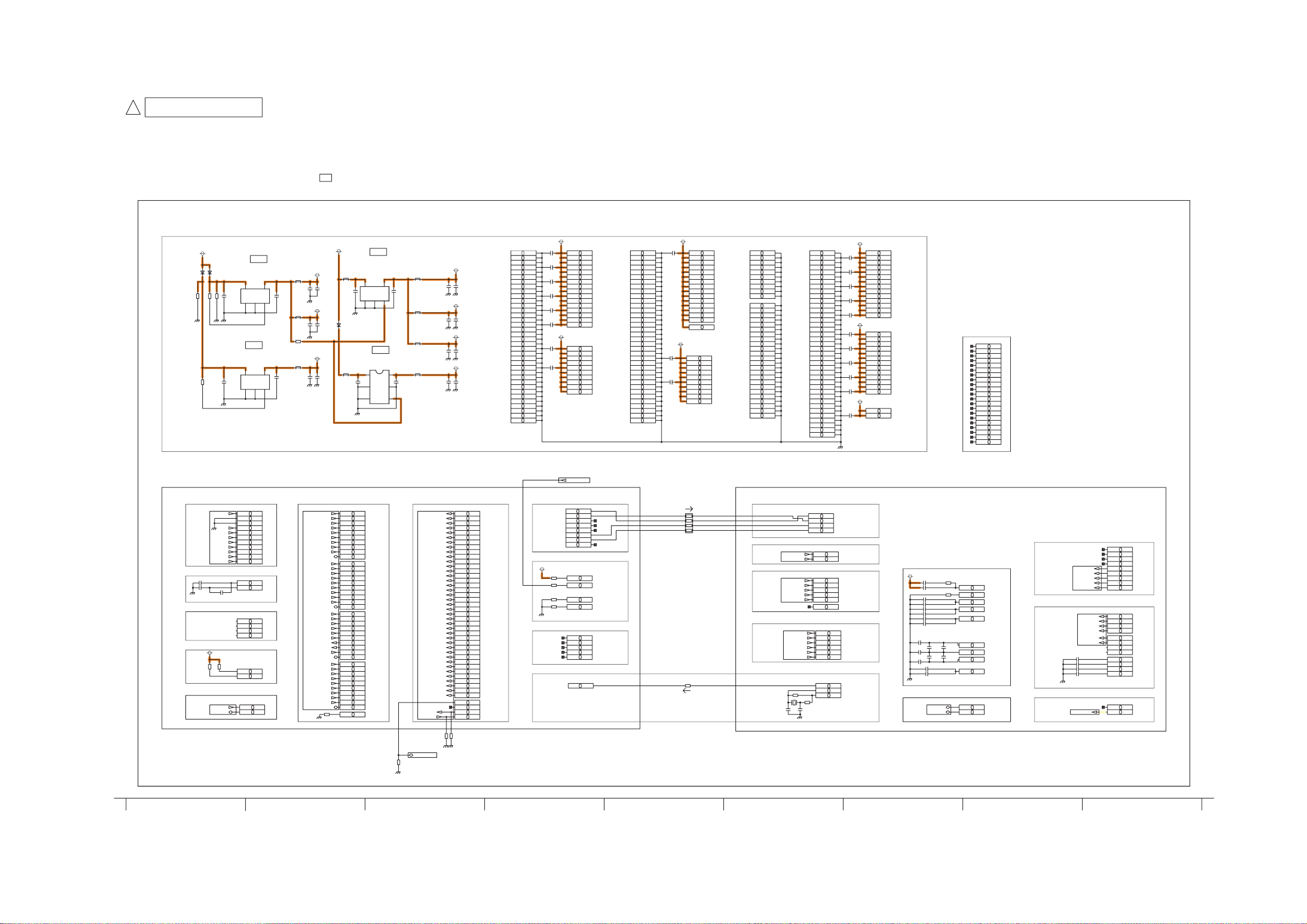

12.13. A-Board (9/22) Schematic Diagram

!

A-BOARD (9/22)

ADV

REF No. 4500-4799

ADV

IC4510

C1AB00003045

PowerSupply

SUB5V

D4577

D4576

B0HCMM000014

B0HCMM000014

10k

100k

R4624

C2118

10V

4.7u

R4699

C4605

10V

4.7u

IC2008

C0DBGYY00578

R4698

100k

R2190

4.7k

ADV7496

AnalogInput

TO 11/22

AIN9 RXA_CP

AIN6

AIN5

AIN4

SOY

SOY2

FBIN

PC_VS

PC_HS

AD ref

C4547

0.1u

16V

C4555

C4550

10u

10V

16V

0.1u

HPDET

CEC

DVDDIO_3.3V

R4642

R4620

47k

47k

IIC2

ADV_SCL

3.3V

IC4511

C0DBGYY00578

4

VOUT

VIN

VSS

ON/OFF

NC

2

3

3.3V

4

VOUT

VIN

VSS

ON/OFF

NC

2

3

IC4510 B10 AIN9

IC4510 A10 AIN8

IC4510 A11 AIN7

IC4510 A12 AIN6

IC4510 A13 AIN5

IC4510 A14 AIN4

IC4510 A15 SYNC2

IC4510 B11 SYNC3

IC4510 D11 FB

IC4510 D12 VS_IN1

IC4510 D13 HS_IN1

IC4510 B8 REFN

IC4510 A8 REFP

IC4510 W2 RXB_5V

IC4510 W3 RXC_5V

IC4510 Y1 RXD_5V

IC4510 W1 RXA_5V

IC4510 C13 AVLINK

IC4510 V4 CEC

IC4510 AA14 SCL

IC4510 AA13 SDATA

TVDD_3.3V

SUB3.3V

DVDDIO_3.3V

L4513

J0JCC0000059

5

C4603
10V

2.2u

1

J0JYC0000068

5

C2111
10V

4.7u

1

C4602

C4601

10V

16V

0.1u

10u

TVDD_3.3V

L4512

J0JCC0000059

C4599

C4600

10V

16V

10u

0.1u

R4623

0

AAVDD_3.3V

L2032

C2192

C2102

10V

16V

0.1u

10u

HDMI IN

TO 10/22 TO 11/22

RXA_CN

RXA_0P

RXA_0N

RXA_1P

RXA_1N

RXA_2P

RXA_2N

ADV-DDCA_SCL

ADV-DDCA_SDA

RXB_CP

RXB_CN

RXB_0P

RXB_0N

RXB_1P

RXB_1N

RXB_2P

RXB_2N

ADV-DDCB_SCL

ADV-DDCB_SDA

RXC_CP

RXC_CN

RXC_0P

RXC_0N

RXC_1P

RXC_1N

RXC_2N

ADV-DDCC_SCL

ADV-DDCC_SDA

RXD_CP

RXD_CN

RXD_0P

RXD_0N

RXD_1P

RXD_1N

RXD_2P

RXD_2N

ADV-DDCD_SCL

ADV-DDCD_SDA

R4631

1%

499

IC4513

C0DBGYY00618

L4514

J0JYC0000068

4

C4616

VIN

10V

4.7u

NC

3

D4583
B0HCMM000014

IC4512

C0CBCAG00039

L4515

J0JYC0000068

6

VIN

C4606

10V

5

4.7u
VSS

4

NC

IC4510 B5 RXA_C+

IC4510 A5 RXA_C-

IC4510 B4 RXA_0+

IC4510 A4 RXA_0-

IC4510 B3 RXA_1+

IC4510 A3 RXA_1-

IC4510 B2 RXA_2+

IC4510 A2 RXA_2-

IC4510 G4 DDCA_SCL

IC4510 F4 DDCA_SDA

IC4510 D2 RXB_C+

IC4510 D1 RXB_C-

IC4510 E2 RXB_0+

IC4510 E1 RXB_0-

IC4510 F2 RXB_1+

IC4510 F1 RXB_1-

IC4510 G2 RXB_2+

IC4510 G1 RXB_2-

IC4510 H4 DDCB_SCL

IC4510 J4 DDCB_SDA

IC4510 J2 RXC_C+

IC4510 J1 RXC_C-

IC4510 K2 RXC_0+

IC4510 K1 RXC_0-

IC4510 L2 RXC_1+

IC4510 L1 RXC_1-

IC4510 M2 RXC_2+

IC4510 M1 RXC_2-

IC4510 P4 DDCC_SCL

IC4510 R4 DDCC_SDA

IC4510 P2 RXD_C+

IC4510 P1 RXD_C-

IC4510 R2 RXD_0+

IC4510 R1 RXD_0-

IC4510 T2 RXD_1+

IC4510 T1 RXD_1-

IC4510 U2 RXD_2+

IC4510 U1 RXD_2-

IC4510 T4 DDCD_SCL

IC4510 U4 DDCD_SDA

IC4510 L4 RTERM

1.8V

J0JYC0000068

5

VOUT

C4617
10V

4.7u

VSS

ON/OFF

1

2

1.8V

1

VOUT

C4607
10V

4.7u

2

VSS

3

ON/OFF

L4517

J0JYC0000068

L4518

J0JYC0000068

L4519

J0JYC0000068

PVDD 1.8V

C4608

0.1u

AVDD 1.8V

C4613

6.3V

CVDD 1.8V

C4595

0.1u

DVDD 1.8V

C4633

16V

VAVDD_1.8V

1u

16V

10V
10u

CVDD_1.8V

DVDD_1.8V

C4631
10V
10u

C4635

10V
10u

C4598
10V

10u

C4637
16V

0.1u

PVDD_1.8V

L4516

DigitalVideoOUT

IC4510 AB2 P0

ADV_P0

IC4510 AC2 P1

ADV_P1

IC4510 AB3 P2

ADV_P2

IC4510 AC3 P3

ADV_P3

IC4510 AB4 P4

ADV_P4

IC4510 AC4 P5

ADV_P5

IC4510 AB5 P6

ADV_P6

IC4510 AC5 P7

ADV_P7

IC4510 AB6 P8

ADV_P8

IC4510 AC6 P9

ADV_P9

IC4510 AB8 P10

ADV_P10

IC4510 AC8 P11

ADV_P11

IC4510 AB9 P12

ADV_P12

IC4510 AC9 P13

ADV_P13

IC4510 AB10 P14

ADV_P14

IC4510 AC10 P15

ADV_P15

IC4510 AB11 P16

ADV_P16

IC4510 AC11 P17

ADV_P17

ADV_P18

IC4510 AC13 P18

IC4510 AB13 P19

ADV_P19

IC4510 AC14 P20

ADV_P20

IC4510 AB14 P21

ADV_P21

IC4510 AC15 P22

ADV_P22

IC4510 AB15 P23

ADV_P23

IC4510 AC16 P24

ADV_P24

IC4510 AB16 P25

ADV_P25

IC4510 AB18 P26

ADV_P26

IC4510 AC18 P27

ADV_P27RXC_2P

IC4510 AB19 P28

ADV_P28

IC4510 AC20 P29

ADV_P29

IC4510 AB20 P30

ADV_P30

IC4510 AC21 P31

ADV_P31

IC4510 AB21 P32

ADV_P32

IC4510 AC22 P33

ADV_P33

IC4510 AB22 P34

ADV_P34

IC4510 AB23 P35

ADV_P35

IC4510 AA1 HS

ADV_HS

ADV_DE

R4665

IC4510 AA2 VS_FIELD

IC4510 Y2 DE

IC4510 Y13 INT

IC4510 Y14 SYNC_OUT/INT2

IC4510 AC19 LLC/BLC

IC4510 AA18 DCLKIN

R4666

47k

47k

ADV_VS_FIELD

ADV_CLKOA

TO 5/22

AA_XIRQ3

R4652

47k

IC4510A1DGND

IC4510A6DGND

IC4510AA7DGND

IC4510AA12DGND

IC4510AA17DGND

IC4510AB1DGND

IC4510AB7DGND

IC4510AB12DGND

IC4510AC23DGND

IC4510AB17DGND

IC4510AC1DGND

IC4510AC7DGND

IC4510AC12DGND

IC4510AC17DGND

IC4510C1DGND

IC4510C3DGND

IC4510C4DGND

IC4510C5DGND

IC4510D4DGND

IC4510D5DGND

IC4510E3DGND

IC4510E4DGND

IC4510F3DGND

IC4510J3DGND

IC4510J10DGND

IC4510J11DGND

IC4510J12DGND

IC4510J13DGND

IC4510J14DGND

IC4510J15DGND

IC4510J16DGND

IC4510J17DGND

IC4510J20AGND

IC4510K10DGND

IC4510K11DGND

IC4510K12DGND

C4642

16V

0.1u

C4632

16V

0.1u

C4634

16V

0.1u

C4640

16V

0.1u

C4638

16V

0.1u

C4636

16V

0.1u

CVDD_1.8V

C4574

16V

0.1u

C4580

16V

0.1u

TO 8,13/22

HDMISoundOUT

VideoControl

DVDDIO_3.3V

R4707

47k

2.2k

R4656

R4674

10k

R4677

10k

EEPROM

IC4510 B1 TVDD

IC4510 B6 TVDD

IC4510 C2 TVDD

IC4510 C6 TVDD

IC4510 D3 TVDD

IC4510 D6 TVDD

IC4510 G3 TVDD

IC4510 H1 TVDD

IC4510 H2 TVDD

IC4510 H3 TVDD

IC4510 M3 TVDD

IC4510 N2 TVDD

IC4510 N3 TVDD

IC4510 U3 TVDD

IC4510 V2 TVDD

IC4510 V3 TVDD

IC4510 J7 CVDD

IC4510 J8 CVDD

IC4510 J9 CVDD

IC4510 K7 CVDD

IC4510 K8 CVDD

IC4510 K9 CVDD

IC4510 L7 CVDD

IC4510 L8 CVDD

IC4510 M7 CVDD

IC4510 M8 CVDD

G-ADV_XRST

IC4510Y9SCLK

IC4510Y8LRCLK

IC4510Y10I2S3

IC4510AA10I2S2

IC4510Y11I2S1

IC4510AA11I2S0

IC4510AA9SPDIF

IC4510AA8CLK_24.576

IC4510 AA3 PWRDNB

IC4510 AA22 RESETB

IC4510 B7 TEST0

IC4510 A7 TEST1

IC4510 Y6 EP_MISO

IC4510 AA4 EP_MOSI

IC4510 AA5 EP_CS

IC4510 AA6 EP_SCK

IC4510 AA23 SHARED_EDID

IC4510C15VCLKIN

M13DGND

DVDD_1.8V

C4626

16V

0.1u

IC4510K13DGND

IC4510K14DGND

IC4510K15DGND

IC4510K16DGND

IC4510K17DGND

IC4510L3DGND

IC4510K3DGND

IC4510L9DGND

IC4510L10DGND

IC4510L11DGND

IC4510L12DGND

IC4510L13DGND

IC4510L14DGND

IC4510L15DGND

IC4510L16DGND

IC4510L17DGND

IC4510M4DGND

IC4510M9DGND

IC4510M10DGND

IC4510M11DGND

IC4510M12DGND

IC4510

IC4510M14DGND

IC4510M15DGND

IC4510M16DGND

IC4510M17DGND

IC4510N1DGND

IC4510N7DGND

IC4510N8DGND

IC4510N9DGND

IC4510N10DGND

IC4510N11DGND

IC4510N12DGND

IC4510N13DGND

IC4510N14DGND

IC4510N15DGND

C4644

0.1u

C4645

0.1u

DVDDIO_3.3V

16V

16V

IC4510 P10 DVDD

IC4510 P11 DVDD

IC4510 P12 DVDD

IC4510 P13 DVDD

IC4510 P14 DVDD

IC4510 P15 DVDD

IC4510 P16 DVDD

IC4510 P17 DVDD

IC4510 R11 DVDD

IC4510 R12 DVDD

IC4510 R13 DVDD

IC4510 R14 DVDD

IC4510 R15 DVDD

IC4510 R16 DVDD

IC4510 R17 DVDD

IC4510 R10 DVDD

IC4510 AA16 DVDDIO

IC4510 U9 DVDDIO

IC4510 U10 DVDDIO

IC4510 U11 DVDDIO

IC4510 U12 DVDDIO

IC4510 U13 DVDDIO

IC4510 U14 DVDDIO

IC4510 U15 DVDDIO

IC4510 U16 DVDDIO

IC4510 Y16 DVDDIO

IC4510N16DGND

IC4510N17DGND

IC4510P3DGND

IC4510P7DGND

IC4510P8DGND

IC4510P9DGND

IC4510R3DGND

IC4510R7DGND

IC4510R8DGND

IC4510R9DGND

IC4510T3DGND

IC4510T7DGND

IC4510T8DGND

IC4510T9DGND

IC4510T10DGND

IC4510T11DGND

IC4510T12DGND

IC4510T13DGND

IC4510T14DGND

IC4510T15DGND

IC4510T16DGND

IC4510T17DGND

IC4510U7DGND

IC4510U8DGND

IC4510U17DGND

IC4510U22DGND

IC4510V1DGND

IC4510W20DGND

IC4510W21DGND

IC4510W22DGND

IC4510W23DGND

IC4510Y7DGND

IC4510Y12DGND

IC4510Y17DGND

VAVDD_1.8V

C4628

16V

IC4510A9AGND

IC4510A16AGND

IC4510A23AGND

IC4510B9AGND

IC4510B15AGND

IC4510B16AGND

IC4510C9AGND

IC4510C16AGND

IC4510C17AGND

IC4510C18AGND

IC4510C19AGND

IC4510C20AGND

IC4510D9AGND

IC4510D16AGND

IC4510D17AGND

IC4510D18AGND

IC4510D19AGND

IC4510D20AGND

IC4510G14AGND

IC4510G15AGND

IC4510H7AGND

IC4510H8AGND

IC4510H9AGND

IC4510H10AGND

IC4510H11AGND

IC4510H12AGND

IC4510H13AGND

IC4510H14AGND

IC4510H15AGND

IC4510H16AGND

IC4510H17AGND

IC4510H20AGND

IC4510K20AGND

IC4510K21AGND

IC4510K22AGND

IC4510L20AGND

IC4510L21AGND

IC4510L22AGND

IC4510L23AGND

0.1u

C4629

16V

0.1u

C4630

16V

0.1u

C4585

16V

0.1u

C4575

16V

0.1u

C2251

10V
10u

C2216

16V

0.1u

C2049

16V

0.1u

C2050

16V

0.1u

C2023

16V

0.1u

C4643

16V

0.1u

AAVDD_3.3V

PVDD_1.8V

IC4510 B12 VAVDD

IC4510 B13 VAVDD

IC4510 B14 VAVDD

IC4510 C10 VAVDD

IC4510 C11 VAVDD

IC4510 C12 VAVDD

IC4510 C14 VAVDD

IC4510 D10 VAVDD

IC4510 D14 VAVDD

IC4510 G9 VAVDD

IC4510 G10 VAVDD

IC4510 G11 VAVDD

IC4510 G12 VAVDD

IC4510 G13 VAVDD

IC4510 C21 AAVDD

IC4510 D21 AAVDD

IC4510 E21 AAVDD

IC4510 F20 AAVDD

IC4510 F21 AAVDD

IC4510 G16 AAVDD

IC4510 G17 AAVDD

IC4510 G20 AAVDD

IC4510 G21 AAVDD

IC4510 H21 AAVDD

IC4510 J21 AAVDD

IC4510 J22 AAVDD

IC4510 J23 AAVDD

IC4510 G7 PVDD

IC4510 G8 PVDD

NC

IC4510 AA15 NC

IC4510 AA19 NC

IC4510 AA20 NC

IC4510 AA21 NC

IC4510 C7 NC

IC4510 C8 NC

IC4510 D7 NC

IC4510 D8 NC

IC4510 K4 NC

IC4510 N4 NC

IC4510 W4 NC

IC4510 Y3 NC

IC4510 Y4 NC

IC4510 Y5 NC

IC4510 Y15 NC

IC4510 Y18 NC

IC4510 Y19 NC

IC4510 Y20 NC

IC4510 Y21 NC

IC4510 Y22 NC

IC4510 Y23 NC

ADAV4622

HDMISoundInput

IC4510 N20 BCLK1/SPDIF_IN4

IC4510 N21 LRCLK1/SPDIF_IN3

IC4510 T20 SDIN1

TO 12/22

TO 5/22

X2010

50V
15p

ARESETB

AH_SRCK0

AH_LRCK0

AH_DMIX0

AH_DAUDIO

AH_IECOUT0

TO 12/22

R2003

MUTEB

SIF_IN2

SIF_IN1

AUXIN1L

AUXIN1R

AUXIN2L

AUXIN2R

1M

IC4510 R20 SDIN3/SPDIF_IN0

IC4510 M21 ARESETB

IC4510 U23 MUTEB

IC4510 U20 BCLK2/SPDIF_IN6

IC4510 U21 LRCLK2/SPDIF_IN5

IC4510 R21 SDIN2

IC4510 T21 SDIN0

IC4510 P20 BCLK0/SPDIF_IN2

IC4510 P21 LRCLK0/SPDIF_IN1

IC4510 A17 SIF_IN2

IC4510 A18 SIF_IN1

IC4510 B21 AUXIN1L

IC4510 A21 AUXIN1R

IC4510 B22 AUXIN2L

IC4510 A22 AUXIN2R

IC4510 D15 MCLK_OUT

IC4510 V23 XIN

IC4510 V22 XOUT

R2002

1k
C2056
50V
12p

Filter

IIC2

AAVDD_3.3V

C2244 0.1u

16V

C2245 1000p

50V

C2106 0.1u16V

C2108 10u

10V

C2105 0.1u16V

C2107 10u10V

C2059 10u10V

C2058 0.1u16V

C2114

0.1u

16V

C2115

0.1u

16V

C2117

0.1u

16V

C2124 0.1u

16V

C2137 10u

10V

TO 1/22TO 1/22

ADAV_SCL

ADAV_SDAADV_SDA

R2019

C2112
10V

10u

C2113
10V
10u

R2020

2k

IC4510 K23 PLL_LF

20k

IC4510 E20 ISET

IC4510 B20 FILTA

IC4510 A20 VREF_AUDIO

IC4510 B23 FILTD

C2109

IC4510 B19 SIF_REFP

16V

0.1u
IC4510 A19 SIF_REFCM

C2110
16V

IC4510 B18 SIF_REFN

0.1u

IC4510 B17 SIF_PGA_REF

IC4510 V20 AUDIO_SCL

IC4510 V21 AUDIO_SDA

PWM OUT

AnalogSoundOUT

DigitalSoundOUT

TO 12/22

PWM3A

PWM3B

PWM4A

PWM4B

PWM_READY

TO 12/22

AUDIOOUT_L

AUDIOOUT_R

TV_L

TV_R

HPOUT1L

HPOUT1R

C2135 16V 0.01u

C2136

16V 0.01u

C2127

16V

C2125

16V

TO 13/22

SPDIF_OUTADV_LLC

0.01u

0.01u

IC4510 R23 PWM1A

IC4510 R22 PWM1B

IC4510 P23 PWM2A

IC4510 P22 PWM2B

IC4510 N23 PWM3A

IC4510 N22 PWM3B

IC4510 M23 PWM4A

IC4510 M22 PWM4B

IC4510 T23 PWM_READY

IC4510 D22 AUXOUT1L

IC4510 D23 AUXOUT1R

IC4510 C22 AUXOUT2L

IC4510 C23 AUXOUT2R

IC4510 H22 HPOUT1L

IC4510 H23 HPOUT1R

IC4510 G22 HPOUT2L

IC4510 G23 HPOUT2R

IC4510 F22 AUXOUT3L

IC4510 F23 AUXOUT3R

IC4510 E22 AUXOUT4L

IC4510 E23 AUXOUT4R

IC4510 T22 SDO0

IC4510 M20 SPDIF_OUT

R4648

EXB28V330JX

R2172

SoundControl

DTVSoundInput

AnalogSoundIN

SystemClock

68

H0J245500089

C2055

61

80777673 7574 7978 81

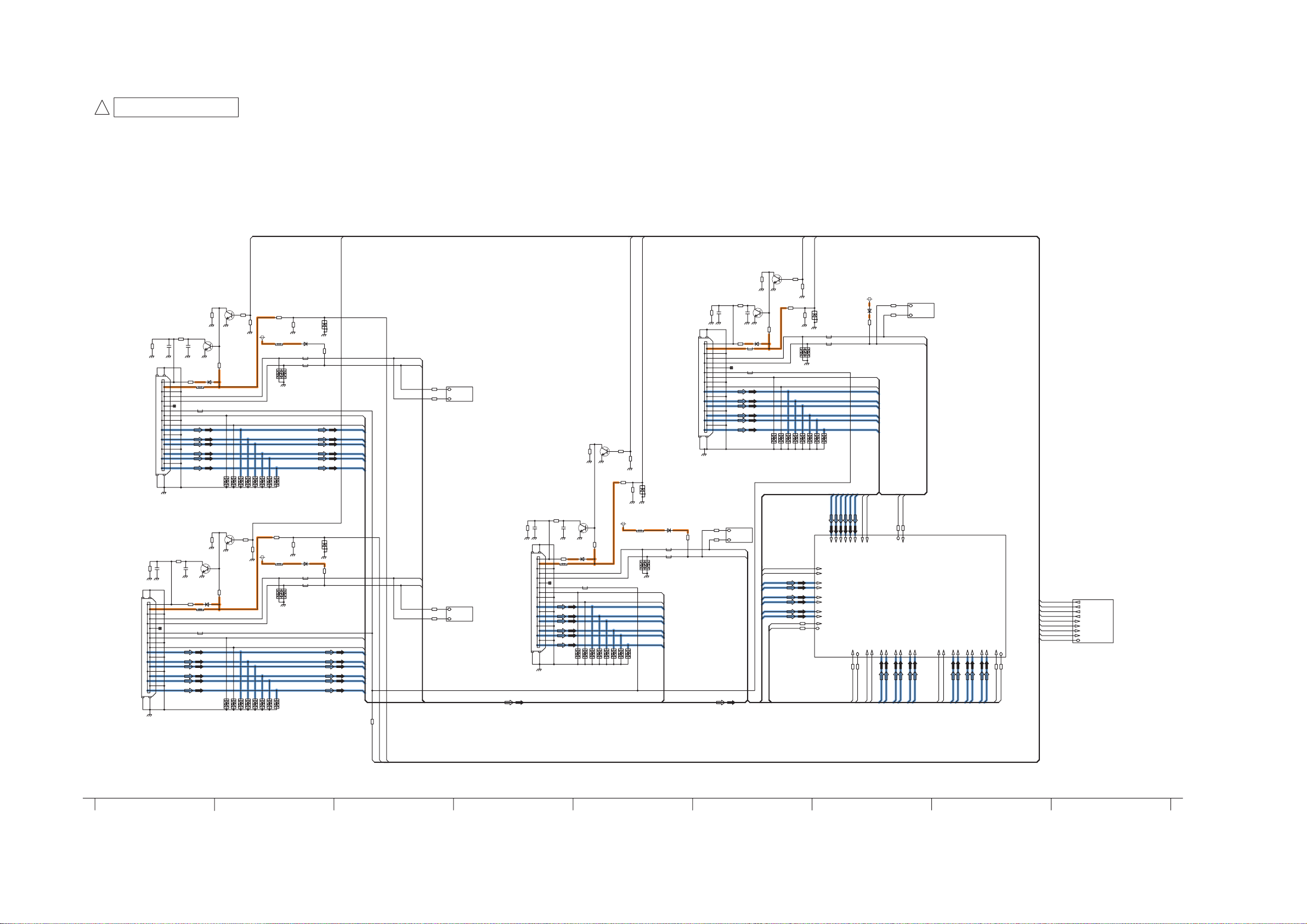

12.14. A-Board (10/22) Schematic Diagram

!

A-BOARD (10/22)

ADV_V
REF No. 4500-4799

HDMI1

HDMI2

JK4500

JK4501

R4500

HPDT

+5V

DDCG

SDA

SCL

N.C.

CEC

CLK-

CLKG

CLK+

D0-

D0G

D0+

D1-

D1G

D1+

D2-

D2G

D2+

G-HPD1

Q4533

B1ABCF000231

R4525

R4529
10k

Q4534

B1ABCF000231

R4531
10k

D4587

EZAEG2A50AX

R4507

D4588

EZAEG2A50AX

10k

D4589

R4524

R4506

R4658

47k

Q4501

R4503

33

C4501

R4501

16V

10k

0.1u

HPDT

19

+5V

DDCG

17

SDA

SCL

15

N.C.

CEC

13

CLK-

CLKG

11

CLK+

D0-

9

D0G

D0+

7

D1-

D1G

5

D1+

D2-

3

D2G

D2+

1

C4500
16V

10k

0.1u

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

B1ABCF000231

C4503
16V

0.1u

D4526

R4505

MA2J11100L

1k

18

16

14

12

10

8

6

4

2

P

L4501

VJUMP1608-P

L4503

J0JYC0000068

R4534

47k

R4502

Q4500

33

B1ABCF000231

C4502
16V

0.1u

D4525

R4504

MA2J11100L

1k

P

L4500

VJUMP1608-P

L4502

J0JYC0000068

47k

D4590

EZAEG2A50AX

EZAEG2A50AX

10k

47k

R4530

10k

R4533

47k

STB5V

D4591

EZAEG2A50AX

STB5V

D4592

EZAEG2A50AX

B0BC5R6A0275

R4667

D4541

VJUMP1608-P

P

MA2J11100L

L4506

J0JYC0000068

L4507

J0JYC0000068

D4520

D4517

EZAEG2A50AX

EZAEG2A50AX

D4594

D4593

EZAEG2A50AX

EZAEG2A50AX

R4528

10k

R4532

47k

B0BC5R6A0275

D4542

R4671

MA2J11100L

VJUMP1608-P

PP

L4504

J0JYC0000068

L4505

J0JYC0000068

D4518

D4512

EZAEG2A50AX

EZAEG2A50AX

G-HPD2

D4611

R4540
47k

RXC_CN

RXC_CP

RXC_0N RXD_2P

RXC_0P

RXC_1N

RXC_1P

RXC_2N

RXC_2P

D4513

R4538

47k

RXB_CN

RXB_CP

RXB_0N

RXB_0P

RXB_1N

RXB_1P

RXB_2N

RXB_2P

DDCC_SDA

DDCC_SCL

DDCB_SDA

DDCB_SCL

R4543

TO 8/22

0

G-DDCSCL1

R4541

0

G-DDCSDA1

B1ABCF000231

R4740

47k

R4729

Q4520

33

C4702

R4728

16V

10k

HDMI3

JK4502

HPDT

19

+5V

DDCG

17

SDA

SCL

15

N.C.

CEC

13

CLK-

CLKG

11

R4539

TO 8/22

0

G-DDCSCL2

R4542

0

G-DDCSDA2

CLK+

D0-

9

D0G

D0+

7

D1-

D1G

5

D1+

D2-

3

D2G

D2+

1

B1ABCF000231

C4703
16V

0.1u

0.1u

R4739

10k

D4615

R4734

MA2J11100L

1k

18

L4524

VJUMP1608-P

16

14

12

10

8

6

4

2

L4521

J0JYC0000068

D4503

EZAEG2A50AX

D4505

EZAEG2A50AX

D4507

EZAEG2A50AX

Q4535

D4509

D4511

EZAEG2A50AX

EZAEG2A50AX

R4733

10k

STB5V

D4516

EZAEG2A50AX

R4732

R4735

10k

R4736

D4521

G-HPD3

47k

47k

D4523

EZAEG2A50AX

R4746

VJUMP1608-P

D4573

EZAEG2A50AX

G-HDMI_5V_DET3

D4617
B0BC5R6A0275

P

EZAEG2A50AX

RXA_CN

RXA_CP

RXA_0N

RXA_0P

RXA_1N

RXA_1P

RXA_2N

RXA_2P

J0JYC0000068

D4574

EZAEG2A50AX

D4575

MA2J11100L

L4522

L4523

J0JYC0000068

HDMI4

JK4700

HPDT

G-HPD0

D4701

EZAEG2A50AX

R4701

10k

D4702

R4700

10k

R4718

47k

R4702

D4706

D4703

EZAEG2A50AX

R4600

R4599

47k

EZAEG2A50AX

D4704

EZAEG2A50AX

EZAEG2A50AX

0

0

G-HDMI_5V_DET0

D4707

EZAEG2A50AX

D4705

D4708

EZAEG2A50AX

D4584
B0BC5R6A0275

L4525

J0JYC0000068

L4526

J0JYC0000068

D4709

EZAEG2A50AX

EZAEG2A50AX

RXC_CN

RXC_CP

RXC_0N

RXC_0P

RXC_1N

RXC_1P

RXC_2N

RXC_2P

ADV-DDCC_SCL

ADV-DDCC_SDA

RXA_2P

RXA_2P

RXA_2N

RXA_2N

RXA_1P

RXA_1P

RXA_1N

MA2J11100L

RXA_0P

RXA_1N

D4713

R4705

RXA_0N

RXA_0N

RXA_0P

ADV-DDCD_SDA

ADV-DDCD_SCL

0

0

R4613

R4614

DDCD_SDA

DDCD_SCL

RXA_CP

STB5V

R4710

TO 8/22

0

G-DDCSCL0

R4711

0

RXD_0N

RXD_0P

R4604

RXD_0P

DDCA_SDA

0

TO 9/22

RXD_1N

RXD_1N

DDCD_SDA

DDCD_SCL

DDCA_SCL

R4607

0

ADV-DDCA_SCL

ADV-DDCA_SDA

RXD_1P

RXD_1P

RXD_2N

G-DDCSDA0

RXD_2N

RXD_2P

RXD_2P

RXB_CN

RXB_CN

RXB_CP

RXB_CP

RXB_0N

RXB_0N

RXB_0P

RXB_0P

RXB_1N

RXB_1N

RXB_1P

RXB_1P

RXB_2N

RXB_2N

RXB_2P

RXB_2P

ADV-DDCB_SCL

ADV-DDCB_SDA

0

0

R4615

R4616

DDCB_SDA

DDCB_SCL

G-HPD0

G-HPD3

G-HPD2

G-HPD1

G-HDMI_5V_DET0

G-HDMI_5V_DET3

G-HDMI_5V_DET2

G-HDMI_5V_DET1

G-HDMI_CEC

TO 8/22

G-HPD0

G-HPD3

G-HPD2

G-HPD1

G-HDMI_5V_DET0

G-HDMI_5V_DET3

G-HDMI_5V_DET2

G-HDMI_5V_DET1

G-HDMI_CEC

47k

RXD_CN

RXD_CP

RXD_0N

RXD_0P

RXD_1N

RXD_1P

RXD_2N

RXA_CN

RXA_CP

RXA_CN

RXD_CN

RXD_CP

RXD_CN

RXD_CP

RXD_0N

Q4538

B1ABCF000231

R4619

47k

Q4700

R4716

2SD0601A0L

33

C4700

R4713

19

+5V

DDCG

17

SDA

SCL

15

N.C.

CEC

13

CLK-

CLKG

11

CLK+

D0-

D0G

D0+

D1-

D1G

D1+

D2-

D2G

D2+

R4738
47k

C4701

16V

10k

9

7

5

3

1

16V

0.1u

0.1u

R4606

10k

D4548

R4717

MA2J11100L

1k

18

16

14

12

10

8

6

4

2

R4708

R4709

L4700

J0JYC0000068

L4701

J0JYC0000068

D4700

EZAEG2A50AX

TO 8/22

0

G-DDCSCL3

0

G-DDCSDA3

DDCA_SDA

DDCA_SCL

RXC_CN

RXC_CP

RXC_0N

RXC_0P

RXC_1N

RXC_1P

RXC_2N

RXC_2P

DDCC_SCL

DDCC_SDA

D4595

EZAEG2A50AX

D4596

EZAEG2A50AX

D4597

EZAEG2A50AX

D4598

EZAEG2A50AX

D4599

EZAEG2A50AX

D4600

EZAEG2A50AX

D4601

EZAEG2A50AX

D4602

EZAEG2A50AX

R4552

22

G-HDMI_CEC

G-HDMI_5V_DET2

G-HDMI_5V_DET1

84 86 8982 8887 9083 85

62

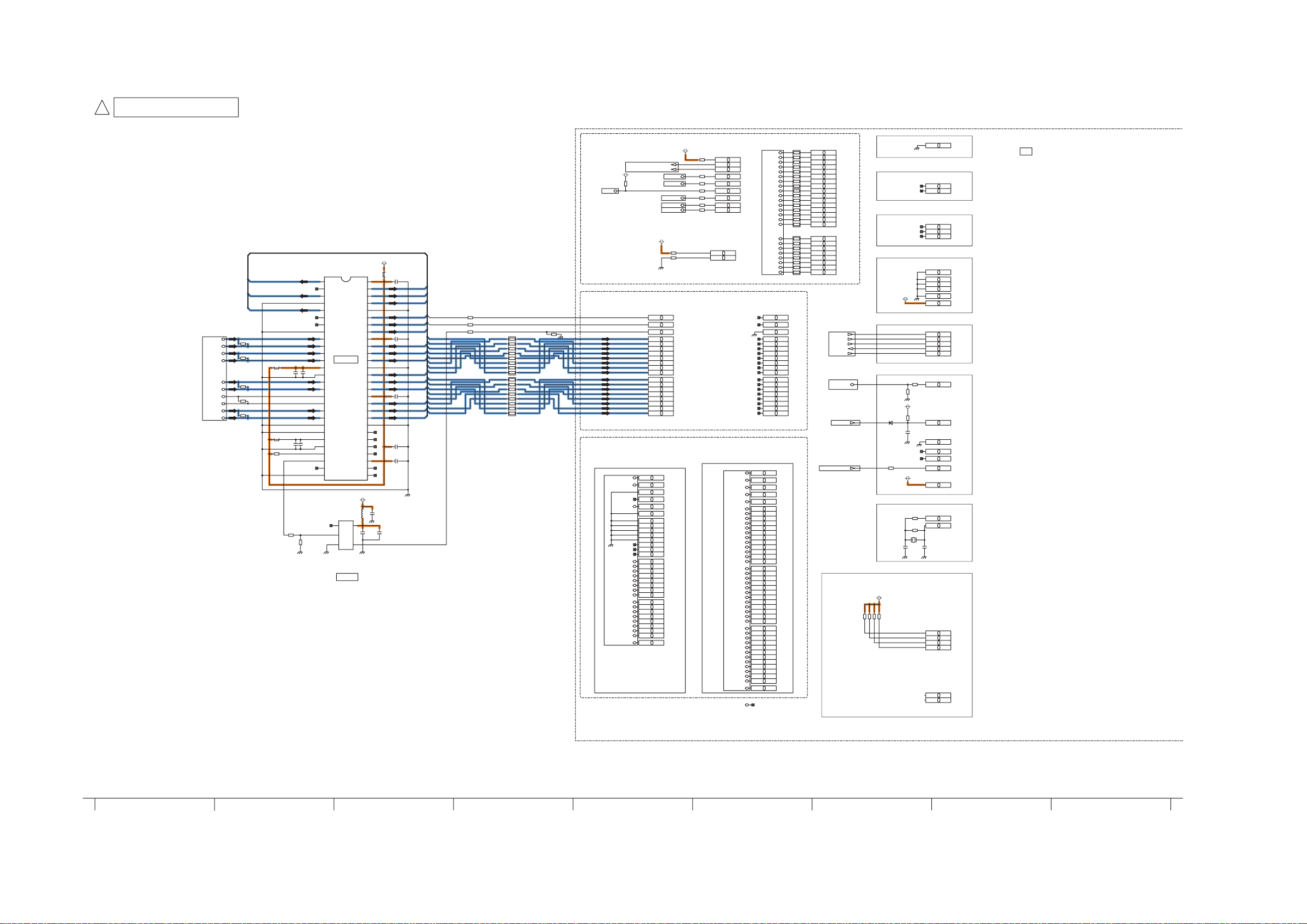

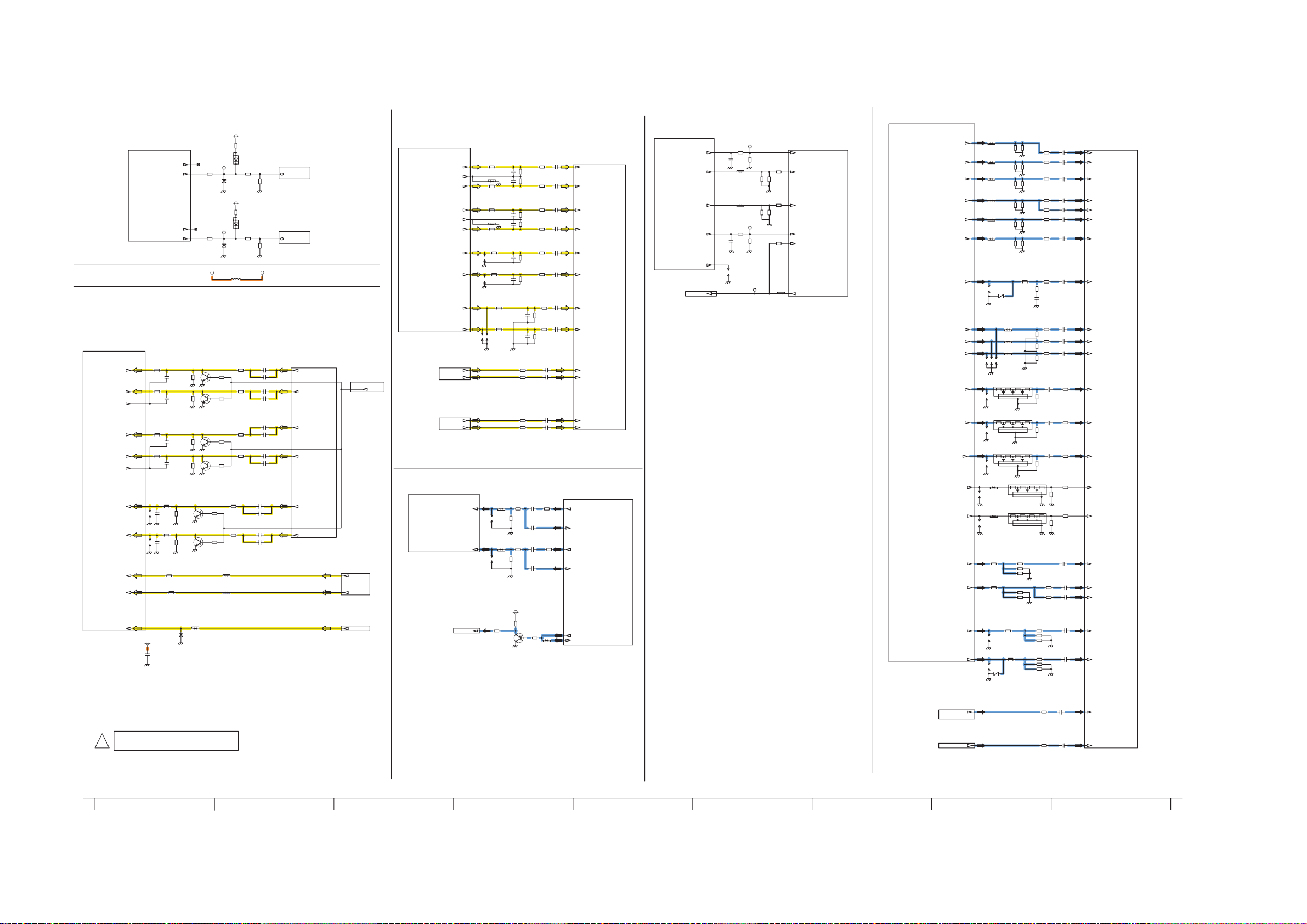

12.15. A-Board (11/22) Schematic Diagram

!

A-BOARD (11/22)

ADV_V
REF No. 4500-4799

TO 13/22

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

RGB_FB

TO 9/22

SUB9V

L4511

J0JYC0000068

R4601

C4625

1k

16V

0.1u

Q4517

R4587

2SB0709ASL

604

C4533

R4593

50V

RGB_FB

PC_HS

PC_VS

PC_HS

PC_VS

MAIN_Y/CVBS

MAIN_PB/C

RGB_CVBS

RGB_CVBS

MAIN_PR

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

2.2k
68p

*C4537

*R4608

16V

1k

Q4516

Q4515

0.1u

C4624

R4598

16V

1k

0.1u

C4535

R4597

16V

1k

0.1u

C4534

R4596

16V

1k

0.1u

Q4514

2SB0709ASL

*Q4519

2SB0709ASL

*R4664

604

*R4605

2.2k

R4626

220

Y

R4592

806

2SB0709ASL

R4627
220

R4589

806

2SB0709ASL

R4634
220

R4588

806

+

C4554

C4551

16V

16V

47u

0.1u

C4553

1000p

50V

*C4567

0.1u

16V

TP4512

YIN

C4552

16V

0.1u

PB/C

C4549

16V

0.1u

PR

C4548

16V

0.1u

R4673

VJUMP1005-S

PC_HS

PC_VS

RGB_FB

S

*R4622

1k

TO 9/22

PC_HS

PC_VS

FBIN

*R4609

1.2k

SOY

RGB_CVBS

SOY

AIN9

YIN

AIN4

PB/C

AIN6

PR

AIN5

ADV_VS_FIELD

ADV_P0

ADV_P1

ADV_P2

ADV_P3

ADV_P4

ADV_P5

ADV_P6

ADV_P7

ADV_P8

ADV_P9

ADV_P10

ADV_P11

ADV_P12

ADV_P13

ADV_P14

ADV_P15

ADV_P16

ADV_P17

ADV_P18

ADV_P19

ADV_P20

ADV_P21

ADV_P22

ADV_P23

ADV_P24

ADV_P25

ADV_P26

ADV_P27

ADV_P28

ADV_P29

ADV_P30

ADV_P31

ADV_P32

ADV_P33

ADV_P34

ADV_P35

ADV_HS

ADV_DE

ADV_LLC

ADV_CLKOA

ADV_P0

ADV_P1

ADV_P2

ADV_P3

ADV_P4

ADV_P5

ADV_P6

ADV_P7

ADV_P8

ADV_P9

ADV_P10

ADV_P11

ADV_P12

ADV_P13

ADV_P14

ADV_P15

ADV_P16

ADV_P17

ADV_P18

ADV_P19

ADV_P20

ADV_P21

ADV_P22

ADV_P23

ADV_P24

ADV_P25

ADV_P26

ADV_P27

ADV_P28

ADV_P29

ADV_P30

ADV_P31

ADV_P32

ADV_P33

ADV_P34

ADV_P35

ADV_HS

ADV_VS_FIELD

ADV_DE

ADV_LLC

ADV_CLKOA

EXB28V680JX

EXB28V680JX

EXB28V680JX

EXB28V680JX

EXB28V680JX

EXB28V680JX

EXB28V680JX

EXB28V680JX

EXB28V680JX

R4635

R4639

R4640

R4678

R4679

R4649

R4799

R4646

R4645

R4636

R4638

R4637

R4651

R4650

GC6_GYIA11

GC6_GYIA10

GC6_GYIA9

GC6_GYIA8

GC6_GYIA7

GC6_GYIA6

GC6_GYIA5

GC6_GYIA4

GC6_GYIA3

GC6_GYIA2

GC6_GYIA1

GC6_GYIA0

GC6_BUIA11

GC6_BUIA10

GC6_BUIA9

GC6_BUIA8

GC6_BUIA7

GC6_BUIA6

GC6_BUIA5

GC6_BUIA4

GC6_BUIA3

GC6_BUIA2

GC6_BUIA1

GC6_BUIA0

GC6_RVIA11

GC6_RVIA10

GC6_RVIA9

GC6_RVIA8

GC6_RVIA7

GC6_RVIA6

GC6_RVIA5

GC6_RVIA4

GC6_RVIA3

GC6_RVIA2

GC6_RVIA1

GC6_RVIA0

68

68

GC6_ENBIA

68

GC6_CLKIA

68

GC6_CLKOA

68

GC6_HSIA

GC6_VSIA

GC6_HSIA

GC6_VSIA

GC6_ENBIA

GC6_CLKOA

GC6_CLKIA

GC6_RVIA11

GC6_RVIA10

GC6_RVIA9

GC6_RVIA8

GC6_RVIA7

GC6_RVIA6

GC6_RVIA5

GC6_RVIA4

GC6_RVIA3

GC6_RVIA2

GC6_RVIA1

GC6_RVIA0

GC6_BUIA11

GC6_BUIA10

GC6_BUIA9

GC6_BUIA8

GC6_BUIA7

GC6_BUIA6

GC6_BUIA5

GC6_BUIA4

GC6_BUIA3

GC6_BUIA2

GC6_BUIA1

GC6_BUIA0

GC6_GYIA11

GC6_GYIA10

GC6_GYIA9

GC6_GYIA8

GC6_GYIA7

GC6_GYIA6

GC6_GYIA5

GC6_GYIA4

GC6_GYIA3

GC6_GYIA2

GC6_GYIA1

GC6_GYIA0

TO 16/22

GC6_HSIA

GC6_VSIA

GC6_ENBIA

GC6_CLKOA

GC6_CLKIA

GC6_RVIA11

GC6_RVIA10

GC6_RVIA9

GC6_RVIA8

GC6_RVIA7

GC6_RVIA6

GC6_RVIA5

GC6_RVIA4

GC6_RVIA3

GC6_RVIA2

GC6_RVIA1

GC6_RVIA0

GC6_BUIA11

GC6_BUIA10

GC6_BUIA9

GC6_BUIA8

GC6_BUIA7

GC6_BUIA6

GC6_BUIA5

GC6_BUIA4

GC6_BUIA3

GC6_BUIA2

GC6_BUIA1

GC6_BUIA0

GC6_GYIA11

GC6_GYIA10

GC6_GYIA9

GC6_GYIA8

GC6_GYIA7

GC6_GYIA6

GC6_GYIA5

GC6_GYIA4

GC6_GYIA3

GC6_GYIA2

GC6_GYIA1

GC6_GYIA0

R4610

TO 2/22

47k

VI1CKOUT

VI1CLK

R4611

47k

63

96959291 97 9893 9994

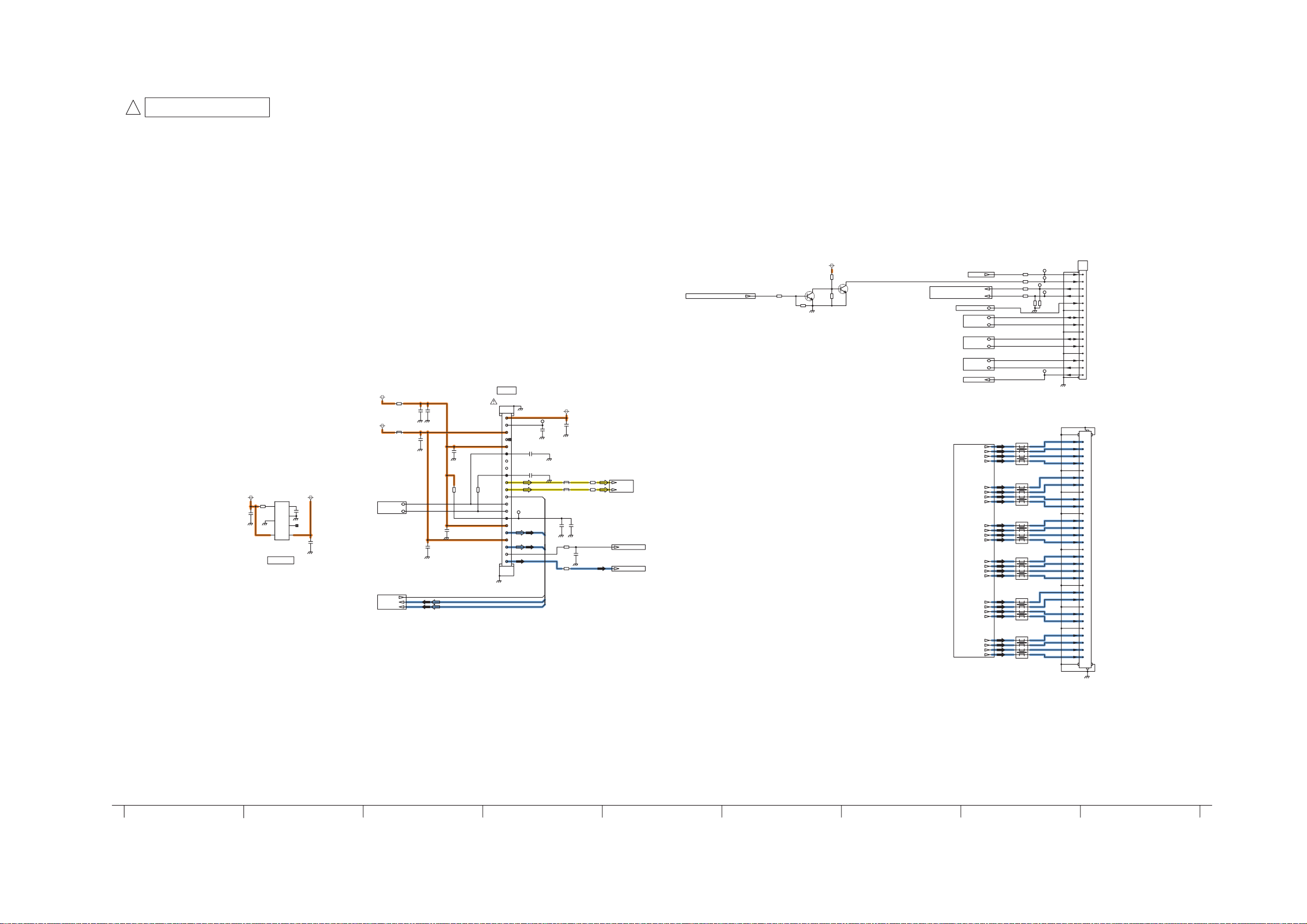

12.16. A-Board (12/22) Schematic Diagram

!

A-BOARD (12/22)

ADV_A

REF No. 2000-2499

R2114

Q2022

B1ADCE000022

2.2k

C2302

16V

0.1u

C2313

10V

R2325

VJUMP1005-S

S

R2115

2.2k

1u

SUB9V

D2014

MA2J11100L

C1AB00002875

1

STBY

2

NC1

3

MUTE

4

NC2

5

PWM_A1

6

NC3

7

PWM_B1

8

NC4

9

VREG5

10

GND

11

NC5

12

PWM_B2

13

NC6

14

PWM_A2

15

NC7

16

NOD_THERM

17

NOD_OUTSHDN

18

NC8

AUDIO AMP

IC2301

Thermal Pad

R2118

470

OUT_CH1_P

BOOT_CH1_P

BOOT_CH1_N

OUT_CH1_N

OUT_CH2_N

BOOT_CH2_N

BOOT_CH2_P

OUT_CH2_P

PVD1

PVD1

VDDA1

PGND1

PGND1

PGND2

PGND2

VDDA2

PVD2

PVD2

TO 8/22

G-AUDIO_XRST

G-SOUND_SOS

TO 18/22

TO 9/22

PWM_READY

AMP_MUTE

ARESETB

TP2008

R2142

2.2k

OPERATE

To SOS

C2301

R2141

16V

1k

0.1u

D2017

MA2J11100L

R2129

10

R2137

10

G-SOUND_SOS

OPERATE

SOS

RESET

AMP_MUTE

PWM_READY

MUTE

PWM_READY

PWM_L+

PWM_L-

G-AUDIO_XRST

G-SOUND_SOS

PWM_R+

PWM_R-

AMP_MUTE

R2316

EXB28V220JX

R2126

VJUMP1005-S

S

MUTE

PWM_READY

G-AUDIO_XRST

PWM_R+

PWM_R-

PWM_L+

PWM_L-

PWM_READY

PWM4A

PWM4B

PWM3A

PWM3B

SUB5V

R2015

C2096

16V

TO 15/22

SIF

AM

10k

0.1u

R2016

10k

Q2001

B1ABCF000231

R2132

470

R2007

220

R2008

470

L2001

G1C150KA0038

R2006

C2092

50V
22p

C2120

50V

R2032

56p

0

470

C2091

50V
10p

C2121

50V
56p

SIF_IN1

SIF_IN2

ADV-COMMON

ADV7470

TO 9/22

*C2261

10u

10V

SOUND15V

L2023

G1C3R0ZA0156

L2018

J0JHC0000042

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

C2359

50V

1000p

C2317

50V

0.1u

C2319

50V

0.1u

C2321

50V

0.1u

C2323

50V

0.1u

C2353

50V

1000p

C2412

25V

1u

+

C2362

C2361

25V

25V

470u

10u

C2309
25V

L2010

1u

G1C220MA0291

C2325

C2305
25V
1u

C2390

25V
1u

0.47u

L2012

G1C220MA0291

L2014

G1C220MA0291

C2331

0.47u

L2016

G1C220MA0291

C2303
25V
1u

C2409

C2410

C2411

25V

25V

1000p

1u

1u

C2333

25V

50V

0.1u

0.022u

C2335

25V

0.1u

50V

C2341

25V

0.1u

0.022u

0.022u

C2343

25V

0.1u

S_15V

C2408

C2407

25V

25V

50V

10u

1u

R2127

3.3

C2337

50V

0.022u

C2377

50V

0.022u

C2375

50V

C2339

50V

0.022u

R2121

3.3

R2125

3.3

C2345
50V

0.022u

C2379

50V

C2381

50V

C2347
50V

0.022u

R2123

3.3

C2389

50V

1000p

TO SPEAKER

TP2010

TP2012

TP2014

C2385

C2387

50V

50V

1000p

1000p

TP2017

C2383

50V

1000p

A12

1

2

A11

1

2

3

L+

L-

TO SPEAKER

R+

NC

R-

TO 13/22

TO 14/22

AUDIOOUT_L

AUDIOOUT_R

TO 14/22

HP_LOUT

HP_ROUT

AV_L

AV_R

TV_L

TV_R

*C2262

10V

10u

C2263

10V

10u

C2264

10V

10u

C2201

R2017

25V

10k

0.033u

C2202

R2018

25V

10k

0.033u

C2122

0.01u

C2129

0.01u

DVDDIO_3.3V

C2099

6.3V
220u

*R2047

28k

C2123
16V

0.01u

C2128
16V

0.01u

R2023

10k

Q2063

2SD0601ASL

AUXIN2L

28k

AUXIN2R

28k

AUXIN1L

28k

AUXIN1R

TV_L

TV_R

AUDIOOUT_L

AUDIOOUT_R

MUTEB

Q2064

2SD0601ASL

R2110

100

HPOUT1R

HPOUT1L

R2111

R2093

R2092

10k

10k

C2098

6.3V
220u

+

100

Q2065

R2122

2SB0709ASL

100

R2119
1M

R2120

R2124
10k

47k

TO 18/22

HP_MUTE

*R2048

R2050

R2051

16V

16V

+

64

105100 102 107103 106104101 108

12.17. A-Board (13/22) Schematic Diagram

!

A-BOARD (13/22)

AVSW
REF No. 3000-3399

JK3001

D3015

K7AAAY000003

JK3707
K4AK17B00004

K1FY115B0021

11

12

13

14

15

DRIVE IC

YC

V

L

R

C3118

10V

1u

AVSW_R076PIN_FBIN/O1

AVSW_R079PIN_CVBSIN6

AVSW_R081PIN_CVBSIN5

AVSW_R083PIN_YIN4

AVSW_R084PIN_TDET8

AVSW_R085PIN_CIN4

AVSW_R090PIN_TDET7

AVSW_R092PIN_TDET6

AVSW_R093PIN_PBIN1

AVSW_R094PIN_L3DET1

AVSW_R095PIN_CYIN1

AVSW_R097PIN_PRIN1

AVSW_R099PIN_BIN

AVSW_R100PIN_VDIN

AVSW5V

IC3003

C0DBGYY00281

5

VOUT4VIN

VSS

1NC2

TO 14/22

SUB6V

C3119

R3014

10V

10k

CE

1u

3

TO 14/22

AVSW_R071PIN_R7IN

AVSW_R070PIN_L7IN

AVSW_R069PIN_R6IN

AVSW_R068PIN_L6IN

73

74

75

76

77

78

79

CVBSin6

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

100

R8in

VCC9V

L9in

R9in

CVBSin5

T DET9

Yin4

T DET8

CVBSin7

FBin1/O1

FBin2/O2

Cin4

VCC5V

PBin2/B3

L3 DET2

CYin2/G3

T DET7

PRin2/R3

T DET6

PBin1

L3 DET1

CYin1

HD VD/FBKMUTE

PRin1

1

2

3

AVSW_R001PIN_GIN

AVSW_R002PIN_HDIN

IC3001

C1AB00002855

GND99Bin

VDin

Gin

HDin

Rin

T DET55CVBSin46T DET47CVBSin38BG9Yin310S2 DET311R2/Cin312GND13G2/Yin214S2 DET215B2/Cin216T DET317CVBSin118T DET219G1/Yin120S2 DET121B1/Cin122T DET1

4

AVSW_R003PIN_RIN

AVSW_R007PIN_CVBS3

AVSW_R005PIN_CVBSIN4

C3147

10V

10u

AVSW_R062PIN_L3IN

AVSW_R061PIN_R2IN

AVSW_R063PIN_R3IN

AVSW_R064PIN_L4IN

AVSW_R065PIN_R4IN

AVSW

AVSW_R014PIN_S2DET2

AVSW_R015PIN_B2/CIN2

AVSW_R013PIN_G2/YIN2

AVSW_R011PIN_R2/CIN3

C3146

10V
10u

AVSW_R059PIN_R1IN

AVSW_R060PIN_L2IN

AVSW_R058PIN_L1IN

57

58

L1in59R1in60L2in61R2in62L3in63R3in64L4in65R4in66L5in67R5in68L6in69R6in70L7in71R7in72L8in

AU1/2Vcc

R2out

L3out

G/CY/Y/CVBSout7

R3out

C/Y+C/CVBSout5

Y/Y+C/CVBSout4

R1

VCC5V

CVBSin2

AVSW_R016PIN_TDET3

AVSW_R019PIN_G1/YIN1

AVSW_R017PIN_CVBSIN1

AVSW_R052PIN_L3OUT

AVSW_R056PIN_L1OUT

AVSW_R053PIN_R2OUT

AVSW_R054PIN_L2OUT

AVSW_R055PIN_R1OUT

52

53

54

L2out55R1out56L1out

VCC9V

CVBS/Y+Cout3

SAG CVBSout3

R4out50L4out

AU_GND

GND

SAG CVBSout5

S2out

SAG CVBSout4

VCC5V

R/Prout1

VD out1

B/PB/Cout1

HD out1

State out27FBout/T DET1028SDA

G/CY/CVBSout1

GND

SCL

24

23

AVSW_R020PIN_S2DET1

AVSW_R023PIN_CVBSIN2

AVSW_R021PIN_B1/CIN1

AVSW_R051PIN_R3OUT

51

49

48

47

O3

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

26

25

C3139
16V

0.1u

AV_L

AV_R

AVSW_R044PIN_CVBS/Y+COUT3

AVSW_R043PIN_SAGCVBSOUT3

AVSW_R041PIN_C/Y+C/CVBSOUT5

AVSW_R040PIN_SAGCVBSOUT5

AVSW_R039PIN_S2OUT

AVSW_R038PIN_Y/Y+C/CVBSOUT4

AVSW_R037PIN_SAGCVBSOUT4

AV-SW_SCL

AV-SW_SDA

AVSW_R027PIN_FBOUT/TDET10

TO 14/22

PC_HS

PC_VS

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

RGB_CVBS

C3141

0.1u

16V

C3140

0.1u

16V

MAIN_PR

PC_VS

68

R3236

MAIN_PB/C

PC_HS

68

R3237

MAIN_Y/CVBS

PC_HS

TP3009

PC_VS

TP3021

MAIN_Y/CVBS
MAIN_Y/CVBS/G

TP3004

MAIN_PB/C
MAIN_PB/C/B

TP3005

MAIN_PR
MAIN_PR/R

TP3006

RGB_CVBS
RGB_CVBS

TO 12/22

AV_L

AV_L

AV_R

AV_R

TO 1/22

AV-SW_SCL

AV-SW_SDA

TO 11/22

TP3008

AV2

20

18

16

14

12

10

9

8

7

6

5

4

3

2

1

*JK3003

K1FY121A0008

20

18

16

14

12

10

9

8

7

6

5

4

3

2

1

*JK3002

K1FY121A0008

GND(PLUG)

GND(VIDEO IN)

GND(VIDEO)

Chroma/RED in

GND(RED/C)

GND(GREEN)

GND(AUDIO)

AV1

TV VIDEO OUT

GND(VIDEO IN)

GND(VIDEO)

GND(GREEN)

GND(AUDIO)

VIDEO IN

VIDEO OUT

FB IN

GND(FB)

GREEN IN

Q-LINK

AV2 SLOW

BLUE IN

L IN

GND(BLUE)

TV L OUT

R IN

TV R OUT

GND(PLUG)

VIDEO IN

FB IN

RED IN

GND(FB)

GND(RED)

GREEN IN

AV1 SLOW

BLUE IN

GND(BLUE)

TV L OUT

R IN

TV R OUT

Y

PB

PR

AUDIO IN

L

R

AUDIO OUT

L

R

*JK3100A
K2HA7YYA0004

TO 14/22

E_AV2_VIN(20P)/A_AV3_V__TERMINAL

E_AV2_VOUT(19P)_TERMINAL

E_AV2_FB(16P)_TERMINAL

E_AV2_RED/C(15PIN)_TERMINAL

NC

NC

L IN

PB

PR

Y

G

L

R

G

L

R

G

E_AV2_NC(12P)_TERMINAL

E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV2_Q-LINK(10P)_TERMINAL

E_AV2_SLOW(_8P)_TERMINAL

E_AV2_BLUE(_7PIN)_TERMINAL

E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL

E_AV2_GND(AUDIO)(_4P)_TERMINAL

E_AV2_LOUT(_3PIN)_TERMINAL

E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL

E_AV2_ROUT(_1PIN)_TERMINAL

TO 14/22

E_AV1_VIN(20P)/A_AV2_V__TERMINAL

E_AV1_VOUT(19P)/A_VOUT__TERMINAL

E_AV1_FB(16P)_TERMINAL

E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL

E_AV1_NC(12P)_TERMINAL

E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV1_Q-LINK(10P)_TERMINAL

E_AV1_SLOW(_8P)_TERMINAL

E_AV1_BLUE(_7PIN)/A_AV2C_PR__TERMINAL

E_AV1_LIN(_6PIN)/A_AV2_L__TERMINAL

E_AV1_GND(AUDIO)(_4P)_TERMINAL

E_AV1_LOUT(_3PIN)_TERMINAL

E_AV1_RIN(_2PIN)/A_AV2_R__TERMINAL

E_AV1_ROUT(_1PIN)_TERMINAL

TO 14/22

E_YPBPR_Y/A_AV1C_Y__TERMINAL

E_YPBPR_PB/A_AV1C_PB__TERMINAL

E_YPBPR_PR/A_AV1C_PR__TERMINAL

E_PC_LIN/A_AV1_LIN__TERMINAL

E_PC_RIN/A_AV1_RIN__TERMINAL

RCA_AUDIOOUT_L__TERMINAL

RCA_AUDIOOUT_R__TERMINAL

SUB9V_VIDEO

TO 8,9/22

G-ADV_XRST

21

19

6

1

7

2

8

3

9

4

10

5

VCC

Vin

GND

SHIELD

C

Y

G

CY-G

G

V-SW

V

V-G

L

L-G

R

R-G

2

3

4

1

SUB3.3V

TO 14/22

PC_R_TERMINAL

PC_G_TERMINAL

PC_B_TERMINAL

PC_HD_TERMINAL

PC_VD_TERMINAL

TO 14/22

OPT_SPDIF_TERMINAL

TO 14/22

SIDE_C_TERMINAL

SIDE_Y_TERMINAL

SIDE_S_PLUG_DET_TERMINAL

SIDE_VIN_TERMINAL

SIDE_LIN_TERMINAL

SIDE_RIN_TERMINAL

SIDE_HP_L_TERMINAL

SIDE_HP_R_TERMINAL

17

15

13

11

21

19

17

15

13

11

AVSW5V

SUB9V

R3113

R3112

0

0

+

C3138

10V

100u

C3143

16V

0.1u

TO 14/22

AVSW_R078PIN_FBIN2/O2

C3145

16V

0.1u

AVSW_R087PIN_PBIN2/B3

AVSW_R089PIN_CYIN2/G3

AVSW_R091PIN_PRIN2/R3

S

R3239

VJUMP1005-S

111 114109 115110 112 116 117113

65

12.18. A-Board (14/22) Schematic Diagram

TO 13/22

E_AV1

E_AV1_LOUT(_3PIN)_TERMINAL

E_AV1_ROUT(_1PIN)_TERMINAL

E_AV1_GND(AUDIO)(_4P)_TERMINAL

E_AV2

E_AV2_LOUT(_3PIN)_TERMINAL

E_AV2_ROUT(_1PIN)_TERMINAL

E_AV2_GND(AUDIO)(_4P)_TERMINAL

AUDIO OUT

RCA_AUDIOOUT_L__TERMINAL

RCA_AUDIOOUT_R__TERMINAL

HP

SIDE_HP_L_TERMINAL

SIDE_HP_R_TERMINAL

OPT

OPT_SPDIF_TERMINAL

TO 13/22

E_AV1

E_AV1_NC(12P)_TERMINAL

E_AV1_Q-LINK(10P)_TERMINAL

E_AV2

E_AV2_NC(12P)_TERMINAL

E_AV2_Q-LINK(10P)_TERMINAL

J0JCC0000287

SUB3.3V

16V

*L3004

*L3005

J0JCC0000287

*L3008

J0JCC0000287

*L3009

J0JCC0000287

C3023

0.1u

L3014

J0JCC0000287

C3003
50V
560p

L3015

J0JCC0000287

C3002
50V
560p

L3034

J0JCC0000364

J0JCC0000364

MAZ81400ML

TERMINAL ETC

AUDIO

IN

VIDEO

DET

VIDEO

IN

TO 13/22

STB5V

*R3106

27k

*D3339

*R3153

68

MAZ81400ML

*R3089

68

MAZ81400ML

MOUT_9V

MA3X704A0L

TP3015

*R3207

TP3014

STB5V

L3025

G1C100MA0072

*R3108

27k

*D3048

MA3X704A0L

22

*R3288

*R3206

22

*D3014

*D3013

TO 8/22

QLINK_AV1

G-QLINK2

47k

TO 8/22

QLINK_AV2

G-QLINK1

*R3287

47k

SUB9V

AUDIO
OUT

*Q3002

B1ABCF000231

*C3009

*R3006

50V

100k

560p

*C3004

*R3007

50V

100k

560p

*Q3003

B1ABCF000231

*Q3004

B1ABCF000231

*C3012

*R3010

50V

100k

560p

*C3005

50V

*R3011

560p

100k

*Q3005

Q3001

B1ABCF000231

R3025
100k

Q3000

B1ABCF000231

R3024

100k

L3035

R3030

VJUMP1005-S

S

D3001

B1ABCF000231

R3019

R3021

2.2k

2.2k

*R3008

*R3009

*R3012

2.2k

*R3013

2.2k

VJUMP1005-S

VJUMP1005-S

*R3028

330

*C3020

*C3018

2.2k

2.2k

R3107

R3105

10V

*C3021

10V

*R3029

*C3019

330

10V

*C3030

*R3042

10V

330

*C3029

10V

*C3028

10V

*R3041

*C3027

330

10V

R3146

330

C3116

10V

C3117

10V

C3114

10V

R3120

C3115

330

10V

S

S

10V

10u

10u

10u

10u

HP_LOUT

HP_ROUT

SPDIF_OUT

TO 13/22

10u

10u

10u

10u

10u

10u

10u

10u

AVSW_R056PIN_L1OUT

AVSW_R055PIN_R1OUT

AVSW_R054PIN_L2OUT

AVSW_R053PIN_R2OUT

AVSW_R052PIN_L3OUT

AVSW_R051PIN_R3OUT

TO 12/22

TO 9/22

TO 18/22

MONITOROUT_MUTE

HP_LOUT

HP_ROUT

SPDIF_OUT

TO 13/22

E_AV1

E_AV1_LIN(_6PIN)/A_AV2_L__TERMINAL

E_AV1_GND(AUDIO)(_4P)_TERMINAL

E_AV1_RIN(_2PIN)/A_AV2_R__TERMINAL

E_AV2

E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL

E_AV2_GND(AUDIO)(_4P)_TERMINAL

E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL

E_AV3

SIDE_LIN_TERMINAL

SIDE_RIN_TERMINAL

PC

E_PC_LIN/A_AV1_LIN__TERMINAL

E_PC_RIN/A_AV1_RIN__TERMINAL

AUDIO OUT

TO 13/22

E_AV1

E_AV1_VOUT(19P)/A_VOUT__TERMINAL

E_AV2

E_AV2_VOUT(19P)_TERMINAL

TO 12/22

AUDIOOUT_L

AUDIOOUT_R

TO 12/22

TV_L

TV_R

TO 18/22

SUB_Y

L IN

R IN

J0JCC0000287

VJUMP1005-S

J0JCC0000287

J0JCC0000287

VJUMP1005-S

J0JCC0000287

J0JCC0000287

J0JCC0000287

L3002

JS3000

S

L3003

L3006

JS3001

S

L3007

L3029

L3030

J0JCC0000287

J0JCC0000287

TV_L

TV_R

VJUMP1005-S

VJUMP1005-S

*R3301

L3010

L3011

JS3010

JS3015

*R3174

0

*Q3300

2SB0709A0L

C3047

10V

R3050

C3007

560p

C3008

560p

50V

C3010

50V

560p

C3011

50V

560p

C3257

50V

560p

C3099

50V

560p

S

R3169

100k

S

100k

220

R3000

22k

50V

R3001

R3049

22k

220

R3052

220

R3002

22k

R3003

R3051

22k

220

R3043

220

R3717

22k

R3045

220

R3716
22k

R3004

C3013

22k

50V

560p

C3014

R3005

50V

22k

560p

R3033

220

R3034

220

R3037

220

R3038

220

C3095

10V

R3167

100u

+

75

C3103

10V
100u

+

*C3097

10V

*R3172

100u

+

75

*C3102

10V
100u

+

MOUT_9V

*R3300

360

*R3307

220

VJUMP1005-S

R3047

R3048

220

220

C3022

C3024

C3025

C3026

R3161

R3219

10V
1u

10V
1u

10V
1u

10V
1u

0

R3176

1u

C3046

10V

1u

C3049

10V

1u

C3048

10V

1u

C3039

10V
1u

C3041

10V
1u

C3043

10V
1u

C3044

10V
1u

0

S

TO 13/22

AVSW_R062PIN_L3IN

AVSW_R063PIN_R3IN

AVSW_R064PIN_L4IN

AVSW_R065PIN_R4IN

AVSW_R068PIN_L6IN

AVSW_R069PIN_R6IN

AVSW_R070PIN_L7IN

AVSW_R071PIN_R7IN

AUDIOOUT_L

AVSW_R058PIN_L1IN

AUDIOOUT_R

AVSW_R059PIN_R1IN

AVSW_R060PIN_L2IN

AVSW_R061PIN_R2IN

TO 13/22

E_AV1_VOUT

AVSW_R044PIN_CVBS/Y+COUT3

AVSW_R043PIN_SAGCVBSOUT3

E_AV2_VOUT

AVSW_R038PIN_Y/Y+C/CVBSOUT4

AVSW_R037PIN_SAGCVBSOUT4

AVSW_R041PIN_C/Y+C/CVBSOUT5

AVSW_R040PIN_SAGCVBSOUT5

TO 13/22

E_AV1

E_AV1_SLOW(_8P)_TERMINAL

E_AV1_FB(16P)_TERMINAL

E_AV2

E_AV2_FB(16P)_TERMINAL

E_AV2_SLOW(_8P)_TERMINAL

E_AV3

SIDE_S_PLUG_DET_TERMINAL

TO 11/22

RGB_FB

TP3022

*R3091

21.5k

*C3064

*C3065

1000p

1000p

50V

50V

JS3011

VJUMP1005-S

VJUMP1005-S

*R3094

S

*R3073

150

JS3018

S

*R3079

150

TP3023

*R3092

21.5k

*R3182

13k

TP3007

*R3098

*R3104

VJUMP1005-S

*R3143

150

*R3150

150

*R3100

R3238

100k

RGB_FB

68

68

S

TO 13/22

AVSW_R014PIN_S2DET2

AVSW_R076PIN_FBIN/O1

AVSW_R078PIN_FBIN2/O2

E_AV2_SLOW

AVSW_R020PIN_S2DET1

AVSW_R094PIN_L3DET1

AVSW_R027PIN_FBOUT/TDET10

E_AV1

E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL

E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV1_BLUE(_7PIN)/A_AV2C_PR__TERMINAL

E_AV2

E_AV2_RED/C(15PIN)_TERMINAL

E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL

E_AV2_BLUE(_7PIN)_TERMINAL

E_AV3

SIDE_C_TERMINAL

E_YPbPr

E_YPBPR_Y/A_AV1C_Y__TERMINAL

E_YPBPR_PB/A_AV1C_PB__TERMINAL

E_YPBPR_PR/A_AV1C_PR__TERMINAL

PC

PC

PC_G_TERMINAL

E_AV1

E_AV1_VIN(20P)/A_AV2_V__TERMINAL

E_AV2

E_AV2_VIN(20P)/A_AV3_V__TERMINAL

E_AV3

SIDE_VIN_TERMINAL

SIDE_Y_TERMINAL

PC_R_TERMINAL

PC_B_TERMINAL

PC_HD_TERMINAL

PC_VD_TERMINAL

JS3012

VJUMP1005-S

VJUMP1005-S

VJUMP1005-S

VJUMP1005-S

VJUMP1005-S

VJUMP1005-S

VJUMP1005-S

VJUMP1005-S

J0JCC0000287

J0JCC0000287

JS3013

JS3014

JS3016

JS3019

JS3020

L3017

S

S

S

S

S

S

R

B

G

R3228

R3229

L3018

EZJP0V080GA

D3055

EZJP0V080GA

VJUMP1005-S

VJUMP1005-S

VJUMP1005-S

FL3003
J0HABB000004

1

2

FL3005
J0HABB000004

1

2

FL3004
J0HABB000004

1

2

S

S

J0JCC0000287

J0JCC0000287

D3054

*R3188

*R3193

*R3198

*R3083

*R3204

*R3082

JS3007

JS3008

JS3009

L3026

150

150

150

150

150

150

S

S

S

FL3001
J0HABB000003

3

FL3002

J0HABB000003

3

R3240

*R3072

*R3097

*R3077

*R3102

L3028

J0JCC0000287

4

4

*R3074

R3140

C3092

R3226

4.7k

R3227

4.7k

10V

C3090

10V

C3091

10V

*C3088
10V

C3072

16V

*C3089
10V

*C3087

10V

C3077

16V

C3086

10V 10u

C3085

10V

C3084

10V

C3144

10V 10u

10V 10u

10V 10u

10V 10u

TO 13/22

10u

AVSW_R091PIN_PRIN2/R3

10u

AVSW_R089PIN_CYIN2/G3

10u

AVSW_R087PIN_PBIN2/B3

10u

AVSW_R011PIN_R2/CIN3

0.1u
AVSW_R021PIN_B1/CIN1

10u

AVSW_R013PIN_G2/YIN2

10u

AVSW_R015PIN_B2/CIN2

0.1u
AVSW_R085PIN_CIN4

AVSW_R095PIN_CYIN1

10u

AVSW_R093PIN_PBIN1

10u

AVSW_R097PIN_PRIN1

R3191

68

AVSW_R003PIN_RIN

R3189

68

AVSW_R099PIN_BIN

R3190

68

AVSW_R001PIN_GIN

R3223

68

AVSW_R002PIN_HDIN

R3225

68

AVSW_R100PIN_VDIN

10V
10u

C3071

C3070

C3073

C3074

AVSW_R079PIN_CVBSIN6

AVSW_R023PIN_CVBSIN2

AVSW_R019PIN_G1/YIN1

AVSW_R081PIN_CVBSIN5

AVSW_R083PIN_YIN4

220

150

R3138

220

*R3075

150

R3139

220

*R3076

150

*R3136

220

*R3087

R3117

150

220

*R3137

220

*R3081

150

*R3135

220

*R3205

150

L3027

R3123

220

R3121

75

C3075

10V

1u

R3134

82

R3084

75

R3133

82

R3085

75

R3132

82

R3086

75

C3109

10u

10V

3

4

R3230

75

C3108

10u

10V

3

R3234

4

75

C3107

10u

10V

3

4

R3232
75

1

2

1

2

220

150

150

R3116

220

150

220

*R3115

150

R3118

220

150

*R3187

150

*R3213

R3119

220

150

*R3212

150

*R3186

!

A-BOARD (14/22)

AVSW
REF No. 3000-3399

*C3078

*R3245

TO 5/22

TO 15/22

MAIN_RF_CVBS

DVB_CVBS

MVDACO1

10V
10u

220

C3083

10V

R3128

10u

220

AVSW_R017PIN_CVBSIN1

AVSW_R005PIN_CVBSIN4

122 124121120 123 125 126118 119

66

12.19. A-Board (15/22) Schematic Diagram

!

A-BOARD (15/22)

TUNER

REF No. 2900-2999

LVDS-MODEL

CRNo.4200-4499

C2960

SUB6V

10V

1u

R2960

10k

Cont

5

Sub

6

Vin

7

IC2960

C0DBGHF00001

TUNER5V

STB5V

R4856

Q4831

10k

2SD0601ASL

R4857

47k

TO 8/22

G-PANEL_ALARM/INVERTER_SOS

TO 8/22

G-PANEL_STBY_ON/PANEL_VCC_ON

Q4832

2SD0601ASL

R4853

100k

R4854

100k

TO 1,18,22/22

TUNER5V

R2916

0

+

C2912

C2916

16V

6.3V

0.1u

BT30V

L2901

J0JCC0000278

TUNER5V

Cn

C2961

4

50V
470p

GND

3

NC

2

Vo

1

C2962

6.3V
1u

TO 1/22

TUNER_SCL

TUNER_SDA

TO 4/22

IFAGC

IFD1

IFD2

100u

C2914

50V

0.1u

C2907
16V

0.1u

*R2942

0

C2922
16V

0.1u

C2937
50V

0.1u

TUNER

*TU2901

ENG37E18KF

+B_active_ANT

1

AGC_Monitor

2

BTL

3

BT_Monitor

4

BB

*C2927

5

100p

SCL

6

NC

7

NC

*C2928

50V

8

100p

SDA

9

Audio-out

10

SIF-out

*R2941

0

11

IF-AGC

12

NC

13

NC

TP2904

14

+B

15

VB

16

IFD-out1

17

NC

18

IFD-out2

19

AFT-out

20

Video-out

21

ACT5V

TP2901

C2902
50V

2200p

*C2923

16V

0.1u

50V

*L2902

*R2909

TO 12/22

J0JCC0000269

IFAGC

J0JCC0000269

C2906

16V

0.1u

IFD1

IFD2

Vout

IFAGC

IFD1

IFD2

0

AM

SIF

R2905

L2904

0

C2929
50V
1000p

R2915

220

C2920
50V

0.01u

R2927

0

TO 8/22

G-RF_AFT1

TO 14/22

MAIN_RF_CVBS

G-PANEL_READY

TO 22/22

IIC_CONT/C_SEL

TO 22/22

PANEL_SDA2

PANEL_SCL2

TO 22/22

TO 8,22/22

TO 20/22

1ST_PIX_TA-

1ST_PIX_TA+

1ST_PIX_TB-

1ST_PIX_TB+

1ST_PIX_TC-

1ST_PIX_TC+

1ST_PIX_TCLK-

1ST_PIX_TCLK+

1ST_PIX_TD-

1ST_PIX_TD+

1ST_PIX_TE-

1ST_PIX_TE+

2ND_PIX_TA-

2ND_PIX_TA+

2ND_PIX_TB-

2ND_PIX_TB+

2ND_PIX_TC-

2ND_PIX_TC+

2ND_PIX_TCLK-

2ND_PIX_TCLK+

2ND_PIX_TD-

2ND_PIX_TD+

2ND_PIX_TE-

2ND_PIX_TE+

TO 2/22

IS0VAL

GENX7_SDA

GENX7_SCL

AR_RXD_PC

AR_TXD_PC

G-KEY1

R4832

R4844

R4834

R4842

*L4800

J0JYD0000033

*L4801

J0JYD0000033

*L4802

J0JYD0000033

*L4803

J0JYD0000033

*L4804

J0JYD0000033

*L4805

J0JYD0000033

R4841

100k

100

100

1k

1k

1234

1234

1234

1234

1234

1234

TP4202

TP4203

TP4201

TP4204

R4833
100k

TP4801

TO
D-BOARD

A3

(D3)

1

DISPEN

2

PANEL_STB_ON

3

READY

4

ALARM

5

IIC_CONT

6

GND

7

IIC_DATA1

8

IIC_CLK1

9

GND

10

IIC_DATA2

11

IIC_CLK2

12

GND

13

RXD

14

TXD

15

Key

1st pixel TA-

31

1st pixel TA+

30

1st pixel TB-

29

1st pixel TB+

28

GND

27

1st pixel TC-

26

1st pixel TC+

25

GND

24

1st pixel TCLK-

23

1st pixel TCLK+

22

GND

21

1st pixel TD-

20

1st pixel TD+

19

1st pixel TE-

18

1st pixel TE+

17

LVDS_DET

16

2nd pixel TA-

15

2nd pixel TA+

14

2nd pixel TB-

13

2nd pixel TB+

12

GND

11

2nd pixel TC-

10

2nd pixel TC+

9

GND

8

2nd pixel TCLK-

7

2nd pixel TCLK+

6

GND

5

2nd pixel TD-

4

2nd pixel TD+

3

2nd pixel TE-

2

2nd pixel TE+

1

67

TO
D-BOARD
(D5)

A5

134133128127 135131130129 132

12.20. A-Board (16/22) Schematic Diagram

!

A-BOARD (16/22)

GC6

CRNo.
5000-5399
5851-5999

RC3

RD6

RC4

GND

RC5

RC6

RD0

LVDSGND

RA-

RA+

RB-

RB+

LVDS Rx

LVDSVCC

LVDSGND

RC-

RC+

RCLK-

RCLK+

RD-

RD+

LVDSGND

PLLGND

PLLVCC

PLLGND

PDWN

CLKOUT

RA0

GND

G1C100MA0072

1

NC

2

3

GND

IC5320

C0JBAB000703

BUFFER

J0JHC0000045

IC5110

C0JBCZ000519

L5010

5

VCC

A

4

Y

SUB3.3V

TO 2/22

TA1N

TA1P

TB1N

TB1P

TC1N

TC1P

TCLK1N

TCLK1P

TD1N

TD1P

RX_Y7

RX_HP

RX_VP

R5097
100

R5098
100

L5007

J0JHC0000045

C5080

10V

L5008

J0JHC0000045

R5102

10k

10u

C5081

10V

R5111

R5099
100

R5100
100

R5101
100

1

2

3

4

5

6

7

8

9

10

11

12

13

C5082
16V

14

0.1u

15

16

17

18

19

20

21

22

23

C5083
16V

24

10u

0.1u

25

26

27

28

68

R5112
10k

4.7k

4.7k

R5206

R5207

LSI test

LVDS test

PLL test

DRAM test

JTAG

CTRL

D5201

MA2J72800L

R5225

XTAL

H0J270500113

SUB3.3V

4.7k

4.7k

R5204

R5104

IC5100 P27 TEST

IC5100 H6 TSTAIO0

IC5100 K6 TSTAIO1

IC5100 M6 TESTIO_OUT

IC5100 N5 TESTIO_SYS

IC5100 AH2 TESTIO_DDR

IC5100 G26 DRAMTEST

IC5100 L26 PTESTDRAM2

IC5100 F26 PTESTDRAM1

IC5100 H26 PTESTDRAM0

GC6_3.3V

IC5100 P26 WLBI

IC5100 R27 RON

IC5100 AA27 TMS

IC5100 AA26 TRST

IC5100 W27 TCK

IC5100 AC26 TDO

IC5100 J26 TDI

R5096

100

IC5100 M26 NRST

R5151

10k

GC6_3.3V

R5224

33k

IC5100 F27 CCLIN

C5202

16V

0.1u

IC5100 K26 LCDMODE

IC5100 E6 SSOUT

68

IC5100 E7 PWMK

IC5100 V26 OEMUTE

SUB3.3V

IC5100 V27 OEBLK

R5209

0

IC5100 V1 XTALOUT

R5208

IC5100 U1 XTALIN

1M

X5200

C5200

C5201
50V

50V

18p

18p

MASTER

GC6_SDA1

IC5100 AC27 SDA1

GC6_SCL1

IC5100 AB26 SCL1

GC6_SDA2

IC5100 AB27 SDA2

GC6_SCL2

IC5100 Y26 SCL2

IC5100 AD26 SDA

IC5100 AD27 SCL

GC6

IC5100

MN84527

EXB-BUS (PEAKS)

SUB3.3V

R5095

TO 5/22

AA_GC6_IRQ1

(IRQ VBI)

AA_GC6_IRQ0

(IRQ IPR)

SUB3.3V

TO 4,5/22

R5213

TO 2,5/22

2.2k

XEDK

TO 5,6/22

TO 5,6/22

SUB3.3V

L5009

C5079

56

VCC

RC2

RC1

RC0

GND

RB6

RD5

RD4

VCC

RB5

RB4

RB3

GND

RB2

RD3

RD2

VCC

RB1

RB0

RA6

GND

RA5

RD1

RA4

RA3

VCC

RA2

RA1

10u10V

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

C5086

10V

10u

C5087

C5085

10V

16V

10u

0.1u

RX_Y6

RX_Y5

RX_Y4

RX_HP

RX_Y3

RX_Y1

RX_Y0

C5075

16V

0.1u
RX_Y2

RX_C7

RX_C6

RX_C5

RX_C1

RX_C0

C5076

16V

0.1u
RX_C4

RX_C3

RX_C2

C5077

16V

0.1u

C5078

16V

0.1u

R5176

RX_VP

RX_Y7

RX_Y6

RX_Y5

RX_Y4

RX_Y3

RX_Y2

RX_Y1

RX_Y0

RX_C7

RX_C6

RX_C5

RX_C4

RX_C3

RX_C2

RX_C1

RX_C0

68

R5177

68

68

R5178

R5179

EXB2HV680JV

R5180

EXB2HV680JV

R5110

PORT-C (PEAKS Main)

47k

PORT-B(GC3FS_next)

TO Sheet FS-SYSTEM

TO 18/22

GC6_HSIB

GC6_VSIB

GC6_CLKIB

GC6_BUIB7

GC6_BUIB6

GC6_BUIB5

GC6_BUIB4

GC6_BUIB3

GC6_BUIB2

GC6_BUIB1

GC6_BUIB0

GC6_GYIB7

GC6_GYIB6

GC6_GYIB5

GC6_GYIB4

GC6_GYIB3

GC6_GYIB2

GC6_GYIB1

GC6_GYIB0

GC6_FRCKO2

TO 5/22

TO 5/22

SUB3.3V

IC5100 D16 HSIC

IC5100 E16 VSIC

IC5100 A18 CLKIC

IC5100 A20 YIC7

IC5100 B20 YIC6

IC5100 A19 YIC5

IC5100 B19 YIC4

IC5100 C19 YIC3

IC5100 B18 YIC2

IC5100 C18 YIC1

IC5100 D18 YIC0

IC5100 E18 UVIC7

IC5100 B17 UVIC6

IC5100 C17 UVIC5

IC5100 D17 UVIC4

IC5100 E17 UVIC3

IC5100 A16 UVIC2

IC5100 B16 UVIC1

IC5100 C16 UVIC0

IC5100 AJ27 HSIB

IC5100 AK28 VSIB

IC5100 AF23 ENBIB

IC5100 AF24 CLKOB

IC5100 AK20 CLKIB

IC5100 AG25 CLKIB2

IC5100 AJ24 RVIB7

IC5100 AK24 RVIB6

IC5100 AG23 RVIB5

IC5100 AG24 RVIB4

IC5100 AF22 RVIB3

IC5100 AF21 RVIB2

IC5100 AG21 RVIB1

IC5100 AG22 RVIB0

IC5100 AH23 BUIB7

IC5100 AJ23 BUIB6

IC5100 AK23 BUIB5

IC5100 AH22 BUIB4

IC5100 AJ22 BUIB3

IC5100 AK22 BUIB2

IC5100 AH21 BUIB1

IC5100 AJ21 BUIB0

IC5100 AK27 GYIB7

IC5100 AH26 GYIB6

IC5100 AJ26 GYIB5

IC5100 AK26 GYIB4

IC5100 AH25 GYIB3

IC5100 AJ25 GYIB2

IC5100 AK25 GYIB1

IC5100 AH24 GYIB0

IC5100 AE27 FRCKO2

AA_XEAS

AA_XECS2

AA_XERE

AA_XEWE1

AA_XEWE0

10k

R5106

R5089

R5223

R5107

R5108

R5109

R5227

10k

GC6_EXBSEL1

GC6_EXBSEL0

R5230

10k

PORT-D (PEAKS Sub)

PORT-A(ADV7495)

100

100

100

100

100

100

IC5100 E27 EXBSEL1

IC5100 G28 EXBSEL0

TO Sheet ADV-SYSTEM

IC5100 C30 XIRQ2

IC5100 D28 XIRQ1

IC5100 D29 XIRQ0

IC5100 D30 XEAS

IC5100 E28 XECS

IC5100 E29 XEDK

IC5100 E30 XERE

IC5100 F29 XEWE1

IC5100 F28 XEWE0

TO 11/22

GC6_HSIA

GC6_VSIA

GC6_ENBIA

GC6_CLKOA

GC6_CLKIA

GC6_RVIA11

GC6_RVIA10

GC6_RVIA9

GC6_RVIA8

GC6_RVIA7

GC6_RVIA6

GC6_RVIA5

GC6_RVIA4

GC6_RVIA3

GC6_RVIA2

GC6_RVIA1

GC6_RVIA0

GC6_BUIA11

GC6_BUIA10

GC6_BUIA9

GC6_BUIA8

GC6_BUIA7

GC6_BUIA6

GC6_BUIA5

GC6_BUIA4

GC6_BUIA3

GC6_BUIA2

GC6_BUIA1

GC6_BUIA0

GC6_GYIA11

GC6_GYIA10

GC6_GYIA9

GC6_GYIA8

GC6_GYIA7

GC6_GYIA6

GC6_GYIA5

GC6_GYIA4

GC6_GYIA3

GC6_GYIA2

GC6_GYIA1

GC6_GYIA0

GC6_FRCKO1

GC6_FRCKO1

TO 4,5,6/22

IIC

VBI

IPR

IC5100 R29 HSIA

IC5100 T27 VSIA

IC5100 R30 ENBIA

IC5100 AE29 CLKOA

IC5100 AF30 CLKIA

IC5100 AC28 RVIA11

IC5100 AD30 RVIA10

IC5100 AD29 RVIA9

IC5100 AD28 RVIA8

IC5100 AF29 RVIA7

IC5100 AF28 RVIA6

IC5100 AG30 RVIA5

IC5100 AG29 RVIA4

IC5100 AG28 RVIA3

IC5100 AH30 RVIA2

IC5100 AH29 RVIA1

IC5100 AJ30 RVIA0

IC5100 W28 BUIA11

IC5100 Y30 BUIA10

IC5100 Y29 BUIA9

IC5100 Y28 BUIA8

IC5100 AA30 BUIA7

IC5100 AA29 BUIA6

IC5100 AA28 BUIA5

IC5100 AB30 BUIA4

IC5100 AB29 BUIA3

IC5100 AB28 BUIA2

IC5100 AC30 BUIA1

IC5100 AC29 BUIA0

IC5100 R28 GYIA11

IC5100 T30 GYIA10

IC5100 T29 GYIA9

IC5100 T28 GYIA8

IC5100 U30 GYIA7

IC5100 U29 GYIA6

IC5100 U28 GYIA5

IC5100 V30 GYIA4

IC5100 V29 GYIA3

IC5100 V28 GYIA2

IC5100 W30 GYIA1

IC5100 W29 GYIA0

IC5100 M27 FRCKO1

AA_ED15

AA_ED14

AA_ED13

AA_ED12

AA_ED11

AA_ED10

AA_ED9

AA_ED8

AA_ED7

AA_ED6

AA_ED5

AA_ED4

AA_ED3

AA_ED2

AA_ED1

AA_ED0

AA_EA7

AA_EA6

AA_EA5

AA_EA4

AA_EA3

AA_EA2

AA_EA0

IC5100 C15 HSID

IC5100 E11 VSID

IC5100 B15 CLKID

IC5100 D15 YID7

IC5100 E15 YID6

IC5100 A14 YID5

IC5100 B14 YID4

IC5100 C14 YID3

IC5100 A13 YID2

IC5100 B13 YID1

IC5100 C13 YID0

IC5100 D13 UVID7

IC5100 E13 UVID6

IC5100 A12 UVID5

IC5100 B12 UVID4

IC5100 C12 UVID3

IC5100 D12 UVID2

IC5100 E12 UVID1

IC5100 D11 UVID0

R5231

EXB2HV680JV

R5232

EXB2HV680JV

R5087

EXB2HV680JV

IC5100 P30 ED15

IC5100 P29 ED14

IC5100 P28 ED13

IC5100 N30 ED12

IC5100 N29 ED11

IC5100 N28 ED10

IC5100 M30 ED9

IC5100 M29 ED8

IC5100 M28 ED7

IC5100 L30 ED6

IC5100 L29 ED5

IC5100 L28 ED4

IC5100 K30 ED3

IC5100 K29 ED2

IC5100 K28 ED1

IC5100 J30 ED0

IC5100 J29 EA7

IC5100 J28 EA6

IC5100 H30 EA5

IC5100 H29 EA4

IC5100 H28 EA3

IC5100 G30 EA2

IC5100 G29 EA1AA_EA1

IC5100 F30 EA0

TO 1/22

GC6-TMS

GC6-TRST

GC6-TCK

GC6-TDO

GC6-TDI

TO 2/22

VI2CLK

GC6_XRST

TO 8,18/22

STB_RST

TO 5,8/22

G-DTV_VOUTENB

IIC I/F

68

141136 137 139 140 143138 142 144

12.21. A-Board (17/22) Schematic Diagram

VBI

IC5100P4HSOH

IC5100P5VSOH

IC5100U3CLKOH

IC5100R5VBOH9

IC5100R4VBOH8

IC5100T5VBOH7

IC5100T4VBOH6

IC5100T3VBOH5

IC5100U5VBOH4

TO 19/22

IC5100U4VBOH3

IC5100V5VBOH2

FRC_EEPROM_WP

IC5100V4VBOH1

IC5100V3VBOH0

LVDS

IC5100 A1 VSS

IC5100 A11 VSS

IC5100 A15 VSS

IC5100 A17 VSS

IC5100 A21 VSS

IC5100 A29 VSS

IC5100 B2 VSS

IC5100 B21 VSS

IC5100 B28 VSS

IC5100 C3 VSS

IC5100 C27 VSS

IC5100 D4 VSS

IC5100 D26 VSS IC5100 B30 VDD33

IC5100 E5 VSS

IC5100 E25 VSS

IC5100 F6 VSS

IC5100 F7 VSS

IC5100 F8 VSS

IC5100 F11 VSS

IC5100 F15 VSS

IC5100 F16 VSS

IC5100 F19 VSS

IC5100 F20 VSS

IC5100 F23 VSS

IC5100 U2 VSS

IC5100 U6 VSS

IC5100 U14 VSS

IC5100 U15 VSS

IC5100 U16 VSS

IC5100 U17 VSS

IC5100 U18 VSS

IC5100 U25 VSS

IC5100 V2 VSS

IC5100 V6 VSS

IC5100 V13 VSS

IC5100 V16 VSS

IC5100 V17 VSS

IC5100 V18 VSS

IC5100 W1 VSS

IC5100 W2 VSS

IC5100 W3 VSS

IC5100 W4 VSS

IC5100 W5 VSS

IC5100 W6 VSS

IC5100 W12 VSS

IC5100 W15 VSS

IC5100 W18 VSS

IC5100 W26 VSS

IC5100 Y4 VSS

TO 19/22

IC5100R1TA2P

GC6_TA2P

IC5100R2TA2M

GC6_TA2M

GC6_TB2P

IC5100P1TB2P

IC5100P2TB2M

GC6_TB2M

IC5100M1TCLK2P

GC6_TCLK2P

GC6_TCLK2M

IC5100M2TCLK2M

GC6_TC2P

IC5100N1TC2P

IC5100N2TC2M

GC6_TC2M

GC6_TD2P

IC5100L1TD2P

GC6_TD2M

IC5100L2TD2M

IC5100K1TE2P

GC6_TE2P

GC6_TE2M

IC5100K2TE2M

IC5100J1TA1P

GC6_TA1P

IC5100J2TA1M

GC6_TA1M

GC6_TB1P

IC5100H1TB1P

GC6_TB1M

GC6_TCLK1P

IC5100F1TCLK1P

IC5100F2TCLK1M

GC6_TCLK1M

GC6_TC1P

IC5100G1TC1P

IC5100G2TC1M

GC6_TC1M

GC6_TD1P

IC5100E1TD1P

GC6_TD1M

IC5100E2TD1M

IC5100D1TE1P

GC6_TE1P

IC5100D2TE1M

GC6_TE1M

IC5100 G7 VSS

IC5100 J27 VSS

IC5100 K25 VSS

IC5100 K27 VSS

IC5100 L5 VSS

IC5100 L6 VSS

IC5100 L27 VSS

IC5100 M13 VSS

IC5100 M14 VSS

IC5100 M17 VSS

IC5100 M18 VSS

IC5100 N3 VSS

IC5100 N4 VSS

IC5100 N13 VSS

IC5100 N14 VSS

IC5100 N15 VSS

IC5100 N16 VSS

IC5100 N17 VSS

IC5100 N18 VSS

IC5100 N25 VSS

IC5100 P3 VSS

IC5100 P6 VSS

IC5100 P12 VSS

IC5100 P13 VSS

IC5100 P14 VSS

IC5100 Y27 VSS

IC5100 AA5 VSS

IC5100 AA25 VSS

IC5100 AB2 VSS

IC5100 AB6 VSS

IC5100 AC3 VSS

IC5100 AD4 VSS

IC5100 AE1 VSS

IC5100 AE4 VSS

IC5100 AE5 VSS

IC5100 AE8 VSS

IC5100 AE17 VSS

IC5100 AE18 VSS

IC5100 AE22 VSS

IC5100 AE23 VSS

IC5100 AE24 VSS

IC5100 AE28 VSS

IC5100 AE30 VSS

IC5100 AF2 VSS

IC5100 AF4 VSS

IC5100 AF6 VSS

IC5100 AF11 VSS

IC5100 AF14 VSS

IC5100 AF16 VSS

IC5100 AF18 VSS

PORT-E (Digital Out)

IC5100E8HSOE

IC5100E10

VSOE

IC5100C11PTVEN

IC5100B11CLKOE

IC5100B8ROE9

IC5100A8ROE8

IC5100D9ROE7

IC5100C9ROE6

IC5100B9ROE5

IC5100A9ROE4

IC5100D10ROE3

IC5100C10ROE2

IC5100B10ROE1

IC5100A10ROE0

IC5100A2BOE9

IC5100B3BOE8

IC5100A3BOE7

IC5100C4BOE6

IC5100B4BOE5

IC5100A4BOE4

IC5100D5BOE3

IC5100C5BOE2

IC5100B5BOE1

IC5100A5BOE0

IC5100D6GOE9

IC5100C6GOE8

IC5100B6GOE7

IC5100A6GOE6

IC5100D7GOE5

IC5100C7GOE4

IC5100B7GOE3

IC5100A7GOE2

IC5100D8GOE1

IC5100C8GOE0

IC5100E9FRCKO3

GC6

IC5100

MN84527

IC5100 P15 VSS

IC5100 P16 VSS

IC5100 P17 VSS

IC5100 P18 VSS

IC5100 P25 VSS

IC5100 R3 VSS

IC5100 R6 VSS

IC5100 R12 VSS

IC5100 R13 VSS

IC5100 R14 VSS

IC5100 R15 VSS

IC5100 R16 VSS

IC5100 R17 VSS

IC5100 R18 VSS

IC5100 T1 VSS

IC5100 T2 VSS

IC5100 T6 VSS

IC5100 T12 VSS

IC5100 T13 VSS

IC5100 T14 VSSIC5100 F12 VSS

IC5100 T15 VSS

IC5100 T16 VSS

IC5100 T17 VSS

IC5100 T18 VSS

IC5100 T25 VSS

IC5100 AF25 VSS

IC5100 AG1 VSS

IC5100 AG3 VSS

IC5100 AG5 VSS

IC5100 AG7 VSS

IC5100 AG13 VSS

IC5100 AG26 VSS

IC5100 AH1 VSS

IC5100 AH3 VSS

IC5100 AH8 VSS

IC5100 AH12 VSS

IC5100 AH16 VSS

IC5100 AH27 VSS

IC5100 AJ2 VSS

IC5100 AJ4 VSS

IC5100 AJ6 VSS

IC5100 AJ9 VSS

IC5100 AJ15 VSS

IC5100 AJ18 VSS

IC5100 AJ28 VSS

IC5100 AK3 VSS

IC5100 AK12 VSS IC5100AA2MMDQ26

IC5100 AK21 VSS

IC5100 AK29 VSS

C5048

6.3V

2.2u

C5049

16V

0.1u

C5050

6.3V
1u

IC5100 M19 DRAM12_7

IC5100 N19 DRAM12_6

IC5100 P19 DRAM12_5

IC5100 T19 DRAM12_4

IC5100 U19 DRAM12_3

IC5100 V19 DRAM12_2

IC5100 W19 DRAM12_1

IC5100 J25 PVPPDRAM2

IC5100 Y25 PVPPDRAM1

LOSD

MOSDVSO

ALPHA0

MOSDHSI

IC5100AG2MCLK

SUB3.3V

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

1u

10u10V

10u

10u10V

3.3V(1)

1.8V_GCDDR

C5001

16V

0.1u

C5002

16V

0.1u

C5003

16V

0.1u

C5004

16V

0.1u

C5005

6.3V 1u

C5006

6.3V 1u

C5007

10V

10u

C5008

16V

0.1u

C5009

16V

0.1u

C5010

16V

0.1u

C5011

16V

0.1u

L5004
J0JHC0000045

IC5100 A30 VDD33

IC5100 B1 VDD33

IC5100 B29 VDD33

IC5100 C1 VDD33

IC5100 C2 VDD33

IC5100 C28 VDD33

IC5100 C29 VDD33

IC5100 D3 VDD33

IC5100 D14 VDD33

IC5100 D27 VDD33

IC5100 E3 VDD33

IC5100 E4 VDD33

IC5100 E14 VDD33

IC5100 E26 VDD33

IC5100 F4 VDD33

IC5100 F5 VDD33

IC5100 F9 VDD33

IC5100 F10 VDD33

IC5100 F13 VDD33

IC5100 F14 VDD33

IC5100 F17 VDD33

IC5100 F18 VDD33

IC5100 F21 VDD33

IC5100 F22 VDD33

IC5100 F24 VDD33

IC5100 F25 VDD33

IC5100 G5 VDD33

IC5100 G6 VDD33

IC5100 G25 VDD33

IC5100 G27 VDD33

IC5100 H25 VDD33

IC5100 H27 VDD33

IC5100 L25 VDD33

IC5100 M25 VDD33

IC5100 N26 VDD33

IC5100 N27 VDD33

IC5100 R25 VDD33

IC5100 R26 VDD33

IC5100 T26 VDD33

IC5100 U26 VDD33

IC5100 U27 VDD33

IC5100 V25 VDD33

IC5100 W25 VDD33

IC5100 AB25 VDD33

IC5100 AC25 VDD33

GC6_1.8V

L5001
J0JHC0000045

IC5100 Y2 VDDIO

IC5100 AA3 VDDIO

IC5100 AB4 VDDIO

IC5100 AC5 VDDIO

IC5100 AD1 VDDIO

IC5100 AE2 VDDIO

IC5100 AE6 VDDIO

IC5100 AE12 VDDIO

IC5100 AE15 VDDIO

IC5100 AF3 VDDIO

IC5100 AF5 VDDIO

IC5100 AF9 VDDIO

IC5100 AG4 VDDIO

IC5100 AG15 VDDIO

IC5100 AG17 VDDIO

IC5100 AH10 VDDIO

IC5100 AH14 VDDIO

IC5100 AJ3 VDDIO

IC5100 AJ5 VDDIO

IC5100 AJ11 VDDIO

IC5100 AJ13 VDDIO

IC5100 AK1 VDDIO

IC5100 AK8 VDDIO

IC5100 AK17 VDDIO

IC5100 AF7 VDDIOCK

S

R5017

IC5100AJ16MMDM0

IC5100AK15MMDM1

IC5100AK16MMDQS0

IC5100AH15MMDQS1

IC5100AG16MMDQ0

IC5100AE16MMDQ1

IC5100AJ17MMDQ2

IC5100AH17MMDQ3

IC5100AF17MMDQ4

IC5100AG18MMDQ5

IC5100AK18MMDQ6

IC5100AH18MMDQ7

IC5100AE14MMDQ8

IC5100AG14MMDQ9

IC5100AJ14MMDQ10

IC5100AK14MMDQ11

IC5100AE13MMDQ12

IC5100AF13MMDQ13

IC5100AH13MMDQ14

IC5100AK13MMDQ15

IC5100AG8MMA0

IC5100AK9MMA1

IC5100AK6MMA2

IC5100AE11MMA3

IC5100AE9MMA4

IC5100AF10MMA5

IC5100AK7MMA6

IC5100AK10MMA7

IC5100AJ7MMA8

IC5100AJ10MMA9

IC5100AK11MMA10

IC5100AG9MMA11

IC5100AG10MMA12

IC5100AG11MMBA0

IC5100AH9MMBA1

IC5100

AH11MMBA2

IC5100AJ12MMXWE

IC5100AJ8MMXRAS

IC5100AE10MMXCAS

IC5100AF8MMXCS1

IC5100AF12MMXCS0

IC5100AG12MMCKE

IC5100AH6MMODT

IC5100AK4MMCK

IC5100AK5MMXCK

IC5100AG6MMMONB

IC5100AH5MMMONA

IC5100AH4MMPCLKEXT

IC5100AJ1MMRDRV

IC5100AK2MMRODT

IC5100AE7MMVCAL

IC5100AF15MMVREF0

IC5100AB5MMVREF1

IC5100AC2MMDM2

IC5100AB1MMDM3

IC5100AC1MMDQS2

IC5100AB3MMDQS3

IC5100AD5MMDQ16

IC5100AC4MMDQ17

IC5100AD2MMDQ18

IC5100AD3MMDQ19

IC5100AC6MMDQ20

IC5100AD6MMDQ21

IC5100AF1MMDQ22

IC5100AE3MMDQ23

IC5100AA6MMDQ24

IC5100AA4MMDQ25

IC5100AA1MMDQ27

IC5100Y5MMDQ28

IC5100Y6MMDQ29

IC5100Y3MMDQ30

IC5100Y1MMDQ31

VJUMP1005-S

S

R5032

VJUMP1005-S

R5018

S

VJUMP1005-S

S

R5019

VJUMP1005-S

S

R5033

VJUMP1005-S

S

R5034

VJUMP1005-S

S

R5035

VJUMP1005-S

S

R5036

VJUMP1005-S

S

R5037

VJUMP1005-S

S

R5038

VJUMP1005-S

S

R5039

VJUMP1005-S

S

R5040

VJUMP1005-S

S

R5041

VJUMP1005-S

S

R5042

VJUMP1005-S

S

R5043

VJUMP1005-S

S

R5044

VJUMP1005-S

S

R5045

VJUMP1005-S

S

R5046

VJUMP1005-S

S

R5047

VJUMP1005-S

S

R5048

VJUMP1005-S

R5049

47

R5050

47

R5051

47

R5052

47

R5053

47

R5054

47

R5055

47

R5056

47

R5057

47

R5058

47

R5059

47

R5060

47

R5061

47

R5062

47

R5063

47

R5064

47

R5065

47

R5066

47

R5068

47

R5070

47

R5071

47

S

VJUMP1005-S

R5020

S

VJUMP1005-S

R5021

R5079

10k

R5080

10k

1.8V_GCDDR

R5076

R5075

300

75

C5067

0.1u

16V

C5053

C5054

16V

0.1u

0.1u

16V

G_CH0DM0

G_CH0DM1

G_CH0DQS0

G_CH0DQS1

G_CH0DQ0

G_CH0DQ1

G_CH0DQ2

G_CH0DQ3

G_CH0DQ4

G_CH0DQ5

G_CH0DQ6

G_CH0DQ7

G_CH0DQ8

G_CH0DQ9

G_CH0DQ10

G_CH0DQ11

G_CH0DQ12

G_CH0DQ13

G_CH0DQ14 G_CH0DQ10

G_CH0DQ15

G_CH0ODT

G_CH0A0

G_CH0CK

G_CH0A1

G_CH0XCK

G_CH0A2

G_CH0CKE

G_CH0A3

G_CH0A4

G_CH0BA0

G_CH0A5

G_CH0BA1

G_CH0A6

G_CH0BA2

G_CH0A7

G_CH0A8

G_CH0A9

G_CH0XWE

G_CH0CK

VJUMP1005-S

G_CH0DM2

G_CH0DM3

G_CH0DQS2

G_CH0DQS3

G_CH0DQ16

G_CH0DQ17

G_CH0DQ18

G_CH0DQ19

G_CH0DQ20

G_CH0DQ21

G_CH0DQ22

G_CH0DQ23

G_CH0DQ24

G_CH0DQ25

G_CH0DQ26

G_CH0DQ27

G_CH0DQ28

G_CH0DQ29

G_CH0DQ30

G_CH0DQ31

G_CH0XRAS

G_CH0XCAS

G_CH0XCS0

G_CH0ODT

G_CH0CKE

G_CH0ODT

G_CH0CKE

G_CH0BA0

G_CH0BA1

G_CH0BA2

G_CH0XWE

G_CH0XRAS

G_CH0XCAS

G_CH0XCS1

G_CH0A10

G_CH0A11

G_CH0A12

G_CH0BA0

G_CH0BA1

G_CH0BA2

G_CH0XWE

G_CH0XRAS

G_CH0XCAS

G_CH0XCS1

G_CH0XCS0

G_CH0CKE

G_CH0ODT

G_CH0XCK

S

S

R5091

R5090

VJUMP1005-S

R5024

100

S

R5072

VJUMP1005-S

S

R5073

VJUMP1005-S

S

R5022

VJUMP1005-S

S

R5023

VJUMP1005-S

S

R5001

VJUMP1005-S

S

R5002

VJUMP1005-S

S

R5003

VJUMP1005-S

S

R5004

VJUMP1005-S

S

R5005

VJUMP1005-S

S

R5006

VJUMP1005-S

S

R5007

VJUMP1005-S

S

R5008

VJUMP1005-S

S

R5009

VJUMP1005-S

S

R5010

VJUMP1005-S

S

R5011

VJUMP1005-S

S

R5012

VJUMP1005-S

S

R5013

VJUMP1005-S

S

R5014

VJUMP1005-S

S

R5015

VJUMP1005-S

S

R5016

VJUMP1005-S

C5055

16V

0.1u

R5025

R5082

R5074

1.8V_GCDDR

270

G_CH0DM0

G_CH0DM1

G_CH0DQS0

G_CH0DQS1

G_CH0DQ5

G_CH0DQ7

G_CH0DQ1

G_CH0DQ3

G_CH0DQ2

G_CH0DQ0

G_CH0DQ6

G_CH0DQ4

G_CH0DQ8

G_CH0DQ11

G_CH0DQ12

G_CH0DQ15

G_CH0DQ14

G_CH0DQ13

G_CH0DQ9

R5067

220

C5056
16V

0.1u

10k

10k

R5078

C5057
16V

G_CH0DM3

G_CH0DM2

G_CH0DQS3

G_CH0DQS2

G_CH0DQ30

G_CH0DQ28

G_CH0DQ27

G_CH0DQ25

G_CH0DQ24

G_CH0DQ26

G_CH0DQ29

G_CH0DQ31

G_CH0DQ18

G_CH0DQ17

G_CH0DQ22

G_CH0DQ21

G_CH0DQ16

G_CH0DQ23

G_CH0DQ20

G_CH0DQ19

0.1u

R5029

VJUMP1005-P

P

R5026
270

GC6_1.2V

IC5100E21MOSDHSO2

IC5100E23MOSDVSO2

IC5100E24CLKOD2

R5148

R5149

R5150

VJUMP1005-P

R5103

47

47

47

P

EXB2HV560JV

EXB2HV560JV

R5211

IC5100C20MOSDHSO

IC5100E22

IC5100C21CLKOD

IC5100

D19OSDEXTHIN

IC5100E19OSDEXTVIN

IC5100B27FRCH_CLKIN

IC5100C26CLKIN_EXTOSD

IC5100C22OSDYSI

IC5100B22OSDYMI

IC5100A22ALPHA1

IC5100D21

IC5100E20OSDFLAG

IC5100D20

IC5100A28CLKOSDIN1

IC5100A27OSDI15

IC5100B26OSDI14

IC5100A26OSDI13

IC5100D25OSDI12

IC5100C25OSDI11

IC5100B25OSDI10 IC5001 A2 NC

IC5100A25OSDI9

IC5100D24OSDI8

IC5100C24OSDI7

IC5100B24OSDI6

IC5100A24OSDI5

IC5100D23OSDI4

IC5100C23OSDI3

IC5100B23OSDI2

IC5100A23OSDI1

IC5100D22OSDI0IC5100H2TB1M

TO 2/22

VI2P9

VI2P7

VI2P8

10k

TO 2/22

(OSD_FLAG)

IS0CLK

47

R5152

100

R5153

R5185

R5184

R5186
10k

TO 2/22

VI2P3

VI2P2

VI2P6

SLRCK

VI2P5

DSRCK

ADCCK

ADIN

LCSID

LCSCK

VI1CVBS3

VI1CVBS2

VI1CVBS1

VI1CVBS0

VI1CK204F

VI1CK208F

VI2P0

VI2P1

LOSDOUT_H_O

LOSDOUT_CLK_O

LOSDYS

LOSDYM

LOSD ALPHA(no use)

R[3]

R[2]

R[1]

R[0]

G[4]

G[3]

G[2]

G[1]

G[0]

B[3]

B[2]

B[1]

B[0]

L5002
J0JHC0000045

C5012

IC5100 U12 VDDA

16V

0.1u
IC5100 W13 VDDA

C5013

IC5100 W17 VDDA

10u10V

C5014

IC5100 U13 VDDR

16V

0.1u
IC5100 V12 VDDR

IC5100 V15 VDDR

IC5100 W14 VDDR

C5015

IC5100 W16 VDDR

16V

0.1u
IC5100 AE19 VDDR

IC5100 AF19 VDDR

IC5100 AG19 VDDR

C5016

IC5100 AH19 VDDR

10u

10V

IC5100 AJ19 VDDR IC5100 AH7 VDDIO

IC5100 AK19 VDDR

DDR2

C5047

6.3V 1u

C5042

C5043

C5044

6.3V 1u

C5045

6.3V 1u

C5046

16V

16V

10V

0.1u

0.1u

10u

GC6_3.3V

L5006

J0JHC0000045

3.3V(2)

IC5100 V14 AVDD_DPLL

IC5100 M5 AVDD_PLL

IC5100 N6 AVSS_PLL

IC5100 R19 VDD33D_DRAM

IC5100 G4 LVVDD

IC5100 H4 LVVDD

IC5100 H5 LVVDD

IC5100 J4 LVVDD

IC5100 J5 LVVDD

IC5100 J6 LVVDD

IC5100 K4 LVVDD

IC5100 K5 LVVDD

IC5100 L4 LVVDD

IC5100 M4 LVVDD

C5027

C5028

C5029

C5030

C5031

C5032

C5033

6.3V 1u

C5034

6.3V 1u

C5035

6.3V

C5036

6.3V 1u

C5037

6.3V 1u

C5038

6.3V 1u

C5039

C5040

C5041

16V

16V

16V

16V

16V

16V

10V

C5017

16V

C5018

16V

C5019

16V

C5020

16V

C5021

6.3V 1u

C5022

6.3V 1u

C5023

6.3V 1u

C5024

6.3V 1u

C5025

10V

C5026

16V

C5073

6.3V 2.2u

C5072

GC6_1.2V

0.1u

0.1u

0.1u

0.1u

10u

10u10V

GC6_1.2V

0.1u

IC5100 M15 VDD12

IC5100 M16 VDD12

IC5100 AD25 VDD12

IC5100 AE20 VDD12

IC5100 AE21 VDD12

IC5100 AE25 VDD12

IC5100 AE26 VDD12

IC5100 AF20 VDD12

IC5100 AF26 VDD12

IC5100 AF27 VDD12

IC5100 AG20 VDD12

IC5100 AG27 VDD12

IC5100 AH20 VDD12

IC5100 AH28 VDD12

IC5100 AJ20 VDD12

IC5100 AJ29 VDD12

IC5100 AK30 VDD12

L5005
J0JHC0000045

IC5100 M12 LVVDD12

IC5100 N12 LVVDD12

IC5100 F3 LVVSS

IC5100 G3 LVVSS

IC5100 J3 LVVSS

IC5100 L3 LVVSS

IC5100 M3 LVVSS

IC5100 H3 LVVSS

IC5100 K3 LVVSS

1.2V

220

DDR2

IC5001

C3ABRY000038

IC5001 B3 UDM

IC5001 F3 LDM

IC5001 A8 UDQS

IC5001 B7 UDQS

IC5001 E8 LDQS

IC5001 F7 LDQS

IC5001 B9 DQ15

IC5001 B1 DQ14

IC5001 D9 DQ13

IC5001 D1 DQ12

IC5001 D3 DQ11

IC5001 D7 DQ10

IC5001 C2 DQ9

IC5001 C8 DQ8

IC5001 F9 DQ7

IC5001 F1 DQ6

IC5001 H9 DQ5

IC5001 H1 DQ4

IC5001 H3 DQ3

IC5001 H7 DQ2

IC5001 G2 DQ1

IC5001 G8 DQ0

IC5001 K9 ODT

IC5001 J8 CK

IC5001 K8 CK

IC5001 K2 CKE

IC5001 L2 BA0

IC5001 L3 BA1

IC5001 L1 NC

IC5001 K3 WE

IC5001 K7 RAS

IC5001 L7 CAS

IC5001 L8 CS

IC5001 J2 VREF

DDR2

IC5002

C3ABRY000038

IC5002 K9 ODT

IC5002 J8 CK

IC5002 K8 CK

IC5002 K2 CKE

IC5002 L2 BA0

IC5002 L3 BA1

IC5002 L1 NC

IC5002 K3 WE

IC5002 K7 RAS

IC5002 L7 CAS

IC5002 L8 CS

IC5002 J2 VREF

IC5002 B3 UDM

IC5002 F3 LDM

IC5002 A8 UDQS

IC5002 B7 UDQS

IC5002 E8 LDQS

IC5002 F7 LDQS

IC5002 B9 DQ15

IC5002 B1 DQ14

IC5002 D9 DQ13

IC5002 D1 DQ12

IC5002 D3 DQ11

IC5002 D7 DQ10

IC5002 C2 DQ9

IC5002 C8 DQ8

IC5002 F9 DQ7

IC5002 F1 DQ6

IC5002 H9 DQ5

IC5002 H1 DQ4

IC5002 H3 DQ3

IC5002 H7 DQ2

IC5002 G2 DQ1

IC5002 G8 DQ0

1.8V_GCDDR

C5062

16V

0.1u

C5058

4V
68u

+

C5059

16V

0.1u

C5063

16V

0.1u

C5064

16V

0.1u

C5052

10V
10u

C5051

10u

10V

C5060

16V

0.1u

C5065

16V

0.1u

C5066

16V

0.1u

C5061

16V

0.1u

R5088

R5077

68

0

C3ABRY000038

IC5001

A1 VDD

IC5001 E1 VDD

IC5001 M9 VDD

IC5001 J9 VDD

IC5001 R1 VDD

IC5001 J1 VDDL

IC5001 A9 VDDQ

IC5001 C1 VDDQ

IC5001 C3 VDDQ

IC5001 C7 VDDQ

IC5001 C9 VDDQ

IC5001 E9 VDDQ

IC5001 G1 VDDQ

IC5001 G3 VDDQ

IC5001 G7 VDDQ

IC5001 G9 VDDQ

IC5001 E2 NC

IC5001 R3 NC

IC5001 R7 NC

IC5001 R8 NC

G_CH0A0

G_CH0A1

G_CH0A2

G_CH0A3

G_CH0A4

G_CH0A5

G_CH0A6

G_CH0A7

G_CH0A8

G_CH0A9

G_CH0A10

G_CH0A11

G_CH0A12

G_CH0A0

G_CH0A1

G_CH0A2

G_CH0A3

G_CH0A4

G_CH0A5

G_CH0A6

G_CH0A7

G_CH0A8

G_CH0A9

G_CH0A10

G_CH0A11

G_CH0A12

IC5002

A1 VDD

IC5002 E1 VDD

IC5002 M9 VDD

IC5002 J9 VDD

IC5002 R1 VDD

IC5002 A9 VDDQ

IC5002 C1 VDDQ

IC5002 C3 VDDQ

IC5002 C7 VDDQ

IC5002 C9 VDDQ

IC5002 E9 VDDQ

IC5002 G1 VDDQ

IC5002 G3 VDDQ

IC5002 G7 VDDQ

IC5002 G9 VDDQ

IC5002 J1 VDDL

IC5002 A2 NC

IC5002 E2 NC

IC5002 R3 NC

IC5002 R7 NC

IC5002 R8 NC

IC5001 A3 VSS

IC5001 E3 VSS

IC5001 J3 VSS

IC5001 N1 VSS

IC5001 P9 VSS

IC5001 A7 VSSQ

IC5001 B2 VSSQ

IC5001 B8 VSSQ

IC5001 D2 VSSQ

IC5001 D8 VSSQ

IC5001 E7 VSSQ

IC5001 F2 VSSQ

IC5001 F8 VSSQ

IC5001 H2 VSSQ

IC5001 H8 VSSQ

IC5001 J7 VSSDL

IC5001 M8 A0

IC5001 M3 A1

IC5001 M7 A2

IC5001 N2 A3

IC5001 N8 A4

IC5001 N3 A5

IC5001 N7 A6

IC5001 P2 A7

IC5001 P8 A8

IC5001 P3 A9

IC5001 M2 A10

IC5001 P7 A11

IC5001 R2 A12

C3ABRY000038

IC5002 M8 A0

IC5002 M3 A1

IC5002 M7 A2

IC5002 N2 A3

IC5002 N8 A4

IC5002 N3 A5

IC5002 N7 A6

IC5002 P2 A7

IC5002 P8 A8

IC5002 P3 A9

IC5002 M2 A10

IC5002 P7 A11

IC5002 R2 A12

IC5002 A3 VSS

IC5002 E3 VSS

IC5002 J3 VSS

IC5002 N1 VSS

IC5002 P9 VSS

IC5002 A7 VSSQ

IC5002 B2 VSSQ

IC5002 B8 VSSQ

IC5002 D2 VSSQ

IC5002 D8 VSSQ

IC5002 E7 VSSQ

IC5002 F2 VSSQ

IC5002 F8 VSSQ

IC5002 H2 VSSQ

IC5002 H8 VSSQ

IC5002 J7 VSSDL

!

A-BOARD (17/22)

147 148 149145 153150146 151 152

69

GC6

CRNo.
5000-5399
5851-5999

12.22. A-Board (18/22) Schematic Diagram

!

A-BOARD (18/22)

AG_VI2CLK

AG_UB0

AG_UB1

AG_UB2

AG_UB3

AG_UB4

AG_UB5

AG_UB6

AG_UB7

AG_YG0

AG_YG1

AG_YG2

AG_YG3

AG_YG4

AG_YG5GC6_GYIB5

AG_YG6

AG_YG7

AG_HPO

AG_VPO

SUB_FS_3.3V

*C4047

10V

1u

MODEL
FPD
PDP
STB-RESET
REF No. 5400-5499

AG_UB0

AG_UB2

AG_UB1

AG_VI2CLK

5

4

VIN

VOUT

VSS

ON/OFF

NC

1

2

3

*C4051

16V

0.1u

TO 16/22

UVIN2

UVIN3

UVIN4

UVIN5

UVIN6

UVIN7

UVIN8

UVIN9

YIN2

YIN3

YIN4

YIN5

YIN6

YIN7

YIN8

YIN9

GC6_FRCKO2

GC6_BUIB0

GC6_BUIB1

GC6_BUIB2

GC6_BUIB3

GC6_BUIB4

GC6_BUIB5

GC6_BUIB6

GC6_BUIB7

GC6_GYIB0

GC6_GYIB1

GC6_GYIB2

GC6_GYIB3

GC6_GYIB4

GC6_GYIB5

GC6_GYIB6

GC6_GYIB7

GC6_HSIB

GC6_VSIB

GC6_CLKIB

FS-COMMON
FS-SYSTEM
CRNo.4000-4199

Analog ASIC
CRNO.5480-5499

GC6_BUIB0

GC6_BUIB1

GC6_BUIB2

GC6_BUIB3

GC6_BUIB4

GC6_BUIB5

GC6_BUIB6

GC6_BUIB7

GC6_GYIB0

GC6_GYIB1

GC6_GYIB2

GC6_GYIB3

GC6_GYIB4

GC6_GYIB6

GC6_GYIB7

GC6_HSIB

GC6_VSIB

GC6_CLKIB

*R4047

100

EXB2HV680JV

*R4031

*R4032

*R4033

*R4029

*R4030

EXB2HV680JV

TO 1/22

TO 8/22

G-HQ_XRST

TO 14/22

*R4049

47k

GC3FS_SDA

GC3FS_SCL

68

68

68

*IC4005

C0CBCBC00227

SUB FS3.3V

SUB_Y

AG_UB3

VJUMP1608-P

*L4008

J0JYC0000068

*C4049

16V

*R4045

TP4000

L4003

P

0.1u

SUB_FS_1.8V

10k

SUB_FS_1.8V

*C4036

10V

1u

*IC4002

C0CBCAC00358

AG_UB6

AG_UB70VAG_YG2

AG_UB4

AG_UB5

SUB_FS_1.8V

*C4010

16V

0.1u

*C4011

16V

0.1u

*C4006

16V

0.1u

*C4005

16V

0.1u

*R4046

100

SUB5V

*C4050

10V

1u

J0JYC0000068

*R4039

*R4034

750

*R4035

1.24k

*C4008

16V

0.1u

*L4002

J0JHC0000045

SUB9V

*L4009

*C4053

*C4055

16V

1k

0.1u

*C4016

16V

4.7u

*Q4000

2SA207700L

78

79

80

1

2

3

4

UBOUT2

5

VDDI

6

UBOUT1

7

UBOUT0

8

CLKO

9

VDDE

10

VSS

11

VDDI

12

FRCLKIN

13

TEST

14

SDA

15

SCL

16

CTRL0

17

CTRL1

18

22

23

21

*C4013

16V

0.1u

*C4014

16V

0.1u

*C4015

16V

0.1u

*C4054

10u

16V

+

*C4056

16V

16V

0.1u

47u

AG_YG3

AG_YG4

AG_YG0

AG_YG1

69

74

75

76

77

VSS

VDDI

VDDE

UBOUT7

VSS

UBOUT3

NRST19VSS20VDDE

AVD125AVS126MON127YIN28RT229RB230AVD231AVS232MON233UIN34RT335RB336AVD337AVS3

24

UBOUT6

UBOUT5

UBOUT4

VDDE

*IC4001

C1AB00002687

GC3FS-next

VPD

RT1

RB1

*C4021

16V

0.1u

YGOUT470YGOUT371YGOUT272YGOUT173YGOUT0

YGOUT7

*C4025

MON3

0.1u

AG_VPO

AG_YG6

AG_YG7

AG_HPO

AG_YG5

62

63

64

66

67

68

VSS

VDDE

VDDI

YGOUT665YGOUT5

PLLVS

HPO

VDDI

VPO

BXS

VDDE

VSS

VDDE

CW358

PLLVD

VSS

AOUT

AVS4

AVD4

VREF

VDDI

TDO42VDDE43VSS

TCK

TDI

VIN

TMS

TRST

38

39

16V

SUB FS1.8V

*C4027

16V

0.1u

61

60

59

58

57

*C4032

16V

56

55

54

53

52

51

*C4030

50

16V

0.1u

49

48

47

46

45

44

41

40

*L4006

J0JHC0000045

0.1u

*C4033

16V

0.1u

*C4045

*C4034

16V

0.1u

5

4

VIN

VOUT

VSS

ON/OFF

NC

1

2

3

*R4044

10k

*C4038

16V

0.1u

*C4040

*R4043

50V

2k

15p

*C4039

25V

16V

0.1u

0.01u

TO 1/22

GC3FS_TCK

GC3FS_TMS

GC3FS_TRST

GC3FS_TDO

GC3FS_TDI

SUB3.3V

*L4004

J0JYC0000068

*C4028

0.1u

*C4035

16V

1u

10V

TO 8/22

G-GRAB_MODULE_IIC/PWM_POW_ON

TO 21/22

BT_DRIVE

BT_FB

TO 2/22

TO 8/22

G-SW_OFF_DET

TO 8/22

TO 6/22

TO 2/22

RMCO

POWER_DET

G-DTV_XRST

XRST_2

XRST

C5483

SUB3.3V

R5486

D5486

10k

MA2J72800L

R5485

100

TO 22/22

STB_5V_SWON

SUB3.3V

R5473

R5484

39k

L5544

G1C470MA0291

R5488

0

TP5401

C5486

25V

3900p

C5485

0.1u

16V

R5489
10k

47k

C5470
16V

0.01u

IC5470

C0EBM0000026

PANEL

R5470

2.2k

R5472

47

R5471

100

SUB5V

+

C5484

10V

6.3V

10u

47u

STB_RST

RESET

HP_MUTE

Analog ASIC

IC5480

C1ZBZ0003972

FB

15

GND

16

FC

17

PGND

18

DRV

19

DTV5VOUT

20

DTV5VIN

21

EN_DCDC

22

CD

23

STB_RST

24

SCL

25

SDA

26

SEL

27

CLKIN

28

R5570
100

SUB5V

MONITOR_MUTE

AUDIO_MUTE_IN

MUTE_VCC

EN_CLKBF

R5412

10k

1

OUT

5Cd4

DTB9V

SP_MUTE

AMUTE

STB3.3V

STB5V

SCL0

SEL=L

SDA0

SCL1

SEL=H

SDA1

CLKOUT

D5470

MA3X152D0L

2

Vdd

C5471

10V

0.047u

TO 8/22

OFF_HOGO

Q5478

R5413

22k

R5571

10k

R5418

100k

R5419

47k

3

GND

NC

14

13

12

11

10

9

8

7

6

Peaks

5

4

TV-GenX

3

2

1

2SD0601A0L

C5530

16V

0.1u

TO 8,16,18/22

STB_RST

Q5475

2SD0601ASL

C5531
10V

2.2u

F15V

R5474

10k

R5475

C5473

25V

12k

0.01u

Q5480

R5490

47k

SUB9V

J0JYC0000068

MONITOROUT_MUTE

R5491

R5492

47k

1M

R5493

20k

R5494

10k

STB3.3V

B0HCMM000014

STB5V

D5481

L5480

C5487

6.3V
1u

B1ADCE000022

SUB9V

C5482

+

10V

220u

SUB5V

R5482

15

D5482

B0HCMM000014

C5488

6.3V
1u

TO 14/22TO 12/22

MONITOROUT_MUTE

TO 8,16,18/22

STB_RST

TO 8/22

G-MON_MUTE

G-SP_HP_MUTE

TO 12/22

AMP_MUTE

PEAKS_SCL0

PEAKS_SDA0

ADJ-GENX_SCL

ADJ_GENX_SDA

GENX7_SDA

GENX7_SCL

TO 1/22

TO 1,18/22

TO 1,15,22/22

156154 157155 161160 162159158

70

12.23. A-Board (19/22) Schematic Diagram

!

A-BOARD (19/22)

TO 17/22

1st pixel TA-

1st pixel TA+

1st pixel TB-

1st pixel TB+

1st pixel TC-

1st pixel TC+

1st pixel TCLK-

1st pixel TCLK+

1st pixel TD-

1st pixel TD+

1st pixel TE-

1st pixel TE+

2nd pixel TA-

2nd pixel TA+

2nd pixel TB-

2nd pixel TB+

2nd pixel TC-

2nd pixel TC+

2nd pixel TCLK-

2nd pixel TCLK+

2nd pixel TD-

2nd pixel TD+

2nd pixel TE-

2nd pixel TE+

GC6_TA2M

GC6_TA2P

GC6_TB2M

GC6_TB2P

GC6_TC2M

GC6_TC2P

GC6_TCLK2M

GC6_TCLK2P

GC6_TD2M

GC6_TD2P

GC6_TE2M

GC6_TE2P

GC6_TA1M

GC6_TA1P

GC6_TB1M

GC6_TB1P

GC6_TC1M

GC6_TC1P

GC6_TCLK1M

GC6_TCLK1P

GC6_TD1M

GC6_TD1P

GC6_TE1M

GC6_TE1P

*R2743

EXB28VR000X

*R2744

EXB28VR000X

*R2745

EXB28VR000X

*R2746

EXB28VR000X

*R2747

EXB28VR000X

*R2748

EXB28VR000X

Zport(input)

JEIDA 10bit

C1AB00003090

100

100

100

100

100

100

100

100

100

100

100

100

*IC2600 A2 P_ZA_RX0_N

*IC2600

A1 P_ZA_RX0_P

*IC2600 B2 P_ZA_RX1_N

*IC2600 B1 P_ZA_RX1_P

*IC2600 C2 P_ZA_RX2_N

*IC2600 C1 P_ZA_RX2_P

*IC2600 D2 P_ZA_CLK_N

*IC2600 D1 P_ZA_CLK_P

*IC2600 E2 P_ZA_RX3_N

*IC2600 E1 P_ZA_RX3_P

*IC2600 F2 P_ZA_RX4_N

*IC2600 F1 P_ZA_RX4_P

*IC2600 G2 P_ZB_RX0_N

*IC2600 G1 P_ZB_RX0_P

*IC2600 H2 P_ZB_RX1_N

*IC2600 H1 P_ZB_RX1_P

*IC2600 J2 P_ZB_RX2_N

*IC2600 J1 P_ZB_RX2_P

*IC2600 K2 P_ZB_CLK_N

*IC2600 K1 P_ZB_CLK_P

*IC2600 L2 P_ZB_RX3_N

*IC2600 L1 P_ZB_RX3_P

*IC2600 M2 P_ZB_RX4_N

*IC2600 M1 P_ZB_RX4_P

FRC Q

IC2600

C1AB00003090

*R2641

*R2642

*R2643

*R2644

*R2645

0

*R2646

*R2647

*R2648

*R2649

*R2650

*R2651

*R2652

TO 8/22

G-TV_MAIN_ON

*TP2610

S

+

25V
47u

FRC 1.8V

*IC2604

C0CBCAG00039

6

VOUT

VIN

5

VSS

VSS

4

ON/OFF

NC

*L2602

J0JHC0000075

1

2

3

*L2601

G1C100MA0203

VJ2600

VJUMP1005-P

P

*Q2605

2SD0601A0L

FRC 3.3V/D1.05V

1

CTL1

2

CS1

3

FB1

4

VO1

5

ILIM1

6

GND

7

CVBLPF

8

CTL2

9

ILIM2

10

VO2

11

FB2

12

CS2

*R2634

47k

TV_ON OFF

*Q2604

2SD0601A0L

CB1

DRVH1

LX1

DRVL1

VCC

VB

PGND

DRVL2

C0DBAYY00480

*IC2601

LX2

DRVH2

CB2

TEST

*R2635

10k

*R2600

68

*R2601

47k

*C2615

*R2613

2k

*R2612

3.6k

*R2610

10k

*R2609

10k

*R2615

2.2k

*R2616

3.6k

*R2621

270

*C2612

25V

25V

4700p

*C2616

25V
2700p

0.01u

*C2613

1u16V

*R2614

10

*C2614

10V

0.047u

*R2607

22k

*C2601

*R2608

16V

68k

1u

*C2604

16V

0.1u

24

P

R2617

VJUMP1005-P

23

22

P

R2618

VJUMP1005-P

21

20

19

18

17

16

15

14

13

*C2605

25V

0.1u

P

R2619

VJUMP1005-P

P

R2620

VJUMP1005-P

*C2602

*C2603

10V

16V

0.1u

4.7u

S1G1S2G2

*C2608

*C2609

25V

25V

10u

10u

D2 D2 D1 D1

*Q2602

*C2606

B1MBEDA00015
25V
10u

*Q2603

B1MBEDA00015

S1G1S2G2

*C2610

*C2607

D2 D2 D1 D1

25V

25V

10u

10u

G1C2R2Z00007

G1C4R7Z00014

TP2601

*L2603

*C2618

16V

+

0.1u

*C2621

4V

68u

*C2620

4V

68u

+

TP2602

*L2604

J0JYC0000068

*C2623

*L2615

*C2636

10V

4.7u

*PA2601

K5H5022A0031

*C2622

25V

1u

FRC_1.8V

*C2640

10V

4.7u

*L2605

J0JHC0000045

*C2641

*C2645

16V

16V

0.1u

0.1u

F15V

FRC_3.3V

*X2600

H0J270500113

TO 1/22

FRCQ_TDI

FRCQ_TDO

FRCQ_TMS

FRCQ_TCK

FRCQ_TRST

*C2652

50V
12p

*L2617

J0JHC0000045

*C2650

*C2653

16V

0.1u

0.1u

*L2618

J0JHC0000045

*C2651

*C2654

16V

0.1u

TDI

TDO

TMS

TCK

TRST

FRC_D1.05V

FRC_3.3V

FRC_DDR_1.8V

*C2649

16V

0.1u

FRC_3.3V

*IC2600 P1 XOUT

*IC2600 R1 XIN

*C2655

50V
18p

*C2660

16V

0.1u

*C2659

16V

0.1u

*IC2600 A4 TDI

*IC2600 B5 TDO

*IC2600 A5 TMS

*IC2600 B4 TCLK

*IC2600 A3 TRST_N

*IC2600 A6 TM

*IC2600 P4 VDD33OSC

*IC2600 N4 VSS33OSC

*IC2600 D7 VDD33

*IC2600 D8 VDD33

*IC2600 M4 VDD33

*C2663

6.3V
1u

*C2656

10V

16V

10u

*C2657

16V

16V

0.1u

0.1u

JTAG

EEPROM

*IC2605

TVRQ696

*C2658

16V

0.1u

TO 17/22

FRC_EEPROM_WP

TO 8/22

G-HQ_XRST

TP2604

1

2

3

4

TP2605

TP2603

TP2609

NC

E1

E2

Vss

TO 1/22

*IC2600 A11 GPIO00

*IC2600 B10 GPIO01

*IC2600 A10 GPIO02

*IC2600 B9 GPIO03

*IC2600 A9 GPIO04

*IC2600 B8 GPIO05

*IC2600 A8 GPIO06

FRCQ_SCL

FRCQ_SDA

8

Vcc

*R2658

2.2k

7

/WC

6

SCL

5

SDA

68

*R2660

22

*R2656

22

*R2657

68

*R2742

*R2629

1k

47

*R2655

GPIO port

*IC2600 B7 GPIO07

*IC2600 A7 GPIO08

*IC2600 P2 GPIO09

*IC2600 P3 GPIO10

*IC2600 R2 GPIO11

*IC2600 R3 GPIO12

*R2662

*R2659

2.2k

2.2k

*IC2600 N3 MSCL

*IC2600 M3 MSDA

*IC2600 N1 SSCL

*IC2600 N2 SSDA

*IC2600 B6 RESET_N

*C2637

*R2622

2.2k

*C2662

10V

4.7u

Cont

5

NC

6

NC

7

Vin

8

*IC2607

C0CBCAD00090

FRC A1.05V

*IC2606

C0DBFYY00062

10V

1u

FRC 2.5V

1

5

VIN

VOUT

2

VSS

3

4

CE

NC

GND

4

*C2635

Cn

3

NC

2

*C2664

6.3V
1u

Vout

1

FRC_A1.05V

*C2668

*C2666

16V

10V

0.1u

4.7u

*L2609

J0JHC0000045

*C2669

16V

0.1u

*L2610

J0JHC0000045

*C2670

16V

0.1u

*L2611

J0JHC0000045

*C2647

*C2671

16V

0.1u

16V

0.01u

*C2665

FRC_2.5V

*R2661

16V

4.7k

0.1u

*L2608

J0JHC0000045

+

*C2667

*C2639

16V

68u

0.1u

4V

*C2646

4V

22u

4V
22u

J0JHC0000045

*C2672

16V

*L2612

J0JHC0000045

*C2673

16V

0.1u

*L2613

*C2674

16V

0.1u

0.1u

*C2675

4V
22u

*C2676

16V

0.1u

*C2677

16V

0.1u

*C2661

4V
22u

*C2638

4V
22u

*C2678

16V

0.1u

*C2679

16V

0.1u

*IC2600 T13 VDD105DLL

*IC2600 R13 VSS

*IC2600 R4 VDD105PLL

*IC2600 T4 VSS105PLL

*IC2600 T9 VDD105MPLL

*IC2600 T10 VSS105MPLL

*IC2600 D14 VDDLX25PLL

*C2682

16V

0.1u

*IC2600 C14 VSS

*IC2600 H4 VDDLZ25PLL

*C2683

16V

0.1u
*IC2600 J3 VSS

*IC2600 J4 VDDLZ25

*IC2600 K19 VDDLY25PLL

*IC2600 M19 VDDLY25

*C2680

16V

*IC2600 H19 VDDLY25

0.1u

*IC2600 D12 VDDLX25

*IC2600 D16 VDDLX25

*C2681

16V

0.1u

165163 166164 170169 171168167

71

12.24. A-Board (20/22) Schematic Diagram

!

A-BOARD (20/22)

FRC_D1.05V

*C2684

Xport(Out1st)

JEIDA 10bit

*R2632

0

*C2685

16V

4V

0.1u

68u

4

+

*C2687

*C2688

*C2689

*C2690

*C2691

*C2692

*C2693

*C2694

*C2695

*C2686

16V

0.1u

16V

0.1u

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

16V

0.1u

0.1u

16V

0.1u

16V

0.1u

16V

*IC2600 K7 VSS105_S

*IC2600 C5 VSS

*IC2600 C6 VSS

*IC2600 C7 VSS

*IC2600 C8 VSS

*IC2600 C9 VSS

*IC2600 C10 VSS

*IC2600 C11 VSS

*IC2600 C12 VSS

*IC2600 C13 VSS

*IC2600 C15 VSS

*IC2600 C16 VSS

*IC2600 C17 VSS

*IC2600 C18 VSS

*IC2600 C19 VSS

*IC2600 C20 VSS

*IC2600 D3 VSS

*IC2600 D4 VSS

*IC2600 D5 VSS

*IC2600 D6 VSS

*IC2600 D9 VSS

*IC2600 D10 VSS

*IC2600 D11 VSS

*IC2600 D13 VSS

*IC2600 D15 VSS

*IC2600 D17 VSS

*IC2600 D18 VSS

*IC2600 D19 VSS

*IC2600 D20 VSS

*IC2600 E3 VSS

*IC2600 E4 VSS

*IC2600 E19 VSS

*IC2600 E20 VSS

*IC2600A13P_XA_TX0_N

*IC2600B13P_XA_TX0_P

*IC2600A14P_XA_TX1_N

*IC2600B14P_XA_TX1_P

*IC2600A15P_XA_TX2_N

*IC2600B15P_XA_TX2_P

*IC2600A16P_XA_CLK_N

*IC2600B16P_XA_CLK_P

*IC2600A17P_XA_TX3_N

*IC2600B17P_XA_TX3_P

*IC2600A18P_XA_TX4_N

*IC2600B18P_XA_TX4_P

*IC2600A19P_XB_TX0_N*IC2600N21P_YB_TX2_P

*IC2600B19P_XB_TX0_P

*IC2600A20P_XB_TX1_N

*IC2600B20P_XB_TX1_P

*IC2600A22P_XB_TX2_N

*IC2600A21P_XB_TX2_P

*IC2600B22P_XB_CLK_N

*IC2600B21P_XB_CLK_P

*IC2600C22P_XB_TX3_N

*IC2600D22P_XB_TX4_N

*IC2600D21P_XB_TX4_P

*IC2600 G7 VDD105

*IC2600 G8 VDD105

*IC2600 G9 VDD105

*IC2600 H7 VDD105

*IC2600 H8 VDD105

*IC2600 H9 VDD105

*IC2600 J8 VDD105

*IC2600 J9 VDD105

*IC2600 J10 VDD105

*IC2600 K9 VDD105

*IC2600 K10 VDD105

*IC2600 J7 VDD105_S

*IC2600 N9 VDD105

*IC2600 N10 VDD105

*IC2600 P8 VDD105

*IC2600 P9 VDD105

*IC2600 P10 VDD105

*IC2600 R7 VDD105

*IC2600 R8 VDD105

*IC2600 R9 VDD105

*IC2600 T7 VDD105

FRC_DDR_1.8V

*C2698

*C2697

16V

0.1u

16V

0.1u

*C2699

16V

0.1u

*IC2600 F3 VSS

*IC2600 F4 VSS

*IC2600 F19 VSS

*IC2600 F20 VSS

*IC2600 G3 VSS

*IC2600 G4 VSS

*IC2600 G10 VSS

*IC2600 G11 VSS

*IC2600 G12 VSS

*IC2600 G13 VSS

*IC2600 G19 VSS

*IC2600 G20 VSS

*IC2600 H3 VSS

*IC2600 H10 VSS

*IC2600 H11 VSS

*IC2600 H12 VSS

*IC2600 H13 VSS

*IC2600 H20 VSS

*IC2600 J11 VSS

*IC2600 J12 VSS

*IC2600 J19 VSS

*IC2600 J20 VSS

*IC2600 K3 VSS

*IC2600 K4 VSS

*IC2600 K8 VSS

*IC2600 K11 VSS

*IC2600 K12 VSS

*IC2600 K15 VSS

*IC2600 K16 VSS

*IC2600 K20 VSS

FRC Q

IC2600

C1AB00003090

Yport(Out2nd)

TP2606

*IC2600 B11 PWM

TP2607

*IC2600 B12 H

TP2608

*IC2600 A12 V

*IC2600E21P_YA_TX0_P

*IC2600E22P_YA_TX0_N

*IC2600F21P_YA_TX1_P

*IC2600F22P_YA_TX1_N

*IC2600G21P_YA_TX2_P

*IC2600G22P_YA_TX2_N

*IC2600H21P_YA_CLK_P

*IC2600H22P_YA_CLK_N

*IC2600J21P_YA_TX3_P

*IC2600J22P_YA_TX3_N

*IC2600K21P_YA_TX4_P

*IC2600K22P_YA_TX4_N

*IC2600L21P_YB_TX0_P

*IC2600L22P_YB_TX0_N

*IC2600M21P_YB_TX1_P

*IC2600M22P_YB_TX1_N

*IC2600N22P_YB_TX2_N

*IC2600P21P_YB_CLK_P

*IC2600P22P_YB_CLK_N

*IC2600R21P_YB_TX3_P

*IC2600R22P_YB_TX3_N

*IC2600T21P_YB_TX4_P

*IC2600T22P_YB_TX4_N

DDR2

IC2611

220

*C2749

50V
100p

*C2748

50V
100p

C1AB00003090

*IC2611=F3 LDM

*IC2611=B3 UDM

*IC2611=E8 LDQS

*IC2611=F7 LDQS

*IC2611=A8 UDQS

*IC2611=B7 UDQS

*IC2611=B9 DQ15

*IC2611=B1 DQ14

*IC2611=D9 DQ13

*IC2611=D1 DQ12
=

D3 DQ11

*IC2611

*IC2611=D7 DQ10

*IC2611=C2 DQ9

*IC2611=C8 DQ8

*IC2611=F9 DQ7

*IC2611=F1 DQ6

*IC2611=H9 DQ5

*IC2611=H1 DQ4

*IC2611=H3 DQ3

*IC2611=H7 DQ2
=

G2 DQ1

*IC2611

*IC2611=G8 DQ0

*IC2611=K9 ODT

*IC2611=J8 CK

*IC2611=K8 CK

*IC2611=K2 CKE

*IC2611=L2 BA0

*IC2611=L3 BA1

*IC2611=L1 NC

*IC2611=K3 WE

*IC2611=K7 RAS

*IC2611=L7 CAS

*IC2611=L8 CS

*IC2611=J2 VREF

*C2722

*C2719

*C2720

*C2723

*C2724

*C2725

16V

4V

16V

16V

16V

10V

*C2726

10V

10u

*C2727

16V

0.1u

*C2728

16V

0.1u

*C2729

16V

0.1u

FRC_DDR_1.8V

*IC2611

0.1u
*IC2611=E1 VDD

*IC2611=M9 VDD

+

*IC2611=J9 VDD

68u

*IC2611=R1 VDD

*IC2611=J1 VDDL

0.1u

*IC2611=A9 VDDQ

*IC2611=C1 VDDQ

*IC2611=C3 VDDQ

0.1u
*IC2611=C7 VDDQ

*IC2611=C9 VDDQ

*IC2611=E9 VDDQ

*IC2611=G1 VDDQ

*IC2611=G3 VDDQ

0.1u
*IC2611=G7 VDDQ

*IC2611=G9 VDDQ

10u

*IC2611=A2 NC

*IC2611=E2 NC

*C2742

16V

0.1u

*C2743

16V

0.1u

*C2744

16V

0.1u

*C2745

16V

0.1u

*C2746

16V

0.1u

*C2747

16V

0.1u

*C2721

16V

0.1u

C3ABSY000036

*C2730

*C2731

*C2732

*C2733

*C2734

*C2735

*C2736

*C2737

*C2738

*C2739

*C2740

*C2741

A1 VDD

*IC2611=A3 VSS

*IC2611=E3 VSS

*IC2611=J3 VSS

*IC2611=N1 VSS

*IC2611=P9 VSS

*IC2611=A7 VSSQ

*IC2611=B2 VSSQ

*IC2611=B8 VSSQ

*IC2611=D2 VSSQ

*IC2611=D8 VSSQ

*IC2611=E7 VSSQ

*IC2611=F2 VSSQ

*IC2611=F8 VSSQ

*IC2611=H2 VSSQ

*IC2611=H8 VSSQ

*IC2611=J7 VSSDL

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

F_CH0A0

F_CH0A1

F_CH0A2

F_CH0A3

F_CH0A4

F_CH0A5

F_CH0A6

F_CH0A7

F_CH0A8

F_CH0A9

F_CH0A10

F_CH0A11

F_CH0A12

*IC2611=M8 A0

*IC2611=M3 A1

*IC2611=M7 A2

*IC2611=N2 A3

*IC2611=N8 A4

*IC2611=N3 A5

*IC2611=N7 A6

*IC2611=P2 A7

*IC2611=P8 A8

*IC2611=P3 A9

*IC2611=M2 A10

*IC2611=P7 A11

*IC2611=R2 A12

*IC2611=R8 NC

*IC2611=R3 NC

*IC2611=R7 NC

A13

A14

A15

TO 15/22

1ST_PIX_TA-

1st pixel TA-

1ST_PIX_TA+

1st pixel TA+

1st pixel TB-

1ST_PIX_TB-

1ST_PIX_TB+

1st pixel TB+

1ST_PIX_TC-

1st pixel TC-

1ST_PIX_TC+

1st pixel TC+

1st pixel TCLK-

1ST_PIX_TCLK-

1ST_PIX_TCLK+

1st pixel TCLK+

1ST_PIX_TD-

1st pixel TD-

1ST_PIX_TD+

1st pixel TD+

1ST_PIX_TE-

1st pixel TE-

1ST_PIX_TE+

1st pixel TE+

LVDS_DET

2ND_PIX_TA-

2nd pixel TA-

2ND_PIX_TA+

2nd pixel TA+

2nd pixel TB-

2ND_PIX_TB-

2ND_PIX_TB+

2nd pixel TB+

2ND_PIX_TC-

2nd pixel TC-

2ND_PIX_TC+

2nd pixel TC+

2ND_PIX_TCLK-

2nd pixel TCLK-

2ND_PIX_TCLK+

2nd pixel TCLK+

2ND_PIX_TD-

2nd pixel TD-

2ND_PIX_TD+

2nd pixel TD+

2ND_PIX_TE-

2nd pixel TE-

2ND_PIX_TE+

2nd pixel TE+

16V 0.1u

16V 0.1u

16V 0.1u

16V

16V

0.1u

0.1u

*C2706

16V

0.1u

*IC2600 G14 VDD105

*IC2600 G15 VDD105

*IC2600 G16 VDD105

*IC2600 H14 VDD105

*IC2600 H15 VDD105

*IC2600 H16 VDD105

*IC2600 J13 VDD105

*IC2600 J14 VDD105

*IC2600 J15 VDD105

*IC2600 J16 VDD105

*IC2600 K13 VDD105

*IC2600 K14 VDD105

*IC2600 N13 VDD105

*IC2600 N14 VDD105

*IC2600 P13 VDD105

*IC2600 P14 VDD105

*IC2600 P15 VDD105

*IC2600 R14 VDD105

*IC2600 R15 VDD105

*IC2600 R16 VDD105

*IC2600 T14 VDD105

*IC2600 T16 VDD105

*IC2600 P7 VDD18

*IC2600 P16 VDD18

*IC2600 T8 VDD18

*IC2600 T12 VDD18

*IC2600 T15 VDD18

*IC2600 L3 VSS

*IC2600 L4 VSS

*IC2600 L7 VSS

*IC2600 L8 VSS

*IC2600 L9 VSS

*IC2600 L10 VSS

*IC2600 L11 VSS

*IC2600 L12 VSS

*IC2600 L13 VSS

*IC2600 L14 VSS

*IC2600 L15 VSS

*IC2600 L16 VSS

*IC2600 L19 VSS

*IC2600 L20 VSS

*IC2600 M7 VSS

*IC2600 M8 VSS

*IC2600 M9 VSS

*IC2600 M10 VSS

*IC2600 M11 VSS

*IC2600 M12 VSS

*IC2600 M13 VSS

*IC2600 M14 VSS

*IC2600 M15 VSS

*IC2600 M16 VSS

*IC2600 M20 VSS

*IC2600 N7 VSS

*IC2600 N8 VSS

*IC2600 N11 VSS

*IC2600 N12 VSS

*IC2600 N15 VSS

*IC2600 N16 VSS

*IC2600 N19 VSS

*IC2600 N20 VSS

*IC2600 P11 VSS

*IC2600 P12 VSS

*IC2600 P19 VSS

*IC2600 P20 VSS

*IC2600 R10 VSS

*IC2600 R11 VSS

*IC2600 R12 VSS

*IC2600 R19 VSS

*IC2600 R20 VSS

*IC2600 T2 VSS

*IC2600 T3 VSS

*IC2600 T11 VSS

*IC2600 T19 VSS

*IC2600 T20 VSS

*IC2600 U2 VSS

*IC2600 U3 VSS

*IC2600 U4 VSS

*IC2600 U19 VSS

*IC2600 U20 VSS

*IC2600 U22 VSS

*IC2600 V4 VSS

*IC2600 V19 VSS

*IC2600 W4 VSS

*IC2600 W8 VSS

*IC2600 W9 VSS

*IC2600 W10 VSS

*IC2600 W11 VSS

*IC2600 W13 VSS

*IC2600 W14 VSS

*IC2600 W15 VSS

*IC2600 W16 VSS

*IC2600 W17 VSS

*IC2600 W18 VSS

*IC2600 W19 VSS

*C2701

*C2702

*C2703

*C2704

*C2705

*C2700

16V

0.1u

DRAM_DQ25

*IC2600Y20DRAM_DM0

*IC2600Y19DRAM_DM1

*IC2600AB20DRAM_DQS0

*IC2600AA21DRAM_DQS0_N

*IC2600AB22DRAM_DQS1

*IC2600AA22DRAM_DQS1_N

*IC2600V20DRAM_DQ0

*IC2600Y17DRAM_DQ1

*IC2600V21DRAM_DQ2

*IC2600AA20DRAM_DQ3

*IC2600AB16DRAM_DQ4

*IC2600U21DRAM_DQ5

*IC2600AA17DRAM_DQ6

*IC2600W22DRAM_DQ7

*IC2600W20DRAM_DQ8

*IC2600AA18DRAM_DQ9

*IC2600AB21DRAM_DQ10

*IC2600AA19DRAM_DQ11

*IC2600Y18DRAM_DQ12

*IC2600W21DRAM_DQ13

*IC2600AB18DRAM_DQ14

*IC2600Y21DRAM_DQ15

*R2720

*IC2600AA9DRAM_A0

*R2721

*IC2600AB8DRAM_A1

*R2722

*IC2600AA8DRAM_A2

*R2723

*IC2600Y9DRAM_A3

*R2724

*IC2600Y8DRAM_A4

*R2725

*IC2600AA7DRAM_A5

*R2726

*IC2600Y7DRAM_A6

*R2727

*IC2600AA14DRAM_A7

*R2728

*IC2600Y14DRAM_A8

*R2729

*IC2600Y15DRAM_A9

*R2730

*IC2600AA15DRAM_A10

*R2731

*IC2600AA16DRAM_A11

*R2732

*IC2600Y16DRAM_A12

*R2733

*IC2600AA11DRAM_BA0

*R2734

*IC2600Y11DRAM_BA1

*R2735

*IC2600Y10DRAM_BA2

*R2736

*IC2600AA13DRAM_WE_N

*R2737

*IC2600AB14DRAM_RAS_N

*R2738

*IC2600Y13DRAM_CAS_N

*R2739

*IC2600AB12DRAM_CS_N

*R2740

*IC2600Y12DRAM_CKE

*R2741

*IC2600AA12DRAM_ODT

VJ2626 VJUMP1005-S

*IC2600AA10DRAM_CK

VJ2627 VJUMP1005-S

*IC2600AB10DRAM_CK_N

*IC2600W5DRAM_TEST_ANALOG

*IC2600W6DRAM_TEST_D1

*IC2600W7DRAM_TEST_D2

*IC2600W12DRAM_VREF

*C2707

50V

100p

*IC2600AB1DRAM_DM2

*IC2600Y2DRAM_DM3

*IC2600Y3DRAM_DQS2

*IC2600AA3DRAM_DQS2_N

*IC2600AA4DRAM_DQS3

*IC2600AB4DRAM_DQS3_N

*IC2600AB2DRAM_DQ16

*IC2600V2DRAM_DQ17

*IC2600AA2DRAM_DQ18

*IC2600V3DRAM_DQ19

*IC2600U1DRAM_DQ20

*IC2600AB6DRAM_DQ21

*IC2600W3DRAM_DQ22

*IC2600AA6DRAM_DQ23

*IC2600Y5DRAM_DQ24

*IC2600W2

*IC2600Y4DRAM_DQ26

*IC2600AA1DRAM_DQ27

*IC2600W1DRAM_DQ28

*IC2600Y6DRAM_DQ29

*IC2600Y1DRAM_DQ30

*IC2600AA5DRAM_DQ31

47

47

47

47

47

47

47

47

47

47

47

47

47

47

47

47

47

47

47

47

47

47

S

S

TP2633

TP2634

TP2635

F_CH0DM2

F_CH0DM3

F_CH0DQS2

F_CH0XDQS2

F_CH0DQS3

F_CH0XDQS3

F_CH0DQ16

F_CH0DQ17

F_CH0DQ18

F_CH0DQ19

F_CH0DQ20

F_CH0DQ21

F_CH0DQ22

F_CH0DQ23

F_CH0DQ24

F_CH0DQ25

F_CH0DQ26

F_CH0DQ27

F_CH0DQ28

F_CH0DQ29

F_CH0DQ30

F_CH0DQ31

F_CH0DM0

F_CH0DM1

F_CH0DQS0

F_CH0XDQS0

F_CH0DQS1

F_CH0XDQS1

F_CH0DQ0

F_CH0DQ1

F_CH0DQ2

F_CH0DQ3

F_CH0DQ4

F_CH0DQ5

F_CH0DQ6

F_CH0DQ7

F_CH0DQ8

F_CH0DQ9

F_CH0DQ10

F_CH0DQ11

F_CH0DQ12

F_CH0DQ13

F_CH0DQ14

F_CH0DQ15

F_CH0A0

F_CH0A1

F_CH0A2

F_CH0A3

F_CH0A4

F_CH0A5

F_CH0A6

F_CH0A7

F_CH0A8

F_CH0A9

F_CH0A10

F_CH0A11

F_CH0A12

F_CH0BA0

F_CH0BA1

F_CH0BA2

F_CH0XWE

F_CH0XRAS

F_CH0XCAS

F_CH0XCS

F_CH0CKE

F_CH0ODT

F_CH0CK

F_CH0XCK

VJ2628

VJUMP1005-S

S

*C2709

16V

0.1u

F_CH0DM0

F_CH0DM1

F_CH0XDQS0

F_CH0DQS0

F_CH0XDQS1

F_CH0DQS1

F_CH0DQ15

F_CH0DQ14

F_CH0DQ13

F_CH0DQ12

F_CH0DQ11

F_CH0DQ10

F_CH0DQ9

F_CH0DQ8

F_CH0DQ7

F_CH0DQ6

F_CH0DQ5

F_CH0DQ4

F_CH0DQ3

F_CH0DQ2

F_CH0DQ1

F_CH0DQ0

F_CH0ODT

F_CH0CK

F_CH0XCK

F_CH0CKE

F_CH0BA0

F_CH0BA1

F_CH0BA2

F_CH0XWE

F_CH0XRAS

F_CH0XCAS

F_CH0XCS

F_CH0ODT

F_CH0CKE

F_CH0XCS

F_CH0CK

F_CH0XCK

FRC_DDR_1.8V

*R2713

1k

*C2715

16V

0.1u

*R2715

*R2719

VJUMP1005-S

*R2714

1k

*R2718

*C2717

10k

16V

0.1u

*R2716

10k

*R2717

10k

220

VJ2629

S

*C2718

16V

0.1u

174172 175173 179178 180177176

72

12.25. A-Board (21/22) Schematic Diagram

!

A-BOARD (21/22)

POWER-Peaks

REF No. 5600-5749

POWER-MODEL

REF No. 5400-5499

VJ5600

VJUMP1005-P

P

R5630

3.3k
C5624

50V

3300p

R5621

0

R5632

4.02k

R5631

3.9k

R5622

0

R5629

2.1k

F15V

R5651
10k

Q5606

2SD0601A0L

R5649

22k

R5654

10k

Q5605

2SD0601A0L

R5655

47k

C5601

R5650

25V

68k

TO 22/22

0.01u

DCDC_CTL1

R5638

24k

C5650

50V

1500p

R5656

0

R5639

3.9k

R5605

2.2k

R5657

0

C5607

50V

R5604

2700p

3.9k

D5641

MAZ80560LL

R5653

2.2k

C5651

R5652

10V

47k

2.2u

C5621

25V

0.01u

R5634 16k

C5644

1u16V

R5633 12k

C5616

16V

C5623

50V

2700p

0.027u

R5658

20k

C5606

1u16V

R5610

R5603

20k

C5604

25V

6800p

R5635

5.6

VJ5601

VJUMP1005-P

5.6

SUB1.2V/1.8V

1

CTL1

2

CS1

3

FB1

4

VO1

5

ILIM1

6

GND

7

CVBLPF

8

CTL2

9

ILIM2

10

VO2

11

FB2

12

CS2

P

SUB3.3V/5V

1

CTL1

2

CS1

3

FB1

4

VO1

5

ILIM1

6

GND

7

CVBLPF

8

CTL2

9

ILIM2

10

VO2

11

FB2

12

CS2

CB1

DRVH1

LX1

DRVL1

VCC

PGND

IC5601

DRVL2

C0DBAYY00480

LX2

DRVH2

CB2

TEST

CB1

DRVH1

LX1

DRVL1

VCC

PGND

DRVL2

IC5600

LX2

C0DBAYY00480

DRVH2

CB2

TEST

F15V

L5604

G1C100MA0203

C5611

C5619

25V

25V
10u

10u

C5612

C5618

25V

25V

10u

10u

C5626

24

0.1u

16V

VJ5602

23

VJUMP1005-P

P

22

VJ5603

21

VJUMP1005-P

P

20

19

VB

18

VJ5604

17

VJUMP1005-P

P

16

VJ5605

15

VJUMP1005-P

P

14

13

C5627

C5622

10V

16V

4.7u

0.1u

C5645

16V

0.1u

24

VJ5608

23

VJUMP1005-P

P

22

VJ5609

21

VJUMP1005-P

P

20

19

VB

18

17

16

15

14

13

C5643

25V

0.1u

VJ5606
VJUMP1005-P

P

VJ5607
VJUMP1005-P

P

C5605
10V

C5603
16V

4.7u

0.1u

S1G1S2G2

SUB1.2V

L5601

G1C3R3Z00004

D2 D2 D1 D1

Q5601

B1MBDDA00003

C5620

25V

0.1u

L5600

S1G1S2G2

Q5602

B1MBDDA00003

S1G1S2G2

Q5609

B1MBDDA00003

S1G1S2G2

Q5600

B1MBDDA00003

G1C2R2Z00007

D2 D2 D1 D1

L5614

G1C6R8Z00010

D2 D2 D1 D1

L5602

G1C4R7Z00014

D2 D2 D1 D1

TP5602

C5641

+

16V

C5629

0.1u

2.5V
68u

C5628

2.5V
68u

+

TP5601

SUB1.8V

L5608

G1C100MA0077

C5615

C5642

25V

25V

10u

10u

TP5641

+

C5646

C5648

6.3V

16V

0.1u

100u

C5602
4V

TP5600

68u

+

C5640

C5637

C5636

16V

0.1u

C5638

16V

16V

0.1u

16V

0.1u

0.1u

J0JHC0000045

+

C5631
25V

47u

SUB5V

SUB3.3V

C5639

16V

0.1u

S

L5605

PA5600

K5H5022A0031

C5632

25V
1u

SUB9V

IC5481

C0DBEJG00001

3

(FIN)

SUB5V

R5497

10k

C5490

10V

4.7u

F15V

SUB9V

TP5400

BT30V

TP5421

L5421

G1C100MA0072

C5424

C5423

R5421

15k

D5421

B0BC03900015

50V

50V

0.47u

1000p

GND

CTL2Vcc4OUT5C

1

C5401

25V
10u

R5422

100k

+

C5426

C5425

35V

50V

22u

0.47u

R5423

3.4k

R5499
294k

R5496

47k

C5402
25V
10u

D5423

MA3X78900L

C5427

50V
82p

D5422

MAZ83600ML

STB3.3V

TO 18/22

BT_DRIVE

BT_FB

Q5431

2SB0709A0L

R5433

1k

D5431

MA3X152D0L

D5432

MA3X152D0L

Q5432

2SD0601ASL

R5452

100k

R5434

10k

R5451

1k

R5431

2.2k

R5432

3.3k

C5431

16V

0.1u

TP5431

TO 8/22

SOS

C5432
16V

0.1u

R5435

220

R5437

470

R5439

470

R5441

220

SUB5V

D5442

MAZ80680LL

D5433

MA3X152E0L

SUB1.2V

D5444

MAZ80680LL

D5434

MA3X152E0L

GC6_1.2V

D5446

MAZ80680LL

D5435

MA3X152E0L

FRC_D1.05V

*D5448

MAZ80680LL

*D5436
MA3X152E0L

SUB3.3V

D5449

MAZ80680LL

D5437

MA3X152E0L

G-SOS

SUB6V

BT30V

SUB9V

SUB5V

SUB9V

D5441
MAZ81200ML

R5453

R5454

4.7k

4.7k

SUB1.8V

D5443
MAZ80680LL

R5455

R5456

4.7k

4.7k

GC6_1.8V

D5445
MAZ80680LL

R5457

R5458

4.7k

4.7k

FRC_3.3V

*D5447

MAZ80680LL

*R5459

*R5460

4.7k

4.7k

SUB6V

D5582

MAZ81200ML

R5540

R5461

4.7k

4.7k

181 184183182 188187 189186185

73

12.26. A-Board (22/22) Schematic Diagram

!

A-BOARD (22/22)

Set

REF No. 2750-2899

POWER-GC6

CR No.5300-5399

FPD

REF No. 2750-2899

VJ5300

VJUMP1005-P

P

R5330

3.3k

R5336

R5332

4.02k

R5331

3.9k

R5337

R5329

2.1k

TO 21/22

DCDC_CTL1

3300p

C5324

0

0

C5321

50V

25V

6800p

R5334

16k

C5344

1u16V

R5335

R5333

12k

2700p

C5316

16V

C5323

0.033u

50V

TO 1,18/22

TO 1/22

TO 15/22

5.6

TO 8/22

G-SRQ_GENX

ADJ-GENX_SCL

ADJ_GENX_SDA

PEAKS_SCL3

PEAKS_SDA3

PANEL_SCL2

PANEL_SDA2

IIC_CONT/C_SEL

GC6 1.2V/1.8V

1

2

3

4

5

6

7

8

9

10

11

12

MODEL

REF No. 2750-2899

CTL1

CS1

FB1

VO1

ILIM1

GND

CVBLPF

CTL2

ILIM2

VO2

FB2

CS2

CB1

DRVH1

LX1

DRVL1

VCC

VB

PGND

IC5312

DRVL2

C0DBAYY00480

LX2

DRVH2

CB2

TEST

R0180

100

EZJZ0V120JA

D1002

24

23

22

21

20

19

18

17

16

15

14

13

C5322

4.7u

EZAEG2A50AX

EZJZ0V120JA

D1003

10V

EZAEG2A50AX

D1004

C5326

16V

EZAEG2A50AX

EZAEG2A50AX

D1005

D1006

0.1u

C5320

25V

0.1u

C5327

16V

0.1u

EZAEG2A50AX

EZAEG2A50AX

D1007

D1008

TP0102

TP0104

TP0105

TP0106

TP0107

TP0108

TP0109

TP0110

EZAEG2A50AX

D1009

D1010

TO 1/22

TP0101

TMP-SENS_SDA

TMP-SENS_SCL

B1MBDDA00003

B1MBDDA00003

CN0100

1

2

3

4

5

6

7

8

9

10

11

S1G1S2G2

Q5312

S1G1S2G2

Q5318

D2 D2 D1 D1

D2 D2 D1 D1

FOR
FACTORY USE

STB5V

GenX5_SRQ

GND

GenX8_SDA1

PEAKS_SCL3

PEAKS_SDA3

Panel_SCL

Panel_SDA

GenX7_SRQ

G1C2R2Z00007

G1C2R2Z00007

(GenX8 Loarder/E2PROM)GenX8_SCL1

(GenX8 Loarder/E2PROM)

(PEAKS E2PROM)

(PEAKS E2PROM)

(Panel Dpr.E2PROM)

(Panel Dpr.E2PROM)

R1010

10k

L5301

C5329

2.5V
68u

C5328

2.5V
68u

L5302

1

SDA

2

SCL

3

ALERT

4

GND

IC1000

C1ZBZ0003775

TEMP SENSOR

+

+

C5319

25V
10u

C5318

25V
10u

TP5312

C5341

16V

0.1u

TP5318

IC5300

C0CBCBD00062

L5304

G1C100MA0203

C5311

25V

10u

GC6 3.3V

8

V+

7

A0

6

A1

5

A2

SUB6V

39

1

BOOT

2

VIN

3

SW

4

GND

IC2802

C0DBAYY00462

1

BOOT

2

VIN

3

SW

4

GND

FAN VCC

IC2801

C0DBAYY00462

COMP

B0BC4R700007

COMP

8

SS

7

EN

6

5

FB

D2802

C2872

25V

D2870

B0JCME000037

+

L2870

G1C101M00029

D2810
MA2J11100L

TP2804

C2821
25V

0.1u

0.01u

C2803

25V

0.01u

C2802

25V

0.1u

TO 8/22

G-G_LED_ON

G-R_LED_ON

TO 8,15/22

G-KEY1

TO 8/22

G-ACTIVE_STBY_LED_ON

G-AI_SENSOR

TO 8/22

G-SD_LED_ON

C2873

25V

0.1u

R2801

39

G-RMIN

TO

STB3.3V

P-BOARD
(P6)

TO
P-BOARD
(P7)

TPST5

100

R2820

100

R2821

+

C2824
16V

R2823

10u

47k

TO FAN

A8

1

FAN_Vcc_1

2

GND_1

3

FAN_SOS_1

4

FAN_Vcc_2

5

GND_2

6

FAN_SOS_2

7

FAN_Vcc_3

8

GND_3

9

FAN_SOS_3

10

FAN_Vcc_4

11

GND_4

12

FAN_SOS_4

TP2751

A1

1

RMIN

2

3

4

5

GND

6

KEY1

7

8

GND

9

10

GND

11

SUB5V

12

SD-LED

13

GND

14

GND

TP2752

TP2755

TP2756

TP2754

TP2757

TP2753

TP2758

TP2750

F15V

S

L5305

PA5300

J0JHC0000045

K5H5022A0031

C5332

25V

1u

C5312
25V
10u

SUB3.3V

R5324

47k

4

ON/OFF

NC

3

TO 1,15,18/22

SUB3.3V

C1009
16V

0.1u

VSS

2

TO 1/22

TO 1/22

TO 1/22

TO 15/22

C1010
25V
1u

GC6_1.2V

GC6_1.8V

SUB5V

L5303

J0JYC0000068

C5302

C5303
10V

16V

1u

0.1u

5

VIN

VOUT

1

GC6_3.3V

TP5300

C5301

10V

1u

STB5V

CN0101

FOR

TP1062

FACTORY USE

1

STB5V

2

STB3.3V

3

IIC_CONT/SRQ

4

IIC_CONT

5

Panel_SCL

6

Panel_SDA

7

PEAKS_SCL1

8

PEAKS_SBI0(Diag Control)

9

PEAKS_SDA1

10

PEAKS_SBO0(Diag Control)

11

PEAKS_SCL2

12

Panel_TXD

13

PEAKS_SDA2

14

Panel_RXD

15

PEAKS_SCL0

16

NC(REMOCON)

17

PEAKS_SDA0

18

NC(LED_R)

19

GND

20

NC(D_PDB_MODE)

(Panel Dpr.E2PROM)

(Panel Dpr.E2PROM)

(Device Control)

(Device Control)

(Device Control)

(Device Control)

(Device Control)

(Device Control)

PEAKS_SCL1

PEAKS_SDA1

AD_SBI0

AD_SBO0

PEAKS_SCL2

PEAKS_SDA2

AR_TXD_PC

AR_RXD_PC

GENX7_SCL

GENX7_SDA

STB3.3V

TP0154

TP1052

TP1053

TP1054

TP0153

TP1055

TP0155

TP1056

TP1057

TO 8/22

G-TV_SUB_ON

G-ECO_ON/INVERTER_ON

TO 18/22

STB_5V_SWON

STB5V

TPS0N

TPEC0

R2822

47k

TP2805

TO
K-BOARD
(K1)
TO
GL-BOARD
(GL02)

ACTIVE_STBY_LED_ON

G_LED_ON

R_LED_ON

AI_SENSOR

A6

+15V_S

1

+15V_S

2

+15V_S

3

S_GND

4

S_GND

5

S_GND

6

F+15V

7

F+15V

8

F+15V

9

10

GND

11

GND

12

GND

A7

+15Vc_FAN

1

+15Vc_FAN

2

3

GND

4

GND

5

STB5V

6

TUNER_SUB_ON

7

ECO_ON

8

ALL_OFF

9

STBY5V_SW

10

P5V(MON)/P12V-ON

11

N.C.

SUB5V

S_15V

TP2872

TPS15V

F15V

TPF15V

TP2810

TP2801

TP2803

SUB5V

STB3.3V

SUB5V

R2851

22k

R2853

Q2851

1k

R2850

75

Q2850

2SB0709A0L

2SD0601A0L

VJ2870

VJUMP1005-P

P

C2871

TP2871

25V
10u

C2874

SUB6V

MAZ81200ML

MAZ81100ML

R2810

4.7k
D2805

MA2J11100L

R2811

4.7k

D2806

MA2J11100L

R2812

4.7k

D2807

MA2J11100L

R2813

4.7k

D2808

MA2J11100L

R2751

22k

R2752

R2855

1k

R2854
100k

10V

TP2870

100u

D2871

C2807

D2801

25V

B0JCME000037

10u

C2809

C2801

16V

16V

10u

10u

L2803

G1C330M00027

TP2802

D2809

R2815

470

R2814

4.7k

NORMAL SOS

D2811

MAZ80330LL

+

C2753

C2752

25V

6.3V

47k

47u

0.01u

C2875

25VR2870

0.022u

8

SS

R2871

TO 21/22

10k

7

EN

6

5

FB

R2874

10k

C2806

0.1u

R2818

R2805

4.7k

R2803
1k

R2804
330

DCDC_CTL1

R2872

25V

1k

C2878

R2873

50V

68k

0

4700p

R2875

2.2k

TO 8/22

R2819

47k

R2806

5.6k

C2805
50V
4700p

D2803

R2802

20k

R2817

0

R2816

47k

G-MAIN_FAN_ON

B0BC4R700007

G-FAN_MAX

G-FAN_SOS

190 193192191 197196 198195194

74

12.27. D-Board (1/4) Schematic Diagram

D-BOARD TZTNP02DNUE (1/4)

!

A

B

TO
P-BOARD

D25

(P25)

1

+15V

2

+15V

3

GND

4

GND

5

+5V

6

+5V

7

GND

8

GND

9

STBY5V

10

GND

11

PANEL_MAIN_ON

12

SOS4_PS

13

TO
SC-BOARD
(SC20)

SC_FPGANRST

SOS6_SC1

SOS7_SC2

VDATA_DET

CERS

CRC1

CPH2

CPH1

CRC2

CQR5

D20

SIDE

P5V

1

SIU

2

CLK

3

GND

4

5

SEL

6

GND

7

OC2

8

9

10

OC1

11

CIS

12

GND

13

14

15

GND

16

UHZ

17

18

GND

19

CEL

20

CSH

21

GND

22

CSL

23

24

GND

25

CMH

26

CML

27

NC

28

+15V

29

+15V

30

NC

31

NC

32

33

34

GND

35

TERM

C

D

E

F

TP9196

TP9862

TP9006

R9145 100

R9120 100

R9115

C9859

0.01u

FL9803

F1J1E104A148

FL9805

F1J1E104A148

FL9806

F1J1E104A148

100

R9110 100

R9142 100

R9202 100

25V

R9228 47

R9229 47

G

G

G

G

G

G

C9840

0.01u

R9848

EXB2HV470JV

R9849

EXB2HV470JV

PANEL_MAIN_ON

25V

P15V

*C9858

P5V

25V
10u

SOS4_PS

VDATA_DET

C9832

SOS6_SC1

SOS7_SC2

P15V

*C9823

C9844

25V

0.01u

10u

P5V

C9845

C9837

10V
10u

STB5V_M

10V
10u

FP_FPGANRST

SC_UHZ

25V

16V

0.1u

C9846

16V

0.1u

FP_SIU

FP_CLK

FP_CERS

FP_SEL

FP_OC2

FP_CRC1

FP_OC1

FP_CIS

FP_CPH2

FP_CEL

FP_CSH

FP_CSL

FP_CPH1

FP_CMH

FP_CML

FP_CRC2

FP_CQR5

3.3V

1.8V

1.2V

*IC9805

C0DBAYY00605

1

PGND

2

PGND

3

L9001

L9002

D9800

B0JCPD000026

B0JCGD000002

C9076

0.015u

C9087

0.056u

C9863

4700p

STB5V_M

D9110

PGND

4

SW

5

SW

C9071

6

SW

25V

0.1u
7

BOOT

8

NC

16V

9

SS/DELAY

10

GND

1

PGND

2

PGND

3

PGND

4

SW

5

SW

C9082

6

SW

25V

0.1u
7

BOOT

8

NC

10V

9

SS/DELAY

10

GND

1

PGND

2

PGND

3

PGND

4

SW

5

SW

C9066

6

SW

25V

0.1u
7

BOOT

8

NC

25V

9

SS/DELAY

10

GND

STB3.3V

C9033

16V0.1u

R9129

68k

P3.3V

G1C3R3Z00004

*C9072

*C9073

6.3V

6.3V
10u

10u

*IC9807

C0DBAYY00605

P1.8V

G1C6R8Z00008

*C9084

*C9083

6.3V

6.3V

10u

10u

*IC9806

C0DBAYY00605

P1.2V

L9802

G1C6R8Z00010

*C9067

*C9068

6.3V

6.3V
10u

10u

DC-DC CONVERTER

15V->3.3V

VIN

VIN

VIN

NC

NC

EN

PSET

RT

FC

FB

DC-DC CONVERTER

15V->1.8V

VIN

VIN

VIN

NC

NC

EN

PSET

RT

FC

FB

DC-DC CONVERTER

15V->1.2V

VIN

VIN

VIN

NC

NC

EN

PSET

RT

FC

FB

IIC_SW

17

S_SCL2

18

S_SDA2

19

S_SCL1

20

S_SDA1

21

STB33VIN

22

P33V

23

P_ON_OFF

24

C9036

10u

10V

STB5V_IN

25

GND

26

CE

27

*C9051

16V 0.1u

A1

28

A2

29

A3

30

*C9050

16V 0.1u

A4

31

A5

32

R9132

100

C1ZBZ0003983

STB+3.3V/RESET

20

*C9077

19

25V
10u

18

17

16

15

C9080

50V

14

R9079

13

*R9078

12

11

*C9079

50V

10p

R9081

47k

20

*C9088

19

25V
10u

18

17

16

15

C9091

50V

14

R9091

13

*R9088

5.6k

12

11

*C9090

50V

47p

R9089

15k

20

*C9869

19

25V
10u

18

17

16

15

C9882

50V

14

*R9893

13

*R9077

3.3k

12

11

C9874

50V

100p

R9872

10k

IC9004

ANALOG ASIC

FOR

TO

FACTORY

A-BOARD

USE

(A3)

IIC_DATA2

IIC_CLK1

IIC_DATA1

READY

DISPEN

PANEL_STBY_ON

LED_R

GND

0

R9214

EXCLKSEL

P72_SDA1

P73_SCL1

P30

P65_SBT227P66_SBI2

NTEST49SCLOCK_(UND)50SDATA_(UND)

ENTRG0_(UND)

ENTRG1_(UND)

TRCCLK_(UND)

54

C9064

16V

0.1u

P5V

INEXCH

IIC_CONT

0

P1017P1118P1219P1320P1421P1522P16

*IC9003

MNZSFH8KPF5

PANEL MPU

C9040

16V

0.1u

GND

15

16

VSS

GenX7

C9053

16V

0.1u

LED_R

0.1u

C9048

16V

14

IVDD

C9046

16V

0.1u

P5V->FPGA2.5V

P5V

C9899

10V

P3V_SCL02

P3V_SDA02

P3V_SCL01

P3V_SDA01

REM_IN

NRST

SOS6

SOS7

SOS8

AUX_ON/OFF

10u

R9898

10k

R9899

10k

IIC_SW

PROG_M

LED_G

LED_R

RXD_PC

TXD_PC

IIC_CONT

NRST

VDATA_DET

H2C1005A0041

P15V

*C9078

25V
10u

200p

27k

10k

*C9074

50V

3300p

R9080

15k

P15V

*C9089

25V
10u

200p

27k

*C9085

50V

3300p

R9092

12k

P15V

*C9872

25V
10u

200p

27k

*C9069

25V

6800p

R9894

18k

P3.3V

C9055

R9225

R9223

16V

2.7k

2.7k

0.1u

P33V_IN

16

P_SCL2

15

P_SDA2

14

R9201

P_SDA1

DCDC_OE

CD_OUT

P_SCL1

VIN_OR

STB33V

GND

RESET

10

13

R9200

10

12

R9871

P15V

10k

11

R9868

10

Y1

Y2

Y3

Y4

Y5

100k

9

C9037

25V

8

0.01u

7

6

5

4

3

2

1

STB3.3V

C9035

C9034

0.1u

R9121

16V

10V

100k

10u

C9054

50V

200p

5

VIN4VOUT

R9897

10k

VSS

ON/OFF

1

2

Q9807

2SD0601A0L

STB3.3V

R9070

R9152

10k

C9045

C9044

16V

0.1u

X9000

10V4.7u

16V

C9063

0.1u

10k

R9194

NC

3

MAIN_CONF

INT_CONF

R9153

C9062

470

P3.3V

C9926

10V
10u

IC9808

C0CBCAC00365

STB_SCL01

R9154

2.7k

R9155

2.7k

22

R9150

26

28

P31

29

P32

30

P33

31

P34

10k

32

P35

33

P36

34

P37

35

VPPEX_(N.C.)

36

4.7u10V
IVDD

37

VDD

38

RONA

39

VSS

40

OSCXO

41

OSCXI

42

IVDD

43

P64_SBI1

44

P63_SBT1

45

NBOOT_(N.C.)

46

NRST

47

48

R9203

22k

C9052

16V

0.1u

P15V

R9215
100k

R9207

24k

P2.5V

STB_SDA01

*R9098

22

R9151

24

25

23

TRCST_(UND)55TRCD0_(UND)56TRCD1_(UND)57TRCD2_(UND)58TRCD3_(UND)59P80_ADIN060P81_ADIN161P82_ADIN262P83_ADIN363IVDD64VSS65P84_ADIN466P85_ADIN567P86_ADIN668P87_ADIN769P90_ADIN870P91_ADIN971P92_ADIN1072P93_ADIN11

51

52

53

R9073

4.7k

R9205

33k

R9206

56k

P3V_SDA01

ALARM

READY

SOS6

REMOCON

EEP_WR_CTL

10k

R9164

P62_SBI0A

P61_SBT0A

P60_SBO0A

P40_TM0IO

SOS8

10

P2011P2112P2213P23

P75_SCL2

P74_SDA2

P3V_SCL01REM_IN

SOS4_PS

RXD

SCL1

AR_RXD_PC

STB_SDA02

STB_SCL02

2.7k

R9187

22

22

R9186

R9185

8

9

P71_SCL0

P70_SDA0

P50_RMIN_IRQ0

P44_TM4IO_SYSCLK

SOS7

LED_G

AR_TXD_PC

LED_G

FVSEL

XRST_SYS

2.7k

R9188

7

PA1_VSYNC_IRQ1

VDD

IVDD

PA7_VCLKOUT

P41_TM1IO77P42_TM2IO78P43_TM3IO

R9149

4.7k

C9065

16V

0.1u

SIN

SFVRST

NCS_ASIC

4

P05_IRQ65P06_IRQ76P07_IRQ8

PA0_HSYNC

PA2_R00

PA3_G00

OSDXI

PA4_B00

PA5_YSOUT

PA6_HOUT

P54_IRQ5

P53_IRQ4

P52_IRQ3

P51_IRQ2

P04_SBO0B

P03_SBT0B

22

R9219

STB_SDA03

TRST

MCCLK

SCLK

R9130 47

3

73

STB_SCL03

TDO

1011121314151617181920

100

R9854

TRST

SFRST

SOUT

R9124 47

2

VSS

P02

P01

P00

74

R9220

PANEL_MAIN_ON

SCL2

TDI

TCK

SDA2

TMS

AR_STB_SDA02

R9859

EXB38V101JV

TCK

TDO

TDI

TMS

P3.3V

R9072

1k

C9061

16V

1

0.1u

100

99

98

97

R9119

96

EXB38V470JV

95

94

93

92

91

R9212 47

90

R9213 47

89

88

87

R9071

86

85

84

83

82

81

80

79

76

75

R9095

10k

22

R9217

2.7k

2.7k

R9218

AR_STB_SCL02

C9047

16V

0.1u

22k

R9166

10k

IIC_CONT

AR_TXD_PC

AR_RXD_PC

TXD_PC

RXD_PC

R9107

3.3k

IIC_INT

AR_IIC_CONT

AR_STB_SCL02

AR_STB_SDA02

STB_SDA02

STB_SCL02

P3.3V

R9189

10k

STBY3.3V

STBY5V

123456789

R9839

EXB38V101JV

IIC_CONT

OSD_CLKIN

P_ON/OFF

AUX_ON/OFF

FPGANRST

D6

STB5V_M

STB3.3V

OSD_HIN

OSD_VIN

OSD_CKI

XI_DONE

OSD_YS

OSD_HI

DRVRST

D3

AR_IIC_CONT

R9840

22

C9825

50V
100p

OSD_R

OSD_G

OSD_B

XRST

XRST

TXD

REMOCON

SDA1

ALARM

123456789

100

100

100

100

R9231

R9232

R9233

R9230

ALARM

READY

PANEL_STBY_ON

DRVMUTE

STB_SDA03

STB_SCL03

IIC_CONT

TP9200

AR_IIC_CONT

RE_O+(LSB)

31

100

R9245

RE_O+

GND

RE_O-

P3V_SDA01

RE_O-(LSB)

R9243

TP9204

P3V_SCL01

RD_O+

100

RD_O-

RD_O+

TP9313

GND

1011121314

TP9202

TP9203

AR_STB_SDA02

RD_O-

GND

RCLK_O+

100

R9246

RCLK_O+

IC9002

C1ZBZ0003577

TEMP SENSOR

1

SCL

2

GND

3

A1

IIC_CLK2

AR_STB_SCL02

RCLK_O-

RCLK_O-

SDA

VDD

1

E0

2

E1

3

E2

4

VSS

*IC9001

GND

RXD

TP9201

AR_RXD_PC

GND

100

R9242

RC_O+

6

5

A0

4

TVRQ854

EEPROM

AR_TXD_PC

RC_O+

TXD

KEY_SCAN

15

TO
A-BOARD
(A5)

RC_O-

GND

R9235

RC_O-

TP9316

P3.3V

TP9315

C9056

16V

0.1u

TP9314

LVDS_DET

RD_E-

RD_E+

RB_O+

100

RB_O+

VCC

WC

SCL

SDA

RE_E+(LSB)

RA_O+(MSB)

RB_O-

RA_O-(MSB)

RE_E-(LSB)

100

R9234

RA_O+

RB_O-

8

7

6

5

STB_SDA02

100

100

100

R9244

R9236

R9237

INEXCH

RE_E+

RA_O-

RD_E+

RD_E-

RE_E-

STB3.3V

C9057

TP9000

16V

0.1u

STB_SCL02

EEP_WR_CTL

RC_E+

RC_E-

RCLK_E+

GND

RCLK_E-

GND

101112131415161718192021222324252627282930

100

R9241

RCLK_E+

RCLK_E-

GND

100

R9238

R9239

RC_E+

RC_E-

D5

RA_E-(MSB)

RB_E-

RA_E+(MSB)

RB_E+

123456789

100

100

R9240

RA_E-

RA_E+

RB_E+

RB_E-

1

FP_UHZ

2

STB_SCL01

STB_SDA01

STB_SDA02

STB_SCL02

IIC_SW

P_ON/OFF

2 9

SOS7_SC2

SOS6_SC1

PANEL_STBY_ON

SOS8_SS

SC_UHZ

REMOCON

5

684731

75

3

12.28. D-Board (2/4) Schematic Diagram

FPGA

XI_DONE

!

D-BOARD TZTNP02DNUE (2/4)

L8R_FCCLK

FP_SEL

47

R9402

R9618

FP_SIU

FP_CLK

FP_CERS

FP_CRC2

FP_OC2

FP_CRC1

FP_FPGANRST

FP_OC1

FP_CIS

FP_CPH2

FP_CEL

FP_UHZ

FP_CSH

FP_CSL

TMS

16V0.1u

16V0.1u

C9546

16V 0.1u

C9545

16V 0.1u

330

C9543

C9544

R9594

10k

R9600

68

50

51

52

53

IO_L01N_1

54

VCCO_1

55

VCCINT

56

IO_L02P_1

57

IO_L02N_1

58

GND

59

IO_L03P_1/RHCLK0

60

IO_L03N_1/RHCLK1

61

IO_L04P_1/RHCLK2

62

IO_L04N_1/RHCLK3

63

GND

64

TP9500

IO_L05P_1/RHCLK4

65

IO_L05N_1/RHCLK5

66

IO_L06P_1/RHCLK6

67

IO_L06N_1/RHCLK7

68

IP/VREF_1

69

IO_L07P_1

70

IO_L07N_1

71

GND

72

73

76

SC_PULSE

TCK

TDO

TCK

L8R_TDO

P3.3V

L8R_CLKMO

DRVRST

FPGANRST

40

41

IO/M1

IO_L06N_2/D1/GCLK3

DD_PCD2

DD_PCD1

XRST

36

37

38

39

GND

IO_L02N_2/MOSI/CSI_B

IO_L02P_2/DOUT/BUSY

IO_L06P_2/D2/GCLK2

IP_L05N_2/M2/GCLK1

IP_L05P_2/RDWR_B/GCLK0

IO_L07N_0/HSWAP

DD_ODED1

L8R_FPCLK

L8R_FPDAT1

FPDAT0

33

34

35

IO/D5

VCCINT

IO_L04P_2/D4/GCLK14

IO_L04N_2/D3/GCLK15

IO_L07P_0

DD_CLRD1

DD_LED2

L8R_FPDAT0

DRVMUTE

FP_CQR5

DIN

10k

R9604

C9538

C9539

16V 0.1u

16V 0.1u

42

43

44

45

46

47

48

49

VCCO_2

VCCAUX

IO_L08N_2/VS1

IO_L07P_2/M0

IO_L08P_2/VS2

IO_L09P_2/VS0

IO_L09N_2/CCLK

IO_L07N_2/DIN/D0

GND

DONE

IO_L01P_1

VCCO_174VCCAUX75TMS

TDO

TCK

IO_L01P_0

IO_L01N_080VCCINT81GND82VCCO_083IO_L02P_0/GCLK484IO_L02N_0/GCLK585IO_L03P_0/GCLK686IO_L03N_0/GCLK787GND88IP_L04P_0/GCLK889IP_L04N_0/GCLK990IO_L05P_0/GCLK1091IO_L05N_0/GCLK1192IO93GND94IO_L06P_095IO_L06N_0/VREF_096VCCAUX97VCCO_0

77

78

79

C9550

C9549

16V 0.1u

16V 0.1u

FP_CMH

FP_CPH1

FP_CML

68

R9601

DD_LED1

MODEL

C9536

16V0.1u

30

31

32

VCCO_2

IP/VREF_2

IO_L03P_2/D7/GCLK12

IO_L03N_2/D6/GCLK13

IO_L06N_3/LHCLK7

IO_L06P_3/LHCLK6

IO_L05N_3/LHCLK5

IO_L05P_3/LHCLK4

IO_L01P_2/CSO_B

IO_L01N_2/INIT_B

IO_L04N_3/LHCLK3

IO_L04P_3/LHCLK2

IO_L03N_3/LHCLK1

IO_L03P_3/LHCLK0

PROG_B2IO_L01P_33IO_L01N_3

TDI

IO_L02N_3/VREF_3

C9547

16V0.1u

DD_PCD3

DD_PCD4

HFSEL

29

GND

IO_L07P_3

IO_L07N_3

IO_L02P_3

C9548

C9537

16V 0.1u

28

VCCAUX

VCCO_3

VCCO_3

VCCINT

98

16V0.1u

DD_ODED2

X9900

H0J200500076

R9966

IC9300 P33 LVDOD0P

IC9300 P34 LVDOD0N

IC9300 N33 LVDOD1P

IC9300 N34 LVDOD1N

IC9300 N29 LVDOD2P

IC9300 N30 LVDOD2N

IC9300 M33 LVDOD3P

IC9300 M34 LVDOD3N

IC9300 L33 LVDOD4P

IC9300 L34 LVDOD4N

IC9300 J33 LVDOD6P

IC9300 J34 LVDOD6N

IC9300 H33 LVDOD7P

IC9300 H34 LVDOD7N

IC9300 J29 LVDOD8P

IC9300 J30 LVDOD8N

IC9300 G33 LVDOD9P

IC9300 G34 LVDOD9N

IC9300 F33 LVDOD10P

IC9300 F34 LVDOD10N

IC9300 B31 LVDOD12P

IC9300 A31 LVDOD12N

IC9300 B30 LVDOD13P

IC9300 A30 LVDOD13N

IC9300 F27 LVDOD14P

IC9300 E27 LVDOD14N

IC9300 B29 LVDOD15P

IC9300 A29 LVDOD15N

IC9300 B28 LVDOD16P

IC9300 A28 LVDOD16N

IC9300 AP20 XI

C9972

50V
18p

C9971

50V
15p

390

IC9300 AP19 XO

DD7_2P

DD7_2N

DD7_1P

DD7_1N

DRVCLK4P

DRVCLK4N

DD8_2P

DD8_2N

DD8_1P

DD8_1N

DD9_2P

DD9_2N

DD9_1P

DD9_1N

DRVCLK6P

DRVCLK6N

DD10_2P

DD10_2N

DD10_1P

DD10_1N

DD11_2P

DD11_2N

DD11_1P

DD11_1N

DRVCLK7P

DRVCLK7N

DD12_2P

DD12_2N

DD12_1P

DD12_1N

DRVCLK5P

DRVCLK5N

IC9300 B26 LVDOD18P

IC9300 A26 LVDOD18N

IC9300 B25 LVDOD19P

IC9300 A25 LVDOD19N

IC9300 F24 LVDOD20P

IC9300 E24 LVDOD20N

IC9300 B24 LVDOD21P

IC9300 A24 LVDOD21N

IC9300 B23 LVDOD22P

IC9300 A23 LVDOD22N

IC9300 B21 LVDOD24P

IC9300 A21 LVDOD24N

IC9300 B20 LVDOD25P

IC9300 A20 LVDOD25N

IC9300 F19 LVDOD29P

IC9300 E19 LVDOD29N

IC9300 B19 LVDOD27P

IC9300 A19 LVDOD27N

IC9300 B18 LVDOD28P

IC9300 A18 LVDOD28N

IC9300 B17 LVDOD30P

IC9300 A17 LVDOD30N

IC9300 B16 LVDOD31P

IC9300 A16 LVDOD31N

IC9300 F15 LVDOD35P

IC9300 E15 LVDOD35N

IC9300 B15 LVDOD33P

IC9300 A15 LVDOD33N

IC9300 B14 LVDOD34P

IC9300 A14 LVDOD34N

IC9300 F23 LVDOD23P

IC9300 E23 LVDOD23N

IC9300

MN84528

PD3H

DD13_2P

DD13_2N

DD13_1P

DD13_1N

DRVCLK8P

DRVCLK8N

DD14_2P

DD14_2N

DD14_1P

DD14_1N

DD15_2P

DD15_2N

DD15_1P

DD15_1N

DRVCLK9P

DRVCLK9N

IC9300 B11 LVDOD39P

IC9300 A11 LVDOD39N

IC9300 B10 LVDOD40P

IC9300 A10 LVDOD40N

IC9300 F11 LVDOD41P

IC9300 E11 LVDOD41N

IC9300 B9 LVDOD42P

IC9300 A9 LVDOD42N

IC9300 B8 LVDOD43P

IC9300 A8 LVDOD43N

IC9300 B7 LVDOD45P

IC9300 A7 LVDOD45N

IC9300 B6 LVDOD46P

IC9300 A6 LVDOD46N

IC9300 F8 LVDOD47P

IC9300 E8 LVDOD47N

11

12

13

to PD3/FPGA

PD3H_ROM

P3.3V

XRST

RMA16

46

47

48

A16

GND

10k

10k

10k

R9585

R9591

R9592

SASEL

27

26

25

24

23

22

21

20

GND

19

18

17

16

15

GND

14

IP

13

12

11

10

9

8

GND

7

6

5

4

1

99

100

TDI

L8R_TDO2

P1.2V

P

VJ9011

PROG_B from PD3H

IC9500

C1ZBZ0003760

P3.3V

R9588

4.7k

P3.3V

P2.5V

P

VJ9009

P

VJ9010

C9889

10V
10u

R9578

C9535

16V 0.1u

4.7k

R9611

68

C9541

16V0.1u

C9542

16V0.1u

C9540

16V0.1u

DD_CLRD2

P3V_SCL02

P3V_SDA02

FP_UEH

FP_USL

FP_USH

FP_UML

FP_UMH

R9586 47

R9587 47

R9616 47

TP9311

SFLATCH

SFVRST

SFRST

TP9312

HIN

VIN

FP_HD

FP_VD

FVSEL

L8R_PROG

FPGA

BYTE#

A152A143A134A125A116A107A98A89A1910NC11WE#12RESET#13NC14WP#/ACC15RY/BY#16A1817A1718A719A620A521A422A323A224A1

1

RMA13

RMA14

RMA15

FR_RMD07

FR_RMD14

FR_RMD15

44Q745

Q15/A-1

*IC9303

TVRQ856

RMA12

RMA10

RMA11

DATA_DRIVER
SS_PULSE

FR_RMD06

42Q643

Q14

RMA09

EXB2HV151JV

FR_RMD13

RMA08

R9425

Q13

FR_RMD05

40Q541

RMA19

FR_RMD12

Q12

RMA20

FR_RMD04

38Q439

L8R_ROMWE

FP_UEH

FP_USL

FP_USH

FP_UML

FP_UMH

DD_LED2

DD_PCD3

DD_PCD4

DD_ODED2

DD_CLRD2

DD_LED1

DD_PCD1

DD_PCD2

DD_ODED1

DD_CLRD1

FR_RMD11

37

VCC

L8R_ROMRST

FR_RMD03

35Q336

Q11

PD3H_ROM

R9385

FR_RMD10

4.7k

C9469

16V

0.1u

Q10

FR_RMD02

FR_RMD09

RMA18

RMA17

R9609

EXB2HV470JV

R9610

EXB2HV470JV

R9608

EXB2HV470JV

FR_RMD01

RMA07

FR_RMD08

RMA06

FR_RMD00

29Q030Q831Q132Q933Q234

RMA05

L8R_ROMOE

28

OE#

RMA04

R9426

EXB2HV151JV

D-LED2

D-PCD3

D-PCD4

D-ODED2

D-CLRD2

D-LED1

D-PCD1

D-PCD2

D-ODED1

D-CLRD1

RMA00

L8R_ROMCE

25A026

27

CE#

GND

SIN

SFRST

SFVRST

FVSEL

RMA03

RMA01

RMA02

FR_RMD08

FR_RMD09

FR_RMD10

FR_RMD11

FR_RMD12

FR_RMD13

FR_RMD14

FR_RMD15

FR_RMD07

FR_RMD06

FR_RMD05

FR_RMD04

FR_RMD03

FR_RMD02

FR_RMD01

FR_RMD00

RMD00

RMD01

RMD02

RMD03

RMD04

RMD05

RMD06

RMD07

RMD15

RMD14

RMD13

RMD12

RMD11

RMD10

RMD09

RMD08

UEH_C

USL_C

USH_C

UML_C

UMH_C

OSD_HIN

OSD_VIN

OSD_CLKIN

OSD_YS

OSD_R

OSD_B

OSD_G

OSD_CKI

OSD_HI

XRST

XRST_SYS

PROG_M

MCCLK

RA_O+

RA_O-

RB_O+

RB_O-

RC_O+

RC_O-

RCLK_O+

RCLK_O-

RD_O+

RD_O-

RE_O+

RE_O-

P3V_SDA02

P3V_SCL02

L8R_CLKMO

L8R_FCCLK

L8R_PROG

SFLATCH

L8R_FPCLK

L8R_FPDAT1

L8R_FPDAT0

SFRST

SFVRST

FVSEL

FP_HD

FP_VD

LVDS_INPUT

IC9300 AN12 RXOAP

IC9300 AP12 RXOAN

IC9300 AN13 RXOBP

IC9300 AP13 RXOBN

IC9300 AN14 RXOCP

IC9300 AP14 RXOCN

IC9300 AN15 RXOCKP

IC9300 AP15 RXOCKN

IC9300 AN16 RXODP

IC9300 AP16 RXODN

IC9300 AN17 RXOEP

IC9300 AP17 RXOEN

IIC

IC9300 AK16 SDA

IC9300 AJ17 SCL

R9983 47

R9970 47

R9988 47

R9598 47

R9977 47

R9975 47

R9967 47

R9987 47

R9968 47

R9989 47

R9969 47

IC9300 A4 OCKOUTD

IC9300 A5 OCKOUTU

IC9300 AK3 CKMO

IC9300 AJ4 FCCLK

IC9300 AH6 PROG

IC9300 AM1 SFLATCH

IC9300 AJ5 FPCLK

IC9300 AL1 FPDAT1

IC9300 AL2 FPDAT0

IC9300 AM2 SFRST

IC9300 AK6 SFVRST

IC9300 AK17 FVSEL

TP9076

IC9300 AK18 OSDHO

TP9078

IC9300 AL3 SFVO

TP9077

IC9300 AL18 OSDVO

IC9300 AL17 OSDCKO

IC9300 AJ20 OSDYSI

IC9300 AK19 OSDRI

IC9300 AJ19 OSDBI

IC9300 AL19 OSDGI

IC9300 AK20 OSDCKI

IC9300 AL20 OSDHI

RA_E+

RA_E-

RB_E+

RB_E-

RC_E+

RC_E-

RCLK_E+

RCLK_E-

RD_E+

RD_E-

RE_E+

RE_E-

for LVDS_TX

20MHz(SS)

CCLK for FPGA

SIN for ucom

NCS for ucom

IC9300 AK1 XRST

IC9300 AH5 XRSTSYS

IC9300 AN1 PROG_M

IC9300 AJ18 MCCLK

IC9300 AN6 RXEAP

IC9300 AP6 RXEAN

IC9300 AN7 RXEBP

IC9300 AP7 RXEBN

IC9300 AN8 RXECP

IC9300 AP8 RXECN

IC9300 AN9 RXECKP

IC9300 AP9 RXECKN

IC9300 AN10 RXEDP

IC9300 AP10 RXEDN

IC9300 AN11 RXEEP

IC9300 AP11 RXEEN

SOUT for ucom
CDAT for FPGA

TRST

TMS

TMS

TCK

TCK

TDO

TDI

L8R_ROMRST

L8R_ROMOE

L8R_ROMWE

L8R_ROMCE

RMD00

RMD01

RMD02

RMD03

RMD04

RMD05

RMD06

RMD07

RMD08

RMD09

RMD10

RMD11

RMD12

RMD13

RMD14

RMD15

RMA00

RMA01

RMA02

RMA03

RMA04

RMA05

RMA06

RMA07

RMA08

RMA09

RMA10

RMA11

RMA12

RMA13

RMA14

RMA15

RMA16

RMA17

RMA18

RMA19

RMA20

IC9300 AG5 TRST

Low Active

IC9300 AG6 TMS

IC9300 AJ2 TCK

IC9300 AH4 TDO

IC9300 AJ3 TDI

to FLASH

IC9300 AH3 ROMRESET

IC9300 AG4 ROMOE

IC9300 AH2 ROMWE

IC9300 AG3 ROMCE

IC9300 AD6 VI

IC9300 AC4 DOUTDD00

IC9300 AE6 DI2

IC9300 AD4 DOUTDB00

IC9300 AE5 DI0

IC9300 AE4 MASK

IC9300 AF5 DI5

IC9300 AF4 DI4

IC9300 AD2 DOUTDF00

IC9300 AD1 DOUTDE00

IC9300 AE2 DOUTDC00

IC9300 AE1 DOUTDA00

IC9300 AF3 DI1

IC9300 AF2 CKI

IC9300 AF1 HI

IC9300 AG1 DI3

IC9300 AA3 DOUTDB03

IC9300 Y1 DOUTDD03

IC9300 Y2 DOUTDF03

IC9300 Y3 DOUTDB04

IC9300 AA5 DOUTDC03

IC9300 W1 DOUTDC04

IC9300 V6 DOUTDE03

IC9300 W2 DOUTDE04

IC9300 V4 DOUTDF04

IC9300 V3 DOUTDE05

IC9300 W4 DOUTDB05

IC9300 U1 DOUTDA06

IC9300 R6 DOUTDD05

IC9300 U2 DOUTDB06

IC9300 P6 DOUTDF05

IC9300 U3 DOUTDC06

IC9300 W5 DOUTDA03

IC9300 Y5 DOUTDA04

IC9300 W3 DOUTDA05

IC9300 V2 DOUTDC05

IC9300 V5 DOUTDD04

DD1_2P

DD1_2N

DD1_1P

DD1_1N

DRVCLK1P

DRVCLK1N

DD2_2P

DD2_2N

DD2_1P

DD2_1N

DD3_2P

DD3_2N

DD3_1P

DD3_1N

DRVCLK2P

DRVCLK2N

DD4_2P

DD4_2N

DD4_1P

DD4_1N

DD5_2P

DD5_2N

DD5_1P

DD5_1N

DRVCLK3P

DRVCLK3N

DD6_2P

DD6_2N

DD6_1P

DD6_1N

1

to ucom/FPGA/PD3

2

3

18171110 161312 1514

76

12.29. D-Board (3/4) Schematic Diagram

D-BOARD TZTNP02DNUE (3/4)

!

IC9300 M29 LVDOD5P

IC9300 M30 LVDOD5N

IC9300 H29 LVDOD11P

IC9300 H30 LVDOD11N

IC9300 F26 LVDOD17P

IC9300 E26 LVDOD17N

IC9300 F20 LVDOD26P

IC9300 E20 LVDOD26N

IC9300 F16 LVDOD32P

IC9300 E16 LVDOD32N

IC9300 B13 LVDOD36P

IC9300 A13 LVDOD36N

IC9300 B12 LVDOD37P

IC9300 A12 LVDOD37N

IC9300 F12 LVDOD38P

IC9300 E12 LVDOD38N

IC9300 F9 LVDOD44P

IC9300 E9 LVDOD44N

IC9300 K33 LVDRCK0P

IC9300 K34 LVDRCK0N

IC9300 E33 LVDRCK1P

IC9300 E34 LVDRCK1N

IC9300 B32 LVDRCK2P

IC9300 A32 LVDRCK2N

IC9300 B27 LVDRCK3P

IC9300 A27 LVDRCK3N

IC9300 B22 LVDRCK4P

IC9300 A22 LVDRCK4N

IC9300 AC5 DOUTDA01

IC9300 Y6 DOUTDA02

IC9300 T3 DOUTDA07

IC9300 R3 DOUTDA08

IC9300 L6 DOUTDA09 IC9300 N2 DOUTDB09

IC9300 N5 DOUTDA10

IC9300 K1 DOUTDA11

IC9300 H3 DOUTDA12

IC9300 G1 DOUTDA13

IC9300 F2 DOUTDA14

IC9300 D2 DOUTDA15

IC9300 AC6 DOUTDD01

IC9300 AA6 DOUTDD02

IC9300 U6 DOUTDD06

IC9300 P5 DOUTDD07

IC9300 P3 DOUTDD08

IC9300 M2 DOUTDD09

IC9300 K2 DOUTDD10

IC9300 J2 DOUTDD11

IC9300 J4 DOUTDD12

IC9300 G5 DOUTDD13

IC9300 E2 DOUTDD14

IC9300 B5 DOUTDD15

IC9300 AB3 DRVCKD0

IC9300 AB4 DRVCKD1

IC9300 T1 DRVCKD2

IC9300 T2 DRVCKD3

IC9300 L2 DRVCKD4

IC9300 L1 DRVCKD5

IC9300 G3 DRVCKD6

IC9300 G2 DRVCKD7

IC9300 Y21 DTCPOUT

IC9300 C6 TCPOUT_1

IC9300 AK7 TCPOUT_2

IC9300 AJ8 TESTIO

IC9300 AD3 DOUTDB01

IC9300 AB2 DOUTDB02

IC9300 T5 DOUTDB07

IC9300 P2 DOUTDB08

IC9300 K3 DOUTDB10

IC9300 M4 DOUTDB11

IC9300 K5 DOUTDB12

IC9300 H5 DOUTDB13

IC9300 F3 DOUTDB14

IC9300 C1 DOUTDB15

IC9300 AC2 DOUTDE01

IC9300 AA1 DOUTDE02

IC9300 R5 DOUTDE06

IC9300 R2 DOUTDE07

IC9300 M6 DOUTDE08

IC9300 L5 DOUTDE09

IC9300 N4 DOUTDE10

IC9300 J1 DOUTDE11

IC9300 J5 DOUTDE12

IC9300 H6 DOUTDE13

IC9300 F4 DOUTDE14

IC9300 E6 DOUTDE15

IC9300 AC1 DOUTDC01

IC9300 AB1 DOUTDC02

IC9300 R1 DOUTDC07

IC9300 P4 DOUTDC08

IC9300 N6 DOUTDC09

IC9300 M5 DOUTDC10

IC9300 J3 DOUTDC11

IC9300 H2 DOUTDC12

IC9300 G4 DOUTDC13

IC9300 E1 DOUTDC14

IC9300 D5 DOUTDC15

IC9300 AB5 DOUTDF01

IC9300 AA2 DOUTDF02

IC9300 U5 DOUTDF06

IC9300 T4 DOUTDF07

IC9300 N1 DOUTDF08

IC9300 M3 DOUTDF09

IC9300 K6 DOUTDF10

IC9300 L4 DOUTDF11

IC9300 H4 DOUTDF12

IC9300 F1 DOUTDF13

IC9300 D1 DOUTDF14

IC9300 C5 DOUTDF15

TP9084

TP9079

TP9080TP9085

TP9086

TP9081

TP9082

TP9087

TP9083

TP9088

16V

16V

C9141

10u

10V

0.1u

C9920

16V

C9139

10u

10V

16V

C9136

0.1u

16V

0.1u

C9134

16V

C9169

1u

6.3V

C9168

1u

6.3V

C9135

0.1u

16V

C9715

0.1u

16V

IC9300 AL5 EXTTRMO0

IC9300 AP4 EXTTRMO1

IC9300 AM4 EXTTRMI0

IC9300 AN4 EXTTRMI1

IC9300 AK2 PRCKO

L9900

J0JHC0000117

IC9300 V22 VDDR

IC9300 Y22 VDDR

IC9300 AA20 VDDR

IC9300 AB21 VDDR

IC9300 AJ22 VDDR

IC9300 AK22 VDDR

IC9300 AL22 VDDR

IC9300 AM22 VDDR

IC9300 AN22 VDDR

IC9300 AP22 VDDR

IC9300 U22 VDDA

IC9300 AA22 VDDA

IC9300 AB20 VDDA

L9700

J0JHC0000117

IC9300 N16 MLVVDD12

IC9300 N17 MLVVDD12

IC9300 N18 MLVVDD12

IC9300 N22 MLVVDD12

IC9300 AB13 LVVDD12

IC9300 AB14 LVVDD12

P1.2V

L9903

J0JHC0000117

0.1u

C9906

IC9300 N14 VDD12

16V

C9907

0.1u
IC9300 N15 VDD12

16V

IC9300 N19 VDD12

IC9300 N20 VDD12

IC9300 N21 VDD12

0.1u

C9908

IC9300 P15 VDD12

16V

C9909

0.1u
IC9300 P16 VDD12

16V

IC9300 P17 VDD12

IC9300 P18 VDD12

IC9300 P19 VDD12

0.1u

C9910

IC9300 P20 VDD12

16V

0.1u

C9911

IC9300 P21 VDD12

16V

0.1u

C9912

IC9300 P22 VDD12

16V

0.1u

C9914

IC9300 P29 VDD12

16V

0.1u

C9915

IC9300 P30 VDD12

16V

0.1u

C9916

IC9300 P31 VDD12

16V

IC9300 R21 VDD12

IC9300 R22 VDD12

IC9300 R29 VDD12

IC9300 R30 VDD12

IC9300 R31 VDD12

0.1u

C9917

IC9300 R32 VDD12

16V

IC9300 R33 VDD12

0.1u

C9918

IC9300 R34 VDD12

16V

0.1u

C9100

IC9300 T13 VDD12

16V

0.1u

C9101

IC9300 T14 VDD12

16V

0.1u

C9102

IC9300 T29 VDD12

16V

IC9300 T30 VDD12

1u

C9160

IC9300 T31 VDD12

6.3V

C9161

1u

IC9300 T32 VDD12

6.3V

C9162

1u

IC9300 T33 VDD12

6.3V

C9163

1u

IC9300 T34 VDD12

6.3V

C9164

1u

IC9300 U13 VDD12

6.3V

C9165

1u

IC9300 U14 VDD12

6.3V

C9166

1u

IC9300 V13 VDD12

6.3V

C9167

1u

IC9300 V14 VDD12

6.3V

IC9300 W13 VDD12

C9112

10u

10V

IC9300 W14 VDD12

C9111

10u

10V

C9961

10u

10V

C9900 0.1u

16V

C9956

16V

C9901

16V

C9902

16V

C9903

16V

C9905

16V

C9904

16V

C9973

16V

C9143

6.3V

C9142

6.3V

C9960

10V

10u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

P1.8V_DDR2

1u

1u

L9904

J0JHC0000117

IC9300 V31 VDDIO

IC9300 V34 VDDIO

IC9300 Y29 VDDIO

IC9300 Y31 VDDIO

IC9300 AA32 VDDIO

IC9300 AB33 VDDIO

IC9300 AC29 VDDIO

IC9300 AD33 VDDIO

IC9300 AE32 VDDIO

IC9300 AF30 VDDIO

IC9300 AG34 VDDIO

IC9300 AH32 VDDIO

IC9300 AJ29 VDDIO

IC9300 AK27 VDDIO

IC9300 AK30 VDDIO

IC9300 AK33 VDDIO

IC9300 AL26 VDDIO

IC9300 AL31 VDDIO

IC9300 AM25 VDDIO

IC9300 AM30 VDDIO

IC9300 AN24 VDDIO

IC9300 AN29 VDDIO

IC9300 AP28 VDDIO

IC9300 AP34 VDDIO

IC9300 AF31 VDDIOCK

IC9300 AL29 VDDIOCK

P1.8V

C9701 0.1u

C9703 0.1u

C9702 0.1u

C9709 0.1u

C9713 0.1u

C9700

C9704 0.1u

C9714

C9706

C9145

C9146

C9147

C9148

C9149

C9150

C9957

16V

C9976

16V

C9977

16V

C9158

C9159

16V

16V

16V

16V

16V

0.1u

16V

16V

0.1u

16V

0.1u

16V

1u

6.3V

1u

6.3V

1u

6.3V
1u

6.3V
1u

6.3V
1u

6.3V

0.1u

0.1u

0.1u

1u

6.3V

1u

6.3V

IC9300 D8 MLVVDD33

IC9300 D9 MLVVDD33

IC9300 D10 MLVVDD33

IC9300 D11 MLVVDD33

IC9300 D12 MLVVDD33

IC9300 D13 MLVVDD33

IC9300 D14 MLVVDD33

IC9300 D15 MLVVDD33

IC9300 D16 MLVVDD33

IC9300 D17 MLVVDD33

IC9300 D18 MLVVDD33

IC9300 D19 MLVVDD33

IC9300 D20 MLVVDD33

IC9300 D21 MLVVDD33

IC9300 D22 MLVVDD33

IC9300 D23 MLVVDD33

IC9300 D24 MLVVDD33

IC9300 D25 MLVVDD33

IC9300 D26 MLVVDD33

IC9300 D27 MLVVDD33

IC9300 D28 MLVVDD33

IC9300 D29 MLVVDD33

IC9300 E10 MLVVDD33

IC9300 E13 MLVVDD33

IC9300 E14 MLVVDD33

IC9300 E17 MLVVDD33

IC9300 E18 MLVVDD33

IC9300 AJ10 LVVDD33

IC9300 AJ11 LVVDD33

IC9300 AJ12 LVVDD33

IC9300 AJ13 LVVDD33

IC9300 AJ14 LVVDD33

IC9300 AK10 LVVDD33

IC9300 AK11 LVVDD33

IC9300 AK12 LVVDD33

IC9300 AK13 LVVDD33

IC9300 AK14 LVVDD33

IC9300 E21 MLVVDD33

IC9300 E22 MLVVDD33

IC9300 E25 MLVVDD33

IC9300 E28 MLVVDD33

IC9300 F10 MLVVDD33

IC9300 F13 MLVVDD33

IC9300 F14 MLVVDD33

IC9300 F17 MLVVDD33

IC9300 F18 MLVVDD33

IC9300 F21 MLVVDD33

IC9300 F22 MLVVDD33

IC9300 F25 MLVVDD33

IC9300 F28 MLVVDD33

IC9300 F31 MLVVDD33

IC9300 G30 MLVVDD33

IC9300 G31 MLVVDD33

IC9300 H31 MLVVDD33

IC9300 J31 MLVVDD33

IC9300 K29 MLVVDD33

IC9300 K30 MLVVDD33

IC9300 K31 MLVVDD33

IC9300 L29 MLVVDD33

IC9300 L30 MLVVDD33

IC9300 L31 MLVVDD33

IC9300 M31 MLVVDD33

IC9300 N31 MLVVDD33

L9701

J0JHC0000117

L9901

J0JHC0000117

C9980

0.1u

16V

C9138

0.1u

16V

C9144

0.1u

16V

C9921 0.1u

C9113 0.1u

C9114

C9923 0.1u

C9922

C9115 0.1u

C9958

C9967

C9913

C9924

C9970

C9949

C9950

C9925

C9954 0.1u

C9965

C9151

C9152

C9153

C9154

C9155

C9156

C9157

C9124

C9123

C9962

C9966

IC9300 D7 A1AVDD_1

IC9300 AL6 A1AVDD_2

IC9300 W21 DPAVDD

16V

16V

0.1u

16V

16V

0.1u

16V

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

0.1u

16V

16V

0.1u

16V

1u

6.3V
1u

6.3V
1u

6.3V
1u

6.3V
1u

6.3V
1u

6.3V
1u

6.3V

10u

10V
10u

10V
10u

10V
10u

10V

P3.3V

VJ9702

P

IC9300 B1 VDD33

IC9300 C2 VDD33

IC9300 D3 VDD33

IC9300 E3 VDD33

IC9300 E4 VDD33

IC9300 F5 VDD33

IC9300 G6 VDD33

IC9300 H1 VDD33

IC9300 J6 VDD33

IC9300 K4 VDD33

IC9300 M1 VDD33

IC9300 P1 VDD33

IC9300 V1 VDD33

IC9300 W6 VDD33

IC9300 AC3 VDD33

IC9300 AF6 VDD33

IC9300 AJ9 VDD33

IC9300 AK9 VDD33

IC9300 AL8 VDD33

IC9300 AM5 VDD33

IC9300 AM6 VDD33

IC9300 AM7 VDD33

IC9300 AN5 VDD33

IC9300 AP5 VDD33

IC9300 C30 TEST0

IC9300 D30 TEST1

IC9300 C31 TEST

IC9300 E29 MONOUT

IC9300 A1 VSS

IC9300 A2 VSS

IC9300 A3 VSS

IC9300 A33 VSS

IC9300 A34 VSS

IC9300 B2 VSS

IC9300 B3 VSS

IC9300 B4 VSS

IC9300 B33 VSS

IC9300 B34 VSS

IC9300 C3 VSS

IC9300 C4 VSS

IC9300 C32 VSS

IC9300 C33 VSS

IC9300 C34 VSS

IC9300 D4 VSS

IC9300 D31 VSS

IC9300 D32 VSS

IC9300 D33 VSS

IC9300 D34 VSS

IC9300 E5 VSS

IC9300 E7 VSS

IC9300 E30 VSS

IC9300 E31 VSS

IC9300 F6 VSS

IC9300 F7 VSS

IC9300 F29 VSS

IC9300 F30 VSS

IC9300 G7 VSS

IC9300 G29 VSS

IC9300 L3 VSS

IC9300 N3 VSS

IC9300 N13 VSS

IC9300 P13 VSS

IC9300 P14 VSS

IC9300 R4 VSS

IC9300 R13 VSS

IC9300 R14 VSS

IC9300 R15 VSS

IC9300 R16 VSS

IC9300 R17 VSS

IC9300 R18 VSS

IC9300 R19 VSS

IC9300 R20 VSS

IC9300 T6 VSS

IC9300 T15 VSS

IC9300 T16 VSS

IC9300 T17 VSS

IC9300 T18 VSS

IC9300 T19 VSS

IC9300 T20 VSS

IC9300 T21 VSS

IC9300 T22 VSS

IC9300 U4 VSS

IC9300 U15 VSS

IC9300 U16 VSS

IC9300 U17 VSS

IC9300 U18 VSS

IC9300 U19 VSS

IC9300 U20 VSS

IC9300 U21 VSS

IC9300 U29 VSS

IC9300 U30 VSS

IC9300 U33 VSS

IC9300 V15 VSS

IC9300 V17 VSS

IC9300 V18 VSS

IC9300 V19 VSS

IC9300 V20 VSS

IC9300 V21 VSS

IC9300 V29 VSS

IC9300 W15 VSS

IC9300 W16 VSS

IC9300 W17 VSS

IC9300 W18 VSS

IC9300 W19 VSS

IC9300 W20 VSS

IC9300 W22 VSS

IC9300 W30 VSS

IC9300 W32 VSS

IC9300 Y4 VSS

IC9300 Y13 VSS

IC9300 Y14 VSS

IC9300 Y15 VSS

IC9300 Y16 VSS

IC9300 Y17 VSS

IC9300 Y18 VSS

IC9300 Y19 VSS

IC9300 Y20 VSS

IC9300 Y33 VSS

IC9300 AA4 VSS

IC9300 AA13 VSS

IC9300 AA14 VSS

IC9300 AA15 VSS

IC9300 AA16 VSS

IC9300 AA17 VSS

IC9300 AA18 VSS

IC9300 AA19 VSS

IC9300 AA21 VSS

IC9300 AA30 VSS

IC9300 AB6 VSS

IC9300 AB15 VSS

IC9300 AB16 VSS

IC9300 AB17 VSS

IC9300 AB18 VSS

IC9300 AB19 VSS

IC9300 AB22 VSS

IC9300 AB31 VSS

IC9300 AC32 VSS

IC9300 AC34 VSS

IC9300

MN84528

PD3H

IC9300 AD5 VSS

IC9300 AD30 VSS

IC9300 AE3 VSS

IC9300 AE31 VSS

IC9300 AF33 VSS IC9300 AM31 VSS

IC9300 AG2 VSS

IC9300 AG29 VSS

IC9300 AG32 VSS

IC9300 AH1 VSS

IC9300 AH31 VSS

IC9300 AJ1 VSS

IC9300 AJ6 VSS

IC9300 AJ7 VSS

IC9300 AJ15 VSS

IC9300 AJ21 VSS

IC9300 AJ23 VSS

IC9300 AJ26 VSS

IC9300 AJ30 VSS

IC9300 AJ33 VSS

IC9300 AK5 VSS

IC9300 AK15 VSS

IC9300 AK21 VSS

IC9300 AK23 VSS

IC9300 AK25 VSS

IC9300 AK29 VSS

IC9300 AK31 VSS

IC9300 AL4 VSS

IC9300 AL16 VSS

IC9300 AL21 VSSIC9300 V16 VSS

IC9300 AL23 VSS

IC9300 AL24 VSS

IC9300 AL28 VSS

IC9300 AL33 VSS

IC9300 AM3 VSS

IC9300 AM17 VSS

IC9300 AM18 VSS

IC9300 AM19 VSS

IC9300 AM20 VSS

IC9300 AM21 VSS

IC9300 AM23 VSS

IC9300 AM27 VSS

IC9300 AM34 VSS

IC9300 AN2 VSS

IC9300 AN18 VSS

IC9300 AN19 VSS

IC9300 AN20 VSS

IC9300 AN21 VSS

IC9300 AN23 VSS

IC9300 AN26 VSS

IC9300 AN30 VSS

IC9300 AN33 VSS

IC9300 AP1 VSS

IC9300 AP18 VSS

IC9300 AP21 VSS

IC9300 AP23 VSS

IC9300 AP29 VSS

IC9300 AP32 VSS

IC9300 AP33 VSS

IC9300 C7 MLVVSS

IC9300 C8 MLVVSS

IC9300 C9 MLVVSS

IC9300 C10 MLVVSS

IC9300 C11 MLVVSS

IC9300 C12 MLVVSS

IC9300 C13 MLVVSS

IC9300 C14 MLVVSS

IC9300 C15 MLVVSS

IC9300 C16 MLVVSS

IC9300 C17 MLVVSS

IC9300 C18 MLVVSS

IC9300 C19 MLVVSS

IC9300 C20 MLVVSS

IC9300 C21 MLVVSS

IC9300 C22 MLVVSS

IC9300 C23 MLVVSS

IC9300 C24 MLVVSS

IC9300 C25 MLVVSS

IC9300 C26 MLVVSS

IC9300 C27 MLVVSS

IC9300 C28 MLVVSS

IC9300 C29 MLVVSS

IC9300 E32 MLVVSS

IC9300 F32 MLVVSS

IC9300 G32 MLVVSS

IC9300 H32 MLVVSS

IC9300 J32 MLVVSS

IC9300 K32 MLVVSS

IC9300 L32 MLVVSS

IC9300 M32 MLVVSS

IC9300 N32 MLVVSS

IC9300 P32 MLVVSS

IC9300 AJ16 IICsync

IC9300 AK4 OCKIN

IC9300 AM32 CK33IN

IC9300 AM33 FPENF

IC9300 AP3 ID0

IC9300 AN3 ID1

IC9300 AP2 ID2

IC9300 AK8 WLBI

IC9300 AL32 V_TEST

TEST MODE
H: for Vender use
L: for Nomarl use

IC9300 AL9 LVVSS

IC9300 AL10 LVVSS

IC9300 AL11 LVVSS

IC9300 AL12 LVVSS

IC9300 AL13 LVVSS

IC9300 AL14 LVVSS

IC9300 AL15 LVVSS

IC9300 AM8 LVVSS

IC9300 AM9 LVVSS

IC9300 AM10 LVVSS

IC9300 AM11 LVVSS

IC9300 AM12 LVVSS

IC9300 AM13 LVVSS

IC9300 AM14 LVVSS

IC9300 AM15 LVVSS

IC9300 AM16 LVVSS

IC9300 D6 A1AVSS_1

IC9300 AL7 A1AVSS_2

11

KEYSCAN_D

12

D-LED1

13

SIDE

123456789

GND

KEY_SCAN

DRVRST

D-PCD4

UMH_C

D-CLRD2

56

PC4

GND

GND

UMH

CLR2

DD15_1+

D-LED2

D-PCD3

D-ODED2

DRVCLK9N

DRVCLK9P

LE2

PC3

DRVCLK9-

DRVCLK9+

GND

GND

ODE2

GND

D-PCD2

D-PCD1

D-CLRD1

D-ODED1

Q9301

2SD0601A0L

TP9010

C9468

25V

0.01u

D32

TO
C3-BOARD
(C31)

P3.3V

R9370

10k

R9391
100k

Q9302

2SD0601A0L

SIDE

123456789

GND

5V/3.3V_DET

DD9_2N

DD9_1P

DD9_2P

DD9_1N

DD9_1-

DD9_2-

DD9_2+

DD9_1+

DD10_2P

DD10_1N

DD10_2N

DRVCLK6N

DRVCLK6P

1011121314151617181920212223242526272829303132

GND

GND

DD10_2-

DD10_2+

DRVCLK6-

DRVCLK6+

DD10_1-

DD10_1P

DD10_1+

DD11_1N

DD11_1P

DD11_2P

DD11_2N

GND

DD11_2-

DD11_2+

DD11_1-

DD11_1+

DRVCLK7N

DRVCLK7P

GND

DRVCLK7-

DRVCLK7+

DD12_1P

DD12_1-

DD12_1+

DD13_1N

DD13_2P

DD13_1P

DD13_2N

GND

DRVCLK8N

3334353637383940414243444546474849505152535455575859606162636465666768

GND

DD13_1-

DD13_2-

DD13_2+

DD13_1+

DD12_1N

DD12_2N

DD12_2P

GND

DD12_2-

DD12_2+

DRVCLK8-

DRVCLK8P

DRVCLK8+

DD14_1N

DD14_2P

DD14_2N

GND

DD14_2-

DD14_2+

DD14_1-

DD14_1P

DD14_1+

DD15_1N

DD15_2N

DD15_2P

DD15_1P

GND

DD15_2-

DD15_1-

DD15_2+

DD1_2N

DD1_2P

DD1_1N

DD1_1P

1011121314151617181920212223242526272829303132

LE1

PC1

PC2

GND

GND

CLR1

ODE1

DD1_2-

DD1_1-

DD1_2+

DD1_1+

GND

DRVCLK1N

DRVCLK1-

DRVCLK1P

DRVCLK1+

DD2_2N

DD2_2P

DD2_1N

DD2_1P

DD3_2N

DD3_2P

DD3_1N

DD3_1P

GND

GND

DD2_2-

DD2_1-

DD3_2-

DD3_1-

DD2_1+

DD3_2+

DD2_2+

DD3_1+

DD4_2N

DD4_2P

DD4_1N

DD4_1P

DD5_2N

DD5_2P

DD5_1N

DD4_1+

DD5_1P

GND

DD5_2-

DD5_1-

DD5_2+

DD5_1+

DRVCLK2N

DRVCLK2P

3334353637383940414243444546474849505152535455575859606162636465666768

GND

GND

DD4_2-

DD4_1-

DD4_2+

DRVCLK2-

DRVCLK2+

DD6_2N

DD6_2P

DD6_1N

DD6_1P

DD7_2N

DD7_2P

DD7_1N

DRVCLK3N

DRVCLK3P

GND

GND

DD6_2-

DD6_1-

DD6_2+

DRVCLK3-

DRVCLK3+

DD6_1+

DD7_1P

GND

DD7_2-

DD7_1-

DD7_2+

DD7_1+

GND

DRVCLK4N

DRVCLK4-

DRVCLK4P

DRVCLK4+

DD8_2N

DD8_2P

DD8_1N

DD8_1P

56

GND

DD8_2-

DD8_1-

DD8_2+

DD8_1+

GND

DRVCLK5N

DRVCLK5-

DRVCLK5P

DRVCLK5+

P3.3V

0

*R9211

VJ9301

NC

GND

P

P5V/P3.3V

P5V/P3.3V

TERM

P5V/P3.3V

TO
C2-BOARD
(C21)

R9369

4.7k

R9371

100k

D31

SOS8_SS

USL_C

UEH_C

USH_C

UML_C

100

R9116

P5VP3.3V

0

*R9222

P

P

VJ9302

VJ9300

TERM

NC

NC

USL

USH

UML

UEH

GND

P5V/P3.3V

P5V_SS

DRVSOS8

2322 25 2624 272119 20

77

12.30. D-Board (4/4) Schematic Diagram

D-BOARD TZTNP02DNUE (4/4)

!

to DDR

L8R_DM0

L8R_DQS0

L8R_DQS1

L8R_XDQS0

L8R_XDQS1

L8R_DQ0

L8R_DQ1

L8R_DQ2

L8R_DQ3

L8R_DQ4

L8R_DQ5

L8R_DQ6

L8R_DQ7

L8R_DQ8

L8R_DQ9

L8R_DQ10

L8R_DQ11

L8R_DQ12

L8R_DQ14

L8R_DQ15

IC9300 W34 MMDM0

IC9300 AA33 MMDM1

IC9300 W33 MMDQS0

IC9300 AA34 MMDQS1

IC9300 Y32 MMXDQS0

IC9300 Y34 MMXDQS1

IC9300 W31 MMDQ0

IC9300 W29 MMDQ1

IC9300 V33 MMDQ2

IC9300 V32 MMDQ3

IC9300 V30 MMDQ4

IC9300 U31 MMDQ5

IC9300 U34 MMDQ6

IC9300 U32 MMDQ7

IC9300 AA29 MMDQ8

IC9300 AA31 MMDQ9

IC9300 AB32 MMDQ10

IC9300 AB34 MMDQ11

IC9300 AB29 MMDQ12

IC9300 AB30 MMDQ13

IC9300 AD34 MMDQ14

IC9300 AC33 MMDQ15

L8R_DM2

L8R_DM3L8R_DM1

L8R_DQS2

L8R_DQS3

L8R_XDQS2

L8R_XDQS3

L8R_DQ16

L8R_DQ17

L8R_DQ18

L8R_DQ19

L8R_DQ20

L8R_DQ21

L8R_DQ22

L8R_DQ23

L8R_DQ24

L8R_DQ25

L8R_DQ26

L8R_DQ27

L8R_DQ28

L8R_DQ29L8R_DQ13

L8R_DQ30

L8R_DQ31

IC9300 AM28 MMDM2

IC9300 AM26 MMDM3

IC9300 AN28 MMDQS2

IC9300 AP26 MMDQS3

IC9300 AN27 MMXDQS2

IC9300 AP27 MMXDQS3

IC9300 AK28 MMDQ16

IC9300 AL27 MMDQ17

IC9300 AM29 MMDQ18

IC9300 AP30 MMDQ19

IC9300 AJ27 MMDQ20

IC9300 AJ28 MMDQ21

IC9300 AP31 MMDQ22

IC9300 AN31 MMDQ23

IC9300 AJ25 MMDQ24

IC9300 AL25 MMDQ25

IC9300 AN25 MMDQ26

IC9300 AP25 MMDQ27

IC9300 AK24 MMDQ28

IC9300 AJ24 MMDQ29

IC9300 AM24 MMDQ30

IC9300 AP24 MMDQ31

L8R_A0

L8R_A1

L8R_A2

L8R_A3

L8R_A4

L8R_A5

L8R_A6

L8R_A7

L8R_A8

L8R_A9

L8R_A10

L8R_A11

L8R_A12

L8R_BA0

L8R_BA1

L8R_BA2

L8R_XWE

L8R_XRAS

L8R_XCAS

L8R_XCS1

L8R_XCS0

L8R_CKE

L8R_ODT

L8R_CK

L8R_XCK

IC9300 AJ31 MMA0

IC9300 AF32 MMA1

IC9300 AK32 MMA2

IC9300 AE30 MMA3

IC9300 AJ34 MMA4

IC9300 AD29 MMA5

IC9300 AK34 MMA6

IC9300 AF34 MMA7

IC9300 AL34 MMA8

IC9300 AG33 MMA9

IC9300 AE33 MMA10

IC9300 AN34 MMA11

IC9300 AE29 MMA12

IC9300 AC30 MMBA0

IC9300 AE34 MMBA1

IC9300 AD31 MMBA2

IC9300 AD32 MMXWE

IC9300 AG30 MMXRAS

IC9300 AH30 MMXCAS

IC9300 AJ32 MMXCS1

IC9300 AG31 MMXCS0

IC9300 AC31 MMCKE

IC9300 AF29 MMODT

IC9300 AH34 MMCK

IC9300 AH33 MMXCK

DDR-Terminate

L8R_A0

L8R_A1

L8R_A2

L8R_A3

L8R_A4

L8R_A5

L8R_A6

L8R_A7

L8R_A8

L8R_A9

L8R_A10

L8R_A11

L8R_A12

L8R_BA0

L8R_BA1

L8R_BA2

L8R_XWE

L8R_XRAS

L8R_XCAS

L8R_XCS1

L8R_XCS0

L8R_CKE

L8R_ODT

L8R_CK

L8R_XCK

IC9902

C9300

16V

C9302

16V

C9303

16V

C9305

16V

C9306

16V

C9310

16V

C9311

16V

L8DR_A0

L8DR_A1

L8DR_A2

L8DR_A3

L8DR_A4

L8DR_A5

L8DR_A6

L8DR_A7

L8DR_A8

L8DR_A9

L8DR_A10

L8DR_A11

L8DR_A12

C3ABRY000040

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

0.1u

DDR2

IC9902 A3 VSS

IC9902 E3 VSS

IC9902 J3 VSS

IC9902 N1 VSS

IC9902 P9 VSS

IC9902 A7 VSSQ

IC9902 B2 VSSQ

IC9902 B8 VSSQ

IC9902 D2 VSSQ

IC9902 D8 VSSQ

IC9902 E7 VSSQ

IC9902 F2 VSSQ

IC9902 F8 VSSQ

IC9902 H2 VSSQ

IC9902 H8 VSSQ

IC9902 J7 VSSDL

IC9902 M8 A0

IC9902 M3 A1

IC9902 M7 A2

IC9902 N2 A3

IC9902 N8 A4

IC9902 N3 A5

IC9902 N7 A6

IC9902 P2 A7

IC9902 P8 A8

IC9902 P3 A9

IC9902 M2 A10

IC9902 P7 A11

IC9902 R2 A12

D31 D32

ZA9001

K4AZ01D00004

L8R_DM0

L8R_DM1

L8R_XDQS0

L8R_DQS0

L8R_XDQS1

R9405

R9406

R9407

R9408

R9409

R9410

R9411

R9412

R9413

R9414

R9415

R9416

R9404

R9417

R9418

R9419

R9420

R9421

R9422

R9423

R9424

R9085

R9086

R9083

R9084

L8DR_A0

47

L8DR_A1

47

L8DR_A2

47

L8DR_A3

47

L8DR_A4

47

L8DR_A5

47

L8DR_A6

47

L8DR_A7

47

L8DR_A8

47

L8DR_A9

47

L8DR_A10

47

L8DR_A11

47

L8DR_A12

47

L8DR_BA0

47

L8DR_BA1

47

L8DR_BA2

47

L8DR_XWE

47

L8DR_XRAS

47

L8DR_XCAS

47

L8DR_XCS1

47

L8DR_XCS0

47

L8DR_CKE

47

L8DR_ODT

47

L8DR_CK

0

L8DR_XCK

0

L8R_DQS1

L8R_DQ5

L8R_DQ7

L8R_DQ1

L8R_DQ3

L8R_DQ2

L8R_DQ0

L8R_DQ6

L8R_DQ4

L8R_DQ8

L8R_DQ11

L8R_DQ12

L8R_DQ15

L8R_DQ14

L8R_DQ13

L8R_DQ10

L8R_DQ9

L8DR_ODT

L8DR_CK

L8DR_XCK

L8DR_CKE

L8DR_BA0

L8DR_BA1

L8DR_BA2

L8DR_XWE

L8DR_XRAS

L8DR_XCAS

L8DR_XCS0

L8DR_ODT

R9403

10k

IC9902 B3 UDM

IC9902 F3 LDM

IC9902 A8 UDQS

IC9902 B7 UDQS

IC9902 E8 LDQS

IC9902 F7 LDQS

IC9902 B9 DQ15

IC9902 B1 DQ14

IC9902 D9 DQ13

IC9902 D1 DQ12

IC9902 D3 DQ11

IC9902 D7 DQ10

IC9902 C2 DQ9

IC9902 C8 DQ8

IC9902 F9 DQ7

IC9902 F1 DQ6

IC9902 H9 DQ5

IC9902 H1 DQ4

IC9902 H3 DQ3

IC9902 H7 DQ2

IC9902 G2 DQ1

IC9902 G8 DQ0

R9998

220

C9987

16V

0.1u

IC9902 K9 ODT

IC9902 J8 CK

IC9902 K8 CK

IC9902 K2 CKE

IC9902 L2 BA0

IC9902 L3 BA1

IC9902 L1 NC

IC9902 K3 WE

IC9902 K7 RAS

IC9902 L7 CAS

IC9902 L8 CS

IC9902 J2 VREF

C9993

16V

0.1u

+

C9989

4V

68u

C9990

16V

0.1u

C9994

16V

0.1u

C9995

16V

0.1u

C9985

10V
10u

P1.8V_DDR2

IC9902 A1 VDD

IC9902 E1 VDD

IC9902 M9 VDD

IC9902 J9 VDD

IC9902 R1 VDD

IC9902 J1 VDDL

IC9902 A9 VDDQ

IC9902 C1 VDDQ

IC9902 C3 VDDQ

IC9902 C7 VDDQ

IC9902 C9 VDDQ

IC9902 E9 VDDQ

IC9902 G1 VDDQ

IC9902 G3 VDDQ

IC9902 G7 VDDQ

IC9902 G9 VDDQ

IC9902 A2 NC

IC9902 E2 NC

IC9902 R3 NC

IC9902 R7 NC

IC9902 R8 NC

C9312

16V

0.1u

C9313

16V

0.1u

C9314

16V

0.1u

P1.8V_DDR2

R9398

300

R9399

75

IC9300 AN32 MMRDRV

IC9300 AH29 MMRODT

VREF

IC9300 AL30 MMVCAL

C9081

16V

0.1u

C9952

16V

0.1u

IC9300 AK26 MMVREF1

C9953

16V

0.1u

IC9300

MN84528

PD3H

L8DR_CKE

R9999

10k

IC9903

C3ABRY000040

L8DR_ODT

L8DR_CK

L8DR_XCK

L8DR_CKE

L8DR_BA0

L8DR_BA1

L8DR_BA2

L8DR_XWE

L8DR_XRAS

L8DR_XCAS

L8DR_XCS1

P1.8V_DDR2

R9996

1k

C9986

R9087

R9997

16V

100

1k

0.1u

L8R_DM3

L8R_DM2

L8R_XDQS3

L8R_DQS3

L8R_XDQS2

L8R_DQS2

L8R_DQ30

L8R_DQ28

L8R_DQ27

L8R_DQ25

L8R_DQ24

L8R_DQ26

L8R_DQ29

L8R_DQ31

L8R_DQ18

L8R_DQ17

L8R_DQ22

L8R_DQ21

L8R_DQ16

L8R_DQ23

L8R_DQ20

L8R_DQ19

IC9903 K9 ODT

R9401

220

IC9903 J8 CK

IC9903 K8 CK

IC9903 K2 CKE

IC9903 L2 BA0

IC9903 L3 BA1

IC9903 L1 NC

IC9903 K3 WE IC9903 P3 A9

IC9903 K7 RAS

IC9903 L7 CAS

IC9903 L8 CS

IC9903 J2 VREF

C9988

16V

0.1u

IC9903 B3 UDM

IC9903 F3 LDM

IC9903 A8 UDQS

IC9903 B7 UDQS

IC9903 E8 LDQS

IC9903 F7 LDQS

IC9903 B9 DQ15

IC9903 B1 DQ14

IC9903 D9 DQ13

IC9903 D1 DQ12

IC9903 D3 DQ11

IC9903 D7 DQ10

IC9903 C2 DQ9

IC9903 C8 DQ8

IC9903 F9 DQ7

IC9903 F1 DQ6

IC9903 H9 DQ5

IC9903 H1 DQ4

IC9903 H3 DQ3

IC9903 H7 DQ2

IC9903 G2 DQ1

IC9903 G8 DQ0

C9984

10V
10u

C9991

16V

0.1u

C9996

16V

0.1u

C9997

16V

0.1u

C9992

16V

0.1u

IC9903 A2 NC

IC9903 E2 NC

IC9903 R3 NC

IC9903 R7 NC

IC9903 R8 NC

IC9903 A1 VDD

IC9903 E1 VDD

IC9903 M9 VDD

IC9903 J9 VDD

IC9903 R1 VDD

IC9903 A9 VDDQ

IC9903 C1 VDDQ

IC9903 C3 VDDQ

IC9903 C7 VDDQ

IC9903 C9 VDDQ

IC9903 E9 VDDQ

IC9903 G1 VDDQ

IC9903 G3 VDDQ

IC9903 G7 VDDQ

IC9903 G9 VDDQ

IC9903 J1 VDDL

L8DR_A0

L8DR_A1

L8DR_A2

L8DR_A3

L8DR_A4

L8DR_A5

L8DR_A6

L8DR_A7

L8DR_A8

L8DR_A9

L8DR_A10

L8DR_A11

L8DR_A12

DDR2

IC9903 M8 A0

IC9903 M3 A1

IC9903 M7 A2

IC9903 N2 A3

IC9903 N8 A4

IC9903 N3 A5

IC9903 N7 A6

IC9903 P2 A7

IC9903 P8 A8

IC9903 M2 A10

IC9903 P7 A11

IC9903 R2 A12

IC9903 A3 VSS

IC9903 E3 VSS

IC9903 J3 VSS

IC9903 N1 VSS

IC9903 P9 VSS

IC9903 A7 VSSQ

IC9903 B2 VSSQ

IC9903 B8 VSSQ

IC9903 D2 VSSQ

IC9903 D8 VSSQ

IC9903 E7 VSSQ

IC9903 F2 VSSQ

IC9903 F8 VSSQ

IC9903 H2 VSSQ

IC9903 H8 VSSQ

IC9903 J7 VSSDL

28

78

34 353332

3629 30 31

12.31. C1-Board (1/2) Schematic Diagram

C1-BOARD TXNC11DNUJ (1/2)

!

A

B

ZA17104

K4CD01000013

55

C

ZA17102

K4CD01000013

1 55155 155

CB1 CB2 CB3 CB4 CB5

ZA17105

K4CD01000013

ZA17101

K4CD01000013

155 1 55

C10

1

SIDE

CB2

1345789

NC

NC

DM

VDD2

VDD2

VDD2

VDD2

NC

VDD2

VDD2

ZA17103

K4CD01000013

TO
PANEL DATA
DRIVER

AC_LED1

AC_PCD1

AC_ODED1

AC_CLRD1AC_CLRD1

R17113

111213141516171819202122232425262728293031

NC

LE(LEN)

GND

C17102

C1_P5_3.3V

10V

1u

HBLK(ODE)

LBLK(BLK)

CLR

VDD1

VDD1

GND

GND

GND

GND

GND

NC(GND)

NC(GND)

NC(GND)

TEST1(GND)

GND

NC(GND)NCNC(GND)

100

DD2_1+

DD2_1-

DD2_2-

DD2_2+

100

R17114

32

33343536373839404142434445474849515253

GND

A2(-)

A2(+)

DRVCLK2+

DRVCLK2-

200

R17122

GND

GND

GND

GND

A1(-)

A1(+)

GND

CLK(-)

CLK(+)

GND(TEST)

VDA

R17134

1

NC

GND

GND

VDD2

VDD2

C17134

100V

0.33u

TERM

55

NC

VDD2

DM

VDD2

VDD2

VDD2

1

D

2

DD3_2-

DD1_2+

DD1_1-

DD1_1+

TEST1(GND)

DD1_2-

100

R17111

32

GND

GND

A2(-)

NC(GND)

NC(GND)

DRVCLK1-

DRVCLK1+

100

100

R17121

R17112

33343536373839404142434445474849515253

GND

GND

A1(-)

A2(+)

A1(+)

CLK(-)

GND

GND

GND

CLK(+)

GND(TEST)

VDA

R17131

NC

GND

GND

VDD2

C17132

1

100V

0.33u

NC

VDD2

VDD2

VDD2

VDD2

TERM

55

NC

DM

VDD2

CB3

TO
PANEL DATA
DRIVERDRIVER

SIDE

1345789

NC

DM

VDD2

VDD2

NC

NC

VDD2

VDD2

VDD2

VDD2

AC_LED1

AC_PCD1

AC_ODED1

R17115

111213141516171819202122232425262728293031

NC

GND

GND

GND

GND

GND

LE(LEN)

GND

C17103

C1_P5_3.3V

10V

1u

HBLK(ODE)

LBLK(BLK)

CLR

VDD1

VDD1

NC(GND)

NC(GND)

NC(GND)

TEST1(GND)

GND

NC(GND)

NC(GND)

100

AC_LED1

AC_PCD1

AC_CLRD1

AC_ODED1

R17199

150

E

CB1

TO
PANEL DATA

SIDE

1345789

NC

DM

VDD2

VDD2

111213141516171819202122232425262728293031

NC

NC

VDD2

VDD2

GND

GND

GND

VDD2

VDD2

GND

GND

GND

LE(LEN)

HBLK(ODE)

C1_P5_3.3V

C17101

10V

1u

LBLK(BLK)

NC

CLR

VDD1

VDD1

NC(GND)

NC(GND)

NC(GND)

DD3_1+

DD3_1-

DD3_2+

100

R17116

32

33

A2(-)

GND

A2(+)

DRVCLK2+

DRVCLK2-

200

R17123

3536373839404142434445474849515253

34

GND

A1(-)

GND

GND

A1(+)

GND

GND

CLK(-)

GND

CLK(+)

GND(TEST)

VDA

R17136

NC

GND

VDD2

C17136

1

100V

0.33u

TERM

55

NC

NC

DM

VDD2

VDD2

VDD2

VDD2

VDD2

F

3 768

4

51

92

79

12.32. C1-Board (2/2) Schematic Diagram

C1-BOARD TXNC11DNUJ (2/2)

!

1

AC_PCD1

AC_LED1

AC_CLRD1

AC_ODED1

SIDE

1345789

NC

NC

DM

VDD2

VDD2

CB4

TO
PANEL DATA
DRIVER

VDD2

2

SIDE

1345789

NC

NC

DM

VDD2

VDD2

CB5

TO
PANEL DATA
DRIVER

VDD2

111213141516171819202122232425262728293031

NC

GND

GND

GND

GND

VDD2

VDD2

VDD2

VDD2

GND

VDD2

AC_LED1

111213141516171819202122232425262728293031

NC

GND

GND

GND

GND

GND

VDD2

LE(LEN)

LE(LEN)

C17105

GND

C17104

GND

10V

C1_P5_3.3V

10V

1u

AC_ODED1

C1_P5_3.3V

1u

HBLK(ODE)

AC_PCD1

HBLK(ODE)

LBLK(BLK)

AC_CLRD1

LBLK(BLK)

CLR

VDD1

CLR

VDD1

R17105

0

R17104

0

1

2

C14

TO
GK-BOARD
(GK1)

TERM

55

SIDE

C10

TO
C2-BOARD
(C20)

KEY

54

NC

53

5V/P3.3V_DET

52

NC

51

P5V/P3.3V

50

P5V/P3.3V

49

GND

48

LE1

47

GND

46

ODE1

45

PC1

44

GND

43

CLR1

42

GND

41

DD1_2-

40

DD1_2+

39

DD1_1-

38

DD1_1+

37

GND

36

DRVCLK1-

35

DRVCLK1+

34

GND

33

DD2_2-

32

DD2_2+

31

DD2_1-

30

DD2_1+

29

GND

28

DD3_2-

27

DD3_2+

26

DD3_1-

25

DD3_1+

24

GND

23

DRVCLK2-

22

DRVCLK2+

21

GND

20

DD4_2-

19

DD4_2+

18

DD4_1-

17

DD4_1+

16

GND

15

DD5_2-

14

DD5_2+

13

DD5_1-

12

DD5_1+

11

GND

10

DRVCLK3-

9

DRVCLK3+

8

GND

7

NC

6

NC

5

NC

4

VDA

3

VDA

2

VDA

1

VDA

C1_P5_3.3V

R17126

AB_LED1

AB_PCD1

AB_CLRD1

DD1_2-

DD1_2+

DD1_1-

DD1_1+

DRVCLK1-

DRVCLK1+

DD2_2-

DD2_2+

DD2_1-

DD2_1+

DD3_2-

DD3_2+

DD3_1-

DD3_1+

DRVCLK2-

DRVCLK2+

DD4_2-

DD4_2+

DD4_1-

DD4_1+

DD5_2-

DD5_2+

DD5_1-

DD5_1+

DRVCLK3-

DRVCLK3+

1k

VDA

R17127

220k

R17142

AC_LED1

AC_ODED1

AC_PCD1

AC_CLRD1

DD4_1-

DD4_2-

DD4_1+

DD4_2+

100

100

R17117

R17118

32

33343536373839404142434445474849515253

NC

VDD1

NC(GND)

NC(GND)

NC(GND)

NC

VDD1

NC(GND)

NC(GND)

NC(GND)

TEST1(GND)

TEST1(GND)

GND

GND

GND

A2(-)

A2(+)

NC(GND)NCNC(GND)

DD5_2-

DD5_2+

100

100

R17119

R17120

32

33343536373839404142434445474849515253

GND

A2(-)

A2(+)

NC(GND)NCNC(GND)

DRVCLK3+

DRVCLK3-

200

R17124

GND

CLK(-)

CLK(-)

DRVCLK3+

GND

GND

CLK(+)

GND(TEST)

GND

GND

GND

CLK(+)

GND(TEST)

GND

A1(-)

GND

A1(+)

DD5_1-

DD5_1+

DRVCLK3-

200

R17125

GND

A1(-)

GND

A1(+)

VDA

R17138

NC

GND

GND

VDD2

R17140

NC

GND

GND

VDD2

C17138

1

1

100V

0.33u

TERM

55

NC

VDD2

VDD2

VDA

NC

VDD2

VDD2

DM

VDD2

VDD2

VDD2

C17140

100V

0.33u

TERM

55

DM

VDD2

VDD2

VDD2

EXB38V470JV

AB_LED1

AB_ODED1

AB_PCD1

AB_CLRD1

10 12 1815 1711 161413

80

12.33. C2-Board (1/2) Schematic Diagram

!

C2-BOARD TXNC21DNUJ (1/2)

A

DRVCLK3+

DD5_2+

DD5_2+

AB_LED1

DRVCLK3-

DD6_2-

DRVCLK3+

DD6_1-

GND

DD6_2-

DD6_2+

DD6_2+

DD7_2-

DD7_2+

GND

DD6_1+

DD7_2+

DD7_2-

DD6_1+

DD6_1-

GND

DD5_1-

DD5_1+

DD5_1+

DD5_1-

DRVCLK3-

AB_PCD2

AB_CLRD1

AB_ODED1

DRVCLK4+

DRVCLK4-

DD7_1-

DD7_1+

GND

GND

DRVCLK4+

DRVCLK4-

DD7_1+

DD7_1-

DD8_2-

DD8_2+

DD8_1-

100

100

R17217

R17218

32

33343536373839404142434445474849515253

GND

56

DD1_1+

DD1_1+

GND

DD2_2+

DD2_1+

DD2_2-

DRVCLK1+

DRVCLK1+

DD2_1-

DD3_2+

DD3_1+

DD3_2-

GND

DD3_1-

DD3_1-

DD3_2-

DD3_2+

DD2_1+

DD2_2-

DD2_2+

DD2_1-

SIDE

DD3_1+

1345789

DRVCLK1-

55

DRVCLK1-

TERM

55

DM

TERM

55

DD4_2-

DD4_1-

DRVCLK2+

DRVCLK2-

GND

GND

DD4_2-

DRVCLK2+

DRVCLK2-

DD5_2-

DD4_2+

DD4_1+

GND

DD5_2-

DD4_1+

DD4_1-

DD4_2+

111213141516171819202122232425262728293031

PC1

ODE1

AA_ODED1

GND

AA_PCD1

CLR1

PC2

GND

AA_PCD2

VDA

R17235

1

NC

VDD2

VDD2

VDA

R17233

1

AA_CLRD1

VDD2

DD1_1-

GND

DD1_2-

DD1_2+

5758596061626364656667

DD1_2-

DD1_1-

DD1_2+

C17237

100V

0.33u

NC

VDD2

VDD2

VDD2

C17234

100V

0.33u

KEY

GND

LE1

68

TERM

AA_LED1

B

5V/P3.3V_DET

C

DRVCLK1-

DRVCLK1+

D

DRVCLK2-

DRVCLK2+

DRVCLK3-

DRVCLK3+

E

P5V/P3.3V

P5V/P3.3V

DD1_2+

DD1_1+

DD2_2+

DD2_1+

DD3_2+

DD3_1+

DD4_2+

DD4_1+

DD5_2+

DD5_1+

SIDE

KEY

1

NC

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

TERM

C20

TO
C1-BOARD
(C10)

C2_P5_3.3V

VDA

AB_LED1_C1

AB_ODED1_C1

AB_PCD1_C1

AB_CLRD1_C1

DD1_2-

DD1_2+

DD1_1-

DD1_1+

DRVCLK1-

DRVCLK1+

DD2_2-

DD2_2+

DD2_1-

DD2_1+

DD3_2-

DD3_2+

DD3_1-

DD3_1+

DRVCLK2-

DRVCLK2+

DD4_2-

DD4_2+

DD4_1-

DD4_1+

DD5_2-

DD5_2+

DD5_1-

DD5_1+

DRVCLK3-

DRVCLK3+

AB_CLRD1_C1

AB_PCD1_C1

AB_ODED1_C1

AB_LED1_C1

AB_LED1

AB_ODED1

AB_PCD2

AB_CLRD1

CB7

TO
PANEL DATA
DRIVER

R17259

EXB38VR000V

R17258

EXB38V470JV

SIDE

1345789

DM

NC

VDD2

SIDE

1345789

Y8

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

C2_P5_3.3V

C17213

16V

0.1u

NC

VDD2

VDD2

18

G2

19

Vcc

20

111213141516171819

NC

GND

VDD2

VDD2

VDD2

111213141516171819202122232425262728293031

GND

IC17201

C0JBAU000073

GND

GND

GND

AB_LED1

AB_LED1

GND

A8

A7

A6

A5

A4

BUFFER

A3

A2

A1

G1

GND

LE(LEN)

C17204

10

9

C17243

C17244

NC(GND)

100p

NC(GND)

C17245

50V

50V

100p

R17226

680

100

R17215

GND

GND

NC(GND)NCNC(GND)

NC(GND)

TEST1(GND)

100

R17213

8

7

6

5

4

3

2

1

AB_ODED1

C2_P5_3.3V

10V

1u

AB_ODED1

HBLK(ODE)

50V

100p

AB_PCD2

AB_CLRD1

20

21222324252627282930313233343536373839404142434445474849515253

NC

CLR

VDD1

VDD1

LBLK(BLK)

AB_PCD2

AB_CLRD1

R17271

0

C17241

50V

100p

R17247

EXB38V681JV

DD7_2-

DD7_2+

DD7_1-

100

R17216

GND

A2(+)

A2(-)

DD6_2-

DD6_2+

DD6_1-

100

R17214

32

33343536373839404142434445474849515253

AA_LED1

AA_ODED1

AA_PCD1

AA_PCD2

AA_CLRD1

R17272

0

DD7_1+

DRVCLK4-

200

R17223

GND

GND

GND(TEST)

GND

GND

GND

A1(+)

A1(-)

CLK(-)

CLK(+)

DD6_1+

DRVCLK4+ DRVCLK4+

DRVCLK4-

200

R17222

NC

GND

LE1

GND

ODE1

PC1

GND

CLR1

GND

DD1_2-

DD1_1-

GND

GND

DD2_2-

DD2_1-

GND

DD3_2-

DD3_1-

GND

GND

DD4_2-

DD4_1-

GND

DD5_2-

DD5_1-

GND

GND

NC

NC

NC

VDA

VDA

VDA

VDA

GND

DD8_2+

DD8_1+

DD8_2-

DD8_1-

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354

DD8_1-

DD8_2+

DD8_1+

DD8_2-

DRVCLK5-

DRVCLK5-

DRVCLK5+

DRVCLK5+

P5V/P3.3V

P5V/P3.3V

GND

P5V/P3.3V

NC

TO
D-BOARD

123456789

C21

SIDE

(D31)

C2_P5_3.3V

R17204

0

1

2

DD8_1+

DRVCLK5-

DRVCLK5+

VDA

100

R17224

R17237

C17238

1

100V

0.33u

TERM

55

NC

DM

VDD2

VDD2

F

CB6

TO
PANEL DATA
DRIVER

VDD2

21 78

NC

NC

VDD2

VDD2

GND

GND

GND

GND

GND

VDD2

LE(LEN)

GND

HBLK(ODE)

C17201

10V

1u

LBLK(BLK)

NC

CLR

VDD1

VDD1

NC(GND)

NC(GND)

NC(GND)

TEST1(GND)

GND

NC(GND)NCNC(GND)

GND

A1(-)

GND

A2(-)

A2(+)

GND

GND

GND(TEST)

GND

GND

GND

GND

A1(+)

CLK(-)

CLK(+)

4

NC

NC

VDD2

VDD2

VDD2

DM

VDD2

VDD2

VDD2

TO
PANEL DATA
DRIVER

DM

CB8

NC

NC

VDD2

VDD2

VDD2

56

NC

GND

GND

VDD2

VDD2

VDD2

GND

GND

GND

GND

LE(LEN)

HBLK(ODE)

C2_P5_3.3VC2_P5_3.3V

C17205

10V
1u

LBLK(BLK)

NC

CLR

VDD1

VDD1

NC(GND)

NC(GND)

NC(GND)

TEST1(GND)

GND

NC(GND)NCNC(GND)

GND

A1(-)

GND

A2(-)

A2(+)

GND

GND

GND(TEST)

GND

GND

GND

GND

A1(+)

CLK(-)

CLK(+)

NC

NC

VDD2

VDD2

VDD2

DM

VDD2

VDD2

VDD2

93

81

12.34. C2-Board (2/2) Schematic Diagram

!

C2-BOARD TXNC21DNUJ (2/2)

1

2

CB9

TO
PANEL DATA
DRIVER

SIDE

1345789

NC

DM

VDD2

VDD2

ZA17204

K4CD01000013

1

C20

55

1 551

55 155

CB6 CB7 CB8 CB9 CB10

ZA17201

K4CD01000013

DD9_1-

DD9_2+

DD9_2-

AB_PCD2

AB_LED1

AB_ODED1

AB_CLRD1

C17231

100V

0.33u

111213141516171819202122232425262728293031

NC

NC

VDD2

VDD2

GND

GND

GND

GND

GND

VDD2

GND

VDD2

LE(LEN)

C17206

C2_P5_3.3V

10V

1u

HBLK(ODE)

LBLK(BLK)

NC

CLR

VDD1

VDD1

NC(GND)

NC(GND)

NC(GND)

TEST1(GND)

GND

R17211

NC(GND)NCNC(GND)

100

DD9_1+

DRVCLK6+

DRVCLK6-

200

100

R17221

R17212

32

33343536373839404142434445474849515253

GND

A1(-)

GND

A2(-)

A2(+)

GND

GND

A1(+)

GND

CLK(-)

CLK(+)

GND(TEST)

R17231

1

NC

GND

GND

GND

VDD2

VDD2

VDA

TERM

55

NC

VDD2

DM

VDD2

VDD2

VDD2

DD9_2-

DD9_2+

DD9_1-

DD9_1+

DRVCLK6-

DRVCLK6+

DD10_2-

DD10_2+

DD10_1-

DD10_1+

ZA17205

K4CD01000013

155 1

TO
C3-BOARD
(C36)

C26

TERM

30

C2_P5_3.3V

VDA

R17228

220k

P3.3V_DET

29

NC

28

P3.3V

27

P3.3V

26

GND

25

DD9_2-

24

DD9_2+

23

GND

22

DD9_1-

21

DD9_1+

20

GND

19

DRVCLK6-

18

DRVCLK6+

17

GND

16

DD10_2-

15

DD10_2+

14

GND

13

DD10_1-

12

DD10_1+

11

GND

10

GND

9

GND

8

NC

7

NC

6

NC

5

VDA

4

VDA

3

VDA

2

VDA

1

VDA

SIDE

ZA17202

K4CD01000013

68

C21

30

C26

1

55

ZA17203

K4CD01000013

1

CB10

TO
PANEL DATA
DRIVER

SIDE

1345789

NC

DM

VDD2

VDD2

DD10_1+

DD10_2-

DD10_2+

AB_PCD2

AB_LED1

AB_CLRD1

AB_ODED1

111213141516171819202122232425262728293031

NC

NC

VDD2

VDD2

GND

GND

GND

GND

GND

VDD2

GND

VDD2

LE(LEN)

C2_P5_3.3V

C17207

10V
1u

HBLK(ODE)

LBLK(BLK)

NC

CLR

VDD1

VDD1

NC(GND)

NC(GND)

NC(GND)

TEST1(GND)

GND

NC(GND)NCNC(GND)

DD10_1-

DRVCLK6-

DRVCLK6+

100

100

R17219

32

GND

200

R17220

R17225

33343536373839404142434445474849515253

GND

GND

A1(-)

GND

A2(-)

A2(+)

A1(+)

CLK(-)

CLK(+)

GND(TEST)

NC

GND

GND

GND

GND

VDA

R17239

VDD2

C17240

1

100V

0.33u

TERM

55

NC

VDD2

VDD2

DM

VDD2

VDD2

VDD2

1614 1810 12 1511 13 17

82

12.35. C3-Board (1/2) Schematic Diagram

!

C3-BOARD TXNC31DNUJ (1/2)

A

DD10_1+

55

DD10_1+

GND

DD11_2-

DD11_2+

DD11_2-

DD11_2+

DD11_1-

CB11

TO
PANEL DATA
DRIVER

DD11_1-

DD11_1+

DD11_1+

SIDE

DRVCLK7+

DRVCLK7-

GND

DD12_2-

DD12_2+

DRVCLK7+

VDD2

DD12_1-

DD12_1-

DD12_2-

DD12_2+

NC

VDD2

VDD2

VDD2

GND

DRVCLK7-

1345789

NC

DD13_1-

DD13_2-

GND

DD12_1+

DD13_2+

DD13_1-

DD13_2-

DD13_2+

DD12_1+

111213141516171819202122232425262728293031

NC

GND

GND

VDD2

VDD2

DRVCLK6-

DRVCLK6-

DRVCLK6+

DRVCLK6+

DD10_2+

DD10_2-

DD10_1-

GND

5758596061626364656667

56

DD10_2-

DD10_1-

DD10_2+

5V/3.3V_DET

GND

68

TERM

B

DRVCLK6-

DD10_2-

DD10_2+

DD10_1-

DD10_1+

DD9_2-

DD9_2+

DD9_1-

DD9_1+

SIDE

1

NC

P3.3V

P3.3V

GND

GND

GND

GND

GND

GND

GND

GND

NC

NC

NC

VDA

VDA

VDA

VDA

VDA

C3_P5_3.3V

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

DD9_2-

DD9_2+

DD9_1-

DD9_1+

DRVCLK6-

DRVCLK6+

DD10_2-

DD10_2+

DD10_1-

DD10_1+

VDA

TERM

P3.3V_DET

C

DRVCLK6+

D

GND

DD9_2-

DD9_1+

DD9_1-

DD9_2+

DD9_2-

DD9_2+

DD9_1-

DD9_1+

C36

TO
C2-BOARD
(C26)

DD13_1+

DD13_1+

GND

DD14_2-

GND

DRVCLK8-

DRVCLK8+

DRVCLK8+

DD14_2-

DRVCLK8-

AB_PCD3

AB_LED2_1

AB_ODED2_1

GND

GNDDMGND

GND

LE(LEN)

HBLK(ODE)

C3_P5_3.3V

C17301

10V
1u

DD14_2+

DD14_2+

AB_CLRD2_1

LBLK(BLK)

DD14_1-

CLR

DD14_1-

DD14_1+

VDD1

DD14_1+

DD15_2-

GND

DD15_2-

NC

VDD1

DD15_2+

DD15_2+

NC(GND)

DD15_1-

NC(GND)

DD15_1-

DD15_1+

NC(GND)

DD15_1+

GND

TEST1(GND)

DRVCLK9-

DRVCLK9-

GND

ODE2

LE2

DRVCLK9+

GND

PC3

GND

AA_LED2

AA_ODED2

DRVCLK9+

NC(GND)

AA_PCD3

DD11_2-

DD11_2+

DD11_1-

100

100

R17311

R17312

32

33343536373839404142434445474849515253

GND

GND

A2(-)

A2(+)

NC(GND)

PC4

AA_PCD4

DD11_1+

A1(-)

UMH

GND

GND

CLR2

AA_CLRD2

AA_UMH

AA_CLRD2

AA_PCD4

AA_PCD3

AA_ODED2

AA_LED2

DRVCLK7-

DRVCLK7+

200

R17322

GND

A1(+)

CLK(-)

CLK(+)

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354

AA_UML

GND

DRVSOS8

USL

UEH

UML

USH

AA_USH

AA_UEH

AA_USL

R17372

0

C17345

50V

100p

C17344

50V

100p

C17343

50V

100p

L17371

J0JGC0000070

C17341

50V

100p

P5V_SS

NC

P5V/P3.3V

NC

GND

TO

123456789

D-BOARD

C31

SIDE

(D32)

SS_5V

C3_P5_3.3V

R17353

R17346

EXB38V681JV

0

DRVSOS8

BUFFER

C0JBAZ002692

IC17302

SS_5V

C17351

20

16V

Vcc

0.1u

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

Y8

R17347

EXB38V470JV

R17348

EXB38V470JV

AB_UEH

AB_USL

AB_USH

AB_UML

AB_UMH

C3_P5_3.3V

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

IC17301

C0JBAU000073

9

A8

10

GND

680

R17352

Vcc

G2

Y1

Y2

Y3

Y4

BUFFER

Y5

Y6

Y7

Y8

C17311

20

16V

0.1u

19

18

17

16

15

14

13

12

11

R17345

EXB38V470JV

J0JGC0000070

L17351

J0JGC0000070

R17351

EXB38V470JV

AB_CLRD2_2

AB_ODED2_2

AB_LED2_2

L17345

AB_LED2_1

AB_ODED2_1

AB_CLRD2_1

AB_PCD4

AB_PCD3

AA_UEH

AA_USL

AA_USH

AA_UML

AA_UMH

R17349

EXB38V681JV

EXB38V681JV

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

R17350

DRVSOS8

SOS8_SS

AB_UMH

101112

UMH

GND

GND

GND

AB_USL

AB_USH

AB_UML

4

NC UML

AB_UEH

SS_5V

123456789

C33

USH

GND

123

VDA

VDA

P5V

UEH

USL

GND

GND

TO
SS-BOARD
(SS33)

VDA

R17326

220k

TO

C35

P-BOARD
(P35)

1

VDA

GND(TEST)

R17331

NC

GND

GND

GND

GND

VDD2

C17332

1

100V

0.33u

TERM

55

NC

NC

VDD2

VDD2

DM

VDD2

VDD2

VDD2

E

AB_PCD3

AB_LED2_1

AB_ODED2_1

AB_CLRD2_1

2728293031

GND

NC(GND)

NC(GND)

TEST1(GND)

100

R17313

C17333

100V

0.33u

SIDE

1345789

NC

NC

VDD2

VDD2

VDD2

CB12

TO

F

PANEL DATA
DRIVER

25

111213141516171819202122232425

NC

VDD2

VDD2

VDD2

GND

GNDDMGND

GND

GND

LE(LEN)

3 91

26

NC

CLR

GND

C17304

HBLK(ODE)

C3_P5_3.3V

10V

1u

LBLK(BLK)

VDD1

VDD1

NC(GND)

NC(GND)

NC(GND)

DD12_1+

DD12_2-

DD12_1-

DD12_2+

32

A2(-)

GND

DRVCLK7-

DRVCLK7+

200

100

R17323

R17314

33343536373839404142434445474849515253

GND

GND

A1(-)

A2(+)

A1(+)

GND

GND

GND

CLK(-)

CLK(+)

GND(TEST)

VDA

R17334

1

NC

GND

GND

VDD2

VDD2

TERM

55

NC

NC

DM

VDD2

VDD2

VDD2

VDD2

6

74

8

2

83

12.36. C3-Board (2/2) Schematic Diagram

!

C3-BOARD TXNC31DNUJ (2/2)

C3168 1

ZA17301

30

C26

ZA17302

K4CD01000013

1

K4CD01000013

155155

1CB11 CB12 CB13

12 1

155

ZA17303

K4CD01000013

ZA17305

C33

K4CD01000013

155155

CB14

CB15

C35

K4CD01000013

14

ZA17304

1

DD13_1-

DD13_1+

DD13_2-

DD13_2+

32

GND

A2(-)

DRVCLK8-

DRVCLK8+

100

200

R17316

R17324

33343536373839404142434445474849515253

GND

GND

GND

A1(-)

A2(+)

A1(+)

GND

CLK(-)

GND

CLK(+)

GND(TEST)

VDA

R17336

1

NC

GND

GND

VDD2

VDD2

DD15_1+

DD15_2-

R17319

NC(GND)

100

32

GND

A2(-)

DD15_1-

DD15_2+

100

100

R17320

R17321

33343536373839

GND

GND

A1(-)

A2(+)

A1(+)

DRVCLK9-

DRVCLK9+

40

4142434445474849515253

GND

GND

GND

CLK(-)

CLK(+)

GND

GND(TEST)

VDA

R17340

NC

GND

VDD2

C17340

1

100V

0.33u

TERM

55

NC

NC

VDD2

VDD2

DM

VDD2

VDD2

VDD2

R17399

150

AB_PCD4

AB_LED2_2

AB_ODED2_2

AB_CLRD2_2

TERM

55

NC

NC

DM

VDD2

VDD2

VDD2

VDD2

SIDE

1345789

CB15

TO
PANEL DATA
DRIVER

111213141516171819202122232425262728293031

NC

VDD2

VDD2

VDD2

VDD2

VDD2

VDD2

GND

GNDDMGND

LE(LEN)

GND

C3_P5_3.3V

C17307

10V
1u

HBLK(ODE)

GND

GND

NC

NC

LBLK(BLK)

NC

CLR

VDD1

VDD1

NC(GND)

NC(GND)

NC(GND)

TEST1(GND)

GND

NC(GND)

CB13

TO
PANEL DATA
DRIVER

SIDE

1345789

NC

NC

VDD2

VDD2

VDD2

VDD2

AB_PCD3

AB_LED2_1

AB_ODED2_1

AB_CLRD2_1

C17335

100V

0.33u
C17352

50V
33p

111213141516171819202122232425262728293031

NC

VDD2

VDD2

GND

GNDDMGND

LE(LEN)

GND

C17305

HBLK(ODE)

C3_P5_3.3V

10V

1u

GND

GND

LBLK(BLK)

NC

CLR

VDD1

VDD1

NC(GND)

NC(GND)

NC(GND)

TEST1(GND)

100

R17315

GND

NC(GND)

NC(GND)

2

DD14_1+

DD14_2-

DD14_2+

DD14_1-

DRVCLK8-

DRVCLK8+

100

R17317

32

GND

GND

NC(GND)

NC(GND)

200

100

R17318

R17325

33343536373839404142434445474849515253

GND

GND

A2(-)

GND

A1(-)

A1(+)

A2(+)

GND

CLK(-)

GND

CLK(+)

GND(TEST)

VDA

R17338

1

C17338

100V

0.33u

TERM

55

NC

NC

NC

GND

GND

VDD2

VDD2

VDD2

DM

VDD2

VDD2

VDD2

14 1810 171312 15

1611

SIDE

CB14

TO
PANEL DATA
DRIVER

1345789

NC

NC

VDD2

VDD2

VDD2

VDD2

AB_PCD4

AB_LED2_2

AB_ODED2_2

AB_CLRD2_2

111213141516171819202122232425262728293031

NC

GND

GND

GND

GNDDMGND

VDD2

VDD2

LE(LEN)

GND

C3_P5_3.3V

C17306

HBLK(ODE)

10V
1u

LBLK(BLK)

NC

CLR

VDD1

VDD1

NC(GND)

NC(GND)

NC(GND)

TEST1(GND)

84

12.37. SC-Board (1/4) Schematic Diagram

IC16771

C16771

16V
1u

C0CBADC00072

1

!

SC-BOARD TXNSC1DNUJ (1/4)

A

IC16464

330

C16524

4.7u

*L16401

G0C1R1K00001

L16402

G0C1R1K00001

L16403

G0C1R1K00001

*L16404

G0C1R1K00001

*L16405

G0C1R1K00001

L16411

G0C1R1K00001

*L16413

G0C1R1K00001

L16414

G0C1R1K00001

*L16415

G0C1R1K00001

L16416

G0C1R1K00001

25V

C0JBAB000715

INVERTER

1

2

3

IC16465

C0JBAB000715

1

2

3

INVERTER

*R16531

10

*R16532

47k

R16538

10

R16539

47k

D16466

MA2J11100L

C16535

50V

5

NC

VCC

IN_A

4

GND

OUT_Y

5

NC

VCC

IN_A

4

GND

OUT_Y

R16468

82k

R16467

82k

R16466

56k

R16465

27k

0.1u

R16501

C16536

C16501

25V

100

1u

50V

R16502

0.1u

AA_CSL

AA_CML

100

MIDF

15V

9

10

15V

11

12

C16521

R16521

25V

100

1u

13

R16522

100

14

15

16

PC16461

AA_CMH

AA_CML2

AA_CSH

B

TO
P-BOARD
(P2)

SC2

Vsus

GND

TO

C

D-BOARD
(D20)

SC20

35

P5V

34

SIU

33

CLK

GND

SC_FPGANRST

32

31

CERS

30

SEL

29

GND

28

OC2

27

CRC1

26

25

OC1

24

CIS

23

GND

22

SOS6

21

SOS7

20

GND

19

UHZ

18

CPH2

17

GND

16

CEL

15

CSH

GND

14

13

CSL

12

CPH1

11

GND

10

CMH

9

CML

8

NC

7

P15V

6

P15V

5

NC

4

NC

3

CRC2

2

RSV

1

GND

SIDE

TP8

TP24

D

TP25

E

F

TP29

TP28

TP2

TP1

1

3

TERM

C16413

C16408

250V

1.5u

TP5

TP4

TP16

TP17

P5V

TP18

SIU

TP36

CLK

TP19

CERS

TP38

SEL

TP21

OC2

TP22

CRC1

TP70

SC_FPGANRST

TP52

OC1

TP15

CIS

TP37

TP23

TP20

TP14

CPH2

TP39

CEL

TP40

CSH

TP11

CSL

TP97

CPH1

TP26

CMH

TP10

CML

TP88

TP89

CRC2

RSV

15V

TP7

TP6

TP82

TP9

TP32

TP31 TP35TP30

TP34

TP33

+

+

C16414

C16415
220V
180u

R16561

EXB38V470JV

R16562

EXB38V470JV

R16563

EXB38V470JV

R16564

EXB38V470JV

R16574

150

R16579

EXB38V470JV

EXB38V472JV

EXB38V472JV

EXB38V472JV

EXB38V472JV

TP98

220V
180u

R16565

R16566

R16568

R16567

220V
180u

+

R16570

EXB38V472JV

+

C16419

C16410

220V

220V

180u

180u

+

C16563

10V

100u

+

5V

+

C16411

220V
180u

IC16561

C0JBAZ002692

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

IC16562

C0JBAZ002692

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

C16564

14

13

12

11

10

9

IC16563

C0JBAB000388

TP46

MAIN_STOP0

AA_SIU

AA_CLK

AA_CERS

AA_SEL

AA_OC2

AA_OC1

AA_CPH2

AA_CEL

AA_CSH

AA_CSL

AA_CPH1

AA_CMH

AA_CML

AA_CML2

AA_CRC2

AA_CIS

AA_UHZ

5V

C16562

16V

1u

SOS7_SC2

D16480

R16476

MA2J11100L

4.7k

TPSOS6

TP71

C16565

50V

0.01u

R16590

220

C16593

R16592

50V

4.7k

1000p

IC16581

C0BBBA000024

ERROR DET

1

A_OUTPUT

2

A_-INPUT

3

A_+INPUT

4

GND

TP72

C16566

50V

TPSOS7

0.01u

R16587

R16588

10k

2.2k

15V

C16581

25V
1u

D16583

B3ABB0000210

(GREEN LED)

R16585

1k

C16582

16V
1u

R16586

2.15k

R16593

1.4k

B_OUTPUT

B_-INPUT

B_+INPUT

8

VCC

7

6

5

C16631

250V

3u

R16582

39k

R16583

39k

R16584

6.8k

BUFFER

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

AA_SC_FPGANRST

12

Y7

11

Y8

BUFFER

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

TP3

14

Y5

13

Y6

12

Y7

11

Y8

R16591

EXB38V472JV

16V

1u

1

2

3

4

5

6

78

INVERTER

AA_CRC1

D16411

MA2J11100L

*Q16441

2PG0430001TV

*Q16442

2PG0430001TV

*Q16443

2PG0430001TV

*D16461

MA3DF46000LW

*D16462

MA3DF46000LW

*D16463

MA3DF46000LW

*D16464

MA3DF46000LW

C16632

250V

*Q16444

2PG0430001TV

3u

D16451

R16416

*C16633

B0ECKP000055

R16411

10k

R16410

*C16634

250V

250V

3u

*D16481

B0FACP000001

*D16482

B0FACP000001

*D16483

B0FACP000001

*D16484

B0FACP000001

*Q16454

2PG0430000RP

*Q16453

2PG0430000RP

*Q16452

2PG0430000RP

*Q16451

2PG0430000RP

B3PBA0000457

1

270

2

390

3

45

*R16441

*C16441

5.6

50V

3900p

*R16442

*C16442

5.6

50V

3900p

R16443

*C16443

5.6

50V

3900p

R16444

5.6

C16444

R16540

50V

47k

3900p

C16635

C16636

250V

250V

3u

3u

*C16453

*C16452

*C16454

*R16452

*C16451

*R16451

3u

R16454

5.6

50V

3900p

R16453

5.6

50V

3900p

5.6

50V

3900p

5.6

50V

3900p

*R16553

8

C16533

50V

0.1u

7

6

*Q16531

B1HFPFA00001

*R16533

47k

Q16532

B1HFPFA00001

TP92

TP93

C16491

630V

1000p

Q16552

B1HFPFA00001

R16544

47k

*Q16551

B1HFPFA00001

47k

*R16552

R16415

R16414

330

C16471

630V

1000p

TP91

TP90

R16542

10

R16543

47k

*R16551

10

47k

VIN 3

VOUT

COM

2

IC16501

C0ZBZ0001708

NC

9

NC

10

VCC

11

HIN

12

NC

13

LIN

14

GND

15

NC

16

FET DRIVER

CSH/CMH GATE
DRIVE CIRCUIT

IC16521

C0ZBZ0001708

FET DRIVER

CSL/CML GATE
DRIVE CIRCUIT

NC

NC

VCC

HIN

NC

LIN

GND

NC

Vad+5V

C16772

25V

4.7u

VCC2

VCOM

1

R16536

1

D16536

B0ECHR000001

HO

8

VB

7

VS

6

NC

5

NC

4

VCC2

3

VCOM

2

LO

1

C16502

25V

4.7u

C16522

25V

4.7u

D16522

B0ECKP000055

D16524

B0ECKP000055

R16504

75

R16523

75

D16503

B0ECHR000001

+

C16503

25V

470u

+

C16523

25V

470u

2

3

4

5

6

7

8

9

10

R16509

1

D16523

B0ECKP000055

HO

8

VB

7

C16525

25V

4.7u

VS

6

NC

5

NC

4

3

C16505

25V

1u

2

LO

1

11

12

3

5 91 6

74

82

85

12.38. SC-Board (2/4) Schematic Diagram

!

SC-BOARD TXNSC1DNUJ (2/4)

1

*D16401

B0FACR000006

*D16402

B0FACR000006

*D16403

B0FACR000006

2

3

R16503

10

R16511

47k

Q16501

B1HFPFA00001

R16512

47k

*R16407

4

*R16412

*Q16503

*R16526

10

*R16524

47k

5

6

7

B1HFPFA00001

*R16525

47k

8

*Q16401

2PG0110000RP

R16401

7.5

*Q16402

2PG0110000RP

R16402

7.5

0

*Q16403

R16403

2PG0110000RP

7.5

*Q16404

2PG0110000RP

R16404

7.5

0

*Q16405

2PG0110000RP

*R16405

7.5

*Q16406

2PG0110000RP

*R16406

7.5

C16401
630V
5600p

21

22

23

24

25

PC16685

AA_CIS

B3PBA0000496

1

2

R16685

220

34

6

5

C16685

R16769

75

R16761

C16753

50V

0.1u

10

25V

4.7u

R16762

TP103

C16641

TP104

Q16762

B1HFPFA00001

D16407

MA22D3900L

D16865

B0ECKP000047

R16763

47k

47k

630V

2200p

*Q16621

B1JADN000006

R16621

220

*Q16622

B1JADN000006

R16682

10

R16681

10

R16623

220

R16622

220

R16683

10

*Q16623

B1JADN000006

*D16621

B0FBCN000006

*D16641

B0FBCN000007

*D16622

B0FBCN000006

*D16642

B0FBCN000007

*D16623

B0FBCN000006

*D16643

B0FBCN000007

26

R16656

4.7k

Q16649

9

R16891

47k

R16892

D16493

MA3X152E0L

R16497

47k

Q16920

B1ABCN000007

1k

R16711

4.7k

Q16701

B1ADCN000007

D16702

MA2J11100L

Q16702

B1ABCF000231

47k

R16893

47k

R16894

47k

R16895

47k

R16896

33k

D16678

MAZ815000L

5V

R16923

10k

R16926

2.2k

R16927

22k

R16712

1k

R16506

10

R16516

47k

Q16521

B1HFPFA00001

*Q16421

B1JADP000004

R16421

7.5

R16517

47k

*R16427

0

*Q16422

B1JADP000004

R16422

7.5

*Q16423

B1JADP000004

R16423

7.5

C16421

630V

5600p

10

*Q16424

B1JADP000004

R16424

7.5

*R16529

10

*R16527

47k

11

*Q16523

B1HFPFA00001

*R16528

*R16430

47k

*R16425

*R16426

*Q16425

B1JADP000004

7.5

*Q16426

B1JADP000004

7.5

*D16421

MA3DF40001TV

*D16422

MA3DF40001TV

*D16423

MA3DF40001TV

0

AA_UHZ

AA_CEL

C16707

50V

R16717

22p

R16707

3.9k

235k

R16921

2.61k

R16922

IC16773

C0JBAB000715

INVERTER

1

2

3

4

2k

1

NC

2

3

GND

IC16661

C0BBBA000024

COMPARATOR

A_OUTPUT

A_-INPUT

A_+INPUT

GND

R16920

10k

5

VCC

IN_A

4

OUT_Y

R16686

10k

8

VCC

R16897

R16900

1.58k

7

B_OUTPUT

6

B_-INPUT

5

B_+INPUT

1

A_OUTPUT

2

A_-INPUT

B_OUTPUT

3

A_+INPUT

B_-INPUT

4

GND

B_+INPUT

R16716

1.8k

C16708

50V

0.1u

D16716

MAZ80510LL

10k

R16901

4.7k

R16898

2.61k

R16899

2.21k

8

IC16920

VCC

C0BBBA000024

7

COMPARATOR

6

5

R16776

47

Q16818

R16777

B1CBGD000001

10k

B1ABCN000007

IC16691

C0JBAC000363

NAND GATE

D16653

MA2J11100L

R16652

8.2k

C16891

D16902

25V

MA2J11100L

1u

C16773

25V

4.7u

D16901

MA3X152E0L

R16904

22k

12

R16655

10k

1

IN_B

2

IN_A

3

GND

Q16662

2SD0601AQL

R16661

1.2k

IC16692

C0DBZMC00006

R16690

4.7k

5V

5

VCC

C16692

50V

0.1u

4

OUT

R16654

R16657

47

10k

R16662

10k

3

VR16601

C16675

5k

50V

390p

4

1

NC

REFERENCE

3

2

ANODE

CATHODE

SHUNT REG

R16673

4.7k

Q16670

B1ADCN000007

R16691

56k

R16692

Q16671

1.5k
B1ABCF000231

AA_CRC1

D16654

MA2J11100L

15V

Q16645

2SD0601AQL

R16653

1.8k

Q16647

B1CBGD000001

R16658

6.49k

2

1

R16679

7.5k

Q16608

B1CBGD000001

R16663

Q16678

B1ABCF000231

R16680

R16675

4.7k

6.8k

4.7k

AA_CRC2

D16671

MA2J11100L

Q16663

2SB0709ASL

R16694

R16695

1.5k

MAZ80510LL

Q16646

2SB0709ASL

56k

D16648

Q16675

B1ADCN000007

R16667

2k

C16646

630V

1000p

R16668

C16645

2k

R16646

1.21k

D16650

MA2J11100L

R16677

2k

C16661

C16662

630V

630V

1000p

1000p

R16678

2k

R16687

27k

R16688

10.7k

D16669

MA2J11100L

R16699

10k

Q16676

B1ABCF000231

D16645

630V

MAZ81500ML

1000p

D16649

R16650

MA2J11100L

100k

C16665

C16664

50V

50V

82p

82p

D16663

D16662

MAZ81500ML

MAZ81500ML

Q16677

2SD0601AQL

D16677

MA3X152D0L

C16668

R16666

50V

22k

220p

D16646

MAZ81500ML

Q16668

2SD0601AQL

D16647

MAZ81500ML

MAZ81500ML

R16660

2.2k

B0ECKP000055

R16649

*Q16660

B1CERR000025

C16666

50V
82p

D16664

R16665

33

33

R16648

R16651

D16652

*Q16661

2k

2k

R16664

R16674

B1JAER000003

27

+

C16690

160V
100u

+

C16691

160V
100u

2k

2k

28

29

D16674

D16673

B0ECHR000001

B0ECHR000001

30

1110 15 1613 14 17 1812

86

12.39. SC-Board (3/4) Schematic Diagram

!

SC-BOARD TXNSC1DNUJ (3/4)

21

D16625

D16602

MAZ81500ML

MAZ82000ML

D16624

R16627

B0ECKP000055

22

R16628

R16615

1.13k

Q16602

2SD0601AQL

R16634

470

R16605

1.8k

22

AA_CERS

AA_CPH1

IC16491

AA_CERS

IC16490

C0DBZMC00006

SHUNT REG

ANODE

CATHODE

3

4

1NC2

REFERENCE

C0BBAA000008

SEPA PROTECT

D16491

MA2J11100L

D16492

MAZ80470ML

3

4

+INPUT

OUTPUT

GND

2

VCC

1

5

-INPUT

R16492

110k

R16493

10k

R16604

330

PC16603

B3PBA0000498

5V

R16494

2k

C16490

R16495

16V

680

1u

R16496

47

Q16490

B1CBGD000001

R16490

R16491

110k

120k

R16498

10k

TP68TP67

D16490

B0ECKP000055

4

12

3

1

2

34

R16684

220

C16602

50V
22p

PC16684

B3PBA0000496

R16633

22k

6

5

C16684

50V

0.1u

R16765

R16631

10k

1

D16765

B0ECHR000001

R16766

0

C16755

C16756

25V

25V

4.7u

4.7u

47k

Q16607

B1CBGD000001

MAZ80510LL

D16616

MA3X152E0L

D16615

Q16624

MA2J11100L

2SB0709ASL

D16604

D16610

Q16603

MA3X152E0L

2SB0709ASL

R16607

6.98k

MA2J11100L

D16605

23

C16608

50V

220p

D16679

B0ECKP000055

MA2J11100L

R16610

100k

D16607

C16603

630V

1000p

Q16606

2SD0601AQL

C16604

630V
1000p

D16606

B0ECKM000038

R16608

1k

R16617

R16609

1k

R16614

R16611

68k

68k

R16606

R16869

R16613

47k

47k

0

31

32

33

D16618

B0ECKP000055

R16616

1

D

*Q16601

B1CERR000025

S

R16612

47

2.2k

G

TP099

TP100

34

24

25

26

27

35

28

36

29

D16721

B0ECHR000001

AA_SC_FPGANRST

MAIN_STOP0

D16474

MA2J11100L

PC16480

B3PBA0000498

R16475

4.7k

5V

34

IC16724

C0CBADC00072

C16725

25V

D16725

4.7u

IC16725

C0CBADC00072

C16724

25V

4.7u

CHA

R16478

MAZ82000ML

5.6k

D16791

R16791

1k

D16476

MA2J11100L

C16472

R16479

25V

10k

1u

D16475

MAZ80510LL

MA2J11100L

R16471

IC16471

R16473

C0DBEKA00003

560

SHUNT REG

R16474

1k

12

3.9k

SCNR_PRO

D16473

MA3X152D0L

K

REF

3

4

R16472

A

2.2k

2

A

NC

1

5

Q16471

B1ABCF000231

R16480

4.7k

5V_F_A

15V_F

VIN 3

1

VOUT

C16723

COM

25V

2

4.7u

5V_F_B

VIN 3

1

VOUT

+

C16721

COM

50V

2

100u

IC16791

N0BF2GB00002

GND2GND3N.C.4VIN5VIN6N.C.

1

15V

+

C16791

25V

220u

DC/DC CONVERTER

9

COM10COM1116V_OUTPUT1232V_OUTPUT

+

C16795

25V

470u

+

C16796

25V

470u

30

37

38

39

40

41

87

272619 2321 2522 2420

12.40. SC-Board (4/4) Schematic Diagram

31

D16699

32

33

B0ECKP000055

+

C16699

25V

470u

34

TPVSUS

Q16882

B1ABCF000231

+

C16417

220V
180u

PC16896

B3PBA0000498

35

36

37

38

39

40

41

12

34

Q16816

2SD0601AQL

C16843

R16789

50V

10k

0.1u

D16792

MA2J11100L

*R16818

R16821

30.9k

100k

R16820

100k

R16819

100k

*R16919

11.8k

*

R16713

100k

B0ECKP000055

R16833

10k

D16719

T16699

G4DYA0000179

10

1

NC

N1N3

2

9

8

N2

7

4

5

NC6NC

Q16874

B1CBGD000001

R16847

4.7k

C16868

10V

1u

10

DRAIN

IC16784

MIP9L02MBS

VAD GEN.

SOURCE2BY3FB5VCC

1

C16856

10V
1u

IC16793

C0DBZMC00006

SHUNT REG

C16866

8

10V

1u

R16841

D16710

MAZ815000L

VOUT

C16857

50V

4700p

C16867

10V

56k

TPVAD

R16798

2.2k

4

1NC2

REFERENCE

IC16788

MIP3900MSSCF

VSET GEN.

LS

4

FB

3

CL

2

VDD

1

1u

R16838

6

GND7V01

C16858

16V

0.1u

3

ANODE

CATHODE

R16806

1k

56k

G0C102KA0187

IC16792

C0BBAA000008

DRAIN

SOURCE

SOURCE

L16697

TP94

L16472

G0ZZ00002183

C16797

50V

0.1u

1

-INPUT

2

GND

3

+INPUT

COMPARATOR

VHIZ GEN.

5

7

8

*R16846

VR16600

D16711

B0ECHR000001

5

VCC

4

OUTPUT

R16845

VAD

R16844

B0ECKP000055

68.1k

60.4k

50k

1.24k

D16715

TP64

Q16667

2SB0709A0L

Q16884

2SD0601A0L

IC16789

C0DBZMC00006

SHUNT REG

R16825

150k

+

C16813

220V
220u

1

2

3

R16799

1k

R16797

22

VHIZ:85V

AB_HIZ

!

SC-BOARD TXNSC1DNUJ (4/4)

R16719

TP45

22

TPVSET

*

R16731

100k

R16735

187k

R16848

4.7k

3

ANODE

CATHODE

R16822

82k

R16823

82k

D16824

MAZ83300ML

D16825

MAZ83300ML

R16824

33k

D16714

MAZ815000L

C16869

4

1NC2

REFERENCE

PC16722

B3PBA0000498

50V

0.1u

Q16743

2SD0601A0L

D16477

MA2J11100L

C16821

50V

0.1u

R16736

187k

R16737

205k

R16733

470k

R16734

4.99k

12

Q16815

B1ABCN000007

TP84

R16745

22k

R16877

680

R16714

47k

R16715

10k

R16785

100k

R16786

100k

R16787

33k

R16742

10k

34

R16826

10k

TP83

R16746

47k

1

2

3

C16823

630V

5600p

B1CBGD000001

Q16810

B1ABCF000231

B0HCKS000002

NC

IN_A

GND

Q16817

C16844

50V

0.1u

D16478

R16747

10k

VCC

OUT_Y

+

C16822

400V

47u

IC16564

C0JBAB000715

5

VSET23 GEN.

4

R16796

56k

D16811

MA2J11100L

INVERTER

R16573

22

R16744

127k

R16749

R16794

10k

200k

R16795

200k

D16717

MAZ83300ML

Q16875

B1ABCF000231

D16871

MAZ805100L

TP95

D16720

DRAIN

SOURCE

SOURCE

PC16723

B3PBA0000498

B0ECHR000001

B0ECKP000055

5

7

8

D16713

R16815

2.49k

VAD

R16772

12

34

L16698

G0C681MA0065

4.7k

R16804

CATHODE

100k

R16773

1k

R16851

3

ANODE

REFERENCE

C16863

0.1u

470k

4

IC16787

C0DBZMC00006

1NC2

SHUNT REG

Q16801

B1ADCN000007

R16870

68k

50V

IC16786

MIP3900MSSCF

VSCN GEN.

LS

4

FB

3

CL

2

VDD

1

R16829

C16862

10V

1u

2.2k

IC16801

1k

C16861

16V

0.1u

C16814

R16814

3

ANODE

CATHODE

REFERENCE

C0DBZMC00006

SHUNT REG

50V

560p

19.6k

4

1NC2

C16860

10V
1u

R16813

R16812

1.8k

AB_VSET23

AA_CML

15V

R16751

150k

*D16821

MAZ824000L

R16750

R16755

12k

12k

R16831

71.5k

C16864

50V

0.1u

D16712

MAZ815000L

R16875

71.5k

R16873

2.49k

AA_CSL

R16801

R16802

38.3k

47k

5V

R16752

4.7k

D16875

MA2J11100L

D16874

MAZ805100L

TPVSCN

R16860

8.2

D16859

B0ECHR000001

D16860

B0ECHR000001

G0ZZ00002183

R16775

R16753

L16851

MA3X152E0L

4.7k

220k

Q16876

B1ABCF000231

R16783

150k

*D16872

R16756

MAZ805100L

12k

+

C16842

160V
100u

TP101

TP102

9

8

7

6

5

4

3

2

1

TO
SD-BOARD
(SD46)

SC46

SOS7_SC2

D16820

R16696

2.2

TP96

R16778

2.2

TP59

TP60

TP61

TP62

TP63

AB_HIZ

AB_VSET23

TO
SU-BOARD
(SU41)

C16460

630V
3300p

TP41

TP42

TP43

TP44

9

8

7

6

5

4

3

2

1

SC41

9

8

7

6

5

4

3

2

1

SC42

TO
SD-BOARD
(SD42)

AA_SEL

AA_SIU

R16720

22

AA_OC2

R16721

22

AA_CLK

R16722

22

AA_OC1

R16723

22

5V_F_A

ZA16401

K4CD01000011

ZA16411
TUXJ490

ZA16412
TUXJ490

ZA16413
TUXJ490

C16902

630V
3300p

ZA16402

TP79

TP78

TP81

TP80

5V_F_B

SCNR_PRO

CHA

TP51

SC50

1

2

FOR
FACTORY
USE

K4CD01000011

SC46 SC41SC42

ZA16421
TUXJ490

ZA16422
TUXJ490

ZA16423
TUXJ490

ZA16403

K4CD01000011

28

29 30 33 353431 3632

88

12.41. SS-Board (1/2) Schematic Diagram

SS-BOARD TXNSS1DNUJ (1/2)

!

*D16001

B0FCCN000002

1

2

3

4

A

R16031

82k

47k

MA2J11100L

R16173

R16032

82k

R16033

56k

D16032

R16034

27k

*Q16041

2PG0330001TV

R16041

5.6

47k

*Q16042

2PG0330001TV

R16042

5.6

C16042

50V

3900p

R16051

5.6

R16052

5.6

C16052

50V

3900p

D16050

B0ECKP000055

TO
P-BOARD
(P11)

SS11

1

VSUS

3

GND

4

15V

VSUS

TP1

TP2

TP5

TP6

L16271

G0ZZ00002183

*C16011

TPVSUS

+

+

*C16012

*C16013

220V

220V

180u

220V

180u

180u

+

+

*C16015

220V
180u

*C16016

+

+

*C16017

C16031

220V

220V

250V

180u

180u

1.5u

Q16055

R16171

10

B1HFPFA00001

R16172

47k

B

TP7

TP8

+

C16104

47p

C

C16271

C16105

25V

25V

25V

47p

330u

TP9

TP10

AA_USH

AA_USL

C16151

TP068

25V

R16151

100

TP069

R16152

100

R16155

1

D16151

B0ECKP000055

NC

9

NC

10

VCC

11

1u

HIN

12

NC

13

LIN

14

GND

15

NC

16

IC16151

C0ZBZ0001708

FET DRIVER

ENERGY

RECOVERY

HO

8

VB

7

C16152

R16154

25V

4.7u

VS

6

NC

5

NC

4

VCC2

3

VCOM

LO

C16154

2

1

75

B0ECKP000055

25V

4.7u

R16159

C16153

1

25V

4.7u

D16153

B0ECKP000055

D16152

Q16056

B1HFPFA00001

R16181

10

R16182

47k

R16183

*Q16051

2PG0330001TV

*Q16052

2PG0330001TV

*C16201

*C16204

250V

250V

*C16203

*C16202

250V

250V

3u

*C16205

250V

3u

*D16041

MA3DF46000LW

*D16042

MA3DF46000LW

*D16043

MA3DF46000LW

*D16051

B0FBCN000008

*D16052

B0FBCN000008

*D16053

B0FBCN000008

3u

Q16141

B1HFPFA00001

R16141

10

C16071

630V

1000p

C16092

630V

1000p

*L16001

G0C1R1K00001

*L16002

G0C1R1K00001

TP39

TP38

*L16003

G0C1R1K00001

*L16004

G0C1R1K00001

*L16005

G0C1R1K00001

NC

9

NC

10

NC

11

TP077

R16131

100

AA_UMH

TP078

AA_UML

*L16011

G0C1R1K00001

*L16012

G0C1R1K00001

TP41

TP40

*L16013

G0C1R1K00001

*L16014

G0C1R1K00001

*L16015

G0C1R1K00001

HIN

12

NC

13

R16132

100

LIN

14

GND

15

NC

16

IC16131

C0ZBZ0001707

FET DRIVER

VSUS Gen.

DRIVER

HO

8

VB

7

VS

6

NC

5

NC

4

VCC

3

GND

2

LO

1

R16142

47k

D16131

R16134

B0ECKP000055

75

C16133

C16131

25V

25V

4.7u

4.7u

C16135

25V
1u

10

R16162

47k

R16137

1

Q16161

B1HFPFA00001

R16143

R16163

3u

3u

D

TP070

TO
C3-BOARD
(C33)

SS33

1

P5V

2

UEH

3

GND

4

USL

5

GND

6

SOS8_SS

USH

7

GND

8

UML

9

GND

10

UMH

11

GND

12

TP21

TP35

TP33

TP34

C16243

50V

0.01u

E

R16241

EXB38V470JV

TP16

TP17

TP18

TP19

TP20

R16230

47

TP37

TP22

R16280

2.2k

TPSOS8

R16242

EXB38V472JV

R16231

D16281

MAZ80510LL

TP14

TP13

+

C16241

10V

1

100u

1G

2

1A1

3

C16332

50V100p

C16333

50V100p

C16334

50V100p

C16335

50V100p

4.7k

2Y4

4

1A2

5

2Y3

6

1A3

7

2Y2

8

1A4

9

2Y1

10

GND

IC16241

C0JBAZ002811

BUFFER

20

VCC

19

2G

18

1Y1

17

2A4

16

1Y2

15

2A3

14

1Y3

13

2A2

12

1Y4

11

2A1

C16336

100p

F

AA_UMH

C16242

16V

1u

TP071

AA_UEH

TP072

AA_USL

TP073

AA_USH

TP074

AA_UML

50V

AA_SOS8

AA_SOS8

D16255

MA2J11100L

Q16251

2SD0601A0L

R16258

10k

C16252

25V

1u

D16253

B3ABB0000210

R16257

27k

R16260

2.2k

1

A_OUTPUT

2

A_-INPUT

3

A_+INPUT

4

GND

IC16251

C0BBBA000024

ERROR DET

B_OUTPUT

B_-INPUT

B_+INPUT

8

VCC

7

6

5

(GREEN LED)

R16252

39k

R16253

R16255

1.2k

C16251

16V
1u

R16256

1.5k

R16251

1.4k

39k

R16254

6.8k

*Q16001

B1JADN000007

R16001

7.5

*Q16002

B1JADN000007

R16002

7.5

*Q16003

B1JADN000007

47k

R16003

7.5

*Q16004

B1JADN000007

R16004

7.5

*Q16005

B1JADN000007

*R16005

7.5

*Q16021

B1JADN000006

*R16021

7.5

*Q16022

B1JADN000006

R16022

7.5

47k

*Q16023

B1JADN000006

R16023

7.5

*Q16024

B1JADN000006

R16024

7.5

*Q16025

B1JADN000006

R16025

7.5

B0FBCN000008

*D16021

C16003

630V

5600p

*D16003

*D16002

B0FCCN000002

B0FCCN000002

C16023

630V

5600p

*D16025

B0FBCN000005

1

4

52

89673

89

12.42. SS-Board (2/2), SS2-Board and SS3-Board Schematic Diagram

SS-BOARD TXNSS1DNUJ (2/2)

!

1

*D16284

AA_SOS8

FPC DET

MA3X152D0L

*C16284

50V

0.1u

*C16285

50V

0.1u

D16285

MA3X152D0L

C16286

50V

0.1u

C16287

50V

0.1u

D16286

D16282

MAZ80680ML

R16283

47k

MA3X152D0L

R16284

220k

C16288

50V

0.1u

C16289

50V

0.1u

C16280

C16195

25V

4.7u

25V

1u

D16280

MA2J11100L

R16281

10k

TP36

Q16280

2SD0601A0L

R16282

220

*R16289

*R16290

*R16285

330k

330k

62k

R16291

330k

R16292

330k

R16293

330k

R16294

330k

R16286

62k

2

TPSS1

D16195

PC16191

B3PBA0000496

B0ECKP000055

DRAIN

SOURCE

SOURCE

D16191

B0ECKP000055

D16316

5

7

8

R16193

75

R16109

+

6

5

C16193

25V
47u

+

PC16301

B3PBA0000498

C16192

25V

0.1u

D16317

B0ECKP000055

C16032

220V
300u

34

IC16312

C0DBZMC00006

SHUNT REG.

10

R16110

47k

C16191

25V

4.7u

G0C471KA0167

R16334

4.7k

12

Q16191

B1HFPFA00001

R16194

7.5

R16196

7.5

D16193

B0ECKP000055

D16194

B0ECKP000055

L16303

C16331

C16329

250V

1u

R16320

68k

C16318

D16315

50V

MAZ81500ML

0.1u

R16335

1k

R16332

470k

C16319

50V

0.1u

4

3

ANODE

CATHODE

1NC2

REFERENCE

R16101

220

R16103

D16101

R16116

MA22D3900L

47k

TP42

+

200V
200u

R16307

68k

R16318

68k

R16317

1.6k

R16319

2.49k

R16104

R16102

220

L16222

G0ZZ00002183

+

C16328

200V
200u

TPVe

TP28

TP24

R16195

B0ECKP000055

1

AA_UEH

AA_UML

D16192

MA2J11100L

R16192

10k

R16191

150

1

2

34

Vsus

3

4

C16317

10V
1u

IC16304

MIP3900MSSCF

R16330

1k

C16316

16V

0.1u

VE GEN.

LS

4

FB

3

CL

2

VDD

1

C16315

10V
1u

L16103

G0ZZ00002183

*Q16101

2SK4208000RP

10

10

*Q16102

2SK4208001TV

TP29 TP31

TP25 TP26

TP53

TP55

TP56

TP57

TP58

TP43

D

S

G

G

S

R16105

470k

D

R16312

R16309

33k

33k

R16302

R16313

33k

33k

TP30

TP27

*SS53

*SS55

*SS56

SIDE

1

2

3

4

5

6

7

8

9

10

11

12

13

TERM

SIDE

1

2

3

4

5

6

7

8

9

10

11

12

13

TERM

SIDE

1

2

3

4

5

6

7

8

9

10

11

12

13

TERM

PANEL
SUSTAIN
ELECTRODE

PANEL
SUSTAIN
ELECTRODE

PANEL
SUSTAIN
ELECTRODE

*SS24A

*SS22

SS52

SS02

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

!

SS2-BOARD
TXNSS21DNUJ

D16445

B0FBCN000009

ZA16016

K4ZZ01000216

ZA16017

K4ZZ01000216

D16446

B0FBCN000009

C16555

630V

2200p

SS03

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

K4ZZ01000216

SS3-BOARD
TXNSS31DNUJ

ZA16013

B0FBCN000009

!

ZA16015

K4ZZ01000216

D16442

D16444

B0FBCN000009

C16554

C16552

630V

630V

2700p

2200p

1

2

3

4

5

6

7

8

9

10

11

12

13

SS57

1

2

3

4

5

6

7

8

9

10

11

12

13

SS59

1

2

3

4

5

6

7

8

9

10

11

12

13

SIDE

PANEL
SUSTAIN
ELECTRODE

TERM

SIDE

PANEL
SUSTAIN
ELECTRODE

TERM

SIDE

PANEL
SUSTAIN
ELECTRODE

TERM

TUCJ5915 (120mm)

Q6042

Q6041

SS11

D6043

D6042

D6041

TUCJ5916 (135mm)

SS33

ZA16003

K4CD01000011

SS24

D6024

D6053

D6052

D6051

Q6052

Q6051

TUCJ5917 (150mm)

TUCJ5917 (150mm)

ZA16001

K4CD01000011

Q6025

Q6024

Q6023

Q6022

Q6021

D6022

D6021

D6025

Q6005

Q6004

Q6003

Q6002

Q6001

Q6101

Q6102

ZA16002

K4CD01000011

D6002

D6001

D6003

D6023

SS22

SS53

SS54

SS55

SS56

90

18171311 1610 12 14 15

13 Printed Circuit Board

13.1. P(MULTI)-Board

P(MULTI)-BOARD (FOIL SIDE) ETX2MM774MA

6

5

4

3

2

1

ABCDEFGH I

91

P(MULTI)

Parts Location

IC

IC301 G-5
IC352 H-5
IC501 C-2
IC555 E-2

MODULE

MC401 F-2
MC451 H-5
MC501 D-1
MC701 G-1
MC801 E-3

PHOTO COUPLER

PC301 H-5
PC302 H-5
PC401 F-2
PC501 E-3
PC502 D-2

P(MULTI)-BOARD (FOIL SIDE)

TRANSISTOR

Q301 G-5
Q302 F-5
Q303 G-5
Q351 H-3
Q352 G-3
Q353 G-3
Q354 H-4
Q401 G-2
Q402 H-3
Q403 H-3
Q501 E-3
Q502 D-3
Q551 F-2
Q552 H-6
Q553 H-6
Q554 E-1
Q555 E-1
Q701 F-1
Q801 D-3
Q802 E-3
Q803 E-3
Q804 E-3
Q805 E-3

TEST POINT

TP1 F-4
TP2 E-5
TP3 D-3
TP4 C-2
TP7 H-4
TP8 F-2
TP9 F-2

VOLUME

VR401 H-3

Parts Location

IC

IC301 G-2
IC501 C-5

MODULE

MC401 F-5
MC451 H-2
MC501 D-6
MC701 G-6
MC801 E-4

P(MULTI)-BOARD (COMPONENT SIDE)

TRANSISTOR

Q301 G-2
Q302 F-2
Q351 H-4
Q401 G-5
Q402 H-4
Q403 H-4
Q801 D-4

TEST POINT

VOLUME

TP1 F-3
TP2 E-2
TP3 C-4
TP4 C-5
TP7 H-3
TP8 F-5
TP9 F-5

VR401 H-4

92

P(MULTI)-BOARD (COMPONENT SIDE) ETX2MM774MA

6

5

4

3

2

1

ABCDEFGH I

93

13.2. P(SUS)-Board

6

5

P(SUS)-BOARD (FOIL SIDE) ETX2MM774MG

Parts Location

IC

IC201 F-1
IC202 G-1
IC251 H-2
IC601 D-4

PHOTO COUPLER

PC201 G-2
PC202 E-4
PC231 E-4

P(SUS)-BOARD (FOIL SIDE)

TRANSISTOR

Q201 F-2
Q202 F-2
Q203 E-3
Q204 G-2
Q207 E-2
Q208 F-2
Q209 F-2
Q210 F-2
Q211 G-2
Q212 G-2
Q601 C-2
Q602 B-2
Q603 C-3
Q604 B-3
Q605 D-3
Q606 E-3

Q607 D-3
Q608 D-3
Q609 D-4
Q610 D-4
Q611 D-4

TEST POINT

TP1 D-2
TP2 D-2
TP5 H-4
TP6 H-4

VOLUME

VR251 H-2

P(SUS)

4

3

2

1

ABCDEFGH I

94

P(SUS)

Parts Location

P(SUS)-BOARD (COMPONENT SIDE)

IC

6

IC201 F-4
IC251 H-3

TRANSISTOR

Q201 F-3
Q202 F-3
Q207 E-3
Q208 F-3
Q601 C-3
Q602 B-3
Q603 C-3
Q604 B-3

TEST POINT

TP1 D-4
TP2 D-3
TP5 H-2
TP6 H-2

VOLUME

VR251 H-3

5

P(SUS)-BOARD (COMPONENT SIDE) ETX2MM774MG

4

3

2

1

ABCDEFGH I

95

13.3. GK, K and S-Board

S-BOARD (FOIL SIDE)

6

TXN/S1DTUE

TNPA4858

SEE REVERSE

FOR ORDER NO.

SW2500

PbF

S

1

S1

1331

5

GK

S-BOARD (COMPONENT SIDE)
TXN/S1DTUE

TNPA4858

ORDER NO.

S

1

131

3

SW2500

4

PbF

S1

SK

K-BOARD (FOIL SIDE)
GK-BOARD (FOIL SIDE)
TXNGK1EQUE

3

SW3763

ZA3702

R3772

C3753

2

GK1

C3752

1

C3754

SW3762

R3775

PbF

SW3760

R3771

TNPA4875

SEE REVERSE FOR ORDER NO.

SW3761

GK

1

R3770

SW3759

ZA3701

TXN/K1EQUE

TNPA4857

SEE REVERSE FOR ORDER NO.

C2517

D2526

R2562

R2565

Q2519

1

R2561

R2581

R2582

K

R2563

PbF

C2524

C2522

VJ3

VJ1

R2569

VJ2

C2523

R2556

R2530

C2525

R2557

R2531

Q2513

R2570

R2571

Q2522

D2530

R2520

Q2510

R2542

R2516

C2512

D2512

C2521

R2517

K-BOARD (COMPONENT SIDE)

2

GK-BOARD (COMPONENT SIDE)

TXN/K1EQUE
TXNGK1EQUE

1

C2515

Q2511

K1

C2527

ORDER

TNPA4857

NO.

PbF

1

K

D2525

11

R2524

R2525

D2524

SW3759

ZA3701

F

SW3761

TNPA4875

ORDER

NO.

RM2501

+/

SW3760

-/

SW3762

TV

SW3763

2

1

GK1

GK1

AV

ZA3702

D2582

PC2511

C2511

C2510

C2526

D2528

D2520

1

ABCDEFGH I

96

13.4. GL and XS-Board

GL-BOARD (FOIL SIDE)
TXNGL1EBUE

6

R7800

1

JS7801

D7800

C7801

2

GL02

TNPA4693

PbF

GL

1

ORDER

LEPR

NO.

GL-BOARD (COMPONENT SIDE)
TXNGL1EBUE

PbF

1

GL

TNPA4693

SEE REVERSE FOR ORDER NO.

LEPR

XS

5

XS-BOARD (FOIL SIDE)
TXNXS1EBUB

C856

TP807

TP808

TP821

4

C849

C806

L802

3

C850

C816

D815

D805

C820

C813

R862

PA801

ERROR
D/PN
D73
D53
D33
D13
VDD
B3

C865

R810

C817

D816

DISEQCOUT1

C814

R804

R803

RESETB
STROUT
CLKOUT
D63
D43
D23
D03

C810

C811

R802

R808

R861

R801

R857
R855
R853
R851
R849

2

TNPA4851

REVERSE FOR SUFFIX.SEE

CR NO.6

L814

TP813

1

TP819

TP817

C855
C854
C862
C860
C858

1

PbF

TP803

TP815

XS

R826
R825
R823
R821
R840
R842
R844

TU801

C842

R835

R827

C841

C843
D809
R830

R831

C848

C815

R838

TP806

C838

DISEQCIN1

TP805

R860

R819

C807

C857

R839

R859

R848

R813

C864

L817

R829

R832

R846

R812

R847

B1

TP801

C812

C821

C831

D810

SDASCL

R863

C836

C834

TP812

TP804

TP802

TP820

TP818

TP816

C853
C863
C861
C845

TP809

R816

C847

TP814

TP811

R824
R822
R841
R843
R845

C859

L816

D807

R858
R856
R854
R852
R850

TP810

C846

B2

R817

R818

C832

C866

XS-BOARD (COMPONENT SIDE)
TXNXS1EBUB

TU801

R834

D813

JS804

5

R833

JS801
JS803

CR NO.6

AB

AC

BA

8

JS802

BB

ZA804

C824

IC802

C823

ZA801

ZA002

C808

C825

PbF

XS1

XS2

XS3

XS4

1

30130301130

L815

R815

7

5

C829

PA802

D811

C827

4

1

R820

C822

SUFFIX.

IC803

1

4

L807

L806

C828

C830

D808

ZA003

TNPA4851

L801

12

13

R809

C801

1

C802

D803

C852

ZA004

XS

C851

C804

24

ZA001

1

IC801

THERMALPAD

R807

D806

C805

D812

L813

C809

D804

ZA802

C819

C818

R811

R814

ZA803

GL

Parts Location

ICIC

IC6801 G-3
IC6802 D-2
IC6803 E-2

XS-BOARD

TEST POINT

TP6801 C-3
TP6802 D-4
TP6803 B-4
TP6804 D-4
TP6805 C-3
TP6806 C-3
TP6807 C-4
TP6808 C-4
TP6809 D-3
TP6810 C-3
TP6811 D-3
TP6812 C-1
TP6813 B-1
TP6814 C-2
TP6815 B-4
TP6816 D-4
TP6817 B-4
TP6818 D-4
TP6819 B-4
TP6820 D-4
TP6821 B-4

ABCDEFGH I

97

13.5. A-Board

A-BOARD (FOIL SIDE)
A-P65V10B A-P65V10E

6

C8512

5

4

3

2

1

20

2

JK3707

JK3707

8

R2871

1

R2870

C2872

R2872

R2874

R2873

CN1102

JK4700

11

JK3001

15

C2600

R2605

R2602

R2606

R2608

R2607

R2634

R2603

TP2810

CL5440

CL5435

R5455

D5434

D5436

CL5439

CL5436

R5456

CL5438

CL5433

R5453

D5433

D5435

CL5437

CL5434

R5454

CL5441

CL5442

D5437

VJ5601

C5645

VJ5608

24

1

R5656

R5638

TP5641

C5638

D5442

D5423

D5422

C5427

R5422

51

C1111

R1003

Q2904

C2904

Q2001

R2132

Q2001

R2007

R2008

C8311

C8319

IC8301

C8313

R8325
R8328
C8315

VJ5609

C5605

IC5600

R5610

C5606

C5650

R5603

R5658

D5449

L5480

C5487

R5423

Q5475

R5419

C5531

Q5478

R0914

R0913

R1414
R1415
R1422

C1114

R1406

R1407

R1404

R1405

26

R1203

TP0109

TP0110

TP1056

TP2903

C2905

L2903

3

IC2901

4

7

C2960

R2960

CL0900

R0924
R0923

CL0901

5

Q0900

C2120

R2032

L2033

L2039

C2091
R2006
C2092

C2093

L2001

C8327

L8304

C8335

C8340

33

C8314

R8308

R8301

R8322

R8670

R8671

R8675

R8679

R8678

R5461

VJ5606

VJ5607

C5603

13

IC5600

C5607

R5657

R5604

C5604

R5605

12

TP5600

L5544

R5570

TP5401

Q5475

D5470

R5418
R5413
R5571
C5530

Q5478

IC8502

TP1103

1

45

1

C1400

C1402

4

TP0101

TP0104

TP0105

TP0106

TP0107

C5637

D4583

C4606

L4515

1

IC2901

5

R0940

R0922

Q0901

R0921

R0939

Q0900

Q2023

R2095

C2103

Q2023

R2094

C2100

4

3

IC8302

IC8302

5

1

TP8301

IC8301

C8320

C8321

CL8317

17

R8680

R8681

TNPH0795

R8707

TP8549

TP8548

D8500

R8703

JK8302

R2875

C2875

C2877

C2878

IC2802

5

C2873

IC2802

C2871

C2870

VJ2870

4

TP2872

L2870

D2871

TP2870

D5582

19

CN1102

R1109
R1108
R1107
R1106
R1105
R1103
R1102
R1101

R1104
R1200
R1100

1

D4707

D4706

D4714

D4715

6

1

JK3001

5

TP8550

TP8551

TP8565

TP8552

C8533

C8532

C8535

TP8553

C8544

TP8554

TP8555

L8501

C5651

TP8564

R5655

D2870

TP2871

C2874

C5421

C5422

CL2618

TP5421

L5421

X1100

R4710

76

L4526

R4613

D1112

R4705

L4525

R4711

R1173

R4614

TP1400

R1243

R1236

R1237

TP1401

C1104

R3288

R3207

TP3015

D3339

R3206

R3287

R3106

TP3014

100

TP5431

D3048

R3108

C5643

D5641

R5636

R5652

R5653

R5637

Q5606

R5654

C5649

R5651

R5639

Q5605

R5649

C5601

R5650

C5424

C5425

C5426

C5423

R5421

D5421

C1107

C1106

R1153

C1109

C1105

R1146

R5470

R1421

R2816

R1163

IC1100

C1112

R1413

R0911

R0912

1

IC1100

TP0154

CL8041

TP1052

CL8042

TP0153

TP1053

TP1054

TP0155

TP1055

TP1062

TP1057

CL9014

CL9015

TP0102

10

Q2904

R2924

R2930

R2922
R2921

C2901

D2901

C2902

C2925

R2902

+BACTIVEANT
AGCMONITOR

C2923

BTL

TP2901

BTMONITOR

BB

C2934

RFAGC

+B

TU2901

SCL

SW1

SW2

ATTSW

SDA

AUDIOOUT

SIFOUT

BTMONITOR

IFAGC

SCL

SDA

TP2904

VB

IFDOUT1

BTL

IFDOUT2

AFTOUT

VIDEOOUT

C2927

+B

C2928

RFAGCMONITOR

C2933

R2941
C2924

C2929

C2906

R2942

C2931

C2932

R2915

C2920

Q2903

R2910

C2917

R2926

R2901

R2940

L2902

L2904

V

L

IFMONITOR

R

D2902

C2962

R2961

1

IC2960

R2916

C2916

4

C2961

C2921

C2907

IC2960

C2912

TU2901C

TU2901D

R2907

Q2902

Q2902

R2908

TU2901B

R2909

TU2901TU2901A

R2015

R2904

R2906

R2016

Q2901

R2905

C2096

Q2901

R0925
R0927

X8301

R0926
R0928

C8312

R8313

R8312

C8333

C8334

C8310

49

C8316

C8331

C8330

R8354

C8308

L8303

C8309

R8353

C8307

C8317

C8332

C8336

R0941

R0942

64

R2928

R0938

R8305

R8356

R0937

C8306

1

C8329

R8321

R8395

R0943

Q2903

R8327

R8326

R8323

R8324

CL8313

CL2903

R2927
R2911

L2905

SEE REVERSE FOR ORDER NO.

TP2805

R8455

R8453

R8497

R8485

R8484

R8486

R8426

10

IC8410

IC8410

R8440

R8438

R8448

R8447

11

R8474

R8310
R8358
R8365
R8311
R8359
R8366

C8426

R8316
R8360
R8369
R8317
R8375
R8370

C8422
C8421
R8303
R8320
R8361
R8304
R8357
R8362

CL8754

CL8811

8

R8644
R8511

R0946
R0945

8

C1117
R1209
R1207
R1202

R0916

R0917

R0915

R0918

5

TP0108

R4625

IC4512

3

IC4512

1

20

IC8304

1

IC8304

8

1

IC8305

IC8305

8

1

IC8303

8

IC8303

R8334

TP8745

CL8809

TP8563

TP8561

TP8562

TP1102

TNPH0795 B

C4607

C4633

L4519

JK8401

R5412

D5486

R5486

C8508

IC8502

IC1101

IC1101

4

6

Q4534

Q0901

D4575

R4746

R4607

R4708

R4738

R4709

R4604

C8326

D8301

L8301

C8328

L3024

S3035

D3017

L3023

S3036

D3019

D3050

R3147

S3037

1

A

C2824

TPS0N

TPEC0

R8712
R8635
R8701

R8482

R8483

R8605
R8604
R8603
R8602

C8416
R8466

R8428

R8411

10

R8462

1

1

R8456

R8457

IC8411

R8425

C8418

C8415

R8458

R8459

R8491

20

TP8402

R8436
R8434

11

IC8411

R8460

R8445

C8323

R8314

16

R8385

R8433

R8368
R8315

R8450

R8386
R8367

R8435

9

C8324

16

R8392
R8393

R8424

R8396

R8423

R8319

R8422

R8387

9

R8421

R8371

R8461

R8302

C8322

R8409

16

R8306

R8410

R8376

R8465

R8364

C8417

R8307
R8379
R8363

9

TP8220

TP8218

TP8211

R8682

TP8210

CN8701

JK4501

C4637

D4541

R4667

JK4500

R4534

R4590

Q4534

D4542

R4671

D4574

L4523

D4573

L4522

JK4502

D3015

D3015

C3023

D3001

TP8216

TP8213

TP8212

R8769

R8770

R8771

R8499

R8500

R8507

R8333

C8344

CL8466

17

CL8464

R8335

CL8465

CL8467

33

D4533

D4534

R4530

R4533

D4517

D4520

L4507

L4506

R4541

R4599

R4600

R4543

R4540

R4591

Q4533

Q4533

R4658

D4535

D4536

R4528

D4512

D4518

R4616

L4504

L4505

R4542
R4539

R4615

R4538

D4562

D4563

TP3023

CL3100

PbF

R3030

R3031

TPST5

TP2801

C2807

C2808

TPF15V

C2802

IC2801

C2804

4

5

C2805

R2802

D2803

IC2801

8

68

34

33

67

JK8401

36

2

1

35

TP8219

TP8217

TP8206

TP8215

TP8209

TP8214

TP8208

TP8207

IC8401

A88A

IC8401

C8345

R8439

R8609

R8619

R8442

29

C8580

L8580

25

CL8598

CL8596

48

56

D4611

IC4513

D4513

R4532

IC8403

R8394

CL8471

R8336

CL8472

CL8473

R8337

1

CL8474

CL8435

R8406

1

CL8475

C8408

R8346

IC8403

5

R8855

R8471

64

R8403

3

TP8404

4

R8417

R8416

CL8350

TP8403

Q8402

R8343
R8342

R8345

R8418

Q8402

C8346

CL8469

R8654

C8581

C8582

R8583

C4595

C4598

1

3

TP8401

49

IC8580

IC8580A

IC8580

IC4511

R4612

C4603

R4623

1

R4621

5

IC4511

C4605

R4699

4

3

R4624
R4682
R4683

D4576

R4680
R4681

C4642

R4620

R4642

C4632

R4631

C4612

C4640

C4634

C4580

C4643

C4638

C4636

R4622

C4608

L4516

C4631

C4635

C4613

L4518

L4517

C4617

5

IC4513

C4537

C4567

4

R4608

L4514

C4616

TP3006

21

20

1

C2806

R2818

R2801

C2816

C2803

D2802

R2819

R2803

R2804

TP2803

C8080

+

C8042

C8035

C8041

C8045

C8049

C8050

C8044

C8011

C8098

C8100

R8097

C8039

R8032

R8031

C8012

C8090

C8089

R8082

C8102

R8585

R8615
R8612
R8616
R8614
R8617

R8610

R8611

R8613

R8954

R8520

R8600

R8598

C8410

R0951

R0952

R8601

C8064

R8599

TP8406

R0960

R0959

CL8430

R8856

R8857

R8667

R8859

R8864

R8664

CL8876

28
24

R5472

1

1

L4512

L4513

C4601

C4599

C4602

C4600

R4665

R4652

C4644

R0933

R0934

R4648

R0919

R0920

R4707

C4645

C4646

C4626

C4614

C4596

C4619

C4574

R2126

C2023

C4628

C4629

C2050

C2245

C2049

R2172

C4630

C2216

C2244

C4585

R2019

C2251

C2129

C4575

C2124

R4609

C4549

R4597

C2128
C2122

C2137

C2121

R4630

C2123

R4632

C2112

C2113

TP4512

C2115

C2117

C2114

C4552

C4534

C4624

C4535

C4548

R4596

R4598

TP3004

TP3005

TP3021

20

AV3S

TP3022

JK3003

JK3002

JK3003

2

1

AV3

2

AV2

JK3100

Q2601

R2604

Q2601

D2801

C2801

C2809

Q2600

TP2802

Q2600

L2803

R2805

R2806

C2810

C8036

R8101

C8046

C8040

R8074

C8201

C8092

C8086

R8061

R8069

R8056

R8073

R8081

R8100

R8068

R8075

R8059

R8058

R8077

R8078

R8071

R8030

C8101

C8088

C8013

C8077

R8083

C8037

C8014

C8016

L8004

C8015

C8017

C8051

C8010

C8009

C8008

C8018

C8019

C8026

C8023

C8025

C8020

C8022

C8024

TP8405

C8032

C8031

C8030

C8029

C8073

C8028

R8508

R8543

R0901

R8638

R0900

R0907

R8576

R8579

TP0904

R0906

TP0903

TP0905

R8640

R8663

R8746

R0902

R0905

R0990

TP0902

TP0901

R8683

4

R5324

IC5300

C5302

IC5300

5

L5303

C5303

R0967

R0970

R0969
R0991

R0968

X2010

1

R2058

FL2000

R2020

3

C2058

C2059

C2108

C2105C2106

C2107

R4673

R4706

R4676

C4625

C4553

R4633

R4601

D3004

L3017

JS3011

D3003

Q3004

Q3002

21

JK3002

JK3100

1

AV2

C2601

Q2605

Q2604

R2633

R2601

TPS15V

R2600

D5441

TP2610

TP5400

D5607

C8047

C8043

C8048

C8202

C8087

R8963

R8608

C8038

C8070

C8074

C8078

C8071

L8010

C8075

C8085

C8076

L8009

C8006

C8007

C8072

L8011

C8063

R8006

C8021

L8002

R8509

C8027

VJ8601

R8493

C8065

CL8889

R8494

R8515

R8607

R8639

R8637

R0950

R0949

R0948

R0947

R8959

R8800

R8676

R0958

R0957

3

C5300

C5301

TP5300

1

TP0906

TP0907

TP0910

TP0908

R0903

TP0909

C2102

IC2008

R2190

5

IC2008

L2032

C2111

4

C2118

D4577

L4006

R4698

C4032

C4040

R4043

C4038

CL4001

R0984

TP0912

R0992

TP0915

R0983

TP0911

R0985

TP0913

Q3005

Q3003

C3030

S3022

R3074

R3188

JS3012

D3027

R3193

R3075

JS3013

D3028

R3198

D3101

R3076

JS3014

D3030

C5631

VJ5600

L5605

L5604

C5622

C5635

VJ5602

VJ5604

VJ5603

C5626

24

C5620

IC5601

IC5601

R5630

C5624

R5621

R5632

1

R5635

TP5602

C5621

R5634

C5644

C5641

D5444

X8001

1

C8099

C8053

8

C8052

CL8003

R8091

R8086

TP8851

R8897

R8898

L8001

L8008

C8084

C8083

L8012

C8069

C8067

C8033

C8034

R8558

R5153

CL8201

CL8959

R8960
R8692

TP8001

R8691

TP8000

R0904

C2192

C4031

C4037

C4033

C4030

C4039

C4045

R0981
R0986

C4034

R3010

Q3004

R3042

C3029

Q3002

R3006

R3028

C3020

C3018

R3159

C3123

C3124

JS3007

AV1

D5443

C8055

C8054

16

C8057

C8056

IC8004

R8096

9

CL8004

IC8004

R8093

R5471
R8646
R8645

R8740

R8747

R8767

R8727
R8729

R8739

R8724

R8715

R8731

R8749

R8752

R8736

R8723

R8628

R8718

R8503

R8506

C8082

C8081

R8750

L8013

R8751
R8768
R8629

C8003

R8510

R8005

L8007

R8004

R5152

C8005

C5084

R5103

D5201

R5226

R5211

R5228

R5227

R5224

R5229

R5230

C5202
R5222

C5027

R5087

C5049

C5029

R5096

R5151

C5030

R5225

CL008

R5204

C5050

CL009

R5104

CL010

CL011

C5023

C5019

R5207

R0965

R0966

R5206

R4047

IC4002

C4036

4

3

IC4002

C4026

C4028

L4004

R4048

5

R4044

1

C4035

C4006

C4029

C4010

C4011

C4027

C4004

CL4004

CL4003

R0963

C4008

C4016

R0964

TP0914

R4039

C4053

Q4000

Q4000

C4009

TP4000

R4035

C4054

R4034

C4055

L4009

R3011

R3013

C3028

R3012

R3041

Q3005

C3027

R3029

C3019

R3009

R3008

R3007

Q3003

C3021

C3022

R3033

R3034

C3024

C3025

R3037

R3038

C3026

R3050

C3047

C3046

R3049

R3052

C3049

R3051

C3048

R3043

C3039

C3041

R3045

R3158

CL2615

R3150

R3152

R3104

R3151

R3079

C3144

R3097

R3072

R3187

R3213

R3240

D3010

D3012

D3011

R3101

L3019

S3130

S3134

S3142

S3033

AV1

VJ2600

IC2601

C2617

C2611

C5632

PA5600

PA2601

VJ5605

C5627

13

C2622

C5623

R5629

R5622

R5631

12

C5616

R5633

TP5601

D5608

R8719

R8722

C5082

R5177

R5176

C5080

C5075

C5076

R5148

R5149

R5150

CL5100

CL5206

C5033

C5028

C5039

C5034

C5021

C5017

C5035

C5047

C5040

C5048

C5036

C5012

C5025

C5024

C5001

C5020

R4049

C5010

R5018

C5011

R5033

R5037

R5017

R5034

R5038

C5063

R5027

C5064

Q3007

Q3300

Q3300

R3307

C3141

C2603
R2620

C2602

R2619

R2618

R2617
C2604

L2601

L2602

C2623

TP1108

TP1107

X2600

C2652

IC2605

8

R2658

C2658

1

R2662

R2659

IC2605

5

4

C2654

L2618

C2663

C2651

5

IC2607

8

IC2607

C5083

R5111

R5112

R5102

C5081

3

L5007

L5008

IC5320

4

C5077

C5078

C5085

R5105

R5178

R5110
C5074

L5006

CL5210

CL5205

CL5208

L5004

CL5203

CL5209

C5031

C5032

C5037

C5044

C5026

C5042

C5046

C5038

C5022

C5043

C5041

C5045

C5018

C5073

C5072

L5005

L5002

C5015

C5016

C5053

C5014

C5006

C5007

C5005

C5013

R5088

R5077

C5067

C5002

C5003

C5054

C5008

R5052

R5061

R5049

R5060

R5070

R5071

R5064

R5053

R5054

R5062

R5068

R5074

R5081

R5032

R5045

R5042

R5046

R5019

R5041

C5059

R5090

C5056

R5067

C5062

C5052

R5030

+

C5058

Q3007

TP3008

TP3009

26

R3175

R3176

R0930

R3237

R3236

R0929

R3219

C3151

C3140

R3218

R3220

51

IC3001

76

C3077

C3074

C3073

R3123

R3119

R3118

JK3100A

R3121

Q3000

C3075

R3005

R3078

C3014

D3007

L3011

S3030

S3032

C3091

R3139

R3004
C3013
L3010

IC3001

C3090

C3092

R3140

R3138

S3031

MONITOROUT

R3225

100

R3189

TP3007

R3234

C3108

C3086

C3085

C3084

R3132

R3134

R3133

Q3001

Q3000

R3019

C3003

R3024

L3014

L3015

C3002

R3025

S3131

S3137

C1011

AUDIOOUTAUDIOIN

12

R2616

R2621

13

C2616

R2615

C2614

R2609

TP2602

C2613

R2614

IC2601

R2610

R2611

R2725

C2698

C2690

C2689

R5010

L2023

C2618

R2721

+

C3143

R2751

TP2757

R2723

R2735

C2688

R5013

R5014

IC5312

C5316

D2752

R2734

Q8504

C5009

IC5312

C3142

C2408

TP2603

C2640

C2645

C2641

L2605

C2619

C2649

3

R2732

R2740

R2729

R2730

R2727

R2733

R2736

C2675

C2699

C2700

C2692
C2693
C2694
C2706

C2702

C2680

C2703

C2678

C2704

C2705

C2701

C2672

C2667

C2661

C2682

L2612

C8567

C8610

R8766

R8831

C8545

C8557

C8566

L8507

R8630

R8714

C8612

VJ8789

Q8503

C8561

C8611

R8657

Q8504

C8560

C8559

C8613

C8614

VJ8790

C8615
C8616

C8556
C8555

R8633

R8632

C8553

R8702

X5200

C8572

C8573

6

T8302

R5028

7

8

C5320

24

C5326

C5322

C5327

R5331

R5333

13

TP2008

R2129

R2137

C2313

C2305

C2217

C2318

R2191

C2333

C2335

C2387

C2389

TP2010

C2432

C2433

R2127

C2409

C2337

C2377

TP2756

TP2755

TP2754

C2751

L2754

C2612

24

C2615

R2612

C2605

R2613

1

C2606

D5448

TP2601

R2635

C2740

R2716

R2718

C2729

C2744

C2746

C2742

C2745

C2721

C2747

C2743

C2728

C2727

C2741

C2726

TP2635

TP2634

TP2633

C2655

R2653

C2647

C2671

C2677

L2611

R0997

C2646

C2676

C2691

R0955

R0956

C2670

R0996

C2695

L2610

C2687

C2660

C2653

C2697

L2617

C2656

C2650

C2657

C2681

C2683

4

CL2613

C2635

C2638

C2664

L2613

R2661

C2674

C2665

C2673

C2659

1

L2608

C2639

+

IC5320

1

5

L4811

CL5204

L4810

L4809

L4808

L4807

CL5202

L4806

R2742

CL5201

C5201

R5208
R5209

C5200

CL5001

R5075

C5004

R5023

R5001

R5002

R5022

R5079

R5080

R5076

R5005

R5006

R5073

R5009

R5072

C5055

R5025

R5026

R5024

R5029

R5085

R5086

R5031

C5071

C5066

C5070

C5061

C5065

C5060

C5057

C5051

R5082

C5329

D5445

C5328

D5446

TP5312

L5001

R5332

1

C5321

R5330

R5336

+

C1012

C5324

C3139

R3077

R3102

TP5318

R5334

C5344

R3116

R5335

C3071

C5323

R5329

C3072

R3117

R5337

C3070

R3115
R3201

R3204

12

C3078

R3125

C3098

R3245

R3081

C3087

R3135

R3149

C3089

R3137

R3087

C3088

R3136
C3154

R3083

1

C3093

R3129

TP8501

C3083

R3128

R3190

R3191

R3223

C3107

C3109

C2406

R3230

R3232

Q3001

C2753

TP2750

C2752

R2752

TP2758

TP2753

C2822

TP2804

D2811

D2809

C2821

R2814

D2810

C2823

D2805

R2815

D2807

TP2605

TP2604

D2806

C2410

D2808

1

IC2604

IC2604

C2748

C2731

C2720

C2730

C2723

C2722

+

L2609

C2669

C2679

C8568

C8569

C8558

C8571

Q8503

L8508

C8562

C8617

X8500

C8554

C8608

R8694

1

12

7

JK8301

JK8301

PA5300

VJ5300

C2301

R2141

C2320

C2322

R2192

TP2012

R2121

C2339

C2375

TP2751

C2719

C2636

CL2617

6

L2615

+

4

C2725

C2733

R2714

C2715

VJ2629

R2713

C2717

C2738

R2719

C2737

C2724

C2736

C2732

C2735

C2734

C2739

C2696

C2685

+

C2686

R2632

C2684

CL4820

CL4832

CL4819

CL4831

R2756

CL4818

CL4830

CL4829

CL4817

CL4828

CL4816

R2755

CL4815

CL4827

CL4826

CL4814

R2754

CL4825

CL4813

R2753

CL4824

CL4812

CL4811

CL4823

R2750

R2749

C8570

R8382

L5305

C5332

R2142

C2326

R2193

R2125

C2345

C2379

R0987

R0993

R0988

CL4810

CL4822

CL4809

CL4821

TP0919

TP0917

TP0920

TP0918

C2411

R0989

TP0916

R0971

C8609

R4836

R4835

R4832

TP2609

R8631

TP4202

R1416

TP4203

R4844

C8547

R4833

R4834

TP4201

TP4204

C8548

8

C8546

5

C8549

R4842
R4841

R8786

IC8504

4

1

IC8504

R8756

R8758

R8757

R8696

C8552

TP4801

C8565

R8381

2

1

R2319

R2325

L3021

C3138

R3112

R2118

R2115

C2390

Q2022

D2017

D2014

R2114

C2324

C2327

C2328

Q2022

C2302

R2194

C2412

C2343

C2341

C2385

C2383

TP2014

TP2017

C2434

C2435

R2123

C2347

C2381

TP2752

Parts Location

IC

IC1100 B-3
IC1101 B-3
IC2008 D-3
IC2601 E-6
IC2604 F-6
IC2605 E-5
IC2607 E-4
IC2801 D-6
IC2802 A-5
IC2901 B-2
IC2960 B-2
IC3001 E-2
IC4002 D-3
IC4511 C-3
IC4512 B-3
IC4513 C-2
IC5300 D-3
IC5312 E-2
IC5320 E-4
IC5600 B-5
IC5601 E-5
IC8004 D-5
IC8301 B-1
IC8302 B-2
IC8303 C-5
IC8304 C-5
IC8305 C-5
IC8401 C-4
IC8403 C-4
IC8410 B-5
IC8411 C-5
IC8502 B-4
IC8504 F-4
IC8580 C-4

TRANSISTOR

Q0900 B-2
Q0901 B-2
Q2001 B-2
Q2022 F-1
Q2023 B-2
Q2600 D-6
Q2601 D-6
Q2604 D-6
Q2605 D-6
Q2901 B-2
Q2902 B-2
Q2903 B-1
Q2904 B-2
Q3000 E-1
Q3001 E-1
Q3002 D-2
Q3003 D-2
Q3004 D-2
Q3005 D-2

A-BOARD (FOIL SIDE)

Q3007 E-2
Q3300 E-2
Q4000 D-2
Q4533 C-3
Q4534 C-2
Q5475 B-4
Q5478 B-4
Q5605 B-5
Q5606 B-5
Q8402 C-4
Q8503 F-4
Q8504 E-4

TEST POINT

TP0101 B-3
TP0102 B-3
TP0104 B-3
TP0105 B-3
TP0106 B-3
TP0107 B-3
TP0108 B-3
TP0109 B-3
TP0110 B-3
TP0153 B-3
TP0154 B-3
TP0155 B-3
TP0901 D-4
TP0902 D-4
TP0903 D-4
TP0904 D-4
TP0905 D-4
TP0906 D-3
TP0907 D-3
TP0908 D-3
TP0909 D-3
TP0910 D-3
TP0911 D-2
TP0912 D-2
TP0913 D-2
TP0914 D-2
TP0915 D-2
TP0916 F-4
TP0917 F-4
TP0918 F-4
TP0919 F-4
TP0920 F-4
TP1052 B-3
TP1053 B-3
TP1054 B-3
TP1055 B-3
TP1056 B-3
TP1057 B-3
TP1062 B-3
TP1102 B-3
TP1103 B-4
TP1107 E-5
TP1108 E-5

TP1400 A-4
TP1401 A-4
TP2008 F-2
TP2010 F-1
TP2012 F-1
TP2014 F-1
TP2017 F-1
TP2601 E-6
TP2602 E-6
TP2603 F-6
TP2604 F-6
TP2605 F-6
TP2609 F-4
TP2610 D-6
TP2633 E-5
TP2634 E-5
TP2635 E-5
TP2750 E-1
TP2751 F-1
TP2752 F-1
TP2753 E-1
TP2754 F-1
TP2755 F-1
TP2756 E-1
TP2757 E-1
TP2758 E-1
TP2801 C-6
TP2802 D-6
TP2803 D-5
TP2804 F-6
TP2805 C-6
TP2810 D-6
TP2870 A-4
TP2871 A-5
TP2872 A-5
TP2901 B-2
TP2903 B-2
TP2904 A-2
TP3004 D-2
TP3005 D-2
TP3006 C-2
TP3007 E-2
TP3008 E-2
TP3009 E-2
TP3014 A-3
TP3015 A-3
TP3021 D-2
TP3022 D-2
TP3023 C-1
TP4000 E-2
TP4201 F-4
TP4202 F-4
TP4203 F-4
TP4204 F-4
TP4512 D-2
TP4801 F-3
TP5300 D-3

TP5312 E-2
TP5318 E-2
TP5400 D-6
TP5401 B-4
TP5421 A-4
TP5431 B-3
TP5600 B-5
TP5601 E-5
TP5602 D-5
TP5641 B-5
TP8000 D-4
TP8001 D-4
TP8206 C-4
TP8207 C-4
TP8208 C-4
TP8209 C-4
TP8210 C-4
TP8211 C-4
TP8212 C-4
TP8213 C-4
TP8214 C-4
TP8215 C-4
TP8216 C-4
TP8217 C-4
TP8218 C-4
TP8219 C-4
TP8220 C-4
TP8301 B-2
TP8401 C-4
TP8402 C-5
TP8403 C-4
TP8404 C-4
TP8405 D-4
TP8406 D-4
TP8501 E-2
TP8548 A-5
TP8549 B-5
TP8550 B-5
TP8551 B-5
TP8552 B-5
TP8553 B-5
TP8554 B-5
TP8555 B-5
TP8561 B-4
TP8562 B-4
TP8563 B-4
TP8564 A-5
TP8565 A-5
TP8745 B-4
TP8851 D-5
TPEC0 C-6
TPF15V D-6
TPS0N C-6
TPS15V D-6
TPST5 C-6

A

ABCDEFGH I

98

A-BOARD (COMPONENT SIDE)
A-P65V10B A-P65V10E

6

5

1

C2817

R2810

C2818

R2811

A8

12

R2715

IC2611

3

4

A5

1

R2812

C2819

R2660

R2656

R2813

C2820

R2657

D5447

7

A8

CL2606

CL2604

R2622

C2662

C2637

IC2606

1

31

CL2603

IC2606

5

L4805

L4804

L4801 L4802 L4803

L4800

CN2600

IC2611
IC2611-A

1AA1

CL2605

CL2601

CL2602

1

C2668

C2666

+

C2620

C2621

CN2600

+

R2717

CL2610

CL2612

CL2608

CL2609

R2726

R2724

R2739

R2728

R2738

R2722

R2731

R2737

R2741

R2720

VJ2626

VJ2627

IC2600

1

R2641

R2643

R2655

R0944

R2642

R0908

R2629

TP2608

TP2606

TP2607

A5

4

Q5312

Q5318

IC2301

A12

1

39

R2747

IC8503

IC8503

R2746

R2745

1

R2744

IC5100

128

C8618

R2743

1

R5007

R5016

R5004

R5012

R5003

R5008

R5011

12

L8512

8

C5319

C5311C5312

C5318

9

28

C2319

1

R5015

R8383
R8384

IC5002

1

A

VJ8500

C5341

L5301

Q5312

L5302

Q5318

C2361

1

C3118

5

C2359

C2309

L2018

C2362

C2365

36

C2317

L2012

C2325

A12

FL2752

IC3003

1

C2405

IC3003

C2407

L2010

Q2851

Q2851

R2854

R2855

Q2850

FL2756

Q2850

C2754

L2759

FL2753

FL2755

FL2757

A1

14

1

65

A3

A3

C8550

15

C8551

R8754

R8755

103

C8399

6

3

T8301

7

L8511

C8351

JK8301

JK8301

VJ8501

127

L5304

2

10

18

C2303

IC2301

C2364

19

C2353

C2323

C2321

27

L2014

L2016

C2331

3

1

A11

1

2

A11

L2751

D2751

L2604

IC2612
IC2612-A

CL2607

A

Q2603

Q2603

L2603

Q2602

Q2602

C2707

C2718

C2749

VJ2628

C2709

C2708

A

A

1

1

IC2612

CL2611

R0931
R0932

R2652

R2651

R2650

R2649

R2648

R2647

R2646

IC2600

R2645

R2644

28

IC5110

29

L5009

C5079

R2748

1

A

R5058

R5069

R5020

R5057

R5021

R5066

R5078

R5055

R5050

R5051

R5056

R5091

IC5002

R5084

R5083

C5068

C5069

C3102

C3147

C3104

R3148

R3289

R3239

R3238

R3100

C3119

R3113

R3314

4

3

R3014

R2852

R2853

R2851

R2850

MONITOROUT

FL2758

AUDIOOUT

A1

R0979
R1408

C2607

C2610

C5612

C5618

C2608

C2609

Q5602

Q5602

D5602

CN1101

CN1101

4

1

R1225

R1224

R1179

R1181

C5628

C5636

L8005

R8742

R8743

R8744

R8745

R8717

C8700

R8765

R8728

R8725

C1013

R5099

R5098

R5100

R5097

R5101

1

IC5110

56

R5184

R5180

R5179

IC5100

Q2605

C5611

C5619

Q5601

D5601

L5601

L5600

+

+

L8003

C5629

C8060

C8058

R8094

R8095

L8509

R8089

C8059

IC8001

R8741
R8726

R8730
R8737
R8748
R8738
R8733
R8732
R8734
R8735

R8504
R8502
R4611

R4610

1

A

R8518

R5185

R5095

R5089
R5223
R5109

1

Q2604

Q5601

IC8002

1

A

R8087

R8092

R8088

R8090

C8094

C8093

IC8001

R8652

R8665

R8111

R8109

VJ8602

R8516

VJ8600

R8501

R8673

R8688

R8496

CL8479

R5106
R5213
R5107
R5108

R5231

TNPH0795 A

R4650

R5065

R5063

R5059

R5039

R5036

R5043

R5047

R4028

R4029

R5040

R5035

R5044

R5048

IC4001

IC5001

A

IC5001

C3170

R3177

R3178

C3097

R3161
R3160

Q3006

R3172

D3039

JS3015

R3174

C3145

C3150

C3114

C3115

C3117

C3116

C3146

R3120

R3146

JK3100A

R3021

AUDIOIN

R4030

R4031

R4032

61

80

1

R4033

C4007
C4005

1

C4013

21

C4014

R4046

C4015

R3302
R3301

R3300

L3025

C3095

C3160

R3162
R3163

AV1

Q3006

C3112

C3113

C3148

C3149

C3153

C3152

C3043

C3044

R3143

R3047

R3048

R3098

R3073

R3186

R3212

JS3008

JS3009

D3045

R3085

R3084

R5492

R5491

C4050

L4008

C4047

C4049

IC4001

5

IC4005

R4045

C4048

C4051

1

41

C4021

C4025

R0982

C4020

C4023

C4024

C4018

L4002

C4056

C3103

D3038

R3167

R3169

JS3010

AV1

R3086

R3103

D3046

Q5480

Q5480

C5481

R5490

A6

A6

C5402

IC5481

R5499

R5496

IC8002

C8095

R8066

R8076

R8063

R8072

R8026

R8027

R8065

R8070

R8057

R8060

R8062

R8672

R8689

C5640

R5232

R4646

R4645

R4656

R2002

R2003

C2055 C2056

R2023

R2316

R2092
R2093

C2125

C2136

C2127

C2135

C2261

R2047

C2265

L4003

C2262

4

C2266

R2048

IC4005

R2050

C2263

CL4005

R2051

C2264

3

C4551

C4554

R4587

L4511

21

AV2

JK3002

JK3100

1

S3034

12

C5401

D5487

1

5

C5490

R5497

IC5481

C8079

IC8003

A

1

IC8003

R8067

R8064

C8096

C8097

R8390

CL8438

R8412
R8391

CL8436

R8388
R8389

CL8437

CL8439

R2832

C1014

R8899

R8854

R8858

R8653
R8677

Q8401

R8489
R8862
R5186

R8860

24

R8624

R8699

R8655

R8575

R8651

R8577

R8578

R0953

R0954

R8690

R8716

R8514

R8647

R8662

CL8470

R0961

R0962

R8668

R8580

R8661

R8581

25

IC8581

R4640

R4678

R4679

R4649

R4799

R4666

R4651

IC4510

C2110

C2109

C4547

C4550

C4555

Q4515

Q4516

Q4517

Q4514

R4589

C4532

C4529

C4533

R4634

R4626

R4627

C4530

R4592

R4593

R4588

21

20

S3023

D3031

AV2

JS3019

D3014

C3130

R3153

D3100

R3094

R3091

C3064

D3032

JS3020

R3082

R3205

L3002

R3000

C3007

C3008

R3001

L3003

JS3000

1

L3004

C3009

2

L3005

C3004

JK3100

JK3002

A7

1

68

34

67

33

JK8401

2

36

1

35

R8801

C8952

R0935
R0936

L8355

C8951

C8430

L8358

L8357

R5474

L8359

C5473

L8356

R5475

C8431

R8451

R8452

R8350

R8349

R8658

R8666

C8343

R8404

R8405

Q8401

R8408

CL8868

CL8867

CL8875

R8407

R8567

CL8870

CL8874

R8478

R8625

R8623

R8627

C8584

1

CL8468

R8272

R8344

R8341

R8513

R8340

IC8581

R8332

R8622

48

C8583

R4635

R4639

R4636

R4637

R4638

IC4510

A

1

R4674

R4677

R4659

Q4519

Q4514

Q4515

Q4516

Q4519

Q4517

C4542

R4605

R4664

AV3

D3009

D3005

D3006

L3018

JS3018

JS3016

AV3S

JK3003

JK3003

Q2066

A7

R2823
R2821

R2822

R2820

11

R8472

R8441

C8413

20

IC8408

1

IC8408

R8437

C8411

C8412

11

R8430
R8431

IC8405

R8463

20

C8405

R8432

11

IC8404

R8470

R8512
C8409

C1015

R8401

20

1

R8378

R8415
R8476
R8477
R8479

R8669

R8642

R8355

R8498

R8372

R8373

R8374

C8953
R8377

A88A

A88A

R8338

C8510

R8339

30

74

R8698

R8641

R8643

R8618

R8538

R8656

C5639

1

C5472

C5471

4

5

IC5470

C1016

R8517

R8621

CN8701

3

IC5470

R5473
C5470

1

JK4501

D4594

1

D4593

D4592

D4591

D4590

JK4501JK4502

D4589

D4588

D4587

L4503

19

L4501

D4526

D4552

R4527

R4501

C4505

R4505

C4501

C4503

R4503

D4501

R4507

R4525

Q4501

Q4501

R4529

R4660

D4602

1

D4601

D4600

D4599

D4598

JK4500

D4597

D4596

D4595

L4502

19

L4500

D4525

D4551

R4526

D4500

R4524

R4500

R4504

Q4500

R4502

C4500

C4502

R4535

JK4502

1

L4524

R4733

R4737

D4615

Q4535

C4702

R4734

Q4520

C4703

R4727

D4561

R4728

R4729

Q4520

D3015

C2099

C2098

C2202

Q2064

Q2064

Q2067

Q2065

20

D4523

D4521

D4516

D4511

D4509

D4507

D4505

D4503

L4521

19

D4585

R3089

C3129

D3013

D4528

R4552

D3025

R3182

R3092

C3065

L3006

C3010

R3002

JS3001

R3003

C3011

L3007

2

C3012

L3008

D3015

C3005

L3009

Q2063

Q2063

Q2067

R2110

R2097

R2124

R2111

R2096

R2120

R2122

Q2065

Q2066

R2119

R8475

R8488

11

10

IC8409

10

11

R8487

R8446

R8449

R8469

10

C8428
R8468
C8427

R8467

C8425

1

10

C8424
R8464
C8423

R8454

R8347

1

R8348

R8697

R8582

R8260

37

+BACTIVEANT

AUDIOOUT

SIFOUT

IFAGC

BTMONITOR

+B

RFAGCMONITOR

JK4500

R4506

C4504

R4531

Q4500

C4704

D4617

R4732

R4735

R4736

R4739

R4740

R4730

Q4535

C2201

CL2614

CL8888

R8245

R8296

R8297

Q8200

R8244

CL8455

C8414

R8402

JK8401

IC8405

IC8404

C5484

D5482

38

C1017

CN8701

AGCMONITOR

BTL

BTMONITOR

BB

SCL

SW1

ATTSW

SW2

+B

SDA

SCL
SDA

RFAGC

VB
IFMONITOR
IFDOUT1

BTL

IFDOUT2

AFTOUT

VIDEOOUT

PbF

Q8200

1

IC8409

20

Q5600

C5483

1

D5481

R5482

R1409

Q4832

D1004

D1005

D1006

D1007

D1009

D1010

8

C5615

28

11

Q5600

L5602

+

R5489

C5485

R5495

C5489

Q4831

CN0100

1

D1002

D1008

5

C1010

C1009

C5602

R5460

R5483

IC5480

C5488

IC1000

R5459

R5458

R5457

R5540

L5608

C5648

C5486

R5484

R5488

R5487

R5493

R5494

D1402

D1401

R4852

R4851

R4856

R4857

Q4831

CN0100

4

IC1000

1

R0910

R1010

TNPH0795

ORDER

R8706

C8528
C8529

R8674

C5642

Q5609

Q5609

C8530

C8527

L5614

Q5605 Q5606

C5646

Q0904

15

Q0904

R0978

IC5480

R0974

R0973

C5482

14

R5485

R2807

D2804

R2817

R1182

R1197

C1108

C1110

R1420

C1123

D1107

R1410
R1411

C1401

Q4832

C4831
R4854

C1403

R5440

R5439

R4853

R1401

R4855

D5432

R5442

Q5431

1

2

CN0101

20

19

R0180
D1003

TU2901CTU2901D

TU2901TU2901A

TU2901B

R3105

FL3011

R2018

C3057

R3068

R0909

C3056

R3067

FL3012

R3107

R2017

R0977

R0972

Q0903

L3035

L3034

R0980

R5441

R8808
C8513
R8807
R8804

R8802

C8531
R8803

R8805

R8806

Q0905

Q0903

L1100

R5434
C5432
R5433

CN0101

A

1

NO.

R8659

R8660

10

8

A

JK8302

1

9

JK8302

C0901

Q0905

R0975

Parts Location

R4726

D4709

1

R4725

D4708

R4724

D4705

R4723

D4704

R4722

D4703

R4721

D4702

JK4700

R4720

JK4700

D4701

R4719

D4700

L4701

R4619

11

15

CN8702

19

Q4538

L4700

R4701

R4717

D4548

R4713

D4710

R4712

Q4700

C4700

D4586

Q4700

C4705

C4701

R4716

R4700

R4718

R4603

R4602

R5437

D3338

FL3003

R3231

S3029

D3336

FL3004

R3233

S3028

JK3001

S3027

R3235

FL3005

D3334

R3227

R3224

R3226

R3222

FL3001 FL3002

R3124

S3706

D3340

R3099

C3105

D3055

L3027

D3054

L3026

C2914

C2915

L3028

C2913

C2922

C2930

C3257
R3717

C2937

JK3001

S3026

D3302

R3229

C3132

S3025

R3228

C3131

D3301

S3704

S3705

L2901

V

S3703

D3052

L

JK3707

S3701

L3029

R

S3702

L3030

R3716

C3099

C1103

D4713

C1102

R4702

D4584

R1221

R4606

R1255

C1122

R5438

Q4538

D5431

Q5431

R5431

R5435

R5436

C5431

R5432

Q5432

R5452

CL5431

6

Q5432

1

R5451

CL5432

10

5

1

CN8702

4

TU2901

IC

IC1000 E-1
IC2301 A-2
IC2600 B-5
IC2606 A-5
IC2611 A-5
IC2612 B-5
IC3003 B-2
IC4001 C-3
IC4005 C-3
IC4510 C-3
IC5001 B-2
IC5002 B-3
IC5100 B-3
IC5110 B-4
IC5470 D-4
IC5480 E-4
IC5481 C-6
IC8001 C-4
IC8002 C-5
IC8003 C-5
IC8404 D-5
IC8405 D-5
IC8408 D-5
IC8409 E-5
IC8503 A-4
IC8581 D-4

JK3707

C3100

C3101

CL2616

A-BOARD (COMPONENT SIDE)

TRANSISTOR

Q0903 E-4
Q0904 E-4
Q0905 E-4
Q2063 D-1
Q2064 D-1
Q2065 D-1
Q2066 D-1
Q2067 D-1
Q2602 B-6
Q2603 B-6
Q2850 B-1
Q2851 B-1
Q3006 B-2
Q4500 D-2
Q4501 D-3
Q4514 C-2
Q4515 C-2
Q4516 C-2
Q4517 C-2
Q4519 D-2
Q4520 D-2
Q4535 D-2
Q4538 F-3
Q4700 F-3
Q4831 E-3
Q4832 E-3

Q5312 A-2
Q5318 A-2
Q5431 E-3
Q5432 E-3
Q5480 C-1
Q5600 E-5
Q5601 C-6
Q5602 B-6
Q5609 E-5
Q8200 E-5
Q8401 D-4

TEST POINT

TP2606 B-4
TP2607 A-4
TP2608 B-4

ABCDEFGH I

99

13.6. D-Board

D-BOARD (FOIL SIDE)
TZTNP02DNUE

6

R9225

C9055

16

TP9000

TP9000

5

4

3

2

TP006

TP9006

TP196

CL9132

CL9129

CL9128

CL9879

C9028

CL9867

TP9196

CL9137

CL9324

CL9136

CL9328

17

CL9004

C9029

FL9806

FL9805

CL9139

CL9319

CL9138

CL9321

R9394

R9223

CL9003

C9846

C9855

TP9862

R9385

R9400

R9201

R9200

C9854

C9853

TP862

CL9144

CL9312

CL9143

CL9316

R9871

CL9169

D9110

CL9005

C9837

CL9146CL9135

CL9145

CL9308

R9116

R9868

IC9004

R9129
C9033

C9036

C9845

CL9147

R9426

CL9108

R9128

CL9115

CL9602

C9037

CL9599

IC004

C9050

C9051

CL9113

CL9112

CL9111

R9609

CL9600

R9132

C9049

C9032

CL9601

CL9598

CL9592

CL9141

CL9110

CL9116

1

R9970

CL9048

R9992

CL9045

CL9581

CL9582

C9054

32

R9204

C9913

C9154

C9962

CL9117

CL9140

R9610

TP078

TP9078

CL9102

CL9093

C9967

C9958

C9922

C9155

C9156

CL9148

CL9580

CL9595

VJ9702

R9995

R9976

C9970

C9923

C9114

CL9579

C9124

C9115

L9701

C9151

C9925
C9954

C9113

C9921

C9701

CL9152

C9965

C9138

C9966

C9157

C9980

C9153

C9949

C9924

L9901

C9950

C9152

R9244

C9977

C9123

C9160

C9145

C9703

CL9221

C9976

C9158

C9168

L9700

C9100

C9161

C9135

C9906

C9908

C9909

C9910

C9162

C9702

CL9216

CL9232

C9957

C9159

C9715

C9907

C9146

CL9079

C9112

CL9614

CL9114

R9975

TP076

L9900

C9911

C9716

C9147

C9709

CL9020

CL9018

CL9615

R9967

R9987

TP9076

R9969

CL9078

C9912

C9136

CL9019

CL9613

TP9077

C9915

C9914

CL9021

R9989

C9139

C9920

C9144

C9134

C9163

C9148

C9713

TP077

C9916

C9169

C9309

C9953

C9968

C9140

C9164

C9149

C9700

C9039

CL9106

C9142

C9141

C9166

C9111

R9203

C9918

C9714

CL9460

C9956

C9901

C9143

C9165

C9706

C9150

CL9142

C9052

R9402

C9081

C9902

C9900

C9952

C9101

C9917

CL9198

C9704

R9395

TP010

TP9010

C9904

R9396

CL9066

C9311

R9399

R9398

C9905

C9903

R9397

R9215

C9102

R9206

R9087

C9973

R9205

R9187

R9155

R9154

C9314

R9996
R9997

C9310

C9986

C9167

R9096

R9188

CL9082

R9407

R9422

R9086

R9404

R9408

R9419
R9085

TP200

CL9222

CL9214

R9185

R9150

R9151

CL9105

TP9204

R9186

R9405

R9421

R9424

R9410

R9417

R9999

C9961

TP9200

TP204

R9207

CL9149

CL9150

CL9200

R9119

R9401

TP9203

CL9165

CL9202

C9316

C9305

C9303

TP203

CL9159

R9164

CL9015

C9306

C9317

PbF

CL9043

CL9031

R9197

CL9016

CL9014

C9960

CL9044

R9859

CL9042

TP201

TP9202

R9854

TP9201

R9097

C9092

CL9306

TP202

R9220

CL9109

CL9134

R9219

R9189

CL9121

R9107
R9166

CL9211

L9904

R9212

C9315

CL9611

R9213

C9047

C9996

C9992

C9301

L9906

L9903

C9061

C9991

C9997

C9988

CL9092

C9984

R9095

CL9590

CL9083

R9604

R9587

C9990

C9993

R9585

R9589

CL9591

R9898
R9899

TNPA4751

SEE REVERSE FOR ORDER NO.

123

CR NO.9

TP500

CL9163

CL9164

CL9589

R9592

C9987

CL9271

R9846

CL9593

R9593

Q807

C9982

R9403

R9998

TP9500

R9590

Q9807

C9969

C9995

R9591

4

C9994

CL9274

CL9273

R9847

3

IC9808

C9926

IC808

C9985

CL9608

R9897

D

TP314

13

CL9270

CL9272

IC002

TP313

CL9090

R9611

CL9171

CL9854

CL9834

CL9835

1

C9899

C9981

5

C9863

R9900

R9873

C9076

C9087

1

D

R9874

R9902

R9110

IC9002

R9142

CL9878

CL9011

CL9836

CL9832

CL9855

CL9162

CL9166

4

TP9313

CL9877

CL9833

CL9831

CL9157

CL9160

TP9314

6

C9056

TP9315

TP315

TP9316

TP316

CL9852

R9202

R9849

CL9876

R9872

R9081

R9089

CL9158

R9848

C9874

C9079

C9090

CL9837

R9608

CL9012

CL9839

CL9841

CL9843

CL9847

CL9849

CL9851

CL9297

CL9296

R9894

R9077

R9080

R9078

R9092

R9088

CL9844

C9070
C9069

R9893

C9882

C9075
C9074

R9079

C9080

C9086
C9085

R9091

C9091

CL9603

CL9605

CL9838

CL9840

CL9842

CL9845

CL9846

CL9848

CL9850

R9229

R9228

CL9596

CL9604

CL9606

CL9894

CL9858

CL9893

Parts Location

IC

IC9002 F-6
IC9004 A-5
IC9808 E-4

TRANSISTOR

Q9807 E-4

D-BOARD (FOIL SIDE)

TEST POINT

TP9000 A-5
TP9006 A-4
TP9010 C-1
TP9076 C-4
TP9077 C-4
TP9078 B-4
TP9196 A-4
TP9200 D-6
TP9201 D-6
TP9202 D-5
TP9203 D-6
TP9204 D-6
TP9313 F-5
TP9314 F-6
TP9315 F-6
TP9316 F-5
TP9500 E-6
TP9862 A-4

1

ABCDEFGH I

100
