Operating Instructions

Plasma Television

M odel No.

TX-P42ST32Y TX-P46ST32Y TX-P50ST32Y

T hank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. T he images shown in this manual are for illustrative purposes only. Please refer to Pan Eu Panasonic dealer for assistance.

English

ropean Guarantee Card if you need to contact your local

TQB0E2078U

Page 2

Experience an amazing level of multimedia excitement

Enjoy rich multimedia

SD Card

N etwork

Amplifier with

Speaker system

DVD Recorder

VCR

Notice for DVB / Data broadcasting / IPTV functions

T his TV is designed to meet the standards (as of August, 2009) of DVB-T / T2 (MPEG2 and MPEG4-AVC(H.264)) digital terrestrial

•

services, DVB-C (MPEG2 and MPEG4-AVC(H.264)) digital cable services and DVB-S (MPEG2 and MPEG4-AVC(H.264)) digital satellite services.

C onsult your local dealer for availability of DVB-T or DVB-S services in your area. C onsult your cable service provider for availability of DVB-C services with this TV. T his TV may not work correctly with the signal which does not meet the standards of DVB-T, DVB-C or DVB-S.

•

N ot all the features are available depending on the country, area, broadcaster and service provider.

•

N ot all CI modules work properly with this TV. Consult your service provider about the available CI module.

•

T his TV may not work correctly with CI module that is not approved by the service provider and satellite.

•

Additional fees may be charged depending on the service provider.

•

T he compatibility with future services is not guaranteed.

•

C heck the latest information on the available services at the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/

DVD Player

Blu-ray Disc Player

U SB device

Set top box

C amcorder

Page 3

Do not display a still picture for a long time

T his causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.

Typical still images

C hannel number and other logos

•

Image displayed in 4:3 mode

•

V ideo game

•

C omputer image

•

T o prevent image retention, contrast is lowered automatically

after a few minutes if no signals are sent or no operations are performed. (p.102)

P anasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/ or performance from usage of such other maker’s peripheral

devices.

T his product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i)

encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video.

No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM

SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/

OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM. http://www.europe.guideplus.com/

Be Sure to Read

Safety Precautions····································································4 M aintenance ··············································································5

Quick Start Guide

Accessories / Options ······························································6 Identifying Controls ·································································9 B asic Connection ··································································· 11 Auto Setup ··············································································· 13

Enjoy your TV!

Basic Features

U sing “VIERA Connect” ························································17 Watching T V ············································································ 18 U sing TV Guide ······································································· 22 V iewing Teletext ·····································································25 Watching External Inputs ··················································· 27 V iewing 3D images ······························································· 29 H ow to Use VIERA TOOLS ··················································· 34 H ow to Use Menu Functions ············································· 35

Advanced Features

R etuning from Setup Menu ··············································· 46 Tuning and Editing Channels (DVB) ······························· 50 Tuning and Editing Channels (Analogue)····················· 54 T imer Programming ····························································· 56 C hild Lock ················································································· 59 I nput Labels ············································································· 61 U sing Common Interface ··················································· 62 Shipping Condition ······························································ 63 U pdating the TV Software ·················································· 64 U sing Media Player ······························································· U sing Network Services L ink Functions (Q-Link / VIERALink) ······························· 83 External Equipment ······························································ 92

························································· 76

FAQs, etc.

T echnical Information ··························································95 FAQ s ·························································································102 L icence ····················································································105 Specifications ········································································106

Page 4

Safety Precautions

Warning

Safety Precautions

Handling the mains plug and lead

I nsert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.)

•

E nsure that the mains plug is easily accessible.

•

E nsure the earth pin on the mains plug is securely connected to prevent electrical shock.

•

A n apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.

D o not touch the mains plug with a wet hand. (This may cause electrical shock.)

•

D o not damage the mains lead. (A damaged lead may cause fire or electrical shock.)

•

D o not move the TV with the lead plugged in the socket outlet.

•

D o not place a heavy

•

D o not twist the lead, bend it excessively, or stretch it.

•

D o not pull on the lead. Hold onto the mains plug body when disconnecting lead.

•

D o not use a damaged mains plug or socket outlet.

object on the lead or place the lead near a high-temperature object.

If you find any abnormality, remove the mains plug immediately!

Power source

T his TV is designed to operate on AC 220-240 V, 50/60 Hz.

•

Do not remove covers and NEVER modify the TV yourself

D o not remove the rear cover as live parts are accessible

•

when it is removed. There are no user serviceable parts

inside. (High-voltage components may cause serious electrical shock.)

H ave the TV checked, adjusted, or repaired at your local

•

Panasonic dealer.

Do not expose to direct sunlight and other sources of heat

Avoid exposing the TV to direct sunlight and other sources

•

of heat.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

AC 220-240 V 50 / 60 Hz

Do not expose to rain or excessive moisture

T o prevent damage which might result in electric shock

•

or fire, do not expose this TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, not be placed on top of or above the TV.

Do not insert foreign objects into the TV

D o not allow any objects to drop into the TV through the

•

air vents. (Fire or electrical shock may result.)

Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base

T he TV may fall off or tip over.

•

Use only the dedicated pedestals / mounting equipment

U sing an unapproved pedestal or other fixtures may make

•

the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup. U se approved pedestals (p.7) / wall-hanging brackets

•

(p.6).

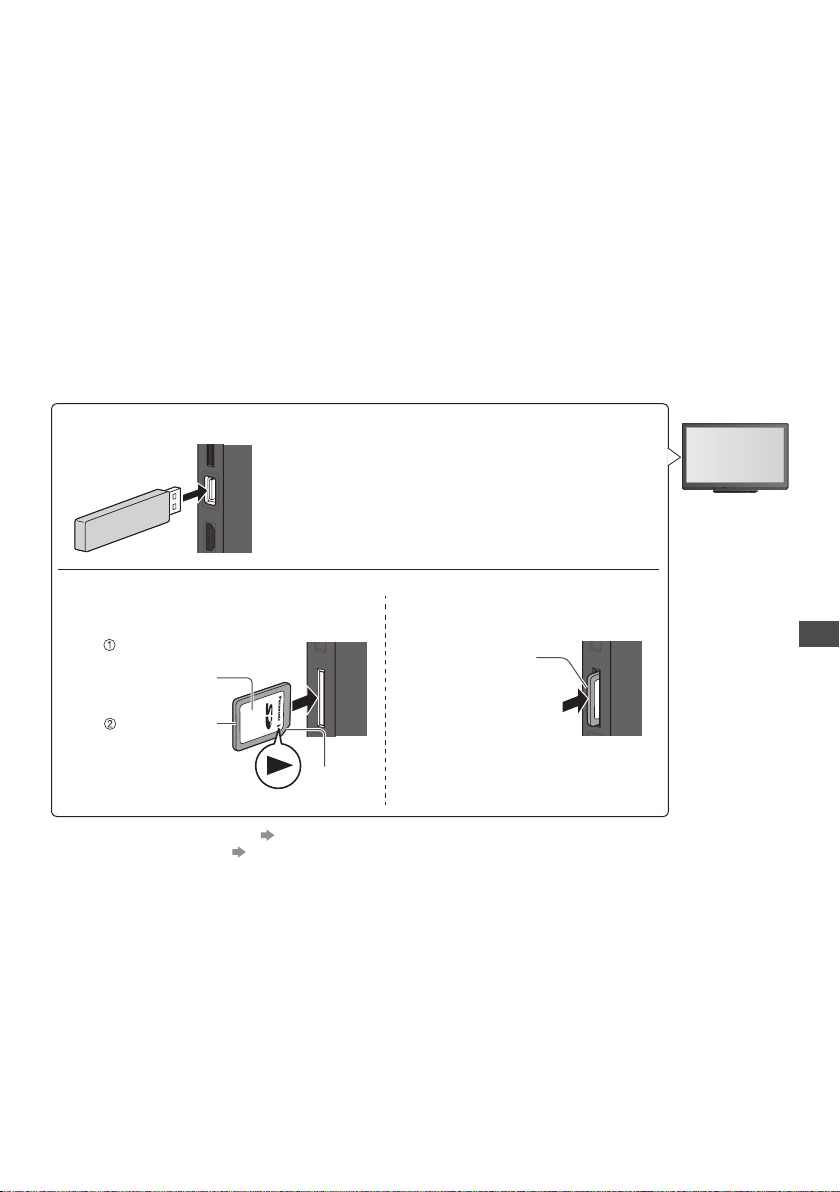

Do not allow children to handle SD Card

A s with any small object, SD Cards can be swallowed by

•

young children. Please remove SD Card immediately after use and store out of reach of children.

such as vases, must

Page 5

Caution

When cleaning the TV, remove the mains plug

Cleaning an energized TV may cause electrical shock.

•

When the TV is not going to be used for a long period of time, remove the mains plug

T his TV will still consume some power even in the Off mode,

•

as long as the mains plug is still connected to a live socket outlet.

Transport only in upright position

Transporting the TV with its display panel facing upward or

•

downward may cause damage to the internal circuitry.

Allow sufficient space around the TV for radiated heat

M inimum distance

When using the

•

pedestal, keep the space between the bottom of the TV and the surface

where the TV is set. I n case of using

•

Wall-hanging bracket,

(cm)

follow the manual of it.

Do not block the rear air vents

Blocked ventilation by newspapers, table cloths, curtains,

•

etc. may cause overheating, fire or electrical shock.

Do not expose your ears to excessive volume from the headphones

Irreversible damage can be caused.

•

Do not apply strong force or impact to the display panel

T his may cause damage resulting in injury.

•

The TV is heavy. Handle the TV by 2 or more people. Support as shown to avoid injury by the TV tipping or falling.

Maintenance

First, remove the mains plug from the socket outlet.

Display panel, Cabinet, Pedestal

Regular care :

G ently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to clean the dirt or fingerprints.

Caution

D o not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.

•

T ake care not to subject the TV’s surfaces to water or detergent. A liquid inside the TV could lead to product failure.

•

T ake care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade

•

surface quality or cause peeling of the paint. T he surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface

•

with your fingernail or other hard objects. D o not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade

•

surface quality.

For stubborn dirt :

D ampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then wring the cloth and wipe the surface. Finally, wipe away all the moisture.

Safety Precautions | Maintenance

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

Page 6

Accessories / Options

Standard accessories

Remote Control Batteries for the

N2QAYB000572

•

Quick Start Guide

Operating Instructions Pan European Guarantee Card

Accessories may not be placed all together. Take care not to throw them away unintentionally.

•

T his product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young

•

children accidentally. Keep these parts out of reach of young children.

Accessories / Options

Remote Control (2)

•

(p.7)

Optional accessories

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.

3D Eyewear set

(Battery type) (Rechargeable type)

TY-EW3D10E

•

Wireless LAN Adaptor

DY-WL10E-K

•

Communication Camera

TY-CC10W

•

Wall-hanging bracket

TY-WK4P1RW

•

TY-EW3D2LE

•

TY-EW3D2ME

•

TY-EW3D2SE

•

Caution

T o use the Wireless LAN Adaptor, an access point needs to be obtained.

•

I t is recommended to use the Wireless LAN Adaptor with the extension cable.

•

T o avoid malfunctions caused by radio wave interference, keep the TV away from the devices such

•

as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor. D epending on the area, this optional accessory may not be available.

•

Additional information for Wireless LAN Adaptor and access point may be on the following website.

•

(English only) http://panasonic.jp/support/global/cs/tv/

Caution

T his camera can be used on VIERA Connect (p. 17, 82).

•

Please also read the manual of the camera.

•

D epending on the area, this optional accessory may not be available.

•

F or details, consult your local Panasonic dealer.

T he angle of wall-hanging bracket can be adjusted in “zero tilting (vertical)” and “15-degree tilting” for

•

this TV.

R ear of the TV

400 mm

300 mm

H oles for wall-hanging bracket installation

Pedestal

(p.7)

If you need 3D Eyewears additionally, please purchase this optional accessory.

•

F or more information (English only) :

•

http://panasonic.net/avc/viera/3d/eu.html

Depth of screw : minimum 17 mm,

Diameter : M8

Screw for fixing the TV onto the wall-hanging bracket ( not supplied with the TV)

(View from the side)

Ferrite core (2)

(Large size)

(p. 12, 93)

U se the Ferrite cores to comply with the EMC standard.

maximum 22 mm

Ferrite core

( Small size) (p. 94)

(TX-P42ST32Y)

Page 7

Warning

U sing other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and

•

product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty. C arefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV

•

from falling off. H andle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

•

T ake care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before

•

hanging bracket. T o prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

•

Installing / removing remote’s batteries

Quick Start Guide

Pull open

Attaching / removing the pedestal

Warning

Do not disassemble or modify the pedestal.

O therwise the TV may fall over and become damaged, and personal injury may result.

•

Caution

Do not use any pedestal other than the one provided with this TV.

O therwise the TV may fall over and become damaged, and personal injury may result.

•

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer

•

immediately.

During set-up, make sure that all screws are securely tightened.

If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough

•

to support the TV, and it might fall over and become damaged, and personal injury may result.

Ensure that the TV does not fall over.

If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may

•

result.

Two or more people are required to install and remove the TV.

If two or more people are not present, the TV may be dropped, and personal injury may result.

•

When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified procedure. (p. 8)

O therwise the TV and / or pedestal may fall over and become damaged, and personal injury may result.

•

H ook

N ote the correct

polarity (+ or -)

Caution

I ncorrect installation may cause battery leakage and corrosion, resulting

•

in damage to the remote control. D o not mix old and new batteries.

•

D o not mix different battery types (such as alkaline and manganese

•

batteries). D o not use rechargeable (Ni-Cd) batteries.

•

D o not burn or breakup batteries.

•

B atteries must not be exposed to excessive heat such as sunshine, fire or the like. D o not disassemble or modify the remote control.

•

Accessories / Options

Page 8

Assembly screw (4)

( silver)

M5 × 20

Assembly screw (4)

( black)

Quick Start Guide

Accessories / Options

M5 × 25

Assembly screw

( black)

M4 × 8

Assembling the pedestal

U se the assembly screws A to fasten the pole D to the base E securely.

M ake sure that the screws are securely tightened.

•

F orcing the assembly screws the wrong way will

•

strip the threads.

A ttach the cover F with assembly screw C

Front

Pole

TBL5ZA3055

•

(TX-P42ST32Y) TBL5ZA3065

•

TX-P46ST32Y

()

TX-P50ST32Y

Base

TBL5ZX0065

•

(TX-P42ST32Y) TBL5ZX0069

•

TX-P46ST32Y

()

TX-P50ST32Y

Securing the TV

U se the assembly screws B to fasten securely.

T ighten the four assembly screws loosely at first, then

•

tighten them firmly to fix securely. C arry out the work on a horizontal and level surface.

•

Arrow mark

Cover

TBL5ZB3045-1

•

(TX-P42ST32Y) TBL5ZB3054-1

•

TX-P46ST32Y

()

TX-P50ST32Y

H ole for pedestal installation

(View from the bottom)

Removing the pedestal from the TV

B e sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

1 Remove the assembly screws B from the TV. 2 Pull out the pedestal from the TV.

3 Remove the assembly screw C from the cover. 4 Pull out the cover. 5 Remove the assembly screws A from the pole.

Adjusting the panel to your desired angle

D o not place any objects within the full rotation range.

•

: 15°

(TX-P42ST32Y)

: 10°

(View from the top)

(TX-P46ST32Y, TX-P50ST32Y)

Page 9

Identifying Controls

Remote Control

ASPECT

ghi

STTL

REC

INPUT

DIRECT TV REC

EXIT

INDEX HOLD

abc def

jkl

tuvpqrs

LAST VIEW

PROGRAMME

DVD/VCR

AVTV

BACK/

RETURN

mno

wxyz

15 16

17 18

22 23

1 2

3 4

5 6

10 11

OPTION

TEXT

Standby On / Off switch

Switches TV On or Off standby

•

3D button (p.31)

Switches to the viewing mode between 2D and 3D

•

[Main Menu] (p.35)

Press to access Picture, Sound, Timer and Setup

•

Menus

Aspect (p.21)

C hanges aspect ratio

•

Information (p.19)

D isplays channel and programme information

•

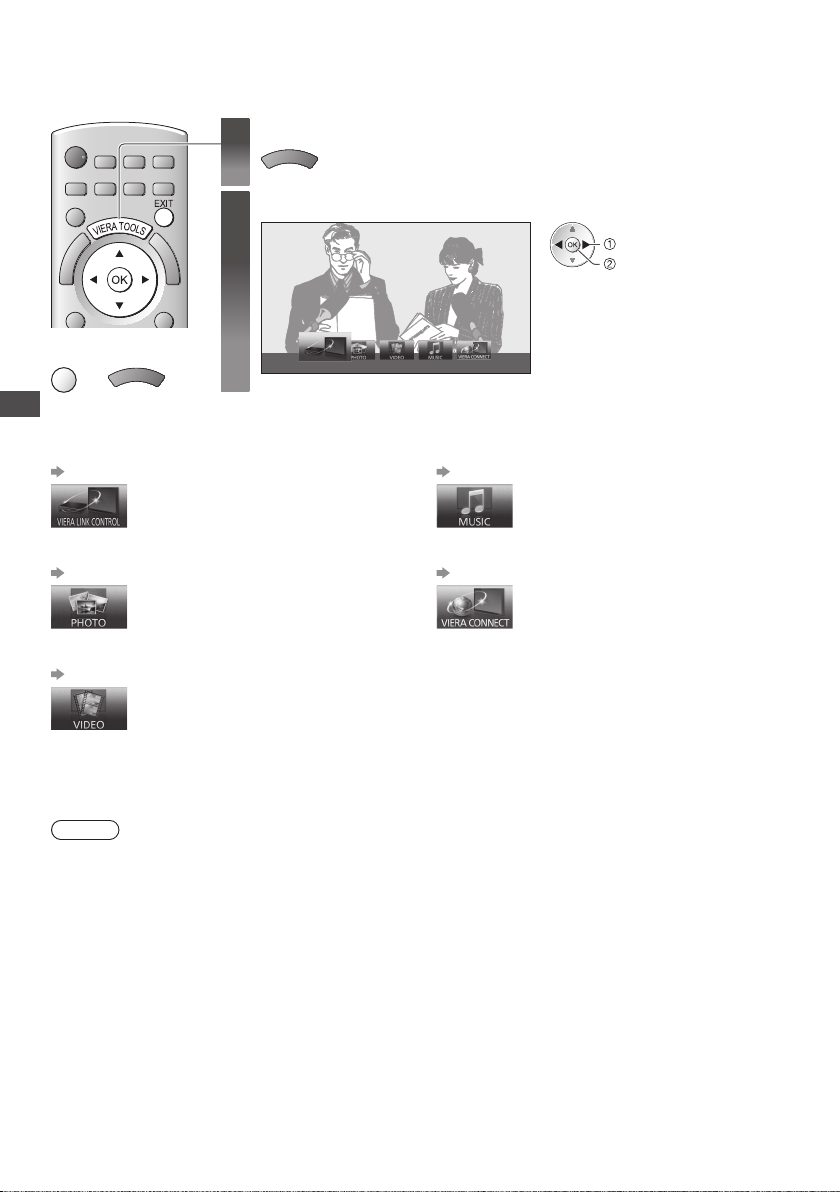

VIERATOOLS (p.34)

D isplays some special feature icons and accesses

•

easily

[VIERA Link Menu] (p.87)

C onfirms selections and choices

•

Press after selecting channel positions to quickly

•

change channel D isplays the Channel List

•

[Option Menu] (p.20)

E asy optional setting for viewing, sound, etc.

•

Teletext (p.25)

Switches to teletext mode

•

Subtitles (p.19)

D isplays subtitles

•

Numeric buttons

C hanges channel and teletext pages

•

Sets characters

•

When in Standby mode, switches TV On (Press for

•

about 1 second)

Sound Mute

Switches sound mute On or Off

•

Volume Up / Down

Input mode selection

TV - switches DVB-S / DVB-C / DVB-T / Analogue

•

mode (p.18) AV - switches to AV input mode from Input Selection

•

list (p.27)

Direct TV Recording (p.85,87)

R ecords programme immediately in DVD Recorder /

•

VCR with Q-Link or VIERA Link connection

[VIERA Connect] (p.17, 82)

D isplays VIERAConnect home screen

•

Exit

R eturns to the normal viewing screen

•

TV Guide (p.22)

Cursor buttons

M akes selections and adjustments

•

Return

R eturns to the previous menu / page

•

Coloured buttons

(red-green-yellow-blue)

U sed for the selection, navigation and operation of

•

various functions

Hold

Freeze / unfreeze picture (p.20)

•

H olds the current teletext page (teletext mode)

•

(p.25)

Index (p.25)

R eturns to the teletext index page (teletext mode)

•

Last view (p.21)

Switches to previously viewed channel or input mode

•

Channel Up / Down

Connected equipment operations

(p.28, 66, 90)

Quick Start Guide

Identifying Controls

Page 10

Quick Start Guide

Identifying Controls

T V

CI slot (p.62)

SD Card slot (p.65)

USB 2 port (p.94)

HDMI 4 terminal (p.94)

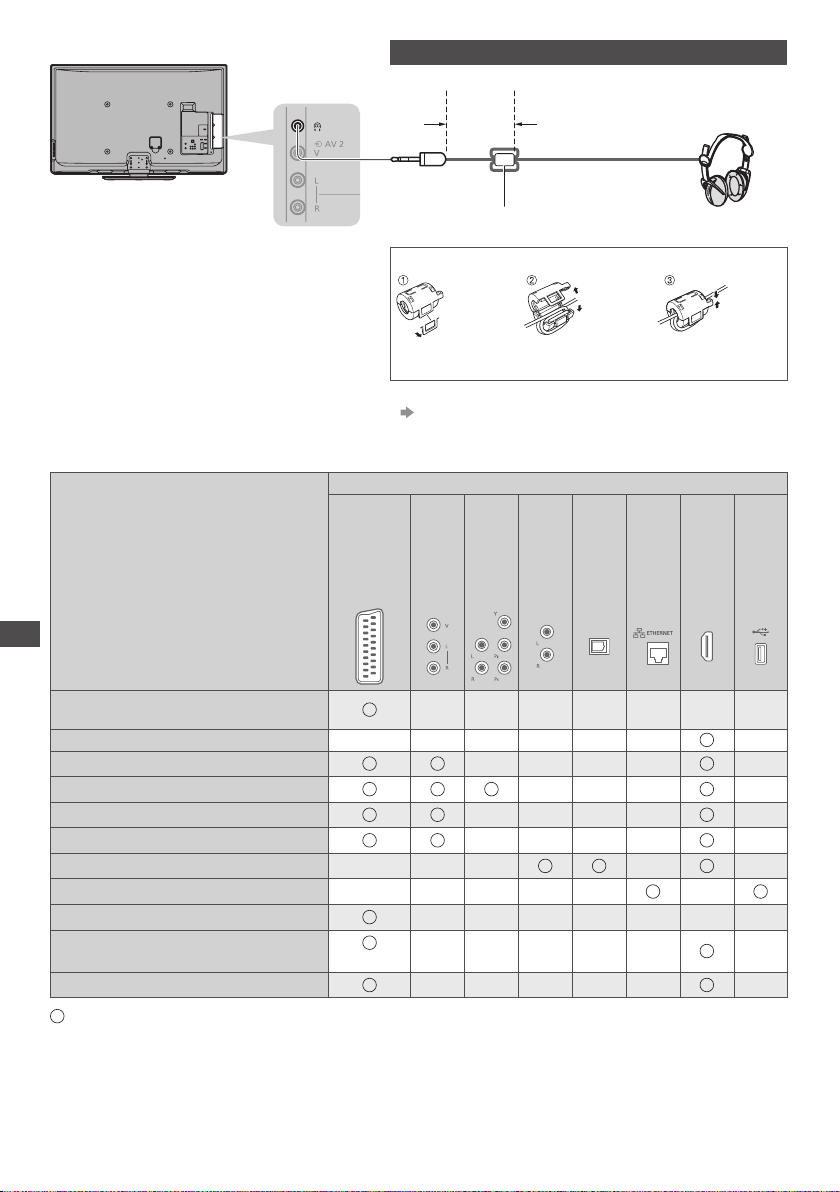

Headphones jack (p. 94)

AV2 terminals (p. 94)

Function select

[Volume] / [Contrast] / [Brightness] / [Colour] /

•

[Sharpness] / [Tint] (NTSC signal) / [Bass]∗ / [Treble]∗ / [Balance] / [Auto Setup] (p.46 - 49) ∗ [Music] or [Speech] mode in the Sound Menu

11 12 13 10

C hannel Up / Down, Value change (when using the F

button), Switching the TV On (press either button for about 1 second when in Standby mode)

Changes the input mode

Mains power On / Off switch

U se to switch the mains power.

•

If you turned the TV Off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

Remote control signal receiver

D o not place any objects between the TV remote

•

control signal receiver and remote control.

C.A.T.S. (Contrast Automatic Tracking System)

sensor

Senses brightness to adjust picture quality when [Eco

•

Mode] in the Picture Menu is set to [On] (p.36)

Power and Timer LED

Red : Standby

•

Green : On Orange : T imer Programming On Orange (flash) :

R ecording of Timer Programming or DirectTVRecording in progress

Red with orange flash :

Standby with Timer Programming On or Direct TV Recording

T he LED blinks when the TV receives a command

•

from the remote control.

Infrared transmitter for 3D Eyewear

D o not place any objects between the transmitter

•

and 3D Eyewear.

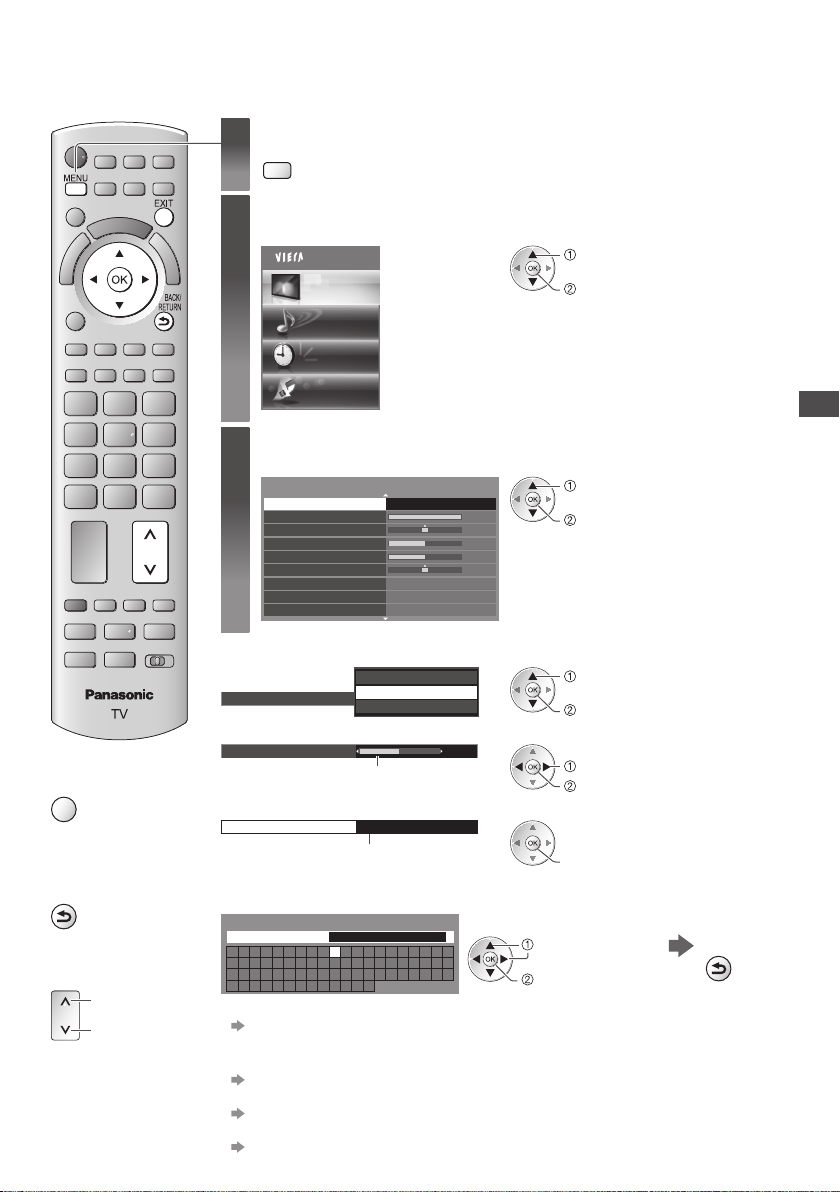

Using the On Screen Displays - Operation guide

M any features available on this TV

Operation guide

O peration guide will help you to operate by using the remote control.

Example : [Sound Menu]

Main Menu

C hange

M ode Music


B ass Treble

Sound

B alance H eadphone Volume

Timer

Surround Auto Gain Control

Setup

V olume Correction Speaker Distance to Wall

Select

Selects the basic sound mode.

EXIT

RETURN

O peration guide

can be accessed via the On Screen Display menu.

How to use remote control

O pen the main menu

M ove the cursor / select the menu item / select from a range of options

M ove the cursor / adjust levels / select from a range of

options

Access the menu / store settings after adjustments have been made or options have been set

BACK/

R eturn to the

RETURN

previous menu

Off

Over 30cm

P age up

P age down

1/2

0 0 0

Auto power standby function

T he TV will automatically go to Standby mode in the following conditions :

•

no signal is received and no operation is performed for 30 minutes in Analogue TV mode

•

[Off Timer] is active in the Timer Menu (p.20)

•

no operation is performed for the period selected in [Auto Standby] (p.40)

T his function does not affect the recording of Timer Programming and Direct TV Recording.

•

Exit the menu system

EXIT

and return to the normal viewing screen

Page 11

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. T here are some restrictions on placement for viewing 3D images. For details (p. 29, 33)

Example 1

Connecting dish or aerial

TV only

T o ensure your satellite dish is correctly installed, please consult your local dealer.

Also please consult the received satellite broadcasting

•

companies for details. Selectable satellites and dish alignment to tune DVB-S

•

channels (p.47)

R ear of the TV

F or digital

•

satellite broadcasts

Satellite dish

Satellite cable

Example 2 Connecting DVD Recorder /

VCR and Player

TV, DVD Recorder / VCR and Player

R ear of the TV

AC 220-240 V 50/60 Hz

Quick Start Guide

Terrestrial aerial

Cable

Basic Connection

RF OUT

RF IN

RF cable

M ains lead

Fully wired

SCART cable

DVD Recorder or VCR

erfered.

Fully wired

HDMI

compliant

cable

Player / 3D-compatible player

RF cable

AC 220-240 V 50/60 Hz

Terrestrial aerial

M ains lead

F or digital cable, digital terrestrial

•

and analogue broadcasts

Note

T o watch 3D contents (p. 29)

•

C onnect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p.85).

•

F or HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI

•

cable (p.92). Q-Link and VIERA Link connection (p. 83, 84)

•

P l ease also read the manual of the equipment being connected.

•

K eep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,

•

distortion of image / sound may occur or operation of other equipment may be int

Cable

RF cable

Page 12

Example 3 Connecting DVD Recorder / VCR and Set top box

TV, DVD Recorder / VCR and Set top box

R ear of the TV

Quick Start Guide

AC 220-240 V 50/60 Hz

Fully wired HDMI

Basic Connection

M ains lead

compliant cable

Cable

Fully wired SCART cable

Terrestrial aerial

RF cable

Fully wired SCART cable

Set top box

DVD Recorder or VCR

RF cable

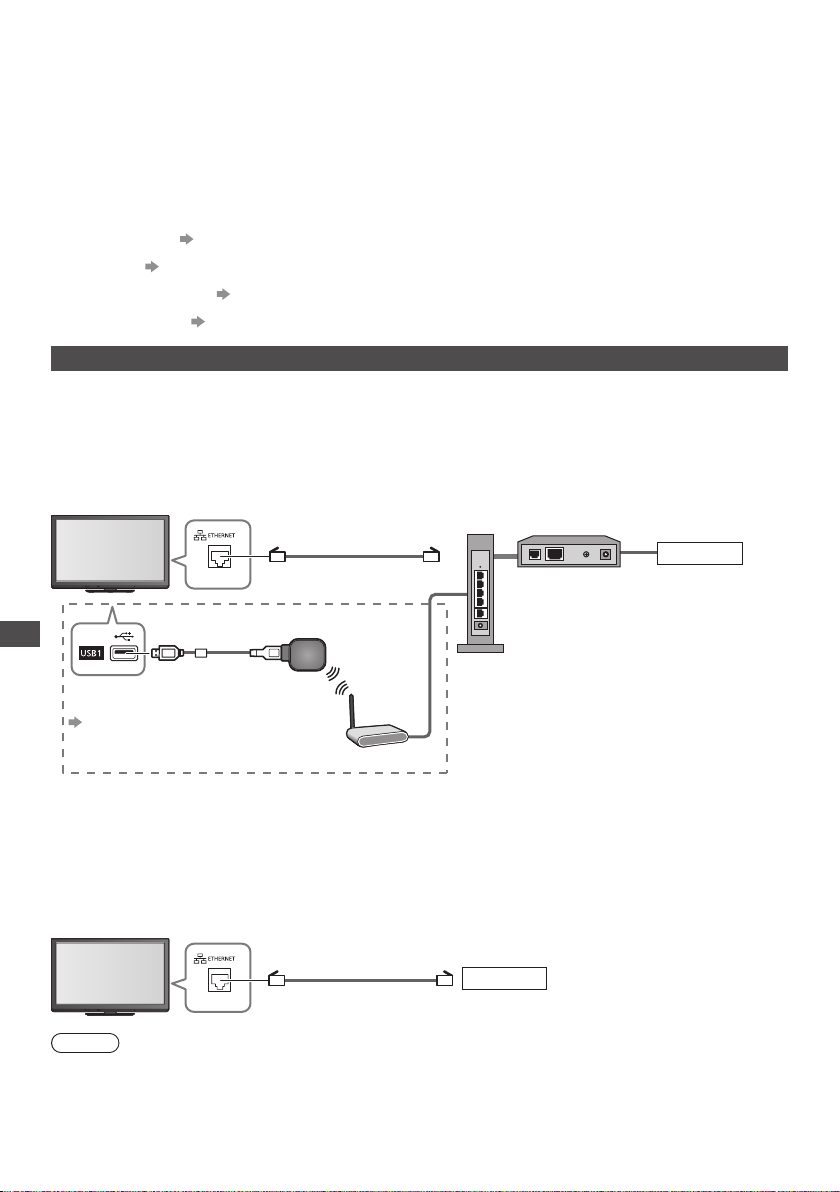

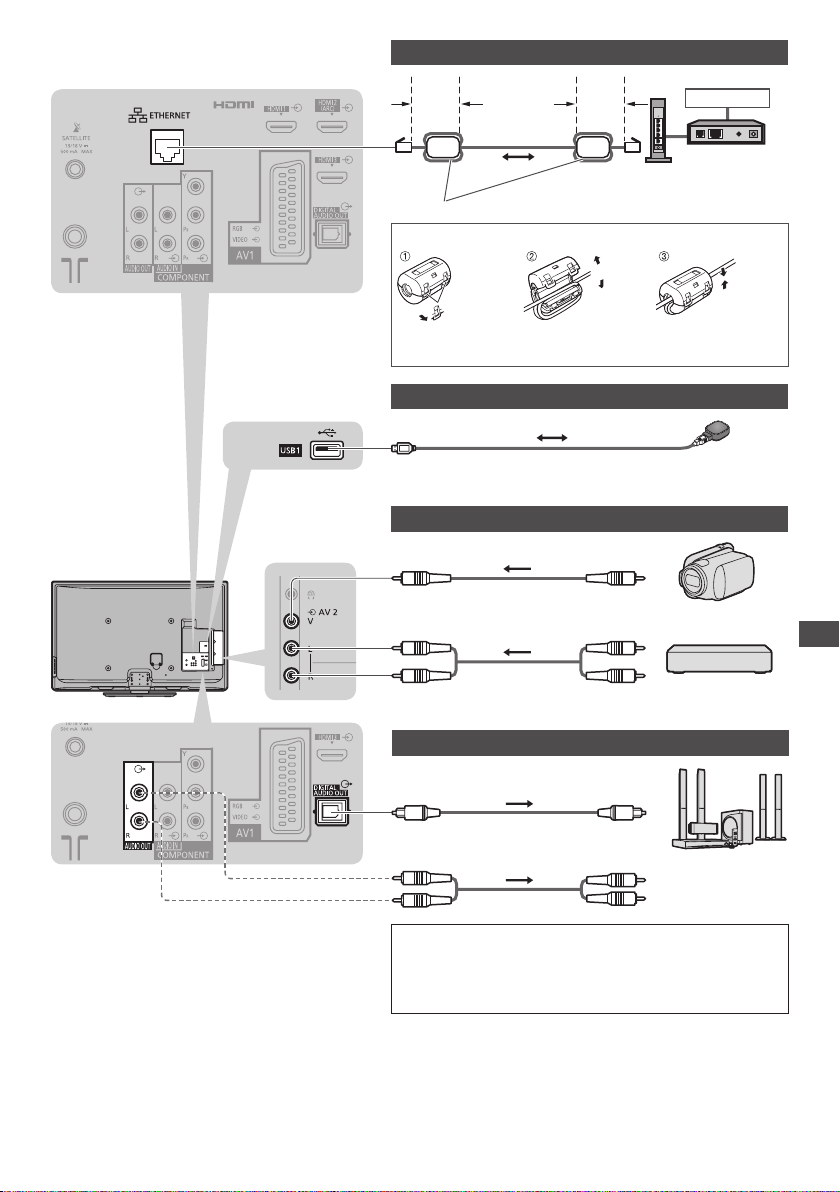

■ Connecting to the network environment (Network connections)

T o enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network environment.

If you do not have any broadband network services, please consult your retailer for assistance.

•

C onnect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).

•

Setup of the network connection will start after the tuning (when first using the TV) (p. 14 - 16)

•

R ear of the TV

Wired connection

L ess than

10cm

Note

F or more information of the network connections (p. 76)

•

Wireless connection

Wireless LAN Adaptor and Extension cable

“Optional accessories” (p. 6)

C onnect to the USB 1 or 2 port.

•

LAN cable

L ess than 10cm

I nternet

environment

F errite core - Large size (supplied)

Installing the Ferrite core

Pull back the tabs (in two places)

Wind the cable

twice

environment

Access point

Press the cable through and close

RF IN

RF OUT

I nternet

Page 13

Auto Setup

Search and store TV channels automatically.

T hese steps are not necessary if the setup has been completed by your local dealer.

•

Please complete connections (p.11, 12) and settings (if necessary) of the connected equipment before starting Auto Setup.

•

For details of settings for the connected equipment, read the manual of the equipment.

Plug the TV into mains socket and switch On

T akes a few seconds to be displayed

•

If the red LED shows on the TV, press the Standby On / Off switch on the remote

•

control for about 1 second.

Select the language

Menüsprache

Deutsch D anskPolskiSrpyski

E nglish Svenska č eština Hrvatski

Français Norsk Magyar Slovenščina

Italiano Suomi Slovenčina Latviešu E spañol Türkçe Български eesti keel

P ortuguês Еλληνικά RomânăLietuvių

N ederlands

select

set

Select your country

Country

G ermany D enmark Poland

Austria Sweden Czech

France Norway Hungary

I taly Finland Slovakia

Spain Luxembourg Slovenia

P ortugal Belgium Croatia

Switzerland Netherlands E stonia

M alta Turk ey Lithuania

A ndorra Greece O thers

select

•

set

D epending on the country you select, select your Region or store the Child LockPIN number (“0000” cannot be stored) by following the on screen instructions.

Select the mode you want to tune

TV Signal Selection

DVB-S DVB-C

DVB-T

Analogue

Start Auto Setup

select

tune / skip tuning

: tune (search for the available channels) : skip tuning

Select [Start Auto Setup]

TV Signal Selection

DVB-S DVB-C DVB-T Analogue

Auto Setup will start to search for TV channels and store them.

•

T he stored channels and sorted channel order vary depending on the country, area, broadcasting system and conditions of signal reception.

Auto Setup screen varies depending on the country you select.

Start Auto Setup

1 DVB-S Search Mode 2 DVB-S Satellite Search

Search Mode

Free Channels

All Channels

select mode

set

DVB-S Auto Setup

Satellite Progress T his will take up to 40 minutes.

Satellite

Astra 19.2°E Hot Bird 13°E

select

access

Press EXIT to skip Satellite installation

C hecking LNB2

0% 100%

Searching Satellite

Quick Start Guide

Auto Setup

Page 14

Quick Start Guide

Auto Setup

3 [DVB-S Auto Setup] 4 [DVB-C Network Settings]

DVB-S Auto Setup

Satellite Progress T his will take about 30 minutes.

N o. C hannel Name Type

CBBC Channel

BBC Radio Wales

Free TV: 3

Astra 19.2° E

0% 100%

Free TV Free TV Free TV

Pay TV: 0 Radio: 0

Searching

Quality

100 100 100

D epending on the country you select, select your cable provider

•

beforehand by following the on screen instructions.

DVB-C Network Settings

Frequency Auto N etwork ID

select

access

Auto

Start Auto Se

tup

[Start Auto Setup]

abc def

jkl

ghi

tuvpqrs

N ormally set [Frequency] and [Network ID] to [Auto]. If [Auto] is not displayed or if necessary, enter [Frequency] and [Network ID] specified by your cable provider with numeric buttons.

5 [DVB-C Auto Setup] 6 [DVB-T Auto Setup]

DVB-C Auto Setup

Progress

T his will take about 3 minutes.

N o. C hannel Name Type

CBBC Channel

BBC Radio Wales

Free TV: 3

0% 100%

Pay TV: 0 Radio: 0

Searching

Free TV Free TV Free TV

Quality

100 100 100

DVB-T Auto Setup

Progress

T his will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 100Cartoon Nwk

Free TV: 4

D epending on the country you select, the channel selection screen will

•

be displayed after DVB-T Auto Setup if multiple channels have the same

CH 5 69

Free TV Free TV Free TV

V: 0

Free TV

Searching

Pay T

R adio: 0

Quality

100 100 100

logical channel number. Select your preferred channel or exit the screen for automatic selections.

7 [Analogue Auto Setup] 8 Preset Download

Analogue Auto Setup

Scan T his will take about 3 minutes.

CH Channel Name

CH 29 CH 33 BBC1

A nalogue: 2

Setup the network connection

Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p.17, 76).

T o setup the wireless connection, the Wireless LAN Adaptor (optional accessory) is required.

•

Please note that this TV does not support wireless public access points. E nsure the network connections (p. 12) and network environment are completed before starting setup.

•

Select the network type

Network Setup

Select Wired or Wireless

Wired Wireless Se

CH 2 78 41CC 1

Searching

t later

If Q-Link, VIERALink or similar technology (p.85, 86) compatible recorder is connected, channel, language, country / region settings are automatically downloaded to the recorder.

Sending Preset Data

Please wait!

0% 100%

R emote control unavailable

I f d ownloading has failed, you can download later through the Setup

•

Menu. [Download] (p.41)

[Wired] “Wired connection” (p. 12) [Wireless] “Wireless connection” (p. 12)

T o setup later on or skip this step

select

access

•

Select [Set later] or

■ [Wired]

1 . Select [Auto]

Acquire IP Address

Auto M anual

select

access

2 . Go to the next step

(Press twice)

Automatically setup is done and the test of the network connection starts.

T o set manually, select [Manual] and set each item. For

•

details

Connection Test

C heck network cable connection. C heck acquired IP address. C heck for devices using same IP address. C heck gateway connection. C heck server connection.

(p.78)

: succeeded

T he test is successful and the TV is connected to the network.

C heck the settings and connections. And then select [Retry].

mno

wxyz

EXIT

: failed

Page 15

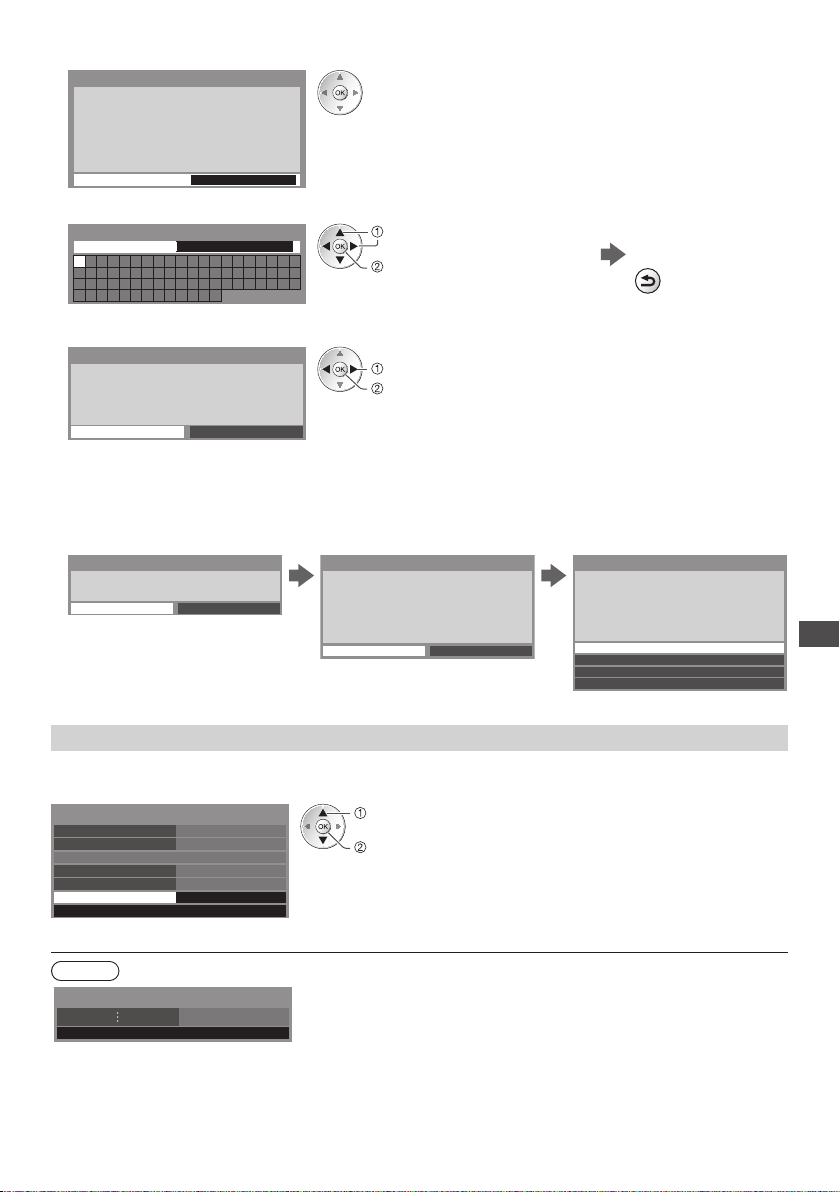

■ [Wireless]

Select the connection type

Connection Type

Please select network connection type.

Search for access point

WPS(P

ush button)

access

[Search for access point]

Access points found automatically are listed. 1 . Select your desired access point

Available Access Points

N o. Wireless type Encrypt Reception

SSID

Access Point A Access Point B

Access Point C

T o search access points again

•

(yellow)

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

: Encrypted access point

F or the information of the

•

highlighted access point

2 . Access the encryption key input mode

Encryption Key Setting

C onnection will be made with the following settings:SSID : Access Point A

Authentication type : WPA- PSK E ncryption type : TKIP

Please input the encryption key.

E ncryption key

If the selected access point is not encrypted, the confirmation screen

•

will be displayed. It is recommended to select the encrypted access

point.

3 . Enter the encryption key of the access point

Access Point Settings

E ncryption key

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : # a b c d e f g h i j k l m n o p q r s t u v w x y z ( ) + - . * _

4 . Select [Yes]

Access Point Settings

E ncryption key is set to:- XXXXXXXX

Select 'Yes' to confirm. Select 'No' to change.

Yes

N o

Set characters

You can set characters by using numeric buttons.

•

T o re-enter the encryption key, select [No].

•

If the connection has failed, check the encryption key, settings

•

and positions of your access point. And then, follow the on screen instructions.

5 . After the access point setting is finished, perform the connection test

Connection Test

C heck access point connection.

6 . Go to the next step

C heck acquired IP address. C heck for devices using same IP address. C heck gateway connection. C heck server connection.

(Press twice)

select

access

T o set manually (p.81)

•

(red)

select

set

select

set

: succeeded

T he test is successful and the TV is connected to the network.

: failed

C heck the settings and connections. And then select [Retry].

T o set manually, select [Manual] and set each item.

•

For details (p.78)

Quick Start Guide

Auto Setup

Store

BACK/

RETURN

Page 16

[WPS(Push button)]

Quick Start Guide

Auto Setup

Select [Home]

Select [Home] viewing environment to use in your home environment.

1 . Press the WPS button on the access point until the light flashes 2 . Connect the Wireless LAN Adaptor and the access point

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light ashes.

2) When the light is ashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

3 . After the access point setting is finished, perform the connection test

4 . Go to the next step

Please select your viewing environment.

H ome Shop

C onnect

Connection Test

(Press twice)

C heck access point connection. C heck acquired IP address. C heck for devices using same IP address. C heck gateway connection. C heck server connection.

E nsure that your access point supports WPS for this setup.

•

WPS : Wi-Fi Protected Setup™

•

If the connection has failed, check the settings and positions of your

•

access point. And then, follow the on screen instructions.

: succeeded

T he test is successful and the TV is connected to the network.

: failed

C heck the settings and connections [Retry].

T o set manually, select [Manual] and set each item.

•

For details (p.78)

select

set

. And then select

■ [Shop] viewing environment (for shop display only)

[ Shop] viewing environment is the demonstration mode to explain main features of this TV.

Select [Home] viewing environment to use in your home environment.

You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic

•

Demo Off / On selection screen.

1 Return to viewing environment selection

screen

Shop

You have selected shop mode

Automatic Demo

Off O n

T o change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.

[Shipping Condition](p.63)

2 Select [Home]

Please select your viewing environment.

H ome Shop

BACK/

RETURN

select

set

Auto Setup is now complete and your TV is ready for viewing.

If tuning has failed, check the connection of the satellite cable, RF cable, and then, follow the on screen instructions.

Note

T o check channel list at-a-glance “Using TV Guide” (p.22)

•

T o edit or hide (skip) channels “Tuning and Editing Channels” (p.50 - 55)

•

T o retune all channels [Auto Setup](p.46, 49)

•

T o add the available TV mode later [Add TV Signal] (p.41, 42, 43)

•

T o initialise all settings [Shipping Condition](p.63)

•

If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.

T o setup the wireless connection (p.79 - 81)

•

Wireless LAN adaptor connection

Wireless LAN adaptor connected, do you want to set it up?

No - Exit

Current network type : Wireless

Yes

N o

Page 17

Using “VIERA Connect”

VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet cont photos, videos, games, etc. from VIERA Connect home screen.

T his TV has no full browser function and all features of websites may not be available.

•

Turn power on

Press for about 1 second

•

M ains power On / Off switch should be On. (p.10)

•

ents such as

■

To exit from VIERA Connect

EXIT

T o set the VIERA

•

Connect instruction banner display off

 [VIERA Connect

Banner] (p. 44)

Enjoy selected internet content with VIERA Connect.

Simply press the OK / INTERNET button

Access VIERA Connect

While the banner is displayed

Example :

Welcome to VIERA Connect™

VIERA Connect™ home screen is subject to change without notice.

The services through VIERA Connect™ are operated by their respective service providers, and service may

be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no

warranty for the content or the continuity of the services.

All features of websites or content of the service may not be available.

Don’t show this message again

Some content may only be available for specic countries and may be presented in specic languages.

Example : VIERAConnect home screen

ENTER

Some content may be inappropriate for some viewers.

Every time you turn on the TV, VIERA Connect introduction banner appears. The banner is subject to change.

T he button design varies

•

depending on the remote control.

T o go to the next level

•

[MORE]

T o back to the previous level

•

[BACK]

INTERNET

D epending on the usage conditions, it may take a

•

while to read all the data. M essages might be displayed before VIERAConnect

•

home screen. Please read these instructions carefully and follow the on screen instructions.

BACK

■ How to operate VIERAConnect (current as of January, 2011)

T o move the cursor / select the item

•

When the key words are displayed on colour bar

•

(red) (green) (yellow) (blue)

V ideo communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.

•

“Optional accessories” (p.6) F or details, read the manual of the Communication Camera. You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect.

•

You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features For more information

“USB connection” (p. 100)

Note

If you cannot access VIERA Connect, check the network connections (p. 12) and settings (p. 14 - 16).

•

F or more information of VIERA Connect (p. 82)

•

T o access

•

When options with

•

numbers are displayed

abc def

jkl

ghi

mno

tuvpqrs

wxyz

T o return to the previous screen

•

BACK/

RETURN

T o return to VIERA Connect home

•

screen

INTERNET

Using “VIERA Connect”

Page 18

Watching TV

Turn power on

■ VIERA Connect introduction banner appears

You can access to VIERA Connect and enjoy the various contents. (p.17)

T o remove this banner, l eave for about 5 seconds or press any buttons

•

(except the buttons to access VIERA Connect). T o set this banner display off [ VIERA Connect Banner] (p. 44)

•

Select the mode

TV Selection

DVB-S

DVB-C

B-T

DV Analogue

Press for about 1 second

•

M ains power On / Off switch should be On. (p.10)

•

T he selectable modes vary depending on the

•

stored channels (p.13).

select

access

Also possible to select the mode pressing the TV

•

button repeatedly on the remote control or side panel of the TV (p.10).

If [TV Selection] menu is not displayed, press the

•

TV button to switch the mode.

All DVB-T Channels

Change category

20:35

I nformation banner (p.19)

T o select a more than two-digit channel position

abc def

•

jkl

ghi

mno

number, e.g. 399

tuvpqrs

wxyz

def

V olume

Coronation Street

20:00 - 20:55

BBC ONE WALES

Select a channel

Now I nfo

u p

d own

■ To select from the Channel List

All DVB-T Channels

6Cartoon Nwk 7 BBC Radio Wales 8 BBC Radio Cymru

1 BBC ONE Wales

2 BBC THREE 3 BBCi 4 CBBC Channel

Sorting 123...

select channel

watch

T o sort channel names in

•

alphabetical order

(red)

T o change the category

•

(blue)

■ Select a channel using Information banner (p.19)

1 Display Information banner if it is not displayed 2 While the banner is displayed, select the channel

select channel

watch

■ Select a channel using TV Guide (p.22)

1 Display TV Guide

T he postcode entry or update may be required depending on the country you select (p.13). Follow the on screen

•

instructions.

Note

T o watch pay-TV “Using Common Interface” (p.62)

•

2 Select the current

programme or channel

select

access

3 Select [ View] (DVB mode)

Das Erste

19:30- 20:00

V iew T imer P

rogramming

select

watch

Page 19

Other useful functions

Display Information banner

Features available / Message meanings

Also appears when changing a channel

•

Example : DVB

ZDF

C hannel position and name

C hannel type ([Radio], [Data], [HDTV], etc.) /

Encrypted channel ( ) / TV mode ( , , , )

Programme

Current time

HDTV

2 3 6 7 4 5

Coronation Street 20:00 - 20:55 Now

D olby D+ B ad signal

All DVB-T Channels

C hange category I nfo

Programme Start/Finish time (DVB)

C hannel number, etc. (Analogue) Progress time indicator of the selected programme

(DVB) C ategory

T o change the category (DVB)

•

(blue)

20:35

select

set

Watching TV

Sound mute On

[Bad signal]

P oor T V signal quality

[Dolby D+], [Dolby D], [HE-AAC]

D olby Digital Plus, Dolby Digital or HE-AAC audio track

Subtitle service available

T o confirm another tuned channel

•

name

T o hide

•

EXIT

Extra information (DVB)

•

(Press again to hide the banner)

T eletext service available

Multiple audio available

Multiple video available

T o watch the channel listed in the

•

banner

Multiple audio and video available

[Stereo], [Mono]

Audio mode

1 - 90

Off Timer remaining time

F or settings (p.20)

•

I nformation on the next programme

•

(DVB)

T o set display timeout

•

[Banner Display Timeout] (p.43)

Display subtitles

Display / hide subtitles (if available)

STTL

•

T o change the language for DVB (if available)

•

[Preferred Subtitles] (p.43)

Note

If you press the STTL button in Analogue mode, it switches to teletext service and calls up a favourite page (p.25). Press the EXIT button to return to TV mode. Subtitles may not be displayed properly in 3D images.

Page 20

Hold

Freeze / unfreeze picture

HOLD

Display the selectable settings for the current status

Check or change the current status instantly

OPTION

[Multi Video] (DVB mode) Allows you to select from a group of multiple videos (if available)

•

[Multi Audio] (DVB mode)

Watching TV

Allows you to select between alternative language for sound tracks

(if available)

•

T o change

•

T his setting is not memorized and it will return to the default setting once you exit the current programme.

select

access

[Dual Audio] (DVB mode) Allows you to select stereo / monaural (if available)

[Sub Channel] (DVB mode) Allows you to select the multifeed programme - sub channel (if available)

[Subtitle Language] (DVB mode) Allows you to select the language

in which subtitles should appear (if available)

[Teletext Character Set]

Sets the teletext language font

[Setup Menu] (p.43)

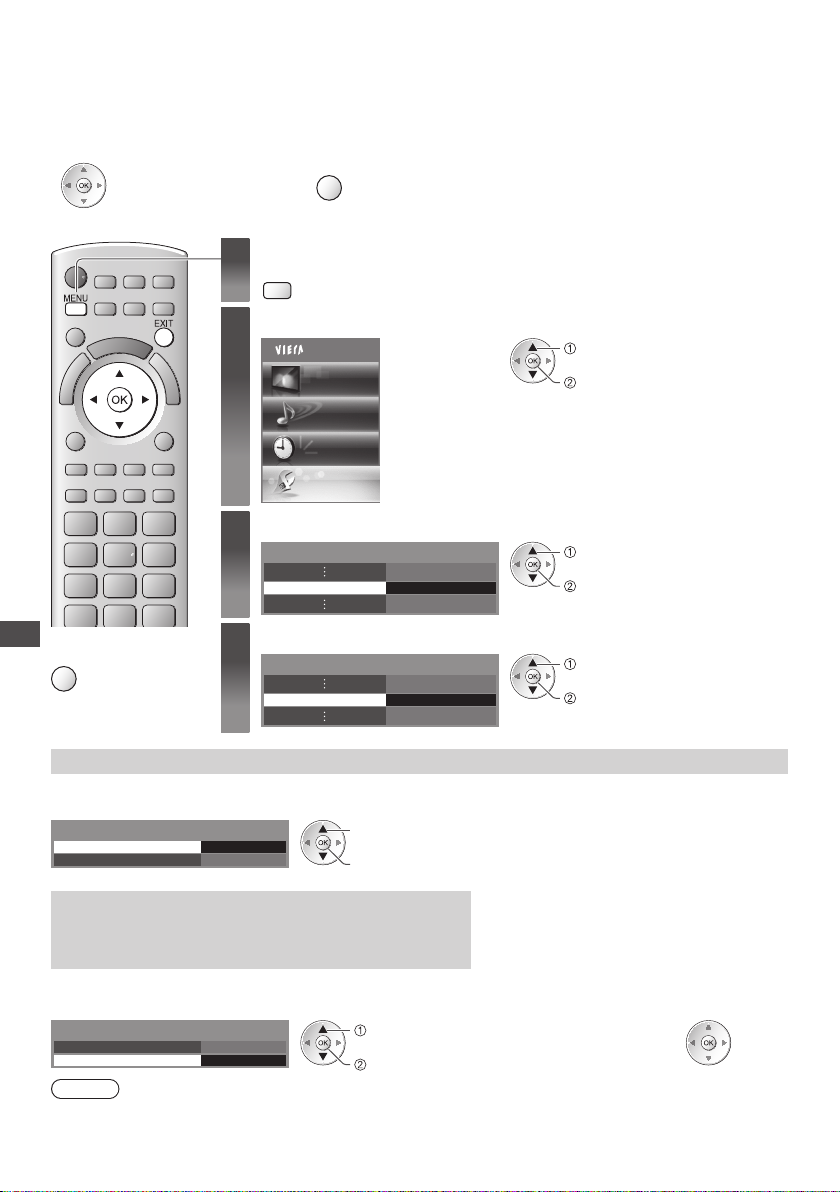

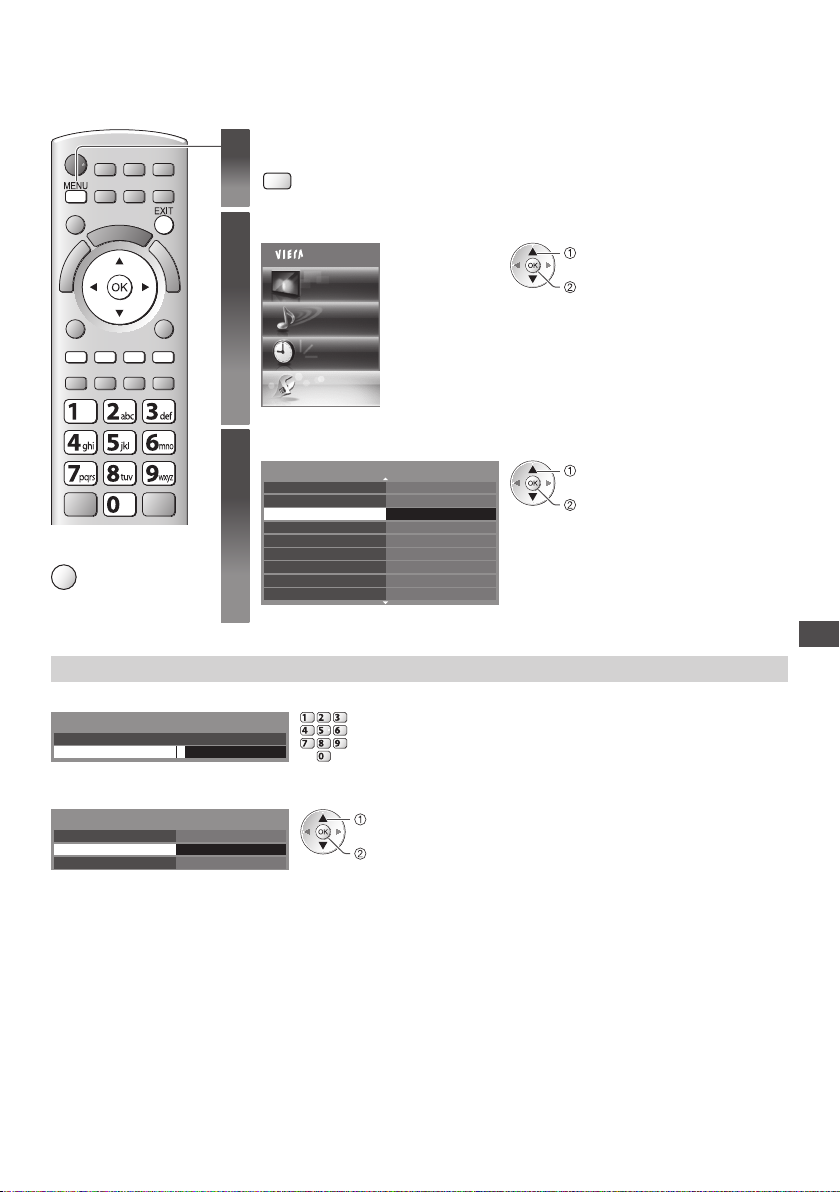

Off Timer

Turn the TV to Standby mode automatically after a fixed period

1 Display the menu

2 Select [ Timer]

Main Menu


Sound

select

access

select / change

store

[Teletext Language] (DVB mode) Allows you to select between alternative language for teletext (if available)

[MPX] (Analogue mode) Selects multiplex sound mode (if available)

[Sound Menu] (p.39)

[Volume Correction]

Adjusts volume of individual channel or input mode

Timer

Setup

3 Select [Off Timer] and set the time

T imer Programming

Off Timer

Auto Standby

Off

30 45 60 75 90

m inute m inute m inutes m inutes m inutes m inutes

select [Off Timer]

s s

access

T o cancel Set to [Off ] or turn the TV off.

•

T o confirm the remaining time “Display Information banner” (p.19)

•

When the remaining time is within 3 minutes, the remaining time will flash on the

•

screen.

select the time

store

Page 21

A s p e c t

Change the aspect ratio (image size)

E njoy viewing the image at its optimum size and aspect.

ASPECT

Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p.95).

■ If you would like to change the aspect ratio manually

1 Display Aspect Selection list 2 While the list is displayed,

ASPECT

[Auto]

[16:9] [4:3 Full]

[14:9] [Zoom1]

[Just] [Zoom2]

[4:3] [Zoom3]

T he best ratio is chosen and the image expanded to fill the screen. F or details (p.95)

D irectly displays the image at 16:9 without distortion (anamorphic).

D isplays the image at the standard 14:9 without distortion.

D isplays a 4:3 image full-screen. Stretching is only noticeable at the left and right edges.

D isplays the image at the standard 4:3 without distortion.

Aspect Selection

Auto

16:9 14:9 Just 4:3 4:3 F

ull Zoom1 Zoom2 Zoom3

Select

EXIT

Change

RETURN

A spect Selection list

select the mode

select

store

Note

A spect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.

•

A spect cannot be changed in teletext service and 3D mode (except for [2D 3D] mode in [3D Mode Selection] (p.31)).

•

A spect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.

•

You can also change the mode only

•

using the ASPECT button.

ASPECT

(Press repeatedly until you reach

the desired mode)

D isplays a 4:3 image enlarged horizontally to fit the screen.

HD signal only

•

D isplays a 16:9 letterbox or 4:3 image without distortion.

D isplays a 16:9 letterbox (anamorphic) image full-screen without distortion.

D isplays a 2.35:1 letterbox (anamorphic) image full-screen without distortion. At 16:9, displays the image at its maximum (with slight enlargement).

Watching TV

Last view

Switch to previously viewed channel or input mode easily

LAST VIEW

•

Press again to return to the present view.

•

Note

Switching channel is not available while the recording of Timer Programming or Direct TV Recording is in progress. Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.

Page 22

Using TV Guide

TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

T his function varies depending on the country you select (p.13).

•

T he postcode entry or update may be required to use the GUIDE Plus+ system depending on the country you select.

•

“View advertisement” (p.23)

DVB-T and Analogue channels are displayed on the same TV Guide screen. [D] means DVB-T channel and [A] means Analogue

•

channel. There will be no programme listings for Analogue channels. When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV

•

Guide is completely shown.

Select the mode

(p.18)

View TV Guide

Using TV Guide

■

To return to TV

EXIT

Press again to change the layout ([Landscape] / [Portrait]).

•

V iew [Landscape] to see many channels.

V iew [Portrait] to see one channel at a time.

Example : [Landscape] (Displays by channel)

Wed 27.10.2010 10:46

rogramming

Timer P

-24 hours +24 hours Prog.Ty pe Category

TV Guide: Landscape

Wed 27.10.2010 All Types All Channels

1 BBC ONE

Y SOS : We open in the Battersbys

20:00 - 20:30 DI

19:30 20:00 20:30 21:00

Time:

Das Erste DIY SOS The Bill Red Cap

BBC ONE

Hot Wars Holiday Program

BBC THREE

72 105

105

Select channel

E4 BBC FOUR BBC 2W BBCi BBC Radi

EXIT Select programme RETURN

Emmerdal. 10 O’ clock News BBC

GUIDE

OPTION

Coronation Street

Info Change display mode Select Advert

Pepsi Char.

Example : [Portrait] (Displays by time)

Wed 27.10.2010 10:46

Timer P

rogramming

TV Guide: Portrait

Wed 27.10.2010

D BBC ONE1 D BBC THREE7DE414 D BBC FOUR70

19:30-20:00

Das Erste

20:00-20:30

DIY SOS

20:30-21:00

The Bill

21:00-22:00

Red Cap

22:00-23:00

Live junction

23:00-23:30

POP 100

23:30-00:00

Rugby

Select programme

EXIT Select channel RETURN

+24 hours Prog.Type Category

All Types All Channels

Info

GUIDE

Change display mode

OPTION

Select Advert

The Bill Good bye CoastSpring watchPanorama NewsPop IdolI’m A Celebrity The Bill15 To 1Rugby

Page down

Current date and time

TV Guide date

TV Guide time

Programme

C hannel position and

Page up

name [D] : DVB-T

[A] : Analogue

Depending on the country you select, you can select the TV Guide type

 [Default Guide] in [Display

Settings] (p.43)

If you select [Channel List], the channel list will appear when the GUIDE button is pressed.

Page up

■ To watch the programme

1 Select the current programme or

channel

select

access

2 Select [ View] (DVB mode)

Das Erste 19:30- 20:00

V iew T imer Programming

select

watch

T o use Timer Programming (p.24)

•

Page 23

■ To the previous day (DVB mode)

(red)

■ To view a channel list of the selected type

(DVB mode)

(yellow)

All Types

Movie New

Prog.Type

All Types

(Type list)

select type

view

■ To the next day (DVB mode)

(green)

■ To view a channel list of the selectedcategory

(blue)

(Category list)

Viewing Teletext

T eletext services are the text information provided by the broadcasters. T he features may vary depending on the broadcasters.

What is FLOF (FASTEXT) mode?

I n FLOF mode, four differently coloured subjects are situated at the bott one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is TOP mode? (in case of TOP text broadcasting) TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.

F ast overview of the teletext information available

•

E asy to use step-by-step selection of the topical subject

•

P age status information at the bottom of the screen

•

Available page up / down

(red) (green)

What is List mode?

I n List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory.

■ To change mode

[Teletext] (p.43)

To select among subject blocks

(blue)

“Store frequently viewed pages” (p.26)

Switch to Teletext

TEXT

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

TELETEXT

INFORMATION

Current page number

om of the screen. To access more information about

T o select next subject within the subject block (After the last subject, it moves to the next subject block.)

(yellow)

D isplays the index page (content varies

•

depending on the broadcasters)

T ime / date

C olour bar

Viewing Teletext

Select the page

abc def

jkl

ghi

mno

tuvpqrs

wxyz

■

To return to TV

EXIT

■ To adjust contrast

(Press three times)

Reveal hidden data

Reveal hidden words e.g. quiz page answers

(red)

Press again to rehide.

•

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

Press again to resume.

HOLD

•

u p

d own

A s the blue bar is displayed

C oloured button (Corresponds to the colour bar)

INDEX

Return to the main index page

INDEX

Call up a favourite page

View a favourite page stored

C all up the page stored on the blue button (List mode).

F actory setting is “P103”.

STTL

•

Page 26

FULL / TOP / BOTTOM

(TOP) (BOTTOM) Normal (FULL)

(green)

(Expand the TOP half )

(Expand the BOTTOM half)

View in multi window

Watch TV and Teletext in two windows at once

(Press twice)

O perations can be made only in teletext screen.

•

Store frequently viewed pages

Viewing Teletext

Store frequently viewed pages in the colour bar (List mode only)

A s page is displayed

(Corresponding coloured button)

Select Picture and text On or Off

press and hold

■ To change stored pages

C oloured button you want to change

View sub page

View sub page (Only when Teletext is more than one page)

E nter new page number

abc def

jkl

ghi

mno

tuvpqrs

wxyz

A ppears at top of the screen

■ To view specific sub page

(blue)

T he number of sub pages varies depending on the

•

broadcasters (up to 79 pages). I t may take some time for searching, during which time

•

you can watch TV.

E nter the 4-digit number Example : P6

T he number changes to white.

press and hold

mno

Watch TV while waiting for update

View the TV picture while searching for a teletext page

T eletext automatically updates itself when new information becomes available.

T he news page provides a function that indicates arrival of latest news (“News Flash”).

•

(yellow)

C hanges to TV screen temporarily

P108

(You cannot change the channel.)

A ppears when updating is completed

V iew the updated page

(yellow)

Page 27

Watching External Inputs

C onnect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.

T o connect the equipment (p.11, 12, 92 - 94)

•

T he remote control is capable of operating some functions of selected external equipment.

“Operating the equipment with the TV remote control” (p. 28)

Turn the TV on

When connecting with SCART as example 2 or 3 (p.11, 12)

R eceives input signals automatically when playback starts

I nput signals are automatically identified by the SCART (pin 8) terminal.

•

T his function is also available for HDMI connections (p.92).

•

If input mode is not switched automatically

P erform

Display the input selection menu

Select the input mode connected to the equipment

Input Selection

AV1

AV2 COMPONENT HDMI1 HDMI2 HDMI3 HDMI4 TV SD Card/USB

•

and

C heck the setup of the equipment.

•

select

watch

You can also select the input using the AV button on the remote control or the side panel of the TV (except [SD Card/USB]). Press the button repeatedly until the desired input is selected. [ SD Card/USB] : Switches to Media Player “Using Media Player” (p.65) You can label or skip each input mode (except [SD Card/USB]). “Input Labels” (p.61) Skipped inputs will not be displayed when the AV button is pressed.

Watching External Inputs

■

To return to TV

View

AV1

D isplays the selected mode

Note

If the external equipment has an aspect adjustment function, set it to “16:9”.

•

F or details, see the manual of the equipment or ask your local dealer.

•

Page 28

Operating the equipment with the TV remote control

T he equipment connected to the TV can be directly operated with the below buttons of this TV remote control.

Selection Switch for operating the connected equipment

Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc

DVD/VCR

Watching External Inputs

PROGRAMME

REC

theatre or VCR

“How to change the code for the type of the equipment” (see below)

Select “TV” to use in Media Player or VIERA Link

“Media Player” (p. 66) “VIERA Link Control” (p.90)

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR :

R ewind, view the picture rapidly in reverse

DVD / video content :

Skip to the previous track, title or chapter Press and hold to search backward

Fast-forward / Skip / Search

VCR :

F ast-forward, view the picture rapidly forward

DVD / video content :

Skip to the next track, title or chapter Press and hold to search forward

Pause

P ause / Resume DVD : Press and hold to play at slow speed

Channel Up / Down

Select channel

Record

Start recording

How to change the code for the type of the equipment

E ach type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.

1 Set the position to “DVD/VCR”

DVD/VCR

2 Press and hold during the following operations

E nter the appropriate code, see table below

DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Type of the equipment C ode

Player theatre, Blu-ray Disc theatre 71

VCR 72

Press

Note

C onfirm if the remote control works correctly after changing the code.

•

T he codes may be reset to default values if batteries are replaced.

•

Some operations may not be possible on some equipment models.

•

Page 29

Viewing 3D images

You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear.

“Optional accessories” (p. 6)

T his TV supports [Frame Sequential]

∗

1 : The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately

played back

∗

2, ∗3 : Other available 3D formats

H ow to view the 3D images (p.30)

•

Caution

To enjoy 3D images safely and comfortably, please read these instructions fully.

Viewing 3D Content

D o not use the 3D Eyewear if you have a history of over-

•

sensitivity to light, heart problems, or have any other existing medical conditions.

Please stop using the 3D Eyewear immediately, if you

•

feel tired, are not feeling well or experience any other uncomfortable sensation. When you set the effect by using [3D Adjustment], take

•

into account that the vision of 3D images varies among different individuals. T ake an appropriate break after viewing a 3D movie.

•

T ake a break of between 30 - 60 minutes after viewing

•

3D content on interactive devices such as 3D games or computers. B e careful not to strike the TV screen or other people

•

unintentionally. When using the 3D Eyewear the distance between the user and screen can be misjudged. T he 3D Eyewear must only be worn when viewing 3D

•

content. If you do not look toward the TV screen for a while when

•

viewing 3D images, the 3D Eyewear may be turned off automatically. If you suffer from any eyesight problems (short /

•

far-sighted, astigmatism, eyesight differences in left and right), please ensure to correct your vision before using the 3D Eyewear. Stop using the 3D Eyewear if you can clearly see double

•

images when viewing 3D content. D o not use the 3D Eyewear at a distance less than the

•

recommended distance. T he recommended viewing distance is at least 3 times of image height. TX-P42ST32Y : 1.6 m or more TX-P46ST32Y : 1.7 m or more TX-P50ST32Y : 1.9 m or more When the top and bottom area of the screen is blackened,

such as movies, view the screen at a distance at least 3 times further than the height of the actual image. (That

makes the distance closer than above recommended figure.)

∗

, [Side by Side]

∗

and [Top and Bottom]

3D Eyewear Use

P ay special attention when children are using the 3D

•

Eyewear. 3D Eyewear should not be used by children younger than about 5 - 6 years old, as a guideline. All children must be fully supervised by parents or guardians who must ensure their safety and health throughout the using 3D Eyewear. B efore using the 3D Eyewear, ensure no breakable objects

•

surrounding the user to avoid any accidental damage or injury.

R emove the 3D Eyewear before moving around to avoid

•

falling or accidental injury. Always store the 3D Eyewear in the case supplied with the

•

3D Eyewear when not in use. U se the 3D Eyewear only for the intended purpose and

•

nothing else. D o not use 3D Eyewear in the condition of high

•

temperature. D o not use if the 3D Eyewear is physically damaged.

•

D o not use any devices that emit the infrared signals near

•

the 3D Eyewear, as this may cause the 3D Eyewear false operations.

D o not use devices (such as mobile phones or personal

•

transceivers) that emit strong electromagnetic waves near the 3D Eyewear as this may cause the 3D Eyewear to

malfunction. D o not expose the infra-red receiver section to bright light

•

such as direct sunshine and fluorescent light. The 3D image may not be displayed correctly. Stop using the 3D Eyewear immediately if a malfunction or

•

fault occurs. Stop using the 3D Eyewear immediately if you experience

•

any redness, pain, or skin irritation around the nose or temples.

I n rare cases, the materials used in the 3D Eyewear may

•

cause an allergic reaction.

∗

3D formats.

Viewing 3D images

Page 30

To view the 3D images

You can enjoy the 3D images in a variety of ways. (Frame Sequential, Side by Side and Top and Bottom are the supported 3D format.)

■ Playing back 3D-compatible Blu-ray disc (Frame Sequential format)

C onnect the 3D-compatible player via a fully wired HDMI compliant cable.

•

If input mode is not switched automatically, select the input mode connected to the player. (p.27)

•

If you use the non 3D-compatible player, the images will be displayed on 2D mode.

•

■ 3D-supported broadcast

Please consult the suppliers of contents or programmes for availability of this service.

•

■ 3D photos and 3D videos taken by 3D-compatible Panasonic products

Available in Media Player (p. 67 - 69, 72)

•

■ 2D images converted to 3D

Set to [2D 3D] mode in [3D Mode Selection] (p. 31)

Turn the 3D Eyewear on

Viewing 3D images

Put on the 3D Eyewear

Watch the 3D images

Safety precautions will be displayed when you first watch the 3D image. Select [Yes] or [No] to continue to view 3D

•

images. If you select [Yes], this message will be displayed again in the same condition after Mains power On / Off switch is next turned On. Select [No] if you do not wish to display this message again.

Example :

Safety Precautions

To enjoy 3D images safely and comfortably, please read the Operating Instructions fully.

Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable sensation.

Always put the 3D Eyewear in the case provided after use. Would you like to display this message again later?

Turn off the 3D Eyewear after using it

Yes No

Note

3D Eyewear is not included. Please purchase as necessary. (p.6)

•

F or more detail about using and wearing the 3D Eyewear, please refer to the manual of the 3D Eyewear.

•

T he 3D image or 3D effect may not be available while VIERAConnect home screen (p.82) is displayed or Ext Rec. of Timer

•

Programming (p.56) / Direct TV Recording (p.85,87) is in progress. As for the contents of the Frame Sequential format and Side by Side (Full), no images will be displayed in these conditions. If the room is lit by fluorescent lights / dimmers (50 Hz) and light appears to flicker when using the 3D Eyewear, switch off the

•

fluorescent light or set [3D Refresh Rate] to [100Hz] (p. 37). 3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.

•

D o not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as computer

•

screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear. D o not use the 3D Eyewear as sunglasses.

•

3D effects may be perceived differently depending on the person.

•

Page 31

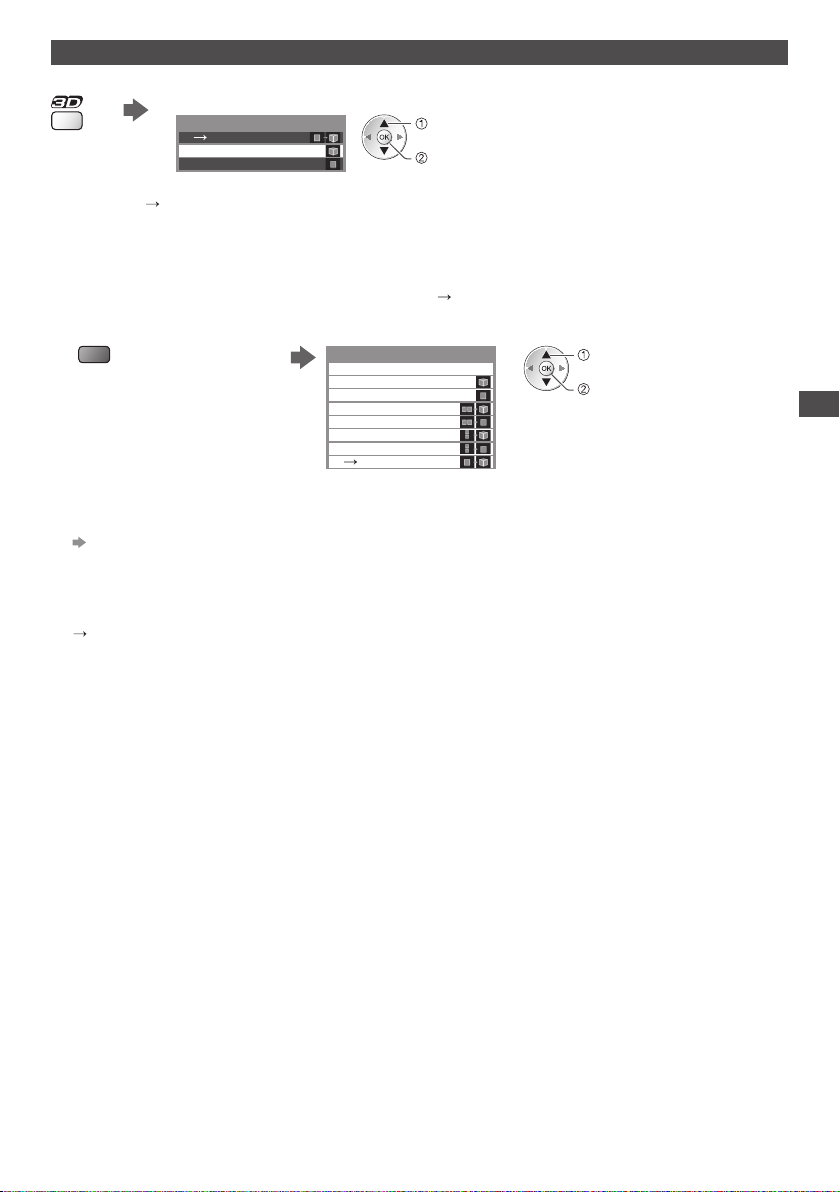

Changing 2D - 3D mode

You can easily change the viewing mode between 2D and 3D using the 3D button.

Select the mode

3D Mode Selection

2D3D3D

select

set

I tems of [3D Mode Selection] vary

•

depending on the condition.

[3D] / [2D] / [2D

D isplays the appropriate image that you desire without selecting 3D format

T his mode may not work properly depending on the source image format. In this case, select the appropriate 3D format

•

manually.

3D] :

■ To change 3D format manually

When the image is not changed properly using [3D], [2D] or [2D 3D] mode, use this manual setting.

During the above operation Select the mode

(red)

[Original] :

D isplays the source image as it is

U se to identify the format type of the source image.

•

“Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format” (p.32)

[Frame Sequential - 3D] / [Frame Sequential - 2D] / [Side by Side - 3D] / [Side by Side - 2D] / [Top and Bottom - 3D] / [Top and Bottom - 2D] :

D isplays the mode you select

N ot valid on Analogue and AV mode

•

[2D

3D] :

C onverts 2D images into 3D

F or DVB, Analogue, AV, Component, HDMI, Media Player and VIERA Connect.

•

O n-screen displays are also seen in 3D in this mode.

•

Please note the 3D images appear slightly different from the originals.

•

U sing this function for profit-making purposes, or publically showing images converted from 2D to 3D in places such as

•

shops or hotels etc. may infringe on the rights of the copyright holder protected under copyright law.

3D Mode Selection (Manual)

Original Frame Sequential - 3D Frame Sequential - 2D Side by Side - 3D Side by Side - 2D T op and Bottom - 3D T op and Bottom - 2D 2D 3D

select

set

Viewing 3D images

Page 32

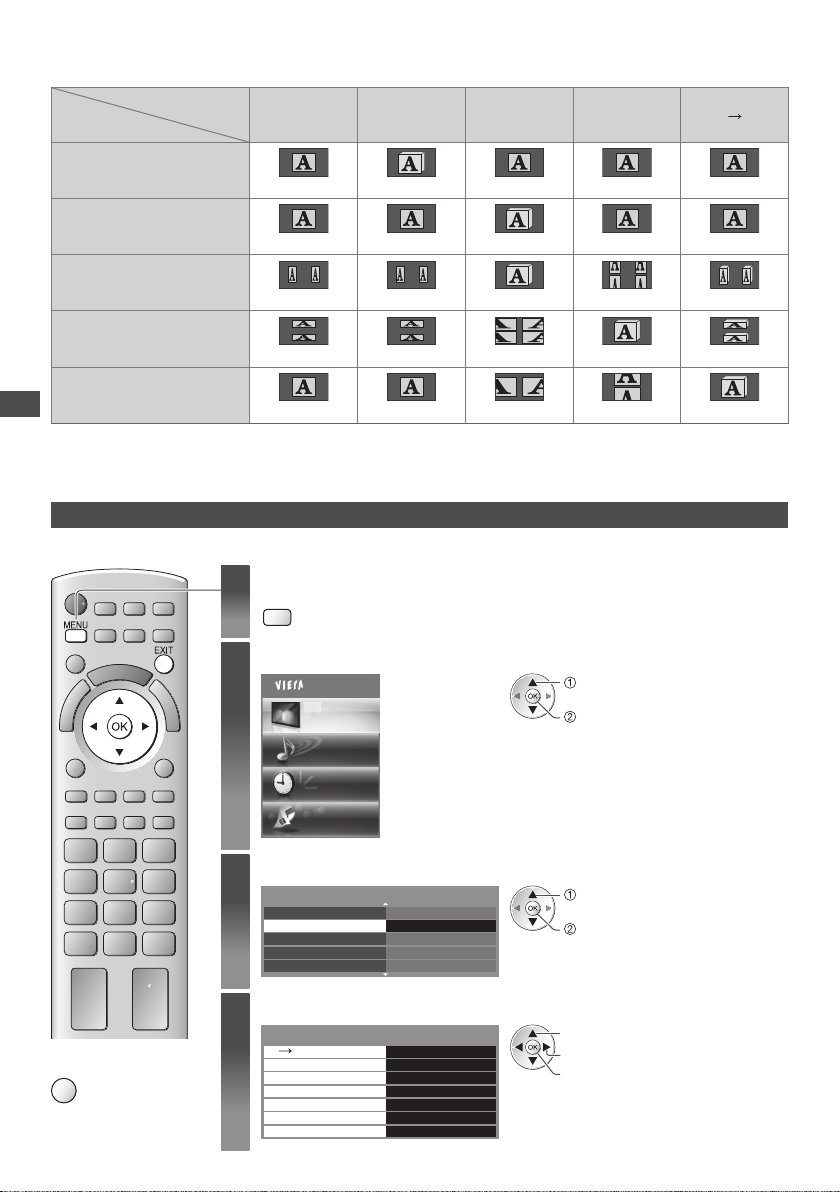

Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format

If the picture appears to be abnormal, refer to the table below to choose the correct 3D mode.

Source image format

[3D Mode Selection]

[Original]

[Frame

Sequential

- 3D]

[Side by Side

- 3D]

[Top and

Bottom - 3D]

[2D

3D]

Frame Sequential

Side by Side (Full)

Side by Side

Top and Bottom

Normal format (2D)

Viewing 3D images

∗

1 : When selecting [Frame Sequential - 2D], [Side by Side - 2D] or [Top and Bottom - 2D], the images will be displayed without

N ormal 3D

∗

N ormal 3D

∗

N ormal 3D

∗

3D effect.

D epending on the player or broadcasts, the image may be different from the above illustrations.

•

3D Settings

If the 3D images are not displayed correctly or seem unusual, please adjust and setup the 3D settings.

Display the menu

Select [Picture]

Main Menu


Sound

select

access

N ormal 3D

■

To return to TV

EXIT

imer

ettings

3D Depth

Detection

Setup

Access O n

M id Access N ormal Off O n O n Ac

cess

2/2

select

access

select adjust

access / store

Select [3D Settings]

P-NR Off

3D S

Screen Display Ad

vanced Settings

R eset to Defaults

Select one of the following functions and set

3D Settings

2D 3D Adjustment P icture Sequence Edge Smoother 3D 3D Signal Message Safety Precautions

Page 33

Item Adjustments / Configurations (alternatives)

2D 3D Depth

3D Adjustment

Selects a level of 3D-image depth for viewing converted 2D images [Min] / [Mid] / [Max]

Adjustment of the 3D effect (except in [2D

Set to [On] to enable [Effect] setting.

•

When setting to [On], a safety precaution message will appear. Read it carefully and then press the

•

BACK/RETURN button to go to [Effect] setting.

[Effect] : Adjust the 3D depth according to the contents or to your preference.

3D] mode) [Off] / [On]

Picture Sequence

Edge Smoother

3D Detection

3D Signal Message

Safety Precautions

Note

[3D Adjustment] and [Picture Sequence] will not be memorized when changing the input mode or channel.

•

Select [Reverse] if you feel that the sense of depth is unusual (except in [2D

[Normal] / [Reverse]

Set to [On] if you feel the contoured parts of an image are not smooth enough (except in [2D mode) [Off] / [On]

Automatically detects the 3D format signals [Off] / [On] / [On (Advance)]

[On (Advance)] : Detects all the 3D format signals and displays the 3D image automatically. [On] : Detects the par ticular 3D format signals (Frame Sequential,

automatically.

T o view 3D images without any notifications and operations, set to [On (Advance)].

•

Selects whether to give a notification message when a signal of 3D format is found [Off] / [On]

F or DVB, Component and HDMI

•

T his function is not available when [3D Detection] is set to [On (Advance)].

•

D isplays the precautions for viewing 3D images

etc.) and displays the 3D image

3D] mode)

3D]

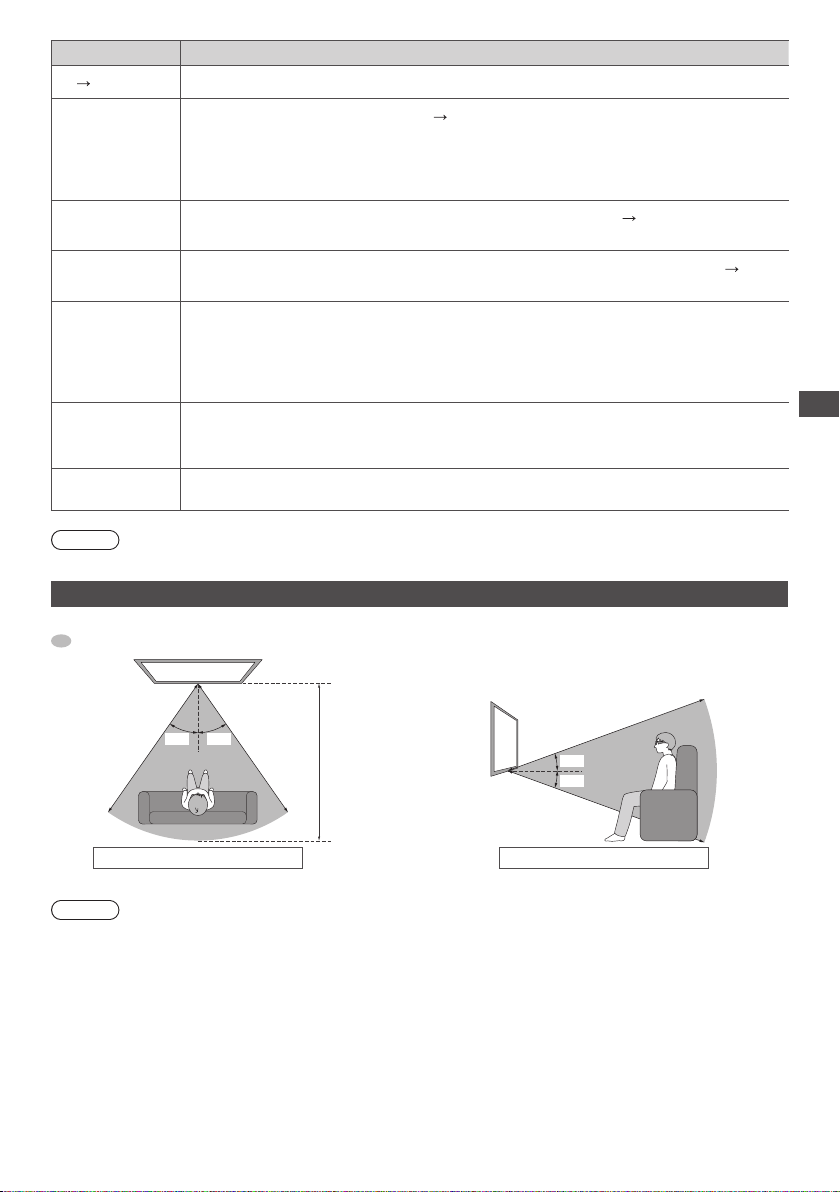

Available range for the 3D Eyewear

If the 3D Eyewear is placed outside the coverage area for about 5 minutes, the 3D Eyewear will be turned off automatically.

: Coverage area for using the 3D Eyewear

A pprox.

3 .2 m

A pprox.

35°35°

3 .2 m

A pprox. 3 .2 m

A pprox. 3.2 m

20° 20°

Viewing 3D images

Note

You cannot view the 3D images with the 3D Eyewear too far from the TV, because of the difficulty of receiving infrared signals

•

from the TV. T he range may be shortened depending on the obstacles between the infrared sensors on the TV and the 3D Eyewear, the

•

dirt on the infrared sensors or the surrounding environment. If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off automatically

•

even if in the coverage area.

View from the top

View from the side

Page 34

How to Use VIERA TOOLS

You can access some special features easily by using the VIERATOOLS function.

Display icons of the feature

Select a feature

■

To return to TV

EXIT

How to Use VIERA TOOLS

■ Follow the operations of each feature

[VIERA Link Control]

“VIERA Link Control” (p.89)

[Photo]

“Photo mode” (p.67)

[ Video]

“Video mode” (p.72)

When two or more compatible equipment are connected, a selection screen will be displayed. Please select the correct description and access.

∗

VIERA Link Control

∗

[Music]

“Music mode” (p.74)

[VIERA Connect]

“VIERA Connect” (p.17, 82)

select

access

∗

When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

Note

If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to

•

view the demonstration after selecting the unavailable feature.

Page 35

How to Use Menu Functions

V arious menus allow you to make settings for the picture, sound, and other functions.

Display the menu

Select the menu

Example : [Picture Menu]

D isplays the functions that can be set (varies according to the input signal)

•

Main Menu


Sound

imer

select

access

■

To return to T V at any time

EXIT

■

To return to the previous screen

BACK/

RETURN

■

To change menu pages

u p

d own

Select the item

Example : [Picture Menu]

V iewing Mode Dynamic

C ontrast Brightness C olour Sharpness T int C olour Balance V ivid Colour Eco Mode Of

Setup

Warm Off

1/2

5 0

■ Choose from among alternatives

C ool

C olour Balance

N ormal

Warm

■ Adjust using the slide bar

Sharpness

M oved

■ Go to the next screen

C hild Lock Access

D isplays the next screen

■ Enter characters by free input menu

You can enter names or numbers freely for some items.

User input

N ame

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : # a b c d e f g h i j k l m n o p q r s t u v w x y z ( ) + - . * _

You can set characters by using numeric buttons.

•

 “Characters table for numeric buttons” (p.101)

Set characters one by one

select

■ To reset the settings

T o reset the picture settings only

•

 [Reset to Defaults] in the Picture Menu (p.38)

T o reset the sound settings only

•

 [Reset to Defaults] in the Sound Menu (p.40)

T o initialise all settings

•

 [Shipping Condition] in the Setup Menu (p.44)

set

select

access

select

store

change

store

access

How to Use Menu Functions

Store

BACK/

RETURN

Page 36

How to Use Menu Functions

Menu list

Viewing Mode


Contrast, Brightness, Colour, Sharpness

Item Adjustments / Configurations (alternatives)

B asic picture mode [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] / [Photo] I n each Viewing Mode and input, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted and stored to suit your particular viewing requirement.

Set for each input signal.

•

[Dynamic] :

Provides enhanced picture contrast and sharpness when viewing in a bright room.

[Normal] :

R ecommended for viewing under normal ambient room lighting conditions.

[Cinema] :

F or watching movies in a darkened room with the improved performance of contrast, black and colour reproduction

[True Cinema] :

Precisely reproduces the original quality of the image without any revision.

[Game] :

F ast response signal specifically to provide suitable images for playing games

N ot valid on TV mode

•

A continuous record of time spent using Game mode can be displayed in the top

•

right of the screen. [Playing Time Display](p.44)

[Photo] :

Set [Reversal Film Effect] to [On] to provide the suitable image quality for photos

F or HDMI input, Media Player and VIERA Connect

•

I ncreases or decreases the levels of these options according to your personal preference

With an NTSC signal source connected to the TV, the picture hue can be adjust

Tint

Colour Balance

Vivid Colour Automatically adjusts colours to vivid ones [Off] / [On]

Colour Remaster

Reversal Film Effect

Eco Mode

suit your taste

F or NTSC signal reception only

•

Allows you to set the overall colour tone of the picture [Cool] / [Normal] / [Warm]

N ot valid when [Viewing Mode] is set to [True Cinema].

•

D isplays the vivid images with the expanded colour gamut [Off] / [On] / [Auto]

F or HDMI input mode or video contents in Media Player (p. 72)

•

N ot valid when [Viewing Mode] is set to [True Cinema] or [Photo].

•

Set to [Auto] to use this function effectively.

•

Provides the picture effect such as the reversal film [Off] / [On]

T his function is available when [Viewing Mode] is set to [Photo].

•

Automatic Brightness Control function Adjusts picture settings automatically dependent on ambient lighting conditions

[Off] / [On]

ed to

Page 37

Item Adjustments / Configurations (alternatives)

P-NR

3D-COMB

3D Settings Adjusts and sets to view 3D images (p.32)

Screen Display

Intelligent Frame


Creation

24p Smooth Film

Advanced Settings

P icture Noise Reduction Automatically reduces unwanted picture noise and flicker noise in the contoured parts of a picture [Off] / [Min] / [Mid] / [Max]

M akes still or slow moving pictures look more vivid [Off] / [On]

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be

•

seen. Set to [On] to display sharper and more accurate colours. F or PAL or NTSC signal reception only

•

N ot valid on 3D, RGB, Component, HDMI and Media Player

•

Turns the screen off when you select [Off ]

[Off] / [On]

T he sound is active even if the screen turns off.

•

Press any buttons (except Standby) to turn the screen on.

•

T his function is effective in reducing power consumption when listening to the sound

•

without watching the TV screen.

Automatically compensates the picture frame rate and removes juddering movements to make the images smooth [Off] / [Mid] / [Max]

D epending on the contents, images may be noisy. To prevent the noise, change the

•

setting. T his function is not available for selection (default to [Off]) when [Viewing Mode] is

•

set to [Game] or in the mode of VIERA Connect.

Automatically compensates the picture frame rate to make the 24p sour images smooth [Off] / [Mid] / [Max]

T his is available only for 24p signal input and displayed instead of [Intelligent Frame

•

Creation]. T his function is not available for selection (default to [Off]) when [Viewing Mode] is

•

set to [Game] or in the mode of VIERA Connect.

How to Use Menu Functions

ce movie

Film Cadence Detection

3D Refresh Rate

Resolution Enhancer

Side Panel

Automatically makes the film source movie images clear [

T his function is available for the interlaced signal (except when [Viewing Mode] is set

•

to [Game]).

R educes juddering and flicker noises of the 3D images [Auto] / [100Hz]

If the room is lit by fluorescent lights / dimmers (50 Hz) and light appears to flicker

•

when using the 3D Eyewear, set to [100Hz].

E nhances the picture resolution to make the image sharper [Off] / [Mid] / [Max]

T his function is available for SD (Standard definition) signal.

•

A s for HD (High definition) signal, this function is available when aspect mode is set

•

to [16:9] ([16:9 Overscan] is set to [On]), [4:3 Full] or [Zoom]. N ot valid on Media Player and VIERA Connect

•

I ncreases the brightness of the side panel [Off] / [Low] / [Mid] / [High]

T he recommended setting is [High] to prevent panel “image retention”.

•

Off] / [On]

Page 38

How to Use Menu Functions

Advanced Settings


Reset to Defaults

Mode

Sound

Bass I ncreases or decreases level to enhance or minimise lower, deeper sound output

Treble I ncreases or decreases level to enhance or minimise sharper, higher sound output

Item Adjustments / Configurations (alternatives)

Selects the screen area displaying the image [Off] / [On] [On] :

E nlarged the image to hide the edge of the image.

[Off] :

16:9 Overscan

AV Colour System

DVI Input Setting

Pixel Orbiter

crolling Bar

D isplayed the image in the original size. Set to [On] if noise is generated on the edge of the screen.

•

T his function is available when aspect is set to [Auto] (16:9 signal only) or [16:9].

•

T his function can be memorized separately for SD (Standard definition) and HD (High

•

definition) signals. N ot valid on VIERA Connect

•

Selects optional colour system based on video signals in AV mode

[Auto] / [PAL] / [SECAM] / [M.NTSC] / [NTSC]

C hanges the black level in the image for HDMI input mode with DVI input signal manually [Normal] / [F

When the DVI input signal from the external equipment, especially from PC, is

•

displayed, the black level may not be suitable. In this case, select [Full]. T he black level for HDMI input signal will be adjusted automatically.

•

F or HDMI input mode with DVI input signal only

•

Selects the mode for wobbling of the image to prevent panel “image retention”

[Auto] / [On] [Auto] :

Automatically works only for the appropriate images and you rarely recognise the wobbling.

Scrolls the vertical bar to prevent panel “image retention”

Press the OK button to start scrolling and press any buttons (except Standby) to exit

•

this mode.

Press the OK button to reset the present Picture Viewing Mode of the selected input to the default settings

Selects the basic sound mode [Music] / [Speech] / [User]

T he selected mode affects all input signals.

•

[Music] :

Improves sound quality for watching music videos, etc.

[Speech] :

Improves sound quality for watching news, drama, etc. I n Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those

•

settings will be stored for each mode.

[User] :

Adjusts the sounds manually by using the equaliser to suit your favourite sound quality. F or the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and

•

[Treble]. Select the [Equaliser] and adjust the frequency. [Equaliser] (p. 39)

ull]

Page 39

Equaliser

Balance Adjusts volume level of right and left speakers

Headphone

Surround

Auto Gain Control

Volume Correction Adjusts the volume of individual channel or input mode

Sound

Speaker Distance to Wall

MPX

Audio Preference

Item Adjustments / Configurations (alternatives)

Adjusts the frequency level to suit your favourite sound quality

T his function is available when [Mode] is set to [User].

•

Select the frequency and change the frequency level by using the cursor button.

•

If you want to enhance the bass sound, raise the level of the lower frequency. If you

•

want to enhance the treble sound, raise the level of the higher frequency. T o reset the levels of each frequency to the default settings, select the [Reset to

•

Defaults] by using the cursor button, and then press the OK button.

Volume Adjusts the volume of the headphones

Surround sound settings [Off] / [V-Audio] / [V-Audio Surround] [V-Audio] :

Provides a dynamic enhancer of width to simulate improved spatial effects

[V-Audio Surround] :

Provides a dynamic enhancer of width and depth to simulate improved spatial effects

Adjusts the current volume level if it is extremely different from the previous viewed channel or input mode [

Adjusts the low frequency sound [Over 30cm] / [Up to 30cm]

If the back space between the TV and wall is over 30 cm, [Over 30cm] is

•

recommended. If the back space between the TV and wall is within 30 cm, [Up to 30cm] is

•

recommended.

Selects multiplex sound mode (if available)

[Stereo] : Use this normally [Mono] : When stereo signal cannot be received [M1] / [M2] : Available while mono signal is transmitt

A nalogue mode only

•

Selects the initial setting for audio tracks [Auto] / [Multichannel] / [Stereo] / [MPEG]

Selectable options vary depending on the country you select.

•

[Auto] : Automatically selects the audio tracks if programme has more than two tracks.

The priority is given in the following order - Dolby Digital Plus, HE-AAC, Dolby Digital, MPEG.

[Multichannel] : T he priority is given to multi-channel audio track. [Stereo] : T he priority is given to stereo (2ch) audio track. [MPEG] : T he priority is given to MPEG.

D olby Digital Plus and Dolby Digital are the methods of coding digital signals

•

developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio. HE-AAC is a perceptual coding method used to compress digital audio for efficient

•

storage and transmission. MPEG is an audio compression method that compresses audio to the smaller size

•

without any considerable loss of audio quality. D olby Digital Plus and HE-AAC are the technologies for HD (High definition)

•

programmes. DVB mode only

•

Off] / [On]

How to Use Menu Functions

Page 40

How to Use Menu Functions

SPDIF Selection

Sound

HDMI1 / 2 / 3 / 4 Input

SPDIF Delay

Reset to Defaults

Timer Programming

Off Timer

Timer

Auto Standby

Eco Navigation

Setup

Link Settings

Item Adjustments / Configurations (alternatives)

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM]

[Auto] : D olby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output

as Dolby Digital Bitstream. MPEG is output as PCM.

[PCM]

: Digital output signal is fixed to PCM.

F or DVB mode, VIERA Connect (p. 17, 82) or Video mode of Media Player (p.72)

•

ARC (Audio Return Channel) : A function of digital audio output using HDMI cable

•

Select to fit the input signal [Digital] / [Analogue] (p.99)

[Digital] : HDMI cable connection [Analogue] : HDMI-DVI adaptor cable connection

HDMI input mode only

•

Adjusts the delay time of the sound output from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals if the sound does not synchronize the image

DVB mode only

•

Press the OK button to reset the present Sound Mode, [Balance], [Headphone Volume] and [Surround] to the default settings

Sets a timer to remind watching or record forthcoming programmes (p.56)

DVB mode only

•

Sets the time until the TV automatically goes to Standby mode [Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p.20)

Sets the time the TV automatically goes to Standby mode when no operation is performed for the selected times [

Starting Timer Programming automatically does not affect this function.

•

Automatic input switching with the connected equipment affects this function and

•

time-count will be reset. T he notification message will appear 3 minutes before going to Standby mode.

•

Automatically sets the TV to the most suitable energy-saving mode

If you press the OK button, the following items are set as below :

•

[Eco Mode], [VIERA Link], [Power off Link], [Standby Power Save], [Power Save] [On] [Intelligent Auto Standby] [On (No reminder)] [Auto Standby] [2 hours]

VIERA Link Sets to use VIERA Link functions [Off ] / [On] (p.86)

Adjusts the picture settings according to the content type signal from the connected

equipment via HDMI cable [Off] / [Auto]

HDMI Content Type

AV1 out

Power on Link Sets to use Power on Link function [Off ] / [On] (p.85,86)

Power off Link Sets to use Power off Link function [Off] / [On] (p.85,86)

T his function is available if the connected equipment supports HDMI Content Type.

•

T he content type information will be displayed for several seconds when this function

•

works.

C hooses the signal to be transmitted from the TV to Q-Link [TV] / [AV2] / [Monitor] [Monitor] : Image displayed on screen

C omponent and HDMI signals cannot be output.

•

Off] / [2] / [4] (hours)

Page 41

Item Adjustments / Configurations (alternatives)

Standby Power Save

Link Settings

Intelligent Auto Standby

C ontrols the power consumption in Standby mode of the connected equipment to reduce the consumption [Off] / [On] (p.87)

T his function is available when [VIERA Link] is set to [On] and [Power off Link] is set

•

to [On].

M akes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption

Off] / [On (With reminder)] / [On (No reminder)] (p.87)

[

T his function is available when [VIERA Link] is set to [On].

•

Download

Child Lock L ocks a channel / AV input to prevent access to it (p.59)

Favourites Edit Creates list of favourite DVB-S channels (p.50)

Channel List Skips the unwanted DVB-S channels or edits DVB-S channels (p.51)

D ownloads channel, language, country / region settings to a Q-Link or VIERALink compatible equipment connected to the TV

DVB-S and DVB-C channel settings cannot be downloaded.

•

Setup

Auto Setup Automatically sets the DVB-S channels received in the area (p.47)

Manual Tuning Sets the DVB-S channels manually (p.52)

Update Channel List U pdates DVB-S Channel List while keeping your settings (p.53)

DVB-S Tuning Menu

New Channel Message

Signal Condition C hecks the DVB-S signal condition (p.53)

Antenna System

LNB Configuration Selects the satellite for each LNB (p.47)

Add TV Signal

Selects whether to give a notification message when a new DVB-S channel is found [Off] / [On] (p.53)

Sets the ant [One LNB] / [MiniDiSEqC] / [DiSEqC1.0] / [Single Cable] (p.46)

•

Adds the TV mode

•

enna system to use plural LNBs for receiving several satellites

T his TV supports DiSEqC Version 1.0.

T his function is available if you skip any modes to tune in [Auto Setup] for first using the TV. T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).

How to Use Menu Functions

Page 42

How to Use Menu Functions

Setup

Item Adjustments / Configurations (alternatives)

Favourites Edit Creates list of favourite DVB-C channels (p.50)

Channel List Skips the unwanted DVB-C channels or edits DVB-C channels (p.51)

Auto Setup Automatically sets the DVB-C channels supplied (p.48)

Manual Tuning Sets the DVB-C channels manually (p.52)

Update Channel List U pdates DVB-C Channel List while keeping your settings (p.53)

DVB-C Tuning Menu

avourite Network Selects your favourite network for each broadcasters (only available in some countries)

New Channel Message

Service Replacement

Signal Condition C hecks the DVB-C signal condition (p.53)

Attenuator Automatically reduces the DVB-

Add TV Signal

Favourites Edit Creates list of favourite DVB-T channels (p.50)

Channel List Skips the unwanted DVB-T channels or edits DVB-T channels (p.51)

Auto Setup Automatically sets the DVB-T channels received in the area (p.49)

Manual Tuning Sets the DVB-T channels manually (p.52)

DVB-T Tuning Menu

Update Channel List U pdates DVB-T Channel List while keeping your settings (p.53)

avourite Network Selects your favourite network for each broadcasters (only available in some countries)

New Channel Message

Signal Condition C hecks the DVB-T signal condition (p.53)

Add TV Signal

Selects whether to give a notification message when a new DVB-C channel is found

Off] / [On] (p.53)

[

Set to [On] to enable a message to switch to the available service (only available in some countries) [Off] / [On]

C signal to avoid the interference [Off] / [On] (p.53)

Adds the TV mode

T his function is available if you skip any modes to tune in [Auto Setup] for first using

•

the TV. T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).

•

Selects whether to give a notification message when a new DVB- [Off] / [On] (p.53)

Adds the TV mode

T his function is available if you skip any modes to tune in [Auto Setup] for first using

•

the TV. T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).

•

T channel is found

Page 43

Setup

Item Adjustments / Configurations (alternatives)

Analogue Tuning Menu

Channel List Skips the unwanted Analogue channels or edits Analogue channels (p.54)

Auto Setup Automatically sets the Analogue channels received in the area (p.49)

Manual Tuning Sets the Analogue channels manually (p.55)

Adds the TV

Add TV Signal

•

OSD Language C hanges language for on screen displays

Language

Preferred Audio 1 / 2

Preferred Subtitles 1 / 2

Preferred Teletext Selects the preferred language for DVB teletext service (depending on the broadcaster)

Preferred Subtitle Typ e

Selects the first and second preferred language for DVB multi audio (depending on the broadcaster)

Selects the first and second preferred language for DVB subtitles (depending on the broadcast

•

Selects the preferred subtitle type [Standard] / [Hard of Hearing]

•

Teletext T eletext display mode [TOP (FLOF)] / [List] (p.25)

Teletext Character

Display Settings

Set

Default Guide

Input Labels L abels or skips each input terminal (p.61)

Banner Display Timeout

Selects teletext language font [West] / [East1] / [East2] [West] : English, French, German, Greek, Italian, Spanish, Swedish, T

[East1] : Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc. [East2] : Czech, Hungarian, Lettish, Polish, Rumanian, etc.

Selects the default TV Guide type when the GUIDE button is pressed (only available in

some countries) [ [TV Guide] :

[Channel List] :

Sets how long the Information banner (p.19) stays on screen

[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)

mode T his function is available if you skip any modes to tune in [Auto Setup] for first using the TV. T o operate, refer to the “Au to Setup” operations for first using the TV (p.13,14).

er)

T o display subtitles (p.19)

[Hard of Hearing] provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster). [Preferred Subtitles 1 / 2] in [Language] are given priority.

urkish, etc.

TV Guide] / [Channel List]

Electronic Programme Guide (EPG) is available.

T o use EPG (p.22)

•

EPG is not available and the channel list will appear instead of it.

How to Use Menu Functions

Page 44

Item Adjustments / Configurations (alternatives)

How to Use Menu Functions

VIERA Connect Banner

Display Settings

Playing Time Display

Radio Mode

Common Interface U ses include to watch encrypted channels (p.62)

Network Setup Sets the network setting to use in your network environment (p.77)

Sets the VIERA Connect introduction banner display [Off] / [On] (p. 17, 18)

Set to [On] to display a continuous record of time spent using Game mode every 30 minutes [Off] / [On]

T his function is available when [Game] is selected in [Viewing Mode] (p.36)

•

Sets the timer for turning off the screen automatically when a radio channel is selected

[Off] / [5] / [10] / [15] / [20] (seconds)

T he sound is active even if the screen turns off.

•

Press any buttons except Standby, Volume Up / Down and Sound Mute buttons to

•

turn the screen on. T his function is effective in reducing power consumption when listening to a radio

•

channel. DVB mode only

•

Setup

DivX® VOD D isplays DivX VOD registration code (p.97)

USB Keyboard Layout

System Menu

Shipping Condition R esets all settings, for example, when moving house (p.63)

System Update D ownloads new software to this TV (p.64)

Selects the language that your USB Keyboard supports

F or the information of using USB Keyboard (p.100)

•

Software Licence D isplays the software licence information

System Information D isplays the syst

Other Settings

GUIDE Plus+ Settings

Update

Postcode Sets your postcode to display advertisements in the GUIDE Plus+ system (p.23)

System Information

P erforms the update of the GUIDE Plus+ schedule and advertising information for the GUIDE Plus+ system (p.23)

D isplays the syst

em information of this TV

em information of the GUIDE Plus+ system

Page 45

Item Adjustments / Configurations (alternatives)

Automatically selects the input when the TV is turned on [TV] / [AV] Set to [TV] to view picture from TV tuner.

Power on Preference

Set to [AV] to view input from an external equipment connected to the AV1 or HDMI1 terminal, e.g. set top box.

T he external equipment must be switched on and sending a control signal for

•

automatic switching at power on to occur.

Other Settings

Setup

A different menu will be displayed in the mode of Media Player (p. 66 - 75) or VIERA Connect (p. 17,82).

•

O nly available items can be selected.

•

USB Charge in Standby

Power Save Reduces brightness of picture to economise on power consumption [Off] / [On]

Time Zone

Exchange Channel List

Enables to supply the power from the USB terminal in Standby mode [

Available for charging 3D Eyewear (optional)

•

T his function is available when in Standby mode.

•

Adjusts the time data

T he time data will be corrected based on GMT.

•

Set to [Auto] to adjust the time automatically according to your area.

•

Exports / Imports DVB-S Channel List settings using the SD Card to share the same settings with VIERA which has the same function

Off] / [On]

How to Use Menu Functions

Page 46

Retuning from Setup Menu

Automatically retune the channels received in the area.

T his function is available if channel tuning is already performed.

•

O nly the selected mode is retuned.

•

All the previous tuning settings are erased.

•

If Child Lock PIN number (p. 59) has been set, the PIN number is required.

•

If tuning has not been done completely [Manual Tuning] (p. 52, 55)

•

DVB-S channels

Select DVB-S

(p.18)

Display the menu

Select [Setup]

■

To return to TV

EXIT

Main Menu


Sound

Timer

select

access

Retuning from Setup Menu

For Auto Setup, using the buttons on the side panel of the TV (p. 10)

Press repeatedly until

[Auto Setup] appears

Access [Auto Setup]

Set the satellite, search

mode and scan mode

( select the item)

(set) (store)

Start [Auto Setup]

To return to TV

•

Select [DVB-S Tuning Menu]

DVB-S Tuning Menu Access

Set [Antenna System] and [LNB Configuration]

DVB-S Tuning Menu

A ntenna System DiSEqC1.0 LNB Configuration Access

Setup

select

access

1 Select [Antenna System] and set

You can receive several satellites if you have DiSEqC control antenna system.

DVB-S Tuning Menu

A ntenna System DiSEqC1.0

[One LNB] : compatible with single LNB [MiniDiSEqC] : up to 2 LNBs can be controlled [DiSEqC1.0] : up to 4 LNBs can be controlled [Single Cable] : When using the Single Cable router, up to 8 user bands are available.

select

access / store

T his TV supports DiSEqC Version 1.0.

•

Page 47

2 Select [LNB Configuration]

DVB-S Tuning Menu

LNB Configuration Access

select

access

3 Set [LNB] and [Satellite]

Set [LNB] first, then set [Satellite] for the selected LNB.

LNB Configuration

Signal Quality Signal Strength

LNB

requency

LNB Low Band F LNB High Band Frequency

Satellit

Test Transponder F

requency

010 010

AA 9750 MHz 10600 MHz Astra 19.2° E 10744 MHz

select

set

[LNB] :

If you set to “One LNB”

•

not selectable If you set to “MiniDiSEqC” or “Single Cable”

•

select between LNB AA and AB If you set to “DiSEqC1.0”

•

select between LNB AA, AB, BA and BB

[Satellite] :

Select [No Satellite] if you do not know the connected satellite (available satellite will be searched in Auto Setup).

•

Select [User defined] to set [Test Transponder Frequency] manually.

•

If you set to [Single Cable], additional settings are required. Set [User Band], [User Band Frequency] and [PIN]

•

(depending on the Single Cable router you use). F or details, read the manual of the Single Cable router.

4 Store

BACK/

RETURN

■ Selectable satellites and dish alignment to tune DVB-S channels :

•

Express at 53° East

•

I ntelsat at 45° East

•

Turk sat at 42° East

•

Express at 40° East

•

H ellas at 39° East

•

Eutelsat at 36° East

•

Eurobird at 33° East

•

A stra at 28.2° East

•

Arabsat at 26° East

•

Eurobird at 25.5° East

T o ensure your satellite dish is correctly installed, please consult your local dealer.

•

Also please consult the received satellite broadcasting companies for details.

•

Select [Auto Setup]

DVB-S Tuning Menu

Access Auto Setup

•

A stra at 23.5° East

•

Eutelsat at 21.5° East

•

A stra at 19.2° East

•

Eutelsat at 16° East

•

at 13° East

H ot Bird

•

Eutelsat at 10° East

•

Eurobird at 9° East

•

Eutelsat at 7° East

•

A stra at 4.8° East

•

T hor at 0.8° West / Intelsat at 1° West

select

access

Set the satellite, search mode and scan mode

DVB-S Auto Setup Settings

Satellite Search Mode Scan Mode

Start Auto Setup (Settings are made automatically)

DVB-S Auto Setup

All DVB-S tuning data will be erased

Start scan

Astra 19.2° E Free Channels Quick

select

access / store

After settings, select [Start scan].

•

DVB-S Auto Setup

Satellite Progress T his will take about 30 minutes.

N o. C hannel Name Type

CBBC Channel

BBC Radio Wales

Free TV: 3

When the operation is completed, the channel at the lowest position will be displayed.

•

Amos at 4° West

•

A tl. Bird at 5° West

•

A tl. Bird at 7° West

•

A tl. Bird at 8° West

•

A tl. Bird at 12.5° West

•

T elstar at 15° West

•

N SS at 22° West

•

I ntelsat at 24.5° West

•

H ispasat at 30° West

[Full] : scans the whole frequency range [Quick] : scans the suitable frequency for the

selected satellite

Astra 19.2° E

0% 100%

Pay TV: 0 Radio: 0

Searching

Free TV Free TV Free TV

Quality

100 100 100

Retuning from Setup Menu

Page 48

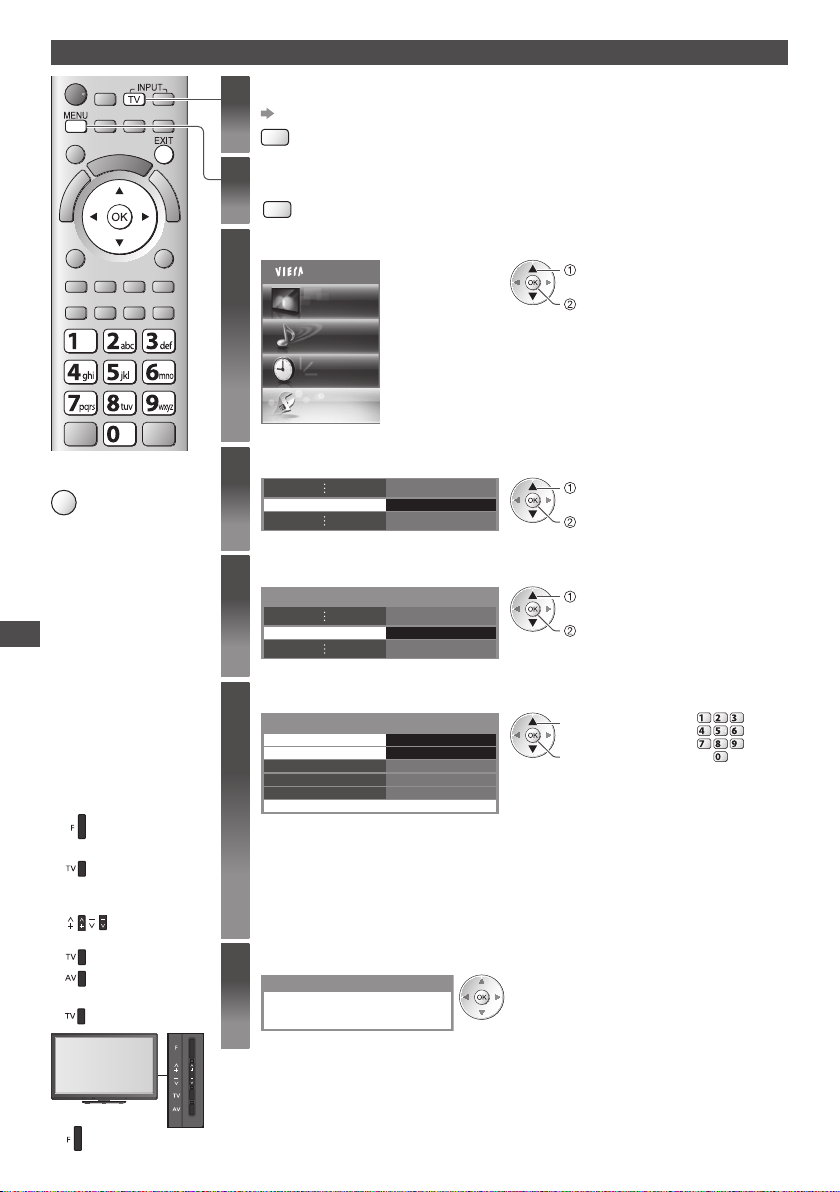

DVB-C channels

Select DVB-C

(p.18)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

■

To return to TV

EXIT

Retuning from Setup Menu

For Auto Setup, using the buttons on the side panel of the TV (p. 10)

Press repeatedly until

[Auto Setup] appears

Access [Auto Setup]

Set the search mode

and scan mode

( select the item)

(set) (store)

Start [Auto Setup]

Select [DVB-C Tuning Menu]

DVB-C Tuning Menu Access

Select [Auto Setup]

DVB-C Tuning Menu

Auto Setup Access

Set the Auto Setup settings

DVB-C Auto Setup Settings

Search Mode Free Channels Scan Mode

Frequency Symbol Rate N etwork ID

[ Scan Mode]

•

[Full] : scans the whole frequency range [Quick] : scans the suitable frequency in your country

N ormally set [Frequency], [Symbol Rate] and [Network ID] to [Auto].

•

If [Auto] is not displayed or if necessary, enter [Frequency], [Symbol Rate] and [Network ID] specified by your cable provider with numeric buttons.

Start Auto Setup (Settings are made automatically)

DVB-C Auto Setup

Setup

Quick Auto Auto Auto

Start scan

All DVB-C tuning data will be erased

select

access

select

access

select

access / store

After settings, select [Start scan].

•

When the operation is completed, the channel at the lowest position will be displayed.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

•

T o return to TV

Page 49

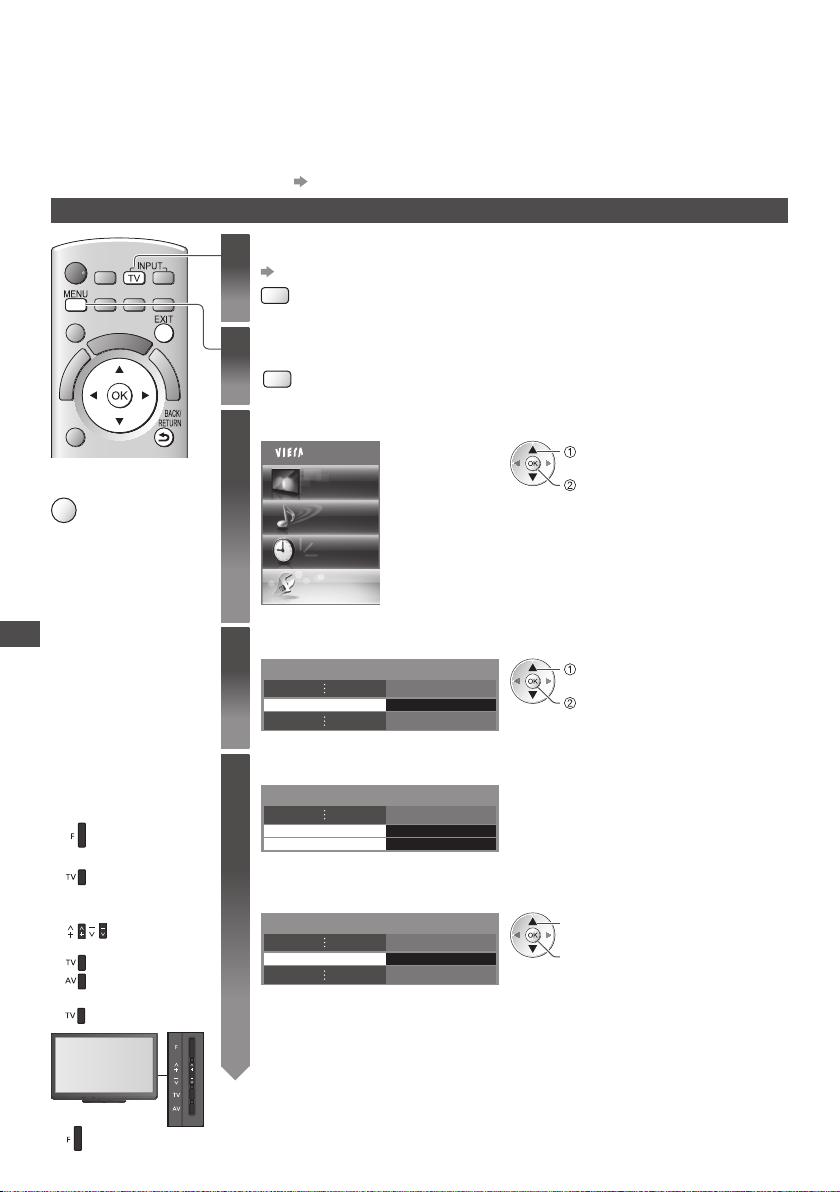

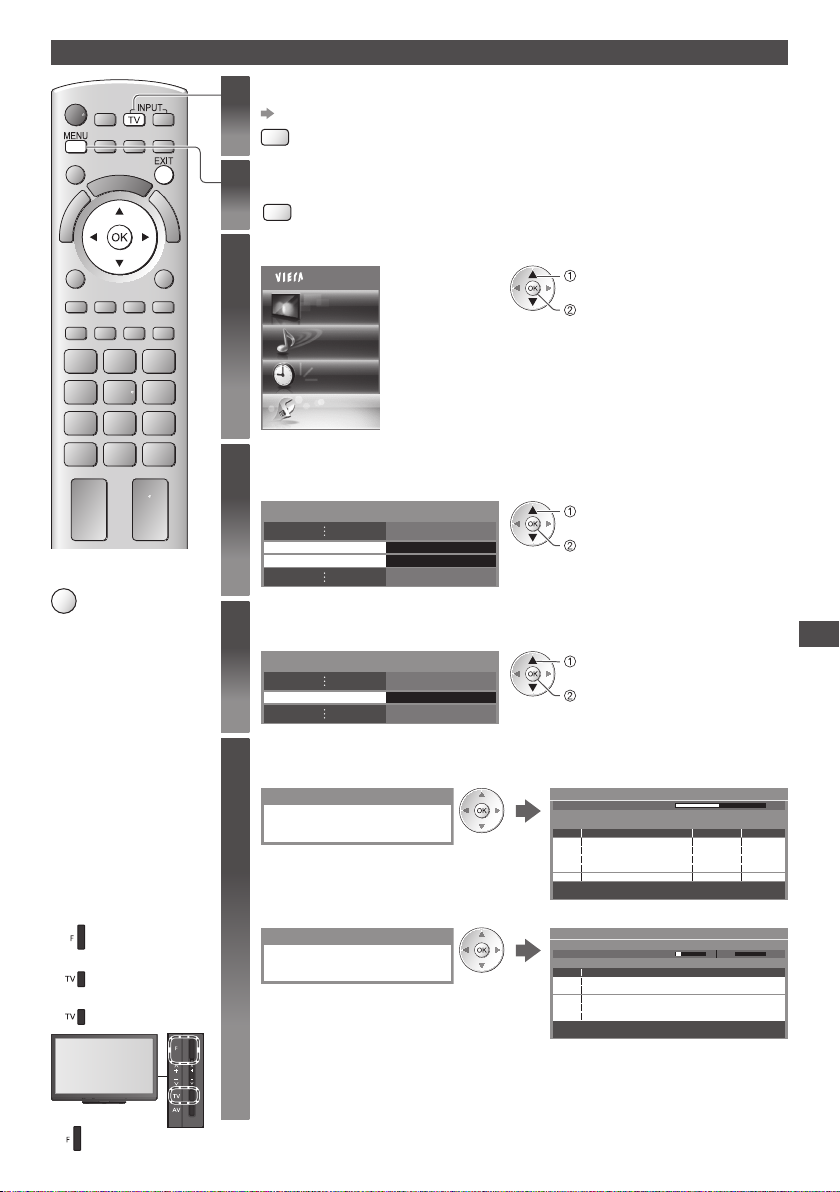

DVB-T or Analogue channels

Select DVB-T or Analogue

(p.18)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

■

To return to TV

EXIT

For Auto Setup, using the buttons on the side panel of the TV (p.10)

Press repeatedly until

[Auto Setup] appears

Access [Auto Setup]

Start [Auto Setup]

T o return to TV

•

Select [DVB-T Tuning Menu] or

Setup

[Analogue Tuning Menu]

select

DVB-T Tuning Menu Access A nalogue Tuning Menu Access

Select [Auto Setup]

Example :

DVB-T Tuning Menu

Auto Setup Access

Start Auto Setup (Settings are made automatically)

DVB-T :

DVB-T Auto Setup

All DVB-T tuning data will be erased

A nalogue :

Analogue Auto Setup

All analogue tuning data will be erased

T he channel, language, country / region settings are downloaded to a Q-Link or

•

VIERALink compatible equipment connected to the TV.

When the operation is completed, the channel at the lowest position will be displayed.

access

T he displayed item depends on the selected

•

mode.

select

access

DVB-T Auto Setup

Progress

T his will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 100Cartoon Nwk

Free TV: 4

Analogue Auto Setup

Scan T his will take about 3 minutes.

CH Channel Name

CH 29 CH 33 BBC1

A nalogue: 2

Pay T

V: 0

CH 5 69

100

Free TV

100

Free TV

100

Free TV Free TV

R adio: 0

Searching

CH 2 78 41CC 1

Searching

Retuning from Setup Menu

Quality

Page 50

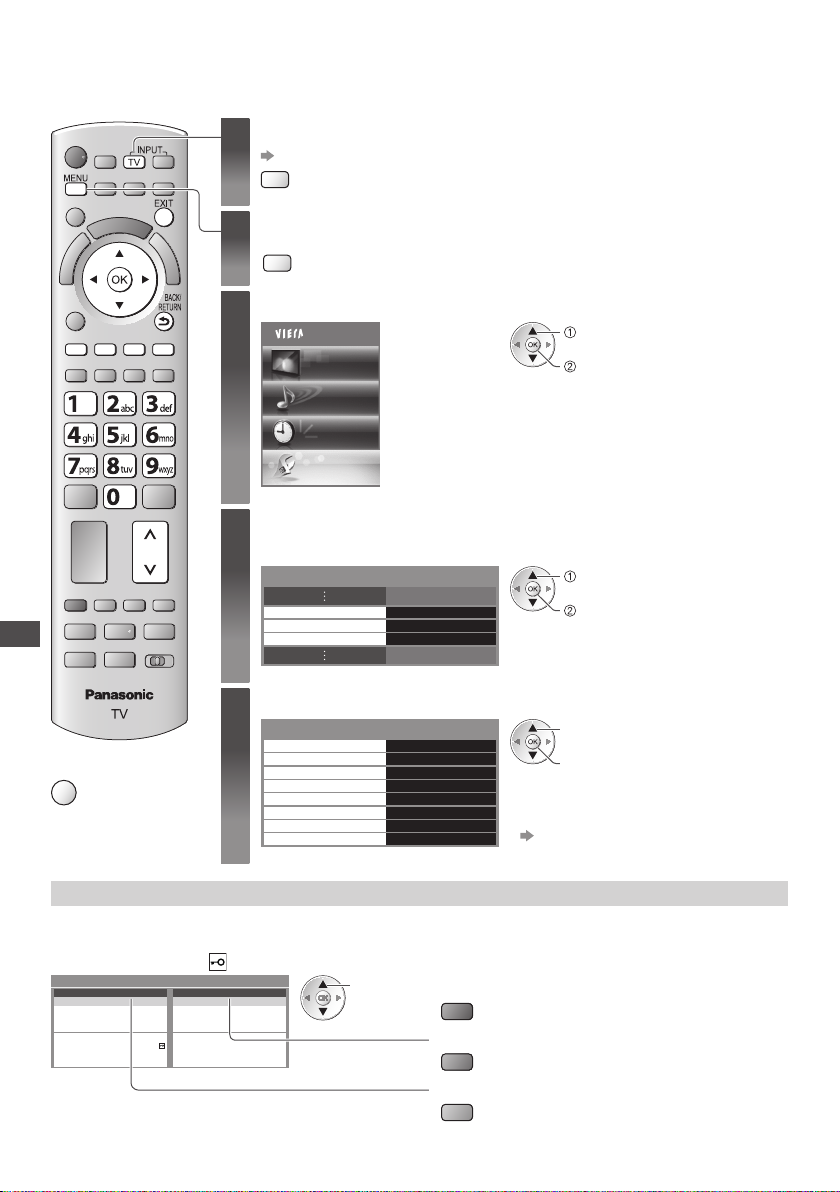

Tuning and Editing Channels (DVB)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select DVB-S, DVB-C or DVB-T

(p.18)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Select [DVB-S Tuning Menu], [DVB-C Tuning Menu] or

Setup

[DVB-T Tuning Menu]

select

cess DVB-S Tuning Menu

Access Access Access Access Access O n Access

Tuning and Editing Channels (DVB)

■

To return to TV

EXIT

DVB-C Tuning Menu Access DVB-T Tuning Menu Access

Select one of the following functions

DVB-C Tuning Menu

F avourites Edit C hannel List

tup

Auto Se M anual Tuning U pdate Channel List N ew Channel Message Signal Condition A ttenuator Off

List favourite DVB channels [Favourites Edit]

Create your favourite channel lists from various broadcasters (up to 4 : [Favourites]1 to 4). T he DVB Favourites lists are available from “Category” in the Information banner (p.19) and the T V Guide screen (p.22).

1 Select a channel to list ( : Encrypted channel)

DVB-C Favourites Editor

All DVB-C Channels F avourites1

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

Sorting 123...

select

T o sort channel names in alphabetical order

•

(red)

T o display other Favourites

•

(green)

T o change the category

•

(blue)

access

T he displayed item depends on the selected

•

mode.

select

access / store

T he function items vary depending on the

•

country you select (p.13). [Auto Setup]

•

 “Retuning from Setup Menu” (p.46 -49)

Page 51

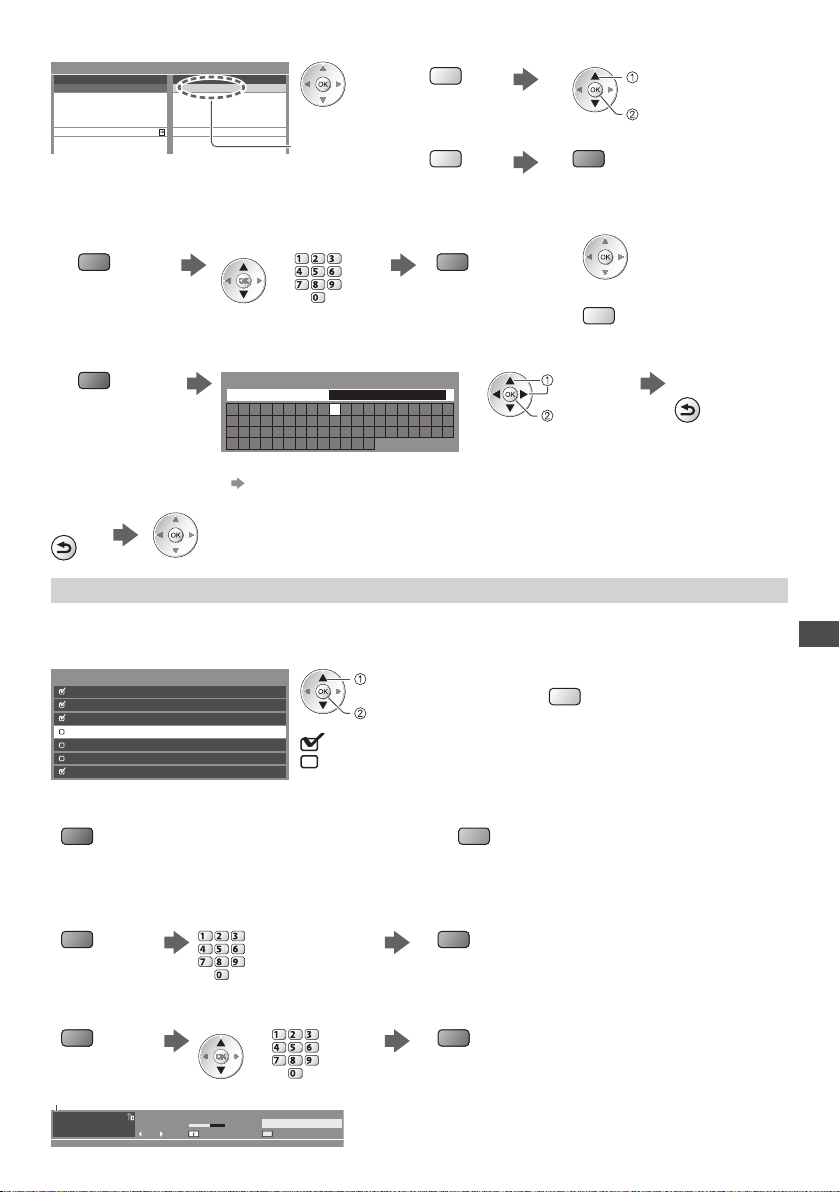

2 Add it to the Favourites list

DVB-C Favourites Editor

All DVB-C Channels F avourites1

1 BBC One Wales

7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

1 BBC One Wales

Sorting 123...

A channel is added

T o add continuous block of channels to the list at once

•

(yellow)

T o add all channels to the list

•

(yellow) (green)

make the block

add

■ To edit Favourites list

While the cursor is in the Favourites field to edit

T o move the channel

•

Select the new position Store

(green)

T o name the Favourites

•

Set characters (maximum : ten characters) Store

(red)

3 Store

BACK/

RETURN

User input

N ame

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : # a b c d e f g h i j k l m n o p q r s t u v w x y z ( ) + - . * _

T o use numeric buttons

•

 “Characters table for numeric buttons” (p.101)

abc def

jkl

ghi

mno

tuvpqrs

wxyz

(green)

T o delete the channel

•

T o delete all channels

•

select

set

(yellow)

Skip unwanted DVB channels, Edit DVB Channels [Channel List]

You can hide unwanted DVB channels. T he hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

All DVB-C Channels

70 CBBC Channel

72 Cartoon Nwk 105 BBCi

719 BBC Radio Wales

720 BBC Radio Cymru

1 BBC ONE Wales 7 BBC THREE

Sorting 123...

select

[Reveal] / [Hide]

: [Reveal]

: [Hide] (skip)

T o reveal all channels

•

(yellow)

■ To sort channel list

T o sort channel names in alphabetical order

•

(red)

T o change the category

•

(blue)

■ To edit channels

You can also edit each channel in Channel List.

T o swap the channel position (if available)

•

Enter the new position number Store

(green)

T o move the channel position (if available)

•

Select the new position Store

(green)

abc def

jkl

ghi

mno

tuvpqrs

wxyz

(green)

abc def

jkl

ghi

mno

tuvpqrs

wxyz

(green)

BACK/

RETURN

Tuning and Editing Channels (DVB)

C hannel position

BBC ONE WALES

Coronation Street 20:00 - 20:55 Now Info

All DVB-T Channels

C hange category

20:35

Page 52

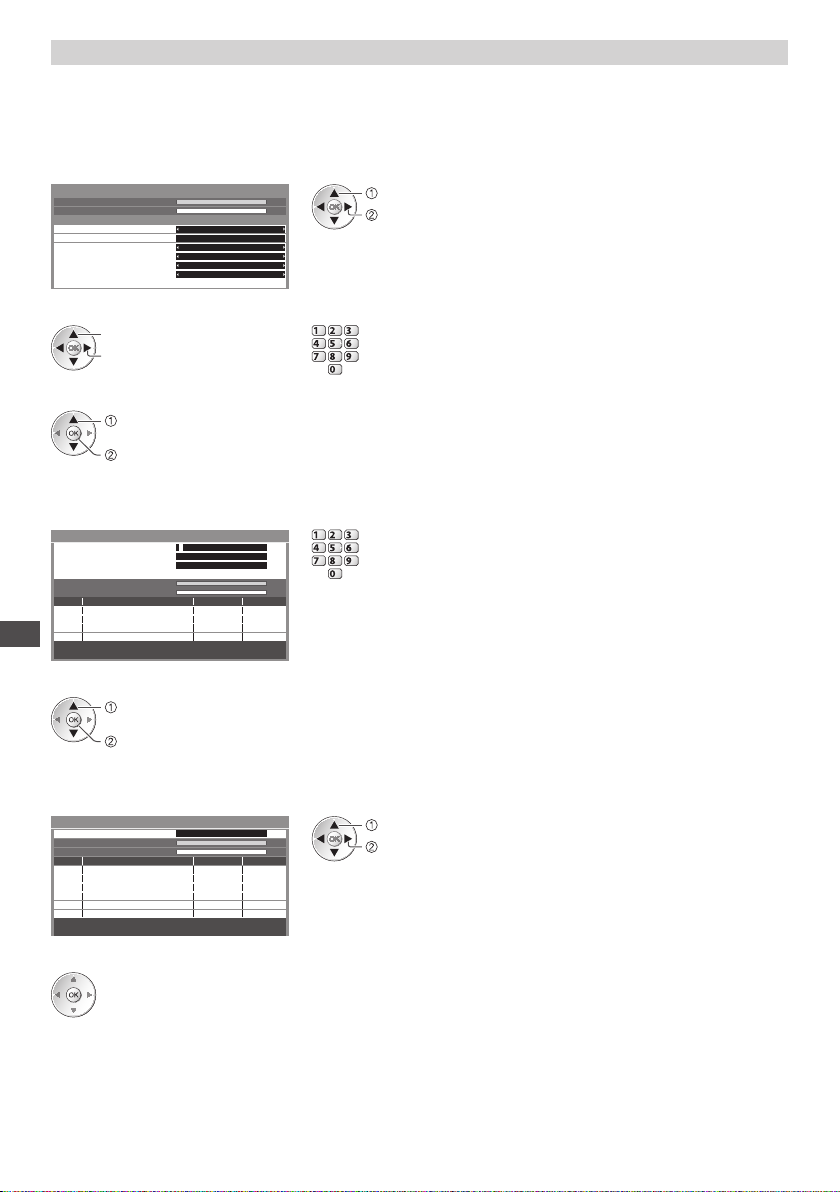

Set DVB channel manually [Manual Tuning]

N ormally use [Auto Setup] or [Update Channel List] to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial or dish, use this function.

All channels found will be added to the Channel List.

•

DVB-S :

1 Set the satellite

DVB-S Manual Tuning

Signal Quality Signal Strength

Satellite Transponder F

requency Symbol Rate Polar isation M odulation Service ID

Start scan

Astra 19.2° E 10847 MHz Auto H orizontal Auto Auto

100 % 100 %

select

set

Please consult the received satellite broadcasting companies for the setting.

•

2 Set [Transponder Frequency], [Symbol Rate], [Polarisation], [Modulation] and [Service ID]

select c hange

abc def

jkl

ghi

mno

tuvpqrs

wxyz

3 Select [Star t scan]

select

access

DVB-C :

1 Enter the frequency

DVB-C Manual Tuning

Frequency

Service ID Auto

Signal Quality Signal Strength

N o. C hannel Name Type N ew

Start scan

74,00 MHz4

Auto Symbol Rate

100 % 100 %

abc def

jkl

ghi

mno

tuvpqrs

wxyz

N ormally set [Symbol Rate] and [Service ID] to [Auto].

•

Tuning and Editing Channels (DVB)

Free TV: 0

Pay TV: 0 Radio: 0

opped

2 Select [Star t scan]

select

access

DVB-T :

1 Adjust frequency for each channel

DVB-T Manual Tuning

Frequency

Signal Quality Signal Strength

N o. C hannel Name Type N ew

Pay TV: 0 Radio: 0 Data: 0

Free TV: 0

[CH21]

Stopped

2 Search

474,00 MHz

100 100 %

•

select channel

adjust frequency

Set where the level of [Signal Quality] becomes the maximum.

Page 53

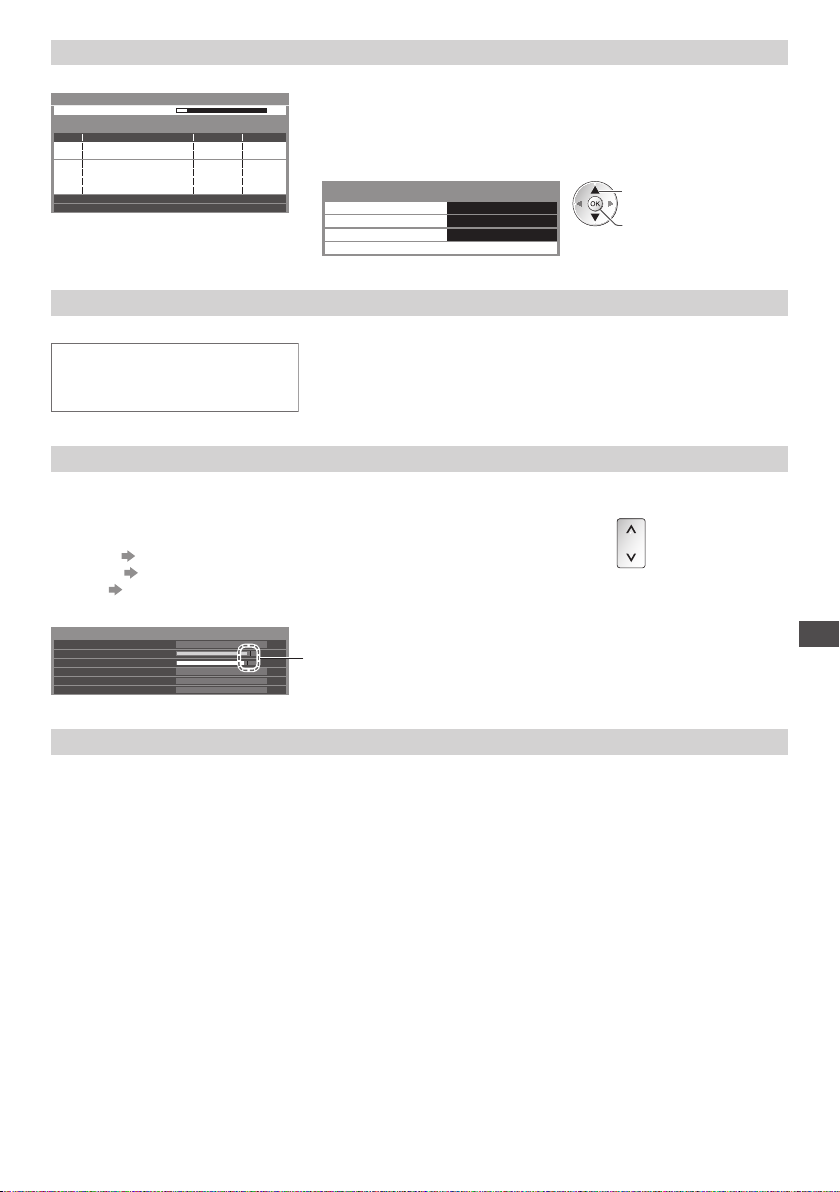

Update DVB channel automatically [Update Channel List]

You can add new channels, delete removed channels, update channel name and position automatically to Channel List.

DVB-T Update Channel List

Progress

T his will take about 3 minute

CH Channel Name Type Quality

Free TV: 0 Pay T V: 0 Radio: 0

CH 5 69

Searching

C hannel List is updated while keeping your settings in [Favourites Edit],

•

[Channel List], [Child Lock], etc. D epending on the signal condition, the update may not work properly.

•

T o update DVB-S channels, the satellite, search mode and scan mode settings

•

are required before updating.

DVB-S Update Channel List Settings

Satellite Search Mode Scan Mode

Start scan

Astra 19.2° E Free Channels Quick

select

access / store

After settings, select [Start scan].

•

Display a notification message [New Channel Message]

Selects whether to give a notification message when a new DVB channel is found. [Off] / [On]

New channel s foun d!

Press OK to upd ate channel list.

Press EXIT to ignore.

Selecting OK will perform [Update Channel List].

•

Check DVB signal [Signal Condition]

Selects a channel and checks the DVB signal condition. A good Signal Strength is not an indication of suitable signal for DVB reception.

Please use the Signal Quality indicator as follows :

[Signal Quality] :

Green bar Good

•

Yellow bar Poor

•

R ed bar Bad (Check the Terrestrial aerial, Satellite dish or cable)

•

Example :

DVB-C Signal Condition

C hannel Name Signal Quality Signal Strength B it Error Rate N etwork Name Parameter

70 CBBC Channel

0.00E+00 Wenvoe 802,00 MHz, 64 QAM, 6940 kS/s

9080%

T hese bars show the maximum signal value of the selected channel.

T o change the channel

•

Tuning and Editing Channels (DVB)

Reduce the DVB-C signal [Attenuator]

If the DVB-C signal is too strong, the interference may occur. In this case set to [On] to reduce the signal automatically.

T his function is available only for DVB-C signal.

•

Page 54

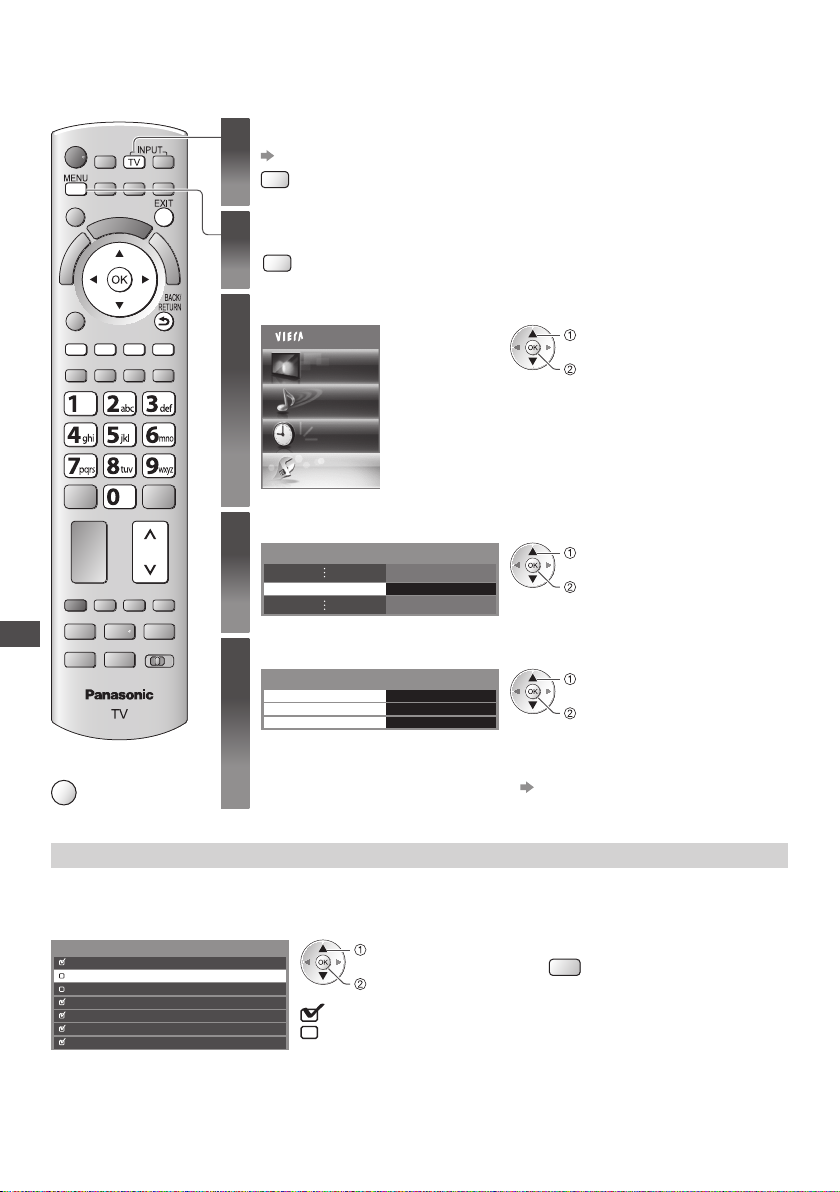

Tuning and Editing Channels (Analogue)

You can retune channels or skip unwanted channels, edit channels etc.

Select Analogue

(p.18)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Setup

select

access

Access

tup

Access Access

•

select

access

T he function items vary depending on the country you select (p.13). [Auto Setup]

 “Retuning from Setup Menu” (p.49)

Tuning and Editing Channels (Analogue)

■

To return to TV

EXIT

Select [Analogue Tuning Menu]

A nalogue Tuning Menu Access

Select one of the following functions

Analogue Tuning Menu

C hannel List Auto Se M anual Tuning

Skip unwanted Analogue channels, Edit Analogue channels [Channel List]

You can hide unwanted Analogue channels. T he hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

Analogue Channel List

1 BBC1

2 *****

3 ***** 4 ***** 5 ***** 6 ***** 7 *****

: [Reveal] : [Hide] (skip)

select

[Reveal] / [Hide]

T o reveal all channels

•

(yellow)

Page 55

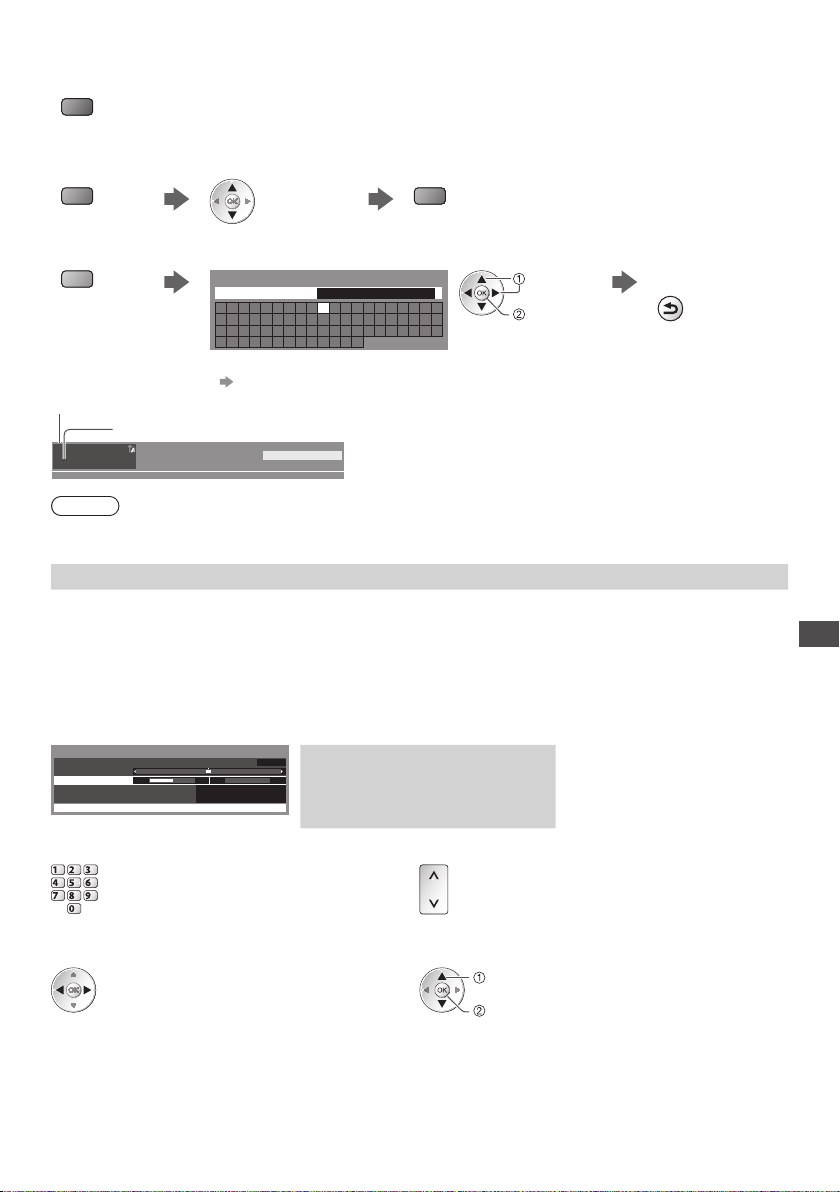

■ To edit channels

You can also edit each channel in Channel List.

T o retune each channel ([Manual Tuning])

•

(red)

( see below) T o move the channel position

•

Select the new position Store

(green)

T o rename the channel name

•

Set characters (maximum : five characters) Store

(blue)

Edit channel name

N ame

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

T o use numeric buttons

•

 “Characters table for numeric buttons” (p.101)

(green)

select

set

BACK/

RETURN

C hannel position

C hannel name

ITV

CH23 SC1

All Analogue Channels

23:35

Note

If a VCR is connected only with the RF cable, edit [VCR].

•

Set Analogue channel manually [Manual Tuning]

[Fine Tuning]

U se to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.)

[Manual Tuning]

Set Analogue channel manually after Auto Setup.

Set [Sound System] and [Colour System], and then perform this function.

•

N ormally set [Colour System] [Auto]. If a VCR is connected only with the RF cable, select channel position [0].

•

Analogue Manual Tuning

Fine Tu ning

M anual Tuning

Sound Syst C olour System

278 411

SC1 Auto

Store

CH331 BBC1

SC1 : PAL B, G, H / SECAM B, G SC2 : PAL I SC3 : PAL D, K / SECAM D, K F : SECAM L, L’

Tuning and Editing Channels (Analogue)

1 Select the channel position 2 Select the channel

abc def

jkl

ghi

mno

tuvpqrs

wxyz

3 Search 4 Select [Store]

select

store

Page 56

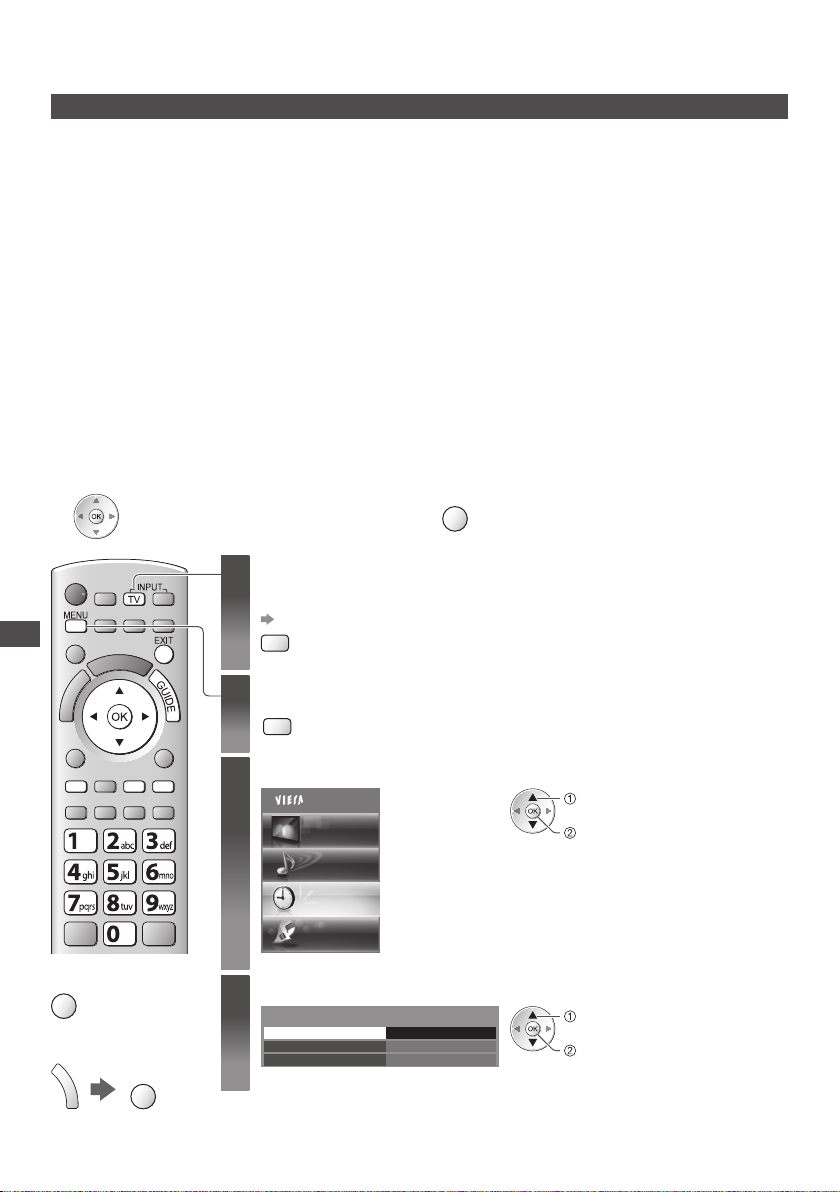

Timer Programming

Timer Programming from Menu

T he Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external recorder. At the correct time, the TV will tune to the correct channel even if the TV TV Guide may also be used to set timer programming event (p.24).

T his function is not available in Analogue mode.

•

T imer Programming can store up to 15 events.

•

T imer Programming only works reliably if correct time information is received via the signal from the broadcaster or service

•

provider. F or recording using Timer Programming, the T V must be either On or in standby. For reminders to be displayed, the TV must

•

be On. N o other channel can be selected while the recording of Timer Programming is in progress.

•

I t may not be possible to record an encrypted programme (which is copy-protected).

•

When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the

•

TV. If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p.85,86) and the [Link Settings] (p.40) are completed, no setting of the recorder is required. Also read the manual of the recorder. If the recorder is not compatible with Q-Link, VIERA Link or similar technologies, make timer programming of the recorder.

•

For preparations of a recorder, read the manual of the recorder. R ecordings to the external recorders are always in standard definition composite video via SCART, even if the original

•

programme is in high definition. 2 minutes before the starting time, a reminder message appears if you are watching TV.

•

T o remove the message and start the programming

Select the mode you want to set

•

T o cancel the programming

EXIT

(DVB-S, DVB-C or DVB-T)

(p.18)

Timer Programming

Display the menu

is in Standby mode.

■

To return to TV

EXIT

■

To unlock the tuner and stop recording

EXIT

Select [Timer]

Main Menu


Sound

Timer

Select [Timer Programming]

Off Timer Auto Standby

Setup

Access T imer Programming Of

Off

select

access

select

access

Page 57

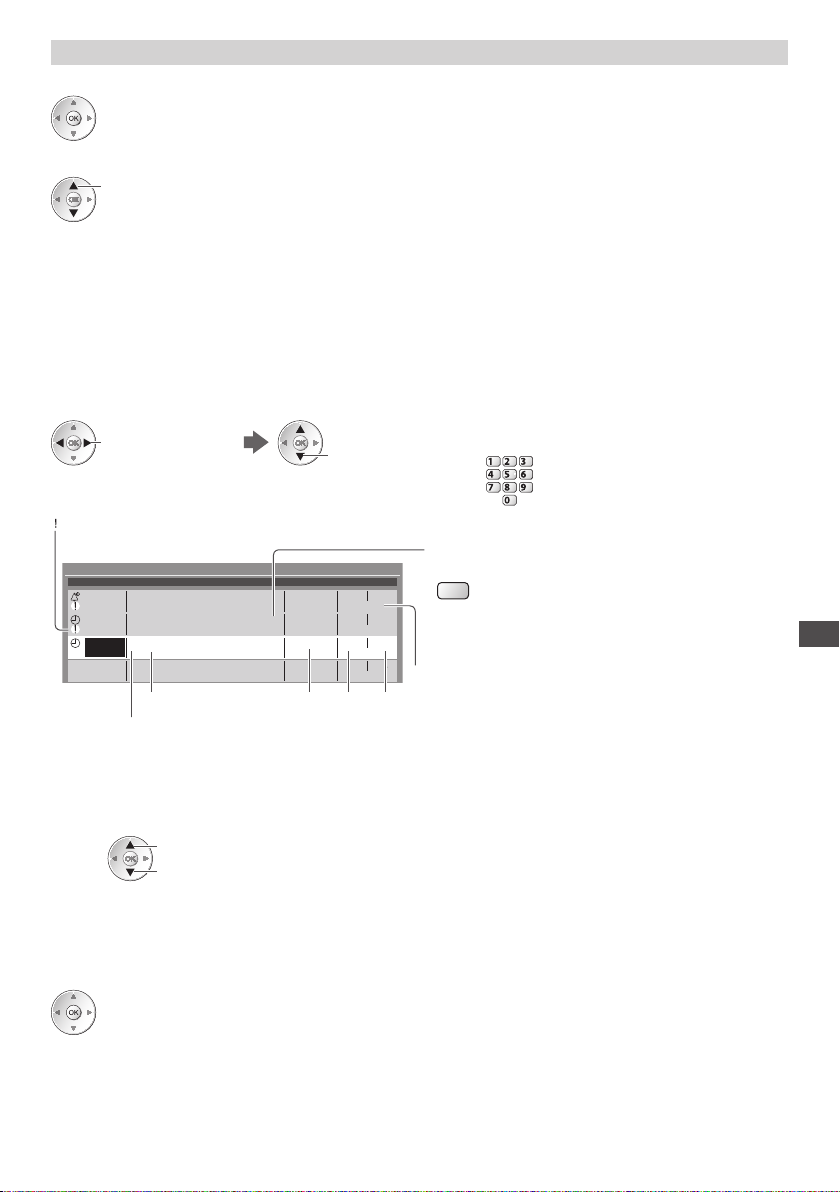

Set timer programming event details [Timer Programming]

Start making the settings

2 Select the function ([Ext Rec.] or [Reminder])

select

[Ext Rec.] :

to record the programme to the external recorder When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minute

s before the starting time, a reminder message appears if you are watching TV.

[Reminder] :

to remind you to watch the programme When you are watching TV, a reminder message appears 2 minute

s before the start time.

Press the OK button to switch to the programmed channel.

3 Set the channel, date and time (repeat the operations as below)

Set items in the order of 1 to 4.

select the item

: Displayed if the timer programming events are overlapped

Timer Programming

Function No. Date Start End Channel Name

Reminder

D 7 BBC7 17:00 18:30

Ext Rec.

<TIMER>

D 1 BBC1 STTL 18:00 20:00

<TIMER>

C 3 ITV1

<TIMER>

------

[ S] : DVB-S [C] : DVB-C [D] : DVB-T

You cannot change the mode within the menu.

•

Channel number

Date

one day ahead

d aily or weekly (press repeatedly)

[Daily Sun-Sat] : Sunday to Saturday

•

[Daily Mon-Sat] : Monday to Saturday

•

[Daily Mon-Fri] : Monday to Friday

•

[ Wee kly Sat/Fri/Thu/Wed/Tue/Mon/Sun] : Same time on the same day every week

•

set

R ecords with subtitles (if available)

•

(Press again to remove subtitles)

Duration (automatic display)

Wed 27.10.2010

Thu 28.10.2010

Wed 27.10.2010 10:46

(90 min.)

(120 min.)

21:30 22:30

(60 min.)

--:----:-- --:--

1 , 3 and 4 can also be entered with numeric

•

buttons.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

T o indicate this

(yellow)

2 3 4

Starting time

Ending time

4 Store

Timer Programming

Page 58

■ To change a timer programming event

Select the programme to be changed

select

access

C orrect as necessary (p.57)

■ To cancel a timer programming event

Select the programme to be deleted

(red)

Note

C heck that the LED is orange. If not, timer programmes are not active or not stored.

•

T imer Programming reminder messages will remain displayed until one of the following occurs :

•

You press the OK button to view the programme or the EXIT button to cancel the reminder.

•

T he timer programming event that the reminder is set for ends.

“!” identifies that any timer programming events have overlapped. [Ext Rec.] is given priority over [Reminder]. As for the

•

overlapped two or more [Ext Rec.], the first timer programming event starts and finishes as programmed. The next timer programming event can then start.

T he recording of Timer Programming will automatically change to the programmed channel 10 seconds before the start

•

time. T o stop recording the timer programming event directly prior to the start time, it may be necessary to stop the recorder

•

manually. T he recording of Timer Programming will be performed even if the TV is in Pause Live TV recording (p.88). In this case, Pause

•

Live TV recording will be cancelled.

■ To record with subtitles (if available)

Select the programme to record with subtitles

(yellow)

E ach time pressed :

•

auto

off

■ To cancel a timer programming event

temporarily

Select the programme to be cancelled

(blue)

E ach time pressed :

•

c ancel

stop cancelling

Timer Programming

Page 59

Child Lock

You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears; by entering the PIN number, y ou can watch it.

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Select [Child Lock]

Eco Navigation L ink Settings

■

To return to TV

EXIT

C hild Lock

DVB-C Tuning Menu L anguage D isplay S

ettings C ommon Interface N etwork Setup D ivX® VOD

Control channel audience [Child Lock]

Enter the PIN number (4 digits)

Child Lock-PIN Entry

Please enter new PIN

* * * *

ghi

2 Select [Child Lock List]

Child Lock

C hange PIN

C hild Lock List

P arental Rating

Access N o limit

abc def

jkl

tuvpqrs

Setup

1/2

Access

E nter the PIN number twice at first setting.

•

mno

M ake a note of the PIN number in case you forget it.

•

wxyz

“0000” may be stored as the default PIN number which depends on

•

the country you select (p.13).

select

access

select

access

Child Lock

Page 60

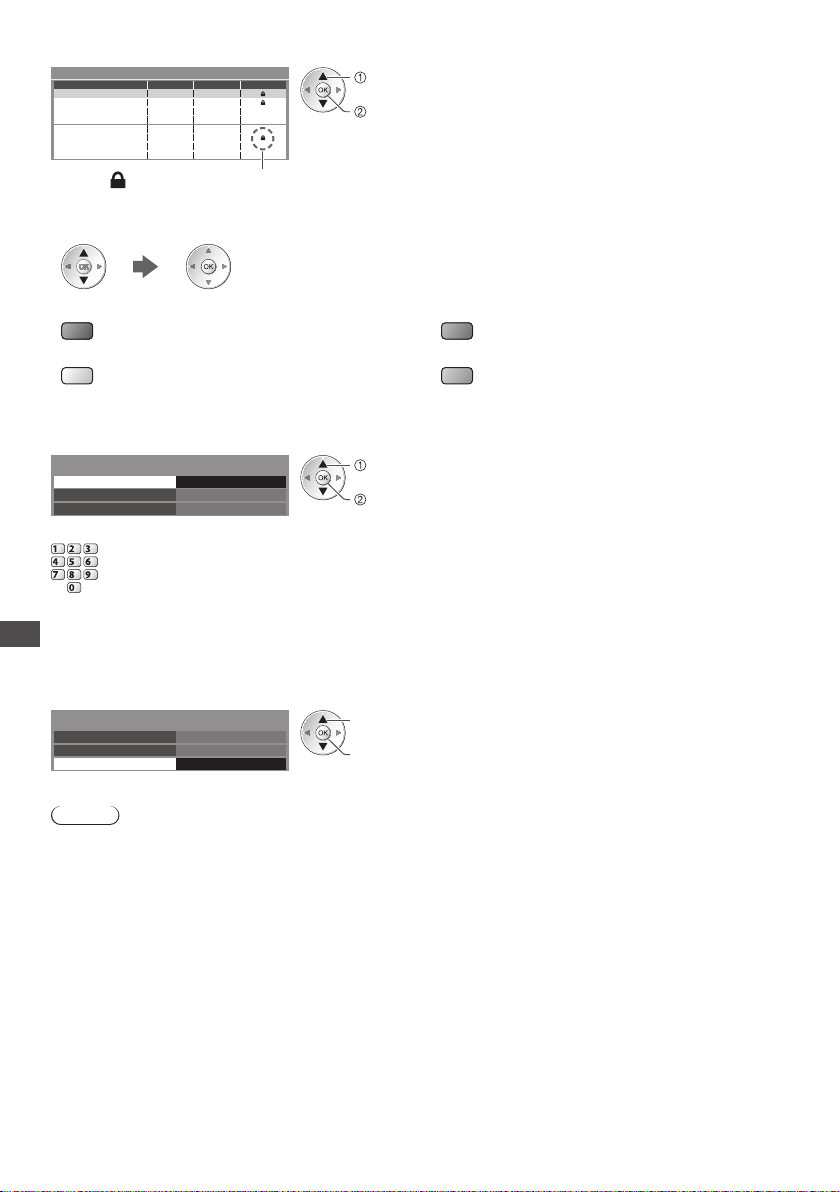

3 Select the channel / input to be locked

Child Lock List - TV and AV Sorting 123...

N ame I nput

101 BBC 1 Wales

7 BBC THREE

14 E4C

VCR

1 BBC1 2 *****

AV1 AV2

T o cancel

•

Select the locked channel / input

DVB-C DVB-

T DVB-T A nalogue A nalogue A nalogue External External

: Appears when the channel / input is locked

Type

Free TV Free TV Free TV A nalogue A nalogue A nalogue AV AV

L ock

select

lock

T o sort channel names in alphabetical order

•

T o cancel all locks

•

T o lock all

•

(red) (green)

T o jump to the top of the next input

•

(yellow) (blue)

■ To change the PIN number

1 . Select [Change PIN]

Child Lock

C hange PIN

C hild Lock List P arental Rating

Access

N o limit

select

access

2 . Enter a new PIN number twice

abc def

jkl

ghi

mno

tuvpqrs

wxyz

■ To set Parental Rating

T he availability of this function depends on the country you select (p.13).

•

Child Lock

If the DVB programme has the rated information for over the selected age, you have to enter the PIN number to watch (depending on the broadcaster).

Select [Parental Rating] and set an age for the restriction of programmes.

Child Lock

C hange PIN C hild Lock List

P arental Rating

N o limit

Note

Setting [Shipping Condition] (p.63) erases the PIN number and all settings.

•

select

access / store

Page 61

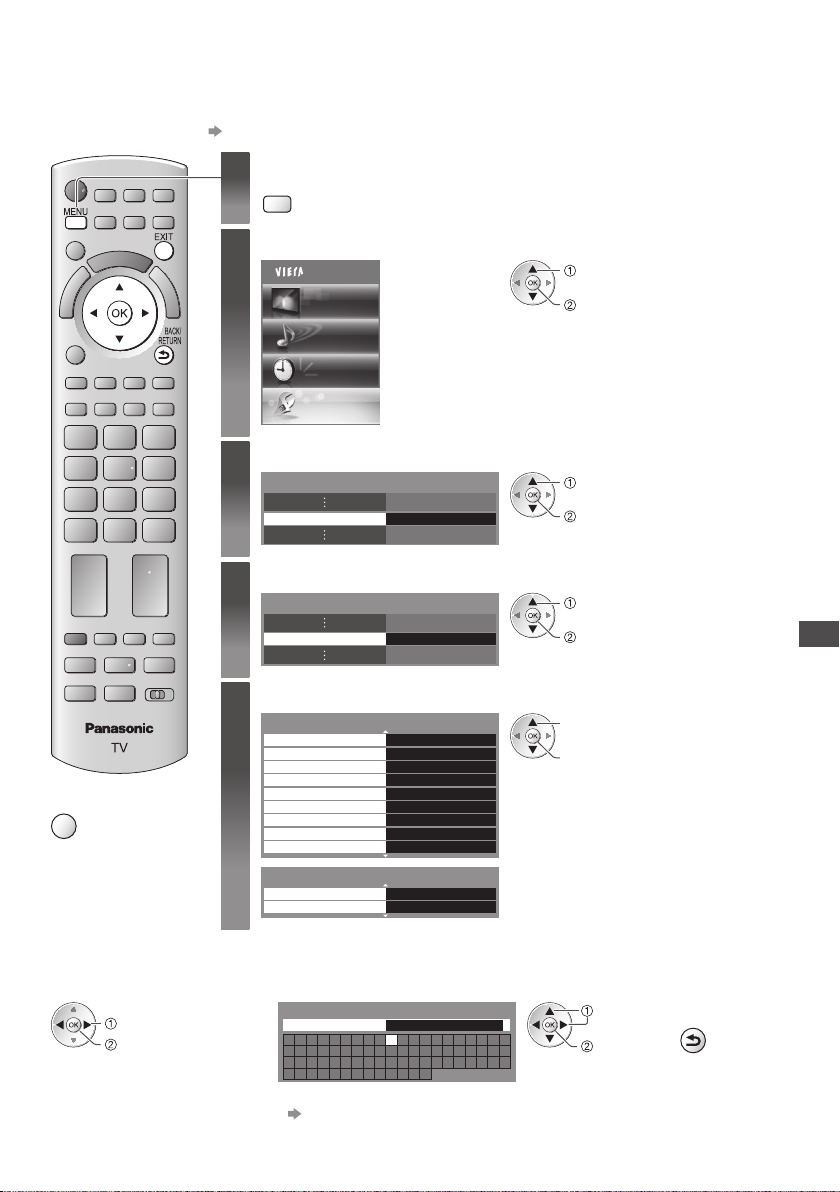

Input Labels

F or easier identification and selection of the input mode, you can label each input mode or skip terminal that is not connected to any equipment.

T o select the input mode (p.27)

•

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Setup

Access D isplay Settings

DVD AV2 COMPONENT HDMI1 HDMI2 HDMI3 HDMI4 DVB-S

A nalogue

select

access

select

access

1/2

2/2

select

access / store

T he labels you set will be displayed in [Input Selection] menu (p.27), [T V Selection] menu (p.18) or banner.

If [Skip] is selected, you cannot select the

•

mode.

■

To return to TV

EXIT

Select [Display Settings]

Select [Input Labels]

Display Settings

I nput Labels Access

Select an input terminal

Input Labels

AV1 AV2 COMPONENT HDMI1 HDMI2 HDMI3 HDMI4 DVB-S DVB-C DVB-C

Input Labels

DVB-T DVB-T A nalogue

■ User input

You can name each input mode freely.

1 Select [User input] 2 Set characters (maximum : ten characters) 3 Store

select

access

User input

N ame

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : # a b c d e f g h i j k l m n o p q r s t u v w x y z ( ) + - . * _

T o use numeric buttons

•

 “Characters table for numeric buttons” (p.101)

select

set

BACK/

RETURN

Input Labels

Page 62

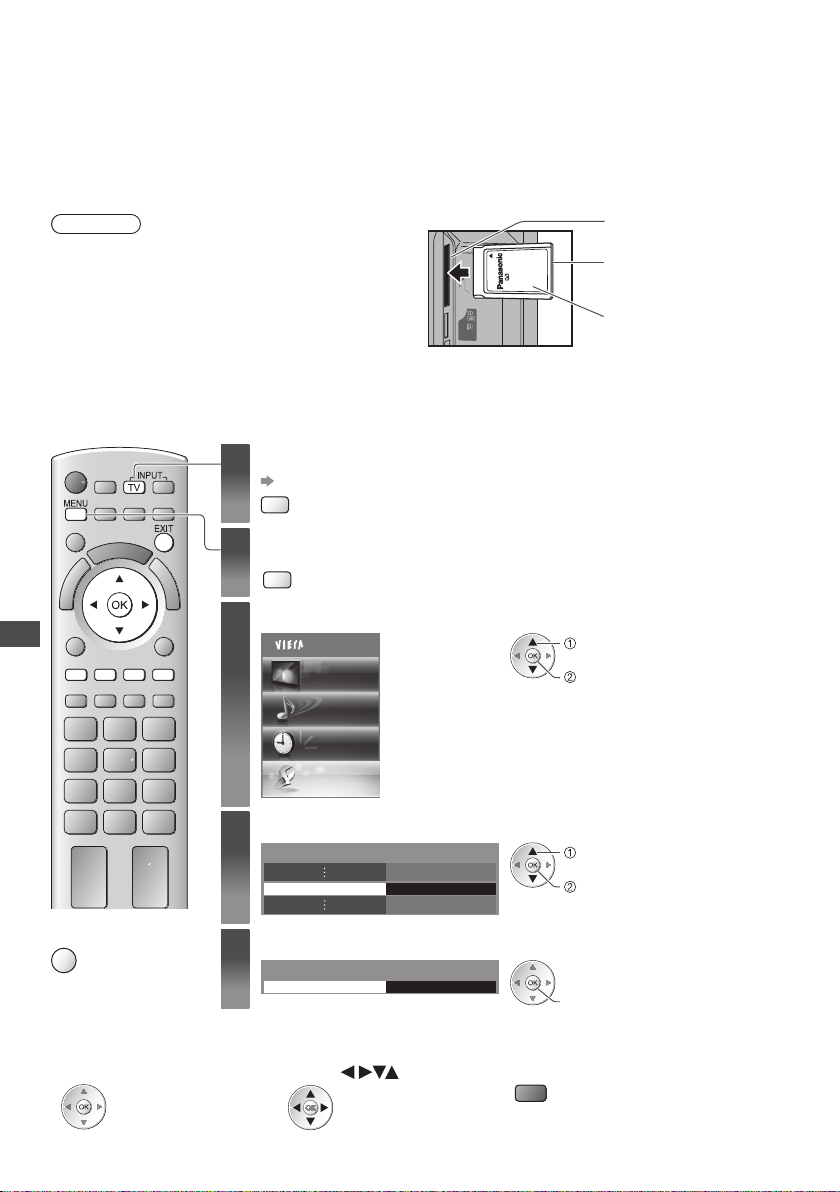

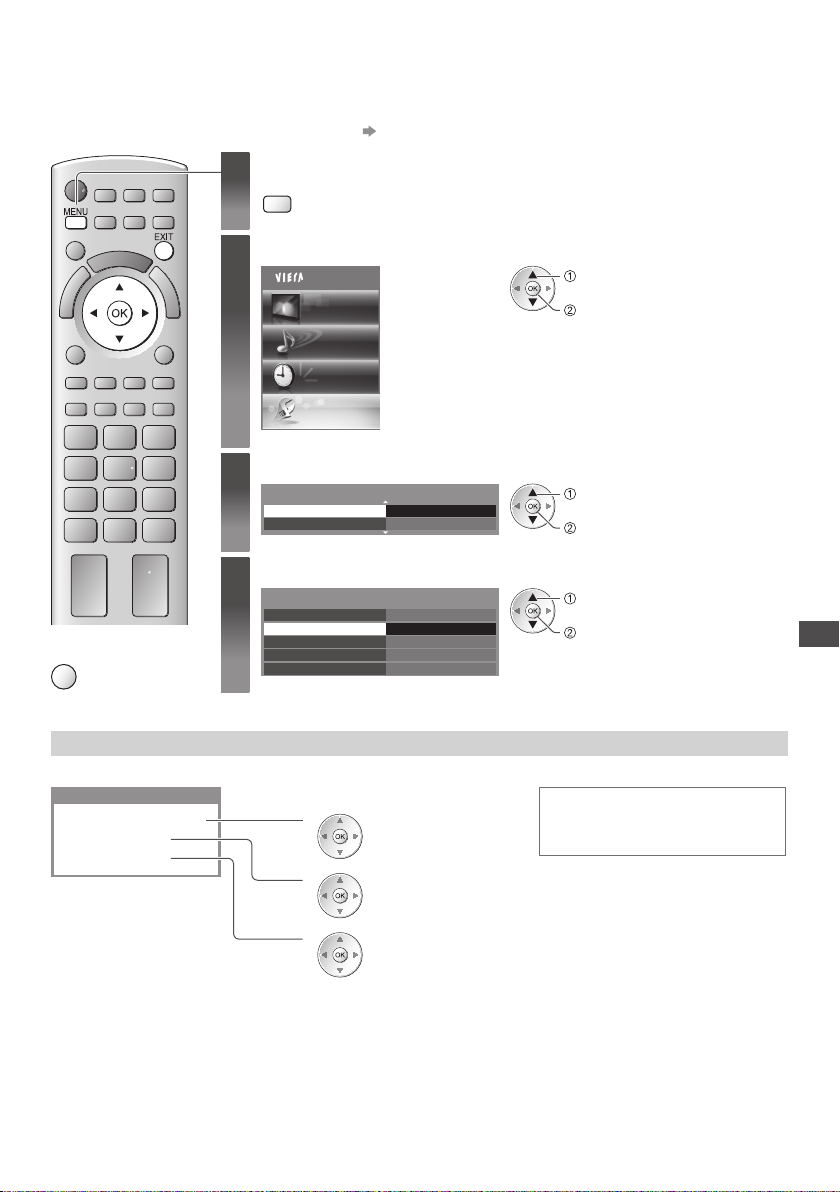

Using Common Interface

T he Common Interface Module menu provides access to software contained on Common Interface (CI) Modules.

T his function may not be available in some countries or regions.

•

V ideo and audio signals may not be output depending on broadcasts or services.

•

Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV channels). Please use only the approved CI module by the broadcaster. C onsult your local Panasonic dealer or broadcasters for more information and conditions of the services.

Caution

Turn Off Mains power On / Off switch whenever inserting or

•

removing the CI module. If a view card and a card reader come as a set, first insert the

•

card reader, then insert the view card into the card reader. I nsert the module in the correct direction.

•

Insert the CI module (optional)

T he features that appear on screen are dependent on the contents of the selected CI module.

•

N ormally encrypted channels will appear. Follow the on screen operation guide.

•

If encrypted channel does not appear, perform below. F or more details, see the manual of the CI module, or check with the broadcaster.

•

Select DVB-S, DVB-C or DVB-T

(p.18)

Display the menu

Select [Setup]

Using Common Interface

Main Menu


Sound

CI slot

I nsert or remove straightly and completely

CI module

Side of the TV

select

access

Timer

Setup

M odule inserted

■

To return to TV

EXIT

Select [Common Interface]

C ommon Interface Access

Access Common Interface

Common Interface

Slot 1:

■ How to operate services by following the on screen operation guide

Example :

Select, go

•

O n screen operation guide may not correspond to the remote control buttons.

•

Symbol :

•

select

access

C oloured characters

•

Coloured button

Page 63

Shipping Condition

R esets the TV to its original condition, i.e. no channels tuned in. All settings are reset (channels, picture, sound settings, etc.).

T o retune TV channels only, e.g. after moving house “Retuning from Setup Menu” (p.46 - 49)

•

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

em Menu

ettings

em Update

Setup

Access Syst

E nglish(UK) Access

2/2

select

access

select

access

■

To return to TV

EXIT

Select [System Menu]

O ther S

Select [Shipping Condition]

System Menu

U SB Keyboard Layout

Shipping Condition

Syst Software Licence System Information

Restore Settings [Shipping Condition]

Check the message and initialise 2 Follow the on screen instructions

Shipping Condition

All tuning data will be erased

Are you sure ? Are you sure ?

(Confirm)

(Start [Shipping Condition])

Reset to Factory Shipping Condition

[Auto Setup] will automatically start

•

when Mains power On / Off switch is next turned On. (p.13)

Completed.

Please switch o TV.

Shipping Condition

Page 64

Updating the TV Software

From time to time, a new version of software may become available for download to enhance the performance or operations of the TV.

If there is an update available, a notification banner is displayed when the channel has the update information.

T o download

•

You can update any new software automatically or update manually.

If you choose not to download

•

EXIT

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Setup

select

access

select

access

Updating the TV Software

■

To return to TV

EXIT

Select [System Menu]

System Menu Access

Select [System Update]

System Menu

System Update Access

Update TV’s software system [System Update]

■ To update automatically

Select [Auto Update Search in Standby]

System Update

Auto Update Search in Standby

Syst

em Update Search Now

If System Update is performed, the software will be updated (it may change TV functions). If you do not wish to do so, set [Auto Update Search in Standby] to [Off].

Off

select

access / store

Every time you set, the TV automatically performs a

•

search in standby and downloads an update, if any software updates are available.

T he automatic updating is performed under the

•

following conditions :

•

Standby (TV turned Off with the remote control)

•

R ecording of Timer Programming or Direct TV Recording is not in progress.

■ To update immediately

1 Select [System Update Search Now] 2 Searches for an update (for

System Update

Auto Update Search in Standby

Syst

em Update Search Now

Off Access

Note

D ownload may take for about 60 minutes.

•

During software download and update, DO NOT switch Off the TV.

•

T he message might be the notification beforehand. In this case, the schedule information (the date that the new version can

•

be used) will appear. You can set the reservation for update. T he update will not start when the TV is set to Off.

select

access

several minutes) and displays a corresponding message if any

3 Download

Page 65

Using Media Player

M edia Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory. VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card simply inserting into the SD Card slot.

P hoto mode : Still pictures recorded by digital cameras will be displayed. V ideo mode : M oving pictures recorded by digital video cameras will be played back. Music mode : D igital music data will be played back.

During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.

•

But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p.40). To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 84) and set to use theatre speakers (p. 91). [Date] shows the date on which the recording was made by the recording equipment. The file without record of the date is

•

shown “**/**/****”. T he picture may not appear correctly on this TV depending on the recording equipment used.

•

D isplay may take some time when there are many files and folders.

•

P artly degraded files might be displayed at a reduced resolution.

•

P icture setting may not work depending on the conditions.

•

T he folder and file names may be different depending on the digital camera or digital video camera used.

•

To insert or remove the SD Card / USB Flash Memory

■ USB Flash Memory

I nsert or remove straightly and completely.

•

C onnect to the USB 1 or 2 port.

•

■ SD Card

To insert the SD Card To remove the SD Card

on the TV screen by

Gently insert the

SD Card label surface

facing front.

Push until a click

F or the information of the devices “Devices for recording or playing back” (p.98)

•

F or the supported file format “Supported file format in Media Player” (p. 96, 97)

•

is heard

Cutout

Push the centre of

the card

Using Media Player

Page 66

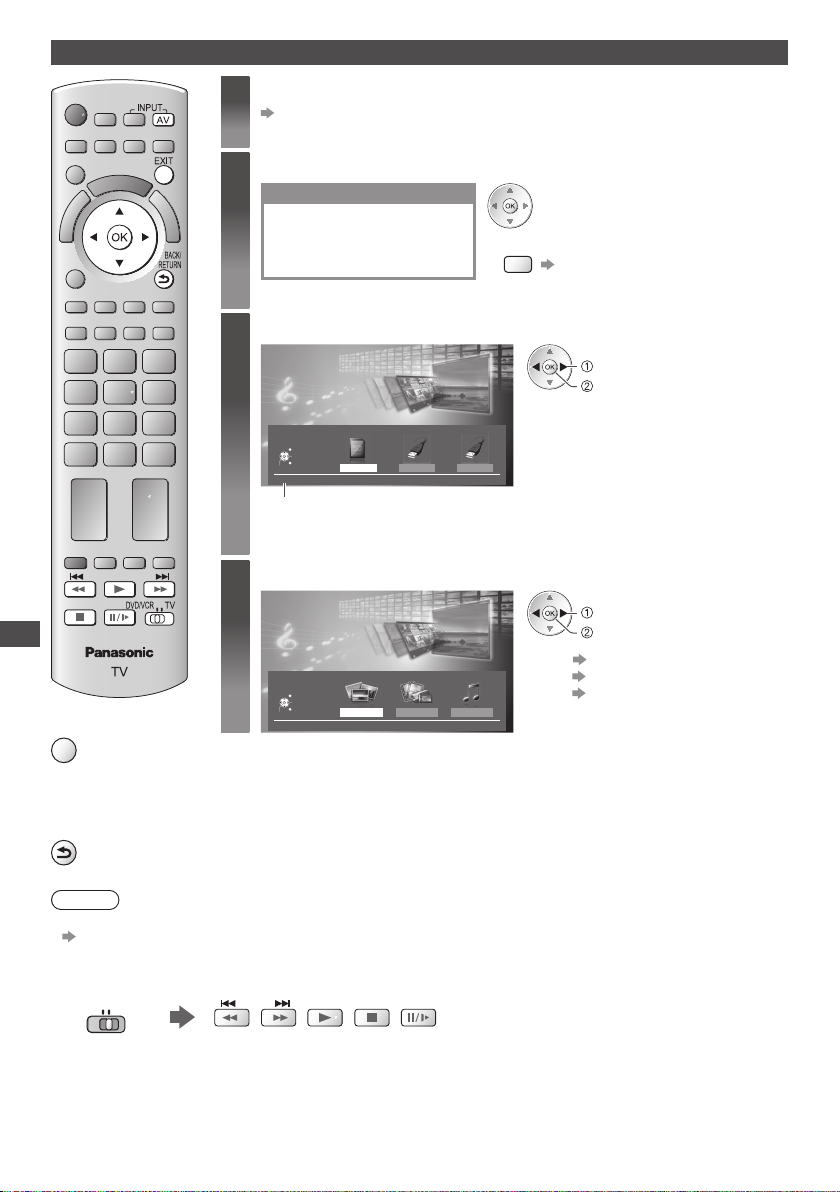

Starting Media Player

Using Media Player

■

To return to TV

EXIT

Insert the SD Card or USB Flash Memory to the TV

(p. 65)

Start Media Player

Media Player

Signal output from all AV terminals will be

disabled during Media Player view.

Press OK to proceed.

Press EXIT to return to TV viewing.

Select the device you want to access to

M edia Player

Drive Select

EXIT Select RETURN

SD Card

Access

SD Card

Selected device name

Select the content

M edia Player

C ontents Select

EXIT Select RETURN

Access

SD Card

USB Drive... USB Flash...

P hoto V ideo Music

Also possible by pressing following button.

•

AV “Watching External Inputs” (p.27)

select

access

If two or more devices are not connected,

•

this step will be skipped.

select

access

[Photo]  “Photo mode” (p.67) [Video]  “Video mode” (p.72) [Music]  “Music mode” (p.74)

■

To return to the previous screen

BACK/

RETURN

Note

You can also access each mode directly by using VIERA TOOLS.

•

“How to Use VIERA TOOLS” (p. 34)

Select the appropriate device and content for playing back each file.

•

You can use the following buttons during playback.

•

Set the position to “TV”

DVD/VCR

Page 67

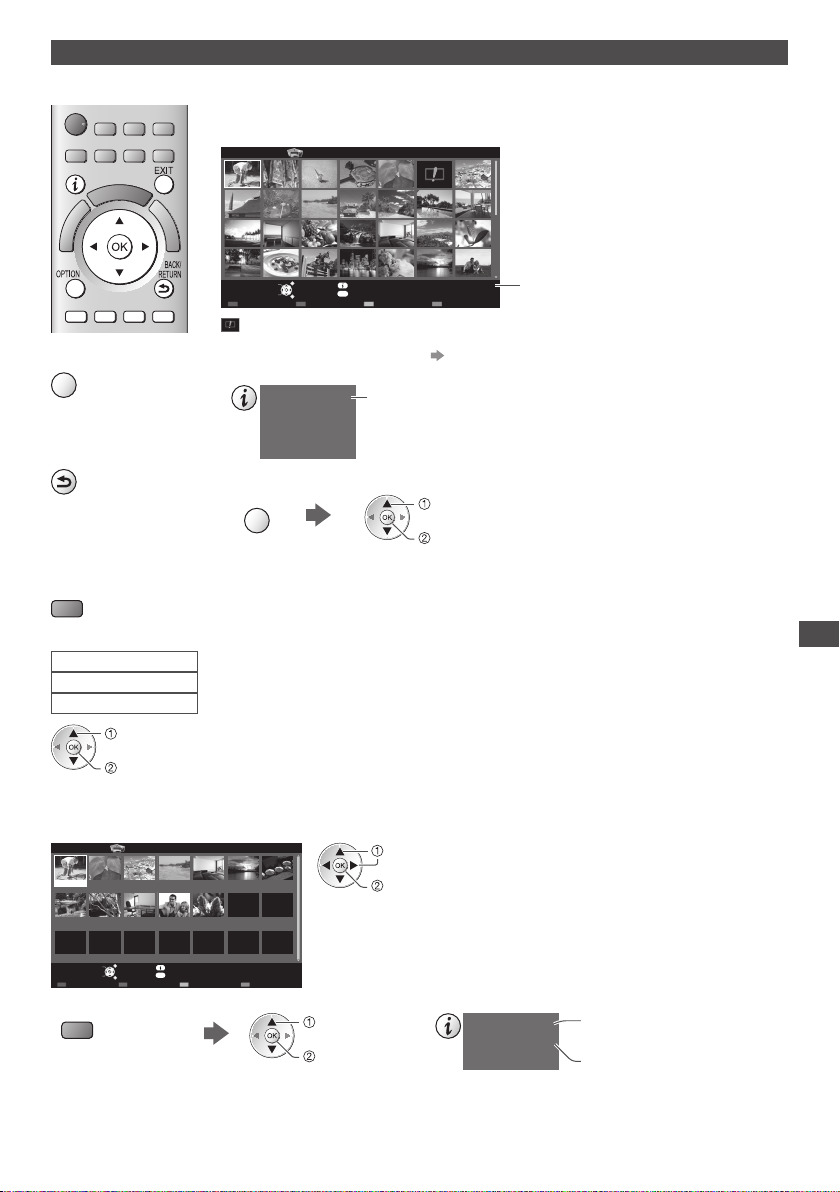

Photo mode

P hoto mode will read all “.jpg” extension files and supports “.mpo” extension files in the SD Card or USB Flash Memory.

T he thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [All photos]

Media Player Photo

All photos

SD Card

select [Change Size]

change

Selected device name

■

To return to TV

EXIT

■

To return to the previous screen

BACK/

RETURN

V iew

Select

Slideshow View Select Drive Select C ontents Select

: Error display

T o change the back ground music “Photo Settings” (p.69)

•

T o display the information of the highlighted photo

•

F ile name

D ate

P ixel

T o change the size of photos on a thumbnail screen

•

OPTION

EXIT RETURN


23/10/2010

1600X1200

I nfo

OPTION

O ption Menu

1/48

F ile number / Total file number

■ To sort by folder, recorded date or recorded month

1 Display the view selection

(green)

2 Select the sort type

F older view

Sort by Date

Sort by Month

select

access

3 Select one of the sor ted groups to display the thumbnail of the selected group

Media Player Photo

23/10/2010 25/10/2010 01/11/2010 05/11/2010 10/11/2010 22/11/2010 23/11/2010

24/11/2010 01/12/2010 03/12/2010 20/12/2010 22/12/2010

[Folder view] :

D isplays the thumbnail grouped by folder

T he files which are not into a folder will be collected to the folder named “/”.

•

[Sort by Date] :

D isplays the thumbnail grouped by the same date

T he group of the photos without recorded date is shown as [Unknown].

•

[Sort by Month] :

D isplays the thumbnail grouped by the same month

T he group of the photos without recorded date is shown as [Unknown].

•

Sor t by Date

select

thumbnail of the selected group

Using Media Player

Access

Select RETURN

Slideshow View Select Contents Select

T o return to the thumbnail of all photos

•

(green)

I nfo

EXIT

OPTION

O ption Menu

Drive Select

SD Card

select

[All photos]

access

T o display the information of the highlighted group

•

F older name

Number of files

23/10/2010

Group number /

1/12

Total group number

F older name, date or month

Page 68

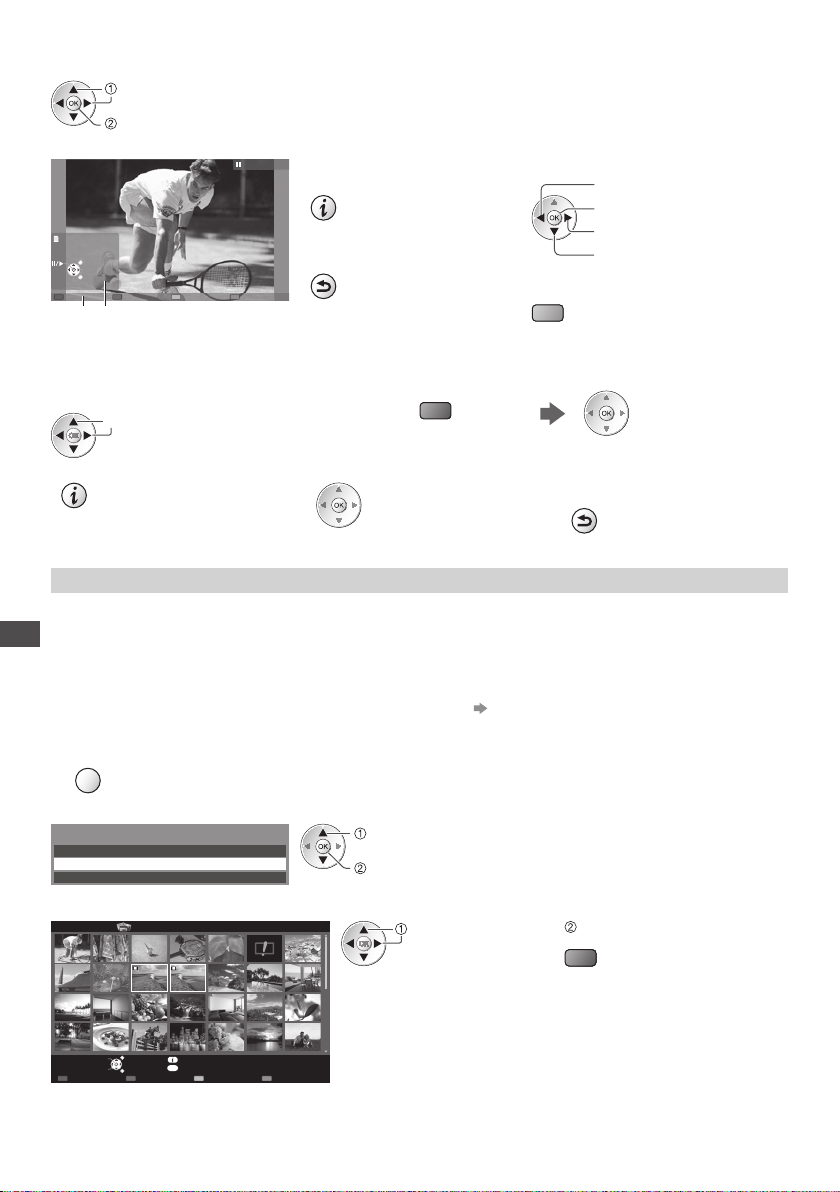

[Single view] - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

select

access

Example :

Single view

EXIT Select RETURN

Stop

O peration guide

Single view

R otate

T o display / hide the operation

•

guide

T o return to thumbnail

•

BACK/

RETURN

T o operate Single view

•

T o rotate 90°

•

T o the previous photo

Slideshow T o the next photo Stop

(return to thumbnail)

(blue)

[Slideshow] - Slideshow will complete when all photos have been viewed within the present thumbnail.

1 Select the file from the thumbnail of photos

for the first view

select

T o display / hide the operation guide

•

T o pause (return to Single view)

•

2 Start Slideshow

(red)

T o return to thumbnail

•

BACK/

RETURN

Multi Shot 3D

T his TV can create the 3D photo using a pair of photos in the SD Card and save it into the same SD Card.

T his TV can also create the 3D photo from photos in the USB Flash Memory, but cannot save it.

•

T his function is available with photos recorded by digital cameras.

•

Using Media Player

D epending on the photos you select, the created 3D photo may not be suitable or the 3D photo creation may not be

•

possible. It is recommended to take a photo (for L) and then move your camera to the right about 5 cm and take another photo (for R).

T o view the created 3D photo with 3D effect, you need the 3D Eyewear “Optional accessories” (p.6)

•

1 Display the option menu in the thumbnail view

OPTION

2 Select [Multi Shot 3D]

select

Option Menu

Slideshow Settings

Multi Shot 3D

C hange Size

access

3 Select two photos for L (left) and R (right)

Media Player Photo

L R

Multi Shot 3D

All photos

select

You can only select photos of the same recorded date and same pixels.

•

You may not be able to view the created 3D photo properly if you select

•

the photos for L and R oppositely.

set

(red)

V iew

Select

EXIT RETURN

I nfo

OPTION

O ption Menu

SD Card

Page 69

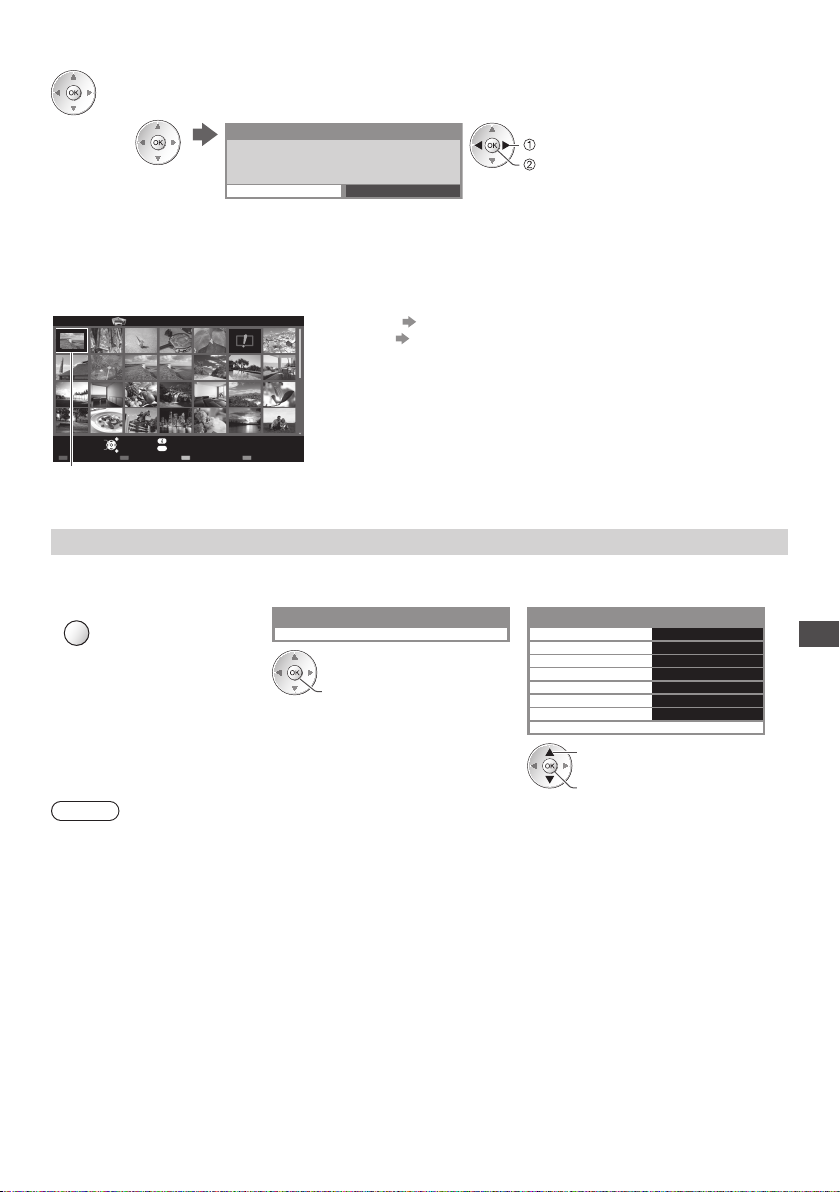

4 Create the 3D photo

If your selected photos are not suitable for the 3D photo, the error message will be displayed and will return to

•

the photo selection screen (step 3). T o save the 3D photo in the SD Card

•

The 3D image will be saved onto your media.

After finishing saving the photo, the photo selection screen will be displayed (step 3). Select photos again to create another 3D photo or exit from [Multi Shot 3D] mode.

■ To enjoy the saved 3D photos

You can enjoy viewing the saved 3D photos.

Example : Thumbnail

Media Player Photo

All photos

Continue?

N o Yes

Single view (p.68)

•

Slideshow (p.68)

•

select [Yes]

save

Access

Select RETURN

Slideshow View Select Contents Select

I nfo

EXIT

OPTION

O ption Menu

Drive Select

SD Card

Saved 3D photo

Photo Settings

Setup the settings for Photo mode.

1 Display the option menu 2 Select [Slideshow Settings] 3 Select the items and set

OPTION

Note

P icture quality may become lower depending on the slideshow settings.

•

P icture setting may not work depending on the slideshow settings.

•

Option Menu

Slideshow Settings

access

Slideshow Settings

Frame Off C olour Effect Transition Effect Screen Mode Burst Playback I nterval R epeat B ack Ground Music

select

access / store

Off F ade N ormal Off 5 seconds O n

Using Media Player

Page 70

Frame

Colour Effect

Slideshow Settings

Transition Effect

Using Media Player

Screen Mode

Burst Playback

Interval

Repeat Slideshow repeat [Off] / [On]

Item Adjustments / Configurations (alternatives)

Selects the frame type of the slideshow

[Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi] :

9 photos are displayed orderly at once.

[Collage] :

E ach photo is displayed at a random position and random scale.

[Drift (+ calendar)] / [Drift] :

P hotos are displayed like flow images.

You can select to display the calendar or not. The month of calendar is turned by

•

pressing left or right cursor button.

[Gallery (+ calendar)] / [Gallery] :

T he various sizes of photos in the frame are displayed.

You can select to display the calendar or not. The month of calendar is turned by

•

pressing left or right cursor button.

[Cinema] :

P hotos are displayed like old films (sepia tone)

Selects the colour effect of phot

[Off] / [Sepia] / [Gray scale]

T his function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

•

Selects the transition effect for switching the photo during the slideshow

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random] [Fade] : T he next photo fades in gradually.

: T he next photo slides and appears from the left side.

[Slide] [Dissolve] : E ach photo is dissolved when switching to the next photo. [Motion] : Each photo is displayed with an effect of enlarging, reducing, moving up or

[Random] : Each transition is selected at random.

•

Selects whether enlarged or normal viewing on Single view and Slideshow

[Normal] / [Zoom]

•

Selects whether to display burst photos in a fast-paced slideshow mode

[Off] / [On]

•

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)

•

moving down.

T his function is available when [Frame] is set to [Off].

T his function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or [Cinema]. T his function is not available when [Transition Effect] is set to [Motion]. D epending on the photo size, it may not be fully enlarged to fill the screen, e.g. portrait style picture.

T his function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema]. T his function is not available when [Transition Effect] is set to [Motion].

os on Single view and Slideshow

Page 71

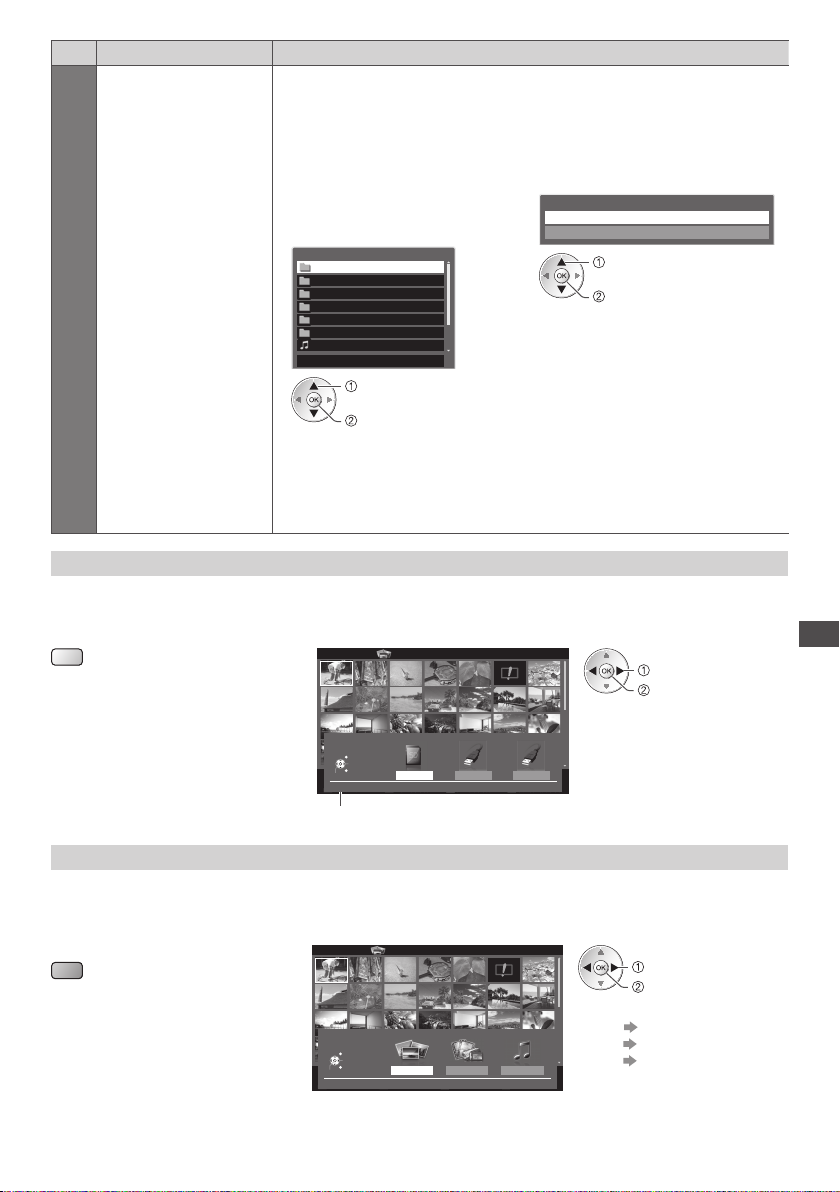

Item Adjustments / Configurations (alternatives)

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3] / [User] / [Auto]

[Type1], [ Type2] and [ Type3] are the fixed music each installed in this TV.

•

[User] : Music data in the device registered by yourself will be played back.

To register the music

1. Select the music file 2. Select [File] or [Folder]

Slideshow Settings

Back Ground Music

D epending on the condition of the device, select folders until you reach the desired music file.

Back Ground Music

PRIVATE

DCIM MISC 001photo 002photo 003music 01 song.mp3

Type1

select

access

If no music has been registered or the device which has the registered music is

•

removed, no sound will be produced.

[Auto] : Music data stored in the root folder of the current device will be played back

randomly.

If there is no available music data, no sound will be produced.

•

F ile

F older

select

set

[File] : The selected music file will be

registered as back ground music.

[Folder] : All the music in the folder which

contains the selected music file will be registered as back ground music.

Change the device

You can change to the other device directly in the same mode if two or more devices are connected.

1 While the thumbnail is displayed,

display the device selection

(yellow)

2 Select the device you want to access to

Media Player Photo

All photos

select

access

Using Media Player

Drive Select

EXIT Select RETURN

V iew

EXIT

I nfo

SD Card

Access

Select RETURN

SD Card

Slideshow View Select Drive Select C ontents Selec t

OPTION

USB Drive... USB Flash...

Selected device name

Change the contents

You can switch to the other mode of Media Player from the thumbnail view.

T he mode can be switched in the current device.

•

1 While the thumbnail is displayed,

display the contents selection

(blue)

2 Select the contents

Media Player Photo

C ontents Select

EXIT Select RETURN

V iew

EXIT

I nfo

Select RETURN

P hoto V ideo Music

OPTION

Access

SD Card

Slideshow View Select Drive Select C ontents Select

SD Card

All photos

SD Card

select

access

[Photo] [Video]

“Photo mode” (p.67)

“Video mode” (p.72)

[Music] “Music mode” (p.74)

Page 72

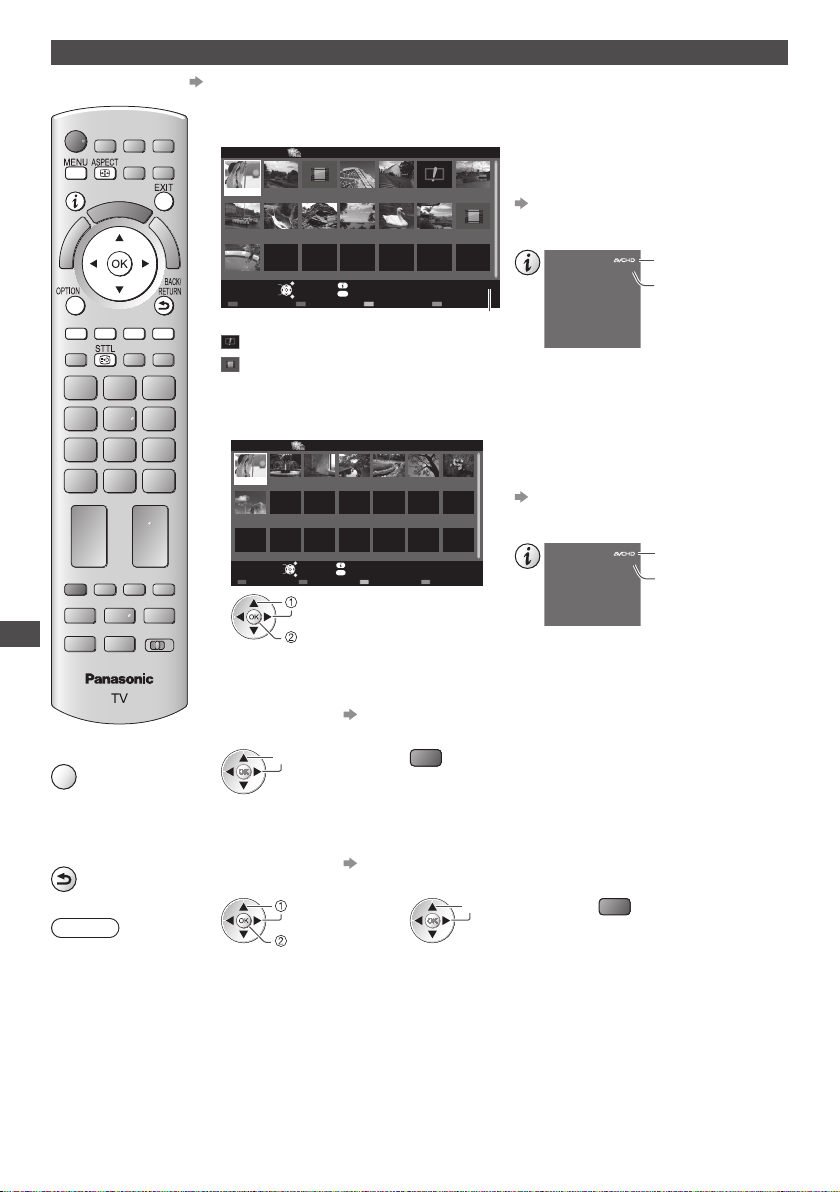

Video mode

Supported file format (p.96)

•

Using Media Player

■

To return to TV

EXIT

■

To return to the previous screen

BACK/

RETURN

Note

T he structure of titles

•

and scenes may vary depending on the digital video camera used.

T he thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [Title view]

Media Player Video

Title view

T he preview will start when the title is highlighted if it supports a preview.

Trip1 Trip2Trip3Trip4Trip5RoomNature1

Nature3Nature4Nature5Nature6

2010_9

Access

Select

Play Contents Select

EXIT RETURN

I nfo

OPTIONOPTION

O ption Menu

: Error display : T he file does not support thumbnail view.

T o view the scenes of the title

•

Select the title

Example : Thumbnail - [Scene view]

Media Player Video

Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7

Trip1_8

Play

Select RETURN

Play

I nfo

EXIT

OPTION

O ption Menu

2010_4 2010_7Nature2

Drive Select

Selected device name

Title view > Trip1

SD Card

Drive Select

C ontents Select

select

access

T o turn off the preview

•

 “Video Setup” (p.73)

T o display the information of the highlighted

•

title

F ile format

SD Card

T itle

D ate & Time

Number of scenes

Duration

19/02/2010 11:21

00h15m39s

1/15

Trip1

T itle number / Total title number

T he preview will start when the scene is highlighted if it supports a preview.

T o turn off the preview

•

“Video Setup” (p.73)

T o display the information of the highlighted

•

scene

F ile format

Scene

D ate & Time

Duration

Trip1_1

19/02/2010 11:21

00h04m12s

1/8

Scene number / Total scene number

■ Playback from Title view

Playback of the selected title will start.

T o repeat playback “Video Setup” (p.73)

•

1 Select the title 2 Start playback

select

(red)

■ Playback from the selected scene in the title (SD-Video or AVCHD)

Playback will start from the selected scene to the end of the title.

T o repeat playback “Video Setup” (p.73)

•

1 Select the title 2 Select the scene 3 Start playback

select

access

select

(red)

Page 73

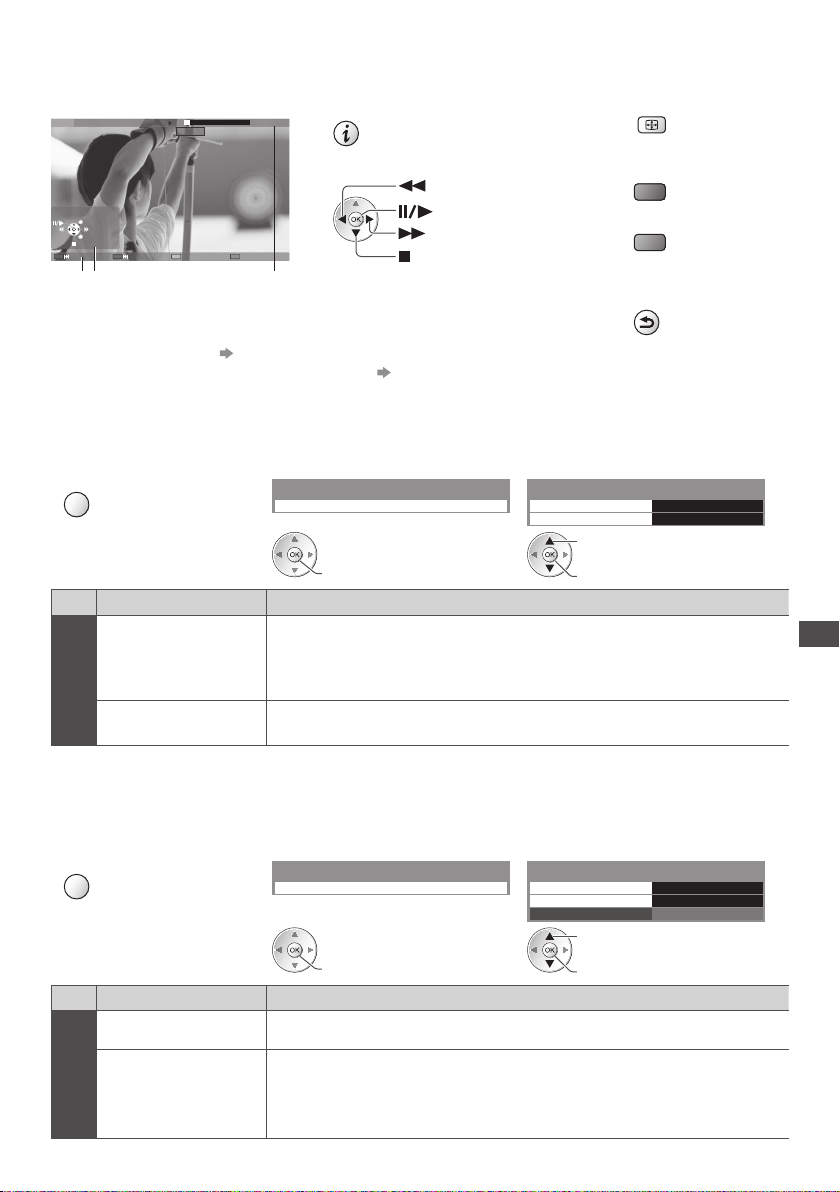

■ How to operate in the playback

Example : Playback

SD 19/02/2010 11:21 00:15:39

EXIT

RETURN

O peration guide

00:02:05

I nformation banner

T o display / hide the operation guide and

•

information banner

T o operate the playback

•

Rewind

Pause / Playback

F ast forward

Stop

■ To change the device “Change the device” (p.71)

■ To change the content in the current device “Change the contents” (p.71)

■ Video Setup

Setup the settings for Video mode.

1 Display the option menu

in the thumbnail view

OPTION

Item Adjustments / Configurations (alternatives)

Video Setup

Video Preview

2 Select [ Video Setup] 3 Select the items and set

Option Menu

V ideo Setup

access

Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]

Image may not be displayed for an instant in the thumbnail view. Set the preview [Off]

•

to resolve this.

Video Setup Menu

V ideo Preview O n R epeat

T o change aspect

•

ASPECT

T o the previous title /

•

scene

T o the next title / scene

•

T o return to thumbnail

•

BACK/

RETURN

select

access / store

(red)

(green)

Off

Using Media Player

Repeat Playback repeat within the title or selected file (depending on the content) [Off] / [On]

■ Confirm or change the current status

You can confirm or change the current status of the content.

M enu items and selectable options vary depending on the content.

•

1 Display the option menu

during playback

OPTION

Video Setup

Item Adjustments / Configurations (alternatives)

Multi Audio

Aspect Change

2 Select [ Video Setup] 3 Select the items and set

Option Menu

V ideo Setup

access

Allows you to select between selectable sound tracks (if available)

I t may take several seconds to change the sound.

•

[Aspect1] : Displays the content enlarged without distortion [Aspect2] : D isplays the content full-screen [Original] : Displays the content original size

You can also change the aspect using the ASPECT button.

•

A spect change may not work depending on the content.

•

Video Setup Menu

Multi Audio Stereo A spect Change

R epeat

select

access / store

A spect1 Off

Page 74

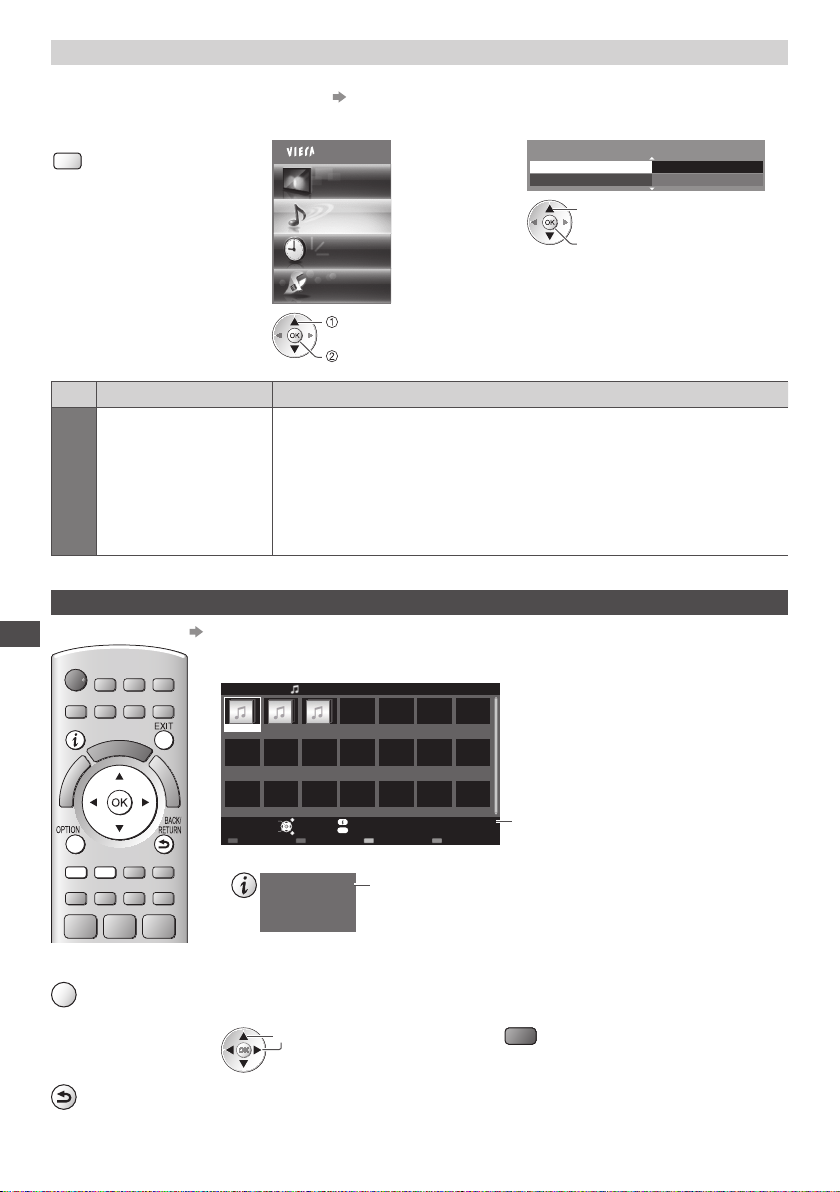

Audio output Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.

T o confirm or change the current sound status “Confirm or change the current status” (p.73)

•

1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set

Main Menu

access


Sound

Timer

select

etup

SPDIF Selection

R eset to Defaults

select

access / store

Auto R eset

2/2

Sound

SPDIF Selection

Music mode

Supported file format (p.96)

•

Using Media Player

■

To return to TV

EXIT

■

To return to the previous screen

BACK/

RETURN

Item Adjustments / Configurations (alternatives)

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM]

[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output

as Dolby Digital Bitstream.

DTS is output as DTS. MPEG is output as PCM.

[PCM]

: Digital output signal is fixed to PCM.

T he thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example : Thumbnail - [Folder view]

Media Player Music

My Music_1 My Music_2 My Music_3

Access

Select

Play Folder Contents Select

T o display the information of the highlighted folder

•

F older name

Number of files

EXIT RETURN

My Music_1

I nfo

OPTION

O ption Menu

Drive Select

1/3

F older number / Total folder number

Folder view

SD Card

Selected device name

■ Playback from Folder view

All the files in the selected folder will be played back.

1 Select the folder 2 Start playback

select

(red)

Page 75

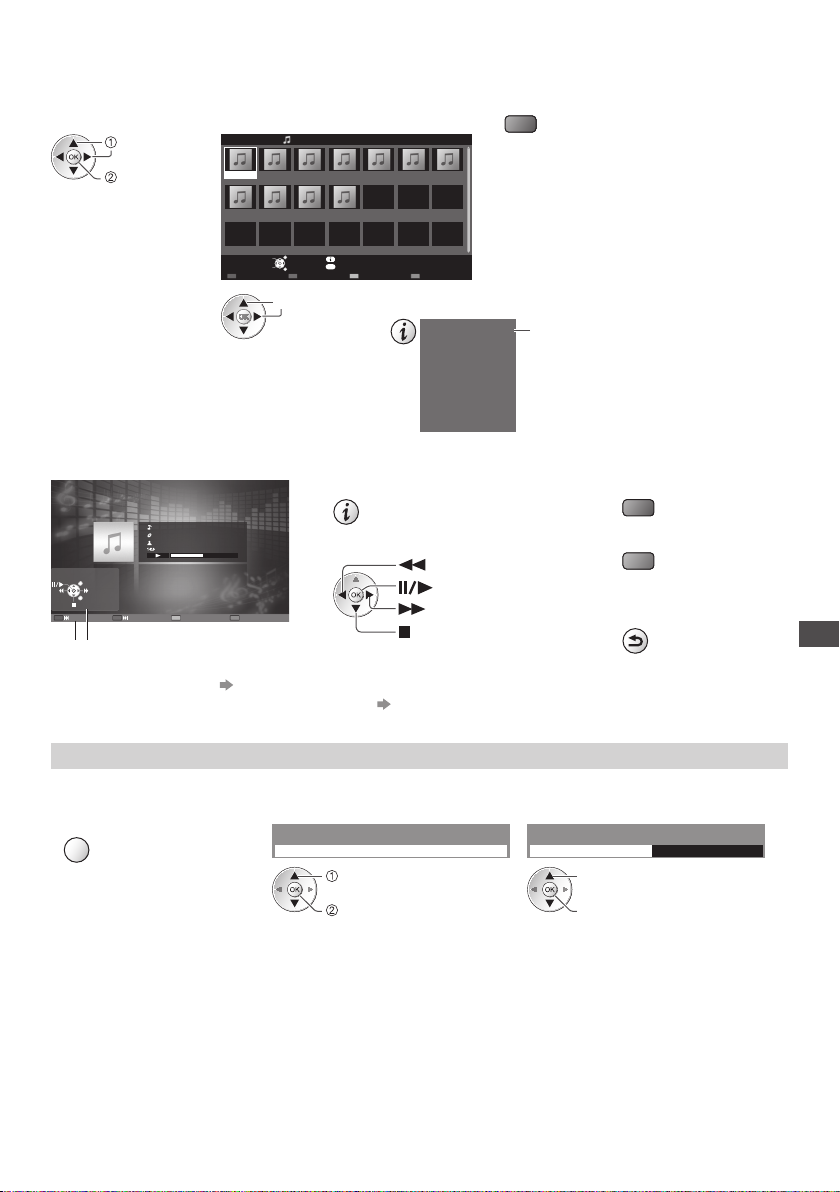

■ Playback from File view

Selected file will be played back.

1 Select the folder 2 Select the file 3 Start playback

Example : Thumbnail - File view

select

access

Media Player Music

My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7

My Song_9 My Song_10 My Song_11My Song_8

Folder view > My Music_1

(red)

Play

Select RETURN

Play Folder

EXIT

select

OPTION

I nfo O ption Menu

Drive Select

•

SD Card

C ontents Select

T o display the information of the highlighted file

1/11

T itle

My Song_1

Album

My Music_1

Artist

My Favourite

Track No.

Duration

00h03m29s

F ile number / Total file number

■ How to operate in the playback

Example : Playback

EXIT

RETURN

O peration guide

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

T o display / hide the operation guide

•

T o operate the playback

•

Rewind Pause / Playback

F ast forward

Stop

■ To change the device “Change the device” (p.71)

■ To change the content in the current device “Change the contents” (p.71)

Music Setup

Setup the setting for Music mode (only available in the thumbnail view).

1 Display the option menu 2 Select [Music Setup] 3 Set

OPTION

Option Menu

Music Setup

select

Music Setup Menu

R epeat O ne

T o the previous track

•

(red)

T o the next track

•

(green)

T o return to thumbnail

•

BACK/

RETURN

select

Using Media Player

access

access / store

[Folder] : Playback repeat within the

selected folder

[One] : Playback repeat of the selected

one file

Page 76

Using Network Services

VIERA Connect

VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc. from VIERA Connect home screen.

T his TV has no full browser function and all features of websites may not be available.

•

Network Link

E nables to control the TV from the network equipment (Smartphone, etc.)

Network connection

Network setup

VIERA Connect operations

Network Link Settings

Network connections

T o use VIERA Connect features, you need a broadband network environment.

If you do not have any broadband network services, please consult your retailer for assistance.

•

Set up and connect any equipment required for the network environment. You cannot make settings for the equipment on

•

this TV. Read the manual of the equipment. R equired speed (effective) : at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is

•

not enough, contents may not be played back properly.

Example 1

Using Network Services

(See below)

(p. 77 - 81)

(p. 17, 82)

(p. 77)

Wireless connection

Wired connection

LAN cable

Internet

M odem

Hub or Router

Wireless LAN Adaptor and Extension cable

“Optional accessories” (p. 6)

C onnect to the USB 1 or 2 port.

•

E nsure to use a LAN straight cable for this connection.

•

If your modem has no broadband router functions, use a broadband router.

•

If your modem has broadband router functions but there are no vacant ports, use a hub.

•

E nsure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.

•

If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.

•

Access point

Example 2

You can connect the TV and the telecommunication equipment directly to use VIERA Connect features.

Note

C ontact your Internet Service Provider (ISP) telecommunications company for further assistance regarding the network

•

equipment. C onfirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company.

•

Depending on the contracts, additional fees may be charged or multiple connections to the int

LAN cable

Internet

ernet may be impossible.

Page 77

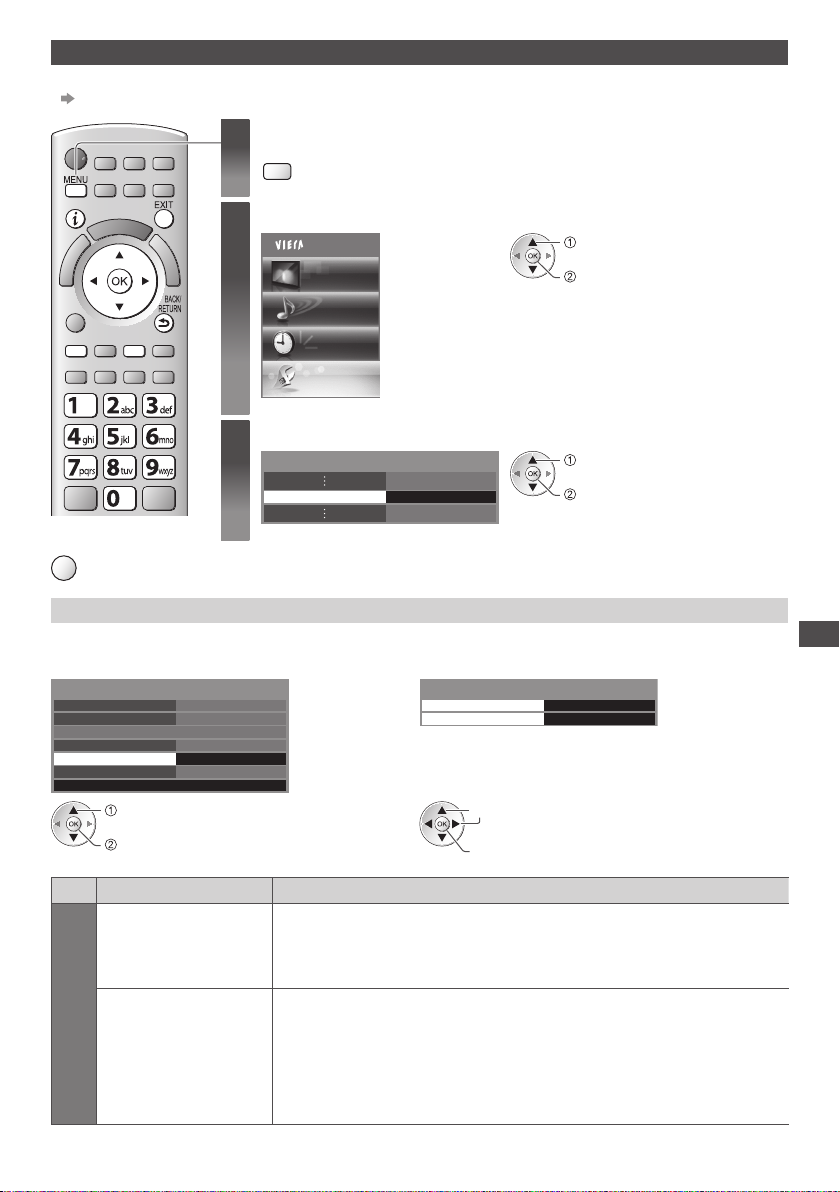

Network Setup

E nsure the connections are completed before starting Network Setup.

•

“Network connections” (p.76)

Display the menu

Select [Setup]

Main Menu


Sound

Timer

select

access

Setup

■

To return to TV

EXIT

Select [Network Setup]

N etwork Setup Access

Network Link settings

Sets the link settings to control this TV from the network equipment via the network.

1 Select [Network Link Settings] 2 Select the items and set

Network Setup

C onnection Test N etwork Type Wired

Access Point Settings

IP/DNS Settings

N etwork Link Settings

Software Update MAC Address

select

access

Item Adjustments / Configurations (alternatives)

Network Link Settings

VIERA Name

Access

ab-cd-ef-gh-ij-kl

Sets your favourite name for this TV

T his name will be used as the name of this TV on the screen of the other network

•

equipment.

Network Link Settings

VIERA Name N etwork Remote Control O n

select

access / store

VIERA

select

access

Using Network Services

Network Remote Control

E nables to control the TV from the network equipment (Smartphone, etc.) [Off ] / [On]

D epending on the area, this function may not be available. For details, consult your

•

local Panasonic dealer. F or more information of this function, visit the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/

Page 78

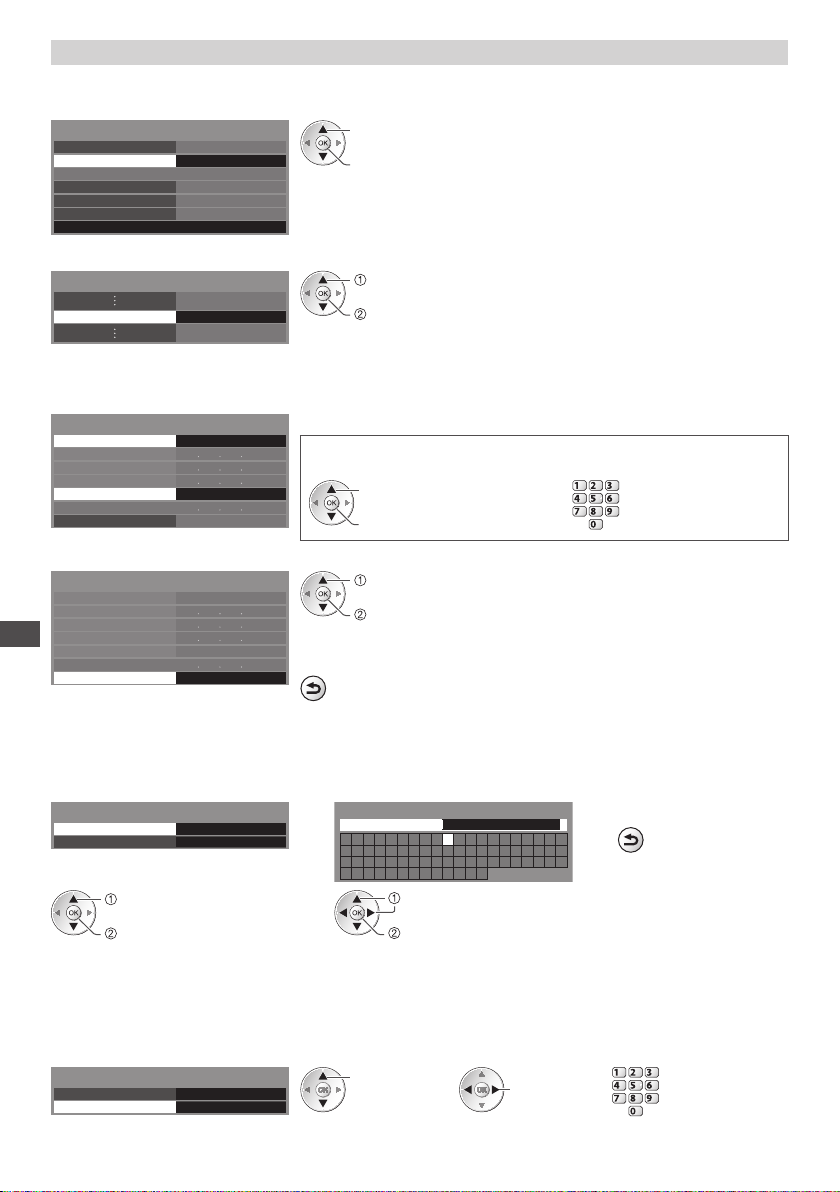

Wired connection settings

T his setting is for the network connection by using the LAN cable.

1 Select [Network Type] and set to [Wired]

Network Setup

C onnection Test

N etwork T

ype

Access Point S

ettings

IP/DNS Settings N etwork Link Settings Software Update MAC Address

Wired

ab-cd-ef-gh-ij-kl

select

access / store

2 Select [IP/DNS Settings] and set the items

Network Setup

select

IP/DNS Settings Access

access

■ [Acquire IP Address] / [Acquire DNS Address]

Sets [IP Address], [Subnet Mask], [Gateway], [Primary DNS] and [Secondary DNS]. Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended)

T he available settings are displayed automatically.

IP/DNS Settings

Acquire IP Address Auto

IP Address Subnet Mask G ateway

Acquire DNS A

DNS A

Proxy Settings

ddress

Auto

•

M anual settings ([IP Address], [Subnet Mask], [Gateway], [Primary DNS], [Secondary DNS])

select

access / store

abc def

jkl

ghi

mno

tuvpqrs

wxyz

3 Select [Proxy Settings] and set the items

IP/DNS Settings

Acquire IP Address

IP Address Subnet Mask G ateway

Acquire DNS Address

Using Network Services

DNS Address

Proxy

Settings

Auto

Access

•

select

access

After settings, return to [Network Setup] screen

BACK/

RETURN

■ [Proxy]

Sets Proxy address.

T his is the address of the relay server that is connected to the target server instead of the browser and sends data to the

•

browser. Setting is required if specified by the provider.

1 . Select [Proxy] 2. Enter the address 3 . Store

Proxy Settings

Proxy

Port

select

Proxy

H ost

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : # a b c d e f g h i j k l m n o p q r s t u v w x y z ( ) + - . * _

select

BACK/

RETURN

access

•

set

You can set characters by using numeric buttons.

■ [Proxy Port]

Sets Proxy port number.

T his number is also specified by the provider with the Proxy address.

•

1 . Select [Proxy Port] 2. Move the cursor and enter the number

select

m ove

Proxy Settings

Proxy

Port

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Page 79

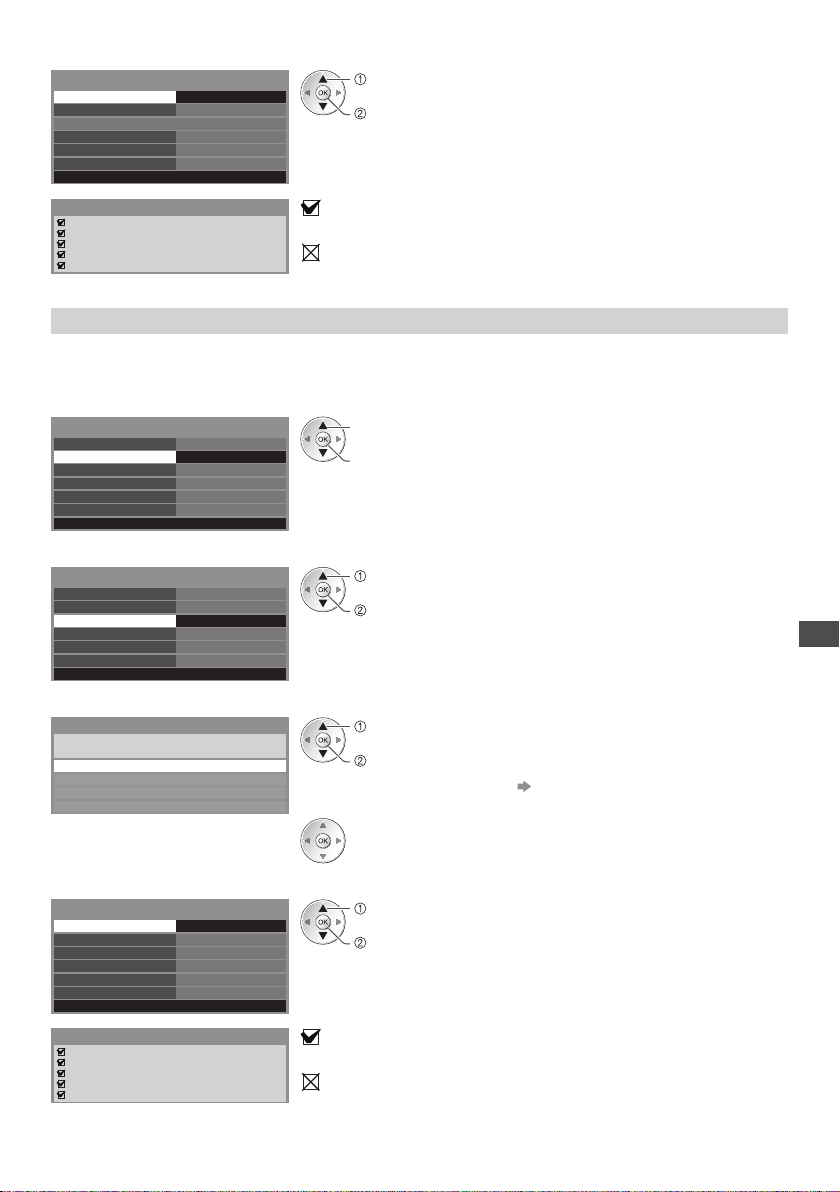

4 Select [Connection Test] and access to test

Network Setup

C onnection Test

N etwork T

ype

Access Point Settings

IP/DNS Settings N etwork Link Settings Software Update MAC Address

Connection Test

C heck network cable connection. C heck acquired IP address. C heck for devices using same IP address. C heck gateway connection. C heck server connection.

Access Wired

ab-cd-ef-gh-ij-kl

•

: succeeded

select

access

P erforms automatic testing of the network connection for the TV. (It takes a while to test.)

T he test is successful and the TV is connected to the network.

: failed

C heck the settings and connections, and then perform this function again.

Wireless connection settings

T his setting is for the network connection by using the Wireless LAN Adaptor. (Wireless connection)

C onfirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of

•

the access point.

1 Select [Network Type] and set to [Wireless]

Network Setup

C onnection Test

N etwork T

ype

Access Point S

ettings IP/DNS Settings N etwork Link Settings Software Update MAC Address

Wireless

ab-cd-ef-gh-ij-kl

select

access / store

2 Select [Access Point Settings]

Network Setup

C onnection Test N etwork Type

Access Point S

ettings

IP/DNS S

ettings N etwork Link Settings Software Update MAC Address

Wireless Access

ab-cd-ef-gh-ij-kl

select

access

When the access point is already set,

•

[Current Settings] screen will be displayed. To change the settings, select [No] on this screen and go to the next step.

3 Select the connection type and set

Connection Type

Please select network connection type.

WPS(Push button)

WPS(PIN)

arch for access point

M anual

select

access

F or details of each connection type (p.80,81)

•

After settings, return to [Network Setup] screen

•

Using Network Services

4 Select [Connection Test] and access to test

Network Setup

C onnection Test Access

N etwork Type Access Point Settings IP/DNS Settings N etwork Link Settings Software Update MAC Address

Connection Test

C heck access point connection. C heck acquired IP address. C heck for devices using same IP address. C heck gateway connection. C heck server connection.

Wireless

ab-cd-ef-gh-ij-kl

P erforms automatic testing of the network connection for the TV. (It takes a while to test.)

: succeeded

select

access

T he test is successful and the TV is connected to the network.

: failed

C heck the settings and connections, and then perform this function again. If you continue to have difficulty, please contact your internet service provider.

Page 80

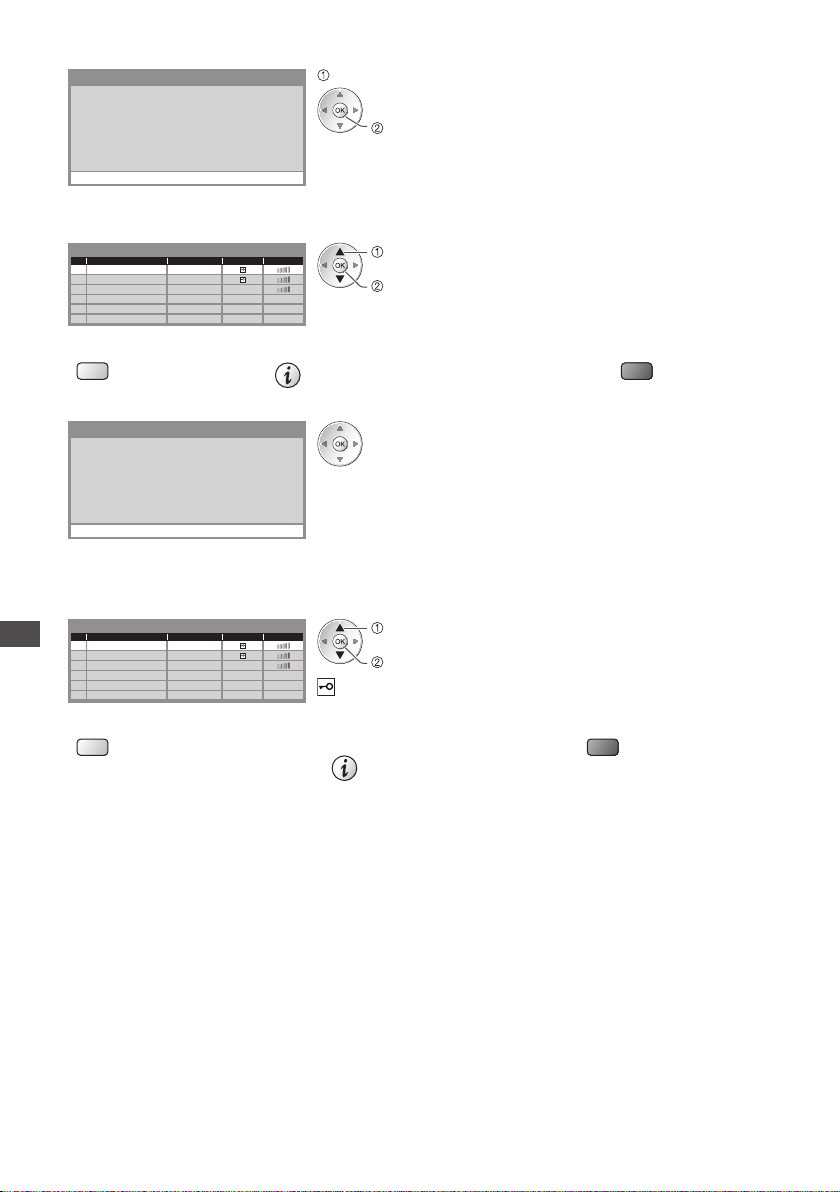

■ [WPS(Push button)]

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light ashes.

2) When the light is ashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

C onnect

press the WPS button on the access point until the light flashes

E nsure that your access point supports WPS for this setup.

•

WPS : Wi-Fi Protected Setup™

•

■ [WPS(PIN)]

1 Select your desired access point

Available Access Points

N o. Wireless type Encrypt Reception

SSID

Access Point A Access Point B

Access Point C

T o search access points again

•

(yellow)

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

E nsure that your access point supports WPS for this setup.

•

F or the information of the highlighted access point

•

2 Enter the PIN code to the access point, and then select [Connect]

WPS(PIN)

Please register the following PIN codes on the access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving the settings on the access point.

C onnect

■ [Search for access point]

Access points found automatically are listed.

1 Select your desired access point

Available Access Points

N o. Wireless type Encrypt Reception

Using Network Services

Access Point C

SSID

Access Point A Access Point B

T o search access points again

•

(yellow)

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

: Encrypted access point

F or the information of the highlighted

•

access point

c onnect the Wireless LAN Adaptor and the access point

select

access

T o set manually

•

(red)

select

access

T o set manually

•

(red)

Page 81

2 Access the encryption key input mode

Encryption Key Setting

C onnection will be made with the following settings:SSID : Access Point A

Authentication type : WPA- PSK E ncryption type : TKIP

Please input the encryption key.

E ncryption key

If the selected access point is not encrypted, the confirmation screen will be

•

displayed. It is recommended to select the encrypted access point.

3 Enter the encryption key of the access point (Set characters one by one)

Access Point Settings

E ncryption key

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : # a b c d e f g h i j k l m n o p q r s t u v w x y z ( ) + - . * _

select

set

You can set characters by using numeric

•

buttons.

Store

BACK/

RETURN

4 Select [ Yes]

Access Point Settings

E ncryption key is set to:- XXXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes

N o

select

confirm

T o re-enter the encryption key, select [No].

•

■ [Manual]

You can setup SSID, authentication type, encryption type, and encryption key manually. F ollow the on screen instructions and set manually.

When you use 11n (5 GHz) for the wireless system between the Wireless LAN Adaptor and access point, please select [AES]

•

for the encryption type.

Access Point Settings

Please input the SSID.

SSID XXXXXXX

SSID Setting

SSID is set to:- XXXXXXX

Select ‘Yes’ to confirm. Select ‘No’ to change.

Yes

N o

Authentication Type Settings

C onnection will be made with the following settings:-

SSID : XXXXXXX

Please select the authentication type.

WPA2-PSK

WPA

-P SK

Shared key

O pen

Using Network Services

Update TV’s software

Accesses the specific website to update TV’s software and search if any software updates are available.

Select [Software Update]

Network Setup

C onnection Test N etwork Type

Access Point Settings

IP/DNS Settings N etwork Link Settings

Software Update

MAC Address

Note

Network Setup

MAC Address

Wired

Access ab-cd-ef-gh-ij-kl

ab-cd-ef-gh-ij-kl

•

[MAC Address]

•

select

access

F ollow the on screen instructions

MAC address is a unique address that identifies hardware in the network. (for information only)

Page 82

VIERA Connect

You can access VIERA Connect and enjoy various network contents.

VIERAConnect requires a broadband internet connection. Dial-up internet connections cannot be used.

•

E nsure the network connections and network settings are completed.

•

“Network connections” (p.76), [Network Setup] (p.77-81)

F or details about VIERA Connect operation “Using “VIERA Connect”” (p. 17)

•

Setup menu (Items in [Setup] may change without notice.)

•

Customize HomeScreen C hanges the position of each services on VIERAConnect home screen My Account C onfirms or removes the account information of the TV you entered on VIERA Connect Lock Sets to restrict access to some services

eep Sets beep sound On or Off when operating VIERAConnect

B Notices D isplays the information of VIERAConnect

Note

B e sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated,

•

you will not be able to use VIERAConnect. You can update the software later manually [Software Update] in [Network Setup] (p.81) VIERAConnect home screen is subject to change without notice.

•

T he services through VIERAConnect are operated by their respective service providers, and service may be discontinued

•

either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services. Some content may be inappropriate for some viewers.

•

Some content may only be available for specific countries and may be presented in specific languages.

•

D epending on the connection environment, the internet connection may be slow or may not be successful.

•

During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.

•

But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p.40). To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 84) and set to use theatre speakers (p. 91). You can restrict access to VIERAConnect [Child Lock] (p.59)

•

Turn the TV off, and then on again when changing or reconnecting the network connection.

•

Using Network Services

Page 83

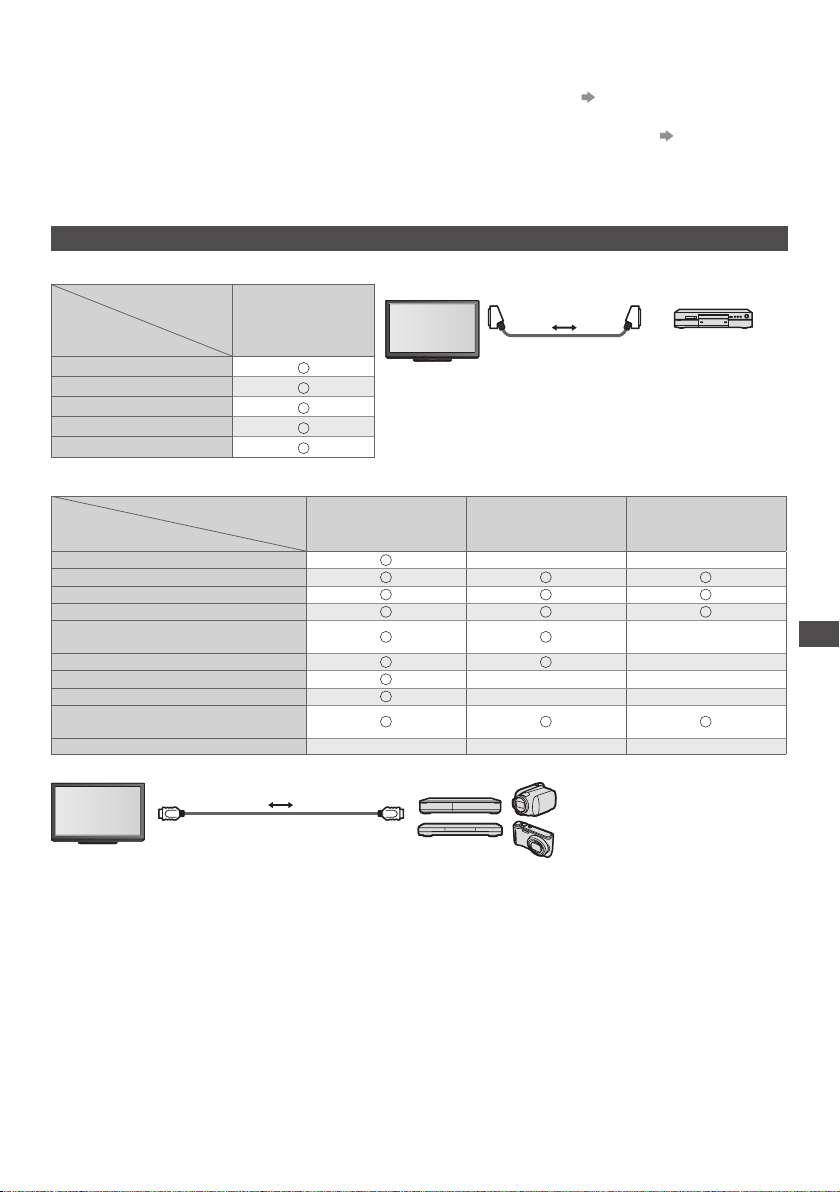

Link Functions (Q-Link / VIERALink)

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p.85) VIERALink (HDAVI Control™) connects the TV and the equipment with VIERALink function, and enables easy control,

convenient recording, playback, energy saving, creating home theatre, etc., without complicated setting. You can use Q-Link and VIERALink functions together.

T his TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s version of

•

HDAVI Control. Please refer to the manual of the equipment to confirm the version. VIERALink features may be available even with other manufacturers’ equipment supporting HDMI CEC.

•

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection)

C onnected equipment

F eatures Preset download E asy playback P ower on link P ower off link D irect TV Recording

DVD Recorder / VCR

with Q-Linkfunction

Connection

SCART cable

U se fully wired SCART cable.

•

C onnect the DVD Recorder / VCR supporting Q-Link to the TV’s AV1

•

terminal via a SCART cable.

VIERA Link (HDMI connection)

C onnected equipment

F eatures Preset download

E asy playback P ower on link P ower off link R educe unnecessary power consumption in standby Auto standby for unnecessary equipment P ause Live TV programme D irect TV Recording C ontrol the menu of the connected equipment by VIERA remote control Speaker control – – –

Connection

HDMI cable

DIGA Recorder with VIERALink function

∗2 ∗

∗

∗2 ∗

∗

DVD Player / Blu-ray Disc

Player with VIERALink

function

– –

∗

– – – –

∗

DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with VIERA Link function

(p.86 - 91)

DVD Recorder / VCR with Q-Link function

HD Video Camera/ LUMIXCamera with VIERALink function

–

∗

Link Functions (Q-Link / VIERALink)

U se fully wired HDMI compliant cable.

•

C onnect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

•

A bout HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.

•

Page 84

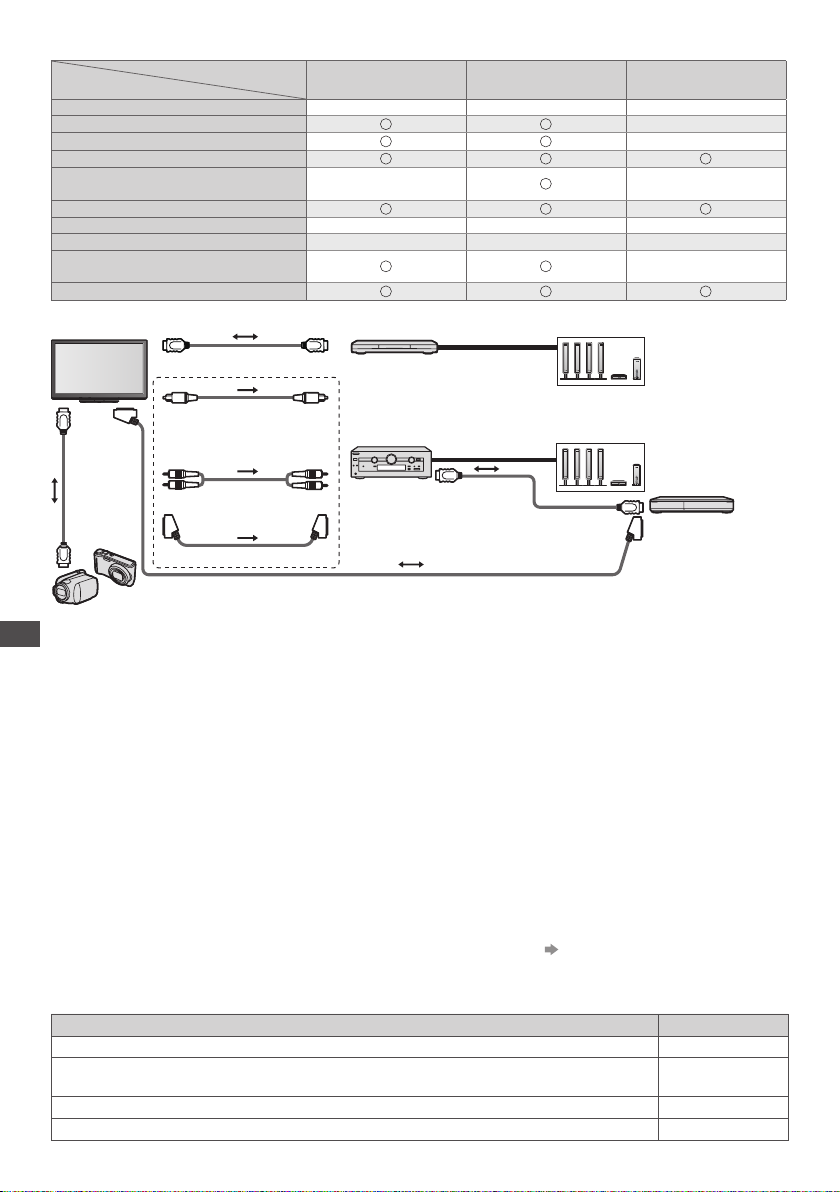

VIERA Link (HDMI and Audio out connections)

F eatures Preset download – – –

E asy playback P ower on link P ower off link R educe unnecessary power consumption in standby Auto standby for unnecessary equipment P ause Live TV programme – – – D irect TV Recording – – – C ontrol the menu of the connected equipment by VIERA remote control Speaker control

Connection

HDMI cable

HD Video Camera / LUMIXCamera with VIERALink function

U se fully wired HDMI compliant cable.

•

Link Functions (Q-Link / VIERALink)

C onnect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.

•

U se fully wired SCART cable.

•

If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 terminal and set

•

[AV1 out] to [Monitor] in the Setup Menu (p.40). U se the optical digital audio cable, RCA cable or SCART cable for audio output from the TV.

•

∗

1 : Available with the equipment which has “HDAVI Control 2 or

later” function.

∗

2 : Available with the equipment which has “HD

later” function.

∗

3 : Available with the equipment which has “HDAVI Control 4 or

later” function.

∗

4 : Available with DIGA Recorder which has HDD.

∗

5 : This function is available regardless of the version of HDAVI

Control when the recorder supports Q-Link and is connected via SCART cable.

C onnected equipment

HDMI cable

O ptical digital

audiocable

RCA cable

SCART cable

Player theatre with

VIERALink function

∗

–

∗3 ∗

∗

T o use Player theatre / Blu-ray Disc theatre :

•

Player theatre / Blu-ray Disc theatre with VIERALink function

T o use Amplifier :

•

Amplifier with VIERALink function

∗

SCART cable

AVI Control 3 or

Blu-ray Disc theatre with

VIERALink function

∗

6 : While playing a disc

∗

7 : Except for watching a disc

∗

8 : If the connected equipment has “HDAVI Control 5”

function, you do not have to use this audio cable (Optical digital audio cable, RCA cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.

Amplifier with VIERALink

function

∗

∗3 ∗

∗

Speaker system

HDMI cable

DIGARecorder with VIERALink function

– –

–

∗

–

VIERA Link Control of compatible equipment ([VIERA Link Control] p.89)

T able below displays maximum number of compatible equipment that can be controlled by VIERA Link Control.

•

T his includes connections to equipment already connected to the TV. F or example, DIGA Recorder connected to Amplifier which is connected to the TV

Type of the equipment M aximum number R ecorder (DIGA Recorder, etc.) 3 Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera, Digital Camera, Player

theatre, Blu-ray Disc theatre, etc.)

dio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1

Au Tuner (Set top box, etc.) 4

via an HDMI cable.

Page 85

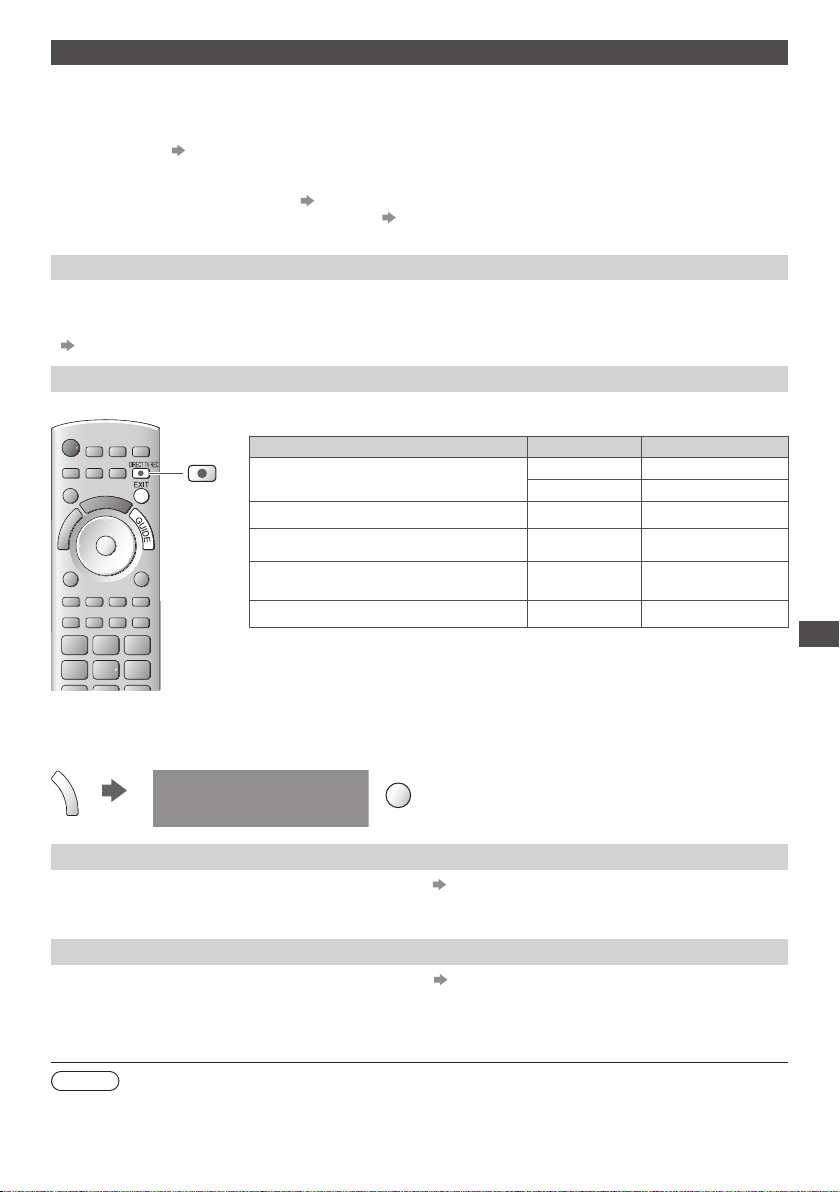

Q-Link

Preparations

C onnect the DVD Recorder / VCR with the following logos :

•

“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips Corporation)”, “Megalogic (a trademark of Grundig Corporation)” Q-Link connection (p.83)

•

U se fully wired SCART cable.

•

Set up the DVD Recorder / VCR. Read the manual of the recorder.

•

Q-Link terminal setup in the Setup Menu [AV1 out] (p.40)

•

D ownload preset - channel, language, country settings “Preset download” (see below)

•

, “SMARTLINK (a trademark of Sony Corporation)”

Features available

Preset download

C hannel, language, country settings can be downloaded to the recorder.

DVB-S and DVB-C channel settings cannot be downloaded.

•

T o download settings

•

 [Download] (p.41) or [Auto Setup] (p.49) or “Auto Setup” - when first using the TV (p.13,14)

Direct TV Recording - What you see is What you record

R ecording the current programme in DVD Recorder / VCR immediately.

DIRECT TV REC

Available conditions :

•

P icture source M ode R ecording from

A nalogue

DVB TV TV monitor out

AV (watching recorder’s tuner) AV Recorder’s tuner

AV (watching recorder’s external input) A

AV (watching TV ’s external input) AV TV monitor out

When Direct TV Recording is performed, the recorder is automatically turned on if it is in

•

Standby mode. C hanging channel or turning off the TV is available while the recorder is recording from its

•

own tuner. C hanging channel is not available while the recorder is recording from the TV tuner.

•

TV TV monitor out AV Recorder’s tuner

R ecorder’s

externalinput

■ To stop recording

Unlock the tuner

Tuner Locked

Press EXIT to unlock and stop recording

EXIT

Link Functions (Q-Link / VIERALink)

Power on link and Easy playback

Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p.40)

When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p.40)

When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not active.)

T his function will work even if the TV enters Standby mode automatically by auto power standby function.

•

Note

Some recorders are not applicable. Read the manual of the recorder.

•

Page 86

VIERA Link “ ”

∗

Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.

T his TV supports “HDAVI Control 5” function. C onnections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p.83,84). T hese features are limit

Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the connected

•

equipment’s version of HDAVI Control. VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI

•

CEC (Consumer Electronics Control), is a unique function that we have developed and added. A s such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.

•

A bout applicable Panasonic equipment, consult your local Panasonic dealer.

•

ed to models incorporating “HDAVI Control” and “VIERA Link”.

∗

Preparations

C onnect the equipment supporting VIERA Link.

•

VIERA Link connection (p.83,84)

•

U se fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized.

•

R ecommended Panasonic’s HDMI cable part number :

•

RP-CDHS15 (1.5 m)

U se fully wired SCART cable.

•

Set up the connected equipment. Read the manual of the equipment.

•

F or optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.

•

D ownload preset - channel, language, country / region settings “Preset download” (see below)

•

Set [VIERA Link] [On] in the Setup Menu [VIERA Link] (p.40)

•

Set up the TV

•

 After connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p.27), and make sure that an image is displayed correctly.

T his setup should be done each time when the following conditions occur :

•

f or the first time

•

w hen adding or reconnecting equipment

•

w hen changing setup

•

RP-CDHS30 (3.0 m)

•

RP-CDHS50 (5.0 m)

Features available

Link Functions (Q-Link / VIERALink)

Preset download

C hannel, language, country / region settings can be downloaded to the recorder.

DVB-S and DVB-C channel settings cannot be downloaded.

•

T o download settings

•

 [Download] (p.41) or [Auto Setup] (p.49) or “Auto Setup” - when first using the TV (p.13,14)

Easy playback

Automatic input switching - When the connected equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.

Power on link

Set Power on Link [On] in the Setup Menu to use this function [Power on Link] (p.40)

When the connected equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when the TV is in Standby mode.)

Power off link

Set Power off Link [On] in the Setup Menu to use this function [Power off Link] (p.40)

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

T his function will work even if the TV enters Standby mode automatically by auto power standby function.

•

Page 87

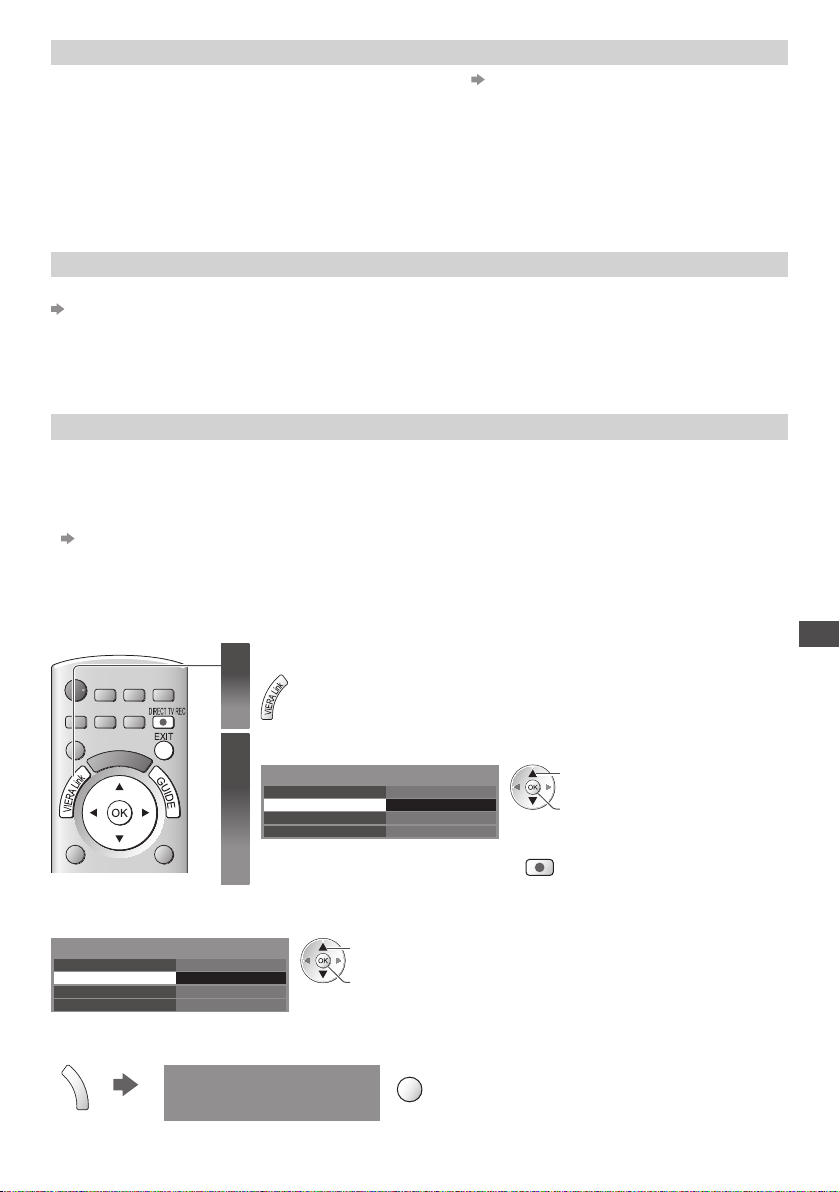

Reduce unnecessary power consumption in standby [Standby Power Save]

Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p.41)

T he power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronization with the TV On / Off state to reduce the consumption. When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption in Standby mode of the connected equipment is automatically minimised. When the TV is turned on, the connected equipment is still in Standby mode, but the power consumption is increased to make startup time early.

T his function is effective if the connected equipment can change the power consumption in Standby mode and is set to

•

higher consumption. T his function will work when [Power off Link] is set to [On].

•

Auto standby for unnecessary equipment [Intelligent Auto Standby]

Set Intelligent Auto Standby [On (With reminder)] or [On (No reminder)] in the Setup Menu to use this function

[Intelligent Auto Standby] (p.41)

When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically to reduce the power consumption. For example, when the input mode is switched from HDMI, when Speaker Selection is changed to [TV]

(except for watching a disc).

If you select [On (With reminder)], the on screen message will be displayed to be noticed before working this function.

•

T his function may not work properly depending on the connected equipment. If required, set to [Off ].

•

Direct TV Recording - What you see is What you record [Direct TV Rec]

R ecording the current programme in DIGA Recorder immediately.

If you connect a variety of recorders including other manufacturers’ recorders at the same time, please connect DIGA

•

Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, in this case connect DIGA Recorder to HDMI1. If you cannot operate, check the settings and the equipment

•

 “Summary of Q-Link and VIERA Link features” (p.83,84), “Preparations” (p.86) If you wish to record the programme which DIGA Recorder does not support, SCART connection is required and the

•

programme is recorded by Q-Link function (p.85). D epending on the programme, SCART connection may be required to record.

•

C hanging channel or turning off the TV is available while the recorder is recording from its own tuner.

•

C hanging channel is not available while the recorder is recording from the TV tuner.

•

Display [VIERA Link Menu]

Link Functions (Q-Link / VIERALink)

■ To stop recording

Select [Stop] in [Direct TV Rec]

VIERA Link Menu

P ause Live TV

D irect TV

Rec

VIERA Link Control Speaker Selection

You can also stop recording directly.

•

Unlock the tuner

Start Stop R ecorder H ome Cinema

Tuner Locked

Press EXIT to unlock and stop recording

Select [Direct TV Rec] and start recording

VIERA Link Menu

P ause Live TV

D irect TV

VIERA Link Control Speaker Selection

Rec

Start Start R ecorder H ome Cinema

select

access / stop

EXIT

select

access / start

You can also start recording directly.

•

DIRECT TV REC

Page 88

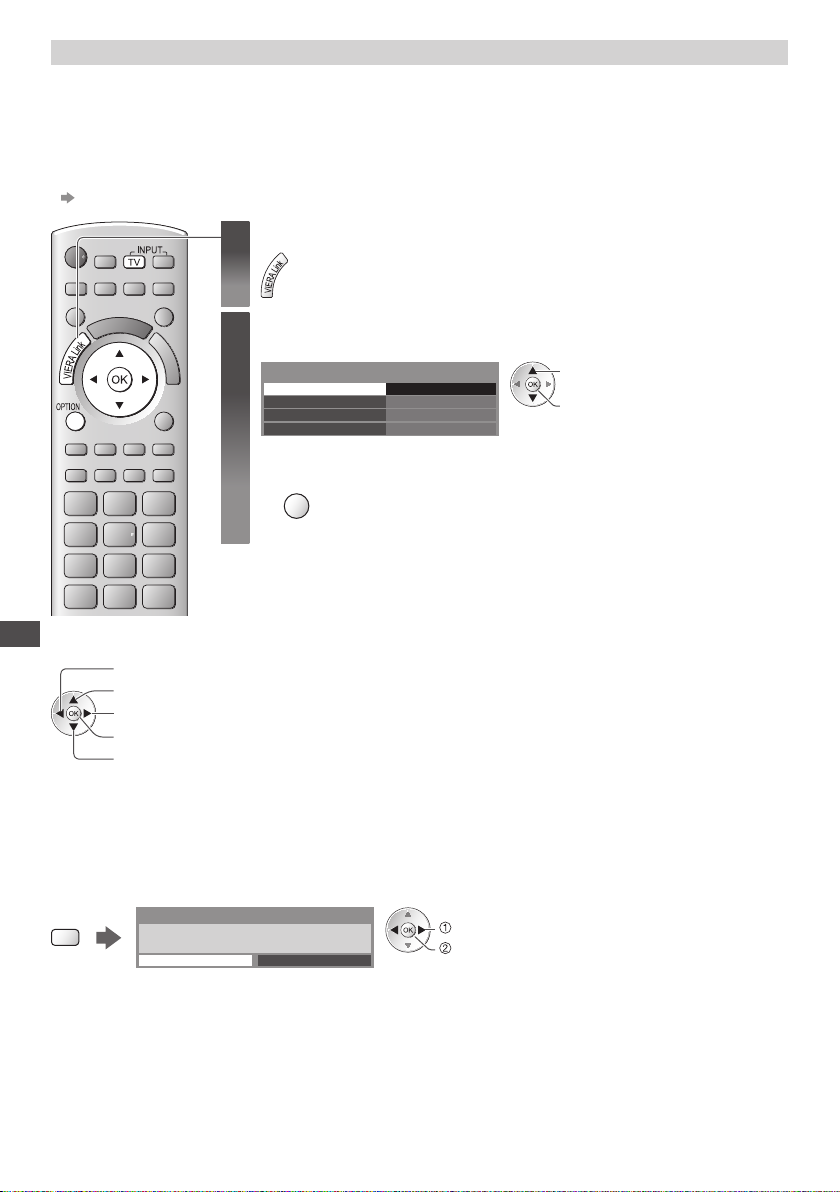

Pause Live TV programme [Pause Live TV]

You can pause the live TV programme and resume later. L ive TV programme will be recorded on HDD of the connected DIGA Recorder.

T his function is available with DIGA Recorder which has HDD.

•

If you connect a variety of recorders including other manufacturers’ recorders at the same time, please connect DIGA

•

Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, in this case connect DIGA Recorder which has HDD to HDMI1. If you cannot operate, check the settings and the equipment

•

 “Summary of Q-Link and VIERA Link features” (p.83,84), “Preparations” (p.86)

Display [VIERA Link Menu]

Select [Pause Live TV] and pause

T he TV picture will be paused.

select

access / pause

■ To operate Pause Live TV

Link Functions (Q-Link / VIERALink)

search backward pause search forward playback stop

If you stop playback, the recorded

•

programme will be deleted from HDD.

VIERA Link Menu

P ause Live TV

D irect TV

Rec VIERA Link Control Speaker Selection

L ive TV programme is recorded on HDD from where it was paused.

•

If the paused TV picture disappears after a few minutes.

•

OPTION

(The paused picture will be restored)

F ollow the operation guide to operate Pause Live TV function.

•

Start Start R ecorder H ome Cinema

O perations may be different depending on the recorder. In this case,

•

follow the operation guide or read the manual of the recorder.

■ To return to Live TV

( Stop playback of Pause Live TV / cancel pause)

Select [Yes]

Pause Live TV

If you stop playback or cancel pause, the recorded programme will be deleted from HDD.

•

Stop Pause Live TV?

Yes

N o

select

stop

Page 89

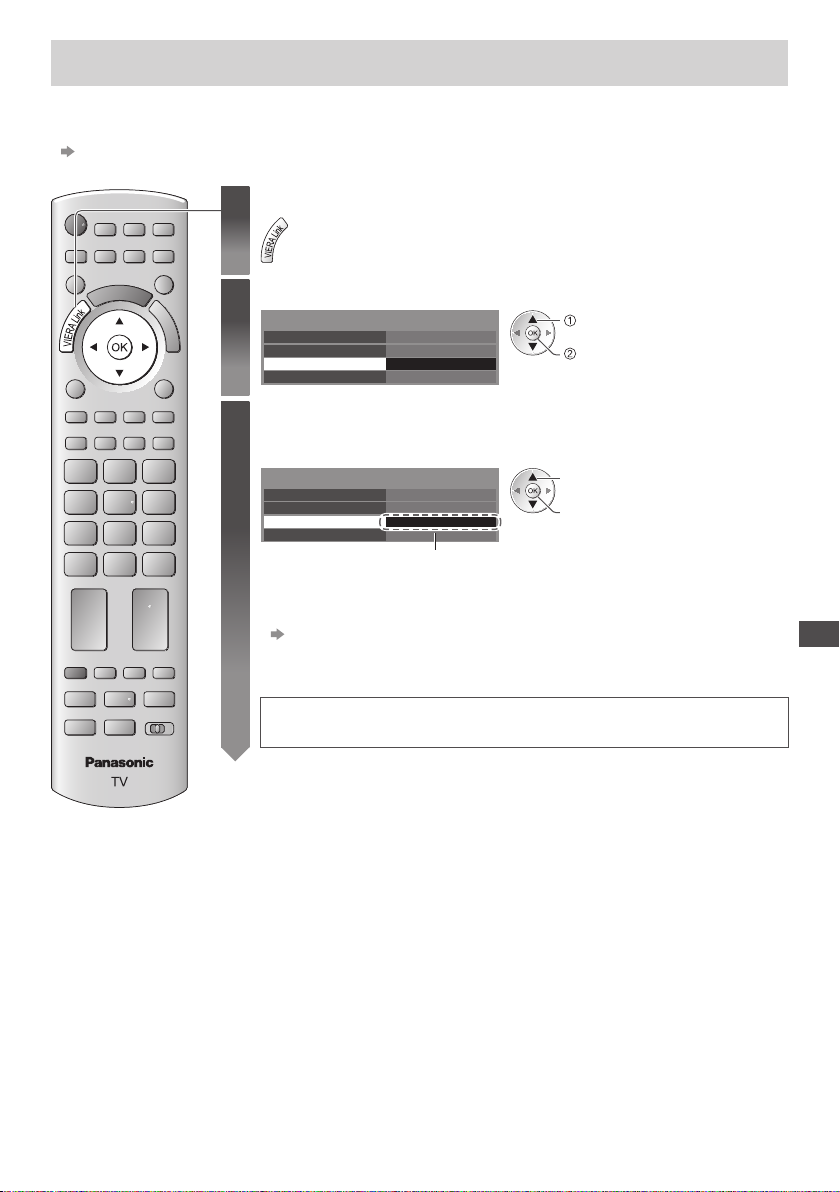

Control the menu of the connected equipment by VIERA remote control [VIERA Link Control]

You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s signal receiver).

If you cannot operate, check the settings and the equipment

•

 “Summary of Q-Link and VIERA Link features” (p.83,84), “Preparations” (p.86)

F or details of the operations for the connected equipment, read the manual of the equipment.

•

Display [VIERA Link Menu]

Select [VIERA Link Control]

VIERA Link Menu

P ause Live TV D irect TV Rec

VIERA Link Control

Speaker Selection

Select the equipment you want to access

T he type of the connected equipment is displayed. Select the type of the equipment and access.

VIERA Link Menu

P ause Live TV D irect TV Rec

VIERA Link Control

Speaker Selection

[Recorder] / [Player] / [Home Cinema] / [Video Camera] / [LUMIX] / [Digital Camera] / [Other]

You can also access directly by using VIERATOOLS

•

 “How to Use VIERA TOOLS” (p.34)

T he displayed item may vary depending on the connected equipment.

•

[Home Cinema] means Player theatre, Blu-ray Disc theatre or Recorder theatre.

•

[Other] means Tuner set top box.

•

The menu of the accessed equipment

(Input mode will be changed automatically)

Start Start R ecorder H ome Cinema

select

access

select

access / store

Link Functions (Q-Link / VIERALink)

Page 90

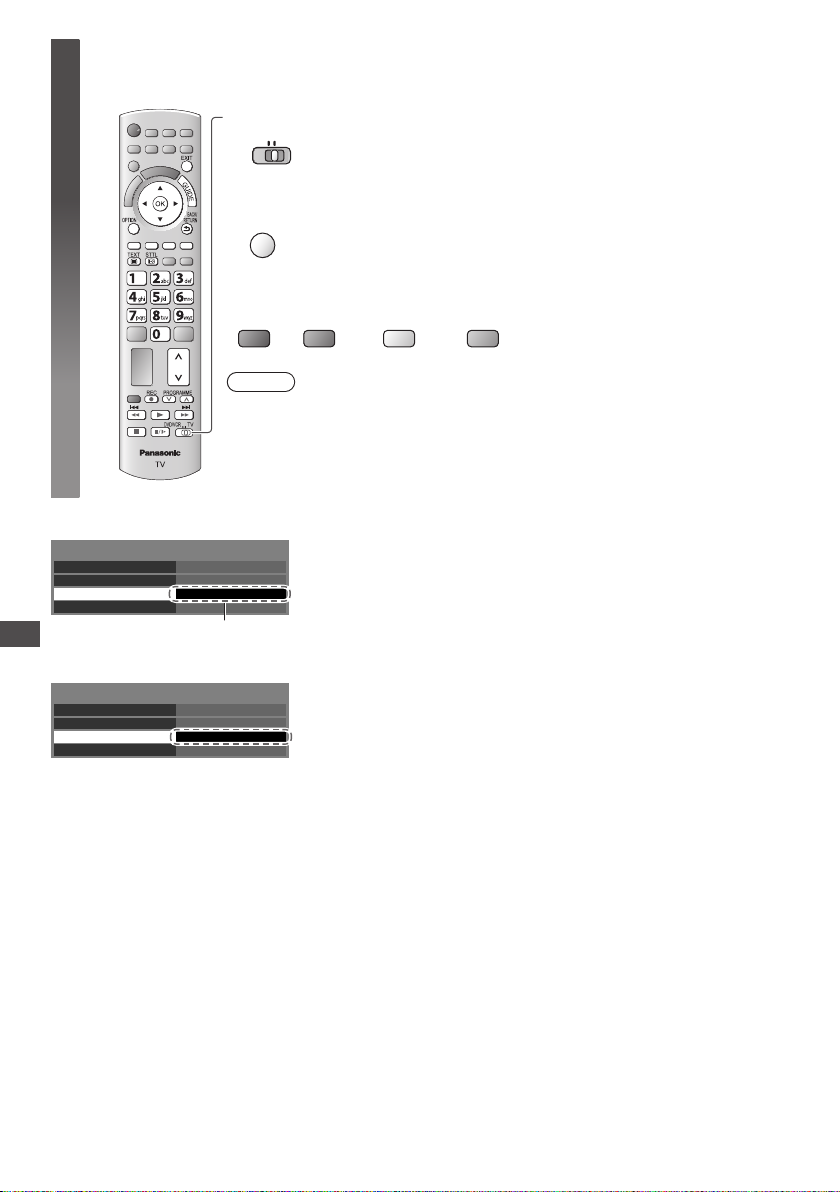

Operate the menu of the equipment

Available VIERA remote control buttons : (Depending on the connected equipment)

1 Set the position to “TV”

DVD/VCR

2 Follow the operation guide

T o display the operation guide

•

OPTION

If other manufacturers’ equipment is accessed, Setup / Contents Selection menu may be displayed.

When the key words are displayed on colour bar

•

(red) (green) (yellow) (blue)

Note

Some operations may not be available depending on the equipment. In this case use its own

•

remote control to operate the equipment.

■ If multiple recorders or players are connected

VIERA Link Menu

P ause Live TV D irect TV Rec

VIERA Link Control

Speaker Selection

Link Functions (Q-Link / VIERALink)

■ If you access non-VIERALink equipment

VIERA Link Menu

P ause Live TV D irect TV Rec

VIERA Link Control

Speaker Selection

Start Start R ecorder2 H ome Cinema

[Recorder1-3 / Player1-3]

Start Start R ecorder H ome Cinema

T he number is given from the TV’s lower HDMI terminal number connected to the same type equipment. For example, two recorders to HDMI2 and HDMI3, in this case the recorder connected to HDMI2 is displayed as [Recorder1], and the recorder connected to HDMI3 is displayed as [Recorder2].

T he type of the connected equipment is displayed. You can access the menu of the equipment. But you cannot operate it. Use its own remote control to operate the equipment.

Page 91

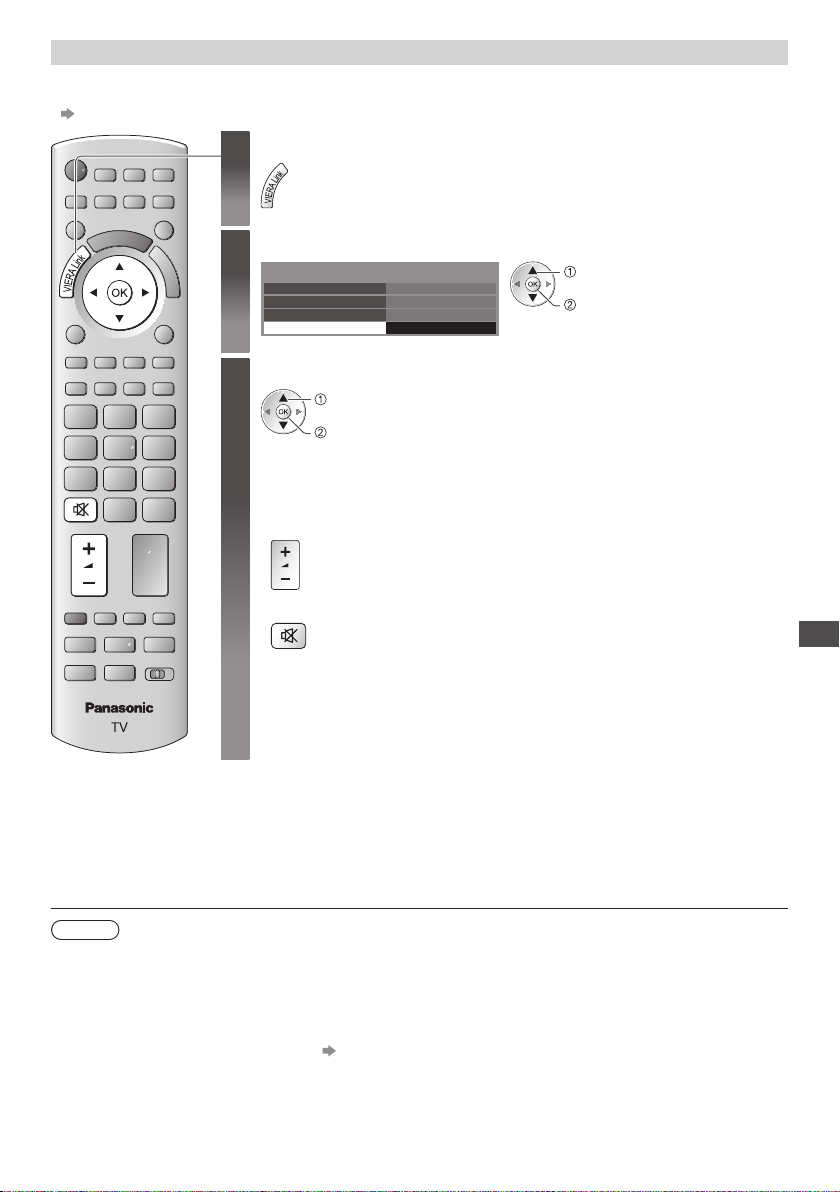

Speaker control [Speaker Selection]

You can control the theatre speaker with this TV remote control (point the remote control at the TV’s signal receiver).

If you cannot operate, check the settings and the equipment

•

 “Summary of Q-Link and VIERA Link features” (p.83,84), “Preparations” (p.86)

Display [VIERA Link Menu]

Select [Speaker Selection]

VIERA Link Menu

P ause Live TV D irect TV Rec VIERA Link Control

Speaker Selection

Set to [Home Cinema] or [TV]

select

store

Start Start R ecorder H ome Cinema

[Home Cinema]

Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is in Standby mode and the sound is from theatre speakers connected to the equipment.

V olume up / down

•

Mute

•

T he sound of TV speakers is mute.

•

When the equipment is turned off, TV speakers will be active.

•

[TV]

TV speakers are active.

select

access

Link Functions (Q-Link / VIERALink)

Multi-channel sound

If you wish to enjoy the multi-channel sound (e.g. Dolby Digital 5.1ch) via an Amplifier, connect with HDMI cable and Optical digital audio cable (p.84), and then select [Home Cinema]. If your Amplifier has “HDAVIControl 5” function, you can connect only with HDMI cable. In this case, connect your Amplifier to the TV’s HDMI2 terminal. T o enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable from the DIGA Recorder to the Amplifier (p.84).

Note

T hese functions may not work properly depending on the connected equipment.

•

Image or sound may not be available for the first few seconds when input mode is switched.

•

E asy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier. Read the

•

manual of the equipment. “HDAVI Control 5” is the newest standard (current as of December, 2010) for HDAVI Control compatible equipment. This

•

standard is compatible with conventional HDAVI equipment. T o confirm this TV’s version of HDAVI Control [System Information] (p.44)

•

Page 92

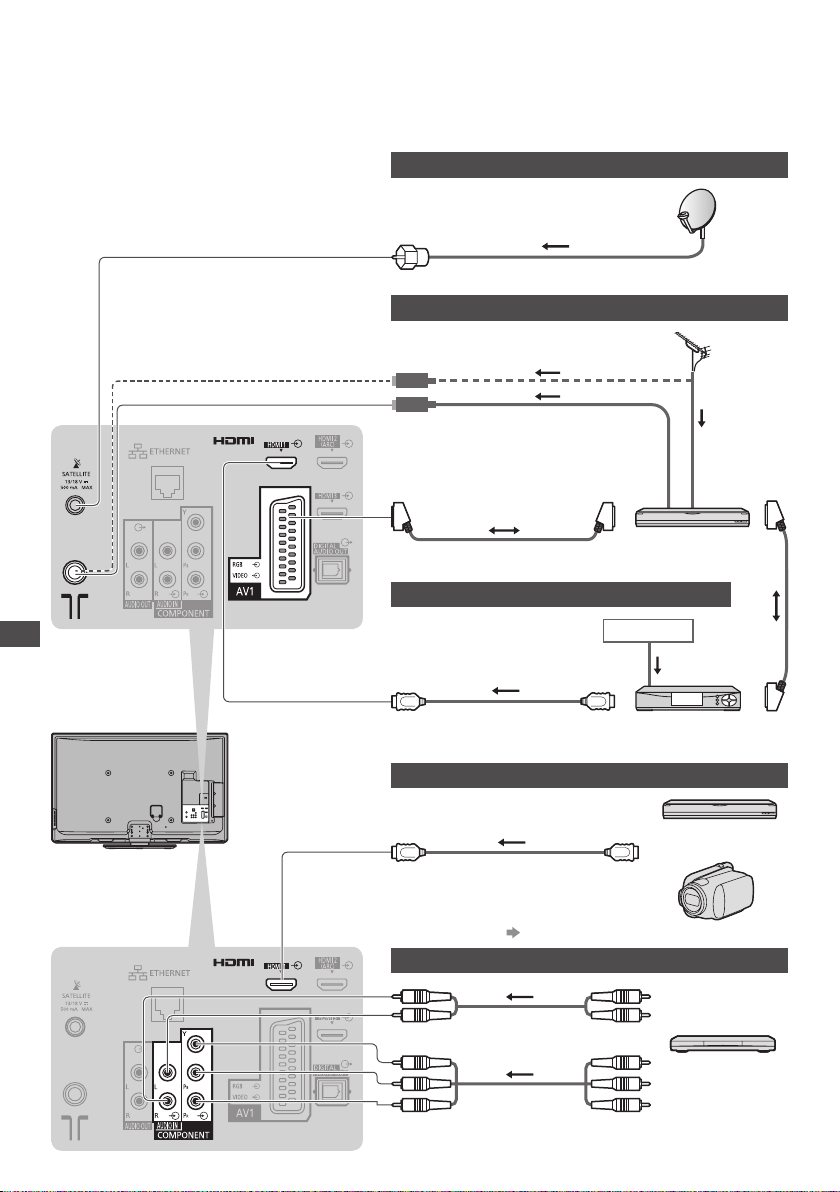

External Equipment

T hese diagrams show our recommendations for connection of your TV to various pieces of equipment. F or other connections, consult the instructions for each piece of equipment, the table below, and the specifications (p.106,

107).

To watch satellite broadcasts

Satellite dish

External Equipment

R ear of the TV

Satellite cable

To record / playback

T errestrial aerial

RF cable

Fully wired SCART cable

DVD Recorder / VCR

To watch cable broadcasts

Cable

SCART cable

Fully wired HDMI

compliant cable

Set top box

HDMI equipment

Recorder / Player

Fully wired

Fully wired HDMI

compliant cable

HDMI connection (p.99)

•

Camcorder

To watch DVDs

(Listening)

DVD Player

(Viewing)

Page 93

Network (wired)

L ess than

10cm

F errite core - Large size (supplied)

LAN cable

L ess than 10cm

Hub or Router

Installing the Ferrite core

Pull back the tabs (in two places)

Wind the cable twice

USB devices

Wireless LAN Adaptor

Internet

Modem

Press the cable through and close

R ear of the TV

Side panel of

the TV

Camcorder / Game equipment

(Viewing)

Camcorder

(Listening)

Game equipment

To listen with speakers

O ptical digital audio cable

T o enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. F or the connections, read the manuals of the equipment and amplifier.

RCA cable

Amplifier with

speaker system

External Equipment

Page 94

R ear of the TV

Side panel of

the TV

Headphones

L ess than 10 cm

(M3 stereo mini plug)

F errite core - Small size (supplied) (TX-P42ST32Y)

Installing the Ferrite core

O pen

Pull back the tab Wind the cable

twice

T o adjust volume

•

[Headphone Volume] (p.39)

Press the cable through and close

Types of connectable equipment to each terminal

Terminal

COMPONENT

AUDIO OUT

AV1

AV2

Recording/ Playback

(equipment)

External Equipment

T o record / playback videocassettes/ DVDs (VCR / DVD Recorder)

T o watch 3D contents (Blu-ray Disc Player) T o watch cable broadcasts (Set top box)

T o watch DVDs (DVD Player)

T o watch camcorder images (Video camera)

T o play games (Game equipment)

T o use amplifier with speaker system

T o use network services

Q-Link

VIERA Link

(with HDMI)

D irect TV Recording

: Recommended Connection

∗

1 : Use HDMI1 for automatic input switching.

∗

2 : Use HDMI2 for connecting an amplifier. This connection is applicable when using an amplifier that has ARC (Audio Return

Channel) function.

ETHERNET

DIGITAL

HDMI 1 - 4

∗

USB 1 - 2

Page 95

Technical Information

A u t o A s p e c t

T he optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p.21)

Aspect Control Signal

[ WIDE] will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal is found.

T he aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio. T his function will work in any aspect mode.

Aspect Control Signal

Input terminal Input signal format

Satellite DVB-S

C able RF

AV1 / AV2 (Composite)

COMPONENT

HDMI1 HDMI2 HDMI3 HDMI4

DVB-C DVB-T PAL B, G, H, I PAL D, K SECAM B, G SECAM L, L’ SECAM D, K PAL 525/60 6.5 MHz – PAL 525/60 6.0 MHz – PAL 525/60 5.5 MHz – M .NTSC 6.5 MHz – M .NTSC 6.0 MHz – M .NTSC 5.5 MHz – PAL SECAM PAL 525/60 – M .NTSC – NTSC – 525 (480) / 60i, 60p – 625 (576) / 50i, 50p 750 (720) / 60p, 50p – 1,125 (1,080) / 60i, 50i – 525 (480) / 60i, 60p – 625 (576) / 50i, 50p – 750 (720) / 60p, 50p – 1,125 (1,080) / 60i, 50i – 1,125 (1,080) / 60p, 50p, 24p –

Widescreen signal

(WSS)

Auto mode

Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS, Control signal through SCART / HDMI terminal, Letterbox detection or Justify to fill the screen) to determine.

T his process may take several minutes, depending on the darkness of the image. L etterbox detection : If black bands at the top and bottom of the screen are detected, Auto mode chooses the best ratio and expands the image to fill the screen. If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.

Note

T he ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top and bottom

•

of the screen may appear. If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the

•

VCR. Read the manual of the VCR.

Control signal

through SCART (pin8) /

HDMI terminal

Technical Information

Page 96

Supported file format in Media Player

■ Photo

Format File extension

JPEG

∗

1 : Design rule for Camera File system - unified standard established by Japan Electronics and Information Technology

Industries Association (JEITA)

∗

2 : Exchangeable Image File - image file format used by digital cameras

.jpg .mpo

Image resolution

(pixel)

8 × 8 to 30,719 × 17,279

Details / Restrictions

∗

DCF Sub-sampling : 4:4:4, 4:2:2, 4:2:0

Progressive JPEG is not supported.

•

and EXIF

∗

standards

■ Video

Container File extension Video codec Audio codec Details / Restrictions

SD-Video .mod

AVCHD .mts H .264 Dolby Digital

AVI

MKV .mkv H.264 BP / MP / HP

A SF

MP4 .mp4 H.264 BP / MP / HP

.avi .divx

.asf .wmv

MPEG1 MPEG2

DIV3 DIV4 DIVX DX50 DIV6 XviD MPEG4 SP / ASP

Windows Media Video Ver. 9

VC-1

Technical Information

MOV .mov

P S

∗

3 : Some products of before the year 2004 may not be available. The compatibility with future products is not guaranteed.

.mpg .mpeg

M otionJPEG H .264 BP / MP / HP

MPEG1 MPEG2

MPEG D olby Digital

MPEG MP3 D olby Digital

MPEG MP3 D olby Digital DTS core

WMA

AAC MP3 D olby Digital

L inear PCM (RAW / TWOS / SOWT)

AAC MP3 D olby Digital

MPEG MP3 L inear PCM

SD-Video Standard Ver. 1.3 (Entertainment Video Profile)

T he data may not be available if a folder

•

structure on the device is modified.

AVCHD Standard (including 3D videos recorded by the 3D-compatible Video Camera)

T he data may not be available if a folder

•

structure on the device is modified.

C ertified to play DivX Plus HD video file in

•

Media Player F or details of DivX “DivX” (p. 97)

C opy-protected files cannot be played

•

back. WMA Pro and WMA Lossless are not

•

supported.

T his TV supports this container recorded

•

by Panasonic products. F or details, read the manual of the products.

T his TV supports Motion JPEG recorded by

•

Panasonic LUMIX Camera

–

∗

Page 97

■ Music

Codec File extension Restrictions

MP3 .mp3 –

AAC .m4a

WMA .wma

Note

Some files may not be played back even if they fulfill these conditions.

•

D o not use two-byte characters or other special codes for data.

•

T he device may become unusable with this TV if the file or folder names are changed.

•

DivX

D ivX Certified® to play DivX® and DivX Plus™ HD (H.264/MKV) video up to 1080p HD including premium content. ABOUT DIVX VIDEO : D ivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video. V isit divx.com for more information and software tools to convert your files into DivX video.

Subtitle text file of DivX

Subtitles format - MicroDVD, SubRip, TMPlayer

T he DivX video file and subtitles text file are inside the same folder, and the file names are the same except for the file

•

extensions. If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority :

•

“.srt”, “.sub”, “ .txt”. T o confirm or change the current subtitle status while playing DivX content, press the OPTION button to display Option

•

Menu. D epending on the methods used to create the file or the state of recording, only parts of the subtitles may be displayed, or

•

the subtitles may not be displayed at all.

Note

D epending on how you make SD Card or USB Flash Memory, files and folders may not be displayed in the order you

•

numbered. D epending on how you create the files and the structure of folders, the files and folders may not be displayed.

•

When there are many files and folders, operation may take time to complete or some files may not be displayed or playable.

•

ABOUT DIVX VIDEO-ON-DEMAND : T his DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in the Setup Menu. Go to vod.divx.com for more information on how to complete your registration.

To show DivX VOD registration code

[DivX® VOD] in the Setup Menu (p.44)

If you want to generate the new registration code, you have to deregister the present registration code.

•

After playing DivX VOD content once, the confirmation screen to deregister will be displayed in [DivX® VOD] in the Setup Menu. If you press the OK button on the confirmation screen, the deregistration code will be generated and you will not be able to play any contents that you purchased using the present registration code. You will obtain the new registration code by pressing the OK button on the deregistration code screen. If you purchase DivX VOD content using a registration code different from this TV’s code, you will not be able to play this

•

content. ([Your device is not authorized to play this DivX protected video.] is displayed.)

Regarding DivX content that can only be played a set number of times

Some DivX VOD content can only be played a set number of times. When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of remaining plays is zero. ([

When playing this content, the number of remaining plays is reduced by one in the following conditions :

•

If you exit the current application.

•

If you play the other content.

•

If you go to the next or previous content.

This DivX rental has expired.] is displayed.)

C opy-protected files cannot be played back.

•

C opy-protected files cannot be played back.

•

WMA Pro and WMA Lossless are not supported.

•

Technical Information

Page 98

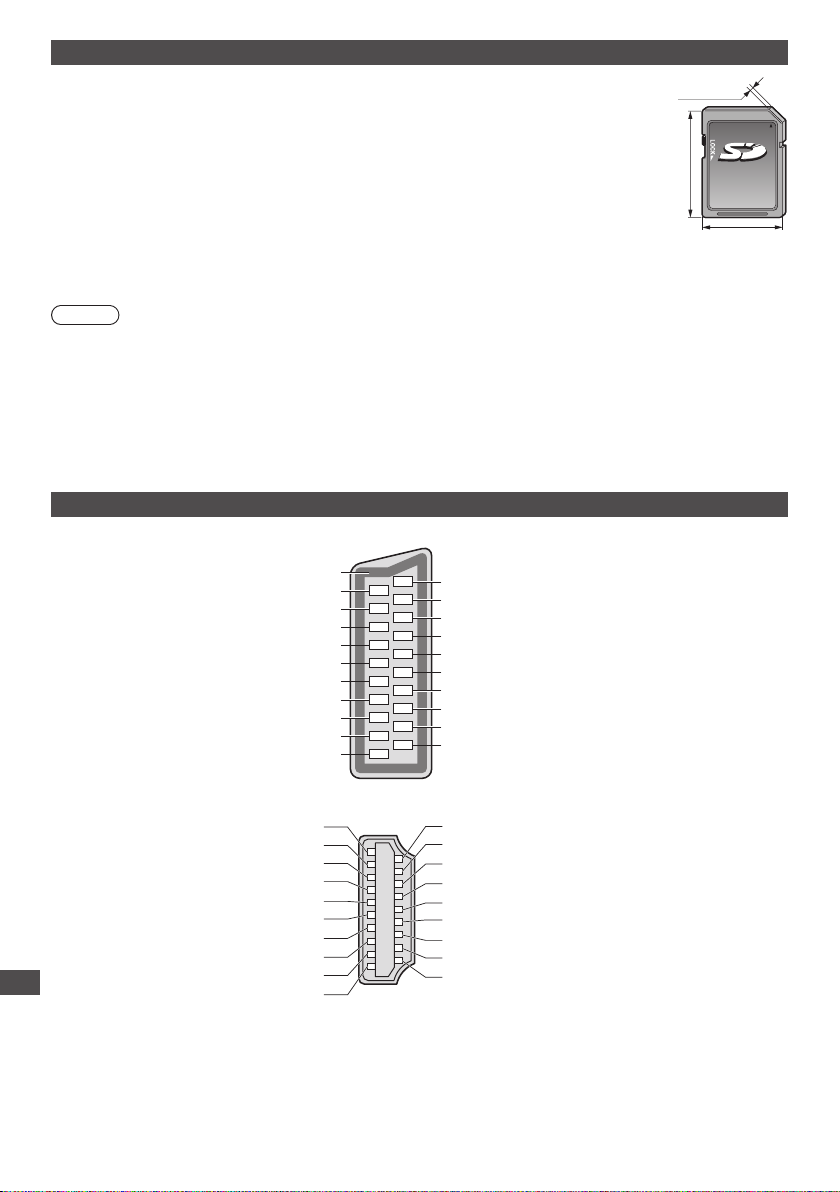

Devices for recording or playing back

■ SD Card (for playing back in Media Player)

C ard format : SDXC Card - exFAT SDHC Card / SD Card - FAT16 or FAT32 C ompliant card type (maximum capacity) : SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB),

If miniSD Card is used, insert / remove it together with the adaptor.

•

C heck the latest information on the card type at the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/ U se an SD Card which meets SD standards. If not, it may cause the TV to malfunction.

•

■ USB Flash Memory (for playing back in Media Player)

U SB Flash Memory format : FAT16, FAT32 or exFAT

A USB HDD formatted by PC is not supported in Media Player.

•

Note

D ata modified with a PC may not be displayed.

•

D o not remove the device while the TV is accessing data (this can damage device or TV).

•

D o not touch the pins on the device.

•

D o not subject the device to a high pressure or impact.

•

I nsert the device in the correct direction (otherwise, device or TV may be damaged).

•

Electrical interference, static electricity, or erroneous operation may damage the data or device.

•

B ack up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV.

•

(Panasonic is not liable for any deterioration or damage of recorded data.)

SCART and HDMI terminal information

AV1 SCART terminal (RGB, VIDEO, Q-Link)

CVBS out (video) 19

Technical Information

HDMI terminal

H ot Plug Detect 19

DDC/CEC Ground 17

TMDS Clock Shield 11

TMDS Data0− 9 TMDS Data0+ 7

TMDS Data1 Shield 5

TMDS Data2− 3 TMDS Data2+ 1

miniSD Card (2 GB) (requiring miniSD adaptor)

R ed in 15

Socket Earth 21

CVBS earth 17

R ed earth 13

Green in 11

Green earth 9

Blue in 7

Blue earth 5 Audio out (L) 3 Audio out (R) 1

SCL 15

CEC 13

20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 - 10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)

18 +5V Power 16 SDA 14 Utility 12 TMDS Clock− 10 TMDS Clock+ 8 TMDS Data0 Shield 6 TMDS Data1− 4 TMDS Data1+ 2 TMDS Data2 Shield

2 .1 mm

32 mm

24 mm

Page 99

HDMI connection

HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a noncompression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment. HDMI-compatible equipment equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. A bout connections, see “External Equipment” ( p.92).

∗

with an HDMI or DVI output terminal, such as a DVD player, a set top box or a game

Applicable HDMI features

I nput audio signal :

•

2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz) I nput video signal :

•

480i, 480p, 576i, 576p, 720p, 1080i and 1080p “Input signal that can be displayed” (p.101) M atch the output setting of the digital equipment. I nput PC signal :

•

“Input signal that can be displayed” (p.101) M atch the output setting of the PC.

VIERA Link (HDAVI Control 5)

•

[VIERA Link] (p.86) 3D

•

C ontent Type

•

D eep Colour

•

x .v.Colour™

•

Audio Return Channel

•

(HDMI2 terminal only)

∗

DVI connection

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable DVI to HDMI adaptor cable is used, connect the audio cable to the audio input terminal (HDMI1 / 2 / 3 : use AUDIO IN terminals / HDMI4 : use AV2 audio terminals).

Note

Audio settings can be made on the [HDMI1 / 2 / 3 / 4 Input] in the Sound Menu. (p.40)

•

If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.

•

T hese HDMI connectors are “type A”.

•

T hese HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

•

Equipment having no digital output terminal may be connected to the input terminal of “COMPONENT” or “VIDEO” to receive

•

analogue signals. T his TV incorporates HDMI™ technology.

•

∗1 : The HDMI logo is displayed on HDMI-compliant equipment. ∗2 : Audio Return Channel (ARC) is a function to be able to send digital sound signals via an HDMI cable. ∗3 :

Enquire at your local digital equipment retailer shop.

∗

. When the

Technical Information

Page 100

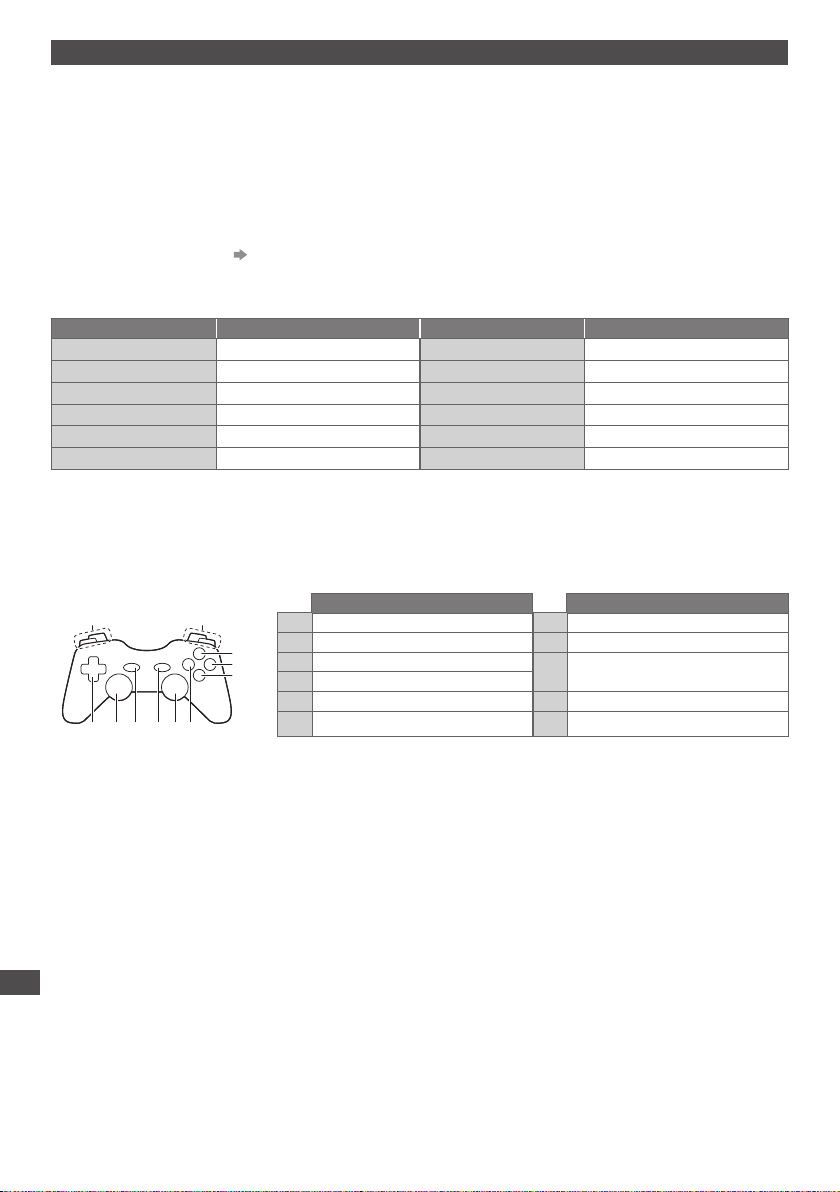

USB connection

I t is recommended to connect the USB Flash Memory directly to the TV’s USB ports.

•

Some USB devices or USB HUB may not be used with this TV.

•

You cannot connect any devices by using USB card reader.

•

You cannot use two or more same kind of USB devices simultaneously except USB Flash Memory.

•

Additional information for USB devices may be on the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/

USB Keyboard

T he USB Keyboard which requires the driver is not supported.

•

T o change the language type [USB Keyboard Layout] (p.44)

•

C haracters may not be displayed correctly on the TV screen depending on the connected keyboard or the keyboard layout

•

setting. Some of the keys of USB keyboards may correspond to the operation of the remote control.

•

USB Keyboard Remote Control USB Keyboard Remote Control

↑ / ↓ / ← / → E nter OK F3 MENU B ackspace BACK/RETURN F4 INPUT (AV) E sc EXIT F5 / F6 Channel Down / Up 0 - 9 / Character Numeric buttons F7 / F8 Volume Down / Up F1 GUIDE F9 / F10 / F11 / F12 Coloured buttons

rsor buttons F2 VIERA TOOLS

Gamepad

C heck the gamepads that have been tested for the performance with this TV at the following website. (English only)

•

http://panasonic.jp/support/global/cs/tv/ Some of the keys of gamepads correspond to the operation of the remote control.

•

Example :

Select Start

1011

7 69 8

Remote Control Remote Control

1 Volume Up / Down 7 2 Channel Up / Down 8 EXIT

3 GUIDE

4 5

4 OK 5 BACK/RETURN 10 MENU

6 VIERA Connect 11 Cursor buttons

VIERA TOOLS

INPUT

(AV)

Technical Information

100
