Operating Instructions
Plasma Television
Model No.
TX-P42G30B
TX-P50G30B
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this
product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
English
UK and Ireland model
QB0E2122
Page 2
Features
DVB-T tuner built-in
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts.
DVB-T2 tuner built-in
DVB-T2 is an advanced digital terrestrial system for more efficient transmission.
Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.
GUIDE Plus+ (p. 21)
This TV supports the TV Guide services sent from the GUIDE Plus+ system.
Sharp pictures and clear sound with HDMI connection (p. 97)
Enjoy high definition digital picture and high quality sound by using an HDMI cable.
This TV supports HDMI (Version 1.4 with Content Type, Audio Return Channel), Deep Colour, x.v.Colour™.
•
Using USB devices
Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 55, 67)
Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 59)
Wireless LAN Adaptor for the network connection. (p. 6, 11, 13)
USB keyboard, gamepad, etc. are available. (p. 98)
Timer Programming (p. 22, 45)
Timer Programming enables you to use functions such as programme reminder and programme
recording to the external recorder / formatted USB HDD.
VIERA IMAGE VIEWER - SD Card viewer in Media Player (p. 59)
Enjoy your photos or videos recorded on an SD Card on the TV screen.
SDXC Card
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.
DLNA
DLNA is a standard that makes digital electronics easier and more convenient to use on a home
network. For example, you can enjoy watching photos and videos stored in the PC connected to your
home network by accessing from the TV. (p. 78)
VIERA Connect - Enjoy great web entertainment (p. 16, 81)
Enjoy the internet contents on the TV such as photos, videos, weather, video communication
(ex. Skype™), etc. through an easy-to-use web interface that is built into the TV.
Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 82)
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.
VIERA TOOLS - Display special feature icons for easy accessibility (p. 29)
Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS button.
Dolby Digital Plus / Dolby Pulse decoders
It is possible to decode Dolby Digital Plus / Dolby Pulse multi-channel audio tracks and output as Dolby
Digital Bitstream (multi-channel sound signal) from DIGITAL AUDIO OUT / HDMI2 (ARC function) terminals.
Owner ID (p. 50)
Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help
the Police to determine the owner in the case of theft.
Supports Audio Description signal (p. 18, 33)
Audio Description (when broadcast) adds an additional soundtrack to describe events on screen
(narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description
soundtrack independently of the main volume.
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region.
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV
channels and some Digital TV channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue
channels are permanently turned off, it will not be possible to recover them.
To retune your TV [Auto Setup] in [DVB Tuning Menu]-DVB mode (p. 40)
•
Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via
their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in
•
some cases, despite good reception of analogue channels.
2
Page 3
Do not display a still picture for a long time
This causes the image to remain on the plasma
screen (“image retention”). This is not considered a
malfunction and is not covered by the warranty.
Typical still images
Channel number and other logos
•
Image displayed in 4:3 mode
•
Video game
•
Computer image
•
To prevent image retention, contrast is lowered
automatically after a few minutes if no signals are
sent or no operations are performed. (p. 100)
Contents
Be Sure to Read
Safety Precautions ·····································4
Quick Start Guide
Accessories / Options ·································6
Identifying Controls ·····································8
Basic Connection······································10
Auto Setup ················································12
The recording and playback of content on this or any
other device may require permission from the owner
of the copyright or other such rights in that content.
Panasonic has no authority to and does not grant
you that permission and explicitly disclaims any right,
ability or intention to obtain such permission on your
behalf. It is your responsibility to ensure that your use
of this or any other device complies with applicable
copyright legislation in your country. Please refer to
that legislation for more information on the relevant
laws and regulations involved or contact the owner of
the rights in the content you wish to record or playback.
Enjoy your TV!
Basic Features
Using “VIERA Connect” ····························16
Watching TV ·············································17
Using TV Guide ········································21
Viewing Teletext ········································24
Watching External Inputs ··························27
How to Use VIERA TOOLS ······················29
How to Use Menu Functions ····················30
Advanced Features
This product is licensed under the AVC patent portfolio
license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the AVC
Standard (“AVC Video”) and/or (ii) decode AVC Video
that was encoded by a consumer engaged in a personal
and non-commercial activity and/or was obtained from a
video provider licensed to provide AVC Video. No license
is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC
See http://www.mpegla.com.
ROVI CORPORATION AND/OR ITS RELATED
AFFILIATES ARE NOT IN ANY WAY LIABLE FOR
THE ACCURACY OF THE PROGRAM SCHEDULE
INFORMATION PROVIDED BY THE GUIDE PLUS+
SYSTEM. IN NO EVENT SHALL ROVI CORPORATION
AND/OR ITS RELATED AFFILIATES BE LIABLE FOR
ANY AMOUNTS REPRESENTING LOSS OF PROFITS,
LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR
CONSEQUENTIAL DAMAGES IN CONNECTION WITH
THE PROVISION OR USE OF ANY INFORMATION,
EQUIPMENT, OR SERVICES RELATING TO THE
GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
Notice for DVB / Data broadcasting / IPTV functions
This TV is designed to meet the standards (as of
August, 2009) of digital services.
The compatibility with future services is not guaranteed.
•
Check the latest information on the available
•
services at the following website.
http://panasonic.jp/support/global/cs/tv/
Retuning from Setup Menu·······················40
Tuning and Editing Channels ···················41
Timer Programming ··································45
Child Lock ·················································47
Input Labels ··············································48
Shipping Condition ···································49
.
Owner ID ··················································50
Using Common Interface ··························51
Updating the TV Software ························52
Advanced Picture Setting ·························53
USB HDD Recording ································55
Using Media Player ··································59
Using Network Services (DLNA / VIERA Connect)
Link Functions (Q-Link / VIERA Link) ·······82
External Equipment ··································90
FAQs, etc.
Technical Information································93
FAQs·······················································100
On screen messages······························102
Glossary ·················································104
Maintenance ···········································104
Index ·······················································105
Specifications ·········································106
Licence ···················································107
··71
3
Page 4
Safety Precautions
Warning
Safety Precautions
■ Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.
•
Insert the mains plug fully into the socket outlet.
•
Ensure that the mains plug is easily accessible.
•
Remove the mains plug when cleaning the TV.
•
Do not touch the mains plug with a wet
•
hand.
Do not damage the mains lead.
•
• Do not place a heavy
object on the lead.
• Do not place the
lead near a high
temperature object.
• Do not pull on the
lead. Hold onto the
mains plug body when
disconnecting the
plug.
• Do not move the TV with the lead plugged into a socket outlet.
• Do not twist the lead, bend it excessively or stretch it.
• Do not use a damaged mains plug or socket outlet.
• Ensure the TV does not crush the mains lead.
Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
•
• An apparatus with CLASS I construction shall be connected to a mains socket outlet with a
protective earthing connection.
If you detect anything unusual,
immediately switch off the mains supply
switch and remove the mains plug.
AC 220-240 V
50 / 60 Hz
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10
amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the
replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to
avoid interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified
electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an
authorized dealer.
WARNING: – THIS TV MUST BE EARTHED.
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
or the BSI mark on the body of the fuse.
4
Page 5
Warning
■ Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
Do not remove covers and never modify the TV yourself as live parts are
•
accessible when they are removed. There are no user serviceable parts inside.
Do not expose the TV to rain or excessive moisture. This TV must
•
not be exposed to dripping or splashing water and objects filled with
liquid, such as vases, must not be placed on top of or above the TV.
Do not expose the TV to direct sunlight and other sources of heat. To
•
prevent fire never place any type of candle or naked flame on top or
near the TV.
Do not place the TV on sloped or unstable surfaces, and ensure that
•
the TV does not hang over the edge of the base.
Do not insert foreign objects into the TV through the air vents.
•
Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic
•
dealer to perform the setup or installation of approved wall-hanging brackets.
Do not apply strong force or impact to the display panel.
•
To prevent the spread of fire, keep candles or other
open flames away from this product at all times
■ Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.
Keep the dangerous parts out of reach of young children.
•
Do not allow children to handle SD Card. As with any small object, the
•
SD Card could be swallowed by young children. Please remove SD Card
immediately after use and store out of reach of young children.
Caution
■ Ventilation
Allow sufficient space around the TV in order to help prevent excessive
heat, which could lead to early failure of some electronic components.
Ventilation should not be impeded by covering
•
the ventilation openings with items such as
newspapers, tablecloths and curtains.
Whether you are using the pedestal or not, always ensure the vents in the bottom of
•
the TV are not blocked and there is sufficient space to enable adequate ventilation.
■ Moving the TV
Before moving the TV, disconnect all cables.
The TV is heavy. Move the TV with at least two people. Support as
•
shown to avoid injury by the TV tipping or falling.
Transport only in upright position. Transporting the TV with its display panel
•
facing upward or downward may cause damage to the internal circuitry.
■ When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still
connected to a live socket outlet.
Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
•
■ Excessive volume
Do not expose your ears to excessive volume from the headphones.
Irreversible damage can be caused.
Minimum distance
10
10
10
(cm)
Safety Precautions
7
5
Page 6
Accessories / Options
Standard accessories
Remote Control
Quick Start Guide
N2QAYB000490
•
or
N2QAYB000672
•
Batteries for the
Remote Control (2)
(p. 8)
R6
•
Pedestal
TX-P42G30B
TBL5ZX0065
•
TXFBL5Z0007
•
TXFBL5Z0040
•
(p. 7)
:
TX-P50G30B
TBL5ZX0069
•
TXFBL5Z0009
•
TXFBL5Z0041
•
:
Operating Instructions Mains Lead
Product Registration
Leaflet
Accessories / Options
Accessories may not be placed all together. Take care not to throw them away unintentionally.
•
Optional accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For
additional details, please refer to the manual of the optional accessories.
Wireless LAN Adaptor
DY-WL10E-K
•
Communication Camera
TY-CC10W
•
Wall-hanging bracket
TY-WK4P1RW
•
Warning
Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of
•
personal injury and product damage. In order to maintain the unit’s performance and safety, be sure
to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused
by installing without a qualified installer will void your warranty.
Carefully read the instructions accompanying optional accessories, and be sure to take steps to prevent the TV from falling off.
•
Handle the TV carefully during installation since subjecting it to impact or other forces may cause
•
product damage which will void your warranty.
Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically
•
give off high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by metal
•
within the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of time.
6
•
Caution
To use the Wireless LAN Adaptor, an access point needs to be obtained.
•
It is recommended to use the Wireless LAN Adaptor with the extension cable.
•
To avoid malfunctions caused by radio wave interference, keep the TV away from
•
the devices such as other wireless LAN devices, microwaves and the devices that
use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor.
Depending on the area, this optional accessory may not be available.
•
Additional information for Wireless LAN Adaptor and access point may be on the following website.
•
http://panasonic.jp/support/global/cs/tv/
Caution
This camera can be used on VIERA Connect (p. 16, 81).
•
Please also read the manual of the camera.
•
Depending on the area, this optional accessory may not be available.
•
For details, consult your local Panasonic dealer.
Rear of the TV
Holes for wall-hanging bracket installation
400 mm
300 mm
(p. 10) Ferrite core (2) (p. 11, 91)
(View from the side)
J0KG00000014
•
Depth of screw : minimum 17 mm,
Diameter : M8
Screw for fixing the TV onto the wall-hanging bracket
(not supplied with the TV)
Use the Ferrite cores to
comply with the EMC standard.
maximum 22 mm
Page 7
Attaching the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and
cautions below:
Warning
Do not disassemble or modify the pedestal.
•
Caution
Do not use any pedestal other than the one provided with this TV.
•
Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your
•
nearest Panasonic dealer immediately.
During setup, make sure that all screws are securely tightened.
•
Ensure that the TV does not suffer any impact during installation of the pedestal.
•
Ensure that children do not climb onto the pedestal.
•
Install or remove the TV from the pedestal with at least two people.
•
Quick Start Guide
Assembly screw (4)
A
(silver)
XYN5+F20FN
•
M5 × 20
Assembly screw (4)
B
(black)
THEL087N
•
(TX-P42G30B)
THEL088N
•
(TX-P50G30B)
Assembling the pedestal
1
Use the assembly screws A to fasten the pole
D
to the base E securely.
Make sure that the screws are securely tightened.
•
Forcing the assembly screws the wrong way
•
will strip the threads.
A
E
Attach the cover
F
M5 × 25
D
Front
F
with assembly screw C
C
Assembly screw
C
(black)
XSB4+8FNK
•
M4 × 8
Pole
D
TBL5ZA3055
•
(TX-P42G30B)
TBL5ZA3065
•
(TX-P50G30B)
Base
E
TBL5ZX0065
•
(TX-P42G30B)
Securing the TV
2
Use the assembly screws B to fasten securely.
Tighten the four assembly screws loosely at first,
•
then tighten them firmly to fix securely.
Carry out the work on a horizontal and level surface.
•
B
E
TBL5ZX0069
•
(TX-P50G30B)
Cover
F
TBL5ZB3094-1
•
(TX-P42G30B)
TBL5ZB3095-1
•
(TX-P50G30B)
Arrow mark
(View from the bottom)
Accessories / Options
Hole for pedestal
installation
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way
when using the wall-hanging bracket or repacking the TV.
1 Remove the assembly screws B from the TV.
2 Pull out the pedestal from the TV.
3 Remove the assembly screw
4 Pull out the cover.
5 Remove the assembly screws A from the pole.
C
from the cover.
Adjusting the panel to your desired angle
Do not place any objects within the full rotation range.
•
(View from the top)
: 15°
(TX-P42G30B)
: 10°
(TX-P50G30B)
7
Page 8
Identifying Controls
Remote Control
MENU
L
A
R
E
I
V
OPTION
TEXT
SD CARD
ASPECT
k
n
i
ghi
1
2
3
Quick Start Guide
4
5
6
7
8
Identifying Controls
9
10
11
12
13
14
E
I
V
STTL
REC
A
R
TV
INPUT
AVTV
DIRECT TV REC
EXIT
T
O
O
L
S
G
RETURN
INDEX HOLD
abc def
jkl
tuvpqrs
wxyz
LAST VIEW
PROGRAMME
DVD/VCR
U
I
D
BACK/
mno
TV
1 Standby On / Off switch
Switches TV On or Off standby
15
16
17
18
19
E
20
21
22
23
24
25
26
27
•
2 [Media Player] (p. 59)
Switches to SD Card and
•
USB device viewing /
listening mode
3 [Main Menu]
Press to access Picture,
•
Sound, Timer and Setup Menus
4 Aspect (p. 20)
Changes aspect ratio
•
5 Information
Displays channel and
•
programme information
6 VIERA TOOLS
Displays some special feature
•
icons and accesses easily
7
[VIERA Link Menu] (p. 86)
8OK
Confirms selections and choices
•
Press after selecting
•
channel positions to
quickly change channel
Displays the Channel List
•
9 [Option Menu]
Easy optional setting for
•
viewing, sound, etc.
10 Teletext
Switches to teletext mode
•
11 Subtitles
Displays subtitles
•
12 Numeric buttons
Changes channel and
•
teletext pages
Sets characters
•
When in Standby mode, switches
•
TV On (Press for about 1 second)
13 Sound Mute
Switches sound mute On or Off
•
14 Volume Up / Down
(p. 30)
(p. 17)
(p. 29)
(p. 19)
(p. 24)
(p. 20)
15 Input mode selection
TV - switches between DVB
•
and Analogue modes (p. 17)
AV - switches to AV input mode
•
from Input Selection list (p. 27)
16 Direct TV Recording
(p. 84, 86)
Records programme
•
immediately in DVD
Recorder / VCR with Q-Link
or VIERA Link connection
17
[VIERA Connect] (p. 16, 81)
Displays VIERA Connect home screen
•
18 Exit
Returns to the normal viewing screen
•
19 TV Guide (p. 21)
20 Cursor buttons
Makes selections and adjustments
•
21 Return
Returns to the previous
•
menu / page
22 Coloured buttons
(red-green-yellow-blue)
Used for the selection, navigation
•
and operation of various functions
23 Hold
Freeze / unfreeze picture
•
(p. 19)
Holds the current teletext
•
page (teletext mode)
(p. 25)
24 Index
25 Last view
26 Channel Up / Down
27
(p. 26)
Returns to the teletext
•
index page (teletext mode)
Switches to previously viewed
•
channel or input mode
Connected equipment operations
(p. 28, 58, 66, 68, 88)
(p. 18)
Installing / removing remote’s batteries
1
Pull open
Hook
2
Close
Note the correct
polarity (+ or -)
8
Caution
Incorrect installation may cause battery leakage and
•
corrosion, resulting in damage to the remote control.
Do not mix old and new batteries.
•
Do not mix different battery types (such as alkaline and
•
manganese batteries).
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or breakup batteries.
•
Batteries must not be exposed to excessive heat such as
sunshine, fire or the like.
Do not disassemble or modify the remote control.
•
Page 9
TV
8
Channel Up / Down, Value change (when using
F
1
7
the F button), Switching the TV On (press either
button for about 1 second when in Standby mode)
9 Changes the input mode
10 Mains power On / Off switch
2
3
8
TV
9
AV
4
5
6
11 12 13
10
Use to switch the mains power.
•
If you turned the TV Off during Standby
mode by the remote control last time, the TV
will be in Standby mode when you turn the
TV On with Mains power On / Off switch.
11 Remote control signal receiver
Do not place any objects between the TV remote
•
control signal receiver and remote control.
12 C.A.T.S. (Contrast Automatic Tracking
System) sensor
Senses brightness to adjust picture quality when
1 CI slot (p. 51)
2 USB 3 port
3 SD Card slot
4 HDMI4 terminal
5 Headphones jack
6 AV2 terminals
(p. 55, 92)
(p. 59)
(p. 92)
(p. 92)
(p. 92)
7 Function select
[Volume] / [Contrast] / [Brightness] / [Colour] /
•
[Sharpness] / [Tint] (NTSC signal) / [Bass]∗ /
[Treble]∗ / [Balance] / [Auto Setup] (p. 40)
∗ [Music] or [Speech] mode in the Sound Menu
•
[C.A.T.S.] in the Picture Menu is set to [On] (p. 31)
13 Power and Timer LED
Red : Standby
•
Green : On
Orange : Timer Programming On
Orange (flash) :
Recording of Timer Programming,
Direct TV Recording or One Touch
Recording in progress
Red with orange flash :
Standby with Timer Programming On, Direct
TV Recording or One Touch Recording
The LED blinks when the TV receives a
•
command from the remote control.
Using the On Screen Displays - Operation guide
Many features available on this TV can be accessed via the On Screen Display menu.
Operation guide
Operation guide will help you to operate by using
the remote control.
Example : [Owner ID]
Owner ID
Please enter new PIN
PIN
EXIT
Operation guide
* * * *
09
PIN entry
How to use remote control
MENU
Open the main menu
Move the cursor / select the menu item /
select from a range of options
Move the cursor / adjust levels /
select from a range of options
Access the menu / store settings after
adjustments have been made or options
have been set
BACK/
RETURN
Return to the previous menu
Quick Start Guide
Identifying Controls
EXIT
Exit the menu system and return to the
normal viewing screen
Auto power standby function
The TV will automatically go to Standby mode in the following conditions:
• no signal is received and no operation is performed for 30 minutes in Analogue TV mode
• [Off Timer] is active in the Timer Menu (p. 19)
• no operation is performed for the period selected in [Auto Standby] (p. 34)
This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.
•
9
Page 10

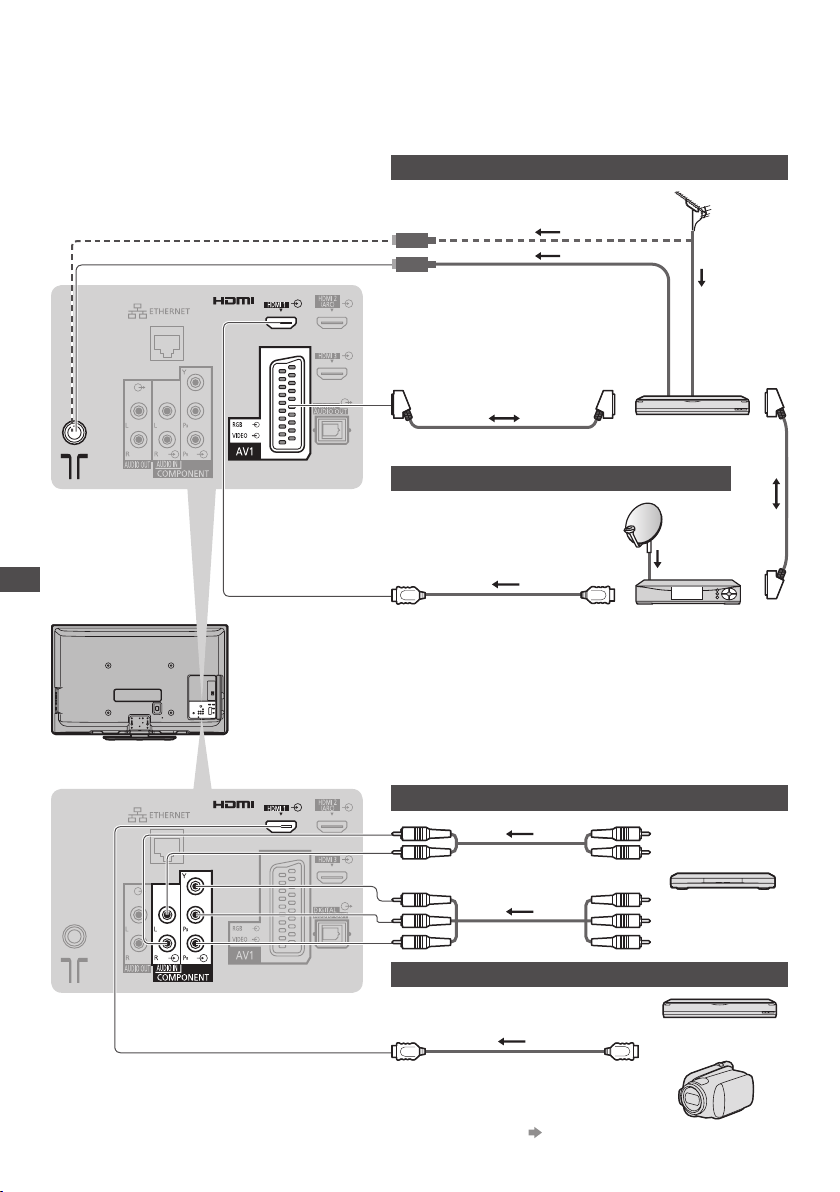

Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.
Example 1 Example 2
Connecting aerial Connecting DVD Recorder / VCR
Quick Start Guide
TV only TV, DVD Recorder or VCR
Rear of the TV
Terrestrial aerial
Rear of the TV
Terrestrial aerial
Basic Connection
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
Aerial input terminal
Mains Lead
Make sure that
Push until both side
tabs click
To remove from the TV :
tabs
Press both tabs and pull on mains connector to
release
the mains lead is
securely fixed.
RF cable
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
RF cable
RF OUT
DVD Recorder or VCR
RF IN
Aerial input terminal
Fully wired
HDMI
compliant
cable
Fully wired
SCART cable
HDMI AV
RF cable
Note
Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p. 84).
•
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 /
•
HDMI4) by using HDMI cable (p. 90).
Q-Link and VIERA Link connection (p. 82, 83)
•
Please also read the manual of the equipment being connected.
•
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared
•
sensor. Otherwise, distortion of image / sound may occur or operation of other equipment may be
interfered.
10
Page 11
Example 3
Connecting DVD Recorder / VCR and Satellite receiver
TV, DVD Recorder / VCR and Satellite
Rear of the TV
Aerial input terminal
AC 220-240 V
50 / 60 Hz
Fully wired HDMI
compliant cable
Fully wired
HDMI
compliant
cable
Fully wired
SCART
cable
RF cable
Terrestrial
aerial
Quick Start Guide
Basic Connection
Mains lead
(supplied)
Recorder/AV
HDMI
Satellite receiver
Fully wired
SCART cable
RF OUT
RF IN
AV 2 AV 1
DVD Recorder
or VCR
RF cable
HDMI
RF OUT
RF IN
RF cable
■ Connecting to the network environment (Network connections)
To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a
broadband network environment.
If you do not have any broadband network services, please consult your retailer for assistance.
•
Connect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).
•
Setup of the network connection will start after the tuning (when first using the TV) (p. 12 - 14)
•

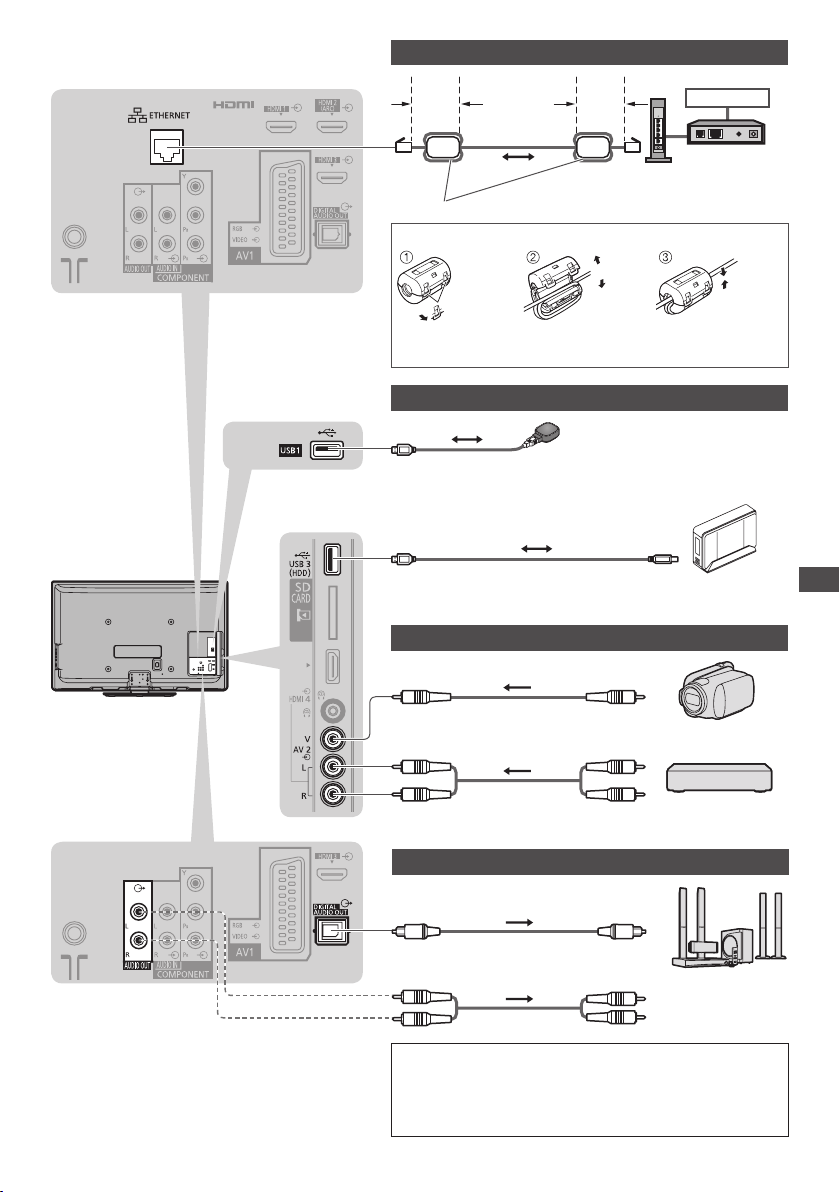

Rear of the TV
Wired connection
Less
than
10 cm
Note
For more information of the network connections (p. 72)
•
Wireless connection
Wireless LAN Adaptor and Extension cable
“Optional accessories” (p. 6)
Connect to the USB 1, 2 or 3 port.
•
Ferrite core (supplied)
Installing the Ferrite core
LAN cable
Less
than
10 cm
Internet
environment
Pull back the tabs
(in two places)
Wind the
cable twice
Internet
environment
Access point
Press the cable
through and close
11
Page 12

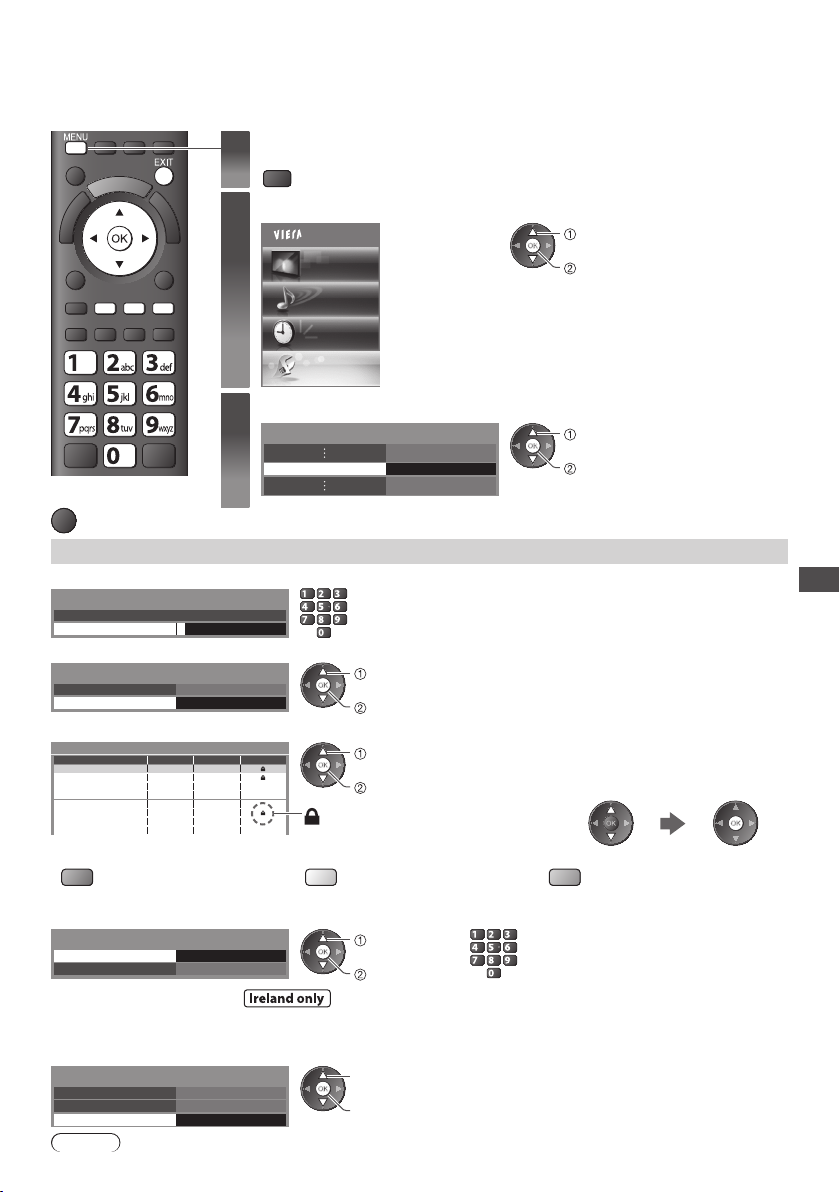

Auto Setup
Search and store TV channels automatically.
These steps are not necessary if the setup has been completed by your local dealer.
•
Please complete connections (p. 10, 11) and settings (if necessary) of the connected equipment before
•
starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.
Plug the TV into mains socket and switch On
Quick Start Guide
Auto Setup
1
Select your country
2
Country Selection
United Kingdom Ireland
Takes a few seconds to be displayed.
•
If the red LED shows on the TV, press the Standby On / Off switch
•
on the remote control for at least 1 second to turn the TV On.
select
set
Example :
Auto Setup - DVB and Analogue
DVB Scan
Analogue Scan
This will take about 6 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
29 33 -BBC1
Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2
Example :
Auto Setup - DVB and Analogue
DVB Scan
Analogue Scan
This will take about 6 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
CH29 CH33 -BBC1
Free TV: 8 Pay TV: 0 Radio: 0 Analogue: 2
Sending Preset Data
Please wait!
0% 100%
Remote control unavailable
CH 21 68
CH 21 68
Free TV
10
Free TV
10
Free TV
10
Free TV
Analogue
Analogue
Searching
CH 5 69
CH 1 99 41H: 21
Free TV
10
Free TV
10
Free TV
10
Free TV
Analogue
Analogue
Searching
Quality
Quality
Auto Setup will start to search for
TV channels and store them in the
numbered order as specified by the
broadcasters.
Actual number of channels may
•
differ due to channel duplication.
If Q-Link or similar technology (p. 84) compatible recorder with analogue
tuner is connected, analogue channel setting is automatically downloaded
to the recorder. (Digital channel setting is not downloaded.)
If downloading has failed, you can download later through the Setup Menu.
•
“Q-Link Download” (p. 34)
12
TV
Setup the network connection
3
Setup the network connection to enable the network service functions
such as VIERA Connect, etc. (p. 16, 71).
To setup the wireless connection, the Wireless LAN Adaptor
•
(optional accessory) is required.
Please note that this TV does not support wireless public access points.
Ensure the network connections (p. 11) and network environment are
•
completed before starting setup.
Select the network type
Network Setup
Select Wired or Wireless
Wired Wireless Set later
[Wired] “Wired connection” (p. 11)
[Wireless] “Wireless connection” (p. 11)
To setup later on or
•
select
access
skip this step
Select [Set later]
or
EXIT
Page 13
■ [Wired]
3
1. Select [Auto]
Acquire IP Address
Auto Manual
select
access
2. Go to the next step
(Press twice)
Automatically setup is done and the test of the
network connection starts.
4
To set manually, select [Manual] and set
•
each item. For details (p. 74)
■ [Wireless]
Select the connection type
Connection Type
Please select network connection type.
Search for access point
WPS(Push button)
[Search for access point]
Access points found automatically are listed.
1. Select your desired access point
Available Access Points
No. Wireless type Encrypt Reception
SSID
1
Access Point A
Access Point B
2
Access Point C
3
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
Connection Test
Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
select
access
select
access
: Encrypted access point
: succeeded
The test is
successful and the
TV is connected to
the network.
: failed
Check the settings
and connections,
and then select
[Retry].
Quick Start Guide
Auto Setup
To search access points again
•
(yellow)
For the information of the
•
highlighted access point
2. Access the encryption key input mode
Encryption Key Setting
Connection will be made with the following settings:SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
Encryption key
If the selected access point is not encrypted,
•
the confirmation screen will be displayed.
It is recommended to select the encrypted access point.
3. Enter the encryption key of the access point
Access Point Settings
Encryption key
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
You can set characters by using numeric buttons.
•
“Characters table for numeric buttons” (p. 97)
Set characters
select
set
4. Select [Yes]
Access Point Settings
Encryption key is set to:XXXXXXXX
Select 'Yes' to confirm.
Select 'No' to change.
Yes
No
•
•
select
set
To re-enter the encryption key, select [No].
If the connection has failed, check the encryption key,
settings and positions of your access point. And then,
follow the on screen instructions.
To set manually (p. 77)
•
(red)
Store
BACK/
RETURN
13
Page 14
5. After the access point setting is finished, perform the connection test
3
Quick Start Guide
6. Go to the next step
Connection Test
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
(Press twice)
: succeeded
The test is successful and the TV is connected
to the network.
: failed
Check the settings and connections, and then
select [Retry].
To set manually, select [Manual] and set
•
each item. For details (p. 74)
4
Auto Setup
4
[WPS(Push button)]
1. Press the WPS button on the access point until the light flashes
2. Connect the Wireless LAN Adaptor and the access point
WPS(Push button)
1) Please press the ‘WPS’ button on the access
point until its light flashes.
2) When the light is flashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
Connect
Ensure that your access point supports WPS for this setup.
•
WPS : Wi-Fi Protected Setup™
•
If the connection has failed, check the settings and
•
positions of your access point. And then, follow the on
screen instructions.
3. After the access point setting is finished, perform the connection test
Connection Test
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
4. Go to the next step
(Press twice)
4
: succeeded
The test is successful and the TV is
connected to the network.
: failed
Check the settings and connections, and then
select [Retry].
To set manually, select [Manual] and set
•
each item. For details (p. 74)
Input Owner ID
Owner ID
Please enter new PIN
PIN
Make a note of the PIN number in case you forget it. The PIN number cannot be reset.
•
You can input or change the Owner ID later. [Owner ID] (p. 50)
•
To skip this step
•
EXIT
* * * *
Please enter your own choice of PIN number, name, etc. to
help the police to crack crime.
14
This step will be skipped in the Auto Setup after [Shipping Condition] (p. 49) is performed.
•
■ How to input Owner ID
1 Enter the PIN number (4 digits)
abc def
Owner ID
Please enter new PIN
PIN
ghi
* * * *
Enter the PIN number twice at first setting.
•
jkl
mno
tuvpqrs
wxyz

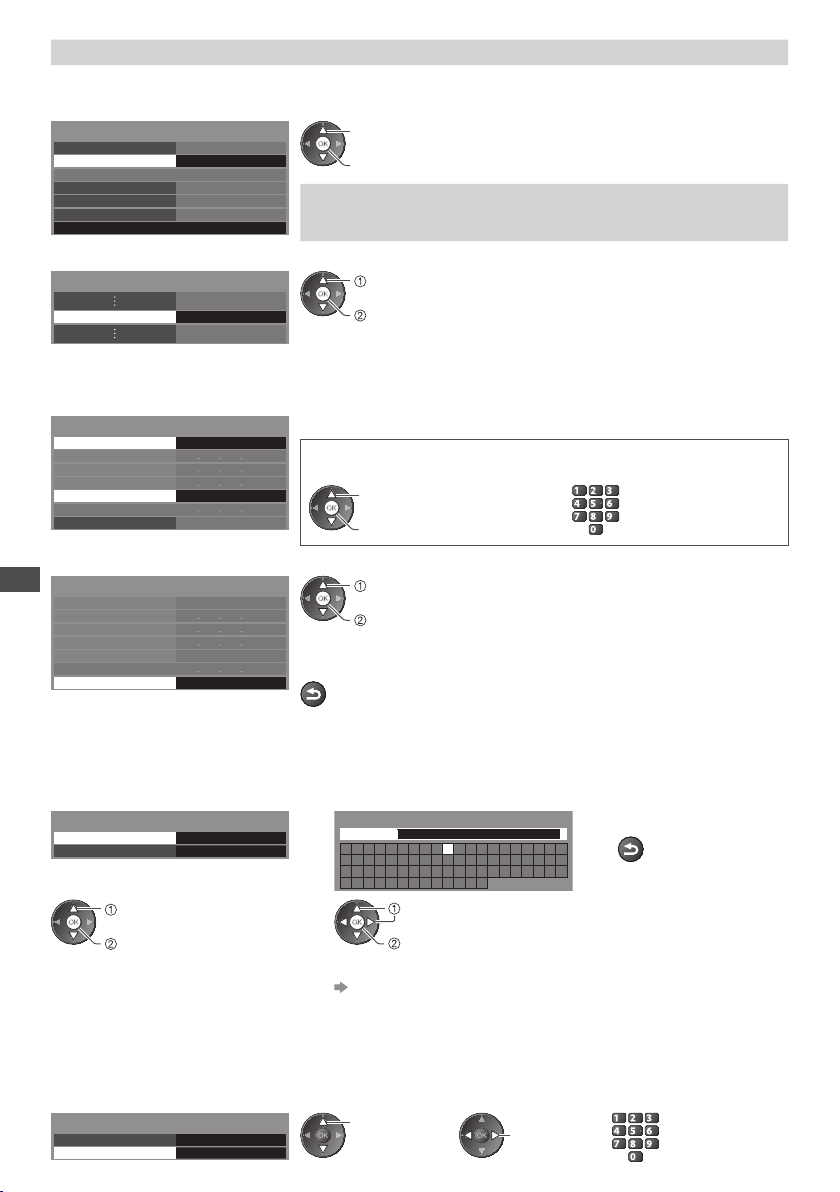

2 Select the item (NAME / HOUSE NO / POSTCODE)
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
* * * *
select
access
Page 15
3 Enter your name, house number and postcode
4
Set characters Return to select other items
User input
NAME
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
You can set characters by using numeric buttons.
•
“Characters table for numeric buttons” (p. 97)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
select
set
BACK/
RETURN
Select the next item and repeat the
•
operations.
4 Exit to go to next step
EXIT
Quick Start Guide
Select [Home]
5
Select [Home] viewing environment (highlight [Home] in yellow) to use in your home environment.
Please select your viewing environment.
Home Shop
select
set
■ [Shop] viewing environment (for shop display only)
[Shop] viewing environment is the demonstration mode to explain main features of this TV.
Select [Home] viewing environment to use in your home environment.
You can return to viewing environment selection screen at the stage of Shop confirmation
•
screen and Automatic Demo Off / On selection screen.
1 Return to viewing environment
selection screen
Shop
You have selected shop mode
Automatic Demo
Off
On
To change viewing environment later on, you will need to initialise all settings by accessing
Shipping Condition. [Shipping Condition] (p. 49)
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the RF cable, and then, follow the on screen
instructions.
To check channel list at-a-glance “Using TV Guide” (p. 21)
•
To edit or hide (skip) channels “Tuning and Editing Channels” (p. 41 - 44)
•
To retune all channels [Auto Setup] (p. 40)
•
To initialise all settings [Shipping Condition] (p. 49)
•
2 Select [Home]
Please select your viewing environment.
Home Shop
BACK/
RETURN
Auto Setup
select
set
If you connect the Wireless LAN Adaptor later on, the confirmation
screen will be displayed for the setup.
To setup the wireless connection (p. 75 - 77)
•
Wireless LAN adaptor connection
Wireless LAN adaptor connected, do you want to
set it up?
No - Exit
Current network type : Wireless
Yes
No
15
Page 16
Using “VIERA Connect”
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy
internet contents such as photos, videos, games, etc. from VIERA Connect home screen.
This TV has no full browser function and all features of websites may not be available.
•
Turn power on
1
Press for about 1 second
•
Mains power On / Off switch should be
•
On. (p. 9)
Enjoy selected internet content with VIERA Connect.
Simply press the OK / INTERNET button
Access VIERA Connect
Using “VIERA Connect”
2
While the banner is displayed
Example :
Welcome to VIERA Connect™
VIERA Connect™ home screen is subject to change without notice.
The services through VIERA Connect™ are operated by their respective service providers, and service may
be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no
warranty for the content or the continuity of the services.
All features of websites or content of the service may not be available.
Don’t show this message again
ENTER
Some content may be inappropriate for some viewers.
■
To exit from
VIERA Connect
EXIT
To set the VIERA
•
Connect instruction
Some content may only be available for specific countries and may be presented in specific languages.
Example : VIERA Connect home screen
banner display off
[VIERA Connect
Banner] (p. 35)
■ How to operate VIERA Connect (current as of January, 2011)
To move the cursor / select the item
•
To access
•
Every time you turn on the TV, VIERA Connect
introduction banner appears. The banner is
subject to change.
The button design
INTERNET
or
Depending on the usage conditions, it may
•
take a while to read all the data.
Messages might be displayed before
•
VIERA Connect home screen.
•
varies depending on the
remote control.
Please read these instructions carefully and
follow the on screen instructions.
To go to the next level
•
[MORE]
To back to the previous level
•
[BACK]
MORE
BACK
To return to the previous screen
•
BACK/
RETURN
When the key words are displayed on colour bar
•
(red) (green) (yellow) (blue)
Video communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.
•
“Optional accessories” (p. 6)
When options with
•
numbers are displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
To return to VIERA Connect
•
home screen
INTERNET
For details, read the manual of the Communication Camera.
You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect.
•
You ca
n also operate the TV with a keyboard or a gamepad other than VIERA Connect features.
For more in
formation
“USB connection” (p. 98)
Note
If you cannot access VIERA Connect, check the network connections (p. 11) and settings (p. 12 - 14).
•
For more information of VIERA Connect (p. 81)
•
16
Page 17
Watching TV
Turn power on
1
You can access to VIERA Connect and enjoy the various
contents. (p. 16)
•
•
Select DVB or Analogue
2
TV
Press for about 1 second
•
Mains power On / Off switch should be On. (p. 9)
•
■ VIERA Connect introduction banner appears
To remove this banner, leave for about 5 seconds or press any
buttons (except the buttons to access VIERA Connect).
To set this banner display off [VIERA Connect Banner] (p. 35)
Also possible to select the mode pressing the TV button on
•
the side panel of the TV (p. 9).
Watching TV
Coronation Street
1
20:00 - 20:55
BBC ONE WALES
Now Info
Select a channel
3
All DVB Channels
Select favourites
20:35
Information banner (p. 18)
DVB channel position numbers run from
1 onwards.
Analogue channel position numbers run
Volume
up
down
or
abc def
jkl
ghi
mno
in the ranges 0 - 99.
tuvpqrs
wxyz
To select a two or three-digit channel
•
position number, e.g. 399
wxyz
wxyz
def
■ Select a channel using Information banner (p. 18)
It is possible to confirm the channel name and programme information by using the Information banner
before changing channels.
1
Display Information banner if it is not displayed2 While the banner is displayed, select the channel
select channel
watch
■ Select a channel using TV Guide (p. 21)
It is possible to confirm the channel and programme information by using the TV Guide (EPG)
before changing channels.
1 Display TV
Guide
G
U
I
D
E
2 Select a current
programme or channel
select
access
3 Select [View] (DVB mode)
Eastender
19:30- 20:00
View Timer Programming
select
watch
Note
To watch pay-TV “Using Common Interface” (p. 51)
•
17
Page 18
Other useful functions
Display Information banner
Display Information banner
Also appears when changing a channel
•
1
Example : DVB
1
ZDF
Mute STTLAD TEXTMulti Audio
Channel position and name
1
Channel type ([Radio], [Data], [HDTV], etc.) /
2
HDTV
Bad signal
Encrypted channel ( ) /
TV mode ( , )
Programme
3
Current time
4
Watching TV
Features available / Message meanings
[Mute]
Sound mute On
[Bad signal]
Poor TV signal quality
[Also in
]
Same programme available as HD
broadcast
To display the extra information for
•
details
To confirm another tuned
•
channel name
23 6 745
Coronation Street
20:00 - 20:55
Now
Programme Start / Finish time (DVB)
5
Channel number, etc. (Analogue)
Progress time indicator of the selected programme (DVB)
6
[All DVB Channels] or [Favourites1-4] (p. 42) (DVB)
7
To switch
•
(blue)
[AD]
Audio Description service
available
This function can aid visually-
•
impaired viewers by adding
an additional audio track to
describe events
For settings (p. 33)
•
on screen.
[STLL]
Subtitle service available
To watch the channel listed in
•
the banner
All DVB Channels
Select favouritesInfo
20:35
45
[TEXT]
Teletext service available
[Multi Audio]
Multiple audio available
[Stereo], [Mono],
[NICAM]
Audio mode
1 - 90
Off Timer remaining time
For settings (p. 19)
•
Information on the next
•
programme (DVB)
To hide
•
EXIT
[AD], [STTL], [TEXT], [Multi Audio] indications are displayed as available on particular programmes,
•
but may not be available for all individual programmes being broadcast. Display the extra information
Extra information (DVB)
•
(Press again to hide the banner)
To set display timeout
•
[Banner Display Timeout]
(p. 35)
to confirm availability of these functions.
Example :
1
BBC ONE WALES
Coronation Street
20:00 - 20:55
Now
[AD]
AD
All DVB Channels
Select favourites
20:35
Last view
Switch to previously viewed channel or input mode easily
Press again to return to the present view.
•
LAST VIEW
Note
Switching channel is not available while the recording of Timer Programming, Direct TV Recording or
•
One Touch Recording is in progress.
Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.
•
18
Page 19
Hold
Freeze / unfreeze picture
HOLD
Display the selectable settings for the current status
Check or change the current status instantly
OPTION
[Audio Description]
(DVB mode)
Set to [Auto] if the programme
has Audio Description service,
then you will hear an additional
audio track to describe events
on screen
To adjust the volume for Audio
•
Description
[Audio Description Menu]
(p. 33)
[Multi Audio]
(DVB mode)
Allows you to select between
alternative language for sound
tracks (if available)
This setting is not memorised
•
and it will return to the default
setting once you exit the
current programme.
To change
•
select
access
select / change
store
[Monaural Audio]
(DVB mode)
Allows you to select stereo /
monaural (if available)
This setting is not memorised
•
and it will return to the default
setting once you exit the current
programme.
[Subtitle Language]
(DVB mode)
Allows you to select the language
in which subtitles should appear
(if available)
This setting is not memorised
•
and it will return to the default
setting once you exit the current
programme.
[Teletext Character Set]
Sets the teletext language font
[Setup Menu] (p. 35)
[Teletext Language]
(DVB mode)
Allows you to select between
alternative language for teletext
(if available)
[NICAM]
(Analogue mode)
Switches NICAM sound (if available)
[Sound Menu] (p. 33)
[Volume Correction]
Adjusts volume of individual
channel or input mode
[Safely remove USB]
Takes this operation to remove
the connected USB device
safely from the TV
Watching TV
Off Timer
Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
1 Display the menu
MENU
2 Select [Timer]
Main Menu
Sound
Timer
Setup
select
access
3 Select [Off Timer] and set the time
Timer Programming
Off Timer
Auto Standby
Off
15
30
45
60
75
90
minutes
minutes
minutes
minutes
minutes
minutes
•
•
•
select
[Off Timer]
access
select the time
store
To cancel Set to [Off] or turn the TV off.
To display the remaining time “Display Information banner” (p. 18)
When the remaining time is within 3 minutes, the remaining time
will flash on the screen.
19
Page 20
Aspect
A
Change the aspect ratio (image size)
ASPECT
Enjoy viewing the image at its optimum size and aspect.
Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV
will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 93).
■ If you would like to change the aspect ratio manually
1 Display Aspect Selection list 2 While the list is displayed,
ASPECT
Aspect Selection list
Aspect Selection
Auto
16:9
14:9
4:3
Zoom1
Zoom2
Zoom3
Select
Change
EXIT
RETURN
select the mode
select
store
You can also change the mode
•
only using the ASPECT button.
SPECT
(Press repeatedly until
you reach the desired
mode)
[Auto]
Watching TV
[16:9] [Zoom1]
[14:9] [Zoom2]
The best ratio is chosen and the image expanded to fill the screen.
For details (p. 93)
Directly displays the image at 16:9
without distortion (anamorphic).
Displays the image at the
standard 14:9 without distortion.
Displays a 16:9 letterbox or 4:3
image without distortion.
Displays a 16:9 letterbox
(anamorphic) image full-screen
without distortion.
[4:3] [Zoom3]
Displays the image at the
standard 4:3 without distortion.
Displays a 2.35:1 letterbox
(anamorphic) image full-screen
without distortion. At 16:9, displays
the image at its maximum (with
slight enlargement).
Note
Aspect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.
•
Not available in teletext service.
•
Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition) signals.
•
Display subtitles
■ DVB mode
Display / hide subtitles (if available)
STTL
To change the language for DVB (if available)
•
[Preferred Subtitles] (p. 35)
■ Analogue mode
Display subtitles Hide subtitles
STTL
EXIT
Note
This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service).
•
(p. 26)
You cannot change the channel when this function is active.
•
20
Page 21
Using TV Guide
TV Guide−Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently
broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).
This TV supports the GUIDE Plus+ system.
•
The Rovi branding partner will supply the rating information in the programme information and the
•
recommended group in the Search list.
DVB and Analogue channels are displayed on the same TV Guide screen. [D] means DVB channel
•
and [A] means Analogue channel. There will be no programme listings for Analogue channels.
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take
•
some time before TV Guide is completely shown.
Select DVB or Analogue
1
TV
View TV Guide
2
■
To return to TV
EXIT
or
G
U
I
D
E
G
U
Example :
I
D
E
Wed 27 Oct 2010
1
10:46
2
3
4
5
Timer Programming
-24 hours +24 hours Search Category
Some programmes may also be broadcast in HD
7
You can select HD or SD broadcast before viewing or setting Timer Programming.
•
8 Programme
Logo of the Rovi branding partner
9
678 9
TV Guide
Wed 27 Oct Search All Channels
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
D
D
D
D
D
D
D
Select channel
19:30 20:00 20:30 21:00
Time:
Das Erste DIY SOS Holiday News
BBC ONE
1
Hot Wars Holiday Program
BBC THREE
7
Emmerdal.
E4
14
10 O’ clock News BBC
BBC FOUR
70
BBC 2W
72
105
BBCi
719
BBC Radi
EXIT
Select programme
RETURN
■ To change the layout of TV Guide [TV Guide View] (p. 34)
■ To watch the programme
1
Select a current
programme or channel
select
access
or
abc def
jkl
ghi
mno
tuvpqrs
wxyz
■ To the previous day (DVB mode) ■
(red) (blue)
■ To the next day (DVB mode)
(green)
■ View details of the programme (DVB mode)
1
Select the programme
select
2 Select [View] (DVB mode)
Eastender
19:30- 20:00
View Timer Programming
select
watch
To use Timer Programming
•
(p. 22)
2 View details
Press again to return
•
to TV Guide.
If a programme exists in both HD and SD
•
broadcasts, the [View Options] screen
will be displayed to select HD or SD
broadcast. (DVB mode)
DIY SOS
To view a channel list of the selected category
(Category list)
All Channels
All Channels
All DVB Channels
All HD Channels
All Analogue Channels
Free DVB Channels
TV/Data DVB Channels
Favourites1
Favourites2
Favourites3
Favourites4
Also in
Pepsi Char.
View Options
The Bill
Good bye
CoastSpring watchPanorama
NewsPop IdolI’m A Celebrity
Sports15 To 1Rugby
Page up
Page down
Coronation Street
Enter Channel
09
Info
RETURN
GUIDE
OPTION
Select Advert
101 BBC ONE 19:30-20:00 Wed 27 Oct 2010
119 BBC HD 19:30-20:00 Wed 27 Oct 2010
Category
Only Analogue
channels are listed
•
Current date and time
1
TV Guide time
2
Advertisement
3
[D] : DVB
4
[A] : Analogue
Channel position
5
and name
TV Guide date
6
To list favourite
channels (p. 42)
select
watch
Using TV Guide
21
Page 22
■ To search programme types and view a channel list of the searched programmes (DVB mode)
(yellow)
(Search list)
Search
Search Titles...
Movie
News and Factual
Prog.Type
All Types
Movie
News
(Type list)
All Types
select type
view
■ To search programme titles and view a list of the searched programmes (DVB mode)
(yellow)
(Search list)
Search
Search Titles...
Movie
News and Factual
Using TV Guide
1
Select
[Search Titles...]
select
access
2 Set characters
(maximum: 19 characters)
3 Start
[Search]
select
set
To use numeric buttons
•
“Characters table for numeric
buttons” (p. 97)
(green)
All the programme
•
titles including the
word you set will be
listed.
Searching without
•
any characters will
list all programmes
including current
programmes.
Timer Programming (DVB mode)
Timer Programming is a timer to remind watching or record the programme to the external recorder or the USB HDD.
1
Select the forthcoming programme2 Select the function ([Ext Rec.], [USB HDD Rec.] or [Reminder])
select
set
LED will turn to orange if Timer
Programming is set.
(Orange LED will flash if the recording
of Timer Programming is in progress.)
LED
■ To check / change / cancel a timer
programming event
“Timer Programming” (p. 45)
(Timer Programming screen)
Timer Programming
Function No. Channel Name Date Start End
Ext Rec.
D
DIY SOS
--- --/-- --:-- --:-----
Wed 27.10.2010 10:46
Wed 27 Oct
19:30119 BBC HD 20:00
(30 min.)
(--- min.)
[Ext Rec.] / [USB HDD Rec.] :
to record the programme to the external recorder or the USB HDD
When the start time comes, the channel will be switched
automatically and the video and audio signals will be output.
2 minutes before the starting time, a reminder message appears
if you are watching TV.
[Reminder]
:
to remind you to watch the programme
When you are watching TV, a reminder message appears
2 minutes before the start time. Press the OK button to switch to
the programmed channel.
■ To return to TV Guide
BACK/
RETURN
select
store
■ If you select a current programme ■ If a programme exists in both HD and SD
broadcasts
A confirmation screen asking whether you wish to
watch or record the programme will appear.
Select [Timer Programming] and set [Ext Rec.] or
[USB HDD Rec.] to record from the time you finish
the timer programming event setting.
Eastender
19:30- 20:00
View Timer Programming
22
select
access
The [Timer Options] screen will be displayed to
select HD or SD broadcast.
DIY SOS
(Timer Programming screen)
Timer Programming
Function No. Channel Name Date Start End
Ext Rec.
Timer Options
101 BBC ONE 19:30-20:00 Wed 27 Oct 2010
119 BBC HD 19:30-20:00 Wed 27 Oct 2010
Wed 27.10.2010 10:46
D
DIY SOS
--- --/-- --:-- --:-----
Wed 27 Oct
19:30119 BBC HD 20:00
(30 min.)
(--- min.)
select
set
will be displayed
if HD broadcast
is set.
Page 23
Note
This function is not available in Analogue mode.
•
Timer Programming reminder messages will remain displayed until one of the following occurs:
•
• You press the OK button to view the programme or the EXIT button to cancel the reminder.
• The timer programming event that the reminder is set for ends.
No other channel can be selected while the recording of Timer Programming is in progress.
•
When recording programmes, be sure to make the proper settings on the recorder connected to the TV. (p. 45)
•
When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for
•
recording in [Recording Setup] (p. 55).
Guide link programming (Timer Programming from the TV Guide signal)
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme
start and end times are changed by the broadcaster, the timer programming event will follow the change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if
correct information is received from broadcasters.
Timer Programming
Store timer
(Timer Programming screen)
Function No. Date Start EndChannel Name
Ext Rec. Wed 27 Oct
D
7 BBC ONE
DIY SOS
Reminder
D
14 E4 21:00 22:30
The Bill
Ext Rec.
72 BBC 2W
D
<TIMER>
Ext Rec.
---
BBC ONE1
D
Red Cap
------
Change function
EXIT
Select
RETURN
Remaining Capacity:
500GB (50%)
Guide
Wed 27 Oct
Guide
Wed 27 Oct
Thu 28 Oct
S/P
9
0
Wed 27 Oct 2010 10:46
20:00 20:30
(30 min.)
(90 min.)
22:45 23:00
(15 min.)
10:30 11:30
(60 min.)
--:----:-- --:--
(--- min.)
1/1
“S/P” is displayed if the timer is set from the TV
Guide and the programme is a Split Programme
“Guide” is displayed if the timer is set from the
TV Guide (Guide link programming)
Note
If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no
•
longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.
Whilst making the Split Programme programming event for [Ext Rec.] or [USB HDD Rec.], you cannot
•
record any channels between the interrupted programmes.
The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.
•
The Split Programme programming event for Reminder will switch to the programmed channel by
•
pressing the OK button even if it is between the interrupted programmes.
The Split Programme programming does not work if the separated parts are broadcast on different channels.
•
Example :
Wed 27 Oct 2010
10:46
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
D
D
D
D
D
D
D
TV Guide
Wed 27 Oct Search All Channels
19:30 20:00 20:30 21:00
Time:
Das Erste DIY SOS Holiday News
BBC ONE
1
Hot Wars Holiday Program
BBC THREE
7
Emmerdal.
14
70
72
105
719
E4
BBC FOUR
BBC 2W
BBCi
BBC Radi
Coronation Street
10 O’ clock News BBC
Pepsi Char.
“ ” or “ ” will be displayed in the TV
Guide if Timer Programming is set as
the Guide link programming.
The Bill
Good bye
CoastSpring watchPanorama
NewsPop IdolI’m A Celebrity
Sports15 To 1Rugby
Using TV Guide
View advertisement
Enter your postcode when using this function for the first time
[Guide Plus+ Postcode] in [TV Guide Settings] (p. 34)
If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12 - 15), you do not have to enter it again.
If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.
Display advertisement information
OPTION
To display the latest advertisement, you will need to update the information.
•
To update the information continuously, the TV must be left in Standby mode.
■ To change advertisements ■ To return to TV Guide
or
BACK/
RETURN
OPTION
Note
Some advertisements are for future programmes.
•
In this case it is possible to use the Guide link programming function.
The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot
•
be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.
23
Page 24
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
The availability of teletext services for a programme is indicated by [TEXT] in the information banner.
•
Information banner (p. 18)
Coronation Street
1
20:00 - 20:55
BBC ONE WALES
Now
Depending on the broadcaster, the digital teletext (MHEG) services may not be available. In this case,
the operation of the teletext services may be the same as the analogue teletext services (p. 24).
Digital teletext (MHEG)
Digital teletext services differ greatly from analogue teletext.
Viewing Teletext
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out
and controlled in a manner decided by the broadcaster.
TEXT
20:35
All DVB Channels
Select favourites
1
2
Displayed if programme has teletext service
Select DVB
TV
Switch to Teletext
TEXT
DVB programmes have digital teletext
•
services (MHEG).
Example :
17:51 28 Feb
■
To return to TV
TEXT
24
TV
■ How to operate services
In all cases, it is possible to navigate the pages using buttons on the remote
control, but because the commands available must apply to all manufacturers
of digital equipment, some on screen commands may not correspond exactly
to the remote control buttons.
Select, go
•
Back key
•
BACK/
RETURN
Note
As soon as you switch to a digital channel with links to a teletext service,
•
software is downloaded in the background to enable the teletext function.
T
his means that when switching to a digital channel, you should wait for approximately
5 seconds before pressing the TEXT button - this will allow the software to download.
If you press the TEXT button before download is complete, it will be ignored and you
will have to press the TEXT button again when the download is complete.
While navigating digital teletext, you will find there is a short delay when moving
•
between pages while the page downloads. There is often a prompt shown somewhere
on the page (for example “Loading”) to let you know that this is happening.
Symbol :
•
Coloured characters
•
Coloured button
When options with numbers
•
are displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Page 25
Analogue teletext
Analogue teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FASTEXT (FLOF) mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access
more information about one of these subjects, press the appropriately coloured button. This facility
enables fast access to information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. “Store frequently viewed pages” (p. 26)
■
To change mode
[Teletext] (p. 35)
Select Analogue
1
TV
Switch to Teletext
2
TEXT
Sub page number
<< 01 02 03 04 05 06 07 >>
TELETEXT
17:51 28 Feb
Displays the index page (content
•
varies depending on the broadcasters)
Time /
date
INFORMATION
Colour bar
Current page number
Select the page
3
■
To return to TV
EXIT
abc def
jkl
ghi
mno
or
tuvpqrs
wxyz
■ To adjust contrast
MENU
(Press twice)
up
down
or
Coloured button
(Corresponds to the colour bar)
As the blue bar is displayed
Viewing Teletext
FULL / TOP / BOTTOM
MENU
(green)
(TOP) (BOTTOM) Normal (FULL)
(Expand the TOP half)
(Expand the BOTTOM half)
Reveal hidden data HOLD
Reveal hidden words e.g. quiz page answers Stop automatic updating
MENU
(red)
Press again to
•
rehide
(If you wish to hold the current page without
updating)
HOLD
Press again to resume
•
25
Page 26
INDEX Subtitles
Return to the main index page View a favourite page stored
INDEX
STTL
View in multi window
Watch TV and Teletext in two windows at once
TEXT
Operations can be made only in Teletext screen.
•
Each time pressed: Teletext TV and Teletext
•
TV
Store frequently viewed pages
Store frequently viewed pages in the colour bar (List mode only)
As page is displayed
Viewing Teletext
(Corresponding
press and hold
coloured
button)
The number changes
to white.
■ To change stored pages
Enter new page number
Coloured button you want to
change
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Factory setting is
•
“P888” (subtitle
service) on the blue
button (List mode).
If you wish to use
•
Subtitles, do not
change number on
blue button.
press and hold
View sub page
View sub page (Only when teletext is more than one page)
The number of sub pages varies depending
Appears at top of the
screen
•
on the broadcasters (up to 79 pages).
It may take some time for searching, during
•
which time you can watch TV.
■ To view specific sub page
MENU
(blue)
Watch TV while waiting for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
MENU
(yellow)
P108
(You cannot change the channel.)
The news page provides a function that indicates arrival of latest news (“News Flash”).
•
26
Enter the 4-digit number
example : P6
mno
Appears when
updating is
completed
View the
updated page
(yellow)
Page 27
Watching External Inputs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.
To connect the equipment (p. 10, 11, 90 - 92)
•
The Remote Control is capable of operating some functions of selected external equipment.
“Operating the equipment with the TV remote control” (p. 28)
Turn the TV on
1
When connecting with SCART as example 2 or 3 (p. 10, 11)
Receives input signals automatically when playback starts
Input signals are automatically identified by the SCART (pin 8) terminal.
•
This function is also available for HDMI connections (p. 90).
•
If input mode is not switched automatically
3
select
watch
Displays the selected mode
TV
■
To return to TV
TV
Perform 2 and
Check the setup of the equipment.
•
Display the input selection menu
2
AV
Select the input mode connected to the equipment
3
Input Selection
AV1
AV2
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
TV
SD Card/USB
You can also select the input using the AV button on the remote control
•
or the side panel of the TV (except [SD Card/USB]).
Press the button repeatedly until the desired input is selected.
[SD Card/USB] : Switches to Media Player [Using Media Player] (p. 59)
•
You can label or skip each input mode (except [SD Card/USB]).
•
“Input Labels” (p. 48)
Skipped inputs will not be displayed when the AV button is pressed.
View
4
AV1
Watching External Inputs
Terminal
Manual input
(default setting
in “Input Labels”)
Auto input
(EC mode or
VIERA Link)
If the above information is permanently displayed on the top left of the screen, press the button to clear.
•
Note
If the external equipment has an aspect adjustment function, set it to [16:9].
•
For details, see the manual of the equipment or ask your local dealer.
•
AV1 AV2
AV1
AV1-RGB
EC/AV1
EC/AV1-RGB
COMPONENT
AV2
COMPONENT
−−
Applicable for
EC mode and
VIERA Link
HDMI1 HDMI2 HDMI3 HDMI4
HDMI1 HDMI2 HDMI3 HDMI4
EC/HDMI1
EC/HDMI2
Applicable for
VIERA Link
EC/HDMI3
Applicable for
VIERA Link
EC/HDMI4
Applicable for
VIERA Link
27
Page 28
Operating the equipment with the TV remote control
The equipment connected to the TV can be directly operated with the below buttons of this TV remote
control.
Selection Switch for operating the connected equipment
Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player
DVD/VCR
TV
Watching External Inputs
PROGRAMME
REC
theatre, Blu-ray Disc theatre or VCR
“How to change the code for the type of the equipment” (see below)
Select “TV” to use USB HDD Recording, Media Player or VIERA Link
“USB HDD Recording” (p. 58)
“Media Player” (p. 66, 68)
“VIERA Link Control” (p. 88)
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD / video content
Stop
Stop the operations
Rewind / Skip / Search
VCR :
Rewind, view the picture rapidly in reverse
DVD / video content :
Skip to the previous track, title or chapter
Press and hold to search backward
Fast-forward / Skip / Search
VCR :
Fast-forward, view the picture rapidly forward
DVD / video content :
Skip to the next track, title or chapter
Press and hold to search forward
Pause
Pause / Resume
DVD : Press and hold to play at slow speed
Channel Up / Down
Select channel
Record
Start recording
How to change the code for the type of the equipment
Each type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.
1 Set the position to “DVD/VCR”
DVD/VCR
TV
2 Press and hold during the following operations
Enter the appropriate
code, see table below
DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)
Player theatre, Blu-ray Disc theatre 71
Note
Confirm if the remote control works correctly after changing the code.
•
The codes may be reset to default values if batteries are replaced.
•
Some operations may not be possible on some equipment models.
•
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Press
Type of the equipment Code
VCR 72
28
Page 29

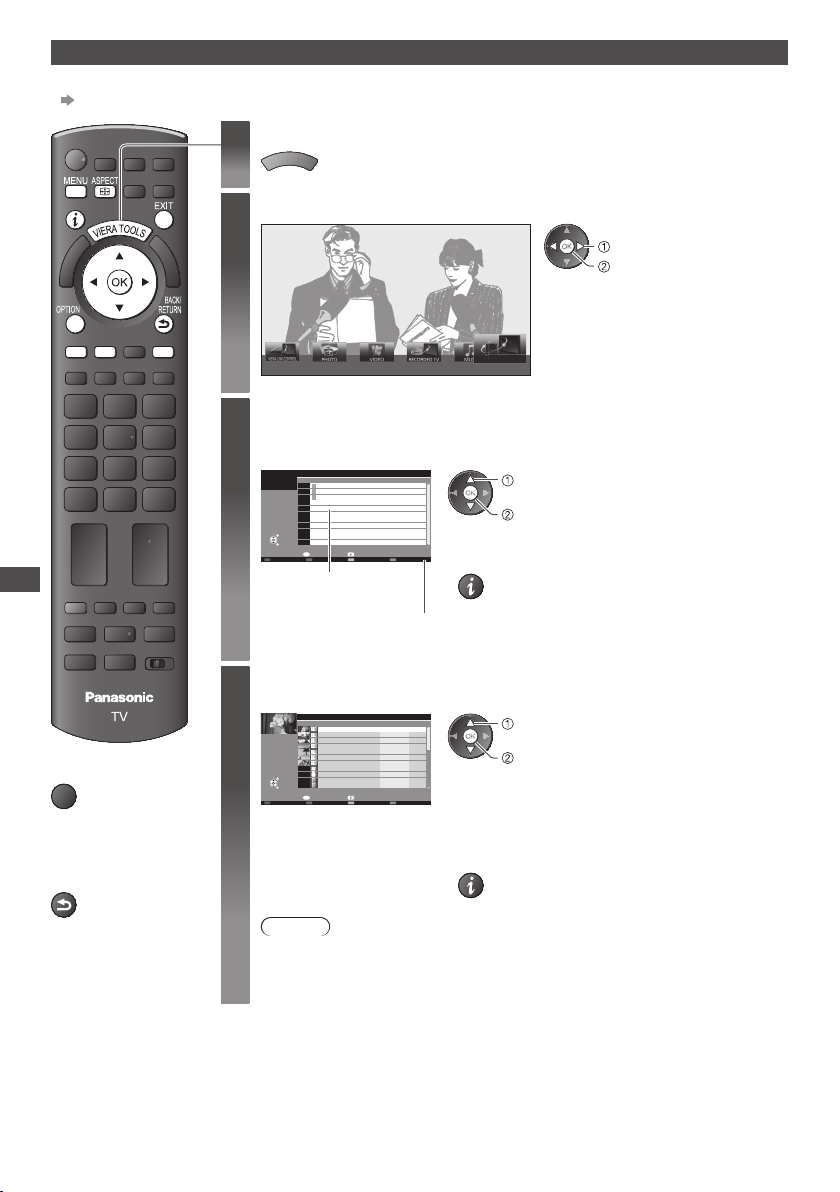

How to Use VIERA TOOLS
You can access some special features easily by using the VIERA TOOLS function.
For [VIERA Link Control] and [Pause Live TV] functions to operate correctly, ensure the connections
•
and settings are completed.
“Summary of Q-Link and VIERA Link features” (p. 82, 83), “Preparations” (p. 85)
After connection, turn the equipment on and then switch the TV on.
For [Photo], [Video] and [Music] functions to operate correctly, ensure the device has photo or video
•
data on it and insert it into the SD Card slot or USB port properly.
“Using Media Player” (p. 59)
Display icons of the feature
■
To return to TV
EXIT
or
A
R
E
I
V
1
2
T
O
O
L
S
T
O
A
O
R
L
E
S
I
V
Select a feature
VIERA Link Control
select
access
How to Use VIERA TOOLS
■ Follow the operations of each feature
[VIERA Link Control]
“VIERA Link Control” (p. 87)
[Recorded TV]
“Recorded TV mode” (p. 67)
When two or more compatible
equipment are connected, a selection
screen will be displayed.
[Photo]
Please select the correct description
and access.
∗
[Music]
“Music mode” (p. 69)
“Photo mode” (p. 61)
[Media Server]
[Video]
∗
“Using DLNA® features” (p. 78)
“Video mode” (p. 65)
∗
When two or more available devices are connected, a selection screen will be displayed.
Please select the correct description and access.
Note
If the selected feature is not available, the demonstration to explain how to use it can be displayed.
•
Press the OK button to view the demonstration after selecting the unavailable feature.
∗
∗
∗
29
Page 30
How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
Display the menu
1
MENU
Select the menu
2
Displays the functions that can be set
•
(varies according to the input signal)
Main Menu
Sound
Timer
Setup
select
access
How to Use Menu Functions
TV
■
To return to TV
at any time
EXIT
■
To return to the
previous screen
BACK/
RETURN
■
To change menu
pages
up
down
Select the item
3
Example : [Picture Menu]
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
C.A.T.S. Off
Warm
Off
■ Choose from among alternatives
Cool
Colour Balance
Normal
Warm
■ Adjust using the slide bar
Sharpness
1/2
5
select
access
■ To reset the settings
To reset the picture
•
settings only
To reset the sound settings
•
only
Moved
■ Go to the next screen
Child Lock
Access
To initialise all settings
•
Displays the next screen
■ Enter characters by free input menu
You can enter names or numbers freely for some items.
User input
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
You can set characters by using numeric buttons.
•
“Characters table for numeric buttons” (p. 97)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
Set characters
select
set
[Reset to Defaults]
in the Picture Menu
(p. 32)
[Reset to Defaults]
in the Sound Menu
(p. 33)
[Shipping Condition]
in the Setup Menu
(p. 36)
Store
BACK/
RETURN
Note
If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment.
•
To return to “Home” viewing environment initialise all settings by accessing Shipping Condition. (p. 49)
30
Page 31
Menu list
Menu
Viewing Mode
Contrast,
Brightness,
Colour,
Sharpness
Tint
Colour Balance
Vivid Colour
Reversal Film
Effect
C.A.T.S.
P-NR
3D-COMB
Item Adjustments / Configurations (alternatives)
Basic picture mode [Dynamic] / [Normal] / [Cinema] / [THX (True Cinema)] /
[Game] / [Photo] / [Professional1] / [Professional2]
In each Viewing Mode, [Contrast], [Brightness], [Colour], [Sharpness],
[Tint], [Colour Balance], [Vivid Colour], [C.A.T.S.], [P-NR] and [3D-COMB]
can be adjusted and stored to suit your particular viewing requirement.
Set for each input signal.
•
Dynamic] : Provides enhanced picture contrast and sharpness when viewing in a bright room.
[
[Normal] :
[Cinema] : For watching movies in a darkened room with the improved
[THX (True Cinema)] :
Precisely reproduces the original quality of the image without any revision.
Recommended for playback of THX disc (disc with [THX] logo)
THX mode is used to mirror the picture settings used by professional
filmmakers, faithfully reproducing the image quality of THX Certified movies.
THX Certified movies have the [THX] logo on a disc.
•
[True Cinema] is displayed instead of [THX] in the mode of Media Player
•
and Network service operations.
[
Game] : Fast response signal specifically to provide suitable images for playing games
Not valid on TV mode
•
A continuous record of time spent using Game mode can be displayed in
•
the top right of the screen. [Playing Time Display] (p. 35)
[Photo] : Set [Reversal Film Effect] to [On] to provide the suitable image quality for photos
For HDMI input, Media Player and network service operations
•
[Professional1 / 2] :
Allows you to set the professional picture settings in [Advanced Settings],
[Lock Settings] and [Copy Adjustment] (p. 53)
This mode is available only when [Advance(isfccc)] in the Setup Menu is
•
set to [On].
Not valid on VIERA Connect
•
If the certified professional dealer sets these modes, [Professional1] and
•
[Professional2] may be displayed as [isf Day] and [isf Night].
Increases or decreases the levels of these options according to your
personal preference
With an NTSC signal source connected to the TV, the picture hue can be
adjusted to suit your taste
For NTSC signal reception only
•
Allows you to set the overall colour tone of the picture [Cool] / [Normal] / [Warm]
Not valid when [Viewing Mode] is set to [THX] ([True Cinema]),
•
[Professional1] or [Professional2].
Automatically adjusts colours to vivid ones [Off] / [On]
Not valid when [Viewing Mode] is set to [Professional1] or [Professional2].
•
Provides the picture effect such as the reversal film [Off] / [On]
This function is available when [Viewing Mode] is set to [Photo].
•
Contrast Automatic Tracking System (Automatic Brightness Control function)
Adjusts picture settings automatically dependent on ambient lighting conditions [Off] / [On]
Set to [On] to make the suitable contrast setting automatically.
•
The default setting is [On] when [Viewing Mode] is set to [Normal].
Picture Noise Reduction
Automatically reduces unwanted picture noise and flicker noise in the
contoured parts of a picture [Off] / [Min] / [Mid] / [Max]
Makes still or slow moving pictures look more vivid [Off] / [On]
Occasionally, whilst viewing still or slow moving pictures, colour patterning
•
may be seen. Set to [On] to display sharper and more accurate colours.
For PAL or NTSC signal reception only
•
Not valid on RGB, Component, HDMI and Media Player
•
Recommended for viewing under normal ambient room lighting conditions.
performance of contrast, black and colour reproduction
How to Use Menu Functions
31
Page 32
Menu
How to Use Menu Functions
Advanced Settings
Sound
32
Item Adjustments / Configurations (alternatives)
Screen Display
Intelligent Frame
Creation
24p Smooth Film
Clear Cinema
Resolution
Enhancer
Side Panel
16:9 Overscan
DVI Input Setting
Pixel Orbiter
Scrolling Bar
Reset to Defaults
Mode
Bass
Treble
Turns the screen off when you select [Off] [Off] / [On]
The sound is active even if the screen turns off.
•
Press any buttons (except Standby) to turn the screen on.
•
This function is effective in reducing power consumption when
•
listening to the sound without watching the TV screen.
Automatically compensates the picture frame rate and removes
juddering movements to make the images smooth [Off] / [Mid] / [Max]
Depending on the contents, images may be noisy. To prevent the
•
noise, change the setting.
This function is not available for selection (default to [Off]) when [Viewing
•
Mode] is set to [Game] in the mode of or network service operations.
Automatically compensates the picture frame rate to make the 24p
source movie images smooth [Off] / [Mid] / [Max]
This is available only for 24p signal input and displayed instead of
•
[Intelligent Frame Creation].
This function is not available for selection (default to [Off]) when [Viewing
•
Mode] is set to [Game] or in the mode of network service operations.
Improves vertical resolution for movie images [Off] / [On]
This function is available for the interlaced signal (except when
•
[Viewing Mode] is set to [Game]).
Enhances the picture resolution to make the image sharper [Off] / [Mid] / [Max]
This function is available for SD (Standard definition) signal.
•
As for HD (High definition) signal, this function is available when
•
aspect mode is set to [16:9] ([16:9 Overscan] is set to [On]) or [Zoom].
Not valid on Media Player and network service operations
•
Increases the brightness of the side panel [Off] / [Low] / [Mid] / [High]
The recommended setting is [High] to prevent panel “image retention”.
•
Selects the screen area displaying the image [Off] / [On]
[On] : Enlarges the image to hide the edge of the image.
[Off] : Displays the image in the original size.
Set to [On] if noise is generated on the edge of the screen.
•
This function is available when aspect is set to [Auto] (16:9 signal only) or [16:9].
•
This function can be memorised separately for SD (Standard
•
definition) and HD (High definition) signals.
Not valid on VIERA Connect
•
Changes the black level in the image for HDMI input mode with DVI
input signal manually [Normal] / [Full]
When the DVI input signal from the external equipment, especially from PC,
•
is displayed, the black level may not be suitable. In this case, select [Full].
The black level for HDMI input signal will be adjusted automatically.
•
For HDMI input mode with DVI input signal only
•
Selects the mode for wobbling of the image to prevent panel “image
retention” [Auto] / [On]
[Auto] : Automatically works only for the appropriate images and you
Scrolls the vertical bar to prevent panel “image retention”
•
Press the OK button to reset the present Picture Viewing Mode to the default settings
Selects the basic sound mode [Music] / [Speech] / [User]
•
[Music] : Improves sound quality for watching music videos, etc.
[Speech] : Improves sound quality for watching news, drama, etc.
•
[User] : Adjusts the sounds manually by using the equaliser to suit your
•
Increases or decreases level to enhance or minimise lower, deeper sound output
Increases or decreases level to enhance or minimise sharper, higher sound output
rarely recognise the wobbling.
Press the OK button to start scrolling and press any buttons (except
Standby) to exit this mode.
The selected mode affects all input signals.
In Music and Speech modes, you can adjust [Bass] and [Treble]
settings, and those settings will be stored for each mode.
favourite sound quality.
For the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and
[Treble]. Select the [Equaliser] and adjust the frequency. [Equaliser] (p. 33)
Page 33
Menu
Equaliser
Balance
Headphone Volume
Surround
Auto Gain Control
Volume Correction
Speaker Distance
to Wall
Preferred Multi
Audio
NICAM
Sound
SPDIF Selection
HDMI1 / 2 / 3 / 4
Input
Item Adjustments / Configurations (alternatives)
Adjusts the frequency level to suit your favourite sound quality
This function is available when [Mode] is set to [User].
•
Select the frequency and change the frequency level by using the cursor button.
•
If you want to enhance the bass sound, raise the level of the lower frequency. If
•
you want to enhance the treble sound, raise the level of the higher frequency.
To reset the levels of each frequency to the default settings, select the [Reset
•
to Defaults] by using the cursor button, and then press the OK button.
Adjusts volume level of right and left speakers
Adjusts the volume of the headphones
Surround sound settings [Off] / [V-Audio] / [V-Audio Surround]
[V-Audio] :
[V-Audio Surround] :
Automatically regulates large sound level differences between channels
and inputs [Off] / [On]
Adjusts the volume of individual channel or input mode
Compensates for the distance between the speakers and the wall
[Over 30cm] / [Up to 30cm]
If the distance between the TV and wall is over 30 cm, [Over 30cm] is recommended.
•
If the distance between the TV and wall is within 30 cm, [Up to 30cm]
•
is recommended.
Selects the preferred language for digital channel multi audio
•
(depending on the broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]
Near Instantaneous Companded Audio Multiplex
Reproduces NICAM stereo sound [Off] / [On]
Off if reception is poor (FM monaural sound)
•
Analogue mode only
•
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL
AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM]
[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-
[PCM] : Digital output signal is fixed to PCM.
For DVB mode, network video contents (p. 79) or Video mode of Media Player (p. 65)
•
ARC (Audio Return Channel) : A function of digital audio output using HDMI cable
•
Select to fit the input signal [Digital] / [Analogue] (p. 97)
[Digital] : When sound is carried via the HDMI cable connection
[Analogue] : When sound is not carried via the HDMI cable connection
HDMI input mode only
•
Provides a dynamic enhancer of width to simulate improved spatial effects
Provides a dynamic enhancer of width and depth
to simulate improved spatial effects
channel are output as Dolby Digital Bitstream.
MPEG is output as PCM.
How to Use Menu Functions
Audio
Audio Description Menu
Description
Volume
Speakers
Headphones
Reset to Defaults
Narration settings for visually impaired users [Off] / [Auto]
Set to [Auto] to activate the narration sound track when available on the
broadcast
The availability of audio description sound track is indicated by [AD] in
•
the information banner (p. 18).
DVB mode only
•
Adjusts the volume for Audio Description
DVB mode only
•
Set to [On] to activate the description sound track from TV speakers [Off] / [On]
DVB mode only
•
Set to [On] to activate the description sound track from headphones [Off] / [On]
DVB mode only
•
Press the OK button to reset the present Sound Mode, [Balance],
[Headphone Volume] and [Surround] to the default settings
33
Page 34
Menu
Timer Programming
Item Adjustments / Configurations (alternatives)
Sets programme reminders and records forthcoming programmes (p. 45)
Off Timer
Timer
Auto Standby
TV Guide Settings
TV Guide View
How to Use Menu Functions
GUIDE Plus+
Postcode
GUIDE Plus+
Information
Eco Navigation
Recording Setup Formats the connected USB HDD and sets the condition (p. 55)
Setup
VIERA Link Setting for VIERA Link functions [Off] / [On] (p. 85)
HDMI Content
Detection
Link Settings
AV1 out
Standby Power
Save
Intelligent Auto
Standby
Q-Link
Download
Sets the time until the TV automatically goes to Standby mode
[Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p. 19)
Sets the duration of time that the TV will remain On when no operation
is received from the user [Off] / [2] / [4] (hours)
Starting Timer Programming automatically does not affect this function.
•
Automatic input switching with the connected equipment affects this
•
function and time-count will be reset.
The notification message will appear 3 minutes before going to
•
Standby mode.
Changes the layout of TV Guide [Normal] / [Full] / [Info]
[Normal] : Default TV Guide screen
[Full] : Displays channels and programmes full-screen without the
operation guide
[Info] : Displays details of the selected programme at the bottom
without the operation guide
Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 23)
Displays the system information of the GUIDE Plus+ system
Automatically sets the TV to the most suitable energy-saving mode
If you press the OK button, the following items are set as below :
•
[C.A.T.S.], [VIERA Link], [Standby Power Save], [Power Save] [On]
[Intelligent Auto Standby] [On (No reminder)]
[Auto Standby] [2 hours]
Automatically adjusts picture according to received HDMI content
[Off] / [Auto]
This function is available if the connected equipment supports HDMI
•
Content Type.
The content type information will be displayed for several seconds
•
when this function works.
Chooses the signal to be transmitted from the TV to Q-Link [TV] / [AV2] / [Monitor]
[Monitor] : Image displayed on screen
Component and HDMI signals cannot be output.
•
Controls the connected equipment to reduce power consumption in
Standby [Off] / [On] (p. 86)
This function is available when [VIERA Link] is set to [On].
•
Makes non-watched or non-used connected equipment go into Standby
mode to reduce the power consumption
[Off] / [On (With reminder)] / [On (No reminder)] (p. 86)
This function is available when [VIERA Link] is set to [On].
•
Downloads analogue channel information to a Q-Link compatible
equipment connected to the TV
34
Child Lock
Applies access control for channels or AV inputs to prevent unwanted
access (p. 47)
Page 35
Menu
Item Adjustments / Configurations (alternatives)
Favourites Edit Creates a list of favourite DVB channels (p. 42)
Channel List Skips the unwanted DVB channels or edits DVB channels (p. 43)
DVB Tuning Menu
Auto Setup
Channel Sorting
by Region
Manual Tuning Searches for the DVB channels manually (p. 41)
Update Channel
List
New Channel
Message
Signal Condition Checks the DVB signal condition (p. 42)
Analogue Tuning Menu
Channel List
Auto Setup
Manual Tuning Searches for the Analogue channels manually (p. 44)
Teletext Analogue teletext display mode [FASTEXT] / [List] (p. 25)
Automatically searches for the DVB channels received in the area (p. 40)
Automatically sorts tuned channels according to the available region (p. 41)
Updates DVB Channel List while keeping your settings (p. 43)
Selects whether to give a notification message when a new DVB
channel is found [Off] / [On] (p. 42)
Skips the unwanted Analogue channels or edits Analogue channels (p. 44)
Automatically searches for the Analogue channels received in the area
(p. 40)
How to Use Menu Functions
Setup
Teletext
Character Set
Preferred
Teletext
Preferred
Display Settings
Subtitles
Input Labels Labels or skips each input terminal (p. 48)
Banner Display
Timeout
VIERA Connect
Banner
Playing Time
Display
Radio Mode
Selects teletext language font [West] / [East1] / [East2]
[West] :
[East1] :
[East2] : Czech, Hungarian, Lettish, Polish, Rumanian, etc.
Selects the preferred language for digital channel teletext service
(depending on the broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]
Selects the preferred language for digital channel subtitles (depending
on the broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]
To display subtitles (p. 20)
(depending on the broadcaster).
Sets how long the Information banner (p. 18) stays on screen
[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)
Sets the VIERA Connect introduction banner display [Off] / [On] (p. 16, 17)
Set to [On] to display a continuous record of time spent using Game
mode every 30 minutes [Off] / [On]
•
Sets the timer for turning off the screen automatically when a radio
channel is selected [Off] / [5] / [10] / [15] / [20] (seconds)
•
•
•
English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
provides aids in understanding and enjoyment with DVB subtitles
This function is available when [Game] is selected in [Viewing Mode]
(p. 31)
The sound is active even if the screen turns off.
Press any buttons except Standby, Volume Up / Down and Sound
Mute buttons to turn the screen on.
This function is effective in reducing power consumption when
listening to a radio channel.
35
Page 36
Menu
Network Setup Sets the network setting to use in your network environment (p. 73)
DivX
Advance(isfccc)
Item Adjustments / Configurations (alternatives)
®
VOD Displays DivX VOD registration code (p. 95)
Enables the advanced picture settings [Off] / [On]
Set to [On] to enable the mode of [Professional1] and [Professional2]
•
in [Viewing Mode].
Set to [On] to display the advanced items in the Picture Menu
•
- [Advanced Settings], [Lock Settings] and [Copy Adjustment].
[Copy Adjustment] will be displayed when [Viewing Mode] is set to
[Professional1] or [Professional2].
[isfccc] is the picture setting for the certified professional dealer. For
•
details, consult your local dealer
USB Keyboard
Layout
Shipping
How to Use Menu Functions
Setup
Condition
System Menu
Owner ID Inputs the owner ID (p. 50)
Common
Interface
System Update Downloads new software to this TV (p. 52)
Software
Licence
System
Information
Power on
Preference
Other Settings
Power on
Channel List
Power Save
Selects the language that your USB Keyboard supports
For the information of using USB Keyboard (p. 98)
•
Resets all settings, for example, when moving house (p. 49)
Settings for watching encrypted channels (p. 51)
Displays the software licence information
Displays the system information of this TV
Automatically selects the input when the TV is turned on [TV] / [AV]
Set to [TV] to view picture from TV tuner.
Set to [AV] to view input from an external equipment connected to a
SCART terminal, e.g. satellite receiver.
The external equipment must be switched on and sending a control
•
signal for automatic switching at power on to occur.
Automatically selects All Channels or Favourites list in the Information
banner (p. 18) when the TV is turned on [All Channel List] / [Last]
Set to [All Channel List] to display all the channels.
Set to [Last] to display the one you selected last time.
Not available in Analogue mode
•
Reduces brightness of picture to economise on power consumption
[Off] / [On]
A different menu will be displayed when [Advance(isfccc)] in the Setup Menu is set to [On] or in the
•
mode of Media Player / network service operations. (p. 53, 61 - 71, 79 - 82)
Only available items can be selected.
•
36
Page 37

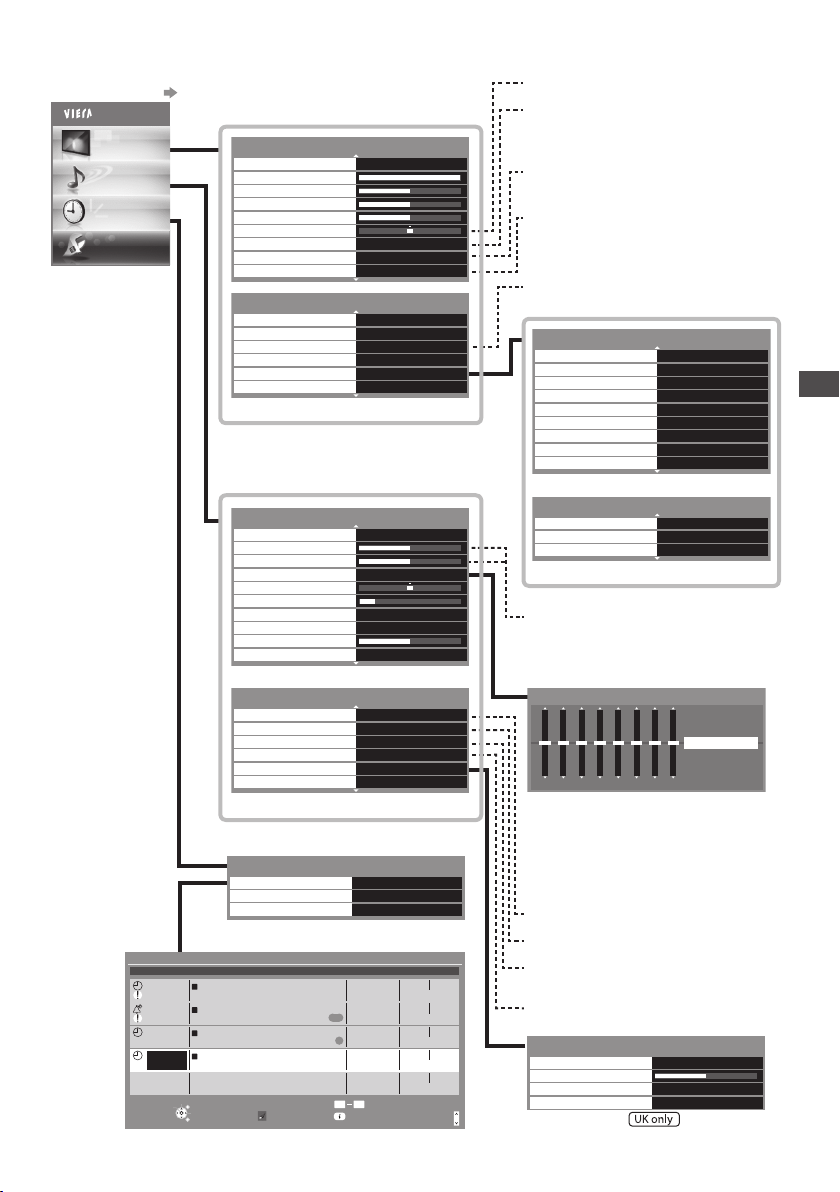

Overview (Picture, Sound, Timer)
How to operate (p. 30)
Main Menu
Sound
Timer
Setup
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
Reversal Film Effect
C.A.T.S. Off
P-NR
3D-COMB
Screen Display
Advanced Settings
Reset to Defaults
Mode Music
Bass
Treble
Equaliser
Balance
Headphone Volume
Surround
Auto Gain Control
Volume Correction
Speaker Distance to Wall Over 30cm
Warm
Off
Off
Off
Off
On
Access
Reset
Access
Off
Off
(p. 31, 32)
Available in NTSC
Not available when [Viewing Mode]
1/2
is set to [THX (True Cinema)] or
[Professional1 / 2]
Not available when [Viewing Mode]
is set to [Professional1 / 2]
Available when [Viewing Mode] is
set to [Photo]
2/2
1/2
Available in NTSC / PAL
Advanced Settings
White Balance Access
Colour Management
Gamma
Intelligent Frame Creation
24p Smooth Film
Clear Cinema
Resolution Enhancer
Side Panel
16:9 Overscan Off
Advanced Settings
Pixel Orbiter
Scrolling Bar
Access
Access
Off
Off
Off
Off
Off
NormalDVI Input Setting
Auto
Start
1/2
How to Use Menu Functions
2/2
(p. 32, 54)
Available when [Mode] is
set to [Music] or [Speech]
Timer Programming
Function No. Date Start EndChannel Name
Ext Rec.
72 BBC 2W 20:00 21:30
D
Reminder
14 E4
D
Ext Rec.
D
Ext Rec.
D
------ --:----:-- --:--
Change function
EXIT
Store timer
Select
RETURN
Preferred Multi Audio English
NICAM
SPDIF Selection
HDMI1 Input
Audio Description
Reset to Defaults Reset
Off Timer
Auto Standby
<TIMER>
The Bill
1 BBC ONE
DIY SOS
BBC ONE
<TIMER>
Remaining Capacity:
500GB (50%)
STTL
Guide
S/P
0
Off
Auto
Digital
Access
(p. 32, 33)
AccessTimer Programming
Off
Off
Wed 27.10.2010 10:46
Wed 27 Oct
Wed 27 Oct
Wed 27 Oct
Thu 28 Oct
9
(p. 34)
(90 min.)
21:00 22:00
(60 min.)
22:45 23:00
(15 min.)
10:30 11:30
(60 min.)
(p. 46)
2/2
Equaliser
Reset to Defaults
150 250 500 1k 2k 4k 8k 12k Hz
Available when [Mode] is set to [User]
Available in DVB
Available in Analogue
Available in DVB, network video
contents or Video mode
Available in HDMI input
Audio Description Menu
Audio Description
Volume
Speakers
1/1
Headphones
Available in DVB
Off
Off
Off
(p. 33)
37
Page 38

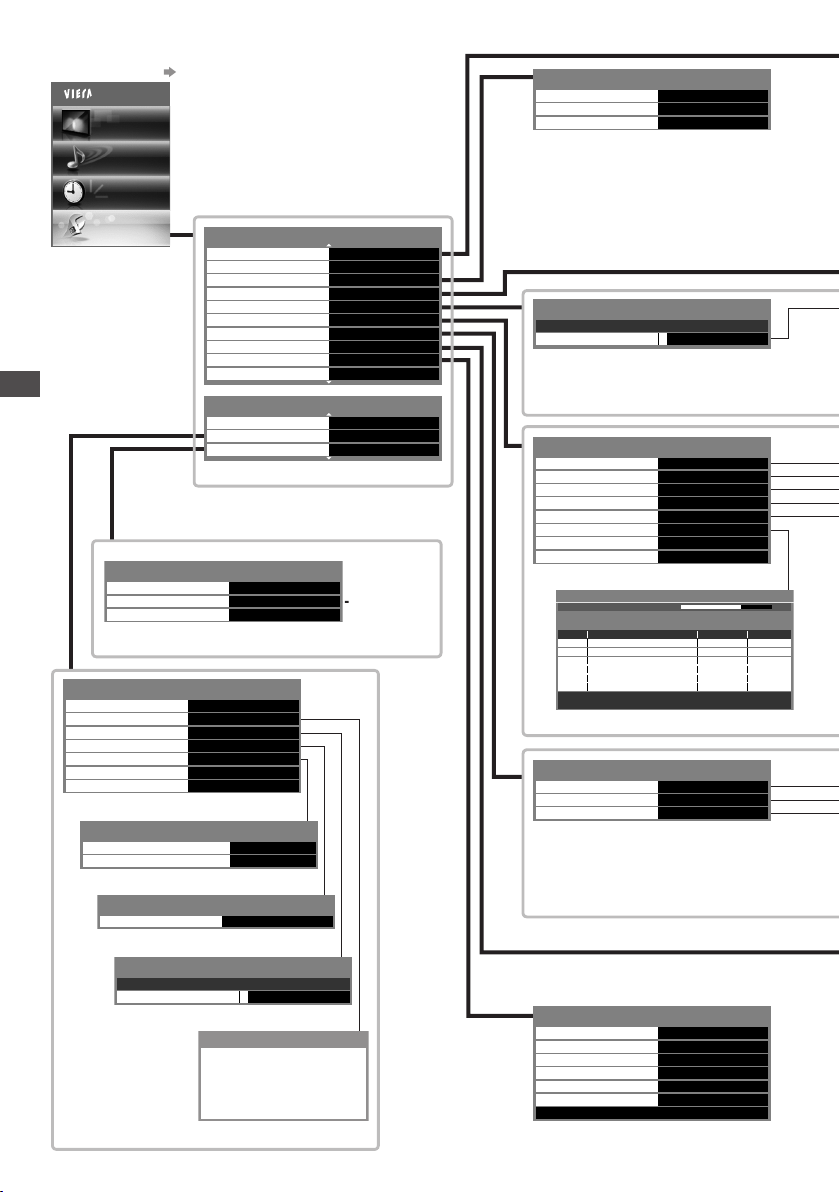

Overview (Setup)
How to operate (p. 30)
Main Menu
Sound
Timer
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
Access
180 minutes
Off
(p. 55)
Setup
TV Guide Settings Access
Eco Navigation
Recording Setup
Link Settings
Child Lock
DVB Tuning Menu
Analogue Tuning Menu
Display Settings
Network Setup
DivX® VOD
How to Use Menu Functions
Advance (isfccc)
System Menu
Other Settings
Power on Preference
Power on Channel List
Power Save
System Menu
USB Keyboard Layout
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
English(UK)
Access
Access
Access
Access
Access
Access
System Update
Auto Update Search in Standby
System Update Search Now
Common Interface
Slot 1:
Available in DVB (p. 51)
Owner ID
Please enter new PIN
PIN
Shipping Condition
All tuning data will be erased
TV
Last
Off
(p. 36)
Off
Access
(p. 52)
Module inserted
* * * *
Are you sure ?
Are you sure ?
(p. 36)
(p. 50)
(p. 49)
Access
Access
Access
Access
Access
Access
Access
Access
Access
Off
Access
AccessOther Settings
(p. 34 - 36)
Available in
DVB
1/2
Child Lock-PIN Entry
Please enter new PIN
PIN
* * * *
(p. 47)
2/2
DVB Tuning Menu
Favourites Edit
Channel List
Auto Setup
Channel Sorting by Region
Manual Tuning
Update Channel List
New Channel Message
Signal Condition
Available in DVB
DVB Update Channel List
Progress
This will take about 3 minutes.
CH Channel Name Type Quality
Free TV: 0 Pay TV: 0 Data: 0Radio: 0
Access
Access
Access
Access
Access
Access
On
Access
(p. 40 - 43)
CH 21 68
Searching
(p. 43)
Analogue Tuning Menu
Channel List
Auto Setup
Manual Tuning
Available in Analogue
Access
Access
Access
(p. 40, 43, 44)
Network Setup
Connection Test
Network Type Wired
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Access
Access
Access
Access
Access
ab-cd-ef-gh-ij-kl
(p. 73)
38
Page 39

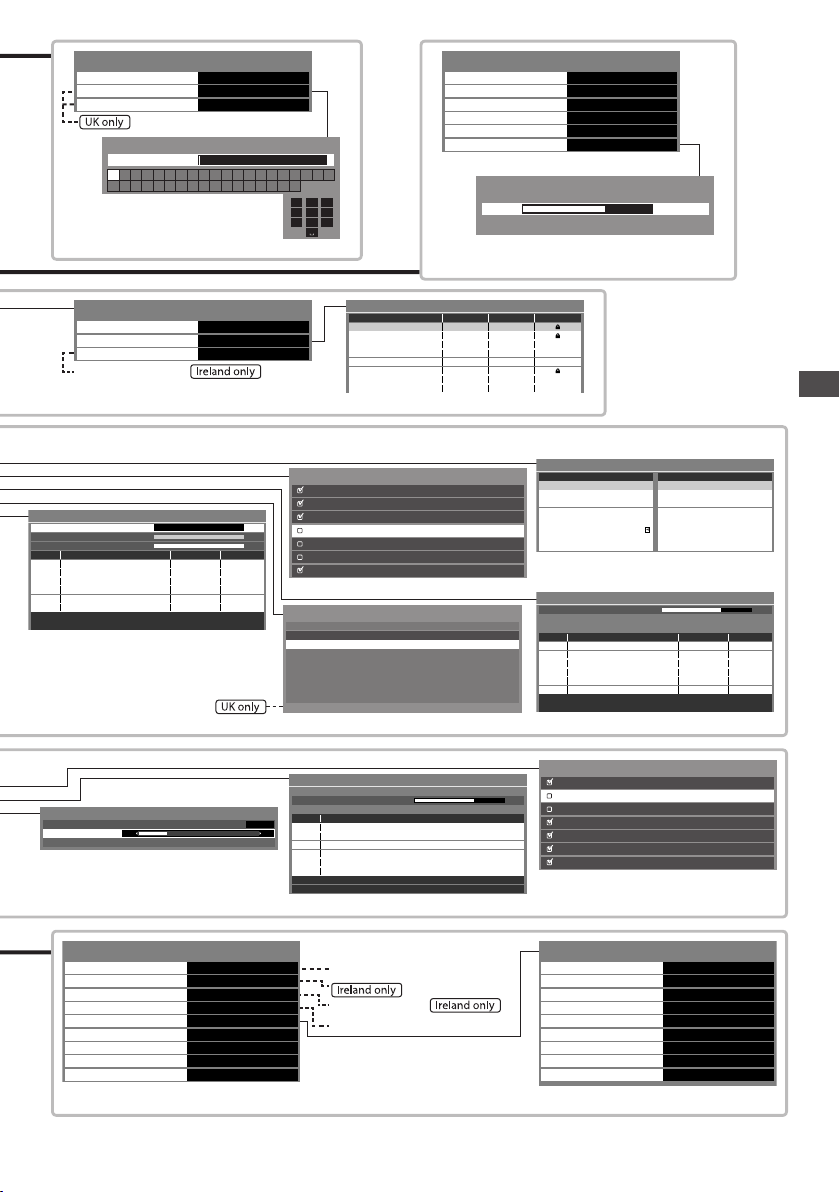

TV Guide Settings Menu
TV Guide View
GUIDE Plus+ Postcode
GUIDE Plus+ Information
Enter Postcode
Postcode
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9
Normal
Access
Access
(p. 34)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
(p. 34)
Link Settings
VIERA Link
HDMI Content Detection
AV1 out
Standby Power Save
Intelligent Auto Standby
Q-Link Download
On
Off
TV
On
On (No reminder)
Access
(p. 34)
Sending Preset Data
Please wait!
0% 100%
0
Remote control unavailable
(p. 34)
Child Lock
Change PIN
Child Lock List
Parental Rating
Access
Access
No limit
Available in DVB
DVB Manual Tuning
Frequency
Signal Quality
Signal Strength
No. Channel Name Type New
Free TV: 0 Pay TV: 0 Data: 0Radio: 0
Stopped
[CH21]
474,00 MHz
0
0
(p. 41)
Analogue Manual Tuning
Manual Tuning
21 68
Store
(p. 47)
All DVB Channels
10
10
Channel Sorting by Region
GBR>
Best signal quality (All Regions)
England Regions>
Region choice available
Analogue Auto Setup
Scan
This will take about 3 minutes.
CH331 BBC1
(p. 44)
Analogue: 2
Child Lock List - TV and AV
Name Input
101 BBC 1 Wales
7 BBC THREE
14 E4C
VCR
1 BBC1
2 *****
AV1
AV2
70 CBBC Channel
72 Cartoon Nwk
105 BBCi
719 BBC Radio Wales
720 BBC Radio Cymru
1 BBC ONE Wales
7 BBC THREE
CH Channel Name
29
30
CH 21 68
Searching
DVB
DVB
DVB
Analogue
Analogue
Analogue
External
External
Type
Free TV
Free TV
Free TV
Analogue
Analogue
Analogue
AV
AV
(p. 43)
(p. 41)
(p. 40)
Lock
(p. 47)
DVB Favourites Editor
All DVB Channels Favourites1
1 BBC One Wales
7 BBC THREE
14 E4
CBBC Channel70
72 Cartoon Nwk
BBCi
105
BBC Radio Wales
719
BBC Radio Cymru
720
DVB Auto Setup
Progress
This will take about 3 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
Free TV: 4 Pay TV: 0 Data: 0Radio: 0
Analogue Channel List
1 BBC1
2 *****
3 *****
4 *****
5 *****
6 *****
7 *****
CH 21 68
Searching
Free TV
Free TV
Free TV
Free TV
(p. 42)
Quality
10
10
10
(p. 40)
(p. 44)
How to Use Menu Functions
Display Settings
Teletext
Teletext Character Set
Preferred Teletext
Preferred Subtitles
Input Labels
Banner Display Timeout
VIERA Connect Banner
Playing Time Display
Radio Mode
FASTEXT
West
Irish
English
Access
3 seconds
On
On
Off
(p. 35)
Available in Analogue
Available in DVB
Available in DVB
Input Labels
AV1
AV2
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
DVB
Analogue Analogue
DVD
AV2
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
DVB
(p. 48)
39
Page 40

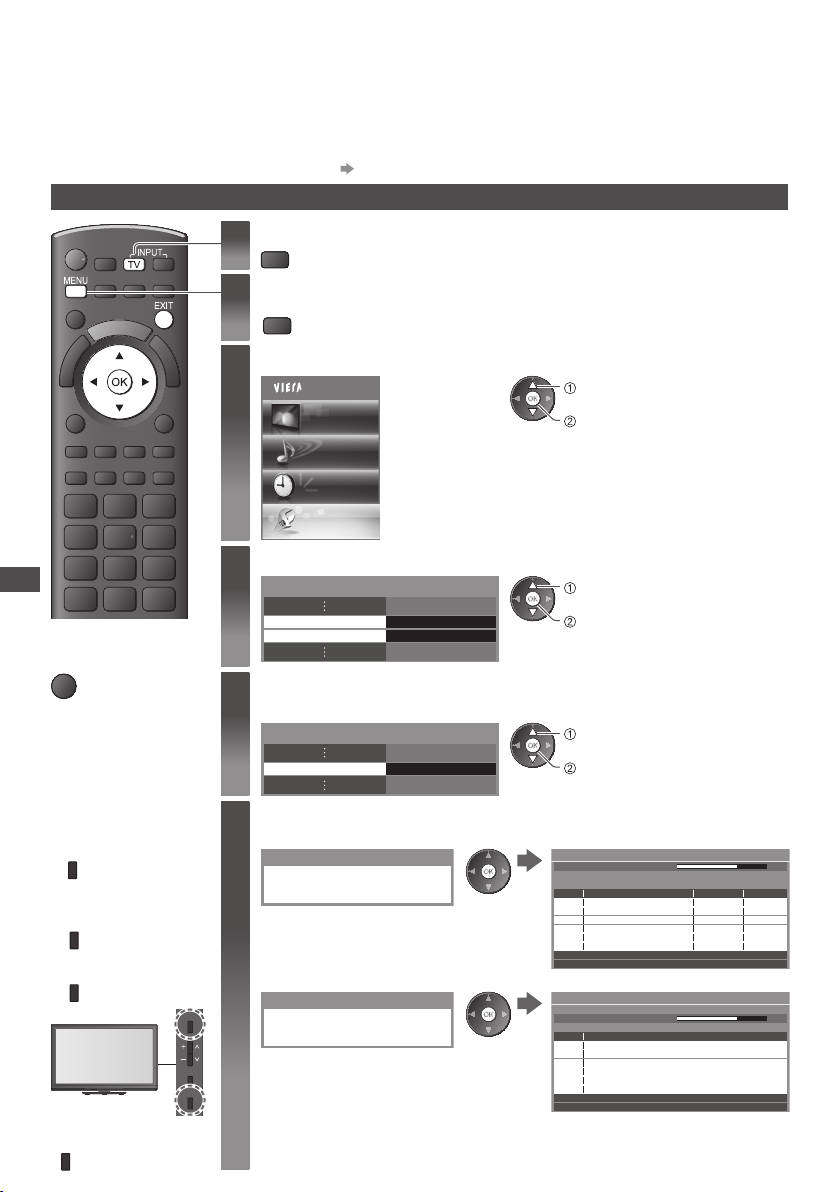

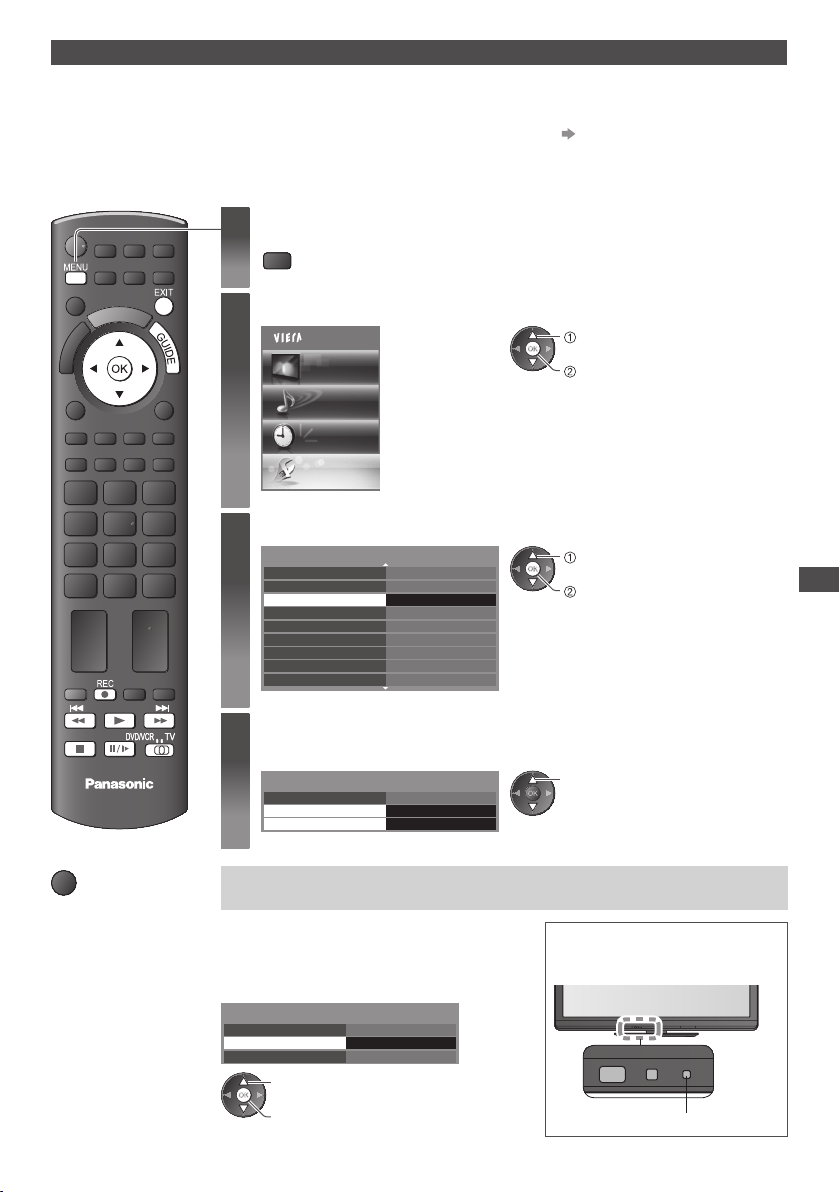

Retuning from Setup Menu
Automatically retune the channels received in the area.
This function is available if channel tuning is already performed.
•
Only the selected mode is retuned. All the previous tuning settings are erased.
•
If Child Lock PIN number (p. 47) has been set, the PIN number is required.
•
If tuning has not been done completely [Manual Tuning] (p. 41, 44)
•
DVB or Analogue channels
Select DVB or Analogue
1
TV
Display the menu
2
MENU
Select [Setup]
Retuning from Setup Menu
■
To return to TV
EXIT
For Auto Setup,
using the buttons
on the side panel of
the TV (p. 9)
1 Press repeatedly
until [Auto Setup]
appears
F
2 Access [Auto
Setup]
TV
3 Start [Auto Setup]
TV
F
TV
AV
To return to TV
•
F
40
3
4
5
6
Main Menu
Sound
Timer
Setup
Select [DVB Tuning Menu] or [Analogue Tuning Menu]
DVB Tuning Menu
Analogue Tuning Menu
Access
Access
Select [Auto Setup]
Example :
DVB Tuning Menu
Auto Setup Access
Start Auto Setup (Settings are made automatically)
Example : DVB
DVB Auto Setup
All DVB tuning data will be erased
Example : Analogue
Analogue Auto Setup
All analogue tuning data will be erased
The analogue settings are downloaded to a Q-Link compatible
•
equipment connected to the TV in Analogue mode.
When the operation is completed, the channel at the lowest position will be displayed.
select
access
select
access
The displayed item depends on the
•
selected mode.
select
access
DVB Auto Setup
Progress
This will take about 3 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
Free TV: 4 Pay TV: 0 Data: 0Radio: 0
Analogue Auto Setup
Scan
This will take about 3 minutes.
CH Channel Name
29
30
Analogue: 2
CH 21 68
Free TV
Free TV
Free TV
Free TV
Searching
CH 21 68
Searching
Quality
10
10
10
Page 41

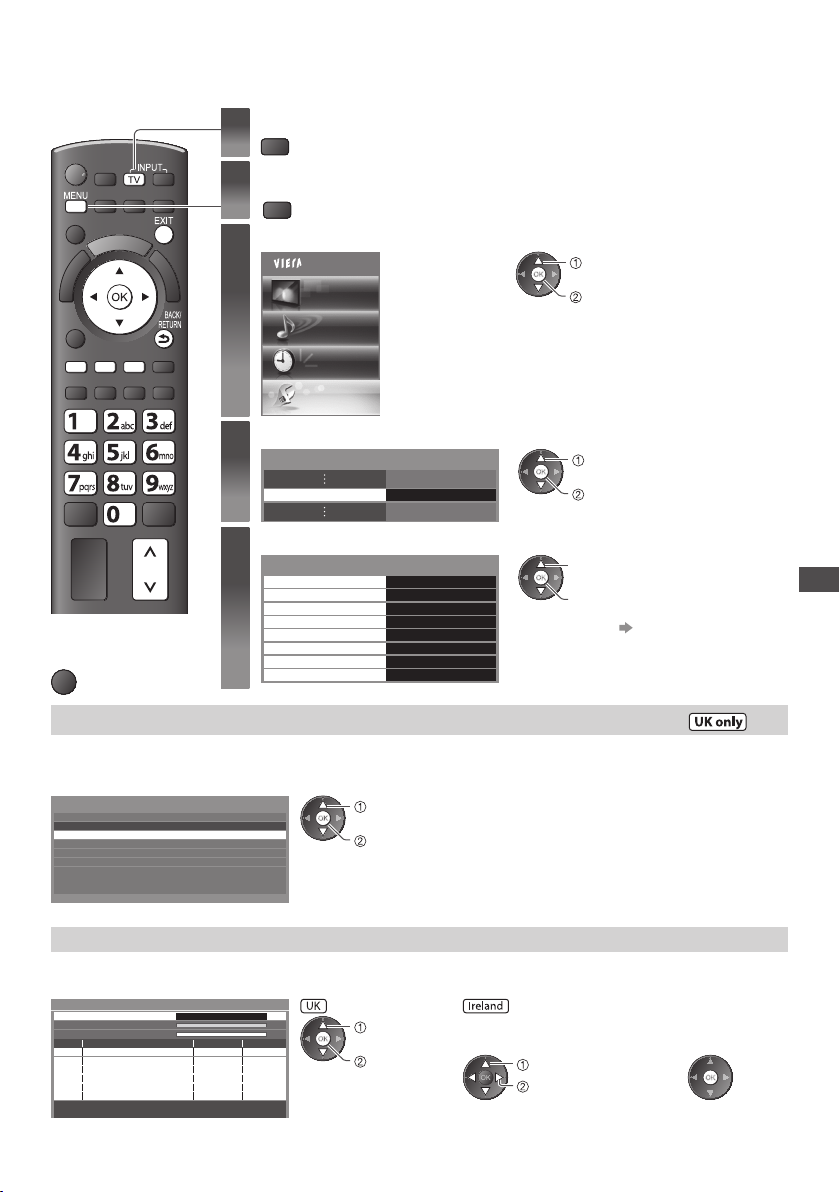

Tuning and Editing Channels (DVB)
You can retune channels or make your favourite channel lists, skip unwanted channels, etc.
Select DVB
1
TV
Display the menu
2
MENU
Select [Setup]
■
To return to TV
EXIT
3
4
5
Main Menu
Sound
Timer
Setup
Select [DVB Tuning Menu]
DVB Tuning Menu Access
Select one of the following functions
DVB Tuning Menu
Favourites Edit
Channel List
Auto Setup
Channel Sorting by Region
Manual Tuning
Update Channel List
New Channel Message
Signal Condition
Access
Access
Access
Access
Access
Access
On
Access
•
select
access
select
access
select
access / store
[Auto Setup] “Retuning from
Setup Menu” (p. 40)
Tuning and Editing Channels
Sort DVB channels according to the region [Channel Sorting by Region]
You can sort DVB channels so that those with the best signal quality, or those for your preferred region,
appear nearer the top of your Channel List.
Normally, you should select [Best signal quality (All Regions)].
Channel Sorting by Region
GBR>
Best signal quality (All Regions)
England Regions>
select region
access
(select repeatedly until you reach the available region)
If you choose to select your preferred region, you could find channels with
•
Region choice available
a weaker signal appear nearer the top of your Channel List. If you have any
image or sound problems, select [Best signal quality (All Regions)] instead.
Set DVB channel manually [Manual Tuning]
Normally use [Auto Setup] or [Update Channel List] to retune DVB channels.
If tuning has not been done completely or for adjusting the direction of the aerial, use this function.
DVB Manual Tuning
Frequency
Signal Quality
Signal Strength
No. Channel Name Type New
Free TV: 0 Pay TV: 0 Radio: 0 Data: 0
All channels found will be added
•
to the Channel List.
Stopped
[CH21]
474,00 MHz
0
0
10
10
select
frequency
search
1 Adjust frequency for
each channel
select channel
2 Search
adjust frequency
Set where the level of
•
[Signal Quality] becomes the
maximum.
41
Page 42

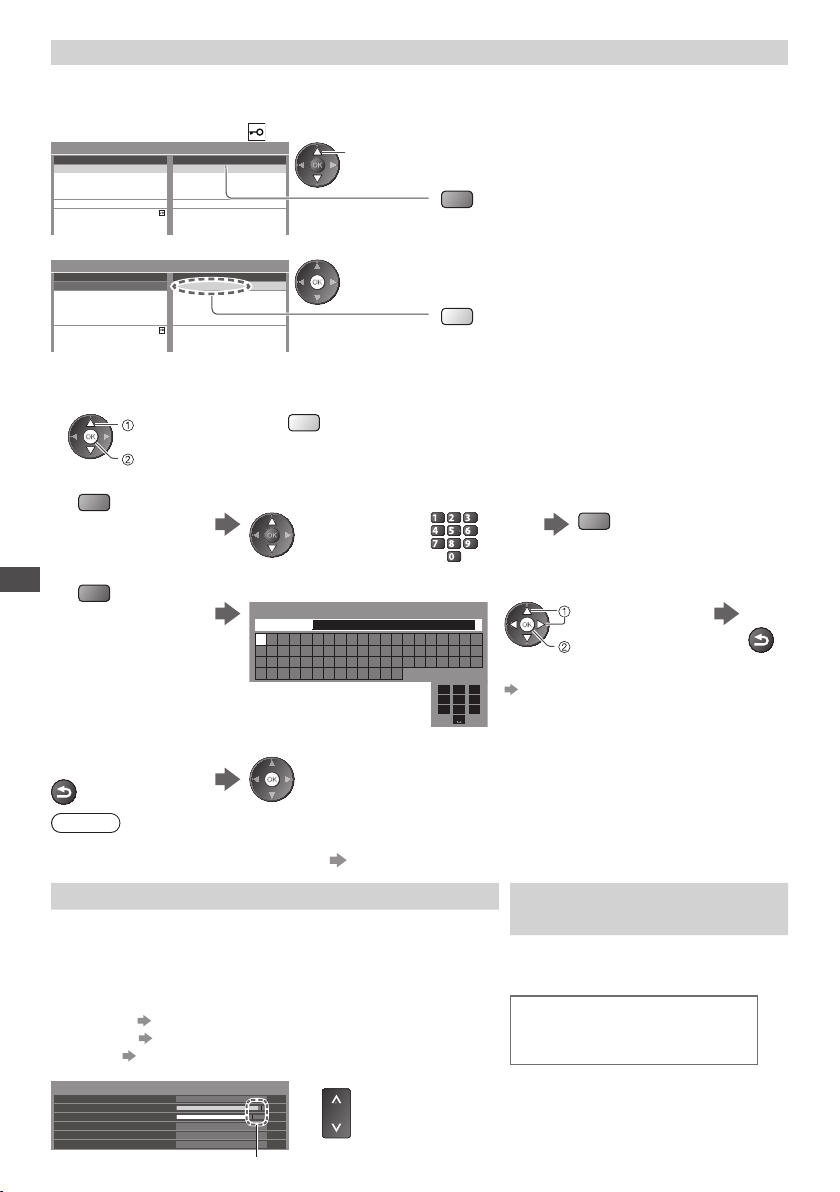

List favourite DVB channels [Favourites Edit]
Create your favourite channel lists from various broadcasters (up to 4: [Favourites]1 to 4).
The DVB Favourites lists are available for switching in the Information banner (p. 18) and from
[Category] in the TV Guide screen (p. 21).
1 Select a channel to list ( : Encrypted channel)
DVB Favourites Editor
All DVB Channels Favourites1
1 BBC One Wales
7 BBC THREE
14 E4
CBBC Channel70
72 Cartoon Nwk
BBCi
105
BBC Radio Wales
719
BBC Radio Cymru
720
2 Add it to the Favourites list
DVB Favourites Editor
All DVB Channels Favourites1
1 BBC One Wales
7 BBC THREE
14 E4
CBBC Channel70
72 Cartoon Nwk
BBCi
105
BBC Radio Wales
719
BBC Radio Cymru
720
1 BBC One Wales
select
To display other Favourites
•
(green)
To add all channels to the list
•
(yellow)
■ To edit Favourites list
While the cursor is in the Favourites field to edit
To delete a channel
•
To move the channel
•
(green)
To name the Favourites
•
Tuning and Editing Channels
(red)
3 Store
BACK/
RETURN
select
delete
To delete all channels
•
(yellow)
Select the new position
Select the turn Store
abc def
or
jkl
ghi
mno
tuvpqrs
wxyz
(green)
Set characters (maximum: ten characters) Store
User input
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
•
select
set
To use numeric buttons
“Characters table for
numeric buttons” (p. 97)
BACK/
RETURN
Note
Channel position numbers (known as logical channel numbers) can be swapped in Channel List.
•
To swap the channel position number [Channel List] (p. 43)
Check DVB signal [Signal Condition]
Selects a channel and checks the DVB signal condition.
A good Signal Strength is not an indication of best signal for
DVB reception.
Please use the Signal Quality indicator as follows :
[Signal Quality] :
Green bar Good
•
Yellow bar Poor
•
Red bar Bad (Check the Terrestrial aerial)
•
Example :
DVB Signal Condition
Channel Name
Signal Quality
Signal Strength
Bit Error Rate
Network Name
Frequency
These bars show the maximum signal value of the selected channel.
42
70 CBBC Channel
0
0
0.00E+00
Wenvoe
802,00 MHz, 64 QAM, 6940 kS/s
To change the channel
•
9
8
Display a notification message
[New Channel Message]
Selects whether to give a notification
message when a new DVB channel is
found. [Off] / [On]
New channels found!
Press OK to update channel list.
Press EXIT to ignore.
Selecting OK will perform [Update
•
Channel List].
Page 43

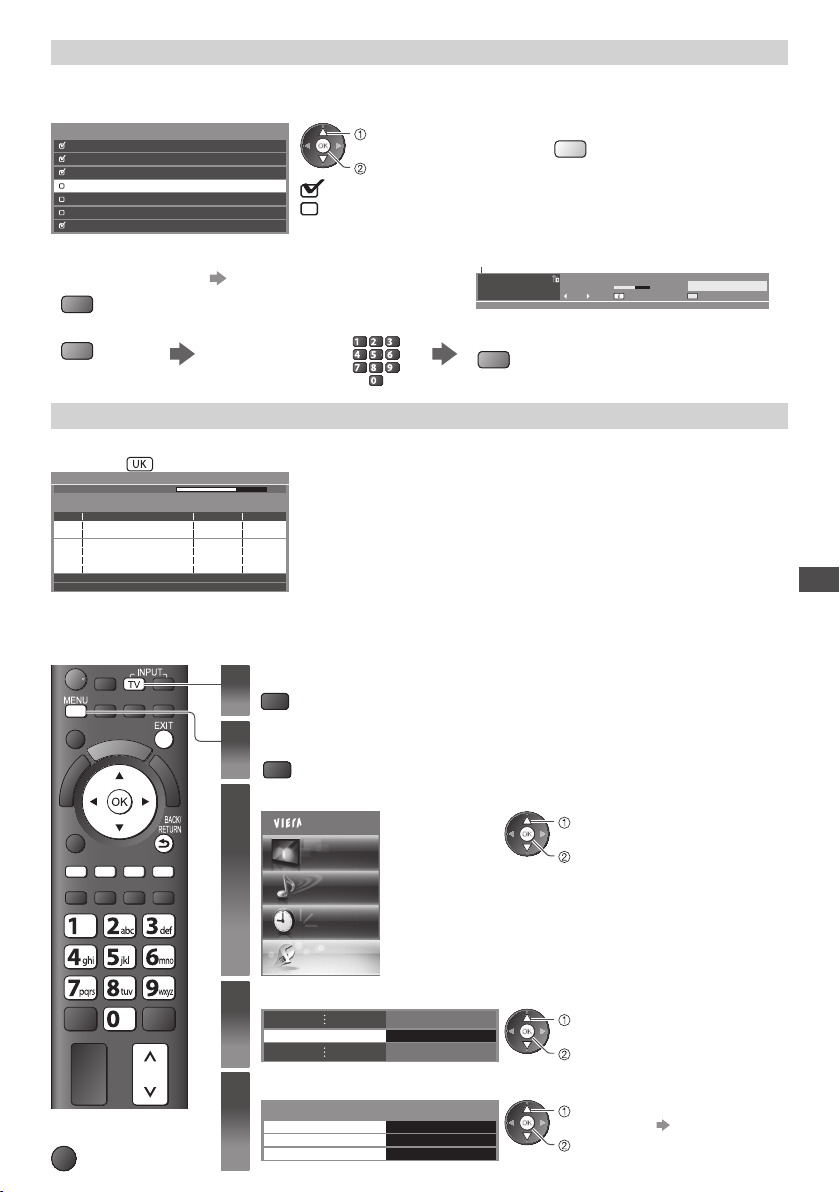

Skip unwanted DVB channels, Edit DVB Channels [Channel List]
You can hide unwanted DVB channels. The hidden channels cannot be displayed except in this
function. Use this function to skip unwanted channels.
Select a channel and [reveal] / [hide]
All DVB Channels
70 CBBC Channel
72 Cartoon Nwk
105 BBCi
719 BBC Radio Wales
720 BBC Radio Cymru
1 BBC ONE Wales
7 BBC THREE
select
[reveal] / [hide]
: [reveal]
: [hide] (skip)
■ To edit channels
You can also edit each channel in Channel List.
To retune each channel
•
(red)
To swap the channel position number (logical channel number)
•
(green)
[Manual Tuning] (p. 41)
(only for the revealed channels)
Enter the new
position number
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Channel position number
1
BBC ONE WALES
Store
To reveal all channels
•
(yellow)
Coronation Street
20:00 - 20:55
Now Info
(green)
All DVB Channels
Select favourites
20:35
Update DVB channel automatically [Update Channel List]
You can add new channels, delete removed channels, update channel name and position automatically to Channel List.
Example :
DVB Update Channel List
Progress
This will take about 3 minutes.
CH Channel Name Type Quality
CH 21 68
Channel List is updated while keeping your settings in [Favourites
•
Edit], [Channel List], [Child Lock], [Timer Programming], etc.
Depending on the signal condition, the update may not work
•
properly.
Free TV: 0 Pay TV: 0 Data: 0Radio: 0
Searching
(Analogue)
You can retune channels or skip unwanted channels, edit channels etc.
Select Analogue
1
TV
Display the menu
2
MENU
Select [Setup]
■
To return to TV
EXIT
3
4
5
Main Menu
Sound
Timer
Setup
Select [Analogue Tuning Menu]
Analogue Tuning Menu
Access
Select one of the following functions
Analogue Tuning Menu
Channel List
Auto Setup
Manual Tuning
Access
Access
Access
select
access
select
access
select
access
[Auto Setup]
•
“Retuning
from Setup
Menu” (p. 40)
Tuning and Editing Channels
43
Page 44

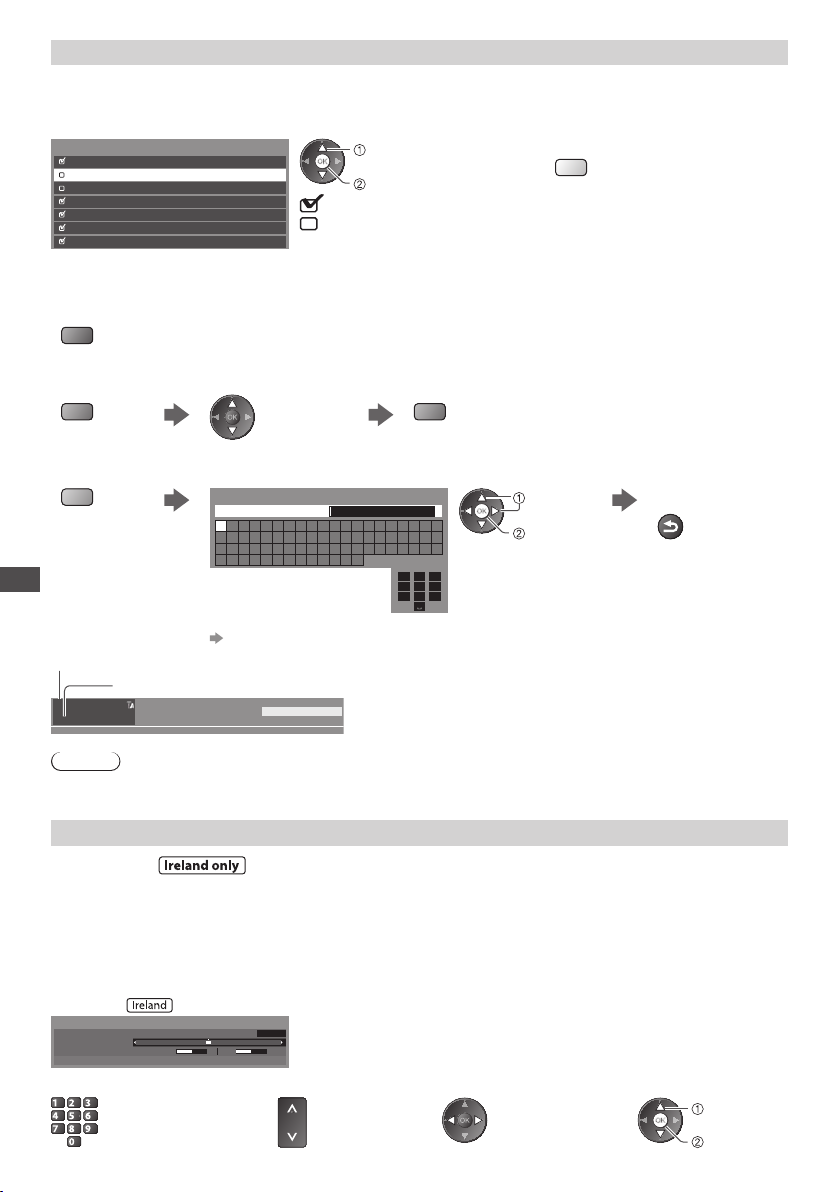

Skip unwanted Analogue channels, Edit Analogue channels [Channel List]
You can hide unwanted Analogue channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.
Select a channel and [reveal] / [hide]
Analogue Channel List
1 BBC1
2 *****
3 *****
4 *****
5 *****
6 *****
7 *****
select
[reveal] / [hide]
: [reveal]
: [hide] (skip)
To reveal all channels
•
(yellow)
■ To edit channels
You can also edit each channel in Channel List.
To retune each channel ([Manual Tuning]) (see below)
•
(red)
To move the channel position
•
(green)
To rename the channel name
•
(blue)
Tuning and Editing Channels
Channel position
Channel name
1
ITV
CH23
Select the new position
Set characters (maximum: five characters) Store
Edit channel name
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
To use numeric buttons
•
“Characters table for numeric buttons” (p. 97)
23:35
All Analogue Channels
Store
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
(green)
select
set
BACK/
RETURN
Note
If a VCR is connected only with the RF cable, edit [VCR].
•
Set Analogue channel manually [Manual Tuning]
[Fine Tuning]
Use to make small adjustments to the tuning of an individual programme (affected by weather
conditions, etc.)
[Manual Tuning]
Set Analogue channel manually after Auto Setup.
If a VCR is connected only with the RF cable, it is recommended to select channel position [0].
•
Example :
Analogue Manual Tuning
Fine Tuning
Manual Tuning
CH 1 99 41H: 21
Store
CH331 BBC1
1 Select the channel position 2 Select the channel 3 Search 4 Select [Store]
abc def
jkl
ghi
mno
tuvpqrs
wxyz
44
select
store
Page 45

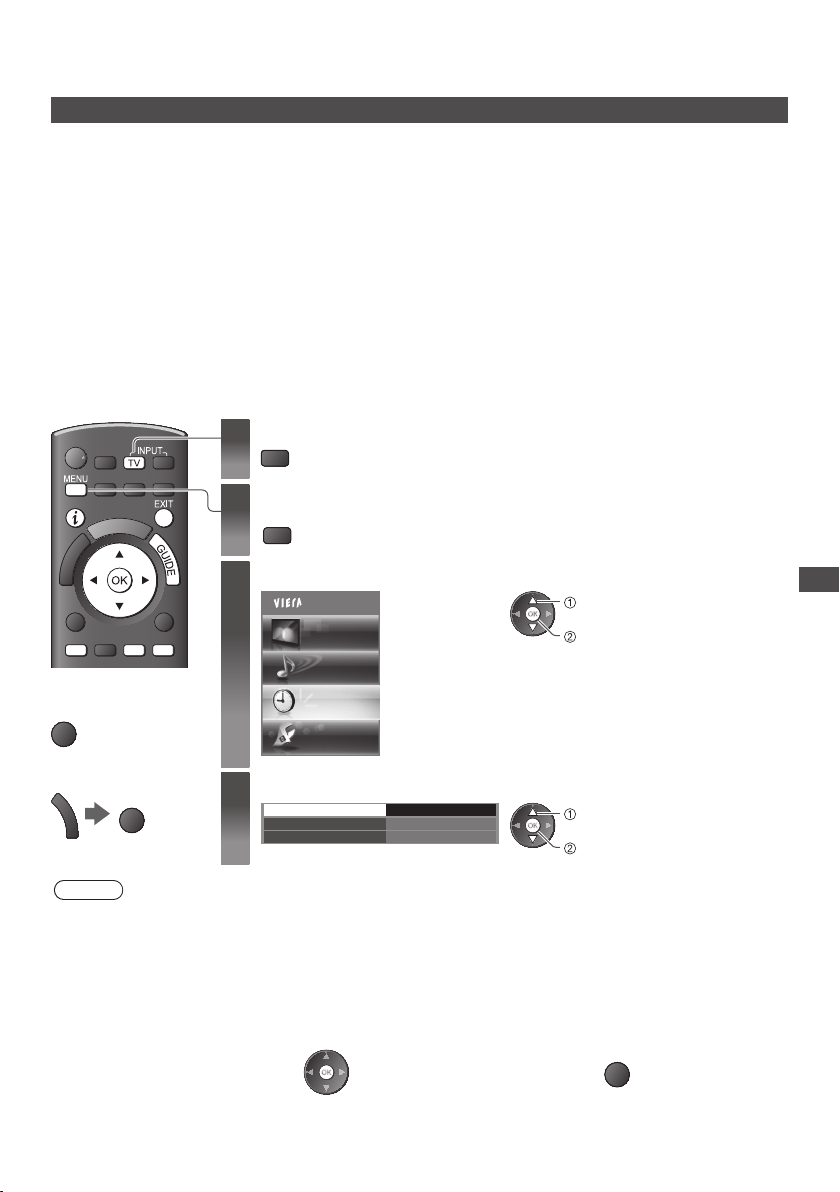

Timer Programming
Timer Programming from Menu
The Timer Programming menu allows you to choose programmes that you wish to remind watching or
record to the external recorder or the USB HDD. At the correct time, the TV will tune to the correct channel
automatically to record even if the TV is in Standby mode.
TV Guide may also be used to set timer programming event (p. 22).
Timer Programming can store up to 15 events.
•
For recording using Timer Programming, the TV must be either On or in standby. For reminders to be displayed, the TV must be On.
•
No other channel can be selected while the recording of Timer Programming is in progress.
•
It may not be possible to record an encrypted programme (which is copy-protected).
•
When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the TV.
•
If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 84) and the [Link
Settings] (p. 34) are correct, no setting of the recorder is required. Also read the manual of the recorder.
If the recorder is not compatible with Q-Link or similar technologies, set the timer of the recorder in addition
•
to the Timer Programming on the TV. For preparations of a recorder, read the manual of the recorder.
When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording Setup] (p. 55).
•
Recordings to the external recorders are always in standard definition composite video via SCART,
•
even if the original programme is in high definition.
Select the tuner you want to use (DVB or Analogue)
1
TV
Display the menu
2
MENU
Select [Timer]
3
Main Menu
select
access
Timer Programming
Sound
■
To return to TV
EXIT
■
To unlock the tuner
and stop recording
G
•
•
•
•
•
•
•
EXIT
U
I
D
E
Note
Check that the LED is orange. If not, timer programmes are not active or not stored.
Timer Programming reminder messages will remain displayed until one of the following occurs:
• You press the OK button to view the programme or the EXIT button to cancel the reminder.
• The timer programming event that the reminder is set for ends.
“!” identifies that any timer programming events have overlapped. [Ext Rec.] and [USB HDD Rec.] are given
priority over [Reminder]. As for the overlapped two or more [Ext Rec.] / [USB HDD Rec.], the first timer
programming event starts and finishes as programmed. The next timer programming event can then start.
2 minutes before the starting time, a reminder message appears if you are watching TV.
• To remove the message and
start the programme
The recording of Timer Programming will automatically change to the programmed channel 10 seconds before the start time.
To stop recording of the timer programming event, it may be necessary to stop the recorder manually.
The recording of Timer Programming will be performed even if the TV is in Rewind LIVE TV recording
(p. 58) or Pause Live TV recording (p. 87). In this case, these recordings will be cancelled.
Select [Timer Programming]
4
Off Timer
Auto Standby
Timer
Setup
AccessTimer Programming
Off
Off
• To cancel the Timer
Programming
select
access
EXIT
45
Page 46

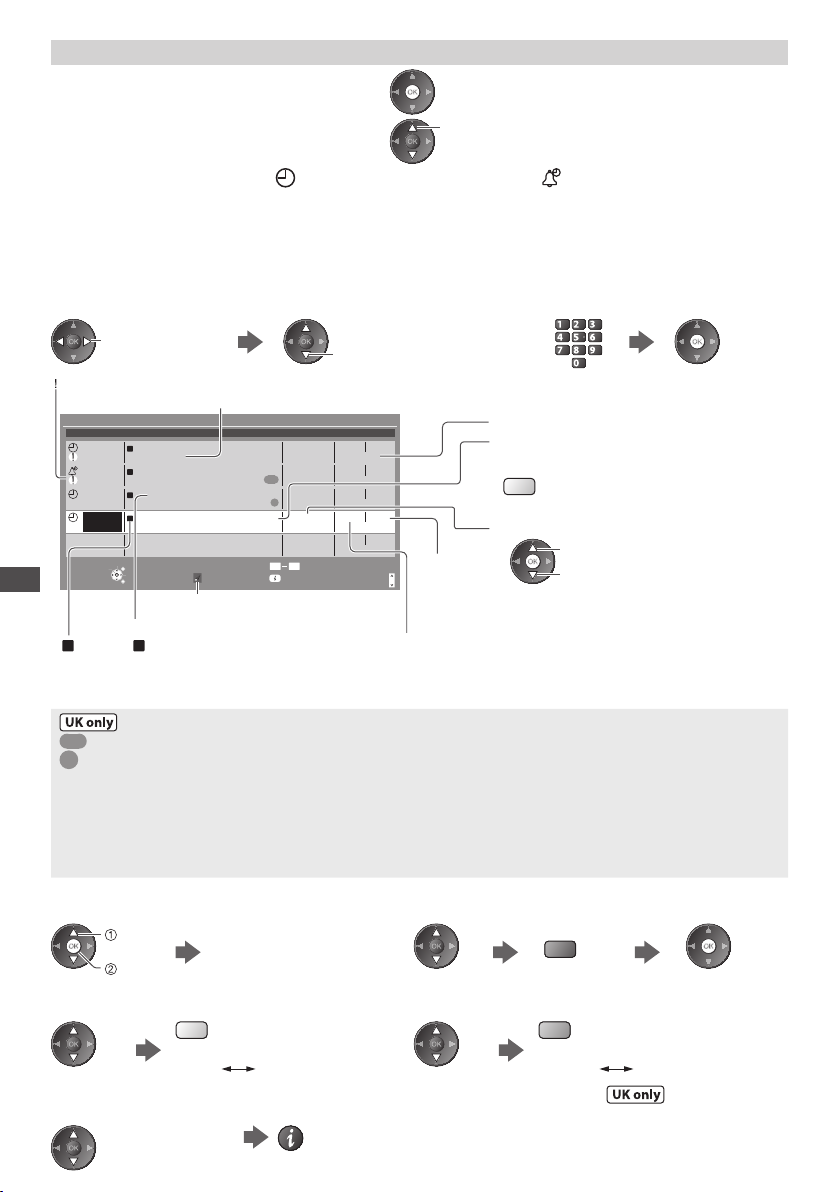

Set timer programming event details [Timer Programming]
1 Start making the settings
2 Select the function ([Ext Rec.],
select
[USB HDD Rec.] or [Reminder])
[Ext Rec.] / [USB HDD Rec.] :
to record the programme to the external recorder or the USB HDD
When the start time comes, the channel will be
switched automatically and the video and audio signals
will be output. 2 minutes before the starting time, a
reminder message appears if you are watching TV.
[Reminder] : to remind you to watch the
programme
When you are watching TV, a reminder message
appears 2 minutes before the start time.
Press the OK button to switch to the
programmed channel.
3 Set the channel, date and time (repeat the operations as below)
Set items in the order of 1 to 4. Store
1, 3 and 4 can also be
select the item
•
entered with numeric
set
buttons.
: Displayed if the timer programming events are overlapped
Timer programming - Programmes according to the time setting
Timer Programming
Function No. Date Start EndChannel Name
Ext Rec.
72 BBC 2W 20:00 21:30
D
Reminder
Ext Rec.
Ext Rec.
Change function
Store timer
Timer Programming
<TIMER>
14 E4
D
The Bill
1 BBC ONE
D
DIY SOS
BBC ONE
D
<TIMER>
------ --:----:-- --:--
Remaining Capacity:
EXIT
Select
RETURN
500GB (50%)
Information of the USB HDD (if available)
1 Channel number
D
: DVB / A : Analogue
You cannot change the mode within the menu.
•
STTL
Guide
S/P
0
Wed 27.10.2010 10:46
Wed 27 Oct
Wed 27 Oct
Wed 27 Oct
Thu 28 Oct
9
(90 min.)
21:00 22:00
(60 min.)
22:45 23:00
(15 min.)
10:30 11:30
(60 min.)
1/1
3 Starting time
4 Ending
time
Duration (automatic display)
Records with subtitles (if available)
To indicate this
•
( Press again to remove subtitles)
2 Date
•
•
•
•
abc def
jkl
ghi
mno
tuvpqrs
wxyz
(yellow)
one day ahead
daily or weekly
(press repeatedly)
[
Daily Sun-Sat] : Sunday to Saturday
[Daily Mon-Sat] : Monday to Saturday
[Daily Mon-Fri] : Monday to Friday
[Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun] :
Same time on the same day every week
Guide
:
Guide link programming - Programmes according to the TV Guide signal (p. 23)
:
Split Programme programming (p. 23)
S/P
These functions are not available in Analogue mode.
•
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme
start and end times are changed by the broadcaster, the timer programming event will follow the change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if
correct information is received from broadcasters.
■ To change a timer programming event ■ To cancel a timer programming event
Select the programme to be changed Select the programme to be deleted
select
access
■ To record with subtitles (if available) ■
Correct as necessary
(as above)
(red)
To cancel a timer programming event temporarily
Select the programme to record with subtitles Select the programme to be cancelled
(yellow) (blue)
Each time pressed:
•
auto
off cancel stop cancelling
Each time pressed:
•
■ To view details of the programming (only for Guide link programming)
Select the programme to be viewed
Press again to return to Timer Programming menu.
•
46
Page 47
Child Lock
You can lock specific channels / AV input terminals and control who watches them.
When the locked channel / input is selected, a message appears; by entering the PIN number, you can watch it.
Display the menu
1
MENU
Select [Setup]
■
To return to TV
EXIT
2
3
Main Menu
Sound
Timer
Setup
Select [Child Lock]
AccessChild Lock
Control channel audience [Child Lock]
1 Enter the PIN number (4 digits)
Child Lock-PIN Entry
Please enter new PIN
PIN
* * * *
abc def
jkl
ghi
tuvpqrs
Enter the PIN number twice at first setting.
•
mno
Make a note of the PIN number in case you forget it.
•
wxyz
2 Select [Child Lock List]
Child Lock
Change PIN
Child Lock List
3 Select the channel / input to be locked
Child Lock List - TV and AV
Name Input
101 BBC 1 Wales
7 BBC THREE
14 E4C
VCR
1 BBC1
2 *****
AV1
AV2
To lock all
•
DVB
DVB
DVB
Analogue
Analogue
Analogue
External
External
Access
Type
Free TV
Free TV
Free TV
Analogue
Analogue
Analogue
AV
AV
Lock
To cancel all locks
•
(green) (yellow) (blue)
select
access
select
lock
: Appears when the channel /
input is locked
■ To change the PIN number
1. Select [Change PIN] 2. Enter a new PIN number twice
Child Lock
Change PIN
Child Lock List
Access
select
access
abc def
jkl
ghi
mno
tuvpqrs
wxyz
■ To set Parental Rating
If the DVB programme has the rated information for over the selected age, you have to enter the PIN
number to watch (depending on the broadcaster).
Select [Parental Rating] and set an age for the restriction of programmes.
Child Lock
Change PIN
Child Lock List
Parental Rating
No limit
Note
Setting [Shipping Condition] (p. 49) erases the PIN number and all settings.
•
select
access / store
select
access
select
access
To cancel
•
Select the locked channel /
input
To jump to the top of the next input
•
Child Lock
47
Page 48

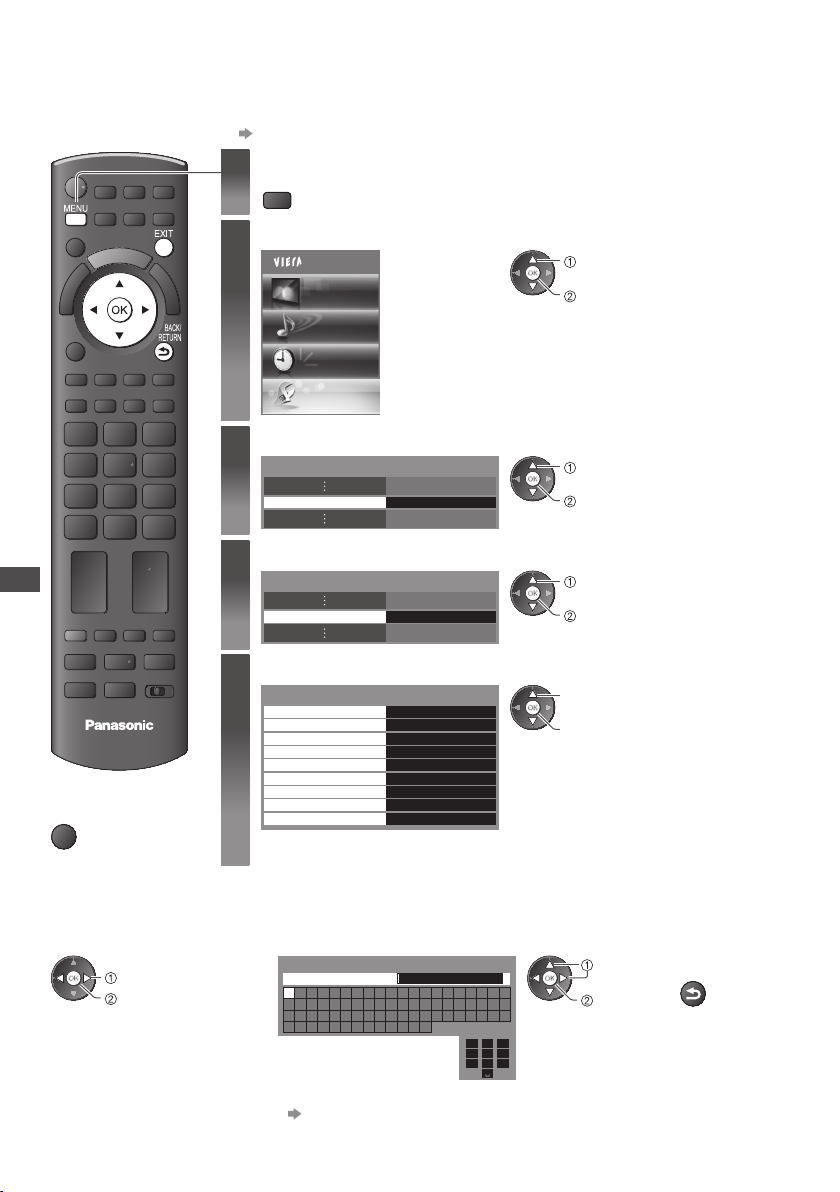

Input Labels
For easier identification and selection of the input mode, you can label each input mode or skip
terminals that are not connected to any equipment.
To select the input mode (p. 27)
•
Display the menu
1
MENU
Select [Setup]
2
Main Menu
select
Input Labels
■
To return to TV
EXIT
TV
Sound
Timer
Setup
Select [Display Settings]
3
AccessDisplay Settings
Select [Input Labels]
4
Display Settings
Input Labels Access
Select an input terminal
5
Input Labels
AV1
AV2
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
DVB
Analogue Analogue
DVD
AV2
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
DVB
access
select
access
select
access
select
access / store
The labels you set will be displayed
in the [Input Selection] menu (p. 27),
[TV Selection] menu or banner.
If [Skip] is selected, the input will not
•
be displayed in the [Input Selection]
menu and you cannot select the
mode.
■ User input
You can name each input mode yourself.
1 Select [User input] 2 Set characters (maximum : ten characters) 3 Store
48
select
access
User input
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
To use numeric buttons
•
“Characters table for numeric buttons” (p. 97)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
select
set
BACK/
RETURN
Page 49

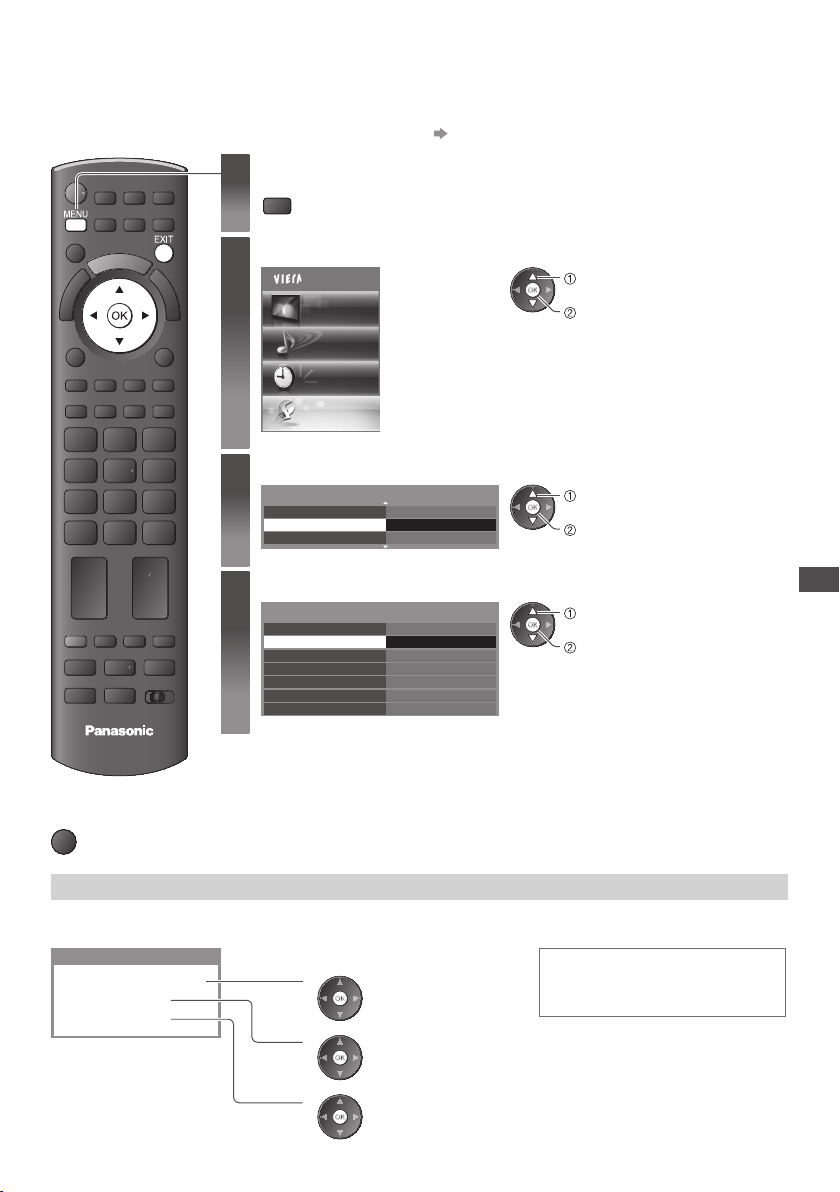

Shipping Condition
Resets the TV to its original condition with no channels tuned in.
All settings other than [Owner ID] and [USB HDD Setup] are reset (channels, picture, sound settings, etc.).
To retune TV channels only, e.g. after moving house “Retuning from Setup Menu” (p. 40)
•
Display the menu
1
MENU
Select [Setup]
2
3
4
Main Menu
Sound
Timer
Setup
Select [System Menu]
Advance (isfccc)
System Menu
Other Settings
Access
Select [Shipping Condition]
System Menu
USB Keyboard Layout
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
English(UK)
Access
2/2
select
access
select
access
select
access
Shipping Condition
TV
■
To return to TV
EXIT
Restore Settings [Shipping Condition]
1 Check the message and initialise 2 Follow the on screen
instructions
Shipping Condition
All tuning data will be erased
Are you sure ?
Are you sure ?
1
(Confirm)
2
(Confirm)
3
(Start [Shipping
Condition])
Reset to Factory Shipping Condition
[Auto Setup] will automatically
•
start when Mains power On / Off
Completed.
Please switch off TV.
switch is next turned On. (p. 12)
49
Page 50

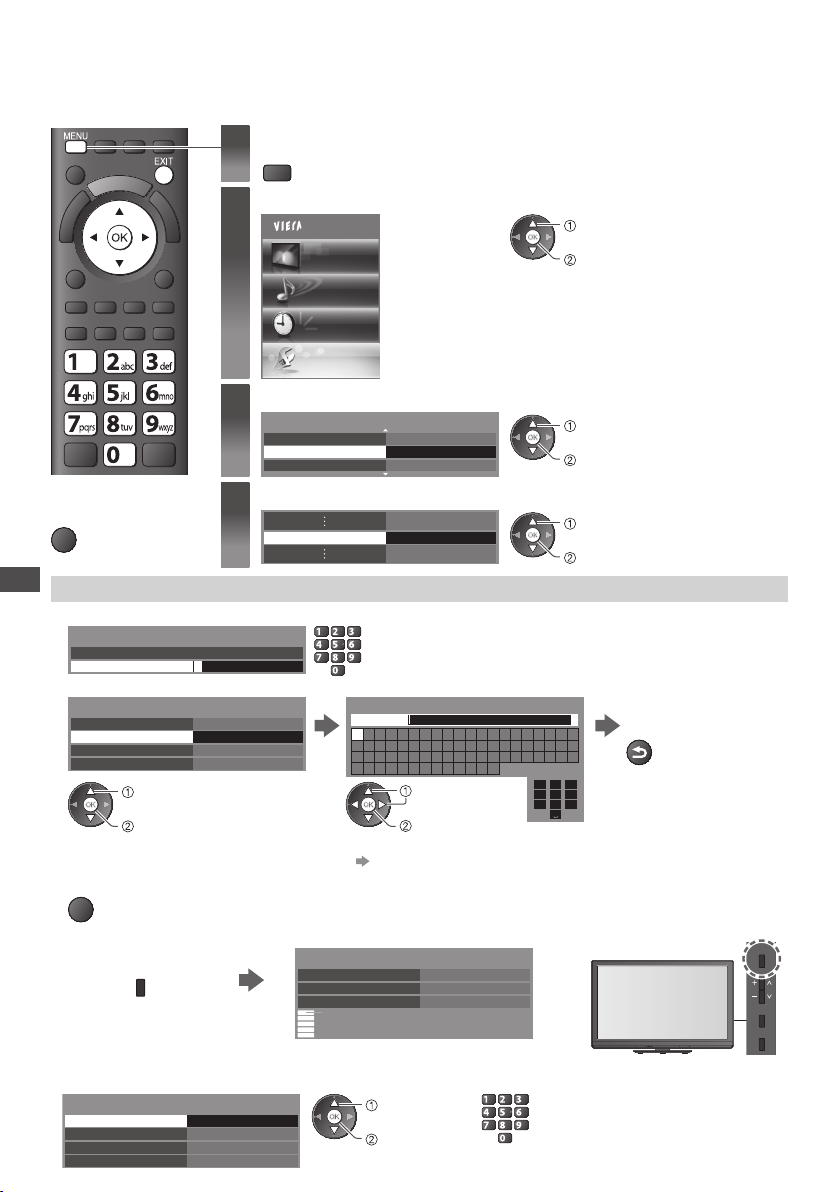

Owner ID
Entry of the PIN number and personal information (your name, address and postcode).
In the unfortunate event of theft, the Owner ID will help the Police to determine the owner.
Display the menu
1
MENU
Select [Setup]
2
3
Main Menu
Sound
Timer
Setup
Select [System Menu]
Advance (isfccc)
System Menu
Other Settings
Access
2/2
select
access
select
access
■
To return to TV
EXIT
Select [Owner ID]
4
AccessOwner ID
select
access
Input owner ID [Owner ID]
Owner ID
1 Enter the PIN number (4 digits)
Owner ID
Please enter new PIN
PIN
* * * *
abc def
Enter the PIN number twice at first setting.
•
jkl
ghi
mno
Make a note of the PIN number in case you forget it.
•
tuvpqrs
wxyz
The PIN number cannot be reset.
2 Select the item (NAME / HOUSE NO / POSTCODE) and set characters
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
select
access
3 Exit the menu
EXIT
* * * *
User input
NAME
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
select
set
To use numeric buttons
•
“Characters table for numeric buttons” (p. 97)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
■ To check the personal information stored
Hold down for about 5 seconds
F
■ To change the PIN number
1. Select [PIN] 2. Enter a new PIN number twice
Owner ID-Data Entry
50
PIN
NAME
HOUSE NO
POSTCODE
* * * *
Owner ID
NAME
HOUSE NO
POSTCODE
EXIT
The PIN number is not displayed.
•
select
* * * * *
* * * * *
* * * * * *
abc def
jkl
ghi
tuvpqrs
access
mno
wxyz
Return to select other items
BACK/
RETURN
Select the next item and
•
repeat the operations.
F
TV
AV
Page 51

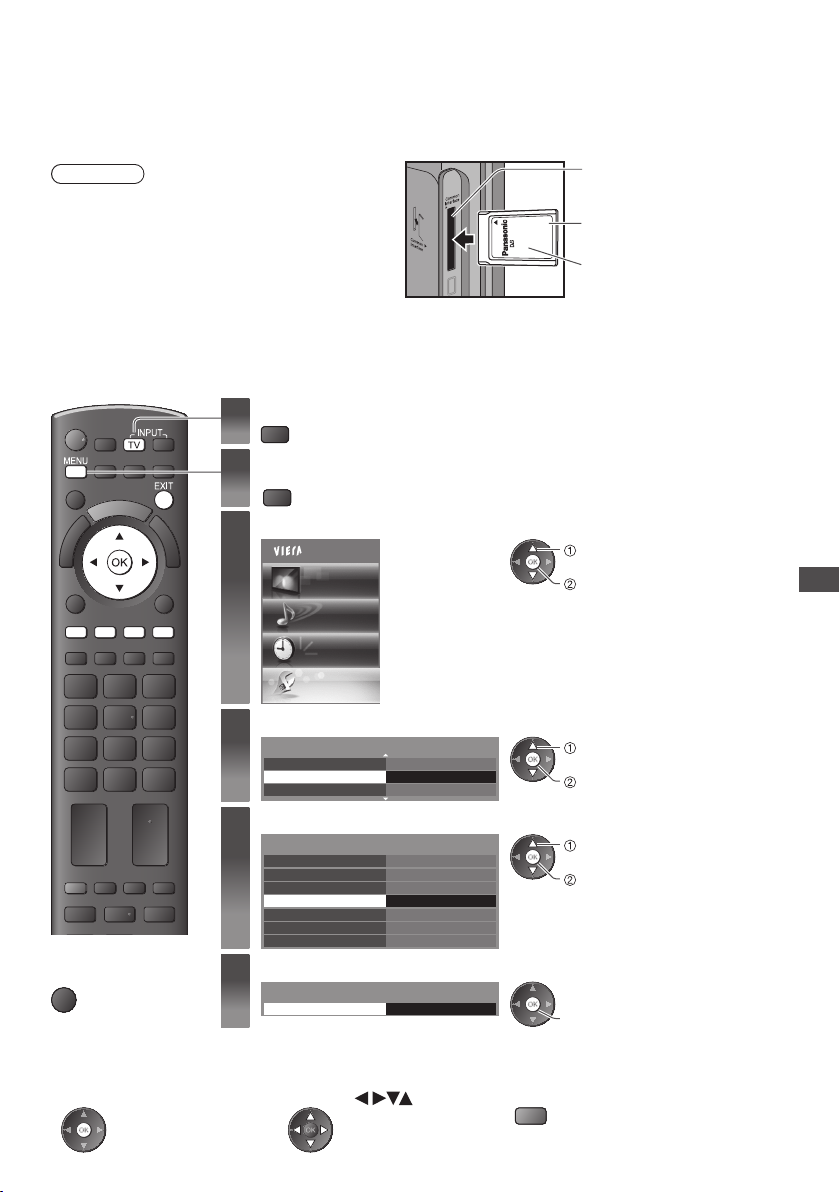

Using Common Interface
The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules.
This TV works only for Pay TV modules complying with CI standard.
This function is not available for BskyB’s Sky channels.
•
Video and audio signals may not be output depending on broadcasts or services.
•
Caution
Turn Off Mains power On / Off switch whenever
•
inserting or removing the CI module.
If a viewing card and a card reader come as a
•
set, first insert the card reader, then insert the
viewing card into the card reader.
Insert the module in the correct direction.
•
Insert the CI module (optional)
The features that appear on screen are dependent on the contents of the selected CI module.
•
Follow the instructions that came with the viewing card to tune in the encrypted channels. If encrypted
•
channels do not appear, perform the below to verify the card is recognised by the TV.
For more details, see the manual of the CI module, or check with the broadcaster.
•
Select DVB
1
TV
Display the menu
2
MENU
Select [Setup]
3
Main Menu
Sound
CI slot
Insert or remove straightly
and completely
CI module
Side of the TV
select
access
Using Common Interface
Timer
Setup
Select [System Menu]
■
To return to TV
EXIT
4
Advance (isfccc)
System Menu
Other Settings
Select [Common Interface]
5
System Menu
USB Keyboard Layout
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
Access Common Interface
6
Common Interface
Slot 1:
Access
English(UK)
Access
Module inserted
2/2
access
■ How to operate services by following the on screen operation guide
(Check the instructions provided with the CI module.)
Example :
Select, go
•
On screen operation guide may not correspond to the remote control buttons.
•
Symbol :
•
Coloured characters
•
Coloured button
select
access
select
access
51
Page 52

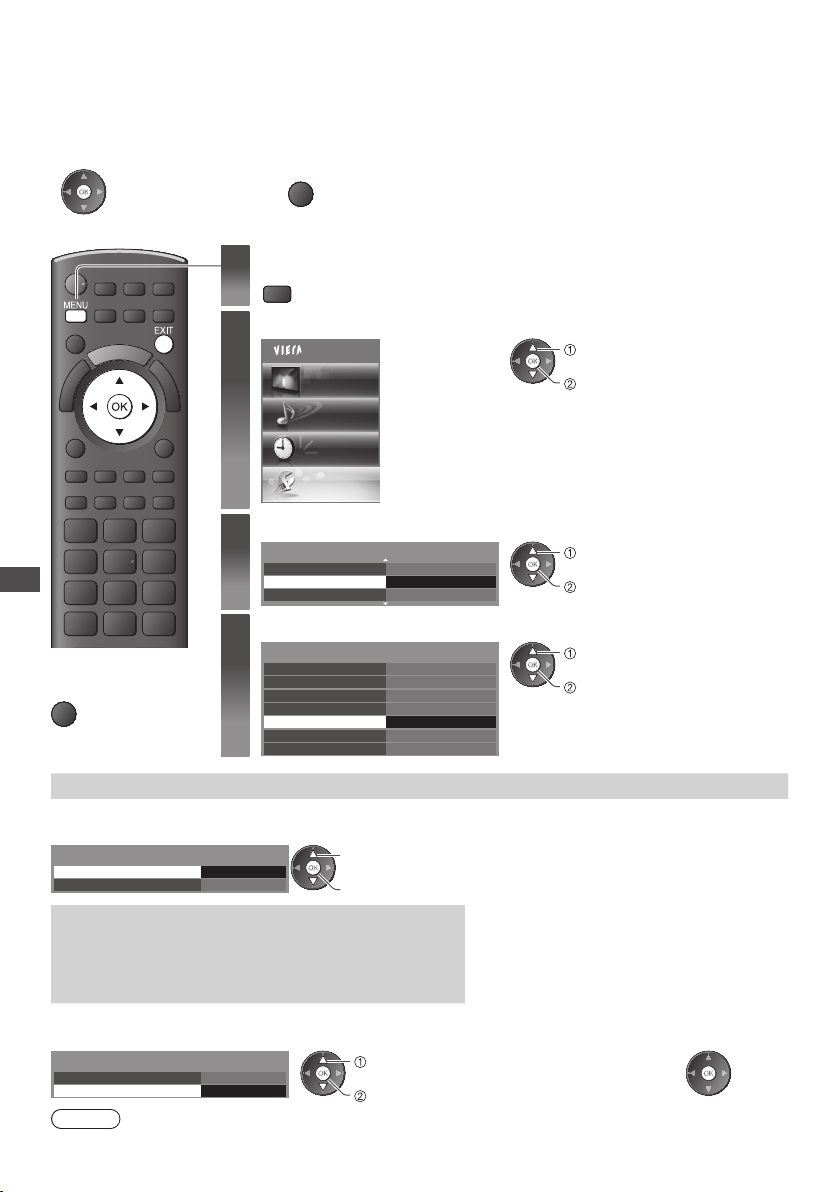

Updating the TV Software
From time to time, a new version of software may become available for download to enhance the
performance or operations of the TV.
In DVB mode, a notification banner will appear when one of the BBC channels is turned to if a new available software is found.
To download
•
You can update any new software automatically or manually.
1
2
3
Updating the TV Software
4
■
To return to TV
EXIT
If you choose not to download
•
EXIT
Display the menu
MENU
Select [Setup]
Main Menu
Sound
Timer
Setup
Select [System Menu]
Advance (isfccc)
System Menu
Other Settings
Access
2/2
Select [System Update]
System Menu
USB Keyboard Layout
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
English(UK)
Access
select
access
select
access
select
access
Update TV’s software system [System Update]
■ To update automatically
Select [Auto Update Search in Standby] and set to [On]
System Update
Auto Update Search in Standby
System Update Search Now
Off
select
access / store
If System Update is performed, the software will be
updated (it may change TV functions).
If you do not wish to do so, set [Auto Update Search in Standby]
to [Off]. The notification banner will keep appearing during the
period of new software availability, usually 2 to 3 days.
Automatically performs a search in standby
•
and downloads an update, if any software
updates are available.
The automatic updating is performed at
•
night under the following conditions:
• Standby (TV turned Off with the remote control)
• Recording of Timer Programming, Direct
TV Recording or One Touch Recording is
not in progress.
■ To update immediately
1 Select [System Update Search Now] 2 Searches for an update
System Update
Auto Update Search in Standby
System Update Search Now
Off
Access
Note
Download may take up to 60 minutes.
•
During software download and update, DO NOT perform any operations on the TV or switch Off the TV.
•
52
select
access
(for several minutes) and
displays a corresponding
message if any
3 Download
Page 53

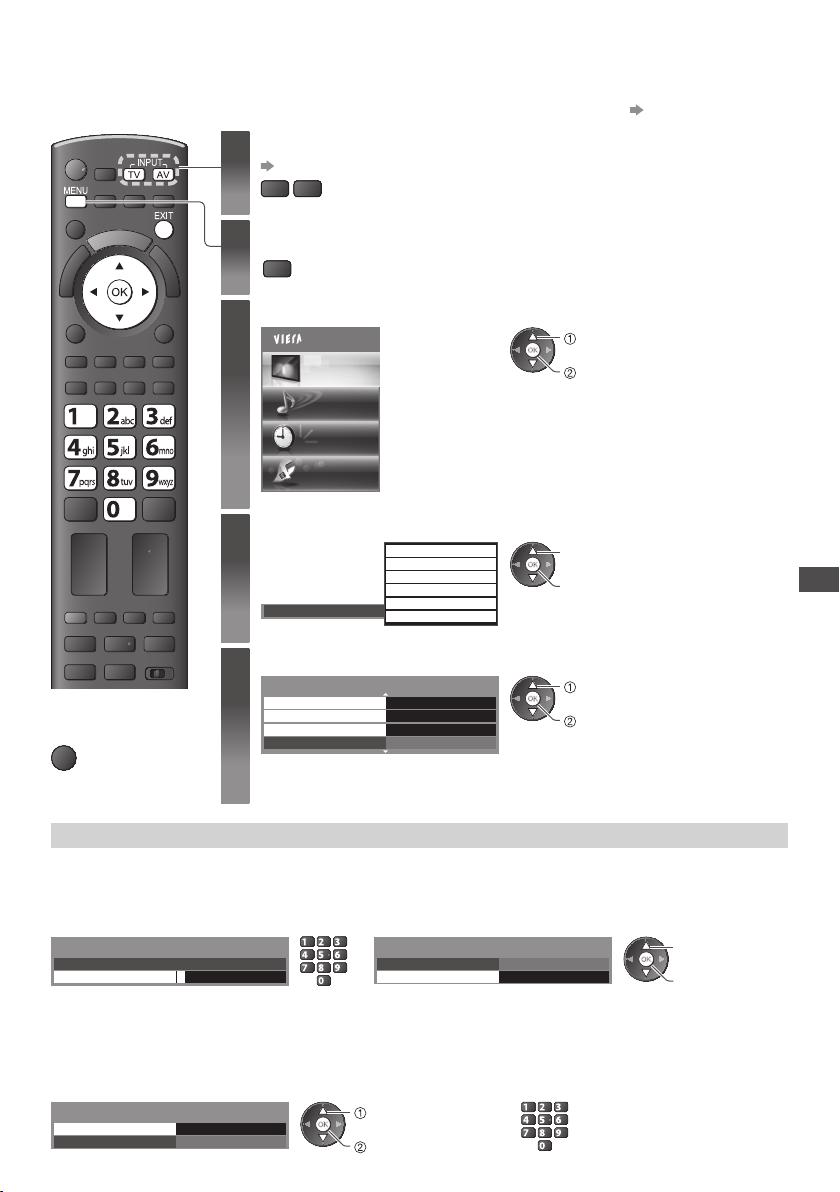

Advanced Picture Settings
You can adjust and setup the detailed picture settings for each input and Viewing Mode.
To use this function completely, set [Advance(isfccc)] to [On] in the Setup Menu. (p. 36)
•
Select the input mode to adjust and setup
1
(p. 17, 27)
TV AV
Display the menu
2
MENU
Select [Picture]
3
Main Menu
Sound
Timer
select
access
Setup
Dynamic
Normal
Cinema
True Cinema
Professional1
Professional2
Access
Access
Reset
select
access / store
2/2
select
access
■
To return to TV
EXIT
Select [Viewing Mode] and set the mode
4
Viewing Mode
Select one of the following functions
5
Advanced Settings Access
Lock Settings
Copy Adjustment
Reset to Defaults
[Copy Adjustment] is available when [Viewing Mode] in the Picture
•
Menu is set to [Professional1] or [Professional2].
Lock the picture setting [Lock Settings]
Advanced Settings can be locked for each Viewing Mode and input.
Additionally, [Contrast], [Brightness], [Colour], [Sharpness], [Tint] and [Reset to Defaults] in the Picture
Menu can be locked for [Professional1] and [Professional2].
1 Enter the PIN number (4 digits) 2 Select [Adjustment Lock] and set to [On]
Lock Settings-PIN Entry
Please enter new PIN
PIN
Enter the PIN number twice at first setting.
•
Make a note of the PIN number in case
•
you forget it.
* * * *
abc def
Lock Settings
jkl
ghi
mno
Change PIN
tuvpqrs
wxyz
On Adjustment Lock
select
access / store
■ To change the PIN number
1. Select [Change PIN] 2. Enter a new PIN number twice
Lock Settings
Change PIN
Adjustment Lock
Access
On
select
access
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Advanced Picture Settings
53
Page 54
Adjust the detailed picture settings [Advanced Settings]
Advanced Settings
White Balance Access
Colour Management
Gamma
Access
Access
select
adjust
access / store
Menu
Item Adjustments / Configurations (alternatives)
R-Gain Adjusts the white balance of bright red area
G-Gain Adjusts the white balance of bright green area
White Balance
B-Gain Adjusts the white balance of bright blue area
R-Cutoff Adjusts the white balance of dark red area
G-Cutoff Adjusts the white balance of dark green area
B-Cutoff Adjusts the white balance of dark blue area
Reset to Defaults Press the OK button to reset to the default White Balance
R-Hue Adjusts the picture hue of red area
Advanced Settings
G-Hue Adjusts the picture hue of green area
B-Hue Adjusts the picture hue of blue area
Colour Management
R-Saturation Adjusts the saturation of red area
Advanced Picture Settings
G-Saturation Adjusts the saturation of green area
B-Saturation Adjusts the saturation of blue area
R-Luminance Adjusts the luminance of red area
G-Luminance Adjusts the luminance of green area
B-Luminance Adjusts the luminance of blue area
Reset to Defaults Press the OK button to reset to the default Colour Management
Gamma
Gamma
Switches the gamma curve [S Curve] / [1.8] / [2.0] / [2.2] /
[2.4] / [2.6]
Please note the numerical values are reference for the
•
adjustment.
Reset to Defaults Press the OK button to reset to the default Gamma
[Colour Management] is available when [Viewing Mode] in the Picture Menu is set to [Professional1] or
•
[Professional2].
Copy the settings to the other input [Copy Adjustment]
You can copy the selected [Professional1] or [Professional2] settings to that of the other input.
The settings of [Contrast], [Brightness], [Colour], [Sharpness], [Tint] and [Advanced Settings] will be
copied.
Select the destination to copy to
Copy Adjustment
Destination All
54
select
access / store
You cannot copy to the locked mode.
•
Page 55

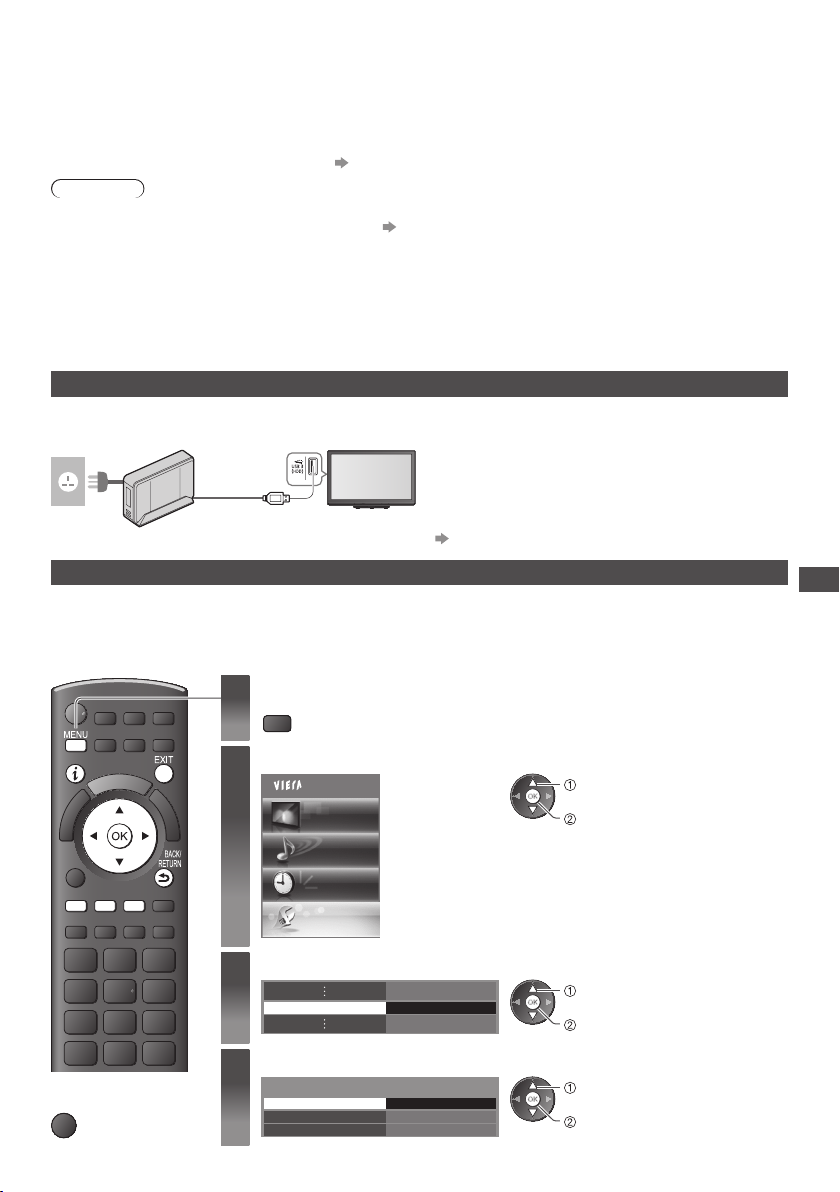

USB HDD Recording
You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways.
Analogue TV programme cannot be recorded to the USB HDD.
•
The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.
•
Not all the programmes can be recorded depending on the broadcaster and service provider.
•
For more information of the USB HDD (p. 96)
•
Caution
All data in the USB HDD will be erased in the following cases :
•
• When formatting the USB HDD with the TV “Setting for USB HDD” (see below)
• When formatting the USB HDD to use on PC
When the TV is repaired due to a malfunction, you may have to format the USB HDD again with the
•
TV to use it. (All data will be erased when formatting.)
In order to use the USB HDD with your PC after recording with this TV, format it again on your PC.
•
(Special operations or tools may be necessary to format on your PC. For details, refer to the manual of the USB HDD.)
The data recorded to the USB HDD with this TV can only be played back on this TV. You cannot play
•
back its contents with another TV (including the TV of the same model number) or any PCs.
USB HDD connection
Connect the USB HDD to the USB 3 port.
Be sure to connect the USB HDD to the socket
socket outlet
USB cable
USB HDD
Setting for USB HDD
Format and setup the USB HDD with this TV in order to use it for recording.
Before the settings, connect the USB HDD (see above) and be sure to turn on the USB HDD.
•
You cannot change the settings for the USB HDD while recording is in progress.
•
Please note that USB HDD will be formatted and all data in it will be erased when you format it.
•
•
outlet.
Do not turn off or disconnect the USB HDD during
•
operation. It may cause malfunction of the drive
or damage the recorded data.
To remove the USB HDD safely from the TV
•
(p. 19, 56)
USB HDD Recording
■
To return to TV
EXIT
Display the menu
1
MENU
Select [Setup]
2
3
4
Main Menu
Sound
Timer
Setup
Select [Recording Setup]
Recording Setup Access
Select [USB HDD Setup] and set
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
Access
180 minutes
Off
select
access
select
access
select
access
55
Page 56

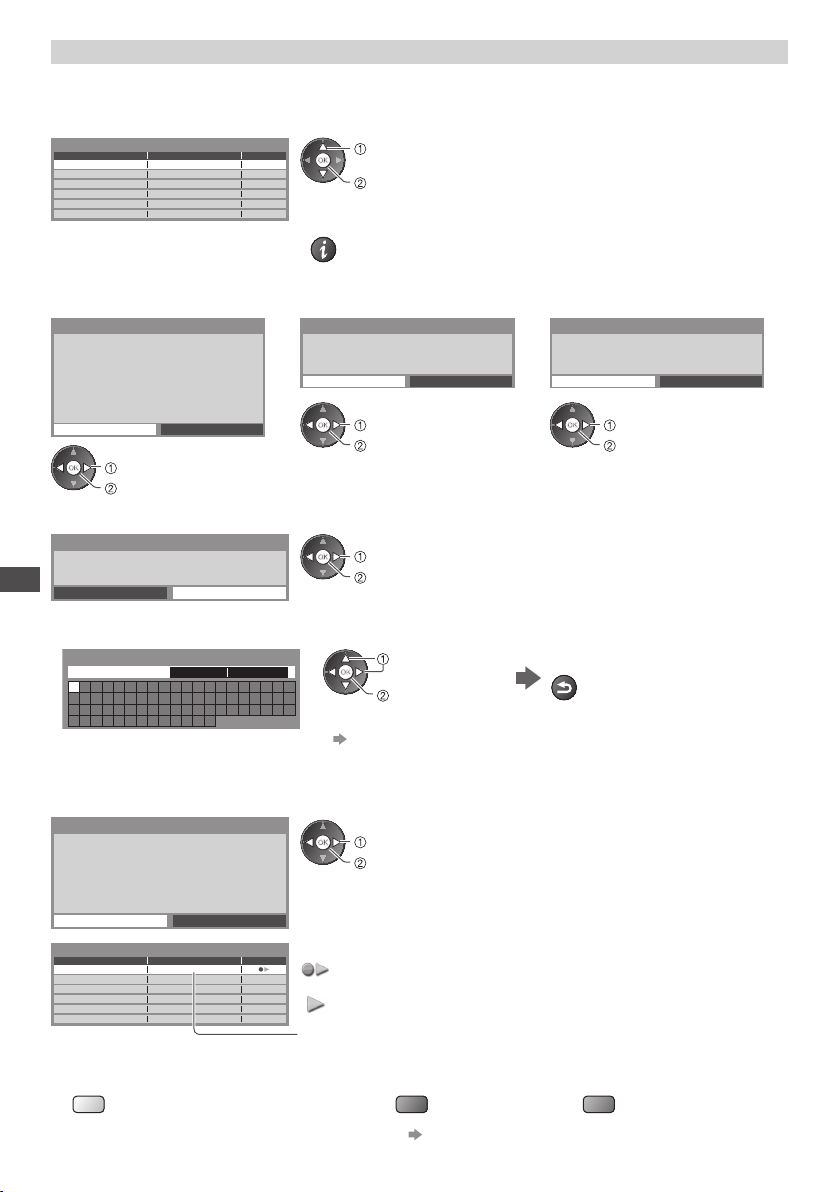

Setup the USB HDD [USB HDD Setup]
All the USB devices recognised as a mass storage device will be listed.
You can only choose one USB HDD for recording at a time.
•
1 Select the USB HDD for recording and start setup
USB HDD Setup
Product Name
USB Drive A
USB Flash Disk
•
•
select
access
Some USB HDD may not be displayed.
For the information of the highlighted device
2 Caution and confirmation of using USB HDD
Select [Yes] to proceed
USB HDD Formatting
The data recorded to the USB HDD with this TV can only
be played back on this TV.
You cannot playback it with other TV (including the TV
of the same model number) or any PCs.
If your TV is repaired due to a malfunction, the USB
HDD may not be available with your repaired TV.
Continue?
Yes No
select [Yes]
set
USB HDD Formatting
To use this device for recording,
it must be formatted first.
Continue?
Yes No
select [Yes]
set
USB HDD Formatting
This device will be formatted and
all contents deleted.
Are you sure?
Yes No
select [Yes]
set
3 Confirmation of USB HDD name
USB HDD Formatting
USB HDD Recording
Name :
USB Drive A
Edit name?
Yes No
The name for the USB HDD is created automatically. If you want to edit the name, select [Yes].
Set characters Store
USB HDD
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
USB HDD 1
select
set
select
BACK/
RETURN
set
To use numeric buttons
•
“Characters table for numeric buttons” (p. 97)
4 Confirmation to enable USB HDD for recording
If the formatted USB HDD for recording already exists, this confirmation screen will be displayed to
switch to enable this USB HDD for recording.
USB HDD Formatting
USB HDD Setup
Do you want to enable this
device now for recording?
When disconnecting any USB device,
always use the "Safely Remove USB" function
in the USB HDD Device Setup menu to avoid
any corruption of recorded content.
Yes No
Product Name
USB Drive A
USB Flash Disk
USB HDD 1
Mode
select [Yes]
set
: The USB HDD is available for recording / playing back.
Only one USB HDD on the list can be available for recording.
: The USB HDD is available for playing back.
USB HDD name is displayed
To remove the USB HDD safely from
•
the TV
(yellow) (red) (green)
To set “Safely remove USB” in other conditions (p. 19)
•
56
To format
•
To edit USB HDD name
•
Page 57
Recording the TV programme to USB HDD
You can record the current programme immediately by using [One Touch Recording].
You can also record the current programme constantly for the selected period by using [Rewind LIVE
TV] so that you can go back or pause the current programme.
Ensure the connection and setup are completed before start recording (p. 55, 56)
•
Ensure not to connect or disconnect any USB devices during USB HDD recording. Otherwise the
•
recording may not work properly.
If the remaining capacity of the USB HDD is run out, the recording cannot be done.
•
Display the menu
1
MENU
Select [Setup]
2
Main Menu
Sound
Timer
Setup
Select [Recording Setup]
3
TV Guide Settings
Eco Navigation
Recording Setup
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
Network Setup
DivX® VOD
Access
1/2
select
access
select
access
USB HDD Recording
TV
■
To return to TV
EXIT
Select [One Touch Recording] or
4
[Rewind LIVE TV]
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
180 minutes
Off
One touch direct TV recording - What you see is What you record
[One Touch Recording]
Recording the current programme in the
USB HDD immediately.
Select the maximum recording time
[30] / [60] / [90] / [120] / [180] (minutes)
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
select
access / store
180 minutes
Off
select
LED will turn to orange (flash)
while One Touch Recording is
in progress.
LED
57
Page 58
■ To start One Touch Recording
Set the position to “TV” Start
DVD/VCR
TV
No other channel can be selected while the recording is in progress.
•
REC
■ To stop recording on the way
DVD/VCR
TV
or
G
U
I
D
E
EXIT
■ To playback or delete the recorded contents “Recorded TV mode” (p. 67)
Even if One Touch Recording is in progress, you can playback all the contents. However, the recording
•
may not work properly while playback.
Record constantly [Rewind LIVE TV]
Recording the currently viewed channel constantly.
Select [Auto] to start Rewind LIVE TV
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
180 minutes
Auto
select
access / store
When you select [Auto], the recording will start automatically.
•
■ To operate the Rewind LIVE TV
Set the position to “TV”
DVD/VCR
TV
To pause
•
To search backward (up to 90 minutes)
•
USB HDD Recording
(Press and hold)
After pausing or searching backward, the following buttons are available to operate.
•
search backward
playback / pause
search forward
stop (stops the current
operation and goes back to
live TV)
search
backward /
forward
(Press and
hold)
pause /
playback
playback stop
■ To stop the Rewind LIVE TV
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
Rewind LIVE TV will be stopped and the recorded content deleted automatically in the following
•
conditions :
Off
Auto
(Even if Rewind LIVE TV stops for the following conditions, as long as the setting is [Auto], the new
recording will start automatically in a condition that makes the recording available.)
• selected other channels
• selected locked channel
• selected invalid channel
• no TV signal
• when the other recording starts
• when the TV is turned off or standby
58
select [Off]
If you stop the Rewind LIVE TV, the recorded content for the
•
Rewind LIVE TV will be deleted.
stops the
current
operation and
goes back to
live TV
Page 59
Using Media Player
Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash
Memory, and recorded contents on the formatted USB HDD.
VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card
on the TV screen by simply inserting into the SD Card slot.
Photo mode : Still pictures recorded by digital cameras will be displayed.
Video mode : (For SD Card or USB Flash Memory) Moving pictures recorded by digital video
Recorded TV mode :
Music mode : Digital music data will be played back.
During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2
•
(ARC function) terminals. But no video signals are output. AV1 can output audio signal if [AV1 out] is
set to [Monitor] in the Setup Menu (p. 34). To use HDMI2 with ARC function, connect an amplifier that
has ARC function (p. 82) and set to use theatre speakers (p. 88).
[Date] shows the date on which the recording was made by the recording equipment. The file without
•
record of the date is shown “**/**/****”.
The picture may not appear correctly on this TV depending on the recording equipment used.
•
Display may take some time when there are many files and folders.
•
Partly degraded files might be displayed at a reduced resolution.
•
Picture setting may not work depending on the conditions.
•
The folder and file names may be different depending on the digital camera or digital video camera used.
•

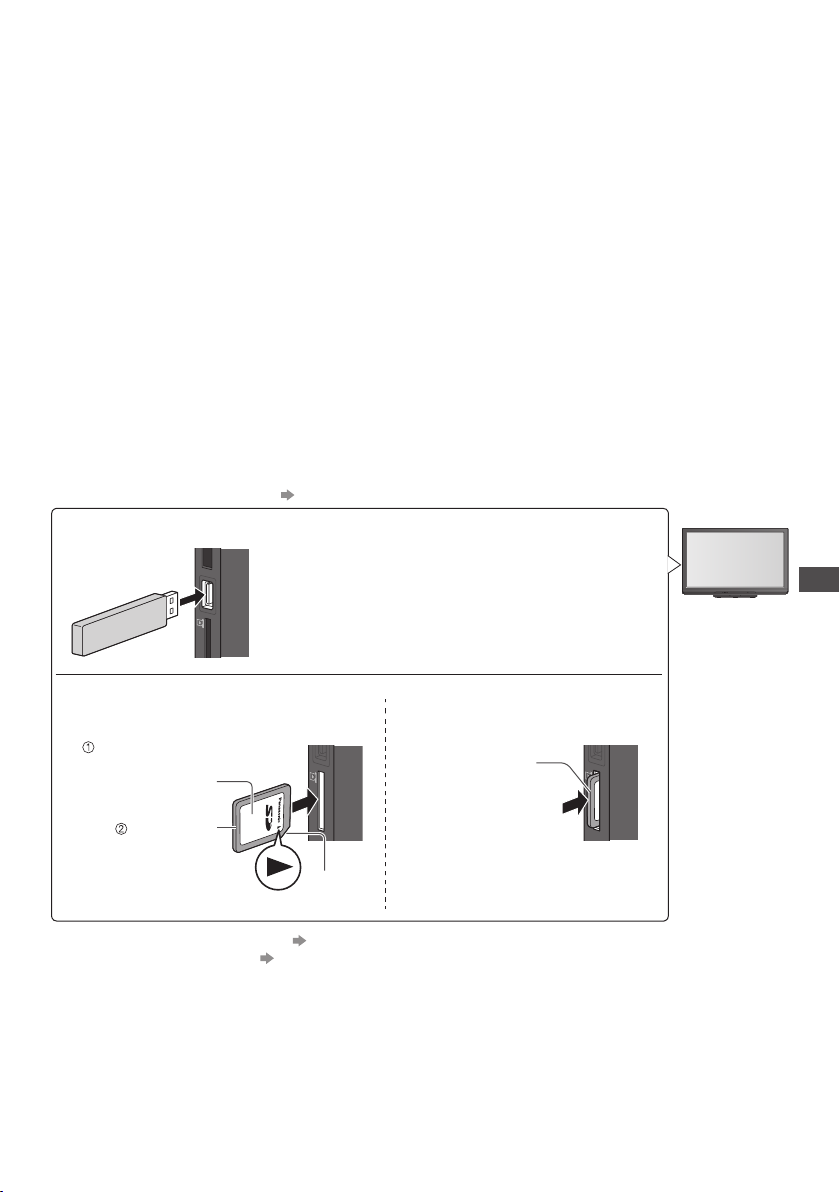

To insert or remove the SD Card / USB Flash Memory
For the USB HDD Connection (p. 55)
•
■ USB Flash Memory
cameras will be played back.
(For USB HDD) TV programmes recorded in USB HDD with this TV will be played back.
Insert or remove straightly and completely.
•
Before removing the USB Flash Memory, ensure to
•
perform “Safely remove USB” (p. 19).
Connect to the USB 1, 2 or 3 port.
•
Using Media Player
■ SD Card
To insert the SD Card To remove the SD Card
Gently insert the
SD Card label surface
For the information of the devices “Devices for recording or playing back” (p. 96)
For the supported file format “Supported file format in Media Player and media servers” (p. 94, 95)
•
facing front.
Push until a
click is heard
Cutout
Push the centre of
the card
59
Page 60

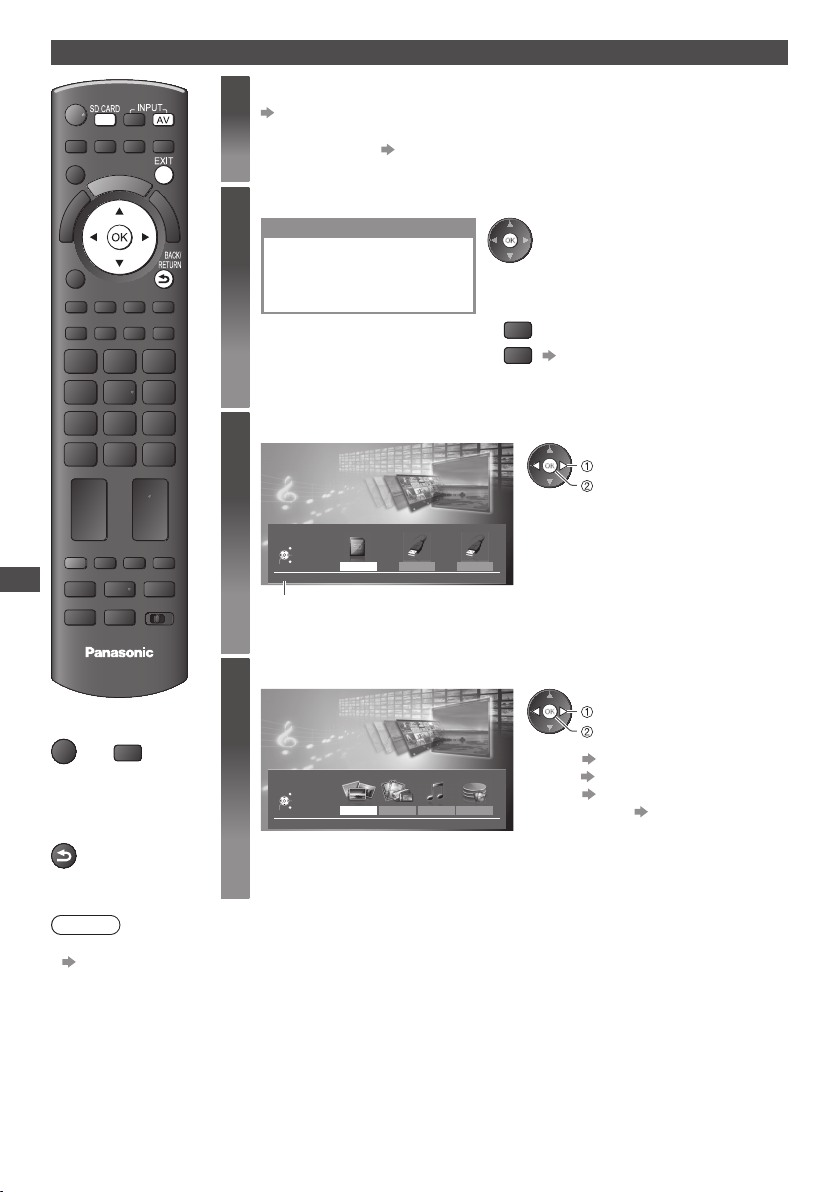

Starting Media Player
Using Media Player
Insert the SD Card or USB Flash Memory to the TV
1
(p. 59)
To play back contents in USB HDD, check the connection and settings
•
are completed. (p. 55, 56)
Start Media Player
2
Media Player
Signal output from all AV terminals will be
disabled during Media Player view.
Press OK to proceed.
Press EXIT to return to TV viewing.
Also possible by pressing following
•
buttons.
SD CARD
AV
“Watching External Inputs”
(p. 27)
Select the device you want to access to
3
Media Player
select
access
If two or more devices are not
•
Drive Select
EXIT
Select
RETURN
Access
SD Card
SD Card
USB Drive... USB Flash...
connected, this step will be
skipped.
Selected device name
TV
■
To return to TV
EXIT
SD CARD
or
■
To return to the
previous screen
BACK/
RETURN
Select the content
4
Media Player
Contents Select
EXIT
Select
RETURN
Access
SD Card
Photo Video Music
Note
You can also access each mode directly by using VIERA TOOLS.
•
“How to Use VIERA TOOLS” (p. 29)
[Recorded TV] is available for USB HDD.
•
Select the appropriate device and content for playing back each file.
•
60
Recorded TV
select
access
[Photo] “Photo mode” (p. 61)
[Video] “Video mode” (p. 63)
[Music] “Music mode” (p. 69)
[Recorded TV]
“Recorded TV
mode” (p. 67)
Page 61

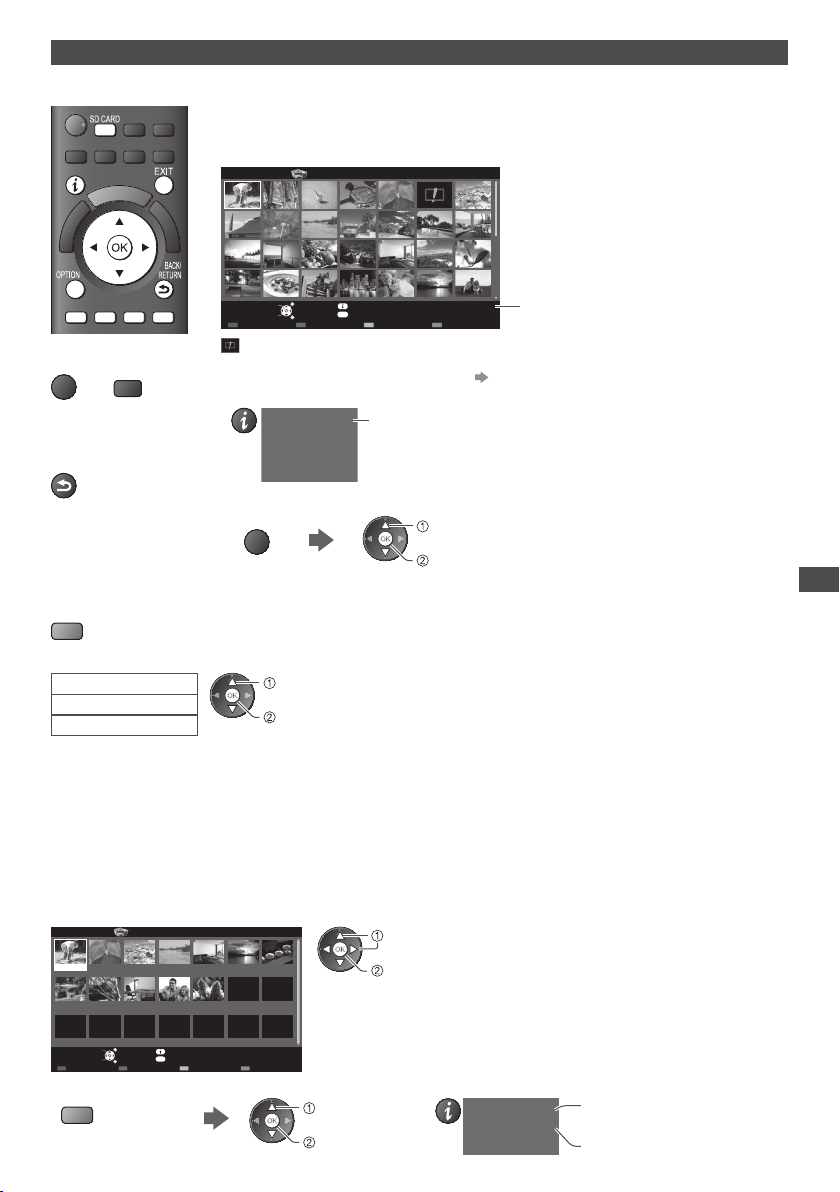

Photo mode
Photo mode will read all “.jpg” extension files in the SD Card or USB Flash Memory.
The thumbnail of all the photos in the SD Card or USB Flash Memory will be
displayed.
Example : Thumbnail - [All photos]
Media Player Photo
All photos
SD Card
Contents Select
Selected device name
select [Change Size]
■
To return to TV
EXIT
SD CARD
or
■
To return to the
previous screen
BACK/
RETURN
View
Select
Slideshow View Select Drive Select
EXIT
RETURN
Info
OPTION
Option Menu
: Error display
To change the back ground music “Photo Settings” (p. 62)
•
To display the information of the highlighted photo
•
1/48
File name
Date
Pixel
To change the size of photos on a thumbnail screen display
•
OPTION
File number / Total file number
23/10/2010
1600X1200
change
■ To sort by folder, recorded date or recorded month
1 Display the view selection
(green)
2 Select the sort type
Folder view
Sort by Date
Sort by Month
3 Select one of the sorted groups to display the thumbnail of the selected group
Media Player Photo
23/10/2010 25/10/2010 01/11/2010 05/11/2010 10/11/2010 22/11/2010 23/11/2010
24/11/2010 01/12/2010 03/12/2010 20/12/2010 22/12/2010
select
access
Sort by Date
[Folder view] :
Displays the thumbnail grouped by folder
The files which are not into a folder will be collected to
•
the folder named “/”.
[Sort by Date] :
Displays the thumbnail grouped by the same date
The group of the photos without recorded date is
•
shown as [Unknown].
[Sort by Month] :
Displays the thumbnail grouped by the same month
The group of the photos without recorded date is
•
shown as [Unknown].
select
thumbnail of the selected
group
Using Media Player
Access
Select RETURN
Slideshow View Select Contents Select
To return to the thumbnail of all photos
•
Info
EXIT
OPTION
Option Menu
Drive Select
SD Card
(green)
select
[All photos]
access
To display the information of the highlighted group
•
Folder name
Number of files
23/10/2010
Group number /
1/12
Total group number
3
Folder name, date or month
61
Page 62

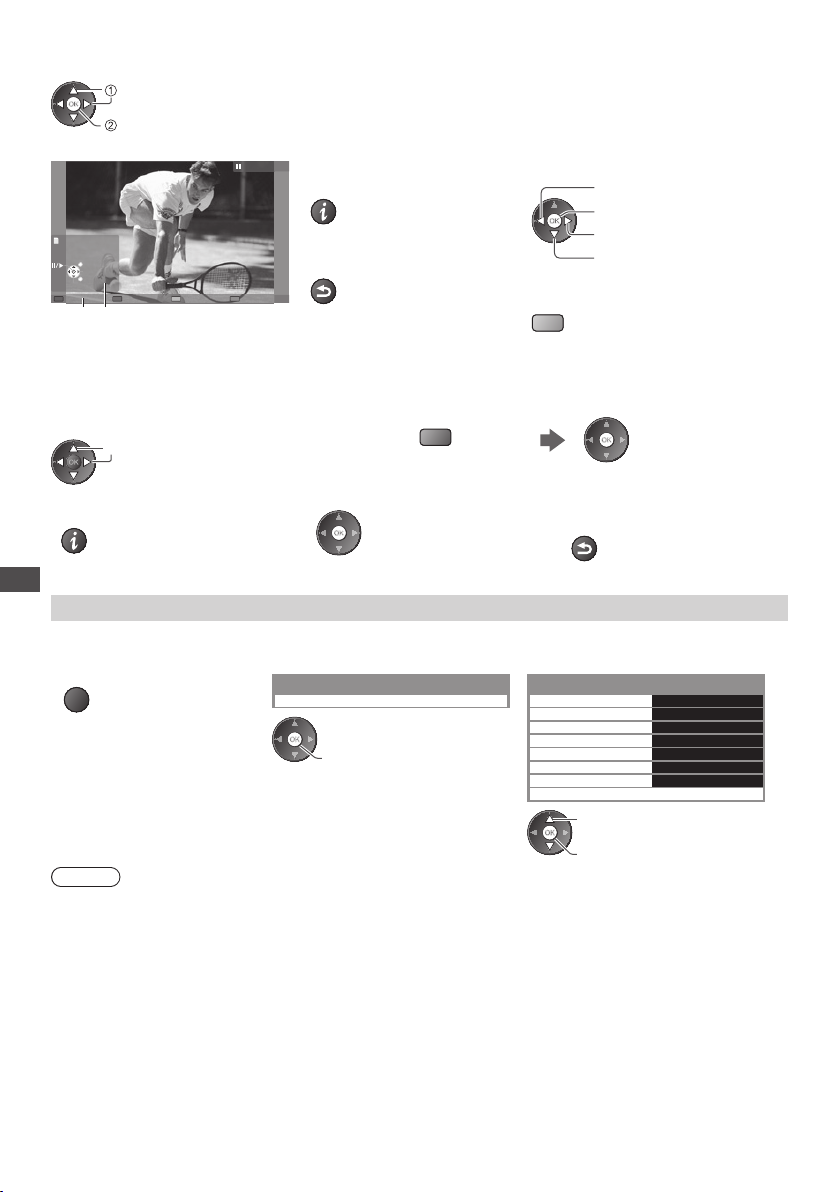

[Single view] - Photos are displayed one at a time.
Select the file from the thumbnail of photos to be viewed
select
access
Example :
Single view
To display / hide the
•
operation guide
To operate Single view
•
To the previous photo
Slideshow
Single view
EXIT
Select
RETURN
Stop
Operation guide
Rotate
To return to thumbnail
•
BACK/
RETURN
To rotate 90°
•
To the next photo
Stop
(return to thumbnail)
(blue)
[Slideshow]
- Slideshow will complete when all photos have been viewed within the present thumbnail.
1 Select the file from the thumbnail of photos
for the first view
select
2 Start Slideshow
(red)
To display / hide the operation
•
guide
Using Media Player
Photo Settings
To pause (return to Single view)• To return to thumbnail
•
BACK/
RETURN
Setup the settings for Photo mode.
1 Display the option menu 2 Select [Slideshow Settings] 3 Select the items and set
OPTION
Note
Picture quality may become lower depending on the slideshow settings.
•
Picture setting may not work depending on the slideshow settings.
•
Option Menu
Slideshow Settings
access
Slideshow Settings
Frame Off
Colour Effect
Transition Effect
Aspect
Burst Playback
Interval
Repeat
Back Ground Music
select
access / store
Off
Fade
Original
Off
5 seconds
On
62
Page 63
Menu
Frame
Colour Effect
Item Adjustments / Configurations (alternatives)
Slideshow Settings
Transition Effect
Aspect
Selects the frame type of the slideshow
[Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] /
[Gallery (+ calendar)] / [Gallery] / [Cinema]
[Multi] :
9 photos are displayed orderly at once.
[Collage] :
Each photo is displayed at a random position and random scale.
[Drift (+ calendar)] / [Drift] :
Photos are displayed like flow images.
You can select to display the calendar or not. The month of
•
calendar is turned by pressing left or right cursor button.
[Gallery (+ calendar)] / [Gallery] :
The various sizes of photos in the frame are displayed.
You can select to display the calendar or not. The month of
•
calendar is turned by pressing left or right cursor button.
[Cinema] :
Photos are displayed like old films (sepia tone)
Selects the colour effect of photos on Single view and Slideshow
[Off] / [Sepia] / [Gray scale]
This function is not available when [Frame] is set to [Drift], [Gallery] or
•
[Cinema].
Selects the transition effect for switching the photo during the slideshow
[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random]
[Fade] : The next photo fades in gradually.
[Slide] : The next photo slides and appears from the left side.
[Dissolve] : Each photo is dissolved when switching to the next photo.
[Motion] : Each photo is displayed with an effect of enlarging, reducing,
[Random] : Each transition is selected at random.
This function is available when [Frame] is set to [Off].
•
Selects whether enlarged or normal viewing on Single view and
Slideshow [Original] / [Zoom]
This function is not available when [Frame] is set to [Collage], [Drift],
•
[Gallery] or [Cinema].
This function is not available when [Transition Effect] is set to [Motion].
•
Depending on the photo size, it may not be fully enlarged to fill the
•
screen, e.g. portrait style picture.
moving up or moving down.
Using Media Player
Selects whether to display burst photos in a fast-paced slideshow mode
[Off] / [On]
Burst Playback
Interval
Repeat Slideshow repeat [Off] / [On]
This function is not available when [Frame] is set to [Drift], [Gallery] or
•
[Cinema].
This function is not available when [Transition Effect] is set to [Motion].
•
Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120]
(seconds)
This function is not available when [Frame] is set to [Drift], [Gallery] or
•
[Cinema].
This function is not available when [Transition Effect] is set to [Motion].
•
63
Page 64

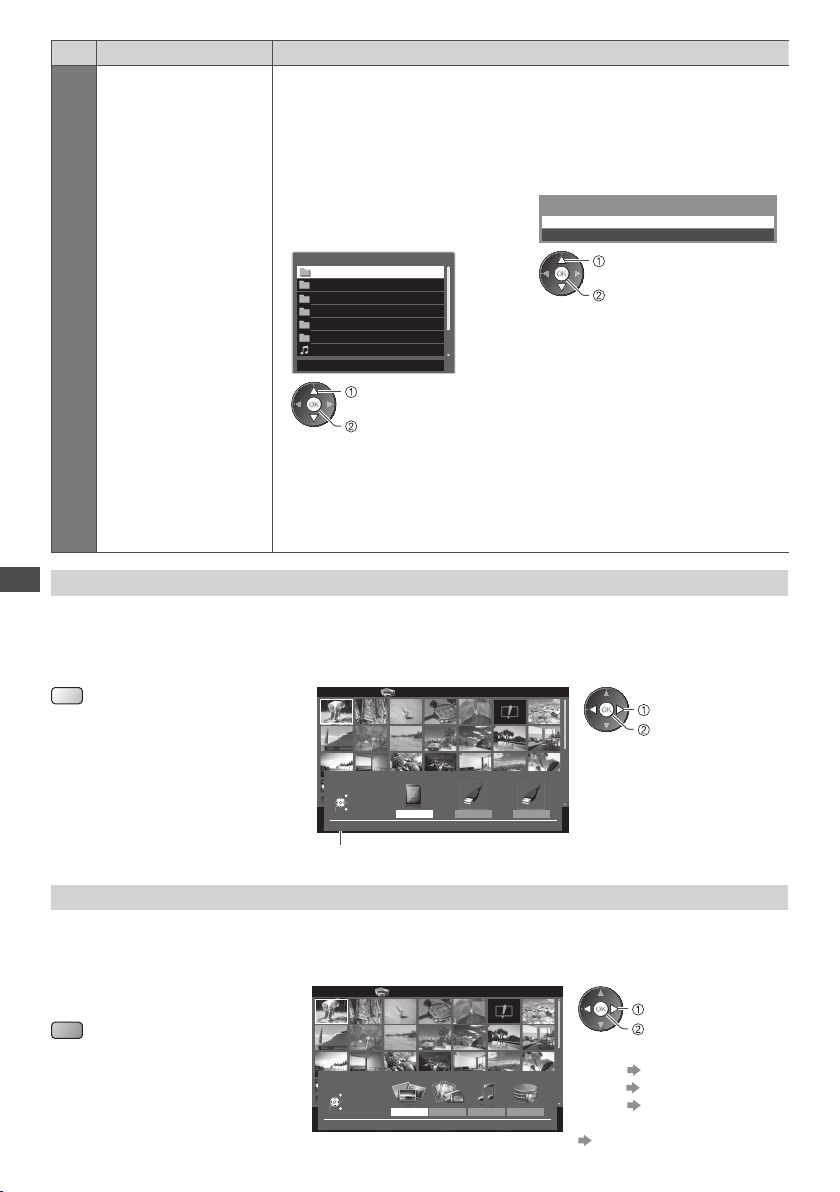

Menu
Item Adjustments / Configurations (alternatives)
Selects the back ground music during Photo mode
[Off] / [Type1] / [Type2] / [Type3] / [User] / [Auto]
[Type1], [Type2] and [Type3] are the fixed music each installed in this TV.
•
[User] :
Music data in the device registered by yourself will be played back.
To register the music
1. Select the music file 2. Select [File] or [Folder]
Slideshow Settings
Back Ground Music
Depending on the condition of the
device, select folders until you
reach the desired music file.
Back Ground Music
PRIVATE
DCIM
MISC
001photo
002photo
003music
01 song.mp3
Type1
select
Register Slideshow BGM?
File
Folder
select
set
[File] : The selected music file
will be registered as back
ground music.
[Folder] : All the music in the
folder which contains the
selected music file will
access
be registered as back
ground music.
If no music has been registered or the device which has the
•
registered music is removed, no sound will be produced.
[Auto] : Music data stored in the root folder of the current device will be
played back randomly.
If there is no available music data, no sound will be produced.
•
Change the device
Using Media Player
You can change to the other device directly in the same mode if two or more devices are connected.
1 While the thumbnail is
2 Select the device you want to access to
displayed, display the device
selection
(yellow)
Media Player Photo
All photos
select
access
Drive Select
EXIT
Select
RETURN
View
EXIT
Info
SD Card
Access
Select RETURN
SD Card
Slideshow View Select Drive Select
USB Drive... USB Flash...
OPTION
Selected device name
Change the contents
You can switch to the other mode of Media Player from the thumbnail view.
The mode can be switched in the current device.
•
1 While the thumbnail is
displayed, display the
2 Select the contents
Media Player Photo
contents selection
(blue)
Contents Select
EXIT
Select
RETURN
View
Access
Select RETURN
SD Card
Slideshow View Select Drive Select
Info
EXIT
Photo Video Music
OPTION
64
SD Card
Contents Select
All photos
Recorded TV
SD Card
Contents Select
select
access
[Photo] “Photo mode” (p. 61)
[Video]
“Video mode” (p. 65)
[Music] “Music mode” (p. 69)
[Recorded TV]
“Recorded TV mode” (p. 67)
Page 65

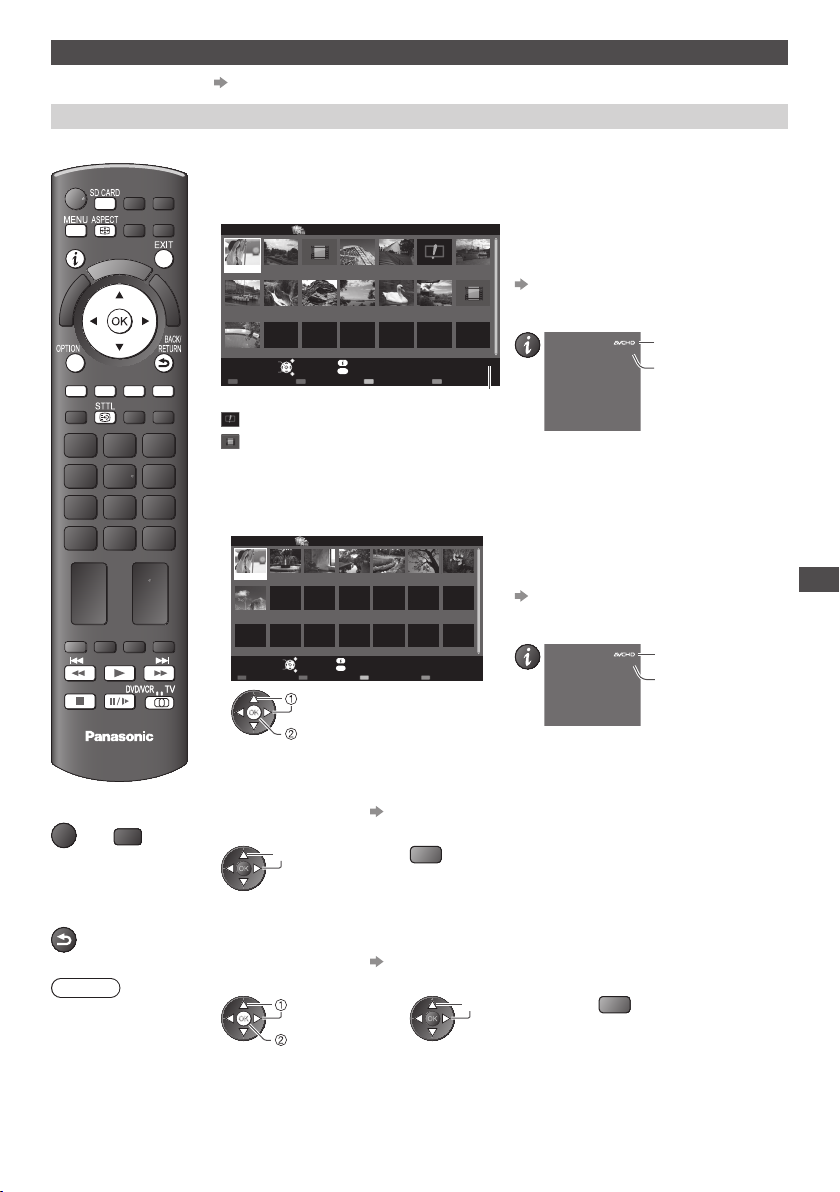

Video and Recorded TV mode
Supported file format (p. 94)
•
Video mode
(For SD Card or USB Flash Memory)
The thumbnail of video titles in the SD Card or USB Flash Memory will be
displayed.
Example : Thumbnail - [Title view]
Media Player Video
Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1
Nature3 Nature4 Nature5 Nature6
2010_9
Access
EXIT
OPTIONOPTION
RETURN
Select
Play
Selected device name
: Error display
: The file does not support thumbnail
view.
To view the scenes of the title
•
Select the title
Example : Thumbnail - [Scene view]
Media Player Video
Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7
Trip1_8
Play
EXIT
Select RETURN
Play
OPTION
select
access
TV
■ Playback from Title view
■
To return to TV
EXIT
SD CARD
or
■
To return to the
previous screen
BACK/
RETURN
Note
The structure of
•
titles and scenes
may vary depending
on the digital video
camera used.
Playback of the selected title will start.
To repeat playback “Video Setup” (p. 66)
•
1 Select the title 2 Start playback
select
■ Playback from the selected scene in the title (SD-Video or AVCHD)
Playback will start from the selected scene to the end of the title.
To repeat playback “Video Setup” (p. 66)
•
1 Select the title 2 Select the scene 3 Start playback
select
access
Info
Option Menu
Drive Select
Info
Option Menu
Drive Select
Title view
2010_4 2010_7Nature2
Contents Select
Title view > Trip1
SD Card
Contents Select
(red)
The preview will start when the title is
highlighted if it supports a preview.
To turn off the preview
•
“Video Setup” (p. 66)
To display the information of the
•
highlighted title
File format
SD Card
Title
Date & Time
Number of scenes
Duration
Trip1
19/02/2010 11:21
00h15m39s
1/15
Title number /
Total title number
8
The preview will start when the scene is
highlighted if it supports a preview.
To turn off the preview
•
“Video Setup” (p. 66)
To display the information of the
•
highlighted scene
File format
Trip1_1
19/02/2010 11:21
00h04m12s
1/8
Scene number /
Total scene
number
(red)
Scene
Date & Time
Duration
select
Using Media Player
65
Page 66

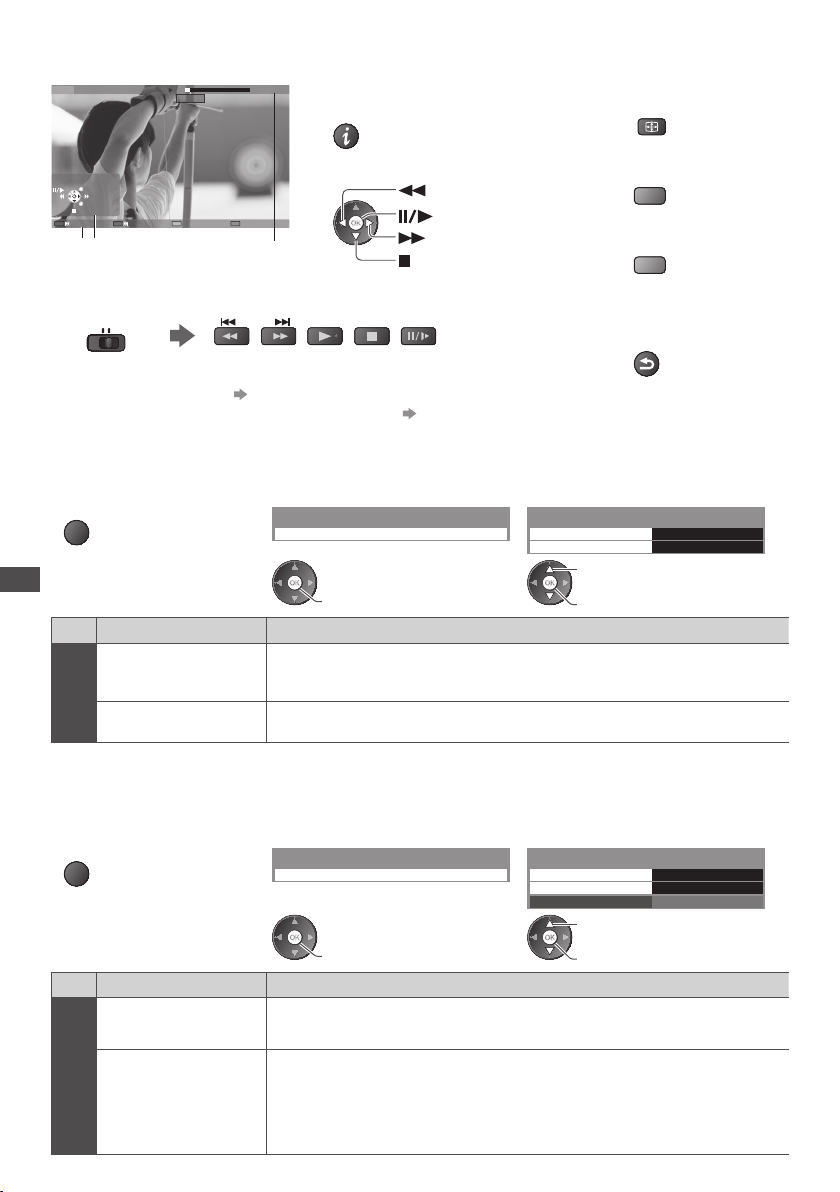

■ How to operate in the playback
Example : Playback
SD 19/02/2010 11:21 00:15:39
EXIT
RETURN
Operation guide
You can also use the following buttons. (p. 27)
•
Set the position to “TV”
DVD/VCR
TV
00:02:05
Information banner
To display / hide the operation guide
•
and information banner
To operate the playback
•
Rewind
Pause / Playback
Fast forward
Stop
■ To change the device “Change the device” (p. 64)
■ To change the content in the current device “Change the contents” (p. 64)
■ Video Setup
Setup the settings for Video mode.
1 Display the option menu
in the thumbnail view
OPTION
Using Media Player
Menu
Video Setup
Item Adjustments / Configurations (alternatives)
Video Preview
Repeat
2 Select [Video Setup] 3 Select the items and set
Option Menu
Video Setup
access
Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]
Image may not be displayed for an instant in the thumbnail view. Set
•
the preview [Off] to resolve this.
Playback repeat within the title or selected file (depending on the
content) [Off] / [On]
Video Setup Menu
Video Preview On
Repeat
■ Confirm or change the current status
You can confirm or change the current status of the content.
Menu items and selectable options vary depending on the content.
•
1 Display the option menu
during playback
OPTION
Menu
Video Setup
Item Adjustments / Configurations (alternatives)
Multi Audio
Aspect Change
66
2 Select [Video Setup] 3 Select the items and set
Option Menu
Video Setup
access
Allows you to select between selectable sound tracks (if available)
It may take several seconds to change the sound.
•
[Aspect1] : Displays the content enlarged without distortion
[Aspect2] : Displays the content full-screen
[Original] : Displays the content original size
You can also change the aspect using the ASPECT button.
•
Aspect change may not work depending on the content.
•
Video Setup Menu
Multi Audio Stereo
Aspect Change
Repeat
To change aspect
•
ASPECT
To the previous title /
•
scene
(red)
To the next title /
•
scene
(green)
To return to
•
thumbnail
BACK/
RETURN
Off
select
access / store
Aspect1
Off
select
access / store

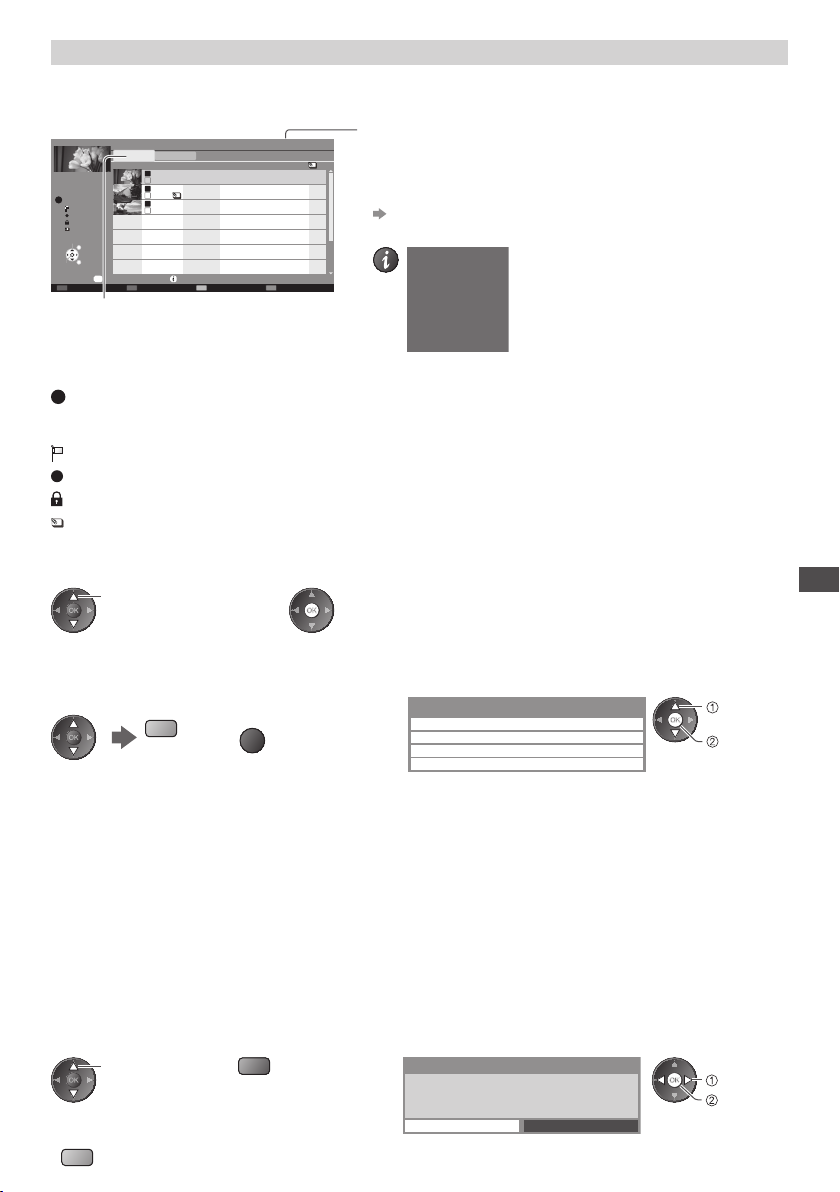

Page 67
Recorded TV mode
(For USB HDD)
Contents list of the USB HDD will be displayed.
Example : Contents list
Duration
00:00
G
Not Viewed
Recording now
Protected
Grouped
Select
EXIT
RETURN
Play
Option Menu
OPTION
Delete
Media Player
All
Recorded TV
Not Viewed
Channel TitleDate
Thu 28/10
BBC 1D
12:00
Mon 10/1
ITVD
13:30
Sat 15/1
BBC 2
13:50
Info
Remaining Capacity 500GB (50%)
Das Erste
News
Cinema
Chapter List Select
USB HDD 1
[All] :
All the recorded contents are listed.
[Not Viewed] :
Contents not played back are listed.
:Appears when the recorded content has the guidance information (parental rating, etc.) or the
G
Remaining capacity of the HDD
This value may not be accurate depending on the condition.
•
1
3
1D
You can also access the contents list directly by using
•
VIERA TOOLS.
“How to Use VIERA TOOLS” (p. 29)
To display the information of the highlighted content
•
- Channel
DVB-T, BBC 1
- Title
Das Erste
- Date & Time
Wed 27/10/2010 12:00
- Duration
00:20
channel of the content is restricted by Child Lock.
This content requires entering PIN number to playback.
: Content not played back (Once you playback the content, this icon will disappear.)
: Content under recording (You can playback this content even if under recording.)
: Protected content cannot be deleted.
: Two or more contents are grouped.
■ Playback the content from the list
1 Select the content 2 Start playback
select
Using Media Player
■ To edit recording content
1 Select and tick the
content to edit
[Create Group] :
Two or more contents can be grouped. Select and tick all the desired contents, and then select [Create Group].
[Release Group] :
Select the created group you want to release, and then select [Release Group]. (To release several
groups at once, tick all the desired groups.)
[Exclude from Group] :
Select the group and press the OK button to display the grouped contents. To exclude only the specific
content from the group, select it and then select [Exclude from Group]. (To exclude several contents at
once, tick all the desired contents.)
[Change Protect Status] :
Select the content you want to protect to delete, and then select [Change Protect Status]. Perform the same
way to cancel the protection. (To change the status of several contents at once, tick all the desired contents.)
(blue)
2 Display the option
menu
OPTION
3 Select the item and edit
Option Menu
Create Group
Release Group
Exclude from Group
Change Protect Status
select
edit
■ Delete the selected content
1 Select the content 2 Delete the content 3 Confirm
select
To select two or more
•
contents
(blue)
(red)
Delete
Are you sure you want to delete?
select
set
No Yes
67

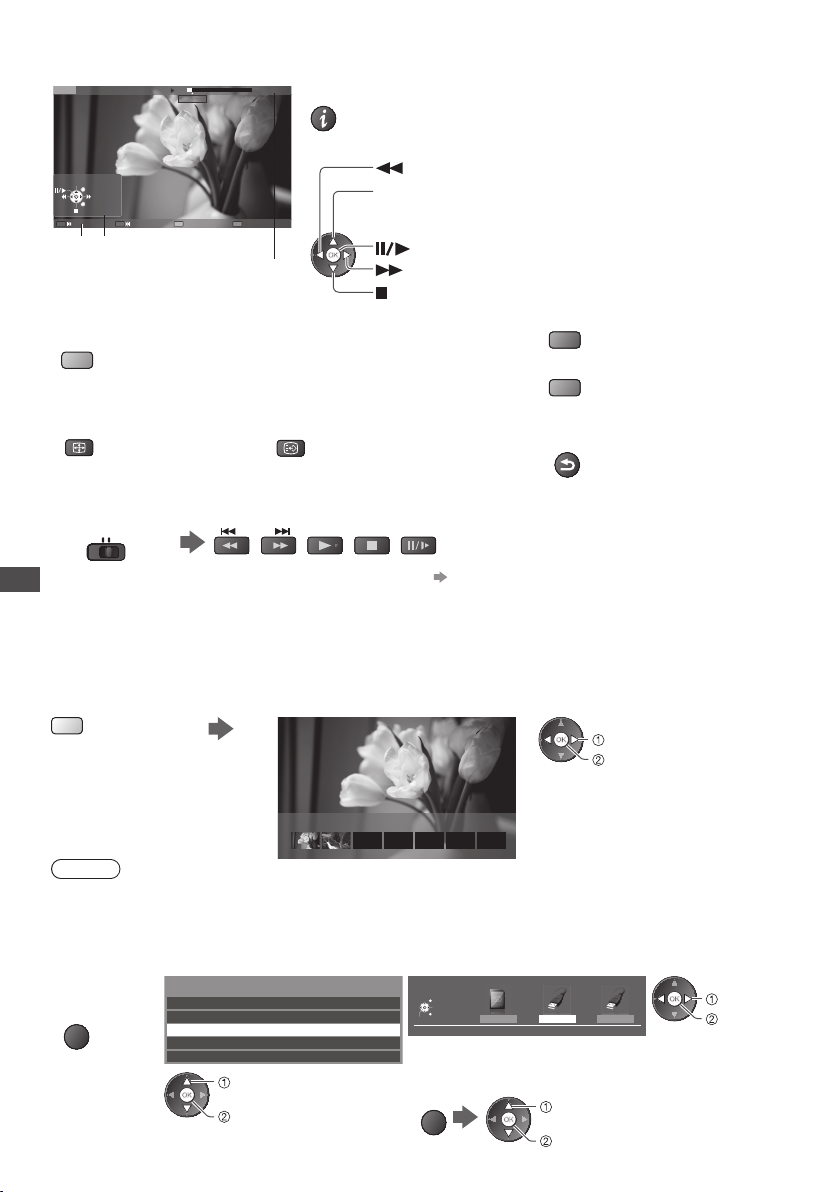

Page 68
■ How to operate in the playback
Example : Playback
Das ErsteUSB 00:15:39
00:02:05
To display / hide the operation guide and information banner
•
To operate the playback
•
Manual skip
EXIT
RETURN
Operation guide
To repeat between the starting point “A” and finishing point “B”
•
Set “A” and “B” in order
(blue)
To change aspect
•
ASPECT
Information banner
• The points will be reset by pressing this button
again or other operations.
To display the subtitle (if available)• To return to list
•
STTL
Rewind
[Manual skip]
Press to skip forward about 30 seconds
•
Press and hold to skip backward about 15 seconds
•
Pause / Playback
Fast forward
Stop
To the previous chapter
•
(red)
To the next chapter
•
(green)
BACK/
RETURN
You can also use the following buttons. (p. 28)
•
Set the position to “TV”
DVD/VCR
TV
To confirm or change the current status (if available) “Display the selectable settings for the
•
current status” (p. 19)
Using Media Player
■ Chapter List
You can start playback from the chapter list you select.
A recorded content is automatically divided into chapters (about five minutes for each).
•
The chapter list is not displayed while the selected content is being recorded.
•
To play back from the chapter list
(yellow)
select
playback
Chapter List
00:00:00 00:05:00
Note
Depending on the recorded programmes, some playback operations may not work properly.
•
■ Change the device
You can change to the other device directly in the same mode if two or more devices are connected.
1 Display
the option
menu
OPTION
68
2 Select [Drive Select]
Option Menu
Create Group
Release Group
Drive Select
Contents Select
Change Protect Status
select
access
3 Select the device you want to access to
Drive Select
EXIT
Select
RETURN
SD Card
USB HDD1 USB Flash...
select [Contents Select]
access
Access
USB HDD1
If you select the SD Card or USB Flash Memory, also
change the contents to enjoy photo, video or music.
To change the content
•
OPTION
select
access
Page 69

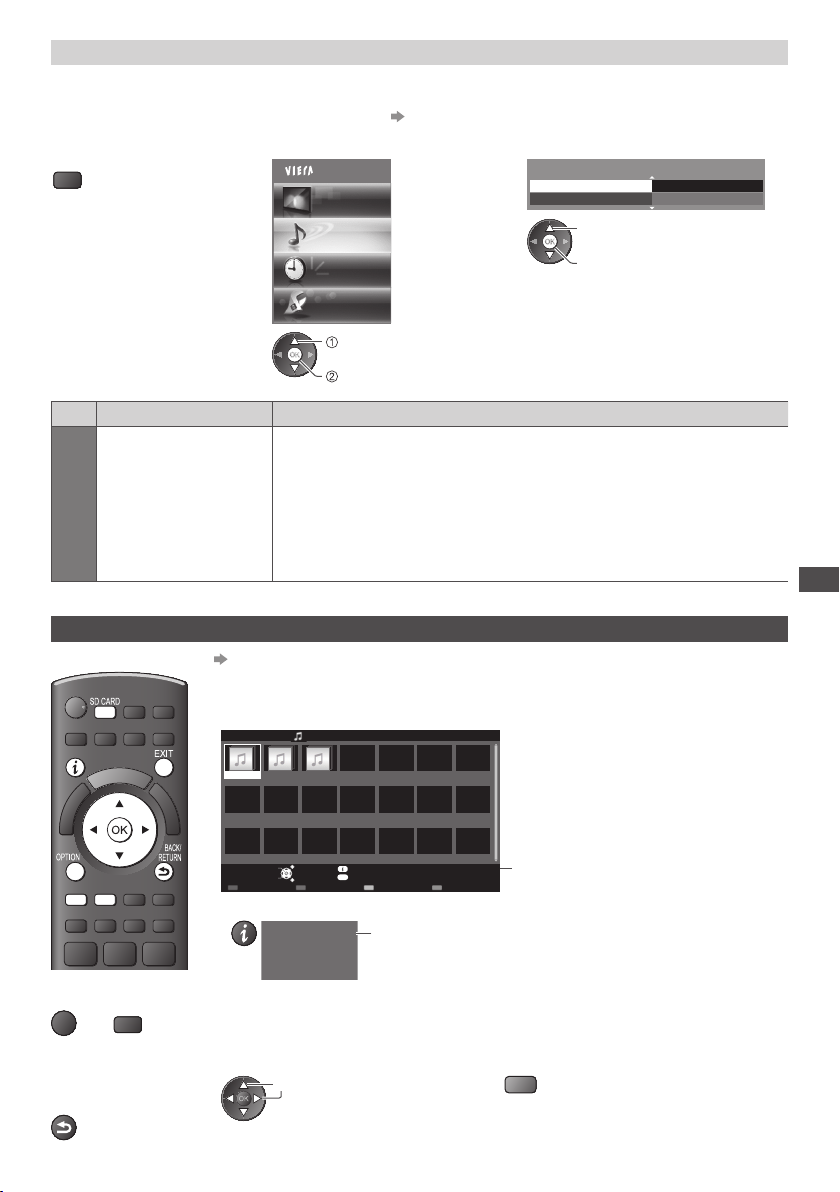

Audio output Settings
You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2
(ARC function) terminal.
To confirm or change the current sound status “Confirm or change the current status” (p. 66)
•
1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set
MENU
Main Menu
Sound
Timer
SPDIF Selection
Reset to Defaults
select
access / store
Auto
Reset
2/2
Menu
Item Adjustments / Configurations (alternatives)
Sound
SPDIF Selection
Music mode
Supported file format (p. 94)
•
■
To return to TV
EXIT
SD CARD
or
■
To return to the
previous screen
BACK/
RETURN
The thumbnail of music folders in the SD Card or USB Flash Memory will be
displayed.
Example : Thumbnail - [Folder view]
Media Player Music
My Music_1 My Music_2 My Music_3
Play Folder Contents Select
To display the information of the highlighted folder
•
■ Playback from Folder view
All the files in the selected folder will be played back.
1 Select the folder 2 Start playback
Setup
select
access
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL
AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM]
[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-
channel are output as Dolby Digital Bitstream.
DTS is output as DTS.
MPEG is output as PCM.
[PCM] : Digital output signal is fixed to PCM.
Folder view
Access
Select
Folder name
Number of files
EXIT
RETURN
select
My Music_1
Info
OPTION
Option Menu
Drive Select
1/3
Folder number / Total folder
number
11
SD Card
Selected device name
(red)
Using Media Player
69
Page 70

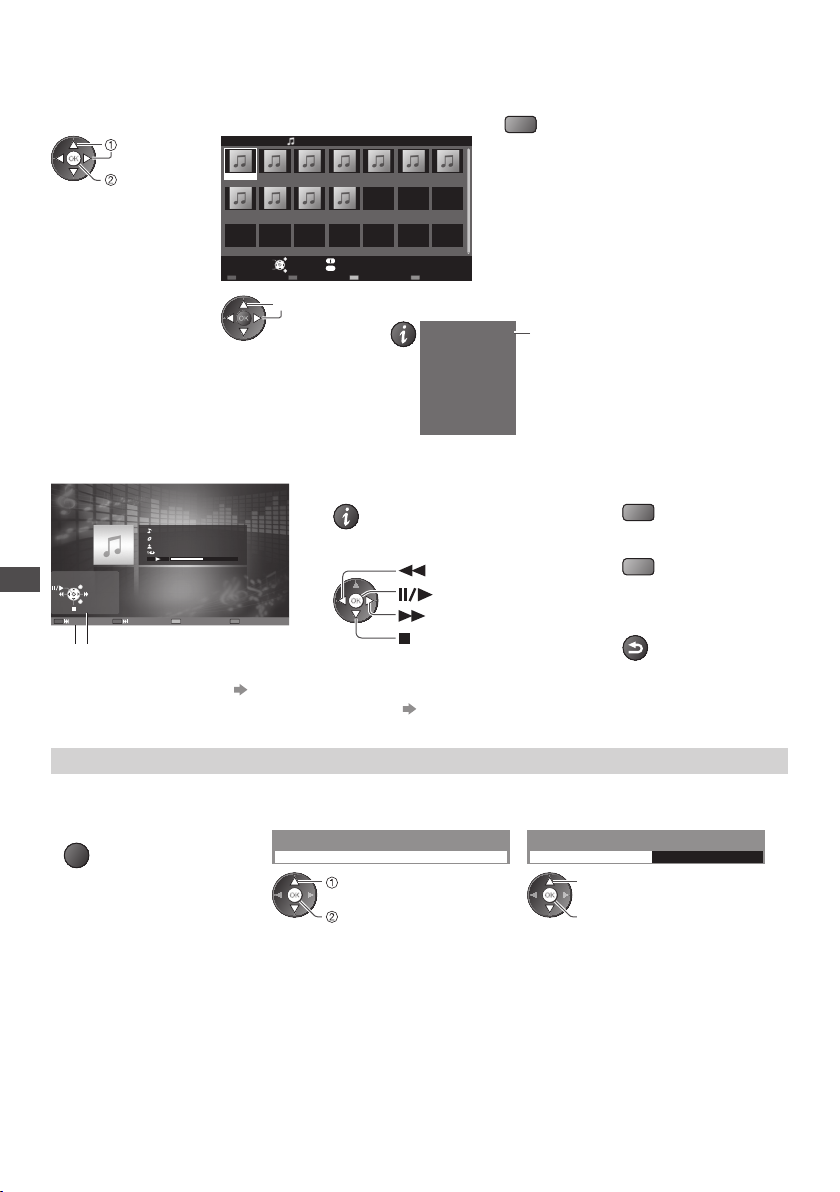

■ Playback from File view
Selected file will be played back.
1 Select the folder 2 Select the file 3 Start playback
Example : Thumbnail - File view
select
access
Media Player Music
My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7
My Song_9 My Song_10 My Song_11My Song_8
Folder view > My Music_1
(red)
Play
Select RETURN
Play Folder
EXIT
select
Info
OPTION
Option Menu
Drive Select
•
SD Card
Contents Select
To display the information of the highlighted file
1/11
Title
My Song_1
Album
My Music_1
Artist
My Favourite
Track No.
Duration
00h03m29s
File number / Total file number
1
■ How to operate in the playback
Example : Playback
To display / hide the operation guide• To the previous track
•
To operate the playback
•
Rewind
Pause / Playback
Fast forward
Stop
Using Media Player
EXIT
RETURN
Operation guide
My Song_9
My Favourite
My Music_1
00:02.43 / 00:05.44
■ To change the device “Change the device” (p. 64)
■ To change the content in the current device “Change the contents” (p. 64)
Music Setup
Setup the setting for Music mode (only available in the thumbnail view).
1 Display the option menu 2 Select [Music Setup] 3 Set
OPTION
Option Menu
Music Setup
select
Music Setup Menu
Repeat One
(red)
To the next track
•
(green)
To return to thumbnail
•
BACK/
RETURN
select
70
access
access / store
[Folder] : Playback repeat within the
selected folder
[One] : Playback repeat of the
selected one file
Page 71
Using Network Services
(DLNA / VIERA Connect)
®
DLNA
This TV is a DLNA Certified™ product.
DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier
and more convenient to use on a home network. To learn more, visit www.dlna.org.
It allows you to share photos, videos and music stored in the DLNA Certified media server (for example, PC with
windows 7 installed, DIGA Recorder etc.) connected to your home network, and enjoy the contents on the TV screen.
It also allows you to control the TV with the DLNA Certified equipment connected to your home network.
(DLNA Remote Control)
For the supported file format (p. 94, 95)
•
AVCHD and DivX files are not supported by DLNA, but can be played by Media Player (p. 59).
•
■ Media server
Store photos, videos or music into the DLNA Certified media server, and then you can enjoy them on the TV.
To use a PC as a media server
Prepare the PC with Windows 7 or ensure the server software is installed on the PC.
“Windows 7” and “TwonkyMedia server 6 (installed on the PC with Windows 7, Windows Vista or
Windows XP)” are the server software that has been tested for compatibility with this TV (current as
of January, 2011). Any other server software have not been tested with this TV, therefore compatibility
and performance cannot be assured.
Windows 7
•
The setup for homegroup settings of Windows 7 is required. For details, refer to the help functions of Windows 7.
TwonkyMedia server
•
“TwonkyMedia server” is the product of PacketVideo Corporation.
To obtain the Installation Guides for installing and setting “TwonkyMedia server”, visit the website of TwonkyMedia.
Additional fees may be charged to obtain server software.
Note
For more information about the server software, please consult each software company.
•
When server software for the media server is installed on the PC, the data may be at risk of being
•
accessed by other people. Please take care of the settings and connections under the network
circumstances at the office, hotel or even at home when not using a router.
To use a DLNA compatible DIGA Recorder as a media server
By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it
as one of the media servers.
Please refer to the manual of your DIGA Recorder to confirm whether the recorder is compatible with DLNA.
•
■ DLNA Remote Control
You can control the TV with the DLNA Certified equipment.
To use this function, set the [Network Link Settings] (p. 73)
•
“Windows 7” is the OS that has been tested for compatibility of this TV (current as of January, 2011).
•
For the operations, refer to the help functions of Windows 7.
Using Network Services (DLNA / VIERA Connect)
Network connection
Network setup
DLNA operations (p. 78 - 81)
VIERA Connect
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA
CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy
internet contents such as photos, videos, games, etc. from VIERA Connect home screen.
This TV has no full browser function and all features of websites may not be available.
•
Network connection
Network setup
VIERA Connect operations
“Example 1” or “Example 2” in “Network connections” (p. 72)
(p. 73 - 77)
“Example 1” or “Example 3” in “Network connections” (p. 72)
(p. 73 - 77)
(p. 16, 81)
71
Page 72

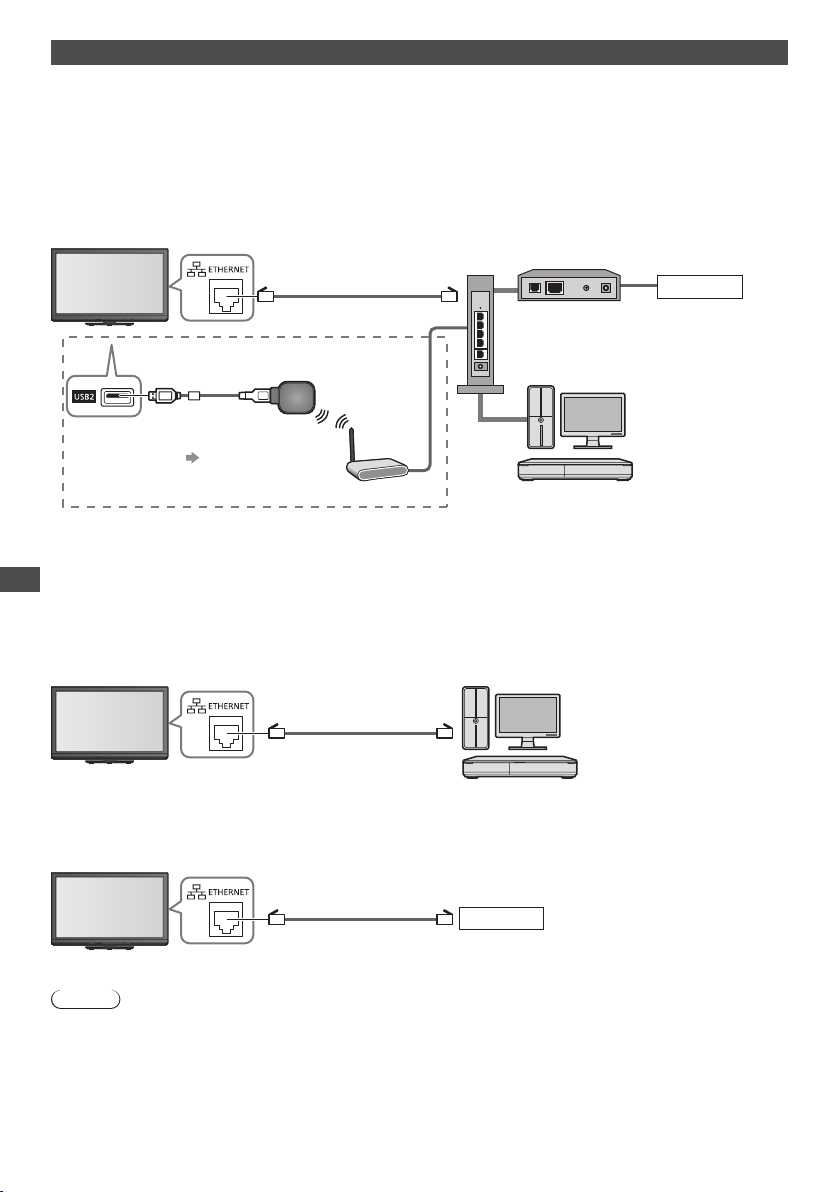

Network connections
To use only DLNA features, you can operate the features without broadband network environment.
To use VIERA Connect features, you need a broadband network environment.
If you do not have any broadband network services, please consult your retailer for assistance.
•
Set up and connect any equipment required for the network environment. You cannot make settings
•
for the equipment on this TV. Read the manual of the equipment.
Required speed (effective) : at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If
•
the transfer speed is not enough, contents may not be played back properly.
Example 1
(For DLNA and VIERA Connect)
Wired connection
Internet
LAN cable
Wireless connection
Wireless LAN Adaptor and
Extension cable
accessories” (p. 6)
Connect to the USB 1, 2 or 3 port.
•
Ensure to use a LAN straight cable for this connection.
•
If your modem has no broadband router functions, use a broadband router.
•
If your modem has broadband router functions but there are no vacant ports, use a hub.
•
Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.
•
Using Network Services (DLNA / VIERA Connect)
If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.
•
“Optional
Access point
Modem
Hub or Router
DLNA Certified
media server
(for example, PC,
DIGA Recorder, etc.)
Example 2
(For DLNA)
You can connect the TV and the equipment directly to use DLNA features.
DLNA Certified
media server
(for example, PC,
LAN cable
Ensure to use a LAN cross cable for this connection.
•
DIGA Recorder, etc.)
Example 3
(For VIERA Connect)
You can connect the TV and the telecommunication equipment directly to use VIERA Connect features.
Note
Contact your Internet Service Provider (ISP) telecommunications company for further assistance
•
regarding the network equipment.
Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or
•
telecommunications company. Depending on the contracts, additional fees may be charged or
multiple connections to the internet may be impossible.
LAN cable
Internet
72
Page 73

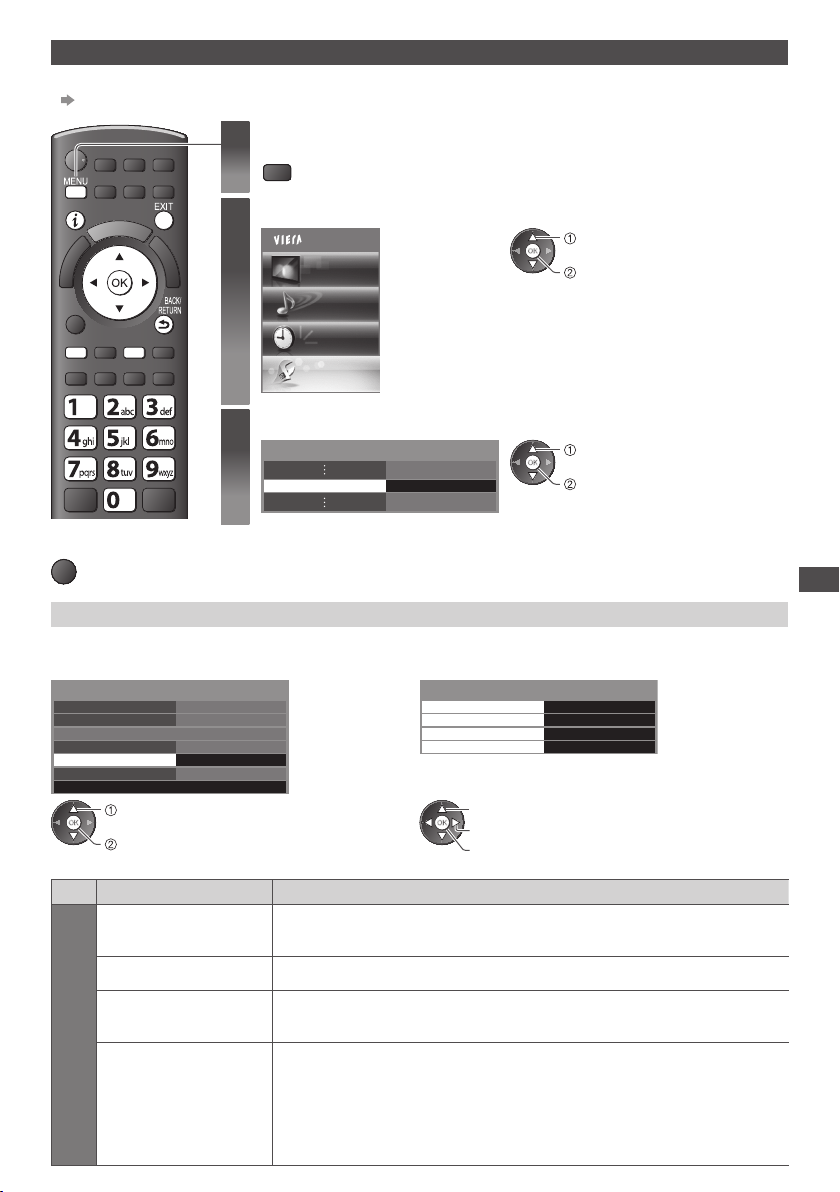

Network Setup
Ensure the connections are completed before starting Network Setup.
•
“Network connections” (p. 72)
Display the menu
1
MENU
Select [Setup]
2
3
Main Menu
Sound
Timer
Setup
Select [Network Setup]
select
access
select
access
■
To return to TV
EXIT
Network Setup Access
Network Link settings
Settings which allow the TV to be controlled by the equipment connected to the network.
1 Select [Network Link Settings] 2 Select the items and set
Network Setup
Connection Test
Network Type Wired
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Access
ab-cd-ef-gh-ij-kl
select
access
Menu
VIERA Name
Network Link Settings
Item Adjustments / Configurations (alternatives)
DLNA Remote Control
DLNA Remote
Volume
Network Remote
Control
Sets your favourite name for this TV and this name will be used to display
the name of this TV on the screen of the other DLNA compatible equipment.
Enables to control the TV using Windows 7 via the network [Off] / [On]
Enables to control the volume of the TV using Windows 7
via the network [Off] / [On]
Enables to control the TV from the network equipment (Smartphone, etc.)
[Off] / [On]
Depending on the area, this function may not be available. For details,
•
consult your local Panasonic dealer.
For more information of this function, visit the following website.
•
http://panasonic.jp/support/global/cs/tv/
Network Link Settings
VIERA Name
DLNA Remote Control
DLNA Remote Volume
Network Remote Control
select
change
access / store
VIERA
On
On
On
Using Network Services (DLNA / VIERA Connect)
73
Page 74
Wired connection settings
This setting is for the network connection by using the LAN cable.
1 Select [Network Type] and set to [Wired]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Wired
ab-cd-ef-gh-ij-kl
select
access / store
If you make the network connection like “Example 2” (p. 72), you do
not have to set [Acquire DNS Address], [Proxy] and [Proxy Port].
2 Select [IP/DNS Settings] and set the items
Network Setup
select
IP/DNS Settings Access
access
■ [Acquire IP Address] / [Acquire DNS Address]
Sets [IP Address], [Subnet Mask], [Gateway], [Primary DNS] and [Secondary DNS].
Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended)
IP/DNS Settings
Acquire IP Address Auto
IP Address
Subnet Mask
Gateway
Acquire DNS Address
DNS Address
Proxy Settings
Auto
The available settings are displayed automatically.
•
Manual settings
([IP Address], [Subnet Mask], [Gateway], [Primary DNS], [Secondary DNS])
select
access / store
abc def
jkl
ghi
mno
tuvpqrs
wxyz
3 Select [Proxy Settings] and set the items
IP/DNS Settings
Using Network Services (DLNA / VIERA Connect)
Acquire IP Address
IP Address
Subnet Mask
Gateway
Acquire DNS Address
DNS Address
Proxy Settings
Auto
Auto
Access
•
RETURN
select
access
After settings, return to [Network Setup] screen
BACK/
■ [Proxy]
Sets Proxy address.
This is the address of the relay server that is connected to the target server instead of the browser
•
and sends data to the browser. Setting is required if specified by the provider.
1. Select [Proxy] 2. Enter the address 3. Store
Proxy Settings
Proxy
Proxy Port
select
0
Proxy
Host
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
select
BACK/
RETURN
access
•
set
To use numeric buttons
“Characters table for numeric
buttons” (p. 97)
■ [Proxy Port]
Sets Proxy port number.
This number is also specified by the provider with the Proxy address.
•
1. Select [Proxy Port] 2. Move the cursor and enter the number
74
Proxy Settings
Proxy
Proxy Port
0
select
move
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Page 75

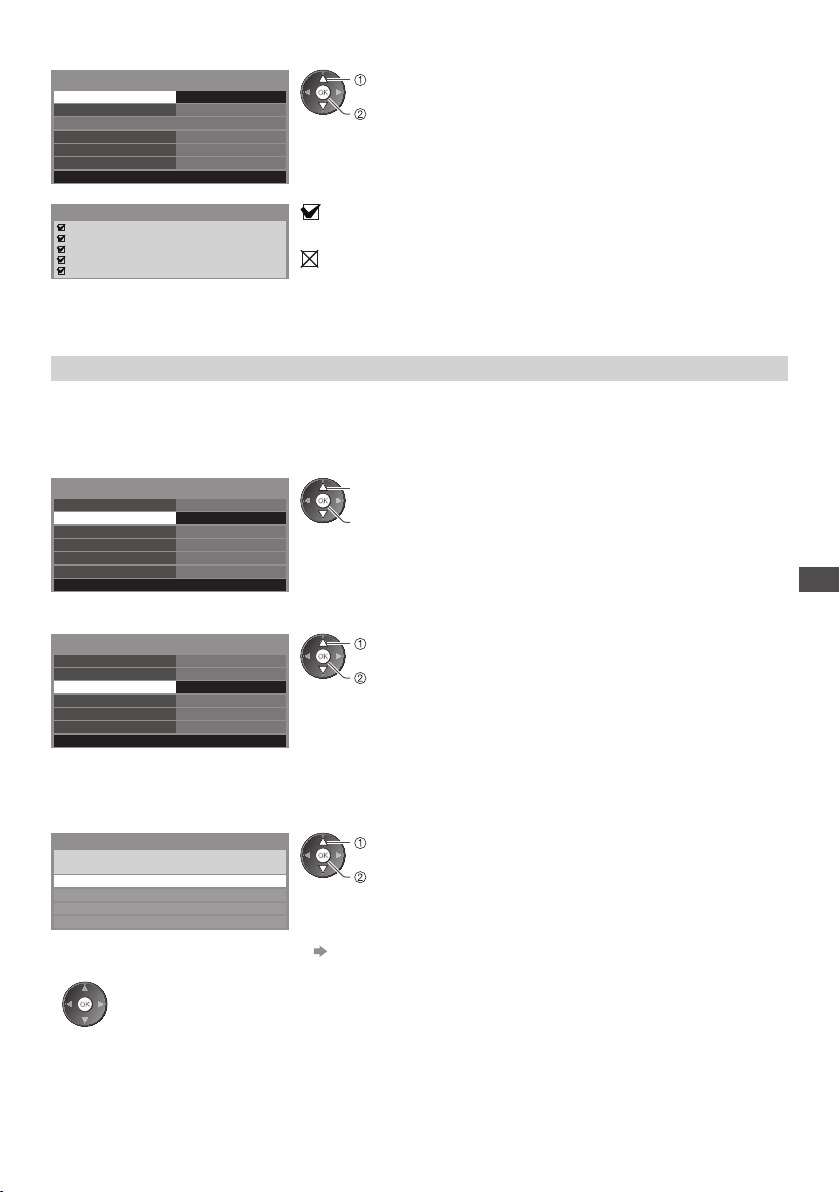

4 Select [Connection Test] and access to test
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Access
Wired
ab-cd-ef-gh-ij-kl
•
select
access
Performs automatic testing of the network connection for the TV.
(It takes a while to test.)
Connection Test
Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
: succeeded
The test is successful and the TV is connected to the network.
: failed
Check the settings and connections, and then perform this
function again.
Wireless connection settings
This setting is for the network connection by using the Wireless LAN Adaptor. (Wireless connection)
Confirm the encryption key, settings and positions of your access point before starting setup. For
•
details, read the manual of the access point.
1 Select [Network Type] and set to [Wireless]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Wireless
ab-cd-ef-gh-ij-kl
select
access / store
2 Select [Access Point Settings]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
When the access point is already set, [Current Settings] screen will be displayed.
•
To change the settings, select [No] on this screen and go to the next step.
Wireless
Access
ab-cd-ef-gh-ij-kl
select
access
3 Select the connection type and set
Connection Type
Please select network connection type.
WPS(Push button)
WPS(PIN)
Search for access point
Manual
For details of each connection type (p. 76, 77)
•
After settings, return to [Network Setup] screen
•
select
access
Using Network Services (DLNA / VIERA Connect)
75
Page 76

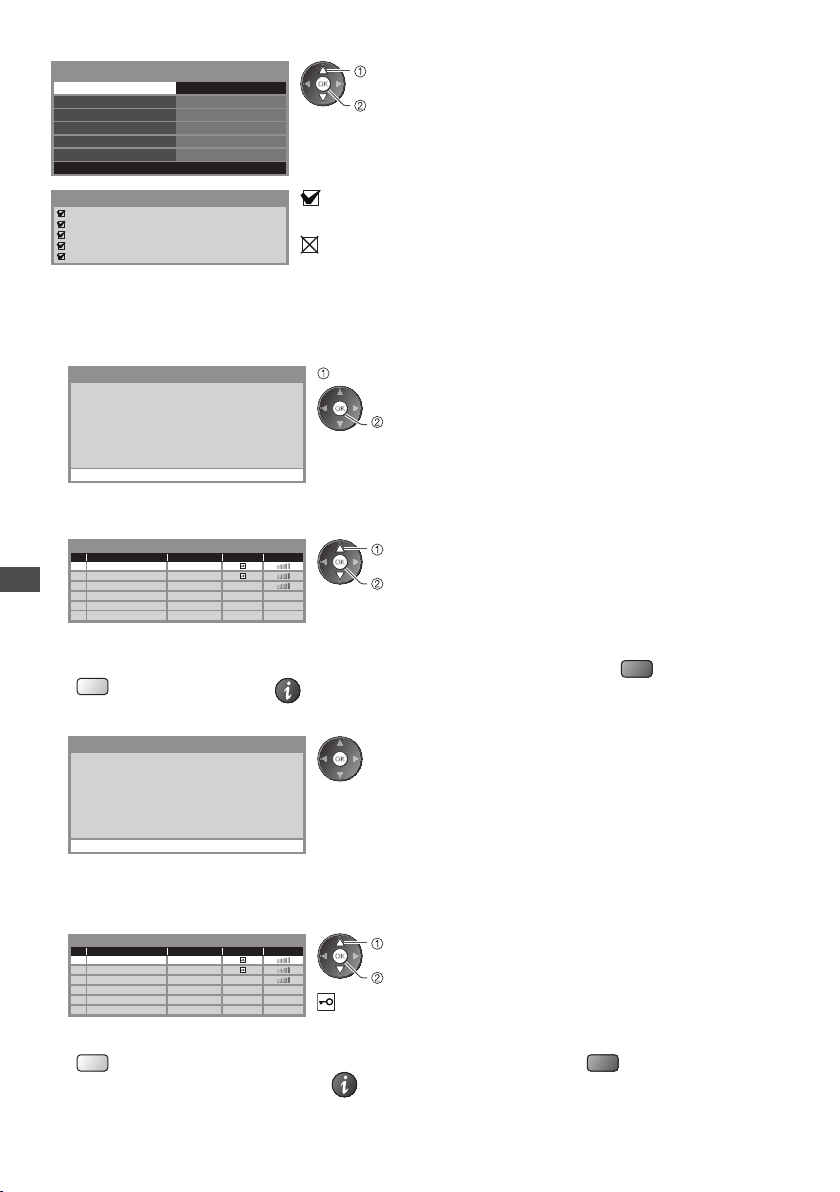

4 Select [Connection Test] and access to test
Network Setup
Connection Test Access
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Connection Test
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
Wireless
Performs automatic testing of the network connection for the TV.
(It takes a while to test.)
ab-cd-ef-gh-ij-kl
■ [WPS(Push button)]
WPS(Push button)
1) Please press the ‘WPS’ button on the access
point until its light flashes.
2) When the light is flashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
Connect
■ [WPS(PIN)]
1 Select your desired access point
Available Access Points
No. Wireless type Encrypt Reception
1
2
3
Using Network Services (DLNA / VIERA Connect)
SSID
Access Point A
Access Point B
Access Point C
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
select
access
: succeeded
The test is successful and the TV is connected to the network.
: failed
Check the settings and connections, and then perform this
function again.
If you continue to have difficulty, please contact your internet
service provider.
press the WPS button on the access point until the light flashes
connect the Wireless LAN Adaptor and the access point
Ensure that your access point supports WPS for this setup.
•
WPS : Wi-Fi Protected Setup™
•
select
access
Ensure that your access point supports WPS for this setup.
•
To search access points
•
again
For the information of the highlighted access
•
point
(yellow)
2 Enter the PIN code to the access point, and then select [Connect]
WPS(PIN)
Please register the following PIN codes on the
access point.
PIN code : 12345678
Select ‘Connect’ after entering and saving the
settings on the access point.
Connect
■ [Search for access point]
Access points found automatically are listed.
1 Select your desired access point
Available Access Points
No. Wireless type Encrypt Reception
SSID
1
Access Point A
Access Point B
2
Access Point C
3
To search access points again
•
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
(yellow)
76
select
access
: Encrypted access point
For the information of the
•
highlighted access point
To set manually
•
(red)
To set manually
•
(red)
Page 77
2 Access the encryption key input mode
Encryption Key Setting
Connection will be made with the following settings:SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
Encryption key
If the selected access point is not encrypted, the confirmation
•
screen will be displayed. It is recommended to select
the encrypted access point.
3 Enter the encryption key of the access point (Set characters one by one)
Access Point Settings
Encryption key
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
select
set
To use numeric buttons
•
“Characters table for numeric
buttons” (p. 97)
Store
BACK/
RETURN
4 Select [Yes]
Access Point Settings
Encryption key is set to:XXXXXXXX
Select ‘Yes’ to confirm.
Select ‘No’ to change.
Yes
No
•
select
confirm
To re-enter the encryption key, select [No].
■ [Manual]
You can setup SSID, authentication type, encryption type, and encryption key manually.
Follow the on screen instructions and set manually.
When you use 11n (5 GHz) for the wireless system between the Wireless LAN Adaptor and access
•
point, please select [AES] for the encryption type.
Access Point Settings
Please input the SSID.
SSID XXXXXXX
SSID Setting
SSID is set to:-
XXXXXXX
Select ‘Yes’ to confirm.
Select ‘No’ to change.
Yes
No
Authentication Type Settings
Connection will be made with the following settings:-
SSID : XXXXXXX
Please select the authentication type.
WPA2-PSK
WPA-PSK
Shared key
Open
Using Network Services (DLNA / VIERA Connect)
Update TV’s software
Check for available software updates from the Panasonic website.
Select [Software Update]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Note
Network Setup
MAC Address
Wired
Access
ab-cd-ef-gh-ij-kl
ab-cd-ef-gh-ij-kl
•
[MAC Address]
•
select
access
Follow the on screen instructions
MAC address is a unique address that identifies hardware in the
network. (for information only)
77
Page 78
Using DLNA® features
Ensure the preparation of media server, network connections and network settings are completed.
•
“Media server” (p. 71), “Network connections” (p. 72), [Network Setup] (p. 73 - 77)
Display icons of the feature
1
2
3
Using Network Services (DLNA / VIERA Connect)
T
O
A
O
R
L
E
S
I
V
Select [Media Server]
select
access
Media Server
Select one of the media servers you want to
access
Example : Media server list
Media Server
A
SERVER1
5
SERVER2
g
SERVER3
DIGA
Select
EXIT
RETURN
Access
OPTION
Option Menu
Info
Available media
servers
Total listed number
•
4
select
access
To display the information of the highlighted
media server
■
To return to TV
EXIT
■
To return to the
previous screen
BACK/
RETURN
78
Select the file
4
Example : File list
Media Server
Pixel
3648x2736
Format
JPEG
Select
EXIT
RETURN
View
Slideshow
SERVER1
P000102 2010-10-05 09:54
P000135
P000180
P000214
P000251
P000276
P000293
V100025
V100042
M10054
M10078
Info
OPTION
Option Menu
2010-11-20 13:18
2010-12-07 11:31
2010-12-10 15:20
2010-12-19 12:39
2010-12-25 14:06
2011-01-06 13:52
2011-01-12 15:56
2011-01-20 10:08
2011-01-28 14:48
2011-02-09 19:58
•
28
select
access
Depending on the condition of media server,
you may need to select the folder before
selecting the file.
To display the information of the highlighted
•
file
Note
Non-playable files are also listed but cannot be selected.
•
Turn the TV off, and then on again when changing or reconnecting the
•
network connection.
Page 79

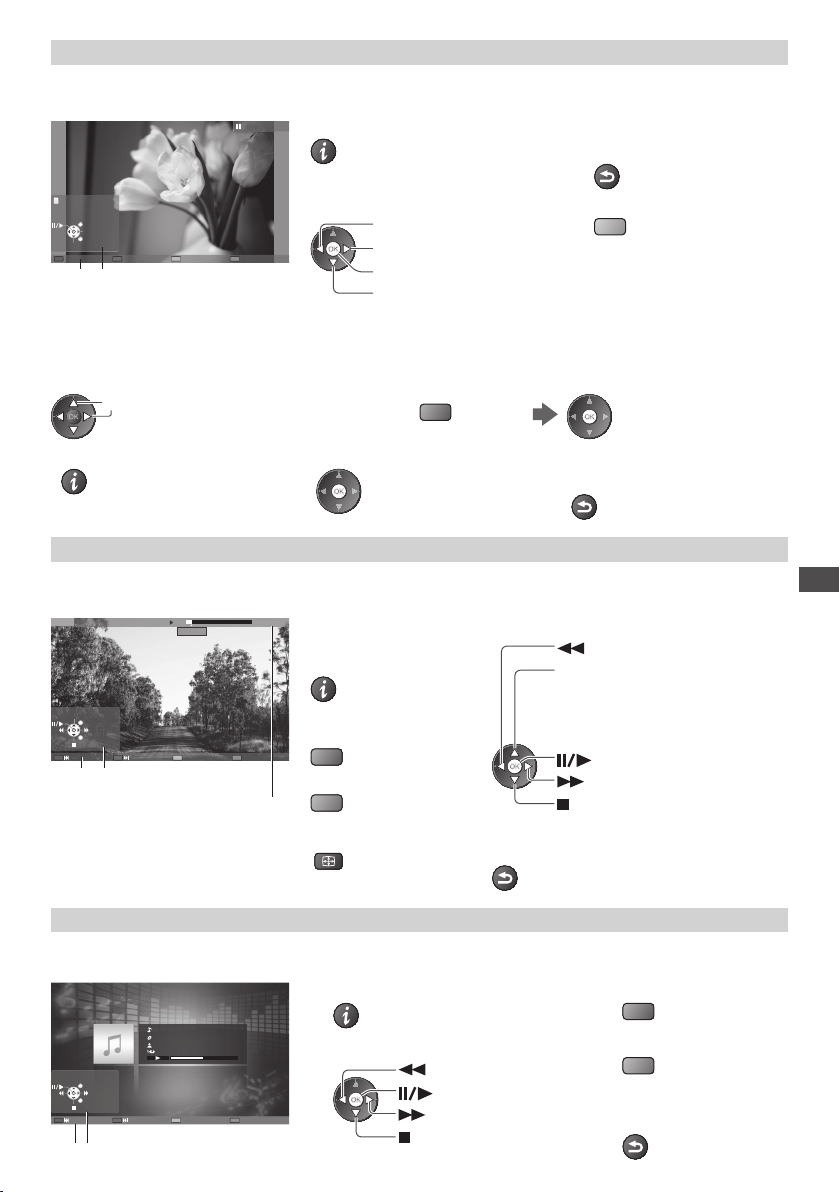

For photo file
[Single view] - Photos are displayed one at a time.
Example :
Single view
To display / hide the operation guide
•
To return to list
•
BACK/
RETURN
Single view
EXIT
Select
RETURN
Stop
Operation guide
Rotate
To operate Single view
•
To the previous photo
To the next photo
Slideshow
To rotate 90°
•
(blue)
Stop
(return to list)
[Slideshow] - Slideshow will complete when all photos have been viewed within the list.
1 Select the photo file from the list for the first
view
select
To display / hide the operation guide• To pause (return to Single view)• To return to list
•
2 Start Slideshow
(red)
BACK/
RETURN
For video file
Playback
Example : Playback
MEDIA SERVER
Manual skip
Operation guide
- Playback will start.
19/02/2010 11:21 00:15:39
EXIT
RETURN
00:02:05
Information banner
To display / hide the
•
operation guide and
information banner
To the previous
•
content
(red)
To the next content
•
(green)
To change aspect
•
ASPECT
To operate the playback
•
Rewind
[Manual skip]
Press to skip forward about 30
•
seconds
Press and hold to skip
•
backward about 15 seconds
Pause / Playback
Fast forward
Stop
To return to list
•
BACK/
RETURN
Using Network Services (DLNA / VIERA Connect)
For music file
Playback
Example : Playback
Operation guide
- Playback will start
EXIT
RETURN
My Song_9
My Favourite
My Music_1
00:02.43 / 00:05.44
To display / hide the operation guide• To the previous track
•
(red)
To operate the playback
•
Rewind
Pause / Playback
Fast forward
Stop
To the next track
•
(green)
To return to list
•
BACK/
RETURN
79
Page 80

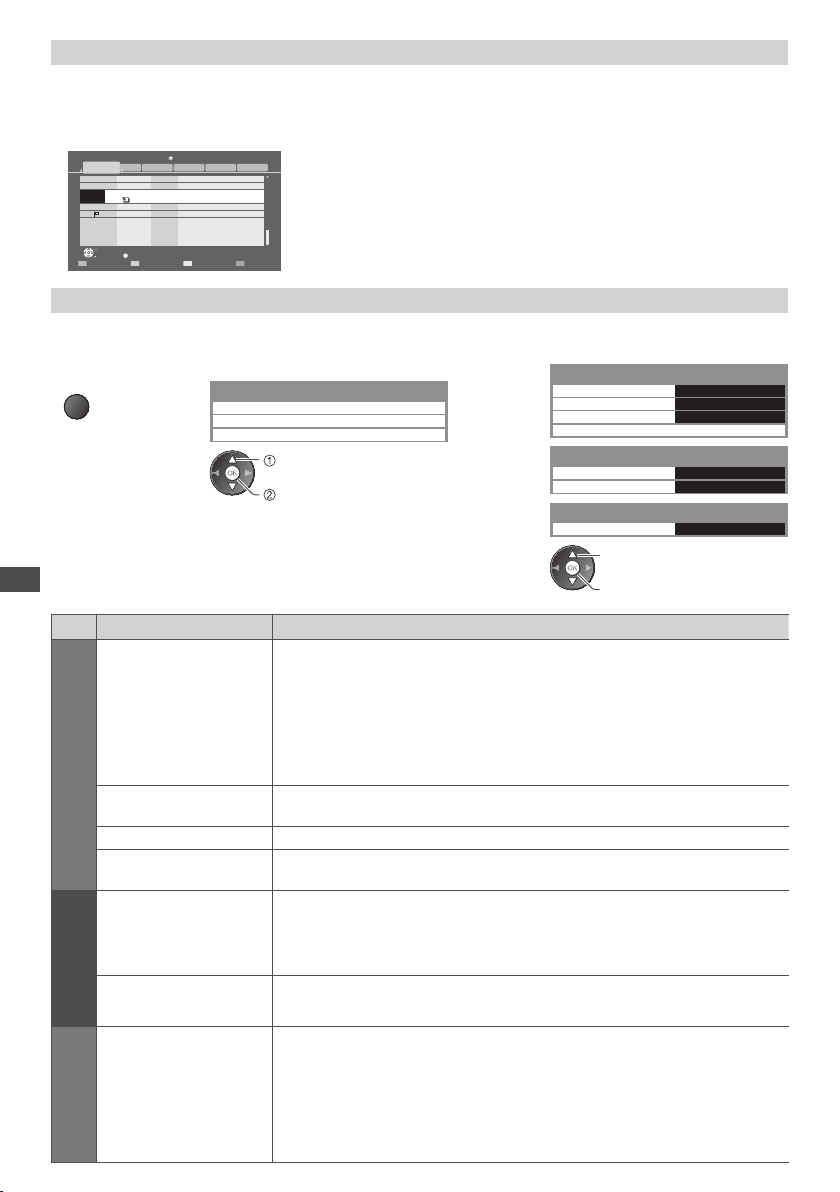

For DIGA Recorder
Control the DIGA Recorder
The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder
with this TV remote control according to the operation guide.
Example :
DIRECT NAVIGATOR (Grouped Titles)
All
Bibel TV Bibel TV das Gespräch
HDD
Liberty TV FR Journal Télévisé / Météo
19.08(Wed)
AV1
19.08(Wed)
19.08(Wed) Start Time 11:01 Titles 27
18.08(Tue)
18.08(Tue)
WDR aktuell
WDR aktuell
WDR Aachen
WDR Wuppertal
Time Remaining 36:17 (DR)
Video (AVCHD)SportsSocial/EconomyMovieNot Viewed
Before operating, register this TV on the DIGA Recorder.
•
For details, read the manual of the DIGA Recorder.
•
OK
RETURN
OPTION
Page 005/005
Delete TitleSelect
Option menu for each content
Setup the settings for Photo, Video and Music file operations.
1 Display the
option menu
OPTION
Using Network Services (DLNA / VIERA Connect)
Menu
Slideshow Settings
Transition Effect
Interval
Repeat Slideshow repeat [Off] / [On]
Back Ground Music
Video Setup
Video Preview
2 Select [Slideshow Settings], [Video
Setup] or [Music Setup]
Option Menu
Slideshow Settings
Video Setup
Music Setup
select
access
Item Adjustments / Configurations (alternatives)
Selects the transition effect for switching the photo during the slideshow
[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random]
[Fade] : The next photo fades in gradually.
[Slide] : The next photo slides and appears from the left side.
[Dissolve] : Each photo is dissolved when switching to the next photo.
[Motion] : Each photo is displayed with an effect of enlarging, reducing,
[Random] : Each transition is selected at random.
Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)
This function is not available when [Transition Effect] is set to [Motion].
•
Selects the back ground music during Photo mode
[Off] / [Type1] / [Type2] / [Type3]
Sets to start the preview of the title or scene in the thumbnail screen
[Off] / [On]
Image may not be displayed for an instant in the thumbnail screen.
•
Set the preview [Off] to resolve this.
moving up or moving down.
3 Select the items and set
Slideshow Settings
Transition Effect Fade
Interval 5 seconds
Repeat On
Back Ground Music
Video Setup Menu
Video Preview On
Repeat
Music Setup Menu
Repeat One
select
access / store
Off
80
Repeat Playback repeat within the selected file [Off] / [On]
Music Setup
Repeat
Playback repeat [Off] / [Folder] / [One]
[Folder] : Playback repeat within the selected folder
[One] : Playback repeat of the selected one file
Page 81

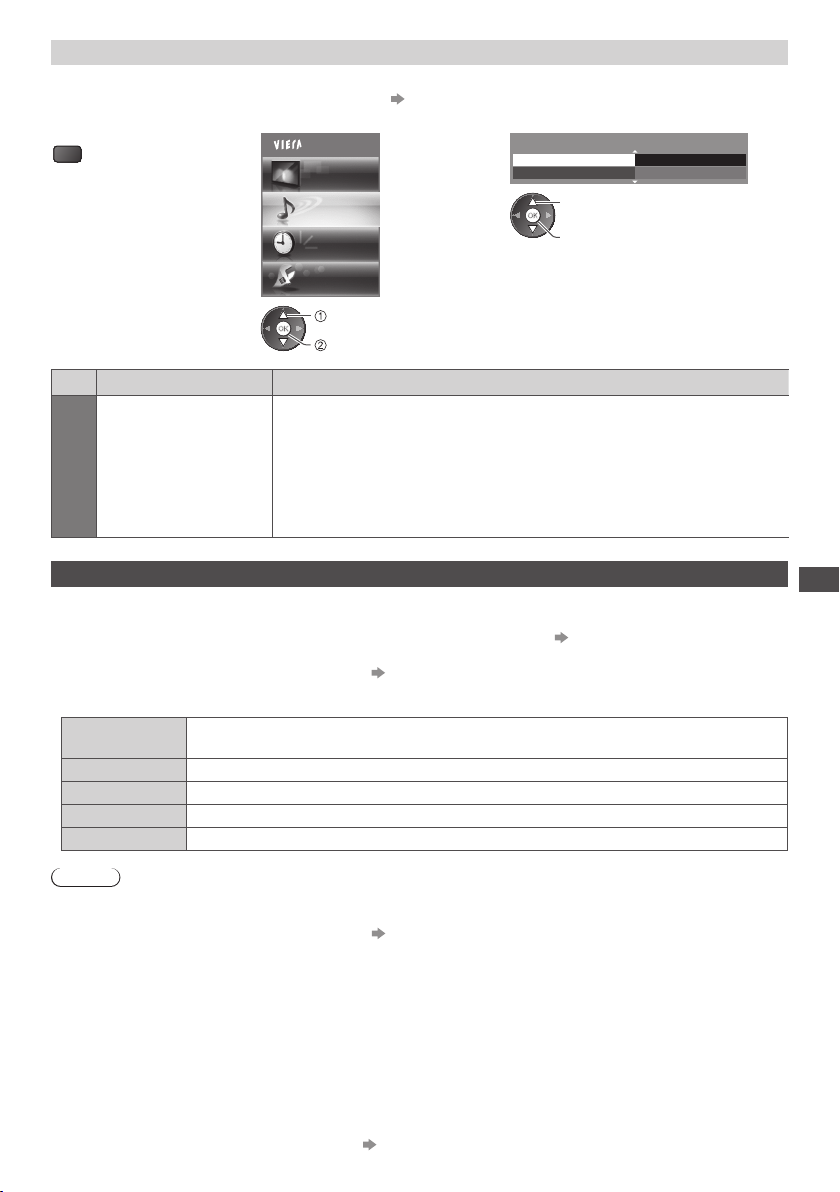

Audio output settings (for video contents)
You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.
To confirm or change the current sound status “Confirm or change the current status” (p. 66)
•
1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set
MENU
Main Menu
Sound
Timer
Setup
select
access
SPDIF Selection
Reset to Defaults
select
access / store
Auto
Reset
2/2
Menu
Sound
SPDIF Selection
Item Adjustments / Configurations (alternatives)
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL
AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM]
[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-
channel are output as Dolby Digital Bitstream.
MPEG is output as PCM.
[PCM] : Digital output signal is fixed to PCM.
VIERA Connect
You can access VIERA Connect and enjoy various network contents.
VIERA Connect requires a broadband internet connection. Dial-up internet connections cannot be used.
•
Ensure the network connections and network settings are completed. “Network connections”
•
(p. 72), [Network Setup] (p. 73 - 77)
For details about VIERA Connect operation “Using “VIERA Connect”” (p. 16)
•
Setup menu (Items in [Setup] may change without notice.)
•
Customize
HomeScreen
My Account
Lock Sets to restrict access to some services
Beep Sets beep sound On or Off when operating VIERA Connect
Notices Displays the information of VIERA Connect
Note
Be sure to update the software when a software update notice is displayed on the TV screen. If the
•
software is not updated, you will not be able to use VIERA Connect.
You can update the software later manually [Software Update] in [Network Setup] (p. 77)
VIERA Connect home screen is subject to change without notice.
•
The services through VIERA Connect are operated by their respective service providers, and service
•
may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make
no warranty for the content or the continuity of the services.
Some content may be inappropriate for some viewers.
•
Some content may only be available for specific countries and may be presented in specific languages.
•
Depending on the connection environment, the internet connection may be slow or may not be successful.
•
During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2
•
(ARC function) terminals. But no video signals are output. AV1 can output audio signal if [AV1 out] is
set to [Monitor] in the Setup Menu (p. 34). To use HDMI2 with ARC function, connect an amplifier that
has ARC function (p. 83) and set to use theatre speakers (p. 89).
You can restrict access to VIERA Connect [Child Lock] (p. 47)
•
Turn the TV off, and then on again when changing or reconnecting the network connection.
•
Changes the position of each services on VIERA Connect home screen
Confirms or removes the account information of the TV you entered on VIERA Connect
Using Network Services (DLNA / VIERA Connect)
81
Page 82

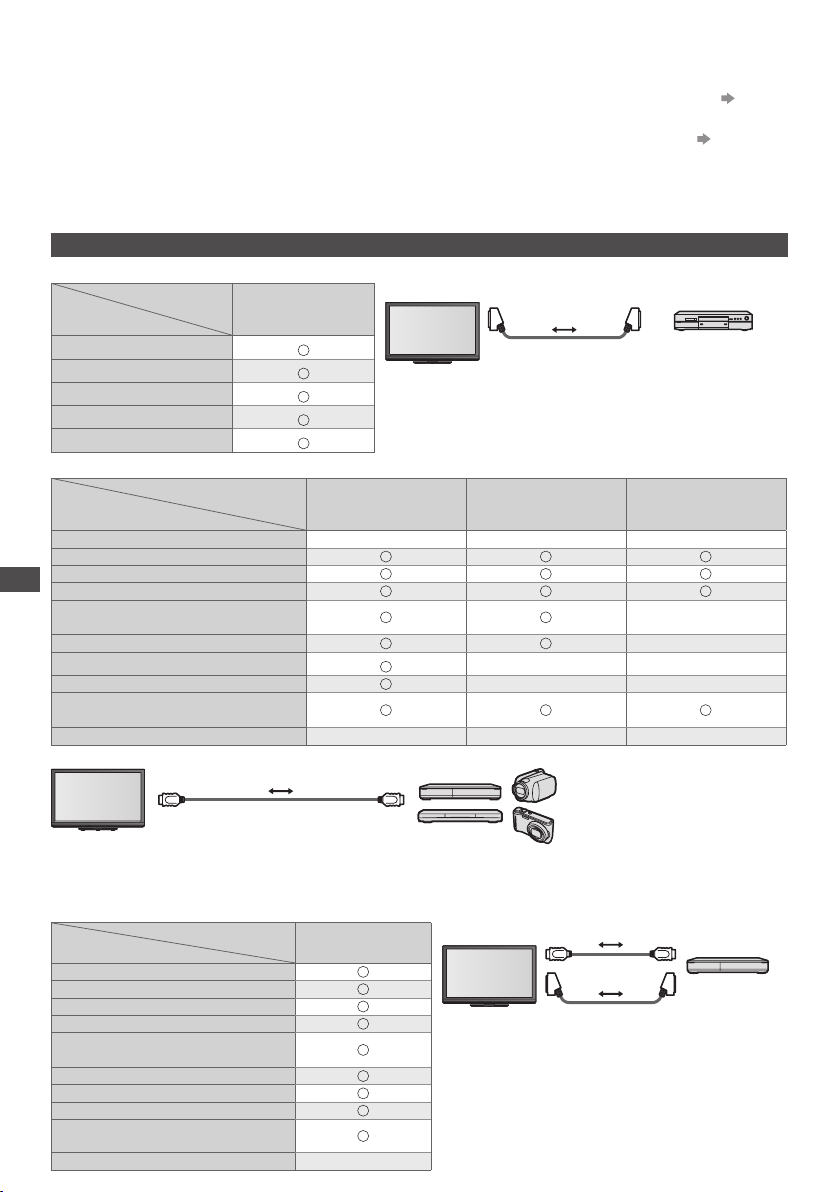

Link Functions (Q-Link / VIERA Link)
Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 84)
VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and enables easy control,
convenient recording, playback, energy saving, creation of a home theatre, etc., without complicated setting. (p. 85 - 89)
You can use Q-Link and VIERA Link functions together.
This TV supports “HDAVI Control 5” function. But available features are depending on the connected
•
equipment’s version of HDAVI Control. Please refer to the manual of the equipment to confirm the version.
VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.
•
Summary of Q-Link and VIERA Link features
Q-Link (SCART connection only)
Connected equipment
Features
Analogue channel download
Easy playback
Power on link
Power off link
Direct TV Recording
DVD Recorder /
VCR with
Q-Link function
VIERA Link (HDMI connection only)
Connected equipment
Features
Analogue channel download – – –
Easy playback
Power on link
Power off link
Link Functions (Q-Link / VIERA Link)
Reduce unnecessary power
consumption in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected
equipment by VIERA remote control
Speaker control – – –
Connection
Use a fully wired HDMI compliant cable.
•
Connect the equipment supporting VIERA Link to the TV’s HDMI1 or HDMI2 terminal via an HDMI cable.
•
For information about using HDMI cables for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.
•
DIGA Recorder with
VIERA Link function
HDMI cable
VIERA Link (HDMI and SCART connections)
Features
Analogue channel download
Easy playback
Power on link
Power off link
Reduce unnecessary power
consumption in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected
equipment by VIERA remote control
Speaker control –
82
Connected equipment
DIGA Recorder with
VIERA Link function
Connection
SCART cable
Use a fully wired SCART cable.
•
Connect the DVD Recorder / VCR supporting Q-Link to
•
the TV’s AV1 terminal via a SCART cable.
DVD Player /
Blu-ray Disc Player with
VIERA Link function
3
∗
3
∗
∗2 ∗
2
∗
1
∗
∗
∗
∗3 ∗
∗
∗
4
3
3
3
1
4
Connection
Use a fully wired HDMI compliant cable.
•
Connect the equipment supporting VIERA Link to the
•
TV’s HDMI1 or HDMI2 terminal via an HDMI cable.
Use a fully wired SCART cable.
•
Connect the equipment supporting VIERA Link
•
to the TV’s AV1 terminal via a SCART cable.
3
∗
3
∗
––
––
1
∗
DIGA Recorder / DVD Player /
Blu-ray Disc Player /
HD Video Camera / LUMIX Camera
with VIERA Link function
HDMI cable
SCART cable
DVD Recorder / VCR
with Q-Link function
HD Video Camera /
LUMIX Camera with
VIERA Link function
–
–
1
∗
DIGA Recorder with
VIERA Link function
Page 83

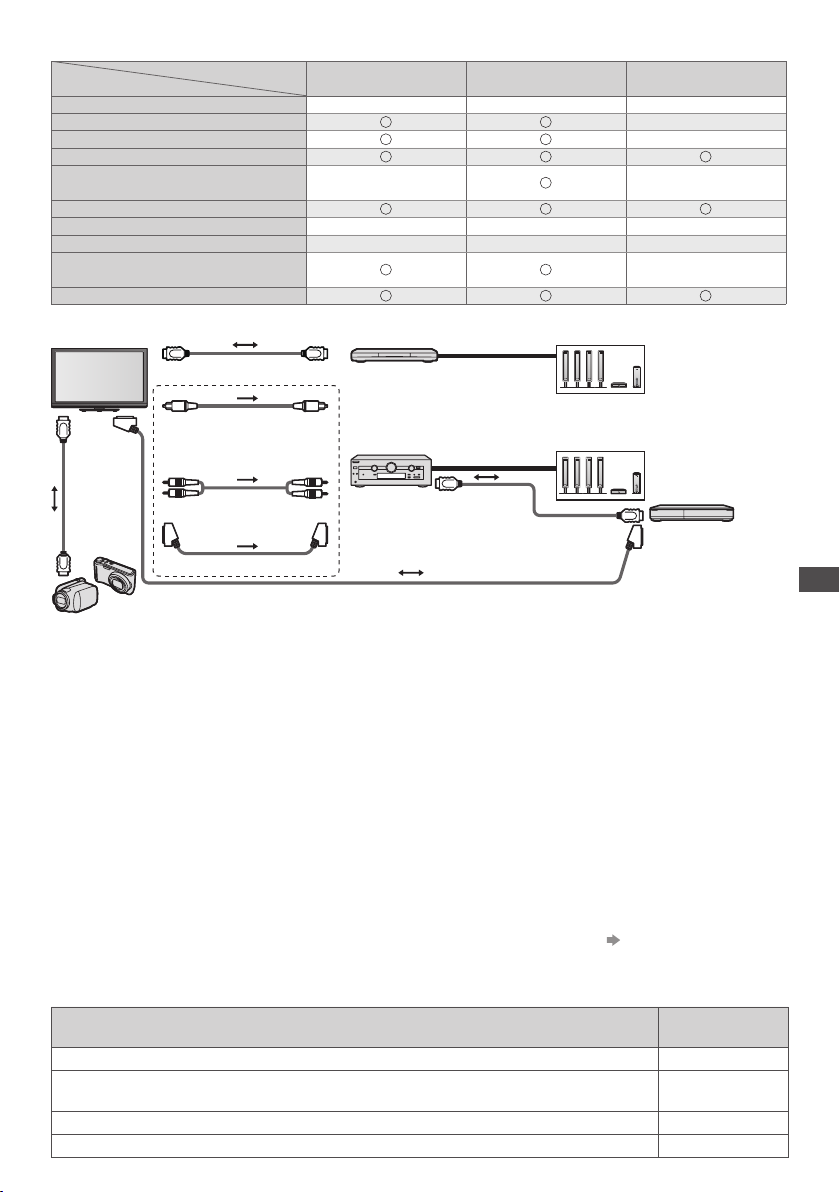

VIERA Link (HDMI and Audio out connections)
Features
Analogue channel download – – –
Easy playback
Power on link
Power off link
Reduce unnecessary power
consumption in standby
Auto standby for unnecessary equipment
Pause Live TV programme – – –
Direct TV Recording – – –
Control the menu of the connected
equipment by VIERA remote control
Speaker control
Connection
HDMI
cable
HD Video Camera / LUMIX Camera with VIERA Link function
Use fully wired HDMI compliant cable.
•
Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.
•
Use fully wired SCART cable.
•
If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s
•
AV1 terminal and set [AV1 out] to [Monitor] in the Setup Menu (p. 34).
Use the optical digital audio cable, RCA cable or SCART cable for audio output from the TV.
•
∗
1 : Available with the equipment which has
“HDAVI Control 2 or later” function.
∗
2 : Available with the equipment which has
“HDAVI Control 3 or later” function.
∗
3 : Available with the equipment which has
“HDAVI Control 4 or later” function.
∗
4 : Available with DIGA Recorder which has
HDD.
Connected equipment
HDMI cable
Optical digital
audio cable
or
RCA cable
or
SCART cable
Player theatre with
VIERA Link function
5
∗
–
6
∗3 ∗
1
∗
To use Player theatre / Blu-ray Disc theatre :
•
Player theatre / Blu-ray
Disc theatre with
VIERA Link function
To use Amplifier :
•
Amplifier with
VIERA Link function
7
∗
SCART cable
Blu-ray Disc theatre with
VIERA Link function
5
∗
3
∗
∗3 ∗
1
∗
HDMI cable
∗
5 : While playing a disc
∗
6 : Except for watching a disc
∗
7 : If the connected equipment has “HDAVI
Control 5” function, you do not have to use
this audio cable (Optical digital audio cable,
RCA cable or SCART cable). In this case,
connect the equipment to the TV’s HDMI2
terminal via an HDMI cable.
Amplifier with
VIERA Link function
–
–
–
6
Speaker system
Speaker system
DIGA Recorder
with VIERA Link
function
3
∗
–
VIERA Link Control of compatible equipment ([VIERA Link Control] p. 87)
Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control.
•
This includes connections to equipment already connected to the TV.
For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.
Type of the equipment Maximum
Recorder (DIGA Recorder, etc.) 3
Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera,
Digital Camera, Player theatre, Blu-ray Disc theatre, etc.)
Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1
Tuner (Set top box, etc.) 4
number
3
Link Functions (Q-Link / VIERA Link)
83
Page 84

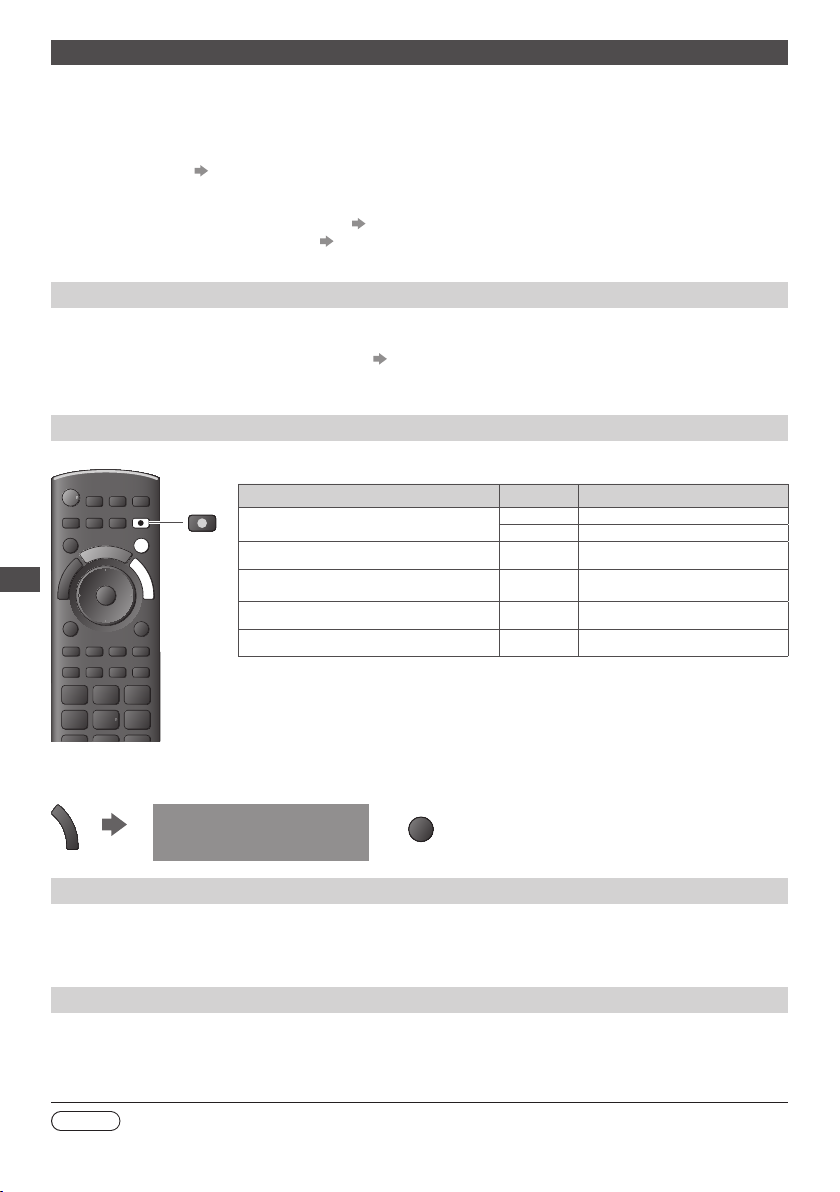

Q-Link
EXIT
DIRECT TV REC
G
U
I
D
E
Preparations
Connect the DVD Recorder / VCR with the following logos:
•
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”,
“Easy Link (a trademark of Philips Corporation)”, “Megalogic (a trademark of Grundig Corporation)” or
“SMARTLINK (a trademark of Sony Corporation)”
Q-Link connection (p. 82)
•
Use fully wired SCART cable.
•
Set up the DVD Recorder / VCR. Read the manual of the recorder.
•
Q-Link terminal setup in the Setup Menu [AV1 out] (p. 34)
•
Download Analogue channel setting “Analogue channel download” (see below)
•
Features available
Analogue channel download
Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is
still broadcast). Digital channel settings are not downloaded.
To download the Analogue channel settings [Q-Link Download] (p. 34) or [Auto Setup] in
•
Analogue mode (p. 40) or “Auto Setup” - when first
using the TV (p. 12)
Direct TV Recording - What you see is What you record
Recording the current programme on a DVD Recorder / VCR immediately.
DIRECT TV REC
Link Functions (Q-Link / VIERA Link)
Available conditions:
•
Picture source Mode Recording from
Analogue
DVB TV TV monitor out
AV (watching recorder’s tuner) AV Recorder ’s tuner
AV (watching recorder’s external input)
AV (watching TV’s external input) AV TV monitor out
When Direct TV Recording is performed, the recorder is automatically
•
turned on if it is in Standby mode.
Changing channel or turning off the TV is available while the recorder is
•
recording from its own tuner.
Changing channel is not available while the recorder is recording from the TV tuner.
•
TV TV monitor out
AV Recorder’s tuner
AV Recorder’s external input
■ To stop recording
Unlock the tuner
G
U
I
D
E
Press EXIT to unlock and stop recording
Tuner Locked
EXIT
Power on link and Easy playback
When the DVD Recorder / VCR starts playback or the direct navigator / function menu for the equipment
is activated, the TV is turned on and the input mode is switched automatically so that you can view the
content. (Only when the TV is in Standby mode.)
Power off link
When the TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the
videocassette or disc is not active.)
This function will work even if the TV enters Standby mode automatically by auto power standby
•
function.
Note
Some recorders are not compatible. Read the manual of the recorder.
•
84
Page 85
VIERA Link “ Control™”
∗
Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 5” function.
Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with
HDMI and SCART cables allow you to interface them automatically (p. 82, 83).
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
Some functions are not available depending on the equipment’s version of HDAVI Control.
•
Please confirm the connected equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry
•
standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have
developed and added.
As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
•
For information about applicable Panasonic equipment, consult your local Panasonic dealer
•
or refer to www.panasonic.co.uk
∗
Preparations
Connect the equipment that supports VIERA Link.
•
VIERA Link connection (p. 82, 83)
•
Use a fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilised.
Recommended Panasonic HDMI cables’ part numbers:
• RP-CDHS15 (1.5 m) • RP-CDHS30 (3.0 m) • RP-CDHS50 (5.0 m)
Use a fully wired SCART cable.
•
Set up the connected equipment. Read the manual of the equipment.
•
For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.
•
Download Analogue channel setting “Analogue channel download” (see below)
•
Set [VIERA Link] [On] in the Setup Menu [VIERA Link] (p. 34)
•
Set up the TV
•
After connection, turn the equipment on and then switch the TV on.
Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p. 27), and make sure that an
image is displayed correctly.
This setup should be done each time when the following conditions occur:
• for the first time
• when adding or reconnecting equipment
• when changing setup
Features available
Analogue channel download
Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is
still broadcast). Digital channel settings are not downloaded.
To download the Analogue channel settings [Q-Link Download] (p. 34) or [Auto Setup] in
•
Analogue mode (p. 40) or “Auto Setup” - when first
using the TV (p. 12)
Link Functions (Q-Link / VIERA Link)
Easy playback
Automatic Input switching - When the connected equipment is operated (during playback or menu
operations, etc.), the input mode is switched automatically. When playback is stopped or menus are
exited, the input mode returns to the original setting.
Power on link
When the connected equipment starts playback or the direct navigator / function menu for the
equipment is activated, the TV is automatically turned on and the input mode is switched automatically
so that you can view the content. (Only when the TV is in Standby mode.)
Power off link
When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.
This function will work even if the TV enters Standby mode automatically by auto power standby
•
function.
85
Page 86

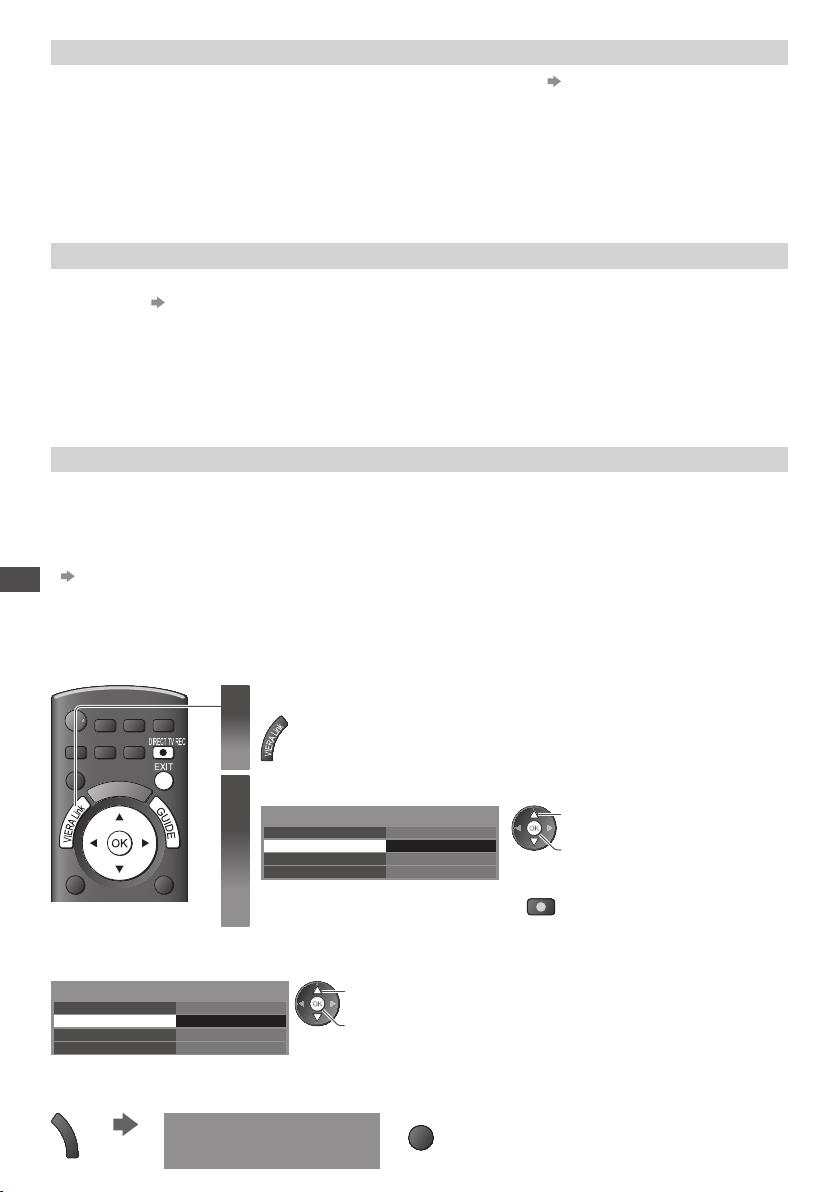

Reduce unnecessary power consumption in standby [Standby Power Save]
Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p. 34)
The power consumption in Standby mode of the connected equipment is controlled in synchronization
with the TV On / Off state.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the
power consumption in Standby mode of the connected equipment is automatically minimised.
When the TV is turned on and the connected equipment is still in Standby mode, the power
consumption of the connected equipment is increased to reduce the startup time.
This function is effective if the connected equipment can change the power consumption in Standby
•
mode and is set to higher consumption.
Auto standby for unnecessary equipment [Intelligent Auto Standby]
Set Intelligent Auto Standby [On (With reminder)] or [On (No reminder)] in the Setup Menu to use
this function [Intelligent Auto Standby] (p. 34)
When the TV is On, non-watched or non-used connected equipment goes into Standby mode
automatically to reduce power consumption. For example, when the input mode is switched from HDMI,
the connected equipment will go into Standby mode / when Speaker Selection is changed to [TV], the
Player theatre will go into Standby mode (except when watching a disc).
If you select [On (With reminder)], the on screen message will be displayed before the connected
•
equipment turns to Standby.
This function may not work properly depending on the connected equipment. If required, set to [Off].
•
Direct TV Recording - What you see is What you record [Direct TV Rec]
Recording the current programme on a DIGA Recorder immediately.
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please
•
connect the DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1
and HDMI2 for two recorders, connect the DIGA Recorder to HDMI1.
If Direct TV Recording does not operate, check the settings and the equipment
•
“Summary of Q-Link and VIERA Link features” (p. 82, 83), “Preparations” (p. 85)
If you wish to record a programme that the DIGA Recorder does not support, a SCART connection is
•
Link Functions (Q-Link / VIERA Link)
required and the programme is recorded by Q-Link function (p. 84).
Depending on the programme, a SCART connection may be required to record.
•
Changing channel or turning off the TV is available while the recorder is recording from its own tuner.
•
Changing channel is not available while the recorder is recording from the TV tuner.
•
■ To stop recording
Select [Stop] in [Direct TV Rec]
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
You can also stop recording directly.
•
G
U
I
D
E
86
Start
Stop
Recorder
Home Cinema
Unlock the tuner
Press EXIT to unlock and stop recording
Display [VIERA Link Menu]
1
Select [Direct TV Rec] and start recording
2
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Start
Recorder
Home Cinema
select
access / start
You can also start recording directly.
•
DIRECT TV REC
select
access / stop
Tuner Locked
EXIT
Page 87
Pause Live TV programme [Pause Live TV]
You can pause the live TV programme and resume the programme later.
The live TV programme will be recorded on HDD of the connected DIGA Recorder.
This function is available with a DIGA Recorder which has HDD.
•
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please
•
connect the DIGA Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if
you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder which has HDD to HDMI1.
If Pause Live TV does not operate, check the settings and the equipment
•
“Summary of Q-Link and VIERA Link features” (p. 82, 83), “Preparations” (p. 85)
Display [VIERA Link Menu]
1
Select [Pause Live TV] and pause
2
The TV picture will be paused.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Live TV programme is recorded on HDD from where it was paused.
•
If the paused TV picture disappears after a few minutes.
•
OPTION
(the paused picture will be restored)
Follow the operation guide to operate Pause Live TV function.
•
Start
Start
Recorder
Home Cinema
select
pause
■ To operate Pause Live TV
search backward
pause
search forward
playback
stop
If you stop playback, the recorded programme will be deleted from HDD.
•
Operations may be different depending on the recorder. In this case,
•
follow the operation guide or read the manual of the recorder.
Link Functions (Q-Link / VIERA Link)
■ To return to Live TV (stop playback of Pause Live TV / cancel pause)
Select [Yes]
Pause Live TV
TV
If you stop playback or cancel pause, the recorded programme will be deleted from HDD.
•
Stop Pause Live TV?
Yes
No
Control the menu of the connected equipment by VIERA remote control [VIERA Link Control]
You can control some functions of the connected equipment with this TV remote control (point the
remote control at the TV’s signal receiver).
If you cannot operate the menu of the connected equipment, check the settings and the equipment
•
“Summary of Q-Link and VIERA Link features” (p. 82, 83), “Preparations” (p. 85)
For details of the operations for the connected equipment, read the manual of the equipment.
•
Display [VIERA Link Menu]
1
Select [VIERA Link Control]
2
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Start
Recorder
Home Cinema
select
stop
select
access
87
Page 88
Select the equipment you want to access
3
The type of the connected equipment is displayed.
Select the type of the equipment and access.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Start
Recorder
Home Cinema
select
store
[Recorder] / [Player] / [Home Cinema] / [Video Camera] / [LUMIX] / [Digital Camera] / [Other]
You can also access directly by using VIERA TOOLS “How to Use VIERA TOOLS” (p. 29)
•
The displayed item may vary depending on the connected equipment.
•
[Home Cinema] means Player theatre, Blu-ray Disc theatre or Recorder theatre.
•
[Other] means Tuner set top box.
•
The menu of the accessed equipment (Input mode will be changed automatically)
Operate the menu of the equipment
4
Available VIERA remote control buttons:
(depending on the connected equipment)
1 Set the position to “TV”
DVD/VCR
TV
2 Follow the operation guide
To display the operation guide
•
OPTION
Link Functions (Q-Link / VIERA Link)
If other manufacturers’ equipment is accessed, Setup / Contents Selection
menu may be displayed.
When the key words are displayed on colour bar
•
(red) (green) (yellow) (blue)
Note
Some operations may not be available depending on the equipment. In this
•
case use its own remote control to operate the equipment.
TV
■ If multiple recorders or players are connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
[Recorder1-3 / Player1-3]
Start
Start
Recorder2
Home Cinema
The number is given from the TV’s lower HDMI terminal number
connected to the same type equipment. For example, two recorders
to HDMI2 and HDMI3, in this case the recorder connected to HDMI2
is displayed as [Recorder1], and the recorder connected to HDMI3 is
displayed as [Recorder2].
■ If you access non-VIERA Link equipment
The type of the connected equipment is displayed.
You can access the menu of the equipment. But you cannot operate
it. Use its own remote control to operate the equipment.
88
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Start
Recorder
Home Cinema
Page 89
Speaker control [Speaker Selection]
You can control the home theatre speakers with this TV remote control (point the remote control at the
TV’s signal receiver).
If you cannot operate, check the settings and the equipment.
•
“Summary of Q-Link and VIERA Link features” (p. 82, 83), “Preparations” (p. 85)
Display [VIERA Link Menu]
1
Select [Speaker Selection]
2
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Set to [Home Cinema] or [TV]
3
select
store
Start
Start
Recorder
Home Cinema
select
access
[Home Cinema]
The Player theatre, Blu-ray Disc theatre or Amplifier will be automatically
turned on if it is in Standby mode and the sound will be output from
theatre speakers connected to the equipment.
Volume up / down
•
•
Mute
Link Functions (Q-Link / VIERA Link)
The sound of the TV speakers is muted.
•
When the equipment is turned off, the TV speakers will be activated.
•
[TV]
TV speakers are active.
TV
Note
These functions may not work properly depending on the connected equipment.
•
Image or sound may not be available for the first few seconds when input mode is switched.
•
Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or
•
Amplifier. Read the manual of the equipment.
“HDAVI Control 5” is the newest standard (current as of December, 2010) for HDAVI Control
•
compatible equipment. This standard is compatible with conventional HDAVI equipment.
To confirm this TV’s version of HDAVI Control [System Information] (p. 36)
•
Multi-channel sound
If you wish to enjoy multi-channel sound (e.g. Dolby Digital 5.1ch) via an
Amplifier, connect the Amplifier to the TV with an HDMI cable and an Optical
digital audio cable (p. 83), and then select “Home Cinema”. If your Amplifier
has “HDAVI Control 5” function, you only need to connect with an HDMI cable.
In this case, connect your Amplifier to the TV’s HDMI2 terminal.
To enjoy the sound from the DIGA Recorder in multi-channel sound, connect
an HDMI cable from the DIGA Recorder to the Amplifier (p. 83).
89
Page 90
External Equipment
These diagrams show our recommendations for connection of your TV to various pieces of equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the
specifications (p. 106, 107).
To record / playback
Terrestrial aerial
or
RF cable
External Equipment
Rear of the TV
Fully wired SCART cable
DVD Recorder /
VCR
To watch satellite broadcasts
Fully wired
Fully wired HDMI
compliant cable
HD Satellite
receiver
To watch DVDs
(Listening)
DVD Player
(Viewing)
HDMI equipment
SCART
cable
90
Recorder / Player
Fully wired HDMI
compliant cable
HDMI connection (p. 97)
•
Camcorder
Page 91
Side panel of
the TV
Network (wired)
Less
than
10 cm
Ferrite core (supplied)
LAN cable
Less
than
10 cm
Hub or Router
Installing the Ferrite core
Pull back the tabs
(in two places)
Wind the cable
twice
USB devices
Wireless LAN Adaptor
Internet
Modem
Press the cable
through and close
Rear of the TV
USB cable
USB HDD
Camcorder / Game equipment
(Viewing)
Camcorder
(Listening)
Game equipment
To listen with speakers
Optical digital audio
cable
To enjoy the sound from the external equipment in
multi-channel sound (e.g. Dolby Digital 5.1ch),
connect the equipment to the amplifier.
For the connections, read the manuals of the
equipment and amplifier.
RCA cable
or
Amplifier with
speaker system
External Equipment
91
Page 92
Rear of the TV
Side panel of
Headphones
the TV
(M3 stereo mini plug)
To adjust volume
•
[Headphone Volume] (p. 33)
Types of connectable equipment to each terminal
Terminal
COMPONENT
AUDIO OUT
AUDIO OUT
AV1
AV2
Recording / Playback
(equipment)
To record / playback videocassettes /
DVDs (VCR / DVD Recorder)
External Equipment
To watch satellite broadcasts
(Set top box)
To watch DVDs (DVD Player)
To watch camcorder images
(Video camera)
To play games (Game equipment)
To use amplifier with speaker system
To use network services
USB HDD Recording
Q-Link
VIERA Link
(with
HDMI)
Direct TV Recording
: Recommended Connection
∗
1 : Use HDMI1 for automatic input switching.
∗
2 : Use HDMI2 for connecting an amplifier. This connection is applicable when using an amplifier that
has ARC (Audio Return Channel) function.
∗
3 : Use USB 3 port for connecting the USB HDD.
DIGITAL
ETHERNET
HDMI 1 - 4
USB 1 - 3
1
∗
2
∗
3
∗
92
Page 93
Technical Information
Auto Aspect
The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p. 20)
Aspect Control Signal
[WIDE] will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through
SCART / HDMI terminal is found.
The aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio.
This function will work in any aspect mode.
Aspect Control Signal
Input terminal Input signal format
DVB
RF
AV1 / AV2
(Composite)
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
PAL I
PAL 525/60 6.0 MHz –
M.NTSC 6.0 MHz –
PAL
PAL 525/60 –
M.NTSC –
NTSC –
525 (480) / 60i, 60p –
625 (576) / 50i, 50p
750 (720) / 60p, 50p –
1,125 (1,080) / 60i, 50i –
525 (480) / 60i, 60p –
625 (576) / 50i, 50p –
750 (720) / 60p, 50p –
1,125 (1,080) / 60i, 50i –
1,125 (1,080) / 60p,
50p, 24p
Widescreen
signal (WSS)
–
Auto mode
Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process
(WSS, Control signal through SCART / HDMI terminal, Letterbox detection or Justify to fill the screen).
This process may take several minutes, depending on the darkness of the image.
Letterbox detection:
If black bands at the top and bottom of the screen are detected, Auto mode chooses the best ratio and
expands the image to fill the screen.
If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.
Note
The ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands
•
at the top and bottom of the screen may appear.
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR,
•
adjust the tracking of the VCR. Read the manual of the VCR.
Control signal
through SCART (pin8) /
HDMI terminal
Technical Information
93
Page 94
Supported file format in Media Player and media servers
■ Photo
Format File extension Image resolution (pixel) Details / Restrictions
1
JPEG .jpg
∗
1 : Design rule for Camera File system - unified standard established by Japan Electronics and
Information Technology Industries Association (JEITA)
∗
2 : Exchangeable Image File - image file format used by digital cameras
8 × 8
to
30,719 × 17,279
∗
DCF
and EXIF
Sub-sampling : 4:4:4, 4:2:2, 4:2:0
Progressive JPEG is not supported.
•
2
∗
standards
■ Video
Container
SD-Video .mod
AVCHD .mts H.264 Dolby Digital
AVI
MKV .mkv
ASF
Technical Information
MP4 .mp4
MOV .mov
PS
TS
∗
3 :
94
File extension
.avi
.divx
.asf
.wmv
.mpg
.mpeg
.ts
.tp
Some products of before the year 2004 may not be available. The compatibility with future products is not guaranteed.
Video codec Audio codec Details / Restrictions
MPEG1
MPEG2
DIV3 DIV4
DIVX DX50
DIV6 XviD
MPEG4 SP /
ASP
H.264 BP /
MP / HP
Windows
Media Video
Ver. 9
VC-1
H.264 BP /
MP / HP
MotionJPEG
H.264 BP /
MP / HP
MPEG1
MPEG2
MPEG2
H.264
MPEG
Dolby Digital
MPEG
MP3
Dolby Digital
MPEG
MP3
Dolby Digital
DTS core
WMA
AAC
MP3
Dolby Digital
Linear PCM (RAW /
TWOS / SOWT)
AAC
MP3
Dolby Digital
MPEG
MP3
Linear PCM
AAC
MP3
Dolby Digital
Dolby Digital
Plus
HE-AAC
SD-Video Standard Ver. 1.3
(Entertainment Video Profile)
The data may not be available if a folder
•
structure on the device is modified.
AVCHD Standard
The data may not be available if a folder
•
structure on the device is modified.
Certified to play DivX Plus HD video
•
file in Media Player
For details of DivX “DivX” (p. 95)
Copy-protected files cannot be played
•
back.
WMA Pro and WMA Lossless are not
•
supported.
This TV supports this container
•
recorded by Panasonic products.
For details, read the manual of the products.
This TV supports Motion JPEG recorded
•
by Panasonic LUMIX Camera
This TV is not available for playing back
•
Motion JPEG with the media server.
–
This container can be played back
•
only with the media server.
3
∗
.
Page 95
■ Music
Codec File extension Restrictions
MP3 .mp3 –
AAC .m4a
WMA .wma
Note
Some files may not be played back even if they fulfill these conditions.
•
Do not use two-byte characters or other special codes for data.
•
The device may become unusable with this TV if the file or folder names are changed.
•
DivX
DivX Certified® to play DivX® and DivX Plus™ HD (H.264/MKV) video up to 1080p HD including premium content.
ABOUT DIVX VIDEO :
DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video.
Visit divx.com for more information and software tools to convert your files into DivX video.
Subtitle text file of DivX
Subtitles format - MicroDVD, SubRip, TMPlayer
The DivX video file and subtitles text file are inside the same folder, and the file names are the same
•
except for the file extensions.
If there are more than one subtitles text files inside the same folder, they are displayed in the following
•
order of priority : “.srt”, “.sub”, “.txt”.
To confirm or change the current subtitle status while playing DivX content, press the OPTION button
•
to display Option Menu.
Depending on the methods used to create the file or the state of recording, only parts of the subtitles
•
may be displayed, or the subtitles may not be displayed at all.
Note
Depending on how you make SD Card, USB Flash Memory or the media server, files and folders may
•
not be displayed in the order you numbered.
Depending on how you create the files and the structure of folders, the files and folders may not be displayed.
•
When there are many files and folders, operation may take time to complete or some files may not be
•
displayed or playable.
ABOUT DIVX VIDEO-ON-DEMAND :
This DivX Certified
(VOD) movies. To obtain your registration code, locate the DivX VOD section in the Setup Menu. Go to
vod.divx.com for more information on how to complete your registration.
®
device must be registered in order to play purchased DivX Video-on-Demand
To show DivX VOD registration code
[DivX® VOD] in the Setup Menu (p. 36)
If you want to generate the new registration code, you have to deregister the present registration code.
•
After playing DivX VOD content once, the confirmation screen to deregister will be displayed in [DivX®
VOD] in the Setup Menu. If you press the OK button on the confirmation screen, the deregistration
code will be generated and you will not be able to play any contents that you purchased using the
present registration code.
You will obtain the new registration code by pressing the OK button on the deregistration code screen.
If you purchase DivX VOD content using a registration code different from this TV’s code, you will not be
•
able to play this content. ([Your device is not authorized to play this DivX protected video.] is displayed.)
Regarding DivX content that can only be played a set number of times
Some DivX VOD content can only be played a set number of times.
When you play this content, the remaining number of plays is displayed. You cannot play this content
when the number of remaining plays is zero. ([This DivX rental has expired.] is displayed.)
When playing this content, the number of remaining plays is reduced by one in the following conditions :
•
• If you exit the current application.
• If you play the other content.
• If you go to the next or previous content.
Copy-protected files cannot be played back.
•
Copy-protected files cannot be played back.
•
WMA Pro and WMA Lossless are not supported.
•
Technical Information
95
Page 96
Devices for recording or playing back
■ SD Card (for playing back in Media Player)
Card format : SDXC Card - exFAT SDHC Card / SD Card - FAT16 or FAT32
Compliant card type (maximum capacity) :
SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB), miniSD Card (2 GB)
(requiring miniSD adaptor)
If miniSD Card is used, insert / remove it together with the adaptor.
•
Check the latest information on the card type at the following website.
•
http://panasonic.jp/support/global/cs/tv/
Use an SD Card which meets SD standards. If not, it may cause the TV to
•
malfunction.
2.1 mm
32 mm
24 mm
■ USB Flash Memory (for playing back in Media Player)
USB Flash Memory format : FAT16, FAT32 or exFAT
A USB HDD formatted by PC is not supported in Media Player.
•
■ USB HDD (for recording the digital TV programmes with this TV and playing back in Media Player)
The capacity of USB HDD that have been tested for the performance with this TV : From 160 GB to 3 TB
Connect the USB HDD to the socket outlet to record and play back properly with this TV.
•
Format the USB HDD with this TV in order to use it. (p. 55)
•
Regarding the performance, not all USB HDDs are guaranteed. Check the USB HDDs that have been
•
tested for the performance with this TV at the following website.
http://panasonic.jp/support/global/cs/tv/
Note
Data modified with a PC may not be displayed.
•
Do not remove the device while the TV is accessing data (this can damage device or TV).
•
Do not touch the pins on the device.
•
Do not subject the device to a high pressure or impact.
•
Insert the device in the correct direction (otherwise, device or TV may be damaged).
•
Electrical interference, static electricity, or erroneous operation may damage the data or device.
•
Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic
•
operation of the TV. (Panasonic is not liable for any deterioration or damage of recorded data.)
SCART and HDMI terminal information
AV1 SCART terminal (RGB, VIDEO, Q-Link)
Socket Earth 21
Technical Information
CVBS out (video) 19
CVBS earth 17
Red in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
HDMI terminal
Hot Plug Detect 19
96
DDC/CEC Ground 17
TMDS Clock Shield 11
TMDS Data0− 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2− 3
TMDS Data2+ 1
SCL 15
CEC 13
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
18 +5V Power
16 SDA
14 Utility
12 TMDS Clock−
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1−
4 TMDS Data1+
2 TMDS Data2 Shield
Page 97
Characters table for numeric buttons
You can enter characters by using numeric buttons for free input items.
User input
Name
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
O P Q R S T
7 8 9 ! : #
o p q r s t
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
Characters table:
Numeric
buttons
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
1234567 891011
.1! :#+- *
abc 2ABC
de f 3DEF
ghi4GHI
jkl5JKL
mno6MNO
pq r s7PQRS
tuv8TUV
wxyz9WXYZ
Space 0
abc def
Press the numeric button repeatedly until you reach
jkl
ghi
mno
the desired character.
tuvpqrs
wxyz
The character is set automatically if you do not press the
•
button for 1 second.
You can also set the character by pressing the OK button or
•
other numeric buttons within 1 second.
The number of times to press
_()
HDMI connection
HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface
complying with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV
and the equipment.
HDMI-compatible equipment
1
∗
with an HDMI or DVI output terminal, such as a DVD player, a set top box or
a game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
For information about connections, see “External Equipment” (p. 90).
Applicable HDMI features
Input audio signal :
•
2ch Linear PCM
(sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
Input video signal :
•
480i, 480p, 576i, 576p, 720p, 1080i and 1080p
“Input signal that can be displayed” (p. 98)
Match the output setting of the digital equipment.
Input PC signal :
•
“Input signal that can be displayed” (p. 98)
Match the output setting of the PC.
VIERA Link (HDAVI Control 5)
•
[VIERA Link] (p. 85)
Content Type
•
Deep Colour
•
x.v.Colour™
•
Audio Return Channel
•
(HDMI2 terminal only)
2
∗
DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI
adaptor cable
input terminal (HDMI1 / 2 / 3 : use AUDIO IN terminals / HDMI4 : use AV2 audio terminals).
Note
Audio settings can be made on the [HDMI1 / 2 / 3 / 4 Input] in the Sound Menu. (p. 33)
•
If the connected equipment has an aspect adjustment function, set the aspect ratio to [16:9].
•
These HDMI connectors are “type A”.
•
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection)
•
copyright protection.
Equipment having no digital output terminal may be connected to the input terminal of “COMPONENT”
•
or “VIDEO” to receive analogue signals.
This TV incorporates HDMI™ technology.
•
∗
1 : The HDMI logo is displayed on HDMI-compliant equipment.
∗
Audio Return Channel (ARC) is a function to be able to send digital sound signals via an HDMI cable.
2 :
∗
3 : Enquire at your local digital equipment retailer shop.
3
∗
. When the DVI to HDMI adaptor cable is used, connect the audio cable to the audio
Technical Information
97
Page 98
USB connection
It is recommended to connect the USB HDD or USB Flash Memory directly to the TV’s USB ports.
•
Some USB devices or USB HUB may not be used with this TV.
•
You cannot connect any devices by using USB card reader.
•
You cannot use two or more same kind of USB devices simultaneously except USB Flash Memory or USB HDD.
•
Additional information for USB devices may be on the following website.
•
http://panasonic.jp/support/global/cs/tv/
USB Keyboard
The USB Keyboard which requires the driver is not supported.
•
To change the language type [USB Keyboard Layout] (p. 36)
•
Characters may not be displayed correctly on the TV screen depending on the connected keyboard or
•
the keyboard layout setting.
Some of the keys of USB keyboards may correspond to the operation of the remote control.
•
USB Keyboard Remote Control USB Keyboard Remote Control
↑ / ↓ / ← / →
Enter OK F3 MENU
Backspace BACK/RETURN F4 INPUT (AV)
Esc EXIT F5 / F6 Channel Down / Up
0 - 9 / Character Numeric buttons F7 / F8 Volume Down / Up
F1 GUIDE F9 / F10 / F11 / F12 Coloured buttons
Cursor buttons F2 VIERA TOOLS
Gamepad
Check the gamepads that have been tested for the performance with this TV at the following website.
•
http://panasonic.jp/support/global/cs/tv/
Some of the keys of gamepads correspond to the operation of the remote control.
•
Example :
1
Select Start
1011
2
7 69 8
1 Volume Up / Down 7 VIERA TOOLS
2 Channel Up / Down 8 EXIT
3
4
3 GUIDE
5
4OK
5 BACK/RETURN
6 VIERA Connect 11 Cursor buttons
Remote Control Remote Control
INPUT
9
(AV)
10
MENU
Input signal that can be displayed
Technical Information
COMPONENT (Y, PB, PR), HDMI
Signal name COMPONENT HDMI
525 (480) / 60i, 60p
625 (576) / 50i, 50p
750 (720) / 60p, 50p
1,125 (1,080) / 60i, 50i
1,125 (1,080) / 60p, 50p, 24p
Mark : Applicable input signal
PC (from HDMI terminal)
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00
Applicable input signal for PC is basically compatible to HDMI standard timing.
Note
Signals other than above may not be displayed properly.
•
The above signals are reformatted for optimal viewing on your display.
•
PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with
•
sufficient clarity.
98
Page 99
How to use Windows 7 as a media server
Follow the examples below to set up Windows 7 for use as a media server.
Confirm the MAC Address of VIERA in [Network Setup] (p. 77).
The following procedure and screens are examples. For more information, refer to the help functions of
Windows 7.
Open the Windows start menu and select
1
[Control Panel].
Select [HomeGroup] in Control Panel window.
property window
In [Name your media library:] text box, enter a name
3
that will identify your PC on VIERA.
On the Show devices drop bar, select [All networks]
to display all the available devices in the list. VIERA
Name stored in the [Network Link Settings] (p. 73)
will be displayed.
Select the VIERA Name and click [Allowed] so that
VIERA can access your PC.
Then, click [OK].
If the VIERA Name is not displayed correctly, click
the device to confirm the MAC address of the device
in property window. Find a device that has the same
MAC address as VIERA: that is your VIERA.
Be sure [Pictures], [Music] and [Videos]
2
of “Share libraries and printers” and
[Stream my pictures, music, and videos
to all devices on my home network] of
“Share media with devices” are checked.
(Check them and click [Save changes] if
necessary). Then select [Choose media
streaming options...].
To share photos, music and videos with
4
VIERA, put photo files into [Public Pictures]
folder and video files into [Public Videos]
folder under
\Computer\Local Disk (C:)\Users\Public.
Technical Information
99
Page 100
FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care
Centre for assistance. For details
Block noise, frozen or disappearing image occurs in digital mode / White spots or shadow
image (ghosting) occurs in Analogue mode / Some channels cannot be tuned
Check the position, direction and connection of the aerial.
•
Check [Signal Condition] (p. 42). If [Signal Quality] is displayed in red, the digital signal is weak.
•
Check your postcode area is able to receive the Freeview channels at www.freeview.co.uk
•
Digital signals may be relatively low to prevent interference with analogue signals for the period of
•
Digital Switchover. Check the schedule of Digital Switchover at www.digitaluk.co.uk
Weather conditions will affect signal reception (heavy rain, snow, etc.), in particular in poor reception
•
areas. Even during good weather, high pressure can cause poor reception of some channels.
Due to the digital reception technologies involved, quality of the digital signals may be relatively low
•
in some cases, despite good reception of analogue channels.
Turn the TV off with the Mains power On / Off switch, and then on again.
•
If problem persists, consult your local dealer.
•
Neither image nor sound is produced
Is the TV in AV mode?
•
Check the correct AV input mode is selected.
•
Check the mains lead is plugged into the socket outlet.
•
Has the TV been turned On?
•
Check the Picture Menu (p. 31) and volume.
•
Check all required cables and connections are firmly in place.
•
Auto aspect
Auto aspect is designed to provide you with the best ratio to fill the screen. (p. 93)
•
Press the ASPECT button if you would like to change the aspect ratio manually. (p. 20)
•
(p. 108)
Black and white picture
When connecting with SCART, ensure the output setting of the external equipment is not S-Video.
•
Input mode, i.e. EC/AV1 remains on the screen
Press the button to clear this message.
•
Press again to redisplay.
Q-Link function does not work
Confirm SCART cable and connection.
•
Also set [AV1 out] in the Setup Menu. (p. 34)
FAQs
[VIERA Link] function does not work and an error message appears
Confirm the connection. (p. 82, 83)
•
Turn the connected equipment on and then switch the TV on. (p. 85)
•
Recording does not start immediately
Check the settings of the recorder. For details, read the manual of the recorder.
•
Contrast is reduced
Contrast is lowered in the following conditions without any user operation for a few minutes:
•
• no signal in DVB or AV mode
• selection of a locked channel
• selection of an invalid channel
• selection of a radio channel
• displayed menu
• digital teletext (no video contents)
• thumbnail or still picture in Media Player or
DLNA operations
100
Loading...
