Model No.
TX-P42VT30E
TX-P50VT30E
Operating Instructions
Plasma Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
English |
TQB0E2131U-1 |
Experience an amazing level of multimedia excitement
Enjoy rich multimedia
|
USB device |
SD Card |
Camcorder |
Network
Set top box
Amplifier with
Speaker system
DVD Recorder |
USB HDD |
VCR |
|
DVD Player
Blu-ray Disc Player
Notice for DVB / Data broadcasting / IPTV functions
•This TV is designed to meet the standards (as of August, 2010) of DVB-T (MPEG2 and MPEG4-AVC(H.264)) digital terrestrial services, DVB-C (MPEG2 and MPEG4-AVC(H.264)) digital cable services and DVB-S (MPEG2 and MPEG4-AVC(H.264)) digital satellite services.
Consult your local dealer for availability of DVB-T or DVB-S services in your area.
Consult your cable service provider for availability of DVB-C services with this TV.
•This TV may not work correctly with the signal which does not meet the standards of DVB-T, DVB-C or DVB-S.
•Not all the features are available depending on the country, area, broadcaster, service provider and satellite.
•Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
•This TV may not work correctly with CI module that is not approved by the service provider.
•Additional fees may be charged depending on the service provider.
•The compatibility with future services is not guaranteed.
•Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/
2
Do not display a still picture for a long time
This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.
Typical still images
•Channel number and other logos
•Image displayed in 4:3 mode
•Video game
•Computer image
To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 122)
Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/ or performance from usage of such other maker’s peripheral devices.
The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.
This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/
OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS,
OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY
INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
Be Sure to Read
Safety Precautions····································································4
Maintenance ··············································································5
Quick Start Guide
Accessories / Options······························································6
Identifying Controls·································································9
Basic Connection··································································· 11
Auto Setup··············································································· 13
Enjoy your TV!
Basic Features
Using “VIERA Connect”························································ 18
Watching TV ············································································ 19 Using TV Guide······································································· 23 Viewing Teletext····································································· 26
Watching External Inputs ··················································· 28 Viewing 3D images······························································· 30 How to Use VIERA TOOLS ··················································· 39 How to Use Menu Functions············································· 40
Advanced Features
Retuning from Setup Menu··············································· 50 Tuning and Editing Channels (DVB) ······························· 54 Tuning and Editing Channels (Analogue)····················· 58 Timer Programming ····························································· 60 Child Lock················································································· 62 Input Labels············································································· 64 Using MHP Services······························································ 65 Using Common Interface ··················································· 67
Shipping Condition ······························································ 68 Updating the TV Software·················································· 69 Multi Window·········································································· 70 Advanced Picture Settings················································· 71 USB HDD / SD Card Recording·········································· 74 Using Media Player ······························································· 79 Using Network Services (DLNA / VIERA Connect)··········· 92 Link Functions (Q-Link / VIERA Link)·····························103 External Equipment····························································112
FAQs, etc.
Technical Information························································115
FAQs ·························································································122
Licence ····················································································125
Specifications········································································126
3
Precautions Safety
Warning
Handling the mains plug and lead
•Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.)
•Ensure that the mains plug is easily accessible.
•Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
•An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
•Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
•Do not damage the mains lead. (A damaged lead may cause fire or electrical shock.)
•Do not move the TV with the lead plugged in the socket outlet.
•Do not place a heavy object on the lead or place the lead near a high-temperature object.
•Do not twist the lead, bend it excessively, or stretch it.
•Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
•Do not use a damaged mains plug or socket outlet.
If you find any abnormality, |
AC 220-240 V |
remove the mains plug |
50 / 60 Hz |
immediately! |
|
|
|
Power source
•This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.
Do not remove covers and NEVER modify the TV yourself
•Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside. (High-voltage components may cause serious electrical shock.)
•Have the TV checked, adjusted, or repaired at your local Panasonic dealer.
Do not expose to direct sunlight and other sources of heat
•Avoid exposing the TV to direct sunlight and other sources of heat.
To prevent the spread of fire, keep candles or other open flames away from this product at all times
Do not expose to rain or excessive moisture
•To prevent damage which might result in electric shock or fire, do not expose this TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.
Do not insert foreign objects into the TV
•Do not allow any objects to drop into the TV through the air vents. (Fire or electrical shock may result.)
Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base
•The TV may fall off or tip over.
Use only the dedicated pedestals / mounting equipment
•Using an unapproved pedestal or other fixtures may make the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup.
•Use approved pedestals (p. 7) / wall-hanging brackets
(p. 7).
Do not allow children to handle SD Card
•As with any small object, SD Cards can be swallowed by young children. Please remove SD Card immediately after use and store out of reach of children.
4
Caution
When cleaning the TV, remove the mains plug
•Cleaning an energized TV may cause electrical shock.
When the TV is not going to be used for a long period of time, remove the mains plug
•This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.
Transport only in upright position
•Transporting the TV with its display panel facing upward or downward may cause damage to the internal circuitry.
Allow sufficient space around the TV for radiated heat
Minimum distance
10
10 |
10 |
7 |
(cm)
•When using the pedestal, keep the space between the bottom of the TV and the surface where the TV is set.
•In case of using Wall-hanging bracket, follow the manual of it.
Do not block the rear air vents
•Blocked ventilation by newspapers, table cloths, curtains, etc. may cause overheating, fire or electrical shock.
Do not expose your ears to excessive volume from the headphones
•Irreversible damage can be caused.
Do not apply strong force or impact to the display panel
•This may cause damage resulting in injury.
The TV is heavy. Handle the TV by 2 or more people. Support as shown to avoid injury by the TV tipping or falling.
First, remove the mains plug from the socket outlet.
Display panel, Cabinet, Pedestal
Regular care : |
For stubborn dirt : |
Gently wipe the surface of the display panel, cabinet, |
Dampen a soft cloth with clean water or diluted neutral detergent |
or pedestal by using a soft cloth to clean the dirt or |
(1 part detergent to 100 parts water). Then wring the cloth and |
fingerprints. |
wipe the surface. Finally, wipe away all the moisture. |
Caution
•Do not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.
•Take care not to subject the TV’s surfaces to water or detergent. A liquid inside the TV could lead to product failure.
•Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.
•The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
•Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.
Maintenance | Precautions Safety
5
Options / Accessories Guide Start Quick
Accessories / Options |
|
||
Standard accessories |
|
|
|
Remote Control |
Batteries for the |
Pedestal |
Clamper |
•N2QAYB000593 |
Remote Control (2) |
(p. 7) |
(p. 11) |
|
•R6 |
|
|
|
(p. 7) |
|
|
Wireless LAN Adaptor and |
3D Eyewear set (2) |
Ferrite core (2) |
Ferrite core |
exclusive stand |
(p. 32) |
(Large size) |
(Small size) |
(p. 12 and p. 93) |
|
(p. 12, 113) |
(p. 114) |
|
|
Use the Ferrite cores to comply with the EMC standard. |
|
Operating Instructions |
Pan European Guarantee Card |
|
|
Terminal adaptors |
•RF adaptor |
•SCART adaptor |
•COMPONENT adaptor |
•Satellite adaptor |
|||
(p. 11, 112) |
(p. 11, 12, 112) |
(p. 11, 12, 112) |
(p. 112) |
•Composite adaptor |
•Audio adaptor |
•Optical digital audio adaptor |
(p. 112, 113) |
(p. 113) |
(p. 113) |
•Accessories may not be placed all together. Take care not to throw them away unintentionally.
•This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children.
Optional accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.
3D Eyewear set |
|
|
(Battery type) |
(Rechargeable type) |
•If you need 3D Eyewears additionally, please purchase this optional accessory. |
•TY-EW3D10E |
•TY-EW3D2LE |
|
|
•TY-EW3D2ME |
•For more information (English only) : |
|
•TY-EW3D2SE |
http://panasonic.net/avc/viera/3d/eu.html |
Communication Camera |
|
|
•TY-CC10W |
Caution |
|
|
•This camera can be used on VIERA Connect (p. 18, 102). |
|
|
•Please also read the manual of the camera. |
|
|
•Depending on the area, this optional accessory may not be available. |
For details, consult your local Panasonic dealer.
6
Wall-hanging bracket
•TY-WK4P1RW •Tilting angle for this TV : 0 (vertical) to 20 degrees
Rear of the TV |
Depth of screw : minimum 10 mm, |
|
|
|
maximum 16 mm |
400 mm |
Diameter : M8 |
|
|
300 mm |
Screw for fixing the TV onto the wall-hanging bracket |
(not supplied with the TV) |
(View from the side)
Holes for wall-hanging bracket installation
Warning
•Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
•Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.
•Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
•Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
•To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.
Installing / removing remote’s batteries
1 |
Caution |
|
Pull open |
•Incorrect installation may cause battery leakage and corrosion, resulting |
|
|
in damage to the remote control. |
|
|
•Do not mix old and new batteries. |
|
Hook |
•Do not mix different battery types (such as alkaline and manganese |
|
2 |
batteries). |
|
•Do not use rechargeable (Ni-Cd) batteries. |
||
Close |
||
•Do not burn or breakup batteries. |
||
|
||
|
Batteries must not be exposed to excessive heat such as sunshine, fire or |
|
|
the like. |
|
Note the correct |
•Do not disassemble or modify the remote control. |
|
polarity (+ or -) |
|
Attaching / removing the pedestal
Warning
Do not disassemble or modify the pedestal.
•Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any pedestal other than the one provided with this TV.
•Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
•If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately.
During set-up, make sure that all screws are securely tightened.
•If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.
Ensure that the TV does not fall over.
•If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.
Two or more people are required to install and remove the TV.
•If two or more people are not present, the TV may be dropped, and personal injury may result.
When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified procedure (p. 8)
•Otherwise the TV and / or pedestal may fall over and become damaged, and personal injury may result.
Options / Accessories Guide Start Quick
7
Options / Accessories Guide Start Quick
A |
Assembly screw (4) |
D Pole |
E Base |
F Cover |
|
(silver) |
•TBL5ZA3055 |
•TBL5ZX0063 |
•TBL5ZB3045-1 |
|
|
|||
|
|
(TX-P42VT30E) |
(TX-P42VT30E) |
(TX-P42VT30E) |
|
|
•TBL5ZA3065 |
•TBL5ZX0067 |
•TBL5ZB3054-1 |
|
M5 × 20 |
(TX-P50VT30E) |
(TX-P50VT30E) |
(TX-P50VT30E) |
B |
Assembly screw (4) |
|
|
|
|
(black) |
|
|
|
M5 × 25
CAssembly screw
(black)
M4 × 8
1Assembling the pedestal
Use the assembly screws A to fasten the pole D to the base E securely.
•Make sure that the screws are securely tightened.
•Forcing the assembly screws the wrong way will strip the threads.
A |
E |
D |
|
Front |
||
|
2Securing the TV
Use the assembly screws B to fasten securely.
•Tighten the four assembly screws loosely at first, then tighten them firmly to fix securely.
•Carry out the work on a horizontal and level surface.
B
Arrow mark
|
|
Hole for pedestal |
Attach the cover |
F with assembly screw C |
installation |
|
||
F |
C |
|
|
|
|
|
|
E |
|
|
(View from the bottom) |
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.
1 Remove the assembly screws B from the TV. 2 Pull out the pedestal from the TV.
3 Remove the assembly screw C from the cover.
4 Pull out the cover.
5 Remove the assembly screws A from the pole.
Adjusting the panel to your desired angle
•Do not place any objects within the full rotation range.
(View from the top)
: 15° (TX-P42VT30E) : 10° (TX-P50VT30E)
8
Remote Control
1 |
15 |
2 |
16 |
3 |
|
4 |
17 |
5 |
18 |
6 |
19 |
7 |
20 |
8 |
21 |
|
|
9 |
22 |
|
23 |
10 |
24 |
11 |
25 |
12
13 26
14 |
27 |
28
1Standby On / Off switch
•Switches TV On or Off standby
23D button (p. 36)
•Switches to the viewing mode between 2D and 3D
3[Main Menu] (p. 40)
•Press to access Picture, Sound, Timer and Setup Menus
4Aspect (p. 22)
•Changes aspect ratio
5Light
•Lights the buttons (numeric, sound mute, last view, volume, channel) for about 5 seconds
6 [VIERA Link Menu] (p. 107)
7Information (p. 20)
•Displays channel and programme information
8OK
•Confirms selections and choices
•Press after selecting channel positions to quickly change channel
•Displays the Channel List
9[Option Menu] (p. 21)
•Easy optional setting for viewing, sound, etc.
10Teletext (p. 26)
•Switches to teletext mode
11Subtitles (p. 20)
•Displays subtitles
12Numeric buttons
•Changes channel and teletext pages
•Sets characters
•When in Standby mode, switches TV On (Press for about 1 second)
13Sound Mute
•Switches sound mute On or Off
14Volume Up / Down
15Input mode selection
•TV - switches DVB-S / DVB-C / DVB-T / Analogue mode (p. 19)
•AV - switches to AV input mode from Input Selection list (p. 28)
16Direct TV Recording (p. 105, 107)
•Records programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection
17TV Guide (p. 23)
18[VIERA Connect] (p. 18, 102)
•Displays VIERA Connect home screen
19VIERATOOLS (p. 39)
•Displays some special feature icons and accesses easily
20Exit
•Returns to the normal viewing screen
21Cursor buttons
•Makes selections and adjustments
22Return
•Returns to the previous menu / page
23Coloured buttons (red-green-yellow-blue)
•Used for the selection, navigation and operation of various functions
24Hold
•Freeze / unfreeze picture (p. 21)
•Holds the current teletext page (teletext mode)
(p. 26)
25Index (p. 26)
•Returns to the teletext index page (teletext mode)
26Last view (p. 22)
•Switches to previously viewed channel or input mode
27Channel Up / Down
28Connected equipment operations (p. 29, 78, 80, 99, 110)
Controls Identifying Guide Start Quick
9
Controls Identifying Guide Start Quick
TV
|
5 |
1 |
6 |
|
|
2 |
7 |
|
3 |
12 |
|
|
4 |
9 |
10 |
11 |
8 |
1 CI slot (p. 67)
2 SD Card slot (p. 74, 79)
3 USB 3 port (p. 74, 114)
4 HDMI1 - 4 terminal (p. 114)
5Function select
•[Volume] / [Contrast] / [Brightness] / [Colour] /
[Sharpness] / [Tint] (NTSC signal) / [Bass] / [Treble] /
[Balance] / [Auto Setup] (p. 50 - 53)
[Music] or [Speech] mode in the Sound Menu
6Channel Up / Down, Value change (when using the F button), Switching the TV On (press either button for about 1 second when in Standby mode)
Using the On Screen Displays - Operation guide
7 Changes the input mode
8Mains power On / Off switch
•Use to switch the mains power.
If you turned the TV Off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.
9Remote control signal receiver
•Do not place any objects between the TV remote control signal receiver and remote control.
10C.A.T.S. (Contrast Automatic Tracking System) sensor
•Senses brightness to adjust picture quality when [Eco Mode] in the Picture Menu is set to [On] (p. 42)
11Power and Timer LED
•Red : Standby
Green : On
Orange : Timer Programming On
Orange (flash) :
Recording of Timer Programming, Direct TV Recording or One Touch Recording in progress
Red with orange flash :
Standby with Timer Programming On, Direct TV Recording or One Touch Recording
•The LED blinks when the TV receives a command from the remote control.
12Infrared transmitter for 3D Eyewear
•Do not place any objects between the transmitter and 3D Eyewear.
Many features available on this TV can be accessed via the On Screen Display menu.
Operation guide
Operation guide will help you to operate by using the remote control.
Example : [Sound Menu]
Main Menu |
|
|
|
1/2 |
||
|
|
|
|
|
|
|
|
Picture |
Mode |
Music |
|
||
|
Bass |
|
|
0 |
||
|
Sound |
Treble |
|
|
0 |
|
|
Balance |
|
|
0 |
||
|
Timer |
Headphone Volume |
|
|
11 |
|
|
Surround |
Off |
|
|||
|
|
|
||||
|
Setup |
Auto Gain Control |
Off |
|
||
|
|
Volume Correction |
|
|
0 |
|
|
|
Speaker Distance to Wall |
Over 30cm |
|
||
|
|
|
|
|
|
|
Select |
Selects the basic sound mode. |
|
||||
Change |
EXIT |
Page up |
||||
|
|
|
Page down
RETURN
Operation guide
How to use remote control
Open the main menu
Move the cursor / select the menu item / select from a range of options
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options have been set
Return to the
Exit the menu system
previous menu
and return to the normal viewing screen
Auto power standby function
The TV will automatically go to Standby mode in the following conditions :
•no signal is received and no operation is performed for 30 minutes in Analogue TV mode
•[Off Timer] is active in the Timer Menu (p. 21)
•no operation is performed for the period selected in [Auto Standby] (p. 45)
•This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.
10
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. There are some restrictions on placement for viewing 3D images. For details (p. 31, 38)
Example 1 |
Connecting dish or aerial |
TV only
To ensure your satellite dish is correctly installed, please consult your local dealer.
•Also please consult the received satellite broadcasting companies for details.
•Selectable satellites and dish alignment to tune DVB-S channels (p. 51)
Rear of the TV
AC 220-240 V
50/ 60 Hz
|
Satellite dish |
•For digital satellite broadcasts |
Terrestrial aerial |
Satellite adaptor |
Satellite cable |
|
|
(supplied) |
|
•For digital cable, digital terrestrial and analogue |
Cable |
|
|
broadcasts |
|
RF adaptor |
RF cable |
(supplied) |
|
Mains lead
■Clamper (Standard accessory / Attached with the mains lead)
Attach the clamper |
Bundle the cables |
|
|
hole |
|
Insert the |
|
|
clamper in a |
|
Set the |
hole |
|
|
|
|
tip in the |
|
hooks |
hooks |
To remove from the TV :
snaps
Keep pushing both side snaps
To loosen : |
|
|
Keep pushing |
knob |
the knob |
•Do not bundle the Satellite cable, RF cable and mains lead together (could cause distorted image).
•Fix cables with clampers as necessary.
•When using the optional accessory, follow the option’s assembly manual to fix cables.
Example 2 |
Connecting DVD Recorder / VCR and Player |
|
|
TV, DVD Recorder / VCR and Player |
|
|
|
Rear of the TV |
|
|
|
|
|
Fully wired HDMI |
|
|
|
compliant cable |
Player / |
|
|
|
|
|
|
|
3D-compatible player |
|
|
SCART adaptor |
|
|
|
(supplied) |
|
AC 220-240 V |
Terrestrial |
RF adaptor |
Fully wired SCART cable |
(supplied) |
|
||
50/ 60 Hz |
aerial |
|
|
|
|
Cable |
RF OUT |
RF cable |
Mains lead |
RF cable |
RF IN DVD Recorder or VCR |
|
|
Connection Basic Guide Start Quick
11
Connection Basic Guide Start Quick
Example 3 |
Connecting DVD Recorder / VCR and Set top box |
TV, DVD Recorder / VCR and Set top box |
|
Rear of the TV |
Cable |
|
|
|
Fully wired HDMI |
|
compliant cable |
|
Set top box |
|
SCART adaptor |
|
(supplied) |
AC 220-240 V |
Terrestrial |
|
|
Fully wired |
|
aerial |
|
|
|||
RF adaptor |
Fully wired |
SCART cable |
|||
50/ 60 Hz |
|
||||
|
(supplied) |
SCART cable |
|
||
|
|
|
|||
Mains lead |
RF cable |
RF OUT |
|
||
|
|
||||
|
|
RF cable |
RF IN |
DVD Recorder or VCR |
|
|
|
|
|

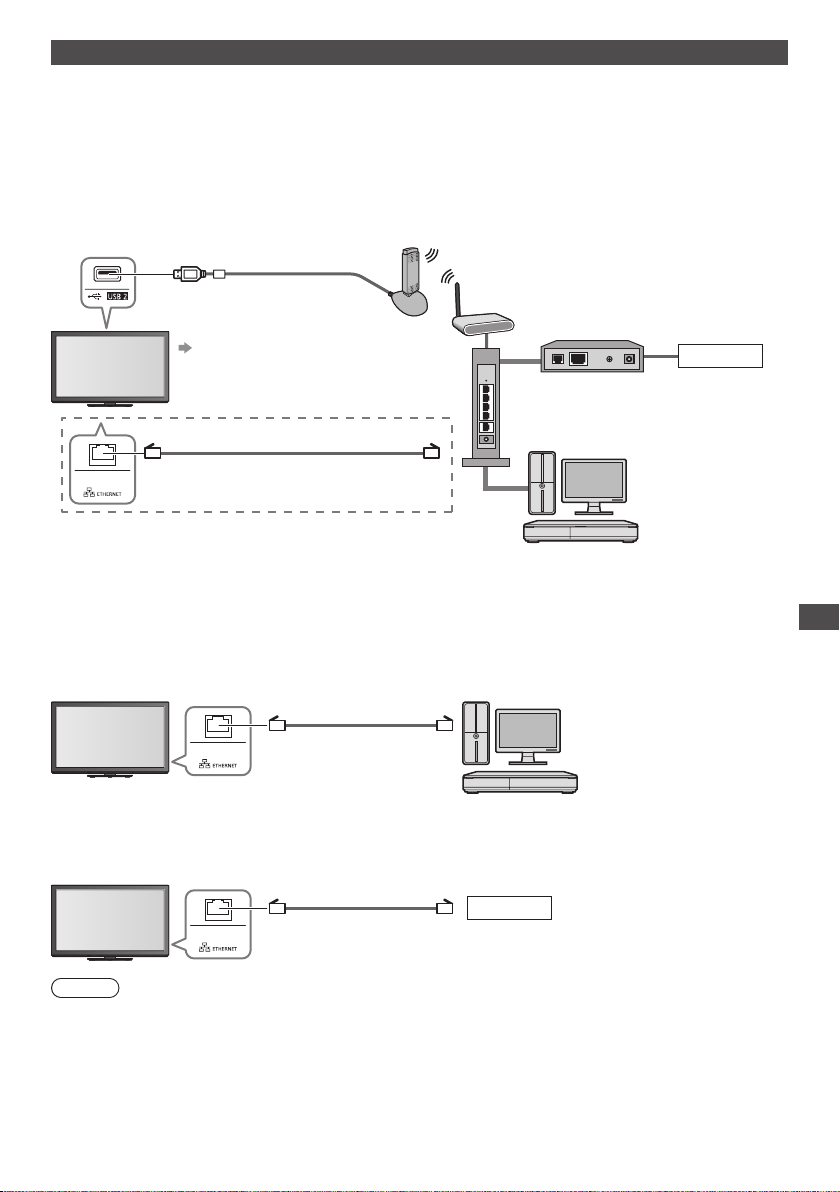

■Connecting to the network environment (Network connections)
To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network |
|||||
environment. |
|
|
|
|
|
•If you do not have any broadband network services, please consult your retailer for assistance. |
|
||||
•Connect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection). |
|
||||
•Setup of the network connection will start after the tuning (when first using the TV) |
(p. 14 - 16) |
|
|||
Rear of the TV |
Wireless connection |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Internet |
|
Wireless LAN Adaptor and exclusive stand |
|
|
environment |
|
|
|
|
|
||
|
“Standard accessories” (p. 6) |
|
|
|
|
|
•Insert the Wireless LAN Adaptor to the stand straightly and |
|
|||
|
completely. |
|
|
|
Access point |
|
•Connect to the USB 1 or 2 port. |
|
|
||
|
|
|
|
||
Wired connection |
|
|
|
|
|
|
|
Ferrite core - Large size (supplied) |
|
||
|
LAN cable |
Installing the Ferrite core |
|
||
Less |
|
|
|
|
|
Less |
|
|
|
|
|
than |
than |
|
|
|
|
10 cm |
10 cm |
|
|
|
|
|
Internet |
Pull back the tabs |
Wind the cable |
Press the cable |
|
|
environment |
||||
|
(in two places) |
twice |
|
through and close |
|
|
|
|
|||
•For more information of the network connections |
(p. 93) |
|
|
|
Note
•To watch 3D contents (p. 30)
•Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p. 105).
•For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI cable (p. 112).
•Q-Link and VIERA Link connec (p. 103, 104)
•Please also read the manual of the equipment being connected.
•Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,
distortion of image / sound may occur or operation of other equipment may be interfered.
12
Search and store TV channels automatically.
•These steps are not necessary if the setup has been completed by your local dealer.
•Please complete connections (p. 11, 12) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the manual of the equipment.
1 Plug the TV into mains socket and switch On
•Takes a few seconds to be displayed
•If the red LED shows on the TV, press the Standby On / Off switch on the remote control for about 1 second.
2 Select the language
|
|
Menüsprache |
|
|
|
|
|
||
|
|
Deutsch |
|
|
Dansk |
|
Polski |
|
Srpyski |
|
|
English |
|
|
Svenska |
|
čeština |
|
Hrvatski |
|
|
|
|
|
|
|
|
|
|
|
|
Français |
|
|
Norsk |
|
Magyar |
|
Slovenščina |
|
|
Italiano |
|
|
Suomi |
|
Slovenčina |
|
Latviešu |
|
|
Español |
|
|
Türkçe |
|
Български |
|
eesti keel |
|
|
Português |
|
|
Еλληνικά |
|
Română |
|
Lietuvių |
|
|
Nederlands |
|
|
|
|
|
|
|
select set
3 Select your country
Country
|
|
|
|
|
|
|
|
Germany |
|
Denmark |
|
Poland |
|
|
|
|
|
|
|
|
Austria |
|
Sweden |
|
Czech |
|
|
|
|
|
|
|
|
France |
|
Norway |
|
Hungary |
|
|
|
|
|
|
|
|
Italy |
|
Finland |
|
Slovakia |
|
|
|
|
|
|
|
|
Spain |
|
Luxembourg |
|
Slovenia |
|
|
|
|
|
|
|
|
Portugal |
|
Belgium |
|
Croatia |
|
|
|
|
|
|
|
|
Switzerland |
|
Netherlands |
|
Estonia |
|
|
|
|
|
|
|
|
Malta |
|
Turkey |
|
Lithuania |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Andorra |
|
Greece |
|
Others |
select set
•Depending on the country you select, select your Region or store the Child LockPIN number (“0000” cannot be stored) by following the on screen instructions.
4 Select the mode you want to tune
TV Signal Selection |
select |
DVB-S |
|
DVB-C |
tune / skip tuning |
DVB-T |
|
Analogue |
: tune (search for the available channels) |
Start Auto Setup |
: skip tuning |
5 Select [Start Auto Setup]
TV Signal Selection |
select |
DVB-S |
|
DVB-C |
access |
DVB-T
Analogue
Start Auto Setup
•Auto Setup will start to search for TV channels and store them.
The stored channels and sorted channel order vary depending on the country, area, broadcasting system and conditions of signal reception.
Auto Setup screen varies depending on the country you select.
1 DVB-S Search Mode
Search Mode
Free Channels
All Channels
select mode
set
2 DVB-S Satellite Search
DVB-S Auto Setup
Satellite |
|
Checking LNB2 |
Progress |
0% |
100% |
This will take up to 40 minutes.
Satellite
Astra 19.2°E
Hot Bird 13°E
Press EXIT to skip Satellite installation
Searching Satellite
Setup Auto Guide Start Quick
13
Setup Auto Guide Start Quick
5 |
3 [DVB-S Auto Setup] |
|
|
|||||
|
DVB-S Auto Setup |
|
|
|
|
|
||
|
|
Satellite |
|
|
Astra 19.2° E |
|
|
|
|
|
Progress |
|
0% |
|
|
|
100% |
|
|
This will take about 30 minutes. |
|
|
|
|
|
|
|
|
No. |
Channel Name |
|
|
Type |
Quality |
|
|
|
1 |
CBBC Channel |
|
|
Free TV |
100 |
|
|
|
2 |
BBC Radio Wales |
|
|
Free TV |
100 |
|
|
|
3 |
E4 |
|
|
Free TV |
100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Free TV: 3 |
Pay TV: 0 |
|
|
Radio: 0 |
|
|
|
|
|
Searching |
|
|
4 [DVB-C Network Settings]
•Depending on the country you select, select your cable provider beforehand by following the on screen instructions.
DVB-C Network Settings
Frequency |
Auto |
Network ID |
Auto |
|
Start Auto Setup |
|
select [Start Auto Setup] |
|
access |
5 [DVB-C Auto Setup]
DVB-C Auto Setup
|
Progress |
0% |
|
|
|
100% |
|
|
This will take about 3 minutes. |
|
|
|
|
||
|
No. |
Channel Name |
Type |
Quality |
|
||
|
1 |
CBBC Channel |
Free TV |
100 |
|
|
|
|
2 |
BBC Radio Wales |
Free TV |
100 |
|
|
|
|
3 |
E4 |
Free TV |
100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Free TV: 3 |
Pay TV: 0 |
Radio: 0 |
|
|
|
|
|
|
Searching |
|
|
|
|
7 [Analogue Auto Setup]
Analogue Auto Setup
Scan |
CH 2 |
|
78 |
CC 1 |
|
41 |
This will take about 3 minutes. |
|
|
|
|
||
CH |
Channel Name |
|
|
|
|
|
CH 29 |
|
|
|
|
|
|
CH 33 |
BBC1 |
|
|
|
|
Analogue: 2
Searching
Normally set [Frequency] and [Network ID] to [Auto].
If [Auto] is not displayed or if necessary, enter [Frequency] and [Network ID] specified by your cable provider with numeric buttons.
6 [DVB-T Auto Setup]
DVB-T Auto Setup
|
Progress |
CH 5 |
|
|
|
69 |
|
|
This will take about 3 minutes. |
|
|
|
|
||
|
CH |
Channel Name |
Type |
Quality |
|
||
|
62 |
CBBC Channel |
Free TV |
100 |
|
|
|
|
62 |
BBC Radio Wales |
Free TV |
100 |
|
|
|
|
62 |
E4 |
Free TV |
100 |
|
|
|
|
62 |
Cartoon Nwk |
Free TV |
100 |
|
|
|
|
|
|
|
|
|
|
|
|
Free TV: 4 |
Pay TV: 0 |
Radio: 0 |
|
|
|
Searching
•Depending on the country you select, the channel selection screen will be displayed after DVB-T Auto Setup if multiple channels have the same logical channel number. Select your preferred channel or exit the screen for automatic selections.
8 Preset Download
If Q-Link, VIERA Link or similar technology (p. 105, 106) compatible recorder is connected, channel, language, country / region settings are automatically downloaded to the recorder.
Sending Preset Data
Please wait!
0% 100%
Remote control unavailable
•If downloading has failed, you can download later through the Setup
Menu. [Download] (p. 46)
6 |
Setup the network connection |
|
|
|
|
||||||||||
Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p. 18, 92). |
|||||||||||||||
|
•To setup the wireless connection, use the Wireless LAN Adaptor (supplied). (p. 17) |
||||||||||||||
|
|
Please note that this TV does not support wireless public access points. |
|
|
|
||||||||||
|
•Ensure the network connections (p. 12) and network environment are completed before starting setup. |
||||||||||||||
|
|
Select the network type |
|
|
|
|
|||||||||
|
|
Network Setup |
|
|
[Wired] |
“Wired connection” (p. 12) |
|||||||||
|
|
Select Wired or Wireless |
|
|
[Wireless] |
“Wireless connection” (p. 12) |
|||||||||
|
|
|
|
|
|
|
|
•To setup later on or skip this step |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
Wired |
Wireless |
Set later |
select |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
access |
Select [Set later] or |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■[Wired]
1. Select [Auto] |
|
|
Connection Test |
Acquire IP Address |
|
|
Check network cable connection. |
|
|
Check acquired IP address. |
|
Auto |
Manual |
|
|
|
Check for devices using same IP address. |
||
|
|
|
Check gateway connection. |
|
|
|
Check server connection. |
|
|
|
|
select access
2. Go to the next step 7
(Press twice)
Automatically setup is done and the test of the network connection starts.
•To set manually, select [Manual] and set each item. For details (p. 95)
: succeeded
The test is successful and the TV is connected to the network.
: failed
Check the settings and connections. And then select [Retry].
14
6 |
■[Wireless] |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Select the connection type |
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
select |
|
|
|
|
|
|
Connection Type |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
Please select network connection type. |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
access |
|
|
|
|
|
|
|
|
|
|
|
|
|
Search for access point |
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
WPS(Push button) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
[Search for access point] |
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
Access points found automatically are listed. |
|
|
|
|
|
|
|||||||||||||||||||||||||||
|
|
1. Select your desired access point |
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
select |
|
|
|
||
|
|
Available Access Points |
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||
|
|
No. |
SSID |
|
Wireless type Encrypt Reception |
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
|
|
1 |
|
Access Point A |
|
11n(2.4GHz) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
2 |
|
Access Point B |
|
11n(5GHz) |
|
|
|
|
|
|
|
|
|
|
|
|
|
access |
|
|
|
||||||||||||
|
|
3 |
|
Access Point C |
|
11n(5GHz) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
: Encrypted access point |
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•For the information of the |
•To set manually (p. 98) |
||||||||
|
|
•To search access points again |
|||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
(yellow) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
highlighted access point |
|
|
(red) |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
2. Access the encryption key input mode |
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
Encryption Key Setting |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||
|
|
Connection will be made with the following settings:- |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||
|
|
SSID : Access Point A |
|
•If the selected access point is not encrypted, the confirmation screen |
|||||||||||||||||||||||||||||||
|
|
Authentication type : WPA-PSK |
|
||||||||||||||||||||||||||||||||
|
|
Encryption type : TKIP |
|
||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
Please input the encryption key. |
|
will be displayed. It is recommended to select the encrypted access |
|||||||||||||||||||||||||||||||
|
|
|
point. |
|
|
|
|
|
|
||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
Encryption key |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
3. Enter the encryption key of the access point |
|
|
|
|
|
|
|||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Set characters |
|
|
Store |
|||||||||
|
|
Access Point Settings |
|
|
|
||||||||||||||||||||||||||||||
|
|
Encryption key |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
select |
|
|
|
|||||||||
|
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
R |
S |
T |
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
U |
V |
W |
X |
Y |
Z |
|
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
! |
: |
# |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
l |
m |
n |
o |
p |
q |
r |
s |
t |
|
|
|
|
|
|
set |
|
|
|
||||
|
|
u |
v |
w |
x |
y |
z |
( |
) |
+ |
- |
. |
* |
_ |
|
|
|
|
|
|
|
|
|
•You can set characters by using numeric buttons. |
|||||||||||
|
|
4. Select [Yes] |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
|
|
Access Point Settings |
|
|
|
|
|
|
select |
|
|
|
|||||||||||||||||||||||
|
|
Encryption key is set to:- |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||
|
|
XXXXXXXX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
set |
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
Select 'Yes' to confirm. |
|
•To re-enter the encryption key, select [No]. |
|||||||||||||||||||||||||||||||
|
|
Select 'No' to change. |
|
||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•If the connection has failed, check the encryption key, settings |
|||||||||||||||||
|
|
|
|
|
|
|
|
Yes |
|
|
|
|
|
|
|
No |
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
and positions of your access point. And then, follow the on screen |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
instructions. |
|
|
|
||||||
|
|
5. After the access point setting is finished, perform the connection test |
|
|
|
||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
Connection Test |
|
|
|
|
|
|
: succeeded |
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Check access point connection. |
|
|
|
|
|
|
The test is successful and the TV is connected to the |
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Check acquired IP address. |
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Check for devices using same IP address. |
|
|
network. |
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Check gateway connection. |
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Check server connection. |
|
|
|
|
|
|
: failed |
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Check the settings and connections. And then select |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[Retry]. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•To set manually, select [Manual] and set each item. |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For details |
(p. 95) |
||
|
|
6. Go to the next step |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
7 |
|
|
|
|
|
|
|
|
|
|
(Press twice)
Setup Auto Guide Start Quick
15
Setup Auto Guide Start Quick
6 |
|
[WPS(Push button)] |
|
|
|
|
|
|
|
|
|
|
1. Press the WPS button on the access point until the light flashes |
||||||||||
|
|
2. Connect the Wireless LAN Adaptor and the access point |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WPS(Push button) |
|
|
|
|
|
|
|
|
|
|
|
1) Please press the ‘WPS’ button on the access |
|
|
|
|
|
|
|||
|
|
point until its light flashes. |
|
|
|
•Ensure that your access point supports WPS for this setup. |
|||||
|
|
2) When the light is flashing select ‘Connect’ on |
|
||||||||
|
|
TV. |
|
|
|
||||||
|
|
If you are unsure, please check the instruction |
|
•WPS : Wi-Fi Protected Setup™ |
|||||||
|
|
manual of the access point. |
|
|
|
•If the connection has failed, check the settings and positions of your |
|||||
|
|
|
Connect |
|
access point. And then, follow the on screen instructions. |
||||||
|
|
3. After the access point setting is finished, perform the connection test |
|||||||||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
Connection Test |
|
|
|
|
: succeeded |
|||
|
|
|
Check access point connection. |
|
|
|
|
The test is successful and the TV is connected to the |
|||
|
|
|
Check acquired IP address. |
|
|
|
|
||||
|
|
|
Check for devices using same IP address. |
|
network. |
||||||
|
|
|
Check gateway connection. |
|
|
|
|
||||
|
|
|
|
|
|
|
|
||||
|
|
|
Check server connection. |
|
|
|
|
: failed |
|||
|
|
4. Go to the next step |
|
|
|
|
|
|
|
||
|
|
7 |
|
|
|
|
|
|
Check the settings and connections. And then select |
||
|
|
|
|
|
|
|
|
|
|
|
[Retry]. |
|
|
(Press twice) |
|
|
|
|
|
|
|
•To set manually, select [Manual] and set each item. |
|
|
|
|
|
|
|
|
|
|
|
|
For details (p. 95) |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
Select [Home] |
|
|
|
|
|
|
|
|
||
|
Select [Home] viewing environment to use in your home environment. |
||||||||||
|
Please select your viewing environment. |
|
|
select |
|
||||||
|
|
Home |
|
Shop |
|
|
|
||||
|
|
|
|
|
|
set
■[Shop] viewing environment (for shop display only)
[Shop] viewing environment is the demonstration mode to explain main features of this TV.
Select [Home] viewing environment to use in your home environment.
•You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.
1 Return to viewing environment selection screen
Shop
You have selected shop mode
Automatic Demo |
|
Off |
On |
2 Select [Home]
Please select your viewing environment. |
select |
|
Home |
Shop |
set
To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
[Shipping Condition] (p. 68)
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the satellite cable, RF cable, and then, follow the on screen instructions.
Note
•To check channel list at-a-gl |
“Using TV Guide” (p. 23) |
|
•To edit or hide (skip) channe |
“Tuning and Editing Channels” (p. 54 - 59) |
|
•To retune all channe |
[Auto Setup] (p. 50 - 53) |
|
•To add the available |
ode l |
[Add TV Signal] (p. 46 - 48) |
•To initialise all settin |
[Shipping Condition] (p. 68) |
16
Wireless LAN Adaptor
Caution
Be aware of the following limits before using the supplied Wireless LAN Adaptor.
•To use the Wireless LAN Adaptor, an access point needs to be obtained.
•Do not use the Wireless LAN Adaptor to connect to any wireless network (SSID ) for which you do not have usage rights.
Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.SSID is a name for identifying a particular wireless network for transmission.
•Do not subject the Wireless LAN Adaptor to high temperatures, direct sunlight or moisture.
•Do not bend, or subject the Wireless LAN Adaptor to strong impacts.
•Do not disassemble or alter the Wireless LAN Adaptor in any way.
•Do not attempt to install the Wireless LAN Adaptor in any incompatible device.
•Do not remove the Wireless LAN Adaptor from the TV’s USB port during operations.
•Data transmitted and received over radio waves may be intercepted and monitored.
•To avoid malfunctions caused by radio wave interference, keep the TV away from the devices such as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor.
•When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case, turn the TV Off with Mains power On / Off switch, then turn it On again.
•Depending on the area, this Wireless LAN Adaptor may not be available.
•Additional information for Wireless LAN Adaptor and access point may be on the following web site. (English only) http://panasonic.jp/support/global/cs/tv/
If you connect the Wireless LAN Adaptor later on, the confirmation screen will be |
Wireless LAN adaptor connection |
|
|
displayed for the setup. |
|
Wireless LAN adaptor connected, do you want to |
|
•To setup the wireless connec |
(p. 96 - 98) |
set it up? |
|
No - Exit |
|
||
|
|
|
|
|
|
Current network type : Wireless |
|
|
|
Yes |
No |
Wireless LAN Adaptor
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE products from our DoC server: http://www.doc.panasonic.de
Contact in the EU: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre,
Winsbergring 15, 22525 Hamburg, Germany
This product is intended to be used in the following countries.
Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Italy, Iceland, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden
This product is intended for general consumer. (Category 3)
The WLAN feature of this product shall exclusively be used inside buildings.
This product on purpose to connect to access point of 2.4 GHz or 5 GHz WLAN.
Setup Auto Guide Start Quick
17
Connect” Using“VIERA
Using“VIERA Connect”
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc. from VIERA Connect home screen.
•This TV has no full browser function and all features of websites may not be available.
1 Turn power on
•Press for about 1 second
•Mains power On / Off switch should be On (p. 10).
Enjoy selected internet content with VIERA Connect. Every time you turn on the TV, VIERA Connect introduction |
Simply press the OK / INTERNET button |
banner appears. The banner is subject to change. |
2 |
Access VIERA Connect |
•The button design varies |
|||
|
While the banner is displayed |
|
|
||
|
|
|
|
|
|
|
|
|
or |
|
depending on the remote |
|
|
|
|
control. |
|
|
|
|
|
|
|
|
Example : |
• |
|
|
|
|
|
Welcome to VIERA Connect™ |
Depending on the usage conditions, it may take a |
||
|
|
be discontinued eitherwtearrmanty for the content or the continuity of the services. |
while to read all the data. |
||
|
|
VIERA Connect™ home screen is subject to change without notice. |
|
|
|
|
|
The services through VIERA Connect™ are operated by their respective service providers, and service may |
•Messages might be displayed before VIERA Connect |
||
|
|
porarily or permanently without notice. Therefore, Panasonic will make no |
|||
|
|
All features of websites or content of the service may not be available. |
|||
|
|
|
|||
|
|
|
|
home screen. |
|
|
|
ENTER |
|
Please read these instructions carefully and follow the |
|
|
|
Don’t show this message again |
|
|
|
■To exit from |
|
Some content may be inappropriate for some viewers. |
|
on screen instructions. |
|
|
Some content may only be available for specific countries and may be presented in specific languages. |
|
|||
VIERA Connect |

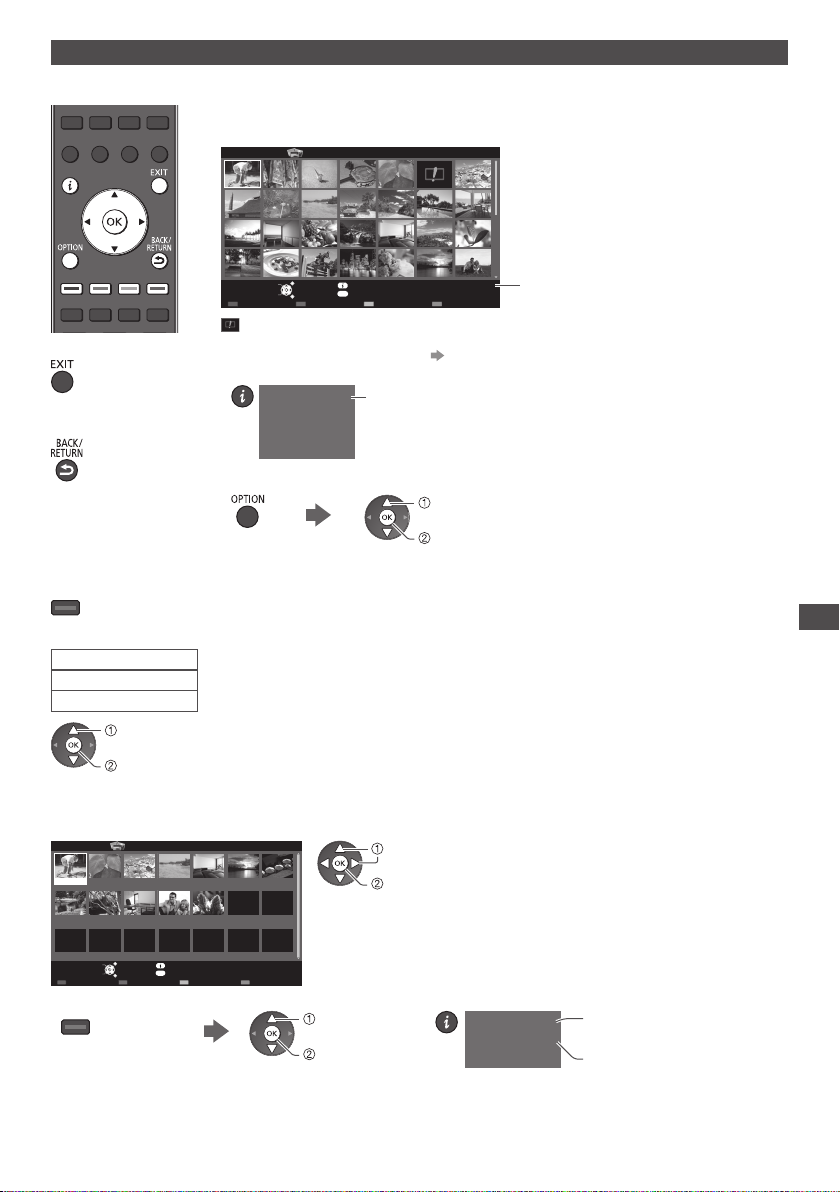

Example : VIERA Connect home screen |
|
|||
|
|
|
|
•To go to the next level |
|
•To set the VIERA |
|
|
|
• |
[MORE] |
|
|
|
To back to the previous level |
||
|
|
|
[BACK] |
||
Connect instruction |
|
|
|
|
|
banner display off |
|
|
|
|
|
[VIERA Connect |
|
|
|
|
|
Banner] (p. 48) |
|
MORE |
|
|
|
|
|
BACK |
|
|
|
■How to operate VIERA Connect (current as of January, 2011) |
|
•To return to the previous screen |
|||
•To move the cursor / select the item |
•To access |
|
|
•When the key words are displayed on colour bar |
•When options with |
•To return to VIERA Connect home |
||||||||||
|
|
(red) |
|
(green) |
|
(yellow) |
|
(blue) |
numbers are displayed |
|
screen |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
•Video communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.
“Optional accessories” (p. 6)
For details, read the manual of the Communication Camera.
•You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect. You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features.
For more information “USB connection” (p. 120)
Note
•If you cannot access VIERA Connect, c |
the network connections (p. 12) and settings (p. 14 - 16). |
•For more information of VIERA Conne |
(p. 102) |
18
1
2
Volume
3
Turn power on
•Press for about 1 second
•Mains power On / Off switch should be On.
(p. 10)
■VIERA Connect introduction banner appears
You can access to VIERA Connect and enjoy the various contents. (p. 18)
•To remove this banner, leave for about 5 seconds or press any buttons (except the buttons to access VIERA Connect).
•To set this banner display off [VIERA Connect Banner] (p. 48)
Select the mode
•The selectable modes vary depending on the stored channels (p. 13).
TV Selection |
select |
DVB-S |
|
DVB-C |
access |
DVB-T |
|
|
|
•Also possible to select the mode pressing the TV |
Watching |
|
Analogue |
|
|
|
|||
|
|
|
|
button repeatedly on the remote control or side |
||
|
|
|
|
panel of the TV (p. 10). |
||
|
|
|
|
•If [TV Selection] menu is not displayed, press the |
||
|
|
|
|
TV button to switch the mode. |
TV |
|
|
|
|
|
|
|
|
1 |
Coronation Street |
|
20:35 |
Information banner |
(p. 20) |
|
20:00 - 20:55 |
|
All DVB-T Channels |
|
|||
BBC ONE WALES |
Now |
Info |
Change category |
|
||
|
|
Select a channel
up |
•To select a more than two-digit channel position |
or |
number, e.g. 399 |
down |
|
■To select from the Channel List
All DVB-T Channels |
Sorting 123... |
6 Cartoon Nwk
7 BBC Radio Wales
8 BBC Radio Cymru
1 BBC ONE Wales
2BBC THREE
3BBCi
4CBBC Channel
select channel
watch
•To sort channel names in alphabetical order (red)
•To change the category (blue)
■Select a channel using Information banner (p. 20)
1 Display Information banner if it is not displayed |
2 While the banner is displayed, select the channel |
|
select channel |
|
watch |
■Select a channel using TV Guide (p. 23) |
|
1 Display TV Guide 2 Select the current |
3 Select [View] (DVB mode) |
programme or channel |
|
select access
Das Erste |
select |
|
19:3020:00 |
watch |
|
View |
||
Timer Programming |
•The postcode entry or update may be required depending on the country you select (p. 13). Follow the on screen instructions.
Note
•To watch pay- “Using Common Interface” (p. 67)
19
Other useful functions
Display Information banner
Display Information banner
|
•Also appears when changing a channel |
|
|
|
|
|
|
||||||
|
|
1 |
|
Example : DVB |
2 |
3 |
5 |
6 |
|
7 |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
1 |
HDTV |
|
Coronation Street |
|
|
|
20:35 |
|
|
|
|
|
|
|
|
|
All DVB-T Channels |
|
|||||
|
|
|
|
ZDF |
|
|
20:00 - 20:55 |
|
|
|
|
||
|
|
|
|
|
|
Now |
|
Info |
|
Change category |
|
||
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
Bad signal |
|
Dolby D+ |
|
|
|
|
45 |
|
|
1 Channel position and name |
|
|
|
|
5 Programme Start / Finish time (DVB) |
|||||||
|
2 Channel type ([Radio], [Data], [HDTV], etc.) / |
|
|
Channel number, etc. (Analogue) |
|
||||||||
|
Encrypted channel ( |
) / |
|
|
|
|
6 Progress time indicator of the selected programme |
||||||
|
TV mode ( |
, |
, |
, |
) |
|
|
|
|
(DVB) |
|
|
|
|
3 Programme |
|
|
|
|
|
|
|
7 Category |
|
|
|
|
|
4 Current time |
|
|
|
|
|
|
|
•To change the category (DVB) |
select |
|||
TV Watching |
|
|
|
|
|
|
|
|
|
(blue) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
set |
|
Features available / Message meanings |
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
[Stereo], [Mono] |
|||
|
Sound mute On |
|
|
|
|
Teletext service available |
Audio mode |
|
|||||
|
|
|
|
|
|
|
|
||||||
|
[Bad signal] |
|
|
|
|
|
|
|
|
|
|
|
|
|
Poor TV signal quality |
|
|
Multiple audio available |
MHP service available |
||||||||
|
|
|
|
|
|
|
|||||||
|
[Dolby D+], [Dolby D], [HE-AAC] |
|
|
|
|
|
1 - 90 |
|
|
||||
|
Dolby Digital Plus, Dolby Digital or |
|
Multiple video available |
Off Timer remaining time |
|||||||||
|
HE-AAC audio track |
|
|
•For settings |
(p. 21) |
||||||||
|
|
|
|
|
|
|
|||||||
|
Subtitle service available |
|
Multiple audio and video available |
|
|
|
|||||||
|
•To confirm another tuned channel |
•To watch the channel listed in the |
•Information on the next programme |
||||||||||
|
name |
|
|
|
|
|
banner |
|
|
|
(DVB) |
|
|
|
•To hide |
|
|
•Extra information (DVB) |
|
|
•To set display timeout |
|
[Banner Display Timeout] (p. 48)
(Press again to hide the banner)
Display subtitles
Display / hide subtitles (if available)
•To change the language for DVB (if available)
[Preferred Subtitles] (p. 48)
Note
•If you press this button in Analogue mode, it switches to teletext service and calls up a favourite page (p. 26). Press the EXIT button to return to TV mode.
•Subtitles may not be displayed properly in 3D images.
20
Hold
Freeze / unfreeze picture
Display the selectable settings for the current status
Check or change the current status instantly
•To change
|
|
select |
|
|
select / change |
|
|
|
|
|
|||
|
|
access |
|
|
store |
|
[Multi Video] (DVB mode) |
[Sub Channel] (DVB mode) |
[MPX] (Analogue mode) |
||||
Allows you to select from a group of |
Allows you to select the multifeed |
Selects multiplex sound mode |
||||
multiple videos (if available) |
programme - sub channel (if available) |
(if available) |
||||
•This setting is not memorized and it |
[Subtitle Language] (DVB mode) |
[Sound Menu] (p. 44) |
||||
will return to the default setting once |
[Volume Correction] |
|||||
you exit the current programme. |
Allows you to select the language |
|||||
[Multi Audio] (DVB mode) |
in which subtitles should appear (if |
Adjusts volume of individual channel or |
||||
available) |
input mode |
|||||
Allows you to select between |
[Teletext Character Set] |

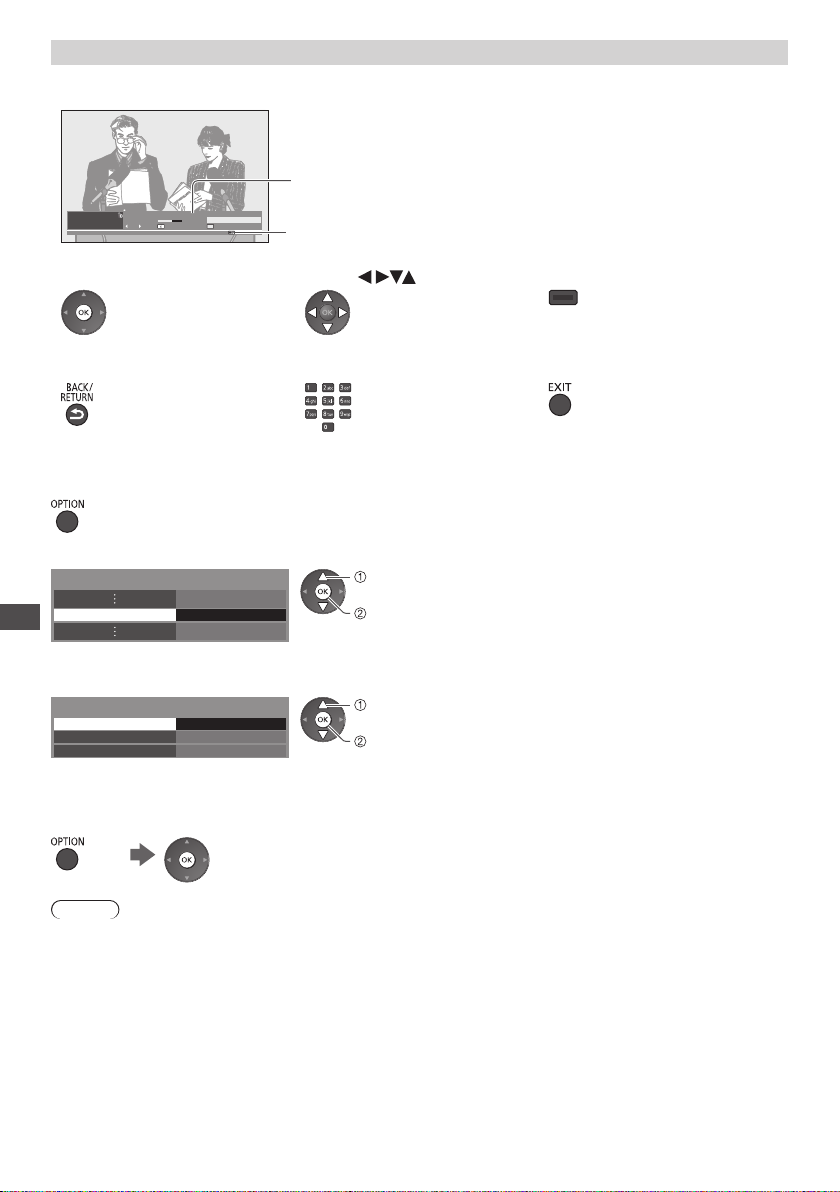

[MHP App] (DVB mode) |
||||
alternative language for sound tracks |
||||||
(if available) |
Sets the teletext language font |
Allows you to load MHP application |
||||
•This setting is not memorized and it |
[Setup Menu] (p. 48) |
manually (if available) |
||||
will return to the default setting once |
[Teletext Language] (DVB mode) |
(p. 65) |
||||
you exit the current programme. |
[Safely remove USB] |
|||||
[Dual Audio] (DVB mode) |
Allows you to select between |
|||||
alternative language for teletext (if |
Takes this operation to remove the |
|||||
Allows you to select stereo / monaural |
available) |
connected USB device safely from the TV |
||||
(if available) |
|
|
|
|
Off Timer

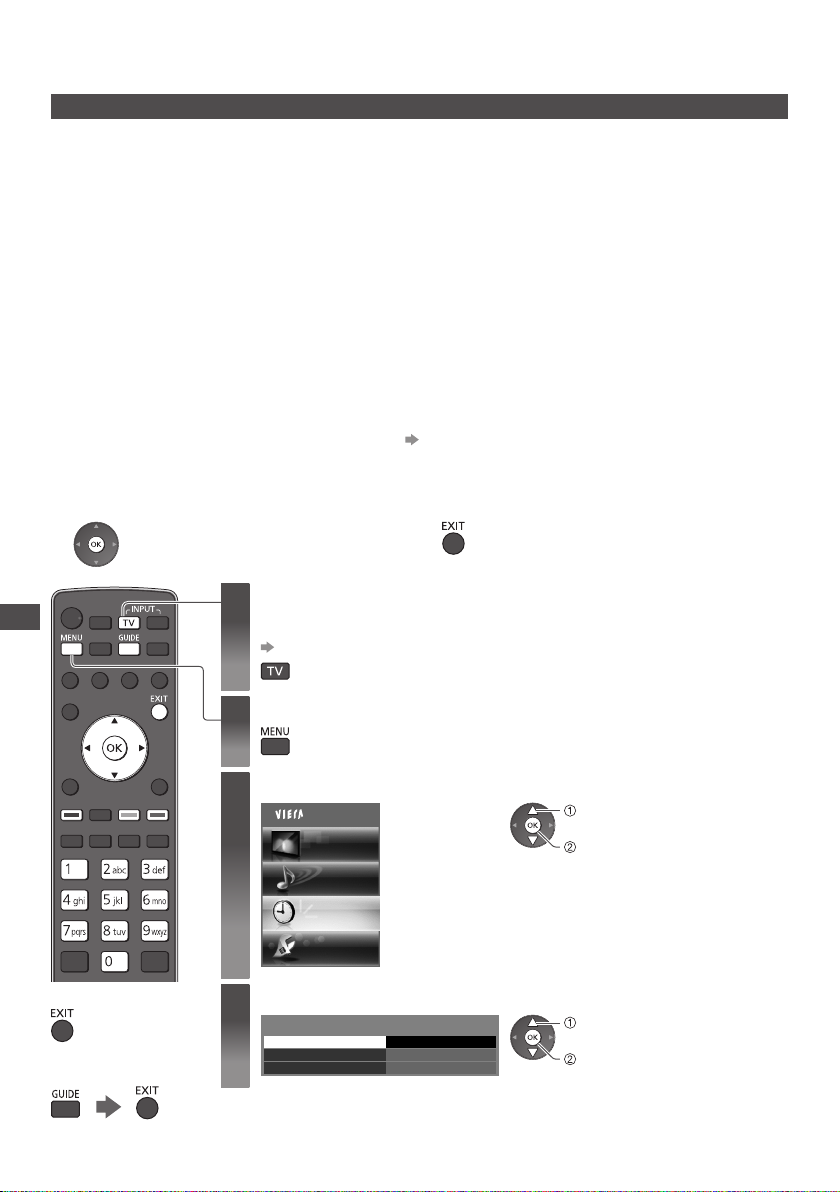

Turn the TV to Standby mode automatically after a fixed period

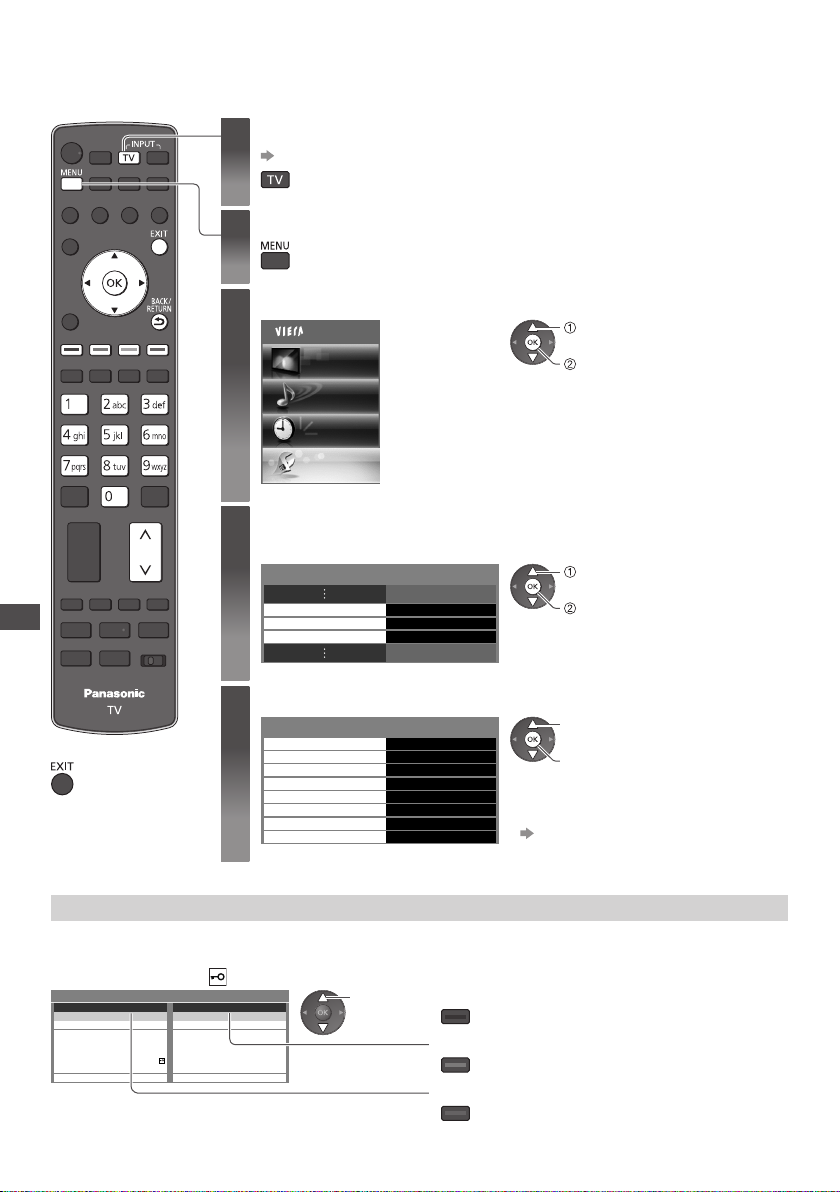

1 Display the menu
2 Select [Timer]
Main Menu |
select |
|
|
Picture |
access |
Sound
Timer
Setup
3 Select [Off Timer] and set the time
Timer Programming
Off Timer
Off
Auto Standby
15 minutes
30 minutes
45 minutes
60 minutes
75 minutes
90 minutes
select [Off Timer] |
select the time |
access |
store |
•To cancel Set to [Off] or turn the TV off.
•To confirm the remaining time “Display Information banner” (p. 20)
•When the remaining time is within 3 minutes, the remaining time will flash on the screen.
TV Watching
21
TV Watching
Aspect
Change the aspect ratio (image size)
Enjoy viewing the image at its optimum size and aspect.
Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 115).

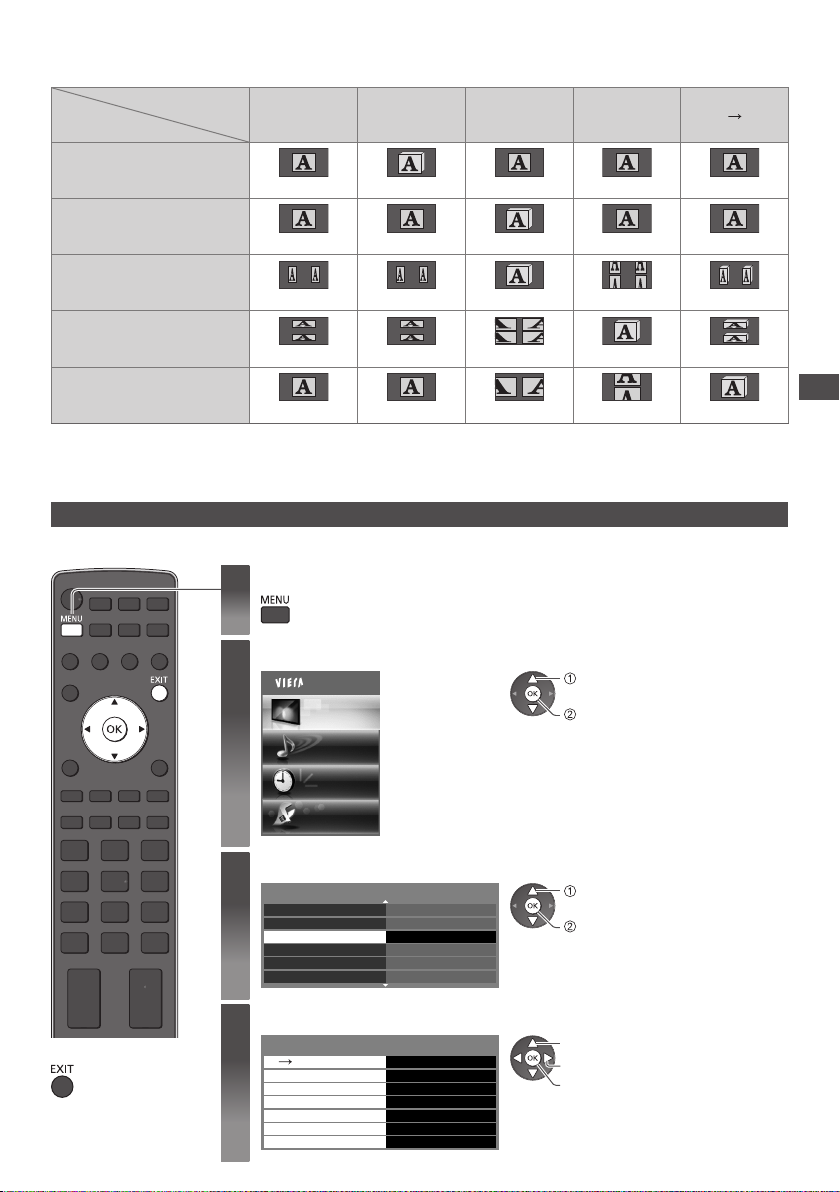

■If you would like to change the aspect ratio manually
1 Display Aspect Selection list
Aspect Selection
Auto 16:9 14:9 Just 4:3 4:3 Full
Zoom1
Zoom2
Zoom3
Select
ChangeEXIT RETURN
2 While the list is displayed, select the mode
select
store
•You can also change the mode only using the ASPECT button.
(Press repeatedly until you reach the desired mode)
Aspect Selection list
[Auto]
|
The best ratio is chosen and the image expanded to fill the screen. |
||
|
For details (p. 115) |
|
|
|
|
|
|
[16:9] |
|
[4:3 Full] |
|
|
Directly displays the image at 16:9 |
|
Displays a 4:3 image enlarged |
|
without distortion (anamorphic). |
|
horizontally to fit the screen. |
|
|
|
•HD signal only |
[14:9] |
|
[Zoom1] |
|
|
Displays the image at the standard 14:9 |
|
Displays a 16:9 letterbox or 4:3 image |
|
without distortion. |
|
without distortion. |
|
|
|
|
[Just] |
[Zoom2] |
||
|
Displays a 4:3 image full-screen. |
|
Displays a 16:9 letterbox (anamorphic) |
|
Stretching is only noticeable at the left |
|
image full-screen without distortion. |
|
and right edges. |
|
|
|
|
|
|
[4:3] |
|
[Zoom3] |
|
|
Displays the image at the standard 4:3 |
|
Displays a 2.35:1 letterbox (anamorphic) |
|
without distortion. |
|
image full-screen without distortion. |
|
|
|
At 16:9, displays the image at its |
|
|
|
maximum (with slight enlargement). |
|
|
|
Note
•Aspect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.
•Aspect cannot be changed in teletext service and 3D mode (except for [2D 3D] mode in [3D Mode Selection] (p. 36)).
•Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
Last view
to previously viewed channel or input mode easily
•Press again to return to the present view.
Note
•Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is in progress.
•Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.
22
TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).
•This function varies depending on the country you select (p. 13).
•The postcode entry or update may be required to use the GUIDE Plus+ system depending on the country you select.
“View advertisement” (p. 24)
•DVB-T and Analogue channels are displayed on the same TV Guide screen. [D] means DVB-T channel and [A] means Analogue channel. There will be no programme listings for Analogue channels.
•When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.
1 |
Select the mode |
|
|
|
|
|
|
|
|
||||
|
|
(p. 19) |
|
|
|
|
|
|
|
|
|
|
|
2 |
View TV Guide |
|
|
|
|
|
|
|
|
|
|||
|
|
•Press again to change the layout ([Landscape] / [Portrait]). |
|
||||||||||
|
|
View [Landscape] to see many channels. |
|
|
|
|
|||||||
|
|
View [Portrait] to see one channel at a time. |
|
|
|
Using |
|||||||
|
|
Example : |
|
|
|
|
|
|
|
|
|
|
|
|
|
[Landscape] (Displays by channel) |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
TV |
||||||
|
|
|
|
|
|
|
|
|
|
|
1 |
Current date and time |
|
|
1 |
|
|
TV Guide: Landscape |
|
|
|
|
|
Guide |
|||
|
Wed 27.10.2010 |
Wed 27.10.2010 |
|
|
All Types |
|
All Channels |
2 |
2 |
TV Guide date |
|||
|
10:46 |
|
|
|
|
|
|
|
|||||
|
|
1 BBC ONE |
|
|
|
|
|
||||||
|
3 |
20:00 - 20:30 DIY SOS : We open in the Battersbys |
|
|
|
3 |
TV Guide time |
||||||
|
|
|
Time: |
19:30 |
|
20:00 |
20:30 |
21:00 |
4 |
||||
|
D |
1 |
BBC ONE |
Das Erste |
|
DIY SOS |
The Bill |
Red Cap |
|||||
|
5 |
D |
7 |
BBC THREE |
Hot Wars |
|
|
Holiday Program |
4 |
Programme |
|
||
|
D |
14 |
E4 |
Emmerdal. |
|
Coronation Street |
The Bill |
|
|
||||
|
D |
70 |
BBC FOUR |
10 O’ clock News BBC |
Pepsi Char. |
Good bye |
|
5 |
Advertisement |
|
|||
|
|
D |
72 |
BBC 2W |
Panorama |
|
Spring watch |
|
Coast |
|
|
||
|
7 |
D |
105 |
BBCi |
I’m A Celebrity |
|
Pop Idol |
News |
|
6 |
Channel position and |
|
|
|
D |
105 |
BBC Radi |
Rugby |
|
15 To 1 |
|
The Bill |
6 |
|
|||
|
Select channel |
|
|
|
|
|
|
||||||
|
|
|
|
Info |
|
|
|
name |
|
||||
|
|
|
|
EXIT |
|
|
|
Page up |
|
|
|||
|
|
|
|
|
GUIDE Change display mode |
|
|
|
|||||
|
|
|
|
Select programme |
Page down |
|
7 |
|
|
||||
|
|
Timer Programming |
|
OPTION Select Advert |
|
|
[D] : DVB-T |
|
|||||
|
|
|
RETURN |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
-24 hours |
|
+24 hours |
|
|
Prog.Type |
|
Category |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
[A] : Analogue |
|
Example :
[Portrait] (Displays by time)
|
|
|
|
|
|
|
TV Guide: Portrait |
|
|
||||
|
|
|
Wed 27.10.2010 |
|
|
Wed 27.10.2010 |
|
All Types |
|
All Channels |
|
||
|
|
|
10:46 |
|
|
D 1 BBC ONE |
D |
7 BBC THREE |
D 14 E4 |
D 70 BBC FOUR |
|||
|
|
|
|
|
19:30-20:00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Das Erste |
|
|
|
|
|
|||
|
|
|
|
|
20:00-20:30 |
DIY SOS |
|
|
|
|
|
||
|
|
|
|
|
20:30-21:00 |
The Bill |
|
|
|
|
|
|
|
|
|
|
|
|
21:00-22:00 |
Red Cap |
|
|
|
|
|
||
■To return to TV |
|
|
22:00-23:00 |
Live junction |
|
|
|||||||
|
|
23:00-23:30 |
POP 100 |
|
|
|
|
|
|||||
|
|
|
|
|
23:30-00:00 |
Rugby |
|
|
|
|
|
|
|
|
|
|
|
Select programme |
|
|
Info |
|
|
||||
|
|
|
|
|
|
EXIT |
|
|
Page up |
||||
|
|
|
|
|
|
|
|
GUIDE Change display mode |
|||||
|
|
|
|
|
|
Select channel |
|
Page down |
|||||
|
|
|
Timer Programming |
|
|
OPTION Select Advert |
|||||||
|
|
|
|
|
|
RETURN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
+24 hours |
|
Prog.Type |
Category |
Depending on the country you select, you can select the TV Guide type
[Default Guide] in [Display Settings] (p. 48)
If you select [Channel List], the channel list will appear when the GUIDE button is pressed.
■To watch the programme
1 Select the current programme or 2 Select [View] (DVB mode) channel
select
Das Erste |
|
select |
19:3020:00 |
|
watch |
access |
Timer Programming |
|
View |
•To use Timer Programming (p. 25) |
|
|
|
23
Guide TV Using
■To the previous day (DVB mode)
(red)
■To view a channel list of the selected type
(DVB mode)
(yellow)
(Type list) |
select type |
Prog.Type |
|
All Types |
view |
|
All Types
Movie
News
■To the next day (DVB mode)
(green)
■To view a channel list of the selected category
(blue)
(Category list) |
|
|
|
select category |
||||
|
|
|
||||||
Category |
|
|
|
|
|
|
||
All Channels |
|
|
|
|
|
view |
||
|
|
|
|
|
|
|
|
|
All Channels |
|
|
|
|
|
|
||
All DVB-T Channels |
|
|
|
|
|
|
||
All Analogue Channels |
|
|
|
|
Only Analogue channels are listed |
|||
|
|
|
||||||
Free TV |
|
|
|
|
|
|
||
Pay TV |
|
|
|
|
|
|
||
HDTV |
|
|
|
|
|
|
||
Free Radio |
|
|
|
|
|
|
||
Pay Radio |
|
|
|
|
|
|
||
Favourites1 |
|
|
|
•To list favourite channels (p. 54) |
||||
Favourites2 |
|
|
|
|
||||
|
|
|
|
|||||
Favourites3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Favourites4 |
|
|
|
|
|
|
Other useful functions
View details of the programme (DVB mode)
1 Select the programme |
2 View details |
||
|
|
select |
•Press again to return to TV Guide. |
|
|
View advertisement
Depending on the country you select, this TV supports the GUIDE Plus+ system in DVB-T or Analogue mode
The postcode entry or update is required. Follow the on screen instructions.
•Also possible to setup manually from the Setup Menu
[Update] / [Postcode] in [GUIDE Plus+ Settings] (p. 49)
•Enter your postcode when using this function for the first time. If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.
Display advertisement information
•To display the latest advertisement
[Update] in [GUIDE Plus+ Settings] (p. 49)
■To change advertisements |
■To return to TV Guide |
or
Note
•To update the information continuously, the TV must be left in Standby mode.
24
Timer Programming (DVB mode)
Timer Programming is a timer to remind watching or record the programme to the external recorder, the USB HDD or the SD Card.
1 Select the forthcoming programme 2 Select the function ([Ext Rec.], [USB HDD Rec.], [SD Card Rec.] or [Reminder])
select set
LED will turn to orange if Timer Programming is set.
(Orange LED will flash if the recording of Timer Programming is in progress.)
LED
|
|
|
(Timer Programming screen) |
|
select |
|||||
|
|
|
|
|||||||
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
Timer Programming |
Wed 27.10.2010 10:46 |
|
|
|
||||||
|
Function |
No. |
Channel Name |
Date |
Start |
End |
|
|
store |
|
|
Ext Rec. |
D 12 |
BBC ONE |
Wed 27.10.2010 |
20:00 |
20:30 |
|
|
|
|
|
|
|
|
<TIMER> |
|
(30 |
min.) |
|
|
|
--- |
|
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
|
|
(--- |
min.) |
|
|
|
--- |
|
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
|
|
(--- |
min.) |
|
|
|
--- |
|
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
|
|
(--- |
min.) |
|
|
|
--- |
|
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
|
|
(--- |
min.) |
|
|
|
|
|
Select timer |
Remaining Capacity: |
0 9 |
|
1/1 |
|
|
|
|
Edit tim |
er |
EXIT |
32GB (80%) |
|
|
|
|
|||
|
|
|
RETURN |
500GB (50%) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[Ext Rec.] / [USB HDD Rec.] / [SD Card Rec.] :
to record the programme to the external recorder, the USB HDD or the SD Card When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minutes before the starting time, a reminder message appears if you are watching TV.
For [USB HDD Rec.] / [SD Card Rec.], you can select a recording mode: [DR] : Direct recording (normal mode)
[LT1] : Long time recording
[LT2] : Extra long time recording
“Recording time for the USB HDD / SD Card Recording” (p. 119) [Reminder] :
to remind you to watch the programme
When you are watching TV, a reminder message appears 2 minutes before the start time. Press the OK button to switch to the programmed channel.
■To check / change / cancel a timer |
■To return to TV Guide |
programming event |
|
“Timer Programming” (p. 60 - 62) |
|
■If you select the current programme
A confirmation screen asking whether you wish to watch or record the programme will appear.
Select [Timer Programming] and set [Ext Rec.], [USB HDD Rec.] or [SD Card Rec.] to record from the time you finish the timer programming event setting.
Das Erste |
select |
|
19:3020:00 |
access |
|
View |
||
Timer Programming |
Note
•This function is not available in Analogue mode.
•Timer Programming only works reliably if correct time information is received via the signal from the broadcaster or service provider.
•No other channel can be selected while the recording of Timer Programming is in progress.
•When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the
TV.
If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 105, 106) and the [Link Settings] (p. 45) are completed, no setting of the recorder is required. Also read the manual of the recorder.
•When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording Setup] (p. 75).

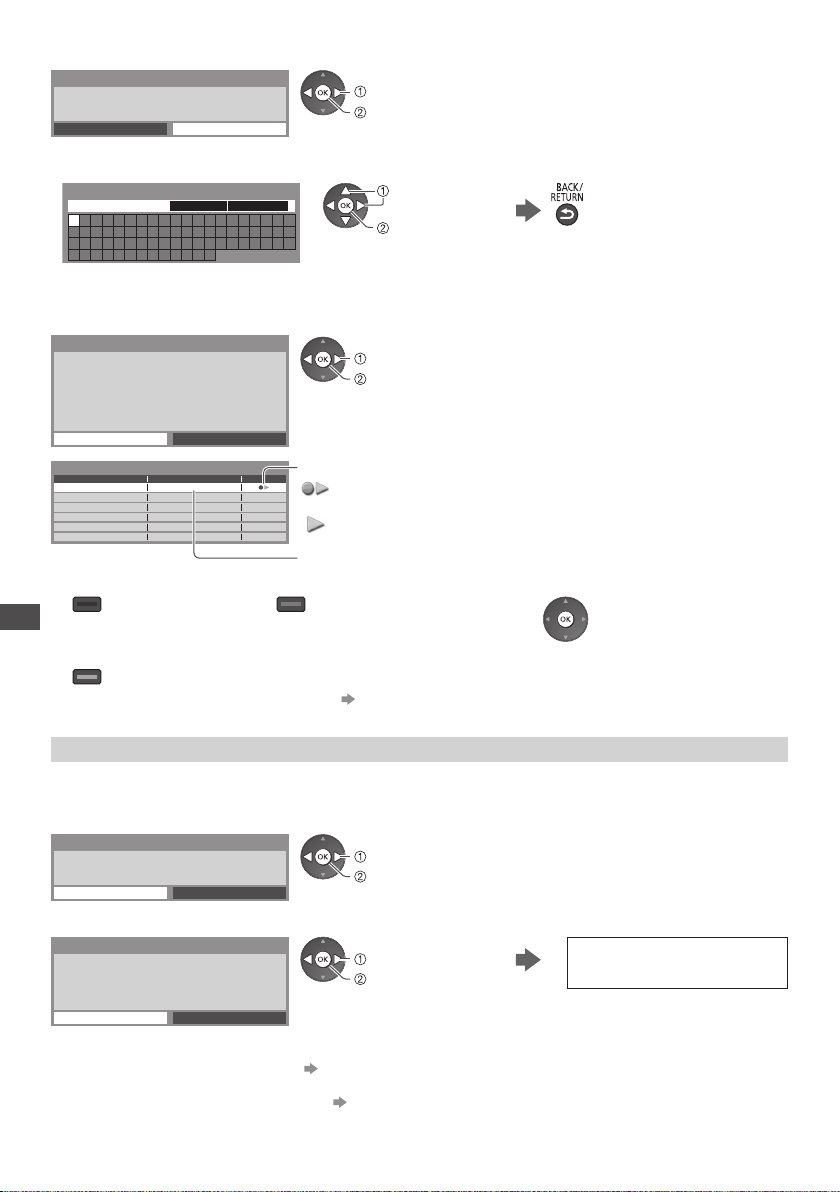

•When recording programmes to the SD Card, prepare a ne Card or the SD Card formatted with this TV. (p. 76)
•For more information of the USB HDD / SD Card Recordin (p. 74, 118)
Guide TV Using
25
Teletext Viewing
Teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FLOF (FASTEXT) mode?
In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.
What is TOP mode? (in case of TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
•Fast overview of the teletext information available
•Easy to use step-by-step selection of the topical subject
•Page status information at the bottom of the screen
Available page up / down |
To select among subject blocks |
||||||
|
|
(red) |
|
(green) |
|
|
(blue) |
|
|
|
|
What is List mode?
To select next subject within the subject block
(After the last subject, it moves to the next subject block.)
(yellow)
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. “Store frequently viewed pages” (p. 27)
■To change mode [Teletext] (p. 48)
1 |
Switch to Teletext |
|
•Displays the index page (content varies |
|
|
|
|
|
|
|
Sub page number |
|
|
depending on the broadcasters) |
|
|
|
|
|
|
<< 01 02 03 04 05 06 07 |
>> |
|
|
|
17:51 28 Feb |
Time / date |
||
|
TELETEXT |
|
|
|
|
INFORMATION |
|
|
|
|
|
|
Colour bar |
|
|
Current page number |
|
|
|
2 |
Select the page |
|
|
|
|
up |
|
|
Coloured button |
|
or |
|
or |
|
|
down |
|
(Corresponds to the colour bar) |
|
|
■To adjust contrast |
|
As the blue bar is displayed |
|
|
|
|
||
■To return to TV |
(Press three times) |
|
|
|
|
|
|
|
|
Reveal hidden data |
|
|
INDEX |
|
Reveal hidden words e.g. quiz page answers |
Return to the main index page |
|||
(red) |
•Press again to rehide. |
|
|
|
|
|
|
|
|
HOLD |
|
|
Call up a favourite page |
|
Stop automatic updating |
|
View a favourite page stored |
||
(If you wish to hold the current page without updating) |
Call up the page stored on the blue button (List mode). |
|||
•Press again to resume. |
|
|
•Factory setting is “P103”. |
26
FULL / TOP / BOTTOM
|
(green) |
|
(TOP) |
(BOTTOM) |
Normal (FULL) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(Expand the TOP half) |
|
|
|
(Expand the BOTTOM half) |
|
|
View in multi window
Watch TV and Teletext in two windows at once
Select Picture and text On or Off (Press twice)
•Operations can be made only in teletext screen.
Store frequently viewed pages
Store frequently viewed pages in the colour bar (List mode only)
As page is displayed
(Corresponding |
press and hold |
|
|
coloured button) |
|
The number changes to white.
■To change stored pages
Enter new page number
press and hold
Coloured button you want to change
View sub page
View sub page (Only when Teletext is more than one page)
Appears at top of the screen •The number of sub pages varies depending on the
broadcasters (up to 79 pages).
•It may take some time for searching, during which time you can watch TV.
■To view specific sub page
|
|
|
|
Enter the 4-digit number |
|
|
|
|
(blue) |
|
|
Example : P6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Watch TV while waiting for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available. Changes to TV screen temporarily
(yellow) |
P108 |
Appears when updating |
|
is completed |
|
|
|
View the updated page
(yellow)
(You cannot change the channel.)
•The news page provides a function that indicates arrival of latest news (“News Flash”).
Teletext Viewing
27
Inputs External Watching
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.
•To connect the equipment (p. 11, 12, 112 - 114)
The remote control is capable of operating some functions of selected external equipment.
“Operating the equipment with the TV remote control” (p. 29)
1 Turn the TV on
When connecting with SCART as example 2 or 3 (p. 11, 12)
Receives input signals automatically when playback starts
•Input signals are automatically identified by the SCART (pin 8) terminal.
•This function is also available for HDMI connections (p. 112).
If input mode is not switched automatically
Perform 2 and 3
|
|
•Check the setup of the equipment. |
|
|
2 |
Display the input selection menu |
|
|
3 |
Select the input mode connected to the equipment |
|
|
|
Input Selection |
select |
|
|
AV1 |
|
|
|
AV2 |
watch |
|
|
COMPONENT |
|
|
|
|
|
|
|
HDMI1 |
|
|
|
HDMI2 |
|
|
|
HDMI3 |
|
|
|
HDMI4 |
|
|
|
TV |
|
|
|
SD Card/USB |
|
|
|
•You can also select the input using the AV button on the remote control or the side panel |
|
|
|
of the TV (except [SD Card/USB]). |
|
|
|
Press the button repeatedly until the desired input is selected. |
|
|
|

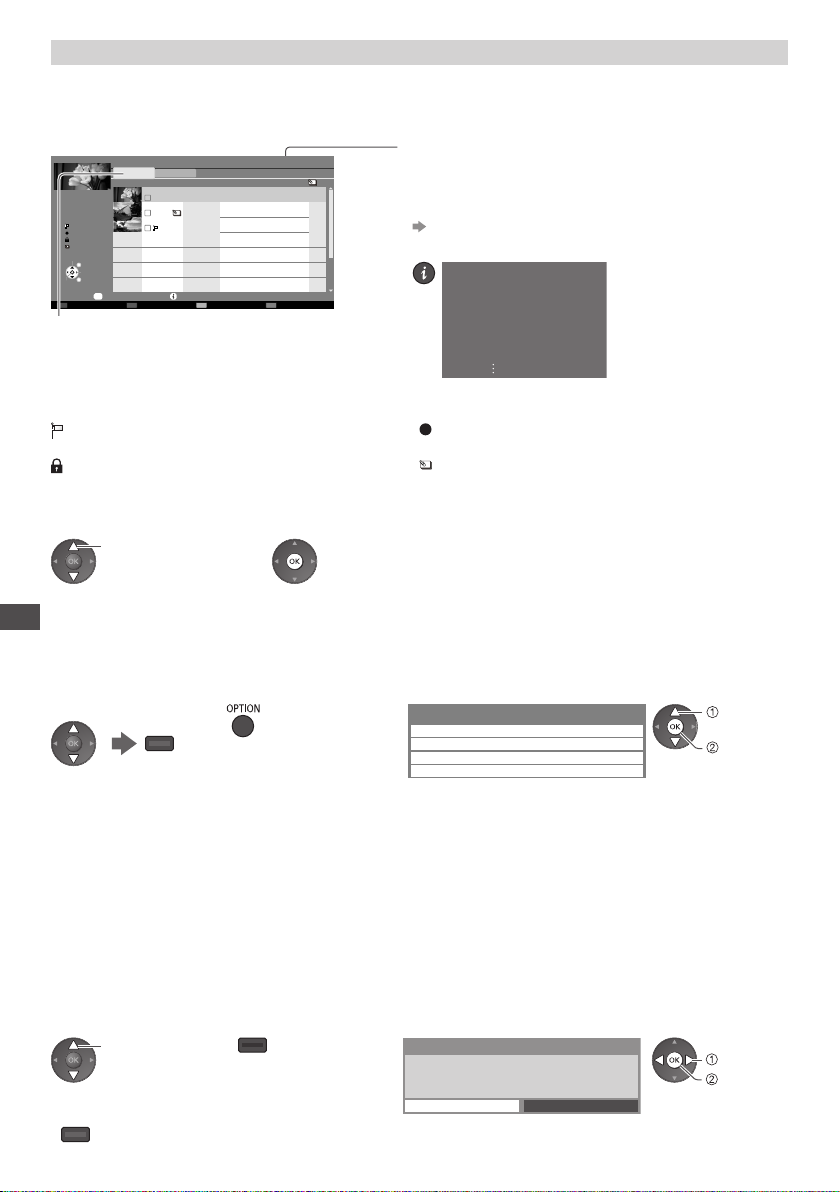

•[SD Card/USB] : Switches to Media Player |
“Using Media Player” (p. 79) |
|
|
•You can label or skip each input mode (except [SD Card/USB]). “Input Labels” (p. 64) |
|
|
|
Skipped inputs will not be displayed when the AV button is pressed. |
|
return to TV |
4 |
View |
|
|
|
AV1 |
|
Displays the selected mode
Note
•If the external equipment has an aspect adjustment function, set it to “16:9”.
•For details, see the manual of the equipment or ask your local dealer.
28
Operating the equipment with the TV remote control
The equipment connected to the TV can be directly operated with the below buttons of this TV remote control.
Selection Switch for operating the connected equipment
Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc theatre or VCR
“How to change the code for the type of the equipment” (see below)
Select “TV” to use in USB HDD / SD Card Recording, Media Player, DLNA operations or VIERA Link
“USB HDD / SD Card Recording” (p. 77)
“Media Player” (p. 80)
“Using DLNA® features” (p. 99) “VIERA Link Control” (p. 110)
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD / video content
Stop
Stop the operations
Rewind / Skip / Search
VCR :
Rewind, view the picture rapidly in reverse
DVD / video content :
Skip to the previous track, title or chapter
Press and hold to search backward
Fast-forward / Skip / Search
VCR :
Fast-forward, view the picture rapidly forward
DVD / video content :
Skip to the next track, title or chapter
Press and hold to search forward
Pause
Pause / Resume
DVD : Press and hold to play at slow speed
Channel Up / Down
Select channel
Record
Start recording
How to change the code for the type of the equipment
Each type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.
1 Set the position to “DVD/VCR”
2 Press and hold |
during the following operations |
|
|
|
|
Enter the appropriate code, see |
Press |
|
|||
table below |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Type of the equipment |
|
|
|
Code |
|
DVD Recorder, DVD Player, Blu-ray Disc Player |
70 (default) |
|||
|
Player theatre, Blu-ray Disc theatre |
71 |
|||
|
VCR |
|
|
|
72 |
Note
•Confirm if the remote control works correctly after changing the code.
•The codes may be reset to default values if batteries are replaced.
•Some operations may not be possible on some equipment models.
Inputs External Watching
29
images 3D Viewing
You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear (supplied). “Standard accessories” (p. 6)
This TV supports [Frame Sequential] 1, [Side by Side] 2 and [Top and Bottom] 3 3D formats.
1 : The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately played back
2, 3 : Other available 3D formats

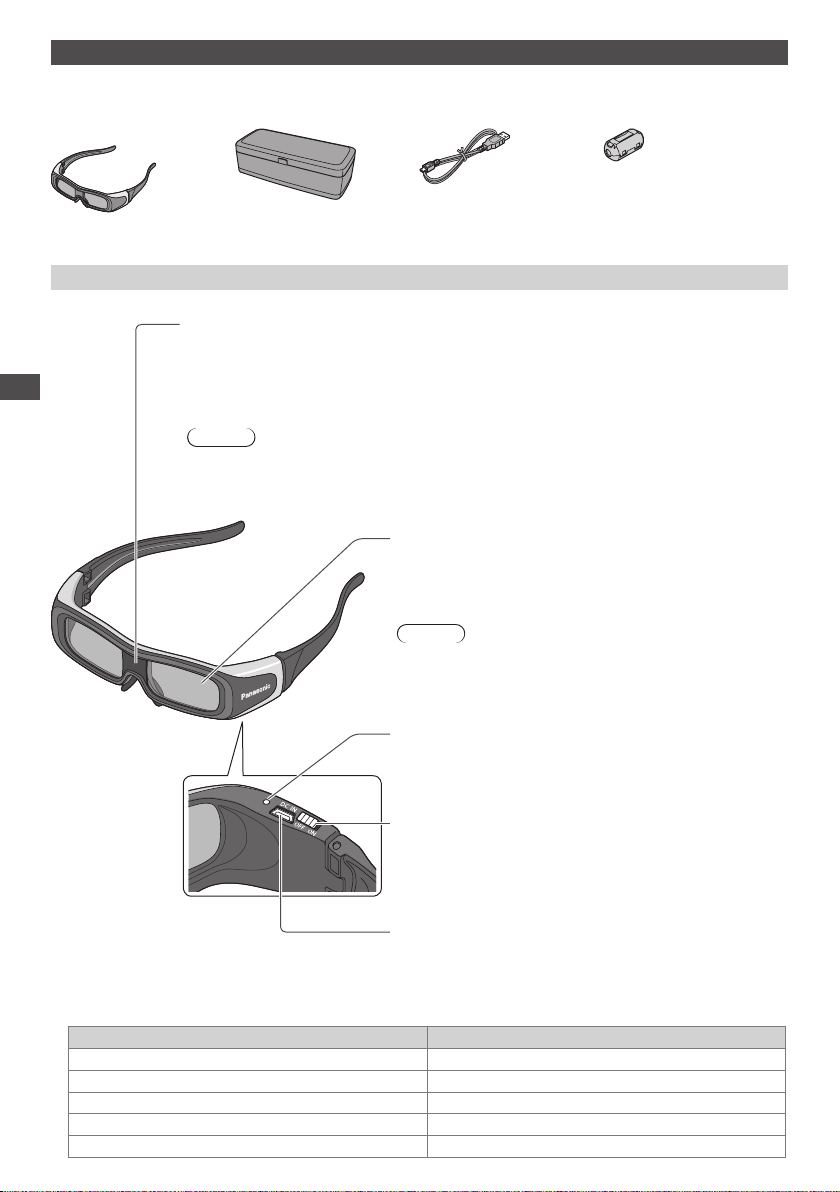

•How to use the 3D Eyewear (p. 32)

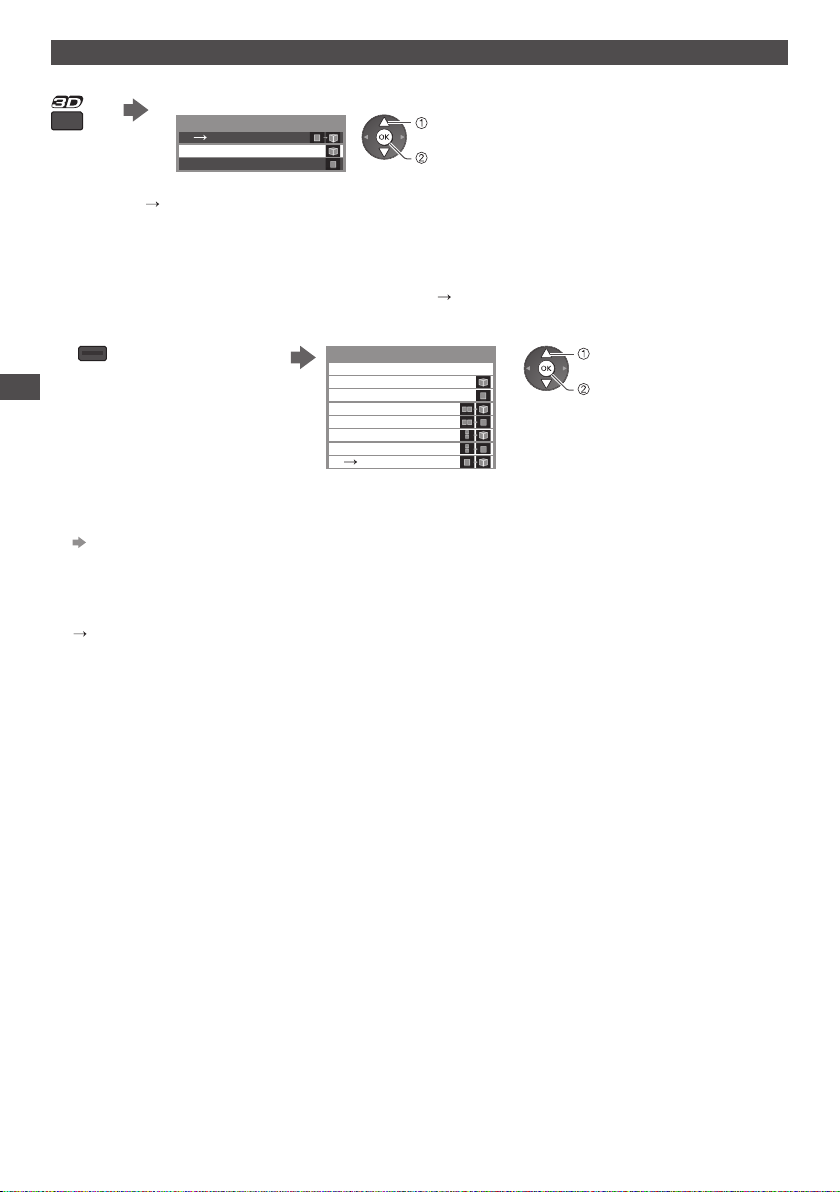

•How to view the 3D images (p. 35)
Danger
Prohibition of Heating
•Do not put 3D Eyewear in fire, heat it or leave it in places that can get hot.
•3D Eyewear contains a lithium-ion polymer rechargeable battery, so heating may result in combustion or rupture that may cause burns or fire.
Warning
Small Parts
•3D Eyewear contains small parts (ferrite core, etc.) and must be kept out of reach of small children to avoid accidental ingestion.
Disassembly
•Do not disassemble or modify the 3D Eyewear.
•When disposing this 3D Eyewear, refer “Disposal” (p. 34) and disassemble properly for removing the rechargeable battery.

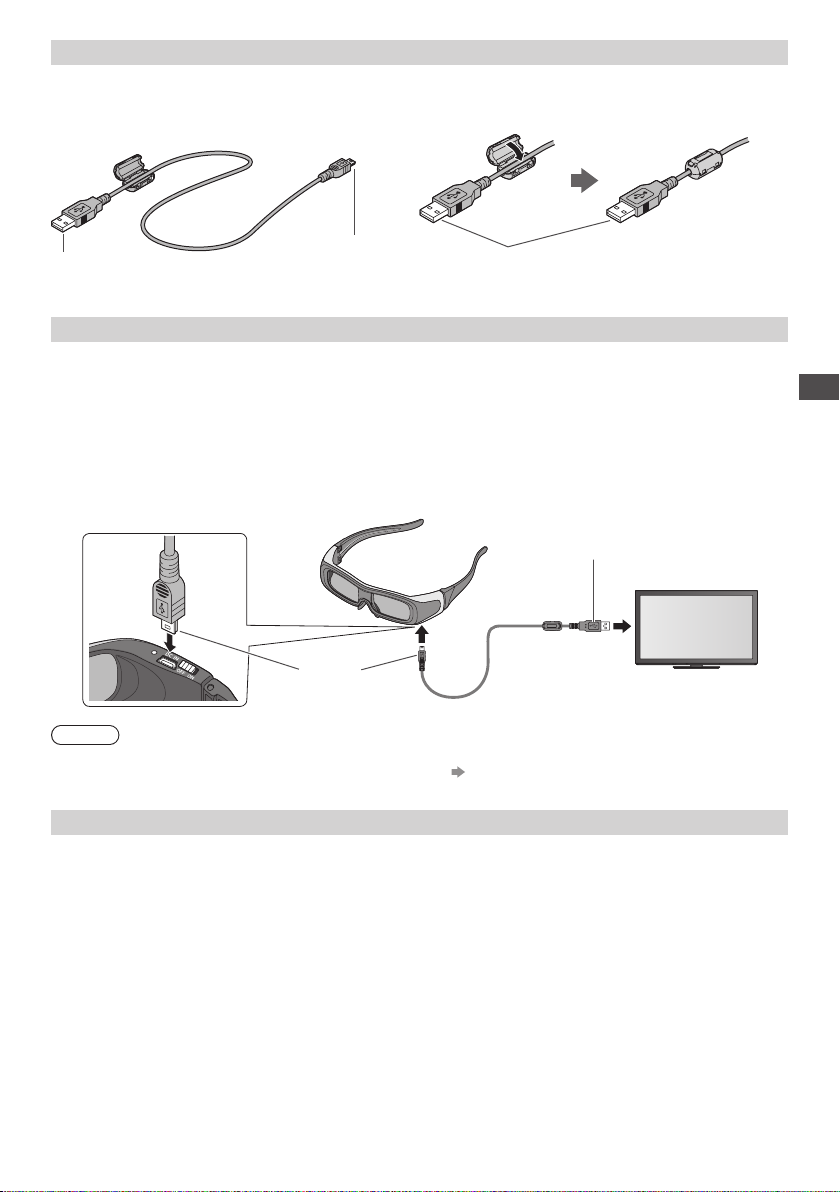

Charging
•Charge by connecting the included charging cable to the USB port of this TV. Charging with other devices may result in battery leakage, heating or rupture.
•Do not use the included charging cable for uses other than charging
30
