Panasonic TX-L65WT600B Operating Instructions

TX-L65WT600B

eHELP

English

Watching

my Home Screen

• Information	12
• How to use	13
• Settings	14

Basic

• Satellite connection	16
• Basic connection	17
• Selecting channel	19
• Information banner	20
• Option Menu	22
• Subtitle	24
• Off Timer	24
• Last view	25

4K resolution

• 4K compatible equipment	26
• PC	26
• Valid 4K format	27

External equipment

• External connection	28
• Watching external input	31
• Operating with TV’s remote control	32
• HDMI features	34
• Terminal information	35
• Valid input signals	36

For best picture

• Viewing Mode	38
• Ambient Sensor	39
• Auto power standby function	39
• Aspect	40
• Aspect Control Signal	41
• Advanced Settings	43
• Lock Settings	46

- 2 -

• Copy Adjustment

For best audio

• Sound mode

TV Guide

• Using TV Guide	48
• Timer Programming	50
• Guide link programming	51

Teletext

• Digital text service	52
• Viewing Teletext	53
• Teletext mode	54

• Note		56
• 3D Eyewear - Functions		56
• 3D	Eyewear - Registration	58
• 3D	Eyewear - Replacing battery	59
• Viewing 3D		59
• 3D	Mode Selection	61
• 3D	Settings	62
• Source image format		64

Tuning and editing channels

• Setting menu	65
• Favourites Edit	65
• Channel List	67
• Regional Channel Edit	69
• Auto Setup	69
• Channel Sorting by Region	71
• Manual Tuning	71
• Update Channel List	72
• New Channel Message	72
• Signal Condition	73
• Add New Channels	73

- 3 -

Recording

USB HDD setup

• Preparations	74
• Setting for USB HDD	75

Recording current programme

• One Touch Recording	77
• Rewind LIVE TV	78

Timer Programming

• Setting timer programming	80
• Editing timer programming	82
• Note	83

Technical information

• USB HDD

Internet service

Internet content

• Information	85
• Selecting internet content	86
• Note	87

Network connections

• Internet connection	88
• Note	89

Network settings

• Network Connection	90
• Custom - Wireless	91
• Custom - Wired	93
• Network Status	94
• VIERA Name	95
• TV Remote App Settings	95
• Network Link Settings	95
• File Sharing Settings	95
• Software Update	95
• New Software Message	95
	- 4 -

Home network

DLNA

• Information	96
• Using DLNA	99

Network connections

• DLNA connection	100
• Note	102

Network settings

• Network Connection	103
• Custom - Wireless	104
• Custom - Wired	106
• Custom - Wireless Access Point	107
• Network Status	108
• VIERA Name	108
• TV Remote App Settings	109
• Network Link Settings	109
• File Sharing Settings	110
• Software Update	110
• New Software Message	111

Photos

• Selecting file	112
• Viewing photo	112
• Using slideshow	113

Videos

• Selecting file	115
• Watching video	116
• Video Setup	117
• Audio output settings	118

Music

• Selecting file	119
• Playing music	119
• Music Setup	120

- 5 -

DIGA Recorder

• Controlling DIGA Recorder

121

Technical information

• Photo format	122
• Video format	122
• Music format	125

Media Player

Using Media Player

• Information	126
• Selecting device / mode	128
• Sharing file	129

Photo mode

• Selecting file	131
• Viewing photo	131
• Sorting photos	132
• Multi Shot 3D	132
• Using slideshow	133

Video mode

• Selecting file	136
• Watching video	136
• Video Setup	138
• Audio output settings	139

Recorded TV mode

• Selecting content	140
• Watching recorded TV	141
• Grouping contents	142
• Deleting content	142
• Changing device	142
• Chapter List	143
• Audio output settings	143

Music mode

• Selecting file

144

- 6 -

• Playing music	144
• Music Setup	145

Technical information

• Device handling caution	146
• SD Card	146
• USB devices	147
• Photo format	147
• Video format	148
• Music format	151

Functions

APPS List

• Information	152
• How to use	152
• Settings	153

Multi Window

• Information	154
• How to use	154
• Note	156

VIERA Link “HDAVI Control™”

• Summary of VIERA Link	157
• Preparations	161
• Easy playback	161
• Power on Link	162
• Power off Link	162
• Standby Power Save	162
• Intelligent Auto Standby	162
• VIERA Link Control	163
• Speaker Selection	164
• Note	165

Child Lock

• Using Child Lock	166
• PIN number	167

- 7 -

• Parental Rating

167

Common Interface

• Caution	168
• Using Common Interface	168

Shipping Condition

• Shipping Condition

170

Updating the TV Software

• Information	171
• Auto update	171
• Manual update	172

Setting characters

• Using numeric buttons

173

Built-in Camera

• Using built-in Camera

174

Voice Control

• Preparations	175
• How to use	176

Bluetooth devices

• Bluetooth Setup

177

Keyboard / Gamepad

• Keyboard	178
• Gamepad	179

Settings

Setting menu

• How to use

180


• Viewing Mode	182
• Basic settings	183
• Ambient Sensor	183
• Noise reduction settings	183
• Resolution Remaster	184
	- 8 -

Panasonic TX-L65WT600B Operating Instructions

• Caption Smoother	184
• Brilliance Enhancer	184
• Intelligent Frame Creation	184
• 24p Smooth Film	184
• Advanced Settings	185
• Option Settings	185
• Screen Settings	187
• 3D Settings	188
• Lock Settings	189
• Copy Adjustment	190
• Reset to Defaults	190

Sound

• Mode	191
• Basic settings	191
• Volume settings	192
• Voice Guidance Settings	193
• Audio Description	194
• Advanced settings	195
• Reset to Defaults	196

Network

• Network Connection	197
• Network Status	197
• VIERA Name	197
• TV Remote App Settings	197
• Network Link Settings	197
• File Sharing Settings	197
• Other settings	198

Timer

• Off Timer	199
• Timer Programming	199
• Time Zone	199
• Auto Standby	199
• No signal Power off	199

- 9 -

Setup

• Eco Navigation	200
• Voice Control Settings	200
• TV Guide Settings	200
• USB Device Setup	200
• Recording Setup	200
• VIERA Touch Pad Controller	200
• Bluetooth Setup	201
• Child Lock	201
• Tuning Menu	201
• Language	203
• Display Settings	204
• DisplayPort Settings	205
• VIERA Link Settings	206
• Professional Mode (isfccc)	206
• System Menu	207
• Other Settings	207

Support

FAQs

• Picture	209
• Digital TV	210
• Analogue TV	212
• Sound	212
• 3D	213
• HDMI	214
• Network	215
• Other	216

Maintenance

• Care and Cleaning

218

Information

• Using Help menu

219

- 10 -

Optional accessories

• 3D Eyewear	220
• Wall-hanging bracket	220

Licence

• Licence		221

	Letters enclosed in a box indicate remote control buttons.
OK	Letters enclosed in a box indicate remote control buttons.
Menu	Letters in cyan indicate on-screen display items.
	References in this eHELP
●● The images shown in this eHELP are for illustrative purposes only.

- 11 -

Watching

my Home Screen

Information

“my Home Screen” is a gateway to the TV, applications, and more.

It provides easy access to special features such as the Media Player, videos, games, communication tools, etc. as shown below (example).

HOME

OK HOME

Home Screen

Selected content screen (TV, application, etc.)

Home Screen Selection

– Your preferred Home Screen can be selected or added.

- 12 -

How to use

Home Screen provides access to special features such as the Media Player,

TV, internet content, data services, communication tools, etc.

1.Display Home Screen with HOME (Example)

●● The last viewed Home Screen is displayed when the TV is turned on. ●● Press again to select or add your preferred Home Screen layout.

Watching my Home Screen Settings

2. Select a feature with / / / and press OK to access ●● To watch full-screen TV

1)Select the TV viewer with / / / (Example)

2)Press OK to watch (Example)

●● Also refer to Tutorial from the tool guide.

- 13 -

Settings

Select the setup menu from the tool guide on the top of the screen, or use coloured button to display the setup menu.

(Example)

■■Home Screen Selection

1.Display Home Screen Selection with HOME

(Example)

2.Select the screen with / and press OK to set Full Screen TV:

Displays full-screen TV

TV Home Screen:

To make your TV experience more convenient and comfortable. Lifestyle Screen:

Displays the TV with useful information and services for everyday life.

Info Screen:

Enjoy internet content while watching TV.

Add New Screen:

You can add a new screen to personalise.

■■Face Recognition

By using the built-in Camera, you can select the registered Home Screen with face recognition. Please refer to Tutorial from the tool guide.

●● For details of the built-in Camera

Functions Built-in Camera Using built-in Camera

- 14 -

■■Settings

You can customise any Home Screen. (For example, changing the wallpaper, renaming freely, editing applications, setting the screen launched when the

TV is turned on, etc.)

1.Select Settings from the tool guide

2.Follow the on-screen instructions

■■Search

You can search the content from various features.

1.Select Search from the tool guide

2.Follow the on-screen instructions

= Note =

●● To use this function fully, you need a broadband network environment.

Ensure the network connections and network settings are completed.

Internet service Network connections

Internet service Network settings

●● Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you will not be able to use my Home Screen. You can update the software later manually.

Internet service Network settings Software Update

- 15 -

Basic

Satellite connection

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.

●● For freesat, Other Sat. / Satellite

■■Dual tuner

Connect the both of satellite IN 1 / IN 2 terminals to the satellite dish, and you can watch or record 2 satellite programmes simultaneously, etc.

Satellite IN 1 / IN 2 terminals

Satellite cables

Satellite dish

■■Single tuner

Connect the satellite IN 1 terminal to the satellite dish.

●● Watching or recording 2 satellite programmes simultaneously, etc. are not available.

Satellite IN 1 terminal

Satellite cable

Satellite dish

= Note =

●● To ensure your satellite dish is correctly installed, please consult your local dealer. Also consult the received satellite broadcasting companies for details.

●● The freesat channel uses Astra2 at 28.2° East and Eurobird1 at 28.5° East satellites. To ensure your satellite dish is correctly installed, consult your freesat registered dealer. (UK only)

- 16 -

●●

External equipment and cables shown are not supplied with this TV.

Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.

Check the terminal type and cable plugs are correct when connecting.

Basic connection

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.

■■Aerial

Terrestrial terminal

RF cable

Terrestrial aerial

●● For DVB, Analogue

■■DVD Recorder / VCR

Terrestrial terminal

RF cable

DVD Recorder / VCR

Terrestrial aerial

AV1 (SCART) terminal

SCART cable

–AV1 (SCART) adaptor (supplied) is necessary when connecting to the TV.

-17 -

■■DVD Recorder / VCR and Set top box

HDMI terminal

HDMI cable

Cable TV box

Terrestrial aerial or cable

AV1 (SCART) terminal

SCART cable

– AV1 (SCART) adaptor (supplied) is necessary when connecting to the TV.

RF cable SCART cable

Terrestrial terminal

RF cable

DVD Recorder / VCR

●● For VIERA Link connections

Functions VIERA Link “HDAVI Control™” Summary of VIERA Link

= Note =

●● External equipment and cables shown are not supplied with this TV. ●● Please also read the manual of the equipment being connected.

●● Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.

●● When using a SCART or HDMI cable, it is recommended to use fully wired one.

●● Check the terminal type and cable plugs are correct when connecting.

- 18 -

Selecting channel

1.Display the TV Selection screen with TV

2.Select the mode with / and press OK to set

freesat (UK only) / DVB / Analogue / Other Sat. (UK only) / Satellite

(Ireland only)

●● Other Sat. is displayed if Auto Setup is completed for Other Sat. channels.

Watching Tuning and editing channels Auto Setup

●● The selectable modes vary depending on the channels stored.

●● You can also select the mode pressing TV repeatedly on the remote control or INPUT/OK/HOLD for MENU button on the control panel of the TV.

●● If the TV Selection menu is not displayed, press TV to switch the mode.

3. Select a channel with Channel Up / Down or numeric buttons

●● freesat channel position numbers are in the 100 - 999 and 0100 - 0999 ranges. DVB and Other Sat. / Satellite channel position begin from number 1 upward. Analogue channel position numbers are in the 0 - 99 range.

■■To select a channel using information banner

It is possible to confirm the channel name and programme information by using the information banner before changing channels.

1.Display information banner with if it is not displayed

2.Select a channel with / and press OK to watch while the banner is displayed

Watching Basic Information banner

■■To select a channel using TV Guide

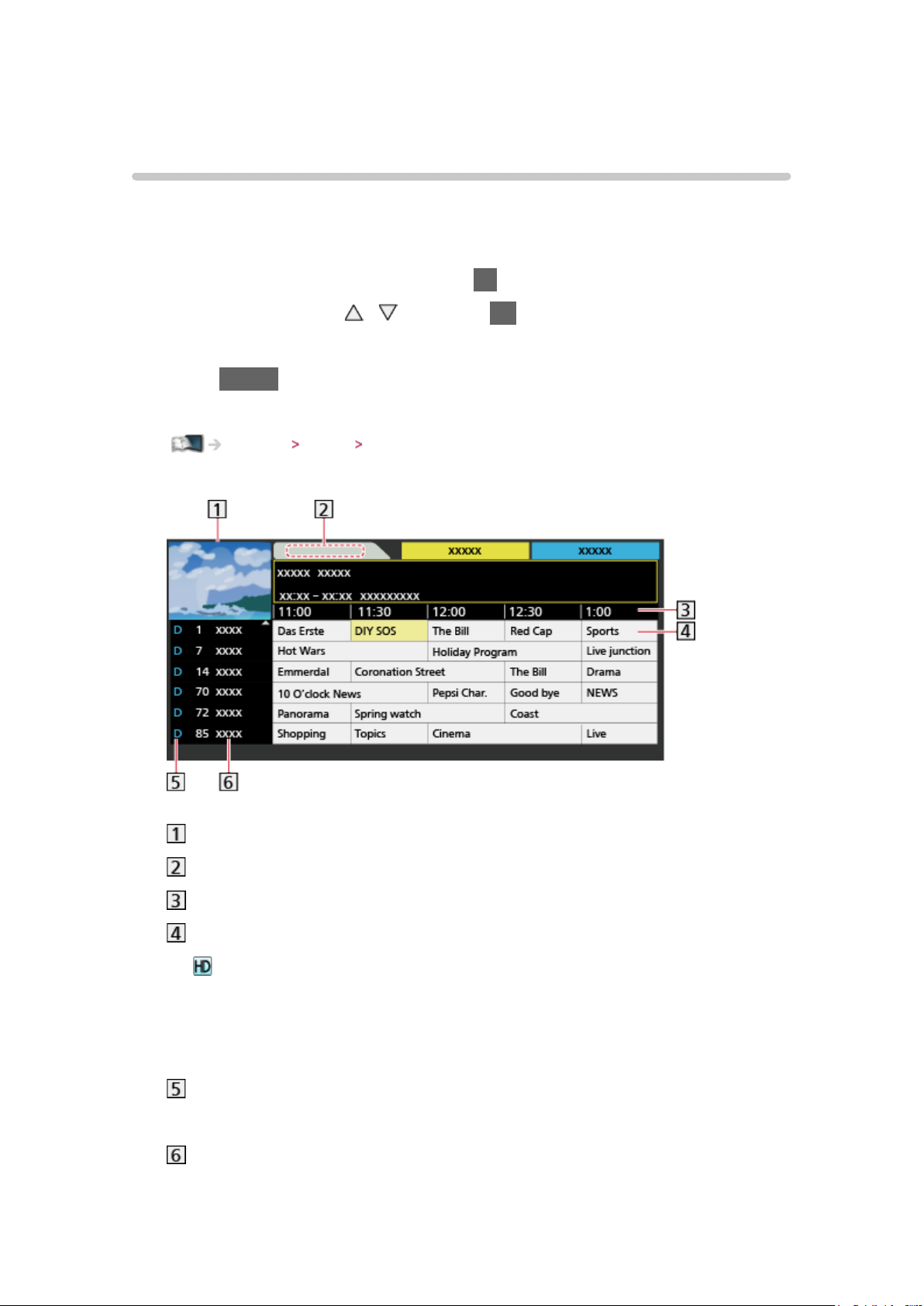

It is possible to confirm the channel and programme information by using TV

Guide (EPG) before changing channels.

1.Display TV Guide with GUIDE

2.Select the current programme or channel with / / / and press OK to access

3.Select View with / and press OK to access (DVB)

–The current programme is displayed on the top left of the screen.

-19 -

4. Press OK to exit TV Guide

Watching TV Guide Using TV Guide

■■To watch pay-TV

●● For information of the encrypted channels

Functions Common Interface Using Common Interface

●● Consult the operator / broadcaster or CI module manufacturer for more information and conditions of the services.

Information banner

Display information banner with .

●● Also appears when changing a channel.

(Example)

Channel position and name

Channel type (Radio, HDTV, etc.) / encrypted channel () / TV mode (,

, , )

Programme

Programme start / finish time (except Analogue) Channel position, etc. (Analogue)

Progress time indicator of the selected programme (except Analogue)

All DVB Channels / All freesat Channels / All Other Sat. Channels /

All Satellite Channels / All Analogue Channels / Favourites 1 to 4

●● Press (blue) to switch. (DVB or Other Sat. / Satellite)

●● To list favourite channels, set Favourites Edit.

Watching Tuning and editing channels Favourites Edit

Current time

Features available / message meanings Mute:

Sound mute is on

- 20 -

Bad signal:

Poor quality TV signal

Dolby D+, Dolby D, HE-AAC:

Dolby Digital Plus, Dolby Digital or HE-AAC audio track Also in :

Same programme available as HD broadcast ●● To display the extra information for details ●● UK only

AD:

Audio Description service available

●● This function can aid visually-impaired viewers by adding an additional audio track to describe events on screen.

Settings Sound Audio Description

STTL:

Subtitle service available TEXT:

Text service available Multi Audio:

Multiple audio available Stereo, Mono, NICAM:

Audio mode 1 – 90:

Off Timer remaining time

Watching Basic Off Timer

●● To confirm another tuned channel

●● To watch the channel listed in the banner

●● Information on the next programme (DVB)

●● To hide the banner EXIT

●● Extra information (DVB)

- 21 -

– Press again to hide the banner.

●● To adjust banner timeout, set Banner Display Timeout.

Settings Setup Display Settings

●● AD, STTL, TEXT, Multi Audio indications are displayed as available on particular programmes, but may not be available for all individual programmes being broadcast. Display the extra information to confirm availability of these functions.

Option Menu

Confirm or change the current status.

1.Display Option Menu with OPTION

2.Select one of the following items with / and press OK to access

Voice Guidance Settings / Audio Description / Multi Audio / AD /

Multi Audio / Monaural Audio / Sub Channel / Subtitle Language /

Teletext Character Set / Teletext Language / NICAM / Volume Correction

●● The function items vary depending on the country you select. 3. Set with / / / and press OK to store

Voice Guidance Settings

Guidance settings for visually impaired users

Settings Sound Voice Guidance Settings

Audio Description

Set to Auto if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen.

●● To adjust the volume for Audio Description (UK only)

Settings Sound Audio Description

●● For DVB mode

●● Not valid on the sub screen in multi window mode

Multi Audio / AD

Selects between alternative language or Audio Description for sound tracks (if available).

●● Set Audio Description to Auto in the Sound Menu to select the audio description sound track.

Settings Sound Audio Description

●● This setting is not memorised and it will return to the default setting once you exit the current programme.

- 22 -

●● In freesat mode, Audio Description cannot be controlled separately from the audio description sound track.

●● For freesat mode (UK only)

●● For DVB mode (Ireland only)

Multi Audio

Selects between alternative languages for sound tracks (if available).

●● This setting is not memorised and it will return to the default setting once you exit the current programme.

●● For DVB mode

●● For Other Sat. mode (UK only)

●● For Satellite mode (Ireland only)

Monaural Audio

Selects stereo / monaural (if available).

●● This setting is not memorised and it will return to the default setting once you exit the current programme.

●● Not valid in Analogue mode

Sub Channel

Selects the multifeed programme - sub channel (if available). ●● For Other Sat. mode (UK only)

●● For Satellite mode (Ireland only)

Subtitle Language

Selects the language in which subtitles should appear (if available).

●● This setting is not memorised and it will return to the default setting once you exit the current programme.

●● Not valid in Analogue mode

●● Not valid on the sub screen in multi window mode

Teletext Character Set

Sets the teletext language font.

Settings Setup Display Settings

●● Ireland only

- 23 -

Teletext Language

Selects between alternative languages for teletext (if available). ●● For DVB / Satellite mode (Ireland only)

NICAM

Switches NICAM sound (if available).

Settings Sound Advanced settings

●● For Analogue mode

Volume Correction

Adjusts the volume of each individual channel or input mode.

Subtitle

■■freesat, DVB or Other Sat. / Satellite

Display / hide subtitles (if available) with STTL.

■■Analogue

Display subtitles with STTL. ●● Hide subtitles with EXIT.

= Note =

●●

Subtitles may not be displayed properly in 3D images.

If you press STTL in Analogue mode, the TV switches to teletext service and calls up a favourite page. Press EXIT to return to TV mode.

This is the same as switching to analogue teletext service and selecting “P888” (subtitle service).

Watching Teletext Viewing Teletext

●● Not valid on the sub screen in multi window mode

Off Timer

Turn the TV Standby mode automatically after a fixed period.

1.Display the menu with MENU

2.Select Timer Off Timer with / and press OK to access

3.Select the time in 15-minute increments with / and press OK to set 90 / 75 / 60 / 45 / 30 / 15 / Off (minutes)

●● To cancel, set to Off or turn the TV off.

- 24 -

●● The remaining time displays on the information banner.

Watching Basic Information banner

●● When the remaining time is less than 3 minutes, the remaining time will flash on the screen.

Last view

Switch to a previously viewed channel or input mode easily with LAST VIEW.

●● Press again to return to the current view.

= Note =

●● Watching less than 10 seconds is not reflected in the previously viewed channel or input mode.

- 25 -

4K resolution

4K compatible equipment

You can watch the contents of 4K format that have twice the horizontal and vertical resolution of the 1080p signal.

●● For valid 4K format

Watching 4K resolution Valid 4K format

●● Connect the 4K compatible equipment to HDMI4 using a 4K compatible cable and you can watch contents of 4K format.

■■4K compatible equipment

HDMI4 terminal

HDMI cable

4K compatible equipment

●● Check the terminal type and cable plugs are correct when connecting.

■■PC

DisplayPort™

DisplayPort cable

●● Please use DisplayPort 1.2 compliant cable. In some case using

DisplayPort 1.2 NON-compliant cable or mini DisplayPort connector adaptor, there will be malfunctions that TV couldn’t display higher resolution (e.g. 4K).

●● Check the terminal type and cable plugs are correct when connecting. ●● To select the signal stream, set DisplayPort Settings.

Settings Setup DisplayPort Settings

- 26 -

Valid 4K format

■■Valid 4K format (HDMI4 / DisplayPort)

●● 4K UHD

3,840 × 2,160 (60p, 50p, 30p, 25p, 24p)

– Aspect is fixed to 16:9.

●● DCI 4K

4,096 × 2,160 (60p, 50p, 30p, 25p, 24p)

–Actual resolution is 3,840 × 2,160p.

–Selectable aspect is 16:9, H Full or V Full.

=Note =

●● The above signals are reformatted for optimal viewing on your display. ●● 3D content of 4K format is not supported.

●● The broadcast of 4K format is not supported.

●● For details of aspect

Watching For best picture Aspect

- 27 -

External equipment

External connection

These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment.

●● For basic connection

Watching Basic Basic connection

●● To use the specific devices supporting Bluetooth wireless technology

Functions Bluetooth devices

●● Check the terminal type and cable plugs are correct when connecting.

■■HDMI equipment

HDMI terminal

Fully wired HDMI compliant cable

Recorder / Player / 3D compatible player / Cable TV box / Camcorder / Amplifier with speaker system

= Note =

●● For VIERA Link connections

Functions VIERA Link “HDAVI Control™” Summary of VIERA Link

●● Use HDMI2 or HDMI4 for connecting an amplifier and match the output setting in ARC Output in the Sound menu. This connection is applicable when using an amplifier that has ARC (Audio Return Channel) function.

Settings Sound Advanced settings

- 28 -

■■AV devices

AV2 (COMPONENT) terminals

Component cables

– AV2 (COMPONENT / VIDEO) adaptor (supplied) is necessary. DVD player

AV2 (VIDEO) terminals

Composite cables

– AV2 (COMPONENT / VIDEO) adaptor (supplied) is necessary. Camcorder / Game equipment

■■USB devices

USB port

USB cable

USB HDD

= Note =

●●

It is recommended to connect the devices to the TV’s USB ports directly.

You cannot use two or more of the same kind of USB devices simultaneously except USB Flash Memory or USB HDD.

- 29 -

●●

Use USB 3 port for connecting the USB HDD.

Some USB devices or USB HUB may not be used with this TV. You cannot connect any devices by using USB card reader.

Additional information for the devices may be on the following website.

(English only) http://panasonic.net/viera/support

■■PC

DisplayPort™

DisplayPort cable

●● Please use DisplayPort 1.2 compliant cable. In some case using DisplayPort 1.2 NON-compliant cable or mini DisplayPort connector adaptor, there will be malfunctions that TV couldn’t display higher resolution (e.g. 4K).

●● To select the signal stream, set DisplayPort Settings.

Settings Setup DisplayPort Settings

■■To listen with speakers

DIGITAL AUDIO

Optical digital audio cable

Amplifier with speaker system

●● To enjoy the sound from the external equipment in multi-channel sound

(e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the connections, read the manuals of the equipment and amplifier.

- 30 -

+ 194 hidden pages
