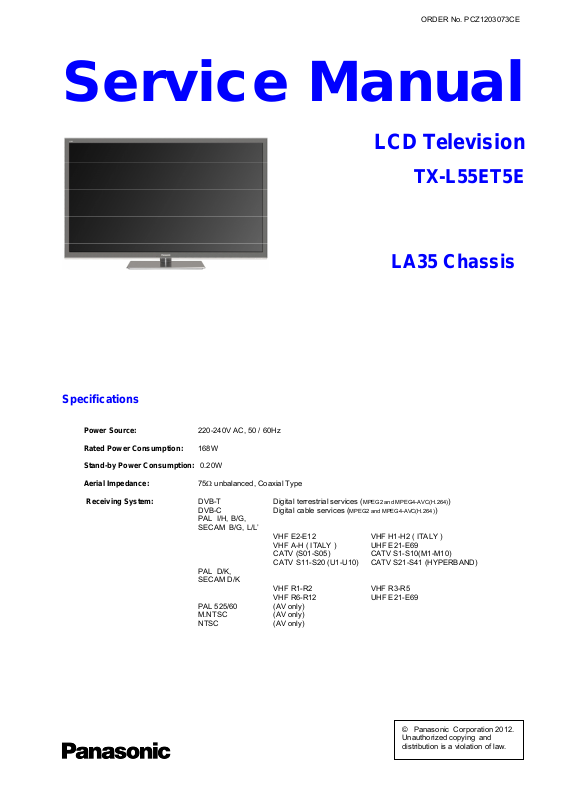

Panasonic TX-L55ET5E Schematic

ORDER No. PCZ1203073CE
Service Manual
LCD Television
TX-L55ET5E
LA35 Chassis
Power Source: 220-240V AC, 50 / 60Hz
Rated Power Consumption: 168W Stand-by Power Consumption: 0.20W
Aerial Impedance: 75 unbalanced, Coaxial Type
Receiving System: DVB-T Digital terrestrial services (
DVB-C Digital cable services ( PAL I/H, B/G,
SECAM B/G, L/L’ VHF E2-E12 VHF H1-H2 ( ITALY ) VHF A-H ( ITALY ) UHF E21-E69
CATV (S01-S05) CATV S1-S10(M1-M10)
CATV S11-S20 (U1-U10) CATV S21-S41 (HYPERBAND)
PAL D/K,
SECAM D/K VHF R1-R2 VHF R3-R5 VHF R6-R12 UHF E21-E69
PAL 525/60 (AV only) M.NTSC (AV only) NTSC (AV only)
MPEG2 and MPEG4-AVC(H.264))
MPEG2 and MPEG4-AVC(H.264))
© Panasonic Corporation 2012. Unauthorized copying distribution is a violation of law.
and
2
Aerial - Rear:
VHF/UHF
Operating Conditions: Temperature: 0°C  35°C
Humidity: 20%  80% RH (non condensing)
Terminals: AV1 IN Video (21 pin) 1V p-p 75
Audio (21 pin) 500mV rms 10k RGB (21 pin) 0.7V p-p 75
AV1 OUT Video (21 pin) 1V p-p 75 Audio (21 pin) 500mV rms 1k
AV2 IN Video (RCAx1) 1V p-p 75
(COMPONENT/VIDEO) Audio (RCAx2) 500mV rms 10k (used for HDMI_ with the supplied AV cable)
Video (RCAx3) Y:1V p-p 75 (including synchronization)
Pb, Pr: ±0.35V p-p 75
HDMI1, HDMI2, HDMI3, HDMI4 Type A Connectors
HDMI
1/3/4 :3D, Content Type, Deep Colour HDMI 2 :3D, Content Type, Audio Return Channel, Deep Colour This TV supports “HDAVI Control 5” function.
DIGITAL AUDIO OUT PCM / Dolby digital / DTS, Fiber optic
USB 1/2/3 USB 2.0 DC 5V Max 500mA
PC HIGH-DENSITY D_SUB 15PIN R,G,B: 700mV p-p 75 HD,VD/TTL Level 2-5V p-p (high impedance)
ETHERNET RJ45, IEEE802.3 10BASE-T / 100BASE-TX
CARD SLOT SD CARD slot x1 Common interface slot (Complies with CI+) x1
Wireless LAN: Standard Compliance IEEE802.11a/n , IEEE802.11b/g/n
Frequency Range IEEE802.11a/n: 5.180 GHz – 5.320 GHz
5.500 GHz – 5.580 GHz
5.660 GHz – 5.700 GHz IEEE802.11b/g/n: 2.412 GHz – 2.472 GHz
Security WPA2-PSK (TKIP/AES)
WPA-PSK (TKIP/AES) WEP(64 bit/128 bit)
3D Eyewear: Dimensions (W x H x D) 149mm x 44m x 171mm
Mass 18g Lens Type Circularly-polarised filter
Usage Temperature Range 0°C 40°C Materials Main body / Lens section: Resin
LCD screen: L5EDDYY00368 1920 x 1080, 16:9 Visible Diagonal 1390mm
Audio Output: 20W (2 x 10W) Headphones: 3.5mm, 8 Impedance Accessories supplied : Remote Control
2 x R6 (UM3) Batteries SCART Cable AV Cable
3
Dimensions:
Including TV stand 1,281mm 811mm 282mm
Mass:
Including TV stand 29kg
TV set only 25kg
Design and Specifications are subject to change without notice. Mass and dimensions shown are approximate.
Width: Height: Depth:
TV set only 1,281mm 765mm 52mm
This equipment complies with the EMC standards listed below:
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024
Warning
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products deal within this service information by anyone else could result in serious injury or death.

CONTENTS

4
SAFETY PRECAUTIONS........................................... 5
GENERAL GUIDE LINES...................................... 5
TOUCH – CURRENT CHECK............................... 5
PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES)
DEVICES.................................................................... 6
ABOUT LEAD FREE SOLDER (PBF)......................... 7
SUGGESTED PB FREE SOLDER........................ 7
APPLICABLE SIGNALS.............................................. 8
SERVICE HINTS ........................................................ 9
CHASSIS BOARD LAYOUT..................................... 10
LOCATION OF LEAD WIRING................................. 10
TECHNICAL DESCRIPTION ................................….11
SPECIFICATION OF KEY FOR CI PLUS, DTCP-IP, ONE-TO-ONE, WIDEVINE, NETFLIX. 11
GENERAL INFORMATION................................. 11
REPLACEMENT OF ICS..................................... 11
MODEL AND KEYS ............................................ 11
SETTING INSPECTION............................................ 12
SELF CHECK ........................................................... 13
POWER LED BLINKING TIMING CHART................ 14
SERVICE MODE FUNCTION................................... 15
SERVICE ................................................................ 16
SERVICE TOOL MODE............................................ 17
HOTEL MODE .......................................................... 18
DATA COPY BY SD CARD....................................... 19
DATA COPY FROM TV SET TO SD CARD.............20
DATA COPY FROM SD CARD TO TV SET.............21
OPTION BYTES DESCRIPTION.............................. 22
ADJUSTMENT METHOD.......................................... 23

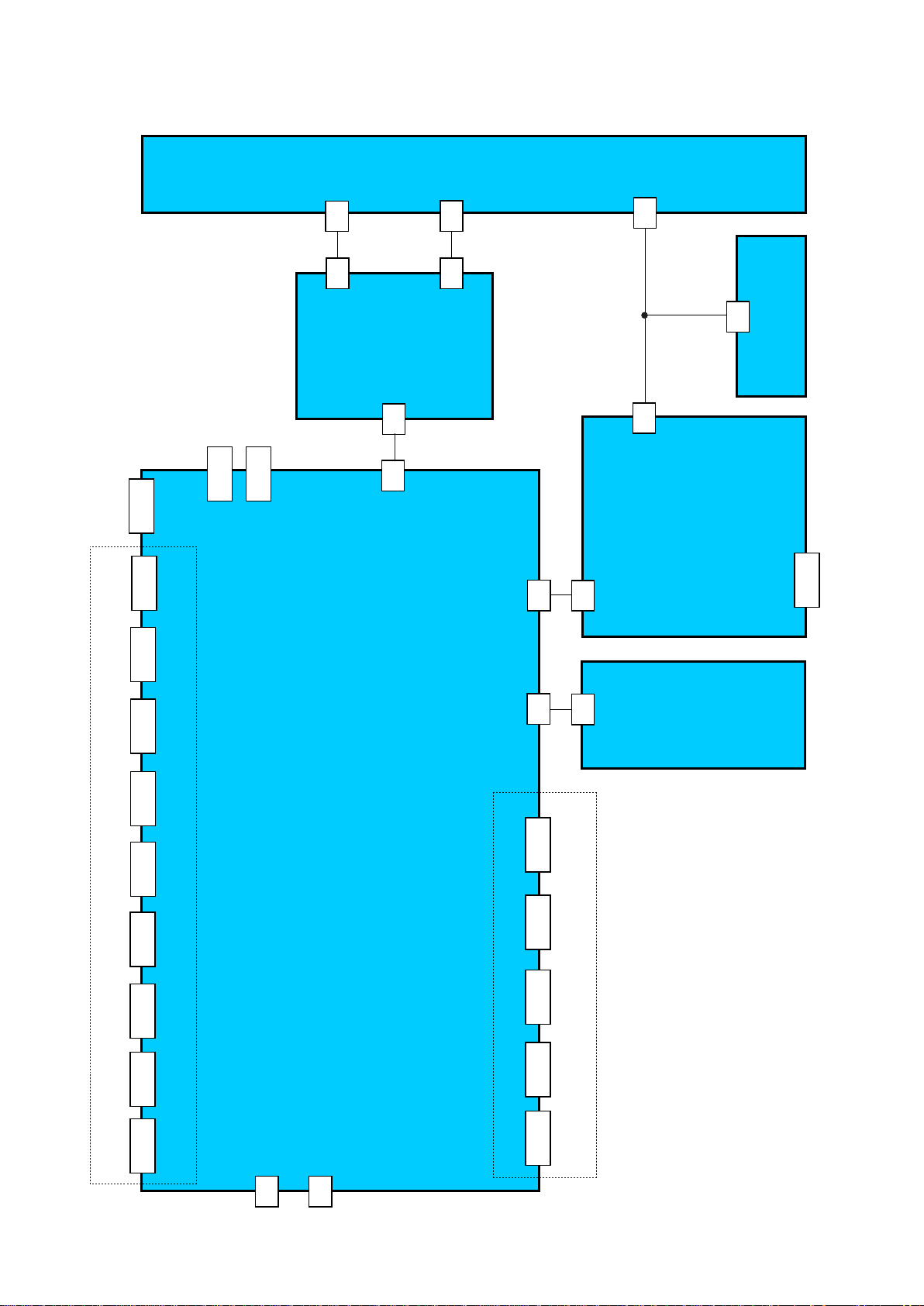

WIRING DIAGRAM................................................... 24

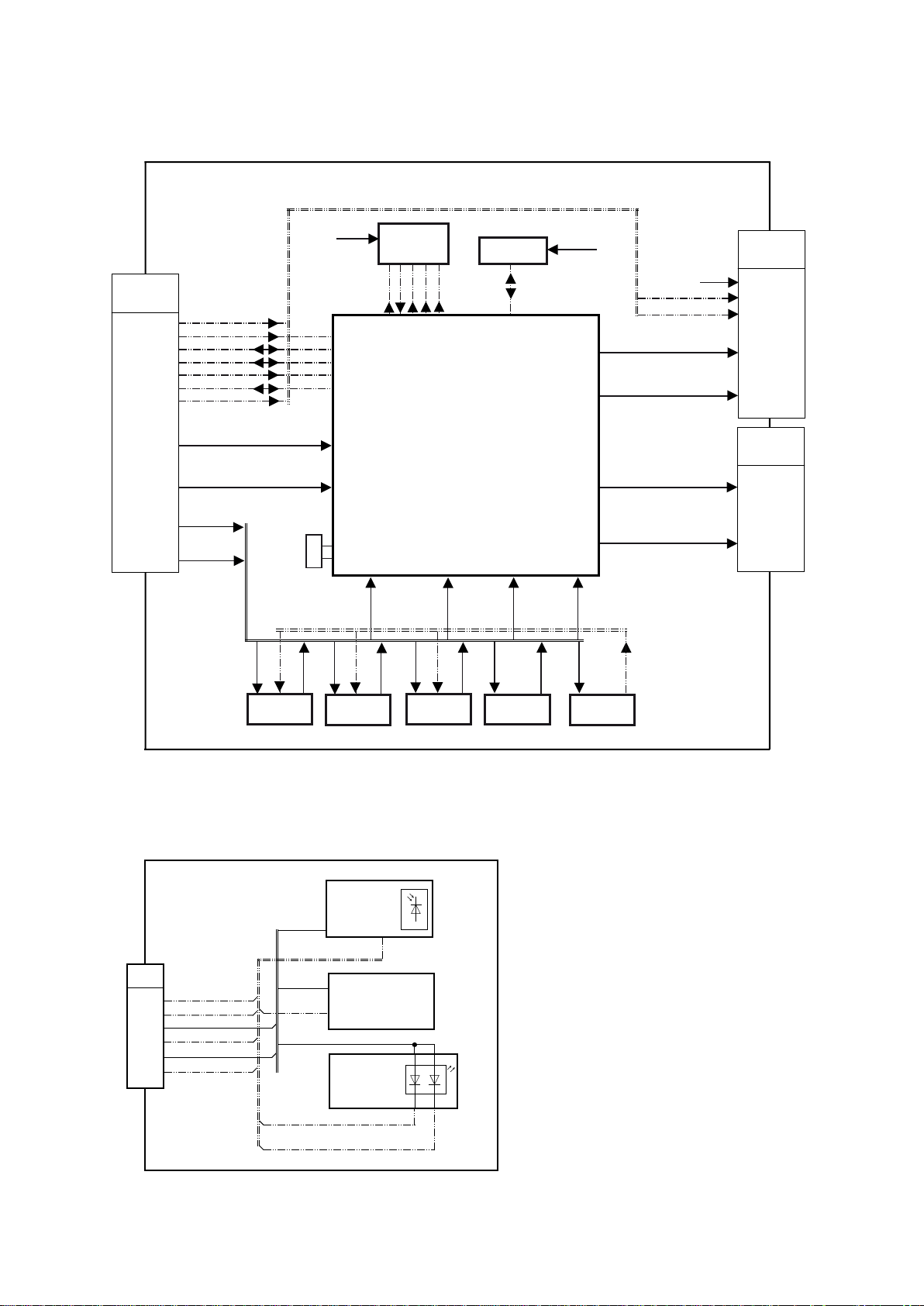

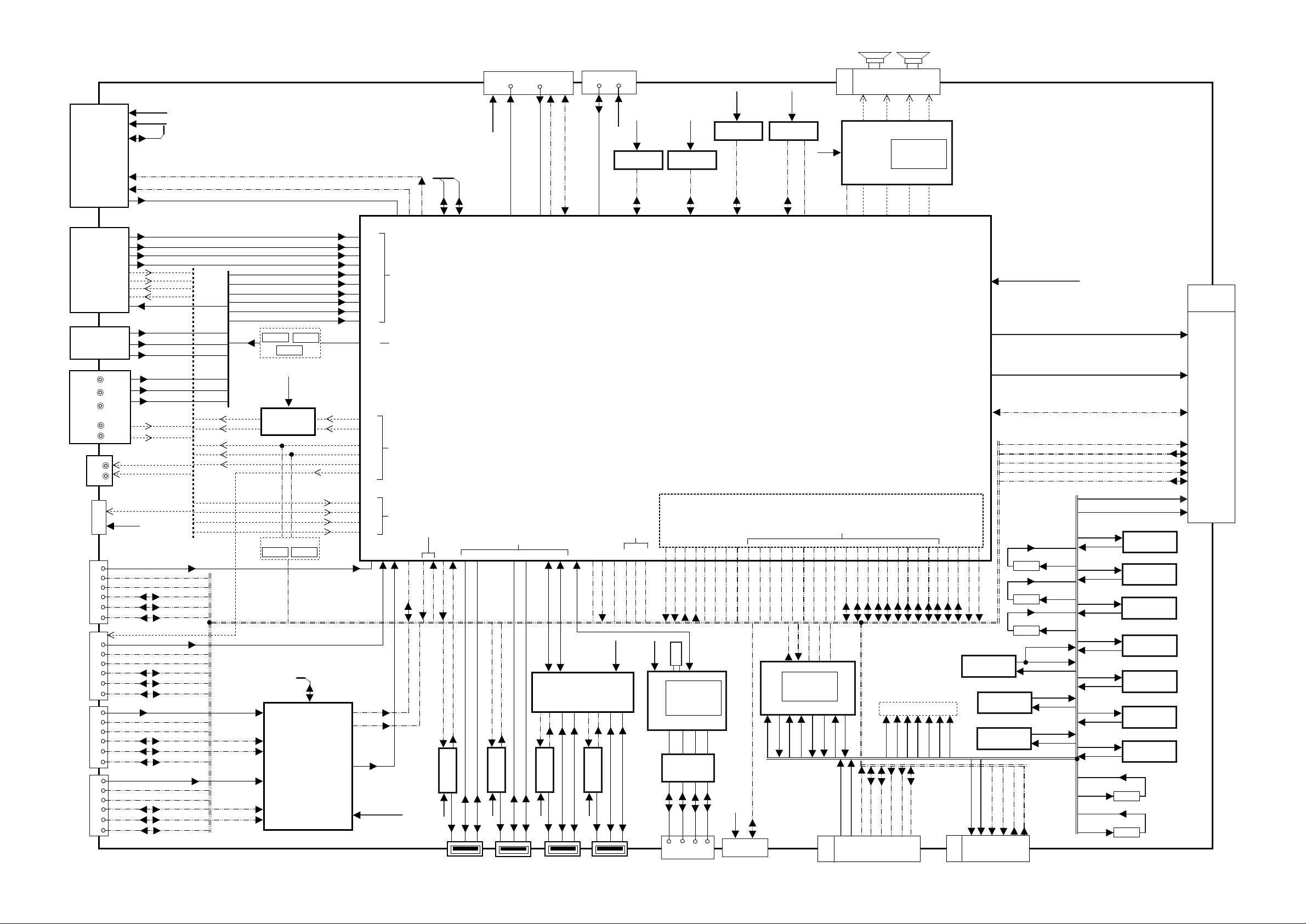

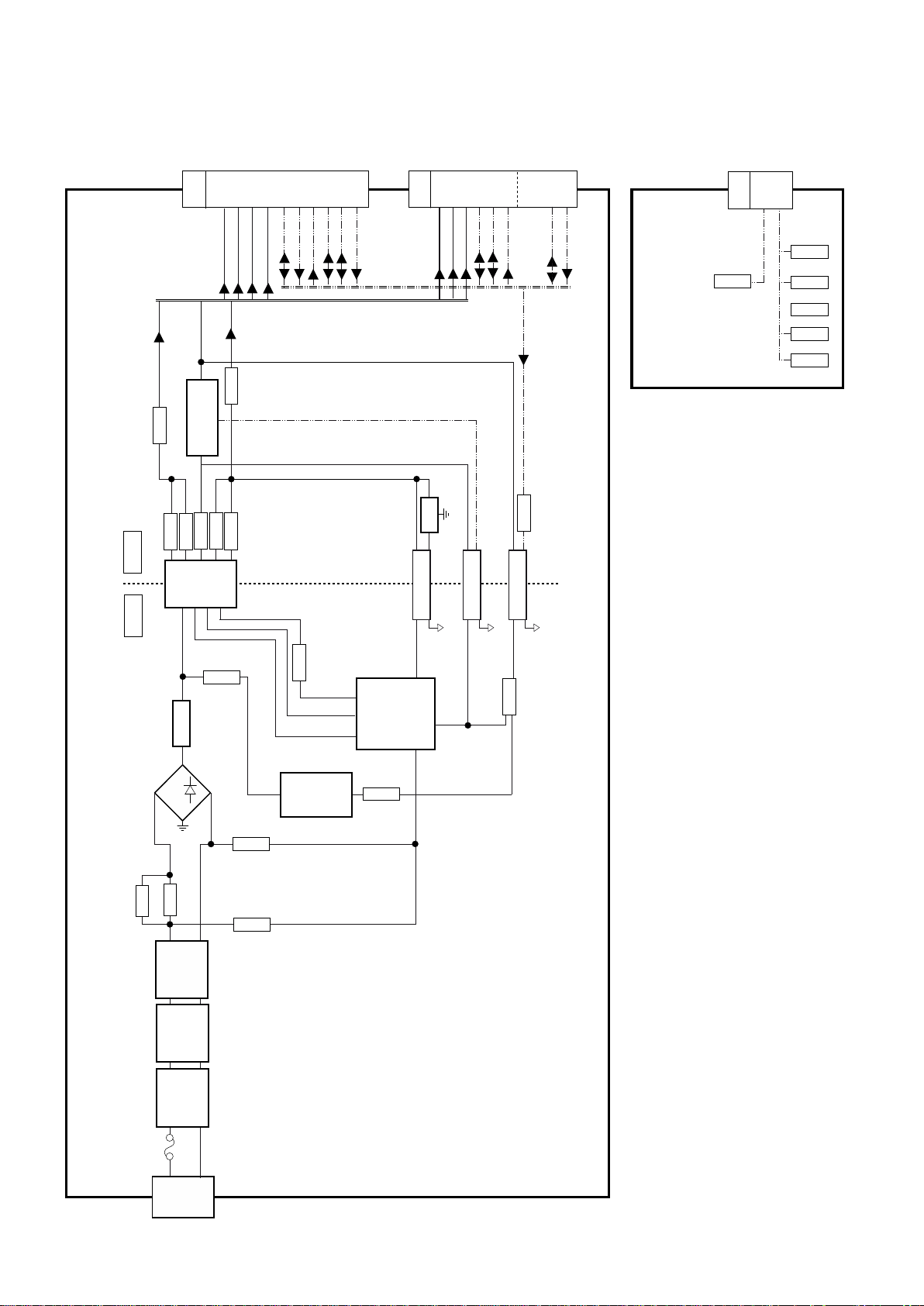

BLOCK DIAGRAM (1 OF 3)......................................25

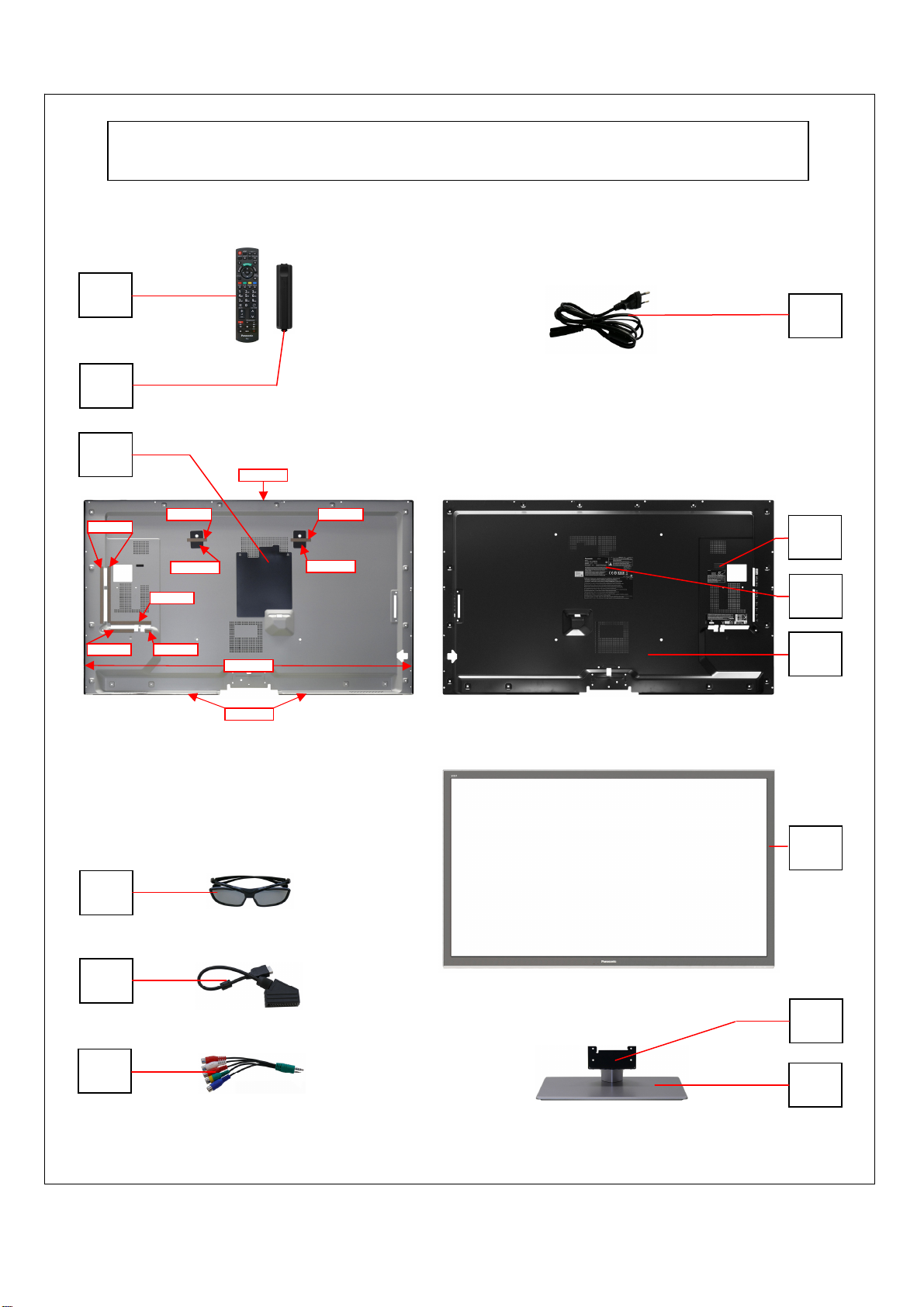

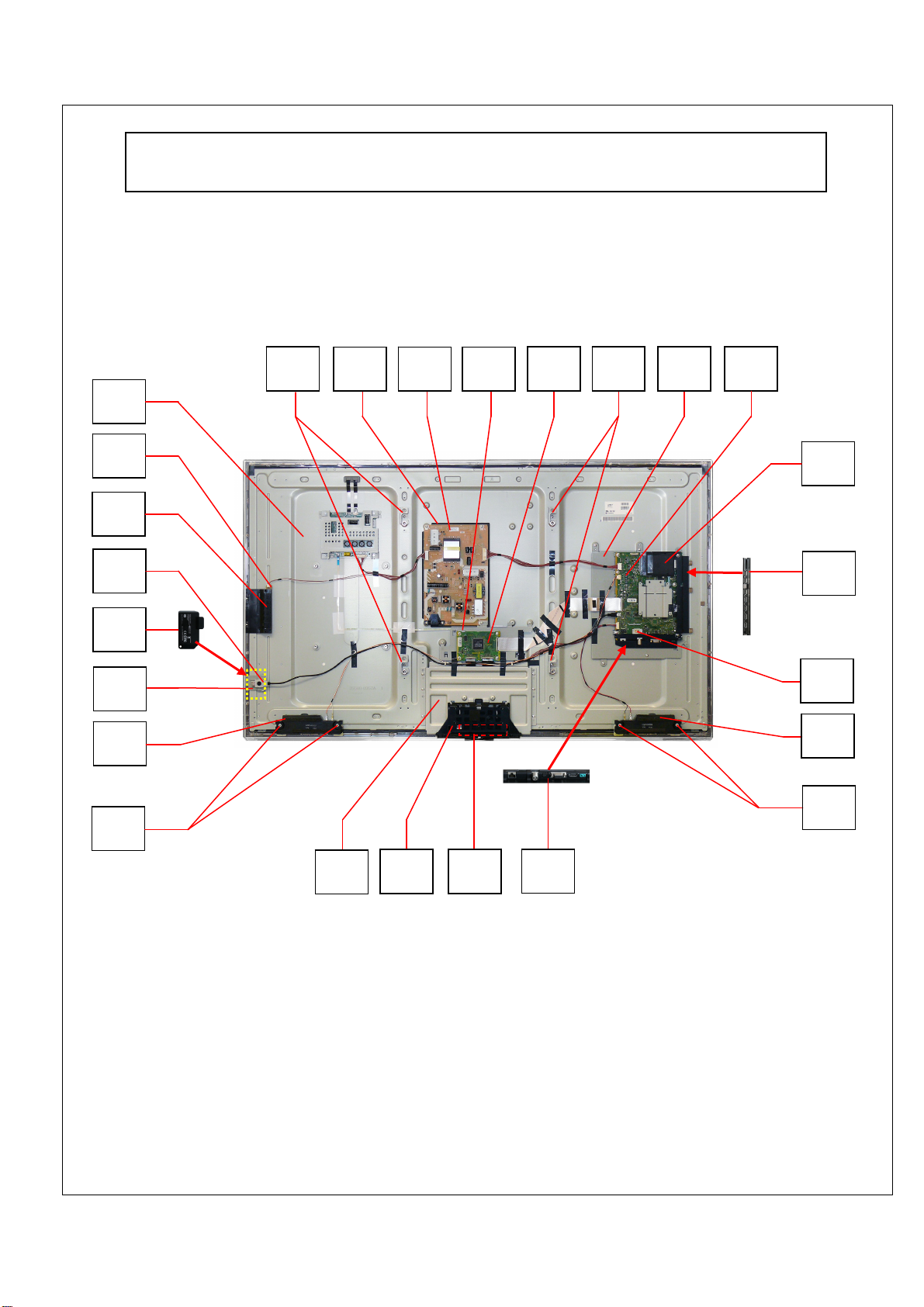

PARTS LOCATION...................................................28
REPLACEMENT PARTS LIST.................................. 30
SCHEMATIC DIAGRAMS......................................... 40

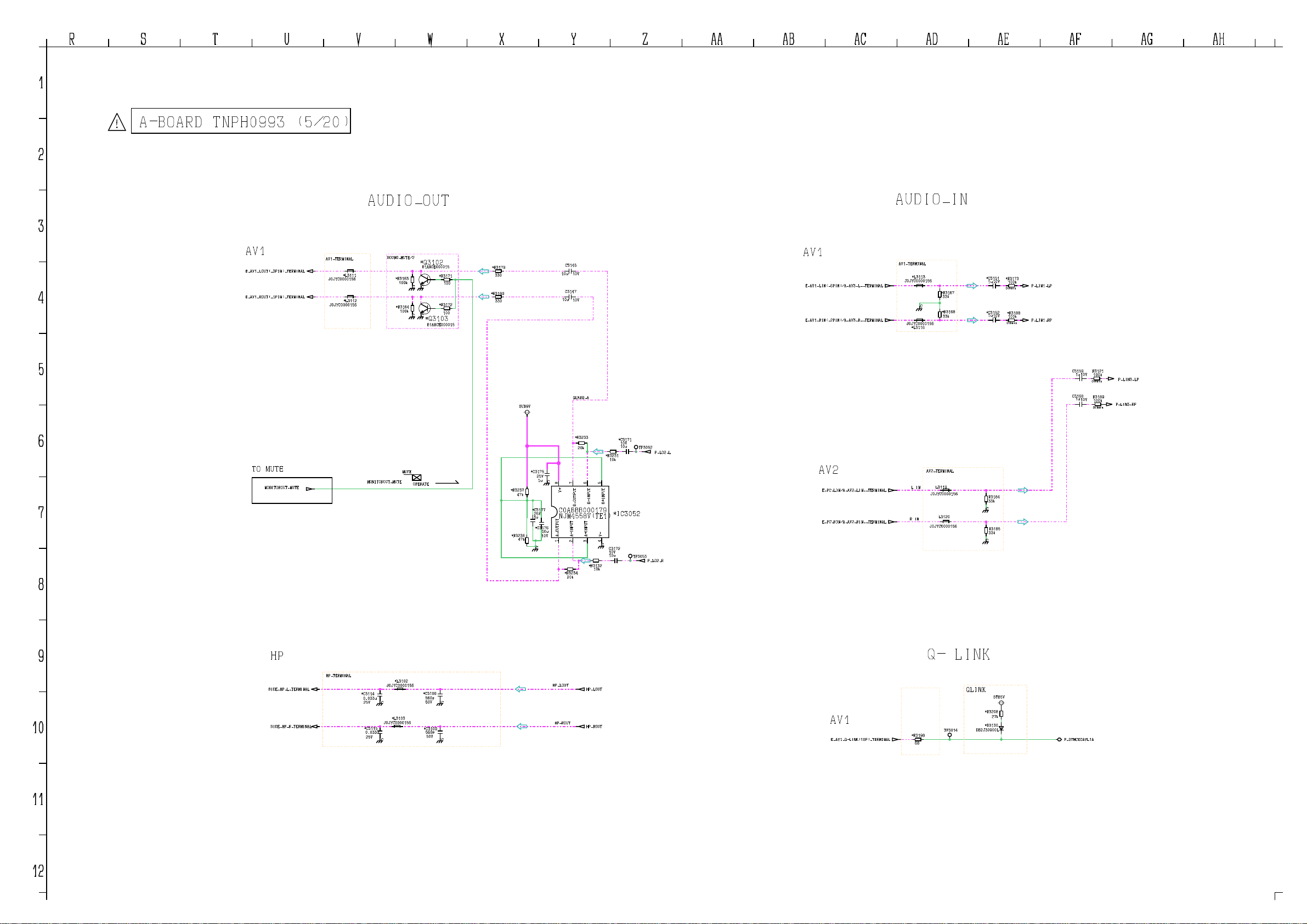

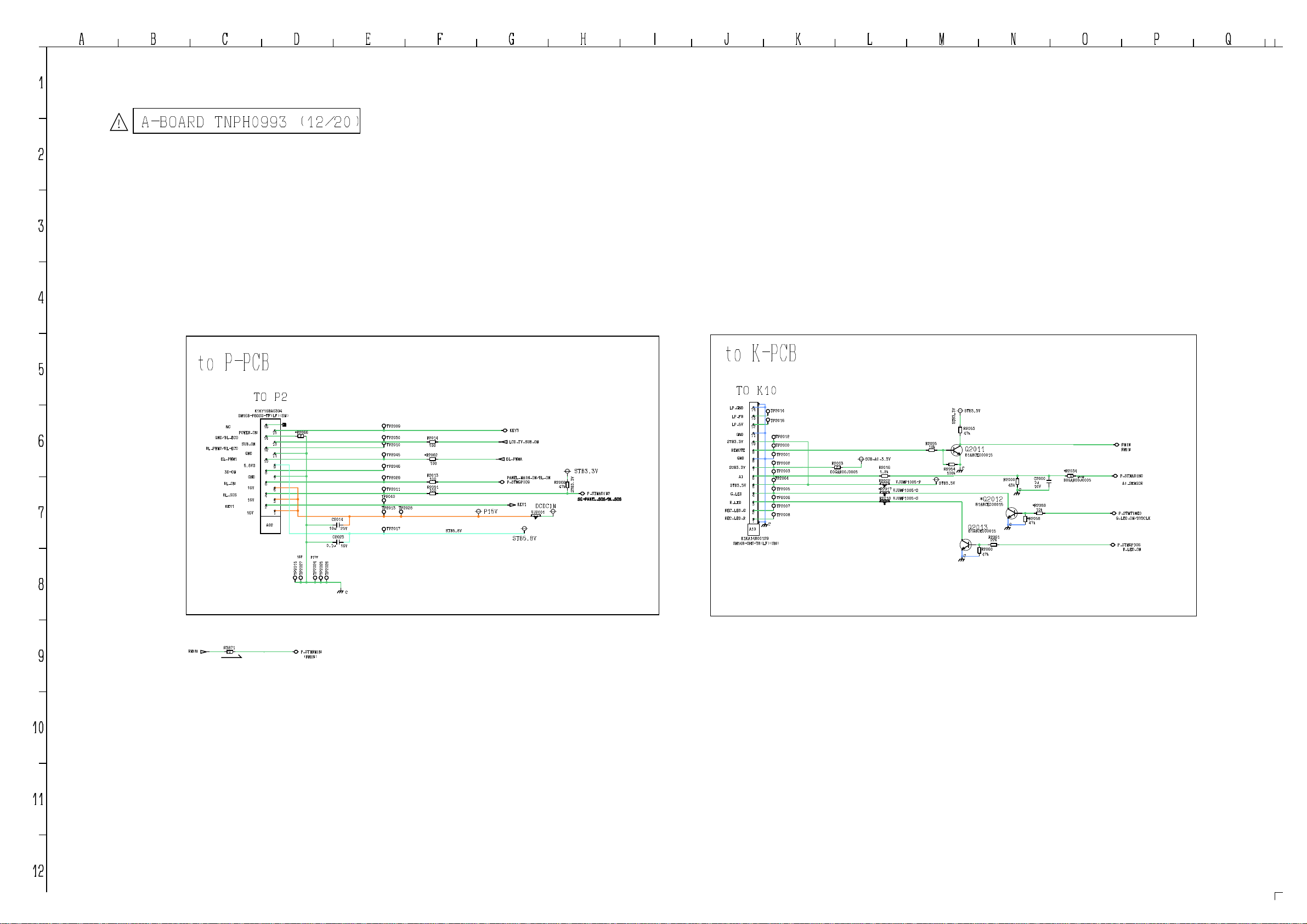

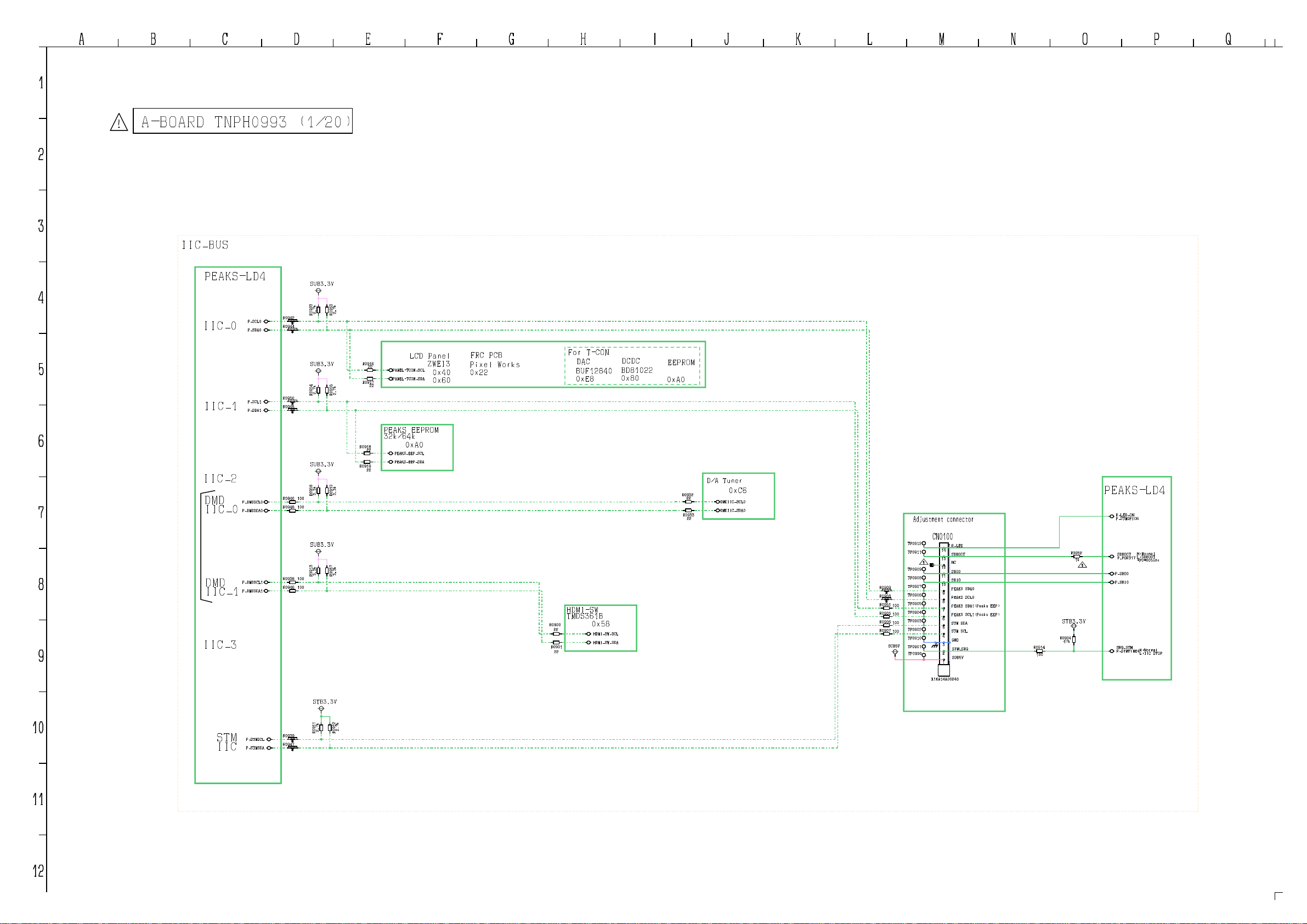

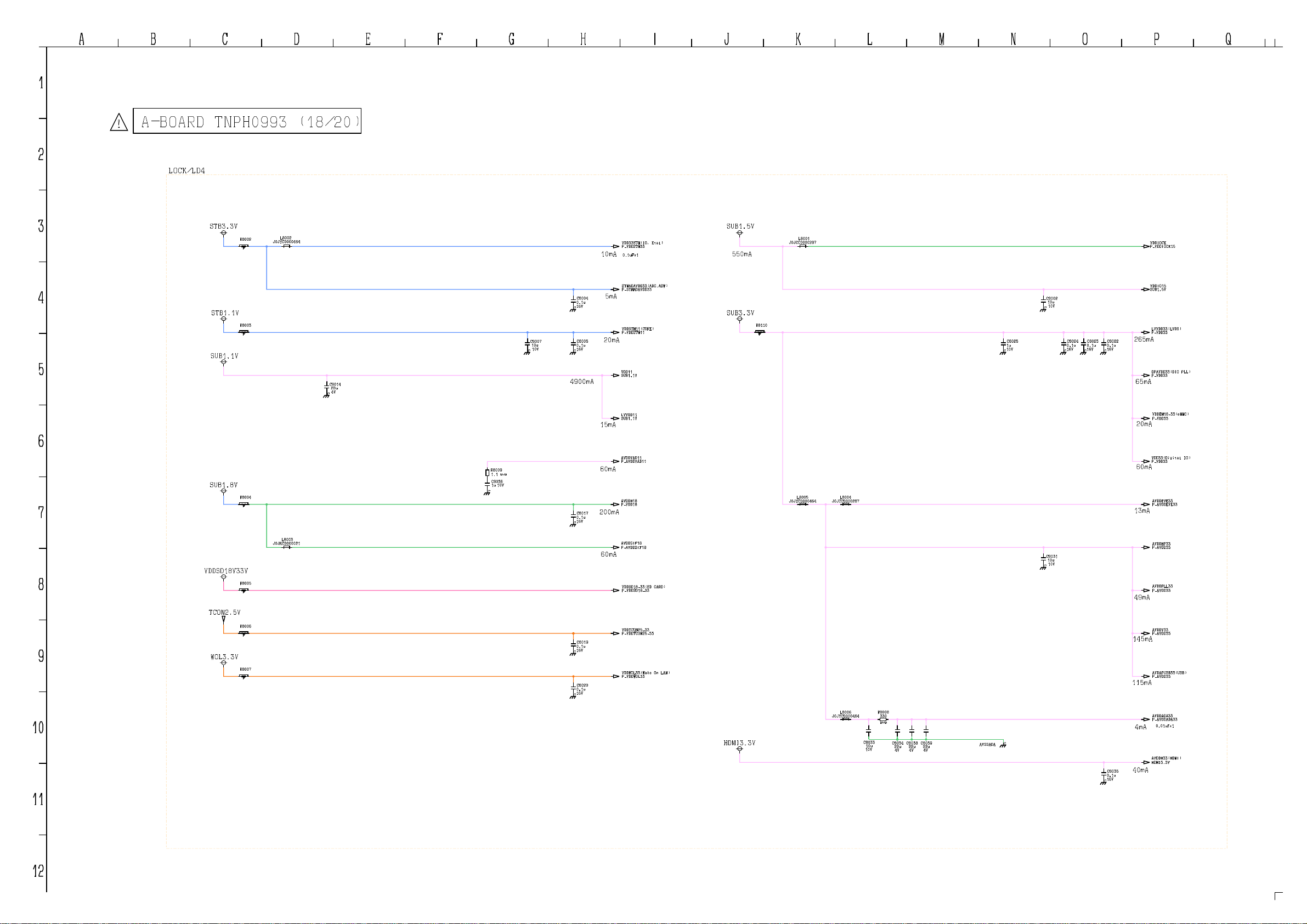

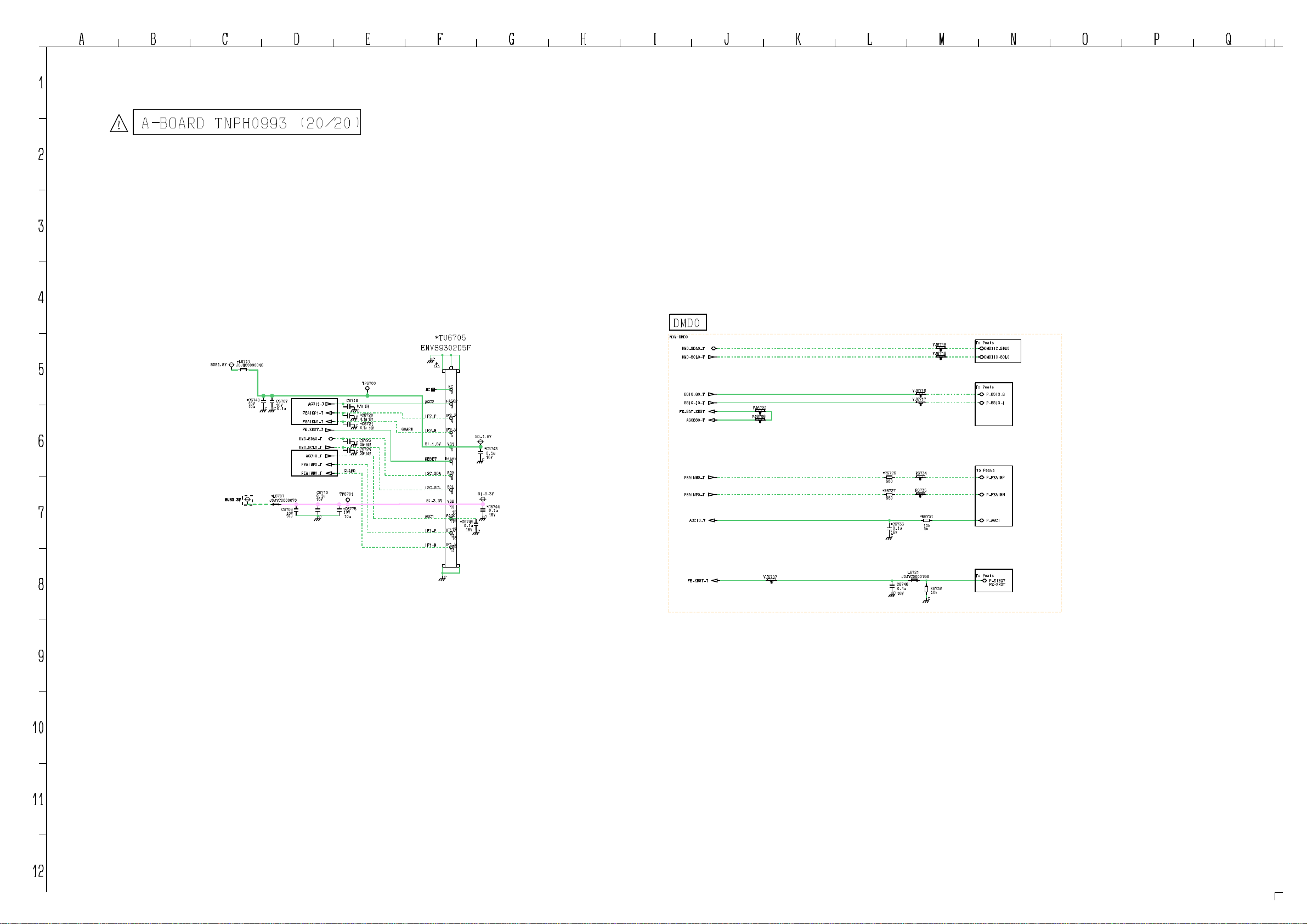

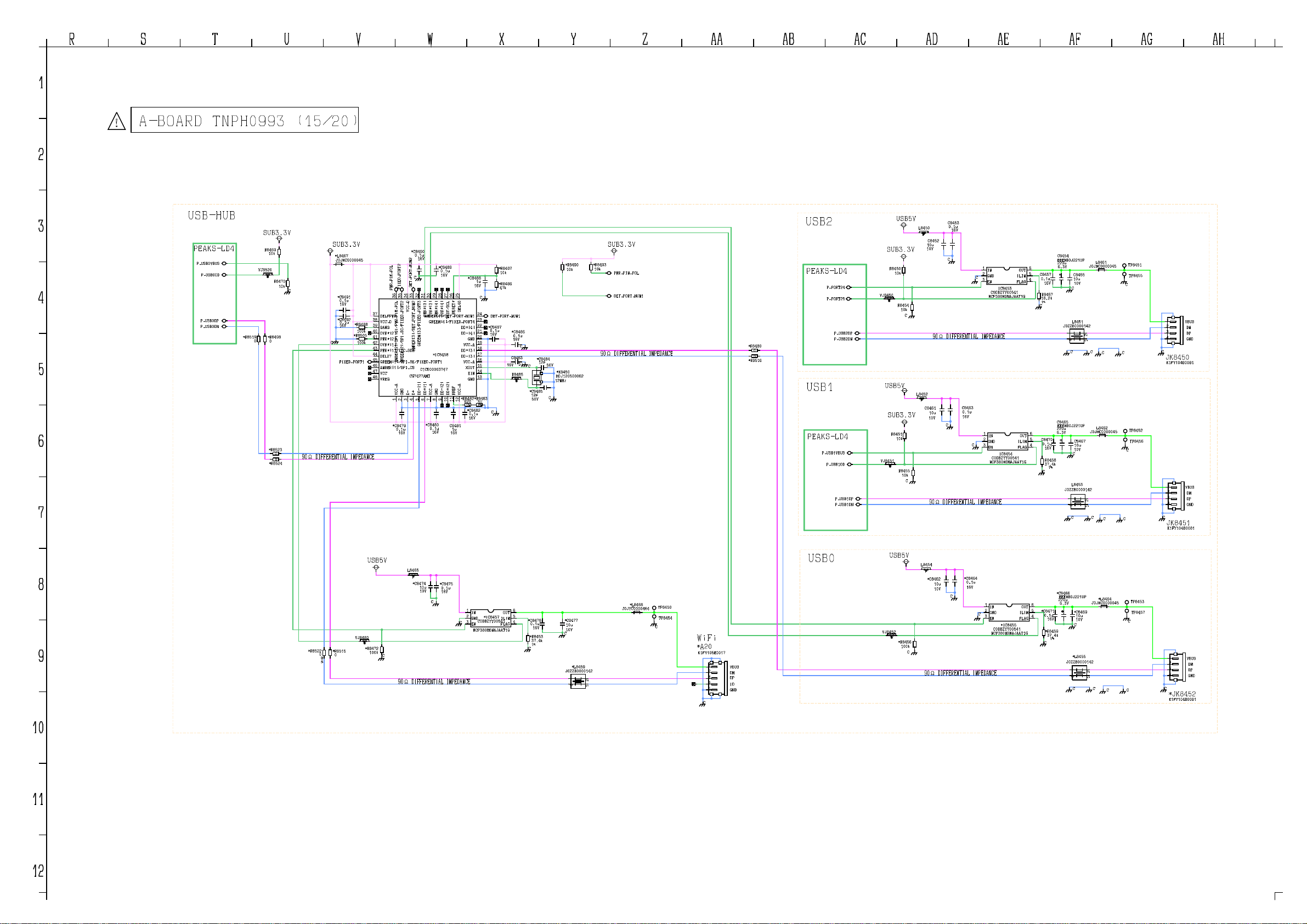

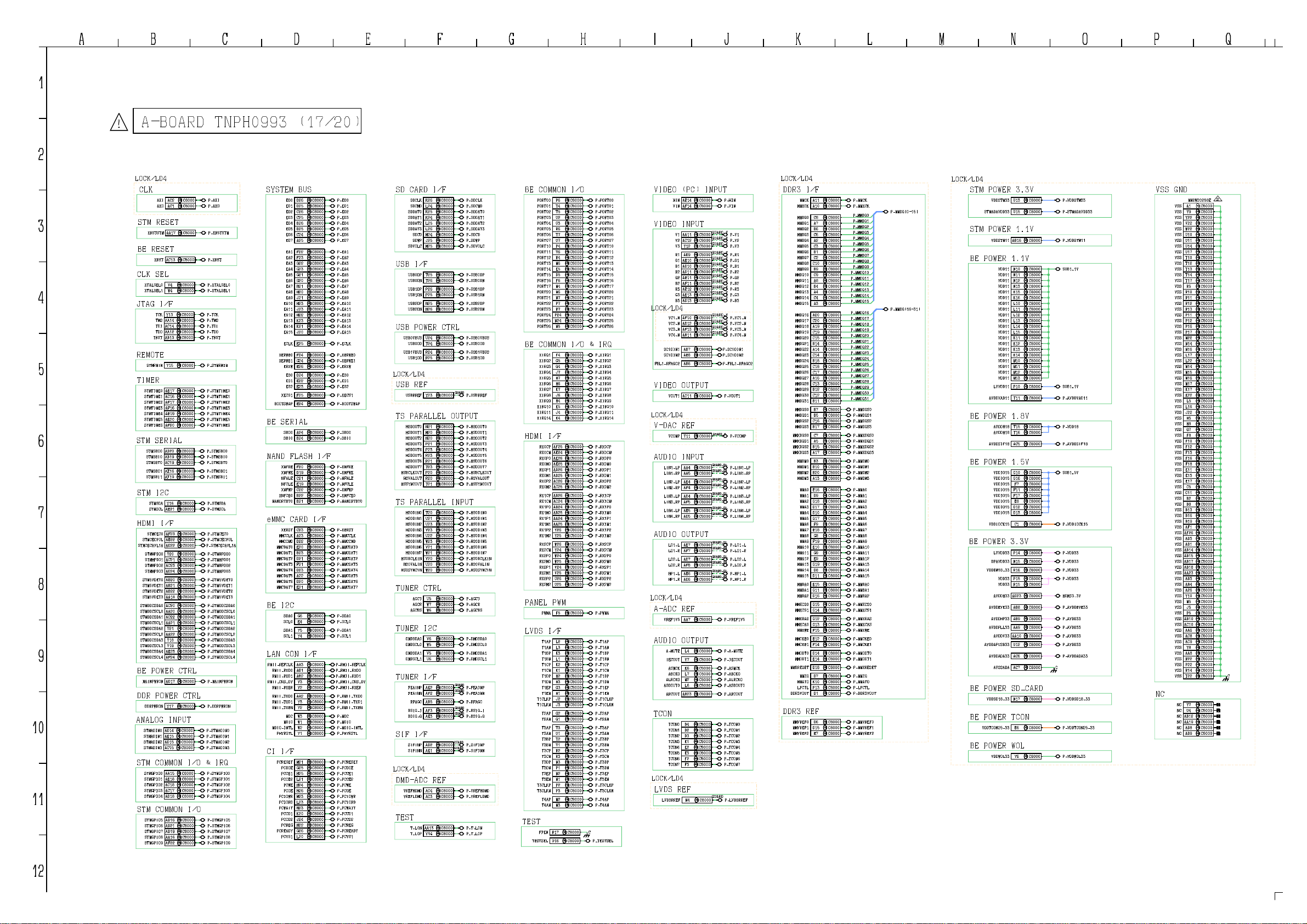

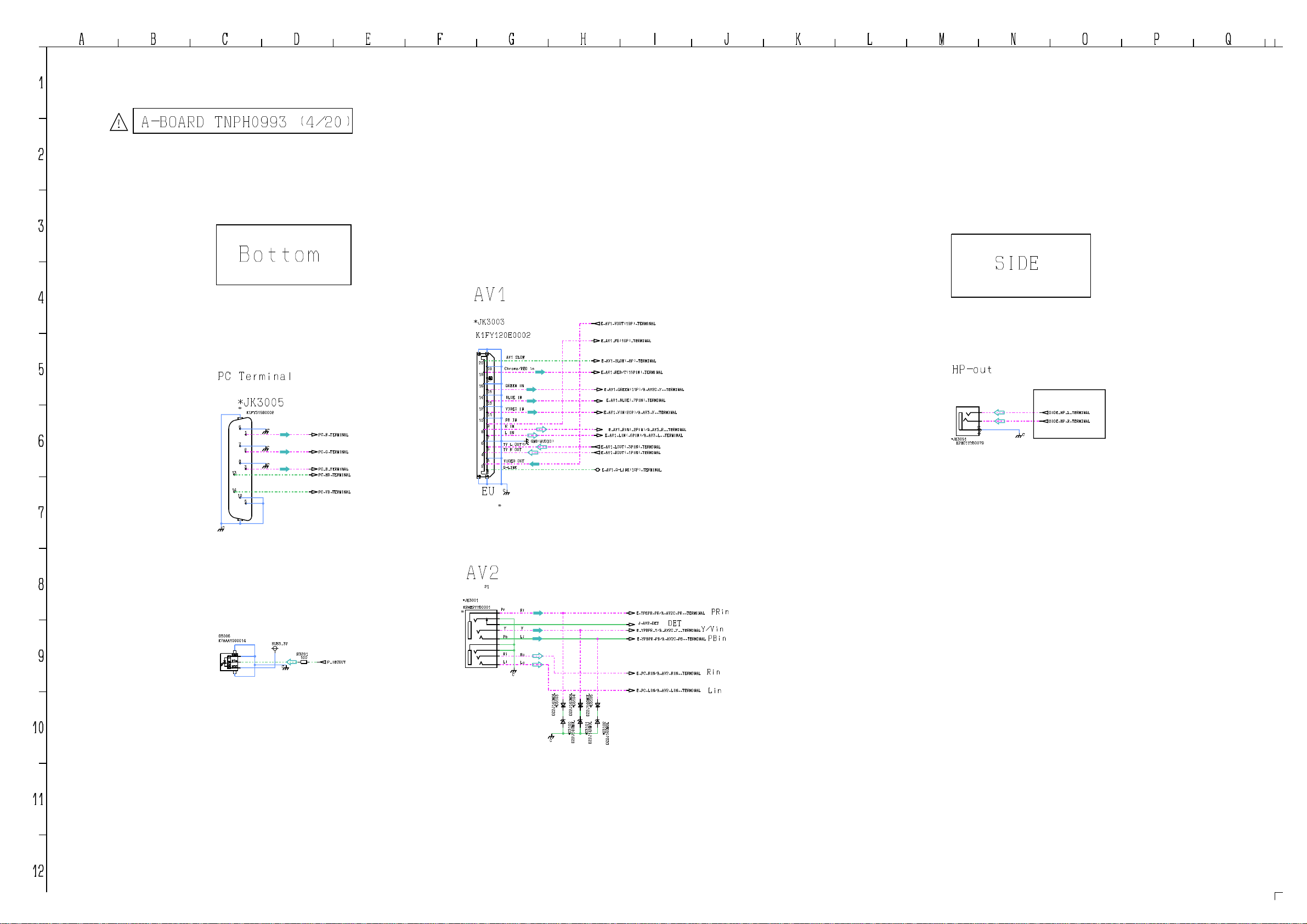

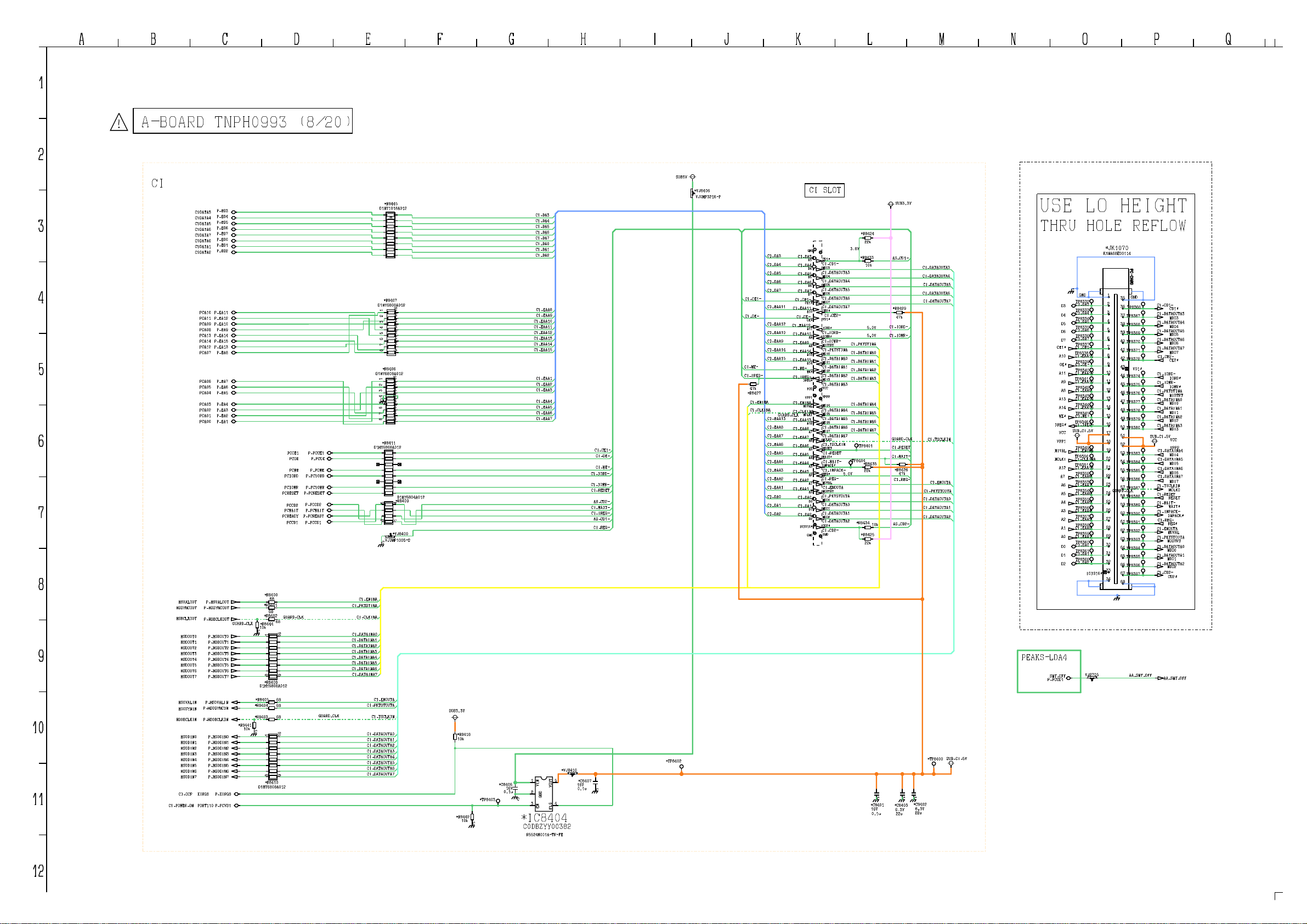

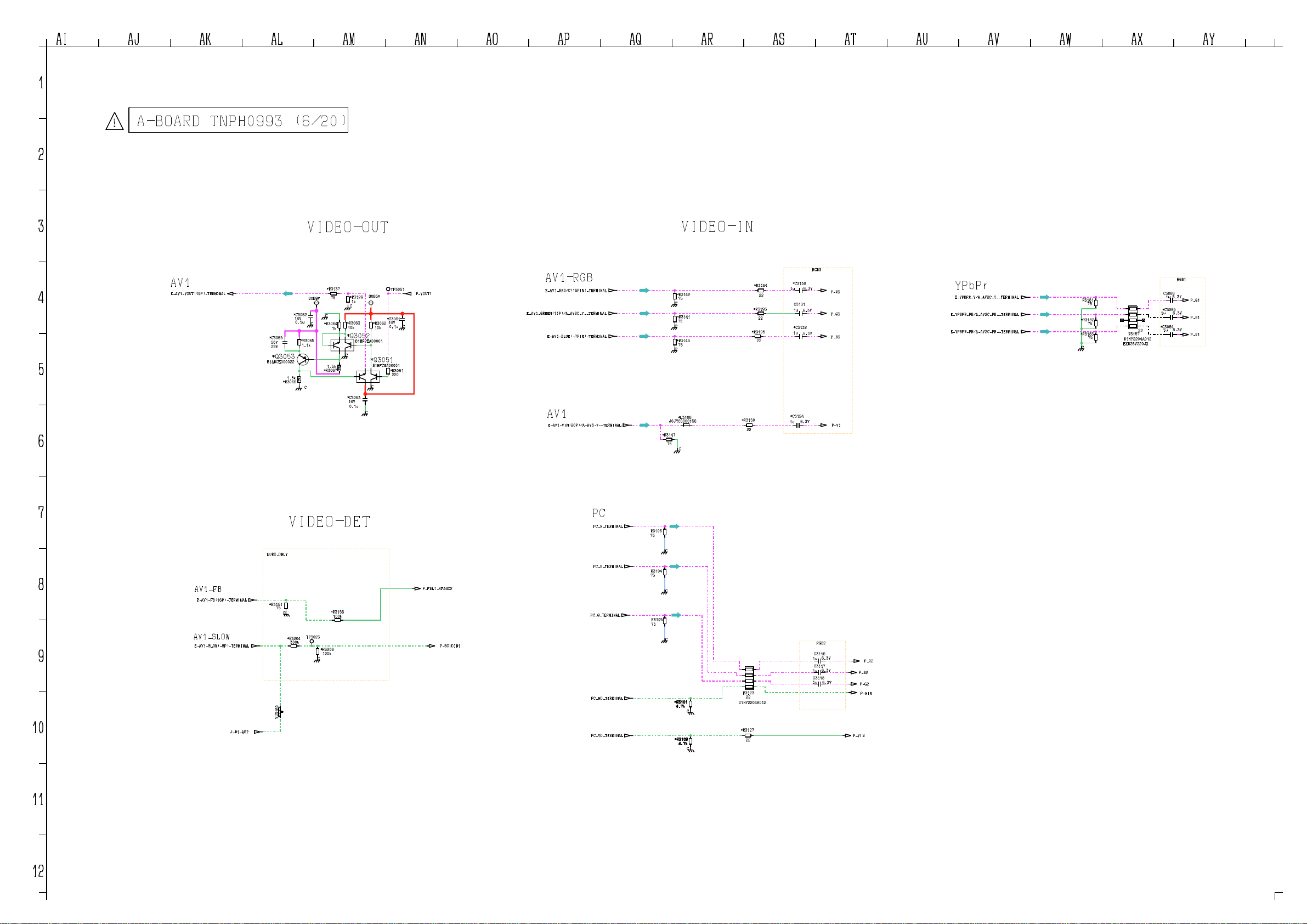

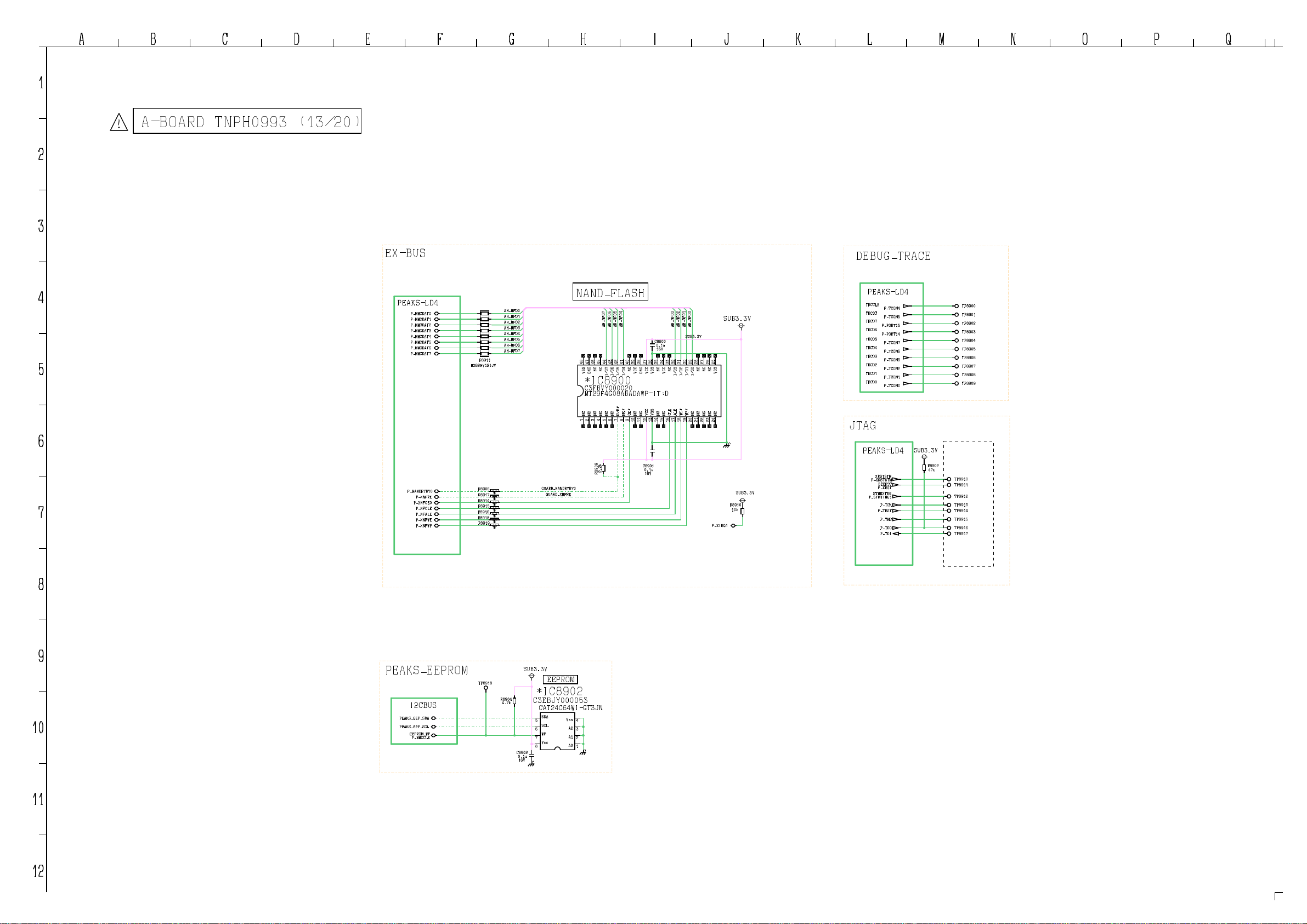

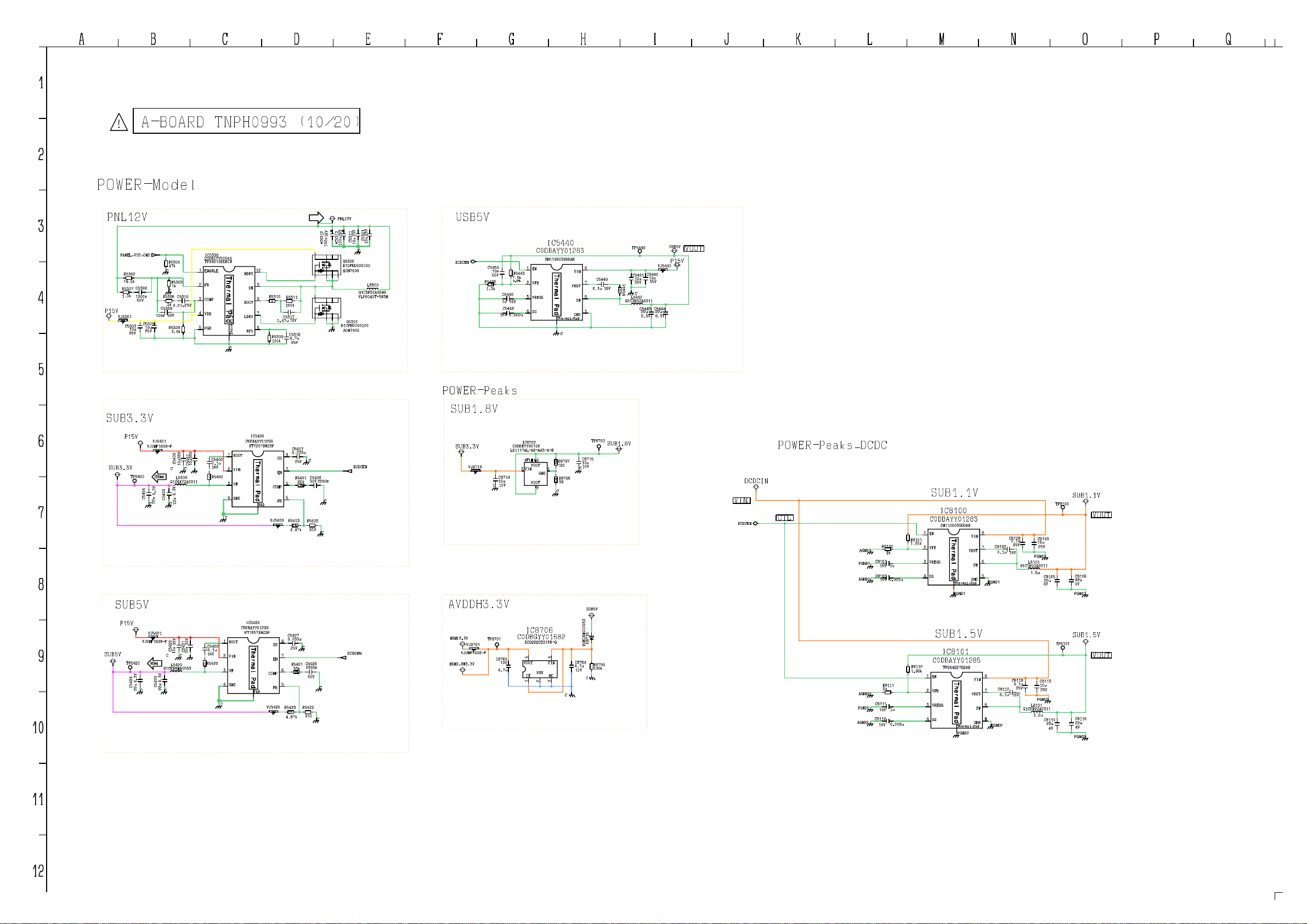

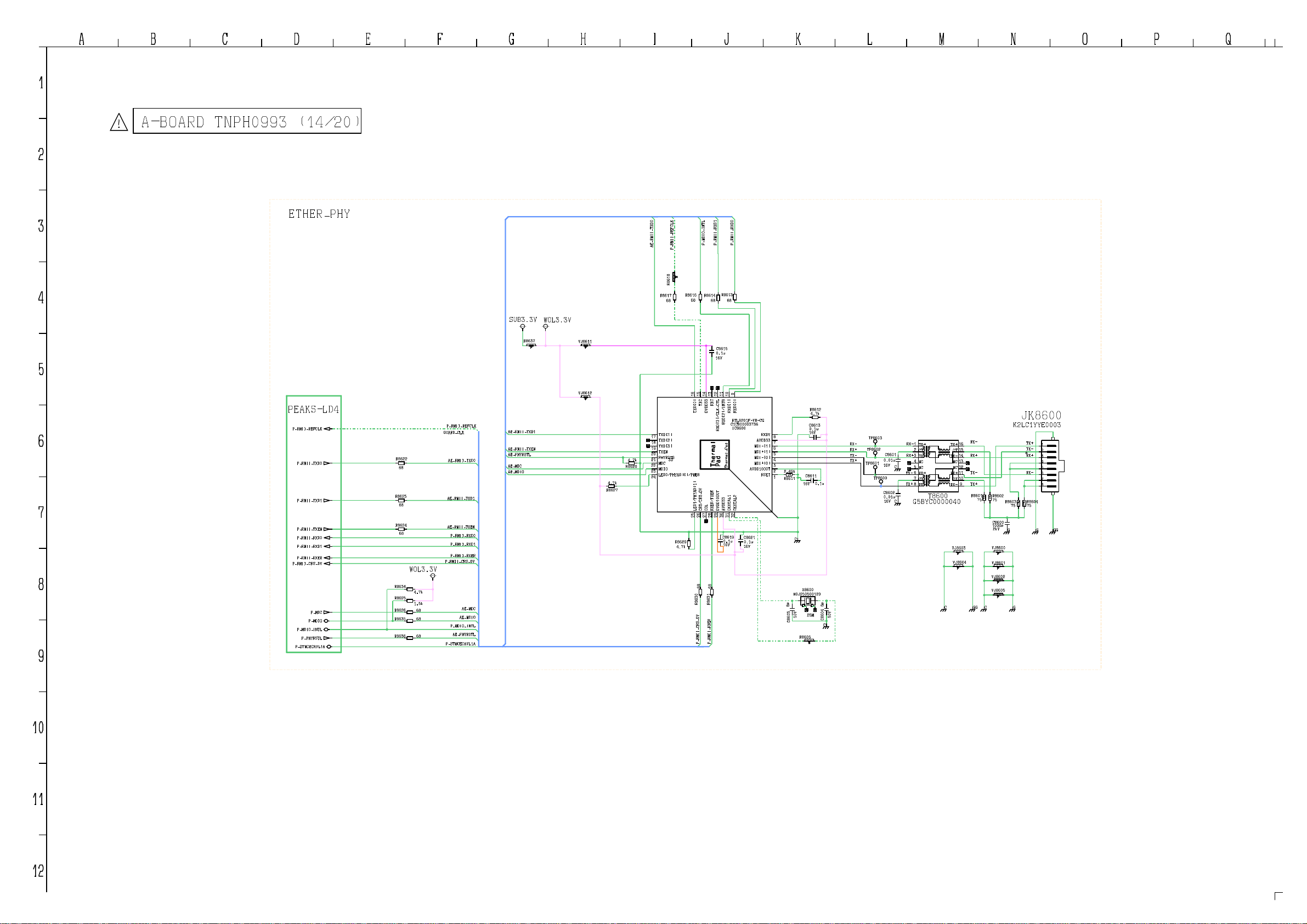

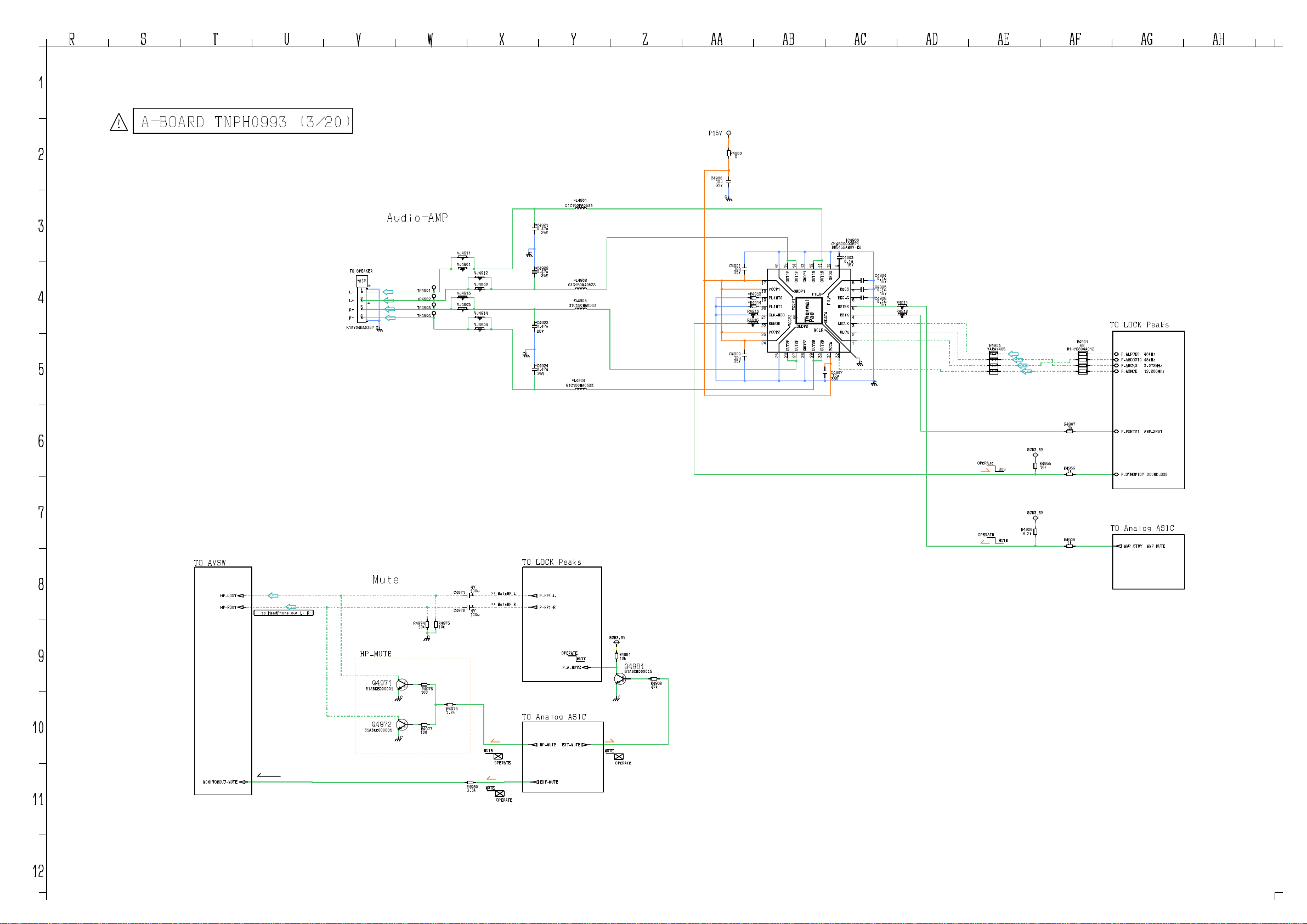

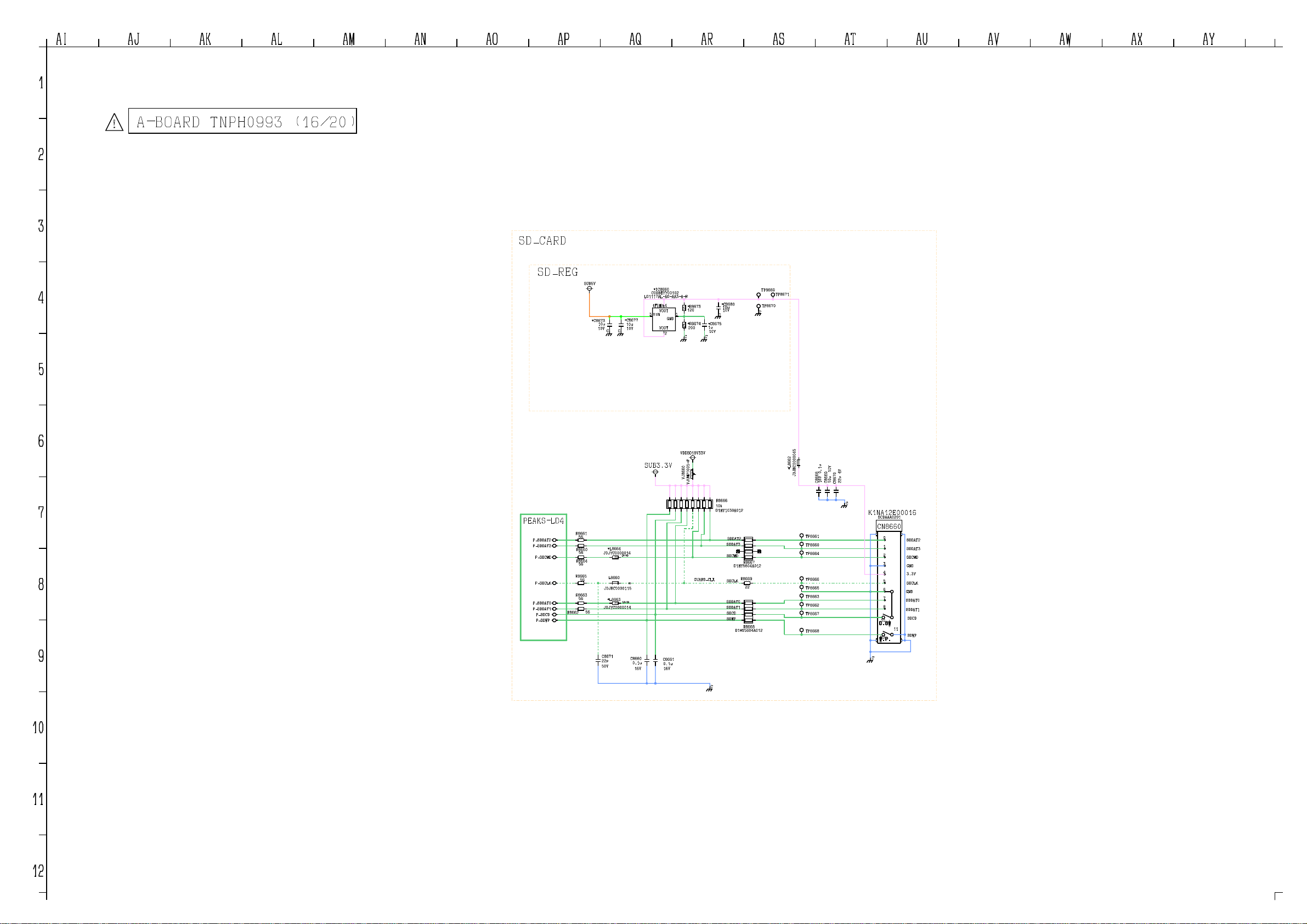

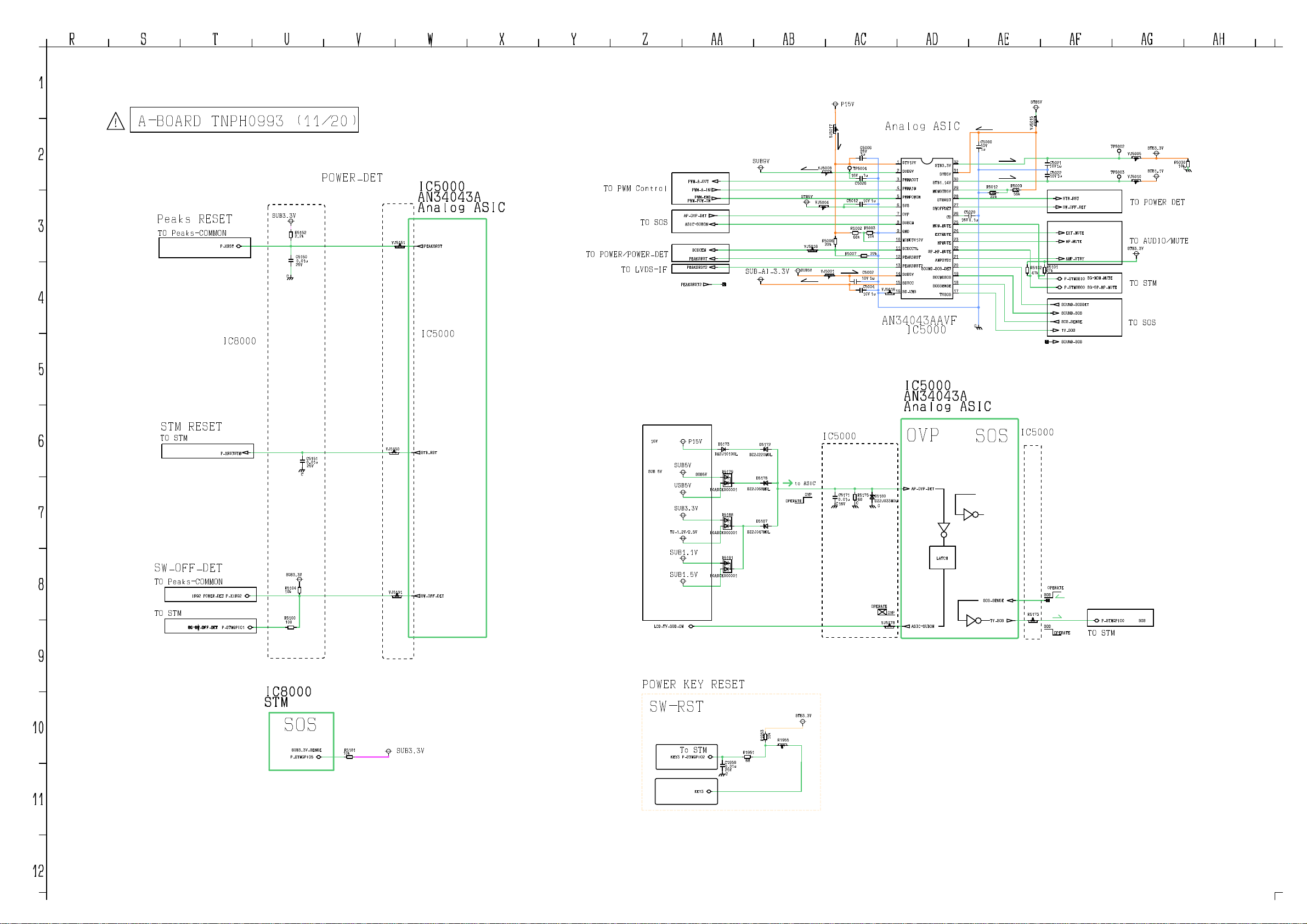

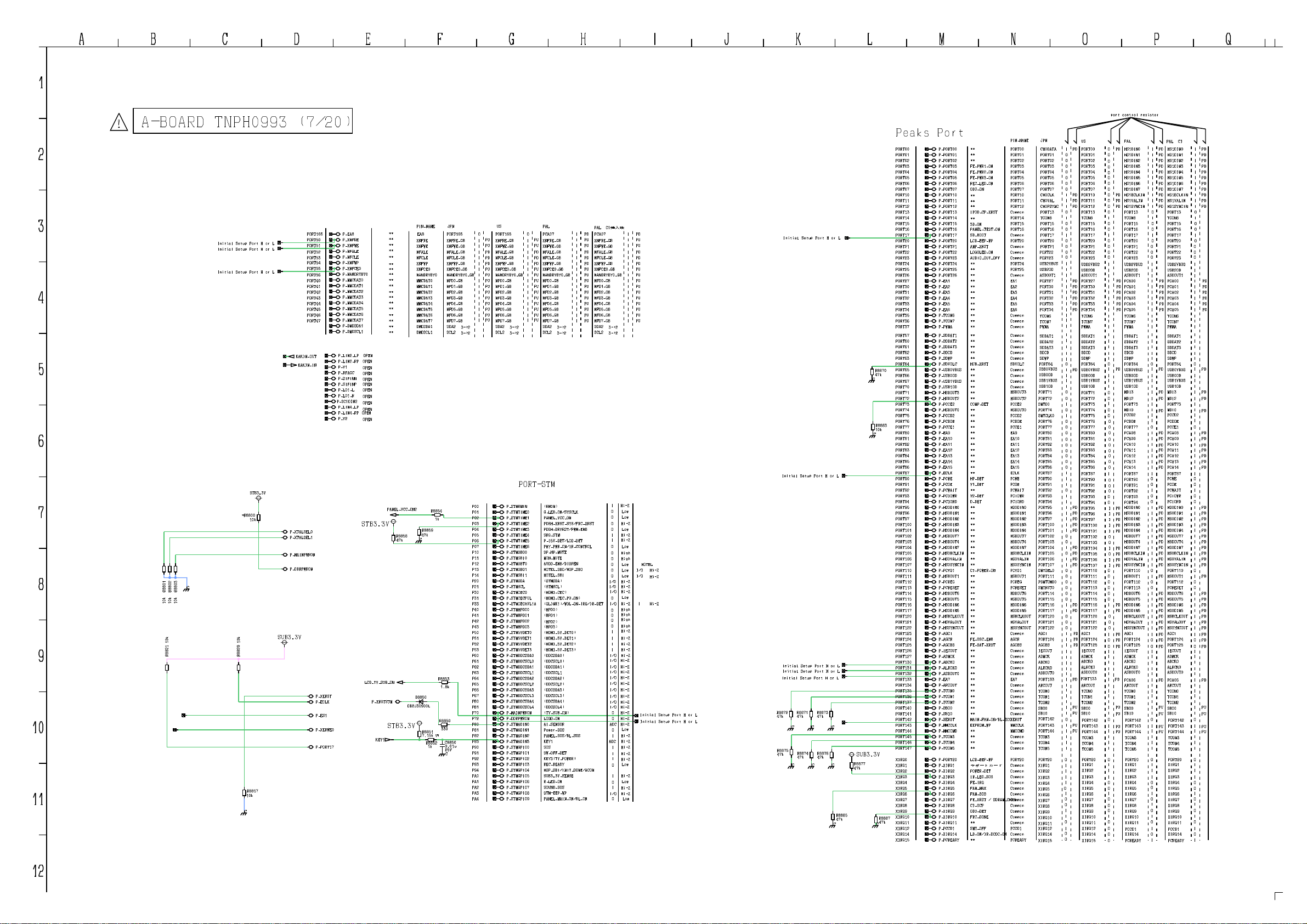

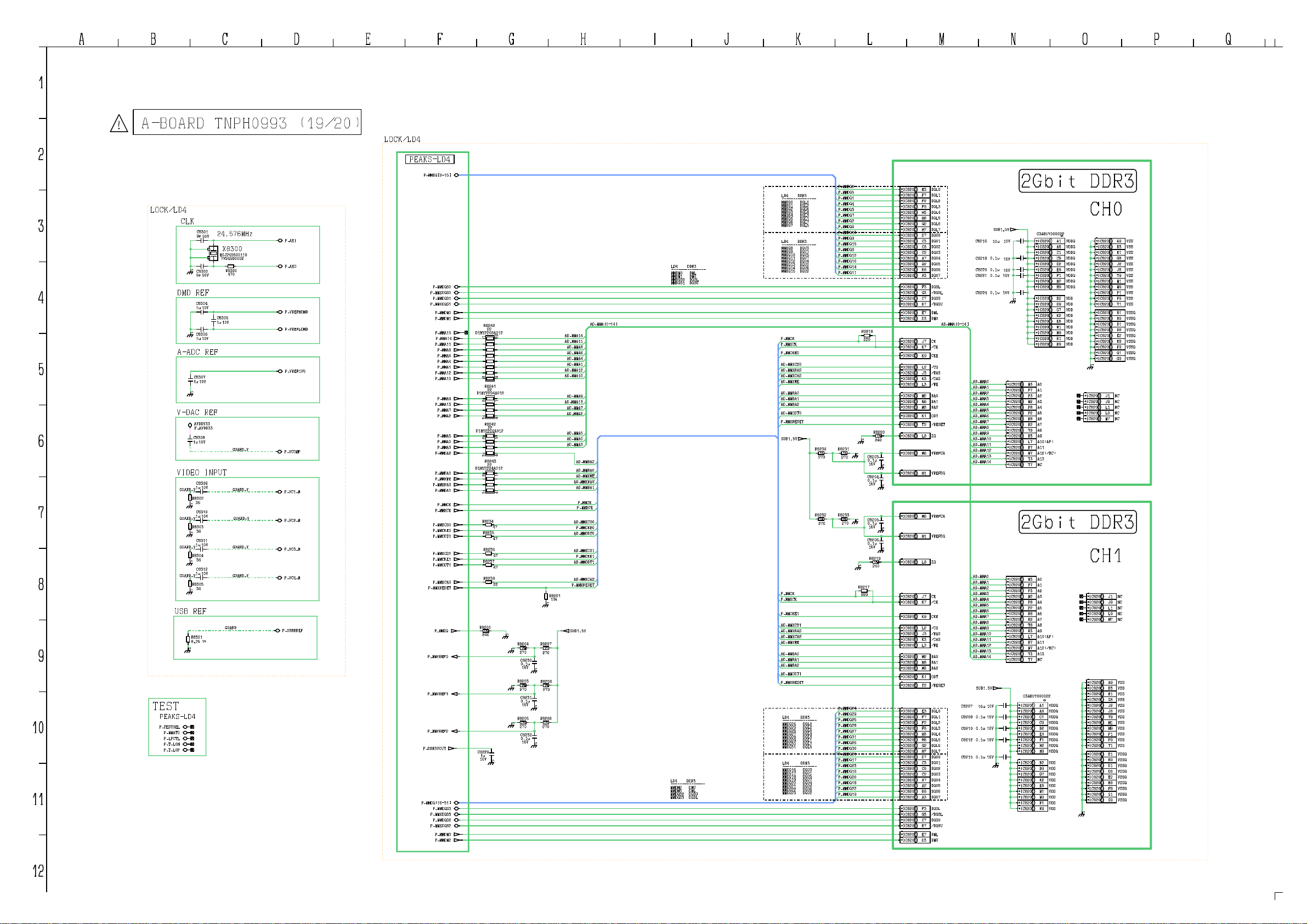

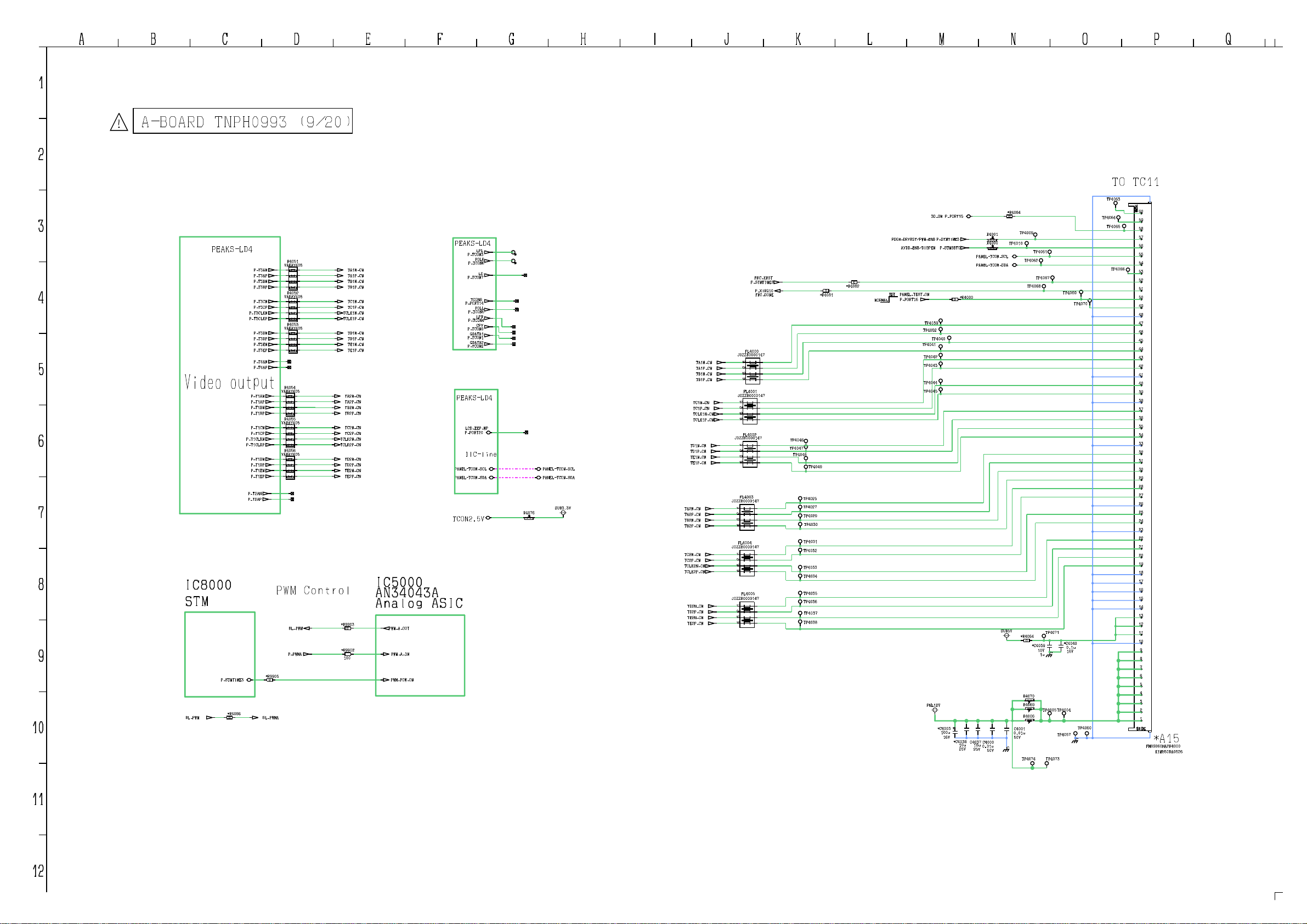

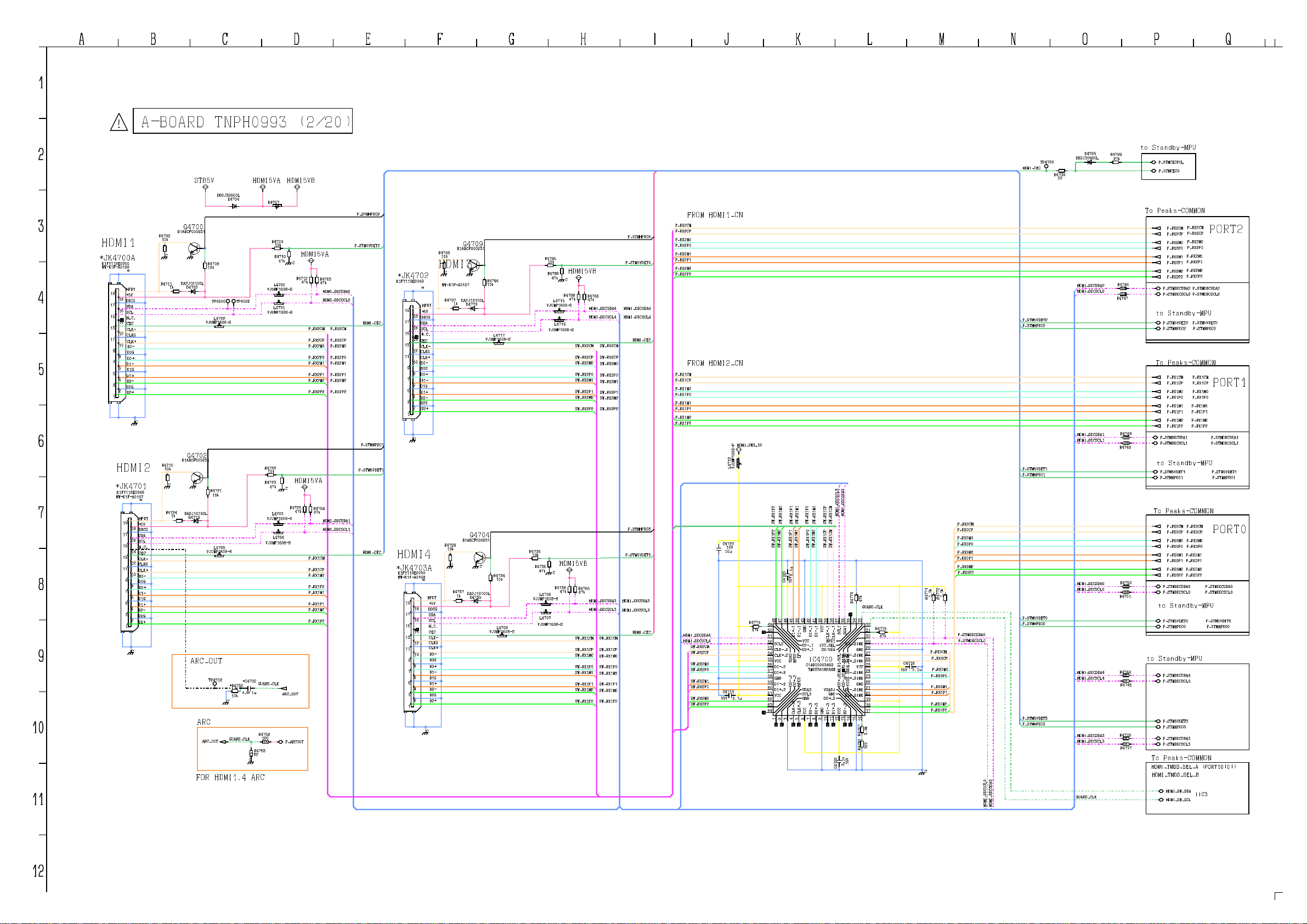

A-BOARD (1 OF 20) SCHEMATIC DIAGRAM.... 41

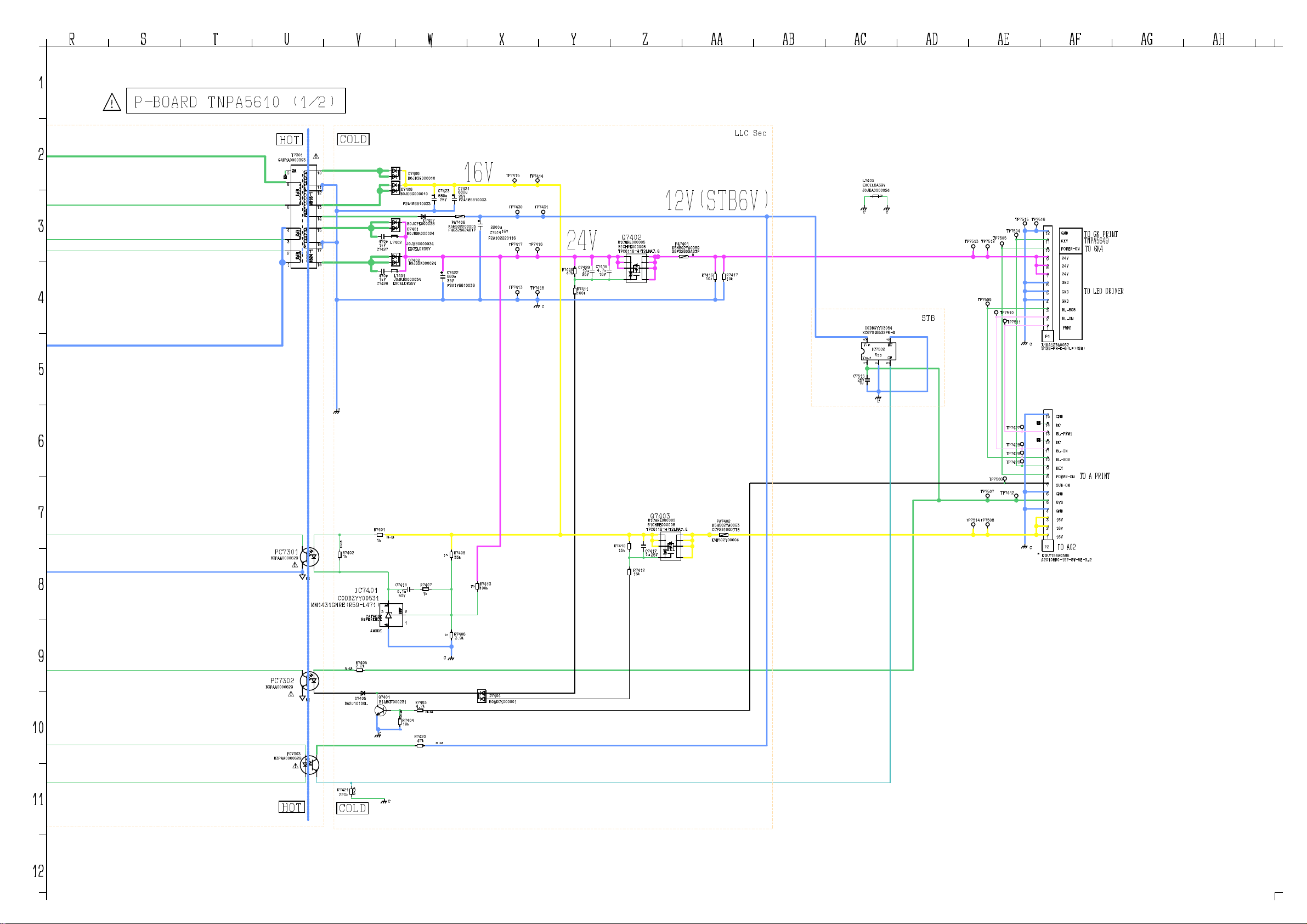

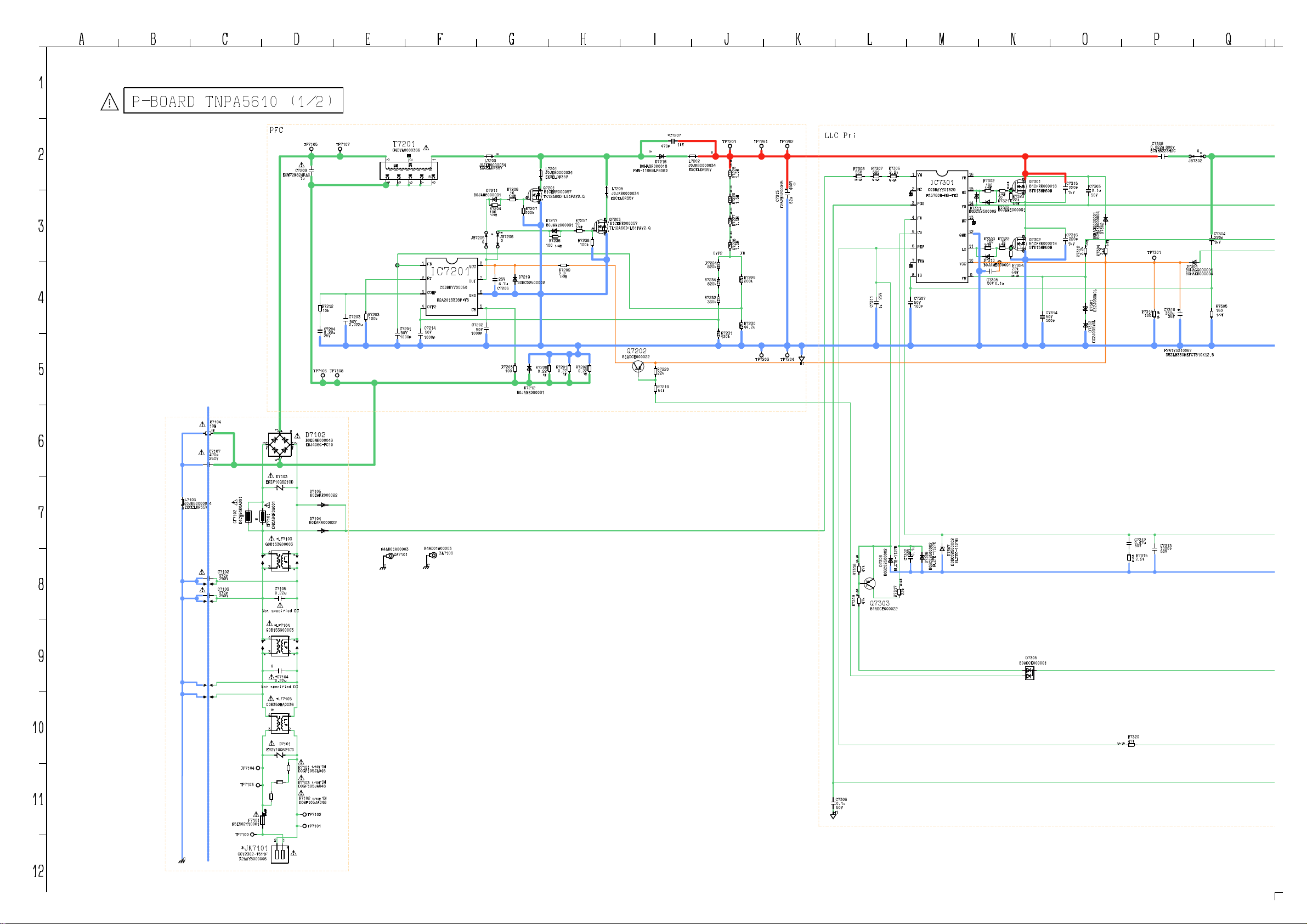

P-BOARD (1 OF 2) SCHEMATIC DIAGRAM...... 61

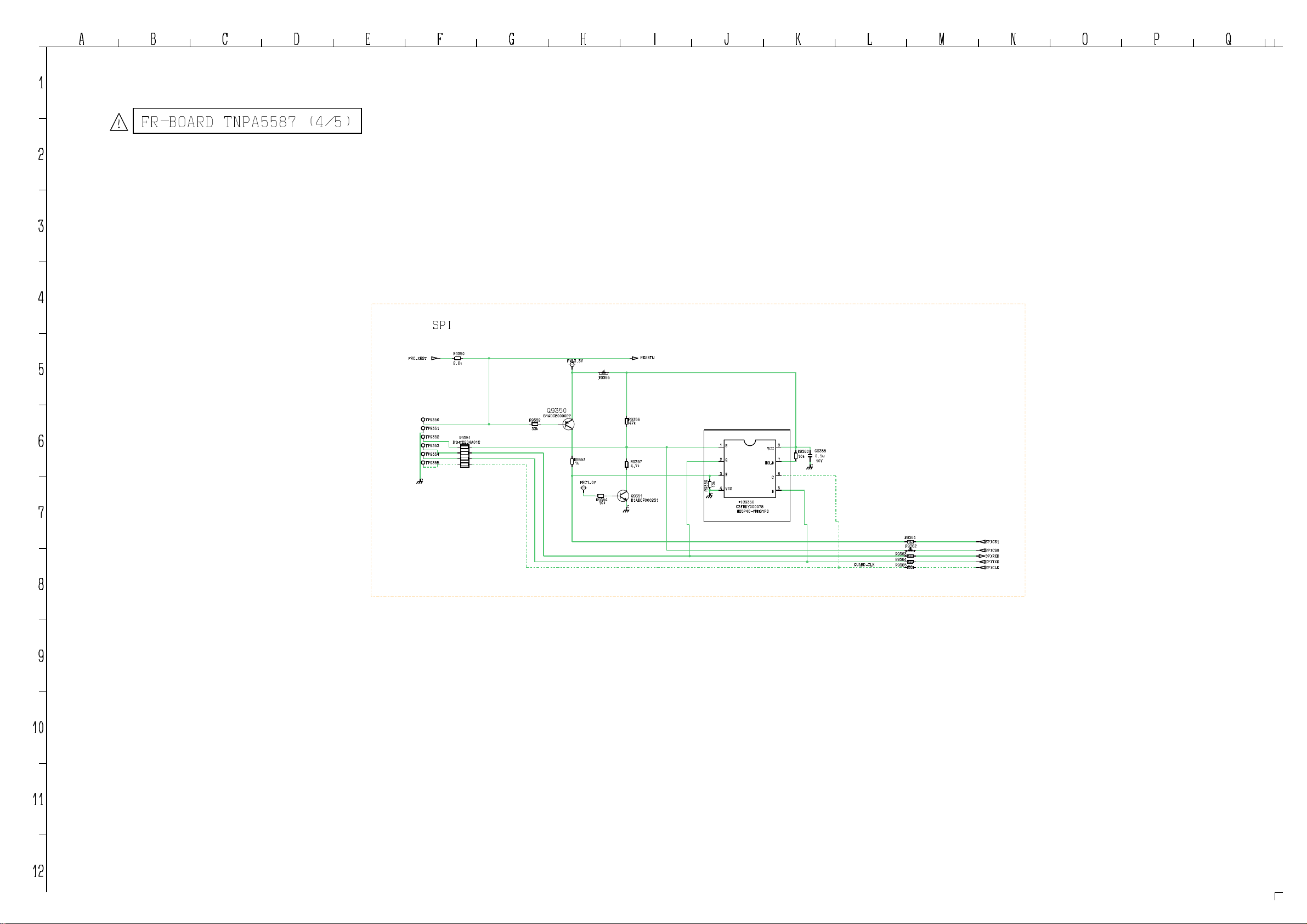

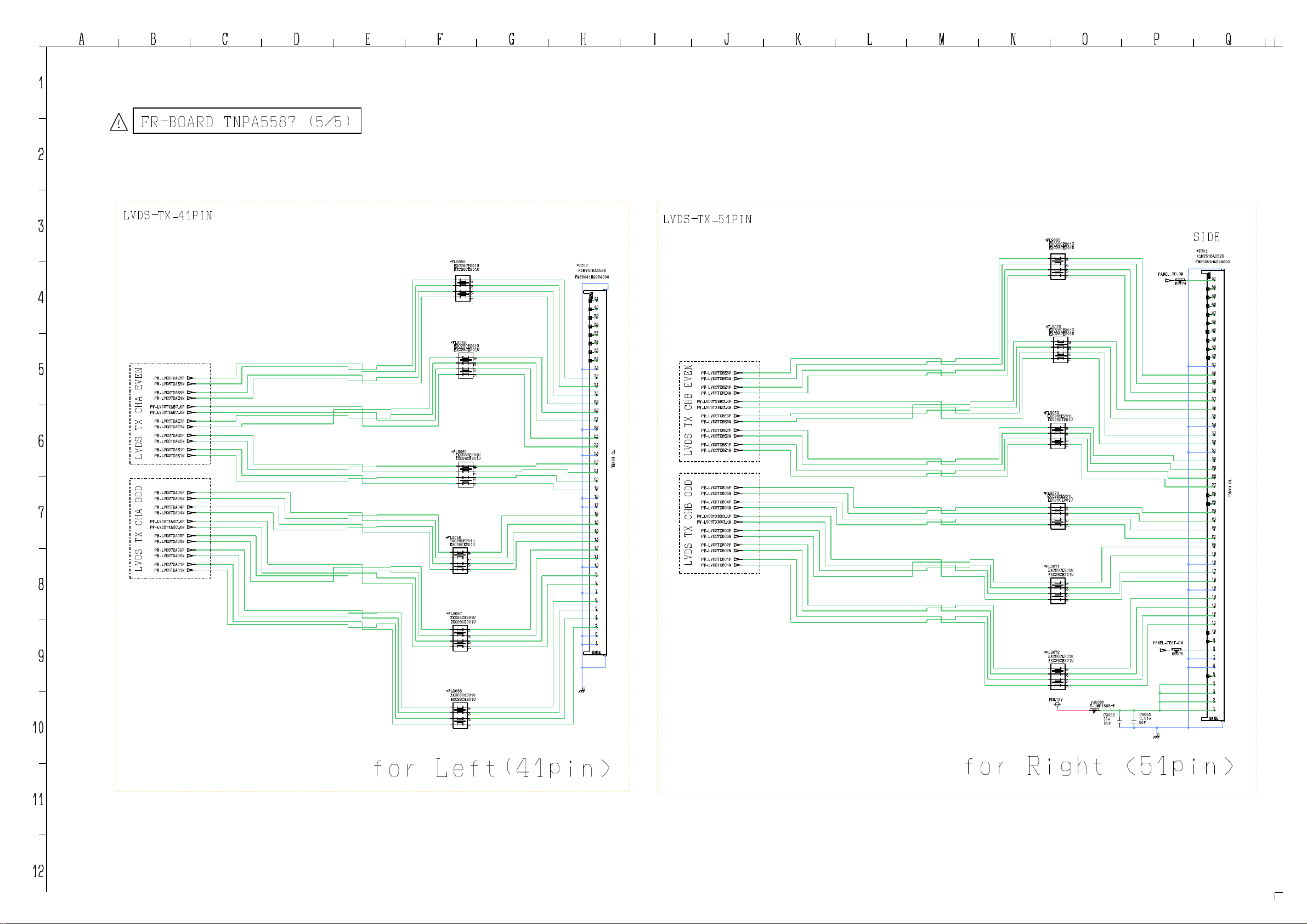

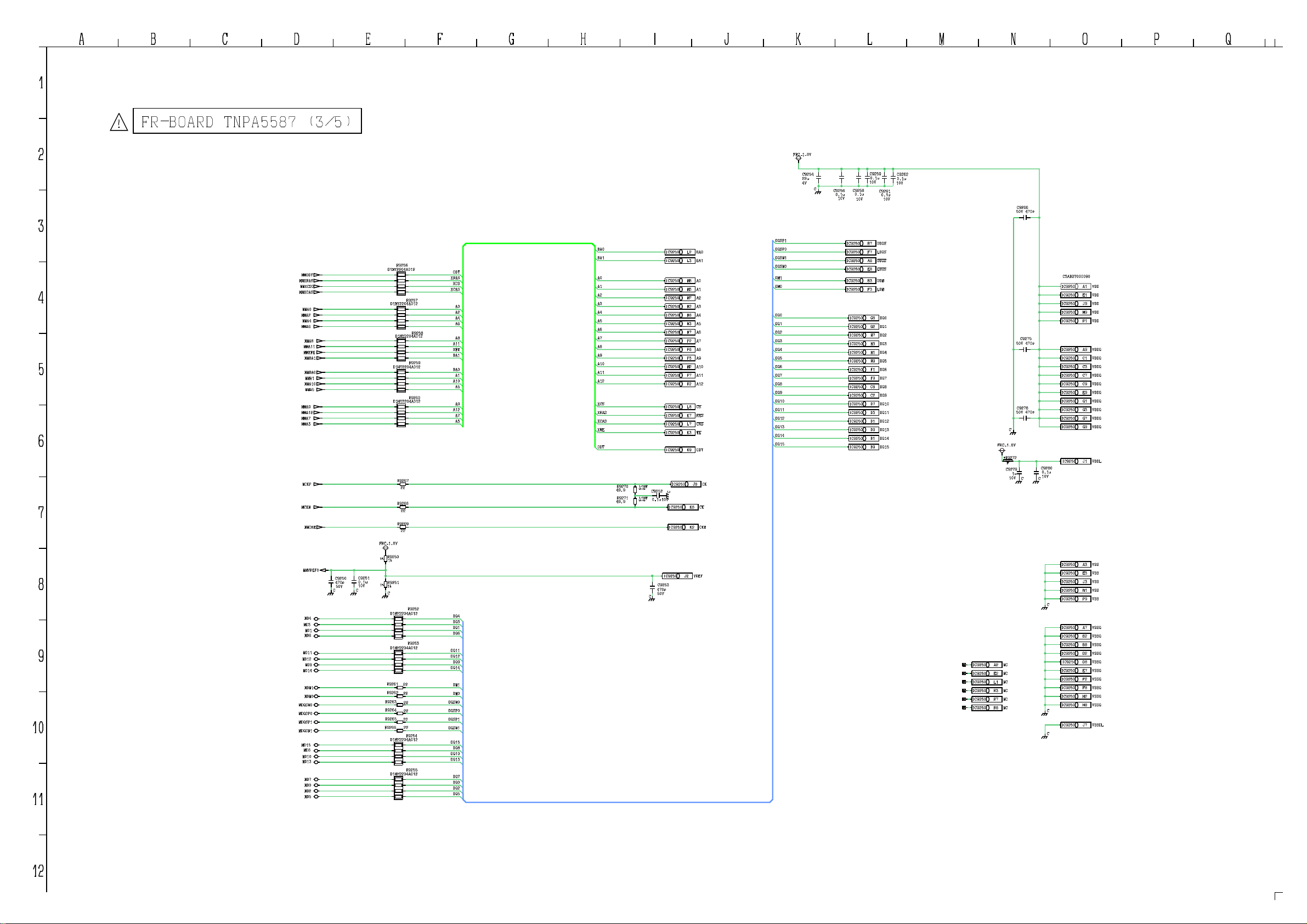

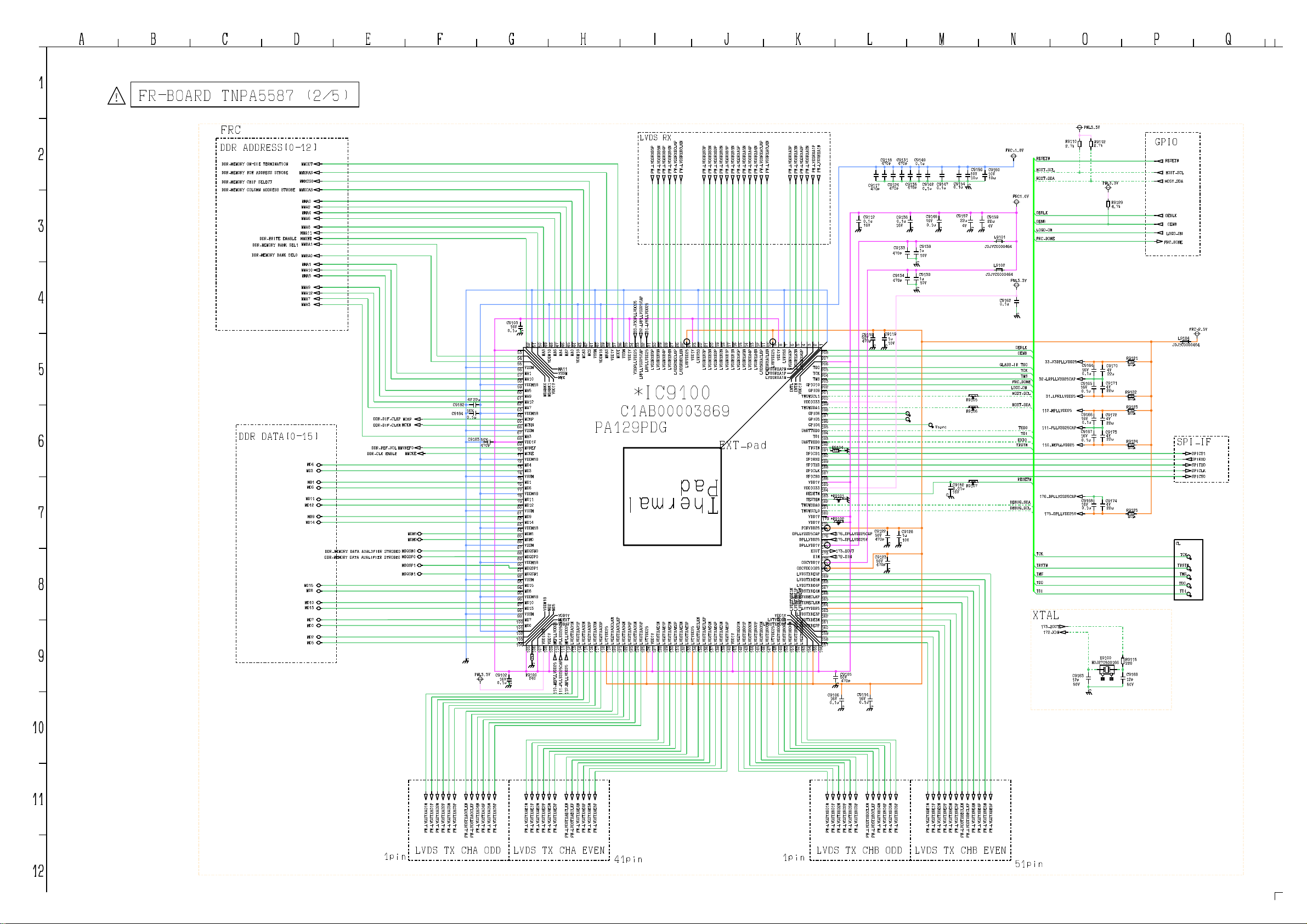

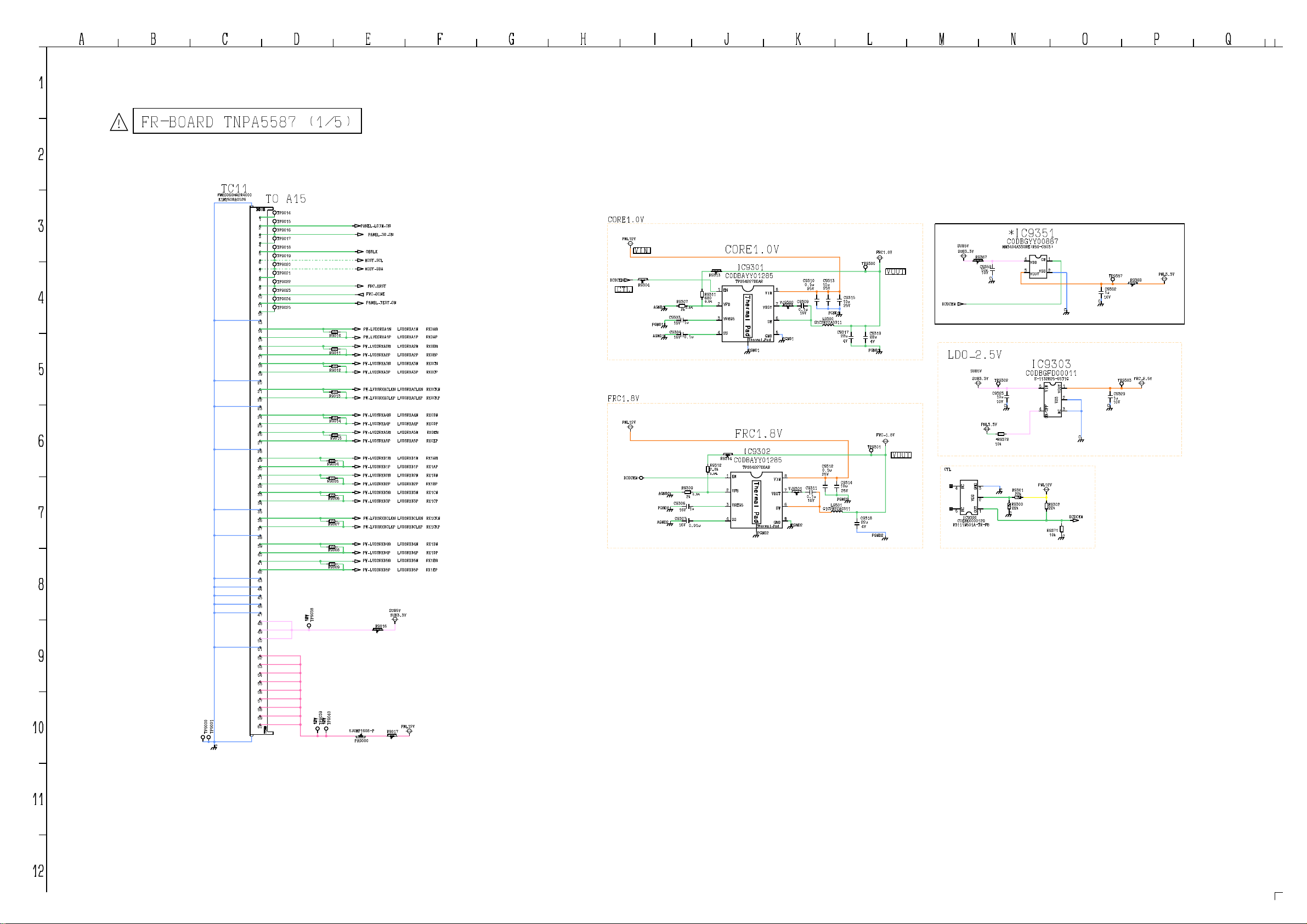

FR-BOARD (1 OF 5) SCHEMATIC DIAGRAM.... 63

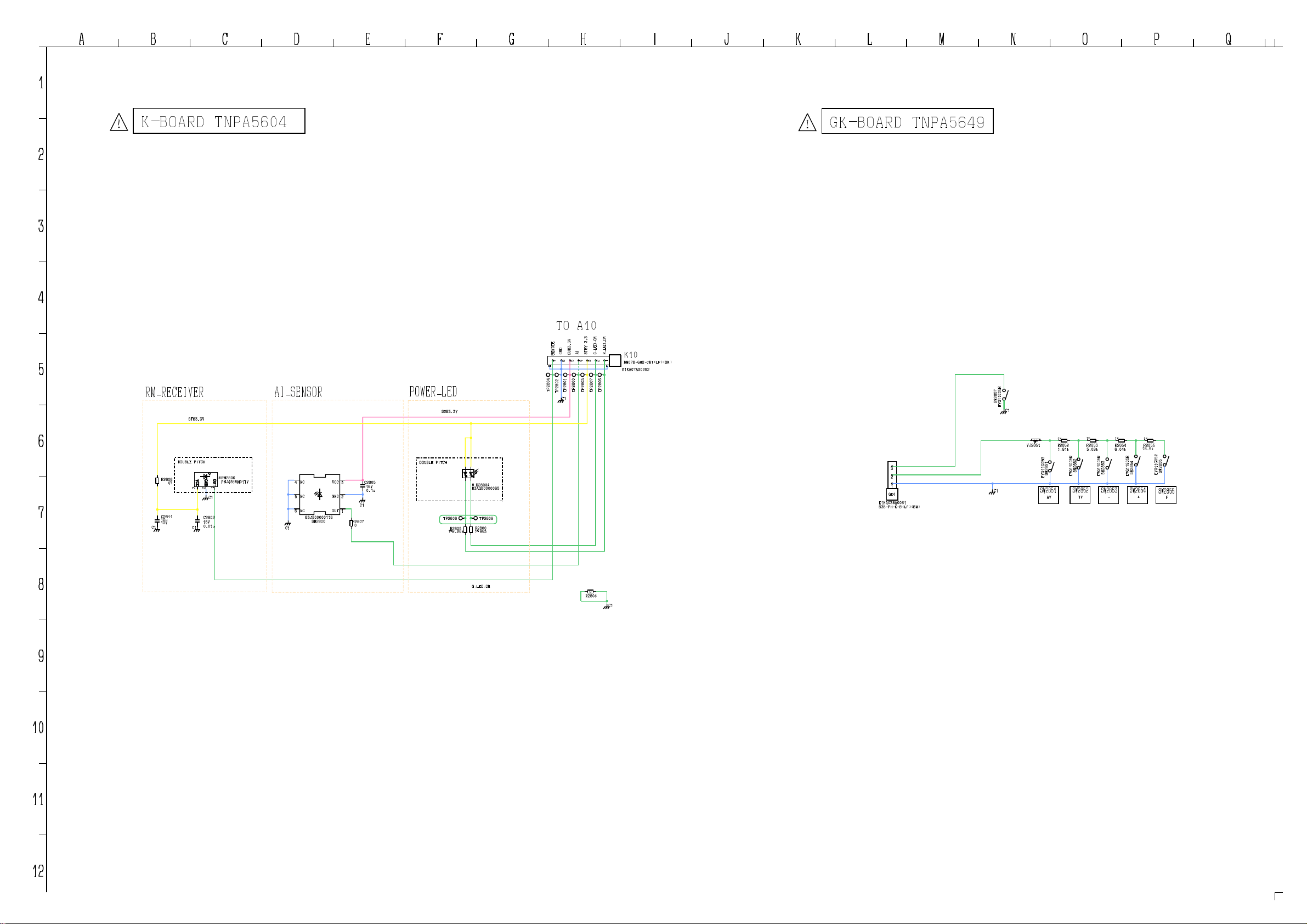

K-BOARD............................................................ 68
GK-BOARD .........................................................68

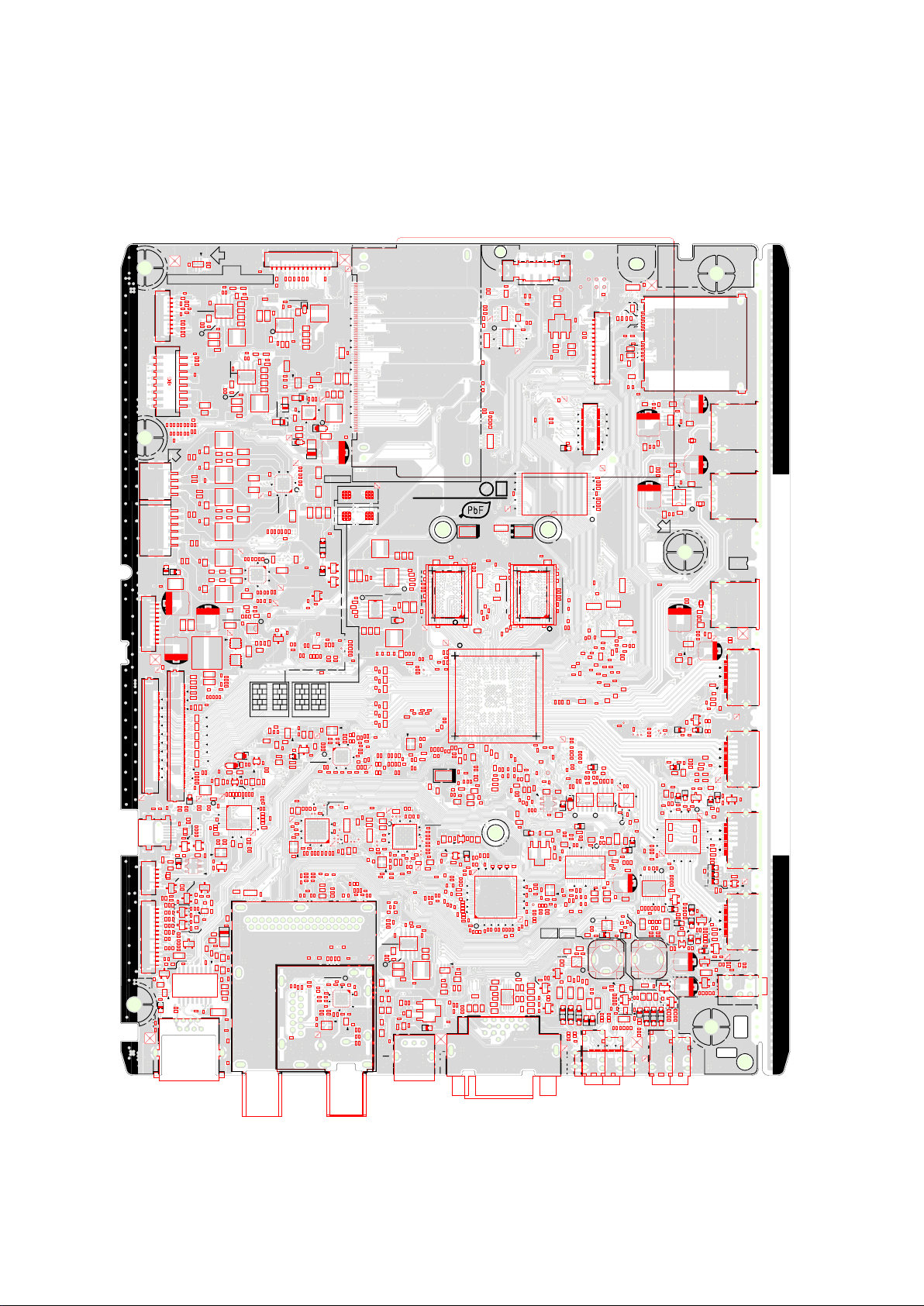

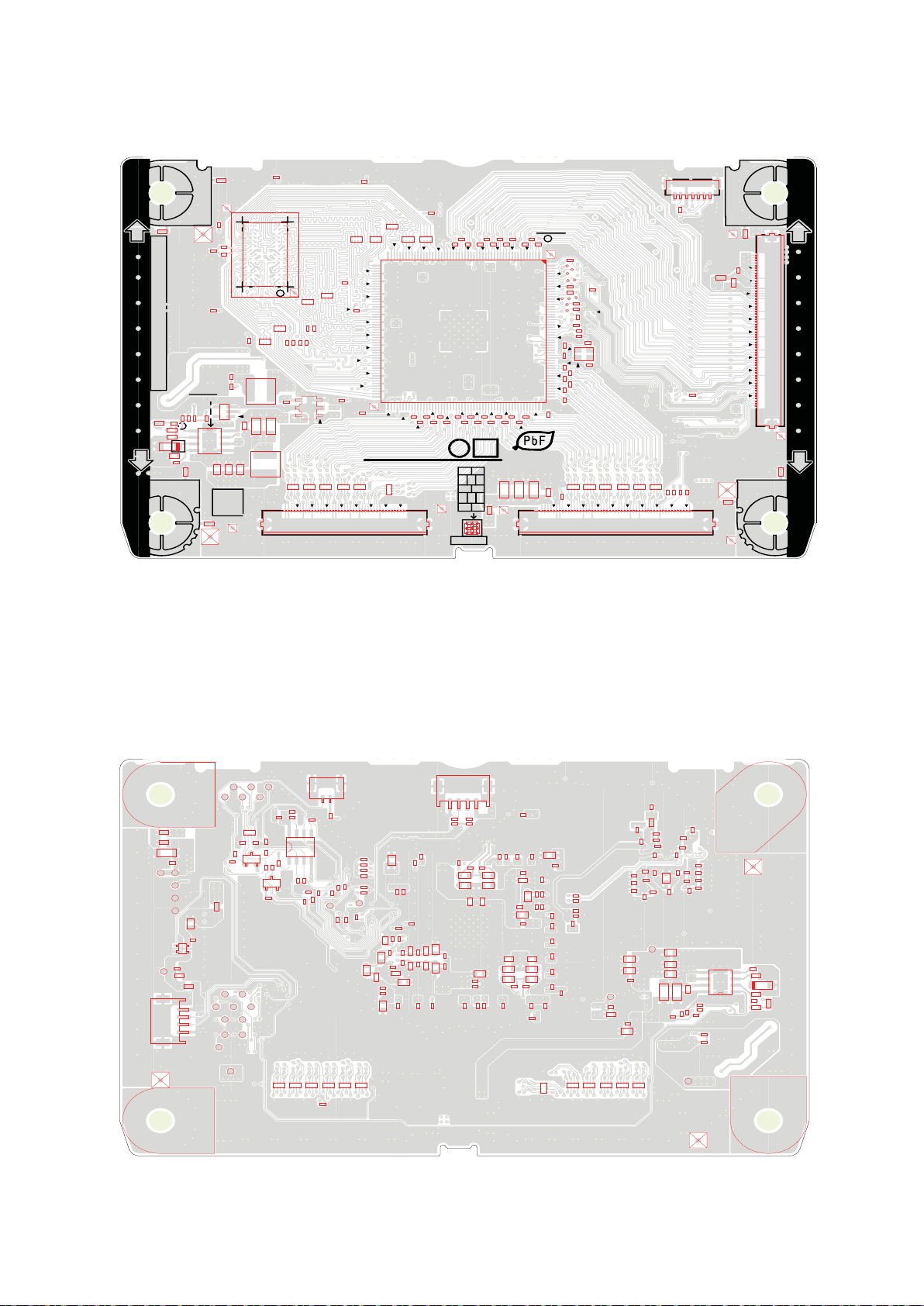

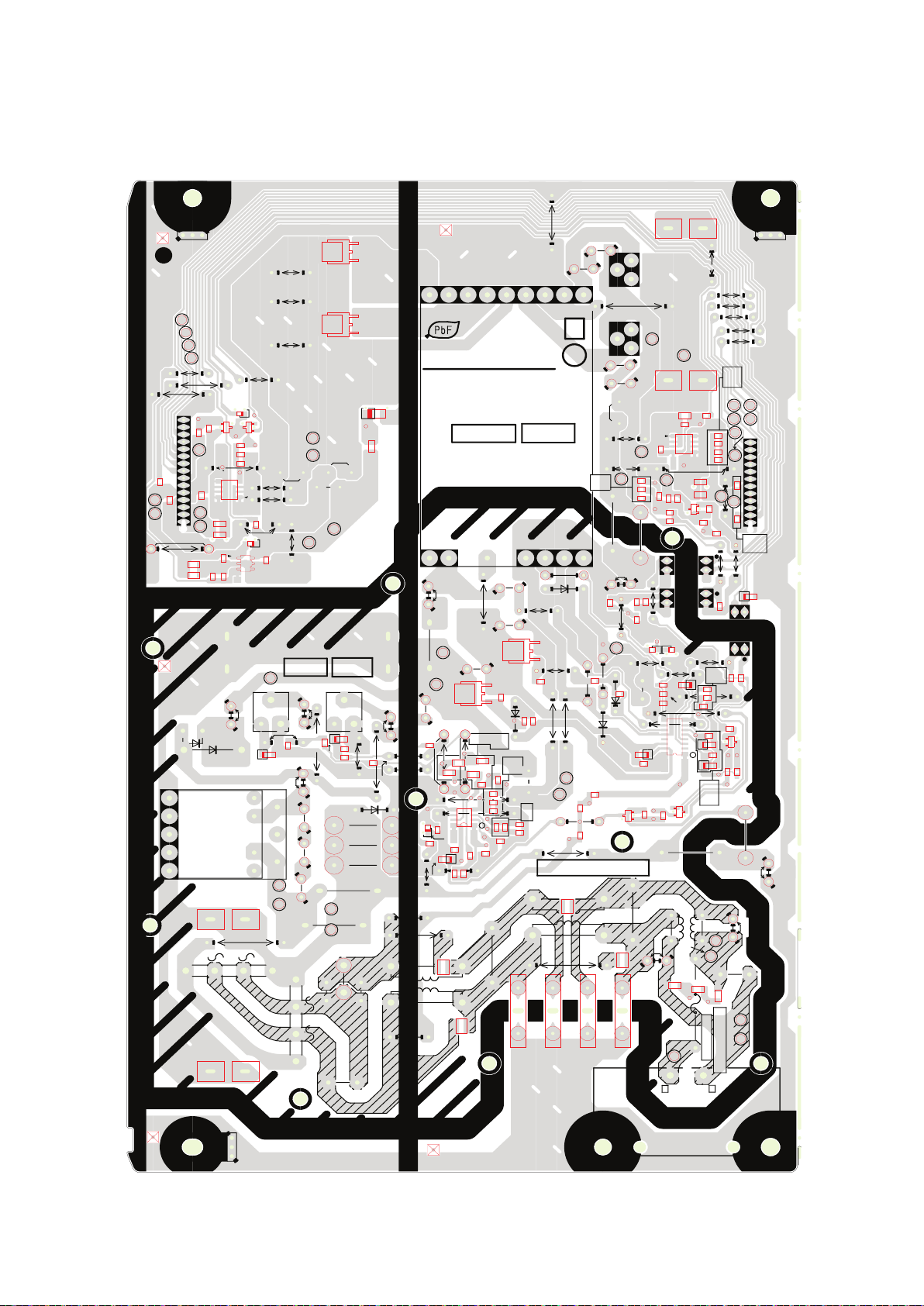

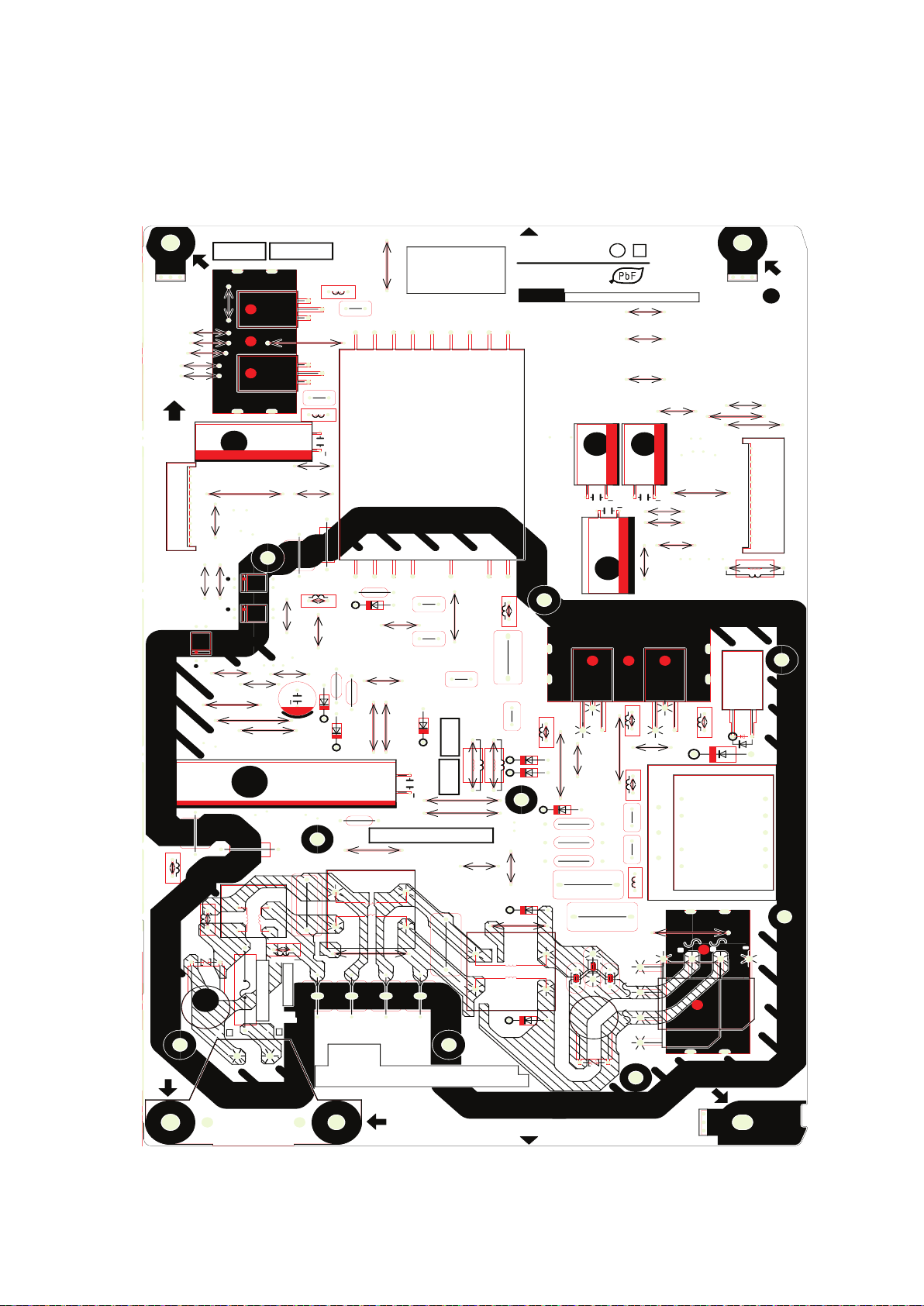

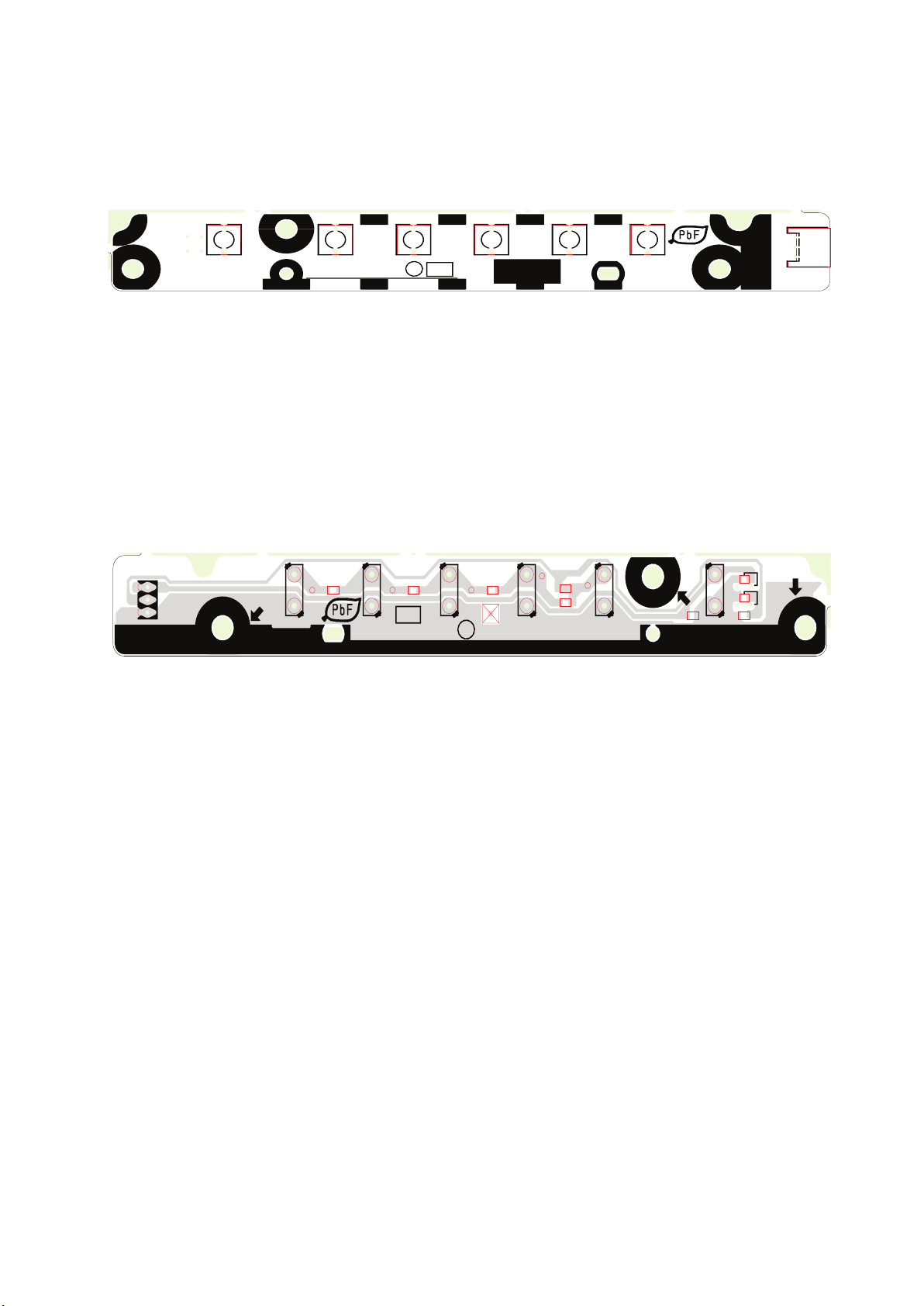

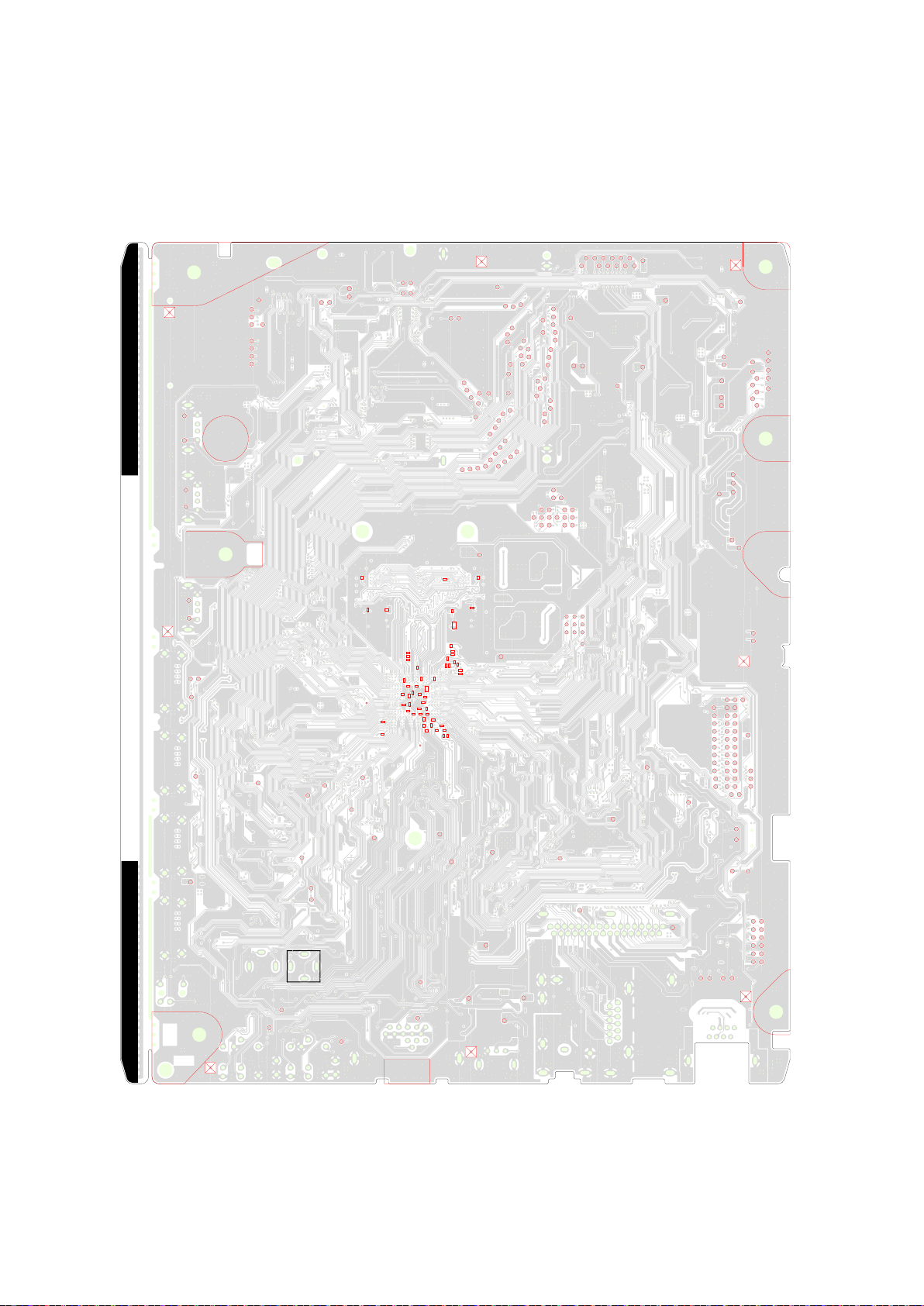

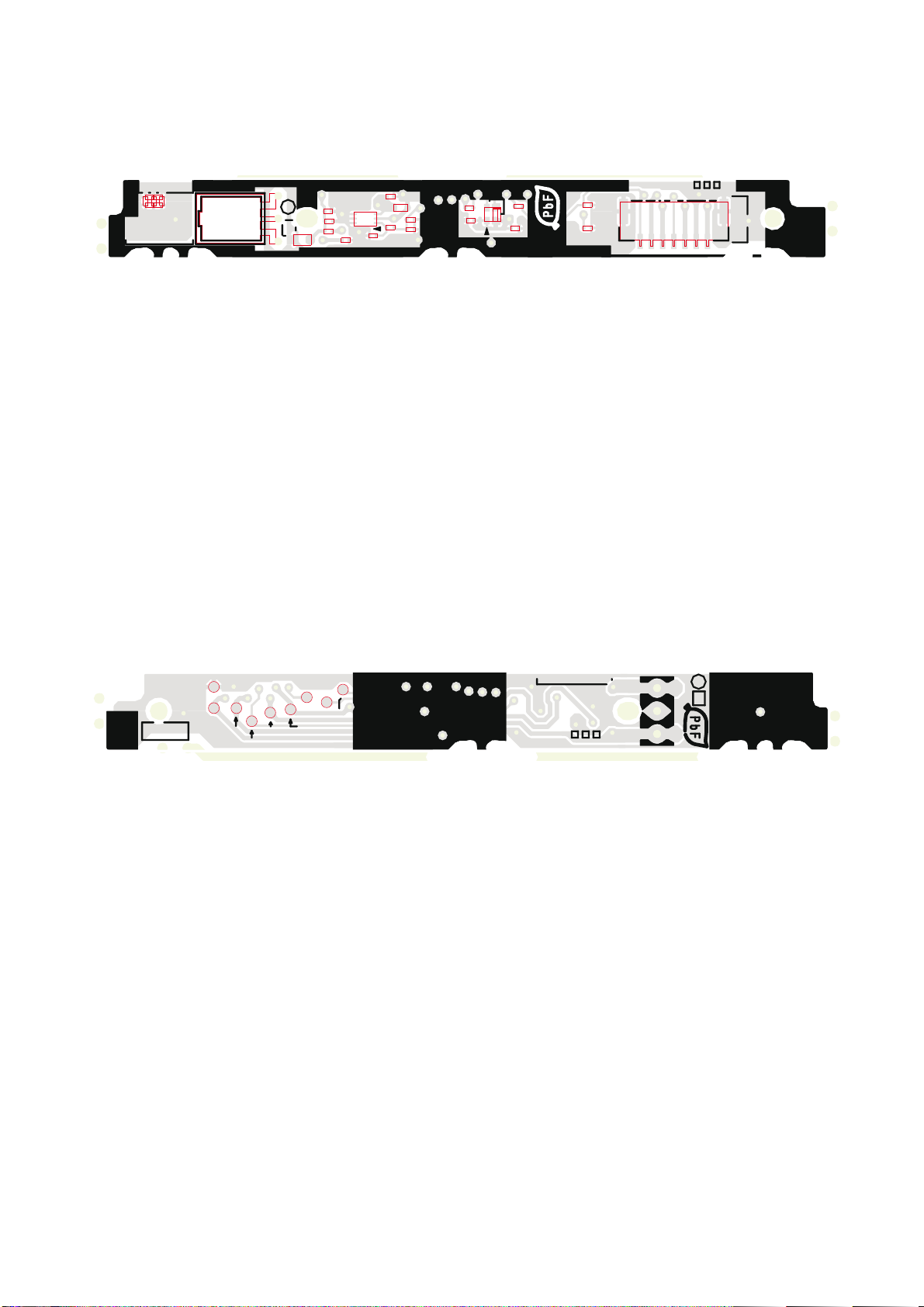

CONDUCTOR VIEWS .............................................. 69

Safety Precautions

5
General Guide Lines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.
4. Always ensure cover label TBM4GU113 is correctly replaced before returning to customer (see Fig.1).
Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Fig. 2.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values: For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak); For d. c.: U1 = 1.0 V,
Note:
The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and
2.0 mA d. c. The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.
COLD WATER PIPE (EARTH GROUND)
TO APPLIANCES EXPOSED METAL PARTS
Resistance values in ohms ()
V: Voltmetr or oscilloscope (r.m.s. or peak reading)
NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms
Measuring network for TOUCH CURRENTS
=1500
R
S
Input resistance: 1M Input capacitance:200pF Frequency range: 15Hz to 1MHz and d.c.respectively
R0=500
Fig. 2
Fig. 1
=0.22F
C
S
10k
U1 (V)
F
0.022
V
U2 (V)
Prevention of Electrostatic Discharge (ESD) to Electrostatically
6
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).
There are special components used in this equipment which are important for safety. These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
About lead free solder (PbF)
7
Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol
stamped on the back of PCB.
Caution
Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)
higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
After applying PbF solder to double layered boards, please check the component side for excess solder which may
flow onto the opposite side. (see Fig.3)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)
Fig.3
Fig.4

Applicable Signals

8
Component (Y, Pb, Pr) (from AV2 terminal), HDMI
Applicable input signal for PC is basically compatible to VESA standard timing.
Signal name COMPONENT HDMI
525 (480) / 60i,60p * * 625 (576) / 50i, 50p * *
750 (720) / 60p, 50p * * 1,125 (1,080) / 60i, 50i * * 1,125 (1,080) / 60p * 1,125 (1,080) / 50p * 1,125 (1,080) / 24p *
PC (from D-sub 15P)
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 480 @60 Hz 800 600 @60 Hz 852 480 @60Hz 1,024 768 @60Hz 1,280 768 @60Hz 1,280 1,024 @60Hz 1,366 768 @60Hz
PC (from HDMI terminal)
Applicable input signal for PC is basically compatible to HDMI standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 480 @60 Hz 1,280 720 @60 Hz 1,920 1,080 @60Hz
Note:
Signals other than above may not be displayed properly.  The above signals are reformatted for optimal viewing on your display.  PC signal is magnified or compressed for display, so that it may not be possible to show fine detail
with sufficient clarity.
31.47 59.94
37.88 60.32
31.44 59.89
48.36 60.00
47.70 60.00
63.98 60.02
48.39 60.04
31.47 60.00
45.00 60.00
67.50 60.00

Service Hints

9
How to remove the backcover
Remove the 4 fixing screws, the 1 fixing screw and WIFI DONGLE. (see Fig.5)
SCREWS (1) THTD030J /1pcs/ (4) XYN4+F25FJK /4pcs/
(4)
(4)
(1)
(4)
(4)
(1)
(2)
(2)
Fig.5
(1)
(1)
(2)
(2)
(2)
(3)
(3)
Remove the 38 fixing screws, 4 caps and the backcover. (see Fig.6)
(1)
(1)
(1)
(2)
(1)
(2)
(1)
(2)
(2)
(1)
(1)
(1)
(1)
(2)
(3)
(3)
(1)
(1)
(1)
(2)
(1) THTD030J /21pcs/ (2) THEC1509 /17pcs/
(1)
(2)
(2)
(2)
(1)
(2)
(1)
(3) TKKL5521 /4pcs/
(2)
(1)
(2)
(1)
(1)
SCREWS
Fig.6
How to remove the pedestal assembly.
Lay the main unit face down. (see Fig.7) Remove the 4 fixing screws and the pedestal assembly. (see Fig.8)
Fig.7
(4)
(4)
(4)
Fig.8
(4)

Chassis Board Layout

10
P-BOARD
GK-BOARD
K-BOARD
Board Name Function
A-Board AV Terminal, HDMI, HDMI Switch, USB, USB HUB, Digital Audio Out,
Tuner DVB-T/T2/C, SD Card, CI slot, PC, Ethernet, Wireless LAN,
Peaks IC, Speaker out, EEPROM, Flash Memory, DDR SDRAM
FR-Board Image Processor, SPI Flash
P-Board Main Input, Power Supply K-Board Remote Receiver, Power and Timer LED, C.A.T.S
GK-Board Key control, Power switch
A-BOARD
FR-BOARD

Location of Lead Wiring

To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
P4-LD WIRE
A02-P2 WIRE
LVDS FFC
A12-SPK WIRE
GK4
WIFI
LD
JK7101
P2
P4
TC11
TC02
TC01
A02
A12
A15
A20
A10
TU6705
SP_R
K10
SP_L
WIFI DONGLE CABLE
LVDS FFC3 LVDS FFC2
A10-K10 WIRE

Technical Description

11
Specification of KEY for CI Plus, DTCP-IP, One-to-One, Widevine and Netflix General information:
1. EEPROM (IC8902) for spare parts has the seed of KEY for each.
2. The final KEY data will be generated by LDA4 IC (IC8000) when SELF CHECK was done and are stored in both LDA4 IC (IC8000) and EEPROM (IC8902). All KEYs are not generated for all models. The necessary KEY are only generated and stored depend on the featur e of models.
Replacement of ICs:
When LDA4 IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time. When EEPROM (IC8902) is replaced, LDA4 IC (IC8000) is not necessary to be replaced the same time. After the replacement of IC, SELF CHECK should be done to generate the final KEY data. How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press the STATUS button on the remote control for more than 3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK.
Model and Keys:
Keys
Model No.
TX-L55ET5E Yes Yes None Yes Yes
CI PLUS DTCP-IP
One-to-One
(for USB Rec.)
Widevine Netflix

Setting Inspection

12
Voltage Confirmation
A board
Description Test point Voltage
SUB1.1V TP8100 1.10V - 1.22V SUB 1.5 V TP8101 1.435V - 1.585V SUB1.8V TP8700 1.7V – 1.9V SUB3.3V TP5400 3.17V – 3.43V SUB5V TP5420 4.80V - 5.25V USB5V TP5440 4.94V – 5.40V PNL12V TP4004 (TP4005) 11.5V – 12.9V
P board
Description Test point Voltage* Voltage**
24V (PANEL) TP7512/TP7513 16V TP7508/TP7514 5VS TP7507/TP7412 5.3V ± 0.1V 5.3V ± 0.1V PFC TP7201 and GND
* Connect AC 230V to JK7101 connector ** Connect DC 2.5V to TV_SUB_ON P2 connector – pin 7 /TP7506/ from voltage divider. ***Beware, for testing of PFC use the GND (TP7203) in Hot area of P board – risk of electric shock!
<1V <1V
TP7203***
<340V
24V ± 1.2V
16.1V ± 0.6V
390V ± 15V

Self Check

p
13
Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep
pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check,
switch off the TV set at the power button.
TX-L55ET5E
55FHD Panasonic 2012LCD
Self Check Com
TUN O.K. STBY O.K. MEM1 O.K. MEM2 O.K.. FRC O.K. LAN O.K. ID O.K. ID2 O.K. HDMI-SW O.K. WiFi O.K.
PEAKS-SOFT 1.213 PEAKS-EEP 01.04.0001 LSI-PACKAGE 2.424 LSI-RELEASE 1.14 STBY-SOFT 1.03.02 STBY-EEP 1.00.0013 STBY-ROMCORR 0.00.00 FRC-SOFT 00000520
lete
SUM C0F4
MODEL ID 09 03317100 00040000
Display Ref. No. Description P.C.B. TUN TU6705 TUNER A-Board STBY IC8000 Peaks-LDA4 A-Board MEM1 IC8900 NAND FLASH MEMORY A-Board MEM2 IC8902 EEPROM PEAKS LDA4 A-Board FRC IC9100 IMAGE PROCESSOR FR-Board LAN IC8600 ETHERNET IF A-Board ID IC8902 CI+, DTCP-IP, C2mod A-Board ID2 IC8902 WIDEVINE , Netflix A-Board HDMI SW IC4700 HDMI SWITCH A-Board
WiFi
IC8458
N5HBZ0000064
USB HUB
WIFI DONGLE
A-Board
Wifi Dongle
If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".
Power LED blinking timing chart
14
1. Subject Information of LED Flashing timing chart.
2. Contents When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by number of blinking of the Power LED on the front panel of the unit.
Blinking
times
Once
1 BL_SOS
3
7
8
9
10
Blinking timing Contents Check point
4 sec
Light
No Light
IROM SOS
SUB3.3V_SENSE_SOS
SOS
SOUND_SOS
FRC_SOS FR BOARD
A BOARD
A BOARD
A BOARD
A BOARD
A BOARD
12
13
BE_SOS A BOARD
EMERGENCY A BOARD

Service Mode Function

15
MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Service Menu
How to enter SERVICE
While pressing (-/v) button on the TV unit, press on the remote control for 3 times within 2 seconds. Note:
To exit from Service mode, press the exit button on remote control.
0

SERVICE

A
A
A
A
A
A
V
16
SERVICE ADJUST WB-ADJ OPTION SRV-TOOL DRV CHECK
Peaks SOFT 1.213 OPTION 1 14 Peaks EEP 01.04.0001 OPTION 2 ee
S e r v i c e 1
LSI PACKAGE 2.424 OPTION 3 01 LSI DATA 1.00.14 OPTION 4 11 STBY SOFT 1.03.02 MODEL ID 09 STBY EEP 1.00.0013 03317100 STBY ROMCOR 0.00.00 00040000 FRC SOFT 0520 R/E Cnt 000/000 AJAX-CE 0.44.7 INV Cnt 0000
AVSW --
1
ADJUST DYNAMIC CONTRAST YMAX
1,2:MAIN SELECT 3,4:SUB SELECT 9:PICTURE MENU SELECT YELLOW:AUTO ADJUST VOL :ADJUST OK :WRITE
000
2
ADJUST DYNAMIC
3
COLOR
1,2:MAIN SELECT
4
3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
1 2
WB-ADJ DYNAMIC R-GAIN
BEFORE 77 METHOD 02
COLOR TEMP NORMAL
1,2:MAIN SELECT 3,4:SUB SELECT 7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ
77
WB-ADJ DYNAMIC G-GAIN
3
BEFORE 6F METHOD 02
COLOR TEMP NORMAL
1,2:MAIN SELECT 3,4:SUB SELECT
4
7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ
1 2
OPTION DYNAMIC Boot
1,2:MAIN SELECT 3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST
SD
OPTION DYNAMIC STBY-SET
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 9:PICTURE MENU SELECT OK :POWER OFF
1 2
SRV-TOOL DYNAMIC
1,2:MAIN SELECT 9:PICTURE MENU SELECT OK:ENTER
00
1 2
DRV-CHECK DYN AMIC USBHDD CHECK
1,2:MAIN SELECT 9:PICTURE MENU SELECT OK 3sec:HDD CHK START
00
6F
50
00
216
DJUST DYN AMIC
3
TINT
1,2:MAIN SELECT
4
3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
WB-ADJ DYNAMIC B-GAIN
3
BEFORE 80 METHOD 02
COLOR TEMP NORMAL
1,2:MAIN SELECT 3,4:SUB SELECT
4
7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ
OPTION DYNAMIC CLK MODE
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST
Key Command
Press the 3/4 button to change the adjustment values or function. Press the 1/2 button to step up/down through the functions and adjustments Press the numerical button VOLUME (+/-) to change of each option item.  Press the OK button after each adjustment has been made to store the required values.
80
00
O0
ADJUST DYNAMIC
3
SUB-BRT
1,2:MAIN SELECT
4
3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
WB-ADJ DYNAMIC R-CENT
3
BEFORE 7E METHOD 02
COLOR TEMP NORMAL
1,2:MAIN SELECT 3,4:SUB SELECT
4
7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ
OPTION DYNAMIC CLOCK
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST
800
7E
ON
DJUST DYNAMIC
3
BACKLGT
1,2:MAIN SELECT
4
3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
WB-ADJ DYNAMIC G-CENT
3
BEFORE 80 METHOD 02
COLOR TEMP NORMAL
1,2:MAIN SELECT 3,4:SUB SELECT
4
7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ
OPTION DYNAMIC
3
Emergency
4
1,2:MAIN SELECT 3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST
200
80
ON
DJUST DYNAMIC
H-POS
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
WB-ADJ DYNAMIC B-CENT
3
BEFORE 7C METHOD 02
COLOR TEMP NORMAL
1,2:MAIN SELECT 3,4:SUB SELECT
4
7:COLOR TEMP SELECT 9:PICTURE MENU SELECT 0:WB METHOD SELECT VOL :ADJUST OK :WRITE/WB DIFF ADJ
OPTION DYNAMIC Y/C Delay
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
7C
DJUST DYN AMIC
0
H-AMP
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK:WRITE
OPTION DYNAMIC OPT 1
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 5,6:BIT SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
0
00010100
ADJUST DYNAMIC V-POS
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
OPTION DYNAMIC OPT 2
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 5,6:BIT SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
OPTION DYNAMIC EDID-CLK
HDMI 1
1,2:MAIN SELECT 3,4:SUB SELECT 7 :HDMI SELECT 9 :PICTURE MENU SELECT OK:WRITE
11101110
MID
DJUST DYNAMIC
0
V-AMP
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
4
DJUST DYNAMIC
VCOM BEFORE 00
1,2:MAIN SELECT 3,4:SUB SELECT 5 :FLICKER PATTERN 9 :PICTURE MENU SELECT OK :WRITE
OL :ADJUST
OPTION DYNAMIC OPT 3
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 5,6:BIT SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
4
OPTION DYNAMIC OPT 4
3
1,2:MAIN SELECT
4
3,4:SUB SELECT 5,6:BIT SELECT 9:PICTURE MENU SELECT VOL :ADJUST OK :WRITE
00010001
0
3
000
00000001
3

Service Tool Mode

17
How to access
1. Select [SRV-TOOL] in Service Mode.
2. Press [OK] button on the remote control.
Display of TD2Microcode version
Display of Flash ROM maker code
Display of SOS History
SRV-TOOL
TD2Microcode:005a0910 Flash ROOM: AD – F1 PTCT:00.00.00.00.00 Time 00051:30 On/Off 0000042
Display of SOS History
SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2 This indication will be cleared by [Self/check indication and forced to factory shipment setting].
nd
occurrence after shipment, 1st occurrence after shipment.
Power ON Time, On/Off
Note: To display TIME/COUNT menu, highlight position, then press MUTE for 3sec. Time: Cumulative power on time, indicated hour: minute by decimal. On/Off: Number of On/Off switching by decimal. Note: This indication will not be cleared by either of the self-checks or any other command.
Exit
Disconnect the AC cord from wall outlet or switch off the power with [Power] button on the main unit.
POWER ON TIME/COUNT Press [MUTE] button (3sec)

Hotel Mode

18
1. Purpose Restrict a function for hotels.
2. Access command to the Hotel mode setup menu. In order to display the Hotel mode setup menu, please enter the following command (within 2 second). [TV] : Vol.[Down] + [REMOTE] : AV (3 times)
Then, the Hotel mode setup menu is displayed.
Hotel mode
Hotel mode
Initial INPUT
Initial POS
Off
Off
Off
Initial VOL Level
Maximum VOL Level
Button Lock
Remote Lock
Off
Off
Off
Off
Private Information
Keep
EXIT
RETURN
Select
OK
3. To exit the “Hotel mode” menu press the EXIT button on remote control.
4. Explain the Hotel mode setup menu.
ITEM Function
Hotel Mode Select hotel mode ON/OFF
Initial INPUT Select input signal modes.
Initial POS Select programme number.
Initial VOL Level Adjust the volume when each time power is
Maximum VOL Level
Button Lock Select local key conditions.
Remote Lock Select remote control key conditions.
Private Information
Set the input, when each time power is switched on. Selection: Off/Analog/DVB-C/DVB-T/AV1/AV2/PC/ HDMI1/HDMI2/HDMI3/HDMI4 *Off: give priority to the last memory. However, Euro Model is compulsorily set to TV. *AVnS/AVnC: only Euro model selectable * PC:selectable with VGA option
Selection: Off/0 to 99 *Off: give priority to the last memory
switched on. Selection/Range: Off/0 to 100 *Off: give priority to the last memory Adjust maximum volume. Range: 0 to 100
Selection: Off/SETUP/MENU/ALL *Off: altogether valid *Setup: only F-key is invalid
(Tuning guide (menu) can not be selected.)
*MENU: only F-key is invalid
(only Volume/Mute can be selected.)
*All: altogether invalid.
Selected” Off/SETUP/MENU *Off: altogether valid *Setup: only Setup menu is invalid MENU: Picture/Sound/Setup menu are invalid
Select private information for VIERA Cast is Keep or Reset if Hotel mode is set to [On] when TV power on. Selection : Keep/Reset
•Keep: private information for VIERA Cast is keep
•Reset: private information for VIERA Cast is reset

Data Copy by SD Card

19
Purpose a) Board replacement (Copy the data when exchanging A-board):
When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.
TV
A-board
(Before exchanging)
Copy to SD card
(After exchanging)
Copy back from SD card
SD
Following data can be copied. User setting data (inc. Hotel mode setting data) Channel scan data Adjustment and factory preset data
b) Hotel (Copy the data when installing a number of units in hotel or any facility):
When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and the copy to other TVs.
Master TV
Copy to SD card
SD
Other TV
Copy from SD card
Other TV
Other TV
Following data can be copied. User setting data (inc. Hotel mode setting data) Channel scan data
Preparation
Make pwd file as startup file for (a) or (b) in an empty SD card.
1. Insert an empty SD card to your PC.
2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default (New Text Document.txt).
3. Right-click the new text document that you just created and select rename, and then change the name and extension of the file to the following file name (a) or (b) and press ENTER.
File name:
(a) For Board replacement: boardreplace.pwd (b) For Hotel: hotel.pwd
Note: Please make only one file to prevent the operation error. No any other file should be in SD card.

Data Copy from TV set to SD Card

20
1. Turn on the TV set.
2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically.
3. Input a following password for (a) or (b) by using remote control.
(a) For Board replacement: 2770
(b) For Hotel: 4850 Data will be copied from TV set to SD card. It takes around 2 to 6 minutes maximum for copying.
4. After the completion of copying to SD card, remove SD card from TV set.
5. Turn off the TV set.
Note: Following new folder will be created in SD card for data from TV set.
(a) For Board replacement: user_setup (b) For Hotel: hotel
Please do not remove the SD card
Data copy has been successful
Data Copy(Board replacement )
Input password
Data Copy(Board replacement )
Input password
Data Copy(Board replacement )
Copy TV to SD card
Please wait for a while
Data Copy(Board replacement )
Performing
Please remove SD card
Data copy (Board replacement) or (Hotel)
-----
Input Password
2770 or 4850
-----
Performing
GETTING
Completion
FINISH

Data Copy from SD Card to TV set

21
1. Turn on the TV set.
2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically.
3. Input a following password for (a) or (b) by using remote control.
(a) For Board replacement: 2771 (b) For Hotel: 4851
Data will be copied from SD card to TV set.
4. After the completion of copying to SD card, remove SD card from TV set.
(a) For Board replacement: Data will be deleted after copying (Limited one copy). (b) For Hotel: Data will not be deleted and can be used for other TVs.
5. Turn off the TV set.
Note:
1. Depending on the failure of boards, function of Data for board replacement does not work.
2. This function can be effective among the same model numbers.
Data Copy(Board replacement )
Input Password
Input password
Performing
Data Copy(Board replacement )
Copy SD card to TV
Please wait for a while
Please do not remove the SD card
Data Copy(Board replacement )
Performing
Data copy has been successful
Please remove SD card
Input Password
2771 or 4851
-----
Performing
WRITING
Completion
FINISH

Option Bytes Description

22
OPTION1
b1 TEXT Ch Refresh ON (1) / OFF (0) b2 ID-1 ON (1) / OFF (0) b3 Macrovision Auto-judge ON (1) / OFF (0) b4 Surround enable low bit ON (1) / OFF (0) b5 Surround enable high bit ON (1) / OFF (0) b6 Enable HDMI force reset ON (1) / OFF (0) b7 TINT_Component_HDMI ON (1) / OFF (0)
OPTION2
b0 Adjust gain enable ON (1) / OFF (0) b1 A2 BG enable (5.5MHz) ON (1) / OFF (0) b2 A2 DK1 enable (6.26MHz) ON (1) / OFF (0) b3 A2 DK3 enable (5.742MHz) ON (1) / OFF (0) b4 NICAM scan ON (1) / OFF (0) b5 NICAM BG enable (5.5MHz) ON (1) / OFF (0) b6 NICAM I enable (6.0MHz) ON (1) / OFF (0) b7 NICAM DK enable (6.5MHz) ON (1) / OFF (0)
OPTION3
b0 NICAM priority ON (1) / OFF (0) b1 Starhub scan enable (Singapore) ON (1) / OFF (0)
Enable special edge smoother
b2
function (CHINA)
b3 A2 DK2 enable ON (1) / OFF (0)
Inhibition of countermeasure
b4
for SIF signal drop
b5 Get onid from physical CH (CHINA) ON (1) / OFF (0)
SSU search enable for HOTEL
b6
model
b7 SASO mute (ASIA) ON (1) / OFF (0)
OPTION4
b2 3DYC color motion detect ON (1) / OFF (0)
b4 SHOP banner enable ON (1) / OFF (0) b6 PIP ON (1) / OFF (0)
Enable Video Distortion
b0
Countermeasure for Analog VIF
RF Clamp Current minimum
b3
(TAIWAN)
Enable workaround for Polsat CAM
b7
problem (POLAND)
ON (1) / OFF (0)
ON (1) / OFF (0)
ON (1) / OFF (0)
ON (0) / OFF (1)
ON (1) / OFF (0)
ON (1) / OFF (0)
23

Adjustment Method

Sub-Contrast/White Balance Adjustment
Instrument Name Connect to Remarks
1. Remote controller
2. LCD WB meter (Minolta CA-210 or equivalent)
3. Comunication jig
4. Computer for external control
Procedure Remarks
Subcontrast adjustment
1. Receive PAL colour bar (100% white) RF signal.
2. Enter “Contrast” adj. In SERVICE mode.
3. Start adjusting by using Yellow Key.
4. If the adjustment finished normally, the letter of Contrast will change from red to black.
White Balance adjustment
1. Procedure basically performs checking using the production software and make automatic adjustment using external computer.
2. It adjusts in the mode of: Colour balance Normal
Viewing Mode Dynamic
Normal Highlight x: 0.307  0.010 y: 0.322 0.010
Normal Lowlight x: 0.307 0.010 y: 0.322  0.010
Correlation can be also taken by CS-1000A or equivalent
Let the panel standfor more than 3 hours at more than 20 C. Basically perform adjustment in the ambient environment of room temperature more than 20 C. The aging time is more than 20 min at above room temperature.
Applied signal
100% full colour bar
0.7V p-p white peak 85% modulation
100% WHITE
50% GRAY
Loading...
+ 52 hidden pages
