Panasonic TX-L47WT50B, TX-L42WT50B, TX-L55WT50B Operating Instructions

Page 1

Operating Instructions

LCD Television

Model No.

TX-L42WT50B TX-L47WT50B TX-L55WT50B

Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.

English

UK and Ireland model

TQB0E2282

Page 2

Features

Smart VIERA

Digital smart life to create new and exciting TV experiences (Networking / Easy Operation / Picture Quality / Eco / Design).

3D technology

You can enjoy viewing 3D images on this TV by wearing the 3D Eyewear.

VIERA Touch Pad Controller

VIERA Touch Pad Controller is designed to operate the TV conveniently and intuitively, especially on VIERA Connect or internet contents.

freesat HD tuner built-in

This TV has a built-in freesat HD tuner. freesat is a free digital TV service which broadcasts via satellite so you can receive TV, radio, interactive TV, and HD TV with crystal clear reception.

DVB-T2 tuner built-in

DVB-T2 is an advanced digital terrestrial system for more efficient transmission. Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.

Wireless connection

This TV can be connected to the network with the builtin wireless LAN. Also can be connected to the specific devices supporting Bluetooth wireless technology (3D Eyewear, VIERA Touch Pad Controller, Keyboard, Audio devices).

Using USB devices

Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 74, 84) Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 78) USB keyboard, gamepad, etc. are available. (p. 112)

Timer Programming (p. 28, 64)

Timer Programming enables you to use functions such as programme reminder and programme recording to the external recorder or SD Card / formatted USB HDD.

SDXC Card

This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing. You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.



To retune your TV [Auto Setup] in [DVB Tuning Menu]-DVB mode (p. 57) Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)



Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases,

despite good reception of analogue channels.

Notice for DVB / Data broadcasting / IPTV functions

This TV is designed to meet the standards (as of August, 2011) of digital services.



Not all the features are available depending on the country, area, broadcaster, service provider and network environment.



The compatibility with future services is not guaranteed.



Check the latest information on the available services at the following website.

http://panasonic.jp/support/global/cs/tv/

DLNA

DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. (p. 94)

VIERA Connect - Enjoy great web entertainment

(p. 21, 89)

VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, EPG, communication tools, etc. from VIERA Connect home screen.

Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 97)

Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.

VIERA TOOLS - Display special feature icons for easy accessibility (p. 43)

Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS button.

Dolby Digital Plus / Dolby Pulse decoders

It is possible to decode Dolby Digital Plus / Dolby Pulse multi-channel audio tracks and output as Dolby Digital Bitstream (multi-channel sound signal) from DIGITAL AUDIO OUT / HDMI2 (ARC function) terminals.

Owner ID (p. 68)

Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to determine the owner in the case of theft.

Voice Guidance (p. 24, 48)

Voice Guidance narrates the operation of the basic features (EPG, on-screen messages, etc.) to assist visually-impaired users.

Supports Audio Description signal (p. 24, 48)

Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired users.

Page 3

Transport only in upright position

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/ or performance from usage of such other maker’s peripheral devices.

Contents

Be Sure to Read

Safety Precautions ···············································4

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

Rovi Corporation and/or its subsidiaries and related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the Rovi Guide system and cannot guarantee service availability in your area. In no event shall Rovi Corporation and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the Rovi Guide system.

“Full HD 3D Glasses™” Logo indicates compatibility between TV products and 3D Eyewear which are compliant with the “Full HD 3D Glasses™” format, and does not indicate picture quality of TV products.

Quick Start Guide

Accessories / Options ···········································7 Identifying Controls ············································· 11 Basic Connection················································ 14 Auto Setup ··························································17

Enjoy your TV!

Basic

Using “VIERA Connect” ······································21 Watching TV ·······················································22 Using TV Guide ··················································26 Viewing Teletext ·················································· 31 Watching External Inputs ····································34 Viewing 3D images ·············································36 How to Use VIERA TOOLS ································43 How to Use Menu Functions ······························44

Advanced

Retuning from Setup Menu································· 56 Tuning and Editing Channels ·····························58 Timer Programming ············································64 Child Lock ···························································66 Shipping Condition ·············································67 Owner ID ····························································68 Using Common Interface ····································69 Updating the TV Software ··································70 Multi Window ······················································71 Displaying PC Screen on TV ······························72 Advanced Picture Settings ·································73 USB HDD / SD Card Recording ·························74 Using Media Player ············································78 Using Network Services

(DLNA / VIERA Connect / freesat) ······················88 Link Functions (Q-Link / VIERA Link) ·················97 External Equipment ··········································105

Others

Technical Information········································107 FAQs································································· 116 On-screen messages ······································· 119 Glossary ···························································121 Maintenance ····················································· 122 Licence ····························································· 122 Index ································································· 124 Specifications ···················································125

Page 4

Safety Precautions

Warning

Safety Precautions

 Mains plug and lead

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:



This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.



Insert the mains plug fully into the socket outlet.



Ensure that the mains plug is easily accessible.



Remove the mains plug when cleaning the TV.



Do not touch the mains plug with a wet hand.



Do not damage the mains lead.

Do not place a heavy object on

•

the lead.

Do not place the lead near a high

•

temperature object.

Do not pull on the lead.

•

Hold onto the mains plug body when disconnecting the plug.

Do not move the TV with the lead plugged into a socket outlet.

•

Do not twist the lead, bend it excessively or stretch it.

•

Do not use a damaged mains plug or socket outlet.

•

Ensure the TV does not crush the mains lead.

•



Do not use any mains lead other than that provided with this TV.

If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.

AC 220-240 V 50 / 60 Hz

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This TV is supplied with a moulded three pin mains plug for your safety and convenience.

A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained. A replacement fuse cover may be purchased from your local dealer.

Do not cut off the mains plug. Do not use any other type of mains lead except the one supplied with this TV. The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for your safety. If the socket outlet in your home is not suitable, get it changed by a qualified electrician. If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.

How to replace the fuse

For plug type shown in example 1:

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

For plug type shown in example 2:

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).

or the BSI mark on the body of the fuse.

Example 1

Example 2

Page 5

Warning

 Take care

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:



Do not remove covers and never modify the TV yourself as live parts are accessible when they are removed.



Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.



Do not expose the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.



Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base.



Do not insert foreign objects into the TV through the air vents.



Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.



Do not apply strong force or impact to the display panel.



This TV is designed for Table-top use.

There are no user serviceable parts inside.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

 Small object

This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.



Keep the dangerous parts out of reach of young children.



Do not allow children to handle SD Card. As with any small object, the SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.

 Radio waves



Do not use the TV, 3D Eyewear and VIERA Touch Pad Controller in any medical institutions or locations with medical equipment. Radio waves from the TV equipment and cause accidents due to the malfunction.



Do not use the TV, 3D Eyewear and VIERA Touch Pad Controller near any automatic control equipment such as automatic doors or fire alarms. Radio waves from the TV, 3D Eyewear and VIERA Touch Pad Controller may interfere with the automatic control equipment and cause accidents due to the malfunction.



Keep the distance at least 22 cm from the built-in wireless LAN part, 3D Eyewear and VIERA Touch Pad Controller when you have a cardiac pacemaker. Radio waves from the part may interfere with the operation of the pacemaker



Do not disassemble or alter the built-in wireless LAN, 3D Eyewear and VIERA Touch Pad Controller in any way.

, 3D Eyewear and VIERA Touch Pad Controller may interfere with the medical

Safety Precautions

Page 6

Caution

 Ventilation

Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

Safety Precautions



Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.



Whether you are using the pedestal or not, always ensure the vents in the bottom of the TV are not blocked and there is suf ventilation.

 Moving the TV

Before moving the TV, disconnect all cables.



The TV is heavy. Move the TV with at least two people. Support as shown to avoid injury by the TV tipping or falling.



Transport only in upright position. Transporting the TV with its display panel facing upward or downward may cause damage to the internal circuitry.

ficient space to enable adequate

Minimum distance

 When not in use for a long time

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.



Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

 Excessive volume

Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

 Built-in wireless LAN



To use the built-in wireless LAN, an access point needs to be obtained.



Do not use the built-in wireless LAN to connect to any wireless network (SSID) for which you do not have usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.



SSID is a name for identifying a particular wireless network for transmission.



Do not subject the built-in wireless LAN to high temperatures, direct sunlight or moisture.



Data transmitted and received over radio waves may be intercepted and monitored.



The built-in wireless LAN uses 2.4 GHz and 5 GHz frequency bands. To avoid malfunctions or slow response caused by radio wave interference, keep the TV away from the devices such as other wireless LAN devices, microwaves, mobile phones and the devices that use 2.4 GHz and 5 GHz signals when using the built-in wireless LAN.



When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case, turn the TV of



Additional information for built-in wireless LAN and access point may be on the following website.

http://panasonic.jp/support/global/cs/tv/

f with Mains power On / Off switch, then turn it on again.

(cm)

Bluetooth® wireless technology



The TV, 3D Eyewear and VIERA Touch Pad Controller use the 2.4 GHz radio frequency ISM band (Bluetooth®). To avoid malfunctions or slow response caused by radio wave interference, keep the TV, 3D Eyewear and VIERA Touch Pad Controller away from the devices such as other wireless LAN devices, other Bluetooth devices, microwaves, mobile phones and the devices that use 2.4 GHz signal.

Page 7

Accessories / Options

Standard accessories

Remote Control



N2QAYB000715

Mains lead (p. 14)



K2CT2YY00090

VIERA Touch Pad Controller

(p. 8, 12)



N2QBYB000015

3D Eyewear (2) (p. 37)



N5ZZ00000257

Batteries (4)

(p. 8)



Clamper (p. 16)



TMME289

Pedestal

(p. 8)

Operating Instructions

Production Registration Leaflet

Quick Start Guide

Accessories / Options

Terminal adaptors

AV1 (SCART) adaptor

(p. 15)



K1HY20YY0011



Accessories may not be placed all together. Take care not to throw them away unintentionally.



This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children.

AV2 (COMPONENT / VIDEO) adaptor

(p. 105)



K2KYYYY00206

Optional accessories

Please contact your local Panasonic dealer to purchase the recommended optional accessories. For additional details, please read the manual of the optional accessories.

Wall-hanging bracket

Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.



Holes for wall-hanging bracket installation

400 mm

Rear of the TV

(View from the side)

Warning



Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit’s performance and safety licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.



Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.



Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.



Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.



To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

Depth of screw:

minimum 6 mm maximum 8 mm

Diametre: M8

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

, be absolutely sure to ask your dealer or a

Page 8

3D Eyewear

(Rechargeable type)



TY-ER3D4ME



TY-ER3D4SE

Communication Camera



TY-CC20W

Quick Start Guide



If you need 3D Eyewear additionally, please purchase this optional accessory.



Use Panasonic 3D Eyewear supporting Bluetooth wireless technology.



For more information: http://panasonic.net/avc/viera/3d/eu.html



This camera can be used on VIERA Connect (p. 21, 89).



Depending on the area, this optional accessory may not be available. For details, consult your local Panasonic dealer

Installing / removing batteries

Caution



Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control / touch pad controller.

Accessories / Options



Do not mix old and new batteries.



Replace only with same or equivalent type. Do not mix different battery types (such as alkaline and manganese batteries).



Do not use rechargeable (Ni-Cd) batteries.



Do not burn or break up batteries.



Do not expose batteries to excessive heat such as sunshine, fire or the like.



Make sure you dispose of batteries correctly.



Ensure batteries are replaced correctly, there is danger of explosion and fire if battery is reversed.



Do not disassemble or modify the remote control / touch pad controller.

 Remote Control

Pull open

Hook

Note the correct

polarity (+ or -)

 VIERA Touch Pad Controller

Slide open

Note the correct polarity (+ or -)

Attaching / removing the pedestal

Warning

Do not disassemble or modify the pedestal.



Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any pedestal other than the one provided with this TV.



Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.



If you use the pedestal while it is physically damaged, personal injury may result. Contact your local Panasonic dealer immediately.

During set-up, make sure that all screws are securely tightened.



If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV

Ensure that the TV does not fall over.



If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.

Two or more people are required to install and remove the TV



If two or more people are not present, the TV may be dropped, and personal injury may result.

When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified procedure.



Otherwise the TV and / or pedestal may fall over and become damaged, and personal injury may result.

(p. 10)

, and it might fall over and become damaged, and personal injury may result.

Page 9

Assembly screw (4)



XSS5+15FNK

M5 × 15

Assembly screw (4)

(black)



XYN4+F10FJK

M4 × 10

Assembly screw (2)

(silver)



XYN4+F10FJ

M4 × 10

Bracket



TBL5ZA32771

Cover



TBL5ZB32332

 Preparations

Take out the pedestal and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.)



Use a firm table bigger than the TV.



Do not hold the screen panel part.



Make sure not to scratch or break the TV.

Base



TBL5ZX04011 (TX-L42WT50B)



TBL5ZX04021

TX-L47WT50B

()

TX-L55WT50B

Quick Start Guide

Accessories / Options

 Assembling the pedestal

Attach the bracket fix with assembly screws



Forcing the assembly screws the wrong way will strip the threads.



Hold the bracket not to fall over.

to the tabs of the top of the base and

 Securing the TV

Attach the pedestal

Tabs

Attach the cover

and fix securely with assembly screws .

Tabs (top)

Front

Align the 3 tabs on the bracket with the grooves on the back of the TV and insert them. Make sure the centre tab is in the hole of the TV. Slide in the bracket aligning the arrow marks () on the TV and the bracket.

Tighten the 4 assembly screws at first, then tighten them firmly to fix securely.

loosely

Page 10

 Moving the TV

Hold the specified parts as shown to stand the TV up and move it with two people.

Quick Start Guide

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

1 Put the TV onto a work table with the screen panel down on the clean and soft cloth. 2 Remove the assembly screws

3 Remove the assembly screws

Accessories / Options

4 Remove the pedestal from the TV. 5 Remove the assembly screws

Adjusting the panel to your desired angle



Do not place any objects within the full rotation range.

Preventing the TV from falling over

Using the fall-prevent screw hole and a screw (commercially available), securely fix the body of the pedestal to the installation surface.



The place where the pedestal is to be fixed should be thick enough and made of hard material.

from the cover. from the TV.

from the bracket.

15°

(View from the top)

Screw (not supplied) Diametre: 3 mm Length: 25 - 30 mm

Screw hole

Page 11

Identifying Controls

Remote Control

1 2 3

4 5

10 11

Standby On / Off switch



Switches TV on or off standby.

3D button (p. 40)



Switches the viewing mode between 2D and 3D.

[Main Menu] (p. 44)



Press to access Picture, Sound, Network, Timer and Setup Menus.

Information (p. 23)



Displays channel and programme information.

VIERA TOOLS (p. 43)



Displays some special feature icons and accesses easily.

INTERNET ([VIERA Connect]) (p. 21, 89)



Displays VIERA Connect home screen.



Confirms selections and choices.



Press after selecting channel positions to quickly change channel.

21 22

[Option Menu] (p. 24)



Easy optional setting for viewing, sound, etc.

Coloured buttons

(red-green-yellow-blue)



Used for the selection, navigation and operation of various functions.

Sound Mute



Switches sound mute on or off.

Teletext (p. 31)



Switches to teletext mode.

Volume Up / Down

Numeric buttons



Changes channel and teletext pages.



Sets characters.



When in Standby mode, switches TV on (press for about 1 second).

Surround (p. 47)



Switches surround sound setting.

Light



Lights the buttons for about 5 seconds (except the buttons “25”).

Input mode selection



TV - switches freesat / DVB / Analogue / Other Sat. / Satellite mode.



AV - switches to AV input mode from Input Selection list.

Exit



Returns to the normal viewing screen.

TV Guide (p. 26)

Cursor buttons



Makes selections and adjustments.

Return



Returns to the previous menu / page.

Aspect (p. 25)



Changes aspect ratio.

Subtitles (p. 25)



Displays subtitles.

Channel Up / Down

Last view (p. 23)



Switches to previously viewed channel or input mode.

Operations for contents, connected equipment,

etc. (p. 35, 77, 79, 94, 103)

(p. 34)

(p. 22)

Quick Start Guide

Identifying Controls

Page 12

VIERA Touch Pad Controller

This touch pad controller is designed for the convenient operations, especially, on VIERA Connect or internet contents. You can operate the TV intuitively with this controller.



The touch pad controller can be used by registering to this TV with Bluetooth wireless technology. Setup screen to register will appear in “Auto Setup” for first using the TV. (p. 20)



After registering, you can operate the TV without pointing this controller at the TV (except Standby On / Off switch).



To use Standby On / Off switch, point the controller directly at the TV's remote control signal receiver (p. 13) because it works with the infrared. (You can operate the switch without registration.)

Standby On / Off switch

Quick Start Guide



Identifying Controls

 

The behaviour may vary depending on the mode or content.



Same function of the remote control button 1 (p. 11).

Touch pad (see below)

3 4

Exit



Same function of the remote control button 17 (p. 11).

VIERA TOOLS / On-screen remote control



VIERA TOOLS: Same function of the remote control button 5 (p. 11).



On-screen remote control: Press and hold to display the remote control GUI (Graphical User Interface). Press again to move the position of GUI. (To change the page of GUI, slide your finger to the left / right on the touch pad.)

Volume Up / Down



Same function of the remote control button 12 (p. 11).

[Option Menu]

Return



Same function of the remote control button 20 (p. 11).

Channel Up / Down



Same function of the remote control button 23 (p. 11).

INTERNET ([VIERA Connect])



Same function of the remote control button 6 (p. 11).

 Touch Pad



Tap the centre of the pad for “OK”.



Slide your finger to move the cursor (on internet contents or [Cursor Settings] in [VIERA Touch Pad Controller] (p. 49)), select the item, adjust levels, etc.



Trace the fringe to scroll.

Note



It is recommended to hold the touch pad controller with your hand when using.



The battery power will be used whenever you use the touch pad controller (including the touch of the touch pad) even if not operating the TV

. It may decrease the battery life.

Page 13

Indicator / Control panel

2 3

Power and Timer LED

Red: Standby Green: On Orange: Timer Programming On Orange (flash):

Red with orange flash:



The LED blinks when the TV receives a command from the remote control.

Rear side of the TV

Recording of Timer Programming, Direct TV Recording or One Touch Recording in progress

Standby with Timer Programming On, Direct TV Recording or One Touch Recording

C.A.T.S. (Contrast Automatic Tracking System)

sensor



Senses brightness to adjust picture quality when [C.A.T.S.] in the Picture Menu is set to [On].

(p. 45)

Front Logo LED



To turn the LED on / off, set [Front Logo LED] in Setup Menu. (p. 51)

Remote control signal receiver



Do not place any objects between the TV remote control signal receiver and remote control.

Function select



[Volume] / [Contrast] / [Brightness] / [Colour] / [Sharpness] / [Tint] (NTSC signal) / [Bass] / [T

reble] / [Balance] / [Auto Setup] (p. 56, 57)

[Music] or [Speech] mode in the Sound Menu

Channel Up / Down, Value change (when using the

F button), Switching the TV on (press either button for about 1 second when in Standby mode)

Changes the input mode

Mains power On / Off switch



Use to switch the mains power. If you turned the TV off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV on with Mains power On / Off switch.

When pressing the control panel button (4 - 7), the control panel guide appears on the right side of the screen for 3 seconds to highlight the pressed button.

Quick Start Guide

Identifying Controls

Using the On Screen Displays - Operation guide

Many features available on this TV can be accessed via the On Screen Display menu.

 Operation guide

Operation guide will help you to operate by using the remote control.

Example: [Owner ID]

Owner ID

Please enter new PIN

EXIT

* * * *

PIN entry

PIN entr

Operation guide

 How to use remote control

Auto power standby function

The TV will automatically go into Standby mode in the following conditions:

No signal is received and no operation is performed for 30 minutes in Analogue TV mode.

•

[Off Timer] is active in the Timer Menu. (p. 24)

•

No operation is performed for the period selected in [Auto Standby] (p. 48).

•



This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.

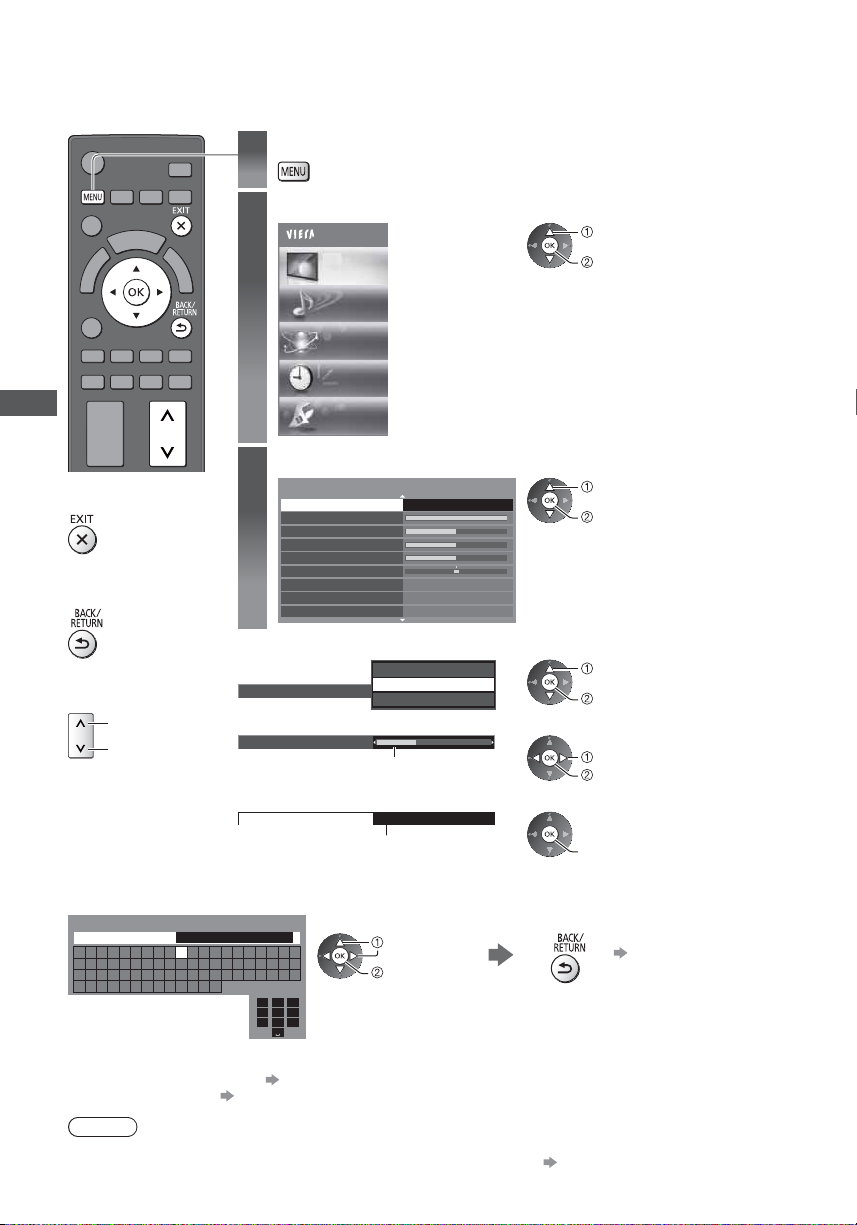

Open the main menu

Move the cursor / select from a range of options / select the menu item (up and down only) / adjust levels (left and right only)

Access the menu / store settings after adjustments have been made or options have been set

Return to the previous menu

Exit the menu system and return to the normal viewing screen

Page 14

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. There are some restrictions on placement for viewing 3D images. For details

Terminals

Quick Start Guide

Basic Connection

(p. 36)

CI slot (p. 69)

SD Card slot (p. 75, 78)

USB 1 - 3 port (p. 75, 78, 105)

HDMI1 - 4 (p. 15, 105)

Headphone jack (p. 106)

ETHERNET (p. 16)

Satellite terminal (see below)

Terrestrial terminal (see below)

DIGITAL AUDIO OUT (p. 106)

PC terminal (p. 105)

AV1 (SCART) (p. 15)

AV2 (COMPONENT / VIDEO)

(p. 105)

6 7 8 9 10 11 12

Connections

Mains lead, satellite dish and aerial

 freesat, Other Sat. / Satellite

Satellite cable

Satellite dish

Terrestrial aerial

 DVB, Analogue

Mains lead

Aerial input terminal

RF cable

 Mains lead

Insert the mains plug (supplied) firmly into place.



AC 220-240 V 50 / 60 Hz

Note

To ensure your satellite dish is correctly installed, please consult your local dealer.



Also please consult the received satellite broadcasting companies for details.



The freesat channel uses Astra2 at 28.2° East and Eurobird1 at 28.5° East satellites. To ensure your satellite dish is correctly installed please consult your freesat registered dealer.

When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.

Page 15

AV devices

 Player / 3D compatible player

Player / 3D-compatible player

 DVD Recorder / VCR

AV1 (SCART)

Aerial input terminal

 DVD Recorder / VCR and Cable

Aerial input terminal

HDMI cable



adaptor

RF cable

HDMI cable

AV1 (SCART)

adaptor



SCART cable

DVD Recorder / VCR

Cable TV box

SCART cable

Quick Start Guide

Terrestrial aerial

Basic Connection

RF cable

Cable

Terrestrial aerial

RF Cable

RF cable

DVD Recorder / VCR



Supplied with this TV

Note



Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p. 99).



Q-Link and VIERA Link connection



Please also read the manual of the equipment being connected.



Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise, distortion of image / sound may occur or operation of other equipment may be interfered.



When using a SCART or HDMI cable, use the fully wired one.



Check the type of terminals and cable plugs are correct when connecting.

(p. 97, 98)

Page 16

Network

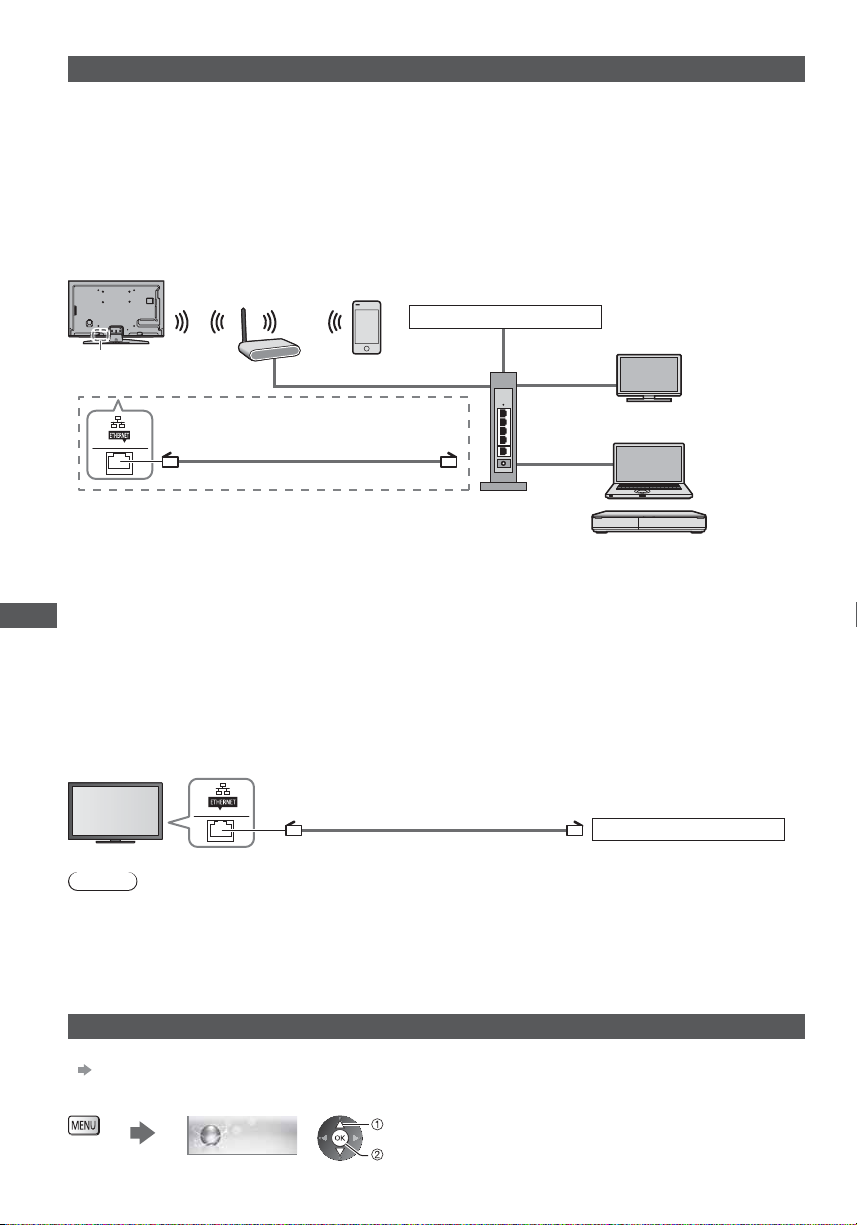

To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network environment.



If you do not have any broadband network services, please consult your retailer for assistance.



Prepare the internet environment for wired connection or wireless connection.



Setup of the network connection will start after the tuning (when first using the TV).

(p. 18, 19)

 Wired connection

Quick Start Guide

LAN cable (Shielded)



Basic Connection

 Wireless connection

Built-in wireless LAN

Use the Shielded Twist Pair (STP) LAN cable.

Access point

Using clamper



Do not bundle the Satellite cable, RF cable and mains lead together (could cause distorted image).



Fix cables with clampers as necessary.



When using the optional accessory, follow the option’s assembly manual to fix cables.

Internet environment

 Clamper (Standard accessory)

Attach the clamper Bundle the cables

Insert the clamper in a hole

To remove from the TV: To loosen:

snaps

Keep pushing both side snaps

hole

hooks

knob

Set the tip in the hooks

Keep pushing the knob

Page 17

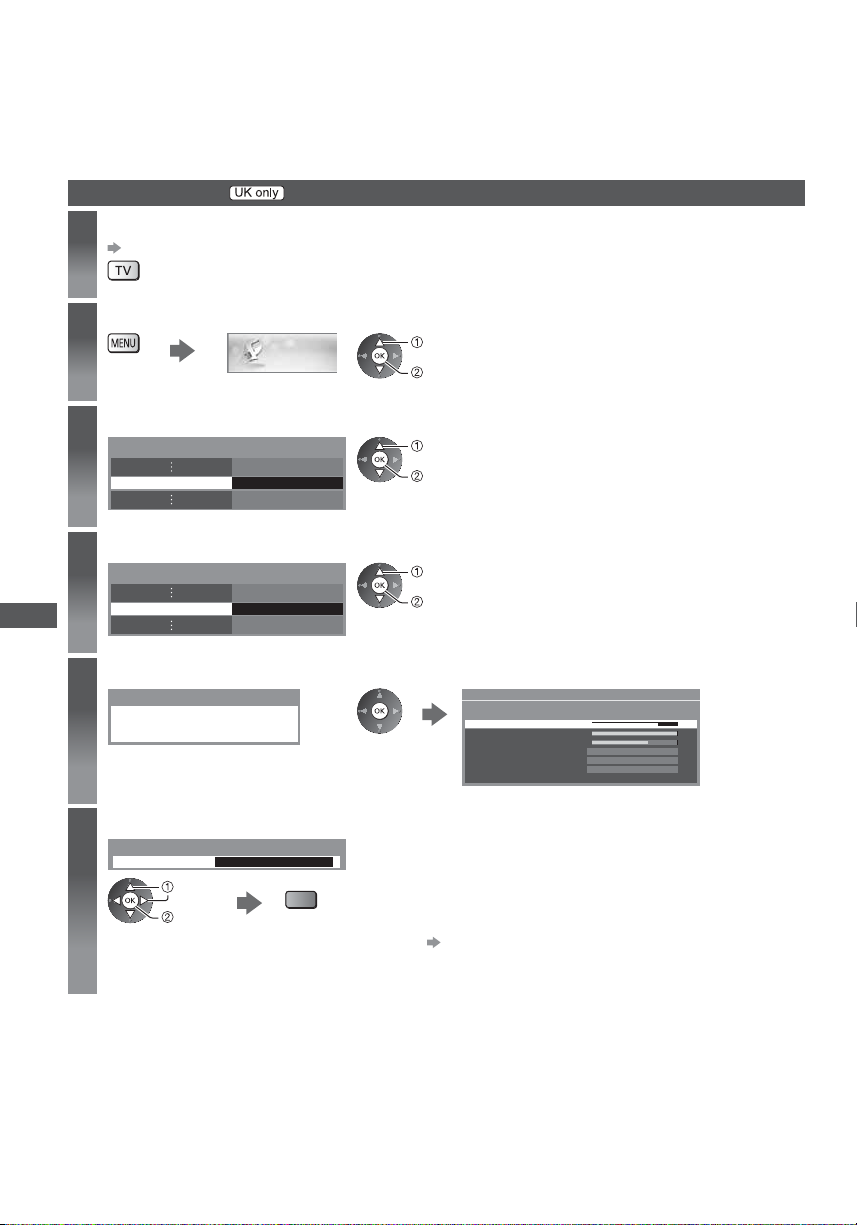

Auto Setup

Search and store TV channels automatically.



These steps are not necessary if the setup has been completed by your local dealer.



Please complete connections (p. 14 - 16) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the manual of the equipment.

Plug the TV into mains socket and switch on



Takes a few seconds to be displayed.



If the red LED shows on the TV, press the Standby On / Off switch on the remote control for about 1 second.

Select your country

Country Selection

United Kingdom Ireland

Example:

freesat Auto Setup

Searching

Signal Quality Signal Strength TV Channels Found Radio Channels Found Data Channels Found

Channels found, creating channel list

Auto Setup - DVB and Analogue

DVB Scan Analogue Scan This will take about 6 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 10Cartoon Nwk 29 33 -BBC1

Free TV

8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2

0 0

8 2 1

CH 21 68 CH 21 68

Free TV Free TV Free TV Free TV Analogue Analogue

Searching

10 10

Quality

10 10 10

Auto Setup will start to search for TV channels and store them.



Actual number of channels may differ due to channel duplication.

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

If Q-Link or similar technology (p. 99) compatible recorder with analogue tuner is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.)



If downloading has failed, you can download later through the Setup Menu.

“Q-Link Download” (p. 49)

select

set

Example:

Search Mode

Free Channels All Channels

select

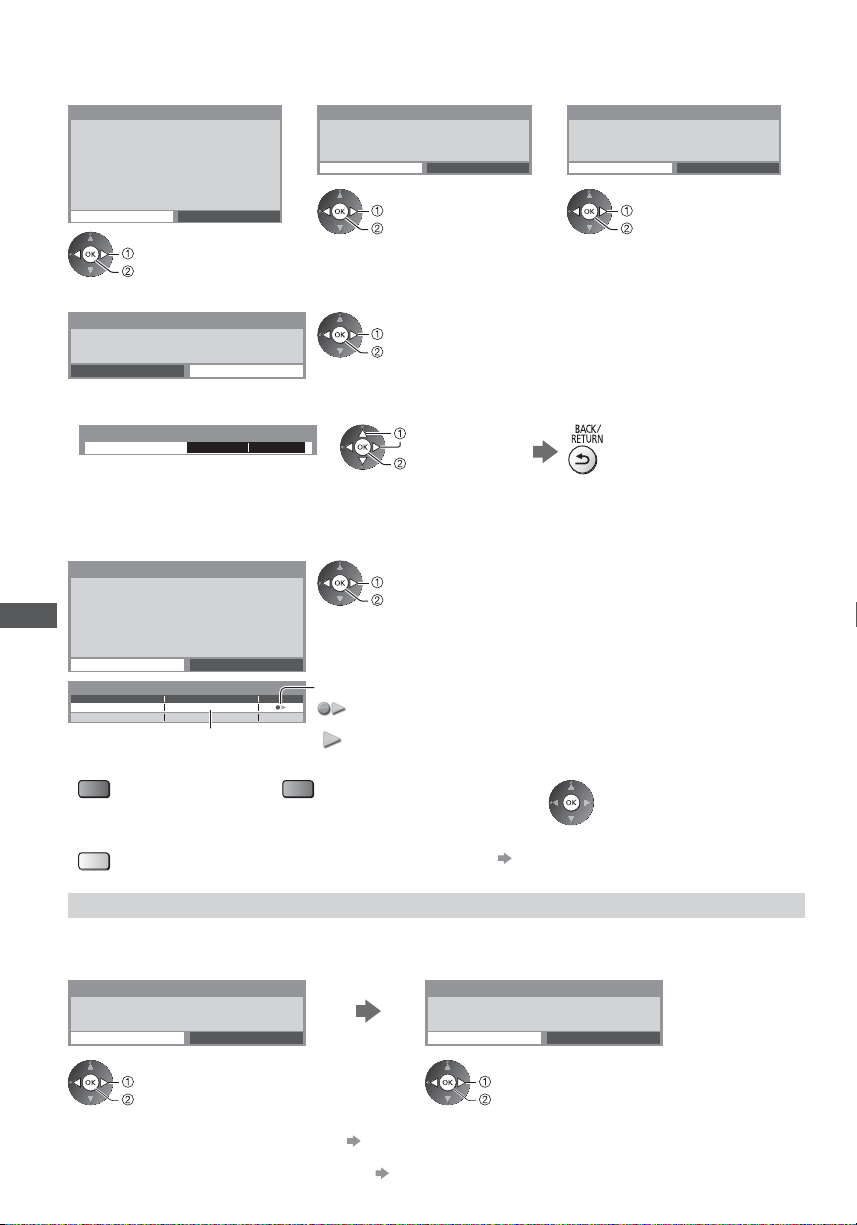

start

Satellite Auto Setup

Satellite Progress This will take up to 5 minutes.

Satellite Auto Setup

Satellite Progress This will take up to 30 minutes.

No. Channel Name Type

ETV

BBC TES 2

BBC TES 3

9100BBC FOUR 10 100CBBC Channel 11 100CBeebies

Free TV

11 Pay TV: 0 Radio: 0

Auto Setup - DVB and Analogue

DVB Scan Analogue Scan This will take about 6 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 100Cartoon Nwk

CH29 CH33 -BBC1

Free TV

8 Pay TV: 0 Radio: 0 Analogue: 2

Checking Satellite

0% 100%

Astra1

0% 100%

Free TV Free TV Free TV Free TV Free TV Free TV

Searching

CH 5 69 CH 1 99 41H: 21

Free TV Free TV Free TV Free TV Analogue Analogue

Searching

Enter your postcode



Enter Postcode for local channels including space

Postcode

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Your postcode is required to receive local services and sort the channel order. Please ensure to include a space when entering your postcode.



If you skip this step, the default postcode (central London) will be set.

 How to enter the postcode

Set characters Exit to go to next step

select

set

(green)



You can set characters by using numeric buttons.

“Characters table for

numeric buttons” (p. 114)

Quality

100 100 100

Quality

100 100 100

Quick Start Guide

Auto Setup

Page 18



Region selection screen may appear.

Channel Sorting by Region

GBR> Best signal quality (All Regions)

England Regions>

(select repeatedly until you reach the available region)

Setup the network connection

Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p. 21, 89).



Quick Start Guide

Please note that this TV does not support wireless public access points.



Ensure the network connections (p. 16) and network environment are completed before starting setup.

Select the network type

Network Setup

Select Wired or Wireless

Auto Setup

 [Wired]

1. Select [Auto]

Acquire IP Address

2. Go to the next step

 [Wireless]

Access points found automatically are listed.

1. Select your desired access point

Available Wireless Networks

No. Network Name(SSID) Status Wireless type

1 2 3



To search access points again

2. Access the encryption key input mode

Encryption Key Setting

Connection will be made with the following settings: Network Name(SSID) : Access Point A Security type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key

Wired Wireless Set later

Auto Manual

select

access

(Press twice)

Access Point A Access Point B Access Point C

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

(blue)

select region

access

[Wired] “Wired connection” (p. 16) [Wireless]

“Wireless connection” (p. 16)



select

access

Connection Test

Check network cable connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

To setup later on or skip this step

Select [Set later] or

Automatically setup is done and the test of the network connection starts.



To set manually, select [Manual] and set each item. For details

(p. 91)

select

access

: Encrypted access point



For the information of the highlighted



For [WPS(Push button)] (p. 19)

(red)

access point



If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].



To set manually (p. 93)

(yellow)

Page 19

3. Enter the encryption key of the access point

Wireless Network Settings

Encryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _ @ / “ ‘ % & ?

, ; = $ [ ] ~ < > { } | ` ^ \

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Set characters

select

set



You can set characters by using numeric buttons.

“Characters table for numeric buttons” (p. 114)

4. After the access point setting is finished, perform the connection test

Connection Test

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].



To set manually, select [Manual] and set each item. For details

(p. 91)

5. Go to the next step

(Press twice)

[WPS(Push button)]

1. Press the WPS button on the access point until the light flashes

2. Connect the TV with the access point

WPS(Push button)

1) Please press the ‘WPS’ button on the access point until its light flashes.

2) When the light is flashing select ‘Connect’ on TV.

If you are unsure, please check the instruction manual of the access point.

Connect



Ensure that your access point supports WPS for this setup.



WPS: Wi-Fi Protected Setup™



If the connection has failed, check the settings and positions of your access point. And then, follow the on-screen instructions.

3. After the access point setting is finished, perform the connection test

Connection Test

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

4. Go to the next step

(Press twice)

Input Owner ID

Owner ID

Please enter new PIN



Make a note of the PIN number in case you forget it. The PIN number cannot be reset.



You can input or change the Owner ID later.

* * * *

Please enter your own choice of PIN number, name, etc. to help the police to crack crime.

“Owner ID” (p. 68)



This step will be skipped in the Auto Setup after [Shipping Condition] (p. 67) is performed.

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then select [Retry].



To set manually, select [Manual] and set each item. For details



To skip this step

(p. 91)

Store

Quick Start Guide

Auto Setup

Page 20

 How to input Owner ID

1 Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

2 Select the item (NAME / HOUSE NO / POSTCODE)

Owner ID-Data Entry

Quick Start Guide

NAME

HOUSE NO POSTCODE

3 Enter your name, house number and postcode

User input

NAME

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

Auto Setup

u v w x y z ( ) + - . _*

4 Exit to go to next step

Select [Pairing]

Follow the on-screen instructions to use the touch pad controller (supplied).



To skip this step

Select [Set later] or



To register later on or for detailed settings

[VIERA Touch Pad Controller] (p. 49)

Select [Home]

Select [Home] viewing environment to use in your home environment.

Please select your viewing environment.

 [Shop] viewing environment (for shop display only)

[Shop] viewing environment is the demonstration mode to explain main features of this TV.

Select [Home] viewing environment to use in your home environment.



You can return to viewing environment selection screen at the stage of Shop confirmation screen.

1 Return to viewing environment

selection screen

Shop

To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.

* * * *

Home Shop

You have selected shop mode

[Shipping Condition] (p. 67)

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz



Enter the PIN number twice at first setting.

select

access

Set characters

select

set



You can set characters by using numeric buttons.

“Characters table for numeric

buttons” (p. 114)

select

set

2 Select [Home]

Please select your viewing environment.

Home Shop

Return to select other items



Select the next item and repeat the operations.

select

set

Auto Setup is now complete and your TV is ready for viewing.

If tuning has failed, check the connection of the Satellite cable, RF cable, and then, follow the on screen instructions.

Note



To check the channel list “Using TV Guide” (p. 26)



To edit or hide (skip) channels “Tuning and Editing Channels” (p. 58 - 61)



To retune all channels [Auto Setup] (p. 56, 57)



To tune in other satellite channels [Auto Setup] in [Other Sat. / Satellite Tuning Menu] (p. 62)



To initialise all settings [Shipping Condition] (p. 67)

Page 21

Using “VIERA Connect”

VIERA Connect is a gateway to the internet services unique to Panasonic. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, EPG, communication tools, etc. from VIERA Connect home screen.



This TV does not support full web browser function and some features of the websites may not be available.

Turn power on



Press for about 1 second.



Mains power On / Off switch should be on. (p. 13)

Every time you turn on the TV, VIERA Connect introduction banner appears. The banner is subject to change.

Enjoy selected internet content with VIERA Connect.

Simply press the OK / INTERNET button

Access VIERA Connect

While the banner is displayed



Depending on the usage conditions, it may take a while to read all the data.



Messages might be displayed before VIERA Connect home screen. Please read these instructions carefully and follow the on-screen instructions.

Example: VIERA Connect home screen



To exit from VIERA Connect



To set the VIERA Connect introduction banner display off

[VIERA Connect

Banner] (p. 50)



Setup & Help menu (Items in [Setup & Help] may change without notice.)

Customize HomeScreen Changes the position of each services on VIERA Connect home screen

My Account

Lock Sets to restrict access to some services Restrictions Sets to restrict reveal of the restricted services Beep Sets beep sound On or Off when operating VIERA Connect Notices Displays the information of VIERA Connect Help Explains the setup items and operations in VIERA Connect



You may operate the internet contents with the free cursor of the VIERA Touch Pad Controller (supplied).



Video communication (for example Skype™) requires an exclusive Communication Camera TY-CC20W.

“Optional accessories” (p. 8)

For details, read the manual of the Communication Camera.



You can connect a keyboard and a gamepad for character input and playing games in VIERA Connect. You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features. For more information

“USB connection” (p. 112), “Bluetooth Setup” (p. 112), “Operations from Keyboard / Gamepad” (p. 112)

Confirms or removes the account information of the TV you entered on VIERA Connect



To go to the next level, select [MORE].



To back to the previous level, select [BACK].



To return to VIERA Connect home

BACK

screen

Note



If you cannot access VIERA Connect, check the network connections (p. 16) and settings (p. 18, 19).



For more information of VIERA Connect

(p. 89)

Using “VIERA Connect”

Page 22

Watching TV

Volume

Note



To watch pay-TV

“Using Common

Interface” (p. 69)

Turn power on

Select the mode

(freesat, DVB, Analogue or Other Sat. / Satellite)

Select a channel

freesat channel position numbers run in the ranges 100 - 999 and 0100 - 0999.



DVB and Other Sat. / Satellite channel position numbers run from 1 onwards. Analogue channel position numbers run in the ranges 0 - 99.



Press for about 1 second.



Mains power On / Off switch should be on. (p. 13)

 VIERA Connect introduction banner appears

Every time you turn on the TV, this banner appears at the bottom of the screen. You can access to VIERA Connect easily and enjoy the various contents. (p. 21)



To remove this banner, leave for about 5 seconds or press any buttons (except the buttons to access VIERA Connect).



To set this banner display off [VIERA Connect Banner] (p. 50)



You can also select the mode pressing the TV button repeatedly on the remote control or the TV (p. 13).

TV Selection

freesat

DVB Analogue Other Sat. Satellite

select

access

down

To select a three or four-digit channel position number, e.g. 0246

To select a more than two-digit channel position number, e.g. 399

Displayed if [Other Satellite Auto Setup] (p. 62) is completed.



The selectable modes vary depending on the selected country and stored channels (p. 17).

 To select a channel using Information banner (p. 23)

It is possible to confirm the channel name and programme information by using the Information banner before changing channels.

1 Display Information banner if it is not displayed

2 While the banner is displayed, select the channel

select channel

watch

 To select a channel using TV Guide (p. 26)

It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.

1 Display TV Guide 2 Select the current

programme or channel

select

access

3 Select [View] (DVB)

Das Erste 19:30- 20:00

View Timer Programming

select

watch

Page 23

Other useful functions

Display Information banner



Features available / Message meanings



Also appears when changing a channel.

Example: DVB

ZDF

Mute

Mut

Bad signal

Channel position and name

Channel type ([Radio], [Data], [HDTV], etc.) /

Encrypted channel ( ) / TV mode (

Programme

Current time

Programme Start / Finish time (except Analogue)

Bad signal

, , , )

2 3 6 7 4 5

HDTV

Dolby D+

Channel number, etc. (Analogue)

[Mute]

Sound mute on

[Bad signal]

Poor TV signal quality

[Dolby D+], [Dolby D], [HE-AAC]

Dolby Digital Plus, Dolby Digital or HEAAC audio track

[Also in

]

Same programme available as HD broadcast



To display the extra information for details

To confirm another tuned channel name



To watch the channel listed in the banner

Coronation Street 20:00 - 20:55 Now

Progress time indicator of the selected programme

(except Analogue) [All DVB Channels], [freesat Channel List], [All

Other Sat. Channels], [All Satellite Channels], [All Analogue Channels] or [Favourites]1 to 4 (p. 59)



To switch (DVB or Other Sat. / Satellite)

[AD]

Audio Description service available



This function can aid visuallyimpaired viewers by adding an additional audio track to describe events on screen.



For settings (p. 48)

[STTL]

Subtitle service available

[TEXT]

Teletext service available

[Multi Audio]

Multiple audio available

(blue)

All DVB Channels

Select favourites Info

Multi Audio TEXT STTL AD

20:35

[Stereo], [Mono], [NICAM]

Audio mode

1 - 90

Off Timer remaining time



For settings



Information on the next programme

(p. 24)

(except Analogue)

Watching TV



To hide



[AD], [STTL], [TEXT], [Multi Audio] indications are displayed as



Extra information (except Analogue)

available on particular programmes, but may not be available for all individual programmes being broadcast. Display the extra information to confirm availability of these functions.

Last view

Switch to previously viewed channel or input mode easily



Press again to return to the current view.

Note



Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is in progress.



Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.

(Press again to hide the banner)



To set display timeout

[Banner Display Timeout] (p. 50)

Example:

BBC ONE WALES

Coronation Street 20:00 - 20:55 Now

]

[AD]

20:35

All DVB Channels

Select favourites

Page 24

Display the selectable settings for the current status

Confirm or change the current status instantly



To change

[Voice Guidance Settings] Guidance settings for visually impaired users

[Audio Description] (DVB) Set to [Auto] if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen



To adjust the volume for Audio Description

[Audio Description Menu]

(p. 48)

Watching TV

[Multi Audio / AD]

(freesat) (DVB) Selects between alternative language or Audio Description for sound tracks (if available)



Set Audio Description [Auto] in the Sound Menu (p. 48) to select the audio description sound track. In freesat mode, Audio Description cannot be controlled separately from the audio description sound track.



This setting is not memorised and it will return to the default setting once you exit the current programme.

select

access

[Multi Audio] (DVB)

(p. 48)

(Other Sat. / Satellite ) Selects between alternative language for sound tracks (if available)



This setting is not memorised and it will return to the default setting once you exit the current programme.

[Monaural Audio] (except Analogue) Selects stereo / monaural (if available)



This setting is not memorised and it will return to the default setting once you exit the current programme.

[Sub Channel]

(Other Sat.

/ Satellite ) Selects the multifeed programme sub channel (if available)

[Subtitle Language] (except Analogue) Selects the language in which subtitles should appear (if available)



This setting is not memorised and it will return to the default setting once you exit the current programme.

select / change

store

[Teletext Character Set]

Sets the teletext language font

(p. 50)

[Teletext Language] (DVB or Satellite) Selects between alternative language for teletext (if available)

[NICAM] (Analogue) Switches NICAM sound (if available)

(p. 47)

[Volume Correction]

Adjusts volume of individual channel or input mode

[Safely remove USB]

Takes this operation to remove the connected USB device safely from the TV

Off Timer

Turn the TV to Standby mode automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

1 Display the menu

2 Select [Timer]

Timer

select

access

3 Select [Off Timer] and set the time in 15-minute increments

Timer Programming

f Timer

Auto Standby

Off

15 30 45 60 75 90

minutes minutes minutes minutes minutes minutes

select [Off Timer]

access



To cancel, set to [Off] or turn the TV off.



To confirm the remaining time



When the remaining time is within 3 minutes, the remaining time will flash on

“Display Information banner” (p. 23)

select the time

store

the screen.

Page 25

Aspect

Change the aspect ratio (image size)

Enjoy viewing the image at its optimum size and aspect. Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 107).

 To change the aspect ratio manually

1 Display Aspect Selection list

Aspect Selection

Auto

16:9 14:9 4:3 Zoom1 Zoom2 Zoom3

Change

Select

EXIT

RETURN

2 While the list is displayed, select the mode



select

store

You can also change the mode only using the ASPECT

(Press repeatedly until you reach the desired mode.)

button.

Aspect Selection list

[Auto]

The best ratio is chosen and the image expanded to fill the screen. For details

(p. 107)

[16:9] [Zoom1]

Directly displays the image at 16:9 without distortion (anamorphic).

Displays a 16:9 letterbox or 4:3 image without distortion.

[14:9] [Zoom2]

Displays the image at the standard 14:9 without distortion.

Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.

[4:3] [Zoom3]

Displays the image at the standard 4:3 without distortion.

Displays a 2.35:1 letterbox (anamorphic) image full-screen without distortion. At 16:9, displays the image at its maximum (with slight enlargement).

Note



Only [16:9] and [4:3] are available in PC input mode.



Aspect cannot be changed in teletext service and 3D mode.



Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition) signals.

Display subtitles



Subtitles may not be displayed properly in 3D images.

 freesat, DVB or Other Sat. / Satellite

Display / hide subtitles (if available)



To change the language for DVB (if available)

[Preferred Subtitles] (p. 50)

 Analogue

Display subtitles Hide subtitles

Watching TV

Note



This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 32)



You cannot change the channel when this function is active.

Page 26

Using TV Guide

TV Guide  Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).



When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.

(freesat)

Select freesat

(p. 22)

Display the Channel Genre selection list

Select the genre and view TV Guide

Using TV Guide



To return to TV

Example:

Channel Genre Selection

All Channels

Entertainment

News & Sport

Movies

Lifestyle

Music



Children

Example:

Wed 26 Oct 2011 Search

1 BBC ONE 20:00 - 20:30 DIY SOS : We open in the Battersbys

102 103 104 105 106 107

BBC ONE101 BBC 2W BBC NEWS BBCi BBC THRE BBC FOUR BBC Radio

Time:

5 6 1

19:30 20:00 20:30 21:00 21:30

Eastender DIY SOS The Bill Hot Wars Holiday Program Emmerdal. 10 O’ clock News BBC

There might be some programmes displayed as greyed-out in TV Guide.

Special Interest

Shopping

Gaming & Dating

Interactive

Regional

Favourites

TV Guide Wed 26 Oct 2011 10:46

Coronation Street

Pepsi Char.

These are the Off-Air

programmes (non-running programmes).

Radio

Red Cap

The Bill Good bye CoastSpring watchPanorama NewsPop IdolI’m A Celebrity The Bill

All Channels

Drama Cinema

Shop Sports15 To 1Rugby

Also in

select

view

Current date and time

TV Guide time

Channel position and name

TV Guide date

Some programmes may

also be broadcast in HD



You can select HD or SD broadcast before viewing or setting T Programming.

Programme

imer

 To change the layout of TV Guide  To watch the programme

1 Select a current programme or

channel

select

access

 To the previous day

(red)

 To the next day

(green)

[TV Guide View] (p. 49)

2 Select [View]



Eastender 19:30- 20:00

View Timer Programming

select



watch

To use Timer Programming

(p. 28)

If a programme exists in both HD and SD broadcasts, the [View Options] screen will be displayed to select HD or SD broadcast.

DIY SOS

View Options

101 BBC ONE 19:30-20:00 Wed 26 Oct 2011

119 BBC HD 19:30-20:00 Wed 26 Oct 2011

select

watch

 View details of the programme

1 Select the programme 2 View details



Press again to return to TV Guide.

Page 27

 To view a channel list of the selected genre

(blue)

(Channel Genre list)

Channel Genre

All Channels

Entertainment

News & Sport

Favourites



To list favourite channels

(p. 58)

 To search programme types and view a

channel list of the searched programmes

(yellow)

(Search list)

Search Titles...

Movie

News and Factual

select type

view

 To search programme titles and view a list of the searched programmes

(yellow)

Search Titles...

Movie

News and Factual

(Search list)

1 Select

[Search Titles...]

select

access

2 Set characters

(maximum 19 characters)

select

set



To use numeric buttons “Characters table for

numeric buttons” (p. 114)

3 Start [Search]

(green)



All the programme titles including the word you set will be listed.



Searching without any characters will list all programmes including current programmes.

(DVB or Analogue)



DVB and Analogue channels are displayed on the same TV Guide screen. [D] means DVB channel and [A] means Analogue channel. There will be no programme listings for Analogue channels.

Select the mode

(p. 22)

View TV Guide

Using TV Guide



To return to TV

3 4

 To watch the programme

1 Select the current programme or

channel

select

access

TV Guide date

Example:

Wed 26 Oct Search

1 BBC ONE

20:00 - 20:30 DIY SOS : We open in the Battersbys

Time:

BBC ONE

BBC THREE

BBC FOUR

BBC 2W

105

BBCi

719

BBC Radi

Some programmes may also be broadcast in HD



You can select HD or SD broadcast before viewing or setting Timer Programming.

Programme

Current date and time

5 6 7

TV Guide Wed 26 Oct 2011 10:46

19:30 20:00 20:30 21:00 21:30

Das Erste DIY SOS Holiday News Hot Wars Holiday Program Emmerdal.

Coronation Street

10 O’ clock News BBC

Pepsi Char.

The Bill Good bye CoastSpring watchPanorama NewsPop IdolI’m A Celebrity Sports15 To 1Rugby

All Channels

Also in

TV Guide time

[D]: DVB

[A]: Analogue Channel position and

name

2 Select [View] (DVB)



Das Erste 19:30- 20:00

View Timer Programming

select

watch



To use Timer Programming

(p. 28)

If a programme exists in both HD and SD broadcasts, the [View Options] screen will be displayed to select HD or SD broadcast. (DVB)

DIY SOS

View Options

101 BBC ONE 19:30-20:00 Wed 26 Oct 2011

119 BBC HD 19:30-20:00 Wed 26 Oct 2011

select

watch

Page 28

 To change the layout of TV Guide  To view a channel list of the selected category

[TV Guide View] (p. 49)

 To the previous day (DVB)

(red)

 To the next day (DVB)

(green)

 View details of the programme (DVB)

1 Select the programme 2 View details



Press again to return to TV Guide.

(blue)

(Category list)

Category

All Channels

All HD Channels

All DVB Channels

All Analogue

Free DVB Channels

TV/Data DVB Channels

Favourites1

Favourites2

Favourites3

Favourites4

Channels

select category

view

Only Analogue channels are listed



To list favourite channels

(p. 59)

 To search programme types and view a channel list of the searched programmes (DVB)

(yellow)

Using TV Guide

(Search list)

Search Titles...

Movie

News and Factual

All Types

Movie

News

(Type list)

Prog.Type

All Types

select type

view

 To search programme titles and view a list of the searched programmes (DVB)

(yellow)

(Search list)

Search Titles...

Movie

News and Factual

1 Select

[Search Titles...]

select

access

2 Set characters

(maximum 19 characters)

select

set



To use numeric buttons

“Characters table for

numeric buttons” (p. 114)

3 Start [Search]

(green)



All the programme titles including the word you set will be listed.



Searching without any characters will list all programmes including current programmes.

Timer Programming (freesat or DVB)

The Timer Programming menu allows you to choose programmes that you want to remind watching or record to the external recorder, the USB HDD or the SD Card. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode.

1 Select the forthcoming programme

select

set



LED will turn to orange if Timer Programming is set. (Orange LED will flash if the recording of Timer Programming is in progress.)

“Indicator / Control panel” (p. 13)

2 Select the function ([Ext Rec.], [USB HDD Rec.], [SD Card Rec.] or

[Reminder])

(Timer Programming screen)

Timer Programming

Function No. Channel Name Date Start End

Ext Rec.

<TIMER>

--- --/-- --:-- --:-----

--- --/-- --:--

---

--- --/-- --:-- --:-----

Wed 26 Oct 2011 10:46

Wed 26 Oct 2011

20:00D 12 BBC ONE

20:30

(30 min.)

(--- min.)

--:--

(--- min.)

select

store

[Ext Rec.] / [USB HDD Rec.] / [SD Card Rec.] / [Reminder]

“Set timer programming event details” (p. 64)

Page 29

 To check / change / cancel a timer

 To return to TV Guide

programming event

“Timer Programming” (p. 64, 65)

 If you select the current programme  If a programme exists in both HD and SD

A confirmation screen asking whether you want to watch or record the programme appears. Select [Timer Programming] and set [Ext Rec.], [USB HDD Rec.] or [SD Card Rec.] to record from the time you finish the timer programming event setting.

Das Erste 19:30- 20:00

View

Timer Programming

select

access

Note



Timer Programming reminder messages will remain displayed until one of the following occurs:

You press the OK button to view the programme or the EXIT button to cancel the reminder.

•

The timer programming event that the reminder is set for ends.

•



No other channel can be selected while the recording of Timer Programming is in progress.



When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the TV

. If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 99, 100) and [Link Settings] (p. 49) are completed, no setting of the recorder is required. Also read the manual of the recorder.



When recording programmes to the USB HDD, be sure to format the USB HDD and enable it to record in [Recording Setup]. When recording programmes to the SD Card, prepare the appropriate SD Card. For more information of the USB HDD / SD Card Recording.

(p. 74, 110)

Guide link programming (Timer Programming from the TV Guide signal)

Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change. A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes. Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

Timer Programming

Function No. Date Start End Channel Name

Ext Rec.

Reminder

Ext Rec.

---

“Guide” is displayed if the timer is set from the TV Guide (Guide link programming)

Note



If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.



While making the Split Programme programming event for [Ext Rec.], [USB HDD Rec.] or [SD Card Rec.], you cannot record any channels between the interrupted programmes.



The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.



The Split Programme programming event for Reminder will switch to the programmed channel by pressing the OK button even if it is between the interrupted programmes.



The Split Programme programming does not work if the separated parts are broadcast on different channels.

(Timer Programming screen)

7 BBC ONE

DIY SOS

14 E4 21:00 22:30

The Bill

72 BBC 2W

<TIMER>

BBC ONE1

Red Cap

------

Wed 226 Oct 2011 10:46

Wed 26 Oct

Guide

Wed 26 Oct

Guide

Wed 26 Oct

Thu 27 Oct

S/P

20:00 20:30

(30 min.)

(90 min.)

22:45 23:00

(15 min.)

10:30 11:30

(60 min.)

--:----:-- --:--

“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme

broadcasts

The [Timer Options] screen will be displayed to select HD or SD broadcast.

DIY SOS

Timer Programming

Function No. Channel Name Date Start End

Ext Rec.

Timer Options

101 BBC ONE 19:30-20:00 Wed 26 Oct 2011

119 BBC HD 19:30-20:00 Wed 26 Oct 2011

(Timer Programming screen)

DIY SOS

--- --/-- --:-- --:-----

Wed 26 Oct 2011 10:46

Wed 26 Oct

19:30119 BBC HD 20:00

HD broadcast is set.

(30 min.)

(--- min.)

will be displayed if

Example:

Wed 26 Oct Search

1 BBC ONE

20:00 - 20:30 DIY SOS : We open in the Battersbys

D D D D D D D

19:30 20:00 20:30 21:00 21:30

Time:

Das Erste DIY SOS Holiday News

BBC ONE

Hot Wars Holiday Program

BBC THREE

Emmerdal.

10 O’ clock News BBC

BBC FOUR

BBC 2W

105

BBCi

719

BBC Radi

TV Guide

Coronation Street

Pepsi Char.

The Bill Good bye CoastSpring watchPanorama NewsPop IdolI’m A Celebrity Sports15 To 1Rugby

“ ” or “ ” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.

select

set

All Channels

Also in

Using TV Guide

Page 30

(Other Sat. / Satellite )

In Other Sat. or Satellite mode, TV Guide is not available. In stead, Channel List will appear.



To tune in Other Sat. / Satellite Channels

Using TV Guide



To return to TV

Select Other Sat. / Satellite

(p. 22)

Display the Channel List

Example:

All Other Sat. Channels

Select the channel

(p. 62)

2 freesatHome 3 freesatSSU 4 Brit Shorts

5 HINRG LOWNRG

6 WELL Class 7 GROOVE 8-

select

watch

Example:

Satellite Channel List

2 freesatHome 3 freesatSSU 4 Brit Shorts

5 HINRG LOWNRG

6 WELL Class 7 GROOVE 8-

Page 31

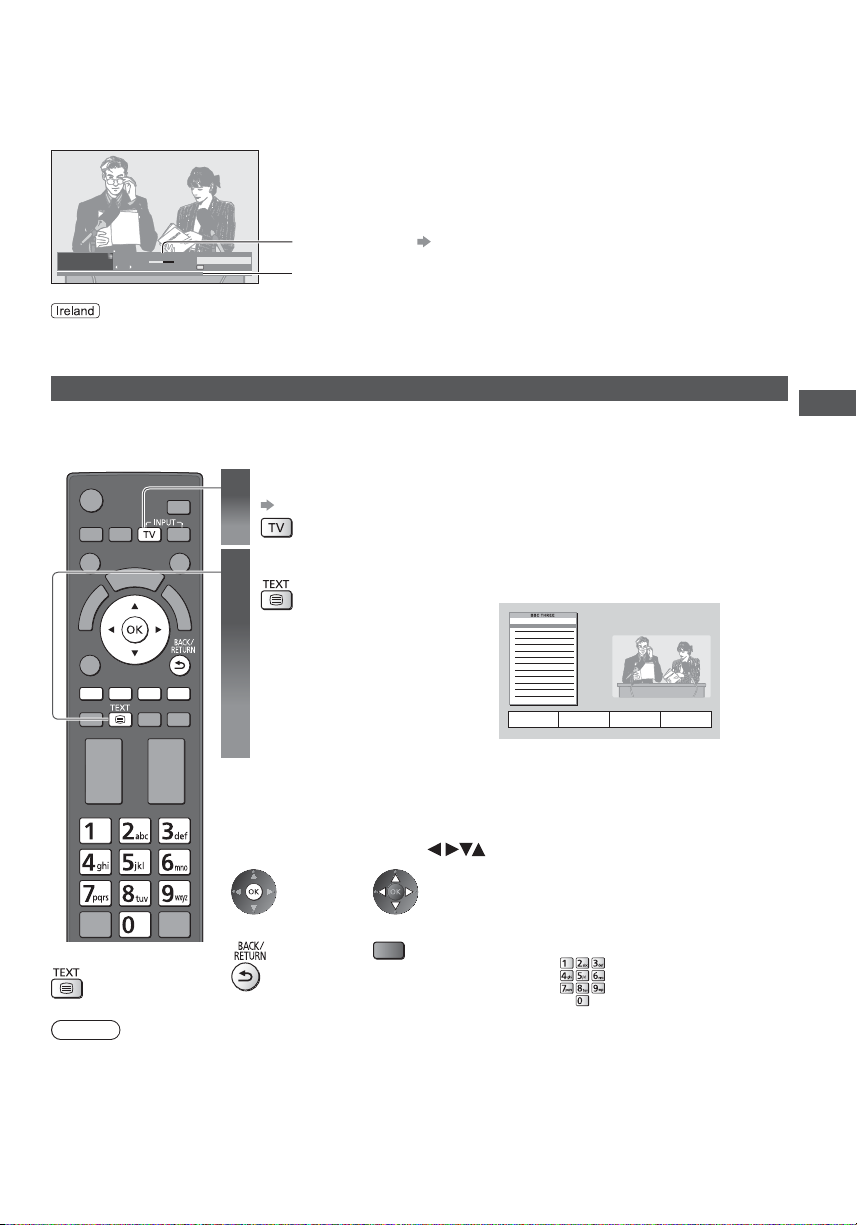

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)



The availability of teletext services for a programme is indicated by [TEXT] in the information banner.

Information banner

Coronation Street

20:00 - 20:55

BBC ONE WALES

Depending on the broadcaster, the digital teletext (MHEG) services may not be available. In this case, the operation of the teletext services may be the same as the analogue teletext services (p. 32).

Now

TEXT

All DVB Channels

Select favourites

20:35

Displayed if programme has teletext service

(p. 23)

Digital teletext (MHEG)

Digital teletext services differ greatly from analogue teletext. When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

Select freesat or DVB

(p. 22)

Switch to Teletext



freesat and DVB programmes have digital teletext services (MHEG).

Example:

17:51 28 Feb

 How to operate services

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of digital equipment, some on-screen commands may not correspond exactly to the remote control buttons.



Select, go



Symbol:

Viewing Teletext



To return to TV



Back key



Coloured characters

Coloured button



When options with numbers are displayed

Note



As soon as you switch to a digital channel with links to a teletext service, software is downloaded in the background to enable the teletext function. This means that when switching to a digital channel, you should wait for approximately 5 seconds before pressing the before download is complete, it will be ignored and you will have to press the TEXT button again when the download is complete.



While navigating digital teletext, you will find there is a short delay when moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know that this is happening.

TEXT button - this will allow the software to download. If you press the TEXT button

Page 32

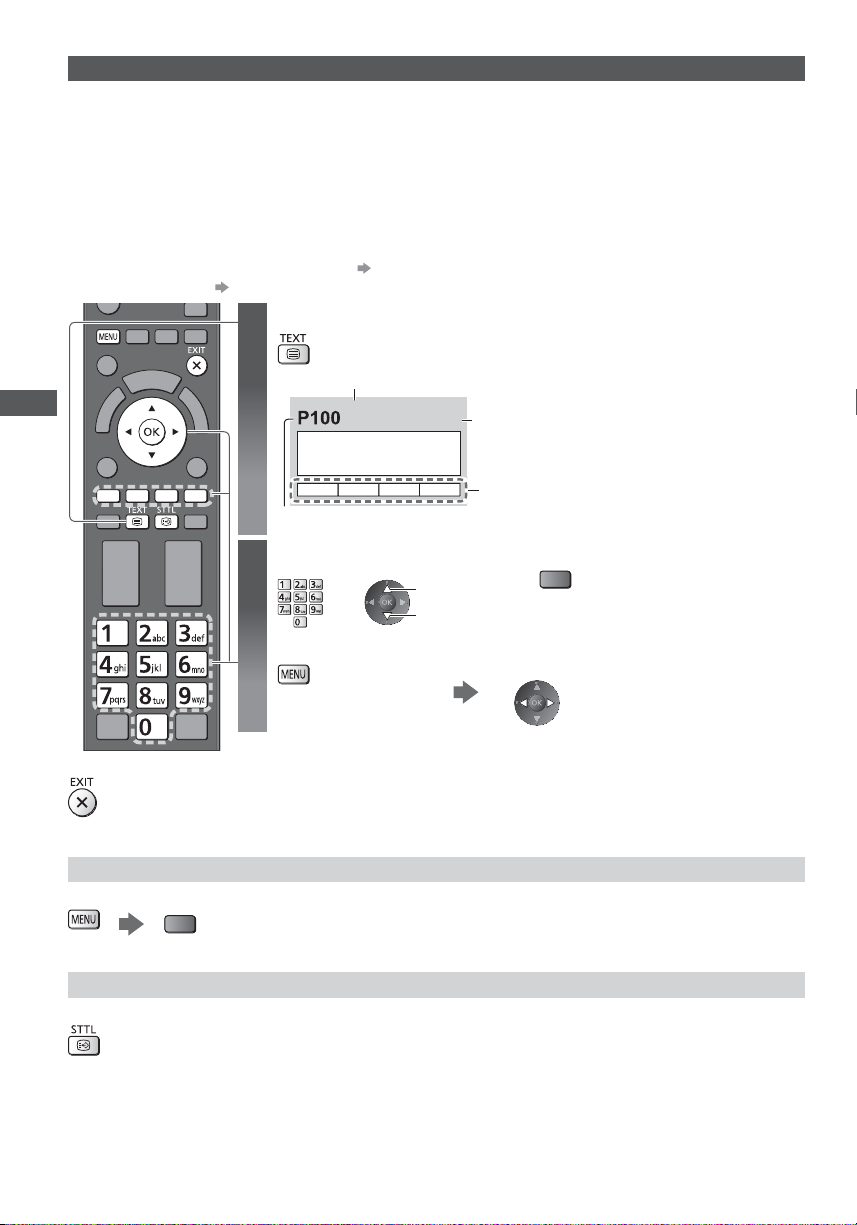

Analogue teletext

Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriate coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory.

“Store frequently viewed pages” (p. 33)

 To change mode [Teletext] (p. 50)

Switch to Teletext

Viewing Teletext

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb



Time / date

Displays the index page (content varies depending on the broadcasters).

TELETEXT

INFORMATION

Colour bar

Current page number

Select the page

down

Coloured button

(Corresponds to the colour bar)

 To adjust contrast

As the blue bar is displayed



To return to TV

(Press twice)

Reveal hidden data

Reveal hidden words e.g. quiz page answers

(red)



Press again to rehide.

Subtitles

View a favourite page stored



Factory setting is “P888” (subtitle service) on the blue button (List mode).

Page 33

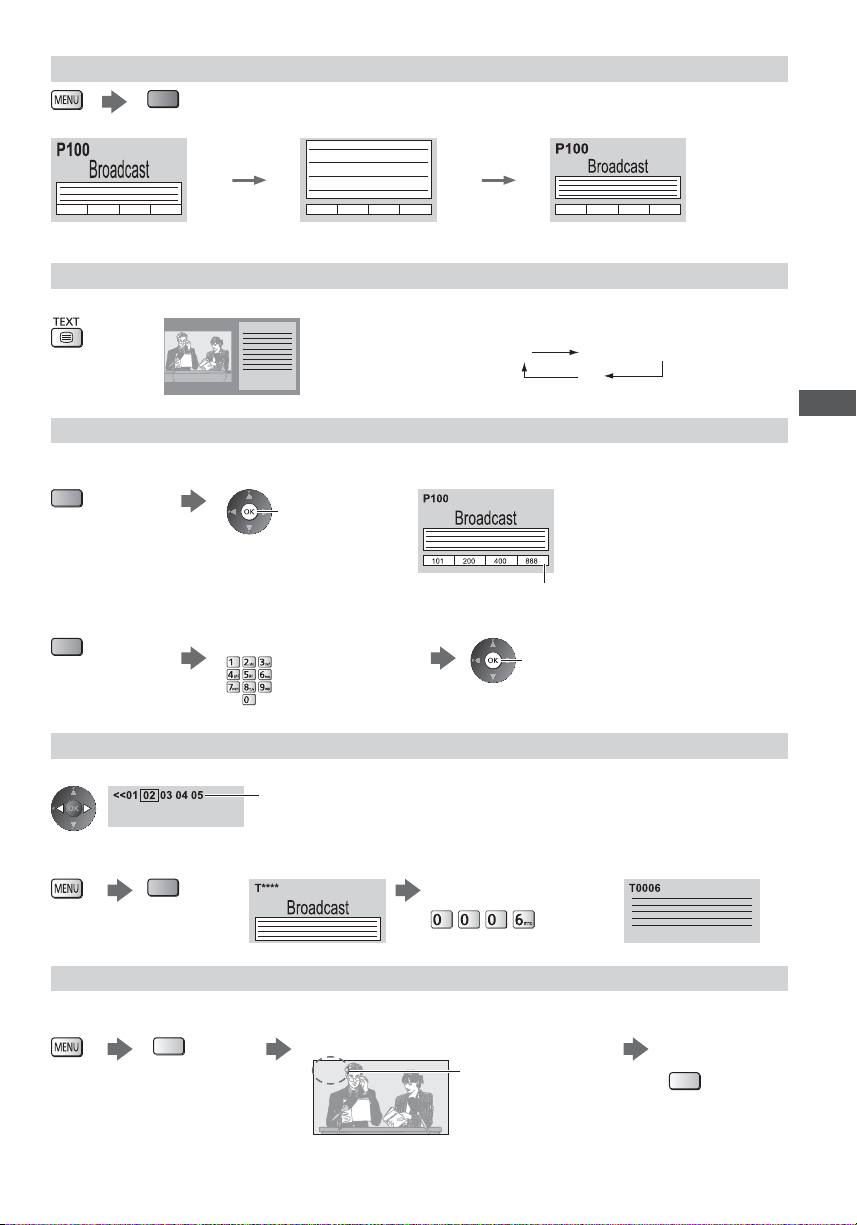

FULL / TOP / BOTTOM

(green)

(TOP) (BOTTOM) Normal (FULL)

(Expand the TOP half) (Expand the BOTTOM half)

View in multi window

Watch TV and Teletext in two windows at once



Operations can be made only in Teletext screen.



Each time pressed: Teletext

Store frequently viewed pages

Store frequently viewed pages in the colour bar (List mode only)

As page is displayed

Corresponding coloured button

press and hold

The number changes to white.

 To change stored pages

Coloured button you want to change

View sub page

View sub page (Only when Teletext is more than one page)

Enter new page number

Appears at top of the screen



 To view specific sub page

(blue)

Enter the 4-digit number Example: P6

TV and Teletext



If you use Subtitles, do not change number on blue button.

press and hold

The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch TV

Viewing Teletext

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

(yellow)



The news page provides a function that indicates arrival of the latest news (“News Flash”).

Changes to TV screen temporarily

P108

(You cannot change the channel.)

Appears when updating is completed

View the updated page

(yellow)

Page 34

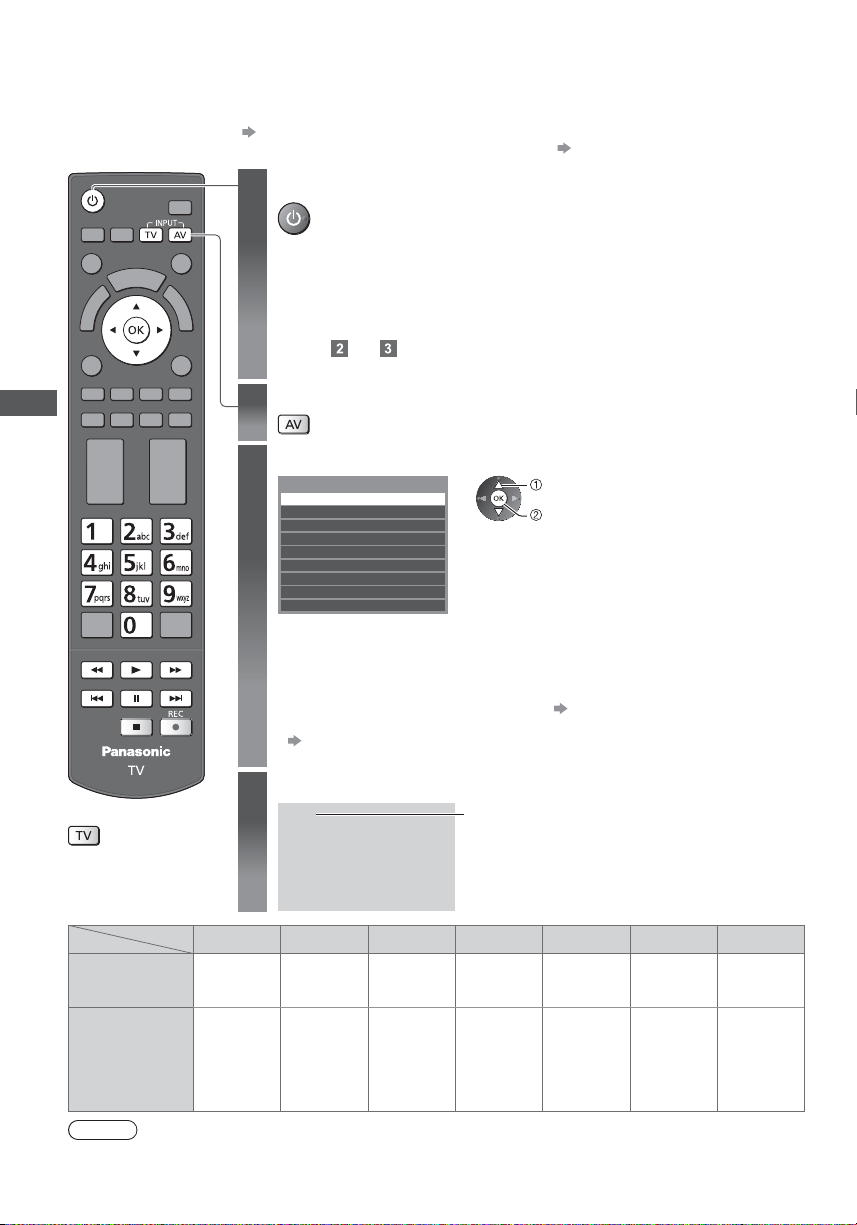

Watching External Inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.



To connect the equipment

The remote control is capable of operating the contents or external equipment. (p. 35)

Watching External Inputs



To return to TV

(p. 14 - 16, 105, 106)

Turn the TV on

When connecting with SCART (p. 15)

Receives input signals automatically when playback starts



Input signals are automatically identified by the SCART (pin 8) terminal.



This function is also available for HDMI connections (p. 105).

If input mode is not switched automatically

Perform and



Check the setup of the equipment.

Display the input selection menu

Select the input mode connected to the equipment

Input Selection

AV1

AV2 PC HDMI1 HDMI2 HDMI3 HDMI4 TV SD Card/USB



You can also select the input using the AV button on the remote control or the TV (except [SD Card/USB]). Press the button repeatedly until the desired input is selected.



To switch between [COMPONENT] and [VIDEO] in [AV2], move the indicator by pressing left and right cursor button.



[SD Card/USB]: Switches to Media Player.



You can label or skip each input mode (except [SD Card/USB]).

“Input Labels” (p. 50)

Skipped inputs will not be displayed when the AV button is pressed.

View

AV1

select

watch

“Using Media Player” (p. 78)

Displays the selected mode

Terminal

Manual input (default setting in “Input Labels”)

Auto input (EC mode or VIERA Link)

AV 1 AV2 PC HDMI1 HDMI2 HDMI3 HDMI4

AV 1

AV1-RGB

EC/AV1

EC/AV1-RGB

COMPONENT

VIDEO

 

PC HDMI1 HDMI2 HDMI3 HDMI4

Note



If the external equipment has an aspect adjustment function, set it to [16:9].



For details, read the manual of the equipment or ask your local dealer.

EC/HDMI1

Applicable

for

EC mode

and

VIERA Link

EC/HDMI2

Applicable

for

VIERA Link

EC/HDMI3

Applicable

for

VIERA Link

EC/HDMI4 Applicable

for

VIERA Link

Page 35

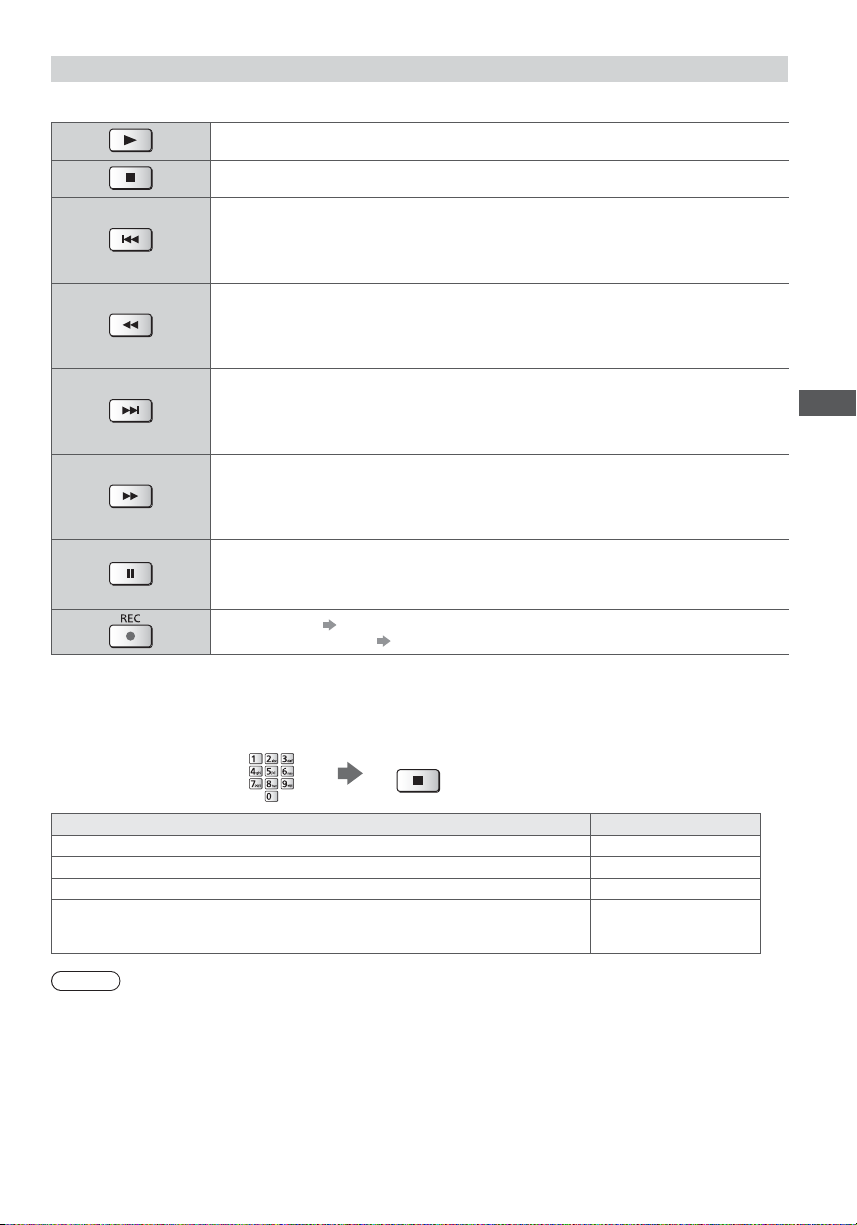

Operating the contents or equipment with the TV remote control

You can operate the contents in Media Player / media servers, recording functions or the connected equipment with the below buttons of this TV remote control.

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip

VCR:

Rewind, view the picture rapidly in reverse

DVD / video content:

Skip to the previous track, title or chapter

Rewind / Search

VCR:

Rewind, view the picture rapidly in reverse

DVD / video content:

Search backward

Fast-forward / Skip

VCR:

Fast-forward, view the picture rapidly forward

DVD / video content:

Skip to the next track, title or chapter

Fast-forward / Search

VCR:

Fast-forward, view the picture rapidly forward

DVD / video content:

Search forward

Pause

Pause / Resume DVD:

Press and hold to play at slow speed

[Direct TV Rec] (p. 99, 101) [One Touch Recording] (p. 77)

Watching External Inputs

How to change the code

Each type of the Panasonic equipment has its own remote control code. Change the code according to the equipment you want to operate.

Press and hold Standby On / Off switch during the following operations

Enter the appropriate code, see table below

Type of the equipment, features Code

DVD Recorder, DVD Player, Blu-ray Disc Player 70

Player theatre, Blu-ray Disc theatre 71

VCR 72

Using in USB HDD / SD Card Recording (p. 77), Media Player (p. 79),

DLNA features (p. 94), Direct TV Recording (p. 99, 101),

Equipment using in VIERA Link (p. 102)

Note



Confirm if the remote control works correctly after changing the code.



The codes may be reset to default values if batteries are replaced.



Some operations may not be possible on some equipment models.

Press

73 (default)

Page 36

Viewing 3D images

You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear. “Standard accessories” (p. 7) This TV supports [Frame Sequential]



1: The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately

played back.



2, 3: Other available 3D formats



How to view the 3D images

Warning

Small Parts



3D Eyewear contains small parts (battery, etc.) and must be kept out of reach of small children to avoid accidental ingestion.

Disassembly



Do not disassemble or modify the 3D Eyewear.

Lithium Battery



Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Viewing 3D images

Caution

To use 3D Eyewear safely and comfortably, please read these instructions fully.

3D Eyewear



Do not drop, bend, exert pressure on, or step on the 3D Eyewear.



Be careful of the tips of the frame when putting on the 3D Eyewear.



Always keep the 3D Eyewear in a cool, dry place.



Be careful not to trap a finger in the hinge section of the 3D Eyewear.



Do not exert pressure on or scratch the surface of the liquid crystal shutter of the 3D Eyewear.

Viewing 3D Content



Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other existing medical conditions.



Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable sensation. When you set the effect by using [3D images varies among different individuals.



Take an appropriate break after viewing a 3D movie.



Take a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games or computers.



Be careful not to strike the TV screen or other people unintentionally. When using the 3D Eyewear the distance between the user and screen can be misjudged.



The 3D Eyewear must only be worn when viewing 3D content.



Use the 3D Eyewear where there is no interference from other devices with Bluetooth signal.



If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and right), please ensure to correct your vision before using the 3D Eyewear.



Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.



Do not use the 3D Eyewear at a distance less than the recommended distance. The recommended viewing distance is at least 3 times of the image height. TX-L42WT50B: 1.6 m or more TX-L47WT50B: 1.8 m or more TX-L55WT50B: 2.1 m or more When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance at least 3 times of the height of the actual image. (That makes the distance closer than above recommended figure.)



(p. 40)

, [Side by Side]



and [Top and Bottom]

Adjustment], take into account that the vision of 3D



3D formats.

Page 37

3D Eyewear Use



Pay special attention when children are using the 3D Eyewear. 3D Eyewear should not be used by children younger than about 5 - 6 years old, as a guideline. All children must be fully supervised by parents or guardians who must ensure their safety and health throughout the using 3D Eyewear.



Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental damage or injury.



Remove the 3D Eyewear before moving around to avoid falling or accidental injury.



Use the 3D Eyewear only for the intended purpose and nothing else.



Do not use 3D Eyewear in the condition of high temperature.



Do not use if the 3D Eyewear is physically damaged.



Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves near the 3D Eyewear as this may cause the 3D Eyewear to malfunction.



Stop using the 3D Eyewear immediately if a malfunction or fault occurs.



Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose or temples.



In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.

Lithium Battery



Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

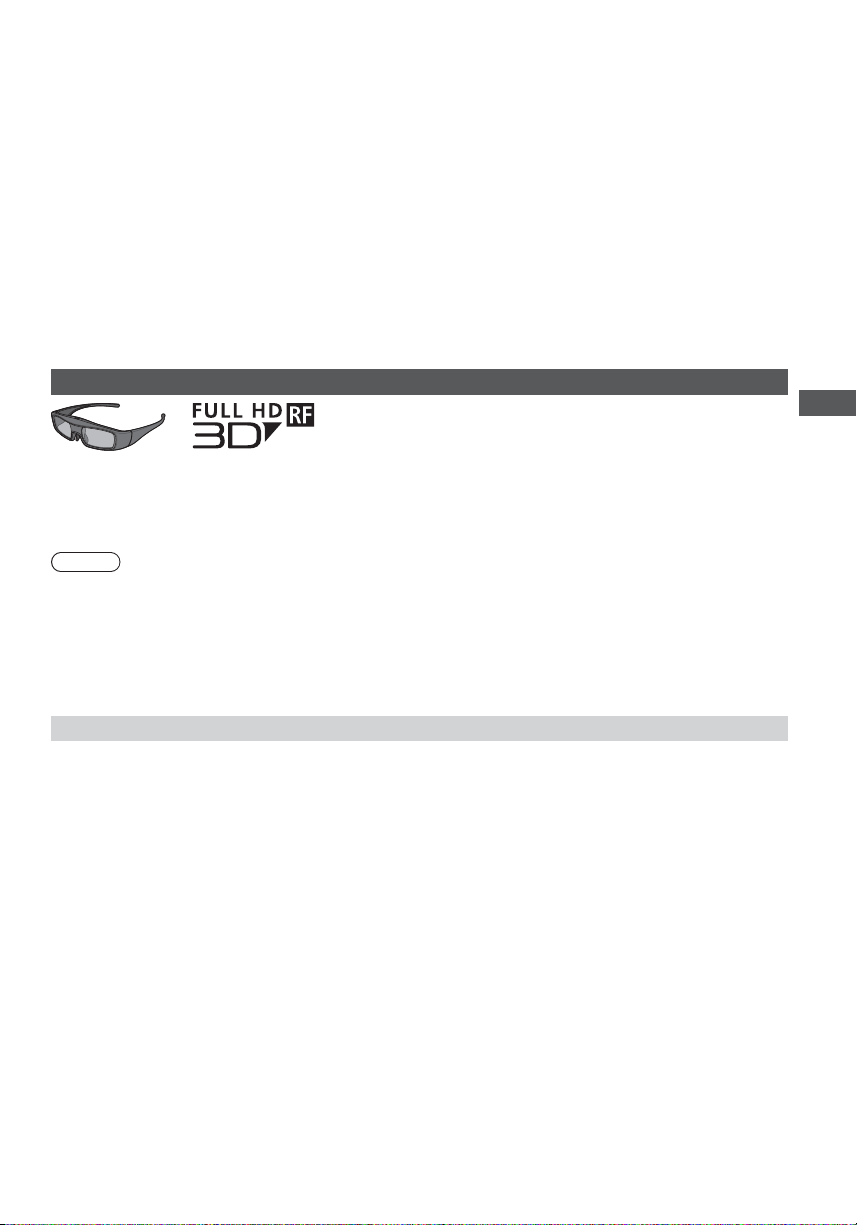

3D Eyewear



Use the supplied 3D Eyewear or Panasonic 3D Eyewear that has this

“Full HD 3D Glasses™” logo indicates products that are compatible with the active shutter 3D glasses technology standards licensed by the Full HD 3D Glasses Initiative. The RF mark on the logo means the wireless system (Bluetooth Eyewear and the TV that have the same mark together.

logo and supports Bluetooth

Note



Use the 3D Eyewear within approximately 3.2 m from the TV. You cannot view the 3D images with the 3D Eyewear too far from the TV, because of the difficulty of receiving radio waves from the TV.



The range may be shortened depending on the obstacles between the TV and the 3D Eyewear, or the surrounding environment.



There are differences in the viewing range of the 3D Eyewear among individuals.



The 3D Eyewear may not operate correctly at the outside of the viewing range.



3D Eyewear can be worn over vision correction glasses.

wireless technology.

wireless technology), and you can use the 3D

Viewing 3D images

Storing and cleaning the 3D Eyewear



Clean using a soft, dry cloth.



Wiping the 3D Eyewear with a soft cloth that is covered in dust or dirt may scratch the eyewear. Shake off any dust from the cloth before use.



Do not use benzene, thinner, or wax on the 3D Eyewear, as doing so may cause the paint to peel off.



Do not dunk the 3D Eyewear in liquid such as water when cleaning.



Avoid storing the 3D Eyewear in hot or highly humid locations.



As the liquid crystal shutters (lens) are fragile and easily broken, be very careful when cleaning them.

Page 38

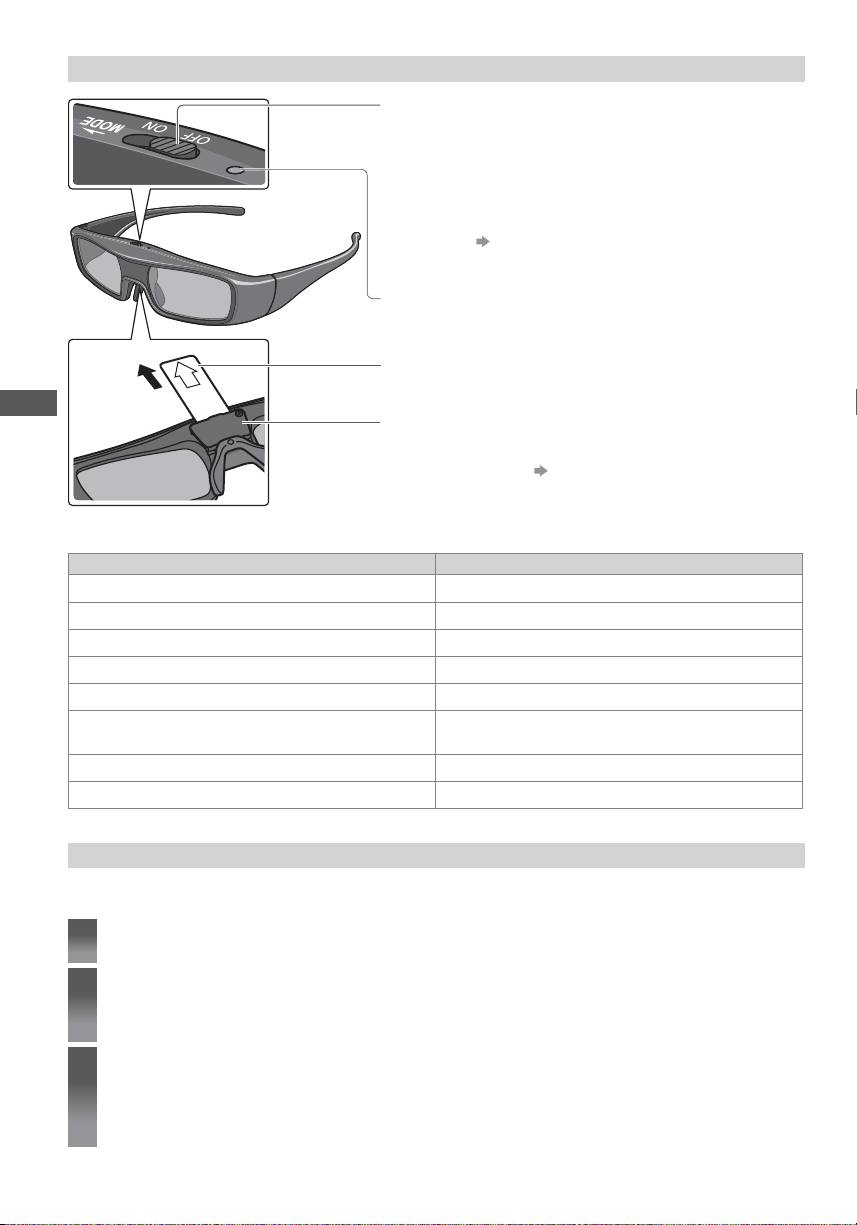

Part names and functions

Power switch

ON / OFF



Slide the tab to the “ON” / “OFF” position to switch the power

On / Of

MODE



Slide the tab to the “MODE” position to change the mode between 3D and 2D (view a 3D image in 2D).



This is also used when registering the 3D Eyewear to the TV. For details “Registration” (see below)

Indicator lamp

Lights or flashes during use to show the status.

Insulating sheet

Viewing 3D images

Pull

Battery cover



When using for the first time, remove the insulating sheet. Pull the insulating sheet.



To replace the battery

“Replacing the battery” (p. 39)

 Indicator lamp status

Indicator lamp Status

Lights red for 2 seconds when turned on Sufficient battery level

Flashes 5 times when turned on Low battery level

Flashes red and green alternately Under registering

Flashes green once every 2 seconds Under reconnecting to the TV

Lights green for 3 seconds Registering or reconnecting is successfully completed.

Flashes red 3 times

Flashes red once every 2 seconds when in use 3D mode is selected

Flashes red twice every 4 seconds when in use 2D mode is selected

Registration

First registration

Perform the first registration when the 3D Eyewear is used for the first time.

Turn the TV on

Slide the power switch from “OFF” to “ON”

The 3D Eyewear will be turned on and start registration. Place the 3D Eyewear within 50 cm from the TV while registration in progress.

Automatically power off (Registering or connecting fails or connection is lost)

The green LED lights on the 3D Eyewear for 3 seconds when the

registration is successfully completed

After first registration, the 3D Eyewear will reconnect with TV automatically when 3D Eyewear is turned on near the TV in 3D mode.

Page 39

 Registration again

When connection with registered TV fails, or when using with another TV, re-register the 3D Eyewear.

1 Turn the TV on 2 Within 50 cm from the TV, hold the power switch on the “MODE” position for more than 2 seconds



Release the power switch when registration starts.

3 The green LED lights for 3 seconds when the registration is successfully completed

Note



If the registration failed, the 3D Eyewear will be turned off. In this case, turn off the TV and perform from step 1.

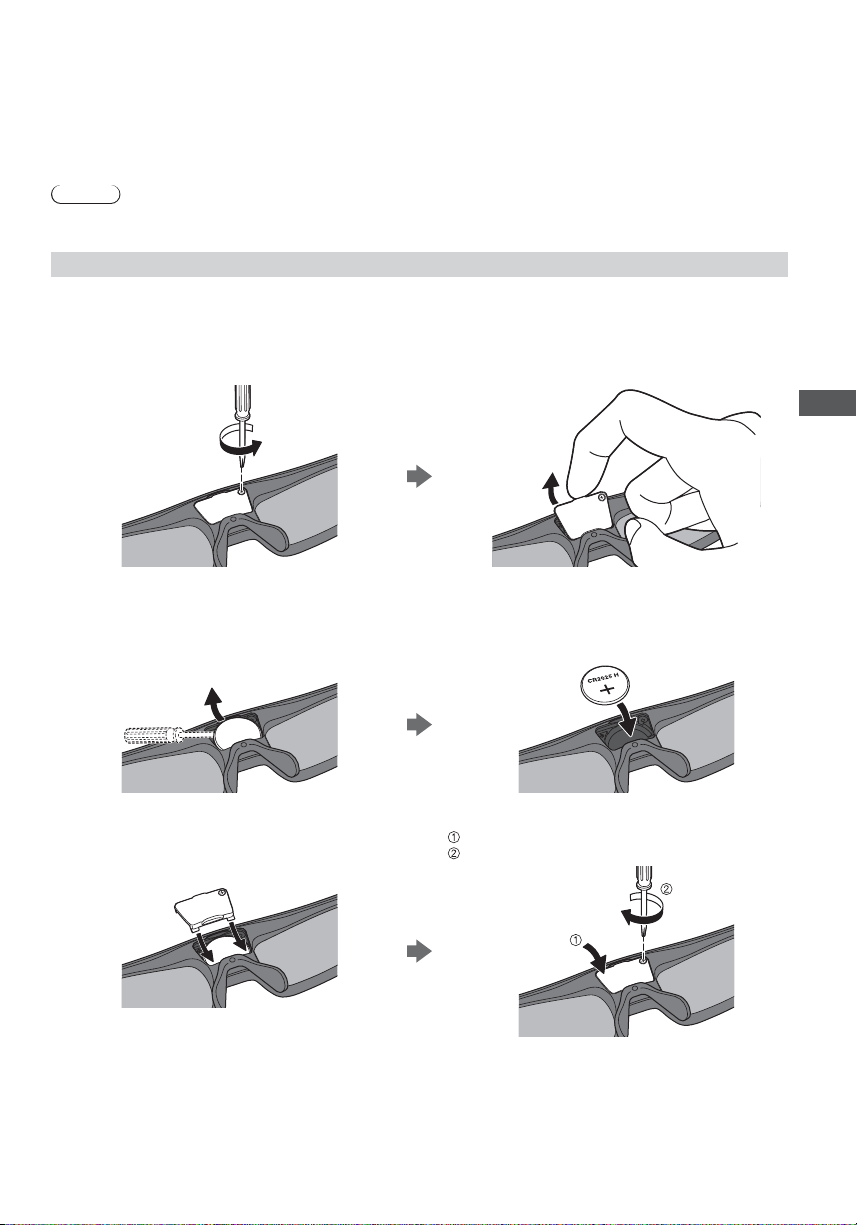

Replacing the battery

When the battery is running low, the indicator lamp flashes 5 times on turning the 3D Eyewear on. In this case, early battery replacement is recommended.



Dispose of the old batteries as non-burnable rubbish, or in line with the waste disposal regulations in your local area.

1 Loosen the screw and remove the cover using with a precision Phillips (No.0, plus +) screwdriver



The screw is not removed from the cover.

Viewing 3D images

2 Replace the battery



If difficulty, remove it with the tip of the driver.



Use the specified type of battery (coin-shaped lithium battery CR2025).



Note the correct polarity (+ or -).

3 Replace and fasten the cover

Push the cover firmly until it clicks.

Tighten the screw.

Page 40

To view the 3D images

You can enjoy the 3D images in a variety of ways. (Frame Sequential, Side by Side and Top and Bottom are the supported 3D format.)

 Playing back 3D-compatible Blu-ray disc (Frame Sequential format)



Connect the 3D-compatible player via a fully wired HDMI compliant cable.



If input mode is not switched automatically, select the input mode connected to the player. (p. 34)



If you use the non 3D-compatible player, the images will be displayed on 2D mode.

 3D-supported broadcast



Please consult the suppliers of contents or programmes for availability of this service.

 3D photos and 3D videos taken by 3D-compatible Panasonic products



Available in Media Player (p. 78) and Network services (p. 94)

 2D images converted to 3D



Set to [2D

Preparations

Perform the First Registration when the 3D Eyewear is used for the first time.

Viewing 3D images

Note



The 3D image or 3D effect may not be available in the following conditions:

Multi window (p. 71) is active.

•

VIERA Connect home screen (p. 21) is displayed.

•

[Ext Rec.] or [LT1] / [LT2] of Timer Programming (p. 64) is in progress.

•

[LT1] / [LT2] of One Touch Recording (p. 77) is in progress.

•

Direct TV Recording (p. 99, 101) is in progress.

•

As for the contents of the Frame Sequential format and Side by Side (Full), no images will be displayed in these conditions.



If light appears to flicker under fluorescents or dimmers when using the 3D Eyewear, change the setting of [3D Refresh Rate]. (p. 46)



3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.



Do not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as computer screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear.



Do not use the 3D Eyewear as sunglasses.



3D effects may be perceived differently depending on the person.

3D] mode in [3D Mode Selection]. (p. 41)

“Registration” (p. 38)

Turn the 3D Eyewear on and put it on



Connection status and battery status are displayed on the bottom right of the screen.

View the 3D images



Safety precautions will be displayed when you first watch the 3D image. Select [Yes] or [No] to continue to view 3D images. If you select [Yes], this message will be displayed again in the same condition after Mains power On / Off switch is next turned on. Select [No] if you do not want to display this message again.



Turn off the 3D Eyewear after using it.

Changing 2D - 3D mode

You can easily change the viewing mode between 2D and 3D using the 3D button.



This function is not available in PC mode.

[3D] / [2D] / [2D

Displays the appropriate image that you desire without selecting 3D format.



This mode may not work properly depending on the source image format. In this case, select the appropriate 3D format manually.

Select the mode

3D Mode Selection

2D3D3D

3D]:



select

set

Items of [3D Mode Selection] vary depending on the condition.

Page 41

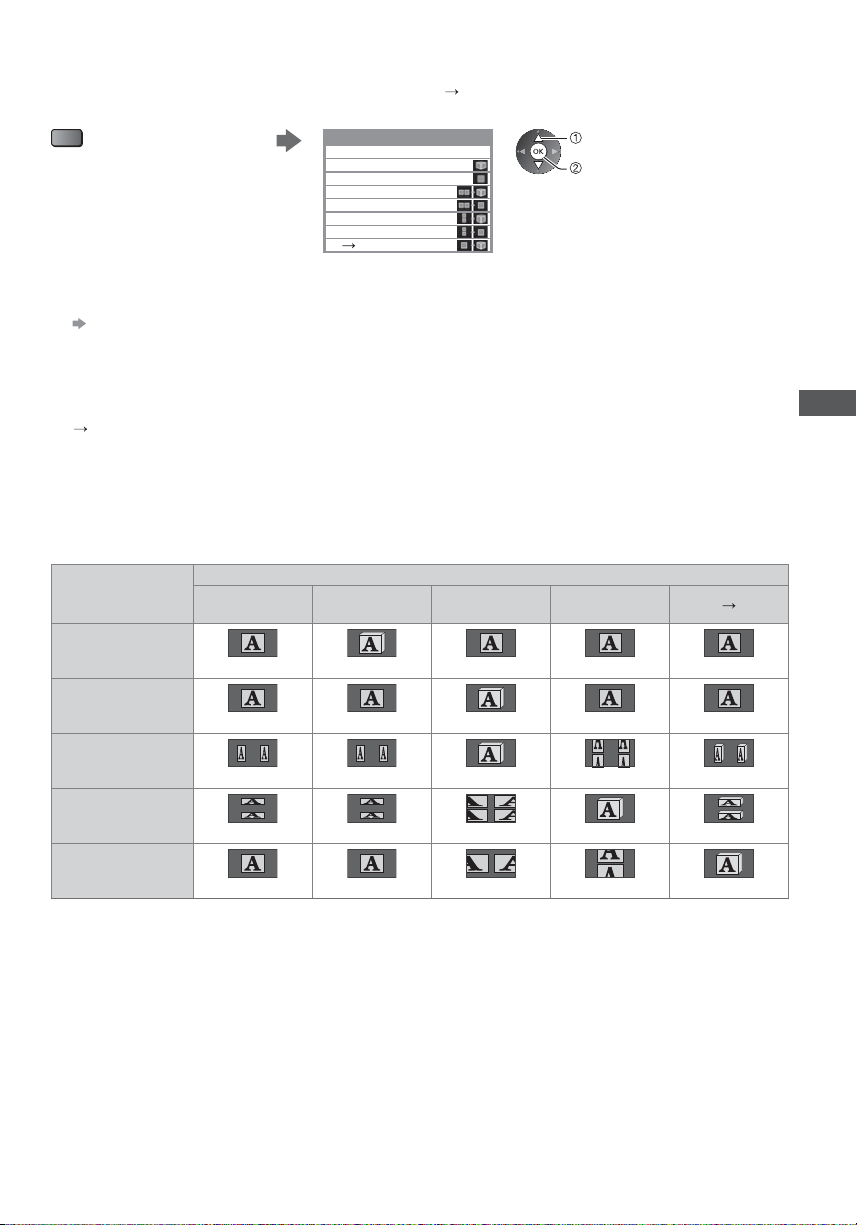

 To change 3D format manually

When the image is not changed properly using [3D], [2D] or [2D 3D] mode, use this manual setting.

During the above operation Select the mode

(red)

3D Mode Selection (Manual)

Original Frame Sequential - 3D Frame Sequential - 2D Side by Side - 3D Side by Side - 2D Top and Bottom - 3D Top and Bottom - 2D

2D 3D

[Original]:

Displays the source image as it is.



Use to identify the format type of the source image.

“Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format”

(see below)

[Frame Sequential - 3D] / [Frame Sequential - 2D] / [Side by Side - 3D] / [Side by Side - 2D] / [Top and Bottom - 3D] / [Top and Bottom - 2D]:

Displays the mode you select.



Not valid on Analogue and AV mode

[2D

3D]:

Converts 2D images into 3D.



Please note the 3D images appear slightly different from the originals.



Using this function for profit-making purposes, or publically showing images converted from 2D to 3D in places such as shops or hotels etc. may infringe on the rights of the copyright holder protected under copyright law.

Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format

If the picture appears to be abnormal, refer to the table below to choose the correct 3D mode.

Source image format

[Original]

[Frame

Sequential - 3D]

[3D Mode Selection]

[Side by Side

- 3D]

select

set

[Top and

Bottom - 3D]

[2D

Viewing 3D images

3D]

Frame Sequential

Side by Side (Full)

Side by Side

Top and Bottom

Normal format (2D)



1: When selecting [Frame Sequential - 2D], [Side by Side - 2D] or [Top and Bottom - 2D], the images will be displayed

without 3D effect.



Depending on the player or broadcasts, the image may be different from the above illustrations.

Normal 3D



Normal 3D



Normal 3D



Normal 3D

Page 42

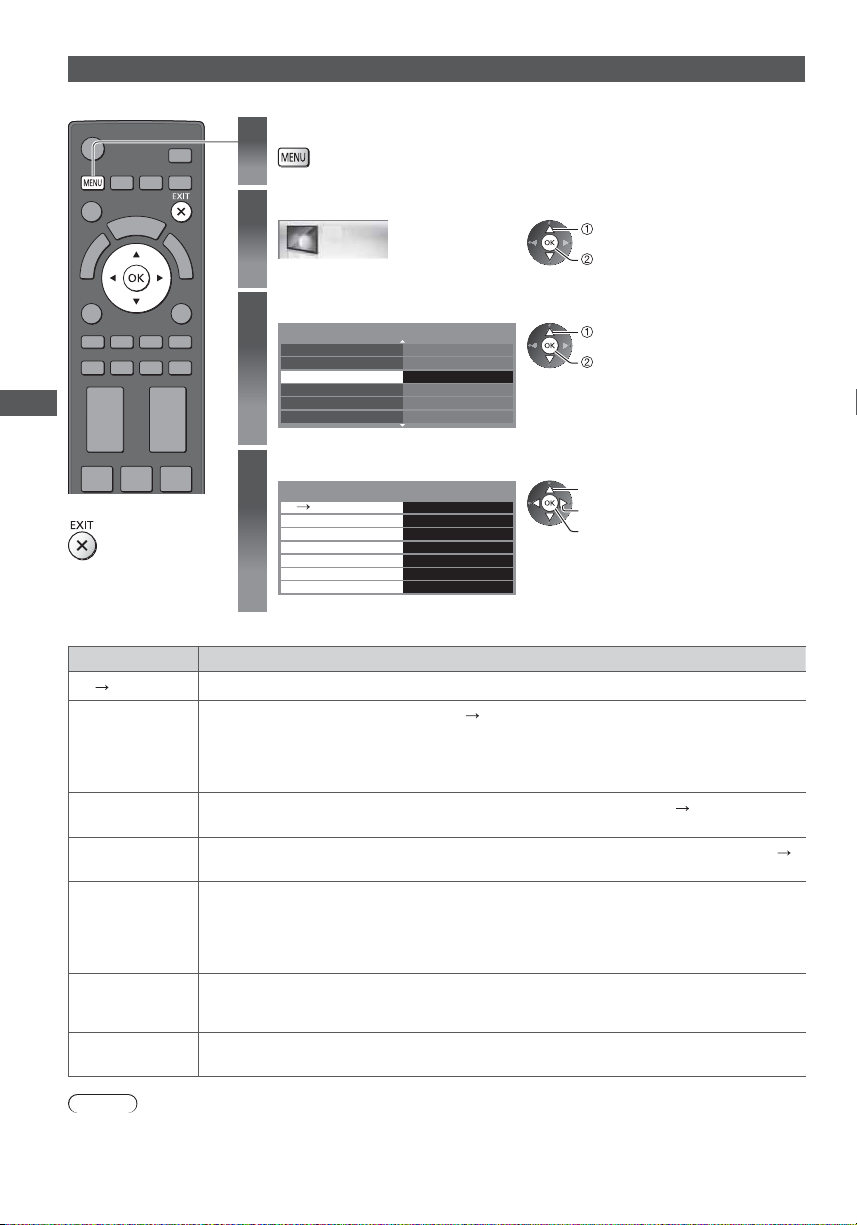

3D Settings

If the 3D images are not displayed correctly or seem unusual, adjust and setup the 3D settings.

Display the menu

Select [Picture]


P-NR Off Picture in Picture

3D Settings

Screen Display Advanced Settings Reset to Defaults

3D Settings

3D Depth 3D Adjustment Picture Sequence Edge Smoother 3D Detection 3D Signal Message Safety Precautions

Access On

Mid Access Normal Off On On Access

2/2

Viewing 3D images



To return to TV

Select [3D Settings]

Select one of the following functions and set

select

access

select

access

select adjust access / store

Item Adjustments / Configurations (alternatives)

2D 3D Depth

3D Adjustment

Picture Sequence

Edge Smoother

3D Detection

3D Signal Message

Safety Precautions

Note



[3D Adjustment] and [Picture Sequence] will not be memorised when changing the input mode or channel.

Selects a level of 3D-image depth for viewing converted 2D images [Min] / [Mid] / [Max]

Adjustment of the 3D effect (except in [2D



Set to [On] to enable [Effect] setting.



When setting to [On], a safety precaution message will appear. Read it carefully and press the BACK/RETURN button to go to [Effect] setting.

[Effect]:

Adjusts the 3D depth according to the contents or to your preference.

Select [Reverse] if you feel that the sense of depth is unusual (except in [2D

[Normal] / [Reverse]

Set to [On] if you feel the contoured parts of an image are not smooth enough (except in [2D 3D] mode) [Off] / [On]

Automatically detects the 3D format signals [Off] / [On] / [On (Advance)]

[On (Advance)]: Detects all the 3D format signals and displays the 3D image automatically. [On]: Detects the particular 3D format signals (Frame Sequential, etc.) and displays the 3D

image automatically.



To view 3D images without any notifications and operations, set to [On (Advance)].

Selects whether to give a notification message when a signal of 3D format is found [Off] / [On]



For DVB, Component and HDMI input



This function is not available when [3D Detection] is set to [On (Advance)].

Displays the precautions for viewing 3D images

3D] mode) [Off] / [On]

3D] mode)

Page 43

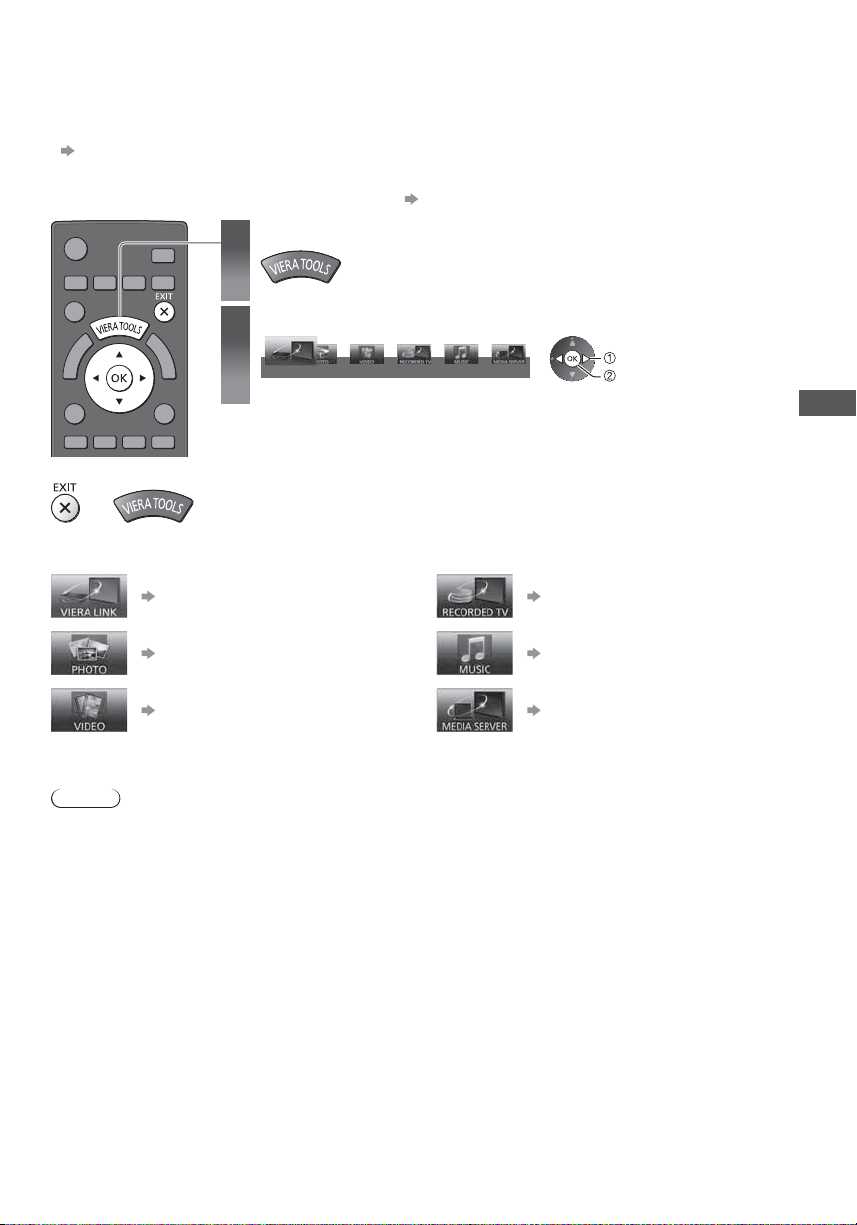

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.



For [VIERA Link] function to operate correctly, ensure the connections and settings are completed.

“Summary of Q-Link and VIERA Link features” (p. 97), “Preparations” (p. 100)

After connection, turn the equipment on and then switch the TV on.



For [Photo], [Video] and [Music] functions to operate correctly, ensure the device has photo, video or music data on it and insert it into the SD Card slot or USB port properly.

Display icons of the feature

Select a feature

VIERA Link



To return to TV

“Using Media Player” (p. 78)

select

access

How to Use VIERA TOOLS

 Follow the operations of each feature

[VIERA Link]

(p. 102)



When two or more available devices are connected, a selection screen will be displayed.

Please select the correct description and access.

[Photo]

(p. 80)

[Video]

(p. 83)



[Recorded TV]

(p. 84)

[Music]

(p. 87)

[Media Server]

(p. 94)

Note



If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to view the demonstration after selecting the unavailable feature.



Page 44

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

Display the menu



Displays the functions that can be set (varies according to the input signal).

Select the menu

Main Menu


Sound

Network

imer

select

access

How to Use Menu Functions



To return to TV at any time



To return to the previous screen



To change menu pages

down

Select the item

Viewing Mode Dynamic

Contrast Brightness Colour Sharpness T

int Colour Balance Vivid Colour C.A.T.S. Off

 Choose from among alternatives

Colour Balance

 Adjust using the slide bar

Sharpness

Setup

Cool

Normal

Warm

Moved

Warm Off

1/2

select

access

select

store

change

store

 Go to the next screen

Child Lock Access

Displays the next screen

access

 Enter characters by free input menu

You can enter names or numbers freely for some items.

User input

Name

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _

Set characters one by one

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

Store You can set characters by

using numeric buttons.

“Characters table for

numeric buttons” (p. 114)

 To reset the settings



Picture or sound settings only



To initialise all settings [Shipping Condition] (p. 51)

Note



If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment. To return to “Home” viewing environment initialise all settings by accessing Shipping Condition.

[Reset to Defaults] in the Picture Menu (p. 46) or Sound Menu (p. 48)

(p. 67)

Page 45

Menu list

Viewing Mode


Item Adjustments / Configurations (alternatives)

Selects your favourite picture mode for each input [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] / [Professional1] /

[Professional2] [Dynamic]:

Improves contrast and sharpness for viewing in a bright room.

[Normal]:

The [Colour Balance] default setting is set to [Cool]. This is ideal for natural day light conditions.



For indoor lighting conditions, change the [Colour Balance] setting to [Normal] or [Warm] for best picture viewing. If [Reset to Default] is performed, the [Colour Balance] setting will return to [Cool].

[Cinema]:

Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.

[True Cinema]:

Reproduces the original image quality precisely without any revision.

[Game]:

Provides suitable images for fast response signal when playing games.



Not valid on TV mode



To display a continuous record of time spent using Game mode

[Playing Time Display] (p. 51)

[Professional1 / 2]:

Allows you to set the professional picture settings in [Advanced Settings], [Lock Settings] and [Copy Adjustment].



This mode is available only when [Advance(isfccc)] in the Setup Menu is set to [On].



If the certified professional dealer sets these modes, [Professional1] and [Professional2] may be displayed as [isf Day] and [isf Night].

In each Viewing Mode, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [C.A.T.S.], [P-NR] and [3D-COMB] can be adjusted and stored for each input. Additionally, you can adjust and setup the detailed settings when [Advance(isfccc)] in the Setup Menu is set to [On].



You can set [Viewing Mode] in 2D and 3D mode for each.

(p. 73)

(p. 51)

How to Use Menu Functions

Contrast, Brightness, Colour, Sharpness

Tint

Colour Balance

Vivid Colour

C.A.T.S.

P-NR

Adjusts the levels of these options according to your personal preference

Adjusts the picture hue to suit your taste



For NTSC signal reception

Sets the overall colour tone of the picture [Cool] / [Normal] / [W



Not valid when [Viewing Mode] is set to [True Cinema], [Professional1] or [Professional2]

Automatically adjusts colours to vivid ones [Off] / [On]



Not valid on PC mode



Not valid when [Viewing Mode] is set to [Professional1] or [Professional2]

Contrast Automatic Tracking System (Automatic Brightness Control function) Adjusts picture settings automatically depending on ambient lighting conditions

[Off] / [On]



Set to [On] to make the suitable contrast setting automatically. The default setting is [On] when [Viewing Mode] is set to [Normal].

Picture Noise Reduction Reduces unwanted picture noise and flicker noise in the contoured parts of a picture [Off] / [Min] / [Mid] / [Max] / [Auto]



Not valid on PC mode / when [Viewing Mode] is set to [Game] or [1080p Pure Direct] is set to [On]

arm]

Page 46

3D-COMB

Picture in Picture Displays two windows at once (p. 71)

3D Settings Adjusts and sets to view 3D images (p. 42)

Screen Display

Area Dimmer Control

How to Use Menu Functions

Item Adjustments / Configurations (alternatives)

1080p Pure Direct

Intelligent Frame Creation


24p Smooth Film

Clear Cinema

Advanced Settings

3D Refresh Rate

16:9 Overscan

DVI Input Setting

Reset to Defaults

Makes still or slow moving pictures more vivid [Off] / [On]



Occasionally, while viewing still or slow moving pictures, colour patterning may be seen. Set to [On] to display sharper and more accurate colours.



For PAL / NTSC signal reception in TV mode or from composite (except 3D mode)

Turns the screen off when you select [Off]

[Off] / [On]



The sound is active even if the screen turns off.



Press any buttons (except Standby) to turn the screen on.



This function is effective in reducing power consumption when listening to the sound without watching the

Automatically controls dark areas according to the images [Off] / [On]



If the uncomfortable dark images occur, set to [Off].



This function is available when [Viewing Mode] is set to [Dynamic], [Normal] or [Cinema]. (except multi window mode)

Reproduces the original image quality in detail for 1080p (HDMI) input signal

[Off] / [On]



Not valid on 3D or multi window mode

Automatically compensates the picture frame rate and removes juddering movements to make the images smooth [Off] / [Min] / [Mid] / [Max]



Depending on the contents, images may be noisy. To prevent the noise, change the setting.



Not valid on PC mode or when [Viewing Mode] is set to [Game]

Automatically compensates the picture frame rate to make the 24p source movie images smooth [Off] / [Min] / [Mid] / [Max]



This is available only for 24p signal input and displayed instead of [Intelligent Frame Creation].



Not valid on PC mode or when [Viewing Mode] is set to [Game]

Improves vertical resolution for movie images [Off] / [On]



This function is available for the interlaced signal (except in the mode of PC, multi window, VIERA

Reduces juddering and flicker noises of the 3D images when using the 3D Eyewear [Auto] / [100Hz] / [120Hz]

[100Hz]:

If light appears to flicker under fluorescents (or dimmers) of 50 Hz.

[120Hz]:

If light appears to flicker under fluorescents (or dimmers) of 60 Hz. If flicker noises appear with 50 Hz input signal.

Selects the screen area displaying the image [Off] / [On]

[On]:

Enlarges the image to hide the edge of the image.

[Off]:

Displays the image in the original size.



Set to [On] if noise is generated on the edge of the screen.



This function is available when aspect is set to [Auto] (16:9 signal only) or [16:9].



This function can be memorised separately for SD (Standard definition) and HD (High definition) signals.



Not valid on PC mode or VIERA Connect

Changes the black level of the image for HDMI input mode with DVI input signal manually [Normal] / [Full]



When the DVI input signal from the external equipment (especially from PC) is displayed, the black level may not be suitable. In this case, select [Full].



The black level for HDMI input signal will be adjusted automatically.



For HDMI input mode with DVI input signal

Press the OK button to reset the current Picture Viewing Mode to the default settings

TV screen.

Connect or when [Viewing Mode] is set to [Game]).

Page 47

Mode

Bass Adjusts level to enhance or minimise lower, deeper sound output

Treble Adjusts level to enhance or minimise sharper, higher sound output

Equaliser

Balance Adjusts volume level of right and left speakers

Headphone Volume

Sound

Surround

Auto Gain Control

Volume Correction Adjusts the volume of individual channel or input mode

Speaker Distance to Wall

Preferred Multi Audio

NICAM

SPDIF Selection

Item Adjustments / Configurations (alternatives)

Selects your favourite sound mode [Music] / [Speech] / [User]



The selected mode affects all input signals.

[Music]:

Improves sound quality for watching music videos, etc.

[Speech]:

Improves sound quality for watching news, drama, etc.



In Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those settings will be stored for each mode.

[User]:

Adjusts the sounds manually by using the equaliser to suit your favourite sound quality.



For the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and [Treble]. Select [Equaliser] and adjust the frequency

[Equaliser] (see below)

Adjusts the frequency level to suit your favourite sound quality



This function is available when [Mode] is set to [User].



Select the frequency and change the frequency level by using the cursor button.



To enhance the bass sound, raise the level of the lower frequency. To enhance the treble sound, raise the level of the higher frequency.



To reset the levels of each frequency to the default settings, select [Reset to Defaults] by using the cursor button, and then press the OK button.

Adjusts the volume of the headphones

Surround sound settings

[Off] / [V-Audio] / [V-Audio Surround] / [V-Audio ProSurround] [V-Audio]:

Provides a dynamic enhancer of width to simulate improved spatial effects.

[V-Audio Surround]:

Provides a dynamic enhancer of width and depth to simulate improved spatial effects.

[V-Audio ProSurround]:

Provides a more progressive enhancer and reverberation to simulate improved spatial effects.



Switching is also possible by the SURROUND button on the remote control (p. 11).

Automatically regulates large sound level differences between channels and inputs [Off] / [On]

Compensates for the low frequency sound due to the distance between the speakers and the wall [Over 30cm] / [Up to 30cm]



If the back space between the TV and wall is over 30 cm, [Over 30cm] is recommended.



If the back space between the TV and wall is within 30 cm, [Up to 30cm] is recommended.

Selects the preferred language for digital channel multi audio (depending on the broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]

Near Instantaneous Companded Audio Multiplex Reproduces NICAM stereo sound [Off] / [On]



Off if reception is poor (FM monaural sound)



For Analogue mode

SPDIF: A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals [Auto] / [PCM] [Auto]: Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as

Dolby Digital Bitstream. MPEG is output as PCM. [PCM]: Digital output signal is fixed to PCM.



For Digital mode or video contents of Media Player / Network services (p. 86,

96)



ARC (Audio Return Channel): A function of digital audio output using HDMI cable

How to Use Menu Functions

Page 48

HDMI1 / 2 / 3 / 4 Input

Voice Guidance Settings

Item Adjustments / Configurations (alternatives)

Voice Guidance

Speed Selects the readout speed for the voice guidance [Normal] / [Fast]

Volume Selects the volume for the voice guidance [Min] / [Mid] / [Max]

User Level Selects the level of verbosity for voice guidance [Beginner] / [Expert]

Sound

Audio Description Menu

How to Use Menu Functions

Audio Description

Selects to fit the input signal [Digital] / [Analogue] (p. 111) [Digital]: When sound is carried via the HDMI cable connection [Analogue]:



For HDMI input

Set to [On] to enable voice guidance of the basic features (EPG, on-screen messages, etc.) for visually impaired users [Off] / [On]

Narration settings for visually impaired users [Off] / [Auto] Set to [Auto] to activate the narration sound track when available on the broadcast.



The availability of audio description sound track is indicated by [AD] in the information banner (p. 23).



For freesat or DVB mode

When sound is not carried via the HDMI-DVI adaptor cable connection

Volume

Speakers

Headphones

Reset to Defaults

Connection Test, Network Connection, Wireless Network Settings, IP/DNS Settings

Network

Network Link Settings Sets to control the TV with the devices connected to the network (p. 91)

Software Update Checks for available software updates from the Panasonic website

New Software Message

Network Status Displays the network status (MAC Address, current network settings, etc.)

Timer Programming Sets a timer to record or remind forthcoming programmes (p. 64)

Off Timer

Timer

Adjusts the volume for Audio Description



For DVB mode

Set to [On] to activate the description sound track from TV speakers [Off] / [On]



For DVB mode

Set to [On] to activate the description sound track from headphones [Off] / [On]



For DVB mode

Press the OK button to reset the current Sound Mode, [Balance], [Headphone Volume] and [Surround] to the default settings

Sets the network setting to use in your network environment (p. 91)

Selects whether to give a notification message when new software is found via network [Off] / [On]

Sets the duration of time until the TV automatically goes into Standby mode

[Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p. 24)

Auto Standby

Sets the duration of time that the TV will remain on when no operation is performed [Off] / [2] / [4] (hours)



Starting Timer Programming automatically does not affect this function.



Automatic input switching with the connected equipment affects this function and time-count will be reset.



The notification message will appear 3 minutes before going into Standby mode.

Page 49

TV Guide Settings

Eco Navigation

Recording Setup Settings for the recording feature of the USB HDD / SD Card (p. 75)

Bluetooth Setup Settings for the specific devices supporting Bluetooth wireless technology (p. 112) VIERA Touch Pad Controller

Item Adjustments / Configurations (alternatives)

Changes the layout of TV Guide [Normal] / [Full] / [Info]

TV Guide View

[Normal]: Default TV Guide screen [Full]: Displays channels and programmes full-screen without the operation guide [Info]: Displays details of the selected programme at the bottom without the

operation guide

Automatically sets the TV to the most suitable energy-saving mode



If you press the OK button, the following items are set as below: [C.A.T.S.], [VIERA

[Intelligent Auto Standby]

[Auto Standby] [2 hours]

Link], [Standby Power Save], [Power Save]

[On (No reminder)]

[On]

Pairing

Cursor Settings Sets for the cursor of the touch pad controller

Setup

VIERA Link Sets to use VIERA Link functions [Off] / [On] (p. 100)

HDMI Content Detection

Link Settings

AV1 out

Standby Power Save

Intelligent Auto Standby

Q-Link Download

Child Lock Applies access control for channels or inputs to prevent unwanted access (p. 66)

Tuning Menu*

Favourites Edit

Channel List Skips the unwanted channels or edits channels (p. 60)

Region Channel Edit

Registers the VIERA Touch Pad Controller (supplied) to this TV



Only 1 touch pad controller can be registered.

Automatically adjusts the picture settings according to the received HDMI content via HDMI cable [Off] / [Auto]



This function is available if the connected equipment supports HDMI Content Type.



The content type information will be displayed for several seconds when this function works.

Chooses the signal to be transmitted from the TV to Q-Link

[TV] / [AV2] / [Monitor]

[Monitor]: Image displayed on screen



Component and HDMI signals cannot be output.

Controls the connected equipment to reduce power consumption in Standby [Off] / [On] (p. 101)



This function is available when [VIERA Link] is set to [On].

Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption [Off] / [On (With reminder)] / [On (No reminder)] (p. 101)



This function is available when [VIERA Link] is set to [On].

Downloads analogue channel information to a Q-Link compatible equipment connected to the TV

Creates a list of favourite channels (p. 59)



Not valid on Analogue mode

Replaces your regional channels with the available channels from another region (p. 59)



For freesat mode

How to Use Menu Functions

Page 50

Item Adjustments / Configurations (alternatives)

Auto Setup Automatically searches for the receivable channels (p. 56)

Channel Sorting by Region

Manual Tuning

Tuning Menu*

Update Channel List

New Channel Message

Signal Condition

How to Use Menu Functions

Add New Channels

Language

Preferred Audio 1 / 2

Preferred Subtitles 1 / 2

Setup

Preferred Teletext

Preferred Subtitle Type

Automatically sorts tuned channels according to the available region (p. 60)



For DVB mode

Searches for the channels manually (p. 61)



Not valid on freesat mode

Updates the channel list while keeping your settings (p. 61)



For DVB mode

Selects whether to give a notification message when a new channel is found [Off] / [On] (p. 61)



For DVB mode

Checks the signal condition (p. 61)



Not valid on Analogue mode

Adds new Other Satellite channels to the channel list (p. 63)



For Other Sat.

Selects the first and second preferred language for digital channel multi audio (depending on the broadcaster)

Selects the first and second preferred language for digital channel subtitles (depending on the broadcaster)



To display subtitles (p. 25)

Selects the preferred language for digital channel teletext service (depending on the broadcaster)

Selects the preferred subtitle type [Standard] / [Hard of Hearing]



[Hard of Hearing] provides aids in understanding and enjoyment with digital channel subtitles (depending on the broadcaster).



[Preferred Subtitles 1 / 2] in [Language] are given priority.

/ Satellite mode

Teletext

Teletext Character Set

Display Settings

Preferred Subtitles

Input Labels

Banner Display Timeout

VIERA Connect Banner

Analogue teletext display mode [FASTEXT] / [List] (p. 31)

Selects teletext language font [West] / [East1] / [East2] [West]: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc. [East1]: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc. [East2]: Czech, Hungarian, Lettish, Polish, Rumanian, etc.

Selects the preferred language for digital channel subtitles (depending on the broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]



To display subtitles



provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster).

Accesses the input labels list to select the label of each input mode or set to skip unconnected one for easier identification and selection in [TV Selection] (p. 22), [Input Selection] (p. 34) or banner



To name each input mode freely, select [User input] and set characters (maximum 10 characters).



To skip the input mode, select [Skip].

Sets how long the Information banner stays on screen

[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)

Sets the VIERA Connect introduction banner display [Off] / [On] (p. 21, 22)

(p. 25)

Page 51

Display Settings

DivX® VOD Displays DivX VOD registration code (p. 110)

Advance(isfccc)

Setup

System Menu

Other Settings

 

The settings in [Tuning Menu] are applicable only for the selected TV mode. The menu name varies depending on the TV mode. ([freesat Tuning Menu] / [DVB Tuning Menu] / [Analogue Tuning Menu] / [Other Sat. Tuning Menu] / [Satellite Tuning Menu])



A different menu will be displayed when [Advance(isfccc)] in the Setup Menu is set to [On] or in the mode of PC input, Media Player or network service operations. (p. 72, 73, 78 - 87, 89 - 94)



Only available items can be selected.

Item Adjustments / Configurations (alternatives)

Playing Time Display

Radio Mode

Channel Transition Effect

Keyboard Layout

Shipping Condition Resets all settings to the original condition (p. 67)

Owner ID Inputs the owner ID (p. 68)

Common Interface Sets for watching encrypted channels, etc. (p. 69)

System Update Downloads new software to this TV (p. 70)

Software Licence Displays the software licence information

System Information Displays the system information of this TV

Device Information Displays the device information of this TV

Power on Preference

Power on Channel List

USB Charge in Standby

Power Save

Front Logo LED Lights the Panasonic logo on the TV front while the

Set to [On] to display a continuous record of time spent using Game mode in the top right of the screen every 30 minutes [Off] / [On]



This function is available when [Viewing Mode] is set to [Game].

Sets the timer for turning off the screen automatically when a radio channel is selected [Off] / [5] / [10] / [15] / [20] (seconds)



The sound is active even if the screen turns off. This function is effective in reducing power consumption when listening to a radio channel.



Press any buttons except Standby, Volume Up / Down and MUTE buttons to turn the screen on.



Not valid on Analogue mode

Enables the transition effect when changing channels [Off] / [On]

Enables the advanced picture settings [Off] / [On]



Set to [On] to display the advanced items in the Picture Menu - [Advanced Settings], [Lock Settings] and [Copy Adjustment]. [Copy displayed when [Viewing Mode] is set to [Professional1] or [Professional2]. (p. 73)



[isfccc] is the picture setting for the certified professional dealer. For details, consult your local dealer.

Selects the language that your USB or Bluetooth Keyboard supports



For the information of using Keyboard

Automatically selects the input when the TV is turned on [TV] / [AV]



Set to [TV] to view picture from TV tuner. Set to [AV] to view input from the external equipment connected to the AV1 or HDMI1 terminal, e.g. satellite receiver.



The external equipment must be switched on and sending a control signal for automatic switching at power on to occur.

Automatically selects All Channels or Favourites list in the Information banner when the TV is turned on [All Channel List] / [Last]



Set to [All Channel List] to display all the channels. Set to [Last] to display the one you selected last time.



Not valid on freesat or Analogue mode

Enables to supply the power from the USB port in Standby mode [Off] / [On]



Available for charging the rechargeable 3D Eyewear (optional)



This function is available when in Standby mode.

Reduces brightness of the picture to economise on power consumption

[Off] / [On]

(p. 112)

TV is on [Off] / [On]

(p. 45)

Adjustment] will be

How to Use Menu Functions

Page 52

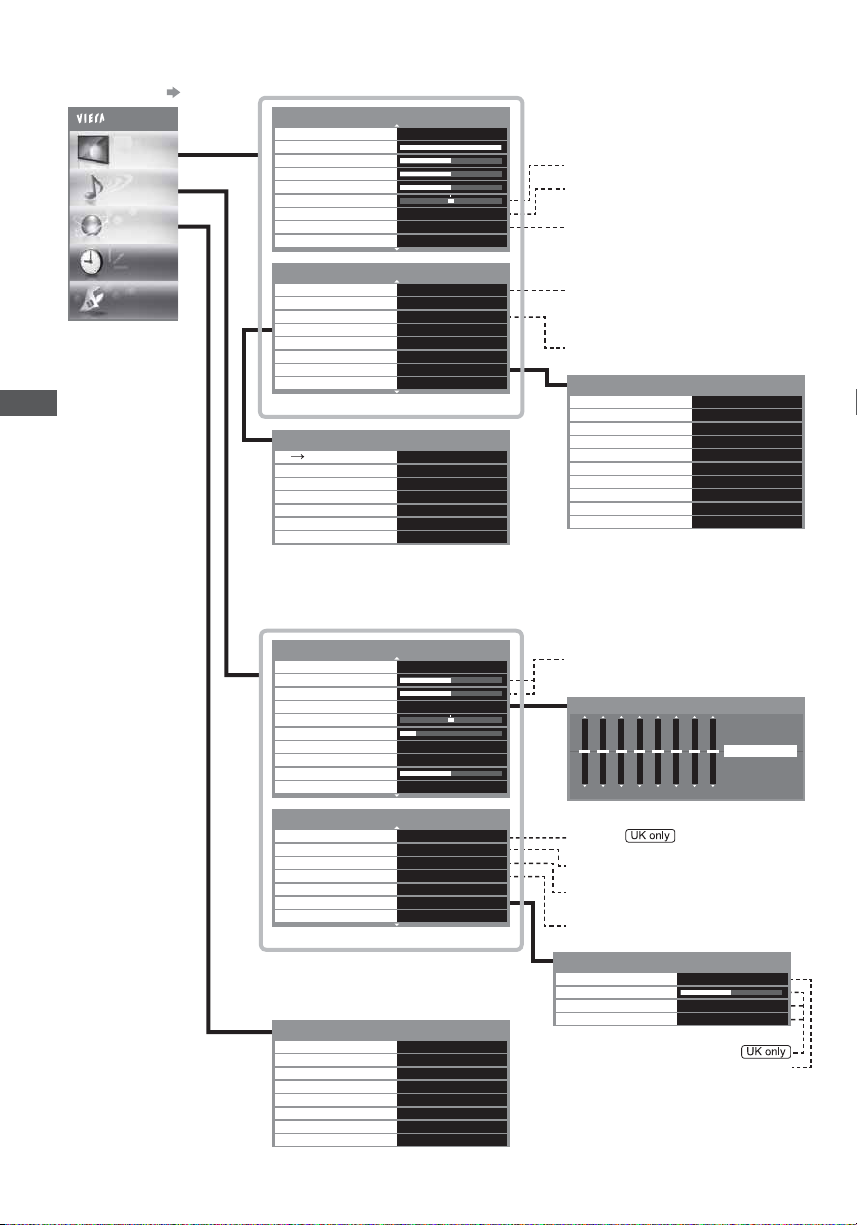

Overview (Picture, Sound, Network, Timer, Setup)

How to operate (p. 44)

Main Menu


Sound

Network

Timer

Setup

How to Use Menu Functions

Viewing Mode Dynamic Contrast Brightness Colour Sharpness T

int Colour Balance Vivid Colour C.A.T.S. Off

Picture in Picture Access 3D-COMB Off 3D Settings Screen Display Area Dimmer Control

Reset to Defaults

3D Settings

3D Depth 3D Adjustment Picture Sequence Edge Smoother 3D Detection 3D Signal Message Safety Precautions

arm

Off

Off P-NR

Access On Of

f Access Advanced Settings Reset

Mid Access Normal Off On On Access

(p. 45, 46)

(p. 42)

1/2

For NTSC

Not valid when [Viewing Mode] is set to [True Cinema] or [Professional1 / 2]

Not valid PC mode or when [Viewing Mode] is set to [Professional1 / 2]

2/22/2

Not valid on PC mode / when [Viewing Mode] is set to [Game] or [1080p Pure Direct] is set to [On]

For NTSC / PAL

Advanced Settings

White Balance Access Colour Management Gamma

Intelligent Frame Creation 24p Smooth Film Clear Cinema

16:9 Overscan DVI Input Setting

Access Access Off 1080p Pure Direct Off Off Off Auto 3D Refresh Rate Off Normal

(p. 46, 73)

Mode Music Bass Treble Equaliser Balance Headphone Volume Surround Auto Gain Control Volume Correction Speaker Distance to Wall

Preferred Multi Audio English NICAM SPDIF Selection HDMI1 Input V

oice Guidance Settings

Audio Description

Connection Test Network Connection Wired Wireless Network Settings IP/DNS Settings Network Link Settings Software Update New Software Message Network Status

Access

Off Off

Over 30cm

Off Auto Digital Access Access Reset Reset to Defaults

Access

Access Access Access Access On Access

(p. 47, 48)

(p. 90 - 93)

1/2

Available when [Mode] is set to [Music] or [Speech]

Equaliser

Reset to Defaults

150 250 500 1k 2k 4k 8k 12k Hz

2/2

Available when [Mode] is set to [User]

For DVB

For Analogue

For DVB or video contents of Media Player / Network services For HDMI input

Audio Description Menu

Audio Description Volume Speakers Headphones

Off

Off Off

(p. 48)

For DVB

For freesat or DVB

Page 53

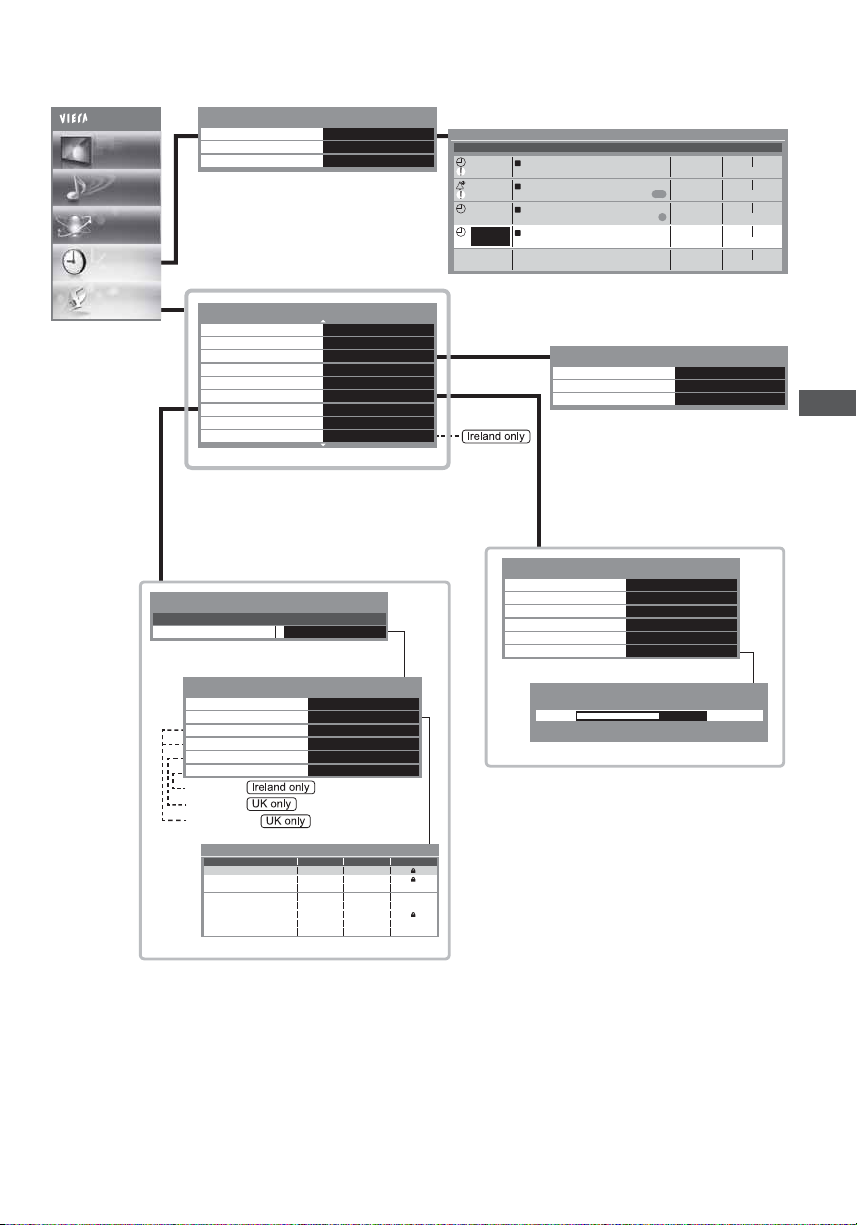

Main Menu


Sound

Network

Timer

Setup

Off Timer Auto Standby

TV Guide Settings Access Eco Navigation

VIERA Touch Pad Controller Link Settings Child Lock DVB Tuning Menu Language

Child Lock-PIN Entry

Please enter new PIN

* * * *

Child Lock

Change PIN Child Lock List

Channels

freesat Adult

For DVB For DVB For freesat

Child Lock List - TV and AV

Name Input

101 BBC 1 Wales

7 BBC THREE

14 E4C

VCR

1 BBC1 2 *****

AV1 AV2

DVB DVB DVB Analogue Analogue Analogue External External

Access Timer Programming Off Off

Access Access Recording Setup Access Bluetooth Setup Access Access Access Access Access

Access Access Hide Unlock freesat Players Unlock Freeview Players No limit Parental Rating

(p. 49 - 51)

(p. 66)

Type

Free TV Free TV Free TV Analogue Analogue Analogue

AV AV

(p. 48)

(p. 66)

Lock

(p. 66)

Timer Programming

1/2

Function No. Date Start End Channel Name

Ext Rec.

72 BBC 2W 20:00 21:30

Reminder

Ext Rec.

<TIMER>

14 E4

The Bill

1 BBC ONE

DIY SOS

BBC ONE

<TIMER>

------ --:----:-- --:--

Recording Setup

USB HDD Setup One Touch Recording Rewind LIVE TV

Link Settings

VIERA Link HDMI Content Detection A

V1 out Standby Power Save Intelligent Auto Standby Q-Link Download

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

On Off TV On On (No reminder) Access

STTL

Guide

S/P

Wed 26 Oct 2011 10:46

Wed 26 Oct

21:00 22:00

Wed 26 Oct

22:45 23:00

Thu 27 Oct

10:30 11:30

Access 180 minutes Off

(p. 49)

(90 min.)

(60 min.)

(15 min.)

(60 min.)

(p. 64)

How to Use Menu Functions

Page 54

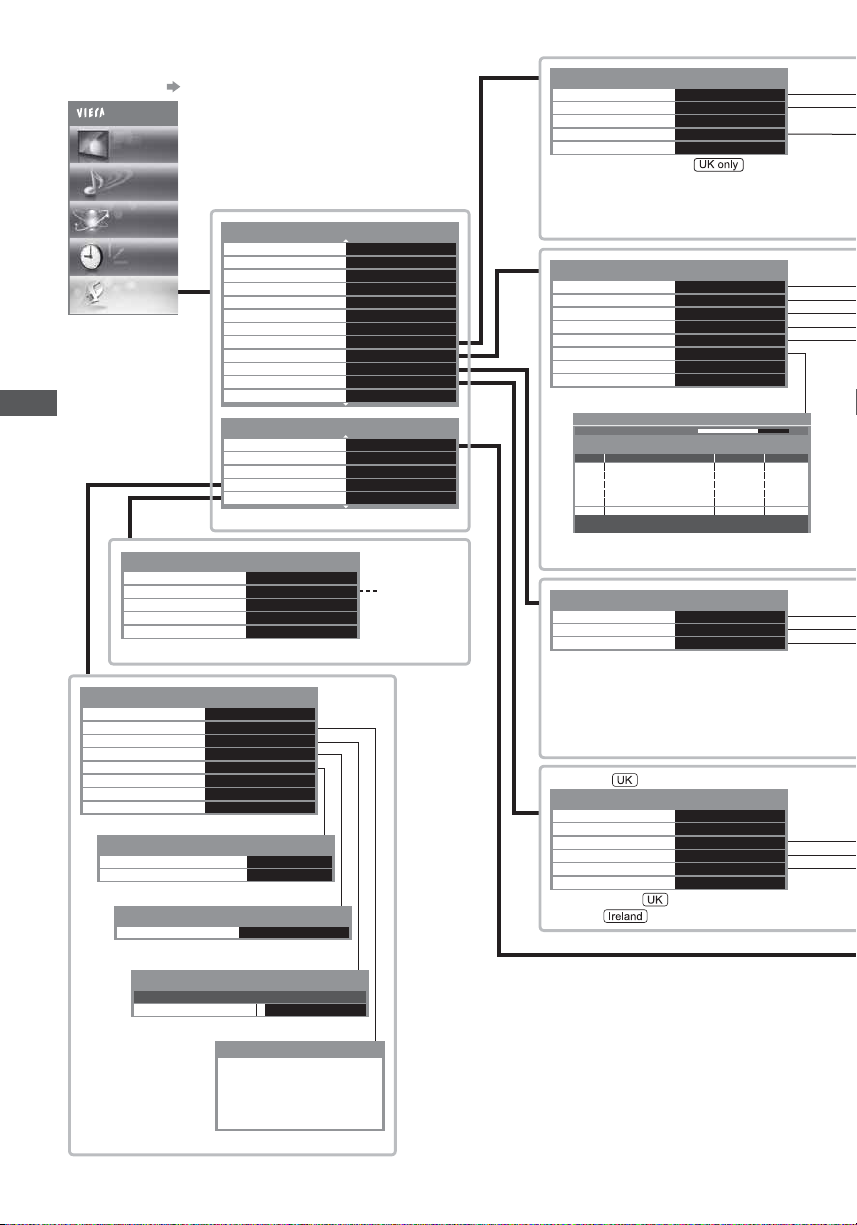

Overview (Setup)

How to operate (p. 44)

Main Menu


Sound

freesat Tuning Menu

Favourites Edit Channel List Regional Channel Edit Auto Setup Signal Condition

For freesat

Access Access Access Access Access

(p. 58)

Network

TV Guide Settings Access

Timer

Setup

Eco Navigation Recording Setup Bluetooth Setup VIERA Touch Pad Controller Link Settings Child Lock freesat T DVB Tuning Menu Analogue Tuning Menu Other Sat. Tuning Menu Satellite Tuning Menu

How to Use Menu Functions

Display Settings

DivX

Advance(isfccc)

Other Settings

Power on Preference Power on Channel List USB Charge in Standby Power Save

System Menu

USB Keyboard Layout Shipping Condition Owner ID Common Interface System Update Software Licence System Information Device Information

System Update

Auto Update Search in Standby System Update Search Now

Common Interface

Slot 1:

For DVB (p. 69)

Owner ID

Please enter new PIN

English(UK) Access Access Access Access Access Access Access

Shipping Condition

All tuning data will be erased

uning

® VOD

TV Last Off Off On Front Logo LED

(p. 51)

Off Access

(p. 70)

Module inserted

* * * *

Are you sure ?

(p. 51)

(p. 68)

Access Access Access Access Access Access Access Access Access Access Access

Access Access Off Access System Menu Access Other Settings

(p. 67)

(p. 49 - 51)

Not valid on freesat or Analogue

1/2

DVB Tuning Menu

Favourites Edit Channel List Auto Setup Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

For DVB (p. 57 - 61)

2/2

DVB Update Channel List

Progress

This will take about 3 minutes.

CH Channel Name Type Quality

Free TV: 0 Pay TV: 0 Data: 0 Radio: 0

Analogue Tuning Menu

Channel List Auto Setup Manual Tuning

For Analogue (p. 57 - 61)

Example:

Other Satellite Tuning Menu

Channel List Auto Setup Manual T

uning Add New Channels Signal Condition

For Other Sat. /

Access Access Access Access Access Access On Access

CH 21 68

Searching

Access Access Access

Access Favourites Edit Access Access Access Access Access

(p. 61)

(p. 62)

Satellite

Page 55

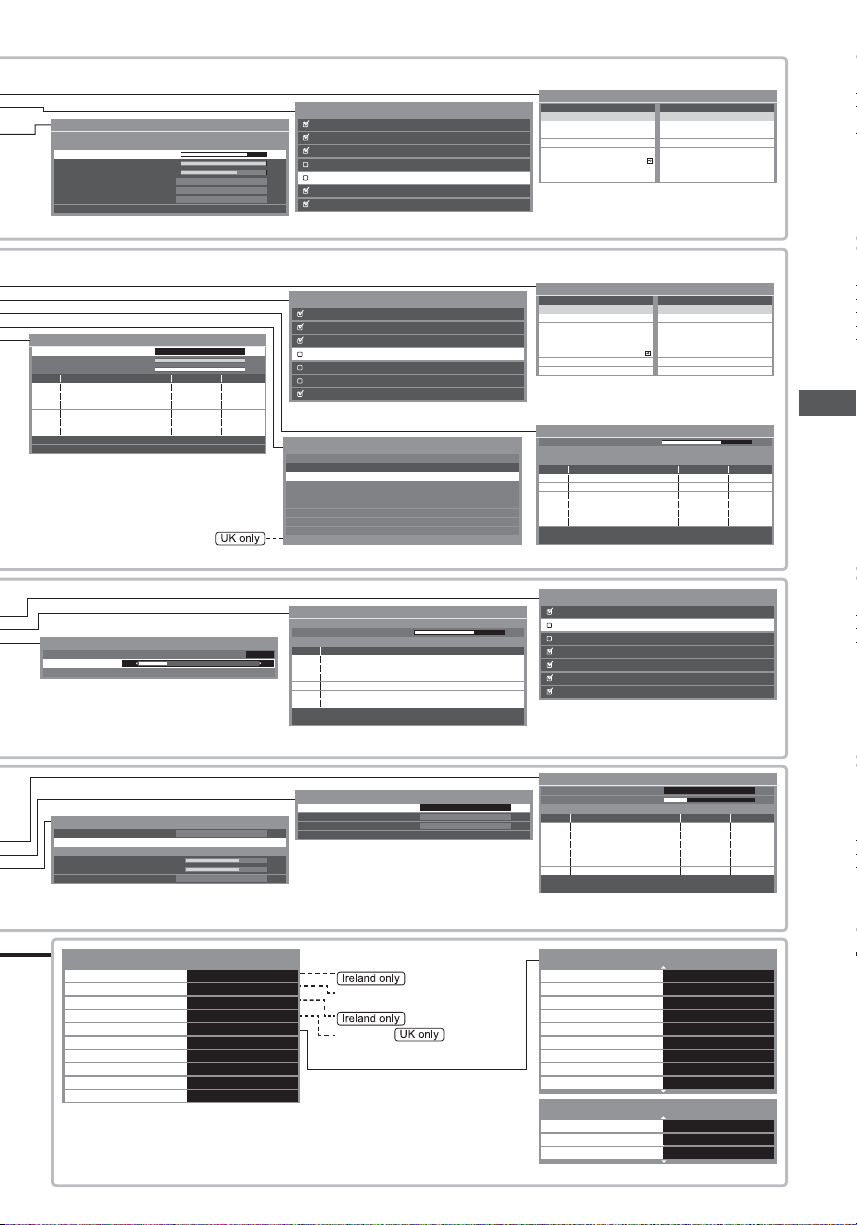

freesat Auto Setup

Searching

Signal Quality Signal Strength TV Channels Found Radio Channels Found Data Channels Found

Channels found, creating channel list

(p. 56)

0 0

8 2 1

freesat Channel List

101 BBC 1 Scotland 102 BBC 2 Scotland 103 stv

104 stv

108 BBC THREE

109 BBC FOUR 110 BBC HD

(p. 58)

freesat Favourites Editor

freesat Channels Favourites

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

(p. 58)

DVB Manual Tuning

Frequency

Signal Quality Signal Strength

No. Channel Name Type New

Free TV: 0 Pay TV: 0 Data: 0 Radio: 0

Searching

[CH21]

474,00 MHz 0 0

(p. 61)

Analogue Manual Tuning

Manual Tuning

Other Satellite Add New Channels - Satellite Selection

Satellite Selection

freesat and other channels Signal Quality Signal Strength Signal Lock Locked

(p. 63)

21 68

Store

Astra2/Eurobird

Continue

0 0

All DVB Channels

10 10

Channel Sorting by Region

GBR> Best signal quality (All Regions)

England Regions>

Region choice available

Analogue Auto Setup

Scan This will take about 3 minutes.

CH Channel Name

CH331 BBC1

29 30

(p. 61)

Analogue: 2

Other Satellite Manual Tuning

Transponder Frequency

Polarisation Horizontal Symbol Rate (Ksym/s) Auto

(p. 63)

10 10

70 CBBC Channel

72 Cartoon Nwk 105 BBCi

719 BBC Radio Wales

720 BBC Radio Cymru

1 BBC ONE Wales 7 BBC THREE

CH 21 68

Searching

Start Scan

10773

(p. 60)

(p. 57)

DVB Favourites Editor

All DVB Channels Favourites1

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

DVB Auto Setup

Progress

This will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 10Cartoon Nwk

Free TV

4 Pay TV: 0 Data: 0 Radio: 0

Analogue Channel List

Other Satellite Auto Setup

Satellite Progress This may take up to 20 minutes.

No. Channel Name Type

BBC 1 East (W)

BBC 1 Cl

BBC HD

3 4106945

Free TV:

4 Pay TV: 0 Radio: 0

(p. 62)

1 BBC1

2 *****

3 ***** 4 ***** 5 ***** 6 ***** 7 *****

CH 21 68

Free TV Free TV Free TV Free TV

Searching

Astra2/Eurobird

0% 100%

Free TV Free TV Free TV Free TV

Searching

(p. 59)

Quality

10 10 10

(p. 57)

(p. 60)

Quality

10 10 10

How to Use Menu Functions

Display Settings

imeout

Preferred Subtitle Teletext Teletext Character Set Preferred Subtitles Input Labels Banner Display VIERA Connect Banner

Radio Mode Channel Transition Effect

ype

Standard FASTEXT West English Access 3 seconds On On Playing Time Display Of

(p. 50)

For Analogue

For DVB

Input Labels

AV1 AV2 PC HDMI1 HDMI2 HDMI3 HDMI4 freesat Satellite Satellite

DVD AV2 PC HDMI1 HDMI2 HDMI3 HDMI4 freesat

Input Labels

DVB Analogue Other Sat.

(p. 50)

1/2

2/2

Page 56

Retuning from Setup Menu

Automatically retune the channels received in the area.



This function is available if channel tuning is already performed.



Only the selected mode is retuned. All the previous tuning settings are erased.



If Child Lock PIN number (p. 66) has been set, the PIN number is required.

freesat channels

Select freesat

(p. 22)

Display the menu and select [Setup]

Select [freesat Tuning Menu]

Select [Auto Setup]

Retuning from Setup Menu

freesat Tuning Menu Access

freesat Tuning Menu

Auto Setup Access

Setup

select

access

select

access



The displayed item depends on the selected mode.

select

access

Start Auto Setup (Settings are made automatically)

freesat Auto Setup

All freesat tuning data will be erased

Enter your postcode

Enter Postcode for local channels including space

Postcode

select

set



You can set characters by using numeric buttons.

When the operation is completed, the channel at the lowest position will be displayed.

(green)

freesat Auto Setup

Searching

Signal Quality Signal Strength TV Channels Found Radio Channels Found Data Channels Found

Your postcode is required to receive local services and sort the channel order. Please ensure to include a space when entering your postcode.

(p. 114)

Channels found, creating channel list

0 0

8 2 1

10 10

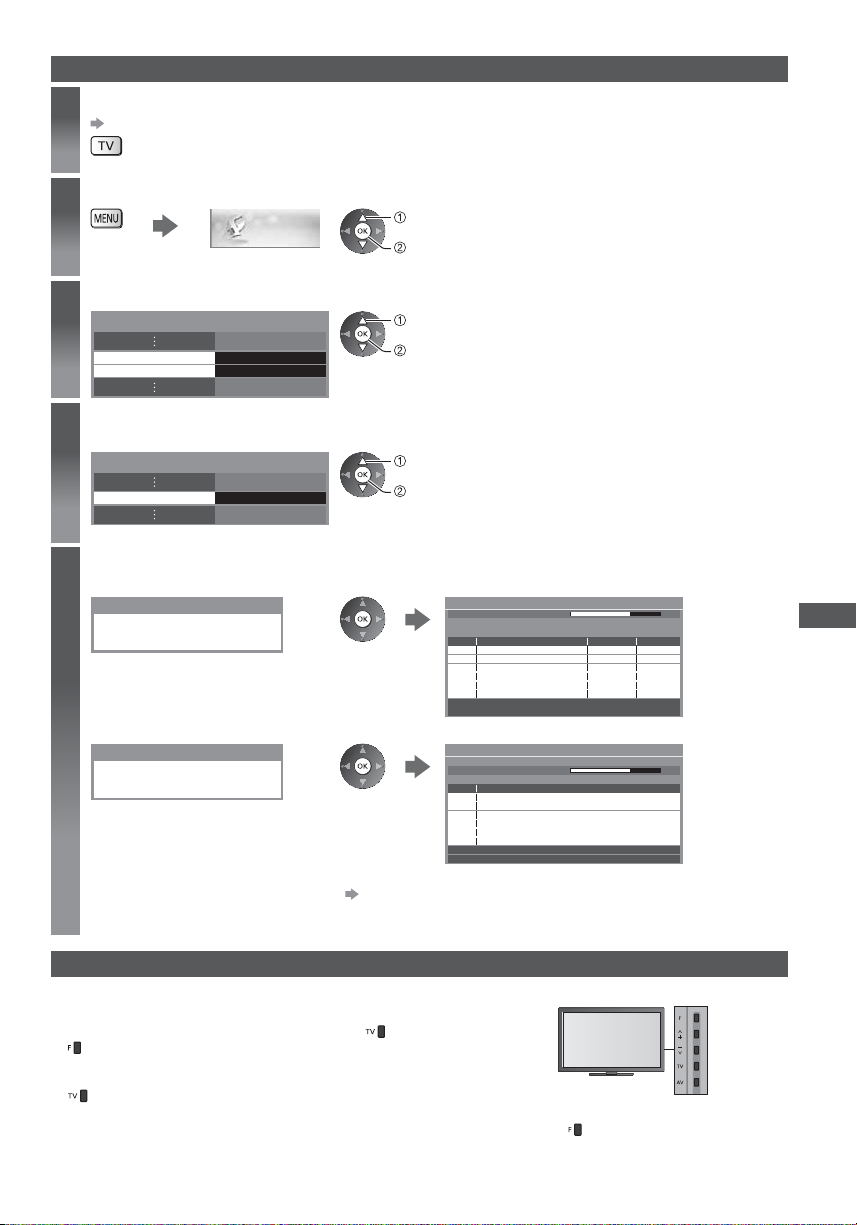

Page 57

DVB or Analogue channels

Select the mode

(p. 22)

Display the menu and select [Setup]

Select [DVB Tuning Menu] or [Analogue Tuning Menu]

Select [Auto Setup]

Example:

Start Auto Setup (Settings are made automatically)

Example: DVB

Example: Analogue

DVB Tuning Menu Analogue Tuning Menu

DVB Tuning Menu

Auto Setup Access

DVB Auto Setup

All DVB tuning data will be erased

Analogue Auto Setup

All analogue tuning data will be erased

Access Access

Setup

select

access

select

access



The displayed item depends on the selected mode.

select

access

DVB Auto Setup

Progress

This will take about 3 minutes.

CH Channel Name Type

CBBC Channel

BBC Radio Wales

62 62 10Cartoon Nwk

Free TV

4 Pay TV: 0 Data: 0 Radio: 0

Analogue Auto Setup

Scan This will take about 3 minutes.

CH Channel Name

29 30

CH 21 68

Searching

CH 21 68

Free TV Free TV Free TV Free TV

Quality

10 10 10

Retuning from Setup Menu

Analogue: 2



The analogue settings are downloaded to a Q-Link compatible equipment connected to the TV in Analogue mode.



If tuning has not been done completely

[Manual Tuning] (p. 61)

Searching

When the operation is completed, the channel at the lowest position will be displayed.

Auto setup using the buttons on the TV

For Auto Setup, using the buttons on the TV (p. 13)

1 Press the F button repeatedly until [Auto

Setup] appears

3 Start [Auto Setup]

2 Access [Auto Setup]



To return to TV



Control panel OSD appears when pressing the control panel button.

Page 58

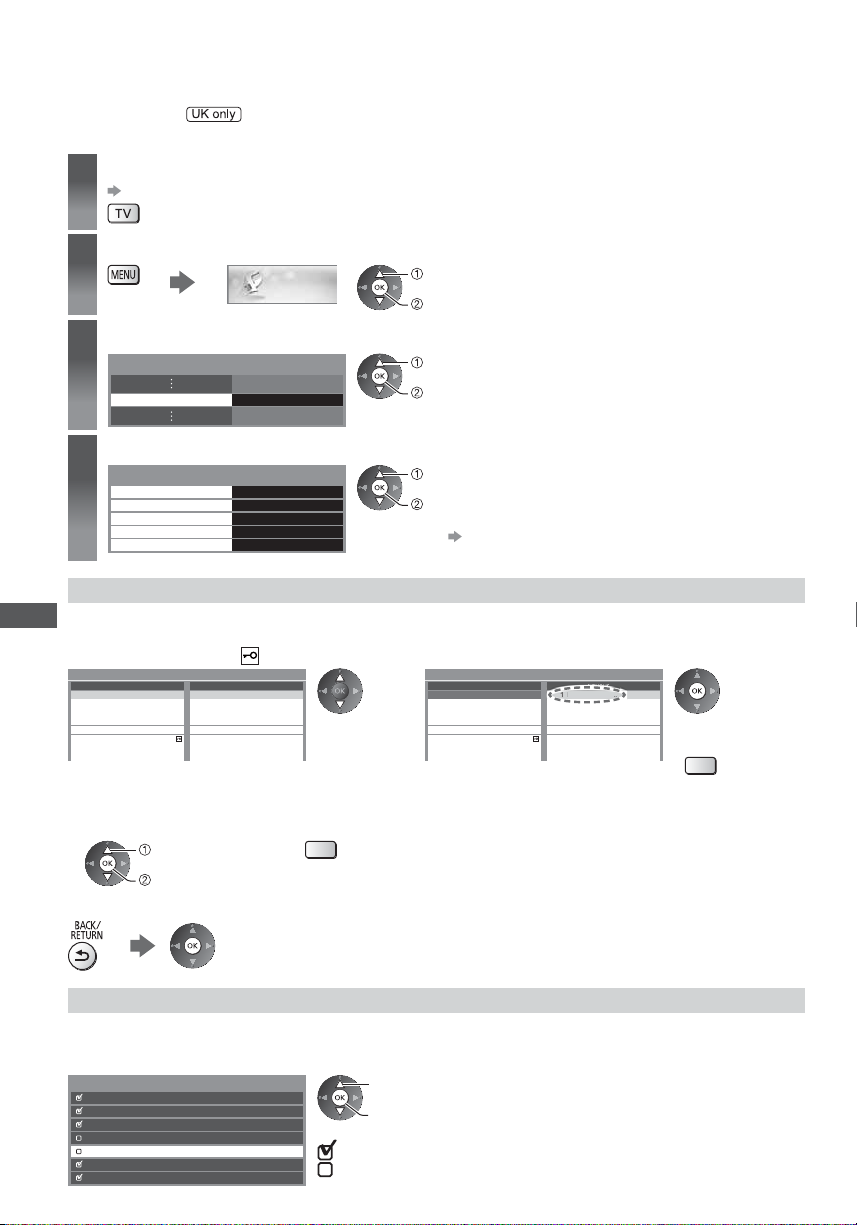

Tuning and Editing Channels

e Wale

ites

(freesat)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select freesat

(p.22)

Display the menu and select [Setup]

Select [freesat Tuning Menu]

Select one of the following functions

List favourite freesat channels [Favourites Edit]

Create your favourite channel list from various broadcasters. The freesat Favourites list is available for switching from [Channel Genre] in the TV Guide screen (p. 27).

Tuning and Editing Channels

1 Select a channel to list ( : Encrypted channel)

freesat Favourites Editor

freesat Channels Favourites

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

 To edit Favourites list

While the cursor is in the Favourites field to edit



To delete a channel

3 Store

freesat Tuning Menu Access

freesat Tuning Menu

Favourites Edit Channel List Regional Channel Edit Auto Setup

Access Access Access Access Access Signal Condition

select

delete

Setup



To delete all channels

(yellow)

select

access

select

access

select

access



[Auto Setup] “Retuning from Setup Menu” (p. 56)

2 Add it to the Favourites list

freesat Favourites Editor

freesat Channels Favourites

1 BBC One Wales

7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

BBC On

1 BBC One Wales



To add all channels to the list

(yellow)

Skip unwanted freesat channels [Channel List]

You can hide unwanted freesat channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and [Reveal] / [Hide]

freesat Channel List

101 BBC 1 Scotland 102 BBC 2 Scotland 103 stv 104 stv

108 BBC THREE

109 BBC FOUR 110 BBC HD

: [Reveal] : [Hide] (skip)

select

[Reveal] / [Hide]

Page 59

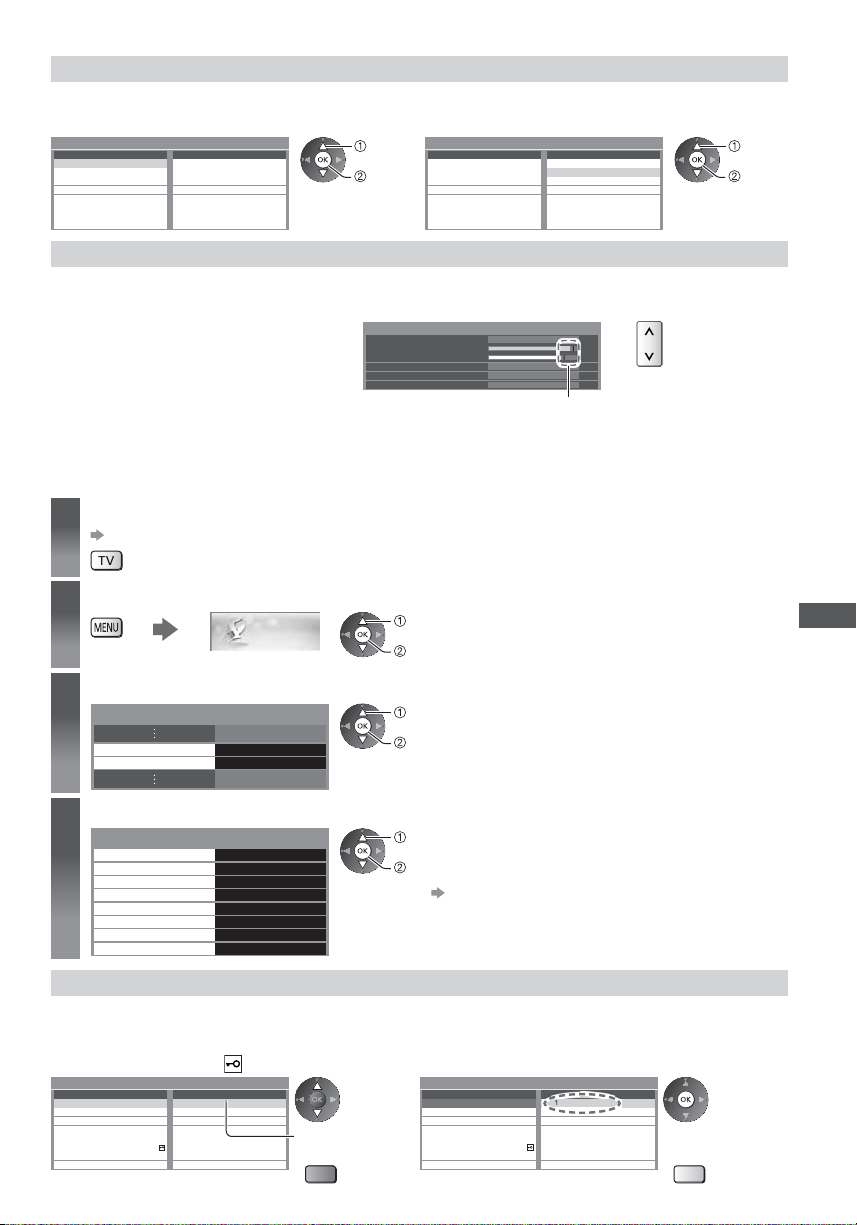

Replace the regional channels [Regional Channel Edit]

e Wale

You can replace some regional channels with the available channels from another region channel. (if available)

1 Select the channel to replace 2 Select the channel to be replaced

freesat Regional Channels Editor

freesat Regional Channels Alternative Regional Channels

101 BBC 1 London 102 BBC 2 England

101 BBC 1 Scotland 101 BBC 1 Wales 101 BBC 1 East

select

set

freesat Regional Channels Editor

freesat Regional Channels Alternative Regional Channels

101 BBC 1 London

102 BBC 2 England

101 BBC 1 Scotland 101 BBC 1 Wales 101 BBC 1 East

select

replace

Check freesat signal [Signal Condition]

Selects a channel and checks the freesat signal condition.

A good Signal Strength is not an indication of best signal for freesat reception. Use the Signal Quality indicator as follows.



Green bar: Good



Yellow bar: Poor



Red bar: Bad (Check the Satellite dish)

Example:

freesat Signal Condition

Channel Name Signal Quality Signal Strength Bit Error Rate Satellite Frequency

101 BBC 1 Wales 0 0

0.00E+00

Astra 28.2° E

10847MHz, V, 22000kS/s

These bars show the maximum signal value of the selected channel.



To change the channel

9 8

(DVB / Analogue)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select the mode

(p. 22)

Display the menu and select [Setup]

Select [DVB Tuning Menu] or [Analogue Tuning Menu]

Select one of the following functions

List favourite DVB channels [Favourites Edit]

Create your favourite channel lists from various broadcasters (up to 4: [Favourites]1 to 4). The DVB Favourites lists are available for switching in the Information banner (p. 23) and from [Category] in the TV Guide screen (p. 26).

1 Select a channel to list ( : Encrypted channel)

DVB Favourites Editor

All DVB Channels Favourites1

1 BBC One Wales 7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

DVB Tuning Menu Analogue Tuning Menu

DVB Tuning Menu

Favourites Edit Channel List Auto Setup Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

Access Access

Access Access Access Access Access Access On Access

Setup



To display other Favourites

select

access

select

access

select

access



[Auto Setup]

“Retuning from Setup Menu” (p. 57)

2 Add it to the Favourites list

DVB Favourites Editor

All DVB Channels Favourites1

1 BBC One Wales

7 BBC THREE

14 E4

CBBC Channel70

72 Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

(green) (yellow)

Favourites

1 BBC One Wales



To add all channels to the list

Tuning and Editing Channels

Page 60

 To edit Favourites list

While the cursor is in the Favourites field to edit



To move the channel

(green)

Select the new position



To name the Favourites

Select the

turn

Store

(green)



To delete the channel



To delete all channels

(yellow)

Set characters (maximum 10 characters) Store

3 Store

(red)

User input

Name



To use numeric buttons

(p. 114)

select

set

Note



Channel position numbers (known as logical channel numbers) can be swapped in Channel List. To swap the channel position number

[Channel List] (see below)

Skip unwanted channels, Edit Channels [Channel List]

You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function.

Select a channel and reveal / hide

Example: DVB

All DVB Channels

70 CBBC Channel

72 Cartoon Nwk 105 BBCi

719 BBC Radio Wales

Tuning and Editing Channels

720 BBC Radio Cymru

1 BBC ONE Wales 7 BBC THREE

: [Reveal]

: [Hide] (skip)

select

[Reveal] / [Hide]



To reveal all channels

(yellow)

 To edit channels



To swap the channel position number (logical channel number) (DVB)

Enter the new position number

Store

(green)



To retune each channel

(red)



To rename the channel name (Analogue)

(blue)

[Manual Tuning] (p. 61) (only for the revealed channels)

Set characters (maximum 5 characters)

Edit channel name

Name



To use numeric buttons

(p. 114)

Note



If a VCR is connected only with the RF cable in Analogue mode, edit [VCR].

Sort DVB channels according to the region [Channel Sorting by Region]

You can sort DVB channels so that those with the best signal quality, or those for your preferred region, appear nearer the top of your Channel List. Normally, you should select [Best signal quality (All Regions)].

Channel Sorting by Region

GBR> Best signal quality (All Regions)

England Regions>

Region choice available

select region

access



If you choose to select your preferred region, you could find channels with a weaker signal appear nearer the top of your Channel List. If you have any image or sound problems, select [Best signal quality (All Regions)] instead.

Example: Analogue

ITV

CH23 SC1

Channel name

Channel position

Store

select

set

(select repeatedly until you reach the available region)

23:35

All Analogue Channels

Page 61

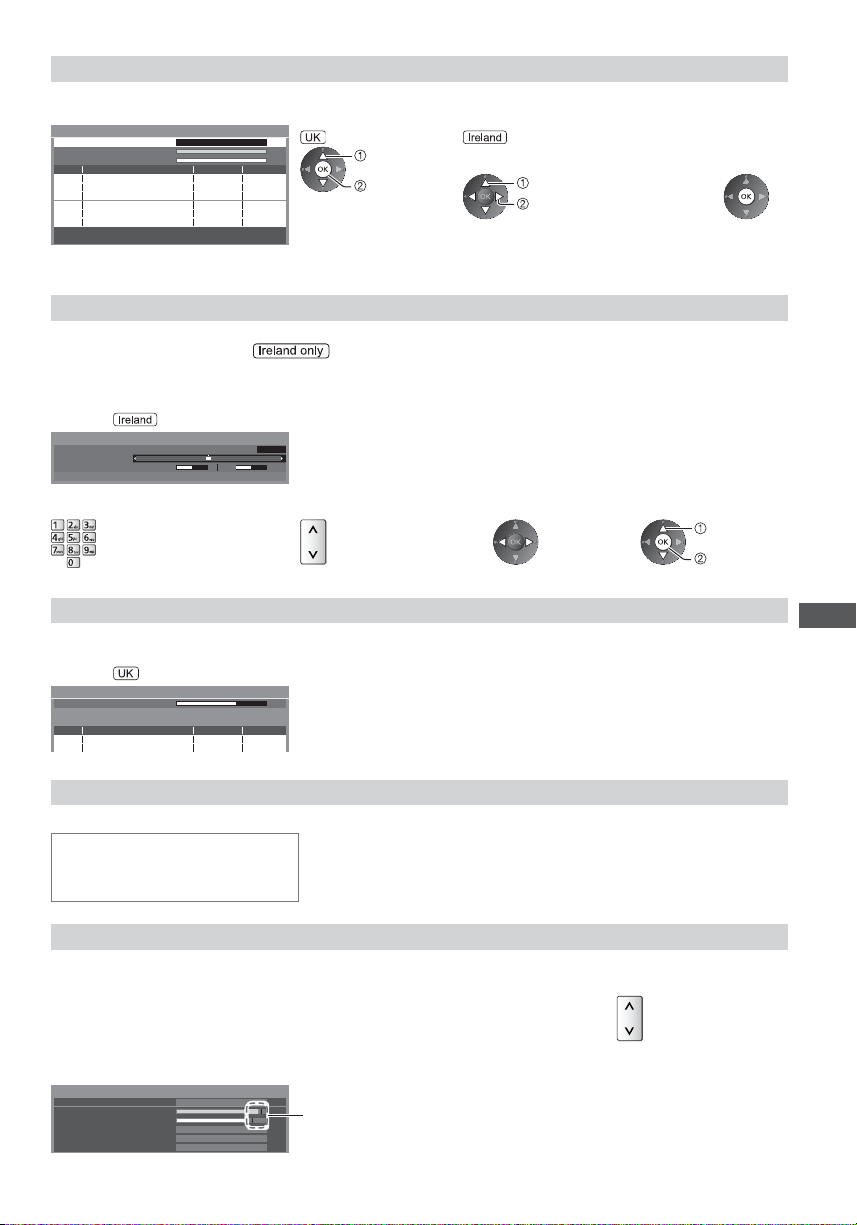

Set DVB channel manually [Manual Tuning]

Normally use [Auto Setup] or [Update Channel List] to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial, use this function.

DVB Manual Tuning

Frequency

Signal Quality Signal Strength

Channel Name Type New

No.

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0



All channels found will be added to the Channel List.

0 0

Searching

[CH21]

474,00 MHz

10 10

select

frequency

1 Adjust frequency for each channel 2 Search

select channel adjust frequency



Set where the level of [Signal Quality] becomes the maximum.

Set Analogue channel manually [Manual Tuning]

[Fine Tuning]: Use to make small adjustments to the tuning of an individual programme (affected by weather

[Manual Tuning]: Set Analogue channel manually after Auto Setup.



If a VCR is connected only with the RF cable, select channel position [0].

Example:

Analogue Manual Tuning

Fine Tuning Manual Tuning

conditions, etc.).

CH 1 99 41H: 21

Store

CH331 BBC1

1 Select the channel position 2 Select the channel 3 Search 4 Select [Store]

select

store

Update DVB channel automatically [Update Channel List]

You can add new channels, delete removed channels, update channel name and position automatically to the channel list.

Example:

DVB Update Channel List

Progress

This will take about 3 minutes.

CH Channel Name Type Quality

CH 21 68



The channel list is updated while keeping your settings in [Favourites Edit], [Channel List], [Child Lock], etc.



Depending on the signal condition, the update may not work properly.

Tuning and Editing Channels

Display a notification message [New Channel Message] (DVB)

Selects whether to give a notification message when a new DVB channel is found.

New channels found!

Press OK to update channel list.

Press EXIT to ignore.



Selecting OK will perform [Update Channel List].

Check DVB signal [Signal Condition]

Selects a channel and checks the DVB signal condition. A good Signal Strength is not an indication of suitable signal for DVB reception.

Use the Signal Quality indicator as follows.



Green bar: Good



Yellow bar: Poor



Red bar: Bad (Check the Terrestrial aerial)

Example:

DVB Signal Condition

Channel Name Signal Quality Signal Strength Bit Error Rate Network Name Frequency

70 CBBC Channel 0 0

0.00E+00

Wenvoe

802,00 MHz [CH62]

These bars show the maximum signal value of the selected

channel.



To change the channel

Page 62

(Other Sat.) / (Satellite)

You can tune all receivable digital satellite channels and create your channel list, etc.



Some of Other Sat. / Satellite functions may work to differing specifications (depending on the broadcasters).

Select freesat or Other Sat. / Satellite

(p. 22)

Display the menu and select [Setup]

Select [Other Sat. Tuning Menu] / [Satellite Tuning Menu]

Select one of the following functions

Set all receivable digital satellite channels [Auto Setup]

Any receivable digital compliant satellite channels can be tuned.



Only Other Sat. / Satellite channels are tuned or retuned.



All the previous tuning settings are erased.



If a Child Lock PIN number (p. 66) has been set, it must be entered.

Tuning and Editing Channels

1 Select the satellite and then select [Start]

Other Satellite Auto Setup - Satellite Selection

Satellite Selection Astra2/Eurobird

freesat and other channels



Selectable satellites are Astra2/Eurobird, Astra1 and Hotbird.



If you want to tune from all available satellites, select [Any Satellite].

2 Check the signal condition and the message

Other Satellite Auto Setup - Satellite Selection

Satellite Selection freesat and other channels Signal Quality Signal Strength Signal Lock Locked

If you select [Any Satellite], this step is skipped.



It takes a while to check the connection for your selected satellite.



Ensure that the Signal Lock status is shown as “Locked”. If it is not locked, the search cannot be executed.



If the status is shown as “Not locked” and Signal Quality / Signal Strength have no indications, please check the dish alignment. If the status is shown as “Not locked” but there are some levels of Signal Quality / Signal Strength indicated, select [Any Satellite] in Satellite Selection and try again.

3 Select the search mode and start Auto Setup (Settings are made automatically)

Search Mode

Free Channels All Channels

When the operation is completed, the channel at the lowest position will be displayed.

Other Sat. Tuning Menu Access

Other Satellite Tuning Menu

Channel List Auto Setup Manual T

uning Add New Channels Signal Condition

Start

Astra2/Eurobird

0 0

Access Favourites Edit Access Access Access Access Access

select

start

10 10

Setup

select

access

select

access

select

access

select

set

Other Satellite Auto Setup

All Other Satellite tuning data will be erased

Other Satellite Auto Setup

Satellite Progress This may take up to 20 minutes.

No. Channel Name Type

BBC 1 East (W)

BBC 1 Cl

BBC HD

3 4106945

: 4 Pay TV: 0 Radio: 0

Free TV

Astra2/Eurobird

0% 100%

Searching

Free TV Free TV Free TV Free TV



Check the dish alignment for the satellite to select

• Astra2/Eurobird

(p. 14)

• Astra1, Hotbird Please consult the received

satellite broadcasting companies.



If you select [Astra2/ Eurobird] or [Any Satellite], freesat channels will also be

Quality

10 10 10

searched.

Page 63

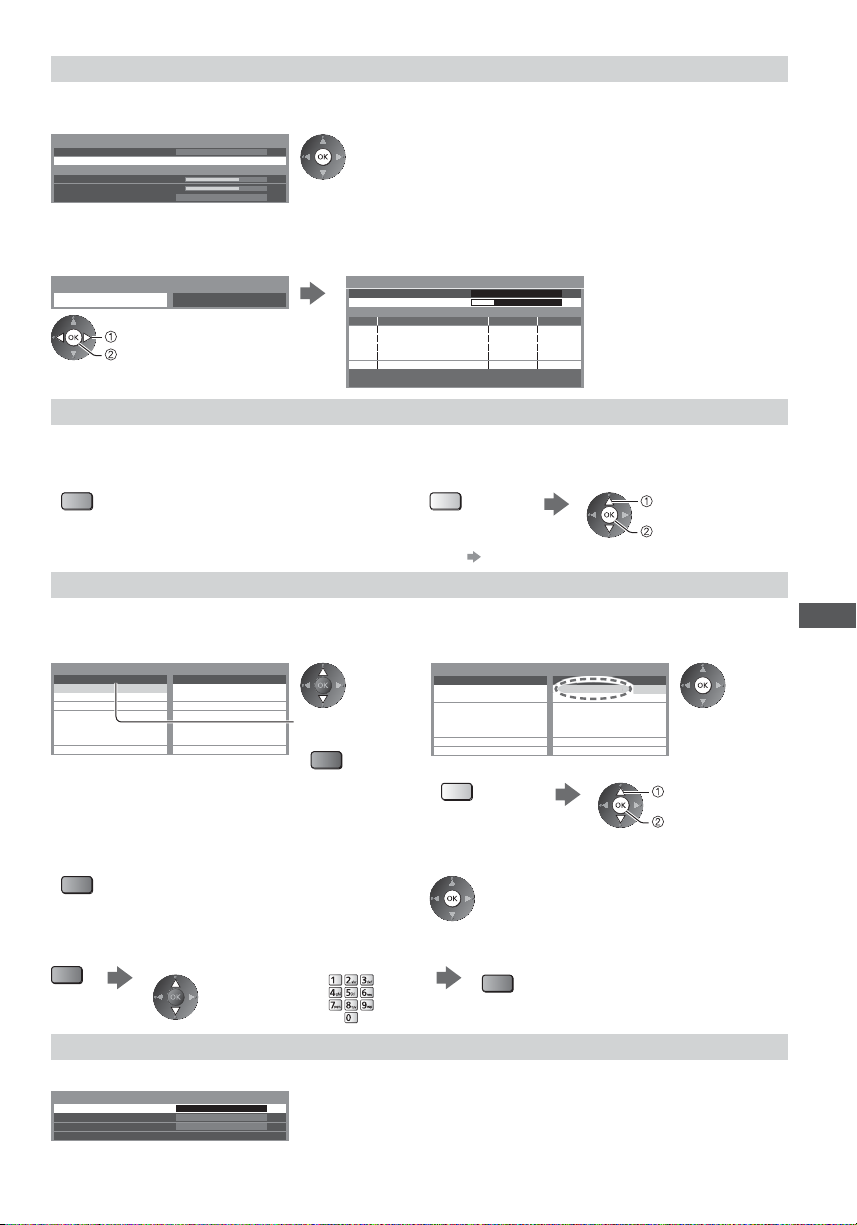

Add Other Sat. / Satellite channels automatically [Add New Channels]

You can add any new channels found automatically to Channel List.

1 Check the signal condition

Other Satellite Add New Channels - Satellite Selection

Satellite Selection

freesat and other channels Signal Quality Signal Strength Signal Lock Locked

Astra2/Eurobird

Start

0 0

10 10

If you selected [Any Satellite] in Auto Setup, this step is skipped.



It takes a while to check the connection for your selected satellite.



Ensure that the Signal Lock status is shown as “Locked”. If it is not locked, the search cannot be executed.



If the status is shown as “Not locked” and Signal Quality / Signal Strength have no indications, please check the dish alignment.

2 Select the search mode and start Add New Channels

Search Mode

Free Channels All Channels

select

start

Other Satellite Add New Channels

Satellite

Progress

This may take up to 20 minutes.

Channel Name Type Quality

No.

Free TV: 0 Pay TV: 0 Radio: 0

Astra2/Eurobird

0% 100%

Searching



New channels can only be added to the existing Channel List from the same satellite.

List favourite Other Sat. / Satellite channels [Favourites Edit]

Create your favourite channel lists from various broadcasters (up to 4: [Favourites]1 to 4). The Other Sat. / Satellite Favourites lists are available for switching in the Information banner (p. 23)



To change the category

(blue) (yellow)



As for the other operations, refer to “List favourite DVB channels” (p. 59)



To add continuous block of channels to the list at once

make the block

add

Create the channel list of Other Sat. / Satellite [Channel List]

Create your channel list of Other Sat. / Satellite for viewing from all the found channels to exclude the duplicated channels or to reduce the number of channels. And then you can select your desired channels easily.

1 Select a channel to list 2 Add it to the list

Other Satellite Channel List Editor

Channels Found - All Channels for Viewing

BBC One Wales BBC THREE E4 CBBC Channel Cartoon Nwk BBCi BBC Radio Wales BBC Radio Cymru



To delete the selected channel from the list of [Channels Found]

(green)



To move the selected channel in the list of [Channels for Viewing]

Select the new position

(green)



To change the category

(red)

Other Satellite Channel List Editor

Channels Found - All Channels for Viewing

BBC THREE E4 CBBC Channel Cartoon Nwk BBCi BBC Radio Wales BBC Radio Cymru



To add continuous block of channels to the list at once

(yellow)



To exclude the selected channel from the list of [Channels for Viewing]

Select the turn Store

(green)

hannels for View

1 BBC One WalesBBC One Wales

1 BBC One Wales

make the block

add

Set Other Sat. / Satellite channel manually [Manual Tuning]

Normally use [Auto Setup] or [Add New Channels] to tune Other Sat. / Satellite channels.

Other Satellite Manual Tuning

Transponder Frequency

Polarisation Horizontal Symbol Rate (Ksym/s) Auto

10773

Start Scan



Set tuning parameters for the required satellite, details can usually be found in a satellite TV magazine.

Tuning and Editing Channels

Page 64

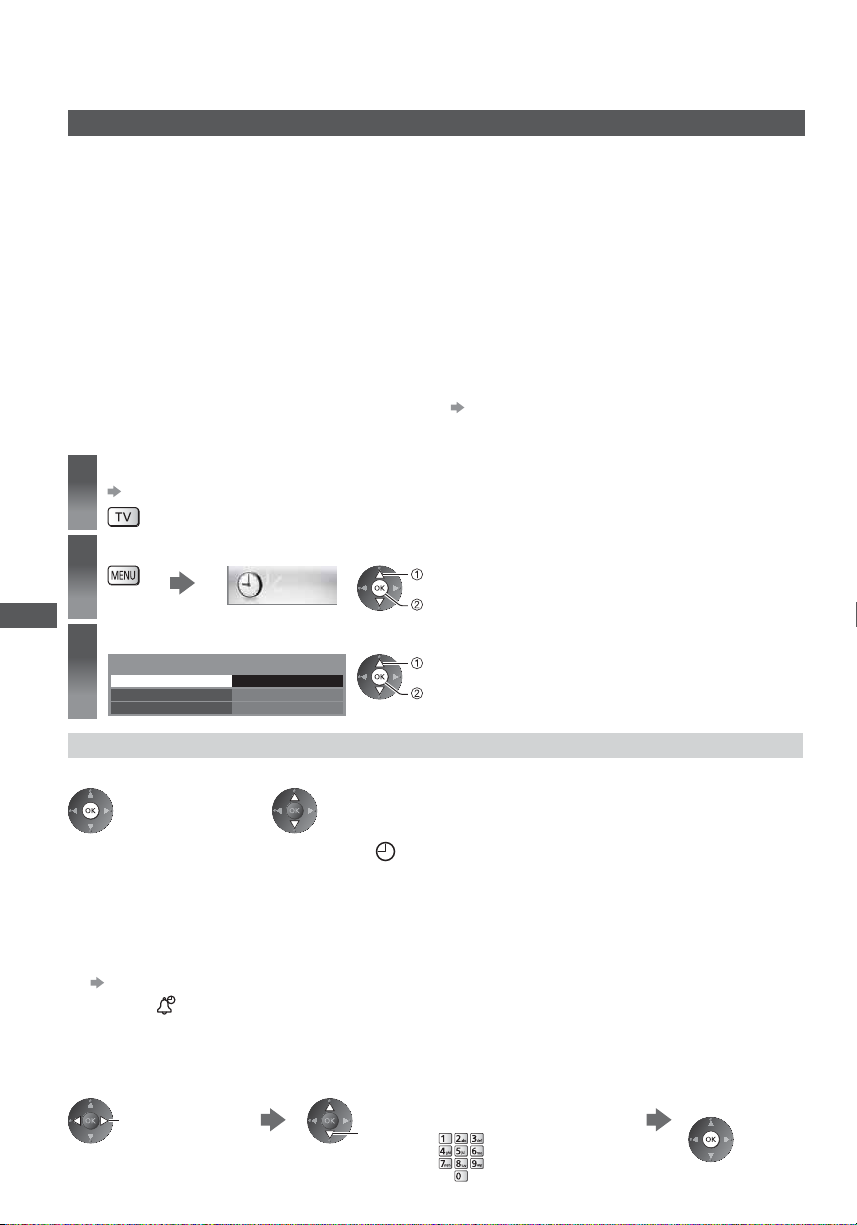

Timer Programming

Timer Programming from Menu



Timer Programming can store up to 15 events.



Timer Programming only works reliably if correct time information is received via the signal from the broadcaster or

service provider.



For recording using Timer Programming, the TV must be either on or in Standby. For reminders to be displayed, the

TV must be on.



No other channel can be selected while the recording of Timer Programming is in progress.



Recording an encrypted (copy-protected) programme may not be possible.



When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected

to the TV

. If a recorder compatible with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 99, 100)

and [Link Settings] (p. 49) are completed, no setting of the recorder is required. Also read the manual of the recorder.



If the recorder is not compatible with Q-Link, VIERA Link or similar technologies, make timer programming of the

recorder. For preparations of a recorder, read the manual of the recorder.



For more information of the USB HDD / SD Card Recording



Recording to the external equipment via SCART is always in standard definition (composite video), even if the

original programme is in high definition.

Select the tuner you want to use

(p. 22)

Display the menu and select [Timer]

Timer Programming

Select [Timer Programming]

Off Timer Auto Standby

Access Timer Programming Off Off

Timer

(p. 74, 110)

select

access

select

access

Set timer programming event details

Start making the settings

[Ext Rec.] / [USB HDD Rec.] / [SD Card Rec.] : Records the programme to the external recorder, the USB HDD

When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minutes before the starting time, a reminder message appears if you are watching TV. For [USB HDD Rec.] and [SD Card Rec.], you can select a recording mode: [DR]: Direct recording (normal mode) [LT1]: Long time recording [LT2]: Extra long time recording

“Recording time for the USB HDD / SD Card Recording” (p. 111)

[Reminder]

When you are watching TV, a reminder message appears 2 minutes before the start time. Press the OK button to switch to the programmed channel.

: Reminds you to watch the programme.

2 Select the function ([Ext Rec.], [USB HDD Rec.], [SD Card Rec.] or [Reminder])

or the SD Card.

3 Set the channel, date and time (repeat the operations as below)

Set items in the order of 1 to 4.

select the item

set



1, 3 and 4 can also be entered with numeric buttons.

Store

Page 65

: Overlapped timer programming events

Timer programming - Programmes according to the time setting

Timer Programming

Function No. Date Start End Channel Name

Ext Rec.

72 BBC 2W 20:00 21:30

Reminder

Ext Rec.

<TIMER>

14 E4

The Bill

1 BBC ONE

DIY SOS

BBC ONE

<TIMER>

------ --:----:-- --:--

1 Channel number

: freesat / D: DVB / A: Analogue / S: Satellite



You cannot change the mode within the menu.

: DVB / A : Analogue / S : Other Sat.

STTL

Guide

S/P

Wed 26 Oct 2011 10:46

Wed 26 Oct

21:00 22:00

Wed 26 Oct

22:45 23:00

Thu 27 Oct

10:30 11:30

(90 min.)

(60 min.)

(15 min.)

(60 min.)

4 Ending time

3 Starting time

Duration (automatic display) Records with subtitles (if available)



To indicate this

( Press again to remove subtitles)

(yellow)

2 Date

one day ahead

daily or weekly (press repeatedly)



[Daily Sun-Sat]: Sunday to Saturday



[Daily Mon-Sat]: Monday to Saturday



[Daily Mon-Fri]: Monday to Friday



[Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun]: Same time on the same day every week

Guide

: Guide link programming - Programmes according to the TV Guide signal (p. 29)

: Split Programme programming (p. 29)

S/P



These functions are not available in Analogue mode or Other Sat. mode.

Guide link programming is

imer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change. A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes. Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

 To edit a timer programming event



Select the event



To record with subtitles (if available)

(yellow)



To cancel a timer programming event temporarily

(blue)

Each time pressed:

•

auto

Each time pressed:

•

cancel

off

stop cancelling

To change a timer programming event

Correct as necessary (p. 64)



To delete a timer programming event

(red)

 To unlock the tuner and stop recording  To view details of the programming (only for

Guide link programming)

Select the programme

Note



Check that the LED is orange. If not, timer programming events are not active or not stored.



Timer Programming reminder messages will remain displayed until one of the following occurs:

You press the OK button to view the programme or the EXIT button to cancel the reminder.

•

The timer programming event that the reminder is set for ends.

•



“!” identifies that two or more timer programming events are overlapped. [Ext Rec.], [USB HDD Rec.] and [SD Card Rec.] are given priority over [Reminder]. As for the overlapped recording events, the first event starts and finishes as programmed.



The recording of Timer Programming will automatically change to the programmed channel a few seconds before the start time.



To stop recording the timer programming event, it may be necessary to stop the recorder manually.



The recording of Timer Programming will be performed even if the TV is in [Rewind LIVE TV] recording (p. 77) or [Pause Live TV] recording (p. 102). In this case, [Rewind LIVE TV] recording or [Pause Live TV] recording will be cancelled.



2 minutes before the starting time, a reminder message appears if you are watching TV.

To remove the message and start the programming

•

The next event can then start.

To cancel the programming

•



Press again to return to Timer Programming menu.

Timer Programming

Page 66

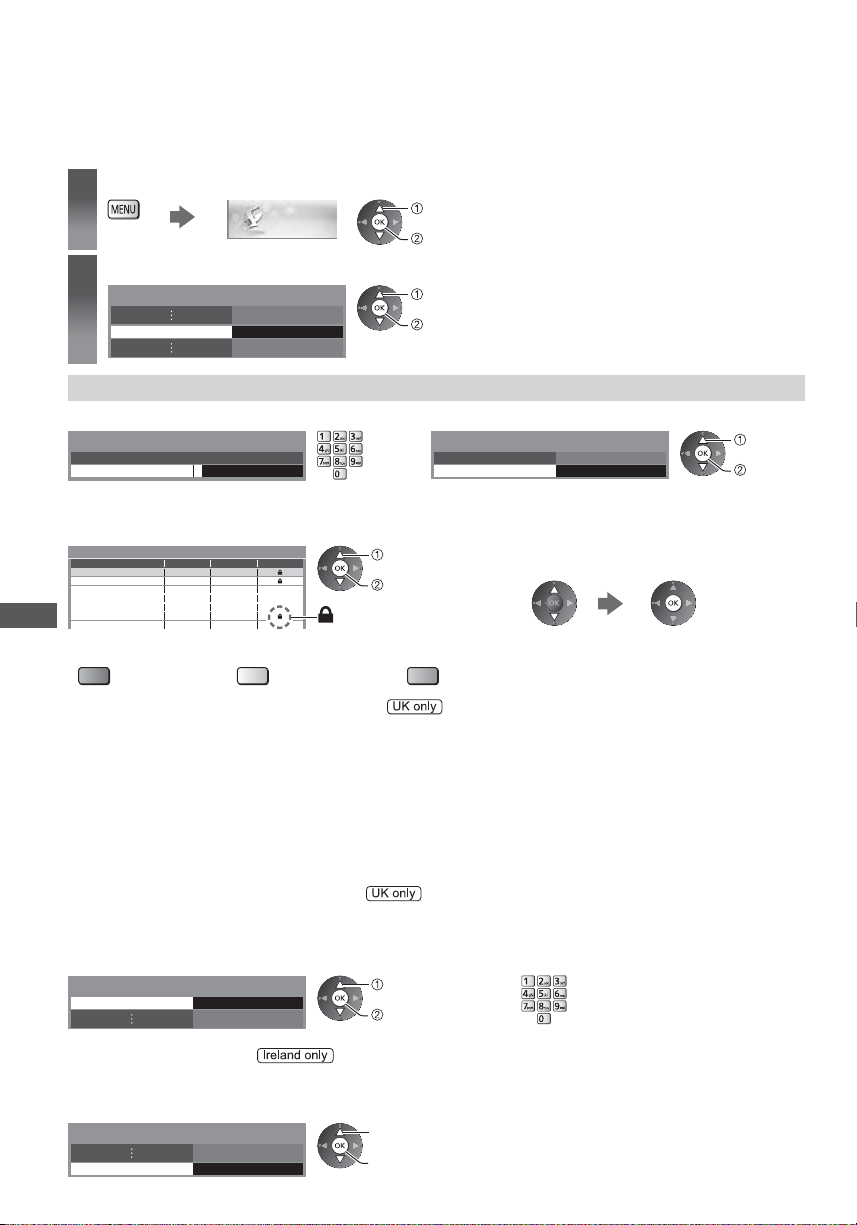

Child Lock

You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch.



Setting [Shipping Condition] (p. 67) erases the PIN number and all settings.

Display the menu and select [Setup]

Select [Child Lock]

Control channel audience [Child Lock]

Enter the PIN number (4 digits) 2 Select [Child Lock List]

Child Lock-PIN Entry

Please enter new PIN



Enter the PIN number twice at first setting.



Make a note of the PIN number in case you forget it.

3 Select the channel / input to be locked

Child Lock List - TV and AV

Name Input

101 BBC 1 Wales

7 BBC THREE

14 E4C

VCR

1 BBC1 2 *****

AV1 AV

Child Lock



To lock all

(green) (yellow)



In freesat mode, additional lock items will appear.

[freesat Adult Channels]: Select “Hide” to hide channels of the adult genre in TV Guide and Channel List. All the

[freesat Players]: Locks freesat content supplied through the internet.

Unlock: With this setting selected, you will not be required to enter your 4 digit child lock PIN when viewing freesat

Lock Guidance Content: With this setting selected, you will be asked to enter your 4 digit child lock PIN whenever

Lock All Content: With this setting selected, you will be required to enter your 4 digit child lock PIN every time you



In DVB mode, additional lock item will appear. [Freeview Players]: Applies access control for some MHEG services.

 To change the PIN number

1. Select [Change PIN] 2. Enter a new PIN number twice

Child Lock

Change PIN

 To set Parental Rating

To watch the DVB programme that has the rating information over the selected age, enter the PIN number to watch (depending on the broadcaster).

Select [Parental Rating] and set an age for the restriction of programmes.

Child Lock

Parental Rating

Child Lock Access

* * * *

Type

Free TV

DVB

Free TV

DVB

Free TV

DVB

Analogue

Analogue External



To cancel all locks

Setup

Lock

Timer Programming events of the adult genre will be cancelled.

Player content. This is the default setting.

you want to watch freesat Player content which is signalled as “Guidance” (i.e. originally broadcast post watershed).

want to watch freesat Player content.

Access

No limit

: Appears when the

channel / input is locked

select

access

select

access

Child Lock

Change PIN

Child Lock List

select

lock



To jump to the top of the next input

(blue)

select

access

select

access / store



To cancel

Access

Select the locked channel / input

select

access

Page 67

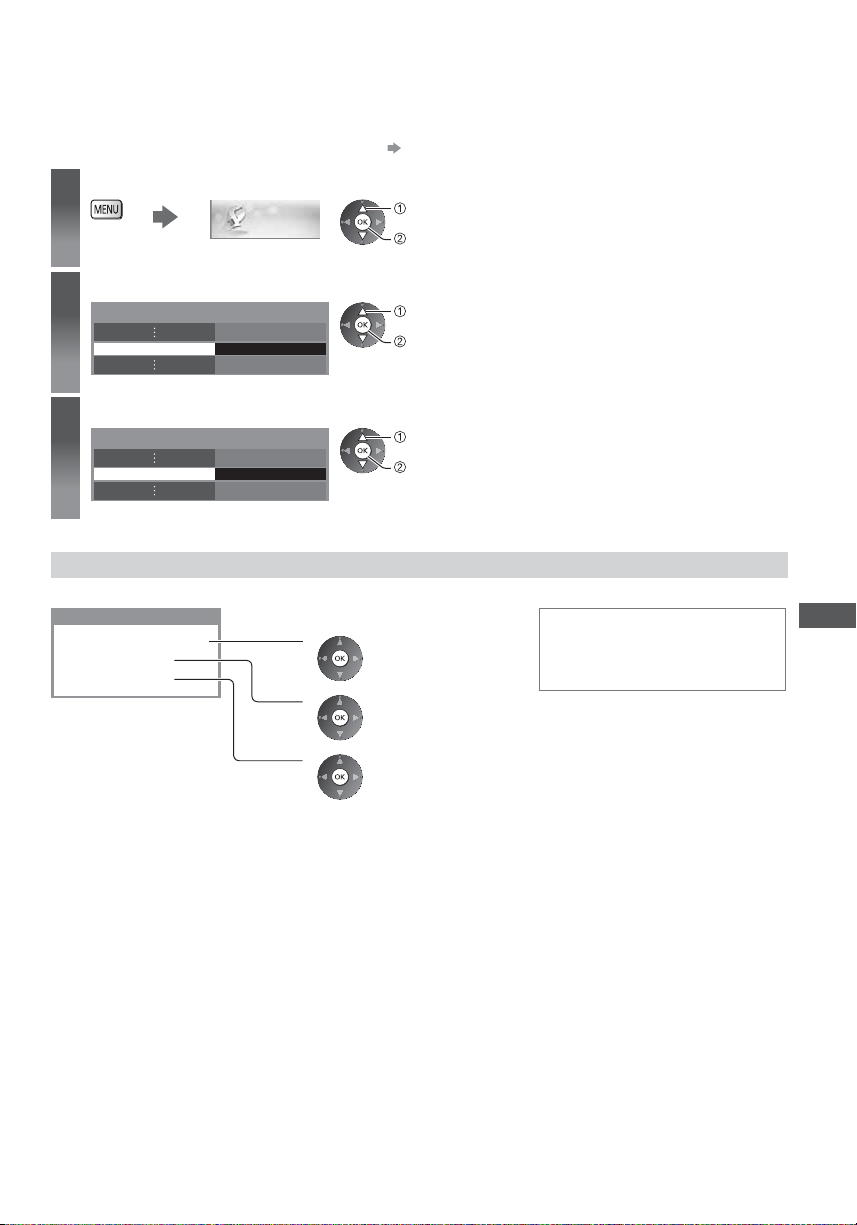

Shipping Condition

Resets the TV to its original condition, i.e. no channels tuned in. All settings other than [Owner ID] and [USB HDD Setup] are reset (channels, picture, sound settings, etc.).



To retune TV channels only, e.g. after moving house

Display the menu and select [Setup]

Select [System Menu]

Select [Shipping Condition]

System Menu Access

System Menu

Shipping Condition Access

Setup

Restore Settings [Shipping Condition]

Check the message and initialise 2 Follow the on-screen instructions

Shipping Condition

All tuning data will be erased

Are you sure ?

“Retuning from Setup Menu” (p. 56, 57)

select

access

select

access

select

access

Reset to Factory Shipping Condition

(Confirm)

(Start [Shipping Condition])



[Auto Setup] will automatically start. (p. 17)

Completed.

TV will automatically restart.

Do not turn off

Shipping Condition

Page 68

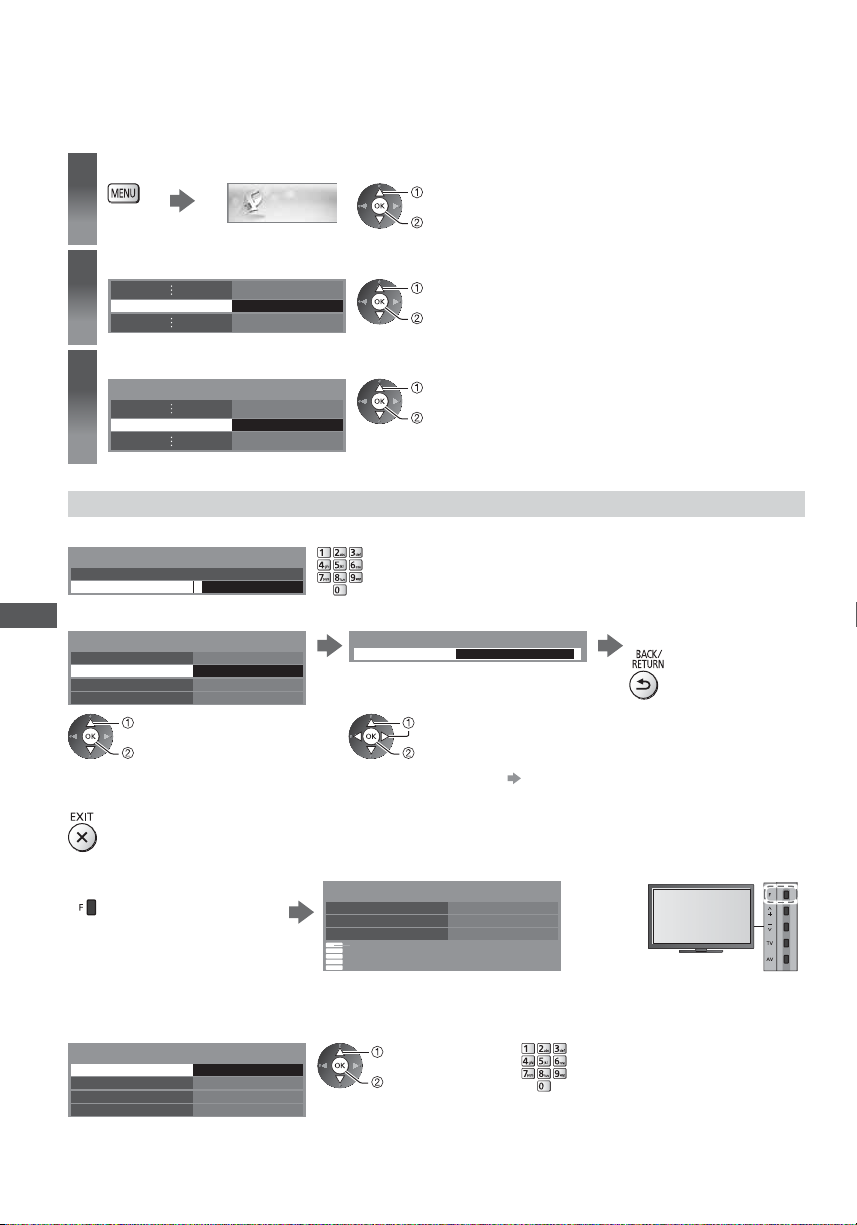

Owner ID

Entry of the PIN number and personal information (your name, address and postcode). In the unfortunate event of theft, the Owner ID will help the Police to determine the owner.

Display the menu and select [Setup]

Select [System Menu]

Select [Owner ID]

Input owner ID [Owner ID]

Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

2 Select the item (NAME / HOUSE NO / POSTCODE) and set characters

Owner ID

Owner ID-Data Entry

NAME

HOUSE NO POSTCODE

3 Exit the menu

System Menu

select

access

Access System Menu

Access Owner ID

* * * *

Setup



select

access

select

access

select

access



Enter the PIN number twice at first setting.



Make a note of the PIN number in case you forget it. The PIN number cannot be reset.

User input

NAME

select

set

To use numeric buttons (p. 114)

Return to select other items



Select the next item and repeat the operations.

 To check the personal information stored

Hold down for about 5 seconds

Owner ID

NAME HOUSE NO POSTCODE

EXIT



The PIN number is not displayed.

* * * * * * * * * * * * * * * *

 To change the PIN number

1. Select [PIN] 2. Enter a new PIN number twice

Owner ID-Data Entry

NAME HOUSE NO POSTCODE

* * * *

select

access

Page 69

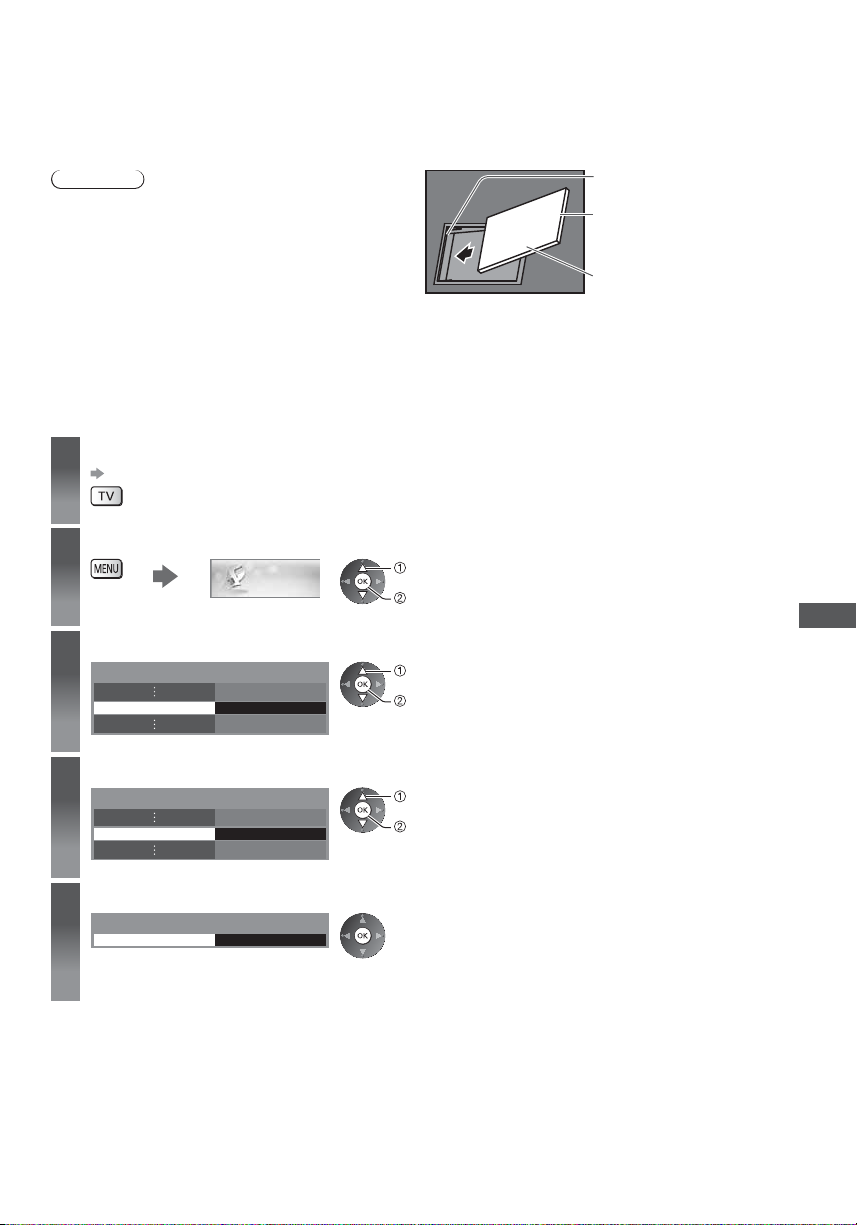

Using Common Interface

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules. This TV works only for Pay TV modules complying with CI standard.



Video and audio signals may not be output depending on broadcasts or services.

Caution



Turn off Mains power On / Off switch whenever inserting or removing the CI module.



If a view card and a card reader come as a set, first insert the card reader, then insert the view card into the card reader.



Insert the module in the correct direction.



Remove the CI module from the TV when placing the TV facing upward. This may cause damages to the CI module and CI slot.

Insert the CI module (optional)



The features that appear on screen are dependent on the contents of the selected CI module.



Follow the instructions that came with the viewing card to tune in the encrypted channels. If encrypted channels do not appear, perform the below to verify the card is recognised by the



For more details, read the manual of the CI module, or check with the broadcaster.

Select DVB

(p. 22)

Display the menu and select [Setup]

Select [System Menu]

System Menu Access

Setup

Rear of the TV

select

access

select

access

TV.

CI slot

Insert or remove completely

CI module

Using Common Interface

Select [Common Interface]

Common Interface Access

Access Common Interface and follow the on-screen instructions

Common Interface

Slot 1:



On-screen instructions may not correspond to the remote control buttons.

Module inserted

select

access

Page 70

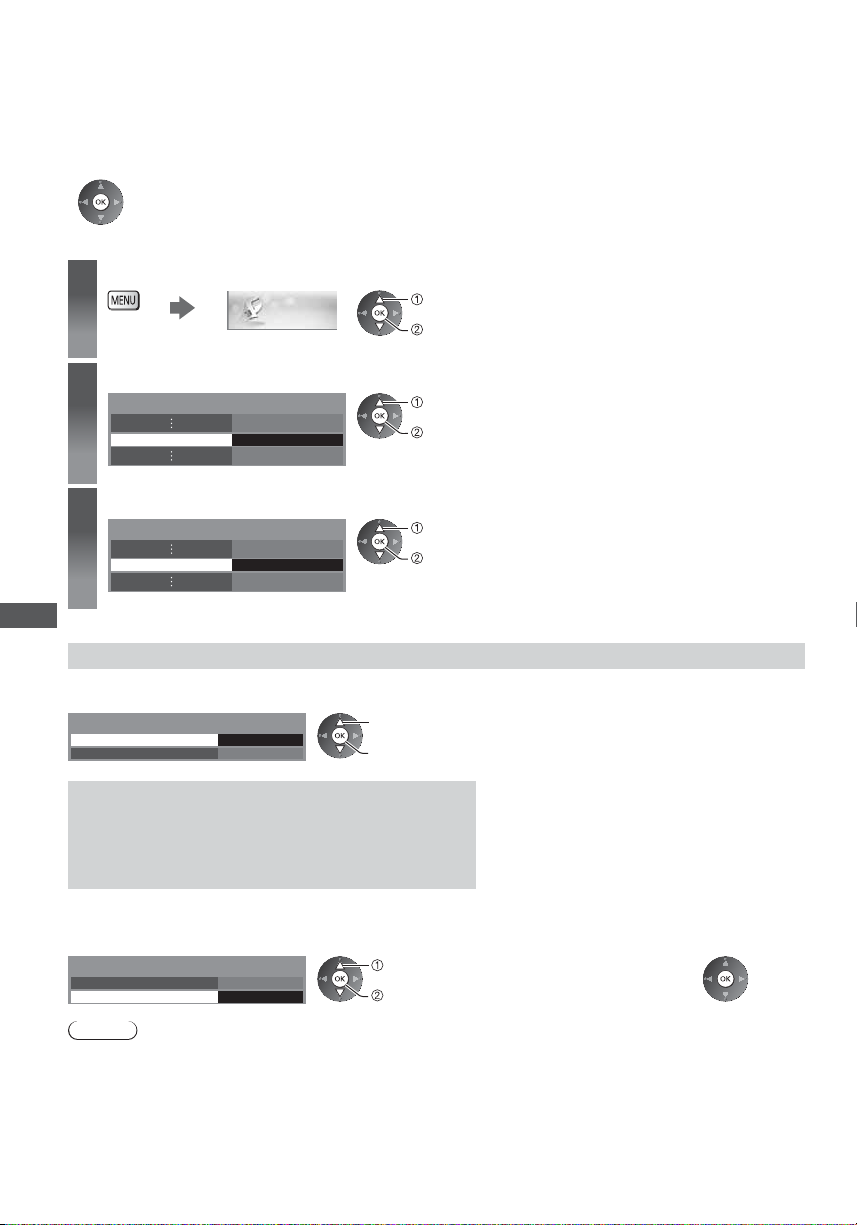

Updating the TV Software

A new version of software may be released for download to enhance the performance or operations of the TV. In DVB mode, a notification banner will appear when one of the BBC channels is turned to if a new available software is found.



To download

(Press the EXIT button not to download)

You can update new software automatically or update manually.

Display the menu and select [Setup]

Select [System Menu]

Select [System Update]

Updating the TV Software

Update TV’s software system [System Update]

 To update automatically

Select [Auto Update Search in Standby]

System Update

Auto Update Search in Standby

System Update Search Now

If System Update is performed, the software will be updated (it may change TV functions). If you do not want to do so, set [Auto Update Search in Standby] to [Off]. The notification banner will keep appearing during the period of new software availability, usually 2 to 3 days.

System Menu Access

System Menu

System Update Access

Off

Setup

select

access

select

access

select

access

select

access / store



Automatically performs a search in standby and downloads an update, if any software updates are available.



The automatic updating is performed at night under the following conditions:

Standby (TV turned off with the remote control)

•

Recording of Timer Programming, Direct TV

•

Recording or One Touch Recording is not in progress.

 To update immediately

1 Select [System Update Search Now] 2 Searches for an update (for

System Update

Auto Update Search in Standby

System Update Search Now

Off Access

Note



Download may take up to 60 minutes.



During software download and update, DO NOT perform any operations on the TV or switch Off the TV.

select

access

several minutes) and displays a corresponding message if any

3 Download

Page 71

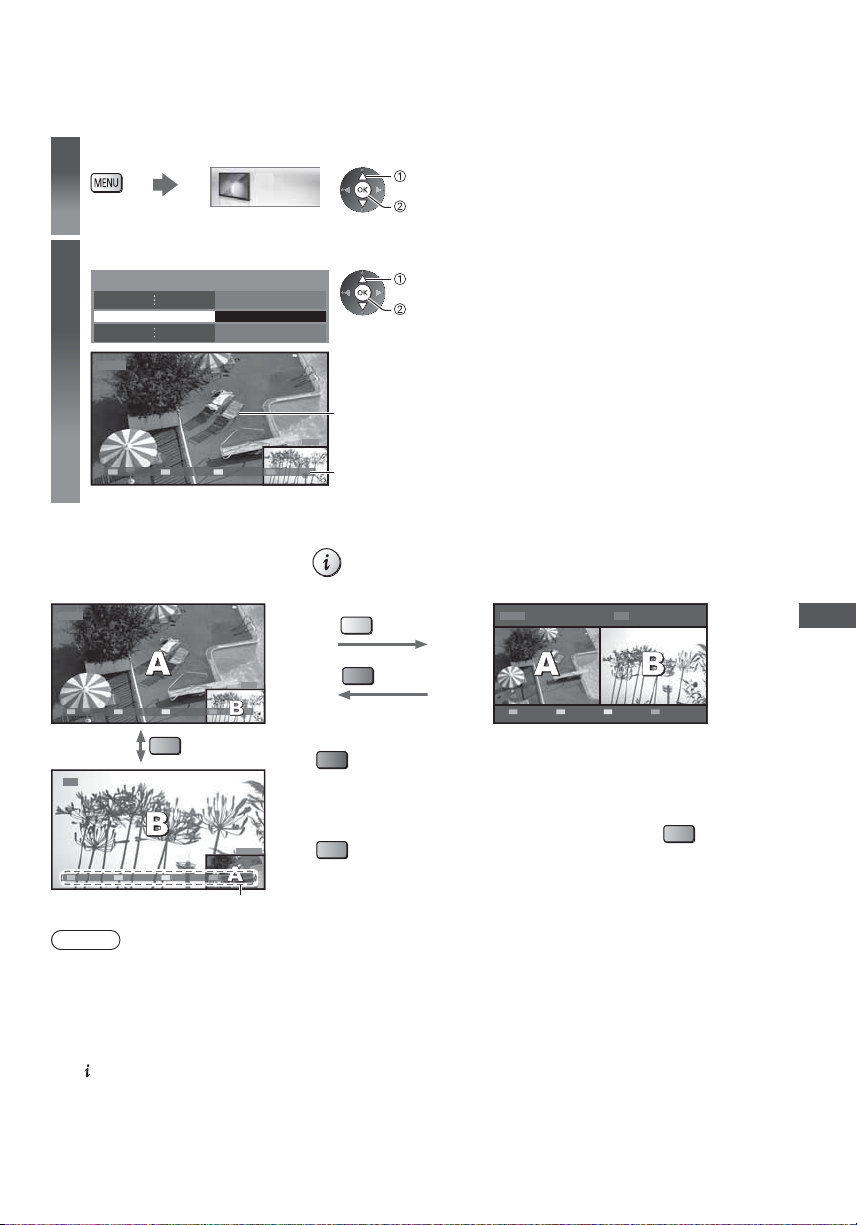

Multi Window

Swap

Enjoy viewing the digital TV programme and external input (AV, Component or HDMI) at once.

Display the menu and select [Picture]

Select [Picture in Picture]

 How to operate in multi window

Display the colour bar if it is not displayed

Picture-in-Picture mode [PinP] Picture-and-Picture mode [PandP]

1 DVB

AV 1

Note



Each input mode can only be displayed either on main screen or sub screen.



The sound comes from only the main screen in multi window.



You cannot change the aspect ratio in multi window.



HDMI is available only for main screen.



Some signals are reformatted for suitable viewing on your display.



If main screen has digital teletext signals, some key words may appear on the colour bar. In this case the operations can be performed by using colour buttons on the remote control except when the colour bar is displayed by pressing

button.

the

Picture in Picture Access

1 DVB

EXIT

PandP Swap

PandP Swap EXIT

(blue)

PandP Swap EXIT PandP

Colour bar

1 DVB


AV 1



To exit multi window



To change the input mode or channel of sub screen

1 Swap sub screen

for main screen

select

access

select

access



Remote control operations apply to the main screen.

Main screen

Sub screen

(yellow)

1 DVB AV1

(green)

EXIT PinP Swap

(red)

2 Change the input mode

or channel by the remote

(blue)

control (p. 22, 34)

3 Swap again

(blue)

Multi Window

Page 72

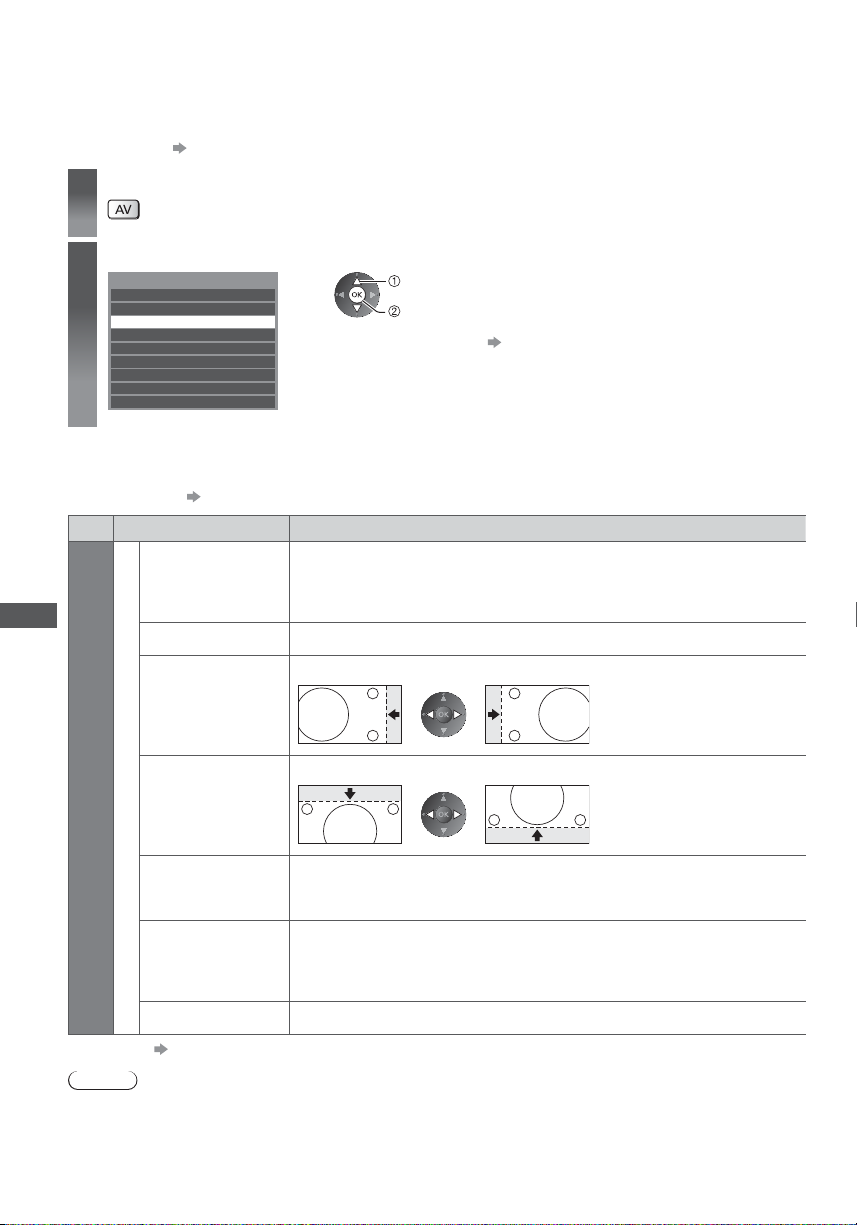

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected.



To connect PC

Select the external input

Select [PC]

Input Selection

AV1 AV2

HDMI1 HDMI2 HDMI3 HDMI4 TV SD Card/USB

PC menu setting



To make settings

Displaying PC Screen on TV

PC Setup

Setup



Other items

Note



For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI cable (p. 11

(p. 105)

select

access



Corresponding signals



If [H-freq.] or [V-freq.] is shown in red, the signals may not be supported.

“How to Use Menu Functions” (p. 44)

(p. 113)

Item Adjustments / Configurations (alternatives)

Switches to a wide view:

Input Resolution

Clock Set to the minimum level if noise occurs

H-pos

V-pos

Clock Phase

Sync

Reset to Defaults Press the OK button to reset [PC Setup] to the default settings

(p. 45 - 51, 73)

1).

VGA (640 × 480 pixels) / WVGA (852 × 480 pixels) / XGA (1,024 × 768 pixels) / WXGA (1,280 × 768 pixels, 1,366 × 768 pixels)



Options change depending on signals

Adjusts horizontal position

Adjusts vertical position

Eliminates flicker and distortion



Adjust after Clock adjustment



Set to the minimum level if noise occurs

Chooses another synchronous signal if the image is distorted

[H & V] / [On Green] [H & V]: by the horizontal and vertical signals from your PC [On Green]: by the green signal from your PC (if available)

Page 73

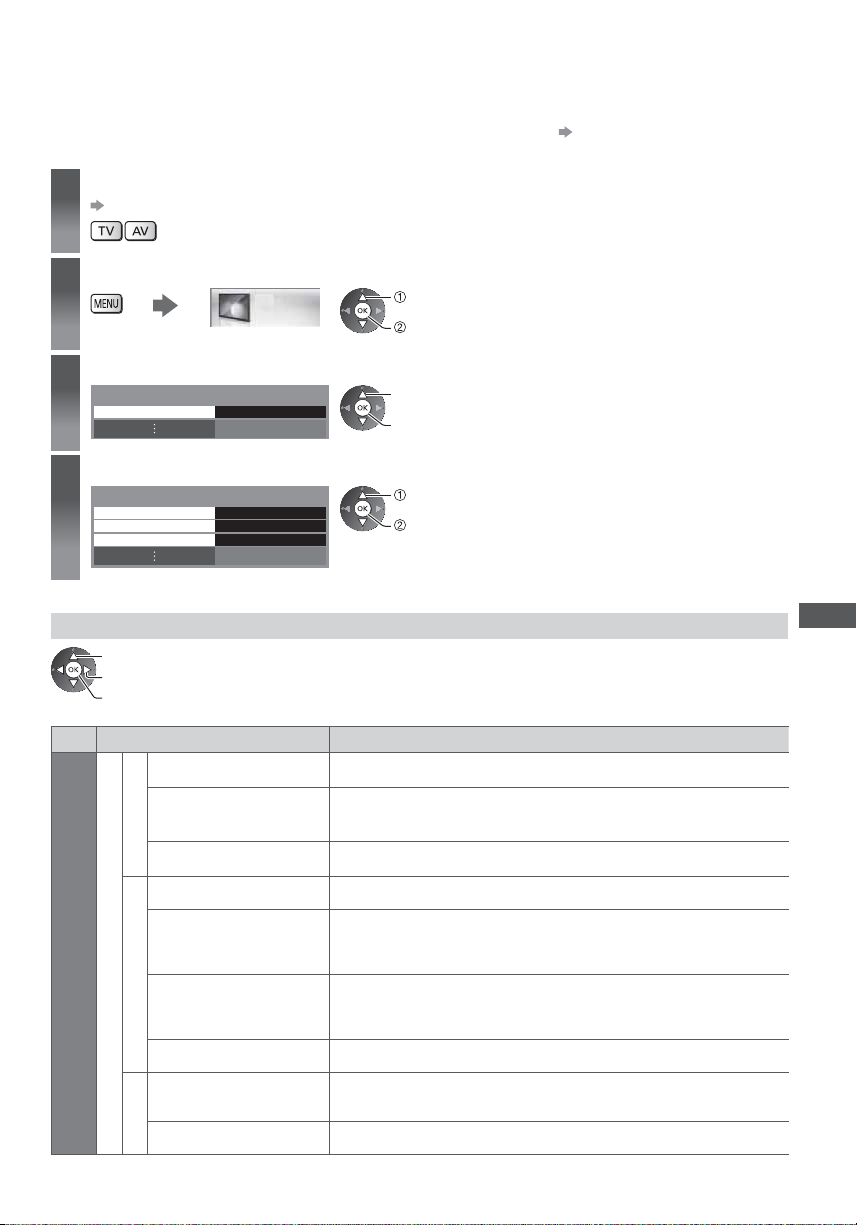

Advanced Picture Settings

You can adjust and setup the detailed picture settings for each Viewing Mode.



To use this function completely, set [Advance(isfccc)] to [On] in the Setup Menu.



For PC input mode, some functions are available without setting [Advance(isfccc)].

Select the input mode to adjust and setup

(p. 22, 34)

Display the menu and select [Picture]

Select [Viewing Mode] and set the mode

Select one of the following functions

Viewing Mode Dynamic

Advanced Settings Access Lock Settings Copy Adjustment

Access Access


select

access

select

access / store

select

access



[Copy Adjustment] is available when [Viewing Mode] is set to [Professional1] or [Professional2].

(p. 51)

Adjust the detailed picture settings [Advanced Settings]



select adjust access / store

Advanced Settings


Item Adjustments / Configurations (alternatives)

White Balance

R-Gain, G-Gain, B-Gain Adjusts the white balance of bright red / green / blue area

R-Cutoff, G-Cutoff, B-Cutoff

Reset to Defaults Press the OK button to reset to the default White Balance

R-Hue, G-Hue, B-Hue Adjusts the picture hue of red / green / blue area

Colour Management

R-Saturation, G-Saturation, B-Saturation

R-Luminance, G-Luminance, B-Luminance

Reset to Defaults Press the OK button to reset to the default Colour Management

Gamma

Reset to Defaults Press the OK button to reset to the default Gamma

[Colour Management] is available when [Viewing Mode] in the Picture Menu is set to [True Cinema], [Professional1] or [Professional2].

Adjusts the white balance of dark red / green / blue area

Adjusts the saturation of red / green / blue area

Adjusts the luminance of red / green / blue area

Switches the gamma curve [1.8] / [2.0] / [2.2] / [2.4] / [2.6]



Please note the numerical values are reference for the adjustment.

Advanced Picture Settings

Page 74

Lock the picture setting [Lock Settings]

[White Balance], [Colour Management] and [Gamma] can be locked for each Viewing Mode and each input. Additionally, [Contrast], [Brightness], [Colour], [Sharpness], [Tint] and [Reset to Defaults] in the Picture Menu can be locked for [Professional1] and [Professional2].

1 Enter the PIN number (4 digits) 2 Select [Adjustment Lock] and set to [On]

Lock Settings-PIN Entry

Please enter new PIN



Enter the PIN number twice at first setting.



Make a note of the PIN number in case you forget it.

* * * *

Lock Settings

Change PIN

Adjustment Lock

select

access / store

 To change the PIN number

1. Select [Change PIN] 2. Enter a new PIN number twice

Lock Settings

Change PIN

Adjustment Lock

Access On

Copy the settings to the other input [Copy Adjustment]

You can copy the selected [Professional1] or [Professional2] settings to that of the other input. The settings of [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [White Balance], [Colour Management] and [Gamma] will be copied.

Select the destination to copy to

Copy Adjustment

Destination All

USB HDD / SD Card Recording

Advanced Picture Settings | USB HDD / SD Card Recording

You can record the digital TV programmes to the connected USB HDD or inserted SD Card and enjoy playing back in various ways.



Analogue TV programme cannot be recorded on the USB HDD / SD Card.



The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.



Not all the programmes can be recorded depending on the broadcaster and service provider.



You cannot copy the recorded contents of the USB HDD.



It is recommended to use the SD Card formatted with this TV.



For more information of the USB HDD and the SD Card (p. 110)

Caution



All data in the USB HDD / SD Card will be erased in the following cases:

When formatting the USB HDD / SD Card with this TV “Setting for USB HDD / SD Card” (p. 75)

•

When formatting the USB HDD / SD Card to use on PC, etc.

•



When the TV is repaired due to a malfunction, you may have to format the USB HDD again with this TV to use it. (All data will be erased when formatting.)



In order to use the USB HDD with your PC after recording with this TV, format it again on your PC. (Special operations or tools may be necessary to format on your PC. For details, read the manual of the USB HDD.)



The data recorded on the USB HDD / SD Card with this TV can only be played back on this TV. You cannot play back its contents with another TV (including the



Do not turn the TV off, pull out the mains plug or remove the USB HDD / SD Card during operation (formatting, recording, etc.). It may cause malfunction of the device or damage the recorded data. (Also when the electric outage occurs.) It is recommended to back up the data (if any) of the SD Card before using with this TV

select

access

select

access / store

TV of the same model number) or any equipment.

(p. 76)



You cannot copy to the locked mode.

Page 75

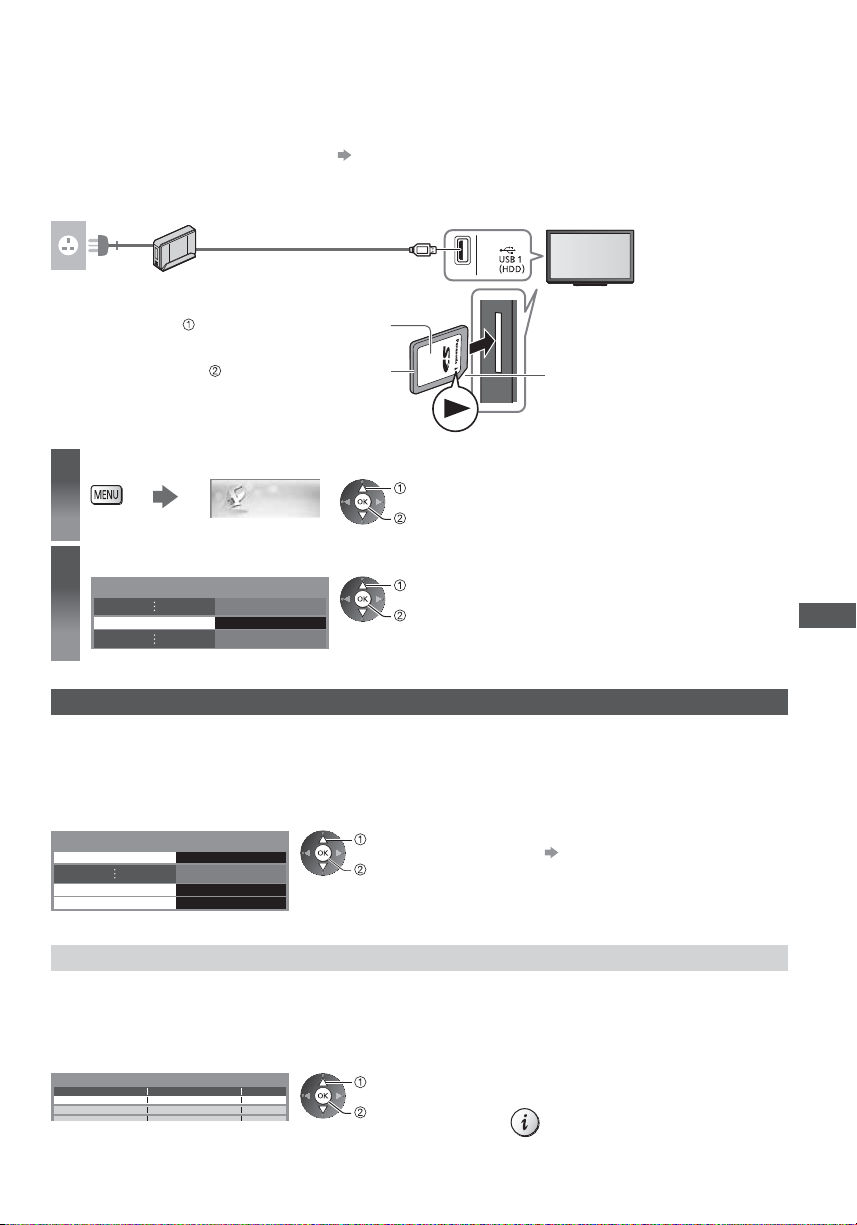

 Preparation for USB HDD / SD Card

USB HDD

Connect the USB HDD to the USB 1 port with the USB cable.



Be sure to connect the USB HDD to the socket outlet.



To remove the USB HDD safely from the TV



Check the type of terminals and cable plugs are correct when connecting.

socket outlet

USB cable

USB HDD

Gently insert the SD Card with

the label surface facing front.

Push until a click is heard.

To remove, push it again.

Display the menu and select [Setup]

Select [Recording Setup]

Recording Setup Access

Setup

(p. 24, 76)

SD Card



Unlock the write-protection switch (on the left side of the SD Card) to record and play back.



When connecting a USB device to the USB 1 port, there may be a difficulty to insert / remove the SD Card. In this case, confirm a USB device is not active and insert / remove the SD Card carefully.

Cutout

select

access

select

access

USB HDD / SD Card Recording

Setting for USB HDD / SD Card

Format and setup the USB HDD with this TV in order to use it for recording. Depending on the conditions of the SD Card, the recording may not work properly. Formatting the SD Card with this TV will resolve this problem. (All data will be erased when formatting.)



Before the settings, connect the USB HDD / SD Card (see above) and be sure to turn on the USB HDD.



Prepare the USB HDD for the exclusive use of recording with this TV.

Select [USB HDD Setup] or [SD Card Formatting] and set

Recording Setup

USB HDD Setup

SD Card Information

Access

Access SD Card Formatting Access

select

access



To check the information of the inserted SD

[SD Card Information]

Card

Setup the USB HDD [USB HDD Setup]

All the USB devices recognised as a mass storage device will be listed.



You can only choose one USB HDD for recording at a time.



You cannot change the settings for the USB HDD while recording is in progress.



Please note that USB HDD will be formatted and all data in it will be erased after this setup.

1 Select the USB HDD for recording and start setup

USB HDD Setup

Product Name

USB Drive A

USB Flash Disk

select

access



Some USB HDD may not be displayed.



For the information of the highlighted device

Page 76

2 Caution and confirmation of using USB HDD

Select [Yes] to proceed

USB HDD Formatting

The data recorded to the USB HDD with this TV can only

be played back on this TV.

You cannot playback it with other TV (including the TV

of the same model number) or any PCs.

If your TV is repaired due to a malfunction, the USB

HDD may not be available with your repaired TV.

Continue?

Yes No

select [Yes]

set

USB HDD Formatting

To use this device for recording,

it must be formatted first.

Yes No

select [Yes]

set

Continue?

USB HDD Formatting

This device will be formatted and

all contents deleted.

Yes No

select [Yes]

set

Are you sure?

3 Confirmation of USB HDD name

USB HDD Formatting

Name : USB Drive A

Edit name?

Yes No

The name for the USB HDD is created automatically. If you want to edit the name, select [Yes].

Set characters Store

USB HDD

Name



You can set characters by using

USB HDD 1

numeric buttons.

select

set

select

set

4 Confirmation to enable USB HDD for recording

If the formatted USB HDD for recording already exists, this confirmation screen will be displayed to switch to enable this USB HDD for recording.

USB HDD Formatting

Do you want to enable this

device now for recording?

When disconnecting any USB device,

always use the "Safely Remove USB" function

in the USB HDD Device Setup menu to avoid

USB HDD / SD Card Recording

any corruption of recorded content.

Yes No

USB HDD Setup

Product Name

USB Drive A

USB Flash Disk

USB HDD name is displayed



To format

(red)



To remove the USB HDD safely from the TV

(yellow)

USB HDD 1

To set “Safely remove USB” in other conditions (p. 24)

•



To edit USB HDD name

select [Yes]

set

Mode

The USB HDD is available for recording / playing back.

Only one USB HDD on the list is available for recording.

The USB HDD is available for playing back.



To change the mode

(green)

SD Card Formatting

Formats the inserted SD Card.



Please note that all data in the SD Card will be erased after formatting.

Caution and confirmation of using SD Card and start format

SD Card Formatting



If the formatting has failed,

Ensure the SD Card is inserted correctly. (p. 75)

•

Ensure the write-protection switch is unlocked.

•

Check your SD Card is suitable for recording. (p. 110)

•

Format SD card.

Are you sure?

Yes No

select [Yes]

set

SD Card Formatting

All data stored on the SD card will be deleted during

formatting. Continue?

Yes No

select [Yes]

set

Page 77

One touch direct TV recording - What you see is What you record [One Touch Recording]

Records the current programme in the USB HDD or the SD Card immediately.



Confirm the code of the remote control is “73” (p. 35).

Select the maximum recording time [30] / [60] / [90] / [120] / [180] (minutes)



Recording Setup

One Touch Recording 180 minutes

select

access / store

LED will turn to orange (flash) while One Touch Recording is in progress.

“Indicator / Control panel” (p. 13)

 Default REC Mode

You can select default recording mode for [One Touch Recording].

“Recording time for the USB HDD / SD Card Recording” (p. 111)

[DR]: Direct recording (normal mode) [LT1]: Long time recording [LT2]: Extra long time recording

 To start One Touch Recording  When both USB HDD and SD Card are available

Start



No other channel can be selected while the recording is in progress.

Select the recording device

Please select recording device

EXIT

Select RETURN

SD Card

USB HDD1

select

set

 To stop recording on the way  To play back or delete the recorded contents

“Recorded TV mode” (p. 84)



Even if One Touch Recording is in progress, you can play back all the contents. (Depending on the USB HDD / SD Card, it may not be available or the recording may not work properly while playback.)

Record constantly [Rewind LIVE TV] (USB HDD only)

Records the current programme constantly.



Confirm the code of the remote control is “73” (p. 35).

Select [Auto] to start [Rewind LIVE TV]



Recording Setup

Rewind LIVE TV Auto

select

access / store

When you select [Auto], the recording will start automatically.



This recording will not start if the other recording is in progress, TV signal condition is bad or any images are not displayed.

 To operate [Rewind LIVE TV]



To pause



After pausing or searching backward, the following buttons are available to operate.

Search backward

Playback / Pause

Search forward

Return to the current programme



To search backward (up to 90 minutes)

Search backward /

forward

Pause /

Playback

Return to the

current programme

 To stop [Rewind LIVE TV]



Recording Setup

Rewind LIVE TV

Off

Auto

select [Off]



[Rewind LIVE TV] will be stopped and the recorded content deleted automatically in the following conditions: (Even if [Rewind LIVE TV] stops for the following conditions, as long as the setting is [Auto], the new recording will start automatically in a condition that makes the recording available.)

Selected other channels

•

Selected locked channel

•

Selected invalid channel

•

No TV signal

•

When the other recording starts

•

When the TV is turned to Standby or off

•

If you stop [Rewind LIVE TV], the recorded content for [Rewind LIVE TV] will be deleted.

USB HDD / SD Card Recording

Page 78

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and contents recorded with this TV on the recording devices (SD Card / exclusive USB HDD).

Photo mode:

Still pictures recorded by digital cameras will be displayed.

Video mode:

(For SD Card / USB Flash Memory) Moving pictures recorded by digital video cameras will be played back.

Recorded TV mode:

(For SD Card / exclusive USB HDD) TV programmes recorded on the USB HDD / SD Card with this TV will be played back.

Music mode:

Digital music data will be played back.



During the operation, audio signal is output from AV1, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals. But no video signals are output. To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 98) and set to use theatre speakers (p. 104).



[Date] shows the date on which the recording was made by the recording equipment. The file without record of the date is shown “**/**/****”.



The picture may not appear correctly on this TV depending on the recording equipment used.



Display may take some time when there are many files and folders.



Partly degraded files might be displayed at a reduced resolution.



Picture setting may not work depending on the conditions.



The folder and file names may be different depending on the digital camera or digital video camera used.

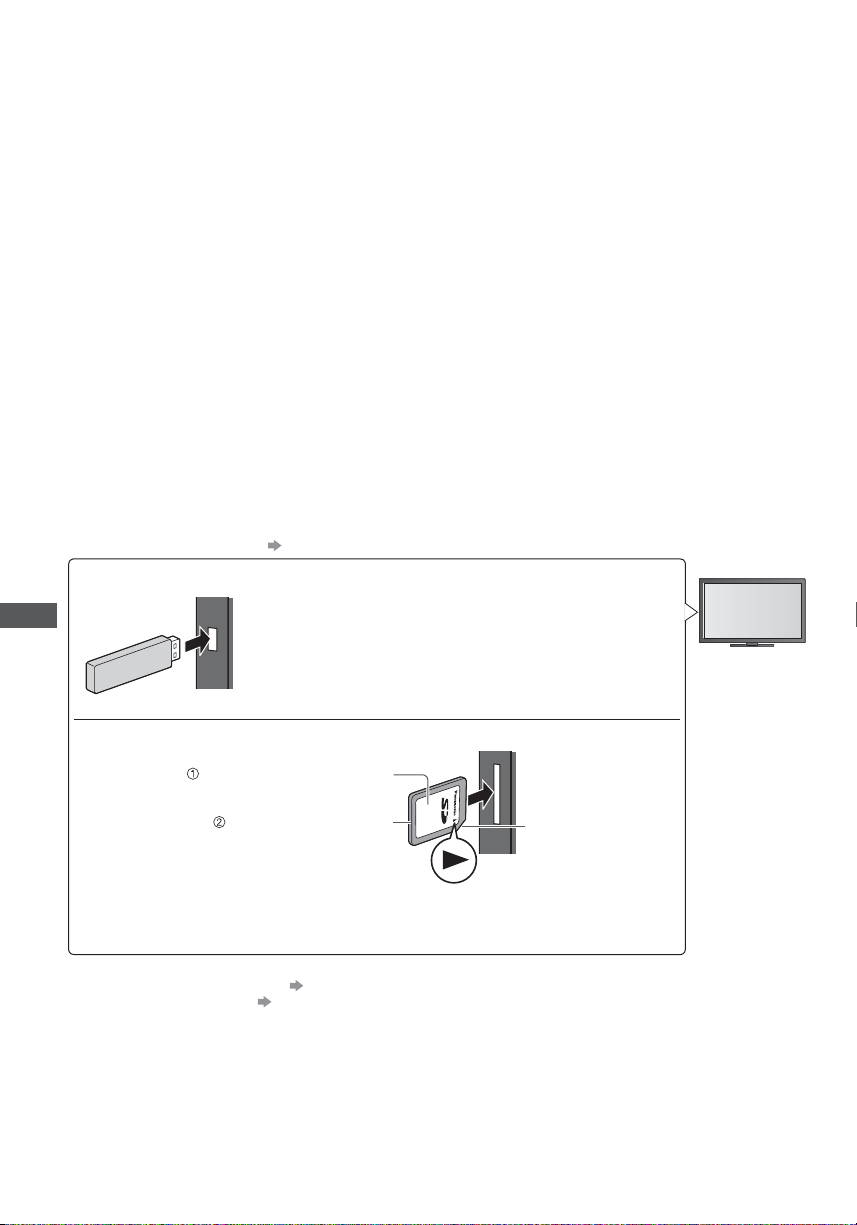

 To insert or remove the SD Card / USB Flash Memory



For the USB HDD Connection

USB Flash Memory

Using Media Player

V1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p. 49).

(p. 75)



Insert or remove straightly and completely.



Before removing the USB Flash Memory, ensure to perform “Safely remove USB” (p. 24).



Connect the USB Flash Memory to the USB 1, 2 or 3 port.

SD Card

Gently insert the SD Card with

the label surface facing front.

Push until a click is heard.

To remove, push it again.



When connecting a USB device to the USB 1 port, there may be a difficulty to insert / remove the SD Card. In this case, confirm a USB device is not active and insert / remove the SD Card carefully.



Check the type of terminals and devices are correct when connecting.



For the information of the devices



For the supported file format

“Devices for recording or playing back” (p. 110)

“Supported file format in Media Player and media servers” (p. 107 - 109)

Cutout

Page 79

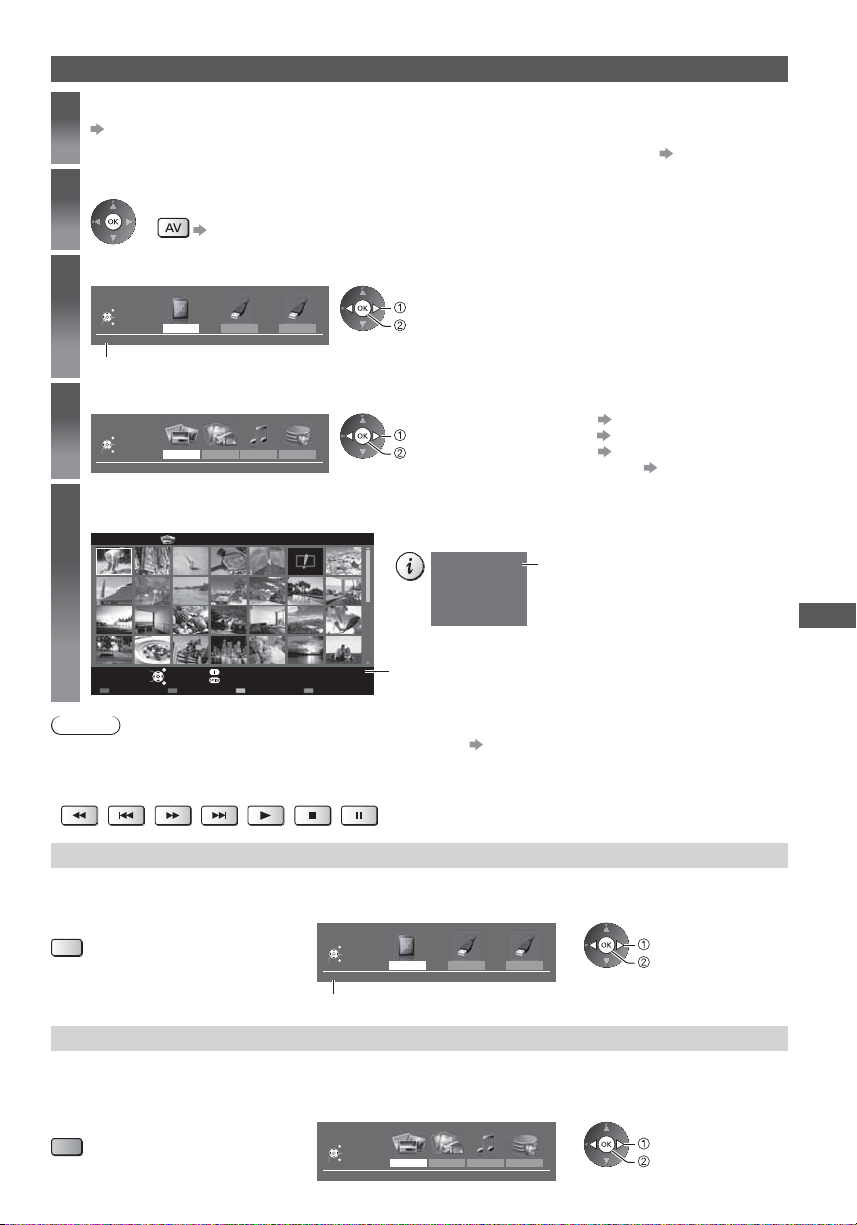

Starting Media Player

Insert the SD Card or USB Flash Memory to the TV

(p. 78)



To play back contents in the USB HDD, check the connection and settings are completed.

Confirm the message and start Media Player



You can also start by pressing following button.

“Watching External Inputs” (p. 34)

Select the device to access

Drive Select

EXIT Select RETURN

Access

SD Card

Selected device name

SD Card

USB HDD1 USB Flash...



If two or more devices are not connected, this step will be skipped.

Select the content

Contents Select

EXIT Select RETURN

Access

SD Card

Photo Video Music

Recorded TV

Enjoy Media Player

Example: Thumbnail - [All photos]

Media Player Photo All photos

select

access

select

access



To display the information of the highlighted content

File name


Date

23/10/2011

Size

1600X1200

[Photo] (p. 80) [Video] [Music]

[Recorded TV]

1/48

File number / Total file number

(p. 75)

(p. 83) (p. 87)

(p. 84)

Using Media Player

EXIT RETURN

Info Option Menu

View

Select

Slideshow View Select Drive Select Contents Select

SD Card

Selected device name

Note



You can also access each mode directly by using VIERA TOOLS.



[Recorded TV] is available for contents recorded with this TV on the USB HDD / SD Card.



Select the appropriate device and content for playing back each file.



You can use the following buttons during playback. Confirm the code of the remote control to “73” (p. 35).

(p. 43)

Change the device

You can change to the other device directly in the same mode if two or more devices are connected.

1 While the thumbnail is displayed,

display the device selection

(yellow)

2 Select the device to access

Drive Select

EXIT Select RETURN

Access

SD Card

Selected device name

SD Card

USB HDD1 USB Flash...

select

access

Change the contents

You can switch to the other mode of Media Player from the thumbnail view.



The mode can be switched in the current device.

1 While the thumbnail is displayed,

display the contents selection

(blue)

2 Select the content

Contents Select

EXIT Select RETURN

Access

SD Card

Photo Video Music

Recorded TV

select

access

Page 80

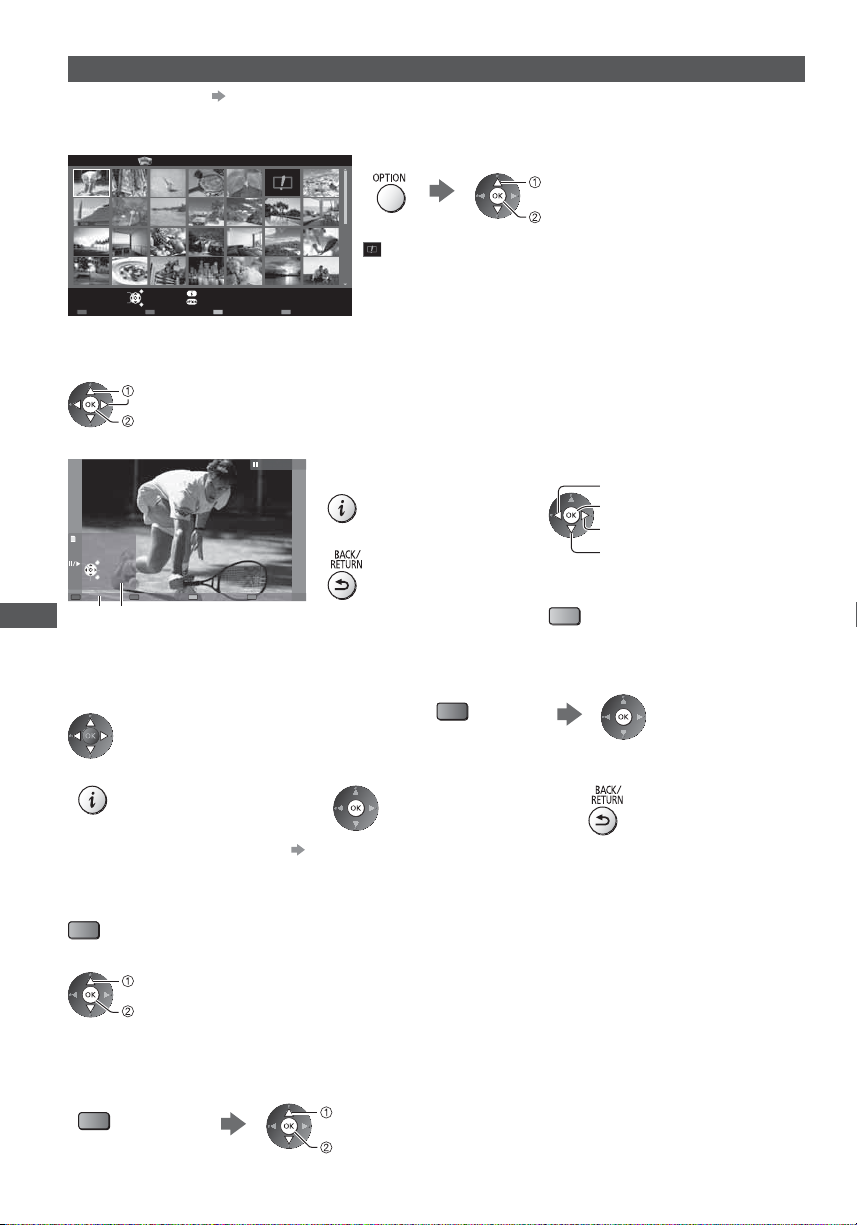

Photo mode



Supported file format

The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [All photos]

Media Player Photo All photos

(p. 107)



To change the size of photos on a thumbnail screen

select [Change Size]

change

: Error display

EXIT RETURN

Info Option Menu

View

Select

Slideshow View Select Drive Select Contents Select

SD Card

[Single view] - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

select

access

Example:

Single view



To display / hide the operation



To operate Single view

guide



Single view

EXIT Select RETURN

Stop

Operation guide

Using Media Player

Rotate

To return to thumbnail



To rotate 90°

(blue)

[Slideshow] - Slideshow completes when all photos are viewed within the current thumbnail.

1 Select the file from the thumbnail of photos

for the first view



To display / hide the operation guide



To change the back ground music



To pause (return to Single view)

“Photo Settings” (p. 81)

2 Start Slideshow

(red)



To the previous photo

Slideshow

To the next photo

Stop (return to thumbnail)

To return to thumbnail

 To sort by folder, recorded date or recorded month

1 Display the view selection in the thumbnail view

(green)

2 Select the sort type

select

access



To return to the thumbnail of all photos

(green)

[Folder view]:

Displays the thumbnail grouped by folder.



The files which are not into a folder will be collected to the folder named “/”.

[Sort by Date] / [Sort by Month]:

Displays the thumbnail grouped by the same date or month.



The group of the photos without a recorded date is shown as [Unknown].

select [All photos]

access

Page 81

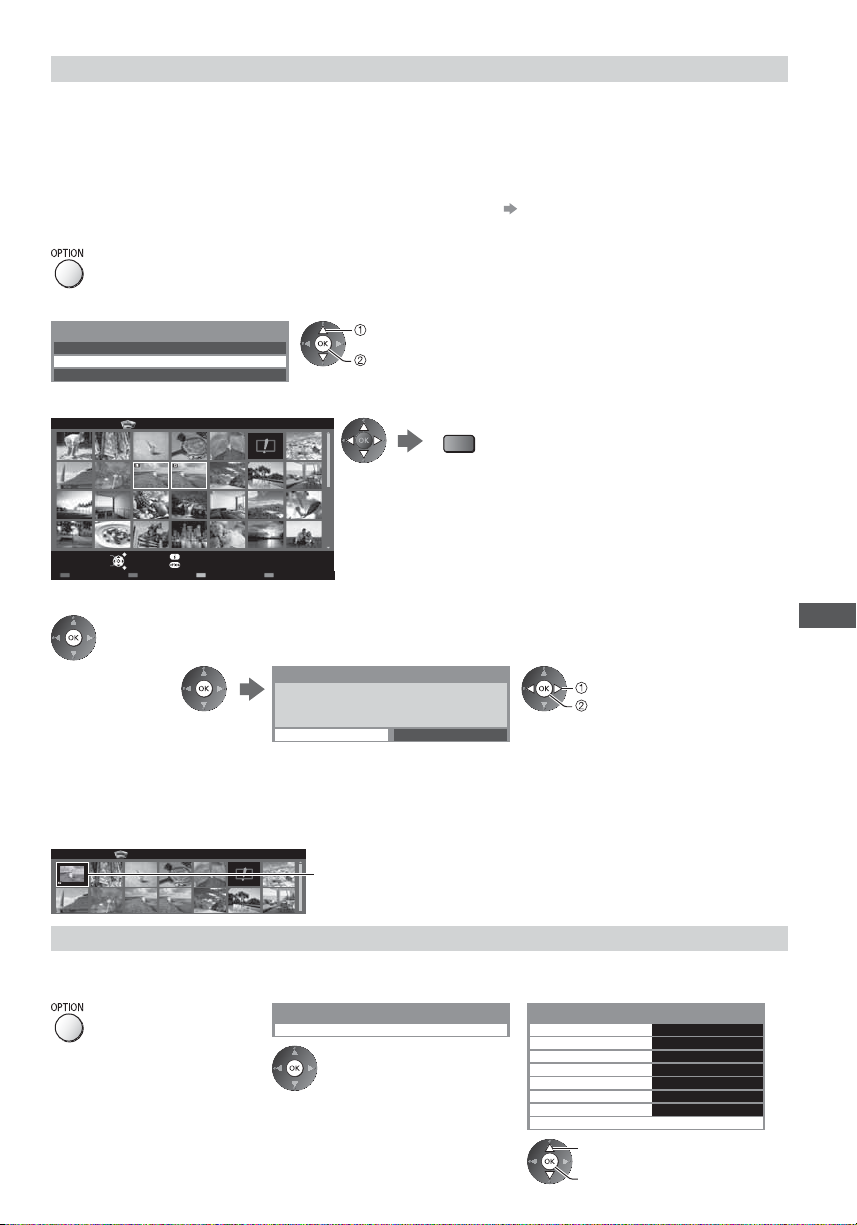

Multi Shot 3D

This TV can create the 3D photo using a pair of photos in the SD Card and save it into the same SD Card.



This TV can also create the 3D photo from photos in the USB Flash Memory, but cannot save it.



This function is available with photos recorded by digital cameras.



You cannot save the photo into the SD Card while SD Card recording is in progress or set in Timer Programming.



Depending on the photos you select, the created 3D photo may not be suitable or the 3D photo creation may not be possible. It is recommended to take a photo (for L) and then move your camera to the right about 5 cm and take another photo (for R).



To view the created 3D photo with 3D effect, you need the 3D Eyewear “Standard accessories” (p. 7)

1 Display the option menu in the thumbnail view

2 Select [Multi Shot 3D]

Option Menu

Slideshow Settings

Multi Shot 3D

Change Size

select

access

3 Select two photos for L (left) and R (right)

Media Player Photo Multi Shot 3D All photos



You can only select photos of the same recorded date and same pixels.



You may not be able to view the created 3D photo properly if you select the photos for L and R oppositely

View

Select

EXIT RETURN

Info Option Menu

SD Card

(red)

4 Create the 3D photo



If your selected photos are not suitable for the 3D photo, the error message will be displayed and will return to the photo selection screen (step 3).



To save the 3D photo in the SD Card

The 3D image will be saved onto your media.

Continue?

Yes

select [Yes]

save

After finishing saving the photo, the photo selection screen will be displayed (step 3). Select photos again to create another 3D photo or exit from [Multi Shot 3D] mode.

 To enjoy the saved 3D photos

Saved 3D photos are displayed in the Thumbnail screen. Wear the 3D Eyewear and enjoy the 3D photos. Example: Thumbnail

Media Player Photo All photos

Saved 3D photo

Using Media Player

Photo Settings

Setup the settings for Photo mode.

1 Display the option menu

2 Select [Slideshow Settings]

Option Menu

Slideshow Settings

3 Select the items and set

Slideshow Settings

Frame Off Colour Effect Transition Ef

fect Aspect Burst Playback Interval Repeat Back Ground Music

select

access / store

Off Fade Original Off 5 seconds On

Page 82

Item Adjustments / Configurations (alternatives)

Selects the frame type of the slideshow [Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi]: 9 photos are displayed orderly at once. [Collage]: Each photo is displayed at a random position and random scale. [Drift (+ calendar)] / [Drift]: Photos are displayed like flow images.

Frame



You can select to display the calendar or not. The month of calendar is turned

by pressing the left or right cursor button. [Gallery (+ calendar)] / [Gallery]: The various sizes of photos in the frame are displayed.



You can select to display the calendar or not. The month of calendar is turned

by pressing the left or right cursor button.

[Cinema]: Photos are displayed like old films (sepia tone).

Colour Effect

Selects the colour effect of photos on Single view and Slideshow [Off] / [Sepia] / [Gray scale]



This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].

Selects the transition effect for switching the photo during the slideshow

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random] [Fade]: The next photo fades in gradually. [Slide]: The next photo slides and appears from the left side.

Transition Effect

[Dissolve]: Each photo is dissolved when switching to the next photo. [Motion]: Each photo is displayed with an effect of enlarging, reducing, moving

up or moving down. [Random]: Each transition is selected at random.



This function is available when [Frame] is set to [Off].

Selects enlarged or normal viewing on Single view and Slideshow [Original] / [Zoom]



Aspect

Slideshow Settings

This function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or [Cinema] or when [Transition Ef



Depending on the photo size, it may not be fully enlarged to fill the screen, e.g. portrait style picture.

Selects whether to display burst photos in a fast-paced slideshow mode [Off] / [On]

Burst Playback



This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema] or when [Transition Ef

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)



Using Media Player

Interval

This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema] or when [Transition Ef

Repeat Slideshow repeat [Off] / [On]

Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3] / [Type4] / [Type5] / [User] / [Auto]



[Type1 - 5] are the fixed music each installed in this TV.

[User]: Music data in the device registered by yourself will be played back.

To register the music

1. Select the music file Depending on the condition of the

device, select folders until you reach the desired music file.

Back Ground Music

PRIVATE

DCIM

Back Ground Music

MISC 001photo 002photo 003music 01 song.mp3

Type1

select

access



If no music has been registered or the device which has the registered music is removed, no sound will be produced.

[Auto]: Music data stored in the root folder of the current device will be played

back randomly.



If there is no available music data, no sound will be produced.

Note



Picture quality may become lower depending on the slideshow settings.



Picture setting may not work depending on the slideshow settings.

fect] is set to [Motion].

2. Select [File] or [Folder]

[File]: The selected music file will be

[Folder]: All the music in the folder

File

Folder

select

set

registered.

which contains the selected music file will be registered.

Page 83

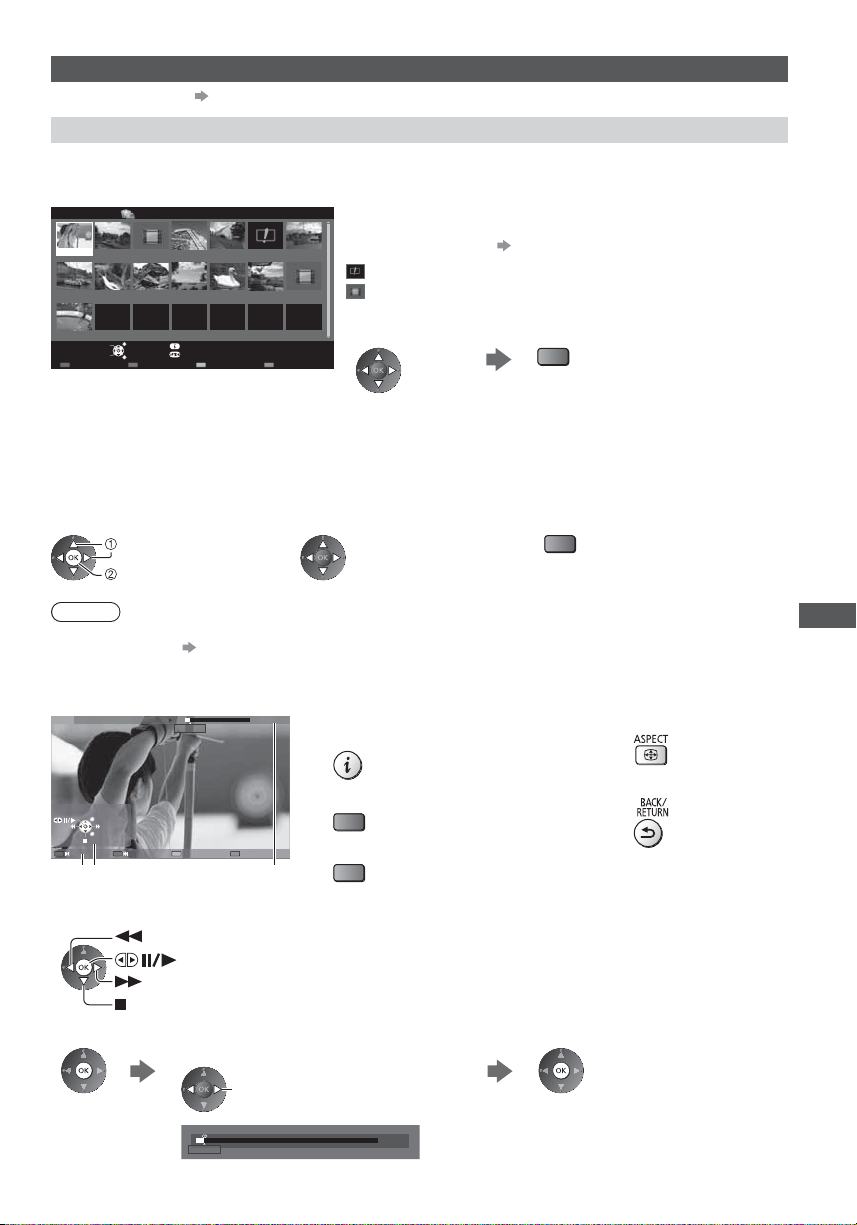

Video and Recorded TV mode



Supported file format

(p. 108, 109)

Video mode

(For SD Card / USB Flash Memory)

The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Title view]

Media Player Video Title view

Trip1 Trip2 Trip3 Trip4 Trip5 Room

2011_4

2011_9

Access

Select

Play Contents Select

EXIT RETURN

Info Option Menu

Drive Select

The preview will start when the title / scene is highlighted if it supports a preview.



Nature1

2011_7Nature2 Nature3 Nature4 Nature5 Nature6

SD Card

To turn off the preview

: Error display : The file does not support thumbnail view.



To play back the selected title Select the title

“Video Setup” (p. 84)

Start playback

(red)



If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning.

 Playback from the selected scene in the title (SD-Video or AVCHD)

Playback of the selected scene will start to the end of the title.

1 Select the title 2 Select the scene 3 Start playback

select

access

Note



The structure of titles and scenes may vary depending on the digital video camera used.



To repeat playback “Video Setup” (p. 84)

(red)

Using Media Player

 How to operate in the playback

Example: Playback

SD 19/02/2011 11:21 00:15:39

EXIT

RETURN

Operation guide Information banner



To operate the playback

Rewind

Fast forward



To jump to the specified time point

00:02:05

Pause (displays the time seek bar) / Playback

Stop

While the time seek bar is displayed

Press: Search about 10 seconds Press and hold: Search rapidly

00:02:05



To display / hide the operation guide and information banner



To the previous title / scene

(red)



To the next title / scene

(green)

00:15:39



To change aspect



To return to thumbnail

Page 84

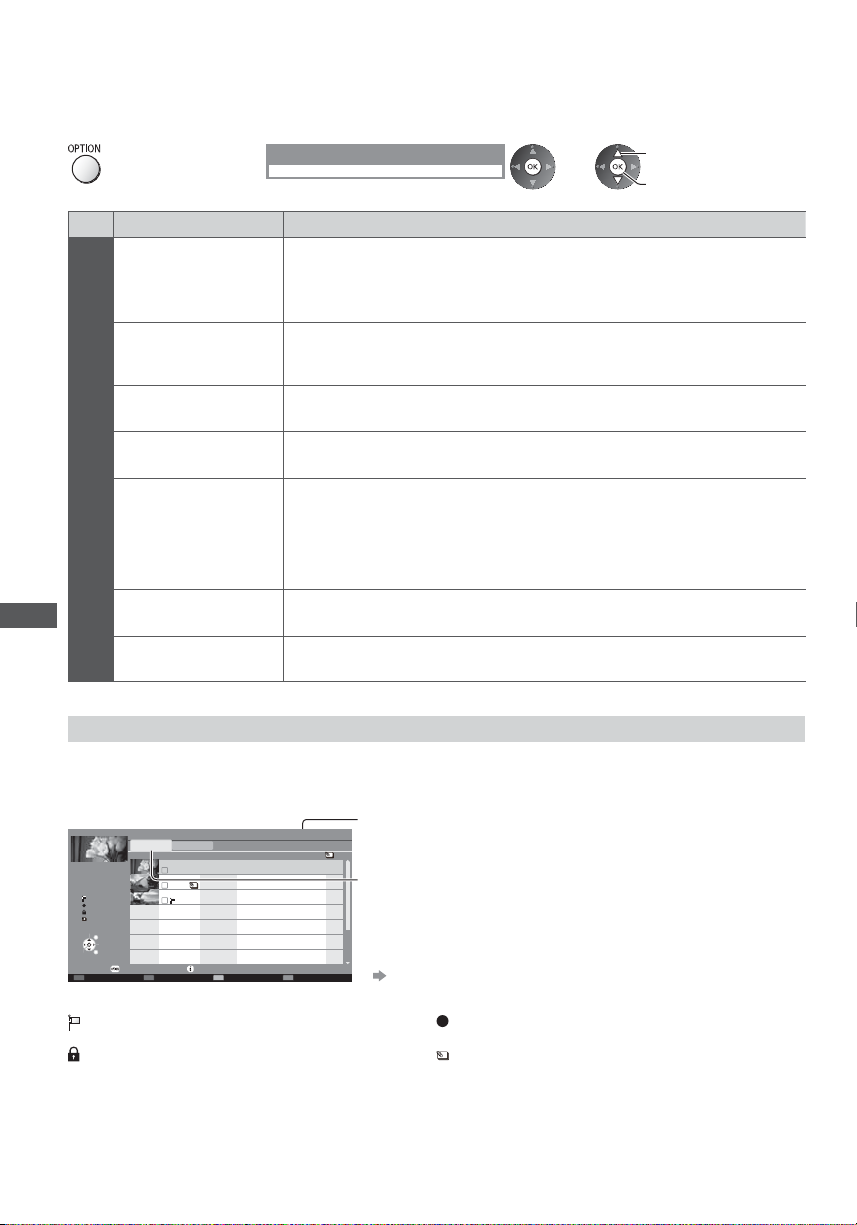

 Video Setup

Setup the settings for Video mode.



Menu items and selectable options vary depending on the content.

1 Display the option menu 2 Select [Video Setup]

Option Menu

Video Setup

3 Select the items and set

select

access / store

Video Setup

Item Adjustments / Configurations (alternatives)

Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]



Video Preview

Multi Audio, Dual Mono Audio

Subtitle

Subtitle Text

Image may not be displayed for an instant in the thumbnail view. Set the preview [Off] to resolve this.



Only available in the thumbnail view

Selects between selectable sound tracks (if available)



It may take several seconds to change the sound.



Only available during playback

Subtitles On / Off (if available)



Only available during playback

Selects the font type to display subtitles correctly (if available)



Only available during playback

[Aspect1]: Displays the content enlarged without distortion. [Aspect2]: Displays the content full-screen.

Aspect Change

Repeat

Using Media Player

Title

[Original]: Displays the content original size.



You can also change the aspect using the ASPECT button.



Aspect change may not work depending on the content.



Only available during playback

Playback repeat within the title or selected file (depending on the content)

[Off] / [On]

Selects from a group of titles (if available)

Recorded TV mode

(For SD Card / exclusive USB HDD)

Contents list of the selected device will be displayed.



For the SD Card, unlock the write-protection switch on the left side of the SD Card to play back.

Example: Contents list

Duration

00:20

Not Viewed Recording now Protected Grouped

Select

EXIT Select RETURN

Play

Option Menu

Delete

Media Player

All

BBC 1

ITV

BBC 2

Recorded TV

Not Viewed

Channel

Thu 27/10

Info

Remaining Capacity 500GB (50%)

Date

Das Erste

12:00

News

Mon 12/1

13:30

Cinema

Sat 17/1

13:50

Chapter List Select

Title

(USB HDD only)

: Content not played back yet (Once you play back

the content, this icon will disappear.)

: Protected content cannot be deleted.

Remaining capacity of the selected device

(This value may not be accurate depending on the condition.)

[All]:

All the recorded contents are listed.

[Not Viewed] (USB HDD only):

Contents not played back yet are listed.



USB HDD 1

You can also access the contents list directly by using VIERA TOOLS.

(p. 43)

: Content under recording (You can play back this

content even if under recording.)

: Two or more contents are grouped.

Page 85

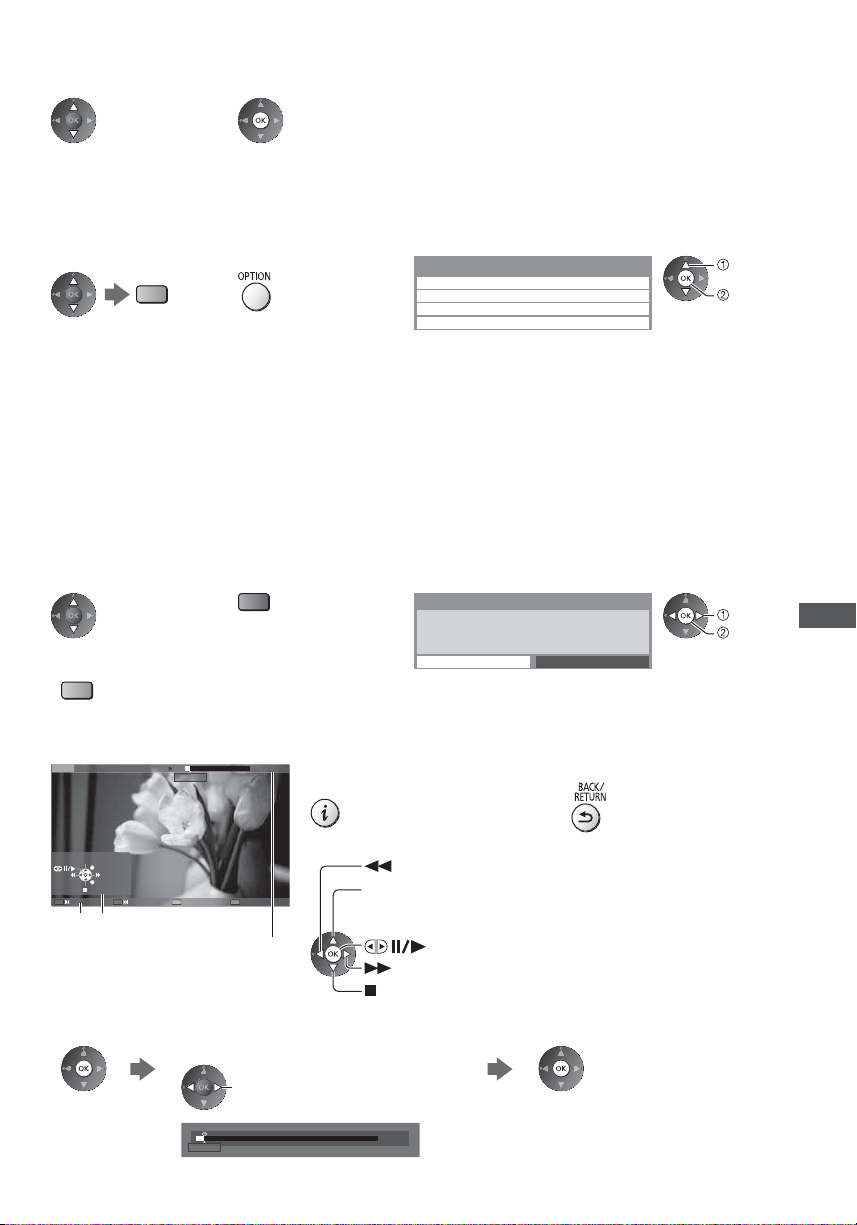

 Playback from the list

1 Select the content

2 Start playback



If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning. (USB HDD only)



If the content has multiple programmes with the different parental ratings, the highest restriction is valid for the content. Once you unlock the restriction, all the programmes in the content can be played back.

 To edit recording content (USB HDD only)

1 Select and tick the

content to edit

(blue)

[Create Group]:

Two or more contents can be grouped. Select and tick all the desired contents, and then select [Create Group].

[Release Group]:

Select the created group to release, and then select [Release Group]. (To release several groups at once, tick all the desired groups.)

[Exclude from Group]:

Select the group and press the OK button to display the grouped contents. To exclude only the specific content from the group, tick it and then select [Exclude from Group]. (To exclude several contents at once, tick all the desired contents.)

[Change Protect Status]:

Select the content to protect from deletion, and then select [Change Protect Status]. Perform the same way to cancel the protection. (To change the status of several contents at once, tick all the desired contents.)

2 Display the option

3 Select the item and edit

Option Menu

Create Group Release Group Exclude from Group Change Protect Status

select

edit

 To delete the selected content

1 Select the content



To select two or more contents

(blue)

2 Delete the content

(red)

3 Confirm

Delete

Are you sure you want to delete?

Yes

select

set

Using Media Player

 How to operate in the playback

Example: Playback

Das ErsteUSB 00:15:39

Manual skip

EXIT

RETURN

Operation guide



To jump to the specified time point

00:02:05

Chapter List A-B repeat

Information banner

While the time seek bar is displayed

Press: Search about 10 seconds Press and hold: Search rapidly

00:02:05



To display / hide the operation guide and information banner



To operate the playback

Rewind

[Manual skip]



Press to skip forward about 30 seconds.



Press and hold to skip backward about 15 seconds.

Pause (displays the time seek bar) / Playback

Fast forward

Stop

00:15:39



To return to list

Page 86



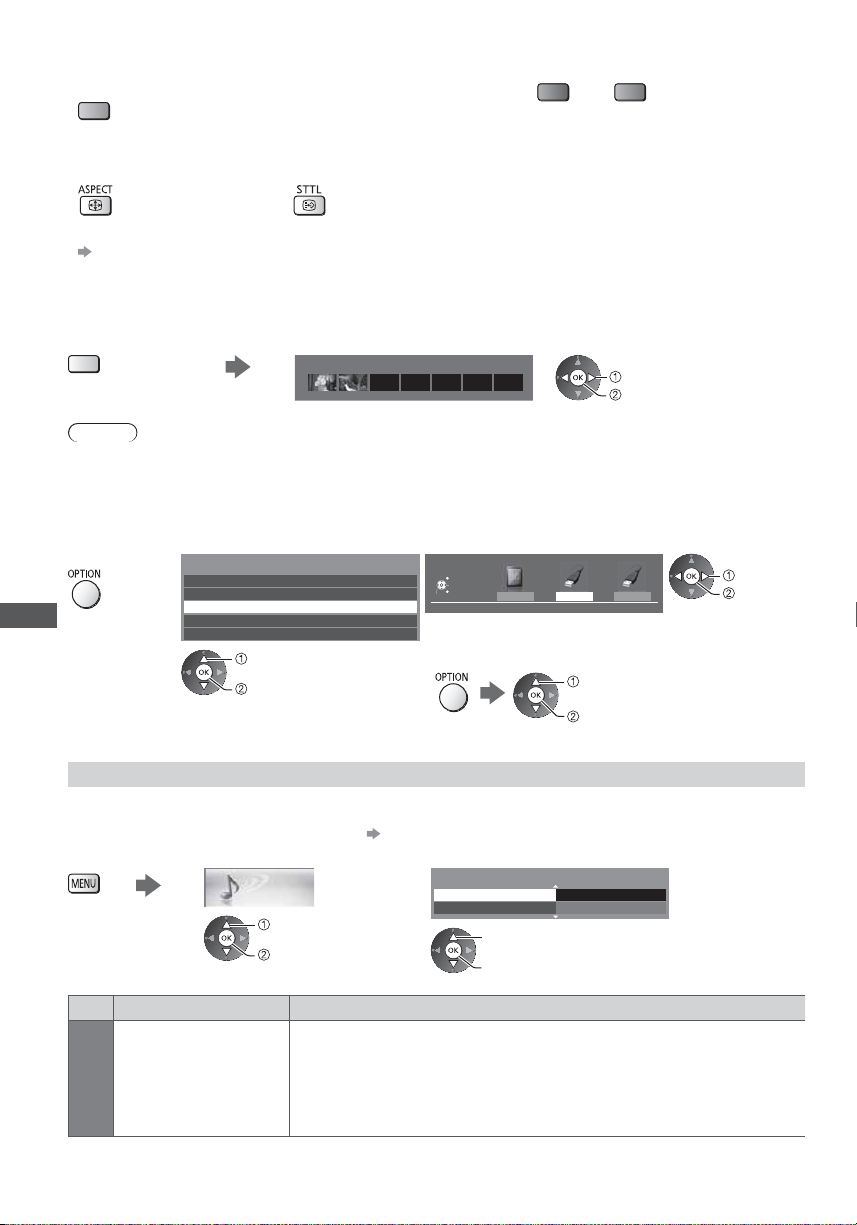

To repeat between the starting point “A” and finishing point “B” Set “A” and “B” in order

The points will be reset by pressing this button

(blue)



To change aspect

•

again or other operations.



To display the subtitle (if available)



To the previous / next chapter

(red) / (green)

A recorded content is automatically

•

divided into chapters (about 5 minutes for each).



To confirm or change the current status (if available)

“Display the selectable settings for the current status” (p. 24)

 Chapter List (USB HDD only)

You can start playback from the chapter list you select.



The chapter list is not displayed while the selected content is being recorded.

To play back from the chapter list

(yellow)

Chapter List

00:00:00 00:05:00

select

playback

Note



Depending on the recorded programmes, some playback operations may not work properly.

 To change the device

You can change to the other device directly in the same mode if two or more devices are connected.

1 Display the

option menu

Using Media Player

2 Select [Drive Select]

Option Menu

Create Group Release Group

Drive Select

Contents Select Change Protect Status

select

access

Audio output Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.



To confirm or change the current sound status

1 Display the menu and Select [Sound]

Sound

select

access

3 Select the device to access

Drive Select

EXIT Select RETURN

Access

USB HDD1

SD Card

USB HDD1 USB Flash...

If you select the device to play back photos, videos or music, change to the appropriate content.



To change the content

select [Contents Select]

access

(p. 84)

2 Select [SPDIF Selection] and set

SPDIF Selection

Reset to Defaults

select

access / store

Auto Reset

2/2

select

access

Sound

Item Adjustments / Configurations (alternatives)

SPDIF Selection

Dolby Digital Bitstream. DTS is output as DTS. MPEG is output as PCM.

[PCM]: Digital output signal is fixed to PCM.

Page 87

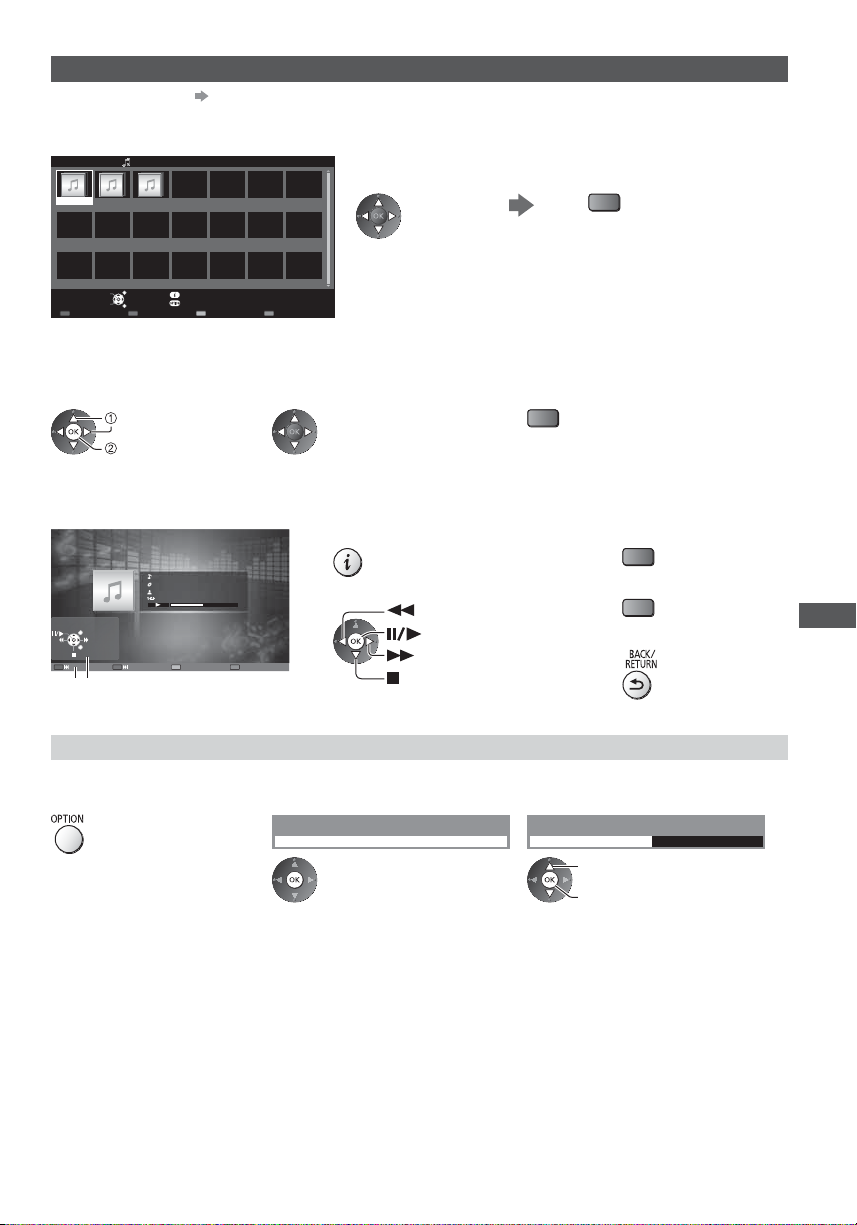

Music mode



Supported file format

The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Folder view]

Media Player Music Folder view

My Music_1 My Music_2 My Music_3

(p. 109)



To play back the selected folder Select the folder

Start playback

(red)

Access

Select

Play Folder Contents Select

EXIT RETURN

Info Option Menu

Drive Select

SD Card

 Playback from File view

Selected file will be played back.

1 Select the folder 2 Select the file 3 Start playback

select

access

(red)

 How to operate in the playback

Example: Playback



To display / hide the operation guide



To operate the playback

Rewind

Pause / Playback

Fast forward

Stop

EXIT

RETURN

Operation guide

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44

Music Setup

Setup the setting for Music mode (only available in the thumbnail view).

1 Display the option menu

2 Select [Music Setup]

Option Menu

Music Setup

3 Set

Music Setup Menu

Repeat One

[Folder]: Playback repeat within the

[One]: Playback repeat of the selected



select

access / store

selected folder

one file

To the previous track

(red)

To the next track

(green)

To return to thumbnail

Using Media Player

Page 88

Using Network Services (DLNA / VIERA Connect / freesat)

DLNA

This TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org.



To enable this function, connect this TV to your home network. “Network connections” (p. 90), “Network Setup” (p. 90)

 Playback of sharing contents stored in the media server

Store photos, videos or music contents into the DLNA Certified media server (for example, PC with Windows 7 installed, DIGA Recorder, etc.) connected to your home network. And then you can enjoy these contents on this TV.



For watching and operating contents on this TV (p. 94)



For the supported file format

To use a PC as a media server

Prepare the PC with Windows 7 or ensure the server software is installed on the PC. “Windows 7” and “TwonkyMedia server 6 (installed on the PC with Windows 7, Windows Vista or Windows XP)” are the server software that has been tested for compatibility with this TV (as of January, 2011). Any other server software have not been tested with this TV, therefore compatibility and performance cannot be assured.



Windows 7 The setup for homegroup settings of Windows 7 is required. For details, refer to the help functions of Windows 7.



TwonkyMedia server “TwonkyMedia server” is the product of PacketV To obtain the Installation Guides for installing and setting “TwonkyMedia server”, visit the website of TwonkyMedia. Additional fees may be charged to obtain server software.

Note



For more information about the server software, please consult each software company.



When server software for the media server is installed on the PC, the data may be at risk of being accessed by other people. Please take care of the settings and connections under the network circumstances at the office, hotel or even at home when not using a router

Using Network Services (DLNA / VIERA Connect / freesat)



AVCHD and DivX files are not supported by DLNA functions of this TV, but can be played by Media Player (p. 78).

To use a DLNA

By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of the media servers.



Please read the manual of your DIGA Recorder to confirm whether the recorder is compatible with DLNA.

compatible DIGA Recorder as a media server

(p. 107 - 109)

ideo Corporation.

 Playback of sharing contents on this TV with the DMC (Digital Media Controller) network

equipment

You can enjoy contents stored in the media server by controlling with the DMC network equipment (PC with Windows 7 installed, smartphone, etc.) connected to your home network.



To use this function with Windows 7, set [DLNA Remote Control] and [DLNA Remote Volume] of this TV to [On].

(p. 91)



“Windows 7” is the OS that has been tested for compatibility of this TV (as of January, 2011). For the operations, refer to the help functions of Windows 7.



To use this function with your smartphone, set [Network Remote Control] of this TV to [On]. (p. 91) And you need to install the application for controlling VIERA in your smartphone. For the information of the application: http://panasonic.jp/support/global/cs/tv/ For the operations, refer to the support information of the application.

Page 89

 Sharing the TV programme or contents of this TV with the other network equipment

You can enjoy the current digital TV programme or the contents



of this TV on the other DLNA Certified VIERA



, your smartphone, etc. connected to your home network. For example, watching the continuation of the current programme on your smartphone in the other room, etc.



To use this function, set [DLNA Server Settings] of this TV.



To use this function with the other VIERA, select a name or MAC Address of this TV from the DLNA server list of the other VIERA, and then select the content to operate. Also refer to the manual of the other VIERA.



To use this function with your smartphone, you need to install the application for controlling VIERA in your

(p. 91)

smartphone. For the information of the application: http://panasonic.jp/support/global/cs/tv/ For the operations, refer to the support information of the application.



1: Available contents:

Contents that can be played back by Media Player of this TV and other network equipment

•

TV programmes recorded on the USB HDD with this TV (TV programmes recorded on the SD Card are not

•

available.)



2: DLNA Certified VIERA of before the year 2009 may not be available. The compatibility with future products is not

guaranteed.

Note



When using this function, this TV must be on.



This function is available only with 1 piece of other equipment.



You may be able to control this TV for turning off the screen and muting the sound from your smartphone. For details, refer to the support information of the application.



This function may not be available in the following conditions of this TV:

While the recording is in progress.

•

While Video mode or Recorded TV mode in Media Player.

•

When in VIERA Connect.

•

When accessing the media server.

•

When the data service is active.

•

When selecting radio channels.

•

When watching encrypted (copy-protected) programmes.

•

When the broadcast prohibits the output of video and audio.

•

VIERA Connect



To enable this function, connect this TV to a broadband network environment.

“Network connections” (p. 90), “Network Setup” (p. 90)



For details about VIERA Connect operation

Note



VIERA Connect home screen is subject to change without notice.



This TV does not support full web browser function and some features of the websites may not be available.



Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you will not be able to use VIERA Connect. You can update the software later manually. [Software Update] in [Network] (p. 93)



The services through VIERA Connect are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.



Some content may be inappropriate for some viewers.



Some content may only be available for specific countries and may be presented in specific languages.



Depending on the connection environment, the internet connection may be slow or may not be successful.



During the operation, audio signal is output from AV1, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals. But no video signals are output. A To use HDMI2 with ARC function, connect an amplifier that has ARC function (p. 98) and set to use theatre speakers (p. 104).



You can restrict access to VIERA Connect.



VIERA Connect is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is in progress.

V1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p. 49).

(p. 21)

[Child Lock] (p. 66)

Using Network Services (DLNA / VIERA Connect / freesat)

freesat

freesat may give you access to the interactive services and features through an internet connection.



Please contact broadcasters for availability of services.

Page 90

Network connections

To use only DLNA features, you need a home network environment and you can operate the features without broadband network environment. To use VIERA Connect features, you need a broadband network environment.



If you do not have any broadband network services, please consult your retailer for assistance.



Dial-up internet connections cannot be used.



Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is not enough, contents may not be played back properly.

Example 1

(For DLNA and VIERA Connect)

Wireless connection

Access point

Internet environment

Built-in wireless LAN

Wired connection

LAN cable (Shielded)



Ensure to use a LAN straight cable for this connection.



Set up and connect any equipment required for the network environment. You cannot make settings for the

Using Network Services (DLNA / VIERA Connect / freesat)

equipment on this TV



If your modem has no broadband router functions, use a broadband router.



If your modem has broadband router functions but there are no vacant ports, use a hub.



Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.



If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.

. Read the manual of the equipment.

Smartphone

DLNA Certified VIERA

Hub or Router

DLNA Certified media server (for example, PC, DIGA Recorder, etc.)

Example 2

(For VIERA Connect)

You can connect this TV and the telecommunication equipment directly to use VIERA Connect features.

LAN cable (Shielded)

Note



Contact your Internet Service Provider (ISP) or telecommunications company for further assistance regarding the network equipment.



Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be impossible.



Turn the TV off, and then on again when changing or reconnecting the network connection.

Internet environment

Network Setup



Ensure the connections are completed before starting Network Setup.

“Network connections” (p. 90)

Display the menu and select [Network]

Network

select

access

Page 91

Network Link settings

Sets the link settings to access and control this TV from the network equipment (PC with Windows 7 installed, smartphone, DLNA Certified VIERA, etc.) via the network.

1 Select [Network Link Settings]

Access Network Link Settings

select

access

VIERA Name

DLNA Remote Control Enables to control the TV using Windows 7 via the network [Off] / [On]

Network Link Settings

DLNA Remote Volume

Network Remote Control

DLNA Server Settings





Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.

Item Adjustments / Configurations (alternatives)

Sets your favourite name for this TV



This name will be used as the name of this TV on the screen of the other network equipment.

Enables to control the volume of the TV using Windows 7 via the network

[Off] / [On]

Enables to control the TV from the network equipment (smartphone, etc.)



DLNA Server

Registration Type

Remote Device List Lists the accessible equipment to this TV on the home network

[Off] / [On]



For more information of this function: http://panasonic.jp/support/global/cs/tv/

Enables to share the TV programme or contents of this TV with the network equipment (DLNA Certified VIERA, smartphone, etc.) [Off] / [On]

Selects whether to restrict the access to this TV for each equipment on the home network [Auto] / [Manual] [Auto]: All the available equipment on the home network are accessible.

(maximum 16 equipment)

[Manual]: Sets the restrictions for each equipment in the [Remote Device List].

2 Select the items and set

Network Link Settings

VIERA Name DLNA Remote Control DLNA Remote Volume Network Remote Control DLNA Server Settings Access

select

access / store

VIERA On On On

Using Network Services (DLNA / VIERA Connect / freesat)

Wired connection settings

This setting is for the network connection by using the LAN cable.

1 Select [Network Connection] and set to [Wired]

select

Network Connection Wired

access / store

2 Select [IP/DNS Settings] and set the items

select

IP/DNS Settings Access

access

 [Acquire IP Address] / [Acquire DNS Address]

Sets [IP Address], [Subnet Mask], [Default Gateway] and [DNS Address]. Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended).

IP/DNS Settings

Acquire IP Address Auto

IP Address Subnet Mask Default Gateway

Acquire DNS Address

DNS Address

Proxy Settings

Auto



The available settings are displayed automatically.

Manual settings

Address], [Subnet Mask], [Default Gateway], [DNS Address])

([IP

select

access / store

Page 92

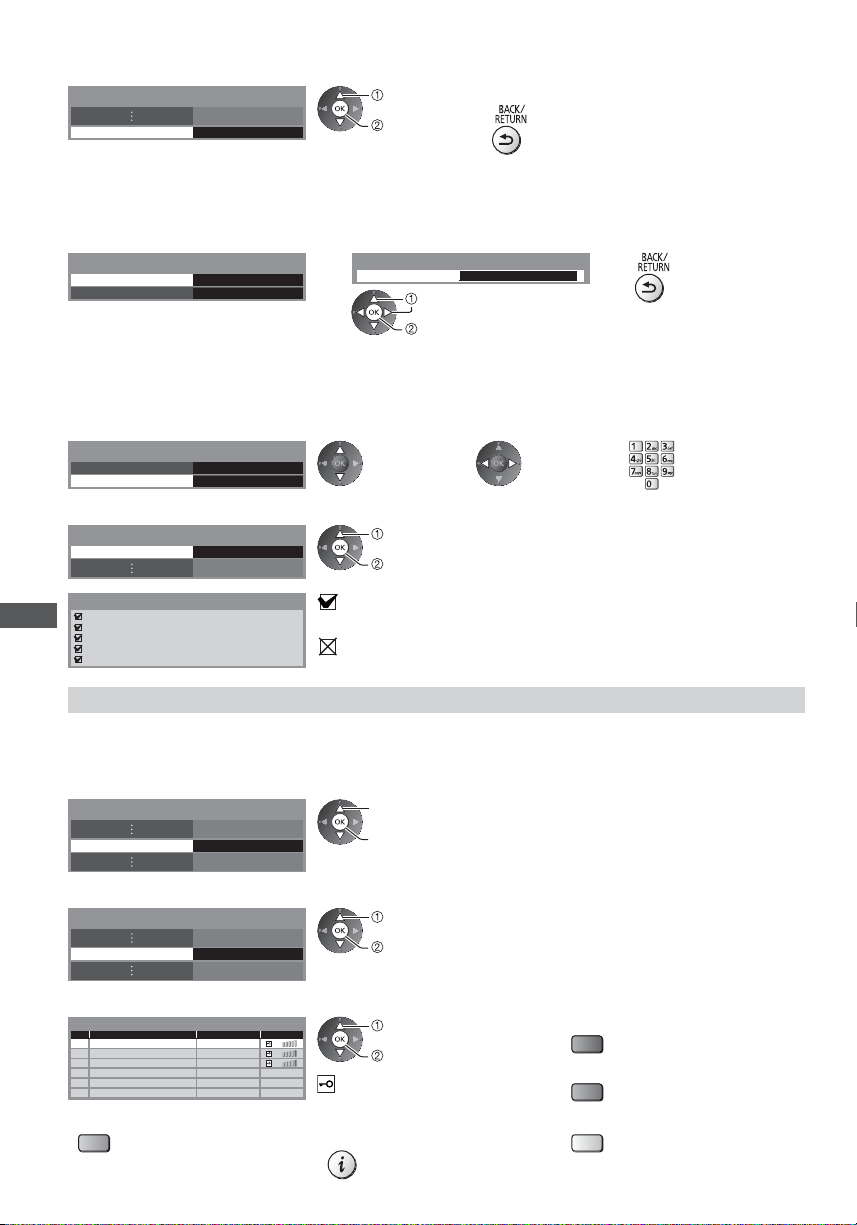

3 Select [Proxy Settings] and set the items



select

Access Proxy Settings

access

After settings, return to the previous menu.

 [Proxy]

Sets Proxy address.



This is the address of the relay server that is connected to the target server instead of the browser and sends data to the browser. Setting is required if specified by the provider.

1. Select [Proxy]

Proxy Settings

Proxy

Proxy Port

2. Enter the address

Proxy

Host

select

set



You can set characters by using numeric buttons.

3. Store

 [Proxy Port]

Sets Proxy port number.



This number is also specified by the provider with the Proxy address.

1. Select [Proxy Port]

Proxy Settings

Proxy

Proxy Port

4 Select [Connection Test] and access to test

Connection Test Access

Connection Test

Check network cable connection. Check acquired IP address.

Using Network Services (DLNA / VIERA Connect / freesat)

Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

select

access

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then try again.

Wireless connection settings

This setting is for the wireless network connection.



Confirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of the access point.

1 Select [Network Connection] and set to [Wireless]

select

Network Connection Wireless

access / store

2 Select [Wireless Network Settings]

select

Wireless Network Settings

Access

access

3 Select your desired access point

Available Wireless Networks

No. Network Name(SSID) Status Wireless type

Access Point A

Access Point B

Access Point C



To search access points again

(blue)

11n(2.4GHz) 11n(5GHz) 11n(5GHz)

select

access

: Encrypted access point



For the information of the highlighted access point

2. Move the cursor and enter the number



Performs automatic testing of the network connection for the TV



When the access point is already set, [Current

. (It takes a while to test.)

Settings] screen will be displayed. T settings, select [No] on this screen and go to the next step.



For [WPS(Push button)] (p. 19)

(red)



For [WPS(PIN)] (p. 93)

(green)



To set manually (p. 93)

(yellow)

o change the

Page 93

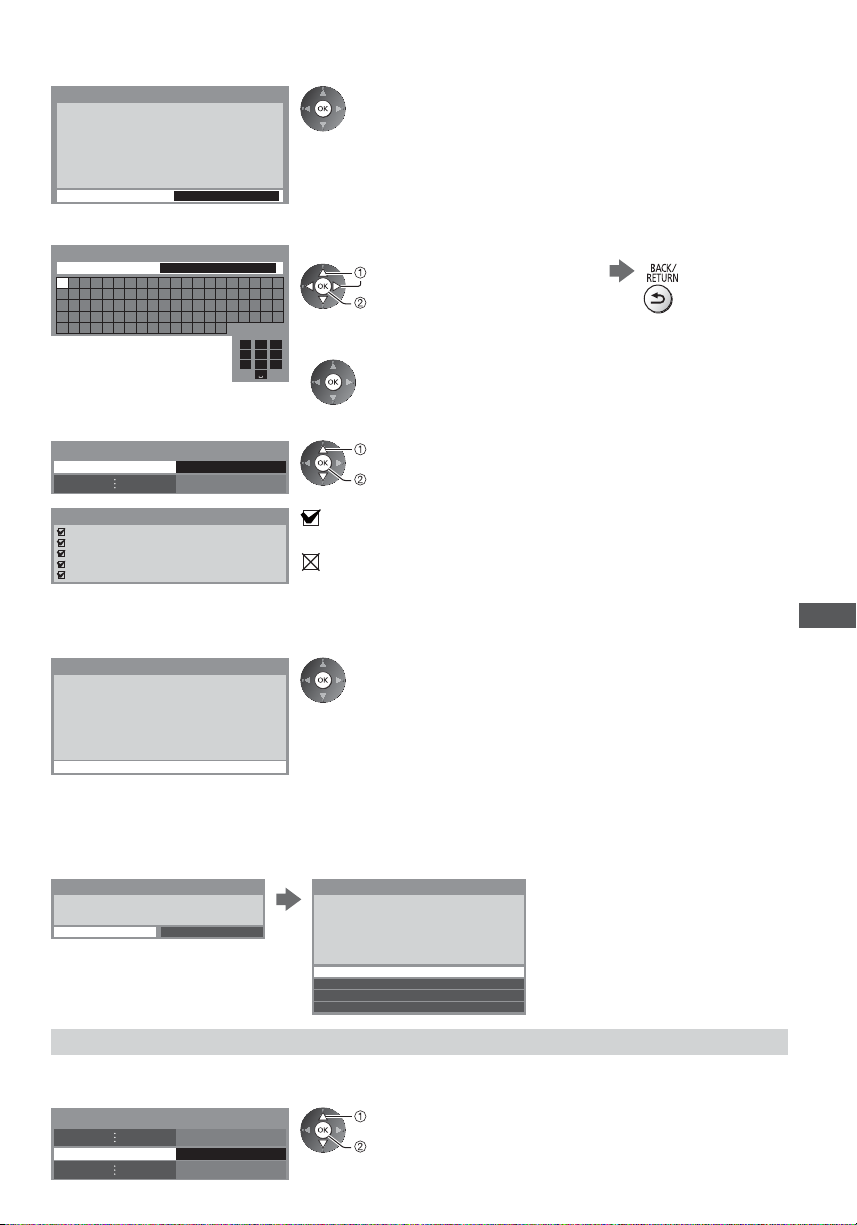

4 Access the encryption key input mode

Encryption Key Setting

Connection will be made with the following settings: Network Name(SSID) : Access Point A Security type : WPA-PSK Encryption type : TKIP

Please input the encryption key.

Encryption key



If the selected access point is not encrypted, the confirmation screen will be displayed. It is recommended to select the encrypted access point.

5 Enter the encryption key of the access point

Wireless Network Settings

Encryption key

A B C D E F G H I J K L M N O P Q R S T

U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #

a b c d e f g h i j k l m n o p q r s t

u v w x y z ( ) + - . * _ @ / “ ‘ % & ?

, ; = $ [ ] ~ < > { } | ` ^ \

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Set characters

select

set



You can set characters by using numeric buttons.



After settings, return to the previous menu.

Store

6 Select [Connection Test] and access to test



Connection Test Access

Connection Test

Check wireless network connection. Check acquired IP address. Check for devices using same IP address. Check gateway connection. Check server connection for VIERA Connect.

select

access

: succeeded

The test is successful and the TV is connected to the network.

: failed

Check the settings and connections. And then try again.

Performs automatic testing of the network connection for the TV

. (It takes a while to test.)

If you continue to have difficulty, please contact your internet service provider.

 [WPS(PIN)]

Enter the PIN code to the access point, and then select [Connect]

WPS(PIN)

Please register the following PIN codes on the wireless access point.

PIN code : 12345678

Select ‘Connect’ after entering and saving the settings on the wireless access point.

Connect

 [Manual]

You can setup SSID, security type, encryption type, and encryption key manually. Follow the on-screen instructions and set manually.



When you use 11n (5 GHz) for the wireless system between the built-in wireless LAN and access point, select [AES] for the encryption type.

Network Name(SSID) Setting

Please input the network name(SSID).

SSID

XXXXXXX

Security Type Settings

Connection will be made with the following settings: Network Name(SSID) : XXXXXXX

Please select the security type.

Using Network Services (DLNA / VIERA Connect / freesat)

WPA2-PSK

WPA-PSK

Shared key

Open

Update TV’s software

Accesses the specific website to update TV’s software and search if any software updates are available.

Select [Software Update]

select

Software Update Access

access



Follow the on-screen instructions.

Page 94

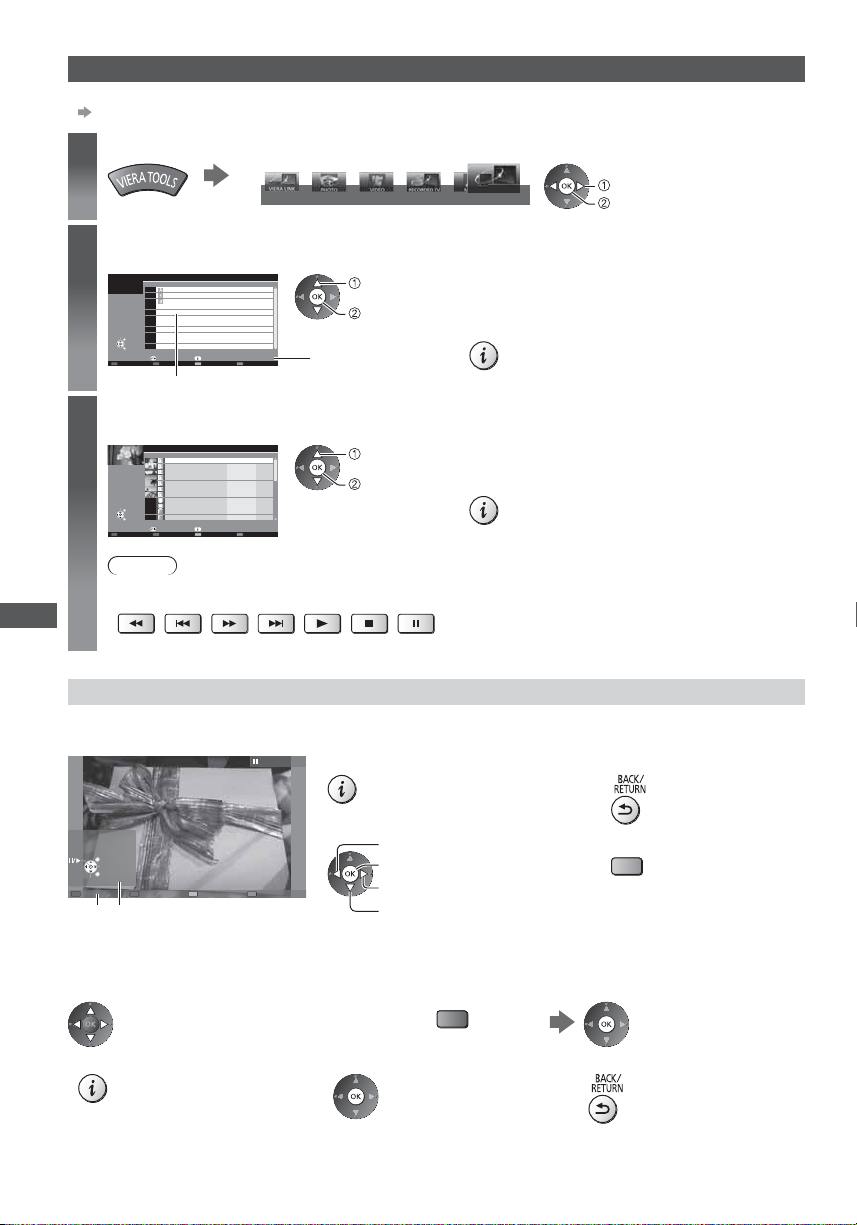

Using DLNA® features



Ensure the preparation of the media server, network connections and network settings are completed.

(p. 88 - 93)

Display [VIERA TOOLS] and select [Media Server]

Select one of the media servers to access

Example: Media server list

Select

EXIT

RETURN

Access

Available media servers

Select the file

Example: File list

Size

3648x2736

Format

JPEG

Select

EXIT

RETURN

View

Slideshow

Note



Non-playable files are also listed but cannot be selected.



You can use the following buttons during playback. Confirm the code of the remote control to “73” (p. 35).

Using Network Services (DLNA / VIERA Connect / freesat)

Media Server

SERVER1 SERVER2 SERVER3 DIGA

Info Option Menu

Media Server

SERVER1

P000102 2011-10-05 09:54 P000135 P000180 P000214 P000251 P000276 P000293 V100025 V100042 M10054 M10078

Option Menu

Info

2011-11-20 13:18 2011-12-07 11:31 2011-12-10 15:20 2011-12-19 12:39

2011-12-25 14:06 2012-01-06 13:52 2012-01-12 15:56 2012-01-20 10:08 2012-01-28 14:48 2012-02-09 19:58

select

access

Total listed number

select

access

Media Server



For the operations to access the other TV, select a name or MAC Address of the other



To display the information of the highlighted media

select

server



Depending on the condition of media server, you may need to select the folder before selecting the file.



To display the information of the highlighted file

access

TV from this list.

For photo file

[Single view]

Example:

Single view

EXIT Select RETURN

Stop

Operation guide

- Photos are displayed one at a time.

Single view



To display / hide the operation guide



To operate Single view

To the previous photo

Slideshow

Rotate

To the next photo

Stop (return to list)

[Slideshow] - Slideshow completes when all photos are viewed within the list.

1 Select the photo file from the list for the first view 2 Start Slideshow



To display / hide the operation guide



To pause (return to Single view)

(red)



To return to list



To rotate 90°

(blue)

To return to list

Page 95

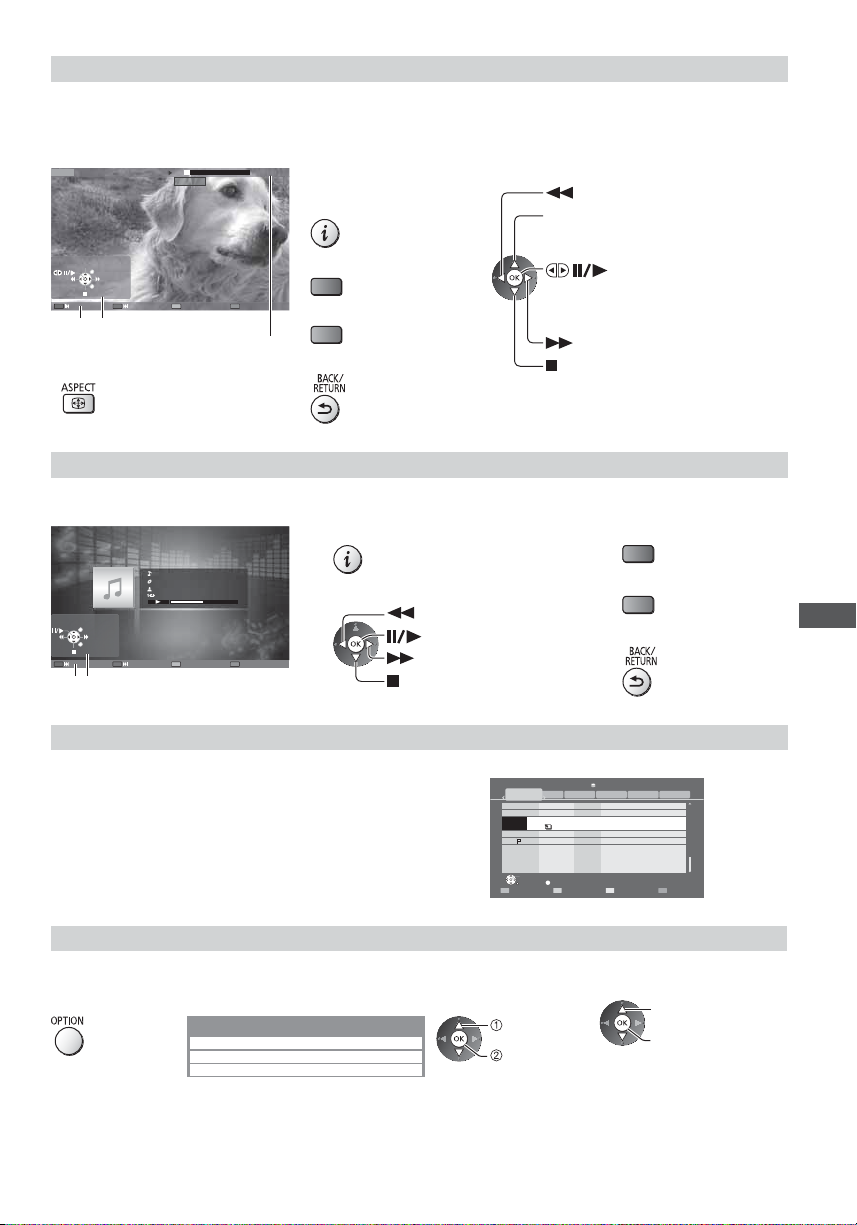

For video file

Playback



If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning.

Example: Playback

MEDIA SERVER

Manual skip

Operation guide



To change aspect

- Playback will start.

V100025 00:15:39

EXIT

RETURN

00:02:05

Information banner



To display / hide the operation guide and information banner



To the previous content

(red)



To the next content

(green)



To return to list



To operate the playback

Rewind

[Manual skip]



Press to skip forward about 30 seconds.

Pause (displays the time seek bar) / Playback

Fast forward

Stop

For music file

Playback

Example: Playback

Operation guide

- Playback will start.

EXIT

RETURN

My Song_9 My Favourite My Music_1

00:02.43 / 00:05.44



To display / hide the operation guide



To operate the playback

Rewind

Pause / Playback

Fast forward

Stop

For DIGA Recorder

Control the DIGA Recorder

The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with this TV remote control according to the operation guide.



Before operating, register this TV on the DIGA Recorder.



For details, read the manual of the DIGA Recorder.

Option menu for each content

Setup the settings for Photo, Video and Music file operations of this TV.

1 Display the

option menu

2 Select [Slideshow Settings], [Video Setup] or

[Music Setup]

Option Menu

Slideshow Settings Video Setup Music Setup

Example:

DIRECT NAVIGATOR (Grouped Titles)

All

Liberty TV FR Journal Télévisé / Météo

AV1

Bibel TV Bibel TV das Gespräch

WDR Aachen

WDR Wuppertal

OK RETURN

select

access



To the previous track

(red)



To the next track

(green)



To return to list

HDD

Time Remaining 36:17 (DR)

WDR aktuell

Video (AVCHD)SportsSocial/EconomyMovieNot Viewed

Page 005/005

19.08(Wed)

19.08(Wed) Start Time 11:01 Titles 27

18.08(Tue)

OPTION

3 Select the items and set

select

access / store

Using Network Services (DLNA / VIERA Connect / freesat)

Delete TitleSelect

Page 96

Slideshow Settings

Transition Effect

Interval

Repeat Slideshow repeat [Off] / [On]

Back Ground Music

Video Preview

Multi Audio, Monaural Audio, Dual Mono

Video Setup

Subtitle

Subtitle Text

Subtitle Language

Aspect Change

Using Network Services (DLNA / VIERA Connect / freesat)

Repeat Playback repeat within the selected file [Off] / [On]

Music Setup

Item Adjustments / Configurations (alternatives)

Selects the transition effect for switching the photo during the slideshow

[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random] [Fade]: The next photo fades in gradually. [Slide]: The next photo slides and appears from the left side. [Dissolve]: Each photo is dissolved when switching to the next photo.

Audio

[Motion]: Each photo is displayed with an effect of enlarging, reducing, moving

[Random]: Each transition is selected at random.

Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)



Selects the back ground music during Photo mode

[Off] / [Type1] / [Type2] / [Type3] / [Type4] / [Type5]

Sets to start the preview of the title or scene in the thumbnail screen [Off] / [On]



Selects between selectable sound tracks (if available)

 

Subtitles On / Off (if available)



Selects the font type to display subtitles correctly (if available)



Selects the language in which subtitles should appear (if available)



[Aspect1]: Displays the content enlarged without distortion. [Aspect2]: Displays the content full-screen. [Original]: Displays the content original size.

  

up or moving down.

This function is not available when [Transition Effect] is set to [Motion].

Image may not be displayed for an instant in the thumbnail screen. Set the preview [Off] to resolve this.

It may take several seconds to change the sound. Only available during playback

Only available during playback

You can also change the aspect using the ASPECT button. Aspect change may not work depending on the content. Only available during playback

Repeat

Playback repeat [Off] / [Folder] / [One] [Folder]: Playback repeat within the selected folder. [One]: Playback repeat of the selected one file.

Audio output settings (for video contents)

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.



To confirm or change the current sound status (see above)

1 Display the menu and Select [Sound]

Item Adjustments / Configurations (alternatives)

Sound

SPDIF Selection

Sound

select

access

Dolby Digital Bitstream. DTS is output as DTS. MPEG is output as PCM.

[PCM]: Digital output signal is fixed to PCM.

2 Select [SPDIF Selection] and set

SPDIF Selection

Reset to Defaults

select

access / store

Auto Reset

2/2

Page 97

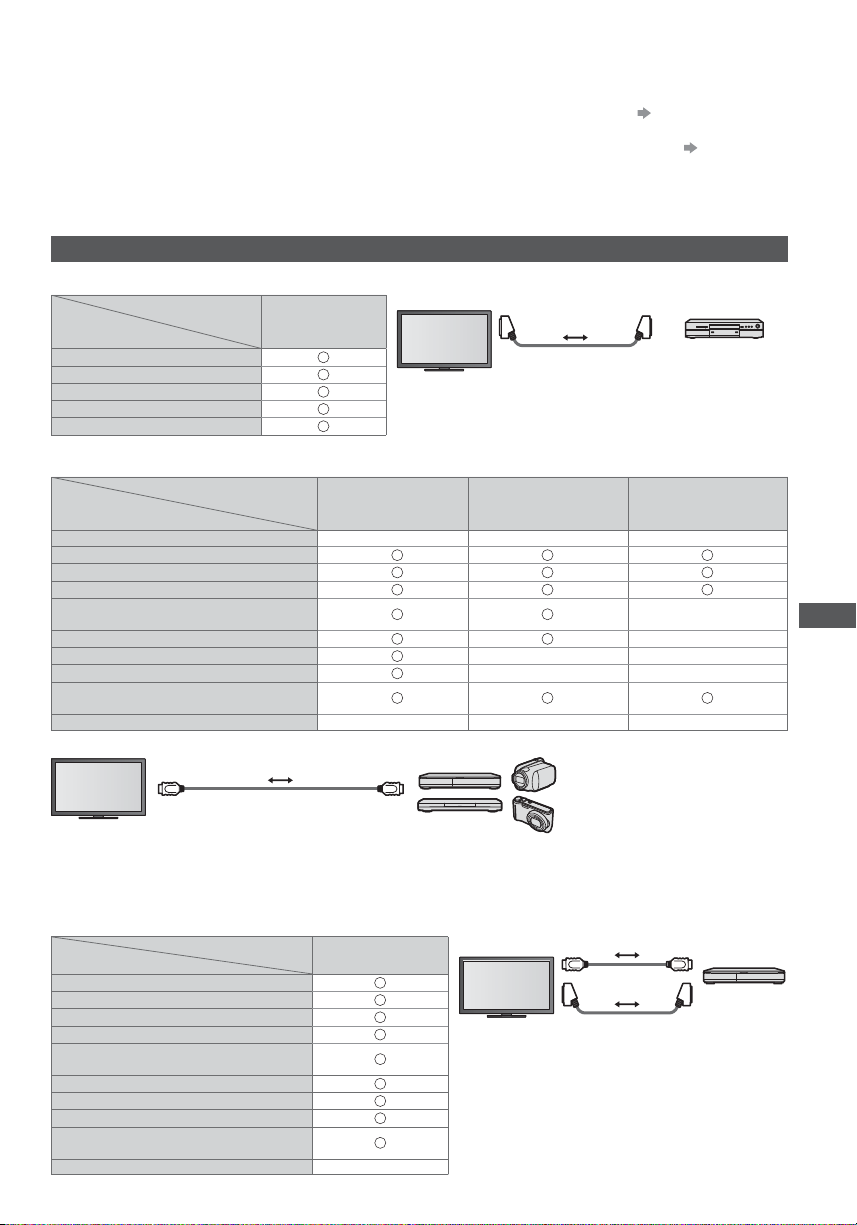

Link Functions (Q-Link / VIERA Link)

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 99) VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and enables easy control,

convenient recording, playback, energy saving, creating home theatre, etc., without complicated setting. (p. 100 - 104) You can use Q-Link and VIERA Link functions together.



This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s version of HDAVI Control. Please read the manual of the equipment to confirm the version.



VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.

Summary of Q-Link and VIERA Link features

Q-Link (SCART connection)

Connected equipment

Features Analogue channel download

Easy playback Power on link Power off link Direct TV Recording

DVD Recorder /

VCR with Q-Link

function

VIERA Link (HDMI connection)

Connected equipment

Features Analogue channel download – – –

Easy playback Power on link Power off link Reduce unnecessary power consumption in Standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected equipment by VIERA remote control Speaker control – – –

Connection

HDMI cable



Use fully wired HDMI compliant cable.



Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.



About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment.

DIGA Recorder with VIERA Link function

VIERA Link (HDMI and SCART connections)

Features

Connected equipment

Analogue channel download Easy playback Power on link Power off link Reduce unnecessary power consumption in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected equipment by VIERA remote control Speaker control –

DIGA Recorder with VIERA Link function

Connection

SCART cable



Use fully wired SCART cable.



Connect the DVD Recorder / VCR supporting Q-Link to the TV’

AV1 terminal via a SCART cable.

DVD Player / Blu-ray

Disc Player with

VIERA Link function



3 



– – – –



DVD Recorder / VCR with Q-Link function

HD Video Camera /

LUMIX Camera with

VIERA Link function

DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with VIERA Link function

Connection

HDMI cable



 2 



Use a fully wired HDMI compliant cable.



Connect the equipment supporting VIERA Link to

s HDMI1, HDMI2, HDMI3 or HDMI4 terminal

the TV’ via an HDMI cable.



Use a fully wired SCART cable.



Connect the equipment supporting VIERA Link to

SCART cable

the TV’s AV1 terminal via a SCART cable.

–



DIGA Recorder with VIERA Link function

Link Functions (Q-Link / VIERA Link)

Page 98

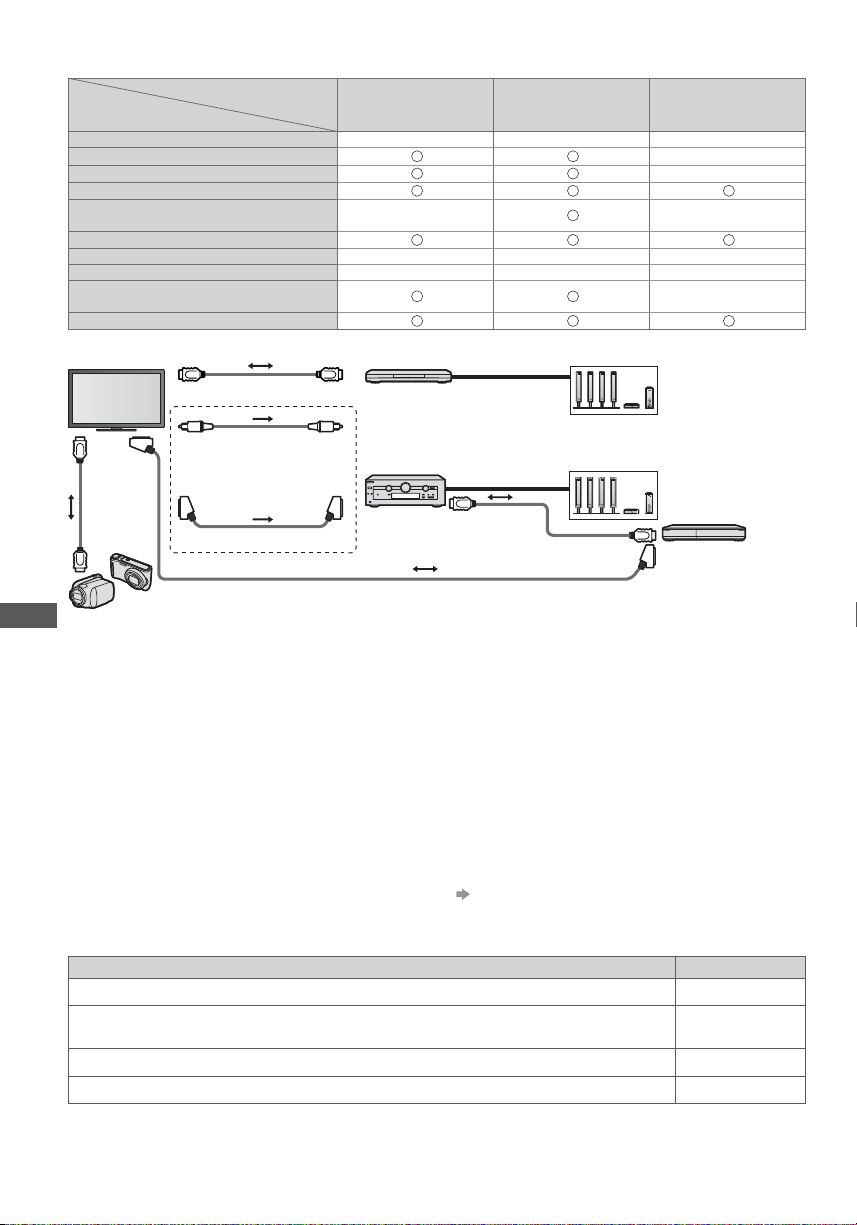

VIERA Link (HDMI and Audio out connections)

Connected equipment

Features Analogue channel download – – –

Easy playback Power on link Power off link Reduce unnecessary power consumption in Standby Auto standby for unnecessary equipment Pause Live TV programme – – – Direct TV Recording – – – Control the menu of the connected equipment by VIERA remote control Speaker control

Connection

HDMI cable

Player theatre with

VIERA Link function



–

3 



To use Player theatre / Blu-ray Disc theatre

Player theatre / Blu-ray Disc theatre with VIERA Link function



To use Amplifier

Amplifier with VIERA Link function



HDMI cable

Optical digital

audio cable

SCART

cable

SCART cable

HD Video Camera / LUMIX Camera with VIERA Link function

Link Functions (Q-Link / VIERA Link)



Use fully wired HDMI compliant cable.



Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.



Use fully wired SCART cable.



If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 terminal and set [AV1 out] to [Monitor] in the Setup Menu (p. 49).



Use the optical digital audio cable or SCART cable for audio output from the TV.



1: Available with the equipment which has “HDAVI Control 2

or later” function.



2: Available with the equipment which has “HDAVI Control 3

or later” function.



3: Available with the equipment which has “HDAVI Control 4

or later” function.



4: Available with a DIGA Recorder which has HDD.

Blu-ray Disc theatre

with VIERA Link

function



Amplifier with

VIERA Link function



3 



Speaker system

HDMI cable

DIGA Recorder with VIERA Link function



5: While playing a disc.



6: Except for watching a disc.



7: If the connected equipment has “HDAVI Control 5”

function, you do not have to use this audio cable (Optical digital audio cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.

– –

–



–

VIERA Link Control of compatible equipment [VIERA Link Control] (p. 102)



Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control. This includes connections to equipment already connected to the

. For example, DIGA Recorder connected to Amplifier

which is connected to the TV via an HDMI cable.

Type of the equipment Maximum number

Recorder (DIGA Recorder, etc.) 3

Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera, Digital Camera, Player theatre, Blu-ray Disc theatre, etc.)

Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1

Tuner (Set top box, etc.) 4

Page 99

Q-Link

Preparations



Connect the DVD Recorder / VCR with the following logos: “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips Corporation)”, “Megalogic (a trademark of Grundig Corporation)”, “SMARTLINK (a trademark of Sony Corporation)”



Q-Link connection



Use fully wired SCART cable.



Set up the DVD Recorder / VCR. Read the manual of the recorder.



Q-Link terminal setup in the Setup Menu [AV1 out] (p. 49)



Download Analogue channel setting “Analogue channel download” (see below)

Features available

(p. 97)

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital channel settings are not downloaded.



To download the Analogue channel settings

[Q-Link Download] (p. 49), [Auto Setup] (p. 17, 57)

Direct TV Recording - What you see is What you record

Records the current programme in DVD Recorder / VCR immediately. (When USB HDD / SD Card for recording is connected in DVB mode, [One Touch Recording] starts.)



Confirm the code of the remote control to “73” (p. 35).



Available conditions:

Picture source Mode Recording from

Analogue

freesat, DVB, Other Sat. / Satellite (USB HDD / SD Card for recording is not connected)

AV (watching recorder’s tuner) AV Recorder’s tuner

AV (watching recorder’s external input) AV Recorder’s external input

AV (watching TV’s external input) AV TV monitor out



When Direct TV Recording is performed, the recorder is automatically turned on if it is in Standby mode.



You can change channel or turn the TV off while the recorder is recording from its own tuner.



Changing channel is not available while the recorder is recording from the TV tuner.

TV TV monitor out

AV Recorder’s tuner

TV TV monitor out

 To stop recording

Unlock the tuner

Press EXIT to unlock and stop recording

Tuner Locked

Link Functions (Q-Link / VIERA Link)

Power on link and Easy playback

When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not active.)



This function works even if the TV enters Standby mode automatically by auto power standby function.

Note



Some recorders are not applicable. Read the manual of the recorder.

Page 100

VIERA Link “ ”

 

Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.

This TV supports “HDAVI Control 5” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p. 97, 98). These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.



Some functions are not available depending on the equipment’s version of HDAVI Control. Confirm the connected equipment’s version of HDAVI Control.



VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.



Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.



For information about applicable Panasonic equipment, consult your local Panasonic dealer or refer to www.panasonic.co.uk

Preparations



Connect the equipment supporting VIERA Link.



VIERA Link connection



Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilised. Recommended Panasonic’s HDMI cable part number:

RP-CDHS15 (1.5 m)

•



Use fully wired SCART cable.



Set up the connected equipment. Read the manual of the equipment.



For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.



Download Analogue channel setting “Analogue channel download” (see below)



Set [VIERA Link] to [On] in the Setup Menu. [VIERA Link] (p. 49)



Set up the TV.

After connection, turn the equipment on and then switch the TV on. Select the input mode from HDMI1, HDMI2, HDMI3 or HDMI4 (p. 34), and make sure that an image is displayed correctly.

This setup should be done each time when the following conditions occur:

for the first time

•

when adding or reconnecting equipment

Link Functions (Q-Link / VIERA Link)

•

when changing setup

•

(p. 97, 98)

RP-CDHS30 (3.0 m)

•



RP-CDHS50 (5.0 m)

•

Features available

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital channel settings are not downloaded.



To download the Analogue channel settings

[Q-Link Download] (p. 49), [Auto Setup] (p. 17, 57)

Easy playback

Automatic input switching - When the connected equipment is operated (during playback or menu operations, etc.), the input mode is switched automatically. When playback is stopped or menus are exited, the input mode returns to the original setting.

Power on link

Power off link

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.



This function will work even if the TV enters Standby mode automatically by auto power standby function.

100
