Panasonic TX-L37E30B Operating Instructions
T
Operating Instructions
LCD Television
Model No.
TX-L32E30B
TX-L37E30B
TX-L42E30B
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain
them for future reference.
The images shown in this manual are for illustrative purposes only.
English
UK and Ireland model
QB0E2096
Features
DVB-T tuner built-in
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts.
DVB-T2 tuner built-in
DVB-T2 is an advanced digital terrestrial system for more efficient transmission.
Available DVB-T2 broadcasts will be tuned automatically when you per form DVB Auto Setup.
GUIDE Plus+ (p. 21)
This TV supports the TV Guide services sent from the GUIDE Plus+ system.
Sharp pictures and clear sound with HDMI connection (p. 96)
Enjoy high definition digital picture and high quality sound by using an HDMI cable.
This TV supports HDMI (Version 1.4 with Audio Return Channel), Deep Colour, x.v.Colour™.
•
Using USB devices
Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 54, 65)

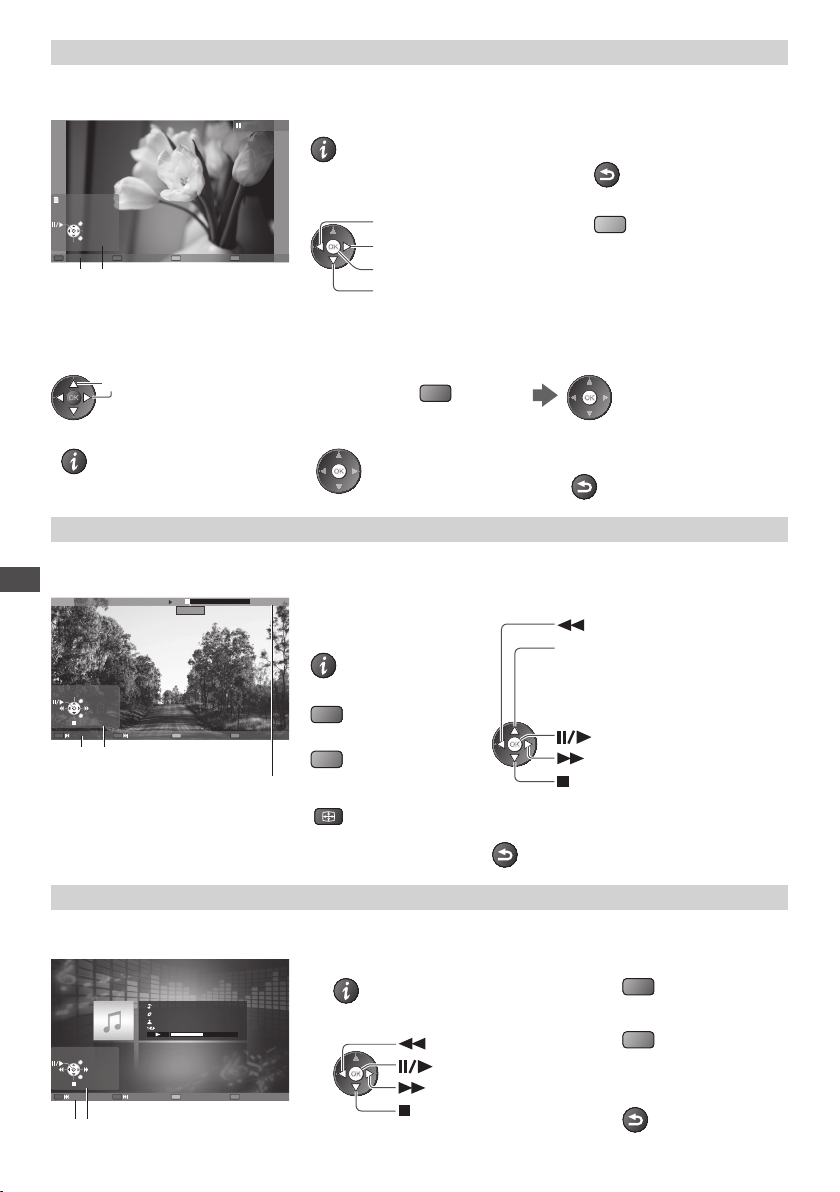

Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 58)

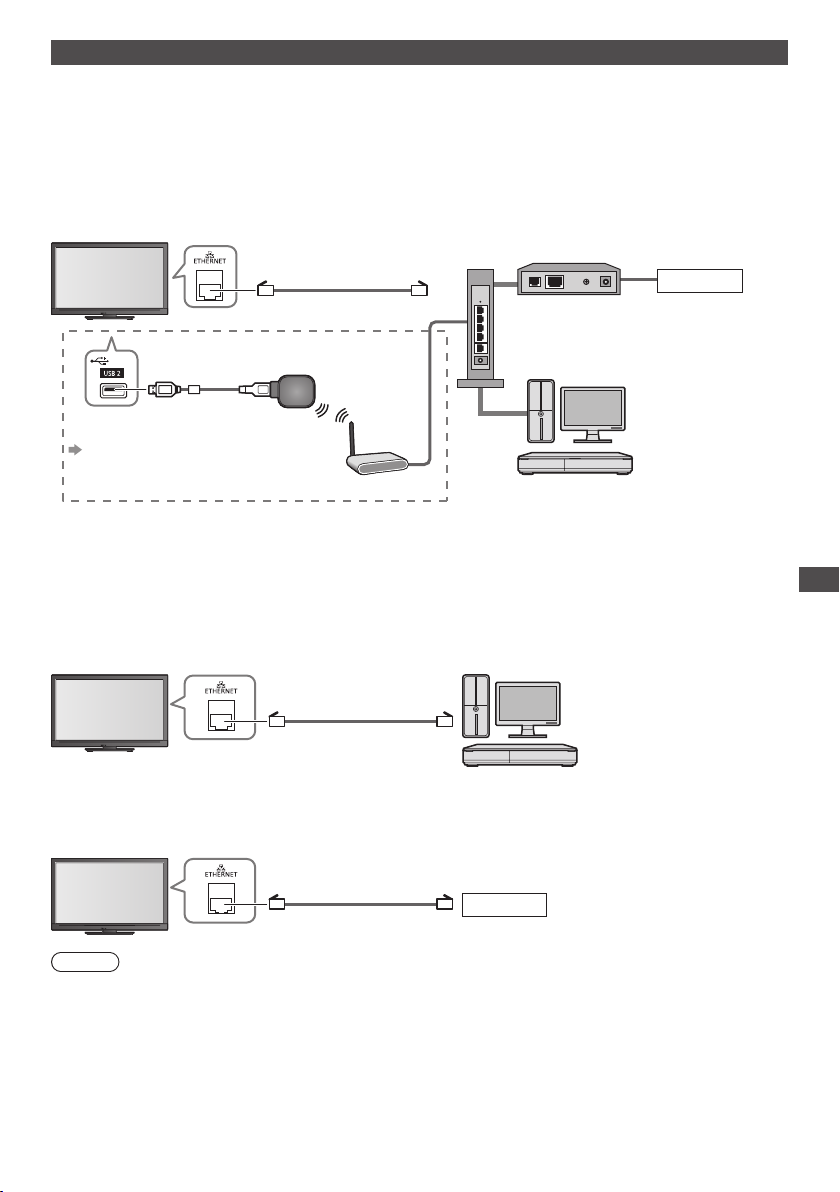

Wireless LAN Adaptor for the network connection. (p. 6, 11, 13)
USB keyboard, gamepad, etc. are available. (p. 97)
Timer Programming (p. 22, 45)
Timer Programming enables you to use functions such as programme reminder and programme recording to the external
recorder / formatted USB HDD.
VIERA IMAGE VIEWER - SD Card viewer in Media Player (p. 58)
Enjoy your photos or videos recorded on an SD Card on the T V screen.
SDXC Card
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.
DLNA
DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. For example, you
can enjoy watching photos and videos stored in the PC connected to your home network by accessing from the TV. (p. 77)
VIERA Connect - Enjoy great web entertainment (p. 16, 80)
Enjoy the internet contents on the TV such as photos, videos, weather, video communication (ex. Skype™), etc. through an
easy-to-use web interface that is built into the TV.
Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 81, 82)
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.
VIERA TOOLS - Display special feature icons for easy accessibility (p. 29)
Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS button.
Dolby Digital Plus / Dolby Pulse decoders
It is possible to decode Dolby Digital Plus / Dolby Pulse multi-channel audio tracks and output as Dolby Digital Bitstream
(multi-channel sound signal) from DIGITAL AUDIO OUT / HDMI2 (ARC function) terminals.
Owner ID (p. 50)
Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to
determine the owner in the case of theft.
Supports Audio Description signal (p. 18, 33)
Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids
understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of
the main volume.
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region.
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV
channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently
turned off, it will not be possible to recover them.
To retune your TV
•
[Auto Setup] in [DVB Tuning Menu]-DVB mode (p. 40)
Users of cable or satellite boxes should still retune the T V to continue to receive Freeview channels via their aerial. (Your
Analogue channel for viewing Cable or Satellite services will change to a new position.)
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite
•
good reception of analogue channels.
2
Transport only in upright position
The recording and playback of content on this or any other
device may require permission from the owner of the copyright
or other such rights in that content. Panasonic has no authority
to and does not grant you that permission and explicitly
disclaims any right, ability or intention to obtain such permission
on your behalf. It is your responsibility to ensure that your use
of this or any other device complies with applicable copyright
legislation in your country. Please refer to that legislation for
more information on the relevant laws and regulations involved
or contact the owner of the rights in the content you wish to
record or playback.
This product is licensed under the AVC patent portfolio license
for the personal and non-commercial use of a consumer to (i)
encode video in compliance with the AVC Standard (“AVC Video”)
and/or (ii) decode AVC Video that was encoded by a consumer
engaged in a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC Video.
No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEGLA, LLC.
See http://www.mpegla.com.
ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT
IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM
SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+
SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/
OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS
REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS,
OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES
IN CONNECTION WITH THE PROVISION OR USE OF ANY
INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE
GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
Contents
Be Sure to Read
Safety Precautions····································································4
Quick Start Guide
Accessories / Options ······························································6
Identifying Controls ·································································8
Basic Connection ··································································· 10
Auto Setup ··············································································· 12
Enjoy your TV!
Basic Features
Using “VIERA Connect” ························································16
Watching TV ············································································ 17
Using TV Guide ······································································· 21
Viewing Teletext ·····································································24

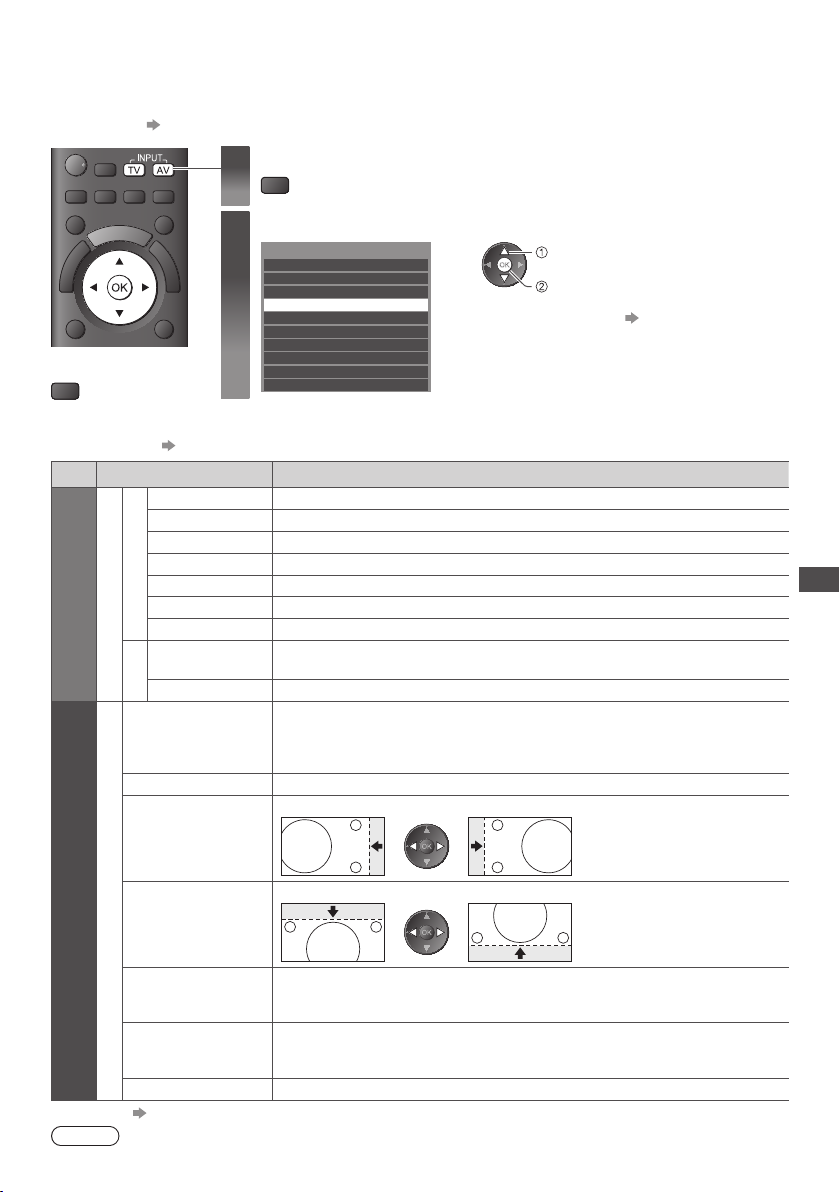

Watching External Inputs ··················································· 27
How to Use VIERA TOOLS ··················································· 29
How to Use Menu Functions ············································· 30
Advanced Features
Retuning from Setup Menu ··············································· 40
Tuning and Editing Channels ············································41
Timer Programming ····························································· 45
Child Lock ················································································· 47
Input Labels ············································································· 48
Shipping Condition ······························································49
Owner ID··················································································· 50
Using Common Interface ···················································51
Updating the TV Software ·················································· 52

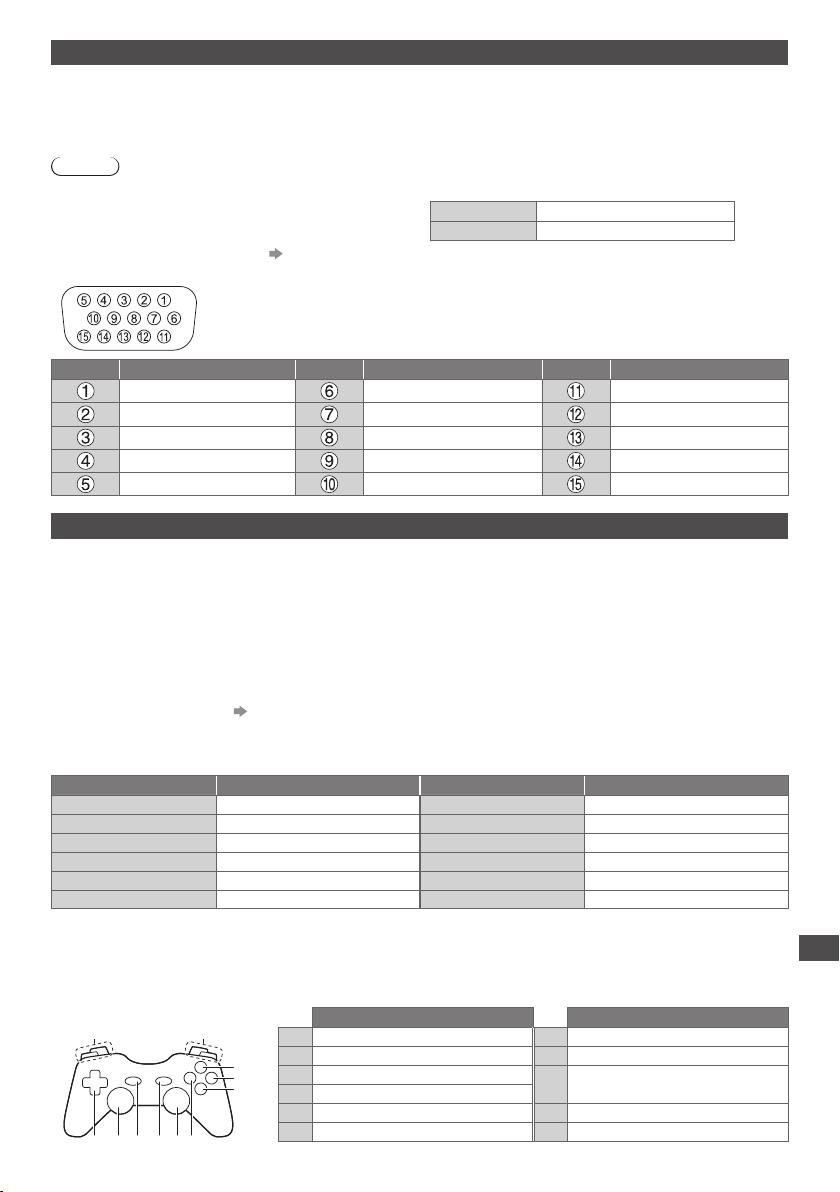

Displaying PC Screen on TV ··············································· 53
USB HDD Recording ·····························································54
Using Media Player ·······························································58
Using Network Services (DLNA / VIERA Connect)······70
Link Functions (Q-Link / VIERALink) ·······························81

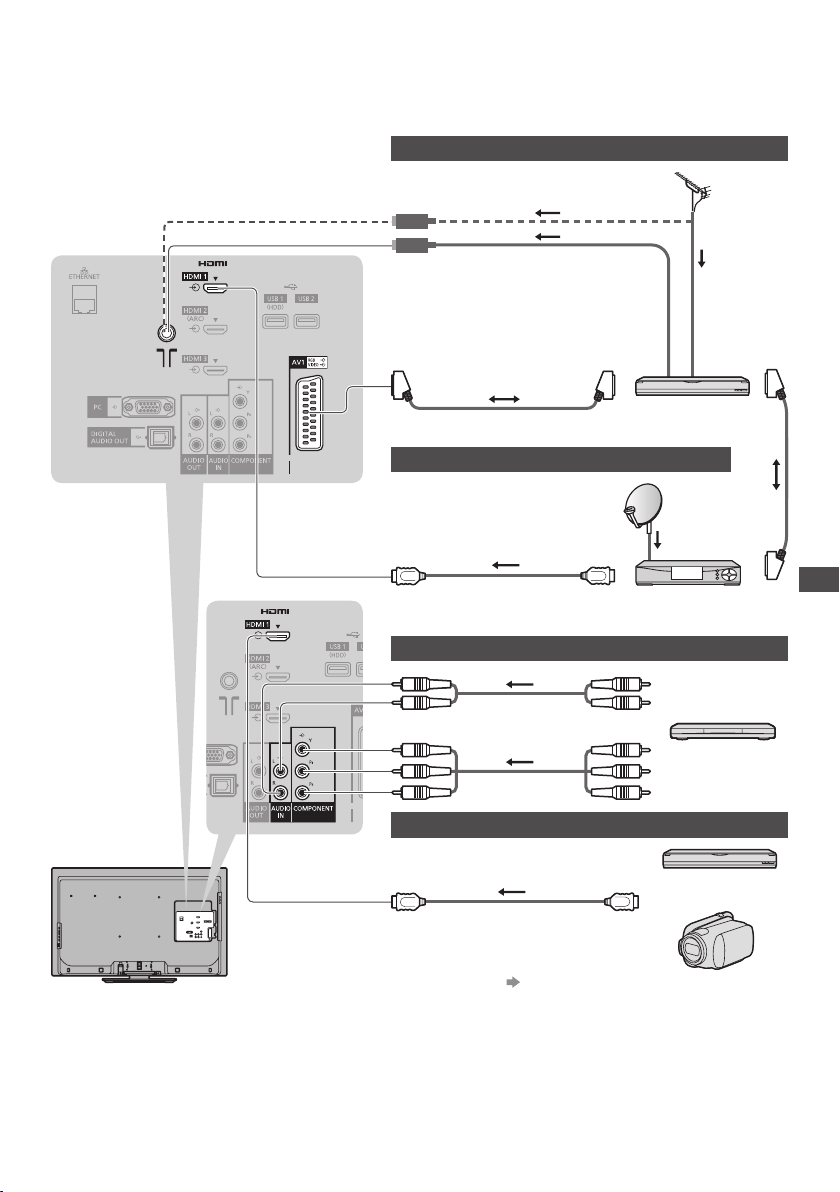

External Equipment ······························································ 89
Notice for DVB functions
The compatibility with future services is not guaranteed.
Check the latest information on the available services at the
following website.
http://panasonic.jp/support/global/cs/tv/
FAQs, etc.
Technical Information ··························································92
FAQs ·························································································100
On screen messages ···························································102
Glossary···················································································104
Maintenance ·········································································104
Index ························································································105
Specifications ········································································106
Licence ····················································································107
3
Safety Precautions
Warning
Safety Precautions
■ Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.
•
Insert the mains plug fully into the socket outlet.
•
Ensure that the mains plug is easily accessible.
•
Remove the mains plug when cleaning the TV.
•
Do not touch the mains plug with a wet hand.
•
Do not damage the mains lead.
•
• Do not place a heavy
object on the lead.
• Do not place the lead near
a high temperature object.
• Do not pull on the lead.
Hold onto the mains plug
body when disconnecting
the plug.
• Do not move the TV with the lead plugged into a socket outlet.
• Do not twist the lead, bend it excessively or stretch it.
• Do not use a damaged mains plug or socket outlet.
• Ensure the TV does not crush the mains lead.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this
mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.
If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed
and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains
plug is inserted into any 13 amp socket.
If a new mains plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: –
Blue: Neutral Brown: Live
As the colours of the wire in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your mains plug, proceed as follows.
The wire which is coloured BLUE must be connected to the terminal in the mains plug
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the mains plug which is
marked with the letter L or coloured RED.
Under no circumstances should either of these wires be connected to the Earth terminal of the
three pin mains plug, marked with the letter E or the earth symbol
How to replace the fuse
For plug type shown in example 1:
Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit
securely into the mains plug (see example 1).
For plug type shown in example 2:
Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse,
then press the fuse cover down securely (see example 2).
4
or the BSI mark on the body of the fuse.
If you detect anything unusual, immediately
switch off the mains supply switch and remove the
mains plug.
AC 220-240 V
50 / 60 Hz
Example 1
Example 2
.
Warning
■ Take car e
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
Do not remove covers and never modify the T V yourself as live parts are accessible when they are
•
removed. There are no user serviceable parts inside.
Do not expose the TV to rain or excessive moisture. This TV must not be exposed to
•
dripping or splashing water and objects filled with liquid, such as vases, must not be
placed on top of or above the TV.
Do not expose the TV to direct sunlight and other sources of heat. To prevent fire
•
never place any type of candle or naked flame on top or near the TV.
Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not
•
hang over the edge of the base.
Do not insert foreign objects into the TV through the air vents.
•
Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the
•
setup or installation of approved wall-hanging brackets.
Do not apply strong force or impact to the display panel.
•
This TV is designed for Table-top use.
•
To prevent the spread of fire, keep candles or other open
flames away from this product at all times
■ Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.
Keep the dangerous parts out of reach of young children.
•
Do not allow children to handle SD Card. As with any small object, the SD Card could be
•
swallowed by young children. Please remove SD Card immediately after use and store out of
reach of young children.
Safety Precautions
Caution
■ Ventilation
Allow sufficient space around the TV in order to help prevent excessive heat, which
could lead to early failure of some electronic components.
Ventilation should not be impeded by covering
•
the ventilation openings with items such as
newspapers, tablecloths and curtains.
Whether you are using the pedestal or not, always ensure the vents in the bottom of the
•
TV are not blocked and there is sufficient space to enable adequate ventilation.
Minimum distance
10
10
10
■ Moving the TV
Before moving the TV, disconnect all cables.
■ When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket
outlet.
Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
•
■ Excessive volume
Do not expose your ears to excessive volume from the headphones. Irreversible
damage can be caused.
10
(cm)
5
Accessories / Options
Standard accessories
Remote Control Batteries for the
N2QAYB000490
•
or
N2QAYB000672
Quick Start Guide
Accessories / Options
•
Operating Instructions
Product Registration Leaflet
Accessories may not be placed all together. Take care not to throw them away unintentionally.
•
Optional accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please
refer to the manual of the optional accessories.
Wireless LAN Adaptor
DY-WL10E-K
•
Communication Camera
TY-CC10W
•
Wall-hanging bracket
TY-WK3L2RW
•
The angle of wall-hanging bracket can
be adjusted in “zero tilting (vertical)”
and “10-degree tilting” for this TV.
Caution
To use the Wireless LAN Adaptor, an access point needs to be obtained.
•
It is recommended to use the Wireless LAN Adaptor with the extension cable.
•
To avoid malfunctions caused by radio wave interference, keep the TV away from the devices such
•
as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when
using the Wireless LAN Adaptor.
Depending on the area, this optional accessory may not be available.
•
Additional information for Wireless LAN Adaptor and access point may be on the following website.
•
(English only)
http://panasonic.jp/support/global/cs/tv/
Caution
This camera can be used on VIERA Connect (p. 16, 80).
•
Please also read the manual of the camera.
•
Depending on the area, this optional accessory may not be available.
•
For details, consult your local Panasonic dealer.
Remote Control (2)
R6
•
(p.7)
Rear of the TV
200 mm
Pedestal
TX-L32E30B:
•
•
•
200 mm
(p.7)
TBL5ZX0140
TBL5ZX0028
TXFPE01NUUE
TX-L37E30B:
TBL5ZX0144
•
TBL5ZX0028
•
TXFPE01NUUE
•
Screw for fixing the TV onto the wall-hanging
bracket (not supplied with the TV)
Depth of screw :
minimum 4 mm,
maximum 17 mm
Diameter : M6
TX-L42E30B:
TBL5ZX0149
•
TBL5ZX0166
•
TXFPE01NUUE
•
(View from the side)
Holes for wall-hanging bracket installation
Warning
Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of personal injury and
•
product damage. In order to maintain the unit’s performance and safety, be sure to ask your dealer or a licensed contractor
to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
Carefully read the instructions accompanying optional accessories, and be sure to take steps to prevent the TV from falling
•
off.
Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage which
•
will void your warranty.
Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat.
•
Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by metal within the wall.
•
Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of time.
•
6
Attaching / removing the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:
Warning
Do not disassemble or modify the pedestal.
•
Caution
Do not use any pedestal other than the one provided with this TV.
•
Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer
•
immediately.
During setup, make sure that all screws are securely tightened.
•
Ensure that the TV does not suffer any impact during installation of the pedestal.
•
Ensure that children do not climb onto the pedestal.
•
Install or remove the TV from the pedestal with at least two people.
•
A
Assembly screw (4)
XSS5+15FNK
•
M5 × 15
B
Assembly screw (4)
XYN4+F30FJK
•
M4 × 30
Assembling the pedestal
1
Use the assembly screws A to fasten the bracket
to the base D securely.
C
Make sure that the screws are securely
•
tightened.
Forcing the assembly screws the wrong way
•
will strip the threads.
A
C
Hold the bracket not to
D
fall over
C
Bracket
TBL5ZA3017
•
TX-L32E30B
()
TX-L37E30B
TBL5ZA3014
•
(TX-L42E30B)
Securing the TV
2
Use the assembly screws B to fasten securely.
Tighten the four assembly screws loosely at first, then tighten
•
them firmly to fix securely.
Carry out the work on a horizontal and level surface.
•
D
Base
TBL5ZX0140 (TX-L32E30B)
•
TBL5ZX0144 (TX-L37E30B)
•
TBL5ZX0149 (TX-L42E30B)
•
B
B
Quick Start Guide
Accessories / Options
Front
Installing / removing remote’s batteries
1
Pull open
Hook
2
Close
Note the correct
polarity (+ or -)
Foam mat or thick soft cloth
Caution
Incorrect installation may cause battery leakage and corrosion, resulting
•
in damage to the remote control.
Do not mix old and new batteries.
•
Replace only with same or equivalent type. Do not mix different battery
•
types (such as alkaline and manganese batteries).
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or break up batteries.
•
Batteries must not be exposed to excessive heat such as sunshine, fire, etc.
Make sure you dispose of batteries correctly.
•
Ensure batteries are replaced correctly, there is danger of explosion and
•
fire if battery is reversed.
Do not disassemble or modify the remote control.
•
7
Identifying Controls
Remote Control
INPUT
SD CARD
ASPECT
MENU
I
V
k
n
i
L
A
R
E
I
V
OPTION
TEXT
STTL
ghi
REC
Switches TV On or Off standby
Switches to SD Card and USB device viewing /
listening mode

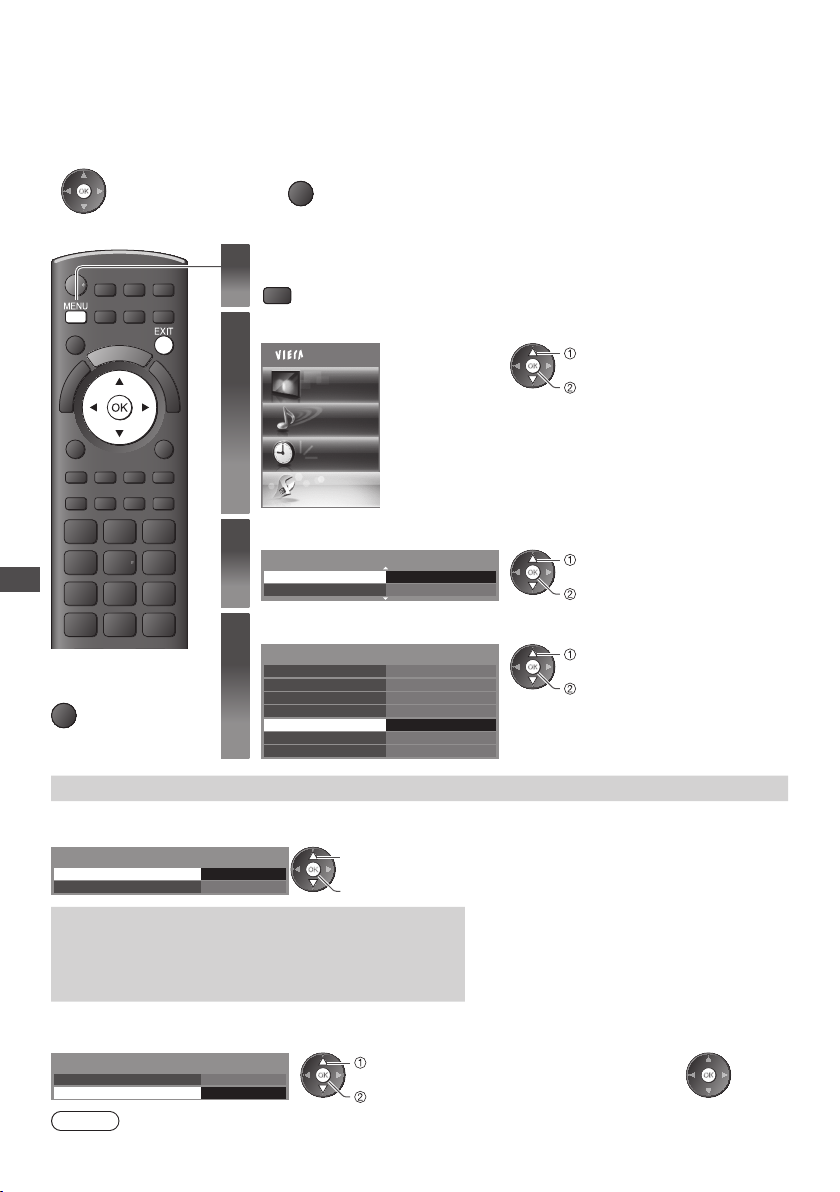

Press to access Picture, Sound, Timer and Setup
Menus
Changes aspect ratio
Displays channel and programme information
Displays some special feature icons and accesses
easily
T
O
A
R
E
INDEX HOLD
abc def
jkl
tuvpqrs
PROGRAMME
DVD/VCR
TV
AVTV
DIRECT TV REC
EXIT
O
L
S
G
U
I
D
E
BACK/
RETURN
mno
wxyz
LAST VIEW
TV
15
16
17
18
19
20
21
22
23
24
25
26
27
Quick Start Guide
Identifying Controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Standby On / Off switch
1
•

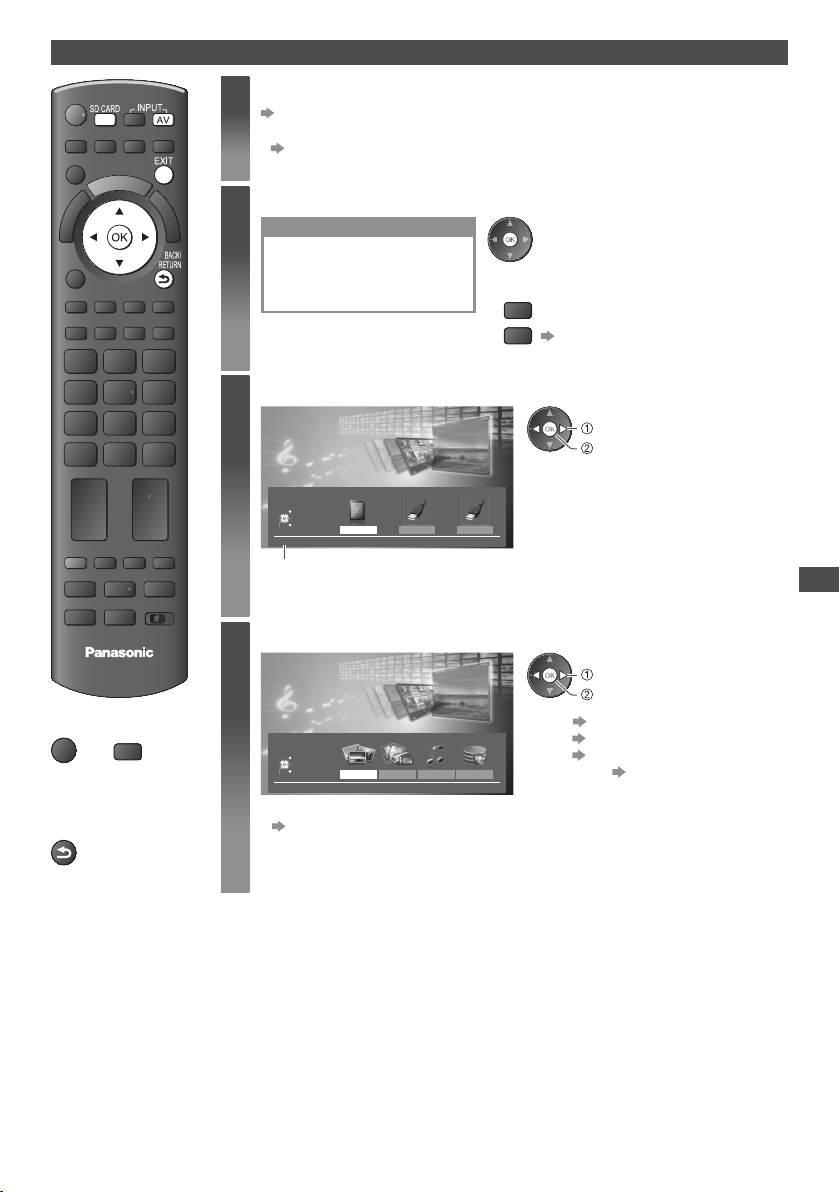

[Media Player] (p.58)
2
•
[Main Menu] (p.30)
3
•
Aspect (p.20)
4
•
Information (p.17)
5
•
VIERATOOLS (p.29)
6
•
[VIERA Link Menu] (p.85)
7
OK
8
Confirms selections and choices
•
Press after selecting channel positions to quickly
•
change channel
Displays the Channel List
•
[Option Menu] (p.19)
9
Easy optional setting for viewing, sound, etc.
•
Teletext (p.24)
10
Switches to teletext mode
•
Subtitles (p.20)
11
Displays subtitles
•
Numeric buttons
12
Changes channel and teletext pages
•
Sets characters
•
When in Standby mode, switches TV On (Press for
•
about 1 second)
Sound Mute
13
Switches sound mute On or Off
•
Volume Up / Down
14
Input mode selection
15
TV - switches between DVB and Analogue modes
•
(p.17)
AV - switches to AV input mode from Input Selection
•
list (p.27)
Direct TV Recording (p.83, 85)
16
Records programme immediately in DVD Recorder /
•
VCR with Q-Link or VIERA Link connection
[VIERA Connect] (p.16, 80)
17
Displays VIERAConnect home screen
•
Exit
18
Returns to the normal viewing screen
•
TV Guide (p.21)
19
Cursor buttons
20
Makes selections and adjustments
•
Return
21
Returns to the previous menu / page
•
Coloured buttons
22
(red-green-yellow-blue)
Used for the selection, navigation and operation of
•
various functions
Hold
23
Freeze / unfreeze picture (p.19)
•
Holds the current teletext page (teletext mode)
•
(p.25)
Index (p.26)
24
Returns to the teletext index page (teletext mode)
•
Last view (p.18)
25
Switches to previously viewed channel or input mode
•
Channel Up / Down
26
Connected equipment operations
27
(p.28, 57, 65, 66, 87)
8
TV
1
2
3
4
5
6
AV2 terminals (p.91)
1
Headphones jack (p.91)
2
CI slot (p.51)
3

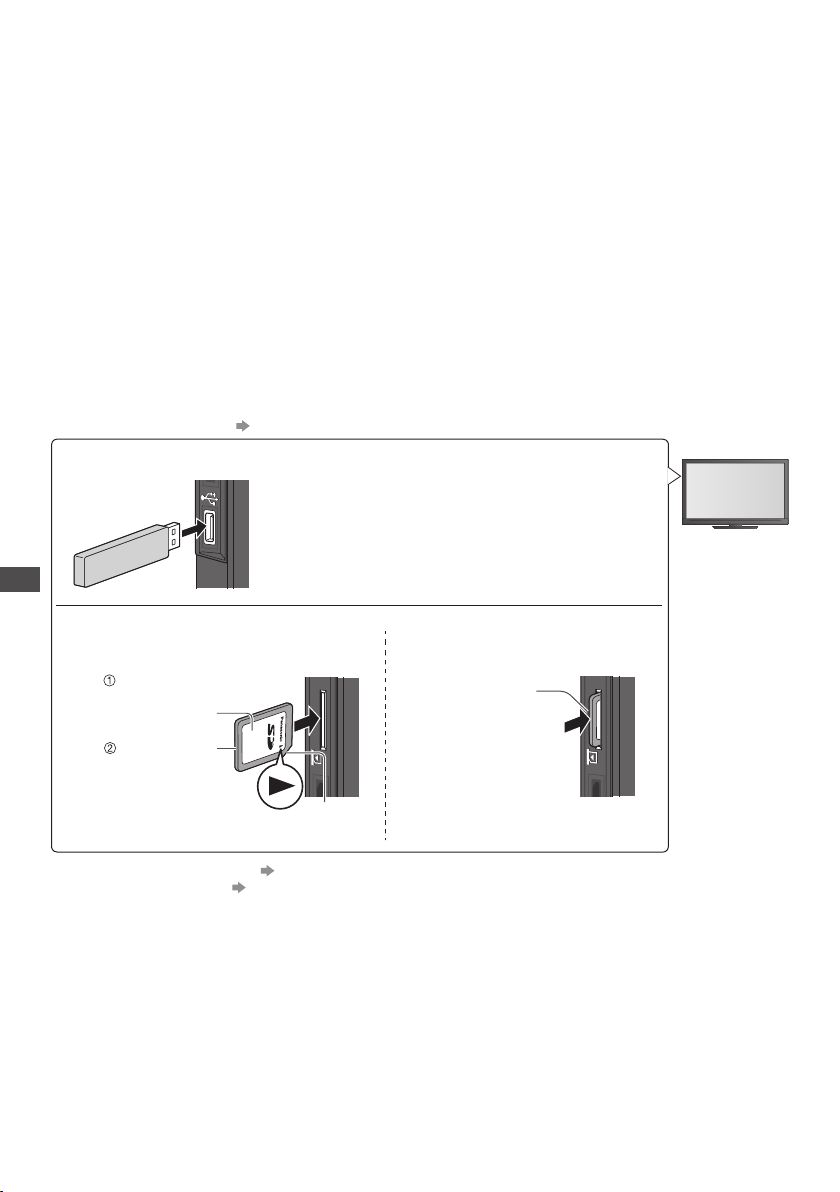

SD Card slot (p.58)
4
HDMI4 terminal (p.91)
5
USB 3 port (p.91)
6
Function select
7
[Volume] / [Contrast] / [Brightness] / [Colour] /
•
[Sharpness] / [Tint] (NTSC signal) / [Bass]∗ / [Treble]∗ /
[Balance] / [Auto Setup] (p.40)
∗
[Music] or [Speech] mode in the Sound Menu
11 12 13
Channel Up / Down, Value change (when using the F
8
F
7
8
TV
9
AV
10
button), Switching the TV On (press either button for
about 1 second when in Standby mode)
Changes the input mode
9
Mains power On / Off switch
10
Use to switch the mains power.
•
If you turned the TV Off during Standby mode by the
remote control last time, the TV will be in Standby
mode when you turn the TV On with Mains power On
/ Off switch.
Remote control signal receiver
11
Do not place any objects between the TV remote
•
control signal receiver and remote control.
C.A.T.S. (Contrast Automatic Tracking System)
12
sensor
Senses brightness to adjust picture quality when
•
[C.A.T.S.] in the Picture Menu is set to [On] (p.31)
Power and Timer LED
13
Red : Standby
•
Green : On
Orange : Timer Programming On
Orange (flash) :
Recording of Timer Programming, Direct TV
Recording or One Touch Recording in progress
Red with orange flash :
Standby with Timer Programming On, Direct TV
Recording or One Touch Recording
The LED blinks when the TV receives a command
•
from the remote control.
Quick Start Guide
Identifying Controls

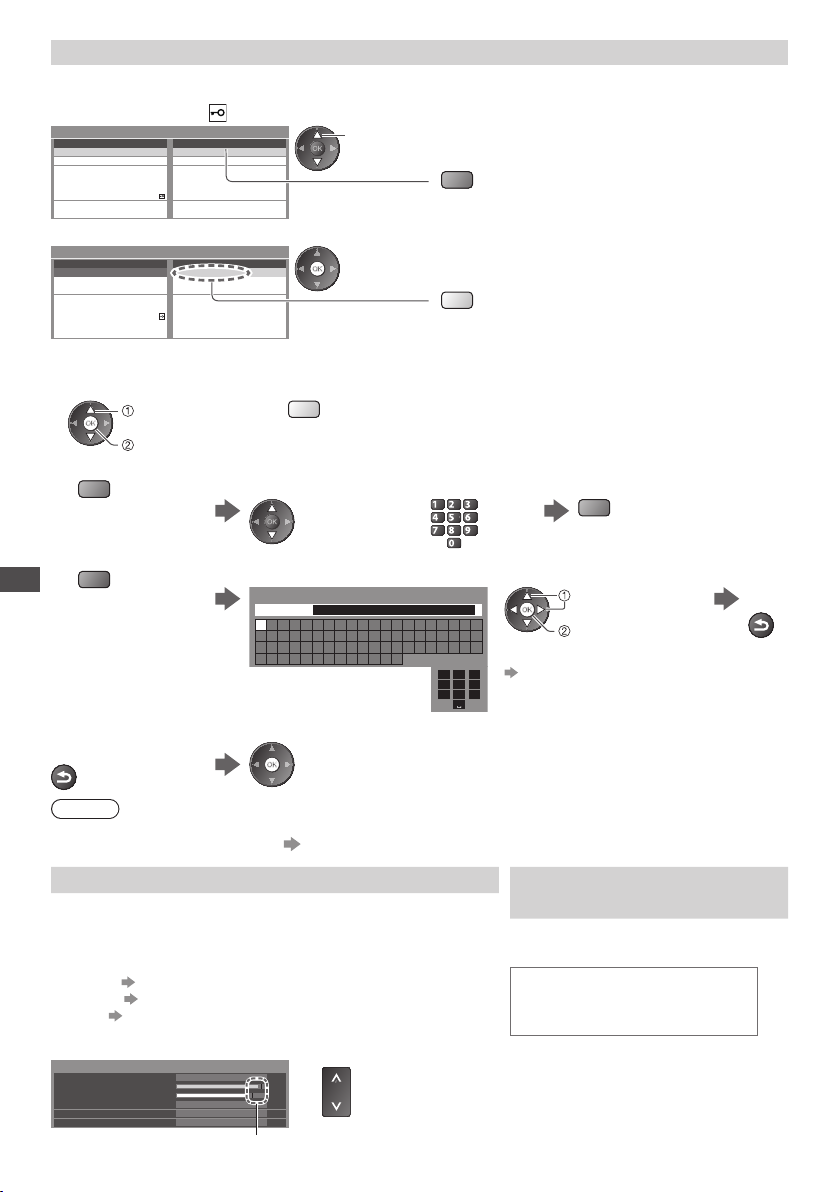

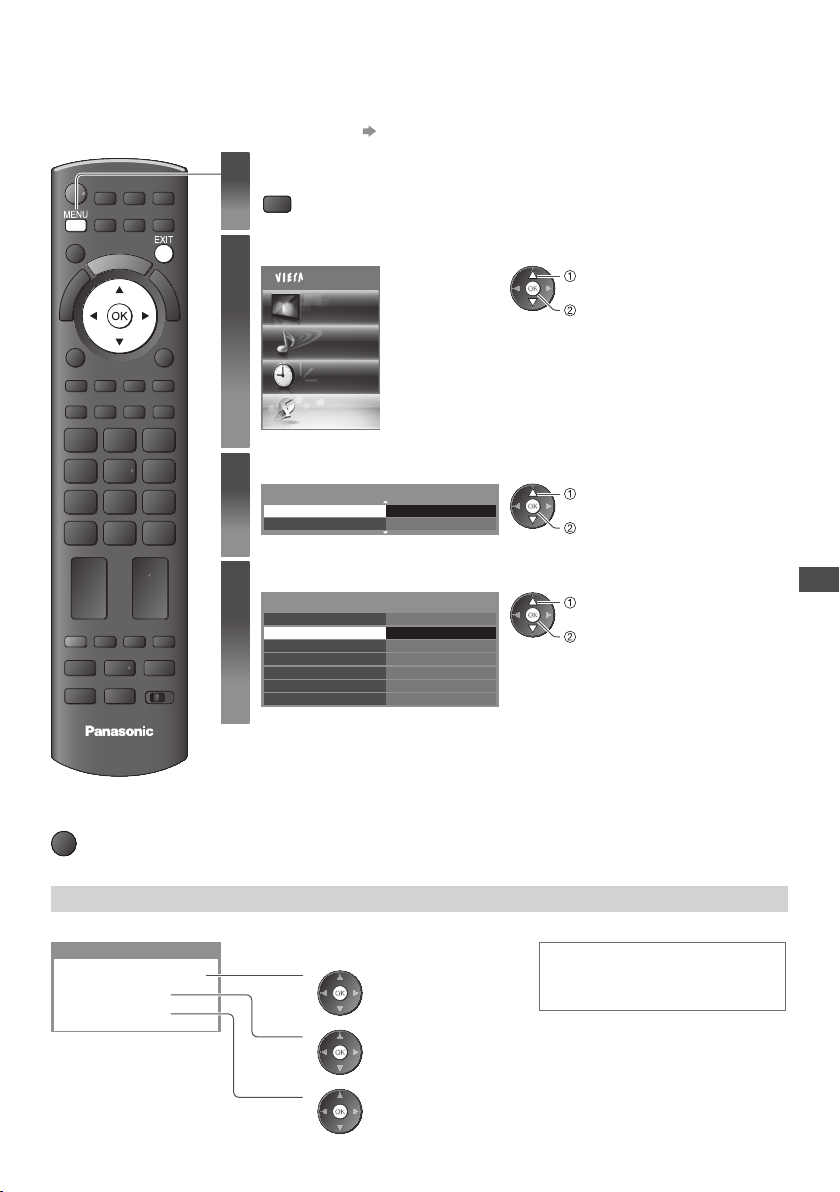

Using the On Screen Displays - Operation guide
Many features available on this TV can be accessed via the On Screen Display menu.
Operation guide
Operation guide will help you to operate by using the
remote control.
Example : [Owner ID]
Owner ID
Please enter new PIN
PIN
EXIT
Operation guide
* * * *
09
PIN entry

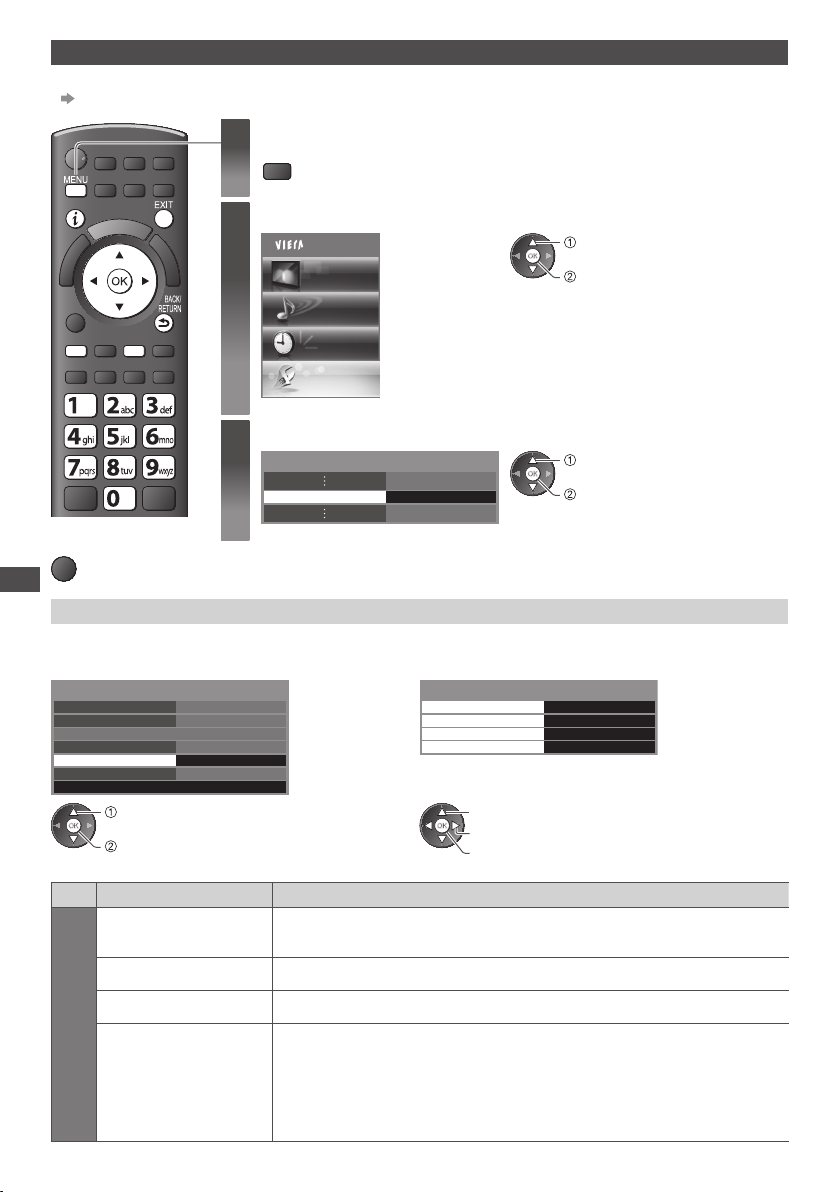

How to use remote control
MENU
Open the main menu
Move the cursor / select the menu item / select
from a range of options
Move the cursor / adjust levels / select from a
range of options
Access the menu / store settings after
adjustments have been made or options have
been set
BACK/
RETURN
Return to the previous menu
EXIT
Exit the menu system and return to the normal
viewing screen
Auto power standby function
The TV will automatically go to Standby mode in the following conditions:
• no signal is received and no operation is performed for 30 minutes in Analogue TV mode
• [Off Timer] is active in the Timer Menu (p. 19)
• no operation is performed for the period selected in [Auto Standby] (p. 34)
This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.
•
9
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Example 1 Example 2
Connecting aerial Connecting DVD Recorder / VCR
TV only TV, DVD Recorder or VCR
Quick Start Guide
Rear of the TV
Terrestrial aerial
Rear of the TV
Terrestrial aerial
Basic Connection
AC 220-240 V
50/60 Hz
Mains lead
Aerial input terminal
RF cable
AC 220-240 V
50/60 Hz
Aerial input terminal
■ How to use the clamper
bundling the mains lead
To loosen :
Mains lead
knob
Bundle the cables
hooks
To remove from the TV:
Do not bundle the RF cable and mains lead together (could cause distorted image).
•
Fix cables with clampers as necessary.
•
When using the optional accessory, follow the option’s assembly manual to fix cables.
•
Keep pushing the
knob
Set the tip in the
hooks
snaps
Keep pushing both side
snaps
RF OUT
RF IN
RF cable
Fully wired HDMI
compliant cable
HDMI AV
DVD Recorder or VCR
Fully wired
SCART cable
RF cable
Note
Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p.83).
•
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI
•
cable (p.89).

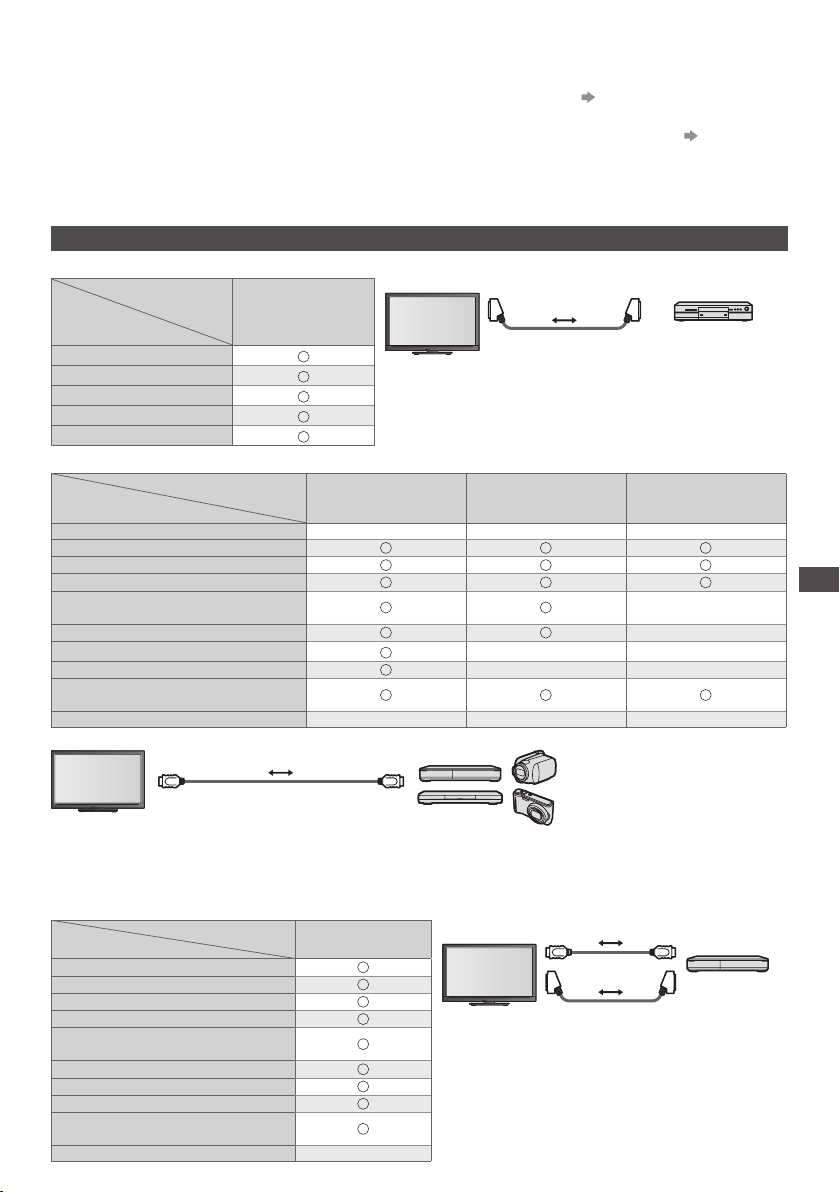

Q-Link and VIERA Link connection (p. 81, 82)
•
Please also read the manual of the equipment being connected.
•
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,
•
distortion of image / sound may occur or operation of other equipment may be interfered.
10
Example 3
Connecting DVD Recorder / VCR and Satellite receiver
TV, DVD Recorder / VCR and Satellite
Rear of the TV
AC 220-240 V
50/60 Hz
Fully wired HDMI
Mains lead
HDMI AV 2 AV 1 HDMIRecorder/AV
Aerial input terminal
compliant cable
Fully wired
SCART cable
Fully wired HDMI
compliant cable
Fully wired
SCART cable
Terrestrial aerial
RF cable
Quick Start Guide
Basic Connection
Satellite receiver
RF OUT
RF IN
DVD Recorder or
VCR
RF cable
RF cable
RF OUT
RF IN

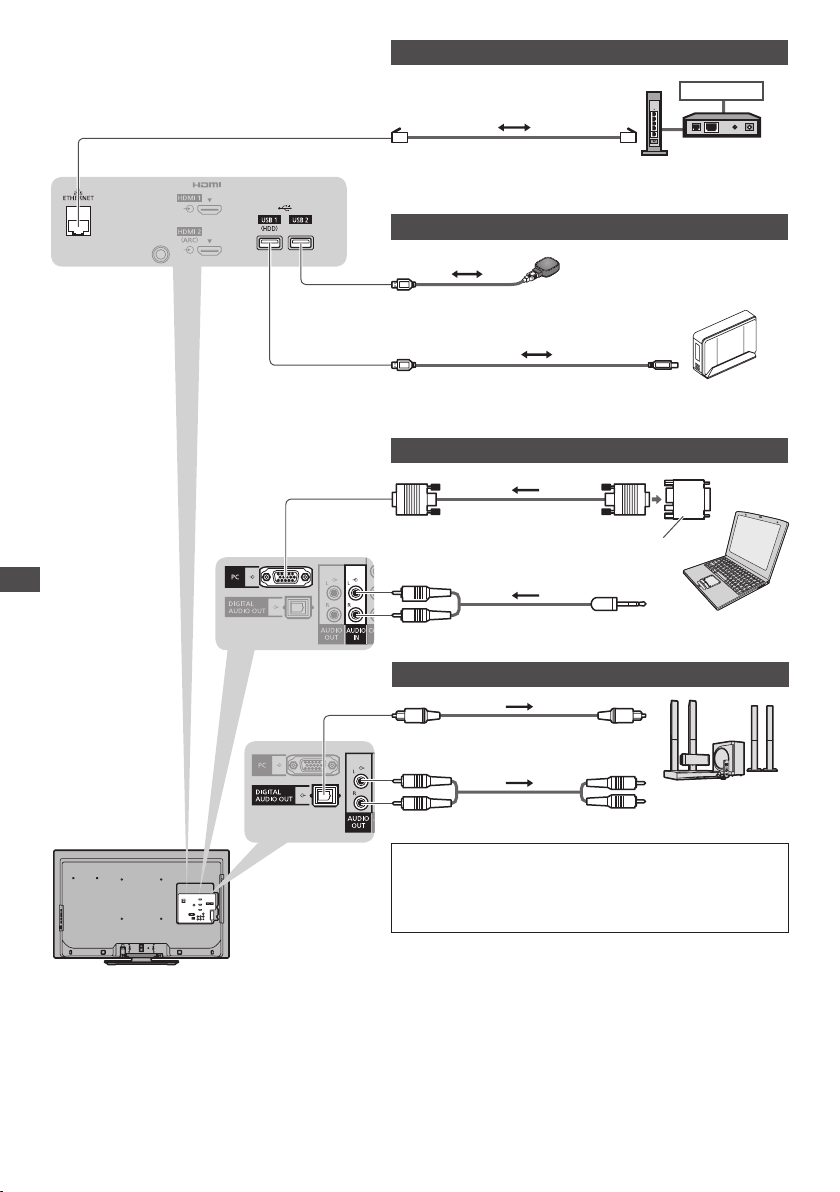

■ Connecting to the network environment (Network connections)
To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network
environment.
If you do not have any broadband network services, please consult your retailer for assistance.
•
Connect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).
•
Setup of the network connection will start after the tuning (when first using the TV) (p. 12 - 14)
•
Rear of the TV
Wired connection
LAN cable (Shielded)
Use the Shielded Twist Pair (STP) LAN cable.
•
Wireless connection
Wireless LAN Adaptor and Extension cable
“Optional accessories” (p. 6)
Connect to the USB 1, 2 or 3 port.
•
Internet
environment
Internet
environment
Access point
Note
For more information of the network connections (p. 71)
•
11
Auto Setup
Search and store TV channels automatically.
These steps are not necessary if the setup has been completed by your local dealer.
•
Please complete connections (p.10, 11) and settings (if necessary) of the connected equipment before starting Auto Setup.
•
For details of settings for the connected equipment, read the appropriate manual.
Plug the TV into mains socket and switch On
Quick Start Guide
Auto Setup
1
Select your country
2
Country Selection
United Kingdom Ireland
Example :
Auto Setup - DVB and Analogue
DVB Scan
Analogue Scan
This will take about 6 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
29 33 -BBC1
Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2
Example :
Auto Setup - DVB and Analogue
DVB Scan
Analogue Scan
This will take about 6 minutes.
CH
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
29 33 -BBC1
Free TV: 8 Pay TV: 0 Radio: 0 Analogue: 2
Sending Preset Data
Please wait!
0%100%
Remote control unavailable
Takes a few seconds to be displayed.
•
If the red LED shows on the TV, press the Standby On / Off switch on
•
the remote control for at least 1 second to turn the T V On.
select
set
CH 21 68
CH 21 68
Free TV
Free TV
Free TV
Free TV
Analogue
Analogue
Searching
CH 5 69
CH 1 99 41H: 21
Channel Name Type
Searching
Free TV
Free TV
Free TV
Free TV
Analogue
Analogue
Quality
10
10
10
Quality
10
10
10
Auto Setup will start to search for TV
channels and store them in the numbered
order as specified by the broadcasters.
Actual number of channels may differ due
•
to channel duplication.
If Q-Link or similar technology (p. 83)
compatible recorder with analogue tuner
is connected, analogue channel setting is
automatically downloaded to the recorder.
(Digital channel setting is not downloaded.)
If downloading has failed, you can
•
download later through the Setup Menu.
“Q-Link Download” (p. 34)
12
TV
Setup the network connection
3
Setup the network connection to enable the network service functions such as VIERA
Connect, etc. (p.16, 70).
To setup the wireless connection, the Wireless LAN Adaptor (optional accessory) is
•
required.
Please note that this TV does not support wireless public access points.
Ensure the network connections (p. 11) and network environment are completed
•
before starting setup.
Select the network type
Network Setup
Select Wired or Wireless
Wired Wireless Set later
[Wired] “Wired connection” (p. 11)
[Wireless] “Wireless connection” (p. 11)
To setup later on or
•
select
access
skip this step
Select [Set later]
or
EXIT
■ [Wired]
3
1. Select [Auto]
Acquire IP Address
Auto
select
access
2. Go to the next step
4
(Press twice)

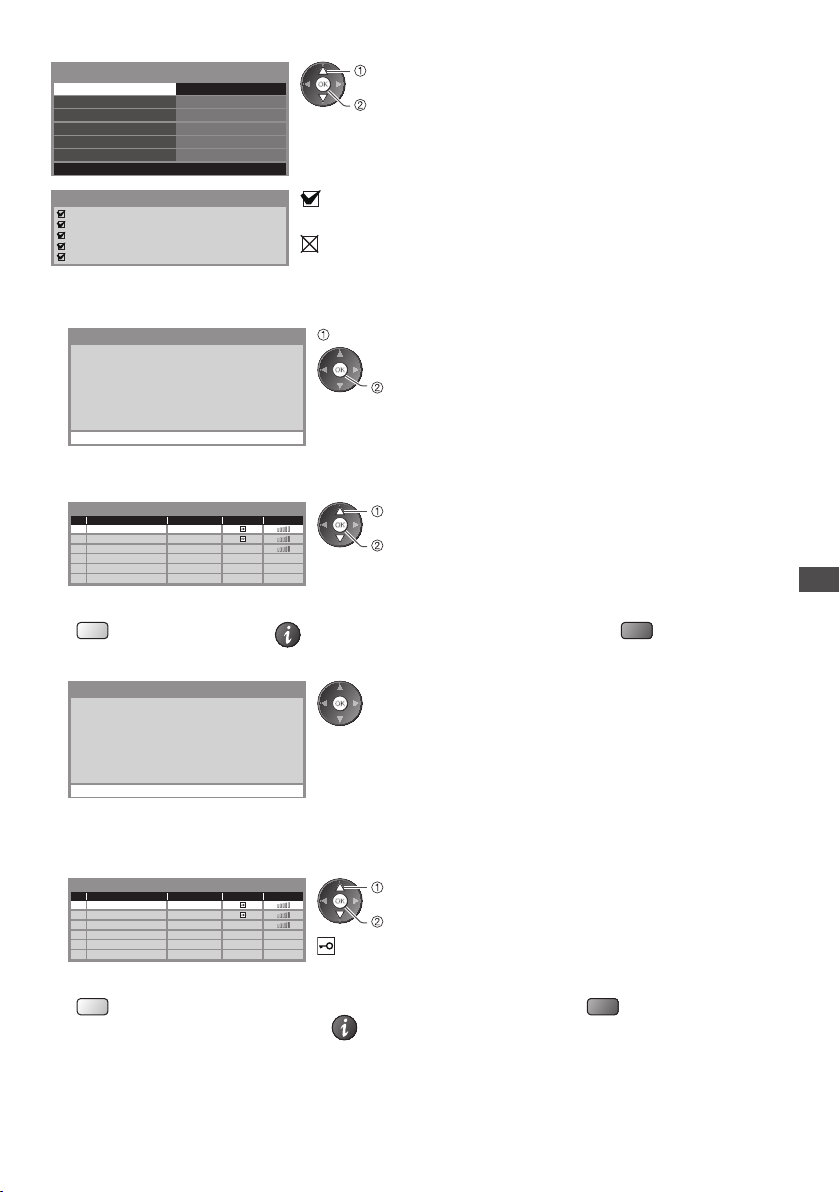

■ [Wireless]
Select the connection type
Connection Type
Please select network connection type.
Search for access point
WPS(Push button)

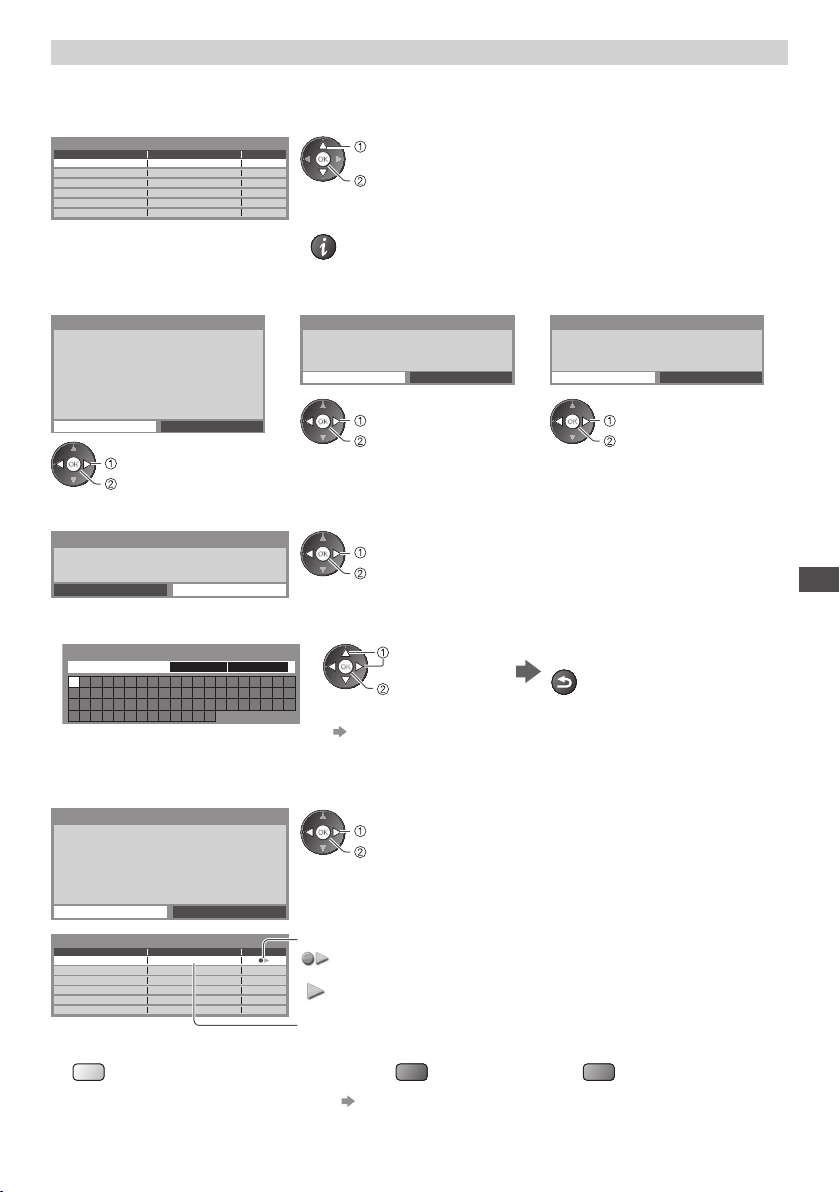

[Search for access point]
Access points found automatically are listed.
1. Select your desired access point
Available Access Points
No. Wireless type Encrypt Reception
SSID
1
Access Point A
Access Point B
2
Access Point C
3
To search access points again
•
(yellow)
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
Connection Test
Check network cable connection.
Manual
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
Automatically setup is done and the test of the network
connection starts.
To set manually, select [Manual] and set each item. For
•
details
(p.73)
select
access
select
access
: Encrypted access point
For the information of the
•
highlighted access point
: succeeded
The test is successful
and the TV is connected
to the network.
: failed
Check the settings and
connections, and then
select [Retry].
To set manually (p.76)
•
(red)
Quick Start Guide
Auto Setup

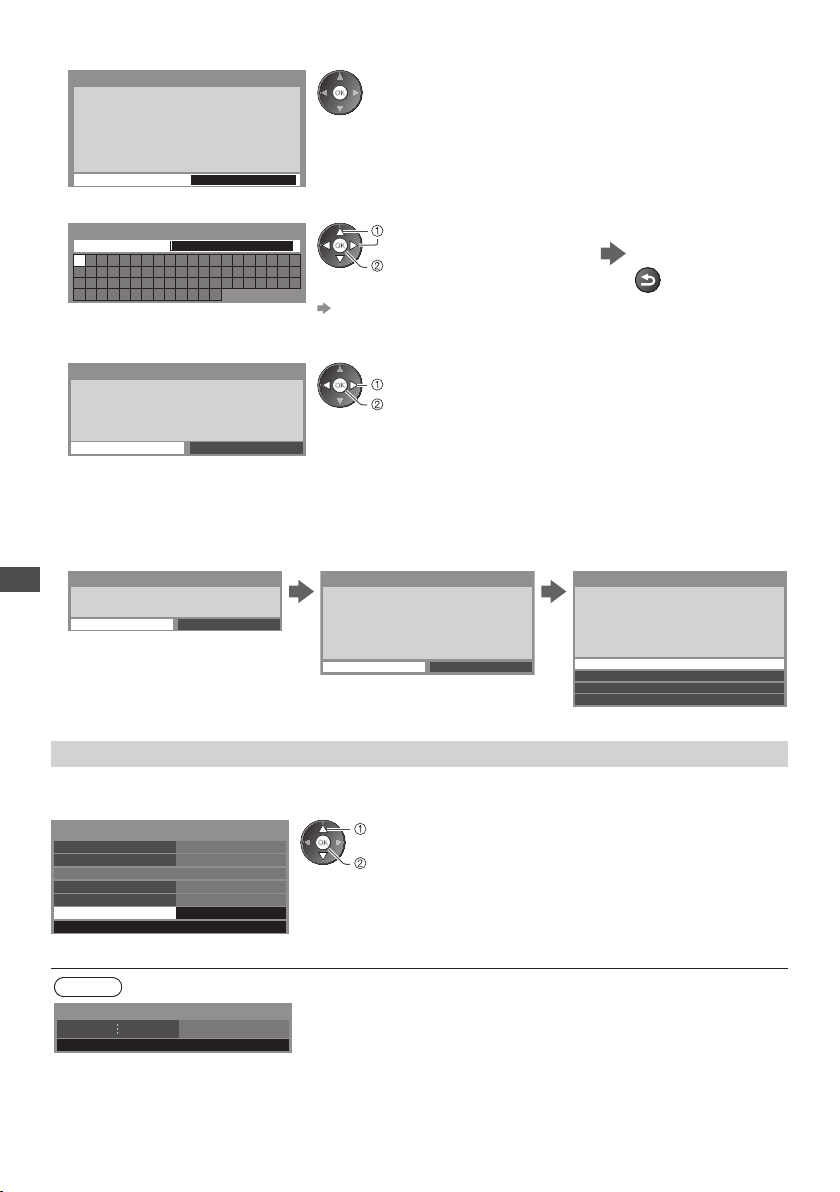

2. Access the encryption key input mode
Encryption Key Setting
Connection will be made with the following settings:SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
Encryption key
•
3. Enter the encryption key of the access point
Access Point Settings
Encryption key
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
Set characters Store
•
4. Select [Yes]
Access Point Settings
Encryption key is set to:XXXXXXXX
Select 'Yes' to confirm.
Select 'No' to change.
Yes
No
•
•
If the selected access point is not encrypted, the confirmation screen
will be displayed. It is recommended to select the encrypted access
point.
select
BACK/
RETURN
set
You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p.96)
select
set
To re-enter the encryption key, select [No].
If the connection has failed, check the encryption key, settings
and positions of your access point. And then, follow the on screen
instructions.
13
Quick Start Guide
5. After the access point setting is finished, perform the connection test
3
6. Go to the next step
Connection Test
(Press twice)
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
4
: succeeded
The test is successful and the TV is connected to the
network.
: failed
Check the settings and connections, and then select
[Retry].
To set manually, select [Manual] and set each item. For
•
details (p.73)
Auto Setup
[WPS(Push button)]
1. Press the WPS button on the access point until the light flashes
2. Connect the Wireless LAN Adaptor and the access point
WPS(Push button)
1) Please press the ‘WPS’ button on the access
point until its light ashes.
2) When the light is ashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
3. After the access point setting is finished, perform the connection test
4. Go to the next step
Input Owner ID
4
Owner ID
Please enter new PIN
PIN
Make a note of the PIN number in case you forget it. The PIN number cannot be reset.
•
You can input or change the Owner ID later. [Owner ID] (p. 50)
•
To skip this step
•
EXIT
Connect
Connection Test
(Press twice)
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
4
* * * *
Ensure that your access point supports WPS for this setup.
•
WPS : Wi-Fi Protected Setup™
•
If the connection has failed, check the settings and positions of your
•
access point. And then, follow the on screen instructions.
: succeeded
The test is successful and the TV is connected to the
network.
: failed
Check the settings and connections, and then select
[Retry].
To set manually, select [Manual] and set each item. For
•
details (p.73)
Please enter your own choice of PIN number, name, etc. to help the police
to crack crime.
14
This step will be skipped in the Auto Setup after [Shipping Condition] (p.49) is performed.
•

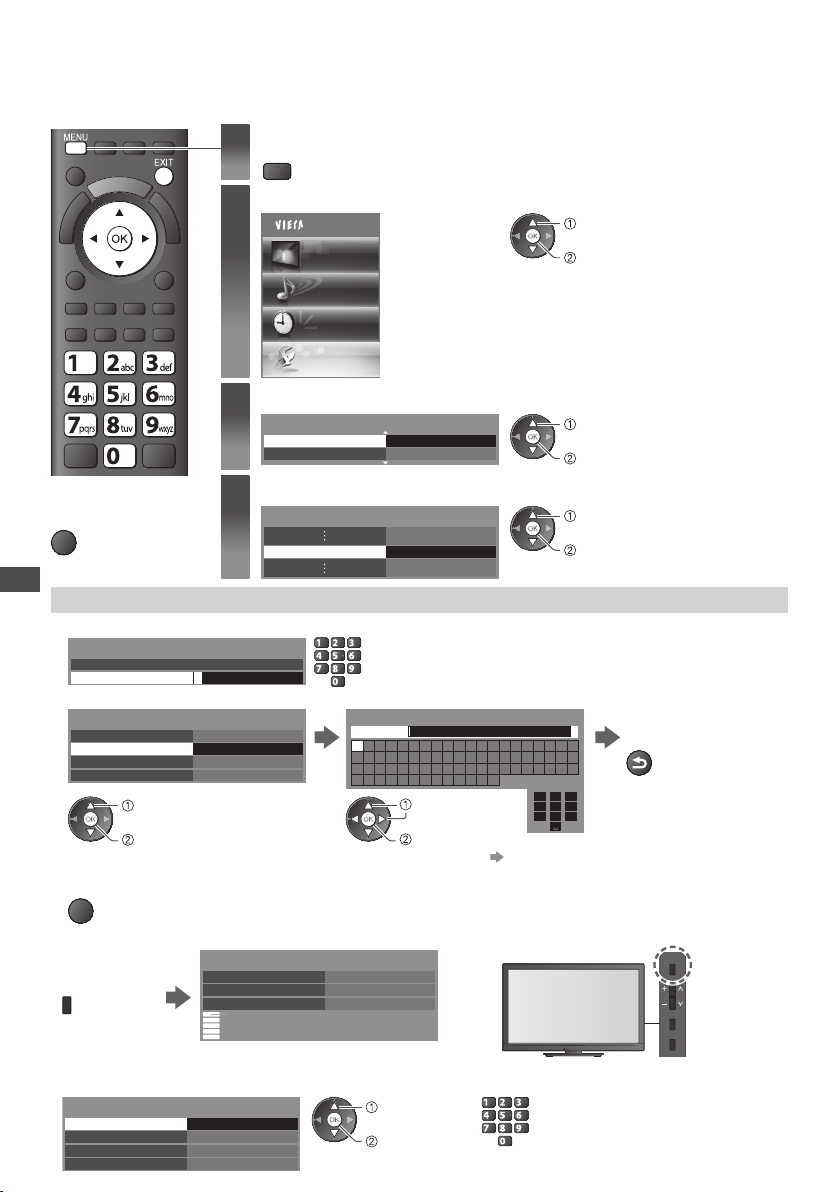

■ How to input Owner ID
1 Enter the PIN number (4digits)
Owner ID
Please enter new PIN
PIN
* * * *
2 Select the item (NAME / HOUSE NO / POSTCODE)
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
* * * *
abc def
Enter the PIN number twice at first setting.
•
jkl
ghi
mno
tuvpqrs
wxyz
select
access
3 Enter your name, house number and postcode
4
Set characters Return to select other items
User input
NAME
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
You can set characters by using numeric buttons.
•
“Characters table for numeric buttons” (p.96)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
select
set
BACK/
RETURN
Select the next item and repeat the
•
operations.
4 Exit to go to next step
EXIT
Quick Start Guide
Select [Home]
5
Select [Home] viewing environment (highlight [Home] in yellow) to useinyour home environment.
Please select your viewing environment.
Home Shop
select
set
■ [Shop] viewing environment (for shop display only)
[Shop] viewing environment is the demonstration mode to explain main features of this T V.
Select [Home] viewing environment to use in your home environment.
You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic
•
Demo Off / On selection screen.
1 Return to viewing environment selection
screen
Shop
You have selected shop mode
Automatic Demo
Off
To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
[Shipping Condition](p.49)
On
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the RF cable, and then, follow the on screen instructions.
To check channel list at-a-glance “Using TV Guide” (p. 21)
•
To edit or hide (skip) channels “Tuning and Editing Channels” (p. 41 - 44)
•
To retune all channels [Auto Setup](p.40)
•
To initialise all settings [Shipping Condition] (p.49)
•
If you connect the Wireless LAN Adaptor later on, the confirmation screen will be
displayed for the setup.
To setup the wireless connection (p.74 - 76)
•
2 Select [Home]
Please select your viewing environment.
Home Shop
BACK/
RETURN
Wireless LAN adaptor connection
Wireless LAN adaptor connected, do you want to
set it up?
No - Exit
Current network type : Wireless
Yes
Auto Setup
select
set
No
15
Using “VIERA Connect”
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as
photos, videos, games, etc. from VIERA Connect home screen.
This TV has no full browser function and all features of websites may not be available.
•
Turn power on
1
Press for about 1 second
•
Mains power On / Off switch should be On. (p.9)
•
Using “VIERA Connect”
■
To exit from
VIERA Connect
EXIT
To set the VIERA
•
Connect instruction
banner display off
[VIERA Connect
Banner] (p. 35)
Enjoy selected internet content with VIERA Connect.
Simply press the OK / INTERNET button
Access VIERA Connect
2
While the banner is displayed
Example :
Welcome to VIERA Connect™
VIERA Connect™ home screen is subject to change without notice.
The services through VIERA Connect™ are operated by their respective service providers, and service may
be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no
warranty for the content or the continuity of the services.
All features of websites or content of the service may not be available.
Don’t show this message again
ENTER
Some content may be inappropriate for some viewers.
Some content may only be available for specic countries and may be presented in specic languages.
Example : VIERAConnect home screen
Every time you turn on the TV, VIERA Connect introduction
banner appears. The banner is subject to change.
The button design varies
•
depending on the remote
control.
To go to the next level
•
[MORE]
To back to the previous level
•
[BACK]
MORE
INTERNET
or
Depending on the usage conditions, it may take a
•
while to read all the data.
Messages might be displayed before VIERAConnect
•
home screen.
Please read these instructions carefully and follow the
on screen instructions.
BACK
■ How to operate VIERAConnect (current as of January, 2011)
To move the cursor / select the item
•
When the key words are displayed on colour bar
•
(red) (green) (yellow) (blue)
Video communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.
•
“Optional accessories” (p.6)
For details, read the manual of the Communication Camera.
You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect.
•
You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features. For more information
“USB connection” (p. 97)
Note
If you cannot access VIERA Connect, check the network connections (p. 11) and settings (p. 12 - 14).
•
For more information of VIERA Connect (p. 80)
•
16
To access
•
When options with
•
numbers are displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
To return to the previous screen
•
BACK/
RETURN
To return to VIERA Connect home
•
screen
INTERNET

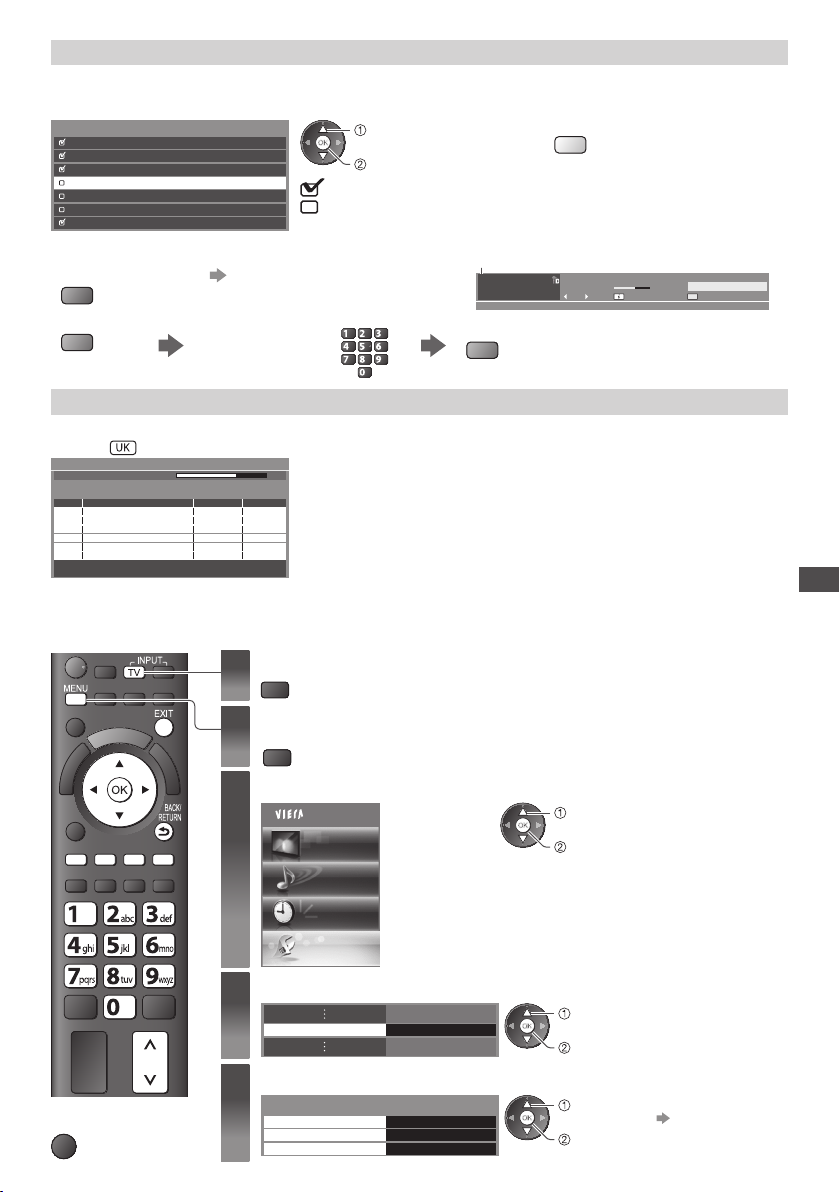

Watching TV
Turn power on
1
Select DVB or Analogue
2
Press for about 1 second
•
Mains power On / Off switch should be On. (p.9)
•
■ VIERA Connect introduction banner appears
You can access to VIERA Connect and enjoy the various contents.
(p.16)
To remove this banner, leave for about 5 seconds or press any
•
buttons (except the buttons to access VIERA Connect).
To set this banner display off [VIERA Connect Banner] (p. 35)
•
TV
Also possible to select the mode pressing the TV
•
button on the side panel of the TV. (p.9)
Watching TV
20:35
All DVB Channels
Select favourites
or
Information banner (p. 18)
DVB channel position numbers run from 1
onwards.
Analogue channel position numbers run in the
abc def
jkl
ghi
mno
ranges 0 - 99.
tuvpqrs
wxyz
To select a two or three-digit channel position
•
number, e.g. 399
wxyz
wxyz
def
Volume
Coronation Street
1
20:00 - 20:55
BBC ONE WALES
Now Info
Select a channel
3
up
down
■ Select a channel using Information banner (p. 18)
It is possible to confirm the channel name and programme information by using the Information banner before changing
channels.
1 Display Information banner if it is not displayed 2 While the banner is displayed, select the channel
select channel
watch
■ Select a channel using TV Guide (p. 21)
It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.
1 Display TV Guide 2 Select a current
programme or channel
G
U
I
D
E
select
access
3 Select [View] (DVB mode)
Eastender
19:30- 20:00
View Timer Programming
select
watch
Note
To watch pay-TV “Using Common Interface” (p. 51)
•
17
Other useful functions
Display Information banner
Display Information banner
Also appears when changing a channel
•
HDTV
23 6 745
Coronation Street
20:00 - 20:55
Now
[AD]
Audio Description service available
This function can aid visually-
•
impaired viewers by adding an
additional audio track to describe
events
For settings (p. 33)
•
[STLL]
Subtitle service available
Extra information (DVB)
•
(Press again to hide the banner)
20:35
All DVB Channels
Select favourites
All DVB Channels
Select favouritesInfo
Programme Start/Finish time (DVB)
5
Channel number, etc. (Analogue)
Progress time indicator of the selected programme (DVB)
6
[All DVB Channels] or [Favourites1-4] (p. 42) (DVB)
7
To switch
•
(blue)
on screen.
•
20:35
45
[TEXT]
Teletext service available
[Multi Audio]
Multiple audio available
[Stereo], [Mono], [NICAM]
Audio mode
1 - 90
Off Timer remaining time
For settings (p.19)
•
To set display timeout
[Banner Display Timeout] (p.35)
1
Example : DVB
1
ZDF
Mute STTLAD TEXT Multi Audio
Bad signal
Channel position and name
1
Channel type ([Radio], [Data], [HDTV], etc.) /
2
Encrypted channel ( ) /
TV mode (
Programme
3
Current time
4
Watching TV
Features available / Message meanings
[Mute]
Sound mute On
[Bad signal]
Poor TV signal quality
[Also in
Same programme available as HD broadcast
To display the extra information for details
•
To confirm another tuned channel name• To watch the channel listed in the banner• Information on the next programme (DVB)
•
To hide
•
EXIT
[AD], [STTL], [TEXT ], [Multi Audio] indications are displayed as available on par ticular programmes, but may not be available for all
•
individual programmes being broadcast. Display the extra information to confirm availability of these functions.
Example :
1
BBC ONE WALES
]
, )
Coronation Street
20:00 - 20:55
Now
[AD]
AD
Last view
Switch to previously viewed channel or input mode easily
Press again to return to the present view.
•
LAST VIEW
Note
Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is
•
in progress.
Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.
•
18
Hold
Freeze / unfreeze picture
HOLD
Display the selectable settings for the current status
Check or change the current status instantly
OPTION
To change
•
select
access
select / change
store
[Audio Description]
(DVB mode)
Set to [Auto] if the programme has
Audio Description service, then you
will hear an additional audio track to
describe events on screen
To adjust the volume for Audio
•
Description
[Audio Description Menu] (p.33)
[Multi Audio]
(DVB mode)
Allows you to select between alternative
language for sound tracks (if available)
This setting is not memorized and it
•
will return to the default setting once
you exit the current programme.
[Monaural Audio]
(DVB mode)
Allows you to select stereo / monaural (if
available)
This setting is not memorized and it will
•
return to the default setting once you
exit the current programme.
[Subtitle Language]
(DVB mode)
Allows you to select the language
in which subtitles should appear (if
available)
This setting is not memorized and it will
•
return to the default setting once you
exit the current programme.
[Teletext Character Set]
Sets the teletext language font
[Setup Menu] (p.35)
[Teletext Language]
(DVB mode)
Allows you to select between
alternative language for teletext (if
available)
[NICAM]
(Analogue mode)
Switches NICAM sound (if available)
[Sound Menu] (p. 33)
[Volume Correction]
Adjusts volume of individual channel
or input mode
[Safely remove USB]
Takes this operation to remove the
connected USB device safely from
the TV

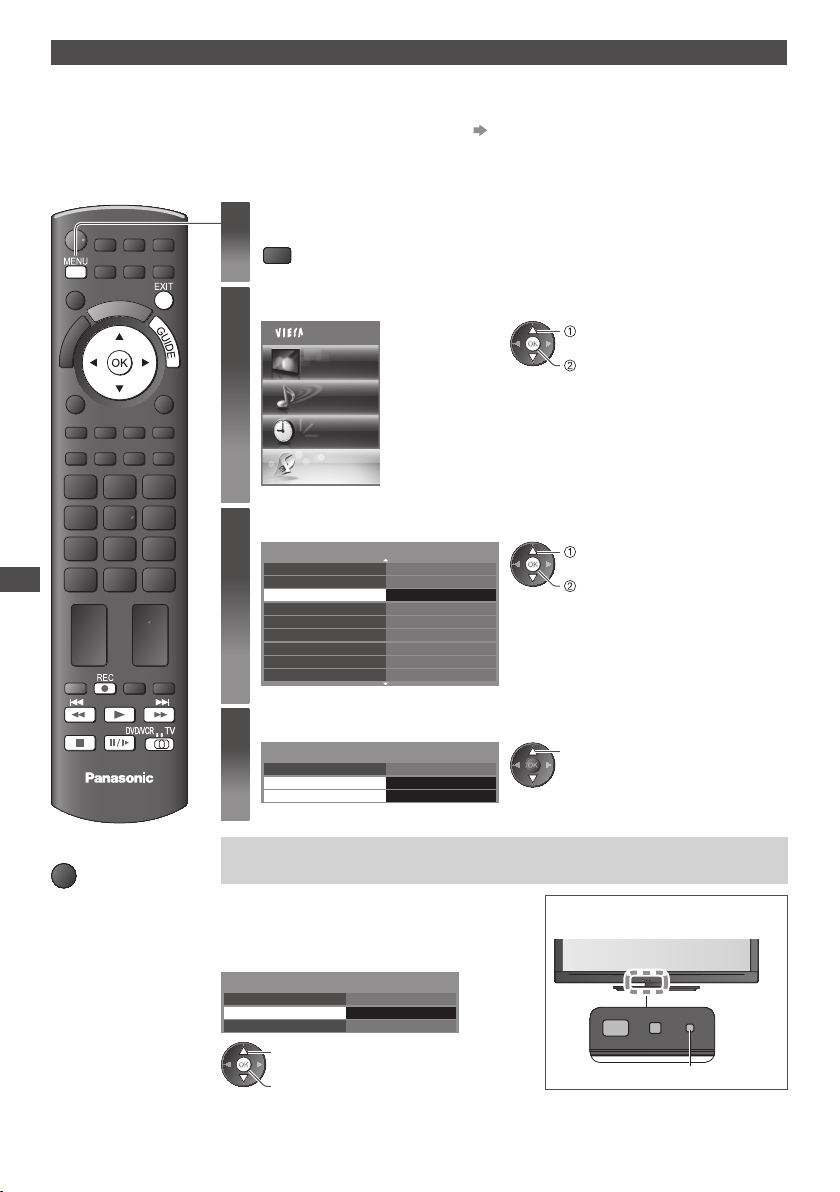

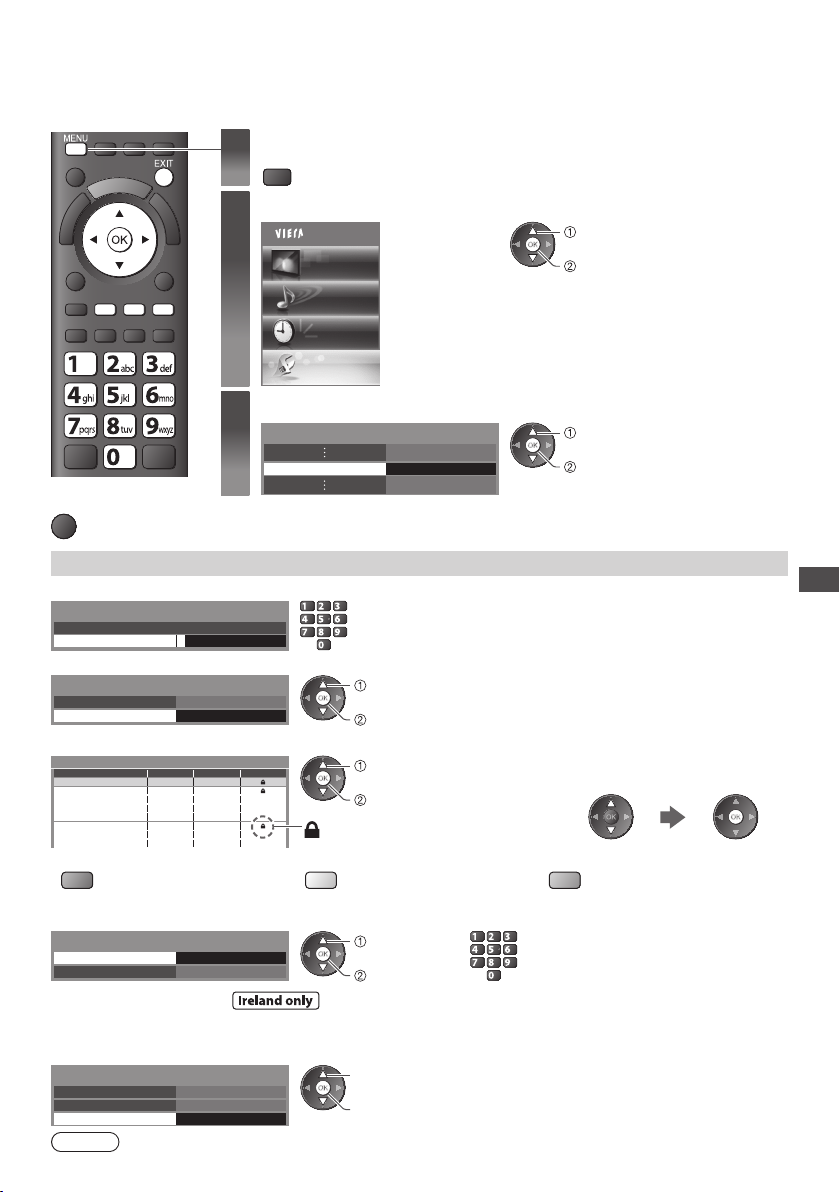

Off Timer
Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
1 Display the menu
MENU
2 Select [Timer]
Main Menu
Sound
select
access
Watching TV
Timer
Setup
3 Select [Off Timer] and set the time
Timer Programming
Off Timer
Auto Standby
Off
15
30
45
60
75
90
minutes
minutes
minutes
minutes
minutes
minutes
select [O ff Timer]
access
To cancel Set to [Off] or turn the TV off.
•
To display the remaining time “Display Information banner” (p.18)
•
When the remaining time is within 3 minutes, the remaining time will flash on the
•
screen.
select the time
store
19
Aspect
Change the aspect ratio (image size)
Enjoy viewing the image at its optimum size and aspect.
ASPECT
Programmes usually contain an “Aspect Control Signal” ( Widescreen signal, etc.), and the TV will choose the aspect
ratio automatically according to the “Aspect Control Signal” (p.92).
■ If you would like to change the aspect ratio manually
1 Display Aspect Selection list 2 While the list is displayed,
ASPECT
Aspect Selection
Auto
16:9
14:9
4:3
Zoom1
Zoom2
Zoom3
Select
EXIT
Change
RETURN
Aspect Selection list
select the mode
select
store
You can also change the mode only
•
using the ASPECT button.
ASPECT
(Press repeatedly until you reach
the desired mode)
Watching TV
[Auto]
[16:9] [Zoom1]
[14:9] [Zoom2]
[4:3] [Zoom3]
The best ratio is chosen and the image expanded to fill the screen.
For details (p.92)
Directly displays the image at 16:9
without distortion (anamorphic).
Displays the image at the standard 14:9
without distortion.
Displays the image at the standard 4:3
without distortion.
Displays a 16:9 letterbox or 4:3 image
without distortion.
Displays a 16:9 letterbox (anamorphic)
image full-screen without distortion.
Displays a 2.35:1 letterbox (anamorphic)
image full-screen without distortion.
At16:9, displays the image at its maximum
(with slight enlargement).
Note
Aspect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.
•
Only [16:9] and [4:3] are available in PC input mode.
•
Not available in teletext service.
•
Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
•
Display subtitles
■ DVB mode
Display / hide subtitles (if available)
STTL
To change the language for DVB (if available)
•
[Preferred Subtitles] (p.35)
■ Analogue mode
Display subtitles Hide subtitles
STTL
Note
This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 26)
•
You cannot change the channel when this function is active.
•
20
EXIT

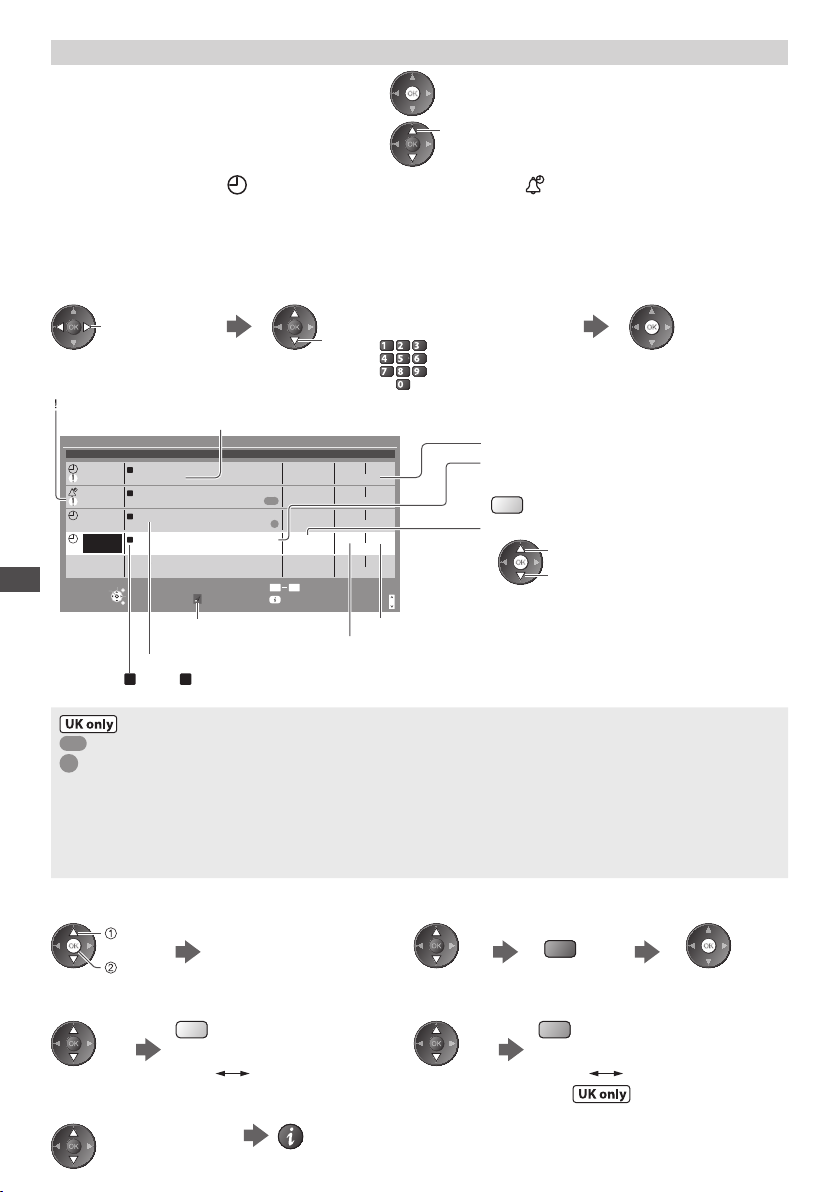

Using TV Guide
TV Guide−Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the
forthcoming broadcasts over the next seven days (depending on the broadcasters).
This TV supports the GUIDE Plus+ system.
•
The Rovi branding partner will supply the rating information in the programme information and the recommended group in
•
the Search list.
DVB and Analogue channels are displayed on the same TV Guide screen. [D] means DVB channel and [A] means Analogue
•
channel. There will be no programme listings for Analogue channels.
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV
•
Guide is completely shown.
Select DVB or Analogue
1
TV
View TV Guide
2
■
To return to TV
EXIT
or
G
U
Example :
I
D
E
Wed 27 Oct 2010
1
10:46
2
3
4
5
Timer Programming
-24 hours +24 hours Search Category
Some programmes may also be broadcast in HD
7
You can select HD or SD broadcast before viewing or setting Timer Programming.
G
U
I
D
E
•
Programme
8
Logo of the Rovi branding partner
9
678 9
TV Guide
Wed 27 Oct Search All Channels
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
D
D
D
D
D
D
D
Select channel
19:30 20:00 20:30 21:00
Time:
Das Erste DIY SOS Holiday News
BBC ONE
1
Hot Wars Holiday Program
BBC THREE
7
Emmerdal.
E4
14
10 O’ clock News BBC
BBC FOUR
70
BBC 2W
72
105
BBCi
719
BBC Radi
EXIT
Select programme
RETURN
Coronation Street
09
Info
GUIDE
RETURN
OPTION
Select Advert
Enter Channel
Pepsi Char.
The Bill
Good bye
CoastSpring watchPanorama
NewsPop IdolI’m A Celebrity
Sports15 To 1Rugby
Page down
Also in
Page up
■ To change the layout of TV Guide [TV Guide View] (p. 34)
■ To watch the programme
1 Select a current
programme or channel
select
or
access
abc def
jkl
ghi
mno
tuvpqrs
wxyz
2 Select [View] (DVB mode)
Eastender
19:30- 20:00
View Timer Programming
select
watch
To use TimerProgramming (p.22)
•
If a programme exists in both HD and SD broadcasts, the
•
[View Options] screen will be displayed to select HD or
SD broadcast. (DVB mode)
DIY SOS
View Options
101 BBC ONE 19:30-20:00 Wed 27 Oct 2010
119 BBC HD 19:30-20:00 Wed 27 Oct 2010
■ To the previous day (DVB mode) ■ To view a channel list of the selected category
(red) (blue)
■ To the next day (DVB mode)
(green)
■ View details of the programme (DVB mode)
1 Select the programme 2 View details
select
Press again to return to TV
•
Guide.
(Category list)
Category
All Channels
All Channels
All DVB Channels
All HD Channels
All Analogue Channels
Free DVB Channels
TV/Data DVB Channels
Favourites1
Pay Radio
Favourites2
Favourites3
Favourites4
Only Analogue channels
are listed
•
Current date and time
1
TV Guide time
2
Advertisement
3
[D] : DVB
4
[A] : Analogue
Channel position and
5
name
TV Guide date
6
To list favourite channels
(p.42)
select
watch
Using TV Guide
21
■
To search programme types and view a channel list of the searched programmes (DVB mode)
(yellow)
Search
Search Titles...
Movie
News and Factual
(Search list)
All Types
Movie
News
Prog.Type
All Types
(Type list)
select type
view
■ To search programme titles and view a list of the searched programmes
(DVB mode)
(yellow)
All the programme titles
•
including the word you
set will be listed.
Searching without any
•
characters will list all
programmes including
current programmes.
Using TV Guide
Search
Search Titles...
Movie
News and Factual
(Search list)
1 Select
[Search Titles...]
select
access
2 Set characters
(maximum: 19 characters)
select
set
To use numeric buttons
•
“Characters table for
3 Start [Search]
(green)
numeric buttons” (p.96)
Other useful functions
Timer Programming (DVB mode)
Timer Programming is a timer to remind watching or record the programme to the external recorder or the USB HDD.
1 Select the forthcoming programme 2 Select the function ([Ext Rec.],[USB HDD Rec.] or [Reminder])
select
set
LED will turn to orange if Timer
Programming is set.
(Orange LED will flash if the recording of
Timer Programming is in progress.)
LED
■ To check / change / cancel a timer
programming event
“Timer Programming” (p. 45)
(Timer Programming screen)
Timer Programming
Function No. Channel Name Date Start End
Ext Rec.
D
DIY SOS
--- --/-- --:-- --:-----
[Ext Rec.] / [USB HDD Rec.]
Wed 27.10.2010 10:46
Wed 27 Oct
19:30119 BBC HD 20:00
(30 min.)
(--- min.)
:
to record the programme to the external recorder or the USB HDD
When the start time comes, the channel will be switched automatically and the
video and audio signals will be output. 2 minutes before the starting time, a
reminder message appears if you are watching TV.
[Reminder]
:
to remind you to watch the programme
When you are watching TV, a reminder message appears 2 minutes before the
start time. Press the OK button to switch to the programmed channel.
■ To return to TV Guide
BACK/
RETURN
select
store
■ If you select a current programme ■
A confirmation screen asking whether you wish to watch or
record the programme will appear.
Select [Timer Programming] and set [Ext Rec.] or [USB
HDD Rec.] to record from the time you finish the timer
programming event setting.
Eastender
19:30- 20:00
View
22
Timer Programming
select
access
If a programme exists in both HD and SD broadcasts
The [Timer Options] screen will be displayed to select HD or SD
broadcast.
DIY SOS
Timer Programming
Function No. Channel Name Date Start End
Ext Rec.
Timer Options
101 BBC ONE 19:30-20:00 Wed 27 Oct 2010
119 BBC HD 19:30-20:00 Wed 27 Oct 2010
(Timer Programming screen)
D
DIY SOS
--- --/-- --:-- --:-----
Wed 27.10.2010 10:46
Wed 27 Oct
19:30119 BBC HD 20:00
(30 min.)
(--- min.)
HD broadcast is set.
select
set
will be displayed if
Note
This function is not available in Analogue mode.
•
Timer Programming reminder messages will remain displayed until one of the following occurs:
•
• You press the OK button to view the programme or the EXIT button to cancel the reminder.
• The timer programming event that the reminder is set for ends.
No other channel can be selected while the recording of Timer Programming is in progress.
•
When recording programmes, be sure to make the proper settings on the recorder connected to the TV. (p. 45)
•
When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording
•
Setup] (p.54).
Guide link programming (Timer Programming from the TV Guide signal)
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and
end times are changed by the broadcaster, the timer programming event will follow the change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if correct information is
received from broadcasters.
Timer Programming
Function No. Date Start EndChannel Name
D
Ext Rec. Wed 27 Oct
D
Reminder
D
Ext Rec.
---
D
Ext Rec.
Change function
EXIT
Store timer
Select
RETURN
(Timer Programming screen)
7 BBC ONE
DIY SOS
14 E4 21:00 22:30
The Bill
72 BBC 2W
<TIMER>
BBC ONE1
Red Cap
------
Remaining Capacity:
500GB (50%)
Guide
Guide
S/P
0
Wed 27 Oct 2010 10:46
Wed 27 Oct
Wed 27 Oct
Thu 28 Oct
9
20:00 20:30
(30 min.)
(90 min.)
22:45 23:00
(15 min.)
10:30 11:30
(60 min.)
--:----:-- --:--
(--- min.)
1/1
“S/P” is displayed if the timer is set from the TV
Guide and the programme is a Split Programme
“Guide” is displayed if the timer is set from the TV Guide
(Guide link programming)
Note
If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no longer follow
•
the broadcaster’s changes to the start or end time. The start and end times will become fixed.
Whilst making the Split Programme programming event for [Ext Rec.] or [USB HDD Rec.], you cannot record any channels
•
between the interrupted programmes.
The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.
•
The Split Programme programming event for Reminder will switch to the programmed channel by pressing the OK button
•
even if it is between the interrupted programmes.
The Split Programme programming does not work if the separated parts are broadcast on different channels.
•
Example :
Wed 27 Oct 2010
10:46
TV Guide
Wed 27 Oct Search All Channels
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
19:30 20:00 20:30 21:00
Time:
Das Erste DIY SOS Holiday News
D
BBC ONE
1
Hot Wars Holiday Program
D
BBC THREE
7
Emmerdal.
10 O’ clock News BBC
Coronation Street
Pepsi Char.
D
E4
14
D
BBC FOUR
70
D
BBC 2W
72
105
D
BBCi
719
D
BBC Radi
Good bye
CoastSpring watchPanorama
NewsPop IdolI’m A Celebrity
Sports15 To 1Rugby
“ ” or “ ” will be displayed in the TV Guide if
Timer Programming is set as the Guide link
programming.
The Bill
Using TV Guide
View advertisement
Enter your postcode when using this function for the first time
[Guide Plus+ Postcode] in [TV Guide Settings] (p.34)
If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12 - 15), you do not have to enter it again.
If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.
Display advertisement information
OPTION
To display the latest advertisement, you will need to update the information.
•
To update the information continuously, the TV must be left in Standby mode.
■ To change advertisements ■ To return to TV Guide
or
BACK/
RETURN
OPTION
Note
Some advertisements are for future programmes.
•
In this case it is possible to use the Guide link programming function.
The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot be deleted
•
manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.
23
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
The availability of teletext services for a programme is indicated by [TEXT] in the information banner.
•
Information banner
Coronation Street
1
20:00 - 20:55
BBC ONE WALES
Now
Depending on the broadcaster, the digital teletext (MHEG) services may not be available. In this case, the operation of the
teletext services may be the same as the analogue teletext services (p. 24).
TEXT
All DVB Channels
Select favourites
20:35
Displayed if programme has teletext service
(p. 18)
Digital teletext (MHEG)
Digital teletext services differ greatly from analogue teletext.
Viewing Teletext
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a
manner decided by the broadcaster.
Select DVB
1
TV
Switch to Teletext
2
TEXT
DVB programmes have digital teletext
•
services (MHEG).
Example :
17:51 28 Feb
■ How to operate services
In all cases, it is possible to navigate the pages using buttons on the remote control, but
because the commands available must apply to all manufacturers of digital equipment, some
on screen commands may not correspond exactly to the remote control buttons.
24
■
To return to TV
TEXT
TV
Select, go
•
Back key
•
BACK/
RETURN
Symbol :
•
Coloured characters
•
Coloured button
When options with numbers are
•
displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Note
As soon as you switch to a digital channel with links to a teletext service, software is downloaded
•
in the background to enable the teletext function. This means that when switching to a digital
channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will
allow the software to download. If you press the TEXT button before download is complete, it will
be ignored and you will have to press the TEXT button again when the download is complete.
While navigating digital teletext, you will find there is a short delay when moving between pages while
•
the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to
let you know that this is happening.
Analogue teletext
Analogue teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FASTEXT (FLOF) mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about
one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects
shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be
altered and stored in the TV’s memory.
■ To change mode
[Teletext] (p.35)
1
2
“Store frequently viewed pages” (p.26)
Select Analogue
TV
Switch to Teletext
TEXT
Sub page number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
Time / date
Displays the index page (content varies
•
depending on the broadcasters)
TELETEXT
INFORMATION
Colour bar
Current page number
Select the page
3
■
To return to TV
EXIT
abc def
jkl
ghi
mno
or
tuvpqrs
wxyz
■ To adjust contrast
MENU
(Press twice)
up
down
or
Coloured button
(Corresponds to the colour bar)
As the blue bar is displayed
Viewing Teletext
FULL / TOP / BOTTOM
MENU
(green)
(TOP) (BOTTOM) Normal (FULL)
(Expand the TOP half) (Expand the BOT TOM half )
Reveal hidden data HOLD
Reveal hidden words e.g. quiz page answers Stop automatic updating
MENU
(red)
Press again to rehide (If you wish to hold the current page without updating)
•
HOLD
Press again to resume
•
25
INDEX Subtitles
Return to the main index page View a favourite page stored
INDEX
STTL
View in multi window
Watch TV and Teletext in two windows at once
TEXT
Operations can be made only in Teletext screen.
•
Each time pressed: Teletext TV and Teletext
•
TV
Store frequently viewed pages
Store frequently viewed pages in the colour bar (List mode only)
As page is displayed
Viewing Teletext
(Corresponding
coloured button)
press and hold
The number changes to
white.
■ To change stored pages
Enter new page number
Coloured button you want to
change
abc def
jkl
ghi
mno
tuvpqrs
wxyz
View sub page
View sub page (Only when teletext is more than one page)
The number of sub pages varies depending on the
Appears at top of the screen
•
broadcasters (up to 79 pages).
It may take some time for searching, during which time
•
you can watch TV.
■ To view specific sub page
MENU
(blue)
Enter the 4-digit number
example : P6
mno
Factory setting is “P888”
•
(subtitle service) on the blue
button (List mode).
If you wish to use Subtitles,
•
do not change number on
blue button.
press and hold
Watch TV while waiting for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
MENU
The news page provides a function that indicates arrival of latest news (“News Flash”).
•
(yellow)
P108
(You cannot change the channel.)
26
Appears when updating
is completed
View the updated
page
(yellow)
Watching External Inputs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.
To connect the equipment (p.10, 11, 89, 90)
•
The Remote Control is capable of operating some functions of selected external equipment.
“Operating the equipment with the T V remote control” (p.28)
Turn the TV on
1
When connecting with SCART as example 2 or 3 (p.10, 11)
Receives input signals automatically when playback starts
Input signals are automatically identified by the SCART (pin 8) terminal.
•
This function is also available for HDMI connections (p.89).
•
If input mode is not switched automatically
Perform 2 and
Check the setup of the equipment.
•
Display the input selection menu
2
AV
Select the input mode connected to the equipment
3
Input Selection
AV1
AV2
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
TV
SD Card/USB
You can also select the input using the AV button on the remote control or the side
•
panel of the TV (except [SD Card/USB]).
Press the button repeatedly until the desired input is selected.
[SD Card/USB] : Switches to Media Player [Using Media Player] (p.58)
•
You can label or skip each input mode (except [SD Card/USB]). “Input Labels” (p.48)
•
Skipped inputs will not be displayed when the AV button is pressed.
3
select
watch
Watching External Inputs
TV
■
To return to TV
TV
Terminal
Manual input
(default setting
in “InputLabels”)
Auto input
(EC mode or
VIERA Link)
If the above information is permanently displayed on the top left of the screen, press the button to clear.
•
Note
If the external equipment has an aspect adjustment function, set it to [16:9].
•
For details, see the manual of the equipment or ask your local dealer.
•
AV1 AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4
AV1
AV1-RGB
EC/AV1
EC/AV1-RGB
View
4
AV1
AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4
−−−
Displays the selected mode
EC/HDMI1
Applicable for
EC mode and
VIERA Link
EC/HDMI2
Applicable
for
VIERA Link
EC/HDMI3
Applicable
VIERA Link
for
EC/HDMI4
Applicable
for
VIERA Link
27
Operating the equipment with the TV remote control
The equipment connected to the TV can be directly operated with the below buttons of this TV remote control.
Selection Switch for operating the connected equipment
Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc
DVD/VCR
Watching External Inputs
TV
PROGRAMME
REC
theatre or VCR
“How to change the code for the type of the equipment” (see below)
Select “TV” to use USB HDD Recording, Media Player or VIERA Link
“USB HDD Recording” (p. 57)
“Media Player” (p. 65)
“VIERA Link Control” (p.87)
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD / video content
Stop
Stop the operations
Rewind / Skip / Search
VCR :
Rewind, view the picture rapidly in reverse
DVD / video content :
Skip to the previous track, title or chapter
Press and hold to search backward
Fast-forward / Skip / Search
VCR :
Fast-forward, view the picture rapidly forward
DVD / video content :
Skip to the next track, title or chapter
Press and hold to search forward
Pause
Pause / Resume
DVD : Press and hold to play at slow speed
Channel Up / Down
Select channel
Record
Start recording
How to change the code for the type of the equipment
Each type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.
1 Set the position to “DVD/VCR”
DVD/VCR
TV
2 Press and hold during the following operations
Enter the appropriate code, see
table below
DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)
Note
Confirm if the remote control works correctly after changing the code.
•
The codes may be reset to default values if batteries are replaced.
•
Some operations may not be possible on some equipment models.
•
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Type of the equipment Code
Player theatre, Blu-ray Disc theatre 71
VCR 72
Press
28
How to Use VIERA TOOLS
You can access some special features easily by using the VIERATOOLS function.
For [VIERA Link Control] and [Pause Live TV] functions to operate correctly, ensure the connections and settings are
•
completed.
“Summary of Q-Link and VIERA Link features” (p. 81, 82), “Preparations” (p.84)
After connection, turn the equipment on and then switch the TV on.
For [Photo], [Video] and [Music] functions to operate correctly, ensure the device has photo or video data on it and insert it
•
into the SD Card slot or USB port properly.
”Using Media Player” (p. 58)
Display icons of the feature
■
To return to TV
EXIT
or
1
2
T
O
A
O
R
L
E
S
I
V
T
O
A
O
R
L
E
S
I
V
Select a feature
VIERA Link Control
select
access
How to Use VIERA TOOLS
■ Follow the operations of each feature
[VIERA Link Control]
“VIERA Link Control” (p.86)
[Photo]
“Photo mode” (p.60)
[Video]
“Video mode” (p.64)
∗
When two or more available devices are connected, a selection screen will be displayed.
Please select the correct description and access.
When two or more compatible equipment are
connected, a selection screen will be displayed.
Please select the correct description and access.
∗
∗
[Recorded TV]
“Recorded TV mode” (p.65)
[Music]
“Music mode” (p.68)
[Media Server]
“Using DLNA® features” (p.77)
Note
If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to
•
view the demonstration after selecting the unavailable feature.
∗
∗
∗
29

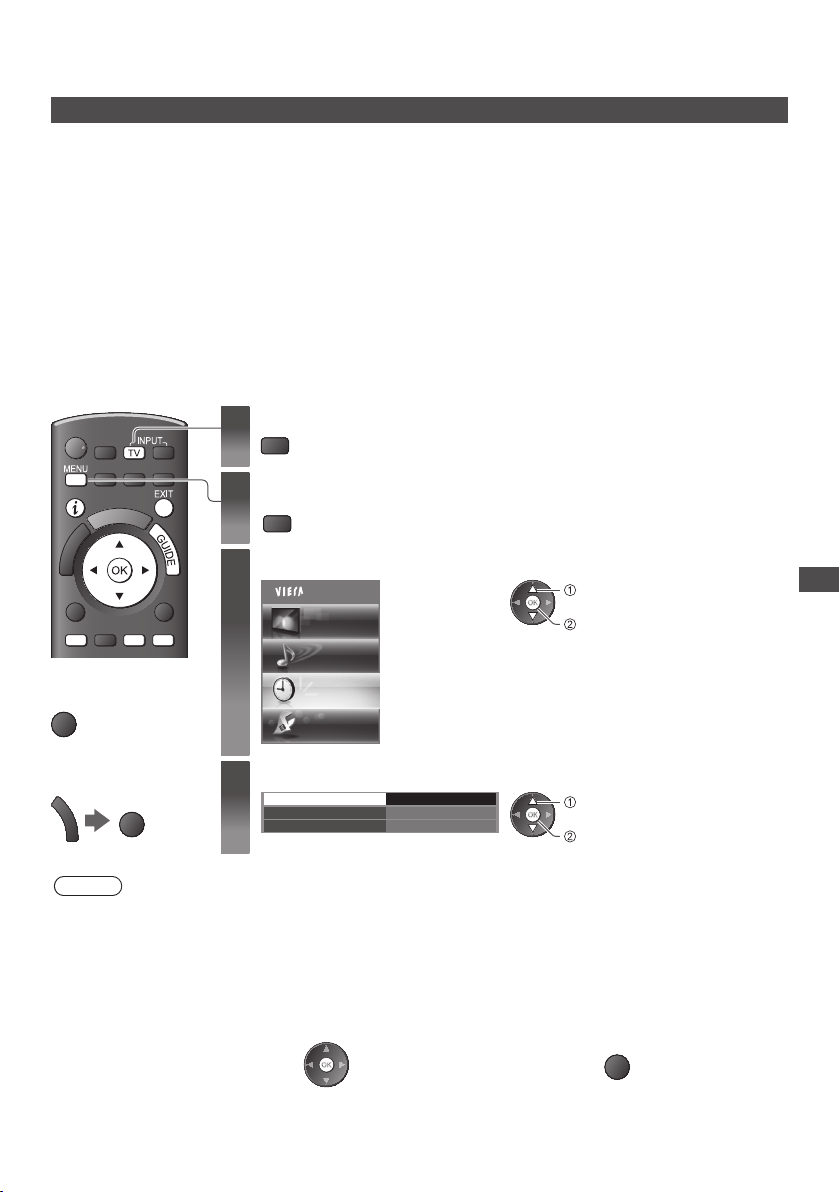

How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
Display the menu
1
MENU
Select the menu
2
Displays the functions that can be set (varies according to the input signal)
•
Main Menu
Sound
Timer
Setup
select
access
How to Use Menu Functions
■
To return to TV at
any time
EXIT
■
To return to the
previous screen
BACK/
RETURN
■
To change menu
pages
TV
up
down
Select the item
3
Example : [Picture Menu]
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
C.A.T.S. Off
Warm
Off
1/2
select
access
■ Choose from among alternatives ■ To reset the settings
Cool
Colour Balance
Normal
Warm
■ Adjust using the slide bar
Sharpness
Moved
■ Go to the next screen
Child Lock
Access
Displays the next screen
5
To reset the picture settings only
•
[Reset to Defaults] in the
Picture Menu (p.32)
To reset the sound settings only
•
[Reset to Defaults] in the
Sound Menu (p.33)
To initialise all settings
•
[Shipping Condition] in the
Setup Menu (p.36)
■ Enter characters by free input menu
You can enter names or numbers freely for some items.
User input
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
You can set characters by using numeric buttons.
•
“Characters table for numeric buttons” (p.96)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
Set characters Store
select
set
BACK/
RETURN
Note
If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment.
•
To return to “Home” viewing environment initialise all settings by accessing Shipping Condition. (p. 49)
30
Loading...
