Page 1
T
Operating Instructions
LCD Television
Model No.
TX-L32E31B
TX-L42E31B
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain
them for future reference.
The images shown in this manual are for illustrative purposes only.
English
UK and Ireland model
QB0E2158
Page 2
Features
DVB-T tuner built-in
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts.
DVB-T2 tuner built-in
DVB-T2 is an advanced digital terrestrial system for more efficient transmission.
Available DVB-T2 broadcasts will be tuned automatically when you per form DVB Auto Setup.
GUIDE Plus+ (p. 21)
This TV supports the TV Guide services sent from the GUIDE Plus+ system.
Sharp pictures and clear sound with HDMI connection (p. 96)
Enjoy high definition digital picture and high quality sound by using an HDMI cable.
This TV supports HDMI (Version 1.4 with Content Type, Audio Return Channel), Deep Colour.
•
Using USB devices
Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 54, 66)
Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 58)
Wireless LAN Adaptor for the network connection. (p. 6, 11, 13)
USB keyboard, gamepad, etc. are available. (p. 97)

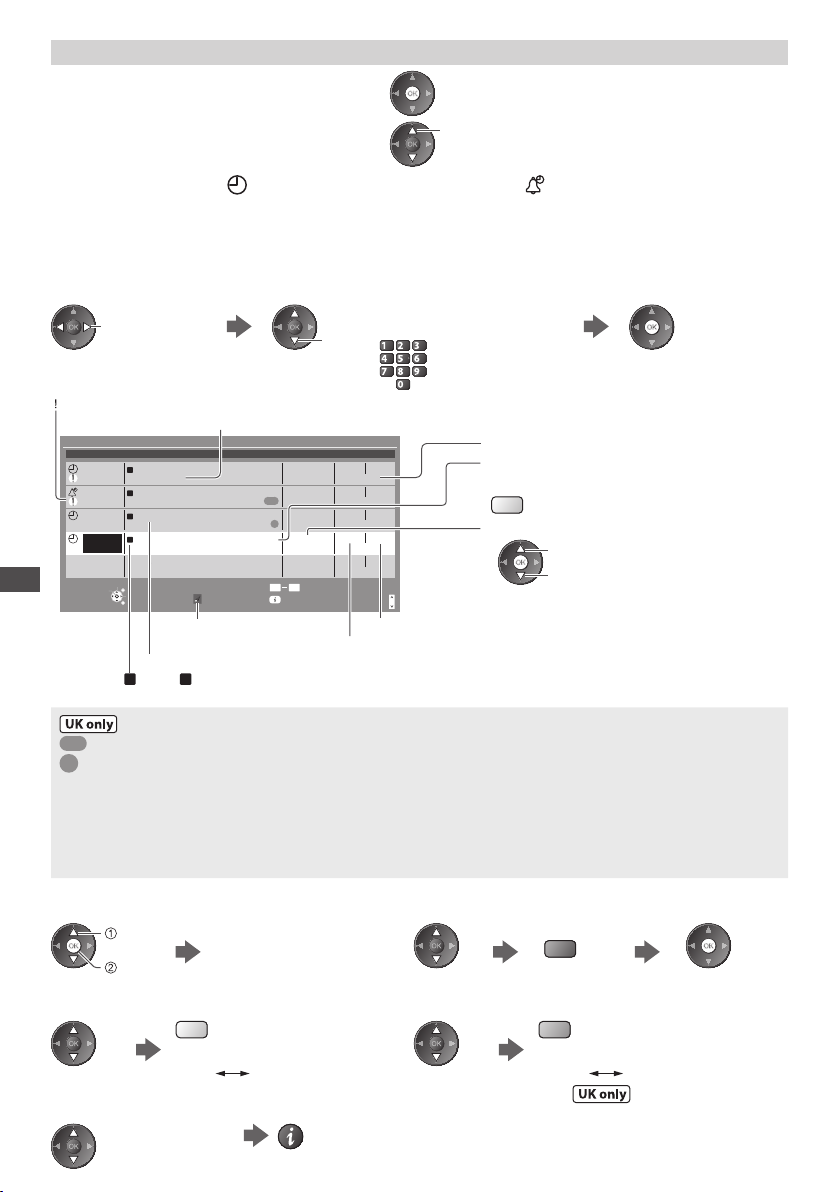

Timer Programming (p. 22, 45)
Timer Programming enables you to use functions such as programme reminder and programme recording to the external
recorder / formatted USB HDD.

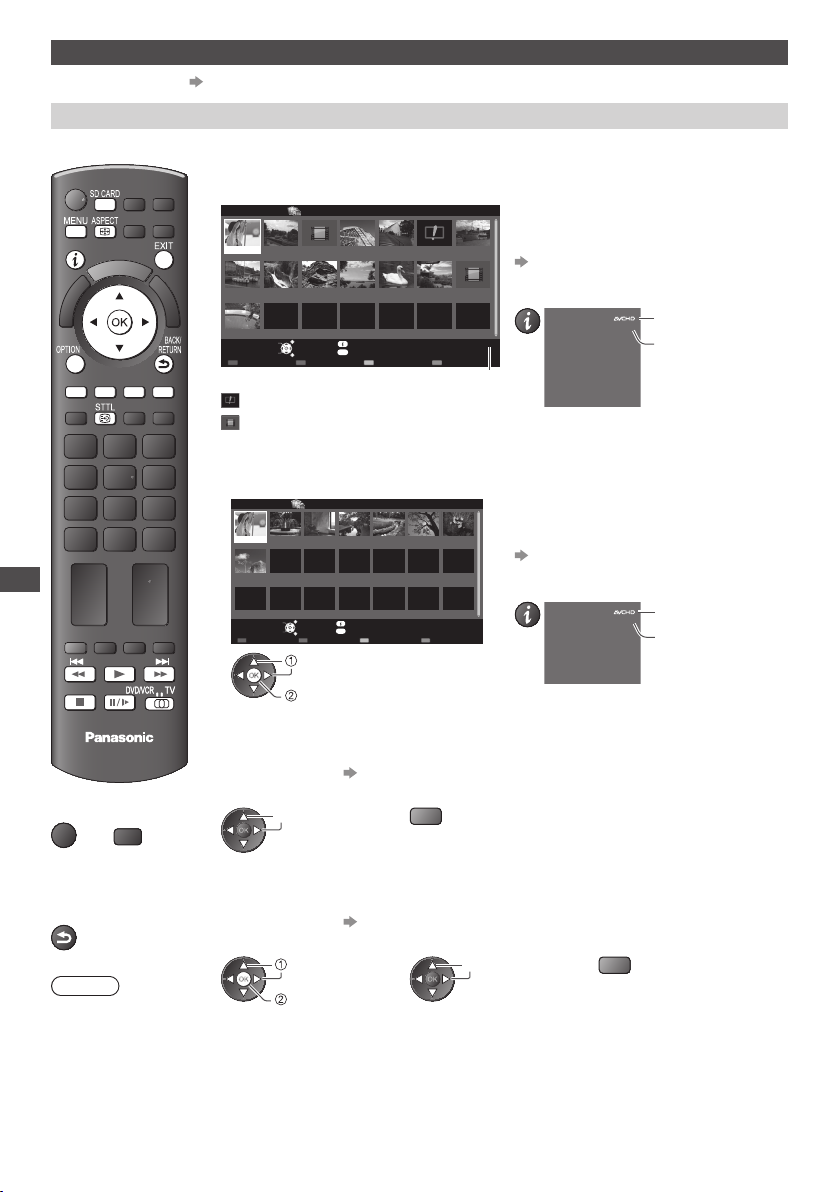

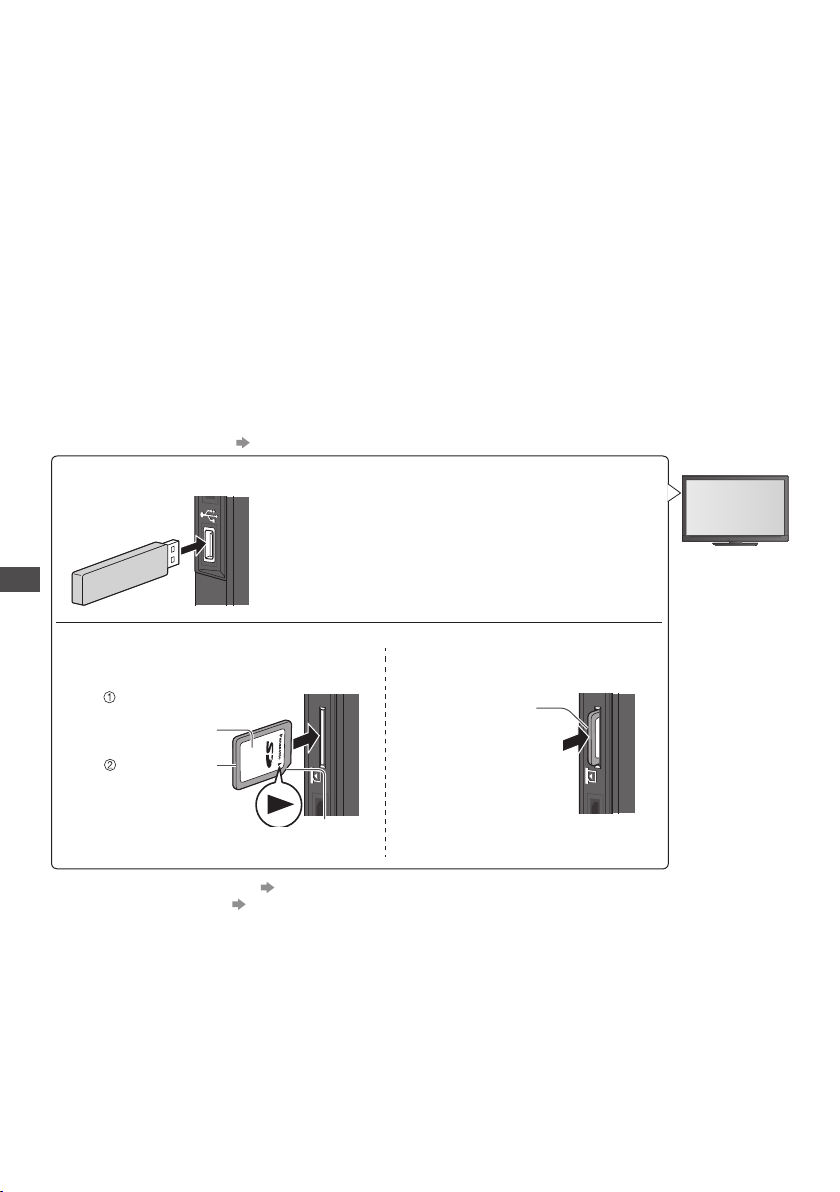

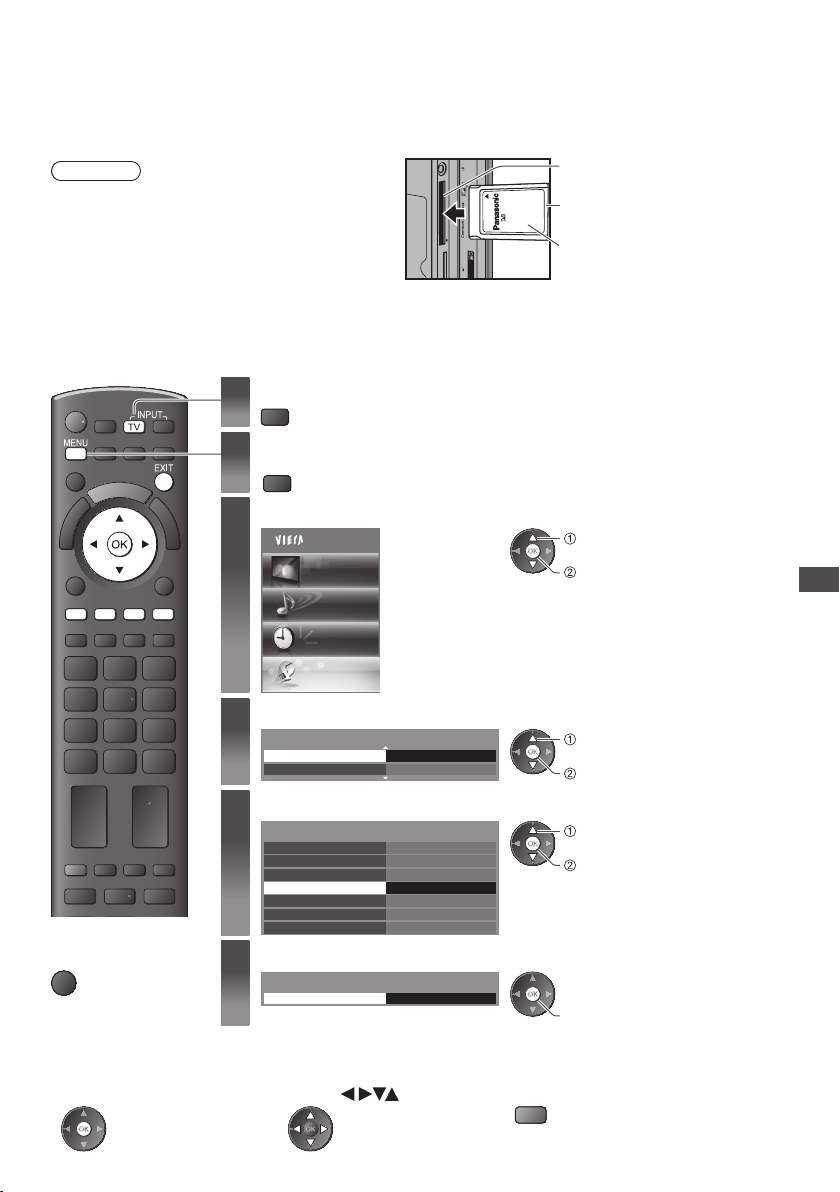

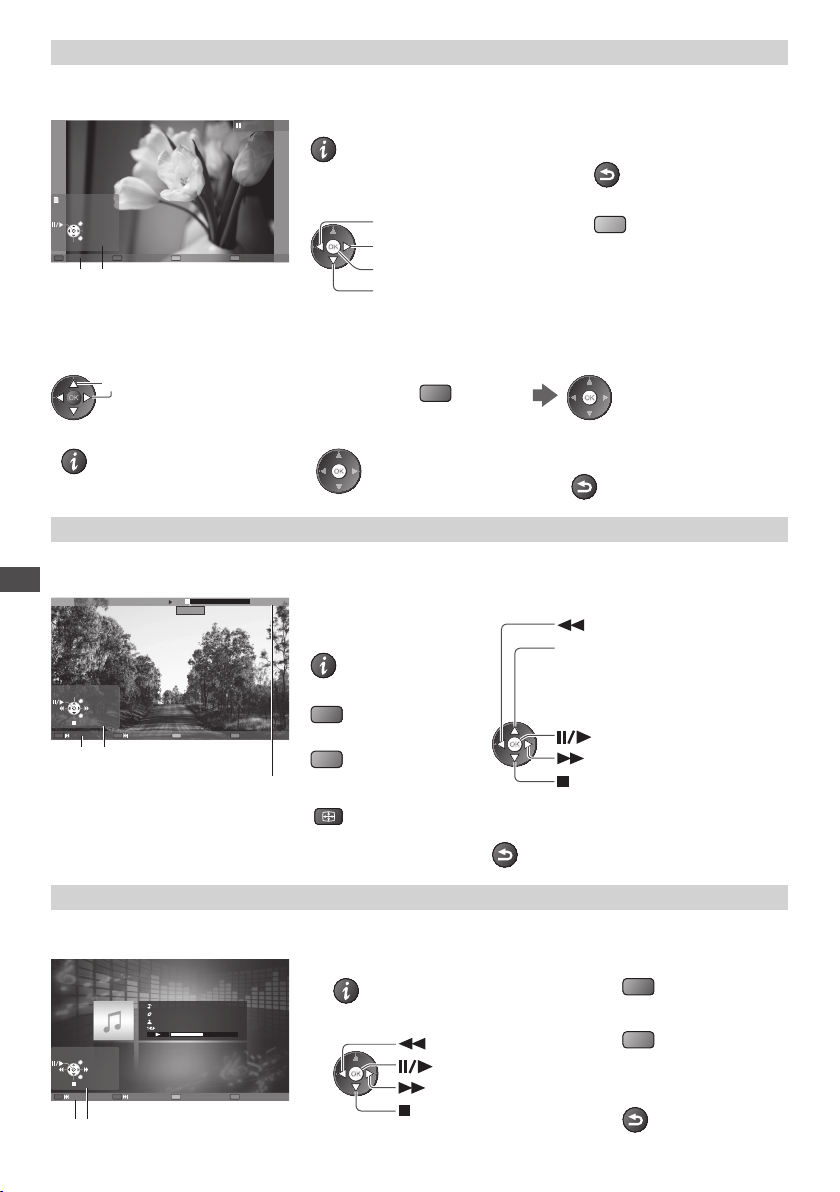

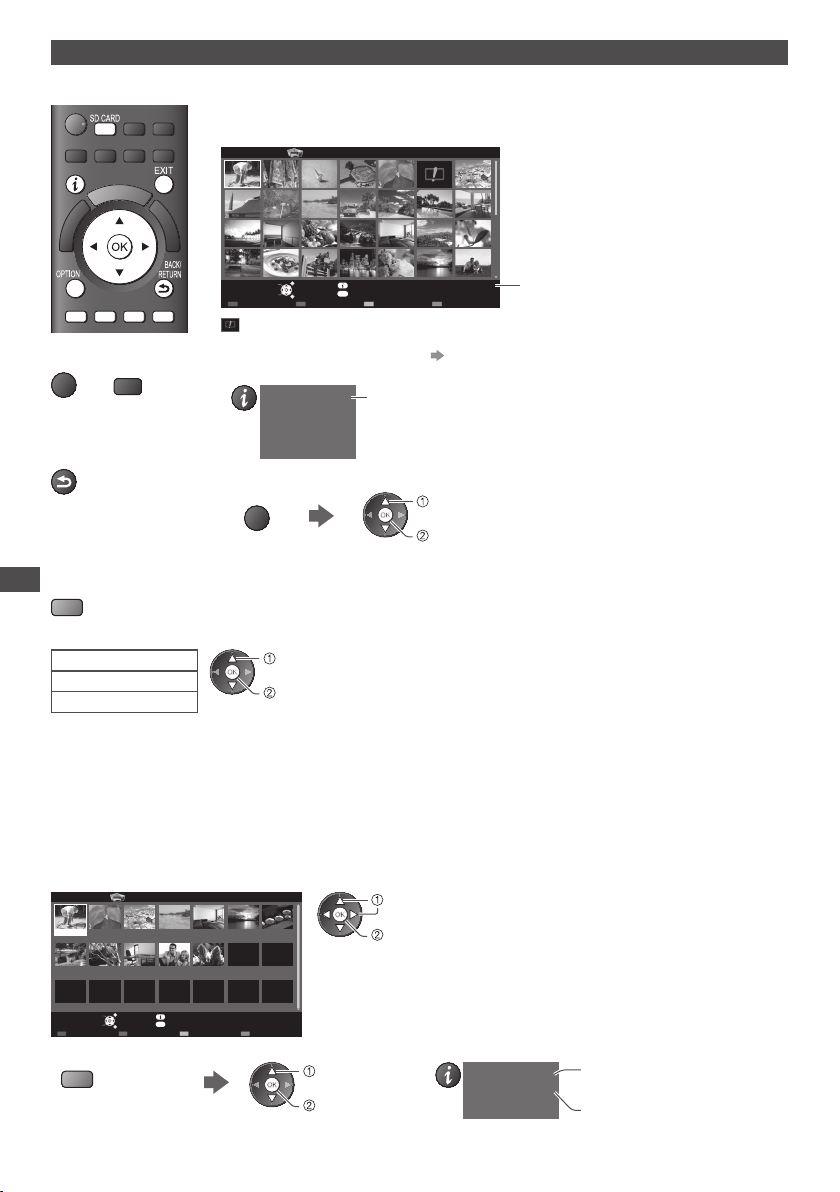

VIERA IMAGE VIEWER - SD Card viewer in Media Player (p. 58)
Enjoy your photos or videos recorded on an SD Card on the T V screen.
SDXC Card
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

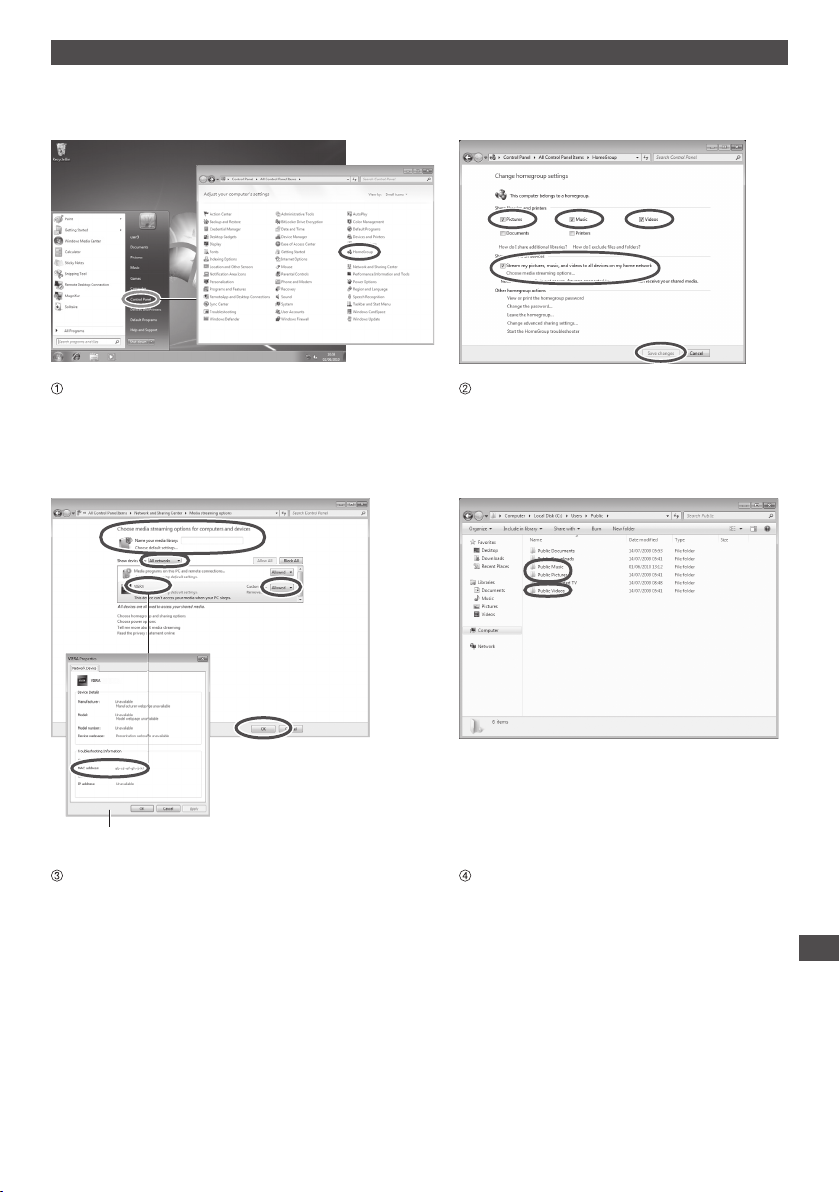

DLNA
DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. For example, you
can enjoy watching photos and videos stored in the PC connected to your home network by accessing from the TV. (p. 77)
VIERA Connect - Enjoy great web entertainment (p. 16, 80)
Enjoy the internet contents on the TV such as photos, videos, weather, video communication (ex. Skype™), etc. through an
easy-to-use web interface that is built into the TV.
Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 81)
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.

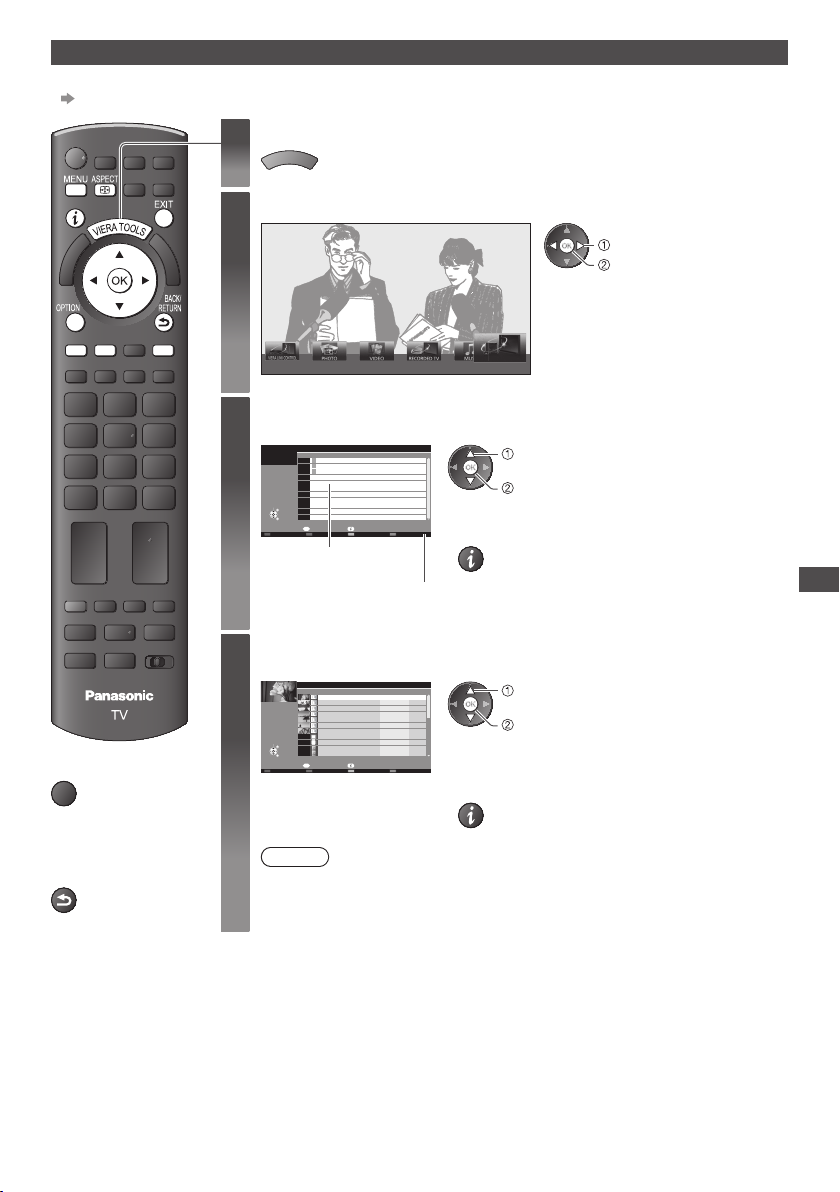

VIERA TOOLS - Display special feature icons for easy accessibility (p. 29)
Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS button.
Dolby Digital Plus / Dolby Pulse decoders
It is possible to decode Dolby Digital Plus / Dolby Pulse multi-channel audio tracks and output as Dolby Digital Bitstream
(multi-channel sound signal) from DIGITAL AUDIO OUT / HDMI2 (ARC function) terminals.
Owner ID (p. 50)
Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to
determine the owner in the case of theft.
Supports Audio Description signal (p. 18, 33)
Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids
understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of
the main volume.
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region.
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV
channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently
turned off, it will not be possible to recover them.
To retune your TV
•
[Auto Setup] in [DVB Tuning Menu]-DVB mode (p. 40)
Users of cable or satellite boxes should still retune the T V to continue to receive Freeview channels via their aerial. (Your
Analogue channel for viewing Cable or Satellite services will change to a new position.)
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite
•
good reception of analogue channels.
2
Page 3
Transport only in upright position
The recording and playback of content on this or any other
device may require permission from the owner of the copyright
or other such rights in that content. Panasonic has no authority
to and does not grant you that permission and explicitly
disclaims any right, ability or intention to obtain such permission
on your behalf. It is your responsibility to ensure that your use
of this or any other device complies with applicable copyright
legislation in your country. Please refer to that legislation for
more information on the relevant laws and regulations involved
or contact the owner of the rights in the content you wish to
record or playback.
This product is licensed under the AVC patent portfolio license
for the personal and non-commercial use of a consumer to (i)
encode video in compliance with the AVC Standard (“AVC Video”)
and/or (ii) decode AVC Video that was encoded by a consumer
engaged in a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC Video.
No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEGLA, LLC.
See http://www.mpegla.com.
ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT
IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM
SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+
SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/
OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS
REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS,
OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES
IN CONNECTION WITH THE PROVISION OR USE OF ANY
INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE
GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
Contents
Be Sure to Read
Safety Precautions····································································4
Quick Start Guide

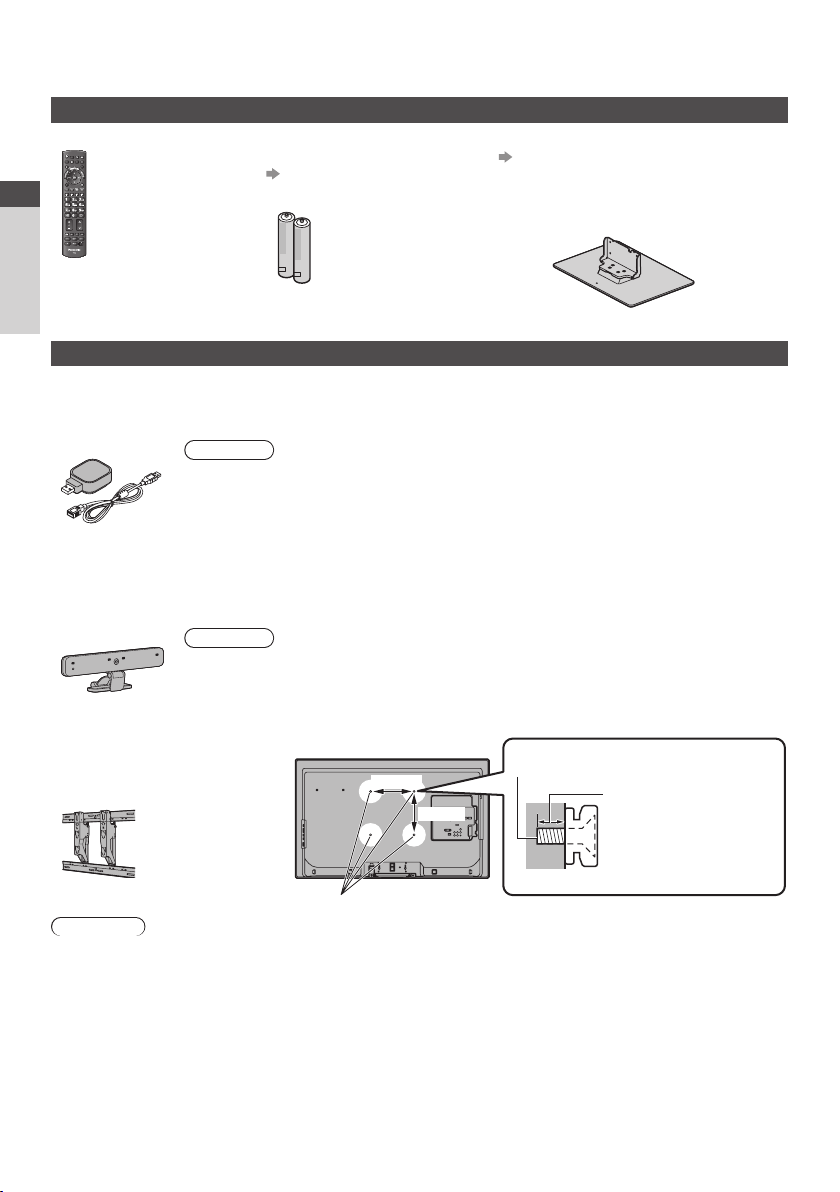

Accessories / Options ······························································6

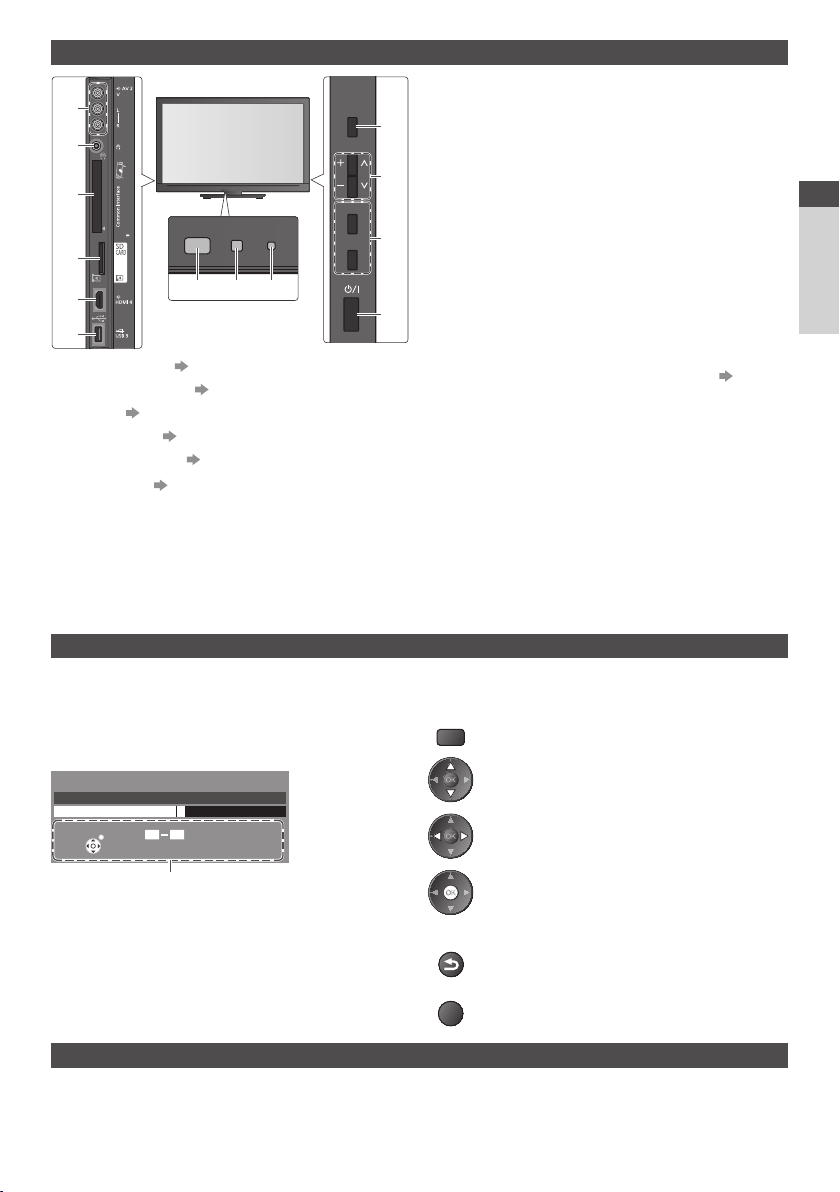

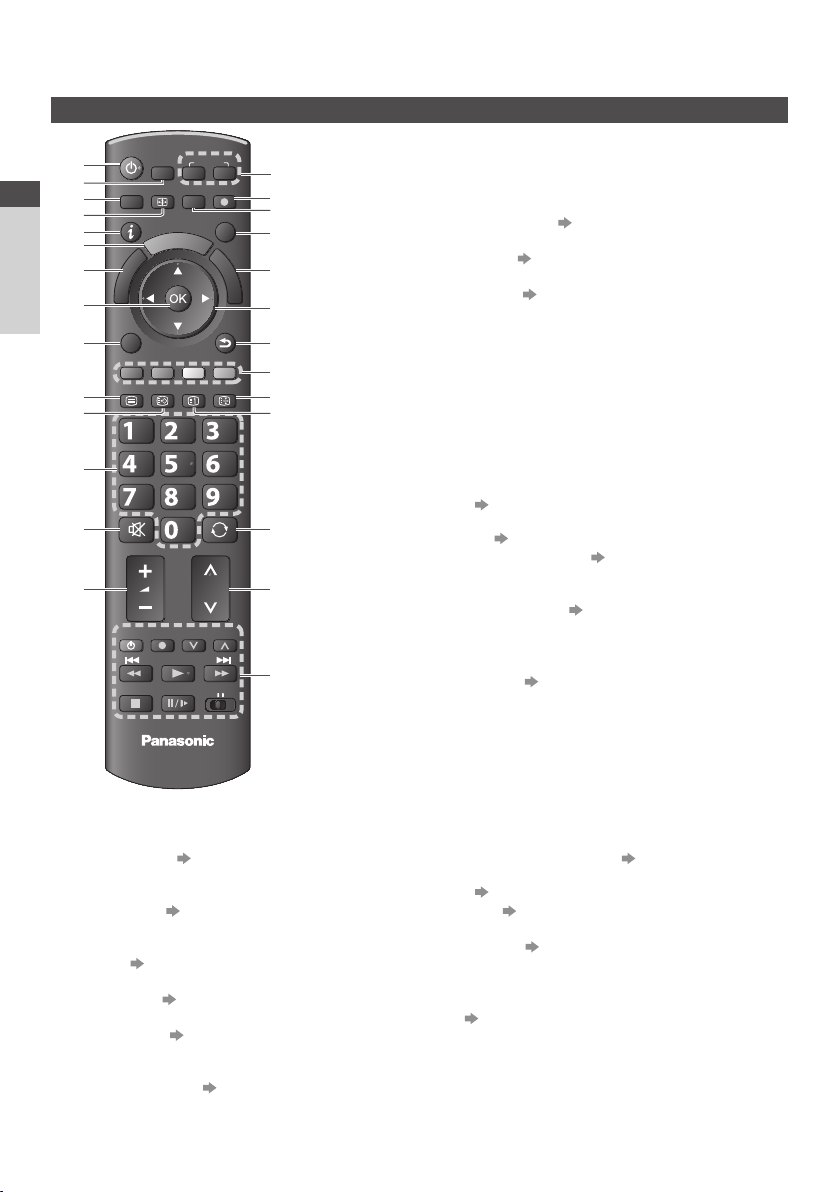

Identifying Controls ·································································8

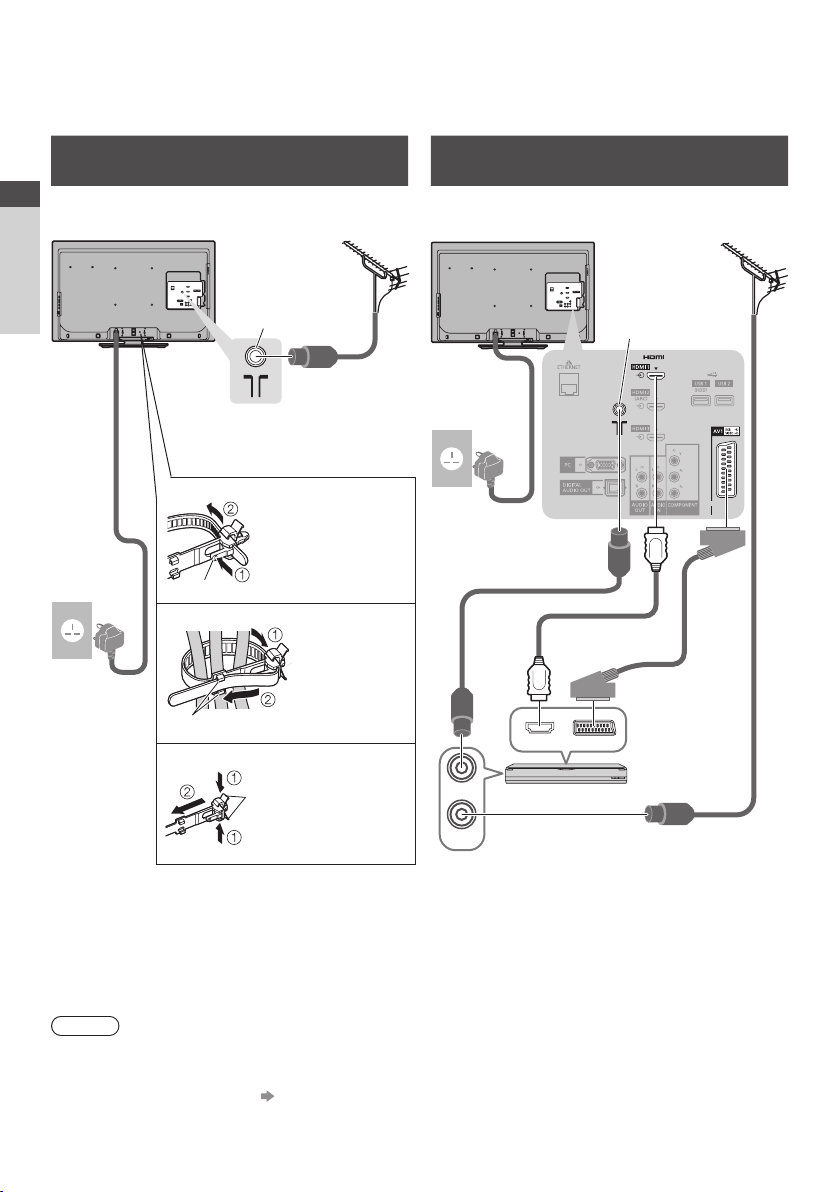

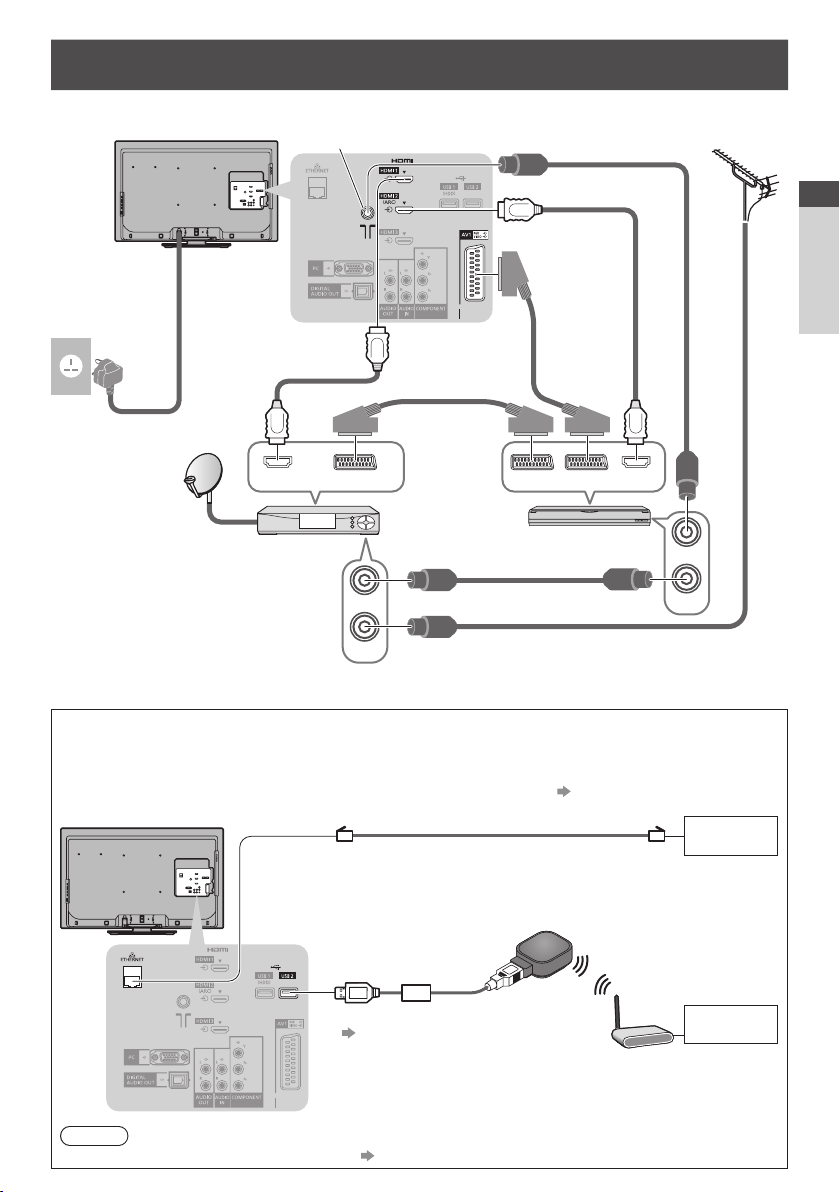

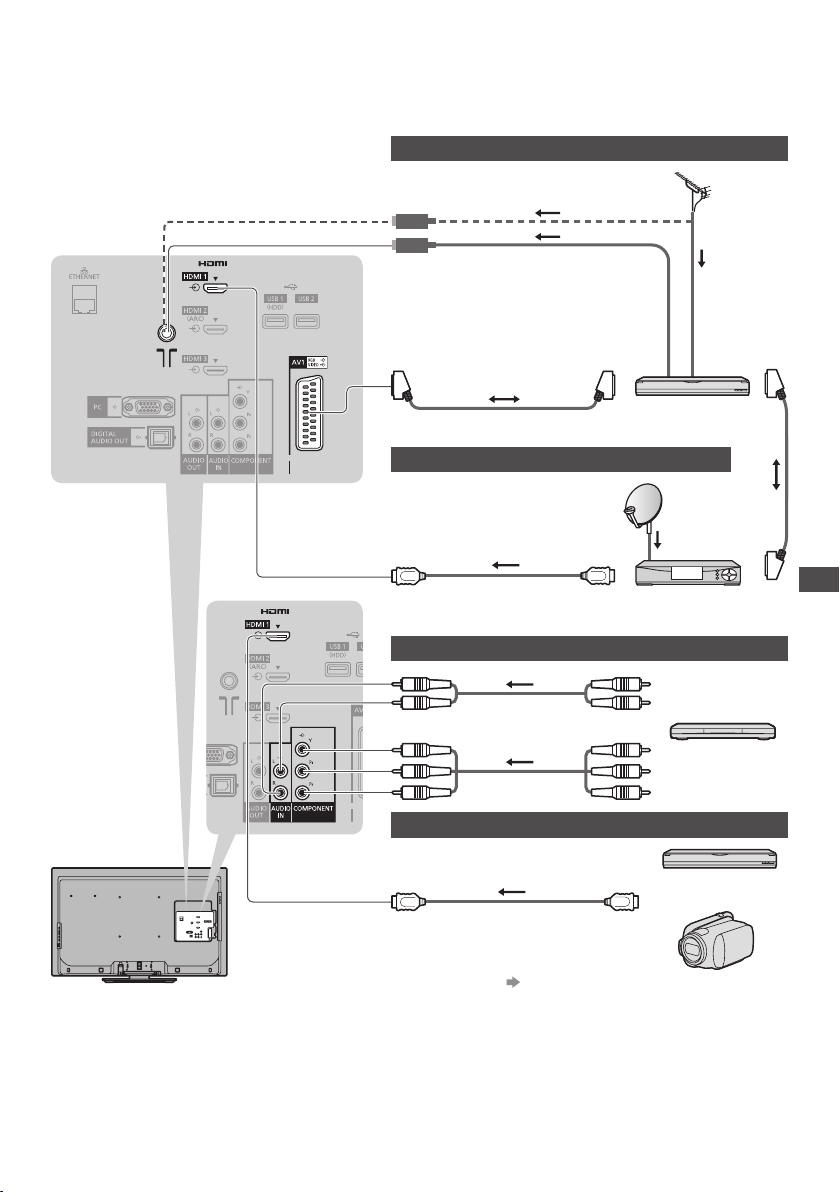

Basic Connection ··································································· 10

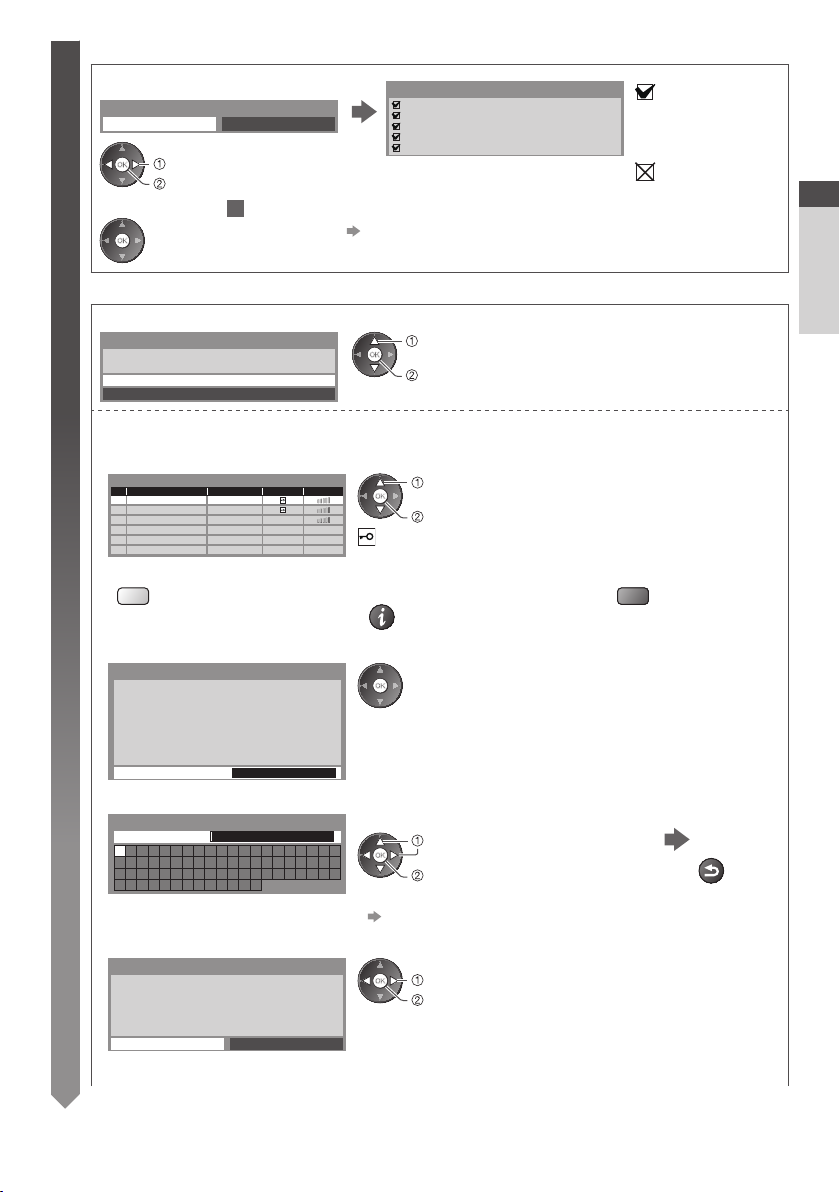

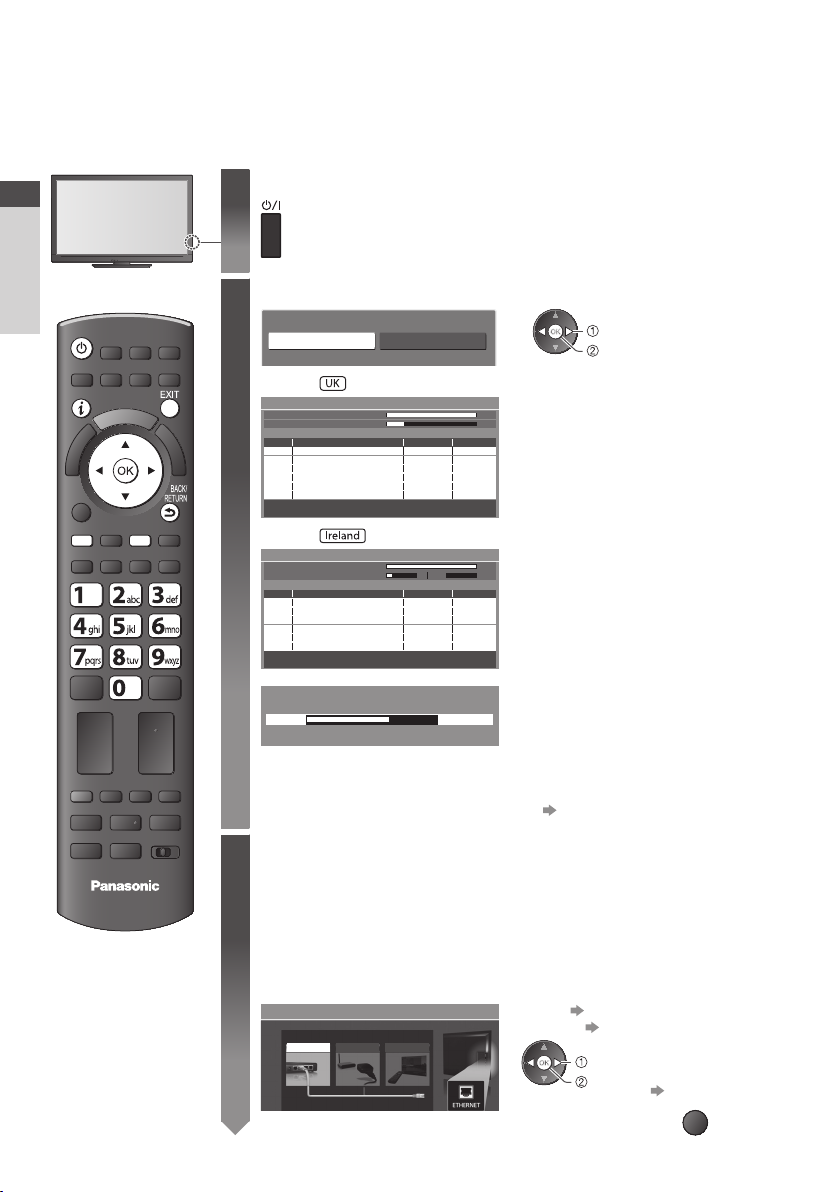

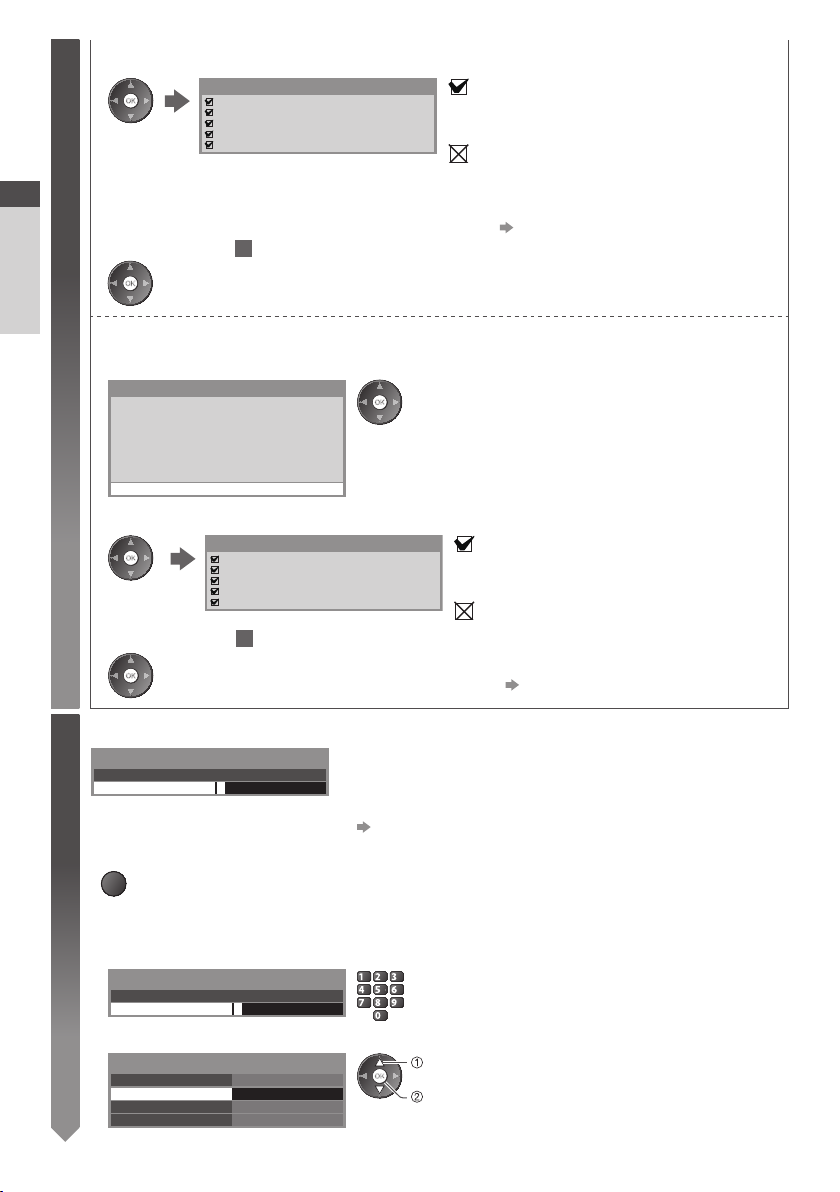

Auto Setup ··············································································· 12
Enjoy your TV!
Basic Features

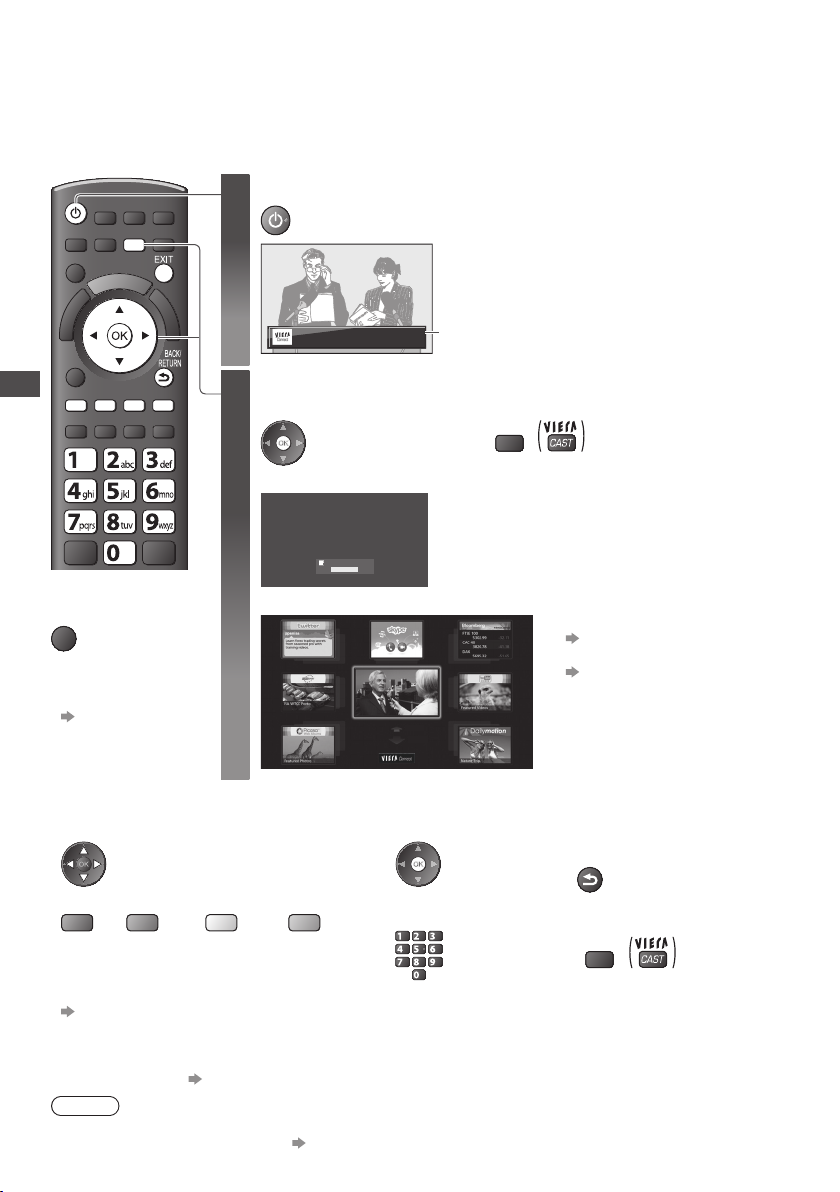

Using “VIERA Connect” ························································16

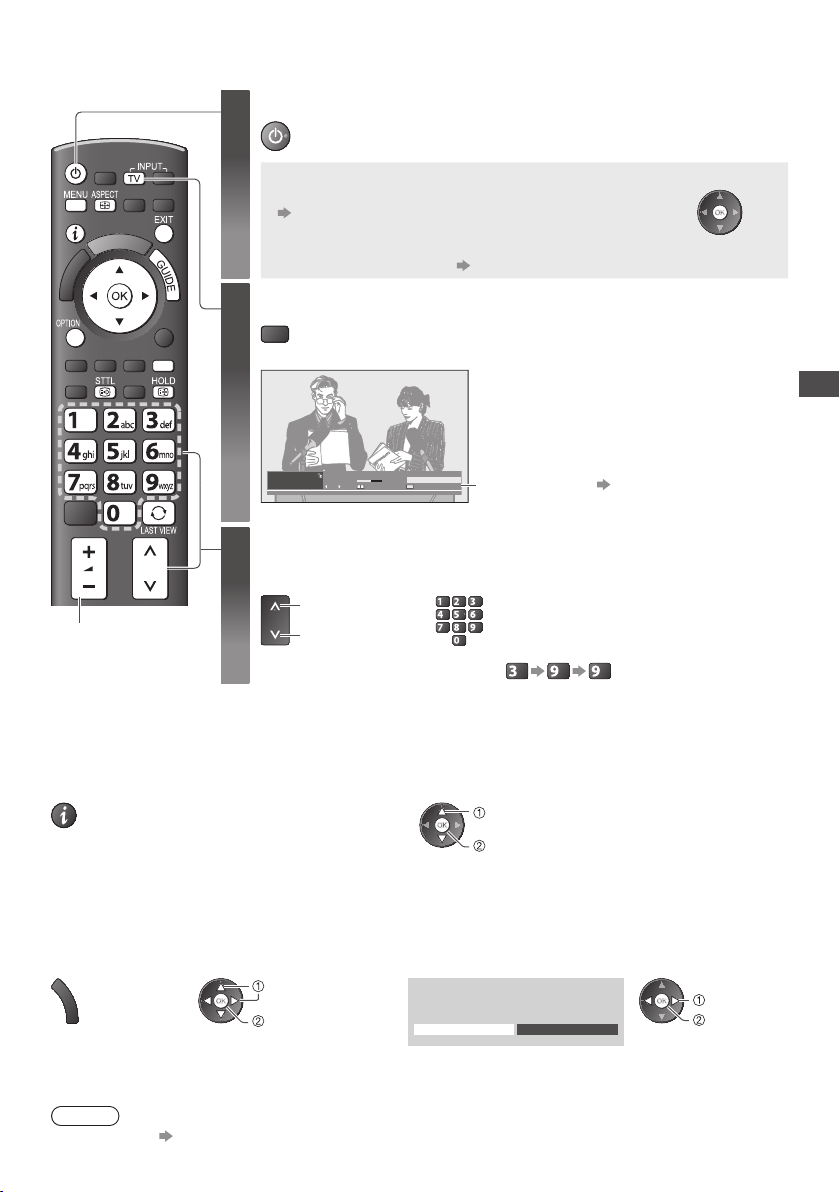

Watching TV ············································································ 17

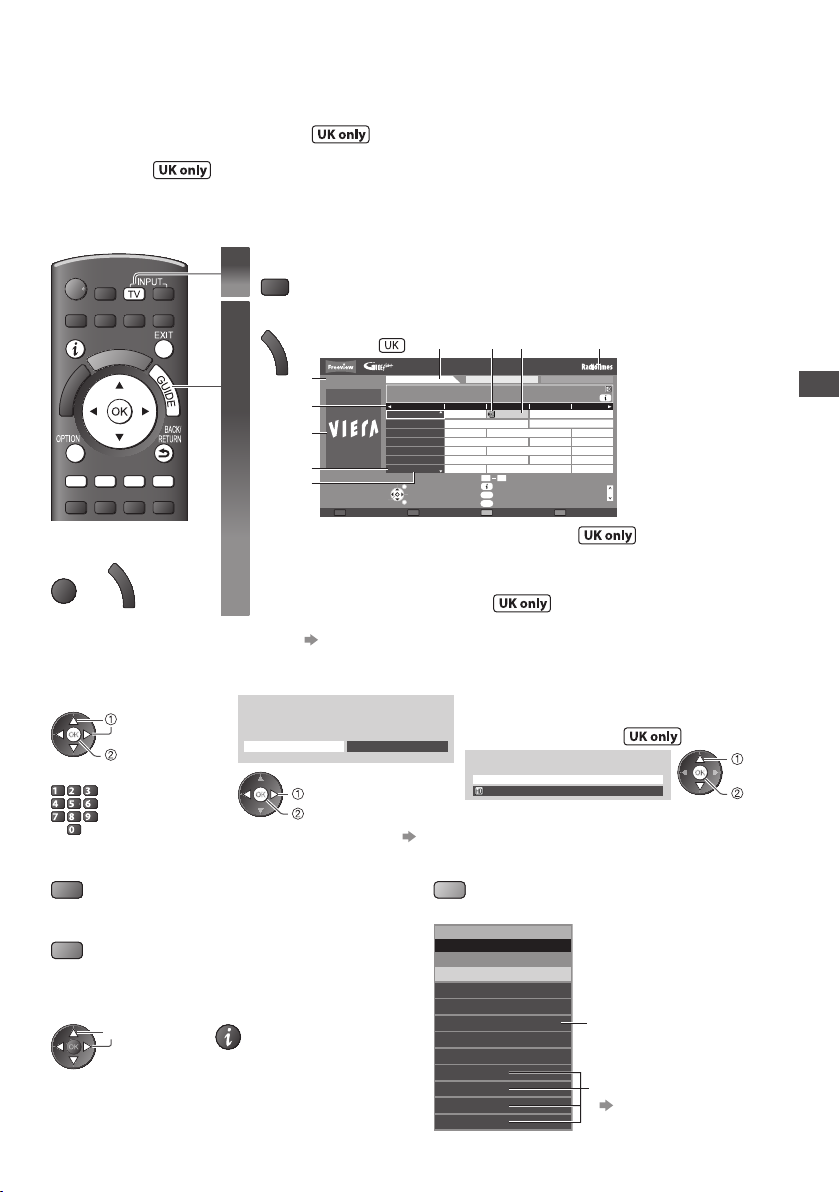

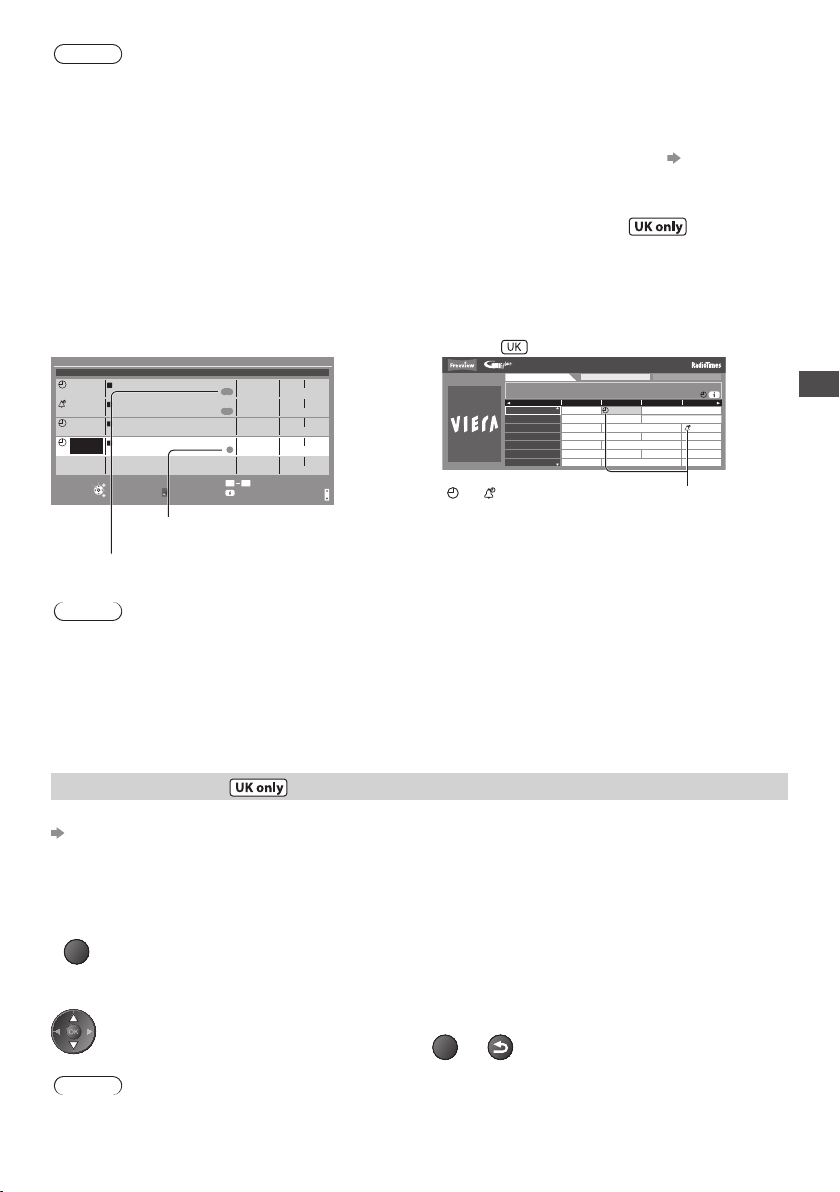

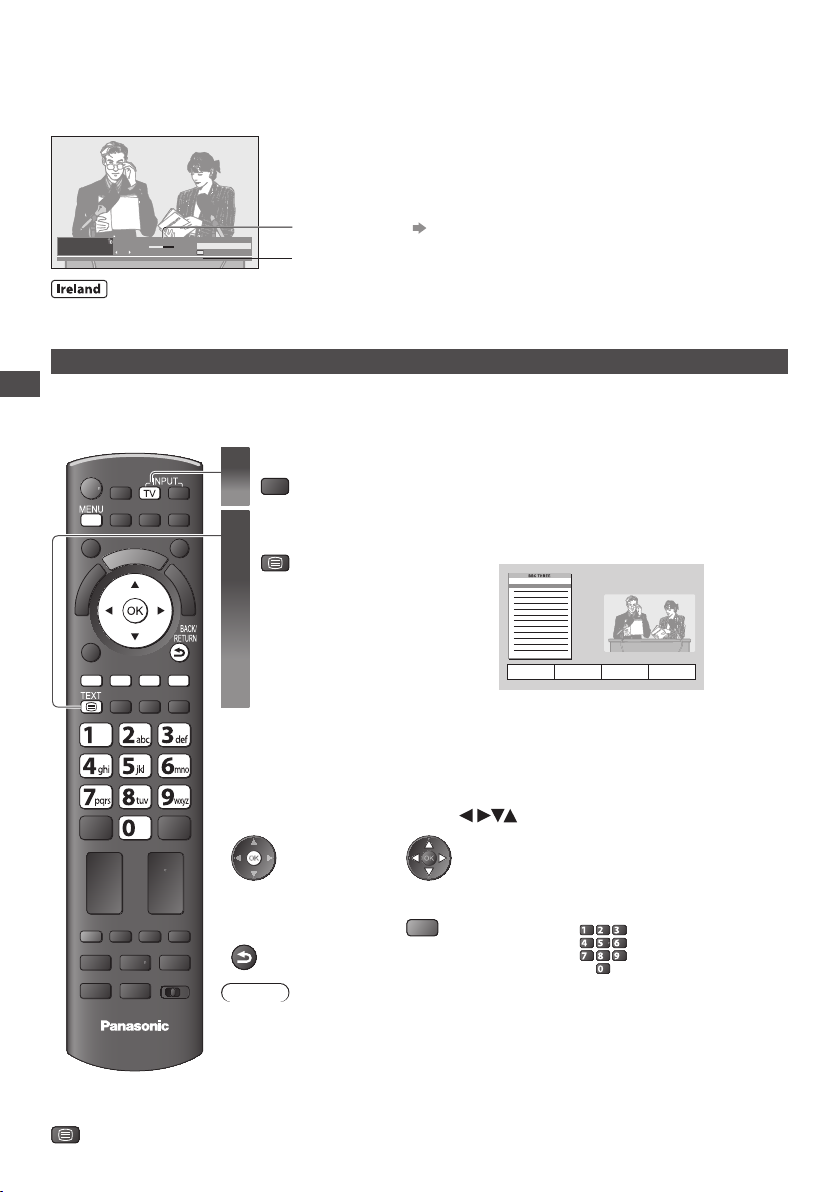

Using TV Guide ······································································· 21

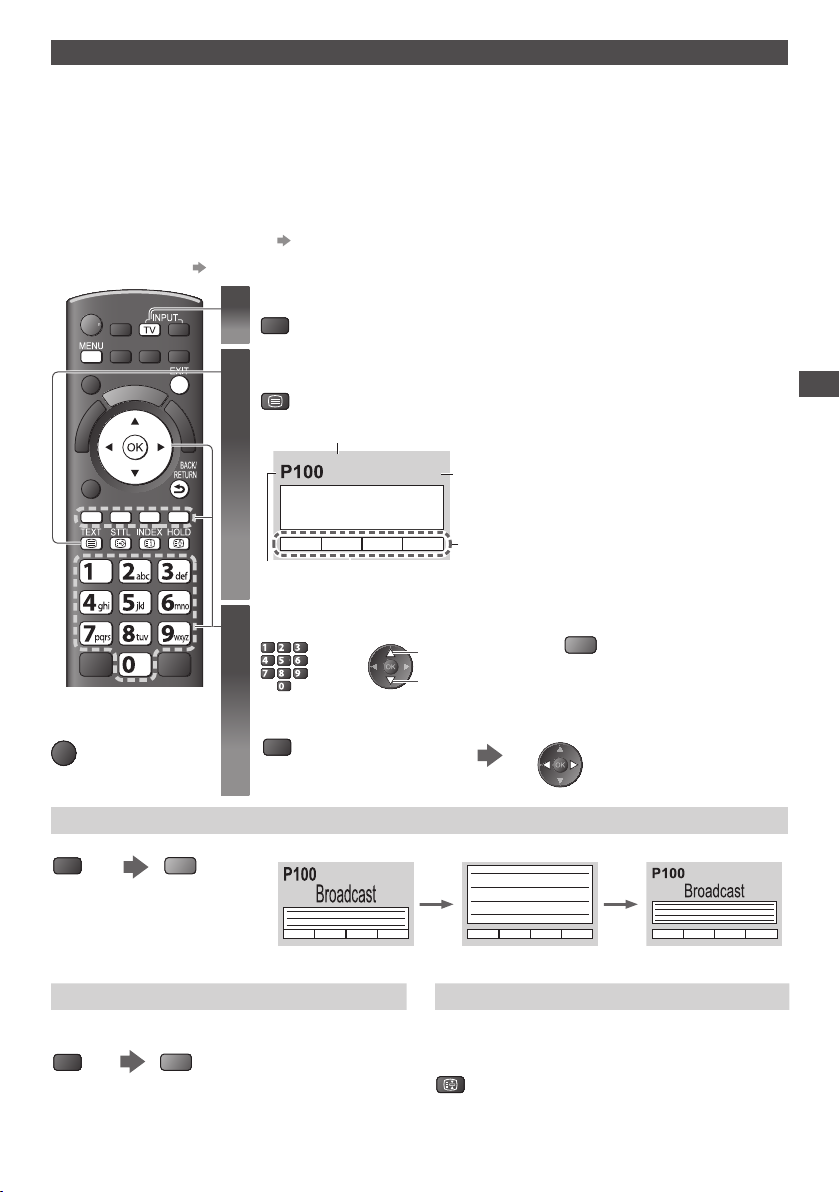

Viewing Teletext ·····································································24
Watching External Inputs ··················································· 27

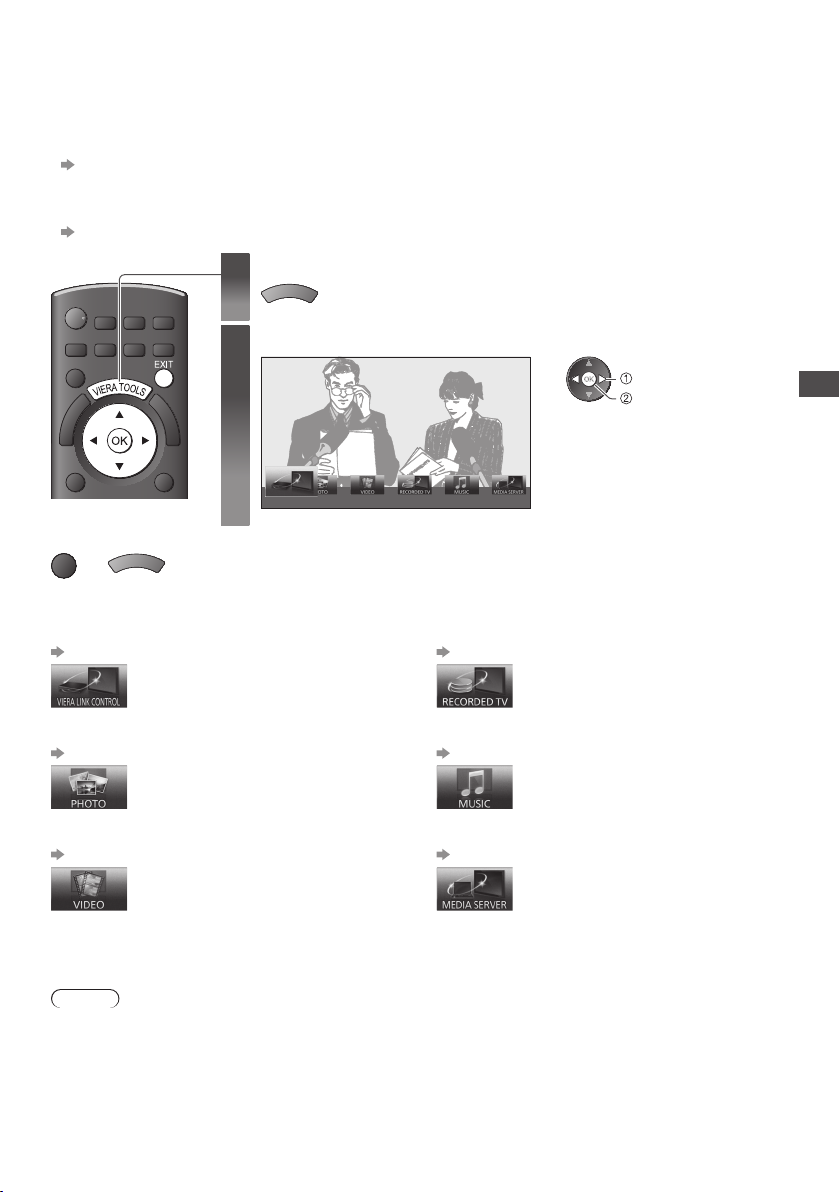

How to Use VIERA TOOLS ··················································· 29

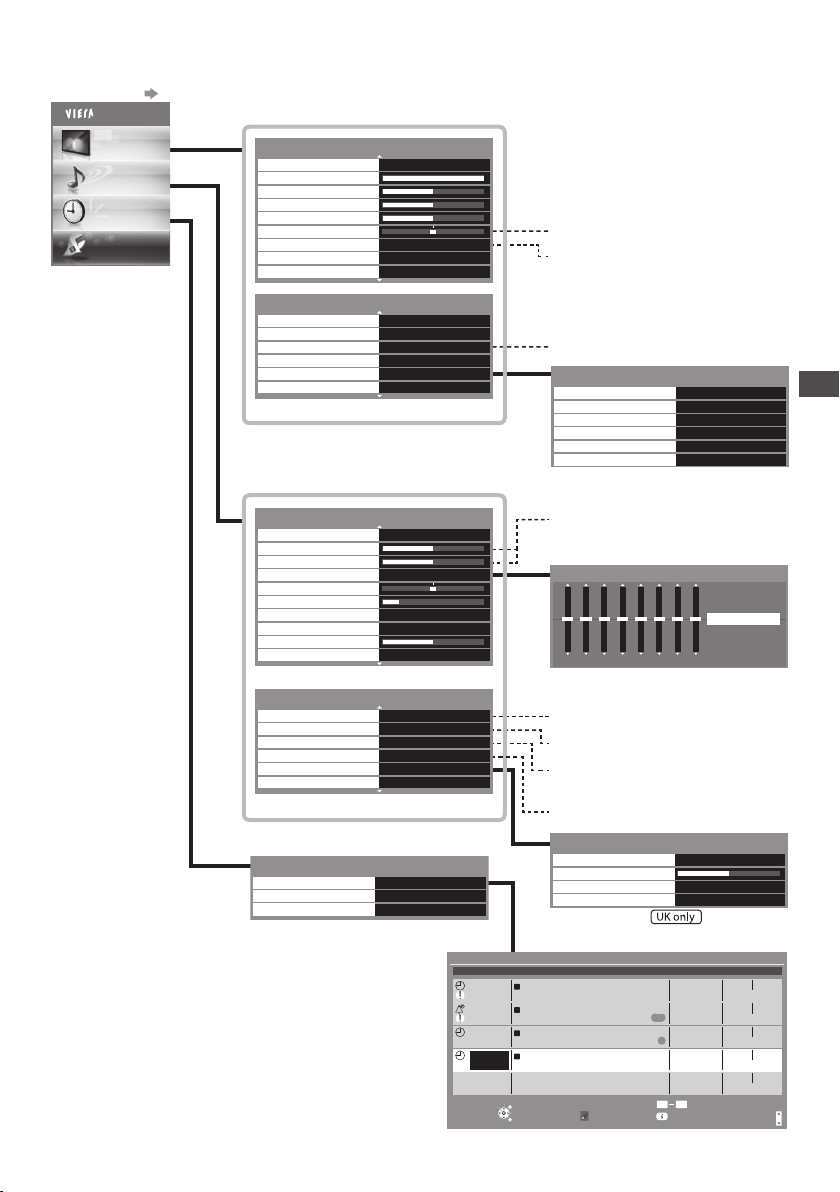

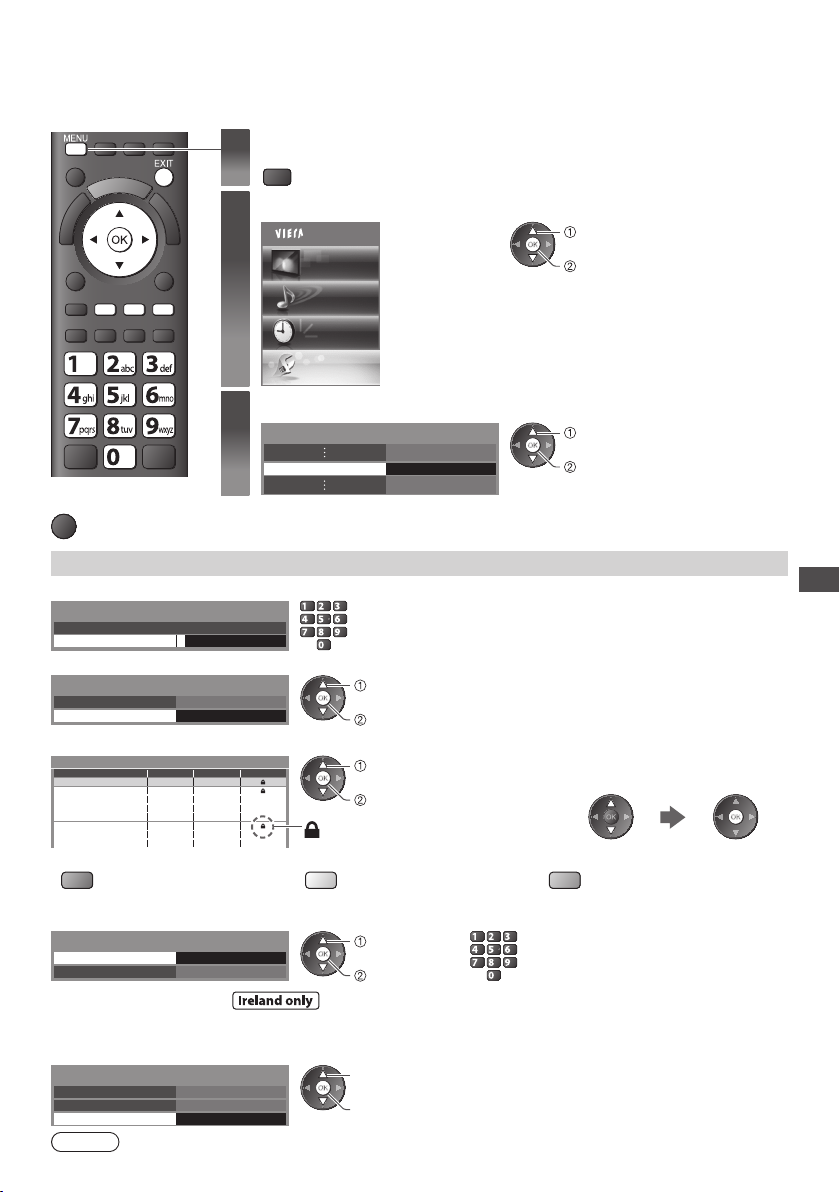

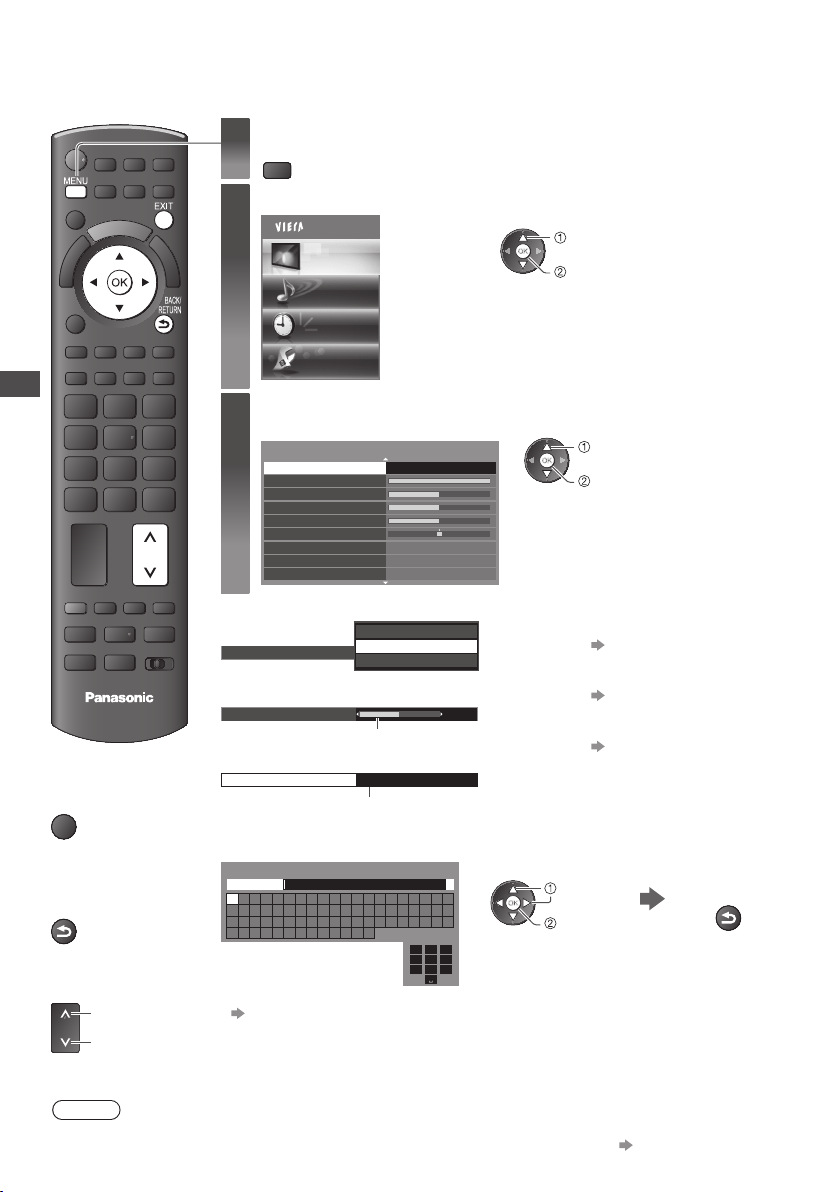

How to Use Menu Functions ············································· 30
Advanced Features
Retuning from Setup Menu ··············································· 40
Tuning and Editing Channels ············································41
Timer Programming ····························································· 45
Child Lock ················································································· 47
Input Labels ············································································· 48
Shipping Condition ······························································49
Owner ID··················································································· 50
Using Common Interface ···················································51
Updating the TV Software ·················································· 52
Displaying PC Screen on TV ··············································· 53
USB HDD Recording ·····························································54

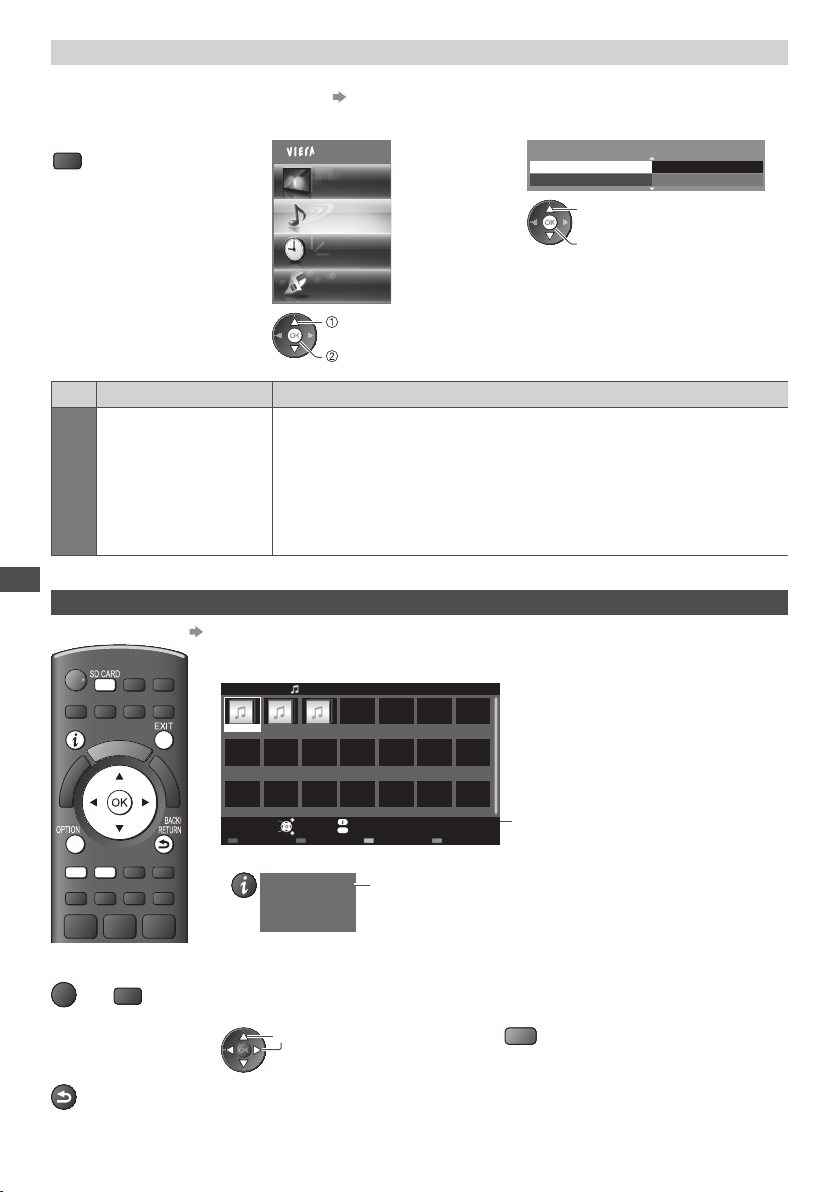

Using Media Player ·······························································58
Using Network Services (DLNA / VIERA Connect)······70

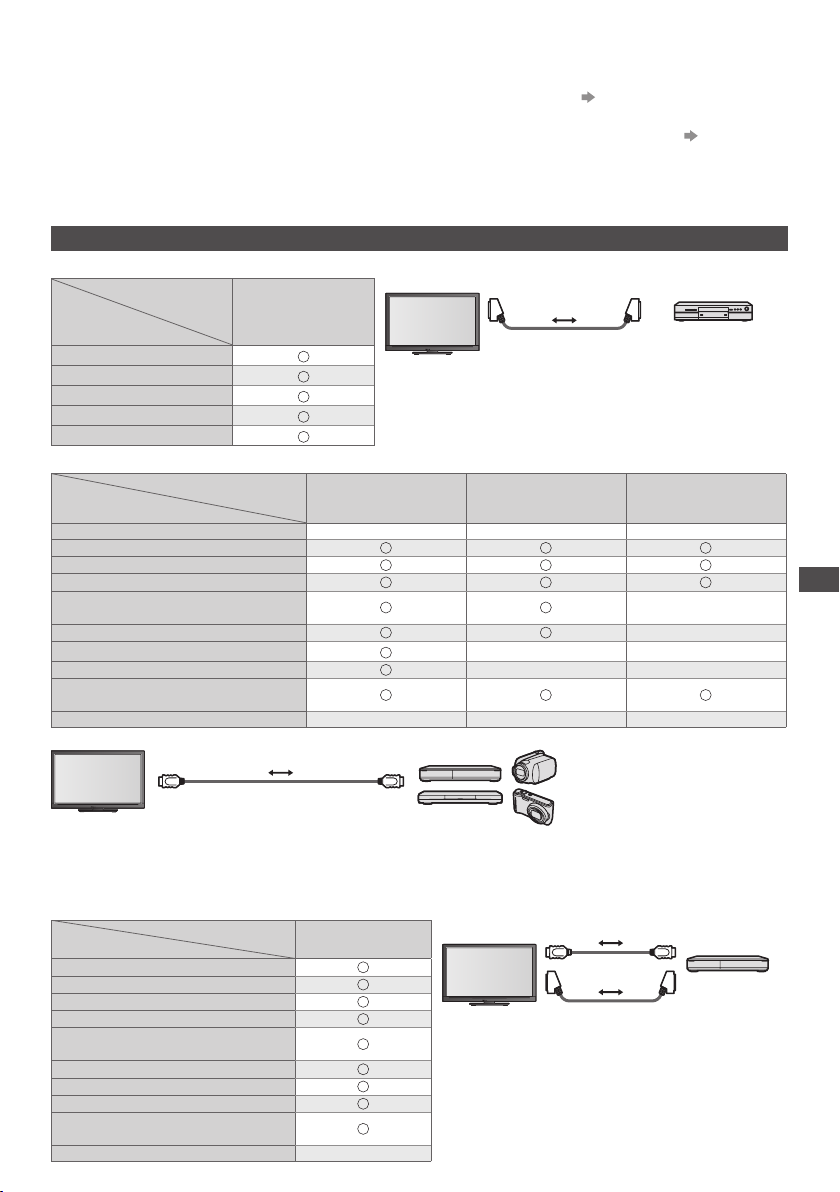

Link Functions (Q-Link / VIERALink) ·······························81

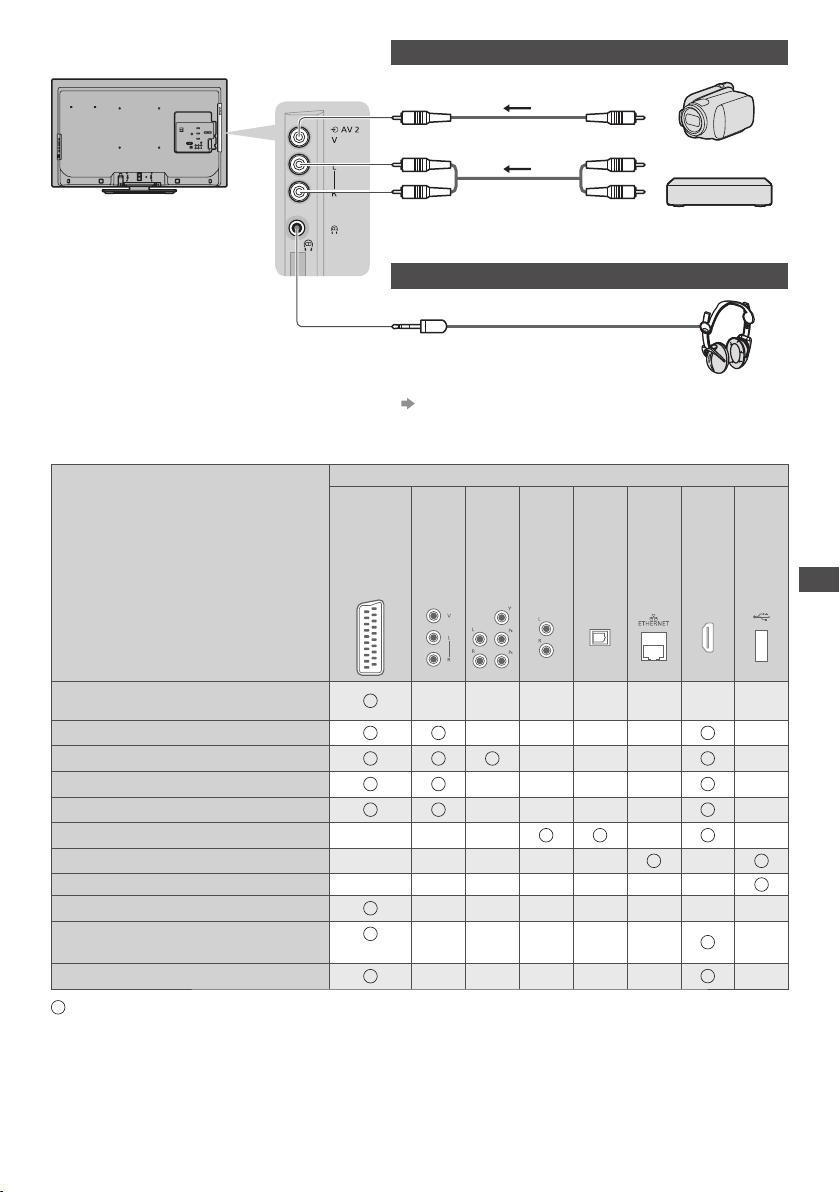

External Equipment ······························································ 89
Notice for DVB / Data broadcasting / IPTV functions
This TV is designed to meet the standards (as of August, 2009) of
digital services.
The compatibility with future services is not guaranteed.
•
Check the latest information on the available services at the
•
following website.
http://panasonic.jp/support/global/cs/tv/
FAQs, etc.

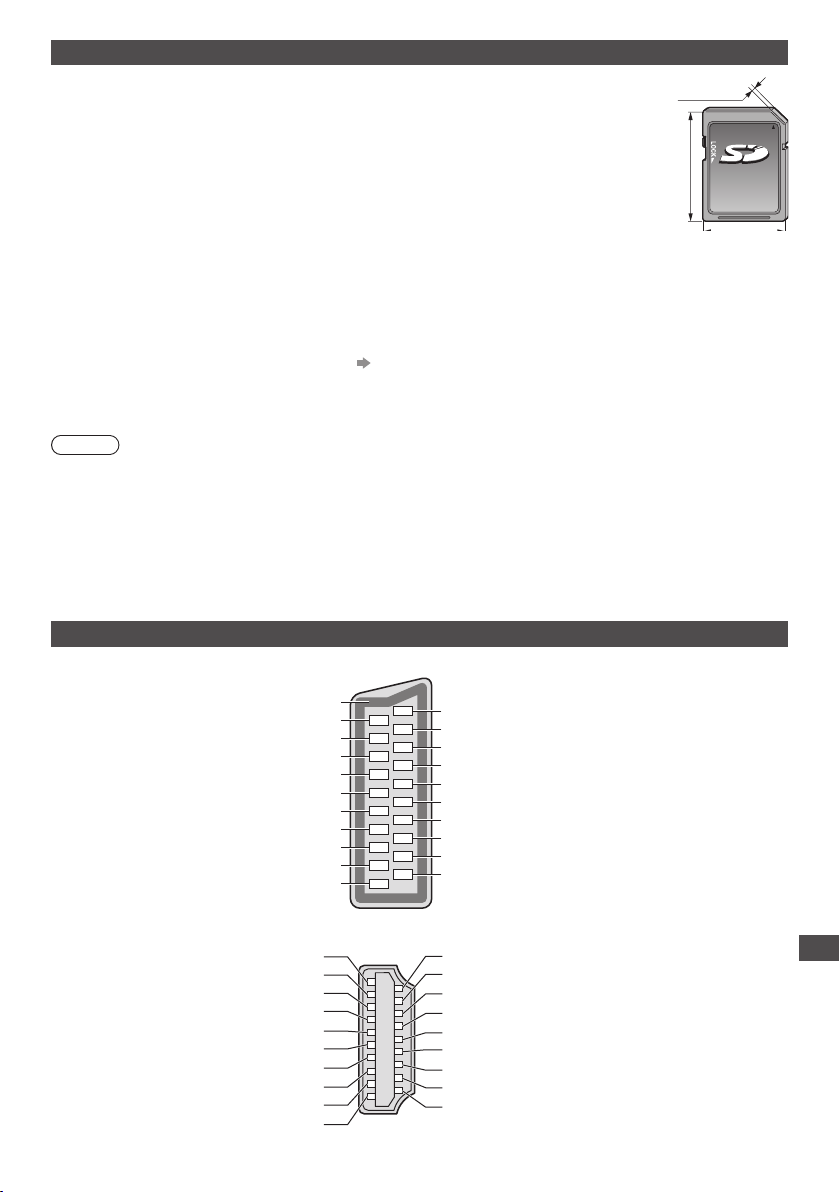

Technical Information ··························································92
FAQs ·························································································100
On screen messages ···························································102
Glossary···················································································104
Maintenance ·········································································104
Index ························································································105
Specifications ········································································106
Licence ····················································································107
3
Page 4
Safety Precautions
Warning
Safety Precautions

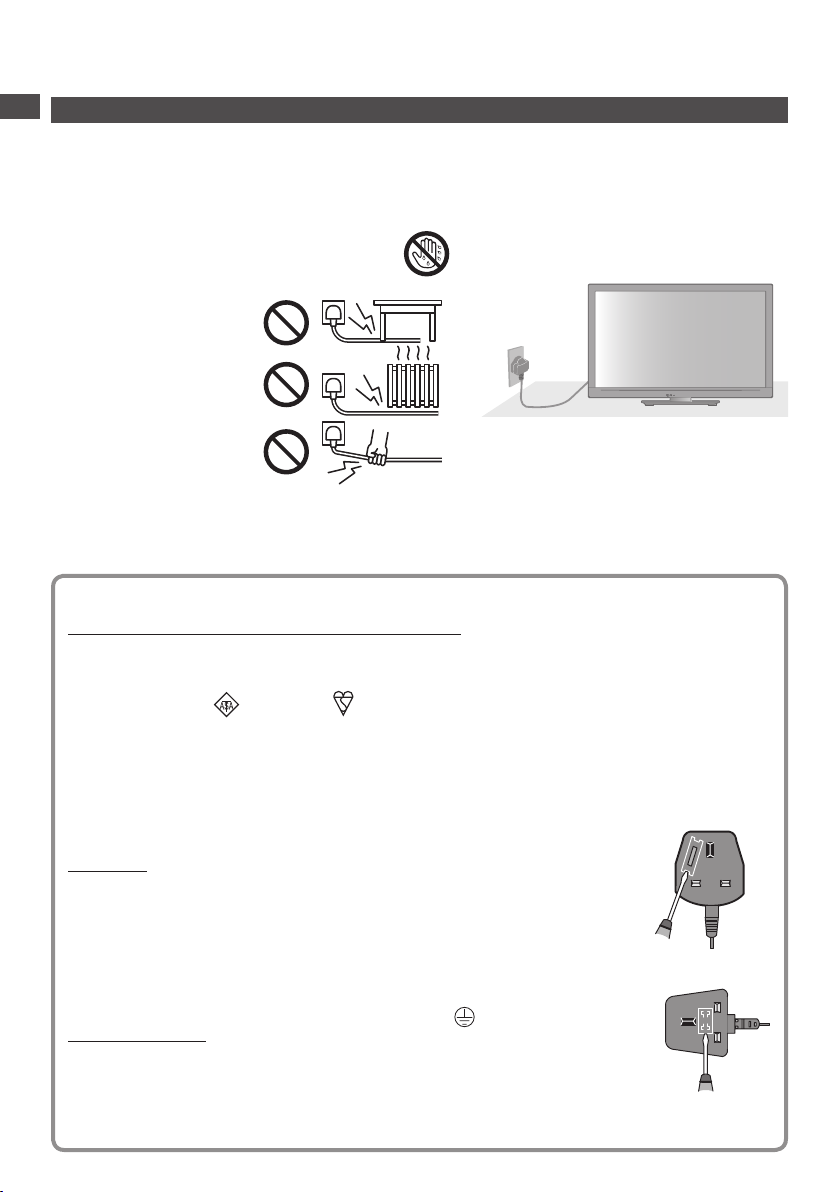

■ Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.
•
Insert the mains plug fully into the socket outlet.
•
Ensure that the mains plug is easily accessible.
•
Remove the mains plug when cleaning the TV.
•
Do not touch the mains plug with a wet hand.
•
Do not damage the mains lead.
•
• Do not place a heavy
object on the lead.
• Do not place the lead near
a high temperature object.
• Do not pull on the lead.
Hold onto the mains plug
body when disconnecting
the plug.
• Do not move the TV with the lead plugged into a socket outlet.
• Do not twist the lead, bend it excessively or stretch it.
• Do not use a damaged mains plug or socket outlet.
• Ensure the TV does not crush the mains lead.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this
mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.
If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed
and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains
plug is inserted into any 13 amp socket.
If a new mains plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: –
Blue: Neutral Brown: Live
As the colours of the wire in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your mains plug, proceed as follows.
The wire which is coloured BLUE must be connected to the terminal in the mains plug
which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the mains plug which is
marked with the letter L or coloured RED.
Under no circumstances should either of these wires be connected to the Earth terminal of the
three pin mains plug, marked with the letter E or the earth symbol .
How to replace the fuse
For plug type shown in example 1:
Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit
securely into the mains plug (see example 1).
For plug type shown in example 2:
Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse,
then press the fuse cover down securely (see example 2).
4
or the BSI mark on the body of the fuse.
If you detect anything unusual, immediately
switch off the mains supply switch and remove the
mains plug.
AC 220-240 V
50 / 60 Hz
Example 1
Example 2
Page 5

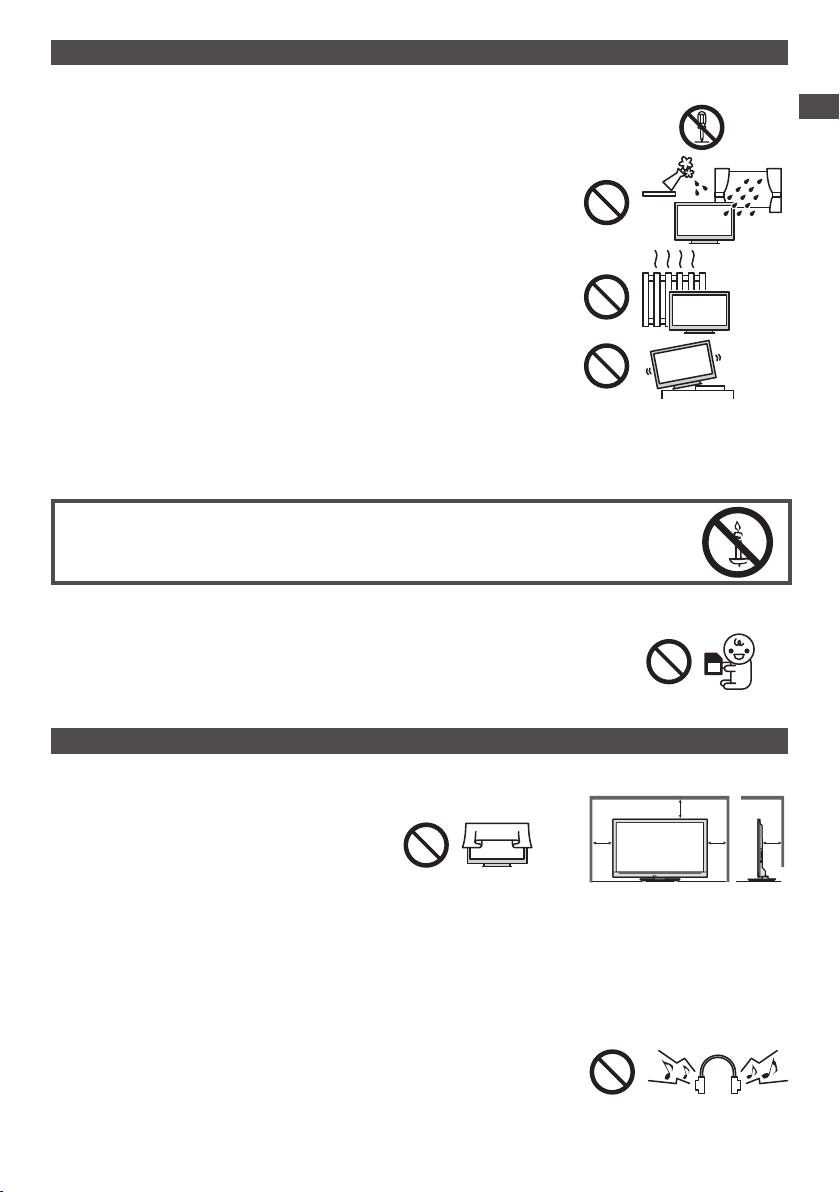

Warning
■ Take car e
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
Do not remove covers and never modify the T V yourself as live parts are accessible when they are
•
removed. There are no user serviceable parts inside.
Do not expose the TV to rain or excessive moisture. This TV must not be exposed to
•
dripping or splashing water and objects filled with liquid, such as vases, must not be
placed on top of or above the TV.
Do not expose the TV to direct sunlight and other sources of heat. To prevent fire
•
never place any type of candle or naked flame on top or near the TV.
Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not
•
hang over the edge of the base.
Do not insert foreign objects into the TV through the air vents.
•
Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the
•
setup or installation of approved wall-hanging brackets.
Do not apply strong force or impact to the display panel.
•
This TV is designed for Table-top use.
•
To prevent the spread of fire, keep candles or other open
flames away from this product at all times
■ Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.
Keep the dangerous parts out of reach of young children.
•
Do not allow children to handle SD Card. As with any small object, the SD Card could be
•
swallowed by young children. Please remove SD Card immediately after use and store out of
reach of young children.
Safety Precautions
Caution
■ Ventilation
Allow sufficient space around the TV in order to help prevent excessive heat, which
could lead to early failure of some electronic components.
Ventilation should not be impeded by covering
•
the ventilation openings with items such as
newspapers, tablecloths and curtains.
Whether you are using the pedestal or not, always ensure the vents in the bottom of the
•
TV are not blocked and there is sufficient space to enable adequate ventilation.
Minimum distance
10
10
10
■ Moving the TV
Before moving the TV, disconnect all cables.
■ When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket
outlet.
Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
•
■ Excessive volume
Do not expose your ears to excessive volume from the headphones. Irreversible
damage can be caused.
10
(cm)
5
Page 6
Accessories / Options
Standard accessories
Remote Control Batteries for the Remote
N2QAYB000490
•
or
N2QAYB000672
Quick Start Guide
Accessories / Options
•
Operating Instructions
Product Registration Leaflet
Accessories may not be placed all together. Take care not to throw them away unintentionally.
•
Optional accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please
refer to the manual of the optional accessories.
Wireless LAN Adaptor
DY-WL10E-K
•
Communication Camera
TY-CC10W
•
Wall-hanging bracket
TY-WK3L2RW
•
The angle of wall-hanging bracket can
be adjusted in “zero tilting (vertical)”
and “10-degree tilting” for this TV.
Caution
To use the Wireless LAN Adaptor, an access point needs to be obtained.
•
It is recommended to use the Wireless LAN Adaptor with the extension cable.
•
To avoid malfunctions caused by radio wave interference, keep the TV away from the devices such
•
as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when
using the Wireless LAN Adaptor.
Depending on the area, this optional accessory may not be available.
•
Additional information for Wireless LAN Adaptor and access point may be on the following website.
•
http://panasonic.jp/support/global/cs/tv/
Caution
This camera can be used on VIERA Connect (p. 16, 80).
•
Please also read the manual of the camera.
•
Depending on the area, this optional accessory may not be available.
•
For details, consult your local Panasonic dealer.
Control (2)
(p.7)
R6
•
Rear of the TV
200 mm
200 mm
Pedestal
(p.7)
:
TX-L32E31B
TBL5ZX0041
•
TBL5ZX0028
•
TXFPE01NUUE
•
Screw for fixing the TV onto the wall-hanging
bracket (not supplied with the TV)
TX-L42E31B
TBL5ZX0147
•
TBL5ZX0166
•
TXFPE01NUUE
•
Depth of screw :
minimum 4 mm,
maximum 17 mm
Diameter : M6
:
(View from the side)
Holes for wall-hanging bracket installation
Warning
Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of personal injury and
•
product damage. In order to maintain the unit’s performance and safety, be sure to ask your dealer or a licensed contractor
to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
Carefully read the instructions accompanying optional accessories, and be sure to take steps to prevent the TV from falling
•
off.
Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage which
•
will void your warranty.
Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat.
•
Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by metal within the wall.
•
Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of time.
•
6
Page 7

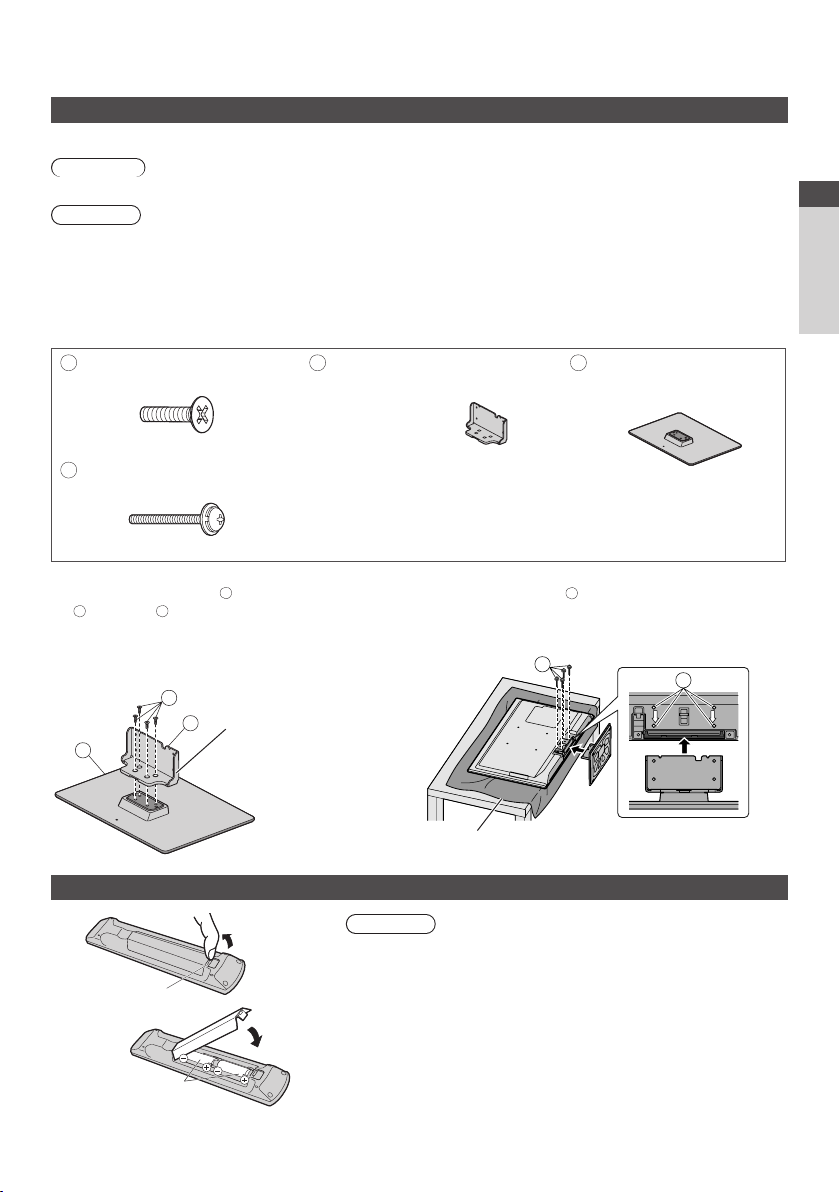

Attaching / removing the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:
Warning
Do not disassemble or modify the pedestal.
•
Caution
Do not use any pedestal other than the one provided with this TV.
•
Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer
•
immediately.
During setup, make sure that all screws are securely tightened.
•
Ensure that the TV does not suffer any impact during installation of the pedestal.
•
Ensure that children do not climb onto the pedestal.
•
Install or remove the TV from the pedestal with at least two people.
•
A
Assembly screw (4)
XSS5+15FNK
•
M5 × 15
B
Assembly screw (4)
XYN4+F30FJK
•
M4 × 30
Assembling the pedestal
1
Use the assembly screws A to fasten the bracket
to the base D securely.
C
Make sure that the screws are securely
•
tightened.
Forcing the assembly screws the wrong way
•
will strip the threads.
A
C
Hold the bracket not to
D
fall over
C
Bracket
•
•
TBL5ZA3017
(TX-L32E31B)
TBL5ZA3014
(TX-L42E31B)
2
D
Base
TBL5ZX0041 (TX-L32E31B)
•
TBL5ZX0147 (TX-L42E31B)
•
Securing the TV
Use the assembly screws B to fasten securely.
Tighten the four assembly screws loosely at first, then tighten
•
them firmly to fix securely.
Carry out the work on a horizontal and level surface.
•
B
B
Quick Start Guide
Accessories / Options
Front
Installing / removing remote’s batteries
1
Pull open
Hook
2
Close
Note the correct
polarity (+ or -)
Foam mat or thick soft cloth
Caution
Incorrect installation may cause battery leakage and corrosion, resulting
•
in damage to the remote control.
Do not mix old and new batteries.
•
Replace only with same or equivalent type. Do not mix different battery
•
types (such as alkaline and manganese batteries).
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or break up batteries.
•
Batteries must not be exposed to excessive heat such as sunshine, fire, etc.
Make sure you dispose of batteries correctly.
•
Ensure batteries are replaced correctly, there is danger of explosion and
•
fire if battery is reversed.
Do not disassemble or modify the remote control.
•
7
Page 8
Identifying Controls
Remote Control
INPUT
SD CARD
ASPECT
MENU
I
V
k
n
i
L
A
R
E
I
V
OPTION
TEXT
STTL
ghi
REC
Switches TV On or Off standby
Switches to SD Card and USB device viewing /
listening mode
Press to access Picture, Sound, Timer and Setup
Menus
Changes aspect ratio
Displays channel and programme information
Displays some special feature icons and accesses
easily
T
O
A
R
E
INDEX HOLD
abc def
jkl
tuvpqrs
PROGRAMME
DVD/VCR
TV
AVTV
DIRECT TV REC
EXIT
O
L
S
G
U
I
D
E
BACK/
RETURN
mno
wxyz
LAST VIEW
TV
15
16
17
18
19
20
21
22
23
24
25
26
27
Quick Start Guide
Identifying Controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Standby On / Off switch
1
•
[Media Player] (p.58)
2
•
[Main Menu] (p.30)
3
•
Aspect (p.20)
4
•
Information (p.17)
5
•
VIERATOOLS (p.29)
6
•
[VIERA Link Menu] (p.85)
7
OK
8
Confirms selections and choices
•
Press after selecting channel positions to quickly
•
change channel
Displays the Channel List
•
[Option Menu] (p.19)
9
Easy optional setting for viewing, sound, etc.
•
Teletext (p.24)
10
Switches to teletext mode
•
Subtitles (p.20)
11
Displays subtitles
•
Numeric buttons
12
Changes channel and teletext pages
•
Sets characters
•
When in Standby mode, switches TV On (Press for
•
about 1 second)
Sound Mute
13
Switches sound mute On or Off
•
Volume Up / Down
14
Input mode selection
15
TV - switches between DVB and Analogue modes
•
(p.17)
AV - switches to AV input mode from Input Selection
•
list (p.27)
Direct TV Recording (p.83, 85)
16
Records programme immediately in DVD Recorder /
•
VCR with Q-Link or VIERA Link connection
[VIERA Connect] (p.16, 80)
17
Displays VIERAConnect home screen
•
Exit
18
Returns to the normal viewing screen
•
TV Guide (p.21)
19
Cursor buttons
20
Makes selections and adjustments
•
Return
21
Returns to the previous menu / page
•
Coloured buttons
22
(red-green-yellow-blue)
Used for the selection, navigation and operation of
•
various functions
Hold
23
Freeze / unfreeze picture (p.19)
•
Holds the current teletext page (teletext mode)
•
(p.25)
Index (p.26)
24
Returns to the teletext index page (teletext mode)
•
Last view (p.18)
25
Switches to previously viewed channel or input mode
•
Channel Up / Down
26
Connected equipment operations
27
(p.28, 57, 65, 67, 87)
8
Page 9
TV
1
2
3
4
5
6
AV2 terminals (p.91)
1
Headphones jack (p.91)
2
CI slot (p.51)
3
SD Card slot (p.58)
4
HDMI4 terminal (p.91)
5
USB 3 port (p.91)
6
Function select
7
[Volume] / [Contrast] / [Brightness] / [Colour] /
•
[Sharpness] / [Tint] (NTSC signal) / [Bass]∗ / [Treble]∗ /
[Balance] / [Auto Setup] (p.40)
∗
[Music] or [Speech] mode in the Sound Menu
11 12 13
Channel Up / Down, Value change (when using the F
8
F
7
8
TV
9
AV
10
button), Switching the TV On (press either button for
about 1 second when in Standby mode)
Changes the input mode
9
Mains power On / Off switch
10
Use to switch the mains power.
•
If you turned the TV Off during Standby mode by the
remote control last time, the TV will be in Standby
mode when you turn the TV On with Mains power On
/ Off switch.
Remote control signal receiver
11
Do not place any objects between the TV remote
•
control signal receiver and remote control.
C.A.T.S. (Contrast Automatic Tracking System)
12
sensor
Senses brightness to adjust picture quality when
•
[C.A.T.S.] in the Picture Menu is set to [On] (p.31)
Power and Timer LED
13
Red : Standby
•
Green : On
Orange : Timer Programming On
Orange (flash) :
Recording of Timer Programming, Direct TV
Recording or One Touch Recording in progress
Red with orange flash :
Standby with Timer Programming On, Direct TV
Recording or One Touch Recording
The LED blinks when the TV receives a command
•
from the remote control.
Quick Start Guide
Identifying Controls
Using the On Screen Displays - Operation guide
Many features available on this TV can be accessed via the On Screen Display menu.
Operation guide
Operation guide will help you to operate by using the
remote control.
Example : [Owner ID]
Owner ID
Please enter new PIN
PIN
EXIT
Operation guide
* * * *
09
PIN entry

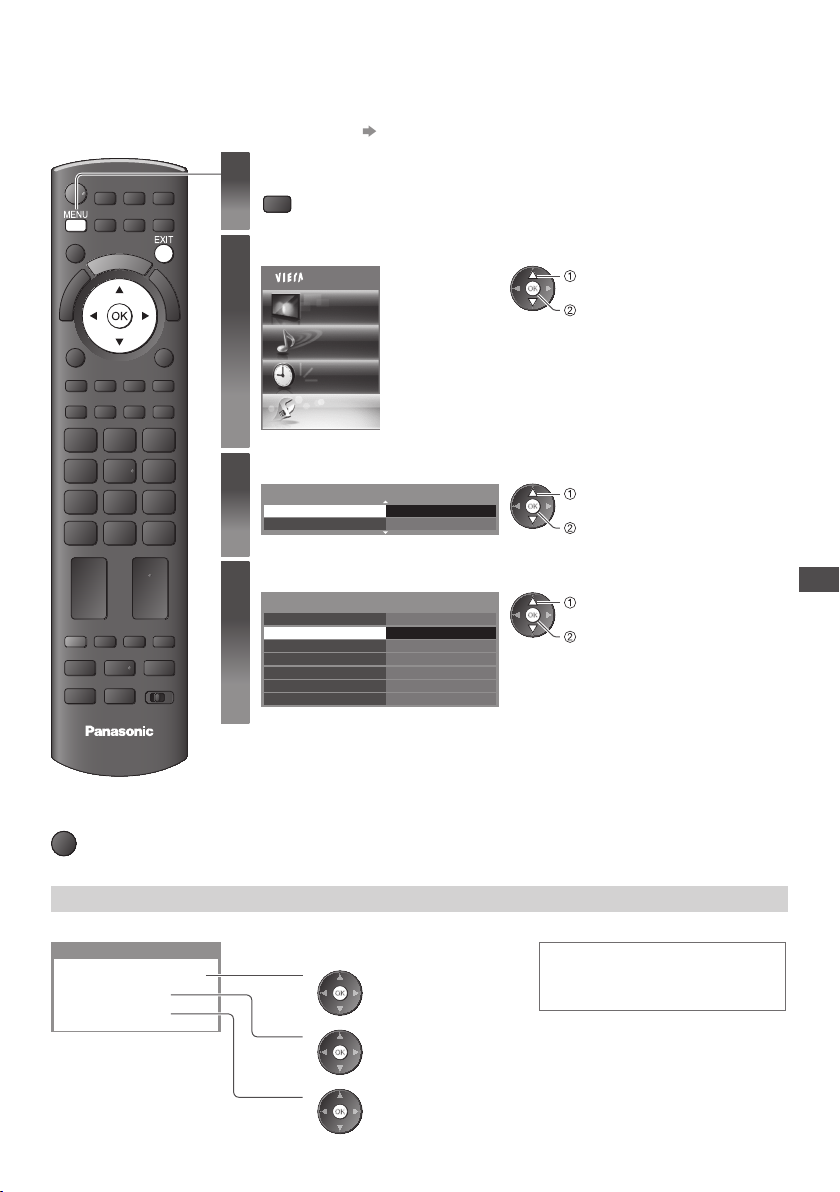

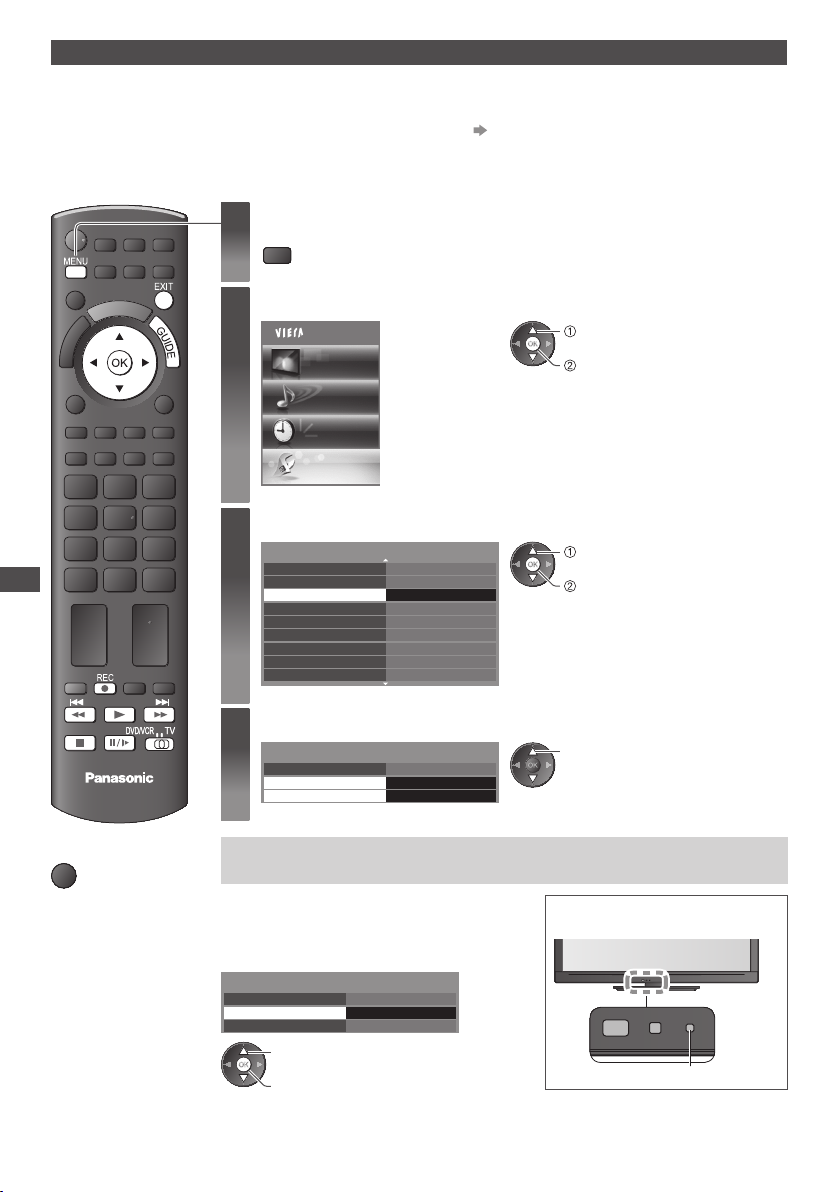

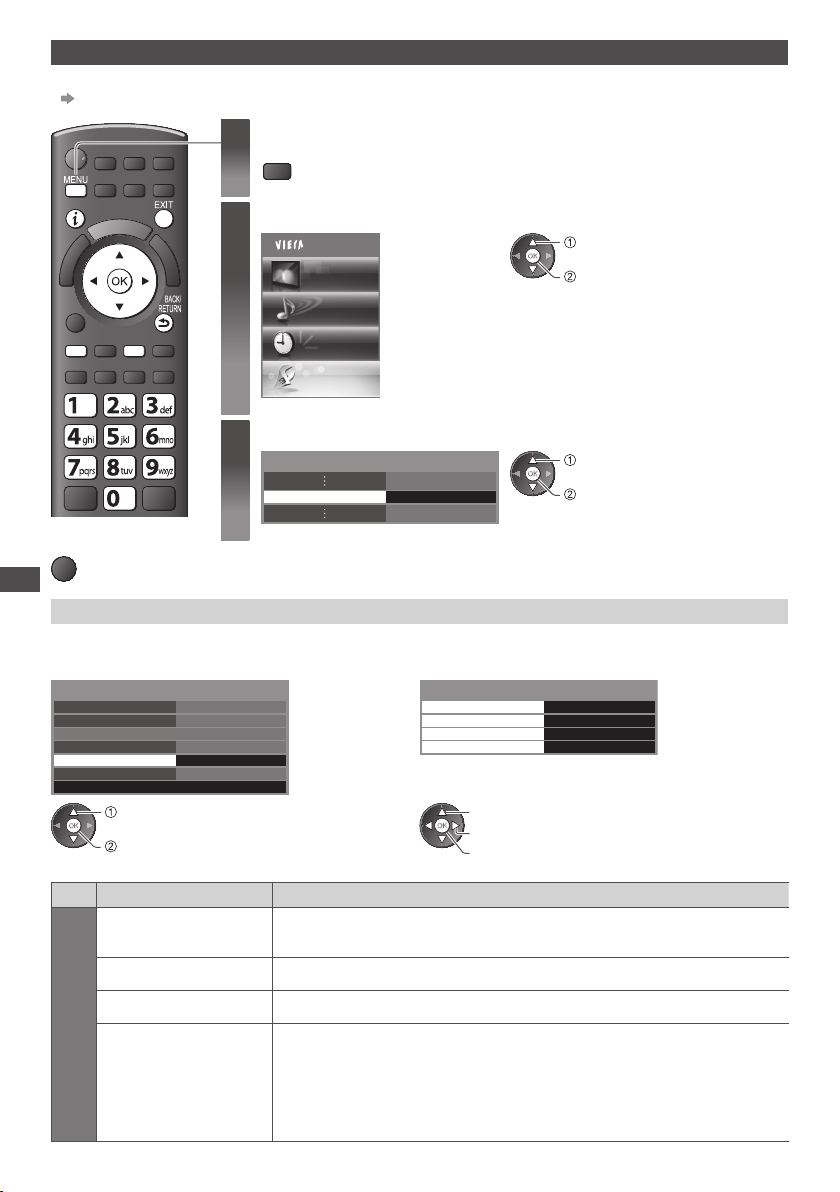

How to use remote control
MENU
Open the main menu
Move the cursor / select the menu item / select
from a range of options
Move the cursor / adjust levels / select from a
range of options
Access the menu / store settings after
adjustments have been made or options have
been set
BACK/
RETURN
Return to the previous menu
EXIT
Exit the menu system and return to the normal
viewing screen
Auto power standby function
The TV will automatically go to Standby mode in the following conditions:
• no signal is received and no operation is performed for 30 minutes in Analogue TV mode
• [Off Timer] is active in the Timer Menu (p. 19)
• no operation is performed for the period selected in [Auto Standby] (p. 34)
This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.
•
9
Page 10
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Example 1 Example 2
Connecting aerial Connecting DVD Recorder / VCR
TV only TV, DVD Recorder or VCR
Quick Start Guide
Rear of the TV
Terrestrial aerial
Rear of the TV
Terrestrial aerial
Basic Connection
AC 220-240 V
50/60 Hz
Mains lead
Aerial input terminal
RF cable
AC 220-240 V
50/60 Hz
Aerial input terminal
■ How to use the clamper
bundling the mains lead
To loosen :
Mains lead
knob
Bundle the cables
hooks
To remove from the TV:
Do not bundle the RF cable and mains lead together (could cause distorted image).
•
Fix cables with clampers as necessary.
•
When using the optional accessory, follow the option’s assembly manual to fix cables.
•
Keep pushing the
knob
Set the tip in the
hooks
snaps
Keep pushing both side
snaps
RF OUT
RF IN
RF cable
Fully wired HDMI
compliant cable
HDMI AV
DVD Recorder or VCR
Fully wired
SCART cable
RF cable
Note
Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p.83).
•
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI
•
cable (p.89).
Q-Link and VIERA Link connection (p. 81, 82)
•
Please also read the manual of the equipment being connected.
•
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,
•
distortion of image / sound may occur or operation of other equipment may be interfered.
10
Page 11
Example 3
Connecting DVD Recorder / VCR and Satellite receiver
TV, DVD Recorder / VCR and Satellite
Rear of the TV
AC 220-240 V
50/60 Hz
Fully wired HDMI
Mains lead
HDMI AV 2 AV 1 HDMIRecorder/AV
Aerial input terminal
compliant cable
Fully wired
SCART cable
Fully wired HDMI
compliant cable
Fully wired
SCART cable
Terrestrial aerial
RF cable
Quick Start Guide
Basic Connection
Satellite receiver
RF OUT
RF IN
DVD Recorder or
VCR
RF cable
RF cable
RF OUT
RF IN

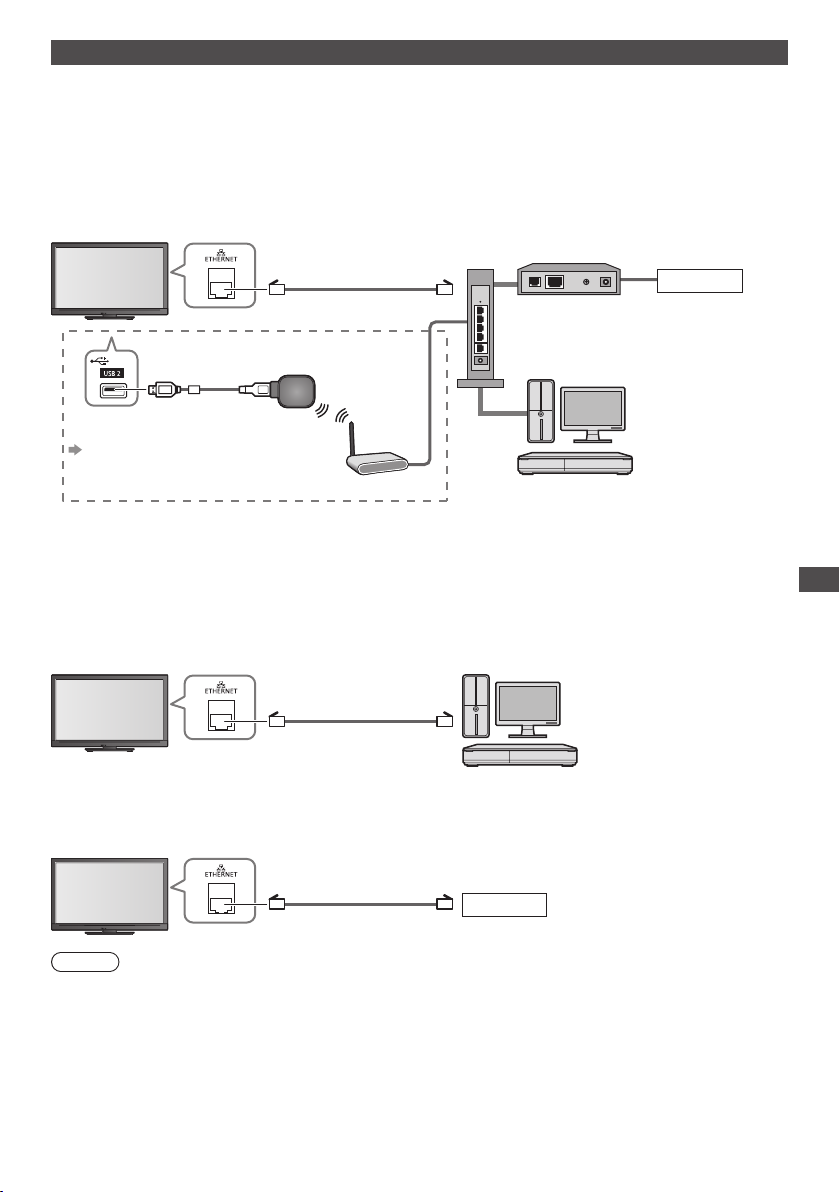

■ Connecting to the network environment (Network connections)
To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network
environment.
If you do not have any broadband network services, please consult your retailer for assistance.
•
Connect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).
•
Setup of the network connection will start after the tuning (when first using the TV) (p. 12 - 14)
•
Rear of the TV
Wired connection
LAN cable (Shielded)
Use the Shielded Twist Pair (STP) LAN cable.
•
Wireless connection
Wireless LAN Adaptor and Extension cable
“Optional accessories” (p. 6)
Connect to the USB 1, 2 or 3 port.
•
Internet
environment
Internet
environment
Access point
Note
For more information of the network connections (p. 71)
•
11
Page 12

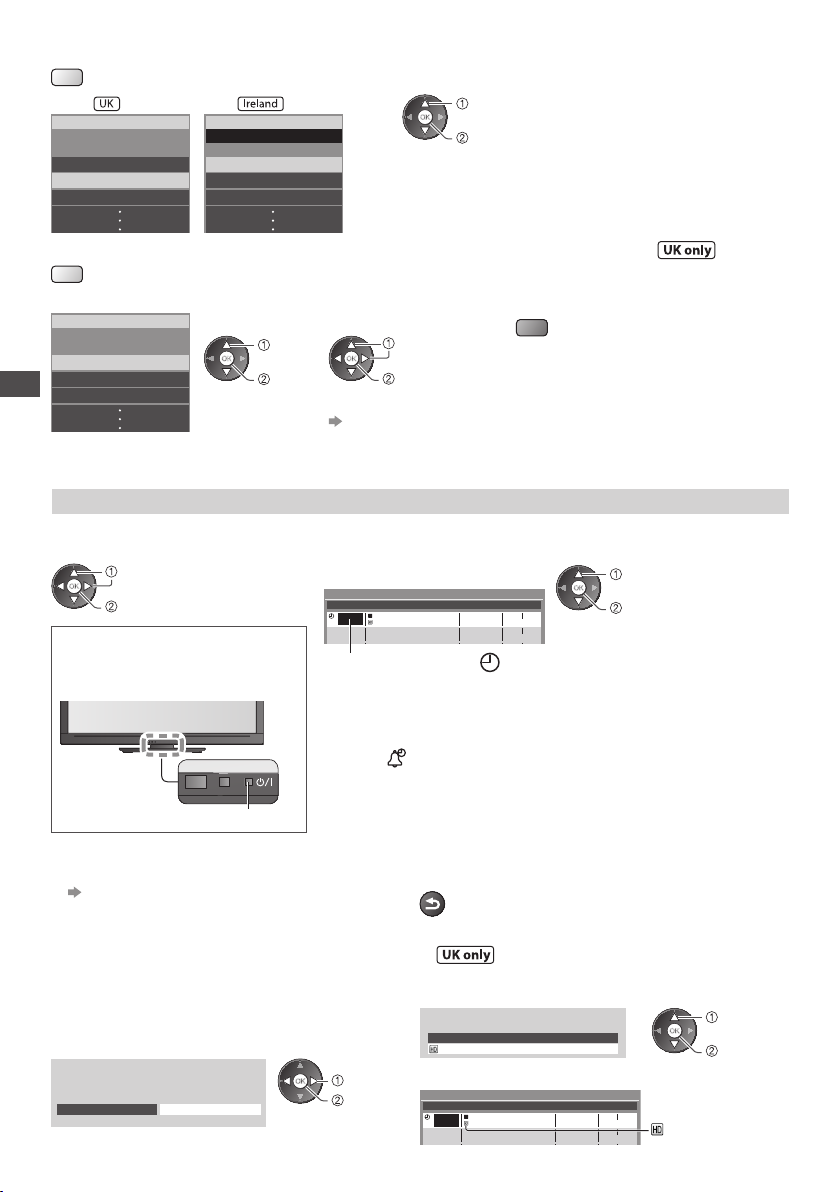

Auto Setup
Search and store TV channels automatically.
These steps are not necessary if the setup has been completed by your local dealer.
•
Please complete connections (p.10, 11) and settings (if necessary) of the connected equipment before starting Auto Setup.
•
For details of settings for the connected equipment, read the appropriate manual.
Plug the TV into mains socket and switch On
Quick Start Guide
Auto Setup
1
Select your country
2
Country Selection
United Kingdom Ireland
Example :
Auto Setup - DVB and Analogue
DVB Scan
Analogue Scan
This will take about 6 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
29 33 -BBC1
Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2
Example :
Auto Setup - DVB and Analogue
DVB Scan
Analogue Scan
This will take about 6 minutes.
CH
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
CH29 CH33 -BBC1
Free TV: 8 Pay TV: 0 Radio: 0 Analogue: 2
Sending Preset Data
Please wait!
0%100%
Remote control unavailable
Takes a few seconds to be displayed.
•
If the red LED shows on the TV, press the Standby On / Off switch on
•
the remote control for at least 1 second to turn the T V On.
select
set
CH 21 68
CH 21 68
Free TV
Free TV
Free TV
Free TV
Analogue
Analogue
Searching
CH 5 69
CH 1 99 41H: 21
Channel Name Type
Searching
Free TV
Free TV
Free TV
Free TV
Analogue
Analogue
Quality
10
10
10
Quality
10
10
10
Auto Setup will start to search for TV
channels and store them in the numbered
order as specified by the broadcasters.
Actual number of channels may differ due
•
to channel duplication.
If Q-Link or similar technology (p. 83)
compatible recorder with analogue tuner
is connected, analogue channel setting is
automatically downloaded to the recorder.
(Digital channel setting is not downloaded.)
If downloading has failed, you can
•
download later through the Setup Menu.
“Q-Link Download” (p. 34)
12
TV
Setup the network connection
3
Setup the network connection to enable the network service functions such as VIERA
Connect, etc. (p.16, 70).
To setup the wireless connection, the Wireless LAN Adaptor (optional accessory) is
•
required.
Please note that this TV does not support wireless public access points.
Ensure the network connections (p. 11) and network environment are completed
•
before starting setup.
Select the network type
Network Setup
Select Wired or Wireless
Wired Wireless Set later
[Wired] “Wired connection” (p. 11)
[Wireless] “Wireless connection” (p. 11)
To setup later on or
•
select
access
skip this step
Select [Set later]
or
EXIT
Page 13

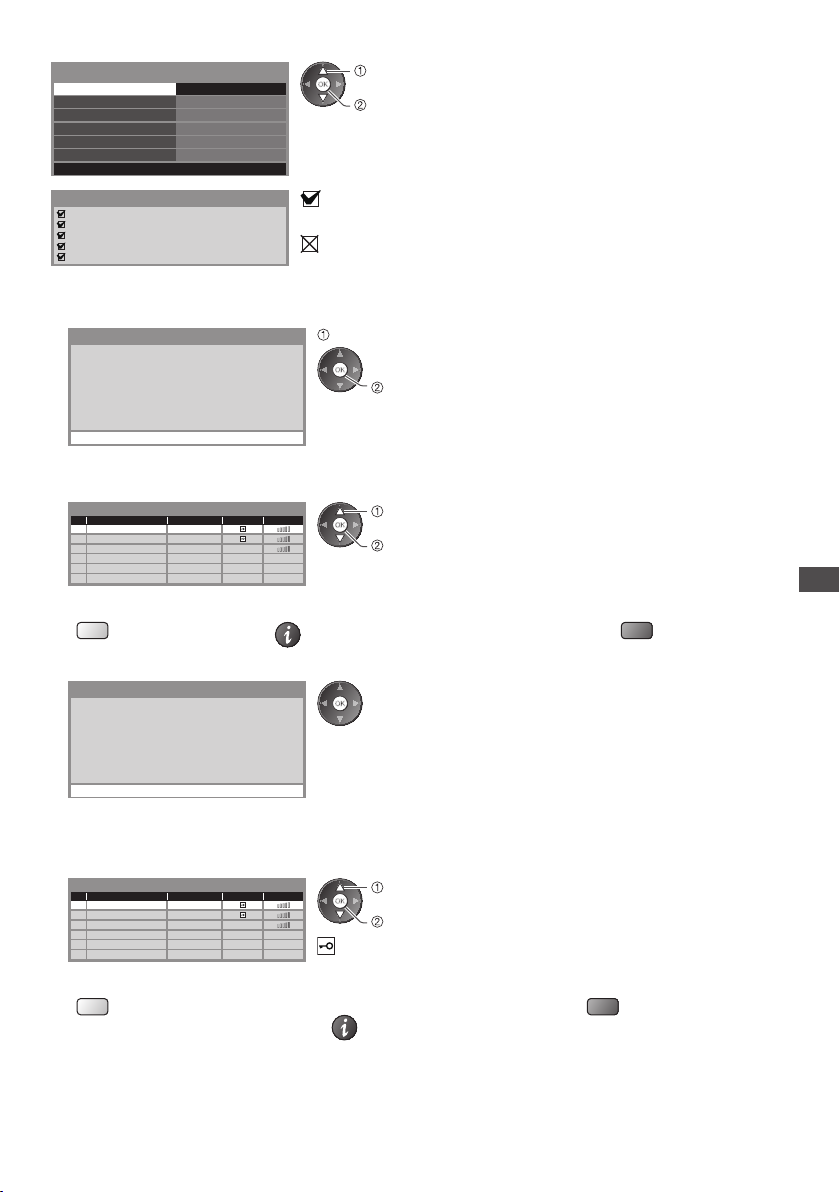

■ [Wired]
3
1. Select [Auto]
Acquire IP Address
Auto
select
access
2. Go to the next step
4
(Press twice)
■ [Wireless]
Select the connection type
Connection Type
Please select network connection type.
Search for access point
WPS(Push button)

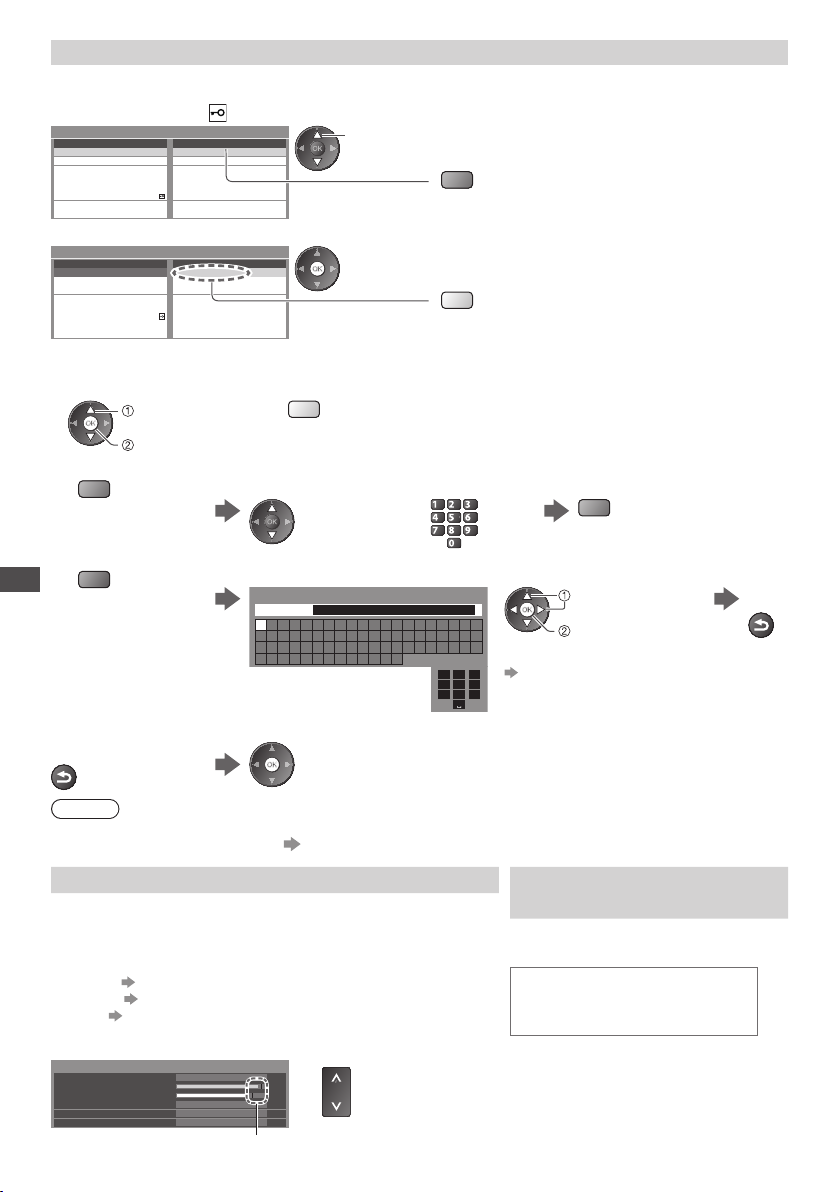

[Search for access point]
Access points found automatically are listed.
1. Select your desired access point
Available Access Points
No. Wireless type Encrypt Reception
SSID
1
Access Point A
Access Point B
2
Access Point C
3
To search access points again
•
(yellow)
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
Connection Test
Check network cable connection.
Manual
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
Automatically setup is done and the test of the network
connection starts.
To set manually, select [Manual] and set each item. For
•
details
(p.73)
select
access
select
access
: Encrypted access point
For the information of the
•
highlighted access point
: succeeded
The test is successful
and the TV is connected
to the network.
: failed
Check the settings and
connections, and then
select [Retry].
To set manually (p.76)
•
(red)
Quick Start Guide
Auto Setup
2. Access the encryption key input mode
Encryption Key Setting
Connection will be made with the following settings:SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
Encryption key
•

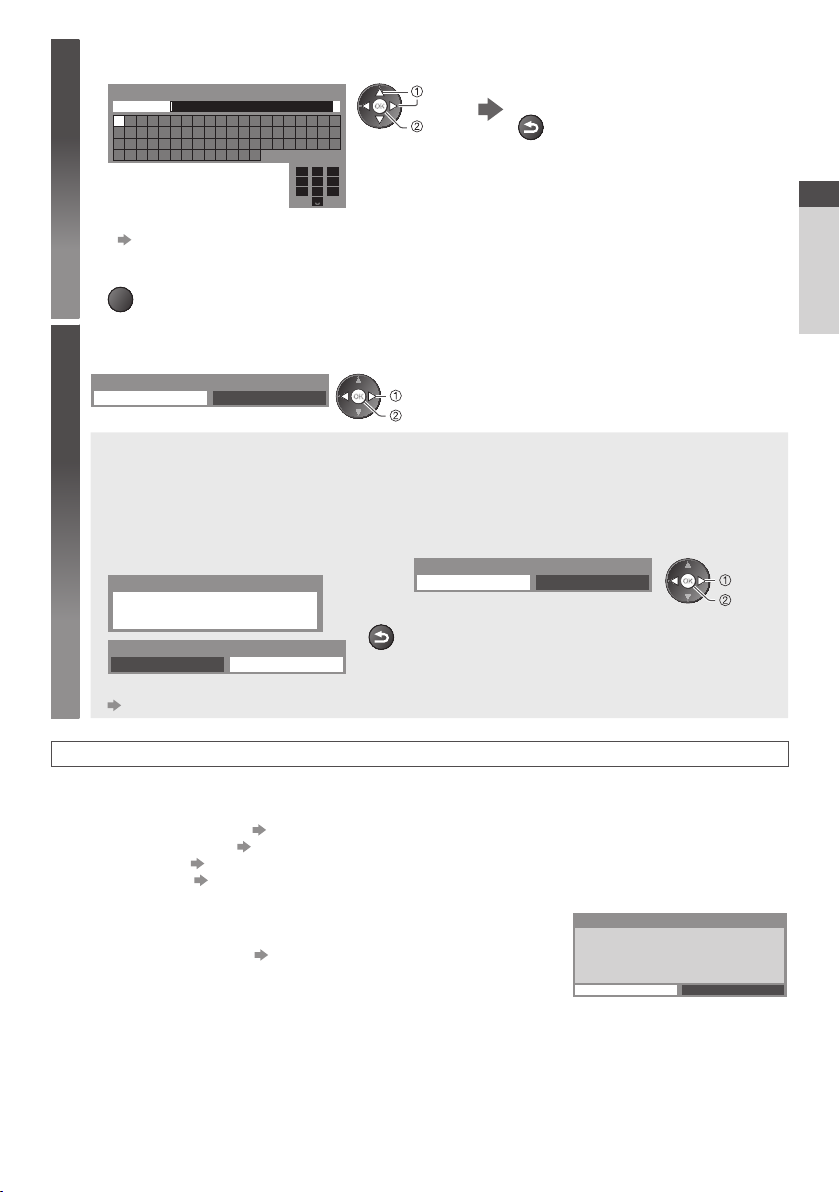

3. Enter the encryption key of the access point
Access Point Settings
Encryption key
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
Set characters Store
•
4. Select [Yes]
Access Point Settings
Encryption key is set to:XXXXXXXX
Select 'Yes' to confirm.
Select 'No' to change.
Yes
No
•
•
If the selected access point is not encrypted, the confirmation screen
will be displayed. It is recommended to select the encrypted access
point.
select
BACK/
RETURN
set
You can set characters by using numeric buttons.

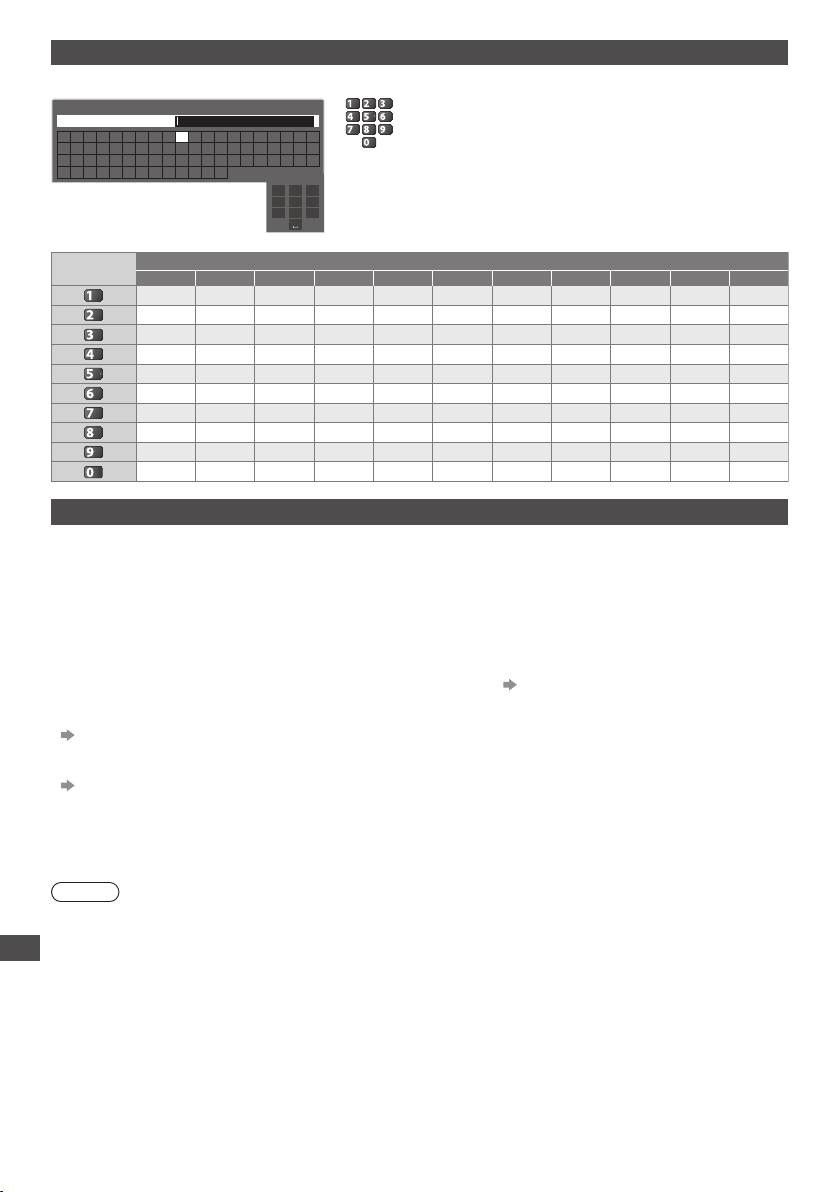

“Characters table for numeric buttons” (p.96)
select
set
To re-enter the encryption key, select [No].
If the connection has failed, check the encryption key, settings
and positions of your access point. And then, follow the on screen
instructions.
13
Page 14
Quick Start Guide
5. After the access point setting is finished, perform the connection test
3
6. Go to the next step
Connection Test
(Press twice)
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
4
: succeeded
The test is successful and the TV is connected to the
network.
: failed
Check the settings and connections, and then select
[Retry].
To set manually, select [Manual] and set each item. For
•
details (p.73)
Auto Setup
[WPS(Push button)]
1. Press the WPS button on the access point until the light flashes
2. Connect the Wireless LAN Adaptor and the access point
WPS(Push button)
1) Please press the ‘WPS’ button on the access
point until its light ashes.
2) When the light is ashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
3. After the access point setting is finished, perform the connection test
4. Go to the next step
Input Owner ID
4
Owner ID
Please enter new PIN
PIN
Make a note of the PIN number in case you forget it. The PIN number cannot be reset.
•
You can input or change the Owner ID later. [Owner ID] (p. 50)
•
To skip this step
•
EXIT
Connect
Connection Test
(Press twice)
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
4
* * * *
Ensure that your access point supports WPS for this setup.
•
WPS : Wi-Fi Protected Setup™
•
If the connection has failed, check the settings and positions of your
•
access point. And then, follow the on screen instructions.
: succeeded
The test is successful and the TV is connected to the
network.
: failed
Check the settings and connections, and then select
[Retry].
To set manually, select [Manual] and set each item. For
•
details (p.73)
Please enter your own choice of PIN number, name, etc. to help the police
to crack crime.
14
This step will be skipped in the Auto Setup after [Shipping Condition] (p.49) is performed.
•

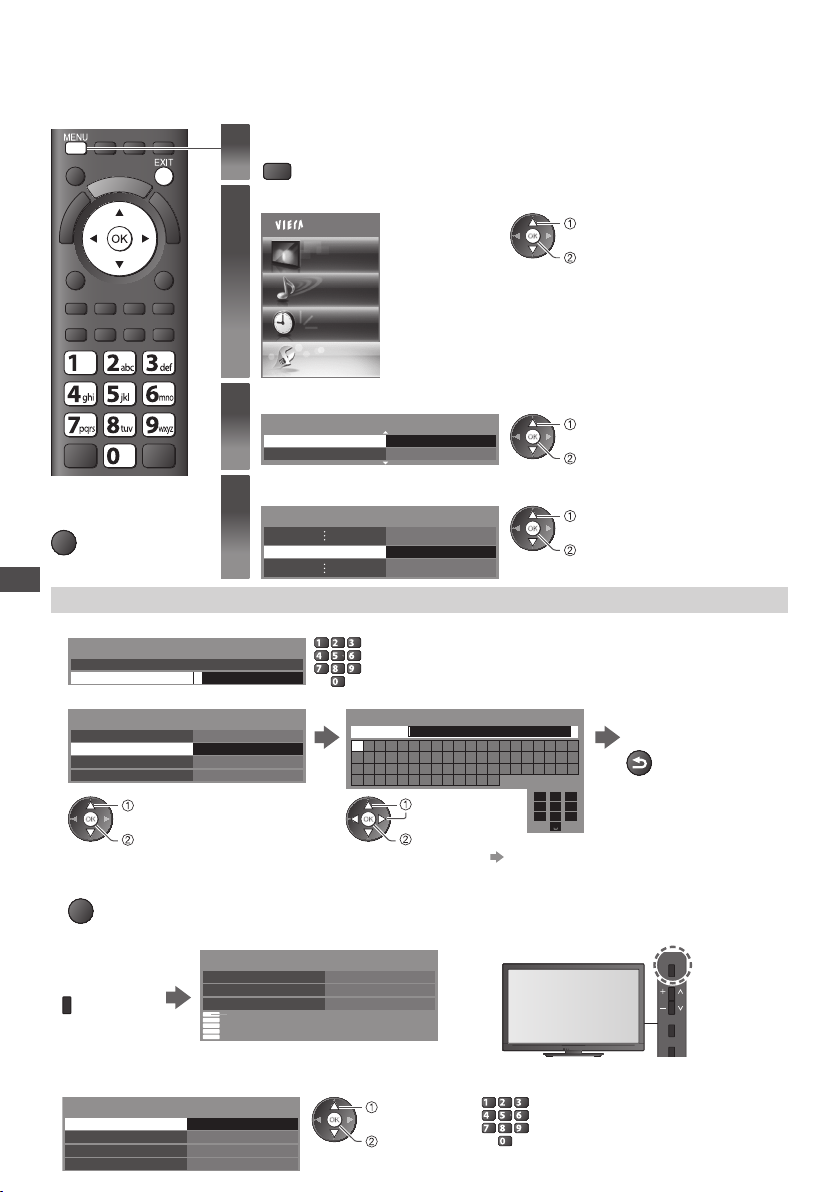

■ How to input Owner ID
1 Enter the PIN number (4digits)
Owner ID
Please enter new PIN
PIN
* * * *
2 Select the item (NAME / HOUSE NO / POSTCODE)
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
* * * *
abc def
Enter the PIN number twice at first setting.
•
jkl
ghi
mno
tuvpqrs
wxyz
select
access
Page 15
3 Enter your name, house number and postcode
4
Set characters Return to select other items
User input
NAME
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
You can set characters by using numeric buttons.
•
“Characters table for numeric buttons” (p.96)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
select
set
BACK/
RETURN
Select the next item and repeat the
•
operations.
4 Exit to go to next step
EXIT
Quick Start Guide
Select [Home]
5
Select [Home] viewing environment (highlight [Home] in yellow) to useinyour home environment.
Please select your viewing environment.
Home Shop
select
set
■ [Shop] viewing environment (for shop display only)
[Shop] viewing environment is the demonstration mode to explain main features of this T V.
Select [Home] viewing environment to use in your home environment.
You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic
•
Demo Off / On selection screen.
1 Return to viewing environment selection
screen
Shop
You have selected shop mode
Automatic Demo
Off
To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
[Shipping Condition](p.49)
On
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the RF cable, and then, follow the on screen instructions.
To check channel list at-a-glance “Using TV Guide” (p. 21)
•
To edit or hide (skip) channels “Tuning and Editing Channels” (p. 41 - 44)
•
To retune all channels [Auto Setup](p.40)
•
To initialise all settings [Shipping Condition] (p.49)
•
If you connect the Wireless LAN Adaptor later on, the confirmation screen will be
displayed for the setup.
To setup the wireless connection (p.74 - 76)
•
2 Select [Home]
Please select your viewing environment.
Home Shop
BACK/
RETURN
Wireless LAN adaptor connection
Wireless LAN adaptor connected, do you want to
set it up?
No - Exit
Current network type : Wireless
Yes
Auto Setup
select
set
No
15
Page 16
Using “VIERA Connect”
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as
photos, videos, games, etc. from VIERA Connect home screen.
This TV has no full browser function and all features of websites may not be available.
•
Turn power on
1
Press for about 1 second
•
Mains power On / Off switch should be On. (p.9)
•
Using “VIERA Connect”
■
To exit from
VIERA Connect
EXIT
To set the VIERA
•
Connect instruction
banner display off
[VIERA Connect
Banner] (p. 35)
Enjoy selected internet content with VIERA Connect.
Simply press the OK / INTERNET button
Access VIERA Connect
2
While the banner is displayed
Example :
Welcome to VIERA Connect™
VIERA Connect™ home screen is subject to change without notice.
The services through VIERA Connect™ are operated by their respective service providers, and service may
be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no
warranty for the content or the continuity of the services.
All features of websites or content of the service may not be available.
Don’t show this message again
ENTER
Some content may be inappropriate for some viewers.
Some content may only be available for specic countries and may be presented in specic languages.
Example : VIERAConnect home screen
Every time you turn on the TV, VIERA Connect introduction
banner appears. The banner is subject to change.
The button design varies
•
depending on the remote
control.
To go to the next level
•
[MORE]
To back to the previous level
•
[BACK]
MORE
INTERNET
or
Depending on the usage conditions, it may take a
•
while to read all the data.
Messages might be displayed before VIERAConnect
•
home screen.
Please read these instructions carefully and follow the
on screen instructions.
BACK
■ How to operate VIERAConnect (current as of January, 2011)
To move the cursor / select the item
•
When the key words are displayed on colour bar
•
(red) (green) (yellow) (blue)
Video communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.
•
“Optional accessories” (p.6)
For details, read the manual of the Communication Camera.
You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect.
•
You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features.
For more information
“USB connection” (p. 97)
Note
If you cannot access VIERA Connect, check the network connections (p. 11) and settings (p. 12 - 14).
•
For more information of VIERA Connect (p. 80)
•
16
To access
•
When options with
•
numbers are displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
To return to the previous screen
•
BACK/
RETURN
To return to VIERA Connect home
•
screen
INTERNET
Page 17

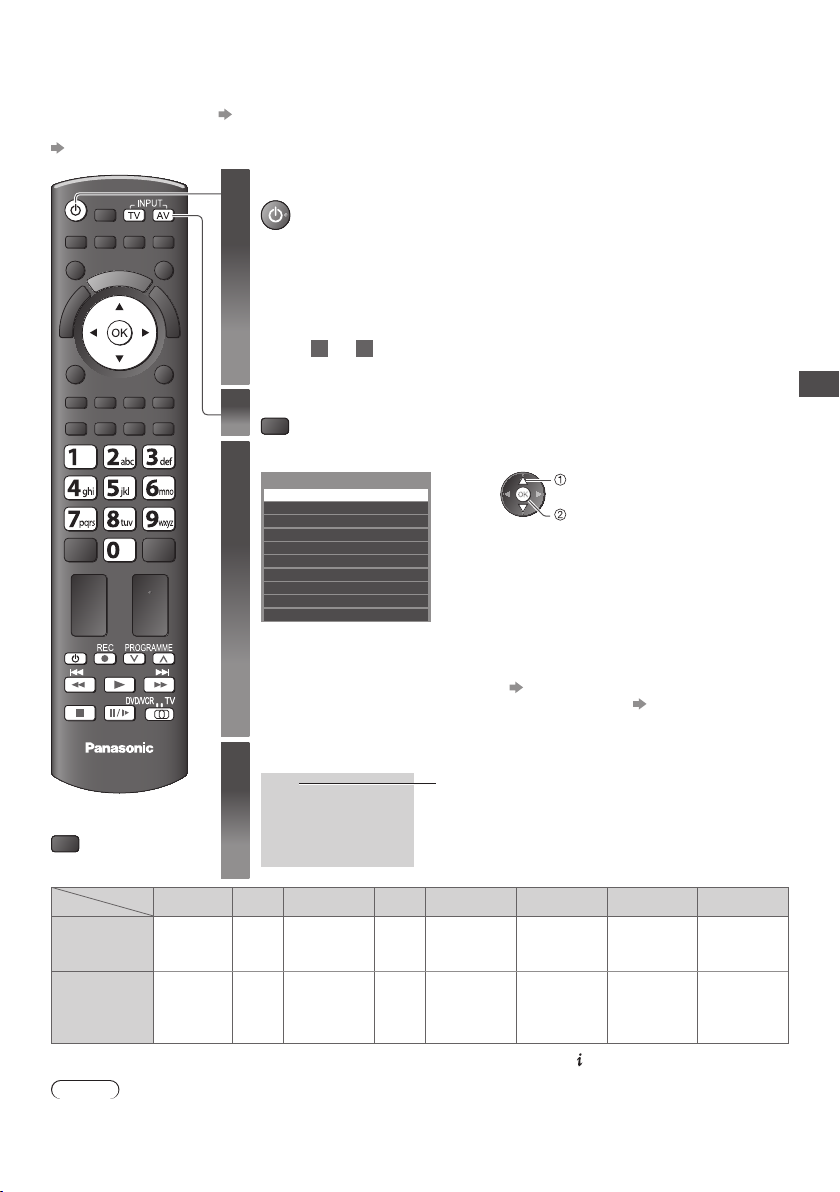

Watching TV
Turn power on
1
Select DVB or Analogue
2
Press for about 1 second
•
Mains power On / Off switch should be On. (p.9)
•
■ VIERA Connect introduction banner appears
You can access to VIERA Connect and enjoy the various contents.
(p.16)
To remove this banner, leave for about 5 seconds or press any
•
buttons (except the buttons to access VIERA Connect).
To set this banner display off [VIERA Connect Banner] (p. 35)
•
TV
Also possible to select the mode pressing the TV
•
button on the side panel of the TV (p.9).
Watching TV
20:35
All DVB Channels
Select favourites
or
Information banner (p. 18)
DVB channel position numbers run from 1
onwards.
Analogue channel position numbers run in the
abc def
jkl
ghi
mno
ranges 0 - 99.
tuvpqrs
wxyz
To select a two or three-digit channel position
•
number, e.g. 399
wxyz
wxyz
def
Volume
Coronation Street
1
20:00 - 20:55
BBC ONE WALES
Now Info
Select a channel
3
up
down
■ Select a channel using Information banner (p. 18)
It is possible to confirm the channel name and programme information by using the Information banner before changing
channels.
1 Display Information banner if it is not displayed 2 While the banner is displayed, select the channel
select channel
watch
■ Select a channel using TV Guide (p. 21)
It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.
1 Display TV Guide 2 Select a current
programme or channel
G
U
I
D
E
select
access
3 Select [View] (DVB mode)
Eastender
19:30- 20:00
View Timer Programming
select
watch
Note
To watch pay-TV “Using Common Interface” (p. 51)
•
17
Page 18

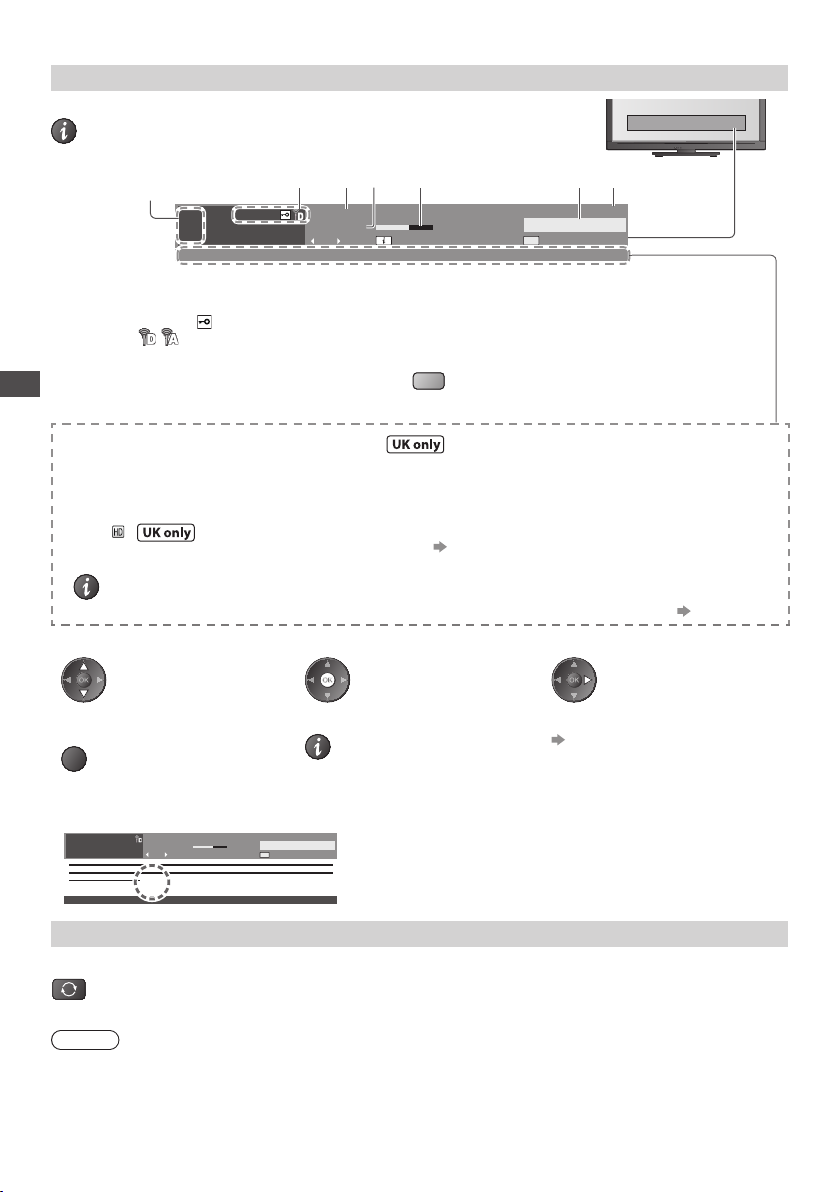

Other useful functions
Display Information banner
Display Information banner
Also appears when changing a channel
•
HDTV
23 6 745
Coronation Street
20:00 - 20:55
Now
[AD]
Audio Description service available
This function can aid visually-
•
impaired viewers by adding an
additional audio track to describe
events
For settings (p. 33)
•
[STLL]
Subtitle service available
Extra information (DVB)
•
(Press again to hide the banner)
20:35
All DVB Channels
Select favourites
All DVB Channels
Select favouritesInfo
Programme Start/Finish time (DVB)
5
Channel number, etc. (Analogue)
Progress time indicator of the selected programme (DVB)
6
[All DVB Channels] or [Favourites1-4] (p. 42) (DVB)
7
To switch
•
(blue)
on screen.
•
20:35
45
[TEXT]
Teletext service available
[Multi Audio]
Multiple audio available
[Stereo], [Mono], [NICAM]
Audio mode
1 - 90
Off Timer remaining time
For settings (p.19)
•
To set display timeout
[Banner Display Timeout] (p.35)
1
Example : DVB
1
ZDF
Mute STTLAD TEXT Multi Audio
Bad signal
Channel position and name
1
Channel type ([Radio], [Data], [HDTV], etc.) /
2
Encrypted channel ( ) /
TV mode (
Programme
3
Current time
4
Watching TV
Features available / Message meanings
[Mute]
Sound mute On
[Bad signal]
Poor TV signal quality
[Also in
Same programme available as HD broadcast
To display the extra information for details
•
To confirm another tuned channel name• To watch the channel listed in the banner• Information on the next programme (DVB)
•
To hide
•
EXIT
[AD], [STTL], [TEXT ], [Multi Audio] indications are displayed as available on par ticular programmes, but may not be available for all
•
individual programmes being broadcast. Display the extra information to confirm availability of these functions.
Example :
1
BBC ONE WALES
]
, )
Coronation Street
20:00 - 20:55
Now
[AD]
AD
Last view
Switch to previously viewed channel or input mode easily
Press again to return to the present view.
•
LAST VIEW
Note
Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is
•
in progress.
Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.
•
18
Page 19
Hold
Freeze / unfreeze picture
HOLD
Display the selectable settings for the current status
Check or change the current status instantly
OPTION
To change
•
select
access
select / change
store
[Audio Description]
(DVB mode)
Set to [Auto] if the programme has
Audio Description service, then you
will hear an additional audio track to
describe events on screen
To adjust the volume for Audio
•
Description
[Audio Description Menu] (p.33)
[Multi Audio]
(DVB mode)
Allows you to select between alternative
language for sound tracks (if available)
This setting is not memorized and it
•
will return to the default setting once
you exit the current programme.
[Monaural Audio]
(DVB mode)
Allows you to select stereo / monaural (if
available)
This setting is not memorized and it will
•
return to the default setting once you
exit the current programme.
[Subtitle Language]
(DVB mode)
Allows you to select the language
in which subtitles should appear (if
available)
This setting is not memorized and it will
•
return to the default setting once you
exit the current programme.
[Teletext Character Set]
Sets the teletext language font
[Setup Menu] (p.35)
[Teletext Language]
(DVB mode)
Allows you to select between
alternative language for teletext (if
available)
[NICAM]
(Analogue mode)
Switches NICAM sound (if available)
[Sound Menu] (p. 33)
[Volume Correction]
Adjusts volume of individual channel
or input mode
[Safely remove USB]
Takes this operation to remove the
connected USB device safely from
the TV

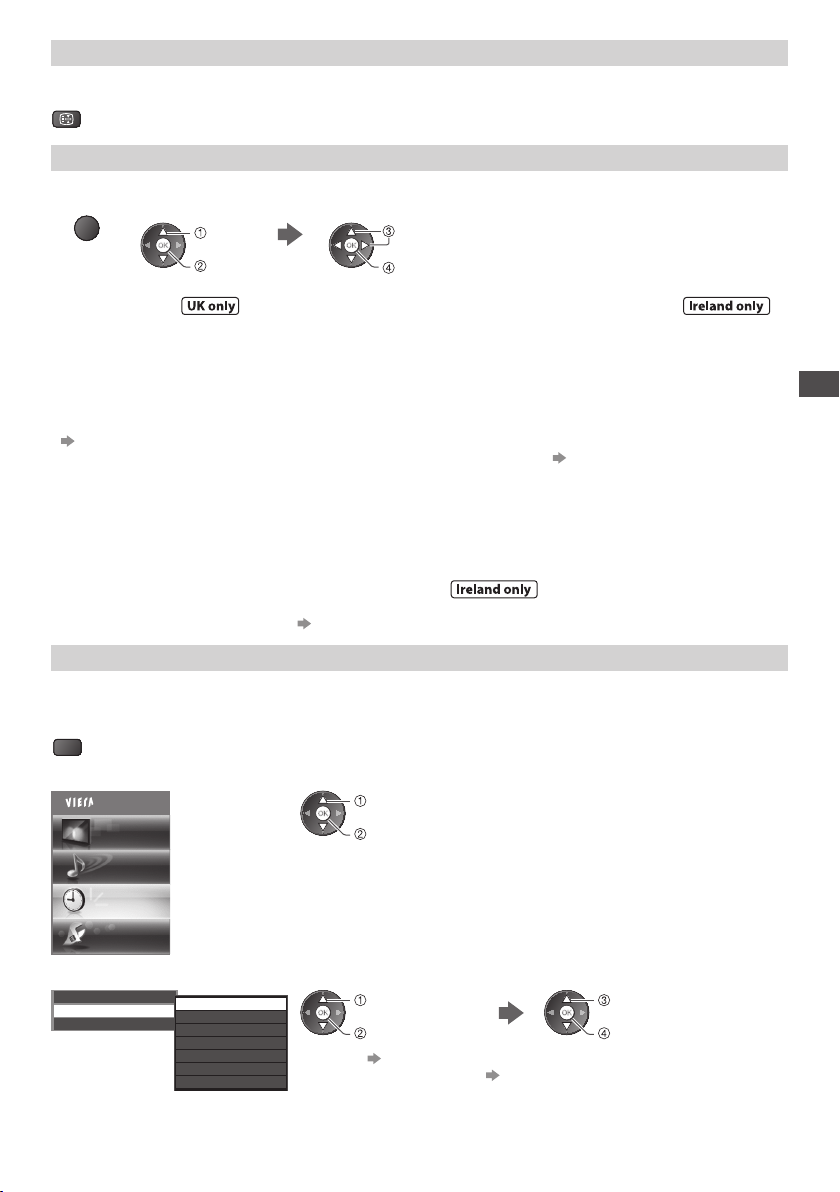

Off Timer
Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
1 Display the menu
MENU
2 Select [Timer]
Main Menu
Sound
select
access
Watching TV
Timer
Setup
3 Select [Off Timer] and set the time
Timer Programming
Off Timer
Auto Standby
Off
15
30
45
60
75
90
minutes
minutes
minutes
minutes
minutes
minutes
select [O ff Timer]
access
To cancel Set to [Off] or turn the TV off.
•
To display the remaining time “Display Information banner” (p.18)
•
When the remaining time is within 3 minutes, the remaining time will flash on the
•
screen.
select the time
store
19
Page 20

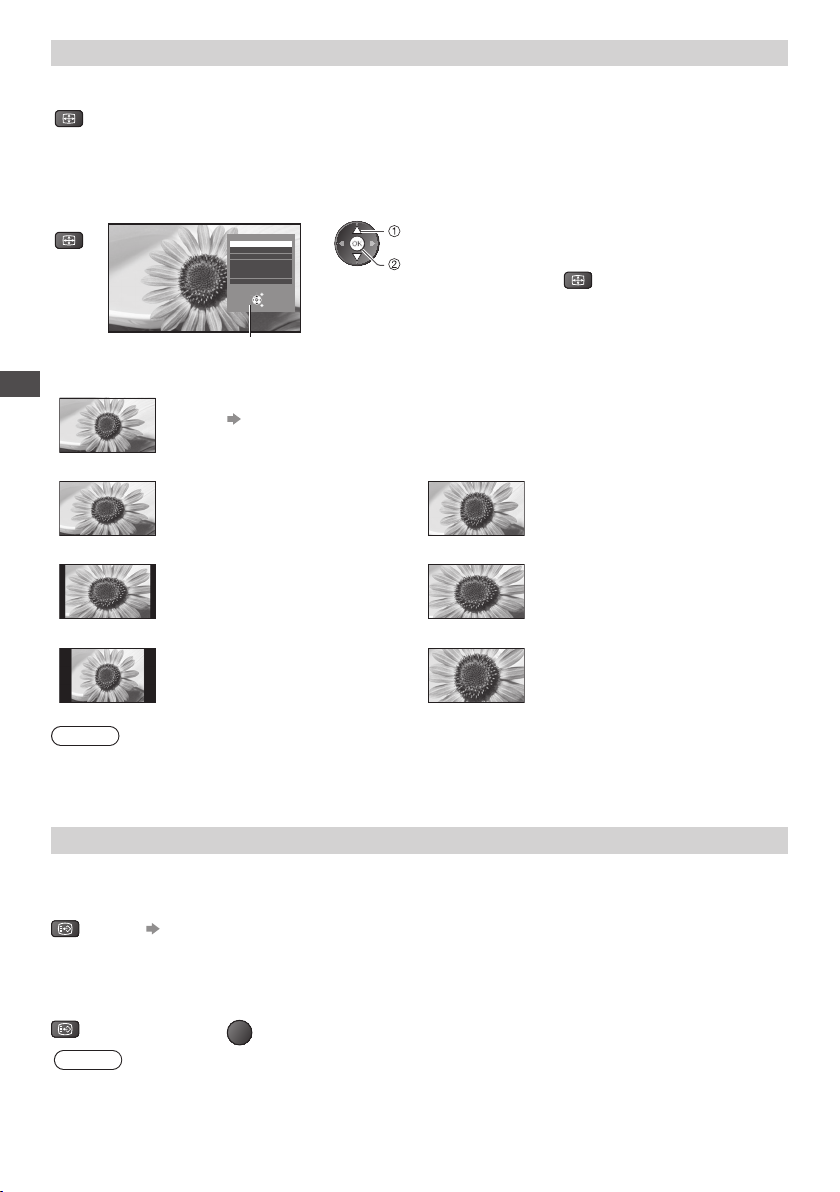

Aspect
Change the aspect ratio (image size)
Enjoy viewing the image at its optimum size and aspect.
ASPECT
Programmes usually contain an “Aspect Control Signal” ( Widescreen signal, etc.), and the TV will choose the aspect
ratio automatically according to the “Aspect Control Signal” (p.92).
■ If you would like to change the aspect ratio manually
1 Display Aspect Selection list 2 While the list is displayed,
ASPECT
Aspect Selection
Auto
16:9
14:9
4:3
Zoom1
Zoom2
Zoom3
Select
EXIT
Change
RETURN
Aspect Selection list
select the mode
select
store
You can also change the mode only
•
using the ASPECT button.
ASPECT
(Press repeatedly until you reach
the desired mode)
Watching TV
[Auto]
[16:9] [Zoom1]
[14:9] [Zoom2]
[4:3] [Zoom3]
The best ratio is chosen and the image expanded to fill the screen.
For details (p.92)
Directly displays the image at 16:9
without distortion (anamorphic).
Displays the image at the standard 14:9
without distortion.
Displays the image at the standard 4:3
without distortion.
Displays a 16:9 letterbox or 4:3 image
without distortion.
Displays a 16:9 letterbox (anamorphic)
image full-screen without distortion.
Displays a 2.35:1 letterbox (anamorphic)
image full-screen without distortion.
At16:9, displays the image at its maximum
(with slight enlargement).
Note
Aspect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.
•
Only [16:9] and [4:3] are available in PC input mode.
•
Not available in teletext service.
•
Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
•
Display subtitles
■ DVB mode
Display / hide subtitles (if available)
STTL
To change the language for DVB (if available)
•
[Preferred Subtitles] (p.35)
■ Analogue mode
Display subtitles Hide subtitles
STTL
Note
This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 26)
•
You cannot change the channel when this function is active.
•
20
EXIT
Page 21
Using TV Guide
TV Guide−Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the
forthcoming broadcasts over the next seven days (depending on the broadcasters).
This TV supports the GUIDE Plus+ system.
•
The Rovi branding partner will supply the rating information in the programme information and the recommended group in
•
the Search list.
DVB and Analogue channels are displayed on the same TV Guide screen. [D] means DVB channel and [A] means Analogue
•
channel. There will be no programme listings for Analogue channels.
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV
•
Guide is completely shown.
Select DVB or Analogue
1
TV
View TV Guide
2
■
To return to TV
EXIT
or
G
U
Example :
I
D
E
Wed 27 Oct 2010
1
10:46
2
3
4
5
Timer Programming
-24 hours +24 hours Search Category
Some programmes may also be broadcast in HD
7
You can select HD or SD broadcast before viewing or setting Timer Programming.
G
U
I
D
E
•
Programme
8
Logo of the Rovi branding partner
9
678 9
TV Guide
Wed 27 Oct Search All Channels
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
19:30 20:00 20:30 21:00
Time:
Das Erste DIY SOS Holiday News
D
BBC ONE
1
Hot Wars Holiday Program
D
BBC THREE
7
Emmerdal.
10 O’ clock News BBC
GUIDE
OPTION
Coronation Street
09
Info
RETURN
Select Advert
Enter Channel
D
14
D
70
D
72
105
D
719
D
Select channel
E4
BBC FOUR
BBC 2W
BBCi
BBC Radi
EXIT
Select programme
RETURN
Pepsi Char.
The Bill
Good bye
CoastSpring watchPanorama
NewsPop IdolI’m A Celebrity
Sports15 To 1Rugby
Page down
Also in
Page up
■ To change the layout of TV Guide [TV Guide View] (p. 34)
■ To watch the programme
1 Select a current
programme or channel
select
or
access
abc def
jkl
ghi
mno
tuvpqrs
wxyz
2 Select [View] (DVB mode)
Eastender
19:30- 20:00
View Timer Programming
select
watch
To use TimerProgramming (p.22)
•
If a programme exists in both HD and SD broadcasts, the
•
[View Options] screen will be displayed to select HD or
SD broadcast. (DVB mode)
DIY SOS
View Options
101 BBC ONE 19:30-20:00 Wed 27 Oct 2010
119 BBC HD 19:30-20:00 Wed 27 Oct 2010
■ To the previous day (DVB mode) ■ To view a channel list of the selected category
(red) (blue)
■ To the next day (DVB mode)
(green)
■ View details of the programme (DVB mode)
1 Select the programme 2 View details
select
Press again to return to TV
•
Guide.
(Category list)
Category
All Channels
All Channels
All DVB Channels
All HD Channels
All Analogue Channels
Free DVB Channels
TV/Data DVB Channels
Favourites1
Favourites2
Favourites3
Favourites4
Only Analogue channels
are listed
•
Current date and time
1
TV Guide time
2
Advertisement
3
[D] : DVB
4
[A] : Analogue
Channel position and
5
name
TV Guide date
6
To list favourite channels
(p.42)
select
watch
Using TV Guide
21
Page 22
■
To search programme types and view a channel list of the searched programmes (DVB mode)
(yellow)
Search
Search Titles...
Movie
News and Factual
(Search list)
All Types
Movie
News
Prog.Type
All Types
(Type list)
select type
view
■ To search programme titles and view a list of the searched programmes
(DVB mode)
(yellow)
All the programme titles
•
including the word you
set will be listed.
Searching without any
•
characters will list all
programmes including
current programmes.
Using TV Guide
Search
Search Titles...
Movie
News and Factual
(Search list)
1 Select
[Search Titles...]
select
access
2 Set characters
(maximum: 19 characters)
select
set
To use numeric buttons
•
“Characters table for
3 Start [Search]
(green)
numeric buttons” (p.96)
Other useful functions
Timer Programming (DVB mode)
Timer Programming is a timer to remind watching or record the programme to the external recorder or the USB HDD.
1 Select the forthcoming programme 2 Select the function ([Ext Rec.],[USB HDD Rec.] or [Reminder])
select
set
LED will turn to orange if Timer
Programming is set.
(Orange LED will flash if the recording of
Timer Programming is in progress.)
LED
■ To check / change / cancel a timer
programming event
“Timer Programming” (p. 45)
(Timer Programming screen)
Timer Programming
Function No. Channel Name Date Start End
Ext Rec.
D
DIY SOS
--- --/-- --:-- --:-----
[Ext Rec.] / [USB HDD Rec.]
Wed 27.10.2010 10:46
Wed 27 Oct
19:30119 BBC HD 20:00
(30 min.)
(--- min.)
:
to record the programme to the external recorder or the USB HDD
When the start time comes, the channel will be switched automatically and the
video and audio signals will be output. 2 minutes before the starting time, a
reminder message appears if you are watching TV.
[Reminder]
:
to remind you to watch the programme
When you are watching TV, a reminder message appears 2 minutes before the
start time. Press the OK button to switch to the programmed channel.
■ To return to TV Guide
BACK/
RETURN
select
store
■ If you select a current programme ■
A confirmation screen asking whether you wish to watch or
record the programme will appear.
Select [Timer Programming] and set [Ext Rec.] or [USB
HDD Rec.] to record from the time you finish the timer
programming event setting.
Eastender
19:30- 20:00
View
22
Timer Programming
select
access
If a programme exists in both HD and SD broadcasts
The [Timer Options] screen will be displayed to select HD or SD
broadcast.
DIY SOS
Timer Programming
Function No. Channel Name Date Start End
Ext Rec.
Timer Options
101 BBC ONE 19:30-20:00 Wed 27 Oct 2010
119 BBC HD 19:30-20:00 Wed 27 Oct 2010
(Timer Programming screen)
D
DIY SOS
--- --/-- --:-- --:-----
Wed 27.10.2010 10:46
Wed 27 Oct
19:30119 BBC HD 20:00
(30 min.)
(--- min.)
HD broadcast is set.
select
set
will be displayed if
Page 23
Note
This function is not available in Analogue mode.
•
Timer Programming reminder messages will remain displayed until one of the following occurs:
•
• You press the OK button to view the programme or the EXIT button to cancel the reminder.
• The timer programming event that the reminder is set for ends.
No other channel can be selected while the recording of Timer Programming is in progress.
•
When recording programmes, be sure to make the proper settings on the recorder connected to the TV. (p. 45)
•
When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording
•
Setup] (p.54).
Guide link programming (Timer Programming from the TV Guide signal)
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and
end times are changed by the broadcaster, the timer programming event will follow the change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if correct information is
received from broadcasters.
Timer Programming
Function No. Date Start EndChannel Name
D
Ext Rec. Wed 27 Oct
D
Reminder
D
Ext Rec.
---
D
Ext Rec.
Change function
EXIT
Store timer
Select
RETURN
(Timer Programming screen)
7 BBC ONE
DIY SOS
14 E4 21:00 22:30
The Bill
72 BBC 2W
<TIMER>
BBC ONE1
Red Cap
------
Remaining Capacity:
500GB (50%)
Guide
Guide
S/P
0
Wed 27 Oct 2010 10:46
Wed 27 Oct
Wed 27 Oct
Thu 28 Oct
9
20:00 20:30
(30 min.)
(90 min.)
22:45 23:00
(15 min.)
10:30 11:30
(60 min.)
--:----:-- --:--
(--- min.)
1/1
“S/P” is displayed if the timer is set from the TV
Guide and the programme is a Split Programme
“Guide” is displayed if the timer is set from the TV Guide
(Guide link programming)
Note
If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no longer follow
•
the broadcaster’s changes to the start or end time. The start and end times will become fixed.
Whilst making the Split Programme programming event for [Ext Rec.] or [USB HDD Rec.], you cannot record any channels
•
between the interrupted programmes.
The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.
•
The Split Programme programming event for Reminder will switch to the programmed channel by pressing the OK button
•
even if it is between the interrupted programmes.
The Split Programme programming does not work if the separated parts are broadcast on different channels.
•
Example :
Wed 27 Oct 2010
10:46
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
D
D
D
D
D
105
D
719
D
TV Guide
Wed 27 Oct Search All Channels
19:30 20:00 20:30 21:00
Time:
Das Erste DIY SOS Holiday News
BBC ONE
1
Hot Wars Holiday Program
BBC THREE
7
Emmerdal.
10 O’ clock News BBC
Coronation Street
Pepsi Char.
14
70
72
E4
BBC FOUR
BBC 2W
BBCi
BBC Radi
Good bye
CoastSpring watchPanorama
NewsPop IdolI’m A Celebrity
Sports15 To 1Rugby
“ ” or “ ” will be displayed in the TV Guide if
Timer Programming is set as the Guide link
programming.
The Bill
Using TV Guide
View advertisement
Enter your postcode when using this function for the first time
[Guide Plus+ Postcode] in [TV Guide Settings] (p.34)
If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12 - 15), you do not have to enter it again.
If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.
Display advertisement information
OPTION
To display the latest advertisement, you will need to update the information.
•
To update the information continuously, the TV must be left in Standby mode.
■ To change advertisements ■ To return to TV Guide
or
BACK/
RETURN
OPTION
Note
Some advertisements are for future programmes.
•
In this case it is possible to use the Guide link programming function.
The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot be deleted
•
manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.
23
Page 24
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
The availability of teletext services for a programme is indicated by [TEXT] in the information banner.
•
Information banner
Coronation Street
1
20:00 - 20:55
BBC ONE WALES
Now
Depending on the broadcaster, the digital teletext (MHEG) services may not be available. In this case, the operation of the
teletext services may be the same as the analogue teletext services (p. 24).
TEXT
All DVB Channels
Select favourites
20:35
Displayed if programme has teletext service
(p. 18)
Digital teletext (MHEG)
Digital teletext services differ greatly from analogue teletext.
Viewing Teletext
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a
manner decided by the broadcaster.
Select DVB
1
TV
Switch to Teletext
2
TEXT
DVB programmes have digital teletext
•
services (MHEG).
Example :
17:51 28 Feb
■ How to operate services
In all cases, it is possible to navigate the pages using buttons on the remote control, but
because the commands available must apply to all manufacturers of digital equipment, some
on screen commands may not correspond exactly to the remote control buttons.
24
■
To return to TV
TEXT
TV
Select, go
•
Back key
•
BACK/
RETURN
Symbol :
•
Coloured characters
•
Coloured button
When options with numbers are
•
displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Note
As soon as you switch to a digital channel with links to a teletext service, software is downloaded
•
in the background to enable the teletext function. This means that when switching to a digital
channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will
allow the software to download. If you press the TEXT button before download is complete, it will
be ignored and you will have to press the TEXT button again when the download is complete.
While navigating digital teletext, you will find there is a short delay when moving between pages while
•
the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to
let you know that this is happening.
Page 25
Analogue teletext
Analogue teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FASTEXT (FLOF) mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about
one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects
shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be
altered and stored in the TV’s memory.
■ To change mode
[Teletext] (p.35)
1
2
“Store frequently viewed pages” (p.26)
Select Analogue
TV
Switch to Teletext
TEXT
Sub page number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
Time / date
Displays the index page (content varies
•
depending on the broadcasters)
TELETEXT
INFORMATION
Colour bar
Current page number
Select the page
3
■
To return to TV
EXIT
abc def
jkl
ghi
mno
or
tuvpqrs
wxyz
■ To adjust contrast
MENU
(Press twice)
up
down
or
Coloured button
(Corresponds to the colour bar)
As the blue bar is displayed
Viewing Teletext
FULL / TOP / BOTTOM
MENU
(green)
(TOP) (BOTTOM) Normal (FULL)
(Expand the TOP half) (Expand the BOT TOM half )
Reveal hidden data HOLD
Reveal hidden words e.g. quiz page answers Stop automatic updating
MENU
(red)
Press again to rehide (If you wish to hold the current page without updating)
•
HOLD
Press again to resume
•
25
Page 26

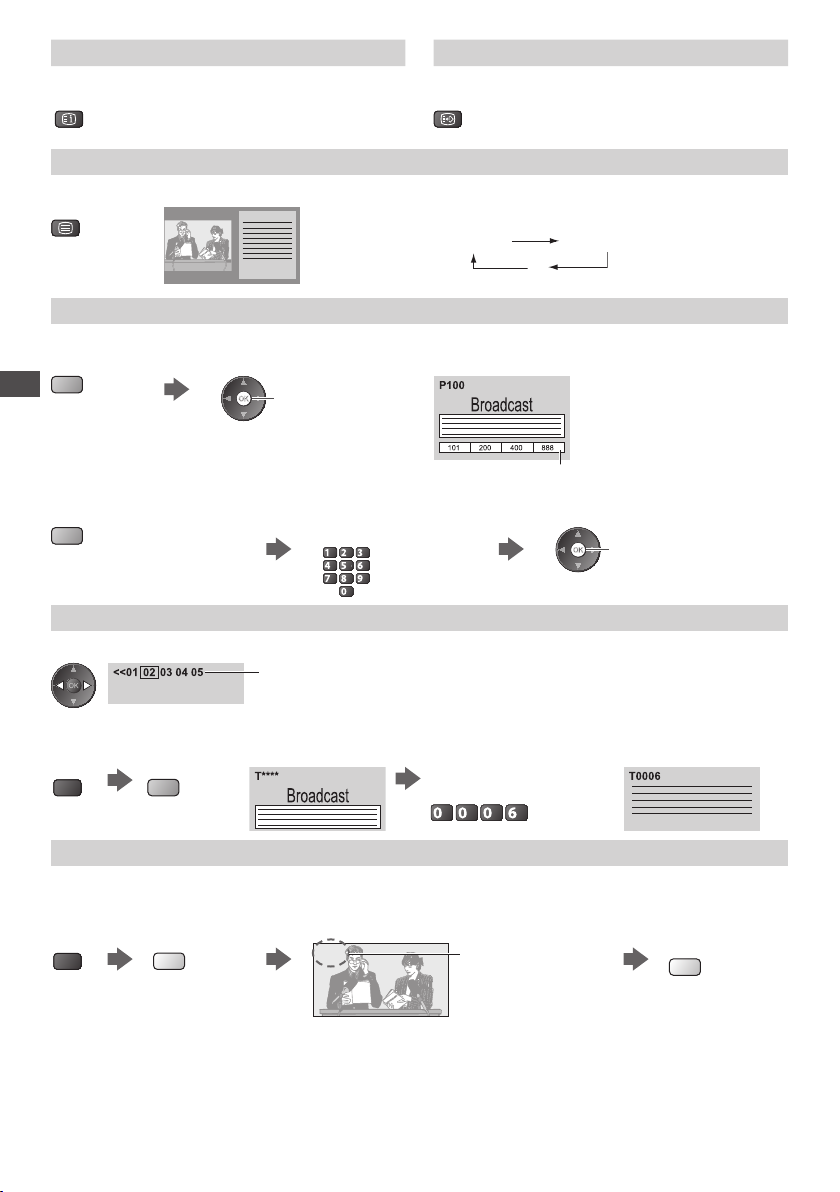

INDEX Subtitles
Return to the main index page View a favourite page stored
INDEX
STTL
View in multi window
Watch TV and Teletext in two windows at once
TEXT
Operations can be made only in Teletext screen.
•
Each time pressed: Teletext TV and Teletext
•
TV
Store frequently viewed pages
Store frequently viewed pages in the colour bar (List mode only)
As page is displayed
Viewing Teletext
(Corresponding
coloured button)
press and hold
The number changes to
white.
■ To change stored pages
Enter new page number
Coloured button you want to
change
abc def
jkl
ghi
mno
tuvpqrs
wxyz
View sub page
View sub page (Only when teletext is more than one page)
The number of sub pages varies depending on the
Appears at top of the screen
•
broadcasters (up to 79 pages).
It may take some time for searching, during which time
•
you can watch TV.
■ To view specific sub page
MENU
(blue)
Enter the 4-digit number
example : P6
mno
Factory setting is “P888”
•
(subtitle service) on the blue
button (List mode).
If you wish to use Subtitles,
•
do not change number on
blue button.
press and hold
Watch TV while waiting for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
MENU
The news page provides a function that indicates arrival of latest news (“News Flash”).
•
(yellow)
P108
(You cannot change the channel.)
26
Appears when updating
is completed
View the updated
page
(yellow)
Page 27
Watching External Inputs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.
To connect the equipment (p.10, 11, 89 - 91)
•
The Remote Control is capable of operating some functions of selected external equipment.
“Operating the equipment with the T V remote control” (p.28)
Turn the TV on
1
When connecting with SCART as example 2 or 3 (p.10, 11)
Receives input signals automatically when playback starts
Input signals are automatically identified by the SCART (pin 8) terminal.
•
This function is also available for HDMI connections (p.89).
•
If input mode is not switched automatically
Perform 2 and
Check the setup of the equipment.
•
Display the input selection menu
2
AV
Select the input mode connected to the equipment
3
Input Selection
AV1
AV2
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
TV
SD Card/USB
You can also select the input using the AV button on the remote control or the side
•
panel of the TV (except [SD Card/USB]).
Press the button repeatedly until the desired input is selected.
[SD Card/USB] : Switches to Media Player [Using Media Player] (p.58)
•
You can label or skip each input mode (except [SD Card/USB]). “Input Labels” (p.48)
•
Skipped inputs will not be displayed when the AV button is pressed.
3
select
watch
Watching External Inputs
TV
■
To return to TV
TV
Terminal
Manual input
(default setting
in “InputLabels”)
Auto input
(EC mode or
VIERA Link)
If the above information is permanently displayed on the top left of the screen, press the button to clear.
•
Note
If the external equipment has an aspect adjustment function, set it to [16:9].
•
For details, see the manual of the equipment or ask your local dealer.
•
AV1 AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4
AV1
AV1-RGB
EC/AV1
EC/AV1-RGB
View
4
AV1
AV2 COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4
−−−
Displays the selected mode
EC/HDMI1
Applicable for
EC mode and
VIERA Link
EC/HDMI2
Applicable
for
VIERA Link
EC/HDMI3
Applicable
VIERA Link
for
EC/HDMI4
Applicable
for
VIERA Link
27
Page 28

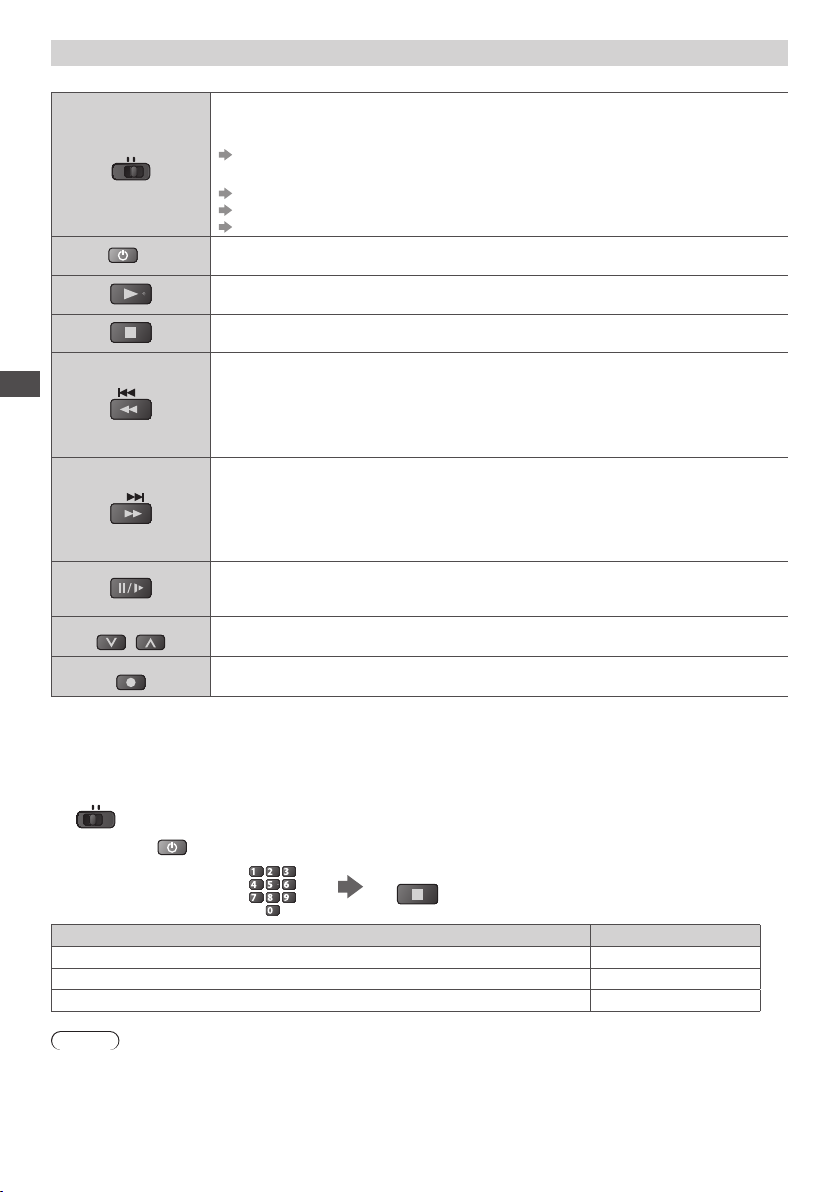

Operating the equipment with the TV remote control
The equipment connected to the TV can be directly operated with the below buttons of this TV remote control.
Selection Switch for operating the connected equipment
Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc
DVD/VCR
Watching External Inputs
TV
PROGRAMME
REC
theatre or VCR
“How to change the code for the type of the equipment” (see below)
Select “TV” to use USB HDD Recording, Media Player or VIERA Link
“USB HDD Recording” (p. 57)
“Media Player” (p. 65, 67)
“VIERA Link Control” (p.87)
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD / video content
Stop
Stop the operations
Rewind / Skip / Search
VCR :
Rewind, view the picture rapidly in reverse
DVD / video content :
Skip to the previous track, title or chapter
Press and hold to search backward
Fast-forward / Skip / Search
VCR :
Fast-forward, view the picture rapidly forward
DVD / video content :
Skip to the next track, title or chapter
Press and hold to search forward
Pause
Pause / Resume
DVD : Press and hold to play at slow speed
Channel Up / Down
Select channel
Record
Start recording
How to change the code for the type of the equipment
Each type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.
1 Set the position to “DVD/VCR”
DVD/VCR
TV
2 Press and hold during the following operations
Enter the appropriate code, see
table below
DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)
Note
Confirm if the remote control works correctly after changing the code.
•
The codes may be reset to default values if batteries are replaced.
•
Some operations may not be possible on some equipment models.
•
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Type of the equipment Code
Player theatre, Blu-ray Disc theatre 71
VCR 72
Press
28
Page 29
How to Use VIERA TOOLS
You can access some special features easily by using the VIERATOOLS function.
For [VIERA Link Control] and [Pause Live TV] functions to operate correctly, ensure the connections and settings are
•
completed.
“Summary of Q-Link and VIERA Link features” (p. 81, 82), “Preparations” (p.84)
After connection, turn the equipment on and then switch the TV on.
For [Photo], [Video] and [Music] functions to operate correctly, ensure the device has photo or video data on it and insert it
•
into the SD Card slot or USB port properly.
”Using Media Player” (p. 58)
Display icons of the feature
■
To return to TV
EXIT
or
1
2
T
O
A
O
R
L
E
S
I
V
T
O
A
O
R
L
E
S
I
V
Select a feature
VIERA Link Control
select
access
How to Use VIERA TOOLS
■ Follow the operations of each feature
[VIERA Link Control]
“VIERA Link Control” (p.86)
[Photo]
“Photo mode” (p.60)
[Video]
“Video mode” (p.64)
∗
When two or more available devices are connected, a selection screen will be displayed.
Please select the correct description and access.
When two or more compatible equipment are
connected, a selection screen will be displayed.
Please select the correct description and access.
∗
∗
[Recorded TV]
“Recorded TV mode” (p.66)
[Music]
“Music mode” (p.68)
[Media Server]
“Using DLNA® features” (p.77)
Note
If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to
•
view the demonstration after selecting the unavailable feature.
∗
∗
∗
29
Page 30
How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
Display the menu
1
MENU
Select the menu
2
Displays the functions that can be set (varies according to the input signal)
•
Main Menu
Sound
Timer
Setup
select
access
How to Use Menu Functions
■
To return to TV at
any time
EXIT
■
To return to the
previous screen
BACK/
RETURN
■
To change menu
pages
TV
up
down
Select the item
3
Example : [Picture Menu]
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
C.A.T.S. Off
Warm
Off
1/2
select
access
■ Choose from among alternatives ■ To reset the settings
Cool
Colour Balance
Normal
Warm
■ Adjust using the slide bar
Sharpness
Moved
■ Go to the next screen
Child Lock
Access
Displays the next screen
5
To reset the picture settings only
•
[Reset to Defaults] in the
Picture Menu (p.32)
To reset the sound settings only
•
[Reset to Defaults] in the
Sound Menu (p.33)
To initialise all settings
•
[Shipping Condition] in the
Setup Menu (p.36)
■ Enter characters by free input menu
You can enter names or numbers freely for some items.
User input
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
You can set characters by using numeric buttons.
•
“Characters table for numeric buttons” (p.96)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
Set characters Store
select
set
BACK/
RETURN
Note
If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment.
•
To return to “Home” viewing environment initialise all settings by accessing Shipping Condition. (p. 49)
30
Page 31
Menu list
Menu
Viewing Mode
Contrast, Brightness,
Colour, Sharpness
Tint
Colour Balance
Vivid Colour
Reversal Film Effect
C.A.T.S.
P-NR
3D-COMB
Screen Display
Item Adjustments / Configurations (alternatives)
Basic picture mode [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] / [Photo]
In each Viewing Mode, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour
Balance], [Vivid Colour], [C.A.T.S.], [P-NR] and [3D-COMB] can be adjusted and stored to suit
your particular viewing requirement.
Set for each input signal.
•
[Dynamic] : Provides enhanced picture contrast and sharpness when viewing in a bright
room.
[Normal] : Recommended for viewing under normal ambient room lighting conditions.
[Cinema] : For watching movies in a darkened room with the improved performance of
contrast, black and colour reproduction
[True Cinema] : Precisely reproduces the original quality of the image without any revision.
[Game] : Fast response signal specifically to provide suitable images for playing games
Not valid on TV mode
•
A continuous record of time spent using Game mode can be displayed in the top right of
•
the screen. [Playing Time Display](p.35)
[Photo] : Set [Reversal Film Effect] to [On] to provide the suitable image quality for photos
For HDMI input, Media Player and network service operations
•
Increases or decreases the levels of these options according to your personal preference
With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit
your taste
For NTSC signal reception only
•
Allows you to set the overall colour tone of the picture [Cool] / [Normal] / [ Warm]
Not valid when [Viewing Mode] is set to [True Cinema].
•
Automatically adjusts colours to vivid ones [Off] / [On]
Not valid on PC signal
•
Provides the picture effect such as the reversal film [Off] / [On]
This function is available when [Viewing Mode] is set to [Photo].
•
Contrast Automatic Tracking System (Automatic Brightness Control function)
Adjusts picture settings automatically dependent on ambient lighting conditions [Off] / [On]
Set to [On] to make the suitable contrast setting automatically. The default setting is [On]
•
when [Viewing Mode] is set to [Normal].
Picture Noise Reduction
Automatically reduces unwanted picture noise and flicker noise in the contoured parts of a
picture [Off] / [Min] / [Mid] / [Max]
Not valid on PC signal
•
Makes still or slow moving pictures look more vivid [Off] / [On]
Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen.
•
Set to [On] to display sharper and more accurate colours.
For PAL or NTSC signal reception only
•
Not valid on RGB, Component, HDMI and Media Player
•
Turns the screen off when you select [Off] [Off ] / [On]
The sound is active even if the screen turns off.
•
Press any buttons (except Standby) to turn the screen on.
•
This function is effective in reducing power consumption when listening to the sound
•
without watching the TV screen.
How to Use Menu Functions
31
Page 32
How to Use Menu Functions
32
Menu
Advanced Settings
Sound
Item Adjustments / Configurations (alternatives)
Automatically compensates the picture frame rate and removes juddering movements
Intelligent Frame
Creation
24p Smooth Film
Clear Cinema
Resolution Enhancer
16:9 Overscan
DVI Input Setting
Reset to Defaults Press the OK button to reset the present Picture Viewing Mode to the default settings
Mode
Bass Increases or decreases level to enhance or minimise lower, deeper sound output
Treble Increases or decreases level to enhance or minimise sharper, higher sound output
Equaliser
to make the images smooth [Off] / [Mid] / [Max]
Depending on the contents, images may be noisy. To prevent the noise, change the
•
setting.
This function is not available for selection (default to [Off]) when [ Viewing Mode] is
•
set to [Game] or in the mode of PC input / network service operations.
Automatically compensates the picture frame rate to make the 24p source movie
images smooth [Off] / [Mid] / [Max]
This is available only for 24p signal input and displayed instead of [Intelligent Frame
•
Creation].
This function is not available for selection (default to [Off]) when [ Viewing Mode] is
•
set to [Game] or in the mode of PC input / network service operations.
Improves vertical resolution for movie images [Off] / [On]
This function is available for the interlaced signal (except when [Viewing Mode] is set
•
to [Game]).
Enhances the picture resolution to make the image sharper [Off] / [Mid] / [Max]
This function is available for SD (Standard definition) signal.
•
As for HD (High definition) signal, this function is available when aspect mode is set to
•
[16:9] ([16:9 Overscan] is set to [On]), [4:3 Full] or [Zoom].
Not valid on Media Player and network service operations
•
Selects the screen area displaying the image [Off] / [On]
[On] : Enlarges the image to hide the edge of the image.
[Off] : Displays the image in the original size.
Set to [On] if noise is generated on the edge of the screen.
•
This function is available when aspect is set to [Auto] (16:9 signal only) or [16:9].
•
This function can be memorized separately for SD (Standard definition) and HD (High
•
definition) signals.
Not valid on PC and VIERA Connect
•
Changes the black level in the image for HDMI input mode with DVI input signal manually
[Normal] / [Full]
When the DVI input signal from the external equipment, especially from PC, is
•
displayed, the black level may not be suitable. In this case, select [Full].
The black level for HDMI input signal will be adjusted automatically.
•
For HDMI input mode with DVI input signal only
•
Selects the basic sound mode [Music] / [Speech] / [User]
The selected mode affects all input signals.
•
[Music] : Improves sound quality for watching music videos, etc.
[Speech] : Improves sound quality for watching news, drama, etc.
In Music and Speech modes, you can adjust [Bass] and [Treble] settings, and those
•
settings will be stored for each mode.
[User] : Adjusts the sounds manually by using the equaliser to suit your favourite sound
quality.
For the User mode, [Equaliser] will appear on the Sound Menu instead of [Bass] and
•
[Treble]. Select the [Equaliser] and adjust the frequency. [Equaliser] (see below)
Adjusts the frequency level to suit your favourite sound quality
This function is available when [Mode] is set to [User].
•
Select the frequency and change the frequency level by using the cursor button.
•
If you want to enhance the bass sound, raise the level of the lower frequency. If you
•
want to enhance the treble sound, raise the level of the higher frequency.
To reset the levels of each frequency to the default settings, select the [Reset to
•
Defaults] by using the cursor button, and then press the OK button.
Page 33
Menu
Sound
Item Adjustments / Configurations (alternatives)
Balance Adjusts volume level of right and left speakers
Headphone Volume Adjusts the volume of the headphones
Surround sound settings [Off] / [V-Audio] / [V-Audio Surround]
Surround
Auto Gain Control
Volume Correction Adjusts the volume of individual channel or input mode
Speaker Distance to Wall
Preferred Multi Audio
NICAM
SPDIF Selection
HDMI1 / 2 / 3 / 4 Input
[V-Audio] : Provides a dynamic enhancer of width to simulate improved spatial effects
[V-Audio Surround] : Provides a dynamic enhancer of width and depth to simulate
Automatically regulates large sound level differences between channels and inputs
[Off] / [On]
Compensates for the distance between the speakers and the wall
[Over 30cm] / [Up to 30cm]
If the distance between the TV and wall is over 30 cm, [Over 30cm] is recommended.
•
If the distance between the TV and wall is within 30 cm, [Up to 30cm] is
•
recommended.
Selects the preferred language for digital channel multi audio (depending on the
•
broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]
Near Instantaneous Companded Audio Multiplex
Reproduces NICAM stereo sound [Off] / [On]
Off if reception is poor (FM monaural sound)
•
Analogue mode only
•
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and
HDMI2 (ARC function) terminals [Auto] / [PCM]
[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output
as Dolby Digital Bitstream.
MPEG is output as PCM.
[PCM] : Digital output signal is fixed to PCM.
For DVB mode, network video contents (p. 78) or Video mode of Media Player (p.64)
•
ARC (Audio Return Channel) : A function of digital audio output using HDMI cable
•
Select to fit the input signal [Digital] / [Analogue] (p.96)
[Digital] : When sound is carried via the HDMI cable connection
[Analogue] : When sound is not carried via the HDMI cable connection
HDMI input mode only
•
improved spatial effects
How to Use Menu Functions
Audio Description
Audio Description Menu
Volume
Speakers
Headphones
Reset to Defaults
Narration settings for visually impaired users [Off] / [Auto]
Set to [Auto] to activate the narration sound track when available on the broadcast
The availability of audio description sound track is indicated by [AD] in the
•
information banner (p. 18).
DVB mode only
•
Adjusts the volume for Audio Description
DVB mode only
•
Set to [On] to activate the description sound track from TV speakers [Off] / [On]
DVB mode only
•
Set to [On] to activate the description sound track from headphones [Off] / [On]
DVB mode only
•
Press the OK button to reset the present Sound Mode, [Balance], [Headphone Volume]
and [Surround] to the default settings
33
Page 34
Menu
Item Adjustments / Configurations (alternatives)
Timer Programming Sets programme reminders and records forthcoming programmes (p.45)
How to Use Menu Functions
Off Timer
Timer
Auto Standby
TV Guide View
TV Guide Settings
GUIDE Plus+
Postcode
GUIDE Plus+
Information
Eco Navigation
Recording Setup Formats the connected USB HDD and sets the condition (p. 54)
Setup
VIERA Link Settings for VIERA Link functions [Off] / [On] (p.84)
Sets the time until the TV automatically goes to Standby mode
[Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes) (p.19)
Sets the duration of time that the TV will remain On when no operation is received
from the user [Off] / [2] / [4] (hours)
Starting Timer Programming automatically does not affect this function.
•
Automatic input switching with the connected equipment affects this function and
•
time-count will be reset.
The notification message will appear 3 minutes before going to Standby mode.
•
Changes the layout of TV Guide [Normal] / [Full] / [Info]
[Normal] : Default TV Guide screen
[Full] : Displays channels and programmes full-screen without the operation guide
[Info] : Displays details of the selected programme at the bottom without the
operation guide
Sets your postcode to display advertisements in the GUIDE Plus+ system (p.23)
Displays the system information of the GUIDE Plus+ system
Automatically sets the TV to the most suitable energy-saving mode
If you press the OK button, the following items are set as below :
•
[C.A.T.S.], [VIERA Link], [Standby Power Save], [Power Save] [On]
[Intelligent Auto Standby] [On (No reminder)]
[Auto Standby] [2 hours]
34
HDMI Content
Detection
Link Settings
AV1 out
Standby Power Save
Intelligent Auto
Standby
Q-Link Download
Child Lock Applies access control for channels or AV inputs to prevent unwanted access (p.47)
Automatically adjusts picture according to received HDMI content [Off] / [Auto]
This function is available if the connected equipment supports HDMI Content Type.
•
The content type information will be displayed for several seconds when this function
•
works.
Chooses the signal to be transmitted from the TV to Q-Link [TV] / [AV2] / [Monitor]
[Monitor] : Image displayed on screen
Component, PC and HDMI signals cannot be output.
•
Controls the connected equipment to reduce power consumption in Standby
[Off] / [On] (p.85)
This function is available when [VIERALink] is set to [On].
•
Makes non-watched or non-used connected equipment go into Standby mode to
reduce the power consumption
[Off] / [On (With reminder)] / [On(Noreminder)] (p.85)
This function is available when [VIERALink] is set to [On].
•
Downloads analogue channel information to a Q-Link compatible equipment
connected to the TV
Page 35
Menu
Item Adjustments / Configurations (alternatives)
Favourites Edit Creates a list of favourite DVB channels (p.42)
Channel List Skips the unwanted DVB channels or edits DVB channels (p.43)
Auto Setup Automatically searches for the DVB channels received in the area (p.40)
DVB Tuning Menu
Channel Sorting by
Region
Manual Tuning Searches for the DVB channels manually (p.41)
Update Channel List Updates DVB Channel List while keeping your settings (p.43)
New Channel
Message
Signal Condition Checks the DVB signal condition (p.42)
Analogue Tuning Menu
Channel List Skips the unwanted Analogue channels or edits Analogue channels (p.44)
Auto Setup Automatically searches for the Analogue channels received in the area (p.40)
Manual Tuning Searches for the Analogue channels manually (p.44)
Teletext Analogue teletext display mode [FASTEXT] / [List] (p.25)
Automatically sorts tuned channels according to the available region (p. 41)
Selects whether to give a notification message when a new DVB channel is found
[Off] / [On] (p.42)
How to Use Menu Functions
Setup
Teletext Character
Set
Preferred Teletext
Display Settings
Preferred Subtitles
Input Labels Labels or skips each input terminal (p.48)
Banner Display
Timeout
VIERA Connect
Banner
Playing Time Display
Radio Mode
Selects teletext language font [West] / [East1] / [East2]
[West] : English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
[East1] : Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
[East2] : Czech, Hungarian, Lettish, Polish, Rumanian, etc.
Selects the preferred language for digital channel teletext service (depending on the
broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]
Selects the preferred language for digital channel subtitles (depending on the
broadcaster) [English] / [Welsh] / [Gaelic] / [Irish]
To display subtitles
provides aids in understanding and enjoyment with DVB subtitles (depending on
the broadcaster).
Sets how long the Information banner (p.18) stays on screen
[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)
Sets the VIERA Connect introduction banner display [Off] / [On] (p. 16, 17)
Set to [On] to display a continuous record of time spent using Game mode every 30
minutes [Off] / [On]
This function is available when [Game] is selected in [Viewing Mode] (p.31)
•
Sets the timer for turning off the screen automatically when a radio channel is selected
[Off] / [5] / [10] / [15] / [20] (seconds)
The sound is active even if the screen turns off.
•
Press any buttons except Standby, Volume Up / Down and Sound Mute buttons to
•
turn the screen on.
This function is effective in reducing power consumption when listening to a radio
•
channel.
(p. 20)
35
Page 36
How to Use Menu Functions
Menu
System Menu
Setup
Other Settings
Item Adjustments / Configurations (alternatives)
Network Setup Sets the network setting to use in your network environment (p.72)
DivX® VOD Displays DivX VOD registration code (p.94)
USB Keyboard
Layout
Shipping Condition Resets all settings, for example, when moving house (p.49)
Owner ID Inputs the owner ID (p. 50)
Common Interface Settings for watching encrypted channels (p. 51)
System Update Downloads new software to this TV (p.52)
Software Licence Displays the software licence information
System Information Displays the system information of this TV
Power on Preference
Power on Channel
List
Power Save Reduces brightness of picture to economise on power consumption [Off] / [On]
Selects the language that your USB Keyboard supports
For the information of using USB Keyboard (p.97)
•
Automatically selects the input when the TV is turned on [TV] / [AV]
Set to [TV ] to view picture from TV tuner.
Set to [AV] to view input from an external equipment connected to a SCART terminal,
e.g. satellite receiver.
The external equipment must be switched on and sending a control signal for
•
automatic switching at power on to occur.
Automatically selects All Channels or Favourites list in the Information banner (p.18)
when the TV is turned on [All Channel List] / [Last]
Set to [All Channel List] to display all the channels.
Set to [Last] to display the one you selected last time.
Not available in Analogue mode
•
A different menu will be displayed in the mode of PC input, Media Player or network service operations. (p.53, 58 - 69, 77-80)
•
Only available items can be selected.
•
36
Page 37
Overview (Picture, Sound, Timer)
How to operate (p. 30)
Main Menu
Sound
Timer
Setup
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
Reversal Film Effect
C.A.T.S. Off
P-NR
3D-COMB
Screen Display
Advanced Settings
Reset to Defaults
Warm
Off
Off
Off
Off
On
Access
Reset
1/2
2/2
(p. 31, 32)
Available in NTSC
Not available when [ViewingMode] is
set to [TrueCinema]
Available in NTSC / PAL
Advanced Settings
Intelligent Frame Creation
24p Smooth Film
Clear Cinema
Resolution Enhancer
16:9 Overscan
DVI Input Setting
Off
Off
Off
Off
Off
Normal
How to Use Menu Functions
(p. 32)
Mode Music
Bass
Treble
Equaliser
Balance
Headphone Volume
Surround
Auto Gain Control
Volume Correction
Speaker Distance to Wall Over 30cm
Preferred Multi Audio English
NICAM
SPDIF Selection
HDMI1 Input
Audio Description
Reset to Defaults Reset
Off Timer
Auto Standby
Access
Off
Off
Off
Auto
Digital
Access
AccessTimer Programming
Off
Off
1/2
2/2
(p. 32, 33)
(p. 34)
Timer Programming
Function No. Date Start EndChannel Name
Ext Rec.
Reminder
Ext Rec.
Ext Rec.
Change function
Store timer
Available when [Mode] is
set to [Music] or [Speech]
Equaliser
Reset to Defaults
150 250 500 1k 2k 4k 8k 12k Hz
Available when [Mode] is set to [User]
Available in DVB
Available in Analogue
Available in DVB, network video
contents or Video mode
Available in HDMI input
Audio Description Menu
Audio Description
Volume
Speakers
Headphones
Off
Off
Off
Available in DVB
Wed 27.10.2010 10:46
72 BBC 2W 20:00 21:30
D
<TIMER>
14 E4
D
The Bill
1 BBC ONE
D
DIY SOS
BBC ONE
D
<TIMER>
------ --:----:-- --:--
Remaining Capacity:
EXIT
Select
RETURN
500GB (50%)
Wed 27 Oct
Wed 27 Oct
Guide
Wed 27 Oct
S/P
Thu 28 Oct
STTL
0
9
(p. 33)
(90 min.)
21:00 22:00
(60 min.)
22:45 23:00
(15 min.)
10:30 11:30
(60 min.)
(p. 46)
1/1
37
Page 38

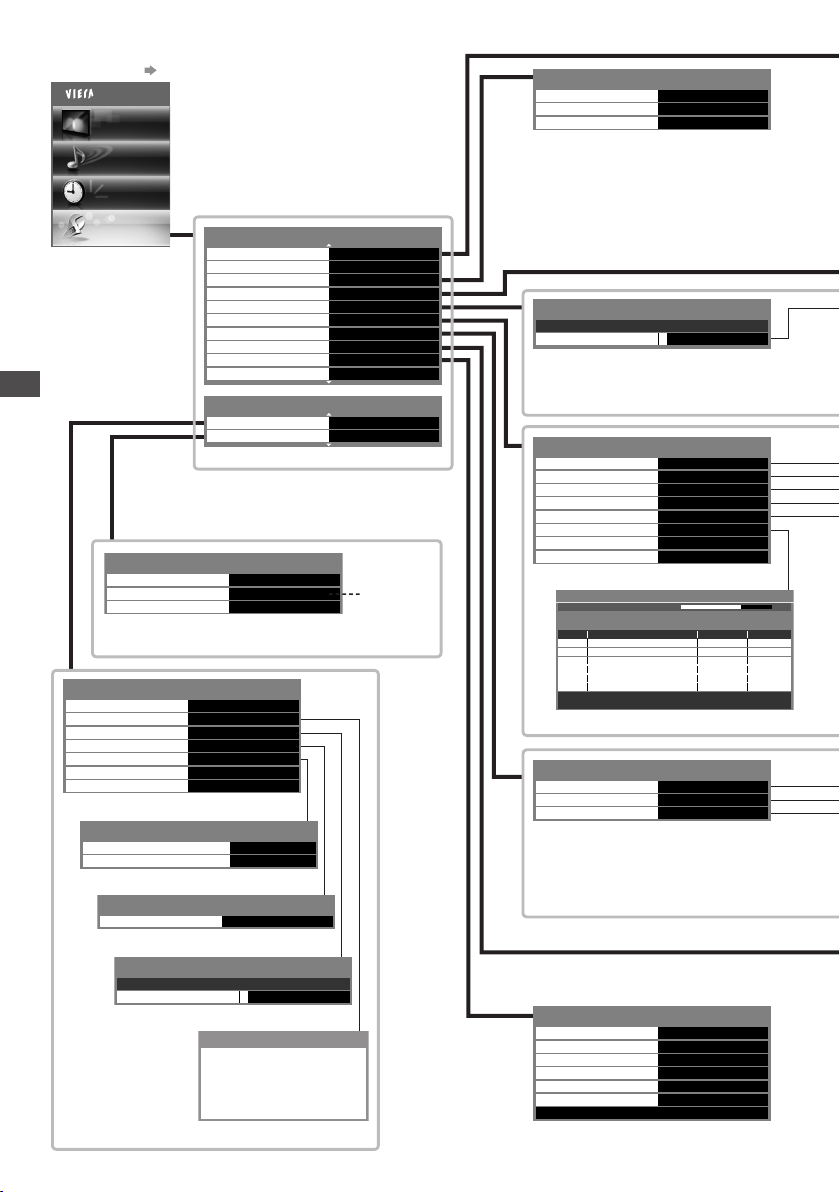

Overview (Setup)
How to operate (p. 30)
Main Menu
Sound
Timer
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
Access
180 minutes
Off
(p. 54)
How to Use Menu Functions
Setup
TV Guide Settings Access
Eco Navigation
Recording Setup
Link Settings
Child Lock
DVB Tuning Menu
Analogue Tuning Menu
Display Settings
Network Setup
DivX® VOD
System Menu
Other Settings
Other Settings
Power on Preference
Power on Channel List
Power Save
TV
Last
Off
System Menu
USB Keyboard Layout
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
English(UK)
Access
Access
Access
Access
Access
Access
System Update
Auto Update Search in Standby
System Update Search Now
Off
Access
Common Interface
Slot 1:
Module inserted
Available in DVB (p. 51)
Owner ID
Please enter new PIN
PIN
* * * *
Shipping Condition
All tuning data will be erased
Are you sure ?
Are you sure ?
(p. 36)
(p. 52)
(p. 36)
(p. 50)
Access
Access
Access
Access
Access
Access
Access
Access
Access
Access
Access
(p. 49)
(p. 34 - 36)
Available in
DVB
1/2
Child Lock-PIN Entry
Please enter new PIN
PIN
* * * *
(p. 47)
2/2
DVB Tuning Menu
Favourites Edit
Channel List
Auto Setup
Channel Sorting by Region
Manual Tuning
Update Channel List
New Channel Message
Signal Condition
Access
Access
Access
Access
Access
Access
On
Access
Available in DVB (p. 40 - 43)
DVB Update Channel List
Progress
This will take about 3 minutes.
CH Channel Name Type Quality
Free TV: 0 Pay TV: 0 Data: 0Radio: 0
CH 21 68
Searching
(p. 43)
Analogue Tuning Menu
Channel List
Auto Setup
Manual Tuning
Access
Access
Access
Available in Analogue (p. 40, 43, 44)
Network Setup
Connection Test
Network Type Wired
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Access
Connected
Access
Access
Access
ab-cd-ef-gh-ij-kl
(p. 72)
38
Page 39
TV Guide Settings Menu
TV Guide View
GUIDE Plus+ Postcode
GUIDE Plus+ Information
Enter Postcode
Postcode
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9
Normal
Access
Access
(p. 34)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
(p. 34)
Link Settings
VIERA Link
HDMI Content Detection
AV1 out
Standby Power Save
Intelligent Auto Standby
Q-Link Download
Sending Preset Data
Please wait!
0%100%
Remote control unavailable
On
Off
TV
On
On (No reminder)
Access
(p. 34)
(p. 34)
Child Lock
Change PIN
Child Lock List
Parental Rating
Access
Access
No limit
Available in DVB
DVB Manual Tuning
Frequency
Signal Quality
Signal Strength
No. Channel Name Type New
Free TV: 0 Pay TV: 0 Data: 0Radio: 0
Analogue Manual Tuning
Manual Tuning
[CH21]
474,00 MHz
0
0
Stopped
21 68
Store
10
10
(p. 41)
(p. 44)
(p. 47)
CH331 BBC1
Child Lock List - TV and AV
Name Input
101 BBC 1 Wales
7 BBC THREE
14 E4C
VCR
1 BBC1
2 *****
AV1
AV2
All DVB Channels
70 CBBC Channel
72 Cartoon Nwk
105 BBCi
719 BBC Radio Wales
720 BBC Radio Cymru
1 BBC ONE Wales
7 BBC THREE
Channel Sorting by Region
GBR>
Best signal quality (All Regions)
England Regions>
Region choice available
Analogue Auto Setup
Scan
This will take about 3 minutes.
CH Channel Name
29
30
Analogue: 2
CH 21 68
Searching
DVB
DVB
DVB
Analogue
Analogue
Analogue
External
External
Type
Free TV
Free TV
Free TV
Analogue
Analogue
Analogue
AV
AV
DVB Favourites Editor
(p. 43)
DVB Auto Setup
Progress
This will take about 3 minutes.
Free TV: 4 Pay TV: 0 Data: 0Radio: 0
(p. 41)
(p. 40)
Lock
(p. 47)
All DVB Channels Favourites1
1 BBC One Wales
7 BBC THREE
14 E4
CBBC Channel70
72 Cartoon Nwk
BBCi
105
BBC Radio Wales
719
BBC Radio Cymru
720
CH 21 68
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
Analogue Channel List
1 BBC1
2 *****
3 *****
4 *****
5 *****
6 *****
7 *****
Searching
Free TV
Free TV
Free TV
Free TV
(p. 42)
Quality
10
10
10
(p. 40)
(p. 44)
How to Use Menu Functions
Display Settings
Teletext
Teletext Character Set
Preferred Teletext
Preferred Subtitles
Input Labels
Banner Display Timeout
Playing Time Display
Radio Mode
FASTEXT
West
Irish
English
Access
3 seconds
OnVIERA Connect Banner
On
Off
(p. 35)
Available in Analogue
Available in DVB
Available in DVB
Input Labels
AV1
AV2
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
DVB
Input Labels
DVD
AV2
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
DVB
AnalogueAnalogue
1/2
2/2
(p. 48)
39
Page 40

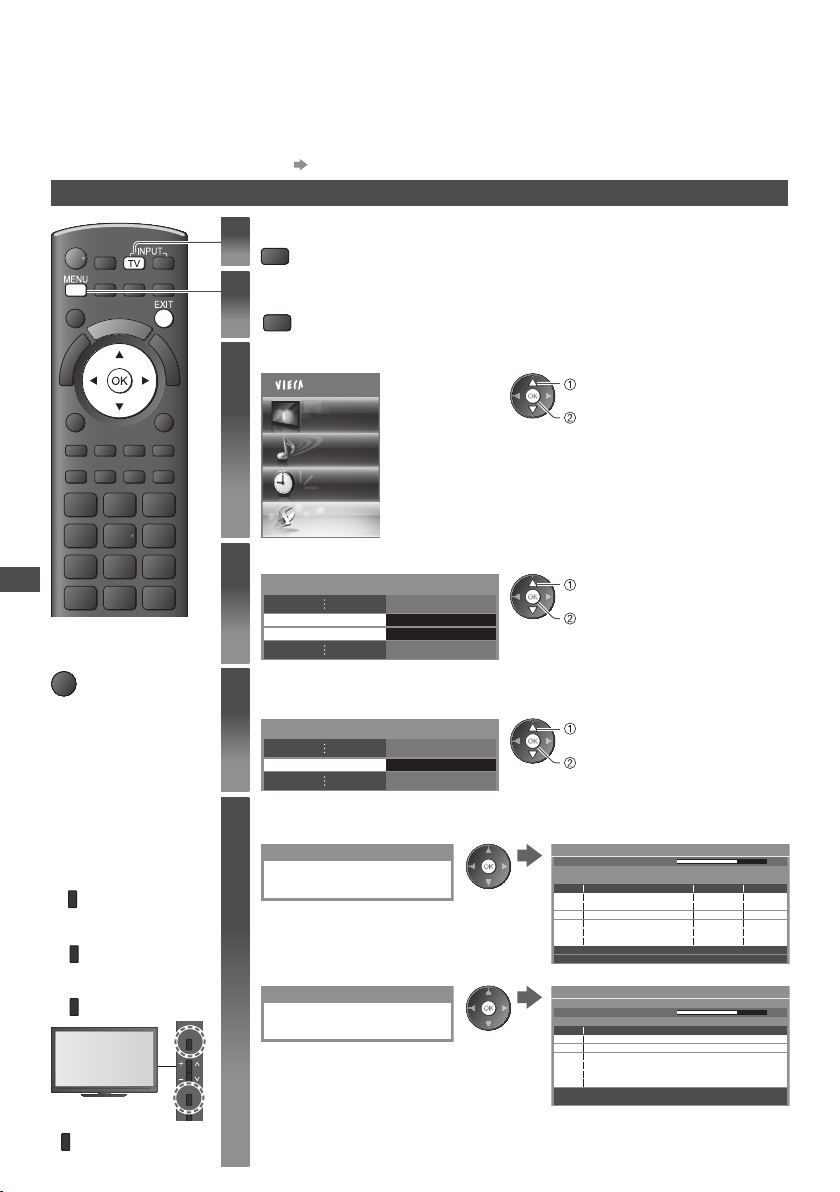

Retuning from Setup Menu
Automatically retune the channels received in the area.
This function is available if channel tuning is already performed.
•
Only the selected mode is retuned. All the previous tuning settings are erased.
•
If Child Lock PIN number (p. 47) has been set, the PIN number is required.
•
If tuning has not been done completely [Manual Tuning] (p. 41, 44)
•
DVB or Analogue channels
Select DVB or Analogue
1
TV
Display the menu
2
MENU
Select [Setup]
Retuning from Setup Menu
■
To return to TV
EXIT
3
4
5
Main Menu
Sound
Timer
Setup
Select [DVBTuningMenu] or [AnalogueTuningMenu]
DVB Tuning Menu
Analogue Tuning Menu
Access
Access
Select [Auto Setup]
Example :
DVB Tuning Menu
select
access
select
access
The displayed item depends on the selected
•
mode.
select
For Auto Setup, using
the buttons on the side
panel of the TV (p.9)
1 Press repeatedly until
[Auto Setup] appears
F
2 Access [Auto Setup]
TV
3 Start [Auto Setup]
TV
To return to TV
•
F
40
Auto Setup Access
Start Auto Setup (Settings are made automatically)
6
Example : DVB
DVB Auto Setup
All DVB tuning data will be erased
Example : Analogue
Analogue Auto Setup
F
TV
AV
All analogue tuning data will be erased
The analogue settings are downloaded to a Q-Link compatible equipment connected
•
to the TV in Analogue mode.
access
DVB Auto Setup
Progress
This will take about 3 minutes.
CH Channel Name Type
CBBC Channel
62
BBC Radio Wales
62
E4
62
62 10Cartoon Nwk
Free TV: 4 Pay TV: 0 Data: 0Radio: 0
Analogue Auto Setup
Scan
This will take about 3 minutes.
CH Channel Name
29
30
Analogue: 2
CH 21 68
Searching
CH 21 68
Searching
Free TV
Free TV
Free TV
Free TV
Quality
10
10
10
When the operation is completed, the channel at the lowest position will be displayed.
Page 41

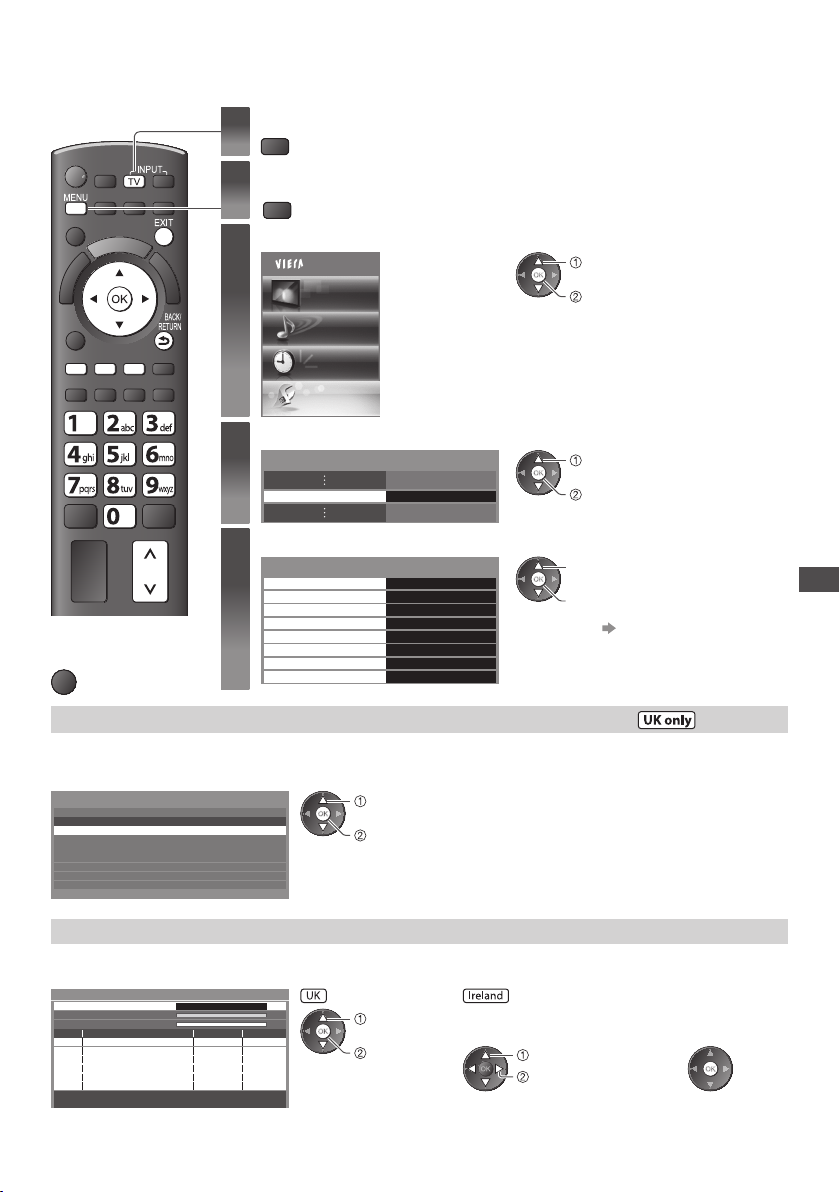

Tuning and Editing Channels (DVB)
You can retune channels or make your favourite channel lists, skip unwanted channels, etc.
Select DVB
1
TV
Display the menu
2
MENU
Select [Setup]
3
4
Main Menu
Sound
Timer
Setup
Select [DVB Tuning Menu]
select
access
select
access
select
access / store
[Auto Setup] “Retuning from Setup
Menu” (p. 40)
■
To return to TV
EXIT
DVB Tuning Menu Access
Select one of the following functions
5
DVB Tuning Menu
Favourites Edit
Channel List
Auto Setup
Channel Sorting by Region
Manual Tuning
Update Channel List
New Channel Message
Signal Condition
Access
Access
Access
Access
Access
Access
On
Access
•
Sort DVB channels according to the region [Channel Sorting by Region]
You can sort DVB channels so that those with the best signal quality, or those for your preferred region, appear nearer the top
of your Channel List.
Normally, you should select [Best signal quality (All Regions)].
Channel Sorting by Region
GBR>
Best signal quality (All Regions)
England Regions>
Region choice available
(select repeatedly until you reach the available region)
•
select region
access
If you choose to select your preferred region, you could find channels with a
weaker signal appear nearer the top of your Channel List. If you have any image or
sound problems, select [Best signal quality (All Regions)] instead.
Set DVB channel manually [Manual Tuning]
Normally use [Auto Setup] or [Update Channel List] to retune DVB channels.
If tuning has not been done completely or for adjusting the direction of the aerial, use this function.
DVB Manual Tuning
Frequency
Signal Quality
Signal Strength
No. Channel Name Type New
Free TV: 0 Pay TV: 0 Radio: 0 Data: 0
All channels found will be added to the
•
Channel List.
Stopped
[CH21]
474,00 MHz
0
0
10
10
select
frequency
search
1 Adjust frequency for each
channel
select channel
adjust frequency
Set where the level of [Signal
•
Quality] becomes the maximum.
2 Search
Tuning and Editing Channels
41
Page 42
List favourite DVB channels [Favourites Edit]
Create your favourite channel lists from various broadcasters (up to 4: [Favourites]1 to 4).
The DVB Favourites lists are available for switching in the Information banner (p. 18) and from [Category] in the TV Guide screen (p. 21).
1 Select a channel to list ( : Encrypted channel)
DVB Favourites Editor
All DVB Channels Favourites1
1 BBC One Wales
7 BBC THREE
14 E4
CBBC Channel70
72 Cartoon Nwk
BBCi
105
BBC Radio Wales
719
BBC Radio Cymru
720
select
To display other Favourites
•
(green)
2 Add it to the Favourites list
DVB Favourites Editor
All DVB Channels Favourites1
1 BBC One Wales
7 BBC THREE
14 E4
CBBC Channel70
72 Cartoon Nwk
BBCi
105
BBC Radio Wales
719
BBC Radio Cymru
720
1 BBC One Wales
To add all channels to the list
•
(yellow)
■ To edit Favourites list
While the cursor is in the Favourites field to edit
To delete a channel
•
To move the channel
•
To name the Favourites
•
Tuning and Editing Channels
3 Store
BACK/
RETURN
select
delete
(green)
(red)
To delete all channels
•
(yellow)
Select the new position Select the turn Store
abc def
or
jkl
ghi
mno
tuvpqrs
wxyz
(green)
Set characters (maximum: ten characters) Store
User input
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
•
select
set
To use numeric buttons
“Characters table for
numeric buttons” (p. 96)
BACK/
RETURN
Note
Channel position numbers (known as logical channel numbers) can be swapped in Channel List.
•
To swap the channel position number [Channel List] (p. 43)
Check DVB signal [Signal Condition] Display a notification message
Selects a channel and checks the DVB signal condition.
A good Signal Strength is not an indication of best signal for DVB reception.
Please use the Signal Quality indicator as follows :
[Signal Quality] :
Green bar Good
•
Yellow bar Poor
•
Red bar Bad (Check the Terrestrial aerial)
•
Example :
DVB Signal Condition
Channel Name
Signal Quality
Signal Strength
Bit Error Rate
Network Name
Frequency
70 CBBC Channel
0
0
0.00E+00
Wenvoe
802,00 MHz, 64 QAM, 6940 kS/s
To change the channel
•
9
8
These bars show the maximum signal value
of the selected channel.
42
[New Channel Message]
Selects whether to give a notification message
when a new DVB channel is found. [Off] / [On]
New channels found!
Press OK to update channel list.
Press EXIT to ignore.
Selecting OK will perform [Update Channel List].
•
Page 43

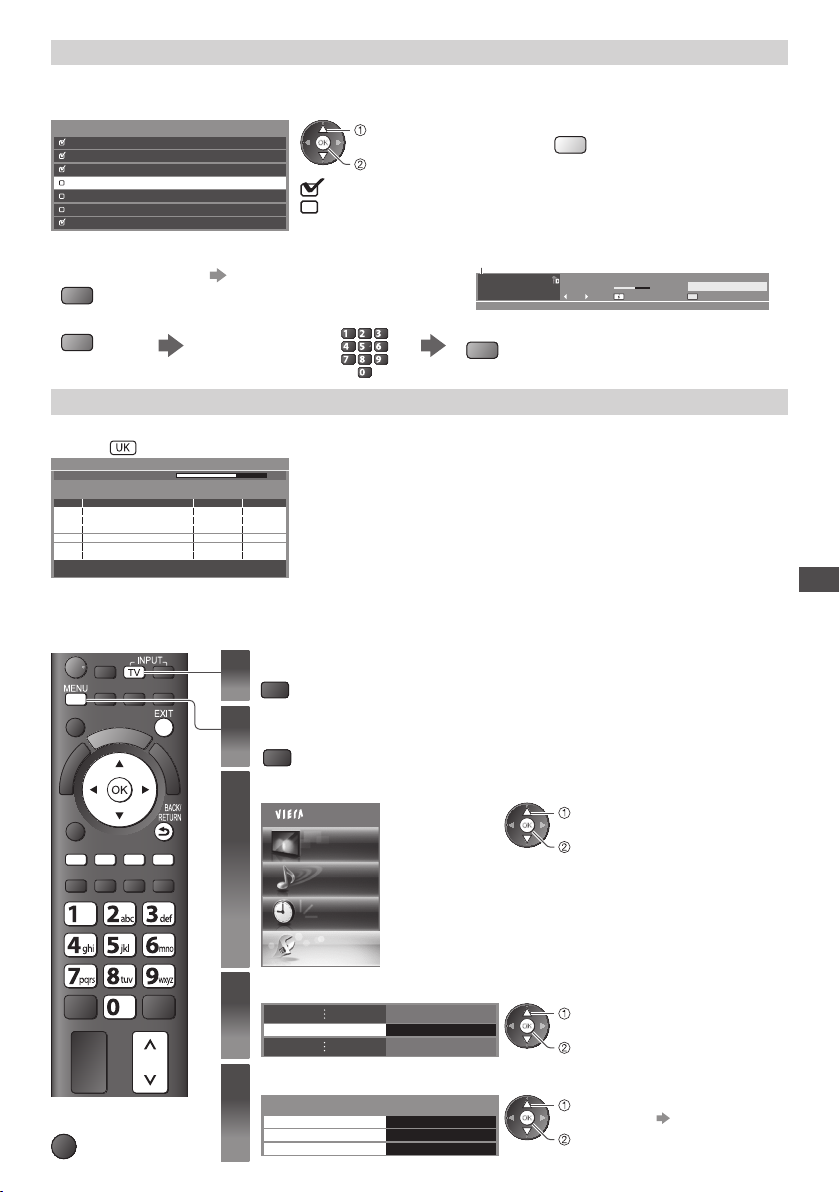

Skip unwanted DVB channels, Edit DVB Channels [Channel List]
You can hide unwanted DVB channels. The hidden channels cannot be displayed except in this function. Use this function to
skip unwanted channels.
Select a channel and [reveal] / [hide]
All DVB Channels
70 CBBC Channel
72 Cartoon Nwk
105 BBCi
719 BBC Radio Wales
720 BBC Radio Cymru
1 BBC ONE Wales
7 BBC THREE
select
[reveal] / [hide]
: [reveal]
: [hide] (skip)
To reveal all channels
•
(yellow)
■ To edit channels
You can also edit each channel in Channel List.
To retune each channel
•
(red)
To swap the channel position number (logical channel number)
•
(green)
[Manual Tuning] (p. 41)
(only for the revealed channels)
Enter the new
position number
ghi
abc def
jkl
tuvpqrs
mno
wxyz
Update DVB channel automatically [Update Channel List]
You can add new channels, delete removed channels, update channel name and position automatically to Channel List.
Example :
DVB Update Channel List
Progress
This will take about 3 minutes.
CH
CH 21 68
Channel Name Type Quality
Channel List is updated while keeping your settings in [Favourites Edit], [Channel
•
List], [Child Lock], [Timer Programming], etc.
Depending on the signal condition, the update may not work properly.
•
Channel position number
1
BBC ONE WALES
Store
(green)
Coronation Street
20:00 - 20:55
Now Info
All DVB Channels
Select favourites
20:35
Free TV: 0 Pay TV: 0 Data: 0Radio: 0
Searching
(Analogue)
You can retune channels or skip unwanted channels, edit channels etc.
Select Analogue
1
TV
Display the menu
2
MENU
Select [Setup]
■
To return to TV
EXIT
3
4
5
Main Menu
Sound
Timer
Setup
Select [Analogue Tuning Menu]
Analogue Tuning Menu Access
Select one of the following functions
Analogue Tuning Menu
Channel List
Auto Setup
Manual Tuning
Access
Access
Access
select
access
select
access
select
access
[Auto Setup]
•
“Retuning from
Setup Menu”
(p.40)
Tuning and Editing Channels
43
Page 44

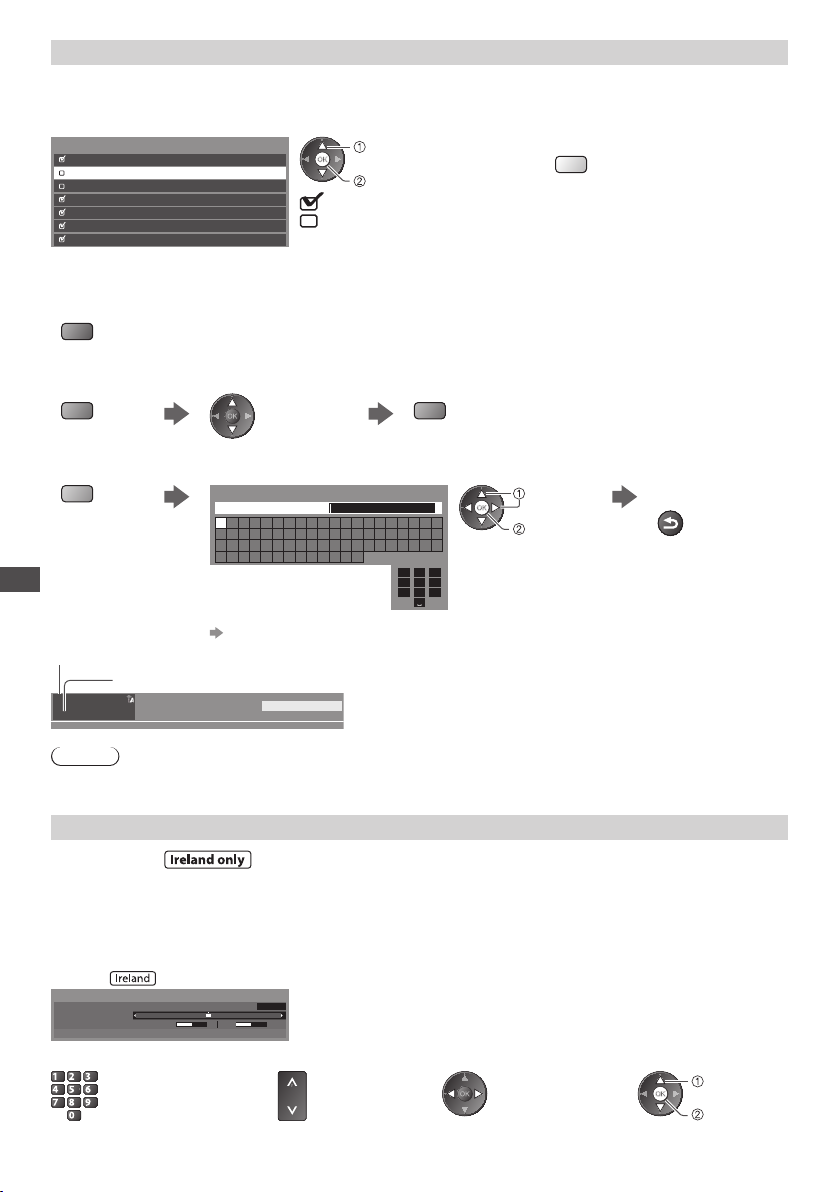

Skip unwanted Analogue channels, Edit Analogue channels [Channel List]
You can hide unwanted Analogue channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.
Select a channel and [reveal] / [hide]
Analogue Channel List
1 BBC1
2 *****
3 *****
4 *****
5 *****
6 *****
7 *****
select
[reveal] / [hide]
: [reveal]
: [hide] (skip)
To reveal all channels
•
(yellow)
■ To edit channels
You can also edit each channel in Channel List.
To retune each channel ([Manual Tuning]) (see below)
•
(red)
To move the channel position
•
Select the new position Store
(green) (green)
To rename the channel name
•
Tuning and Editing Channels
Channel position
1
ITV
(blue)
Channel name
CH23
Set characters (maximum: five characters) Store
Edit channel name
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
To use numeric buttons
•
“Characters table for numeric buttons” (p.96)
All Analogue Channels
23:35
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
select
set
BACK/
RETURN
Note
If a VCR is connected only with the RF cable, edit [VCR].
•
Set Analogue channel manually [Manual Tuning]
[Fine Tuning]
Use to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.)
[Manual Tuning]
Set Analogue channel manually after Auto Setup.
If a VCR is connected only with the RF cable, it is recommended to select channel position [0].
•
Example :
Analogue Manual Tuning
Fine Tuning
Manual Tuning
CH 1 99 41H: 21
Store
CH331 BBC1
1 Select the channel position 2 Select the channel 3 Search 4 Select [Store]
abc def
jkl
ghi
mno
tuvpqrs
wxyz
44
select
store
Page 45

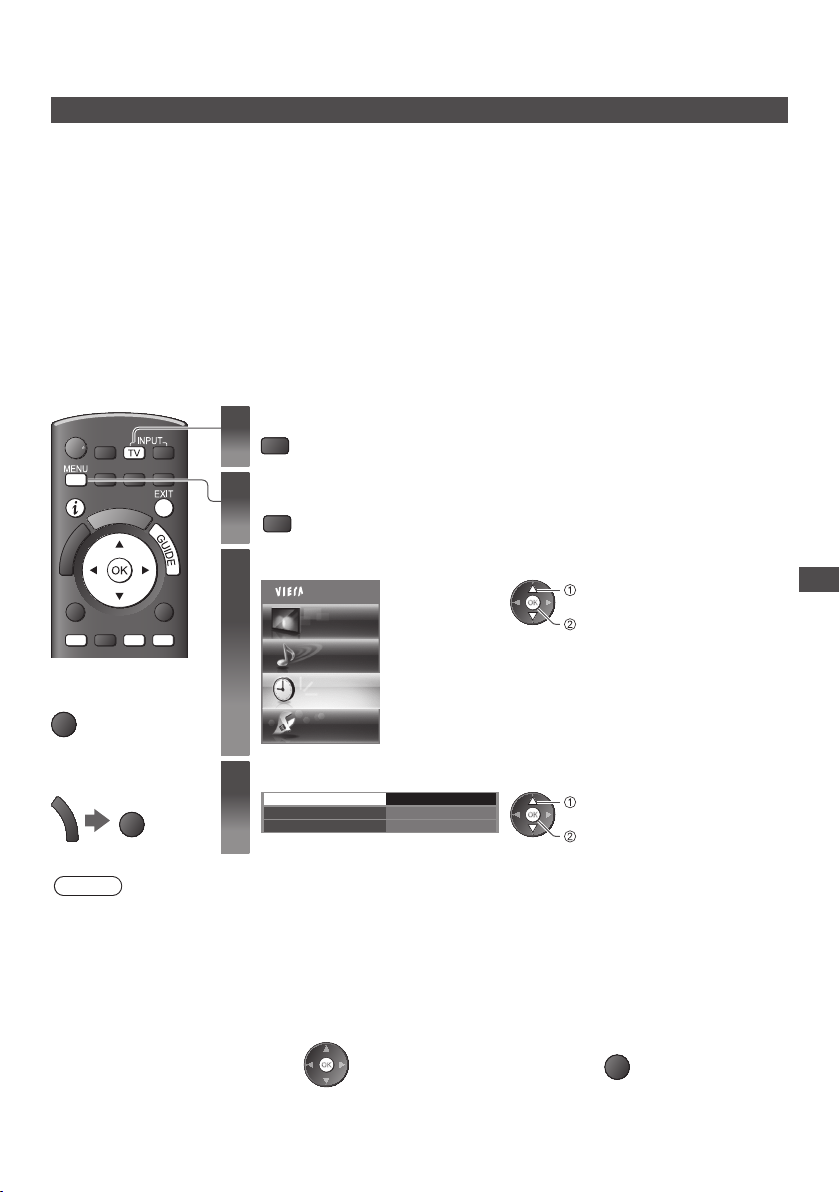

Timer Programming
Timer Programming from Menu
The Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external recorder
or the USB HDD. At the correct time, the T V will tune to the correct channel automatically to record even if the TV is in Standby mode.
TV Guide may also be used to set timer programming event (p. 22).
Timer Programming can store up to 15 events.
•
For recording using Timer Programming, the TV must be either On or in standby. For reminders to be displayed, the TV must be On.
•
No other channel can be selected while the recording of Timer Programming is in progress.
•
It may not be possible to record an encrypted programme (which is copy-protected).
•
When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the TV.
•
If a compatible recorder with Q-Link or similar technologies is connected to the TV (p.83) and the [Link Settings] (p.34) are
correct, no setting of the recorder is required. Also read the manual of the recorder.
If the recorder is not compatible with Q-Link or similar technologies, set the timer of the recorder in addition to the Timer
•
Programming on the TV. For preparations of a recorder, read the manual of the recorder.
When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording
•
Setup] (p.54).
Recordings to the external recorders are always in standard definition composite video via SCART, even if the original
•
programme is in high definition.
Select the tuner you want to use (DVB or Analogue)
1
TV
Display the menu
2
MENU
Select [Timer]
3
Main Menu
select
access
Timer Programming
Sound
■
To return to TV
EXIT
■
To unlock the tuner
and stop recording
G
•
•
•
•
•
•
•
EXIT
U
I
D
E
Note
Check that the LED is orange. If not, timer programmes are not active or not stored.
Timer Programming reminder messages will remain displayed until one of the following occurs:
• You press the OK button to view the programme or the EXIT button to cancel the reminder.
• The timer programming event that the reminder is set for ends.
“!” identifies that any timer programming events have overlapped. [Ext Rec.] and [USB HDD Rec.] are given priority over
[Reminder]. As for the overlapped two or more [Ext Rec.] / [USB HDD Rec.], the first timer programming event starts and
finishes as programmed. The next timer programming event can then start.
2 minutes before the starting time, a reminder message appears if you are watching TV.
• To remove the message and start
the programme
The recording of Timer Programming will automatically change to the programmed channel 10 seconds before the starttime.
To stop recording of the timer programming event, it may be necessary to stop the recorder manually.
The recording of Timer Programming will be performed even if the TV is in Rewind LIVE TV recording (p.57) or Pause Live TV
recording (p.86). In this case, these recordings will be cancelled.
Select [Timer Programming]
4
Off Timer
Auto Standby
Timer
Setup
AccessTimer Programming
Off
Off
• To cancel the Timer
Programming
select
access
EXIT
45
Page 46
Set timer programming event details [Timer Programming]
1 Start making the settings
2 Select the function ([Ext Rec.], [USB HDD Rec.] or
select
[Reminder])
[Ext Rec.] / [USB HDD Rec.] :
to record the programme to the external recorder or the USB HDD
When the start time comes, the channel will be switched automatically
and the video and audio signals will be output. 2minutes before the
starting time, a reminder message appears if you are watching TV.
[Reminder] : to remind you to watch the programme
When you are watching TV, a reminder message appears
2minutes before the start time.
Press the OK button to switch to the programmed
channel.
3 Set the channel, date and time (repeat the operations as below)
Set items in the order of 1 to 4.Store
select the item
set
: Displayed if the timer programming events are overlapped
Timer programming - Programmes according to the time setting
Timer Programming
Timer Programming
Function No. Date Start EndChannel Name
Ext Rec.
D
Reminder
D
Ext Rec.
D
Ext Rec.
D
Change function
EXIT
Store timer
Select
RETURN
72 BBC 2W 20:00 21:30
<TIMER>
14 E4
The Bill
1 BBC ONE
DIY SOS
BBC ONE
<TIMER>
------ --:----:-- --:--
Remaining Capacity:
500GB (50%)
Guide
S/P
STTL
0
Wed 27.10.2010 10:46
Wed 27 Oct
Wed 27 Oct
Wed 27 Oct
Thu 28 Oct
9
Information of the USB HDD
(if available)
1 Channel number
D
: DVB / A : Analogue
You cannot change the mode within the menu.
•
1, 3 and 4 can also be
•
entered with numeric buttons.
abc def
jkl
ghi
mno
tuvpqrs
wxyz
(90 min.)
21:00 22:00
(60 min.)
22:45 23:00
(15 min.)
10:30 11:30
(60 min.)
1/1
4 Ending time
3 Starting time
Duration (automatic display)
Records with subtitles (if available)
To indicate this
•
(yellow)
( Press again to remove subtitles)
2 Date
one day ahead
daily or weekly (press repeatedly)
[Daily Sun-Sat] : Sunday to Saturday
•
[Daily Mon-Sat] : Monday to Saturday
•
[Daily Mon-Fri] : Monday to Friday
•
[Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun] :
•
Sametime on the same day every week
Guide
:
Guide link programming - Programmes according to the TV Guide signal (p. 23)
S/P
:
Split Programme programming (p. 23)
These functions are not available in Analogue mode.
•
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start
and end times are changed by the broadcaster, the timer programming event will follow the change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if correct information is
received from broadcasters.
■ To change a timer programming event ■ To cancel a timer programming event
Select the programme to be changed Select the programme to be deleted
select
access
Correct as necessary
(as above)
(red)
■ To record with subtitles (if available) ■ To cancel a timer programming event temporarily
Select the programme to record with subtitles Select the programme to be cancelled
(yellow) (blue)
Each time pressed:
•
auto
off cancel stop cancelling
Each time pressed:
•
■ To view details of the programming (only for Guide link programming)
Select the programme to be viewed
Press again to return to TimerProgramming menu.
•
46
Page 47
Child Lock
You can lock specific channels / AV input terminals and control who watches them.
When the locked channel / input is selected, a message appears; by entering the PIN number, you can watch it.
Display the menu
1
MENU
Select [Setup]
2
3
Main Menu
Sound
Timer
Setup
Select [Child Lock]
select
access
select
access
■
To return to TV
EXIT
AccessChild Lock
Control channel audience [Child Lock]
1 Enter the PIN number (4 digits)
Child Lock-PIN Entry
Please enter new PIN
PIN
* * * *
abc def
jkl
ghi
tuvpqrs
Enter the PIN number twice at first setting.
•
mno
Make a note of the PIN number in case you forget it.
•
wxyz
2 Select [Child Lock List]
Child Lock
Change PIN
Child Lock List
3 Select the channel / input to be locked
Child Lock List - TV and AV
Name Input
101 BBC 1 Wales
7 BBC THREE
14 E4C
VCR
1 BBC1
2 *****
AV1
AV2
To lock all
•
DVB
DVB
DVB
Analogue
Analogue
Analogue
External
External
Access
Type
Free TV
Free TV
Free TV
Analogue
Analogue
Analogue
AV
AV
Lock
To cancel all locks
•
(green) (yellow) (blue)
select
access
select
lock
: Appears when the channel / input is locked
To jump to the top of the next input
•
To cancel
•
Select the locked channel / input
■ To change the PIN number
1. Select [Change PIN] 2. Enter a new PIN number twice
Child Lock
Change PIN
Child Lock List
Access
select
access
abc def
jkl
ghi
mno
tuvpqrs
wxyz
■ To set Parental Rating
If the DVB programme has the rated information for over the selected age, you have to enter the PIN number to watch
(depending on the broadcaster).
Select [Parental Rating] and set an age for the restriction of programmes.
Child Lock
Change PIN
Child Lock List
Parental Rating
No limit
Note
Setting [Shipping Condition] (p.49) erases the PIN number and all settings.
•
select
access / store
Child Lock
47
Page 48

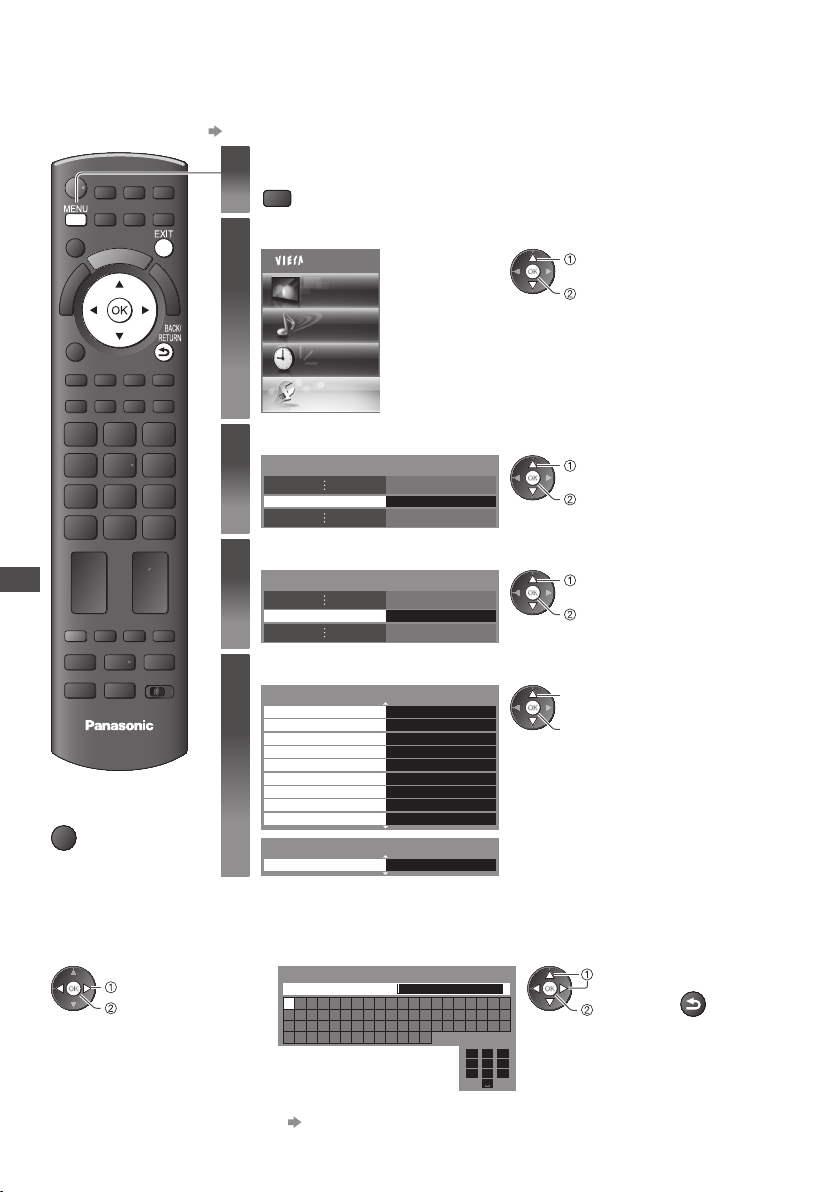

Input Labels
For easier identification and selection of the input mode, you can label each input mode or skip terminals that are not
connected to any equipment.
To select the input mode (p.27)
•
Display the menu
1
MENU
Select [Setup]
Input Labels
2
3
4
Main Menu
Sound
Timer
Setup
Select [Display Settings]
AccessDisplay Settings
Select [Input Labels]
Display Settings
Input Labels Access
select
access
select
access
select
access
Select an input terminal
TV
■
To return to TV
EXIT
5
Input Labels
AV1
AV2
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
DVB
Input Labels
Analogue
DVD
AV2
COMPONENT
PC
HDMI1
HDMI2
HDMI3
HDMI4
DVB
Analogue
1/2
select
access / store
The labels you set will be displayed in the
[InputSelection] menu (p.27), [TVSelection]
menu or banner.
If [Skip] is selected, the input will not be
•
displayed in the [InputSelection] menu and
you cannot select the mode.
2/2
■ User input
You can name each input mode yourself.
1 Select [User input] 2 Set characters (maximum: ten characters) 3 Store
select
set
48
select
access
User input
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
To use numeric buttons
•
“Characters table for numeric buttons” (p.96)
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
BACK/
RETURN
Page 49
Shipping Condition
Resets the TV to its original condition with no channels tuned in.
All settings other than [Owner ID] and [USB HDD Setup] are reset (channels, picture, sound settings, etc.).
To retune TV channels only, e.g. after moving house “Retuning from Setup Menu” (p.40)
•
Display the menu
1
MENU
Select [Setup]
2
3
4
Main Menu
Sound
Timer
Setup
Select [System Menu]
System Menu
Other Settings
Access
Select [Shipping Condition]
System Menu
USB Keyboard Layout
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
English(UK)
Access
2/2
select
access
select
access
select
access
Shipping Condition
TV
■
To return to TV
EXIT
Restore Settings [Shipping Condition]
1 Check the message and initialise 2 Follow the on screen instructions
Shipping Condition
All tuning data will be erased
Are you sure ?
Are you sure ?
1
(Confirm)
2
(Confirm)
3
(Start [Shipping Condition])
Reset to Factory Shipping Condition
[Auto Setup] will automatically start
•
when Mains power On / Off switch is
next turned On. (p.12)
Completed.
Please switch o TV.
49
Page 50
Owner ID
Entry of the PIN number and personal information (your name, address and postcode).
In the unfortunate event of theft, the Owner ID will help the Police to determine the owner.
Display the menu
1
MENU
Select [Setup]
2
3
■
To return to TV
EXIT
Owner ID
Input owner ID [Owner ID]
1 Enter the PIN number (4digits)
Owner ID
Please enter new PIN
PIN
2 Select the item (NAME / HOUSE NO / POSTCODE) and set characters
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
select
access
3 Exit the menu
EXIT
4
* * * *
* * * *
Main Menu
Sound
Timer
Setup
Select [System Menu]
System Menu
Other Settings
Access
Select [Owner ID]
AccessOwner ID
abc def
Enter the PIN number twice at first setting.
•
jkl
ghi
mno
Make a note of the PIN number in case you forget it. The PIN number
•
tuvpqrs
wxyz
cannot be reset.
User input
NAME
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
select
set
To use numeric buttons “Characters table for numeric buttons” (p.96)
•
2/2
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
select
access
select
access
select
access
Return to select other items
BACK/
RETURN
Select the next item and
•
repeat the operations.
■ To check the personal information stored
Hold down for
about 5 seconds
F
■ To change the PIN number
1. Select [PIN] 2. Enter a new PIN number twice
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
50
Owner ID
NAME
HOUSE NO
POSTCODE
EXIT
The PIN number is not displayed.
•
* * * *
* * * * *
* * * * *
* * * * * *
select
access
abc def
jkl
ghi
mno
tuvpqrs
wxyz
F
TV
AV
Page 51
Using Common Interface
The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules.
This TV works only for Pay T V modules complying with CI standard.
This function is not available for BskyB’s Sky channels.
•
Video and audio signals may not be output depending on broadcasts or services.
•
Caution
Turn Off Mains power On / Off switch whenever
•
inserting or removing the CI module.
If a viewing card and a card reader come as a set, first
•
insert the card reader, then insert the viewing card into
the card reader.
Insert the module in the correct direction.
•
Insert the CI module (optional)
The features that appear on screen are dependent on the contents of the selected CI module.
•
Follow the instructions that came with the viewing card to tune in the encrypted channels. If encrypted channels do not
•
appear, perform the below to verify the card is recognised by the TV.
For more details, see the manual of the CI module, or check with the broadcaster.
•
Select DVB
1
TV
Display the menu
2
MENU
Select [Setup]
3
Main Menu
Sound
Timer
CI slot
Remove the cover before using CI slot.
•
Insert or remove straightly and
completely
CI module
Side of the TV
select
access
Using Common Interface
Setup
Select [System Menu]
■
To return to TV
EXIT
4
System Menu
Other Settings
Select [Common Interface]
5
System Menu
USB Keyboard Layout
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
Access Common Interface
6
Common Interface
Slot 1:
Access
English(UK)
Access
Module inserted
2/2
■ How to operate services by following the on screen operation guide
(Check the instructions provided with the CI module.)
Example :
Select, go
•
On screen operation guide may not correspond to the remote control buttons.
•
Symbol :
•
select
access
select
access
access
Coloured characters
•
Coloured button
51
Page 52

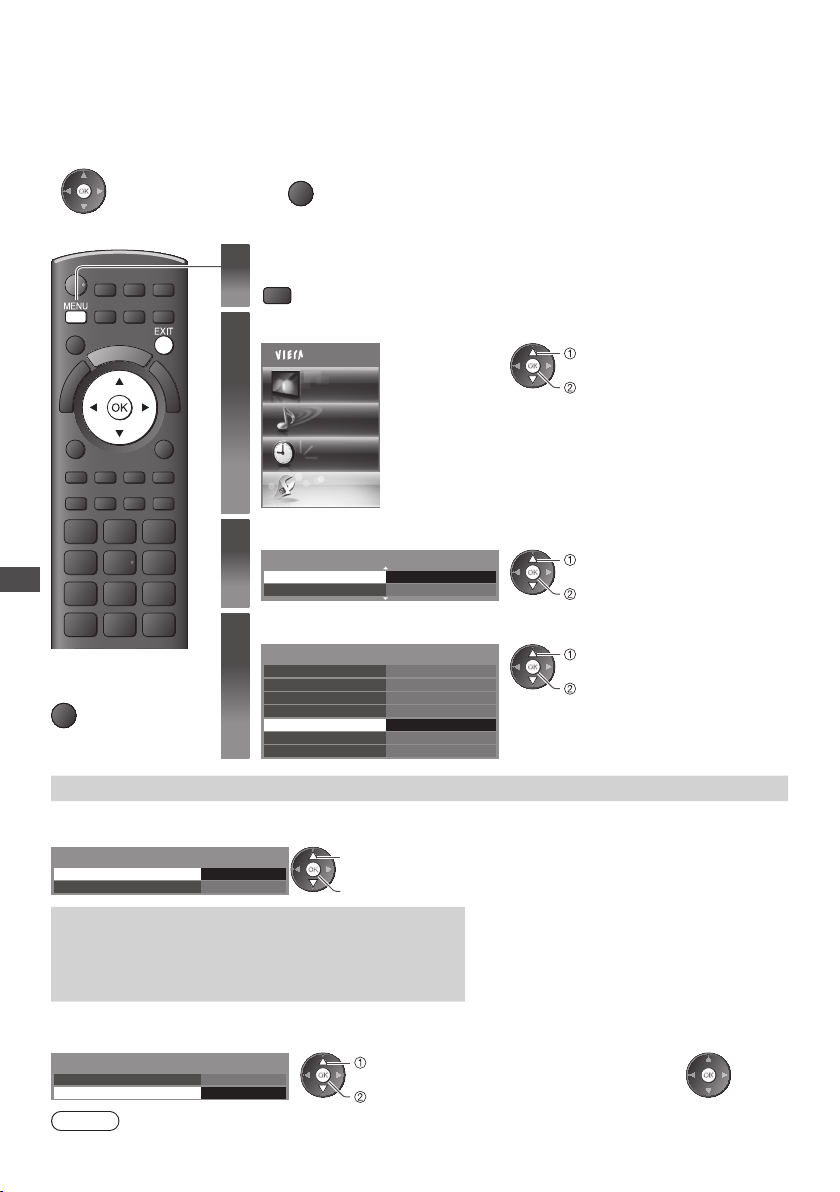

Updating the TV Software
From time to time, a new version of software may become available for download to enhance the performance or operations
of the TV.
In DVB mode, a notification banner will appear when one of the BBC channels is turned to if a new available software is found.
To download
•
You can update any new software automatically or manually.
1
2
3
Updating the TV Software
4
■
To return to TV
EXIT
If you choose not to download
•
EXIT
Display the menu
MENU
Select [Setup]
Main Menu
Sound
Timer
Setup
Select [System Menu]
System Menu
Other Settings
Access
Select [System Update]
System Menu
USB Keyboard Layout
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
English(UK)
Access
select
access
2/2
select
access
select
access
Update TV’s software system [System Update]
■ To update automatically
Select [Auto Update Search in Standby] and set to [On]
System Update
Auto Update Search in Standby
System Update Search Now
If System Update is performed, the software will be updated (it
may change TV functions).
If you do not wish to do so, set [Auto Update Search in Standby]
to [Off]. The notification banner will keep appearing during the
period of new software availability, usually 2 to 3 days.
Off
select
access / store
Automatically performs a search in standby and
•
downloads an update, if any software updates are
available.
The automatic updating is performed at night
•
under the following conditions:
• Standby (TV turned Off with the remote control)
• Recording of Timer Programming, Direct TV
Recording or One Touch Recording is not in
progress.
■ To update immediately
1 Select [System Update Search Now] 2 Searches for an update (for
System Update
Auto Update Search in Standby
System Update Search Now
Off
Access
Note
Download may take up to 60 minutes.
•
During software download and update, DO NOT perform any operations on the TV or switch Off the TV.
•
52
select
access
several minutes) and displays a
corresponding message if any
3 Download
Page 53

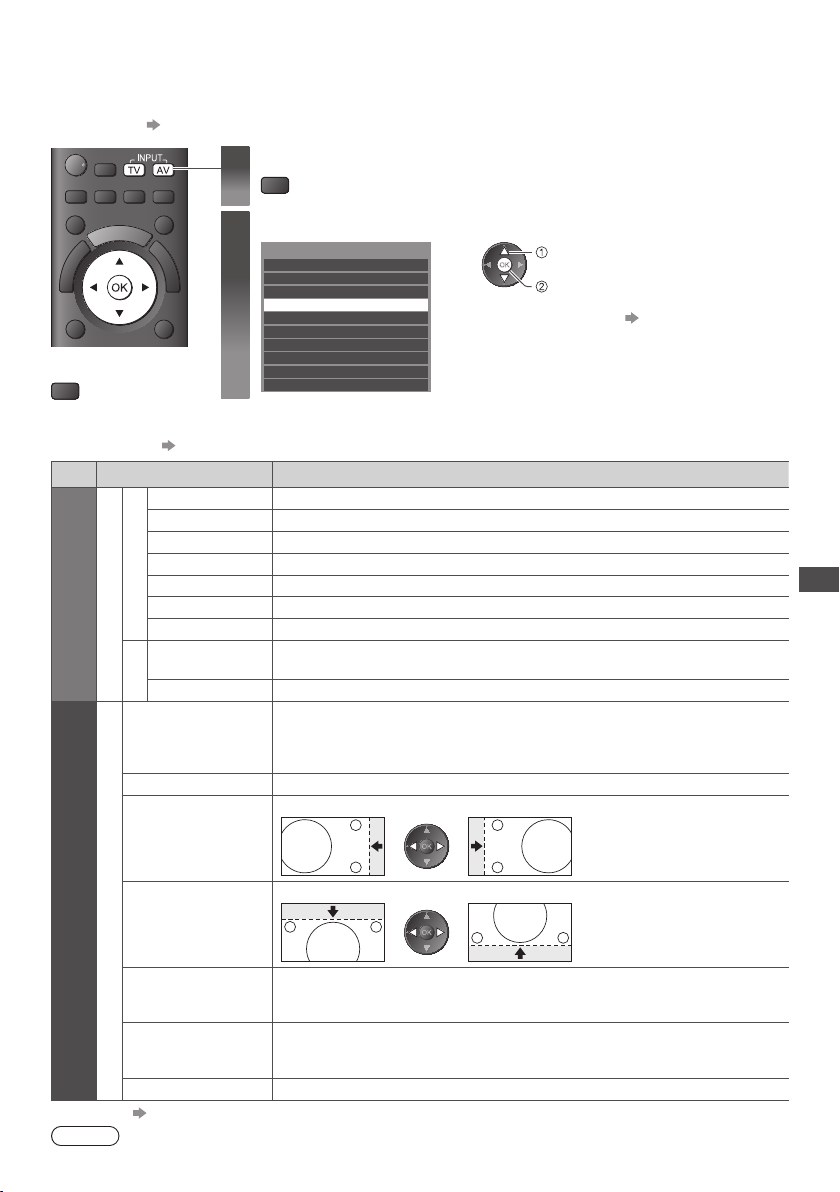

Displaying PC Screen on TV
The screen of the PC connected to the TV can be displayed on the TV.
You can also listen to PC sound with the audio cable connected.
To connect PC (p.90)
•
Select the external input
1
AV
Select [PC]
2
Input Selection
AV1
AV2
COMPONENT
PC
HDMI1
HDMI2
HDMI3
■
To return to TV
TV
HDMI4
TV
SD Card/USB
PC menu setting
To make settings “How to Use Menu Functions” (p. 30)
•
Menu
Setup
Advanced Settings
PC Setup
Item Adjustments / Configurations (options)
R-Gain Adjusts the white balance of bright red area
White Balance
G-Gain Adjusts the white balance of bright green area
B-Gain Adjusts the white balance of bright blue area
R-Cutoff Adjusts the white balance of dark red area
G-Cutoff Adjusts the white balance of dark green area
B-Cutoff Adjusts the white balance of dark blue area
Reset to Defaults
Gamma
Gamma
Reset to Defaults
Input Resolution
Clock Set to the minimum level if noise occurs
H-pos
V-pos
Press the OK button to reset to the default White Balance
Switches the gamma curve [1.8] / [2.0] / [2.2] / [2.4] / [2.6]
Please note the numerical values are reference for the adjustment.
•
Press the OK button to reset to the default Gamma
Switches to a wide view
VGA (640 × 480 pixels), WVGA (852 × 480 pixels), XGA (1,024 × 768 pixels),
•
WXGA (1,280 × 768 pixels, 1,366 × 768 pixels)
Options change depending on signals
•
Adjusts horizontal position
Adjusts vertical position
Corresponding signals (p.98)
•
If [H-freq.] or [V-freq.] is shown in red, the signals
•
may not be supported.
select
access
Displaying PC Screen on TV
Clock Phase
Sync
Reset to Defaults Press the OK button to reset to the default PC Setup settings
Other items (p.31 - 36)
•
Note
For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI cable (p.96).
•
Eliminates flicker and distortion
Adjust after Clock adjustment
•
Set to the minimum level if noise occurs
•
Chooses another synchronous signal if the image is distorted [H & V] / [On Green]
[H & V] : by the horizontal and vertical signals from your PC
[On Green] : by the green signal from your PC (if available)
53
Page 54

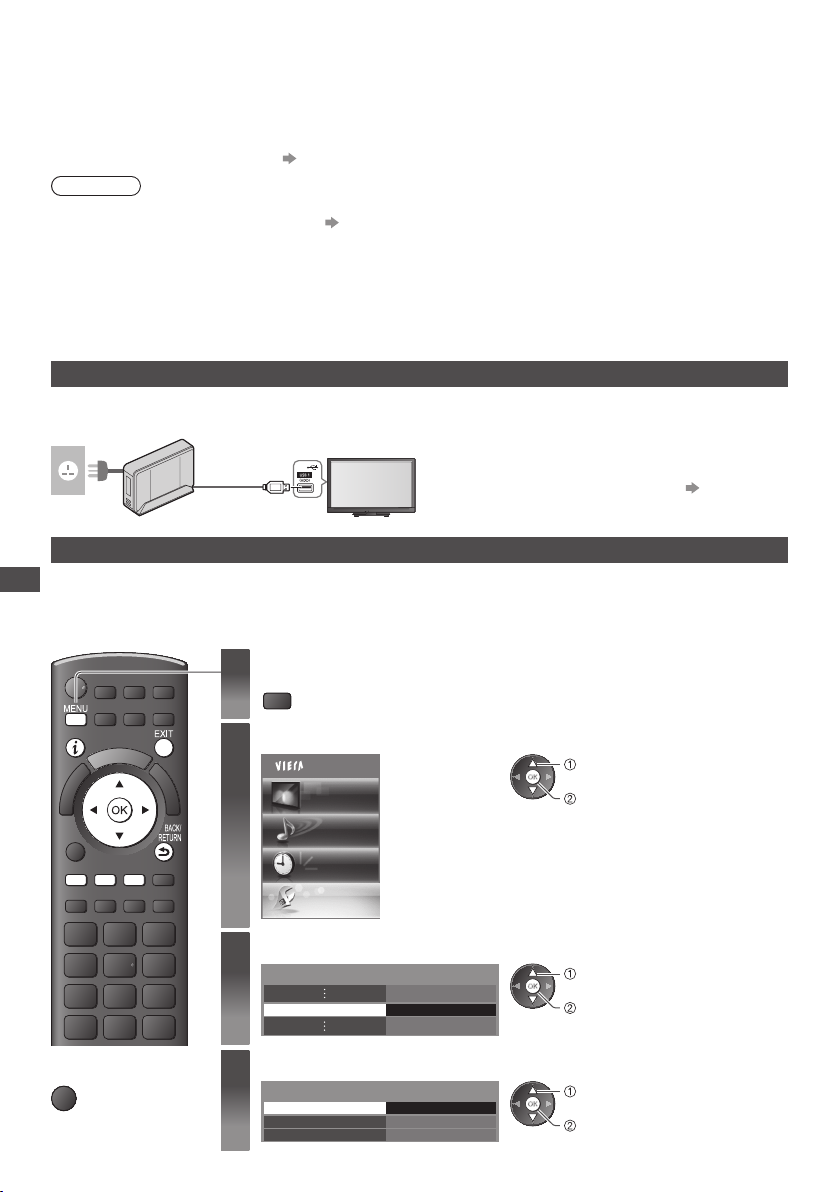

USB HDD Recording
You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways.
Analogue TV programme cannot be recorded to the USB HDD.
•
The data broadcasting (MHEG, etc.), radio broadcasting and the periods without any signal will not be recorded.
•
Not all the programmes can be recorded depending on the broadcaster and service provider.
•
For more information of the USB HDD (p.95)
•
Caution
All data in the USB HDD will be erased in the following cases :
•
• When formatting the USB HDD with the TV “Setting for USB HDD” (see below)
• When formatting the USB HDD to use on PC
When the TV is repaired due to a malfunction, you may have to format the USB HDD again with the T V to use it. (All data will
•
be erased when formatting.)
In order to use the USB HDD with your PC after recording with this TV, format it again on your PC. (Special operations or tools
•
may be necessary to format on your PC. For details, refer to the manual of the USB HDD.)
The data recorded to the USB HDD with this TV can only be played back on this T V. You cannot play back its contents with
•
another TV (including the TV of the same model number) or any PCs.
USB HDD connection
Connect the USB HDD to the USB 1 port.
socket outlet
USB cable
USB HDD
Setting for USB HDD
Format and setup the USB HDD with this TV in order to use it for recording.
Before the settings, connect the USB HDD (see above) and be sure to turn on the USB HDD.
•
USB HDD Recording
You cannot change the settings for the USB HDD while recording is in progress.
•
Please note that USB HDD will be formatted and all data in it will be erased when you format it.
•
Be sure to connect the USB HDD to the socket outlet.
•
Do not turn off or disconnect the USB HDD during
•
operation. It may cause malfunction of the drive or damage
the recorded data.
To remove the USB HDD safely from the TV (p.19, 55)
•
54
■
To return to TV
EXIT
Display the menu
1
MENU
Select [Setup]
2
3
4
Main Menu
Sound
Timer
Setup
Select [Recording Setup]
Recording Setup Access
Select [USB HDD Setup] and set
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
Access
180 minutes
Off
select
access
select
access
select
access
Page 55

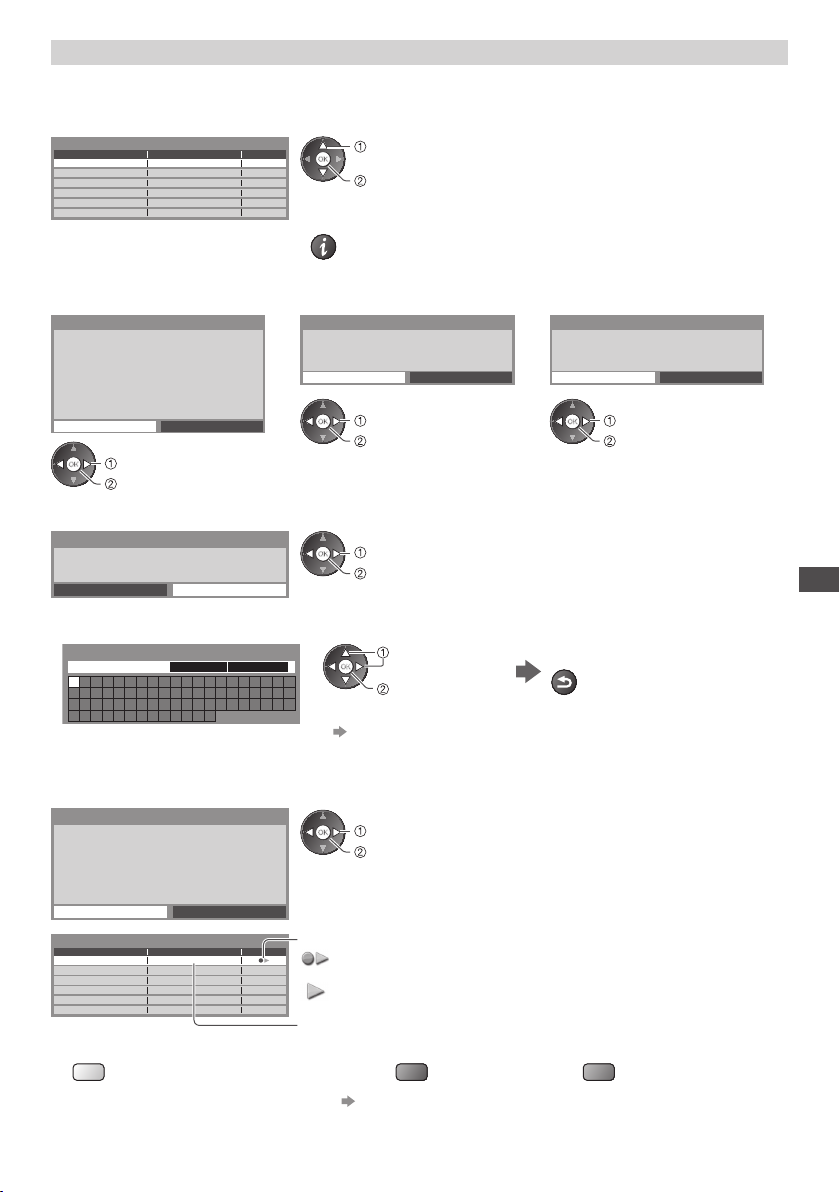

Setup the USB HDD [USB HDD Setup]
All the USB devices recognised as a mass storage device will be listed.
You can only choose one USB HDD for recording at a time.
•
1 Select the USB HDD for recording and start setup
USB HDD Setup
Product Name
USB Drive A
USB Flash Disk
•
•
select
access
Some USB HDD may not be displayed.
For the information of the highlighted device
2 Caution and confirmation of using USB HDD
Select [Yes] to proceed
Format
The data recorded to the USB HDD with this TV can only
be played back on this TV.
You cannot playback it with other TV (including the TV
of the same model number) or any PCs.
If your TV is repaired due to a malfunction, the USB
HDD may not be available with your repaired TV.
Continue?
Yes No
select [ Yes]
set
Format
To use this device for recording,
it must be formatted rst.
Yes No
Continue?
select [ Yes]
set
Format
This device will be formatted and
Yes No
all contents deleted.
Are you sure?
select [ Yes]
set
3 Confirmation of USB HDD name
Format
Name :
USB Drive A
Edit name?
Yes No
The name for the USB HDD is created automatically. If you want to edit the name, select [Yes].
Set characters Store
USB HDD
Name
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
USB HDD 1
select
set
select
BACK/
RETURN
set
To use numeric buttons
•
”Characters table for numeric buttons” (p.96)
4 Confirmation to enable USB HDD for recording
If the formatted USB HDD for recording already exists, this confirmation screen will be displayed to switch to enable this USB
HDD for recording.
Format
USB HDD Setup
Do you want to enable this
device now for recording?
When disconnecting any USB device,
always use the "Safely Remove USB" function
in the USB HDD Device Setup menu to avoid
any corruption of recorded content.
Yes No
Product Name
USB Drive A
USB Flash Disk
USB HDD 1
Mode
select [ Yes]
set
The USB HDD is available for recording / playing back.
:
Only one USB HDD on the list can be available for recording.
The USB HDD is available for playing back.
:
USB HDD Recording
USB HDD name is displayed
To remove the USB HDD safely from the TV
•
To f orm at
•
(yellow) (red) (green)
To set “Safely remove USB” in other conditions (p. 19)
•
To edit USB HDD name
•
55
Page 56
Recording the TV programme to USB HDD
You can record the current programme immediately by using [One Touch Recording].
You can also record the current programme constantly for the selected period by using [Rewind LIVE TV] so that you can go
back or pause the current programme.
Ensure the connection and setup are completed before start recording (p.54, 55)
•
Ensure not to connect or disconnect any USB devices during USB HDD recording. Otherwise the recording may not work
•
properly.
If the remaining capacity of the USB HDD is run out, the recording cannot be done.
•
Display the menu
1
MENU
Select [Setup]
USB HDD Recording
2
Main Menu
Sound
Timer
Setup
Select [Recording Setup]
3
TV Guide Settings
Eco Navigation
Recording Setup
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
Network Setup
DivX® VOD
Access
1/2
select
access
select
access
56
TV
■
To return to TV
EXIT
Select [One Touch Recording] or [Rewind LIVE TV]
4
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
180 minutes
Off
select
One touch direct TV recording - What you see is What you record
[One Touch Recording]
Recording the current programme in the USB HDD
immediately.
Select the maximum recording time
[30] / [60] / [90] / [120] / [180] (minutes)
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
select
access / store
180 minutes
Off
LED will turn to orange (flash) while
One Touch Recording is in progress.
LED
Page 57

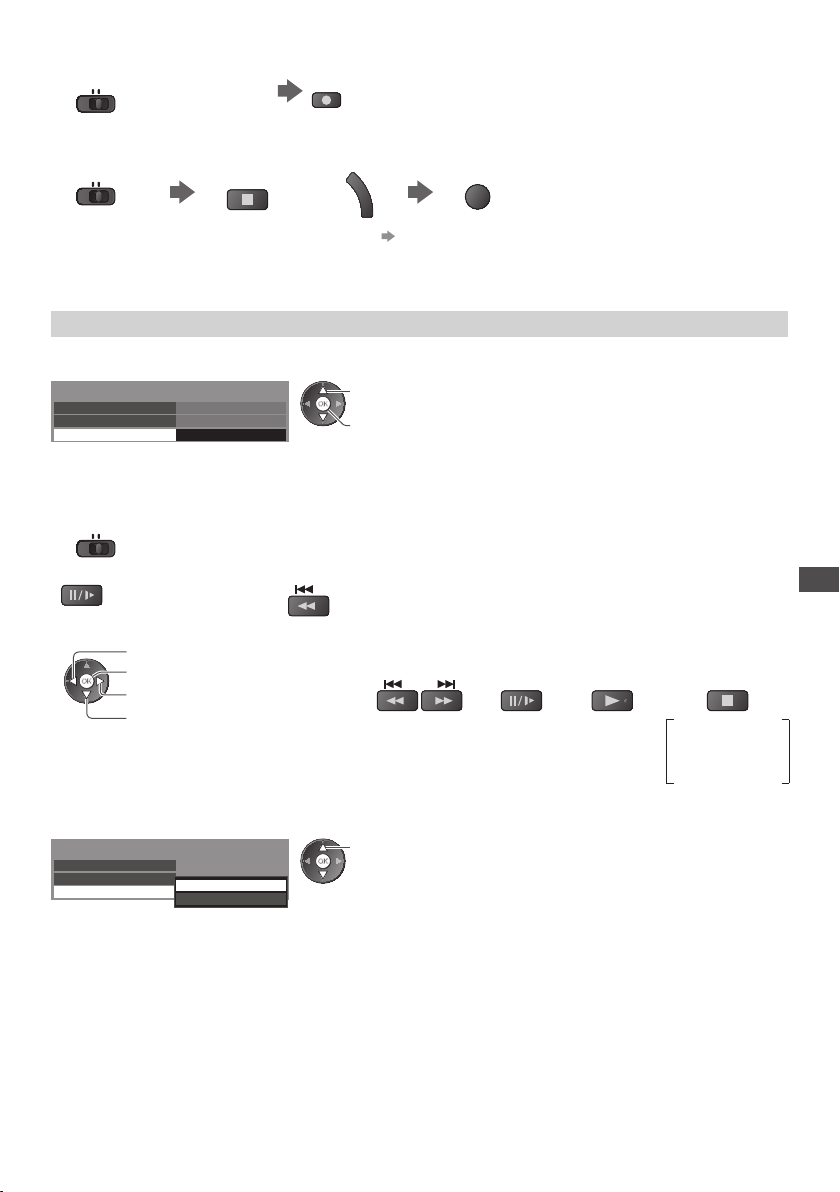

■ To start One Touch Recording
Set the position to “TV” Start
DVD/VCR
TV
No other channel can be selected while the recording is in progress.
•
REC
■ To stop recording on the way
DVD/VCR
TV
or
G
U
I
D
E
EXIT
■ To playback or delete the recorded contents “Recorded TV mode” (p.66)
Even if One Touch Recording is in progress, you can playback all the contents. However, the recording may not work properly
•
while playback.
Record constantly [Rewind LIVE TV]
Recording the currently viewed channel constantly.
Select [Auto] to start Rewind LIVE TV
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
180 minutes
Auto
select
access / store
When you select [Auto], the recording will start automatically.
•
■ To operate the Rewind LIVE TV
Set the position to “TV”
DVD/VCR
TV
To pause
•
After pausing or searching backward, the following buttons are available to operate.
•
search backward
playback / pause
search forward
stop (stops the current operation and
goes back to live TV)
To search backward (up to 90 minutes)
•
(Press and hold)
search backward /
forward
(Press and hold)
pause /
playback
playback stop
stops the current
operation and
goes back to
■ To stop the Rewind LIVE TV
Recording Setup
USB HDD Setup
One Touch Recording
Rewind LIVE TV
Rewind LIVE TV will be stopped and the recorded content deleted automatically in the following conditions :
•
(Even if Rewind LIVE TV stops for the following conditions, as long as the setting is [Auto], the new recording will start
automatically in a condition that makes the recording available.)
• selected other channels
• selected locked channel
• selected invalid channel
• no TV signal
• when the other recording starts
• when the TV is turned off or standby
Off
Auto
select [Off ]
If you stop the Rewind LIVE TV, the recorded content for the Rewind LIVE TV will
•
be deleted.
USB HDD Recording
liveTV
57
Page 58
Using Media Player
Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and recorded
contents on the formatted USB HDD.
VIERA IMAGE VIEWER is the function of the easy viewing for photos or videos recorded on an SD Card on the TV screen by
simply inserting into the SD Card slot.
Photo mode : Still pictures recorded by digital cameras will be displayed.
Video mode : (For SD Card or USB Flash Memory) Moving pictures recorded by digital video cameras will be played back.
Recorded TV mode : (For USB HDD) TV programmes recorded in USB HDD with this TV will be played back.
Music mode : Digital music data will be played back.
During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.
•
But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p.34). To use
HDMI2 with ARC function, connect an amplifier that has ARC function (p. 82) and set to use theatre speakers (p. 88).
[Date] shows the date on which the recording was made by the recording equipment. The file without record of the date is
•
shown “**/**/****”.
The picture may not appear correctly on this TV depending on the recording equipment used.
•
Display may take some time when there are many files and folders.
•
Partly degraded files might be displayed at a reduced resolution.
•
Picture setting may not work depending on the conditions.
•
The folder and file names may be different depending on the digital camera or digital video camera used.
•
To insert or remove the SD Card / USB Flash Memory
For the USB HDD Connection (p.54)
•
■ USB Flash Memory
Insert or remove straightly and completely.
•
Before removing the USB Flash Memory, ensure to perform
•
“Safely remove USB” (p.19).
Connect to the USB 1, 2 or 3 port.
•
Using Media Player
■ SD Card
To insert the SD Card To remove the SD Card
Gently insert the
SD Card label surface
facing front.
Push until a click
is heard
Cutout
For the information of the devices “Devices for recording or playing back” (p.95)
•
For the supported file format “Supported file format in Media Player and media servers” (p. 93, 94)
•
Push the centre of
the card
58
Page 59

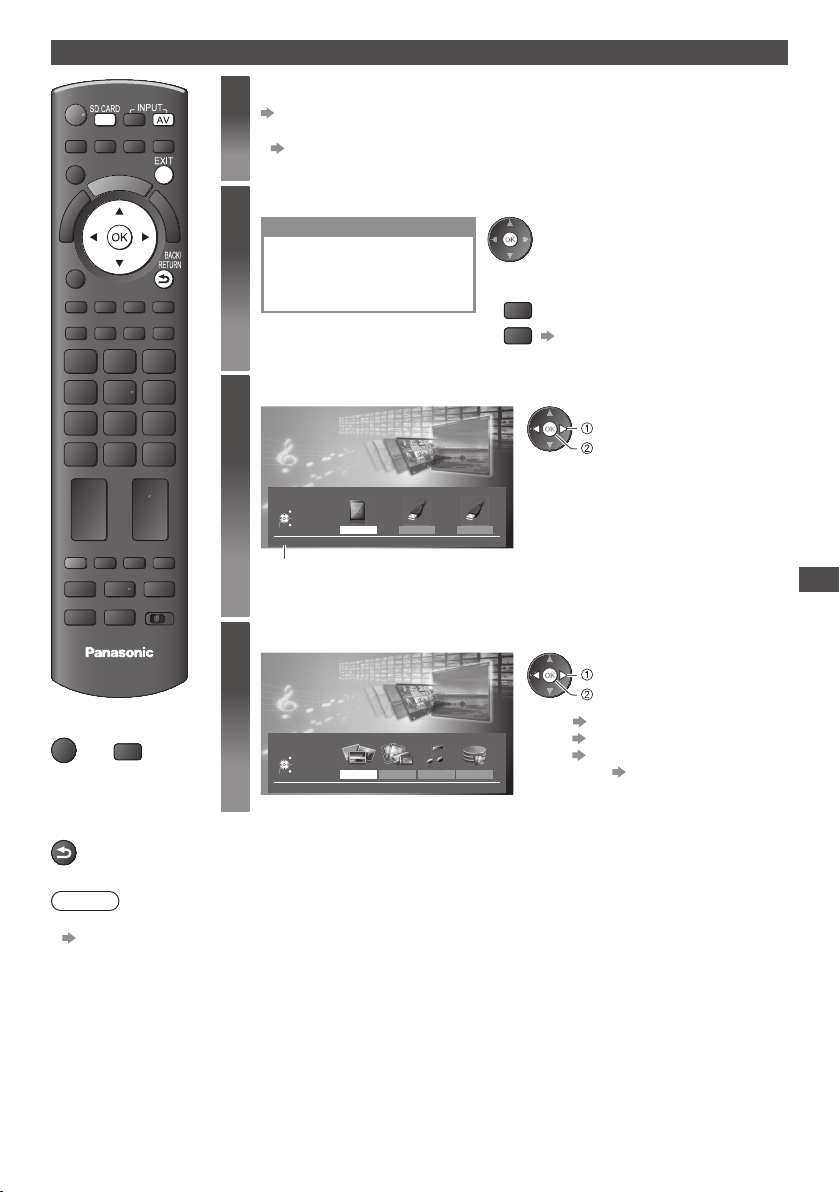

Starting Media Player
Insert the SD Card or USB Flash Memory to the TV
1
(p. 58)
To play back contents in USB HDD, check the connection and settings are completed.
•
(p. 54, 55)
Start Media Player
2
Media Player
Signal output from all AV terminals will be
disabled during Media Player view.
Press OK to proceed.
Press EXIT to return to TV viewing.
Select the device you want to access to
3
Media Player
Drive Select
EXIT
Select
RETURN
SD Card
Access
SD Card
Selected device name
USB Drive... USB Flash...
Also possible by pressing following buttons.
•
SD CARD
AV
“Watching External Inputs” (p.27)
select
access
If two or more devices are not connected,
•
this step will be skipped.
Using Media Player
Select the content
4
TV
■
To return to TV
EXIT
SD CARD
or
■
To return to the
previous screen
BACK/
RETURN
Media Player
Contents Select
EXIT
Select
RETURN
Access
SD Card
Photo Video Music
Note
You can also access each mode directly by using VIERA TOOLS.
•
“How to Use VIERA TOOLS” (p. 29)
[Recorded TV] is available for USB HDD.
•
Select the appropriate device and content for playing back each file.
•
Recorded TV
select
access
[Photo] “Photo mode” (p.60)
[Video] “Video mode” (p.64)
[Music] “Music mode” (p.68)
[Recorded TV]
“Recorded TV mode” (p.66)
59
Page 60
Photo mode
Photo mode will read all “.jpg” extension files in the SD Card or USB Flash Memory.
The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [All photos]
Media Player Photo
All photos
View
Select
Slideshow View Select Drive Select Contents Select
EXIT
RETURN
Info
OPTION
Option Menu
SD Card
: Error display
■
To return to TV
EXIT
SD CARD
or
■
To return to the
previous screen
BACK/
RETURN
To change the back ground music “Photo Settings” (p.61)
•
To display the information of the highlighted photo
•
1/48
File name
Date
23/10/2010
Pixel
To change the size of photos on a thumbnail screen display
•
OPTION
File number / Total file number
1600X1200
select
[Change Size]
change
■ To sort by folder, recorded date or recorded month
1 Display the view selection
Using Media Player
(green)
2 Select the sort type
Folder view
Sort by Date
Sort by Month
3 Select one of the sorted groups to display the thumbnail of the selected group
Media Player Photo
23/10/2010 25/10/2010 01/11/2010 05/11/2010 10/11/2010 22/11/2010 23/11/2010
24/11/2010 01/12/2010 03/12/2010 20/12/2010 22/12/2010
select
access
Sort by Date
[Folder view] :
Displays the thumbnail grouped by folder
The files which are not into a folder will be collected to the folder
•
named “/”.
[Sort by Date] :
Displays the thumbnail grouped by the same date
The group of the photos without recorded date is shown as
•
[Unknown].
[Sort by Month] :
Displays the thumbnail grouped by the same month
The group of the photos without recorded date is shown as
•
[Unknown].
select
thumbnail of the selected group
Selected device name
Access
Select RETURN
Slideshow View Select Contents Select
To return to the thumbnail of all photos
•
Info
EXIT
OPTION
Option Menu
(green)
60
Drive Select
SD Card
select
[All photos]
access
To display the information of the highlighted group
•
Folder name
Number of files
23/10/2010
Group number /
1/12
Total group number
3
Folder name, date or month
Page 61

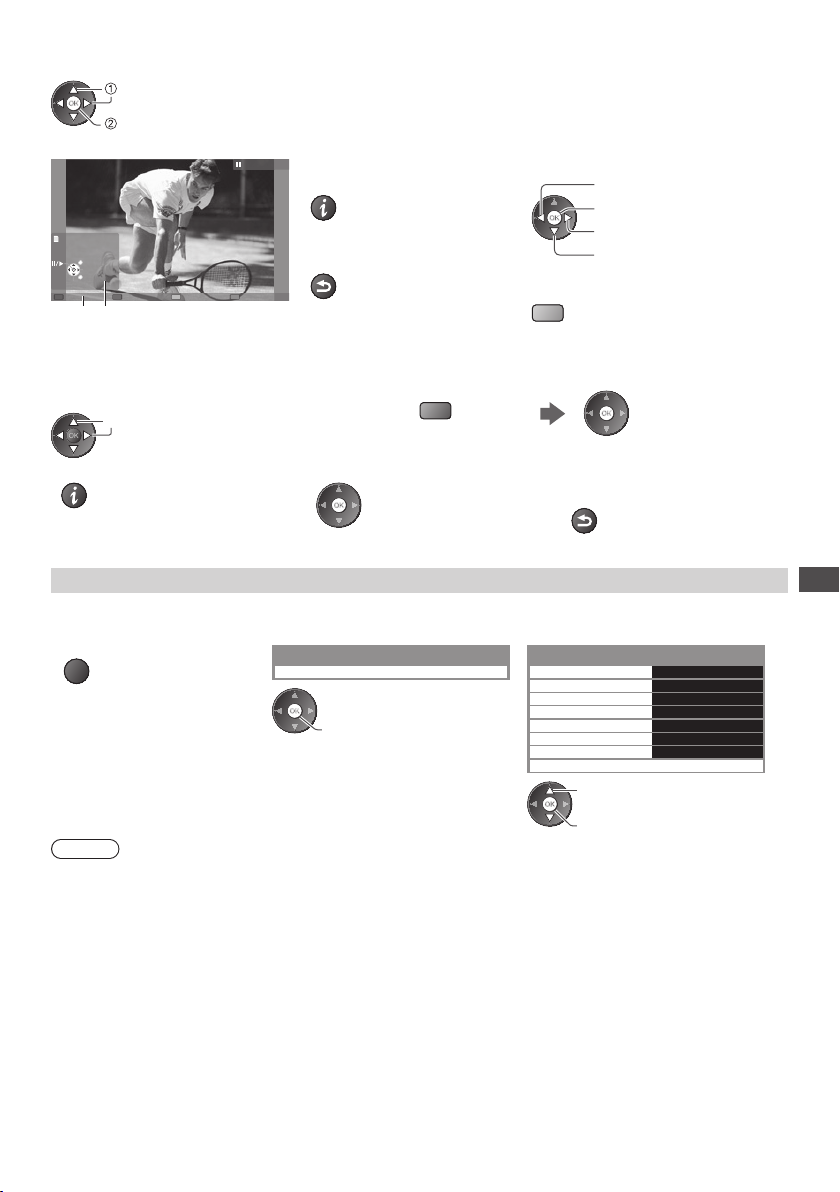

[Single view] - Photos are displayed one at a time.
Select the file from the thumbnail of photos to be viewed
select
access
Example :
Single view
EXIT
Select
RETURN
Stop
Operation guide
Single view
Rotate
To display / hide the operation
•
guide
To return to thumbnail
•
BACK/
RETURN
To operate Single view
•
To rotate 90°
•
To the previous photo
Slideshow
To the next photo
Stop
(return to thumbnail)
(blue)
[Slideshow] - Slideshow will complete when all photos have been viewed within the present thumbnail.
1 Select the file from the thumbnail of photos
for the first view
select
2 Start Slideshow
(red)
To display / hide the operation guide
•
To pause (return to Single view)
•
To return to thumbnail
•
BACK/
RETURN
Photo Settings
Setup the settings for Photo mode.
1 Display the option menu 2 Select [Slideshow Settings] 3 Select the items and set
OPTION
Note
Picture quality may become lower depending on the slideshow settings.
•
Picture setting may not work depending on the slideshow settings.
•
Option Menu
Slideshow Settings
access
Slideshow Settings
Frame Off
Colour Effect
Transition Effect
Aspect
Burst Playback
Interval
Repeat
Back Ground Music
select
access / store
Off
Fade
Original
Off
5 seconds
On
Using Media Player
61
Page 62
Menu
Slideshow Settings
Using Media Player
Item Adjustments / Configurations (alternatives)
Selects the frame type of the slideshow
[Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] /
[Gallery] / [Cinema]
[Multi] :
9 photos are displayed orderly at once.
[Collage] :
Each photo is displayed at a random position and random scale.
Frame
Colour Effect
Transition Effect
Aspect
Burst Playback
Interval
Repeat Slideshow repeat [Off] / [On]
[Drift (+ calendar)] / [Drift] :
Photos are displayed like flow images.
You can select to display the calendar or not. The month of calendar is turned by
•
pressing left or right cursor button.
[Gallery (+ calendar)] / [Gallery] :
The various sizes of photos in the frame are displayed.
You can select to display the calendar or not. The month of calendar is turned by
•
pressing left or right cursor button.
[Cinema] :
Photos are displayed like old films (sepia tone)
Selects the colour effect of photos on Single view and Slideshow
[Off] / [Sepia] / [Gray scale]
This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].
•
Selects the transition effect for switching the photo during the slideshow
[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random]
[Fade] : The next photo fades in gradually.
[Slide] : The next photo slides and appears from the left side.
[Dissolve] : Each photo is dissolved when switching to the next photo.
[Motion] : Each photo is displayed with an effect of enlarging, reducing, moving up or
[Random] : Each transition is selected at random.
•
Selects whether enlarged or normal viewing on Single view and Slideshow
[Original] / [Zoom]
•
•
•
Selects whether to display burst photos in a fast-paced slideshow mode
[Off] / [On]
•
•
Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)
•
•
moving down.
This function is available when [Frame] is set to [Off].
This function is not available when [Frame] is set to [Collage], [Drift], [Gallery] or
[Cinema].
This function is not available when [Transition Effect] is set to [Motion].
Depending on the photo size, it may not be fully enlarged to fill the screen, e.g.
portrait style picture.
This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].
This function is not available when [Transition Effect] is set to [Motion].
This function is not available when [Frame] is set to [Drift], [Gallery] or [Cinema].
This function is not available when [Transition Effect] is set to [Motion].
62
Page 63

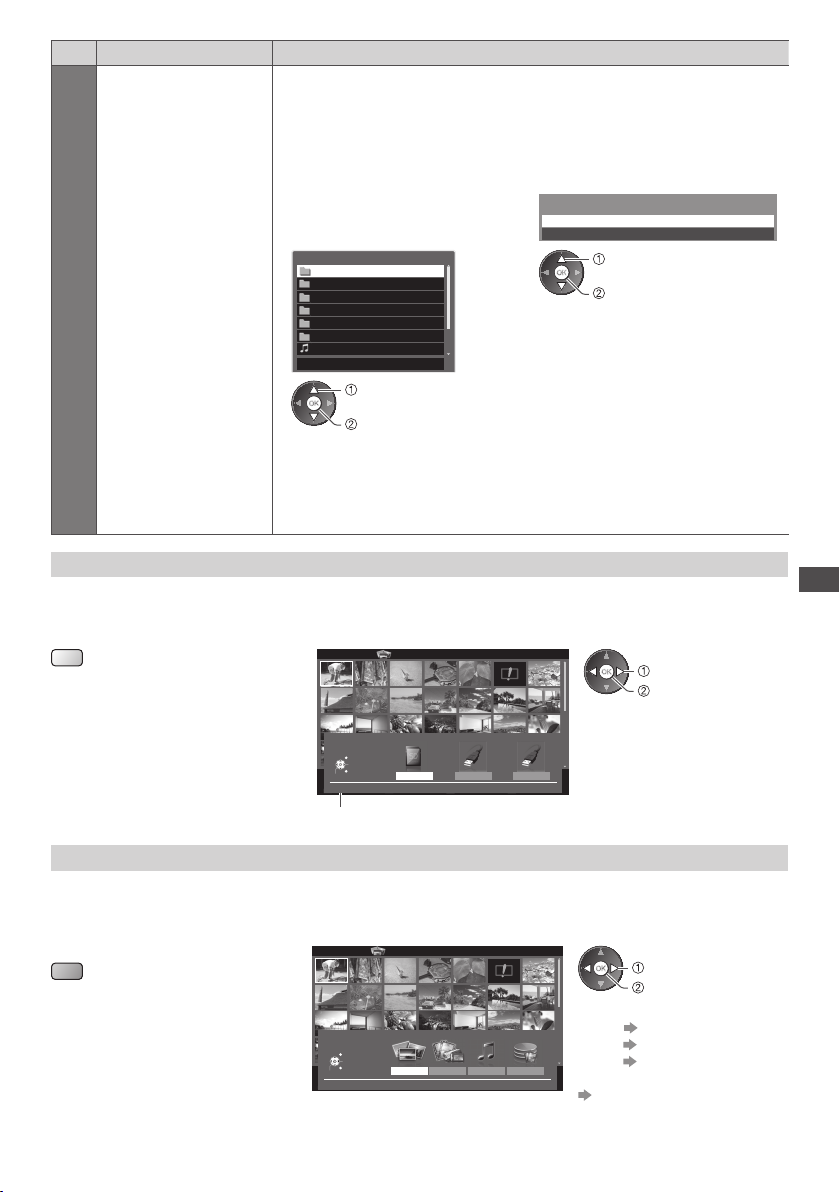

Menu
Item Adjustments / Configurations (alternatives)
Selects the back ground music during Photo mode
[Off] / [Type1] / [Type2] / [Type3] / [User] / [Auto]
[Type1], [Type2] and [Type3] are the fixed music each installed in this TV.
•
[User] : Music data in the device registered by yourself will be played back.
To register the music
1. Select the music file 2. Select [File] or [Folder]
Slideshow Settings
Back Ground Music
Depending on the condition of the
device, select folders until you reach the
desired music file.
Back Ground Music
PRIVATE
DCIM
MISC
001photo
002photo
003music
01 song.mp3
Type1
select
Register Slideshow BGM?
File
Folder
select
set
[File] : The selected music file will be
registered as back ground music.
[Folder] : All the music in the folder which
contains the selected music file
will be registered as back ground
music.
access
If no music has been registered or the device which has the registered music is
•
removed, no sound will be produced.
[Auto] : Music data stored in the root folder of the current device will be played back
randomly.
If there is no available music data, no sound will be produced.
•
Change the device
You can change to the other device directly in the same mode if two or more devices are connected.
1 While the thumbnail is displayed,
display the device selection
(yellow)
2 Select the device you want to access to
Media Player Photo
All photos
Using Media Player
select
access
Drive Select
EXIT
Select
RETURN
View
EXIT
Info
SD Card
Access
Select RETURN
SD Card
Slideshow View Select Drive Select Contents Select
OPTION
USB Drive... USB Flash...
Selected device name
Change the contents
You can switch to the other mode of Media Player from the thumbnail view.
The mode can be switched in the current device.
•
1 While the thumbnail is displayed,
display the contents selection
(blue)
2 Select the contents
Media Player Photo
Contents Select
EXIT
Select
RETURN
View
Access
Select RETURN
SD Card
Slideshow View Select Drive Select Contents Select
Info
EXIT
Photo Video Music
OPTION
All photos
Recorded TV
SD Card
select
access
[Photo] “Photo mode” (p.60)
[Video]
“Video mode” (p.64)
“Music mode” (p.68)
[Music]
SD Card
[Recorded TV]
“Recorded TV mode” (p.66)
63
Page 64
Video and Recorded TV mode
Supported file format (p.93)
•
Video mode
(For SD Card or USB Flash Memory)
The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [Title view]
Media Player Video
Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1
2010_9
Play Contents Select
: Error display
: The file does not support thumbnail view.
To view the scenes of the title
•
Select the title
Example : Thumbnail - [Scene view]
Media Player Video
Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7
Trip1_8
Using Media Player
Play
Nature3 Nature4 Nature5 Nature6
Access
Select
Play
Select RETURN
EXIT
RETURN
EXIT
Info
OPTIONOPTION
Option Menu
Info
OPTION
Option Menu
select
access
Title view
2010_4 2010_7Nature2
Drive Select
SD Card
Selected device name
Title view > Trip1
SD Card
Drive Select
Contents Select
The preview will start when the title is
highlighted if it supports a preview.
To turn off the preview
•
“Video Setup” (p.65)
To display the information of the highlighted
•
title
File format
Title
Date & Time
Number of scenes
Duration
1/15
Trip1
19/02/2010 11:21
00h15m39s
Title number /
Total title number
8
The preview will start when the scene is
highlighted if it supports a preview.
To turn off the preview
•
“Video Setup” (p.65)
To display the information of the highlighted
•
scene
File format
Scene
Date & Time
Duration
Trip1_1
19/02/2010 11:21
00h04m12s
1/8
Scene number /
Total scene number
■
To return to TV
EXIT
or
■
To return to the
previous screen
BACK/
RETURN
Note
The structure of titles
•
and scenes may vary
depending on the digital
video camera used.
64
TV
SD CARD
■ Playback from Title view
Playback of the selected title will start.
To repeat playback “Video Setup” (p.65)
•
1 Select the title 2 Start playback
select
(red)
■ Playback from the selected scene in the title (SD-Video or AVCHD)
Playback will start from the selected scene to the end of the title.
To repeat playback “Video Setup” (p.65)
•
1 Select the title 2 Select the scene 3 Start playback
select
access
select
(red)

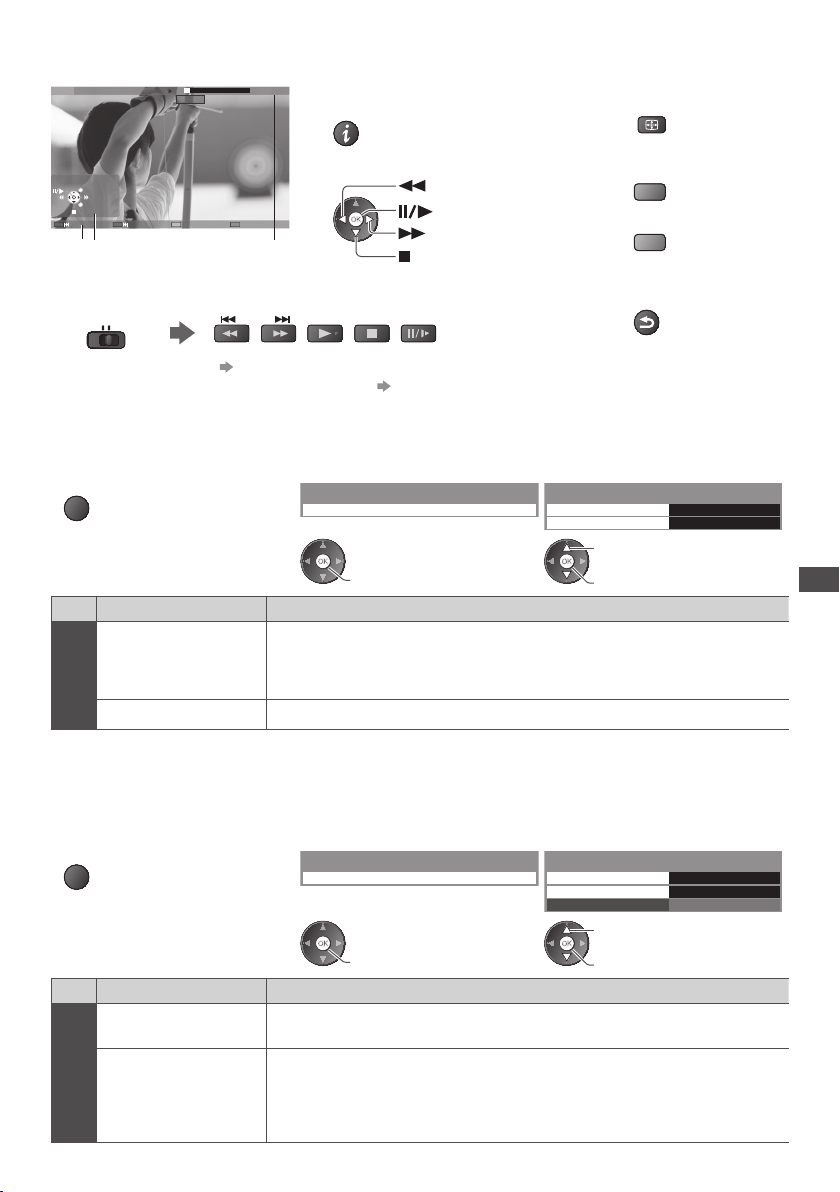

Page 65
■ How to operate in the playback
Example : Playback
SD 19/02/2010 11:21 00:15:39
EXIT
RETURN
Operation guide
You can also use the following buttons. (p.28)
•
Set the position to “TV”
DVD/VCR
TV
00:02:05
Information banner
To display / hide the operation guide and
•
information banner
To operate the playback
•
Rewind
Pause / Playback
Fast forward
Stop
■ To change the device “Change the device” (p.63)
■ To change the content in the current device “Change the contents” (p.63)
■ Video Setup
Setup the settings for Video mode.
1 Display the option menu in the
thumbnail view
OPTION
Menu
Video Setup
Item Adjustments / Configurations (alternatives)
Video Preview
2 Select [Video Setup] 3 Select the items and set
Option Menu
Video Setup
access
Sets to start the preview of the title or scene in the thumbnail view [Off] / [On]
Image may not be displayed for an instant in the thumbnail view. Set the preview [Off]
•
to resolve this.
To change aspect
•
ASPECT
To the previous title /
•
scene
(red)
To the next title / scene
•
(green)
To return to thumbnail
•
BACK/
RETURN
Video Setup Menu
Video Preview On
Repeat
select
access / store
Off
Using Media Player
Repeat Playback repeat within the title or selected file (depending on the content) [Off] / [On]
■ Confirm or change the current status
You can confirm or change the current status of the content.
Menu items and selectable options vary depending on the content.
•
1 Display the option menu during
playback
OPTION
Menu
Video Setup
Item Adjustments / Configurations (alternatives)
Multi Audio
Aspect Change
2 Select [Video Setup] 3 Select the items and set
Option Menu
Video Setup
access
Allows you to select between selectable sound tracks (if available)
It may take several seconds to change the sound.
•
[Aspect1] : Displays the content enlarged without distortion
[Aspect2] : Displays the content full-screen
[Original] : Displays the content original size
You can also change the aspect using the ASPECT button.
•
Aspect change may not work depending on the content.
•
Video Setup Menu
Multi Audio Stereo
Aspect Change
Repeat
select
access / store
Aspect1
Off
65

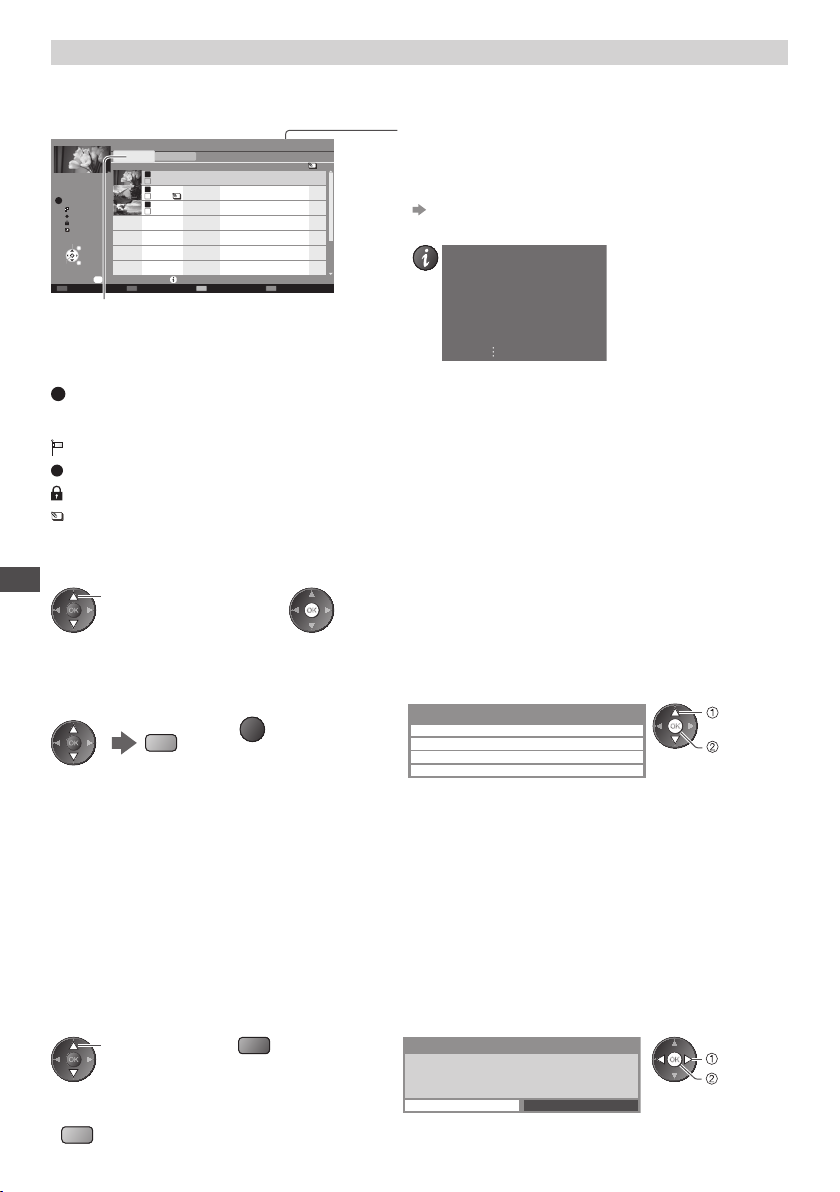

Page 66
Recorded TV mode
(For USB HDD)
Contents list of the USB HDD will be displayed.
Example : Contents list
Duration
00:00
G
Not Viewed
Recording now
Protected
Grouped
Select
EXIT
RETURN
Play
OPTION
Option Menu
Delete
Media Player
All
Recorded TV
Not Viewed
Channel TitleDate
BBC 1D
Thu 28/10
Mon 10/1
ITVD
Sat 15/1
BBC 2
Info
12:00
13:30
13:50
[All] :
All the recorded contents are listed.
[Not Viewed] :
Remaining Capacity 500GB (50%)
Das Erste
News
Cinema
Chapter List Select
USB HDD 1
1
3
1D
Remaining capacity of the HDD
This value may not be accurate depending on the condition.
•
You can also access the contents list directly by using VIERA
•
TOOLS.
“How to Use VIERA TOOLS” (p.29)
To display the information of the highlighted content
•
- Channel
DVB-T, BBC 1
- Title
Das Erste
- Date & Time
Thu 28/10/2010 12:00
- Duration
00:20
Contents not played back are listed.
: Appears when the recorded content has the guidance information (parental rating, etc.) or the channel of the content is
G
restricted by Child Lock.
This content requires entering PIN number to playback.
: Content not played back (Once you playback the content, this icon will disappear.)
: Content under recording (You can playback this content even if under recording.)
: Protected content cannot be deleted.
: Two or more contents are grouped.
■ Playback the content from the list
1 Select the content 2 Start playback
Using Media Player
select
If you stopped the last playback on the way, the confirmation
•
screen asking whether you wish to start from the last stopped
part or beginning will be displayed. Select your desired option.
■ To edit recording content [Create Group] / [Release Group] / [Change Protect Status]
1 Select and tick the
content to edit
[Create Group] :
Two or more contents can be grouped. Select and tick all the desired contents, and then select [Create Group].
[Release Group] :
Select the created group you want to release, and then select [Release Group]. (To release several groups at once, tick all the
desired groups.)
[Exclude from Group] :
Select the group and press the OK button to display the grouped contents. To exclude only the specific content from the
group, select it and then select [Exclude from Group]. (To exclude several contents at once, tick all the desired contents.)
[Change Protect Status] :
Select the content you want to protect to delete, and then select [Change Protect Status]. Perform the same way to cancel the
protection. (To change the status of several contents at once, tick all the desired contents.)
2 Display the option menu
OPTION
(blue)
3 Select the item and edit
Option Menu
Create Group
Release Group
Exclude from Group
Change Protect Status
■ Delete the selected content
1 Select the content 2 Delete the content 3 Confirm
Delete
Are you sure you want to delete ?
Yes
No
To select two or more
•
contents
66
select
(blue)
(red)
Chapter List
select
edit
select
set

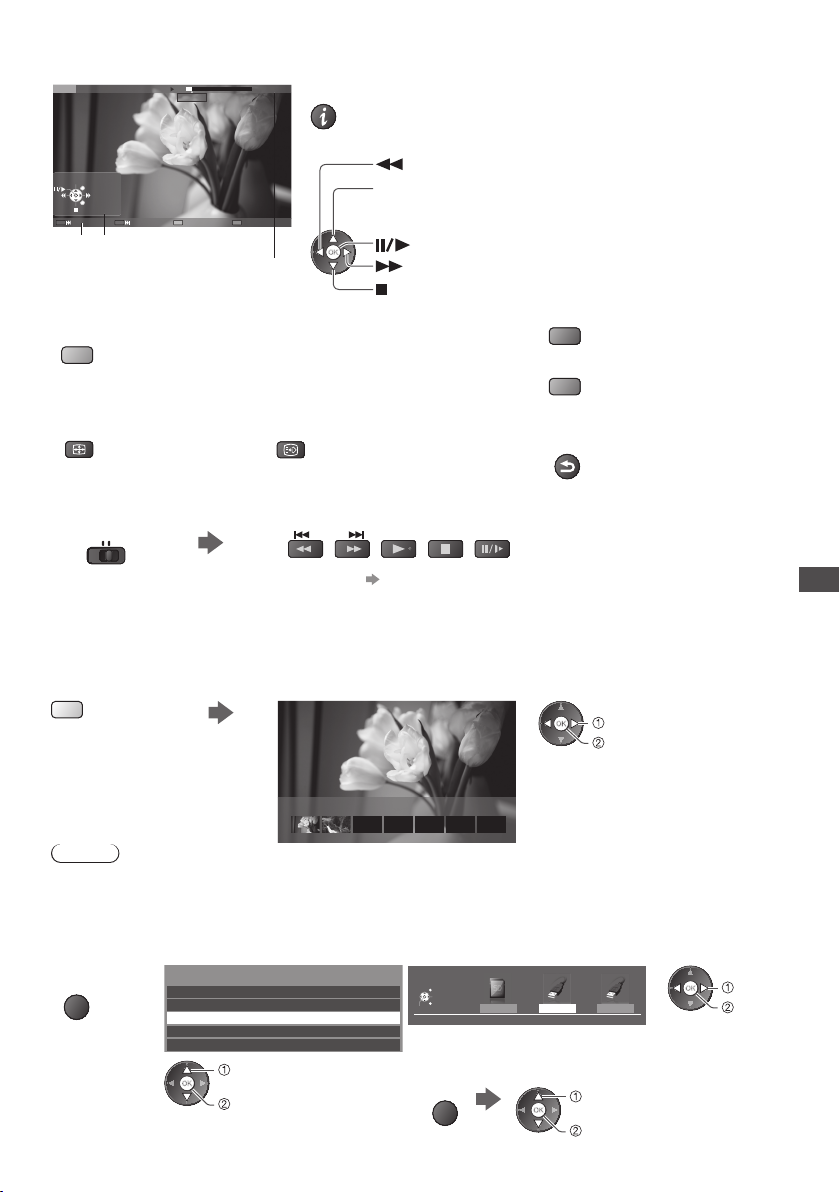

Page 67
■ How to operate in the playback
Example : Playback
Das ErsteUSB 00:15:39
Manual skip
RETURN
Operation guide
To repeat between the starting point “A” and finishing point “B”
•
Set “A” and “B” in order
(blue)
To change aspect
•
ASPECT
You can also use the following buttons. (p. 28)
•
Set the position to “TV”
DVD/VCR
TV
To confirm or change the current status (if available) “Display the selectable settings for the current status” (p.19)
•
00:02:05
Chapter List A-B repeat
Information banner
• The points will be reset by pressing this button again or
other operations.
To display / hide the operation guide and information banner
•
To operate the playback
•
To display the subtitle (if available)
•
STTL
Rewind
[Manual skip]
Press to skip forward about 30 seconds
•
Press and hold to skip backward about 15 seconds
•
Pause / Playback
Fast forward
Stop
To the previous chapter
•
To the next chapter
•
To return to list
•
RETURN
(red)
(green)
BACK/
■ Chapter List
You can start playback from the chapter list you select.
A recorded content is automatically divided into chapters (about five minutes for each).
•
The chapter list is not displayed while the selected content is being recorded.
•
To play back from the chapter list
(yellow)
select
playback
Using Media Player
Chapter List
00:00:00 00:05:00
Note
Depending on the recorded programmes, some playback operations may not work properly.
•
■ Change the device
You can change to the other device directly in the same mode if two or more devices are connected.
1 Display the
option menu
OPTION
2 Select [Drive Select]
Option Menu
Create Group
Release Group
Drive Select
Contents Select
Change Protect Status
select
access
3 Select the device you want to access to
Drive Select
EXIT
Select
RETURN
SD Card
Access
USB HDD1
If you select the SD Card or USB Flash Memory, also change the
contents to enjoy photo, video or music.
To change the content
•
OPTION
USB HDD1 USB Flash...
select [Contents Select]
access
select
access
67
Page 68
Audio output Settings
You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.
To confirm or change the current sound status “Confirm or change the current status” (p.65)
•
1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set
MENU
Main Menu
Sound
Timer
Setup
select
access
SPDIF Selection
Reset to Defaults
select
access / store
Auto
Reset
2/2
Menu
Sound
SPDIF Selection
Using Media Player
Music mode
Supported file format (p.94)
•
■
To return to TV
EXIT
SD CARD
or
■
To return to the
previous screen
BACK/
RETURN
Item Adjustments / Configurations (alternatives)
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and
HDMI2 (ARC function) terminals [Auto] / [PCM]
[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output
as Dolby Digital Bitstream.
DTS is output as DTS.
MPEG is output as PCM.
[PCM] : Digital output signal is fixed to PCM.
The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed.
Example : Thumbnail - [Folder view]
Media Player Music
My Music_1 My Music_2 My Music_3
Access
Select
Play Folder Contents Select
To display the information of the highlighted folder
•
Folder name
Number of files
EXIT
RETURN
My Music_1
Info
OPTION
Option Menu
Drive Select
1/3
Folder number / Total folder number
11
Folder view
SD Card
Selected device name
■ Playback from Folder view
All the files in the selected folder will be played back.
1 Select the folder 2 Start playback
select
(red)
68
Page 69

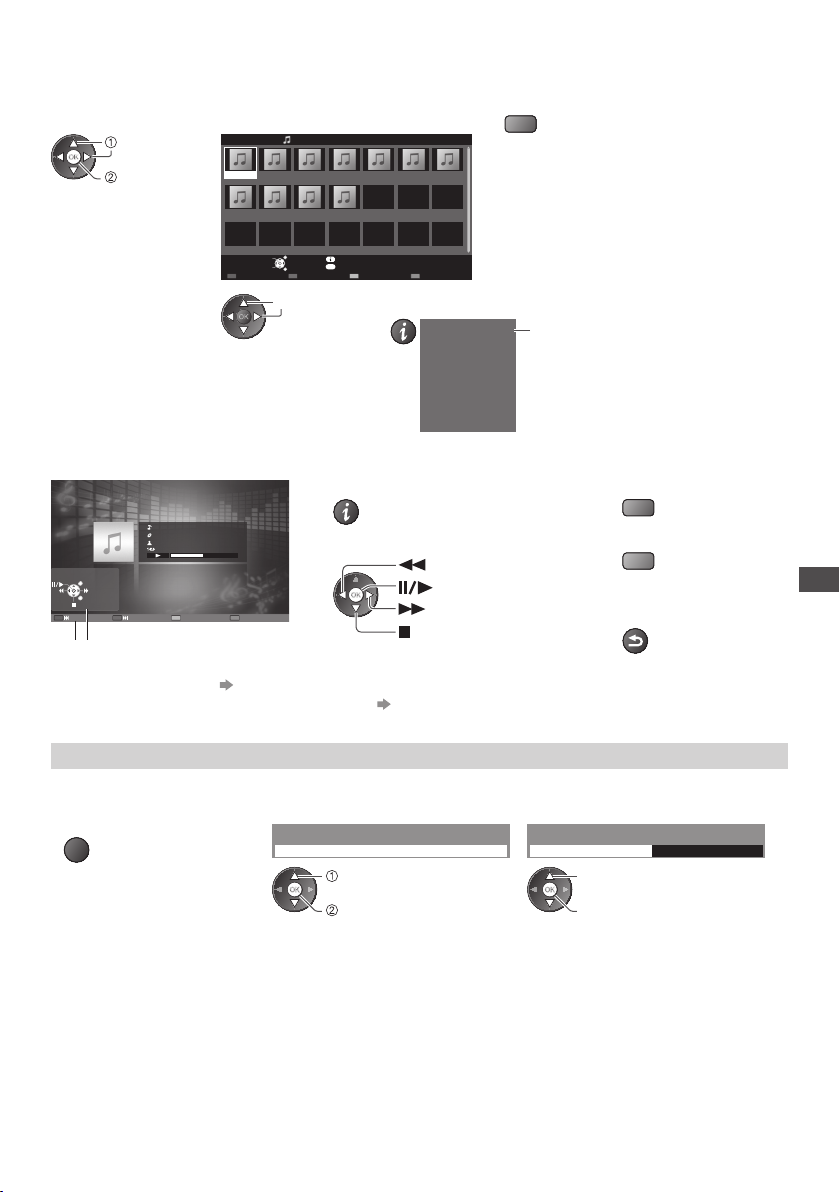

■ Playback from File view
Selected file will be played back.
1 Select the folder 2 Select the file 3 Start playback
select
access
Example : Thumbnail - File view
Media Player Music
My Song_1 My Song_2 My Song_3 My Song_4 My Song_5 My Song_6 My Song_7
My Song_9 My Song_10 My Song_11My Song_8
Folder view > My Music_1
(red)
Play
Select RETURN
Play Folder
EXIT
select
OPTION
Info
Option Menu
Drive Select
•
SD Card
Contents Select
To display the information of the highlighted file
1/11
Title
Album
Artist
Track No.
Duration
My Song_1
My Music_1
My Favourite
00h03m29s
File number / Total file number
1
■ How to operate in the playback
Example : Playback
EXIT
RETURN
Operation guide
My Song_9
My Favourite
My Music_1
00:02.43 / 00:05.44
To display / hide the operation guide
•
To operate the playback
•
Rewind
Pause / Playback
Fast forward
Stop
■ To change the device “Change the device” (p.63)
■ To change the content in the current device “Change the contents” (p.63)
Music Setup
Setup the setting for Music mode (only available in the thumbnail view).
1 Display the option menu 2 Select [Music Setup] 3 Set
OPTION
Option Menu
Music Setup
Music Setup Menu
Repeat One
select
To the previous track
•
(red)
To the next track
•
(green)
To return to thumbnail
•
BACK/
RETURN
select
Using Media Player
access
access / store
[Folder] : Playback repeat within the
selected folder
[One] : Playback repeat of the selected
one file
69
Page 70
Using Network Services
(DLNA / VIERA Connect)
DLNA®
This TV is a DLNA Certified™ product.
DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient
to use on a home network. To learn more, visit www.dlna.org.
It allows you to share photos, videos and music stored in the DLNA Certified media server (for example, PC with windows 7
installed, DIGA Recorder etc.) connected to your home network, and enjoy the contents on the T V screen.
It also allows you to control the TV with the DLNA Certified equipment connected to your home network (DLNA Remote Control).
For the supported file format (p. 93, 94)
•
AVCHD and DivX files are not supported by DLNA, but can be played by Media Player (p. 58).
•
■ Media server
Store photos, videos or music into the DLNA Certified media server, and then you can enjoy them on the TV.
To use a PC as a media server
Prepare the PC with Windows 7 or ensure the server software is installed on the PC.
“Windows 7” and “TwonkyMedia server 6 (installed on the PC with Windows 7, Windows Vista or Windows XP)” are the server
software that has been tested for compatibility with this TV (current as of January, 2011). Any other server software have not
been tested with this TV, therefore compatibility and per formance cannot be assured.
Windows 7
•
The setup for homegroup settings of Windows 7 is required. For details, refer to the help functions of Windows 7.
TwonkyMedia server
•
“TwonkyMedia server” is the product of PacketVideo Corporation.
To obtain the Installation Guides for installing and setting “TwonkyMedia server”, visit the website of TwonkyMedia.
Additional fees may be charged to obtain server software.
Note
For more information about the server software, please consult each software company.
•
When server software for the media server is installed on the PC, the data may be at risk of being accessed by other
•
Using Network Services (DLNA / VIERA Connect)
people. Please take care of the settings and connections under the network circumstances at the office, hotel or even at
home when not using a router.
To use a DLNA compatible DIGA Recorder as a media server
By connecting a DLNA compatible DIGA Recorder to your home network, you can enjoy and control it as one of the media
servers.
Please refer to the manual of your DIGA Recorder to confirm whether the recorder is compatible with DLNA.
•
■ DLNA Remote Control
You can control the TV with the DLNA Certified equipment.
To use this function, set the [Network Link Settings] (p. 72)
•
“Windows 7” is the OS that has been tested for compatibility of this TV (current as of January, 2011). For the operations,
•
refer to the help functions of Windows 7.
Network connection
Network setup
DLNA operations
“Example 1” or “Example 2” in “Network connections” (p. 71)
(p. 72 - 76)
(p. 77 - 80)
VIERA Connect
You can access a selection of internet services from VIERA Connect home screen. For example, YouTube, Picasa Web Albums
(current as of January, 2011).
Network connection
Network setup
VIERA Connect operations
“Example 1” or “Example 3” in “Network connections” (p. 71)
(p. 72 - 76)
(p. 16, 80)
70
Page 71
Network connections
To use only DLNA features, you can operate the features without broadband network environment.
To use VIERA Connect features, you need a broadband network environment.
If you do not have any broadband network services, please consult your retailer for assistance.
•
Set up and connect any equipment required for the network environment. You cannot make settings for the equipment on
•
this TV. Read the manual of the equipment.
Required speed (effective) : at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively. If the transfer speed is
•
not enough, contents may not be played back properly.
Example 1
(For DLNA and VIERA Connect)
Wired connection
Internet
LAN cable (Shielded)
Wireless connection
Wireless LAN Adaptor and Extension cable
“Optional accessories” (p. 6)
Connect to the USB 1, 2 or 3 port.
•
Ensure to use a LAN straight cable for this connection.
•
If your modem has no broadband router functions, use a broadband router.
•
If your modem has broadband router functions but there are no vacant ports, use a hub.
•
Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.
•
If you use the equipment compatible only with 100BASE-TX, category 5 LAN cables are required.
•
Access point
Modem
Hub or Router
DLNA Certified
mediaserver
(for example, PC,
DIGARecorder, etc.)
Example 2
(For DLNA)
You can connect the T V and the equipment directly to use DLNA features.
DLNA Certified mediaserver
(for example, PC,
DIGARecorder, etc.)
LAN cable (Shielded)
Using Network Services (DLNA / VIERA Connect)
Ensure to use a LAN cross cable for this connection.
•
Example 3
(For VIERA Connect)
You can connect the T V and the telecommunication equipment directly to use VIERA Connect features.
LAN cable (Shielded)
Note
Contact your Internet Service Provider (ISP) telecommunications company for further assistance regarding the network
•
equipment.
Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications
•
company. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be
impossible.
Internet
71
Page 72
Network Setup
Ensure the connections are completed before starting Network Setup.
•
“Network connections” (p.71)
Display the menu
1
MENU
Select [Setup]
2
3
Main Menu
Sound
Timer
Setup
Select [Network Setup]
select
access
select
Network Setup Access
■
To return to TV
EXIT
Using Network Services (DLNA / VIERA Connect)
Network Link settings
Settings which allow the TV to be controlled by the equipment connected to the network.
1 Select [Network Link Settings] 2 Select the items and set
Network Setup
Connection Test
Network Type Wired
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
select
access
Menu
Network Link Settings
VIERA Name
DLNA Remote Control Enables to control the TV using Windows 7 via the network [Off] / [On]
DLNA Remote Volume Enables to control the volume of the TV using Windows 7 via the network [Off ] / [On]
Network Remote Control
---
Access
ab-cd-ef-gh-ij-kl
Item Adjustments / Configurations (alternatives)
Sets your favourite name for this TV and this name will be used to display the name of
this TV on the screen of the other DLNA compatible equipment.
Enables to control the TV from the network equipment (Smartphone, etc.)
[Off] / [On]
Depending on the area, this function may not be available. For details, consult your
•
local Panasonic dealer.
For more information of this function, visit the following website.
•
http://panasonic.jp/support/global/cs/tv/
Network Link Settings
VIERA Name
DLNA Remote Control
DLNA Remote Volume
Network Remote Control
select
change
access / store
VIERA
On
On
On
access
72
Page 73
Wired connection settings
This setting is for the network connection by using the LAN cable.
1 Select [Network Type] and set to [ Wired]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Wired
---
ab-cd-ef-gh-ij-kl
select
access / store
If you make the network connection like “Example 2” (p.71), you do not have to
set [Acquire DNS Address], [Proxy] and [Proxy Port].
2 Select [IP/DNS Settings] and set the items
Network Setup
select
IP/DNS Settings Access
access
■ [Acquire IP Address] / [Acquire DNS Address]
Sets [IP Address], [Subnet Mask], [Gateway], [Primary DNS] and [Secondary DNS].
Select [Acquire IP Address] / [Acquire DNS Address] and set to [Auto] (recommended)
The available settings are displayed automatically.
IP/DNS Settings
Acquire IP Address Auto
IP Address
Subnet Mask
Gateway
Acquire DNS Address
DNS Address
Proxy Settings
Auto
•
Manual settings
([IP Address], [Subnet Mask], [Gateway], [Primary DNS], [Secondary DNS])
select
access / store
abc def
jkl
ghi
mno
tuvpqrs
wxyz
3 Select [Proxy Settings] and set the items
IP/DNS Settings
Acquire IP Address
IP Address
Subnet Mask
Gateway
Acquire DNS Address
DNS Address
Proxy Settings
Auto
Auto
Access
•
RETURN
select
access
After settings, return to [Network Setup] screen
BACK/
■ [Proxy]
Sets Proxy address.
This is the address of the relay server that is connected to the target server instead of the browser and sends data to the
•
browser. Setting is required if specified by the provider.
1. Select [Proxy] 2. Enter the address 3. Store
Proxy Settings
Proxy
Proxy Port
0
select
Proxy
Host
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
select
BACK/
RETURN
Using Network Services (DLNA / VIERA Connect)
access
•
set
To use numeric buttons
“Characters table for numeric buttons”
(p.96)
■ [Proxy Port]
Sets Proxy port number.
This number is also specified by the provider with the Proxy address.
•
1. Select [Proxy Port] 2. Move the cursor and enter the number
Proxy Settings
Proxy
Proxy Port
0
select
move
abc def
jkl
ghi
mno
tuvpqrs
wxyz
73
Page 74
4 Select [Connection Test] and access to test
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Connection Test
Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
Access
Wired
---
ab-cd-ef-gh-ij-kl
•
select
access
Performs automatic testing of the network connection for the TV. (It takes a
while to test.)
: succeeded
The test is successful and the TV is connected to the network.
: failed
Check the settings and connections, and then perform this function again.
Wireless connection settings
This setting is for the network connection by using the Wireless LAN Adaptor. (Wireless connection)
Confirm the encryption key, settings and positions of your access point before starting setup. For details, read the manual of
•
the access point.
1 Select [Network Type] and set to [ Wireless]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Wireless
No settings
ab-cd-ef-gh-ij-kl
select
access / store
2 Select [Access Point Settings]
Network Setup
Using Network Services (DLNA / VIERA Connect)
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Wireless
No settings
ab-cd-ef-gh-ij-kl
select
access
3 Select the connection type and set
Connection Type
Please select network connection type.
WPS(Push button)
WPS(PIN)
Search for access point
Manual
•
•
select
access
For details of each connection type (p.75, 76)
After settings, return to [Network Setup] screen
4 Confirm the connection status of [Access Point Settings]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Wireless
Connected
ab-cd-ef-gh-ij-kl
[USB overcurrent] : Overcurrent error
74
- - - : [ Wired] is selected in [Network Type].
[No adaptor] : Wireless LAN Adaptor is not connected.
[No settings] : Setting for connecting to the access point has not been set.
[Connecting...] : Connecting to the access point in progress.
[Connected] : Wireless connection to the access point succeeded
To display the current access point settings, press the OK
•
button.
To change the settings, select [No] on this screen.
Some access points do not allow access to the internet.
•
Perform [Connection Test] (p.75) to check if internet
connection is available.
(p.102)
Page 75
5 Select [Connection Test] and access to test
Network Setup
Connection Test Access
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Connection Test
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
Wireless
Connected
ab-cd-ef-gh-ij-kl
Performs automatic testing of the network connection for the TV. (It takes a while
to test.)
■ [WPS(Push button)]
WPS(Push button)
1) Please press the ‘WPS’ button on the access
point until its light ashes.
2) When the light is ashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
Connect
■ [WPS(PIN)]
1 Select your desired access point
Available Access Points
No. Wireless type Encrypt Reception
SSID
1
Access Point A
Access Point B
2
Access Point C
3
To search access points again
•
(yellow)
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
For the information of the highlighted access point
•
select
access
: succeeded
The test is successful and the TV is connected to the network.
: failed
Check the settings and connections, and then perform this function again.
If you continue to have difficulty, please contact your internet service provider.
press the WPS button on the access point until the light flashes
connect the Wireless LAN Adaptor and the access point
Ensure that your access point supports WPS for this setup.
•
WPS : Wi-Fi Protected Setup™
•
select
access
Ensure that your access point supports WPS for this setup.
•
To set manually
•
(red)
Using Network Services (DLNA / VIERA Connect)
2 Enter the PIN code to the access point, and then select [Connect]
WPS(PIN)
Please register the following PIN codes on the
access point.
PIN code : 12345678
Select ‘Connect’ after entering and saving the
settings on the access point.
Connect
■ [Search for access point]
Access points found automatically are listed.
1 Select your desired access point
Available Access Points
No. Wireless type Encrypt Reception
SSID
1
Access Point A
Access Point B
2
Access Point C
3
To search access points again
•
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
(yellow)
•
select
access
: Encrypted access point
For the information of the highlighted
access point
To set manually
•
(red)
75
Page 76

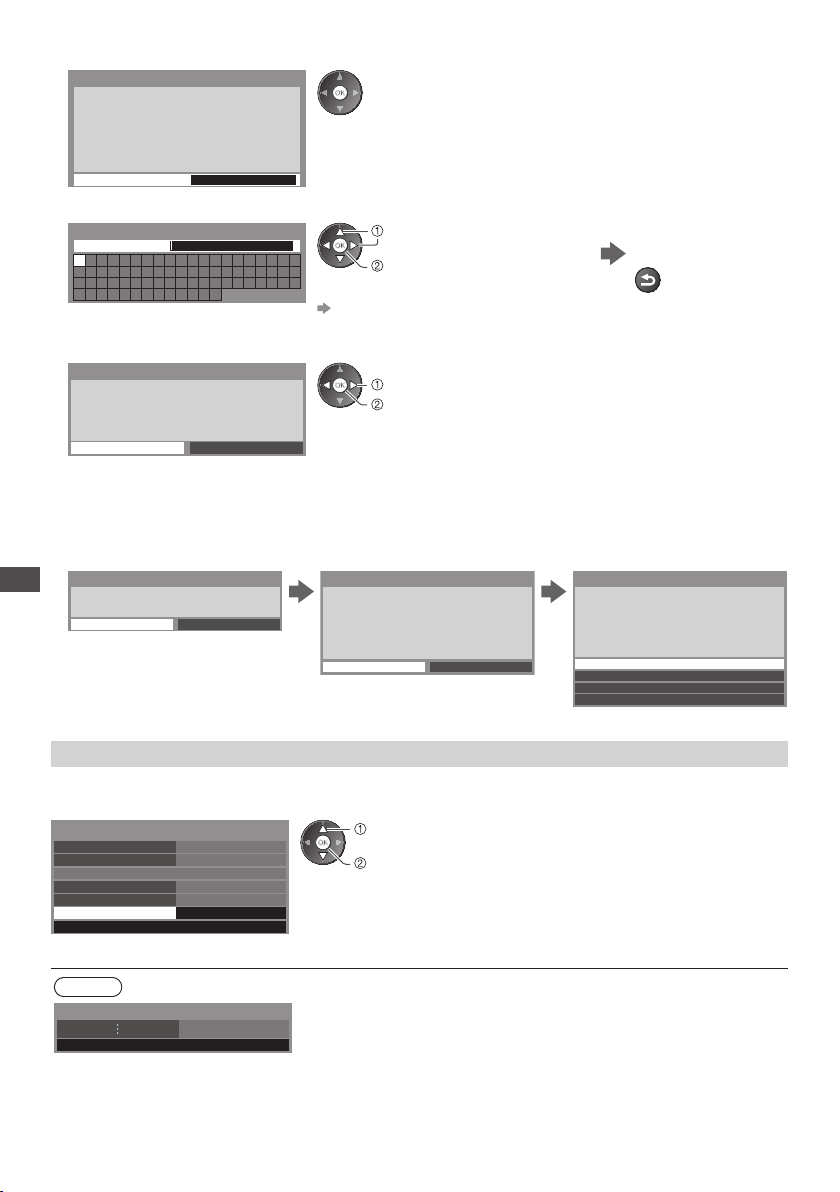

2 Access the encryption key input mode
Encryption Key Setting
Connection will be made with the following settings:SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
Encryption key
If the selected access point is not encrypted, the confirmation screen will be
•
displayed. It is recommended to select the encrypted access point.
3 Enter the encryption key of the access point (Set characters one by one)
Access Point Settings
Encryption key
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
select
set
To use numeric buttons
•
“Characters table for numeric buttons”
(p.96)
Store
BACK/
RETURN
4 Select [Yes]
Access Point Settings
Encryption key is set to:XXXXXXXX
Select ‘Yes’ to confirm.
Select ‘No’ to change.
Yes
No
•
select
confirm
To re-enter the encryption key, select [No].
■ [Manual]
You can setup SSID, authentication type, encryption type, and encryption key manually.
Follow the on screen instructions and set manually.
When you use 11n (5 GHz) for the wireless system between the Wireless LAN Adaptor and access point, please select [AES]
•
for the encryption type.
Access Point Settings
Please input the SSID.
Using Network Services (DLNA / VIERA Connect)
SSID XXXXXXX
SSID Setting
SSID is set to:XXXXXXX
Select ‘Yes’ to confirm.
Select ‘No’ to change.
Yes
No
Authentication Type Settings
Connection will be made with the following
settings:SSID : XXXXXXX
Please select the authentication type.
WPA2-PSK
WPA-PSK
Shared key
Open
Update TV’s software
Check for available software updates from the Panasonic website.
Select [Software Update]
Network Setup
Connection Test
Network Type
Access Point Settings
IP/DNS Settings
Network Link Settings
Software Update
MAC Address
Wired
---
Access
ab-cd-ef-gh-ij-kl
Follow the on screen instructions
•
Note
Network Setup
MAC Address
ab-cd-ef-gh-ij-kl
[MAC Address]
MAC address is a unique address that identifies hardware in the network.
•
(for information only)
76
select
access
Page 77
Using DLNA® features
Ensure the preparation of media server, network connections and network settings are completed.
•
“Media server” (p.70), “Network connections” (p.71), [Network Setup] (p.72 - 76)
Display icons of the feature
1
2
3
T
O
A
O
R
L
E
S
I
V
Select [Media Server]
Media Server
Select one of the media servers you want to access
Example : Media server list
Media Server
A
SERVER1
5
SERVER2
g
SERVER3
DIGA
Select
EXIT
RETURN
Access
Info
OPTION
Option Menu
Available media servers
•
4
select
access
To display the information of the highlighted media
server
select
access
■
To return to TV
EXIT
■
To return to the
previous screen
BACK/
RETURN
Total listed number
Select the file
4
Example : File list
Media Server
Pixel
3648x2736
Format
JPEG
Select
EXIT
RETURN
View
Slideshow
SERVER1
P000102 2010-10-05 09:54
P000135
P000180
P000214
P000251
P000276
P000293
V100025
V100042
M10054
M10078
Info
OPTION
Option Menu
2010-11-20 13:18
2010-12-07 11:31
2010-12-10 15:20
2010-12-19 12:39
2010-12-25 14:06
2011-01-06 13:52
2011-01-12 15:56
2011-01-20 10:08
2011-01-28 14:48
2011-02-09 19:58
•
28
•
select
access
Depending on the condition of media server, you may
need to select the folder before selecting the file.
To display the information of the highlighted file
Note
Non-playable files are also listed but cannot be selected.
•
Turn the TV off, and then on again when changing or reconnecting the network
•
connection.
Using Network Services (DLNA / VIERA Connect)
77
Page 78
For photo file
[Single view]
Example :
- Photos are displayed one at a time.
Single view
To display / hide the operation guide
•
To return to list
•
BACK/
RETURN
Single view
EXIT
Select
RETURN
Stop
Operation guide
Rotate
To operate Single view
•
To the previousphoto
To the next photo
Slideshow
Stop
(return to list)
[Slideshow] - Slideshow will complete when all photos have been viewed within the list.
1 Select the photo file from the list for the first view 2 Start Slideshow
select
To display / hide the operation guide
•
To pause (return to Single view)
•
(red)
For video file
Playback
Example : Playback
Using Network Services (DLNA / VIERA Connect)
MEDIA SERVER
Manual skip
Operation guide
- Playback will start.
19/02/2010 11:21 00:15:39
EXIT
RETURN
00:02:05
Information banner
To display / hide the
•
operation guide and
information banner
To the previous content
•
(red)
To the next content
•
(green)
To change aspect
•
ASPECT
To operate the playback
•
To return to list
•
BACK/
RETURN
To rotate 90°
•
(blue)
To return to list
•
BACK/
RETURN
Rewind
[Manual skip]
Press to skip forward about 30
•
seconds
Press and hold to skip backward
•
about 15 seconds
Pause / Playback
Fast forward
Stop
For music file
Playback
Example : Playback
Operation guide
78
- Playback will start
EXIT
RETURN
My Song_9
My Favourite
My Music_1
00:02.43 / 00:05.44
To display / hide the operation guide
•
To operate the playback
•
Rewind
Pause / Playback
Fast forward
Stop
To the previous track
•
(red)
To the next track
•
(green)
To return to list
•
BACK/
RETURN
Page 79

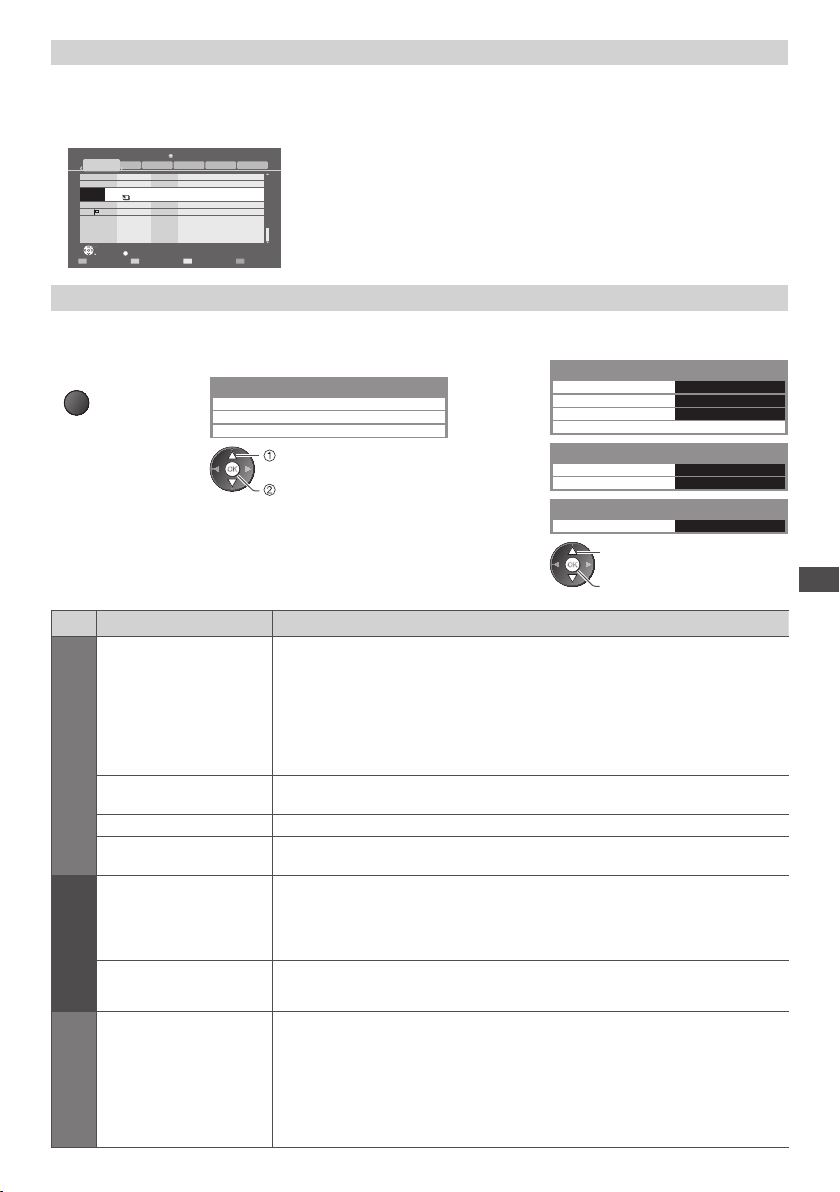

For DIGA Recorder
Control the DIGA Recorder
The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with this TV remote
control according to the operation guide.
Example :
DIRECT NAVIGATOR (Grouped Titles)
All
Bibel TV Bibel TV das Gespräch
HDD
19.08(Wed)
Liberty TV FR Journal Télévisé / Météo
AV1
19.08(Wed)
19.08(Wed) Start Time 11:01 Titles 27
18.08(Tue)
18.08(Tue)
WDR aktuell
WDR aktuell
WDR Aachen
WDR Wuppertal
Time Remaining 36:17 (DR)
Video (AVCHD)SportsSocial/EconomyMovieNot Viewed
Before operating, register this T V on the DIGA Recorder.
•
For details, read the manual of the DIGA Recorder.
•
OK
RETURN
OPTION
Page 005/005
Delete TitleSelect
Option menu for each content
Setup the settings for Photo, Video and Music file operations.
1 Display the option
menu
OPTION
Menu
Slideshow Settings
Transition Effect
Interval
Repeat Slideshow repeat [Off] / [On]
Back Ground Music
Video Setup
Video Preview
2 Select [Slideshow Settings], [Video Setup] or
[Music Setup]
Option Menu
Slideshow Settings
Video Setup
Music Setup
select
access
Item Adjustments / Configurations (alternatives)
Selects the transition effect for switching the photo during the slideshow
[Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random]
[Fade] : The next photo fades in gradually.
[Slide] : The next photo slides and appears from the left side.
[Dissolve] : Each photo is dissolved when switching to the next photo.
[Motion] : Each photo is displayed with an effect of enlarging, reducing, moving up or
[Random] : Each transition is selected at random.
Selects slideshow interval [5] / [10] / [15] / [30] / [60] / [90] / [120] (seconds)
•
Selects the back ground music during Photo mode
[Off] / [Type1] / [Type2] / [Type3]
Sets to start the preview of the title or scene in the thumbnail screen [Off] / [On]
•
moving down.
This function is not available when [Transition Effect] is set to [Motion].
Image may not be displayed for an instant in the thumbnail screen. Set the preview
[Off] to resolve this.
3 Select the items and set
Slideshow Settings
Transition Effect Fade
Interval 5 seconds
Repeat On
Back Ground Music
Video Setup Menu
Video Preview On
Repeat
Music Setup Menu
Repeat One
select
access / store
Off
Using Network Services (DLNA / VIERA Connect)
Repeat Playback repeat within the selected file [Off] / [On]
Music Setup
Repeat
Playback repeat [Off] / [Folder] / [One]
[Folder] : Playback repeat within the selected folder
[One] : Playback repeat of the selected one file
79
Page 80

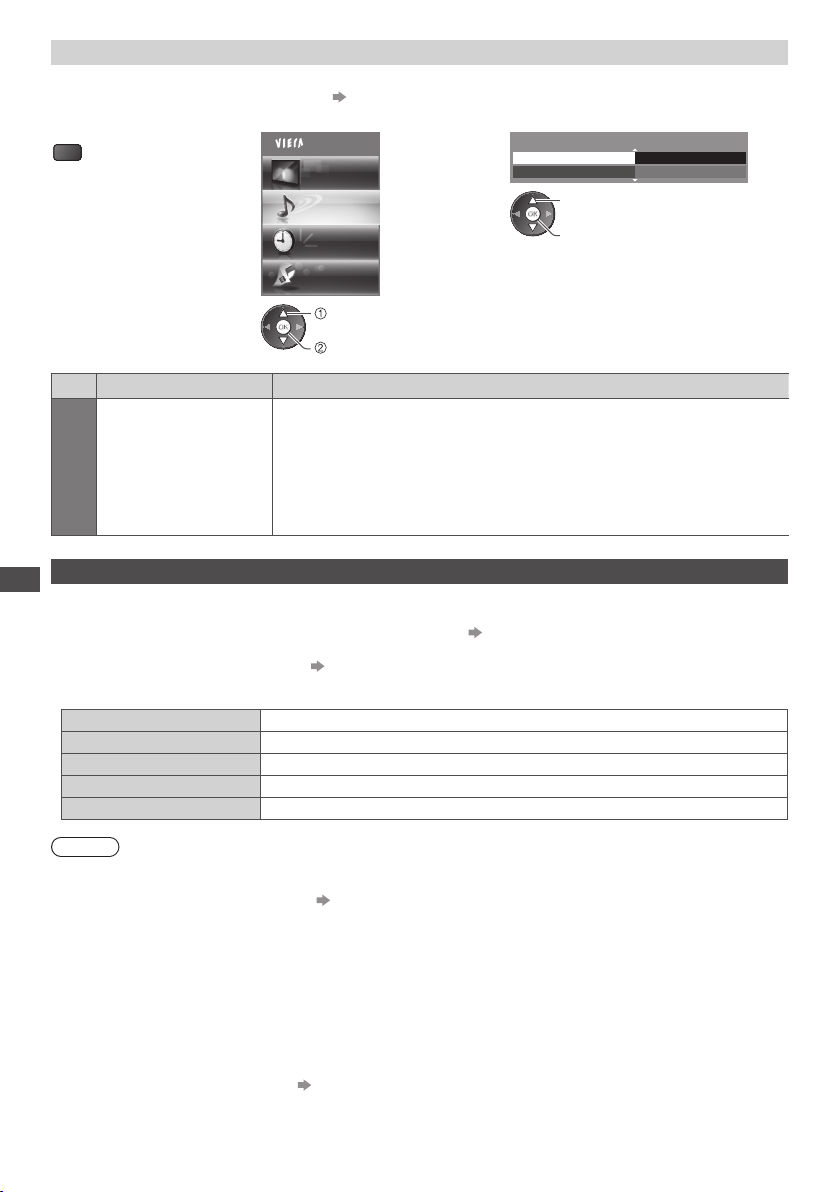

Audio output settings (for video contents)
You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.
To confirm or change the current sound status “Confirm or change the current status” (p.65)
•
1 Display the menu 2 Select [Sound] 3 Select [SPDIF Selection] and set
MENU
Main Menu
Sound
Timer
Setup
select
access
SPDIF Selection
Reset to Defaults
select
access / store
Auto
Reset
2/2
Menu
Sound
Item Adjustments / Configurations (alternatives)
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and
HDMI2 (ARC function) terminals [Auto] / [PCM]
SPDIF Selection
[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output
as Dolby Digital Bitstream.
MPEG is output as PCM.
[PCM] : Digital output signal is fixed to PCM.
VIERA Connect
You can access VIERA Connect and enjoy various network contents.
Using Network Services (DLNA / VIERA Connect)
VIERAConnect requires a broadband internet connection. Dial-up internet connections cannot be used.
•
Ensure the network connections and network settings are completed. “Network connections” (p.71), [Network Setup]
•
(p.72-76)
For details about VIERA Connect operation “Using “VIERA Connect”” (p. 16)
•
Setup menu (Items in [Setup] may change without notice.)
•
Customize HomeScreen Changes the position of each services on VIERAConnect home screen
My Account Confirms or removes the account information of the TV you entered on VIERA Connect
Lock Sets to restrict access to some services
Beep Sets beep sound On or Off when operating VIERAConnect
Notices Displays the information of VIERAConnect
Note
Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated,
•
you will not be able to use VIERAConnect.
You can update the software later manually [Software Update] in [Network Setup] (p.76)
VIERAConnect home screen is subject to change without notice.
•
The services through VIERAConnect are operated by their respective service providers, and service may be discontinued
•
either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the
continuity of the services.
Some content may be inappropriate for some viewers.
•
Some content may only be available for specific countries and may be presented in specific languages.
•
Depending on the connection environment, the internet connection may be slow or may not be successful.
•
During the operation, audio signal is output from AV1, AUDIO OUT, DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.
•
But no video signals are output. AV1 can output audio signal if [AV1 out] is set to [Monitor] in the Setup Menu (p.34). To use
HDMI2 with ARC function, connect an amplifier that has ARC function (p. 82) and set to use theatre speakers (p. 88).
You can restrict access to VIERAConnect [Child Lock] (p.47)
•
Turn the TV off, and then on again when changing or reconnecting the network connection.
•
80
Page 81
Link Functions (Q-Link / VIERALink)
Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p.83)
VIERALink (HDAVI Control™) connects the TV and the equipment with VIERALink function, and enables easy control,
convenient recording, playback, energy saving, creation of a home theatre, etc., without complicated setting. (p.84 - 88)
You can use Q-Link and VIERALink functions together.
This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s version of
•
HDAVI Control. Please refer to the manual of the equipment to confirm the version.
VIERALink features may be available even with other manufacturers’ equipment supporting HDMI CEC.
•
Summary of Q-Link and VIERA Link features
Q-Link (SCART connection only)
Connected equipment
Features
Analogue channel download
Easy playback
Power on link
Power off link
Direct TV Recording
DVD Recorder / VCR
with Q-Linkfunction
VIERA Link (HDMI connection only)
Connected equipment
Features
Analogue channel download – – –
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption
in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected
equipment by VIERA remote control
Speaker control – – –
Connection
HDMI cable
Use a fully wired HDMI compliant cable.
•
Connect the equipment supporting VIERA Link to the TV’s HDMI1 or HDMI2 terminal via an HDMI cable.
•
For information about using HDMI cables for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of
•
the equipment.
VIERA Link (HDMI and SCART connections)
Features
Connected equipment
Analogue channel download
Easy playback
Power on link
Power off link
Reduce unnecessary power
consumption in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected
equipment by VIERA remote control
Speaker control –
DIGA Recorder with
VIERA Link function
Connection
Use a fully wired SCART cable.
•
Connect the DVD Recorder / VCR supporting Q-Link to the TV’s AV1
•
terminal via a SCART cable.
DIGA Recorder with
VIERALink function
3
∗
3
∗
4
∗3 ∗
3
∗
1
∗
3
∗
3
∗
4
∗2 ∗
2
∗
1
∗
SCART cable
DVD Player / Blu-rayDisc
Player with VIERA Link
function
3
∗
3
∗
––
––
1
∗
DIGARecorder / DVDPlayer/
Blu-rayDiscPlayer/
HDVideoCamera/ LUMIXCamera
with VIERALinkfunction
Connection
HDMI cable
SCART cable
Use a fully wired HDMI compliant cable.
•
Connect the equipment supporting VIERA Link to the TV’s
•
HDMI1 or HDMI2 terminal via an HDMI cable.
Use a fully wired SCART cable.
•
Connect the equipment supporting VIERA Link to the TV’s
•
AV1 terminal via a SCART cable.
DVD Recorder / VCR
with Q-Link function
HD Video Camera/
LUMIXCamera with
VIERALink function
–
–
1
∗
DIGA Recorder
with VIERALink
function
Link Functions (Q-Link / VIERALink)
81
Page 82

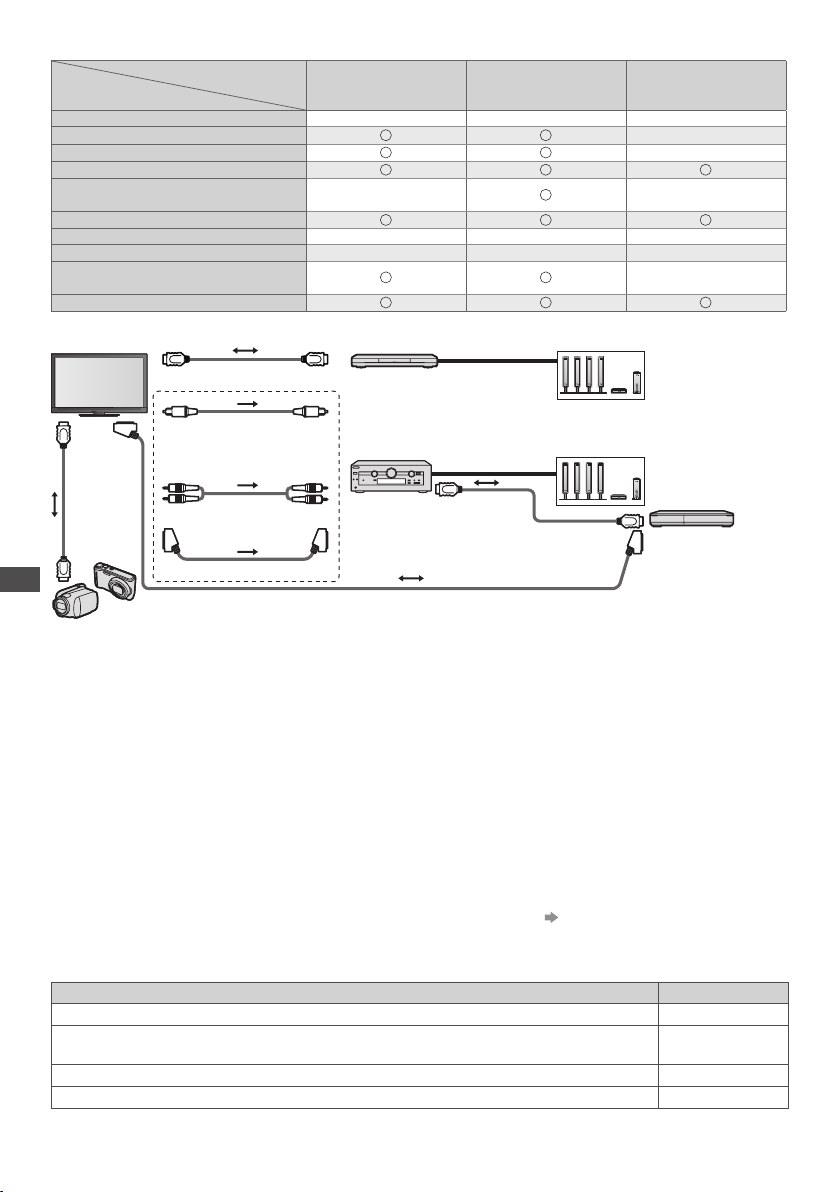

VIERA Link (HDMI and Audio out connections)
Connected equipment
Features
Analogue channel download – – –
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption
in standby
Auto standby for unnecessary equipment
Pause Live TV programme – – –
Direct TV Recording – – –
Control the menu of the connected
equipment by VIERA remote control
Speaker control
Connection
HDMI cable
Optical digital
audiocable
or
HDMI
cable
RCA cable
or
SCART cable
Link Functions (Q-Link / VIERALink)
HD Video Camera / LUMIXCamera with VIERALink function
Use fully wired HDMI compliant cable.
•
Connect the equipment supporting VIERA Link to the TV’s HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable.
•
Use fully wired SCART cable.
•
If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 terminal and set
•
[AV1 out] to [Monitor] in the Setup Menu (p.34).
Use the optical digital audio cable, RCA cable or SCART cable for audio output from the TV.
•
∗
1 : Available with the equipment which has “HDAVI Control
2 or later” function.
∗
2 : Available with the equipment which has “HDAVI Control
3 or later” function.
∗
3 : Available with the equipment which has “HDAVI Control
4 or later” function.
∗
4 : Available with DIGA Recorder which has HDD.
Player theatre with
VIERA Link function
5
∗
–
6
∗3 ∗
1
∗
To use Player theatre / Blu-ray Disc theatre :
•
Player theatre / Blu-ray Disc
theatre with VIERALink function
To use Amplifier :
•
Amplifier with
VIERALink function
7
∗
SCART cable
Blu-ray Disc theatre with
VIERA Link function
∗
5 : While playing a disc
∗
6 : Except for watching a disc
∗
7 : If the connected equipment has “HDAVI Control 5”
function, you do not have to use this audio cable (Optical
digital audio cable, RCA cable or SCART cable). In this
case, connect the equipment to the TV’s HDMI2 terminal
via an HDMI cable.
5
∗
3
∗
6
∗3 ∗
1
∗
HDMI cable
Amplifier with VIERALink
Speaker system
Speaker system
DIGARecorder with
VIERALink function
VIERA Link Control of compatible equipment ([VIERA Link Control] p.86)
Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control.
•
This includes connections to equipment already connected to the TV.
For example, DIGA Recorder connected to Amplifier which is connected to the T V via an HDMI cable.
Type of the equipment Maximum number
Recorder (DIGA Recorder, etc.) 3
Player (DVD Player, Blu-ray Disc Player, HDVideoCamera, LUMIXCamera, Digital Camera, Player
theatre, Blu-ray Disc theatre, etc.)
Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1
Tuner (Set top box, etc.) 4
function
–
–
–
∗
–
3
3
82
Page 83
Q-Link
EXIT
DIRECT TV REC
G
U
I
D
E
Preparations
Connect the DVD Recorder / VCR with the following logos:
•
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips Corporation)”,
“Megalogic (a trademark of Grundig Corporation)” or “SMARTLINK (a trademark of Sony Corporation)”
Q-Link connection (p.81)
•
Use fully wired SCART cable.
•
Set up the DVD Recorder / VCR. Read the manual of the recorder.
•
Q-Link terminal setup in the Setup Menu [AV1 out] (p.34)
•
Download Analogue channel setting “Analogue channel download” (see below)
•
Features available
Analogue channel download
Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital
channel settings are not downloaded.
To download the Analogue channel settings [Q-Link Download] (p.34) or [Auto Setup] in Analogue mode (p.40) or
•
“Auto Setup” - when first using the TV (p.12)
Direct TV Recording - What you see is What you record
Recording the current programme on a DVD Recorder / VCR immediately.
DIRECT TV REC
Available conditions:
•
Analogue
DVB TV TV monitor out
AV (watching recorder’s tuner) AV Recorder’s tuner
AV (watching recorder’s external input) AV Recorder’s externalinput
AV (watching T V’s external input) AV TV monitor out
When Direct TV Recording is performed, the recorder is automatically turned on if it is in
•
Standby mode.
Changing channel or turning off the TV is available while the recorder is recording from its
•
own tuner.
Changing channel is not available while the recorder is recording from the TV tuner.
•
Picture source Mode Recording from
TV TV monitor out
AV Recorder’s tuner
■ To stop recording
Unlock the tuner
G
U
I
D
E
Tuner Locked
Press EXIT to unlock and stop recording
EXIT
Link Functions (Q-Link / VIERALink)
Power on link and Easy playback
When the DVD Recorder / VCR starts playback or the direct navigator / function menu for the equipment is activated, the TV
is turned on and the input mode is switched automatically so that you can view the content. (Only when the TV is in Standby
mode.)
Power off link
When the TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is
not active.)
This function will work even if the TV enters Standby mode automatically by auto power standby function.
•
Note
Some recorders are not compatible. Read the manual of the recorder.
•
83
Page 84
VIERA Link “ Control™”
∗
Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 5” function.
Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables
allow you to interface them automatically (p.81, 82).
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the connected
•
equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI
•
CEC (Consumer Electronics Control), is a unique function that we have developed and added.
As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
•
For information about applicable Panasonic equipment, consult your local Panasonic dealer
•
or refer to www.panasonic.co.uk
Preparations
Connect the equipment that supports VIERA Link.
•
VIERA Link connection (p.81, 82)
•
Use a fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilised.
Recommended Panasonic HDMI cables’ part numbers:
• RP-CDHS15 (1.5 m) • RP-CDHS30 (3.0 m) • RP-CDHS50 (5.0 m)
Use a fully wired SCART cable.
•
Set up the connected equipment. Read the manual of the equipment.
•
For optimal recording, the settings of the recorder may need to be changed. For details, read the manual of the recorder.
•
Download Analogue channel setting “Analogue channel download” (see below)
•
Set [VIERA Link] [On] in the Setup Menu [ VIERA Link] (p.34)
•
Set up the TV
•
After connection, turn the equipment on and then switch the TV on.
Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p.27), and make sure that an image is displayed correctly.
This setup should be done each time when the following conditions occur:
• for the first time
Link Functions (Q-Link / VIERALink)
• when adding or reconnecting equipment
• when changing setup
Features available
Analogue channel download
Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital
channel settings are not downloaded.
To download the Analogue channel settings [Q-Link Download] (p.34) or [Auto Setup] in Analogue mode (p.40) or
•
∗
“Auto Setup” - when first using the TV (p.12)
Easy playback
Automatic Input switching - When the connected equipment is operated (during playback or menu operations, etc.), the input
mode is switched automatically. When playback is stopped or menus are exited, the input mode returns to the original setting.
Power on link
When the connected equipment starts playback or the direct navigator / function menu for the equipment is activated, the TV
is automatically turned on and the input mode is switched automatically so that you can view the content. (Only when the TV
is in Standby mode.)
Power off link
When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.
This function will work even if the TV enters Standby mode automatically by auto power standby function.
•
84
Page 85

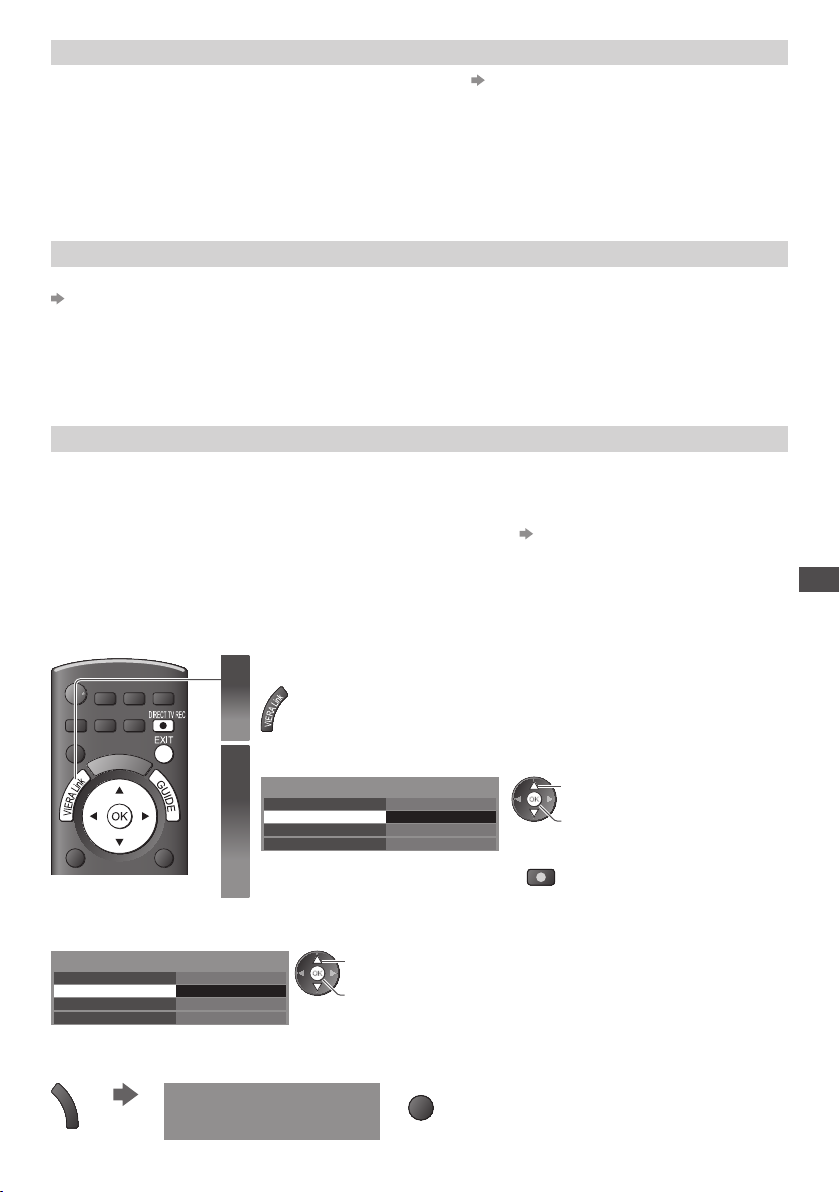

Reduce unnecessary power consumption in standby [Standby Power Save]
Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p.34)
The power consumption in Standby mode of the connected equipment is controlled in synchronization with the T V On/ Off
state.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption in
Standby mode of the connected equipment is automatically minimised.
When the TV is turned on and the connected equipment is still in Standby mode, the power consumption of the connected
equipment is increased to reduce the startup time.
This function is effective if the connected equipment can change the power consumption in Standby mode and is set to
•
higher consumption.
Auto standby for unnecessary equipment [Intelligent Auto Standby]
Set Intelligent Auto Standby [On (With reminder)] or [On (No reminder)] in the Setup Menu to use this function
[Intelligent Auto Standby] (p.34)
When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically to reduce power
consumption. For example, when the input mode is switched from HDMI, the connected equipment will go into Standby mode
/ when Speaker Selection is changed to [TV], the Player theatre will go into Standby mode (except when watching a disc).
If you select [On (With reminder)], the on screen message will be displayed before the connected equipment turns to
•
Standby.
This function may not work properly depending on the connected equipment. If required, set to [Off].
•
Direct TV Recording - What you see is What you record [Direct TV Rec]
Recording the current programme on a DIGA Recorder immediately.
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please connect the DIGA
•
Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the
DIGA Recorder to HDMI1.
If Direct TV Recording does not operate, check the settings and the equipment “Summary of Q-Link and VIERA Link
•
features” (p.81, 82), “Preparations” (p.84)
If you wish to record a programme that the DIGA Recorder does not support, a SCART connection is required and the
•
programme is recorded by Q-Link function (p.83).
Depending on the programme, a SCART connection may be required to record.
•
Changing channel or turning off the TV is available while the recorder is recording from its own tuner.
•
Changing channel is not available while the recorder is recording from the TV tuner.
•
Link Functions (Q-Link / VIERALink)
1
2
■ To stop recording
Select [Stop] in [Direct TV Rec]
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
You can also stop recording directly.
•
G
U
I
D
E
Start
Stop
Recorder
Home Cinema
Unlock the tuner
Press EXIT to unlock and stop recording
Display [VIERA Link Menu]
Select [Direct TV Rec] and start recording
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Tuner Locked
Start
Start
Recorder
Home Cinema
select
access / stop
EXIT
select
access / start
You can also start recording directly.
•
DIRECT TV REC
85
Page 86

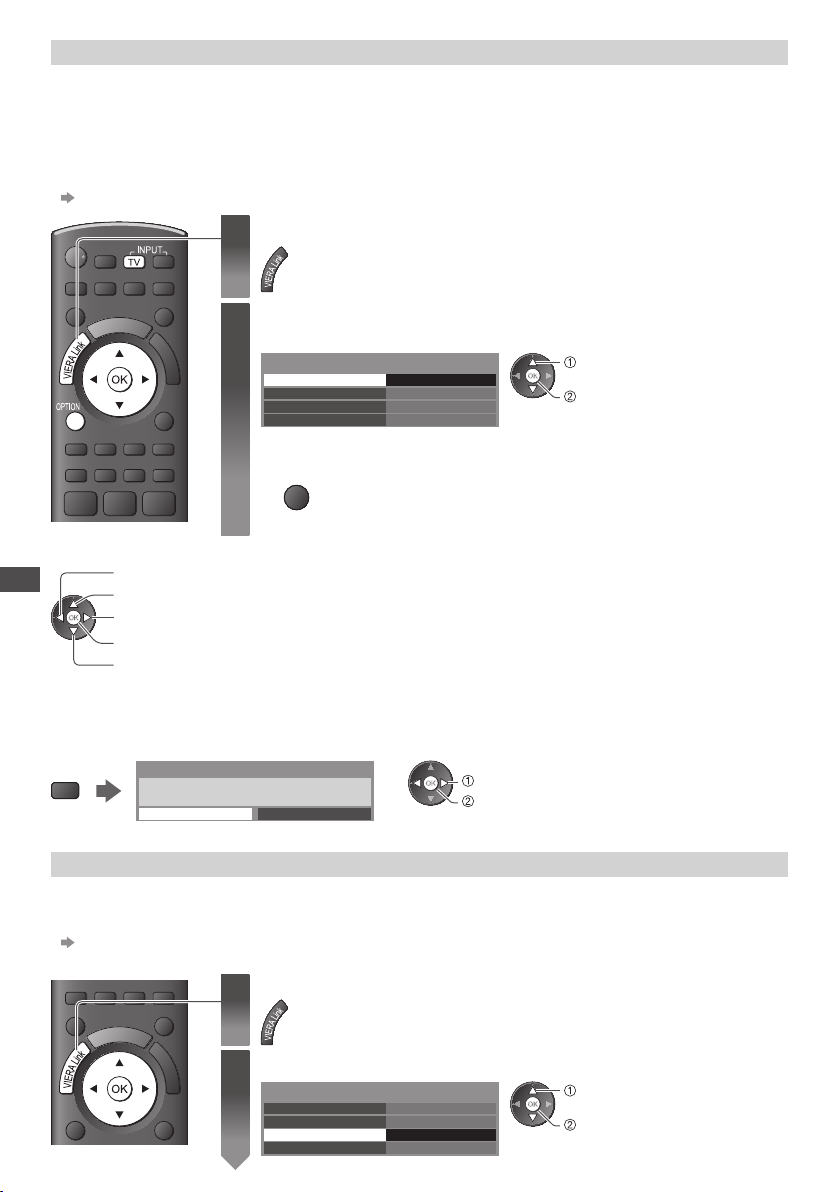

Pause Live TV programme [Pause Live TV]
You can pause the live TV programme and resume the programme later.
The live TV programme will be recorded on HDD of the connected DIGA Recorder.
This function is available with a DIGA Recorder which has HDD.
•
If you connect a variety of recorders including other manufacturers’ recorders at the same time, please connect the DIGA
•
Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two
recorders, connect the DIGA Recorder which has HDD to HDMI1.
If Pause Live TV does not operate, check the settings and the equipment
•
“Summary of Q-Link and VIERA Link features” (p.81, 82), “Preparations” (p.84)
Display [VIERA Link Menu]
1
Select [Pause Live TV] and pause
2
The TV picture will be paused.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Live TV programme is recorded on HDD from where it was paused.
•
If the paused TV picture disappears after a few minutes.
•
OPTION
(the paused picture will be restored)
Follow the operation guide to operate Pause Live TV function.
•
Start
Start
Recorder
Home Cinema
select
pause
■ To operate Pause Live TV
Link Functions (Q-Link / VIERALink)
search backward
pause
search forward
playback
stop
If you stop playback, the recorded programme will be deleted from HDD.
•
Operations may be different depending on the recorder. In this case, follow the
•
operation guide or read the manual of the recorder.
■ To return to Live TV
Select [Yes]
Pause Live TV
TV
If you stop playback or cancel pause, the recorded programme will be deleted from HDD.
•
(stop playback of Pause Live TV / cancel pause)
Stop Pause Live TV?
Yes
No
select
stop
Control the menu of the connected equipment by VIERA remote control [VIERA Link Control]
You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s
signal receiver).
If you cannot operate the menu of the connected equipment, check the settings and the equipment
•
“Summary of Q-Link and VIERA Link features” (p.81, 82), “Preparations” (p.84)
For details of the operations for the connected equipment, read the manual of the equipment.
•
Display [VIERA Link Menu]
1
Select [VIERALink Control]
2
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Start
Recorder
Home Cinema
select
access
86
Page 87

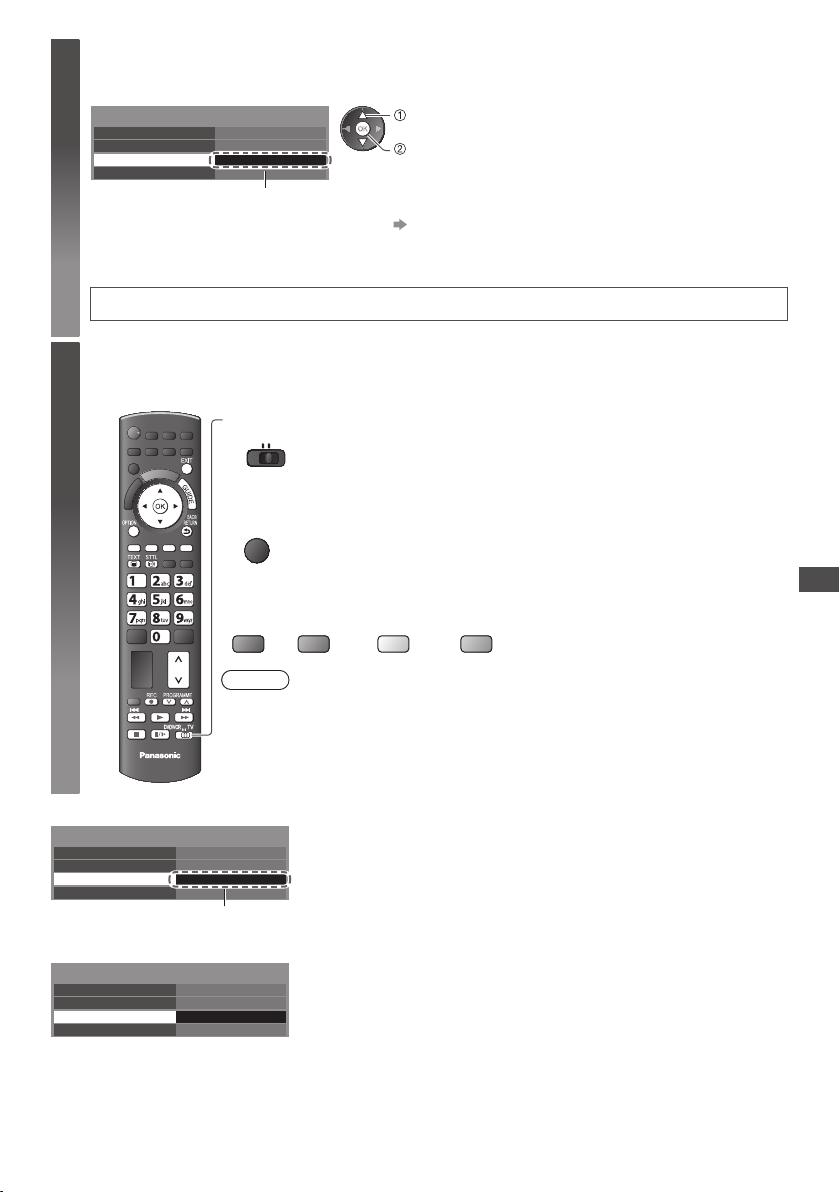

Select the equipment you want to access
3
The type of the connected equipment is displayed.
Select the type of the equipment and access.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
[Recorder] / [Player] / [Home Cinema] / [Video Camera] / [LUMIX] / [DigitalCamera] / [Other]
You can also access directly by using VIERATOOLS “How to Use VIERA TOOLS” (p.29)
•
The displayed item may vary depending on the connected equipment.
•
[Home Cinema] means Player theatre, Blu-ray Disc theatre or Recorder theatre.
•
[Other] means Tuner set top box.
•
The menu of the accessed equipment (Input mode will be changed automatically)
Operate the menu of the equipment
4
Available VIERA remote control buttons:
(depending on the connected equipment)
Start
Start
Recorder
Home Cinema
select
store
1 Set the position to “TV”
DVD/VCR
TV
2 Follow the operation guide
To display the operation guide
•
OPTION
If other manufacturers’ equipment is accessed, Setup / Contents Selection menu may be
displayed.
When the key words are displayed on colour bar
•
(red) (green) (yellow) (blue)
Note
Some operations may not be available depending on the equipment. In this case use its own
•
remote control to operate the equipment.
Link Functions (Q-Link / VIERALink)
TV
■ If multiple recorders or players are connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Start
Recorder2
Home Cinema
[Recorder1-3 / Player1-3]
The number is given from the TV’s lower HDMI terminal number connected to the
same type equipment. For example, two recorders to HDMI2 and HDMI3, in this
case the recorder connected to HDMI2 is displayed as [Recorder1], and the recorder
connected to HDMI3 is displayed as [Recorder2].
■ If you access non-VIERALink equipment
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Start
Recorder
Home Cinema
The type of the connected equipment is displayed.
You can access the menu of the equipment. But you cannot operate it. Use its own
remote control to operate the equipment.
87
Page 88

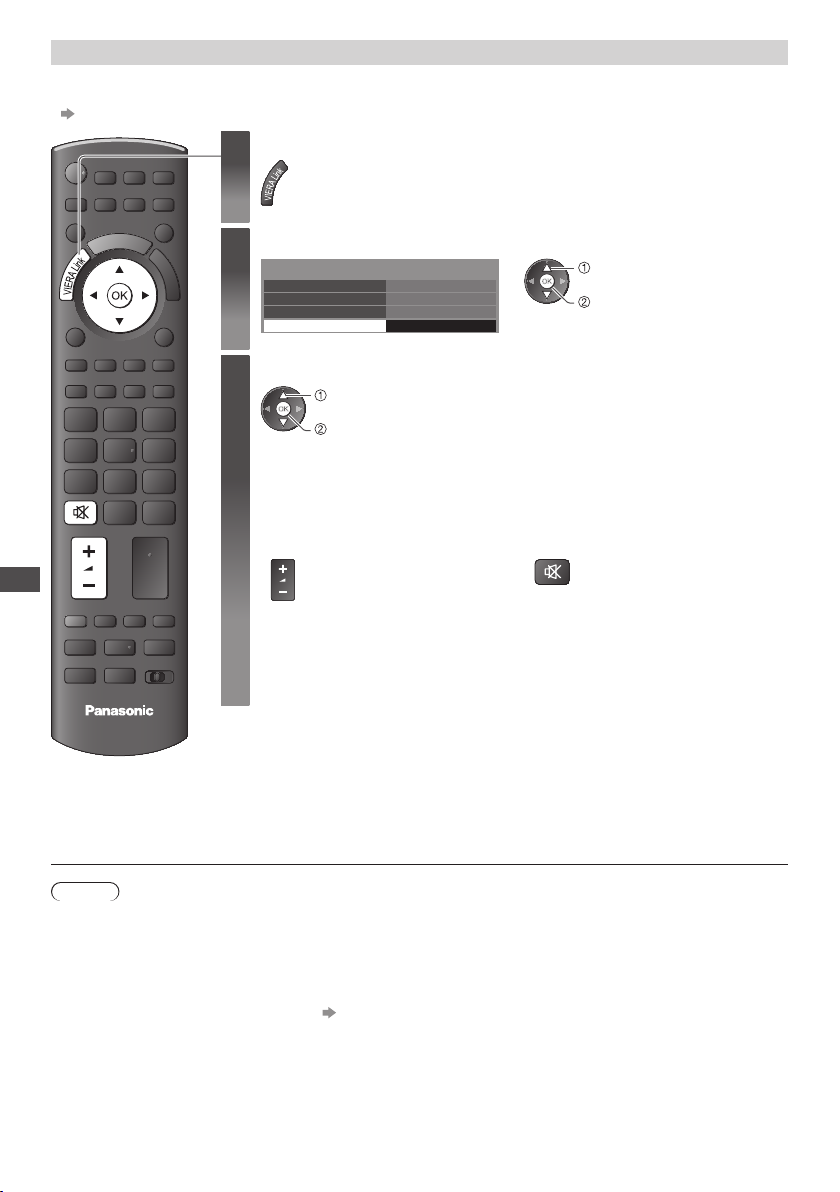

Speaker control [Speaker Selection]
You can control the home theatre speakers with this TV remote control (point the remote control at the TV’s signal receiver).
If you cannot operate, check the settings and the equipment
•
“Summary of Q-Link and VIERA Link features” (p.81, 82), “Preparations” (p.84)
Display [VIERA Link Menu]
1
Select [Speaker Selection]
2
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Set to [Home Cinema] or [TV]
3
select
store
Start
Start
Recorder
Home Cinema
select
access
[Home Cinema]
The Player theatre, Blu-ray Disc theatre or Amplifier will be automatically turned on if it is
in Standby mode and the sound will be output from theatre speakers connected to the
equipment.
Link Functions (Q-Link / VIERALink)
Volume up / down
•
The sound of the TV speakers is muted.
•
When the equipment is turned off, the TV speakers will be activated.
•
•
Mute
[TV]
TV speakers are active.
TV
Note
These functions may not work properly depending on the connected equipment.
•
Image or sound may not be available for the first few seconds when input mode is switched.
•
Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier. Read the
•
manual of the equipment.
“HDAVI Control 5” is the newest standard (current as of December, 2010) for HDAVI Control compatible equipment. This
•
standard is compatible with conventional HDAVI equipment.
To confirm this TV’s version of HDAVI Control [System Information] (p.36)
•
Multi-channel sound
If you wish to enjoy multi-channel sound (e.g. Dolby Digital 5.1ch) via an Amplifier, connect the
Amplifier to the TV with an HDMI cable and an Optical digital audio cable (p.82), and then select
“Home Cinema”. If your Amplifier has “HDAVIControl5” function, you only need to connect with
an HDMI cable. In this case, connect your Amplifier to the TV’s HDMI2 terminal.
To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable
from the DIGA Recorder to the Amplifier (p.82).
88
Page 89
External Equipment
These diagrams show our recommendations for connection of your TV to various pieces of equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the specifications (p.106, 107).
To record / playback
Terrestrial aerial
or
RF cable
Rear of the TV
Fully wired SCART cable
To watch satellite broadcasts
Fully wired HDMI
compliant cable
To watch DVDs
(Listening)
(Viewing)
HDMI equipment
Fully wired HDMI
compliant cable
HDMI connection (p.96)
•
DVD Recorder / VCR
Fully wired
SCART cable
HD Satellite receiver
DVD Player
Recorder / Player
Camcorder
External Equipment
89
Page 90
Network (wired)
Internet
LAN cable (Shielded)
Hub or Router
Modem
USB devices
Wireless LAN Adaptor
USB cable
USB HDD
PC
(Viewing)
Conversion adaptor
(if necessary)
External Equipment
(Listening)
Computer
To listen with speakers
90
Rear of the TV
Optical digital audio cable
RCA cable
To enjoy the sound from the external equipment in
multi-channel sound (e.g. Dolby Digital 5.1ch), connect the
equipment to the amplifier.
For the connections, read the manuals of the equipment and
amplifier.
or
Amplifier with
speaker system
Page 91
Camcorder / Game equipment
Side panel of
the TV
Headphones
(M3 stereo mini plug)
To adjust volume
•
[Headphone Volume] (p.33)
Types of connectable equipment to each terminal
AV1
Recording/ Playback
(equipment)
AV2
(Viewing)
(Listening)
Terminal
COMPONENT
AUDIO OUT
AUDIO OUT
DIGITAL
Camcorder
Game equipment
ETHERNET
HDMI 1 - 4
USB 1 - 3
External Equipment
To record / playback videocassettes/ DVDs
(VCR / DVD Recorder)
1
To watch satellite broadcasts (Set top box)
To watch DVDs (DVD Player)
To watch camcorder images (Video camera)
To play games (Game equipment)
To use amplifier with speaker system
To use network services
USB HDD Recording
Q-Link
VIERA Link
Direct TV Recording
: Recommended Connection
∗
1 : Use HDMI1 for automatic input switching.
∗
2 : Use HDMI2 for connecting an amplifier. This connection is applicable when using an amplifier that has ARC (Audio Return
Channel) function.
∗
3 : Use USB 1 port for connecting the USB HDD.
(with HDMI)
∗
2
∗
3
∗
91
Page 92
Technical Information
Auto Aspect
The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p.20)
Aspect Control Signal
[WIDE] will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal
is found.
The aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio.
This function will work in any aspect mode.
Aspect Control Signal
Input terminal Input signal format
DVB
RF
AV1 / AV2
(Composite)
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
PAL I
PAL 525/60 6.0 MHz –
M.NTSC 6.0 MHz –
PAL
PAL 525/60 –
M.NTSC –
NTSC –
525 (480) / 60i, 60p –
625 (576) / 50i, 50p
750 (720) / 60p, 50p –
1,125 (1,080) / 60i, 50i –
525 (480) / 60i, 60p –
625 (576) / 50i, 50p –
750 (720) / 60p, 50p –
1,125 (1,080) / 60i, 50i –
1,125 (1,080) / 60p, 50p, 24p –
Widescreen signal
(WSS)
Control signal
through SCART (pin8) /
HDMI terminal
Auto mode
Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS, Control signal
through SCART / HDMI terminal, Letterbox detection or Justify to fill the screen).
This process may take several minutes, depending on the darkness of the image.
Letterbox detection:
Technical Information
If black bands at the top and bottom of the screen are detected, Auto mode chooses the best ratio and expands the image to
fill the screen.
If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.
Note
The ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top and bottom
•
of the screen may appear.
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the
•
VCR. Read the manual of the VCR.
92
Page 93
Supported file format in Media Player and media servers
■ Photo
Format File extension
JPEG .jpg
∗
1 : Design rule for Camera File system - unified standard established by Japan Electronics and Information Technology
Industries Association (JEITA)
∗
2 : Exchangeable Image File - image file format used by digital cameras
Image resolution
(pixel)
8 × 8
to
30,719 × 17,279
Details / Restrictions
1
∗
and EXIF
DCF
Sub-sampling : 4:4:4, 4:2:2, 4:2:0
Progressive JPEG is not supported.
•
2
∗
standards
■ Video
Container File extension Video codec Audio codec Details / Restrictions
SD-Video .mod
AVCHD .mts H.264 Dolby Digital
AVI
MKV .mkv H.264 BP / MP / HP
ASF
MP4 .mp4 H.264 BP / MP / HP
MOV .mov
PS
TS
∗
3 : Some products of before the year 2004 may not be available. The compatibility with future products is not guaranteed.
.avi
.divx
.asf
.wmv
.mpg
.mpeg
.ts
.tp
MPEG1
MPEG2
DIV3 DIV4
DIVX DX50
DIV6 XviD
MPEG4 SP / ASP
Windows Media
Video Ver. 9
VC-1
MotionJPEG
H.264 BP / MP / HP
MPEG1
MPEG2
MPEG2
H.264
MPEG
Dolby Digital
MPEG
MP3
Dolby Digital
MPEG
MP3
Dolby Digital
DTS core
WMA
AAC
MP3
Dolby Digital
Linear PCM (RAW /
TWOS / SOWT )
AAC
MP3
Dolby Digital
MPEG
MP3
Linear PCM
AAC
MP3
Dolby Digital
Dolby Digital Plus
HE-AAC
SD-Video Standard Ver. 1.3
(Entertainment Video Profile)
The data may not be available if a folder
•
structure on the device is modified.
AVCHD Standard
The data may not be available if a folder
•
structure on the device is modified.
Certified to play DivX Plus HD video file
•
in Media Player
For details of DivX “DivX” (p. 94)
Copy-protected files cannot be played
•
back.
WMA Pro and WMA Lossless are not
•
supported.
This TV supports this container recorded
•
by Panasonic products.
For details, read the manual of the
products.
This TV supports Motion JPEG recorded
•
by Panasonic LUMIX Camera
This TV is not available for playing back
•
Motion JPEG with the media server.
–
This container can be played back only
•
with the media server.
3
∗
.
Technical Information
93
Page 94
■ Music
Codec File extension Restrictions
MP3 .mp3 –
AAC .m4a
WMA .wma
Note
Some files may not be played back even if they fulfill these conditions.
•
Do not use two-byte characters or other special codes for data.
•
The device may become unusable with this TV if the file or folder names are changed.
•
DivX
DivX Certified® to play DivX® and DivX Plus™ HD (H.264/MKV) video up to 1080p HD including premium content.
ABOUT DIVX VIDEO :
DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video.
Visit divx.com for more information and software tools to convert your files into DivX video.
Subtitle text file of DivX
Subtitles format - MicroDVD, SubRip, TMPlayer
The DivX video file and subtitles text file are inside the same folder, and the file names are the same except for the file
•
extensions.
If there are more than one subtitles text files inside the same folder, they are displayed in the following order of priority :
•
“.srt ”, “.sub”, “.txt”.
To confirm or change the current subtitle status while playing DivX content, press the OPTION button to display Option
•
Menu.
Depending on the methods used to create the file or the state of recording, only parts of the subtitles may be displayed, or
•
the subtitles may not be displayed at all.
Note
Depending on how you make SD Card, USB Flash Memory or the media server, files and folders may not be displayed in the
•
order you numbered.
Depending on how you create the files and the structure of folders, the files and folders may not be displayed.
•
When there are many files and folders, operation may take time to complete or some files may not be displayed or playable.
•
ABOUT DIVX VIDEO-ON-DEMAND :
This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain
your registration code, locate the DivX VOD section in the Setup Menu. Go to vod.divx.com for more information on how to
complete your registration.
To show DivX VOD registration code
Technical Information
[DivX® VOD] in the Setup Menu (p.36)
If you want to generate the new registration code, you have to deregister the present registration code.
•
After playing DivX VOD content once, the confirmation screen to deregister will be displayed in [DivX® VOD] in the Setup
Menu. If you press the OK button on the confirmation screen, the deregistration code will be generated and you will not be
able to play any contents that you purchased using the present registration code.
You will obtain the new registration code by pressing the OK button on the deregistration code screen.
If you purchase DivX VOD content using a registration code different from this TV’s code, you will not be able to play this
•
content. ([Your device is not authorized to play this DivX protected video.] is displayed.)
Regarding DivX content that can only be played a set number of times
Some DivX VOD content can only be played a set number of times.
When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of
remaining plays is zero. ([This DivX rental has expired.] is displayed.)
When playing this content, the number of remaining plays is reduced by one in the following conditions :
•
• If you exit the current application.
• If you play the other content.
• If you go to the next or previous content.
Copy-protected files cannot be played back.
•
Copy-protected files cannot be played back.
•
WMA Pro and WMA Lossless are not supported.
•
94
Page 95
Devices for recording or playing back
■ SD Card (for playing back in Media Player)
Card format : SDXC Card - exFAT SDHC Card / SD Card - FAT16 or FAT32
Compliant card type (maximum capacity) : SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB),
If miniSD Card is used, insert / remove it together with the adaptor.
•
Check the latest information on the card type at the following website.
•
http://panasonic.jp/support/global/cs/tv/
Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.
•
miniSD Card (2 GB) (requiring miniSD adaptor)
2.1 mm
32 mm
■ USB Flash Memory (for playing back in Media Player)
USB Flash Memory format : FAT16, FAT32 or exFAT
A USB HDD formatted by PC is not supported in Media Player.
•
■ USB HDD (for recording the digital T V programmes with this TV and playing back in Media Player)
The capacity of USB HDD that have been tested for the performance with this TV : From 160 GB to 3 TB
Connect the USB HDD to the socket outlet to record and play back properly with this T V.
•
Format the USB HDD with this TV in order to use it. (p. 54)
•
Regarding the performance, not all USB HDDs are guaranteed. Check the USB HDDs that have been tested for the
•
performance with this TV at the following website.
http://panasonic.jp/support/global/cs/tv/
Note
Data modified with a PC may not be displayed.
•
Do not remove the device while the TV is accessing data (this can damage device or TV).
•
Do not touch the pins on the device.
•
Do not subject the device to a high pressure or impact.
•
Insert the device in the correct direction (otherwise, device or TV may be damaged).
•
Electrical interference, static electricity, or erroneous operation may damage the data or device.
•
Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV.
•
(Panasonic is not liable for any deterioration or damage of recorded data.)
24 mm
SCART and HDMI terminal information
AV1 SCART terminal (RGB, VIDEO, Q-Link)
Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
HDMI terminal
Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield 11
TMDS Data0− 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2− 3
TMDS Data2+ 1
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
18 +5V Power
16 SDA
14 Utility
12 TMDS Clock−
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1−
4 TMDS Data1+
2 TMDS Data2 Shield
Technical Information
95
Page 96
Characters table for numeric buttons
You can enter characters by using numeric buttons for free input items.
User input
Name
A B C D E F G H I J K L M N
U V W X Y Z 0 1 2 3 4 5 6
a b c d e f g h i j k l m n
u v w x y z ( ) + - . * _
Characters table:
Numeric
buttons
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
1234567 891011
.1! :#+- *_()
abc 2ABC
de f 3DEF
gh i 4GHI
jkl5JKL
mn o 6MNO
pq r s 7PQRS
tuv8TUV
wx y z9WX YZ
Space 0
O P Q R S T
7 8 9 ! : #
o p q r s t
1
.!:#2abc3def
4
ghi5jkl6mno
7
pqrs8tuv9wxyz
0
abc def
Press the numeric button repeatedly until you reach the desired
jkl
ghi
mno
character.
tuvpqrs
wxyz
The character is set automatically if you do not press the button for 1
•
second.
You can also set the character by pressing the OK button or other numeric
•
buttons within 1 second.
The number of times to press
HDMI connection
HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a noncompression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment.
HDMI-compatible equipment
equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
For information about connections, see “External Equipment” (p.89).
1
∗
with an HDMI or DVI output terminal, such as a DVD player, a set top box or a game
Applicable HDMI features
Input audio signal :
•
2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
Input video signal :
•
480i, 480p, 576i, 576p, 720p, 1080i and 1080p
“Input signal that can be displayed” (p.98)
Match the output setting of the digital equipment.
Technical Information
Input PC signal :
•
“Input signal that can be displayed” (p.98)
Match the output setting of the PC.
DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable
DVI to HDMI adaptor cable is used, connect the audio cable to the audio input terminal.
Note
Audio settings can be made on the [HDMI1 / 2 / 3 / 4 Input] in the Sound Menu. (p.33)
•
If the connected equipment has an aspect adjustment function, set the aspect ratio to [16:9].
•
These HDMI connectors are “type A”.
•
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
•
Equipment having no digital output terminal may be connected to the input terminal of “COMPONENT” or “VIDEO” to receive
•
analogue signals.
This TV incorporates HDMI™ technology.
•
∗
1 : The HDMI logo is displayed on HDMI-compliant equipment.
∗
2 : Audio Return Channel (ARC) is a function to be able to send digital sound signals via an HDMI cable.
∗
3 : Enquire at your local digital equipment retailer shop.
VIERA Link (HDAVI Control 5)
•
[VIERA Link] (p.84)
Content Type
•
Deep Colour
•
Audio Return Channel
•
(HDMI2 terminal only)
2
∗
∗
3
. When the
96
Page 97
PC connection
A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the T V.
PC signals that can be input : Horizontal scanning frequency 31 to 69kHz; vertical scanning frequency 59 to 86Hz (more than
•
1,024 signal lines could result in incorrect display of the image).
A PC adaptor is not necessary for the DOS/V-compliant D-sub 15-pin connector.
•
Note
Some PC models cannot be connected to this TV.
•
When using PC, set the colour display quality of PC to the
•
highest position.
For details of the applicable PC signals
•
“Input signal that can be displayed” (p.98)
D-sub 15-pin connector signal
•
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
R GND (Ground) NC (not connected)
G GND (Ground) NC (not connected)
B GND (Ground) HD
NC (not connected) NC (not connected) VD
GND (Ground) GND (Ground) NC (not connected)
Max. display resolution
•
4:3 1,440 × 1,080 pixels
16:9 1,920 × 1,080 pixels
USB connection
It is recommended to connect the USB HDD or USB Flash Memory directly to the TV’s USB ports.
•
Some USB devices or USB HUB may not be used with this TV.
•
You cannot connect any devices by using USB card reader.
•
You cannot use two or more same kind of USB devices simultaneously except USB Flash Memory or USB HDD.
•
Additional information for USB devices may be on the following website.
•
http://panasonic.jp/support/global/cs/tv/
USB Keyboard
The USB Keyboard which requires the driver is not supported.
•
To change the language type [USB Keyboard Layout] (p.36)
•
Characters may not be displayed correctly on the TV screen depending on the connected keyboard or the keyboard layout
•
setting.
Some of the keys of USB keyboards may correspond to the operation of the remote control.
•
USB Keyboard Remote Control USB Keyboard Remote Control
↑ / ↓ / ← / →
Enter OK F3 MENU
Backspace BACK/RETURN F4 INPUT (AV)
Esc EXIT F5 / F6 Channel Down / Up
0 - 9 / Character Numeric buttons F7 / F8 Volume Down / Up
F1 GUIDE F9 / F10 / F11 / F12 Coloured buttons
Cursor buttons F2 VIERA TOOLS
Gamepad
Check the gamepads that have been tested for the performance with this TV at the following website.
•
http://panasonic.jp/support/global/cs/tv/
Some of the keys of gamepads correspond to the operation of the remote control.
•
Example :
1
Select Start
1011
2
7 69 8
1 Volume Up / Down 7 VIERA TOOLS
2 Channel Up / Down 8 EXIT
3
3 GUIDE
4
5
4OK
5 BACK/RETURN 10 MENU
6 VIERA Connect 11 Cursor buttons
Remote Control Remote Control
INPUT
9
(AV)
Technical Information
97
Page 98
Input signal that can be displayed
COMPONENT (Y, PB, PR), HDMI
525 (480) / 60i, 60p
625 (576) / 50i, 50p
750 (720) / 60p, 50p
1,125 (1,080) / 60i, 50i
1,125 (1,080) / 60p, 50p, 24p
Signal name COMPONENT HDMI
Mark : Applicable input signal
PC (from D-sub 15P)
640 × 400 @70 Hz
640 × 480 @60 Hz
640 × 480 @75 Hz
800 × 600 @60 Hz
800 × 600 @75 Hz
800 × 600 @85 Hz
852 × 480 @60 Hz
1,024 × 768 @60 Hz
1,024 × 768 @70 Hz
1,024 × 768 @75 Hz
1,024 × 768 @85 Hz
1,280 × 768 @60 Hz
1,280 × 1,024 @60 Hz
1,366 × 768 @60 Hz
Macintosh13” (640 × 480)
Macintosh16” (832 × 624)
Macintosh21” (1,152 × 870)
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
31.47 70.07
31.47 59.94
37.50 75.00
37.88 60.32
46.88 75.00
53.67 85.06
31.44 59.89
48.36 60.00
56.48 70.07
60.02 75.03
68.68 85.00
47.70 60.00
63.98 60.02
48.39 60.04
35.00 66.67
49.73 74.55
68.68 75.06
Applicable input signal for PC is basically compatible to VESA standard timing.
PC (from HDMI terminal)
640 × 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00
Technical Information
Note
Signals other than above may not be displayed properly.
•
The above signals are reformatted for optimal viewing on your display.
•
PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.
•
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
Applicable input signal for PC is basically compatible to HDMI standard timing.
98
Page 99
How to use Windows 7 as a media server
Follow the examples below to set up Windows 7 for use as a media server.
Confirm the MAC Address of VIERA in [Network Setup] (p. 76).
The following procedure and screens are examples. For more information, refer to the help functions of Windows7.
Open the Windows start menu andselect [ControlPanel].
Select [HomeGroup] in Control Panel window.
property window
In [Name your media library:] text box, enter a name that will
identify your PC on VIERA.
On the Show devices drop bar, select [All networks] to display
all the available devices in the list. VIERA Name stored in the
[Network Link Settings] (p. 72) will be displayed.
Select the VIERA Name and click [Allowed] so that VIERA can
access your PC.
Then, click [OK].
If the VIERA Name is not displayed correctly, click the device to
confirm the MAC address of the device in property window. Find
a device that has the same MAC address as VIERA: that is your
VIERA.
Be sure [Pictures], [Music] and [Videos] of “Share
libraries and printers” and [Stream my pictures, music,
and videos to all devices on my home network] of
“Share media with devices” are checked. (Check them
and click [Save changes] if necessary). Then select
[Choose media streaming options...].
Technical Information
To share photos, music and videos with VIERA,
putphoto files into [PublicPictures] folder andvideo
files into [PublicVideos] folder under
\Computer\Local Disk (C:)\Users\Public.
99
Page 100
FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care Centre for assistance. For
details
(p.108)
Block noise, frozen or disappearing image occurs in digital mode / White spots or shadow image (ghosting) occurs
in Analogue mode / Some channels cannot be tuned
Check the position, direction and connection of the aerial.
•
Check [Signal Condition] (p.42). If [Signal Quality] is displayed in red, the digital signal is weak.
•
Check your postcode area is able to receive the Freeview channels at www.freeview.co.uk
•
Digital signals may be relatively low to prevent interference with analogue signals for the period of Digital Switchover.
•
Check the schedule of Digital Switchover at www.digitaluk.co.uk
Weather conditions will affect signal reception (heavy rain, snow, etc.), in particular in poor reception areas. Even during
•
good weather, high pressure can cause poor reception of some channels.
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases,
•
despite good reception of analogue channels.
Turn the TV off with the Mains power On / Off switch, and then on again.
•
If problem persists, consult your local dealer.
•
Neither image nor sound is produced
Is the TV in AV mode?
•
Check the correct AV input mode is selected.
•
Check the mains lead is plugged into the socket outlet.
•
Has the TV been turned On?
•
Check the Picture Menu (p.31, 32) and volume.
•
Check all required cables and connections are firmly in place.
•
Auto aspect
Auto aspect is designed to provide you with the best ratio to fill the screen. (p.92)
•
Press the ASPECT button if you would like to change the aspect ratio manually (p.20)
•
Black and white picture
When connecting with SCART, ensure the output setting of the external equipment is not S-Video.
•
Input mode, i.e. EC/AV1 remains on the screen
Press the button to clear this message.
•
Press again to redisplay.
Q-Link function does not work
Confirm SCART cable and connection.
•
Also set [AV1 out] in the Setup Menu (p.34)
[VIERALink] function does not work and an error message appears
FAQ s
Confirm the connection. (p.81, 82)
•
Turn the connected equipment on and then switch the TV on. (p.84)
•
Recording does not start immediately
Check the settings of the recorder. For details, read the manual of the recorder.
•
There may be red spots, blue spots, green spots and black spots on the screen
This is a characteristic of liquid crystal panels and is not a problem. The liquid crystal panel is built with very high
•
precision technology giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a
fixed point of red, green, blue or black. Please note this does not affect the performance of your LCD.
100
Loading...
