Panasonic TX-32LE7LA, TX-26LE7LA User Manual

Page 1
Operating Instructions
LCD Television
Model No. TX-26LE7LA
TX-32LE7LA
English
DIRECT TV REC
TV/AVGUIDE
OK
MENU
TEXT
ASPECT
PROGRAMME
EXIT
123
456
789
C
0
VCR
N
REC
VCR DVD
TV
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Page 2
Turn your living room into a home theatre!
Experience an amazing level of multi-media excitement
Sharp pictures with HDMI terminal Control DVD recorder / VCR via TV with Q-Link connection Create home theatre and DVD recorder link-ups with
"VIERA Link" without complicated settings!
(p. 22)
2
Page 3
Enjoy rich multi-media
Contents
Be Sure to Read
Safety Precautions ······································ 4
•
(Warning / Caution)
Notes ··························································· 5
•
Maintenance················································ 5
•
Quick Start Guide
Amplifi er with
Speaker system
VCR
DVD recorder
Camcorder
Set top box
DVD player
Accessories / Options Identifying Controls Basic Connection Auto Setup
Enjoy your TV!
Basic Features
Watching TV ·············································· 11
•

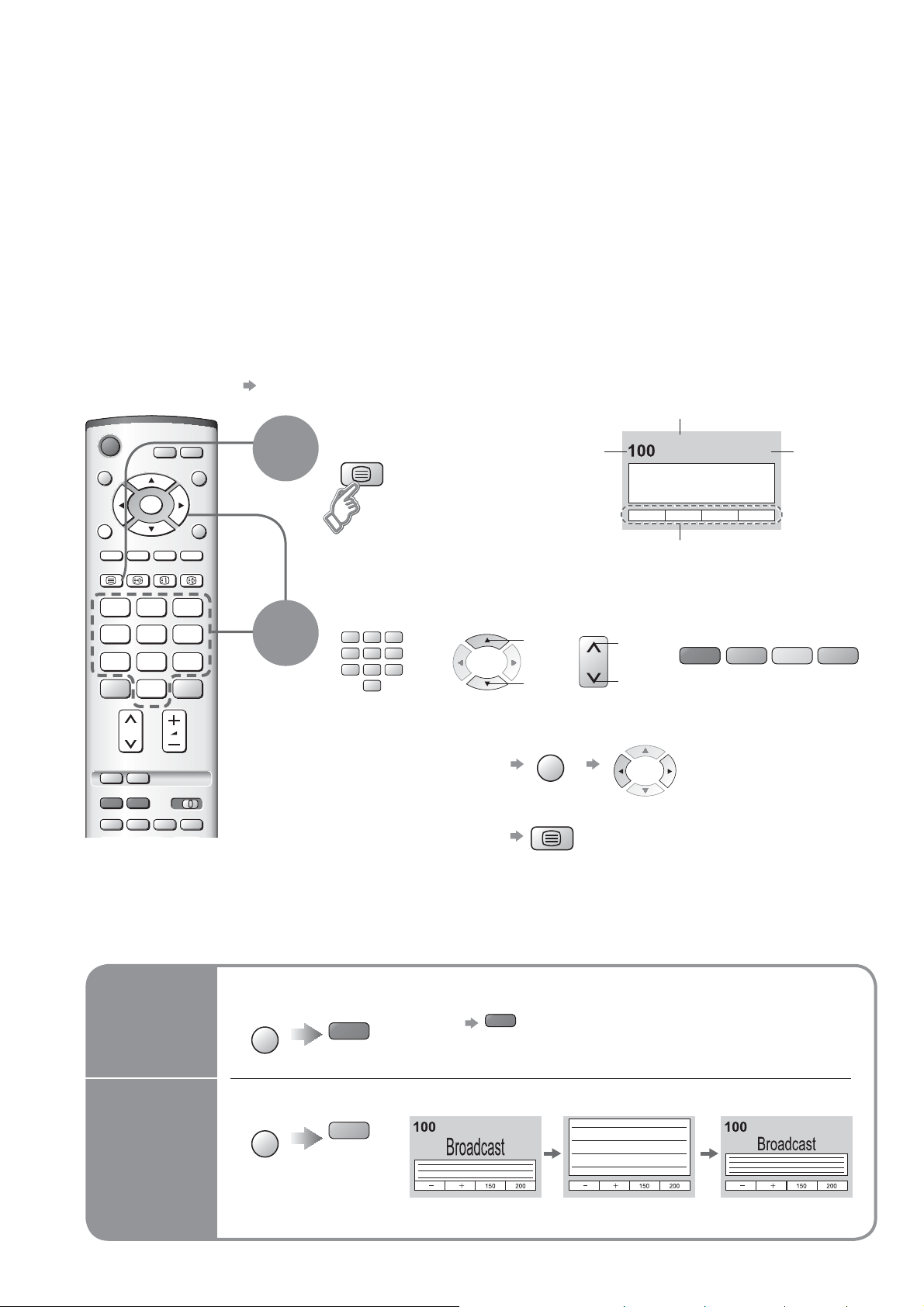

Viewing Teletext ········································12
•

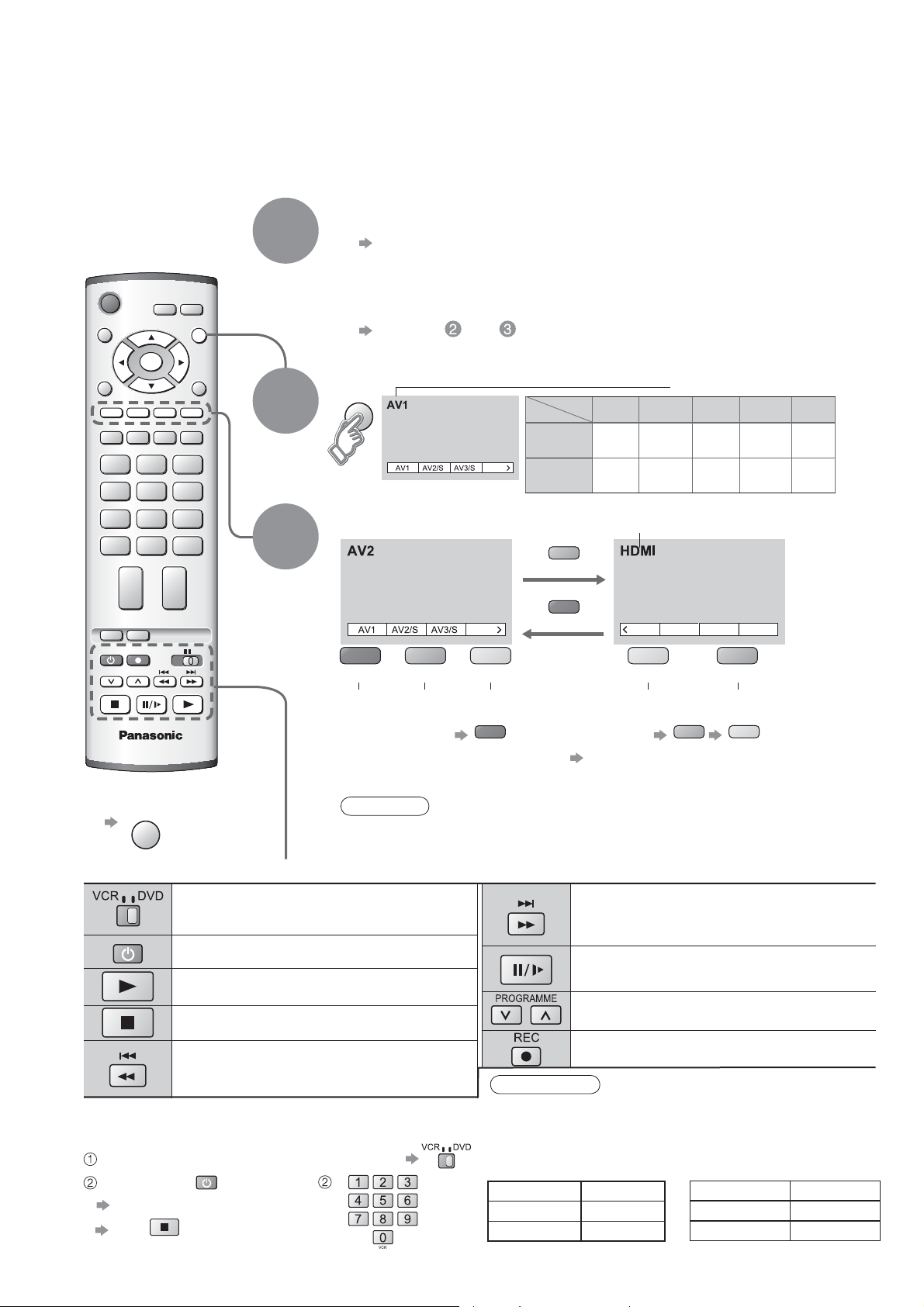

Watching VCR, DVD and Satellites ··········14
·································
··················· 8
·········· 6
··············· 7
•
Advanced Features

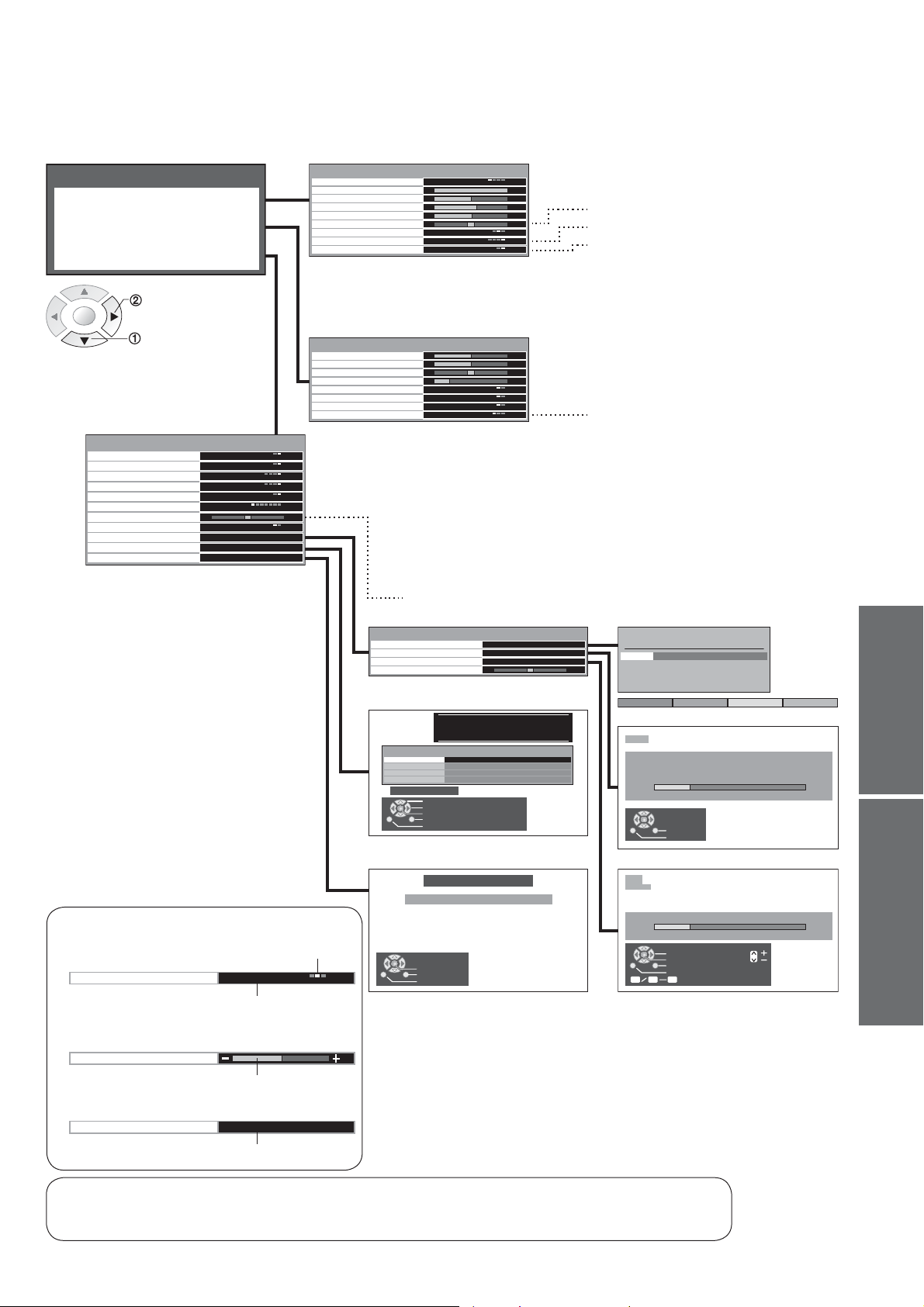

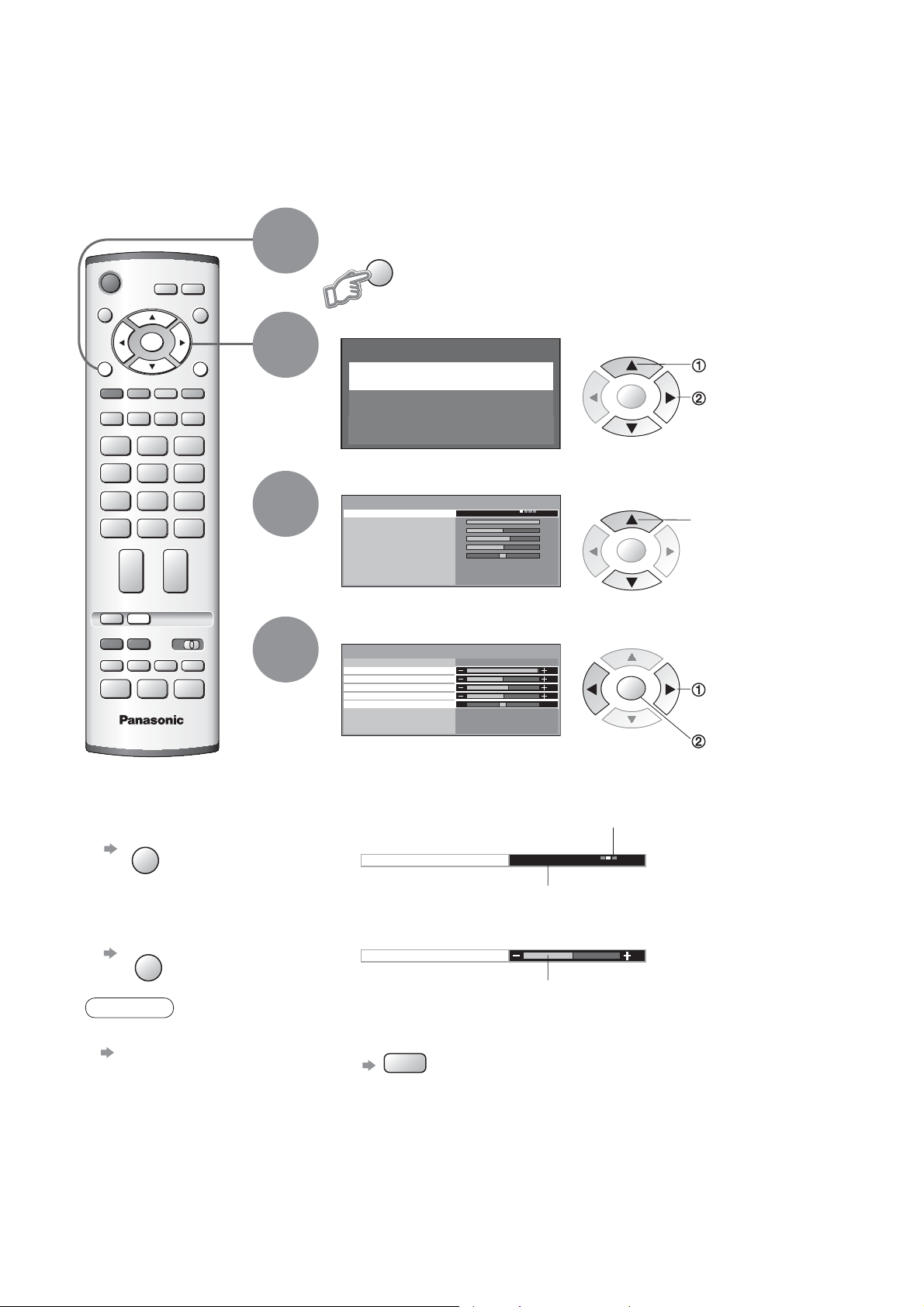

How to Use Menu Functions ····················· 15
•
(picture, sound quality, etc.)
Editing and Setting Channels
•
Restore Settings········································ 20
•
Owner ID ··················································· 21
•
Q-Link Functions ······································· 22
•
HDMI Functions ········································23
•
External Equipment ··································· 26
······················ 18
•
10
Viewing Advanced FAQs, etc.Quick Start Guide
FAQs, etc.

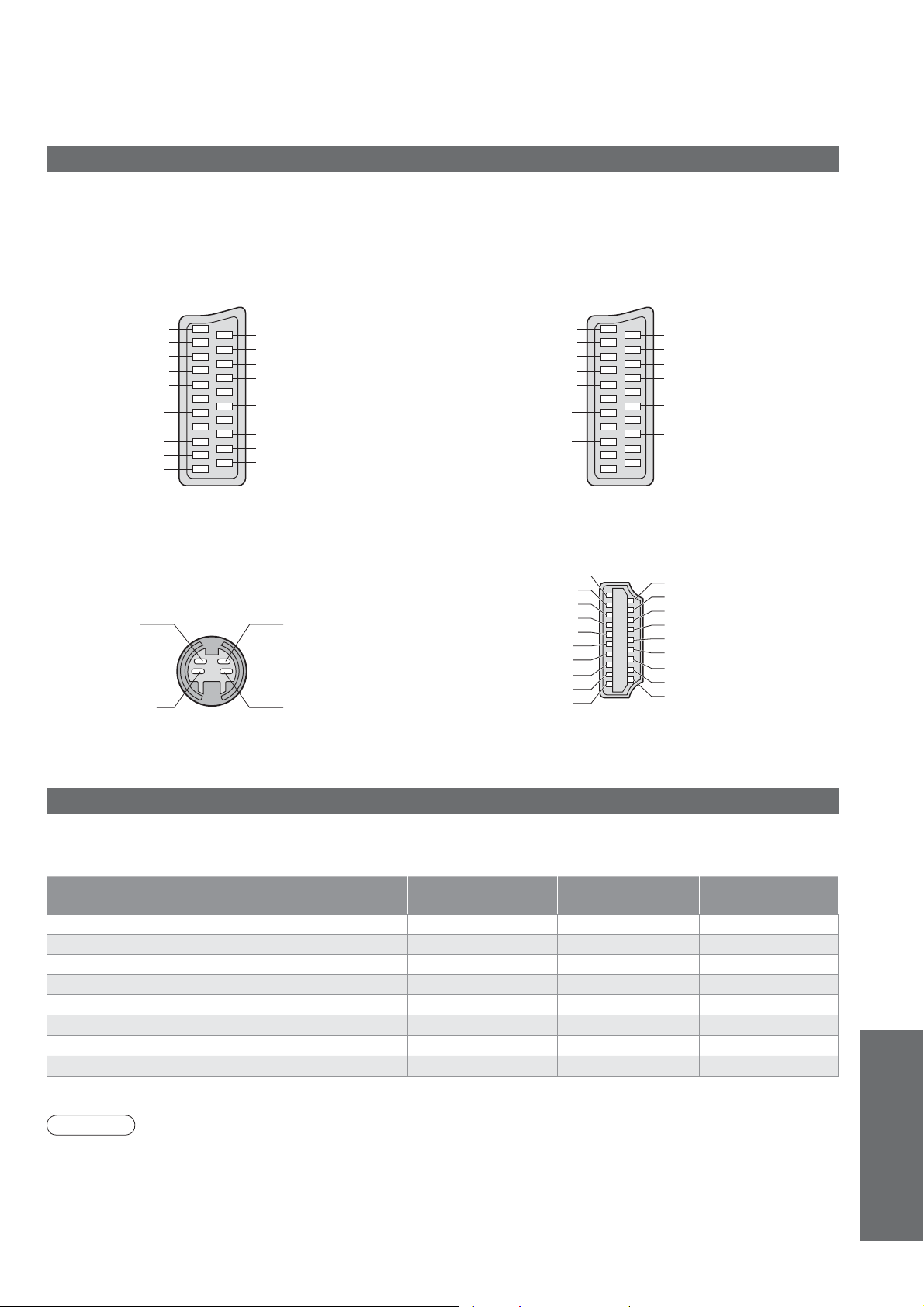

Technical Information ································ 28
•
FAQs ·························································30
•
On screen messages ································ 31
•
Index ························································· 32
•
Licence ······················································ 32
•
Specifi cations ············································ 33
•
3
Page 4
Safety Precautions
Warning & Caution
Handling the mains plug
Ensure that the mains plug is easily accessible at all times. Insert the mains plug fully into the socket outlet. mains plug is loose, it could generate heat and cause fi re.) Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
Note
If the set is not switched off when the TV station stops transmitting, it will automatically go to standby mode after 30 minutes. This function will operate only in TV mode.
(If the
Remove the mains plug from the wall socket when TV is not in use for a prolonged period of time. Remove the mains plug from the wall
AC 220-240 V 50 Hz
socket before connecting or disconnecting any leads.
This TV will still consume some power even in the Standby mode, as long as the mains plug is still connected to a live socket outlet. On /Off switch see page 7.
Power source
This TV set is designed to operate on 220-240V, 50 Hz AC.
Do not expose to direct sunlight and other sources of heat
Avoid exposing the TV set to direct sunlight and other sources of heat. To prevent fi re never place any type of candle or naked fl ame on top or near the TV set.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is
fi tted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark If the mains plug contains a removable fuse cover, you must ensure that it is refi tted when the fuse is replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained. A replacement fuse cover may be purchased from your local Panasonic Dealer.
If the fi tted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains plug is inserted into any 13 amp socket.
If a new mains plug is to be fi tted, please observe the wiring code as shown below. If in any doubt, please consult a qualifi ed electrician.
IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: – Blue: Neutral Brown: Live
As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your mains plug, proceed as follows.
The wire which is coloured BLUE must be connected to the terminal in the mains plug which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the mains plug which is marked with the letter L or coloured RED. Under no circumstances should either of these wires be connected to the Earth terminal of the three pin mains plug, marked with the letter E or the earth symbol . How to replace the fuse.
For plug type shown in example 1:
Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refi t securely into the mains plug (see example 1).
For plug type shown in example 2:
Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).
ASA
or the BSI mark on the body of the fuse.
Example 1
Example 2
4
Page 5
Notes
Keep the TV away from this equipment
Do not remove the cover
Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside.
Do not expose to rain or excessive moisture
To prevent damage which might result in electric shock or fi re, do not expose this TV set to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects fi lled with liquid, such as vases, must not be placed on top of or above the TV.
Do not block the rear ventilation openings
Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.
Allow suffi cient space around the unit for radiated heat
Electronic equipment
In particular, do not place video equipment too close the TV (electromagnetic interference may distort images / sound).
Equipment with an infrared sensor
Remote Controller of this TV also emits infrared rays (this may affect operation of other equipment).
Do not expose your ears to excessive sound pressure from headphones. Irreversible damage can be caused.
Maintenance
First, remove the mains plug from the socket outlet.
Display panel
Daily care: Detail: Wipe the surface clean using a soft cloth dampened with clean water or water containing a small amount of neutral detergent. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.
Gently wipe the surface clean of dirt by using a soft cloth.
10
10
10
TV Stand
7
(cm)
Do not place the TV on sloped or unstable surfaces
The TV may fall off or tip over.
Use only the dedicated stands / mounting equipment
Using an unauthorized stand or other fi xtures may make the unit unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup. Use optional stands / mounts (p. 6).
Cabinet and display panel care
Remove the mains plug from the wall socket. The cabinet and display panel can be cleaned with a soft cloth moistened with mild detergent and water. Do not use solutions containing benzol or petroleum.
TV sets can produce static electricity, care must
be taken whenever touching the TV screen.
Caution
The surface of the display panel has been specially
•
treated and may be easily damaged. Do not tap or scratch the surface with your fi ngernail or other hard object. Use care not to subject the surface to insect repellent,
•
solvent, thinner, or other volatile substances (this may degrade surface quality).
Cabinet
Daily care: Wipe the surface clean using a soft dry cloth. Detail: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.
Caution
Use care not to subject the TV unit's surfaces to detergent.
•
(A liquid inside the TV unit could lead to product failure.) Use care not to subject surfaces to insect repellent,
•
solvent, thinner, or other volatile substances (this may deteriorate the surface by peeling the paint). Do not allow the cabinet to make contact with a rubber
•
or PVC substance for a long time.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fi re or electrical shock.)
5
Page 6
Accessories / Options
Standard accessories
Remote Control Transmitter
EUR7651030A
•
123
456
789
C
Check that you have the accessories and items shown
OK
0
N
TV
Batteries for the Remote Control Transmitter
R6 (UM3)
•
Clamper
Installing remote's batteries
1
Pull open
Operating Instructions
(2)
Pan European Guarantee Card
Attaching the clamper
Hook
Close
2
Caution
Incorrect installation may cause battery
•
leakage and corrosion, resulting in damage to the remote control unit. Do not mix old and new batteries.
•
Do not mix different battery types (such as
•
alkaline and manganese batteries). Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or breakup batteries
•
(see page 36).
Optional accessories
Wall-hanging bracket
TY-WK32LX20W
+
­+
Note the correct polarity (+ or -)
-
Rear of the TV
Bundle the cables
To tighten:
Do not bundle the RF cable and mains lead together (could
•
cause distorted image). Fix cables with clampers as necessary.
•
When using the optional accessory, follow the option’s
•
assembly manual to fi x cables.
Caution
In order to maintain the unit’s performance and safety, be
•
absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Handle the TV carefully during installation since subjecting it to
•
impact or other forces may cause product damage. Take care when fi xing wall brackets to the wall.
•
Always ensure that there are no electrical cables or pipes in the
wall before hanging bracket.
To loosen:
Keep the
knob pressed
6
Page 7
Identifying Controls
Headphones jack (p. 26)
AV3
S-V
Remote control signal receiver
Power lamp
Red light indicates Standby mode,
•
green light indicates On mode. When using the remote control, indicates the TV has received a command.
Switches TV to On or Standby
(On / Off switch in On position)
Programme Guide (p. 11)
Select / OK
MENU
Press to access the Picture, Sound and
()
Setup menus
Teletext (p. 12)
Viewing a favourite teletext channel
(p. 12)
Backlight Automatic Tracking System sensor
(senses brightness to adjust picture quality) (p. 17)
AV3 terminals (p. 26)
V
L
R
MENU
On / Off switch
DIRECT TV REC
OK
TEXT
F.P. INDEX HOLD
123
Function select
Store setting (p. 18)
Used to store tuning and other function settings
()
Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On.
TV/AVGUIDE
EXIT
Volume / Contrast / Brightness /
Sharpness / Tint (NTSC mode) / Bass /
()
Treble / Balance / Tuning mode (p. 18)
Switches TV/AV
Sound mute On / Off
DIRECT TV Recording
To immediately record programme in VCR / DVD recorder with Q-Link
()
connection (p. 22)
Switches TV/AV
(To watch videos or DVDs) (p. 14)
EXIT (Returns to TV screen)
Coloured buttons
(used for various functions) (for example, see p. 12)
Still Picture (p. 11)
Colour /
Quick Start Guide
•
•
Identifying Controls
Accessories / Options
Changes programme / channel
(p. 11)
456
Teletext Index (p. 13)
789
Direct channel access
During normal TV viewing or when in the
Tuning, Programme edit or Manual tuning menus, press and then enter channel number using the numeric buttons
()
Press twice to change to the Cableband mode
Selects programmes in sequence
Normalizes (p. 16)
(Resets settings)
Changes aspect ratio
(p. 11)
C
ASPECT
N
REC
PROGRAMME
0
VCR
VCR DVD
TV
Programme Information (p. 11)
Volume
VCR / DVD operations (p. 14)
7
Page 8
Basic Connection
External equipment and cables shown are not supplied with this TV. Please ensure that the TV is disconnected from the mains socket before attaching or disconnecting any leads.
Ex.
Connecting aerial
AV2
(Q-Link)
(TV only)
Mains lead (supplied) Mains lead (supplied)
2
Ex.
Aerial Aerial
RF cable
AV1
(Q-Link)
1
Rear of the TV Rear of the TV
AV1
(Q-Link)
Connecting DVD Recorder (VCR)
(TV, DVD Recorder or VCR
AV2
(Q-Link)
)
RGB
VIDEO
Note
Connect to AV2 for a DVD Recorder / VCR supporting Q-Link (p. 22).
•
Connect to AV1 for a Satellite receiver.
•
If connecting the TV and Satellite receiver with SCART cable, you can watch satellite broadcast by RGB input signal.
•
SCART:
RF: Radio Frequency - Signal received from terrestrial aerial. RGB / S-Video / Video:
VCR: Video Cassette Recorder
RGB
VIDEO
S-VIDEO
21 pin connection used for video, audio and switching signals (Also known as Euro SCART and Peritel)
Choose between these three video formats depending on personal preference and equipment requirement. (RGB - Red, Green and Blue)
RGB
VIDEO
DVD Recorder or VCR
RGB
VIDEO
S-VIDEO
RF OUT
RF IN
SCART cable (fully wired)
RF cable
RF cable
8
Page 9
Ex.
3
Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder, VCR and Set top box
(
)
Rear of the TV
AV1
(Q-Link)
RGB
VIDEO
AV2
(Q-Link)
RGB
VIDEO
S-VIDEO
Mains lead (supplied)
AC 220-240 V 50 Hz
Aerial
Quick Start Guide
RF cable
•
Basic Connection
SCART cable (fully wired)
SCART cable (fully wired)
RF cable
RF OUT
RF IN
DVD Recorder or VCR
RF cable
SCART cable (fully wired)
RF OUT
RF IN
RF cable
RF IN
Set top box
9
Page 10

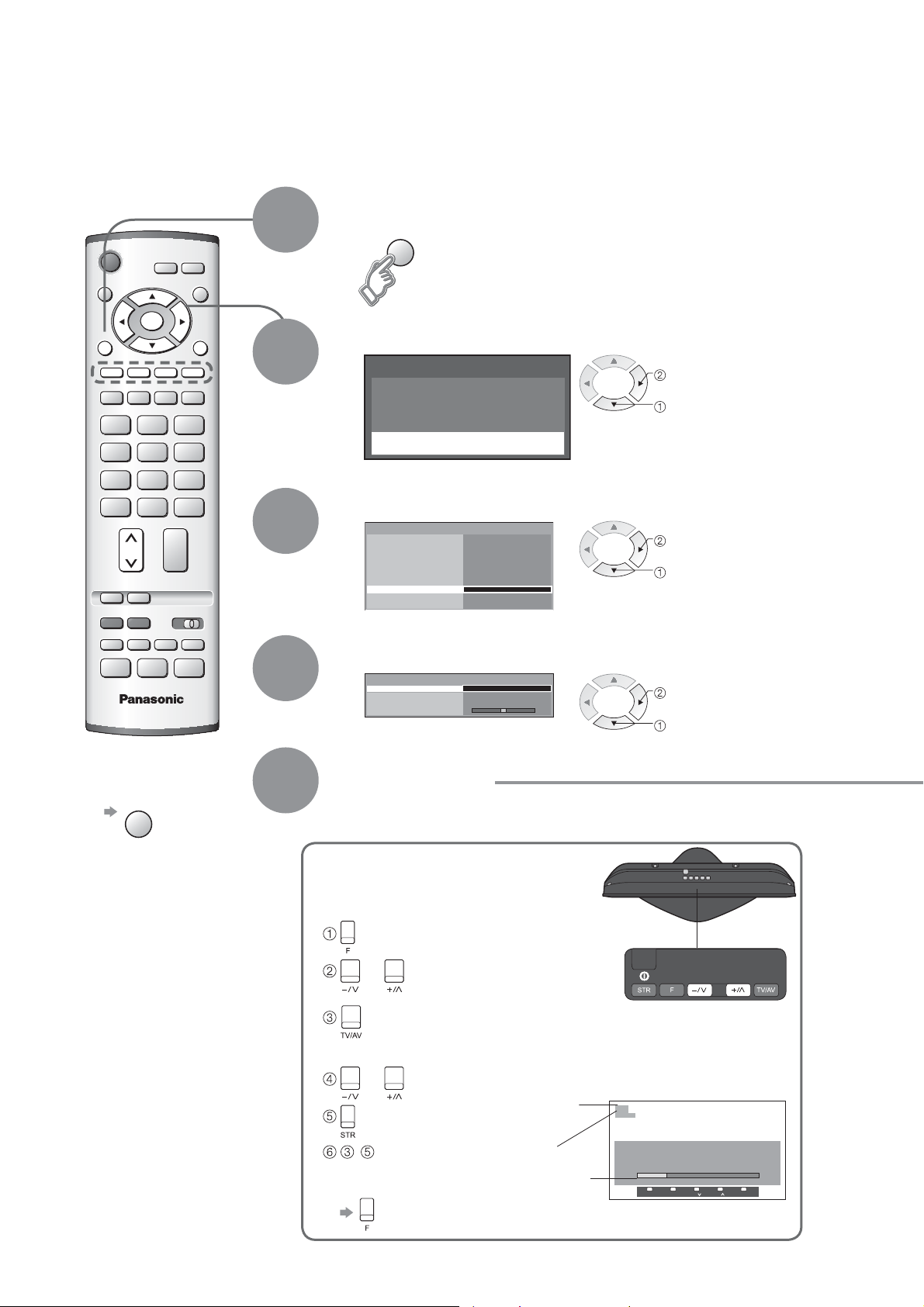

Auto Setup
Search and store TV channels automatically. These steps are not necessary if the setup has been completed your local dealer.
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
1
CH12
AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT
01 99:21 41
Exit
You can now use the remote
•
control to turn On the unit or turn the unit to standby mode. (Power lamp: On)
Auto Setup will start to search for
•
TV channels and store them.
The sorted programme order
•
depends upon the TV signal, the broadcasting system and reception conditions.
OK
EXITMENU
123
456
789
0
VCR
Note
If tuning and downloading
•
data have failed, perform "Auto setup" (p. 19). If you turned the TV Off during
•
Standby mode last time, the TV will be in Standby mode when you turn the TV On with MAINS power On / Off switch.
2
DOWNLOAD IN PROGRESS
PLEASE WAIT
Programme : 63
Remote control unavailable
When inputting owner ID
Ŷ
You now have the opportunit y to enter your details an d help the police crack crim e see instruction boo k
Owner ID
PIN NUMBER :
POSTCODE :
Usable characters and numbers
When inputting owner ID later
Ŷ
NAME :
HOUSE NO :
0123456789
EXIT
Change character Select character Store Owner ID Exit
Return
∗ ∗ ∗ ∗
∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗
If a compatible recording equipment
•
with Q-Link or similar technologies (p. 22) is connected, channel information is automatically downloaded to the equipment.
Following the on-screen operation guide, enter your own choice of PIN number, name, etc.
For detailed procedures
•
"Owner ID" (p. 21)
Make a note of the PIN number
•
in case you forget it.
If you input the ID later
•
"Owner ID" (p. 21)
Auto Setup is now complete and your TV is ready for viewing.
To check programme list
•
at-a-glance
Programme Guide (p. 11)
To edit channels
•
"Programme edit" (p. 19)
10
Many features available on this TV can be accessed via the On Screen Display menu.
Ŷ
MENU
Using the On Screen Displays
How to use remote control
used to open the main menus and to return to the previous menu
used to move the cursor and select
OK
menus
used to access menus, adjust levels or
OK
to select from a range of options
used to store settings after adjustments
OK
have been made or options have been set
EXIT
used to exit the menu system and return to the normal viewing screen
ON SCREEN HELP Instructions box
Ŷ
(example: Owner ID)
You now have the opportunit y to enter your details an d help the police crack crim e see instruction boo k
Owner ID
PIN NUMBER :
HOUSE NO :
POSTCODE :
0123456789
∗ ∗ ∗ ∗
NAME :
∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗
Change character Select character Store Owner ID Exit
Return
On-screen operation guide will help you.
Page 11
Watching TV
A
Turn power on
GUIDE
OK
123
456
789
C
0
VCR
ASPECT
TV
HOLD
EXIT
Volume
1
2
(Press for about 1 second)
MAINS power On / Off switch should be On. Picture will appear.
1 BBC 1
Select a channel
or
CH21 CH44 CH51 CH41 CH47 CH23 CH26 CH58
-
-
-
-
-
123
456
789
0
VCR
select page
Prog. Name Chan.
13 : 14 : 15 : 16 : 17 : 18 : 19 : 20 : 21 : 22 : 23 : 24 :
-
-
-
-
-
-
-
-
-
-
-
-
up
down
To select a channel using programme guide
Ŷ
GUIDE
Programme Guide
Prog. Name Chan.
VCR :
1 :
BBC1
2 :
BBC2
3 :
ITV 4 : 5 : 6 : 7 : 8 : 9 :
10 : 11 : 12 :
select programme
OK
watch
ViewingQuick Start Guide
To select a channel inputting the channel number, e.g. 39.
Ŷ
Other useful functions (Operate after )
Ŷ
Hold
Display
Freeze / unfreeze picture
Display / hide status information
status information
Enjoy viewing the picture at its optimum size and aspect
Change the aspect ratio (p. 28)
Displays information for a few seconds.
•
Change aspect
14 : 9
ratio
ĺ
C
ĺ
3
9
1 CH_ _
HOLD
Each press changes the mode.
•
Auto aspect / 16:9 / 14:9 / 4:3 / Zoom1 / Zoom2 / Zoom3
To change the mode with colour buttons
•
While the bar is displayed
SPECT
red
green
•
•
Watching TV
Auto Setup
11
Page 12
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
What is FASTEXT mode (default)? In FASTEXT mode, four differently coloured subjects are situated at the bottom of the display. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. ("Store frequently viewed pages", p. 13)
To change mode "Teletext" in Setup menu (p. 17)
Ŷ
Sub page number
MENU
OK
TEXT F.P. INDEX HOLD
1
Switch to Teletext
TEXT
Displays the
•
index page
(content varies depending on the broadcasters)
Current page number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
TELETEXT
INFORMATION
Colour bar
Time / date
123
456
789
0
VCR
Using teletext
Ŷ
Reveal hidden data
Select the page
2
Reveal hidden words e.g. quiz page answers
MENU
123
456
789
0
VCR
To adjust contrast
Ŷ
To return to TV
Ŷ
•
red
or
Press once to have picture and text. Press again to return to TV.
Re-hide
•
up
down
MENU
red
or
TEXT
up
or
down
As the blue bar is displayed
(Press twice)
red
(Corresponds to the colour bar)
green
yellow
blue
12
FULL / TOP / BOTTOM
MENU
(TOP) (BOTTOM) Normal (FULL)
green
(Expand the BOTTOM half)

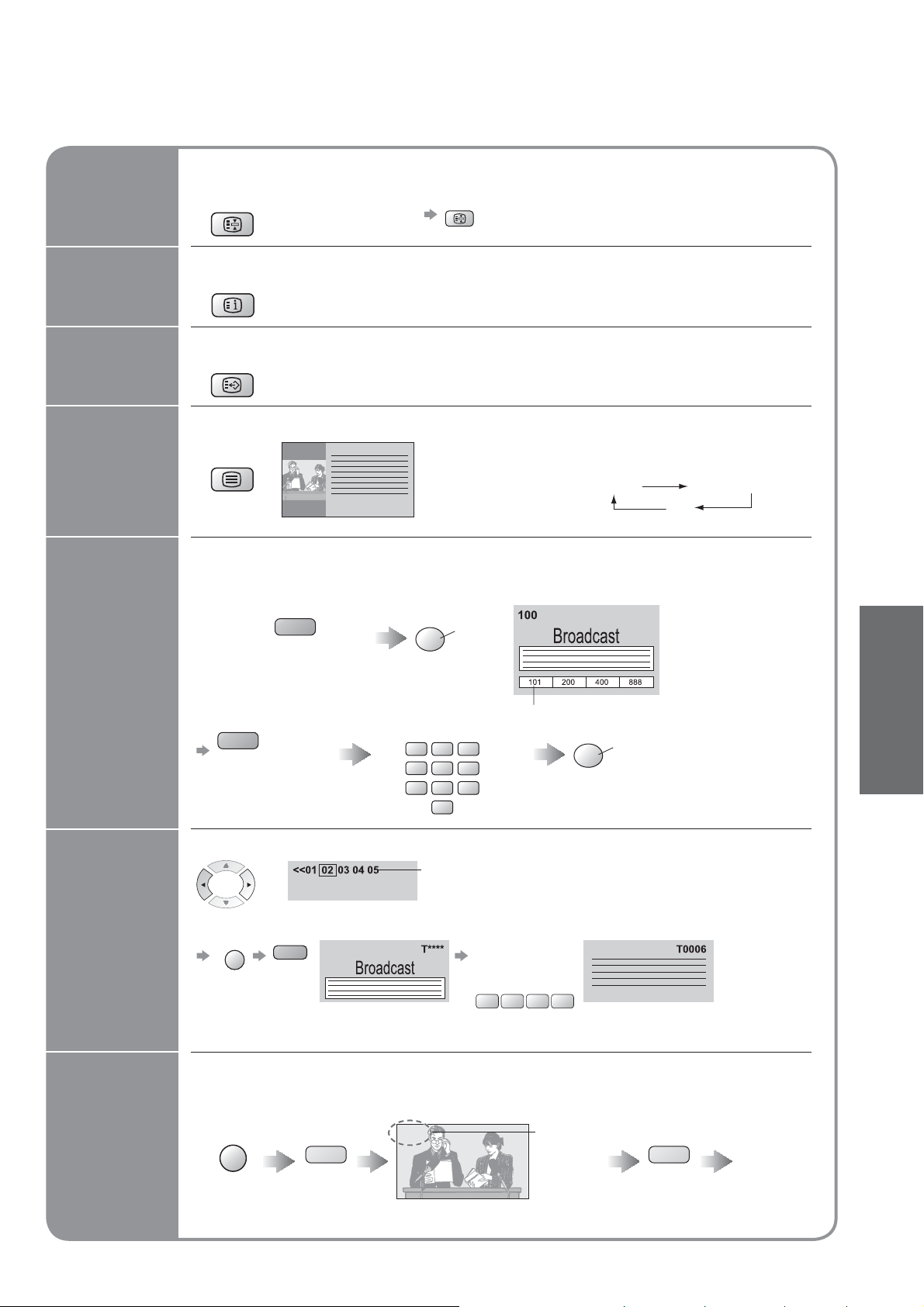

Page 13
HOLD
INDEX
If you wish to hold the current page without updating
Stop or resume automatic updating
HOLD
Return to the main index page
INDEX
To resume
Ŷ
FASTEXT mode only
•
HOLD
Call up a favourite pages
View in multi window
Store frequently viewed pages
View favourite page by pressing F.P. button
F. P.
Watch TV and Teletext in two windows at once
TEXT
Store frequently viewed pages (only on fi rst 25 channels on Programme Guide) in the colour bar
As page is displayed
To change stored pages
Ŷ
Colour button you want to change
Call up the page stored in "blue".
•
Factory setting is "P888" (subtitle service) on blue button.
•
Operations can be made only in Teletext screen.
•
Each time pressed: Teletext TV and Teletext
•
hold
OK
Corresponding colour button
Enter new page number
down
123
456
789
0
VCR
The number changes to white.
OK
TV
(List mode only)
Viewing
hold down
•
Viewing Teletext
View sub page
Watch TV while waiting for update
View sub page (Only when teletext is more than one page)
Appears at upper-left corner of the screen
To view specifi c sub page
Ŷ
MENU
blue
Sub pages:
•
The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch TV.
View theTV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
MENU
yellow yellow
The news page provides a function that indicates arrival of latest news ("News Flash").
•
108
(You cannot change the channel.)
Enter the 4-digit number
example: P6
0 0 0
6
Appears when updating is completed
View the updated page
13
Page 14

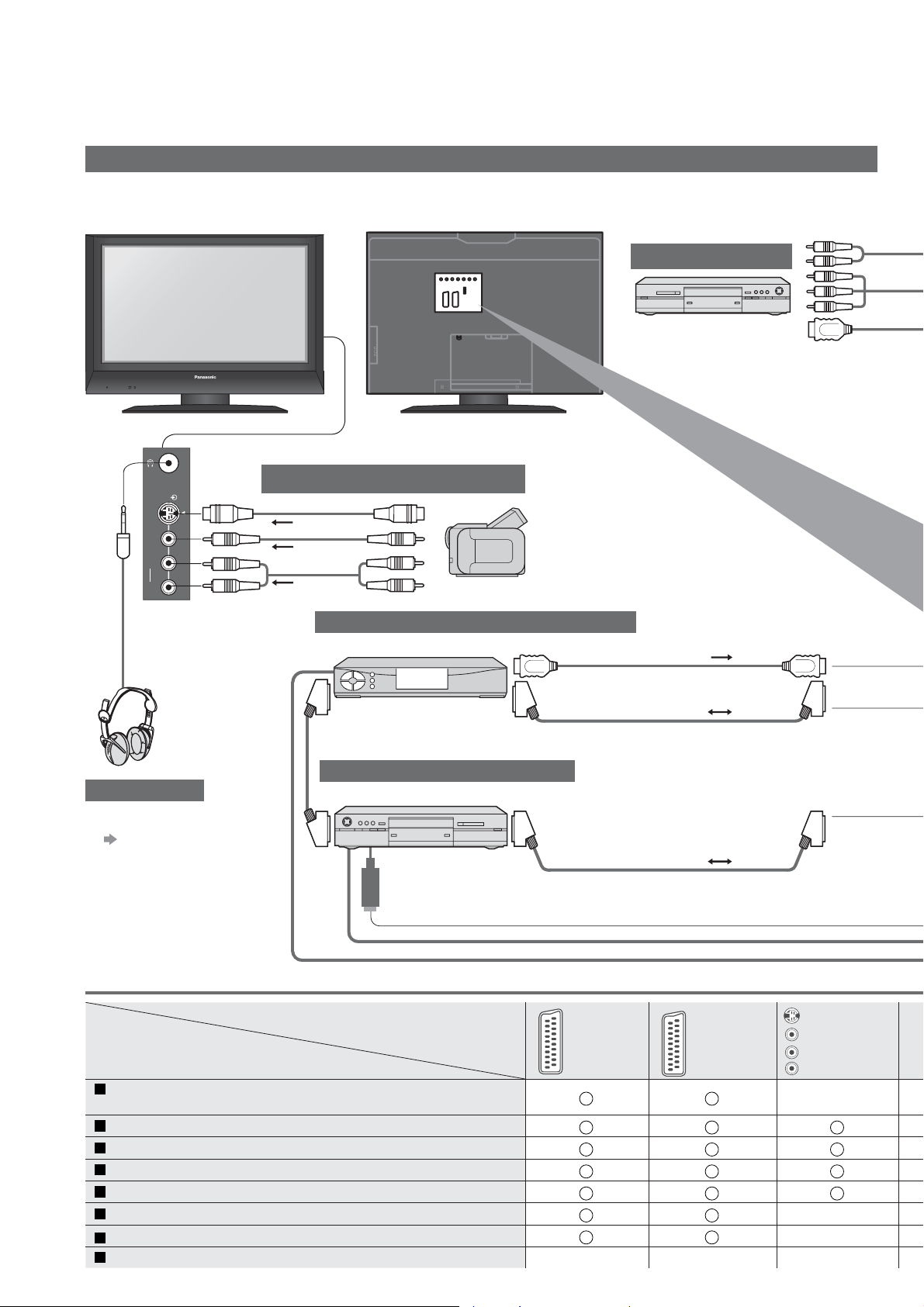

Watching VCR, DVD and Satellites
The Remote Control is capable of operating some functions of selected Panasonic VCRs and DVD (Digital Versatile Disc) equipment. Connect the Satellite receiver and you can watch satellite broadcasts.To connect the equipment (p. 8)
Turn the TV on
When connecting with SCART as example 2 or 3 (p. 8 and p. 9)
Ŷ
1
TV/AV
OK
2
3
Receives input signals automatically when playback starts or satellite receiver is switched on
Input signals are automatically identifi ed by the SCART (pin 8) terminal.
•
This function will be available for HDMI connection too (p. 23).
•
If input mode is not switched automatically
Ŷ
Perform and
Dependant on DVD/VCR setup
•
Select the external input
TV/AV
NEXT
(AV mode screen)
Terminal
Manual input selection
Auto input selection
AV1 AV2 AV3
AV1
EC1/RGB AV1/RGB
(RGB input)
Screen display
AV2
AV2S
(S-video input)
EC2/RGB AV2/RGB
(RGB input)
(S-video input)
Component HDMI
AV3
AV3 S
Component HDMI
ʊʊ
Select the connector
connected to the equipment
blue
Displays the selected connector
HDMI
NEXT
REC
VCR DVD
PROGRAMME
TV
To return to TV
Ŷ
TV/AV
Panasonic equipment connected to the TV can be directly operated with the remote control.
VCR / DVD switch
Select VCR to operate Panasonic VCR or DVD equipment Select DVD to operate Panasonic DVD equipment or Player theatre
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, view the picture rapidly in reverse DVD: Skip to the previous track or title Press and hold to search backward
The remote control will be available for various
Panasonic equipment with the following settings.
Switch to select VCR or DVD you want to change Press and hold while operating
Enter the code below (two digit code)
Press
red
AV1 AV2/
example: AV1
•
When colour bar disappears Press any coloured buttons
•
You can also select the connector using the TV/AV button on the front panel of the TV.
•
Press the button repeatedly until you reach the connector to view.
If the external equipment has an aspect adjustment function, set to "16:9".
•
For details, see the manual of the equipment or ask your local dealer.
•
HDMI (p. 23)
•
Note
green
S-video
yellow yellow
AV3/
S-video
red
After setting, execute operation confi rmation.
•
The respective VCR / DVD code is turned to the default
•
when battery has been exchanged. Set it again. Depending on the model, operation may not be possible.
•
VCR
Equipment Code
red
Component
Fast-forward / Skip / Search
VCR: Fast-forward, view the picture rapidly forward DVD: Skip to the next track or title Press and hold to search forward
Pause
Pause / Restart DVD: Press and hold to play at slow speed
Programme Up / Down
Select programme
Record
Start recording
Note
VCR 10 (default) DVD 11
BACK
Component
blue
DVD
Component
HDMI
blue
HDMI
yellow
Equipment Code
DVD 70 (default)
Player theatre 71
1414
Page 15
How to Use Menu Functions
How to operate (p. 16)
•
Main menu
Picture menu
Sound menu
Setup menu
OK
Setup menu
VIERA Link Q-Link A V1 out AV2 out Teletext Off timer Volume correction Power on preference Tuning menu Owner ID Shipping condition
change or access
select
On AV2 Monitor Monitor List Off
TV Access
Access
Access
Picture menu
Viewing mode Contrast Brightness Colour Sharpness Tint Colour balance P-NR 3D-COMB
Sound menu
Bass Treble Balance Headphone volume NICAM Mode Ambience HDMI input
Dynamic
-
-
-
-
Normal Max On
-
-
­Off Music Off Auto
•
How to Use Menu Functions (picture, sound quality, etc.)
+ + + +
Only available in NTSC signal Not available in HDMI and HD signal Only available in NTSC / PAL
•
Watching VCR, DVD and Satellites
+ +
+
Only available in HDMI
Choose from among alternatives
Ŷ
Number and positions of alternatives
Colour balance Normal
Changed
Adjust using the slide bar
Ŷ
Sharpness
Moved
Go to the next screen
Ŷ
Tuning menu
Access
Displays the next screen
Only available in AV and HDMI
Tuning menu
Programme edit Auto setup Manual tuning
Fine tuning
Access Access Access
(p. 18)
You now have the opportunit y to enter your details an d help the police crack crim e
NAME :
HOUSE NO :
POSTCODE :
0123456789
Change character Select character Store Owner ID Exit
Return
see instruction boo k
∗ ∗ ∗ ∗
∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗
Owner ID
PIN NUMBER :
(p. 21)
Shipping condition
All tuning data will be erased
Start Exit Return
(p. 20)
Programme edit
Prog. Chan. Name Lock
CH44
1 :
CH51
2 :
CH41
3 :
CH47
4 :
CH37
5 :
Delete Add Move Download
CH12
AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT
01 99:21 41
Exit Return
1
CH12
Manual tuning
01 99:21 41
Search down/up Store Exit Return
C
0 9
Direct entry
ABC XYZ FTP 123 456
Off Off Off Off Off
Viewing Advanced
NTSC (National Television System Committee): One of television signal used in USA, etc. HD signal: High-defi nition signal
1515
Page 16
How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
Setup menu (p. 18)
•
Display menu
MENU
Ŷ
OK
N
TV
To return to TV at any time
EXIT
EXIT
1
2
3
4
MENU
Displays the functions that can be set
•
(varies according to the input signal)
Select the menu
Main menu
Picture menu
Sound menu
Setup menu
(example: Picture menu)
Select the item
Picture menu
Viewing mode Contrast Brightness Colour Sharpness Tint Colour balance P-NR 3D-COMB On
Dynamic
Normal Max
(example: Picture menu)
Adjust or select
Picture menu
Viewing mode Contrast Brightness Colour Sharpness Tint Colour balance P-NR 3D-COMB On
Choose from among alternatives
Ŷ
Colour balance Normal
Dynamic
Normal Max
(example: Picture menu)
Number and positions of alternatives
OK
OK
OK
select
access
select
change
store (Required by some functions)
16
To return to the
Ŷ
previous screen
MENU
Note
To initialize all settings
•
"Shipping condition"
(p. 20).
Changed
Adjust using the slide bar
Ŷ
Sharpness
Moved
To reset the setting
Ŷ
N
Resets each Viewing mode (Dynamic / Normal / Cinema / Auto) to the
•
default settings. P-NR in Picture menu is reset to off. Aspect mode is also reset to Auto aspect.
•
Page 17
Menu list
Ŷ
Menu
Picture menu
Adjust by each viewing mode
Bass Treble
Sound menu
Setup menu
In AV mode, the Sound menu and Setup menu give a reduced number of options.
•
Balance Headphone volume
NICAM
Mode Ambience
HDMI input
VIERA Link
Q-Link
AV1 out
AV2 out
Teletext Off timer Volume correction
Power on preference
Tuning menu
Owner ID Shipping condition
Item Adjustments / Confi gurations (alternatives)
Selects four different screen settings (Dynamic / Normal / Cinema / Auto) In each Viewing mode setting, Contrast, Brightness, Colour, Sharpness, Tint (in NTSC only), Colour balance, P-NR and 3D-COMB can be adjusted and stored to suit your particular
Viewing mode
Contrast, Brightness Colour, Sharpness
Tint Colour balance
P-NR
3D-COMB
Programme edit Auto setup Manual tuning Fine tuning
viewing requirement (e.g., you may require different settings for viewing sports, fi lms, news etc.) Changes to any settings in a viewing mode will affect all signal sources: RF, AV1, AV2, AV3, Component and HDMI. Changes will be stored automatically. By analysing and processing the incoming picture, all four modes feature automatic enhancement.
,
Increases or decreases the levels of these options according to your personal preference
With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste
Allows you to set the overall colour tone of the picture (Cool / Normal / Warm) Picture Noise Reduction
Automatically reduces unwanted picture noise (Off / Min / Mid / Max)
Not valid on HDMI and HD signal
•
Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen Set to On to display sharper and more accurate colours (Off / On)
For PAL or NTSC signal reception only
•
Not valid on RGB, S-Video, components and HDMI
•
Increases or decreases level to enhance or minimise lower, deeper sound output
Increases or decreases level to enhance or minimise sharper, higher sound output
Adjusts volume level of right and left speakers
Adjusts the volume of the headphones NICAM (Near Instantaneous Companded Audio Multiplex)
A format for digital sound over television Reproduces stereo sound (Off / On)
Off if reception is poor (FM monaural sound)
•
Sound quality can be improved when watching music scene or drama (Music / Speech)
Provides a dynamic enhancer to simulate improved spatial effects (Off / On)
Select to fi t the input signal (Auto / Digital / Analogue) (p. 23)
Auto : Automatic detection of digital or analogue sound source Digital : HDMI cable connection Analogue : HDMI-DVI adapter cable connection
HDMI input mode only
•
VIERA Link function (Off / On) (p. 24)
Selects which AV terminal is to be used for data communication between this TV and a compatible recording equipment (AV1 / AV2) (p. 22)
Chooses the signal to be transmitted from the TV to Q-Link (TV / AV2 / AV3 / Monitor)
Monitor: Image displayed on screen
•
Component and HDMI signals cannot be outputted
•
Chooses the signal to be transmitted from the TV to Q-Link (TV / AV1 / AV3 / Monitor)
Monitor: Image displayed on screen
•
Component and HDMI signals cannot be outputted
•
Teletext display mode (FASTEXT / List) (p. 12)
Sets the time the unit automatically turns Off. (Off / 15 / 30 / 45 / 60 / 75 / 90) (minutes)
Adjusts volume for AV and HDMI mode
Set to "TV" to view picture from TV tuner. Set to "AV" to view input from an external equipment connected to a SCART terminal, e.g. satellite receiver (TV / AV)
The external equipment must be switched on and sending a control signal for
•
automatic switching at power on to occur
Edits channels (p. 19)
Sets channels automatically (p. 19)
Sets channels manually (p. 19)
Fine tuning of channels (during rain, etc.)
Inputs the owner ID (p. 21)
Resets all settings, for example, when moving (p. 20)
•
How to Use Menu Functions
(picture, sound quality, etc.)
Advanced
17
Page 18

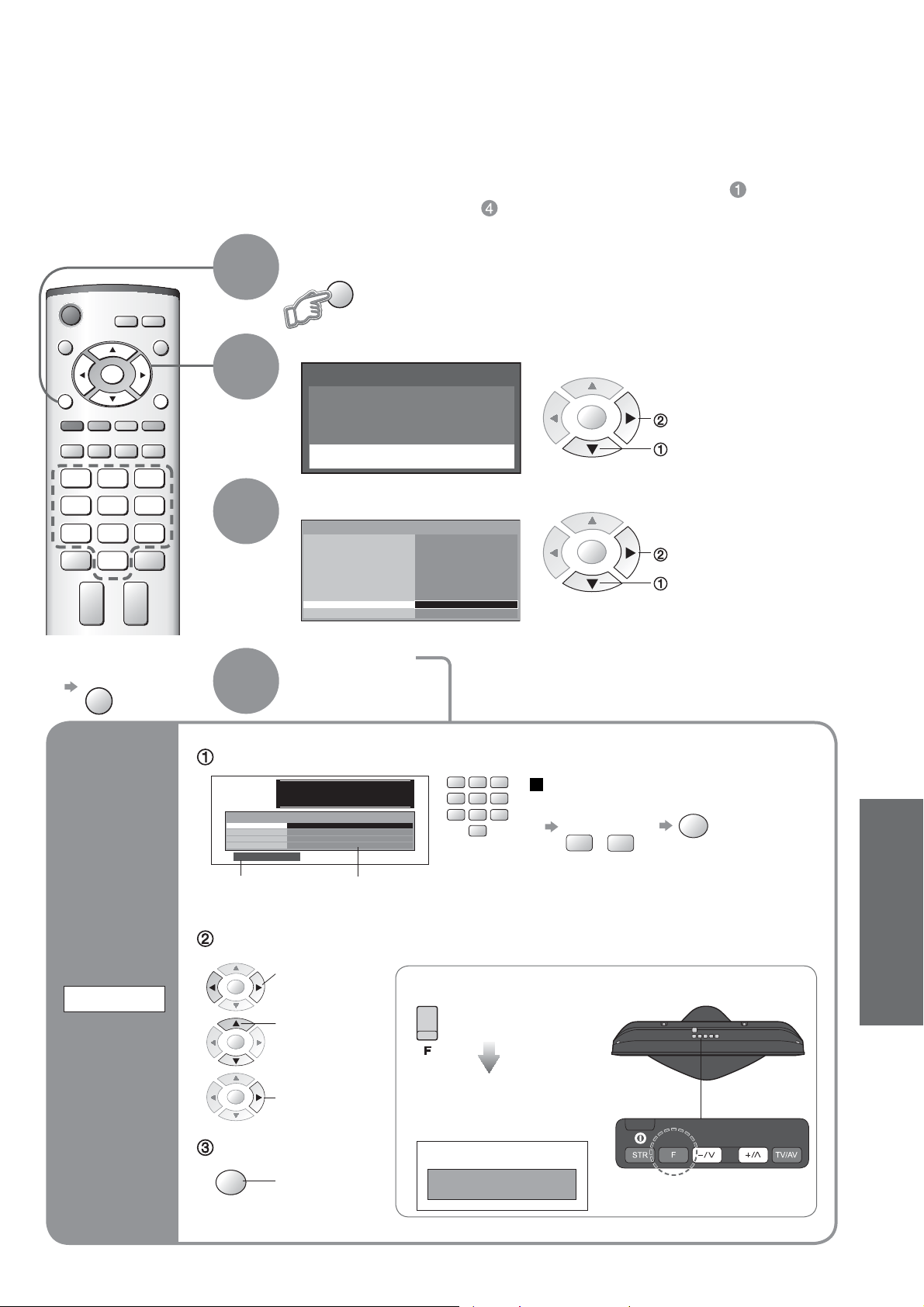

Editing and Setting Channels
The channel settings can be changed according to your needs and reception conditions.
Display the menu
1
MENU
OK
EXITMENU
2
Select "Setup menu"
Main menu
Picture menu
access
select
Sound menu
Setup menu
Select "Tuning menu"
3
Setup menu
VIERA Link Q-Link AV1 out AV2 out Teletext Off timer Power on preference Tuning menu Owner ID Shipping condition
On
AV2 Monitor
Monitor FASTEXT
Off
TV
Access
access
select
Select the function
4
TV
Tuning menu
Programme edit Auto setup Manual tuning Fine tuning
Access
access
select
To return to TV
Ŷ
EXIT
5
How to set
For Manual tuning, using the buttons
on the unit
To return to TV
Ŷ
("Manual tuning" on p. 7)
(Press repeatedly until "Tuning mode" appears)
or (Access "Manual tuning")
(Select programme position or channel number)
Selected item will fl ash.
•
or
(Store)
-
(Change programme position or start searching channels)
(Repeat)
Programme position (fl ash)
Channel number (fl ash)
Channel
(Manual tuning screen)
1
CH12
Manual tuning
01 99:21 41
-
, + : Search TV / AV : Move cursor STR : To store F : To exit
ST RF- / + / TV /A V
18
Page 19

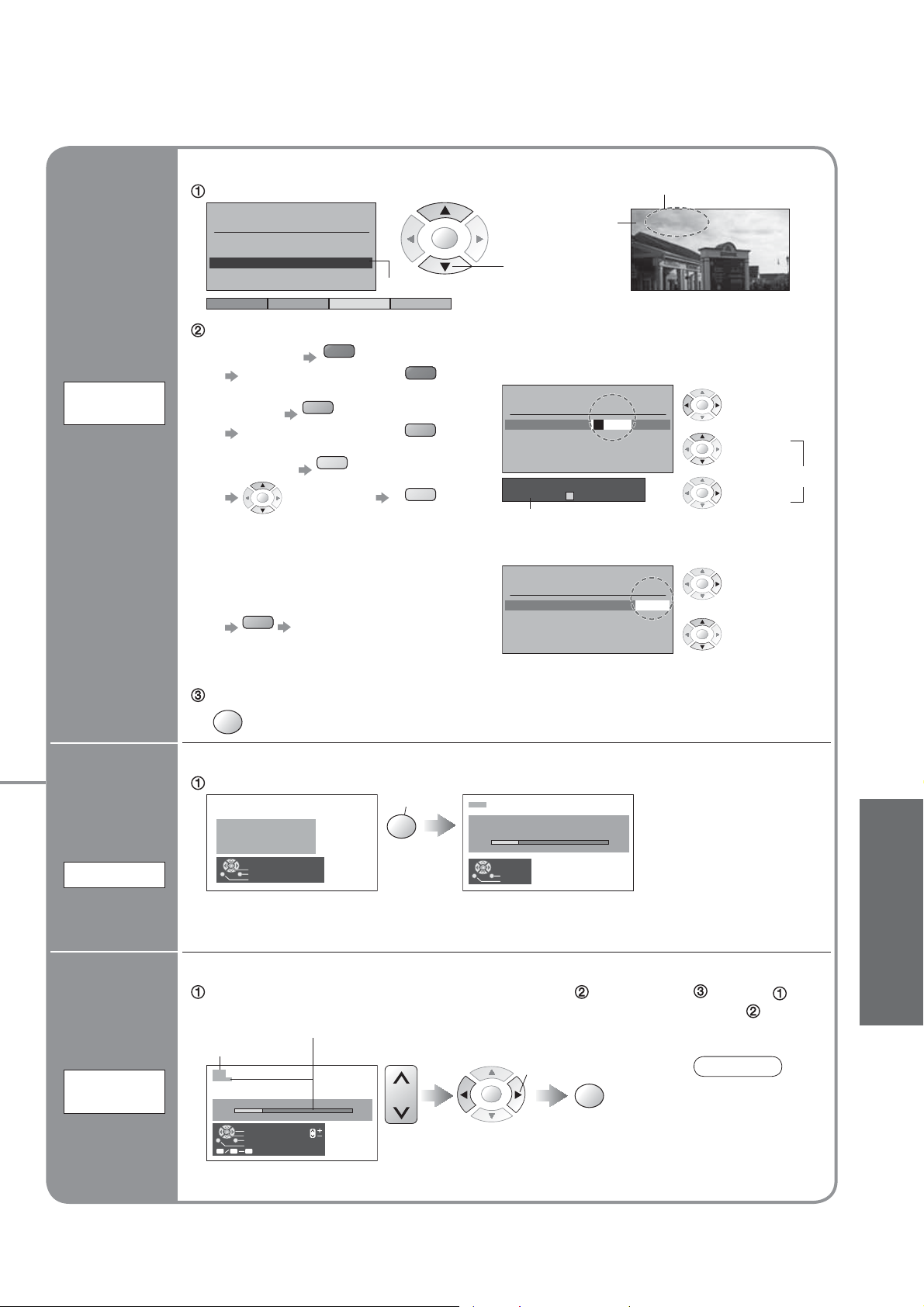

Edit the programme position settings
Select the channel to edit
Programme edit
Prog. Chan. Name Lock
1 : CH44 OffABC
CH51
2 :
:3 CH41 OffFTP
CH47
4 : 5 :
CH37
XYZ
Off
Off
123
Off
456
AdDelete d DownloadMove
Cursor
OK
select
Channel
Name
3 FTP
Edit channels
Programme
edit
Delete
Ŷ
Add
Ŷ
Move
Ŷ
Change
Ŷ
name Lock
Ŷ
Download to
Ŷ
equipment
Set automatically
Auto setup
Edit
To change the name of the broadcaster
To delete
Ŷ
After confi rming, press
To add
Ŷ
After confi rming, press
To move
Ŷ
OK
To download channel
Ŷ
red
green
yellow
Select new position
red
green
yellow
information to a Q-Link compatible equipment connected to the unit
Automatically
blue
transmitted (for a few sec.)
For details (p. 22)
•
Store
OK
Automatically set the channels received in the area
Start Auto setup
start
WARNING
All current tuning data will be erased
Start Auto Setup Exit Return
OK
When the operation is completed,
•
the broadcast of programme number "1" will appear.
Ŷ
displayed when selecting channels
Programme edit
Prog.
1 : 2 : 3 : 4 : 5 :
ABCDEFGHIJKLMNOPQRST UVWXYZ+
Usable characters
To lock
Ŷ
Programme edit
Prog. Chan. Name Lock
1 : 2 : 3 : 4 : 5 :
You cannot select the channel with numeric
•
buttons or the "C" button when locked.
Settings are made automatically
CH12
AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT
01 99:21 41
Exit Return
Chan. Name Lock
CH44 CH51 CH41 CH47 CH37
-
. 0123456789
CH44 CH51 CH41 CH47 CH37
XYZ FTP 123 456
ABC XYZ FTP 123 456
Off Off Off Off Off
Off Off Off Off Off
•
•
•
Select the
OK
"Name" fi eld
Select the
OK
character
To next
OK
character
Select the
OK
"Lock" fi eld
Select "On"
OK
"Off" to unlock
Repeat
)(
The settings are downloaded to a Q-Link compatible equipment connected to the unit. All previous settings are erased. No data is stored if an Auto setup sequence is interrupted.
•
Editing and Setting Channels
Advanced
Set manually
Manual
tuning
To freely change settings after Auto setup
Select the programme position
and search through the channel
Programme position
1
CH12
Manual tuning
01 99:21 41
Search down/up Store Exit Return
C
0 9
Direct entry
Channel
Store
Repeat
and
search
OK
OK
The
•
programme position blinks.
Note
If a VCR is
•
connected with only the RF cable, select programme position "0".
19
Page 20

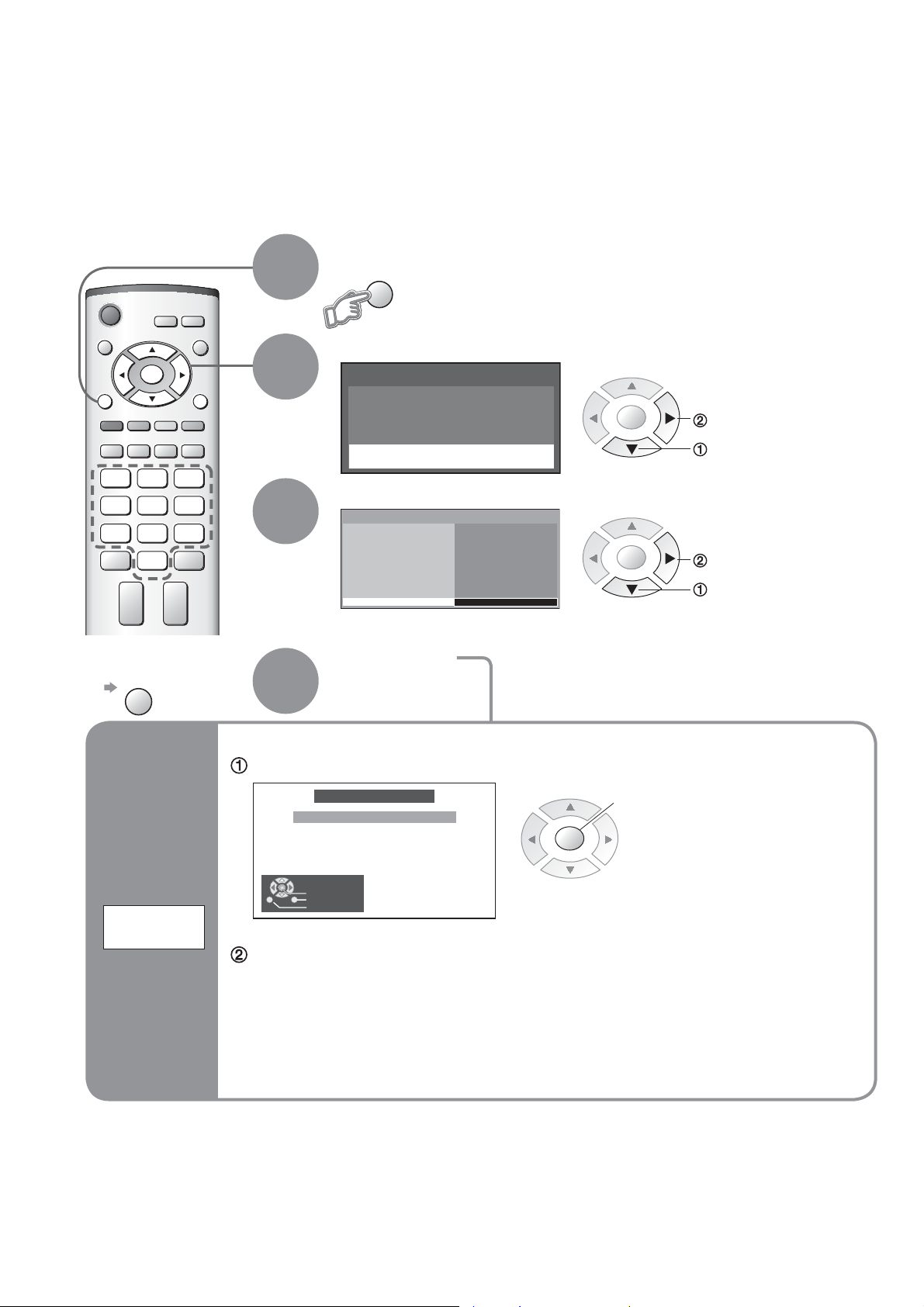

Restore Settings
Resets the TV to its original condition, i.e. no channels tuned in. All settings other than "Owner ID" (channels, picture, sound quality, etc.) are reset.
Display the menu
MENU
Select "Setup menu"
Main menu
Picture menu
Sound menu
Setup menu
Select "Shipping condition"
Setup menu
VIERA Link Q-Link AV1 out AV2 out Teletext Off timer Power on preference Tuning menu Owner ID Shipping condition
On AV2 Monitor Monitor FASTEXT Off TV
Access
OK
OK
MENU
OK
123
456
789
0
VCR
EXIT
1
2
3
access
select
access
select
To return to TV
Ŷ
EXIT
Restore Settings
Shipping
condition
How to set
4
Check the message and initialise
Shipping condition
All tuning data will be erased
OK
Start Exit Return
Follow the on-screen instructions
"Auto Setup" will automatically start when MAINS power On / Off switch is next
•
turned On. (p. 10)
To re-tune TV channels only, e.g. after moving house
Ŷ
"Auto setup" (p. 19)
•
set
20
Page 21
Owner ID
Entry of the security code (PIN number) and "personal information" (your name, address and post code). In the unfortunate event of theft it will help the Police to determine the owner. If you have skipped the Owner ID input in "Auto Setup" (p. 10), and input it later, start from If you input the Owner ID in "Auto Setup" (p. 10), perform
.
Display the menu
1
MENU
Select "Setup menu"
MENU
Ŷ
OK
123
456
789
0
VCR
To return to TV
EXIT
EXIT
2
3
Main menu
Picture menu
Sound menu
Setup menu
Select "Owner ID"
Setup menu
VIERA Link Q-Link AV1 out AV2 out Teletext Off timer Power on preference Tuning menu Owner ID Shipping condition
On AV2 Monitor Monitor FASTEXT Off TV
Access
How to set
OK
OK
access
select
access
select
4
.
•
Restore Settings
•
Owner ID
Input owner ID
Owner ID
Enter the 4-digit PIN number of your choice
You now have the opportunity to enter your details and help the police crack crime
NAME :
HOUSE NO :
POSTCODE :
0123456789
see instruction book
∗ ∗ ∗ ∗
∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗
Entry fi eld
Owner ID
PIN NUMBER :
Characters
Make a note of the PIN number in case you forget it.
•
123
456
789
0
VCR
To change the stored information
Enter the PIN number
-
0
9
OK
Enter your name, address, and post code, in that order
OK
Select the entry fi eld
Select
OK
OK
character
To next character
To check the "personal information" stored
Hold down for about 6 sec.
Displays the information on the screen (for several sec.)
Store
OK
(Press twice)
store
Owner ID
HOUSE NO :
POSTCODE :
NAME : A
The PIN number is
•
not displayed.
Advanced
21
Page 22
Q-Link Functions
Q-Link interlocks the TV unit and VCR / DVD recorder, enables easy recording and playback.
Condition
Ŷ
Use the VCR / DVD recorder with the following logos:
•
"Q-Link", "NEXTVIEWLINK", "DATA LOGIC", "Easy Link", "Megalogic", or "SMARTLINK" Connect the equipment to this unit’s AV1 or AV2 terminal via a "fully-wired" SCART cable. (p. 28)
•
Q-Link terminal setup in Setup menu (Q-Link, AV1/AV2 out). (p. 18)
•
Download channel settings
Ŷ
Perform Auto setup. (p. 21)
•
When fi rst using this unit, see "Auto Setup". (p. 10)
Perform download to the equipment. (p. 21)
•
Features available
Ŷ
Some recording equipments are not applicable. Read the manuals of the equipment.

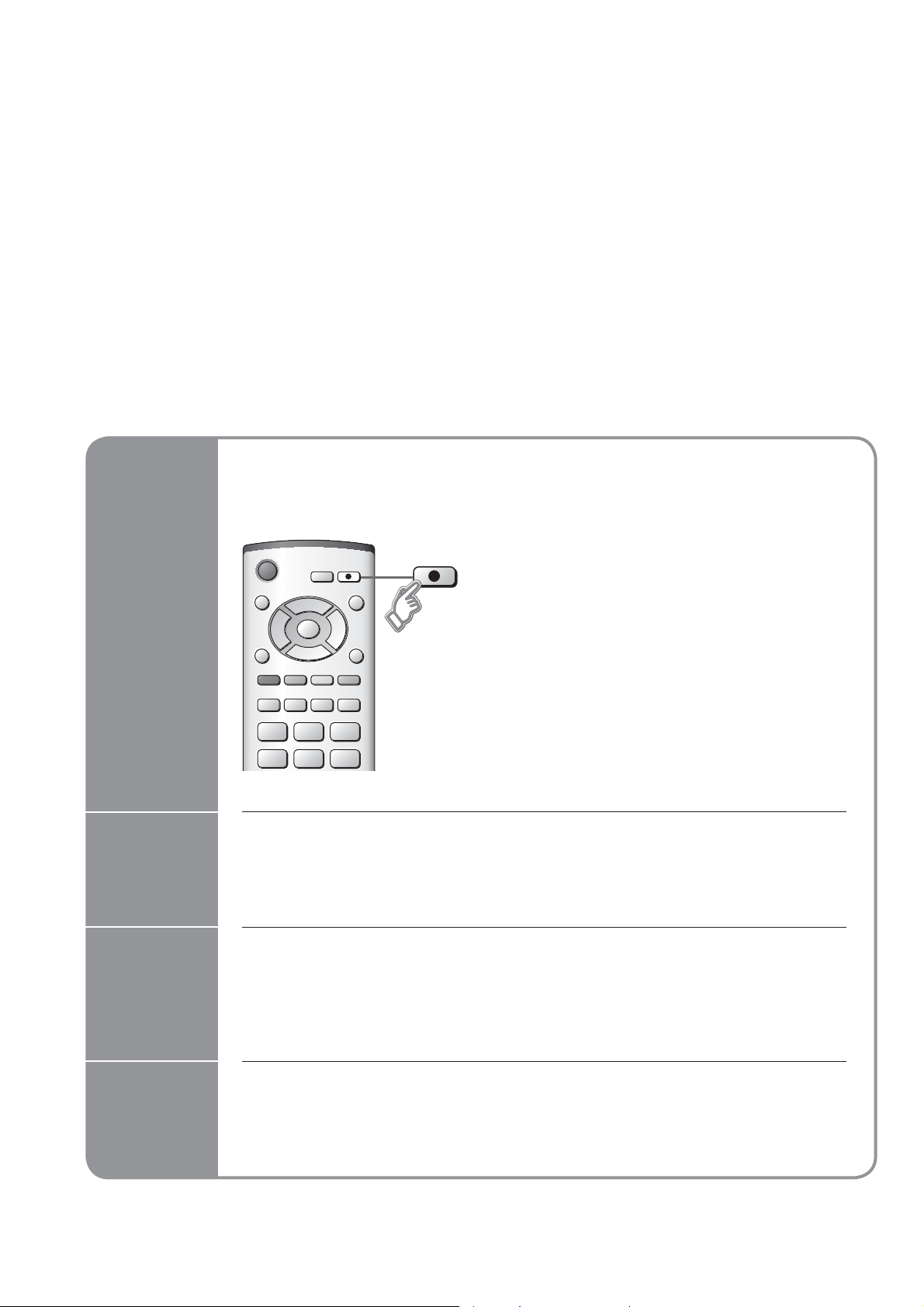

Direct TV Recording:
Recording the current programme in VCR / DVD recorder immediately.
When Direct TV Recording is performed, the
•
recording equipment is automatically turned on if it is in Standby mode. The recording equipment is recording from its own
•
tuner. You can turn the TV off during recording. If, during recording from an AV source, you turn the
•
TV off or change input / programmes, the recording will be stopped.
What you see is What you record
DIRECT TV REC
DIRECT TV REC
22
Information / Message
Power on link and Easy playback
Power off link
• "DATA LOGIC" (a trademark of Metz Corporation) •
• "Easy Link" (a trademark of Philips Corporation) • "SMARTLINK" (a trademark of Sony Corporation)
Read the manuals of the equipment too.
Recording information or if recording is not possible, a message is displayed. (Only when the programme number is "0" or "AV mode" for some equipment.)
When VCR or DVD recorder starts playback or direct navigator or function menu are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when TV is in Standby mode.)
When TV is set to Standby mode, the recording equipment is also automatically set to Standby. (Only when the videocassette or DVD is not active.)
"Megalogic" (a trademark of Grundig Corporation)
Page 23
HDMI Functions
HDMI connection
HDMI (high-defi nition multimedia interface) allows you to enjoy high-defi nition digital images and high-quality sound by connecting the TV unit and the equipment. HDMI-compatible equipment (1) with an HDMI or DVI output terminal, such as a set top box or a DVD player, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. About connections, see "External Equipment" (p. 26).
Note
HDMI is the world's fi rst complete digital consumer AV interface complying with a non-compression standard.
•
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (2).
•
When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.
•
Audio settings can be made on the "HDMI input" menu screen. (p. 17)
•
Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz
•
Use with a PC is not assumed.
•
If the connected equipment has an aspect adjustment function, set the aspect ratio to "16:9".
•
This HDMI connector is "type A".
•
An equipment having no digital output terminal may be connected to the input terminal of either "Component",
•
"S-VIDEO", or "Video" to receive analogue signals. The HDMI input terminal can be used with only the following image signals:
•
480i, 480p, 576i, 576p, 720p and 1080i. Match the output setting of the digital equipment. For details of the applicable HDMI signals, see p. 29.
•
(1): The HDMI logo is displayed on HDMI-compliant equipment. (2): Enquire at your local digital equipment retailer shop.
Summary of Control functions
Ŷ
Function
Easy playback
Direct TV Recording
Theatre speaker
Power on link
Power off link
TV tuning download
Connections
(Not when viewing HDMI input)
HDMI and SCART SCART (Q-Link) only HDMI only
OOO
O
O
OOO
OOO
OO
O
-
-
O
-
•
•
Q-Link Functions
HDMI Functions
Advanced
23
Page 24

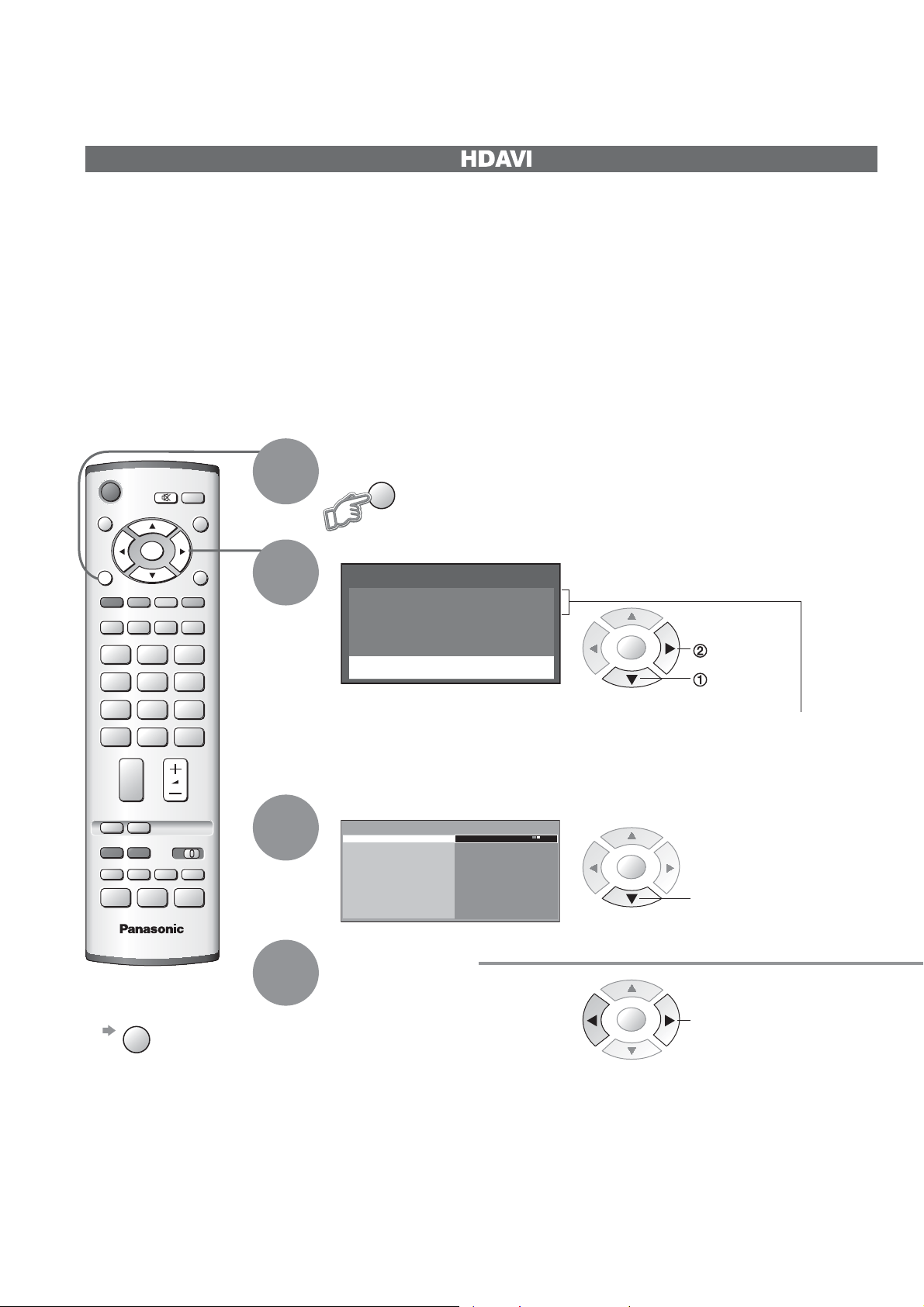

HDMI Functions
(Continued)
VIERA Link " Control"
Enjoy additional HDMI Inter-Operability with Panasonic products which have "HDAVI Control" function. HDMI connections to some Panasonic equipment (Panasonic DVD Recorder DIGA, Panasonic Player theatre, Panasonic Amplifi er, etc.) allow you to enjoy easy playback, power on link, power off link or home theatre. About connections, see "External Equipment" (p. 26). Read the manuals of the equipment too. This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized. Consult your local Panasonic dealer or refer to the URL for applicable equipment: www.panasonic.co.uk
Preparations (For the fi rst time / When adding new equipment, reconnecting equipment or changing setup)
After connection turn the equipment on and then switch the TV unit on. Select the input mode to HDMI (p. 14, p. 17), and make sure that an image is displayed correctly.
Display the menu
1
MENU
MENU
OK
2
Select "Setup menu"
Main menu
Home theatre Picture menu Sound menu
Setup menu
OK
access
select
Displayed when Amplifi er or Player theatre is connected.
•
This may be displayed after disconnecting the equipment. In this case, set "VIERA Link" in Setup menu to "Off", then set to "On" again.
Select "VIERA Link"
Setup menu
3
TV
VIERA Link Q-Link AV1 out AV2 out Teletext Off timer Power on preference Tuning menu Owner ID Shipping condition
Select "On"
To return to TV
4
Ŷ
EXIT
It is recommended that you use Panasonic’s HDMI cable.
•
Recommended part number: RP-CDHG15 (1.5 m) RP-CDHG30 (3.0 m) RP-CDHG50 (5.0 m)
(default is On)
On
AV2 Monitor Monitor FASTEXT Off TV
OK
OK
select
select
24
Page 25

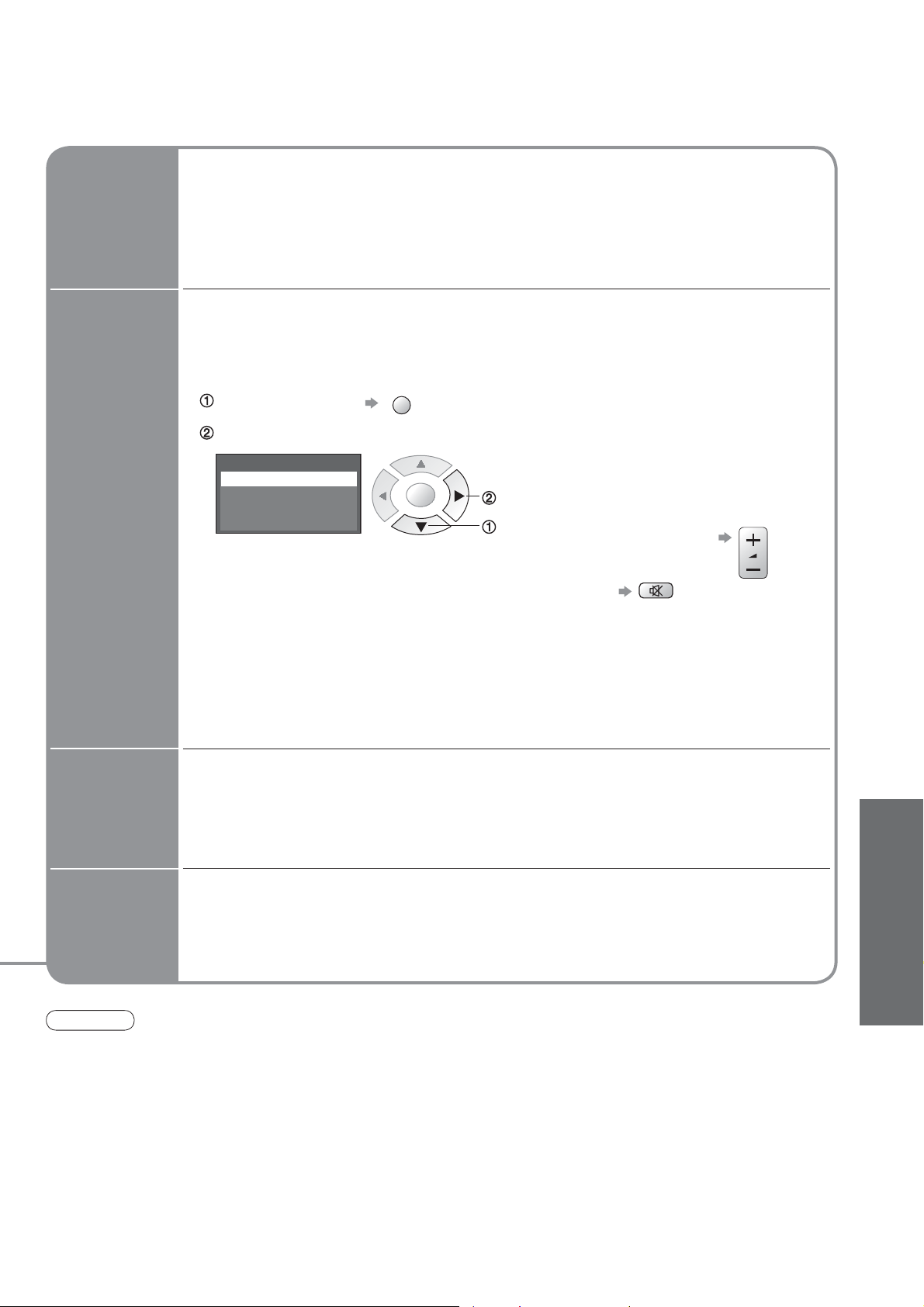

Easy playback
Automatic Input switching-When the connected Panasonic equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.
You can control the theatre speaker with TV’s remote control. This function is available when Panasonic Amplifi er or Player theatre is connected.
Theatre speaker
Power on link
Display the menu
Select "Home theatre" or "TV speaker"
Main menu
Home theatre
Picture menu Sound menu Setup menu
When selecting "Home theatre", the sound of TV speakers is mute.
•
When the equipment is turned off, TV speakers will be active.
•
When the connected Panasonic equipment starts playback or direct navigator or function menu are activated, the TV is automatically turned on. (Only when TV is in Standby mode.)
MENU
OK
access
select
Home theatre:
Ŷ
Adjustment for equipment (automatically turned on if it is in Standby mode)
Volume up / down
Mute
TV speaker:
Ŷ
TV speakers are active.
•
HDMI Functions
Advanced
Power off link
Note
Setup the equipment to enable this function. Read the manual of the equipment.
•
This function may not work normally depending on the equipment condition.
•
Image or sound may not be available for the fi rst few seconds when the playback starts.
•
Image or sound may not be available for the fi rst few seconds when Input mode is switched.
•
Volume function will be displayed when adjusting the volume of the equipment.
•
Easy playback is also available by using the remote control for Amplifi er. Read the manuals of Amplifi er.
•
When TV is set to Standby mode, the connected Panasonic equipment is also automatically set to Standby.
25
Page 26
External Equipment
Connections (overview)
These diagrams show our recommendations for how to connect the TV unit to your various equipment. For other connections, consult the instructions of each equipment, the table below, and the specifi cations (p. 33).
To watch DVDs
DVD player
AV3
S-V
V
(M3 plug)
L
R
Headphones
To adjust volume
Ŷ
"Headphone volume" in the Sound menu (p. 17)
Camcorder / Game equipment
(S-VIDEO)
(VIDEO)
(AUDIO)
To watch satellite broadcasts
Set top box
SCART cable
To record / playback
DVD Recorder / VCR
Fully wired HDMI compliant cable
SCART cable
SCART cable
26
Types of connectable equipment to each connector
Connector
Recording / Playback (equipment)
To record / playback videocassettes / DVDs
(VCR / DVD recorder)
To watch DVDs (DVD player) To watch camcorder images (Video camera) To watch satellite broadcasts (Set top box) To play games (Game equipment) Q-Link Direct TV Recording VIERA Link
AV1 AV2
AV3
Page 27
VIDEO
L
R
Y
P
B
PR
L
R
PC
(Listening)
To listen with speakers
Amplifi er with speaker system
Computer
RF cable
COMPONENT
RGB VIDEO
AV1
VIDEO
RGB S-VIDEO
AV2
VIDEO
AUDIO
AUDIO
AV
or
VIERA Link (p. 24)
DIGA or Panasonic Amplifi er
Fully wired HDMI compliant cable
External Equipment
Advanced
•
COMPONENT
PR
PB
Y
: Recommended Connection
27
Page 28

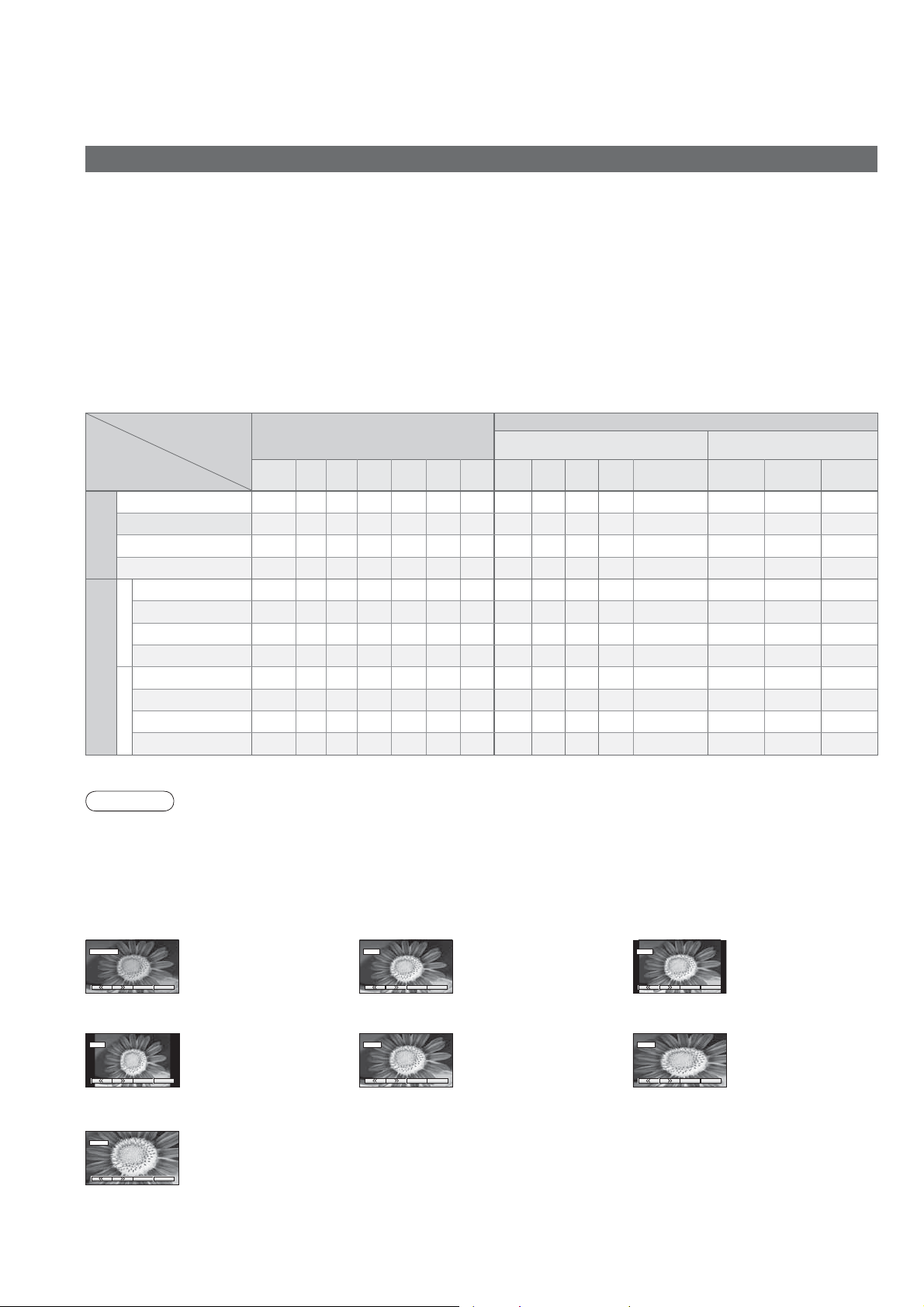

Technical Information
Aspect Ratio
The optimum size and aspect can be chosen, and you can enjoy fi ner images. (p. 11)
Auto aspect: Auto aspect determines the best aspect ratio to use to fi ll your screen. It does this using a four step
Ŷ
process to determine if the picture being viewed is a widescreen picture.
If Auto aspect detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Auto
aspect does not detect a widescreen signal then this advanced TV set enhances the picture for optimum viewing
pleasure. The text shown on the screen indicates how Auto aspect determined which ratio to use: "WIDE" appears in the top left of the screen if a widescreen identifi cation signal (WSS) is found or a signal found
through a SCART terminal. Auto aspect switches to the appropriate 16:9 or 14:9 widescreen ratio. This function
will also work in any aspect mode. "Auto aspect" appears in the top left of the screen if black stripes above and
below the picture are detected. Auto aspect chooses the best ratio and expands the picture to fi ll the screen. This
process can take several minutes, depending on the darkness of the picture.
Signal name
TV/AV1/AV2/
PAL I
AV3
PAL 525/60
M.NTSC
NTSC(AV input only)
525(480)/60i
Component/HDMI
SD
525(480)/60p
625(576)/50i
625(576)/50p
750(720)/50p
HD
750(720)/60p
1125(1080)/50i
1125(1080)/60i
Note
•
•
•
•
Aspect modes
Auto
16:9 14:9
aspect
OOOOOOOOOOO
OOOOOOO
OOOOOOO
OOOOOOO
OOOOOOO
OOOOOOO
OOOOOOO
OOOOOOO
OOOOOOO
OOOOOOO
OOOOOOO
OOOOOOO
4:3
Zoom1 Zoom2 Zoom3TVAV1 AV 2 AV 3
Widescreen signal (WSS)
---- -
---- -
---- -
---- - - -
---- - - -
----
----
---- - - -
---- - - -
---- - - -
---- - - -
Aspect Control Signal
Component
-
O
O
Control signal through SCART
(pin 8) or HDMI terminal
AV1 AV2
OO
OO
OO
OO
--
--
HDMI
-
-
-
-
O
O
O
O
O
O
O
O
The ratio varies depending on the programme, etc. If the ratio is greater than the standard "16:9", black bands may appear at the top and bottom of the screen. If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. (See the VCR manual.) Aspect mode can be memorized for SD (Standard defi nition) and HD (High defi nition) signals separately. To select the ratio manually:
28
Auto aspect
Auto aspect
4:3
4 : 3
Zoom3
Zoom3
The best ratio is chosen and the picture expanded to fi ll the screen.
Displays the image at the standard "4:3" without distortion.
Displays a "2.35:1" letterbox (anamorphic) image full­screen without distortion. At "16:9", displays the image at its maximum (with slight enlargement).
16 : 9
Directly displays the image at "16:9" without distortion (anamorphic).
Displays a "16:9" letterbox or "4:3" image without distortion.
14:916:9
14 : 9
Zoom2Zoom1
Zoom2Zoom1
Displays the image at the standard "14:9" without enlargement.
Displays a "16:9" letterbox (anamorphic) image full-screen without distortion.
Page 29
SCART, S-video and HDMI terminals information
AV1 SCART terminal
Ŷ
(RGB, VIDEO, Q-Link)
Suitable inputs for AV1 include RGB (Red / Green / Blue).
AV2 SCART terminal
Ŷ
(RGB, VIDEO, S-VIDEO, Q-Link)
Suitable inputs for AV2 include RGB (Red / Green / Blue). AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.
Socket Earth CVBS out (video) CVBS earth Red in Red earth Green in Green earth Blue in Blue earth Audio out (L) Audio out (R)
AV3 S-VIDEO 4 pin terminal
Ŷ
Chrominance in
Chrominance earth Luminance earth
21 19 17 15 13 11 9 7 5 3 1
20
CVBS in (video)
18
RGB status earth
16
Status RGB
14
Earth
12
--
10
Q-Link data
8
Status CVBS
6
Audio in (L)
4
Audio earth
2
Audio in (R)
Luminance in
Socket Earth CVBS out (video) CVBS earth Red in, S.C. - in Red earth Green in Green earth Blue in Blue earth Audio out (L) Audio out (R)
HDMI terminal
Ŷ
Hot Plug Detect DDC/CEC Ground SCL CEC TMDS Clock Shield TMDS Data0í TMDS Data0+ TMDS Data1 Shield TMDS Data2í TMDS Data2+
21 19 17 15 13 11 9 7 5 3 1
19 17 15 13 11 9 7 5 3 1
20
CVBS in (video)
18
RGB status earth
16
Status RGB
14
Earth
12
--
10
Q-Link data
8
Status CVBS
6
Audio in (L)
4
Audio earth
2
Audio in (R)
18
+5V Power
16
SDA
14
Reserved (in cable but N.C. on device)
12
TMDS Clockí
10
TMDS Clock+
8
TMDS Data0 Shield
6
TMDS Data1í
4
TMDS Data1+
2
TMDS Data2 Shield
Input signal that can be displayed
Mark: Applicable input signal for Component (Y, PB, PR) and HDMI
Signal name
Horizontal
frequency (kHz)
525 (480) / 60i 15.73 59.94 525 (480) / 60p 31.47 59.94 625 (576) / 50i 15.63 50.00 625 (576) / 50p 31.25 50.00 750 (720) / 60p 45.00 60.00 750 (720) / 50p 37.50 50.00 1,125 (1,080) / 60i 33.75 60.00 1,125 (1,080) / 50i 28.13 50.00
Note
Signals other than above may not be displayed properly.
•
The above signals are reformatted for optimal viewing on your display.
•
Vertical
frequency (Hz)
Component HDMI








•
Technical Information
FAQs, etc.
29
Page 30

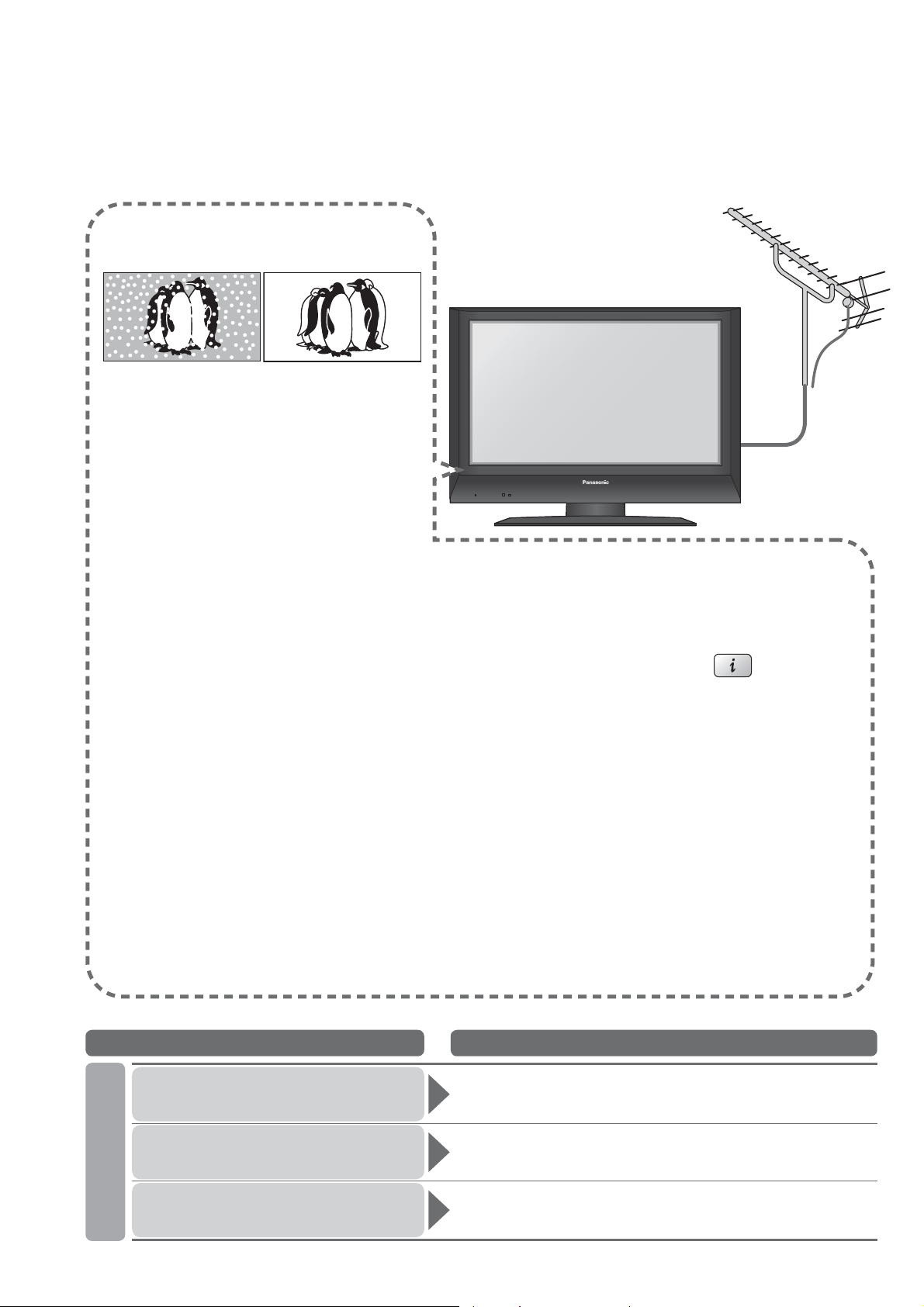

FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem. If problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care Centre for assistance. For details (p. 36)
White spots or shadow images (noise)
Check the position, direction, and
•
connection of the aerial.
Neither image nor sound is produced
Is the unit in "AV mode"?
•
Is the mains lead plugged into the socket
•
outlet? Is the TV unit turned On?
•
Check Picture menu (p. 17) and volume.
•
Check all required SCART cables and
•
connections are fi rmly in place.
Auto aspect
Auto aspect is designed to provide you
•
with the best aspect ratio to use to fi ll your screen. For user control please see p. 28.
There may be red spots, blue spots, green spots and black spots on the screen
This is a characteristic of liquid crystal
•
panels and is not a problem. The liquid crystal panel is built with very high precision technology giving you fi ne picture details. Occasionally, a few non­active pixels may appear on the screen as a fi xed point of red, green, blue or black.
Please note this does not affect the
performance of your LCD.
S-Video / black and white picture
Using TV/AV button please confi rm your selection is S-Video
•
I.e. AV2/S-Video or AV3/S-Video (p. 14).
On Screen messages - I.e. AV1/EC1
You can simply clear these by pressing .
•
Press again to redisplay.
Direct TV record / Q-Link functions not recording
Please confi rm SCART cable and connection. Also please
•
set "AV1/AV2 out" in the Setup menu (p. 17).
The LCD panel moves slightly when it is pushed with a fi nger Clattered sound might be heard
There are some looseness around the panel to prevent the
•
damage to the panel.
The panel might move slightly when it is pushed with a
fi nger, and clattered sound might be heard. This is not a malfunction.
30
Problem Actions
Chaotic image, noisy
Screen
No image can be displayed
Blurry or distorted image
(no sound or low volume)
Set "P-NR" in the Picture menu (to remove noise). (p. 17)
•
Check nearby electrical products
•
(car, motorcycle, fl uorescent lamp).
Is "Colour" or "Contrast" in the Picture menu set to the
•
minimum? (p. 17)
Reset channels. (p. 21)
•
Page 31
Problem Actions
No sound is produced
Sound level is low or sound is distorted
Sound is unusual
Pictures from external equipment are unusual when the equipment is connected via HDMI
An error message appears "VIERA Link" function does not work TV unit goes into
OtherSound HDMI
"Standby mode" The remote control
does not work An error message appears
Is "Sound Mute" active? (p. 7)
•
Is the volume set to the minimum?
•
Sound signal reception may be deteriorated.
•
Set "NICAM" (p. 17) in the Sound menu to "Off".
•
Set the sound setting of the connected equipment to "2ch L.PCM".
•
Check the "HDMI input" setting in the Sound menu.
•
If digital sound connection has a problem, select
•
analogue sound connection. (p. 17) Is the HDMI cable connected properly? (p. 26)
•
Turn Off the TV unit and equipment, then turn them On again.
•
Check an input signal from the equipment. (p. 29)
•
Use an equipment compliant with EIA/CEA-861/861B.
•
Contact the authorized Service Centre.
•
Switch the TV unit on again with the equipment on.
•
Set "VIERA Link" to "Off", then set to "On" again. (p. 24)
•
The sleep function is activated.
•
The TV unit enters "Standby mode" about 30 min. after broadcasting ends.
•
Are the batteries installed correctly? (p. 6)
•
Has the TV unit been switched On?
•
Follow the message’s instructions.
•
If the problem persists, contact the authorized Service Centre.
•
(p. 17)
On screen messages
On screen messages Actions / Meanings
Problem Actions
All tuning data will be erased
Are you sure ?
DOWNLOAD IN PROGRESS PLEASE WAIT
Feature not available
Incorrect PIN Number
No recording - Check Tape or Disc
No recording - UNKNOWN REASON
Please check settings and connections on HDMI devices. No stations found
Please insert the aerial
Please wait.
Recording in progress
Recording stopped - TV source changed
Unable to download, Check Equipment
WARNING All current tuning data will be erased
"Shipping condition" will erase all tuning data.
•
Make sure the operation is with your desire.
•
Q-Link channel download is in progress.
•
Check the Q-Link connection and setting (p. 22).
•
The impossible source (Component / HDMI) to be record.
•
The PIN number you entered is wrong.
•
The tape or disc may be "write protected", missing or damaged.
•
The equipment may already be recording.
The recording cannot be done by any reason. Check the equipment.
•
Disc or tape may be full.
•
Communication error in VIERA Link function (p. 24).
•
No signal can be found in Auto setup.
•
A function is in progress.
•
The recording equipment is recording the programme signal from
•
its own tuner. You can turn the TV off and leave the equipment recording in the normal way.
Direct TV recording will stop if channel or input source is changed.
•
The tape or disc is active. Stop the equipment and try again.
•
Auto setup will be erased all present tuning data (p. 19).
•
•
Frequently Asked Questions
•
On screen messages
FAQs, etc.
31
Page 32
Index
Accessories ···························································· 6
A
Ambience······························································ 17 Aspect····························································· 11, 28 Auto Setup ······················································ 10, 19 AV1/AV2 out ··················································· 14, 22
Clamper ·································································· 6
C
Component ··························································· 29 Connection ······················································· 8, 26
Direct TV Recording ············································· 22
D
Download to equipment ·································· 10, 19 DVI········································································ 23 DVDs ···································································· 14
E
External equipment··········································· 8, 26 External input·················································· 14, 17
F
FAQs····································································· 30
HDMI ······························································· 23-25
H
Hold ································································ 11, 13 Home theatre ························································ 24
Input signal ··························································· 29
I
Licence ································································· 32
L
Lock ······································································ 19
Mains Lead ························································· 4, 8
M
Maintenance ··························································· 5 Manual tuning ················································· 18, 19 Menu Functions ··············································· 15-17
NICAM ·································································· 17
N
Normalise ························································· 7, 16 NTSC ······························································ 15, 33
Off timer ································································ 17
O
On / Off switch ·················································· 7, 10 Optional accessories ·············································· 6 Owner ID ························································ 10, 21
PAL ······································································· 33
P
PIN number ···················································· 10, 21 P-NR ····································································· 17 Power lamp······················································· 7, 10 Programme edit ···················································· 19
Q-Link ··································································· 22
Q
Quick Start Guide ·············································· 6-10
Remote control ··················································· 6, 7
R
RGB ········································································ 8
Sales and Support Information ····························· 36
S
Satellite receiver ········································· 9, 14, 26 SCART ····························································· 8, 29 Shipping condition ················································ 20 Specifi cations ······················································· 33 Sub page ······························································ 13 S-Video ····························································· 8, 29
Teletext ································································· 12
T
TV speaker ··························································· 25
Video ································································ 8, 14
V
VIERA Link ······················································ 24,26 Viewing mode ······················································· 17
WSS ····································································· 28
W
Zoom ······························································ 11, 28
Z
32
Licence
Trademark Credits
VGA is a trademark of International Business Machines Corporation.
•
Macintosh is a registered trademark of Apple Computer, USA.
•
S-VGA is a registered trademark of the Video Electronics Standard Association. Even if no special notation has
•
been made of company or product trademarks, these trademarks have been fully respected.
HDMI, the HDMI Logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI
•
Licensing LLC.
HDAVI ControlTM is a trademark of Matsushita Electric Industrial Co., Ltd.
•
Page 33
Specifi cations
TX-26LE7LA TX-32LE7LA
Power Source
Consumption
Power
Average use 92 W 121 W
Standby condition 1 W
Display panel
Aspect Ratio 16:9
Visible screen size 66 cm 80 cm
Number of pixels 1,049,088 (1,366 (W) x 768 (H))
AC 220-240 V, 50 Hz
Audio Output
Headphones
PAL I UHF E21-69 / VHF Ireland channel
Receiving Systems / Band name
Aerial - Rear VHF / UHF
Operating Conditions
Teletext Pages 200
AV1 (Scart terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
Connection Terminals
AV2 (Scart terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)
VIDEO
AV3
Others
Output AUDIO L - R RCA PIN Type × 2 0.5 V[rms] (high impedance)
Dimensions ( W × H × D )
Including TV stand 657 mm × 525 mm × 239 mm 791 mm × 615 mm × 239 mm TV set only
Weight
S-VIDEO AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
COMPONENT
HDMI TYPE A Connector AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) or NTSC
M.NTSC Playback from M. NTSC Video recorders (VCR). NTSC (AV input only) Playback from NTSC Video recorders (VCR).
Temperature : 5 °C - 35 °C Humidity : 5 % - 90 % RH (non-condensing)
RCA PIN Type × 1 1.0 V[p-p] (75 :) Mini DIN 4-pin Y:1.0 V[p-p] (75 :) C:0.286 V[p-p] (75 :)
Y 1.0 V[p-p] (including synchronization)
B, PR ±0.35 V[p-p]
P
657 mm × 473 mm × 107 mm 791 mm × 563 mm × 107 mm
disc playback from DVD player and recorder.
12,5 kg Net 16 kg Net
2 × 8 W RMS, 8
M3 (3.5 mm) Jack × 1
Note
Design and Specifi cations are subject to change without notice. Weight and Dimensions shown are approximate.
•
This equipment complies with the EMC standards listed below.
•
EN55013:2001+A1:2003, EN55020:2002+A1:2003+A2:2005, EN61000-3-2:2000+A2:2006, EN61000-3-3:1995+A1:2001
•
•
Index
•
Specifi cations
Licence
FAQs, etc.
33
Page 34
34
Page 35
35
Page 36
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)
This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative
effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
0844 844 3852
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identifi cation in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Matsushita Electric Industrial Co., Ltd.
Web Site : http://www.panasonic.net
¤ 2007 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Loading...
