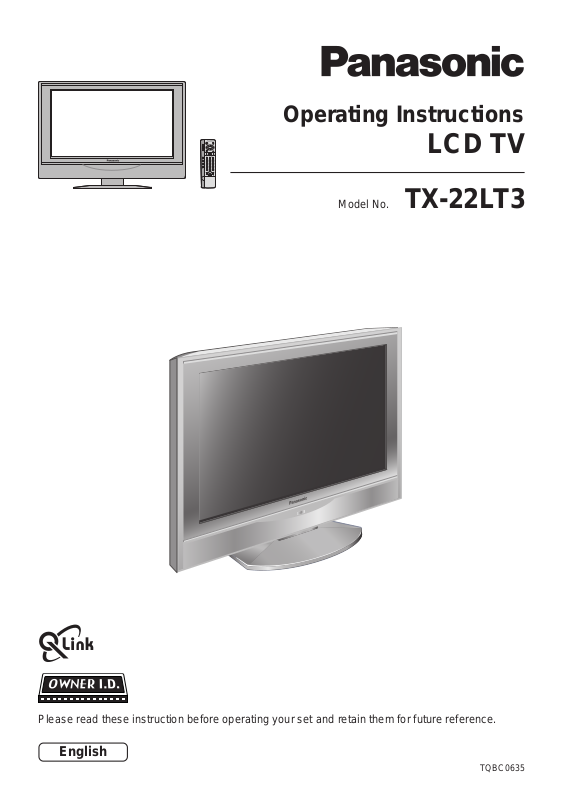

Panasonic TX-22LT3 User Manual

Operating Instructions

LCD TV

Model No.

TX-22LT3

Please read these instruction before operating your set and retain them for future reference.

English

TQBC0635

Welcome

Dear Panasonic Customer, We hope that you have many years of enjoyment from your new TV. The Quick Start Guide section at the beginning of this instruction book will allow you to use the TV as quickly as possible.We recommend that you then read the complete instruction book, and keep it to refer to as you explore the range of advanced features that this LCD TV offers.

Contents

Accessories............................................................. 2

Warnings and Precautions ...................................... 3

Fitting remote control batteries ............................... 4

Antenna cover removal and fitting ..........................4

Cable cover removal and fitting .............................. 4

How to use the LCD stand ...................................... 5

Quick Start Guide.................................................... 5

Basic controls: top panel and remote control ........ 11

Using the On Screen Displays .............................. 12

Q-Link.................................................................... 13

Picture menu ......................................................... 14

Sound menu.......................................................... 15

Setup menu........................................................... 16

Tuning menu - overview........................................ 17

Tuning menu - Programme edit ............................ 18

Adding / deleting a programme channel ............ 18

Moving a programme channel ........................... 18

Tuning a programme channel............................ 18

Accessories

Check that you have the accessories and items shown

Renaming a programme channel ...................... 19

Locking a programme channel .......................... 19

Copying programme information to a recording device ..

Tuning menu - Auto setup ..................................... 20

Tuning menu - Manual tuning ............................... 21

Manual tuning (via Top panel) ............................... 21

Shipping condition................................................. 22

Owner ID ............................................................... 23

Aspect Controls..................................................... 24

VCR / DVD operation ............................................ 26

Teletext operation.................................................. 27

Audio / video connections ..................................... 30

Connecting Headphones / Earphones............... 30

How to connect the input terminals ................... 31

Troubleshooting .................................................... 32

Maintenance ......................................................... 33

Scart and S-video socket information ................... 33

Specifications ........................................................ 34

Operating Instruction book (TQBC0635)

TV Guarantee

Remote Control Transmitter (EUR511256)


SOUND

SET UP

TV/AV

F.P. INDEX HOLD

TV/TEXT

DIRECT TV REC

2 3

5 6

ASPECT

8 9

VCR

Batteries for the Remote Control Transmitter (2 × R6 (UM3) size)

AC Adaptor & Mains Lead AC Adaptor: (N0JZHK000012) Mains Lead: (K2CT3AA00002)

Warnings and Precautions

• This TV set is designed to operate on DC 15V.

•

To prevent damage which might result in electric shock or fire, do not expose this TV set to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

• WARNING : HIGH VOLTAGE!!!

Do not remove the rear cover as live parts are

accessible when it is removed. There are no user serviceable parts inside.

• TV Games / Home Computers

Extended use of TV games or home computers with any television set can cause a permanent ‘shadow’ on the screen. This type of irreversible LCD panel damage, can be limited by observing the following points:

• Reduce the brightness and contrast levels to a minimum

viewing level.

• Do not allow a still picture to be displayed for an extended

period, as this can cause a permanent after-image to remain on the LCD TV screen.

•

Examples of still pictures include logos, video games,

computer images, teletext and images displayed in 4:3 mode.

• This type of LCD panel damage, is not an operating defect,

and as such is not covered by the Panasonic warranty.

• The On/Off switch on this model does not fully disconnect the TV from the mains supply. Remove the mains plug from the wall socket when the TV set is not used for a prolonged period of time.

Note:

If the set is not switched off when the TV station stops transmitting, it will automatically go to stand-by mode after 30 minutes. This function will not operate when the TV is in AV mode.

• Cabinet and LCD panel care

Remove the mains plug from the wall socket. The

cabinet and LCD panel can be cleaned with a soft cloth moistened with mild detergent and water. Do not use solutions containing benzol or petroleum.

• When ambient temperature is cool, the picture may take a short time to reach normal brightness, but this is not a malfunction. (After brief moment, the picture will have normal brightness.)

Adequate ventilation is essential to prevent failure of

• electrical components, we recommend that a gap of at least 10 cm is left all around this television receiver even when it is placed inside a cabinet or between shelves.

• A void exposing the TV set to direct sunlight and other sources of heat.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse. If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover

the plug must not be used until a replacement cover is obtained. Replacement fuse covers can be purchased through your local Panasonic dealer.

The plug fitted to this appliance incorporates a mains filter circuit. If this is removed or replaced with a non-- filtered plug this television will no longer meet the European standards for Electromagnetic Compatibility (EMC). If the fitted plug is unsuitable for the socket outlet in your home an appropriate adapter should be used.

Nonetheless, if the fitted plug is replaced, the fuse should be taken out and the cut- off plug disposed of safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

How to replace the fuse (for plug type shown in example 1):

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

How to replace the fuse (for plug type shown in example 2):

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).

Example 1

Example 2

IMPORTANT :-- The wires in the mains lead of this appliance are coloured in accordance with the following code :--

BLUE : NEUTRAL BROWN : LIVE

As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug, proceed as follows :--

1. The BLUE wire must be connected to the terminal marked ‘N’ or coloured black.

2. The BROWN wire must be connected to the terminal marked ‘L’ or coloured red. IMPORTANT NOTE : Under no circumstances should either of these wires be connected to the Earth terminal of the three

pin plug, marked with the letter ‘E’ or the earth symbol.

Fitting remote control batteries

1 2 3

Slide off the battery cover

Two “R6 (UM3)” size

Insert batteries - note correct polarity (+ and -)

Replace the cover

• Make sure that the batteries are fitted the correct way round.

• Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.

• Do not mix different battery types, i.e. Alkaline and Manganese or use rechargeable (Ni - Cad) batteries.

Antenna cover removal and fitting

P U T

-V ID

E O

-V ID E O

VID

VIDEO

DIO

AUDIO

C O

P O N E

N T

V ID

U T

VID

VIDEO

UDIO

AUD

Hook

Removal

1.Push up hooks and pull the cover slightly towards yourself to disengage the claws (at 4 points).

2.Slowly pull out in the downward direction.

Fitting

1.Insert the claws (at 4 points) at the bottom end.

2.Push it until hook will be cricked.

Note:

To avoid interference appearing on the screen, do not bundle the antenna wire and AC adaptor wire together.

Cable cover removal and fitting

Removal Fitting

1. Disengage the claws at the uppermost end.

2. Slowly pull out in the upward direction.

Note:

Depending on the type of cable used it may not be possible to close the cover. In such cases the cable may be routed through the antenna cover.

1. Insert the claws (at 2 points) at

the bottom.

2. Push it until click.

How to use the LCD stand

Adjust the stand to your desired angle. The stand angle can be adjusted 15 ° backward.

Quick Start Guide

Choose Your Connection Type

Connection and setting up options

• If connecting the TV using an RF lead only, see below .

• If connecting the TV using Scart and RF leads, see page 6.

• If connecting the TV to a Q-Link (or Q-Link compatible) VCR, see page 6.

• If connecting the TV to a Q-Link (or Q-Link compatible) VCR and a satellite receiver, see page 7.

What is Q-Link?

Q-Link allows direct communication between the TV and a Q-Link (or Q-Link compatible) VCR, this will enable features such as downloading of tuning information from the TV to the VCR.

Further information on Q-Link can be found on page 13. In order for Q-Link to function correctly, the Scart leads must be connected as shown in connection diagram, dependent on whether the TV is being connected to a VCR or to a VCR and Satellite Receiver.

1. Connecting the TV directly to an Antenna only

Connect the RF lead into the TV Antenna

Antenna Input socket

RF lead

ANTENNA

Input socket (

Note:

Additional equipment and lead are not supplied.

Quick Start Guide

2. Connection of TV and VCR/DVD recorder using Scart and RF leads

RF connection

Connect the ANTENNA to the Antenna Input terminal of the VCR and an RF lead from the VCR Antenna Output terminal to this set Antenna Input socket (

Scart Connections

The VCR can also be connected to the TV using a Scart lead.

Antenna Input socket

ANTENNA

RF OUT

Notes:

• Additional equipment and leads are not

supplied.

VCR/DVD recorder

RF IN

• Further details of audio / video connections can be found on page 31.

3. Q-Link connection of TV and VCR/DVD recorder using Scart and RF leads RF connection

Connect the ANTENNA to the Antenna Input terminal of the VCR and an RF lead from the VCR Antenna Output terminal to this set Antenna Input socket (

Scart connection

The VCR must be connected to the AV1/ AV2 Scart socket of this set using a ‘fully wired’ Scart lead.

Antenna Input socket

Notes:

• Additional equipment and leads are not

supplied.

ANTENNA

RF OUT

• Further details of audio/ video connections

can be found on page 31.

• Further information for VCR and Satellite

Receiver installation with this set can be found

VCR/DVD recorder

RF IN

on page 7.

• If your VCR is not a ‘Q-Link’ VCR, please

consult your VCR operating instruction book.

Quick Start Guide

4. Q-Link connection of TV, VCR/DVD recorder and Satellite Receiver using Scart and RF leads

For Q-Link to function correctly this set, VCR and Satellite Receiver must be connected as shown in the diagram.

RF connections

• Connect an RF lead to the Antenna Input

terminal of the Satellite Receiver.

• Connect an RF lead from the Antenna

Output terminal of the Satellite Receiver to the Antenna Input terminal of the VCR.

• Connect an RF lead from the Antenna

Output terminal of the VCR to this set Antenna Input socket (

AV1

Scart socket

Antenna Input socket

AV2 Scart socket

RF lead

Antenna Input

Satellite Recevier

Antenna Output

Antenna Input terminal

terminal

AV2

Scart

socket

Antenna Output terminal

TV Scart socket

VCR Scart socket

AV1 Scart socket

VCR/DVD recorder

Scart connections

‘Fully wired’ Scart leads should be used for all of the Scart connections.

• The AV2 Scart socket of the VCR must be

connected to the VCR Scart socket of the Satellite Receiver.

• The TV Scart socket of the Satellite

Receiver must be connected to the AV1 Scart socket of this set.

• For Scart socket wiring information see page

33.

Notes:

• Additional equipment and leads are not

supplied.

• Further details of audio/ video connections

can be found on page 31.

• If your VCR is not a ‘Q-Link’ VCR, please

consult your VCR operating instruction book.

Quick Start Guide

Connecting the AC Adaptor

1 Connect the external equipments. 2 Connect the AC Adaptor DC plug to the DC IN

socket. Plug into household mains socket.

• Be sure to use the power cord and AC adaptor included in the accessories.

• Do not use the AC adaptor for other than the specified equipment.

• Unplug the AC adaptor if it is not used for long time.

• Do not place any objects on the AC adaptor.

• Do not use the AC adaptor outdoors.

• Do not attempt to repair the AC adaptor if it is broken or malfunctioning. Refer the servicing to the service representative.

• Do not try to open the AC adaptor.

• Do not use water or wet cloth for cleaning the AC adaptor.

Switch TV ON

Power Indicator

On/Off switch

TV/AV

LED Indicator

Adaptor connection only : Orange STB : Red On : No Light

Remote control signal sensor

3 Press the switch on the LCD TV to turn

the set on.

IMPORTANT NOTES

There are two ways to switch the TV set to stand-by mode. (A) Press the switch on the LCD TV and the

amber LED is lit.

(B) Press the

control and the Red LED is lit.

The TV set can be switched on by the remote control, only if it was switched to stand-by using method (B).

Stand-by button on the remote

Auto set up

channels

5/S4C

C/CH5

ill

Quick Start Guide

CH44

has Q-Link function and Satellite receiver is switched ON. If the TV has not been programmed for you then Auto setup will

First, ensure that the recording device is in Standby mode, if it

AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT

Stored CH44

21 68

TV/AV : To exit

begin, your stations will be located, sorted into order and stored ready for use (refer to page 20).

TV to VCR /DVD recorder download

If a Q-Link, NEXTVIEWLINK or compatible recording device has been connected to the correct Scart socket before starting Step 1, programme information will be downloaded to the device via Q-Link.

Downloaded tuning data will match the television’s. Not all recording devices support this download of programme information, some may require to be

started manually. Refer to the device’s operating instruction book. lf a recording device other than those described above has been connected, then there will be no download

operation.

Note:

If the recording device has not accepted download data from the TV, you may need to select the Download option from the device’s menu system. Refer to the recording device’s operating instruction book. If Q-Link is not operating correctly, check the following:

• The Scart lead is connected to the TV’s correct Scart socket. The Scart lead is connected to the VCR’s compatible (Q-Link, NEXTVIEWLINK or similar technology) Scart socket.

•

• The Scart lead is a “fully wired” type.

For further information on Q-Link and connecting equipment, see pages 13 and 31.

• The sorted programme order depends upon the TV signal, the broadcasting system, and reception

conditions. If the order is not to your preference it can be rearranged. Refer to the Programme edit menu - see page 18 for details.

• If you have a digital satellite receiver, you can start Auto setup with the receiver set to any channel. You

will then have to manually name the ‘SAT’ position after Auto setup is complete. Refer to the Programme edit - see page 19 for details.

rog. Position

BBC1 BB

H4 4 H

No CH5No CH

BB BB

H4 4 AT

No CH4/CH5No S4CNo CH4/S4CNo CH4/S4

BB BB

4 AT

H4 H

BB BB

H AT

BB BB

e next available channel w

appear, If no other stations are available then the Programme position w

remain nunse

Owner ID

Quick Start Guide

You now have the opportunity to enter your details and help the police crack crime see instruction book

Return

Owner ID

PIN NUMBER :

HOUSE NO :

POST CODE :

ABCDEFGHIJKLMNOPQRST

UVWXYZ

∗∗∗∗

NAME :

∗∗∗∗∗∗∗∗∗∗∗∗∗∗

∗∗∗∗∗∗∗∗∗∗∗

+− .

0123456789

Change Character Select character

TV/AV

'STR' Button - Store Owner ID

Exit

As an added feature, this TV has the option of entering a security code (Owner ID) and personal details into its memory, so that in the unfortunate event of theft it will help the police to trace the owner.

Enter required 4 digit Owner ID PIN NUMBER (using 0 to 9 on the remote control)

Press the TV/AV button at any time to exit the Owner ID feature without saving any information you may have entered.

Enter NAME, HOUSE NUMBER and POSTCODE

If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the NAME line.

1 2 3 4 5 6 7 8 9

TV/AV

1 2 3 4 5 6 7 8 9

If not, move to the NAME line.

Change character.

Select character position. Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.

Press STR to store the details Press STR again, when you are asked "Are you sure?" For further information on Owner ID, including how to view the details you have stored, see page 23. A space is provided on page 23 to write down your PIN

NUMBER for future reference.

Adjusting Volume and changing programme

You are now ready to begin viewing programmes The cursor controls provide the two basic functions:

STR

Change Programme

Adjust Volume

Basic controls: top panel and remote control

On / Off switch

STR (Normalization store)

Used to store tuning and other function settings

F (Function select) Displays the On Screen Display functions, use repeatedly to select from the available functions - Volume, Backlight, Contrast, Brightness, Colour, Sharpness, Tint (in NTSC mode), Bass, Treble, Balance and Tuning

Stand-by On / Off switch Switches TV On or Off (stand-by)

Menu buttons Press to access the PICTURE, SOUND and SETUP menus (see page 12, 14-16)

Status button Press to display programme position,


SOUND

SET UP

programme name, channel number, time, NICAM mode, ASPECT mode and programme table

Teletext buttons (see page 27 - 29)

TV/TEXT

DIRECT TV REC

Direct TV Record button (see page 13)

TV/AV

TV/AV switch (see page 30)

INDEX HOLD

F.P.

1 2 3

Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On

Sound mute On / Off

Cursor buttons to make selections and adjustments

TV/AV

Switch between viewing TV or AV input (see page 30)

Coloured buttons used for

Aspect functions (see page 24, 25) Programme edit functions (see page 18)

Teletext functions (see page 27) AV selection (see page 27)

Ambience On / Off (see page 15)

ASPECT control button (see page 24, 25)

Direct channel access During normal TV viewing or when in the Tuning or Manual tuning menus, press and then enter channel number using the numeric buttons

N (Normalize) button Resets all settings to their default levels

ASPECT

4 5 6 7 8 9

VCR

DVD

REC-VCR

PROGRAMME

STR

Programme / channel change buttons (0-9) and Teletext page buttons (see page 27). When in Standby mode, switches TV On

Programme position for selection of two digit programmes (10-99) using numeric buttons

VCR / DVD buttons (see page 26)

STR (Normalization store) Stores some current settings as the normalized settings in SOUND menu. Stores some settings in Tuning and Programme edit menus.

+ 25 hidden pages
