Panasonic TH-65PY800P Operating Instructions

Page 1
Operating Instructions
Plasma Television
Model No. TH-58PY800P
TH-65PY800P
Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only. Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
English
Page 2
Turn your own living room into a movie theatre!
Experience an amazing level of multi-
Page 3
media excitement
Enjoy rich multi-media
SD memory Card
Camcorder
Personal
computer
Amplifi er with Speaker system
VCR
DVD Recorder
Set top box
DVD player

Contents

Be Sure to Read
Safety Precautions ······································ 4
•
(Warning / Caution)
Notes ··························································· 5
•
Maintenance················································ 5
•
Quick Start Guide
Accessories / Options ········· 6
•
Identifying Controls ·············· 9
•
Basic Connection ················ 10
•
Auto Setup······························ 12
•
Enjoy your TV!
Basic Features
Watching TV ·············································· 14
•

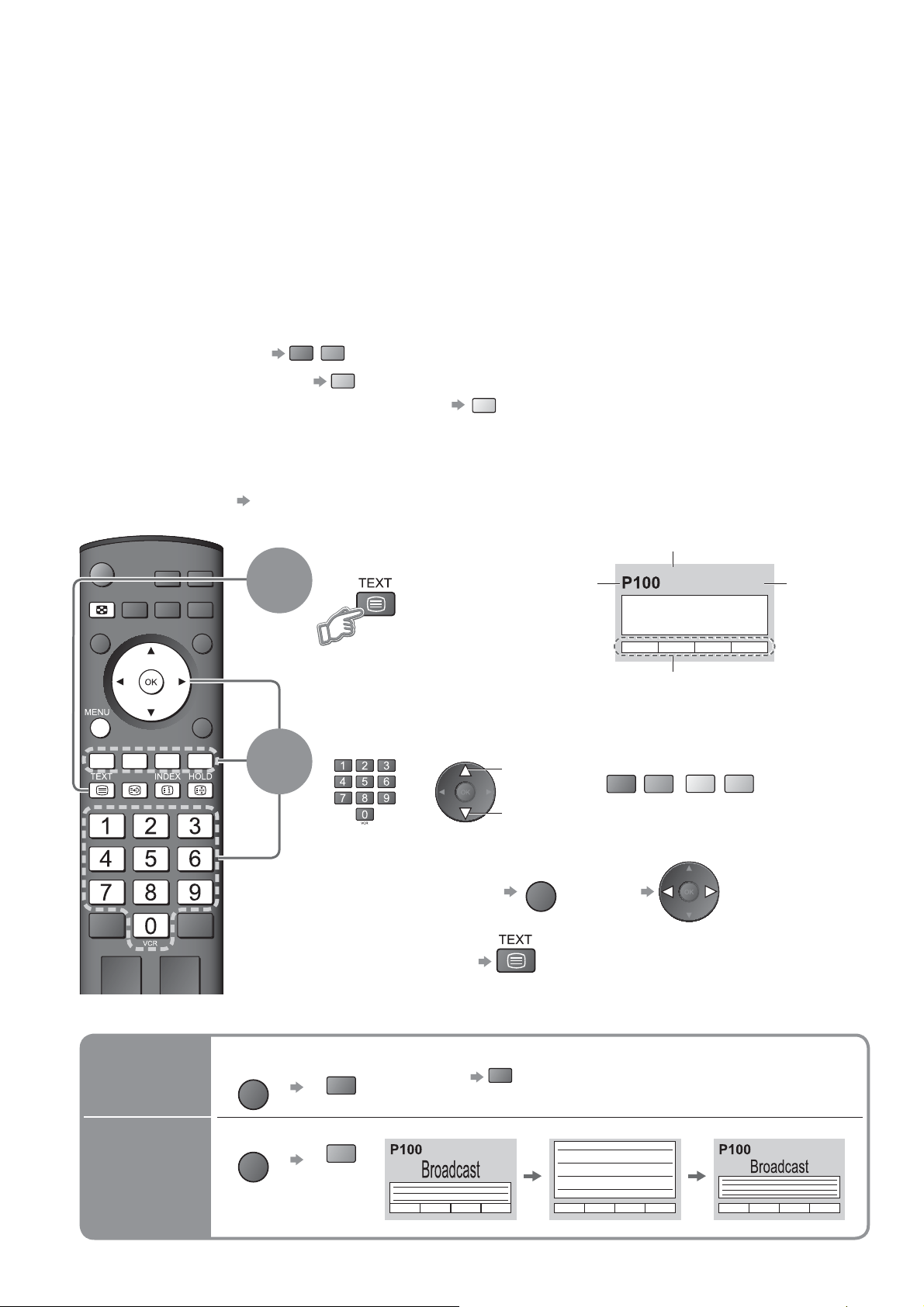

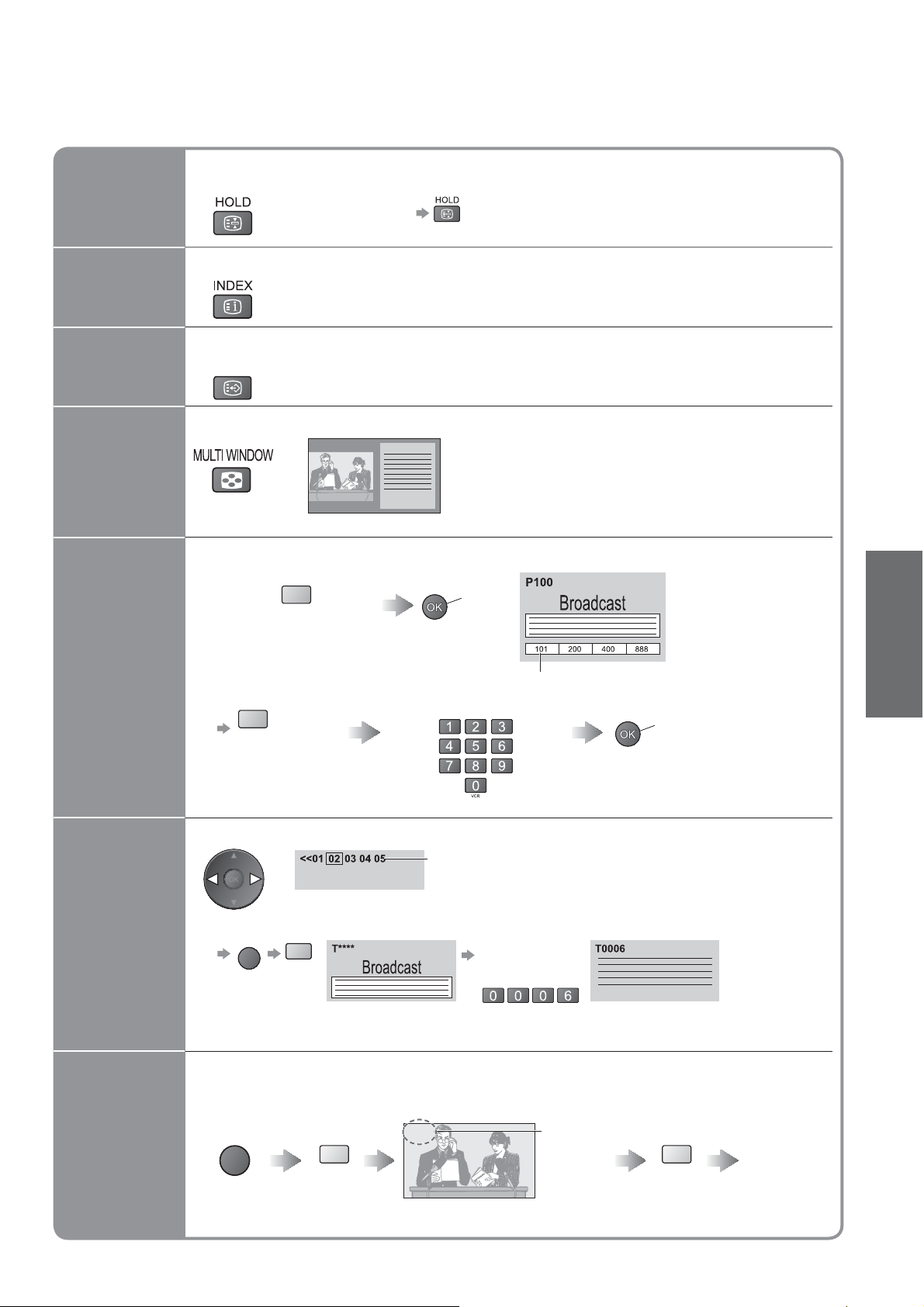

Viewing Teletext ········································ 16
•

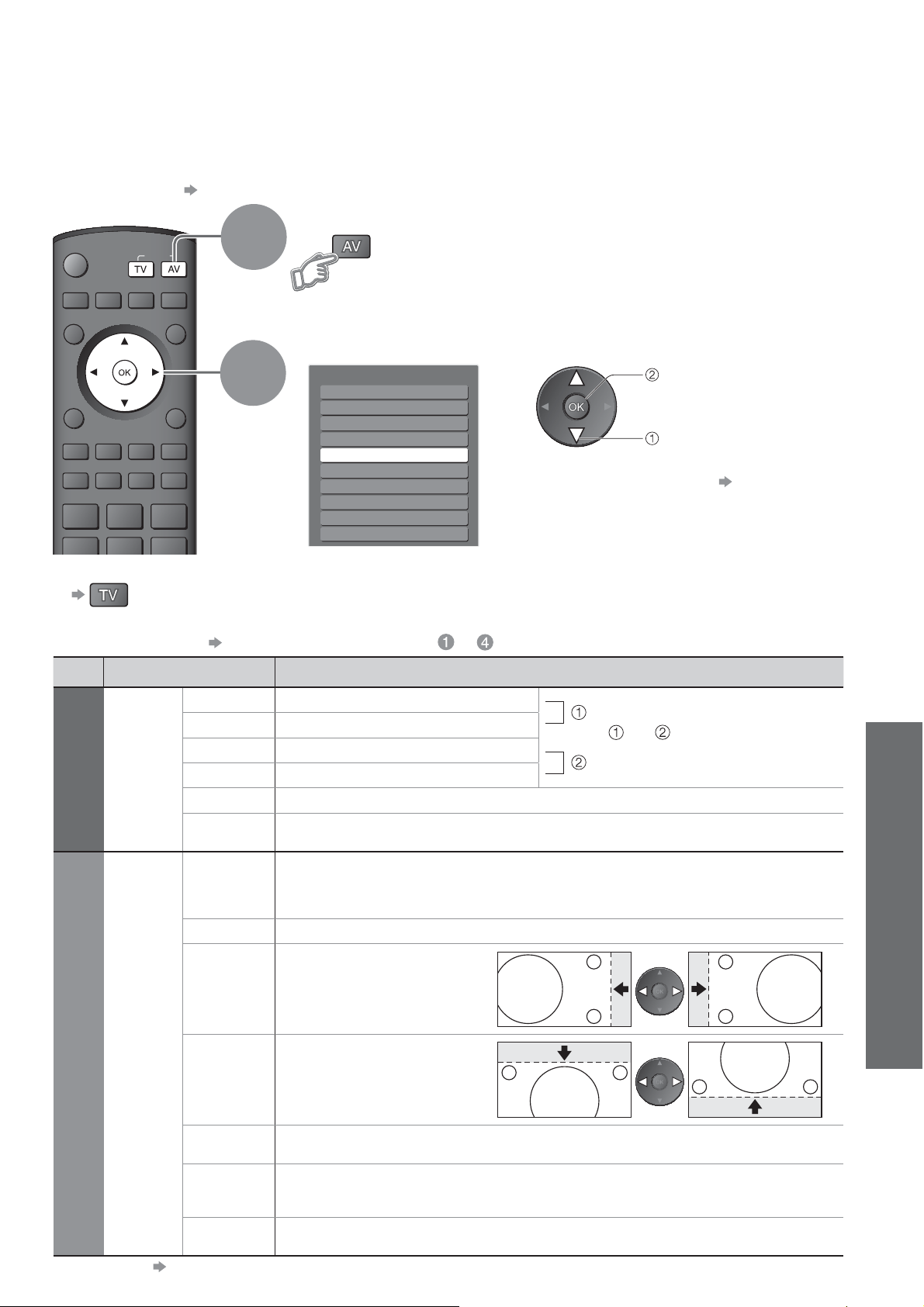

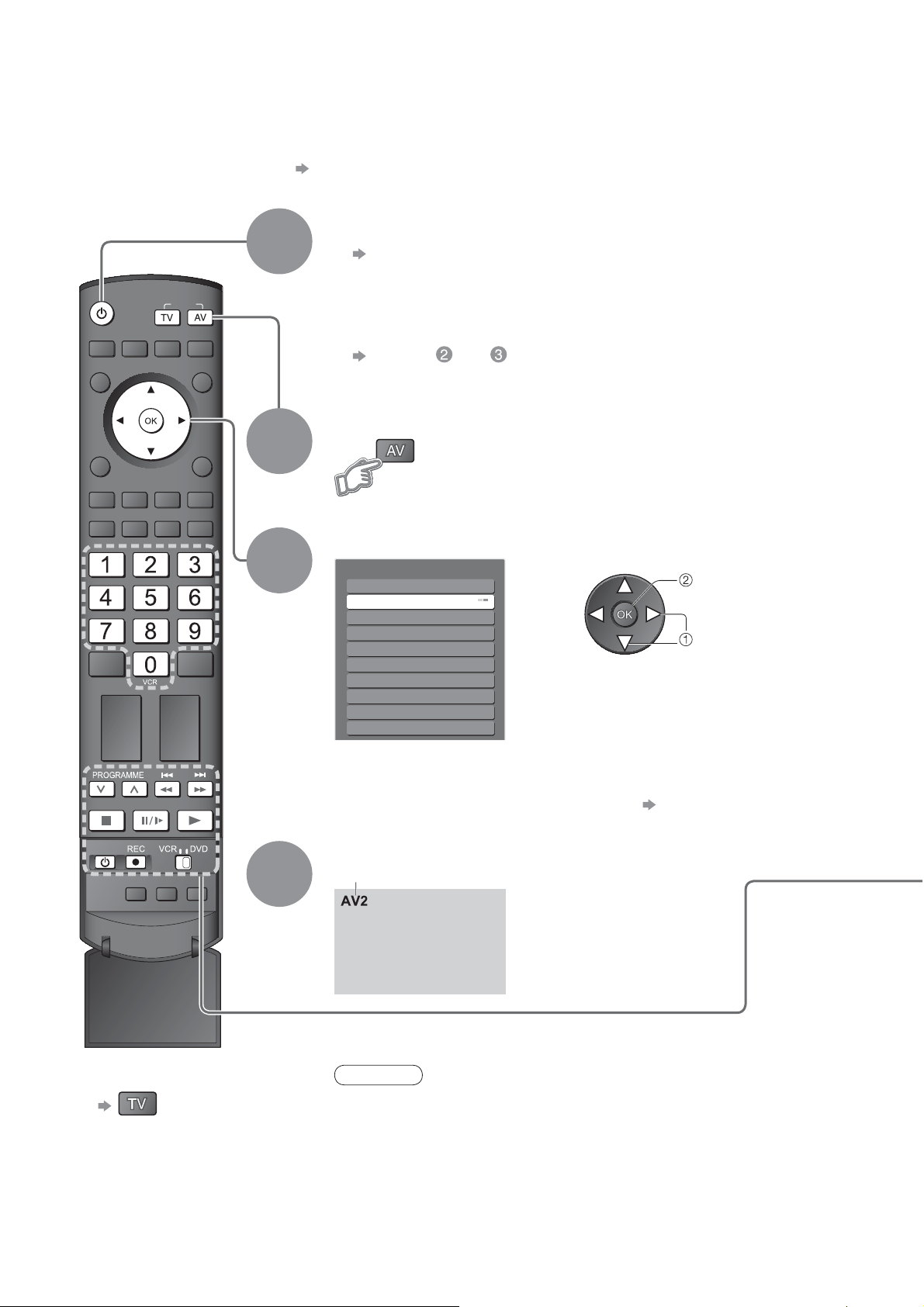

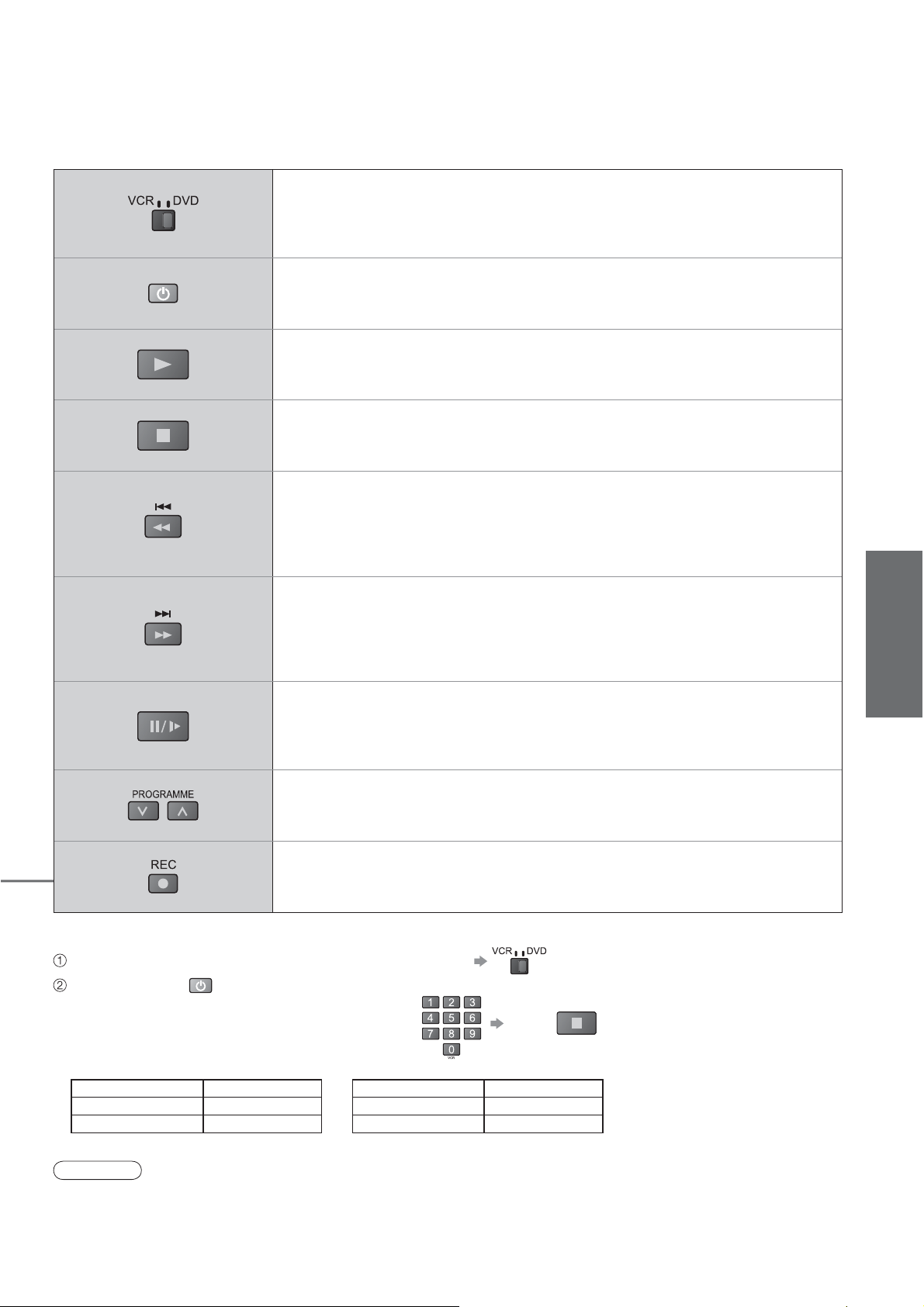

Watching Videos and DVDs ······················ 18
•
Quick Start Guide
Viewing Advanced FAQs, etc.
Up to 100,000 hours Plasma Panel Lifetime
The Plasma display panel used in the 2008 VIERA TV range is rated for up to 100,000 hours.

This measurement is based on the time taken for the brightness of the panel to reduce to half of it’s maximum level. The time taken to reach this level may vary depending on the image content and the environment where the TV is used. Image retention and malfunctions are not taken into account.
Advanced Features

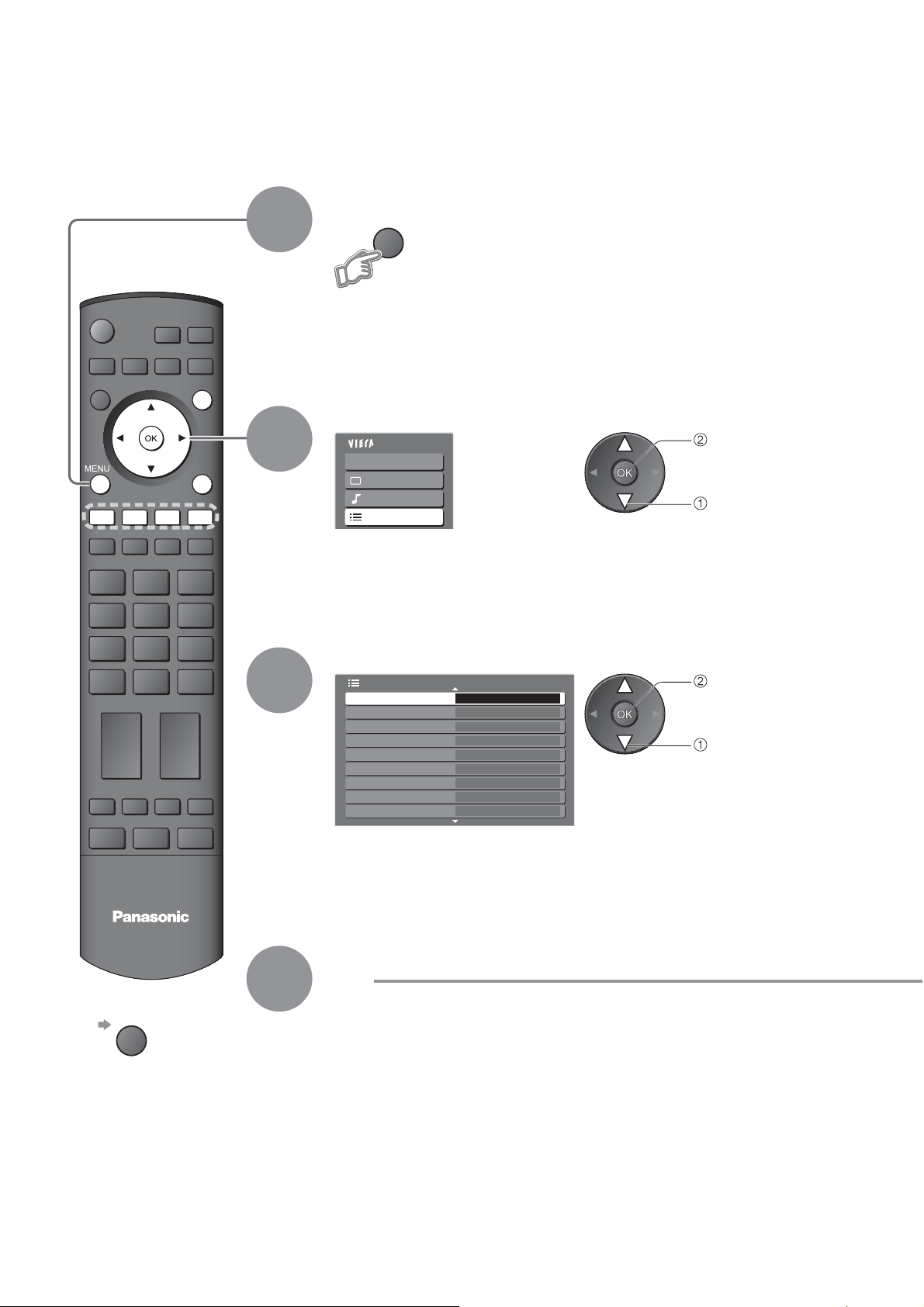

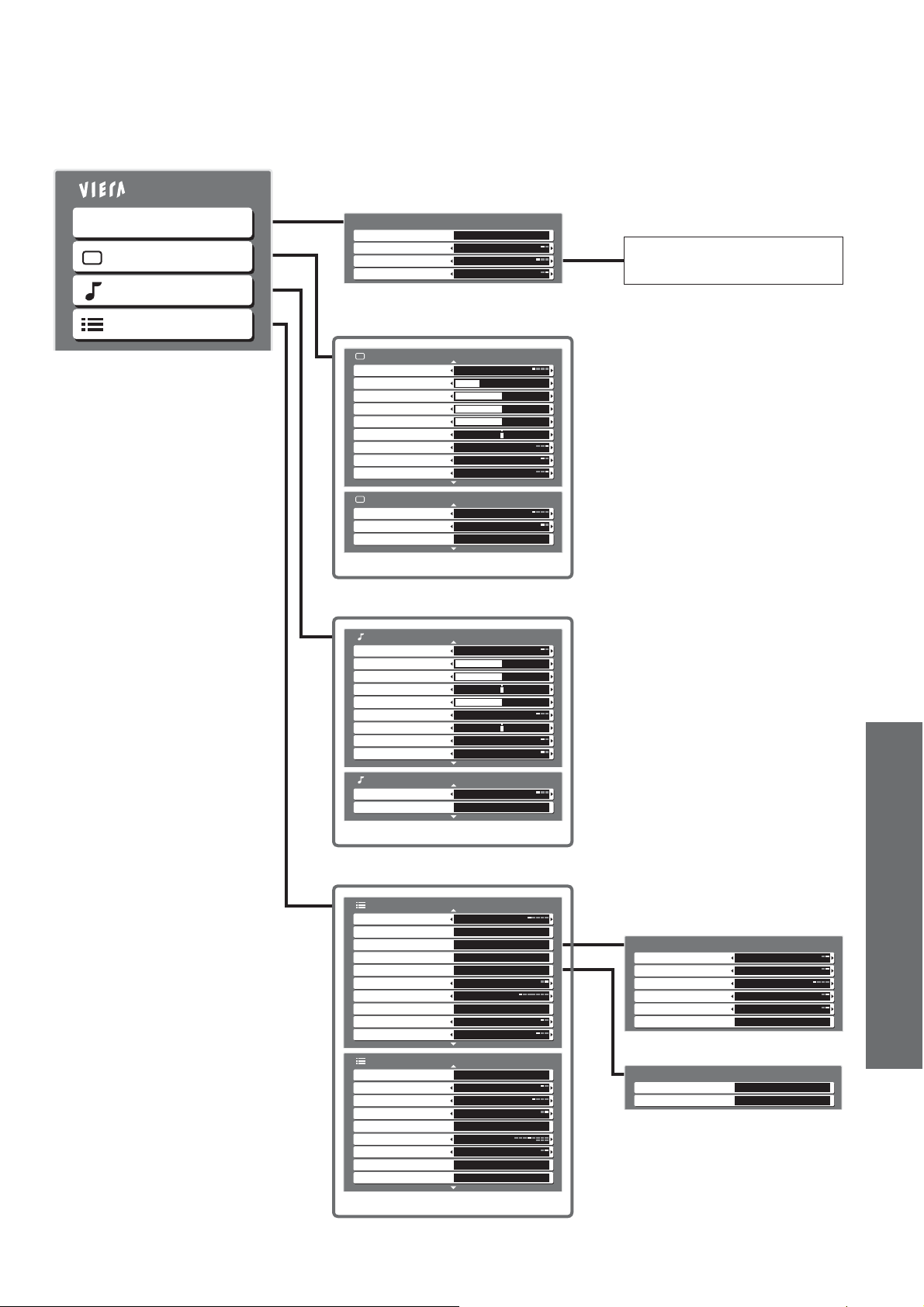

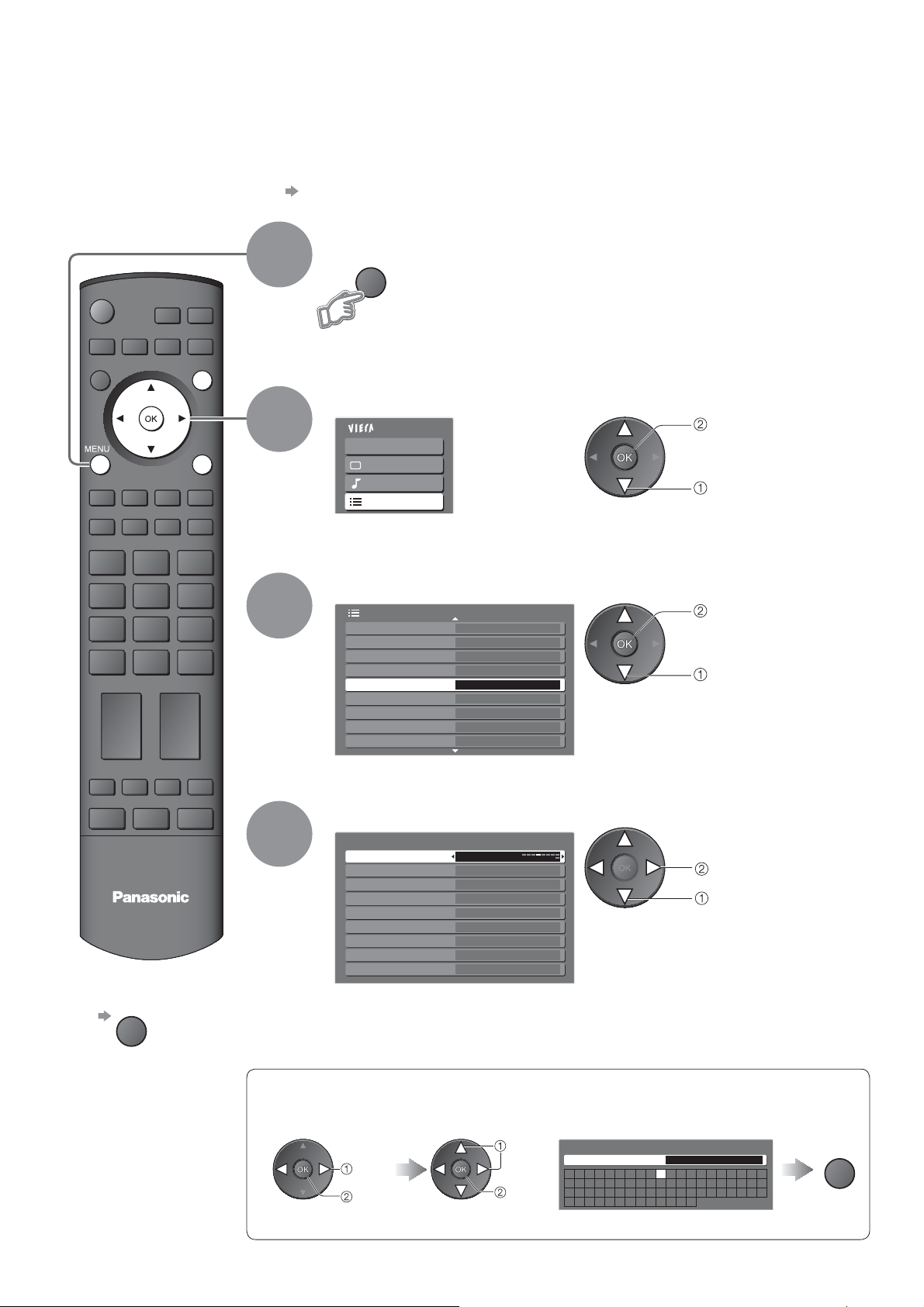

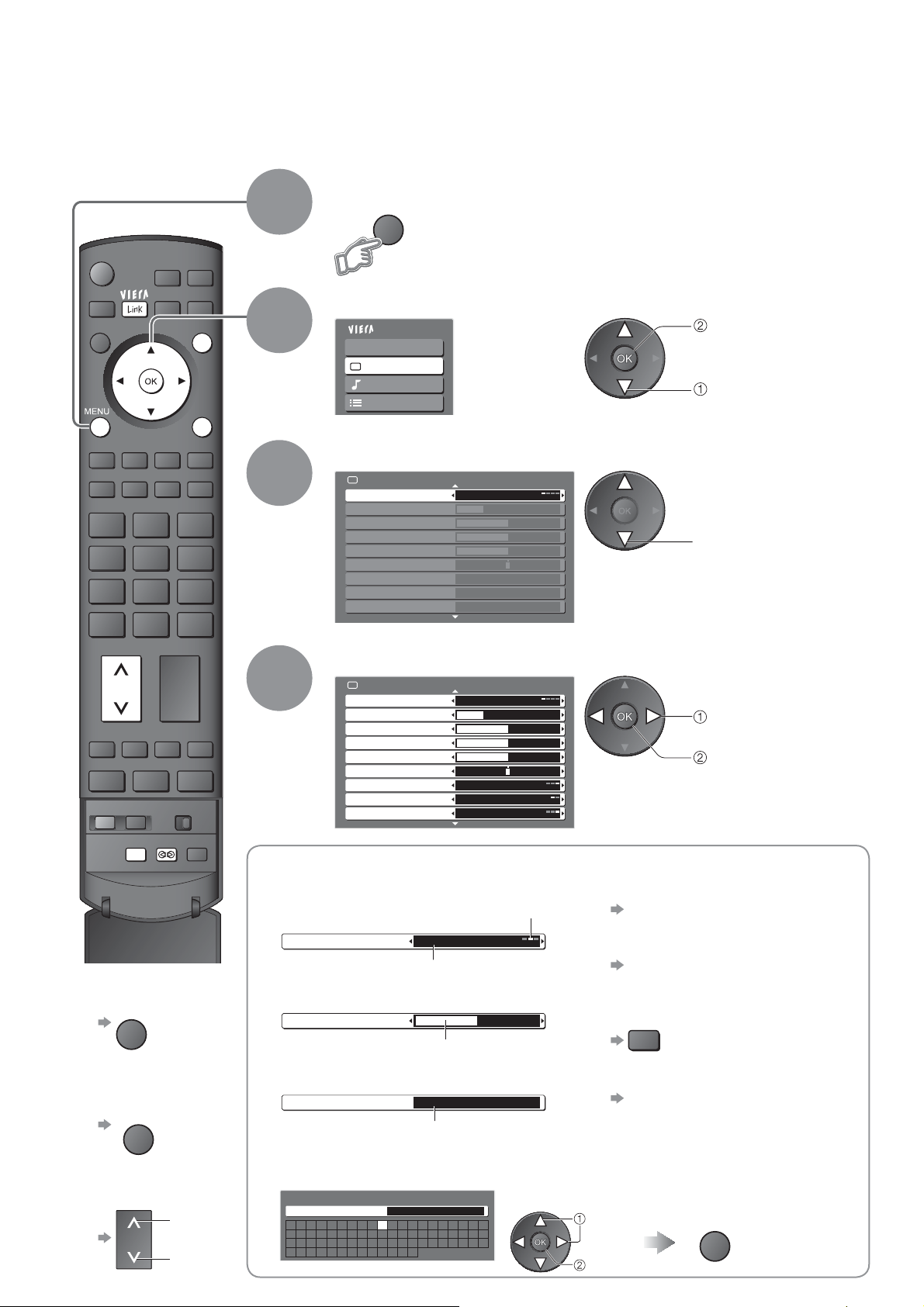

How to Use Menu Functions ····················· 20
•
(picture, sound quality, etc.)

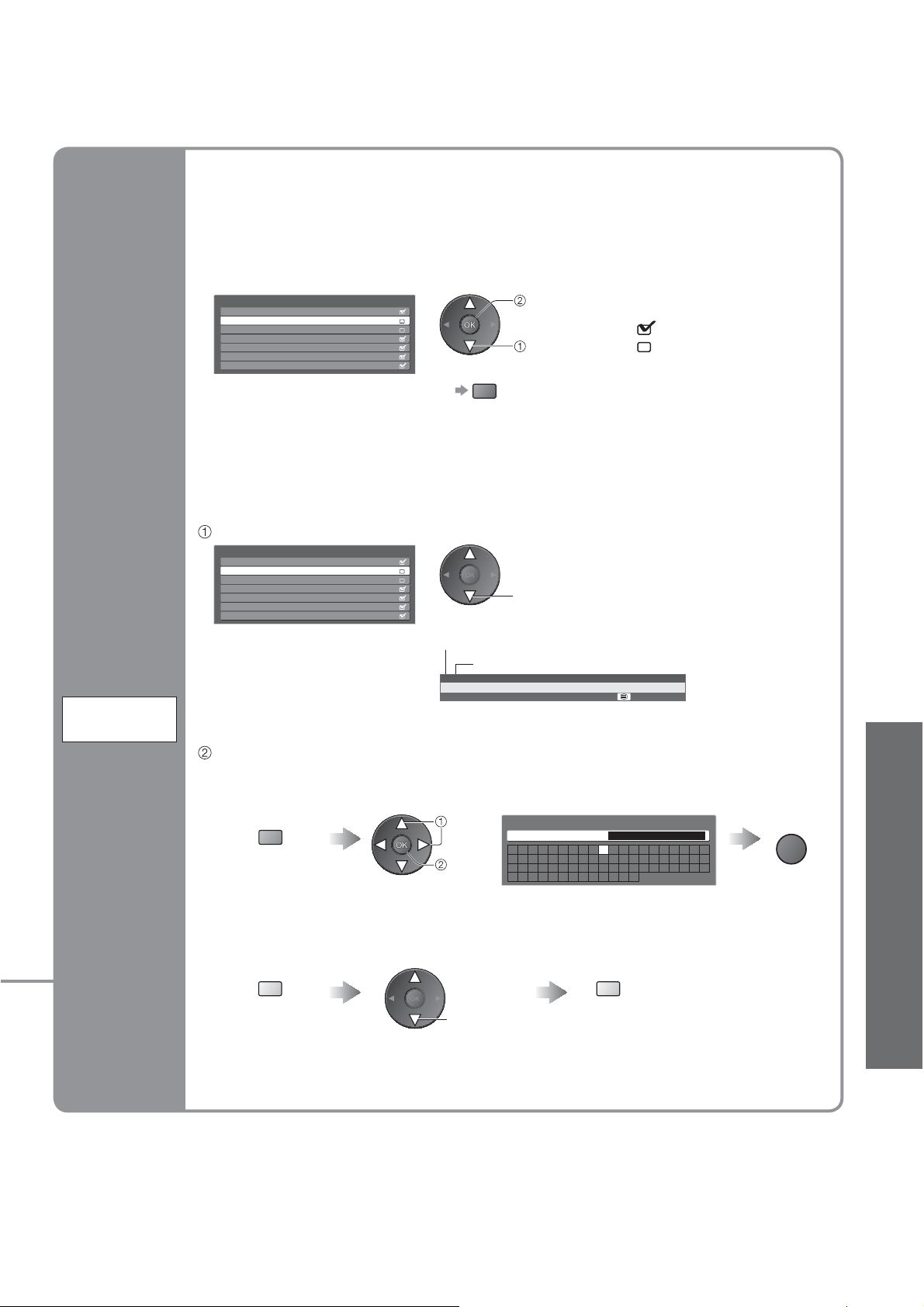

Editing Programmes·································· 24
•

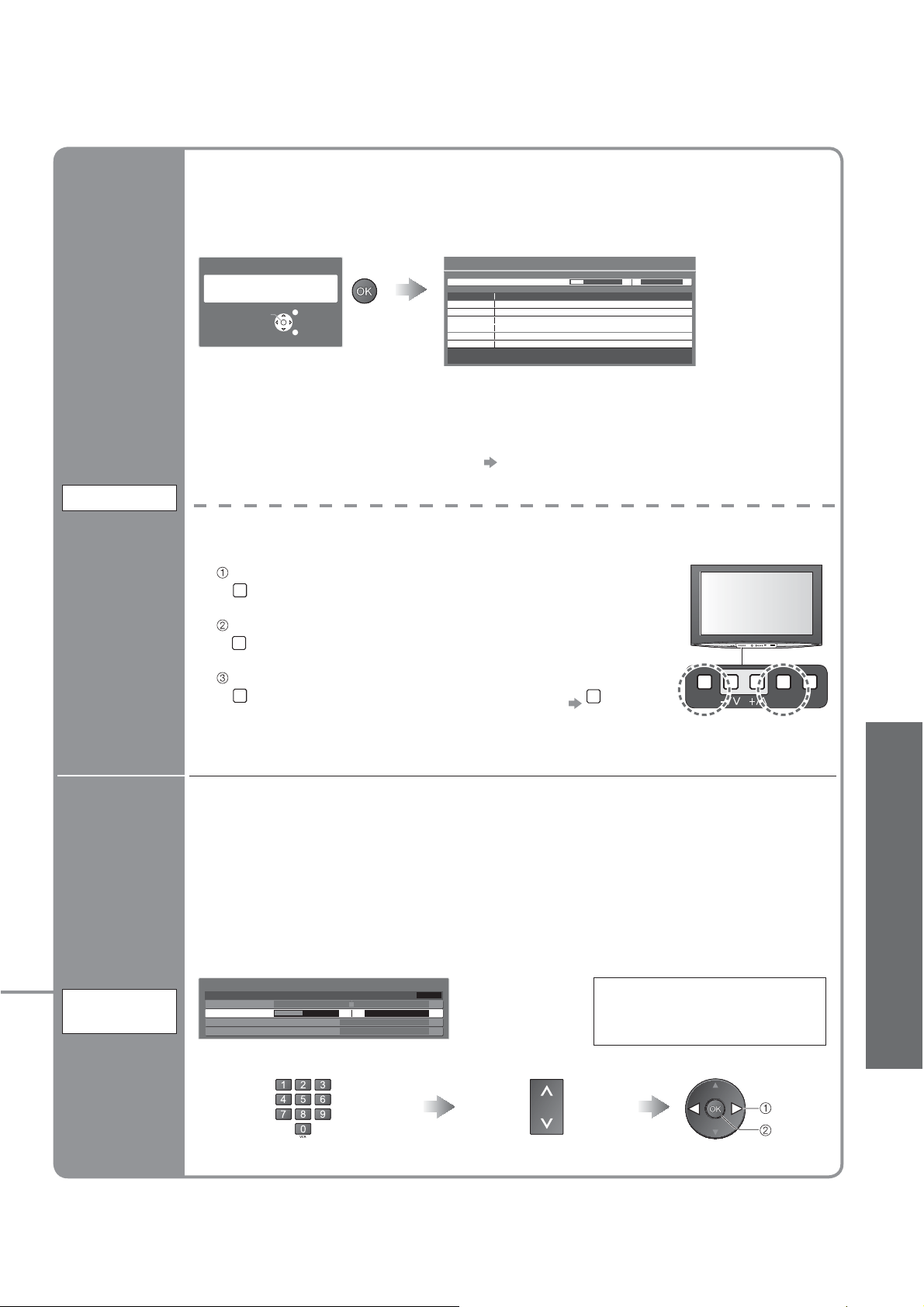

Tuning Programmes ··································26
•
Control Programme Audience ·················· 28
•
Restore Settings ······································· 29
•
Input Labels··············································· 30
•
Displaying PC Screen on TV ·····················31
•

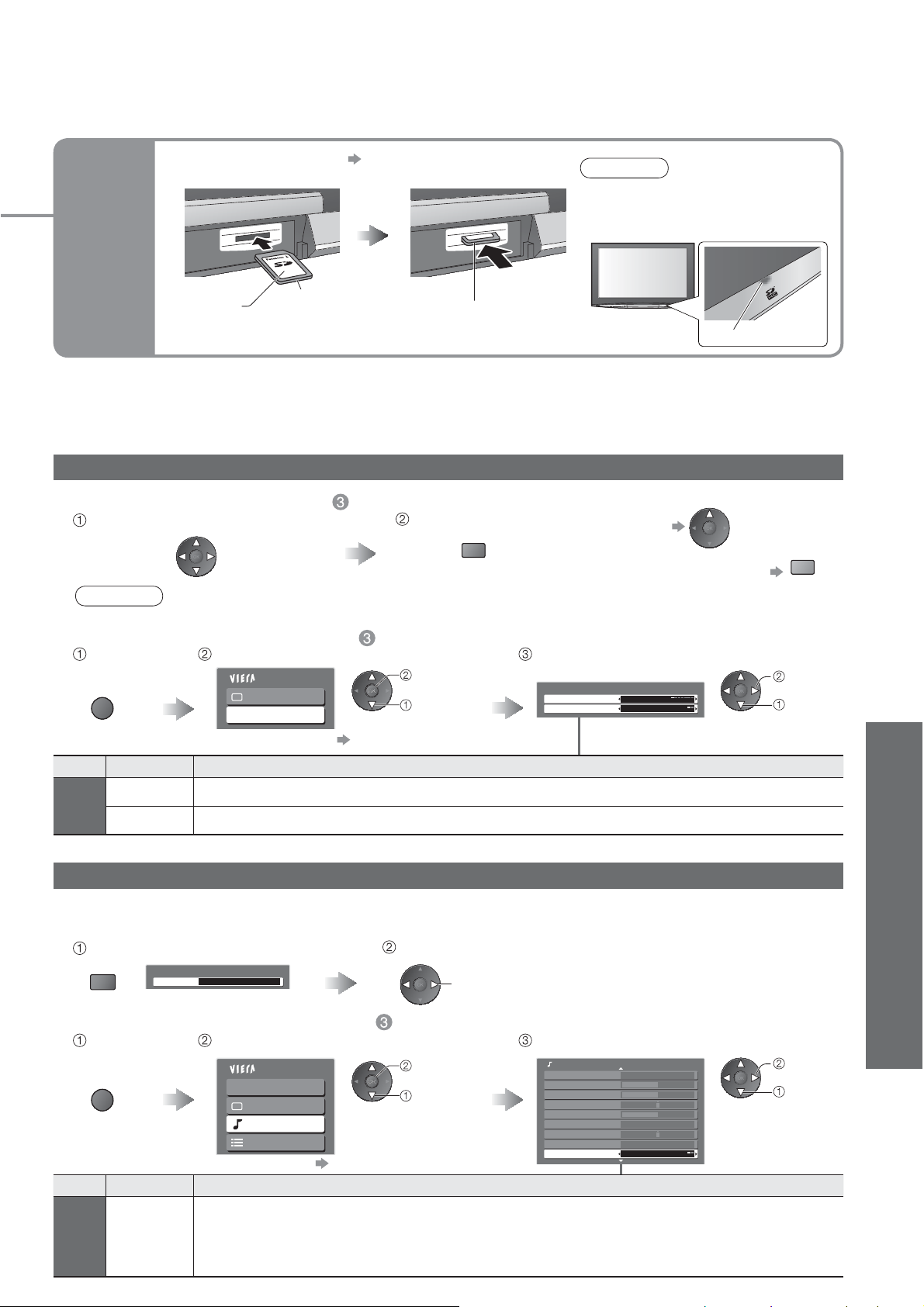

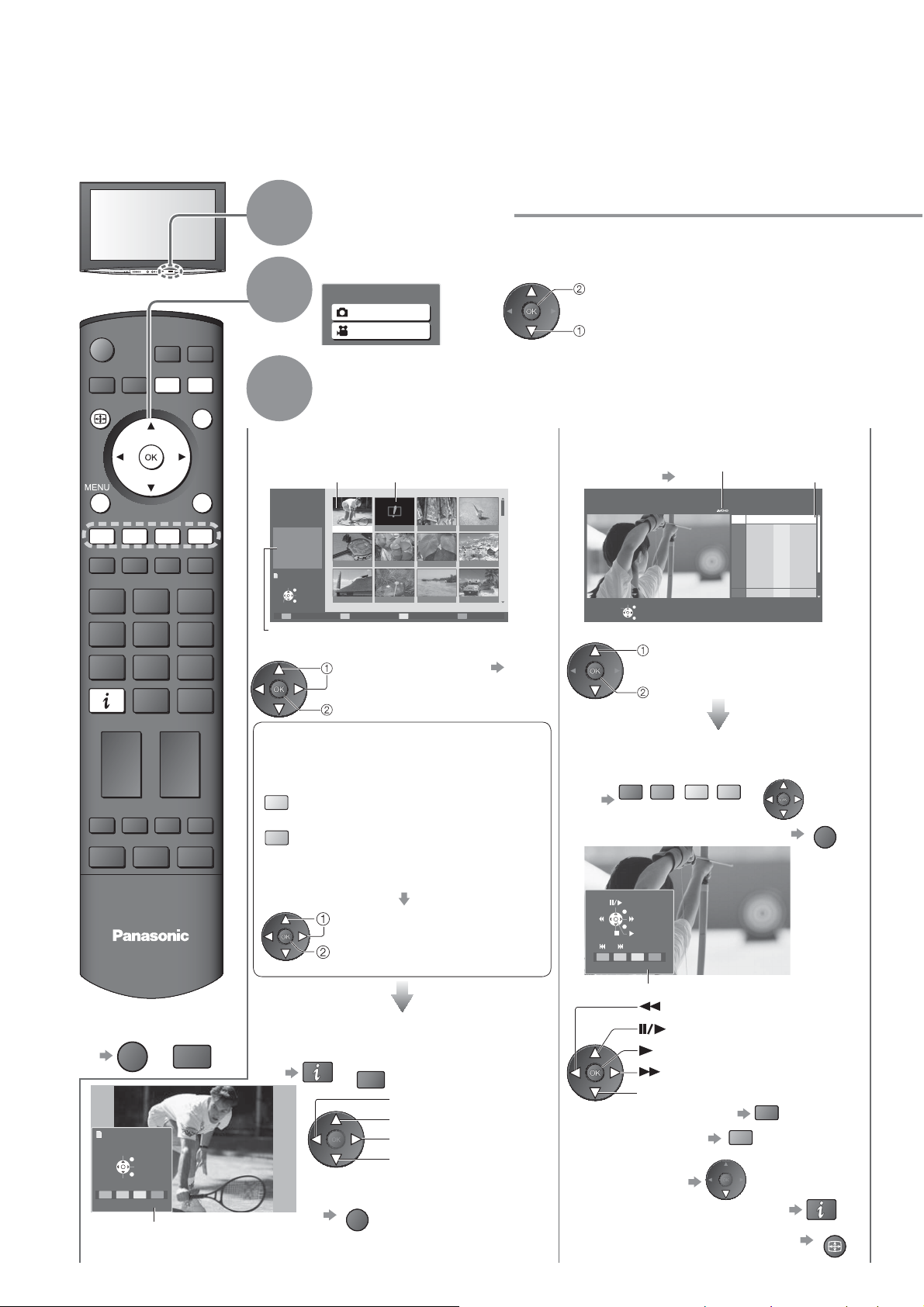

Viewing from SD Card ·······························32
•
(Photos and Movies)

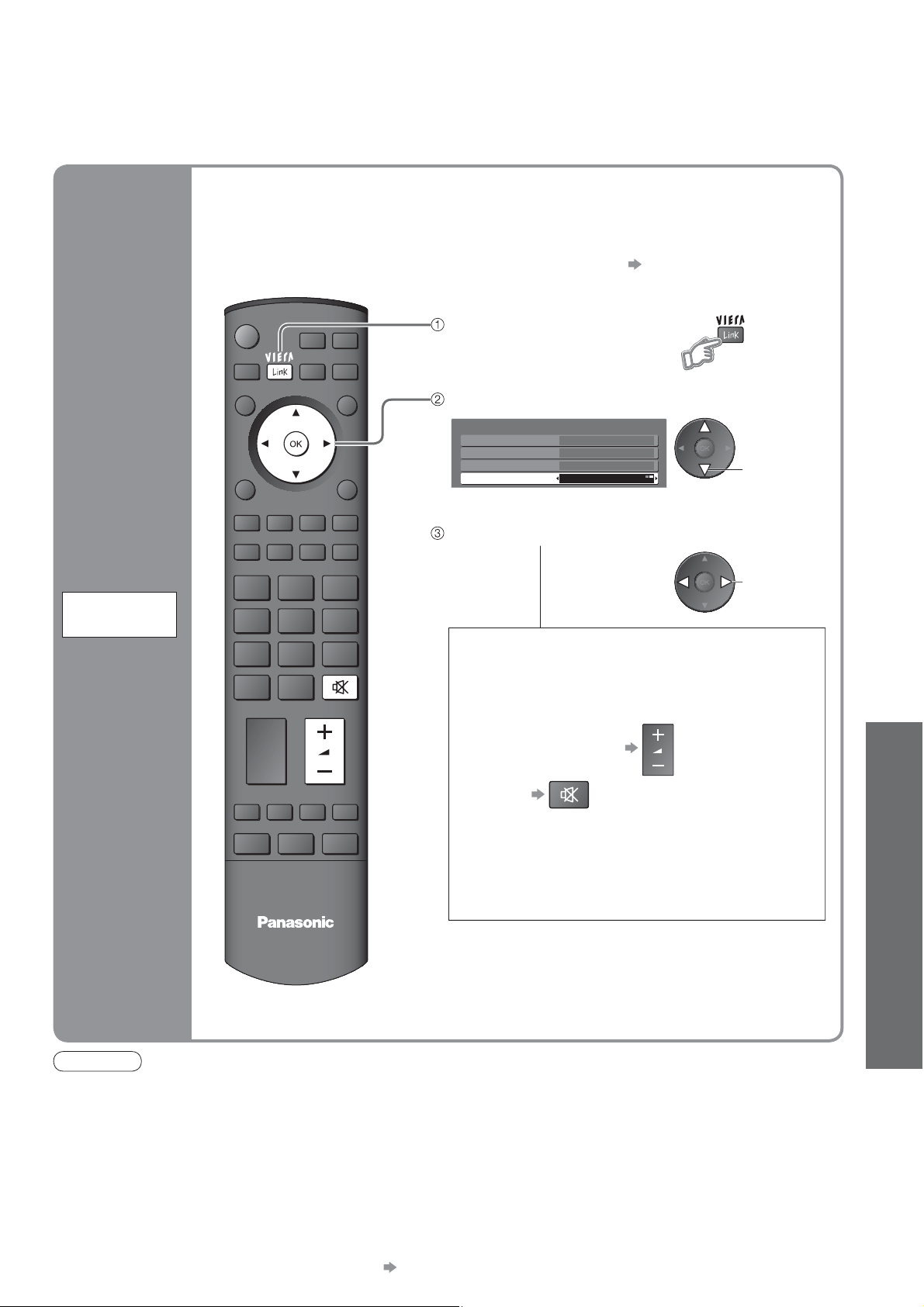

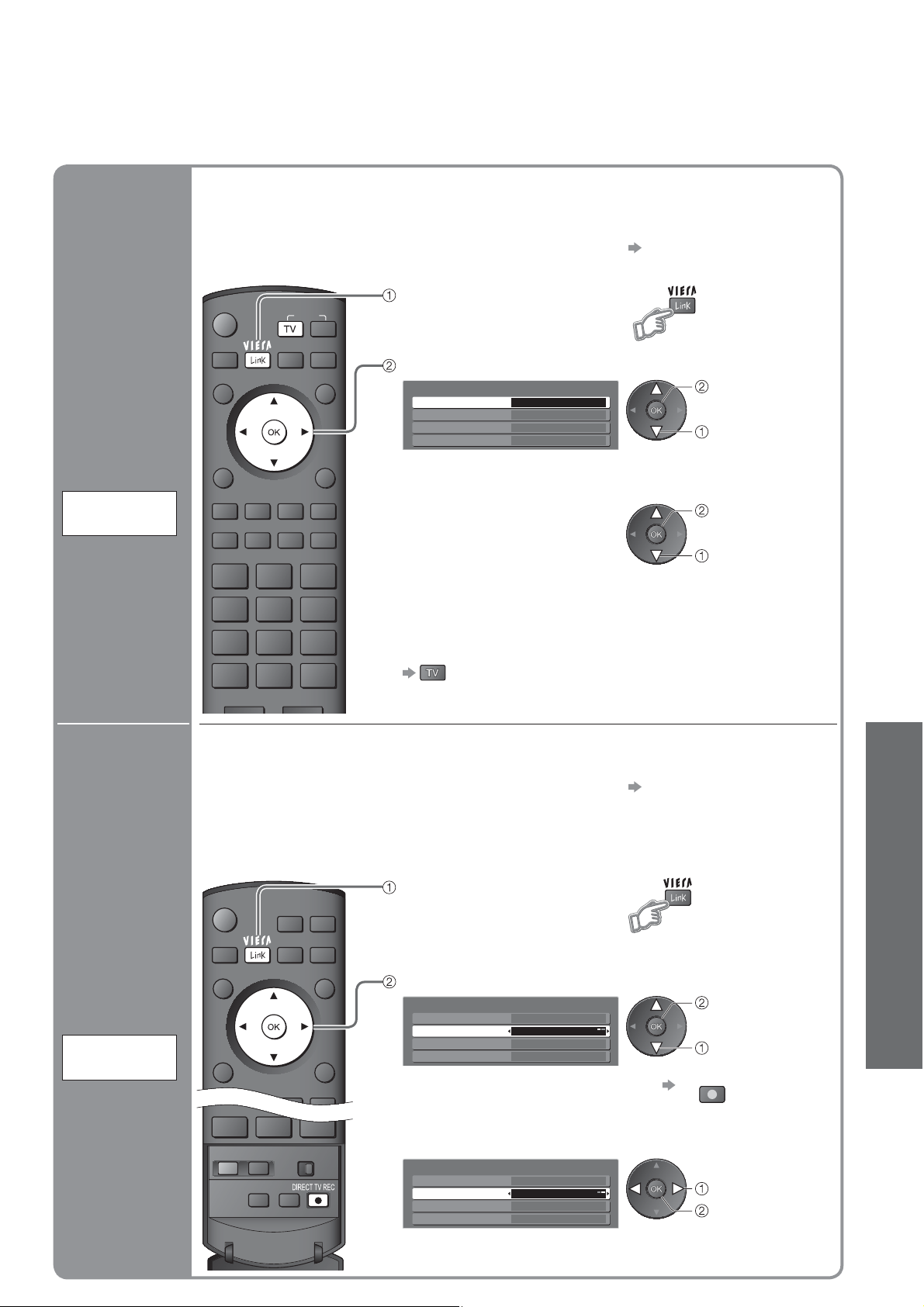

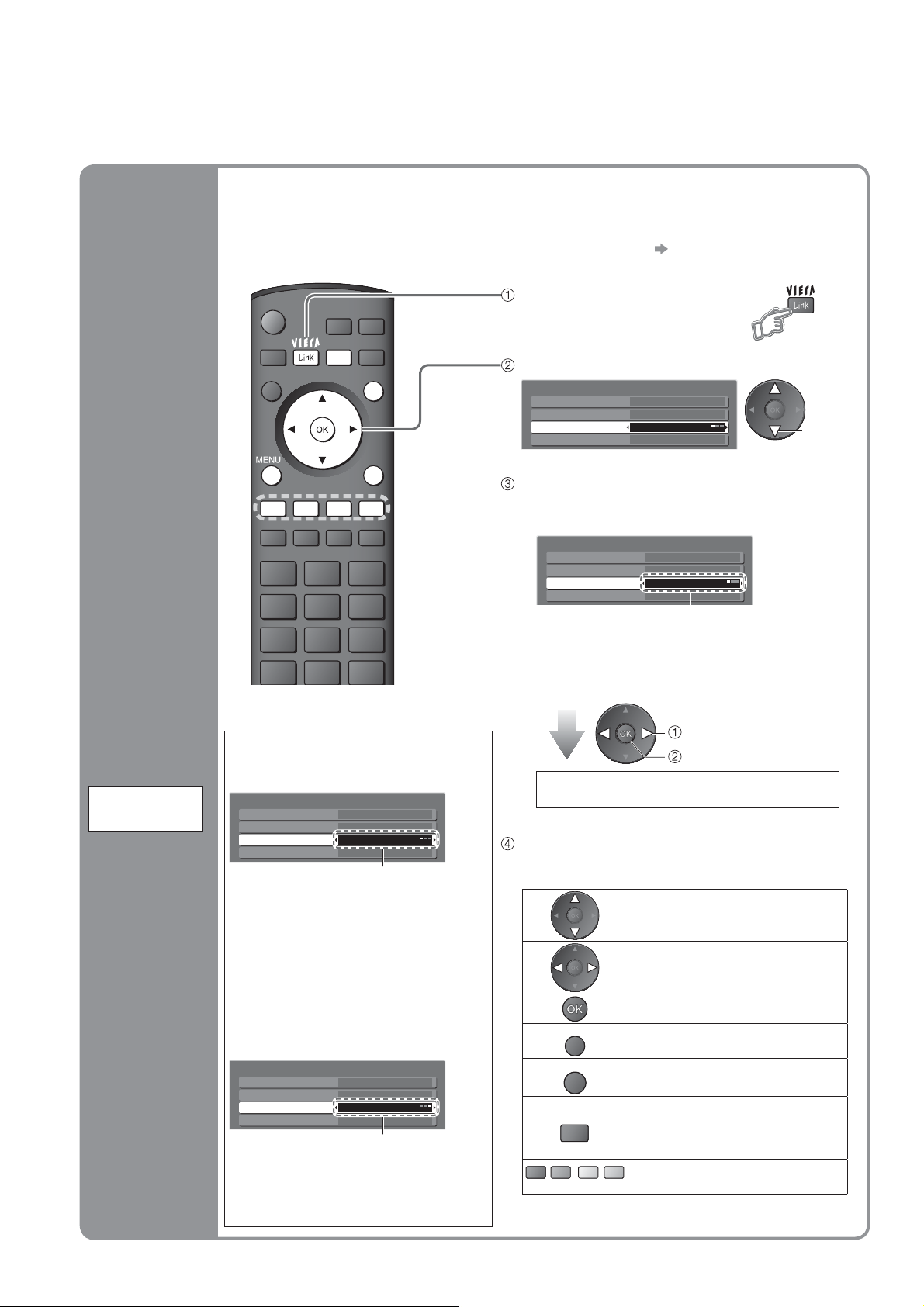

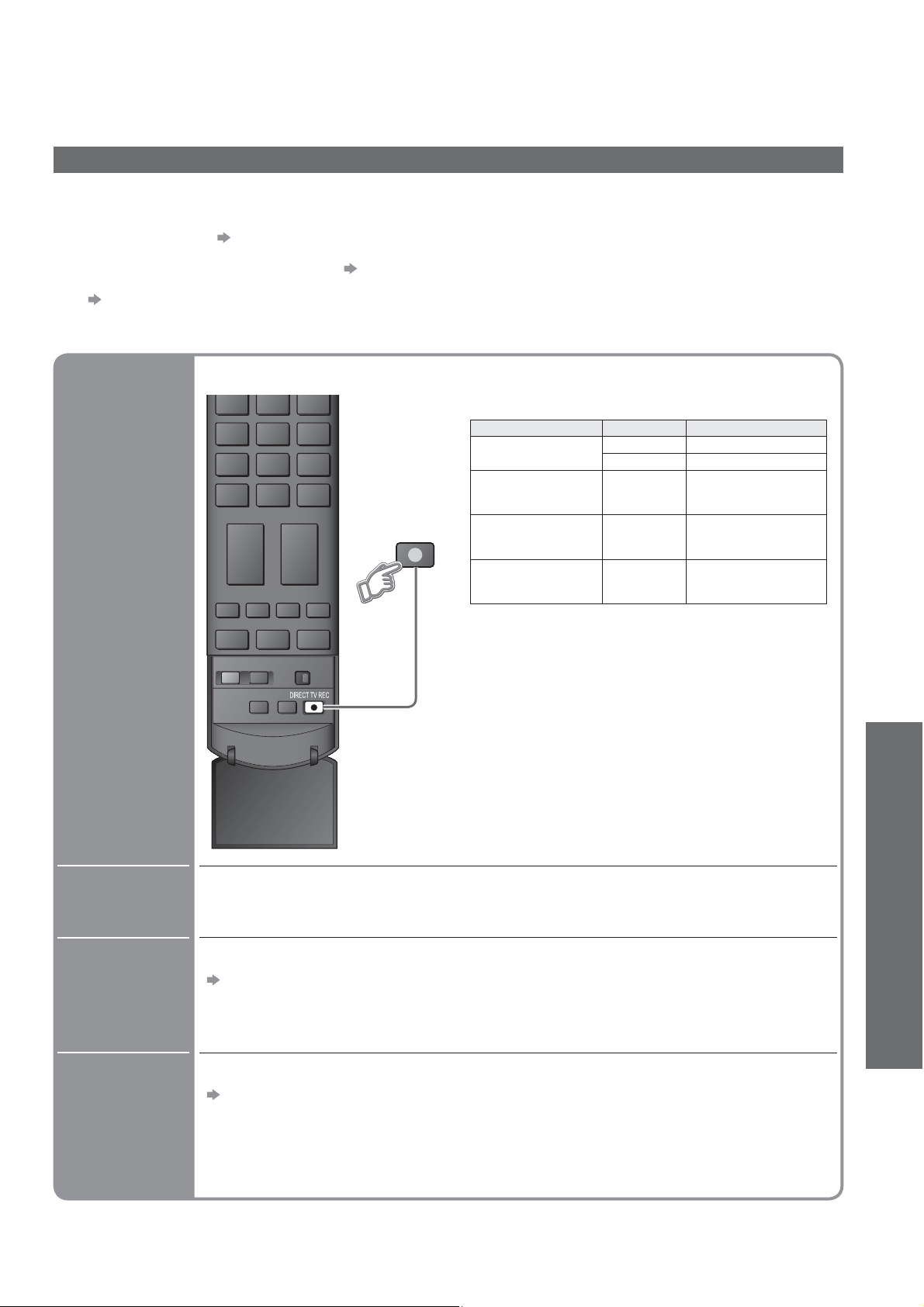

Link Functions ·········································· 34
•
(Q-Link / VIERA Link)

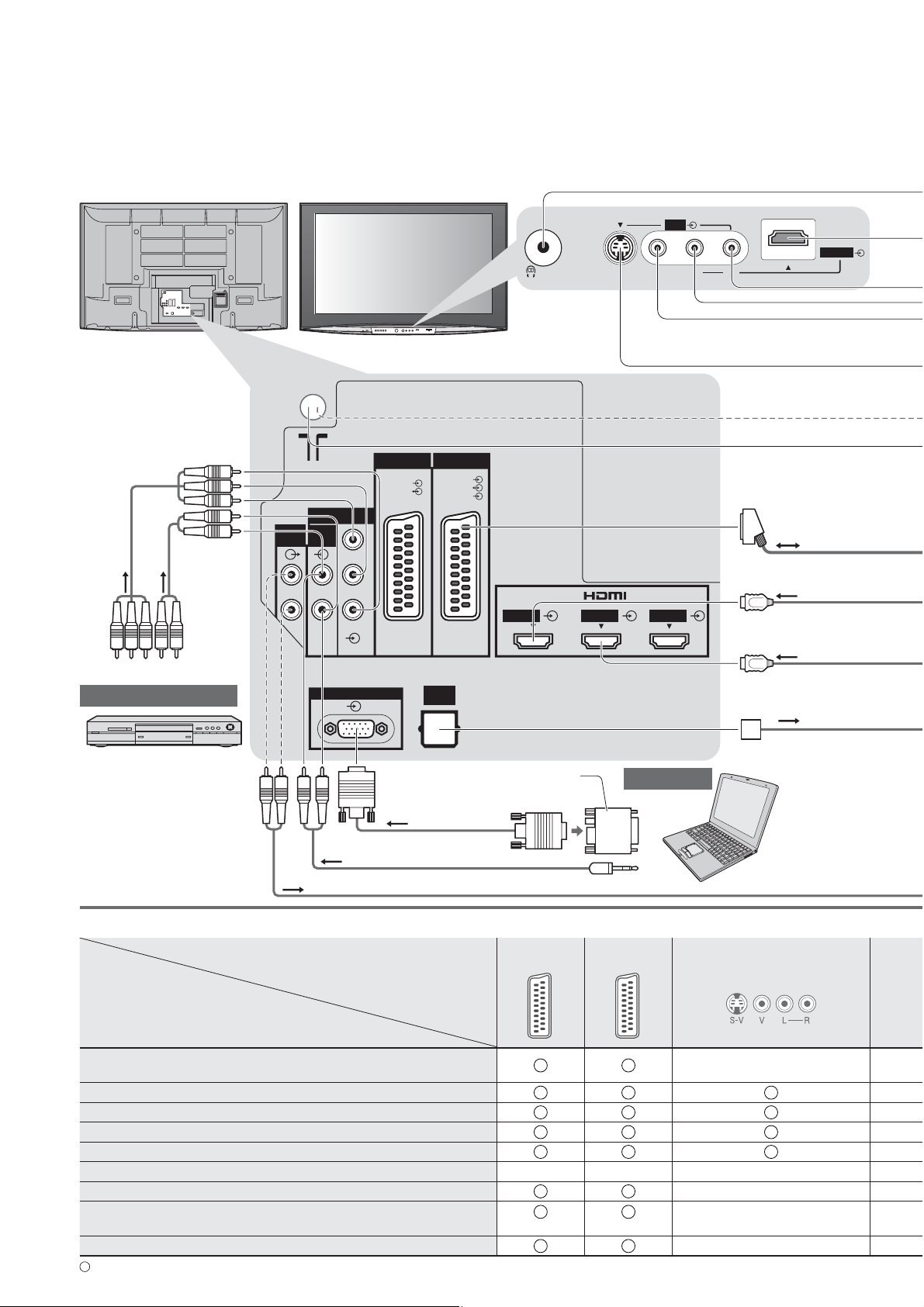

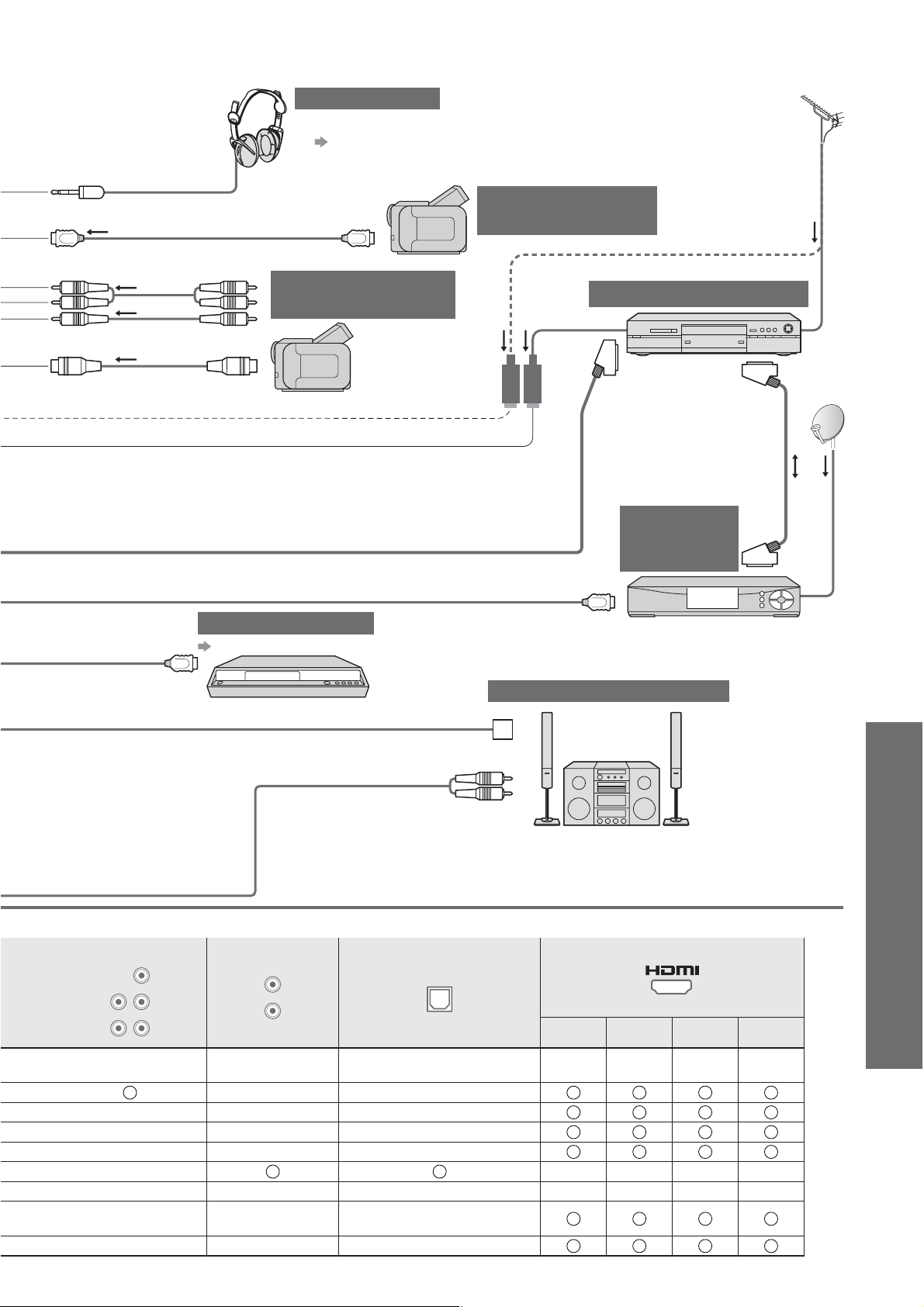

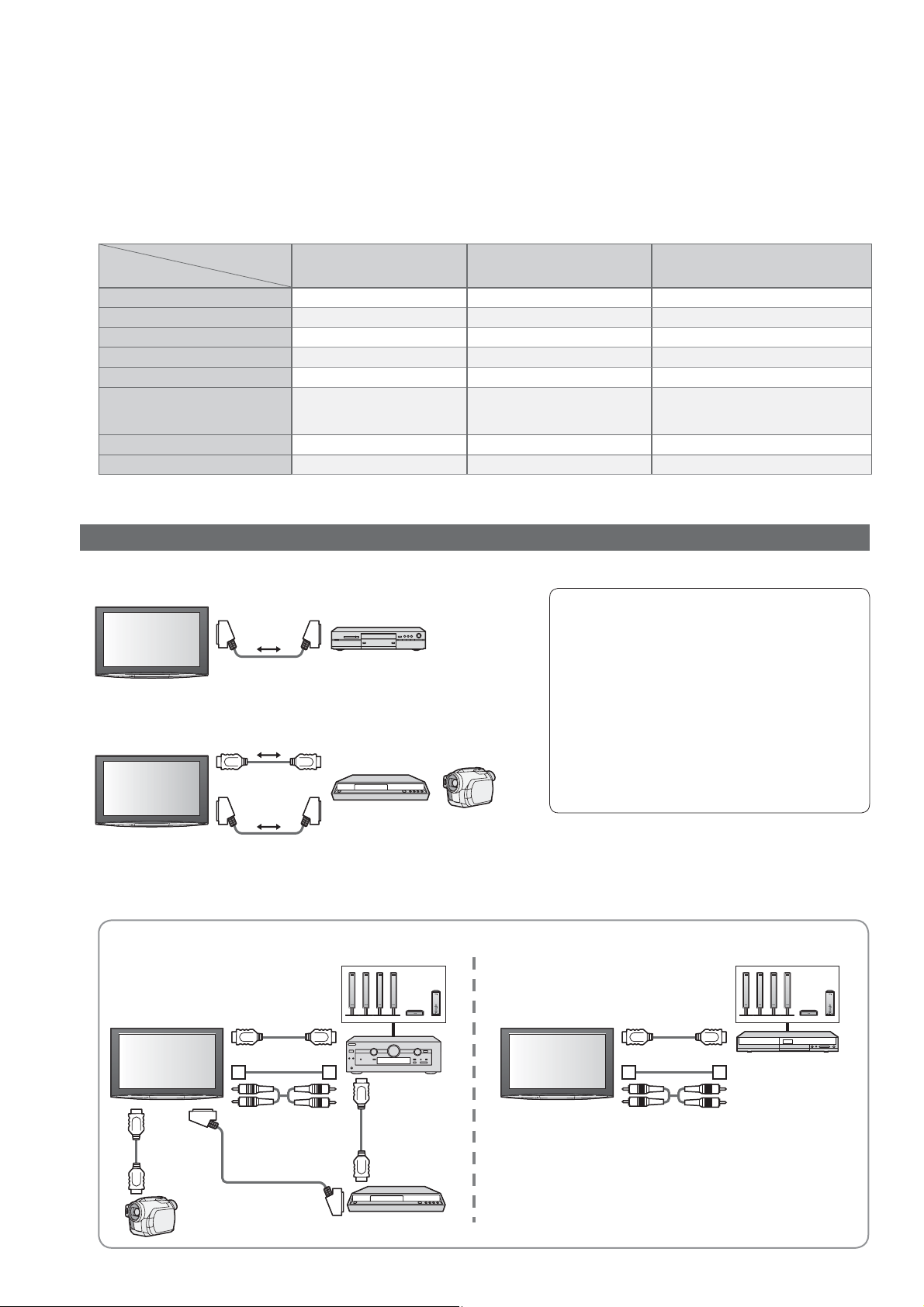

External Equipment ··································· 40
•
FAQs, etc.

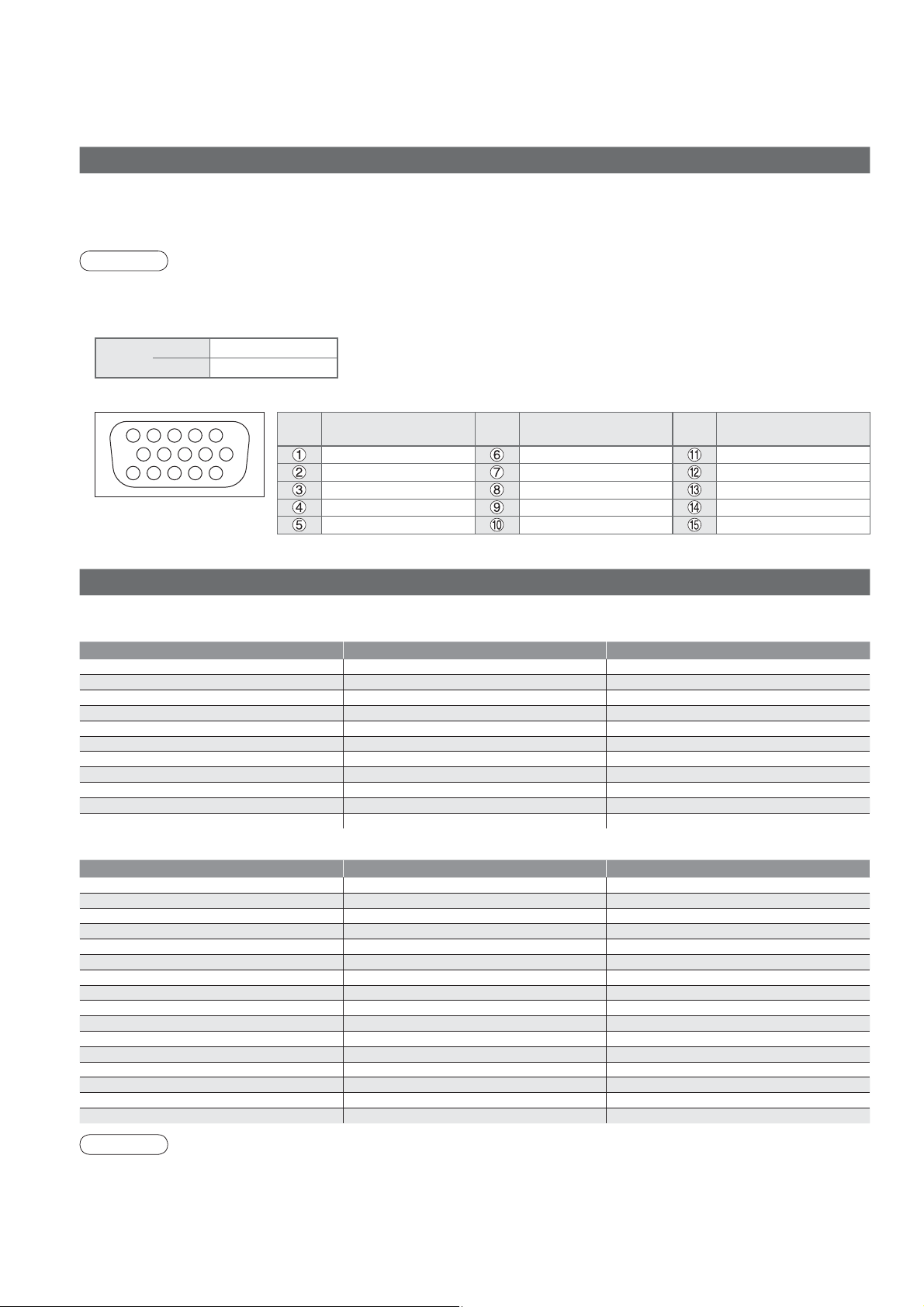

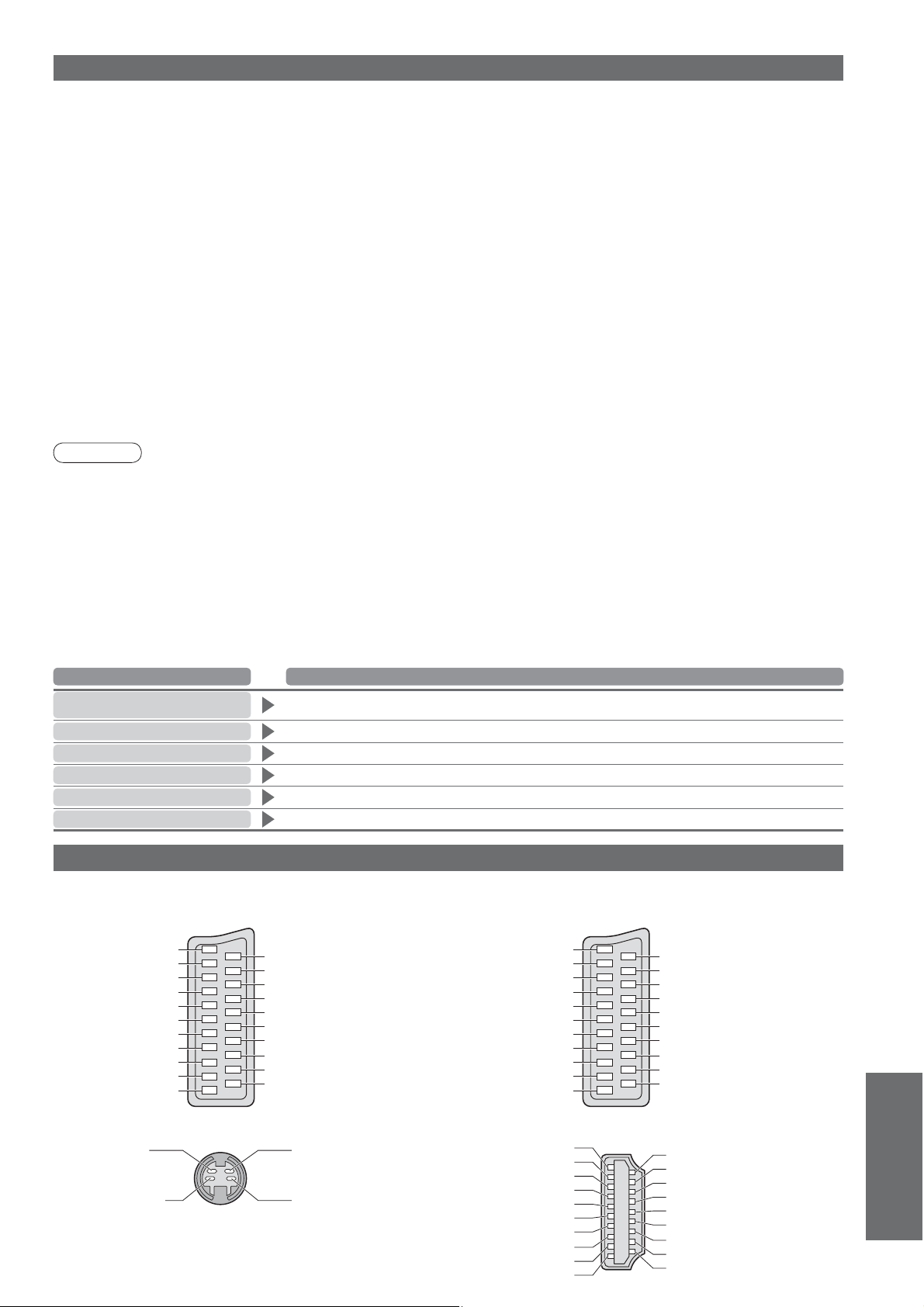

Technical Information ································42
•
FAQs ·························································45
•
Specifi cations ············································ 47
•
Licence ······················································ 48
•
Page 4

Safety Precautions

Warning
Handling the mains plug and lead
Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fi re.)
•
Ensure that the mains plug is easily accessible.
•
Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
•
An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
•
Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
•
Do not use any mains lead other than that provided with this TV. (This may cause fi re or electrical shock.)
•
Do not damage the mains lead. (A damaged lead may cause fi re or electrical shock.)
•
Do not move the TV with the lead plugged in the socket outlet.
•
Do not place a heavy object on the lead or place the lead near a high-temperature object.
•
Do not twist the lead, bend it excessively, or stretch it.
•
Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
•
Do not use a damaged mains plug or socket outlet.
•
If you fi nd any abnormality, remove the mains plug immediately!
AC 220-240 V 50 / 60 Hz
Power source
This TV is designed to operate on 220-240 V,
•
50 / 60 Hz AC.
Do not remove covers NEVER modify the TV yourself
(High-voltage components may cause serious electrical shock.)
Have the TV checked, adjusted, or repaired at your
•
local Panasonic dealer.
Keep liquids away from the TV
To prevent damage which may result in fi re or shock hazard,
•
do not expose this appliance to dripping or splashing. Do not place containers with water (fl ower vase, cups,
•
cosmetics, etc.) above the TV. (including on shelves above, etc.)
Do not place foreign objects inside the TV
Do not allow any objects to drop into the TV through
•
the air vents (fi re or electrical shock may result).
Do not place the TV on sloped or unstable surfaces
The TV may fall off or tip over.
•
Use only the dedicated pedestals / mounting equipment
Using an unapproved pedestal or other fi xtures may
•
make the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup. Use approved pedestals / mounts (p. 6).
•
Do not expose to direct sunlight and other sources of heat
Avoid exposing the TV to direct sunlight and other
•
sources of heat. To prevent fi re never place any type of candle or naked fl ame on top or near the TV.
Do not allow children to handle SD Card
As with a small object, SD Card can be swallowed by
•
young children. Please remove SD Card immediately after use.
Page 5

Notes

Caution
ŶWhen cleaning the TV, remove the
mains plug
Cleaning an energized TV may cause electrical shock.
•
Ŷ
When the TV is not going to be used for a long period of time, remove the mains plug
This TV will still consume some power even in
•
the Off mode, as long as the mains plug is still connected to a live socket outlet.
ŶTransport only in upright position
Transporting the TV with its display panel facing upright
•
or downward may cause damage to the internal circuitry.
ŶAllow suffi cient space around the
TV for radiated heat
Minimum distance
10
10
When using the pedestal, keep the space between
•
the bottom of the TV and the fl oor surface. In case of using Wall-hanging bracket, follow the
•
manual of it.
10 7
(cm)
ŶDo not block the rear air vents
Blocked ventilation by newspapers, table cloths, curtains,
•
etc. may cause overheating, fi re or electrical shock.
Ŷ
Do not expose your ears to excessive volume from the headphones
Irreversible damage can be caused.
•
Do not display a still picture for a long time
This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.
Typical still images
Programme number and other logos
•
Image displayed in 4:3 mode
•
Video game
•
Computer image
•
To prevent image retention, contrast is lowered automatically after a few minutes if no signals are
sent or no operations are performed. (p. 45)
ŶAuto power standby function
If no signal is received and no operation is
•
performed in TV mode for 30 minutes, the TV will automatically go to standby mode.
ŶKeep the TV away from these types of
equipment
Electronic equipment
•
In particular, do not place video equipment near
the TV (electromagnetic interference may distort images / sound).
Equipment with an infrared sensor
•
This TV also emits infrared rays (this may affect
operation of other equipment).

Maintenance

First, remove the mains plug from the socket outlet.
Display panel
Regular care: Gently wipe the surface clean of dirt by using a soft cloth. Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.
Caution
The surface of the display panel has been specially treated and may be easily damaged.
•
Do not tap or scratch the surface with your fi ngernail or other hard object. Take care not to subject the surface to insect repellent, solvent, thinner, or other volatile substances
•
(this may degrade surface quality).
Cabinet, Pedestal
Regular care: Wipe the surface clean using a soft dry cloth. Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.
Caution
Take care not to subject the TV's surfaces to detergent.
•
(A liquid inside the TV could lead to product failure.) Take care not to subject surfaces to insect repellent, solvent, thinner, or other volatile substances
•
(this may deteriorate the surface by peeling the paint). Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time.
•
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fi re or electrical shock.)
Page 6

Accessories / Options

Standard accessories
Remote Control
N2QAYB000240
•
TV
Operating Instructions
Pan European
Guarantee Card
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by
•
young children accidentally. Keep these parts out of reach of young children.
Optional accessories
Pedestal
TY-ST65R4-WL
•
(TH-65PY800P)
Check that you have the accessories and items shown
Batteries for the
Remote Control
R6 (UM3)
•
Cleaning cloth
(2)
Wall-hanging bracket (vertical)
TY-WK42PV4W
•
(TH-58PY800P)
Clamper (2)
p. 8
Pedestal (TH-58PY800P only)
p. 7
Mains Lead
p. 11
TY-WK65PV7
•
(TH-65PY800P)
Caution
In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced
•
contractor to secure the wall-hanging brackets. Carefully read the instructions accompanying the pedestal, and be absolutely sure to take steps to prevent
•
the TV from tipping over. Handle the TV carefully during installation since subjecting it to impact or other forces may cause product
•
damage.
Installing / removing remote’s batteries
1
Hook
Pull open
2
Note the correct polarity (+ or -)
Close
Caution
Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
•
Do not mix old and new batteries.
•
Do not mix different battery types (such as alkaline and manganese batteries).
•
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or breakup batteries.
•
Batteries must not be exposed to excessive heat such as sunshine, fi re or the like.
Page 7
Attaching the pedestal (TH-58PY800P only)
Warning
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
•
Caution
Do not use any other TV and displays.
Otherwise the TV may fall over and become damaged, and personal injury may result.
•
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest
•
Panasonic dealer immediately.
During set-up, make sure that all screws are securely tightened.
If insuffi cient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be
•
strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.
Ensure that the TV does not fall over.
If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal
•
injury may result.
Two or more people are required to install and remove the TV.
If two or more people are not present, the TV may be dropped, and personal injury may result.
•
Quick Start Guide
Assembly screw (4) (silver)
XYN5+F18FN
•
M5 × 18 M5 × 35
Assembly screw (4) (black)
THEL068N
•
ŶAssembling the pedestal
Use the four assembly screws to fasten the left and right poles to the base securely.
Make sure that the screws are securely tightened.
•
Forcing the assembly screws the wrong way will
•
strip the threads. “L” or “R” mark is stamped on the bottom of the pole.
•
ŶSecuring the TV
Use the assembly screws to fasten securely.
Make sure that the screws are securely tightened.
•
Carry out the work on a horizontal and level surface.
•
Pole (2)
R : TBLA3632
•
L : TBLA3633
•
L
R
D
B
Base
TBLX0082
•
•
R
A
L
Front
Accessories / Options
View from the bottom
Hole for pedestal installation
Arrow mark
D
Page 8
Accessories / Options
Using the clamper
Rear of the TV
TH-58PY800P
TH-65PY800P
ŶAttach the clamper ŶBundle the cables
hole
Insert the clamper in a hole
Do not bundle the RF cable and mains lead together (could cause distorted image).
•
Fix cables with clampers as necessary.
•
When using the optional accessory, follow the option’s assembly manual to fi x cables.
•
To remove from the TV:
Keep
snaps
pushing both side snaps
Set the
tip in the hooks
To loosen:
knobhooks
Keep
pushing the knob
Page 9

Identifying Controls

Lift door to open
TV
Function select
Volume / Contrast / Brightness / Colour /
•
Sharpness / Tint (NTSC mode) / Bass / Treble / Balance / Auto Setup (p. 27)
AVTVF
S-V
AV3
V
LR
HDMI4 terminal (p. 40)
HDMI4
Power LED
Standby: red
•
On: green When using the remote
•
control, indicates the TV has received a command.
C.A.T.S. (Contrast Automatic Tracking System) sensor
Senses brightness to adjust picture quality in “Eco” mode in Picture Menu (p. 22)
•
Remote control signal receiver
Mains power On / Off switch
Switch On to turn on the TV or turn the TV to standby mode by the remote control
•
Changes the input mode
Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On.
Headphones jack
(p. 40)
Remote Control
Standby On / Off switch
Switches TV On or Off standby
•
Multi window (p. 15)
Displays two windows at once
•
VIERA Link Menu (p. 37)
Press to access VIERA Link Menu directly
•
Aspect (p. 15)
Changes aspect ratio from Aspect Selection list
•
Also possible by pressing this button
•
repeatedly until you reach the desired aspect
OK
Confi rms selections and choices
•
Press after selecting programme positions to
•
quickly change programme
Main Menu (p. 20)
Press to access VIERA Link, Picture,
•
Sound and Setup Menus
Teletext (p. 16)
Switches to teletext mode
•
Favourite Page (p. 17)
Calls up the teletext page stored in blue button
•
Numeric buttons
Changes programme and teletext pages
•
When in Standby mode, switches TV On
•
Programme Information
Displays programme information
•
Programme Up / Down
Selects programme in sequence
•
(p. 14)
MULTI WINDOW
ASPECT
F.P.
INPUT
OPTION
SD CARD
EXIT
RETURN
AV3 terminals
(p. 40)
Input mode selection
TV - switches to TV mode (p. 18)
•
AV - switches to AV input mode from Input
•
Selection list (p. 18)
SD Card (p. 32)
Switches to SD Card viewing mode
•
Option Menu (p. 15)
Easy setting for viewing and sound options
•
Exit
Returns to the normal viewing screen
•
Cursor buttons
Makes selections and adjustments
•
Return
Returns to the previous menu
•
Coloured buttons
Used for the selection, navigation and
•
operation of various functions
Hold
Freeze / unfreeze picture (p. 14)
•
Holds the current teletext page (teletext
•
mode) (p. 17)
Index (p. 17)
Returns to the teletext index page
•
(teletext mode)
Sound Mute
Switches sound mute On or Off
•
Volume Up / Down
SD Card slot
(p. 33)
Quick Start Guide
•
•
Identifying Controls
Accessories / Options
VCR / DVD Panasonic equipment operations
Normalise (p. 20)
Resets picture and sound settings to their
•
default levels
(p. 19)
Direct TV Recording (p. 35 and p. 37)
Records programme immediately in
•
DVD Recorder / VCR with Q-Link or
DIRECT TV REC
N
VIERA Link connection
Surround (p. 22)
Switches Surround sound
•
Page 10

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet fi rst.
Example 1 Connecting aerial
Example 2 Connecting DVD Recorder / VCR
TV only TV, DVD Recorder or VCR
Aerial AerialRear of the TV Rear of the TV
AC 220-240 V 50 / 60 Hz
Mains lead (supplied) Mains lead (supplied)
RF cable
AUDIO
OUT
COMPONENT
AUDIO
IN
LRL
R
AV2AV1
RGB
RGB
VIDEO
VIDEO
S VIDEO
Y
P
B
P
R
HDMI 1 HDMI 2 HDMI 3
AUDIO
OUT
LRL
COMPONENT
AUDIO
IN
R
Y
P
B
P
R
RGB VIDEO
AV2AV1
RGB VIDEO S VIDEO
HDMI 1 HDMI 2 HDMI 3
AC 220-240 V 50 / 60 Hz
DIGITAL
PC
AUDIO
OUT
PC
DIGITAL
AUDIO
OUT
SCART cable
RF cable
(fully wired)
RF OUT
DVD Recorder or VCR
RF IN
RF cable
Note
Connect to AV1 / AV2 for a DVD Recorder / VCR supporting Q-Link (p. 35).
•
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by
•
using HDMI cable (p. 40). Q-Link connection p. 34
•
VIERA Link connection p. 34
•
Read the manual of the equipment too.
•
10
Page 11
Example 3 Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder / VCR and Set top box
Rear of the TV
Quick Start Guide
Aerial
AUDIO
OUT
COMPONENT
AUDIO
IN
LRL
R
Push until both side tabs click
Make sure that the mains lead is securely fi xed.
To remove from the TV:
•
Press both tabs and pull on mains connector to release
AC 220-240 V 50 / 60 Hz
•
Basic Connection
tabs
Mains lead (supplied)
RF cable
AV2AV1
RGB
RGB
VIDEO
VIDEO
S VIDEO
Y
P
B
P
R
DIGITAL
PC
AUDIO
OUT
HDMI 1 HDMI 2 HDMI 3
SCART cable (fully wired)
Fully wired HDMI
compliant cable
DVD Recorder
or VCR
SCART cable (fully wired)
Set top box
RF OUT
RF IN
RF OUT
RF IN
RF IN
RF cable
RF cable
RF cable
11
Page 12

Auto Setup

Search and store TV programmes automatically. These steps are not necessary if the setup has been completed by your local dealer.
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
1
You can now use the remote
•
control to turn On the TV or turn the TV to standby mode. (Power LED: On)
Select the language
Menüsprache
INPUT
OPTION
SD CARD
EXIT
RETURN
2
3
Deutsch
English
Français
Italiano Español
Português
Nederlands
Dansk
Svenska
Norsk Suomi Türkçe
Еλληνικά
Select your country
Country
Germany
Austria France
Italy
Spain
Portugal
Switzerland
Start Auto Setup
Slovenčina Български
Denmark
Sweden
Norway
Finland
Belgium
Netherlands
Greece
Polski čeština Magyar
Românǎ
Srpski
Hrvatski
Slovenščina
Latviešu
eesti keel
Lietuvių
Poland Czech
Hungary
Ireland
E.Eu
Depending on the selected
•
countries, you may also be required to select the region.
select
store
select
4
Auto Setup
Scan 2 78 141
This will take about 3 minutes.
Channel Service Name
CH 29 CH 33
Analogue: 2
EXIT
RETURN
Sending Preset Data
Please wait!
0% 100%
Remote control unavailable
Searching
Select the picture setting
5
TV
Please select your viewing environment.
•
Home Shop
“Shop” and “Home” are equal to “Dynamic” and “Normal” respectively - “Viewing Mode” in “Picture Menu” (p. 22)
Auto Setup will start to search for
•
TV programmes and store them.
The sorted programme order
depends upon the TV signal, the broadcasting system and reception conditions.
If Q-Link, VIERA Link or similar
•
technology (p. 34), compatible recorder is connected, programme, language, country / region settings are automatically downloaded to the recorder.
select
set
12
Auto Setup is now complete and your TV is ready for viewing.
To edit programmes
•
“Editing Programmes” (p. 24)
Page 13
Many features available on this TV can be accessed via the On Screen Display menu.
ŶHow to use remote control
Using the On Screen Displays
MENU
RETURN
EXIT
Open the main menu
Move the cursor / select the menu
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options have been set
Return to the previous menu
Exit the menu system and return to the normal viewing screen
ŶON SCREEN HELP Instructions box
(example: Sound Menu)
Sound Menu 1/2
Mode Music
Bass Treble Balance Headphone Volume Surround Off Volume Correction Speaker Distance to Wall MPX Stereo
Select
EXIT Change RETURN
Over 30cm
Page up
Page down
Quick Start Guide
•
Auto Setup
On-screen operation guide will help you.
Note
If tuning has failed “Auto Setup” (p. 27)
•
If downloading has failed “Download” (p. 23)
•
To initialize all settings “Shipping Condition” (p. 29)
•
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On
•
with Mains power On / Off switch.
13
Page 14

Watching TV

MULTI WINDOW
ASPECT
INPUT
OPTION
SD CARD
EXIT
RETURN
Volume
Turn power on
(Press for about 1 second)
1
Mains power On / Off switch should be On. (p. 9)
•
Information banner appears whenever you select a
1 BBS
CH05 SC1 Coronation Street
programme
For details see below
•
Select a programme
2
up
or
down
To select from the Programme List
•
All Services
6
7
8
1
2
3
4
Connect
BBCi
Select
EXIT
Page up
Page down
RETURN
To select the two or three-digit
•
programme number, e.g. 39
(in a short time)
select
programme
watch
ŶSelect a programme using Information banner (see below)
Possible to confi rm the programme name before selecting programmes.
Display Information banner if it is not displayed
Possible to set display timeout in
•
“Banner Display Timeout” (p. 23).
While the banner is displayed, select the programme
select programme
watch
14
ŶOther useful functions
Hold
Display Information banner
Off Timer
Freeze / unfreeze picture
Display Information banner
Also appears when changing a programme
•
Features available / Message meanings
Sound mute On
Teletext service available
To confi rm another tuned
•
programme name To watch the programme
•
listed in the banner
To hide
•
Turn the TV off automatically after a fi xed period
Display the menu
To cancel Set to “Off” or turn the TV off.
•
To display the remaining time Information banner (above)
•
When the remaining time is within 3 minutes, the remaining time will fl ash on the screen.
•
Main Menu
VIERA Link
Sound
Setup
Programme
Example:
1 BBS
CH05 SC1 PAL
Sound System Colour System
EXIT
Select “Setup”
MENU
access
select
Event
Coronation Street
Stereo, Mono
Audio mode
1 - 90
Off Timer remaining time
For settings see below
•
To set display timeout
•
“Banner Display Timeout” (p. 23)
Event information is referred to teletext
•
signal.
Select “Off Timer” and set the time
Setup Menu
Service List Edit Link Settings Child Lock Tuning Menu Intelligent Frame Creation
Off Timer
OSD Language Teletext TOP Teletext Character Set West
On Off
1/2
45Stereo
set select
Page 15
ŶOther useful functions
A
A
A
Check or change the current programme status instantly
Display the selectable settings for the current programme
Teletext Character Set
Sets the teletext language
Setup Menu (p. 23)
MPX
Sound Menu (p. 22)
Change the aspect ratio
Enjoy viewing the picture at its optimum size and aspect.
Display Aspect Selection list
To change the mode using the ASPECT button only
•
SPECT
OPTION
Volume Correction
Adjusts volume of individual programme or input mode
Note
Also possible to change the settings in
•
Menu list (p. 22 and p. 23).
SPECT
SPECT
(Press repeatedly until you reach the desired mode)
While the list is displayed, select the mode
To change
•
store
select
change select
Aspect selection
Auto
16:9 14:9 Just 4:3 4:3 Full Zoom1 Zoom2 Zoom3
Select
EXIT
Change
RETURN
Aspect Selection list
Change aspect ratio
Auto 16:9 14:9
Just 4:3 4:3 Full
Zoom1 Zoom2 Zoom3
Only “16:9” and “4:3” are available in PC mode.
•
Not available in teletext mode.
•
Aspect mode can be memorized separately for SD (Standard defi nition) and HD (High
•
defi nition) signals.
View in multi window
Enjoy viewing two images at once, such as a TV programme and a DVD.
The best ratio is chosen and the picture expanded to fi ll the screen. For details p. 42
Displays a “4:3” image full-screen. Stretching is only noticeable at the left and right edges.
Displays a “16:9” letterbox or “4:3” image without distortion.
Directly displays the image at “16:9” without distortion (anamorphic).
Displays the image at the standard “4:3” without distortion.
Displays a “16:9” letterbox (anamorphic) image full-screen without distortion.
Remote control operations apply to the
•
main screen.
Displays the image at the standard “14:9” without distortion.
Displays a “4:3” image enlarged horizontally to fi t the screen.
HD signal only
•
Displays a “2.35:1” letterbox (anamorphic) image full-screen without distortion. At “16:9”, displays the image at its maximum (with slight enlargement).
Picture-in-Picture mode (PinP) Picture-and-Picture mode (PandP)
DVD
EXIT PandP Swap
yellow
AV1
green
DVD AV1
EXIT PinP Swap
Viewing
•
Watching TV
Watch TV, DVD, etc.
blue
AV1
in multi window
EXIT PandP Swap
• To change the layout
• To change the input mode or programme of sub screen Swap sub screen
for main screen
The same input mode cannot be displayed at once.
•
The sound is active for main screen only in multi window.
•
You cannot change the aspect ratio in multi window.
•
Multi window cannot be used with HDMI (available for main screen only), PC or SD Card.
•
Some signals are reformatted for suitable viewing on your display.
•
Colour bar
ŶOperations in multi window
To exit multi window
•
DVD
blue
(return to the single-screen view with main screen) To change the layout, images, fi rst show the colour bar
•
green
• To swap
yellow
Change the input mode or programme by the remote control (p. 14 or p. 18)
Main screen
blue
Sub screen
• To exit multi window
Swap again
red
blue
15
Page 16

Viewing Teletext

You can enjoy teletext broadcasting, including news, weather forecasts and subtitles, if this service is provided by the broadcasters.
What is FLOF (FASTEXT) mode?
In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.
What is TOP mode? (in case of TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
Fast overview of the teletext information available
•
Easy to use step-by-step selection of the topical subject
•
Page status information at the bottom of the screen
•
Available page up / down
To select among subject blocks
To select next subject within the subject block (After the last subject, it moves to the next subject block.)
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 17)
ŶTo change mode “Teletext” in Setup Menu (p. 23)
INPUT
OPTION
MULTI WINDOW
ASPECT
SD CARD
EXIT
1
red
green
blue
Switch to Teletext
Displays Index
•
(content varies depending on the broadcasters)
yellow
Current page number
Sub page number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
TELETEXT
INFORMATION
Time / date
RETURN
F.P.
2
ŶUsing teletext conveniently
Reveal hidden data
Reveal hidden words e.g. quiz page answers
MENU
Select the page
or
ŶTo adjust contrast
ŶTo return to TV
ŶRe-hide
red
red
up
down
MENU
or
red
(Corresponds to the colour bar)
(Press twice)
Colour bar
green
yellow
blue
As the blue bar is displayed
16
FULL / TOP / BOTTOM
MENU
green
(TOP) (BOTTOM)
(Expand the TOP half)
Normal (FULL)
(Expand the BOTTOM half)
Page 17
HOLD
INDEX
Stop automatic updating
(If you wish to hold the current page without updating)
ŶTo resume
Return to the main index page
Call up a favourite page
View in multi window
Store frequently viewed pages
View a favourite page stored
F. P.
Watch TV and Teletext in two windows at once
Operations can be made only in Teletext screen.
•
Store frequently viewed pages in the colour bar
As page is displayed
ŶTo change stored pages
Colour button you want to change
Call up the page stored in “blue”.
•
Factory setting is “P103”.
•
Corresponding colour button
Enter new page number
press and hold
The number changes to white.
press and hold
(List mode only)
Viewing
•
Viewing Teletext
View sub page
Watch TV while waiting for update
View sub page (Only when teletext is more than one page)
Appears at top of the screen
ŶTo view specifi c sub page
MENU
blue
Sub pages:
•
The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch TV.
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
MENU
yellow yellow
The news page provides a function that indicates arrival of latest news (“News Flash”).
•
P108
(You cannot change the programme.)
Enter the 4-digit number
example: P6
Appears when updating is completed
View the updated page
17
Page 18

Watching Videos and DVDs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.
To connect the equipment p. 10 and p. 11
•
The Remote Control is capable of operating some functions of selected Panasonic external equipment.
Turn the TV on
Ŷ
When connecting with SCART as example 2 or 3 (p. 10 and p. 11)
Receives input signals automatically when playback starts
Input signals are automatically identifi ed by the SCART (pin 8)
•
terminal. This function is also available for HDMI connections (p. 40).
•
ŶIf input mode is not switched automatically
Perform and
Dependant on the setup of the equipment
•
Display the Input select menu
INPUT
OPTION
1
SD CARD
EXIT
RETURN
MULTI WINDOW DIRECT TV REC
2
3
4
Select the input mode connected to the equipment
Input Selection
AV1
AV2/S
AV3/S COMPONENT PC HDMI1 HDMI2 HDMI3 HDMI4 TV
You can also select the input using the AV button on the remote
•
control or the front panel of the TV.
Press the button repeatedly until the desired input is selected.
You can label or skip each input mode “Input Labels” (p. 30)
•
View
Displays the selected mode
watch
select
18
ŶTo return to TV
Note
If the external equipment has an aspect adjustment function, set to “16:9”.
•
For details, see the manual of the equipment or ask your local dealer.
•
Page 19
Panasonic equipment connected to the TV can be directly operated with the remote control.
VCR / DVD switch
Select VCR to operate Panasonic VCR or DVD equipment Select DVD to operate Panasonic DVD equipment or Player home theatre
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, view the picture rapidly in reverse DVD: Skip to the previous track or title Press and hold to search backward
Fast-forward / Skip / Search
VCR: Fast-forward, view the picture rapidly forward DVD: Skip to the next track or title Press and hold to search forward
Viewing
Pause
Pause / Resume DVD: Press and hold to play at slow speed
Programme Up / Down
Select programme
Record
Start recording
Setting your remote control to operate Panasonic VCR, DVD, etc.
Set the VCR / DVD switch to the appropriate position Press and hold during the following operations
Enter the appropriate code for the equipment to be controlled, see table below
“VCR” position
Equipment Code
VCR 10 (default) DVD 11
“DVD” position
Equipment Code
Player home theatre
DVD 70 (default)
Press
71
•
Watching Videos and DVDs
Note
Confi rm if the remote control works correctly after changing the code.
•
The codes will be reset to default values if batteries are replaced.
•
“DVD” means DVD player, DVD recorders and Recorder home theatre.
•
Some operations may not be possible on some equipment models.
•
19
Page 20
INPUT
OPTION
SD CARD
MULTI WINDOW DIRECT TV REC
EXIT
RETURN
N

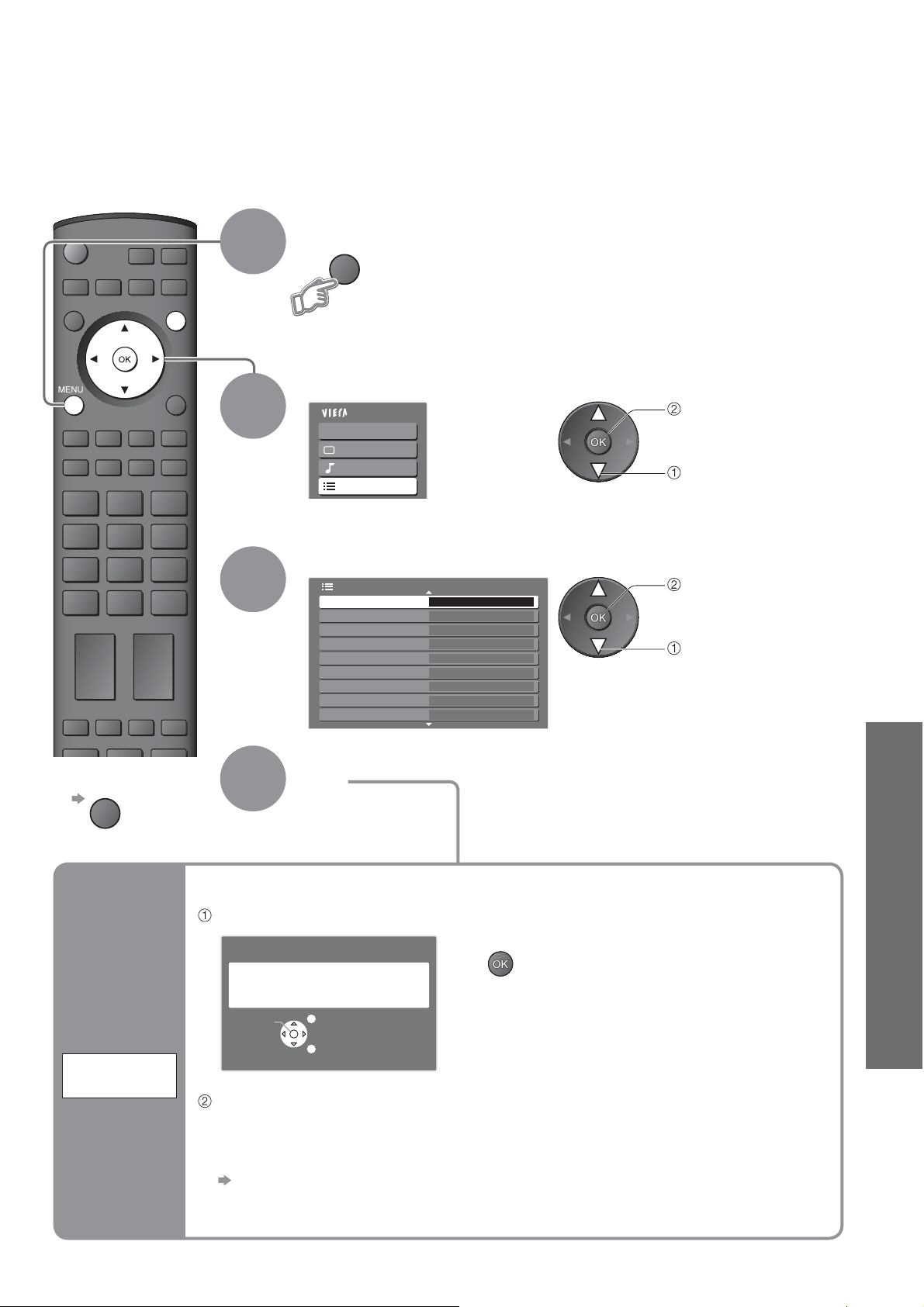

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.
Display the menu
1
2
3
4
MENU
Select the menu
Main Menu
VIERA Link
Sound
Setup
(example: Picture Menu)
Select the item
Picture Menu 1/2
Viewing Mode Dynamic
Contrast Brightness Colour Sharpness Tint Colour Balance Warm Colour Management Off Digital Cinema Colour Auto
Adjust or select
Picture Menu
Viewing Mode Dynamic Contrast Brightness Colour Sharpness Tint Colour Balance Warm Colour Management Off Digital Cinema Colour Auto
Displays the functions that can be set
•
(varies according to the input signal)
(example: Picture Menu)
1/2
(example: Picture Menu)
access
select
select
change
store or access
(Required by
some functions)
ŶTo return to TV
at any time
EXIT
ŶTo return to the
previous screen
RETURN
ŶTo change menu
pages
20
up
down
ŶChoose from among
alternatives
Number and positions of alternatives
Colour Balance Normal
Changed
ŶAdjust using the slide bar
Sharpness
Moved
ŶGo to the next screen
Tuning Menu Access
Displays the next screen
ŶTo reset the settings
To reset the picture settings only
•
To reset the sound settings only
•
To reset the picture and sound
•
settings together
To initialize all settings
•
ŶEnter characters by free input menu
You can enter names or numbers freely for some items.
User input
Name
ABCDEFGH I JKLMN
UVWXYZ 0123456
abcdefghijklmn uvwxyz ( ) +- . *_
OPQRST 789! : # opqr s t
Set characters
select
set
“Reset to Default” in Picture Menu (p. 22)
“Reset to Default” in Sound Menu (p. 22)
N
Also volume level and
(
aspect mode are reset
“Shipping Condition” in Setup Menu (p. 29)
Store
RETURN
)
Page 21
ŶOverview
Main Menu
VIERA Link
Sound
Setup
VIERA Link Menu
Pause Live TV Direct TV Rec VIERA Link Control Speaker Selection
Picture Menu
Viewing Mode Dynamic Contrast Brightness Colour Sharpness Tint Colour Balance Warm Colour Management Off Digital Cinema Colour Auto
Picture Menu
P-NR Off 3D-COMB Off Reset to Default Set
Sound Menu
Mode Music Bass Treble Balance Headphone Volume Surround Off Volume Correction Speaker Distance to Wall MPX Stereo
Sound Menu
HDMI1 Input Auto
Reset to Default Set
Access Start Recorder Home Cinema
Over 30cm
(p. 37)
1/2
2/2
(p. 22)
1/2
2/2
(p. 22)
The menu of the accessed equipment
•
How to Use Menu Functions
(picture, sound quality, etc.)
Advanced
Only available items can be selected.
•
Setup Menu
AV Colour System Service List Edit Access Link Settings Access Child Lock Access Tuning Menu Intelligent Frame Creation Off Timer Off OSD Language Teletext TOP Teletext Character Set West
Setup Menu
Shipping Condition Access Power Save Off Side Panel Off Picture Overscan On Input Labels Banner Display Timeout SD Card LED On Software License Access System Information Access
Auto
Access On
Access
Access 3 seconds
1/2
2/2
(p. 23)
Link Settings
VIERA Link Q-Link AV2 AV2 out TV Power off Link Set Power on Link Set Download Access
Tuning Menu
Auto Setup Access Manual Tuning
On
Access
(p. 23)
(p. 26)
21
Page 22
How to Use Menu Functions
ŶMenu list
Menu Item Adjustments / Configurations (alternatives)
VIERA Link
Pause Live TV Direct TV Rec VIERA Link Control Speaker Selection
Viewing Mode
Contrast, Brightness, Colour, Sharpness
Tint
Colour Balance
Colour Management
Digital Cinema Colour
P-NR
3D-COMB
Reset to Default Mode Bass Treble Balance Headphone Volume
Surround
Sound
Volume Correction
Speaker Distance to Wall
MPX
HDMI1 / 4 Input
Reset to Default
Controls the connected equipment with VIERA Link function, and enables various convenient recording, playback, etc. (p. 37 - 39)
You can also access VIERA Link Menu directly using the VIERA Link button on the
•
remote control.
Basic picture mode (Dynamic / Normal / Cinema / Eco) Dynamic : Normal : Recommended for viewing under normal ambient room lighting conditions Cinema : For watching movies in a darkened room producing a cinema-like picture Eco :
Set for each input signal
•
Increases or decreases the levels of these options according to your personal preference
With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste
For NTSC signal reception only
•
Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)
Automatically adjusts colours to vivid ones (Off / On)
Not valid on PC signal
•
Displays the vivid images with the expanded colour gamut (Off / On / Auto) This is effective when watching HD moving pictures
HDMI input mode or Movie View Mode (p. 33) only
•
Picture Noise Reduction Automatically reduces unwanted picture noise and fl icker noise in the contoured parts of a picture (Off / Min / Mid / Max)
Not valid on PC signal
•
Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen Set to “On” to display sharper and more accurate colours (Off / On)
For PAL or NTSC signal reception only
•
Not valid on RGB, S-Video, Component, PC, HDMI and SD Card
•
Press the OK button to reset the present Picture Mode to the default settings
Basic sound mode (Music / Speech)
Increases or decreases level to enhance or minimise lower, deeper sound output
Increases or decreases level to enhance or minimise sharper, higher sound output
Adjusts volume level of right and left speakers
Adjusts the volume of the headphones
Surround sound settings (Off / Simulated Surround / SRS TruSurround XT) Simulated Surround: Provides a dynamic enhancer to simulate improved spatial effects SRS TruSurround XT
Switching is also possible by the Surround button on the remote control (p. 9).
•
Adjusts volume of individual programme or input mode
Adjusts the low frequency sound (Over 30cm / Up to 30cm)
If the back space between the TV and wall is over 30 cm, “Over 30cm” is recommended.
•
If the back space between the TV and wall is within 30 cm, “Up to 30cm” is recommended.
•
Select stereo / monaural (Mono / Stereo)
Normally: Stereo
•
Stereo signal cannot be received: Mono
•
M1 / M2: Available while mono signal is transmitted
•
Select to fi t the input signal (Auto / Digital / Analogue) (p. 42) Auto : Automatic detection of digital or analogue sound source
Digital : HDMI cable connection Analogue : HDMI-DVI adapter cable connection
HDMI input mode only
•
HDMI2 / 3 terminals are for digital signal only
•
No setting for HDMI2 / 3 available
•
Press the OK button to reset the present Sound Mode to the default settings
Provides enhanced picture contrast and sharpness when viewing in a bright room
Adjusts picture settings automatically dependent on ambient lighting conditions
:SRS TruSurround XT® creates a high quality surround sound effect
using just two speakers from the source which can output surround encoded signals
22
Page 23
ŶMenu list
Menu Item Adjustments / Configurations (alternatives)
AV Colour System
Service List Edit
VIERA Link
Q-Link
Link Settings
AV1 / AV2 out
Power off Link
Power on Link
Download
Child Lock
Tuning Menu
Auto Setup
Manual Tuning
Selects optional colour system based on video signals in AV mode
(Auto / PAL / SECAM / M.NTSC / NTSC)
Skips the unwanted programmes or edits programmes (p. 25)
Sets to use VIERA Link functions (Off / On) (p. 36)
Selects which AV terminal is to be used for data communication between this TV and a compatible recorder (AV1 / AV2) (p. 35)
Select the connected terminal to the recorder even it is not compatible with Q-Link.
•
Chooses the signal to be transmitted from the TV to Q-Link
(TV / AV1 / AV2 / AV3 / Monitor)
Monitor: Image displayed on screen
•
Component, PC and HDMI signals cannot be outputted.
•
Sets to use Power off Link function (No / Set) (p. 35 and p. 36)
Sets to use Power on Link function (No / Set) (p. 35 and p. 36)
Downloads programme, language, country / region settings to a Q-Link or VIERA Link compatible equipment connected to the TV
Locks a programme / AV input to prevent access to it (p. 28)
Automatically sets the programmes received in the area (p. 27)
Sets the programmes manually (p. 27)
•
How to Use Menu Functions
(picture, sound quality, etc.)
Setup
Intelligent Frame Creation
Off Timer
OSD Language
Teletext
Teletext Character Set
Shipping Condition
Power Save
Side Panel
Picture Overscan
Input Labels
Banner Display Timeout
SD Card LED
Software License
System Information
A different menu will be displayed while PC or SD Card is used. (p. 31 and p. 33)
•
Only available items can be selected.
•
Automatically compensates the picture frame rate to make the image smooth (Off / On)
Not valid on PC signal
•
Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
Changes language for on-screen displays
Teletext display mode (TOP (FLOF) / List) (p. 16)
Selects teletext language (West / East1 / East2)
West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
•
East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
•
East2: Czech, Hungarian, Lettish, Polish, Rumanian, etc.
•
Resets all settings, for example, when moving house (p. 29)
Reduces brightness of picture to economise on power consumption (Off / On)
Increases the brightness of the side panel (Off / Low / Mid / High)
The recommended setting is “High” to prevent panel “image retention”.
•
Selects the screen area displaying the image (Off / On) On : Enlarged the image to hide the edge of the image. Off : Displayed the image in the original size.
Set to “On” if noise is generated on the edge of the screen.
•
This function is available when aspect is set to Auto (16:9 signal only) or 16:9.
•
This function can be memorized separately for SD (Standard defi nition) and HD (High
•
defi nition) signals.
Labels or skips each input terminal (p. 30)
Sets how long the information banner (p. 14) stays on screen
0 (No display) to 10 sec. in 1-sec. increments
•
Lights blue LED while SD Card is inserted (Off / On) (p. 33)
Displays the software licence information
Displays the system information of this TV
Advanced
23
Page 24

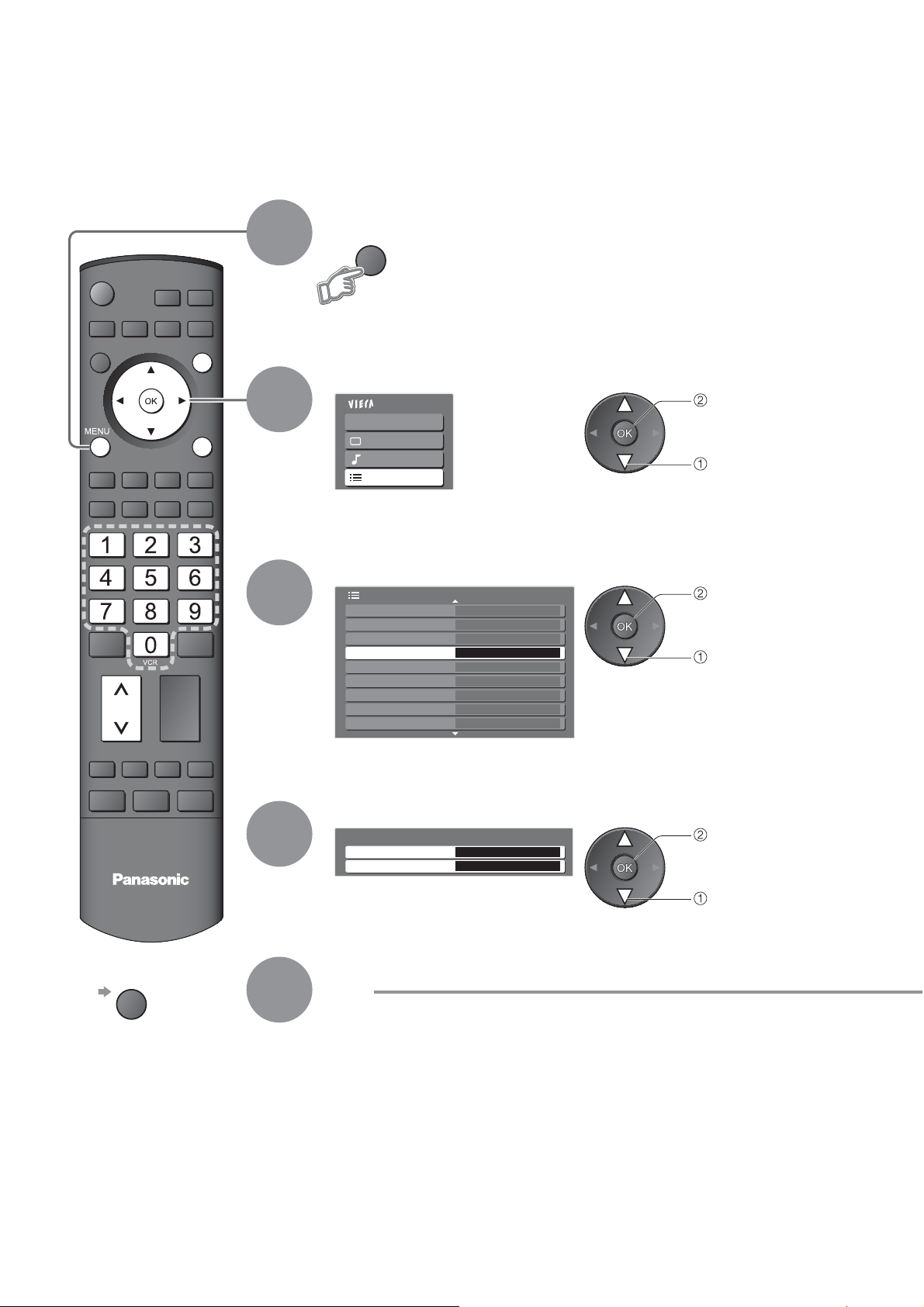

Editing Programmes

You can skip unwanted programmes or edit programmes.
Display the menu
MENU
1
INPUT
OPTION
SD CARD
EXIT
Select “Setup”
access
select
RETURN
2
Main Menu
VIERA Link
Sound
Setup
TV
ŶTo return to TV
EXIT
3
4
Select “Service List Edit”
Setup Menu
Service List Edit
Link Settings Child Lock Tuning Menu Intelligent Frame Creation Off Timer OSD Language Teletext TOP Teletext Character Set
Access
On Off
West
1/2
Set
access
select
24
Page 25
You can hide unwanted services. The deleted services cannot be displayed except in this function. Use this function to skip unwanted programmes.
Select a service and add / delete
You can change the programme name and programme position.
•
Skip unwanted programmes
Edit programmes (Change name,
Move)
Service List Editor
BBC1
1
2
*****
3
***** 4 5 6 7
To retune each programme (Manual Tuning)
•
red
add / delete
select
(p. 27)
If a VCR is connected only with the RF cable, edit “VCR”.
Select the programme to edit
Service List Editor
BBC1
1
2
*****
3
***** 4 5 6 7
Programme position
3 FTP
CH05 SC1 PAL Coronation Street
select
Name
:add :delete (skip)
•
Editing Programmes
Service List
Edit
Edit
ŶTo change the name displayed when selecting programmes
Select “Rename”
green
Set characters
select
set
Edit Service Name
Name
ABCDEFGH I JKLMN UVWXYZ 0123456
abcdefghijklmn uvwxyz ( ) +- . *_
OPQRST
789! : # opqr s t
(maximum: fi ve characters)
ŶTo move the programme position
Select new position
yellow
select
Store
yellow
Store
RETURN
Advanced
25
Page 26

Tuning Programmes

You can retune all the TV programmes when moving house or search for new services which may have recently started broadcasting.
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
INPUT
OPTION
1
SD CARD
EXIT
2
RETURN
TV
ŶTo return to TV
EXIT
3
4
5
Select “Tuning Menu”
Setup Menu
Service List Edit Link Settings Child Lock
Tuning Menu
Intelligent Frame Creation Off Timer Off OSD Language Teletext TOP Teletext Character Set West
Access On
Select a function
Tuning Menu
Auto Setup Access Manual Tuning
Access
Set
1/2
access
select
access
select
26
Page 27
Set all
AVTVF
programmes automatically
Automatically retune all programmes received in the area.
If a Child Lock PIN number (p. 28) has been set, it must be entered.
•
Start Auto Setup Settings are made automatically
Auto Setup
All tuning data will be erased
Start Auto Setup
All the previous tuning settings are erased.
•
The programme, language, country / region settings are downloaded to a Q-Link or
•
VIERA Link compatible equipment connected to the TV. When the operation is completed, the programme at programme position “1” will be
•
displayed. If tuning has not been done completely “Manual Tuning”
•
EXIT
RETURN
Auto Setup
Scan 2 78 141
This will take about 3 minutes.
Channel Service Name
CH 29 CH 33
Analogue: 2
Searching
Auto Setup
Set programme manually
Manual
Tuning
ŶFor Auto Setup, using the buttons on the front of the TV (p. 9)
Press repeatedly until “Auto Setup” appears
F
Access “Auto Setup”
TV
Start “Auto Setup”
TV
To return to TV
•
F
ŶFine Tuning
Use to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.)
ŶManual Tuning
Set programme manually after Auto Setup.
Set Sound System and Colour System, and then perform this function.
•
Normally set Colour System “Auto”. If a VCR is connected only with the RF cable, select programme position “0”.
•
Manual Tuning
1 BBC1 Fine Tuning
Manual Tuning 2 78 411
Sound System Colour System
SC1 Auto
CH33
CH33
SC1: PAL B, G, H / SECAM B, G SC2: PAL I SC3: PAL D, K / SECAM D, K F: SECAM L / L’
•
Tuning Programmes
Advanced
Select the programme position
Search and storeSelect the programme
search
store
27
Page 28

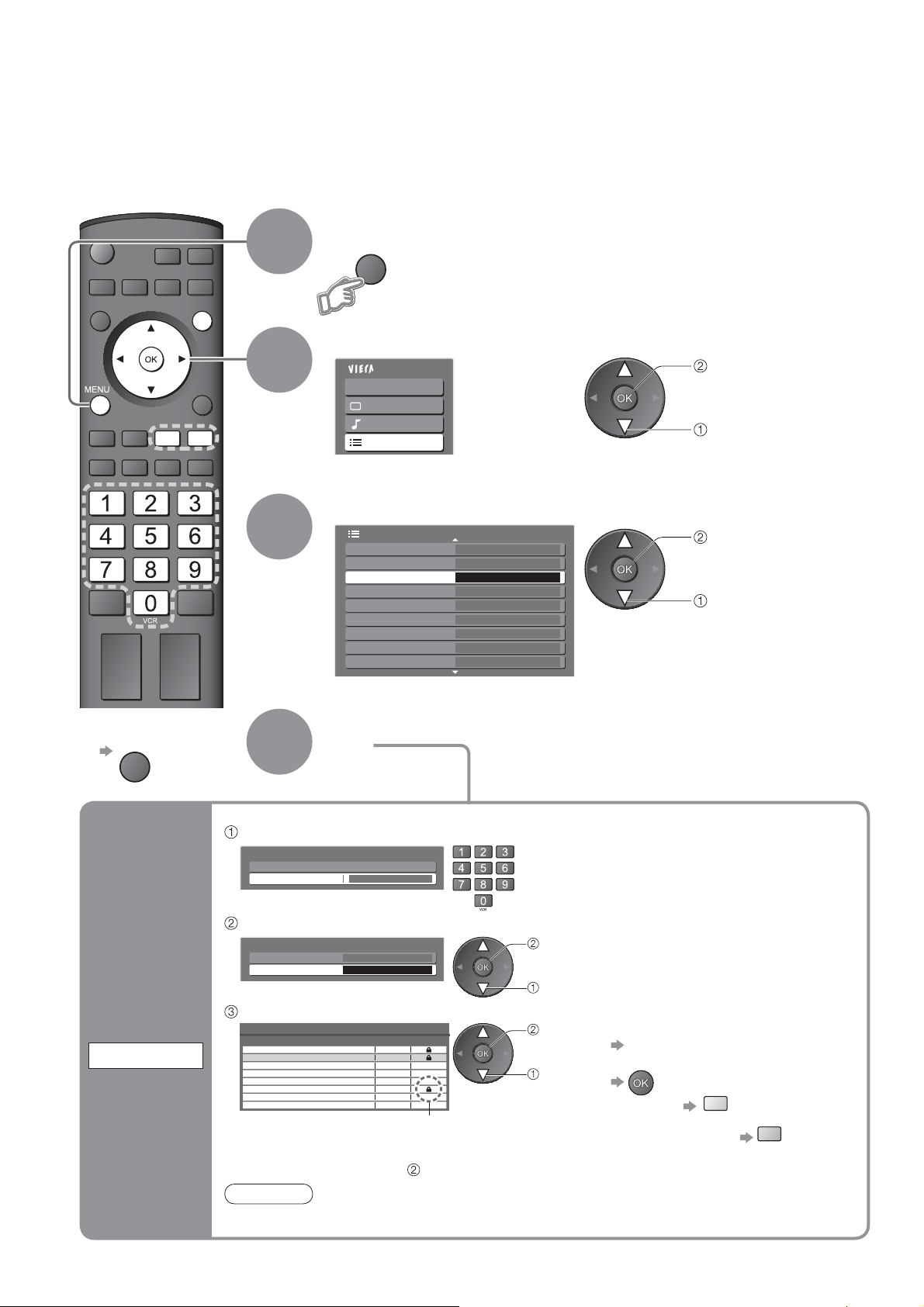

Control Programme Audience

You can lock specific programmes / AV input terminals and control who watches them. (When the locked programme / input is selected, a message appears; by entering the PIN number, you can watch it.)
Display the menu
INPUT
OPTION
SD CARD
EXIT
RETURN
1
2
3
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Child Lock”
Setup Menu
Service List Edit Link Settings
Child Lock
Tuning Menu Intelligent Frame Creation Off Timer Off OSD Language Teletext TOP Teletext Character Set West
Access
On
1/2
access
select
access
select
ŶTo return to TV
EXIT
Control programme audience
Child Lock
4
Set
Enter the PIN number (4 digits)
Child Lock-PIN Entry
Please enter new PIN
PIN
* * * *
Enter the PIN number twice at fi rst
•
setting. Make a note of the PIN number in
•
case you forget it.
Select “Child Lock List”
Child Lock
Change PIN
Child Lock List
Access
access
select
Select the programme / input to be locked
Child Lock List - Services and AV
Name
VCR BBC11 *****2
*****3 4 5
AV1
AV2/ S
Appears when the programme / input is locked
Type
Lock
TV TV TV TV TV TV AV AV
ŶTo change the PIN number
Select “Change PIN” in and enter a new PIN number twice.
set
select
To cancel
•
Select the locked programme / input
To lock all
•
To cancel all locks
•
yellow
Note
Setting “Shipping Condition” (p. 29) erases the PIN number and all settings.
•
blue
28
Page 29

Restore Settings

Resets the TV to its original condition, i.e. no programmes tuned in. All settings (programmes, picture, sound quality, etc.) are reset.
Display the menu
INPUT
OPTION
SD CARD
1
EXIT
MENU
RETURN
ŶTo return to TV
EXIT
2
3
4
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Shipping Condition”
Setup Menu
Shipping Condition Access
Power Save Off Side Panel Off Picture Overscan
Input Labels Banner Display Timeout SD Card LED Software License System Information
On
3 seconds On
2/2
Set
access
•
Control Programme Audience
select
•
Restore Settings
access
select
Advanced
Restore Settings
Shipping
Condition
Check the message and initialise
Shipping Condition
All tuning data will be erased
Confirm
Follow the on-screen instructions
“Auto Setup” will automatically start when Mains power On / Off switch is next
•
turned On. (p. 12)
Are you sure? Are you sure?
EXIT
RETURN
ŶTo retune TV programmes only, e.g. after moving house
“Auto Setup” (p. 27)
29
Page 30

Input Labels

For easier identifi cation and selection of the input mode, you can label each input terminals or skip terminal that is not connected to any equipment.
To select the input mode p. 18
•
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
INPUT
OPTION
SD CARD
EXIT
RETURN
1
2
TV
ŶTo return to TV
EXIT
3
4
Select “Input Labels”
Setup Menu
Shipping Condition Power Save Off Side Panel Off Picture Overscan
Input Labels
Banner Display Timeout SD Card LED Software License System Information
2/2
On
Access 3 seconds On
access
select
Select a input terminal and set
Input Labels
AV1 DVD
AV2/S AV2/S AV3/S AV3/S COMPONENT COMPONENT PC PC HDMI1 HDMI1 HDMI2 HDMI2 HDMI3 HDMI3 HDMI4 HDMI4
The labels you set will be displayed in “Input Selection” menu (p. 18) or banner.
If “Skip” is selected, you cannot select the mode.
•
set
select
30
ŶUser input
You can name each input terminals freely.
Select “User input”
select
access
Set characters
select
set
User input
Name
ABCDEFGH I JKLMN UVWXYZ 0123456 abcde f gh i j k lmn uvwxyz ( ) +- . *_
OPQRST 789! : # opqr s t
(maximum: ten characters)
Store
RETURN
Page 31

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected.
To connect PC p. 40
•
Select the external input
INPUT
OPTION
SD CARD
EXIT
1
Select “PC”
RETURN
2
Input Selection
AV1 AV2/S AV3/S COMPONENT
PC
HDMI1 HDMI2 HDMI3 HDMI4 TV
Corresponding signals p. 44
•
If “H-freq.” or “V-freq.” is shown in red,
•
the signals may not be supported.
access
select
ŶTo return to TV
ŶPC menu setting (changed as desired)
To make settings “How to Use Menu Functions” to (p. 20)
•
Menu Item Adjustments / Configurations (options)
W/B High R White balance of bright red area
Advanced PC Settings
W/B High B White balance of bright blue area
W/B Low R White balance of dark red area
W/B Low B White balance of dark blue area
Gamma (S Curve / 2.0 / 2.2 / 2.5)
Reset to Default
Input Resolution
Clock Set to the minimum level if noise occurs
Press the OK button to reset to the default Picture settings
Switches to a wide view
VGA (640 × 480 pixels), WVGA (852 × 480 pixels),
•
XGA (1,024 × 768 pixels), WXGA (1,366 × 768 pixels) Options change depending on signals
•
Adjusts horizontal position
and
repeatedly adjusted
•
Displaying PC Screen on TV
•
Input Labels
Advanced
H-pos
Setup
PC Setup
Other items p. 22 and p. 23
•
V-pos
Clock Phase
Sync
Reset to Default
Adjusts vertical position
Eliminates fl icker and distortion
Adjust after Clock adjustment
•
Chooses another synchronous signal if the image is distorted (H & V / On G)
H & V : by the horizontal and vertical signals from your PC
•
On G : by the green signal from your PC (if available)
Press the OK button to reset to the default Setup settings
Set to the minimum level if noise occurs
•
31
Page 32
Viewing from SD Card
A
Photo View: Still images recorded by digital cameras will be displayed. Movie View: Moving pictures recorded by digital video cameras will be played back.
ASPECT
INPUT
OPTION
SD CARD
EXIT
RETURN
1
Insert the SD Card
Select “Photo View” or “Movie View”
2
3
SD Card
Select the file to be viewed
ŶPhoto View
Selected
Photo View Mode
All pictures
1/175
Filename
p1010001
Date
23/10/2007
Pixel
1600 x 1200
Reading
Select
EXIT Select RETURN
View
Slide show
Selected photo information is displayed
select
view
Photo View
Movie View
Error display (images that could not be loaded, etc.)
Sort by Month Sort by Date
(Thumbnail)
Slide show p. 33
•
access
select
ŶMovie View
File format: Only AVCHD or MPEG2 are supported.
For details p. 43
•
Movie View Mode
p1010004p1010003p1010002p1010001
p1010008p1010007p1010006p1010005
p1010012p1010011p1010010p1010009
MENU
Select
EXIT
Play
RETURN
select
view
No. Date & Time Duration
01/12/2006 22:12 00h01m01s
1
01/12/2006 22:20 00h01m11s
2
01/12/2006 22:25 00h01m31s
3
01/12/2006 22:28 00h01m00s
4
09/02/2007 11:10 00h00m36s
5
09/02/2007 11:12 00h00m44s
6
09/02/2007 11:13 00h00m27s
7
09/02/2007 11:14 00h00m37s
8
09/02/2007 11:16 00h00m14s
9
Title : Trip
Scene : Japan
Selected movie
(List)
32
TV
ŶTo return to TV
EXIT
Single view
Rotate
Rotate
Slide show
Operation guide
EXIT Select List
SD CARD
or
To sort by date or month recorded
(Sort by Month / Sort by Date)
Display the thumbnail grouped by the same date or the same month
( Sort by Month)
yellow
( Sort by Date)
blue
The group of the photos without record
•
of the date is shown as “Unknown”.
select the group to be viewed
view the thumbnail of
the selected group
View
Displayed one at a time
To display / hide the operation guide
•
•
OPTION
or
To the previous photo
Rotate 90˚ (anti-clockwise)
To the next photo
Rotate 90˚ (clockwise)
To return to thumbnail
RETURN
View
Playback will start
To display the operation guide
•
red
green
yellow
To hide the operation guide
•
Pause
EXIT
Search
RETURN
Play
Stop
Skip
Operation guide
Rewind
Pause / Playback
Playback
Fast forward
blue
or
Ŷ Stop
To the previous movie
•
To the next movie
•
To return to list (stop)
•
To display information banner
•
To change aspect ratio
•
(only for the 4:3 movie content)
red
green
RETURN
SPECT
Page 33
(Photos and Movies)
For details on SD Cards p. 43
•
ŶTo removeŶTo insert
Note
Blue LED lights while SD Card is
•
inserted if set “SD Card LED” to “On” in Setup Menu (p. 23).
SD Card
Label surface
During the operation, no signals are output from any of the AV terminals. But the sound in Movie View can be
•
output from AUDIO OUT and DIGITAL AUDIO OUT terminals. “Date” shows the date on which the recording was made by the digital camera or digital video camera. The fi le
•
without record of the date is shown “**/**/****”.
Push until a click is heard
Slide show (Photo View)
Press the centre of the card
Blue LED
ŶStart Slide show (operate in step )
Select the photo for the first view Start Slide show
red
Note
Slide show is done within the same group if started from the view of the group.
•
ŶSlide show settings (operate in step )
Display the menu
MENU
Menu Item Adjustments / Configurations (alternatives)
Viewing
Setup
Interval Select slide show interval (5 / 10 / 15 / 30 / 60 / 90 / 120 seconds)
Select “Viewing Setup” Select the items and set
Main Menu
Viewing Setup
“Picture Menu” p. 22
•
access
select
Viewing Setup
Interval 5 seconds Repeat Off
To pause
•
To return to Single view
•
•
Viewing from SD Card
(Photos and Movies)
green
set
select
Repeat Slide show repeat (Off / On)
Audio Settings (Movie View)
You can enjoy the multi-channel sound via an amplifi er connected to DIGITAL AUDIO OUT terminal.
ŶTo confi rm or change the current sound status (while viewing movies)
Display the Option menu Change the sound (if the movie has multiple audio signals)
OPTION
Option Menu
Multi Audio Stereo
(Current sound status)
change
It may take several seconds to change
•
the sound.
ŶAudio output settings (operate in step )
Display the menu
MENU
Menu Item Adjustments / Configurations (alternatives)
Sound
SPDIF Selection
Select “Sound” Select “SPDIF Selection” and set
Main Menu
VIERA Link
Sound
Setup
Other items p. 22 and p. 23
•
SPDIF : A standard audio transfer fi le format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal
(Auto / PCM)
Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM. PCM
: Digital output signal is fi xed to PCM.
access
select
Sound Menu 1/2
Mode Music Bass Treble Balance Headphone Volume Surround Off Volume Correction Speaker Distance to Wall
SPDIF Selection Auto
Over 30cm
set
select
Advanced
33
Page 34
Link Functions
Q-Link
(
VIERA Link
)
Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 35) VIERA Link (HDAVI Control enables easy control, convenient recording, playback, etc. (p. 36 - 39) You can use Q-Link and VIERA Link functions together.
TM
) connects the TV and the equipment with VIERA Link function, and
ŶSummary of Q-Link and VIERA Link functions
Features
Preset download Easy playback Power on link Power off link Speaker control Control the menu of the
connected equipment by VIERA remote control
Direct TV Recording Pause Live TV programme
    
Read the manual of the equipment, too.
:Available with the equipment which has “HDAVI Control 2” or “HDAVI Control 3” function. :Available with the equipment which has “HDAVI Control 3” function.
Connection
ŶQ-Link
SCART cable
Connect the DVD Recorder / VCR supporting Q-Link to the
•
TV’s AV1 or AV2 terminal via a fully wired SCART cable.
ŶVIERA Link
HDMI cable
SCART cable
Connect the equipment supporting VIERA Link to the TV’s AV1, AV2, HDMI1, HDMI2, HDMI3 or HDMI4
•
terminals via fully wired SCART and HDMI cables together. Some functions are available only with HDMI cable connection. But use both HDMI and SCART cables to
•
support many features normally.
Q-Link
(SCART connection)
O OO O OO O OO O
-
-
O
--
Connections
DVD Recorder / VCR with Q-Link function
DIGA Recorder / HD Video Camera with VIERA Link function
VIERA Link
(HDMI connection only)
∗∗
O
OO
∗
O
-
SCART cable
•
Use fully wired SCART cable.
HDMI cable
•
Use fully wired HDMI compliant cable.
Non-HDMI-compliant cables cannot be utilized. Recommended Panasonic’s HDMI cable part number:
• RP-CDHG10 (1.0 m)
• RP-CDHG15 (1.5 m)
• RP-CDHG20 (2.0 m)
• RP-CDHG30 (3.0 m)
• RP-CDHG50 (5.0 m)
(SCART and HDMI connection)
VIERA Link
O
∗
O
∗∗
O
∗∗
O
34
For Speaker control (Home Cinema)
To use Amplifi er
•
HDMI cable
Optical digital
audio cable
HDMI cable
HD Video Camera with VIERA Link function
RCA cable
SCART cable
or
Speaker system Speaker system
Amplifi er with VIERA Link function
HDMI cable
DIGA Recorder with VIERA Link function
To use Player theatre
•
HDMI cable
Optical digital
audio cable
or
RCA cable
Player theatre with
VIERA Link function
Page 35
Q-Link
ŶPreparations
Connect the DVD Recorder / VCR with the following logos:
•
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK” Q-Link connection p. 34
•
Set up the DVD Recorder / VCR. Read the manual of the equipment.
•
Q-Link terminal setup in Setup Menu “Q-Link” (p. 23), “AV1 / AV2 out” (p. 23)
•
Download preset - programme, language, country / region setting (Preset download)
•
“Download” (p. 23) or “Auto Setup” (p. 27) or “Auto Setup” - when first using the TV (p. 12)
ŶFeatures available
Some recorders are not applicable. Read the manual of the recorder.
Recording the current programme in DVD Recorder / VCR immediately.
Available conditions:
•
Current mode Using tuner How to record
TV
AV (watching recorder’s
tuner)
DIRECT TV REC
Direct TV Recording -
What you see is What you record
AV (watching recorder’s
external input)
AV (watching TV’s
external input)
When Direct TV Recording is performed, the
•
recorder is automatically turned on if it is in Standby mode. Changing programme or turning off the TV is
•
available while the recorder is recording from its own tuner. Changing programme is not available while the
•
recorder is recording from the TV tuner. Turning off the TV will stop the recording if the
•
recording from an AV source connected to the TV.
TV TV monitor out
Recorder Recorder’s tuner
Recorder Recorder’s tuner
-
-
Recorder’s
external input
TV monitor out
(Q-Link / VIERA Link)
•
Link Functions
Information / Message
Power on link and Easy playback
Power off link
• “DATA LOGIC” (a trademark of Metz Corporation) • “Megalogic” (a trademark of Grundig Corporation)
• “Easy Link” (a trademark of Philips Corporation) • “SMARTLINK” (a trademark of Sony Corporation)
Recording information or if recording is not possible, a message is displayed.
Set Power on Link “Set” in Setup Menu to use this function
“Power on Link” (p. 23) When DVD Recorder / VCR starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when TV is in Standby mode.)
Set Power off Link “Set” in Setup Menu to use this function
“Power off Link” (p. 23) When TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or DVD is not active.)
This function will work even if the TV enters standby mode automatically by Off Timer
•
function or auto power standby function.
Advanced
35
Page 36
Link Functions
Q-Link
(
VIERA Link
)
VIERA Link “ ControlTM”
Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 3” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically. These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
Some functions are not available depending on the equipment’s version of HDAVI Control. Please confi rm the
•
connected equipment’s version of HDAVI Control. VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard
•
known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function. About applicable Panasonic equipment, consult your local Panasonic dealer.
ŶPreparations
Connect the equipment supporting VIERA Link.
•
VIERA Link connection p. 34
•
Set up the connected equipment. Read the manual of the equipment.
•
For optimal recording, the settings of the recorder might be required. For details, read the manual of the
•
recorder. Download preset - programme, language, country / region setting (Preset download)
•
“Download” (p. 23) or “Auto Setup” (p. 27) or “Auto Setup” - when first using the TV (p. 12)
Set VIERA Link On in Setup Menu “VIERA Link” (p. 23)
•
Set up the TV
•
After connection, turn the equipment on and then switch the TV on.
Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p. 18), and make sure that an image is
displayed correctly.
This setup should be done each time when the following conditions occur:
• for the first time
• when adding or reconnecting equipment
• when changing setup
ŶFeatures available
Easy playback
Power on link
Power off link
Automatic Input switching - When the connected equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.
Set Power on Link “Set” in Setup Menu to use this function
When the connected equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when TV is in Standby mode.)
Set Power off Link “Set” in Setup Menu to use this function
When TV is set to Standby mode, the connected equipment is also automatically set to Standby.
•
“Power on Link” (p. 23)
“Power off Link” (p. 23)
This function will work even if the TV enters standby mode automatically by Off Timer function or auto power standby function.
36
Page 37
ŶFeatures available (Using VIERA Link Menu)
You can pause the live TV programme and resume later.
This function is available with DIGA Recorder which has HDD and “HDAVI Control 3”
•
function. Connect DIGA Recorder with both HDMI and SCART cables to use this function.
•
If you cannot operate, check the settings and the equipment “Preparations” (p. 36)
•
Access and pause the live TV programme
Display “VIERA Link Menu”
INPUT
SD CARD
OPTION
Pause Live TV
EXIT
Select “Pause Live TV” and pause
programme
HDAVI Control 3
and
(
Recorder with HDD
Pause Live
TV
)
RETURN
•
ŶTo resume (stop pause)
Select “Pause Live TV” and access
•
VIERA Link Menu
Pause Live TV
Direct TV Rec VIERA Link Control
Speaker Selection Speaker Selection
Live TV programme is recorded on HDD from where it was paused.
About the operations after resuming, read the manual of the equipment.
Access Start Recorder
Home Cinema Home Cinema
pause
select
resume
select
(Q-Link / VIERA Link)
•
Link Functions
Direct TV Recording -
What you see is What you record (HDAVI Control 3)
Direct TV
Rec
ŶTo return to Live TV
(cancel pause or resumed playback)
(change the input mode)
If you cancel pause or resumed playback, the recorded
•
programme will be deleted from HDD.
Recording the current programme in DIGA Recorder immediately.
This function is available with DIGA Recorder which has “HDAVI Control 3” function.
•
Connect DIGA Recorder with both HDMI and SCART cables to use this function.
•
If you cannot operate, check the settings and the equipment “Preparations” (p. 36)
•
Changing programme or turning off the TV is available while the recorder is recording
•
from its own tuner. Changing programme is not available while the recorder is recording from the TV tuner.
•
Turning off the TV will stop the recording if the recording from an AV source connected to
•
the TV.
Display “VIERA Link Menu”
Select “Direct TV Rec” and start recording
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection Speaker Selection
You can also start recording directly
•
Start Recorder
Home Cinema Home Cinema
start
select
DIRECT TV REC
Advanced
ŶTo stop recording
Select “Stop” in “Direct TV Rec” and access
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection Speaker Selection
Stop Recorder
Home Cinema Home Cinema
select
stop
37
Page 38
Link Functions
ŶFeatures available (Using VIERA Link Menu)
You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s signal receiver).
This function is available with the equipment which has “HDAVI Control 2” or
•
“HDAVI Control 3” function. If you cannot operate, check the settings and the equipment “Preparations” (p. 36)
•
Access and operate the menu of the equipment
Display “VIERA Link Menu”
Select “VIERA Link Control”
VIERA Link Menu
Pause Live TV Direct TV Rec
VIERA Link Control
Speaker Selection
Select the equipment you want to access
“Home Cinema” means Player theatre,
•
Recorder theatre and Amplifi er.
VIERA Link Menu
Pause Live TV Direct TV Rec
VIERA Link Control
Speaker Selection
Recorder / Player / Home Cinema / Video Camera
The type of the connected equipment is displayed. Select the type of the equipment and access.
The menu of the accessed equipment
(Input mode will be changed automatically)
Operate the menu of the equipment
Available VIERA remote control buttons
•
(depending on the connected equipment):
Control the menu of the connected equipment by VIERA remote control
HDAVI Control 2
(
HDAVI Control 3
VIERA Link
Control
INPUT
SD CARD
OPTION
EXIT
RETURN
ŶIf you access
the invalid equipment
When the equipment with “HDAVI Control” function is
)
connected
VIERA Link Menu
Pause Live TV Direct TV Rec
VIERA Link Control
Speaker Selection
Recorder / Player / Home Cinema / Video Camera
The type of the connected equipment is displayed. But you cannot access it. Use its own remote control to operate the equipment.
Start Recorder Home Cinema
Q-Link
(
VIERA Link
Start Recorder Home Cinema
Start Recorder Home Cinema
select
access
Move the cursor / select the menu
Move the cursor / access / adjust
)
select
38
When the equipment of other types or manufacturers is connected
VIERA Link Menu
Pause Live TV Direct TV Rec
VIERA Link Control
Speaker Selection
“Others” is displayed. You cannot access it. Use its own remote control to operate the equipment.
Start Others Home Cinema
Others
Store / set / access
RETURN
EXIT
OPTION
red
green
yellow
About the operations for the equipment, read
•
the manual of the equipment.
Return to the previous menu
Exit the menu
Display the operation guide for the equipment / The same functions with the OPTION button of the equipment
Access when the key words are
blue
displayed on colour bar
Page 39
ŶFeatures available (Using VIERA Link Menu)
You can control the theatre speaker with this TV remote control (point the remote control at the TV’s signal receiver).
This function is available with the Amplifi er or Player theatre which has “HDAVI Control”
•
function. If you cannot operate, check the settings and the equipment “Preparations” (p. 36)
•
Access and control the speaker volume
Speaker control
Speaker
Selection
INPUT
OPTION
SD CARD
EXIT
RETURN
Display “VIERA Link Menu”
Select “Speaker Selection”
VIERA Link Menu
Pause Live TV Direct TV Rec VIERA Link Control
Speaker Selection
Speaker Selection
Set to “Home Cinema” or “TV”
Start Recorder
Home Cinema Home Cinema
ŶHome Cinema
Amplifier or Player theatre will be automatically turned on if it is in Standby mode and the sound is from theatre speakers connected to the equipment.
Volume up / down
•
select
set
(Q-Link / VIERA Link)
•
Link Functions
Mute
•
The sound of TV speakers is mute.
•
When the equipment is turned off, TV speakers
•
will be active.
ŶTV
TV speakers are active.
TV
Note
This function may not work properly depending on the connected equipment.
•
Image or sound may not be available for the fi rst few seconds when the playback starts.
•
Image or sound may not be available for the fi rst few seconds when Input mode is switched.
•
Volume function will be displayed when adjusting the volume of the equipment.
•
Easy playback is also available by using the remote control for Amplifi er or Player theatre. Read the manual of
•
the equipment. About HDMI cable for connecting Panasonic HD Video Camera, read the manual of the equipment.
•
If more than one equipment of the same type are connected to the TV by HDMI cables, for example two DIGA
•
Recorders to HDMI1 and HDMI2, VIERA Link will only be available for the lower terminal number, in this case HDMI1.
“HDAVI Control 3” is the newest standard (current as of December, 2007) for HDAVI Control compatible
•
equipment. This standard is compatible with conventional HDAVI equipment.
To confi rm this TV’s version of HDAVI Control “System Information” (p. 23)
•
If you wish to enjoy the multi-channel sound
•
(e.g. Dolby Digital 5.1ch) via an Amplifi er, connect with HDMI cable and Optical digital audio cable (p. 34), and then select “Home Cinema”. To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an HDMI cable from the DIGA Recorder to the Amplifi er (p. 34).
Advanced
39
Page 40

External Equipment

These diagrams show our recommendations for how to connect the TV to your various equipment. For other connections, consult the instructions for each piece of equipment, the table below, and the specifi cations (p. 47).
AV3
HDMI4
LR
V
S-V
(Viewing)
(Listening)
To watch DVDs
DVD player
AUDIO
OUT
LRL
COMPONENT
AUDIO
IN
Y
PB
P
R
R
PC
RGB VIDEO
AV2AV1
RGB VIDEO S VIDEO
HDMI 1 HDMI 2 HDMI 3
DIGITAL
AUDIO
OUT
Conversion adapter (if necessary)
(Viewing)
(Listening)
PC
Computer
40
ŶTypes of connectable equipment to each terminal
AV1 AV2 AV3 (Front of TV)
Terminal
Recording / Playback (equipment)
To record / playback videocassettes / DVDs (VCR / DVD recorder)
To watch DVDs (DVD player) To watch camcorder images (Video camera) To watch satellite broadcasts (Set top box) To play games (Game equipment) To use amplifi er with speaker system Q-Link
VIERA Link
Direct TV Recording
: Recommended Connection
(with HDMI) (with HDMI)
Page 41
Headphones
ŶTo adjust volume
“Headphone Volume” in the Sound Menu (p. 22)
(M3 stereo mini plug)
Fully wired HDMI compliant cable
(AUDIO)
(VIDEO)
or
(S-VIDEO)
Camcorder /
Game equipment
HDMI equipment
“HDMI connection” (p. 42)
Camcorder /
HDMI equipment
To record / playback
DVD Recorder / VCR
To watch
SCART cable
Fully wired HDMI
compliant cable
broadcasts
Set top box
satellite
SCART
cable
RF
cable
or
•
External Equipment
Fully wired HDMI compliant cable
COMPONENT
L
R
To listen with speakers
DVD Recorder
Optical digital audio cable
or
RCA cable
Amplifier with speaker system
AUDIO OUT
Y
PB
P
R
L
R
DIGITAL AUDIO OUT
1234
Advanced
41
Page 42

Technical Information

Auto Aspect
The optimum size and aspect can be chosen, and you can enjoy fi ner images. (p. 15)
ŶAuto
Auto aspect determines the best aspect ratio to use to fi ll your screen. It does this using a four step process to determine if the picture being viewed is a widescreen picture. If Auto aspect detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Auto aspect does not detect a widescreen signal then this advanced TV enhances the picture for optimum viewing pleasure. The text shown on the screen indicates how Auto aspect determined which ratio to use: “WIDE” appears in the top left of the screen if a widescreen identifi cation signal (WSS) is found or a signal found through a SCART or HDMI terminal. Auto aspect switches to the appropriate 16:9 or 14:9 widescreen ratio. This function will also work in any aspect mode. “Auto” appears in the top left of the screen if black stripes above and below the picture are detected. Auto aspect chooses the best ratio and expands the picture to fi ll the screen. This process can take several minutes, depending on the darkness of the picture.
Aspect Control Signal
Signal name
PAL PAL 525/60 M.NTSC NTSC (AV input only)
525(480)/60i
SD
525(480)/60p 625(576)/50i 625(576)/50p 750(720)/50p 750(720)/60p 1125(1080)/50i
HD
1125(1080)/60i 1125(1080)/50p 1125(1080)/60p 1125(1080)/24p
Widescreen signal (WSS)
TV AV1 AV2 AV3 COMPONENT AV1 AV2 HDMI1 HDMI2 HDMI3 HDMI4
OOOO O O
----
----
----
-
-
OOOOO OOOOO
-
-
-
-
-
-
-
Control signal through SCART (pin 8) or HDMI terminal
OO OO OO
OOOO OOOO
OOOO OOOO OOOO OOOO OOOO OOOO OOOO
42
Note
The ratio varies depending on the programme, etc. If the ratio is greater than the standard “16:9”, black bands
•
may appear at the top and bottom of the screen. If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the
•
tracking of the VCR. (See the VCR manual.)
HDMI connection
HDMI (high-defi nition multimedia interface) allows you to enjoy high-defi nition digital images and high-quality sound by connecting the TV and the equipment. HDMI-compatible equipment (1) with an HDMI or DVI output terminal, such as a DVD player, a set top box or a game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. About connections, see “External Equipment” (p. 40).
Note
HDMI is the world’s fi rst complete digital consumer AV interface complying with a non-compression standard.
•
If the external equipment has only a DVI output, connect to the HDMI1 / 4 terminal via a DVI to HDMI adapter
•
cable (2). When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use
•
COMPONENT-AUDIO terminals / HDMI4: use AV3 audio terminals). Audio settings can be made on the “HDMI1 / 4 Input” menu screen. (p. 22)
•
Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz
•
HDMI2 and HDMI3 terminals are for digital audio signal only.
•
Use with a PC is not assumed.
•
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
•
These HDMI connectors are “type A”.
•
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright
•
protection. An equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”,
•
“S-VIDEO”, or “VIDEO” to receive analogue signals. The HDMI input terminal can be used with only the following image signals:
•
480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment. For details of the applicable HDMI signals, see p. 44.
•
This TV incorporates HDMITM (Version 1.3 with Deep Colour, x.v.ColorTM) technology.
•
( (
1): The HDMI logo is displayed on HDMI-compliant equipment.
2): Enquire at your local digital equipment retailer shop.
Page 43
SD Card
ŶCautions in handling SD Card
Do not remove the card while the TV is accessing data (this can damage card or TV).
•
Do not touch the pins on the back of the card.
•
Do not subject the card to a high pressure or impact.
•
Insert the card in the correct direction (otherwise, card may be damaged).
•
Electrical interference, static electricity, or erroneous operation may damage the data or card.
•
Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of
•
the TV. (Panasonic is not liable for any deterioration or damage of recorded data.)
ŶData format for Card browsing
Photo : Still images recorded with digital still cameras compatible with JPEG files of DCF and EXIF standards
Movie : SD-Video Standard Ver. 1.2 [MPEG-2 (PS format)] and AVCHD Standard compatible files with an audio
•
•
•
Note
Format the card with the recording equipment.
•
The picture may not appear correctly on this TV depending on the recording equipment used.
•
Display may take some time when there are many fi les and folders.
•
This function cannot display Motion JPEG and still image not DCF formatted (i.e. TIFF, BMP).
•
A data modifi ed with a PC may not be displayed.
•
Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.
•
Partly degraded fi les might be displayed at a reduced resolution.
•
All “.JPG” extension datas in the card will be read in Photo View Mode.
•
The folder and fi le names may be different depending on the digital camera used.
•
Do not use two-byte characters or other special codes.
•
The card may become unusable with this TV if the fi le or folder names are changed.
•
Data format - Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0) Max. number of files - 9,999 Image resolution - 160 × 120 to 10,000,000
format that is either MPEG-1/Layer-2 format or Dolby Digital format
(A modified data with a PC may not be displayed correctly.) Compliant card type (maximum capacity): SDHC Card (32 GB), SD Card (2 GB), Multi Media Card (128 MB), miniSD Card (2 GB) (requiring miniSD adapter) If miniSD Card is used, insert / remove it together with the adapter. Check the latest information on the card type at the following website. (English only) http://panasonic.co.jp/pavc/global/cs/
DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).
ŶOn screen messages
Message Meaning / Action
Cannot read fi le
Confi rm SD card
Is SD Card in?
No valid fi le to play
Over 9999 pictures found
This operation is not possible
SCART, S-VIDEO and HDMI terminal information
ŶAV1 SCART terminal
(RGB, VIDEO, Q-Link)
Suitable inputs for AV1 include RGB (Red / Green / Blue).
The fi le is broken or unreadable.
•
The TV does not support the format. (For the applicable formats and data, see above.)
•
The inserted SD card has a problem.
•
Insert a SD Card.
•
The card has no data.
•
Maximum valid number of photos is 9,999.
•
Your operation is not available.
•
ŶAV2 SCART terminal
(RGB, VIDEO, S-VIDEO, Q-Link)
AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.
•
Technical Information
Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1
20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -­10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)
Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in, S.C. - in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1
ŶAV3 S-VIDEO 4 pin terminal ŶHDMI terminal
Chrominance in Luminance in
Chrominance earth Luminance earth
Hot Plug Detect 19 DDC/CEC Ground 17 SCL 15 CEC 13 TMDS Clock Shield TMDS Data0í 9 TMDS Data0+ 7 TMDS Data1 Shield 5 TMDS Data2í 3 TMDS Data2+ 1
11
20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -­10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)
18 +5V Power 16 SDA
Reserved (in cable but N.C. on device)
14 12 TMDS Clockí 10 TMDS Clock+ 8 TMDS Data0 Shield 6 TMDS Data1í 4 TMDS Data1+ 2 TMDS Data2 Shield
FAQs, etc.
43
Page 44
Technical Information
PC connection
A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.
PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency
•
59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image). A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.
•
Note
Some PC models cannot be connected to this TV.
•
When using PC, set the colour display quality of PC to the highest position.
•
For details of the applicable PC signals, see below.
•
Max. display resolution
•
Aspect
D-sub 15-pin connector signal
•
16:9
45
10
15 14 13 12 11
1,440 × 1,080 pixels
4:3
1,920 × 1,080 pixels
1
2
67839
Pin No.
Signal Name
R GND (Ground) NC (not connected) G GND (Ground) NC (not connected)
B GND (Ground) HD
NC (not connected) NC (not connected) VD
GND (Ground) GND (Ground) NC (not connected)
Pin No.
Signal Name
Pin No.
Signal Name
Input signal that can be displayed
COMPONENT (Y, PB, PR), HDMI
Mark: Applicable input signal
Signal name COMPONENT HDMI
525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p 1,125 (1,080) / 50p 1,125 (1,080) / 24p
PC (D-sub 15P)
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 400 @70 Hz 31.47 70.07 640 × 480 @60 Hz 31.47 59.94 640 × 480 @75 Hz 37.50 75.00 800 × 600 @60 Hz 37.88 60.32 800 × 600 @75 Hz 46.88 75.00 800 × 600 @85 Hz 53.67 85.06 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 Hz 48.36 60.00 1,024 × 768 @70 Hz 56.48 70.07 1,024 × 768 @75 Hz 60.02 75.03 1,024 × 768 @85 Hz 68.68 85.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,366 × 768 @60 Hz 48.39 60.04 Macintosh13” (640 × 480) 35.00 66.67 Macintosh16” (832 × 624) 49.73 74.55 Macintosh21” (1,152 × 870) 68.68 75.06
       
  
44
Note
Signals other than above may not be displayed properly.
•
The above signals are reformatted for optimal viewing on your display.
•
Applicable input signal for PC is basically compatible to VESA standard timing.
•
PC signal is magnifi ed or compressed for display, so that it may not be possible to show fi ne detail with suffi cient
•
clarity.
Page 45

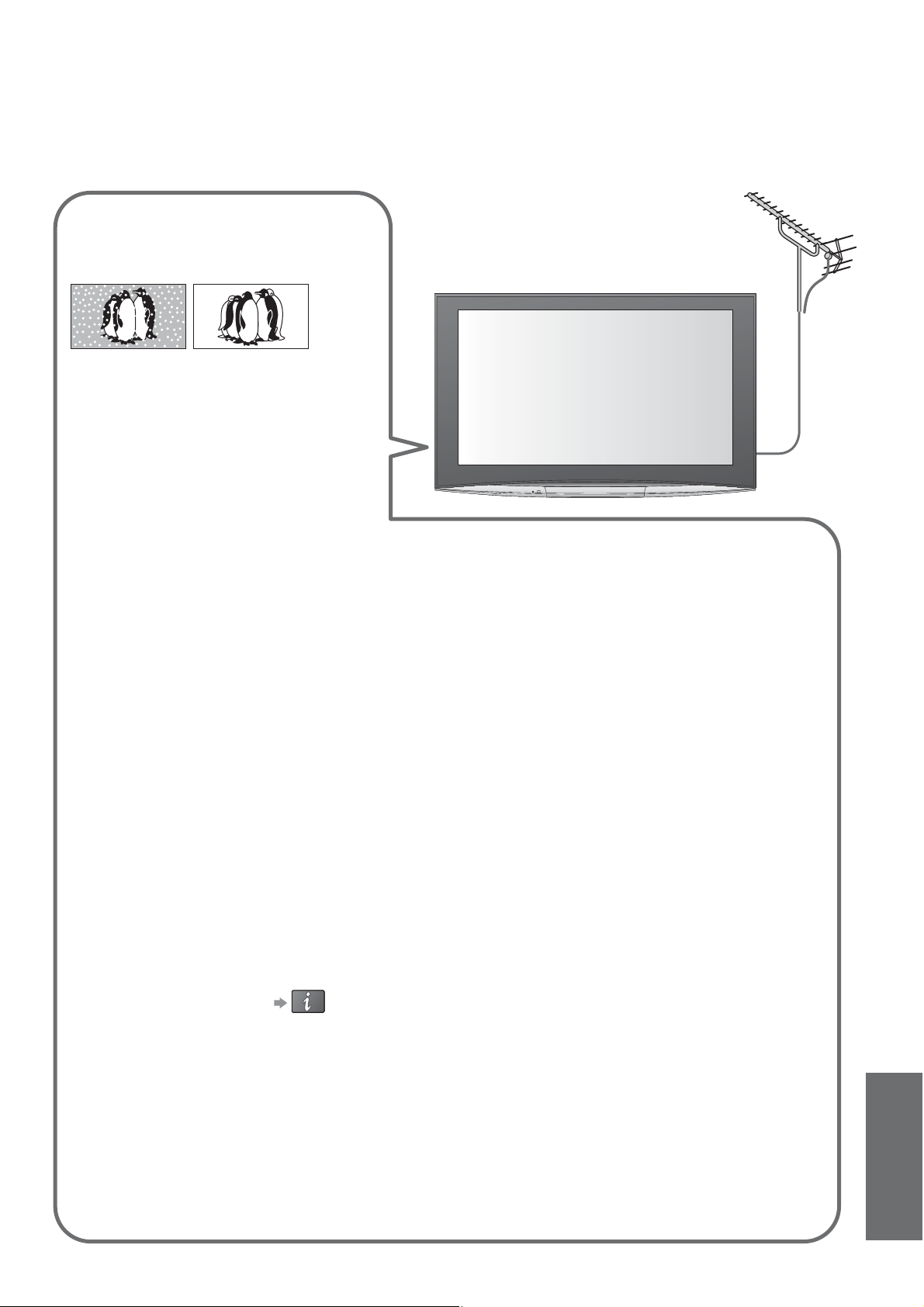

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance.
White spots or shadow images (noise)
Check the position, direction, and
•
connection of the aerial.
Neither image nor sound is produced
Is the TV in “AV mode”?
•
Is the mains lead plugged into the socket
•
outlet? Is the TV turned On?
•
Check Picture Menu (p. 22) and volume.
•
Check all required SCART cables and
•
connections are fi rmly in place.
Q-Link function does not work
Please confi rm SCART cable and connection. Also
•
please set “AV1 / AV2 out” in the Setup Menu (p. 23).
Auto aspect
Auto aspect is designed to provide you
•
with the best aspect ratio to use to fi ll your screen. For user control please see p. 42.
S-Video / black and white picture
Using AV button please confi rm your
•
selection is S-Video I.e. AV2/S (p. 18).
On Screen messages
- I.e. EC/AV1
You can simply clear these
•
Press again to redisplay.
An error message appears
Follow the message’s instructions.
•
If the problem persists, contact the
•
authorized Service Centre.
“VIERA Link” function does not work and an error message appears
Confi rm the connection.
•
Turn the connected equipment on and then switch the TV
•
on. (p. 36)
Recording does not start immediately
Check the settings of the recorder. For details, read the
•
manual of the recorder.
Permanently lit spots on screen
Due to production process involved in this technology
•
this may result in some pixels which are permanently lit or unlit. This is not a malfunction.
Contrast is reduced
Contrast is lowered in the following conditions without
•
any user operation for a few minutes:
Ɣ no signal in AV mode Ɣ selected locked programme Ɣ selected invalid programme Ɣ displayed menu Ɣ Thumbnail, list or still picture in SD Card mode
•
Frequently Asked Questions
•
Technical Information
FAQs, etc.
45
Page 46
FAQs
Problem Actions
Chaotic image, noisy
Set “P-NR” in the Picture Menu (to remove noise). (p. 22)
•
Check nearby electrical products
•
(car, motorcycle, fl uorescent lamp).
No image can be
Screen Sound HDMI
displayed
Blurry or distorted image
(no sound or low volume)
Unusual image is displayed
No sound is produced
Sound level is low or sound is distorted
Is “Colour” or “Contrast” in the Picture Menu set to the minimum?
•
(p. 22) Check Colour System. (p. 27)
•
Reset programme. (p. 27)
•
Turn off the TV with Mains power On / Off switch, then turn it On
•
again.
Is “Sound mute” active? (p. 9)
•
Is the volume set to the minimum?
•
Sound signal reception may be deteriorated.
•
Set “MPX” (p. 22) in the Sound Menu to “Mono”.
•
Whirling sound is heard
Sound is unusual
Pictures from external equipment are unusual when the equipment is connected via HDMI
TV goes into “Standby mode”
Other
The remote control does not work
The sound is from built-in cooling fan
•
(not a sign of faulty operation).
Set the sound setting of the connected equipment to
•
“2ch L.PCM”. Check the “HDMI1 / 4 Input” setting in the Sound Menu. (p. 22)
•
If digital sound connection has a problem, select analogue sound
•
connection. (p. 42)
Is the HDMI cable connected properly? (p. 40)
•
Turn Off the TV and equipment, then turn them On again.
•
Check an input signal from the equipment. (p. 44)
•
Use an equipment compliant with EIA/CEA-861/861B.
•
Off Timer function is activated.
•
The TV enters “Standby mode” about 30 mins. after broadcasting
•
ends.
Are the batteries installed correctly? (p. 6)
•
Has the TV been switched On?
•
46
Page 47
Specifi cations
TH-58PY800P TH-65PY800P
Power Source
Power
Consumption
Average use
AC 220-240 V, 50 / 60 Hz
635 W 700 W
Standby condition
Display
panel
Aspect Ratio
Visible screen size
Number of pixels
Sound
Speaker Audio Output Headphones
PC signals
Receiving Systems / Band name
Aerial - Rear
Operating Conditions
Connection Terminals
AV1 (Scart terminal) AV2 (Scart terminal)
VIDEO
AV3
COMPONENT
Others
Output
Dimensions ( W × H × D )
Mass
S-VIDEO AUDIO L - R
VIDEO
AUDIO L - R
HDMI1 / 2 / 3 / 4
PC
Card slot AUDIO L - R
DIGITAL AUDIO OUT
0.4 W
16:9 147 cm (diagonal)
1,284 mm (W) × 723 mm (H) 2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots] Woofer (ĭ 80 mm) × 2 pcs, Tweeter (23 mm × 100 mm) × 2 pcs 31 W (15.5 W + 15.5 W), 10 % THD M3 (3.5 mm) stereo mini Jack × 1 VGA, SVGA, XGA
SXGA ······ (compressed) Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz
PAL B, G, H, I, SECAM B, G, SECAM L / L’
VHF E2 - E12 VHF H1 - H2 (ITALY) VHF A - H (ITALY) UHF E21 - E69 CATV (S01 - S05) CATV S1 - S10 (M1 - M10) CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)
PAL D, K, SECAM D, K
VHF R1 - R2 VHF R3 - R5 VHF R6 - R12 UHF E21 - E69
PAL 525/60 Playback of NTSC tape from some PAL Video re corders (VCR) M.NTSC Playback from M. NTSC Video recorders (VCR) NTSC (AV input only) Playback from NTSC Video recorders (VCR)
VHF / UHF
Temperature : 0 °C - 35 °C Humidity : 20 % - 80 % RH (non-condensing)
21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link) RCA PIN Type × 1 1.0 V[p-p] (75 :) Mini DIN 4-pin Y:1.0 V[p-p] (75 :) C:0.286 V[p-p] (75 :) RCA PIN Type × 2 0.5 V[rms]
Y 1.0 V[p-p] (including synchronization) P
B, PR ±0.35 V[p-p]
RCA PIN Type × 2 0.5 V[rms] TYPE A Connectors HDMITM (Version 1.3 with Deep Colour, x.v.ColorTM)
This TV supports “HDAVI Control 3” function.
•
HIGH-DENSITY D-SUB 15PIN R,G,B/0.7 V[p-p] (75 :) HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)
SD Card slot × 1 RCA PIN Type × 2 0.5 V[rms] (high impedance)
PCM / Dolby Digital, Fiber optic
1,445 mm × 949 mm × 409 mm (With Pedestal) 1,445 mm × 898 mm × 109 mm (TV only)
Net (With Pedestal)
63.5 k
59.0 k Net (TV only)
165 cm (diagonal) 1,434 mm (W) × 807 mm (H)
1,599 mm × 993 mm × 109 mm
73.0 k Net
•
Frequently Asked Questions
•
Specifi cations
Note
Design and Specifi cations are subject to change without notice. Mass and Dimensions shown are approximate.
•
This equipment complies with the EMC standards listed below.
•
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024. Pedestal: ST-58R4-WL (For safety approval)
•
This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
FAQs, etc.
47
Page 48
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Licence

VGA is a trademark of International Business Machines Corporation.
•
Macintosh is a registered trademark of Apple Inc., USA.
•
S-VGA is a registered trademark of the Video Electronics Standard Association.
•
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected. SDHC Logo is a trademark.
•
HDMI, the HDMI Logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI
•
Licensing LLC. HDAVI ControlTM is a trademark of Matsushita Electric Industrial Co., Ltd.
•
x.v.ColorTM is a trademark.
•
“AVCHD” and the “AVCHD” logo are trademarks of Matsushita Electric Industrial Co., Ltd. and Sony Corporation.
•
Manufactured under license from Dolby Laboratories.
•
Dolby and the double-D symbol are trademarks of Dolby Laboratories. TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc.
•
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identifi cation in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Matsushita Electric Industrial Co., Ltd.
Web Site : http://www.panasonic-europe.com
2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
¤
Printed in Czech Republic
Loading...
