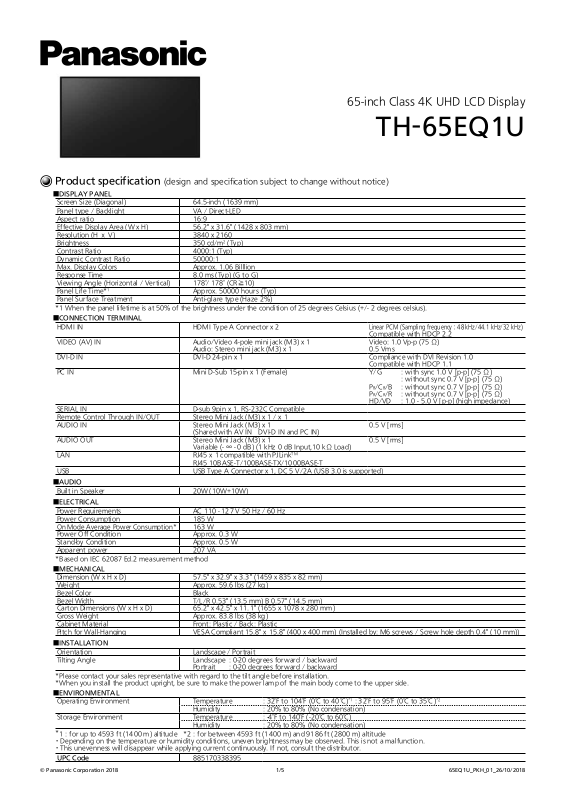

Panasonic TH-65EQ1U Specifications
65-inch Class 4K UHD LCD Display
TH-65EQ1U
Product specification (design and specification subject to change without notice)
■DISPLAY PANEL
|
Screen Size (Diagonal) |
64.5-inch (1639 mm) |
|
|
|
|
Panel type / Backlight |
VA / Direct-LED |
|
|
|
|
Aspect ratio |
16:9 |
|
|
|
|
Effective Display Area (W x H) |
56.2" x 31.6" (1428 x 803 mm) |
|
|
|
|
Resolution (H V) |
3840 x 2160 |
|
|
|
|
Brightness |
350 cd/m2 (Typ) |
|
|
|
|
Contrast Ratio |
4000:1 (Typ) |
|
|
|
|
Dynamic Contrast Ratio |
50000:1 |
|
|
|
|
Max. Display Colors |
Approx. 1.06 Billlion |
|
|
|
|
Response Time |
8.0 ms (Typ) (G to G) |
|
|
|
|
Viewing Angle (Horizontal / Vertical) |
178°/ 178°(CR 10) |
|
|
|
|
Panel Life Time*1 |
Approx. 50000 hours (Typ) |
|
|
|
|
Panel Surface Treatment |
Anti-glare type (Haze 2%) |
|
|
|
*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius). |
|||||
■CONNECTION TERMINAL |
|
|
|
|
|
|
HDMI IN |
HDMI Type A Connector x 2 |
Linear PCM (Sampling frequency 48 kHz/44.1 kHz/32 kHz) |
||
|
|
|
|
Compatible with HDCP 2.2 |
|
|
VIDEO (AV) IN |
Audio/Video 4-pole mini jack (M3) x 1 |
Video: 1.0 Vp-p (75 Ω) |
||
|
|
Audio: Stereo mini jack (M3) x 1 |
0.5 Vms |
|
|
|
DVI-D IN |
DVI-D 24-pin x 1 |
Compliance with DVI Revision 1.0 |
||
|
|
|
|
Compatible with HDCP 1.1 |
|
|
PC IN |
Mini D-Sub 15-pin x 1 (Female) |
Y/G |
: with sync 1.0 V [p-p] (75 Ω) |
|
|
|
|
|
|
: without sync 0.7 V [p-p] (75 Ω) |
|
|
|
|
PB/CB/B : without sync 0.7 V [p-p] (75 Ω) |
|
|
|
|
|
PR/CR/R |
: without sync 0.7 V [p-p] (75 Ω) |
|
|
|
|
HD/VD |
: 1.0 - 5.0 V [p-p] (high impedance) |
|
SERIAL IN |
D-sub 9pin x 1, RS-232C Compatible |
|
|
|
|
Remote Control Through IN/OUT |
Stereo Mini Jack (M3) x 1 / x 1 |
|
|
|
|
AUDIO IN |
Stereo Mini Jack (M3) x 1 |
0.5 V [rms] |
||
|
|
(Shared with AV IN DVI-D IN and PC IN) |
|
|
|
|
AUDIO OUT |
Stereo Mini Jack (M3) x 1 |
0.5 V [rms] |
||
|
|
Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load) |
|
|
|
|
LAN |
RJ45 x 1 compatible with PJLinkTM |
|
|
|
|
|
RJ45 10BASE-T/100BASE-TX/1000BASE-T |
|
|
|
|
USB |
USB Type A Connector x 1, DC 5 V/2A (USB 3.0 is supported) |
|
||
■AUDIO |
|
|
|
|
|
|
Built in Speaker |
20W (10W+10W) |
|
|
|
■ELECTRICAL |
|
|
|
|
|
|
Power Requirements |
AC 110 - 127 V 50 Hz / 60 Hz |
|
|
|
|
Power Consumption |
185 W |
|
|
|
|
On Mode Average Power Consumption* |
163 W |
|
|
|
|
Power Off Condition |
Approx. 0.3 W |
|
|
|
|
Stand-by Condition |
Approx. 0.5 W |
|
|
|
|
Apparent power |
207 VA |
|
|
|
*Based on IEC 62087 Ed.2 measurement method |
|
|
|
||
■MECHANICAL |
|
|
|
|
|
|
Dimension (W x H x D) |
57.5" x 32.9" x 3.3" (1459 x 835 x 82 mm) |
|
|
|
|
Weight |
Approx. 59.6 lbs (27 kg) |
|
|
|
|
Bezel Color |
Black |
|
|
|
|
Bezel Width |
T/L/R 0.53" (13.5 mm) B 0.57" (14.5 mm) |
|
|
|
|
Carton Dimensions (W x H x D) |
65.2" x 42.5" x 11.1" (1655 x 1078 x 280 mm) |
|
|
|
|
Gross Weight |
Approx. 83.8 lbs (38 kg) |
|
|
|
|
Cabinet Material |
Front: Plastic / Back: Plastic |
|
|
|
|
Pitch for Wall-Hanging |
VESA Compliant 15.8" x 15.8" (400 x 400 mm) (Installed by: M6 screws / Screw hole depth 0.4" (10 mm)) |
|||
■INSTALLATION |
|
|
|
|
|
|
Orientation |
Landscape / Portrait |
|
|
|
|
Tilting Angle |
Landscape : 0-20 degrees forward / backward |
|
|
|
|
|
Portrait |
: 0-20 degrees forward / backward |
|
|
*Please contact your sales representative with regard to the tilt angle before installation.
*When you install the product upright, be sure to make the power lamp of the main body come to the upper side.
■ENVIRONMENTAL
Operating Environment |
Temperature |
: 32°F to 104°F (0 to 40 )*1 : 32°F to 95°F (0 to 35 )*2 |
|
Humidity |
: 20% to 80% (No condensation) |
Storage Environment |
Temperature |
: -4°F to 140°F (-20 to 60 ) |
|
Humidity |
: 20% to 80% (No condensation) |
*1 : for up to 4593 ft (1400 m) altitude *2 : for between 4593 ft (1400 m) and 9186 ft (2800 m) altitudeDepending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.This unevenness will disappear while applying current continuously. If not, consult the distributor.
UPC Code |
885170338395 |
© Panasonic Corporation 2018 |
1/5 |
65EQ1U_PKH_01_26/10/2018 |
65-inch Class 4K UHD LCD Display |
TH-65EQ1U |
MAIN FEATURE
USB Media Player |
Yes |
Failover/Failback |
Yes |
Data Cloning |
Yes |
Digital Zoom |
Yes |
Multi display settings |
Yes |
Power ON Screen Delay |
Yes |
1:1 Pixel mode |
Yes |
Screen Saver |
Yes |
Power Management |
HDMI/PC/DVI-D |
Power save |
Yes |
Button Lock |
Yes |
Controller user level |
Yes |
Input search / Input detection |
Yes |
6-segment color management |
Yes |
Picture mode |
Yes |
Dynamic contrast |
Yes |
Color enhancement |
Yes |
Refine enhancer |
Yes |
Gradation smoother |
Yes |
Dynamic backlight control |
Yes |
Set up timer |
Yes |
AMX D.D. |
Yes |
Crestron ConnectedTM |
Yes |
WEB Browser control |
Yes |
PJLink |
Yes |
Image settings |
Yes |
HDMI CEC Compatible |
Yes |
Memory Viewer |
Yes |
Playlist Editing Function |
Yes |
Operating Time*1 |
18h / day |
*1 In case of running for a long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying movie images.
DIMENSIONS
STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS |
UL 60065:2015 Ed.8 |
|
CSA C22.2 No.60065:2016 Ed.2 |
|
Mexico: NOM-019-SCFI-1998 |
RADIATION REGULATIONS |
FCC 47 CFR, Part 15, Subpart B Class A |
|
ANSI C63.4-2014 |
|
ICES-003 |
REMOTE CONTROL TRANSMITTER
Power Requirements |
DC 3 V (2 x AAA Size batteries) |
Operating distance |
Approx. 23 ft (7 m)* |
Weight |
Approx. 2.2 oz (63 g) including batteries |
Dimemsions (W x H x D) |
1.9" x 5.3" x 0.8" (48 x 134 x 20 mm) |
*When operated directly in front of receptor.
INCLUDED ACCESSORIES
-Remote Control - Batteries (AAA size) x 2
-AC cord (approx. 78.7" (2.0 m)) - 4-pole mini plug conversion cable
-Clamper x 3 - USB Memory cover x 1
-CD-ROM / User Manual - Operating Instruction Book
COMPATIBLE SOFTWARE
Multi Monitoring & Control Software |
Ver.2.1 or later |
CMS Content Management Software |
Ver 3.2 or later |
Video Wall Manager |
Ver 1.9 or later |
OPTIONAL ACCESSORIES
Pedestal |
TY - ST55PE9 |
Wall-Hanging Bracket |
TY-WK98PV1 |
Early Warning Software* |
ET-SWA100 / 105series |
Basic license / 3-year license |
(Depending on the license type, the symbol |
|
at the end of the part number is different.) |
* Multi-Monitoring Control Software Ver 2.0 or later is required.

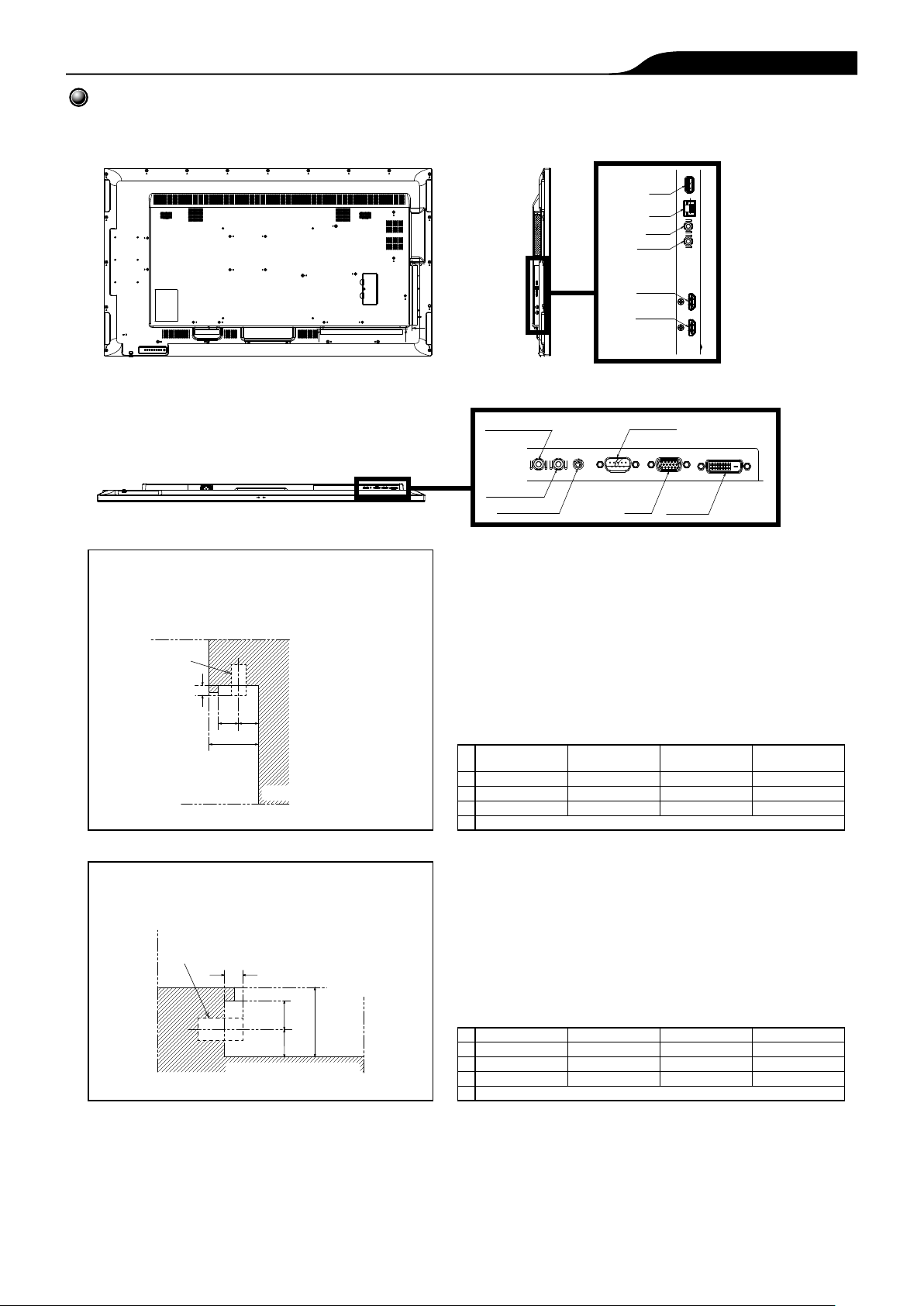

Cautions: This drawing is not a scale
Units : inches (mm)
|
|
|
|
|
3.3(82) |
|
15.8(400) |
||
32.9(835) |
0.6(14.5) |
57.5(1459) |
AreaActive |
2.1(52) |
1.2(30) |
8.3(209) |
17.9(453) |
17.1(433) |
|
0.6(13.5) |
31.6(803) |
4.4(112) |
15.8(400) |
11.4(289) |
8.3(208) |
||||
|
0.6(13.5) |
|
|
0.6(13.5) |
|
|
|
|
|
|
Active Area 56.2(1428) |
|
|
|
|
|
|
|
|
|
|
|
0.2(4) |
0.7(17) |
|
|
|
9.7(245) |
M6 Screw hole depth 10mm |
|
|
|
4.7(119) |
|
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
CONNECTION TERMINAL
* Specifications and appearance are subject to change without notice.
© Panasonic Corporation 2018 |
2/5 |
65EQ1U_PKH_01_26/10/2018 |
