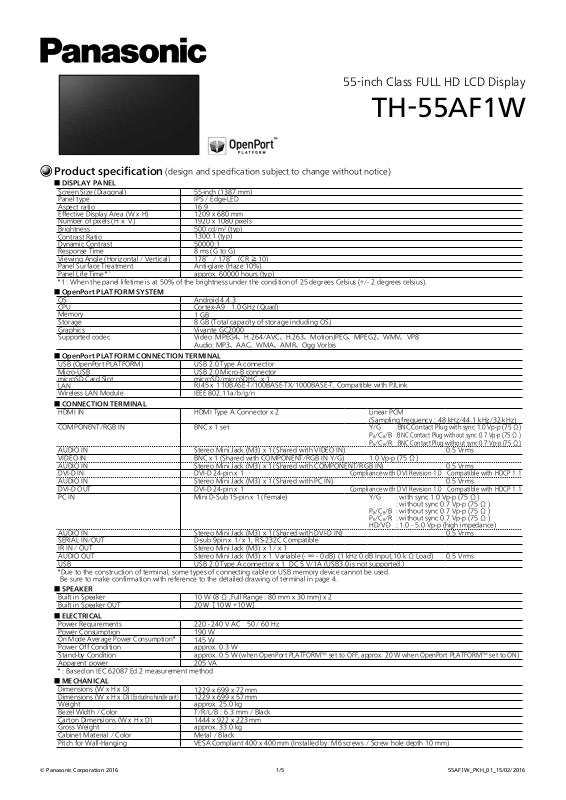

Page 1

55-inch Class FULL HD LCD Display

TH-55AF1W

(design and specification subject to change without notice)

Product specification

■ DISPLAY PANEL

Screen Size (Diagonal) 55-inch (1387 mm) Panel type IPS / Edge-LED Aspect ratio 16:9 Effective Display Area (W x H) 1209 x 680 mm Number of pixels (H ｘ V) 1920 x 1080 pixels Brightness 500 cd/m Contrast Ratio Dynamic Contrast Response Time 8 ms (G to G) Viewing Angle (Horizontal / Vertical) 178° / 178° (CR ≧ 10) Panel Surface Treatment Anti-glare (Haze 10%) Panel Life Time*

*1 : When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■ OpenPort PLATFORM SYSTEM

OS Android 4.4.3 CPU Memory Storage 8 GB (Total capacity of storage including OS) Graphics Supported codec Video: MPEG4、H.264/AVC、H.263、MotionJPEG、MPEG2、WMV、VP8

■ OpenPort PLATFORM CONNECTION TERMINAL

USB (OpenPort PLATFORM) USB 2.0 Type A connector Micro-USB USB 2.0 Micro-B connector

microSD Card Slot microSD/microSDHC x 1 LAN Wireless LAN Module

■ CONNECTION TERMINAL

HDMI IN HDMI Type A Connector x 2 Linear PCM

COMPONENT/RGB IN BNC x 1 set Y/G :

AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with VIDEO IN) VIDEO IN BNC x 1 (Shared with COMPONENT/RGB IN Y/G) 1.0 Vp-p (75 Ω ) AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with COMPONENT/RGB IN) DVI-D IN DVI-D 24-pin x 1 AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with PC IN) DVI-D OUT DVI-D 24-pin x 1 PC IN Mini D-Sub 15-pin x 1 (Female) Y/G

AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with DVI-D IN) SERIAL IN/OUT D-sub 9pin x 1/ x 1, RS-232C Compatible IR IN / OUT Stereo Mini Jack (M3) x 1 / x 1 AUDIO OUT Stereo Mini Jack (M3) x 1 Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 k Ω Load) 0.5 Vrms USB USB 2.0 Type A connector x 1 DC 5 V/1A (USB3.0 is not supported.）

*Due to the construction of terminal, some types of connecting cable or USB memory device cannot be used. Be sure to make confirmation with reference to the detailed drawing of terminal in page 4.

■ SPEAKER

Built in Speaker 10 W （8 Ω ,Full Range : 80 mm x 30 mm) x 2 Built in Speaker OUT 20 Ｗ［10 Ｗ +10 Ｗ］

■ ELECTRICAL

Power Requirements 220 - 240 V AC　50 / 60 Hz Power Consumption On Mode Average Power Consumption Power Off Condition approx. 0.3 W Stand-by Condition approx. 0.5 W Apparent power

* : Based on IEC 62087 Ed.2 measurement method

■ MECHANICAL

Dimensions (W x H x D) Dimensions (W x H x D) Weight approx. 25.0 kg Bezel Width / Color T/R/L/B : 6.3 mm / Black Carton Dimensions (W x H x D) 1444 x 922 x 223 mm Gross Weight approx. 33.0 kg Cabinet Material / Color Metal / Black Pitch for Wall-Hanging

(Excluding handle part)

1300:1 (typ) 50000:1

approx. 60000 hours (typ)

Cortex-A9　1.0 GHz (Quad) 1 GB

Vivante GC2000

Audio: MP3、AAC、WMA、AMR、Ogg Vorbis

RJ45 x 1 10BASE-T/100BASE-TX/1000BASE-T, Compatible with PJLink IEEE 802.11a/b/g/n

190 W

145 W

205 VA

1229 x 699 x 72 mm 1229 x 699 x 57 mm

VESA Compliant 400 x 400 mm (Installed by: M6 screws / Screw hole depth 10 mm)

(typ)

(Sampling frequency：48 kHz/44.1 kHz/32 kHz)

PB/CB/B:BNC Contact Plug without sync 0.7 Vp-p (75 Ω ) PR/CR/R :

Compliance with DVI Revision 1.0　Compatible with HDCP 1.1

P P HD/VD

(when OpenPort PLATFORMTM set to OFF, approx. 20 W when OpenPort PLATFORMTM set to ON)

BNC Contact Plug with sync 1.0 Vp-p (75 Ω)

BNC Contact Plug without sync 0.7 Vp-p (75 Ω )

: with sync 1.0 Vp-p (75 Ω ) : without sync 0.7 Vp-p (75 Ω ) : without sync 0.7 Vp-p (75 Ω )

B/CB

: without sync 0.7 Vp-p (75 Ω )

R/CR

: 1.0 - 5.0 Vp-p (high impedance)

0.5 Vrms

Page 2

55-inch Class FULL HD LCD Display

TH-55AF1W

MAIN FEATURE

USB Media Player Yes Fail back ＆ Fail over Yes Data Cloning Yes Early Warning Software compatible Multi Monitoring & Control Software compatible

Yes

Operating Time 24h / 7d Digital Zoom

Yes Multi Display Yes Power ON Screen Delay Yes 1:1 Pixel mode Yes Auto setup Yes Screen Saver Yes HDMI Power Management Yes PC Power Management Yes DVI-D Power Management Yes Input Lock Yes Button Lock Yes Remote-control User Level Yes Input Search Yes

In case of running for a long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.

INCLUDED ACCESSORIES

- AC cord (2.0 m)　- Remote Control　- Batteries (AAA size) x 2

- Clamper x 3　- CD-ROM / User Manual　- Operating instruction book

OPTIONAL ACCESSORIES

Pedestal Stand TY-ST43PE8 Early Warning Software* Auto Display Adjustment Upgrade Kit*

The symbol at the end of item number differs depending on the type of license.

*1 *2 This kit responds to Ver.1.2 and later versions.

ET-SWA100 series

TY-VUK10

DIMENSIONS

696266.5 266.5

INSTALLATION REQUIREMENT

Orientation Tilting Angle 0-45 degrees forward/backward with landscape/

*Please contact your sales representative with regard to the tilt angle

before installation.

Landscape/Portrait (Angle adjustment 0-45 degrees for both left and right)

portrait setting (Angle adjustment is not possible for forward/backward tilting installation.)

ENVIRONMENTAL

Operating Environment

Temperature

: 0 ℃ to 40 ℃ : 0 ℃ to 35 ℃

Humidity : 20% to 80% (No condensation)

Storage Environment

Altitude : 0 to 2800 m Temperature Humidity

: -20 ℃ to 60 ℃ : 20% to 80% (No condensation)

*1 : for up to 1400 m altitude *2 : for between 1400 m and 2800 m altitude

Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.

・

This unevenness will disappear while applying current continuously.

If not, consult the distributor.

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS

RADIATION REGULATIONS

IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 AS/NZS 60950.1:2011 Inc A1 EN55022:2010+AC:2011 Class A EN55024:2010 EN61000-3-2:2014 EN61000-3-3:2013 AS/NZS CISPR22:2009 + A1:2010

REMOTE CONTROL TRANSMITTER

Power Requirements DC 3 V (2 x AAA Size batteries) Operating distance approx. 7 m* Weight Dimemsions (W x H x D)

*When operated directly in front of receptor.

approx. 63 g including batteries 44 x 105 x 20.5 mm

Cautions: This drawing is not a scale

Units : mm

1229

CONNECTION TERMINAL

6.36.3

Micro-USB

USB

OpenPort PLATFORM

LAN

6.36.3

699

IR IN

IR OUT

SERIAL IN

SERIAL OUT

400

B/PB/CB

R/PR/CR

AUDIO1 IN AUDIO2 INCOMPONENT/RGB/VIDEO IN

PC IN AV IN

G/Y/VIDEO

DVI-D IN DVI-D OUTAUDIO OUT

USB

* Specifications and appearance are subject to change without notice.

Page 3

55-inch Class FULL HD LCD Display

(MHz)

V：VIDEO R：D-sub RGB Y：YC

List of correspondence signals

The picture signal which can indicate a this machine is as it is the following table.

Correspondence signal

NTSC/NTSC4.43/

PAL-M/PAL60

PAL/PAL-N/SECAM 720 x 576i 15.63 50.00 - V

525i (480i) 720 x 480 15.73 59.94 13.50 R/Y 625i (576i) 720 x 576i 15.63 50.00 13.50 R/Y 525i (480i) 720 (1440) x 480

625i (576i) 720 (1440) x 576i 525p (480p) 720 x 483 31.47 59.94 27.00 R/Y/D/H 625p (576p) 720 x 576 31.25 50.00 27.00 R/Y/D/H

750 (720) /60p 1280 x 720 45.00 60.00 74.25 R/Y/D/H 750 (720) /50p 1280 x 720 37.50 50.00 74.25 R/Y/D/H

1125 (1080) /60i

1125 (1080) /50i 1920 x 1080i 28.13 50.00 74.25 R/Y/D/H

1125 (1080) /24p 1920 x 1080 27.00 24.00 74.25 R/Y/D/H

1125 (1080) /24PsF 1920 x 1080i 27.00 48.00 74.25 R/Y

1125 (1080) /25p 1920 x 1080 28.13 25.00 74.25 R/Y/D/H 1125 (1080) /30p 1920 x 1080 33.75 30.00 74.25 R/Y/D/H 1125 (1080) /60p 1920 x 1080 67.50 60.00 148.50 R/Y/D/H 1125 (1080) /50p 1920 x 1080 56.25 50.00 148.50 R/Y/D/H

VESA400

SVGA

MAC16 832 x 624 49.72 74.55 57.28 R/Y/D/H

852 x 480 852 x 480 31.47 59.94 34.24 D/H

WSVGA 1066 x 600 37.64 59.94 53.00 D/H

MXGA

MAC21 1152 x 870 68.68 75.06 100.00 R/Y/D/H

1280 x 720 1280 x 720 44.76 60.00 74.48 R/Y/D/H

1280 x 768

1280 x 800

MSXGA

SXGA

1360 x 768

1366 x 768

SXGA+

WXGA+

1600 x 900

WSXGA+ 1680 x 1050 65.29 59.95 146.25 R/Y/D/H

UXGA 1600 x 1200

1920 x 1080

WUXGA 1920 x 1200

VGA

XGA

Resolution

(dot)

720 x 480i 15.73 59.94 - V

i*2

1920 x 1080i 33.75 60.00 74.25 R/Y/D/H

640 x 400 31.47 70.09 25.18 R/Y/D/H 640 x 400 31.50 85.08 31.50 R/Y/D/H 640 x 480 31.47 59.94 25.18 R/Y/D/H 640 x 480 35.00 66.67 30.24 R/Y/D/H 640 x 480 37.86 72.81 31.50 R/Y/D/H 640 x 480 37.50 75.00 31.50 R/Y/D/H 640 x 480 43.27 85.01 36.00 R/Y/D/H 800 x 600 35.16 56.25 36.00 R/Y/D/H 800 x 600 37.88 60.32 40.00 R/Y/D/H 800 x 600 48.08 72.19 50.00 R/Y/D/H 800 x 600 46.88 75.00 49.50 R/Y/D/H 800 x 600 53.67 85.06 56.25 R/Y/D/H

1024 x 768 39.55 50.00 51.89 D/H 1024 x 768 48.36 60.00 65.00 R/Y/D/H 1024 x 768 56.48 70.07 75.00 R/Y/D/H 1024 x 768 60.02 75.03 78.75 R/Y/D/H 1024 x 768 65.55 81.63 86.00 R/Y/D/H 1024 x 768 68.68 85.00 94.50 R/Y/D/H

1152 x 864 53.70 60.00 81.62 D/H 1152 x 864 63.99 70.02 94.20 R/Y/D/H 1152 x 864 67.50 75.00 108.00 R/Y/D/H 1152 x 864 77.09 85.00 119.65 R/Y/D/H

1280 x 768 39.55 49.94 65.18 R/Y/D/H 1280 x 768 47.70 60.00 80.14 R/Y/D/H 1280 x 768 47.78 59.87 79.50 R/Y/D/H 1280 x 800 41.20 50.00 68.56 R/Y/D/H 1280 x 800 49.31 59.91 71.00 R/Y/D/H 1280 x 800 49.70 59.81 83.50 R/Y/D/H 1280 x 960 60.00 60.00 108.00 R/Y/D/H

1280 x 960 85.94 85.00 148.50 R/Y 1280 x 1024 63.98 60.02 108.00 R/Y/D/H 1280 x 1024 79.98 75.02 135.00 R/Y/D/H 1280 x 1024 91.15 85.02 157.50 R/Y/D/H

1360 x 768 47.71 60.02 85.50 D/H

1360 x 768 47.70 60.00 84.72 D/H

1360 x 768 47.72 59.80 84.75 D/H

1366 x 768 39.55 50.00 69.92 D/H

1366 x 768 48.39 60.03 86.71 R/Y/D/H

1366 x 768 48.00 60.00 72.00 R/Y/D/H

1366 x 768 39.56 49.89 69.00 R/Y/D/H

1366 x 768 47.71 59.79 85.50 R/Y/D/H 1400 x 1050 65.22 60.00 122.61 D/H 1400 x 1050 82.20 75.00 155.85 R/Y/D/H

1440 x 900 55.47 59.90 88.75 R/Y/D/H

1440 x 900 55.92 60.00 106.47 R/Y/D/H

1600 x 900 46.30 50.00 97.05 D/H

1600 x 900 60.00 60.00 108.00 D/H

1600 x 900 55.99 59.95 118.25 D/H

1600 x 900 55.92 60.00 119.00 D/H

1920 x 1080

1920 x 1080 67.50 60.00 148.50 R/Y/D/H

Horizontal(kHz) Vertical(Hz)

15.73 59.94 27.00 D/H

15.63 50.00 27.00 D/H

75.00 60.00 162.00 R/Y/D/H

66.59 59.93 138.50 R/Y/D/H

74.04 59.95 154.00 R/Y/D/H

Scan rate

Dot clock rate

TH-55AF1W

D：DVI-D

BCR

/YPBP

H：HDMI

Input format

● The signal format distinguished automatically will be sometimes indication different from an actual input signal. *1: When 1125 (1035) /60i signal is input, it is displayed as 1125 (1080) /60i signal. *3: Displayed with image elements thinned out in the image processing circuit. *2: Pixel-Repetition signal (dot clock frequency 27.0 MHz) only *4: Based on VESA CVT-RB (Reduced Blanking) standard

Page 4

55-inch Class FULL HD LCD Display

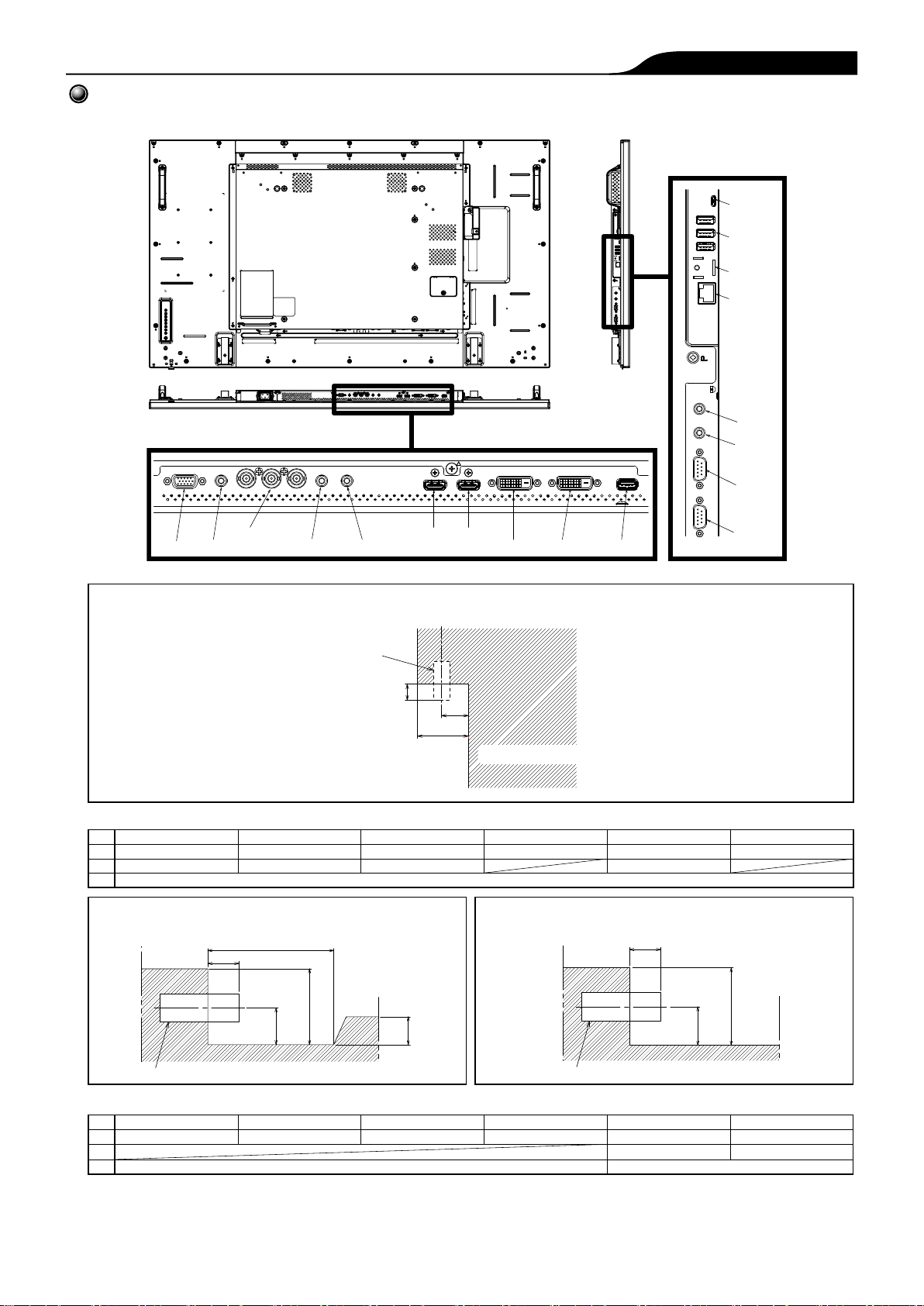

Drawing of terminals

View from back

Magnified figure of terminal a

TH-55AF1W

Magnified figure of terminal b

Micro USB

USB

micro SD

LAN

IR IN

IR OUT

SERIAL IN

SERIAL OUT

PC IN

COMPONENT/RGB/VIDEO IN

AUDIO OUTAUDIO2 INAUDIO1 IN

HDMI2HDMI1

DVI-D OUTDVI-D IN

USB

Sectional view of terminal a

（PC/AUDIO/COMPONENT/HDMI/DVI-D IN/USB）

Terminals

(on the product side)

Terminal a 55AF1 Terminal (Bottom)

A 17.1 17.3 18.9 14.2 15.8 14.8 B 4.3 1.7 10.8 4.7 C 32

Sectional view of terminal b

（LAN/micro SD/USB/Micro USB）

PC AUDIO COMPONENT HDMI DVI-D IN

Sectional view of terminal b

（SERIAL/IR）

137.5

USB（terminal a)

Units : mm

Terminals

(on the product side)

6.2

TerminalsB(on the product side)

Terminal b 55AF1 Terminal (Side)

A 15.2 9.8 16.1 10.1 14.0 14.0

LAN

B 4 1.5 C 35.3 28.9

*Due to the construction of terminal, some types of connecting cable or USB memory device cannot be used.

Be sure to use connecting cable or USB memory device after confirmation in this drawing.

micro SD

USB（terminal b)

Micro USB SERIAL IR

Units : mm

Page 5

55-inch Class FULL HD LCD Display

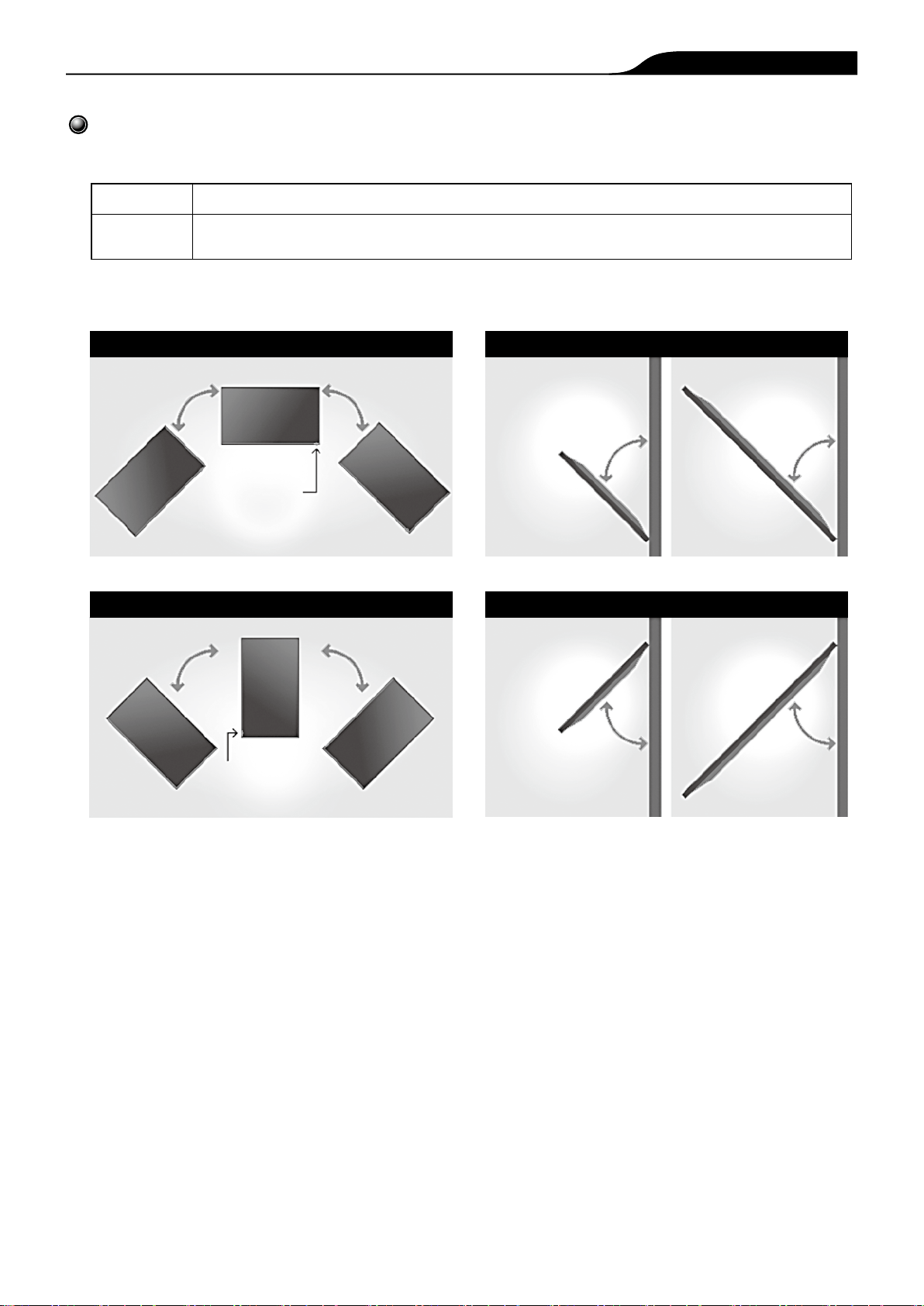

Installation precautions

The AF1 Series is designed for use in either portrait or horizontal orientation with angle adjustment. Tilting installation up to 45 degrees forward or backward is also possible. You can install as shown the example figures.

TH-55AF1W

Orientation

Tilting angle

Landscape/Portrait (Angle adjustment 0‐45 degrees for both left and right)

0‐45 degrees forward/backward with landscape/portrait setting (Angle adjustment is not possible for forward/backward tilting installation.)

◆ Orientation ◆ Tilting angle

Angle adjustment

45° 45°

Angle adjustment

(0-45°for both left and right)

Power Indicator

Landscape

(0-45°for both left and right)

Forward tilting

45° 45°

Landscape orientation

Backward tilting

Portrait orientation

45° 45°

Power Indicator

Portrait

Landscape orientation

45° 45°

Portrait orientation
