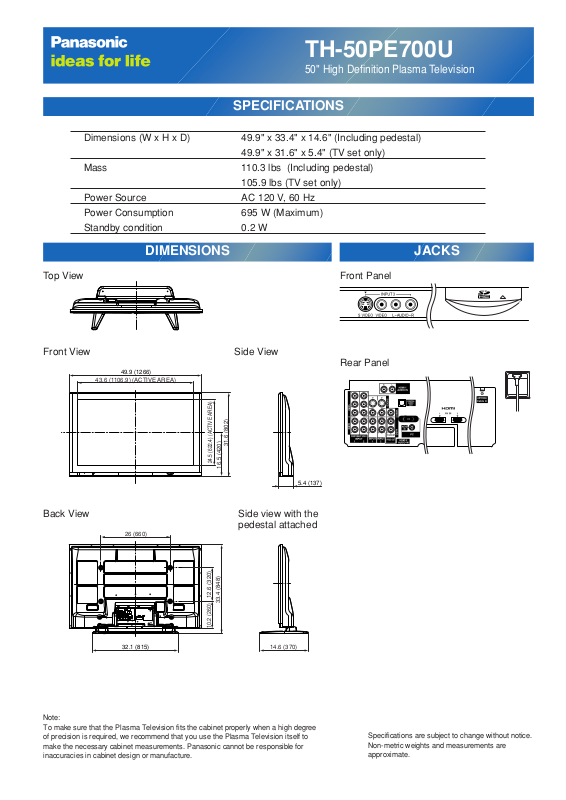

Panasonic th-50pe700 cut sheet

TH-50PE700U

50" High Definition Plasma Television

SPECIFICATIONS

DIMENSIONS JACKS

Top View

43.6 (1106.9) (ACTIVE AREA)

26 (660)

49.9 (1266)

14.6 (370)

5.4 (137)

24.5 (622.4) (ACTIVE AREA)

31.6 (802)

33.4 (848)

10.2 (260)

12.6 (320)

16.5 (420)

32.1 (815)

Front View

Back View Side view with the

pedestal attached

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree
of precision is required, we recommend that you use the Plasma Television itself to
make the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

Front Panel

Rear Panel

Side View

Dimensions (W x H x D) 49.9" x 33.4" x 14.6" (Including pedestal)

49.9" x 31.6" x 5.4" (TV set only)

Mass 110.3 lbs (Including pedestal)

105.9 lbs (TV set only)

Power Source AC 120 V, 60 Hz

Power Consumption 695 W (Maximum)

Standby condition 0.2 W
