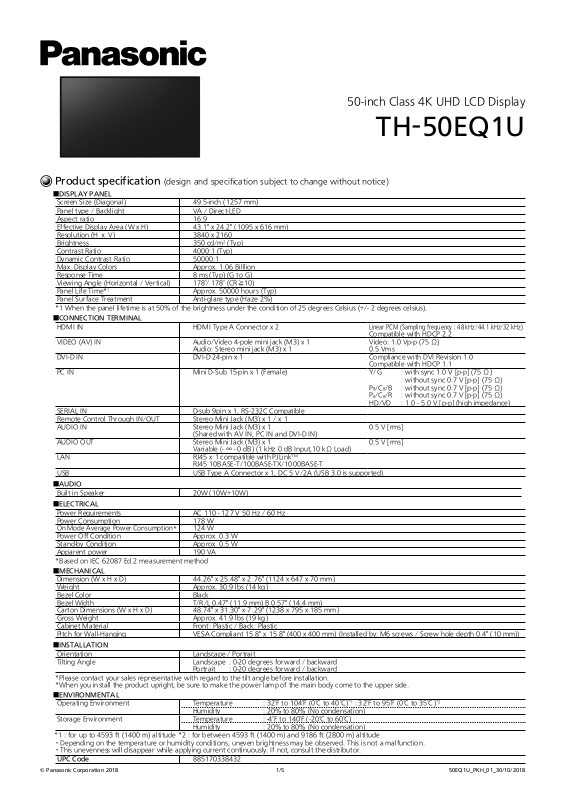

Panasonic TH-50EQ1U Specifications

50-inch Class 4K UHD LCD Display

TH-50EQ1U

Product specification

■DISPLAY PANEL

Screen Size (Diagonal) 49.5-inch (1257 mm) Panel type / Backlight VA / Direct-LED Aspect ratio 16:9 Effective Display Area (W x H) 43.1" x 24.2" (1095 x 616 mm) Resolution (H ｘ V) 3840 x 2160 Brightness 350 cd/m Contrast Ratio 4000:1 (Typ) Dynamic Contrast Ratio 50000:1 Max. Display Colors Response Time 8 ms (Typ) (G to G) Viewing Angle (Horizontal / Vertical) 178°/ 178° (CR≧10) Panel Life Time Panel Surface Treatment Anti-glare type (Haze 2%)

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■CONNECTION TERMINAL

HDMI IN HDMI Type A Connector x 2

VIDEO (AV) IN Audio/Video 4-pole mini jack (M3) x 1

DVI-D IN DVI-D 24-pin x 1 Compliance with DVI Revision 1.0

PC IN Mini D-Sub 15-pin x 1 (Female) Y/G

SERIAL IN D-sub 9pin x 1, RS-232C Compatible Remote Control Through IN/OUT Stereo Mini Jack (M3) x 1 / x 1 AUDIO IN Stereo Mini Jack (M3) x 1

AUDIO OUT Stereo Mini Jack (M3) x 1

LAN RJ45 x 1 compatible with PJLink

USB USB Type A Connector x 1, DC 5 V/2A (USB 3.0 is supported)

■AUDIO

Built in Speaker 20W (10W+10W)

■ELECTRICAL

Power Requirements AC 110 - 127 V 50 Hz / 60 Hz Power Consumption 178 W On Mode Average Power Consumption*124 W Power Off Condition Approx. 0.3 W Stand-by Condition Approx. 0.5 W Apparent power 190 VA

*Based on IEC 62087 Ed.2 measurement method

■MECHANICAL

Dimension (W x H x D) 44.26" x 25.48" x 2.76" (1124 x 647 x 70 mm) Weight Approx. 30.9 lbs (14 kg) Bezel Color Black Bezel Width T/R/L 0.47" (11.9 mm) B 0.57" (14.4 mm) Carton Dimensions (W x H x D) 48.74" x 31.30" x 7.29" (1238 x 795 x 185 mm) Gross Weight Approx. 41.9 lbs (19 kg) Cabinet Material Front: Plastic / Back: Plastic Pitch for Wall-Hanging VESA Compliant 15.8" x 15.8" (400 x 400 mm) (Installed by: M6 screws / Screw hole depth 0.4" (10 mm))

■INSTALLATION

Orientation Landscape / Portrait Tilting Angle Landscape : 0-20 degrees forward / backward

Please contact your sales representative with regard to the tilt angle before installation.

*When you install the product upright, be sure to make the power lamp of the main body come to the upper side.

■ENVIRONMENTAL

Operating Environment Temperature : 32°F to 104°F (0℃ to 40℃)

Storage Environment Temperature : -4°F to 140°F (-20℃ to 60℃)

*1 : for up to 4593 ft (1400 m) altitude *2 : for between 4593 ft (1400 m) and 9186 ft (2800 m) altitude

・Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction. ・This unevenness will disappear while applying current continuously. If not, consult the distributor.

UPC Code 885170338432

(design and specification subject to change without notice)

(Typ)

Approx. 1.06 Billlion

Approx. 50000 hours (Typ)

Linear PCM (Sampling frequency：48 kHz/44.1 kHz/32 kHz)

Compatible with HDCP 2.2

Audio: Stereo mini jack (M3) x 1

(Shared with AV IN, PC IN and DVI-D IN)

Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)

RJ45 10BASE-T/100BASE-TX/1000BASE-T

Portrait : 0-20 degrees forward / backward

Humidity : 20% to 80% (No condensation)

Video: 1.0 Vp-p (75 Ω)

0.5 Vms

Compatible with HDCP 1.1

B/CB

R/CR

HD/VD

0.5 V [rms]

: 32°F to 95°F (0℃ to 35℃)

: with sync 1.0 V [p-p] (75 Ω) : without sync 0.7 V [p-p] (75 Ω)

: without sync 0.7 V [p-p] (75 Ω)

: 1.0 - 5.0 V [p-p] (high impedance)

50-inch Class 4K UHD LCD Display

TH-50EQ1U

MAIN FEATURE

USB Media Player Yes Failover/Failback Yes Data Cloning Yes Digital Zoom Yes Multi display settings Power ON Screen Delay Yes 1:1 Pixel mode Yes Screen Saver Yes Power Management HDMI/PC/DVI-D Power save Yes Button Lock Yes Controller user level Yes Input search / Input detection 6-segment color management Picture mode Yes Dynamic contrast Yes Color enhancement Yes Refine enhancer Yes Gradation smoother Yes Dynamic backlight control Set up timer Yes AMX D.D. Yes Crestron Connected WEB Browser control Yes PJLink Yes Image settings HDMI CEC Compatible Memory Viewer Playlist Editing Function Operating Time

*1 In case of running for a long time, the moving image is recommended

to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying movie images.

Yes

Yes Yes

Yes

Yes Yes Yes Yes 18 / day

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS UL60950-1, 2nd Edition,2014-10-14

RADIATION REGULATIONS

CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 Mexico: NOM-019-SCFI-1998

FCC 47 CFR, Part 15, Subpart B Class A ANSI C63.4-2014 ICES-003

REMOTE CONTROL TRANSMITTER

Power Requirements DC 3 V (2 x AAA Size batteries) Operating distance Approx. 23 ft (7 m) Weight Approx. 2.2 oz (63 g) including batteries Dimemsions (W x H x D) 1.9" x 5.3" x 0.8" (48 x 134 x 20 mm)

*When operated directly in front of receptor.

INCLUDED ACCESSORIES

- Remote Control　- Batteries (AAA size) x 2　

- AC cord (approx. 70.9" (1.8 m))　- 4-pole mini plug conversion cable

- Clamper x 3　- USB Memory cover x 1

- CD-ROM / User Manual　- Operating Instruction Book

COMPATIBLE SOFTWARE

Multi Monitoring & Control Software Ver.2.1 or later CMS Content Management Software Ver 3.0 or later Video Wall Manager

Ver 1.9 or later

OPTIONAL ACCESSORIES

Pedestal TY - ST43PE8 Early Warning Software

Basic license / 3-year license

* Multi-Monitoring Control Software Ver 2.1 or later is required.

ET-SWA100 / 105series

(Depending on the license type, the symbol at the end of the part number is different.)

DIMENSIONS (TENTATIVE)

44.3(1124)

0.5(11.9)

Active Area 43(1095)

0.5(11.9)

25.5(647)

0.6(14.4)

CONNECTION TERMINAL

24(616)

Active Area

0.7(17)

2.8(70)

1.9(48)

0.5(11.9)

0.1(3)

2.8(70)

0.9(22)

3.6(90)

15.8(400)

10.2(257)

5.8(146)

14.9(378)

12(304)

Cautions: This drawing is not a scale

400[15.8]

14.9(378)

Units : inches (mm)

M6 Screw hole depth 0.4(10)

10.2(257)

* Specifications and appearance are subject to change without notice.
