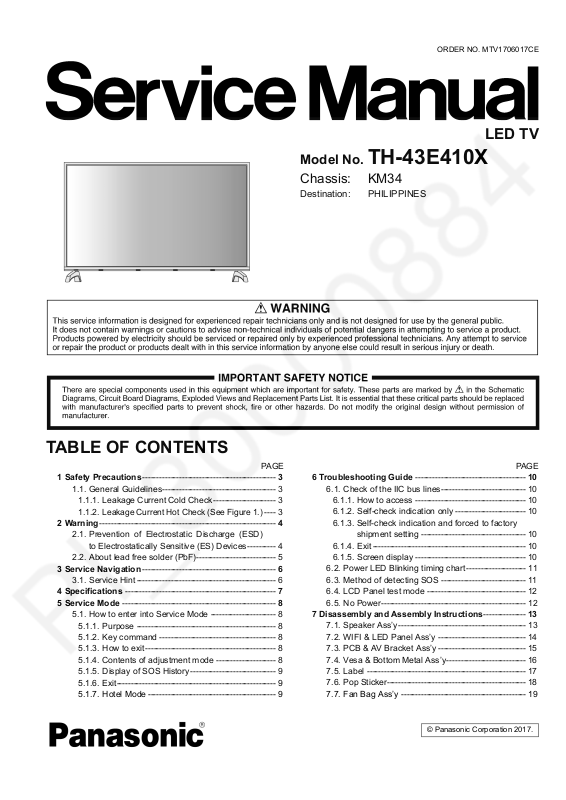

Panasonic TH-43E410X Schematic
ORDER NO. MTV1706017CE
Model No. TH-43E410X
Chassis: KM34
Destination: PHILIPPINES
LED TV
TABLE OF CONTENTS
1 Safety Precautions ----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.1.1. Leakage Current Cold Check ---------------------- 3
1.1.2.
Leakage Current Hot Check (See Figure 1.)
2 Warning-------------------------------------------------------------- 4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices---------- 4
2.2. About lead free solder (PbF)---------------------------- 5
3 Service Navigation ----------------------------------------------- 6
3.1. Service Hint ------------------------------------------------- 6
4 Specifications ----------------------------------------------------- 7
5 Service Mode ------------------------------------------------------ 8
5.1. How to enter into Service Mode ----------------------- 8
5.1.1. Purpose ------------------------------------------------- 8
5.1.2. Key command ----------------------------------------- 8
5.1.3. How to exit---------------------------------------------- 8
5.1.4. Contents of adjustment mode --------------------- 8
5.1.5. Display of SOS History ------------------------------ 9
5.1.6. Exit-------------------------------------------------------- 9
5.1.7. Hotel Mode --------------------------------------------- 9
PAG E PAG E
6 Troubleshooting Guide --------------------------------------- 10
6.1. Check of the IIC bus lines------------------------------ 10
6.1.1. How to access --------------------------------------- 10
---- 3
6.1.2. Self-check indication only ------------------------- 10
6.1.3. Self-check indication and forced to factory
shipment setting ------------------------------------- 10
6.1.4. Exit ------------------------------------------------------ 10
6.1.5. Screen display --------------------------------------- 10
6.2. Power LED Blinking timing chart --------------------- 11
6.3. Method of detecting SOS ------------------------------ 11
6.4. LCD Panel test mode ----------------------------------- 12
6.5. No Power--------------------------------------------------- 12
7 Disassembly and Assembly Instructions--------------- 13
7.1. Speaker Ass’y--------------------------------------------- 13
7.2. WIFI & LED Panel Ass’y ------------------------------- 14
7.3. PCB & AV Bracket Ass’y ------------------------------- 15
7.4. Vesa & Bottom Metal Ass’y---------------------------- 16
7.5. Label -------------------------------------------------------- 17
7.6. Pop Sticker------------------------------------------------- 18
7.7. Fan Bag Ass’y -------------------------------------------- 19
© Panasonic Corporation 2017.
TH-43E410X
7.8. Screw Fixing-----------------------------------------------21

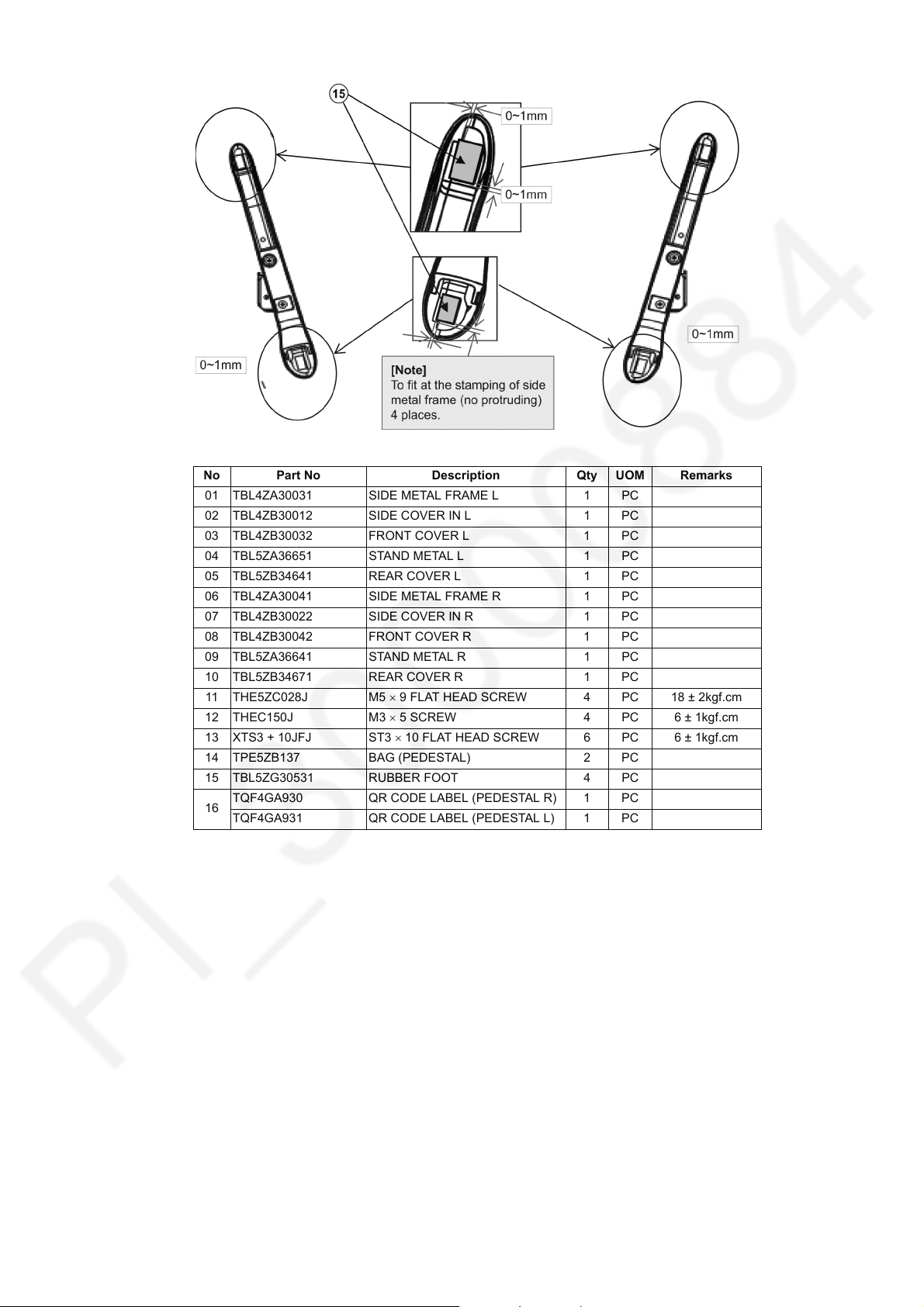

7.9. Pedestal Assembly -------------------------------------- 22

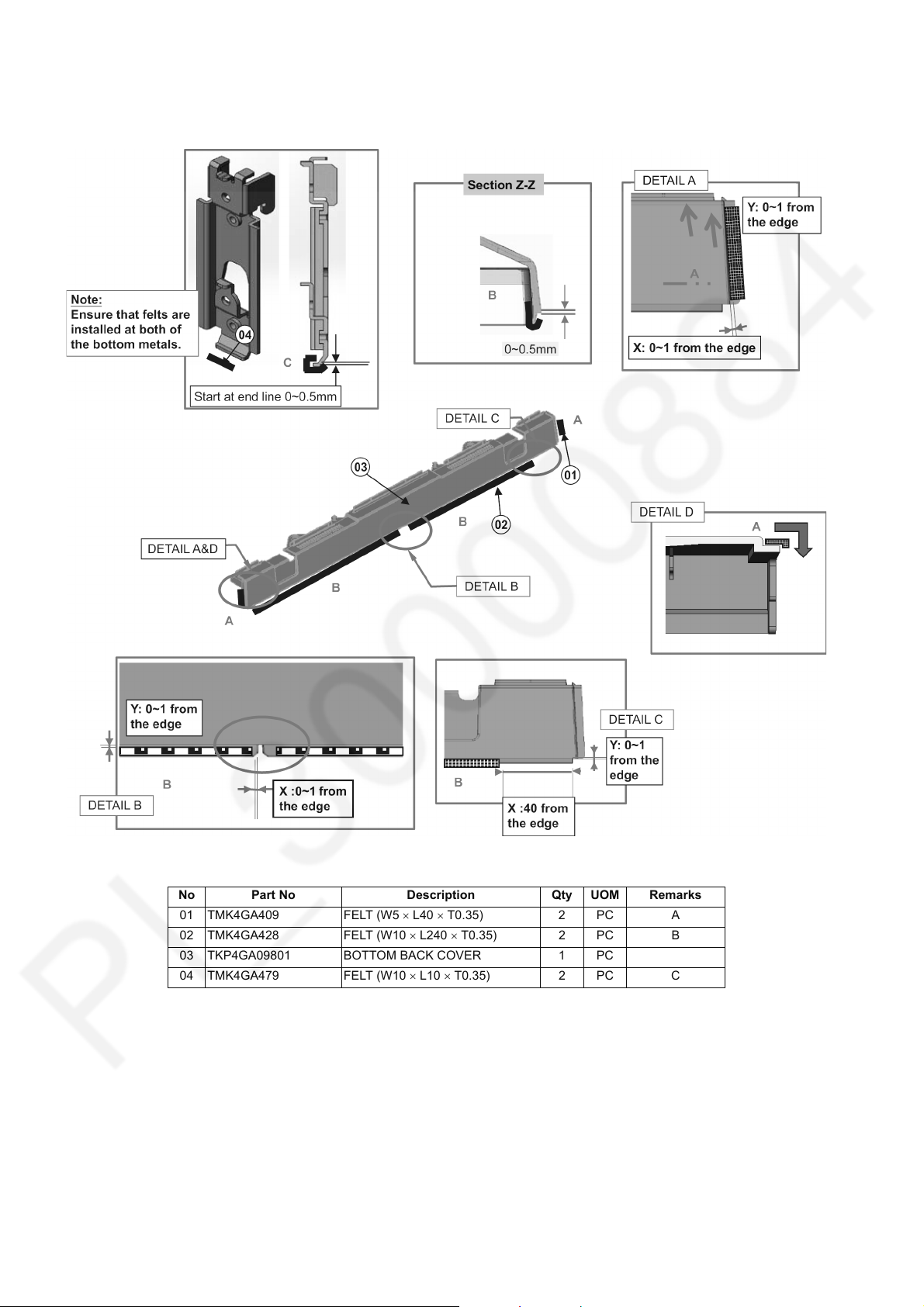

7.10. Bottom Back Cover and Bottom Corner Ass’y ---- 24
7.11. Bottom & Back Cover Ass’y 1------------------------- 25
7.12. Bottom & Back Cover Ass’y 2-------------------------26

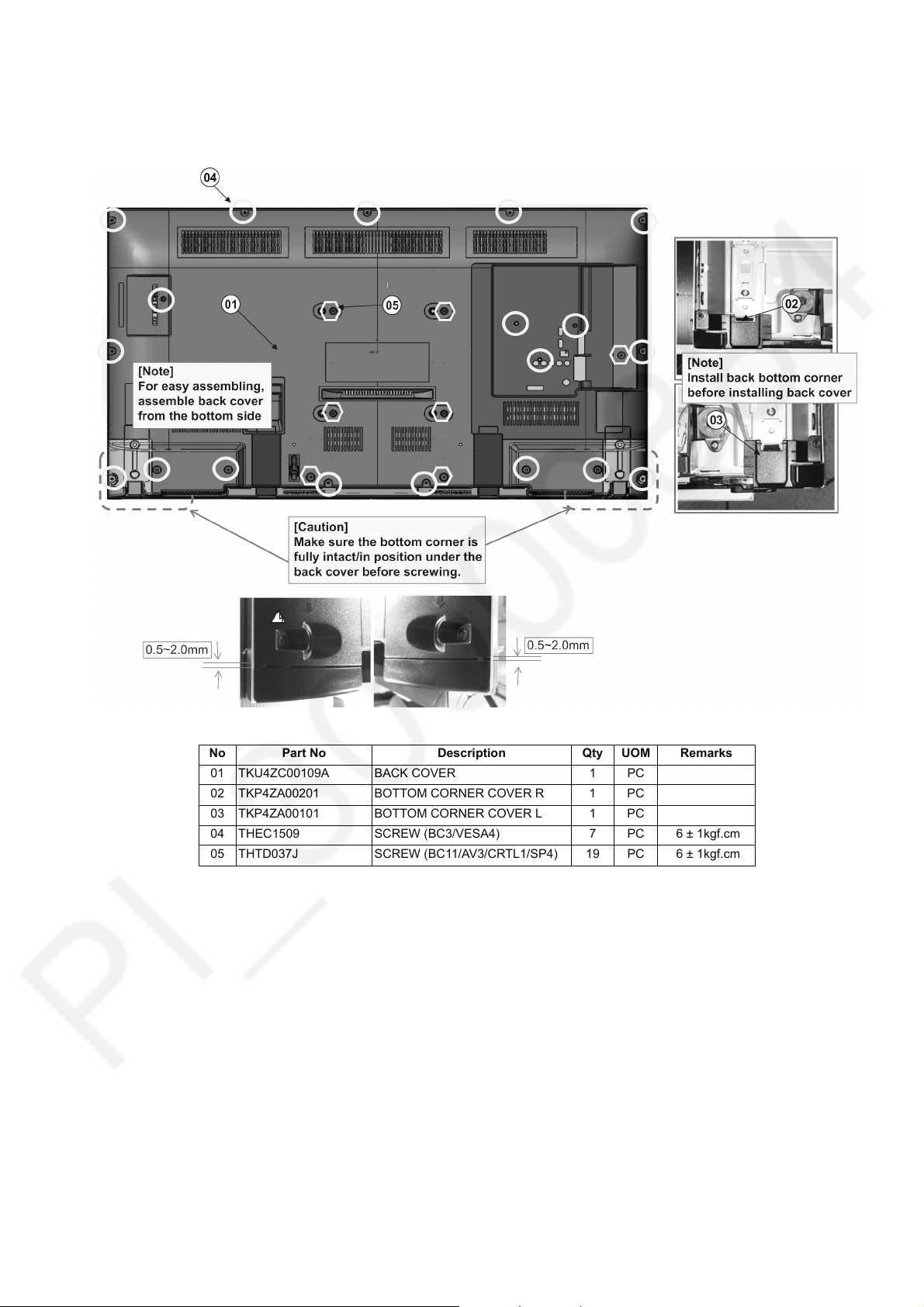

7.13. Back Cover Ass’y ---------------------------------------- 27
8 Measurements and Adjustments -------------------------- 28
8.1. Voltage chart of A-board-------------------------------- 28

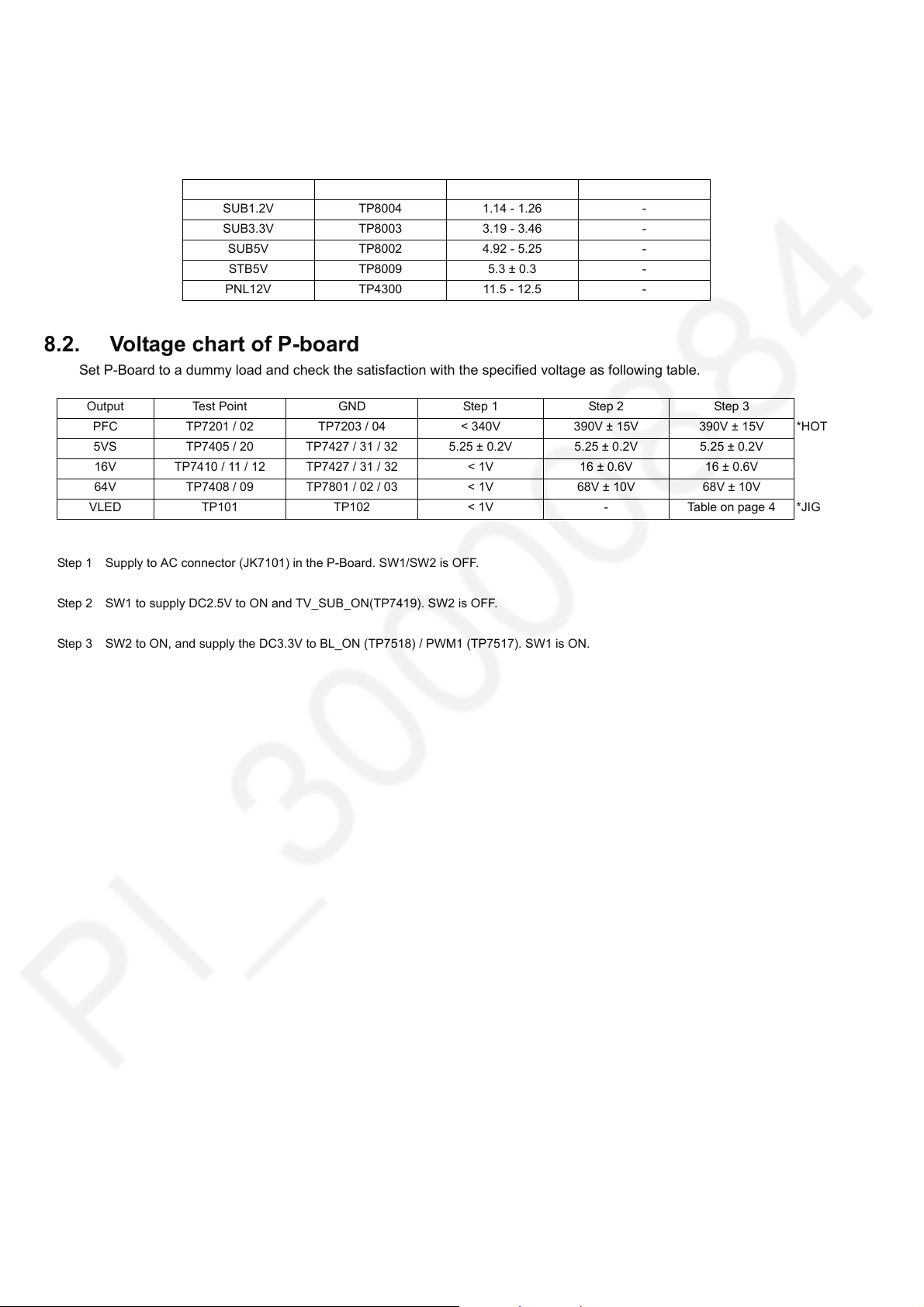

8.2. Voltage chart of P-board-------------------------------- 28
9 Block Diagram --------------------------------------------------- 29

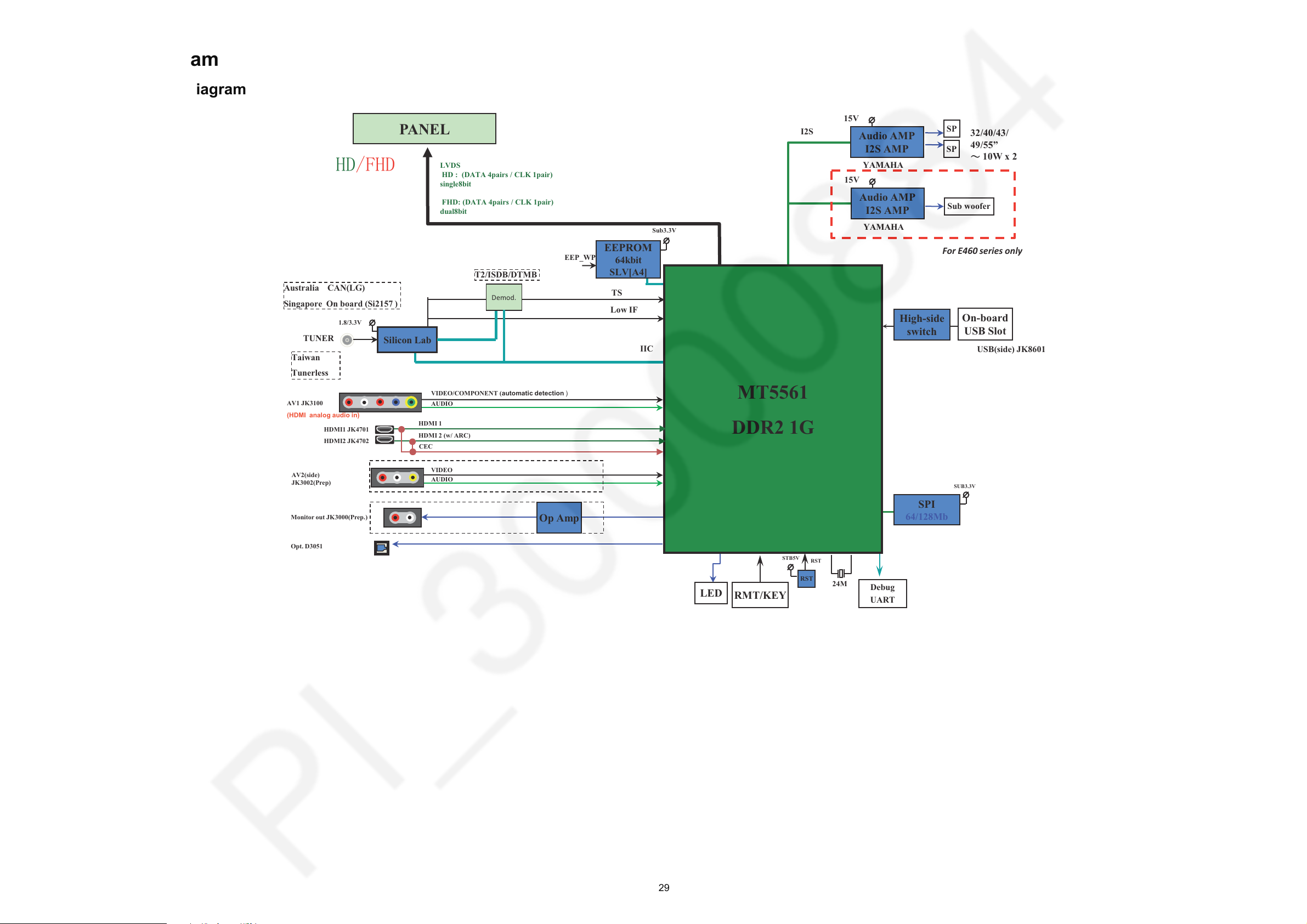

9.1. Main Block Diagram ------------------------------------- 29
10 Wiring Connection Diagram --------------------------------- 30

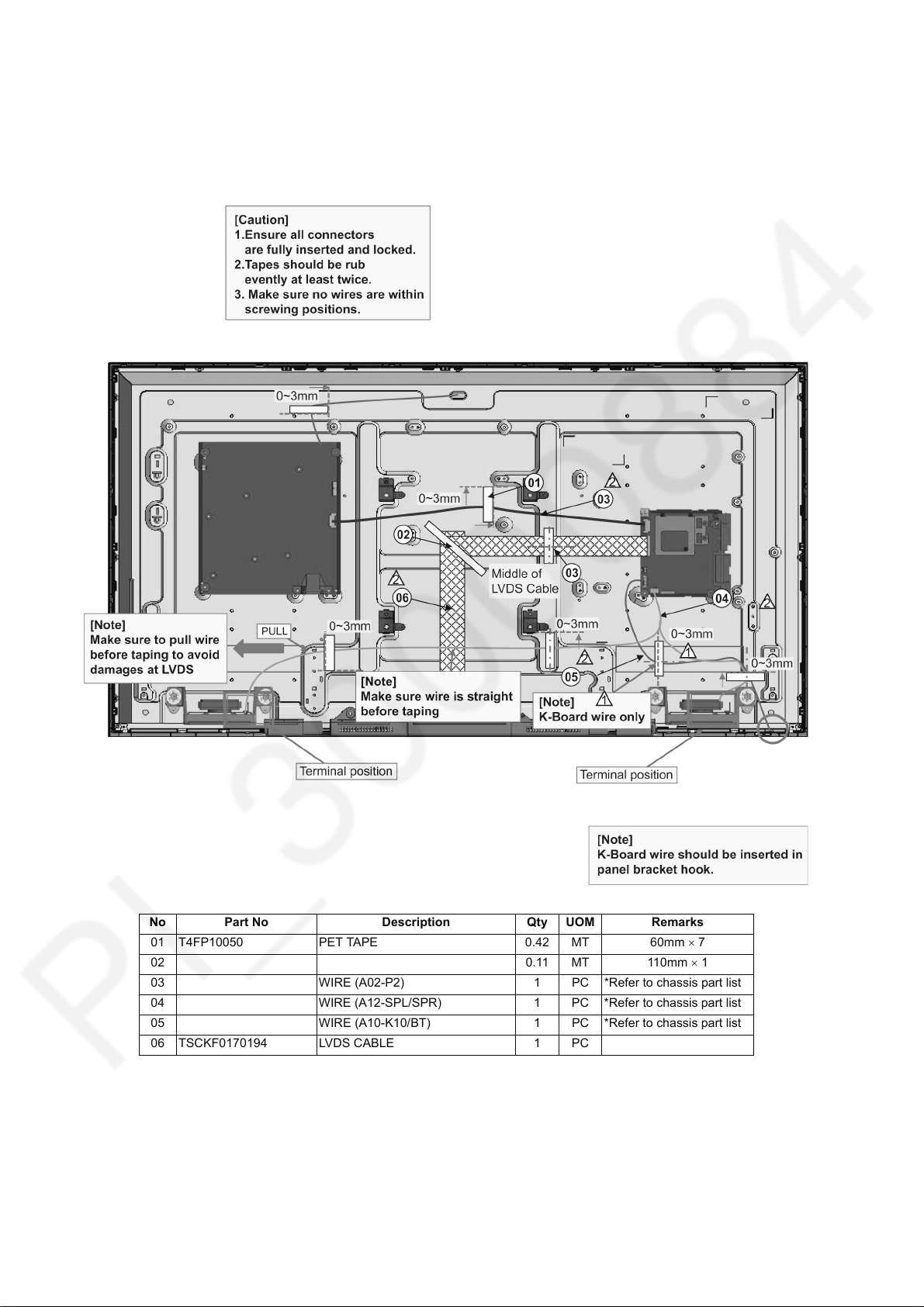

10.1. Wire Dressing --------------------------------------------- 30

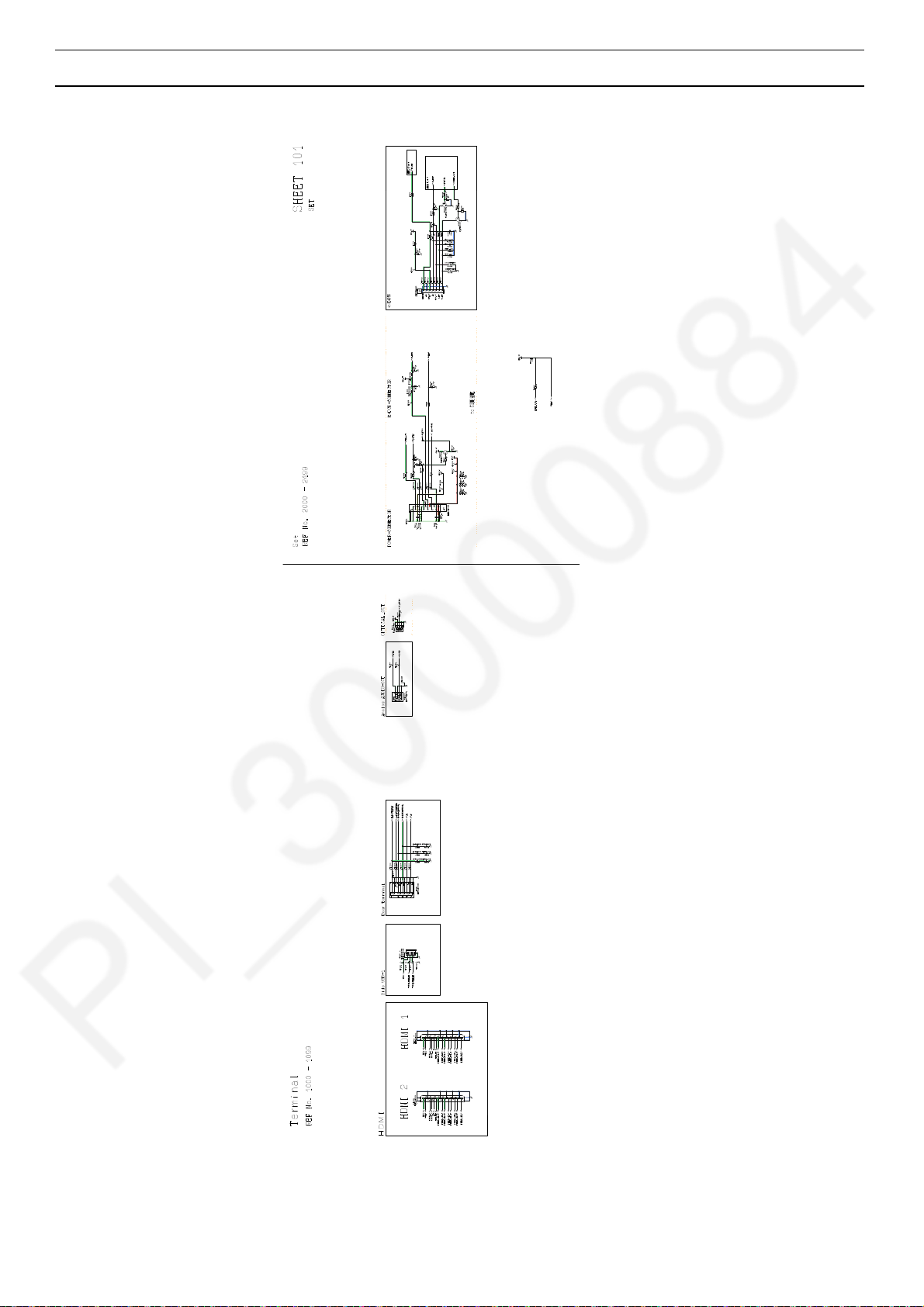

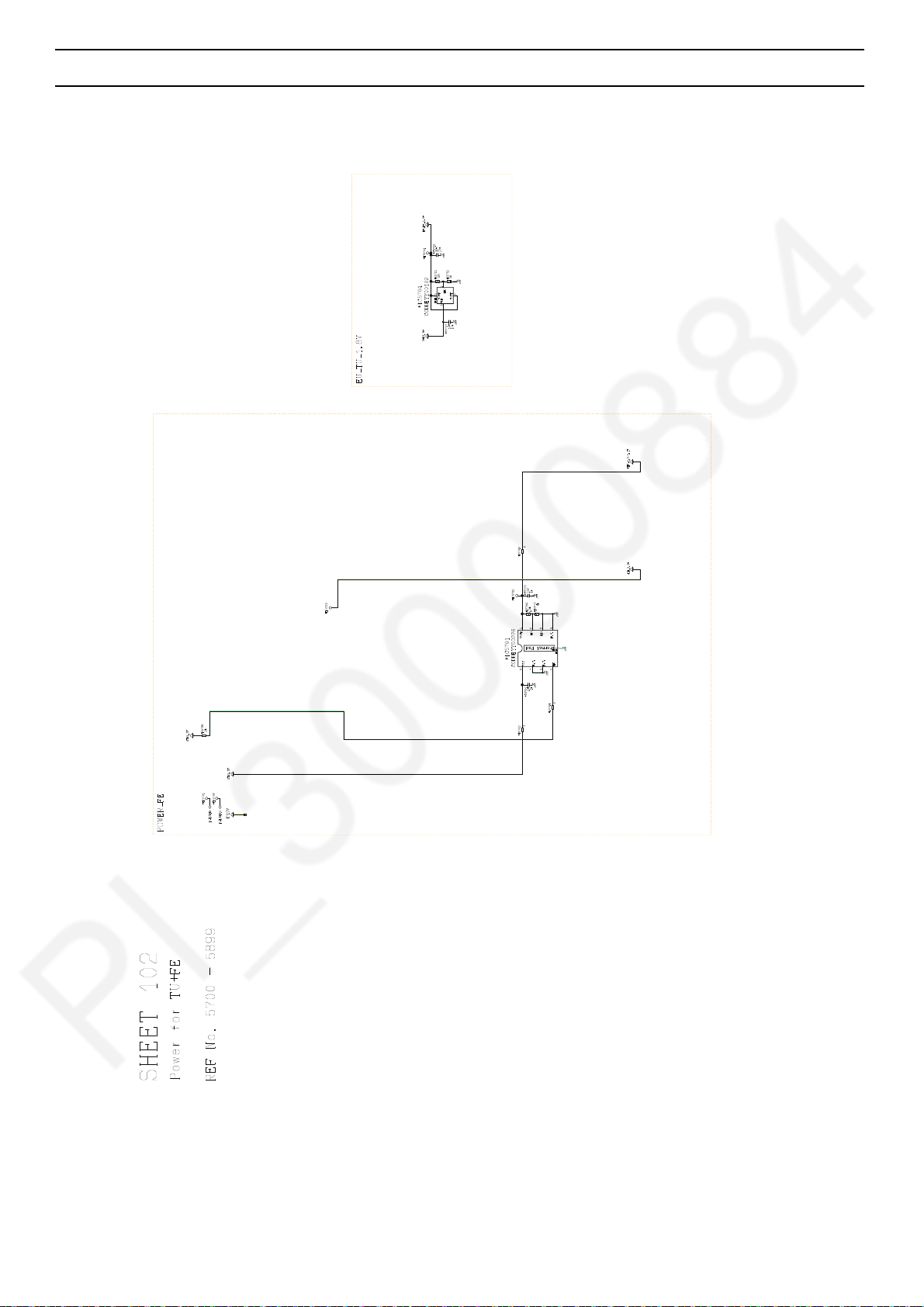

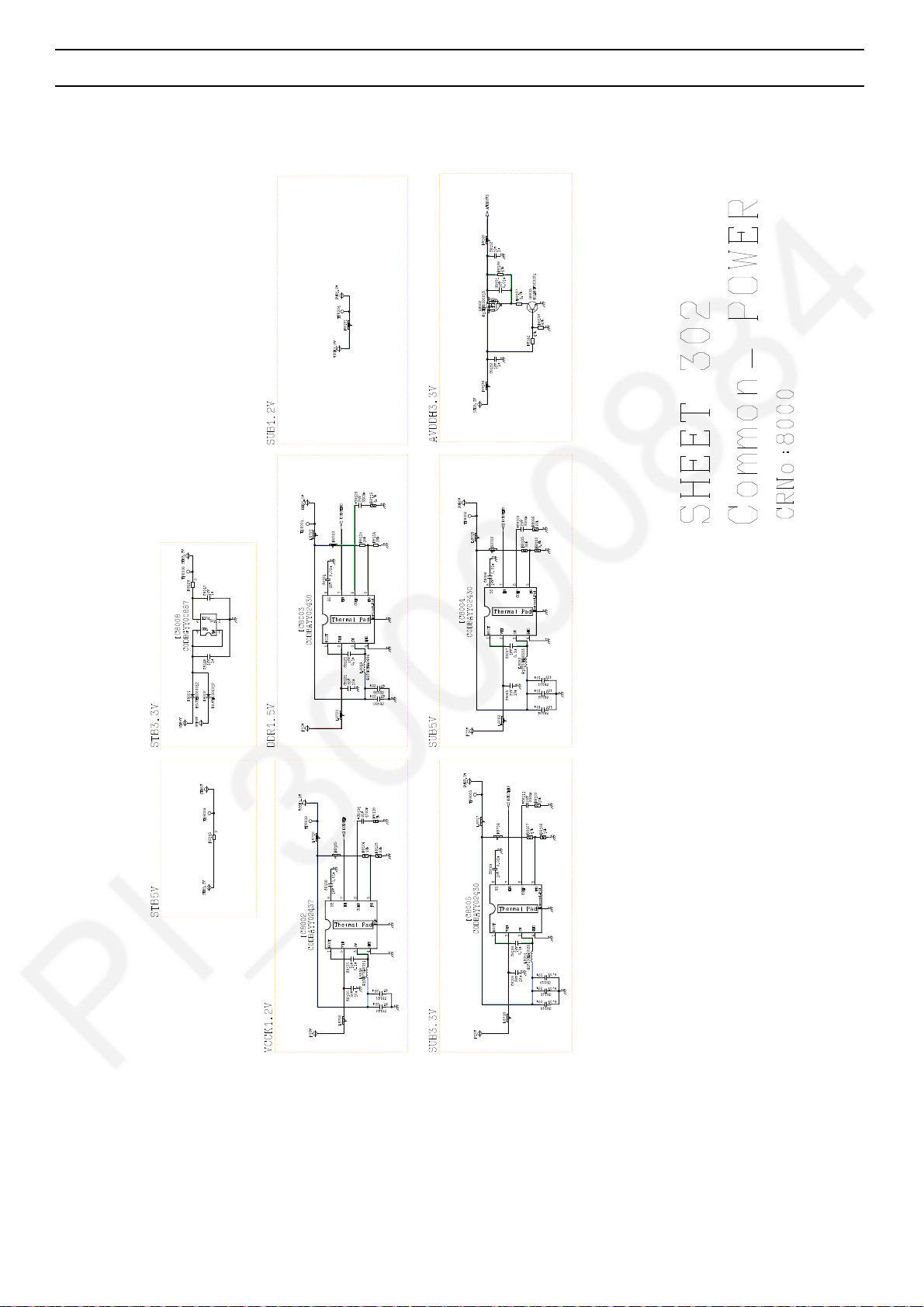

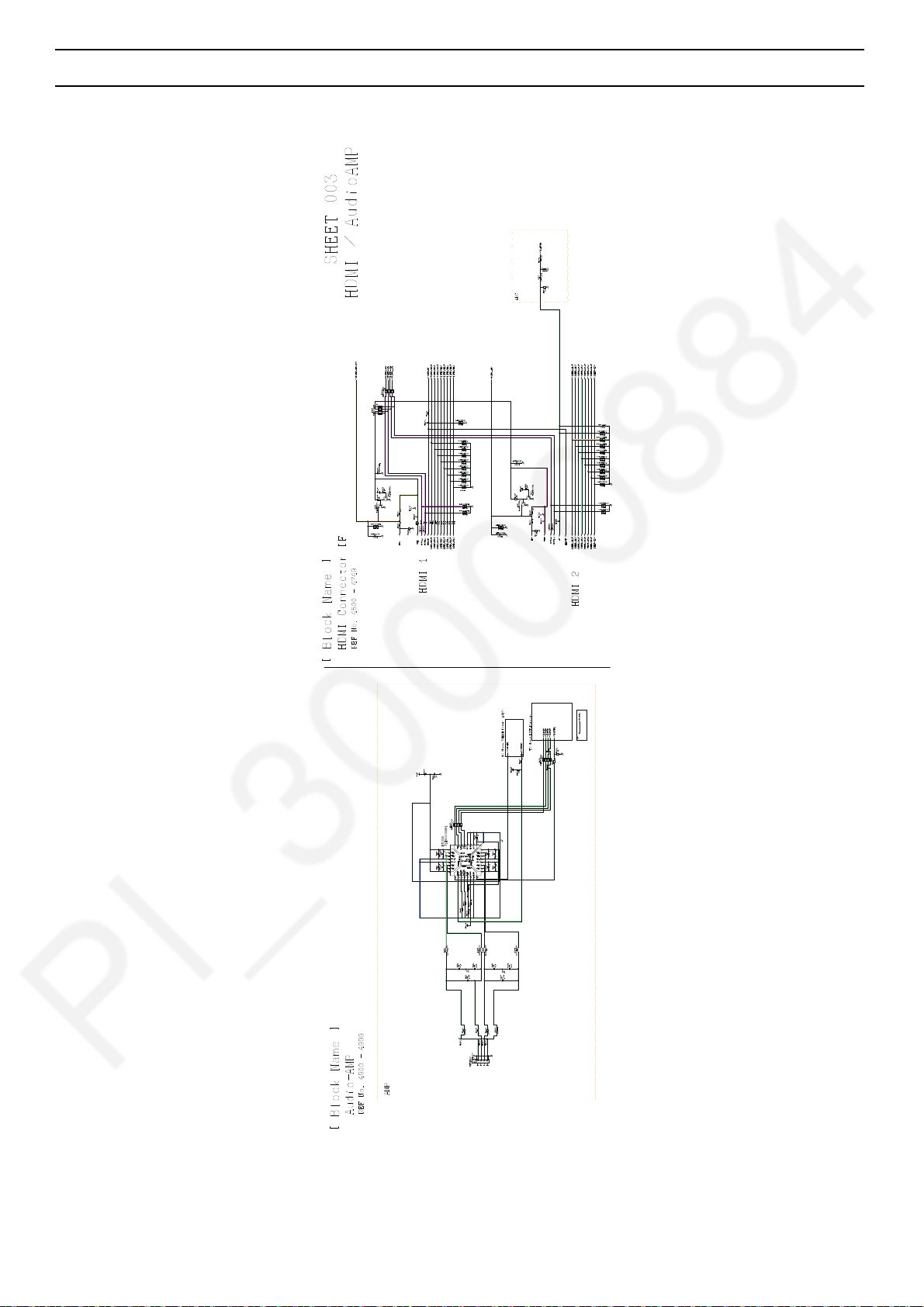

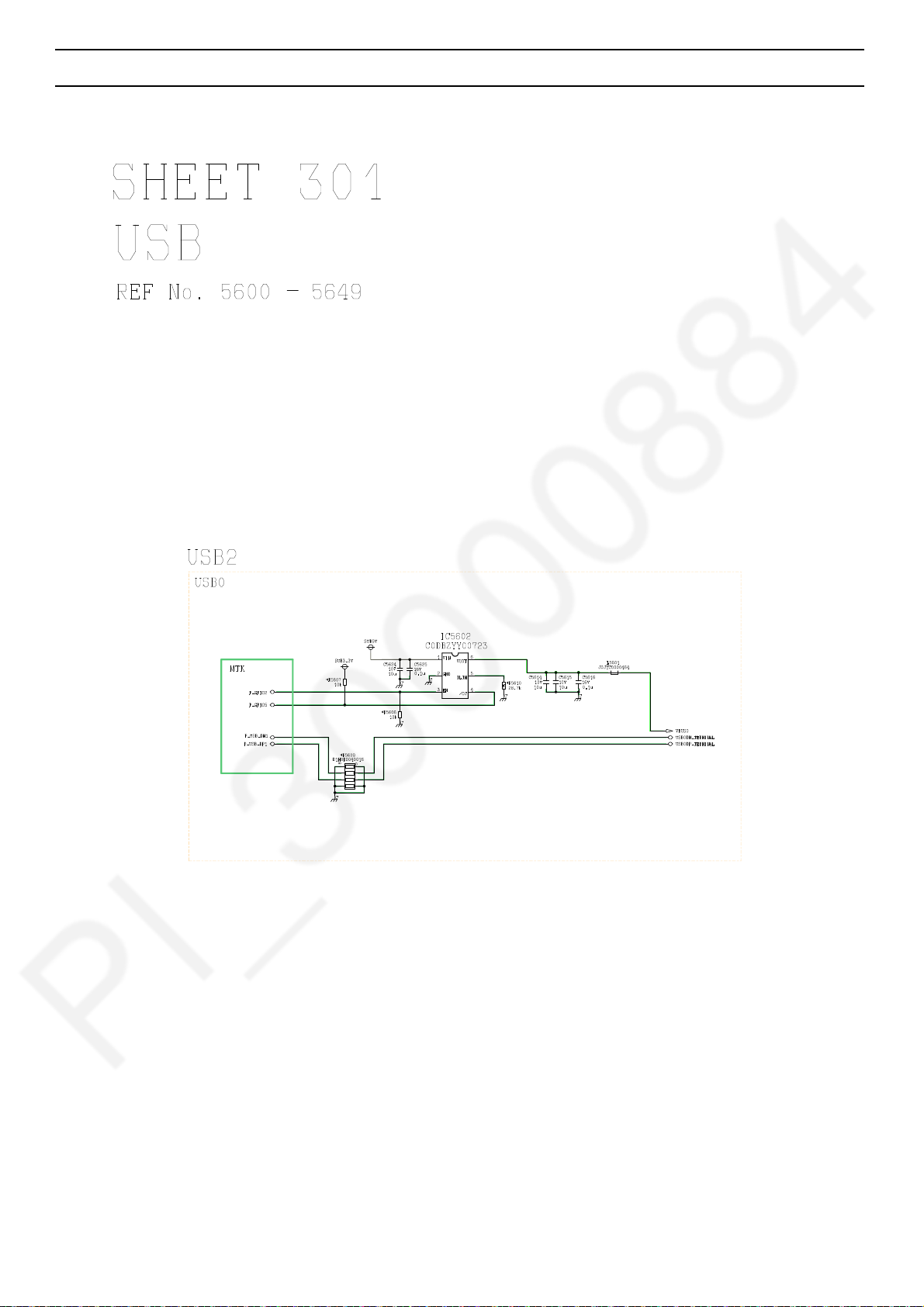

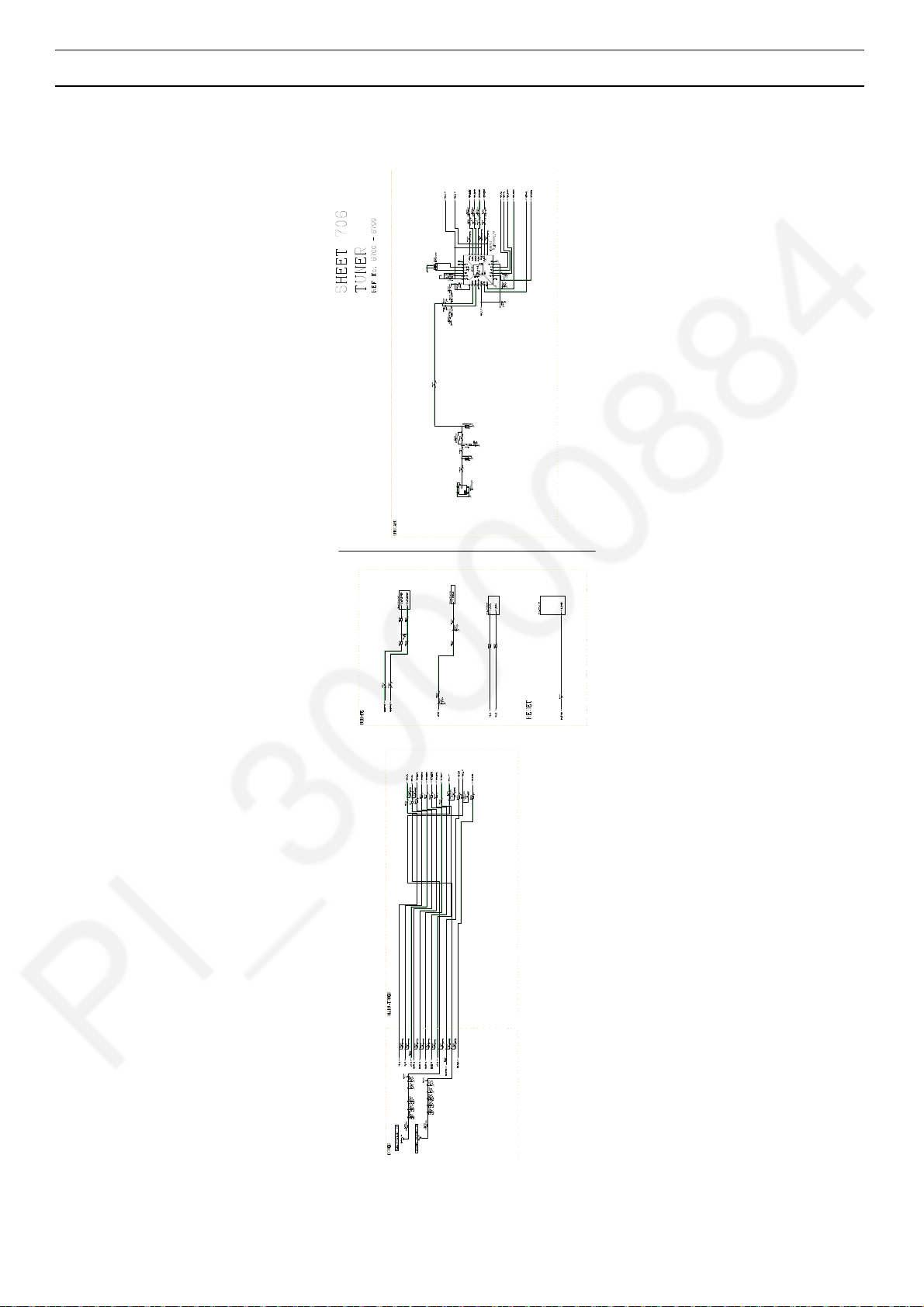

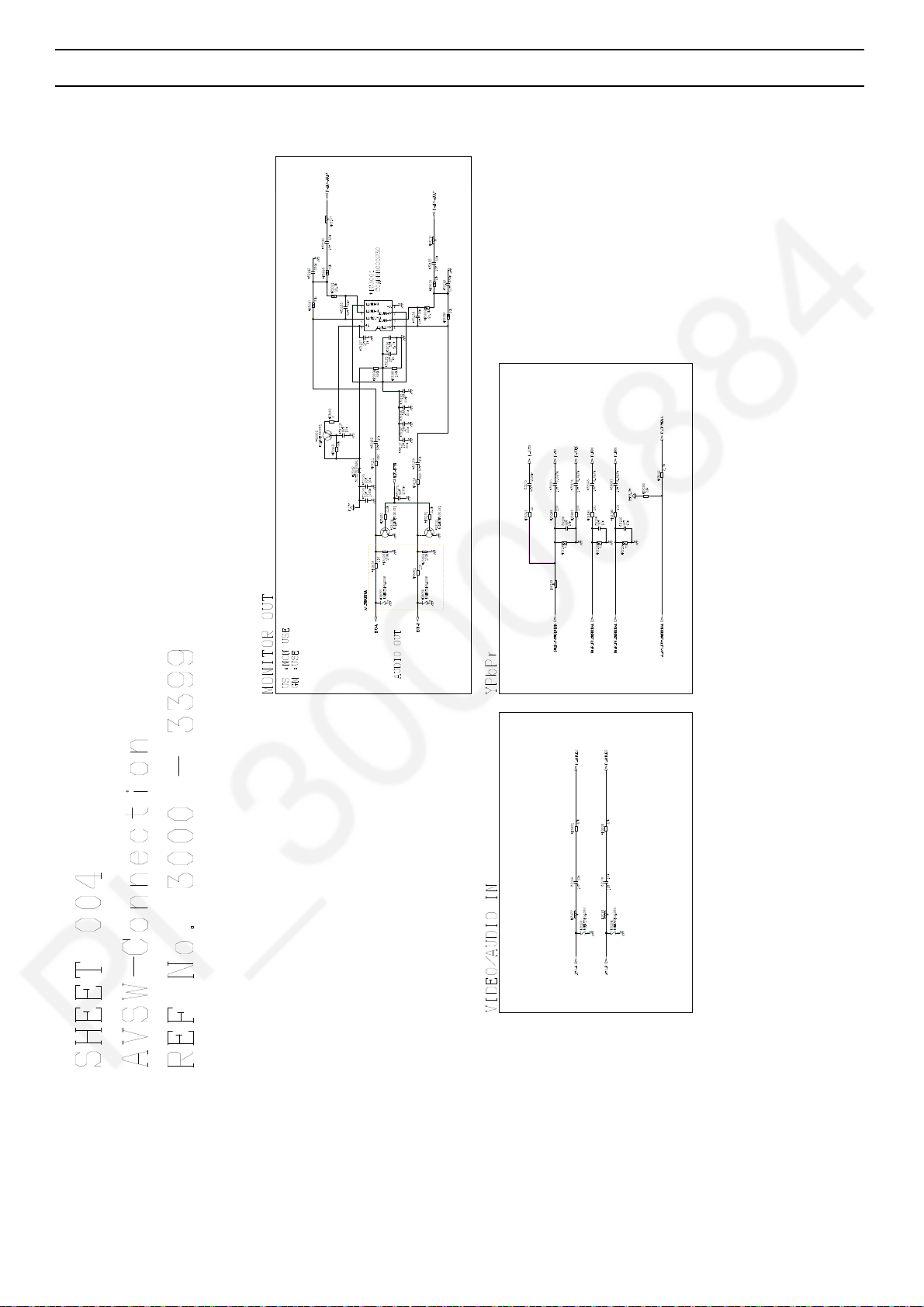

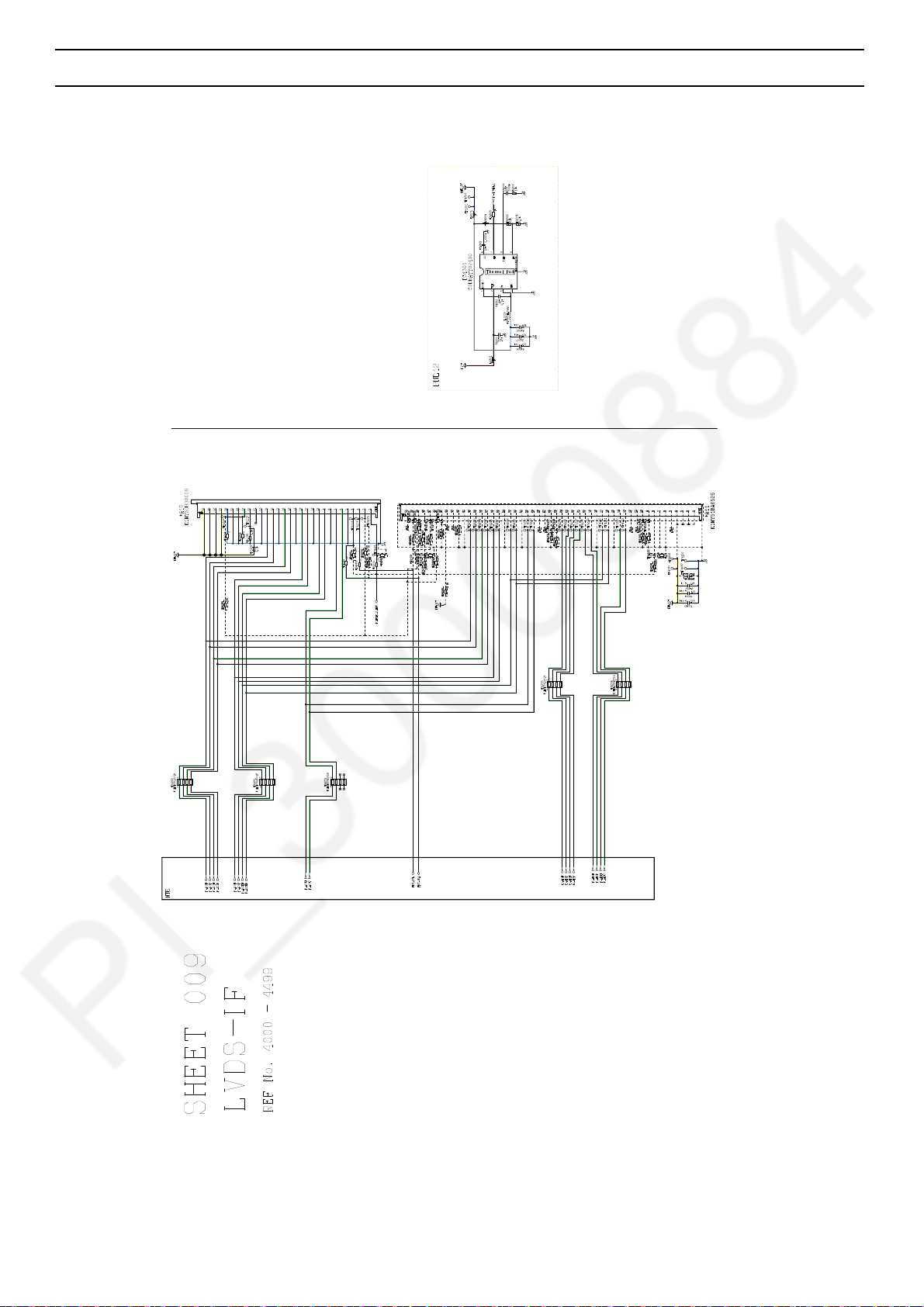

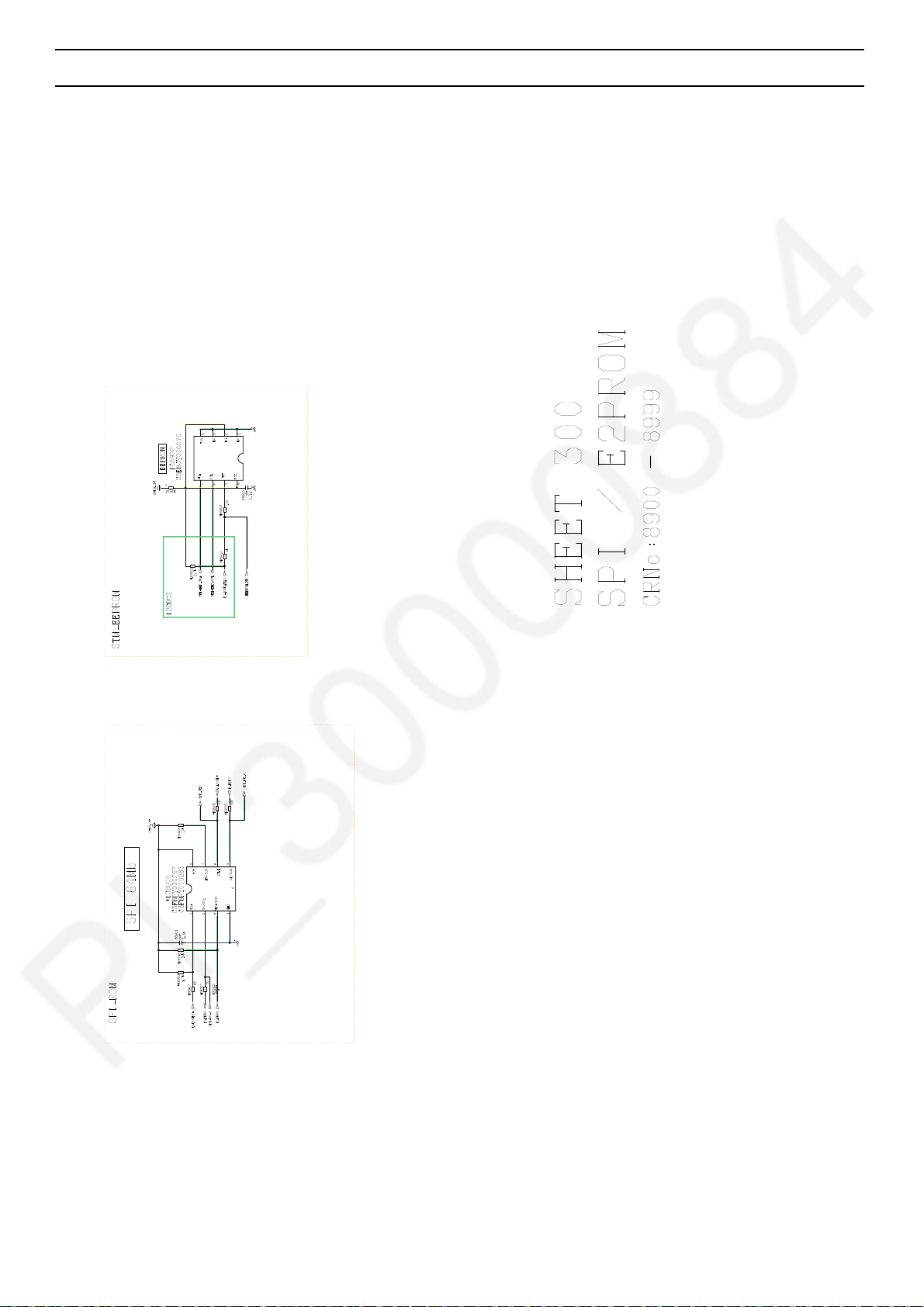

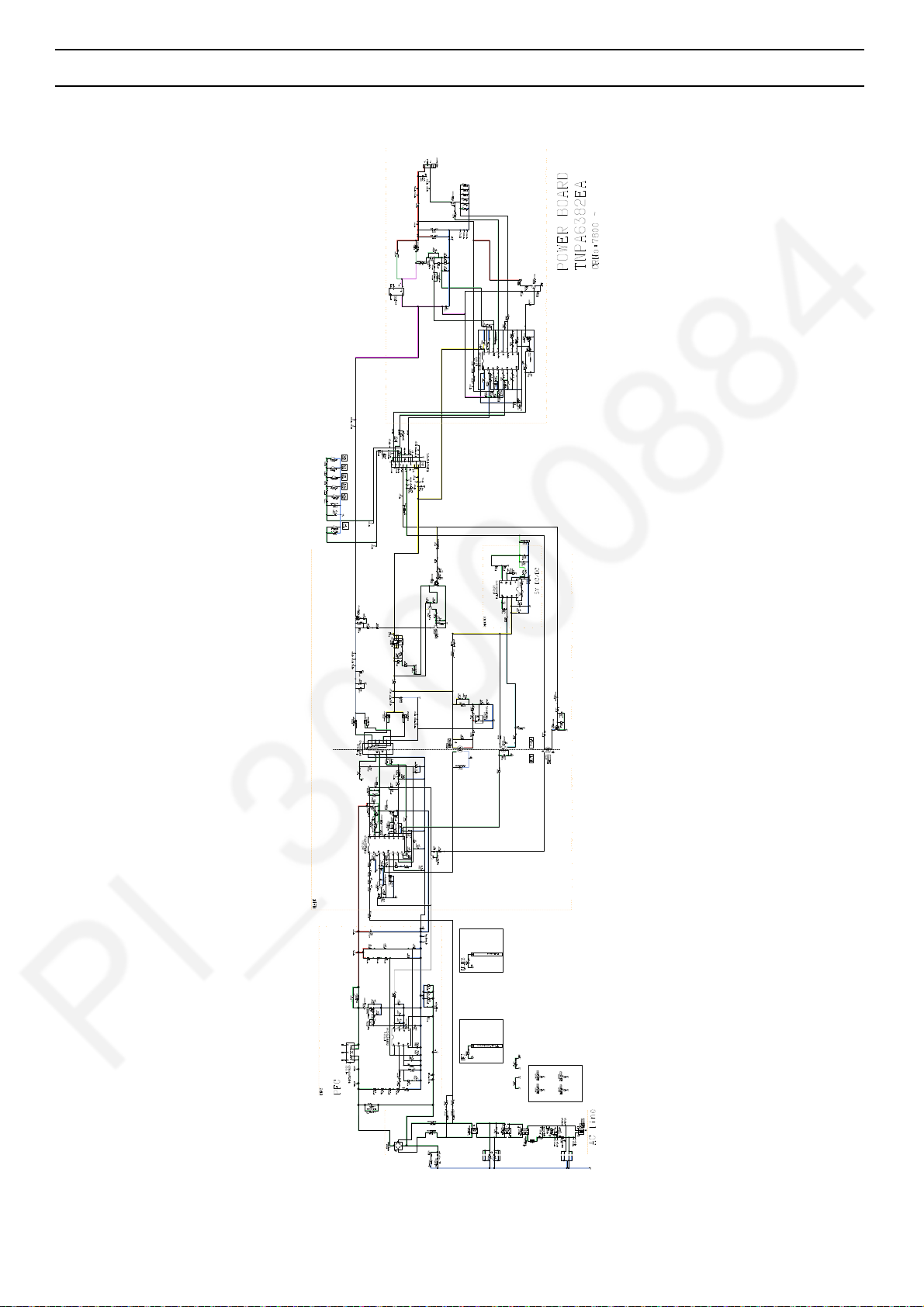

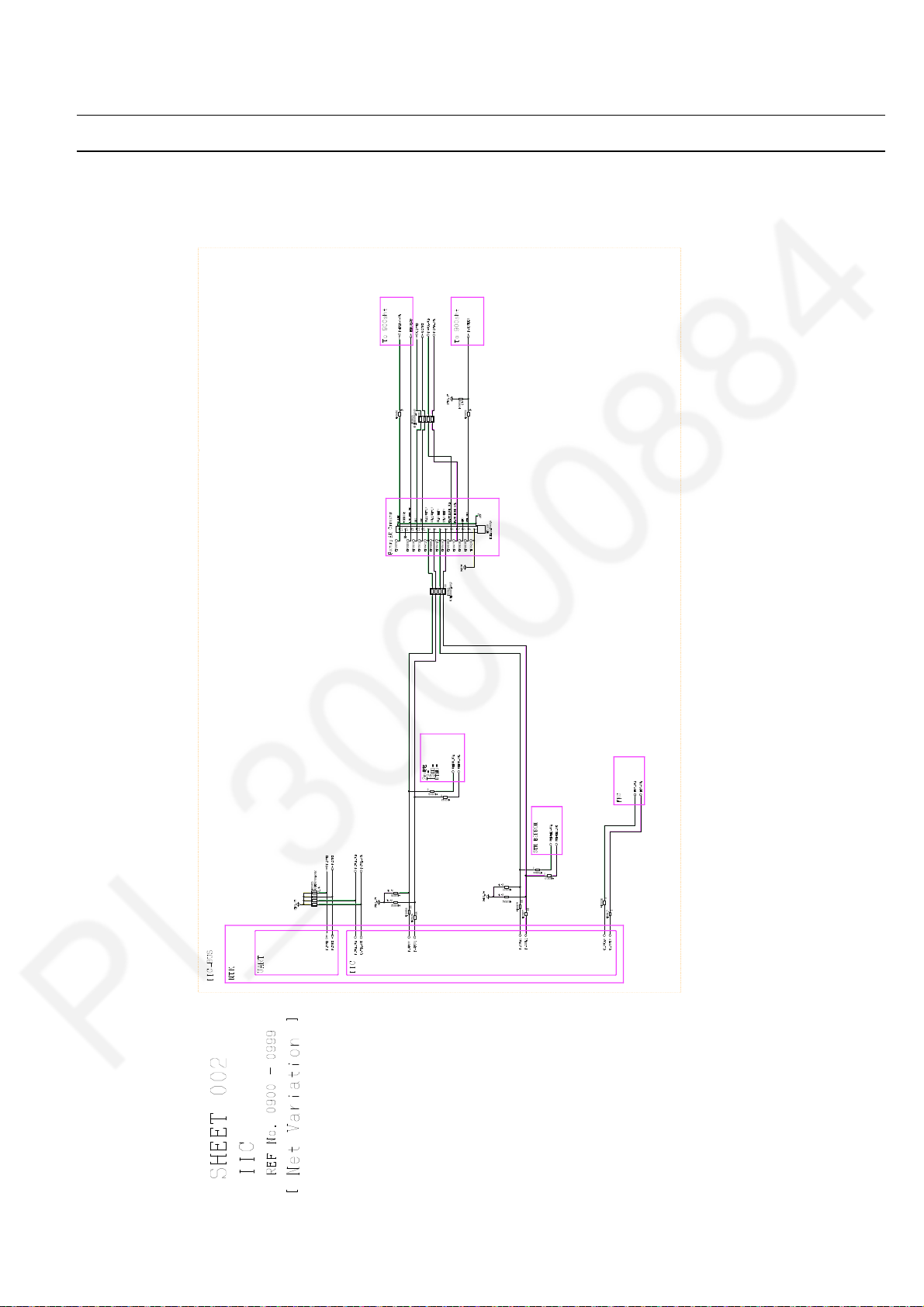

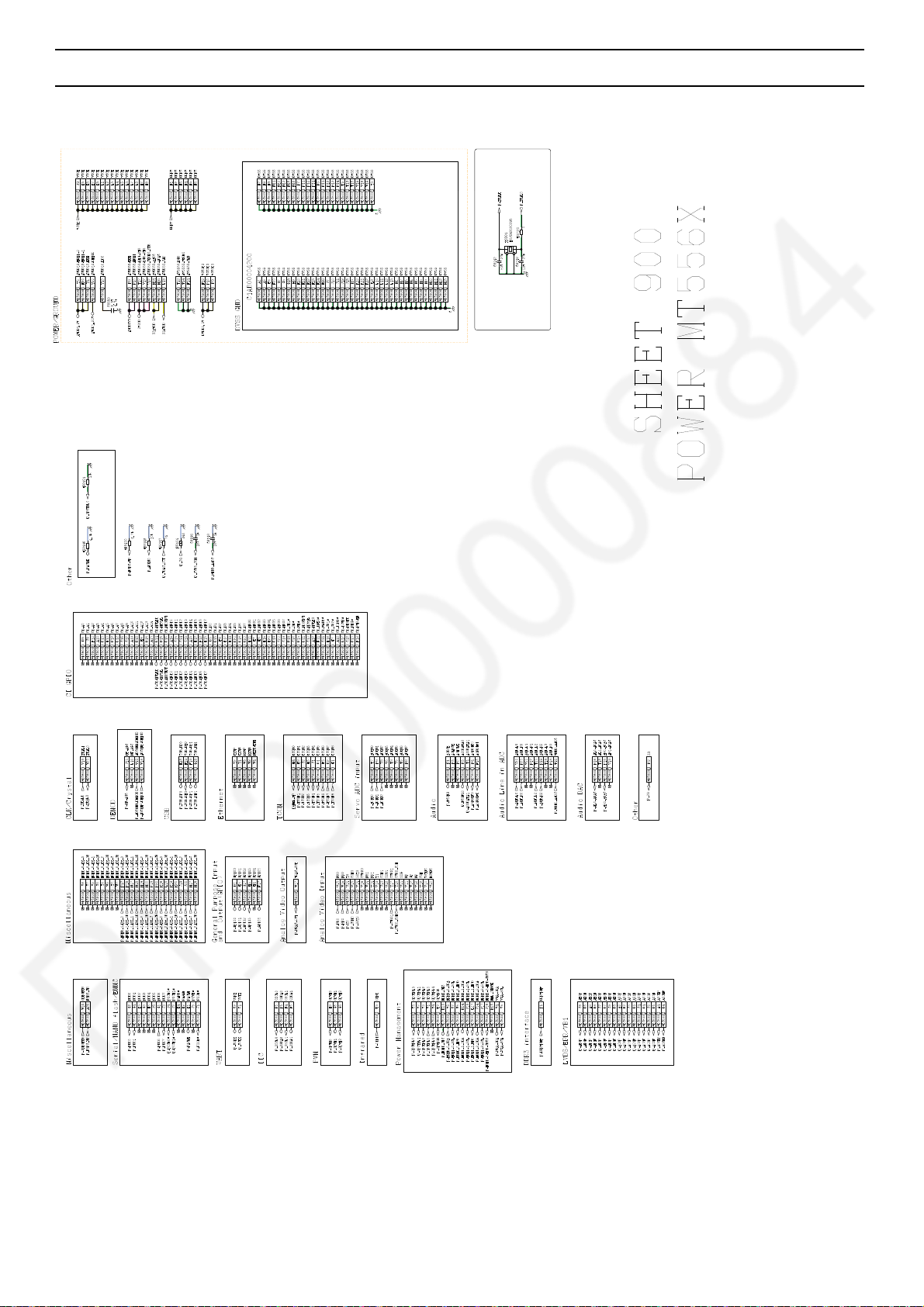

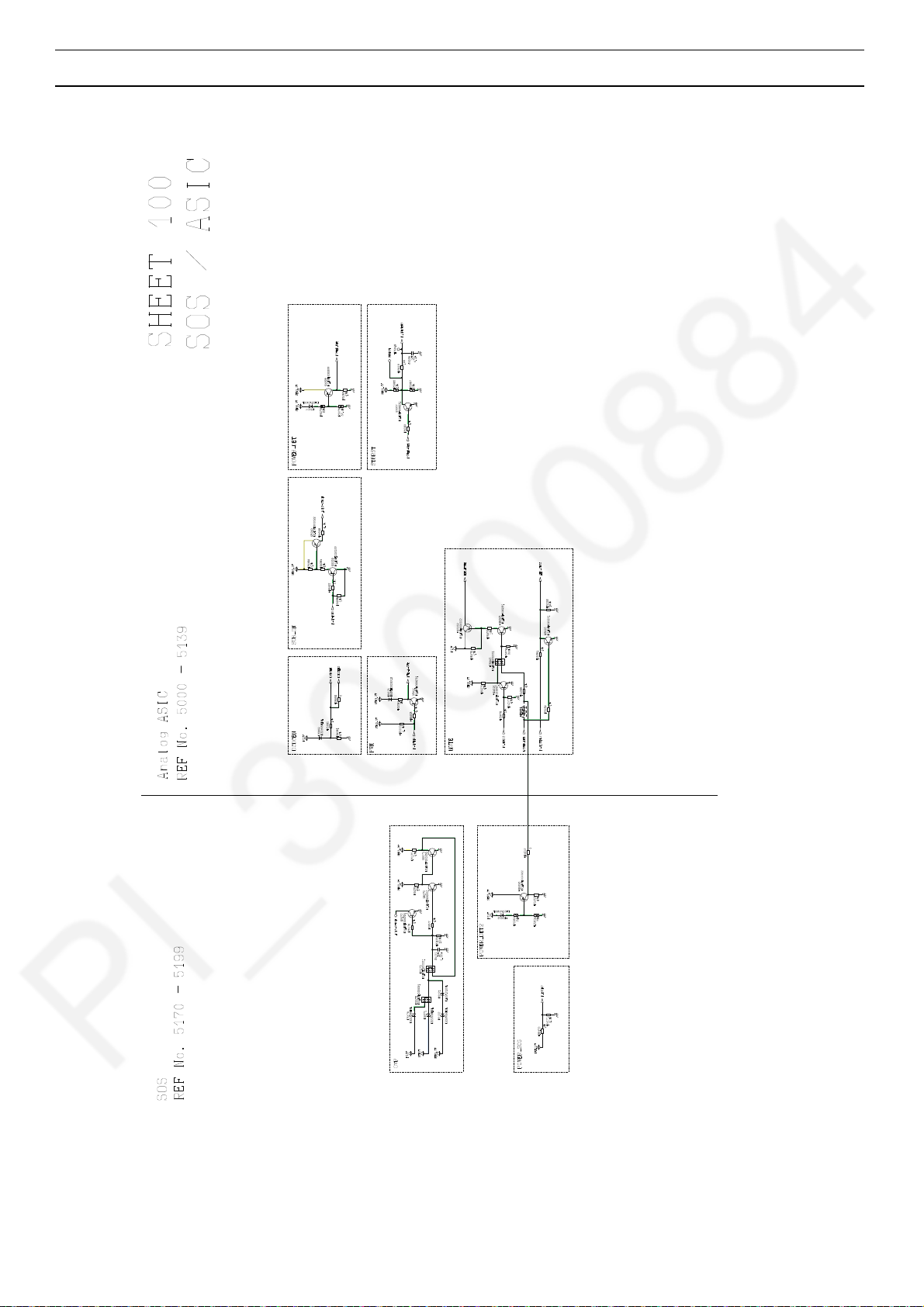

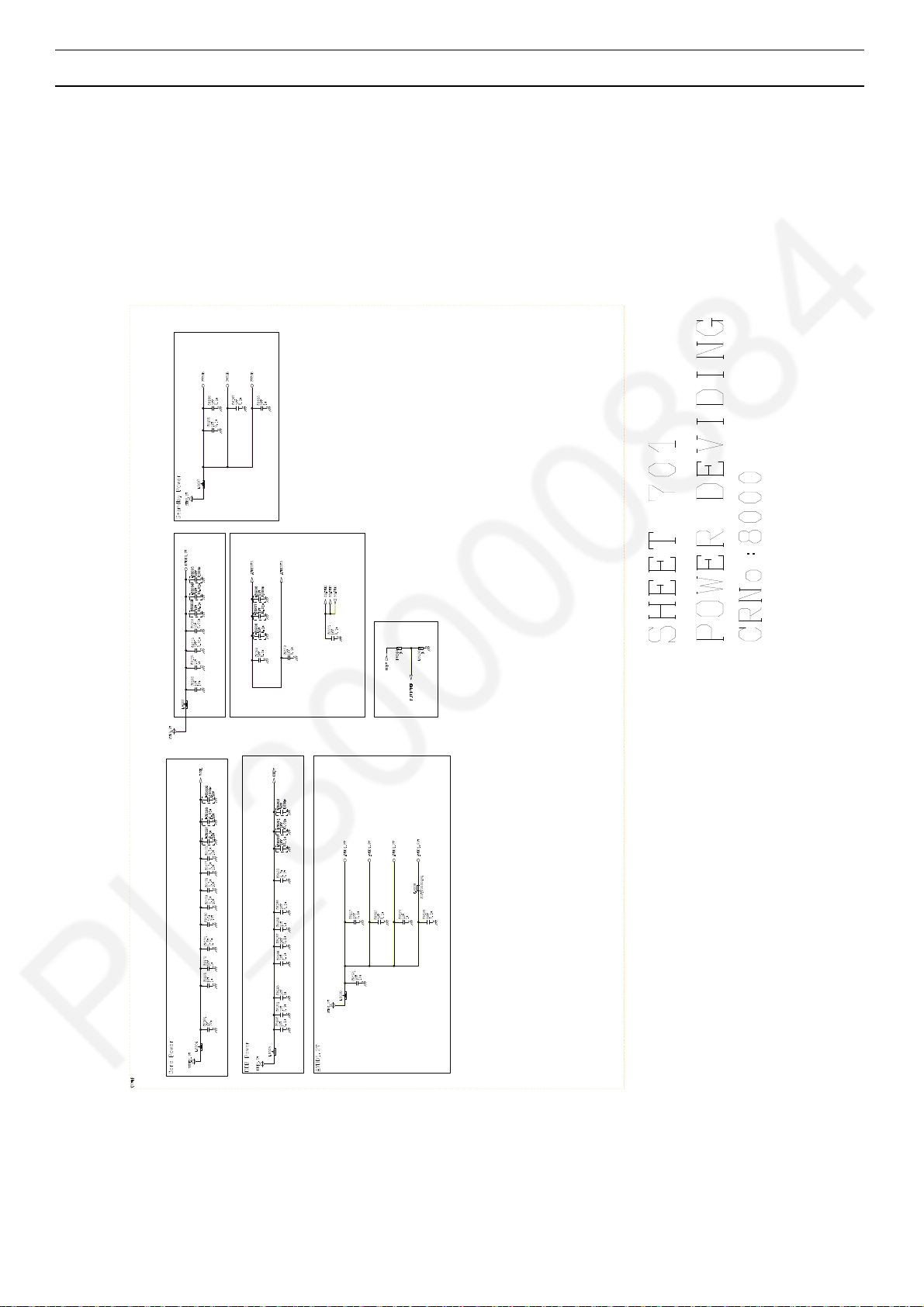

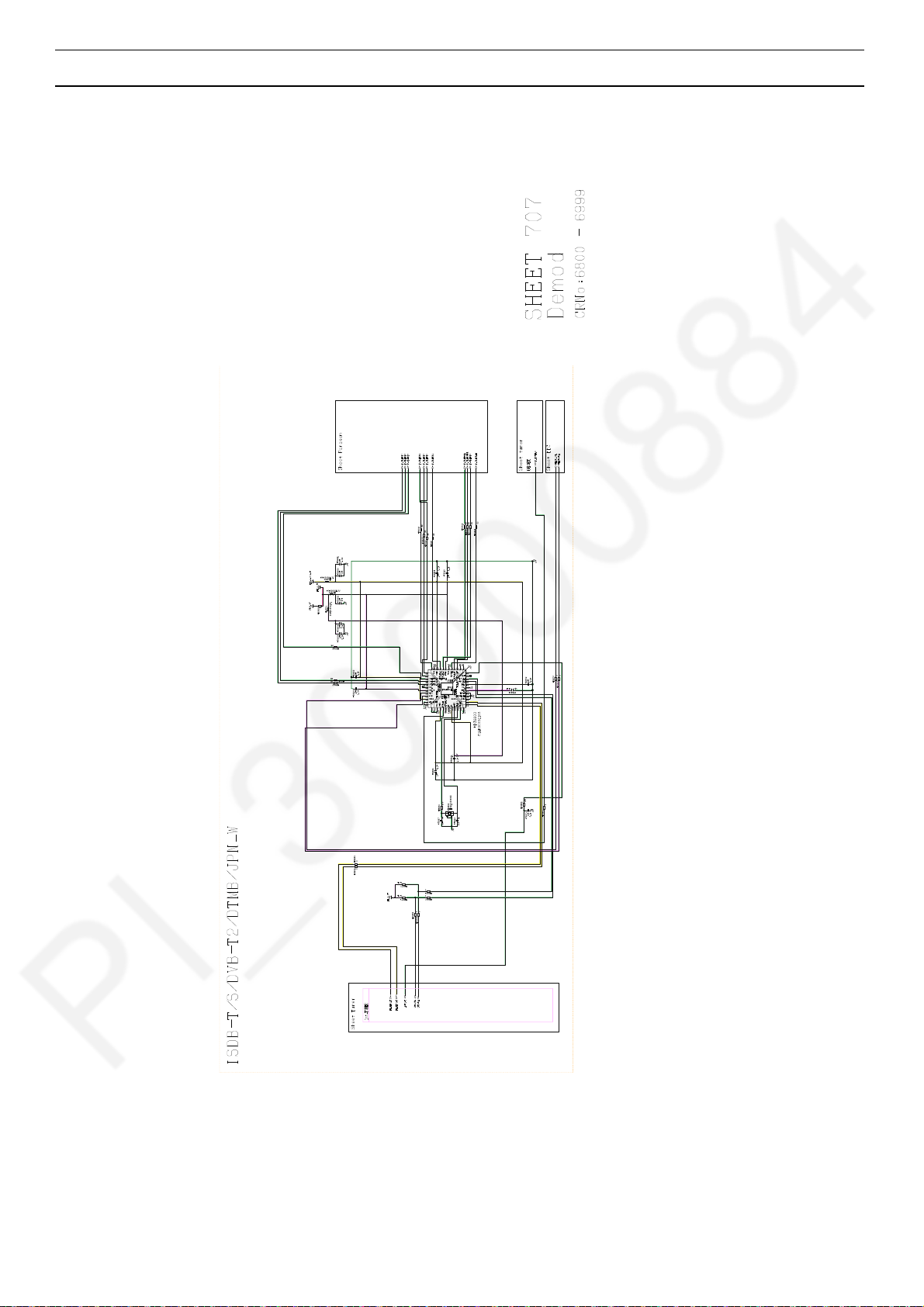

11 Schematic Diagram--------------------------------------------- 31

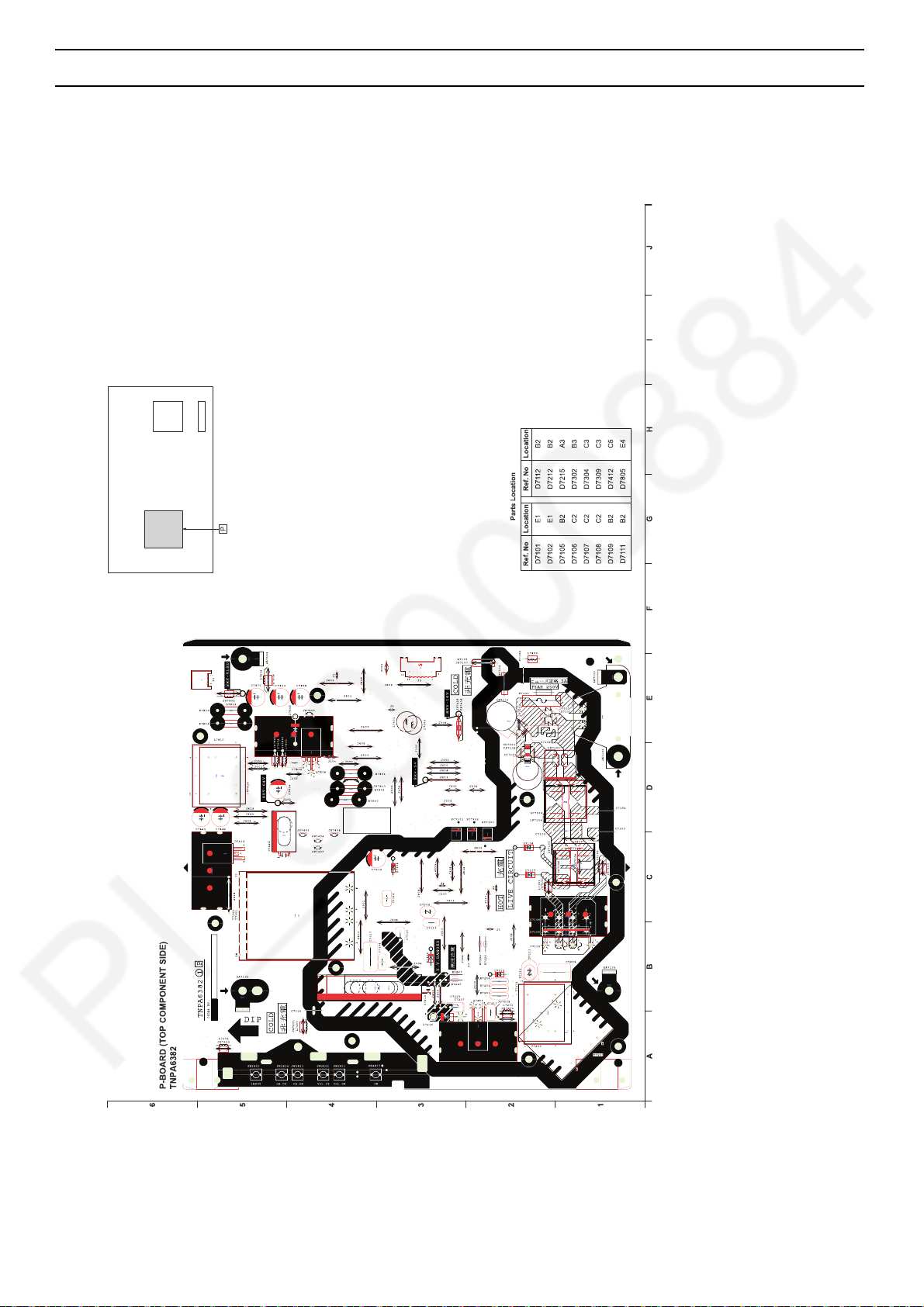

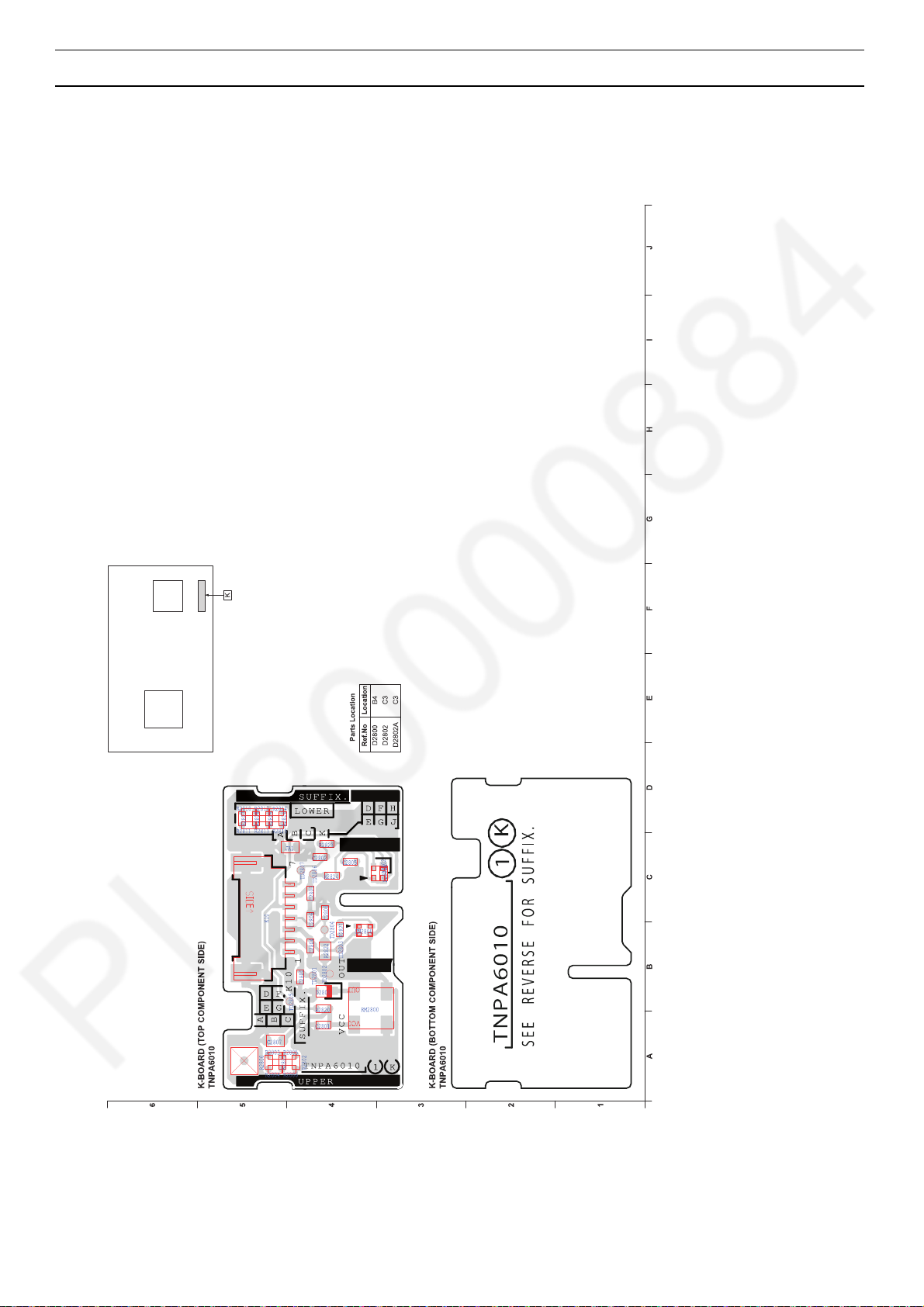

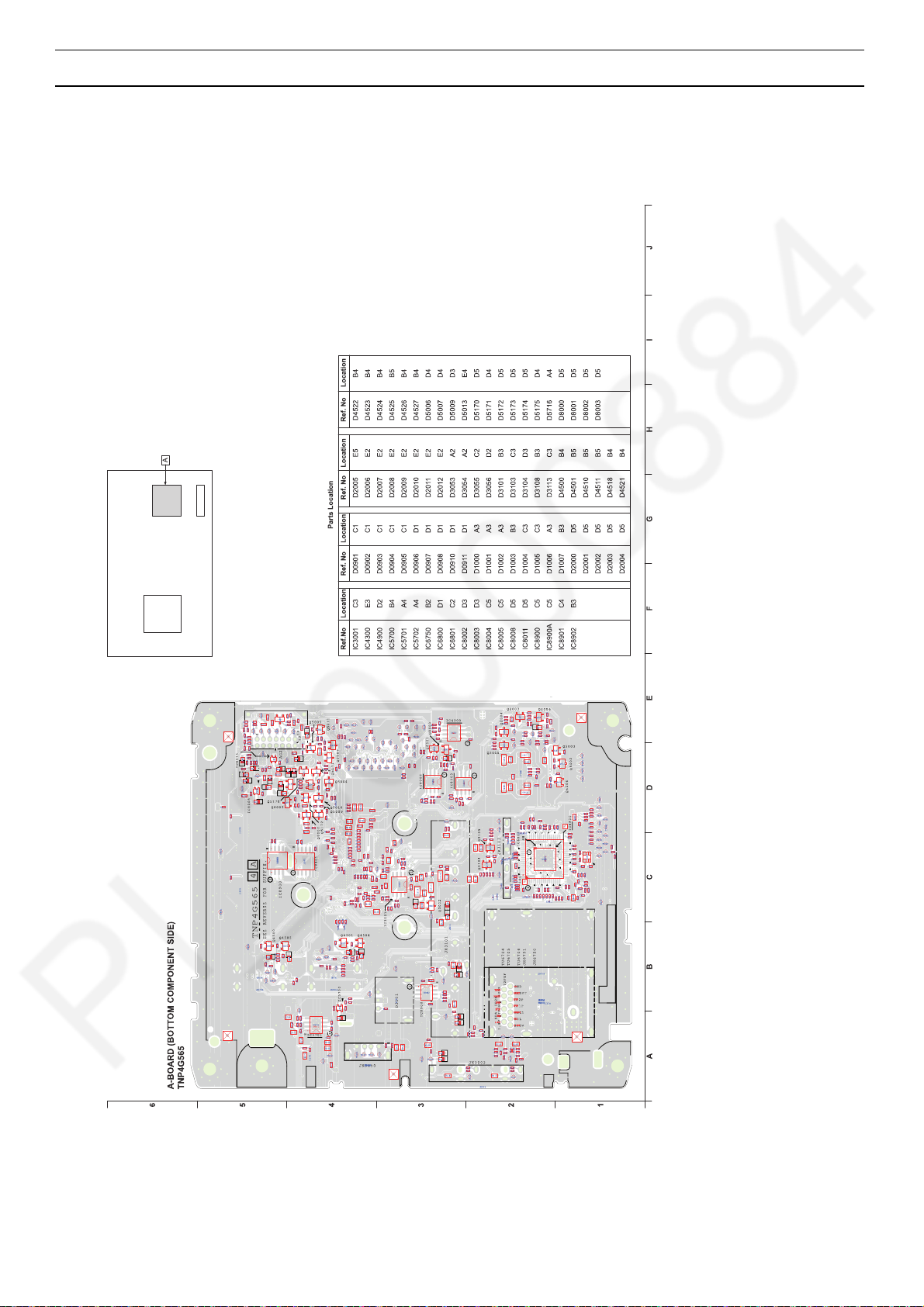

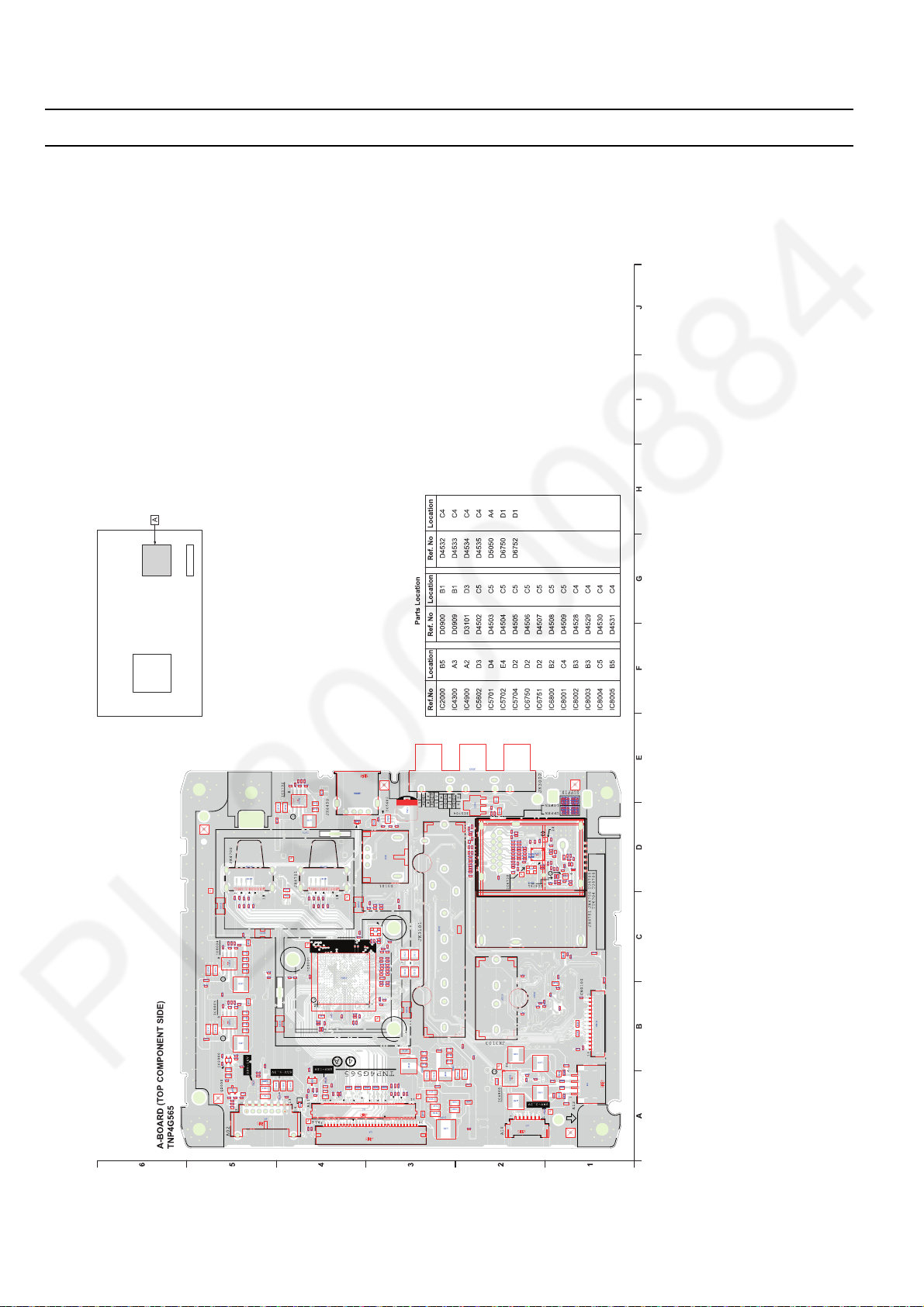

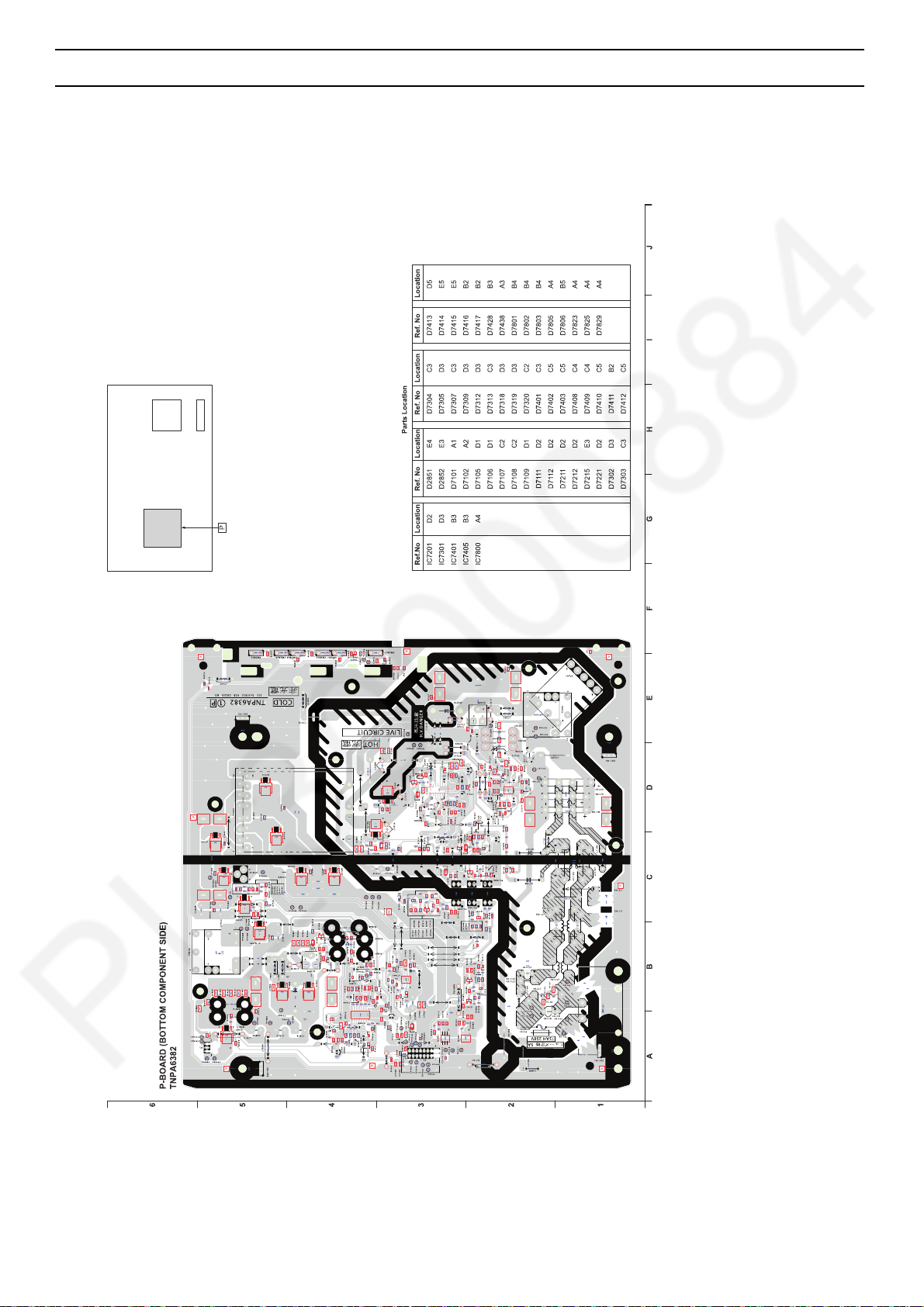

12 Printed Circuit Board ------------------------------------------ 47

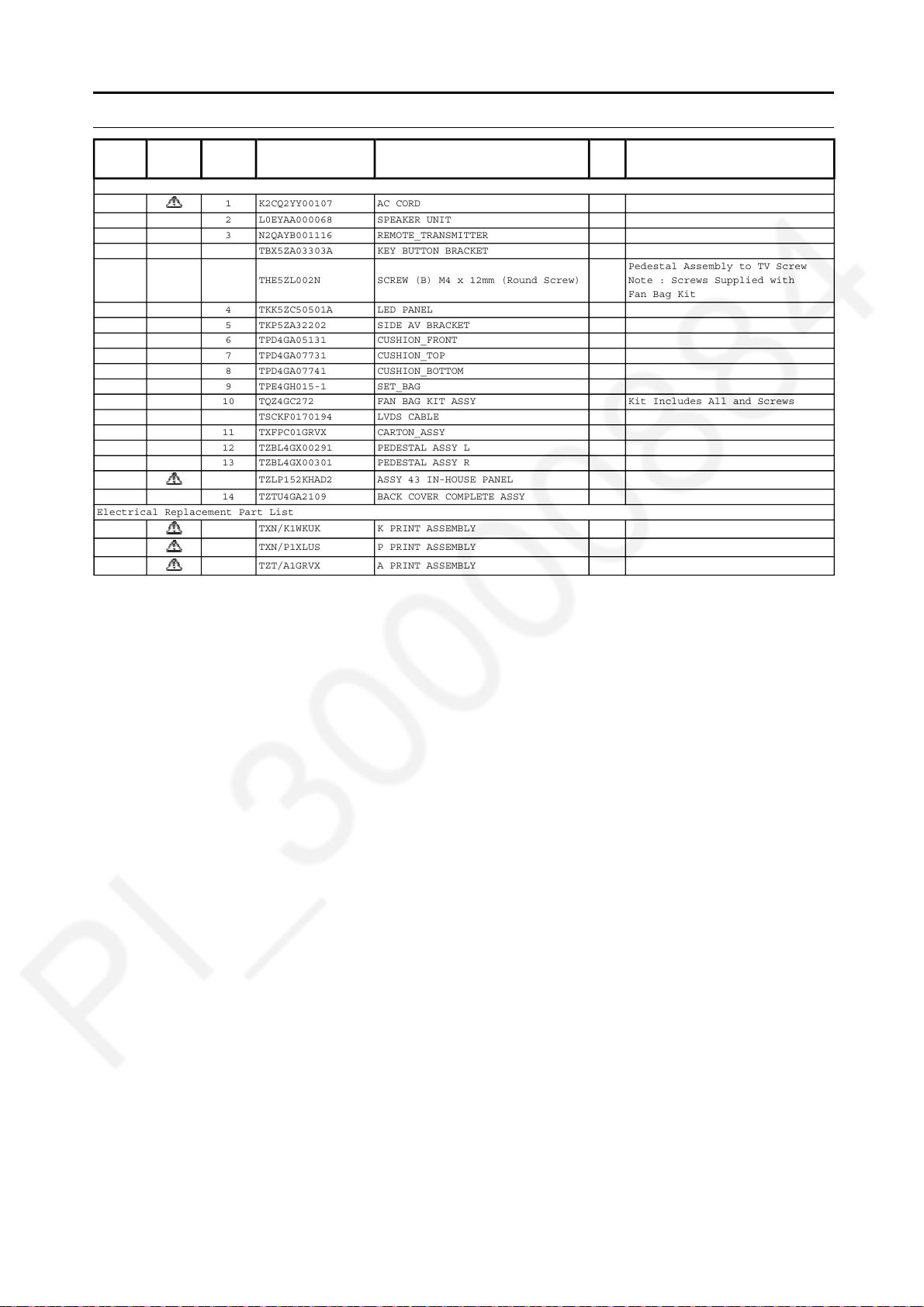

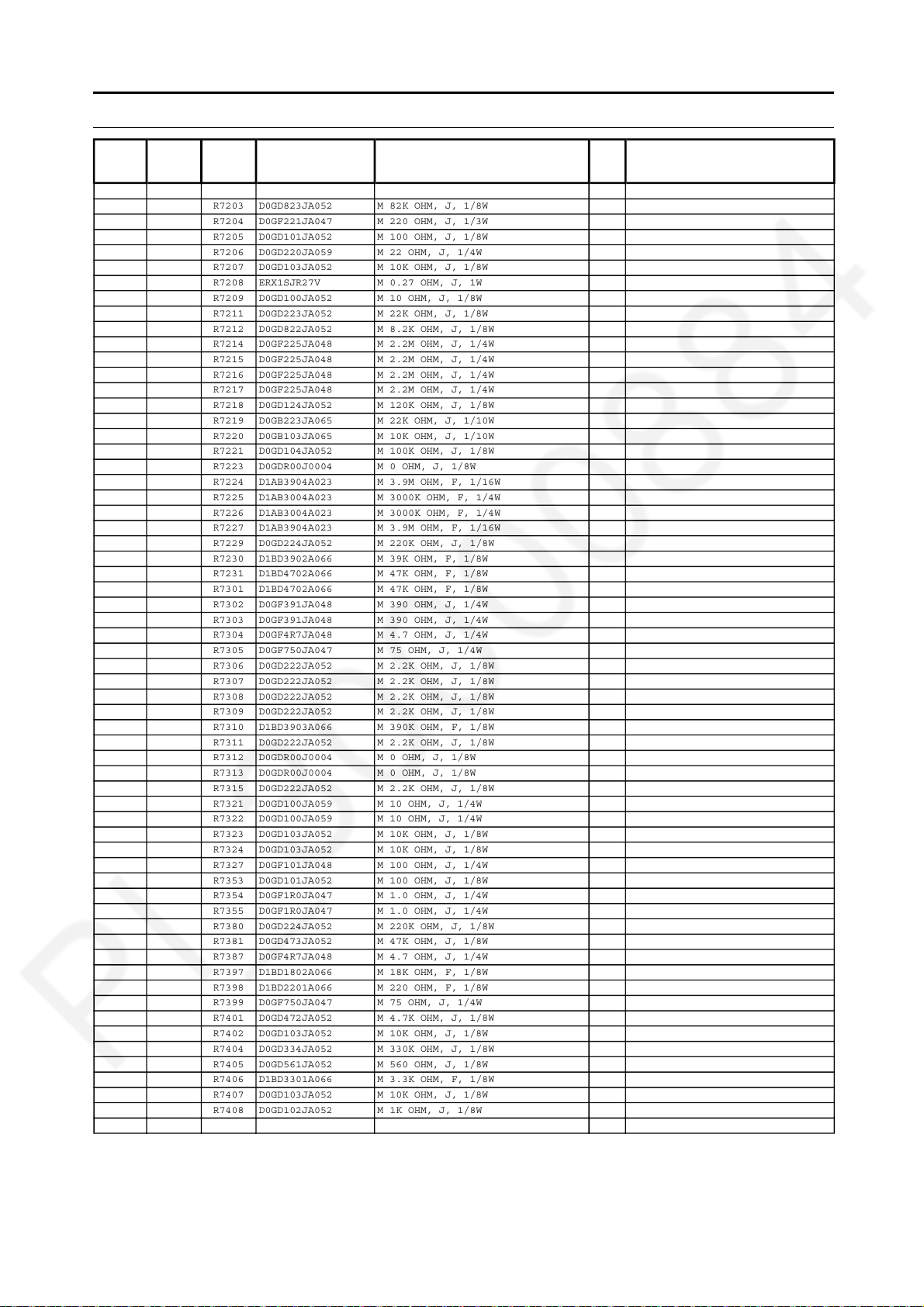

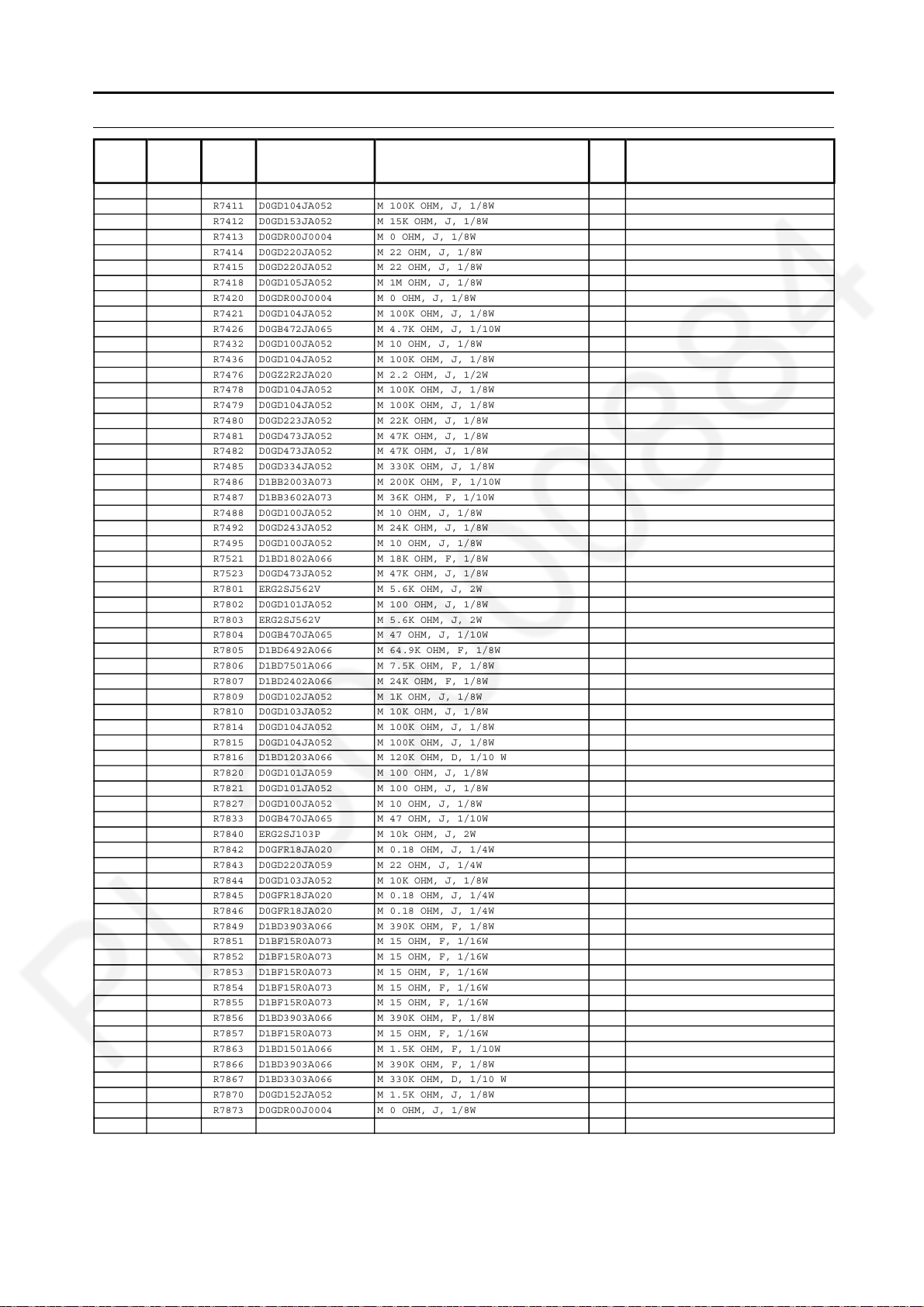

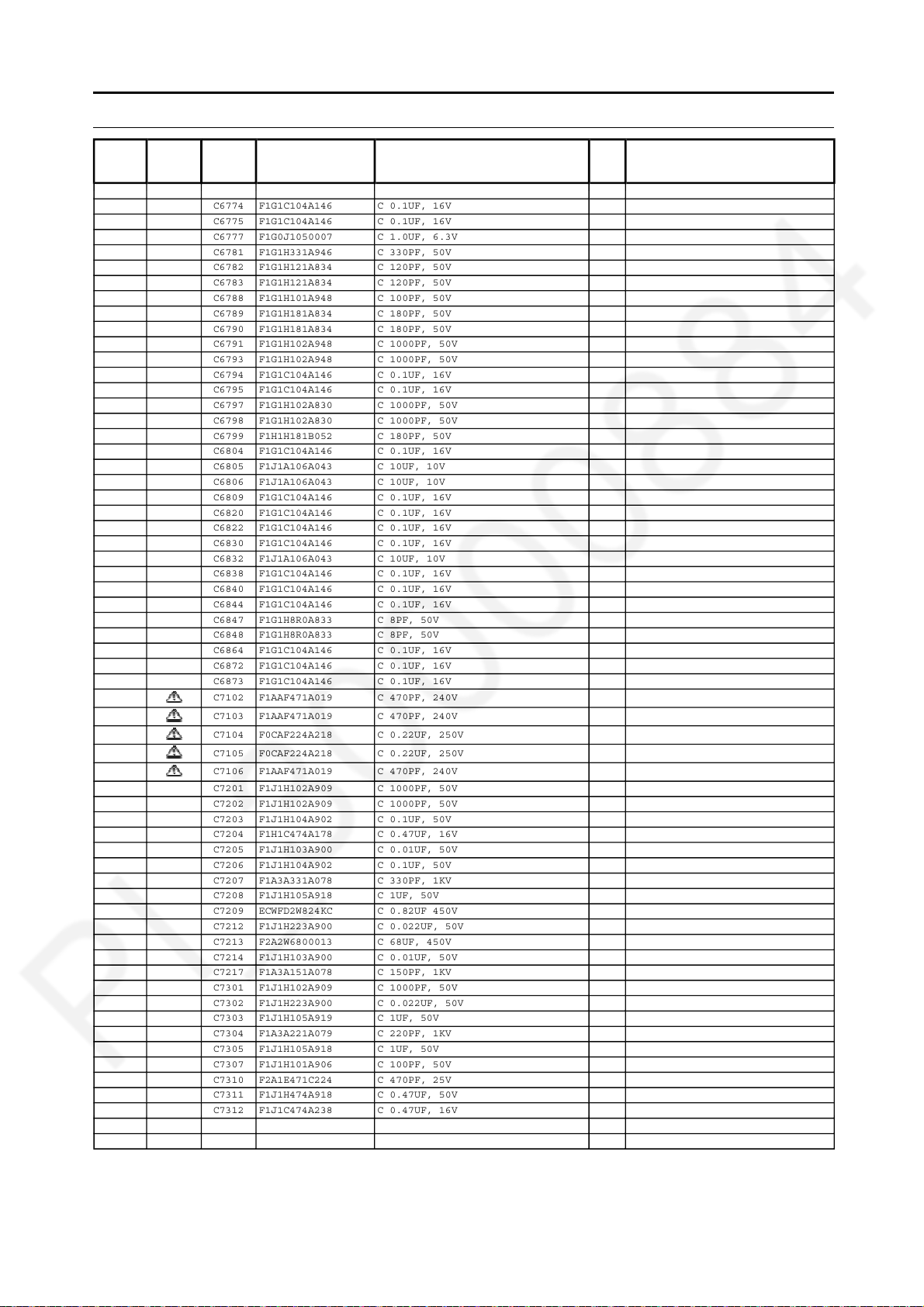

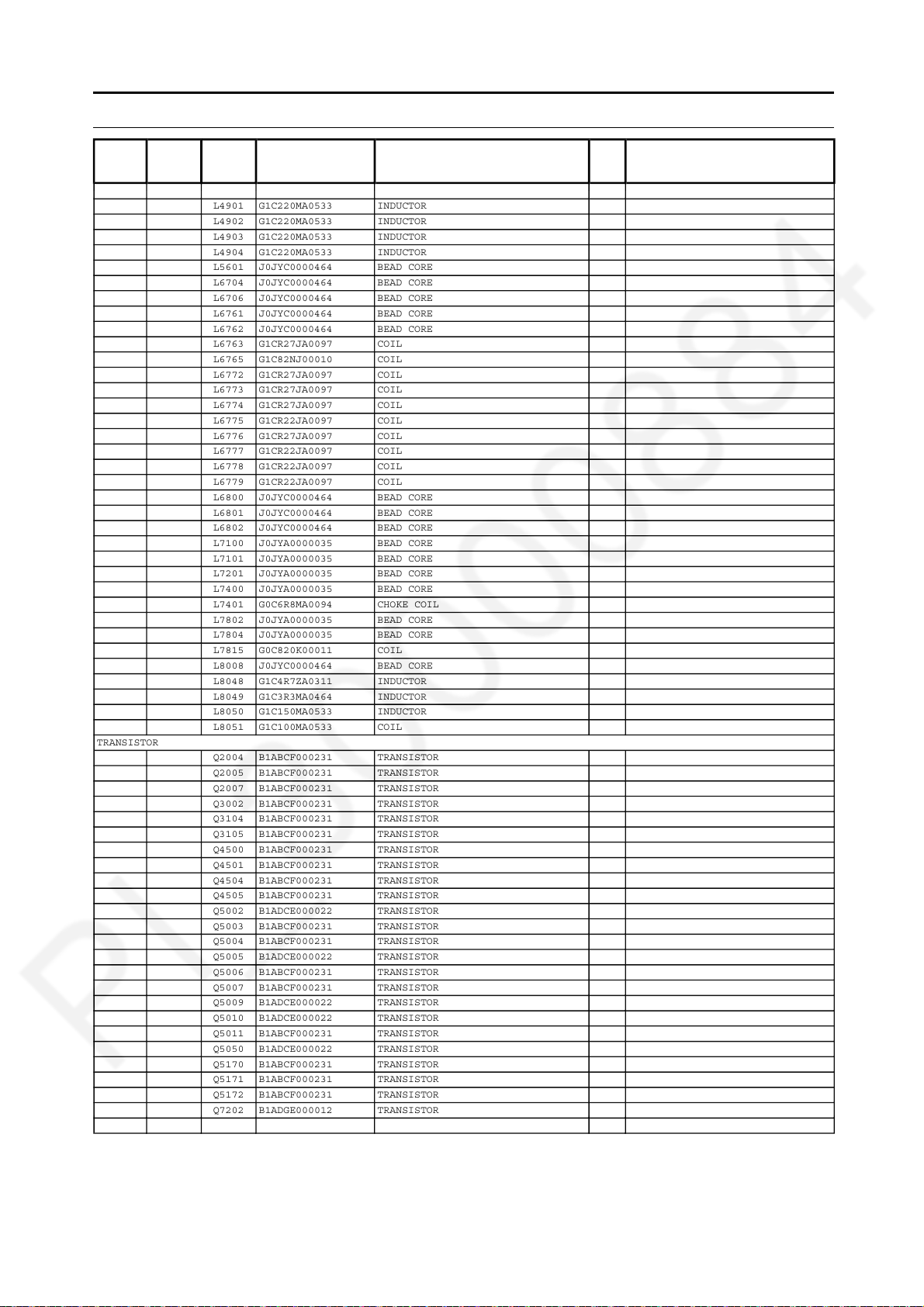

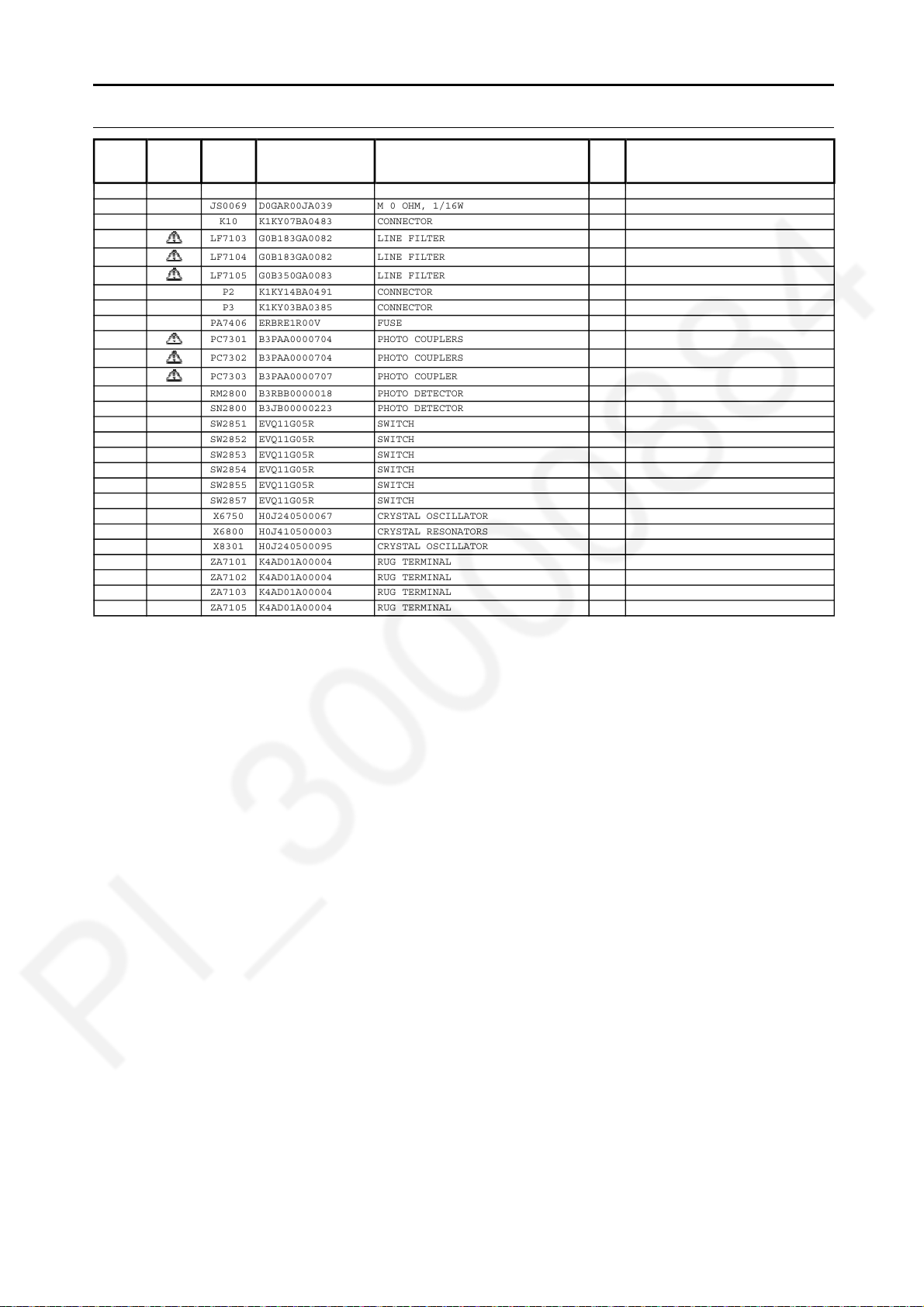

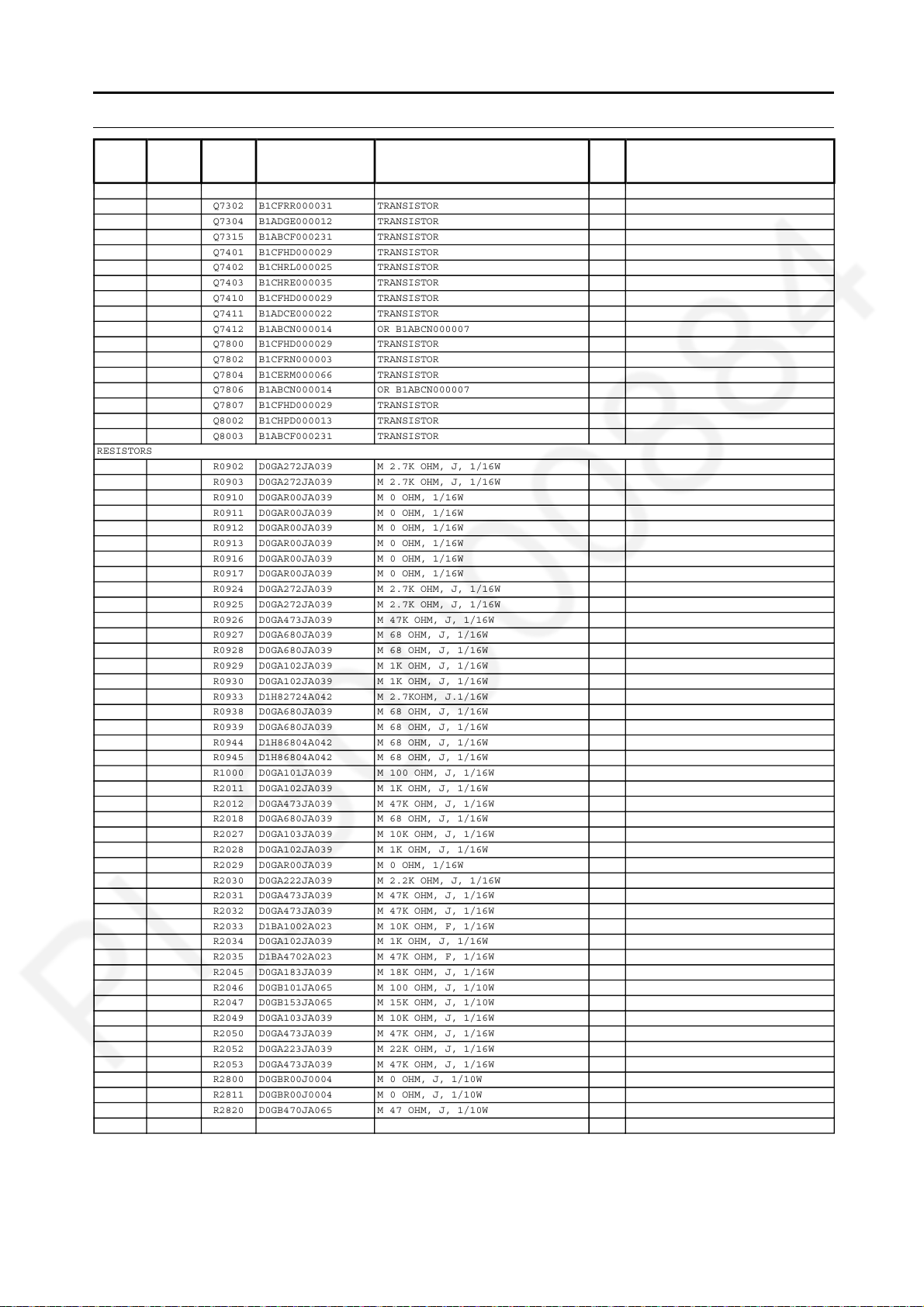

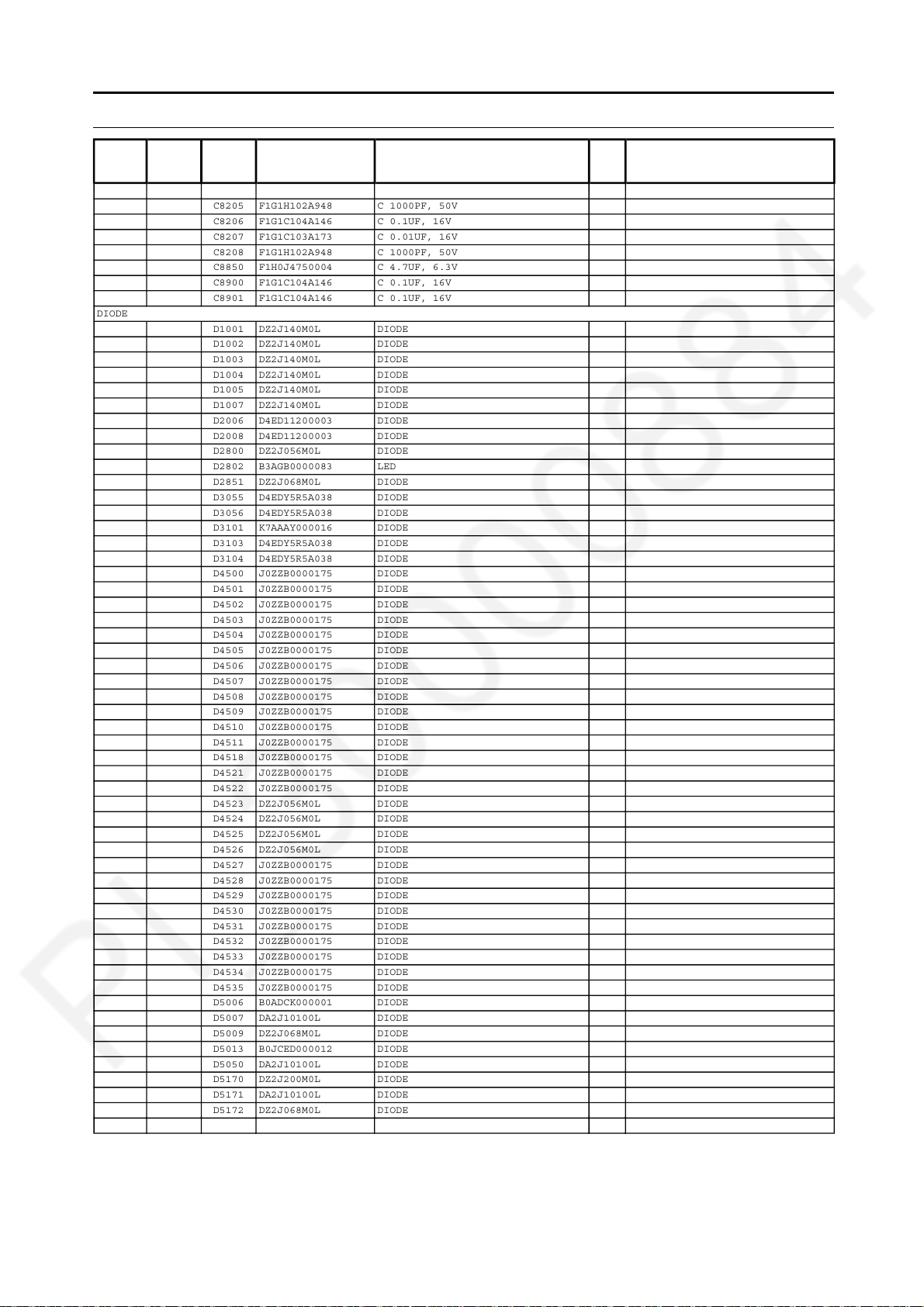

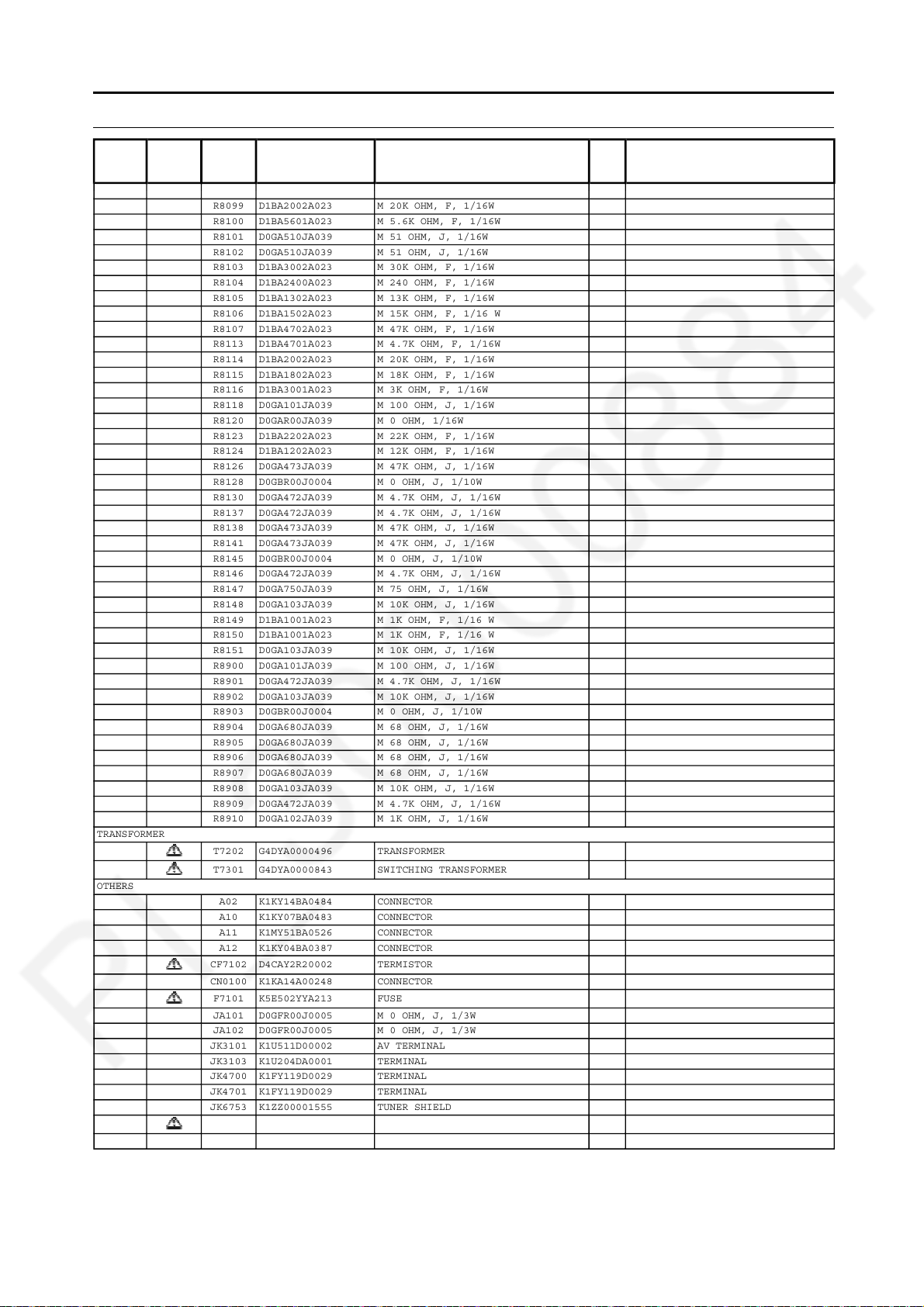

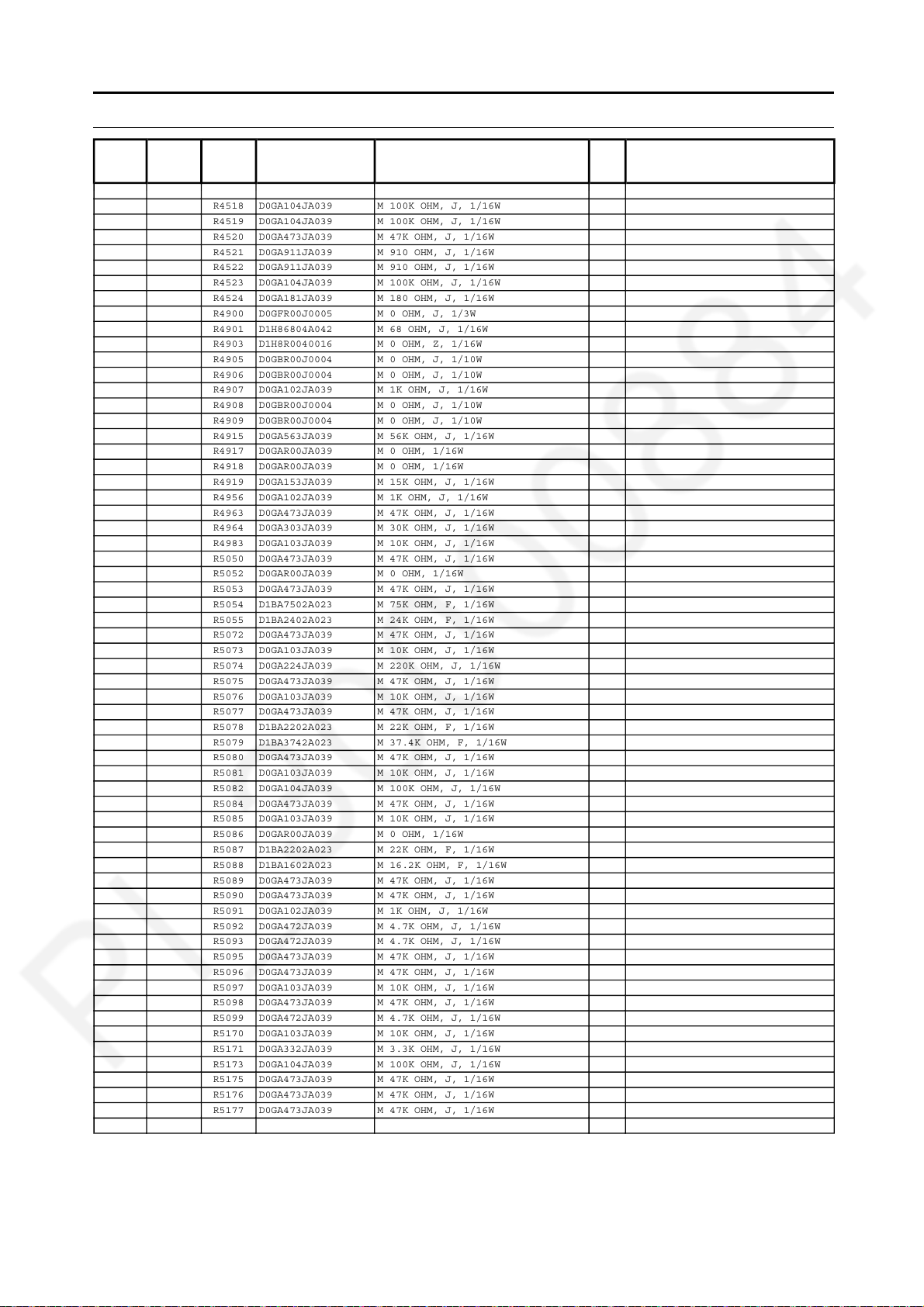

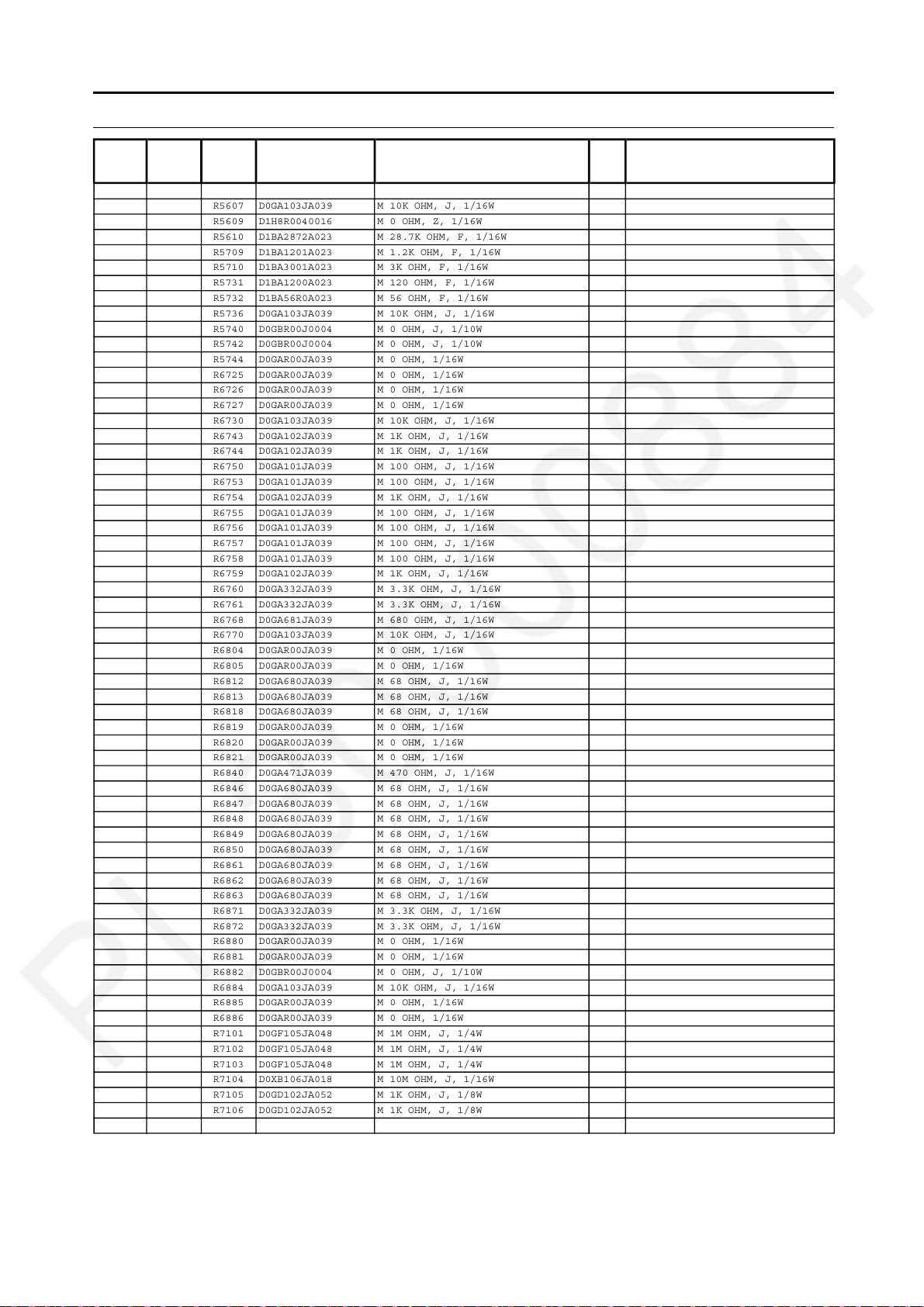

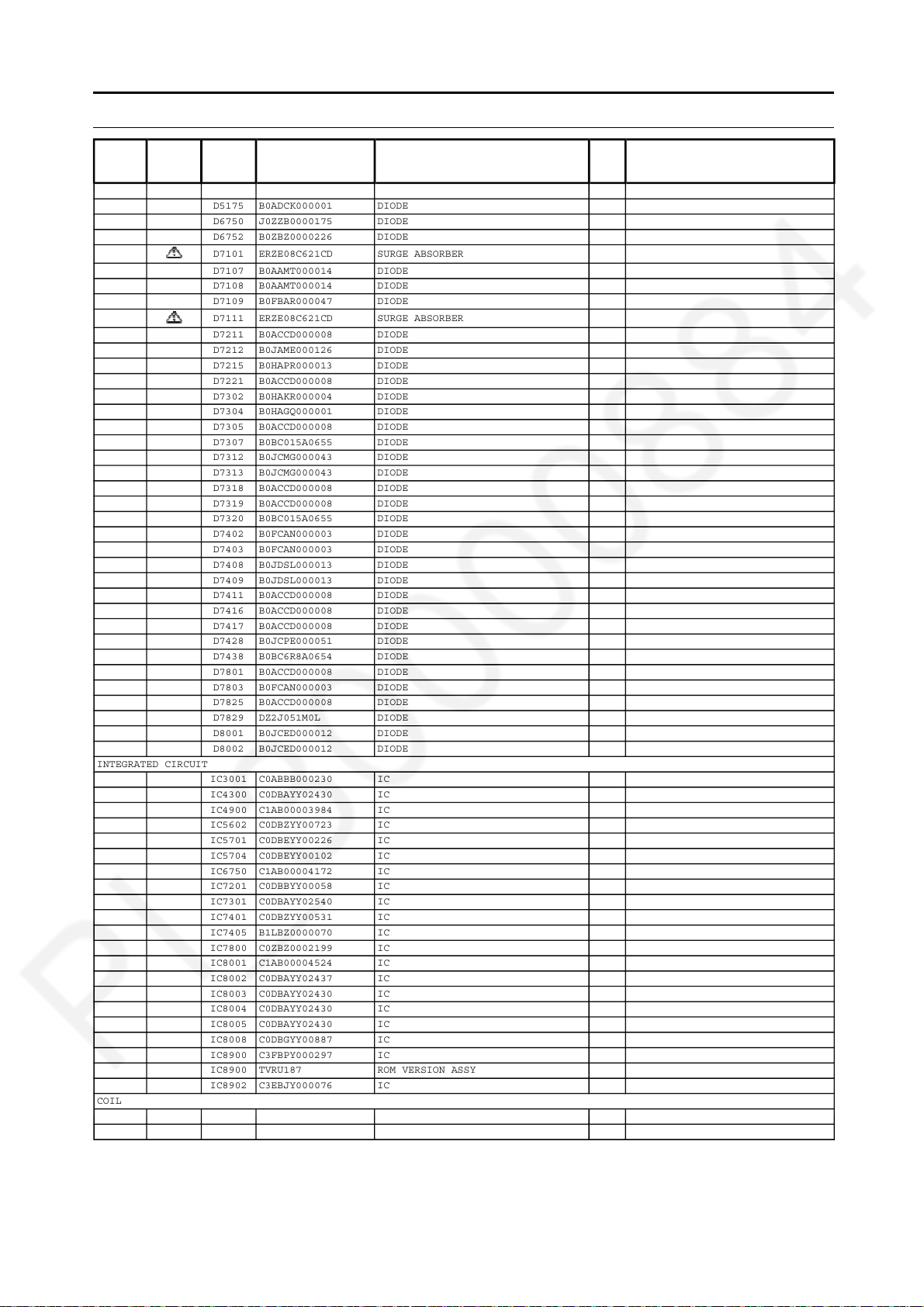

13 Exploded View and Replacement Parts List -----------52
2
TH-43E410X
1 Safety Precautions
1.1. General Guidelines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.
5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
6. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight
out.
1.1.1. Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the
two prongs on the plug.
2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed
metallic cabinet part on the equipment such as
screwheads, connectors, control shafts, etc. When the
exposed metallic part has a return path to the chassis, the
reading should be 8.5Mohm to 13Mohm.
When the exposed metal does not have a return path to
the chassis, the reading must be .
1.1.2. Leakage Current Hot Check (See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.
2. Connect a 1.5kohm, 10 watts resistor, in parallel with a
0.15F capacitors, between each exposed metallic part
on the set and a good earth ground such as a water pipe,
as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more
sensitivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the
voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.
6. The potential at any point should not exceed 0.75 volts
RMS. A leakage current tester (Simpson Model 229 or
equivalent) may be used to make the hot checks, leakage
current must not exceed 1/2 milliamp. In case a
measurement is outside of the limits specified, there is a
possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the
customer.
Figure 1
3
TH-43E410X
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).
4
TH-43E410X
2.2. About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb
solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)
5
TH-43E410X
3 Service Navigation
3.1. Service Hint
Board Name Main Device Remarks
A BOARD TUN, EEP, SPI, MTK IC Repairable
P BOARD Power Supply, Power switch, Keyscan Repairable

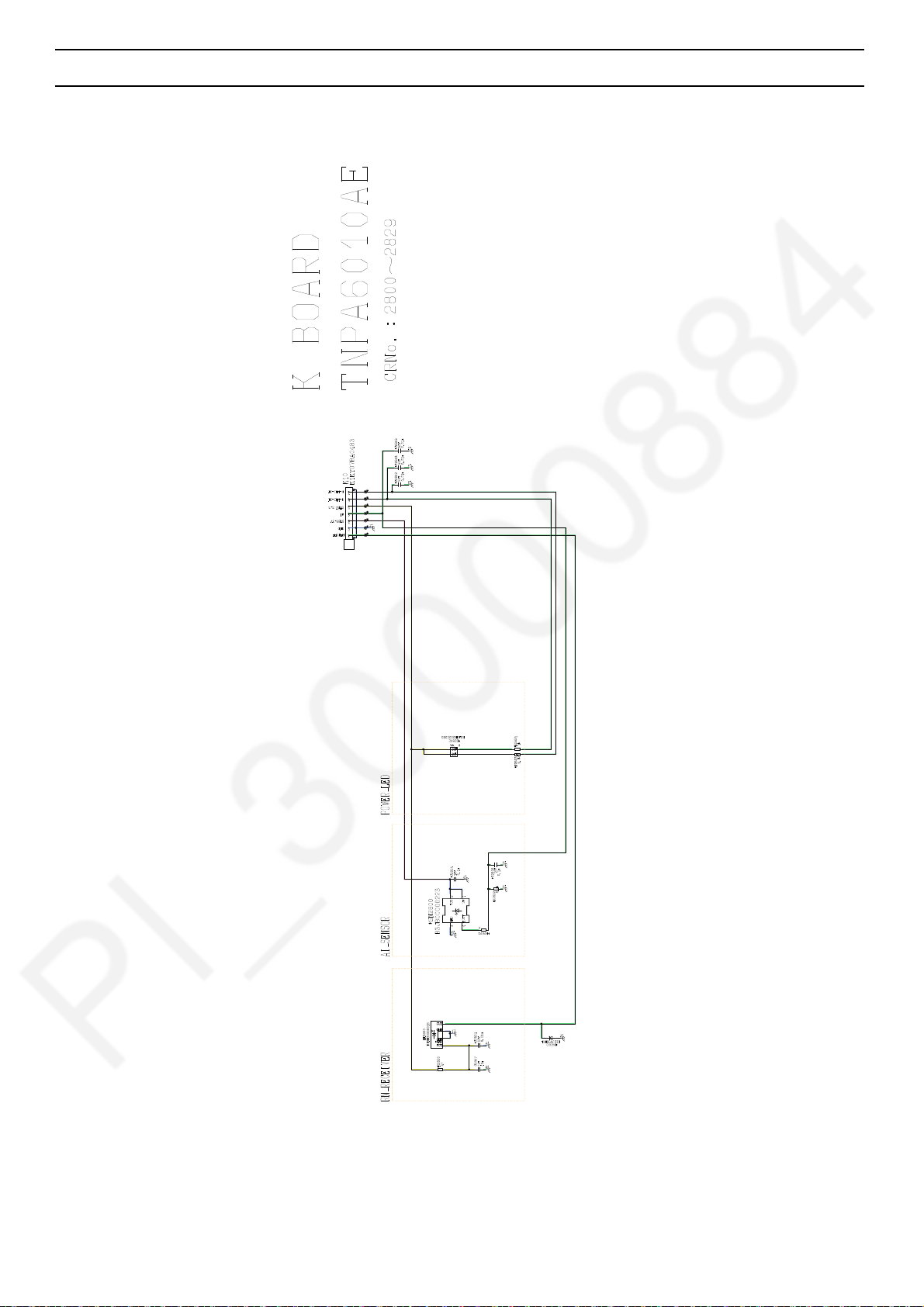

K BOARD Remote, LED, Luminence Sensor Repairable
6
4 Specifications
Power source AC Auto 110 - 240 V, 50 / 60 Hz
Power consumption
(Rated power / Standby power)
Display panel
Panel LED backlight Liquid Crystal Display
Visible screen size (diagonal) 108 cm
Display resolution 1 920 (W) 1 080 (H)
Dimensions (W H D) 974 mm 629 mm 259 mm (With Pedestal)
Mass
Connection terminals
AV I N V ID EO RCA PIN Type 1, 1.0 V[p-p] (75 )
(COMPONENT / VIDEO) AUDIO L - R RCA PIN Type 2, 0.5 V[rms]
HDMI 1 / 2 input TYPE A Connectors
USB USB 2.0 TYPE A Connectors
DIGITAL AUDIO OUT PCM / Dolby Digital / Fibre optic
AUDIO OUT AUDIO L - R RCA PIN Type 2, 0.5 V[rms]
Sound
Audio output 20 W (10 W + 10 W)
Receiving systems / Band name Digital TV
Receiving channels (Analogue TV)
VHF BAND 2 - 13 (NTSC M USA)
UHF BAND 14 - 69 (NTSC M USA)
CATV 1 - 125 (USA CATV)
Aerial input VHF / UHF
Operating Conditions Temperature : 0°C - 40°C
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
86 W / 0.25 W
974 mm 569 mm 82 mm (TV only)
10.0 Net (With Pedestal)
9.0 Net (TV only)
Y 1.0 V[p-p] (including synchronisation)
P
B, CB, PR, CR
DC 5 V, Max. 500 mA
6 MHz VHF / UHF free-to-air TV broadcast reception
Humidity : 20% - 80% RH (non-condensing)
±0.35 V[p-p]
1PAL-M
2PAL-N
3PAL D, K
Reception of broadcast transmissions and
Playback from Video Cassette Tape Recorders
TH-43E410X
7
TH-43E410X
5 Service Mode
5.1. How to enter into Service Mode
5.1.1. Purpose
After exchange parts, check and adjust the contents of adjustment mode.
While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.
5.1.2. Key command
[1] button...Main items Selection in forward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in forward direction
[4] button...Sub items Selection in reverse direction
[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )
5.1.3. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
5.1.4. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample Data
ADJUST H POS
H AMP
V POS
V AMP
V COM
WB-ADJ R-GAIN 8D
G-GAIN AE
B-GAIN FF
R-CENT 6C
G-RENT 80
B-CENT A0
OPTION Boot upgrade NO
STBY-SET 00
EMERGENCY ON
CLK MODE 00
CLOCK FC7
Y/C DELAY DYNAMIC
OPT 1 00000000
OPT 2 11100110
OPT 3 00001001
OPT 4 00000000
EDID-CLK HIGH
8
TH-43E410X
5.1.5. Display of SOS History
SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory
shipment setting].
5.1.6. Exit
1. Disconnect the AC cord from wall outlet.
5.1.7. Hotel Mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu.
In order to display the Hotel mode setup menu:
While pressing [VOLUME (-)] button of the main unit,
press [AV] button of the remote control three times within
2 seconds.
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu
Item Function
Hotel Mode Select hotel mode On/Off
Initial INPUT Select input signal modes.
Set the input, when each time power is switched on.
Selection :
Off,Analogue,DVB-C,DVB-T,AV1,AV2,HDMI1,
HDMI2
• Off: give priority to a last memory. However, Euro
model is compulsorily set to TV.
Initial POS Select programme number.
Selection :
Off/0 to 99
• Off: give priority to a last memory.
Initial VOL LEVEL Adjust the volume when each time power is switched
on.
Selection Range :
Off/0 to 100
• Off: give priority to a last memory.
Maximum Vol Level Adjust maximum volume.
Range :
0 to 100
Button Lock Select local key conditions.
Selection :
Off/SETUP/MENU/ALL
• OFF: altogether valid
• SETUP: only F-key is invalid
(Tuning guide (menu) can not be selected.)
• MENU: only F-key is invalid
(only Volume/Mute can be selected.)
• ALL: altogether invalid.
Remote Lock Select remote control key conditions.
Selection :
Off/SETUP/MENU
• OFF: altogether valid.
• SETUP: only Setup menu is invalid.
• MENU: Picture/Sound/Setup menu are invalid.
Hotel Mode USB Basically after user already setup the hotel mode
according to their criteria, what they need to do is
• insert USB (while in hotel mode)
• choose ‘Copy TV to USB’ to copy the setting into
the USB (a file will be created to store the hotel
mode setting in the USB)
• switch ‘OFF’ the unit
• pull out USB from unit
To copy the hotel mode setting from USB.
• enter hotel mode
•insert USB
• choose ‘Copy USB to TV’
• follow instruction as shown on the units
• once finish, switch ‘OFF; the unit
• pull out USB from unit
Private Information Select private information for VIERA Cast is Keep or
Reset if Hotel mode is set to [On] when TV power on
Selection :
Keep/Reset
• Keep: private information for VIERA Cast is keep
• Reset: private information for VIERA Cast is
reset
9
TH-43E410X
6 Troubleshooting Guide
Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
6.1. Check of the IIC bus lines
6.1.1. How to access
6.1.2. Self-check indication only
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
6.1.3. Self-check indication and forced to factory shipment setting
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote
control for more than 3 seconds.
6.1.4. Exit
Disconnect the AC cord from wall outlet.
6.1.5. Screen display
10
6.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abnormality occurs, the protection circuit will operate and reset the unit to stand by mode. During this time, the
defective block can be identified by the number of blinking times of the Power LED on the front panel of the unit as follow:
Priority Name Factor R_LED Blink
1 BL_SOS SOS from PANEL inverter 1
2 TV_SOS TCON power down 3
3 SOUND_SOS SOS from audio AMP 9
6.3. Method of detecting SOS
1. BL_SOS
Detection beginning after one second pass from ‘BL_ON’=ON
TH-43E410X
2. TV_SOS
Detection beginning after one second pass from ‘AMP_SHUTDOWN’=ON
3. SOUND_SOS
Detection beginning ‘AMP_SHUTDOWN’=ON
11
TH-43E410X
6.4. LCD Panel test mode
Purpose:
To find the possible failure point where in LCD Panel or Printed Circuit Board when the abnormal picture is displayed.
How to Enter:
While pressing [VOLUME ( - )] button of the main unit, press [OPTION] button of the remote control three times within 2
seconds.
How to Exit:
Disconnect AC plug from wall outlet.
How to confirm:
If the abnormal picture is displayed, go into LCD Panel test mode to display the several test patterns.
And then, judge by the following method.
Still abnormal picture is displayed: The cause must be in LCD Panel.
Normal picture is displayed: The cause must be in A board.
Remarks:
The test pattern is created by the circuit in LCD Panel.
In LCD Panel test mode, this test pattern is displayed unaffected by signal processing for RF or input signal.
If the normal picture is displayed, LCD Panel must be okay and the cause of failure must be in A board.
6.5. No Power
First check point
There are following 2 states of No Power indication by power LED.
1. No lit
2. Red is lit then turns red blinking a few seconds later. (See 6.2.)
12
7 Disassembly and Assembly Instructions
7.1. Speaker Ass’y
1. Fix sp bracket.
2. Install sp unit.
TH-43E410X
No Part No Description Qty UOM
01 TKP5ZA52901 SP_BRACKET 4 PC
02 L0EYAA000068 SPEAKER_UNIT 2 PC
13
TH-43E410X
7.2. WIFI & LED Panel Ass’y
Assemble led panel ass'y and install to cabinet.
No Part No Description Qty UOM Remarks
01 TKP5ZA41701 LED PANEL CASE 1 PC
02 TKK5ZC50501A LED PANEL 1 PC
03 K-BOARD 1 PC *Refer to chassis part list
14
7.3. PCB & AV Bracket Ass’y
1. Fix A,P-board and key button bracket.
2. Install av brackets.
TH-43E410X
No Part No Description Qty UOM Remarks
01 A-BOARD 1 PC *Refer to chassis part list
02 P-BOARD 1 PC *Refer to chassis part list
03 TBX5ZA03303A KEY_BUTTON_BRACKET 1 PC
04 TMK4GA332 FELT (W10 L50 T0.55) 1 PC
05 TMK4GA477 FELT (W10 L130 T0.35) 1 PC
06 TMX5ZE0041 CHASSIS BRACKET A-PCB 1 PC
07 TKP5ZA32202 SIDE_AV_BRACKET 1 PC
08 TES5ZA001 GROUND SPRING 1 PC
15
TH-43E410X
7.4. Vesa & Bottom Metal Ass’y
1. Fix barrier.
2. Install vesa metal & bottom metal.
3. Tape felt at bottom panel.
No Part No Description Qty UOM
01 TUX5ZX1061 BOTTOM METAL L 1 PC
02 TUX5ZX1071 BOTTOM METAL R 1 PC
03 TUX5ZX0371 VESA METAL 4 PC
04 TMK5ZX266 BARRIER 1 PC
05 TMK4GA206 FELT (W10 L95 T0.35) 2 PC
06 TMK4GA332 FELT (W10 L50 T0.55) 1 PC
07 TZLP152KHAA2 ASSY 43 IN-HOUSE PANEL 1 PC
16
7.5. Label
Stick labels and sticker follow accordingly. (rub evently at least twice)
TH-43E410X
No Part No Description Qty UOM
01 TBM4GD8562 MODEL_NAME_PLATE 1 PC
02 TBM4GU3151 SIDE_BUTTON_LABEL 1 PC
17
TH-43E410X
7.6. Pop Sticker
No Part No Description Qty UOM
01 TQFT877 POP STICKER 1 PC
02 TQF4GB005 ENERGY RATING LABEL 1 PC
18
7.7. Fan Bag Ass’y
1. Insert all part into cover for fan bag.
2. Direction and sequence (depend by model - Refer part list for detail).
3. Fold cover for fan bag and stick with yellow masking tape.
TH-43E410X
19
TH-43E410X
No Part No Description Qty UOM
01 TQZ4GC169 FAN BAG ASSY 1 PC
02 TQB4GC1720-1 OPERATING MANUAL (ENGLISH) 1 PC
03 TQD4G18013-6 WARRANTY CARD 1 PC
04 T5E4G62400 YELLOW TAPE 0.4 MT
05 XZB20X32A02 BAG 1 PC
06 TXFPE01WNUA PEDESTAL_ACCESSORY_ASSY 1 PC
07 THE5ZL002N M4 12_SEMS_SCREW (BLACK) 4 PC
08 TQE6691 BAG (STAND_METAL) 1 PC
20
7.8. Screw Fixing
Fix screws with torque given.
TH-43E410X
No Part No Description Qty UOM Remarks
01 THEJ036J SCREW (A3/P5/VESA4/MTL4/SP4/WIFI1/LD4/B2) 22 PC 6 ± 1kgf.cm
21
TH-43E410X
7.9. Pedestal Assembly
1. Install pedestal part follow step 1~3.
2. Packed pedestal ass’y with bag.
22
Loading...
