Panasonic TH-43D310M Schematic

© Panasonic Corporation 2009.
Unauthorized copying and distribution is a violation
of law.

LED Television

Model No. TH-43D310M

TP.VST59S.PB781

Chassis

RISK OF

ELECTRIC

SHOCK DO

NOT

OPEN.

SCHNEIDER ELECTRONICS GMBH-GERMANY

1. CAUTION

CAUTION:

Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.

CA UTION: TO RE DUCE THE RIS K OF

CA U T IO N

RISK

SHOCK

The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servici ng) instructions in the
literature accompanying the appliance.

ELECTRI

NOT

OPEN.

ELECTR ICAL SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INSIDE. REFER SE R VIC ING TO
QUALIFIE D SERVIC E PERSONNEL.

dangerous

WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

2



SCHNEIDER ELECTRONICS GMBH-GERMANY

IMPORTANT SAFETY INSTRUCTIONS

CAUTION:

Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.

1. Read Instructions-All the safety and operatinginstructionsshouldbe read before the productis operated.

2. Retain Instructions- The safety and operating instructions should be retained for future reference.

3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions- All operating and use instructions should be followed.

FOR YOUR PERSONAL SAFETY

1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.

2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.

3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.

4. Do not attempt to service this televisi on set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.

5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.

6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.

7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer ser vicing to
qualified service personnel.

8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.

9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.

10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and ser ious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.

10.2. An appliance and car t combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.

3

3

SCHNEIDER ELECTRONICS GMBH-GERMANY

PROTECTION AND LOCATION OF YOUR SET

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.

12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.

13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.

14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to

protect it from overheating. These openings must not be blocked or covered.

Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.

a built-in

PROTECTION AND LOCATION OF YOUR SET

15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some

protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supportingstructure, grounding of the
lead-in wire to an antenna dischargeunit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTR UCTIONS

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICALCODE

ANTENNA
LEAD- IN WIRE

GROUND CLAMP

ELECTRIC SERVICE

EQUIPMENT

NEC-NATIONAL ELECTRICALCODE

ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)

GROUNDING
CONDUCTORS
(NECSECTION 810-21)

GROUND CLAMPS

POWER SER VICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)

15.2. Note to CATV system installer : (Only for the television set with CATV reception)

This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides

installer s
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.

16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.

4

4

SCHNEIDER ELECTRONICS GMBH-GERMANY

OPERATION OF YOUR SET

18.

This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.

19. If the television set does not operate normally by following the operating instructions, unplugthis television set from the
wall outlet and refer servicingto qualifiedservice personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.

20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.

off

IF THE SET DOES NOT OPERATE PROPERLY

21. If youare unable to restorenormal operationby followingthe detailedprocedurein your operatinginstructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.

22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.

23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.

FOR SERVICE AND MODIFICATION

24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.

25. When replacementparts are required,be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.

26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.

5

5

JPEG、BMP、PNG

H.264、MPEG4、MPEG2、MKV w/o Divx

PRODUCT SPECIFICATION RELEASE

Model: Panasonic TH-43D310M/V59S.PB781

Version：1.0 Issued On: 2015-12-03

Basic Information Media Format

Product Type
Chassis

OSD Language English/French/Arabian/Portuguese/Persian

TV System

AV System
Channels(Analog)
DTV Channels(Digital) --­Power Supply
Power Consumption（TV On）
Power Consumption（Standby）
Certification

Basic Function

EPG --­Subtitle --- Panel supplier CSOT ST4251B01-1/LGD LC430DUY-SHA1
Parental Control --- Aspect Ratio 16:9
Lock Yes(Program Lock) Panel Size (inch) 43"
V-Chip --- Display Resolution 1920*1080
CCD (Closed Caption) --- Brightness (cd/m2)(typ.) 240
Sleep Timer Yes Contrast Ratio 3000:1
Teletext --- Response Time (G to G) 6.5ms
Nicam --- Viewing Angle (H/V) 178°/178°
MTS --- Life Time(Typ.) ＞30,000hrs
Screen Saver --- Color 16.7 M(8bit)
System Update Yes (By USB) Refresh Rate 60Hz
Hotel Mode

Special Function

LCD TV
V59S.PB781

PAL BG/DK/I ; SECAM

PAL、NTSC、SECAM
199

AC 110V-240V 50/60Hz
75W
≤0.5W
CB

---

Music MP3/WMA

Video

File ---

---

---

Signal Format Capability

Component Video Format YPBPR：up to 1080P
DVI Video Format Up to XGA for HDMI-PC
HDMI Video Format up to 1080P
PC Compatibility Up to SXGA

Specification

Panel

Backlight Unit

LED

Terminals

Natura Light Technology ---

HDD reading thru USB 2TB (max)
Analog / Digital Signal Receiver Analog

Startup Setting ---

HDMI CEC,ARC ARC yes, CEC option


DCC（Dynamic Contrast Control）

Backlight Adjustable Yes (0~100)

Color Temperature Normal/Cold/Warm

Picture Mode

Picture Size 16:9, 4:3, Zoom1, Zoom2

DLTI ---

DCTI ---

Comb Filter 3D

Dynamic Noise Reduction 3D

Yes

4 picture effects preset (Standard, Dynamic,Mild,
User)

Side

USB 2
AV in 2
Headphone 1

Bottom

HDMI 2
VGA 1
VGA Audio in 1 mini
Antenna 1 ATV
AV out 1 mini

Adaptive Deinterlacing 3D

Sound

Speakers Integrated speakers (Bottom side)

Audio Power Output（THD=7%）

Smart Volume ---

Smart Audio Music, Movie, Sports,Standard, User

2×8W

Sound Control Treble/Bass/Balance

Surround Sound ---

Sound Scene ---

DD (Dolby Digital ) NO

Mechanical dimension

D

A

H

I

D

J

B

C

E

K

ID Picture

Carton Dimensions LxWxH（mm）

1pc 1.5m BS power cord

Design and specifications are subject to change without notice!

）

Container Loading---20 feet（pcs）
Container Loading---40 feet（pcs）
Container Loading--40 feet High（pcs）
Net Weight With Stand（Kg）
Net Weight Without Stand（Kg）
Gross Weight With Packaging（Kg）
VESA Mounting Dimensions LxH（mm）

Remote ID PictureMechanical Key Specification

1128x142x660
246 w/o pallet

510 w/o pallet
676 w/o pallet

7.6

7.4
10
400x200

Essential Accessories（Default

Operation Manual English(Default) Wall Mount WMB233
Remote Control and batteries Panasonic ATV RCU,with two batteries)

Base Stand

AC power cord
Adapt Cable Wire For AV Or YPBPR ---

Integrated Packaging

1pc 1.5m VDE power cord

Optional Accessories

Drafted by: Approved by:





Alignment Procedur

6HULHV

02'(/˖963%963%96(%

 VERSION˖V1.0 

PREPARED BY : Tanner DATE : 2016-2-2

APPROVED BY : DATE :

MSDV59UpgradeInstructionV2.0

upgradebinfile.............................................................................................................................................................2

一、 USBupgradeproceduresforTVset...................................................................................................................3

二、USBupgradeproceduresforADBoard................................................................................................................3

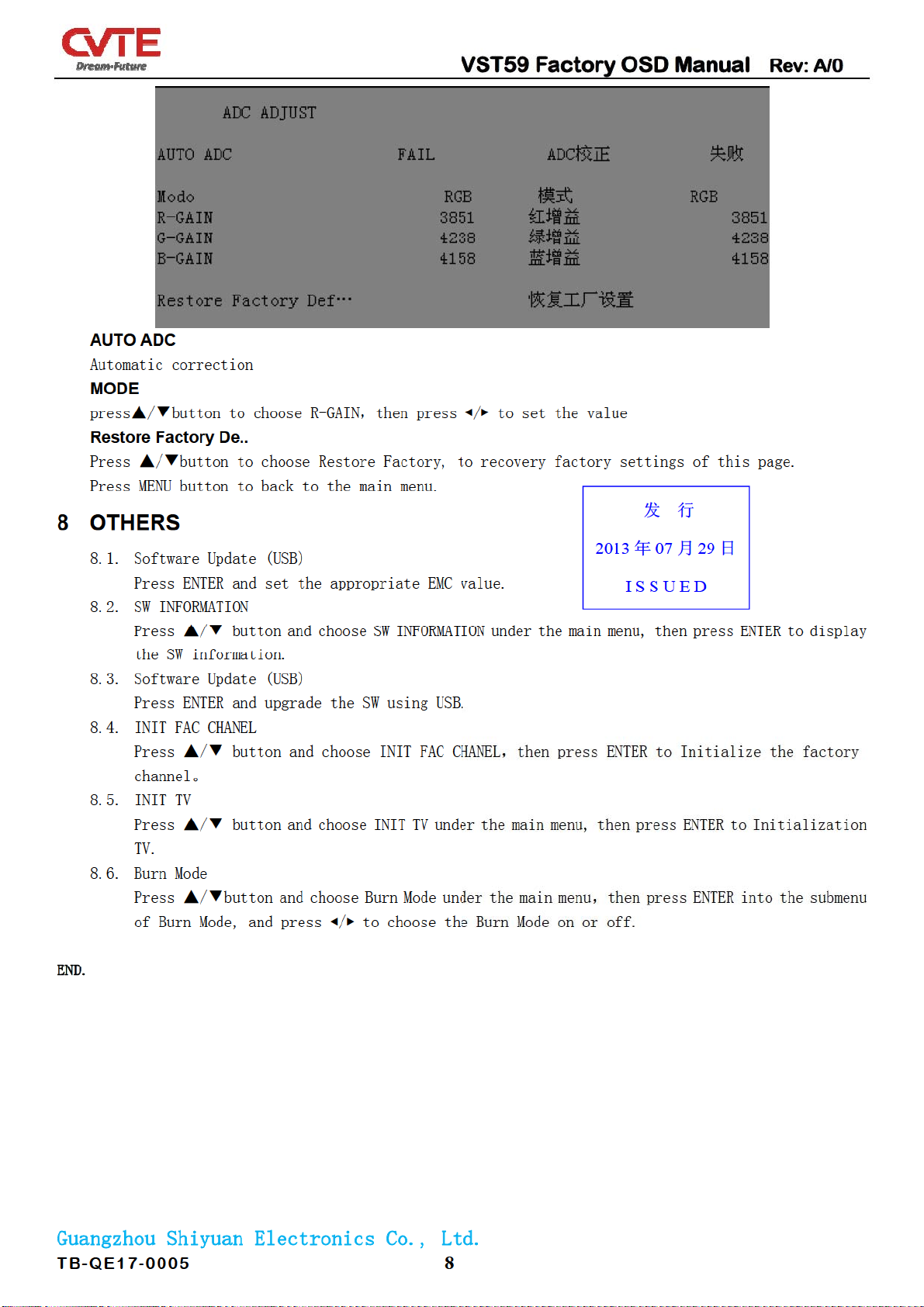

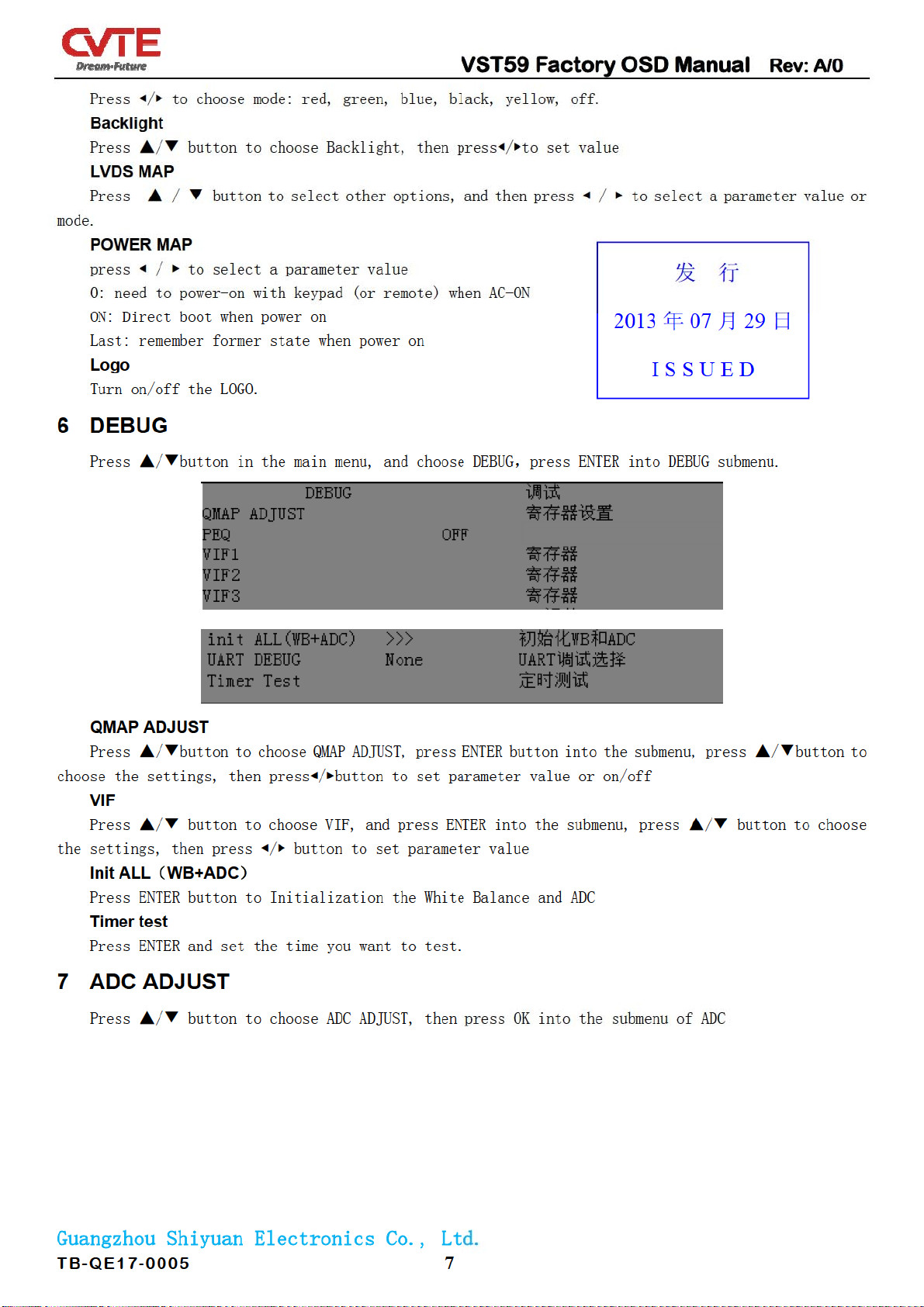

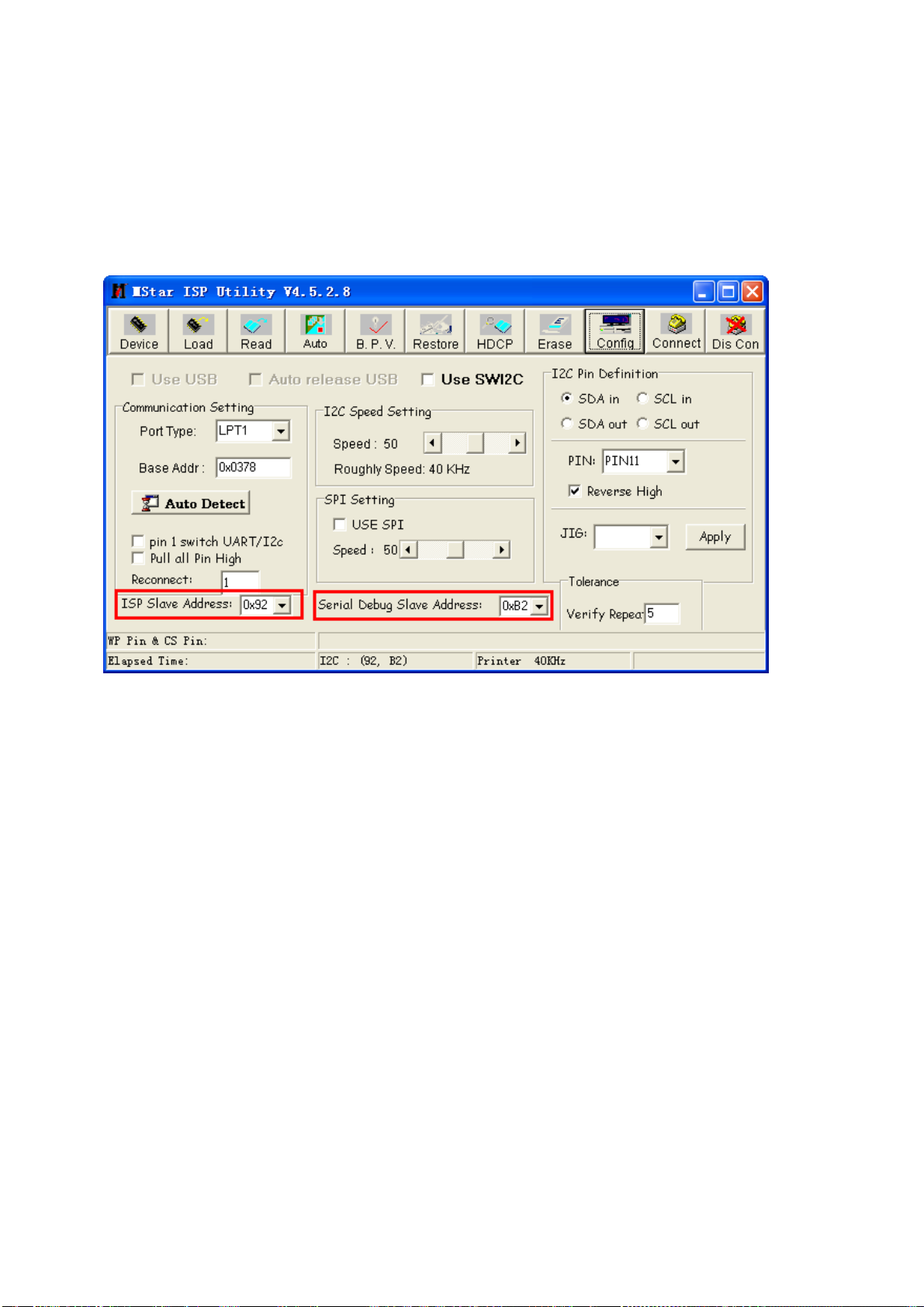

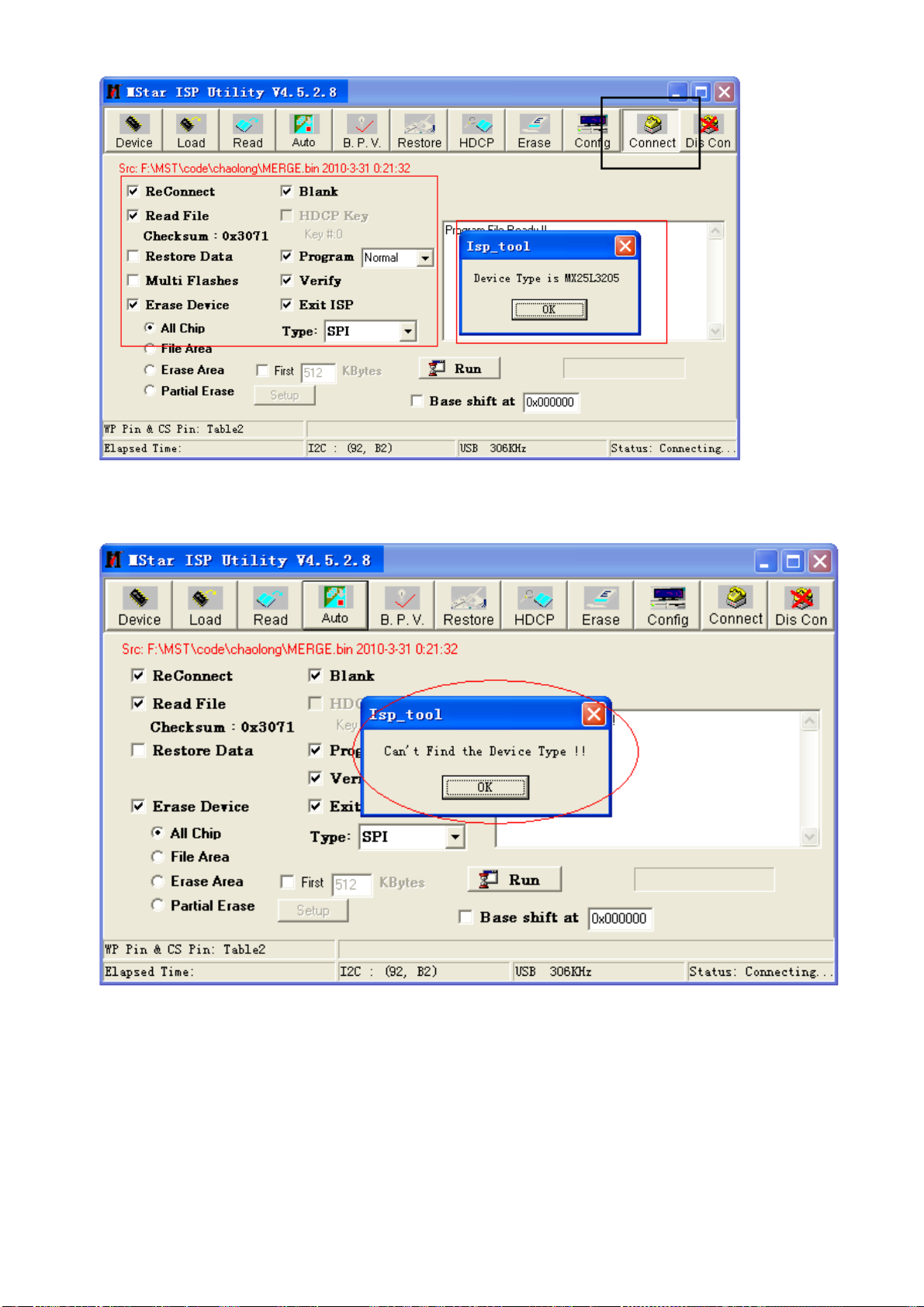

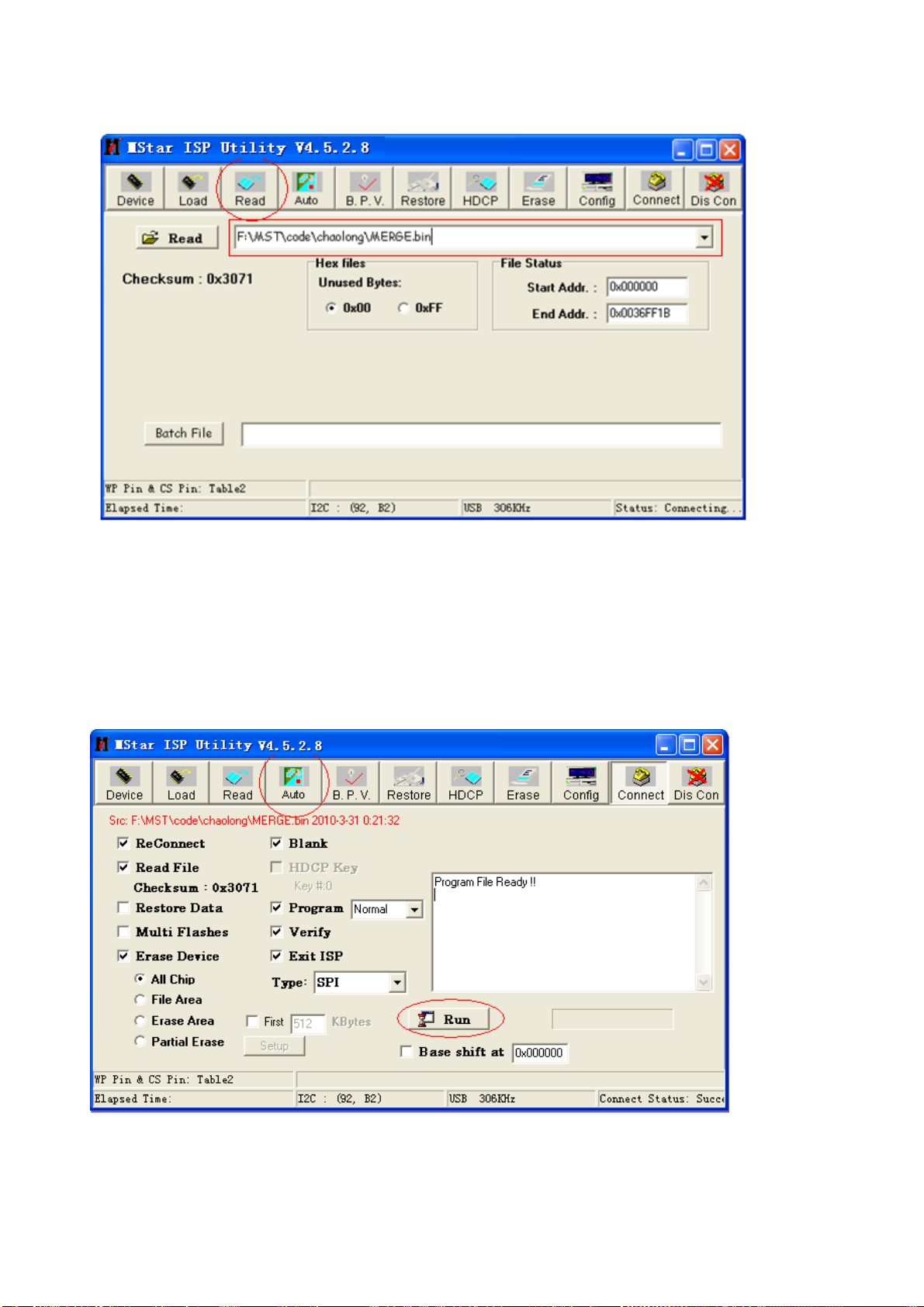

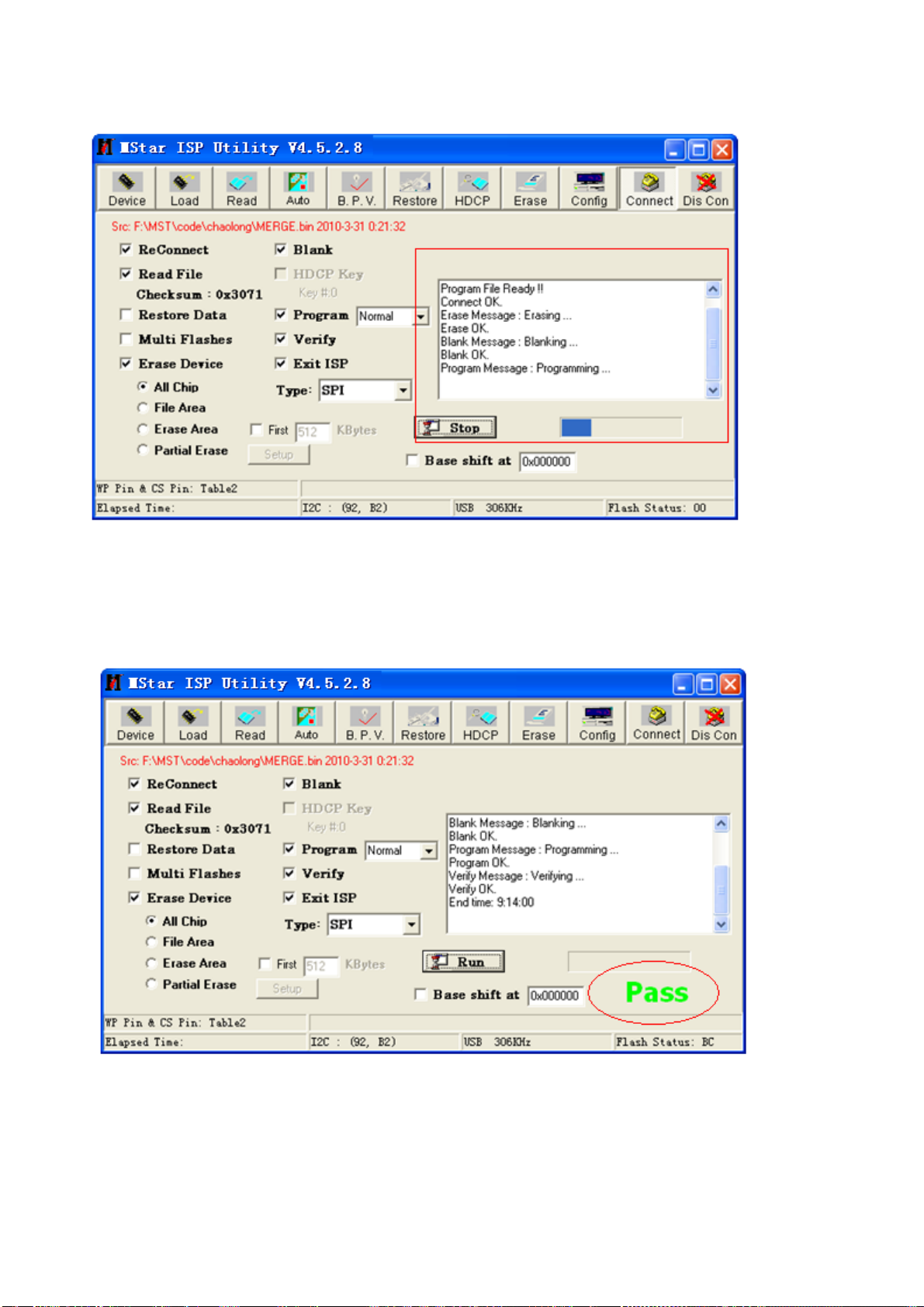

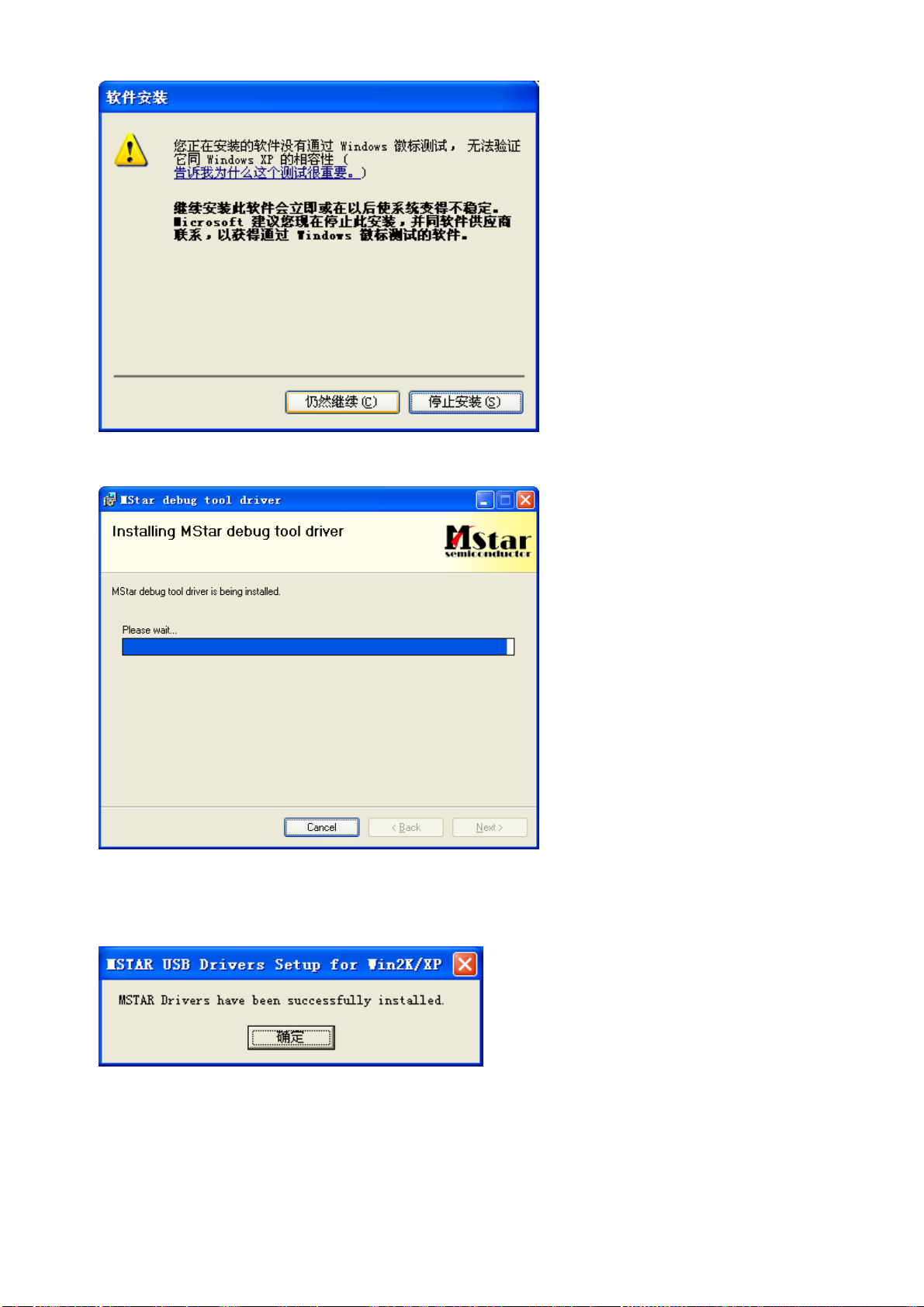

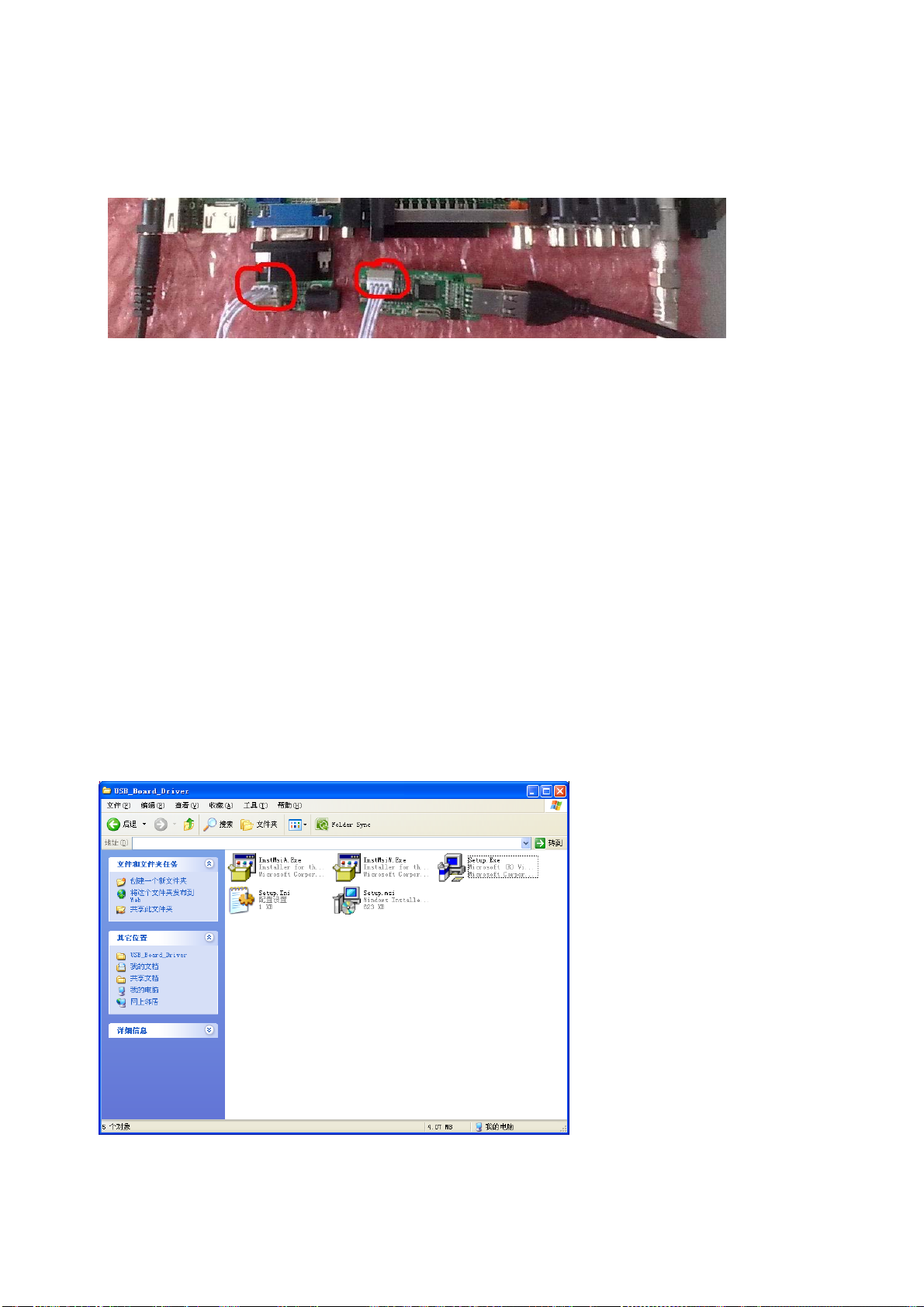

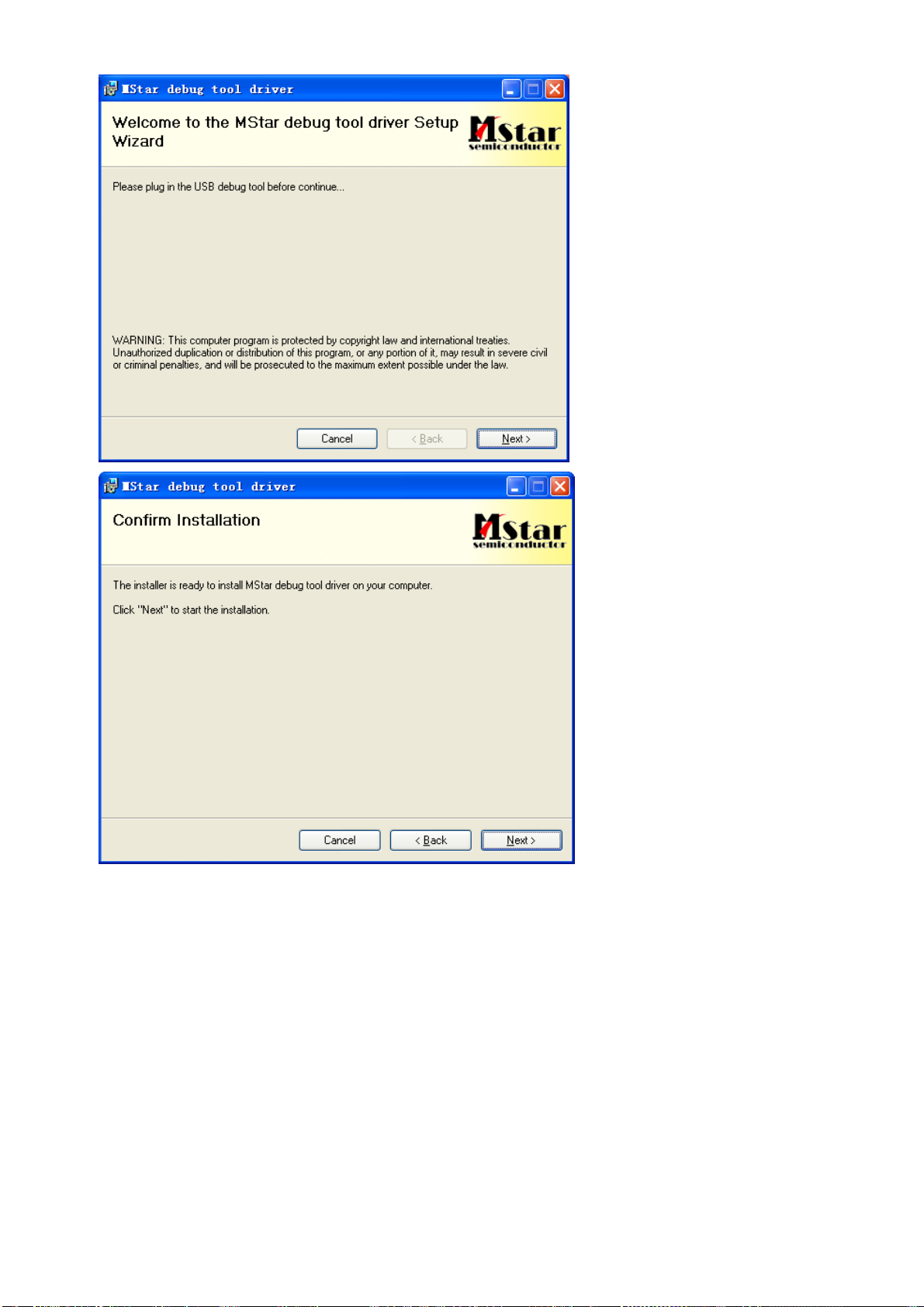

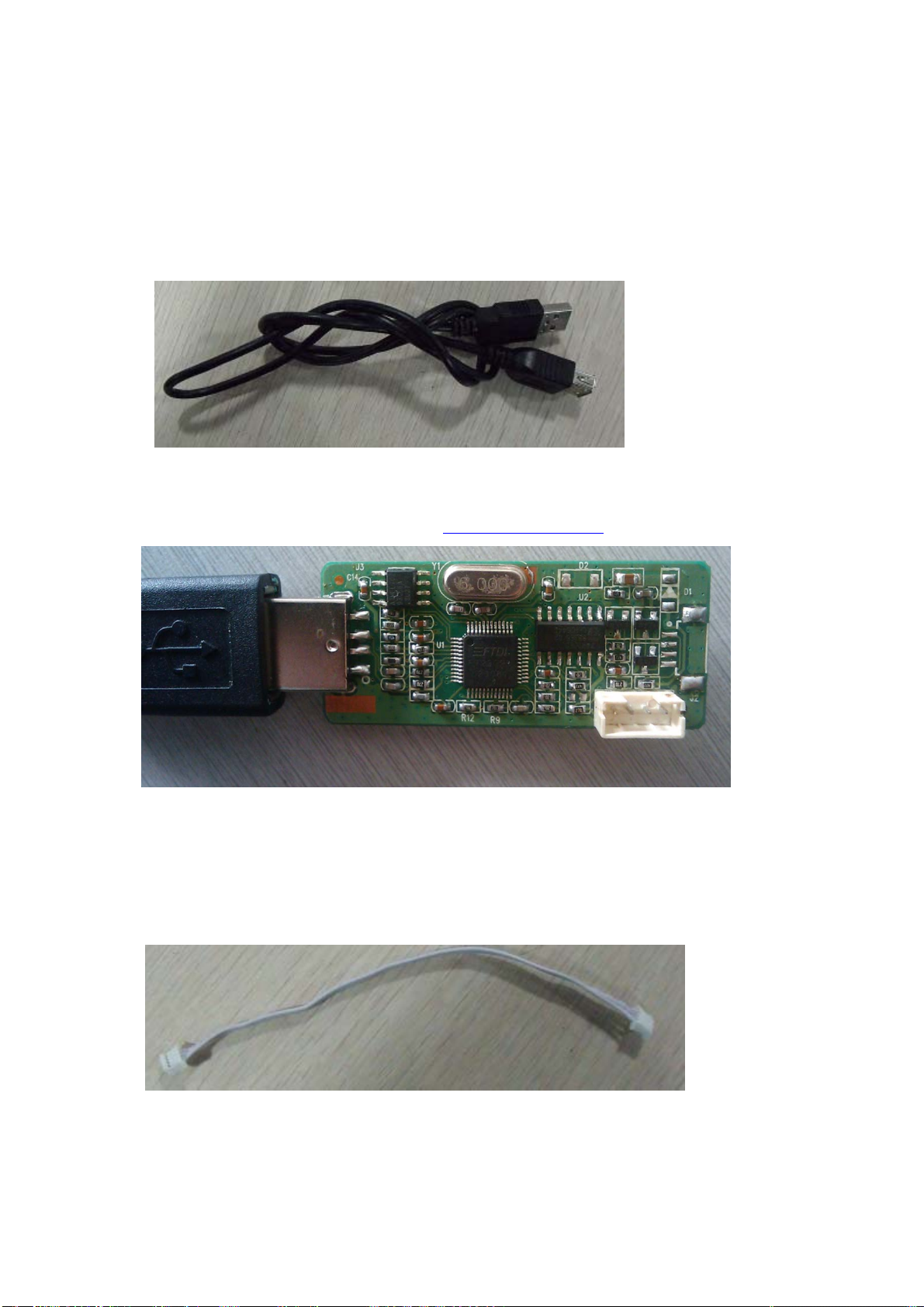

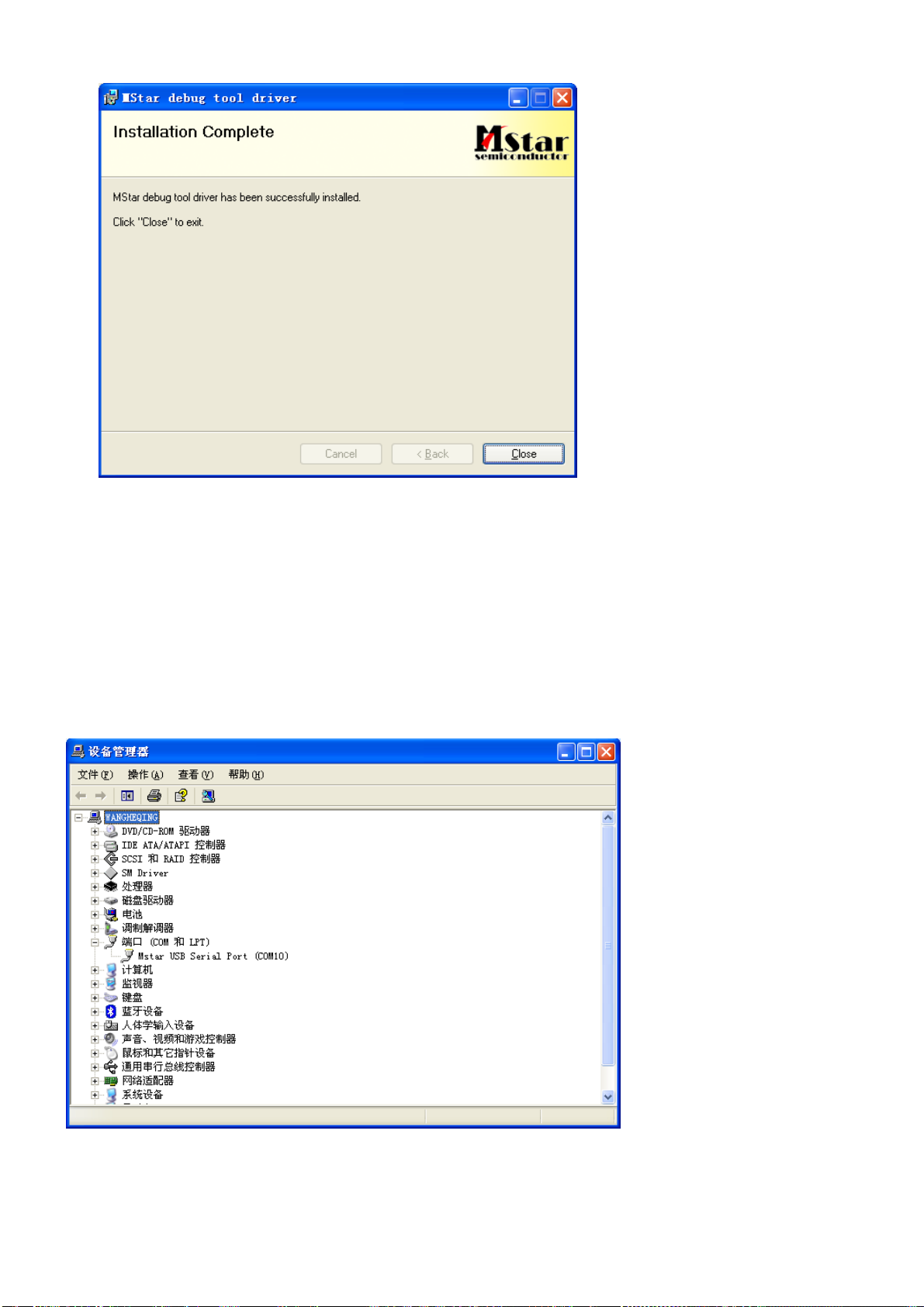

三、ISPupgrademethod.............................................................................................................................................4

MSDV59UpgradeInstructionV1.0

upgradebinfile

Different Board may need software with differentname,for example, VST59.A1A which

usethechipsetTSUMV59XUonlyrecognizesoftwarewiththenameof"bin_V59.bin"

Thenamesforotherboardisasbelow:

T.VST59.A1A

A/D Board

Chip

T.VST59.91A
T.VST59.A5A
T.VST29.A2B

TSUMV59XU
TSUMV59XE

T.VST59S.21A
T.VST59S.81A

TSUMV59XUS
TSUMV59XES

Name

Note：

bin_v59.bin bin_v59S.bin

.bin is the extend file name.

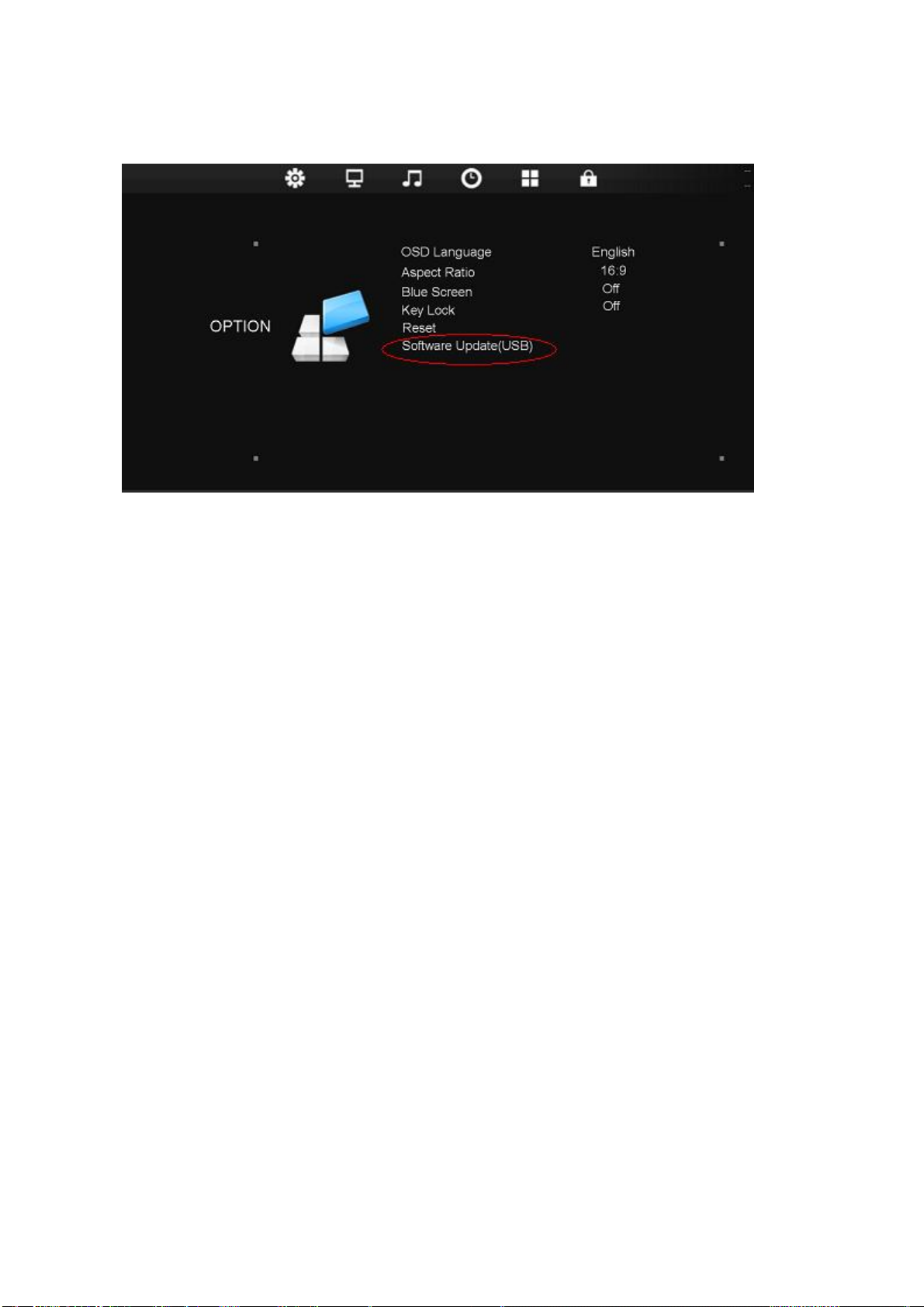

一、 USBupgradeproceduresforTVset

1. Copy the software to the root directory of your USB memory stick.

Plug the USB memory stick to the USB port.

2. Select "Software Update(USB)" on the OSD and follow the instructions.

TV will switch-off automatically when upgrading finishes.

3. If you find the process stop at 19% and the TV does not turn off, it means

the software in the board is the same as the one in the USB memory stick.

USBupgradeproceduresforADBoard 

二、

1. Make sure the board is dis-connected from the power.

2. copy the software to the root directory of your USB memory stick.

Plug the USB memory stick to the USB port.

3. Connect the power to the board, after a few seconds the LED will blink

rapidly, when the upgrading finishes the board will enter the standby mode.

三、ISPupgrademethod



1、Hardwaretools

1.1USBCable

1.2SerialportboardB.CNSISP7A

[you need to install the driver: Debug_board_driver(XP) ]

1.34PINconvertedcable

2、Connect

 Connection asshownbelow



Please note that there are two plugs on the board "",you should connect

the 4-pin cable to the correct plug on the board ""

3、DriverandUpgradingApplications

USB_Board_Driver 和 ISP_Tool_4528

3.1 To Install USB_Board_Driver,Please connect PC and B.CNSISP7A

withUSBcable.

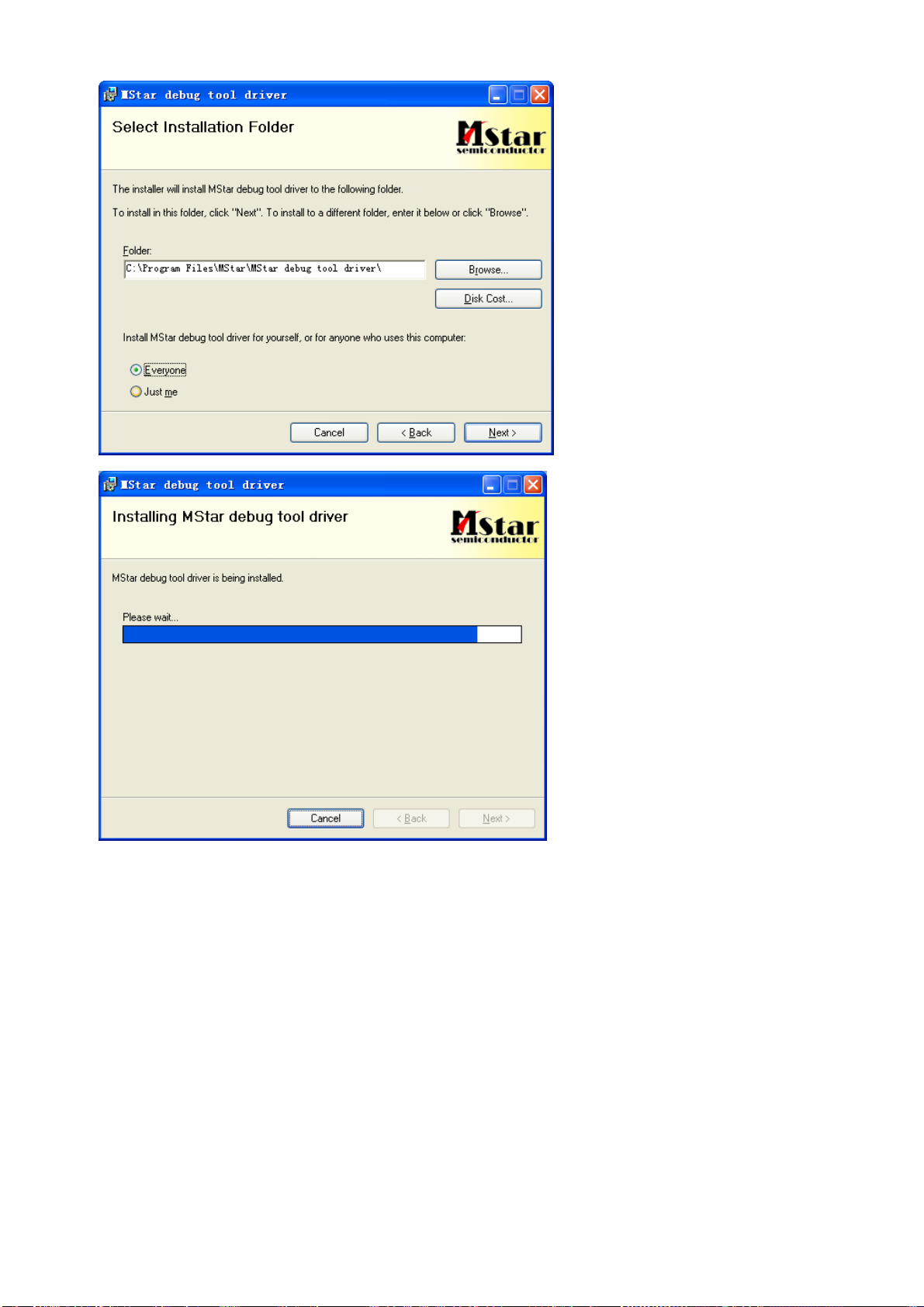

RunSetup.Exe,select“Next”and"Next"and"Next"

Whenyouseesomedialogwindowasbelow,select"Continues"

Successfullyinstalled

[Note:youmustconnectUSBtoolbeforeinstallation]

3.2 Check if the installation was successful

Open 'Device Manager', if you find the device like Mstar USB Serial Port (Com10), you

haveinstalledthedriversuccessfully.



Note:Ifyoucannotfindthat,justunplugtheUSBcableandconnectagain.

Pleaseallowthe'FoundNewHardwareWizard'tosearchfordriverbyitself.

4、Decompress ISP_Tool_4528.rar and you will get ISPISP_Tool.exe

4.1 Run ISPISP_Tool.exe, Click the button "config", set the parameter as

below:ISP 0x92, IIC:OXB2

4.2Click“connect”toenterISPMode.

4.2.1 Click “connect” to enter ISP Mode. If it connect successfully, it will

shown“DeviceType”asthepicturebelow

4.2.2 Ifitfailtoconnect,itwillshow“Can’tfindtheDeviceType”

Note:Ifitfailtoconnect,pleasecheck:
1、whetherpowerison.
2、whetheryouhaveinstalledthedriversuccessfullyandyoucanfindthedeviceinthedevicemanager
3、whetherthecableconnectioniscorrect.

4.3 Switchto“Read”page,click“Rea d”thenselecttheupgrade“bin”file.

4.4 Switchto“Auto”page,settheparameterasbelow:

click“Run”tostarttheupgrading.

Whenupgradingitlookslike:

When it finishes, it looks like:

You will find a 'Pass'ingreen,ifnotre‐connectthepoweroftheboard,andupgradeagain.

1

1

2

2

3

3

4

4

5

5

6

6

D D

C C

B B

A A

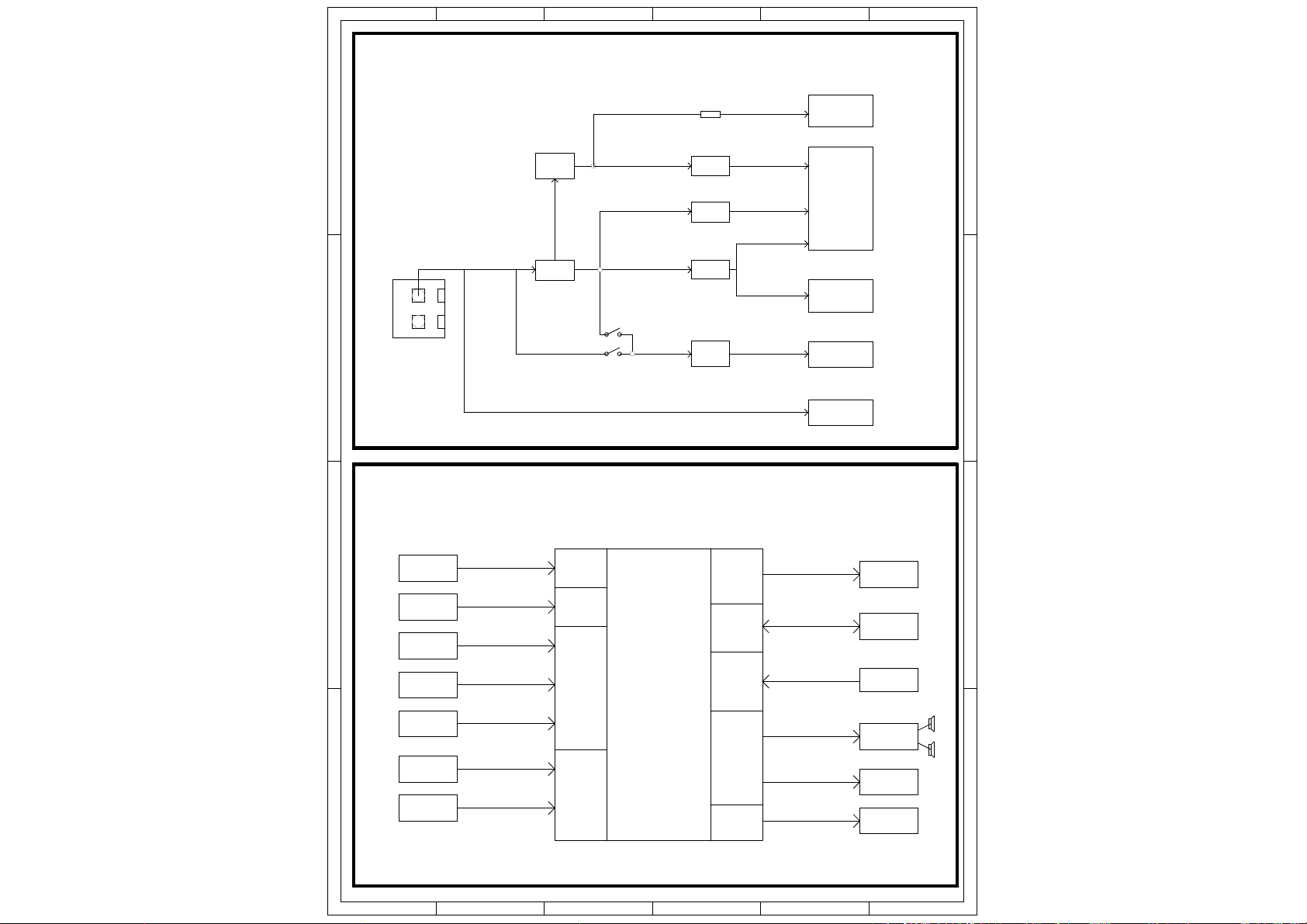

Power Tree

3V3_ST B

PANEL

TSUMV59XX

DDR

1V8_D DR130mA

1000mA

LDO

LDO

WPM3407C

OB6220

INNER POWER

12V

GND

TUNER

400mA

150mA

1300mA

1.2A DC-DC

1V2_ core 50 0mA

3A DC/DCMax:2500mA

WPM3407C

5V_STB

2180mA

1x USB2.0USB_5 V500mA

0Ω

5V_M

3V3_ST B

200mA

200mA

130mA

AUDI O OUT

TSUMV59XX

ATV

LVDS

HDMI

USB

AUDI O IN

HDMI

USB

VGA IN

PC AUDIO

2x AV IN

YPBPR IN

AUDIO IN

Panel(D8bit)

SPI FLASH

AMP

OB6220

RF

VI DEO I N

FLASH
GPI O

CVBS OUT

TMDS&HPD&I2C

DP&DM

RGB&DDC

CVBS

YPBPR

AUDIO_R/L

AUDIO_R/L

IF

CVBS OUT

CVBS

AUDIO_R/L

Core

Block Diagrm

LINE OUT

1

2

3

4

5

6

7

8

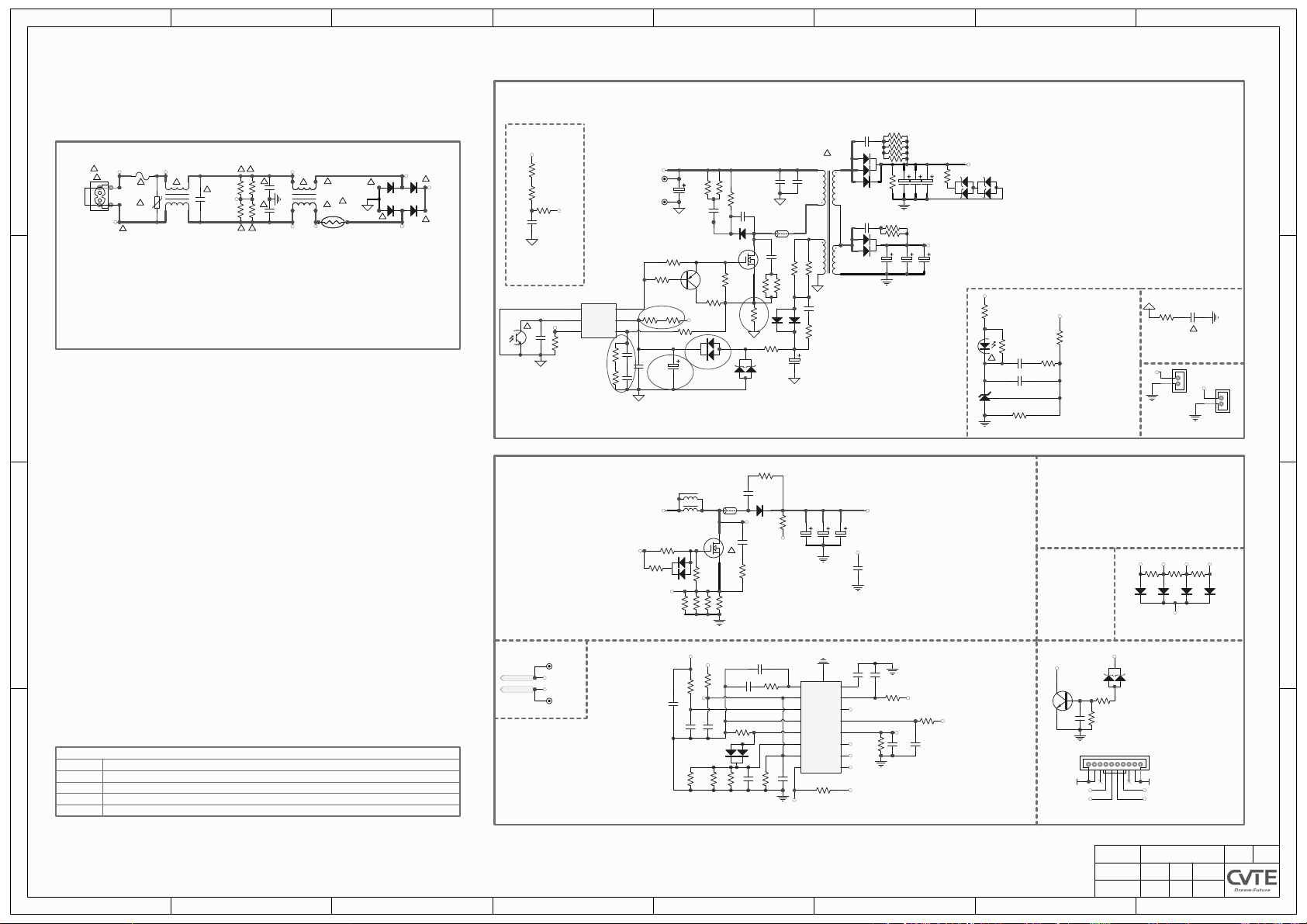

反激线路

A A

CB111

PCB101B

N

RB141

RB142

RB143

BRO

SGND

UB101

1

GND

2

COMP

BRO

!

3 4

CB103

SGND

OTP3CS

RB104

RB103

RB120

Vbridge

TP1

+

+

EB1
EB2

TP2

SGND

RB106

RB107

6

OUT
VCC

RB101RB102

5
4

CB101

CB102

SGND

CB104

EB107

RB105

+

ZDB2

RB123

RB117

RB118

CB105

CB114

CB115

DB106

AK

D

QB101

G

QB102

RB109

S

RB108

N

RB148

SGND

2

2

113

ZDB1

3

RB145

RB110

DB105

CB119

SGND

EB106

BB101

CB116

AK

RB146

DB104

SGND

CB120

RB114

RB115

SGND

AK

+

EMI

电路

B B

!

CNB3
CNB1

FB1

T3.15AH 250~

!

L

N

2

!

1

1

3

2

!

!

3

!

MOVB1

1

4

LCB1

!

CXB1

! !

! !

L

2

CYB1

CYB2

3

!

!

LCB2

LCB3

GND

1

4

1 2

4 3

!

NTCB1
NTCB2

!

!

A KA K

A KA K

SGND

!

RB1

RB2

!

RB3

RB4

DB1 DB2

!

DB3 DB4

!

Vbridge

!

N

CB113

RB111

CB118

DB102

!

1

TB101

6

11

3

DB103

4

9

CB117

1

10

DB101

2

7

RB144
RB124
RB125
RB126
RB127

2

+

+

RB140

EB104

EB105

GND

RB128
RB129

+

+

EB102

EB101

GND

VBL

ZDB103

ZDB104

+

3

3

3

3

RB147

2

2

2

2

EB108

1

1

1

1

12V

+

EB103

12V

RB131

12

RB132

PCB101A

!

KA

R

UB102

GND

12V

RB135

RB133

CB109

CB110

RB134

SGND

CYB3

RB113

CNB2

12V

2

1

GND

GND

!

CNB4

VBL

2

1

GND

GND

D

S

RB802

CB802

CB810

BB801

默认安装3mm

!

RB813

5

RB827

CB805

CB812

HS

CB809

RB810

DB801

CB811

RB811

RB815

RB804

VCC

EPAD

OVP

LED+

+

EB803

LED+

CB808

GND

GND

CB813

CB803

16

RB816

15

VIN

14

GATE

13
12
11

LED1

10

LED2

9

LED3

12V

12V

RB805

CS

OVP

CB806

RB803

GND

CB804

6

EN

QB802

CB824

CNB801

10

LED+

LED4

7

LED4

2

113

RB830

RB831

Model Name:

DRAWN:

CHK'D:

2

3

LED1 LED2 LED3 LED4

RB823 RB824 RB825

AK

AK

AK

DB803

DB806

VBL

ZB802

123465789

LED+
LED1
LED2LED3

TP.VST59.PXX A13123

DATE:

文磊

DATE:

张三

DB804AKDB805

2013-09-10

2013-09-10

8

VERSION:

V1.0

RB814

+

EB801+EB802

OVP

GND

GND

17

UB801

1

COMP

2

EN

3

PWM

GATE

4

GND

ISENSE

5

OSC

6

LED1

ISET

7

LED2

ADIM

8

LED3

LED4

CB814

RB826

GND

LED4

恒流线路

C C

与TV端连接网络

PWM_DIM

D D

1

2

3

PWM_DIM

BL_ON BL_ON

PWM_DIM

BL_ON

4

GATE

若背光规格大于95V时LB802需换用L004

LB802

6
2 5

LB801

VBL

QB801

RB807

G

RB809

DB802

CS

RB818

PWM_DIM

CB801

RB822

RB808

RB819

RB820

RB821

BL_ON

RB801

EN

CB807

DB807

RB812

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

D D

C C

B B

A A

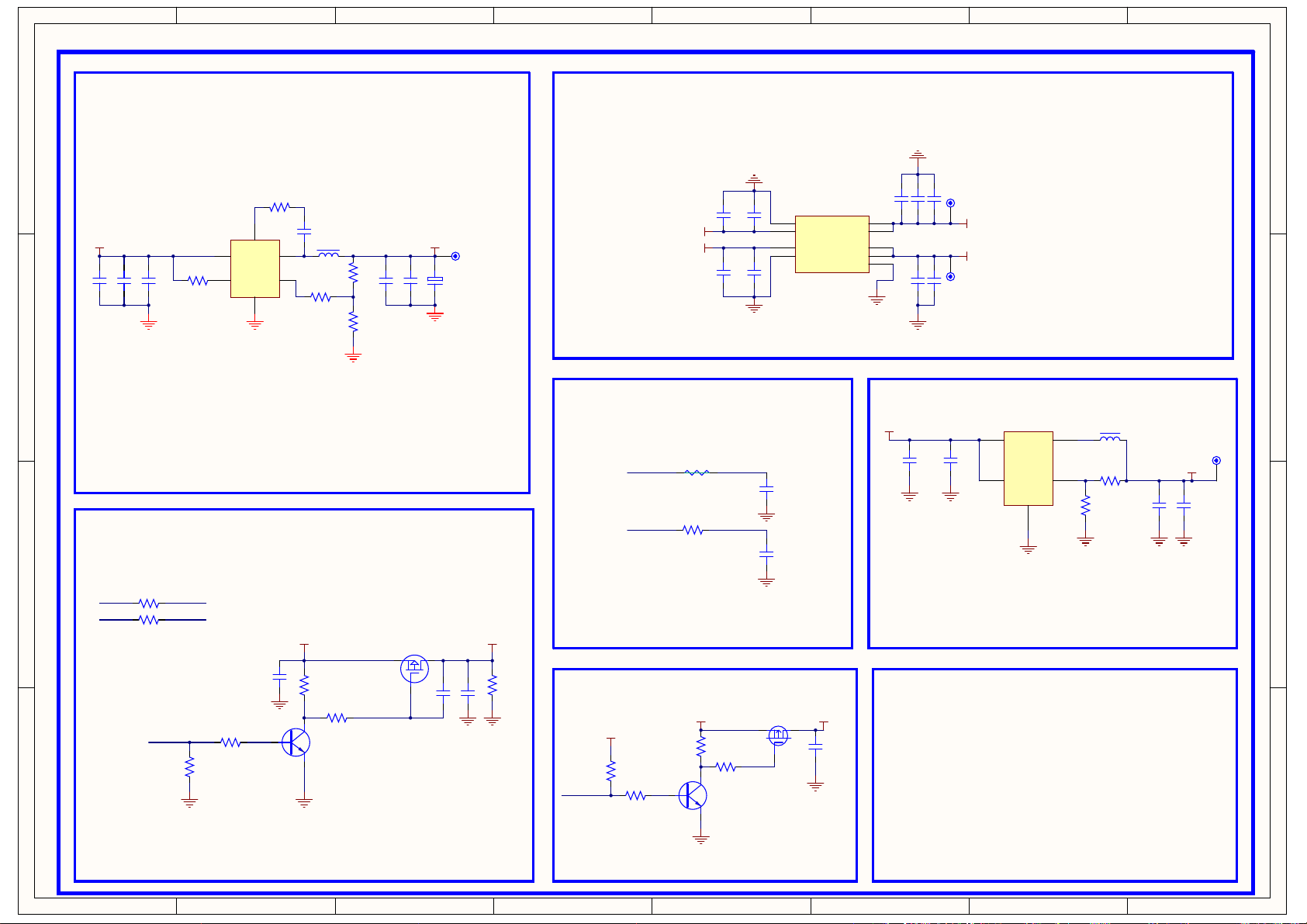

PVCC

GND

VCC-PANEL

GND

12V PVCC

GND

5V_STB PVCC

BL_ON

PWM_DIM

GND

GND

RG17

NC/0ohm-0402-±5%-1/16W

R3

510ohm-0402-±5%-1/16W

C6

NC/0.1uF-0402-Y5V-+80%-20%-16V

C1

NC/0.1uF-0402-Y5V-+80%-20%-16V

R12V

0ohm-0805-±5%-1/8W

R5V

NC/0ohm-0805-±5%-1/8W

RM14
4K7ohm-0402-±5%-1/16W

RM11

4K7ohm-0402-±5%-1/16W

CM23

NC/10uF-0805-X5R-±20%-16V

RM12

4K7ohm-0402-±5%-1/16W

CM12

NC/0.1uF-0402-X5R-±20%-16V

RM16

NC/4K7ohm-0402-±5%-1/16W

PWM

PWM1

5V_M

CL2

0.1uF-0402-X5R-±20%-16V

GND

5V_STB

CL4

0.1uF-0402-X5R-±20%-16V

GND

CL8

NC/10uF-0603-X5R-±20%-6.3V

CL5

10uF-0603-X5R-±20%-6.3V

DDR_2.5V/1.8V

3V3_STB

3V3_STB

TEST

+1.8V_DDR

TEST

CL7

0.1uF-0402-X5R-±20%-16V

GND/ADJ

1

VIN1

2

GND/ADJ

3

VIN2

4

VOUT2

5

VOUT2

6

VOUT1

7

VOUT1

8

EPAD

EPAD

UL3

LC1118CS8TR1833

GND

CL6

0.1uF-0402-X5R-±20%-16V

CL3

NC/10uF-0603-X5R-±20%-6.3V

CL1

NC/10uF-0603-X5R-±20%-6.3V

GND

CL9

10uF-0603-X5R-±20%-6.3V

GND

PANEL_EN

QM11

MMBT3904(f≥350MHz)

D

G

S

QM12

ME2325-G

POW_EN

QM22

WPM2341A-3/TR

5V_STB 5V_M

3V3_STB

QM21

MMBT3904(f≥350MHz)

RE26

10Kohm-0402-±5%-1/16W

RM21

4K7ohm-0402-±5%-1/16W

RM22

4K7ohm-0402-±5%-1/16W

CM22

0.1uF-0402-X5R-±20%-16V

RM23

100Kohm-0402-±5%-1/16W

5V_STB

+1.2V_VDDC

BS

CD52

0.1uF-0402-X5R-±20%-16V

CD53

10uF-0603-X5R-±20%-6.3V

LD51

SLN43T-6R8M

RD52

12Kohm-0402-±1%-1/16W

RD53

10K5ohm-0402-±1%-1/16W

CD54

10uF-0603-X5R-±20%-6.3V

CD48

0.1uF-0402-X5R-±20%-16V

EN

1

GND

2

SW

3

VIN

4

FB

5

U4

LC3406CB5TR

RM13

47Kohm-0402-±5%-1/16W

CM1

0.022uF-0402-X7R-±10%-16V

+1.2V_VDDC

TEST

5V_STB

5V_STB

TEST

CD32

10uF-0805-X5R-±20%-16V

CD1

0.1uF-0402-X5R-±20%-16V

CD3

1uF-0402-X5R-±20%-6.3V

RD1

100Kohm-0402-±5%-1/16W

CD5

0.1uF-0402-X5R-±20%-16V

12V LD1

,Power Inductor,4.7uH,±20%,2.8A,0.35×1P, DR5.8×4.5,SMD,CD54-4.7uH,wenshan

IN

3

EN

5

BS

6

SW

2

FB

4

GND

1

UD1
MP1470GJ-Z

RD4

18Kohm-0402-±1%-1/16W

RD5

3K3ohm-0402-±1%-1/16W

RD3

100Kohm-0402-±1%-1/16W

RD2 22ohm-0402-±5%-1/16W

CD6

10uF-0603-X5R-±20%-6.3V

+

ED2

470uF-10V-±20%-6.3×11 -105 - - -F=2.5-XF

CD7

10uF-0805-X5R-±20%-16V

COUD1

PICD102

PICD701

COCD7

PICD702

PICD3201

PICD102PICD701

PICD3201

COCD1

COCD32

PICD101

PICD3202

PICD101 PICD501 PICD602PICD702

PICD3202

CORD1

PIRD101

PIRD101

PIRD102

PIRD102

CORD2

PIRD201 PIRD202

PIRD202

PIRD201

PICD301

PICD301

COCD3

PIUD106

PIUD106

PIUD103

PIUD103

PIUD105

PIUD105

PIUD101

PIUD101

PICD302

PICD302

PIUD102

PIUD102

PIUD104

PIUD104

PIRD301 PIRD302

PIRD301

COLD1

PILD101 PILD102

PILD102

PILD101

PIRD401

PIRD401

COCD5

CORD4

PIRD402

PIRD402

CORD3

PIRD302

PIRD502

PIRD502

CORD5

PIRD501

PIRD501

PICD502

PICD601

PICD502 PICD601

COCD6

PICD501

PICD602

CO5V0STB

PI5V0STB01

PI5V0STB01

PIED201

PIED201

COED2

PIED202

PIED202

PICL101

PICL101 PICL202

COCL1

COCL2

PICL102

PICL102 PICL201

PICL301

PICL301 PICL402

COCL3

COCL4

PICL302

PICL302 PICL401

PICL202

PIUL301

PIUL301

PICL201

PIUL302

PIUL302

PIUL304

PIUL304
PIUL303

PIUL303

PICL402

PICL401

COUL3

PIUL308

PIUL308

PIUL307

PIUL307

PIUL306

PIUL306
PIUL305

PIUL305
PIUL30EPAD

PIUL30EPAD

PICL701

PICL701

COCL7

COCL8

PICL702

PICL702

COCL5

PICL802

PICL902

PICL802

PICL902

COCL9

CO0108V0DDR

PICL801

PICL901

PICL801

PICL901

PI0108V0DDR01

PI0108V0DDR01

PI3V30STB01

PI3V30STB01

PICL501

PICL601

PICL501

PICL601

COCL6

CO3V30STB

PICL502

PICL602

PICL502

PICL602

PICD5202

PICD5302

PICD5202 PICD5302

COCD52

COCD53

CORG17

NLPWM

PIRG170JP02K

PIRG170JP02K

NLPWM1

PIR302

COR12V

NL12V

PIR12V01 PIR12V02

PIR12V01

COR5V

PIR5V02

PIR12V02

NLPVCC

PIR5V01PIR5V02

PIR5V01

NLPANEL0EN

PIRM1401

PIRM1401

PIRM1402

PIRM1402

NL5V0STB

COCM23

CORM11

PIRM1101PIRM1102

PIRM1102

CORM14

PICM2301

PICM2301

PIRM1201

PIRM1201

PICM2302

PICM2302

PIRM1202

PIRM1202

PIQM110C

PIQM110C

COQM11

PIQM110B

PIQM110BPIRM1101

PIQM110E

PIQM110E

CORM12

CORM13

PIRM1301 PIRM1302

PIRM1301

PIRM1302

PIQM120D

PIQM120D

PICM102

PICM1201

PICM102

PICM1201

COCM12

PICM101

PICM1202

PICM1202

PICM101

CORM16

COQM12

PIQM120S

PIQM120S

COCM1

PIQM120G

PIQM120G

PIRM1602

PIRM1602

PIRM1601

PIRM1601

PIRE2602

PIRE2602

CORE26

PIRE2601

PIRE2601

NLPOW0EN

CORM21

PIRM2102

CORM22

PIQM210B

PIRM2101PIRM2102

PIQM210BPIRM2101

NLPWM0DIM

PIRG170JP01K

PIRG170JP01K

PIC601

PIC601

COC6

PIC602

PIC602

COR3

NLBL0ON

PIR301PIR302

PIR301

PIC101

PIC101

COC1

PIC102

PIC102

COQM22

CORM23

PIRM2301

PIRM2302

PIRM2302

PIRM2301

COQM21

PIQM220S

PIQM220S

PIQM220D

PIQM220D

COCM22

PIQM220G

PIQM220G

PIRM2201

PIRM2201

PIRM2202

PIRM2202

PIQM210C

PIQM210C

PIQM210E

PIQM210E

PICM2201

PICM2201

PICM2202

PICM2202

PICD5201

PICD5301

PICD5201 PICD5301

PIU404

PIU404

PIU401

PIU401

COU4

PIU402

PIU402

PIU403

PIU403

PIU405

PIU405

COLD51

NLBS

PILD5101 PILD5102

PILD5102

PILD5101

CORD52

PIRD5201PIRD5202

PIRD5201

PIRD5202

PIRD5301

PIRD5301

CORD53

PIRD5302

PIRD5302

PICD5402

COCD54

PICD5401

PICD5401

CO0102V0VDDC

PI0102V0VDDC01

PI0102V0VDDC01

PICD4802

PICD4802PICD5402

COCD48

PICD4801

PICD4801

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

D D

C C

B B

A A

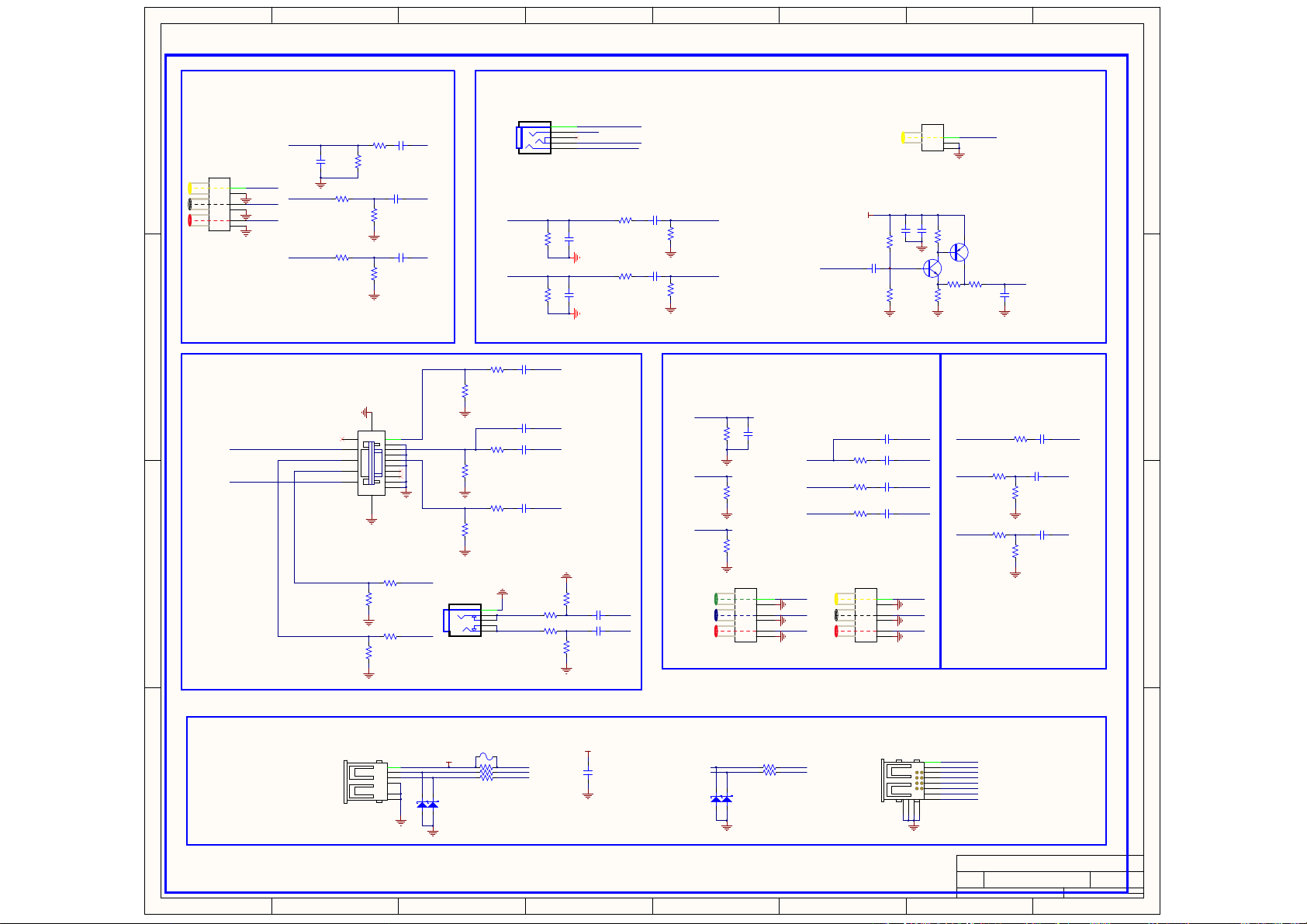

Title

Number RevisionSize

A1

Date: 2015/7/24 Sheet of
File: E:\ \..\TV#02_INTPUT. SchDoc Drawn By:

5V_MUSB-5V

GND

USB1-DM
USB1-DP

USB1_DM
USB1_DP

GND

GND

USB-5V

USB1_DM
USB1_DP

USB-5V

USB0_DM
USB0_DP

GND

USB0_DM
USB0_DP

USB0-DM
USB0-DP

GND

GND

AV1-LIN

AV1-RIN

AV1-IN

GND

RI1

75ohm-0402-±5%-1/16W

RI6

8K2ohm-0402-±5%-1/16W

RI5

8K2ohm-0402-±5%-1/16W

CI4

0.047uF-0402-X7R-±10%-16V

CI6

1uF-0402-X5R-±20%-6.3V

CI5

1uF-0402-X5R-±20%-6.3V

RI7

33ohm-0402-±5%-1/16W

RI20

12Kohm-0402-±5%-1/16W

RI30

12Kohm-0402-±5%-1/16W

GND

GND

AV1-R/

AV1-R/

AV1-L/

AV1-L/

AV1-IN/

AV1-IN/

CS10

NC/100pF-0402-NPO-±5%-50V

5V_M

GNDGNDGND

GND

CS28

10uF-0603-X5R-±20%-6.3V

RS25

100Kohm-0402-±5%-1/16W

RS26

150Kohm-0402-±5%-1/16W

RS28

220ohm-0402-±5%-1/16W

RS29

220ohm-0402-±5%-1/16W

RS30

75ohm-0402-±5%-1/16W

CS18

NC/100pF-0402-NPO-±5%-50V

RS27 220ohm-0402-±5%-1/16W

CS16

1uF-0402-X5R-±20%-6.3V

QS2

,Dynatron,PNP,0.2 A,40V, 60-300,SOT-23,KMBT3906,KEXIN

SCART-VOUT/

SCART-VOUT

SCART-VOUT

VS-VGA

HS-VGA

GND

GND

GND

GND

GND

VGA-RIN

VGA-GIN

VGA-BIN

VGA-HS

VGA-VS

GND

PC-LIN

PC-RIN

GND

GND

VGA-SOG

VS-VGA

HS-VGA

GND

UART-TX/DDC-SDA

UART-RX/DDC-SCL

CV12

1uF-0402-X5R-±20%-6.3V

CV13

1uF-0402-X5R-±20%-6.3V

RV19

12Kohm-0402-±5%-1/16W

RV21

12Kohm-0402-±5%-1/16W

RV18

8K2ohm-0402-±5%-1/16W

RV20

8K2ohm-0402-±5%-1/16W

1

2
3
4

5

GND

ERO

RSPK

LSPK

ELO

AV7
PJ-325

RV10

10Kohm-0402-±5%-1/16W

RV12

10Kohm-0402-±5%-1/16W

RV11

100ohm-0402-±5%-1/16W

RV13

100ohm-0402-±5%-1/16W

1

6
2
7
3
8
4
9
5

11

12

13

14

15

10

1716

TXD

SDA

HS

VS

SCL

R

GND

G

GND

B

GND

RXD

5V

DET

GND

GND

GND

DB15

AV6

WLHD-051A

GND

GND

RV2

33ohm-0402-±5%-1/16W

RV5

33ohm-0402-±5%-1/16W

RV8

33ohm-0402-±5%-1/16W

CV1

0.047uF-0402-X7R-±10%-16V

CV3

0.047uF-0402-X7R-±10%-16V

CV5

0.047uF-0402-X7R-±10%-16V

CV14

1000pF-0402-X7R-±10%-50V

RV1

75ohm-0402-±5%-1/16W

RV4

75ohm-0402-±5%-1/16W

RV7

75ohm-0402-±5%-1/16W

YPbPr-Y

YPbPr-Pb

YPbPr-Pr

YPbPr-Y

YPbPr-Pb

YPbPr-Pr

YPbPr-Y

YPbPr-Pr

YPbPr-Pb

RI31

75ohm-0402-±5%-1/16W

RI32

75ohm-0402-±5%-1/16W

RI33

75ohm-0402-±5%-1/16W

CI31

NC/100pF-0402-NPO-±5%-50V

C56

0.047uF-0402-X7R-±10%-16V

C58

1000pF-0402-X7R-±10%-50V

C59

0.047uF-0402-X7R-±10%-16V

C60

0.047uF-0402-X7R-±10%-16V

R58

33ohm-0402-±5%-1/16W

R60

33ohm-0402-±5%-1/16W

R61

33ohm-0402-±5%-1/16W

Y/SC-G-SOG

Y/SC-G-IN

Pb/SC-B-IN

Pr/SC-R-IN

DF5

NC/ULCE0505A015FR

DF7

NC/ULCE0505A015FR

RF3

5R1ohm-0402-±5%-1/16W

RF4

5R1ohm-0402-±5%-1/16W

1

2
3
4

GND

DM

DP

5V

5
6

GND

GND

AV8

NC/USB-042M-002DP

DF1

NC/ULCE0505A015FR

DF3

NC/ULCE0505A015FR

RF2

0ohm-0402-±5%-1/16W

RF56

5R1ohm-0402-±5%-1/16W

RF57

5R1ohm-0402-±5%-1/16W

RS4

NC/8K2ohm-0402-±5%-1/16W

RS6

NC/8K2ohm-0402-±5%-1/16W

CS2

NC/0.047uF-0402-X7R-±10%-16V

CS4

NC/1uF-0402-X5R-±20%-6.3V

CS6

NC/1uF-0402-X5R-±20%-6.3V

RS2

NC/33ohm-0402-±5%-1/16W

RS7

NC/12Kohm-0402-±5%-1/16W

RS5

NC/12Kohm-0402-±5%-1/16W

GND

GND

SCART-VI

SC-LI

SC-RI

YPbPr-Y

YPbPr-Pb

YPbPr-Pr

1

2
3
4

GND-1

DM-1

DP-1

5V-1

5
6

GND

GND12GND

GND

7
8

GND-2

DM-2

DP-2

5V-2

9

101112

CN18

WLUS-074B

SC-LOUT//

GND

GND

SC-ROUT//

CS23

NC/1uF-0402-X5R-±20%-6.3V

CS26

NC/1uF-0402-X5R-±20%-6.3V

RS43

NC/47Kohm-0402-±5%-1/16W

RS51

NC/47Kohm-0402-±5%-1/16W

USB-5V

USB-5V

SC-LOUT//

SC1-LOUT/

SC1-ROUT/

GND

YPbPr-Y

YPbPr-Pb

YPbPr-Pr

CD17

10uF-0603-X5R-±20%-6.3V

1

2

3
4

5
6

L

GND

R

GND

CVBS

GND

AV9

NC/CYB-3.2-3DW37C-3-200(R)( )-

1

2

3
4

5
6

L

GND

R

GND

CVBS

GND

AV3

RCA ,RCA Jack,AV3, H,Yellow Wh ite Red,CH5.5,D14,Seal,DIP, AV3-8.4-07C-XSH,JSL

1

2

3
4

5
6

Pb

GND

Y

GND

Pr

GND

AV5

RCA ,RCA Jack,AV3, H,Green Blue Red,CH5.5,D14,Seal,DIP,AV3-8.4-07C-XSH,JSL

CD2

NC/10uF-0603-X5R-±20%-6.3V

QS1

MMBT3904(f≥350MHz)

RO1

NC/510ohm-0402-±5%-1/16W

RO5

NC/510ohm-0402-±5%-1/16W

F1

NC/MSMD110

GND

GND

RS13

NC/200Kohm-0402-±5%-1/16W

RS15

NC/200Kohm-0402-±5%-1/16W

CS11

NC/220pF-0402-X7R-±10%-50V

CS12

NC/220pF-0402-X7R-±10%-50V

GND12

4
3

5

GND

AV-R/Pr

AV-L/Pb/PC_R

AV-IN/Y/PC_L

AV2

NC/PJ-322A (H=7.0mm)JSL

SCART-VOUT

SC-ROUT//

1

2

CVBS

GND

3

GND

AV4

RCA ,RCA Jack,AV1, H,Yellow,CH5.5,S eal,DIP,AV38A-01S-5030,QS

COAV2

NLAV10IN0

PICS1001

PICS1001

COCS10

PICS1002

NLAV10L0

NLAV10R0

PICS1002

COAV3

PIAV301

PIAV301
PIAV302

PIAV302

PIAV303

PIAV303
PIAV304

PIAV304

PIAV305

PIAV305
PIAV306

PIAV306

PIRI502

PIRI602

CORI5

CORI6

CORI7

PIRI702

PIRI102

PIRI102

CORI1

PIRI101

PIRI101

PIRI501PIRI502

PIRI2002

PIRI2002

CORI20

PIRI2001

PIRI2001

PIRI601PIRI602

PIRI3001

CORI30

PIRI3001

PIRI3002

PIRI3002

COCI4

NLAV10IN

PICI401 PICI402

PIRI701PIRI702

PICI402

PICI401PIRI701

COCI5

NLAV10LIN

PICI501PICI502

PICI501

PICI502PIRI501

COCI6

NLAV10RIN

PICI601PICI602

PICI601

PICI602PIRI601

PIRV101

PIRV101

CORV1

PIRV102

PIRV102

PIAV6017

PIAV6017

COAV6

NLUART0TX0DDC0SDA

NLUART0RX0DDC0SCL

PIAV6011

PIAV6011

PIAV6012

PIAV6012

PIAV6013

PIAV6013

PIAV6014

PIAV6014

PIAV6015

PIAV6015

PIAV601

PIAV601
PIAV606

PIAV606
PIAV602

PIAV602
PIAV607

PIAV607
PIAV603

PIAV603

PIAV608

PIAV608

PIAV604

PIAV604
PIAV609

PIAV609
PIAV605

PIAV605
PIAV6010

PIAV6010

PIAV6016

PIAV6016

CORV11

NLVS0VGA

NLHS0VGA

CORV10

CORV12

PIRV1102

PIRV1002

PIRV1002

PIRV1001

PIRV1001

CORV13

PIRV1302

PIRV1202

PIRV1202

PIRV1201

PIRV1201

PIRV1101PIRV1102

PIRV1101

PIRV1301PIRV1302

PIRV1301

NLVGA0VS

NLVGA0HS

COAV7

PIRV401

PIRV401

CORV4

PIRV402

PIRV402

PIRV701

PIRV701

PIRV702

PIRV702

CORV7

NLSC10LOUT0

NLSC10ROUT0

COCV1

CORV2

PICV101 PICV102

PIRV201 PIRV202

PIRV201

PICV101PIRV202

COCV14

PICV1401 PICV1402

PICV1401

COCV3

CORV5

PICV301 PICV302

PIRV501 PIRV502

PIRV501

PICV301PIRV502

COCV5

CORV8

PICV501 PICV502

PIRV801 PIRV802

PIRV801

PICV501PIRV802

PIAV701

PIAV701
PIAV705

PIAV705
PIAV702

PIAV702
PIAV703

PIAV703
PIAV704

PIAV704

PIAV201

PIAV201
PIAV202

PIAV202
PIAV205

PIAV205
PIAV204

PIAV204
PIAV203

PIAV203

COCS23

CORO5

PICS2301 PICS2302

PIRO501PIRO502

PICS2301

PIRO501

PIRO502

PICS1102

PIRS1302

PICS1102

PIRS1302

COCS11

CORS13

PICS1101

PIRS1301

PICS1101

PIRS1301

PICS1202

COCS12

PIRS1502

CORS15

PICS1202

PIRS1502

PICS1201

PIRS1501

PICS1201

PIRS1501 PIRS2601 PIRS2801

CORO1

PICS2601 PICS2602

PIRO101PIRO102

PICS2601

PIRO101

PIRO102

NLVGA0RIN

PICV102

NLVGA0SOG

PICV1402

NLVGA0GIN

PICV302

NLVGA0BIN

PICV502

PIRV1901

PIRV1901

CORV19

PIRV1902

PIRV1902

CORV18

COCV12

NLPC0RIN

PICV1201 PICV1202

PIRV1801PIRV1802

PIRV1802

PIRV2002

CORV20

CORV21

PIRV2001PIRV2002

PIRV2102

PIRV2102

PIRV2101

PIRV2101

PICV1201PIRV1801

COCV13

PICV1301 PICV1302

PICV1301PIRV2001

PICV1202

PICV1302

NLPC0LIN

COCS26

PICS2302

CORS43

PICS2602

CORS51

NLSC0LOUT00

PIRS4302

PIRS4302

PIRS4301

PIRS4301

NLSC0ROUT00

PIRS5102

PIRS5102

PIRS5101

PIRS5101

COAV5

PICI3101

PIRI3101

PICI3101

PIRI3101

COCI31

CORI31

PICI3102

PIRI3102

PICI3102

PIRI3102

PIRI3201

PIRI3201

CORI32

PIRI3202

PIRI3202

PIRI3301

PIRI3301

CORI33

PIRI3302

PIRI3302

PIAV501

PIAV501 PIAV901
PIAV502

PIAV502

PIAV503

PIAV503 PIAV903
PIAV504

PIAV504

PIAV505

PIAV505 PIAV905
PIAV506

PIAV506

NLSCART0VOUT0

COR60

PIR6001 PIR6002

PIR6001

COR58

PIR5801 PIR5802

PIR5801

COR61

PIR6101 PIR6102

PIR6101

COAV9

COAV4

PIAV401

PIAV401
PIAV402

PIAV402
PIAV403

PIAV403

PICS1602

PICS1602

COCS16

PIRS2702

PIRS2702

CORS27

PICS1601

PICS1601

PIRS2701

PIRS2701

PIQS20B

PIQS20B

PIQS10C

PIQS10C

COQS1

PIQS10B

PIQS10B

PIQS10E

PIQS10E

PIRS2902

PIRS2802

CORS28

PIRS2802

PIRS2801

COQS2

CORS29

PIQS20E

PIQS20E

PIQS20C

PIQS20C

PIRS2901PIRS2902

PIRS3001 PIRS3002

PIRS2901

PIRS3001

NLYPbPr0Y

NLYPbPr0Pb

NLYPbPr0Pr

CORS30

PIRS3002

PICD201

PICD201

COCD2

CORS25

PIRS2502

PIRS2502

PICD202

PICD202

PIRS2501

PIRS2501

COCS28

PICS2801PICS2802

PICS2801

PICS2802

PIRS2602

CORS26

PIRS2602

PIRS2601

COC58

NLY0SC0G0SOG

PIC5801PIC5802

PIC5801

PIC5802

COC59

NLY0SC0G0IN

PIC5901PIC5902

PIC5902PIR6002

PIC5901

COC56

NLPb0SC0B0IN

PIC5601PIC5602

PIC5602PIR5802

PIC5601

COC60

NLPr0SC0R0IN

PIC6001PIC6002

PIC6002PIR6102

PIC6001

PIAV901
PIAV902

PIAV902

PIAV903
PIAV904

PIAV904

PIAV905
PIAV906

PIAV906

NLSCART0VOUT

PICS1801

PICS1801

COCS18

PICS1802

PICS1802

CORS2

COCS2

NLSCART0VI

PICS201 PICS202

PIRS201PIRS202

PICS201PIRS201

PICS202

PIRS202

COCS6

CORS6

PIRS601 PIRS602

PIRS601

CORS4

PIRS401 PIRS402

PIRS401

PICS602PIRS602

PIRS701

PIRS701

CORS7

PIRS702

PIRS702

PICS402PIRS402

PIRS501

PIRS501

CORS5

PIRS502

PIRS502

COCS4

PICS601PICS602

PICS601

PICS401PICS402

PICS401

NLSC0LI

NLSC0RI

COF1

PIF101 PIF102

PIF102

PIF101

COAV8

PIAV801

PIAV801
PIAV802

PIAV802
PIAV803

PIAV803
PIAV804

PIAV804

PIAV805

PIAV805

PIDF10K

PIDF30K

PIDF10K

PIDF30K

CODF1

CODF3

PIAV806

PIAV806

PIDF10A

PIDF30A

PIDF10A PIDF30A

CORF2

CORF56

CORF57

PIRF201PIRF202

PIRF201

PIRF202
PIRF5601 PIRF5602

PIRF5602

PIRF5601
PIRF5701 PIRF5702

PIRF5702

PIRF5701

NL5V0M

NLUSB00DM

NLUSB00DP

PICD1701

PICD1701

COCD17

PICD1702

PICD1702

PIDF50K

PIDF50K

CODF5

CODF7

PIDF50A

PIDF50A PIDF70A

CORF3

CORF4

PIDF70K

PIDF70K

PIDF70A

PIRF301 PIRF302

PIRF302

PIRF301
PIRF401 PIRF402

PIRF402

PIRF401

NLUSB10DM

NLUSB10DP

COCN18

PICN1801

PICN1801

NLUSB10DM

PICN1802

PICN1802

NLUSB10DP

PICN1803

PICN1803
PICN1804

PICN1804

NLUSB05V

PICN1805

PICN1805

NLUSB00DM

PICN1806

PICN1806

NLUSB00DP

PICN1807

PICN1807

NLGND

PICN1808

PICN1808

PICN1809

PICN18010 PICN18011 PICN18012

PICN1809

PICN18010 PICN18011 PICN18012

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

D D

C C

B B

A A

POW_EN

RXO0+/

RXO1+/

RXO1-/

RXO0-/

RXOC-/

RXO2+/

RXOC+/

RXO2-/

RXO3+/

RXO3-/

RXE0-/
RXE0+/
RXE1-/
RXE1+/
RXE2-/
RXE2+/

SPI-SCK

SPI-SDI

SPI-SDO

SPI-CSN

PANEL_EN

3V3_STB

USB0-DM

USB0-DP

HDMI-CEC

GND

VCOM0

AUVAG

AUVRM

XTALO

XTALI

USB1-DP
USB1-DM

KEYA

KEYB

REMOTE

GND

PWM1

3V3_STB

HDMI-ARC

HDMI2-SCL

HDMI2-SDA

HDMI2-RXC-N
HDMI2-RXC-P
HDMI2-RX0-N
HDMI2-RX0-P

HDMI2-RX1-N
HDMI2-RX1-P

HDMI2-RX2-N
HDMI2-RX2-P

RXE3-/

RXE3+/

RXEC-/
RXEC+/

RXE4+/

RXE4-/

RXO4+/

RXO4-/

TAGC

VIFM

VIFP

SC1-ROUT/

SC1-LOUT/

SC-RI

SC-LI

AV1-RIN

AV1-LIN

PC-RIN

PC-LIN

SCART-VOUT/

AV1-IN

SCART-VI

Pr/SC-R-IN

GIN1M

Y/SC-G-SOG
Y/SC-G-IN

Pb/SC-B-IN

VGA-VS

GIN0M

VGA-RIN

VGA-SOG

VGA-BIN

VGA-GIN

VGA-HS

RESET-H

LED-R/

SCART-FS/

UART-TX

UART-RX

PWM

SPI-WP0N

HOTPLUGB

HOTPLUGA

HDMI1-SCL

HDMI1-SDA

HDMI1-RXC-N

HDMI1-RXC-P

HDMI1-RX0-N

HDMI1-RX0-P

HDMI1-RX1-N

HDMI1-RX1-P

HDMI1-RX2-N

HDMI1-RX2-P

AMP-LO

AMP-RO

+1.2V_VDDC

3V3_STB

DDR_2.5V/1.8V

DDR_2.5 V/1.8V

+1.2V_VDDC

3V3_STB

DDR_2.5V/1.8V

3V3_STB

3V3_STB

+1.2V_VDDC

3V3_STB 3V3_STB

+1.2V_VDDC

3V3_STB

AMP-STB

AV2-RIN

AV2-LIN

AV2-IN

SC-YP-SW//

AMP-MUTE

VSIN/FB

GND

GND

M-SCL
M-SDA

3V3_STB

3V3_STB

XTALO

GND

XTAL_O

3V3_STB

SPI-SCK

SPI-CSN

SPI-SDI

SPI-SDO

3V3_STB

3V3_STB

RF11

10Kohm-0402-±5%-1/16W

RF14

4K7ohm-0402-±5%-1/16W

XTALO

XTALI

CF2

27pF-0402-NPO-±5%-50V

CF1

27pF-0402-NPO-±5%-50V

RF1

1Mohm-0402-±5%-1/16W

RF20

220ohm-0402-±5%-1/16W

CF4

1000pF-0402-X7R-±10%-50V

CF3

NC/30pF-0402-NPO-±5%-50V

GIN0M

VCOM0

GIN1M

CF51

0.047uF-0402-X7R-±10%-16V

CF52 0.047uF-0402-X7R-±10%-16V

CF53

0.047uF-0402-X7R-±10%-16V

RF53

68ohm-0402-±5%-1/16W

RF54

68ohm-0402-±5%-1/16W

RF55

68ohm-0402-±5%-1/16W

AMP-RO

AMP-LO

AUVAG

AUVRM

PWM

M-SCL

M-SDA

C231

10uF-0603-X5R-±20%-6.3V

Rbt2

4K7ohm-0402-±5%-1/16W

R103

4K7ohm-0402-±5%-1/16W

RF58

200Kohm-0402-±5%-1/16W

RF59

200Kohm-0402-±5%-1/16W

R262

4K7ohm-0402-±5%-1/16W

R263

4K7ohm-0402-±5%-1/16W

L11

NC/0ohm-0402-±5%-1/16W

3V3_STB

PWM1

CF56

NC/220pF-0402-X7R-±10%-50V

CF57

NC/220pF-0402-X7R-±10%-50V

UART-RX

UART-TX

RF50

100ohm-0402-±5%-1/16W

RF51

100ohm-0402-±5%-1/16W

5V_STB

RV14

10Kohm-0402-±5%-1/16W

RV15

10Kohm-0402-±5%-1/16W

UART-TX/DDC-SDA

UART-RX/DDC-SCL

C133 10uF-0603-X5R-±20%-6.3VC136

0.01uF-0402-X7R-±10%-50V

C2

10uF-0603-X5R-±20%-6.3V

C65 1uF-0402-X5R-±20%-6.3VC66

1uF-0402-X5R-±20%-6.3V

C67

1uF-0402-X5R-±20%-6.3V

CL47 0.1uF-0402-X5R-±20%-16VCL13

NC/0.1uF-0402-X5R-±20%-16V

C70

NC/10uF-0603-X5R-±20%-6.3V

C74

0.1uF-0402-X5R-±20%-16V

C78

0.1uF-0402-X5R-±20%-16V

C75

0.1uF-0402-X5R-±20%-16V

C80

0.1uF-0402-X5R-±20%-16V

C5

0.1uF-0402-X5R-±20%-16V

C98

0.1uF-0402-X5R-±20%-16V

C79

0.1uF-0402-X5R-±20%-16V

LVA2M

69

SOGIN1

23

BIN1P

22

GIN1M

25

GIN1P

24

CVBS2

29

HSYNC1

28

AUL1

37

GIN0P

17

RFAGC

55

LVA3P

63

VIFM54VIFP

53

AVDD_33

5

RIN1P

26

LVB2P

80

LVACKM

66

LVA1P

70

SAR2/GPIO73

112

SAR1/GPIO74

111

GIN0M

18

PWM2/GPIO24

93

GPIO0

92

GPIO1

91

GPIO2

90

GPIO3

89

LVA4P61LVA4M62LVA3M

64

LVACKP

65

SCZ

97

LVA0M

73

LVB4P

74

LVB4M

75

LVB3P

76

LVB3M

77

LVB1P

83

LVA0P

72

SDO

96

IRIN

113

CEC

114

HWRESET

115

HOTPLUGA

128

SOGIN0

16

AUOUTL147AUOUTR148AUOUTL045AUOUTR046XIN50XOUT49AVDD_DMPLL

51

RXCKN_A

1

RXCKP_A

2

RX0N_A

3

RX0P_A

4

RX1N_A

6

RX1P_A

7

DDCDA_DA

8

RX2N_A

9

RX2P_A

10

DDCDA_CK

11

ARC

12

AVDD1P2_DVI_A

13

HSYNC0

14

BIN0P

15

RIN0P

19

VSYNC0

20

AVDD3P3_ADC

21

CVBS1

30

CVBS0

31

VCOM

32

CVBSOUT

33

AUR1

38

AUREF

35

AUVAG

36

AUL441AUR4

42

AVDD3P3_DADC52GPIO5658VDDP59VDDC60GPIO55

57

LVA2P

68

LVA1M

71

AVDD_MOD

67

LVBCKP

78

LVBCKM

79

LVB2M

81

LVB1M

84

LVB0P

85

LVB0M

86

AVDD_MOD

82

INT/GPIO65

88

PWM0/GPIO26

105

PWM1/GPIO25

106

USB0_DM

98

TESTPIN

104

USB0_DP

99

AVDD_MOD

100

AVDD_DDR

109

SCK

94

GND_EFUSE

116

SDI

95

SAR0/GPIO75

110

DDCA_CK

107

DDCA_DA

108

E-Pad

129

VSYNC1

27

AU33

34

AUR544AUL5

43

AVDD_DDR

56

VDDC

87

HOTPLUGD

117

RXCKN_D

118

RXCKP_D

119

RX0N_D

120

RX0P_D

121

RX1N_D

123

RX1P_D

124

DDCDD_DA

122

RX2N_D

126

RX2P_D

127

DDCDD_CK

125

AUL339AUR3

40

USB1_DP

102

USB1_DM

101

GPIO64

103

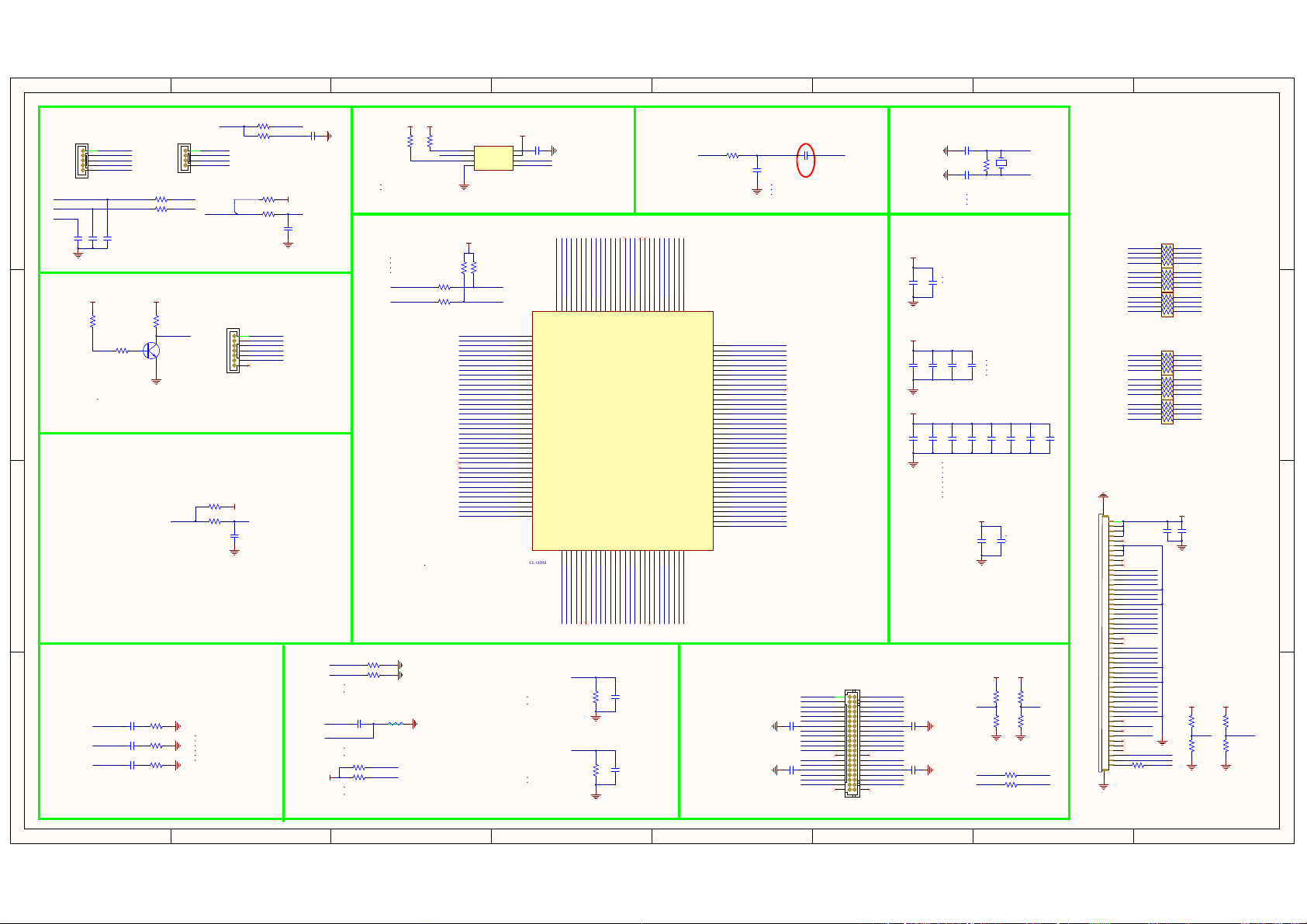

TV ,IC Main Chip,SMD,TSUMV59XUS-003F,TCL-ODM,Mstar

CS#

1

SO/SIO1

2

WP#

3

GND

4

VCC

8

HOLD#

7

SCLK

6

SI/SIO0

5

UF11

SPI FLASH ,IC SPI FLASH,32Mb,SOIC8,SMD,GD25Q32CSIG,GigaDevice

CF13

0.1uF-0402-X5R-±20%-16V

GND GND

RF6

NC/100ohm-0402-±5%-1/16W

RF7

NC/100ohm-0402-±5%-1/16W

LVDS SEL
BITSEL

GND GND

2
4
6
8

12

10

14
16
18
20
22
24
26
28
30

1

27

25

23

19
21

17

15

13

11

9

7

5

3

29
313332

34

353736

38

39 40

CN4

,connect jack,2×20Pin,D2.0,D,SNAP,Fool-proofing,Nature,L=2.6mm,DIP,AMA

VCC-PANEL
VCC-PANEL

TCO_SCL
TCO_SDA

TCO_SCL

TCO_SDA

RXO0+/

RXO1+/

RXO2+/

RXOC+/

RXO3+/

RXE0+/

RXE1+/

RXE2+/

RXE3+/
RXEC+/

VCC-PANEL
VCC-PANEL

RXO0-/

RXO1-/

RXOC-/
RXO2-/

RXO3-/

RXE0-/

RXE1-/

RXE2-/

RXE3-/
RXEC-/

RXE4+/ RXE4-/

RXO4+/ RXO4-/

RF5

NC/NC/?

RF21

NC/?

GND

5V_M

RF22

NC/NC/?

RF23

NC/?

GND

5V_M

LVDS SEL BITSEL

M-SCL

M-SDA

IR

RK4

100ohm-0402-±5%-1/16W

3V3_STB

RK3

4K7ohm-0402-±5%-1/16W

CK4

33pF-0402-NPO-±5%-50V

REMOTE

GND

5V_M

QK1

NC/KMBT3904

RK8

NC/10Kohm-0402-±5%-1/16W

RK9

NC/1Kohm-0402-±5%-1/16W

LOGO

3V3_STB

GND

LED-R/

RK7

4K7ohm-0402-±5%-1/16W

IR
GND

LOGO

LED_R

3.3V_IR

1

2
3
4
5
6
7

CN5

NC/7PIN-2.0-D-H-G-

KEYA

K0/AD

RK5

100Kohm-0402-±1%-1/16W

RK6

1Kohm-0402-±5%-1/16W

CK5

0.01uF-0402-X7R-±10%-50V

3V3_STB

3.3V_IR

LED_R

3V3_STB

LOGO

RK1

22ohm-0402-±5%-1/16W

RK2

510ohm-0402-±5%-1/16W

CK1

NC/0.1uF-0402-X5R-±20%-16V

CK2

NC/0.1uF-0402-X5R-±20%-16V

CK3 0.1uF-0402-X5R-±20%-16V

GND

K0/AD

3V3_STB

5V_M

IR
GND
LED_R

3.3V_IR

1

2
3
4

CN12

NC/4PIN-2.0-D-H-G- -B

1

2
3
4
5

CN3

,connect jack,5Pin,D2.0,D,SNAP,Nature,L=2.8mm,DIP,AMA

LED-R/

CK8

NC/0.1uF-0402

GND

RK13

0ohm-0402-±5%-1/16W

RK14

NC/0ohm-0402-±5%-1/16W

5V_M

K0/AD

KEY/5V

KEY/5V

KEY/5V

YF1

,SPXO,24MHz,±20PPM,20pF,HC-49SMD,SMD,49SMD 24.000MHz,JWT

CF6

NC/5pF-0402-NPO-±5%-50V

CF5

NC/5pF-0402-NPO-±5%-50V

GND GND

CF8

NC/5pF-0402-NPO-±5%-50V

CF7

NC/5pF-0402-NPO-±5%-50V

GND GND

53

52

1

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

CN20

NC/51PIN-0.5-L-M- - -H=2.7mm- XFE

VCC-PANEL

GND

CF9

NC/NC/10uF-0805-X5R-±20%-16V

CF10

NC/0.1uF-0402-X5R-±20%-16V

RXO0-

RXO0+

RXO1+
RXO1-

RXOC-

RXO2+

RXOC+

RXO2-

RXO3-

RXO3+

RXE0+
RXE0-

RXE1-

RXE1+

RXE2-

RXE2+

RXE3+
RXE3-

RXEC-

RXEC+

RXE4+
RXE4-

RXO4+
RXO4-

GND

GND

GND

OD_SEL/

LVDS_SEL/

RF12

NC/

RF9

NC/

GND

3V3_STB

RF8

NC/

RF10

NC/

GND

3V3_STB

OD_SEL/ LVDS_SEL/

RF18

NC/NC/100ohm-0402-±5%-1/16W

TCON_WP

TCO_SCL

TCO_SDA

TCON_WP

1 2
3 4
5 6
7 8

RP1

NC/4*0ohm-0402-±5%-1/16W

1 2
3 4
5 6
7 8

RP2

NC/4*0ohm-0402-±5%-1/16W

1 2
3 4
5 6
7 8

RP3

NC/4*0ohm-0402-±5%-1/16W

1 2
3 4
5 6
7 8

RP4

NC/4*0ohm-0402-±5%-1/16W

1 2
3 4
5 6
7 8

RP5

NC/4*0ohm-0402-±5%-1/16W

1 2
3 4
5 6
7 8

RP6

NC/4*0ohm-0402-±5%-1/16W

RXO0-/
RXO0+/

RXO1+/

RXO1-/

RXOC-/

RXO2+/

RXOC+/

RXO2-/

RXO3-/
RXO3+/

RXE0+/

RXE0-/

RXE1-/
RXE1+/

RXE2-/
RXE2+/

RXE3+/

RXE3-/

RXEC-/
RXEC+/

RXE4+/

RXE4-/

RXO4+/

RXO4-/

RXO0­RXO0+

RXO1+

RXO1-

RXOC-

RXO2+

RXOC+

RXO2-

RXO3­RXO3+

RXE0+

RXE0-

RXE1­RXE1+

RXE2­RXE2+

RXE3+

RXE3-

RXEC­RXEC+

RXE4+

RXE4-

RXO4+

RXO4-

CORK13

PIRK1301 PIRK1302

PIRK1301

PIRK1401 PIRK1402

PIRK1401

CORK5

CORK6

PICN501

PICN501
PICN502

PICN502
PICN503

PICN503
PICN504

PICN504
PICN505

PICN505

PICN506

PICN506

PICN507

PICN507

CORK14

PIRK502

PIRK602

NL303V0IR
NLIR

NLLED0R
NLLOGO

PIRK1302

PIRK1402

PIRK501PIRK502

PIRK501

PIRK601PIRK602

PIRK601

COCK5

NLK00AD
NL5V0M

PICK801 PICK802

PICK801

PICK502

PICK502

PICK501

PICK501

COCK8

PICK802

COC231

COR262

COR263

CORbt2

PIRbt201 PIRbt202

PIRbt201

COR103

PIR10302

PIC23101PIC23102

PIC23102

PIC23101

PIR26201 PIR26202

PIR26201

PIR26202

PIR26301 PIR26302

PIR26301

PIR26302

CORF11

NLUART0TX0DDC0SDA

NLUART0RX0DDC0SCL

PIRbt202

PIR10301PIR10302

PIR10301

COL11

PIL110JP01K

PIL110JP02K

PIL110JP02K

PIL110JP01K

PIRF1102

PIRF1402

PIRF1102 PIRF1402

CORF14

PIRF1101

PIRF1101

COUF11

PIRF1401

PIRF1401

PIUF1101

PIUF1101
PIUF1102

PIUF1102
PIUF1103

PIUF1103
PIUF1104

PIUF1104

PIRV1401

PIRV1501

PIRV1401PIRV1501

CORV14

CORV15

PIRV1402

PIRV1502

PIRV1502

PIRV1402

CORF50

PIRF5001

PIRF5002

PIRF5002

PIRF5001

CORF51

PIRF5101

PIRF5102

PIRF5102

PIRF5101

NLHDMI20RXC0N
NLHDMI20RXC0P
NLHDMI20RX00N
NLHDMI20RX00P

NLHDMI20RX10N

NLHDMI20RX10P

NLHDMI20SDA
NLHDMI20RX20N
NLHDMI20RX20P
NLHDMI20SCL
NLHDMI0ARC

NLVGA0HS

NLVGA0BIN
NLVGA0SOG
NLVGA0GIN
NLGIN0M
NLVGA0RIN

NLVGA0VS

NLPb0SC0B0IN
NLY0SC0G0SOG
NLY0SC0G0IN
NLGIN1M
NLPr0SC0R0IN

NLVSIN0FB

NLSCART0FS0
NLSCART0VI
NLAV20IN
NLAV10IN
NLVCOM0

NLSCART0VOUT0

NLAUVRM
NLAUVAG
NLPC0LIN
NLPC0RIN

COCF13

PICF1301 PICF1302

PIUF1108

PICF1301

PIUF1108

PICF1302

PIUF1107

PIUF1107
PIUF1106

PIUF1106
PIUF1105

PIUF1105

PIU601

PIU601
PIU602

PIU602
PIU603

PIU603
PIU604

PIU604
PIU605

PIU605

PIU606

PIU606

PIU607

PIU607
PIU608

PIU608
PIU609

PIU609
PIU6010

PIU6010
PIU6011

PIU6011
PIU6012

PIU6012

PIU6013

PIU6013

PIU6014

PIU6014
PIU6015

PIU6015
PIU6016

PIU6016
PIU6017

PIU6017
PIU6018

PIU6018
PIU6019

PIU6019
PIU6020

PIU6020
PIU6021

PIU6021
PIU6022

PIU6022
PIU6023

PIU6023
PIU6024

PIU6024
PIU6025

PIU6025

PIU6026

PIU6026

PIU6027

PIU6027
PIU6028

PIU6028
PIU6029

PIU6029
PIU6030

PIU6030
PIU6031

PIU6031
PIU6032

PIU6032

PIU6033

PIU6033

PIU6034

PIU6034
PIU6035

PIU6035
PIU6036

PIU6036
PIU6037

PIU6037
PIU6038

PIU6038

NLHDMI10RX00P

NLHDMI10RX10N

NLHDMI10RX10P

NLHDMI10RX20N

NLHDMI10RX20P

NLHDMI10SCL

NLHDMI10SDA

NLHOTPLUGB

PIU60125

PIU60126PIU60127PIU60128PIU60129

PIU60123

PIU60124

PIU60126

PIU60127

PIU60125

PIU60122

PIU60128

PIU6039 PIU6040 PIU6041

PIU6042

PIU6043 PIU6044 PIU6045 PIU6046 PIU6047 PIU6048 PIU6049 PIU6050 PIU6051 PIU6052 PIU6053 PIU6054

PIU6045

PIU6041

PIU6042

PIU6043

PIU6044

PIU6039

PIU6040

NLAMP0RO

NLAV10LIN

NLAV10RIN

NLAV20LIN

NLAV20RIN

NLSC0LI

NLSC0RI

NLAMP0LO

CORF58

CORF59

CORF20

PIRF2001

PIRF2002

PIRF2002

PIRF2001

NLHDMI10RX00N

NLHDMI10RXC0P

PIU60120

PIU60121

PIU60119

PIU6046

PIU6047

PIU6048

NLSC10LOUT0

NLSC10ROUT0

PIRF5801

PIRF5802

PIRF5802

COCF57

PIRF5901

PIRF5902

PIRF5902

NLDDR0205V0108V

NLHDMI10RXC0N

NLAMP0MUTE

NLHOTPLUGA

NLHDMI0CEC

NLREMOTE

NLRESET0H

PIU60118

PIU60114

PIU60117

PIU60115

PIU6051 PIU6052 PIU6059

PIU6053

PIU6050

PIU6049

NLVIFM

NLVIFP

COCF56

PICF5601

PICF5601PIRF5801

PICF5602

PICF5602

PICF5701

PICF5701PIRF5901

PICF5702

PICF5702

NLPOW0EN

NLUART0RX

NLUART0TX

NLKEYA

NLPWM1

NLKEYB

NLPWM

PIU60103PIU60104PIU60105PIU60106PIU60107PIU60108PIU60109PIU60110PIU60111

PIU60112

PIU60113PIU60114PIU60115PIU60116PIU60117PIU60118PIU60119PIU60120PIU60121PIU60122PIU60123PIU60124

PIU60112

PIU60109

PIU60104PIU60116PIU60129

PIU60110

PIU60111

PIU60103

PIU60105

PIU60106

PIU60113

PIU60107

PIU60108

PIU60102

PIU60102
PIU60101

PIU60101
PIU60100

PIU60100

PIU6099

PIU6099

PIU6098

PIU6098

PIU6055

PIU6056 PIU6057 PIU6058 PIU6059 PIU6060 PIU6061 PIU6062 PIU6063 PIU6064

PIU6060

PIU6056

PIU6057

PIU6055

PIU6058

PIU6054

NLTAGC

NLSC0YP0SW00

PIU6097

PIU6097
PIU6096

PIU6096
PIU6095

PIU6095
PIU6094

PIU6094
PIU6093

PIU6093

PIU6092

PIU6092

PIU6091

PIU6091
PIU6090

PIU6090
PIU6089

PIU6089
PIU6088

PIU6088
PIU6087

PIU6087
PIU6086

PIU6086
PIU6085

PIU6085
PIU6084

PIU6084
PIU6083

PIU6083
PIU6082

PIU6082
PIU6081

PIU6081
PIU6080

PIU6080

PIU6079

PIU6079

PIU6078

PIU6078
PIU6077

PIU6077
PIU6076

PIU6076
PIU6075

PIU6075
PIU6074

PIU6074
PIU6073

PIU6073

PIU6072

PIU6072

PIU6071

PIU6071
PIU6070

PIU6070
PIU6069

PIU6069
PIU6068

PIU6068
PIU6067

PIU6067
PIU6066

PIU6066
PIU6065

PIU6065

PIU6063

PIU6064

PIU6061

PIU6062

COCF4

PICF402

PICF302

COCF3

PICF302

PICF301

PICF301

NLUSB10DP
NLUSB10DM
NL3V30STB
NLUSB00DP

NLUSB00DM

NLSPI0CSN
NLSPI0SDO
NLSPI0SDI
NLSPI0SCK
NLSPI0WP0N

NLPANEL0EN
NLLED0R0

NLAMP0STB

NL0102V0VDDC

COCF6

PICF601 PICF602

PICF602

COCF8

PICF801 PICF802

PICF802

NLXTAL0O

PICF401PICF402

PICF401

PICN401

PICN401
PICN403

PICN403
PICN405

PICN405
PICN407

PICN407

PICN409

PICN409

PICN4011

PICN4011
PICN4013

PICN4013
PICN4015

PICN4015
PICN4017

PICN4017
PICN4019

PICN4019
PICN4021

PICN4021

PICN4023

PICN4023

PICN4025

PICN4025
PICN4027

PICN4027
PICN4029

PICN4029
PICN4031

PICN4031
PICN4033

PICN4033

PICN4035

PICN4035

PICN4037

PICN4037
PICN4039

PICN4039

COCN4

PICN402

PICN402
PICN404

PICN404
PICN406

PICN406
PICN408

PICN408

PICN4010

PICN4010

PICN4012

PICN4012
PICN4014

PICN4014
PICN4016

PICN4016
PICN4018

PICN4018
PICN4020

PICN4020
PICN4022

PICN4022

PICN4024

PICN4024

PICN4026

PICN4026
PICN4028

PICN4028
PICN4030

PICN4030
PICN4032

PICN4032
PICN4034

PICN4034

PICN4036

PICN4036

PICN4038

PICN4038
PICN4040

PICN4040

NLVCC0PANEL
NLGND

COC133

COC65

PICF501 PICF502

PICF501

PICF701 PICF702

PICF701

PIC13302

PIC13302 PIC13602

PIC13301

PIC13301 PIC13601

PIC6502

PIC6502 PIC6602 PIC6702

PIC6501

PIC6501 PIC6601 PIC6701

PIC7002

PIC7002 PIC7402 PIC7502 PIC7802

COC70

PIC7001

PIC7001 PIC7401 PIC7501 PIC7801

COCF5

PICF502PICF601

COCF7

PICF702PICF801

COCF2

PICF201 PICF202

PICF201

COCF1

PICF101 PICF102

PICF101

PIC13602

COC136

PIC13601

COC2

PIC6602

COC66

PIC6702

COC67

PIC6601

PIC6701

PIC7402

PIC7502

COC74

COC75

PIC7401

PIC7501

COCL47

PICF202

PIYF102

PIYF102

PIRF102

PIRF102

CORF1

COYF1

PIYF101

PIYF101

PIRF101

PIRF101

PICF102

PIC202

PIC202

PIC201

PIC201

PIC7802

PIC7902

PIC8002

PIC7902

PIC8002 PIC9802

COC78

COC79

PIC7801

PIC7901

PIC8001

PIC7901

PIC8001 PIC9801

PICL1302

PICL4702

PICL1302PICL4702

COCL13

PICL1301

PICL4701

PICL1301PICL4701

PIRF502

PIRF502

CORF5

NLLVDS SEL

PIRF501

PIRF501
PIRF2101

PIRF2101

CORF21

PIRF2102

PIRF2102 PIRF2302

CORF6

PIRF601 PIRF602

PIRF601

CORF7

PIRF701 PIRF702

PIRF701

NLXTALO

NLXTALI

COC80

PIRF2202

PIRF2202

CORF22

PIRF2201

PIRF2201
PIRF2301

PIRF2301

CORF23

PIRF2302

PIRF602

PIRF702

PIC9802

COC98

PIC9801

NLBITSEL

NLM0SCL

NLM0SDA

PIC502

PIC502

COC5

PIC501

PIC501

CORP1

NLRXE300

PIRP101 PIRP102

PIRP101

NLRXE300

PIRP103 PIRP104

PIRP103

NLRXE400

PIRP105 PIRP106

PIRP105

NLRXE400

PIRP107 PIRP108

PIRP107

CORP2

NLRXE200

PIRP201 PIRP202

PIRP201

NLRXE200

PIRP203 PIRP204

PIRP203

NLRXEC00

PIRP205 PIRP206

PIRP205

NLRXEC00

PIRP207 PIRP208

PIRP207

CORP3

NLRXE000

PIRP301 PIRP302

PIRP301

NLRXE000

PIRP303 PIRP304

PIRP303

NLRXE100

PIRP305 PIRP306

PIRP305

NLRXE100

PIRP307 PIRP308

PIRP307

CORP4

NLRXO300

PIRP401 PIRP402

PIRP401

NLRXO300

PIRP403 PIRP404

PIRP403

NLRXO400

PIRP405 PIRP406

PIRP405

NLRXO400

PIRP407 PIRP408

PIRP407

CORP5

NLRXO200

PIRP501 PIRP502

PIRP501

NLRXO200

PIRP503 PIRP504

PIRP503

NLRXOC00

PIRP505 PIRP506

PIRP505

NLRXOC00

PIRP507 PIRP508

PIRP507

CORP6

NLRXO000

PIRP601 PIRP602

PIRP601

NLRXO000

PIRP603 PIRP604

PIRP603

NLRXO100

PIRP605 PIRP606

PIRP605

NLRXO100

PIRP607 PIRP608

PIRP607

PICN20052

PICN20052

COCN20

PICN2001

PICN2001
PICN2002

PICN2002
PICN2003

PICN2003
PICN2004

PICN2004
PICN2005

PICN2005
PICN2006

PICN2006
PICN2007

PICN2007

PICN2008

PICN2008

PICN2009

PICN2009
PICN20010

PICN20010
PICN20011

PICN20011
PICN20012

PICN20012
PICN20013

PICN20013
PICN20014

PICN20014
PICN20015

PICN20015
PICN20016

PICN20016
PICN20017

PICN20017
PICN20018

PICN20018
PICN20019

PICN20019
PICN20020

PICN20020

PICN20021

PICN20021

PICN20022

PICN20022
PICN20023

PICN20023
PICN20024

PICN20024
PICN20025

PICN20025
PICN20026

PICN20026
PICN20027

PICN20027

PICN20028

PICN20028

PICN20029

PICN20029
PICN20030

PICN20030
PICN20031

PICN20031
PICN20032

PICN20032
PICN20033

PICN20033
PICN20034

PICN20034
PICN20035

PICN20035
PICN20036

PICN20036
PICN20037

PICN20037
PICN20038

PICN20038
PICN20039

PICN20039
PICN20040

PICN20040

PICN20041

PICN20041

PICN20042

PICN20042
PICN20043

PICN20043
PICN20044

PICN20044
PICN20045

PICN20045
PICN20046

PICN20046
PICN20047

PICN20047

PICN20048

PICN20048

NLTCO0SDA

PICN20049

PICN20049

NLTCO0SCL

PICN20050

PICN20050

CORF18

NLTCON0WP

PICN20051

PIRF1801 PIRF1802

PICN20051

PIRF1801

PIRF1802

PICN20053

PICN20053

NLRXE30

PIRP102

NLRXE30

PIRP104

NLRXE40

PIRP106

NLRXE40

PIRP108

NLRXE20

PIRP202

NLRXE20

PIRP204

NLRXEC0

PIRP206

NLRXEC0

PIRP208

NLRXE00

PIRP302

NLRXE00

PIRP304

NLRXE10

PIRP306

NLRXE10

PIRP308

NLRXO30

PIRP402

NLRXO30

PIRP404

NLRXO40

PIRP406

NLRXO40

PIRP408

NLRXO20

PIRP502

NLRXO20

PIRP504

NLRXOC0

PIRP506

NLRXOC0

PIRP508

NLRXO00

PIRP602

NLRXO00

PIRP604

NLRXO10

PIRP606

NLRXO10

PIRP608

PICF901

PICF1002

PICF901

PICF1002

COCF9

COCF10

PICF902

PICF1001

PICF902

PICF1001

PIRF902

PIRF902

CORF9

PIRF901

PIRF901

NLOD0SEL0

PIRF1202

PIRF1202

CORF12

PIRF1201

PIRF1201

PIRF1002

PIRF1002

CORF10

PIRF1001

PIRF1001

NLLVDS0SEL0

PIRF802

PIRF802

CORF8

PIRF801

PIRF801

NLKEY05V

COCN3

PICN301

PICN301
PICN302

PICN302
PICN303

PICN303
PICN304

PICN304

PICN305

PICN305

PICK101

COCK1

PICK201

COCK2

PICK301

COCK3

PICK301

PICK201

PICK101

PICK102

PICK202

PICK302

PICK102 PICK202 PICK302

CORK7

PIRK702

PIRK702

PIRK701

PIRK701

CORK8

PIRK801 PIRK802

PIRK801

COCF51

PICF5101

PICF5101

COCF52

PICF5201

PICF5201

COCF53

PICF5302

PICF5302

COQK1

PIQK10B

PIQK10BPIRK802

CORF53

PICF5102

PICF5102 PIRF5302

CORF54

PICF5202

PICF5202 PIRF5402

CORF55

PICF5301

PICF5301 PIRF5502

CORK1

PIRK102

CORK2

PIRK201 PIRK202

PIRK201

PIRK902

PIRK902

CORK9

PIRK901

PIRK901
PIQK10C

PIQK10C

PIQK10E

PIQK10E

PIRF5302

PIRF5402

PIRF5502

COCN12

PIRK101PIRK102

PIRK101

PIRK202

PIRF5301

PIRF5301

PIRF5401

PIRF5401

PIRF5501

PIRF5501

PICN1201

PICN1201
PICN1202

PICN1202
PICN1203

PICN1203
PICN1204

PICN1204

CORK3

PIRK301PIRK302

PIRK301

PIRK302

CORK4

PIRK401PIRK402

PIRK402

PIRK401

COCK4

COCN5

PICK402

PICK402

PICK401

PICK401

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

D D

C C

B B

A A

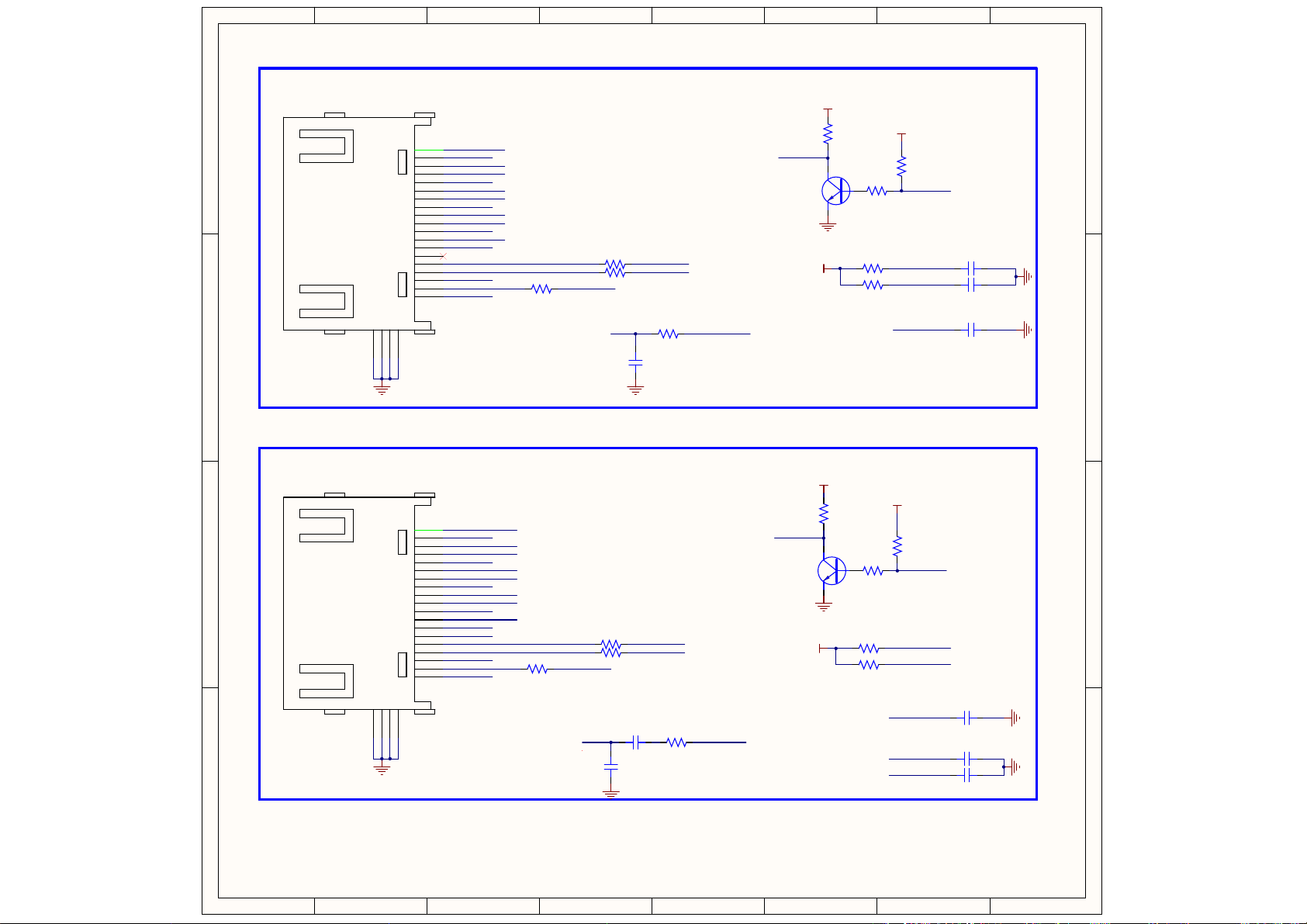

CEC1

HDMI1-5V

HDMI1-SCL/

HDMI1-SDA/

GND

GND

GND

GND

GND

HDMI1-5V

CEC1

HOTPLUG1

HDMI1-SCL/
HDMI1-SDA/

HDMI1-SCL
HDMI1-SDA

GND

HDMI1-RXC-N

HDMI1-RXC-P

HDMI1-RX0-N

HDMI1-RX0-P

HDMI1-RX1-N

HDMI1-RX1-P

HDMI1-RX2-N

HDMI1-RX2-P

HDMI-CEC

HOTPLUG1

1

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

20

HPD

HDMI

+5V

GND

SDA

SCL

ARC

CEC

RXC-

GND

RXC+

RX0-

GND

RX0+

RX1-

GND

RX1+

GND

RX2+

RX2-

212223

GND

GND

GND

GND

CN15

HDMI ,HDMI Jack,H,SMD,161031041(hull-SPCC ),VAST

GND

RH15

33ohm-0402-±5%-1/16W

RH16

33ohm-0402-±5%-1/16W

R197

220ohm-0402-±5%-1/16W

CH8 NC/22pF-0402-NPO-±5%-50V

HDMI1-5V

HOTPLUGA

HDMI1-5V

HOTPLUG1

RH1

10Kohm-0402-±5%-1/16W

RH2

10Kohm-0402-±5%-1/16W

RH3

1Kohm-0402-±5%-1/16W

RH4

10Kohm-0402-±5%-1/16W

RH5

10Kohm-0402-±5%-1/16W

CH22

NC/22pF-0402-NPO-±5%-50V

CH23

NC/22pF-0402-NPO-±5%-50V

CH4

NC/22pF-0402-NPO-±5%-50V

HDMI2-5V

HDMI2-SCL/

HDMI2-SDA/

GND

HOTPLUG2

HDMI2-SCL/

HDMI2-SDA/

1

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

20

HPD

HDMI

+5V

GND

SDA

SCL

ARC

CEC

RXC-

GND

RXC+

RX0-

GND

RX0+

RX1-

GND

RX1+

GND

RX2+

RX2-

212223

GND

GND

GND

GND

CN16

HDMI ,HDMI Jack,H,SMD,161031041(hull-SPCC ),VAST

GND

RH35

33ohm-0402-±5%-1/16W

RH36

33ohm-0402-±5%-1/16W

RH21

10Kohm-0402-±5%-1/16W

RH22

10Kohm-0402-±5%-1/16W

RH23

1Kohm-0402-±5%-1/16W

RH24

10Kohm-0402-±5%-1/16W

RH25

10Kohm-0402-±5%-1/16W

CH14NC/22pF-0402-NPO-±5%-50V

CH15

NC/22pF-0402-NPO-±5%-50V

CH10

NC/22pF-0402-NPO-±5%-50V

HOTPLUG2

HDMI2-5V

HDMI2-5V

GND

GND

GND

GND

GND

HDMI2-5V

CEC1

HOTPLUG2

HDMI2-RXC-N

HDMI2-RXC-P

HDMI2-RX0-N

HDMI2-RX0-P

HDMI2-RX1-N

HDMI2-RX1-P

HDMI2-RX2-N

HDMI2-RX2-P

ARC

HDMI2-SCL/
HDMI2-SDA/

HDMI2-SCL
HDMI2-SDA

HOTPLUGB

ARC HDMI-ARC

CH9

NC/22pF-0402-NPO-±5%-50V

CH1

NC/1uF-0402-X5R-±20%-6.3V

RH18

NC/33ohm-0402-±5%-1/16W

QH1

MMBT3904(f≥350MHz)

QH21

MMBT3904(f≥350MHz)

RH17

NC/47Kohm-0402-±5%-1/16W

RH37

NC/47Kohm-0402-±5%-1/16W

COCN15

NLHDMI10RX20P

PICN1501

PICN1501
PICN1502

PICN1502

NLHDMI10RX20N

PICN1503

PICN1503

NLHDMI10RX10P

PICN1504

PICN1504
PICN1505

PICN1505

NLHDMI10RX10N

PICN1506

PICN1506

NLHDMI10RX00P

PICN1507

PICN1507
PICN1508

PICN1508

NLHDMI10RX00N

PICN1509

PICN1509

NLHDMI10RXC0P

PICN15010

PICN15010

PICN15011

PICN15011

NLHDMI10RXC0N

PICN15012

PICN15012
PICN15013

PICN15013
PICN15014

PICN15014
PICN15015

PICN15022

PICN15023

PICN15022

PICN15023

PICN15015
PICN15016

PICN15016

PICN15017

PICN15017

PICN15018

PICN15018
PICN15019

PICN15019

PICN15020PICN15021

PICN15020PICN15021

NLHDMI105V

CORH17

PIRH1701 PIRH1702

PIRH1702

PIRH1701

NLGND

CORH15

CORH16

NLHDMI10SCL

PIRH1501 PIRH1502

PIRH1502

PIRH1501

NLHDMI10SDA

PIRH1601 PIRH1602

PIRH1602

PIRH1601

COR197

NLCEC1

PIR19702

PIR19702

PICH801

PICH801

COCH8

PICH802

PICH802

PIR19701

PIR19701

NLHDMI0CEC

PIRH302

PIRH302

CORH3

PIRH301

PIRH301

PIQH10C

PIQH10C

COQH1

PIQH10E

PIQH10E

PIRH101

PIRH101

CORH1

PIRH102

PIRH102

CORH2

NLHOTPLUGA

PIQH10B

PIRH201PIRH202

PIRH201

PIQH10B PIRH202

CORH4

PIRH401 PIRH402

PIRH401

CORH5

PIRH501 PIRH502

PIRH501

NLHDMI10SDA0

PIRH402

NLHDMI10SCL0

PIRH502

NLHOTPLUG1

COCH22

PICH2201 PICH2202

PICH2202

PICH2201

COCH23

PICH2301 PICH2302

PICH2302

PICH2301

COCH4

PICH401 PICH402

PICH402

PICH401

COCN16

NLHDMI20RX20P

PICN1601

PICN1601

PICN1602

PICN1602

NLHDMI20RX20N

PICN1603

PICN1603

NLHDMI20RX10P

PICN1604

PICN1604
PICN1605

PICN1605

NLHDMI20RX10N

PICN1606

PICN1606

NLHDMI20RX00P

PICN1607

PICN1607

PICN1608

PICN1608

NLHDMI20RX00N

PICN1609

PICN1609

NLHDMI20RXC0P

PICN16010

PICN16010
PICN16011

PICN16011

NLHDMI20RXC0N

PICN16012

PICN16012

PICN16013

PICN16013
PICN16014

PICN16014

PICN16015

PICN16015

PICN16016

PICN16016
PICN16017

PICN16017

NLHDMI205V

PICN16018

PICN16018

PICN16019

PICN16019

PICN16020PICN16021

PICN16022

PICN16023

PICN16020PICN16021

PICN16022

PICN16023

CORH37

PIRH3701 PIRH3702

PIRH3702

PIRH3701

CORH35
CORH36

NLHDMI20SCL

PIRH3501 PIRH3502

PIRH3502

PIRH3501

NLHDMI20SDA

PIRH3601 PIRH3602

PIRH3602

PIRH3601

COCH1

NLARC

PICH101 PICH102

PICH101

PICH901

PICH901

PICH902

PICH902

CORH18

PIRH1802

PICH102

PIRH1802

COCH9

PIRH1801

PIRH1801

NLHDMI0ARC

PIRH2302

PIRH2302

CORH23

PIRH2301

PIRH2301

PIQH210C

PIQH210C

COQH21

PIQH210B

PIQH210B

PIQH210E

PIQH210E

CORH24

PIRH2401 PIRH2402

PIRH2401

CORH25

PIRH2501 PIRH2502

PIRH2501

PIRH2101

PIRH2101

CORH21

PIRH2102

PIRH2102

CORH22

NLHOTPLUGB

PIRH2201PIRH2202

PIRH2201

PIRH2202

PIRH2402

PIRH2502

NLHOTPLUG2

NLHDMI20SCL0
NLHDMI20SDA0

COCH10

PICH1001 PICH1002

PICH1001

COCH14

PICH1401 PICH1402

PICH1401

COCH15

PICH1501 PICH1502

PICH1501

PICH1002

PICH1402

PICH1502

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

D D

C C

B B

A A

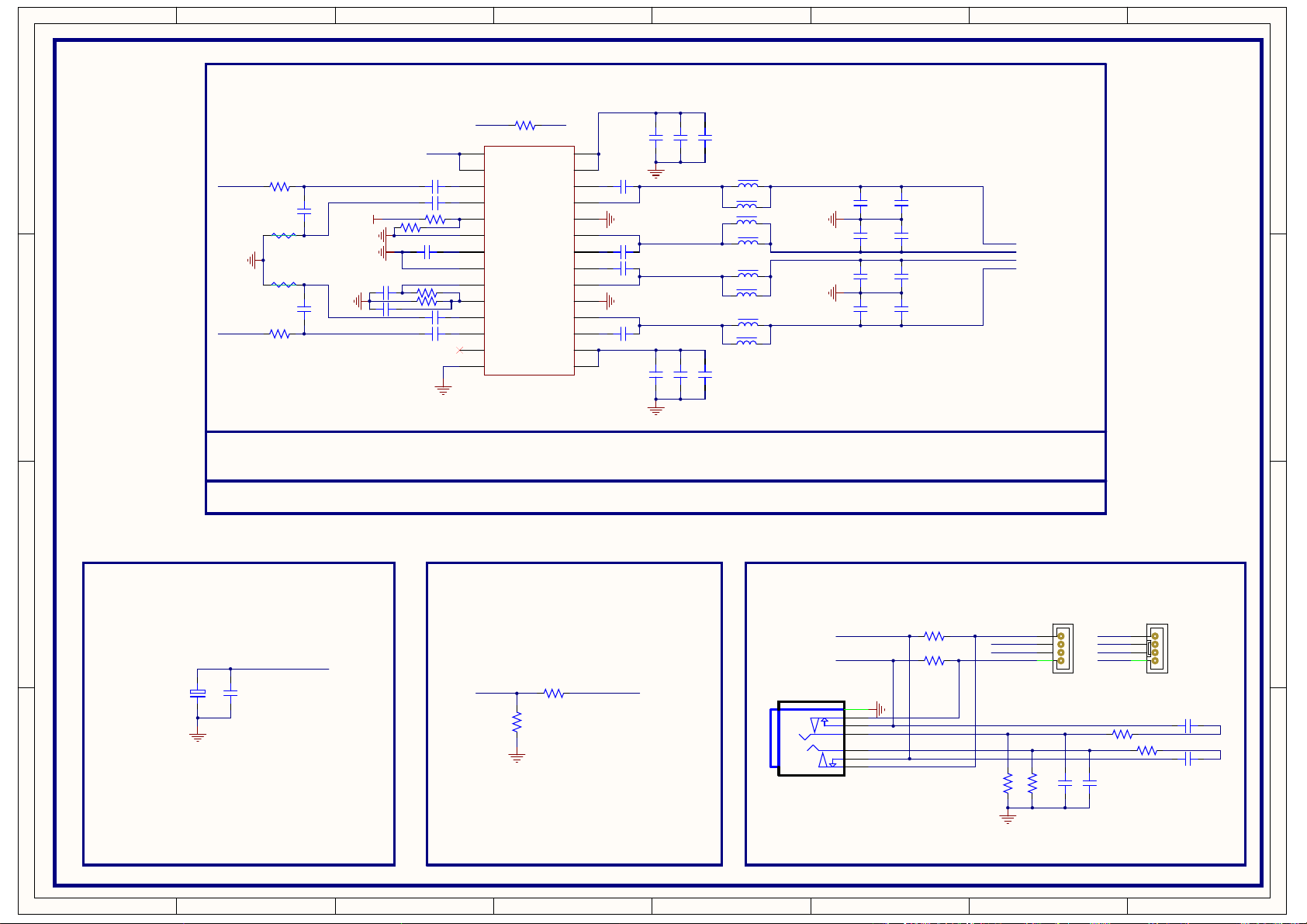

GND

12V

AMP-STB/

GND

AMP-STB

1

2

3

4

CNA1

,connect jack,4Pin,D2.54,D,L=2.8mm,DIP,LD

1

2

3
5

4

7

6

GND

RIN

RSPK

ERO

ELO

LSPK

LIN

CNA2

PJ-339

CA40

10uF-0805-X5R-±20%-16V

CA41

10uF-0805-X5R-±20%-16V

RA14

NC/120ohm-0402-±5%-1/16W

RA9

NC/120ohm-0402-±5%-1/16W

LOUT­ROUT-

RA23

1Kohm-0402-±5%-1/16W

CA61

6800pF-0402-X7R-±10%-50V

CA60

6800pF-0402-X7R-±10%-50V

GND

LOUT+

ROUT+

RA5

NC/0ohm-0603-±5%-1/10W

RA17

NC/0ohm-0603-±5%-1/10W

EP_L

EP_R

LSPK

RSPK

RA8

4K7ohm-0402-±5%-1/16W

RA6

4K7ohm-0402-±5%-1/16W

+

EA1

470uF-16V±20%-10×12-105 - -F=5.0-XL

CD19

NC/10uF-0805-X5R-±20%-16V

112

2RA28

1Kohm-0402-±5%-1/16W

1

2

3

4

CNA3

NC/4PIN-2.54-D-H-G- -B

LSPK

LOUT­ROUT-

RSPK

CA15

1uF-0402-X5R-±20%-16V

RA11

4K7ohm-0402-±5%-1/16W

RA12

NC/3K3ohm-0402-±5%-1/16W

CA18

1uF-0402-X5R-±20%-16V

CA25

1000pF-0402-X7R-±10%-50V

CA3

1000pF-0402-X7R-±10%-50V

GND

GND

CA7

0.22uF-0402-X5R-±10%-16V

CA22

0.22uF-0402-X5R-±10%-16V

CA13

0.22uF-0402-X5R-±10%-16V

CA12

0.22uF-0402-X5R-±10%-16V

GND

GND

LOUT+

ROUT+

AVCC

RA3

100Kohm-0402-±5%-1/16W

12VAVCC

GND

GND

GND

GND

GND

RA21

1Kohm-0402-±5%-1/16W

CA27

3300pF-0402-X7R-±10%-50V

RA10

1Kohm-0402-±5%-1/16W

CA29

3300pF-0402-X7R-±10%-50V

CA6

0.22uF-0402-X5R-±10%-16V

CA8

0.22uF-0402-X5R-±10%-16V

CA20

0.22uF-0402-X5R-±10%-16V

CA21

0.22uF-0402-X5R-±10%-16V

RA110ohm-0402-±5%-1/16W

LOUT­ROUT-

SD

1

FAULT

2

LINP

3

LINN

4

GAIN0

5

GAIN1

6

AVCC

7

AGND

8

GVDD

9

PLIMIT

10

RINN

11

RINP

12

NC

13

PBTL

14

PVCCR

15

PVCCR

16

BSPR

17

OUTPR

18

PGND

19

OUTNR

20

BSNR

21

BSNL

22

OUTNL

23

PGND

24

OUTPL

25

BSPL

26

PVCCL

27

PVCCL

28

UA1

TPA3110LD2PWPR

AMP-STB/

12V

RA4

NC/0ohm-0402-±5%-1/16W

RA15

NC

RA2

NC

12V

12V

CA51

NC/1uF-0603-X5R-±10%-25V

CA52

NC/1uF-0603-X5R-±10%-25V

LBA1

NC/UPZ2012E601-2R0TF(600ohm-2000mA)

LBA2

NC/UPZ2012E601-2R0TF(600ohm-2000mA)

LBA3

NC/UPZ2012E601-2R0TF(600ohm-2000mA)

LBA4

NC/UPZ2012E601-2R0TF(600ohm-2000mA)

+

LA1

,Power Inductor,22uH,±10%,1.7A,0.27×1P,DR5.8×4 . 5, S MD,CD54-22uH,wenshan

+

LA2

,Power Inductor,22uH,±10%,1.7A,0.27×1P,DR5.8×4 . 5, S MD,CD54-22uH,wenshan

+

LA3

,Power Inductor,22uH,±10%,1.7A,0.27×1P,DR5.8×4 . 5, S MD,CD54-22uH,wenshan

+

LA4

,Power Inductor,22uH,±10%,1.7A,0.27×1P,DR5.8×4 . 5, S MD,CD54-22uH,wenshan

CA28

0.1uF-0402-X5R-±20%-16V

GND

GND

CA9

0.47uF-0603-X5R-±10%-16V

CA11

0.47uF-0603-X5R-±10%-16V

CA14

0.47uF-0603-X5R-±10%-16V

CA19

0.47uF-0603-X5R-±10%-16V

CA4

NC/

CA5

NC/

CA10

NC/

CA17

NC/

CA2

1uF-0402-X5R-±20%-16V

CA1

1uF-0402-X5R-±20%-16V

AMP-LO

AMP-RO

NLAMP0LO

CORA21

PIRA2101 PIRA2102

PIRA2101

PIRA2102

COCA27

CORA2

PIRA20JP02K

CORA15

PIRA150JP02K

COCA29

CORA10

NLAMP0RO

PIRA1001 PIRA1002

PIRA1001

PIRA1002

PICA2701

PICA2701

PICA2702

PICA2702

PIRA20JP01KPIRA20JP02K

PIRA20JP01K

PIRA150JP01KPIRA150JP02K

PIRA150JP01K

PICA2902

PICA2902

PICA2901

PICA2901

CORA4

COCA15

PICA1501 PICA1502

PICA1501

PICA1801 PICA1802

PICA1801

COCA18

COCA6

PICA602

COCA8

PICA802

CORA3

PIRA302

PIRA401 PIRA402

PIRA401

PIRA402

COCA28

PICA2801 PICA2802

PICA2801

CORA11

PICA1502

PIRA1102

CORA12

PIRA1202

PICA1802

COCA21

PICA2102

COCA20

PICA2002

CORA1

NLAVCC

PIRA101 PIRA102

PIRA102

PIRA101

COUA1

PIUA101

PIUA101

PICA601PICA602

PICA601

PICA801PICA802

PICA801

PIRA301PIRA302

PIRA301

PICA2802

PIRA1101PIRA1102

PIRA1101
PIRA1201PIRA1202

PIRA1201

PICA2101PICA2102

PICA2101

PICA2001PICA2002

PICA2001

PIUA102

PIUA102

PIUA103

PIUA103

PIUA104

PIUA104

PIUA105

PIUA105

PIUA106

PIUA106

PIUA107

PIUA107

PIUA108

PIUA108

PIUA109

PIUA109

PIUA1010

PIUA1010

PIUA1011

PIUA1011

PIUA1012

PIUA1012

PIUA1013

PIUA1013

PIUA1014 PIUA1015

PIUA1014

PIUA1028

PIUA1028

PIUA1027

PIUA1027

PIUA1026

PIUA1026

PIUA1025

PIUA1025

PIUA1024

PIUA1024

PIUA1023

PIUA1023

PIUA1022

PIUA1022

PIUA1021

PIUA1021

PIUA1020

PIUA1020

PIUA1019

PIUA1019

PIUA1018

PIUA1018

PIUA1017

PIUA1017

PIUA1016

PIUA1016

PIUA1015

NL12V

PICA302

PICA5202

PICA302

PICA5202

COCA3

COCA52

PICA301

PICA5201

PICA301

PICA5201

COCA7

PICA701

PICA702

PICA701

PICA702 PILA10S

COCA12

PICA1201

PICA1202

PICA1201

PICA1202

COCA13

PICA1301

PICA1302

PICA1301

PICA1302

COCA22

PICA2201

PICA2202

PICA2201

PICA2202

PICA2502

PICA5102

PICA2502

PICA5102

COCA25

COCA51

PICA2501

PICA5101

PICA2501

PICA5101

PICA101

PICA101

COCA1

PICA102

PICA102

PILBA101 PILBA102

PILBA101

PILBA201 PILBA202

PILBA201

PILA20S

PILA30S

PILBA301 PILBA302

PILBA301

PILA40F PILA40S

PILA40F

PILBA401 PILBA402

PILBA401

PICA201

PICA201

COCA2

PICA202

PICA202

COLA1

COLBA1
COLBA2

COLA2

COLA3

COLBA3

COLA4

COLBA4

PILA10FPILA10S

PILA10F

PILBA102

PILBA202

PILA20FPILA20S

PILA20F

PILA30FPILA30S

PILA30F

PILBA302

PILA40S

PILBA402

PICA402

PICA902

PICA402

PICA902

COCA9

PICA901

PICA901

PICA1102

PICA1102

COCA11

PICA1101

PICA1101

PICA1402

PICA1402

COCA14

PICA1401

PICA1401
PICA1902

PICA1902

COCA19

PICA1901

PICA1901

COCA4

PICA401

PICA401

PICA502

PICA502

COCA5

PICA501

PICA501

PICA1002

PICA1002

COCA10

PICA1001

PICA1001
PICA1702

PICA1702

COCA17

PICA1701

PICA1701

COCNA1

PICNA104

PICNA104

PICNA103

PICNA103

PICNA102

PICNA102
PICNA101

PICNA101

CORA14

PIRA1401

PIRA1401

PIRA1402

PIRA1402

CORA23

PICA6001

PICA6101

PICA6101

PICA6001

COCA60

COCA61

PICA6002

PICA6102

PICA6002

PICA6102

NLEP0R

NLEP0L

CORA5

PIRA501 PIRA502

PIRA501

PIRA502

CORA17

PIRA1701 PIRA1702

PIRA1701

PIRA1702

CORA9

PIRA901

PIRA901

PIRA902

PIRA902

NLLOUT0

NLROUT0

PIEA101

PIEA101

COEA1

PIEA102

PIEA102

PICD1901

PICD1901

COCD19

PICD1902

PICD1902

NLAMP0STB

CORA6

PIRA602

PIRA602

PIRA601

PIRA601

CORA8

PIRA801 PIRA802

PIRA801

PIRA802

NLAMP0STB0

COCNA2

PICNA201

PICNA201
PICNA206

PICNA206
PICNA204

PICNA204

PICNA202

PICNA202

PICNA203

PICNA203
PICNA205

PICNA205
PICNA207

PICNA207

COCNA3

NLLSPK

PICNA304

PICNA304

NLLOUT0

PICNA303

PICNA303

NLROUT0

PICNA302

PICNA302

NLRSPK

PICNA301

PICNA301

COCA40

PICA4001 PICA4002

PICA4001

PIRA2301PIRA2302

PIRA2302

PIRA2301

CORA28

PIRA2802

PIRA2801PIRA2802

PIRA2801

COCA41

PICA4101 PICA4102

PICA4101

PICA4002

PICA4102

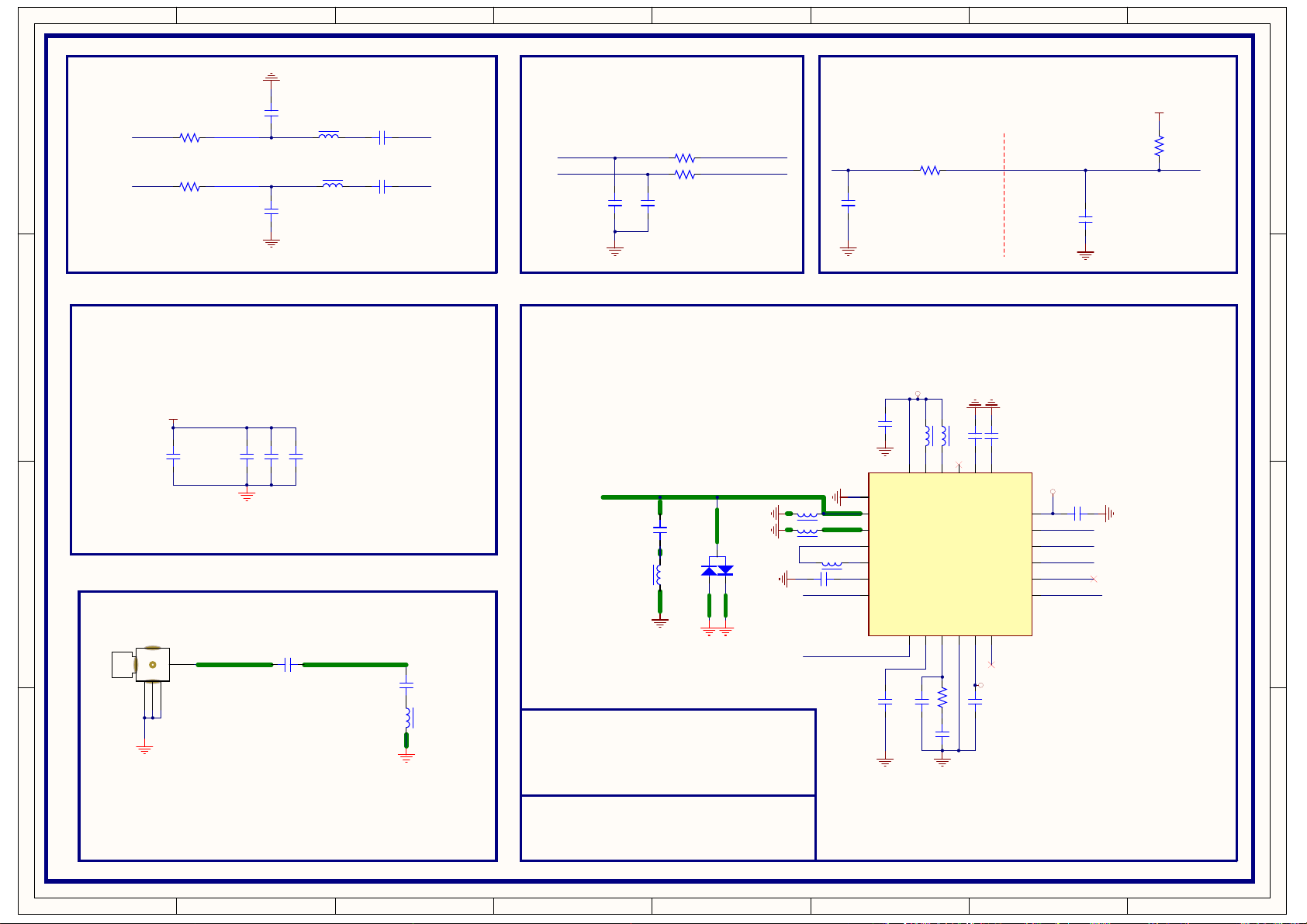

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

D D

C C

B B

A A

TUNER-SDA/

TUNER-SCL/

TAGCIF-AGC

RFINPUT

GND

GND

RFINPUT

GND

GND

GND

TUNER-SCL/

TUNER-SDA/

GND GND

3V3_STB

IFp

IFn

IF-AGC

GND

GNDGND

GND

3V3_STB

3V3_STB

3V3_STB

M-SCL

M-SDA

3V3_STB

XTAL_O

VIFM

VIFPIFp

IFn

GND

RT5

100ohm-0402-±5%-1/16W

RT6

100ohm-0402-±5%-1/16W

CT7

27pF-0402-NPO-±5%-50V

CT8

27pF-0402-NPO-±5%-50V

CT1

0.1uF-0402-X5R-±20%-16V

RT2

10Kohm-0402-±5%-1/16W

RT18

10Kohm-0402-±5%-1/16WCT19
NC/0.22uF-0402-Y5V-+80%-20%-16V

CT4

NC/10uF-0603-X5R-±20%-6.3V

CT5

0.1uF-0402-X5R-±20%-16V

CT6

10uF-0603-X5R-±20%-6.3V

CT3

10uF-0603-X5R-±20%-6.3V

1

234

RF_GNDRFRF_GND

RF_GND

T1

RF ,RF JACK,H,IEC,T14.5mm,CH6.3,12.8×12.3×9.4,DIP,LHD

CT40

470pF-0402-X7R-±10%-50V

LT11

NC/SDCL1005CR27JTDF( )

CT17

NC/100pF-0402-NPO-±5%-50V

LT9

NC/SDCL1005CR27JTDF( )

DT1

BAV99-BR

LT6

1Kohm-0402-±25%

LT8

1Kohm-0402-±25%

LT10

SDCL1005CR18JTDF(180nH-0402±5%-C)

CT9

0.1uF-0402-X5R-±20%-16V

CT12

0.022uF-0402-X7R-±10%-16V

CT25

0.1uF-0402-X5R-±20%-16V

CT26

330pF-0402-NPO-±5%-50V

RT11

1K8ohm-0402-±5%-1/16W

CT29

6800pF-0402-X7R-±10%-50V

CT27

0.1uF-0402-X5R-±20%-16V

CT18

0.1uF-0402-X5R-±20%-16V

RT9

220ohm-0402-±5%-1/16W

RT10

220ohm-0402-±5%-1/16W

CT10

56pF-0402-NPO-±5%-50V

CT24

56pF-0402-NPO-±5%-50V

CT20

0.1uF-0402-X5R-±20%-16V

CT23

0.1uF-0402-X5R-±20%-16V

CT16

NC/NC/100pF-0402-NPO-±5%-50V

RT1

0ohm-0402-±5%-1/16W

RT14

0ohm-0402-±5%-1/16W

RFIN2

2

TF1

3

TF2

4

DECT1

5

SCL

6

SDA7AVDD

8

AVDD

18

VOP

17

VON

16

VAGC

15

DVSS10CP

9

RFIN

1

AVDD

24

TFH

23

TFL

22

GPIO

21

VBG

20

DET2

19

GND

25

DVDD11XTAL_I

12

VAGC2

14

XTAL_O

13

UT1

,IC Si Tuner,QFN24,SMD,R842,Rafael

CT21

0.047uF-0402-X7R-±10%-16V

CT11

0.022uF-0402-X7R-±10%-16V

LT2

SDCL1005CR27JTDF( )

LT1

,HF Inductor,27nH,±5%,0402,SMT,SDCL1005C27NJTDF,Sunlord

CORT9

PIRT901

PIRT902

PIRT902

CORT10

PIRT1001

PIRT1002

PIRT1001

PIRT1002 PIRT1401

COCT10

COCT24

PICT1001

PICT1001

PICT1002

PICT1002

CORT1

CORT14

PICT2401

PICT2401

PICT2402

PICT2402

PIRT101 PIRT102

PIRT101PIRT901

PIRT102

PIRT1401 PIRT1402

PIRT1402

COCT20

PICT2002

COCT23

PICT2302

PICT2001PICT2002

PICT2001

PICT2301PICT2302

PICT2301

NLVIFM

NLVIFP

PICT702

PICT702

COCT7

PICT701

PICT701 PICT802

CORT5

PIRT501 PIRT502

PIRT501

CORT6

PIRT602

PICT801

PICT801

COCT8

PICT802

PIRT502

PIRT601PIRT602

PIRT601

NLM0SDA

NLM0SCL

COCT1

PICT102

PICT102

PICT101

PICT101

CORT2

PIRT201 PIRT202

PIRT201

PIRT202

PICT1902

PICT1902

COCT19

PICT1901

PICT1901

PIRT1801

PIRT1801

CORT18

PIRT1802

PIRT1802

NLTAGC

PICT901

PICT901

PICT402

COCT4

PICT401

COT1

PIT101

PIT101

PIT102 PIT103 PIT104

PIT102 PIT103 PIT104

COCT5

PICT501

PICT502

PICT602

COCT6

PICT601

COCT40

PICT4001 PICT4002

PICT4001

COCT3

PICT302

PICT302PICT402 PICT501 PICT602

PICT301

PICT301PICT401 PICT502 PICT601

PICT4002

PICT1601

PICT1601

COCT16

PICT1602

PICT1602
PILT1101

PILT1101

COLT11

PILT1102

PILT1102

NLRFINPUT

PICT1701

PICT1701

COCT17

PICT1702

PICT1702

CODT1

PILT902

PILT902

COLT9

PIDT101

PILT901

PILT901

PIDT101 PIDT103

PIDT102

PIDT102

PIDT103

COLT6

PILT602

COLT8

PILT802

COCT21

PICT2101 PICT2102

PICT2101

NLTUNER0SCL0

NLTUNER0SDA0

PILT601PILT602

PILT601

PILT801PILT802

PILT801

COLT10

PILT1002

PILT1001PILT1002

PILT1001

PICT2102

COUT1

COCT9

PICT902

PICT902

PIUT1025

PIUT1025

PIUT101

PIUT101

PIUT102

PIUT102

PIUT103

PIUT103

PIUT104

PIUT104

PIUT105

PIUT105

PIUT106

PIUT106

PICT2502

PICT2502

COCT25

PICT2501

PICT2501 PICT2601

COLT1

PIUT1024

PIUT107 PIUT108 PIUT109

PIUT107

PICT2602

PICT2602

COCT26

PICT2601

PILT101

PILT201

PILT101 PILT201

COLT2

COCT11

PILT102

PILT202

PILT102

PILT202

PIUT1021PIUT1022PIUT1023PIUT1024

PIUT1023

PIUT1022

PIUT1021

PIUT1010

PIUT1010

PIUT108

PIUT109

PIRT1102

PIRT1102

CORT11

COCT27

PIRT1101

PIRT1101
PICT2902

PICT2902

COCT29

PICT2901

PICT2901

PICT1101

PICT1201

PICT1101

PICT1201

COCT12

PICT1102

PICT1202

PICT1102

PICT1202

PIUT1019

PIUT1020

PIUT1020

PIUT1019

PIUT1011

PIUT1012

PIUT1011

PIUT1012

PICT2702

PICT2702

PICT2701

PICT2701

COCT18

PIUT1018

PIUT1018

PIUT1017

PIUT1017

PIUT1016

PIUT1016

PIUT1015

PIUT1015

PIUT1014

PIUT1014

PIUT1013

PIUT1013

PICT1801PICT1802

PICT1802

PICT1801

NLIFp

NLIFn

NLIF0AGC

NLXTAL0O

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

D D

C C

B B

A A

M1

MARKM2MARK

TP.VST59S.PB781

PCB_NAME

A15286

PCB_TIME

M3

MARKM4MARK

GND

H1 H2 H3H4

CAUTION

High Voltage

HOT

Manufacture_Info

S/N1

CQC

COLD

M5

MARKM6MARK

S/N2

HS

NC/18.8×13.8×5- -THD

NC/ 0.1g,

3MV59AX7

PCB_NAME1

V59XUS

NC/0ohm-0402-±5%-1/16W

V59XES NC/0ohm-0402-±5%-1/16W

PIV59XES01 PIV59XES02

PIV59XES01 PIV59XES02

PIV59XUS01 PIV59XUS02

PIV59XUS01 PIV59XUS02

COHOT

CO3MV59AX7

COH4

PIH400PIH401PIH402PIH403PIH404PIH405PIH406

CO¹è½º

COCAUTION

COM6

COH3

PIH300PIH301PIH302PIH303PIH304PIH305PIH306

PIH300PIH301PIH302PIH303PIH304PIH305PIH306

COCQC

COTP0VST59S0PB781

COA15286

COM1

COM2 COM3 COM4 COM5

COH1

COH2

PIH100PIH101PIH102PIH103PIH104PIH105PIH106

PIH200PIH201PIH202PIH203PIH204PIH205PIH206

PIH100PIH101PIH102PIH103PIH104PIH105PIH106

PIH200PIH201PIH202PIH203PIH204PIH205PIH206 PIH400PIH401PIH402PIH403PIH404PIH405PIH406

COV59XES

COV59XUS

COHS

PIHS01

PIHS01

COCOLD

COHigh Voltage

COS0N1 COS0N2

COManufacture0Info

Trouble shooting diagram

Terms:

IR: Infrared Receiver
RC: Remote Control
IR logic: IR blink with RC action
LVDS: Low Voltage Differential Signal, output from processor and input for panel
O/C: Open Cell, panel with source board
BL: Back Light, light source for panel module
LB: LED (Light Emitting Diode) Bar, light source for BL module
VBL: Voltage for Back Light (before Boost)

VLED: Voltage for LED (after Boost)

OVP: Over Voltage Protection
OSD: On Screen Display
AMP: Amplifier

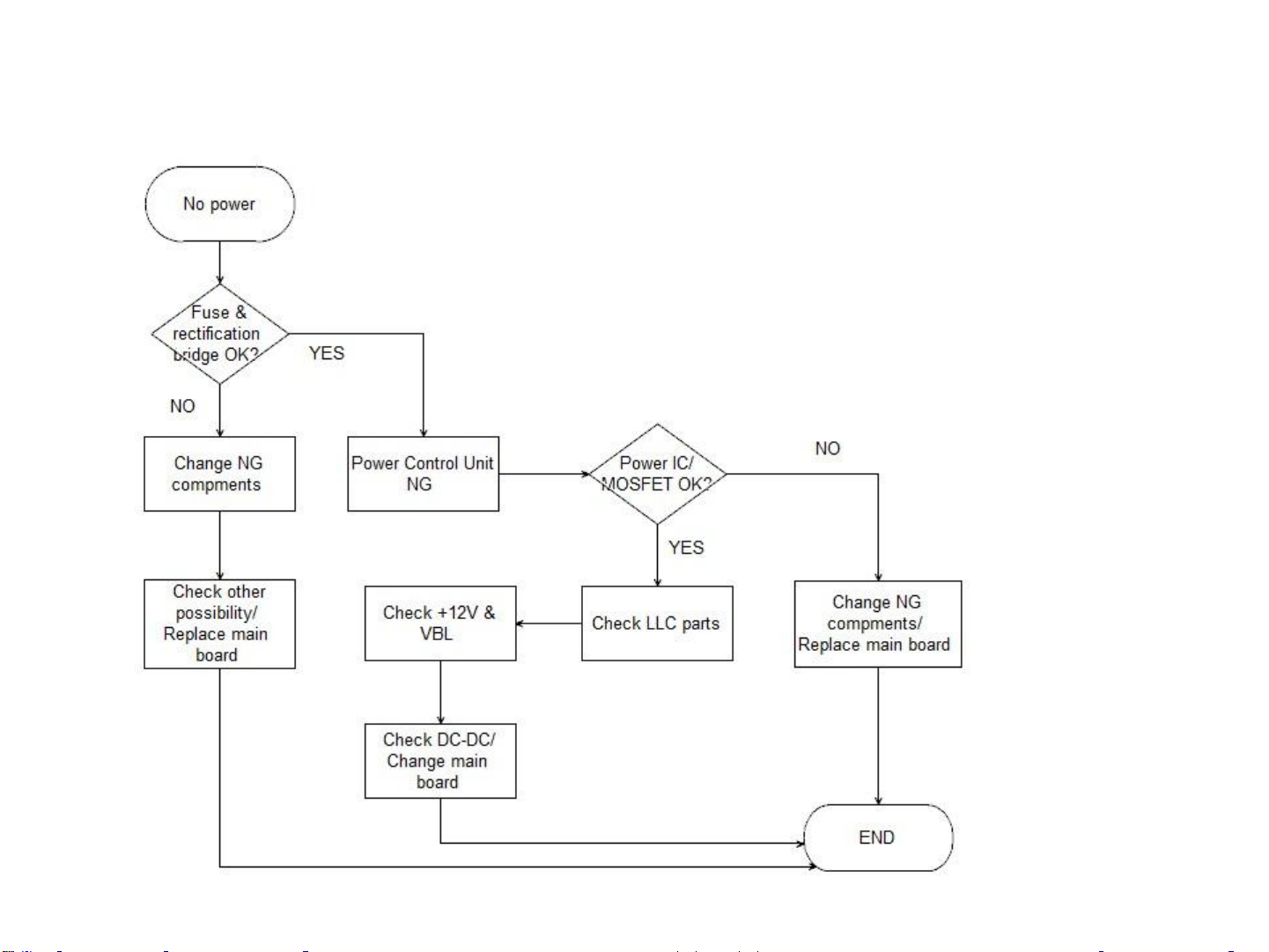

1.No power
No power LED, RC or Key can not turn on TV. Power LED no light/no change.

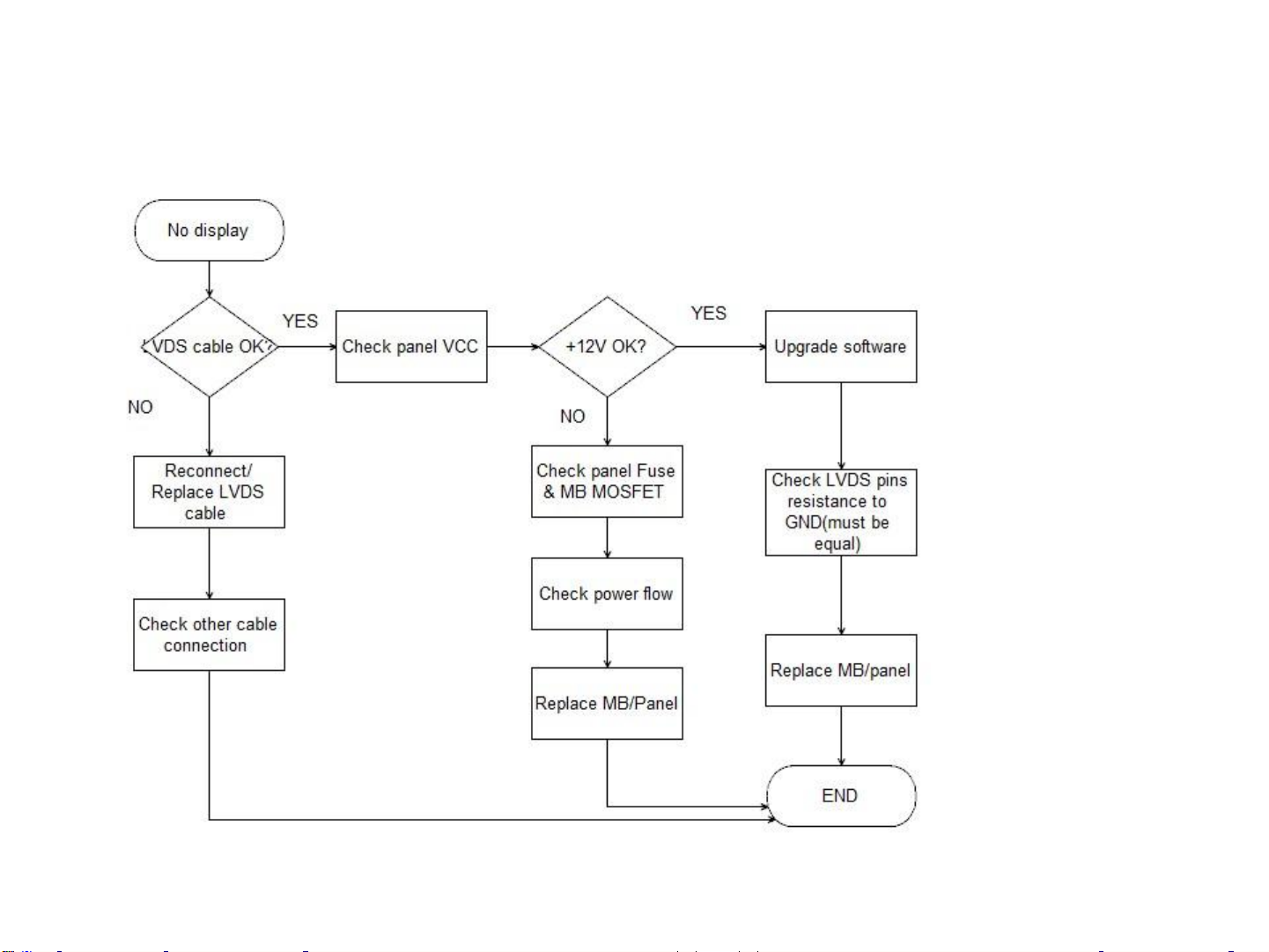

2.No Display / Black Panel
Back light is OK, sound is OK, but no picture.

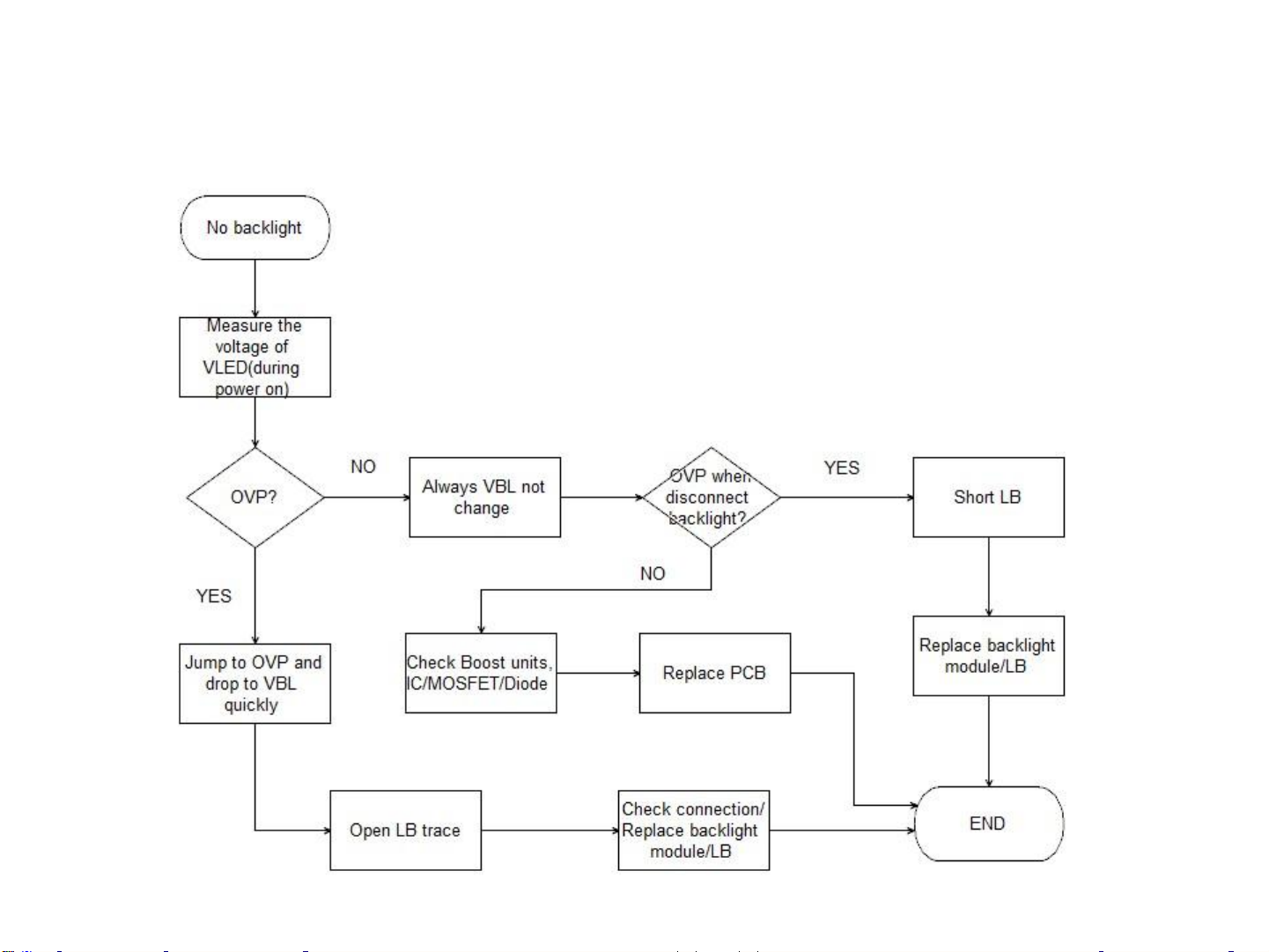

3.No back light
Power LED logic OK, sound OK, but no picture(Different from No Display).

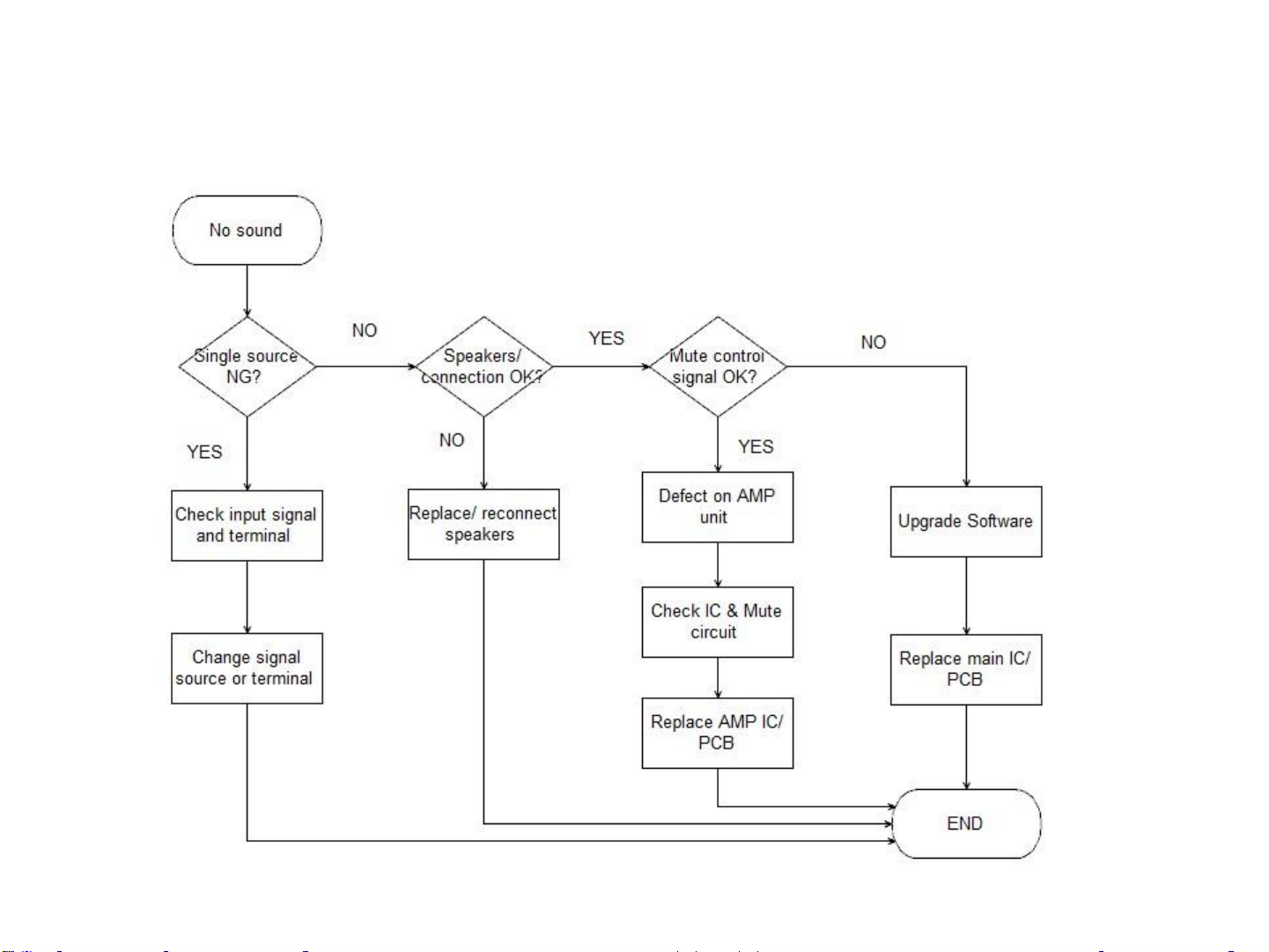

4.No sound
One or all signal source without sound.

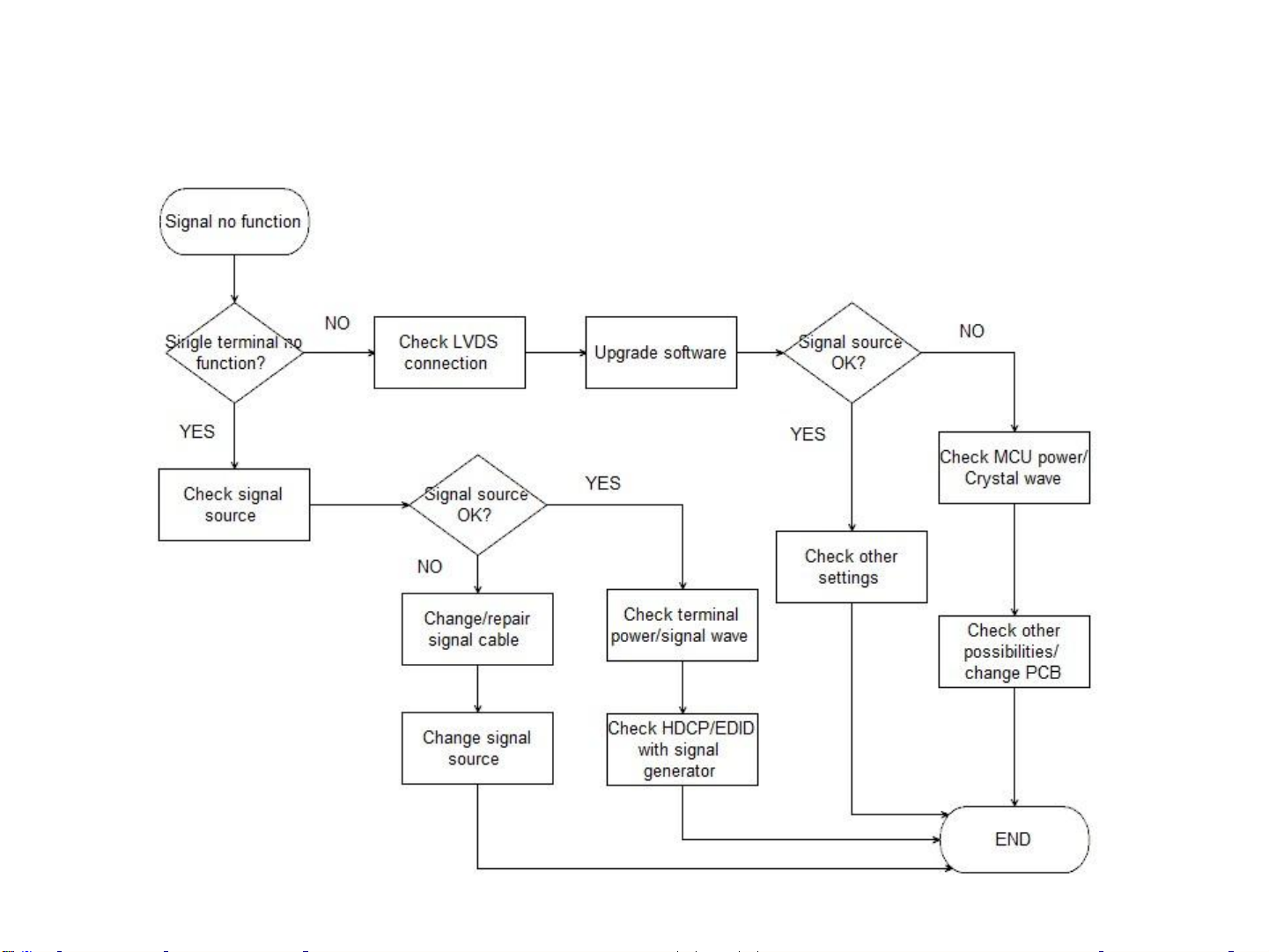

5.Signal source no function
One or several source no function.

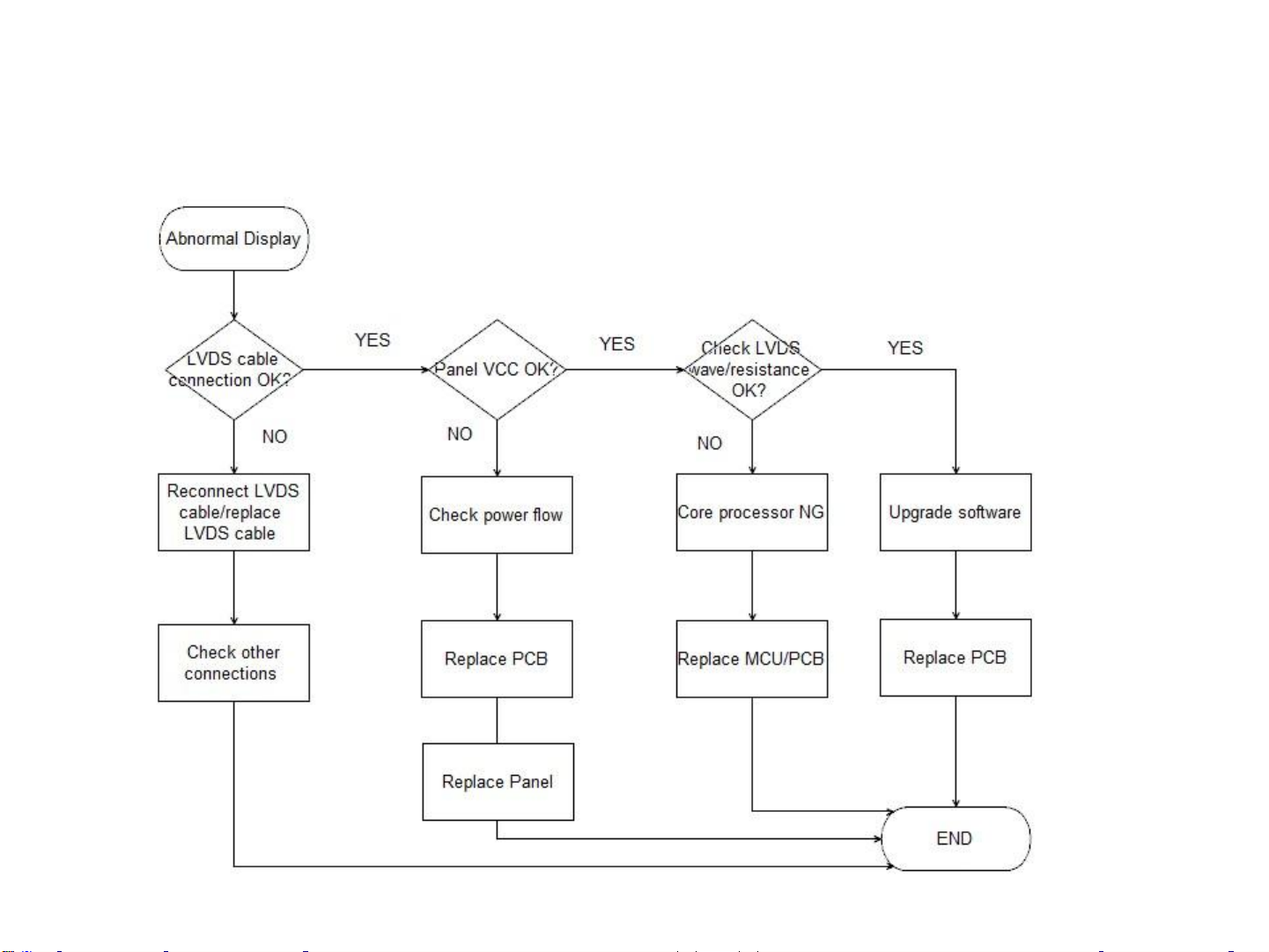

6.Abnormal Display
OSD NG or picture NG.

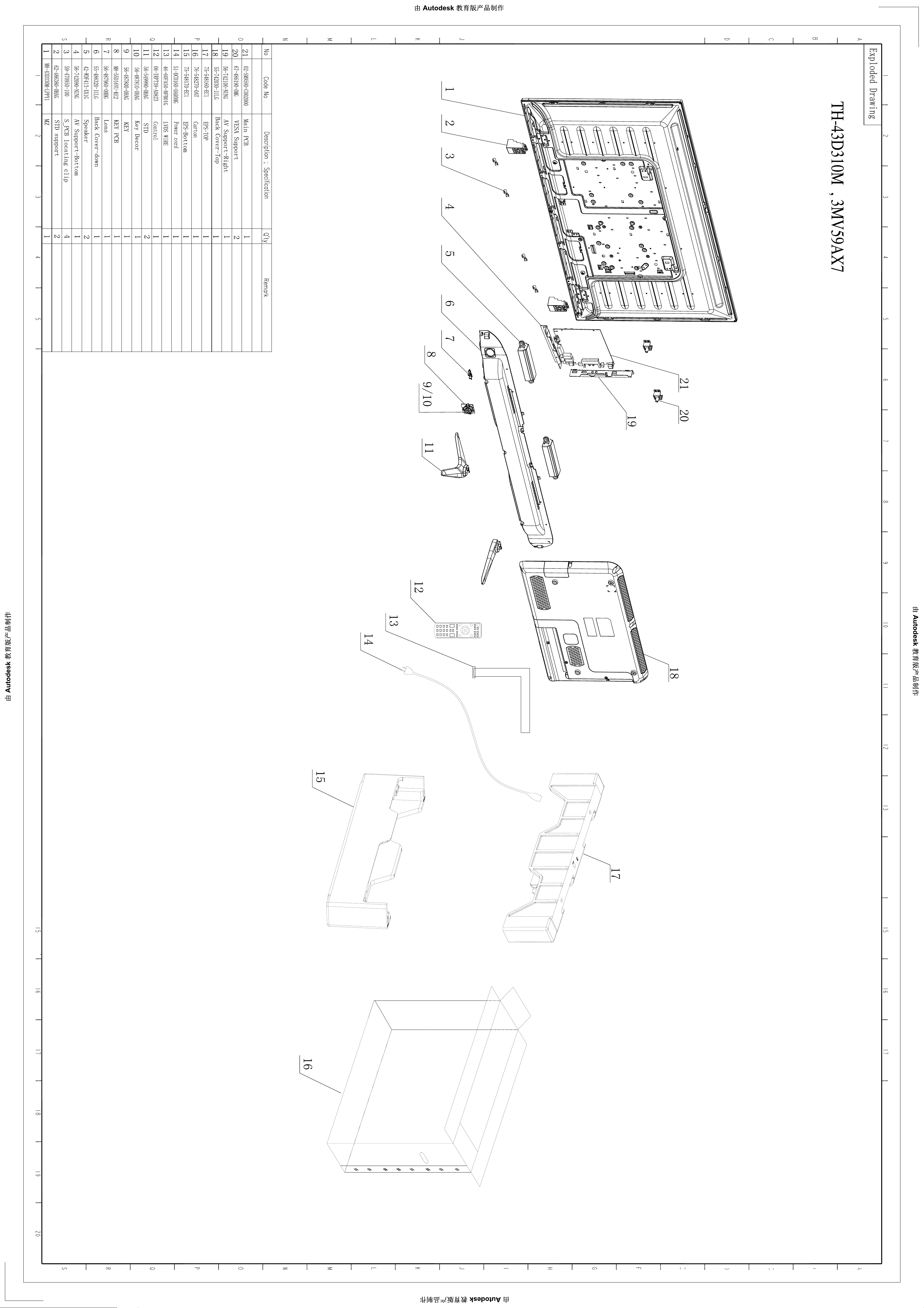

S/N Child Description Qty Unit

1 M8-43D310M-LPPY1 MZ 1 PC

E3-43D160YU-NG0W/ TH-43D310M/43D1600/3MV59AX7/LG1GTA/DT

Optional reserve material list

2 62-486380-0HAG STD support 2 PC
3 59-470950-100 S_PCB Locating clip 4 PC

4 56-742090-NUNG AV Support-Bottom 1 PC
5 42-WDF413-XX1G SPEAKER 8OHM 10W 80 180HZ RECTANGLE 30.1 2 PC
6 55-486320-1ULG RAW BACKCOVER 43D1500 BK 3 H N R=Y 1 PC
7 56-487960-0HHG RAW DECOR LENS TAWNY - - - R=Y 1 PC
8 M8-55D16YU-KE2 ASS'Y - KEY BD 1 PC

9 56-487800-0HAG RAW DECOR KEY BLACK - - - R=Y 1 PC
10 56-487810-0HAG RAW DECOR KEY SUPPORT BLACK - - - R=Y 1 PC
11 56-549990-0HAG RAW STAND STAND BLACK 00 00 00 40D1500 R 2 PC
12 06-IRPT39-A0823 RCT PANASONIC BLACK 3.0V 45MA 3.5UA 0 1 PC
13 46-60FA50-BFB01G WIRE LVDS 500MM 40-51PIN PHD PHD 2.0-1.0 1 PC
14 51-DC0160-0CR0HG POWER CORD 1600MM DTIII-2P-03/DTIII-2P-0 1 PC
15 75-548170-EC1 RAW POLYFOAM BOTTOM 43D1500 -- 00 00 R=Y 1 PC
16 76-548270-0AT RAW CARTON-BOX 43D1500 1128MM 142MM 660M 1 PC
17 75-548160-EC1 RAW POLYFOAM TOP 43D1500 -- 00 00 R=Y 1 PC
18 55-742030-1ULG Back Cover-TOP 1 PC
19 56-742100-NUNG RAW SUPPORT 40D1510_AV_RIGHT 48D1500 BLA 1 PC
20 67-486190-0MG RAW SUPPORT 48D1500_VESA 48D1500_VESA RA 2 PC
21 02-SM959D-C002000 Main PCB 1 PC
