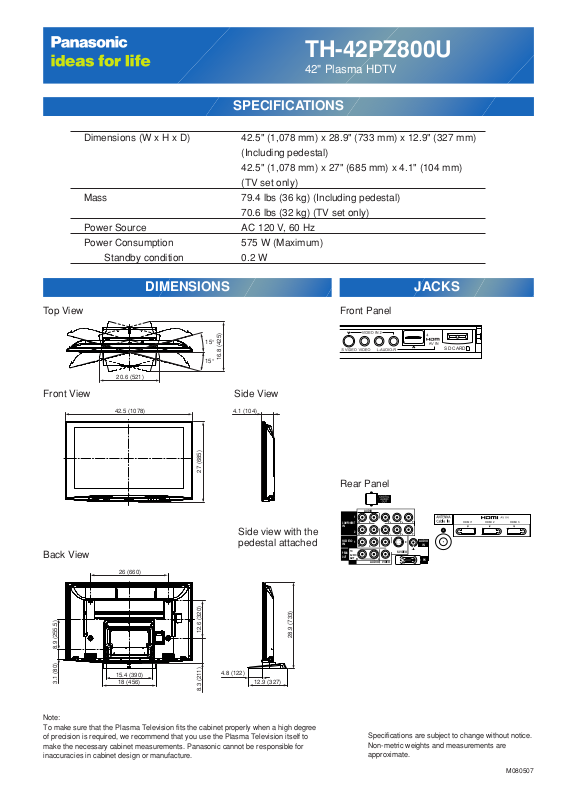

Panasonic th-42pz800 cut sheet

TH-42PZ800U

42" Plasma HDTV

(TV set only)

Mass 79.4 lbs (36 kg) (Including pedestal)

70.6 lbs (32 kg) (TV set only)

Power Source AC 120 V, 60 Hz

Power Consumption 575 W (Maximum)

Standby condition 0.2 W

SPECIFICATIONS

DIMENSIONS JACKS

Top View

26 (660)

42.5 (1078)

20.6 (521)

15.4 (390)

8.9 (255.5)3.1 (80)

8.3 (211) 12.6 (320)

27 (685)

16.8 (425)

18 (456)

4.8 (122)

12.9 (327)

28.9 (733)

4.1 (104)

15°

15°

Front View

Back View

Side view with the
pedestal attached

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree
of precision is required, we recommend that you use the Plasma Television itself to
make the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

Front Panel

SD CARD

Rear Panel

TO
AUDIO
AMP

COMPONENT
IN

VIDEO
IN

1

1

2

VIDEO

S VIDEO

AUDIO

PROG
OUT

R

PRPBY

P

RPB

Y

R

R

L

L

L

R

L

AUDIO

IN

PC

HDMI 1 HDMI 2 HDMI 3

AUDIO

Side View

M080507

Dimensions (W x H x D) 42.5" (1,078 mm) x 28.9" (733 mm) x 12.9" (327 mm)

(Including pedestal)

42.5" (1,078 mm) x 27" (685 mm) x 4.1" (104 mm)
