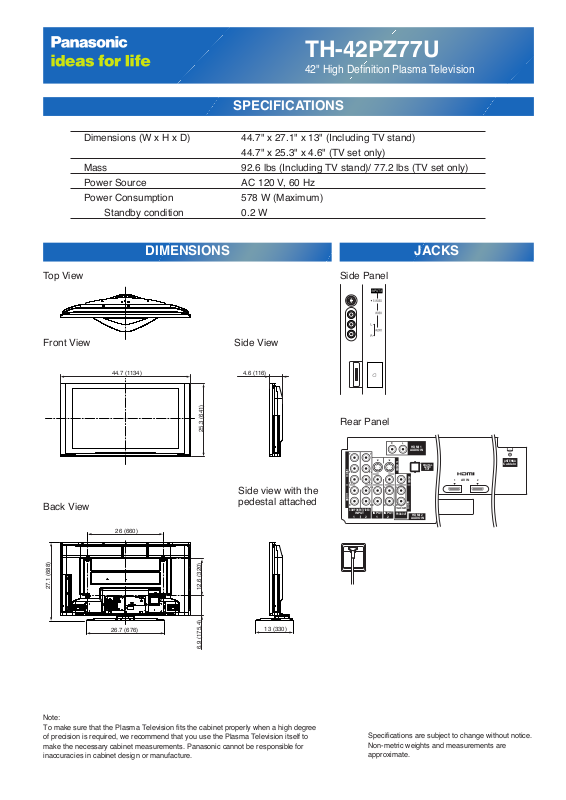

Panasonic th-42pz77 cut sheet

TH-42PZ77U

42" High Definition Plasma Television

Dimensions (W x H x D) 44.7" x 27.1" x 13" (Including TV stand)

44.7" x 25.3" x 4.6" (TV set only)

Mass 92.6 lbs (Including TV stand)/ 77.2 lbs (TV set only)

Power Source AC 120 V, 60 Hz

Power Consumption 578 W (Maximum)

Standby condition 0.2 W

SPECIFICATIONS

DIMENSIONS JACKS

Top View

26 (660)

26.7 (676)

27.1 (688)

44.7 (1134) 4.6 (116)

13 (330)

25.3 (641)

6.9 (175.4) 12.6 (320)

Front View

Back View

Side view with the
pedestal attached

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree
of precision is required, we recommend that you use the Plasma Television itself to
make the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

Side Panel

Rear Panel

DIGITAL

AUDIO

OUT

COMPONENT VIDEO

INPUT

INPUT

12

1

INPUT

2

AUDIO

VIDEO

AUDIO

VIDEO

S VIDEO

PROG OUT

YY

LL

RR

LL

R

LR

RLR

P

BPB

PRP

R

HDMI 1

AUDIO IN

HDMI 2

AUDIO IN

TO AUDIO AMP

21

AV IN

ANTENNA
Cable In

Side View
