Panasonic tc-pxxv10, tc-lxxg1 _u12, tc-pxxz1, tc-pxg10, tc-pxg15 installation

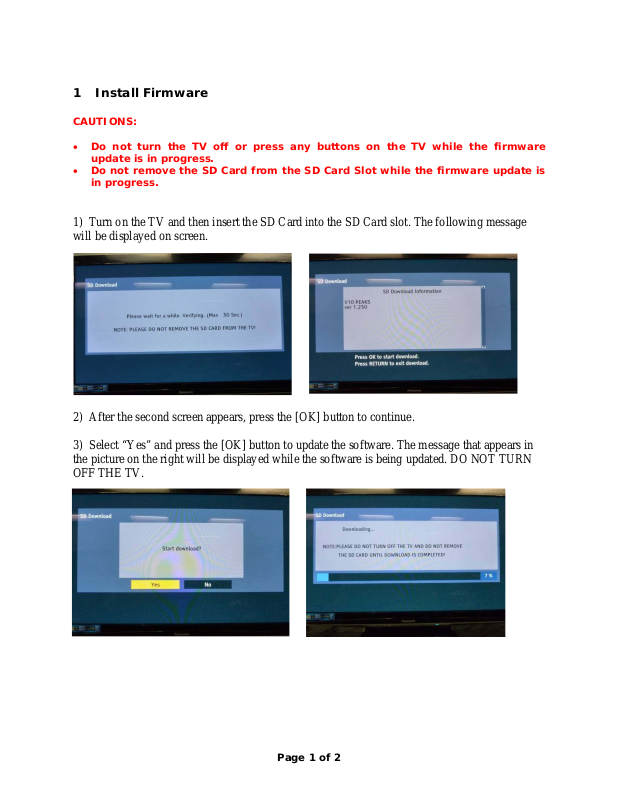

1 Install Firmware

CAUTIONS:
 Do not turn the TV off or press any buttons on the TV while the firmware

update is in progress.

 Do not remove the SD Card from the SD Card Slot while the firmware update is

in progress.

1) Turn on the TV and then insert the SD Card into the SD Card slot. The following message
will be displayed on screen.

2) After the second screen appears, press the [OK] button to continue.

3) Select “Yes” and press the [OK] button to update the software. The message that appears in
the picture on the right will be displayed while the software is being updated. DO NOT TURN
OFF THE TV.

Page 1 of 2

4) When the update is complete, the following message will appear on screen.

5) Remove the SD Card from the TV.

6) Hold down the ‘POWER’ button on the TV for approximately 5 seconds to restart the TV.

7) Wait for the TV to restart.

8) The firmware update is complete.

Page 2 of 2
