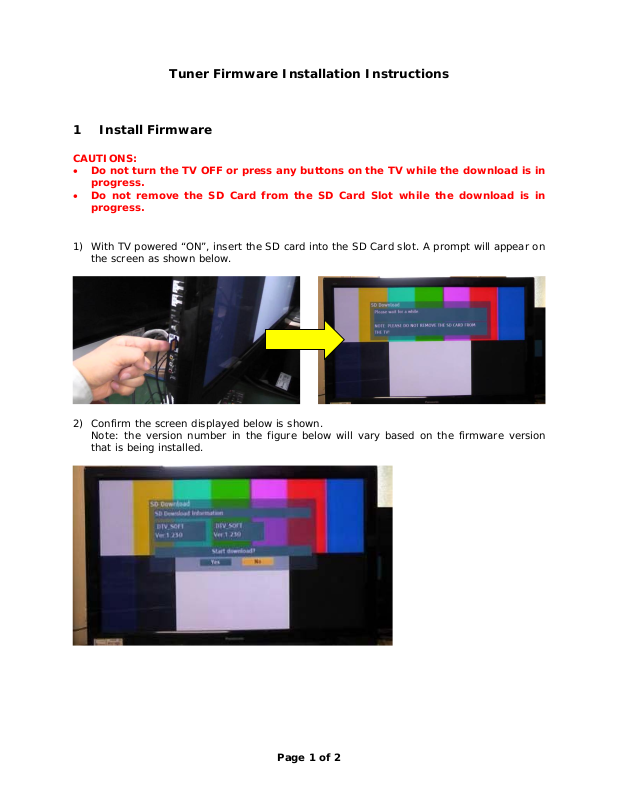

Tuner Firmware Installation Instructions

1 Install Firmware

CAUTIONS:
 Do not turn the TV OFF or press any buttons on the TV while the download is in

progress.

 Do not remove the SD Card from the SD Card Slot while the download is in

progress.

1) With TV powered “ON”, insert the SD card into the SD Card slot. A prompt will appear on
the screen as shown below.

2) Confirm the screen displayed below is shown.

Note: the version number in the figure below will vary based on the firmware version

that is being installed.

Page 1 of 2

3) Select ‘Yes’ and press OK to update the software. The message shown on the picture to

utes

the right will be displayed while the software is being upgraded.
DO NOT TURN OFF THE TV.

Approx. 2

minutes

4) Wait for download to complete.

Warning: Do not turn off the TV’s power while the “System Upgrading” screen
is displayed!!

5) After the update completes, the “Completed” screen appears as shown below. Follow the
directions on the screen: (Remove SD card & hold down power button for 5 seconds)

Approx. 2

min

System Upgrading Screen Completed Screen
The firmware update is complete.
