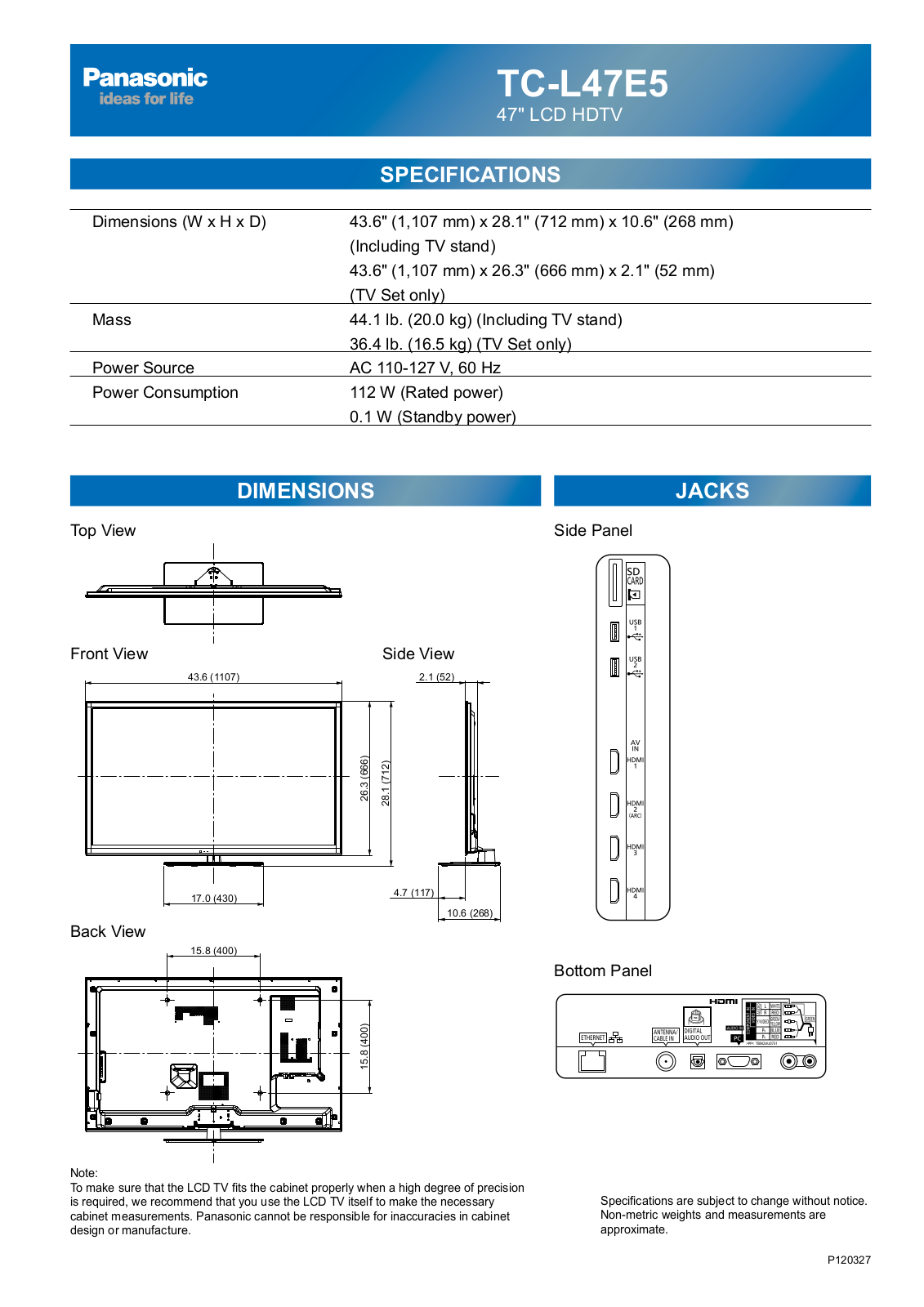

Panasonic tc-l47e5 cut sheet

TC-L47E5

47" LCD HDTV

SPECIFICATIONS

Dimensions (W x H x D) 43.6" (1,107 mm) x 28.1" (712 mm) x 10.6" (268 mm)

(Including TV stand)

43.6" (1,107 mm) x 26.3" (666 mm) x 2.1" (52 mm)

(TV Set only)

Mass 44.1 lb. (20.0 kg) (Including TV stand)

36.4 lb. (16.5 kg) (TV Set only)

Power Source AC 110-127 V, 60 Hz

Power Consumption 112 W (Rated power)

0.1 W (Standby power)

DIMENSIONS JACKS

Top View

Front View

Back View

43.6 (1107)

17.0 (430)

15.8 (400)

Side View

26.3 (666)

28.1 (712)

4.7 (117)

Side Panel

2.1 (52)

10.6 (268)

Bottom Panel

15.8 (400)

Note:
To make sure that the LCD TV fits the cabinet properly when a high degree of precision
is required, we recommend that you use the LCD TV itself to make the necessary
cabinet measurements. Panasonic cannot be responsible for inaccuracies in cabinet
design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

P120327
