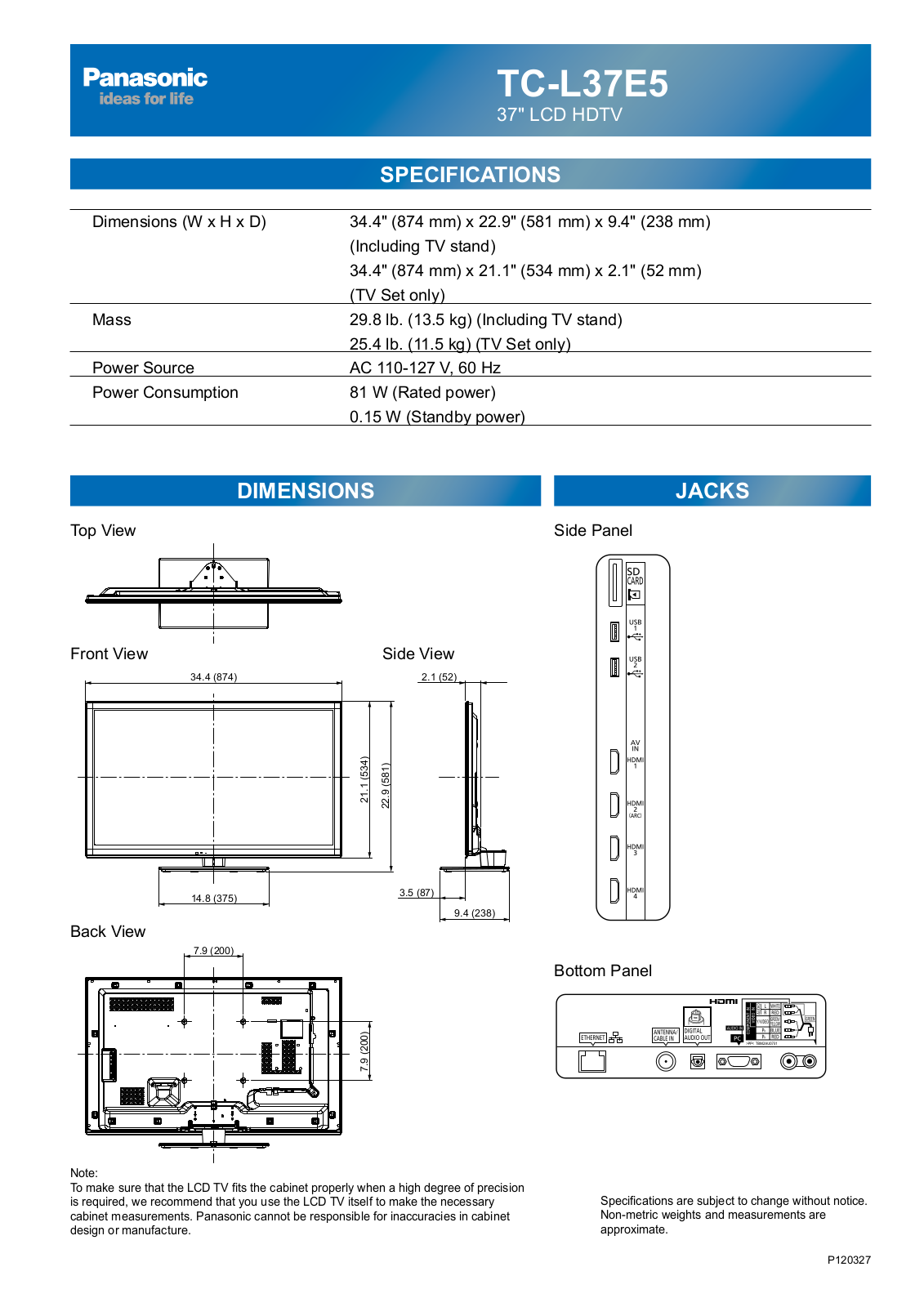

Panasonic tc-l37e5 cut sheet

TC-L37E5

37" LCD HDTV

SPECIFICATIONS

Dimensions (W x H x D) 34.4" (874 mm) x 22.9" (581 mm) x 9.4" (238 mm)

(Including TV stand)

34.4" (874 mm) x 21.1" (534 mm) x 2.1" (52 mm)

(TV Set only)

Mass 29.8 lb. (13.5 kg) (Including TV stand)

25.4 lb. (11.5 kg) (TV Set only)

Power Source AC 110-127 V, 60 Hz

Power Consumption 81 W (Rated power)

0.15 W (Standby power)

DIMENSIONS JACKS

Top View

Front View

Back View

34.4 (874)

14.8 (375)

7.9 (200)

Side View

21.1 (534)

22.9 (581)

3.5 (87)

Side Panel

2.1 (52)

9.4 (238)

Bottom Panel

7.9 (200)

Note:
To make sure that the LCD TV fits the cabinet properly when a high degree of precision
is required, we recommend that you use the LCD TV itself to make the necessary
cabinet measurements. Panasonic cannot be responsible for inaccuracies in cabinet
design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

P120327
