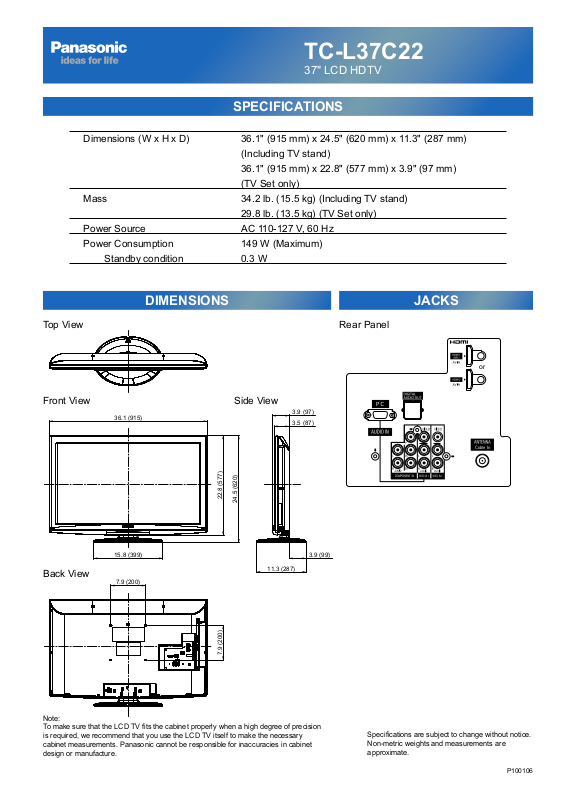

Panasonic tc-l37c22 cut sheet

TC-L37C22

37" LCD HDTV

SPECIFICATIONS

Dimensions (W x H x D) 36.1" (915 mm) x 24.5" (620 mm) x 11.3" (287 mm)

(Including TV stand)

36.1" (915 mm) x 22.8" (577 mm) x 3.9" (97 mm)

(TV Set only)

Mass 34.2 lb. (15.5 kg) (Including TV stand)

29.8 lb. (13.5 kg) (TV Set only)

Power Source AC 110-127 V, 60 Hz

Power Consumption 149 W (Maximum)

Standby condition 0.3 W

DIMENSIONS JACKS

Top View

Front View

Back View

36.1 (915)

15.8 (399)

7.9 (200)

Side View

22.8 (577)

24.5 (620)

Rear Panel

3.9 (97)

3.5 (87)

3.9 (99)

11.3 (287)

7.9 (200)

Note: To make sure that the LCD TV fits the cabinet properly when a high degree of precision is required, we recommend that you use the LCD TV itself to make the necessary cabinet measurements. Panasonic cannot be responsible for inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice. Non-metric weights and measurements are approximate.

P100106
