Panasonic TC-26LE60 User Manual

2

Enjoy rich multimedia

Camcorder

Set Top Box

Contents

Please read before using the unit

Important Safety Instructions ·······················4

•

Accessories/Option ························· 6

•

Connection ····························· 7

•

Identifying Controls ························· 8

•

First Time Setup ·················· 9

•

Quick Start Guide

Amplifier
Home theater
unit

DVD recorder

VCR DVD player

Enjoy your TV !

Basic Features

Watching TV ··············································· 10

•

Watching Videos and DVDs ······················· 12

•

Advanced Features

Input Labels/Closed Caption ····················· 13

•

How to Use Menu Functions

•

(picture, sound quality, etc.) ·······················14
Channel Lock ············································· 16

•

Editing and Setting Channels ···················· 18

•

Operating Peripheral Equipment ··············· 20

•

Control with HDMI “HDAVI ControlTM” ········ 21

•

Recommended AV Connections ················ 22

•

Accesorios/Opción ····································· 24

•

Conexiones ················································ 25

•

Identificación de los controles ···················· 26

•

Ajuste inicial ··············································· 27

•

Para ver la televisión ································· 28

•

Cómo utilizar las funciones de los menús

•

Para ver vídeos y DVDs ····························· 32

•

Control con HDMI “HDAVI ControlTM”········· 33

•

Conexiones AV recomendadas ··················34

•

Viewing Advanced FAQs, etc.

[Resumen]

Español

····· 30

HDAVI Control™

HDAVI Control™ is a trademark of

Matsushita Electric Industrial Co., Ltd.

FAQs, etc.

Remote Control Operation/Code List ········· 36

•

Ratings List for Channel Lock ···················· 39

•

Technical Information ································· 40

•

Maintenance ·············································· 42

•

FAQ ···························································· 42

•

Specifications ············································· 44

•

Limited Warranty (for U.S.A.) ····················· 45

•

Customer Services Directory (for U. S. A.)

•

Limited Warranty (for Canada) ··················· 47

•

······· 46

3

Important Safety Instructions

The lightning flash with
arrow head within a triangle

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.

Note to CATV System Installer

This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as
close to the point of cable entry as practical.

Secure ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD
TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space
from these openings. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface.
This LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

Important Safety Instructions for LCD TV

is intended to tell the user
that parts inside the product
are a risk of electric shock to
persons.

The exclamation point within
a triangle is intended to
tell the user that important
operating and servicing
instructions are in the papers
with the appliance.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury
from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to
your home consult your television dealer or local power company.

16) Follow all warnings and instructions marked on the LCD TV.

17) Never push objects of any kind into this LCD TV through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a fire or electric shock. Never spill liquid of any
kind on the LCD TV.

18) If an outside antenna is connected to the tele vision equipment,
be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charg es.
In the U.S. Section 810-21 of the National Electrical Code
provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.

EXAMPLE OF ANTENNA
GROUNDING AS PER
(NEC) NATIONAL
ELECTRICAL
CODE

GROUND CLAMP

ELECTRIC
SERVICE
EQUIPMENT

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

ANTENNA
LEAD-IN WIRE

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING
CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

4

19) An outside antenna system should not be lo cated in the vicinity of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken
to keep from touching such power lines or circuits as contact with them might be fatal.

20) Unplug this LCD TV from the wall outlet, and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the LCD TV.
c. If the LCD TV has been exposed to rain or water.
d. If the LCD TV does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as improper adjustment of other

controls may result in damage and will often require extensive work by a qualified technician to restore the LCD

TV to normal operation.
e. If the LCD TV has been dropped or the cabinet has been damaged.
f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.

21) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer

that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other
hazards.

22)WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN

OR MOISTURE.
DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET.
(INCLUDING ON SHELVES ABOVE, ETC.)

23)WARNING : SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL

PARTS AWAY FROM YOUNG CHILDREN.
DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS
AND PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN,
CREATING THE POTENTIAL RISK OF SUFFOCATION.

24)CAUTION : TO PREVENT ELECTRIC SHOCK DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET

UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EX POSURE.

25)CAUTION : USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.

26)CAUTION : DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME

OR EQUIVALENT TYPE.

NOTE : This equipment is designed to operate in North America and other countries where the broadcasting system and AC

Ŷ

house current are exactly the same as in North America.

This product utilizes tin-lead solder, and has a fluorescent lamp containing a small amount of mercury. Disposal of
these materials may be regulated in your community due to environmental considerations. For disposal or re cycling
information please contact your local authorities, or the Electronics Industries Alliance: www.eiae.org.

Federal Communication Commission Information

This equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause or receive interference, which can be
determined by turning equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

Reorient or relocate the TV antenna.
Increase the separation between TV and other equipment.
Connect TV into separate outlet from other equipment.
Consult the dealer or an experienced radio / TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void

the user’s authority to operate this equipment.

5

6

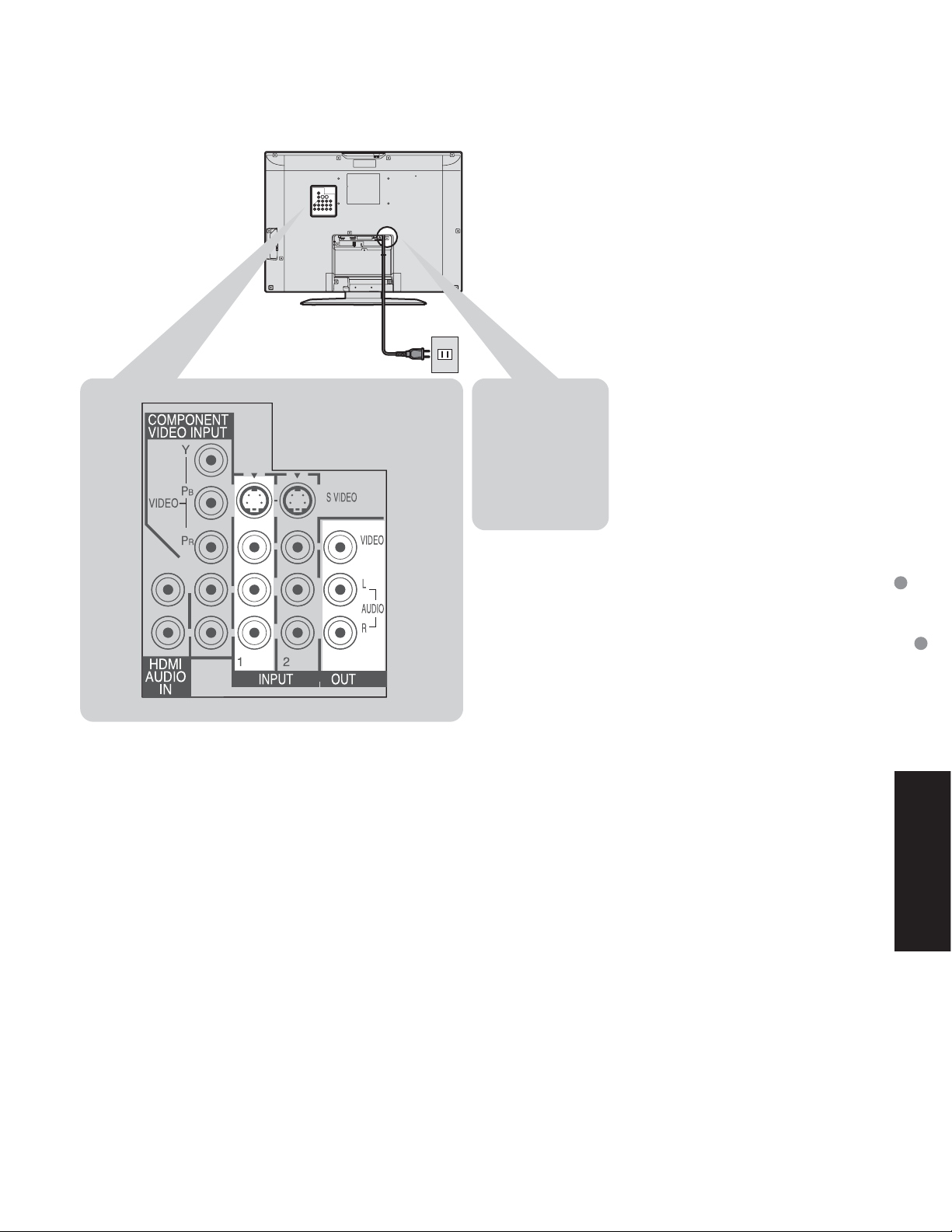

Connection

Watching TV

Ŷ

Back of the unit

Power Cord
(Connect after all the
other connections are
complete.)

ANT

Cable BOX

IN OUT

VHF/UHF aerial

or

Quick Start Guide

or

Connection

Accessories/Option

ANT IN

ANT OUT

To record TV shows

Video

IN

L

Audio

OUT

R

Video

OUT

L

Audio

IN

R

S Video signals have
priority.

Note

All cables and external equipment shown in this book are not supplied with the TV.

•

For additional assistance, visit us at: www.panasonic.com

•

When connecting video cables, priority is given to the S Video cable when both the S VIDEO input terminal and the

•

VIDEO input terminal are connected.
When receiving digital channel signals, all digital formats are down-converted to composite NTSC video to be

•

output through “OUTPUT” terminals.
Some programs contain a copyright protection signal to prevent VCR recording.

•

www.panasonic.ca

S Video

OUT

Video recorder
with TV Tuner

DVD Recorder /
VCR

7

Receiver Location

Locate at a comfortable distance for viewing. Avoid placing where sunlight or other bright light (including reflections)
will fall on the screen.
Use of some types of fluorescent lighting can reduce remote control transmitter range.
Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or
moisture.

How to use the LCD stand

Adjust the stand to your desired angle.
The stand angle can be rotated 20 ° to the right / left.

Identifying Controls

POWER button
Volume

Menu navigations

Switches TV/VIDEO

Power indicator
Remote control sensor
Within about 23 feet (7 meters) in front of the TV set.

Note

The TV consumes some power as long as the power cord is inserted into the wall outlet.

•

Turns power On/Off

(used when the unit Power button is on)

Sets the remote to communicate with
other equipment (p. 20)

Volume
Menu navigations

Selects channels in sequence
Menu navigations

Displays Main Menu

Selects input mode (p. 12)

(p. 14-15)

(on : red, off : no light)

Selects Audio Mode for TV Viewing

(p. 10)

Selects/OK/Change

RETURN
Exit (from the menu)

Operates the Favorite channel list
function.
GUIDE for DBS

Sound mute On/Off

Selects channels
in sequence

(to previous menu)

(p. 11)

8

Displays or removes the channel banner

(p. 10)

Switches to previously viewed channel
and input mode.

Sleep timer (MINUTES)

Changes aspect ratio (p. 11, 40)

(p. 10)

Numeric keypad to select
any channel or press to enter
alphanumeric input in menus.

Direct channel access for DTV and

(p. 10)

DBS

External equipment operations

(p. 12, 36) (VCRs, DVDs, etc.)

(p. 10)

First Time Setup

“First time setup” is displayed only when the TV is turned on for the first time after the power cord is
inserted into a wall outlet.

Available only when “Auto power on” (p. 14-15) is set to “Off”.

Select antenna and input modes

Auto program

Cable

All

scanning)

more channels featuring high-quality
video and sound

1

2

Turn the TV On with the POWER
button

Select your language

First time setup

Language

Auto program

next

ANT In

Mode

Start scan

ANT In

Cable: Cable TV Antenna: Antenna

Mode

All : digital and analog
Analog : analog only (Reduces time for

About broadcasting systems

•

Analog : traditional TV system

(NTSC)

Digital : new system that allows you to view

(ATSC)

Start scanning the channels

set

select

Quick Start Guide

First Time Setup

Identifying Controls

3

Language

Language

English Español Français

English

Press to go to previous screen.
Or, select
for same results.

icon, then press OK

Auto channel setup

Select “Auto program”

First time setup

Language

Auto program

select

next

select

Auto program

ANT In

Mode

Start scan

Now scanning analog channel ...

Progress

Cable

All

•

Confirm registered channels

Edit

Apply

Favorite

- - -

2

If OK is not pressed after selecting “Apply”,

•

the channels will not be memorized.

Press to exit or return to previous screen

Ŷ

Add

No

Yes

start

select

“Start
scan”

Available channels
(analog/digital)
are automatically
set.

select

“Apply”

ok

Note

To change setting later, go to Menu screen (p. 14-15)

•

9

10

Viewing

Setting 1/3

[1]

[2]

[3]

[4]

Setting 1/3

[1] 26-1

[2]

[3]

[4]

Favorite 1/3

[1]

[2]

[3]

[4]

Watching TV

11

Watching Videos and DVDs

Some Panasonic equipment connected to the TV unit can be operated with the remote control.
Programming the remote control is necessary to operate other manufacturers’ products. (p. 20, 36-38)

With VCR or DVD turned On

1

2

Switch to external input

Press to display the Input select menu.

Select the input mode

Input select

[1] TV

[2] Component

[3] HDMI

[4] Video 1

[5] Video 2

[6] Video 3

(Initial screen)

or

select

enter

Press corresponding NUMBER
key on the Remote Control to
select the input of your choice.

Press to select the input of your
choice, then press “OK”.

If during selection, no action

•

is taken for several seconds,
the Input selection menu is
exited.

Press to return to TV

Ŷ

Note

For details, see the

•

manual of the
equipment
or ask your local
dealer.

3

The terminal and label of the connected

•

equipment is indicated.

To label each of the connected equipment

(p. 13)

Operate

the VCR or DVD with the remote control

VCR DVD

Rewind/Fast Forward Reverse/Forward

Play Play

Pause Pause

Stop Stop

VCR Record

TV/VCR Open/Close

Label

Video 1

[example]

-

Terminal

VCR

(example)

12

Channel Down/UP Slow Reverse/Forward

(For other operations, see p. 36)

Input Labels/Closed Caption

Input labels

Display
labels of
external
equipment

CC

Display
Closed
Caption

Display menu

1

Select “Setup”

2

Menu


Audio

Timer

Lock

Setup

The labels of equipment connected to external input terminals can be indicated for easy
recognition on the screen. (In selecting input mode of p. 12

Select the terminal and the label of the external equipment

Input labels

Comp.

HDMI

Video 1

Video 2

Video 3

The television includes a built-in decoder that is capable of providing a text display of the
audio. The program being viewed must be transmitting Closed Captioning (CC) information.
(p. 40)

Select the item and set

Ŷ

CC

Mode

Analog

Digital

Digital setting

CC reset

The settings in “Analog” or “Digital”

•

depend on the broadcaster.

To make more in-depth display settings in digital programs

Ŷ

Select “Digital setting” and press “OK” button

Digital setting

Size

Automatic

Font

Automatic

Style

Automatic

SKIP

DVD

AUX

SKIP

SKIP

Off

CC1

Primary

(1/3)

next

select

select

set

select

set

select

set

Terminal: Comp./HDMI/Video1-3

•

Label: SKIP*/VCR/DVD/CABLE/DBS/PVR/

•

* If “SKIP” is selected for a

non-connected terminal,
its input is skipped when
switched with TV/VIDEO
button.

Mode

Analog

CC1-4:

T1-4:

Digital

Select the setting.

“Primary”, “Second.”, “Service 3”, “Service 4”,

•

“Service 5”, “Service 6”

Size: Text size

•

Font: Text font

•

Style: Text style (Raised, Depressed, etc.)

•

Foreground: Color of text

•

Fore opacity: Opacity of text

•

Background: Color of text box

•

Back opacity: Opacity of text box

•

Outline: Outline color of text

•

(Identify the setting options on the screen.)

Select “Input labels” or “CC”

3

Setup

CH scan

Language

Program channel

Input labels

CC

Other adjust

Set

Press to exit

Ŷ

ALL

4

)

GAME/AUX/[BLANK]

Select “On” (when not using, select “Off”).
(Choose the closed caption service of

Analog broadcasting.)
Information related to pictures

(Appears at bottom of screen)
Textual information

(Appears over entire screen)

(The Digital Closed Caption menu lets you
configure the way you choose to view the
digital captioning.)

Select the item and set

Label

Video 1

VCR

[example]

next

select

Terminal

Input Labels/Closed Caption

Watching Videos and DVDs

Viewing Advanced

To reset the settings

Ŷ

Select “CC reset” and press “OK” button

13

Picture 1/2

Normal
Pic. mode

Brightness
Color
Tint
Sharpness

Set

Standard

+20Back light
+20

Menu Item

Normal

Pic. mode

Back light

Picture, Brightness,
Color, Tint, Sharpness


Color temp

AI picture

Zoom adjust

Video NR

Other adjust

3D Y/C filter

Color matrix

Black level

Normal

Bass

Treble

Audio

Balance

Other adjust

0
0
0
0

AI sound

Surround

HDMI in

Picture 1/2

Normal

Brightness
Color
Tint
Sharpness

Audio leveler

Timer

Sleep

Lock

Set

StandardPic. mode

+20Back light
+20

0
0
0
0

CH scan

Language

Program channel

Input labels

CC

Setup

Auto power on

Other adjust

Prog-out stop

Ctrl with HDMI

Power save

About

Reset

14

Adjustments/Configurations (alternatives)

Resets all picture adjustments to factory default settings except for “Other adjust”
Basic picture mode (Vivid/Standard/Cinema) (p. 41)
Adjusts luminance of the back light.

Adjusts color, brightness, etc. for each picture mode to suit your
taste

Brightness
Color

+20

0
0

Normal

Pic. mode

Back light

Tint
Sharpness

Set

Standard

+20

0
0

Selects level of warm colors (red) and cool colors (blue) (Warm/Cool/Normal)
Controls dark areas without affecting the black level or brightness in the overall picture (On/Off)

Adjusts vertical alignment and size when aspect setting is “ZOOM” (p. 40)
Reduces noise, commonly called snow. Leave off when receiving a strong signal. (On/Off)

Minimizes noise and cross-color in the picture. (On/Off)

Not valid on component and HDMI.

Selects image resolution of component-connected devices (SD/HD)

SD: normal vision HD: high-definition vision
Only 480 p signal accepted; regular TV (NTSC) is not available.

Select Dark or Light depending on the picture conditions. (Dark/Light)
The dark scene becomes easy to see. (Valid only for external input signals.)

Reset Bass, Treble and Balance adjustments to factory default settings.
Increase or decrease the bass response.
Increase or decrease the treble response.
Emphasize the left / right speaker volume.

Equalize overall volume levels across all channels and VIDEO inputs. (On/Off)
Enhances audio response when listening to stereo. (On/Off)

Selects according to the signal when HDMI is connected (Auto/Digital/Analog)

Auto: Automatically selects Analog / Digital signal
Minimizes volume disparity after switching to external inputs
Automatically turns off the TV after a pre-selected amount of time. 0/30/60/90 (minutes)

Timer setting is also possible by pressing the “Sleep” button on the remote control. (p. 10)
Locks the channels and programs (p. 16-17)
Selects channels to be displayed when pressing “Channel up/down” buttons. (Fav./All)

Fav.: Only channels registered as Favorite (p. 19)
Selects the screen menu language (p. 9)

Sets receiving channels. (p. 18-19)
Displays labels of external equipment (p. 13)
Displays subtitles (Closed Caption) (p. 13)

Sets how to power on the TV. (Set/Off)
Set : Connect power cord plug to Cable box etc. and control TV’s On/Off on the connected

equipment. (The Sleep Timer will not function if Auto power on is set.)

Off : Supply Power from wall outlet and control TV’s On/Off on TV side.

(“First time setup” menu is displayed when power cord plug is re-inserted after removing it
from the wall outlet.)

To prevent howling and image oscillation, stops output of the pictures and audio specified in this
menu. (p. 23) (Off/Comp./HDMI/Video 1/Video 2/Video 3)

Comp./HDMI cannot output video signals regardless of “Prog-out stop” setting.
Controls equipment connected to HDMI terminals. (p. 21, 22) (On/Off)
Reduces screen brightness to lower power consumption. Eye-friendly for viewing in a dark room

(Standard/Saving)

Displays TV version and software license.
Performing Reset will clear all items set with Setup, such as channel settings.

(p. 18)

Use Reset with care.

Color temp

AI picture

Zoom adjust

Video NR

3D Y/C filter

Color matrix

Black level

Normal

Bass

Treble

Balance

AI sound

Surround

HDMI in

Audio leveler

Sleep

CH scan

Language

Program channel

Input labels

CC

Auto power on

Prog-out stop

Ctrl with HDMI

Power save

About

Reset

Cool

On

On

Off

Off

SD

Light

Set

+ 4

On

Off

Auto

All

Off

Off

On

Standard

On

How to Use Menu Functions

(picture, sound quality, etc.)

0

0

0

60

Advanced

In VIDEO mode, the Audio menu and Setup menu give a smaller number of options.

•

15

Channel Lock

You can lock out specified channels or shows to prevent children from watching objectionable content.

Display menu

1

Select “Lock”

2

You will be asked to enter your password each time you display the Lock menu.

Menu


Audio

Timer

Lock

Setup

next

select

Press to exit

Ŷ

Caution

Make a note of your

•

password in case
you forget it. (If you
have forgotten your
password, consult your
local dealer.)

Note

When you select a

•

locked channel,
a message will be
displayed that allows
you to view the
channel if you input
your password.

3

4

Input your 4-digit password

A 4-digit code must be entered to view a blocked program or change rating
settings.

If it is the first time to enter the password,

Enter password.

----

Select the Lock mode

Lock

Mode

Channel

Program

Change password

Off: “Channel lock” not activated

•

All: Locks all channels and external inputs

•

Game: Locks CH3, CH4, and external inputs

•

CH: Locks specified channels (analog/digital)

•

To change the password

Ŷ

In , select “Change password” and press “OK” button
Input the new 4-digit password twice

To cancel the “Channel lock”

Ŷ

Select “Off” in

Off

•

enter the number twice in order to register it.

select

16

Lock

Mode

Channel

Program

Lock

Mode

Channel

Program

Change password

CH

CH

Channel lock

CH 1

CH 2

CH 3

3 - 0

Channel Lock

Advanced

17

Editing and Setting Channels

The current channel settings can be changed according to your needs and reception conditions.

Display menu

1

Auto

Set
automaticallty

Select “Setup”

2

Menu


Audio

Timer

Lock

Setup

next

select

Press to exit

Ŷ

Select “Program channel”

3

Setup

CH scan

Language

Program channel

Input labels

CC

Other adjust

ALL

next

select

Select the function

4

5

Ŷ

Program channel

Auto

Manual

Signal meter

next

select

Set

To reset the settings of setup menu

Select “Reset” in Setup menu ( ) and press “OK” button
Input your 4-digit password with number buttons
Select “YES” on the confirmation screen and press “OK”

button

Manual

Set
manually

Signal

meter

Check
signal
strength

18

Automatically searches and adds active channels to memory.

Select “ANT In”

Select “Mode”

Auto program

ANT In

Mode

Start scan

Cable

All

(Select Cable or Antenna)
Select All or Analog

All: Analog and digital
Analog: Analog only

set

select

Select “Start scan”

Auto program

ANT In

Mode

Start scan

Cable

All

Settings are made
automatically

After completing the setting,

•

select “Apply”. (see below
All previously memorized

•

channels are erased.

Use this procedure when changing setting of receiving channels or changing the channel display.
Also, use to add or delete channels from channel list manually.

Select “Edit” Edit

Edit

avorite

- - -

Apply

Add

No

Select the item to be edited

Apply

Edit

Favorite

Caption

CH

1

- - -

2

3

- - -

4

- - -

5

- - -

Caption Favorite

Add

- - -

No

2

Yes

- - -

No

- - -

No

- - -

No

Add

select

next

select item to edit

(Caption/Favorite/Add)

next

Caption

•

Caption select

Preset

Caption detail

Apply

---

Preset

Select the station identifier

Caption detail

Rename (maximum 7 characters available)

Favorite

•

Favorite

Favorite

Apply

12

start

select

select

set/next

select

).

Editing and Setting Channels

Advanced

Caption:

•

Changes the station identifier

Favorite:

•

Registers channel to Favorites List

Add:

•

Adds or deletes channels

Favorite

Select the number

Add

•

Press “OK” button to select “Yes (add)” or “No
(delete)”

Select “Apply”

Press to move cursor to “Apply”

Check the signal strength if interference is found or freezing occurs on a digital image.

Signal meter

CH

Signal strength

Current

Peak level

2 - 1

85 %

85 %

change channel

ok

Signal intensity

If the signal is weak, check the antenna.

•

If no problem is found, consult your
local dealer.

Note

Not available if “Cable” is selected in “ANT In”

•

(see above).
Effective only for digital antenna channels.

•

next

ok
(to enter your
program)

If “Channel lock” (p. 16) is activated and “Auto”, “Manual” or “Signal meter” is selected, “Enter password.” will be displayed.

•

19

Operating Peripheral Equipment

You can operate other manufacturers’ equipment using this TV’s remote control.

Connect the external equipment to the TV and

1

2

3

4

Power Off the external equipment

Press both buttons simultaneously

+

for more than 3 seconds.

Release the buttons when the equipment selection

•

buttons start flashing.

Select the equipment

with the equipment selection button

The selected button remains lit (other buttons are not

•

lit).

Input the equipment’s 4-digit remote
control code

(p. 37-38)

Operate the equipment with the

5

Caution

Registration will fail if the wrong code is input or it takes more than 30 seconds to register.

•

To find a code not listed in the code list

This procedure searches all codes and is called the “sequence method.”

After step above, change the code and

test

change

remote control

The external equipment turns On.

•

If the equipment does not operate with

Ŷ

remote control

When your equipment has a single code

•

Input the remote control code again

When your equipment has multiple codes

•

Change the code with above and test again

When the correct code is found

store

(p. 36)

20

Operate the equipment with the
remote control (p. 36)

Repeat until the code is found

•

It may take many attempts before the correct

•

code is found

Control with HDMI “HDAVI Control

Operating Peripheral Equipment

TM

”

Advanced

Menu


Audio

Timer

Lock

Setup

Other adjust

Auto power on
Prog-out stop

Ctrl with HDMI

Power save

Off
Off
On

Standard

21

Recommended AV Connections

These diagrams show our recommendations for how to connect the TV unit to your various equipment.
For other connections, consult the instructions of each equipment and the specifications (p. 44).
For additional assistance, please visit our website at: www.panasonic.com

www.panasonic.ca

Power Cord
(Connect after all the other
connections are complete.)

Back of the unit

M3 plug

Headphones/
Earphones
(not supplied)

To watch camcorder

Ŷ

images

Camcorder
VCR
DVD Player

To watch digital

Ŷ

video image

DVD Player or
Set Top Box
(HDMI compatible
machine only)

Audio
cable

AV IN

or

SERVICE ONLY

HDMI cable

HDMI-DVI
conversion cable

Control with HDMI

Ŷ

(p. 21)

Connect with HDMI cable

DIGA
(Panasonic DVD Recorder)

22

Note

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their

•

respective operating instruction manuals.

ANT

DIGITAL AUDIO OUT

Digital Audio Out

To watch DVDs

Ŷ

DVD Player
Set Top Box

Recommended AV Connections

Advanced

Cable TV

or

Cable Box

or

DVD Recorder / VCR

Ŷ

Optical digital
audio cable

OPTICAL IN

Amplifier

Note

Set the TV channel to CH3 or CH4 for using Cable Box

•

Connection.
For further information on Cable Box Connection, consult to

•

your local cable company.
The picture and audio input signals connected to a terminal

•

specified in “Prog-out stop” (p. 14-15) cannot be output from
“OUTPUT” terminals.

However, audio output can be obtained from “Digital Audio

Out” terminal.
To prevent howling and image oscillation, set the “Prog-out-stop”

•

setting when connecting VCR with loop-connection. (p. 14)
When equipment (STB, DVD, etc.) is connected to HDMI

•

or COMPONENT terminals, only audio signals can be
obtained. No video signals can be out put.

To listen to the TV through

Ŷ

speakers

Turn Off the

•

TV speakers.

23

Accesorios/Opción

Compruebe que ha recibido todos los elementos que se indican.

Accesorios

Transmisor de

Ƒ

mando a distancia

EUR7613ZG0

•

Pilas para el transmisor

Ƒ

de mando a distancia

Pila AA

•

(2)

Cable HDMI

Ƒ

(para TC-26LE60 y TC-32LE60)

Manual de

Ƒ

instrucciones

Instalación de las pilas del mando a distancia

Empuje

Tarjeta del cliente

Ƒ

(para EE. UU.)

1

Deslice para abrir

2

Cierre

Ponga las polaridades (+ ó -)
en las posiciones correctas

Póngase en contacto con su concesionario
Panasonic más cercano para adquirir la ménsula
de montaje en pared recomendada. Para conocer
más detalles, consulte el manual de instalación
de la ménsula de montaje en pared.

Soporte para colgar
en pared (vertical)

TY-WK32LR2W

•

Tarjeta para el plan de asistencia

Ƒ

al cliente (para EE. UU.)

Precaución

La instalación mal hecha puede causar fugas de electrolito y

•

corrosión, lo que podría dañar el mando a distancia.

No mezcle pilas viejas y nuevas.

•

No mezcle pilas de tipos diferentes (pilas alcalinas y de

•

manganeso, por ejemplo).
No utilice baterías (Ni-Cd).

•

No queme ni rompa las pilas.

•

Anote los códigos de mando a distancia antes de cambiar las

•

pilas en el caso de que tenga que restablecer los códigos.
(págs. 37-38)

Accesorio opcional

ADVERTENCIA

No utilizar una ménsula de Panasonic ó montar la unidad usted

•

mismo puede ser la causa de que el consumidor corra riesgos.
Cualquier daño que resulte de no haber sido un instalador
profesional quien montó su unidad anulará su garantía.
Asegúrese de pedir siempre a un técnico calificado que lleve a

•

cabo la instalación. Una instalación incorrecta podría ser la causa
de que el equipo cayera, causando lesiones a personas y daños
en el producto.
No monte el televisor LCD directamente debajo de las luces

•

del techo (luces direccionales, reflectores ó luces halógenas)
que producen típicamente mucho calor. De lo contrario podrían
deformarse ó dañarse las piezas de plástico de la caja.

24

Cómo retirar la base del televisor

1 2

Retire dos tornillos.

Saque la parte de plástico.

Estera de espuma ó paño
blando y grueso

Retire cuatro tornillos.

Saque la parte metálica.

Accesorios/Opción

Conexiones

[Resumen]

Español

25

Colocación del receptor

Coloque el receptor a una distancia confortable para ver. Evite colocarlo donde la luz solar directa u otra luz brillante
(incluidos reflejos) caiga sobre la pantalla.
La utilización de algún tipo de iluminación fluorescente puede reducir el alcance del transmisor del mando a distancia.
La ventilación adecuada es esencial para impedir el fallo de los componentes internos. Manténgase alejado de las
áreas donde el calor o la humedad sea excesivo.

Cómo utilizar la base del LCD

Ajuste el soporte con el ángulo deseado
El ángulo del soporte se puede girar 20° hacia la derecha/izquierda.

Identificación de los controles

El botón POWER
Volúmen

Navegaciones del
menú

Cambia TV/VIDEO

Indicador de alimentación (conectada: rojo, desconectada: apagado)
Sensor del control remoto

Dentro de unos 7 metros enfrente del televisor.

Nota

El televisor consumirá algo de corriente siempre que el enchufe del cable de alimentación esté introducido en la

•

toma de corriente.

Conecta/desconecta la alimentación.

(Se utiliza cuando está activado el botón de la
alimentación.)

Seleccione el modo de audio para
ver la televisión.

Selecciona canales en orden.

(pág. 28)

Configura el mando a distancia para
hacer la comunicación con otros
dispositivos.

Volúmen
Navegaciones del menú

Selecciona canales en orden.
Navegaciones del menú

Visualiza el menú principal.

Selecciona el modo de entrada. (pág. 32)

Visualiza ó elimina la bandera de canal.

(pág. 28)

Cambia al canal visto previamente.

Temporizador para acostarse
(MINUTOS)

Cambia la relación de aspecto

(pág. 29)

(pág. 28)

(págs. 30-31)

Selección/OK/Cambio

RETURN
Salir (del menú)

Controla la función de la lista de
canales favoritos.
GUÍA para DBS

Encendido / Apagado del
silenciamiento del sonido

Teclado numérico para seleccionar
cualquier canal ó para hacer
introducciones alfanuméricas en los
menús.

Acceso directo a canales para DTV
y DBS

Operaciones de equipos externos

(pág. 32) (Videograbadoras, DVDs, etc.)

(para volver al menú anterior)

(pág. 29)

(pág. 28)

(pág. 28)

26

Ajuste inicial

Idioma

Programa auto

Idioma

Idioma

Español

Programa auto

Ent. ANT

Modo

Tod os

Iniciar escaneo

Programa auto

Ent. ANT

Modo

Tod os

Iniciar escaneo

Cable

Cable

Identificación de los controles

Ajuste inicial

Ajuste inicial

Idioma

Programa auto

Escaneando canales análogos ...

Progreso

Editar

Favoritos

- - -

2

[Resumen]

Español

Aceptar

Agregar

No

Si

27

Para ver la televisión

Conecte el receptor de televisión por cable cuando vaya a ver televisión por cable. (pág. 25)
Conecte directamente el televisor por cable a la terminal “ANT” para recibir emisiones digitales de televisión por cable.

Cambie al modo de

1

televisión.

Conecte la

2

alimentación

Otras funciones útiles (Utilícelas después de )

Ŷ

Apaga la unidad después de pasar un periodo de tiempo de 0 a 90 minutos que

Temporizador
para
acostarse

puede ajustarse a intervalos de 30 minutos.

0/30/60/90 (minutos)

•

Seleccione un número de

3

canal.

Arriba

ó

Abajo

Para introducir directamente el

Ŷ

número de un canal digital

Cuando se sintonicen canales
digitales, presione el botón
para introducir el número
menor en un número de canal
complejo.

Ejemplo: CH15-1:

Escucha
con SAP
(Programa
de audio
secundario)

Recuperación
de
información

Seleccione el modo de audio para ver la televisión.

Ŷ

Modo digital

•

Pulse SAP para seleccionar la siguiente pista de audio (si está disponible) cuando se recibe

un canal digital.

Pista de audio 1 de 1

Modo analógico

•

Pulse SAP para seleccionar el modo de audio como se describe a continuación.

•

Cada vez que se pulsa el botón SAP, el modo de audio cambiará como se muestra a continuación.
(Estereo/SPA/Mono)

Visualice ó elimine la bandera de canales.

(Ingles)

Canal

15-2

ABC - HD

Identificador
de emisora

CC SPA

SPA

Nivel de clasificación

T V -G

Resolución
de señales

1080I

Estándar

Modo de
imagen

Relación de aspecto

4 : 3

30

Tiempo restante del
temporizador para acostarse

28

Ajustes 1/3

[1]

[2]

[3]

[4]

Ajustes 1/3

[1] 26-1

[2]

[3]

[4]

Favoritos 1/3

[1]

[2]

[3]

[4]

Cambie la relación de aspecto

Cambio de
la relación
de aspecto

Llamada
a un canal
favorito

Nota

Vuelva a seleccionar “Cable” ó “Antena” en “ANT In” de “Programa auto” para cambiar la recepción de la señal

•

entre televisión por cable y antena.

El número del canal y el nivel del volúmen se fijan incluso después de apagar el televisor.

•

FAVORITOS

Ŷ

Los números de canales de Favoritos se visualizan en la pantalla de

sintonización de favoritos. Seleccione la emisora deseada con el cursor ó
usando las teclas de números. (vea debajo)

El modo cambia con cada pulsación.

•

• 480i, 480p:COMP/JUSTO/4:3/ACERC

• 1080i, 720p:COMP/H-LLENO/JUSTO/4:3

Configuración de la función de favoritos Utilización de la función de favoritos

1 Visualice el canal que va a colocar en la lista de favoritos.

2 Mantenga pulsado FAVORITE

durante varios segundos.

• Pulse repetidamente FAVORITE
para cambiar entre las páginas
(1/3, 2/3, 3/3 ó salir). Al pulsar
ŻŹ también cambia la página.

1 Pulse FAVORITE.

• Pulse repetidamente FAVORITE
para cambiar entre las páginas
(1/3, 2/3, 3/3 ó salir). Al pulsar
ŻŹ también cambia la página.

Para ver la televisión

3 Pulse Ÿź para resaltar una

• También puede utilizar las

•

Un canal memorizado se podrá eliminar de la lista

Seleccione

posición en la lista. Y luego pulse
OK para memorizar el canal

Aceptar

Para eliminar un canal favorito

manteniendo pulsado FAVORITE mientras su posición está
resaltada.

visualizado en esa posición.

teclas numéricas (1-9 y 0) para
seleccionar los números de lista
grabados (1-9 y 0). Al hacer
esto, los números se grabarán
directamente sin tener que
pulsar la tecla OK.

2 Pulse Ÿź ó una tecla numerada

3 Pulse OK para visualizar el canal

Seleccione

(1-9 y 0 ) para resaltar un canal
de la lista.

• Al seleccionar un número de
canal de la lista con las teclas
numeradas se visualizará
directamente el canal.

Aceptar

resaltado.

[Resumen]

Español

29

Menú

Imagen

Audio

Cronόmetro

Bloqueo

Ajuste

Lista de menús

Ŷ

Menú Elemento

Normal

Modo

Luz de atrás

Contraste, Brillo,
Color, Tinte, Nitidez

Imagen

Temp color

Imagen IA

Ajuste acerc.

Reduc de ruido

Otros ajustes

3D Y/C filtro

Matriz color

Nivel obscuro

Normal

Bajos

Altos

Audio

Balance

Otros ajustes

Sonido IA

Envolvente

Ent. HDMI

Norm. de audio

Cronómetro

Apagado

Bloqueo

Búsqueda

Idioma

Programa canal

Títulos de entradas

CC

Ajuste

Autoencendido

Otros ajustes

Para prog-out

Ctrl con HDMI

Econ. energía

30

Acerca de

Restaurar

Ajustes / Configuraciones (alternativas)

Restablece la configuración del menú de imagen (excepto para “Otros ajustes”).
Modo de imagen básico (Vívido/Estándar/Cinema)
Ajusta la luminancia de la luz de fondo.

Ajusta el color, el brillo, etc. para que cada modo de imagen se
ajuste a sus gustos.

Contraste
Brillo
Color

+20

0
0

Normal

Modo

Luz de atrás

Tinte
Nitidez

Sí

Estándar

+20

0
0

Selecciona el nivel de los colores cálidos (rojo) y de los colores fríos (azul). (Rojo/Azul/Normal)
Controla las áreas oscuras sin afectar al nivel del negro ni al brillo de la imagen en general.

(Sí/No)

Ajusta la alineación vertical y el tamaño cuando el ajuste del aspecto es “ACERC”
Reduce el ruido en el canal, comúnmente llamado efecto de nieve. Permanece en No cuando se recibe una señal intensa.

(Sí/No)

Minimiza el ruido y la diafotía cromática en la imagen. (Sí/No)

No es válido en componente y HDMI.

Temp color

Imagen IA

Ajuste acerc.

Reduc de ruido

3D Y/C filtro

Selecciona la resolución de la imagen de los dispositivos conectados a componentes. (SD/HD)

SD: Visión normal HD: Visión de alta definición

Matriz color

Sólo se acepta la señal 480 p, la televisión convencional (NTSC) no se está disponible.

Selecciona Oscuro ó Claro dependiendo de las condiciones de la imagen. (Obscuro/Claro)
Las escenas oscuras se pueden ver fácilmente. (Sólo es válido para señales de entrada externas.)

Repone los ajustes de Bajos, Altos y Balance los ajustes predeterminados en la fábrica.
Aumenta ó disminuye la respuesta de los graves.
Aumenta ó disminuye la respuesta de los agudos.
Repone los ajustes de Bajos, Altos y Balance los ajustes predeterminados en la fábrica.

Iguale los niveles del sonido en todos los canales y entradas VIDEO. (Sí/No)
Mejora la respuesta de audio cuando se escucha sonido estéreo. (Sí/No)

Selecciona según la señal cuando está conectado HDMI. (Auto/Digital/Análogo)

Auto: Selecciona automáticamente la señal analógica/digital.
Minimiza la diferencia de volúmen después de cambiar a entradas externas.
Apaga automáticamente el televisor después de transcurrido el periodo de tiempo preestablecido.

0/30/60/90 (minutos)

También es posible hacer el ajuste del temporizador pulsando el botón “Sleep” del mando a distancia. (pág. 28)

Nivel obscuro

Normal

Bajos

Altos

Balance

Sonido IA

Envolvente

Ent. HDMI

Norm. de audio

Apagado

Bloquea canales y programas.
Selecciona los canales que van a visualizarse cuando se pulsan los botones “canal arriba/abajo”. (Fav./Todos)

Fav.: Sólo cuando se registran canales como Favoritos
Selecciona el idioma para los menús de la pantalla. (pág. 27)

Establece los canales de recepción.
Etiquetas de visualización de dispositivos externos
Visualiza subtítulos (subtítulos)

Búsqueda

Idioma

Programa canal

Títulos de entradas

CC

Establece cómo se va a conectar la alimentación del televisor. (Sí/No)
Sí : Conecte la clavija del cable de alimentación al receptor de televisión por cable, etc., y

controle el encendido/apagado del televisor en el equipo conectado. (El temporizador para
acostarse no funcionará si está activado “Autoencendido”.)

No : Suministre alimentación desde una toma de corriente y controle el encendido/apagado del

Autoencendido

televisor en el propio televisor.
(El menú “Ajuste inicial” se visualiza cuando la clavija del cable de alimentación vuelve a
conectarse después de desconectarla de la toma de corriente.)

Para impedir el aullido y la oscilación de la imagen, detenga la salida de la imagen y el sonido
especificados en este menú (pág. 35). (No/Comp./HDMI/Video 1/Video 2/Video 3)

Para prog-out

Comp./HDMI 1/HDMI 2 no puede dar salida a señales de vídeo independientemente del ajuste de “Para prog-out”.
Controla los equipos conectados a los terminales HDMI (pág. 33, 34) (Sí/No)
Reduce el brillo de la pantalla para disminuir el consumo de energía. Para ver programas en

habitaciones oscuras sin que se canse la vista. (Estándar/Ahorro)
Visualiza la versión del televisor y la licencia del software.
Al realizar la reposición se cancelarán todos los elementos establecidos con Ajuste como, por

ejemplo, los ajustes de canales. Utilice la reposición con cuidado.

En el modo Video, el menú Audio y el menú Ajuste ofrecen un número inferior de opciones.

•

Ctrl con HDMI

Econ. energía

Acerca de

Restaurar

Estándar

Azul

Sí

On

No

Cómo utilizar las funciones de los menús

No

SD

Claro

Sí

+ 4

0

0

Sí

No

Auto

0

60

Tod os

[Resumen]

Español

No

No

Sí

On

31

Para ver vídeos y DVDs

Algunos dispositivos de Panasonic conectados al televisor pueden ser controlados con el mando a
distancia.
Para controlar los productos de otros fabricantes se necesita programar el mando a distancia.

Con la videograbadora ó DVD encendido

1

2

Cambie a entrada externa.

Pulse para visualizar el menú de selección de entrada.

Seleccione el modo de entrada.

Seleccionar entrada

[1] TV

[2] Componente

[3] HDMI

[4] Video 1

[5] Video 2

[6] Video 3

(Pantalla inicial)

ó

Seleccione.

Introducir.

Pulse la tecla de número
correspondiente en el mando
a distancia para seleccionar la
entrada de su elección.

Pulse para seleccionar la
entrada de su elección y luego
pulse “OK”.

Si, durante la selección, no

•

se realiza ninguna acción
durante varios segundos, se
saldrá del menú de selección
de entrada.

Para volver

Ŷ

al televisor

Nota

Para conocer detalles,

•

vea el manual del
equipo ó pregunte a su
concesionario local.

3

El terminal y la etiqueta del dispositivo

•

conectado se indican.
Para etiquetar cada uno de los dispositivos
conectados (pág. 13)

Etiqueta

[ejemplo]

Utilice

la videograbadora ó DVD con el mando a distancia

Videograbadora DVD

Retroceso/Avance rápido Retroceso/Avance

Reproducción Reproducción

Pausa Pausa

Parada Parada

Grabación de
videograbadora

Televisor/Videograbadora Abertura/Cierre

-

Video 1

VCR

Terminal

(ejemplo)

32

Canal abajo/arriba Retroceso/avance lento

Control con HDMI “HDAVI Control

Para ver vídeos y DVDs

TM

”

[Resumen]

Español

Menú

Imagen

Audio

Cronόmetro

Bloqueo

Ajuste

Otros ajustes

Autoencendido
Para prog-out

Ctrl con HDMI

Econ. energía

Estándar

No
No

Sí

33

Conexiones AV recomendadas

Estos diagramas muestran nuestras recomendaciones sobre cómo conectar el televisor a varios equipos.
Para hacer otras conexiones, consulte las instrucciones de cada equipo y las especificaciones (pág. 44).
Para obtener ayuda adicional, visite nuestro sitio Web www.panasonic.com.

Cable de alimentación de CA (Conecte
después de haber terminado todas las
demás conexiones.)

Parte posterior de la
unidad

Para ver imágenes de

Ŷ

cámara de vídeo

Cámara de vídeo
Videograbadora
Reproductor DVD

Clavija M3

Los cascos auriculares/
auriculares (no suministrados)

Para ver imágenes

Ŷ

de vídeo digital

Reproductor DVD
ó receptor digital
multimedia (Máquinas
compatibles con HDMI
solamente)

Cable
de audio

AV IN

ó

SERVICE ONLY

Cable HDMI

Cable de
conversión
HDMI-DVI

Control con HDMI

Ŷ

(pág. 33)

Conecte con cable HDMI

DIGA
(Grabadora DVD de Panasonic)

34

Notas

Los equipos HDMI individuales tal vez requieran configuraciones de menús específicas adicionales para cada

•

modelo. Consulte sus manuales de instrucciones respectivos.

ANT

DIGITAL AUDIO OUT

Salida de audio digital

Cable óptica
digital de audio

OPTICAL IN

Para ver DVDs

Ŷ

Reproductor DVD
Receptor digital
multimedia

Para escuchar la

Ŷ

televisión por altavoces

Apague los

•

altavoces del televisor.

Conexiones AV recomendadas

[Resumen]

Español

Cable TV

Cable Box

ó

Grabadora DVD /

Ŷ

Videograbadora

Amplificador

ó

Notas

Ponga el canal de televisión en CH3 ó CH4 para utilizar la

•

conexión del receptor de televisión por cable.
Para tener más información acerca de la conexión del

•

receptor de televisión por cable, consulte a su compañía de
televisión por cable local.
Las señales de entrada de vídeo y audio conectadas a un

•

terminal especificado en “Para-prog-out” (págs. 30-31) no
pueden salir por los terminales “OUTPUT”.

Sin embargo, sí se obtendrá salida de audio por el terminal

“Digital Audio Out”.
Para impedir el aullido y la oscilación de la imagen,

•

establezca la configuración “Para prog-out” cuando conecte la
videograbadora mediante una conexión en bucle.
Cuando se conecte un equipo (STB, DVD, etc.) a los

•

terminales HDMI ó COMPONENT sólo se podrán obtener
señales de audio. No se pueden reproducir señales de vídeo.

(pág. 30)

35

Remote Control Operation/Code List

The following explains how to operate external equipment with the remote control.

Register the remote control codes (p. 20) if you want to operate an external equipment of another manufacturer. (p. 37-38)

•

Note

Operation may not be possible depending on the available memory size of the remote control.

•

This remote control is not designed to cover operation of all functions of all models.

Remote Control Operation List

Ŷ

This chart defines which keys are operational after programming (if needed),
while in the selected remote control mode, DTV, CABLE, DBS, VCR, DVD.

KEY NAME VCR MODE

Power Power Power Power

-

-

Vol Down DBS Cursor Left CBL Cursor Left Vol Down

Vol Up DBS Cursor Right CBL Cursor Right Vol Up

-

-

TV Input Switch TV Input Switch TV Input Switch TV Input Switch

Onscreen Display Onscreen Display Recall Onscreen Display

TV Mute TV Mute TV Mute TV Mute

-

(DBS) (CBL)

CH Up, Cursor Up CH Up, Cursor Up Skip Up

CH Down, Cursor Down CH Down, Cursor Down Skip Down

DBS Menu CBL Menu

Exit Exit

Guide Guide

DBS/CBL MODE

-

-

-

DVD MODE

36

-

-

Rewind

Play

Fast Forward

Pause

Stop

VCR Record

TV/VCR Aspect Aspect Open/Close

Channel Down Page Down Page Down Slow Reverse

Channel Up Page Up Page Up Slow Forward

0-9 0-9

--

--

--

--

--

-

PVR Record *

-

Reverse

Play

Forward

Pause

Stop

1

-

*1: Combination type

Remote Control Code List

Ŷ

Cable Converter ( )

Brand Code Brand Code Brand Code Brand Code

ABC 0003, 0008
Americast 0899
Bell South 0899
Digeo 1187
Director 0476
General Instrument
GoldStar 0144

0003, 0276, 0476, 0810

Hamlin 0009, 0273
Jerrold
Memorex 0000
Motorola
Pace 0008, 0237, 1877
Panasonic 0000, 0107
Paragon 0000

0003, 0276, 0476, 0810

1376, 0276, 0476, 0810, 1187

Philips 0317, 1305
Pioneer
Pulsar 0000
Quasar 0000
Regal 0273, 0279
Runco 0000
Samsung 0144

0144, 0533, 0877, 1877

Scientific Atlanta
Sony 1006
Starcom 0003
Supercable 0276
Torx 0003
Toshiba 0000
Zenith 0000, 0525, 0899

0008, 0477, 0877, 1877

Satellite Receiver ( )

AlphaStar 0772
Chaparral 0216
Crossdigital 1109

DirecTV

Dish Network
System

Dishpro
Echostar
Expressvu 0775, 1775
GE 0392, 0566

0099, 0247, 0392, 0566,
0639, 0724, 0749, 0819,
1076, 1108, 1109, 1142,
1377, 1392, 1414, 1442,
1443, 1444, 1609, 1639,
1640, 1749, 1856

0775, 1005, 1170,
1505, 1775

0775, 1005, 1505, 1775
0775, 1005, 1170, 1505, 1775

General
Instrument

GOI 0775, 1775
Goodmans 1246
Hisense 1535
Hitachi 0819, 1250
HTS 0775, 1775
Hughes 0749, 1442, 1749
Hughes Network

Systems
iLo 1535
Janeil 0152
Jerrold 0869
JVC 0775, 1170, 1775
LG 1226, 1414

0869

0749, 1142, 1442,
1443, 1444, 1749

Magnavox 0722, 0724
Memorex 0724
Mitsubishi 0749
Motorola 0856, 0869
NEC 1270
Next Level 0869
Panasonic
Paysat 0724

Philips

Pioneer 1442
Proscan 0392, 0566
Proton 1535
RadioShack 0869
RCA

0152, 0247, 0701, 1786

0099, 0722, 0724, 0749,
0819, 1076, 1142, 1442, 1749

0143, 0392, 0566, 0855, 1392

Samsung

Sanyo 1219
Sony 0639, 1639, 1640
Star Choice 0869
Tivo 1142, 1442, 1443, 1444
Toshiba
UltimateTV 1392, 1640
Uniden 0722, 0724
US Digital 1535
USDTV 1535
Voom 0869
Zenith 1856

1108, 1109, 1142, 1276,
1377, 1442, 1609

0749, 0790, 0819, 1285, 1749

Cable/PVR Combination ( )

Americast 0899
Digeo 1187
General Instrument

0476, 0810

Jerrold 0476, 0810
Motorola 0476, 0810, 1187, 1376
Pace 0237, 1877

Pioneer 0877, 1877
Scientific Atlanta
Sony 1006

0877, 1877

Supercable 0276
Zenith 0899

DBS/PVR Combination ( )

DirecTV

Dish Network
System

0099, 0392, 0639, 1076,
1142, 1377, 1392, 1442,
1443, 1444, 1640

0775, 1505

Dishpro 0775, 1505
Echostar 0775, 1170, 1505
Expressvu 0775
Hughes Network
Systems

1142, 1442, 1443, 1444

JVC 1170
Motorola 0869
Philips 1142, 1442
Proscan 0392
RCA 1392

Samsung 1442
Sony 0639, 1640
Star Choice 0869

VCR ( )

ABS 1972
Adventura 0000
Aiwa 0000, 0037, 0124
Akai 0175
Alienware 1972
American High
Audiovox 0037
Broksonic 1479
Calix 0037
Canon 0035
Citizen 0037, 1278
Craig 0037
Curtis Mathes 0035, 0060, 1035
CyberPower 1972
Daewoo 0045, 1278
Dell 1972
Denon 0042
DirecTV 0739
Durabrand 0039
Dynatech 0000
Electrohome 0037, 0043
Electrophonic 0037
Emerex 0032
Emerson
Fuji 0033, 0035
Funai 0000
Garrard 0000
Gateway 1972
GE
GoldStar 0037, 1237
Gradiente 0000
Harley Davidson

0035

0000, 0037, 0043, 1278, 1479

0035, 0060, 0807, 1035, 1060

0000

Hewlett Packard
Hitachi 0000, 0042, 0089
Howard Computers
HP 1972
Hughes

Network Systems
Humax 0739
Hush 1972
iBUYPOWER 1972
JVC 0067
KEC 0037
Kenwood 0067
Kodak 0035, 0037
Linksys 1972
Lloyd’s 0000
LXI 0037
Magnasonic 1278
Magnavox
Marantz 0035
Marta 0037
Matsushita 0035
Media Center PC
MEI 0035
Memorex
MGA 0043
Microsoft 1972
Mind 1972
Minolta 0042
Mitsubishi 0043, 0067, 0807
Motorola 0035
MTC 0000
Multitech 0000

1972

1972

0042, 0739

0000, 0035, 0039, 1781

1972

0000, 0035, 0037, 0039, 1237

NEC 0067
Nikko 0037
Niveus Media 1972
Northgate 1972
Olympus 0035, 0226
Onkyo 0222
Optimus 0037
Orion 1479

Panasonic

Penney
Pentax 0042
Philco 0035
Philips
Pilot 0037
Pioneer 0067
Proscan 0060, 1060
Pulsar 0039
Quasar 0035, 0077, 1035
RadioShack 0000
Radix 0037
Randex 0037

RCA

Realistic 0000, 0035, 0037
ReplayTV 0614, 0616
Ricavision 1972
Runco 0039
Samsung 0045, 0739, 1014
Sanky 0039
Sansui 0000, 0067, 1479
Sanyo 0159

0035, 0077, 0225, 0226,
0227, 0378, 0616, 1035, 1244

0035, 0037, 0042, 1035, 1237

0035, 0618, 0739, 1081, 1181

0042, 0060, 0077, 0807,
0880, 1035, 1060

Scott 0043, 0045
Sears
Sharp 0807, 0848
Sonic Blue 0614, 0616

Sony

Stack 9 1972
STS 0042
Sylvania
Symphonic 0000
Systemax 1972
Tagar Systems
Teac 0000
Technics 0035
Teknika 0000, 0035, 0037
Thomas 0000
Tivo 0618, 0636, 0739

Toshiba

Totevision 0037
Touch 1972
Vector 0045
Video Concepts
Videomagic 0037
Viewsonic 1972
Villain 0000
Voodoo 1972
Wards
XR-1000 0000, 0035
Zenith
ZT Group 1972

0000, 0035, 0037, 0042, 1237

0000, 0032, 0033, 0035,
0636, 1032, 1232, 1972

0000, 0035, 0043, 1781

1972

0043, 0045, 0845,
1008, 1145, 1972

0045

0000, 0035, 0042, 0060

0000, 0033, 0039, 1479

Remote Control Operation/Code List

FAQs, etc.

37

Remote Control Operation/Code List

Remote Control Code List

Ŷ

DBS/PVR Combination ( )

Brand Code Brand Code Brand Code Brand Code

Hughes Network
Systems

0739

PVR( )

ABS 1972
Alienware 1972
CyberPower 1972
Dell 1972
DirecTV 0739
Gateway 1972
Hewlett Packard
Howard

Computers
HP 1972

1972

1972

DVD ( )

Adcom 1094
Allegro 0869

Apex Digital

Aspire Digital 1168
Blue Parade 0571
Broksonic 0695
California

Audio Labs
CineVision 0833, 0869
Coby 1086
CyberHome 0816, 1023, 1024, 1129
Daewoo 0833, 0869
Denon 0490
Disney 0675
DVD2000 0521
Emerson 0591, 0675
Enterprise 0591
Funai 0675
Gateway 1158
GE 0522

Go Video

0672, 0794, 0796,
0797, 1004, 1056,
1061, 1100

0490

0741, 0833, 0869,
1075, 1158, 1304, 1730

DVD Recorder ( )

Apex Digital 1056
Aspire Digital 1168
Coby 1086
CyberHome 1129
Funai 0675
Gateway 1158

Philips 0739
Samsung 0739

Hughes Network
Systems

Humax 0739
Hush 1972
iBUYPOWER 1972
Linksys 1972
Media Center

PC
Microsoft 1972
Mind 1972

GoldStar 0741
Gradiente 0490
Grundig 0539
Hitachi 0573, 0664
Hiteker 0672
Integra 0571

JVC

Kenwood 0490, 0534
Lecson 1533

LG

LiteOn 1158, 1440
Loewe 0511

Magnavox

Marantz 0539
McIntosh 1533
Memorex 0695
Microsoft 0522
Mitsubishi 0521, 1521
NAD 0591, 0741
NEC 0785

Go Video 0741, 1158, 1304, 1730
JVC 1164, 1275
LG 0741
LiteOn 1158, 1440
Magnavox 0646
Panasonic 0490, 1010, 1011

0739

1972

0558, 0623, 0867, 1164,
1275

0591, 0741, 0801,
0869

0503, 0539, 0646,
0675

Niveus Media 1972
Northgate 1972
Panasonic 0616
Philips 0618, 0739
RCA 0880
ReplayTV 0614, 0616
Sonic Blue 0614, 0616
Sony 0636, 1972
Stack 9 1972

Onkyo 0503, 0792

0490, 0503, 0632,

Panasonic

Philips

PianoDisc 1024

Pioneer

Polaroid 1061, 1086
Polk Audio 0539
Proceed 0672
Proscan 0522
RCA 0522, 0571, 0822
Rio 0869
Rotel 0623
Sampo 0752

Samsung

Sansui 0695
Sanyo 0695, 0873, 1967

Philips 0646
Pioneer 0631
Polaroid 1086
RCA 0522
Samsung 0490

0703, 1010, 1011,
1362, 1462, 1490,
1762, 1967

0503, 0539, 0646,
0675, 1267, 1354

0525, 0571, 0631,
0632

0490, 0573, 0820,
1075

Systemax 1972
Tagar

Systems
Tivo 0618, 0636, 0739
Toshiba 1008, 1972
Touch 1972
Viewsonic 1972
Voodoo 1972
ZT Group 1972

Sensory
Science

Sharp

Shinsonic 0533
Sonic Blue 0869

Sony

Sylvania 0675
Symphonic 0675
Teac 0809
Technics 0490, 0703
Theta Digital 0571
Toshiba 0503, 0695, 1045, 1154
Urban

Concepts
Xbox 0522
Yamaha 0490, 0539, 0545
Zenith 0503, 0591, 0741,0869

Sensory
Science

Sharp 0675
Sony 1033, 1431
Sylvania 0675
Zenith 0741

1972

115 8

0630, 0675, 0752,
1256

0533, 0864, 1033, 1431,
1533

0503

115 8

38

Ratings List for Channel Lock

“V-chip” technology enables you to lock out channels or shows according to
standard ratings set by the entertainment industry. (p. 17)

U.S. MOVIE RATINGS (MPAA)

Ŷ

Off

G

PG

PG-13

R

NC-17

X

U.S. TV PROGRAMS RATINGS (U. S. T. V)

Ŷ

Age-based

Group

NR
(Not Rated)

Youth

Guidance

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie has not been rated or
rating does not apply.

GENERAL AUDIENCES. All ages admitted.
PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.
PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.
RESTRICTED. Under 17 requires accompanying parent or adult guardian.
NO ONE 17 AND UNDER ADMITTED.
ADULTS ONLY.

Age-based

Ratings

TV-NR

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Possible Content

Selections

Viewable
Blocked

Viewable
Blocked

FV Blocked
Viewable
Blocked

Viewable
Blocked

D,L,S,V (all selected)
Any combination of D,

L, S, V

D,L,S,V (all selected)
Any combination of D,

L, S, V

D,L,S,V (all selected)
Any combination of L,

S, V

Description

Not Rated.

All children. The themes and elements in this program are specifically
designed for a very young audience, including children from ages 2-6.

Directed to older children. Themes and elements in this program may
include mild physical or comedic violence, or may frighten children under
the age of 7.

General audience. It contains little or no violence, no strong language,
and little or no sexual dialogue or situations.

Parental guidance suggested. The program may contain infrequent
coarse language, limited violence, some suggestive sexual dialogue and
situations.

Parents strongly cautioned. This program may contain sophisticated
themes, sexual content, strong language and more intense violence.

Mature audiences only. This program may contain mature themes,
profane language, graphic violence, and explicit sexual content.

Remote Control Operation/Code List

Ratings List for Channel Lock

CANADIAN ENGLISH RATINGS (C. E. L. R)

Ŷ

E

C

C8+

G

PG
14+

18+

CANADIAN FRENCH RATINGS (C. F. L. R)

Ŷ

E

G

8 ans+

13 ans+

16 ans+
18 ans+

Exempt - Exempt programming includes: news, sports, documentaries and other information programming,
talk shows, music videos, and variety programming.

Programming intended for children under age 8. No offensive language, nudity or sexual content.
Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.
General programming, suitable for all audiences.
Parental Guidance suggested. Some material may not be suitable for children.
Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are

strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.
18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Exempt - Exempt programming.
General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal

or is depicted appropriately.
8+ General - Not recommended for young children. Programming intended for a broad audience but contains light

or occasional violence. Adult supervision recommended.
Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or

more sufficiently violent scenes to affect them. Adult supervision strongly suggested.
Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense

violence.
Programming restricted to adults. Contains constant violence or scenes of extreme violence.

FAQs, etc.

39

40

DIGITAL AUDIO OUT terminals

You can enjoy your home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier
to the DIGITAL AUDIO OUT terminals.

Caution

Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable

•

optical output.
External speakers cannot be connected directly to OUTPUT terminals.

•

When ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When NTSC

•

channel is selected, the output will be PCM.

Control with HDMI “HDAVI ControlTM”

HDMI connections to some Panasonic equipment allow you to enjoy easy playback.

Setup the equipment to enable this function. Read the manual of the equipment.

•

Switch the TV unit on again with the equipment on when connection or setup is changed.

•

This function may not work normally depending on the equipment condition.

•

The equipment can be operated by TV’s remote control with this function on even if TV is in Standby mode.

•

Image or sound may not be available for the first few seconds when the playback starts.

•

Image or sound may not be available for the first few seconds when Input mode is switched.

•

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting
the TV unit and the equipment.
HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a set-top box or a DVD player, can be connected
to the HDMI connector using an HDMI compliant (fully wired) cable.

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard.

•

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2).

•

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.

•

Audio settings can be made on the “HDMI in” menu screen. (p. 14-15)

•

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz

Caution

Use with a PC is not assumed.

•

All signals are reformatted before being displayed on the screen.

•

If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.

•

This HDMI connector is “type A”.

•

Equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”, “S VIDEO”, or

•

“VIDEO” to receive analog signals.
The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p and 1080i

•

Match the output setting of the digital equipment.
For details of the applicable HDMI signals, see below.

•

(*1): The HDMI logo is displayed on an HDMI-compliant equipment.

(*2): Enquire at your local digital equipment retailer shop.

Technical Information

Input signals that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR) and HDMI

horizontal

525 (480) / 60i 15.73 59.94
525 (480) /60p 31.47 59.94
750 (720) /60p 45.00 59.94
1,125 (1,080) /60i 33.75 59.94

Note

Signals other than those shown above may not be displayed properly.

•

The above signals are reformatted for optimal viewing on your display.

•

Vivid (default) : Provides enhanced picture contrast and sharpness for viewing in a well-lit room.

•

Standard : Recommended for normal viewing conditions with subdued room lighting.

•

Cinema : For watching movies in a darkened room. It provides a soft, film-like picture.

•

frequency (kHz)

Pic. mode

vertical

frequency (Hz)

COMPONENT HDMI

**
**
**
**

FAQs, etc.

41

Maintenance

First, unplug the Power cord plug from the wall outlet.

Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or
a soft, lint-free cloth.

If the surface is particularly dirty, soak a soft, lint-free cloth in a weak detergent solution and then wring the cloth to

•

remove excess liquid. Use this cloth to wipe the surface of the display panel, then wipe it evenly with a dry cloth, of
the same type, until the surface is dry.
Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact

•

with volatile substances such as insect sprays, solvents and thinner; otherwise, the quality of the surface may be
adversely affected.

Cabinet

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in a weak detergent solution and then wring the cloth dry.

•

Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

Do not allow any detergent to come into direct contact with the surface of the LCD TV.

•

If water droplets get inside the unit, operating problems may result.

Avoid contact with volatile substances such as insect sprays, solvents and thinner; otherwise, the quality of the

•

cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods
in contact with articles made from rubber or PVC.

Power cord plug

Wipe the plug with a dry cloth at regular intervals. (Moisture and dust can lead to fire or electrical shock.)

FAQ

Before requesting service or assistance, please follow these simple guides to resolve the problem.
If problem still persists, please contact your local Panasonic dealer or Panasonic Servicenter for assistance. For
details (p. 46, 47)
For additional assistance, please contact us via the website at:
www.panasonic.com/contactinfo
www.panasonic.ca

White spots or
shadow images
(noise)

Check the position, direction,

•

and connection of the aerial.

Interference or
frozen digital channels

(intermittent sound)

Pictures from external equipment
are distorted when the unit is
connected via HDMI

Is the HDMI cable connected properly?

•

(p. 22-23, 41)
Turn Off the TV unit and equipment, then turn

•

them On again.
Check an input signal from the equipment.

•

(p. 41)
Use a equipment compliant with

•

EIA/CEA-861/861B.

42

Change the direction of antenna

•

for digital channels.
Check “Signal meter” (p. 19).

•

If the signal is weak, check the
antenna and consult your local
dealer.

The remote control does not work

Are the batteries installed correctly? (p. 6)

•

Has the battery run down?

•

To operate external equipment of other

•

manufacturers, register the
remote control codes. (p. 20, 37-38)

If there is a problem with your TV please refer to the table below to determine the symptoms, then carry out the
suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model
number and serial number (both found on the rear of the TV).

Symptoms

Checks


Multiple Images

Interference

Normal Picture

No Picture

Sound

Noisy SoundSnowy Picture

Normal Sound

Noisy Sound

No Sound

No Sound

Antenna location, direction or connection.

•

Antenna location, direction or connection.

•

Electrical appliances.

•

Cars / Motorcycles.
Fluorescent lights.

Volume level.

•

Sound mute switched on.
STEREO/SAP/MONO

TV set to AV mode.

•

Not plugged into wall outlet.
Not switched on.
Picture / Sound controls set at minimum levels.

No color

Poor or Distorted Picture

Normal Picture

Cannot operate with the remote control.

The main unit is hot.

There may be red spots, blue spots,
green spots and black spots on the
screen.

Normal Sound

Weak or No Sound

Weak, Wrong or No Sound

Color controls set at minimum levels.

•

Weak signal.

Retune Channel (s).

•

Sound reception may have deteriorated.

•

Set STEREO/SAP/MONO setting to SAP or MONO until reception improved.

The battery/ies is/are exhausted.

•

The batteries’ polarity is wrong.
The remote control sensor is exposed to strong light from a fluorescent

lamp, etc.

The main unit radiates heat and some of the parts may become hot. This is

•

not a problem for performance or quality.
Set up in a location with good ventilation.
Do not cover the ventilation holes of the TV with a tablecloth, etc., and do

not place on top of other equipment.

This is a characteristic of liquid crystal panels and is not a problem. The

•

liquid crystal panel is built with very high precision technology giving you

fine picture details. Occasionally, a few non-active pixels may appear on the

screen as fixed points of red, blue, green, or black.
Please note this does not affect the performance of your LCD.

Frequently Asked Questions

Maintenance

FAQs, etc.

“Control with HDMI”
function does not work

Switch the TV unit on again with the equipment on.

•

Set “Control with HDMI” to “Off”, then set to “On” again. (p. 21)

•

43

Specifications

TC-26LX60 / TC-26LE60 TC-32LX60 / TC-32LE60

Power Source AC 120 V, 60 Hz

Power Consumption

Average use
Maximum Current
Standby condition

Aspect Ratio 16:9

Visible screen size
(W × H × Diagonal)

(No. of pixels)

Sound

Speaker 2.36 ” × 4.7 ” (60 mm × 120 mm) Full-range × 2 pcs
Audio Output 20 W [ 10 W + 10 W ] ( 10 % THD )
Headphones M3 (3.5mm) Jack × 1

Channel Capability
ATSC/NTSC (Digital/Analog)

Operating Conditions

INPUT 1-2

Connection Terminals

INPUT 3

COMPONENT
VIDEO INPUT

HDMI
AUDIO IN

OUTPUT

DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic

FEATURES

Dimensions

(W × H × D)

Including TV stand

113 W

2.2 A

0.6 W

26.0 ” DIAGONAL (66.1 cm DIAGONAL) 31.5 ” DIAGONAL (80.0 cm DIAGONAL)

22.7 ” × 12.8 ” × 26.0 ”
(576 mm × 324 mm × 661 mm)

1,049,088 (1,366 (W) × 768(H)) [4,098 × 768 dots]

VHF/ UHF : 2-69, CATV:1-135

Temperature : 41 °F -95 °F (5 °C – 35°C)
Humidity : 5 % - 90 % RH (non-condensing)

VIDEO : RCA PIN Type × 1 1.0 V[p-p] (75 ȍ)
S VIDEO : Mini DIN 4-pin Y:1.0 V[p-p] (75 ȍ) C:0.286 V [p-p] (75 ȍ)
AUDIO L - R : RCA PIN Type × 2 0.5 V [rms]

VIDEO : RCA PIN Type × 1 1.0 V [p-p] (75 ȍ)
AUDIO L - R : RCA PIN Type × 2 0.5 V [rms]

Y : 1.0 V [p-p] (including synchronization)

B, PR : ±0.35 V [p-p]

P
AUDIO L-R : RCA PIN Type × 2 0.5 V [rms]

TYPE A Connector × 1
AUDIO L - R : RCA PIN Type × 2 0.5 V [rms]

VIDEO : RCA PIN Type × 1 1.0 V [p-p] (75 ȍ)
AUDIO L - R : RCA PIN Type × 2 0.5 V [rms]

3D Y/C Digital Comb Filter, CLOSED CAPTION, V-Chip
HDMI
Vesa compatible

25.9 ” × 20.7 ” × 11.8 ”
(657 mm × 525 mm × 300 mm)

126 W

2.4 A

0.6 W

27.5 ” × 15.4 ” × 31.5 ”
(698 mm × 392 mm × 800 mm)

31.1 ” × 24.2 ” × 11.8 ”
(791 mm × 615 mm × 300 mm)

44

TV Set only

Weight

[TC-26LX60 / TC-26LE60] [TC-32LX60 / TC-32LE60]

25.9 ” (657 mm)

18.6 ” (473 mm)

20.7 ” (525 mm)

19.8 ” (504 mm) 19.8 ” (504 mm)

25.9 ” × 18.6 ” × 4.6 ”
(657 mm × 473 mm × 117 mm)

36.4 lb. (16.5

4.6 ” (117 mm)

11.8 ” (300 mm)

) NET 43.0 lb. (19.5 ) NET

24.2 ” (615 mm)

31.1 ” × 22.2 ” × 4.6 ”
(791 mm × 563 mm × 117 mm)

31.1 ” (791 mm)

22.2 ” (563 mm)

4.6 ” (117 mm)

11.8 ” (300 mm)

Note

Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

•

Limited Warranty (for U.S.A.)

PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF:
PANASONIC CORPORATION OF NORTH AMERICA
One Panasonic Way
Secaucus, New Jersey 07094

PANASONIC SALES COMPANY,
DIVISION OF:
PANASONIC PUERTO RICO, INC.
Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park
Carolina, Puerto Rico 00985

Panasonic LCD Televisions

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer
Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length
of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at
its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished
product. The decision to repair or replace will be made by the warrantor.

LCD TV CATEGORIES PARTS LABOR SERVICE

Up to 20’ (diagonal)

21” (diagonal) and larger In Home or Carry-in / Mail in

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will
be no charge for parts. You must carry-in or mail-in your product during the warranty period. If non-rechargeable
batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in the
United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was
not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.

In-Home or Carry-in Service

For In-Home or Carry-In Service in the United States call 1-800-211-PANA(7262) or visit the Panasonic web Site:
http://www.panasonic.com.
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax [phone].

In-Home service requires clear, complete and easy access to the product by the authorized servicer and does
not include removal or re-installation of an installed product. It is possible that certain in-home repairs will not be
completed in-home, but will require that the product, or parts of the product, be removed for shop diagnosis and/or
repair and then returned.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage, nor does it cover markings or retained images on the LCD panel resulting
from viewing fixed images (including, among other things, letterbox pictures on standard 4:3 screen TV’s, or non­expanded standard 4:3 pictures on wide screen TV’s, or onscreen data in a stationary and fixed location). The
warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products
not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation,
mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls,
improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel,
office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Servicenter or
other Authorized Servicer, or damage that is attributable to acts of God.

1 (ONE) YEAR 1 (ONE) YEAR

Carry-In or Mail-in

Limited Warranty (for U.S.A.)

Specifications

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this

excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to
and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED

WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE
LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have others rights which vary from state to state. If a
problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter.
If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the
addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE APPLICABLE) WHICH
ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

FAQs, etc.

45

Customer Services Directory

Customer Services Directory

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase
Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

(for U.S.A.)

http://www.panasonic.com/consumersupport

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY : 1-877-833-8855

Ŷ

Accessory Purchases

Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web
Site at:

http://www.pasc.panasonic.com

or, send your request by E-mail to:

[e-mail]

You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 8 pm, EST.)
Panasonic Services Company
20421 84th Avenue South,
Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY : 1-866-605-1277

Ŷ

Service in Puerto Rico

Panasonic Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Phone [phone], Fax [phone]

46

Limited Warranty (for Canada)

Panasonic Canada Inc.

PANASONIC PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to
remedy any such defect for a period as stated below from the date of original purchase.

Plasma TV / Monitor In-home service One (1) year, parts (including Plasma Panel) and labour.

LCD TV (26 in & over) In-home service One (1) year, parts (including LCD Panel) and labour.

LCD TV (25 in & under) Carry-in service only One (1) year, parts (including LCD Panel) and labour.

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized
Panasonic service facility.

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly
installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping,
or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor
does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this
warranty.
This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original
purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

Customer Services Directory (for U.S.A.)

In-home service requires clear, complete and easy access to the product by the Authorized Servicentre and does not
include removal or re-installation of an installed product. If removal is required to service the product, it will be at the
discretion of the Servicentre and in no event will Panasonic Canada Inc. or the Servicentre be liable for any special,
indirect or consequential damages.

WARRANTY SERVICE

For product operation and information assistance, please contact:

Our Customer Care Centre: Telephone #: [phone]
1-800 #: 1-800-561-5505
Fax #: [phone]
Email link: “Customer support” on www.panasonic.ca

FOR PRODUCT REPAIRS, please locate your nearest Authorized Servicentre at www.panasonic.ca :
Link: “Servicentres™ locator” under “Customer support”

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

Limited Warranty (for Canada)

FAQs, etc.

47

127(6

127(6

127(6

127(6

127(6

127(6

127(6

127(6

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Anotación del cliente

El modelo y el número de serie de este producto se encuentran en su panel posterior. Deberá anotarlos en el
espacio provisto a continuación y guardar este manual, más el recibo de su compra, como prueba permanente de
su adquisición, para que le sirva de ayuda al identificarlo en el caso de que le sea sustraído o lo pierda, y también
para disponer de los servicios que le ofrece la garantía.

Modelo Número de serie

Panasonic Consumer Electronics
Company,
Division of Panasonic Corporation
of North America

One Panasonic Way, Secaucus

Panasonic Puerto Rico Inc.
(“PSC”)

Ave. 65 de Infanteria, Km 9.5
San Gabriel Industrial Park,
Carolina, Puerto Rico 00985

New Jersey 07094 U.S.A.

¤

2006 Panasonic Corporation of North America. All Rights Reserved.

¤

2006 Panasonic Corporation of North America. Todos los Derechos Reservados.

Panasonic Canada Inc.

5770 Ambler Drive
Mississauga, Ontario
L4W 2T3 CANADA

Printed in U.S.A.

Impreso en EE.UU.
