Color Television
Operating Instructions

SP-2725

For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: [e-mail] (USA only)

TQB2AA0379 20114
PRINTED IN USA

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

FCC CAUTION:

ENVIRONMENTAL NOTICE:

The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.

The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.

NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

The double insulation symbol (a square within a square) is
intended to alert qualified service personnel to use only
identical replacement parts in this apparatus.

ANY CHANGES OR MODIFICATIONS TO THIS TV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.

THIS PRODUCT UTILIZES BOTH A CATHODE RAY TUBE (CRT) AND
OTHER COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE
MATERIALS MAY BE REGULATED IN YOUR COMMUNITY DUE TO
ENVIRONMENTAL CONSIDERATIONS. FOR DISPOSAL OR RECYCLING
INFORMATION PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE
ELECTRONICS INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>

Table of Contents

Congratulations.........................................................2

Customer Record ......................................................................2

Care and Cleaning.....................................................................2

Specifications ............................................................................2

Installation..................................................................3

Television Location....................................................................3

Optional Cable Connections......................................................3

AC Power Supply Cord..............................................................3

Cable / Antenna Connection......................................................3

Feature Chart .............................................................4

Auto Set Up Menu......................................................5

Optional Equipment Connections............................6

VCR .........................................................................................6

Remote Control Operation........................................7

Battery Installation ....................................................................7

Front Control Panel ..................................................................7

Mode Operational Key Chart ....................................................8

Programming the Remote .......................................................10

Programming Without a Code .................................................10

Component Codes...................................................................11

Icon Menu Navigation.............................................13

Main Menu Icons......................................................14

Icon Menus..............................................................................14

Icon Menus Operation .............................................15

Channels .................................................................................15

Set Up......................................................................................15

Picture .....................................................................................16

Timer .......................................................................................17

Audio .......................................................................................18

Lock.........................................................................................18

V-Chip Menu Operation...........................................19

U.S. TV Programs ...................................................................19

U.S. TV Movies........................................................................21

Rating Systems for Canada.....................................................22

Troubleshooting Chart............................................24

Limited Warranty .....................................................25

Customer Services Directory .................................27

Index .........................................................................28

TABLE OF CONTENTS

Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.

Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.

1

CONGRATULATIONS

Congratulations

Your new TV Monitor/Receiver features a solid state chassis that is designed to give you many years of enjoyment. It was
thoroughly tested and tuned at the factory for best performance.

Customer Record

The model and serial number of this product are located on the back of the television. You should note the model and serial
number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event
of theft or loss. Product registration for U.S. customers is available at www.prodreg.com/panasonic .

Model
Number

Serial
Number

Care and Cleaning

Screen (Turn TV Off)

• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.

• Avoid excessive moisture and wipe dry.

Note: Do not spray any type of cleaning fluid directly on the screen.

Cabinet and Remote Control

? For cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and

wipe dry.

? Do not use benzene, thinner or other petroleum based products.

Specifications

Power Source

SP-2725 (1.8A)
SP-2725U (1.8A)

Channel Capability - 181 VHF- 12; UHF-56; Cable-113

Video Input Jack 1Vp-p, 75 Ohm, Phono Jack Type

Audio Input Jacks 500mV RMS 47K Ohm

S-Video Input Jacks S-Video (Y-C) Connector

Specifications are subject to change without notice or obligation.

120V AC, 60Hz

2 ?

INSTALLATION

Incoming Cable from

Installation

Television Location

Follow these recommendations before deciding the location of your television.

? Avoid excessive sunlight or bright lights, including reflections.
? Keep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
? Fluorescent lighting may reduce remote control transmitting range.
? Keep away from magnetic equipment, including motors, fans and external speakers.

CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over. In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of
being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.

Optional Cable Connections

Shielded audio and video cables should be used between components. For best results:

? Use 75-ohm coaxial shielded cables.
? Use appropriate input and output connectors that match your component connectors.
? Avoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET

AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED,
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.

Polarized plug

Cable / Antenna Connection

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company.

Note: A cable converter box may be required for proper reception. Check with your local cable company for

compatibility requirements.

Antenna Connection

• For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an
outdoor antenna is recommended.

Note: Cable Mode is preset at the factory. Antenna users must change to TV mode in the Set Up Menu under

Prog Chan.

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on back of TV

Home Antenna

3

FEATURE CHART

Feature Chart

MODELS

SP-2725

Features

MENU LANGUAGE

ENG/SPAN/FR

CLOSED CAPTIONING ?

V-CHIP CAPABILITY ?

75 OHM INPUT ?

SPECIAL

FEATURES

AUDIO

VIDEO NORM ?

STEREO ?

AI SOUND ?

NUMBER OF SPEAKERS 2

A/V IN

(REAR/FRONT)

A/V

JACKS

S-VHS INPUT ?

?

1

(1/0)

IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR
OTHER FIXED IMAGE DISPLAYS.

4 ?

WARNING: The marking or retained image on the picture tube resulting from viewing fixed
image is not an operating defect and as such is not covered by Warranty.

This television is designed to display constantly moving images on the screen. Continuous viewing
of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non­expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an
image), stock market report bars (ticker running at the bottom of the screen), video game patterns,
fixed scoreboards, bright station logos, on-line (internet) or repetitive computer style patterns should
be limited.

The extended use of fixed image program material can cause a permanent picture tube damage,
shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube
deterioration can be limited by performing the following steps:

• Do not display the fixed image for extended periods of time.

• Turn the power off when not in use.

AUTO SET UP MENU

Auto Set Up Menu

For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.

? IDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.

Press to select English, Spanish or French.

VOL

? MODE - To select TV (antenna) or CABLE mode depending on the signal source.

Press to select TV or CABLE.

VOL

? AUTO PROGRAM - To automatically program all channels with a signal.

Press to start Auto Programming.

VOL

5

OPTIONAL EQUIPMENT CONNECTIONS

Optional Equipment Connections

VCR Connection

Connect equipment as shown to rear Audio/Video input jacks.

1. Select the Video mode by pressing TV/VIDEO button.

2. Operate optional equipment as instructed in equipment manual.

Note: VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the antenna input connection.

(See your equipment manual).

CONNECTIONS ON BACK OF TV

VCR

Use either the

ANT

S-Video or Video
connection.

CABLES NOT SUPPLIED

S-VIDEO

INPUT

L R

VIDEOAUDIO

VIDEO OUT

AUDIO OUT

S-VIDEO

OUT

L

R

ANT INPUTOUTPUT

Incoming Cable

6 ?

Remote Control Operation

TV/VIDEO

REMOTE CONTROL OPERATION

POWER

Press to turn ON and OFF.

TV, VCR, DBS/CBL, DVD

Press to select remote operation.

ACTION

Press to access menus.

VOL

Press to adjust TV sound and navigate
in menus.

TV/VIDEO

Press to select TV or Video mode.

MUTE

Press to mute sound.

R-TUNE

Press to switch to previously viewed
channel or video mode.

CH

Press to select next or previous
channel and navigate in menus.

EXIT

DBS function botton.

GUIDE

DBS function botton.

“0”~ “9”

Press numeric keypad to select any
channel.

RECALL

Press to display time, channel, sleep
timer, and other options.

REW PLAY FF

TV/VCR STOP PAUSE

REC VCR/DBS CH

Component function buttons

EUR511514

Battery Installation

Use two AA batteries:

Remove battery cover by pushing in and up neararrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.

Precautions

• Replace batteries in pairs.

• Do not mix battery types (zinc carbon with alkaline).

• Do not recharge, heat, short-circuit, disassemble, or burn batteries.

Note: Incorrect installation can cause battery leakage and corrosion that will damage the Remote Control.

Front Control Panel

Use the front panel of the television to use the TV without remote.

Press to select VIDEO input mode.

Note: The front control panel can be used to access menus and switch video mode when the remote control is not available.

7

REMOTE CONTROL OPERATION

Mode Operational Key Chart

This chart defines which keys that are operational after programming (if needed), while in the selected remote control mode
TV, CABLE, DBS, VCR or DVD.

KEY NAME

POWER POWER POWER POWER
MUTE TV MUTE TV MUTE TV MUTE
TV/VIDEO TV INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH
CHAN UP CHANNEL UP CABLE CHANNEL UP DBS NAVIGATION UP
CHAN DOWN CHANNEL DOWN CABLE CHANNEL DOWN DBS NAVIGATION DOWN
VOL RIGHT VOL + TV VOL + DBS NAVIGATION RIGHT
VOL LEFT VOL - TV VOL - DBS NAVIGATION LEFT
ACTION ACTION - DBS MENU
RECALL DISPLAY TV DISPLAY DBS PROG. INFO
EXIT - - DBS EXIT
GUIDE - - DBS GUIDE
1 DIGIT 1 DIGIT 1 DIGIT 1
2 DIGIT 2 DIGIT 2 DIGIT 2
3 DIGIT 3 DIGIT 3 DIGIT 3
4 DIGIT 4 DIGIT 4 DIGIT 4
5 DIGIT 5 DIGIT 5 DIGIT 5
6 DIGIT 6 DIGIT 6 DIGIT 6
7 DIGIT 7 DIGIT 7 DIGIT 7
8 DIGIT 8 DIGIT 8 DIGIT 8
9 DIGIT 9 DIGIT 9 DIGIT 9
0 DIGIT 0 DIGIT 0 DIGIT 0

R-TUNE
<<REW - - -

PLAY - - -
>>FF - - -
PAUSE - - -
STOP - - -
RECORD -
TV/VCR - - TV/DBS SW
VCR/DBS CHAN

VCR/DBS CHAN

TV MODE CABLE MODE DBS MODE

PREVIOUS CHAN
OR VIDEO MODE

- - DBS PAGE DOWN

- - DBS PAGE UP

CABLE PREVIOUS

CHANNEL

PREVIOUS DBS CHANNEL

8 ?

Mode Operational Key Chart (cont’d)

KEY NAME VCR MODE DVD DVD MODEE

POWER POWER POWER
MUTE TV MUTE TV MUTE
TV/VIDEO TV INPUT SWITCH TV INPUT SWITCH
ACTION - -
CHAN UP - NEXT CHAPTER
CHAN DOWN - PREVIOUS CHAPTER
VOL RIGHT TV VOLUME + TV VOLUME +
VOL LEFT TV VOLUME - TV VOLUME -

RECALL
EXIT - -

GUIDE - -
1 - -
2 - -
3 - -
4 - -
5 - -
6 - -
7 - -
8 - -
9 - -
0 - -
R-TUNE - -
<<REW VCR REWIND SKIP SEARCH <<
PLAY VCR PLAY DVD PLAY

>>FF VCR FF
PAUSE VCR PAUSE DVD PAUSE

STOP VCR STOP DVD STOP
RECORD VCR RECORD -
TV/VCR TV/VCR SWITCH DVD OPEN/CLOSE
VCR/DBS
CHAN

VCR/DBS
CHAN

ONSCREEN VCR

DISPLAY

VCR CHANNEL

DOWN

VCR CHANNEL UP SLOW +

DVD DISPLAY

SKIP SEARCH

FF>>

SLOW -

REMOTE CONTROL OPERATION

9

REMOTE CONTROL OPERATION

Programming The Remote

The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.

Default Modes For Remote Control

Device Operates Default

TV TV (Panasonic Only) Panasonic TV Code
CABLE CABLE (Preset) Panasonic CABLE Code
DBS DBS (Preset) Panasonic DBS Code
VCR VCR (Preset) Panasonic VCR Code
DVD DVD (Preset) Panasonic DVD Code

Determine the manufacturer of the component and look in the table for the code.

Procedure

• Confirm that the external component is plugged and operating.

• Turn the component off.

• Press and together, for at least 5 seconds.

• Press appropriate component button on the Remote Control VCR, DVD, CABLE or DBS.

• Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons).

• Press the Remote Control to test the component. If the procedure was successful, the component will turnon.

ACTION

Helpful Hints: Unsuccessful Code

If the component does not operate with the Remote Control, repeat
the procedure using another code. (Some brands have multiple
codes).
If an incorrect code is entered, or if the procedure takes longer than
30 seconds, the programming will fail.

Programming Without A Code

This procedure searches all codes and is called the “sequence method.”

• Confirm that the external component is plugged in and on.

• Turn the component off.

• Press and together, for at least 5 seconds.

• Press appropriate component button on the Remote Control.

• Press to move forward to the next code. Press to move backward.

• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.

• After the code is found, press to store the code.

ACTION

VOL

Note: Repeat the above steps until the component code is found. It may take many attempts before the correct code

isfound.

ACTION

VOL

10 ?

REMOTE CONTROL OPERATION

Component Codes

The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.

Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.

VCR DVD DBS CABLE

Codes For VCR

Brand

Marca

Marque

Admiral 135
Aiwa 127, 132
Akai 129, 114, 115, 116
Audio Dynamic 139, 111
Bell & Howell 105, 113
Broksonic 120, 126
Canon 123, 125
CCE 143
Citizen 106
Craig 105, 129, 106
Curtis Mathes 145, 124, 127
Daewoo 143, 124, 175
DBX 139, 110, 111
Dimensia 145
Emerson 143, 126, 119, 103, 125, 120
Fisher 105, 108, 109, 107, 113
Funai 120, 126. 127. 134
GE 124, 133, 145
Go Video 137, 151, 163
Goldstar 106
Gradiente 134, 156, 168, 170
Hitachi 100, 123, 127, 145, 168
Instant Replay 123, 124
Jensen 139
JVC 110, 111, 134, 139
Kenwood 106, 110, 111, 134, 139
LG 106

LXI
Magnavox 123, 124, 131

Marantz 110, 111, 139
Marta 106
Memorex 109, 124
MGA 138, 140, 141, 147, 148, 161
Minolta 100, 145
Mitsubishi 138, 140, 141, 147, 148, 161
Multitech 137
NEC 110, 111, 134, 139
Olympic 123, 124
Optimus 106, 121, 128, 135

100, 105, 106, 107, 108, 109,
127

Code

Código

Code

Brand

Marca

Marque

Orion 120, 126
Panasonic 121, 122, 123, 124

Penney
Pentax 100, 111, 145

Philco 120, 123, 124, 126, 127, 143
Philips 123, 124, 131, 173
Pioneer 123

Proscan
Quasar 121, 122, 123, 124
Radio Shack

RCA

Realistic 105, 109, 124, 127, 136, 140
Samsung 102, 104, 133, 137
Sansui 120, 126, 139, 152
Sanyo 105, 109, 113

Scott
Sears 100, 105, 106, 107, 108

Sharp 135, 136, 137
Shintom 117
Signature 2000 127, 135
Singer 117
Sony 128, 129, 130
SV2000 127
Sylvania 123, 124, 127, 131, 178
Symphonic 127, 168, 177
Tashiro 106
Tatung 110, 111, 139
Teac 110, 111, 127, 139
Technics 121, 122, 123, 124
Teknika 124, 127
Toshiba 101, 146, 166
Vector Research 111
Wards 106, 109, 135, 136
Yamaha 105, 110, 111, 139
Zenith 106, 169

100, 105, 110, 111, 124, 139,
145,

100, 101, 102, 123, 124, 131,
133, 145, 146, 174

105, 109, 124, 127, 133, 136,
140

100, 101, 102,123, 124, 131,
133, 145, 146, 170, 172, 174,
176

102, 104, 109, 120, 126, 138,
140, 147, 148

Code

Código

Code

11

REMOTE CONTROL OPERATION

Component Codes (cont’d.)

Codes for Cable Box

Brand Code

ABC 224
Archer 225, 232
Cableview 205, 232
Citizen 205, 222
Curtis 212, 213
Diamond 224, 225, 232
Eagle 229
Eastern 234
GCbrand 205, 232
Gemini 222

General
Instrument/
Jerrold

Hamlin 212, 218, 240, 241, 242, 245
Hitachi 203, 224
Macom 203, 204, 205
Memorex 230
Movietime 205, 232
Oak 202, 237, 239
Panasonic 209, 210, 214
Philips 206, 207, 228, 229, 230
Pioneer 201, 216
Pulsar 205, 232

211, 219, 220, 221, 222, 224,
225, 226, 227

Brand Code

Puser 232
RCA 215
Realistic 232

Regal
Regency 234

Rembrandt 205, 232, 237
Samsung 205
Scientific

Atlanta
Slmark 201, 205
Sprucer 205, 210
Stargate 205, 210
Telecaption 248
Teleview 201, 205
Texscan 244
Tocom 235, 236, 247
Unika 225, 232
Universal 222, 232
Videoway 206
Viewstar 229, 230
Zenith 200, 227
Zenith/.Drake

Satellite

212, 218, 240, 241, 242, 245,
249

211, 212, 213

200

Brand Code

Dish Network
(Echostar) 105

Echostar 105
G. E. 106
Gradiente 114
Hitachi 103, 111, 112
HNS (Hughes) 103

Brand Code

Denon 100
Ferguson 101
JVC 108
Mitsubishi 105
Nordmende 101
Panasonic 100
Philips 103
Pioneer 102
RCA 101

Codes for DBS

Brand Code

Panasonic 104
Philips 101, 102
Primestar 108
RCA 106, 109, 110, 113
Sony 107
Thoshiba 100
Uniden 101, 102

Codes for DVD

Brand Code

Saba 101
Samsung 110
Sharp 108
Sony 104
Thomson 670
Toshiba 103
Yamaha 100
Zenith 107

12 ?

Icon Menu Navigation

Press to display the Icons.

Press to select desired icon.

Press to display selected

ICON MENU NAVIGATION

Icon features.

Press to select feature.

Press

Press repeatedly to exit menus.

to adjust or activate feature.

BRIGHTNESS 32 -- -- -- I -- -- --

NORMAL PICTURE

13

MAIN MENU ICONS

Main Menu Icons

Icon Menus

These charts list all menus under each Icon and which pages to refer to for menus description.

IDIOMA/LANGUE

? MODE - (ENGLISH, FRANÇAIS, ESPAÑOL)

PROG CHAN

? MODE - (TV or CABLE)
? AUTO PROGRAM
? MANUAL PROGRAM

CC (CLOSED CAPTIONED)

? CC MODE

OTHER ADJ.

? AUTO POWER

CLOCK SET

? TIME

SLEEP

? HOW LONG?

TIMER

? DAY
? ON TIME
? OFF TIME
? ENTER CHANNEL

REFER

TO

PAGE

15

15

16

16

REFER

TO

PAGE

17

17

17

AUDIO ADJ.

? MODE (STERO, SAP or MONO)

OTHER ADJ.

? AI SOUND

VIDEO ADJ

? COLOR, TINT, BRIGHTNESS, PICTURE,

SHARPNESS OR NORMAL

REFER

TO

PAGE

18

18

REFER

TO

PAGE

16

CAPTION

? MANUAL CAPTION

14 ?

REFER

TO

PAGE

15

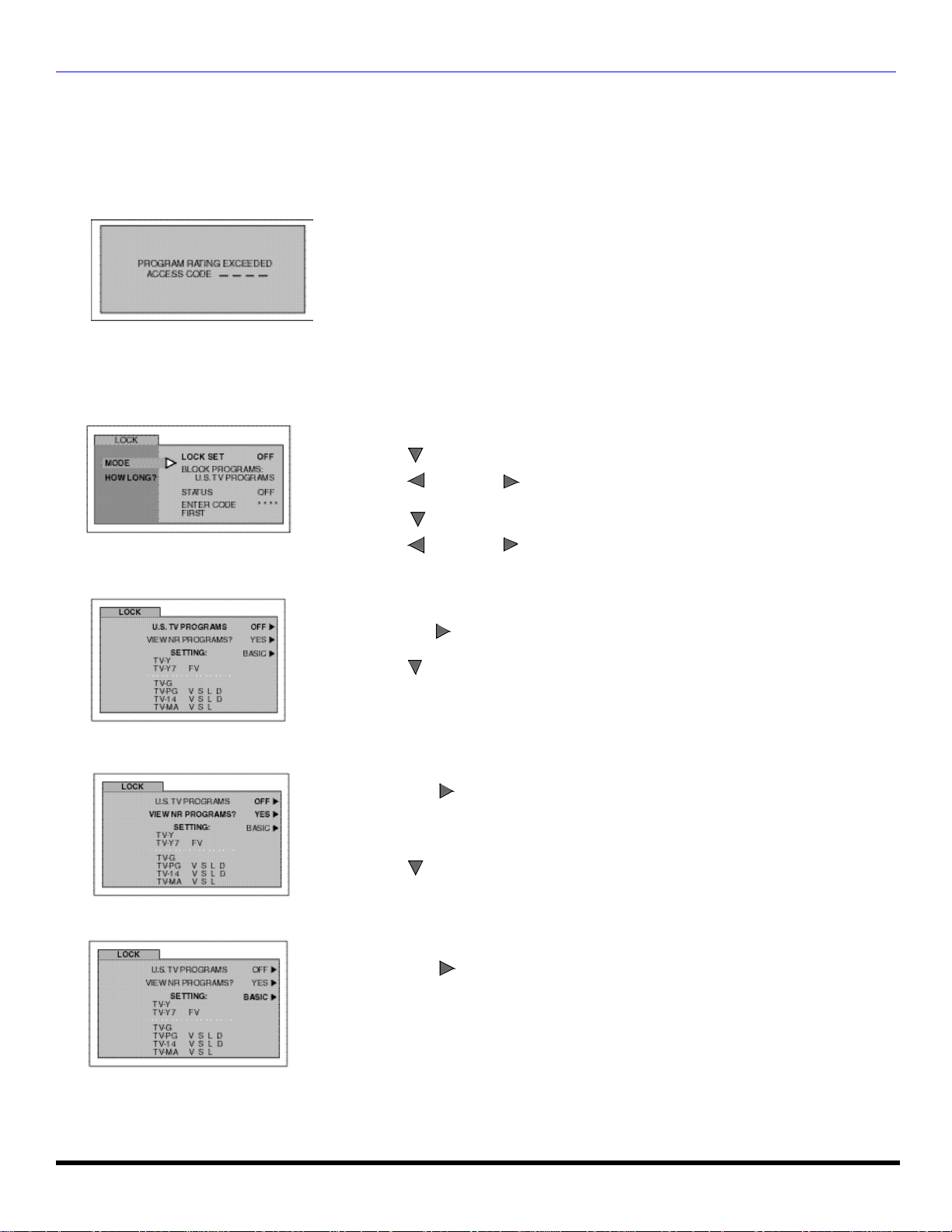

MODE

? LOCK SET - (OFF or GAME)
? BLOCK PROGRAM
? HOW LONG?

V-CHIP OPERATION 19

REFER

TO

PAGE

18

ICON MENU OPERATION

CH

Icon Menu Operation

CHANNELS

Note: Refer to page 13 for Icon Menu Navigation procedures.

Caption

? Manual Caption - To enter numbers and captions manually.

? Use remote numeric keypad to select

desired channel (refer to your local TV
guide).

Press to

VOL

display next menu.

SET UP

Note: Refer to page 13 for Icon Menu Navigation procedures.

IDIOMA/LANGUE (Menu Languages)
In SET UP Menu, select IDIOMA/LANGUE to change menu language to ENGLISH, ESPAÑOL (Spanish) or FRANÇAIS

(French).

Press to select English, Spanish or French.

VOL

? Press to select ENTER CAPTION.

? Press or to select

characters.

VOL

VOL

Prog Chan (Program Channels)

In SET UP menu under PROG CHAN select:

? MODE - To select TV (antenna) or CABLE mode depending on the signal source.

Press to select TV or CABLE.

VOL

? AUTO PROGRAM - To automatically program all channels with a signal.

Press to start AUTO PROGRAM.

VOL

? MANUAL PROGRAM - To manually add or delete channels.

Press

VOL

to display next menu.

Note: Use Remote numeric keypad to enter channel numbers.

15

ICON MENU OPERATION

CC

CC

CH

(Closed Captioning)

This television contains a built-in decoder that displays (Closed Captioned) text across the screen (white or colored
letters on black background). It allows the viewer to read the dialogue of a television program or other information. The
program viewed must include Closed Captioning for the feature to work.

CC

Mode

Activates the onscreen Closed Caption feature by selecting one of the following modes.

? OFF - When Closed Caption is not desired.
? C1 - For video related information to be displayed, up to 4 lines onscreen at a time. (It does not block relevant parts of the picture).

Text may be in any language.

? C2 - For other modes of video related information.

Press to select C1, C2, or OFF.

VOL

Note: C1 mode is recommended for viewing Closed Caption.

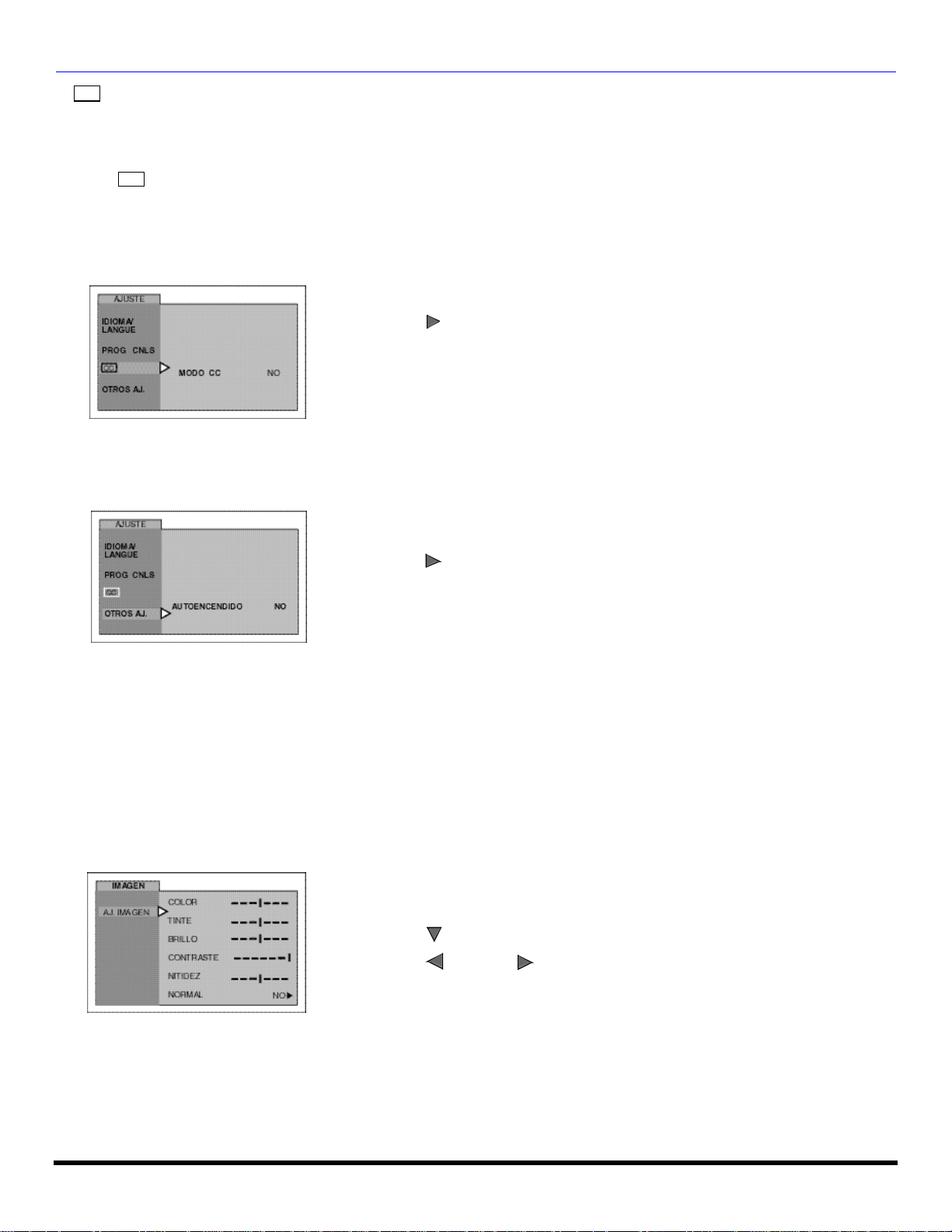

Other Adjustments

In SETUP Menu under OTHER ADJ. select:

? AUTO POWER ON - Select SET to power up the TV at the same time as the Cable box or other components or select OFF.

Press to select OFF or SET.

VOL


Note: Refer to page 13 for Icon Menu Navigation procedures.

Video Adj.

In Picture menu under VIDEO ADJ. select:

? COLOR - Adjusts desired color intensity.
? TINT - Adjusts natural flesh tones.
? BRIGHTNESS - Adjusts dark areas of picture.
? PICTURE - Adjusts white areas of picture.
? SHARPNESS - Adjusts clarity of outline detail.
? NORMAL - Reset all picture adjustments to factory default settings.

? Press to select desired picture adjustment.
? Press or to adjust.

VOL

VOL

16 ?

TIMER

CH

CH

CH

CH

Note: Refer to page 13 for Icon Menu Navigation procedures.

Clock Set

Set the time of the day.

ICON MENU OPERATION

? Press or to select hours AM or PM.

VOL

VOL

? Press to select minutes position.
? Press or to select minutes.

VOL

VOL

Sleep Timer

In TIMER menu, Select SLEEP to turn television off in 30, 60 or 90 minutes. Select NO to turn off timer.

Press to select 30, 60, 90 or NO.

VOL

Timer

In TIMER menu, select timer to turn the television on and off at selected times, on selected channels, and on selected
days.TIME must be entered in CLOCK SET to operate the TIMER features.

? Press to select day or days.
? Press to select ON TIME, then press .

? Repeat for setting OFF TIME.

VOL

VOL

? Press to select ENTER CHANNEL, then press to

VOL

select channel.

? Press to select SET, then press to select YES.

VOL

Turn Off After 90 Minutes

The television automatically turns OFF after
90 minutes when turned ON by the TIMER.
If the OFF time is selected or if a key is
pressed, the automatic OFF after 90
minutes will becancelled.

TIMER Activation

The TIMER is active when the television is
OFF or ON. The television will switch to the
selected channel at the selected time set in
the TIMER.

17

ICON MENU OPERATION

CH

AUDIO

Note: Refer to page 13 for Icon Menu Navigation procedures.

Audio ADJ.

? MODE - Select STEREO, SAP (Second Audio Program) or MONO. (Use MONO when stereo signal is weak).

Press to select STEREO, SAP or MONO.

VOL

Other ADJ.

? AI SOUND - Automatically maintain constant volume between programs and commercials.

Press to select ON or OFF.

VOL

LOCK

Note: Refer to page 13 for Icon Menu Navigation procedures.

Mode
Lock Set

Select LOCK SET to prevent video games and VCR tapes from being viewed.

? Use the remote numeric keypad to enter a four-digit secret code (Use a code that is easy to remember and record it in a safe

place).

Notes:

• If you do not remember your code, LOCK will unlock in 12, 24, or 48 hours, depending on the current setup. Be cautious when
selecting ALWAYS. If ALWAYS is selected, and you forget your secret code, the TV must be serviced by a qualified
technician to clear the LOCK setup.

• If you select CHANGE CODE, and you change your code from the one used in the LOCK menu, your new code becomes the
controlling code.

? OFF - Turns Lock function off.

Press to display LOCK MODE GAME menu.

VOL

? GAME - Lock CH 3, 4 and Video inputs.

? Press twice.

ACTION

18 ?

? Press to highlight HOW LONG?.
? Press to select 12 Hours, 24

VOL

Hours, 48 Hours or ALWAYS.
