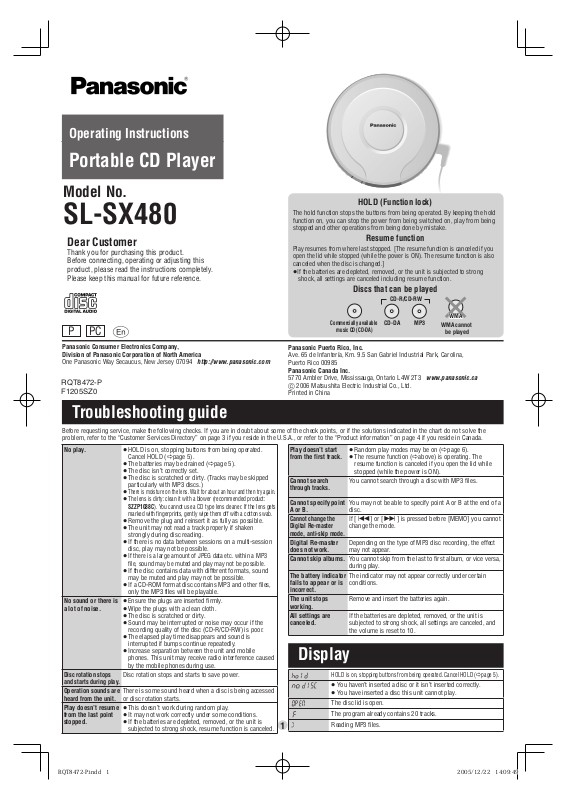

Operating Instructions
WMA
Portable CD Player
Model No.
HOLD (Function lock)
The hold function stops the buttons from being operated. By keeping the hold
SL-SX480
Dear Customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this
product, please read the instructions completely.
Please keep this manual for future reference.
function on, you can stop the power from being switched on, play from being
stopped and other operations from being done by mistake.
Resume function
Play resumes from where last stopped. [The resume function is canceled if you
open the lid while stopped (while the power is ON). The resume function is also
canceled when the disc is changed.]
If the batteries are depleted, removed, or the unit is subjected to strong
shock, all settings are canceled including resume function.
Discs that can be played
CD-R/CD-RW
WMA
WMA
WMA cannot
be played
PCP
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com
RQT8472-P
F1205SZ0
Commercially available
music CD (CD-DA)
Panasonic Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ca
2006 Matsushita Electric Industrial Co., Ltd.
Printed in China
CD-DA
MP3
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart do not solve the
problem, refer to the “Customer Services Directory” on page 3 if you reside in the U.S.A., or refer to the “Product information” on page 4 if you reside in Canada.
No play.
No sound or there is
a lot of noise.
Disc rotation stops
and starts during play.
Operation sounds are
heard from the unit.
Play doesn’t resume
from the last point
stopped.
HOLD is on, stopping buttons from being operated.
Cancel HOLD (Dpage 5).
The batteries may be drained (Dpage 5).
The disc isn’t correctly set.
The disc is scratched or dirty. (Tracks may be skipped
particularly with MP3 discs.)
There is moisture on the lens. Wait for about an hour and then try again.
The lens is dirty: clean it with a blower (recommended product:
SZZP1038C). You cannot use a CD type lens cleaner. If the lens gets
marked with fingerprints, gently wipe them off with a cotton swab.
Remove the plug and reinsert it as fully as possible.
The unit may not read a track properly if shaken
strongly during disc reading.
If there is no data between sessions on a multi-session
disc, play may not be possible.
If there is a large amount of JPEG data etc. within a MP3
file, sound may be muted and play may not be possible.
If the disc contains data with different formats, sound
may be muted and play may not be possible.
If a CD-ROM format disc contains MP3 and other files,
only the MP3 files will be playable.
Ensure the plugs are inserted firmly.
Wipe the plugs with a clean cloth.
The disc is scratched or dirty.
Sound may be interrupted or noise may occur if the
recording quality of the disc (CD-R/CD-RW) is poor.
The elapsed play time disappears and sound is
interrupted if bumps continue repeatedly.
Increase separation between the unit and mobile
phones. This unit may receive radio interference caused
by the mobile phones during use.
Disc rotation stops and starts to save power.
There is some sound heard when a disc is being accessed
or disc rotation starts.
This doesn’t work during random play.
It may not work correctly under some conditions.
If the batteries are depleted, removed, or the unit is
subjected to strong shock, resume function is canceled.
Play doesn’t start
from the first track.
Cannot search
through tracks.
Cannot specify point
A or B.
Cannot change the
Digital Re-master
mode, anti-skip mode.
Digital Re-master
does not work.
Cannot skip albums. You cannot skip from the last to first album, or vice versa,
The battery indicator
fails to appear or is
incorrect.
The unit stops
working.
All settings are
canceled.
Random play modes may be on (Dpage 6).
The resume function (Dabove) is operating. The
resume function is canceled if you open the lid while
stopped (while the power is ON).
You cannot search through a disc with MP3 files.
You may not be able to specify point A or B at the end of a
disc.
If [] or [] is pressed before [MEMO] you cannot
change the mode.
Depending on the type of MP3 disc recording, the effect
may not appear.
during play.
The indicator may not appear correctly under certain
conditions.
Remove and insert the batteries again.
If the batteries are depleted, removed, or the unit is
subjected to strong shock, all settings are canceled, and
the volume is reset to 10.
Display
You haven’t inserted a disc or it isn’t inserted correctly.
11
HOLD is on, stopping buttons from being operated. Cancel HOLD (
You have inserted a disc this unit cannot play.
The disc lid is open.
The program already contains 20 tracks.
Reading MP3 files.
D
page 5).
