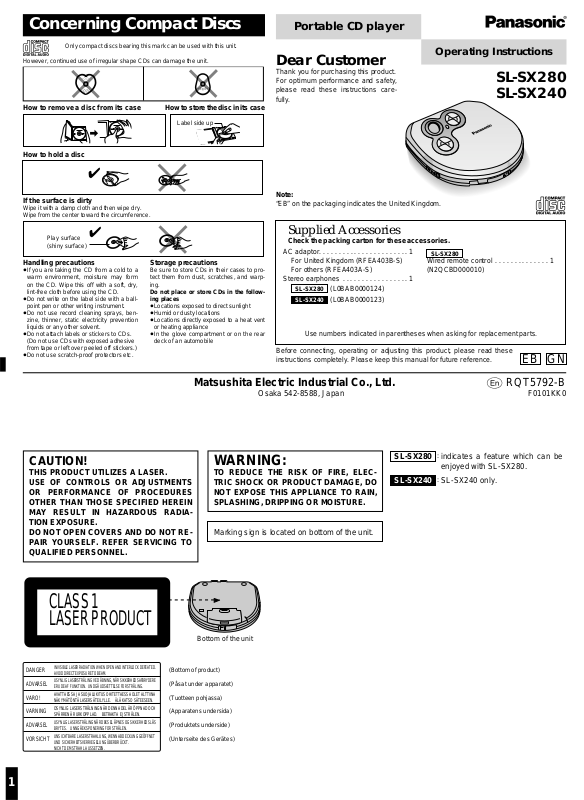

Panasonic SL-SX280, SL-SX240 User Manual

Concerning Compact Discs

CLASS 1 LASER PRODUCT
DANGER
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. AVOID DIRECT EXPOSURE TO BEAM.
ADVARSEL
USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING.
VARO!
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTÖNTÄ LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN.
ADVARSEL
USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG SIKKERHEDSLÅS BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.
VORSICHT
UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET UND SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT. NICHT DEM STRAHL AUSSETZEN.
(Påsat under apparatet) (Tuotteen pohjassa) (Apparatens undersida) (Produktets underside) (Unterseite des Gerätes)
(Bottom of product)
Portable CD player
Only compact discs bearing this mark can be used with this unit.
However, continued use of irregular shape CDs can damage the unit.
How to store the disc in its caseHow to remove a disc from its case
Label side up
How to hold a disc
If the surface is dirty
Wipe it with a damp cloth and then wipe dry. Wipe from the center toward the circumference.
Play surface (shiny surface)
Handling precautions
If you are taking the CD from a cold to a
warm environment, moisture may form on the CD. Wipe this off with a soft, dry, lint-free cloth before using the CD.
Do not write on the label side with a ball-
point pen or other writing instrument.
Do not use record cleaning sprays, ben-
zine, thinner, static electricity prevention liquids or any other solvent.
Do not attach labels or stickers to CDs.
(Do not use CDs with exposed adhesive from tape or left over peeled off stickers.)
Do not use scratch-proof protectors etc.
Storage precautions
Be sure to store CDs in their cases to pro­tect them from dust, scratches, and warp­ing.
Do not place or store CDs in the follow­ing places
Locations exposed to direct sunlightHumid or dusty locationsLocations directly exposed to a heat vent
or heating appliance
In the glove compartment or on the rear
deck of an automobile
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions care­fully.
Note:
“EB” on the packaging indicates the United Kingdom.
Supplied Accessories
Check the packing carton for these accessories.
AC adaptor. . . . . . . . . . . . . . . . . . . . . . . 1
For United Kingdom (RFEA403B-S) For others (RFEA403A-S)
Stereo earphones . . . . . . . . . . . . . . . . . 1
SL-SX280
SL-SX240
Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.
(L0BAB0000124) (L0BAB0000123)
Use numbers indicated in parentheses when asking for replacement parts.
SL-SX280
Wired remote control . . . . . . . . . . . . . . 1
(N2QCBD000010)
SL-SX280 SL-SX240
EB GN
CAUTION!
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIA­TION EXPOSURE. DO NOT OPEN COVERS AND DO NOT RE­PAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
Matsushita Electric Industrial Co., Ltd.
Osaka 542-8588, Japan
WARNING:
TO REDUCE THE RISK OF FIRE, ELEC­TRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPLIANCE TO RAIN, SPLASHING, DRIPPING OR MOISTURE.
Marking sign is located on bottom of the unit.
Bottom of the unit
SL-SX280
SL-SX240
p RQT5792-B
F0101KK0
:
indicates a feature which can be enjoyed with SL-SX280.
:
SL-SX240 only.
1
Using the AC adaptor
Connect the AC adaptor supplied.
Note1
The configuration of the AC adaptor differs according
to the area.
The unit is in the standby condition when the AC
adaptor is connected. The primary circuit is always live as long as the AC adaptor is connected to an electrical outlet.
Turn the unit off before connecting or disconnecting
the AC adaptor.
Using rechargeable batteries (not included)
Obtain the optional rechargeable batteries.
Optional batteries
For United Kingdom: P-3GAVE/2B For others: P-3GAVT/2B
Be sure to recharge the batteries before using them. The unit cannot be used to charge rechargeable batter­ies other than those specifically designed for it.
Recharging procedure
1
Insert the special rechargeable batteries into the unit.
2 Connect the AC adaptor.
(Refer to Using the AC adaptor for connection in­structions.) Recharging starts and the H charging indicator flashes on the units display. When the rechargeable batteries are fully recharged the charging indicator disappears.
3 When recharging is complete, unplug the
AC adaptor from the household mains socket and the DC IN jack.
Note1
Rechargeable batteries have a service life of approxi-
mately 300 charge-discharge cycles. The batteries have reached the end of their operational life if they last for a noticeably shorter time after recharging, or if they cannot be recharged at all. Replace the batteries.
Recharging may only be performed when the unit is
powered off.
The AC adaptor and rechargeable batteries may be-
come warm while recharging is in progress. This is not a malfunction.
Leaving the AC adaptor connected can cause the bat-
teries to go flat. After recharging the batteries and dis­connecting the AC adaptor from the household mains socket, ensure you disconnect the adaptor from the units [DC IN 4.5V K] terminal.
Using the dry cell batteries (not included)
After disconnecting the AC adaptor, insert two LR6 (UM-3) alkaline batteries.
The procedure for inserting and removing dry cell batteries is identical to that for rechargeable bat­teries.
Note!
Turn the unit off before replacing the dry cell batteries.
Battery indicator
This indicator flashes when the batteries are almost out of power. Power is cut off completely a short while later.
Rechargeable batteries: Recharge batteries. Dry cell batteries: Replace batteries with new ones.
Note1
The length of time the unit will continue to operate be-
tween when the battery indicator starts flashing and when the power is cut off differs depending on the type of batteries used.
The battery indicator may not flash if rechargeable
batteries other than those designated by Panasonic are used.
Using the car adaptor (not included)
Be sure to obtain the car adaptor (SH-CDC9), available as an optional accessory. The car adaptor can be used to recharge the units bat­teries while in the car.
2

Power Supply Preparations

Refer to the specifications (page 6) for information on operating times when using rechargeable batteries or dry cell batteries.
Removing batteries
Push up on the battery in the direction indicat­ed by the arrow. Then lift it out.
If the battery lid comes loose
Slide the lid back into place horizontally.
S-XBSTRAINTRAIN
ALL
RANDOM
SORRY
1
M
C
Battery indicator
If the unit malfunctions or freezes during use, disconnect the power sources (the AC adaptor or batteries). Re-connect the power source and continue op­eration.
DC IN jack (DC IN 4.5 V K)
Household mains socket
Back panel of the unit
AC adaptor
1
2
3
+
-

Location of Controls

Portable CD Player A
A Display B Memory/recall button
(MEMORY/RECALL)
C Headphone volume control
buttons (VOL i,j)
D EQ button (EQ) E Mode button (MODE) F Play/pause button (1;) G Skip/search buttons
(:, 96, 5)
H Stop/operation off button
(,OPR OFF)
I Hold switch (HOLD) J Headphone jack (Ë) K CD release button (PUSH) L Open switch (OPEN 1) M Hole for car mounting base N DC IN jack
(DC IN 4.5 V K)
Wired remote control
B
A Skip/search buttons
(:, 9)
B Play/stop/operation off button
(/1)
C Volume control buttons
(j,VOL,i)
D Earphone jack E Clip F Hold switch (HOLD) G EQ button (EQ) H Plug
A
B
K
N
M
IJ
AD
E
F
H
B C
C
G
G
L
H
A
BC
E
F
G
D
SL-SX280
SL-SX280
Never mix dry cell and rechargeable batteries.Turn the unit off before replacing the recharge-
able batteries.
Back panel of the unit
