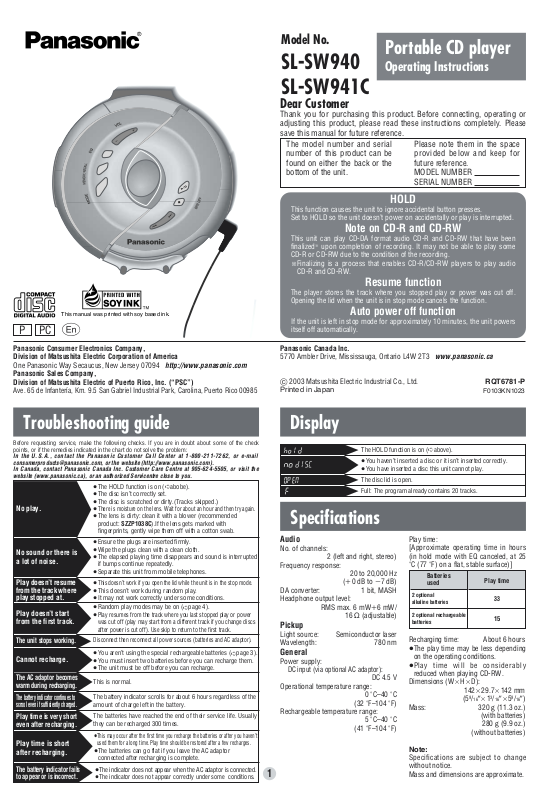

Panasonic SL-SW940, SL-SW941C Operating Instruction

P PC

Before requesting service, make the following checks. If you are in doubt about some of the check
points, or if the remedies indicated in the chart do not solve the problem:

In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail
[e-mail], or the website (http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the
website (www.panasonic.ca), or an authorized Servicentre close to you.

Troubleshooting guide

No sound or there is
a lot of noise.

No play.

≥The HOLD function is on (➪abobe).
≥The disc isn’t correctly set.
≥The disc is scratched or dirty.(Tracks skipped.)
≥

There is moisture on the lens. Wait for about an hour and then try again.

≥The lens is dirty: clean it with a blower (recommended

product: SZZP1038C).If the lens gets marked with
fingerprints, gently wipe them off with a cotton swab.

≥Ensure the plugs are inserted firmly.
≥Wipe the plugs clean with a clean cloth.
≥The elapsed playing time disappears and sound is interrupted

if bumps continue repeatedly.

≥Separate this unit from mobile telephones.

Play doesn’t resume
from the track where
play stopped at.

≥

This doesn’t work if you open the lid while the unit is in the stop mode.

≥This doesn’t work during random play.
≥It may not work correctly under some conditions.

Play doesn’t start
from the first track.

≥Random play modes may be on (➪page 4).
≥

Play resumes from the track where you last stopped play or power
was cut off (play may start from a different track if you change discs
after power is cut off). Use skip to return to the first track.

≥This may occur after the first time you recharge the batteries or after you haven’t

used them for a long time. Play time should be restored after a few recharges.

≥The batteries can go flat if you leave the AC adaptor

connected after recharging is complete.

≥

The indicator does not appear when the AC adaptor is connected.

≥The indicator does not appear correctly under some conditions.

Play time is short
after recharging.

The battery indicator fails
to appear or is incorrect.

Play time is very short
even after recharging.

The batteries have reached the end of their service life. Usually
they can be recharged 300 times.

1

The unit stops working.

Disconnect then reconnect all power sources (batteries and AC adaptor).

This manual was printed with soy based ink.

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ca

C 2003 Matsushita Electric Industrial Co., Ltd.

Printed in Japan

RQT6781-P

F0103KN1023

Display

( The HOLD function is on (

➪

above).

)

≥You haven’t inserted a disc or it isn’t inserted correctly.
≥You have inserted a disc this unit cannot play.

* The disc lid is open.
' Full: The program already contains 20 tracks.

Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com

Panasonic Sales Company,
Division of Matsushita Electric of Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

p

Dear Customer

Thank you for purchasing this product. Before connecting, operating or
adjusting this product, please read these instructions completely. Please
save this manual for future reference.

The model number and serial
number of this product can be
found on either the back or the
bottom of the unit.

Please note them in the space
provided below and keep for
future reference.
MODEL NUMBER

SERIAL NUMBER

Portable CD player

Operating Instructions

Model No.

SL-SW940
SL-SW941C

HOLD

This function causes the unit to ignore accidental button presses.
Set to HOLD so the unit doesn’t power on accidentally or play is interrupted.

Note on CD-R and CD-RW

This unit can play CD-DA format audio CD-R and CD-RW that have been
finalized§upon completion of recording. It may not be able to play some
CD-R or CD-RW due to the condition of the recording.

§Finalizing is a process that enables CD-R/CD-RW players to play audio

CD-R and CD-RW.

Resume function

The player stores the track where you stopped play or power was cut off.
Opening the lid when the unit is in stop mode cancels the function.

Auto power off function

If the unit is left in stop mode for approximately 10 minutes, the unit powers

itself off automatically.

Audio

No. of channels:

2 (left and right, stereo)

Frequency response:

20 to 20,000 Hz

(i0 dB to j7 dB)

DA converter: 1 bit, MASH
Headphone output level:

RMS max. 6 mWi6 mW/

16 ≠ (adjustable)

Pickup

Light source: Semiconductor laser
Wavelength: 780 nm

General

Power supply:

DC input (via optional AC adaptor):

DC 4.5 V

Operational temperature range:

0 eC–40 eC

(32 eF–104 eF)

Rechargeable temperature range:

5 eC–40 eC

(41 eF–104 eF)

Play time:
[Approximate operating time in hours
(in hold mode with EQ canceled, at 25
eC (77 eF) on a flat, stable surface)]

Recharging time: About 6 hours
≥The play time may be less depending

on the operating conditions.

≥Play time will be considerably

reduced when playing CD-RW.

Dimensions (WaHaD):

142a29.7a142 mm

(5

9

/16za13/16za59/16z)

Mass: 320 g (11.3 oz.)

(with batteries)

280 g (9.9 oz.)

(without batteries)

Note:

Specifications are subject to change
without notice.
Mass and dimensions are approximate.

Specifications

This is normal.

≥You aren’t using the special rechargeable batteries (➪page 3).
≥You must insert two batteries before you can recharge them.
≥The unit must be off before you can recharge.

Cannot recharge.

The AC adaptor becomes
warm during recharging.

The battery indicator scrolls for about 6 hours regardless of the
amount of charge left in the battery.

The battery indicator continues to
scrool even if sufficiently charged.

Batteries
used

2 optional
alkaline batteries

2 optional rechargeable
batteries

Play time

33

15

2

IMPORTANT SAFETY INSTRUCTIONS

1. Power source—Connect the unit to a power source of the type described in these

instructions or as marked on the unit.

2. Polarization—The unit is equipped with a polarized power plug where one blade is wider

than the other. This safety feature ensures that the plug fits into your household AC outlet
only one way. If the plug doesn’t fit one way, try reversing it. If the plug still doesn’t fit,
contact an electrician to replace the obsolete outlet. Do not attempt to defeat the safety
purpose of the plug.

3. Power cord protection—Route the AC power supply cord so that it will not be walked on or

pinched by items placed on or against it. Never take hold of the plug or cord with wet
hands. Always grasp the plug body firmly when connecting and disconnecting it.

4. Overloading—When connecting the AC power supply cord, be careful not to overload the

household AC outlet, extension cord, or outlet from any other device as this can result in
fire or electric shock.

5. Nonuse periods—Turn the unit off when it is not in use. Unplug the unit from the

household AC outlet if it is not to be used for a long time. Unplug the unit during lightning
storms. Leaving the unit connected to a household AC outlet for extended periods can
cause battery fluid leakage.

6. Attachments and accessories—Use only the attachments and accessories recommended

in these operating instructions.

∫Placement

1. Foreign material—Ensure objects and liquids do not get into the unit. Avoid exposing the

unit to excessive smoke, dust, mechanical vibration, and shock.

2. Magnetism—

Situate the unit away from equipment and devices that generate strong magnetic fields.

3. Stacking—Do not place anything on top of this unit.

4. Wall and ceiling mounting—Do not mount the unit on walls or ceilings unless specified in

the instructions.

∫Environment

1. Water and moisture—Do not use the unit near water, such as near a bathtub or swimming

pool. Avoid damp basements.

2. Heat—

Situate the unit away from heat sources, such as radiators. Do not leave it in an automobile

exposed to direct sunlight with the doors and windows closed as this may deform the cabinet.

2. Do not situate where temperatures fall below 5 eC (41 eF) or rise above 35 eC (95 eF).

Unplug the unit from the household AC outlet before cleaning.
Clean with a damp cloth.
Do not use abrasive pads, scouring powders, or solvents.

1. Damage requiring service—The unit should be serviced by qualified service personnel if:

1. (a) The AC power supply cord or AC adaptor has been damaged; or

1. (b) Objects or liquids have gotten into the unit; or

1. (c) The unit has been exposed to rain; or

1. (d) The unit does not operate normally or exhibits a marked change in performance; or

1. (e) The unit has been dropped or the cabinet damaged.

2. Servicing—Do not attempt to service the unit beyond that described in these operating

instructions. Refer all other servicing to authorized servicing personnel.

3. Replacement parts—When parts need replacing ensure the servicer uses parts specified

by the manufacturer or parts that have the same characteristics as the original parts.
Unauthorized substitutes may result in fire, electric shock, or other hazards.

4. Safety check—After repairs or service, ask the servicer to perform safety checks to

confirm that the unit is in proper working condition.

Safety

Installation

Maintenance

Service

Read these operating instructions carefully before using the unit. Follow the safety instructions on the
unit and the safety precautions listed below. Keep these operating instructions handy for future reference.

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER
SERVICING TO QUALIFIED PERSONNEL.

Marking sign is located on bottom of the unit.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.

CAUTION:

(SL-SW940)

Use only car adaptor, Model: SH-CDC9
manufactured by Matsushita Electric Industrial Co., Ltd.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and receiver.
≥Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

≥Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the user’s
authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

ONLY FOR U.S.A.

Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic Portable Audio Products Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer
Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the
length of the period indicated on the chart below, which starts with the date of original purchase (“warranty
period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new
or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product or Part Name

All Portable Audio Products except item listed
below

Rechargeable batteries
(in exchange for defective item)

Parts

One (1) Year

Ten (10) Days

Labor

One (1) Year

Not applicable

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there
will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty
excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This warranty only applies
to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the
original purchaser of a new product which was not sold “as is”.

Mail-In Service

For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

Panasonic Services Company
Customer Servicenter
Suite B
4900 George McVay Drive
McAllen, TX 78503

For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax [phone].
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original
carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.

Customer Services Directory

For Product Information, Operating Assistance, Literature Request,
Dealer Locations, and all Customer Service inquiries please contact:
1-800-211-PANA (7262), Monday–Friday 9 am–9 pm;
Saturday–Sunday 9 am–7 pm, EST.
or send e-mail:
[e-mail]
For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Web Site: http://www.panasonic.com
You can purchase parts, accessories or locate your nearest servicenter by visiting
our Web Site.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH
A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF
PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH
PROOF OF PURCHASE.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or
other business or rental use of the product, or service by anyone other than a Factory Servicenter or other
Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes

damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other
memory or recorded content. The items listed are not exclusive, but are for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE
LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal
rights and you may also have other rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to
your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the
warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR
RESPONSIBILITY.

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory

Servicenter:

Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Phone [phone] Fax [phone]

Accessory Purchases:

1-800-332-5368 (Customer Orders Only)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(6 am to 5 pm Monday–Friday; 6 am to 10:30 am Saturday; PST)
(Visa, MasterCard, Discover Card, American Express, Check)

F0402NY1082

DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS

TELEPHONE NUMBER

User memo:
