Panasonic SL-PD7AP, SL-PD7APC, SL-PD9PC User Manual

The photograph shows model SL-PD9.
Compact Disc Changer
Operating Instructions
Model No.
SL-PD9 SL-PD7A
P PC
Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.
Dear customer
Table of Contents
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. ______________________________________________________
These operating instructions are applicable to the SL-PD9 and SL-PD7A models. These operating instructions, however, fundamentally explain the operation of SL-PD9 model.
______________________________________________________
The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.
Before use
MODEL NUMBER!
SERIAL NUMBER
User memo:
DATE OF PURCHASE ______________________________ DEALER NAME ___________________________________ DEALER ADDRESS ________________________________ _________________________________________________ TELEPHONE NUMBER _____________________________
Supplied accessories
Before use
IMPORTANT SAFETY INSTRUCTIONS............................ 3
Connections ...................................................................... 4
Preparing the remote control
SL-PD9 only
..................... 4
Front panel controls ......................................................... 5
Operations

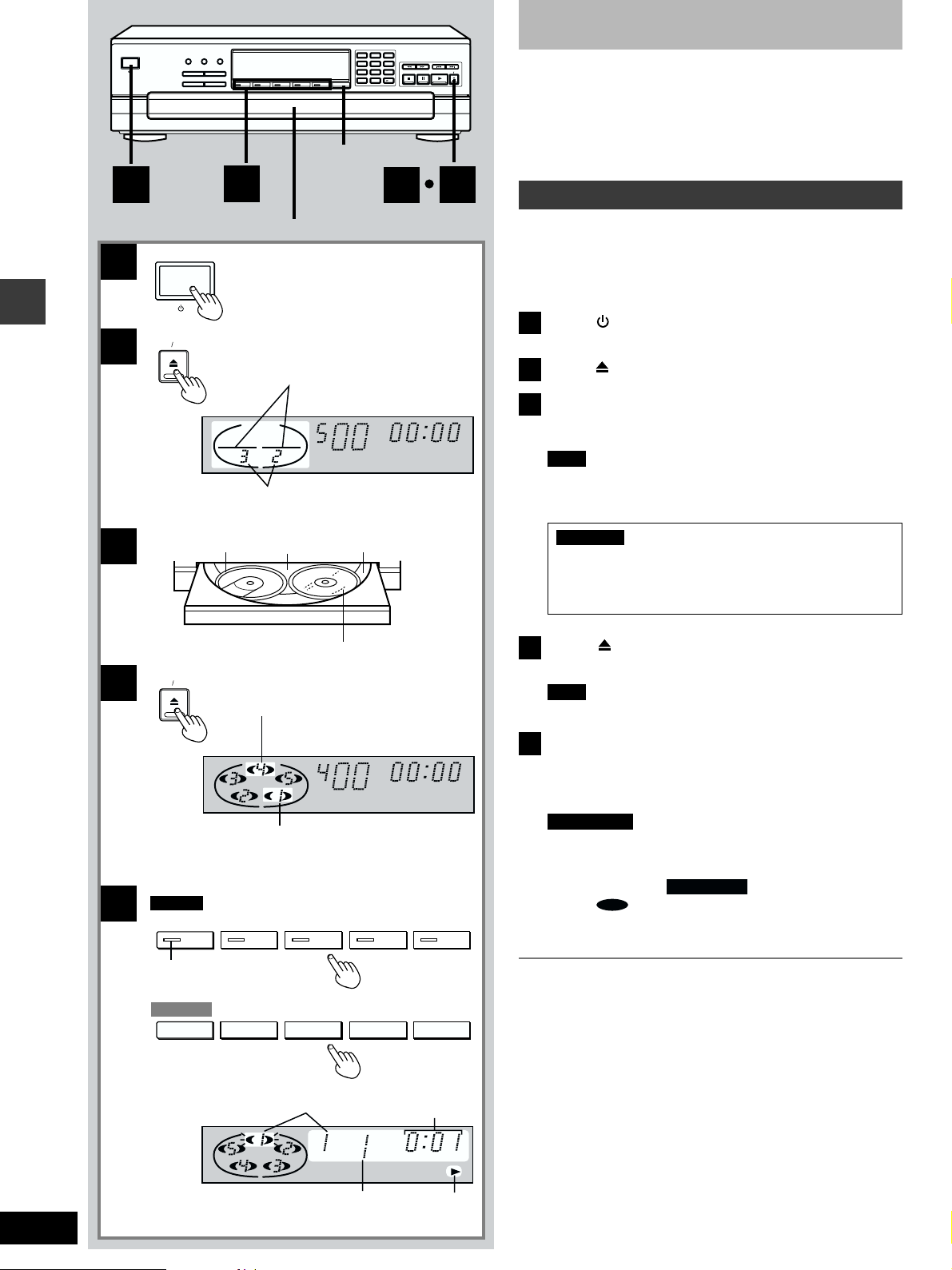

Basic operations ............................................................... 6
Sequential play ............................................................................. 6
To directly access a desired track ................................................ 7
To exchange discs during play ..................................................... 7
Random play...................................................................... 8
One disc random play .................................................................. 8
Full random play ...........................................................................8

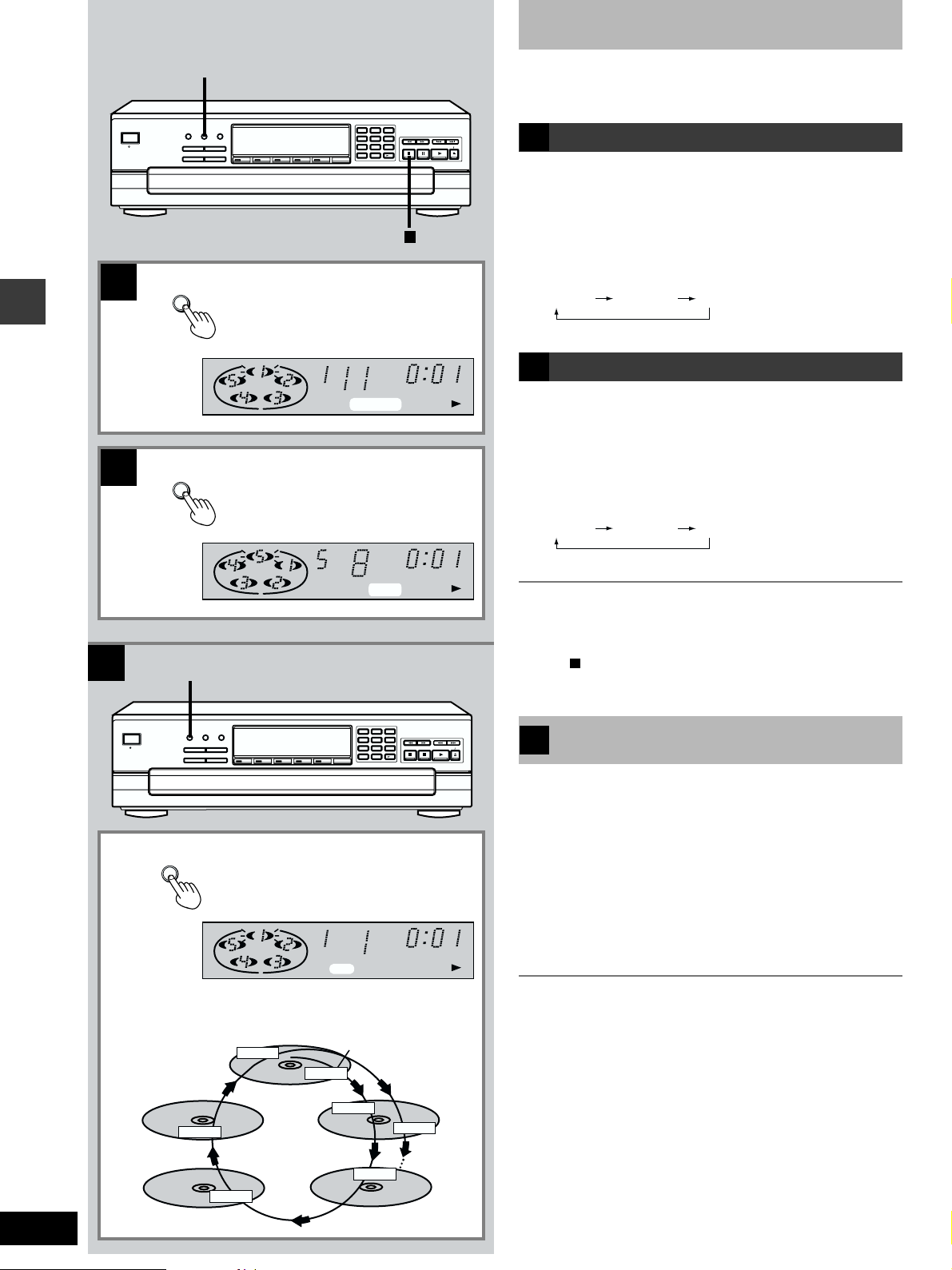

Spiral play ..........................................................................8
Program play ..................................................................... 9
ID scan function .............................................................. 10
Search function ............................................................... 10
Skip function ................................................................... 11
To skip discs............................................................................... 11
To skip tracks ............................................................................. 11
Repeat function ............................................................... 12
Time mode selection....................................................... 12
Edit guide function.......................................................... 13
Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking for replacement parts.
(Only for U.S.A.) To order accessories contact 1-800-332-5368 or web site (http://www.panasonic.com).
AC power supply cord.................................................. 1 pc.
(RJA0065-A)
Note
The included AC power supply cord is for use with this unit only. Do not use it with other equipment.
Stereo connection cable .............................................. 1 pc.
(RJL2P004B08A)
SL-PD9 only
Remote control transmitter .......................................... 1 pc.
(RAK-SL948WK)
Reference
Cautions concerning the moving of this unit ............... 14
Concerning CDs .............................................................. 14
Troubleshooting guide ................................................... 15
Maintenance .................................................................... 15
Product Service ............................................................... 15
Specifications ................................................... Back cover
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock to persons.
2
RQT5763
SL-PD9 only
Remote control batteries............................................ 2 pcs.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the ap­pliance.
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below. Keep these operating instructions handy for future reference.
Safety
1. Power source—Connect the unit to a power source of the type
described in these instructions or as marked on the unit.
2. Polarization—The unit is equipped with a polarized power plug
where one blade is wider than the other. This safety feature ensures that the plug fits into your household AC outlet only one way. If the plug doesn’t fit one way, try reversing it. If the plug still doesn’t fit, contact an electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the plug.
3. Power cord protection—Route the AC power supply cord so
that it will not be walked on or pinched by items placed on or against it. Never take hold of the plug or cord with wet hands. Always grasp the plug body firmly when connecting and disconnecting it.
4. Overloading—When connecting the AC power supply cord, be
careful not to overload the household AC outlet, extension cord, or outlet from any other device as this can result in fire or electric shock.
5. Nonuse periods—Turn the unit off when it is not in use. Unplug
the unit from the household AC outlet if it is not to be used for a long time. Unplug the unit during lightning storms.
6. Attachments and accessories—Use only the attachments and
accessories recommended in these operating instructions.
Installation
Placement
Maintenance
(See page 15 for details.) Unplug the unit from the household AC outlet before cleaning.
Clean with a damp cloth. Do not use abrasive pads, scouring powders, or solvents.
Service
Before use
1. Damage requiring service —The unit should be serviced by
qualified service personnel if: (a) The AC power supply cord or the plug has been damaged; or (b) Objects or liquids have gotten into the unit; or (c) The unit has been exposed to rain; or (d) The unit does not operate normally or exhibits a marked
change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing —Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to authorized servicing personnel.
3. Replacement parts —When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4. Safety check —After repairs or service, ask the servicer to
perform safety checks to confirm that the unit is in proper working condition.
1. Ventilation—Situate the unit so that it receives proper ventilation.
Do not install in a confined space such as a bookcase or cabinet. Allow at least 10 cm (4 inches) clearance from the rear of the unit. To prevent the risk of electric shock or fire due to overheating ensure curtains and other materials do not obstruct the unit’s ventilation.
2. Foreign material—Ensure objects and liquids do not get into
the unit. Avoid exposing the unit to excessive smoke, dust, mechanical vibration, and shock.
3. Magnetism—Situate the unit away from equipment and devices
that generate strong magnetic fields.
4. Stacking—Do not place heavy objects on top of this unit.
5. Surface—Place the unit on a flat, level surface.
6. Carts and stands—Use the unit only with carts
and stands recommended by the manufacturer. Move carts with care. Sudden stops, excessive force, and uneven surfaces can cause carts to overturn.
7. Wall and ceiling mounting—Do not mount the unit on walls or
ceilings unless specified in the instructions.
Environment
1. Water and moisture—Do not use the unit near water, such as
near a bathtub or swimming pool. Avoid damp basements.
2. Heat—Situate the unit away from heat sources, such as radiators.
Do not situate where temperatures fall below 5°C (41°F) or rise above 35°C (95°F).
CAUTION!
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORM­ANCE OF PROCEDURES OTHER THAN THOSE SPECI­FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION:
TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOIS­TURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE AP­PARATUS.
CAUTION!
DO NOT INSTALL, OR PLACE THIS UNIT, IN A BOOK­CASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
3
3
RQT5763
Connections
A
Before use
B
CD or AUX terminals
CD
L R
This unit
AC IN
OPTICAL
CD
LINE OUT
R
Before making connections, be sure that the power of this unit
Amplifier or receiver (not included)
A
and all other system components is turned off.
Stereo connection cable (included) White (L) Red (R)
Conserving power
The unit consumes 1 W even when it is turned off with [ /I, POWER]. To save power when the unit is not to be used for a long time, unplug it from the household AC outlet.
Note
Although the figure shows the AC power supply cord being
OPTICAL
OUT
L
connected to a household AC outlet, if the amplifier (or receiver) is equipped with a AC outlet, connect the cord to that outlet.
Digital connection
B
Remove the dust-protection cap and connect this unit to other
To household AC outlet (AC 120 V, 60 Hz)
digital equipment with an optical fiber terminal, such as a receiver or digital surround processor.
• Leave the cap attached when this terminal is not being used.
For your reference
If you have DTS format CDs, you can enjoy six channel playback by connecting this unit to a receiver or digital surround processor that has a DTS decoder.
Note
Receiver (not included)
Use only the optical fiber terminal when playing back DTS format discs. DTS signals can only be correctly output through the digital terminal. Connection through the stereo LINE OUT terminals will result in noise and could possibly damage your speakers.
• DTS is a trademark of Digital Theater Systems, L.P.
4
RQT5763
Dust-protection cap
C
D
Transmission window
Preparing the remote control
SL-PD9 only
Battery installation
C
Use of batteries
OPTICAL
OUT
Optical-fiber cable (not included)
This unit
• Align the poles (+ and –) properly when inserting the batteries.
• Do not mix old and new batteries, or different types of batteries.
3
• Do not recharge ordinary dry cell batteries.
• Do not heat or disassemble the batteries. Do not allow them to contact flame or water.
• Remove the batteries if the unit is not to be used for a long time.
1
• Do not keep together with metallic objects such as necklaces.
• Do not use rechargeable type batteries.
2
• Do not use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.
R6, AA, UM-3
If electrolyte leaks from the batteries, consult your dealer. Wash thoroughly with water if electrolyte comes in contact with any part of your body.
Correct method of use
Remote control signal sensor
POWER
/
I
REPEATSPIRAL
RANDOM MODE
EDIT GUIDE
ID SCAN
TIME MODE
PROGRAM MODE
DISC 1 DISC 2 DISC 3 DISC 4 DISC 5 DISC SKIP
3
2
6
5
4
9
8
7
0110
10
OPEN CLOSE
D
Operation notes
• Aim the remote control’s transmission window toward the unit’s sensor. Avoid any obstacles.
• Be sure the transmission window and the unit’s sensor are free from dust. Excessive dust might affect performance.
• Do not expose the remote control signal sensor to direct sunlight or to the bright light of a fluorescent light.
To prevent damage
• Never place heavy items on top of the unit.
30˚ 30˚
OPEN/
DISC SKIP
CLOSE
DISC
2
3
1
DISC 1
DISC 2 DISC 3
6
5
DISC 4
DISC 5
4
10
7
89
0
PROGRAM
CLEAR RECALL
ID SCAN
MODE
RANDOM
SPIRAL
REPEAT
MODE
TIME MODE
SEARCH
SKIP
About 7 meters in front of the signal sensor
• Do not disassemble or reconstruct the unit.
• Do not spill water or other liquids into the unit.
Front panel controls
A
Main unit
A
No. Name Ref.page
AA
A Standby/on switch ( /I, POWER)..................... 6
AA
Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.
BB
B Spiral button (SPIRAL) ...................................... 8
BB CC
C Random mode button (RANDOM MODE) ........ 8
CC DD
D Repeat button (REPEAT) ................................ 12
DD
POWER
/
I
ID SCAN
TIME MODE
REPEATSPIRAL
RANDOM MODE
EDIT GUIDE
DISC 1 DISC 2 DISC 3 DISC 4 DISC 5 DISC SKIP
PROGRAM MODE
3
2
6
5
4
9
8
7
0110
10
OPEN CLOSE
EE
E Remote control signal sensor .......................... 4
EE
This changer can be operated by using the remote control pro­vided with a Technics receiver. (This may not be possible with some models.)
FF
F Display
FF GG
G Numeric buttons (1–10, 0, >10) ........................ 7
GG HH
H Search buttons ( , )............................... 10
HH II
I Skip buttons (
II JJ
J ID scan button (ID SCAN) ............................... 10
JJ KK
K Time mode button (TIME MODE).................... 12
KK LL
L Program mode button
LL
, ) .................................. 11
Before use
(PROGRAM MODE)............................................ 9
MM
M Edit guide button (EDIT GUIDE) ..................... 13
MM NN
N Disc buttons (DISC 1–DISC 5) .......................... 6
NN OO
O Disc skip button (DISC SKIP) ..................... 6, 11
OO PP
P Loading drawer .................................................. 6
PP QQ
Q Stop button (
QQ RR
R Pause button ( ) ............................................... 7
RR SS
S Play button ( )................................................. 7
SS TT
T Loading drawer open/close button
TT
)................................................. 7
( OPEN/CLOSE ) .............................................. 6
UU
U Disc trays (1–5) .................................................. 6
UU
B
1
DISC 1
DISC 4
4
7
PROGRAM
MODE
RANDOM
MODE
2
5
CLEAR RECALL
SPIRAL
SEARCH
SKIP
DISC 2 DISC 3
DISC 5
DISC SKIP
3
6
89
TIME MODE
OPEN/ CLOSE
DISC
10
0
ID SCAN
REPEAT
Remote control
B
SL-PD9 only
Buttons 1, 2, 3, 4, 8, 9, 0, o, p, s, u, v, w and x have the same functions as the corresponding buttons on the main unit.
No. Name Ref.page
VV
V Numeric buttons ................................................ 7
VV WW
W Clear button (CLEAR)..................................... 10
WW XX
X Disc button (
XX YY
Y Recall button (RECALL) ................................. 10
YY
DISC
) ............................................ 6
5
5
RQT5763
Loading...
+ 11 hidden pages
