Compact Disc Changer
SL-PD8/SL-PD6
Operating Instructions
r[^6clxixics
'■ ■' T-r.i
. - i; ■;:■■ ■ ' ' ■ i
The photograph shows model SL-PD8 for United Kingdom.
Ofomu. AUDIO
' ''V'.:. i i-.. :
i"‘ -V V
- - V.. .;s 5. •••P: ^ . ■ .• .-s ■ A
Ï-#■#.; Vi-
'.^.v ;
i i-- ¥ ■'■*-
„ 4 . 'V ^ *.VÏÏ^*X. ^ J: ■■ ■'.
* .:■■ f ?■ '*■■■*• ■■■■■ ■ Ti'- "■ ' '■'
, '„ ■ -, ;
.V.^'-'.'i': ‘¡:-
:., v.j
il:.
Note:
the “EB* irKrtcafion showi bo 'the' packing: case ,
indicates United Kingdom. ’
Before connecting, operating ^or ac^usting this
product, please read ttiese instructions compieteiy.
Please save this manual.
- S. V-Î*
RQT4757-B
Page 2
(U
GO
Cautions concerning the moving of this
unit
CAUTION
Before moving the changer to another location, be sure to carry
out the “Preparations for moving the unif described below.
Failure to do so will expose the compact discs and the changer
to the risk of severe damage.
Preparations for moving the unit
All of the discs must be removed so that the trays are
completely empty.
Use the following procedure.
© Press [dJ/l] to switch off the unit.
@ Press [dj/t] to switch on the unit.
(If there is a disc in the play section, it will be returned to the
disc tray at this time.)
(3) Press [AOPEN/CLOSE] to open the loading drawer.
@ Press [DISC SKIP] to rotate the disc trays and remove the
discs from all disc trays.
d) Press [AOPEN/CLOSE] to close the loading drawer.
(D
Press [d>/l] to switch off the unit.
If you have pressed a wrong button by mistake, return to step
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
These operating instructions are applicable to the SL-PD8 and SLPD6 models.
These operating instructions, however, fundamentally explain the
operation of SL-PD8 model.
Table of Contents
Before use
Caution for AC Mains Lead
Suggestions for safety
Connections..................................................................5
Preparing the remote controi 5

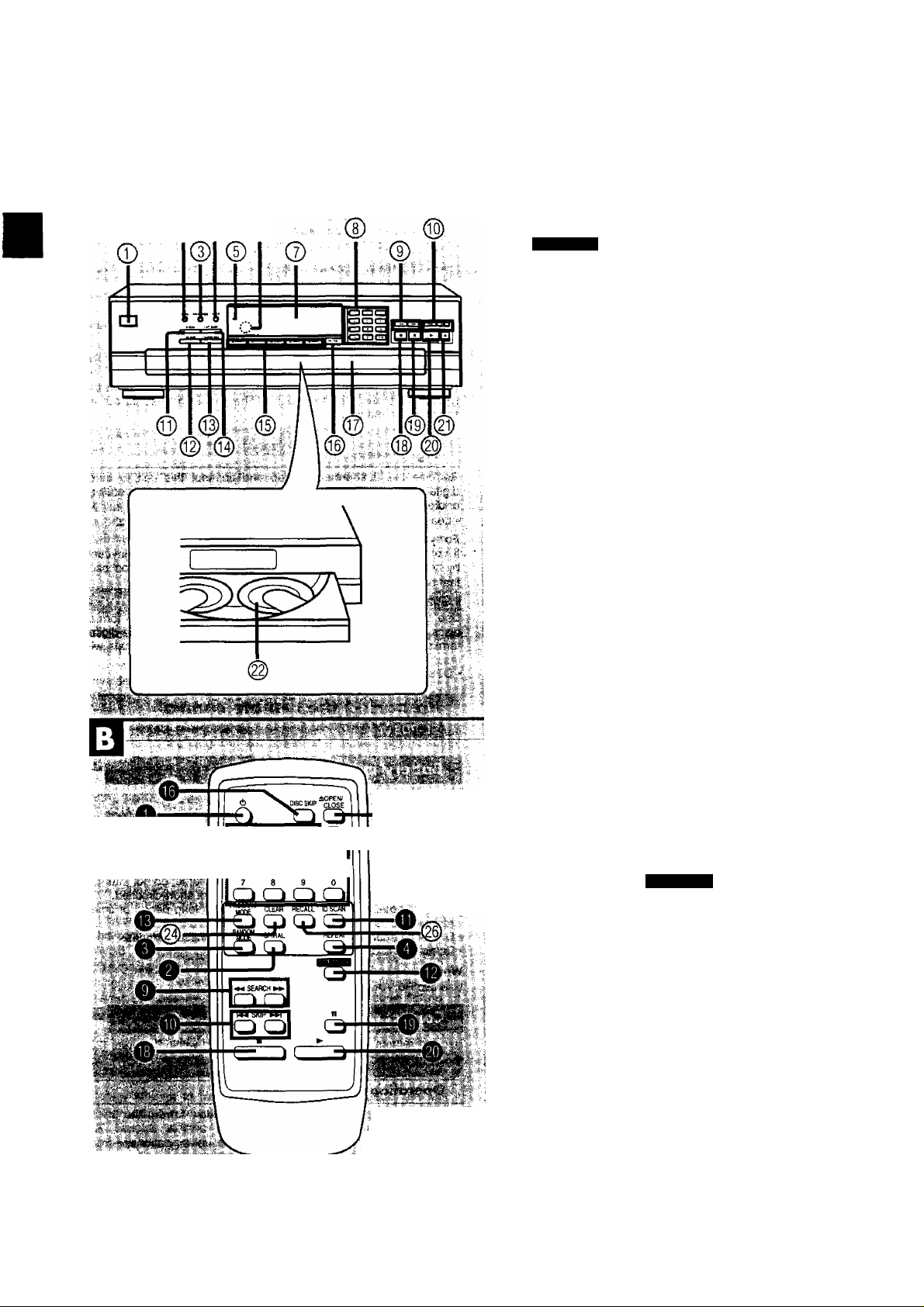

Front panei controls.....................................................6
.........................................
................................................
3
4
Supplied accessories
Please check and identify the supplied
accessories.
Use numbers indicated in parentheses when asking for
replacement parts.
I I AC power supply cord........................................................... 1 pc.
For United Kingdom For Australia and New Zealand
(RJA0053-2X) (RJA0035-X)
I i Stereo connection cable (RJL2P004B08A).......................... 1 pc.
SL-PD8only
□
Remote control transmitter (RAK-SL948WK)
....................
1 pc.

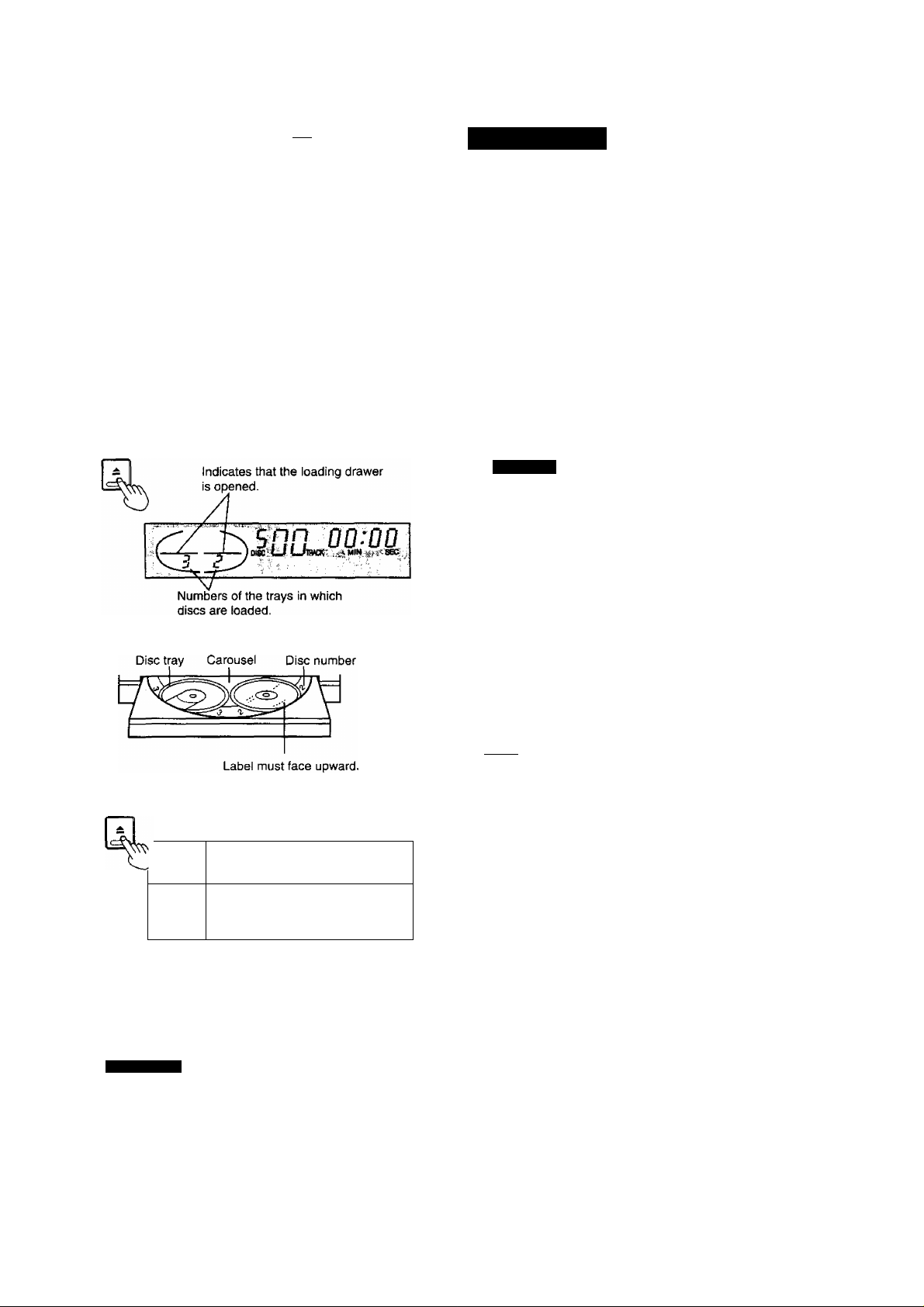

Basic operations...........................................................7
Sequential play.....................................................................................7
To directly access a desired track........................................................8
To exchange discs during play.............................................................8

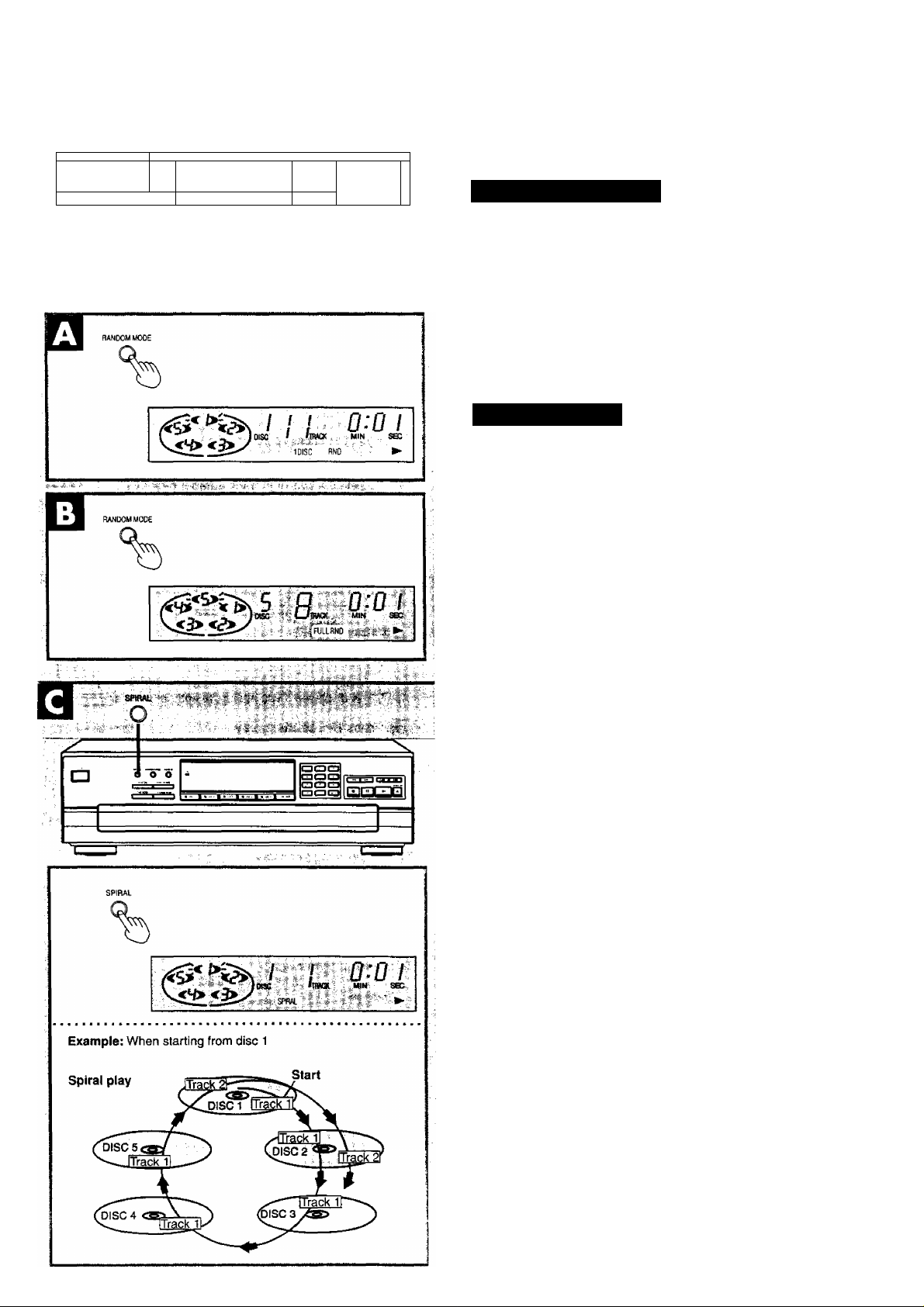

Random play.................................................................9
One disc random play
Full random play...................................................................................9
..........................................................................
Spirai piay......................................................................9

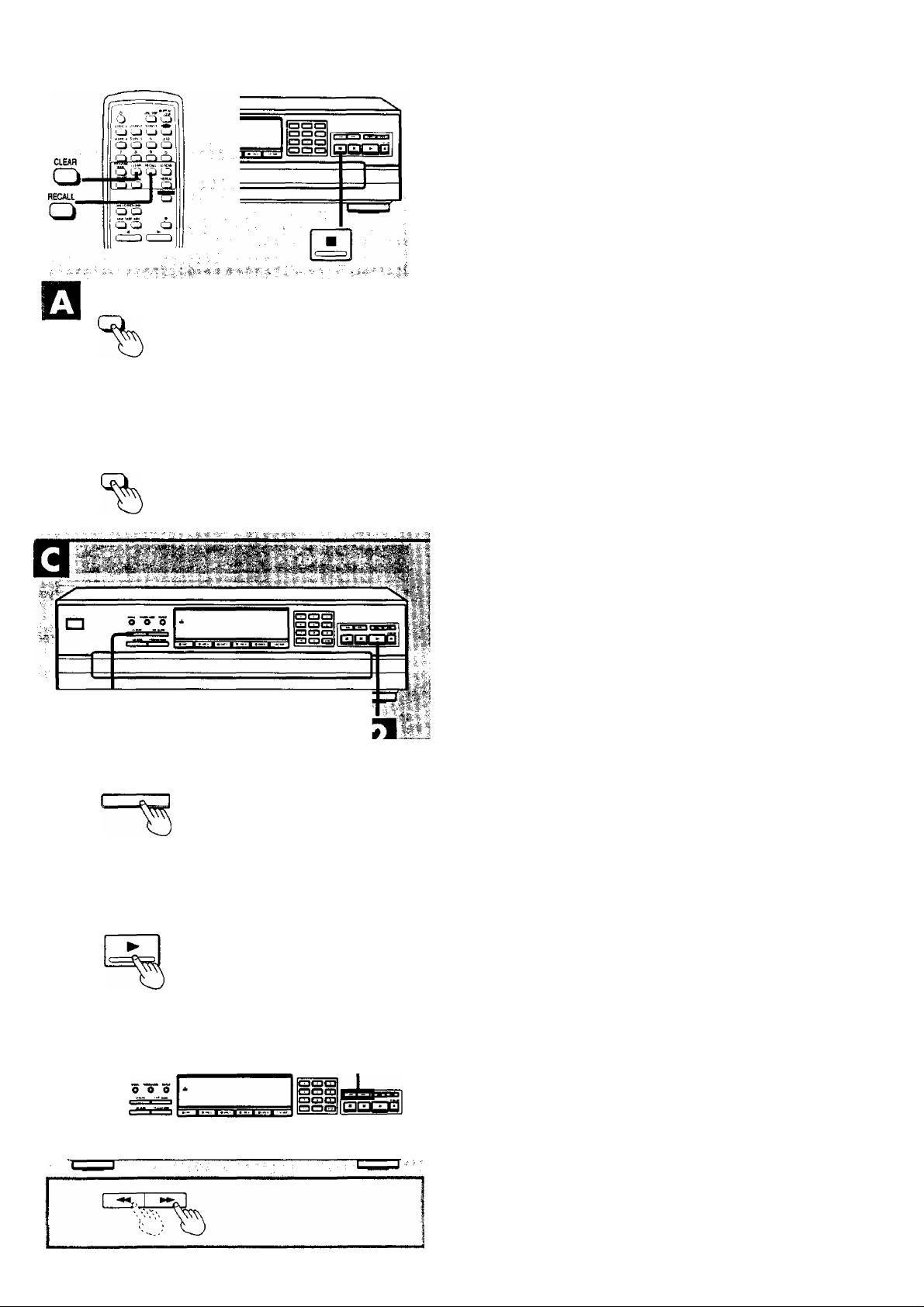

Program play...............................................................10
ID scan function
........................................................
11
Search function..........................................................11
Skip function...............................................................12
To skip discs.......................................................................................12
To skip tracks
.....................................................................................
Repeat function..........................................................13
Time mode selection..................................................13
Edit guide function.....................................................14

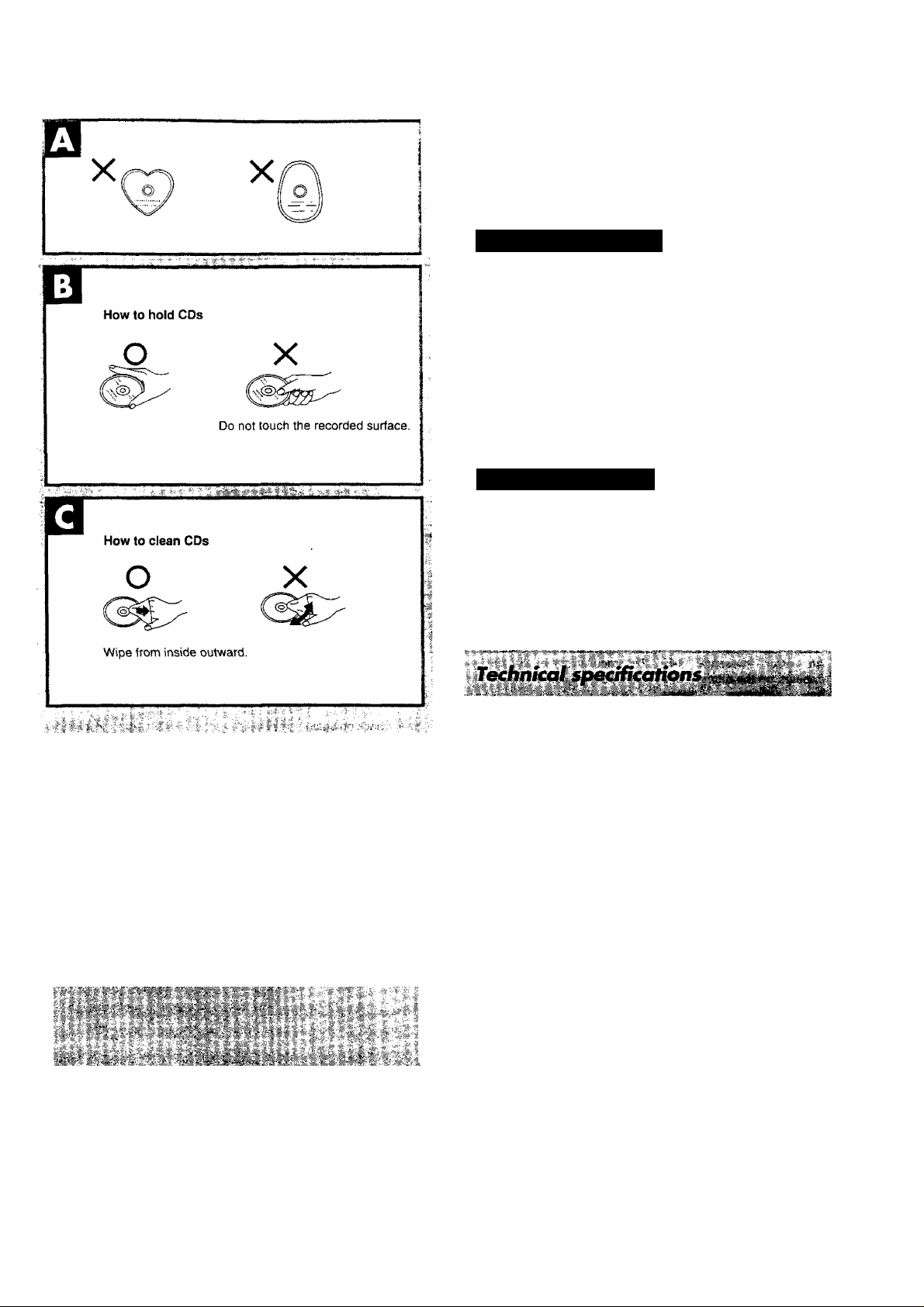

Concerning compact discs
.......................................
15
Technical specifications............................................15
Troubleshooting guide...............................Back cover
9
12
RQT4757
□
SL-PD8 only
Batteries
, 2 pcs.
Page 3
Caution for AC Mains Lead
(For United Kingdom)
(“EB” area code model only)
For your safety, please read the following text careful
ly-
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark ^ on the
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUIT
ABLE FOR THE SOCKET OUTLET IN YOUR
HOME THEN THE FUSE SHOULD BE RE
MOVED AND THE PLUG CUT OFF AND DIS
POSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRI
CAL SHOCK IF THE CUT OFF PLUG IS IN
SERTED INTO ANY 13-AMPERE SOCKET.
WARNING; DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E, BY THE EARTH SYMBOL ^ OR
COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of
AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below,
illustrations may differ from actual AC mains plug.
■
4)
ut
3
£
4)
ca
If a new plug is to be fitted please observe the wiring
code as shown below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accor
dance with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the co
loured markings identifying the terminals in your plug,
proceed as follows;
The wire which is coloured Blue must be connected to
the terminal which is marked with the letter N or col
oured Black or Blue.
The wire which is coloured Brown must be connected
to the terminal which is marked with the letter L or co
loured Brown or Red.
2. Replace the fuse and close or attach the fuse
cover.
RQT4757
Page 4
Suggestions for safety
0)
<n
3
2
Placement
Avoid placing the unit in areas of:
•direct sunlight
• high temperature
•high humidity
• excessive vibration
• uneven surfaces {Place the unit on a fiat level surface.)
Such conditions might damage the cabinet and/or other component
parts and thereby shorten the unit’s service life.
To protect the unit against sound distortion and acoustical effects,
please place the unit at least 15 cm away from wall surfaces etc.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORM
ANCE OF PROCEDURES OTHER THAN THOSE SPECI
FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTION!
0>
m
Stacking
Never place heavy items on top of the unit or the AC power cord.
Voltage
• It is very dangerous to use an AC power source of high voltage
such as for an air conditioner.
A fire might be caused by such a connection.
•A DC power source can not be used.
Be sure to check the power source carefully, especially if on a
ship or other place where DC is used.
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOK
CASE, BUILT IN CABINET OR IN ANOTHER CONFINED
SPACE IN ORDER TO KEEP WELL VENTILATED
CONDITION. ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION
CONDITION TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING.
Power cord protection
•Avoid cuts, scratches or poor connection of the AC power cord, as
this may result in fire or electric shock.
Excessive bending, pulling or slicing of the cord should also be
avoided,
• Do not pull on the cord when you are disconnecting the power, as
this could cause an electric shock. Grasp the plug firmly when you
disconnect the power supply.
• Never touch the plug with wet hands or a serious electric shock
could result.
Foreign materials
• Ensure that no foreign objects, such as needles, coins,
screwdrivers etc., accidentally fall into the unit.
Otherwise, a serious electric shock or malfunction could occur.
• Be extremely careful about spilling water or liquid on/into the unit,
as a fire or electric shock could occur.
(Disconnect the power plug and contact your dealer immediately if
this occurs.)
•Avoid spraying insecticides onto the unit as they contain
flammable gases which can be ignited.
• Insecticides, alcohol, paint thinner and similar chemicals should
never be used to clean the unit as they can cause flaking or
cloudiness to the cabinet finish.
HQT4757
Service
• Never attempt to repair, disassemble or reconstruct the unit if
there seems to be a problem.
A serious electric shock could result if you ignore this
precautionary measure.
• If a problem occurs during operafion {the sound is interrupted,
indicators fail to light up, smoke is detected, etc.) contact your
dealer or Authorized Service Center immediately.
• Disconnect the power supply if the unit will not be used for a long
time. Otherwise the operation life could be shortened.
INVISIBLE USER RADIATION WHEN OPEN.
DANGER
AVOID DIR ECT E XPOSUR E TO BEAM.
USVNIIG lASESSTRiLIN G VED AflNIHG. NAH SIKXEflHEDSAFBflyOEflE
ADVARSEL
Eli ttOEAF FUNCTIO N. UNOGi UOSjETTELSF FOR SIRALIMG
AVAHAESSA JA SUOIA LUKItlS O HITETTAESSA OLET ALTTIINA
VARO!
NAKYMATONTÄ LASERSATEILYLLE. ALÄ KATSO S ATEESEEN.
OSYNllG LASERSTRALNIN G NÄR DENNA DEL ÄH ÖPPNAD OCH
VARNING
SPARREN AR URKOPPLAD. 0ETRAKTAEJ STBALEN.
!JSYNLIGLASf[ISrBAl.lN GNA[tDEKStLAPN£SOGSIKKERHEDSLAS
ADVARSEL
RRYIES JNNGAECSPO NEfilNGFORSIR ALEN
UNSICHTBARE -..AEtRSTRAHLUNf; '.VENN AflOECiUNG G EOrFNEl
VORSICHT
.'ICHTO EySTTAHLAUSSEITEN
(Inside of product)
(Indersiden at apparatet)
(Tuotteen sisällä)
(Apparatens insida)
(Produktets innside)
{Im Inneren des Gerätes)
Page 5
OPTICAL
coQ
--------
□
III
ooo
O©
©
o ooo
o©©
Receiver
(not included)
Connections
Before making connections, be sure that this unit and all other
system components are turned off. Q
White (L)
Red (R)
(For United Kingdom only)
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 3 BEFORE THE FOLLOWING CONNECTIONS.
Although the figure shows the AC power supply cord being
connected to a household AC outlet, if the amplifier (or receiver) is
equipped with a AC outlet, connect the cord to that outlet.
Insertion of connector Q
Even when the connector is perfectly inserted, depending on the
type of inlet used, the front part of the connector may jut out as
shown in the drawing.
However there is no problem using the unit.
Digital connection Q
Remove the dust-protection cap and connect this unit to other
digital equipment with an optical fibre terminal, such as a receiver
or digital surround processor.
* Leave the cap attached when this terminal is not being used.
For your reference
If you have DTS format CDs, you can enjoy six channel playback
by connecting this unit to a receiver or digital surround processor
that has a DTS decoder.
Use only the optical fibre terminal when playing back DTS format
discs. DTS signals can only be correctly output through the digital
terminal. Connection through the stereo LINE OUT terminals will
result in noise and could possibly damage your speakers.
• DTS is a trademark of Digital Theater Systems, L.P.
Stereo connection cable (included)
___________
___________^-OnS^
■
0)
s
o
CQ
Transmission
window
Optical-fibre cable
not included)
R6, AA, UM-3
Remote control signal sensor
About 7 meters in
front of the signal
sensor
This unit
[PtS^ring the rennoie control
SL-PD8 only
Battery installation
Check the {+) and (-) sides.
Use of batteries
• Do not mix old and new batteries, or batteries of different types
(manganese and alkaline, etc.).
• Never subject batteries to excessive heat or flame; do not attempt
to disassemble them; and be sure they are not short-circuited.
• If the remote control is not to be used for a long period of time,
remove the batteries and store them in a cool, dark place.
• Do not attempt to recharge alkaline or manganese batteries.
• Do not use rechargeable type batteries.
When you need to replace these batteries
Use two R6, AA, UM-3 or equivalent batteries.
Correct method of use
Use the remote control within 60 degrees and within 7 meters (23
ft.) facing toward the unit.
Operation notes
Aim the remote control’s transmission window toward the unit’s
sensor. Avoid any obstacles.
Be sure the transmission window and the unit’s sensor are free
from dust. Excessive dust might affect performance.
Do not expose the remote control signal sensor to direct sunlight
or to the bright light of an inverter fluorescent light.
IBI
III
To prevent damage
Never place heavy items on top of the unit.
Do not disassemble or reconstruct the unit.
Do not spill water or other liquids into the unit.
RQT475T
Page 6
Front panel controls
0)
VI
3
£
4)
CQ
I
® © (D
10ISC1 2DISC2 3DISC3
Q Q Q
4DISC4 5CISC9 6
QQQQ
rrwMMi
-iO -
C4 ■
Main unit □
No.
Name Ref.page
® i33ssmsmm
Standby/on switch ((!)/!)
For others
Standby/on switch (©/I, POWER)..........................7
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
d) Spiral button (SPIRAL)
d) Random mode button (RANDOM MODE)
0 Repeat button (REPEAT)
0 Standby indicator (O)
When the unit is connected to the AC mains supply, this indica
tor lights up in standby mode and goes out when the unit is
turned on.
0 Remote control signal sensor..................................5
This changer can be operated by using the remote control pro
vided with a Technics receiver.
(This may not be possible with some models.)
0 Display
0 Numeric buttons (1-10, 0, >10)
0 Search buttons («, »)
® Skip buttons (H-4, ►►f).........................................12
0 ID scan button (ID SCAN)
0 Time mode button (TIME MODE)
0 Program mode button
(PROGRAM MODE)
0 Edit guide button (EDIT GUIDE)
0 Disc buttons (DISC 1-DISC 5)................................. 7
0 Disc skip button (DISC SKIP)
0 Loading drawer
0 Stop button (■)...........................................................8
0 Pause button (u)
® Play button (►)
0 Loading drawer open/close button
(AOPEN/CLOSE).....................................................7
@ Disc trays (1-5)
Remote control SL-PD8 onl
:■ .
Buttons Oi Oi 0< 0> 0> 0< 0’ 0’ 0' 0' 0 0 have
the same functions as the corresponding buttons on the main unit.
.........................................................
.........................................................
.........................................................
............................................
..............
.......
................................
.................................
...........................................
.......................................
...........................
..............................................
.......................
.............................
........................................................
7,12
a m
9
9
13
8
11
11
13
10
14
7
8
8
7
RQT4757
^‘4- •*f''f /f«'" \-’K
-Mrtt -fjiii'W i
No. Name Ref.page
0 Numeric buttons..................
0 Clear button (CLEAR)....
0 Disc button (43^)
® Recall button (RECALL)
.................
.. 8
.. 7
11
11
Page 7
o o o
j
DOCSMP I :
OOC3
0C30
aoo
oao
Basic operations
Sequential play
All of the discs will be played, beginning from track 1 on the
selected disc.
The explanation below is an example of operation in the case
where all five disc trays in the changer are holding CDs,
For United Kingdom
ô/l
toadíng drawer
For others
POWER
Press
The unit wilt switch on,
B Press [^OPEN/CLOSE] to open the loading drawer.
B Load the disc{s) on the disc tray(s).
The discs can be loaded two at a time by pressing [DISC
SKIP] to rotate the carousel.
esa
• Do not load 8 cm and 12 cm discs on the same disc tray.
• Do not use irregular shaped CDs. (See page 15.)
CAUTION
Do not touch the loading drawer and carousel while they
are in motion, and do not attempt to rotate the carouse! by
hand: doing so could result in incorrect operation of the unit
and/or damage to the discs.
Press [^OPEN/CLOSE] again to close the loading drawer.
Do not attempt to close the drawer by hand.
Press the desired disc button ([DISC 1]-[DISC 5]).
Play will begin from the selected disc. If a disc is not on the
selected disc tray, the changer plays the disc at the next num
ber.
■
w
C
.0
•C
§
Current play position (The numeral
illuminates with a red color.)
^^Hnrrmroo
,)m íLJ LJ m x mim sbc
Illuminates when a disc is in the disc tray. If there
is no disc in the disc tray, the indication disappears
when the disc tray comes to the play position.
[ (ÿ oeci II o giscz j| o
SL-PD8 only
Disc indicator
Disc numbeMn play Elapsed play time
discs
/
ifRACK
|| p
06C4
0:0 !
j| o
disc5~[
feflimg
The disc indicator lights when there is a disc in the corre
sponding tray.
For remote control EffljtfFnia
Press and then within 7 seconds or so, press [DISC
1]-[DISC 5] to select the disc you want.
The changer plays all the tracks on all the discs in order and stops
automatically when the last track on the last disc finishes playing.
The first disc will then be at the playing position.
Track number in Play indicator
play
RQT4757
Page 8
Basic operations

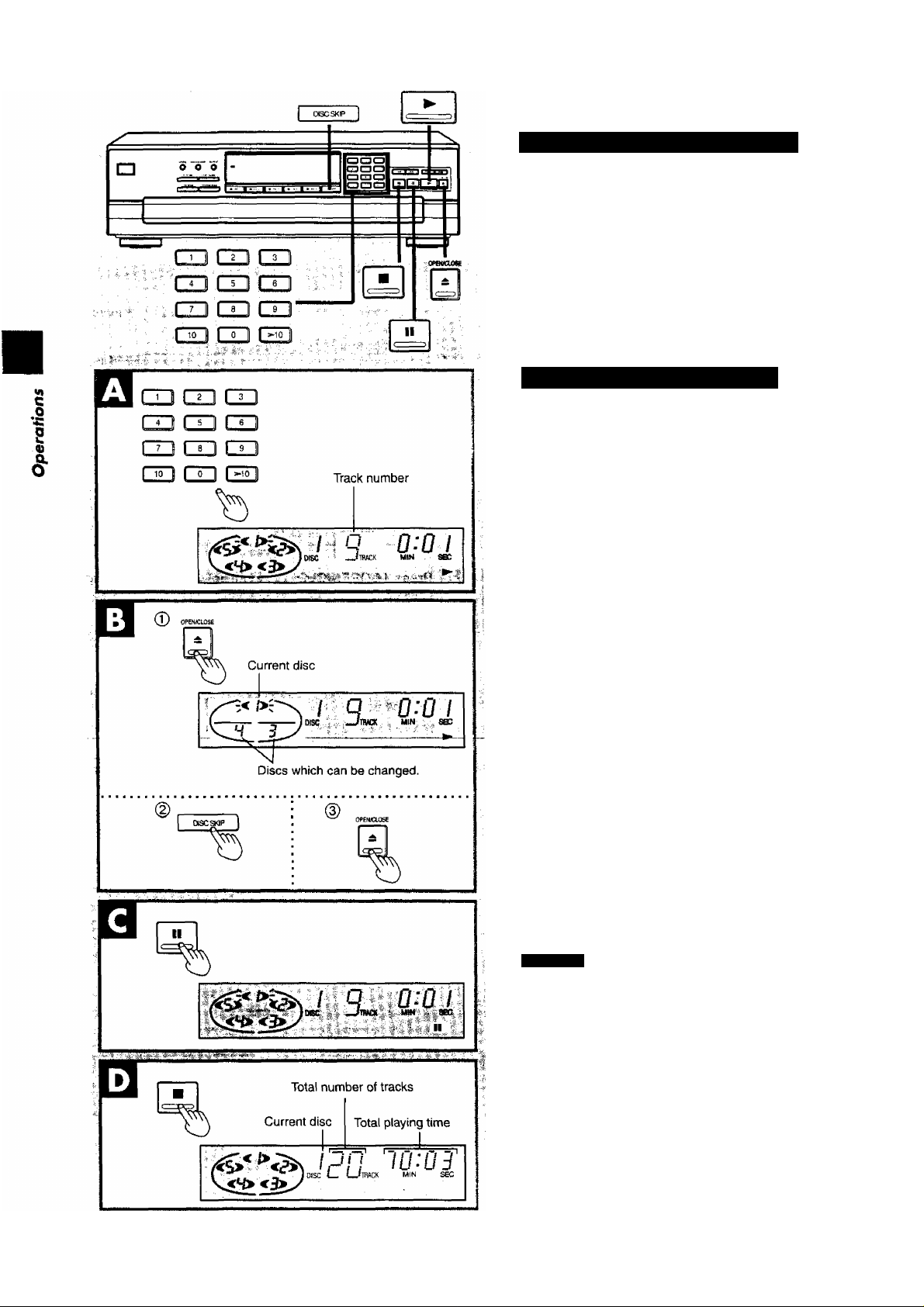

To directly access o desired track
Press the numeric button(s) to select the track.
To select a two-digit track number over 10
(or to select a two-digit track from the remote control for SLPD8)
Press [>10] {[>10] on the remote control tor SL-PD8) and then the
two numbers you want within 7 seconds or so.
For example
Track no. 20: [>10] {[>10] on the remote control for SL-PD8)
(21—[0]
To exchange discs during ploy
While playing a disc, it is possible to change the other discs without
interrupting play.
® Press [AOPEN/CLOSE] to open the loading drawer.
(§) Press [DISC SKIP] to rotate the disc trays and exchange the
discs.
The carousel will move by one disc tray. Pressing again moves
the carousel in the opposite direction by two disc trays.
(g) Press [±OPEN/CLOSE] to close the loading drawer.
IQ
EM
If you play a disc with the loading drawer open, discs other than
the current disc cannot be played.
To temporarily stop play Q
Press [II],
Press [►] to resume play.
To stop play [•]
Press {■],
The display will show the total number of tracks and the total
playing time of the current disc.
RQT4757
The total playing time displayed includes the silent sections
between tracks. For this reason, it may be a few seconds longer
than the playing time indicated on the disc.
Press [►I to re-start play.
CAUTION
Do not move this changer with a compact disc inside the unit. If
a disc comes off the disc tray, it might be scratched or the
changer might become incapable of playing.
{Refer to “Cautions concerning the moving of this unit” on page
2.)
Page 9
Random play
All of the tracks will be played one time each in random order.
There are two types of random play as described below.
" o
□
-
cuaco
izloa
CD Cl 1=1
.;i*v
One disc random play
The changer will play all tracks on the current disc in a random
order. Then it will choose a new disc randomly, excluding the discs
already played, and play all tracks on that disc in a random order.
In the stop or play mode
Press [RANDOM MODE] so that the
cator illuminates.
Every time you press the button;
1 DISC RND-^-FULLRND —{off)
t
______________________
I
Full random play
Each track to be played back is selected randomly from alt of the
tracks on all of the discs, excluding the tracks that have already
been played.
In the stop or play mode
Press [RANDOM MODE] so that the “FULL RND” indica
tor illuminates.
Every time you press the button:
1 DISC RND^FULLRND —(off)
t
______________________
I
‘1 DISC RND ” indi-
110
wi
C
.0
£
§
The changer will stop automatically when all the tracks on ail discs
have been played once.
To cancel random play mode
Press [■].
The “1 DISC {or FULL) RND" indicator will go out.
Spiral play B
The changer plays the first tracks on all the loaded discs in
sequence, followed by the second tracks on all the discs, and so
on.
In the stop or play mode
Press [SPIRAL].
Spiral play will begin with the first track on the disc situated at the
playing position.
The changer will stop automatically when all the tracks on all discs
have been played once.
For your reference
When a disc with fewer tracks finishes playing, that disc will be
skipped and the changer will continue playing the remaining track
on the other discs in spiral sequence.
To cancel spiral play mode
Press [SPIRAL] again.
The “SPIRAL” indicator will go out.
The changer will return to sequential play mode from the current
track on the current disc which is playing.
RQT4757
Page 10
.0
'£
O'
W)
C
I
PROGRiMMODE
2I13B5
/ u '0
asc L-(TfwcK mol

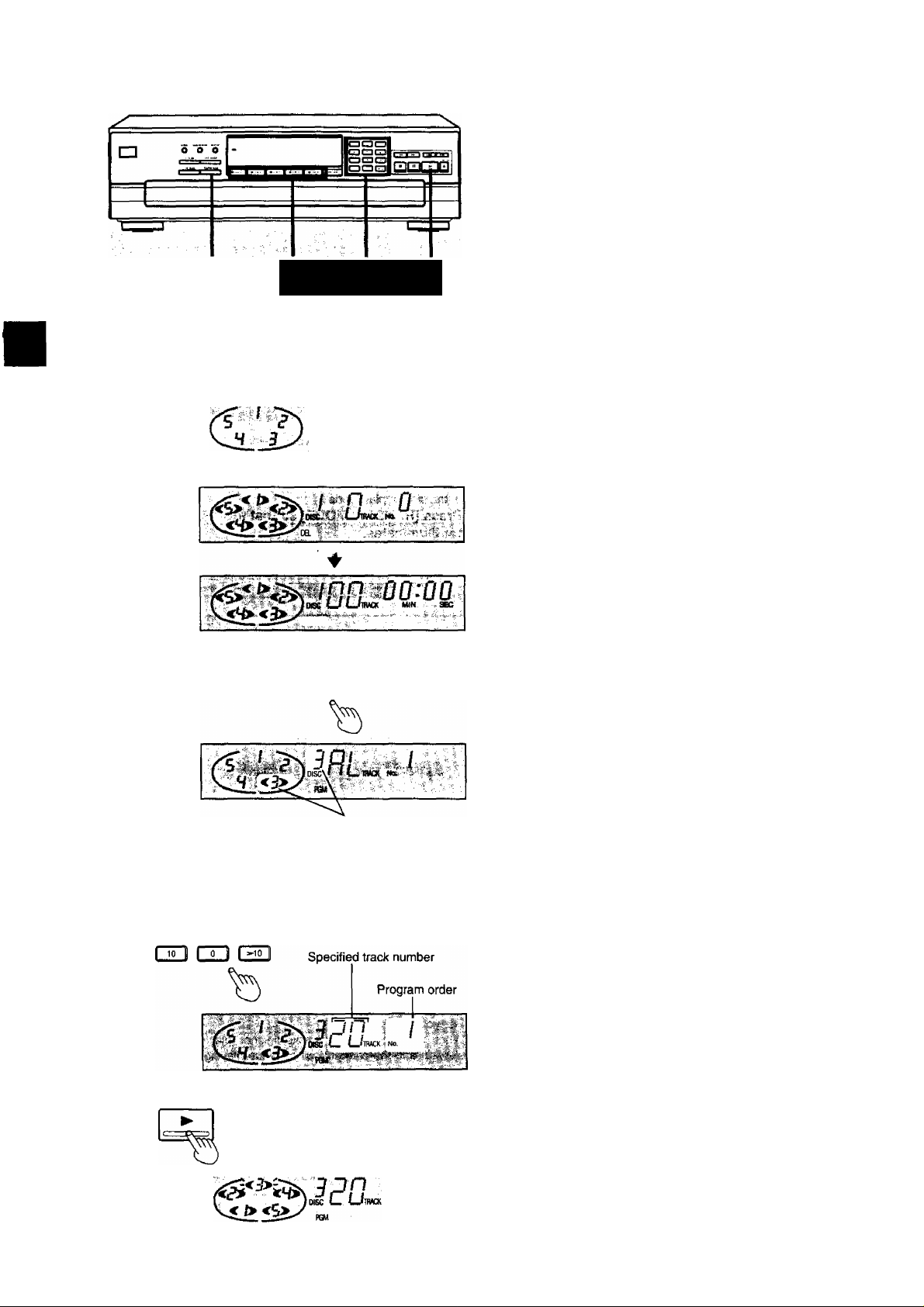

Program piay
This unit has two program play modes; program (PGM) and delete
(DEL).
Program mode allows you to select and piay your favourite tracks in
the order you want to hear them.
Delete mode allows you to program the unit not to play certain
tracks. This mode can be used in combination with sequential and
random play.
Up to 32 tracks can be selected for each mode.
While the unit is stopped
Select the mode with [PROGRAM MODE].
Every time you press the button:
PGM^DEL^(off)
t
_____________
Press [DISC (1 to 5)1 to select the required disc.
“AL” appears on the display to indicate all the tracks on the
disc are selected.
Repeat the above if you want to make selection by disc only.
The number of programmed items increases by one each time
a [DISC] button is pressed.
Press the numeric button(s) to select a track.
B
To select a two-digit track number over 10
(or to select a two-digit track from the remote control for
SL-PD8)
Press [>10] {[slO] on the remote control for SL-PD8) and then
the two numbers you want within 7 seconds or so.
For example
Track no. 20: [>10] ([>10] on the remote control for SL-PD8)
I
I
-(01
[2]'
{ Q DSCT [I O OSCE j| Q D(SC3 |[ Q DBC4 ][ O DISCS |
Specified disc number
□□ CD CD
GDCDCD
CD CD CD
Repeat steps Q and Q to complete the selection.
□
If a non-existing disc or track number is entered, the selection
is initially recorded but erased automatically during playback.
“-P is displayed if you attempt to enter a 33rd item.
Press [►] to start play.
Additional selections can be made during play by repeating
steps B and El.
To use random play and delete mode together
After step 0, make your random play mode selection (see page 9).
To cancel program play
While the unit is stopped
Press [PROGRAM MODE] to select “(off)” mode.
The contents of the program remain in the unit’s memory even after
the unit is turned off.
To use the program again
1. Press [PROGRAM MODE] to select the required mode.
2, Press [►]■
For your reference
The program remains in the memory for up to two weeks even if the
unit is disconnected from its power source.
RQT4757
0:0 I
Page 11
Programmed track
0ISC;í— LJtRO No,
tíFGM ■*■■■"
Programmed
order
Program play
SL-PD8 oniH {Remote control only)
To confirm the selections □
Press [RECALL].
Each time you press the button, the tracks and discs you
programmed appear on the display in the order they were selected.
To cancel selections
While the unit is stopped
Press [■]. The entire program is cancelled.
{Remote control only)
To clear the last item in the program Q
Press [CLEAR].
To clear a specific item
1. Press [RECALL] until the item is displayed.
2. Press [CLEAR].
,0
M»
C
£
P
CLEAR
^ / /
‘UMK MI»
/•• IS
\ilD^scm.fun^ :3
This function is convenient to use when searching for a desired
track.
The function will search from the beginning of the track for a loud
section, and wiii play 10 seconds of the track centering around that
point.
The order of scanning is the same as for play mode.
Press [ID SCAN].
ID scan will start.
U1 When the desired track has been found:
Press [►],
The changer will play the track from the beginning.
To cancel ID scan
Press [ID SCAN],
The "ID" indicator will go out.
The changer will continue to play from the track being played.
Search function íé
You can search rapidly fonward or backward on the disc for specific
sections.
§
■ - ■ -
...-...........'...............
-
.............
■ '-I'-:.^--y^’ ~^:í:-,--
..................•.........
■-.-- '.^:.
In the play or pause mode
Press and hold [<^ or [►►].
[◄^]: You can search backward.
[►►]: You can search forward.
Release the button when you reach the desired point.
The changer will return to the previous mode (play or pause).
In sequential play mode
You can search forward bver discs and backward within the current
disc.
In other play modes
4 í
ij
You can search forward or backward only within the current track.
For your reference
The search function will begin slowly, and then, if the button is held
pressed for longer than 3 seconds, it will change to high-speed
search.
Searching in the play mode will decrease the sound level by 12 dB
(1/4).
RQT4757
Page 12

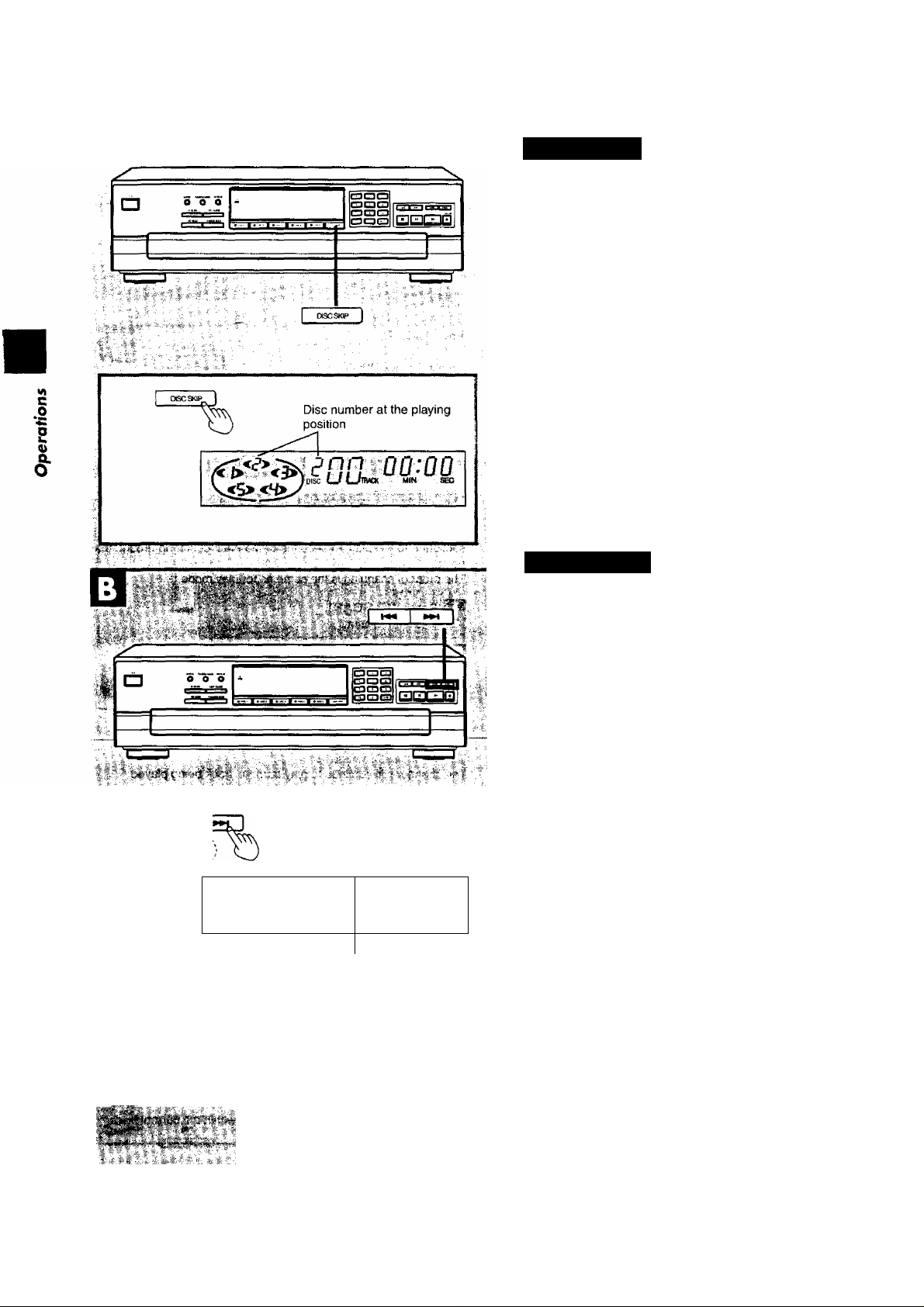

Skip function
IS
To skip discs
Use this function to skip discs when selecting a disc to which you
wish to listen, and when loading and unloading the discs.
You can use this function in stop, sequential play, one disc random
play and delete play modes.
Press [DISC SKIP] to rotate the disc tray.
In stop mode
When the loading drawer is closed, pressing [DISC SKIP] changes
the disc tray to the next one.
When the loading drawer is open, pressing [DISC SKIP] moves the
carousel by two discs trays.
In play mode
When the loading drawer is closed, pressing [DISC SKIP] changes
the disc and the changer plays the track on the next disc.
If a disc is not on the selected disc tray, the changer plays the disc
at the next number.
When the loading drawer is open, pressing [DISC SKIP] moves the
carousel by one disc tray. Pressing again moves the carousel in the
opposite direction so that you can change all discs except the one
being played.
To skip tracks
IQ
1Ш
LiijJ.
1 0-01
JiHACK MiK sa;
Track number at the playing position
V.,.;.,* ■ r у ' /■ -v-fev
Use this function to skip tracks when selecting a track to which you
wish to listen.
Press either or until you reach the desired
track.
You can skip backward.
[►H]: You can skip forward.
In sequential/program/delete play mode
In sequential play mode, you can skip only within the current disc.
In program play mode, you can skip from one track to another in
the programmed sequence.
In delete play mode, you can skip tracks only within the current disc
excluding the tracks to be deleted.
[M^]: You can skip to the beginning of the track being played. If
you press this button again quickly, you can skip to the
beginning of the previous track.
Remember that in a backward skip, the current track is
included in the count.
[►►!]: You can skip as many tracks as the number of times you
press the button.
In random play mode
[H-^]; You can skip to the beginning of the current track,
[►►!]: You can skip to the beginning of a next track in random
order.
In spiral play mode
You can skip to the beginning of the current track.
[►H]: You can skip to the beginning of the track on the next disc.
RQT4757
You can also skip tracks when the changer is in the stop mode
(except during random play and spiral play) or pause mode.
"' '.'f 'fiv'r :a :У'" *''■'"
'там.-к > ■ ' •: -XV ■ ■' .,,', ' vC ■ ;i i’"''
Page 13
Repeat function B
Play will continue endlessly in accordance with the specific play
mode selected.
Before or during play
Press [REPEAT].
In sequential play mode
All tracks of all discs will be played repeatedly.
In program play mode
The changer plays only the programmed selections in the
programmed sequence repeatedly.
In delete play mode
The changer plays the discs and tracks excluding the selections to
be deleted repeatedly.
TIME MODE
® Track number and elapsed play time of the
current track
_T|»CK Mil«,'. “ jaec
(© Total remaining time on the disc
-60: IB
,
.. ... ... ... ... ... ... ... ... ... .
. .. ►
In random play mode
When the changer has played all the tracks on all the loaded discs,
it will select a new random sequence and play continuously. The
sequence differs each time.
In spiral play mode
The changer plays all tracks of all discs repeatedly in the sequence
of spiral play.
To cancel repeat mode
Press [REPEAT] again.
The “C_3" indicator will go out.
time mode selection m
The various time information of the current disc can be displayed.
In the play or pause mode
Press [TIME MODE].
Every time you press the button, the display changes in the order
shown in the diagram.
In all play modes
When track number 21 or greater is playing, display © shows
© is displayed if play is stopped and then started again.
In program/delete/random/spiral mode
The displayed information will alternate between displays © and @
each time the button is pressed.
During operation of the edit guide function
The remaining play time on side A or side B will be shown in
display and the elapsed play time for side A or side B will be
shown in display ©.
C
.0
I
é
@ Track number and remaining time of the
current track
@ Total elapsed play time on the disc
.1:03
SBC-
SBC
►
RQT4757
Page 14

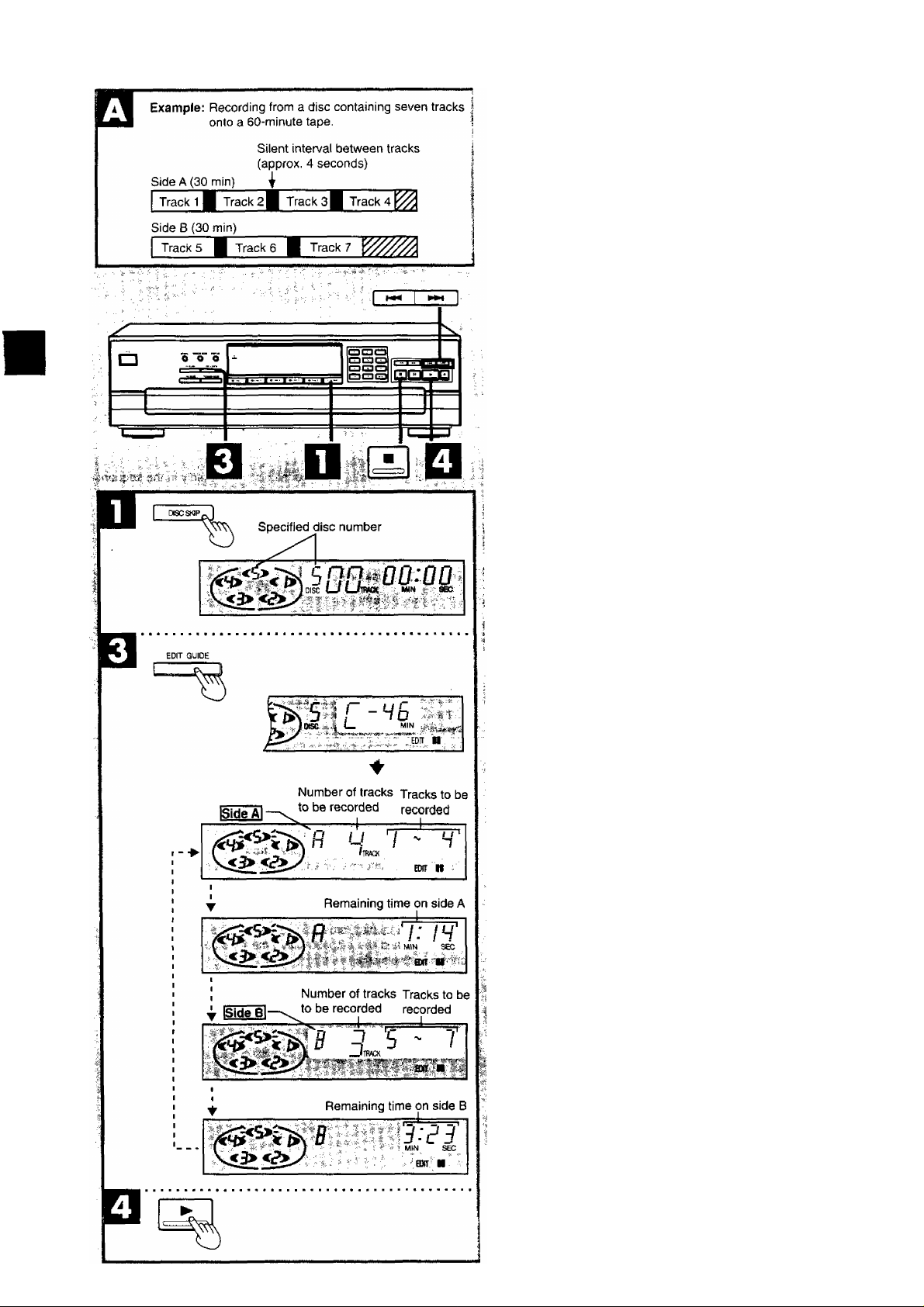

Sdit guide function
When recording, the changer will automatically program the tracks
for tape sides A and B in accordance with the length of the tape so
that none of the tracks will be interrupted before they are
completed.
In addition, the program will also include a silent interval of
approximately 4 seconds between tracks. Q
Press [DISC SKIP] to select the disc to be recorded.
Prepare the tape deck for recording.
Set the Dolby NR, reverse mode, recording level, etc., as in
structed in the Operating Instructions for the tape deck.
Rewind the tape so recording is possible from its beginning.
Press [EDIT GUIDE] to select the tape length.
Each time you press the button, the display showing the tape
c
,o
§
length changes as follows.
C-46 — C-60—C-90 — C—
_______________________
Choose the length of the tape you will use.
More precise time settings are also possible.
(Refer to To enter a desired recording time other than 46, 60
or 90 minutes” below.)
The data of the tracks to be recorded is displayed as shown in
the diagram.
In this example, disc 5 can be recorded with tracks 1-4 on side
A and tracks 5-7 on side B of the cassette tape.
1
Start recording on the tape deck and then immediately:
□
Press [►]•
When the last track set for recording on side A is finished, the
changer will enter the pause mode. Set the tape to the position
from which recording will begin on side B, and then perform
step Q once again.
When all the programmed tracks on the specified disc finish
playing, the changer will automatically stop. The edit guide
mode will be cancelled at the same time.
To enter a desired recording time other than 46, 60 or
90 minutes
1. Select "C—” in step
2. Enter the total recording time in minutes (1-99) using the
numeric buttons.
For example
To use 52-minute tape, press [5] then [2].
You can also specify the tape length by pressing [i^] or [►►<]
buttons.
Press either or [►►<] from each step C-46, C-60, C-90 or C—.
For example
To use 52-minute tape, select C-46 and then press and hold [►►<]
until the display shows “52”.
The maximum allowable playing time for editing is 99 minutes.
0
.
RQT4757
To stop recording
Press [■] and then press the stop button on the tape
deck.
Depending on the disc, a little of the beginning of the next track
may be recorded onto the end of the track.
Page 15
Concerning compact discs
With this changer, you can only play compact discs
having this mark.
However, do not use irregular shaped CDs. CDs of
the sort can damage the unit. □
DtCrTAL AUDIO
Handling precautions
• If you are taking the CD from a cold to a warm environment,
moisture may form on the CD. Wipe this off with a soft, dry, lintfree cloth before using the CD.
• Do not write on the label side with a bail-point pen or other writing
instrument.
• Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
• Do not attach labels or stickers to CDs. {Do not use CDs with
exposed adhesive from tape or left over peeled off stickers.)
• Do not use scratch-proof protectors or covers other than those
specified for use with this system.
m-B
Storage precautions
Be sure to store discs in their cases to protect them from dust,
scratches, and warping.
Do not place or store discs in the following places:
•Locations exposed to direct sunlight
• Humid or dusty locations
•Locations directly exposed to a heat vent or heating appliance
• In the glove compartment or on the rear deck of an automobile
5
C
2
6
V;r’f
5 _ *.* I„ .'*■■ Î ûlAj'V .r* ***-/ A-
..'/‘■V: ., •• '■ * ''!' ■ r'V:ï;/■^,4v^í'w<■•f -p.v.'■>■.'* ( 4^'V/V^'1,'., ■-.
’‘T0^
AUDIO
No. of channels
Frequency response
Output voltage
Dynamic range
S/N
Total harmonic distortion
Wow and flutter
DA converter
Output impedance
Load impedance
2 (left and right, stereo)
0.007% (1 kHz, 0 dB)
Below measurable limit
PICKUP
Wavelength
GENERAL
Power supply
Power consumption
Dimensions (WxHxO)
Weight
Specifications are subject to change without notice.
Weight and dimensions are approximate.
AC 50 Hz, 230-240 V
2-20000 Hz, ±1 dB
2 V (at 0 dB)
92 dB
100 dB
MASH (1 bit)
Approx. 1 kiJ
More than 10 kO,
760 nm
9 W
430x125x374 mm
4,5 kg
RQT4757
Page 16
Troubleshooting guide
Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or
a minor adjustment on your part may eliminate the problem and restore proper operation.
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of
Authorized Service Centers (enclosed with this unit) to locate a convenient service center, or consult your dealer for instructions.
Problem
Changer does not play. A disc(s) or other foreign object(s) has fallen
The disc in the changer
does not play.
Play stops before changing
to the next disc.
A certain music passage
can’t be played correctly.
There is noise from the
tuner or disturbance on the
TV screen.
When program play is
started, an error message (E) appears on the display.
An error message (-E)
appears on the display, and
the changer stops
operating.
The loading drawer stops
in the middle of opening.
II SL-PD8 only
The changer does not
respond correctly to
remote commands.
inside the changer.
Moisture has collected in the changer.
The disc is upside down.
The disc is dirty.
The disc is scratched.
The disc is warped.
The disc is not within specified standards.
The loading drawer is open.
The disc is dirty.
The disc is scratched.
Caused by high-frequency signals from this
changer.
Play was started without a track being
programmed.
The mechanism of the changer has been
improperly adjusted.
The batteries have run out.
There is an obstruction between the remote
control and the changer.
The batteries are inserted incorrectly.
The (+) and (-) polarities are reversed.
Probable cause(s)
Suggested remedy
Reference
page(s)
open the loading drawer, and then remove
the object.
Allow the changer to dry out for about one
hour before using it.
Make sure the label is facing upward.
Wipe the disc with a soft cloth.
Replace the disc with a new one.
Press the [AOPEN/CLOSE] button to close
the loading drawer.
Wipe the disc with a soft cloth. 15
Replace the disc with a new one.
Use the changer further away from the tuner
or TV.
If the tuner or TV’s antenna is the indoor
type, use an outdoor one.
Program a track.
Turn the unit off and then back on again.
However, if the loading drawer is fully open,
take out the compact disc(s) at the front
position and then turn the unit off and then
back on again.
Replace batteries with new ones.
Remove the obstruction.
Re-insert batteries so that the polarities are
correct.
15
10
/
7
5
5
5
Matsushita Electric Industrial Co., Ltd.
Osaka 542-8588, Japan
RQT4757-B
M1298T0(M)
Loading...
