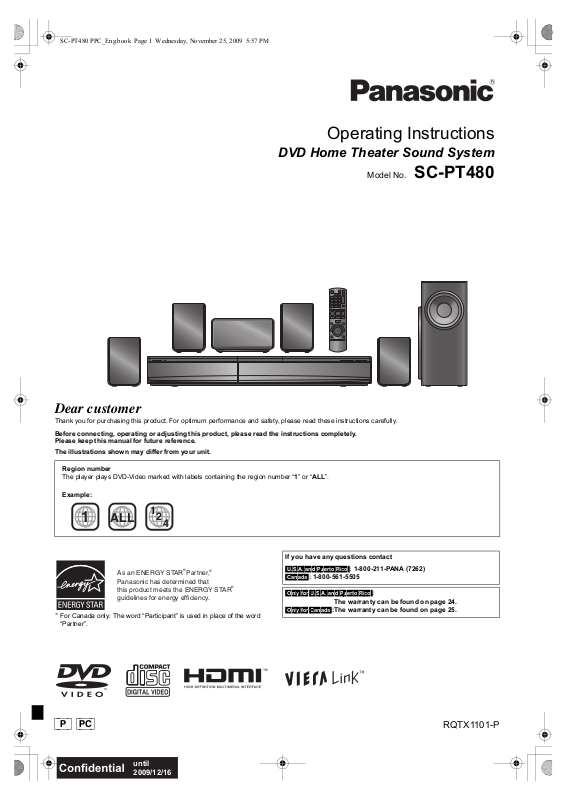

Operating Instructions

DVD Home Theater Sound System

Model No. SC-PT480

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

The illustrations shown may differ from your unit.

Region number The player plays DVD-Video marked with labels containing the region number “1” or “ALL”.

Example:

If you have any questions contact

As an ENERGY STAR Partner, Panasonic has determined that this product meets the ENERGY STAR guidelines for energy efﬁciency.

For Canada only: The word “Participant” is used in place of the word “Partner”.

[U.S.A.]and]Puerto]Rico]: 1-800-211-PANA (7262) [Canada]: 1-800-561-5505

[Only]for[U.S.A.]and]Puerto]Rico]:

The warranty can be found on page 24.

[Only]for[Canada]:The warranty can be found on page 25.

[_P_] [PC]

RQTX1101-P

Page 2

≥ Please note that the actual controls and components, menu

items, etc. of your DVD Home Theater Sound System may look somewhat different from those shown in the illustrations in these Operating Instructions.

≥ Operations in these instructions are described mainly with

the remote control, but you can perform the operations on the main unit if the controls are the same.

Accessories

Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. (Product numbers correct as of November 2009. These may be subject to change.)

Only for U.S.A. and Puerto Rico: To order accessories, refer to “Accessory Purchases (United States and Puerto Rico)” on page 24. For other areas: To order accessories, call the dealer from whom you made your purchase.

∏ 1 Remote control (N2QAYB000514) ∏ 2 Remote control batteries ∏ 1 FM indoor antenna (RSAX0002) ∏ 1 Video cable (K2KA2BA00001)

System SC-PT480 Main unit SA-PT480

Speaker system

Subwoofer SB-HW480

∏ 5 Speaker cables [REEX1152A (red), REEX1153A (white),

REEX1154 (green), REEX1155 (gray), REEX1156 (blue)]

∏ 1 AC power supply cord (K2CB2CB00021) ∏ 1 Sheet of speaker cable stickers

Front speakers SB-HF480 Center speaker SB-HC480 Surround speakers SB-HS480

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, ≥DO NOT EXPOSE THIS APPARATUS TO RAIN,

MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

≥USE ONLY THE RECOMMENDED

ACCESSORIES.

≥DO NOT REMOVE THE COVER (OR BACK);

THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

RQTX1101

SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ﬂash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The socket outlet shall be installed near the equipment and easily accessible. The mains plug of the power supply cord shall remain readily operable. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

≥ Reorient or relocate the receiving antenna. ≥ Increase the separation between the equipment and receiver. ≥ Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

≥ Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party: Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094

Support Contact: Panasonic Consumer Electronics Company Telephone No.: 1-800-211-PANA(7262)

Page 3

RETURN

VOL

STOP

1 2 3 4 5 6 7 809

SLEEP

VOL

INPUT

SKIP

SLOW

SKIP

PLAY

PAUSE

DVD

iPod

EXT-IN

RADIO

MUTE

1010

EXIT

– REPEAT

PLAY MODE

–CH SELECT

SOUND SURROUND W.SRD FL DISPLAY

CANCEL

PLAY LIST













 



 











 

 







SELECTOR

OPEN/CLOSEVOLUME

POWER

 









iPod

Pull open

[Note]

The circled numbers indicated in the operating instructions (e.g. Press [Í]1) correspond to the circled numbers in the above.

RQTX1101

Page 4

Control reference guide

Remote control

1 Turn the main unit on/off (B 8)

Getting StartedPlaying DiscsOther OperationsReference

2 Set the Sleep timer

Press [SLEEP]. SLEEP 30 # SLEEP 60 # SLEEP 90 # SLEEP120

^-------------------------- OFF (Cancel) (------------------------}

≥ To confirm the remaining time, press the button again.

3 Select channels and title numbers etc. / Enter numbers

(B 8, 11)

4 Cancel (B 11 ) 5 Source select

[DVD]: Select disc as the source (B 11 ) [iPod]: Select iPod as the source (B 15) [RADIO, EXT-IN]: Select the FM tuner or the external audio

6 Basic operations for play (B 11 ) 7 Show a disc menu or play list (B 11, 12) 8 Show a disc top menu or program list (B 11, 12) 9 Select or confirm menu items / Frame-by-frame (B 11) : Select the play mode / Set the repeat mode ; Select sound mode / Adjust speaker level (B 10) < Select surround sound effects (B 10) = TV operations

Aim the remote control at the Panasonic TV and press the button. [Í]: Turn the TV on/off [INPUT]: Change the TV’s video input mode [r, VOL, s]: Adjust the TV volume This may not work properly with some models.

> Adjust the volume of the main unit ? Mute the sound

≥ “MUTE” flashes on the main unit’s display while the function is on. ≥ To cancel, press the button again or adjust the volume. ≥ Muting is cancelled when you switch the unit to standby.

@ Select radio stations manually (B 8) A Select preset radio stations (B 8) B Exit the display C Show START menu (B 9) D Show on-screen menu (B 12) E Return to previous screen (B 11 ) F Switch information on the main unit’s display (B 11) G Turn Whisper-mode Surround on/off (B 10)

source. (B 8, 9) FM # AUX # ARC # D-IN

^-----------------------------------------------}

(B 11)

Avoiding interference with other Panasonic equipment

Other Panasonic audio/video equipment may start functioning when you operate the unit using the supplied remote control. You can operate this unit in another mode by setting the remote control operating mode to “REMOTE 2”.

The main unit and remote control must be set to the same mode.

1 Press [RADIO, EXT-IN]5 to select “AUX”. 2 Press and hold [1]: on the main unit and [2] on the remote control

until the main unit’s display shows “REMOTE 2”.

3 Press and hold [OK]9 and [2] on the remote control for at least 2

seconds. To change the mode back to “REMOTE 1”, repeat the steps above by replacing [2] with [1].

Main unit

1 Standby/on switch (POWER Í/I)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

2 Power indicator

The indicator lights when this unit is turned on.

3 Connect iPod (B 15) 4 Adjust the volume of the main unit 5 Open/Close the disc tray (B 11) 6 Display

≥ “SRD” lights when sound is output to the surround speakers.

(B 10)

≥ The display is turned off when the volume is adjusted to “0”. (B 17)

7 Remote control signal sensor 8 Stop playing 9 Select the source

DVD/CD # FM # AUX # ARC # D-IN # IPOD

^-----------------------------------------------------------------------------}

: Play disc

Saving energy

This unit is designed to conserve its power consumption and save energy.

≥ This unit will automatically turn to standby mode after 30 minutes if it

is inactive.

RQTX1101

Page 5

TABLE OF CONTENTS

Getting Started

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Control reference guide. . . . . . . . . . . . . . . . . . . . . . . . . . .4

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . below

Quick Start Guide

step 1 Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

step 2 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Speaker connections. . . . . . . . . . . . . . . . . . . . . .6

Radio antenna connections. . . . . . . . . . . . . . . . .6

Audio and video connections . . . . . . . . . . . . . . .7

step 3 AC power supply cord connection . . . . . . . . 7

step 4 Preparing the remote control . . . . . . . . . . . . 7

step 5 EASY SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Listening to the radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Presetting stations automatically . . . . . . . . . . . . . . . . . . . . . 8

Listening/confirming the preset channels . . . . . . . . . . . . . . .8

Manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the START menu . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Selecting the source by the remote control . . . . . . . . . . . . . 9

Listening to the TV or other device’s audio from this

unit’s speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Enjoying sound effects from all speakers

Enjoying surround sound effects. . . . . . . . . . . . . . . .10

Selecting sound mode. . . . . . . . . . . . . . . . . . . . . . . . .10

Whisper-mode Surround. . . . . . . . . . . . . . . . . . . . . . .10

Adjusting the speaker output level manually . . . . . .10

Adjusting the speaker level during playback . . . . . .10

Playing Discs

Basic play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Other modes of play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Repeat play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Program and Random play . . . . . . . . . . . . . . . . . . . . . . . . 11

Using navigation menus . . . . . . . . . . . . . . . . . . . . . . . . . 12

Playing data discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Playing DVD-R/-RW (DVD-VR) discs . . . . . . . . . . . . . . . . 12

Using on-screen menus . . . . . . . . . . . . . . . . . . . . . . . . . 12

Other Operations

Using the VIERA LinkTM “HDAVI ControlTM” . . . . . . . . . 14

What is VIERA Link “HDAVI Control” . . . . . . . . . . . . . . . . 14

What you can do with “HDAVI Control” . . . . . . . . . . . . . . . 14

Easy control only with VIERA remote control (for

“HDAVI Control 2 or later”) . . . . . . . . . . . . . . . . . . . . . . . . 15

Using the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Reference

Changing the player settings . . . . . . . . . . . . . . . . . . . . . 16

Discs that can be played. . . . . . . . . . . . . . . . . . . . . . . . . 18

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Speaker installation option. . . . . . . . . . . . . . . . . . . . . . . 19

Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Limited Warranty (ONLY FOR U.S.A. AND PUERTO

RICO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Limited Warranty (ONLY FOR CANADA). . . . . . . . . . . . 25

Getting StartedPlaying DiscsOther OperationsReference

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

RQTX1101

Page 6

step 1 Positioning

120°

60°

Front speaker (left)

Front speaker (right)

Surround speaker (right)

Surround speaker (left)

Center speaker

Subwoofer

Main unit

2

1

3

FM ANT

(75 )

Main unit (rear)

FM outdoor antenna [Using a TV antenna (not included)]

The antenna should be installed by a competent technician.

75  coaxial cable

(not included)

Use outdoor antenna if radio reception is poor.

≥ Disconnect the antenna when the unit is not in use. ≥ Do not use the outdoor antenna during an electrical storm.

How you set up your speakers can affect the bass and the sound field. Note the following points:

≥ Place speakers on flat secure bases. ≥ Placing speakers too close to floors, walls, and corners can result in

excessive bass. Cover walls and windows with thick curtains.

≥ For optional wall mount, refer to page 19.

[Note]

Keep your speakers at least 10 mm ( proper ventilation.

Setup example (“Surround layout (Recommended)”: Standard surround placement) Place the front, center, and surround speakers at approximately the same distance from the seating position. The angles in the diagram are approximate.

/32z) away from the system for

step 2 Connections

Turn off all equipment before connection and read the appropriate operating instructions.

Do not connect the AC power supply cord until all other connections are completed.

Speaker connections

Pay attention to the type of speaker and the connector color when you place the speakers.

Main unit (rear) Connect to the terminals of the same color.

Use of the speaker cable stickers is convenient when making cable connections.

Speakers (rear)

Insert the wire fully, taking care not to insert beyond the wire insulation.

i: White j: Blue line

≥ Be careful not to cross (short circuit) or reverse the polarity of the

speaker wires as doing so may damage the speakers.

Radio antenna connections

Using an indoor antenna

§1 Position with at least 5 cm (2q) of space on all sides for proper ventilation.

§2 Put on a rack or shelf. Vibration caused by the speaker can disrupt the picture if it is placed directly on the TV.

§3 Place to the right or left of the TV, on the floor or a sturdy shelf so that it will not cause vibration. Leave about 30 cm (11 TV.

Depending on the room layout, you may like to use all the speakers at the front (“Front layout (Alternative)”) (B 8, Easy setup settings).

Notes on speaker use

≥Use only supplied speakers

Using other speakers can damage the unit, and sound quality will be negatively affected.

≥ You can damage your speakers and shorten their useful life if you play

sound at high levels over extended periods.

≥ Reduce the volume in the following cases to avoid damage:

– When playing distorted sound. – When the speakers are reverberating due to a record player, noise

from FM broadcasts, or continuous signals from an oscillator, test

disc, or electronic instrument. – When adjusting the sound quality. – When turning the unit on or off.

If irregular coloring occurs on your TV

The center speaker is designed to be used close to a TV, but the picture may be affected with some TVs and setup combinations.

If this occurs, turn the TV off for about 30 minutes.

The demagnetizing function of the TV should correct the problem. If it persists, move the speakers further away from the TV.

Caution

≥ The main unit and supplied speakers are to be

used only as indicated in this setup. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire.

RQTX1101

Caution

Do not touch the front netted area of the speakers. Hold by the sides.

Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

≥ Do not attempt to attach these speakers to walls

using methods other than those described in this manual.

/16z) from the

Adhesive tape

FM ANT

(75 )

Main unit (rear)

Using an outdoor antenna

FM indoor antenna

(included) Affix this end of the antenna where reception is best.

Page 7

Audio and video connections

VIDEO OUT

DIGITAL AUDIO

IN OPTICAL

OPTICAL OUT

VIDEO OUT

DIGITAL AUDIO IN OPTICAL

Video cable

(included)

Optical digital audio cable (not included)

Main unit (rear)

CENTERSUBWOOFER FRONT

6 5 2 1 4

R R

SUR

AC IN

Main unit (rear)

AC power supply cord

(included)

To household AC outlet (AC 120 V, 60 Hz)

R6/LR6, AA

Press in and lift up.

Insert so the poles ( and ) match those in the remote control.

Replace the cover.

Basic setup example

To output the TV audio§1, connect the optical digital audio cable,

§2

cable or audio cable.

HDMI When the optical digital audio cable or HDMI

§2

cable is connected,

this unit can decode Dolby Digital audio from the TV.

[Note]

After connecting with the optical digital audio cable or HDMI make settings to suit the type of audio from your digital equipment (B 9).

§1 Refer to the operating instructions of the respective devices for the settings necessary to output the audio.

§2 Only when connecting to a ARC compatible TV. Refer to “Alternative video connection” for details. (B below)

Alternative video connection

[\\\\\HDMI\AV\OUT\\\\\]

This connection provides the best picture quality.

Connect the HDMI cable (not included) from the HDMI AV OUT terminal on the main unit to the HDMI AV IN terminal on your TV.

≥ If your TV is not ARC compatible, make the extra audio connection. ≥ Set “VIDEO PRIORITY” to “ON” (B 17, HDMI menu). ≥ Set “VIDEO FORMAT” in Menu 4 (HDMI) (B 13).

VIERA Link “HDAVI Control”

If your Panasonic TV is VIERA Link compatible, you can operate your TV synchronizing with home theater operations or vice versa (B 14, Using the VIERA Link

“HDAVI ControlTM”).

ARC (Audio Return Channel)

If the TV is ARC compatible, audio from the TV can be sent to this unit via the HDMI cable without the need to make an extra audio connection. ≥ Refer to the operating instructions of the TV for details.

[Note]

≥

Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover)

≥ Non-HDMI-compliant cables cannot be utilized. ≥ It is recommended that you use Panasonic’s HDMI cable.

Recommended part number: RP-CDHS15 (1.5 m/4.9 ft), RP-CDHS30 (3.0 m/9.8 ft), RP-CDHS50 (5.0 m/16.4 ft), etc.

Do not make the video connections through the VCR.

Due to copy guard protection, the picture may not be displayed properly.

Alternative audio connection

[\\\\\\\\\\\AUX\\\\\\\\\\]

Use this connection when the TV does not have an OPTICAL OUT terminal or when the DIGITAL AUDIO IN OPTICAL terminal on this unit is being used by the STB.

Connect the audio cable (not included) from the AUX terminal on the main unit to the AUDIO OUT terminal on your TV.

Set Top Box (cable/satellite/Blu-ray Disc Player, etc) connection

Use this connection when you want to output the original surround audio from your STB, etc. to this unit.

Connect the optical digital audio cable (not included) from the DIGITAL AUDIO IN OPTICAL terminal on the main unit to the OPTICAL OUT terminal on your STB.

≥ If the DIGITAL AUDIO IN OPTICAL terminal is already in use for the

TV audio, reconnect the TV audio to the AUX terminal using an audio cable.

§2

cable,

[Note]

If you have various sound sources (such as Blu-ray player, DVD recorder, VCR, etc.), connect them to the available inputs on the TV and the TV output should then be connected to the AUX, HDMI AV OUT DIGITAL AUDIO IN OPTICAL terminal of the main unit.

§2

step 3 AC power supply cord connection

Conserving power

The main unit consumes a small amount of power, even when it is in standby mode (approx. 0.2 W). To save power when the unit is not to be used for a long time, unplug it from the household AC outlet. You will need to reset some memory items after plugging in the main unit.

[Note]

The included AC power supply cord is for use with the main unit only. Do not use it with other equipment. Also, do not use cords for other equipment with the main unit.

step 4 Preparing the remote control

Batteries

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

≥ Use alkaline or manganese batteries. ≥ Do not heat or expose to flame. ≥ Do not leave the battery(ies) in an automobile exposed to direct

sunlight for a long period of time with doors and windows closed.

Do not:

≥ mix old and new batteries. ≥ use different types of batteries at the same time. ≥ take apart or short circuit. ≥ attempt to recharge alkaline or manganese batteries. ≥ use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can severely damage the remote control.

Remove the batteries if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

Use

Aim at the remote control signal sensor (B 4), avoiding obstacles. Distance: Within approx. 7 m (23 ft)

Angle: Within approx. 20° up and down, approx. 30° to the left and right

Getting Started

Quick Start Guide

RQTX1101

Page 8

step 5 EASY SETUP

SET

MAIN

DISC VIDEO AUDIO DISPLAY HDMI OTHERS

RETURN

The Easy setup screen assists you in making necessary settings.

Preparation

Turn on your TV and select the appropriate video input mode (e.g. VIDEO 1, AV 1, HDMI, etc.) to suit the connection to this unit. ≥ To change your TV’s video input mode, refer to its operating

instructions.

≥ This remote control can perform some basic TV operations (B 4).

Press [Í]1 to turn on the unit.

≥ When the Easy setup screen appears automatically, skip steps

2 to 7.

Press [DVD]5 to select “DVD/CD”.

Press [START]C to show the START menu.

Press [3, 4]9 to select “Setup” and press [OK]9.

Listening to the radio

Presetting stations automatically

Up to 30 stations can be set.

Press [RADIO, EXT-IN]5 to select “FM”.

Press [MENU]7.

Each time you press the button: LOWEST (factory preset): To begin auto preset with the lowest frequency.

CURRENT:

To begin auto preset with the current frequency.

To change the frequency, refer to “Manual tuning” (B below).

Press and hold [OK]9.

Release the button when “FM AUTO” is displayed. The tuner starts to preset all the stations it can receive into the

channels in ascending order.

≥ “SET OK” is displayed when the stations are set, and the radio tunes

to the last preset station.

≥ “ERROR” is displayed when automatic presetting is unsuccessful.

Preset the stations manually (B below).

Listening/confirming the preset channels

Press [3, 4]9 to select “OTHERS” and press

[OK]9. Press [3, 4]9 to select “EASY SETUP” and press

[OK]9. Press [OK]9 to select “SET”.

Press [3, 4]9 to select “Yes” and press [OK]9.

Follow the messages and make the settings with

[3, 4, 2, 1]9 and [OK]9.

(B below, Easy setup settings)

Press [OK]9 to finish Easy setup.

Easy setup settings

≥Language

Select the language used on menu screen.

≥TV aspect

Select the aspect to suit your TV.

≥Speaker layout

Select “Surround layout (Recommended)” mode or “Front layout (Alternative)” mode according to your speaker layout (B 6, Positioning).

≥Speaker check

Listen to speaker output to confirm speaker connections.

≥Speaker output

Make surround sound setting for speaker output.

≥TV audio

Select the audio input connection from your TV. For AUX connection (B 7): Select “AUX”. For HDMI connection (B 7): Select “ARC”. For DIGITAL AUDIO IN OPTICAL connection (B 7): Select “DIGITAL IN”. This will be the TV audio setting for VIERA Link “HDAVI Control”. (B14)

[Note]

≥ If this unit is connected to a “HDAVI Control 3 or later” compatible TV

via HDMI cable, the menu language and TV aspect information will be retrieved via VIERA Link.

≥ If this unit is connected to a “HDAVI Control 2” compatible TV via

HDMI cable, the menu language information will be retrieved via VIERA Link.

≥ Settings in the Easy setup can also be changed in the player settings

[e.g. language, TV aspect, TV audio (B 16)].

Press [RADIO, EXT-IN]5 to select “FM”.

Press the numbered buttons to select a channel.

≥ To select a 2-digit number

e.g. 12: [S10]3 B [1] B [2]

Alternatively, press [X, W]A.

≥ The FM setting is also shown on the TV display.

If noise is excessive

Press and hold [PLAY MODE]: to display “MONO”.

To cancel the mode, press and hold the button again until “AUTO ST” is displayed. ≥ The mode is also cancelled when you change the frequency.

Manual tuning

Press [RADIO, EXT-IN]5 to select “FM”.

Press [SEARCH6, SEARCH5]@ to select the

frequency.

≥ To start automatic tuning, press and hold [SEARCH6,

SEARCH5]@ until the frequency starts scrolling. Tuning stops when a station is found.

Presetting stations manually

Up to 30 stations can be set. 1 While listening to the radio broadcast

Press [OK]9.

2 While the frequency is flashing on the display

Press the numbered buttons to select a channel.

≥ To select a 2-digit number

e.g. 12: [S10]3 B [1] B [2]

Alternatively, press [X, W]A, and then press [OK]9.

A station previously stored is overwritten when another station is stored in the same channel preset.

RQTX1101

Page 9

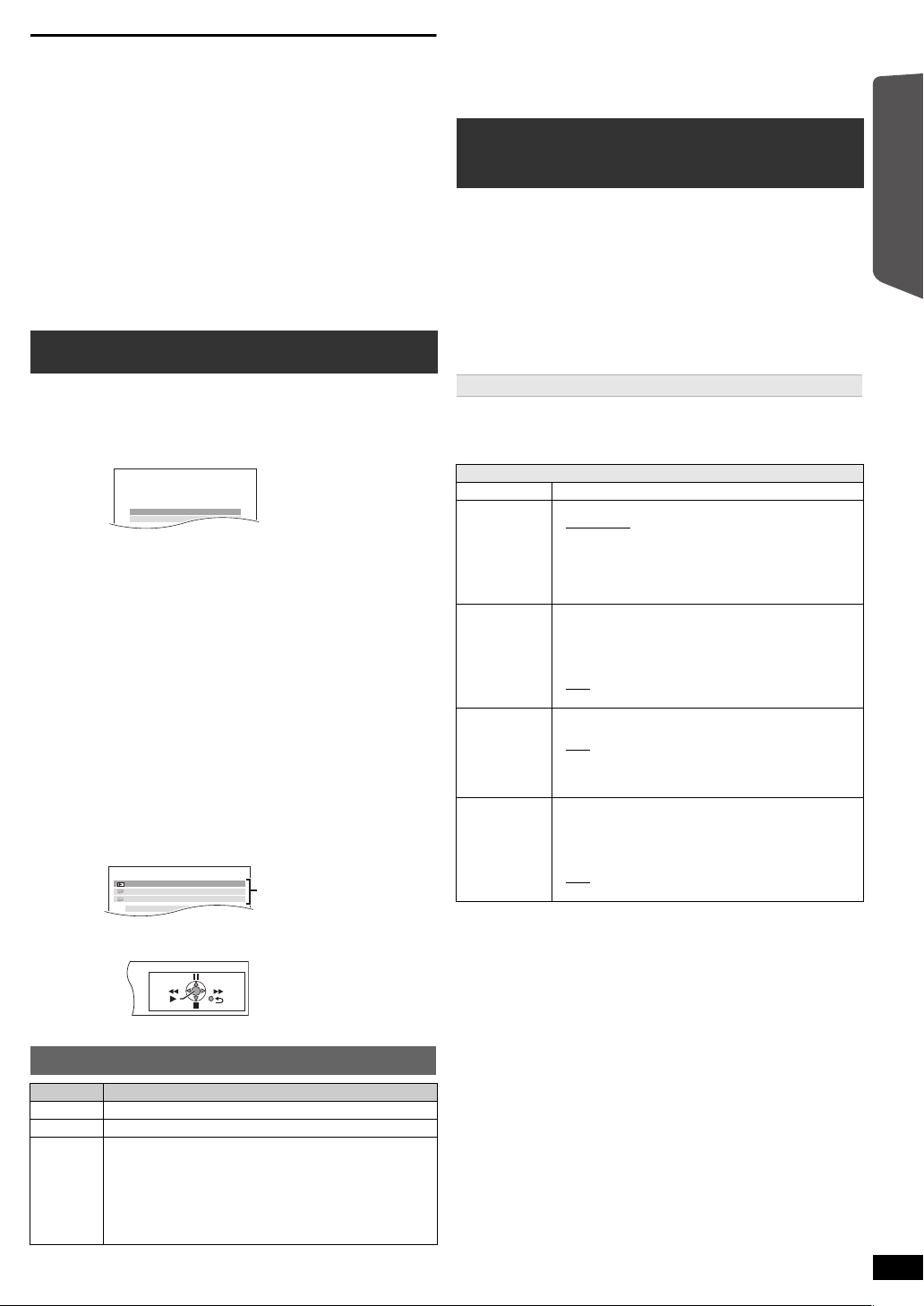

FM frequency step

DVD/CD Home theater

Input select

Setup

DVD/CD Home theater

Input select

Playback Disc

TOP MENU (DVD) MENU (DVD)

Main unit only

The step is factory-set to 0.2 MHz, but you can change it to receive broadcasts allocated in 0.1 MHz steps. You may need to change this setting if the tuner seems to skip over the correct frequency for stations in your area.

1 Press [SELECTOR]9 to select “FM”. 2 Press and hold [∫]8(Stop).

After a few seconds the display changes to show the current minimum frequency. Continue to hold the button down. The minimum frequency changes and the step is changed. e.g. 87.9 (Factory preset) ,# 87.5

To return to the original step, repeat steps 1 and 2.

[Note]

After changing the setting, previously preset frequencies will be cleared. Preset them again.

Using the START menu

You can select desired source, change the settings, access playback/ menus, etc., by using the START menu.

Press [START]C to show the START menu.

≥ When using VIERA Link “HDAVI Control”, the TV also turns on

when the START menu is displayed.

e.g.

Press [3, 4]9 to select an item and press [OK]9.

≥ To exit, press [START]C.

Press [3, 4]9 to make the setting and press [OK]9.

When “Input select” is selected

You can select a desired source from the menu.

≥ DVD/CD (B 11), FM RADIO (B 8), AUX

§1

ARC

(B below), DIGITAL IN

§1 “(TV)” will appear beside “AUX”, “ARC” or “DIGITAL IN”, indicating the TV audio setting for VIERA Link “HDAVI Control” (B 14).

§2 “(STB)” will appear beside “DIGITAL IN”, indicating the STB audio setting for VIERA Link “HDAVI Control” (B 14).

When “Setup”

You can change the settings for this unit. (B 16)

Other selectable items

The items that are displayed will vary depending on the media and source.

When a disc is loaded, you can also access playback or menus from the START menu.

e.g. [DVD-V]

When the on-screen control panel appears e.g. [DVD-V] (when “Playback Disc” is selected from the START menu)

You can operate the playback with the indicated controls.

is selected

§1, 2

Selecting the source by the remote control

Press To select [DVD]5 DVD/CD [iPod]5 IPOD (B 15) [RADIO,

EXT-IN]5

Each time you press the button:

FM: AUX: ARC:

D-IN:

(B 8) For audio input through the AUX terminal. For audio input through the HDMI AV OUT terminal. For audio input through the DIGITAL AUDIO IN OPTICAL terminal. (B right)

§1

(B below),

(B below), iPod (B 15)

Playback/menu access

[Note]

Confirm the audio connection to the AUX, HDMI AV OUT or DIGITAL AUDIO IN OPTICAL terminal on the main unit when you select the corresponding sources (B 7). Reduce the volume on the TV to its minimum, and then adjust the volume of the main unit.

Listening to the TV or other device’s audio from this unit’s speakers

Preparation

≥ Make sure that there is an audio connection between this unit and the

TV or other device. (B 7)

≥ Turn on the TV or/and other device.

Press [RADIO, EXT-IN]5 to choose the source that is used to connect this unit to the TV or other device.

≥ To change the surround sound effects and sound mode, refer to

“Enjoying sound effects from all speakers” (B 10).

≥ If your Panasonic TV is VIERA Link compatible, refer to “Using the

VIERA Link

Making settings for digital audio input

Select to suit the type of audio from the DIGITAL AUDIO IN OPTICAL and HDMI AV OUT terminal on the main unit. Setting must be made for the “D-IN” and “ARC” selector. ≥ Underlined items are the factory presets.

Available settings

DUAL: (Only works with Dolby Dual Mono)

DRC: (Dynamic Range Compression)

PCM FIX: – ON

STB (CABLE/SAT AUDIO)

§3 Only when “D-IN” is selected.

“HDAVI ControlTM”” (B 14) for other related functions.

Mode Setting

– MAIN+SAP – MAIN – SAP “SAP” = Secondary Audio Program ≥ Set PCM FIX mode to “OFF” to listen to the “MAIN” or

“SAP” audio.

– ON

Adjust for clarity even when the volume is low by compressing the range of the lowest sound level and the highest sound level. Convenient for late night viewing. (Only works with Dolby Digital)

– OFF

The full dynamic range of the signal is reproduced.

Select when receiving only PCM signals.

– OFF

Select when receiving Dolby Digital and PCM signals.

≥ When receiving true 5.1-channel surround sound,

§3

select “OFF”.

– SET

Select when setting the main unit to switch to “D-IN” when the input channel of an HDMI connected STB is selected on the TV (B 14, Setting the STB audio for VIERA Link “HDAVI Control”).

– OFF

Select to cancel this setting.

(stereo audio)

Press [RADIO, EXT-IN]5 several times to select “D-IN” or “ARC”.

Press [PLAY MODE]: and then [3, 4]9 to select the mode.

While the selected mode is displayed Press [2, 1]9 and select the desired setting.

Be sure to select the device’s (STB, etc.) input channel on the TV when making the setting. The device must be connected to the Panasonic TV via an HDMI cable.

Getting StartedPlaying DiscsOther OperationsReference

RQTX1101

Page 10

Enjoying sound effects from all

e.g.

AUDIO-SPEAKER SETTINGS-TEST TONE

SPEAKER LEFT

CENTER RIGHT SURROUND RIGHT

TRIM LEVEL

− − 0dB

speakers

≥ The following sound effects may not be available or may have no effect

with some sources. You may experience a reduction in sound quality when these sound effects

≥

are used with some sources. If this occurs, turn the sound effects off.

[Note]

When changing the surround sound effect, Whisper-mode Surround or the sound modes, the setting is displayed on the TV screen if “DVD/CD” is the selected source.

Getting StartedPlaying DiscsOther OperationsReference

Enjoying surround sound effects

Press [SURROUND]<.

Each time you press the button:

STANDARD:

Sound is output as it was recorded/encoded. Speaker output varies depending on the source.

MULTI-CH:

You can enjoy sound from the front speakers, as well as the surround speakers even when playing a 2-channel sound.

MANUAL: (B below)

While “MANUAL” is displayed, press [2, 1]9 to select other surround modes.

Each time you press [2, 1]9:

DOLBY PLII MOVIE

Suitable for movies, or videos recorded in Dolby Surround.

DOLBY PLII MUSIC

Adds 5.1-channel effects to stereo sources.

S.SRD

You can enjoy sound from all speakers with stereo sources.

STEREO

Sound will only be output to the front speakers and the subwoofer from any source.

Recommended modes to enjoy TV audio or stereo sources from all speakers:

≥ DOLBY PLII MOVIE ≥ DOLBY PLII MUSIC ≥ S.SRD

“SRD” lights in the main unit’s display when there is output from the surround speakers.

When the signal is DTS or Dolby Digital, “/DTS” or “/DOLBY DIGITAL” will also be displayed respectively.

Selecting sound mode

Press [SOUND]; to select a sound mode.

Each time you press the button:

EQ: Equalizer SUBW LVL: Subwoofer Level H.BASS: Harmonic Bass C.FOCUS: Center Focus

While the selected mode is displayed, press [2, 1]9 to

make the settings.

Refer to the following for setting details of each sound effect.

EQ (Equalizer)

You can select sound quality settings. Each time you press [2, 1]9:

FLAT: Cancel (no effect is added). HEAVY: Adds punch to rock. CLEAR: Clarifies higher sounds. SOFT: For background music.

SUBW LVL (Subwoofer level)

You can adjust the amount of bass. The unit automatically selects the most suitable setting according to the type of playback source. LEVEL 1

LEVEL 2

LEVEL 3

^-------------------------------------------------------------------J

≥ The setting you make is retained and recalled every time you

play the same type of source.

LEVEL 4

H.BASS (Harmonic Bass)

You can enhance low-frequency sound so that heavy bass sound can be heard clearly, even if the acoustics of your room are not optimal. ON ,------. OFF ≥ The setting you make is retained, and recalled every time you

play from the same type of source.

C.FOCUS (Center Focus) [Effective when playing audio containing the center channel sound or when DOLBY PLII (B left) is selected.]

You can make the sound of the center speaker seem like it is coming from within the TV. ON ,------. OFF

Whisper-mode Surround

You can enhance the audio effect for low volume sound. (Convenient for late night viewing.)

Press [W.SRD]G.

Each time you press the button: ON ,------. OFF

Adjusting the speaker output level manually

Preparation

≥ To display the picture, turn on the TV and select the appropriate video

input mode.

≥ Press [r, VOL, s]> to adjust the volume to normal listening level. ≥ Press [DVD]5 to select “DVD/CD”. ≥ Select “TEST TONE” from “SPEAKER SETTINGS” in AUDIO menu

(B 17).

Press [OK]9 to enter test tone mode.

Test tone will be output to each channel in the following order. LEFT, CENTER, RIGHT, SURROUND RIGHT, SURROUND LEFT

Press [OK]9 then [3, 4]9 to adjust the speaker level

for each speaker. (CENTER, SURROUND RIGHT, SURROUND LEFT)

6dB to i6 dB (Factory preset: 0 dB)

Adjusting the speaker level during playback

(Effective when playing audio containing surround channel sound or when “SRD” lights on the main unit’s display)

Press and hold [—CH SELECT]; to select the speaker.

While the speaker channel is displayed, press [—CH SELECT];. L# C# R# RS# LS# SW

^---------------------------------------------}

≥ SW (Subwoofer) is displayed even if the source does not include a

subwoofer channel.

While “L” or “R” is selected.

Press [2, 1]9 to adjust the front speaker balance.

While “C”, “RS”, “LS” or “SW” is selected.

Press [3]9 (increase) or [4]9 (decrease) to adjust the speaker level for each speaker.

RQTX1101

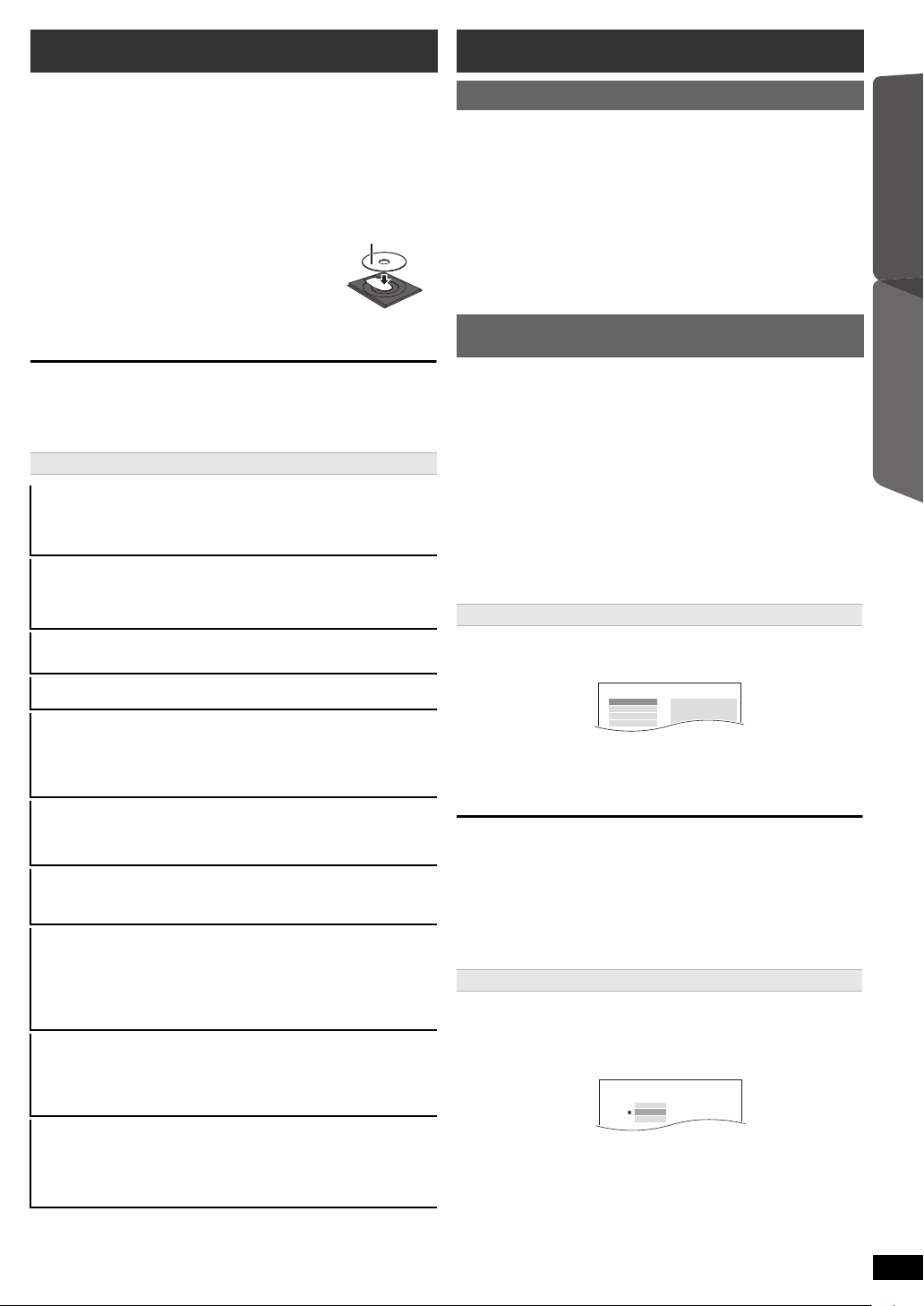

Page 11

Basic play

DVD-V PROGRAM

SELECT TITLE TITLE CHAPTER

TITLE 1

TITLE 2 TITLE 3 TITLE 4

1 2 3 4 5

DVD-V RANDOM SELECT TITLE

TITLE 1

TITLE 2

TITLE 3

Other modes of play

Preparation

To display the picture, turn on your TV and change its video input mode (e.g. VIDEO 1, AV 1, HDMI, etc.) to suit the connection to this unit.

Press [Í]1 to turn on the unit.

Press [DVD]5 to select “DVD/CD”.

Press [< OPEN/CLOSE]5 to open the disc tray.

Load the disc.

≥ Load double-sided discs so the label for the

side you want to play is facing up.

Press [1 PLAY]6 to start play.

≥ Press [r, VOL, s]> to adjust the volume.

[Note]

≥ DISCS CONTINUE TO ROTATE WHILE MENUS ARE DISPLAYED.

Press [∫ STOP]6 when you finish to preserve the unit’s motor and your TV screen.

≥ Total title number may not be displayed properly on iR/iRW.

Basic controls

One touch play (remote control only): [1 PLAY]6

(during standby mode) The main unit automatically turns on and starts playing the disc in the tray.

Stop: [∫ STOP]6 The position is memorized while “RESUME STOP” is on the screen.

≥ Press [1 PLAY]6 to resume. ≥ Press [∫ STOP]6 again to clear the position.

Label facing up

Repeat play

This works only when the elapsed play time can be displayed. It also works with all JPEG content.

During play, press and hold [jREPEAT]:, to show the repeat mode.

While the repeat mode is displayed, press [jREPEAT]: to select the item to be repeated.

e.g. [DVD-V]

`TITLE ---. `CHAP. ---. `OFF

^----------------------------------------------------b

To cancel, select “OFF”.

Items shown differ depending on the type of disc and playback mode.

Program and Random play

[DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

Preparation

While stopped, press [PLAY MODE]: to select the play mode.

Program and random playback screens appear sequentially.

Program ------------------------------------------) Random

^--- Exit program and random screens (}

≥ [DVD-VR] Select “DATA” in “DVD-VR/DATA” (B 17, OTHERS menu) to

play WMA, MP3 or JPEG contents.

≥ For a disc with both WMA/MP3 and JPEG contents, select either music

or picture contents. WMA/MP3: Select “MUSIC PROGRAM” or “MUSIC RANDOM”. JPEG: Select “PICTURE PROGRAM” or “PICTURE RANDOM”.

≥ [DVD-V] Some items cannot be played even if you have programmed

them.

Program play (up to 30 items)

Getting StartedPlaying DiscsOther OperationsReference

Pause: [; PAUSE]6 ≥ Press [1 PLAY]6 to restart play.

Skip: [SKIP:, SKIP 9]6

Search: [SEARCH6, SEARCH5]6 (during play) Slow-motion: [SEARCH6, SEARCH5]6 (during pause)

≥ Up to 5 steps. ≥ Press [1 PLAY]6 to start normal play. ≥ [VCD] Slow-motion: Forward direction only.

Frame-by-frame: [2;, ;1]9 (during pause)

[DVD-VR] [DVD-V] [VCD]

≥ [DVD-VR] [VCD] Forward direction only.

On-screen item select: [3, 4, 2, 1, OK] [3, 4, 2, 1]9: Select [OK]9: Confirm

Enter number: Numbered buttons [DVD-VR] [DVD-V] [VCD] [CD] e.g. To select 12: [S10]3 B [1] B [2]

[VCD] with playback control Press [∫ STOP]6 to cancel the PBC function, and then press the numbered buttons.

[DVD-V] Show a disc top menu: [TOP MENU]8 [DVD-V] Show a disc menu: [MENU]7

Return to previous screen: [RETURN]E [VCD] (with playback control) Show a disc menu: [RETURN]E

Main unit display: [FL DISPLAY]F

[DVD-VR] [DVD-V] [WMA] [MP3] Time display

[JPEG]

SLIDE

,-. Information display (e.g. [DVD-VR] Program number)

,-.Contents number

Press [3, 4]9 to select an item and press [OK]9.

e.g. [DVD-V]

≥ Repeat this step to program other items. ≥ To return to the previous menu, press [RETURN]E.

Press [1 PLAY]6 to start play.

To select all the items

Press [3, 4]9 to select “ALL” and press [OK]9.

To clear the selected program

1 Press [1]9 and then press [3, 4]9 to select the program. 2 Press [CANCEL]4.

To clear the whole program

Press [1]9 several times to select “CLEAR ALL”, and then press [OK]9. The whole program is also cleared when the disc tray is opened, the unit is turned off or another source is selected.

Random play

(Only when the disc has groups or multiple titles.)

Press [3, 4]9 to select a group or title and press [OK]9.

e.g. [DVD-V]

≥ “

” represents selected. To deselect, press [OK]9 again.

Press [1 PLAY]6 to start play.

RQTX1101

Page 12

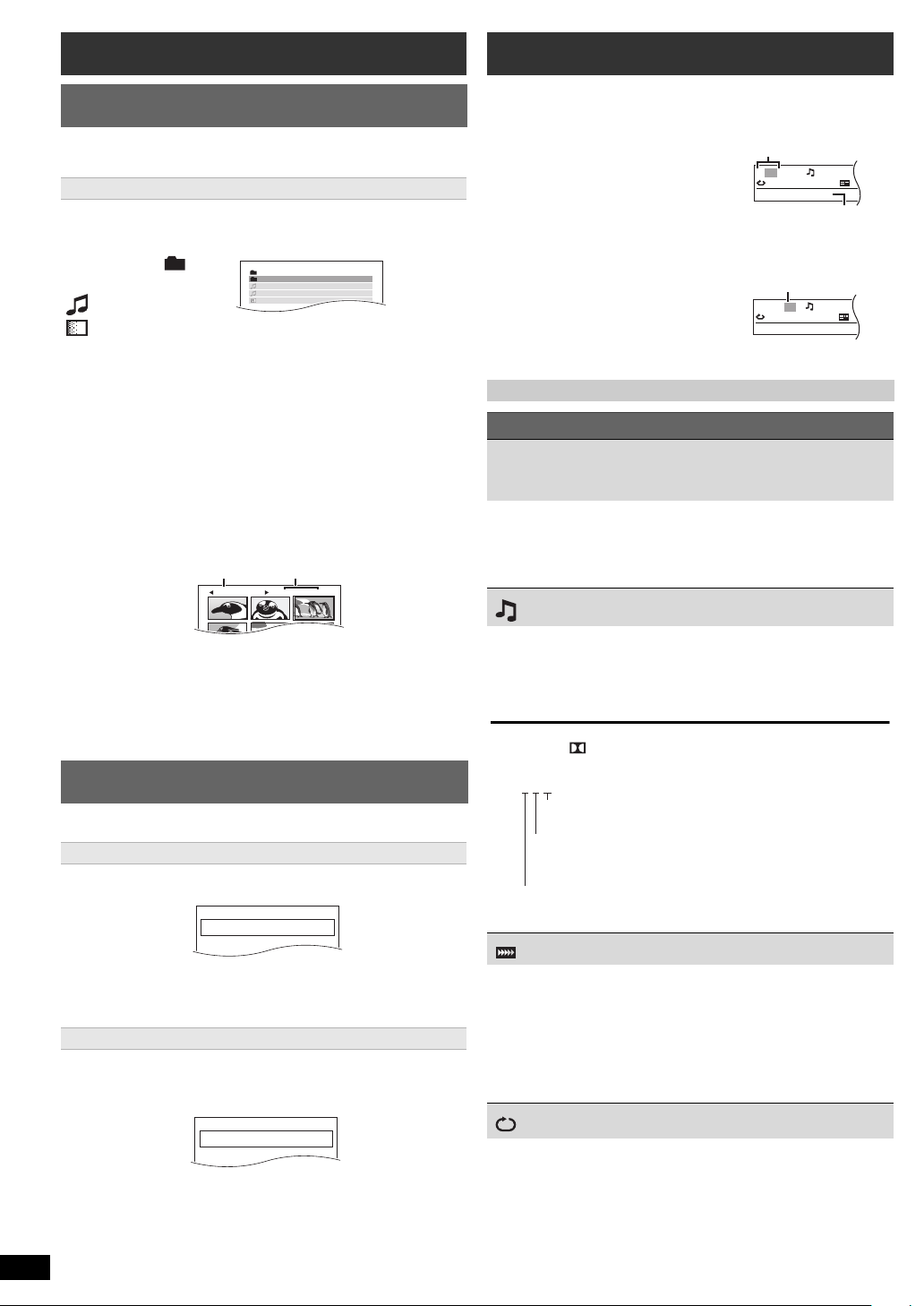

Using navigation menus

DATA-DISC

ROOT Perfume

Underwater Fantasy planet Starpersons1

Group (Folder): Content (File):

JPEG images G 1/ 1:C 3/ 9

Group name

Group and content number

DATE

LENGTH

TITLE

1 0:16:02

10/11

LIVE CONCERT

02:15

2 0:38:25

12/05

AUTO ACTION

01:30

DATE

LENGTH

TITLE

10:00:10

11/11

CITY PENGUIN

00:01

20:01:20

12/01

FOOTBALL

01:20

1:ENG

3 1

OFF

TITLE SEARCH

Current item

Item name

e.g. [DVD-V] Menu 1 (Disc/Play)

1:ENG

3 1

OFF

CHAPTER SEARCH

Current setting

e.g. [DVD-V] Menu 1 (Disc/Play)

3/2 .1ch

.0: No surround .1: Mono surround .2: Stereo surround (left/right)

.1: Low frequency effect (not displayed if there is no signal)

.1: Center .2: Front leftiFront right .3: Front leftiFront rightiCenter

e.g.

Using on-screen menus

Playing data discs

[WMA] [MP3] [JPEG]

[DVD-VR] Select “DATA” in “DVD-VR/DATA” (B 17, OTHERS menu) to

play WMA, MP3 or JPEG contents.

Playing from the selected item

You can select to play from your desired item while the “DATA-DISC” screen is displayed. e.g.

Getting StartedPlaying DiscsOther OperationsReference

: WMA/MP3

: JPEG

≥ To display/exit the screen, press [MENU]7.

Press [3, 4]9 to select an item and press [OK]9.

≥ Press [2, 1]9 to skip page by page. ≥ To return to 1 level up from the current folder, press [RETURN]E. ≥ Maximum: 28 characters for file/folder name.

Play starts from the selected content.

∫ [JPEG] Selecting the picture in Thumbnail menu

While picture is displayed, press [TOP MENU]8 to show

the thumbnail menu.

e.g.

Press [3, 4, 2, 1]9 to select a picture and press

[OK]9.

≥ Press [SKIP:,SKIP9]6 to skip page by page.

To go to other group

1 Press [3]9 to select the group name. 2 Press [2, 1]9 to select the group and press [OK]9.

Playing DVD-R / -RW (DVD-VR) discs

[DVD-VR]

≥ Titles appear only if the titles are recorded on the disc. ≥ You cannot edit programs, play lists and disc titles.

Playing the programs

Press [FUNCTIONS]D to show the on-screen menu.

Each time you press the button:

Menu 1 (Disc/Play) Menu 2 (Video) Menu 3 (Audio) Menu 4 (HDMI) Exit

Press [3, 4, 2, 1]9 to select the item and press

[OK]9.

Press [3, 4]9 to make the settings and press [OK]9.

Items shown differ depending on the type of disc.

Menu 1 (Disc/Play)

TRACK SEARCH, TITLE SEARCH, CONTENT SEARCH, CHAPTER SEARCH, PG SEARCH (Program Search), PL SEARCH (Playlist Search)

To start from a specific item

≥ [VCD] This does not work when using playback control. e.g. [DVD-V]: T2 C5

To select numbers for data disc

e.g. 123: [S10]3 B [1] B [2] B [3] B [OK]9

AUDIO

[DVD-V] (with multiple soundtracks)

To select audio soundtrack

[DVD-VR] [VCD]

To select “L”, “R”, “L+R” or “L R”

Actual operations depend on the disc. Read the disc’s instructions for details.

Signal type/data

LPCM/PPCM/ D/DTS/MP3/MPEG: Signal type kHz (Sampling frequency)/bit/ch (Number of channels)

While stopped, press [DIRECT NAVIGATOR]8.

e.g.

Press [3, 4]9 to select the program and press [OK]9.

≥ Press [2, 1]9 to skip page by page.

Playing a play list

This works only when the disc contains a play list.

While stopped, press [PLAY LIST]7.

e.g.

Press [3, 4]9 to select the play list and press [OK]9.

≥ Press [2, 1]9 to skip page by page.

RQTX1101

PLAY SPEED

[DVD-VR] [DVD-V]

To change play speed

–from “k0.6” to “k1.4” (in 0.1-unit steps) ≥ Press [1 PLAY]6 to return to normal play. ≥ After you change the speed

– Dolby Pro Logic II has no effect. – Audio output switches to 2-channel stereo. – Sampling frequency of 96 kHz is converted to 48 kHz.

≥ This function may not work depending on the disc’s recording.

REPEAT MODE

(B 11, Repeat play) A-B Repeat (To repeat a specified section)

Except [JPEG] [DVD-VR] (Still picture part) [VCD] (SVCD) Press [OK]9 at the starting and ending points. ≥ Select “OFF” to cancel.

Page 13

SUBTITLE

JPG

DATE

HDMI − INFORMATION

CONNECTED STATE AUDIO STREAM MAX CHANNEL VIDEO FORMAT COLOR SPACE

CONNECTED PCM 2ch 720p YCbCr 4 : 4 : 4











[DVD-V] (with multiple subtitles) [VCD] (SVCD only)

To select subtitle language

≥ On iR/iRW, a subtitle number may be shown for subtitles that are

not displayed.

[DVD-VR] (with subtitle on/off information)

To select “ON” or “OFF”

≥ This may not work depending on the disc.

ANGLE

Menu 4 (HDMI)

HDMI

HDMI STATUS

To show HDMI information

e.g. [DVD-V]

[DVD-V] (with multiple angles)

To select a video angle

DATE DISPLAY

[JPEG] To select “ON” or “OFF” for picture’s date display

ROTATION

[JPEG] To rotate a picture (during pause)

0,------. 90,------.180,------.270

^--------------------------------------------J

Menu 2 (Video)

PICTURE MODE

NORMAL CINEMA1: CINEMA2: DYNAMIC: ANIMATION:

Mellows images and enhances detail in dark scenes. Sharpens images and enhances detail in dark scenes. Enhances the contrast for powerful images. Suitable for animation.

ZOOM

To select zoom sizes NORMAL, AUTO (

[DVD-VR] [DVD-V] [VCD]

), k2, k4

≥ [JPEG]: during pause

TRANSFER MODE

If you have chosen “480p”/“720p”/“1080p” or “1080i” [“VIDEO FORMAT” in Menu 4 (HDMI)] select the method of conversion for progressive output to suit the type of material. ≥ The setting will return to “AUTO1” when the disc tray is opened, the

unit is turned off or another source is selected.

AUTO1:

AUTO2:

VIDEO:

Automatically detects the film and video content, and appropriately converts it. In addition to “AUTO1”, automatically detects film contents with different frame rates and appropriately converts it. Select if the video content is distorted when using “AUTO1” or “AUTO2”.

Menu 3 (Audio)

DIALOGUE ENHANCER

To make the dialogue in movies easier to hear

[DVD-V] (Dolby Digital, DTS, 3-channel or higher, with the dialogue recorded in the center channel)

OFF, ON

1 Connection status 2 Shows the output signal type.

(When “OFF” is selected in “AUDIO OUT” (B 17, HDMI menu), “– – –” will be displayed.)

3 Shows the number of audio channels. 4 (B below, VIDEO FORMAT) 5 (B below, COLOR SPACE)

HD ENHANCER

This works when the HDMI connection is being used with “VIDEO PRIORITY” (B 17, HDMI menu) set to “ON”.

To sharpen the “720p”, “1080i” and “1080p” picture quality OFF, 1 (weakest) to 3 (strongest)

VIDEO FORMAT

This works when the HDMI connection is being used with “VIDEO PRIORITY” (B 17, HDMI menu) set to “ON”.

To select suitable picture quality with your TV

(Video recordings will be converted to, and output as, high-definition video.)

480p/720p/1080p (progressive) 480i/1080i (interlaced)

≥ If the picture is distorted, press and hold [CANCEL]4 until the picture

is displayed correctly. (The output will return to “480p”.)

COLOR SPACE

This works when the HDMI connection is being used with “VIDEO PRIORITY” (B 17, HDMI menu) set to “ON”.

To select suitable picture color with your TV

YCbCr 4:2:2

– Luminance and color details are sent separately. Most of the picture

details are in luminance. The color rate is much higher than composite video. Compatible with all TV models.

YCbCr 4:4:4

– All color details are sent. Luminance and color details are in the

same signal.

RGB

– Component video type of signal.

§ Terms are descriptions of the sample formats used in digital video. YCbCr is a video signal for luminance (Y), blue (Cb) and red (Cr) details.

≥ An “ ≥ If the picture color is distorted, press and hold [CANCEL]4 until the

picture color is displayed correctly.

” mark will appear if compatible with your TV.

Getting StartedPlaying DiscsReference

RQTX1101

Page 14

Using the VIERA LinkTM “HDAVI ControlTM”

What is VIERA Link “HDAVI Control”

VIERA Link “HDAVI Control”

VIERA Link VIERA Link “HDAVI Control” is a convenient function that offers linked operations of this unit, and a Panasonic TV (VIERA) under “HDAVI Control”. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment for operational details.

Getting StartedPlaying DiscsOther OperationsReference

≥ VIERA Link “HDAVI Control”, based on the control functions provided by

≥ This unit supports “HDAVI Control 5” function.

≥ Please refer to individual manuals for other manufacturers’ equipment

The TV with “HDAVI Control 2 or later” function enables the following operation: Easy control only with VIERA remote control (for “HDAVI Control 2 or later”) (B 15).

Preparation

≥ Confirm that the HDMI connection has been made (B 7). ≥ Set “VIERA Link” to “ON” (B 17, HDMI menu). ≥ To complete and activate the connection correctly, turn on all VIERA

Setting the TV audio for VIERA Link “HDAVI Control”

Select “AUX” Refer to TV audio setting in Easy setup (B 8) or “TV AUDIO” in HDMI menu (B 17). Confirm the audio connection to the AUX terminal (for “AUX” OUT terminal (for “ARC” “D-IN”

Setting the STB audio for VIERA Link “HDAVI Control”

Select “D-IN” Refer to STB setting in “Making settings for digital audio input” (B 9). Confirm the audio connection to the DIGITAL AUDIO IN OPTICAL terminal (for “D-IN”) (B 7).

Whenever the connection or settings are changed, reconfirm the points above.

§1 “AUX”, “ARC” or “D-IN” (DIGITAL IN) works depending on the TV

§2

is a new name for EZ SyncTM.

HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

“HDAVI Control 5” is the newest standard (current as of December,

2009) for Panasonic’s HDAVI Control compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI equipment.

supporting VIERA Link function.

Link “HDAVI Control” compatible equipment and set the TV to the corresponding HDMI input mode for this unit.

§1, 2

§1

) (B 7).

§1, 2

, “ARC”§1 or “D-IN”

to work with the linked operations.

§1, 2

to work with the linked operations.

§1

) or DIGITAL AUDIO IN OPTICAL terminal (for

§1

audio setting (B above, Setting the TV audio for VIERA Link “HDAVI Control”).

“D-IN” (DIGITAL IN) works depending on the STB audio setting (B above, Setting the STB audio for VIERA Link “HDAVI Control”).

), HDMI AV

Auto input switching (Power on link)

When the following operations are performed, the TV will automatically switch the input channel and display the corresponding action. Additionally when the TV is off, the TV will automatically turn on: – When play starts on the unit – When an action that uses the display screen is performed (e.g., START

menu)

≥ When you switch the TV input to TV tuner mode, this unit will

automatically switch to “AUX”

§1

, “ARC”§1 or “D-IN”

§1, 2

. (For “IPOD” mode, this works only in iPod music mode, or when iPod is not connected.)

≥ When you start disc play, the TV will automatically switch its input mode

for this unit.

Power off link

All connected equipment compatible with “HDAVI Control”, including this unit, automatically turn off when you switch the TV off. To continue audio playback even when the TV is turned off, select “VIDEO” (B 17, “POWER OFF LINK” in HDMI menu).

[Note]

When you press [Í]1, only this unit turns off. Other connected equipment compatible with VIERA Link “HDAVI Control” stays on.

For details, refer also to the operating instructions for your TV.

Speaker control

You can select whether audio is output from this unit’s speakers or the TV speakers by using the TV menu settings. For details, refer to the operating instructions for your TV.

Home theater

This unit’s speakers are active. ≥ When you turn on this unit, this unit’s speakers will be automatically

activated.

≥ When this unit is in standby mode, changing the TV speakers to this

unit’s speakers in the TV menu will automatically turn this unit on and select “AUX”

≥ The TV speakers are automatically muted.

§1

, “ARC”§1 or “D-IN”

§1, 2

as the source.

≥ You can control the volume setting using the volume or mute button on

the TV’s remote control. (The volume level is displayed on the main unit’s display.)

≥ To cancel muting, you can also use this unit’s remote control (B 4). ≥ If you turn off this unit, TV speakers will be automatically activated.

TV speakers are active. ≥ The volume of this unit is set to “0”.

– This function works only when “DVD/CD”, “AUX”

§1, 2

is selected as the source on this unit.

“D-IN”

≥ Audio output is 2-channel audio.

When switching between this unit speakers and TV speakers, the TV screen may be blank for several seconds.

§1

, “ARC”§1 or

What you can do with “HDAVI Control”

Auto lip sync

(Available when using VIERA Link “HDAVI Control” with “HDAVI Control 3 or later” compatible TV)

This function automatically provides synchronized audio and video output. (This works only when the source is “DVD/CD”, “AUX”

§1, 2

or “D-IN” ≥ When using “DVD/CD” as the source, set “TIME DELAY” in VIDEO

menu to “0 ms/AUTO” (B 16).

One touch play

You can turn the main unit and the TV on, and start playing a disc with a single press of a button.

(Remote control only)

During standby mode, press [1PLAY]6 to start disc playback.

This unit’s speakers will be automatically activated (B right).

[Note]

Playback may not be immediately displayed on the TV. If you miss the beginning portion of playback, press [SKIP:]6 or [SEARCH6]6 to go back to where playback started.

RQTX1101

§1

, “ARC”§1

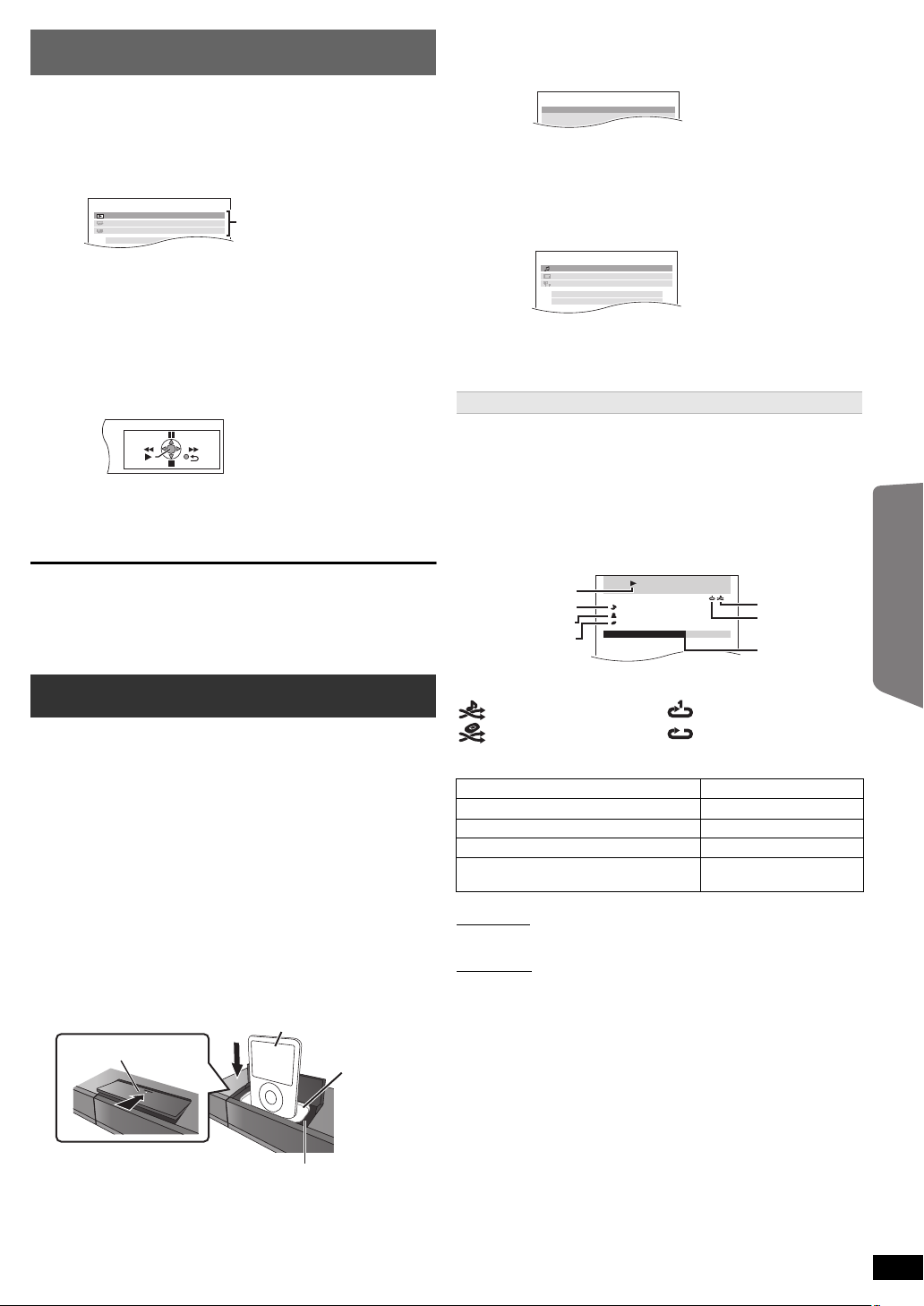

Page 15

Easy control only with VIERA remote control (for

DVD/CD Home theater

Input select

Playback Disc

TOP MENU (DVD) MENU (DVD)

Playback/menu access

Dock adapter (not included)

iPod

Dock for iPod

Push

Main unit

e.g.

iPod Music

Home theater

Playlists

Artists Albums

iPod

Home theater Music

Videos All (iPod display)

Input select iPod Information

iPod Home theater

Good morning Ronaldo Happy days

3 of 20

2:43 -1:15

Playback condition

Song Artist

Album

Current position

Shuffle mode



Repeat mode



“HDAVI Control 2 or later”)

You can control the playback menus of this unit with the TV’s remote control. When operating the TV’s remote control, refer to the below illustration for operation buttons.

1 Select this unit’s operation menu by using the TV menu settings.

(For details, refer to the operating instructions for your TV.) The START menu will be shown. e.g. [DVD-V]

≥ The START menu can also be shown by using a button on the TV’s

remote control (e.g. [SUB MENU]). – When “DVD/CD” is selected as the source, the TV’s remote control

works only during stop mode.

– This feature does not work while the iPod music playback screen is

displayed on the TV.

2 Select the desired item on the START menu (B 9).

When the on-screen control panel appears e.g. [DVD-V] (when “Playback Disc” is selected from the START menu.)

You can operate the playback with the indicated controls. ≥ The on-screen control panel can also be shown by using a button on the

TV’s remote control (e.g. [SUB MENU]). – This works only during “DVD/CD” playback and resume modes or,

while the iPod music playback screen is displayed on the TV.

[Note]

≥ Depending on the menu, some button operations cannot be performed

from the TV’s remote control.

≥ You cannot input numbers with the numbered buttons on the TV’s

remote control ([0] to [9]). Use this unit’s remote control to select the play list etc.

Press [iPod]5 to select “IPOD”.

The iPod automatically switches to this unit’s display mode. e.g.

Press [FUNCTIONS]D to select the menu.

Each time you press the button:

Music menu --------------------) Video menu

^--- iPod menu (iPod LCD) (-}

When using the START menu in “IPOD” mode

e.g.

Music: Shows the music menu. Videos: Shows the video menu. All (iPod display): Switches to iPod menu. iPod Information: Display iPod details.

Enjoying music/videos

Press [FUNCTIONS]D to select music or video menu

on the TV. Press [3, 4]9 to select an item and press [OK]9.

≥ Press [2, 1]9 to skip page by page. ≥ To return to the previous screen, press [RETURN]E.

Play starts from the selected song or video. e.g. music playback screen

Getting StartedPlaying DiscsOther OperationsReference

Using the iPod

You can enjoy iPod music through this unit’s speakers or view iPod videos/photos on the TV.

Preparation

≥ To view photos/videos from the iPod

– Ensure the video connection to the VIDEO OUT terminal on this unit

(B 7).

– Operate the iPod menu to make the appropriate photo/video output

settings for your TV. (Refer to operating instructions of your iPod.)

≥ To display the picture, turn on the TV and select the appropriate video

input mode.

≥ Before connecting/disconnecting the iPod, turn the main unit off or

reduce the volume of the main unit to its minimum.

Push # to open the Dock for iPod lid.

Connect the iPod (not included) firmly.

≥ Attach the dock adapter which should be supplied with your iPod to

the dock for the stable use of the iPod. If you need an adapter, consult your iPod dealer.

§ These icons will only appear for music mode.

: Song shuffle

: Album shuffle

: Repeat 1 song

: Repeat all

Basic controls (For music and videos only)

Button Function

[1 PLAY]6 Play [∫ STOP]6, [; PAUSE]6 Pause [SKIP:,SKIP9]6 Skip (press and hold)

[SKIP:,SKIP9]6

Other methods of playback

Shuffle mode Press [PLAY MODE]: several times.

(For music playback only)

SONGS, ALBUMS, OFF Repeat mode

Press and hold [jREPEAT]: and then press the button several times within a few seconds. During the music/video playback: ONE, ALL, OFF

[Note]

≥ Music playback modes set on the iPod will be maintained when

connected to the main unit. Changes made while the iPod is connected to the main unit will be kept on the iPod after disconnecting it.

≥ If the video menu is accessed, the video shuffle playback mode on the

iPod is set to off when the iPod is disconnected from the unit.

RQTX1101

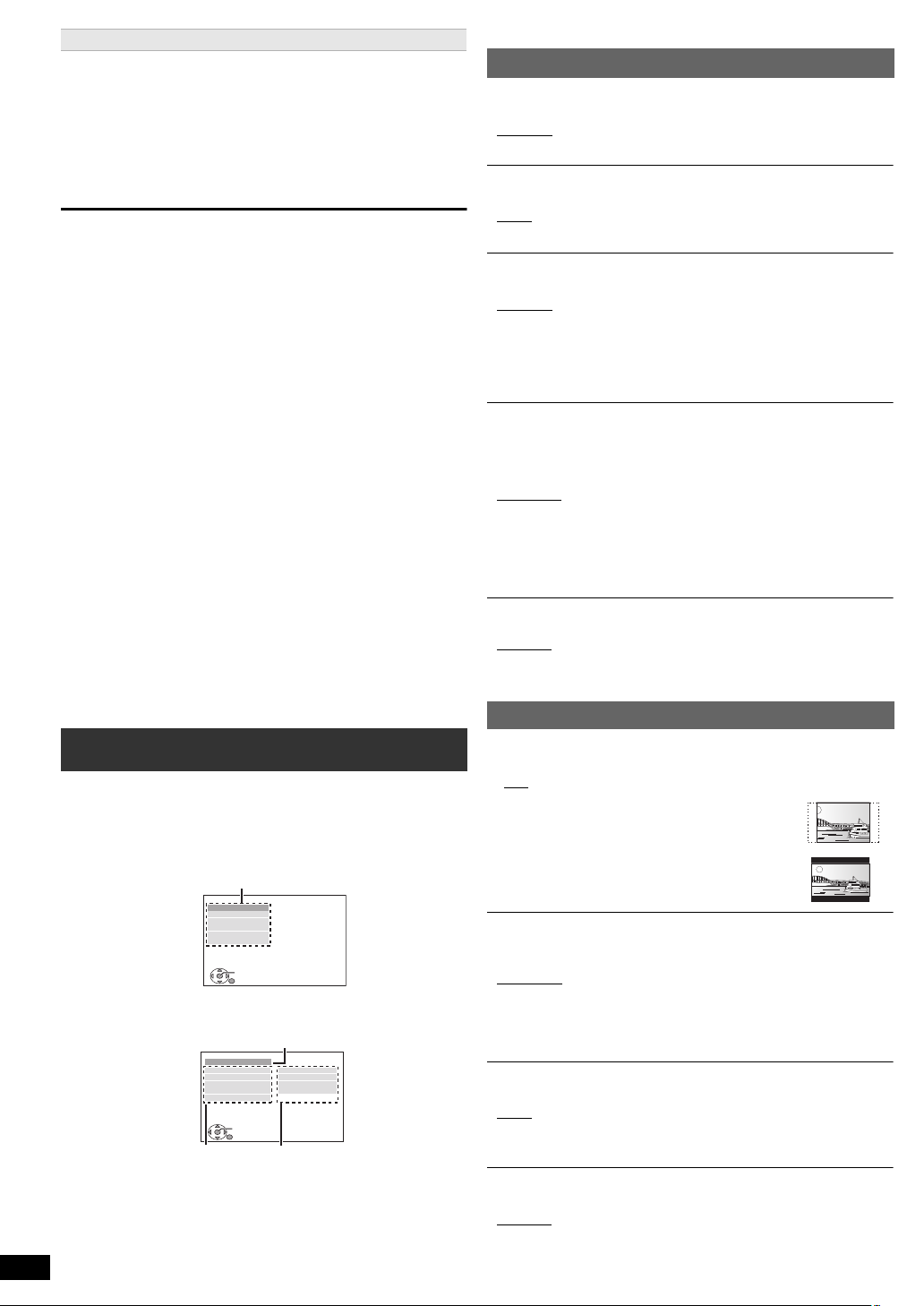

Page 16

Enjoying photos

SET

MAIN

DISC VIDEO AUDIO DISPLAY HDMI OTHERS

RETURN

Press [FUNCTIONS]D to select the iPod menu.

Play a slideshow on your iPod.

You can use the remote control to operate the iPod menu. [3, 4]9: To navigate menu items. [OK]9: To go to the next menu. [RETURN]E: To return to the previous menu.

The remote control operation may vary between iPod models.

While an iPod is connected

Do not push or pull your iPod back and forth with great force.

Getting StartedPlaying DiscsOther OperationsReference

About recharging the battery

≥ iPod will start recharging regardless of whether this unit is on or off. ≥ “IPOD ¢” will be shown on the main unit’s display during iPod charging

in main unit standby mode.

≥ Check iPod to see if the battery is fully recharged. ≥ If you are not using iPod for an extended period of time after recharging

has completed, disconnect it from main unit, as the battery will be depleted naturally. (Once fully recharged, additional recharging will not occur.)

Compatible iPod

≥ iPod nano 5th generation (video camera) (8GB, 16GB) ≥ iPod touch 2nd generation (8GB, 16GB, 32GB, 64GB) ≥ iPod classic [120GB, 160GB (2009)] ≥ iPod nano 4th generation (video) (8GB, 16GB) ≥ iPod classic [160GB (2007)] ≥ iPod touch 1st generation (8GB, 16GB, 32GB) ≥ iPod nano 3rd generation (video) (4GB, 8GB) ≥ iPod classic (80GB) ≥ iPod nano 2nd generation (aluminum) (2GB, 4GB, 8GB) ≥ iPod 5th generation (video) (60GB, 80GB) ≥ iPod 5th generation (video) (30GB) ≥ iPod nano 1st generation (1GB, 2GB, 4GB) ≥ iPod 4th generation (color display) (40GB, 60GB) ≥ iPod 4th generation (color display) (20GB, 30GB) ≥ iPod 4th generation (40GB) ≥ iPod 4th generation (20GB) ≥ iPod mini (4GB, 6GB)

Compatibility depends on the software version of your iPod.

To use the iPod touch features

1 Press the Home button on the iPod touch. 2 Select the iPod touch features on the touch screen to operate.

≥ Underlined items are the factory settings in the following menus.

DISC menu

AUDIO

Choose the audio language.

≥ ENGLISH ≥ ORIGINAL

≥ FRENCH ≥ SPANISH

§1

≥ OTHER – – – –

§2

SUBTITLE

Choose the subtitle language.

§3

≥ AUTO ≥ OTHER – – – –

≥ ENGLISH ≥ FRENCH ≥ SPANISH

§2

MENUS

Choose the language for disc menus.

≥ ENGLISH ≥ OTHER – – – –

≥ FRENCH ≥ SPANISH

§2

§1 The original language designated on the disc is selected.

§2 Input the appropriate code from the language code list (B 19).

§3 If the language selected for “AUDIO” is not available, subtitles appear

in that language (if available on the disc).

RATINGS

Set a rating level to limit DVD-Video play. Setting ratings (When level 8 is selected)

≥ 0 LOCK ALL: To prevent play of discs without rating levels. ≥ 1 to 7 ≥ 8 NO LIMIT

When you select your ratings level, a password screen is shown. Follow the on-screen instructions.

Do not forget your password.

A message screen will be shown if a DVD-Video disc exceeding the rating level is inserted in the unit. Follow the on-screen instructions.

PAS SW ORD

Change the password for “RATINGS”. ≥ SETTING

To change ratings (When level 0 to 7 is selected) ≥ CHANGE: Follow the on-screen instructions.

VIDEO menu

Changing the player settings

Press [DVD]5 to select “DVD/CD”.

Press [START]C to show the START menu.

Press [3, 4]9 to select “Setup” and press [OK]9.

Press [3, 4]9 to select menu and press [OK]9.

Press [3, 4]9 to select the item and press [OK]9.

Press [3, 4]9 to make the settings and press [OK]9.

RQTX1101

≥ To return to the previous screen, press [RETURN]E. ≥ To exit the screen, press [START]C. ≥ The settings remain intact even if you switch the unit to standby.

Display the current setting of the items below

DISC

CURRENT SETTINGS

AUDIO SUBTITLE MENUS RATINGS PASSWORD

Item

SET RETURN

ENGLISH AUTO ENGLISH 8 NO LIMIT

Setting

TV ASPECT

Choose the setting to suit your TV. ≥ 16:9

: Widescreen TV (16:9)

≥ 4:3PAN&SCAN: Regular aspect TV (4:3)

The sides of the widescreen picture are cut off so it fills the screen (unless prohibited by the disc).

≥ 4:3LETTERBOX: Regular aspect TV (4:3)

Widescreen picture is shown in the letterbox style.

TIME DELAY

When connected with a Plasma display, adjust if you notice the audio is out of sync with the video.

≥ 0 ms/AUTO

≥ 20 ms ≥ 40 ms ≥ 60 ms

≥ 80 ms ≥100 ms

When using VIERA Link “HDAVI Control” with “HDAVI Control 3 or later” compatible TV (B 14), select “0 ms/AUTO”. Audio and video will automatically be set in sync.

STILL MODE

Specify the type of picture shown when paused.

≥ AUTO ≥ FIELD: The picture is not blurred, but picture quality is lower. ≥ FRAME : Overall quality is high, but the picture may appear blurred.

BLACK LEVEL

Change the black level of the picture.

≥ LIGHTER ≥ DARKER

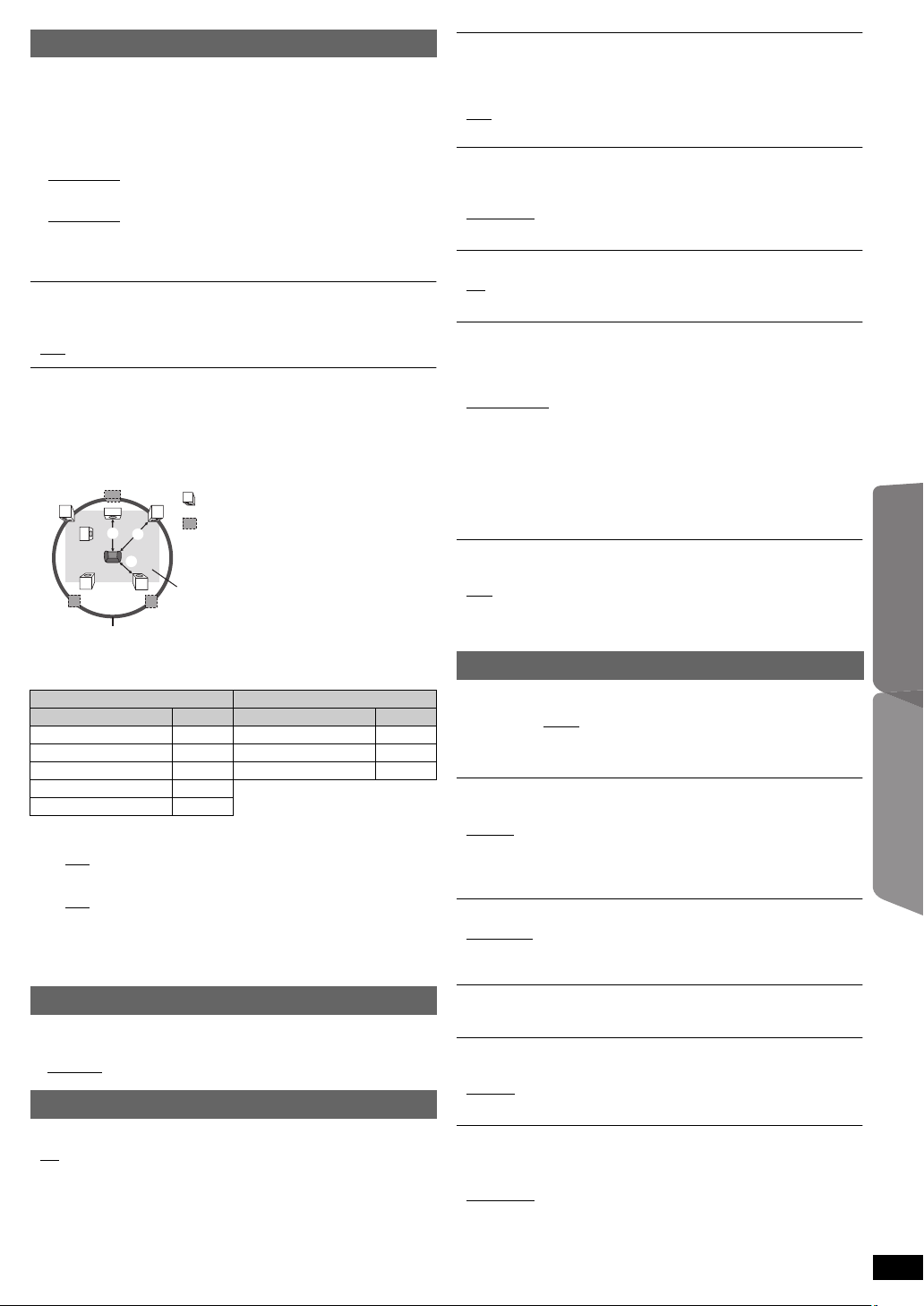

Page 17

AUDIO menu

Select to suit the type of equipment you connected to the HDMI AV OUT terminal. Select “BITSTREAM” when the equipment can decode the bitstream (digital form of 5.1-channel data). Otherwise, select “PCM”. (If the bitstream is output to the equipment without a decoder, high levels of noise can be output and may damage your speakers and hearing.)

DOLBY DIGITAL

≥BITSTREAM ≥PCM

DTS

≥BITSTREAM

§ When audio is output from HDMI AV OUT terminal, and the

connected equipment does not support the item selected, the actual output will depend on the performance of this connected equipment.

DYNAMIC RANGE

≥ ON: Adjusts for clarity even when the volume is low. Convenient for

late night viewing. (Only works with Dolby Digital)

≥ OFF

SPEAKER SETTINGS

Select the delay time of the speakers. (Center and surround speakers only) For optimum listening with 5.1-channel sound, all the speakers, except for the subwoofer, should be the same distance from the seating position. If you have to place the center or surround speakers closer to the seating position, adjust the delay time to make up for the difference.

Circle of constant primary listening distance

If either distance a or b is less than c, find the difference in the table and change to the recommended setting.

a Center speaker b Surround speaker

Difference (Approx.) Setting Difference (Approx.) Setting

30 cm (1 foot) 1ms 150 cm (5 feet) 5ms 60 cm (2 feet) 2ms 300 cm (10 feet) 10ms

90 cm (3 feet) 3ms 450 cm (15 feet) 15ms 120 cm (4 feet) 4ms 150 cm (5 feet) 5ms

≥ SETTINGS:

≥ C DELAY (Center Delay):

0ms Select the delay time for your center speaker.

≥ LS/RS DELAY (Left Surround/Right Surround Delay):

0ms Select the delay time for your surround speakers.

≥ TEST TONE: SETTING

Use the test tone for speaker level adjustments (B 10, Adjusting the speaker output level manually).

≥PCM





: Actual speaker position

: Ideal speaker position







Approximate room dimensions

, 1ms, 2ms, 3ms, 4ms, 5ms

, 5ms, 10ms, 15ms

: Primary listening distance

AUDIO OUT

≥ ON: When audio output is from the HDMI AV OUT terminal.

(Depending on the capabilities of the connected equipment, audio output may differ from the audio settings of the main unit.)

: When audio output is not from the HDMI AV OUT terminal. (The

≥ OFF

audio is output using the settings of the main unit.)

RGB RANGE

This works only when “COLOR SPACE” in Menu 4 (HDMI) is set to RGB (B 13).

≥ STANDARD ≥ ENHANCED: When the black and white images are not distinct.

VIERA Link

≥ ON: The VIERA Link “HDAVI Control” function is available (B 14). ≥ OFF

POWER OFF LINK

Select the desired power off link setting of this unit for VIERA Link operation (B

14). (This works depending on the settings of the connected

“HDAVI Control”

compatible equipment.)

VIERA Link

≥ VIDEO/AUDIO: When the TV is turned off, this unit will turn off

automatically.

≥ VIDEO: When the TV is turned off, this unit will turn off except during the

following conditions:

– audio playback ([CD] [MP3] [WMA]) –iPod mode – radio mode – “AUX”, “ARC” or “D-IN” mode (non-selected TV audio setting

VIERA Link

for

)

TV AUDIO

Select the TV audio input to work with the

≥ AUX ≥ ARC ≥ DIGITAL IN

VIERA Link

operations (B 14).

OTHERS menu

SLIDE SHOW TIME

Set the speed of the slideshow. Factory preset: 3 SEC

≥ 1 SEC to 15 SEC (in 1-unit steps) ≥ 15 SEC to 60 SEC (in 5-unit steps) ≥ 60 SEC to 180 SEC (in 30-unit steps)

FL DIMMER

Change the brightness of the unit’s display.

≥ BRIGHT ≥ DIM: The display is dimmed. ≥ AUTO: The display is dimmed, but brightens when you perform

FL CONTROL

≥ ON (VOL 0): The unit’s display will turn off when the volume is

≥ OFF

some operations.

adjusted to “0”.

Getting StartedPlaying DiscsOther OperationsReference

DISPLAY menu

LANGUAGE

Choose the language for the on-screen messages.

≥ ENGLISH

≥ FRANÇAIS ≥ ESPAÑOL

HDMI menu

VIDEO PRIORITY

≥ ON: When using the HDMI AV OUT terminal for video output. The

resolution of the video output from the HDMI AV OUT terminal is optimized according to the capability of the connected equipment (e.g. TV).

≥ OFF: When not using the HDMI AV OUT terminal for video output.

EASY SETUP

≥ SET (B 8)

DVD-VR/DATA

Select to play only DVD-VR or DATA format. ≥ DVD-VR

: To play the video programs on DVD-R/-RW.

≥ DATA: To play the data files on DVD-R/-RW.

SCREEN DIMMER

This is to prevent burn marks on the TV screen.

≥ OFF ≥ WAIT 5 MIN

: If there is no operation for 5 minutes, the picture turns

gray. The TV screen will resume when you perform some operations. (This does not work during video and picture playback.)

RQTX1101

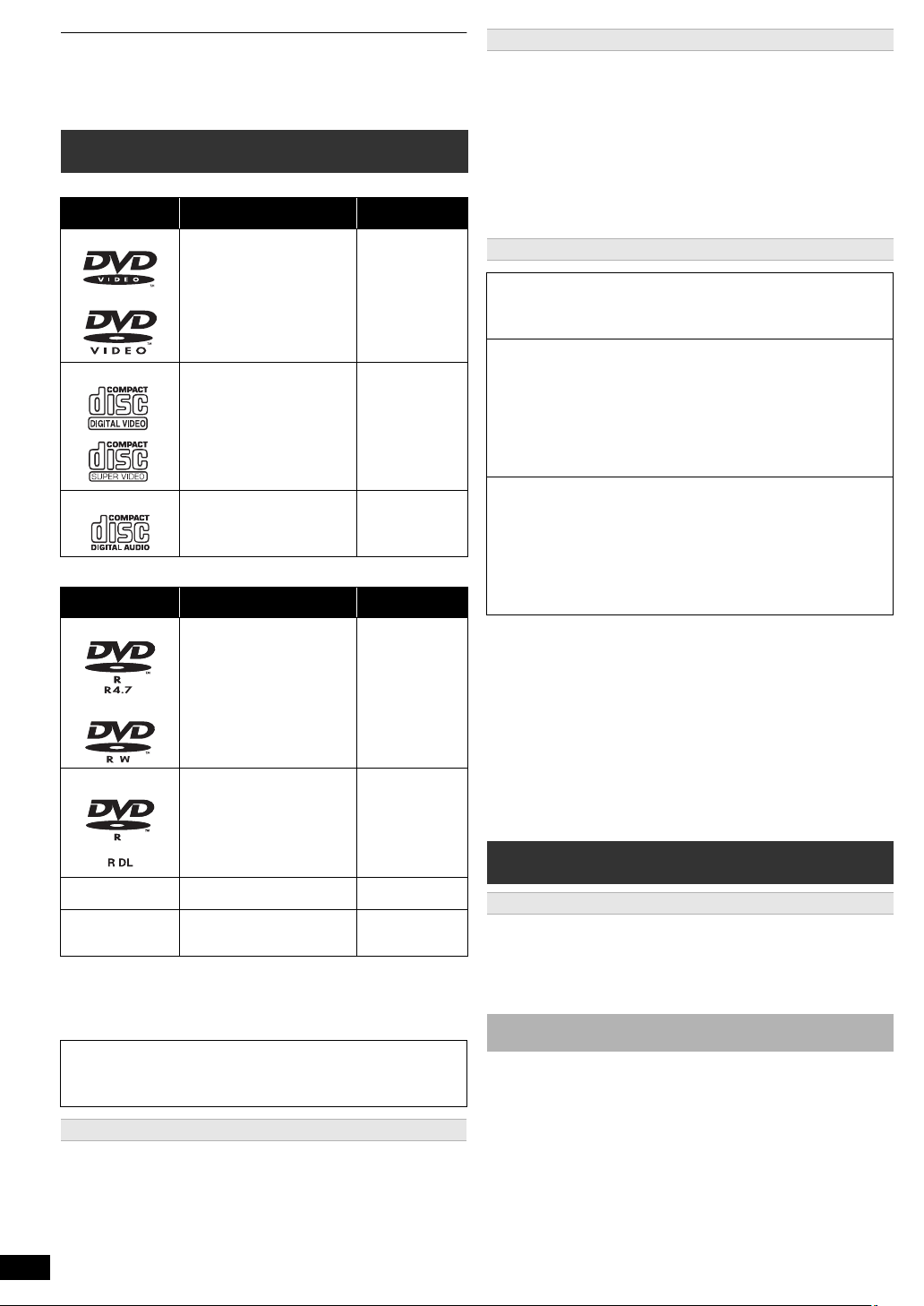

Page 18

DEFAULTS

This returns all values in the MAIN menu to the default settings. ≥ RESET

The password screen is shown if “RATINGS” (B 16) is set. Please enter the same password, then turn the unit off and on again.

Discs that can be played

Commercial discs

Type of media/

Getting StartedPlaying DiscsOther OperationsReference

Recorded discs

Type of media/

Logo

DVD-Video High quality movie and

Video CD Music discs with video

CD Music discs [CD]

Logo

DVD-R/RW ≥ DVD-Video Format

DVD-R DL ≥ DVD-Video Format

Remarks Indicated as

music discs

Including SVCD (Conforming to IEC62107)

Formats Indicated as

≥ Version 1.1 of the DVD

Video Recording Format

≥ MP3 format ≥ JPEG format

≥ Version 1.2 of the DVD

Video Recording Format

[DVD-V]

[VCD]

[DVD-V]

[DVD-VR]

[MP3]

[JPEG]

[DVD-V]

[DVD-VR]

Disc handling precautions

≥ Do not attach labels or stickers to discs. This may cause disc warping,

rendering it unusable.

≥ Do not write on the label side with a ball-point pen or other writing

instrument.

≥ Do not use record cleaning sprays, benzine, thinner, liquids which

prevent static electricity, or any other solvent.

≥ Do not use scratch-proof protectors or covers. ≥ Do not use the following discs:

– Discs with exposed adhesive from removed stickers or labels (rented

discs, etc.). – Discs that are badly warped or cracked. – Irregularly shaped discs, such as heart shapes.

Tips for making data d iscs

[WMA] (Extension: “.WMA”, “.wma”) Disc: CD-R/RW

≥ Compatible compression rate: between 48 kbps and 320 kbps ≥ You cannot play WMA files that are copy-protected.

[MP3] (Extension: “.MP3”, “.mp3”) Disc: DVD-R/RW, CD-R/RW

≥ This unit does not support ID3 tags. ≥ Sampling frequency and compression rate:

– DVD-R/RW: 11.02 kHz, 12 kHz, 22.05 kHz, 24 kHz (8 kbps to

160 kbps), 44.1 kHz and 48 kHz (32 kbps to 320 kbps)

– CD-R/RW: 8

kbps

320 kbps)

[JPEG] (Extension: “.JPG”, “.jpg”, “.JPEG”, “.jpeg”) Disc: DVD-R/RW, CD-R/RW

≥ JPEG files taken on a digital camera that conform to DCF Standard

(Design rule for Camera File system) Version 1.0 are displayed. – Files that have been altered, edited or saved with computer picture

editing software may not be displayed.

≥ This unit cannot display moving pictures, MOTION JPEG and other

such formats, still pictures other than JPEG (e.g. TIFF), or play pictures with attached audio.

≥ There may be differences in the display order on the menu screen and

computer screen.

≥ This unit cannot play files recorded using packet write.

DVD-R/RW

≥ Discs must conform to UDF bridge (UDF 1.02/ISO9660). ≥ This unit does not support multi-session. Only the default session is

played.

CD-R/RW

≥ Discs must conform to ISO9660 level 1 or 2 (except for extended

formats).

≥ This unit supports multi-session but if there are many sessions it takes

more time for play to start. Keep the number of sessions to a minimum to avoid this.

kHz

to 160 kbps), 32

, 11.02

kHz

, 12

, 44.1

kHz

, 16

kHz

, 22.05

and 48 kHz (32 kbps to

kHz

, 24 kHz

rR/rRW/rRDL ≥ +VR (+R/+RW Video

CD-R/RW ≥ MP3 format

≥ Before playback, finalize the disc on the device it was recorded on. ≥ It may not be possible to play all the above-mentioned discs in some

cases due to the type of disc, the condition of the recording, the recording method, or how the files were created (B right, Tips for making data discs).

Note about using a DualDisc

The digital audio content side of a DualDisc does not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so playback may not be possible.

Discs that cannot be played

Blu-ray, HD DVD, AVCHD discs, DVD-RW version 1.0, DVD-Audio, DVD-ROM, CD-ROM, CDV, CD-G, SACD, DivX Video Discs and Photo CD, DVD-RAM, and “Chaoji VCD” available on the market including CVD, DVCD and SVCD that do not conform to IEC62107.

RQTX1101

Recording) Format

≥ JPEG format ≥ WMA

[DVD-V]

[MP3] [JPEG] [WMA]

Maintenance

Clean this unit with a soft, dry cloth

≥ Never use alcohol, paint thinner or benzine to clean this unit. ≥ Before using chemically treated cloth, carefully read the instructions that

came with the cloth.

Do not use commercially available lens cleaners as they may cause malfunction. Cleaning of the lens is generally not necessary although

this depends on the operating environment.

Before moving the unit, ensure the disc tray is empty. Failure to do so will risk severely damaging the disc and the unit.

Page 19

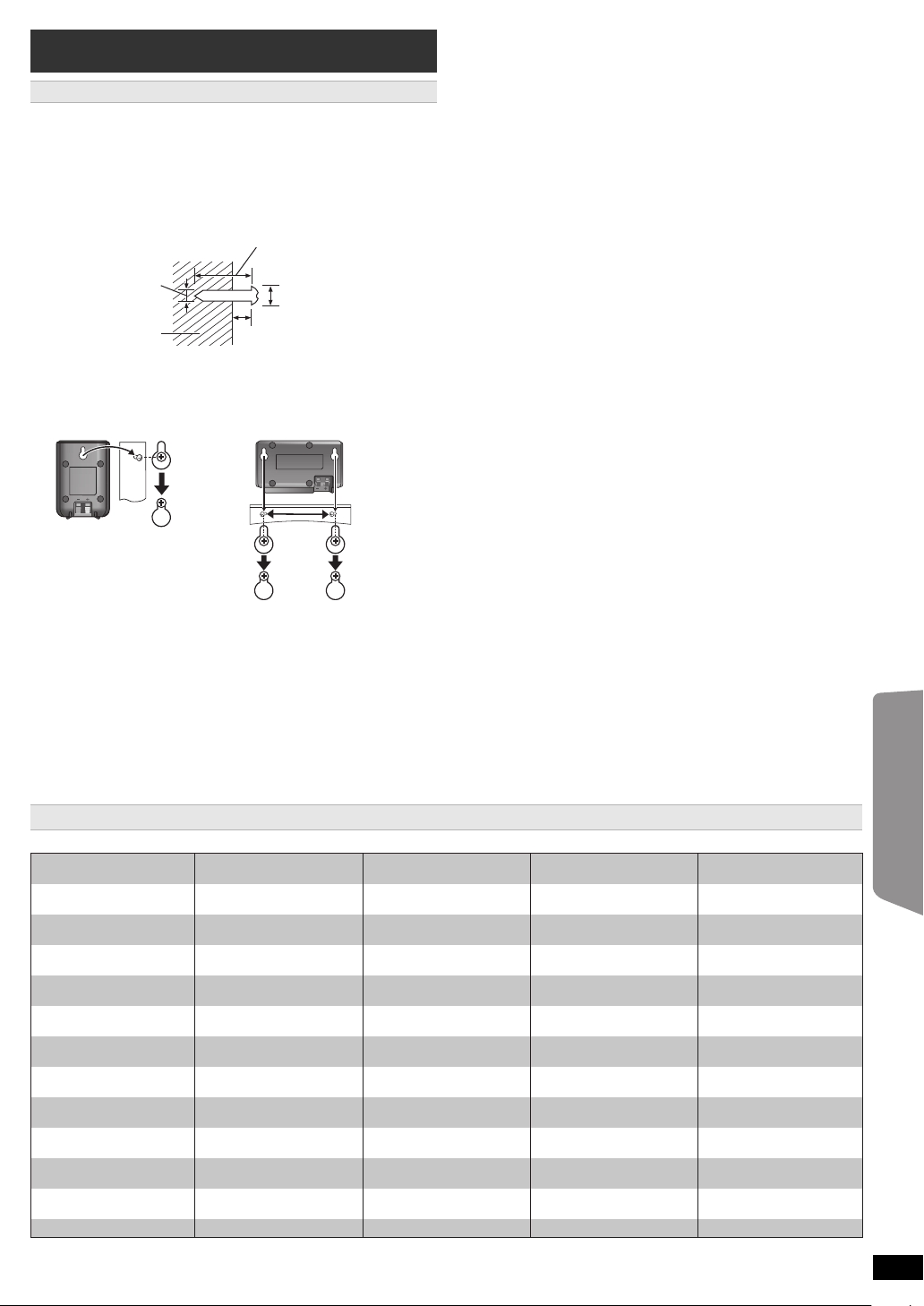

Speaker installation option

100 mm

/16)

Front/Surround speaker Center speaker

Attaching to a wall

You can attach all of the speakers (except subwoofer) to a wall.

≥ The wall or pillar on which the speakers are to be attached should be

capable of supporting 10 kg (22 Ibs) per screw. Consult a qualified building contractor when attaching the speakers to a wall. Improper attachment may result in damage to the wall and speakers.

1 Drive a screw (not included) into the wall.

At least 30 mm (13/16)

4.0 mm (

2 Fit the speaker securely onto the screw(s) with the hole(s).

/32)

Wall or pillar

7.0 mm to 9.4 mm

/32 to 3/8)

(

3 mm to 5 mm (

/8 to 3/16)

Getting StartedPlaying DiscsOther OperationsReference

Language code list

Abkhazian: 6566 Afar: 6565 Afrikaans: 6570 Albanian: 8381 Amharic: 6577 Arabic: 6582 Armenian: 7289 Assamese: 6583 Aymara: 6589 Azerbaijani: 6590 Bashkir: 6665 Basque: 6985 Bengali, Bangla: 6678 Bhutani: 6890 Bihari: 6672 Breton: 6682 Bulgarian: 6671 Burmese: 7789 Byelorussian: 6669 Cambodian: 7577 Catalan: 6765 Chinese: 9072 Corsican: 6779 Croatian: 7282 Czech: 6783

Danish: 6865 Dutch: 7876 English: 6978 Esperanto: 6979 Estonian: 6984 Faroese: 7079 Fiji: 7074 Finnish: 7073 French: 7082 Frisian: 7089 Galician: 7176 Georgian: 7565 German: 6869 Greek: 6976 Greenlandic: 7576 Guarani: 7178 Gujarati: 7185 Hausa: 7265 Hebrew: 7387 Hindi: 7273 Hungarian: 7285 Icelandic: 7383 Indonesian: 7378 Interlingua: 7365 Irish: 7165

Italian: 7384 Japanese: 7465 Javanese: 7487 Kannada: 7578 Kashmiri: 7583 Kazakh: 7575 Kirghiz: 7589 Korean: 7579 Kurdish: 7585 Laotian: 7679 Latin: 7665 Latvian, Lettish: 7686 Lingala: 7678 Lithuanian: 7684 Macedonian: 7775 Malagasy: 7771 Malay: 7783 Malayalam: 7776 Maltese: 7784 Maori: 7773 Marathi: 7782 Moldavian: 7779 Mongolian: 7778 Nauru: 7865 Nepali: 7869

Norwegian: 7879 Oriya: 7982 Pashto, Pushto: 8083 Persian: 7065 Polish: 8076 Portuguese: 8084 Punjabi: 8065 Quechua: 8185 Rhaeto-Romance: Romanian: 8279 Russian: 8285 Samoan: 8377 Sanskrit: 8365 Scots Gaelic: 7168 Serbian: 8382 Serbo-Croatian: 8372 Shona: 8378 Sindhi: 8368 Singhalese: 8373 Slovak: 8375 Slovenian: 8376 Somali: 8379 Spanish: 6983 Sundanese: 8385 Swahili: 8387

8277

Swedish: 8386 Ta ga l o g: 8 4 76 Ta ji k : 8 4 71 Tamil: 8465 Ta ta r : 8 4 8 4 Telugu: 8469 Thai: 8472 Tibetan: 6679 Tigrinya: 8473 To ng a : 84 7 9 Turkish: 8482 Turkmen: 8475 Twi: 8487 Ukrainian: 8575 Urdu: 8582 Uzbek: 8590 Vietnamese: 8673 Volapük: 8679 Welsh: 6789 Wolof: 8779 Xhosa: 8872 Yiddish: 7473 Yo r u b a : 8 9 7 9 Zulu: 9085

RQTX1101

Page 20

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the following guide do not solve the problem, refer to “Customer Services Directory (United States and Puerto Rico)” on page 24 if you reside in the U.S.A. or Puerto Rico, or refer to “Product information” on page 23 if you reside in Canada.

Power

No power.

Getting StartedPlaying DiscsOther OperationsReference

Insert the AC power supply cord securely. (B 7)

The unit is automatically switched to standby mode.

≥ The Sleep timer was working and had reached the set time limit. (B 4) ≥ This unit will automatically turn to standby mode after 30 minutes if it is

inactive. (B 4)

Power of this unit is turned off when the input for the TV is changed.

This is a normal phenomenon when using VIERA Link “HDAVI Control 4 or later”. For details please read the operating instructions of the TV.

Unit displays

The display is dark.

Select “BRIGHT” in “FL DIMMER” in the OTHERS menu. (B 17)

“NO PLAY”

≥ You inserted a disc the unit cannot play; insert one it can. (B 18) ≥ You inserted a blank disc. ≥ You inserted a disc that has not been finalized.

“NO DISC”

≥ You have not inserted a disc; insert one. ≥ You have not inserted the disc correctly; insert it correctly. (B 11)

“IPOD OVER CURRENT ERROR”

The iPod is drawing too much power. Remove the iPod, and turn the unit off and on again.

“F61”

Check and correct the speaker cable connections. If this does not fix the problem, consult the dealer. (B 6)

“F76”

There is a power supply problem. Consult the dealer.

“DVD U11”

Disc may be dirty. Wipe it clean.

“ERROR”

Incorrect operation performed. Read the instructions and try again.

“DVD H∑∑” “DVD F∑∑∑”

∑ stands for a number. ≥ Trouble may have occurred. The numbers following “H” and “F” depend

on the status of the unit. Turn the unit off and then back on. Alternatively, turn the unit off, disconnect the AC power supply cord, and then reconnect it.

≥ If the service numbers fail to clear, note the service number and contact

a qualified service person.

“U70∑”

∑ stands for a number. (The actual number following “U70” will depend on

the state of the main unit.) ≥ The HDMI connection acts unusually.

– The connected equipment is not HDMI-compatible. – Please use HDMI cables that have the HDMI logo (as shown on the

cover). – The HDMI cable is too long. – The HDMI cable is damaged.

“REMOTE 1” or “REMOTE 2”

Match the modes on the main unit and remote control. Depending on the number being displayed (“1” or “2”), press and hold [OK]9 and the corresponding numbered button ([1] or [2]) for at least 2 seconds. (B 4)

RQTX1101

“LOADING”

≥ The iPod is not ready. Wait for this display to disappear. ≥ Disconnect the iPod, and then reconnect it firmly. (B 15)

General operation

No response when any buttons are pressed.

≥ This unit cannot play discs other than the ones listed in these operating

instructions. (B 18)

≥ The unit may not be operating properly due to lightning, static electricity

or some other external factor. Turn the unit off and then back on. Alternatively, turn the unit off, disconnect the AC power supply cord, and then reconnect it.

≥ Condensation has formed. Wait 1 to 2 hours for it to evaporate.

No response when remote control buttons are pressed.

≥ Check that the batteries are installed correctly. (B 7) ≥ The batteries are depleted. Replace them with new ones. (B 7) ≥ Aim the remote control at the remote control signal sensor and operate.

(B 4)

Other products respond to the remote control.

Change the remote control operating mode. (B 4)

Cannot display the START menu.

Remove the disc and then press [START]C again.

No picture or sound.

≥ Check the video or speaker connection. (B 6, 7) ≥ Check the power or input setting of the connected equipment and the

main unit.

≥ Check that the disc has something recorded on it.

You have forgotten your ratings password.

Reset all the settings to Factory Preset. While stopped and “DVD/CD” is the source, press and hold [∫]8 (Stop) on the main unit and [S10]3 on the remote control until “INITIALIZED” disappears from the TV. Turn the unit off and on again. All settings will return to the default values. (This does not work during program and random modes, or when setup menu or START menu is displayed.)

Some characters are not displayed correctly.

Characters other than English alphabet and Arabic numerals may not be displayed correctly.

The VIERA Link “HDAVI Control” function does not respond.

Depending on the condition of this unit or the connected equipment, it may be necessary to repeat the same operation so that the function can work correctly. (B 14)

The setting you made in “TV ASPECT” (B 16, VIDEO menu) or “LANGUAGE” (B 17, DISPLAY menu) does not work.

The settings for “TV ASPECT”§1 and “LANGUAGE”§2 will automatically follow the information from the TV. (B 8, Easy setup settings)

§1 When using VIERA Link “HDAVI Control” with “HDAVI Control 3 or later” compatible TV

§2 When using VIERA Link “HDAVI Control” with “HDAVI Control 2 or later” compatible TV

Disc operation

It takes time before play starts. [MP3]

Play may take time to begin when an MP3 track has still picture data. Even after the track starts, the correct play time will not be displayed. This is normal.

A menu screen appears during skip or search. [VCD]

This is normal for Video CDs.

Playback control menu does not appear.

[VCD] with playback control Press [∫ STOP]6 twice and then press [1 PLAY]6.

Program and Random play do not work. [DVD-V]

These functions do not work with some DVD-Videos.

Page 21

Play does not start.

≥ This unit may not play WMA that contains still picture data. ≥ If a disc contains CD-DA and other formats, proper playback may not be

possible.

No subtitles.

Display the subtitles. (“SUBTITLE” in Menu 1) (B 13)

Point B is automatically set.

The end of an item becomes point B when it is reached.

The Setup menu cannot be accessed.

Select “DVD/CD” as the source.

Sound

Sound is distorted.

≥ Noise may occur when playing WMA. ≥ When using the HDMI output, audio may not be output from other

terminals.

Effects do not work.

Some audio effects do not work or have less effect with some discs.

Humming is heard during play.

An AC power supply cord or fluorescent light is near the main unit. Keep other appliances and cables away from the main unit.

No sound.

≥ There may be a slight pause in sound when you change the play speed. ≥ If the input source is bitstream, set the sound setting to PCM on the

external equipment.

No sound from the TV.

≥ If the TV is not ARC compatible and only the HDMI connection is used,

an extra audio connection is necessary. (B 7)

≥ Confirm the audio connection. Press [RADIO, EXT-IN]5 to select the

corresponding source. (B 7, 9)

≥ When using the HDMI connection, ensure that “AUDIO OUT” in the

HDMI menu is set to “ON”. (B 17)

No sound from the surround speakers.

Press [SURROUND]< to select “MULTI-CH”. (B 10)


The picture on the TV is not displayed correctly or disappears.

≥ Ensure that the unit is connected directly to the TV, and is not

connected through a VCR. (B 7)

≥ Mobile telephone chargers can cause some disturbance. ≥ If you are using an indoor TV antenna, change to an outdoor antenna. ≥ The TV antenna wire is too close to the unit. Move it away from the unit. ≥ Reduce the number of connected HDMI devices. ≥ When using the HDMI AV OUT terminal, ensure that an incompatible

video output with the connected TV is not selected. Press and hold [CANCEL]4 until the picture is displayed correctly. (The output will return to “480p”.) (B 13)

≥ Video images converted to 1920k1080 resolution may look different

from the true native 1080p full-HD sources. This is not a malfunction of the main unit.

Picture size does not fit the screen.

≥ Change “TV ASPECT” in the VIDEO menu. (B 16) ≥ Use the TV to change the aspect. ≥ Change the zoom setting. (“ZOOM” in Menu 2) (B 13)

Menu is not displayed correctly.

Restore the zoom ratio to “NORMAL”. (“ZOOM” in Menu 2) (B 13)

Auto zoom function does not work well.

≥ Turn off TV’s zoom function. ≥ Zoom function may not work well, especially in dark scenes and may

not work depending on the type of disc.

iPod operation

Cannot charge or operate.

≥ Check that the iPod is connected firmly. (B 15) ≥ The battery of the iPod is depleted. Charge the iPod, and then operate

again.

Cannot display iPod photos/videos on the TV.

≥ Ensure the video connection to the VIDEO OUT terminal on this unit.

(B 7)

≥ Operate the iPod menu to make the appropriate photo/video output

settings for your TV. (Refer to operating instructions for your iPod.)

HDMI progressive video

There is ghosting when HDMI progressive output is on.

This problem is caused by the editing method or material used on DVD-Video, but should be corrected if you use interlaced output. When using the HDMI AV OUT terminal, set “VIDEO FORMAT” in Menu 4 to “480i”. Or, disable the HDMI connection and use the other video connection. (B 7, 13)

Closed captions not displayed.

When HDMI progressive output is used, closed captions will not be displayed.

Radio

Distorted sound or noise is heard.

≥ Adjust the position of the FM antenna. ≥ Use an outdoor antenna. (B 6)

A beat sound is heard.

Turn the TV off or move it away from the unit.

TV displays

“/”

The operation is prohibited by the unit or disc.

“THIS DISC CANNOT BE PLAYED IN YOUR REGION.”

Only DVD-Video discs that include or have the same region number as the one on the rear panel of this unit can be played. (B Cover page)

“No Video”

Depending on the connected iPod, video menu may not be available on the TV. Select iPod menu (iPod LCD) mode (B 15) and operate video playback from your iPod menu.

Getting StartedPlaying DiscsOther OperationsReference

RQTX1101

Page 22

Specifications

AMPLIFIER SECTION

RMS Output Power: Dolby Digital Mode

Front Ch Surround Ch Center Ch Subwoofer Ch

125 W per channel (3 ≠), 1 kHz, 10 % THD 125 W per channel (3 ≠), 1 kHz, 10 % THD 250 W per channel (6 ≠), 1 kHz, 10 % THD

250 W per channel (6 ≠), 100 Hz, 10 % THD

Total RMS Dolby Digital mode power 1000 W

FTC Output Power: Dolby Digital Mode

Getting StartedPlaying DiscsOther OperationsReference

Front Ch Surround Ch Center Ch Subwoofer Ch

60 W per channel (3 ≠), 120 Hz to 20 kHz, 1 % THD 60 W per channel (3 ≠), 120 Hz to 20 kHz, 1 % THD

106 W per channel (6 ≠), 120 Hz to 20 kHz, 1 % THD

100 W per channel (6 ≠), 45 Hz to 120 Hz, 1 % THD

Total FTC Dolby Digital mode power 446 W

FM TUNER, TERMINALS SECTION

Preset Memory FM 30 stations Frequency Modulation (FM)

Frequency range 87.9 MHz to 107.9 MHz (200-kHz step)

87.5 MHz to 108.0 MHz (100-kHz step)

Antenna terminals 75 ≠ (unbalanced)

Digital audio input

Optical digital input Sampling frequency

32 kHz, 44.1 kHz, 48 kHz

Optical terminal

DISC SECTION

Discs played [8 cm (3z) or 12 cm (5z)]

(1) DVD (DVD-Video) (2) DVD-R (DVD-Video, DVD-VR, MP3 (3) DVD-R DL (DVD-Video, DVD-VR) (4) DVD-RW (DVD-Video, DVD-VR, MP3 (5) iR/iRW (Video) (6) iR DL (Video) (7) CD, CD-R/RW (CD-DA, Video CD, SVCD

§4, 5

JPEG

§1 Conforming to IEC62107

§2 MPEG-1 Layer 3, MPEG-2 Layer 3

§3 Windows Media Audio Ver.9.0 L3

§4 Exif Ver 2.1 JPEG Baseline files

§5 The total combined maximum number of recognizable audio and

)

Not compatible with Multiple Bit Rate (MBR)

Picture resolution: between 160k120 and 6144k4096 pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and narrow pictures may not be displayed.

picture contents and groups: 4000 audio and picture contents and 255 groups. (Excluding Root folder)

§2, 5

, JPEG

§2, 5

, JPEG

§1

, MP3

§4, 5

)

§2, 5

)

, WMA

Pick up

Wavelength (DVD/CD) 655/ 790 nm Laser power For U.S.A.

For Canada

Audio output (Disc)

Number of channels 5.1 ch (FL, FR, C, SL, SR, SW)

VIDEO SECTION

Video system NTSC Composite video output

Output level Te rm i na l

1Vp-p (75≠)

Pin jack (1 system)

HDMI AV output

Terminal 19-pin type A connector

HDAVI Control This unit supports “HDAVI Control 5” function.

§3, 5

CLASS II

CLASS 1M

SPEAKER SECTION

[Front\speakers\SB-HF480]

Typ e Speaker unit(s)

Full range 6.5 cm (2

Output sound pressure Frequency range

Dimensions (WtHtD)

Mass [Weight]

1 way, 1 speaker system (Bass reflex)

Impedance 3 ≠

/2z) Cone type

78 dB/W (1.0 m) 105 Hz to 25 kHz (j16 dB) 130 Hz to 22 kHz (j10 dB)

80 mmk119 mm k68 mm

/32zk411/16zk211/16z)

0.4 kg (0.88 lbs)

[Surround\speakers\SB-HS480]

Typ e Speaker unit(s)

Full range 6.5 cm (2

Output sound pressure Frequency range

1 way, 1 speaker system (Bass reflex)

105 Hz to 25 kHz (j16 dB)

Impedance 3 ≠

/2z) Cone type

78 dB/W (1.0 m)

130 Hz to 22 kHz (j10 dB)

Dimensions (WtHtD)

Mass [Weight]

80 mmk119 mm k68 mm

/32zk411/16zk211/16z)

0.4 kg (0.88 lbs)

[Center\speaker\SB-HC480]

Typ e Speaker unit(s)

Full range 6.5 cm (2

Output sound pressure Frequency range

Dimensions (WtHtD)

Mass [Weight]

1 way, 1 speaker system (Bass reflex)

Impedance 6 ≠

/2z) Cone type

79 dB/W (1.0 m)

90 Hz to 25 kHz (j16 dB)

115 Hz to 22 kHz (j10 dB)

145 mmk85 mmk71.5 mm

/32zk311/32zk213/16z)

0.6 kg (1.32 lbs)

[Subwoofer\SB-HW480]

Typ e Speaker unit(s)

Woofer 16 cm (6

Output sound pressure Frequency range

Dimensions (WtHtD)

Mass [Weight]

1 way, 1 speaker system (Bass reflex)

Impedance 6 ≠

/2z) Cone type

78 dB/W (1.0 m)

40 Hz to 220 Hz (j16 dB) 45 Hz to 180 Hz (j10 dB)

145 mmk289.5 mmk258 mm

/32zk1113/32zk105/32z)

2.8 kg (6.17 lbs)

GENERAL

Power supply AC 120 V, 60 Hz Power consumption

Dimensions (WtHtD)

Mass [Weight] Operating temperature range Operating humidity range

430 mmk54 mmk287 mm

Main unit 2.7 kg (6.0 lbs)

0 oC to r40 oC (r32 oF to r104 oF)

35 % to 80 % RH (no condensation)

Main unit 90 W

/16zk21/8zk115/16z)

(16

Power consumption in standby mode approx. 0.2 W

[Note]

1 Specifications are subject to change without notice.

Mass and dimensions are approximate.

2 Total harmonic distortion is measured by a digital spectrum analyzer.

RQTX1101

Page 23

Licenses

Product Service

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software. C DTS, Inc. All Rights Reserved.

U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

HDAVI Control

VIERA Link

EZ Sync

is a trademark of Panasonic Corporation.

1. Damage requiring service—The unit should be serviced by qualified service personnel if:

(a) The AC power supply cord or AC adaptor has been damaged; or (b) Objects or liquids have gotten into the unit; or (c) The unit has been exposed to rain; or (d) The unit does not operate normally or exhibits a marked change in

performance; or

(e) The unit has been dropped or the cabinet damaged.

2. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.

3. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

4. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

The servicer will require all components to service your system. Therefore, should service ever be necessary, be sure to bring the entire system.

Product information

For product information or assistance with product operation:

In the U.S.A. and Puerto Rico, refer to “Customer Services Directory (United States and Puerto Rico)” on page 24.

In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

Getting StartedPlaying DiscsOther OperationsReference

“Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

RQTX1101

Page 24

Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO)

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Home Audio Products

Limited Warranty

Limited Warranty Coverage (For USA and Puerto Rico Only)

Getting StartedPlaying DiscsOther OperationsReference

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Product or Part Name Parts Labor

Audio Products (except items below) 1 year 1 year

DVD Home Theater System 1 year 1 year

USB Reader-writer, PC Card Adapters (defective exchange)

Accessories: Headphones, c artridges, Microphones, Adapters

Rechargeable Batteries, DVD-RAM Disc (defective exchange)

SD Memory Cards, Rechargeable Battery Packs (defective exchange)

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold “as is”.

1 year

90 days 90 days

10 days

90 days

Carry-In or Mail-In Service

To find a service center please visit http://www.panasonic.com/help or call 1-800-211-PANA (7262).

When shipping the unit, carefully pack, include all accessories, and send it prepaid, adequately insured and preferably in the original carton. If Lithium Ion batteries are shipped by air the package must be labeled “Contains Lithium Ion Battery (No lithium metal)”. Damaged batteries are prohibited from shipment by US Mail. Batteries must be securely packed in a manner to prevent short-circuiting and a package cannot contain more than 3 Lithium Ion batteries. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/ PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

Not

Applicable

Not

Applicable

Not

Applicable

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes

damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at: 1-800-211-PANA (7262) Monday-Friday 9am-9pm, Saturday-Sunday 10am-7pm EST

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pstc.panasonic.com Or, send your request by E-mail to: [email protected] You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday-Friday 9am-9pm EST) Panasonic Service and Technology Company 20421 84th Avenue South, Kent, WA 98032 (We accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

As of November 2009

RQTX1101

Page 25

Limited Warranty (ONLY FOR CANADA)

Panasonic Canada Inc.

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

Technics Audio Product Panasonic Portable / Clock Radio (without Tape, CD, MD) Panasonic Audio / SD Audio Product Panasonic DVD Product Panasonic Combination DVD Player / VCR Panasonic Combination DVD Recorder / VCR Accessories including rechargeable batteries

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty. This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

One (1) year, parts and labour One (1) year, parts and labour One (1) year, parts and labour One (1) year, parts and labour One (1) year, parts and labour One (1) year, parts and labour Ninety (90) days

Getting StartedPlaying DiscsOther OperationsReference

WARRANTY SERVICE

FOR PRODUCT OPERATION ASSISTANCE, please contact:

Our Customer Care Centre: Telephone #:

1-800 #: Fax #: Email link:

FOR PRODUCT REPAIRS, please locate your nearest Authorized Servicentre at www.panasonic.ca :

Link : “Servicentres

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

(905) 624-5505 1-800-561-5505 (905) 238-2360 “Customer support” on www.panasonic.ca

locator” under “Customer support”

RQTX1101

Page 26

-If you see this symbol-

(Inside of product)

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

User memo:

DATE OF PURCHASE __________________________________________

DE ALER N AME ________________________________________________

DEALER ADDRESS ____________________________________________

_________________________________________________________________

TELE P H O N E N U M B E R _________________________________________

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER ______________________________________________ SERIAL NUMBER ______________________________________________

SC-PT480

[For[U.S.A.]and]Puerto]Rico]

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

http://www.panasonic.com

C Panasonic Corporation 2009 RQTX1101-P Printed in Malaysia F1109AD0

[For[Canada]

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3

www.panasonic.ca
