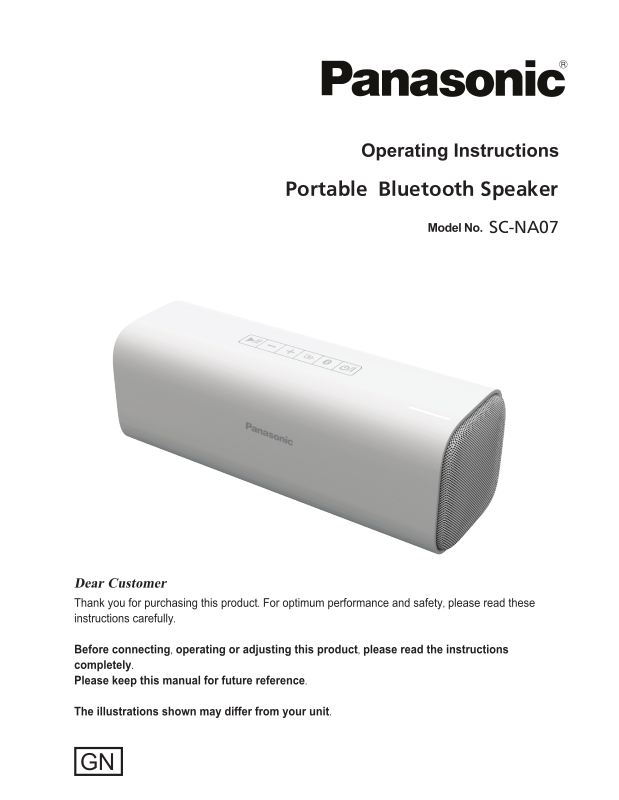

Panasonic SC-NA07 Operating Manual

Portable Bluetooth Speaker

SC-NA07

GN

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycle systems

These symbols are only valid in the European Union and countries with recycle systems.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Do & Don't: E Waste Management Guidelines

S.No.	Do	Don't
1	All electrical and electronic products are required to be	TheproductshouldnotbeopenedbytheUserhimself/
	handedoveronlytoanauthorisa onrecycler	herself,butonlybyauthorisa onservicepersonnel.
2	Thisproductshouldbehandedoveronlytoauthorisa on	Theproductisnotmeantforre-saleanyauthorisa on
	recycler for disposal.	agencies/scrapdealer.
3	Keeptheproductinisolatedarea,a eritbecomesnon-	Theproductisnotmeantformixingintohousehold
	func onal/un-repairablesoastopreventitsaccidentalbreakage.	wastestream.
4	Alwaysdisposeproductsthathavereachedend-oflifeat	Donotkeepanyreplacedsparepart(s)fromtheproduct
	authorisa oncollec oncenters,aregistereddismantlers,	inexposedarea
	recycler or Panasonic service center.
5	Wherever possible or as instructed, separate the	Donotdisposeyourproductingarbagebinsalongwith
	packagingmaterialaccordingtoresponsiblewaste	municipalwastethatul matelyreacheslandfill.
	disposalop onsandsor ngforrecycling.

<![if ! IE]>

<![endif]>SC-NA07

1

<![if ! IE]>

<![endif]>SC-NA07

Table of Contents

Important	3
Safety Precautions	3
Warning	3

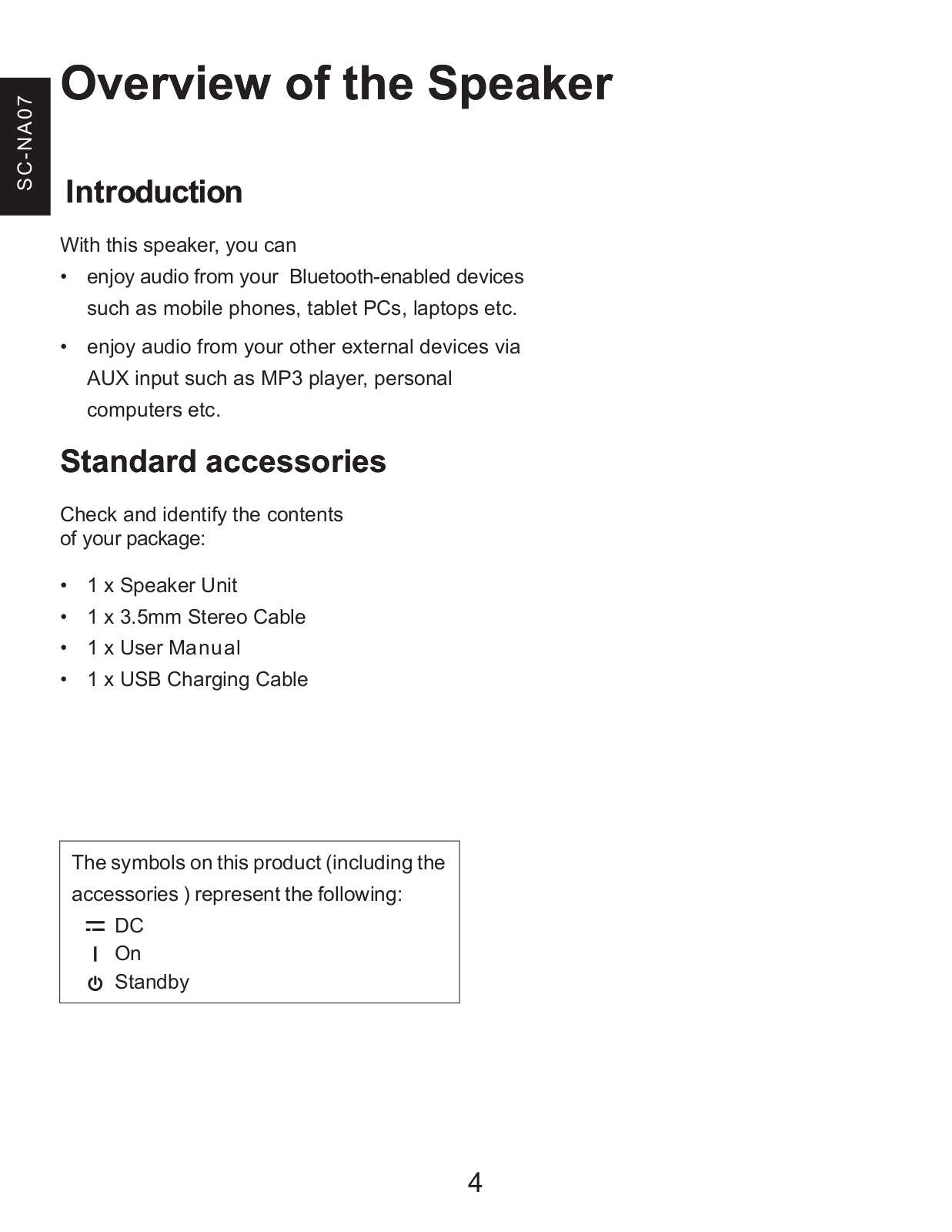

Overview Of The Speaker	4
Introduction	4
Standard Accessories	4

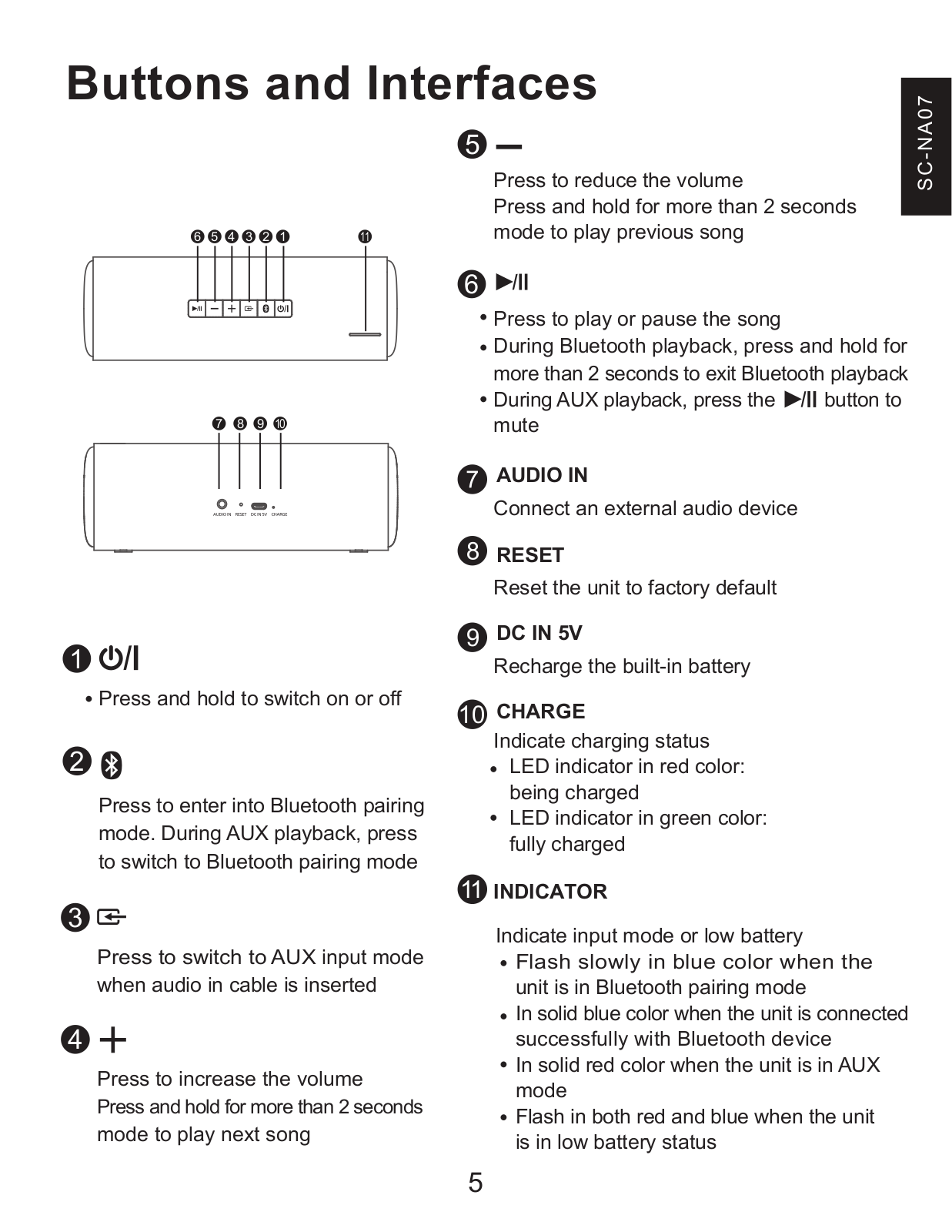

Buttons And Interfaces	5

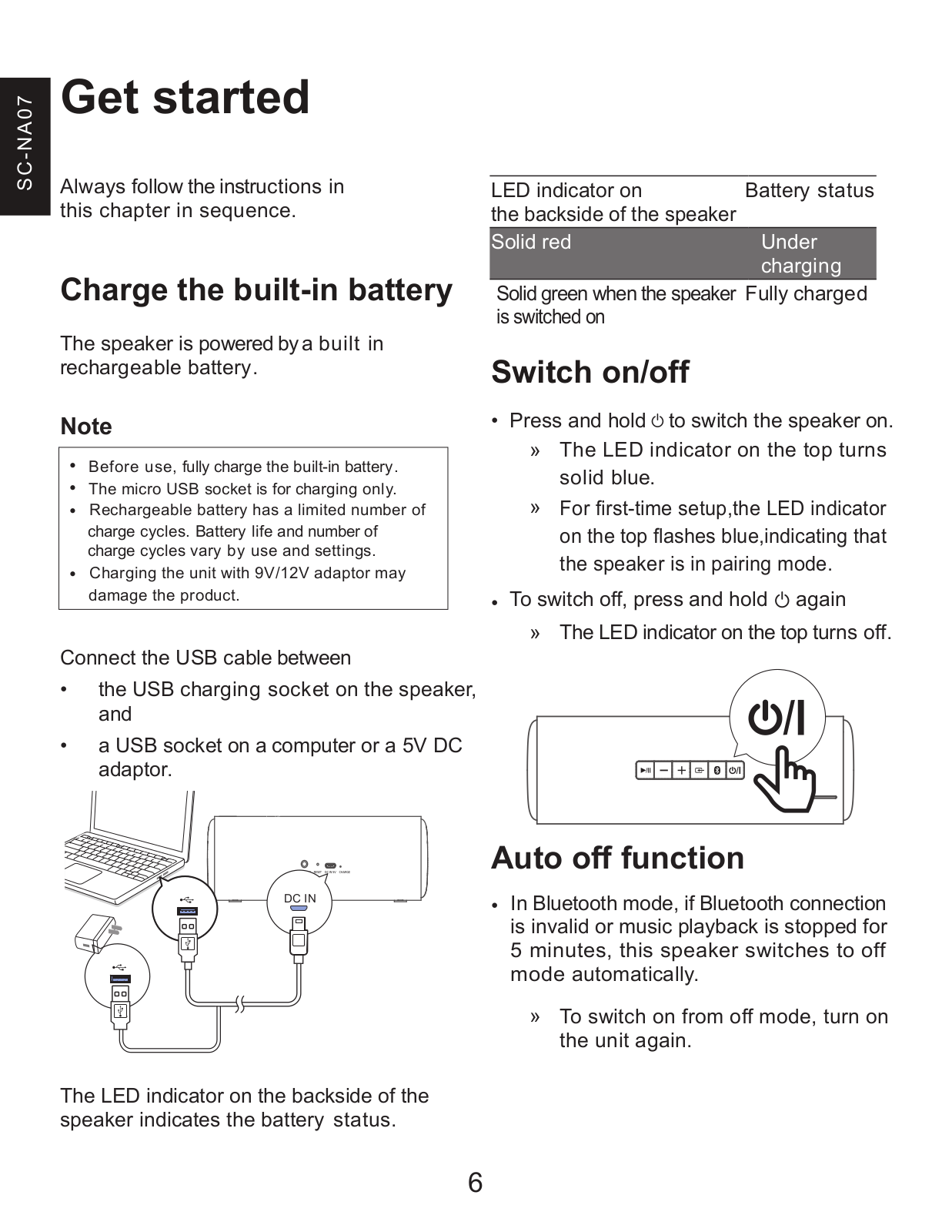

Get Started	6
Charge The Built-In Battery	6
Switch On/Off	6
Auto Off Function	6

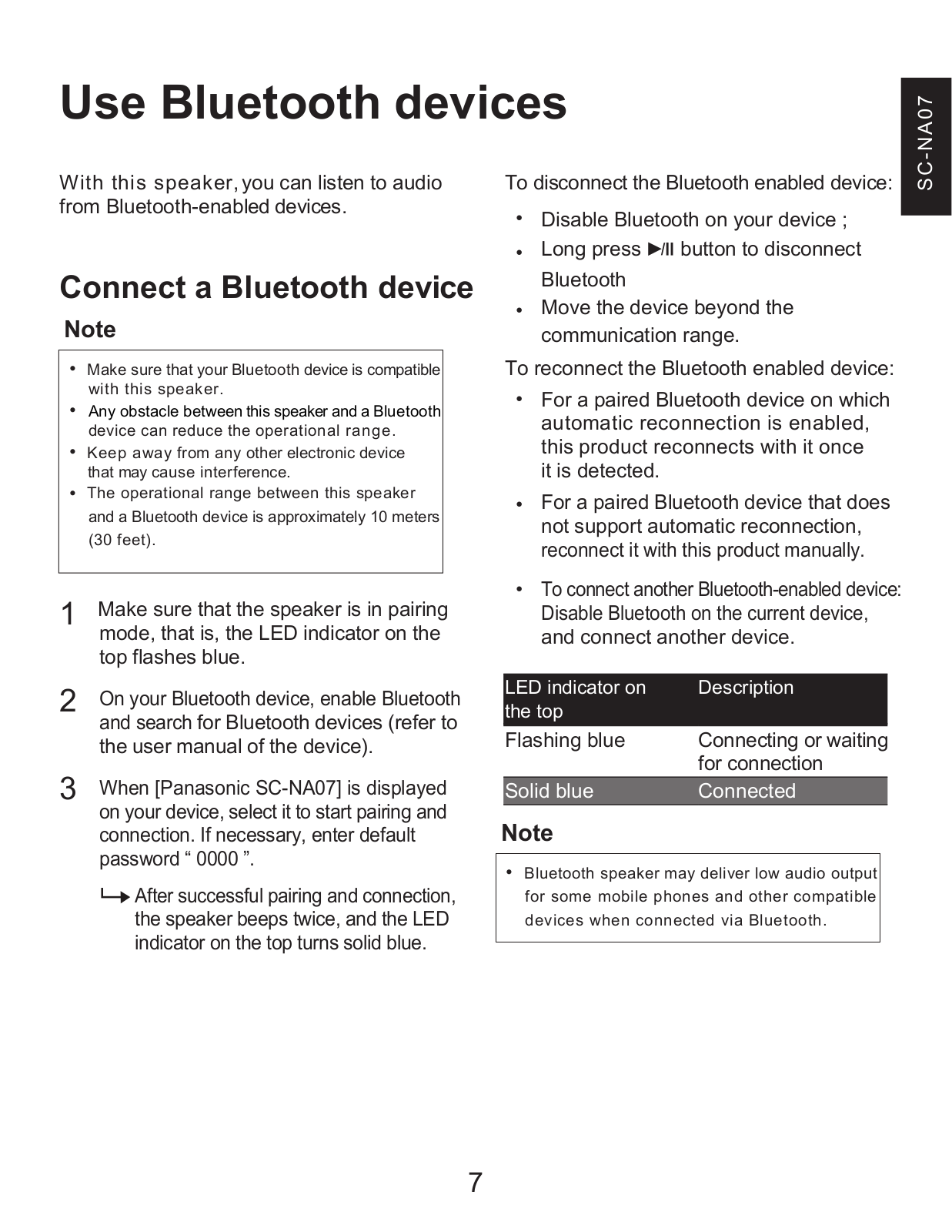

Use Bluetooth Devices	7
Connect A Bluetooth Device	7

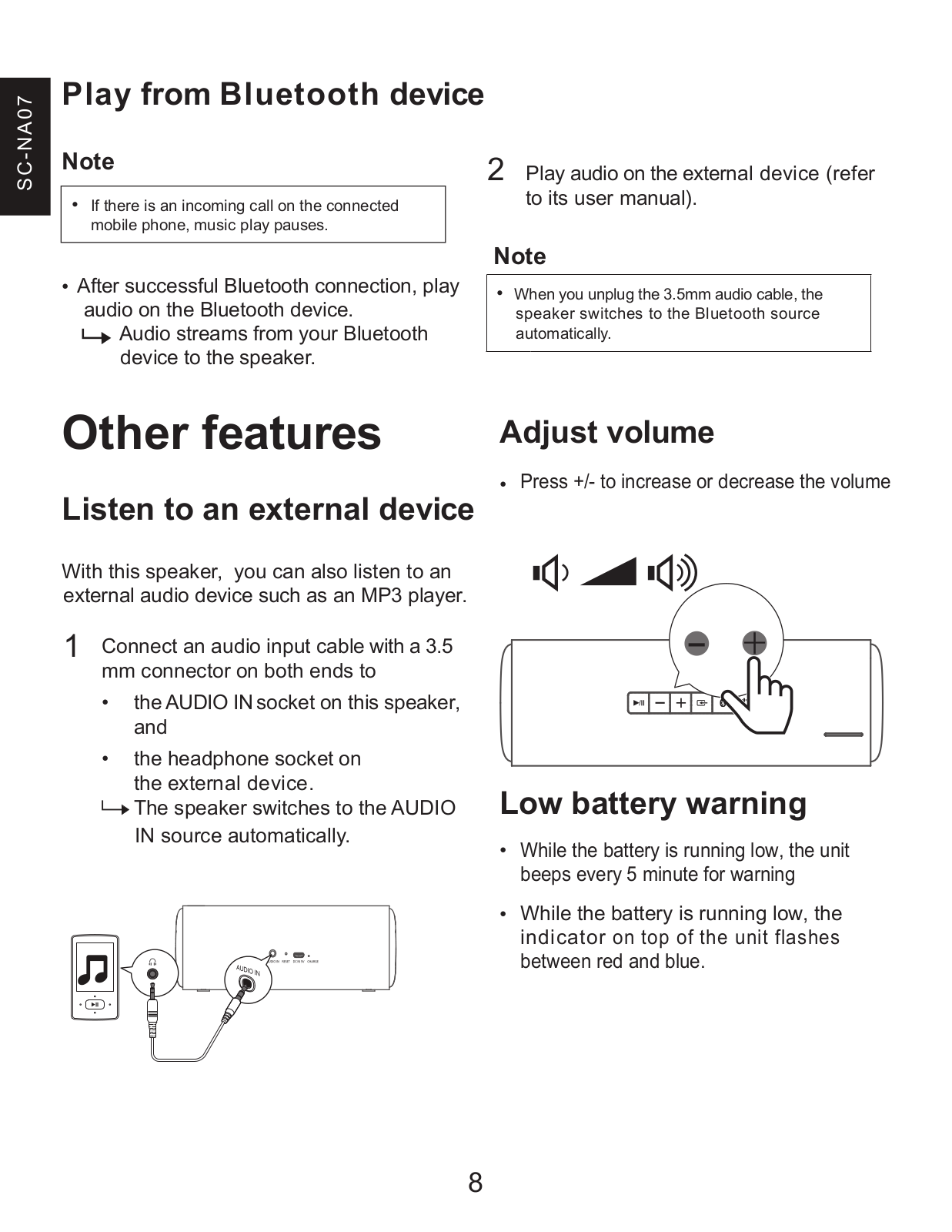

Play From Bluetooth Device	8
Other Features	8
Listen To An External Device	8
Adjust Volume	8
Low Battery Warning	8

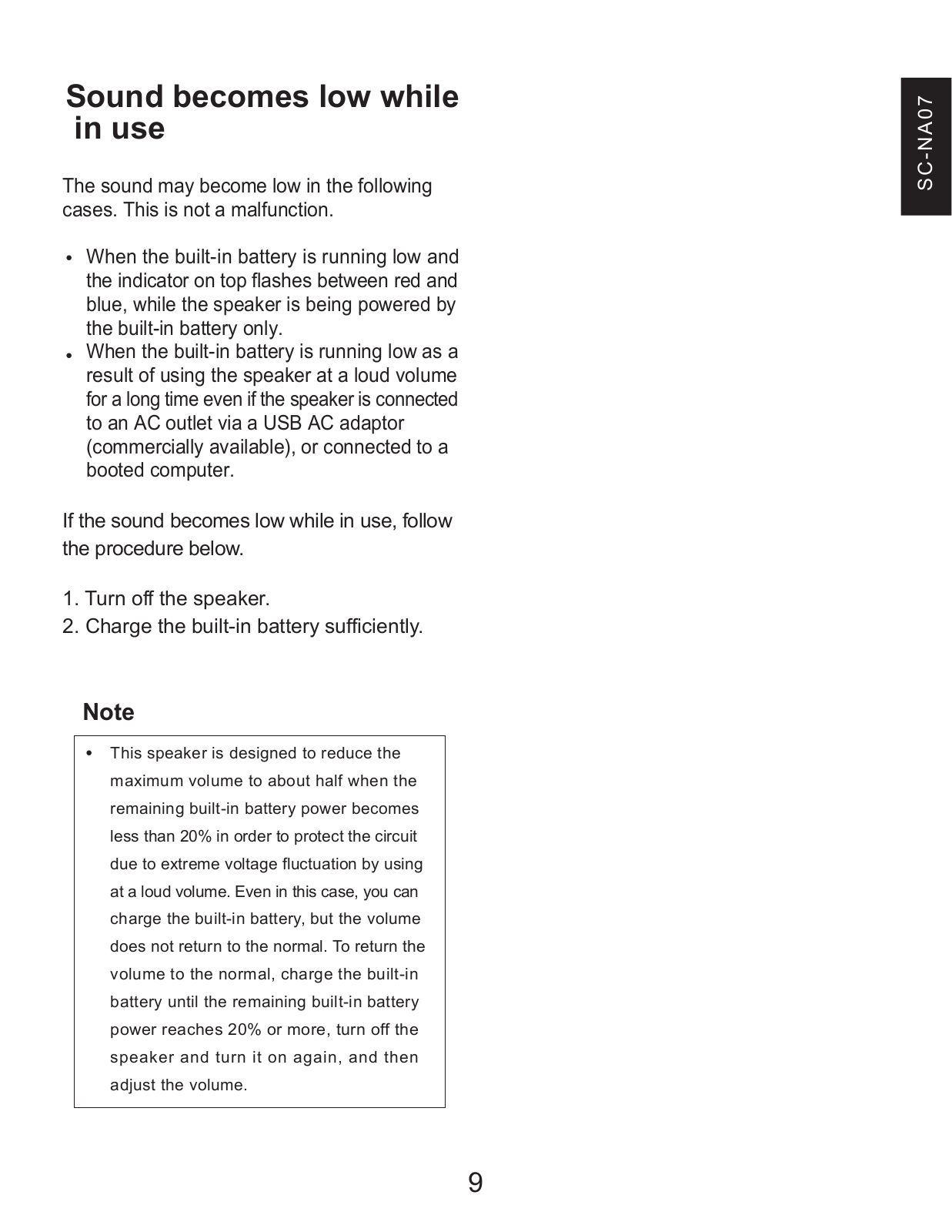

Sound Becomes Low While In Use	9
Product Information	10

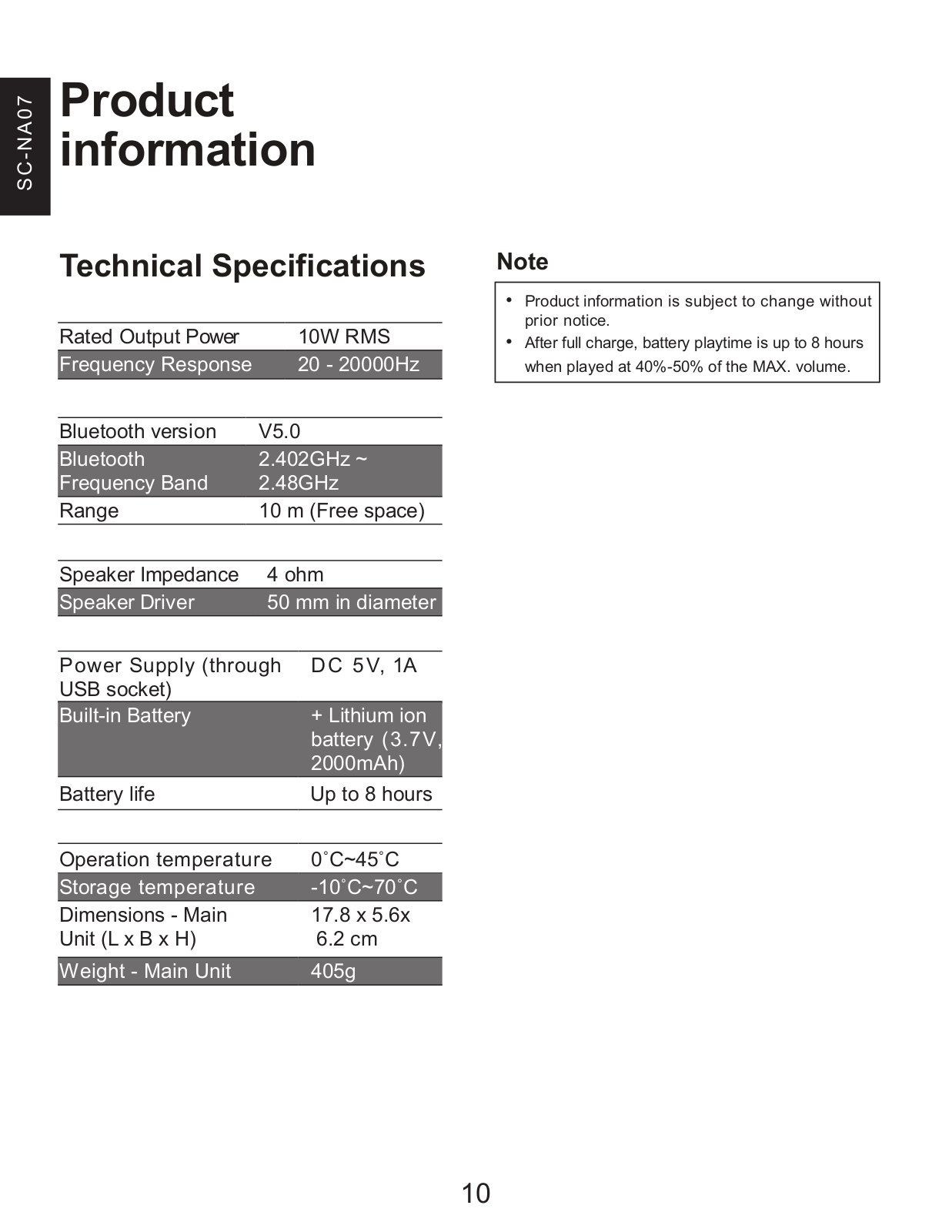

Technical Specifications	10

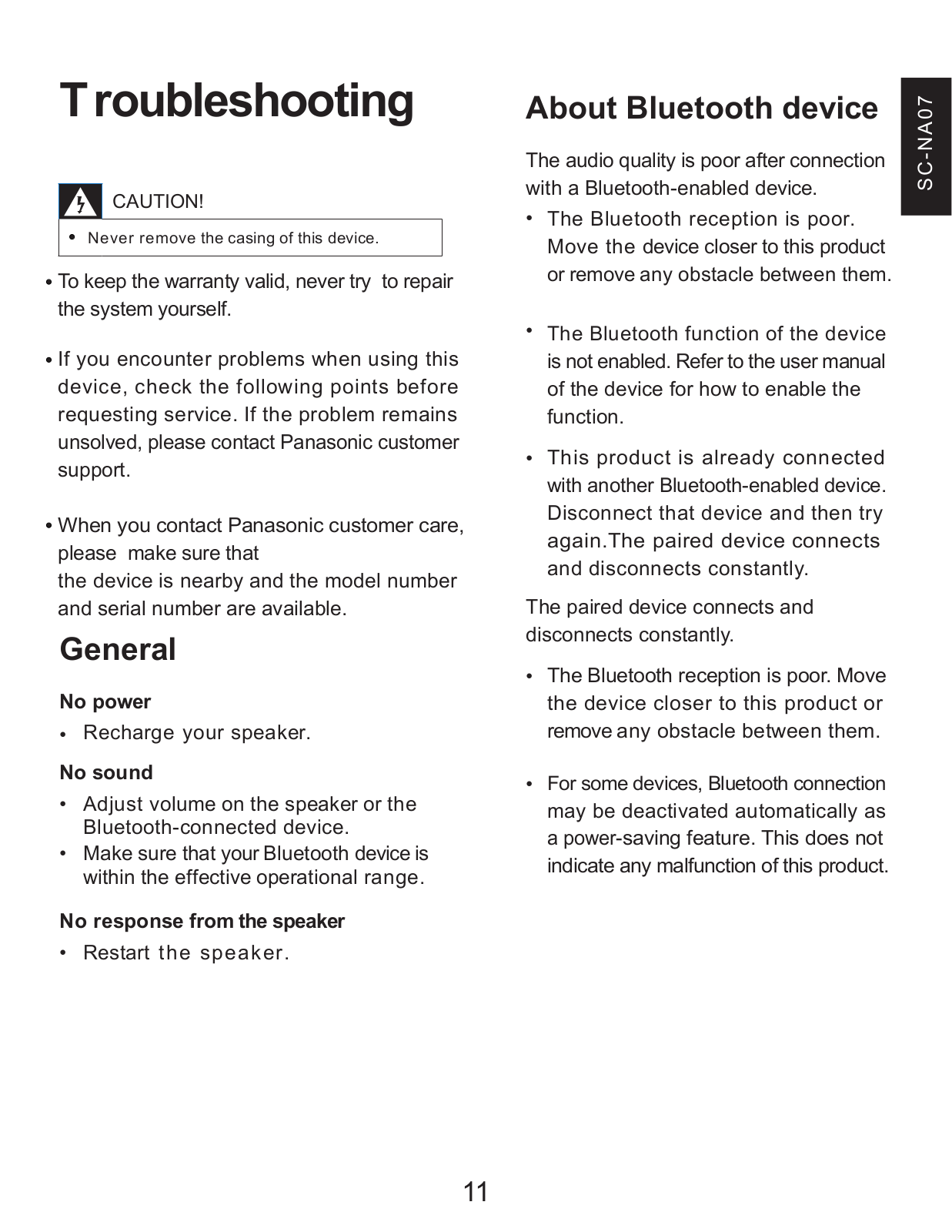

Troubleshooting	11
General	11
About Bluetooth Device	11

2

Important

CAUTION!

•Product Identification Marking is located on the bottom of the unit.

•Never charge the unit with 9V/12V adaptor.

•Never remove the casing of this speaker.

•Never lubricate any part of this speaker.

•Never place this speaker on other electrical equipment.

•Keep this speaker away from direct sunlight, naked flames or heat.

Safety precautions

Unit ≥

To reduce the risk of fire, electric shock or product damage

•Do not let water or other liquids drip or splash inside the unit.

•Do not expose accessories (AC mains lead, and etc.) to rain, moisture, dripping or splashing.

•Do not place objects filled with liquids, such as vases, on this unit.

•Use only the recommended accessories.

•Do not remove covers.

•Do not repair this unit by yourself. Refer servicing to qualified service personnel.

•Do not let metal objects fall inside this unit.

•Do not place any item on top of this unit.

•This unit is intended for use in moderate climate.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 100C or incinerate.

USB charging lead ≥

To reduce the risk of fire, electric shock or product damage

•Ensure that the power supply voltage corresponds to the voltage printed on this unit.

•Insert the USB charging lead fully into the USB socket on the back of the unit.

•Insert the other end of the USB charging lead into a USB/AC Adaptor (not included)

•Do not pull, bend, or place heavy items on the lead.

•Do not handle the lead with wet hands.

•Do not use a damaged mains plug or socket outlet.

Unit ≥

This unit has a built-in battery.

•Do not place sources of naked flames, such as lighted candles, on this unit.

•Do not leave the unit in a car exposed to direct sunlight for a long period of time with doors and windows closed.

•This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

Placement ≥

•Place this unit on an even surface.

•To reduce the risk of fire, electric shock or product damage, Ensure this unit is well ventilated.

•Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items.

•Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

<![if ! IE]>

<![endif]>SC-NA07

3
