Panasonic SAPMX-1-DBEB Service manual

A

4

A

ORDER NO. MD0606218CE

CD Stereo System

SA-PMX1DBEB

Colour

(S)... Silver Type

Specification

n Amplifier Section

RMS OUTPUT POWER both channel driven

simultaneously

10% Total harmonic distortion 80 W per channel (4 Ω)

Input Impedance

MUSIC PORT 250 mV 13 kΩ

Output Impedance

HEADPHONE 16 to 32 Ω

Phone jack

Terminal Stereo, 3.5 mm

Music port input jack

Terminal Stereo, 3.5 mm

DAB external antenna

Terminal F-connector (75 Ω)

n FM Tuner Section

Frequency range 87.50 to 108.00 MHz

(50 kHz step)

Sensitivity 2.5 µV (IHF)

S/N 26dB 1.4 µV

ntenna terminal(s) 75 Ω (unbalanced)

Preset station FM 15 stations

AM 15 stations

n AM Tuner Section

Frequency range 522 to 1629 kHz (9 kHz steps)

520 to 1630 kHz (10 kHz steps)

Sensitivity

S/N 20 dB (at 999 kHz) 1584 µV/m

n DAB Section

Frequency Band (Wavelength)

Band III (UK only) 11B to 12D (218.640 MHz to

229.072 MHz)

Band III (Europe) 5A to 13F (174.928 MHz to

239.200 MHz)

Intermediate frequency 1st : 38.912 MHz, 2nd : 2.048

MHz

Sensitivity *BER 4x10

MAX. Input Power 0dBm

Min Requirement -97 dBm

Selectivity

djacent Channel (Band III) 33 dB

Far-Off Channel (Band III) 45 dB

DAB memories 20 channels

n Cassette Deck Section

Track system 4-track, 2-channel

Heads

Record/playback Solid permalloy head

Erasure Double gap ferrite head

Motor DC servo motor

Recording system AC bias 100 kHz

Erase system AC erase 100 kHz

Tape speed 4.8 cm/s

Overall frequency response (+3, -6 dB) at DECK OUT

NORMAL 35 Hz to 14 kHz

S/N RATIO 47 dB (A weighted)

-

A

SA-PMX1DBEB

Wow and flutter 0.08% (WRMS)

Fast forward and rewind time Approx. 120 seconds with C-60

cassette tape

n CD Section

Disc played [8 cm or 12 cm]

(1) CD-Audio (CD-DA)

(2) CD-R/RW (CD-DA, MP3 formatted disc)

(3) MP3

Sampling frequency

CD 44.1 kHz

MP3 32 kHz, 44.1 kHz, 48 kHz

Bit rate

MP3 32 kbps to 384 kbps

Decoding 16/20/24 bit linear

Pickup

Beam source Semiconductor laser

Wavelength 785 nm

Laser power CLASS 1

udio output (Disc)

Number of channels 2 Channel

Frequency response 20 Hz to 20 kHz (+1, -2 dB)

Wow and flutter Below measurable limit

Digital filter 8fs

D/A converter MASH (1 bit DAC)

n General

Power supply AC 230 to 240 V, 50 Hz

Power consumption 80 W

Dimensions (W x H x D) 174 mm x 242 mm x 318 mm

Mass 5.0 kg

Operating temperature range +5 to +35°C

Operating humidity range 5% to 90% RH (no condensation)

Power consumption in standby mode

Notes :

1. Specifications are subject to change without notices. Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum analyzer.

n System : SC-PMX1DBEBS

Music center: SA-PMX1DBEBS

Speaker: SB-PMX1EG-M

0.8 W (approx.)

CONTENTS

Page Page

1 Safety Precautions 4

1.1. GENERAL GUIDELINES

1.2. Caution for AC Cord

1.3. Before Repair and Adjustment

1.4. Protection Circuitry

2 Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices

3 Precaution of Laser Diode

4 Handling Precautions For Traverse Deck

5 Handling the Lead free Solder

5.1. General description about Lead Free Solder (PbF)

6 Accessories

7 Operating Instructions Procedures

7.1. Main Unit & Remote Control Operation

7.2. Disc Operation

8 Self-Diagnosis & Special Mode Setting

8.1. Special Mode Table

8.2. Error Code Table

9 Assembling and Disassembling

9.1. Caution

9.2. Disassembly flow chart

9.3. Main Parts Location Diagram

9.4. Disassembly of Top Cabinet

9.5. Disassembly of DAB Module Unit

9.6. Disassembly of Front Panel & Deck Mechanism

10

11

12

13

15

25

27

28

29

30

31

4

5

6

7

8

9

9.7. Disassembly of FL, Switch, Music Port & Headphone

P.C.B.

9.8. Disassembly of Rear Cabinet

9.9. Disassembly of Main P.C.B.

9.10. Disassembly of Inner Chassis

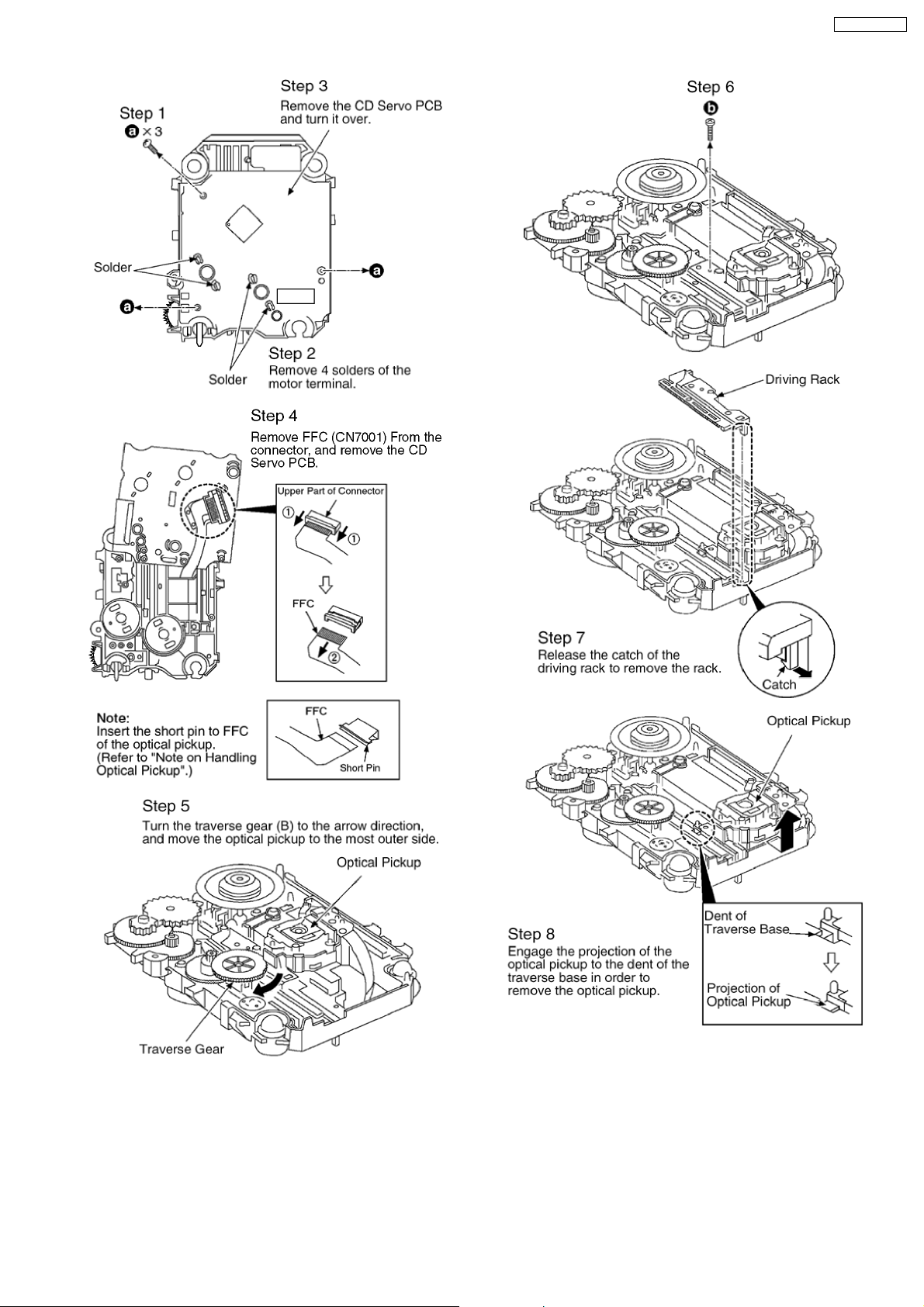

9.11. Disassembly of CD Mechanism

9.12. Disassembly of Transformer P.C.B.

9.13. Disassembly of Tuner Extent P.C.B.

9.14. Replacement of the Power IC

9.15. Disassembly of Traverse Unit, Driving Gear, and Cam

Gear (CD Mechanism Unit)

9.16. Disassembly of Optical Pickup (CD Mechanism Unit)

9.17. Disassembly of Traverse Gear A and Traverse Gear B

(CD Mechanism Unit)

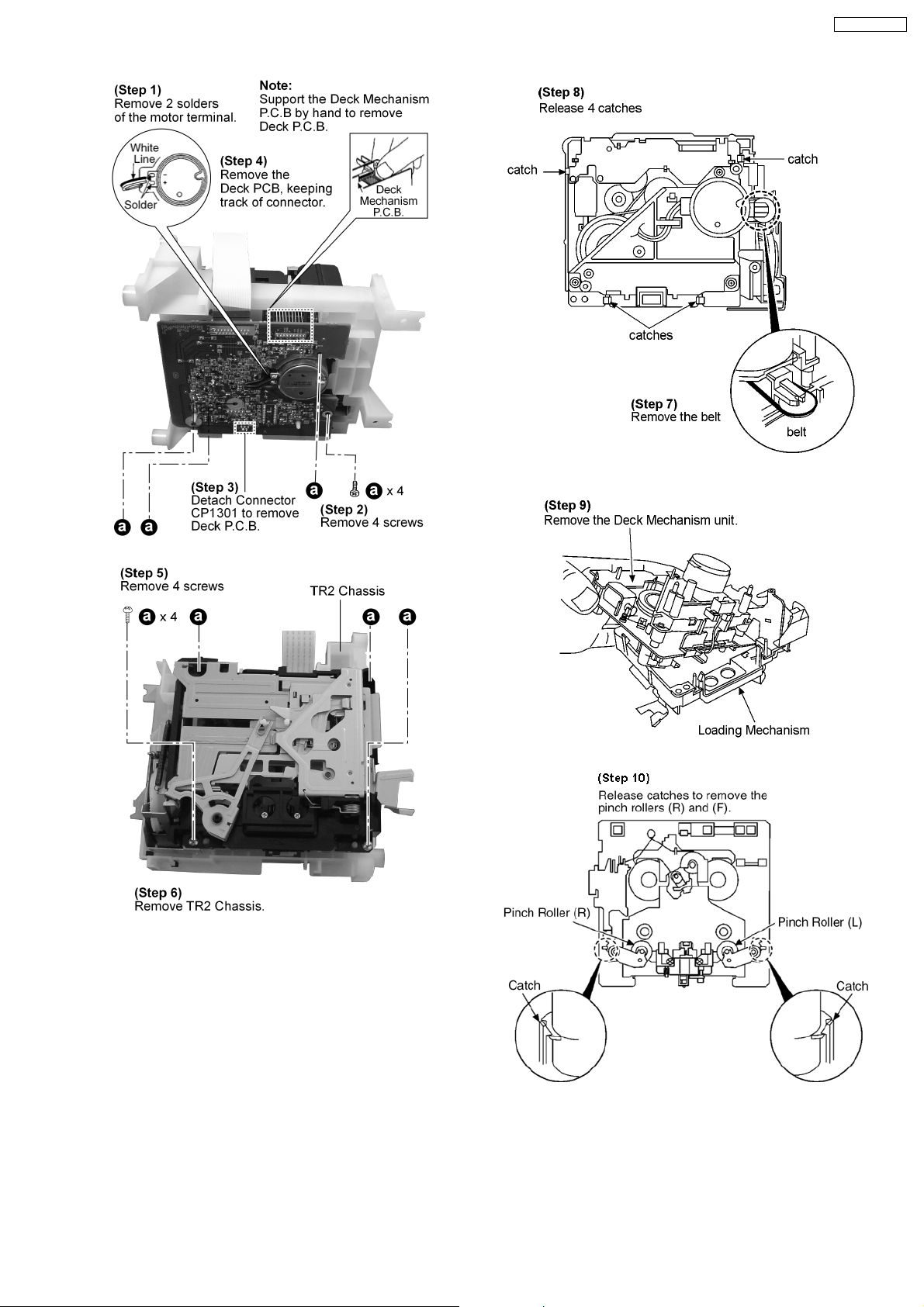

9.18. Procedure for Replacing Pinch Roller and Head Block

(Deck Mechanism Unit)

9.19. Procedure for Replacing Motor, Capstan Belt A, Capstan

Belt B, and Winding Belt (Deck Mechanism Unit)

9.20. Procedure for Replacing Parts on Deck Mechanism PCB

9.21. Disassembly of Loading Mechanism

10 Service Fixture & Tools

11 Service Positions

11.1. Checking and Repairing of Transformer P.C.B.

11.2. Checking and Repairing of DAB Module Unit

32

33

34

35

38

40

42

43

47

48

2

SA-PMX1DBEB

11.3. Checking and Repairing of Deck P.C.B. 49

11.4. Checking and Repairing of FL, Switch, Headphone and

Music Port P.C.B.

11.5. Checking and Repairing of Main P.C.B.

11.6. Checking and Repairing of CD Servo P.C.B.

50

51

52

12 Procedure for Checking Operation of Individual Parts of Deck

Mechanism Unit

12.1. Operation Check with Cassette Tape

12.2. Operation Check without Cassette Tape

13 Measurement And Adjustments

13.1. Cassette Deck Section

14 Voltage Measurement & Waveform Chart

14.1. Voltage Measurement

14.2. Waveform Chart

15 Wiring Connection Diagram

16 Block Diagram

17 Notes of Schematic Diagram

18 Schematic Diagram

18.1. OPTICAL PICKUP CIRCUIT

18.2. CD SERVO CIRCUIT

18.3. MAIN CIRCUIT

18.4. FL CIRCUIT

18.5. SWITCH CIRCUIT

18.6. DECK CIRCUIT

18.7. TRANSFORMER CIRCUIT

53

55

57

62

65

67

71

73

74

75

80

81

82

83

18.8. TUNER EXTENT CIRCUIT, DECK MECHANISM

CIRCUIT, MUSIC PORT CIRCUIT and HEADPHONE

CIRCUIT

19 Printed Circuit Board Diagrams

19.1. CD SERVO P.C.B

19.2. MAIN P.C.B

19.3. TUNER EXTENT P.C.B, FL P.C.B, SWITCH P.C.B,

MUSIC PORT P.C.B and HEADPHONE P.C.B

19.4. DECK P.C.B, DECK MECHANISM P.C.B and

TRANSFORMER P.C.B

20 Illustration of IC's, Transistors and Diodes

21 Terminal Function of IC's

21.1. IC800 (C2CBYY000266) IC MICROPROCESSOR

21.2. IC7001 (MN6627954MA) IC SERVO

PROCESSOR/DIGITAL SIGNAL PROCESSOR/DIGITAL

FILTER D/A CONVERTER

21.3. IC7002 (BA5948FPE2) IC 4CH Drive

22 Troubleshooting Flowchart (CD Section Circuit)

23 Exploded Views

23.1. Cabinet Parts Location

23.2. Deck Mechanism Parts Location (RAA4110-1S)

23.3. CD Loading Mechanism Parts Location

23.4. Packaging

24 Replacement Parts List

84

85

86

87

88

89

90

91

93

95

96

97

98

99

3

SA-PMX1DBEB

1 Safety Precautions

1.1. GENERAL GUIDELINES

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

2. After servicing, ensure that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

3. After servicing, check for leakage current checks to prevent from being exposed to shock hazards.

1.1.1. LEAKAGE CURRENT COLD CHECK

1. Unplug the AC cord and connect a jumper between the two prongs on the plug.

2. Using an ohmmeter measure the resistance value, between the jumpered AC plug and each expose d metallic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the expose d metallic part has a return path to the chassis, the reading should be between 1MΩ and 5.2Ω. When the exposed metal does not have a return path to the chassis, the reading must be

.

Figure. 1

1.1.2. LEAKAGE CURRENT HOT CHECK (See Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a 0.15µF capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.

6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. should the measurement is outside of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and re-checked before it is returned to the customer.

4

1.2. Caution for AC Cord

SA-PMX1DBEB

5

SA-PMX1DBEB

1.3. Before Repair and Adjustment

Disconnect AC power, discharge Power Supply Capacitors C500, C501, C513, C625, C626, C633, C634, C950, C951, C955 and C961 through a 10Ω, 1W resistor to ground.

DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices.

After repairs are completed, restore power gradually using a variac, to avoid overcurrent.

· Current consumption at AC 230V-240V, 50 Hz in NO SIGNAL mode (at volume minimum) should be ~250 mA.

1.4. Protection Circuitry

The protection circuitry may have operated if either of the following conditions are noticed:

· No sound is heard when the power is turned on.

· Sound stops during a performance.

The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speake r connec tion wires are "shorted", or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.

If this occurs, follow the procedure outlines below:

1. Turn off the power.

2. Determine the cause of the problem and correct it.

3. Turn on the power once again after one minute.

Note:

When the protection circuitry functions, the unit will not operate unless the power is first turned off and then on again.

6

SA-PMX1DBEB

2 Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD).

1. Immediately before handlin g any semiconductor component or semiconductor-equiped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equiped with ES devices, place the assembly on a conductive surface such as aluminium foil, to prevent electrostatic charge build up or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can generate electrical charge to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conduc tive foam, aluminium foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installe d.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

7

SA-PMX1DBEB

3 Precaution of Laser Diode

CAUTION:

This unit utilizes a class 1 laser.

Invisible laser radiation is emitted from the optical pickup lens.

When the unit is turned on:

1. Do not look directly into the pick up lens.

2. Do not use optical instruments to look at the pick up lens.

3. Do not adjust the preset variable resistor on the pickup lens.

4. Do not disassemble the optical pick up unit.

5. If the optical pick up is replaced, use the manufacturer’s specified replacement pick up only.

6. Use of control or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

8

SA-PMX1DBEB

4 Handling Precautions For Traverse Deck

The laser diode in the traverse deck (optical pickup) may break down due to potent ial difference caused by static electricity of clothes or human body. So, be careful of electrostatic breakdown during repair of the traverse deck (optical pickup).

· Handling of traverse deck (optical pickup)

1. Do not subject the traverse deck (optical pickup) to static electricity as it is extremely sensitive to electrical shock.

2. To prevent the breakdown of the laser diode, an antistatic shorting pin is inserted into the flexible board (FFC board).

3. Take care not to apply excessive stress to the flexible board (FFC board). When removing or connecting the short pin, finish the job in as short time as possible. (Fig 4.1)

4. Do not turn the variable resistor (laser power adjustment). It has already been adjusted.

· Grounding for electrostatic breakdown prevention

1. Work table grounding. (Fig 4.2) Use the anti-static wrist strap to discharge the static electricity from your body.

2. Work table grounding. (Fig 4.2) Put a conductive material (sheet) or steel sheet on the area where the traverse deck (optical pickup) is place, and ground the sheet.

Caution:

The static electricity of your clothes will not be grounded through the wrist strap. So, take care not to let your clothes touch the traverse deck (optical pickup).

Caution when replacing the Traverse Deck

The traverse deck has a short point shorted with solder to protect the laser diode against electrostatics breakdown. Be sure to remove the solder from the short point before making connections.

(Fig 4.1)

(Figs 4.2)

9

SA-PMX1DBEB

5 Handling the Lead free Solder

5.1. General description about Lead Free Solder (PbF)

The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation.

The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin (Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30 degrees C (86°F) more than that of the normal solder.

Definition of PCB Lead Free Solder being used

The letter of “PbF” is printed either foil side or components side on the PCB using the lead free solder. (See right figure)

Service caution for repair work using Lead Free Solder (PbF)

· The lead free solder has to be used when repairing the equipment for which the lead free solder is used.

(Definition: The letter of “PbF” is printed on the PCB using the lead free solder.)

· To put lead free solder, it should be well molten and mixed with the original lead free solder.

· Remove the remaining lead free solder on the PCB cleanly for soldering of the new IC.

· Since the melting point of the lead free solder is higher than that of the normal lead solder, it takes the longer time to melt

the lead free solder.

· Use the soldering iron (more than 70W) equipped with the temperature control after setting the temperature at 350±30

degrees C (662±86°F).

Recommended Lead Free Solder (Service Parts Route.)

· The following 3 types of lead free solder are available through the service parts route.

RFKZ03D01K-----------(0.3mm 100g Reel)

RFKZ06D01K-----------(0.6mm 100g Reel)

RFKZ10D01K-----------(1.0mm 100g Reel)

Note

* Ingredient: Tin (Sn), 96.5%, Silver (Ag) 3.0%, Copper (Cu) 0.5%, Cobalt (Co) / Germanium (Ge) 0.1 to 0.3%

10

6 Accessories

Note : Refer to Packing Materials & Accessories Parts List (Section 23) for the part number.

Remote Control

AC Power Cord

SA-PMX1DBEB

FM Antenna

AM Loop Antenna

ANT

Adapter

Wire

DAB Antenna

11

SA-PMX1DBEB

7 Operating Instructions Procedures

7.1. Main Unit & Remote Control Operation

12

7.2. Disc Operation

SA-PMX1DBEB

13

SA-PMX1DBEB

14

SA-PMX1DBEB

8 Self-Diagnosis & Special Mode Setting

This unit is equipped with features of self-diagnostic & special mode setting for checking the functions & reliability.

Special Note : Checking of the reliability (ageing) & changer operation must be carry out to ensure good working condition in unit.

8.1. Special Mode Table

Below is the various special modes for checking:-

Item FL Display Key Operation

Mode Name Description Front Key

Doctor Mode To enter into Doctor

Mode for checking of various items and displaying EEPROM and firmware version. (For more information, refer to section 8.1.2)

Note: The microprocessor version as shown is an example. It will be revise when there is an updates.

FL Display Test To check the FL

segments display (All segments will light up)

· BASS TREBLE set to

0dB.

· H.BASS, PRESET

EQ and SURROUND is off.

Tuner Check To Inspect Tuner Check

(For more information, refer to section 8.1.3)

· Volume 50 is set.

· BASS TREBLE set to

0dB.

· PRESET EQ is off.

Volume Setting To Forced Volume

Setting.

· Volume 50 is set.

· BASS TREBLE set to

0dB.

· H.BASS, PRESET

EQ and SURROUND is off.

1.

2.

1. The Check Sum of EEPROM and firmware version will be display for 1 sec.

* ROM correction ** Firmware version No:

· All segment of the FL continues to be ON

1.

2.

In any mode:

1. Press [ by [4] and [7] on remote control.

To exit, press [ENTER] button on remote control or remote control.

In doctor mode:

1. Press [DIMMER] button on remote control.

Press [0] button on remote control to cancel current test mode. To exit, press [ENTER] button on remote control or remote control.

In doctor mode:

1. Press [TUNER] button on remote control.

To exit, press [ENTER] button on remote control or remote control.

In doctor mode:

1. Press [7] button on remote control.

2. Press [8] button on remote control.

3. Press [9] button on remote control.

To exit, press [ENTER] button on remote control or remote control.

] button on main unit follow

button on main unit or

CD Reliability Test (Loading)

CD Reliability Test (Traverse)

To determine the reliability of CD Loading Unit. (For more information, refer to section 8.1.4)

To Inner and Outer Disc aging test. (For more information, refer to section 8.1.5)

3.

The [NO DISC] display will appear after 3 sec.

15

In doctor Mode:

1. Press [

Press [0] button on remote control to cancel current test mode. To exit, press unit or remote control.

In doctor Mode:

1. Press [

Press [0] button on remote control to cancel current test mode. To exit, press unit or remote control.

], [1] button on remote control.

button on main

], [2] button on remote control.

button on main

SA-PMX1DBEB

Item FL Display Key Operation

Mode Name Description Front Key

CD Reliability Test (Combination)

To Inspect the combination of the OPEN/CLOSE operation and the Inner and Outer Disc Access operation aging test. (For more information, refer to section 8.1.6)

CD SelfAdjustment (AJST) Result Display

To display result of selfadjustment for CD. (For more information, refer to section 8.1.7)

· BASS TREBLE set to

0dB.

The [NO DISC] display will appear after 3 sec.

· H.BASS, PRESET

EQ and SURROUND is off.

TPS To check REV TPS for

deck. (For more information, refer to section 8.1.8)

· BASS TREBLE set to

0dB.

· H.BASS, PRESET

EQ and SURROUND is off.

Cold Start To activate cold start

ipon next AC power up.

· BASS TREBLE set to

0dB.

· H.BASS, PRESET

Note: This test do not work when selector is in

Tuner. EQ and SURROUND is off.

The [NO DISC] display will appear after 3 sec.

In doctor Mode:

1. Press [

], [3] button on remote control.

Press [0] button on remote control to cancel current test mode. To exit, press

button on main

unit or remote control.

In doctor mode:

1. Press [

], [4] button on remote control.

To exit, press [ENTER] button on remote control or

button on main unit or

remote control.

In doctor mode:

1. Press [

] button on remote

control.

Press [0] button on remote control to cancel current test mode. To exit, press [ENTER] button on remote control or

button on main unit or

remote control.

In doctor mode:

1. Press [SLEEP] button on remote control.

To exit, press [ENTER] button on remote control or

button on main unit or

remote control.

MP3 Test To Inspect MP3 disc

check.

· BASS TREBLE set to

0dB.

· H.BASS, PRESET

EQ and SURROUND is off.

(For more information, refer to section 8.1.9)

CD to TAPE Recording Test Mode

To Inspect the recording process from CD to TAPE for the unit.

· Volume 50.

· BASS TREBLE set to

0dB.

· H.BASS, PRESET

EQ and SURROUND is off.

(For more information, refer to section 8.1.10)

1.

2.

In doctor mode:

1. Press [PROGRAM] button on remote control.

To exit, press [ENTER] button on remote control or

button on main unit or

remote control.

In doctor mode:

1. Press [4] button on remote control.

2. Press [5] button on remote control

To exit, press [ENTER] button on remote control or

button on main unit or

remote control.

16

Item FL Display Key Operation

Mode Name Description Front Key

CD and Deck Eject Test Mode

To Inspect the CD and Deck Eject.

· BASS TREBLE set to

0dB.

· H.BASS, PRESET

EQ and SURROUND is off.

In doctor mode:

1. Press [6] button on remote control.

To exit, press [ENTER] button on remote control or remote control.

SA-PMX1DBEB

button on main unit or

Self -Diagnostic Mode

To enter into self diagnostic checking for main unit.

1. Press and hold [ ]button for 2 seconds follow by [H.BASS].

To exit, press unit or remote control.

8.1.1. Cassette Mechanism Self-Diagnostic Mode

Below is information on the checking of cassette deck mechanism

No. Operation Procedures Micon operation & processing

1 C-mecha Abnormal Detection shall be

executed for DECK.

2 [ ] key is pressed, after loading in a

NORMAL type cassette with the recording tab on the left side removed.

3 [ ] key is pressed, after loading a

NORMAL, CrO2, METAL type cassette with the recording tab on the right side removed.

4 [TAPE ] Key is pressed, after loading in a

NORMAL, CrO2, METAL type cassette ( cassette for TPS checking purposes and with both recording tabs intact ).

5 [REC] key is pressed, after loading in a

NORMAL type cassette ( with both recording tabs intact )

6 Self-diagnostic mode is stopped by pressing

the [n] Key.

7 To clear all the abnormalities in the memory,

press the [n] Key for more than 5 Sec while the self-diagnostic mode is stopped.

8 To cancel the self-diagnostic mode press the

[POWER] Key.

Check that all DECK mechanism leaf SW is in OFF state.

FF shall be executed for 2 sec, after which STOP. Check the following. { F.REC INH SW } is OFF { R.REC INH SW } is ON { HALF SW } is ON Reel pulse toggles between H & L.

REW shall be executed for 2 sec, after which STOP. Check the following. { F.REC INH SW } is ON { R.REC INH SW } is OFF { HALF SW } is ON Reel pulse toggles between H & L.

TPS operation is executed. Check the following. { F.REC INH SW } is ON { R.REC INH SW } is ON { HALF SW } is ON TPS signal changes. After checking TPS, it shall STOP. If TPS checking is completed at TAPE END, it is considered as TPS abnormal.

REC operation shall not be executed. Check the following. { F.REC INH SW } is ON { R.REC INH SW } is ON { HALF SW } is ON

LCD shall display the abnormality item code, when the STOP key is pressed, it shall display the abnormality item code in the following sequence. [ T EST H 0 1 ] [ TEST H 0 2 ] [ TEST H 0 3 ]

At this time, all the abnormalities item in the memory is cleared and is displayed on the LCD.[ C L E A R ] display for 1 Sec. then,[ TEST ] is displayed.

POWER is OFF.At the next POWER ON, normal operation shall be executed.

button on main

· If RAM check error occurs during microcomputer reset, COLDSTART shall be executed and all the error memory shall be

cleared during RAM initialization.

8.1.2. EEPROM Checksum (ROM correction)

Purpose : To check for micro-processor firmware version & EEPROM check (ROM correction).

Below is the procedures for this mode.

Step 1: Enter into Doctor mode (For more information refer to section 8.1 on key operation to enter into this mode).

Step 2: Check for firmware version & EEPRO M checksum.

· W hen entering into DOCTOR MODE the firmware version & checksum of EEPROM (if applicable) will appear on FL display .

Below is information on the EEPROM IC (Rom correction) under 3 examples:

1. When EEPROM IC is detected and there is no ROM correction:

17

SA-PMX1DBEB

2. When EEPROM IC is detected and has ROM correction:

3. When EEPROM IC is detected and has ROM correction but NG:

Note: Micro-processor firmware version refers to version No. (Eg.MS079_12) for micro-processor IC.

It is subject to change which would update accordingly.

· Rom correction checksum refers to the hex code that is display upon key buttons pressed if an EEPROM is loaded in the unit.

(Main P.C.B)

8.1.3. Tuner Check

Purpose : Tuner inspection mode.

Below is the procedures for this mode.

Step 1: Enter into Doctor mode (For more information refer to section 8.1 on key operation to enter into this mode).

Step 2 : Press [TUNER] button on remote control.

· The system is switched to tuner inspection mode.

· The receiving frequency is set to [87.50Mhz] (FMfmin) this time.

Step 3 : When [PLAY MODE] key is pressed, Auto Scan shall start from Fmin in the direction of downward.

· Auto Scan shall be continued until auto stop is made by pressing [0] key.

· Auto Scan shall stop when auto stop is made. When [0] key is pressed again in this state ( auto stop state ).

· Auto scan shall also be available for AM. It is also in the diretion of downward.

1. [1] key is pressed..........FM 87.50MHz (Fmin) is received.

2. [2] key is pressed..........FM 108.00MHz (Fmax) is received.

3. [3] key is pressed..........FM 98.10MHz (Frequency set by Signal Generator) is received.

4. [4] key is pressed..........FM 90.10MHz.

5. [5] key is pressed..........FM 106.10MHz.

6. [6] key is pressed..........AM 522kHz (Fmin) is received.

7. [7] key is pressed..........AM 1629kHz (Fmax)is received.

8. [8] key is pressed..........AM 999kHz is received.

9. [9] key is pressed..........AM 603kHz is received.

8.1.4. CD Reliability Test (Loading)

Purpose : CD Loading OPEN/CLOSE aging test. (Mainly used for CR130 unit reliability test).

Below is the procedures for this mode.

Step 1: Enter into Doctor mode (For more information refer to section 8.1 on key operation to enter into this mode).

Step 2 : Switch to CD mode and when the key [11] are being pressed using the remote control key, the following operation shall be carried out :

18

Step 3 : The FL shall display as below :

SA-PMX1DBEB

Step 4 : Due to certain reasons, when the following condition happens, the aging will stop but the count value shall be maintained :

1. During OPEN operation, after certain timing, the CD does not in OPEN position. (After REST SW is OFF, the CD OPEN SW did not ON after 4s.)

· Do the CLOSE operation; stop the aging test at CLOSE condition.

2. During CLOSE operation, after certain timing, the CD does not in CLOSE position. (After CLOSE operation, REST SW was not off in 4s.)

· Do the OPEN operation; stop the aging test at OPEN condition.

Note : When key [0] is pressed, the current test shall be cancelled and returns to Doctor mode display. The count value shall be reset to (00000).

During this test, FL shall display as normal and no

display on the FL.

8.1.5. CD Reliability Test (Traverse)

Purpose : CD Access Inner and Outer Disc aging test. (Mainly used for CR130 unit reliability test).

Below is the procedures for this mode.

Step 1: Enter into Doctor mode (For more information refer to section 8.1 on key operation to enter into this mode).

Step 2 : Switch to CD mode and when the key [12] are being pressed using the remote control, the following operation shall carried out :

19

SA-PMX1DBEB

Step 3 : Due to certain reasons, when the following condition happens, the aging will stop but the count value shall be maintained :

· After 10s, the Disc Access not yet completes.

· Out of Focus for more than 2s.

Note : When key [0] is pressed, the current test shall be cancelled and returns to Doctor mode display. The count value shall be reset to (00000).

During this test, FL shall display as normal and no

display on the FL.

8.1.6. CD Reliability Test (Combination)

Purpose : This test is the combination of the OPEN/CLOSE operation and the Inner and Outer Disc Access operation aging test. (Mainly used for CR130 unit reliability test).

Below is the procedures for this mode.

Step 1: Enter into Doctor mode (For more information refer to section 8.1 on key operation to enter into this mode).

Step 2 : Switch to CD mode and when the key [13] are being pressed using the remote control, the following operation shall carried out :

20

SA-PMX1DBEB

Step 3 : Due to certain reasons, when the following condition happens, the aging will stop but the count value shall be maintained :

· During OPEN operation, after certain timing, the CD does not in OPEN position.(After REST SW is OFF, the CD OPEN SW did not ON after 4s.)

· During CLOSE operation, after certain timing, the CD does not in CLOSE position.(After CLOSE operation, REST SW was not off in 4s.)

· After 10s, the Disc Access not yet completes

· Out of Focus for more than 2s

Note : When key [0] is pressed, the current test shall be cancelled and returns to Doctor mode display. The count value shall be reset to (00000).

During this test, FL shall display as normal and no

display on the FL.

8.1.7. CD Self-Adjustment (AJST) Result Display

Purpose : To display result of self-adjustment for CD.

Below is the procedures for this mode.

Step 1: Enter into Doctor mode (For more information refer to section 8.1 on key operation to enter into this mode).

Step 2 : When [14] key are pressed at the doctor mode, the following shall be displayed for 3 secs. The result shall correspond to the condition met as shown in the table below :

21

SA-PMX1DBEB

8.1.8. TPS Inspection

Purpose : Tape for TPS is put into Deck. TPS inspection starts with one key operation. This mode shall run a test program to check REV TPS for the Deck and ends by displaying the result and ejecting the Deck.

Below is the procedures for this mode.

Step 1: Enter into Doctor mode (For more information refer to section 8.1 on key operation to enter into this mode).

Step 2 : Press [

· Software will start checking for existence of cassette in Deck.

· If the Deck does not contain any cassette, it shall end the test and displays [EEROR].

· If the cassette is detected, test shall start by playing the DECK in reverse direction for 1 sec and perform REV TPS.

· If TPS signal is OK, the Deck shall be ejected. Below is information on the TPS under 3 examples.

] button on remote control. Enter into TPS Test mode. (During this mode)

1. If ERROR Flag is set "ERROR" shall be displayed. TPS check result shall not be shown in this case.

2. If Deck TPS check = OK

3. If Deck TPS check = NG

22

SA-PMX1DBEB

8.1.9. MP3 Test

Purpose : To check the MP3 Test.

Below is the procedures for this mode.

Step 1 : Enter into Doctor mode (For more information refer to section 8.1 on key operation to enter into this mode).

Step 2 : Press [PROGRAM] button on remote control. Execute MP3 Disc Check (Refer Flowchart below)

23

SA-PMX1DBEB

Result display :

· Displaye d if MP3 test OK

· Displaye d if MP3 test NG

8.1.10. CD Recording

Purpose : This test is designed for CD to TAPE recording inspection.

Below is the procedures for this mode.

Step 1 : Enter into Doctor mode (For more information refer to section 8.1 on key operation to enter into this mode).

Step 2 : Press [4] button on remote control. It shall enter CD to TAPE Recording Test.

Step 3 : Set shall be set to following condition automatically.

· VOLUME 50.

· BASS / TREBLE FLAT (0dB).

· Preset EQ OFF.

· H.BASS and surround off.

Step 4 : Either set in CD or TAPE mode, CD shall PLAY and TAPE REC for 3 seconds.

Step 5 : After 5 seconds, TAPE REC shall be stop and TAPE REW to starting point (count 0).During TAPE REW, CD drawer shall open

Step 6 : Press [5] button on remote control. To start TAPE PLAYBACK to check the recorded signal. When key [5] pressed, TAPE PLAY shall start for 3 seconds to playba ck the recorded signal. Tape shall be ejected after TAPE PLAY stop.

24

SA-PMX1DBEB

8.2. Error Code Table

Self-Diagnosis Function provides information on any problems occuring for the unit and its respective components by displaying error codes. Thesed error code such as U**, H** and F** are stored in memory and held unless it is cleared.

The error code is automatically display after entering into self-diagnostic mode.

Error Code Diagnosis Contents Description of error Automatic FL Display Remarks

H01 MODE SW abnormal For deck mechanism unit.

H02 REC INH SW

abnormal

H03 HALF SW abnormal For deck mechanism unit.

Press [ error.

For deck mechanism unit. Press [ error.

Press [ error.

] on main unit for next

25

SA-PMX1DBEB

Error Code Diagnosis Contents Description of error Automatic FL Display Remarks

F01

Reel pulse abnormal

For deck mechanism unit. Press [

] on main unit for next

error.

F02

TPS abnormal

F15 CD REST SW

Abnormal

F26 Communication

between CD servo LSI and micro-p abnormal.

POWER AMP output abnormal

CD traverse position intial setting operation failsafe counter (1000 ms) waiting for REST SW toturn on. Error No. shall be clear by force or during cold start.

CD function DTMS command, after system setting, If SENSE = ´L´ cannot be detected. Memory shall contain F26 code. After Power on, CD function shall continue, error display shall be "NO DISC". Error No. shall be clear by force or cold start.

During normal operation, if DCDET becomes "L", normal POWER OFF process shall not be executed, PCONT shall be switched to "L" immediately. "GOODBYE" shall not be display but the error display F61 is displayed instead. 2 seconds after the F61 displayed, ECONO shall be set to "L" and FL display shall be turned off. The error content shall be memorized when the abnormality occurs and can be display in the C-mecha self-diagnostic mode described later.

For CD unit (For Traverse). Press [

] on main unit for next

error.

For CD unit (For Traverse). Press [

] on main unit for next

error.

For Power Supply Related Error Detection. Press [

] on main unit for next

error.

26

SA-PMX1DBEB

9 Assembling and Disassembling

9.1. Caution

“ATTENTION SERVICER”

Some chassis components may be have sharp edges. Be careful when disassembling and servicing.

1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components.

2. For reassembly after operation checks or replacement, reverse the respective procedures. Special reassembly procedures are described only when required.

3. Select items from the following index when checks or replacement are required.

Warning:

This product uses a laser diode. Refer to “Precaution of Laser Diode”.

Below is the list of disassembly sections

· Disasse mbly of Top Cabinet

· Disasse mbly of DAB Module Unit

· Disasse mbly of Front Panel & Deck Mechanism

· Disasse mbly of FL, Switch, Music Port & Headphone P.C.B.

· Disasse mbly of Rear Cabinet

· Disasse mbly of Main P.C.B.

· Disasse mbly of Inner Chassis

· Disasse mbly of CD Mechanism

· Disasse mbly of Transformer P.C.B.

· Disasse mbly of Tuner Extent P.C.B.

· Replacement of the Power IC

27

SA-PMX1DBEB

9.2. Disassembly flow chart

The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing.

To assemble the unit, reverse the steps shown in the chart below.

28

9.3. Main Parts Location Diagram

SA-PMX1DBEB

29

SA-PMX1DBEB

9.4. Disassembly of Top Cabinet

Step 1 : Remove 2 screws from Top Cabinet Left side.

Step 2 : Remove 2 screws from Top Cabinet Right side.

Step 3 : Remove 4 screws from Top Cabinet Rear side.

Step 4 : Remove Top Cabinet as arrow shown. (Be careful of the catch).

9.5. Disassembly of DAB Module Unit

· Follow the (Step 1) - (Step 4) of Item 9.4.

30

SA-PMX1DBEB

Step 1 : Detach DAB connector and F-connector.

Step 2 : Remove 2 screws and remove DAB Module Unit.

9.6. Disassembly of Front Panel & Deck Mechanism

· Follow the (Step 1) - (Step 4) of Item 9.4.

Step 2 : Remove 2 screws.

Step 3 : Detach the connector CN801.

Step 1 : Detach the connector CN300, CN600, CN803, Fconnector and DAB connector.

31

SA-PMX1DBEB

Step 4 : Release 2 catches at both L & R side.

Step 5 : Releas e the catch at the bottom cabinet and remove the front panel as arrow shown.

· Remove Deck Mechanism

Step 6 : Remove 4 screws and remove Deck Mechanism as arrow shown.

Step 1 : Flip down Cass Lid as arrow shown.

Step 2 : Remove 2 screws and Cass Lid unit as arrow shown.

9.7. Disassembly of FL, Switch, Music Port & Headphone P.C.B.

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 6) of Item 9.6.

· Remove FL P.C.B.

32

Step 3 : Remove 4 screws and FL P.C.B. as arrow shown.

· Remove Switch, Music Port, and Headphone P.C.B.

SA-PMX1DBEB

Step 4 : Remove all Knob and 2 Nuts.

Step 5 : Remove 4 screws and release 3 catches to remove Switch P.C.B..

Step 6 : Remove 2 screws and release 1 catch to remove Headphone P.C.B..

Step 7 : Remove 1 screw and release 1 catch to remove Music Port P.C.B..

9.8. Disassembly of Rear Cabinet

· Follow the (Step 1) - (Step 4) of Item 9.4.

Step 1 : Detach connector CN550.

33

SA-PMX1DBEB

Step 2 : Remove 7 screws and 1 Nut.

Step 3 : Remove Rear Cabinet as arrow shown.

9.9. Disassembly of Main P.C.B.

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 5) of Item 9.6.

· Follow the (Step 1) - (Step 3) of Item 9.8.

Step 1 : Remove the Filament tape which used to secure the FFC connec tors.

Step 2 : Release 4 catches and remove the Inner Chassis as arrow shown.

9.11. Disassembly of CD Mechanism

Step 1 : Detach connector CN301, CN303, CN601 and CD open sw (S780).

Step 2 : Remove 4 screws and Deck Cover Sheet.

Step 3 : Remove Main P.C.B. as arrow shown (Be careful of the catch).

9.10. Disassembly of Inner Chassis

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 5) of Item 9.6.

· Follow the (Step 1) - (Step 3) of Item 9.8.

· Follow the (Step 1) - (Step 3) of Item 9.9.

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 5) of Item 9.6.

· Follow the (Step 1) - (Step 3) of Item 9.8.

· Follow the (Step 1) - (Step 3) of Item 9.9.

· Follow the (Step 1) - (Step 2) of Item 9.10.

Step 1 : Remove 4 screws and CD Mechanism unit as arrow shown.

9.12. Disassembly of Transformer P.C.B.

· Follow the (Step 1) - (Step 4) of Item 9.4.

34

SA-PMX1DBEB

· Follow the (Step 1) - (Step 5) of Item 9.6.

· Follow the (Step 1) - (Step 3) of Item 9.8.

· Follow the (Step 1) - (Step 3) of Item 9.9.

· Follow the (Step 1) - (Step 2) of Item 9.10.

Step 1 : Remove 4 screws and Transformer P.C.B. as arrow shown.

· Follow the (Step 1) - (Step 3) of Item 9.9.

Step 1 & 2 : Remove 2 screws and Transistor Holder.

9.13. Disassembly of Tuner Extent P.C.B.

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 5) of Item 9.6.

· Follow the (Step 1) - (Step 3) of Item 9.8.

· Follow the (Step 1) - (Step 3) of Item 9.9.

· Follow the (Step 1) - (Step 2) of Item 9.10.

Step 1 : Remove 1 screw.

Step 2 : Remove Tuner Extent P.C.B. as arrow shown (Be careful of the catch).

Step 3 : Unsolder the Power IC700 and IC500.

9.15. Disassembly of Traverse Unit, Driving Gear, and Cam Gear (CD Mechanism Unit)

9.15.1. Disassembly of the Traverse Unit

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 5) of Item 9.6.

· Follow the (Step 1) - (Step 3) of Item 9.8.

· Follow the (Step 1) - (Step 3) of Item 9.9 .

· Follow the (Step 1) - (Step 2) of Item 9.10.

· Follow the (Step 1) of Item 9.11.

9.14. Replacement of the Power IC

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 5) of Item 9.6.

· Follow the (Step 1) - (Step 3) of Item 9.8.

35

SA-PMX1DBEB

· Disasse mbly of gears drive

36

SA-PMX1DBEB

37

SA-PMX1DBEB

9.16. Disassembly of Optical Pickup (CD Mechanism Unit)

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 5) of Item 9.6.

· Follow the (Step 1) - (Step 3) of Item 9.8.

· Follow the (Step 1) - (Step 3) of Item 9.9 .

· Follow the (Step 1) - (Step 2) of Item 9.10.

· Follow the (Step 1) of Item 9.11.

· Follow the (Step 1) - (Step 4) of Item 9.15.1.

38

SA-PMX1DBEB

39

SA-PMX1DBEB

9.17. Disassembly of Traverse Gear A and Traverse Gear B (CD Mechanism Unit)

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 5) of Item 9.6.

· Follow the (Step 1) - (Step 3) of Item 9.8.

· Follow the (Step 1) - (Step 3) of Item 9.9 .

· Follow the (Step 1) - (Step 2) of Item 9.10.

· Follow the (Step 1) of Item 9.11.

· Follow the (Step 1) - (Step 4) of Item 9.15.1.

9.18. Procedure for Replacing Pinch Roller and Head Block (Deck Mechanism Unit)

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 6) of Item 9.6.

40

SA-PMX1DBEB

41

SA-PMX1DBEB

9.19. Procedure for Replacing Motor, Capstan Belt A, Capstan Belt B, and Winding Belt (Deck Mechanism Unit)

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 6) of Item 9.6.

· Follow the (Step 1) - (Step 10) of Item 9.18.

42

SA-PMX1DBEB

9.20. Procedure for Replacing Parts on Deck Mechanism PCB

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 6) of Item 9.6.

· Follow the (Step 1) - (Step 11) of Item 9.18.

9.21. Disassembly of Loading Mechanism

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 6) of Item 9.6.

· Follow the (Step 1) - (Step 9) of Item 9.18.

43

SA-PMX1DBEB

9.21.1. Disassembly of Cassette Push Plate and Open Lever

9.21.2. Disassembly of Cassette Holder and Under Arm

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 6) of Item 9.6.

· Follow the (Step 1) - (Step 8) of Item 9.21.1

44

SA-PMX1DBEB

9.21.3. Disassembly of Cam gear, Midgear worm pulley and Trigger lever

· Follow the (Step 1) - (Step 4) of Item 9.4.

· Follow the (Step 1) - (Step 6) of Item 9.6.

45

SA-PMX1DBEB

· Follow the (Step 1) - (Step 8) of Item 9.21.1

· Follow the (Step 1) of Item 9.21.2

46

10 Service Fixture & Tools

Part Number Description Compatibility

REEV0147 Extension FFC Cable (Switch P.C.B. - Main P.C.B. / 25 Pin) Same as PMX1 Series

11 Service Positions

Note: For description of the disassembly procedures, see the Section 9.

11.1. Checking and Repairing of Transformer P.C.B.

SA-PMX1DBEB

47

SA-PMX1DBEB

11.2. Checking and Repairing of DAB Module Unit

48

11.3. Checking and Repairing of Deck P.C.B.

SA-PMX1DBEB

49

SA-PMX1DBEB

11.4. Checking and Repairing of FL, Switch, Headphone and Music Port P.C.B.

50

11.5. Checking and Repairing of Main P.C.B.

SA-PMX1DBEB

51

SA-PMX1DBEB

11.6. Checking and Repairing of CD Servo P.C.B.

Note: Connect AC power cord and switch on the set. Eject tray loading, load in CD and switch off the set. Proceed with checking

52

SA-PMX1DBEB

12 Procedure for Checking Operation of Individual Parts of

Deck Mechanism Unit

12.1. Operation Check with Cassette Tape

1. Pull up the EJECT lever using a rubber band. (Fig. 6)

2. Supply DC5V to MOTOR. (→ MOTOR rotates.) (Fig. 5)

3. Insert a cassette tape to the unit.

4. Supply DC9V to the plunger, and turn the power ON and OFF. (→ Power +PL, -PL) (Fig. 5)

a. FWD PLAY: Supply the plunger power in a flash. (ON: approx. 5msec)

b. FWD FF: Supply the plunger power in a flash at PLAY mode. (ON: approx. 5msec)

c. STOP: Supply the plunger power in a flash at FWD FF mode. (ON: approx. 5msec)

d. REV PLAY: Supply the plunger power in a normal timing at STOP mode. (ON: approx. 200msec)

e. REV REW: Supply the plunger power in a flash at REV PLAY mode. (ON: approx. 50msec)

f. STOP: Supply the plunger power in a flash at FF mode. (ON: approx. 50msec)

Repeat the operation (→ FWD PLAY)

(Note) Other operation may start if a timing of supplying the plunger power is missed.

12.1.1. Connection Status between Mechanism and Power Supply (Motor, Plunger)

12.1.2. Operative Parts of Mechanism Unit (EJECT lever fitted with rubber band, Plunger/Rib operation)

Fig. 6

12.2. Operation Check without Cassette Tape

1. Pull up the EJECT lever using a rubber band. (Fig. 6)

2. Supply DC5V to MOTOR. (→ MOTOR rotates.)

3. Lift up the mechanism unit’s plunger/rib with the tip of a negative screwdriver, and operate the unit in the same timing as

supplying the power. (Fig. 7)

53

SA-PMX1DBEB

Fig. 7

54

13 Measurement And Adjustments

13.1. Cassette Deck Section

13.1.1. Requirements

· Test tape (QZZCFM) (QZZCWAT)

· Normal blank cassette tape (QZZCRA)

· Digital frequency counter

· Oscilloscope

· Electrical voltmeter

· Headphone jack output jig (Fig. 8)

13.1.2. Setting of Unit

· VOLUME: MAX

13.1.3. Preparations

1. Apply under [9. Assembling and Disassembling].

2. Remove 4 screws from the mechanism unit to disassemble. under [9. Assembling and Disassembling].

3. Connect the headphone jack output jig (Fig. 8) to headphone jack.

SA-PMX1DBEB

Fig. 8

Fig. 9

13.1.4. Tape Speed Adjustment

· Normal speed adjustment (only during forward playback)

(Product reference value: 3,000±90Hz)

1. Connect a frequency indicator. (Fig. 12)

2. Playback the middle portion of the test tape (QZZCWAT).

3. Adjust the motor screw so that the following output level is produced. (Fig. 10)

Adjustment Range: 3,000 ± 90Hz (a constant speed)

55

SA-PMX1DBEB

13.1.5. Bias Voltage Check

1. Connect an electrical voltmeter. (Fig. 9) (Fig. 12)

2. Set the function to “TAPE” position.

3. Insert a normal blank cassette tape (QZZCRA).

4. While pressing and holding down [REC ( pressing the buttons till the recording pause mode is activated.)

5. Check that the output level is within the standard range.

Standard Range: 16 ± 3mV

/ )] button, press [TAPE ( )] button to pause the recording mode. (Repeat

Fig. 10

Fig. 11

Fig. 12

13.1.6. Bias Frequency Check

1. Connect a digital frequency counter (Fig. 13).

2. Set the function to “TAPE” position.

3. Insert a normal blank cassette tape (QZZCRA) and press “REC” mode on main unit.

4. Check that the output frequency is within the standard range.

Standard Value: 98 ±8 kHz

Fig. 13

56

14 Voltage Measurement & Waveform Chart

Note:

· Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance)

with the chassis taken as standard.

Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester.

· Circuit voltage and waveform described herein shall be regarded as reference information when probing defect point

because it may differ from actual measuring value due to difference of Measuring instrument and its measuring condition and product itself.

14.1. Voltage Measurement

14.1.1. CD SERVO P.C.B

CD SERVO P.C.B

Ref No.

MODE 1 234567891011121314151617181920

CD PLAY 0 000000000000 000001.53.3

STANDBY 0 000000000 0 00 0000000.3

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

CD PLAY 1.6 0 1.5 1.5 1.7 0 3.3 3.3 3.2 0 0 1.6 1.6 1.6 0 0 0 1.7 1.8 1.8

STANDBY 0 0.1 0 0 0 0 0.2 0 0.2 0.2 0 0 0.2 0 0 0.2 0.2 0.2 0 0

Ref No.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

CD PLAY 0.2 2.4 1.8 1.7 0 1.8 3.3 1.2 1.2 0 1.7 1.7 0.8 1.4 1.4 1.5 0 3 1.5 0

STANDBY 0 0 0.2 0.1 0.2 0.1 0.3 0.1 0.2 0.2 0 0 0 0 0 0.2 0 0.3 0.2 0

Ref No.

MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

CD PLAY 3.3 0 0 0 0 0 0 2.8 2.8 2.7 0 2.6 0 1.6 0 1.5 3.3 0 3.3 1.7

STANDBY 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0 0 0 0.2 0 0.2 0.2 0.2 0 0.3 0 0.3 0.2

Ref No.

MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

CD PLAY 1.62.300000000 0 03.30000000

STANDBY 0.30.200000000 0 00.30000000

Ref No.

MODE 1 234567891011121314151617181920

CD PLAY 1.601.60000007.44.23.43.53.42.94.13.73.47.40

STANDBY 0.100 0000000.30.10.10.10.10.10.100.100

Ref No.

MODE 21 22 23 24 25 26 27 28

CD PLAY 7.4 0 0 0 7.4 1.6 1.6 1.6

STANDBY 0.300 00000

Ref No.

MODE E C B

CD PLAY 3.1 2 2.4

STANDBY 0.3 0.1 0.3

Q7601

IC7001

IC7002

SA-PMX1DBEB

57

SA-PMX1DBEB

14.1.2. DECK P.C.B

Ref No.

MODE 12345

CD PLAY 5.6 0 0 0 0

STANDBY 0.2 -0.1 0 0 0

Ref No.

MODE 1 234567891011121314151617181920

CD PLAY 0 0.7 4.9 4.1 0 1.8 0 0.1 0 5.8 0 8.5 0 0 0.1 0 3.4 0.2 4.1 4.9

STANDBY 0 0.1 0.1 0.1 0 0 0 0.1 0 0.2 0 0.2 0 0 0.1 0 0 0 0.1 0.1

Ref No.

MODE 21 22

CD PLAY 0.7 0

STANDBY 0.1 0

Ref No.

MODE E C B E C B E C B E C B E C B

CD PLAY 0 0 0.7 0 0 0.7 2 1.9 0 5.7 0 5.7 0 5.7 0

STANDBY 0 0 0 0 0 0 0 0 0 0 0.2 0 0.2 0 0.2

Ref No.

MODE E C B E C B E C B E C B E C B

CD PLAY 0 0.6 0.1 0 0 0.6 0 0 0 9.6 -2.4 9.5 9.5 0 9.5

STANDBY 0 0 0 0 0 0 0 0 0 0.3 -3.2 0.2 0.2 0 0.2

Ref No.

MODE E C B E C B E C B E C B

CD PLAY -2.2 9 0 0 0 0 0 8.5 0 0 8.5 0

STANDBY 0 0 -3.2 0 0 0 0 0.2 0 0 0.2 0

DECK P.C.B

IC1000

IC1001

Q1101 Q1201 Q1302 Q1303 Q1304

Q1306 Q1307 Q1312 Q1314

Q1316 Q1317 Q1310 Q1309

Q1315

14.1.3. FL P.C.B

FL P.C.B

Ref No.

MODE 1 2 34567891011121314151617181920

CD PLAY 0 0 0 0 1.9 3.3 2.2 2.8 2.2 0.2 0.2 0 2.9 -23.6 -23.6 -23.6 -17.1 -23.6 -23.6 -19.1

STANDBY 0 0 0 0 0 0.3 0.1 0 0 0.2 0.2 0 0.3 0 0 0 0 0 0 0

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

CD PLAY -25.8 -25.8 -23.6 -19.1 -25.8 -25.8 -25.8 -25.8 -19.2 -26.3 -17.1 -23.6 -23.6 -23.5 -23.5 -23.5 -23.5 -23.5 -23.5 -23.5

STANDBY 0 0000000000000000000

Ref No.

MODE 41 42 43 44

CD PLAY -23.5 -23.5 3.3 0

STANDBY 0 0 0.3 0

IC900

14.1.4. TRANSFORMER P.C.B

TRANSFORMER P.C.B

Ref No.

MODE E C B E C B E C B E C B E C B

CD PLAY 0 11.6 0 6.2 7.7 6.9 0 1.8 1.8 -26.3 -36.6 -26.9 -4.2 -23.1 -4.8

STANDBY 0 0 0.6 11.6 12.5 12.3 0 1.8 2.5 0 0 -0.4 -0.6 -0.1 0

Ref No.

MODE E C B E C B E C B E C B

CD PLAY -48.9 -45.6 -48.2 13.2 31 13.1 -49 -28.5 -45.9 27.9 45.3 31.1

STANDBY -0.3 0 -0.3 2.8 0 0.2 -0.1 0.2 0 0.1 0.1 0

Q600 Q601 Q602 Q603 Q604

Q605 Q606 Q607 Q608

58

14.1.5. MAIN P.C.B

MAIN P.C.B

Ref No.

MODE 1 234567891011121314151617181920

CD PLAY 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 0 4.3 4.3 4.3 4.3 4.3 4.3 4.3

STANDBY 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0 0 0.3 0.3 0.3 0.3 0.3 0.3

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

CD PLAY 4.3 4.3 4.3 4.3 4.3 4.3 4.3 0 0 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 8.6 0 0

STANDBY 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0 0 0 0.1 0.1 0.1 0.1 0.2 0.3 0.2 0 0 0

Ref No.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

CD PLAY 0 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3

STANDBY 0 0.1 0.2 0.2 0.2 0 0.1 0.1 0.1 0.3 0.3 0.3 0.1 0.3 0 0.1

Ref No.

MODE 1 2345678

CD PLAY 0 0 0 -8.5 0 0 0 8.7

STANDBY 0.1 0.1 0.1 0.5 0.1 0.1 0.1 0.2

Ref No.

MODE 1 2345678910111213141516

CD PLAY 0 1.4 1.6 1.6 3.3 0 1.6 1.6 0 0 0 3.3 1.6 1.7 0 1.6

STANDBY 0 0.3 0 0 0.3 0 0.2 0.1 0 0 0 0 0.2 0.1 0 0

Ref No.

MODE 12345

CD PLAY 7.5 16.3 0 9.6 16.4

STANDBY 0.3 0.1 0 0.2 0.1

Ref No.

MODE 12345

CD PLAY 6.3 0 2.5 0 3.3

STANDBY 11.6 0 0 0 0

Ref No.

MODE 1 234567891011121314151617181920

CD PLAY -26.2 0 0 27.7 0 -28.4 -20.8 28.1 10.8 -0.3 -28.7 -16.3 -28.8 -0.3 10.8 28.1 -28.4 -28.4 0 27.7

STANDBY 0.1 0 0 0.1 0 0.1 0.4 0.1 0.5 0.2 0.1 0.1 0.1 0.2 0 0.1 0.1 0.1 0 0.1

Ref No.

MODE 21 22 23

CD PLAY 0 0 4.7

STANDBY 0 0 0.1

IC200

IC201

IC300

IC500

IC501

IC700

SA-PMX1DBEB

59

SA-PMX1DBEB

Ref No.

MODE 1 234567891011121314151617181920

CD PLAY 03.23.23.23.200001.30.73.21.601.53.23.23.201.8

STANDBY 0 0000000000.73.31.701.63.33.33.20.11.9

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

CD PLAY 0 000.2000000000000003.23.2

STANDBY 3.300 00000000000000000

Ref No.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

CD PLAY 0 3.2 3.2 0 0 0 0 3.2 3.1 0 0 0 0 0 0 0 1.5 1.6 0 3

STANDBY 0 000000000 03.80.10000000

Ref No.

MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

CD PLAY 3.20.10300000 0 0 0 00 003.203.2

STANDBY 03.30.10000000.30.30000003.300

Ref No.

MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

CD PLAY 3.2 3.2 0 0 0 0 1.4 1.8 3 3.2 3.2 0 0 3.2 3.2 0 1.9 3.3 3.2 3.2

STANDBY 0.7 3.3 0 2.2 0 0 1.4 1.8 0 0 3.3 0 3.3 3.3 1.4 0 0 0 3.3 3.3

Ref No.

MODE 1 2 3

CD PLAY 0 0 0

STANDBY 0 0 0

Ref No.

MODE 1 2345678

CD PLAY 3.2 0 0 0 1.5 0 1.5 0

STANDBY 03.20 00000

IC800

IC801

IC802

60

SA-PMX1DBEB

Ref No.

MODE E C B E C B E C B E C B E C B

CD PLAY 0 0 -5.7 0 0 -5.7 0 0 -5.7 0 0 -5.7 0 0 -5.7

STANDBY 0 0 0.7 0 0 0.7 0 0 0.7 0 0 0.7 0 0 0.7

Ref No.

MODE E C B E C B E C B E C B E C B

CD PLAY 2.8 1.8 2.4 0 0 0.1 0 0 0.1 0 -5.7 0 0 0 -5.7

STANDBY 0 0.2 0.2 0 0 0.2 0 0 0.1 2.2 2.3 0 0 0 0.7

Ref No.

MODE E C B E C B E C B E C B E C B

CD PLAY 3.2 3.2 2.5 0 9.5 0 0 9.5 0 0 0 2.5 -0.6 -9 0

STANDBY 3.3 0 5.6 0 0.2 0 0 0.2 0 0 6.1 0 0.4 0.1 0

Ref No.

MODE E C B E C B E C B E C B E C B

CD PLAY -8.5 -28.1 -9 0 3.2 0 0 3.2 0 10 16.2 10.2 0 0 0.2

STANDBY 0 0.1 0.1 0 0 0.2 0.2 0.4 0 0.4 0.2 0.2 0 0 0

Ref No.

MODE E C B E C B E C B E C B E C B

CD PLAY 10 0 10 0 10 0 0 3.2 0 3.3 3.3 0 0 3.2 0

STANDBY 0.4 0 0.4 0 0.4 0 0 0.6 0 0.3 -4.5 0 0 3.3 0

Ref No.

MODE E C B E C B E C B E C B E C B

CD PLAY 3.2 0 2.8 0 4.8 0 -28.4 -28.4 -27.7 2.4 3.2 0 0 3.2 -3.2

STANDBY 3.2 3.2 0.4 0 0 3.1 0.2 0.2 -3.9 0 0.6 0 0 0.6 0.1

Ref No.

MODE E C B

CD PLAY 6.3 0 3.9

STANDBY 11.7 0 4

Q200 Q201 Q202 Q203 Q204

Q205 Q206 Q209 Q210

Q300 Q301 Q302 Q303 Q500

Q501 Q502 Q503 Q504

Q551 Q552 Q553 Q700 Q800

Q803 Q702 Q701 Q506

Q703

Q211

Q550

Q505

14.1.6. DECK MECHANISM P.C.B.

Ref No.

MODE ECB ECB ECB ECB ECB

CD PLAY 0 0 0.6 0 0 0.7 1.4 1.1 0 0 5.6 0 5.6 0 5.6

STANDBY000 000 000 05.50 5.505.5

Ref No.

MODE ECB ECB ECB ECB ECB

CD PLAY 0 8.3 0 0 8.3 0 0 0 0 9.5 -1.1 9.5 9.5 0 9.5

STANDBY 0 8.3 0 0 8.3 0 0 0 0 9.5 -1.1 -9.5 9.5 0 9.5

Ref No.

MODE E C B E C B

CD PLAY 0 8.9 -1.3 0 0 0

STANDBY 0 8.9 -1 0 0 0

Q1101 Q1201

Q1309 Q1310

Q1316 Q1317

DECK MECHANISM P.C.B.

Q1302 Q1303 Q1304

Q1315Q1312 Q1314

61

SA-PMX1DBEB

14.2. Waveform Chart

CN301 PIN 1 CD PLAY 392mVp-p (1msec.div)

CN301 PIN 11 CD PLAY

3.76Vp-p (10msec.div)

CN801 PIN 17 CD PLAY

3.36Vp-p (10msec.div)

CN301 PIN 2 CD PLAY 101mVp-p (10msec.div)

CN301 PIN 12 CD PLAY

3.4Vp-p (10msec.div)

CN801 PIN 18 CD PLAY

3.4Vp-p (10msec.div)

CN301 PIN 3 CD PLAY 384mVp-p (1msec.div)

CN301 PIN 13 CD PLAY

3.44Vp-p (10msec.div)

CN801 PIN 19 CD PLAY

3.44Vp-p (10msec.div)

CN301 PIN 10 CD PLAY

3.6Vp-p (10usec.div)

CN301 PIN 14 CD PLAY

3.88Vp-p (10msec.div)

IC800 PIN 13 CD PLAY

2.6Vp-p (50nsec.div)

62

IC800 PIN 15 CD PLAY 2Vp-p (50nsec.div)

IC800 PIN 19 CD PLAY

3.6Vp-p (10msec.div)

IC800 PIN 26 CD PLAY

3.44Vp-p (10msec.div)

IC800 PIN 28 CD PLAY

3.44Vp-p (10msec.div)

IC800 PIN 30 CD PLAY

3.44Vp-p (10msec.div)

IC401 PIN 39 CD PLAY

3.76Vp-p (10msec.div)

IC800 PIN 42 CD PLAY

3.76Vp-p (10msec.div)

IC800 PIN 43 CD PLAY

3.48Vp-p (10msec.div)

IC800 PIN 20 CD PLAY

3.24Vp-p (10msec.div)

IC800 PIN 48 CD PLAY

3.56Vp-p (10msec.div)

SA-PMX1DBEB

63

SA-PMX1DBEB

64

15 Wiring Connection Diagram

C

TUNER EXTENT P.C.B

SA-PMX1DBEB

20 . . . . . . . . . . . 2

21 . . . . . . . . . . . . . 1

CN300

SOLDER SIDE

AC IN

230 - 240V 50Hz

4 . . . . . 1

CN803

CD OPEN SW (S780)

CN801

1 . . . . . . . . . . . . . . . . 25

2 . . . . . . . . . . . . . 24

H

TRANSFORMER P.C.B

SOLDER SIDE

JK600

16 . . . . . . . . . 2

17 . . . . . . . . . . . 1

CN301

CP300

1 2

T600

(SUB-TRANSFORMER)

T601

(POWER-TRANSFORMER)

CAUTION RISK OF ELECTRIC SHOCK AC VOLTAGE LINE. PLEASE DO NOT TOUCH THIS P.C.B

CN302

1 . . . . . . . . . . 17

B

MAIN P.C.B

WH500/W500

CN600

1

. .

4

12

. . . . . . .

1

CN601

PbF

2 . . . . . . . . . 18

To DAB Module

12 . . . . . . . . . . . . . . . . 1

TO R/P Head

REC/PLAY HEAD

1 . . . . . . . . . 9

CN303

FAN UNIT

F

CP1301

1

.

2

.

4

5

PbF

JK900

JK700

PbF

CN550

2 1

To DAB Module

W900

SOLDER SIDE

DECK P.C.B

W1903

2 1

+

-

MOTOR

DAB ANT

SPEAKER

CN1305

21

.

20

.

2

1

1 . . . . . 9

CP1902

1 . . . 4

WH901A/JW901

9 . . . . . . 1

WH902/JW902

D

FL P.C.B

SOLDER SIDE

PbF

E

9 . .

VR900

. . . 1

WH901B

JW960

WH911A/JW911

6

. . . .

1

PbF

PL-PL+

SOLENOID

G

DECK MECHANISM P.C.B

GND

(GREY)

SOLDER SIDE

SWITCH P.C.B

VR902 VR901

SOLDER SIDE

1 . . . . . . . . . 9

CS971

TUNE_JOGBASSTREBLEVOLUME

Z900

VR903

WH910A/JW910

WH950/ JW950

CN900

25

. . . . . . . 1

1 . . . 4

24

. . . . . 2

4 . . 1

CN7002

17

.

16 . . . . . . . . 1

. . . . . . . 2

SENSOR

A

M7301

(TRV MOTOR)

M

SOLDER SIDE

I

MUSIC PORT P.C.B

PbF

JK970

SOLDER SIDE

PbF

WH910B/JW910

1 . . . 4

6 . . . . 1

WH911B/ JW911

CD SERVO P.C.B

.

16

M7302

(SPL MOTOR)

SOLDER SIDE

M

CN7001

Z300

MUSIC PORT

J

SOLDER SIDE

JK980

HEADPHONE

1

2

.

15

PbF

1 . . . . . . . . 9

WH303/W303

1 . . . . . . . . . . . . . . .10

Tuner Pack

HEADPHONE P.C.B

PbF

OPTICAL PICKUP

PbF

65

SA-PMX1DBEB

66

16 Block Diagram

OPTICAL PICKUP

SA-PMX1DBEB

PHOTO DETECTOR

EE EE

DC

AB

DC

EFEF

SEMICONDUCTOR

LASER

B

FOCUS

COIL

TRACKING

COIL

35

E

40

A

39

C

38

B

37

D

36

F

41

PD

Q7601

SWITCH

LD_SW

IC7002

BA5948FPE2

4CH DRIVE

26

VREF

F+

F-

T+

T-

D3-

15

[CH3]

D3+

16

D4-

17

[CH4]

18

D4+

LEVEL SHIFT

IN3

28

27 TRP

IN4

B

FOP

BLKCK

TX

NRST

MLD

MCLK

MDATA

STAT

42

LD

IC7001

MN6627954MA

SERVO PROCESSOR/ DIGINAL SIGNAL PROCESSOR/

71

BLKCK

66

TX

72

NRST

69

MLD

67

MCLK

68

MDATA

70

STAT

DIGITAL FILTER D/A CONVERTER

OUTL

OUTR

SPOUT

TRVP

TRP

FOP

56

59

CD SIGNAL

RCH

TO MAIN BLOCK

A

21

22

PC

23

24

25

SPOUT

PC

TRVP

TRP

FOP

M7301

TRAVERSE

MOTOR

M7302

SPINDLE

MOTOR

D2+14

M

[CH2]

13

D2-

D1+

12

[CH1]

D1-

11

LEVEL SHIFT

MUTE [CH1]

MUTE [CH2]

IN2 1

IN1

PC1

PC2

3

4

2

TRVP

LOADING

SPOUT

X1

X2

81 80

X7201

PC

S7201

RESET SWITCH

RESTSW

67

SA-PMX1DBEB

(DECK 2)

R/P HEAD

(DECK 2)

ERASE HEAD

LCH

IC1001

AN7326K

ASP

IC971

CNB13030R2AU

PHOTO INTERRUPTER

22(1)

PB LIN(R)

IC1000

C1AA00000612

ANALOG SWITCH

2

4

B

FILTER

CD SIGNAL

B

13

BIAS

SWITCH

NOR/CRO SW

LOGIC

B

12

VCC

RIPPLE

REJECTION

SWITCH

9

Q1304

SWITCH (REC:H)

Q1303

SWITCH

RF

PB/REC SW

Q1101

(Q1201)

MUTING SWITCH

Q1302

DECK

MUTING

CONT

JK970

MUSIC PORT

52(18)

1(2)

PREV-IN-L

(PREV-IN-R)

IN-L1(IN-R1)

5(6)

54(16)

IGVOUT-L

IN-L3(IN-R3)

9(10)

(IGVOUT-R)

IC200

C1BB00001121

ASP

39

IN-L5

(IN-R5)

CLOCK40DATA

11(12)

42(37)

IN-L6

(IN-R6)

L-OUT(R-OUT)

TUNER PACK

INL4(INR4)

Z300

7(8)

Q206

(Q209)

DAB SIGNAL

AGC

IC201

C0AABB000125

OP AMP

D201,D203

B

16(7)

REC

LIN(R)

D1301

S973

(CRO2)

S971

(MODE)

S972

(HALF)

S974

(RECINH_R)

S975

(RECINH_F)

15(8)

REC AMP (L)

L1301

ALC LOW OUT

TPS

TPS OUT

6

17

TPS

GAIN ADJ

21(2)

PB L NF(R)

PB L EQ(R)

PB LOUT(R)

MUTE

3

Q1317

BEAT PROOF

LEVEL SWITCH

Q1306, Q1307

SWITCH

REC

L OUT(R)

14 1020(3) 1819(4)

ALC

Q1309,

B

Q1310, Q1312

TUN_JOG

VR903

TUNE JOG

VOL_JOG

95

VR900

VOLUME JOG

TRE_JOG

VR902

TREBLE JOG

BASS_JOG

88

VR901

BASS JOG

90

DECK_AD2

EE_CS/

EE_CLK

22

3234245

IC802

EEPROM (NOT SUPPLIED)

89

DECK_AD1

EE_DAT

59

REC

KEY2

93

6

S907~S911

KEY SW

94

S900~S905

KEY SW

KEY1

65

DMT

IC800

C2CBYY000266

MICROPROCESSOR

60

Q930

LED DRIVER

LED_CTRL

D933

B

MECHA_LOAD

2584

S1000

DECK MODE

SW

68

67

ASP_DAT

ASP_CLK

2

3

TU_TUNED

TU_ST

4

TU_CL

Xin15Xout

X800

5

TU_SDA

13

Xcin10Xcout

1187

X801

RMT

18

Z900

REMOTE SENSOR

68

MUTING

CONTROL

Q200

(Q201)

SA-PMX1DBEB

Q205

AGC

SWITCH

JK980

HEADPHONE

DAB SIGNAL

27

DAB ANT

JK900

FL DISPLAY

26

FL_RST

FL_CS

Q301

FILTER

FL950

79

SWITCH

30

FL_DATA

PLUNGER

TO

DAB MODULE

D

28

FL_CLK

MOTOR

77

Q302

MOTOR

SWITCH

FROM

TRANSFORMER

Q801

POWER ON

B

SWITCH

IC800

C2CBYY000266

MICROPROCESSOR

TO

DAB MODULE

Q802

DAB

POWER ON

SWITCH

DMPU_TX

36

DMPU_CLK

TO CD MODULE

DMPU_RX

35

DMPU_TX

DMPU_RX

BLOCK

A

CD-RST

MLD

43

MLD

MDATA

42

STAT

48

MDATA

STATUS

MCLK

CD OPEN

SW

39

78

MCLK

CD_OPEN_CLOSE

RESTSW

82

BLKCLK

19

/RESTSW

NRST

80

BLKCK

DAB_LCH

(DAB_RCH)

D

55

DAB_5V

D_PON

83

54

DAB_PDET

D_DOWFIC

53

D_DOWFIC

D_NRST

D_MPUMOD

52

D_MPUMOD

D_NRST

D_LOCKDET

51

D_LOCKDET

D_NRFRESET

50

D_NRFRESET

D_PLLSDA

45

D_PLLSDA

D_PLLSCL

44

D_PLLSCL

DMPU_CLK

37

RCH

Q202,Q203

(Q211,Q204)

MUTE

CONTROL

Q210

MUTING SWITCH

Q803

MUTING SWITCH

63

HP_SW

40

B

MUTE_A

D971

Q1315

SWITCH

Q1314, Q1316

SWITCH (MOTOR SUPPLY)

M

69

SA-PMX1DBEB

Q702

PCONT

SWITCH

FILTER

FAN 9V

SIGNAL LINES

: MAIN SIGNAL LINE

: FM/AM SIGNAL LINE

: AUX SIGNAL LINE

( ) Indicates Pin No. of Right Channel

IN2+(IN1-)

MODE

OSC

23

22(3)

1

: TAPE PLAYBACK SIGNAL LINE

: TAPE RECORD SIGNAL LINE

: DAB SIGNAL LINE

Note : Signal Lines are applicable to the Left Channel only.

IC700

C1AA00000755

POWER AMPLIFIER

VSSP1,VSSP2

VDDP1,VDDP2

11,13

16,8

BB

FAN

MOTOR

M

Q551

B

SWITCH

Q550, Q552

FAN

SWITCH

: CD-DA SIGNAL LINE

: CD SIGNAL LINE

BOOT2(BOOT1)

15(9)

14(10)

OUT2(OUT1)

L702

FILTER

D551,D553

JK700

TO

SPEAKERS

Q553

DCDET

12

B

/RESET

Q300

SWITCH

81

SWITCH

SYS3.3V

B

Q703

SWITCH

Q704

HOP

BB

SWITCH

21

PCONT2

1

IC800

C2CBYY000266

MICROPROCESSOR

F_HOP2

Q701

Q700

SWITCH

HOP

SWITCH

7

F_HOP1

DVREF+

(TO DECK)

DCDET

HALT

PCONT

Q303

PCONT

SWITCH

Q800

RESET

SWITCH

D513

Q505, Q506

DC DET SWITCH

D618

Q602

HALT

SWITCH

20

49

Q501

CURRENT

LIMITTER

-9V

B

D512

D510

D511

CURRENT

LIMITTER

9.6V

7.5V

FAN 9V

Q500

D500

B

IC500

C0DAZYY00006

DUAL REGULATOR

B

Q502, Q503

DC DET SWITCH

REGULATOR

Q606, Q608

VOLTA GE

REGULATOR

Q604, Q605, Q607

VOLTA GE

REGULATOR

SYS3.3V

Q600

PCONT

SWITCH

Q504

9V

B

CD3.3V

D800

B

IC801

C0CAABC00007

5.5V REGULATOR

IC501

C0DBZGC00067

3.3V REGULATOR

Q603

-VP

REGULATOR

D604~D607

B

SUB+B

FP603

FP602

D600~D603

D610

TO FL

DISPLAY

FP601

FP600

B

SYS5.5V

D930

T501

POWER TRANSFORMER

Q601

REGULATOR

RL600

D627,D628

Z600

D613~D616

F1

T600

SUB

TRANSFORMER

L600

Z700

JK600

AC INLET

B

70

17 Notes of Schematic Diagram

(All schematic diagrams may be modified at any time with the development of new technology)

Note :

S780 CD OPEN switch S900 STOP/DEMO switch S901 CD_PLAY switch S902 TAPE switch S903 TUNER/BAND switch S904 FF/+ switch S905 REW/- switch S906 POWER switch S907 TAPE EJECT switch S908 REC switch S909 H.BASS switch S910 MUSIC PORT switch S911 CD OPEN switch S971 MODE switch S972 HALF switch S973 CrO2 switch S974 RECINH_R switch S975 RECINH_F switch S1000 DECK MODE switch S7201 RESET switch VR900 VOLUM E JOG VR901 BASS_ JOG VR902 TREBL E_JOG VR903 TUNE_ JOG

· Importance safety notice :

Components identified by characteristics important for safety. Furthermore, special parts which have purposes of fire-retardant (resistors), highquality sound (capacitors), low-noise (resistors), etc. are used. When replacing any of components, be sure to use only manufacturer´s specified parts shown in the parts list.

mark have special

SA-PMX1DBEB

71

SA-PMX1DBEB

72

18 Schematic Diagram

18.1. OPTICAL PICKUP CIRCUIT

SA-PMX1DBEB

H

G

F

SCHEMATIC DIAGRAM - 1

OPTICAL PICKUP CIRCUIT

LASER DIODE

6

8

11

12

4 9

10

5

2 3

C

GND

1

2

C

VCC

3

BIN

4

AIN

NBOUT

GND

NAOUT

VREF

C

: +B SIGNAL LINE

: CD-DA SIGNAL LINE

CP701

1

2

C

8

7

6

5

C

3

4

5

6

7

TO CD SERVO CIRCUIT

8

(CN7001) IN

9

SCHEMATIC

10

DIAGRAM - 2

11

12

13

14

15

16

E

D

C

B

A

SA-PMX1DBEB OPTICAL PICKUP CIRCUIT

12345678910111213

73

SA-PMX1DBEB

18.2. CD SERVO CIRCUIT

H

G

F

E

D

C

B

A

SCHEMATIC DIAGRAM - 2

CD SERVO CIRCUIT

VCC

1

F

2

E

3

LD

4

LD GND

5

GND

6

A

10

11

12

13

14

15

16

CN7001

7

GND

8

B

9

VREF

LPD

GND

T-

T+

F-

F+

TO OPTICAL PICKUP CIRCUIT (CP701) IN SCHEMATIC DIAGRAM - 1

C7335

0.1

C7334 10V220

W7023 0

W7027

0

39

37

D3-

D2+

14

C7613 0.1

W7026 0

W7024 0

1615

17

D4-

D3+

D2-

D1+

1

2

13

M7301

TRV

MOTOR

M

M7302

SRL MOTOR

M

C7614

6.3V100

18

D4+

D1-

11

19

10

PVCC2

PVCC1

38

36

W7025

20

PGND2

PGND1

9

0

: +B SIGNAL LINE : CD SIGNAL LINE

R7601

4.7

R7650

5.6

Q7601

B1ADCF000001

LASER POWER DRIVE

21

NC

BA5948FPE2

NC

8

GND

IC7002

4 CH DRIVE

GND

22

23

NCNCNC

NC

7

25 26 27 28

24

NC

R7335

100

C7601

6.3V33

VCC

PC1

3456

VREF

IN1

: CD-DA SIGNAL LINE

C7670

C7626

0.1

W7017 0

W7021 0

R7329

R7327

1K

IN3

IN4

PC2

IN2

12

R7336

10

C7338

0.056

R7323

3.3K

R7325 330

W7020 0W7022 0

16

1K

C7352

0.018

C7315

0.47

R7331

22K

C7203

6.3V220

C7223 50V4.7

C7204 0.1

50

W7016

0

R7328

10K

R7349

18K

C7339

0.018

R7339

1K

R7315

3.3K

W7019

0

W7018

0

C7218

C7241 1000P

R7211

C7244 0.015

C7217 0.1

51(RF)

C7216

W7014

0

C7161

W7015 0

C7102

C7142

C7107

R7 111

W7012

0

C7154 C7155

R7330 5.6K

0.082

82K

680P

0.1

10K

W7013

0.47

3300P

0.022

0

0.1

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

ARFFB

ARFOUT

ARFDC

AVD D2

RFIN

RFOUT

RFENV

CENV

LD

PD

A

C

B

D

F

E

VREF

CTRCRS

OSCIN

AVSS2

SRVMON1

SRVMON0

DVDD1

IOVDD2

DVSS1

R7212

820

51

ARFIN

FOP

14

0

W7010

W7007

0

C7232

6.3V220

0

C7263

S7201

RESET SW

11

8

0.1

13

W7004

W7002

W7003

W7001

3

4

0

210

18

7

9

31

LCH OUT

17

A.GND

16

RCH OUT

15

+3.3V

14

D.GND

13

LD SW

12

TX

11

+7.5V

PGND

MCLK

MDATA

MLD

BLKCK

STAT

/RST

REST SW

LOADING

10

9

8

7

6

5

4

3

2

1

TO MAIN CIRCUIT (CN301) IN SCHEMATIC DIAGRAM - 3

CN7002

C7253

470P

1917

W7011

R7028

0

W7006

0.1

C7233

W7008

W7009

0

C7243

0.1

1

727374

BLKCK

A6

56

C7225 1000P

C7226 1000P

NRST

C7227

C7228

75

SMCK

DQSYTXT

1

234

50V1

PMCK

IOVDD1

NTEST2

A11

DVDD2

DVSS2

NTEST

DRVDD

SDRCK

D15

D14

D13

D12

D11

D10

D7650

MAZ80560ML

76

77

78

79

80

X2

81

X1

82

83

D2

84

D1

85

D0

86

D3

87

D4

88

D5

89

D6

90

D7

91

92

93

94

95

96

97

98

D9

99

D8

100

R7253

R7254

C7166

R7220

1M

X7201

H2B169500005

C7264

0.1

C7234 0.1

C7235

16V10

R7332

1K

0.01

R7214

470

10

1K

R7217

1K

R7218

1K

R7221 100

54

53

IREF

DSLF

TRVP

TRP

245225

23

58

57

55

56

PLLF

OUTL

PLLF0

AVS S1

AVD D1

DIGITAL SIGNAL PROCESSOR/

DIGITAL FILTER D/A CONVERTER

PRAMVDD15

PRAMVDD33

PC

SPOUT

21

20

19

10

C716510C7164

PRAMVSS33

18

22

59

BA1

17

C7230 0.1

C7231 6.3V220

W7005

0

24

60

61

62

63

65

EXT2

EXT1

EXT0

OUTR

DVSS3

NSRVMONON

IC7001

MN6627954MA

SERVO PROCESSOR/

BA0

A10

A1A0A2

15

14

126413

16

11

66

FLAG

A3

10

676869

TX

NRAS

NCAS

MCLK

70

MLD

MDATA

NWEA8A7A9A5

A4

789

71

STAT

SA-PMX1DBEB CD SERVO CIRCUIT

1 2345678910111213

74

18.3. MAIN CIRCUIT

SA-PMX1DBEB

H

G

F

E

D

C

B

A

SCHEMATIC DIAGRAM - 3

MAIN CIRCUIT

JK900

DAB ANT

TO DAB MODULE

(REF NO.47)

CN302

DAB_RCH

AGND

DAB_LCH

D5V

DGND

DDOWFIC

SDA

LCH

RCH

+9V

NIRQ

MPUTX

MPURX

MPUCLK

MPUMOD

NRST

PLL_SDA

PLL_SCL

RF RST

LOCK DET

1

CL

2

3

4

5

6

7

8

9

TO DAB MODULE

(REF NO.47)

TO TUNER EXTENT CIRCUIT (WH303/ W303) IN SCHEMATIC DIAGRAM - 12

CN303

TUNED

STEREO

DET_OUT

AFGND

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

SDA

TUNED

TU_L

TU_R

TGND

: -B SIGNAL LINE : +B SIGNAL LINE : TAPE PLAYBACK SIGNAL LINE

L983

G0C2R2JA0027

L983

C101

1000P

C305

1000P

R307

100

R309

100

R310

100

R311

R312

100

R313

100

R314

100

R315

100

CL

ST

9V

W900

DAB_RCH

GND

DAB_LCH

DAB_5V

DAB_GND

D_DOWFIC

D_MPUTX

D_MPURX

D_MPUCLK

D_MPUMOD

D_NRST

D_PLLSDA

D_PLLSCL

D_NRFRESET

D_LOCKDET

: CD SIGNAL LINE

TO CD SERVO CIRCUIT (CN7002) IN SCHEMATIC DIAGRAM - 2

TO DECK CIRCUIT (CN1305) IN SCHEMATIC DIAGRAM - 10

(17)

(1)

S780

CD OPEN SW

: TUNER SIGNAL LINE : TAPE RECORDING SIGNAL LINE

Q301

PL

MOTOR_H

DECK_AD2

+9.6V

DECK_AD1

+9V

PBL

PBR

AFGND

REC_L

REC_R

REC

BP

DMT

DVREF+

VREF-

DGND


B1GBCFGG0030

PLUNGER SWITCH

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

B1ADCE000012

16

17

18

19

20

21

CN300

PGND/MOTOR GND

MECHA LOAD

CN301

1

CD_L

2

AGND

3

CD_R

4

CD_3.3V

5

CD_DGND

CD_7.5V

PGND

MCLK

MDATA

MLD

BLKCK

STATUS

RST

REST_SW

LOADING

GND

6

7

TX

8

9

10

11

12

13

14

15

16

17

1

2

LD_SW/CLDCK

CD_OPEN_SW

CP300

Q300

PCONT SWITCH

Q300

R301

4.7K

C301

1000P

C302 1000P

R302

R303

R305 100

R306

100

R316

: DAB SIGNAL LINE : MAIN SIGNAL LINE

Q302

Q303

B1GBCFJJ0051

PCONT SWITCH

C303

1000P

C304

1000P

100

100R304

100

B1GBCFGG0030

MOTOR_H SWITCH

L302

L300 - L303

J0JKB0000020

Q302

: AUX SIGNAL LINE

PLUNGER

MOTOR

PGND

DECK_AD2

9.6V

DECK_AD1

PBL

PBR

AGND

REC_L

REC_R

REC

DMT

SYS3.3V

VREF-

PCONT

MECHA_LOAD

CD_L

AGND

CD_R

3.3V

CD_GND

7.5V

PGND

CD_MCLK

CD_MDATA

CD_MLD

BLKCK

STAT

CD_RST

RESETSW

LOADING

CD_OPEN_SW

9V

AUX_L

AUX_R

TU_L

TU_R

DAB_LCH

DAB_RCH

PBL

PBR

CD_L

CD_R

REC_L

REC_R

R212

R275

6.8K

R276

6.8K

R203

R204

R211

5.6K

R207

R208

3.9K

5.6K

R273

5.6K

R274

8.2K

R201

8.2K

R202

3.9K

R205

3.9K

R206

0

10K

R209

10K

R210

0

12K

R213

12K

R214

1K

R215

1K

R216

C209

C210

1000P

C282

C201

C202

C203

C204

C205

C206

C207

C208

1000P

220P

1000P

16V1

R217

18K

R218

18K

C27516V10

C27616V10

C211

C21216V1

C21316V1

C21416V1

C21516V1

C21616V1

C21716V10

C21816V10

B01

B02

B03

B04

B05

TO MAIN SECTION (2/5)

B6

C281

5.6K

1 / 5

SA-PMX1DBEB MAIN CIRCUIT

1 2345678910111213

75

SA-PMX1DBEB

SCHEMATIC DIAGRAM - 4

MAIN CIRCUIT

C221

16V10

1

C239

16V100

2

3

4

5

6

7

8

9

10

11

12

13

14

C222

16V10

IN-L1

IN-R1

IN-L2

IN-R2

IN-L3

IN-R3

IN-L4

IN-R4

IN-L5

IN-R5

IN-L6

IN-R6

GND

REF-IN

15 16 17 1918

B01

B02

B03

B04

B05

C240

16V100

WA402

0

C219

50V1U

OP-OUT

IGVOUT-L

[15] REF_OUT

IGVOUT-R

REC-R

C220

50V1U

53 52 51 50 49 47 46 455556 54

REC-L

PREV-IN-R

PREV-IN-L

HBMIX-IN

C229

0.047

R223

100K

3.9K

R271

0.047C235

C223

SUR2

IC200

ASP IC

HBFLT-OUT

50V4.7uC230

2200P

TRE-L

HARM-IN

D200

B0ACCK000005

R224

R221 2.2K

SUR1

C1BB00001121

HBMIX-OUT

MID-L1

MID-L2

[43] POSTV-IN-L[56] OP-IN

HARM-OUT

HBATT-IN

2420 2221 23 27 2825 26

C234

0.039

R225

5.6K

: +B SIGNAL LINE : TAPE PLAYBACK SIGNAL LINE

15K

R219

C241

16V10

C227 0.022

C225 0.022

4448 43

42

L-OUT

T-OUT-L

BASS-L1

18K

HBATT-OUT

C231

1u

22KR226

BASS-L2

POSTV-IN-R

HBLPF-IN1

NC

DATA

CLOCK

VCC

R-OUT

T-OUT-R

BASS-R2

BASS-R1

MID-R2

MID-R1

TRE-R

NC

HBLPF-OUT

NC

C232

50V0.47

100K

R227

41

40

39

38

37

36

35

34

33

32

31

2200P

30

29

0.1u

C233

C228

0.022

C226

0.022

C224

: -B SIGNAL LINE

C242

16V10

R220

15k

R272

3.9K

C236

0.1u

C200

16V100

R222

C243

50V4.7

C238 220P

C237

220P

C244

50V4.7

4.7

C277

50V4.7

C278

50V4.7

WA404

0

R291

2.7K

R281

2.7K

R282

Q206, Q209

B1ABCF000176

Q209 Q206

100k

R292

100k

SWITCH

R267

560

R265

2.2k

R268

560

R266

2.2k

: TAPE RECORDING SIGNAL LINE

C283

4700P

2.2K

R263

R297

100K

0.39

C271

C284

4700P

0.39

C272

2.2K

R264

D203

MA2J72800L

R298

R283

3.3k

100K

R269

2.2k

R270

2.2k

C290

1

D201, D202 MA2J11100L

C273 50V1

C274 50V1

Q205

D201

: MAIN SIGNAL LINE

C253

50V0.47

C251 1200P

R239 100K

C254

50V0.47

C252 1200P

R240 100K

R288

56k

Q205

B1ABCF000176

SWITCH

R280

1K

C250

C255

0.01

R241

C291

10K

16V10

: AUX SIGNAL LINE

C245 100P

R242

10K

R277

10k

R278

10k

R279

R243

68K

C247

27P

675

IC201

C0AABB000125

OP-AMP IC

243

C246

C248

100P

R244

68K

0

: CD SIGNAL LINE

8

1

27P

Q210

B1GDCFJJ0047

MUTING SWITCH

R228

0

R229

R230

27K

56K

C268

C257

16V10

C258

16V10

10V10

: TUNER SIGNAL LINE

R295

47k

R296

47k

22

R254

N

C269

3300P

C270

3300P

R246

4.7K

R253

R245

4.7K

22

R255

1.5K

R256

1.5K

Q200, Q201

B1ABGC000005

MUTING SWITCH

R247

1K

Q200

R248

1K

Q201

Q202, Q203, Q204, Q211

B1ABGC000005

HEADPHONE MUTING SWITCH

R257

22

R260

Q202

1K

R259

1K

Q211

R258

22

WA401

0

R249

R250

100K

Q203

Q204

R251

4.7K

R252

4.7K

R261

R262

9V

LEFT1

B06

RIGHT1

-9V

HP_L

3.3K

GND

3.3K

HP_R

TO MAIN SECTION (1/5)

B6

50V4.7C292

D202

MUTE_A

TO MAIN SECTION (3/5)

2 / 5

SA-PMX1DBEB MAIN CIRCUIT

B07

D204

DCDET

B0ACCK000005

9V

ASP_DATA

ASP_CLK

220k

10k

R284

R287 10k

R293

15 16 17 18 19 20 21 22 23 24 25 2614

76

SCHEMATIC DIAGRAM - 5

MAIN CIRCUIT

PCONT2

9.6V

3.3V

F_HOP1

F_HOP2

B06

RIGHT1

VDD

Q704

R721

120K

J0JKB0000020

R705

10

L704

Q700

R701 120K

R722

Q703

R704

4.7k

SA-PMX1DBEB

: -B SIGNAL LINE : +B SIGNAL LINE : TAPE PLAYBACK SIGNAL LINE

Q700, Q704

B1GDCFGG0026

SWITCH

R700

120k

C728

Q701

0.1

82k

R702

27k

C703

1000P

Q701, Q703

B1ABGC000005

SWITCH

IN1+

OSC

1 2 3 4 5 6 7 8 9 1011121314151617181920212223

C700

R709

0.47

5.6k

C701

R710

0.47

5.6k

C702 330P

: CD SIGNAL LINE

IN1-

VDDA1

C704

0.1

C706

0.1

SGND1

C705

VSSA1

C707 220P

0.1

C708

: TUNER SIGNAL LINE : TAPE RECORDING SIGNAL LINE

PROT

VDDP1

BOOT1

C711

0.015

C710

R711

220P

10

0.1

C709

C733 220P

OUT1

C712

0.1

IC700

C1AA00000755

POWER AMPLIFIER IC

STABI

VSSP1

0.1

C713

: DAB SIGNAL LINE : MAIN SIGNAL LINE

VSSP2

OUT2

C715

0.015

0.1

C714

R712

10

C716 220P

BOOT2

C717 220P

: AUX SIGNAL LINE

VSSD

VDDP2

0.1

C718

C719

VSSA2

C720

0.1

SGND2

C721

C722

10K

R716

IN2-

IN2+

VDDA2

0.1

R713

C723

5.6k

0.47

C726 330P

C725

1000P

R714

C724

5.6k

0.47

MODE

R715

100

C727

1000P

C741

16V10

5.6k

R718

12K

R717

B1GBCFJJ0044

Q702

SWITCH

LEFT1

VSS

C735

C734

0.1

L703

J0JKB0000020

R706

10

C737

C738

35V470

R708

4.7k

HEATSINK

(REF NO.46)

C744

330P

L702

G0C220Z00002

1

RIGHT

22

R720

C742

C743

C736 1000P

0.015

LEFT

JK700

1

LEFT GND

2

LEFT

3

RIGHT

4

RIGHT GND

1

Z700

2

3

SPEAKERS

B08

C729

0.68u

43

2

C730

0.68u

C732

C731

R719

0.1

22

B07

TO MAIN SECTION (2/5)

TO MAIN SECTION (4/5)

3 / 5

SA-PMX1DBEB MAIN CIRCUIT

B09

28 29 30 31 32 33 34 35 36 37 38 3927

77

SA-PMX1DBEB

SCHEMATIC DIAGRAM - 6

MAIN CIRCUIT

DCDET

D512

B0ACCK000005

-9V

9V

9.6V

D510

7.5V

3.3V

C515

50V2.2

PCONT

CD_GND

DAB_GND

VREF-

DGND

B08

TO MAIN SECTION (3/5)

B09

SYS5.5V

HALT

PCONT

AGND

HP_GND

41 42 43 44 45 46 47 48 49 50 51 5240

D510, D511, D513

B0ACCK000005

D511

D513

4

NC

IC501

C0DBZGC00067

3.3V REGULATOR IC

GNDVstdby

3

C514

0.1

5

CD3.3V

Vin

12

: -B SIGNAL LINE : +B SIGNAL LINE

C507

50V3.3U

FAN9V

Q504

2SD0592ARA

9V REGULATOR

24

VO2VCC

IC500

C0DAZYY00006

DUAL REGULATOR IC

V01 GND CTL

135

C505

16V22

Q504

C511

0.01

C512

50V33

D501

B0BC01000014

R511

220

C506

16V47

R512

R510

R509

150K

68K

Q502

R507

47K

D500

0

C508

16V47

C504

16V10

2.2

C513

25V3300

GND

Q503

R506

47K

R502

R503

560

2.7K

R504

2.7K

C503

0.01

Q501

B1BCCG000023

FUNCTION

Q502, Q503

B1ABCF000079

FUNCTION

Q500

B1ACCF000094

FUNCTION

Q500

R505

3.3K

R50015R501

2

1

VCC+

WH500/W500

C502

50V10

27

7

5

3

4

6

VCC-

AGND

SUB+B GND

TO TRANSFORMER CIRCUIT (CN601) IN SCHEMATIC DIAGRAM - 11

R518

33K

SUB+B

Q506

9108

9.6V

R508

22K

C509

6.3V100

Q505, Q506

B1ABCF000079

C516

50V1

N

R516

27K

11

HALT

SYS5.5V

FUNCTION

R517

33K

12

PCONT

C510

1000P

C500

35V1000

C501

35V1000

R515

27K

Q505

C517 50V1

R513

D553

N

GND

Q553

DCDET

R514

8.2K

B0ACCK000005

D551

Q553

B1ABCF000079

SWITCH

D551, D553

C554

C552

6.3V220

50V2.2

R561 820K

B1ABCF000079

R554

820K

R560

10K

0.1

C550

R557 56K

Q552

SWITCH

Q552

R550

R551

5.6K

Q551

B1ACKD000006

SWTICH

4.7K

10K

R552

C553 16V33

D550

B0ADCJ000020

R553

10K

3

R559

100

Q550

B1ABCF000079

SWITCH

56K

R558

2

1

R556

56K

C551

6.3V100

R555

18

CN550

FAN2(-)

1

2

FAN1(+)

4 /

SA-PMX1DBEB MAIN CIRCUIT

5

FAN

TO MAIN SECTION (5/5)

B10

78

SA-PMX1DBEB

SCHEMATIC DIAGRAM - 7

MAIN CIRCUIT

Z701

CN803

CHASIS GND

FL_DATA

FL_CLK

FL_CS

CN801

9.6V

DGND

SYS5.5V

LED_CTRL

3.3V

SYS3.3V

FL_CLK

FL_DATA

FL_CS

FL_RST

RMT

TUNE_JOG

VOL_JOG

BASS_JOG

TRE_JOG

KEY1

KEY2

VREF-

AUX_L

AUX_GND

AUX_R

HP_SW

HP_L

HP_GND

HP_R

1

2

3

4

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

TO FL CIRCUIT (WH902/JW902) IN SCHEMATIC DIAGRAM - 8

TO SWITCH CIRCUIT (CN900) IN SCHEMATIC DIAGRAM - 9

TO MAIN SECTION (4/5)

(4)

(1)

(25)

(1)

: -B SIGNAL LINE : +B SIGNAL LINE : TAPE PLAYBACK SIGNAL LINE

321

R876

R877

47K

R855 100

560P

C820

R866 100

R867 100

C818 560P

C822

C816

0.1

47K

560P

RESETSW

TUNE_JOG

TRE_JOG

BASS_JOG

DECK_AD1

DECK_AD2

LOADING

KEY2

KEY1

VOL_JOG

SYS3.3V

C827

0.1

R882

12K

R881

10K

R863

10K

C826

560P

R850

100

R858 100

R859 100

D804 B0ACCK000005

D805 B0ACCK000005

R860 100

R862 100

R861 100

R864 10K

R865 10K

C829

6.3V100

C823 560P

560P

C821

C819 560P

C817 560P

R887

15K

DCDET

R885 10K

R800 15K

R801 15K

R802 15K

R803 15K

C828

56P

: CD SIGNAL LINE

CD_RST

PLUNGER

R853

1K

R878 100

80

79

CD_RST

PLUNGER

DAB_PDET

TUNE_JOG

(NC)

TRE_JOG

87 868889 8284 83 818590

BASS_JOG

DECK_AD1

DECK_AD2

CLOSE_L

OPEN_H

KEY2

KEY1

VOL_JOG

AVss

REG

Vref

98 9495 92 919397 96

AVCC

99

100

WA400

TU_TUNED

F_HOP2

1

R804

0

MOTOR

CD_OPEN_SW

R851

100

787677

NC

MOTOR

CD_OPEN_SW

[81]DCDET [82]/RESETSW

[100] DEMO SELECTOR

TU_CL

TU_ST

TU_SDA

342

5

1K

X801

H0A327200111

R869

10K

75

NC

X801

C801

22P

: TUNER SIGNAL LINE : TAPE RECORDING SIGNAL LINE

Q801

B1ACND000003

SWITCH

Q802

B1GBCFJN0009

SWITCH

737172

74

NC

FHOP

768

330K

R805

C802 18P

NC

BYTE

NC

Xcin

/EFP_CNVSS

9

10

4.7K

R806

100P

C803

C800 50V1

70

NC

Xcout

11

ASP_DATA

R849

1K

69

68

NC

ASP_DATA

C2CBYY000266

Xout

/RESET

13

12

0

R808

2

X800

H2B100500004

DMT

ASP_CLK

1K

330

R848

R847

67

656466

NC

DMT

ASP_CLK

IC800

MICROPROCESSOR

Xin

Vss

VCC1

161415

C805

31

R854

47K

16V100

HP_SW

C815

Vss

/NMI

17

C804 0.1

: DAB SIGNAL LINE : MAIN SIGNAL LINE

D806 - D809

B0ACCK000005

REC

LED_CTRL

R846

100

R868 1K

0.1

62

Vcc

BLKCK

19

R811

NC

HALT

20

R810 1K

1K

605961

KEY_LED

PCONT2

21

R812 1K

63

HP_SW

RMT

18

R809 100

DAB_5V

Q801

REC

EE_CS/

22

R813 1K

R814 1K

R883 22K

R843

470

58

RDS_CLK

EE_CLK

23

R815 1K

7.5V

57

RDS_DATA

EE_DA TA

24

: AUX SIGNAL LINE

D809

D807

D806

D808

D_DOWFIC

D_MPUMOD

R844

47K

Q802

55

56

542952

D_PON

DAB_JIG

D_DDOWFIC

[50]D_NRFRESET [49 ]PCONT

[32] TXD [31] RXD

FL_RST

MECHA_LOAD

FL_CS

262827

25

R816 100

R817 100

R879 1K

R880 10K

D_NRST

R842 1K

R841 1K

53

D_NRST

D_MPUMOD

D_PLLSDA

D_PLLSCL

D_MPUCLK

D_MPUTX

D_MPURX

NC

FL_CLK

R818 100

D_LOCKDET

51

D_LOCKDET

STATUS

NC

CE

MLD

MDATA

EPM

MUTE_A

MCLK

NC

BUSY

SCLK

FL_DA TA

30

R819 100

4945 474641 4442 43 48 50

3937353231 3433 36 38 40

R823

4.7K

C806 220P

C807 220P

C808 220P

C809 220P

R871

4.7K

C824 220P

R840 1K

R839 1K

R838 100

R837 1K

R836 220

R835 1K

R834 1K

R870 1K

R833 1K

R832 220

R831 220

R830 220

85

NC

7

GND

6

D0

D1

R872

6.8K

IC802

EEPROM IC

(NOT SUPPLIED)

R820

47K

Q800

NC

VCC

CS

4321

CLK

R874

22K

Q803

B1GDCFGG0026

SWITCH

C0CAABC00007

5.5V REGULATOR IC

B1GBCFNN0009

D800, D801, D802, D803

B0ACCK000005

BACKUP_3.3V

D802

C810 50V1

D803

R873

22K

IC801

Q800

SWITCH

C825

0.022

D800

D801

R821

120

C811

5.5V2.2F

GND

IC801

VOUT VIN

1

C813

6.3V100

2

3

C814 0.01

C812

D_NRFRESET

10V220

EE_DATA

EE_CS

EE_CLK

PCONT

STAT

D_PLLSDA

D_PLLSCL

CD_MLD

CD_MDATA

EPM

SYS3.3V

MUTE_A

CD_MCLK

D_MPUCLK

D_MPUTX

D_MPURX

VREF-

SYS5.5V

G

F

E

D

C

B

H

B10

A

F_HOP2

TUNED

ST

SDA

CL

F_HOP1

CNVss

RMT

BLKCK

FL_CLK

FL_DATA

5 /

SA-PMX1EBEB MAIN CIRCUIT

5

HALT

PCONT2

EE_CS

EE_CLK

EE_DATA

FL_CS

MECHA_LOAD

FL_RST

54 55 56 57 58 59 60 61 62 63 64 6553

79

SA-PMX1DBEB

18.4. FL CIRCUIT

H

G

F

E

D

SCHEMATIC DIAGRAM - 8

FL CIRCUIT

: +B SIGNAL LINE

A2BC00000071

F1

1 2 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 43 44

C951

50V22

R978

1.5K

S908 REC

R979

S907 TAPE

EJECT

B3RAD0000128

REMOTE SENSOR

C924

1000P

1.2K

Z900

132

R907

FL_CS

FL_RESET

C923

6.3V47

C922

0.01

0

WA950

47

RMT

3

2

1

KEY2

KEY2_1

RMT

VREF-

674

5

FL_RST

SYS3.3V

DGND

9

8

3.3V

CHASIS GND

WH901A/JW901

: -B SIGNAL LINE

FL950

FL DISPLAY

C959 220P

220PC958

220PC957

220PC960

R956

R955

R954

R957

FL CLK

FL DATA

FL CS

100

G0C3R3JA0027

L950

C952

0.01

CP1_1608

FL RESET

C956

10V22

R952 47K

OSC

VDDF2VH

C953

0.1

LGND

C954

PGND

0.1

C950

50V22

C955

50V22

68

R950

R951

D950

B0BC6R700006

L951

G0C101JA0027

68

C961

50V22

R953

22

WH950/JW950

1

VP

VPgnd

2

FL2

3

FL1

4

WH902/JW902

4

CHASIS GND

3

FL_DATA

FL_CLK

2

FL_CS

1

TO TRANSFORMER CIRCUIT (CN600) IN SCHEMATIC DIAGRAM - 11

TO MAIN CIRCUIT (CN803) IN SCHEMATIC DIAGRAM - 7

TO SWITCH CIRCUIT (WH901B/JW901) ON SCHEMATIC DIAGRAM - 9

C

B

A

SA-PMX1DBEB FL CIRCUIT

1 2 3 4 5 6 7 8 9 10 1 12 13

80

18.5. SWITCH CIRCUIT

SA-PMX1DBEB

H

SCHEMATIC DIAGRAM - 9

VR900

VOLUME

1

100PC931

: -B SIGNAL LINE

VOL_JOG

R989

3

22K

R980

12K

100PC932

214

3

R981

C933

TREBLE

1

10K

100P

VR902

: MAIN SIGNAL LINE : AUXILLARY SIGNAL LINE

CN900

9.6V

25

DGND

24

SYS5.5V

23

LED_CTRL

22

3.3V

21

SYS3.3V

20

FL_CLK

19

FL_DATA

18

FL_CS

17

FL_RST

16

RMT

15

TUNE_JOG

14

13

12

11

10

9

8

7

6

5

4

3

2

1

VOL_JOG

BASS_JOG

TRE_JOG

KEY1

KEY2

VREF-

AUX_L

AFGND

AUX_R

HP_SW

HP_L

HP_GND

HP_R

R992

10K

9.6V

D933

B3AEA0000058

390

R995

Q930

B0BC8R100004

D932

820

R994

DGND

TRE_JOG

VR901

BASS

3

R982

22K

R983

12K

10K

R984

100P

C934

C935

1

100P

243

SYS3.3V

BASS_JOG

WA981

22K

C936

5

100P

10K

R987

6

0

Q930

B1ABCF000176

LED CONTROL SWITCH

31

R985

R986

12K

LED_CTRL

R991 1K

TO MAIN CIRCUIT (CN801) ON SCHEMATIC DIAGRAM - 7

SWITCH CIRCUIT

TO FL CIRCUIT (WH901A/JW901) IN SCHEMATIC

KEY2

KEY2_1

WH901B/JW901

2

1

DIAGRAM - 8

SYS3.3V

VREF-

RMT

FL_RST

3

674

5

DGND

3.3V

CHASIS GND

9

8

G

: +B SIGNAL LINE

F

KEY2_1

RMT

KEY2

R970

4.7K

SYS5.5V

S905

S904

REW/-

330

E

R990

D930

B3AAA0000487

VREF-

FF/+

KEY2_2

SYS3.3V

R971

3.3K

S910

MUSIC PORT

DGND

FL_RST

S903

(TUNER/

R976

3.3K

3.3V

BAND)

S909

H.BASS

CHASIS_GND

R972

2.2K

S902

TAPE

R977

2.2K

KEY2_1

R973

1.5K

WA987

S901

R974

1.2K

S900

CD_PLAY

STOP/DEMO

0

S906

POWER

KEY2

KEY1

VREF-

CHASIS_GND

KEY2

VR903

1

100PC940

TUNE

C930

0.01

3

100PC941

R999

22K

R998

12K

TUNE_JOG

10K

R997

D

HP_L

HP_R

AUX_L

AUX_R

AFGND

/JW910

WH910A

TO MUSIC PORT CIRCUIT (WH910B/JW910) IN SCHEMATIC

C

DIAGRAM - 12

AUX_SW

HP_SW

JW911

WH911A/

TO HEADPHONE CIRCUIT (WH911B/JW911) IN SCHEMATIC DIAGRAM - 12

HP_GND

VREF-

KEY2_2

B

A

SA-PMX1DBEB SWITCH CIRCUIT

1 2 3 4 5 6 7 8 9 10 1 12 13

81

SA-PMX1DBEB

18.6. DECK CIRCUIT

H

G

F

E

D

C

B

SCHEMATIC DIAGRAM - 10

DECK CIRCUIT

5

4

3

2

1

CP1301

Q1317

B1ABGC000001

BEATPROOF SWITCH

R/P HEAD

ERASE HEAD

RCH

LCH

X

5

4

3

2

1

PBRIN

C1323

50V1

PBLIN

R1062

0

TP6

R1064

AFGND

C1AA00000612

16V47

C1324

9VGND

61

5

0.0047

C1321

4

Q1317

D1301

R1337

10K

: +B SIGNAL LINE

0

IC1000

ANALOG SWITCH

24

HEADSWCTRL2

VCC GND CTRL1

135

9VGND

R1338

4.7K

R1334

22K

L1301

G2ZZ00000024

2

3

r

9VGND

R1335

1.5K

AFGND

C1320

50V1

R1332

AFGND

16V100

10K

R1331

R1333

C1318

C1319

7.5K

4.7

0.047

9VGND

Q1309

9VGND

PBRIN

C1316

c

Q1310

R1330

4.7

C1317

0.001

B1ABCF000011

: -B SIGNAL LINE

C1102

470P

PBLIN

IC1001

AN7326K

ASP

C1202

470P

AFGND

Q1309

B1AAGC000006

BIAS SWITCH

0.001

9VGND

C1315

0.0022

C1314

0.0022

Q1312

SWITCH

AFGND

R1329

4.7K

R1327

4.7K

TP3

C1312

0.0033

9VGND

: TAPE PLAYBACK SIGNAL LINE : TAPE RECORD SIGNAL LINE

C1201

50V1

R1061

R1328

15K

C1311 16V47

C1101

50V1

PB_LIN

PB_RIN

0

RECH1

TP2

AFGND

C1105 470P

R1103 18K

R1101

27

C1103

16V100

C1121

0.001

PB_L

PB_R NF

PB_R

C1221

0.001

C1203

16V100

R1201

27

AFGND

C1205

G0C470JA0052

Q1306

B1ABCF000011

SWITCH

Q1307

B1ABCF000011

SWITCH

Q1310

B1AAGC000006

BIAS SWITCH

r

R1104

10K

C1104

0.027

PB_NF

R1202

C1204

L1302

1500P

1.5K

0.027

R1203

18K

1.5K

C1106

R1102

0.033

C1107

1500P

PB_LOUT

PB_ROUT

C1207

10K

R1204

AFGND

470P

R1321

AFGND

C1122

C1302

ALC_LOWCUT

TPS_TAU

C1301

C1206

50V2.2

AFGND

47

VREF-

0.01

AFGND

C1303

R1302

50V2.2

TPS_GAIN_ADJ

TPS_OUT

632154

50V0.1

0.01

C1371

AFGND

0.01

C1222

Q1307

R1322

82K

270P

C1123

AFGND

0.033

470

REC_RIN

7

AFGND

C1208 16V10

R1319

12K

1

C1108

16V10

REC_LIN

REC_ROUT

270P

C1223

AFGND

Q1306

R1320

100K

2

R1303

4.7M

REC_LOUT

8

22K

R1304

AFGND

RECH1

3

C1304

50V4.7

ALC TAU

PB/REC_SW

9

C1305 16V33

R1305

10K

TPS

AN7

4

5

r

131517192122 20 18 16 14

PBROUTPBROUT

R1371

22K

R1318

10K

6

10

CP1902

TO DECK MECHANISM CIRCUIT (CS971) IN SCHEMATIC DIAGRAM - 12

AFGND

C1307

10V220

12

VCC

NOR/CRO_SW

GND

RF

11

R1063

C1308 16V22

AFGND

7

9

8

0

PLGND

AN6

VREF+

AN7

VREF-

C1209

50V3.3

PBLOUT

C1109 50V3.3

RECH1

PBLOUT

PBROUT

R1105

2.2K r

C1110

0.0068

AFGND

R1205

2.2K

C1210

0.0068

B1GDCFGH0002

REC:H SWITCH

Q1316

MOTOR_VCC

MOTOR_GND

1

2

W1903

1

2

R1106

100K

R1206

100K

AFGND

Q1201

B1ABGC000001

MUTING SWITCH

R1309

Q1304

R1341

470

R1374

GND2

470

2SD09650RA

MOTOR SWITCH

B1GDCFGH0002

MOTOR SWITCH

R1107

1K

R1207

1K

470

R1313

B1GBCFGH0001

9VGND

Q1314

Q1316

Q1314

Q1101

B1ABGC000001

MUTING SWITCH

Q1302

B1GDCFJJ0002

DMT SWITCH

10K

C1310

50V0.1

AFGND

Q1303

REC:H SWITCH

R1314

1K

B1ACKD000006

PLUNGER SWITCH

RECH

Q1315

R1342

47K

r

R1345

1K

R1109

1K

R1209

1K

R1110

33K

R1210

33K

Q1315

R1343

3.3K

R1344

27K

RECRIN

GND2

VREF+

C1326 16V10

DMT

PL_L

VREF+

VREF-

AN7

AN6

S1000

DECK MODE

RECLIN

AFGND

R1380

21


0

20

MECHA_LOAD

19

9V_GND

9VGND

18

VREF-

17

VREF+

16

DMT

15

BP

14

RECRIN

PBR

REC

13

REC Rin

12

REC Lin

11

AF_GND

10

AF_GND

9

PB Rout

8

PB Lout

7

9V(D9V)

6

AN7

5

MOTOR_9V

4

AN6

3

MOTOR_GND

2

MOTOR

1

PLUNGER

TO MAIN CIRCUIT (CN300) IN SCHEMATIC DIAGRAM - 3

CN1305

3

1

4

2

A

+

MOTOR

SA-PMX1DBEB DECK CIRCUIT

1 2 3 4 5 6 7 8 9 10 1 12 13

82

18.7. TRANSFORMER CIRCUIT

SA-PMX1DBEB

H

G

F

E

D

C

SCHEMATIC DIAGRAM - 11

TRANSFORMER CIRCUIT

TO FL CIRCUIT (WH950/JW950) IN SCHEMATIC DIAGRAM - 8

FL1

FL2

VPgnd

VP

CN600

4

3

2

1

R625

47K

2SC3940ARA

Q603

REGULATOR

C610

C611

50V47

0.01

R608

12

3.3K

R610

D611

MTZJ39DTA

Q601

2SC3940ARA

3.3V REGULATOR

B0EAKM000117

C609

50V100

D610

50V100

D609

B0EAKM000117

B1GBCFJJ0007

HALT SWITCH

C612

Q602

: +B SIGNAL LINE

B0EAKM000117

D606

C607

25V100

D607

W606

0

Q601

0.01

C604

25V47

C605

D604,D605, D606,D607

D604

0.1

C608

D605

Q607

B1DEGM000026

VOLTAGE REGULATOR

820

R603

R604

150

D617

B0BC6R100010

Q602

: -B SIGNAL LINE

CN601

VCC+

2

D612

B0EAKM000117

C603

16V1000

D618

B0ACCK000005

C635

0.01

TO MAIN CIRCUIT (WH500/W500) IN SCHEMATIC DIAGRAM - 6

AGND

VCC+

4

R602 22

D615

C601

0.01

D614

VCC-

513

6

B0BA01100004

C633

35V1000

C634

35V1000

R607

10K

HALT

9.6V

SUB+B

SUB+B GND

7

9108

D623

12KR616

D623

100P

12K

C628

R617

C629

100P

D613

D613,D614,D615,D616

B0EAKM000117

D616

10K

R606

SYS5.5V

11

Q608

D624

D619

R612

PCONT

12

FP601

FP600

C632

Q606

Q607

47

R619

B0BA02300017

R611

1K

D620

B0BA01100004

2.2k

D621

B0BA4R600003

1A

4A

0.1

B0BA01200008

R613 10K

D620

R601

4.7K

R600

47K

D624

220K

R614

Q604

D621

R620

R618

560

22K

R621

R622 2.2

FP603

7A

C627

Q605

2.2

B1DEGM000026

VOLTAGE REGULATOR

B1AACF000064

D625,D626

B0EAKM000122

D626

100V10

D625

FP602

0.1

C631

B1AACF000064

10K

R615

2SB0709AHL

REGULATOR

B1ABGC000005

Q608

Q606

VOLTAGE

REGULATOR

C620

100V10

R624

7A

Q605

SWITCH

Q604

VOLTAGE

Q600

PCONT SWITCH

RTP1H3E002

SUB TRANSFORMER

R623

100K

C625

C626

100K

D608

B0ACCK000005

T600

6

7

239

63V470

C622

C621

C623

C624

0.1

D600

C600

0.1

D602

RL600

ELF15N035AN

3

4

D601

D600,D601,D602,D603

B0EAMM000038

D603

2

1

T601

G4CYAYY00095

POWER TRANSFORMER

NC

S1

10 89

S4

S3

16 1517 12 1114 13

S2

250V 1A

FC600 FC601

ERZV10V511CS

F1

Z600

TF

NC

G0B371HA0005

4

1

7

45213 6

L600

3

2

JK600

AC IN

230~240V 50Hz

B

A

SA-PMX1DBEB TRANSFORMER CIRCUIT

1 2 3 4 5 6 7 8 9 10 1 12 13

83

SA-PMX1DBEB

18.8. TUNER EXTENT CIRCUIT, DECK MECHANISM CIRCUIT, MUSIC PORT CIRCUIT and HEADPHONE CIRCUIT

H

G

F

E

SCHEMATIC DIAGRAM - 12

TUNER EXTENT CIRCUIT

Z300

ENG07812QF

TUNER PACK

PORTSEL

1

CL

2

SDA

3

TUNED

4

LCH

5

STEREO

6

RCH

7

DET

8

TUNER_9V

9

C650

10

TNR_GND

0.1

WH303/W303

CL

1

SDA

2

3

TUNED

LCH

4

STEREO

5

RCH

6

DET

7

8

TUNER_9V

9

TNR_GND

TO MAIN CIRCUIT (CN303) IN SCHEMATIC DIAGRAM - 3

: -B SIGNAL LINE : +B SIGNAL LINE

: AUX SIGNAL LINE : FM/AM SIGNAL LINE

: MAIN SIGNAL LINE

DECK MECHANISM CIRCUIT

TO DECK CIRCUIT (CP1902) IN SCHEMATIC DIAGRAM - 10

CS971

3

MODE

SOLENOIDSOLENOID

IC971

D971

S973

(ATS/CR02)

CNB13030R2AU

PHOTO INTERRUPTER

2

1

PL

HALF

MA2C16500E

6

7

4

5

VREF+

PL_GND

PHOTO_T

RECINH_F

31

R973

R972

39K

820

8

VREF-

24

CR02

9

S975

(RECINH_F)

S971

(MODE)

S974

(RECINH_R)

S972

(HALF)

RGSD12A144ST

1

2

4.7K

3

4.7K

4

4.7K

5

4.7K

6

7

Z971

50K

25K 25K 25K

D

MUSIC PORT CIRCUIT

TO SWITCH CIRCUIT (WH910A/JW910)

JK970

C

MUSIC PORT

B

542716

3

C972

R931

1.8K

C971

R930

1.8K

470P

C970

C973

1000P

L930

J0JBC0000019

IN SCHEMATIC DIAGRAM - 9

AUX_R

AUX_L

AFGND

AUX_SW

214

3

WH910B/JW910

HEADPHONE CIRCUIT

TO SWITCH CIRCUIT (WH911A/JW911) IN SCHEMATIC DIAGRAM - 9

S911

HP_L

HP_SW

HP_GND

243

1

WH911B/JW911

HP_R

VREF-

5

KEY2_2

6

CD OPEN

R975

4.7K

L980-L982

J0JBC0000019

L980

L981

L982

C980 0.022

0.022C981

JK980

HP_GND

5

43

HP_R

HP_L

2

HP_GND

1

6

HP_GND

7

HEADPHONE

A

SA-PMX1DBEB TUNER EXTENT/DECK MECHANISM/MUSIC PORT/HEADPHONE CIRCUIT

12345678910111213

84

19 Printed Circuit Board Diagrams

19.1. CD SERVO P.C.B

SA-PMX1DBEB

1

2

3

4

5

6

7

ABCDEFG

A

CD SERVO P.C.B (REPV0082A)

TP51

W7014

C7204

C7102

40

10

R7349

C7352

R7329

25

C7142

35

15

R7339

C7339

(RF)

30

20

R7330

R7328

IC7002

TP50

C7107

26

25

W7026

R7336

W7016

C7155

C7164

C7613

14

16

CN7001

20 15

C7154

12

15

C7614

10 1451

C7670

R7111

W7024

8

10

13

W7017

W7025

6

9

11

D7650

W7023

2

4

7

R7650

3

5

Q7601

C7334

W7027

PbF

7601 C

W7018

W7019

W7022

C7626

1

C

B

0082A-1

R7601

W7020

W7021

E

C7335

TP16

TP14

R7028

C7243

CN7002

TP31

TP1

C7253

17

15

13

11

9

7

5

3

1

TP18

16

14

12

10

8

6

4

2

TP3

R7332

TP19

C7226

TP17

R7221

TP13

C7233

C7232

W7004

W7002

W7003

C7235

M7301

(TRV MOTOR)

M

TP7 TP8

TP9

C7231

W7006

W7001

W7011

C7227

C7225

C7228

R7218

W7007

W7008

R7254

W7009

W7010

X7201

31

TP39

TP10

TP4

C7218

R7217

W7005

TP24

R7253

C7234

2

TP38

C7166

C7263

C7241

75

76

R7220

R7214

R7211

C7217

R7212

C7230

65

70

80

85

C7264

TP2

S7201

(RESET SW)

TP37

C7244

60

90

TP11

W7012

C7223

W7013

C7216

51 50

55

IC7001

95

100 1

R7325

R7335

M7302

(SPL MOTOR)

TP36

C7165

R7315

M

C7203

C7315

W7015

C7161

5

R7331

R7323

45

C7338

R7327

28

HI J KL MNO P

8

9

85

SA-PMX1DBEB

19.2. MAIN P.C.B

1

2

3

4

5

6

7

ABCDEFG

B

MAIN P.C.B (REPV0096B)

Q206

W243

E

C

R284

R287

E

B

Q209

1357911131517

2 4 6 8 10 12 14 16 18

R314

W345

R310

R309

R203

W319

W321

C282

R222

R276

W309

W310

B

C

R282

C305

W333

W313

R281

R315

W331

R292

W327

W312

R291

CN302

R313

W334

W335

W336

W337

W314

W338

W320

W322

Q210

R228

W318

E

C513

B

C

WA404

R215

W239

R848

R849

W224

W212

C209

W232

R869

W237

C827

W222

W226

R217

R216 C210

W240

W244

W231

W235

W236

R853

R851

R876

R881

C826

C823

R850

C821

R218

Q300

E

W246

W247

W228

R877

R882

D804

D805

R858 R859

CN300

21

W249

E

B

C

R301

R868

W234

R878

R863

R855

C820

866 R

R860

B

C

80

81

C822

R867

C817

W213

W241

W242

W238

R846

85

W225

862 R

R865

R864

Q303

808 D

R854

R847

70

75

90

C816

C819

C818

R861

C829

R844

R843

C815

65

95

R887

R885

Q302

B

E

C

Q301

W245

D809

Q801

C

Q802

60

W216

C

E

B

E

B

55

IC800

1100

R804

W227 R800

R801

R802

R803

BCE

WA400

234567891011121314151617181920

1

R841

5

W211

C828

R842

5051

R805

X801

C801

R806

W214

W233

R840

10

W230

R808

C803

C802

Z701

R839

45

15

X800

C800

C810

R838

R836

40

20

3

2

1

Q800

E

D803

CN803

1

2

3

W289

W288

R837

R834

R835

R872

R870

35

31

30

25

C804

B

R820

C

E

D802

D800

1234

C

C805

W286

B

R833

C806

W895

R883 R811

W264

CP300

W307

W302

Q803

R832

R831 R830

R819

R823

R818 C807

R809

R316

W217

W283

R816

W282

R812

810 R

C825

12

W208

W281

C809

R817

W284

R813

R874

R873

CN301

R304

R303

W304

R302

R305

R306

W285

W296

W326

W295

C222

C230

D200

C233

C242

R227

R226

R224

808 C

R880

R879

R814

R815

R871

85

C824

14

IC802

(NOT SUPPLIED)

W291

R223

R272 R220

C229

C231

C232

R225

W890

C303C304

R214

W297

C224

C226 C228

W303

W293

WA402

C239

C234

D204

1234567891011121314151617

R213

C302

W204

W300

C220

28

29

30

C301

25

C236

W260

W299

20

35

W263

W266

W294

40

C237

C238

L302

W292

C218

C208

IC200

42 43

W261

W265

W301

1415

W888

W267

C291

C207

C240

R280

W276

10

45

W209

W262

W305

W277

C217

C227

5

50

C241

Q205

D202

W306

W287

R208

C214

1

56

55

C223 C225

C243

W268

C

B

C216

W311

D807 D806

C215

R288

E

R210

C206

C213 C212 C211

C219

R221 C235

R271

R219

W329

R207

C204

C290

C292

R209 C205

R206

C276

C200

R283

W278

R212

R205

C202

D201

R312

W342

C203

R202

W330

R204

C281 R273

C221

R293

W343

W324

W325

W332

R211

C201

C275

W308

D203

R279

R307

R311

W344

R201

R275

R274

W315

HI J KL MNO P

R267

C268

W896

C244

C504

C273

R265 R297

N

R230

W229

W347

R269

C283

R263

R229

C278

W361

R506

W353

Q701

W363

R268

W360

R507

C502

E

C

R701

W348

C277

R264

266 R

W889

R501

B

R239 R241 C271

C272

C284

R270 R298

W359

W362

W351

R504

Q501

C253

C251 C245

58

IC201

C250

C255

R240 C252

C246 R242

C254

W350

C508

R503

R502

Q500

C503

BCE

R505

R500

C728 R702 R700

R722

R721

R243 C247

C274

W354

D500

W352

W346

C703

C

B

Q703

C248 R244

R254

W357

Q702

BCE

R704

E

C257

R296

14

W349

C701

R245

W356

C507

C725

C700

R249

R295

C258

C505

C724

R708

R711

R246

W355

R716

C723

C717 R712 C716 C733

C710

R710 R709

Q200

B

E

C

R250

R252

W366

W358

C506

R718

C

E

B

R714

R713

706 C

R251

R248

Q201

B

E

C

R717

C726

C722

C715

711 C

C707

C702

IC700

23

21

19

17

15

13

11

7

5

3

1

9

R247

W377

W365

C741

C721C720

C713

C704 C705

R278

R277

R253

IC500

5

3

1

R715

C727

22

20

18

16

14

12

10

8

6

4

2

4

2

C719

C708

C709

R705

CN303

1234567 89

W373

D510

W375

C

744

W368

C714

C712

W369

W371

C718

C737

HEATSINK

W374

C738

Q502

C

Q503

L702

1

3

R706

E

B

E

B

L704

09 5 C

W897

CN550

(TO FAN)

2

1

D550

R512

D511

R509

R508

C510

2

C731

C732

4

L703

R553

R556

Q552

C551

R514 R510

W367

W370

C500

R550

CA

W378

W891

W376

C501

C734

W372

A

CA

R555

D553

R513

W900

R551

C

B

W892

D551

C730

R719

R720

C735

C553

E

C554

W894

W893

Z700

L983

Q551

R559

BCE

R554 R560

R557

C729

R552

BCE

Q550

R558

C550

R561

JK900

C101

1

C736

2

3

C552

Q504

5

Q553

B

E

C

C511

R511

C742

C743

W203

12

43

BCE

JK700

1

2

D501

C512

3

4

DAB ANT

SPEAKER

8

9

W200

W202

W221

W215

W219

123456789

CN801

W218

W206

W207

W341

W210

111213141516171819202122232425

10

W220

W201

R821

C811

W272

D801

R261

W273

C814

Q204

Q203

B

C

B

E

W269

C813

C

E

R260

IC801

123

R262

R257

R258

R259

WA401

0096B

W271

W275

W274

W279

W270

W290

W316

W280

W250

W251

W253

W258

W256

W252

W254

W255

C517

D513

Q506

E

N

C

E

B

C

W259

C812

Q211

B

E

Q202

C

R256

B

R255

C269

C270

E

W257

C515

D512

C516

W317

IC501

N

54

123

Q704

B

C

B

Q700

C

E

C514

E

12 11 10 9 8 7 6 5 4 3 2 1

W

H500/W

500

R515

R516

R517

R518

PbF

Q505

86

19.3. TUNER EXTENT P.C.B, FL P.C.B, SWITCH P.C.B, MUSIC PORT P.C.B and HEADPHONE P.C.B

SA-PMX1DBEB

1

2

3

4

5

6

7

8

9

ABCDEFG

D

FL P.C.B (REPV0095B)

WH902/JW902

1234

R971

C933

974 R

R972

W967

98

R

W968

W966

3

W965

S904

FL950

R984

(FF/+)

C957

S902

(TAPE)

C936

C958

973 R

VR901

R985

C935

R954

123

R955

C959

R986

R956

C960

R957

R952

C953

R987

C954

(CD PLAY)

S905

(REW/-)

R970

W957

S901

W959

W972

W958

W969

W970

44

W976

WA981

R907

W975

R997

PbF

C924

(POWER)

R998

C940

W947

0095B

D930

S906

R999

VR903

TUNE

Z900

123

WA950

C955

C941

321

C922

990 R

W991

W990

PbF

C923

L951

W979

W977

C961

W978

0095B

R953

D950

W960

R951

W973

C950

WH950 /JW950

956 W

R950

CN900

25

23

21

19

17

15

13

11

W974

WH910A

/JW910

C930

W984

C956

L950

W921

C931

W985

W980

Q930

W983

C951

C952

W955

S908

(RECORD)

R995

R994

D932

B

E

C

S900

(STOP/DEMO)

W986

VR900

W981

W982

VOLUM

1 5 10 15 20 25 30 35 40

W952

W953

S910

W988

R976

R977

W918

S909

(H.BASS)

W954

D933

C932

321

R980

S907

(TAPE EJECT)

992 R

R991

W963

W961

R989

R981

R979

R978

(MUSIC PORT)

W962

E TREBLE BASS

WH901A

W930

/JW901

9

8

7

6

5

4

3

2

1

W950

W948

W949

E

SWITCH P.C.B (REPV0095B)

WA987

9

8

7

6

5

4

3

2

1

WH901B

/JW901

W

H911A

/JW

911

6

5

4

3

2

1

W989

S903

(TUNER/BAND)

VR902

R982

C934

123

HI J KL MNO

C

TUNER EXTENT P.C.B (REPV0097B)

WH303/W303

123456789

Z300

(TO TUNER PACK

)

12345678910

SENSOR

1

2

3

4

I

MUSIC PORT P.C.B (REPV0095B)

0095B

PbF

0095B

JK970

5

4

3

2

71 9

6

C

7

C972

R930

R931

C973

L930

C970

1234

H910B/JW

W

24

22

20

18

16

14

12

10

9

8

7

6

5

4

3

2

1

4

3

2

1

J

HEADPHONE P.C.B (REPV0095B)

S911

(CD OPEN)

6

R975

L980

5

4

3

2

L982

1

L981

H911B

W

911

/JW

C981

1

910

C980

5

MUSIC PORT

JK980

1

3

4

9

2

W998

W999

7

0095B

PbF

0095B

HEADPHONE

C650

C651

PbF

0097B

87

SA-PMX1DBEB

19.4. DECK P.C.B, DECK MECHANISM P.C.B and TRANSFORMER P.C.B

1

2

3

4

5

6

7

8

9

ABCDEFG

H

TRANSFORMER P.C.B (REPV0097B)

W609 W608

C625

C622

W625

C608

D607

D606

4A

C629

R623

C621

C624

C626

D602

D600

D601

D603

C623

W600

CN600

1

2 3

4

CN601

12

11

10

W611

W610

C607

D604

D605

R625

D611

C609

C612

PbF

9

8

7

6

5

4

3

2

1

R624

W602

R610 C610

Q603

R608

R622

0097B

E

C

B

R621

AC IN

230~240V 50Hz

4

3

JK600

L600

W623

W622

W621

W620

Z600

C

D608

W615

C604

PRIMARYSECONDARY

628 C

W617

W606

C605

BCE

Q601

43

1

W618

C634

C633

R601

B

E

R602

R613

C620

C600

C632

R614

R600

C

Q600

17

16

15

14

13

12

11

10

9

8

FP603

C627

D625

W605

7A

D626

614 W

W604

W624

C631

FP602

W603

FP601

D612

7A

FP600

C611 D609

D610

1A

FC601

HEATSINK

R618

Q604

Q605

C

BCE

E

B

R611

R620

D621

R612

Q606

BCE

W613

616

D614

D

C601

D613

W607

T600

(SUB-TRANSFORMER)

67 9

32

1

2

3

4

5

6

7

FC600

F1

250V 1A

R615

D619

Q607

R619

E

C

W616

B

D620

E

D623

D615

R617

C603

Q608

R616

R603

D618

R607

T601

C

B

D617

35 6 C

R604

Q602

B

E

R606

W612

RL600

2

D624

(POWER TRANSFORMER)

HI J KL MNO

F

DECK P.C.B (REPV0097B)

BCE

R1331

R1329

R1328

L1302

R1332

R1338

C1206

C1209

R973

R1380

W1909

C1315

C1311

Q1304

C

Q1312

E

B

W1910

C1324

Q1101Q1201

B

C

E

C

R1205

C1210

C1110 R1206

W1934

R1210

R1204

R1304

W1948

W1903

(TO MOTOR)

S972

(HALF)

W1977

W1980

E

B

R1106 R1105

W1938

J1

W1935

C

Q1302

W1908

R1305

R1207 R1107

2

E

B

R1109 R1110

W1939

1

Q1303

B

C

R1313

R1209

S971

(MODE)

W1951

R1314

E

B

C1310

W1975

Q1316

B

C

E

R1341

W1947

W1945

W1942

W1907

W1905

W1933

W1931

R1345 R1342

W1976

R1374

C1326

W1932

R1344

R1319

Q1307

1234 5678

J14

CS971

J10

PbF

R1309

W1902

E

C

B

W1904

Q1315

B

C

E

C

E

B

E

Q1306

J16

R972

0303B-3

W1924

W1979

W1978

W1901

Q1314

W1941

R1318 R1320

B

C

J8

R1343

R1321

J9

W1923

CN1305

20

18

16

14

12

10

1

2

3

4

5

6

7

8

9

R1322

CP1902

PbF

J7

21

19

17

15

13

11

9

8

7

6

5

4

3

2

1

W1946

0097B

9

S975

(RECINH_F)

Q1309

Q1310

BCE

R1337

C

W1919

R1061

C1205

W1918

R1101 W1920

C1105

C1103

S973

(CR02)

J6

PL-

13

E

B

IC1000

W1917

R1062

R1202

203 1 C

C1121

R1302

C1104

D971

C1317

C1318

R1333

R1335

Q1317

5

4

3

2

1

R1063

C1207

C1204

C1208

W1916

C1223

IC1001

C1108

C1304

C1303

C1122

R1102

S1000

(DECK MODE)

J13

C1222

C1302

C1106

1

2

Z971

R1327

C1314

R1330

D1301

W1913

W1906

W1915

R1104

C1123

3

4

7

6

5

4

3

2

1

C1319

R1334

C1371 R1371

C1301

C1308

W1914

R1303

IC971

C1109

C1316

W1912

C1320

C1305

J30

4

32

C1312

W1911

C1307

1

L1301

46

C1321

CP1301

G

PL+

C1323

1

2

3

C1202

4

W1921

5

R1201

C1102

R1064

C1201

R1203

1234567891011

C1221

2221 20 19 18 17 16 15 14 13 12

C1101

R1103 C1107

DECK MECHANISM P.C.B (REPX0321C)

S974

RECINH_R

SOLENOID

CAUTION RISK OF ELECTRIC SHOCK AC VOLTAGE LINE. PLEASE DO NOT TOUCH THIS P.C.B

88

20 Illustration of IC's, Transistors and Diodes

SA-PMX1DBEB

BA5948FPE2 (28P) AN7326K (22P)

C1AA00000755

MN6627954MA(100P) C1BB00001121(56P) C2CBYY000266(100P)

1

C0DAZYY00006

5

1

B1ABGC000005 B1GBCFGH0001 B1GDCFGH0002 B1ABCF000011 B1GDCFJJ0002 B1ABGC000001 B1GBCFGG0030 B1GBCFJJ0044 B1ADCF000001 B1GBCFJJ0007 2SB0709AHL

B1ADCE000012 B1GBCFJJ0051 B1GDCFJJ0047 B1ABCF000176 B1GBCFNN0009 B1GBCFJN0009

1

. . . . . . . . . . . . ..

23

C0AABB000125

1

4

5

B

E

1

C0CAABC00007

8

1

2

3

B1AAGC000006

C

B

C

E

B1ACCF000094 B1ABCF000079 B1DEGM000026

3

C0DBZGC00067

5

1

2

3

4

CNB13030R2AU

3

1

2

1

3

4

2

B1ACND000003 B1BCCG000023

B

C

E

2SD0592ARA 2SD09650RA B1ACKD000006

E

C

B

B0EAKM000117 B0EAMM000038 B0EAKM000122 B0EAMM000057

E

C

B

B1GDCFGG0026

E

B

C1AA00000612

4

1

5

2SC3940ARA

B1AACF000064

C

E

C

B

B3AAA0000487 B3AEA0000041

B

C

E

B0BC01000014

Anode

A

Cathode

Ca

B0BA01100004 B0BA01200008 B0BA4R600003 B0BA02300017

A

Anode

2

1

MAZ80560ML B0BC8R100004 B0BC6R700006 B0BC6R100010

Anode

Cathode

A

Ca

Cathode

Anode

A

Cathode

Ca

MA2J72800LB0ADCJ000020

Cathode

Ca

A

G

S

D

B0ACCK000005 MA2J11100L

Cathode

Ca

Anode

A

Ca

MA2C16500E

Cathode

Anode

Cathode

MTZJ39DTA

Ca

Cathode

A

Anode

89

SA-PMX1DBEB

21 Terminal Function of IC's

21.1. IC800 (C2CBYY000266) IC MICROPROCESSOR

Pin No. Mark I/O Function

1 F_HOP2 O Frequency Shifting for Digital

Amp 2 TU_TUNED I Tuner tuned signal 3 TU_ST I Tuner Stereo signal 4 TU_CL O Tuner Serial Clock Input 5 TU_SDA O Tuner Serial Data Input 6 N.C. - No Connection 7 FHOP1 O Frequency Shifting for Digital

Amp 8 BYTE - External Data Bus Width Select

Input (Connect to Ground) 9 EFP_CNVSS I Flash Mode Terminal

(Connected To Ground)

10 XCIN I 32.768 kHz Sub Clock 11 XCOUT O 32.768 kHz Sub Clock 12 /RESET I Reset Input (ACTIVE L) 13 XOUT - 10 MHz Main Clock 14 VSS - Ground ( 0V ) 15 XIN - 10 MHz Main Clock 16 VCC1 - Power Supply (+3.3V ) 17 /NMI - Connect to Vcc (+3.3V) 18 RMT I Remote Control Input 19 BLKCK I CD Block Clock Input 20 HALT I AC Failure Detect Input 21 PCONT2 O Muting Digital Amp 22 EE_CS/ O EEPROM Chip Select 23 EE_CLK O EEPROM CLOCK 24 EE_DATA I/O EEPROM DATA 25 MECHA_LOAD I Load SW Input 26 FL_CS O FL Driver Chip Select 27 FL_RST O Reset Input(ACTI VE L) 28 FL_CLK O Serial Clock to FL Driver 29 N.C. - No Connection 30 FL_DATA O Serial Data To FL Driver 31 RxD - No Connection 32 TxD - No Connection 33 SCLK - No Connection 34 BUSY - No Connection 35 D_MPURX O DAB LSI Serial Data Output 36 D_MPUTX I DAB LSI Serial Data Input 37 D_MPUCLK O DAB LSI Serial Clock 38 N.C. - No Connection 39 MCLK O CD Command CLK Output 40 MUTE_A O Audio Muting Control 41 EPM O EEPROM Chip Select 42 MDATA O CD Command Data Output 43 MLD O CD Command Load Output/ 44 D_PLLSCL O DAB Serial Clock 45 D_PLLSDA O DAB Serial Data 46 CE - No Connection 47 N.C. - No Connection 48 STATUS I CD Servo LSI Status Input 49 PCONT O Main Transformer Control

Output

50 D_NRFRESET O DAB Tuner LSI Reset 51 D_LOCKDET I DAB Tuner LSI Lock Detection 52 D_NRST O DAB Decoder LSI Reset

Pin No. Mark I/O Function

53 D_MPUMOD O DAB LSI Serial Communication

Mode 54 D_DDOWFIC I Edge Detector 55 D_PON O DAB Module Power Control 56 N.C. - No Connection 57 RDS_DAT - No Connection 58 RDS_CLK - No Connection 59 REC O when record circuit is

operatingDURING RECORDING

=H 60 KEY_LED O DIMMER ON = L, DIMMER= H 61 N.C. - No Connection 62 VCC I Power Supply ( +3.3V ) 63 HP_SW I Headphone Detect SW Input 64 VSS - Ground ( 0V ) 65 DMT O Deck Mute at mecha

transitionL=mute OFF, H=mute

ON 66 N.C. - No Connection 67 ASP_CLK O ASP CLK 68 ASP_DAT O ASP DATA 69 N.C. - No Connection 70 N.C. - No Connection 71 N.C. - No Connection 72 N.C. - No Connection 73 N.C. - No Connection 74 N.C. - No Connection 75 N.C. - No Connection 76 N.C. - No Connection 77 MOTOR O MOTOR Control OutputL=OFF,

H=ON 78 CD_OPEN_SW I CD Open Switch Detection 79 PLUNGER O Deck Plunger Control Output 80 CD_RST O CD Reset Output 81 DCDET I Power Detection Input 82 /RESETSW I CD Limit Switch Input for the

Most Inner Point ( Active Low)83 DAB_PDET I/O DAB Module Power Detection 84 TUNE_JOG I/O Tune Jog 85 N.C. - No Connection 86 N.C. - No Connection 87 TRE_JOG O TREBLE JOG 88 BASS_JOG O BASS JOG 89 DECK_AD1 I DECK AD Input 1 90 DECK_AD2 I DECK AD Input 2 91 CLOSE_L O CD Tray Close 92 OPEN_H O CD Tray Open 93 KEY2 I KEY2 INPUT 94 KEY1 I KEY1 INPUT 95 VOL_JOG I Volume Jog 96 AVss - Analog Power Supply Input

(Connect to GND) 97 REG I Region Setting 98 VREF I Reference for A-D (3.3V) 99 AVCC I Analog Power Supply Input

100 Demo selector I (H = default demo on, L =

default demo off.)

21.2. IC7001 (MN6627954MA) IC SERVO PROCESSOR/DIGITAL SIGNAL PROCESSOR/DIGITAL FILTER D/A CONVERTER

Pin No. Mark I/O Function

1 A11 O DRAM address signal O/P 11

Pin No. Mark I/O Function

2 A9 O DRAM address signal O/P 9

90

SA-PMX1DBEB

Pin No. Mark I/O Function

3 A8 O DRAM address signal O/P 8 4 A7 O DRAM address signal O/P 7 5 A6 O DRAM address signal O/P 6 6 A5 O DRAM address signal O/P 5 7 A4 O DRAM address signal O/P 4 8 NWE O Write Enable Signal (DRAM)

9 NCAS O DRAM CAS Control Signal 10 NRAS O DRAM ARS Control Signal 11 A3 O DRAM address Signal O/P 3 12 A2 O DRAM address Signal O/P 2 13 A1 O DRAM address Signal O/P 1 14 A0 O DRAM address Signal O/P 0 15 A10 O DRAM address Signal O/P 10 16 BA0 N.C. Motor O/P (0);/Serial I/P 17 BA1 N.C. Motor O/P (1);/Serial I/P 18 PRAMVSS33 - GND (DRAM) 19 PRAMVDD15 - Power Supply Voltage (DRAM) 20 PRAMVDD33 - Power Supply Voltage (+1.6V) 21 SPOUT O Spindle Drive O/P 22 PC I/O Spindle motor drive O/P signal

serial data/Monitoring I/P 23 TRVP O Traverse Drive O/P (+ve) 24 TRP O Tracking Drive O/P (+ve) 25 FOP O Focusing Drive O/P (+ve) 26 DVSS1 I GND 27 IOVDD2 I Digital Power Supply Voltage 2

(I/O) 28 DVDD1 - Digital Power Supply Voltage 1

(Built-In) 29 SRVMON0 N.C. Servo Monitor (0) O/P 30 SRVMON1 N.C. Servo Monitor (1) O/P 31 AVSS2 - GND 32 OSCIN I Oscillating Input 33 CTRCRS N.C. Tracking Cross Comparator 34 VREF - +Vref Supply Voltage 35 E I Tracking Input Signal 1 36 F I Tracking Input Signal 2 37 D I Focusing Input Signal 4 38 B I Focusing Input Signal 2 39 C I Focusing Input Signal 3 40 A I Focusing Input Signal 1 41 PD I APC Amp I/P 42 LD O Laser Drive Current O/P 43 CENV I Detection Capacitance

Connection terminal 44 RFENV O RF Envelope O/P 45 RFOUT O RF Summing Amp O/P 46 RFIN I SGC I/P 47 AVDD2 I Analog Power Supply voltage 2

(For DSL/PLL) 48 ARFDC O AGC Capacitive Connection

Terminal 49 ARFOUT O AGC Output 50 ARFFB I ARF Feedback Signal I/P 51 ARFIN I Audio RF Signal I/P 52 DSLF I Loop Filter Terminal (For DSL) 53 IREF I Reference I/P

Pin No. Mark I/O Function

54 PLLF I PLL Loop Filter Terminal (Phase

Compare)

55 PLLF0 O PLL Loop Filter Terminal (Speed

Compare) 56 OUTL O Audio O/P (LCH) 57 AVSS1 I GND 58 AVDD1 I Analog Power Supply Voltage 1 59 OUTR O Audio O/P (RCH) 60 DVSS3 I GND3 (Digital Circuit) 61 NSRVMONON I Servo Motor O/P Enabling 62 EXT0 N.C. Expansion O/P Port 0 63 EXT1 N.C. Expansion O/P Port 1 64 EXT2 N.C. Expansion O/P Port 2 65 FLAG N.C. Flag Signal O/P 66 TX N.C. Digital Audio Interface O/P

signal 67 MCLK I Micro-Computer Command

Clock I/P 68 MDATA I Micro-Computer Data I/P 69 MLD I Micro-Computer Load I/P 70 STAT O Status Signal O/P 71 BLKCK O Subcode Blk Clock 72 NRST O LSI Reset Signal 73 DQSYTXT N.C. Pack Signal O/P for CD-Text

data 74 SMCK N.C. Micro-Computer Clock O/P 75 PMCK N.C. IOCNT Serial data O/P

(Synchronous O/P) 76 DVDD2 - Digital Power Supply Voltage 2

(+1.5V) 77 IOVDD1 - Digital Power Supply Voltage 1

(For I/O) 78 DVSS2 - GND2 (For Digital Circuit) 79 NTEST2 I Test Mode Setting (ON:H) 80 X2 O Crystal Oscillating Circuit O/P 81 X1 I Crystal Oscillating Circuit I/P 82 NTEST I Test Mode Setting I/P (ON:H) 83 D2 I/O Data Sigmal O/P 2 84 D1 I/O Data Signal O/P 1 85 D0 I/O Data Signal O/P 0 86 D3 I/O Data Signal O/P 3 87 D4 I/O Data Signal O/P 4 88 D5 I/O Data Signal O/P 5 89 D6 I/O Data Signal O/P 6 90 D7 I/O Data Signal O/P 7 91 D15 I/O Data Signal O/P 15 92 D14 I/O Data Signal O/P 14 93 DRVDD I I/O Power Supply Voltage

(DRAM) 94 D13 I/O Data Signal O/P 13 95 D12 I/O Data Signal O/P 12 96 D11 I/O Data Signal O/P 11 97 D10 I/O Data Signal O/P 10 98 D9 I/O Data Signal O/P 9 99 D8 I/O Data Signal O/P 8

100 SDRCK O Clock Signal O/P

21.3. IC7002 (BA5948FPE2) IC 4CH Drive

Pin No. Mark I/O Function

1 IN2 I Motor Driver 92 Input 2 PC2 I Turntable Motor Drive Signal

(“L”:ON) 3 IN1 I Motor Drive (1) Input 4 PC1 - Traverse Motor Drive Signal (“L”:

ON)

5-8 N.C. - No Connection

9 PGND1 - Ground Connection (1) for Drive

91

Pin No. Mark I/O Function

10 PVCC1 I Power Supply (1) for Drive 11 D1- O Motor Drive (1) reverse - action

output

12 D1+ O Motor Drive (1) forward - action

output

13 D2- O Motor Drive (2) reverse - action

output

SA-PMX1DBEB

Pin No. Mark I/O Function

14 D2+ O Motor Drive (2) forward - action

output

15 D3- O Motor Drive (3) reverse - action

output

16 D3+ O Motor Drive (3) forward - action

output

17 D4- O Motor Drive (4) reverse - action

output

18 D4+ O Motor Drive (4) forward - action

output 19 PVCC2 - Power Supply (2) for Driver 20 PGND2 - Ground Connection (2) for Driver

21-24 N.C. O No Connection

25 VCC I Power Supply terminal 26 VREF I Reference Voltage Input 27 IN4 I Motor Driver (4) Input 28 IN3 I Motor Driver (3) Input

92

22 Troubleshooting Flowchart (CD Section Circuit)

SA-PMX1DBEB

93

SA-PMX1DBEB

94

23 Exploded Views

23.1. Cabinet Parts Location

SA-PMX1DBEB

95

SA-PMX1DBEB

23.2. Deck Mechanism Parts Location (RAA4110-1S)

96

23.3. CD Loading Mechanism Parts Location

SA-PMX1DBEB

97

SA-PMX1DBEB

23.4. Packaging

98

SA-PMX1DBEB

24 Replacement Parts List

Notes:

· Important safety notice:

Components identified by

Furthermore, special parts which have purposes of fire-retardent (resistors), high-quality sound (capacitors), low noise (resistors), etc are used.

When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list.

· The parenthesized indications in the Remarks columns specify the areas or colour. (Refer to the cover page for area or colour)

Parts without these indications can be used for all areas.

· Warning: This product uses a laser diode. Refer to “Precaution of Laser Diode”.

· Capacitor values are in microfarads (µF) unless specified otherwise, P= Pico-farads (pF), F= Farads.

· Resistance values are in ohms, unless specified otherwise, 1K=1,000 (OHM).

· The marking (RTL) indicates that the Retention Time is limited for this items. After the discontinuation of this assembly in

production, the item will continu e to be available for a specific period of time. The retention period of a availability is dependent on the type of assembly, and in accordance with the laws governing part and product retention. After the end of this period, the assembly will no longer be available.

· [M] Indicates in the Remarks columns indicates parts supplied by PAVCSG.

· Reference for O/I book languages are as follows:

Ar: Arabic Du: Dutch It: Italian Sp: Spanish Cf: Canadian French En: English Ko: Korean Sw: Swedish Cz: Czech Fr: French Po: Polish Co: Traditional Chinese Da: Danish Ge: German Ru: Russian Cn: Simplified Chinese Pe: Persian Ur: Ukraine

mark have special characteristics important for safety.

Ref.

No.

1 L6FALEFH0023 DC FAN [M]

2 REEV0098 21P FFC WIRE [M] 3 REEV0131 17P FFC WIRE [M]

4 REEV0133 25P WIRE [M]

5 RFKGAPMX1DBE FRONT PANEL ASS’Y [M]

5-1 RGBV0016-S PANASONIC BADGE [M] 6 RFKLAPMX1EBS CASS LID ASS’Y [M]

7 RGKV0156-S VOLUME ORNAMENT [M]

8 RGLV0065-Q POWER LIGHTING TIP [M]

9 RGLV0066-Q FUNCTION LIGHTING TIP [M] 10 RGLV0067-Q LED LIGHTING PANEL [M]

11 RFKHAPMX1DBE REAR CABINET ASS’Y [M]

12 RGUV0160-S1 CASS EJECT REC. BUTTON [M]

13 RGUV0161-S1 FUNCTION BUTTON [M] 14 RGWV0040-S2 BASS TREBLE KNOB [M]

15 RGWV0046-S VOLUME KNOB UNIT [M]

16 RHD26046-L SCREW [M]

17 RHD30007-1SJ SCREW [M] 18 RHD30070 EARTH TERMINAL SCREW [M]

19 RHD30115-3 SCREW [M]

20 RHDV30002 SCREW [M] 21 RHN90001-1 M9 NUT [M]

22 RKA0072-KJ LEG CUSHION [M]

23 RKFV0060-S1 CD LID [M]

24 RKFX0090-3S CASS LID [M] 25 RKMV0070-S TOP SIDE CABINET [M]

26 RKNV0036 DECK COVER SHEET [M]

27 RMBV0049 CASS LID SPRING R [M]

28 RMBV0050 EARTH SPRING [M] 29 RMBV0051 CASS LID SPRING L [M]

30 RMC0158-S2 TRANSISTOR HOLDER [M]

31 RMEX0013 CASS LID SPRING [M]

32 RMGX0044-1 D.AMP. INSULATOR [M] 33 RMKV0061 BOTTOM CHASSIS [M]

34 RMKV0062 INNER CHASSIS [M]

35 RMN0091 SPACER [M]

36 RMNV0072 LED HOLDER [M]

Part No. Part Name & Description Remarks

CABINET AND CHASSIS

Ref.

No.

37 RMNV0073 LED COVER [M]

38 RMNV0074 CASS LID FIXTURE [M]

39 RMNV0075 TR2 CHASSIS [M]

40 RMNV0066 FL HOLDER [M] 41 RMY0355 HEATSINK SMALL [M]

42 RSCV0076-2 REAR SHIELD PLATE [M]

43 XTB3+10JFJ SCREW [M]

44 XTV3+10GFJ-M SCREW [M] 45 XTWS3+6TFJ SCREW [M]

46 RMYV0062 HEAT SINK [M]

47 RAL0044 DAB MODULE [M]

48 REEV0132 18P FFC (DAB MODULE) [M] 49 RHN95002 NUT (DAB) [M]

50 RMAV0039 F-CONNECTOR SUPPORT [M]

51 RMAV0040 F-CONNECTOR SUPPORT [M]

52 XTN2+6JFJ DAB TUNER SCREW [M]

101 RED0071 R/P HEAD BLOCK UNIT [M] 103 RDG0300 REEL BASE GEAR [M]

104 RDG0301 WINDING RELAY GEAR [M]

105 RDK0026-4 MAIN GEAR [M] 107 RDV0033-4 WINDING BELT [M]

108 RDV0034-2 CAPSTAN BELT A [M]

110 RMB0312 TRIGGER LEVER SPRING [M]

111 RMB0400 REEL SPRING [M] 112 RMB0403 HEAB PANEL SPRING [M]

113 RMB0404 BRAKE ROD SPRING [M]

114 RMB0406-5 FR LEVER SPRING [M]

115 RMB0408 THRUST SPRING [M] 116 RML0370-4 TRIGGER LEVER [M]

117 RML0371 FR LEVER [M]

118 RML0372-2 WINDING LEVER [M]

119 RML0374-2 EJECT LEVER [M] 120 RMM0131-1 BRAKE ROD [M]

121 RMM0133-1 EJECT ROD [M]

122 RMQ0519 REEL HUB [M]

123 RMS0398-1 MOVING CORE [M]

Part No. Part Name & Description Remarks

CASSETTE DECK

99

SA-PMX1DBEB

Ref.

No.

124 RSJ0003 PLUNGER [M] 125 RMC0061 PACK SPRING [M]

126 RXF0061-1 FLYWHEEL F ASS’Y [M]

127 RXF0062-1 FLYWHEEL R ASSY [M]

128 RXG0040 FF RELAY GEAR ASSY [M] 129 RMK0283A-2 SUB-CHASSIS [M]

130 RXL0124 PINCH ROLLER F ASS’Y [M]

130-1 RMB0401 PINCH ARM SPRING F [M]

131 RXL0125 PINCH ROLLER R ASS’Y [M] 131-1 RMB0402 PINCH ARM SPRING R [M]

132 RXL0126 WINDING ARM ASS’Y [M]

133 RXQ0412-3 HEAD PANEL ASS’Y [M]

133-1 RMB0405 FR ROD SPRING [M] 133-2 RMM0132-1 FR ROD [M]

134 REM0120 CAP MOTOR ASS’Y [M]

135 RHD26022-1 MOTOR SCREW [M]

136 XTW2+5LFJ HEAD BLOCK UNIT SCREW [M] 137 XTW26+10SFJ SUB-CHASSIS SCREW [M]

138 XYC2+JF17FJ PCB EARTH SCREW [M]

139 RFKJSTR280PP MAIN CHASSIS ASS’Y [M]

301 RAE0157Z-V TRAVERSE W/O PCB [M] 302 RDG0455 TRAVERSE GEAR (A) [M]

303 RDG0456-1 TRAVERSE GEAR (B) [M]

304 RFKNCT100 TRAVERSE BASE ASS’Y [M]

304-1 RDG0457 LOAD GEAR (A) [M] 304-10 RXQ0632 TRAVERSE MOTOR UNIT [M]

304-2 RDG0458-1 LOAD GEAR (B) [M]

304-3 RDG0459-1 LOAD GEAR (C) [M]

304-4 RME0369-1 PRESS SPRING [M] 304-5 RME0291-1 LOCK SPRING [M]

304-6 RML0551-1 TRIGGER LEVER [M]

304-7 RML0552 LOCK LEVER [M]

304-8 RMM0219-1 STOPPER [M] 304-9 XQN17+C28FJ SCREW [M]

305 RDG0460-2 CAM GEAR [M]

306 RDG0461 DRIVE GEAR [M]

307 RGQ0254-K2 TRAY [M] 308 RHM0001 MAGNET [M]

309 RMB0603 FLOATING SPRING [M]

310 RME0288-1 CENTERING SPRING [M]

311 RFKNXED50-S CLAMPER HOLDER ASS’Y [M] 312 RMG0510-K FLOATING RUBBER (A) [M]

313 RMG0511-K FLOATING RUBBER (B) [M]

314 RMK0422-7 MECHA CHASSIS [M]

315 RMM0218-1 TRAVERSE DRIVE RACK [M] 316 RHD30083-1 CAM. GEAR SCREW [M]

317 RMR1223-K1 CLAMP PLATE [M]

318 RMR1242-X2 FIXTURE [M]

319 XTN2+6GFJ SCREW [M] 320 RXQ0999 OPU UNIT [M]

321 SNSD38-1 SCREW [M]

501 RDV0066 BELT [M]

502 RMU0083 WORM SHAFT [M] 503 RDG0507 WORM PULLEY [M]

504 RDG0508-2 WORM WHEEL [M]

505 RDK0041-1 CAM GEAR [M] 506 RHD20048-1 SCREW [M]

507 RMA1412-1 CASSETTE HOLDER [M]

508 RMA1413-1 HOLDER PLATE [M]

509 RMA1420-1 CT PUSH PLATE [M] 510 RMB0663 UD ARM SPRING [M]

511 RMB0664 DRIVE LEVER SPRING [M]

512 RME0328 TRIGGER SPRING [M]

513 RME0329 OPEN LEVER SPRING [M] 514 RME0333 PUSH SPRING [M]

515 RME0334 TRIGGER LEVER SPRING [M]

516 RMK0473-2 HOUSING [M]

517 RML0597 TRIGGER LEVER [M] 518 RML0598 OPEN LEVER [M]

519 RML0599 UD ARM [M]

Part No. Part Name & Description Remarks

TRAVERSE DECK

Ref.

No.

520 RML0600 DRIVE LEVER [M] 521 RML0601 SLIDE LEVER [M]

522 RMQ1002-2 CASSETTE HOOK [M]

IC200 C1BB00001121 IC ASP [M] IC201 C0AABB000125 IC OP AMP [M]

IC500 C0DAZYY00006 IC DUAL REGULATOR [M]

IC501 C0DBZGC00067 IC 3.3V REGULATOR [M]

IC700 C1AA00000755 IC POWER AMPLIFIER [M] IC800 C2CBYY000266 IC MICROPROCESSOR [M]

IC801 C0CAABC00007 IC 5.5V REGULATOR [M]

IC971 CNB13030R2AU IC PHOTO INTERRUPTER [M]

IC1000 C1AA00000612 IC ANALOG SWITCH [M] IC1001 AN7326K IC ASP [M]

IC7001 MN6627954MA IC SERVO PROCESSOR/DIGITAL

IC7002 BA5948FPE2 IC 4 CH DRIVE [M]

Q200 B1ABGC000005 TRANSISTOR [M] Q201 B1ABGC000005 TRANSISTOR [M]

Q202 B1ABGC000005 TRANSISTOR [M]

Q203 B1ABGC000005 TRANSISTOR [M]

Q204 B1ABGC000005 TRANSISTOR [M] Q205 B1ABCF000176 TRANSISTOR [M]

Q206 B1ABCF000176 TRANSISTOR [M]

Q209 B1ABCF000176 TRANSISTOR [M]

Q210 B1GDCFJJ0047 TRANSISTOR [M] Q211 B1ABGC000005 TRANSISTOR [M]

Q300 B1ADCE000012 TRANSISTOR [M]

Q301 B1GBCFGG0030 TRANSISTOR [M]

Q302 B1GBCFGG0030 TRANSISTOR [M] Q303 B1GBCFJJ0051 TRANSISTOR [M]

Q500 B1ACCF000094 TRANSISTOR [M]

Q501 B1BCCG000023 TRANSISTOR [M]

Q502 B1ABCF000079 TRANSISTOR [M] Q503 B1ABCF000079 TRANSISTOR [M]

Q504 2SD0592ARA TRANSISTOR [M]

Q505 B1ABCF000079 TRANSISTOR [M]

Q506 B1ABCF000079 TRANSISTOR [M] Q550 B1ABCF000079 TRANSISTOR [M]

Q551 B1ACKD000006 TRANSISTOR [M]

Q552 B1ABCF000079 TRANSISTOR [M]

Q553 B1ABCF000079 TRANSISTOR [M] Q600 B1ABGC000005 TRANSISTOR [M]

Q601 2SC3940ARA TRANSISTOR [M]

Q602 B1GBCFJJ0007 TRANSISTOR [M]

Q603 2SC3940ARA TRANSISTOR [M] Q604 2SB0709AHL TRANSISTOR [M]

Q605 B1AACF000064 TRANSISTOR [M]

Q606 B1AACF000064 TRANSISTOR [M] Q607 B1DEGM000026 TRANSISTOR [M]

Q608 B1DEGM000026 TRANSISTOR [M]

Q700 B1GDCFGG0026 TRANSISTOR [M]

Q701 B1ABGC000005 TRANSISTOR [M] Q702 B1GBCFJJ0044 TRANSISTOR [M]

Q703 B1ABGC000005 TRANSISTOR [M]

Q704 B1GDCFGG0026 TRANSISTOR [M]

Part No. Part Name & Description Remarks

Printed Circuit Board

REPV0082A CD SERVO P.C.B [M] RTL

REPV0095B FL P.C.B / SWITCH P.C.B. /

REPV0096B MAIN P.C.B [M] RTL

REPV0097B TUNER EXTENT P.C.B /

REPX0321C DECK MECHANISM P.C.B [M] RTL

MUSIC PORT P.C.B. / HEADPHONE P.C.B.

TRANSFORMER P.C.B. / DECK P.C.B.

INTEGRATED CIRCUITS

SIGNAL PROCESSOR/DIGITAL FILTER D/A CONVERTER

TRANSISTORS

[M] RTL

[M]

100
