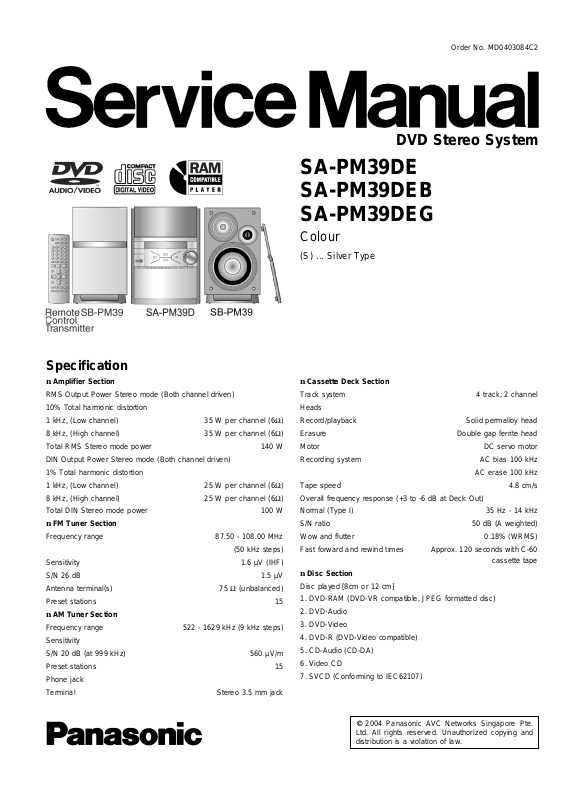

panasonic sa-pm39de Datasheet

A

DVD Stereo System

SA-PM39DE
SA-PM39DEB
SA-PM39DEG

Colour

(S) ... Silver Type

Order No. MD0403084C2

Specification

n Amplifier Section

RMS Output Power Stereo mode (Both channel driven)
10% Total harmonic distortion
1 kHz, (Low channel) 35 W per channel (6Ω)
8 kHz, (High channel) 35 W per channel (6Ω)
Total RMS Stereo mode power 140 W
DIN Output Power Stereo mode (Both channel driven)
1% Total harmonic distortion
1 kHz, (Low channel) 25 W per channel (6Ω)
8 kHz, (High channel) 25 W per channel (6Ω)
Total DIN Stereo mode power 100 W

n FM Tuner Section

Frequency range 87.50 - 108.00 MHz

(50 kHz steps)
Sensitivity 1.6 µV (IHF)
S/N 26 dB 1.5 µV

ntenna terminal(s) 75 Ω (unbalanced)

Preset stations 15

n AM Tuner Section

Frequency range 522 - 1629 kHz (9 kHz steps)
Sensitivity
S/N 20 dB (at 999 kHz) 560 µV/m
Preset stations 15
Phone jack
Terminal Stereo 3.5 mm jack

n Cassette Deck Section

Track system 4 track, 2 channel
Heads
Record/playback Solid permalloy head
Erasure Double gap ferrite head
Motor DC servo motor
Recording system AC bias 100 kHz

AC erase 100 kHz
Tape speed 4.8 cm/s
Overall frequency response (+3 to -6 dB at Deck Out)
Normal (Type I) 35 Hz - 14 kHz
S/N ratio 50 dB (A weighted)
Wow and flutter 0.18% (WRMS)
Fast forward and rewind times Approx. 120 seconds with C-60

cassette tape

n Disc Section

Disc played [8cm or 12 cm]

1. DVD-RAM (DVD-VR compatible, JPEG formatted disc)

2. DVD-Audio

3. DVD-Video

4. DVD-R (DVD-Video compatible)

5. CD-Audio (CD-DA)

6. Video CD

7. SVCD (Conforming to IEC62107)

© 2004 Panasonic AVC Networks Singapore Pte.
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.

A

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

8. CD-R/CD-RW
(CD-DA, Video-CD, SVCD, MP3, WMA, JPEG formatted disc)

9. MP3/WMA*

· Compatible compression rate:

MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps

10. JPEG*

· Exif Ver 2.1 JPEG Baseline files

· Picture resolution:

between 320 x 240 and 6144 x 4096 pixels
(Sub sampling is 4:2:2 or 4:2:0)

11. HighMAT Level 2 (Audio and Image)
* The total combined maximum number of recognizable audio and

picture contents and groups: 4000 audio and picture contents and
400 groups.

Video system PAL625/50, PAL525/60, NTSC
Composite video output
Output level 1Vp-p(75Ω)
Terminal Pinjack(1system)
S-Video output
Y output level 1Vp-p(75Ω)
C output level 0.3 Vp-p (75Ω)(PAL)

0.286 Vp-p (75Ω)(NTSC)
Terminal S terminal (1 system)
RGB video output
R output level 0.7 Vp-p (75Ω)
G output level 0.7 Vp-p (75Ω)
B output level 0.7 Vp-p (75Ω)
Terminal SCART jack (1 system)

udio output
Number of channels 2
Digital audio output

Optical digital output Optical terminal
Pick up
Wavelength
DVD 662 nm
CD 785 nm
Laser power CLASS 2/CLASS 3a

n General

Power supply
For EB AC 230 - 240 V, 50 Hz
For E/EG AC 230 V, 50 Hz
Power consumption 125 W
Power consumption (standby mode) 0.7 W
Dimensions (W x H x D) 174.6 x 251 x 376 mm
Mass 5.8 kg
Operating temperature range +5°C to + 35°C (+41°F to

+95°F)

Operating humidity range 5% to 90% RH (no

condensation)

n System

n System: SC-PM39D E-S

n System: SC-PM39D EB-S

n System: SC-PM39D EG-S

Notes:

1. Specifications are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Music Center: SA-PM39D E-S

Speaker: SB-PM39 EG-M

Music Center: SA-PM39D EB-

Speaker: SB-PM39 EG-M

Music Center: SA-PM39D EG-

Speaker: SB-PM39 EG-M

S

S

CONTENTS

Page Page

1 Caution for AC Mains Lead 4
2 Before Repair and Adjustment
3 Protection Circuitry
4 Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices

5 Handling the Lead-free Solder

5.1. About lead free solder (PbF)

6 Handling Precautions For Traverse Deck
7 Precaution of Laser Diode

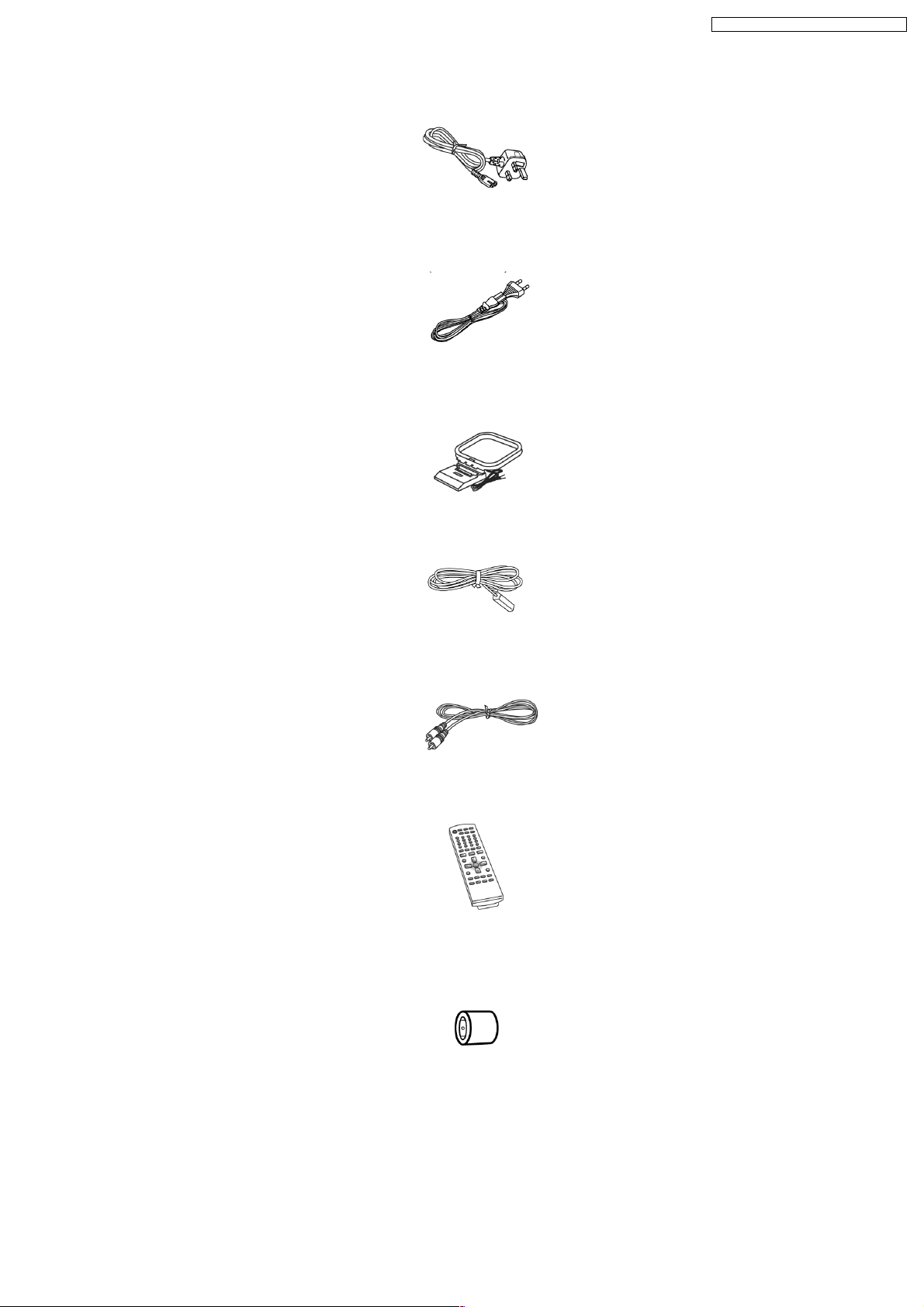

8 Accessories
9 Operating Instructions

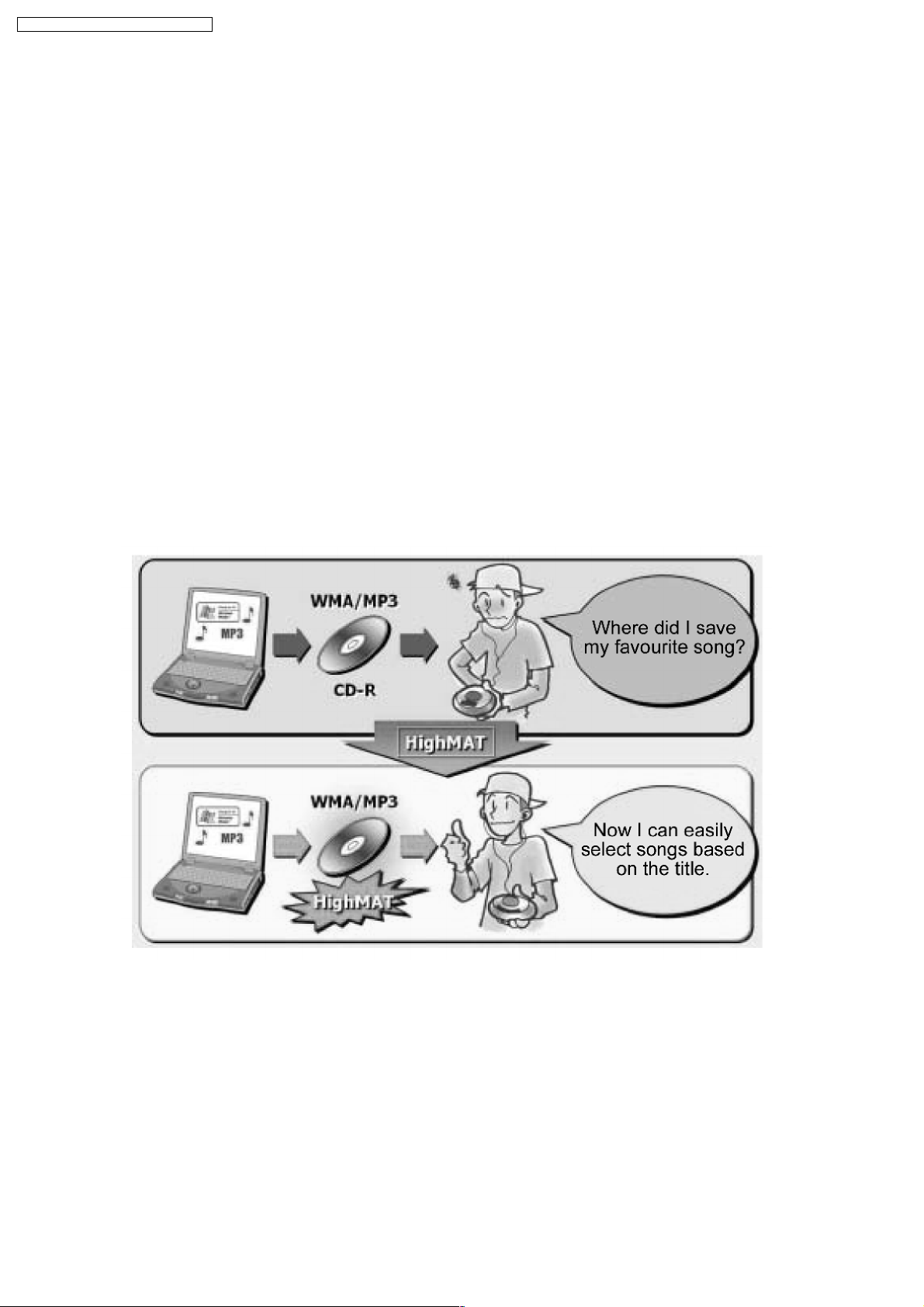

10 About HighMAT

10.1. What is HighMAT?

5
5

5
6

6

6
7

9
10
12

12

10.2. Why use HighMAT?

10.3. The advantages of using HighMAT

10.4. Outline of the HighMAT standard

11 Disassemb ly and Main Componen t Replacement Procedures.

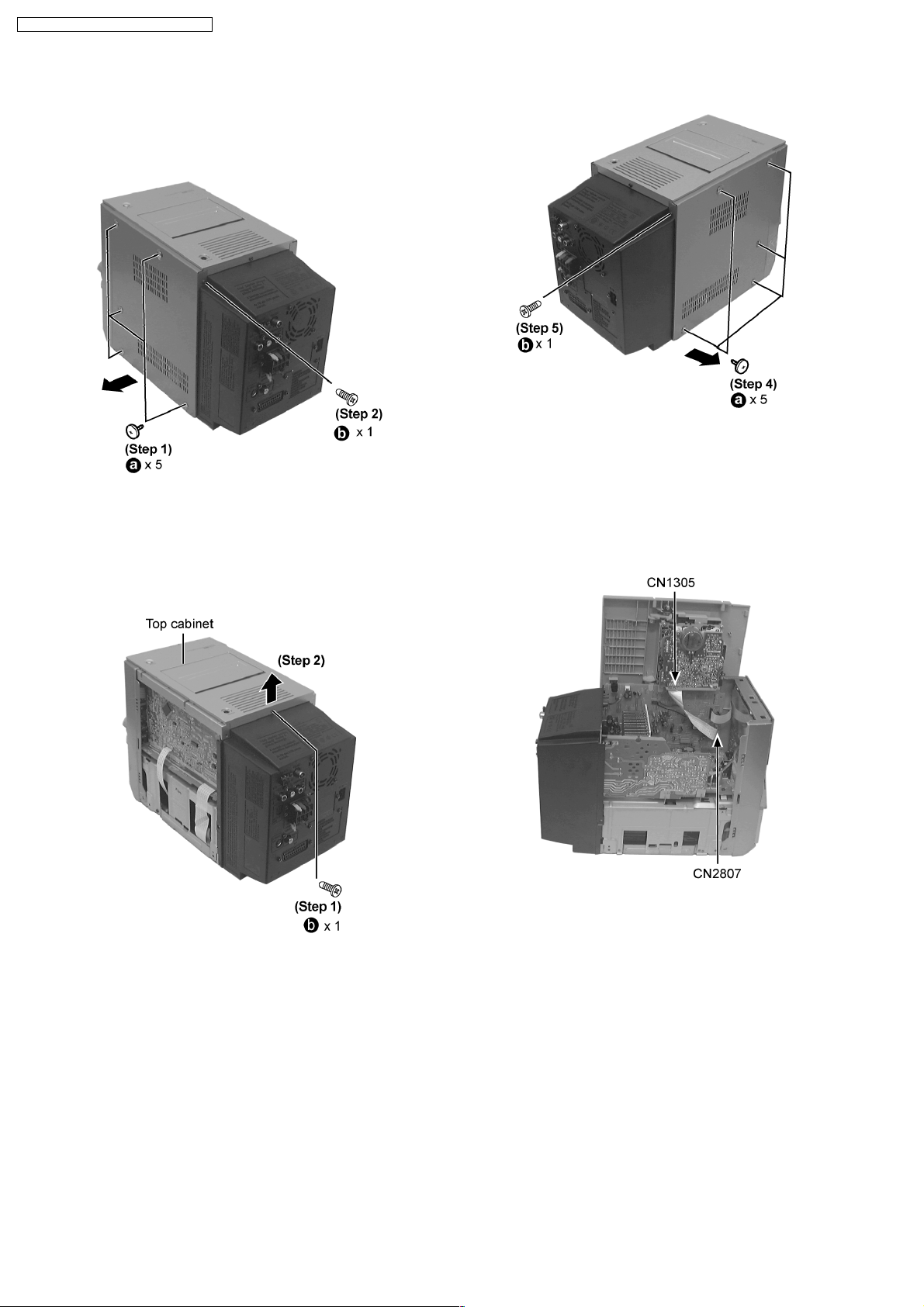

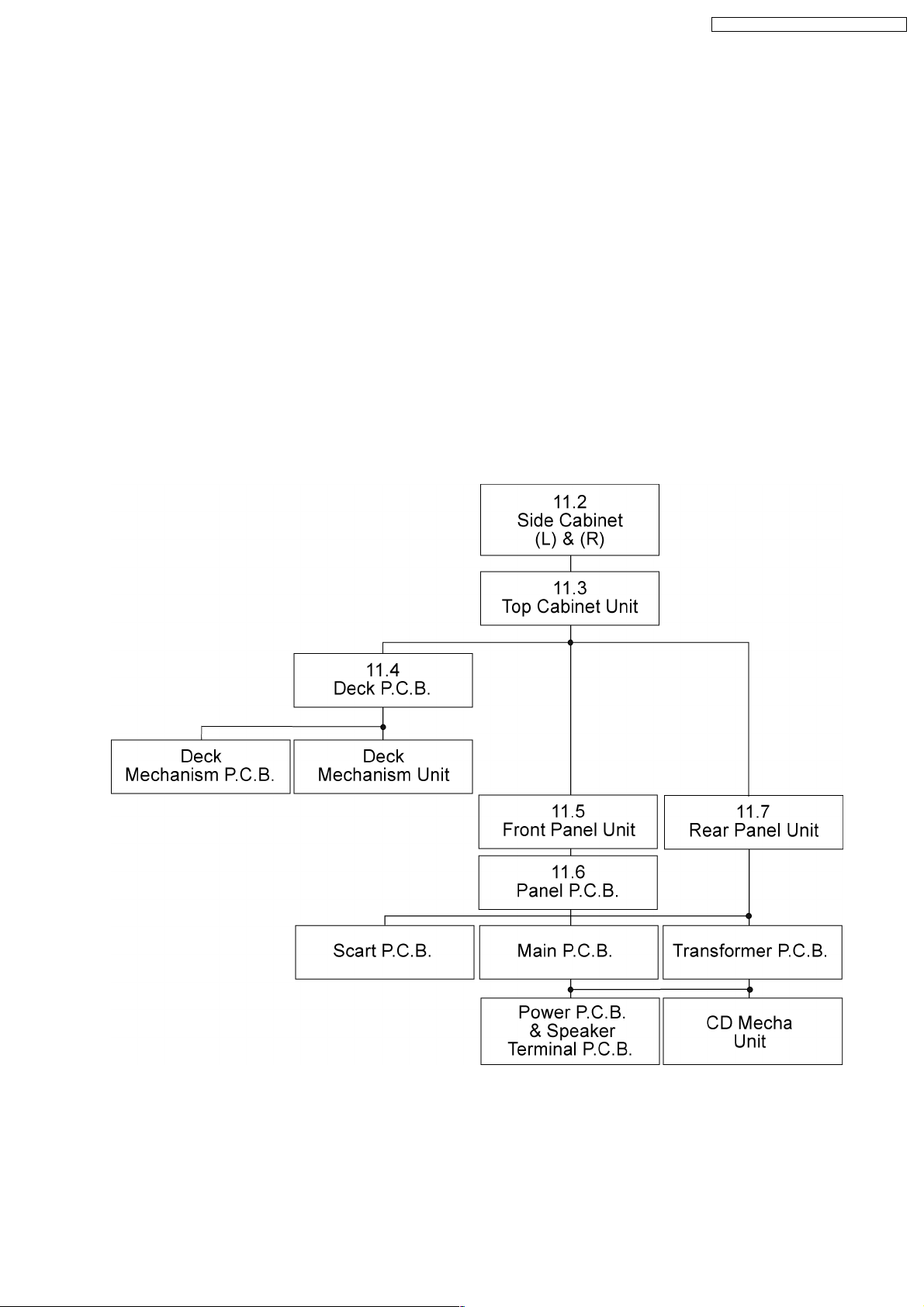

11.1. Disassembly flow chart

11.2. Disassembly of Side Panel (L) & (R)

11.3. Disassembly of Top Cabinet Unit

11.4. Disassembly of Deck Mechanism Unit and Tape Eject
P.C.B.

11.5. Disassembly of Front Panel Unit

11.6. Disassembly of Panel P.C.B.

11.7. Disassembly of Rear Panel

2

12
12
13

15

15
16
16

16
17
18
19

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11.8. Disassembly of Tuner Pack 19

11.9. Disassembly of Main P.C.B. and Scart Terminal P.C.B.

11.10. Disassembly of Transformer P.C.B.

11.11. Disassembly of Power P.C.B. & Speaker Terminal P.C.B.

11.12. Disassembly of CD Mechanism Unit

11.13. Procedure for Replacing Cassette Holder

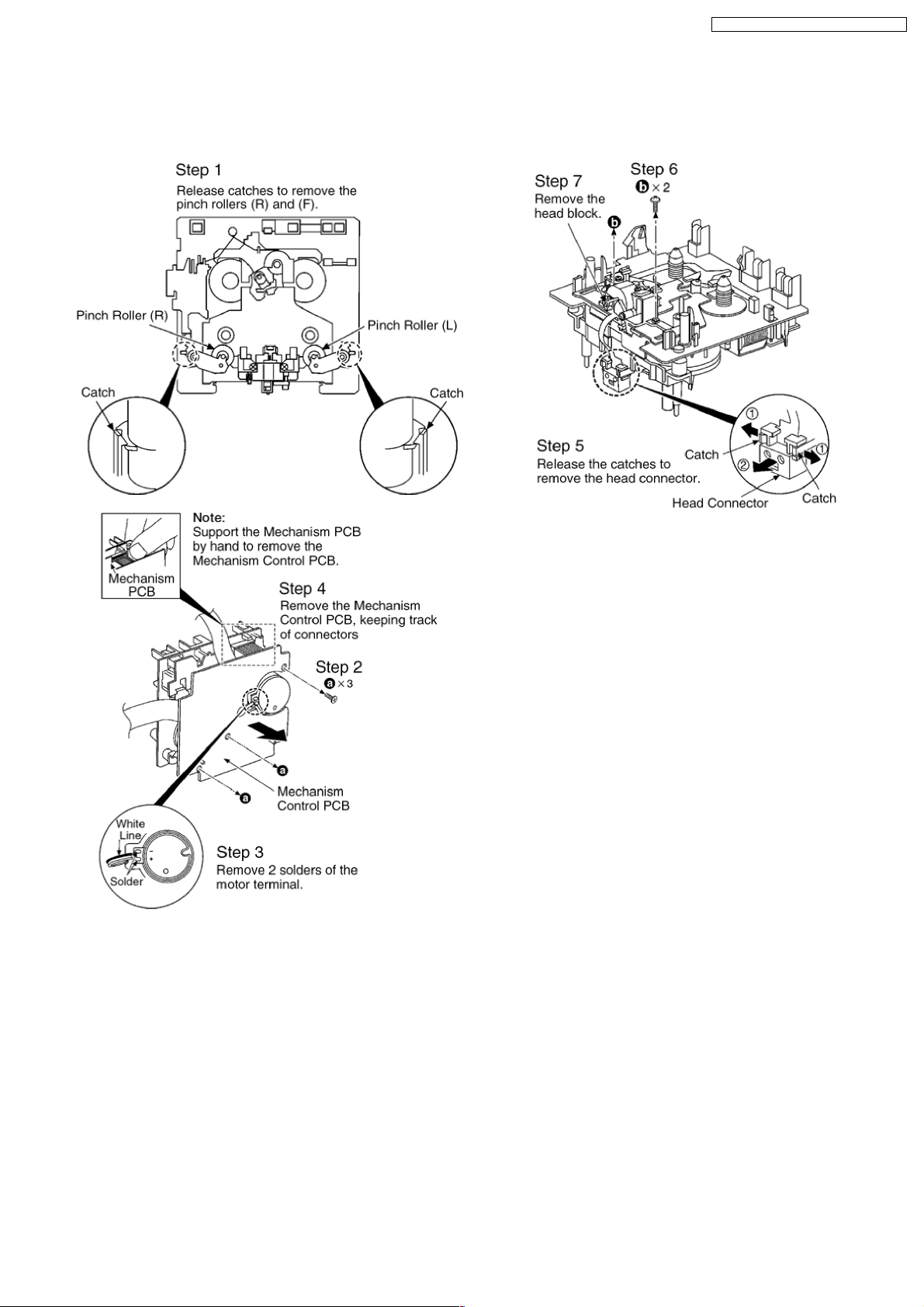

11.14. Procedure for Replacing Pinch Roller and Head Block
(Cassette Mechanism Unit)

11.15. Procedure for Replacing Motor, Capstan Belt A, Capstan
Belt B, and Winding Belt (Cassette Mechanism Unit)

11.16. Procedure for Replacing Parts on Mechanism PCB

11.17. Procedure for removing CD loading mechanism

11.18. CR16 mechanism disassembly procedure

11.19. Replacement for traverse deck

11.20. Replacement for optical pickup unit (CD mechanism)

11.21. CR16 MECHANISM ASSEMBLY PROCEDURE

11.22. Disassembly for Traverse Unit

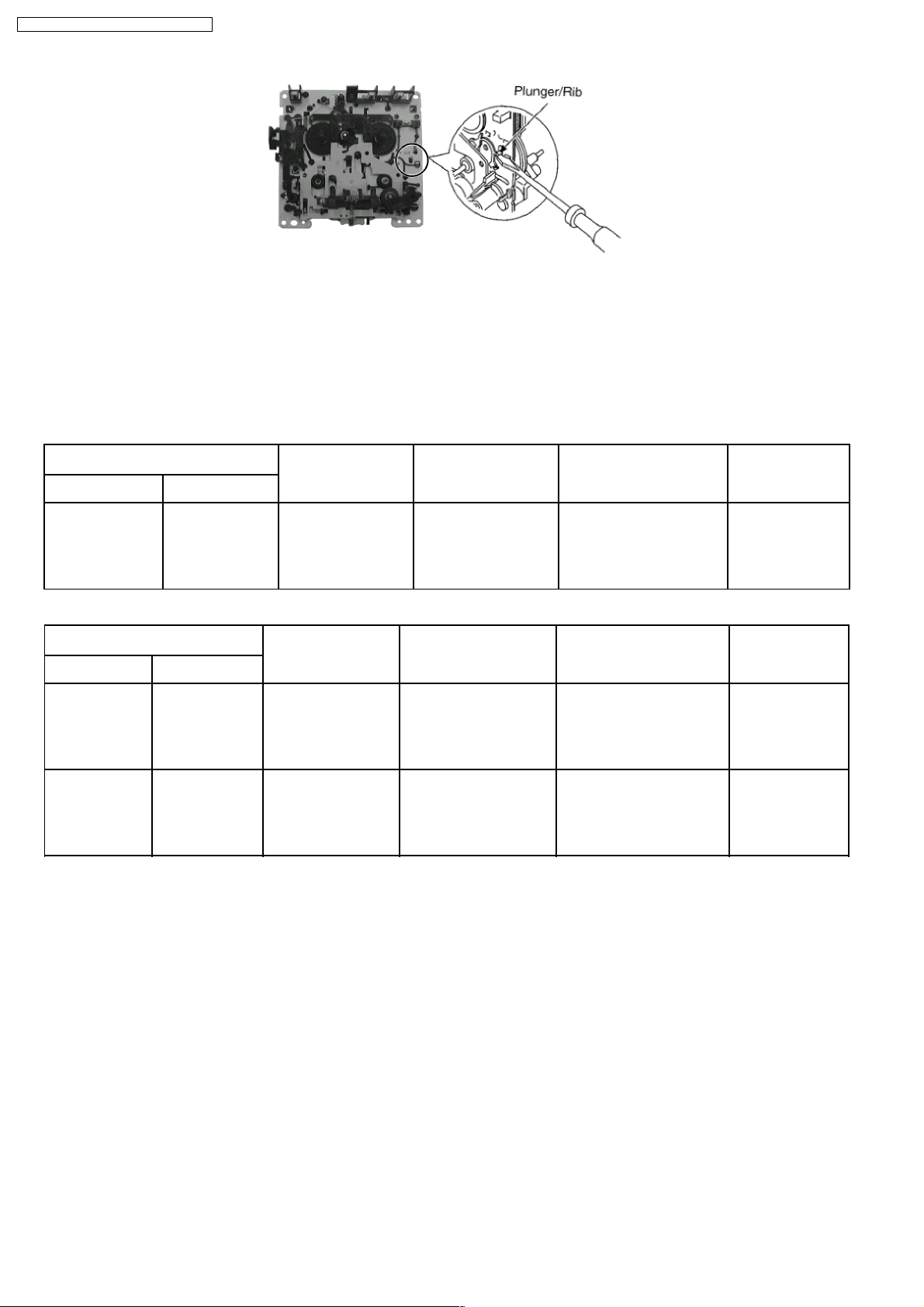

11.23. Handling of cassette tape jam

12 Self-Diagn osis Function

12.1. Automatic Displayed Error Codes

12.2. Memorized Error Codes

12.3. Service Mode Table 1

12.4. DVD/CD Self-Diagnosis Error Code Description

12.5. Error Codes Stored During No Play

12.6. Service Mode Table 2

12.7. Tray Lock Function

12.8. Things to Do After Repair (Precaution)

12.9. Displaying Self-Diagnostic Results

12.10. Error detection for CD block

12.11. Error detection code for Cassette Mechanism Block

13 Cautions To Be Taken During Servicing

13.1. Recovery after the dvd player is repaired

13.2. DVD Player Firmware Version Upgrade Process

13.3. Firmware Version Upgrade Process by Using Disc and
Recovery Process

13.4. Using Recovery Disc

13.5. Total Usage Time Display

14 Procedure for Checking Operation of Individual Parts of

20
21

Cassette Mechanism Unit

14.1. Operation Check with Cassette Tape

14.2. Operation Check without Cassette Tape

15 Measurem ent And Adjustments

21
22
24

15.1. Tuner Section

15.2. Cassette Deck Section

16 Block Diagram

25

17 Schematic Diagram

17.1. Optical Pickup Circuit
26
27
28
28
35
36
38
50
51

52

52
52
53
53
54
54
56
57
57
57
58

59

59
59

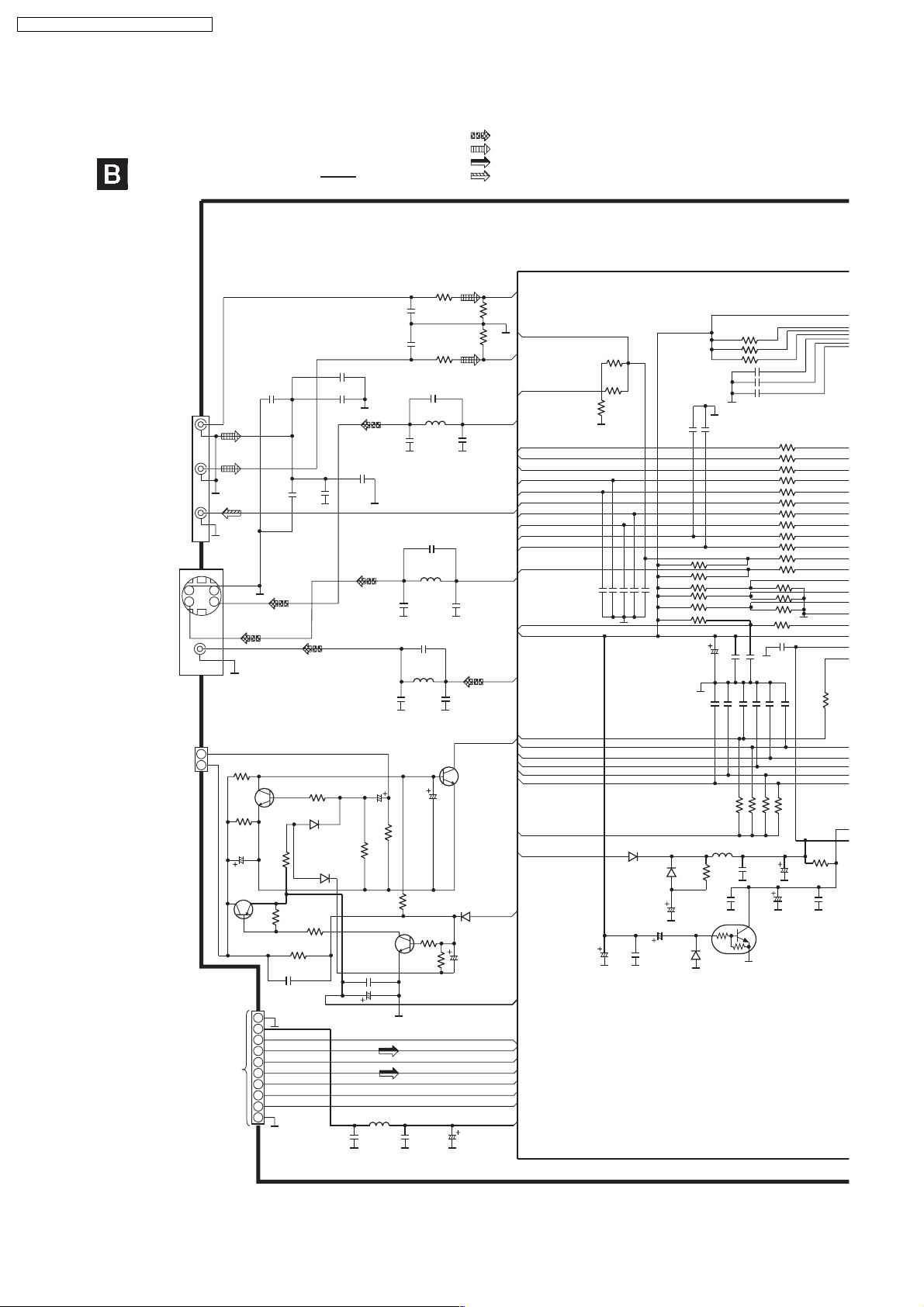

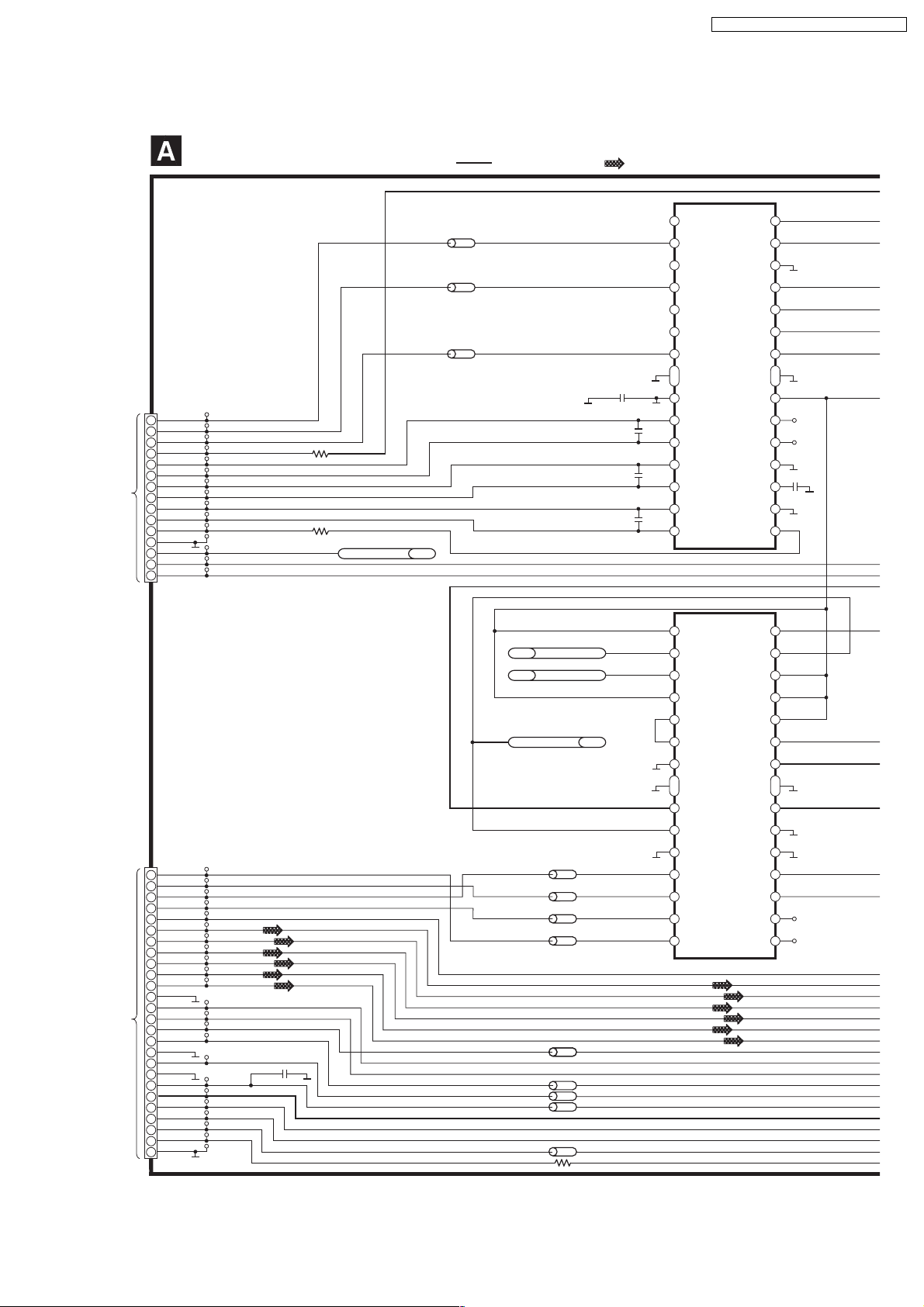

17.2. (A) DVD Module Circuit

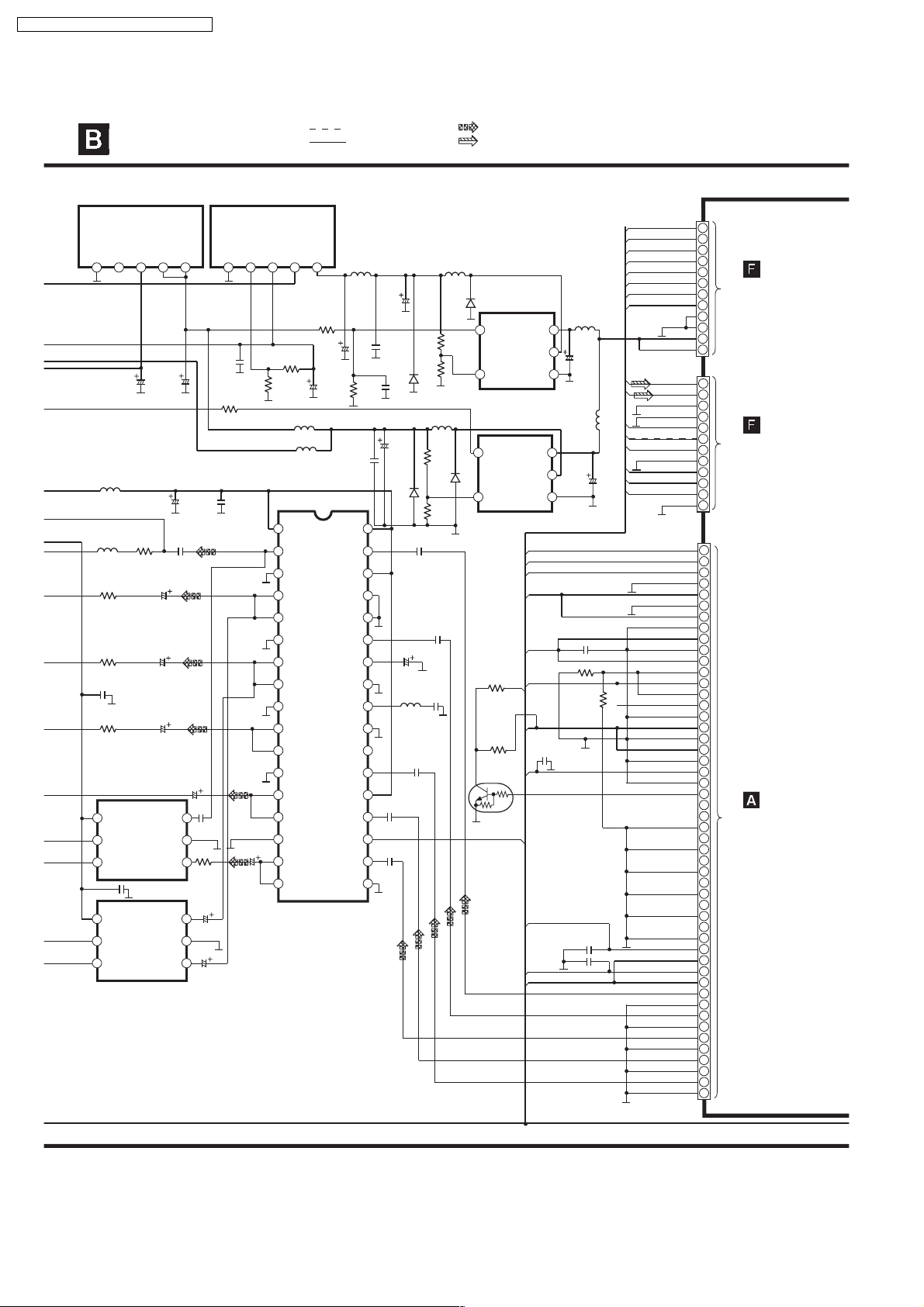

17.3. (B) Main Circuit

17.4. (C) Panel Circuit & (E) Scart Circuit

17.5. (H) Deck Circuit, (I) Tape Eject Circuit & (J) Deck

Mechanism Circuit

17.6. (F) Power Circuit

17.7. (D) Speaker Circuit & (G) Transformer Circuit

17.8. (K) CD Loading Circuit

18 Printed Circuit Board

18.1. (A) DVD Module P.C.B. (Side: A & B)

18.2. (B) Main P.C.B.

18.3. (C) Panel P.C.B.

18.4. (D) Speaker P.C.B. & (E) Scart P.C.B.

18.5. (F) Power P.C.B.

18.6. (G) Transformer P.C.B.

18.7. (H) Deck P.C.B. & (I) Tape Eject P.C.B.

18.8. (J) Deck Mechanism P.C.B. & (K) CD Loading P.C.B.

19 Wiring Connection Diagram
20 Type Illustrations of ICs, Transistors & Diodes
21 Terminal Function of IC 痴

21.1. IC2801(C2CBJG000403) System Microprocessor

22 Troubleshooting Flowchart (CD Section Circuit)
23 Parts Location and Replacement Parts List

23.1. Deck Mechanism (RAA4110-S)

23.2. CD Loading Mechanism
59
60
60

23.3. Cabinet

23.4. Electrical Parts List

23.5. Packing Materials & Accessories Parts List

23.6. Packaging

61

61
61

62

62
62

65
75

76
77
84
89

91
93
95
96

97

97

99
101
102
103
105
106
107

108
110
111

111

112
114

115
117
120
124
133
134

3

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

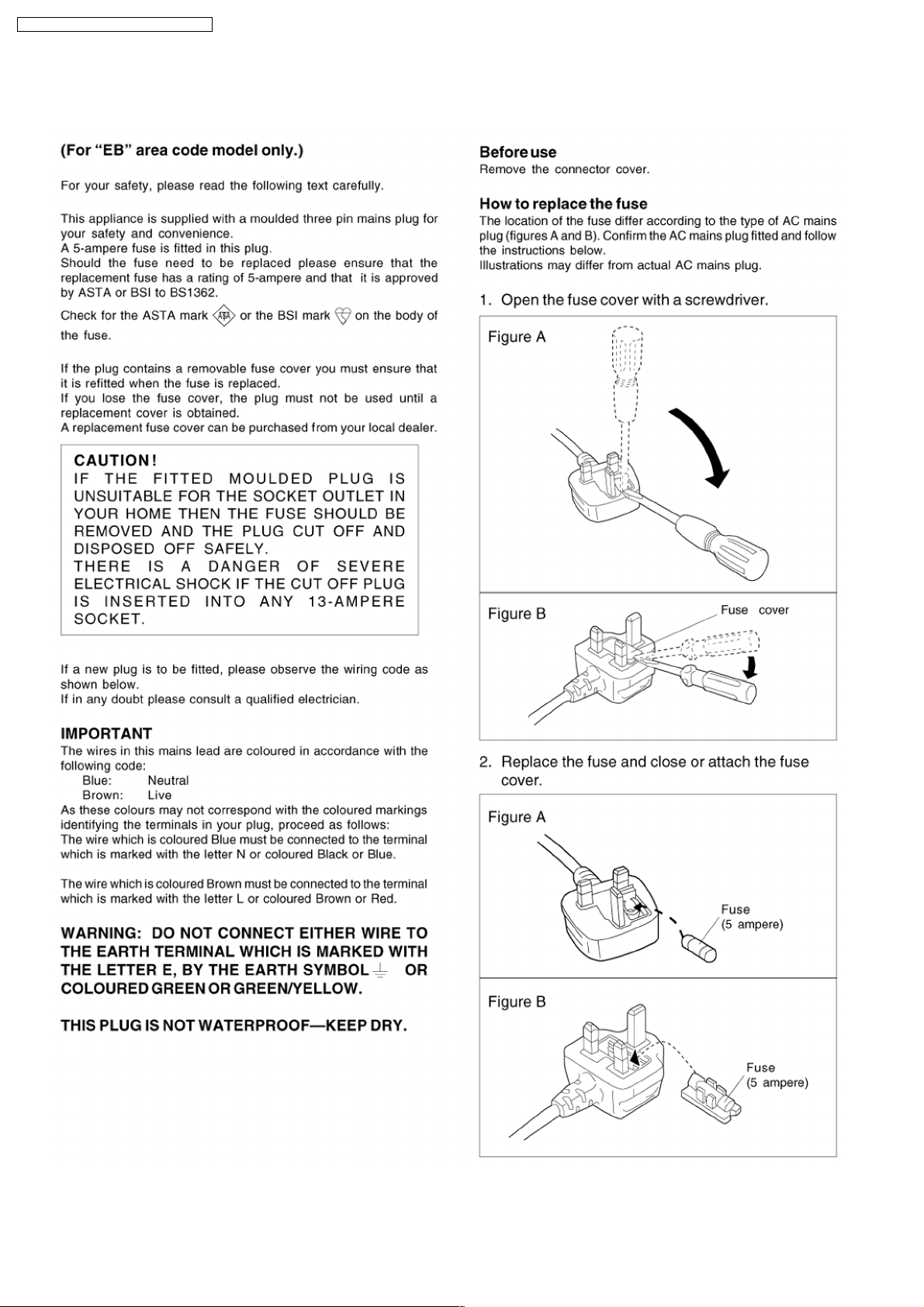

1 Caution for AC Mains Lead

4

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

2 Before Repair and Adjustment

Disconnect AC power, discharge Power Supply Capacitors C5802, C5803, C5804 and C5902 through a 10Ω, 1 W resistor to
ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screw driver blade, for instance), as this may destroy solid state devices.

After repairs are completed, restore power gradually using a variac, to avoid over current.

Current consumption at AC 230 V, 50 Hz in NO SIGNAL mode should be
Current consumption at AC 230~240 V, 50 Hz in NO SIGNAL mode should be ~300 mA. (For EB only)

~300 mA. (For E/EG only)

3 Protection Circuitry

The protection circuitry may have operated if either of the following conditions are noticed:

· No sound is heard when the power is turned on.

· Sound stops during a performance.

The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are
“shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.
If this occurs, follow the procedure outlines below:

1. Turn off the power.

2. Determine the cause of the problem and correct it.

3. Turn on the power once again after one minute.

Note :

When the protection circuitry functions, the unit will not operate unless the power is first turned off and then on again.

4 Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage
caused by electro static discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equiped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equiped with ES devices, place the assembly on a conductive surface such as aluminium
foil, to prevent electrostatic charge build up or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder remover device. Some solder removal devices not classified as “anti-static (ESD protected)” can
generate electrical charge to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorte d together by conductive foam, aluminium foil or
comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize body motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing
together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to
damage an ES device).

5

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

5 Handling the Lead-free Solder

5.1. About lead free solder (PbF)

Distinction of PbF P.C.B.:

P.C.B.s (manufactured) using lead free solder will have a PbF stamp on the P.C.B.

Caution:

· Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a high temperature soldering iron. In case of soldering iron with temperature control, please set it to 700 ± 20°F (370 ±
10°C).

· Pb free solder will tend to splash when heated too high (about 1100°F/600°C).

· When soldering or unsoldering, please completely remove all of the solder on the pins or solder area, and be sure to heat the

soldering points with the Pb free solder until it melts enough.

6 Handling Precautions For Traverse Deck

The laser diode in the traverse deck (optical pickup) may break down due to potential difference caused by static electricity of
clothes or human body. So, be careful of electrostatic breakdown during repair of the traverse deck (optical pickup).

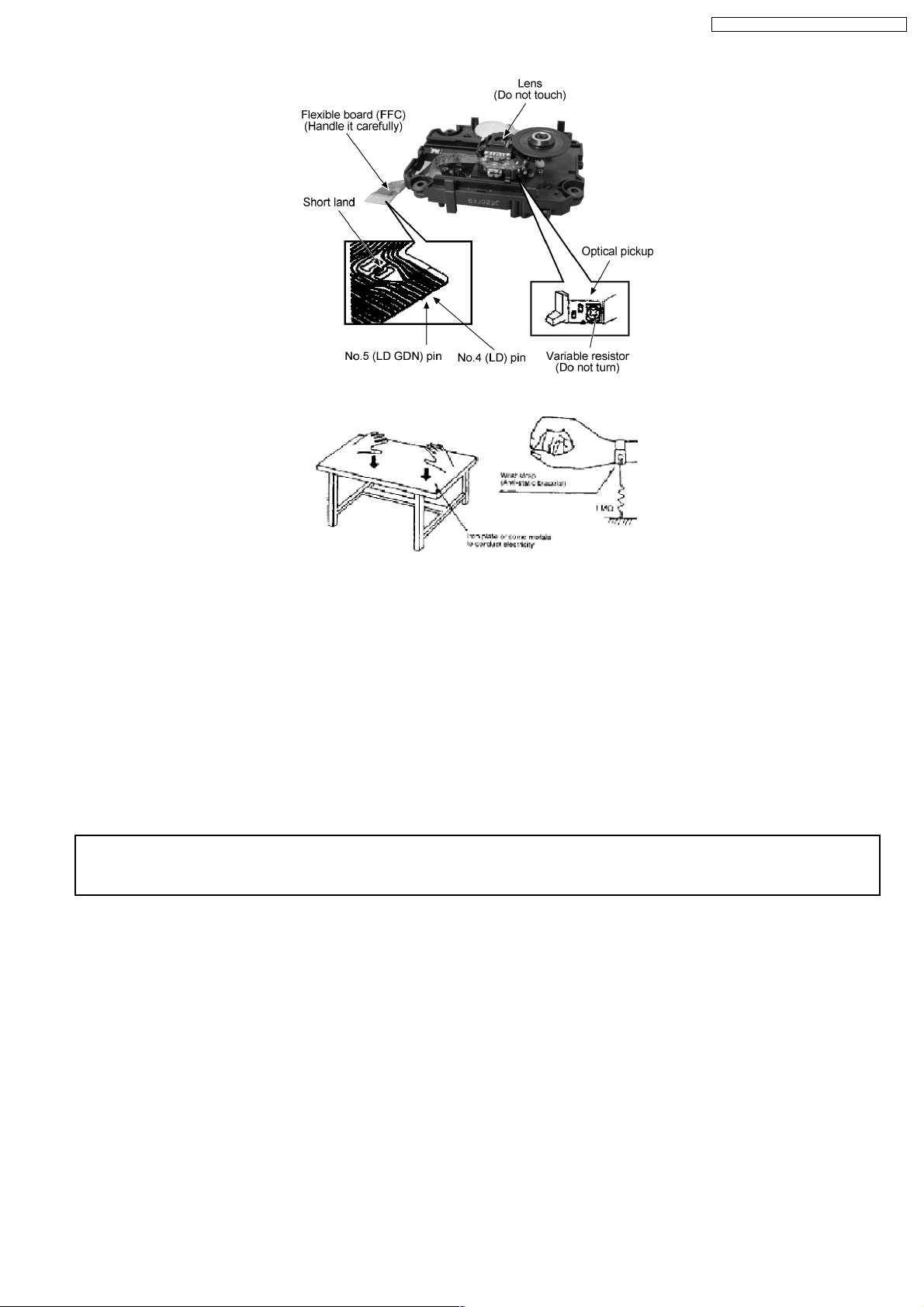

· Handling of traverse deck (optical pickup)

1. Do not subject the traverse deck (optical pickup) to static electricity as it is extremely sensitive to electrical shock.

2. To prevent the breakdown of the laser diode, an antistatic shorting pin is inserted into the flexible board (FFC board).

3. Take care not to apply excessive stress tothe flexible board (FFC board). When removing or connecting the short pin, finish
the job in as short time as possible.

4. Do not turn the variable resistor (laser power adjustment). It has already been adjusted.

· Grounding for electrostatic breakdown prevention

1. Human body grounding
Use the anti-static wrist strap to discharge the static electricity from your body.

2. Work table grounding.
Put a conductive material (sheet) or steel sheet on the area where the travers e deck (optical pickup) is place, and ground

the sheet.

Caution:

The static electricity of your clothes will not be grounded through the wrist strap. So, take care not to let your clothes touch the
traverse deck (optical pickup).

Caution when replacing the Traverse Deck

The traverse deck has a short point shorted with solder to protect the laser diode against electrostatics breakdown. Be sure to
remove the solder from the short point before making connections.

6

Figure No.6.1

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Figure No.6.2

7 Precaution of Laser Diode

Caution :

This product utilizes a laser diode with the unit turned "ON", invisible laser radiation is emitted from the pick up lens.
Maximum output radiation power from pick up : 100 µW/VDE
Laser radiation from pick up unit is safety level, but be sure the followings:

Wavelength: 662nm(DVD)/785nm(CD).

1. Do not disassemble the optical pick up unit, since radiation from exposed laser diode is dangerous.

2. Do not adjust the variable resistor on the pick up unit. It was already adjusted.

3. Do not look at the focus lens using optical instruments.

4. Recommend not to look at pick up lens for a long time.

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.

ACHTUNG :

Dieses Produkt enthält eine Laserdiode. Im eingeschalteten Zustand wird unsichtbare Laserstrahlung von der Lasereinheit
abgestrahlt.
Wellenlänge : 662nm(DVD)/785nm(CD).
Maximale Strahlungsleistung der Lasereinheit :100 µW/VD E
Die Strahlung an der Lasereinheit ist ungefährlich, wenn folgende Punkte beachtet werden:

1. Die Lasereinheit nicht zerlegen, da die Strahlung an der freigelegten Laserdiode gefährlich ist.

2. Den werkseitig justierten Einstellregler der Lasereinhit nicht verstellen.

3. Nicht mit optischen Instrumenten in die Fokussierlinse blicken.

4. Nicht über längere Zeit in die Fokussierlinse blicken.

ADVARSEL: I dette a apparat anvendes laser.

7

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

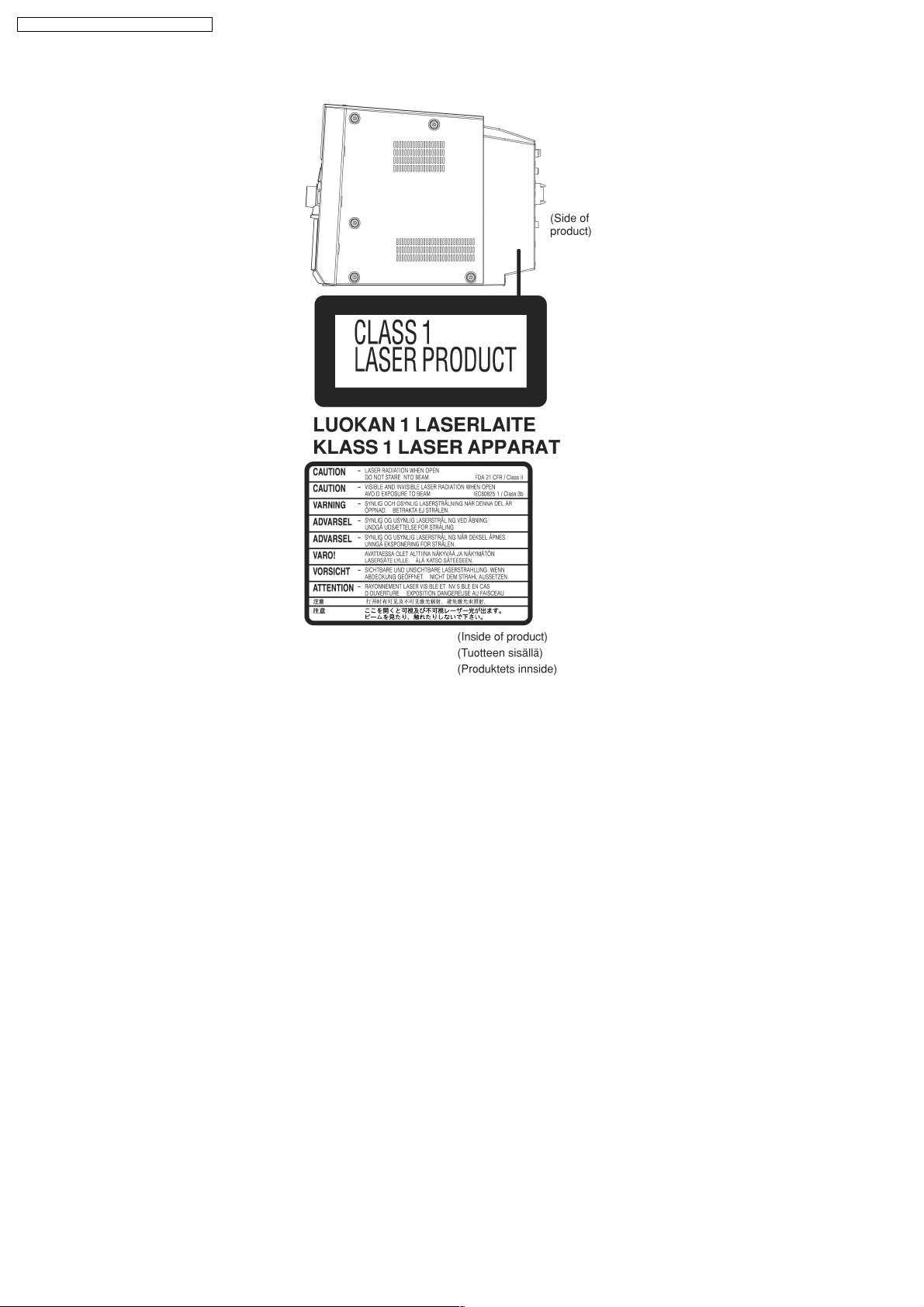

n Use of Caution Labels

8

8 Accessories

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

AC Main Lead (For

EB only)

AC Main Lead (For E &

EG only)

AM Loop Antenna

FM Indoor

Antenna

Video Cable

Remote

Control

Transmitter

Antenna plug

adaptor (For

EB only)

9

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

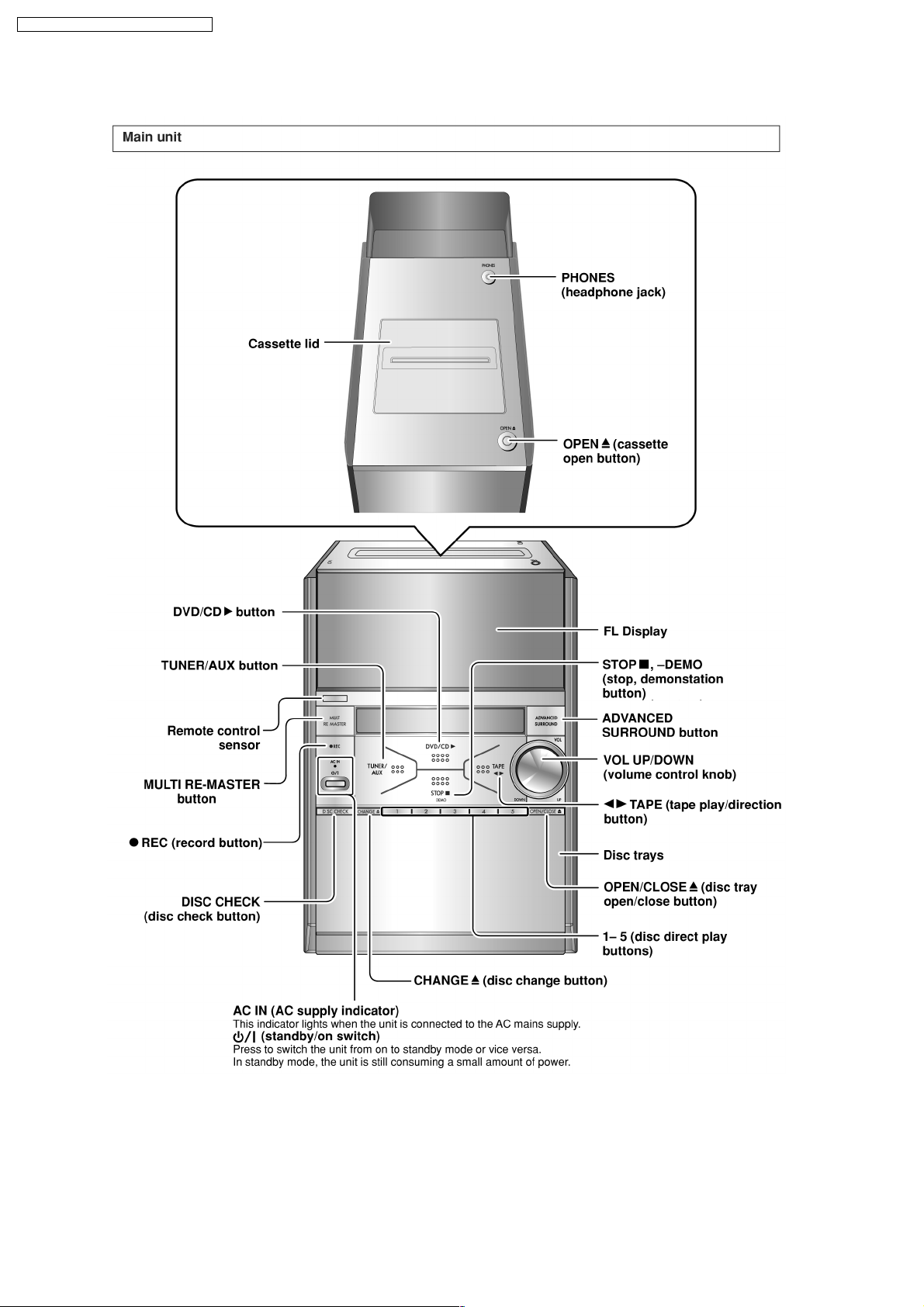

9 Operating Instructions

10

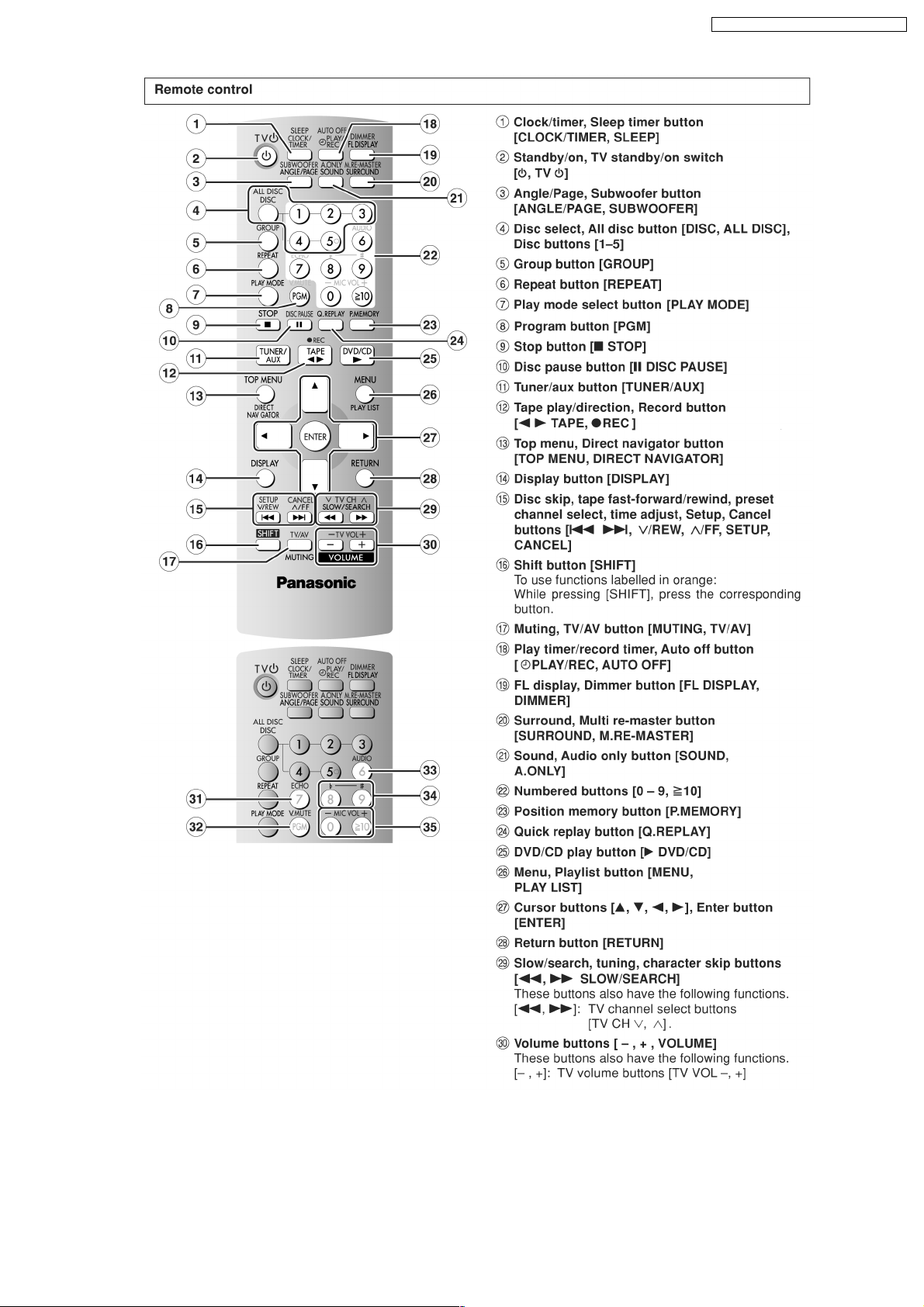

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

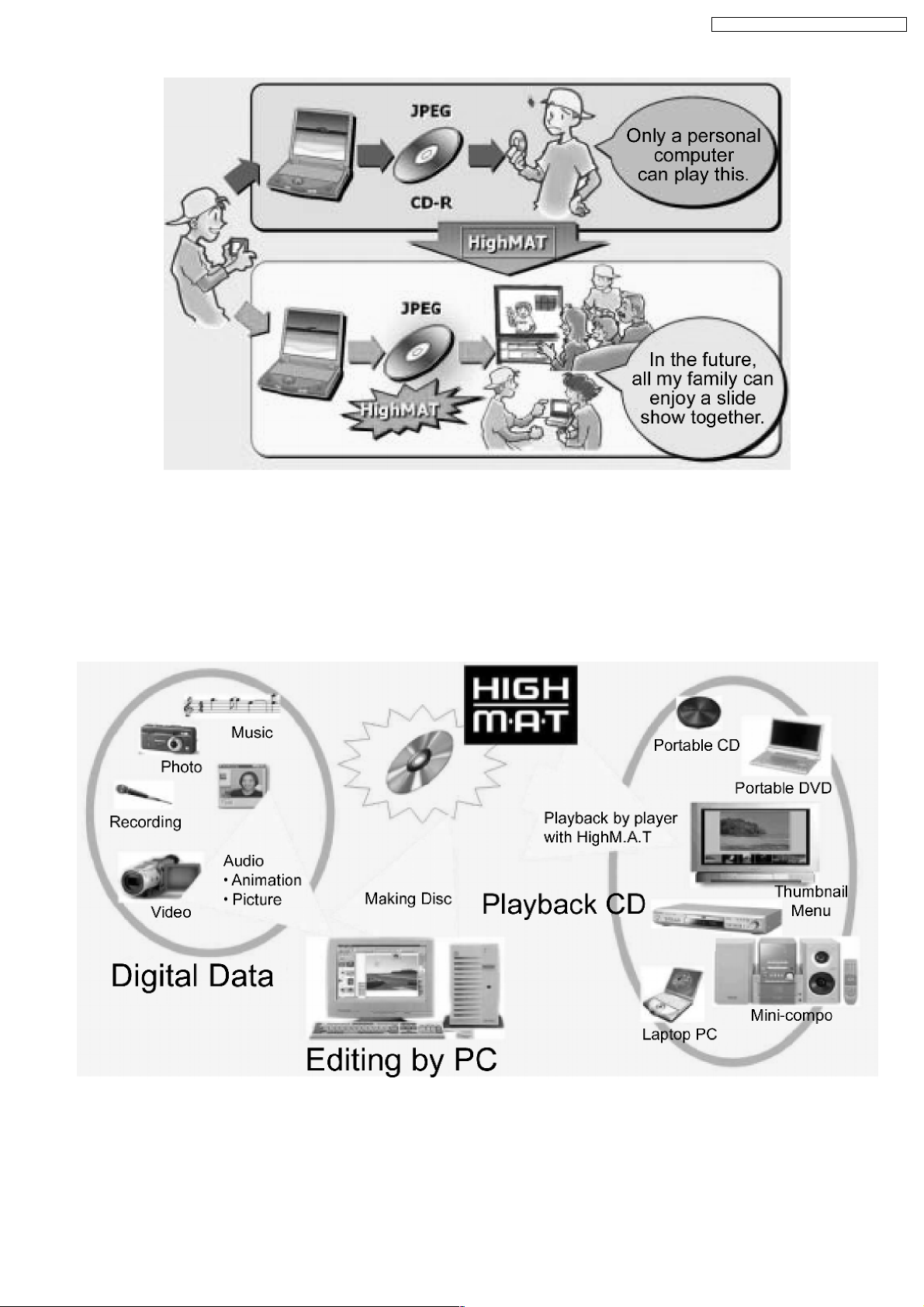

10 About HighMAT

10.1. What is HighMAT?

This word combines the abbreviations of Matsushita Electric Industrial Co. Ltd. and High Performance Media Access Technology,
and is a trademark of Microsoft Corporation. The products with the HighMAT logo shown below are made according to the
HighMAT standard.

HighMAT is a format that allows users to save digital contents such as photographs, audio, and images on a CD. This gives
consistency in the way of reading data when general consumer products (such as DVD players) and PCs are used, and thus, it is
easy to operate for the user.

10.2. Why use HighMAT?

Up to now, there was no harmonized standard from playing digital content stored in CD-ROM formats (including CD-R) on
consumer products like DVD players.Therefore, we used to have problems such as follow:

· There was no common play list or attached information on contents, which is called metadata.

· The data compression method differed according to the equipment.

· As the number of CD-ROMs recorded increased retrieved the contents became more difficult.

· Because display and operation methods were different depending on the equipment, the play order of the content on the same

disc could change.

10.3. The advantages of using HighMAT

Applying the HighMAT standard will solve the following problems and will improve usability.

· It will create a common user interface for both PC and consumer products.

· Regardless of the types of consumer products, such as DVD players, portable CD players, car stereos, and micro computers,

a consistent way to pay for digital content will be created and it will make it easier to retrieve data.

12

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

· You can also play digital content on the disc, which was created in accordance with the HighMAT format with a conventional

CD-ROM player.

10.4. Outline of the HighMAT standard

1. Recording medium

· CD-R/CD-RW

· Supports ISO 9660 Level Expanded Joliet

· For multiple session

2. Support data format

· Level 1 player: WMA, MP3 (MPEG-1 Audio Layer 3)

· Level 2 player: WMA, MP3 (MPEG-1 Audio Layer 3), JPEG

· Level 3 player: WMA, MP3 (MPEG-1 Audio Layer 3), JPEG, WMV, MPEG4 (optional)

3. Limitation of data format

13

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

· WMA, MP3 (MPEG-1 Audio Layer 3) 64 kbps - 160.999 kbps, 44.1 KHz, stereo, fixed bit rate/ variable bit rate.

· WMA, V2 and above, excluding Lossless/Voice/Pro

· JPEG: Max 6M pixel, Maximum file size: 3 MB

4. Limitations regarding the number of files on the media, etc.

· Total number of audio files: Maximum 450

· Total number of still picture files: Maximum 999

· Total number of animation files: Maximum 200

· Total number of directories: Maximum 400

· Length of a file name: Maximum 108 characters (Unicode)

· Total number of play lists: Maximum 200

· Number of contents in the playlist: Maximum 900

5. Composition of HighMAT disc

· Menu: Classified for the navigation of the HighMAT digital contents. When menu selected, its submenu or the play list will
be displayed.

· Play list: A list in which one or more digital contents are arranged in order

· Group: Sub-divided group of a play list.

· Digital Contents: Audio, still picture, and animation data.

14

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11 Disassembly and Main Component Replacem ent

Procedures.

“ATTENTION SERVICER”

Some chassis components maybe have sharp edges. Be careful when disassembling and servicing.

1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main
components.

2. For reassembly after operation checks or replacement, reverse the respective procedures.
Special reassembly procedures are described only when required.

3. Select items from the following index when checks or replacement are required.

4. Refer to the Parts No. on the page of “Main component Replacement Procedures”, if necessary.

Warning:

This product uses a laser diode. Refer to “Precaution of Laser Diode”.

ADVARSEL: I dette a apparat anvendes laser.

11.1. Disassembly flow chart

15

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11.2. Disassembly of Side Panel (L) & (R)

Step 1 Remove 5 screws.
Step 2 Remove 1 screw.
Step 3 Remove the panel as arrow shown.

Step 4 Remove 5 screws .
Step 5 Remove 1 screw.
Step 6 Remove the panel as arrow shown.

11.3. Disassembly of Top Cabinet Unit

· Follow the (Step 1) - (Step 4) of Item 11.2

Step 1 Remove screw.
Step 2 Lift up the Top Cabinet unit, pull upward as arrow shown

and flip Top Cabinet sideway.

Step 3 Disconnect FFC Board (CN1305).

11.4. Disassembly of Deck Mechanism Unit and Tape Eject P.C.B.

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

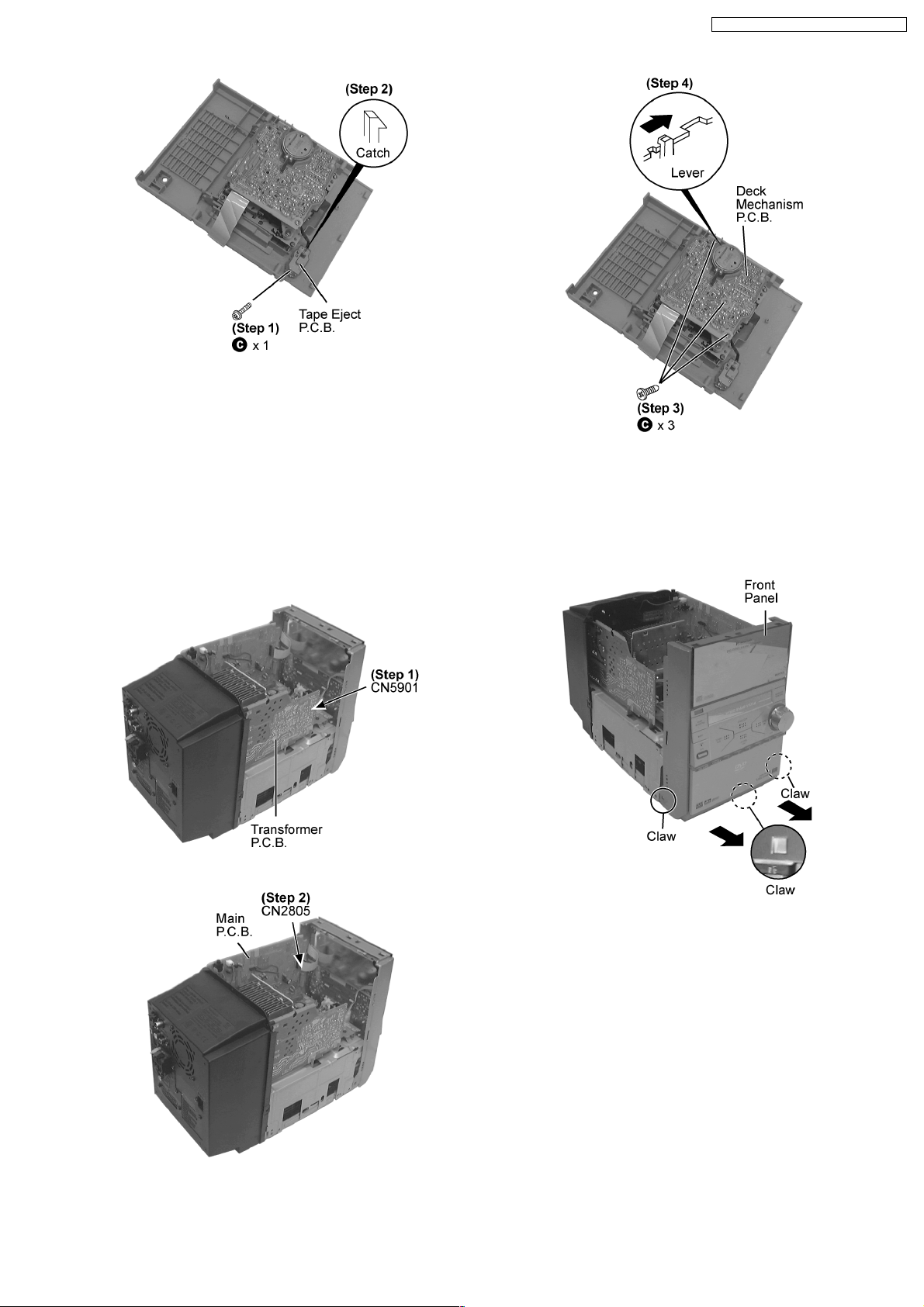

Step 1 Remove 1 screw.
Step 2 Release the catch.

16

Step 3 Remove 3 screws.

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Step 4 Press the lever to open the cassette cover.
Step 5 Remove the cassette mechanism unit.

11.5. Disassembly of Front Panel Unit

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

Step 1 Detach connector CN5901.

Step 2 Detach FFC board (CN2805).

Step 4 Pull the Front Panel unit forward as arrow shown.

· Replacement of CD Lid.

Step 5 Remove 2 screws.

Step 3 Release 3 claws. (2 on the side and 1 at the bottom)

17

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Step 6 Remove spring.

11.6. Disassembly of Panel P.C.B.

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

· Follow the (Step 1) - (Step 4) of Item 11.5

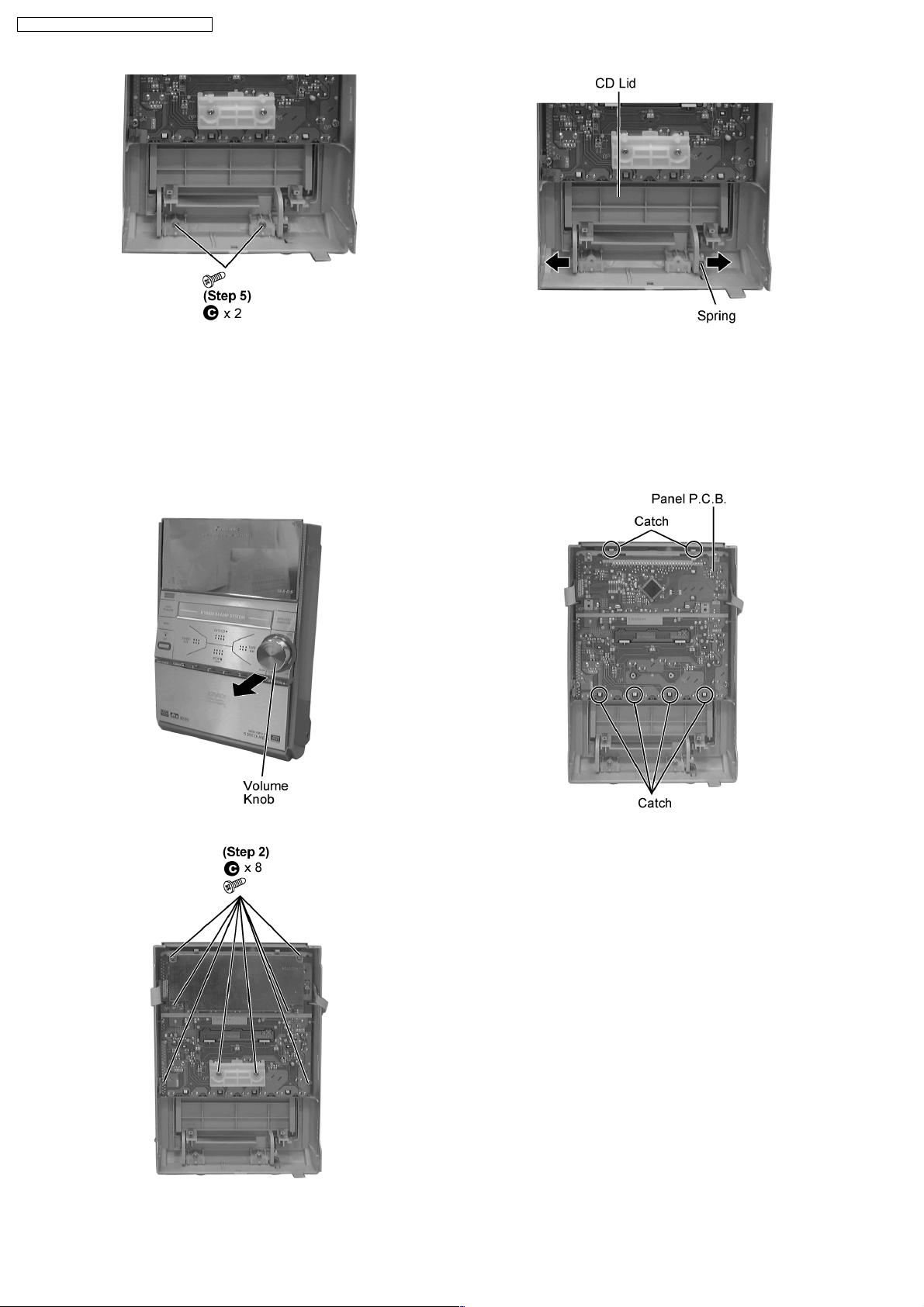

Step 1 Remove Volume Knob.

Step 7 Push the CD Lid sideward as arrow shown to remove it.
Note: Be careful of the spring.

Step 2 Remove 8 screws.

Step 3 Release 6 catches (2 on top & 4 below).

Step 4 Lift up Panel P.C.B..
Note: Replacement of FL Display IC
Step 1 Remove 2 screws.

18

11.7. Disassembly of Rear Panel

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

Step 1 Remove 14 screws.

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Step 2 Desolder the 2 solder point.
Step 3 Remove shield.

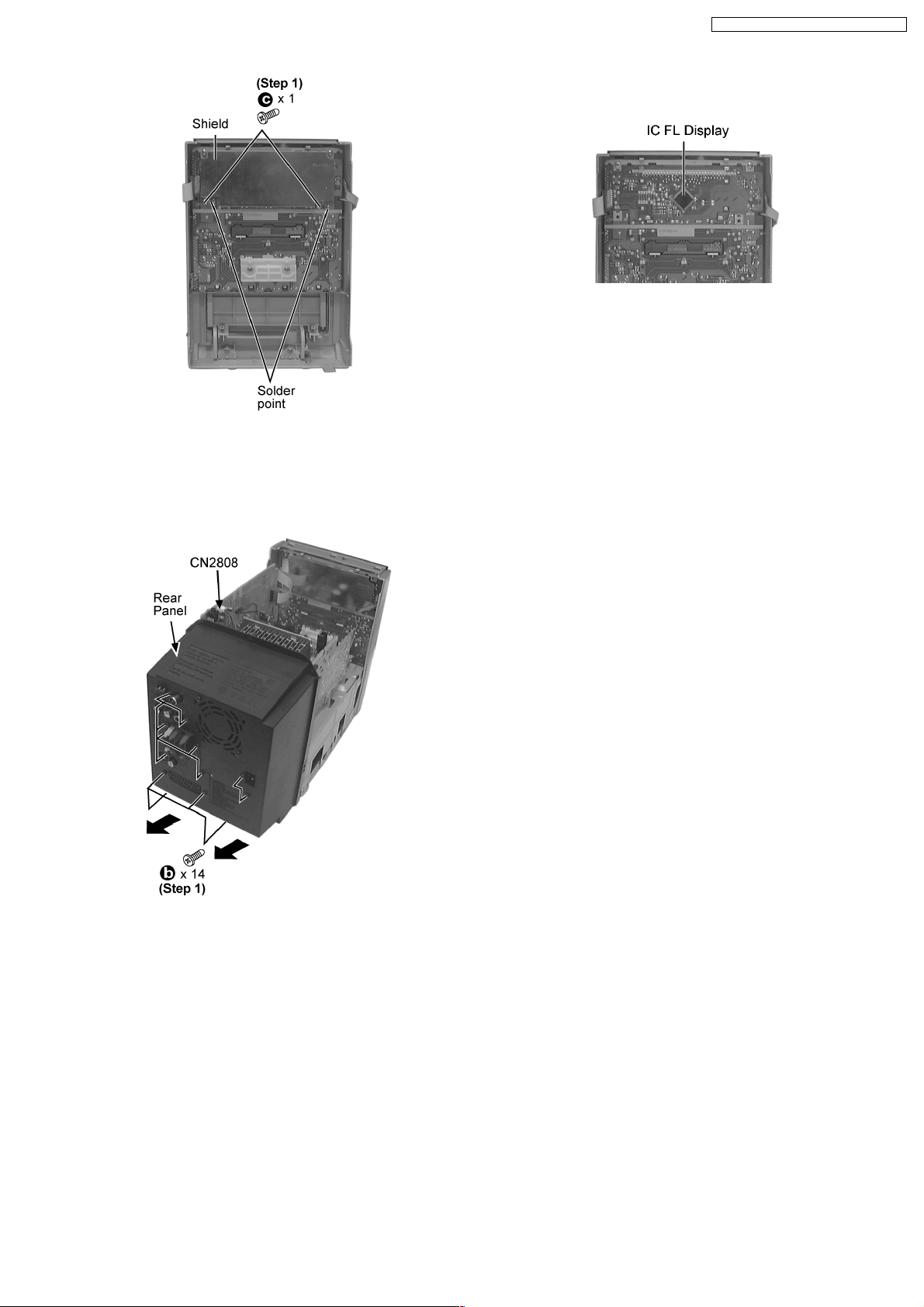

Step 2 Detach connector CN2808 (Fan).
Step 3 Pull the Rear Panel unit backwards as arrow shown.

11.8. Disassembly of Tuner Pack

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

· Follow the (Step 1) - (Step 3) of Item 11.7

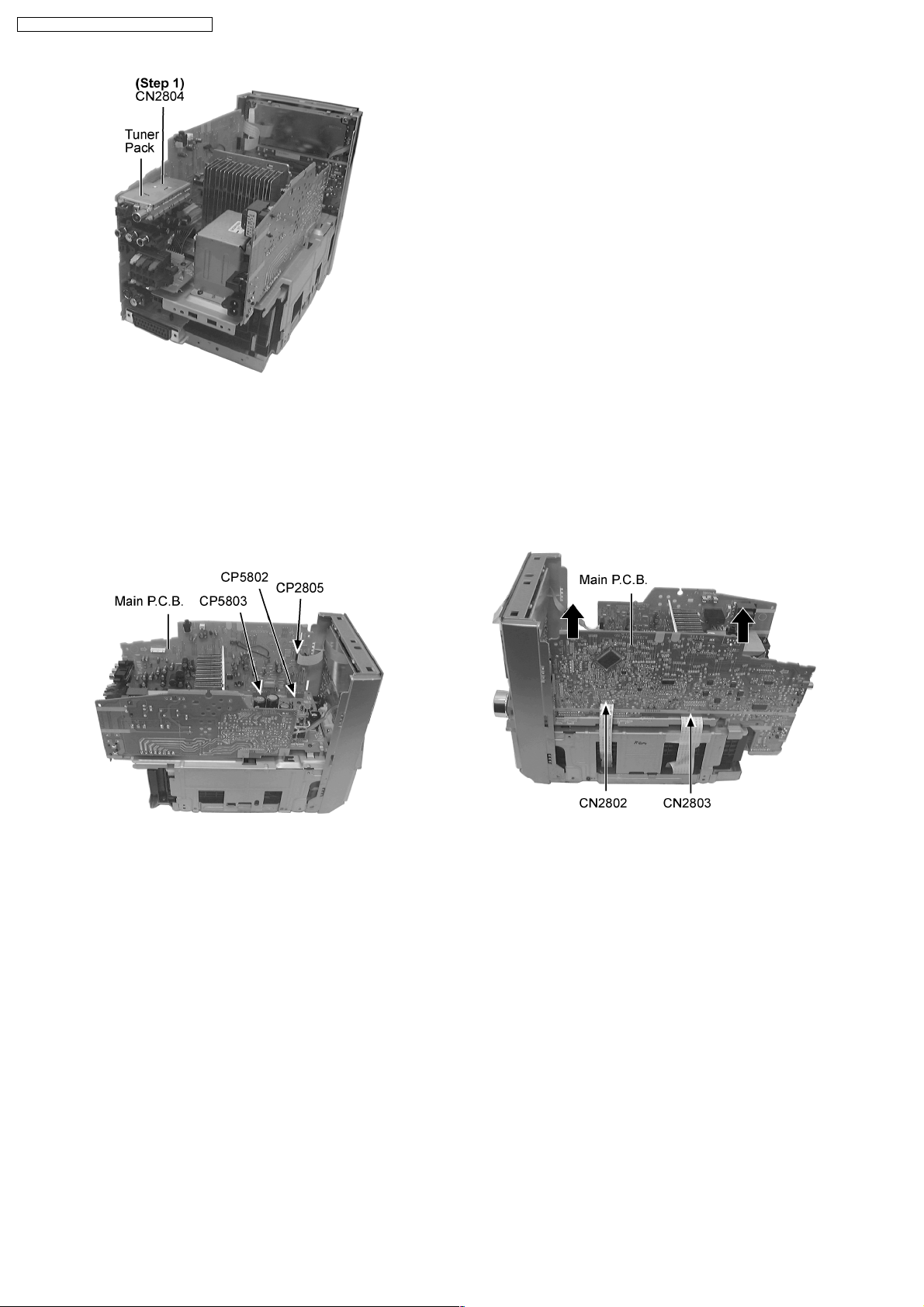

Step 1 Detach connector CN2804.

19

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11.9. Disassembly of Main P.C.B. and Scart Terminal P.C.B.

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

· Follow the (Step 1) - (Step 3) of Item 11.7

· Follow the (Step 1) of Item 11.8

−

− Disassembly of Main P.C.B.

− −

Step 1 Detach 3 connectors CP5802, CP5803 & CP2805.

Step 2 Detach FFC board (CN2802 & CN2803).

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

· Follow the (Step 1) - (Step 3) of Item 11.7

· Follow the (Step 1) of Item 11.8

Step 3 Lift Main P.C.B. upward as arrow shown.
Note: Do not exert strong force when lifting up the P.C.B.

· Disassembly of Scart Terminal P.C.B.

20

11.10. Disassembly of Transformer P.C.B.

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

· Follow the (Step 1) - (Step 3) of Item 11.7

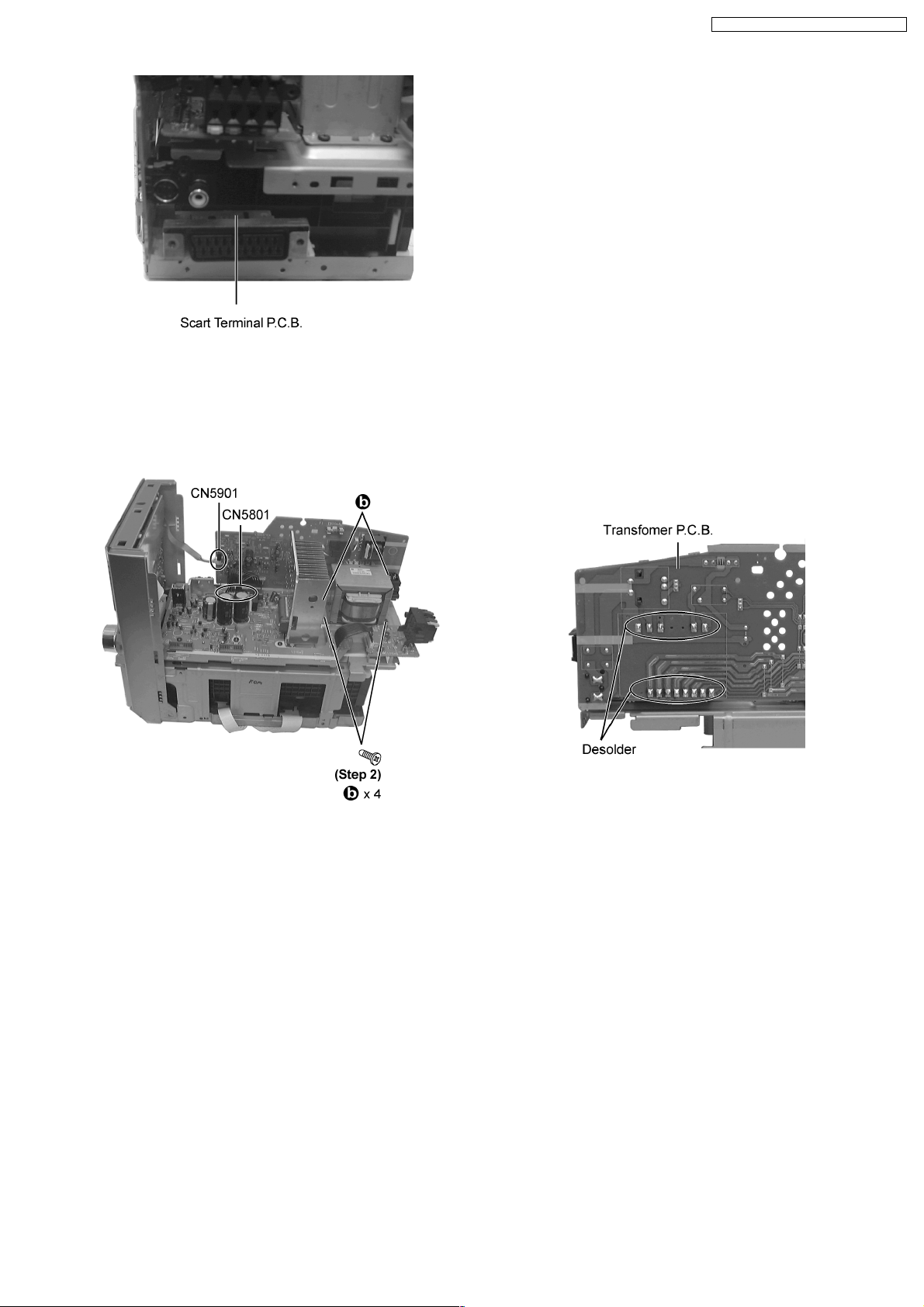

Step 1 Detach connectors CN5901 & CN5801.

Step 2 Remove 4 mounting screws.

· Replacement of Power Transformer.
Step 1 Desolder the terminal points at Transformer P.C.B.

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11.11. Disassembly of Power P.C.B. & Speaker Terminal P.C.B.

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

· Follow the (Step 1) - (Step 3) of Item 11.7

· Follow the (Step 1) - (Step 3) of Item 11.9

· Follow the (Step 1) - (Step 2) of Item 11.10

Step 1 Remove 4 screws.

21

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

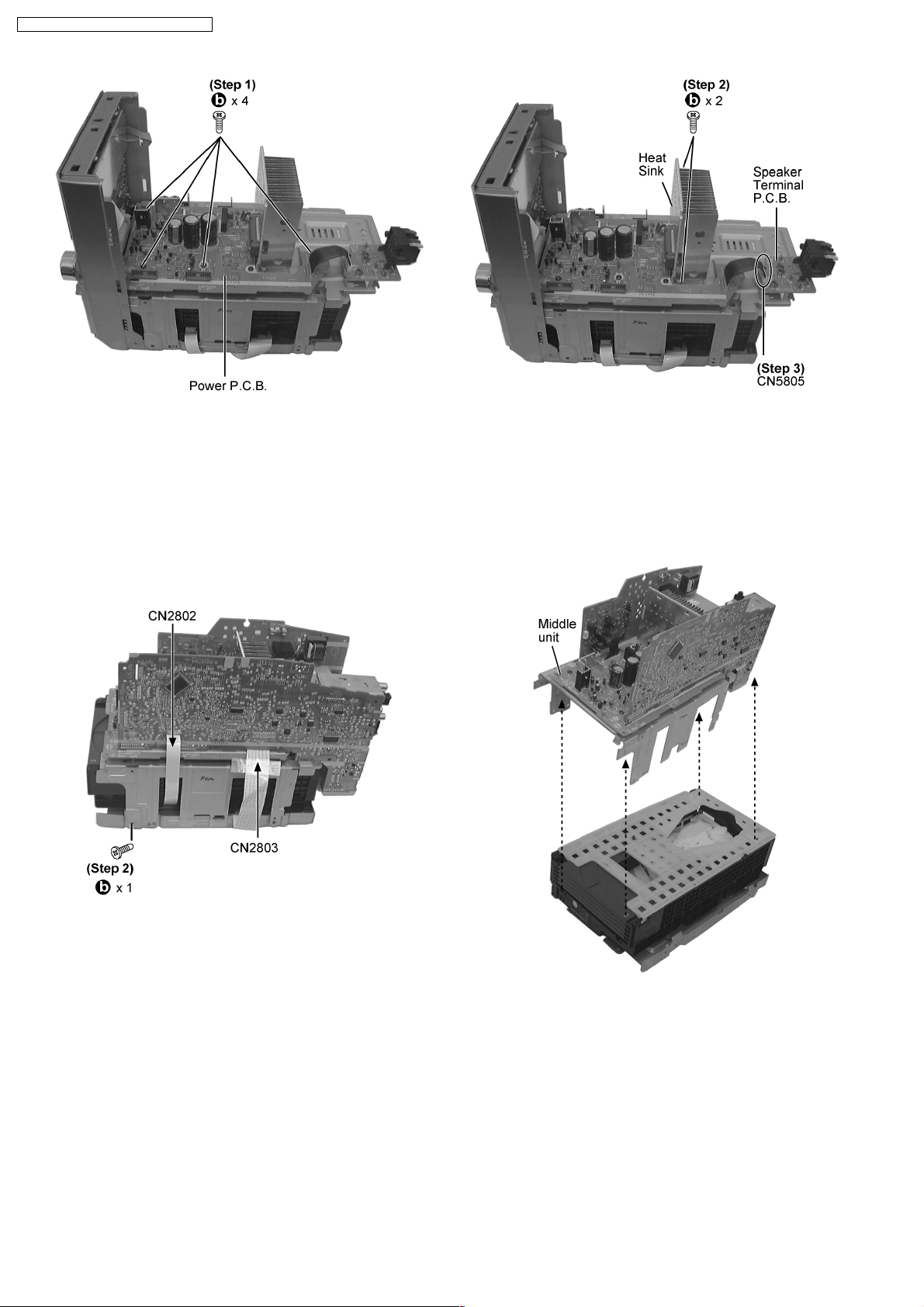

Step 2 Remove 2 screws from heat sink.

Step 3 Detach connector CN5805.

11.12. Disassembly of CD Mechanism Unit

· Follow the (Step 1) - (Step 3) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

· Follow the (Step 1) - (Step 4) of Item 11.5

· Follow the (Step 1) - (Step 3) of Item 11.7

· Disassembly of Middle Unit

Step 1 Detach both FFCs (CN2802 & CN2803).

Step 2 Remove 1 screw.

Step 3 Lift up middle unit.

· Replacement of Power IC

· Follow the (Step 1) - (Step 4) of item 11.2

· Follow the (Step 1) - (Step 3) of item 11.3

· Follow the (Step 1) - (Step 3) of item 11.7

· Follow the (Step 1) - (Step 2) of item 11.10

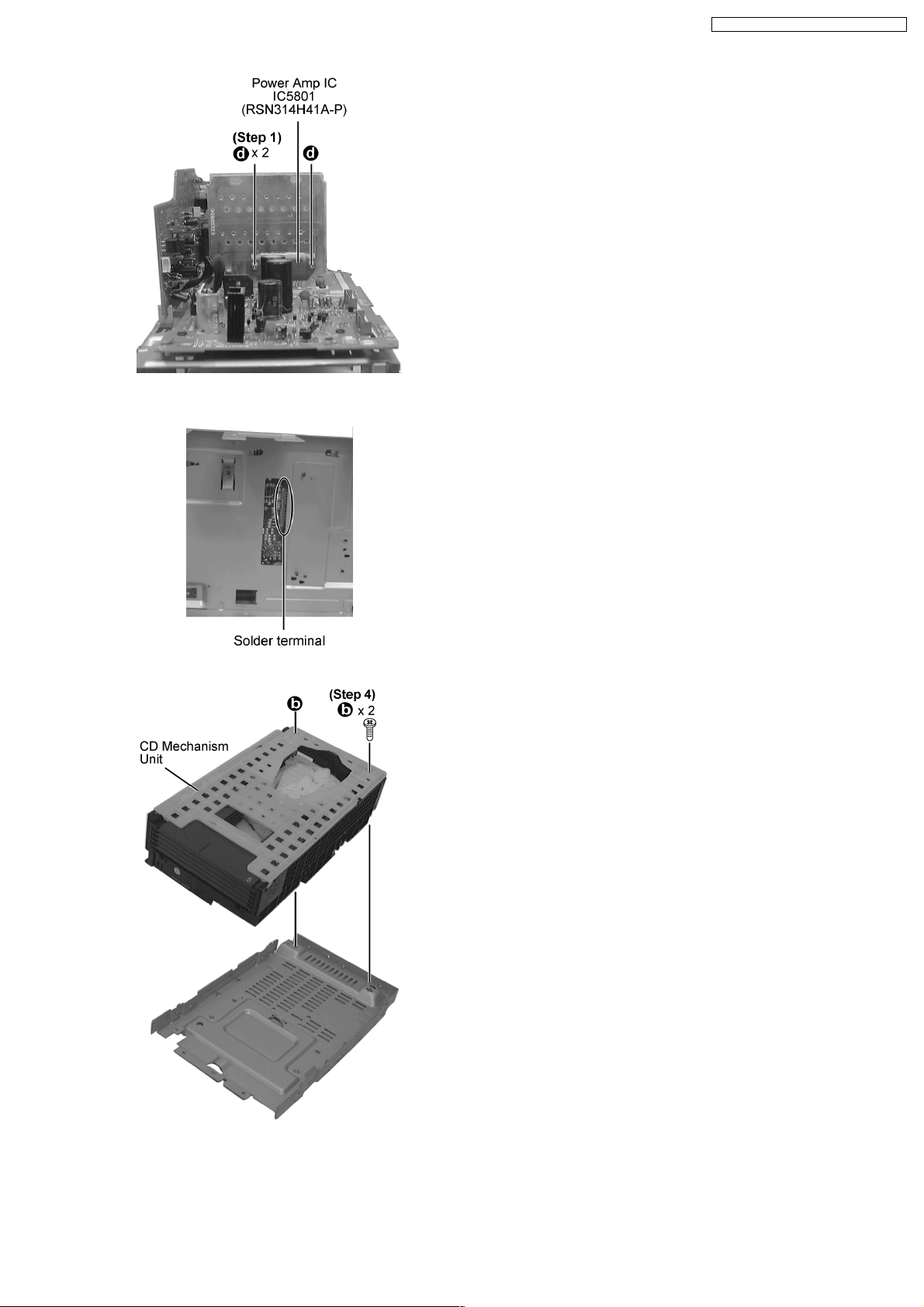

Step 1 Remove 2 screws.

22

Step 2 Desolder the terminal of Power Amp IC and replace the
component.

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

· Disassembly of CD Mecha Unit

Step 4 Remove 2 screws.
Step 5 Lift up CD Mechanism unit.

23

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

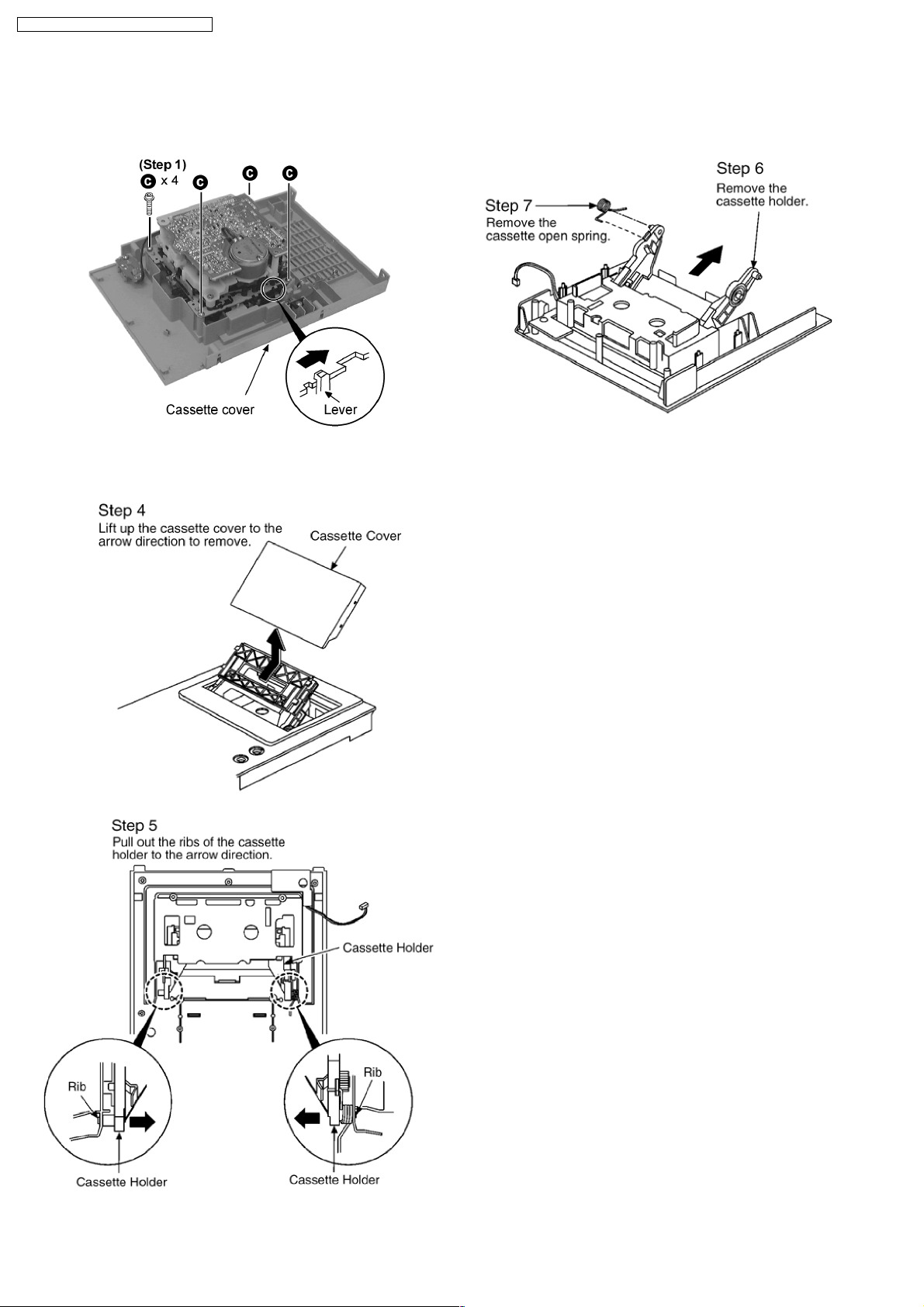

11.13. Procedure for Replacing Cassette Holder

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

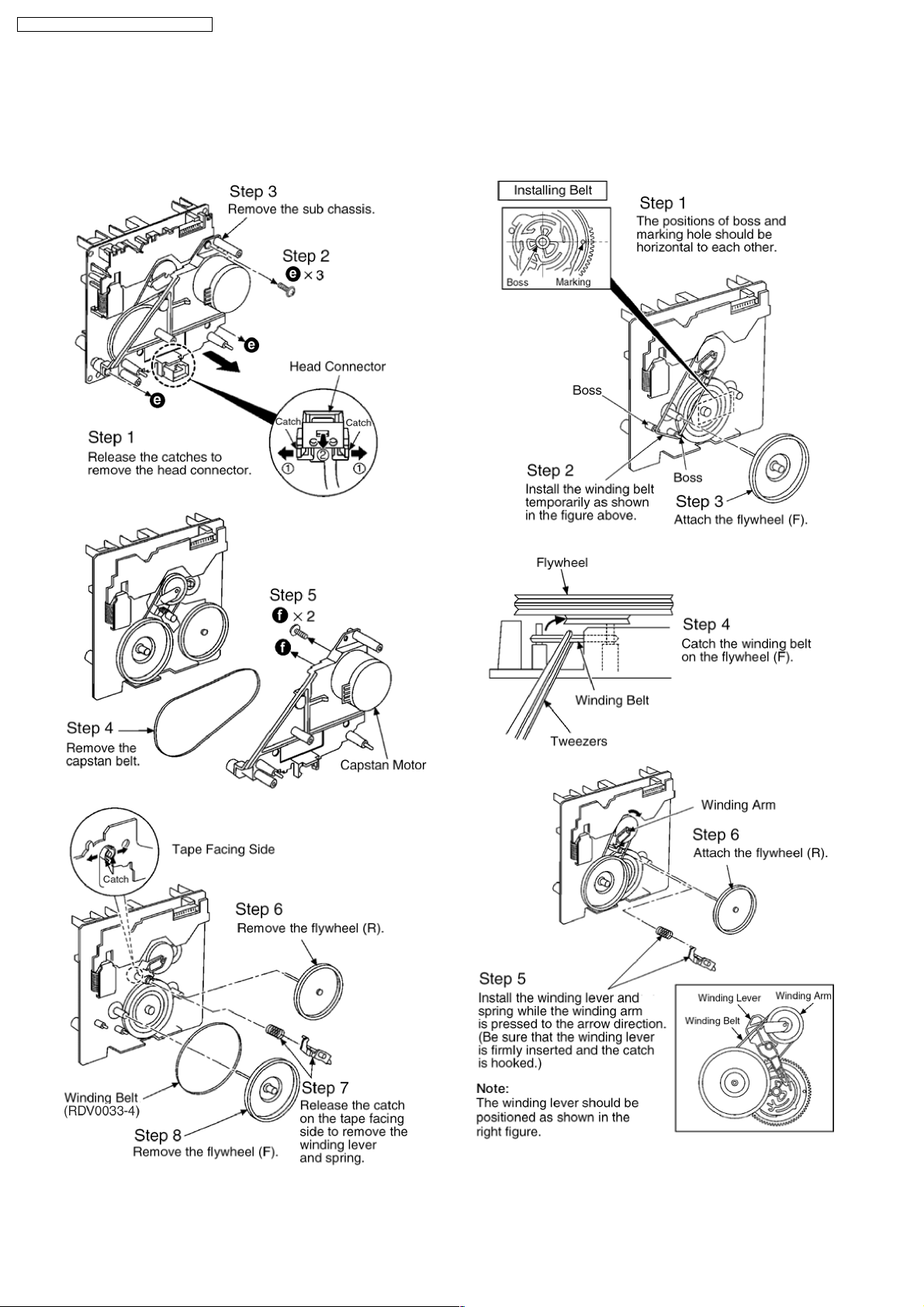

Step 2 Press the lever to open the cassette cover.
Step 3 Remove the cassette mechanism unit.

24

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11.14. Procedure for Replacing Pinch Roller and Head Block (Cassette

Mechanism Unit)

· Follow the (Step 1) - (Step 7) of Item 11.13

25

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

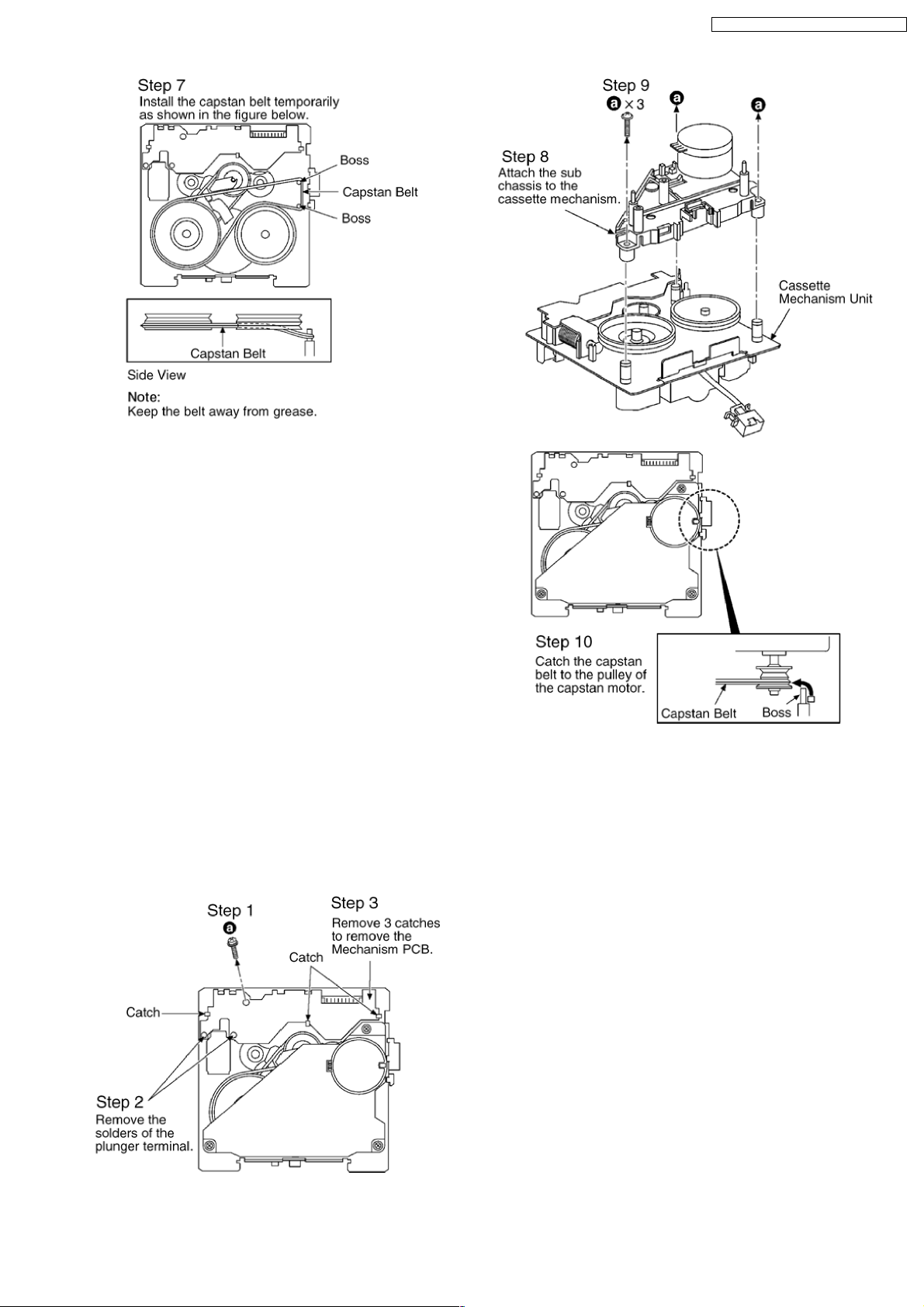

11.15. Procedure for Replacing Motor, Capstan Belt A , Capstan Belt B, and
Winding Belt (Cassette Mechanism Unit)

· Follow the (Step 1) - (Step 7) of Item 11.13

· Follow the (Step 1) - (Step 7) of Item 11.14

26

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11.16. Procedure for Replacing Parts on Mechanism PCB

· Follow the (Step 1) - (Step 3) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

· Follow the (Step 1) - (Step 7) of Item 11.13

· Follow the (Step 1) - (Step 7) of Item 11.14

· Follow the (Step 1) - (Step 10) of Item 11.15

27

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11.17. Procedure for removing CD loading mechanism

1. Turn off by pressing power SW in the body.

2. Unplug AC power cord after the indication of [GOOD-BYE],

then disassemble the body.

3. Disassemble the body, and take out CD loading
mechanism.

4. Perform disassembly according to the following procedure
for disassembly.

11.18. CR16 mechanism disassembly procedure

11.18.1. Gear for servicing information

· This unit has a gear which used for checking items

(open/close of disc tray, up/down operation of traverse unit
by manually) when servicing. (For gear information, that is
described on the items for disassembly procedures.)

· For preparation of gear (for servicing), perform the

procedures as follows.

· In case of re-servicing the same set, the “gear for servicing”

may be took off because it had been used. So, the “gear for
servicing” must be stored.

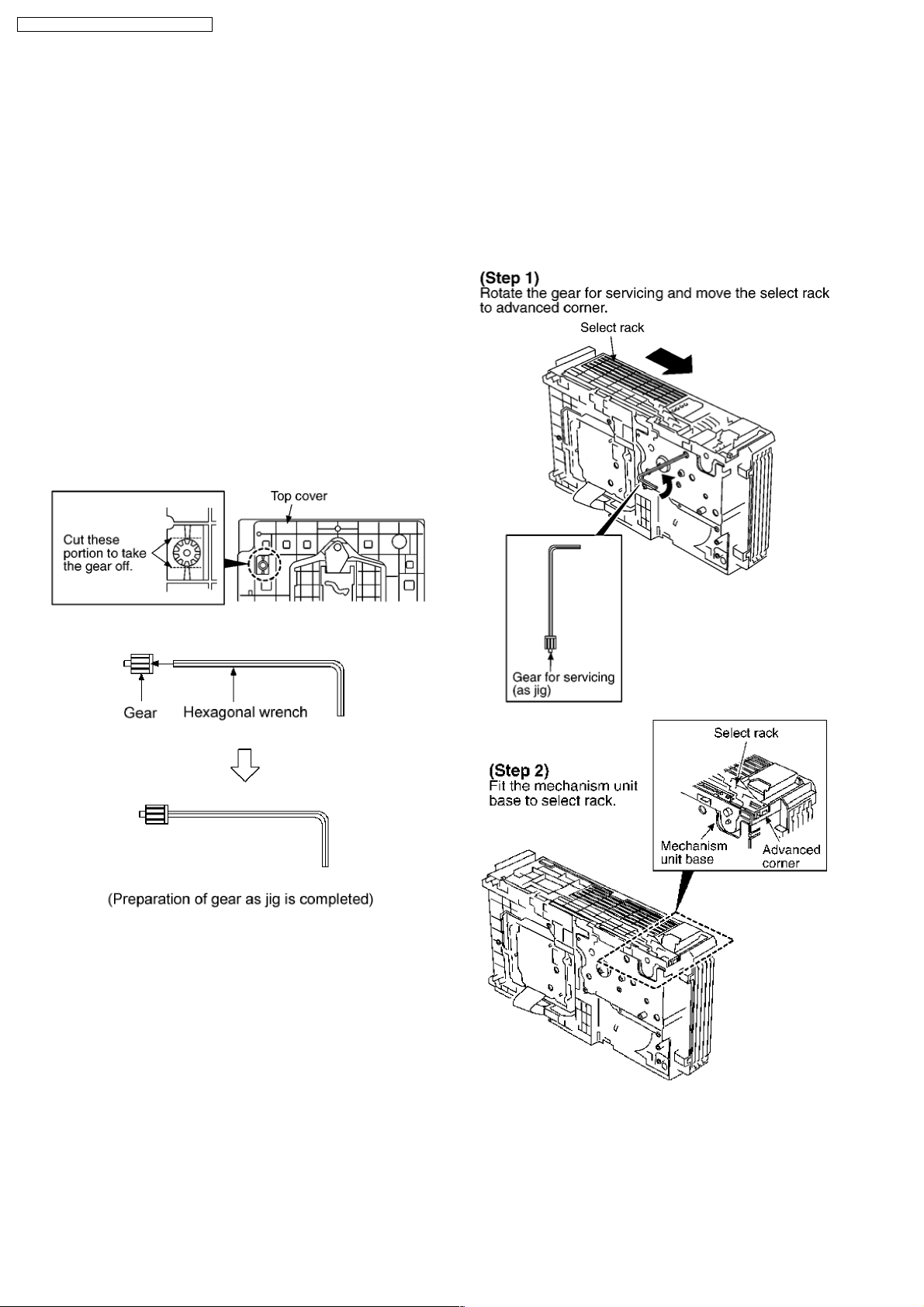

1. Remove the gear attached to top cover of CD loading
mechanism.

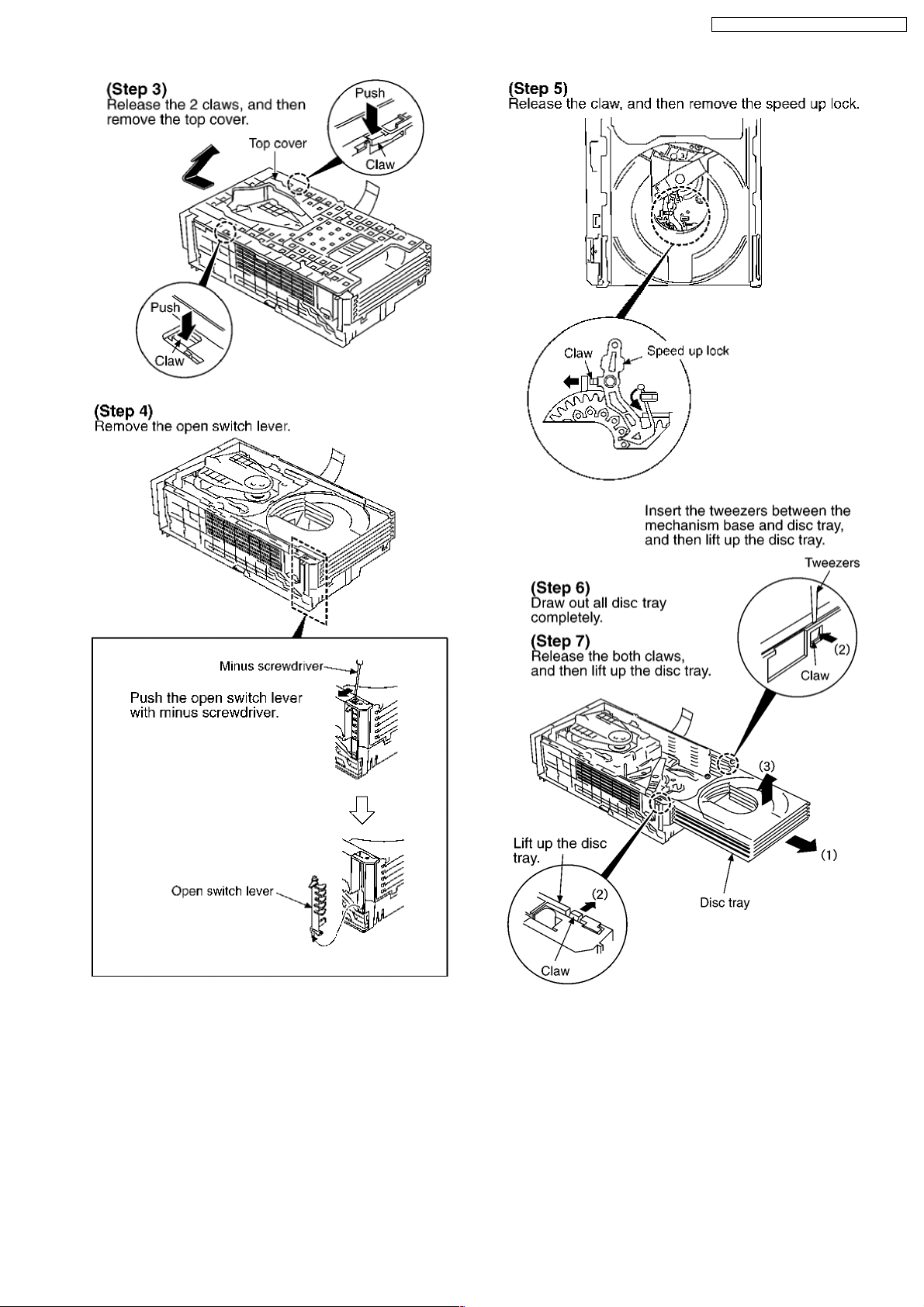

11.18.2. Replac ement for the disc tray

2. Insert the hexagonal wrench (2.5mm) into the gear.

28

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

29

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

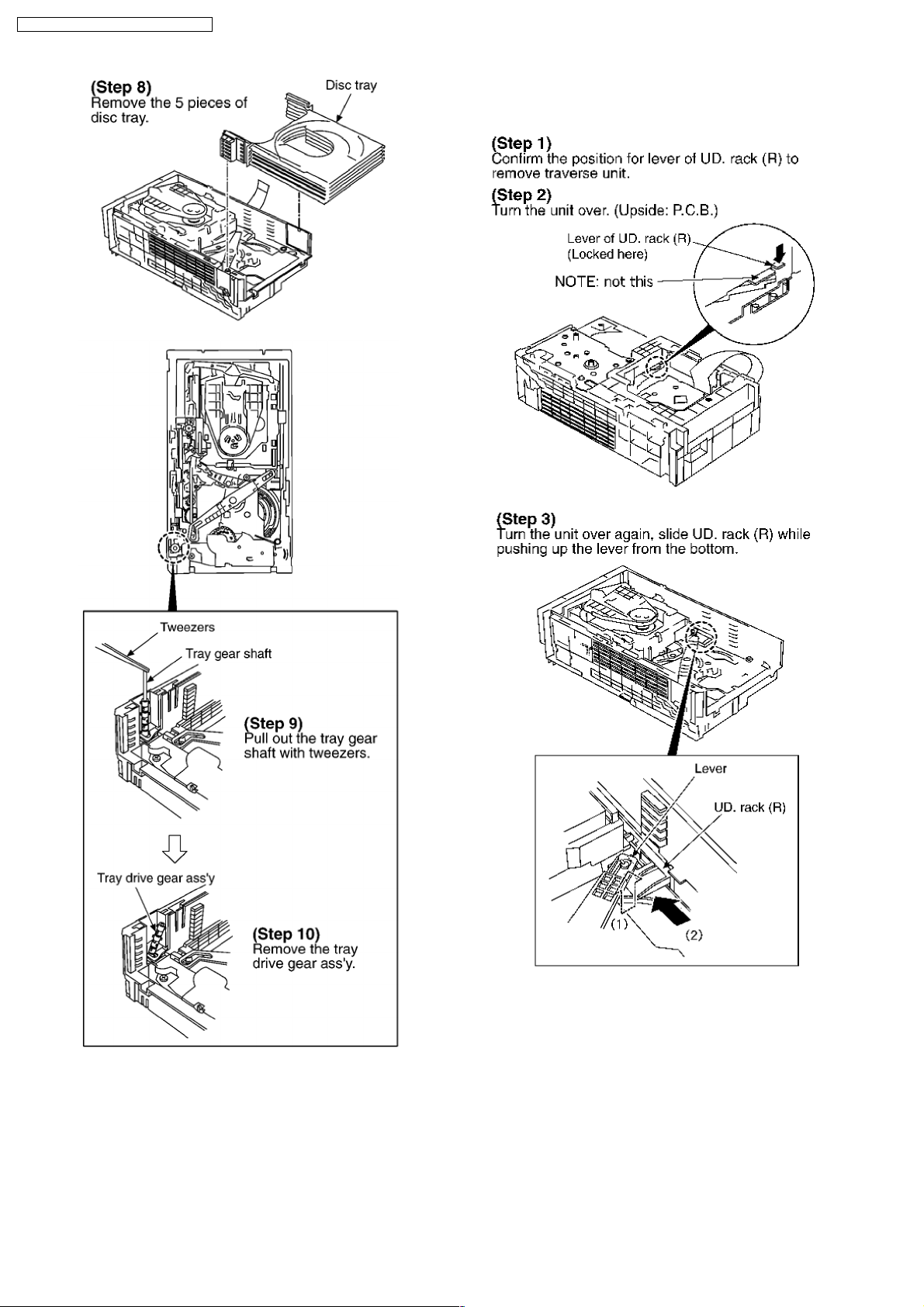

11.18.3. Replac ement for the traverse deck

· Follow the (Step 1) - (Step 10) of item 11.20.2.

30

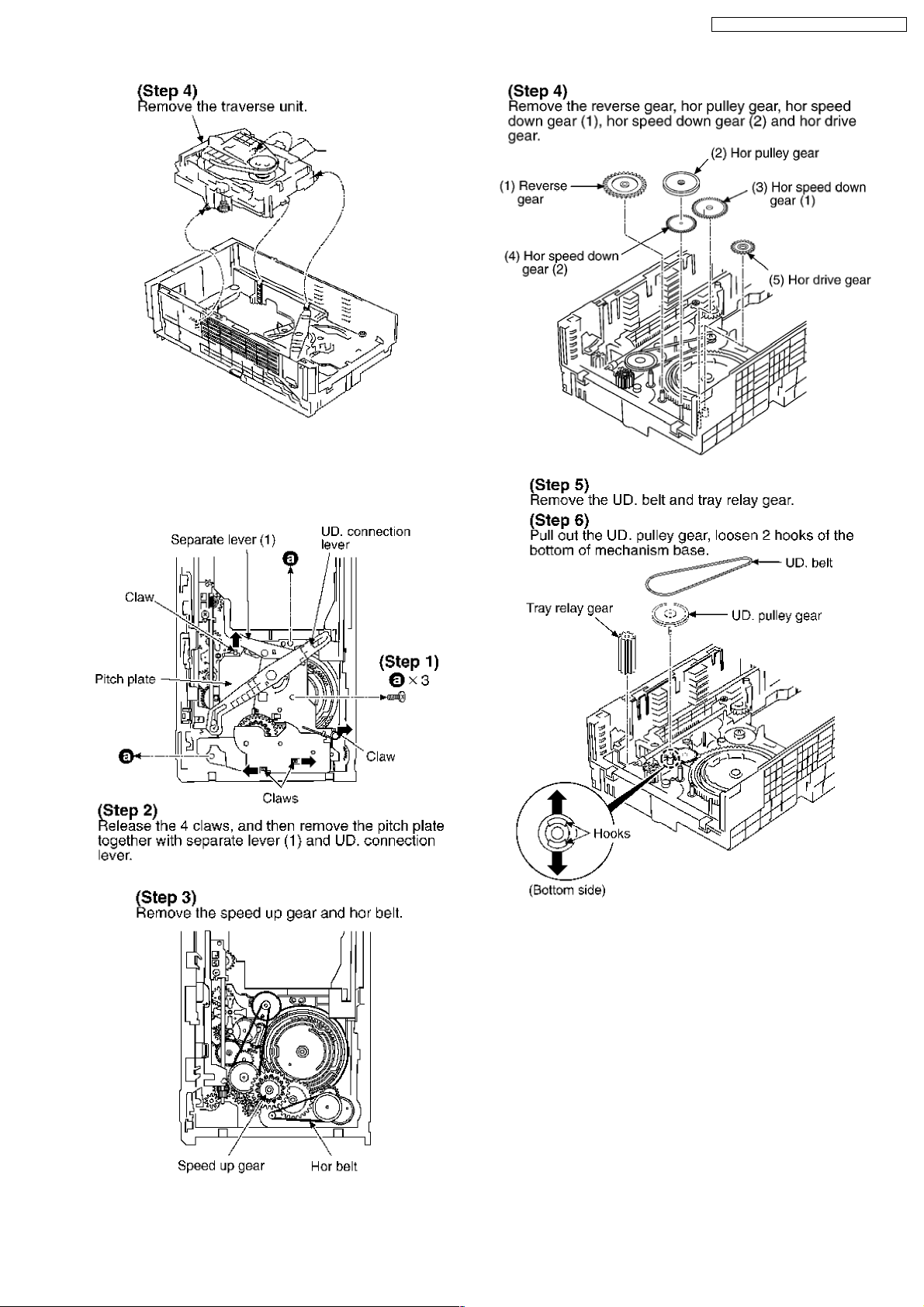

11.18.4. Disass embly for CD loading unit

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

· Follow the (Step 1) - (Step 10) of item 11.20.2.

· Follow the (Step 1) - (Step 3) of item 11.20.3.

31

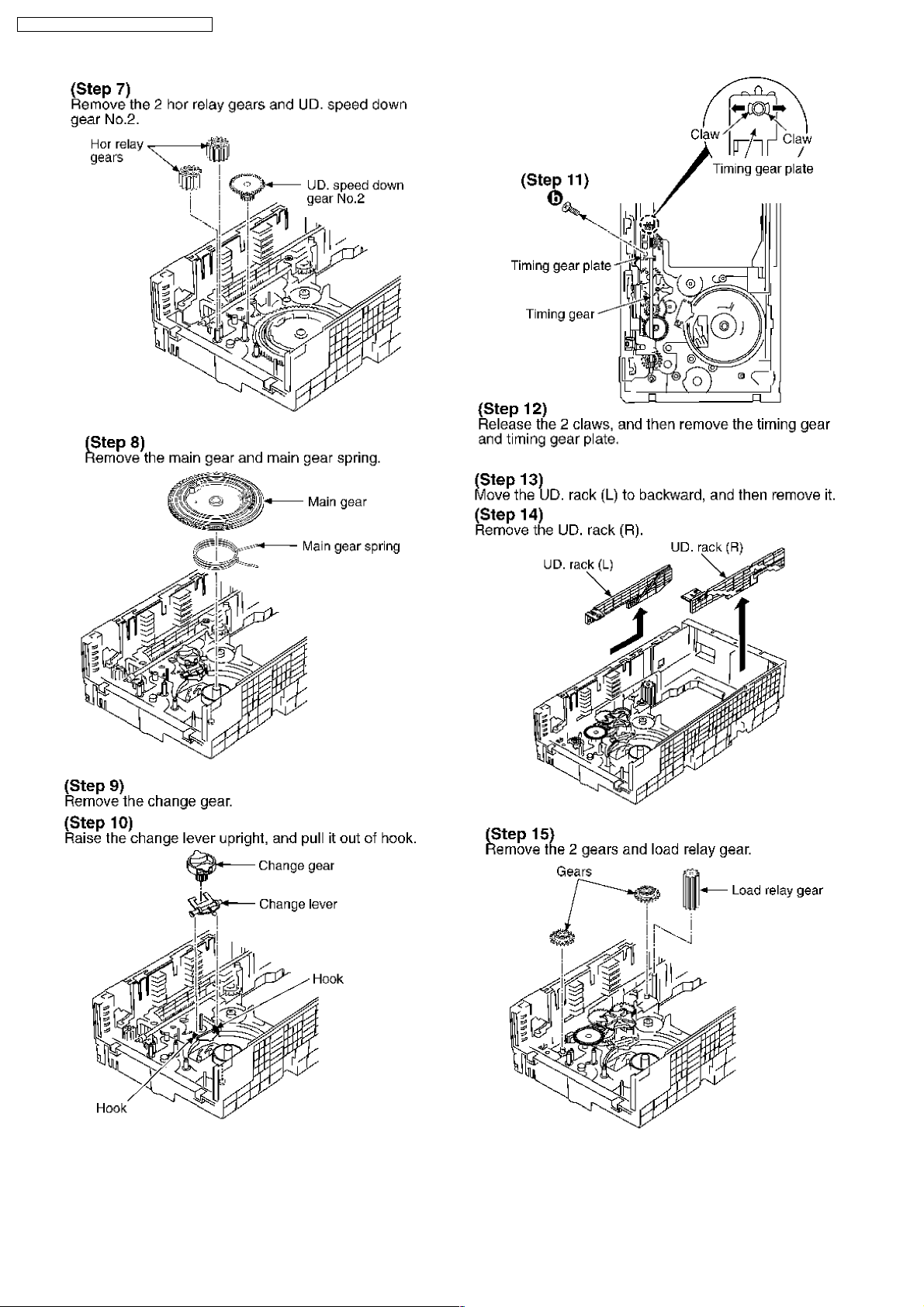

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

32

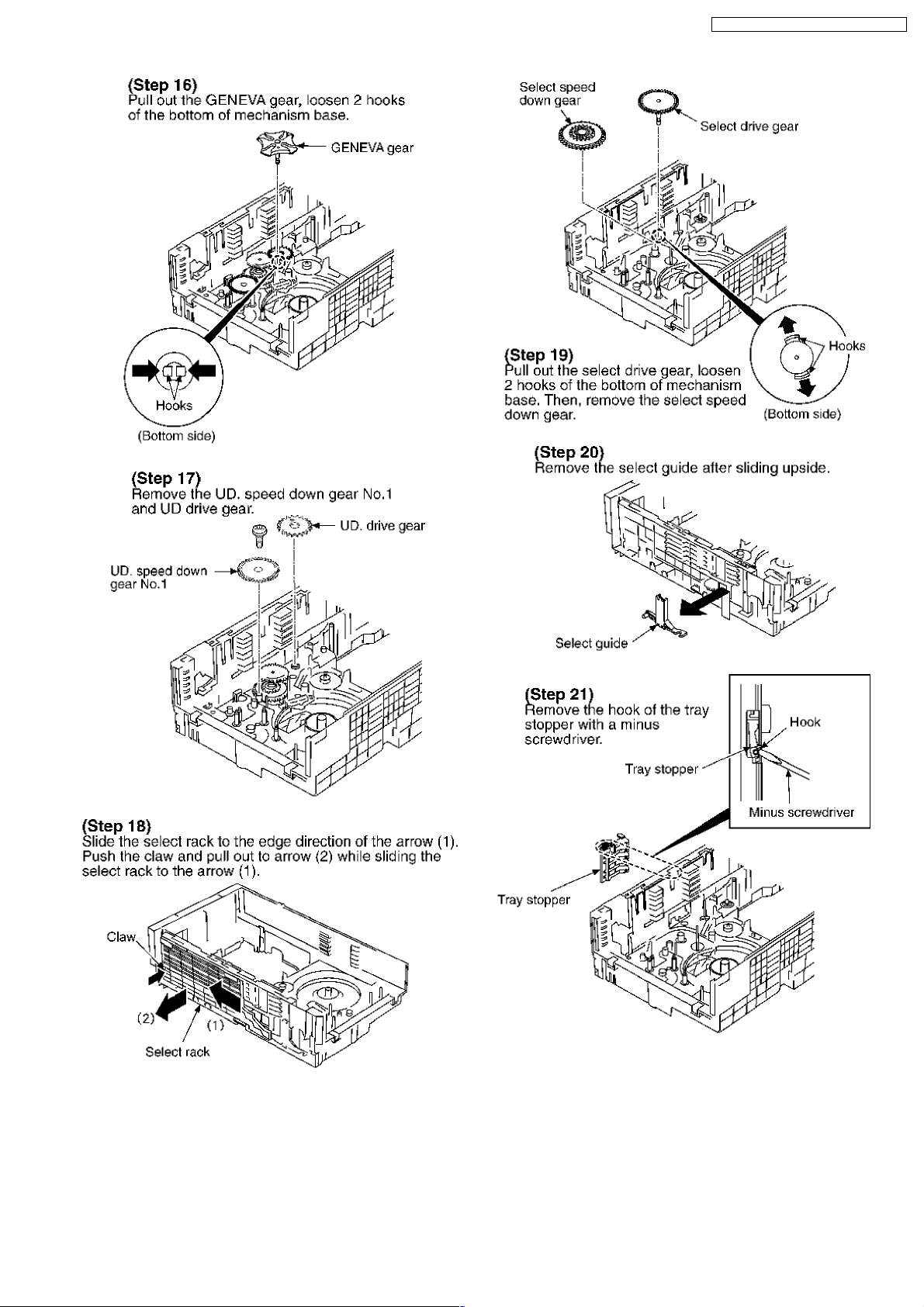

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

33

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

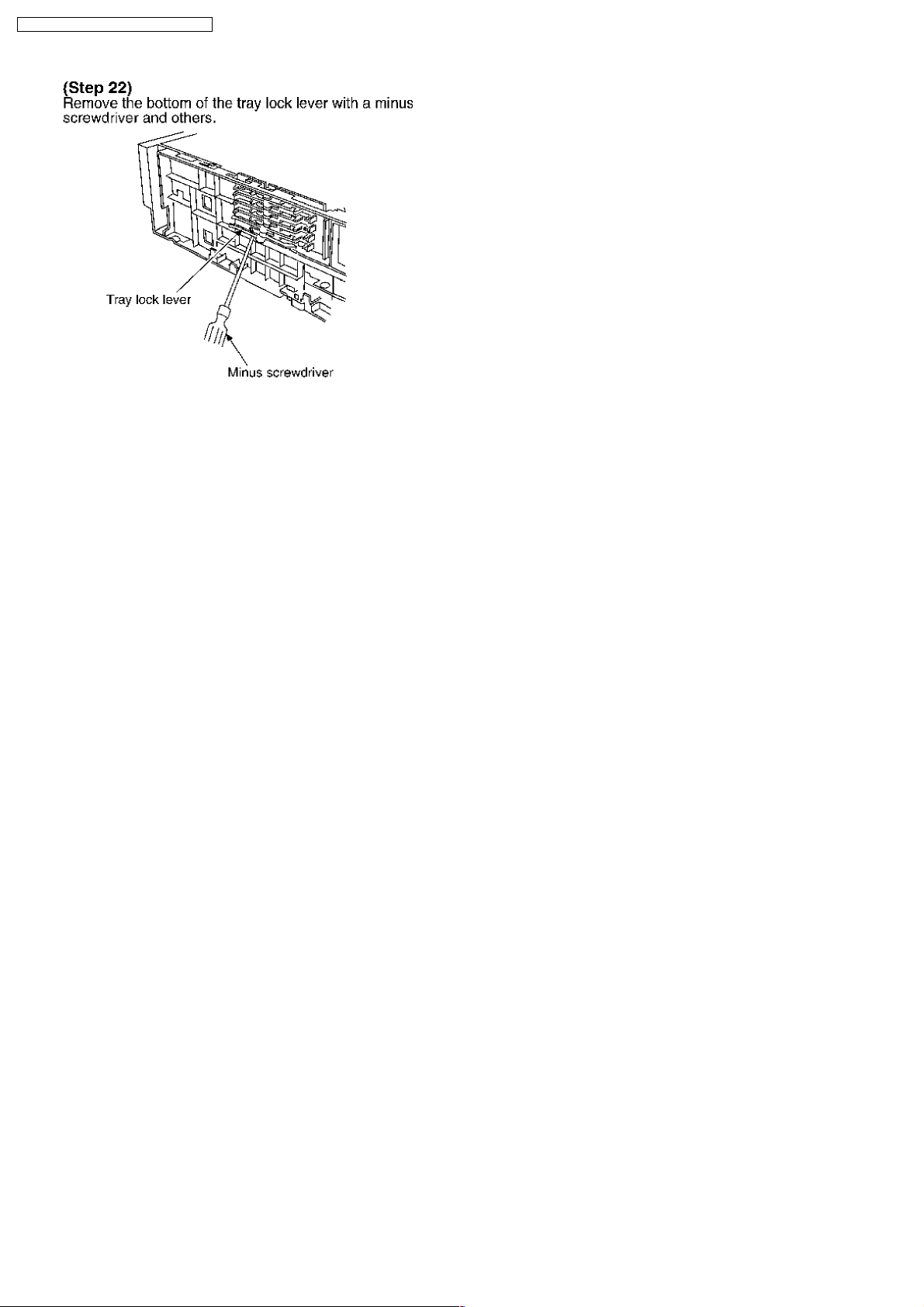

34

11.19. Replacement for traverse deck

· Follow the (Step 1) - (Step 3) of Item 11.12.

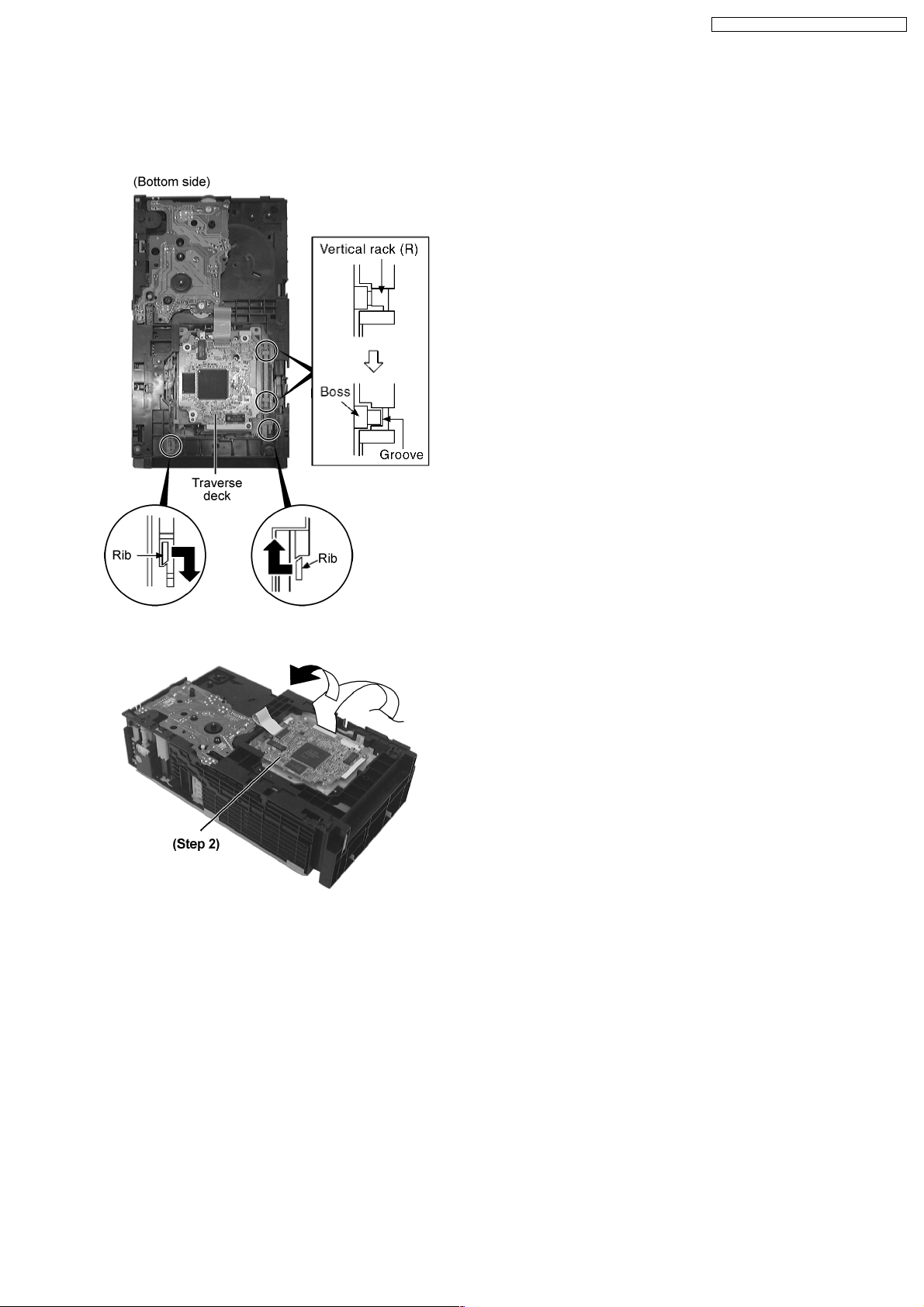

Step 1 Move ribs at both sides to the arrow direction (The
verticval rack (R) slides and the groove opens).

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Step 2 Remove CD traverse deck rotating to the arrow

direction.

35

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11.20. Replacement for optical pickup unit (CD mechanism)

· Follow the (Step 1) - (Step 4) of Item 11.2

· Follow the (Step 1) - (Step 3) of Item 11.3

· Follow the (Step 1) - (Step 7) of Item 11.5

· Follow the (Step 1) - (Step 3) of Item 11.7

· Follow the (Step 1) - (Step 2) of Item 11.20

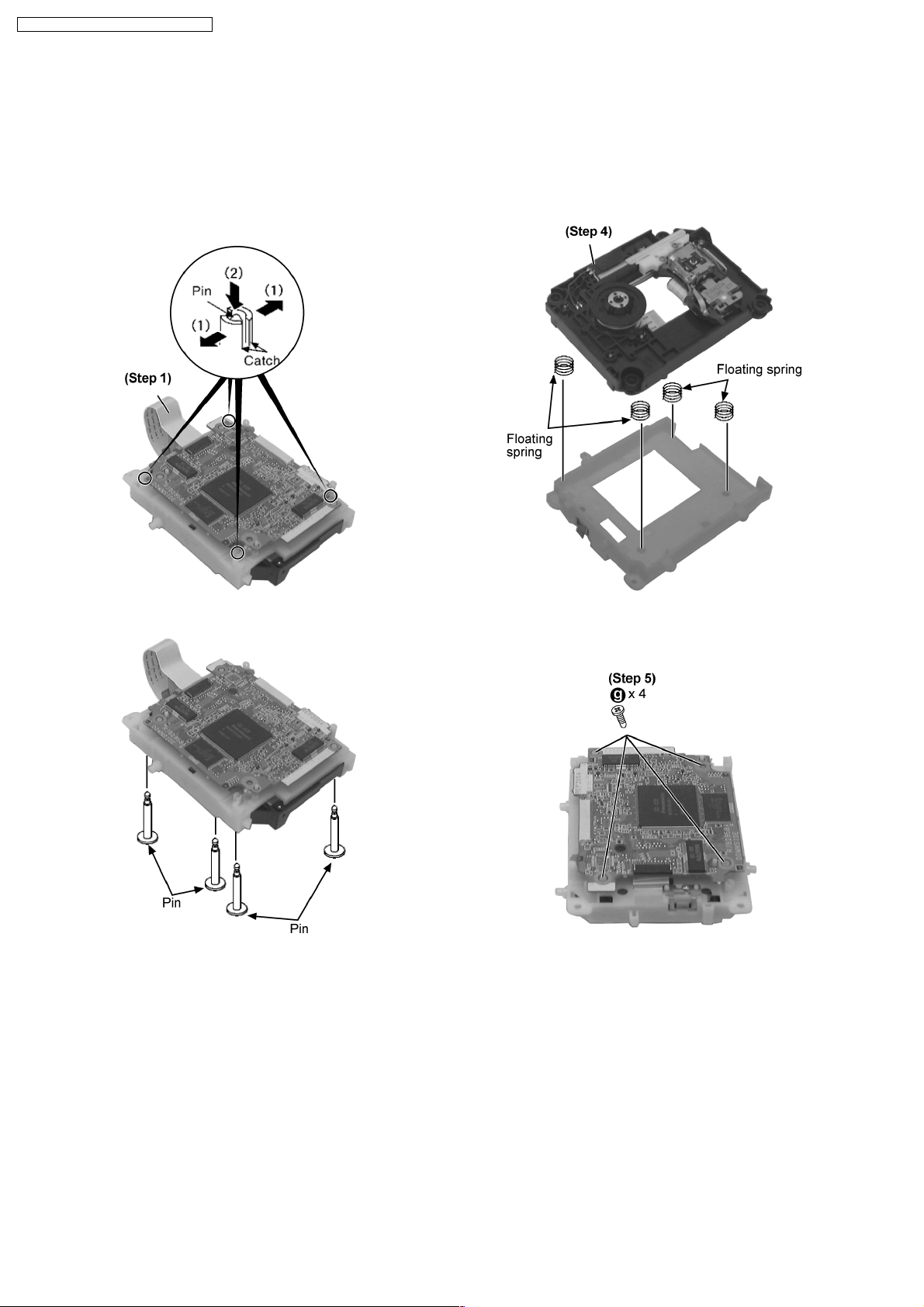

Step 1 Pull out FFC.

Step 2 Widening the catch, push the pin in.

Step 3 Remove 4 pins.

Step 4 Remove the traverse deck.

Note: As floating springs (4 pieces) come off at the same time,
be careful not to lose them.

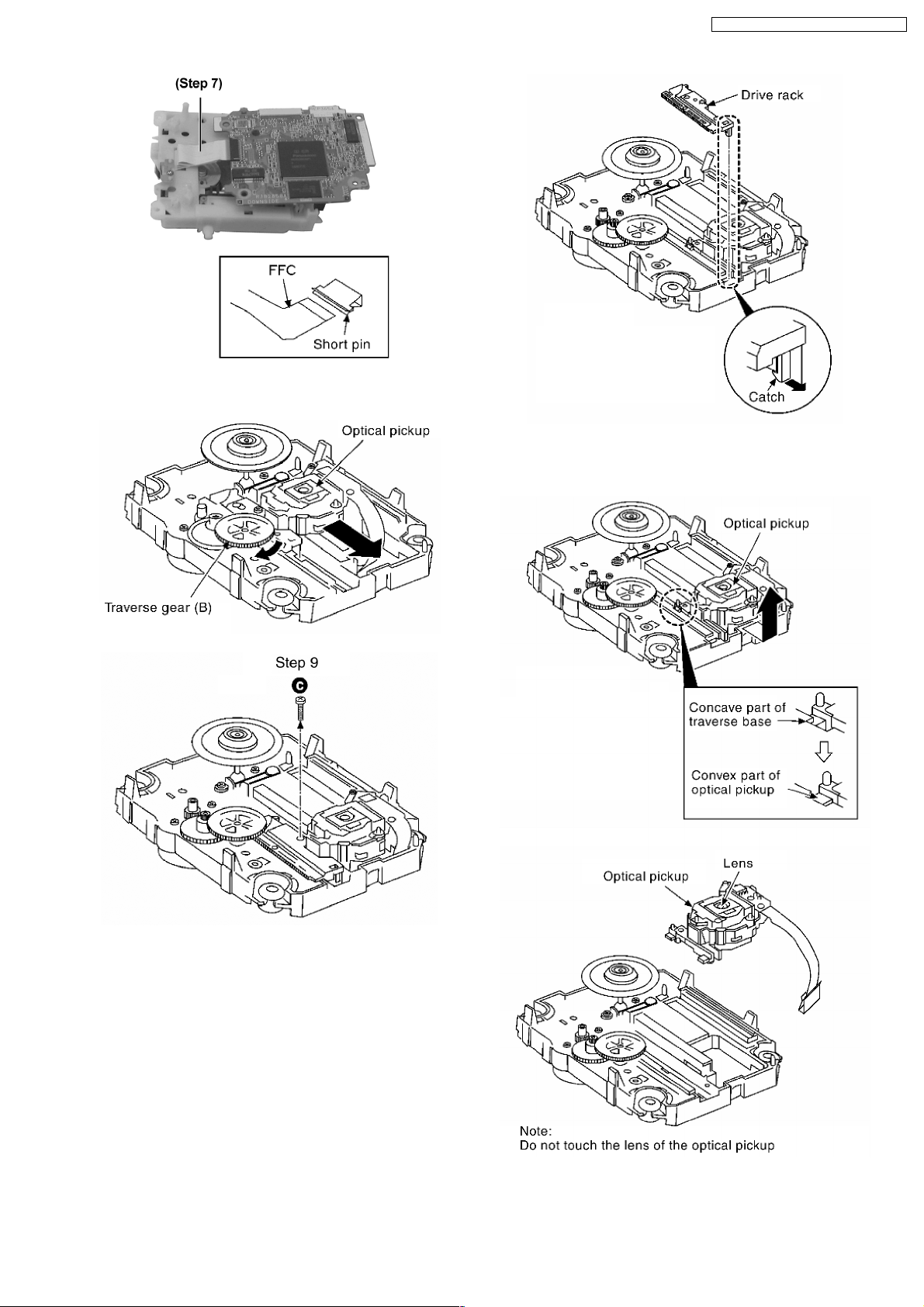

Step 6 Remove the dvd module board and turn it over.
Step 7 Pull FFC out from the connector.

Note: Insert a short pin into FFC of the optical pickup. [See
“Notice on handling of the optical pickup”].

36

Step 8 Rotate the traverse deck (B) to the arrow direction and
shift the optical pickup to the furthest backward.

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Step 11 Place the convex part of an optical pickup to the

concave part of a traverse base, then take out the optical
pickup.

Step 10 Remove the catch of the drive rack, and take out the
drive rack.

37

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

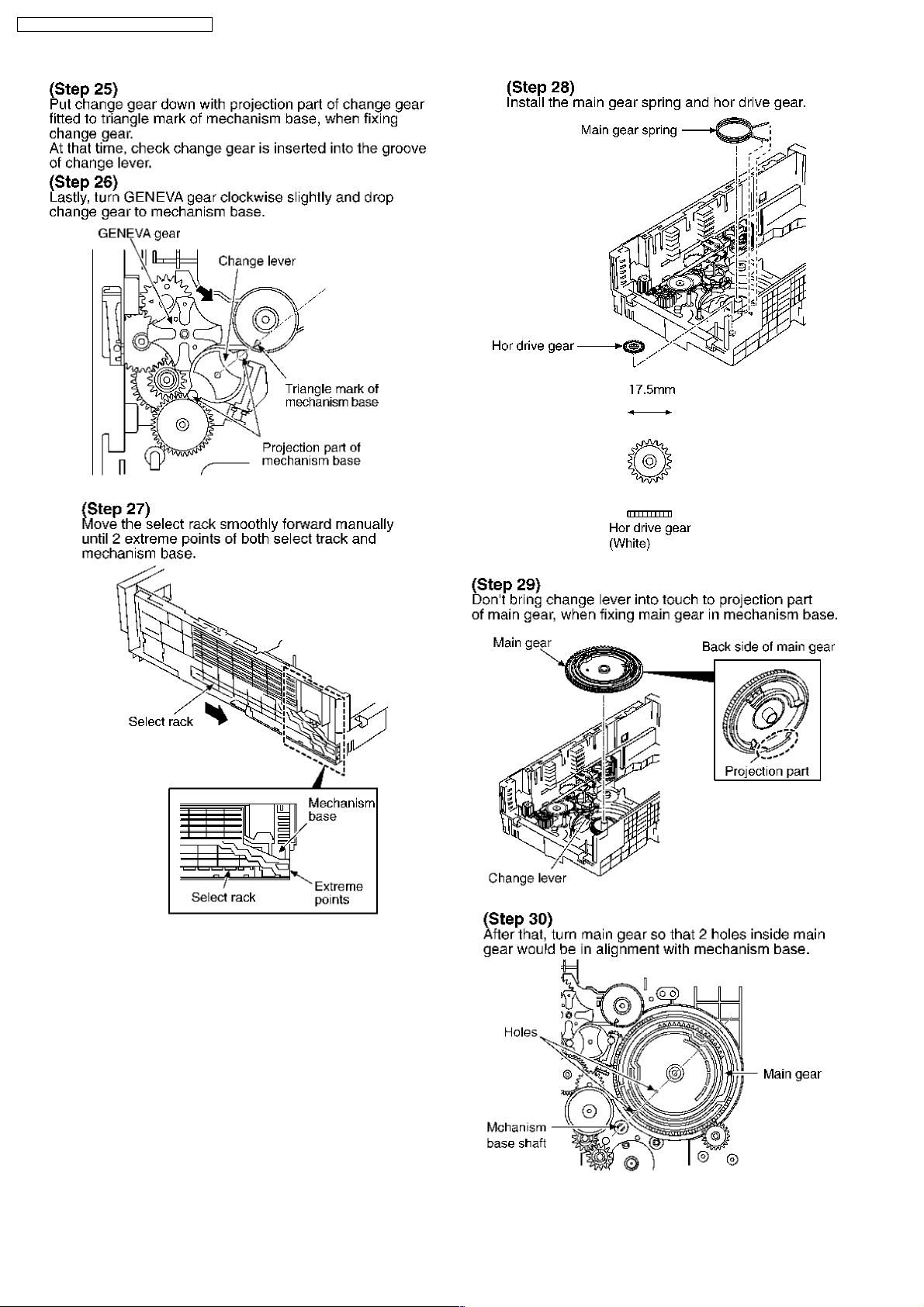

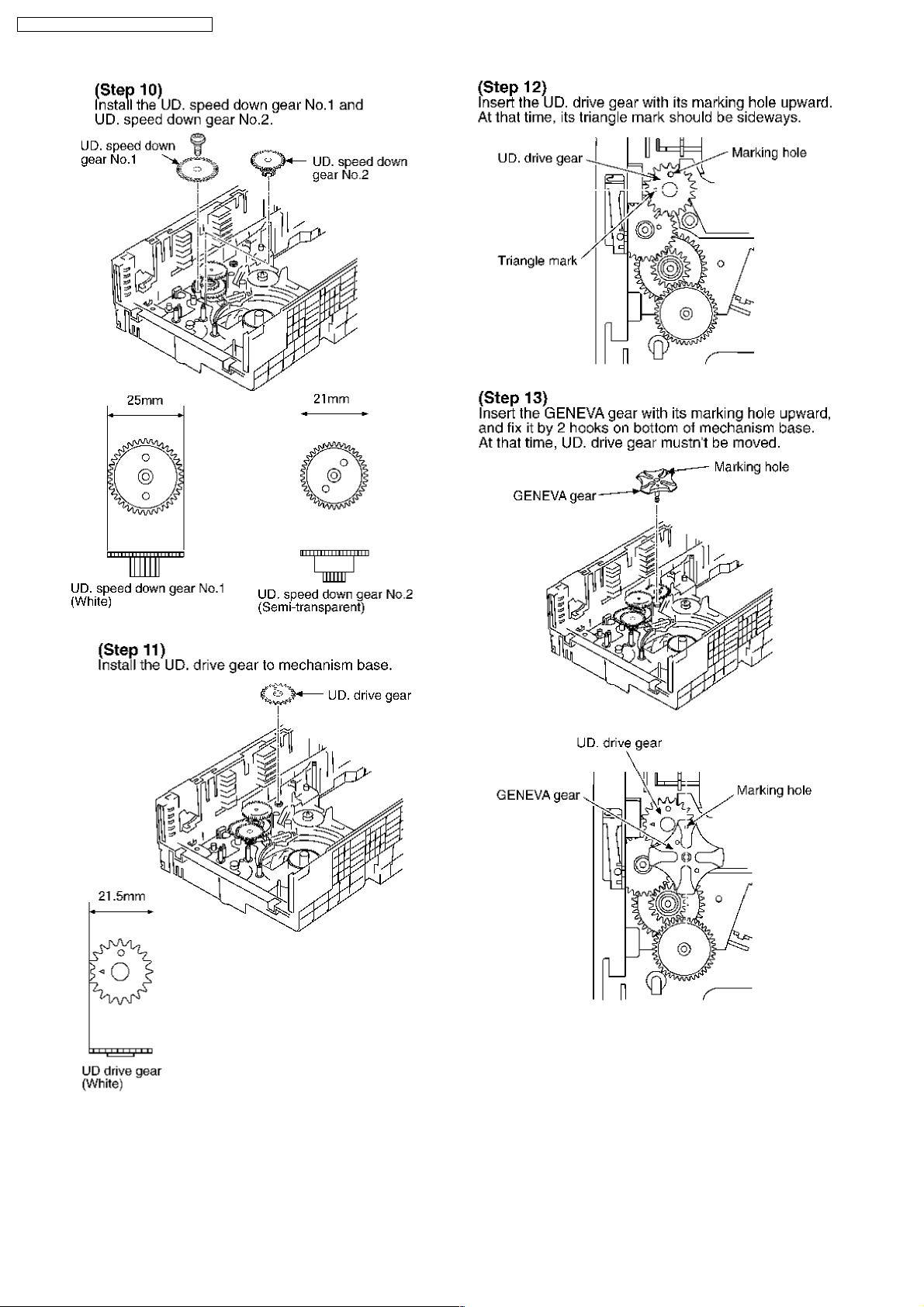

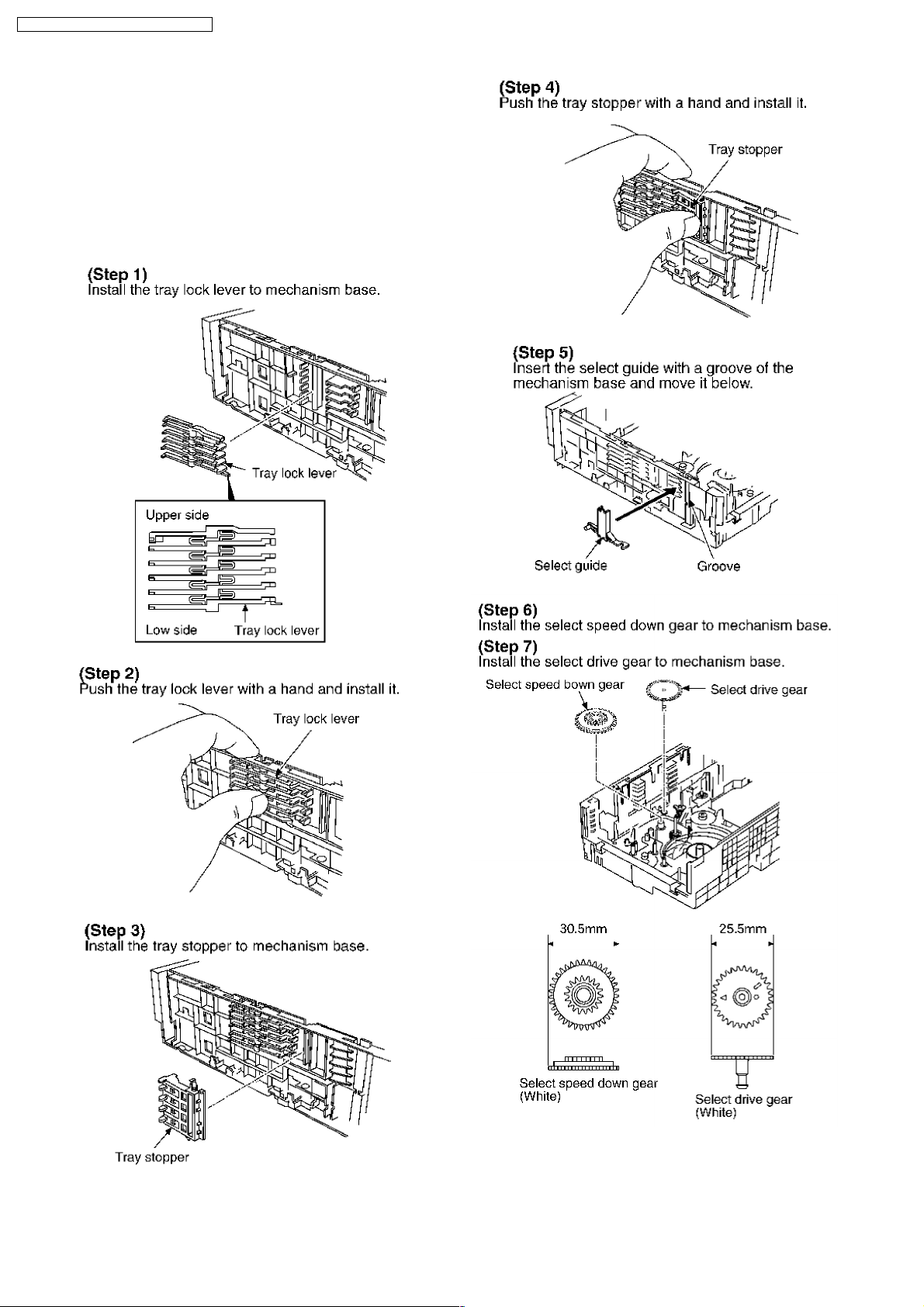

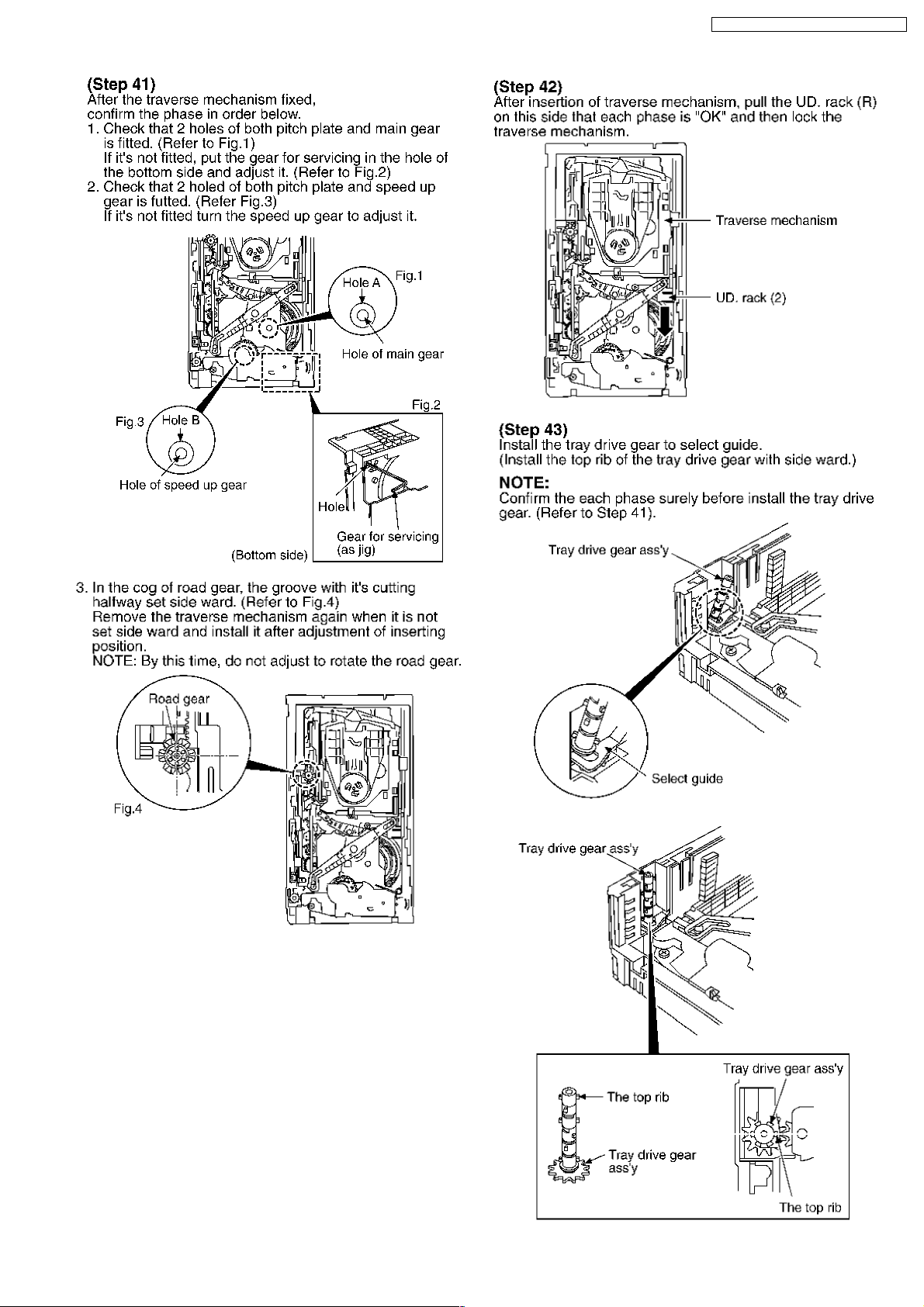

11.21. CR16 MECHANISM ASSEMBLY

PROCEDURE

The following specified greases and/or oil must be applied
when some specific parts are changed.

1. Floil grease (VFK1298) : The floil grease must be

applied to tray, tray (L) and tray (R).

2. Hanarl oil (VFK1700) : The hanarl oil must be applied to

any parts with grease other than the said parts.

38

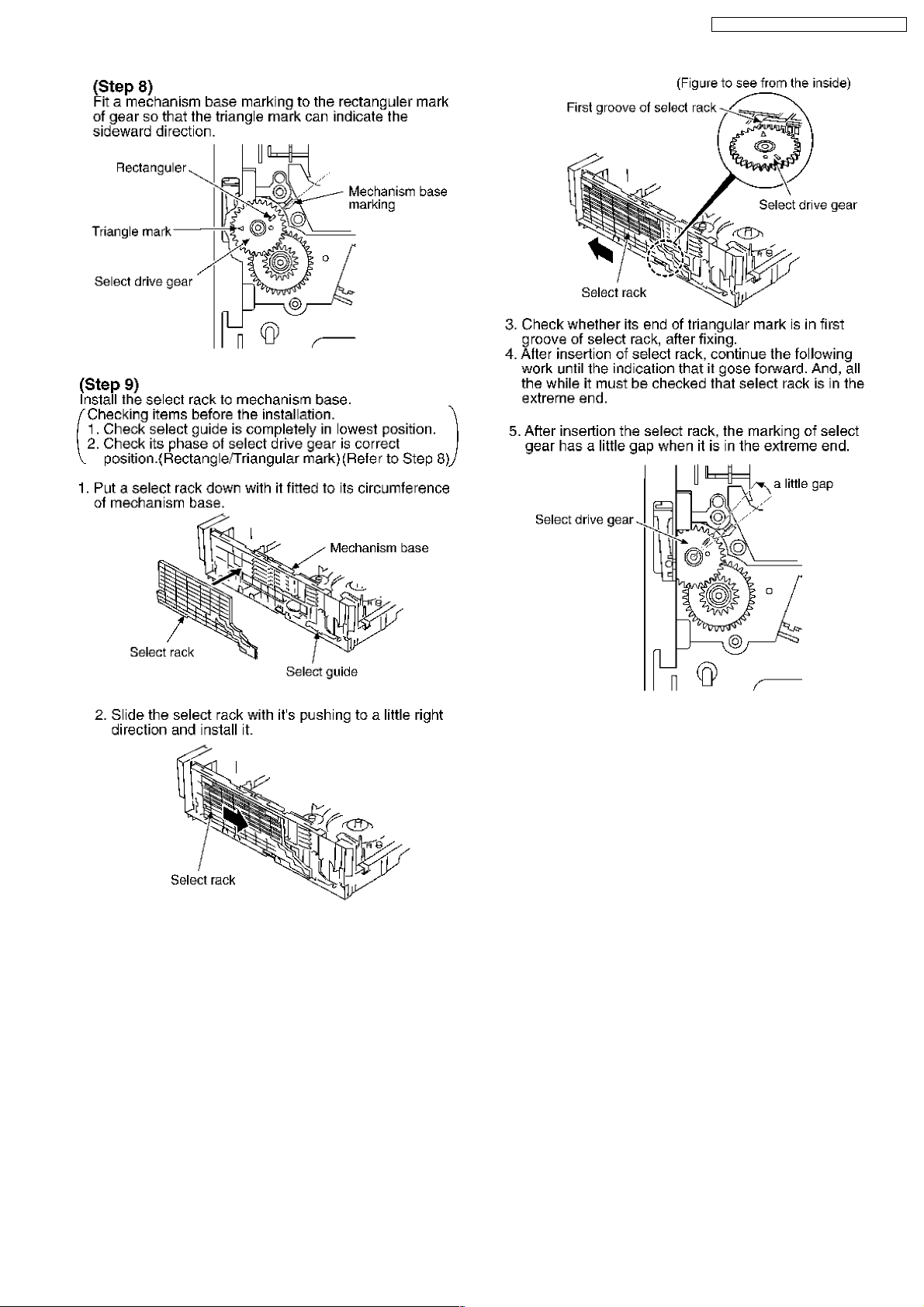

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

39

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

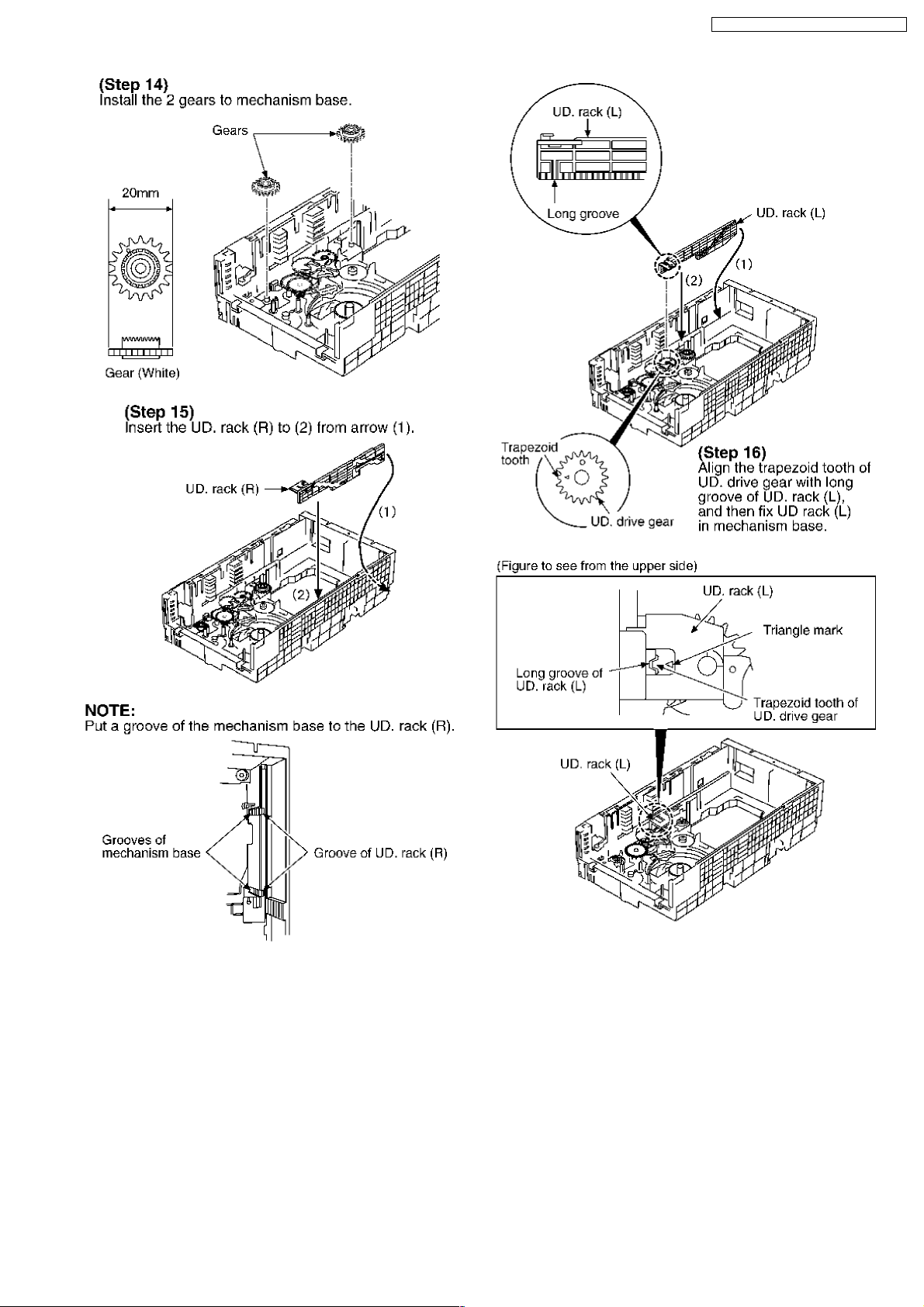

40

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

41

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

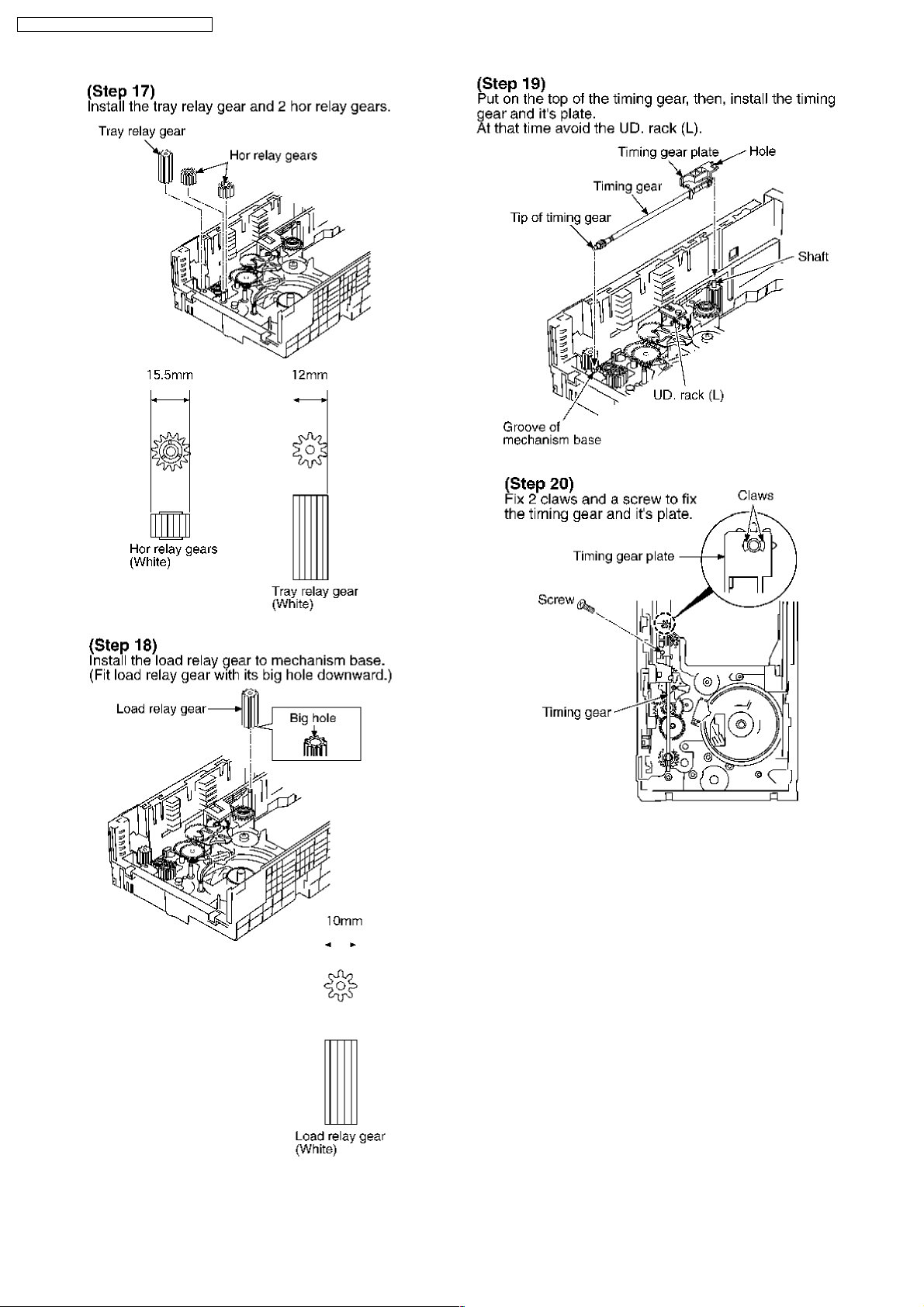

42

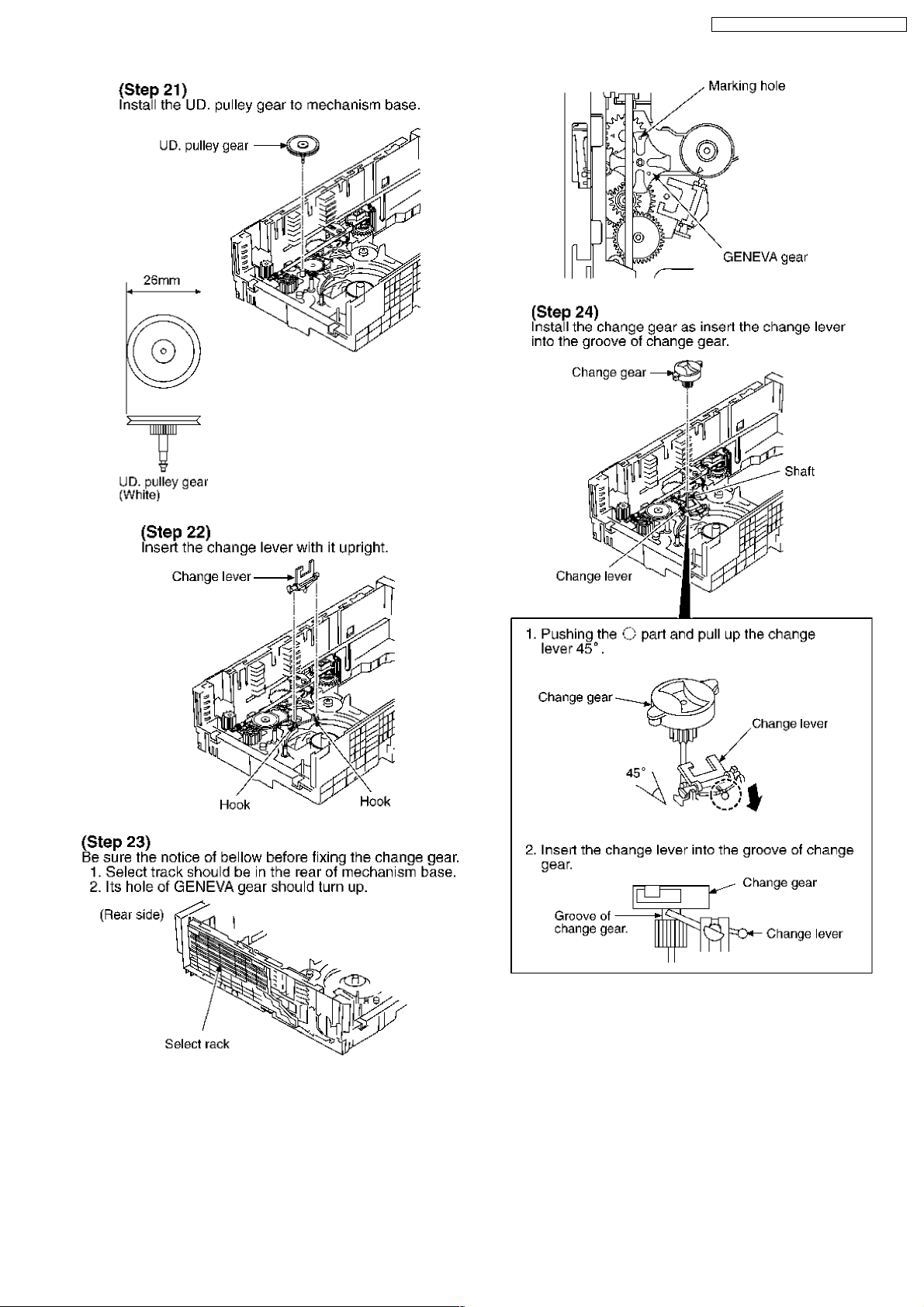

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

43

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

44

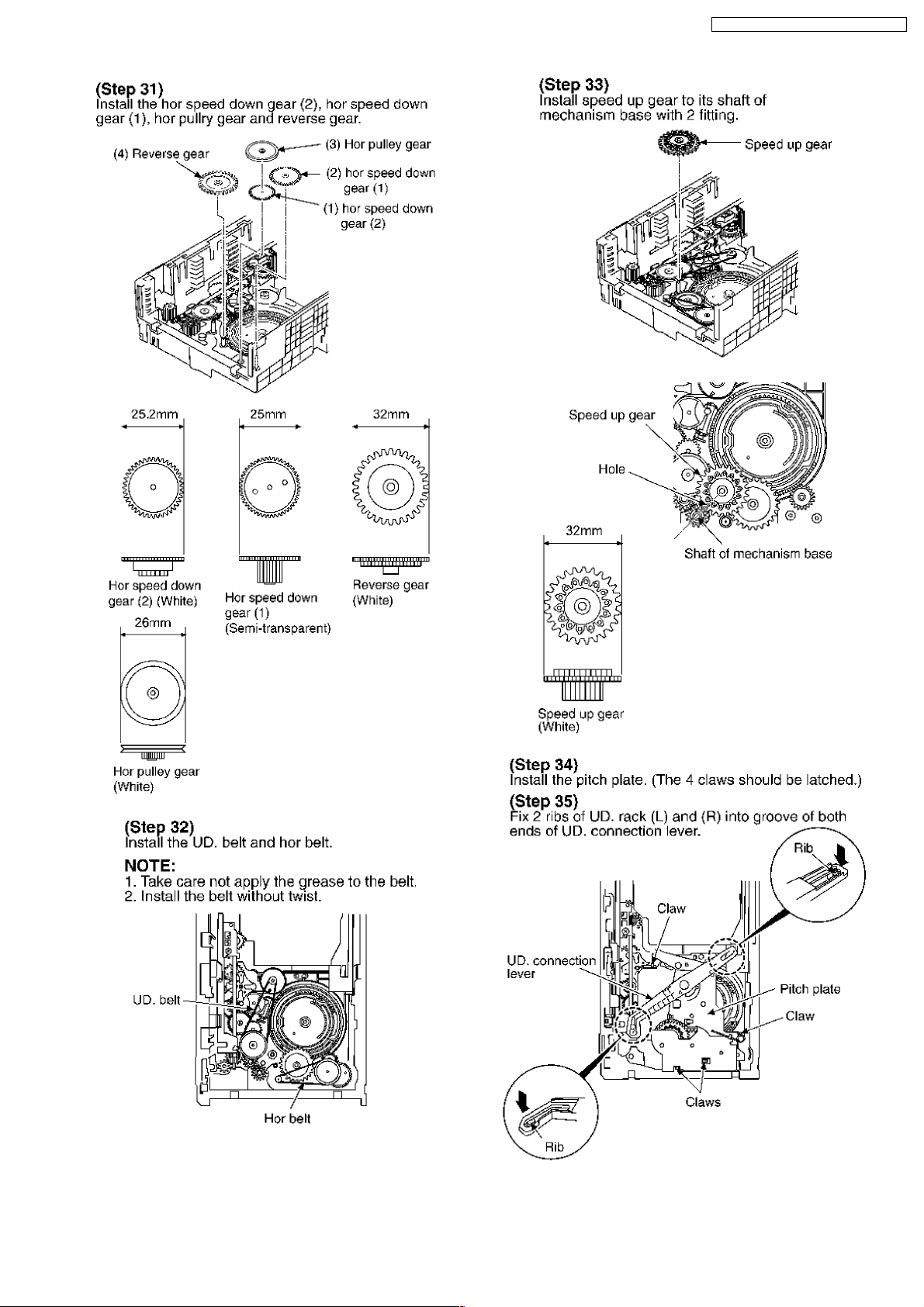

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

45

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

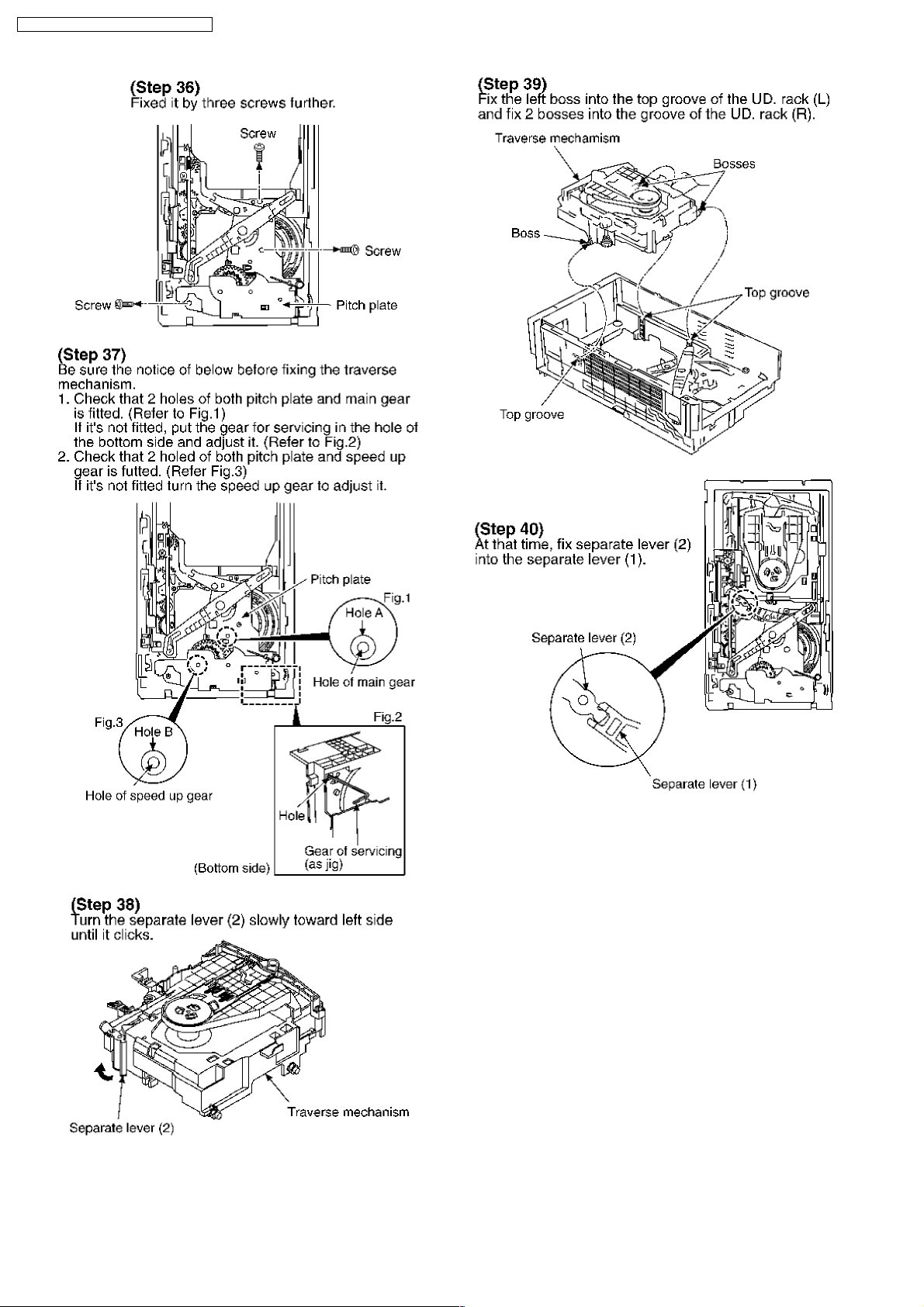

46

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

47

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

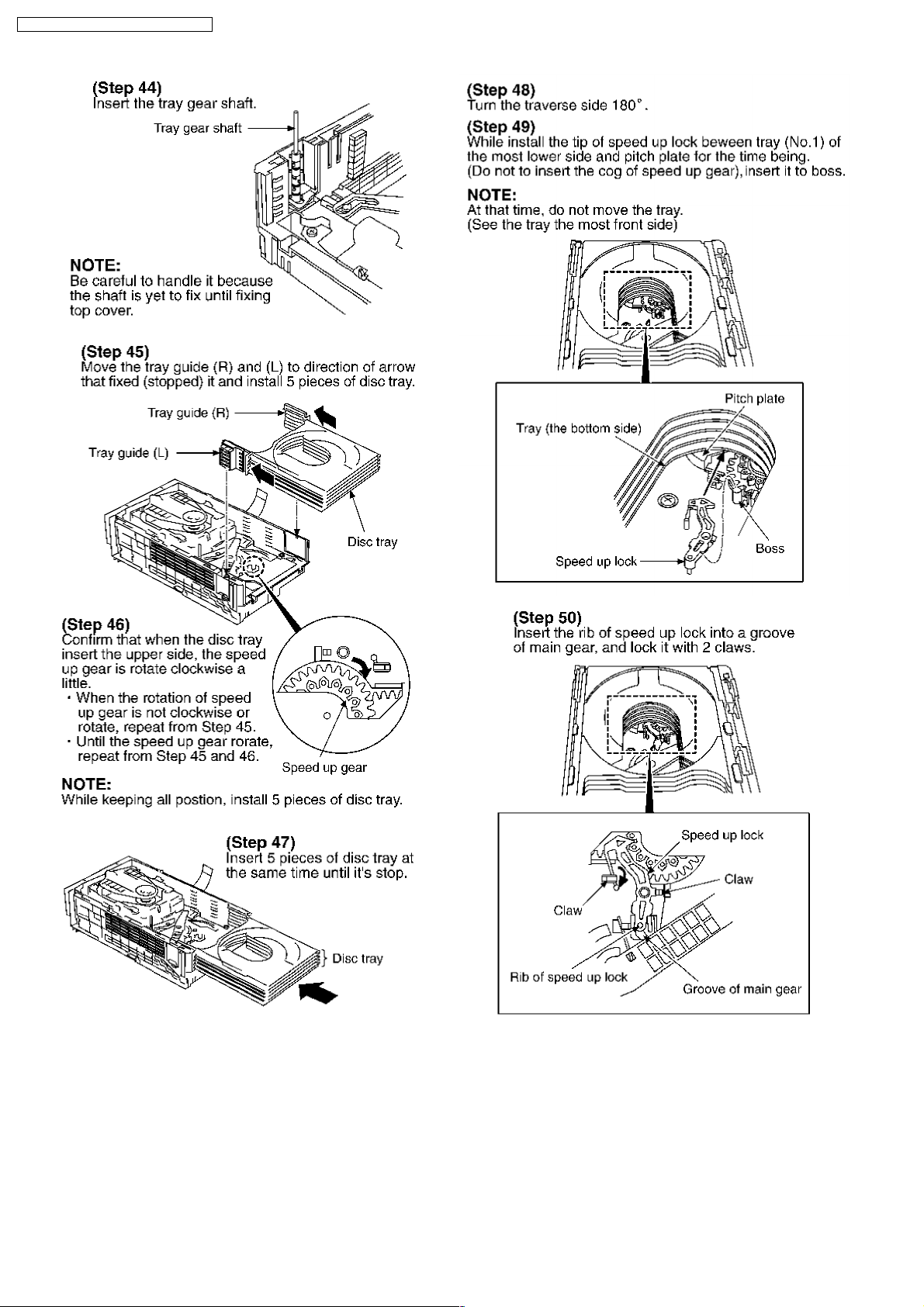

48

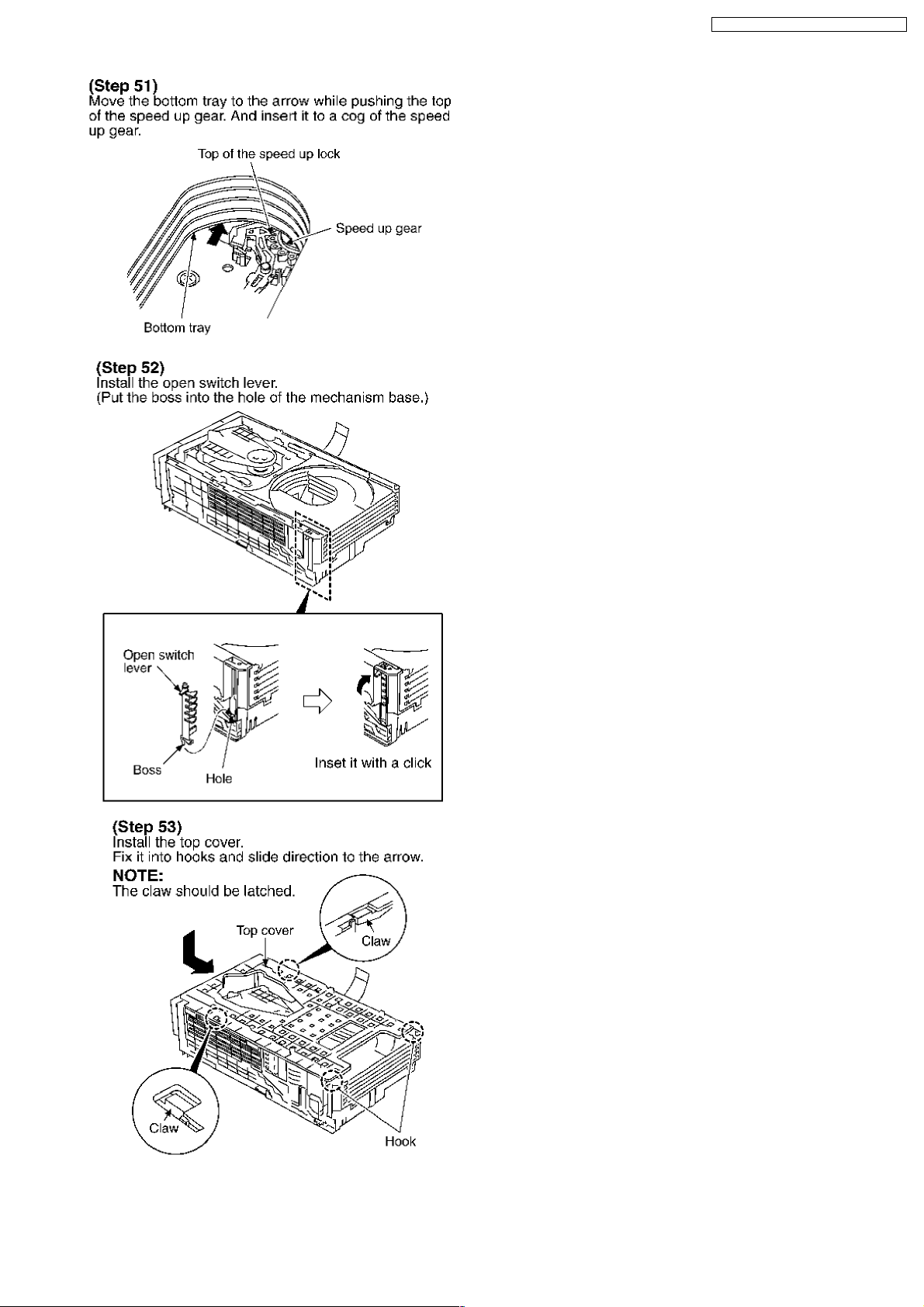

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

49

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

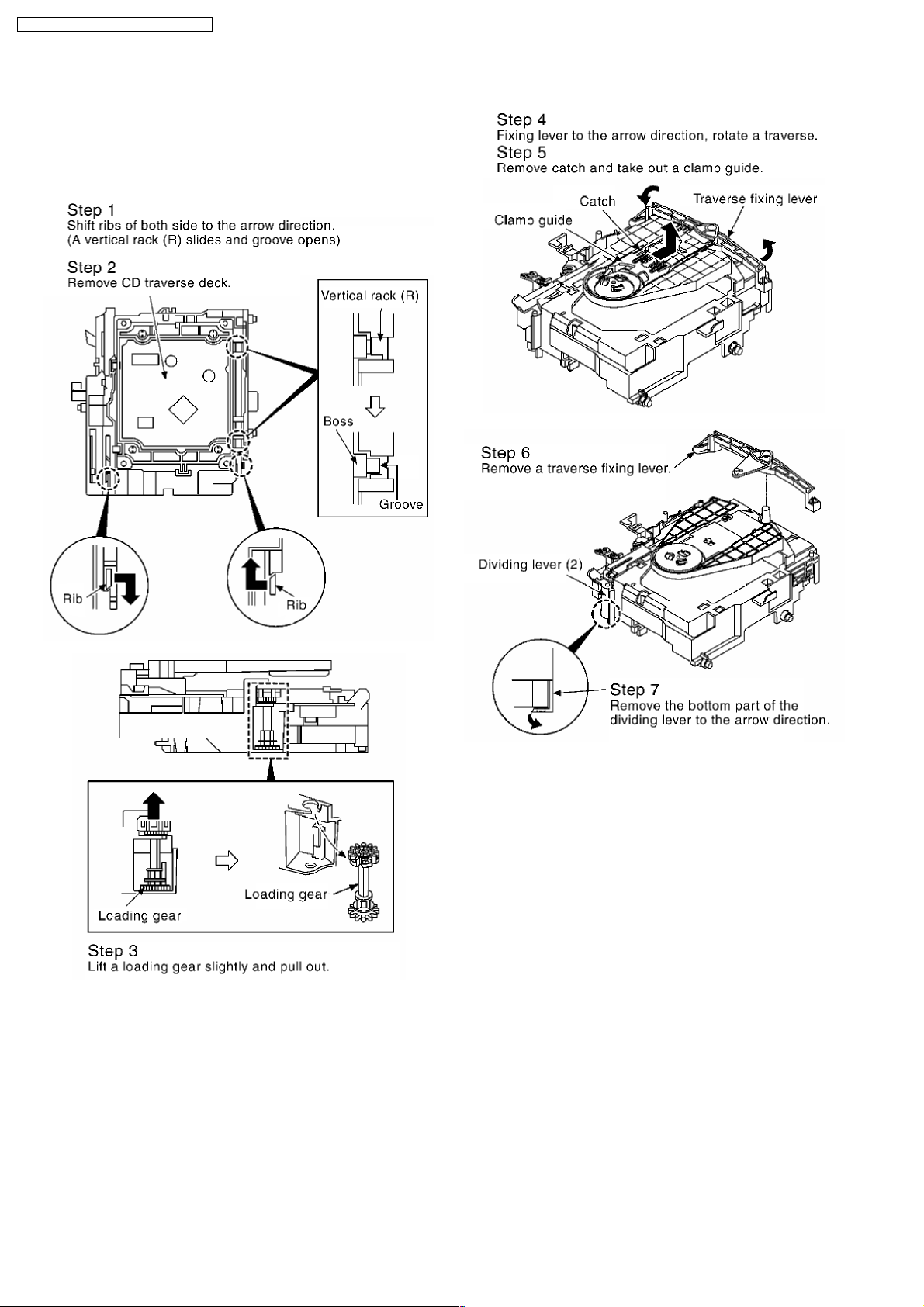

11.22. Disassembly for Traverse Unit

· Follow the (Step 1) - (Step 10) of item 11.19.2.

· Follow the (Step 1) - (Step 3) of item 11.19.3.

· Follow the (Step 1) - (Step 7) of item 11.13

· Follow the (Step 1) - (Step 7) of item 11.14

50

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

11.23. Handling of cassette tape jam

· Follow the (Step 1) - (Step 4) of Item 11.2.

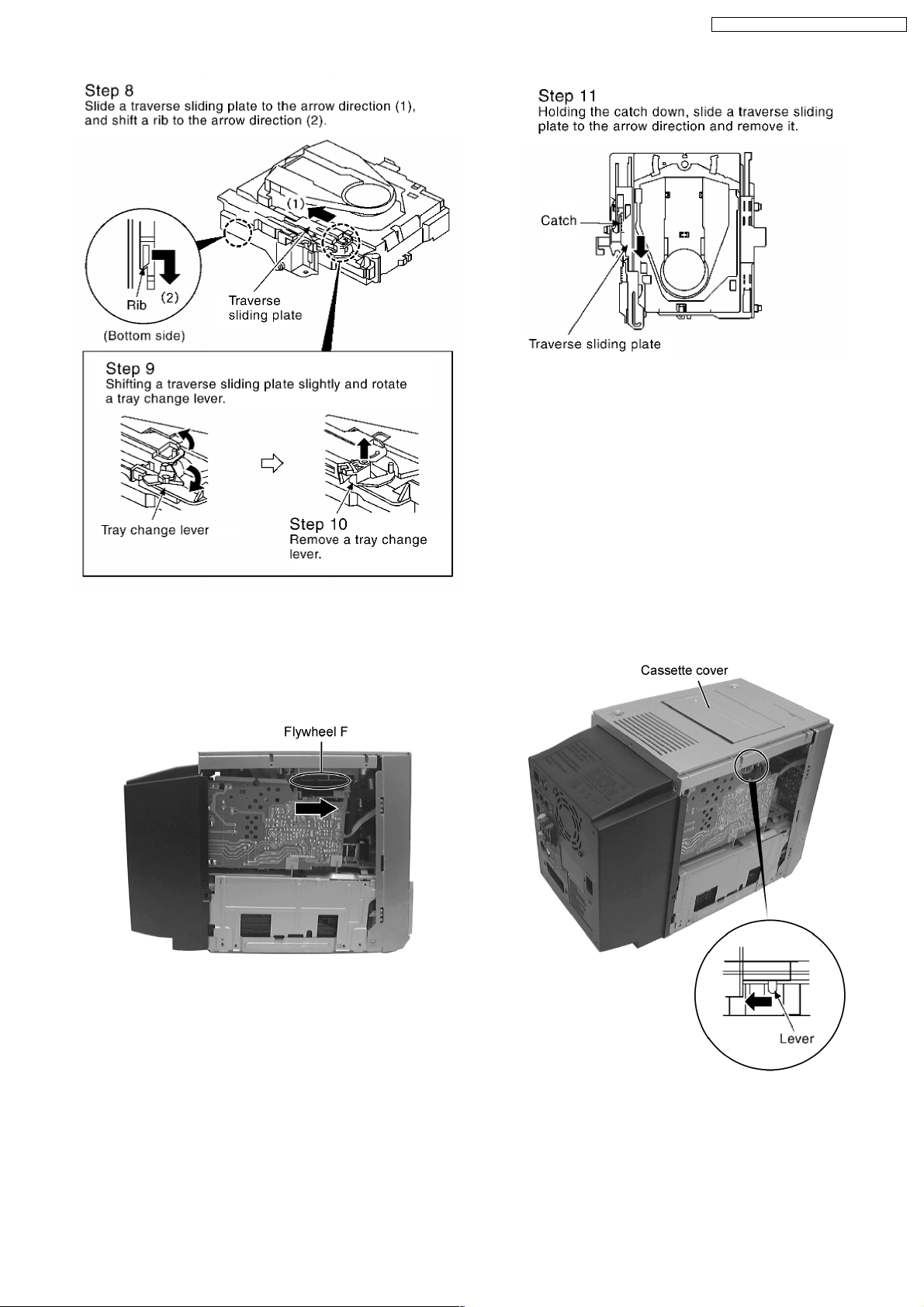

Step 1 If the cassette tape is not ejected due to twining around
capstan or pinch roller during playing or recording, rotate a
flywheel F to the arrow direction to remove twined tape.

Step 2 Push the lever to the arrow direction, open the cassette
cover and take out the cassette tape.

51

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

12 Self-Diagnosis Function

This unit is equipped with the self-diagnosis function, which displays an error when it occurs, for use during servicing.

12.1. Automatic Displayed Error Codes

12.1.1. Automatic Display Function

For a power unit error, the code is automatically displayed.
F61: Automatically displayed on the LCD of the player.

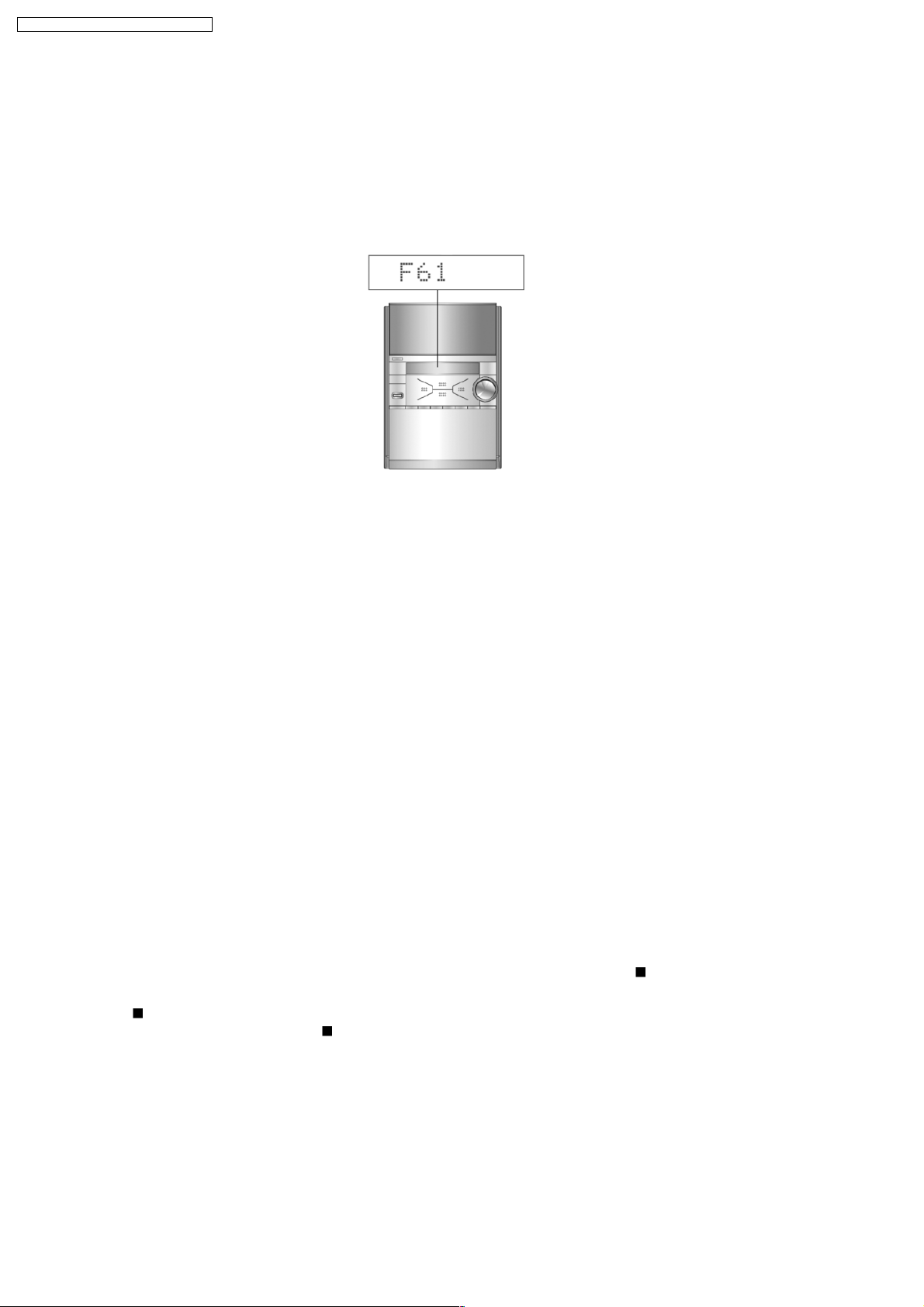

Fig. 12-1

12.1.2. Re-Display

· For F61 Display

−

− When the code, F61 is displayed, the power is automatically turned off.

− −

−

− The code, F61 is displayed for three seconds, and then the current time appears.

− −

−

− To retrieve the code, turn on the power button so that the code F61 appears, however, is switched to time display after three

− −

seconds, and the power is automatically turned off.

· For F76 Display

−

− The abnormalities of an output or abnormalities in the power supply of POWER AMP IC.

− −

12.1.3. Description of Error Code

12.1.3.1. F61

· State, Condition

When the power is turned on, the unit is automatically turned off. The power does not turn on.

· Cause, Troubleshooting

Power circuit system failure and/or direct current flown to speaker terminal
Identify the cause and replace with new parts.

12.2. Memorized Error Codes

12.2.1. Activating Self-Diagnosis Function and Displaying Method

1. Turn on the power.

2. Select DVD/CD function. With no DVD/CD inserted in the player, press and hold down the
and press the “0” button on the remote control for at least two seconds in order to display “DVD_F_ _ _ ”.

3. Press the
If several errors are detected, press the

button. If a memorized error is detected, the result of self diagnosis is displayed. (Ex.: T H15)

button to display each.

52

button for at least two seconds,

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Fig. 12-2

12.2.2. Re-Display

· Press the power button to turn off the power, and then turn on the power.

· The details of self diagnosis are stored in the unit memory.

To retrieve them, follow the procedure described the above, “Activating Self-Diagnosis Function and Displaying Method”.

12.3. Service Mode Table 1

Following modes are available with combinations of the pressed buttons on the player and on the remote controller unit.

Player Remote controller unit Usage

button

0 Error code display (Refer to the item, 9.4. DVD Error Code Description)
5 Tilt adjustment
6 Region number and broadcasting system check
7 Built-in program version check

DISPLAY DVD laser drive current check

3 CD laser drive current check

PAUSE Writing of laser drive current value after replacement of optical pickup

(Do use this function only when optical pickup is replaced.)
Initialization of the player (factory setting is restored.)

Used after replacement of micro-computer and its peripherals and printed circuit board.

12.4. DVD/CD Self-Diagnosis Error Code Description

Error Code State, Conditon Cause, Troubleshooting

H15 The disc tray cannot be opened: it closes spontaneously. Disc tray open/close detection switch (S1001) failure.
H16 The disc tray cannot be closed: it opens spontaneously.

Error Code Meaning Details

U. H. Error
U11 Focus servo failure
H01 Tray loading failure
H02 Spindle servo failure (Spindle servo, DSC, SP motor, CLV servo failure)
H03 Traverse motor failure
H04 Tracking servo error
H05 Seek timeout failure
Decoder related
F220 Y level adjustment failure Brightness signal level adjustment cannot be properly operated
F221 C level adjustment failure Color signal level adjustment cannot be properly operated
II C error
F4FF Compulsory initialization failure (time out)
DSC related
F500 DSC error DSC stops due to servo failure. (Startup, focus failure, etc.)
F501 DSC not ready Communication failure between DSC and system computer (No

F502 DSC time out failure See F500
F503 DSC communication failure Communication failure (Result failure occurs after communication

F504 Data slice offset adjustment failure Not in use. (FEP error)
F505 DSC Attention Error see F500.
F506 Invalid media Disc is placed upside down; TOC is unreadable or invalid disc is

ODC related
F600 Control information unattainable due to demodulation error Operation stops because navigation data cannot be obtained due

(Check and replace)

communication because DSC does not move)

command is transmitted.)

inserted.

to demodulation system failure.

53

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Error Code Meaning Details

F601 Unknown sector ID requested Operation stops because access of illegal ID data is requested.
F602 LEAD-IN unattainable due to demodulation error Unable to read LEAD IN data
F603 KEYDET unattainable due to demodulation error Unable to obtain CSS data
F610 ODC failure No permission of command issue
F611 6626 QCODE don’t read ERROR Unable to obtain seek address at CD system
F612 No CRC OK during a certain time of duration Unable to obtain ID data at DVD system
F630 No response to KEY DET makeshift (Internal use)
F631 CPPM KEY DET unavailable to FILE end terminal CPPM fail system cannot be read due to scratch.
F632 CPPM KEY DET unavailable Revoke or altered.
Microcomputer error
F700 MBX overflow When replying a message to Disc Manager. (Operation continues)
F701 Message command incomplete A message is issued before replying to Disc Manager.
F702 Message command changed A message is issued before replying to Disc manager.
F710 AD conversion at AN0 incomplete Conversion cannot be complete within a designated time during

check of AD conversion before Y/C automatic adjustment.

F711 AD conversion at AN1 incomplete Conversion cannot be complete within a disignated time during

check of AD conversion before Y/C automatic adjustment.

F712 AD conversion at AN0 dispersed Conversion result exceeds standards while a designated value is

set during check of AD conversion before Y/C automatic
adjustment.

F713 AD conversion at AN1 dispersed Conversion result exceeds standards while a designated value is

set during check of AD conversion before Y/C automatic
adjustment.

F720 DA conversion at AN0 unchangeable Conversion result exceeds standards while a designated value is

set during check of AD conversion before Y/C automatic
adjustment.

F721 DA conversion at AN1 unchangeable Conversion result exceeds standards exceeds standards while a

designated value is set during check of AD conversion before Y/C
automatic adjustment .

F880 Unsuitable task number When a message arrives from not existing task (error stops)
F890 A message is sent during AV task transmission During transmission of a message to AV task (error stops)
F891 Unable to transmit a message to AV task When a message starts transmission to AV task (error stops)
F893 From altered
F894 EEPROM failure
F895 PERR JMP MI SMUCH Firm device incompatible (non-conformant destination value)
F896 PERR JMP NON Firm device incompatible (non existing jumper)
F897 PERR NO INIT Initialization incomplete
F8A0 Unsuitable message command When a message starts transmission to AV task (error stops)

12.5. Error Codes Stored During No Play

Error Code Meaning System Computer Item Setting Task Internal error in

F0BF 6) Unable to replay due to physical layer

PCND_NOPLAY_PHYSICAL 0x50 DriveManager 0xD0BF

identification failure

F0C0 8) DVD: Unable to replay due to no DVD

PCND_NOPLAY_VIDEO 0x70 DiscManager 0xD0C0

Video/Audio/VR
F0C1 9) DVD: Prohibited due to illegal regional code PCND_NOPLAY_RCD 0x80 DiscManager 0xD0C1
F0C2 A) DVD: No replay due to PAL system PCND_NOPLAY_PAL 0x90 DiscManager 0xD0C2
F0C3 B) DVD: All title replay prohibited in parental setting PCND_NOPLAY_PTL 0xA0 DiscManager 0xD0C3
F0C4 C) VCD: Prohibited due to PHOTO CD format PCND_NOPLAY_PHOTOCD 0xB0 DiscManager 0xD0C4
F0C5 D) VCD/CD: Prohibited due to CD-ROM without

PCND_NOPLAY_CDROM 0xC0 DiscManager 0xD0C5

CD-DA

system computer

12.6. Service Mode Table 2

Following modes are available with combinations of the pressed buttons on the player and on the remote controller unit.

Item Operational Condition

and Key Function

Jitter display While the player is

stopped and no disc is
inserted, press and
hold down the
button on the player
and the number
button, “5” on the
remote controller unit.

Jitter display
Measures and displays jitter.
Measurement is repeated every
second. Read error counter starts at 0
at the mode setting, and increased by
one as data read fails at target block. A
small defect is allowed to correct by
retry. Any possibility is counted as one
increment. Repetitive errors after retry
increase by two levels or more.

Details Display To Exit Mode

xxx*1_yyy*2_zz

*1

: Jitter display mode

*2

: Jitter measurement value

*3

: Read error counter

*4

: Focus driving value

*3

Press the STOP.

Values are shown to one decimal
place in the decimal digit.Focus
driving value is displayed in the
hexadecimal digit.

54

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Item Operational Condition

and Key Function

Error code display While the player is

stopped and no disc is
inserted, press and
hold down the
button on the player
and the number
button, “0” on the
remote controller unit.

Measurement of
laser current
electricity initialization
value

While the player is
stopped and no disc is
inserted, press and
hold down the
button on the player
and the

button on
the remote controller
unit.

Measurement of DVD
laser current
electricity

While the player is
stopped and no disc is
inserted, press and
hold down the
button on the player
and the DISPLAY
button on the remote
controller unit.

ADSC internal RAM
display

While the player is
stopped and no disc is
inserted, press and
hold down the
button on the player
and the number button
“1” or “2” on the remote
controller unit.

Measurement of CD
laser current
electricity

While the player is
stopped and no disc is
inserted, press and
hold down the
button on the player
and the number button
“3” on the remote
controller unit.

User initialization While the player is

stopped and no disc is
inserted, press and
hold down the
button on the player
and the number button

on the remote

controller unit.

Region display While the player is

stopped and no disc is
inserted, press and
hold down the
button on the player
and the number
button, “6” on the
remote controller unit.

Details Display To Exit Mode

Error code display
Displays the latest error code stored in
EEPROM.

Measurement of laser current
electricity initialization value
Memorizes each initialization value of
DVD and CD in EEPROM.

DVDnn_F---

*nn: Error history
*--: Error number

LDO*1_034*2_028

*1

: Laser current electricity

measurement mode

*2

: DVD current electricity value

*3

: CD current electricity value

Values are shown in the decimal
digit. The above example indicates
that the current electricity
initialization value is 34mA at DVD
laser and 28mA at CD laser when
laser is turned on.

Measurement of DVD laser current
electricity
Measures DVD laser current electricity
and displays the result together with
the initialization value stored in
EEPROM. After measurement, DVD
laser is lit till the power is turned off (or
goes off when the primary power is

LDD*1_034*2_032

*1

: DVD laser current electricity

measurement mode

*2

: Current electricity initialization

value stored in EEPROM

*3

: Present value of current

electricity

turned off).

Values are shown in the decimal
digit. The above example indicates
that the current electricity
initialization value is 34mA and its
present value is 32mA.

ADSC internal RAM display
Reads and displays the RAM value
inside ADSC. The address is renewed
when the CLEAR key is pressed so
that the values at eleven points appear.

A*1_0FA*2_6901

*1

:ADSC internal RAM display

mode

*2

: Address

*3

: RAM value at displayed address

Values are shown in the
hexadecimal digit. The above
example indicates that ADSC value
at the address, 0FAh is 6901h.

Measurement of CD laser current
electricity
Measures CD laser current electricity
and displays the result together with
the initialization value stored in
EEPROM. After measurement, CD
laser is lit till the power is turned off (or
goes off when the primary power is

LDC*1_028*2_026

*1

: CD laser current electricity

measurement mode

*2

: Current electricity initialization

value stored in EEPROM

*3

: Present value of current

electricity

turned off).

Values are shown in the decimal
digit. The above example indicates
the current electricity initialization
value is 28mA and its present value
is 26mA when laser is turned on.

User initialization

“INITIALIZE” Automatically exits
The user setting recovers the factory
setting.

Region display [srrrxxyzzzz]

s : Panecon model type
rrr : Panecon release number
x : Syscon generation (45)
y: Syscon model type
zzz: Syscon release number

Automatically exits
the mode after five
seconds.

*3

Automatically exits
the mode after five
seconds.

*3

Automatically exits
the mode after five
seconds.

*3

*3

Press the STOP.

the mode after five
seconds.

Automatically exits
the mode after five
seconds.

55

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Item Operational Condition

and Key Function

Firm version display While the player is

stopped and no disc is
inserted, press and
hold down the
button on the player
and the number
button, “7” on the
remote controller unit.

Region and firm
display

While the player is
stopped and no disc is
inserted, press and
hold down the
button on the player
and the number
button, “8” on the
remote controller unit.

Laser use time While the player is

stopped and no disc is
inserted, press and
hold down the
button on the player
and the

button
on the remote
controller unit.

Reset laser use time While the usage time 1

is displayed, press and
hold down the
button on the player
and the

button
on the remote
controller unit.

Spindle use time While the player is

stopped and no disc is
inserted, press and
hold down the
button on the player
and the

button
on the remote
controller unit.

Reset spindle use
time

While the usage time 2
is displayed, press and
hold down the
button on the player
and the

button
on the remote
controller unit.

Communication error
display

While the player is
stopped and no disc is
inserted, press and
hold down the
button on the player
and the MENU button
on the remote
controller unit.

Details Display To Exit Mode

Firm version display rrr*1_xx*2y*3zzz

*1

: Panel computer release number

*2

: System computer generation

*3

: System computer model type

*4

: System computer release number

Region and firm version display _r*1__xx*2y*3zzz

*1

: Region number

*2

: System computer generation

*3

: System computer model type

*4

: System computer release number

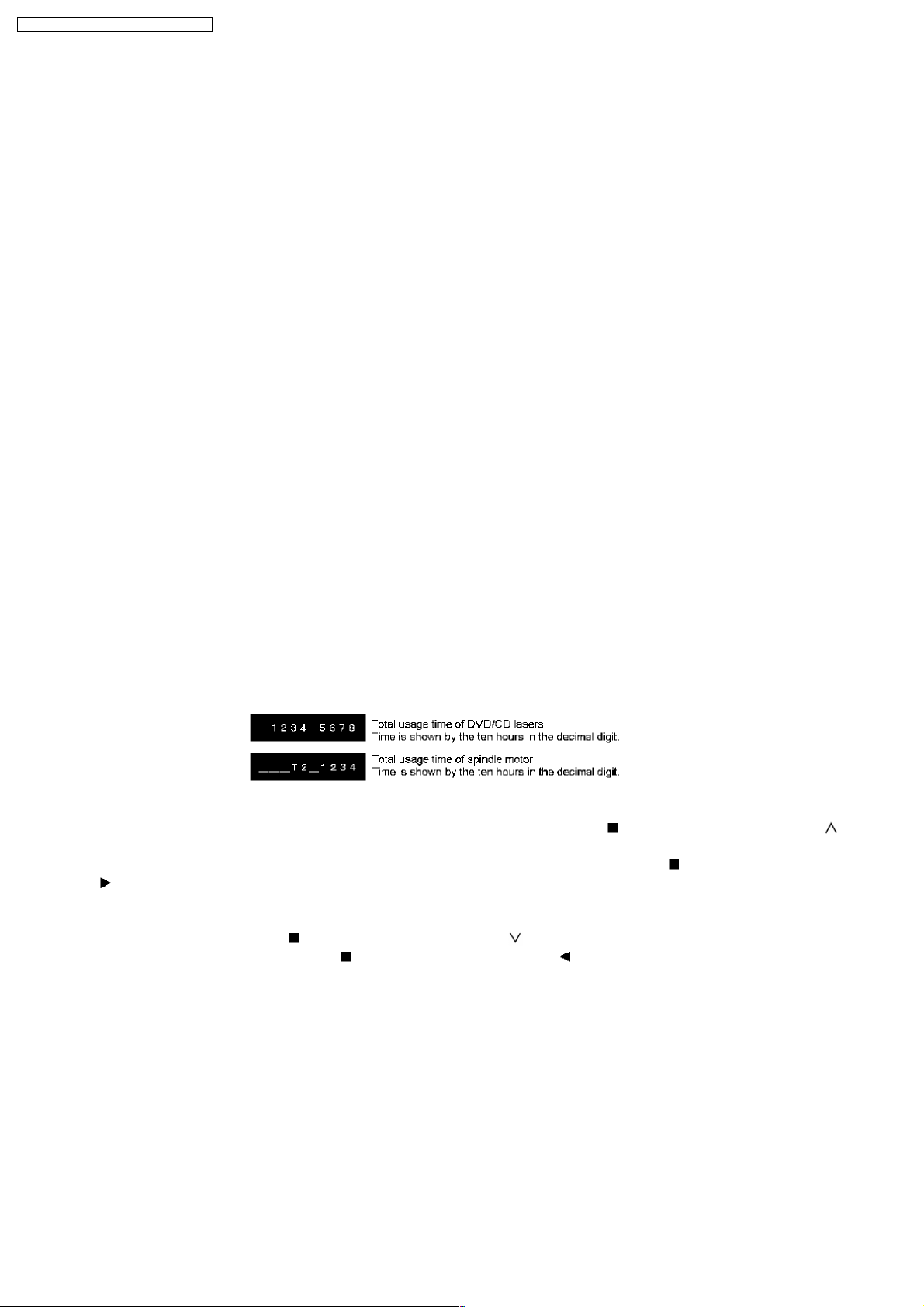

Laser usage time

T1_1234_5678
Measures each for DVD and CD
respectively.

The numbers in the left show usage

time for DVD laser and those in the

right for CD laser. The four-digit

number is shown by the ten hours in

the decimal digit. The number after

0000 is 9999.
Laser usage time reset

T1_0000_0000 Automatically exits
Resets both for DVD and CD at once.

Spindle motor usage time T2_1234

The four-digit number is shown by

the ten hours in the decimal digit.

The number after 0000 is 9999.

Usage time 2 reset

T2_0000 Automatically exits
Spindle motor usage time

Displays frequency of communication

-ERR_00/30 Automatically exits
errors between system computer firm
IC and mechanical computer IC during
DVD module.

*4

Automatically exits
the mode after five
seconds.

*4

Automatically exits
the mode after five
seconds.

Automatically exits
the mode after five
seconds.

the mode after five
seconds.

Automatically exits
the mode after five
seconds.

the mode after five
seconds.

the mode after five
seconds.

12.7. Tray Lock Function

12.7.1. Setting

· Disc Lock Function

1. With the SELECTOR on DVD/CD and POWER ON, hold down the [
[POWER] KEY on the remote control for 3 seconds to enter to Lock mode A.[_ _ _LOCKED_] will be displayed for 3
seconds, and then current disc will begin playing.

2. In Lock mode A, the following key is disabled.
[OPEN/CLOSE]

· Operation Lock Function

1. With the SELECTOR on DVD/CD and POWER ON, hold down the [CD PLAY] KEY on the main unit, and then press the
[POWER] KEY on the remote control for 3 seconds to enter Lock mode B.

[_ _ _ LOCKED_] will be displayed for 3 seconds, and the current disc will begin playing.

2. Lock mode B primarily controls the selector and disc operations, and disenables for the following keys.

56

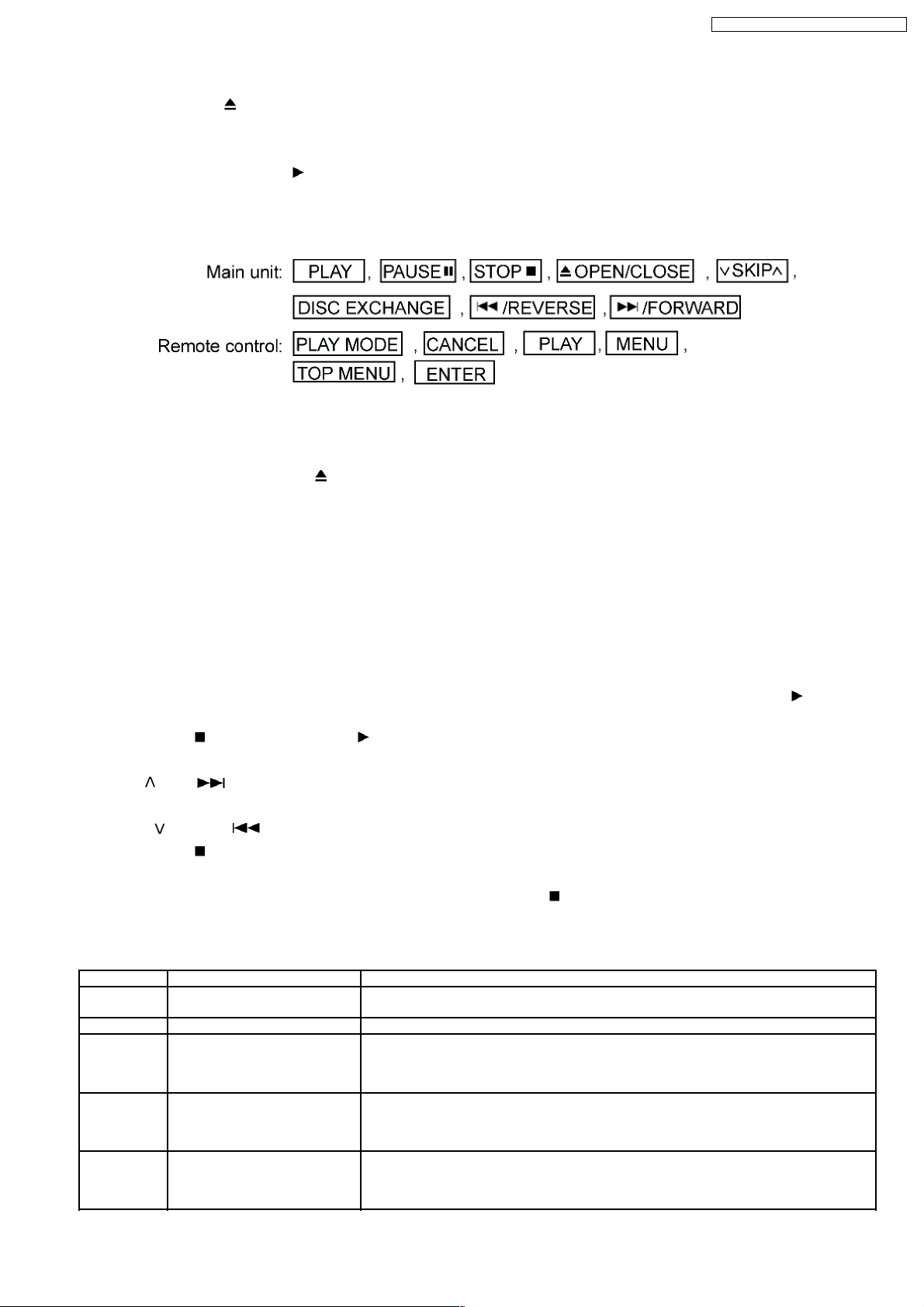

STOP] KEY on the main unit, and then press the

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Note:

OPEN/CLOSE

· Prohibiting operation of selector and disk

button are invalid and the player displays “___LOCKED_” while the lock function mode is entered.

1. Select the DVD/CD function.

2. Press and hold down the

button on the player and the power button on the remote controller unit for at least three

seconds. (The message, “___LOCKED_” appears when the function is activated.)

Note:

The following buttons are invalid and the player displays “___LOCKED_” while the lock function mode is entered.

12.8. Things to Do After Repair (Precaution)

Follow the procedure described below after repair.

1. While the power is on, press the

2. Press the power button to turn off the power.

3. Unplug the power cable.

Note:

It is prohibited to unplug the power cable while the tray is opened and to close the tray manually.
This would cause the mechanism unit to be jammed.

button to close the tray.

12.9. Displaying Self-Diagnostic Results

<Cassette Deck Section> (H01, H02, H03, F01, F02)

1. Enter the self-diagnostic mode, following the instructions described in [11.2. Entering Self-Diagnostic Mode].

2. Insert a normal-positioned music tape with erase prevention niches on both Sides A and B. Press [TAPE
activate the TPS operation so that the tape automatically stops at an interval between music selections.

3. Press [STOP

/- DEMO] and [TAPE ] buttons together on the remote controller. (Recording does not start.)

4. Then, insert a Cr02-positioned blank cassette tape with an erase prevention niche of Side A or B set to the left side.

5. Press[

/FF/ ] button on remote control. The tape will be forwarded and automatically stop after two seconds.

6. Remove the cassette tape, and set the other side.

7. Press [

8. Press [STOP

/ REW/ ] button on remote control. The tape will be rewound and automatically stops after two seconds.

-/ DEMO] button on the unit.
If an error is found, a self-diagnostic key appears on the display.
If several errors are found, the display shows these keys when [STOP

/-DEMO] button is pressed repeatedly. (Ex.:H01 -

H02 - F01 - H01)

12.10. Error detection for CD block

Error Code Abnormal Items Possible Cause

F15 CD REST SW abnormal CD traverse position intial setting operation failsfe counter (1000 ms)waiting for REST SW to

H15 The CD tray closes CD disc tray detect switch NG. (Check and replace.)
F26 CD servo LSI command signal

abnormal

F28 DISC LOAD abnormal While going to play position, iffailsafe counter is finished and switch to o change or switch

F29 DISC unload abnormal While going to play position, if failsafe counter is finished and switch no change or switch

turn on. Error No. shall be clear by force or during coldstart.

CD function DTMS command, after system setting, if SENSE = ‘L’ cannot be detected.
Memory shall contain F26 code. After Power on, CD function shall continue, error shall occur
“NO DISC”
Error No. shall be clear by force or coldstart.

target condition was not achieve, this error shall be memorized. Next time mechanism
operates, it shall do coldstart.
Error No. shall be clear by force or coldstart.

target condition was not achieve, this error shall be memorized. Next time mechanism
operates, it shall do coldstart.
Error No. shall be clear by force or coldstart.

] button to

57

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Error Code Abnormal Items Possible Cause

F27 Slide operation abnormal During vertical operation, if faisafe timer is finished and switch no change or switch target

F17 Down SW abnormal During vertical operation going to the bottom position, if failsafe timer is finished and switch

F22 Loading Mode/ Mecha abnormal During mecha initialization, Loading mode mechanism abnormal, normal operation cannot be

Abnormal item Error Display Method of detection

F75 CD power abnormal under normal operation (self-diagnostic mode inclusive), check if CDRST is H for SELECTOR

condition was not achieve, this error shall be memorized. Next time mechanism operates, it
shall do coldstart. ErrorNo. shall be clear by force or coldstart.

no change or switch target condition was not achieve, this error shall be memorized. The Next
time mechanism operates, it shall do mechanism initialization. Error No. shall be clear by
force or coldstart.

achieve. The next time mechanism operates, it shall do mechanism initialization. Error No.
shall be clear by force or coldstart.

at CD. If it is not H after 1 sec, it shall be memorised as an error.

12.11. Error detection code for Cassette Mechanism Block

Error Code Abnormal Items Possible Cause

H01 MODE SW abnormal Normal operation during mecha transition, MODE SW abnormal is memorised. The content

H02 REC INH SW abnormal
H03 HALF SW abnormal
F01 Reel pulse abnormal
F02 TPS abnormal

of abnormality can be confirmed in the abnormal detection mode explained in the later
section.

The content of abnormality can be confirmed in the abnormal detection mode explained in the
later section.

58

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

13 Cautions To Be Taken During Servicing

13.1. Recovery after the dvd player is repaired

· When Flash ROM or module(2) P.C.B. is replaced, carry out the recovery processing to optimize the drive. Playback the

recovery disc to process the recovery automatically.

· Recovery disc (Product number=RFKZD03R005)

· Performing recovery

1. Load the recovery disc (Product number: RFKZD03R005) to the player and run it.

2. Recovery is performed automatically. When it is finished, a message appears on the screen.

3. Remove the recovery disc.

4. Turn off the power.

Note:

This unit requires no initialization process carried out after the traditional DVD players were repaired. When the recovery
measures are taken, the customer setting will return to the factory setting as same as the procedure described in item
“Initialization” in 9.6 is carried out. Write down the contents of the setting before recovery processing, and reset the player.

13.2. DVD Player Firmware Version Upgrade Process

Firmware of DVD player may upgrade to conform to improvement of its performance and quality including operational range,
playability of non-standardized discs, etc. The version upgrade disc contains the recovery function, and the recovery disc is not
necessary.

Note:

Version upgrade process cannot be complete if the AC power is cut off due to power failure and other occasions during the
process. If this occurs, replace FLASH ROM and restart version upgrade. Version upgrade disc number is informed when
ordered.

13.3. Firmware Version Upgrade Process by Using Disc and Recovery
Process

· Recovery process

· Firmware version upgrade process

Both of the above procedures automatically start when the recovery disc is replayed.General CD-R disc allows version upgrade
process and recovery process, making version upgrade through disc simple.
Recovery process: Optimization process of player after replacement of FLASH ROM, EEPROM, or module circuit board
Version upgrade process: Renewal of firmware for improvement of operational range and performance

59

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

13.3.1. Self-Diagnosis Function

· Total usage time display (spindle motor, DVD/CD laser)

· ADSC internal RAM display

· Others: Last error count......20 items

Efficiency of failure diagnosis is expected to improve by using the above functions together with the repair process.

[Purpose of Use]

Total usage time display: used for estimating a failure due to exhausted spindle motor, laser, or other parts.
ADSC internal RAM display: used for deciding servo system failure according to servo learning values.

13.4. Using Recovery Disc

13.4.1. Recovery Process

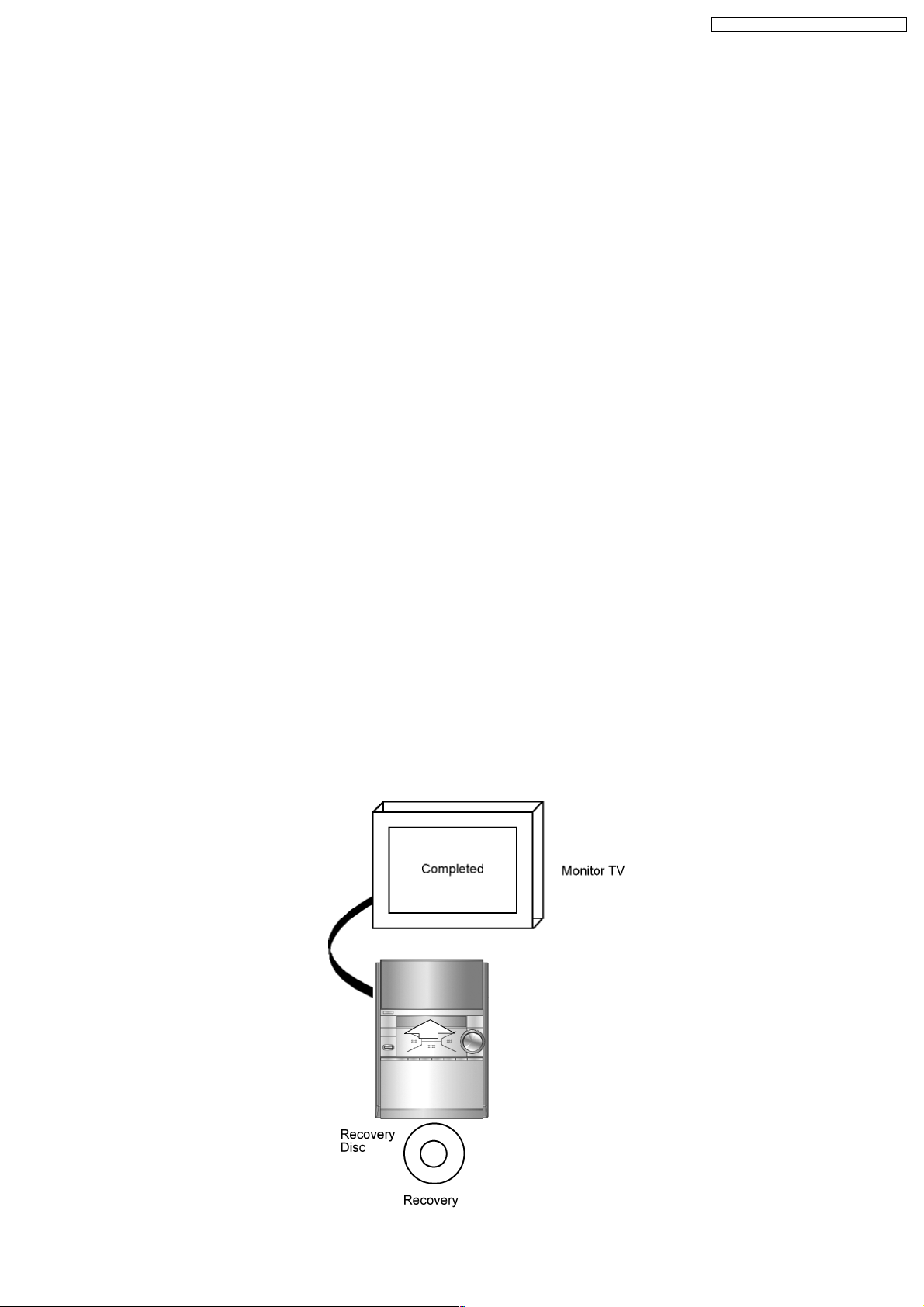

1. Insert the recovery disc (RFKZD03R005) to the player to replay.

2. The recovery process automatically starts, and a message of completion prompts on the screen.

3. Remove the disc.

4. Turn off the power.

13.4.2. Version Upgrade Process

1. Insert the recovery disc to the player to replay.

2. The version of player is automatically checked and prompts if necessary.

3. Select version upgrade process using the cursor keys on the remote controller unit. (Select YES or NO)

4. a. If YES is selected, the process starts.
b. If NO is selected, only the recovery process is applied.

5. a. When the version upgrade process is complete, a message of completion appears on the screen. Remove the disc.
b. Follow the instruction appearing on the screen, and remove the disc.

6. Turn off the power.

13.5. Total Usage Time Display

1. Details of Operation/Display

Keys for Operation:
Laser usage time: While the player is stopped and no disc is inserted, press both the
button on the remote controller unit.
Spindle motor usage time: While the player is stopped and no disc is inserted, press both the
the

To reset the usage time, while the usage time is displayed:
Laser usage time: press both the
Spindle motor usage time: press both the

2. Purpose of Use
To obtain reference data of laser and spindle motor systems during failure diagnosis.

To check faulty parts during re-repair.

button on the remote controller unit.

button on the player and the button on the remote controller unit.

button on the player and the button on the remote controller unit.

button on the player and the

button on the player and

60

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

14 Procedure for Checking Operation of Individual Parts of

Cassette Mechanism Unit

14.1. Operation Check with Cassette Tape

1. Pull up the EJECT lever using a rubber band. (Cf. Fig. 6)

2. Supply DC5V to MOTOR. (→ MOTOR rotates.) (Cf. Fig. 5)

3. Insert a cassette tape to the unit.

4. Supply DC9V to the plunger, and turn the power ON and OFF. (→ Power +PL, -PL) (Cf. Fig. 5)
a. FWD PLAY: Supply the plunger power in a flash. (ON: approx. 5msec)
b. FWD FF: Supply the plunger power in a flash at PLAY mode. (ON: approx. 5msec)
c. STOP: Supply the plunger power in a flash at FWD FF mode. (ON: approx. 5msec)
d. REV PLAY: Supply the plunger power in a normal timing at STOP mode. (ON: approx. 200msec)
e. REV REW: Supply the plunger power in a flash at REV PLAY mode. (ON: approx. 50msec)
f. STOP: Supply the plunger power in a flash at FF mode. (ON: approx. 50msec)

Repeat the operation (→ FWD PLAY)
(Note) Other operation may start if a timing of supplying the plunger power is missed.

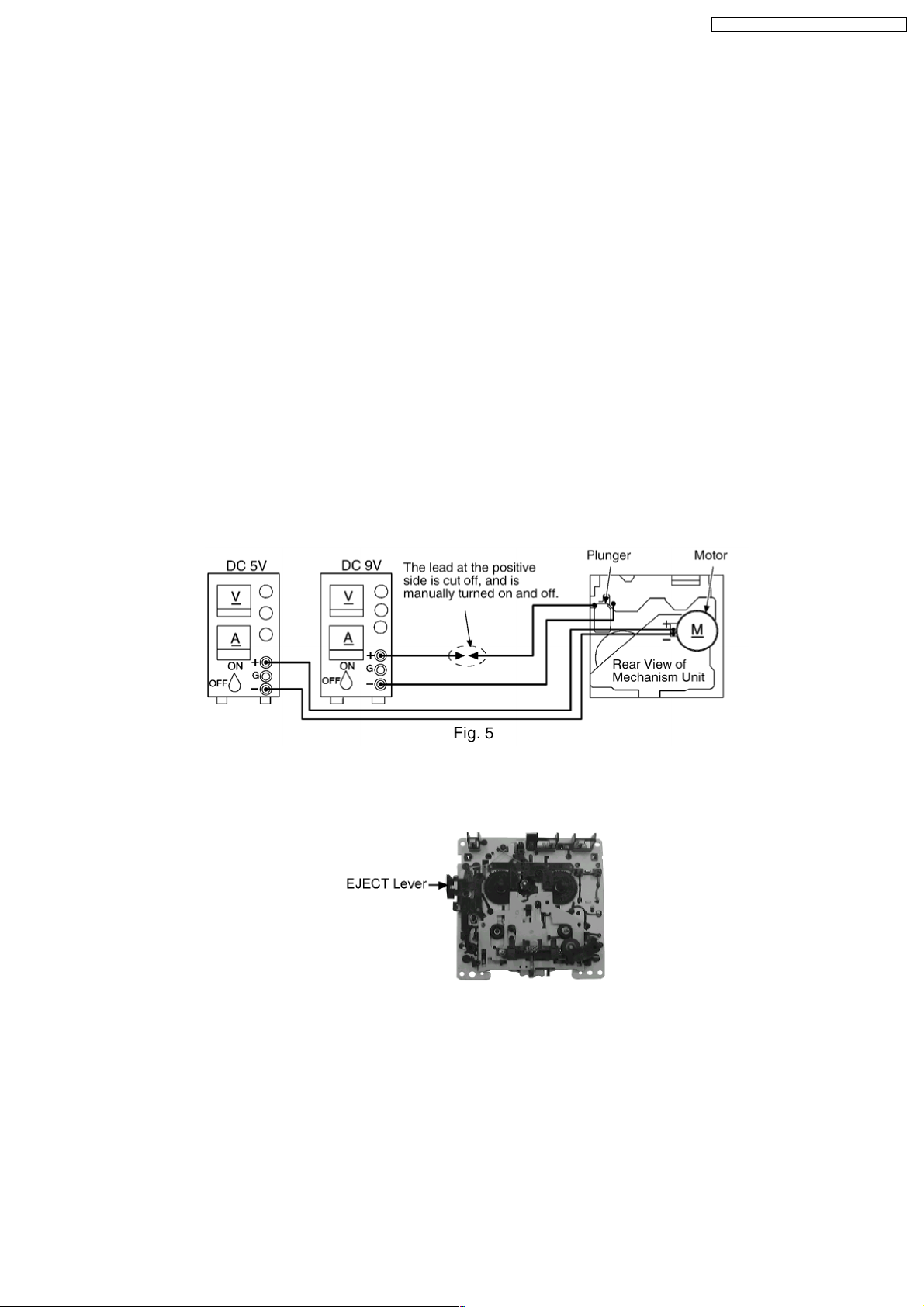

14.1.1. Connection Status between Mechanism and Power Supply (Motor, Plunger)

14.1.2. Operative Parts of Mechanism Unit (EJECT lever fitted with rubber band,

Plunger/Rib operation)

Fig. 6

14.2. Operation Check without Cassette Tape

1. Pull up the EJECT lever using a rubber band. (Cf. Fig. 6)

2. Supply DC5V to MOTOR. (→ MOTOR rotates.)

3. Lift up the mechanism unit’s plunger/rib with the tip of a negative screwdriver, and operate the unit in the same timing as
supplying the power. (Cf. Fig. 7)

61

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Fig. 7

15 Measurement And Adjustments

15.1. Tuner Section

15.1.1. AM-IF Alignment

· AM-IF ALIGNMENT

SIGNAL GENERATOR OR SWEEP

CONNECTIONS FREQUENCY

Fashion a loop of
several turns of wire
and radiate signal
into loop of receiver.

GENERATOR

450 kHz Point of non-

RADIO DIAL SETTING INDICATOR

OSCILLOSCOPE)

interference (on/about
600 kHz)

Headphone Jack (32Ω)
Fabricate the plug as
shown in Fig. 2 and then
connect the lead wires of
the plug to the
measuring instrument.

(ELECTRONIC

VOLTMETER

ADJUSTMENT(Shown in

Fig.3)

Z102 (AM IFT) Adjust for maximum

REMARKS

output.

· AM-RF ALIGNMENT

SIGNAL GENERATOR OR SWEEP

CONNECTIONS FREQUENCY

Fashion a loop of
several turns of
wire and radiate
signal into loop of
receiver.

Fashion a loop of
several turns of
wire and radiate
signal into loop of
receiver.

GENERATOR

522 kHz Tuning capacitor fully

603 kHz Tuning capacitor fully

RADIO DIAL SETTING INDICATOR

closed.

open.

15.2. Cassette Deck Section

15.2.1. Requirements

· Test tape (QZZCFM) (QZZCWAT)

· Normal blank cassette tape (QZZCRA)

· Digital frequency counter

· Oscilloscope

· Electrical voltmeter

· Headphone jack output jig (Cf. Fig. 8)

(ELECTRONIC

VOLTMETER

OSCILLOSCOPE)

Headphone Jack (32Ω)
Fabricate the plug as
shown in Fig. 2 and then
connect the lead wires of
the plug to the measuring
instrument.

Headphone Jack (32Ω)
Fabricate the plug as
shown in Fig. 2 and then
connect the lead wires of
the plug to the measuring
instrument.

ADJUSTMENT(Shown in

Fig.1)

Z101 (AM OSC Coil) Adjust for maximum

Z101 (AM ANT Coil) Adjust for maximum

REMARKS

output.

output.

15.2.2. Setting of Unit

· VOLUME: MAX

15.2.3. Preparations

1. Apply [11.2 Disassembly of Side Panel (L) & (R) and 11.3 Disassembly of Top Cabinet Unit] under [11. Disassembly and Main
Component Replacement Procedures].

62

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

2. Remove 4 screws from the mechanism unit to disassemble. (Refer to [11.13. Procedure for Replacing Cassette Holder (Step

1)] under [11. Disassembly and Main Component Replacement Procedures].

3. Connect the headphone jack output jig (Cf. Fig. 8) to headphone jack.

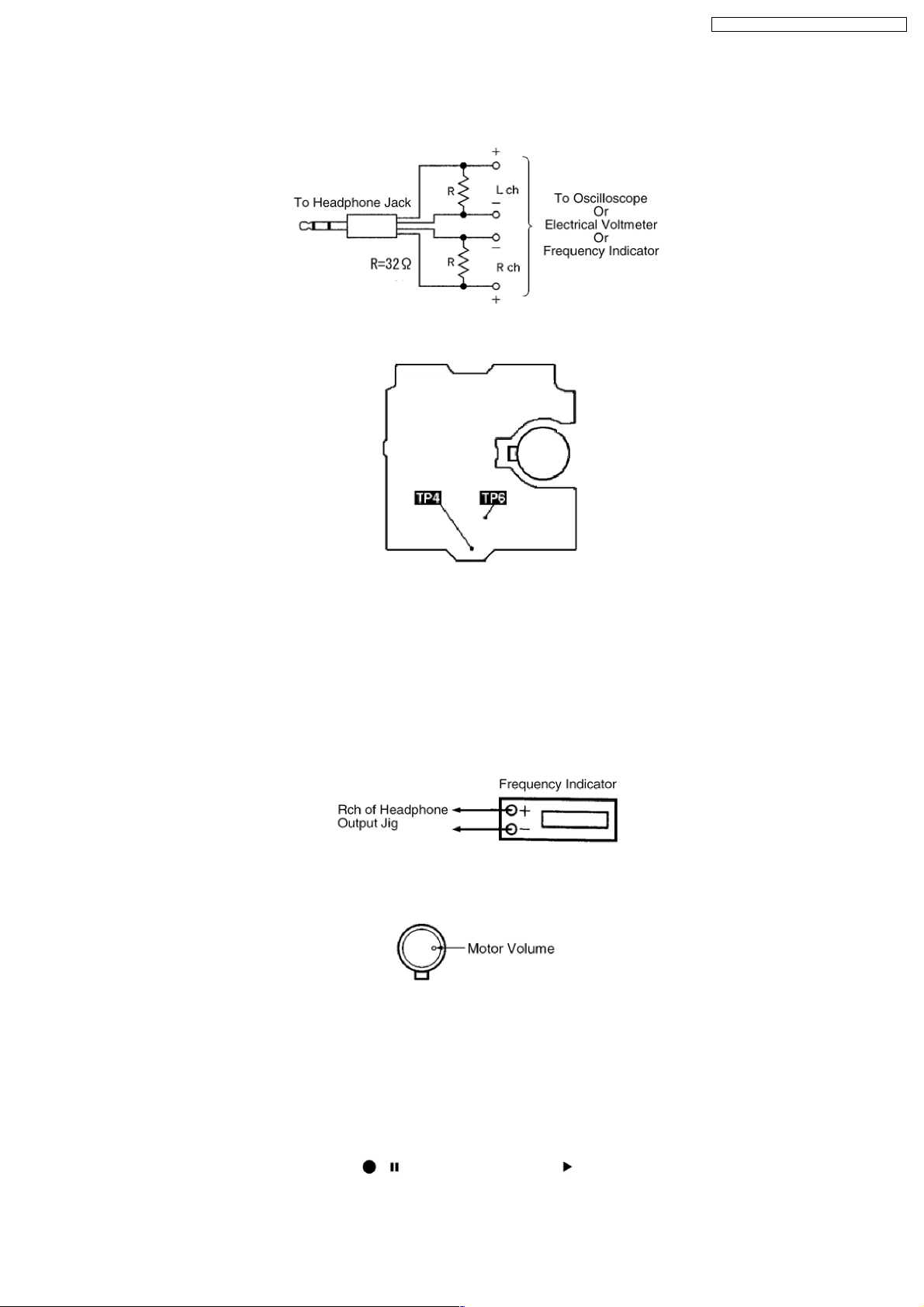

Fig. 8

Fig. 9

15.2.4. Tape Speed Adjustment

· Normal speed adjustment (only during forward playback)

(Product reference value: 3,000±90Hz)

1. Connect a frequency indicator. (Cf. Fig. 12)

2. Playback the middle portion of the test tape (QZZCWAT).

3. Adjust the motor screw so that the following output level is produced. (Cf. Fig. 10)
Adjustment Range: 3,000 ± 90Hz (a constant speed)

Fig. 10

15.2.5. Bias Voltage Check

1. Connect an electrical voltmeter. (Cf. Fig. 12)

2. Set the function to “TAPE” position.

3. Insert a normal blank cassette tape (QZZCRA).

4. While pressing and holding down [REC (
pressing the buttons till the recording pause mode is activated.)

5. Check that the output level is within the standard range.

/ )] button, press [TAPE ( )] button to pause the recording mode. (Repeat

Fig. 11

63

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Standard Range: 14 ± 4mV

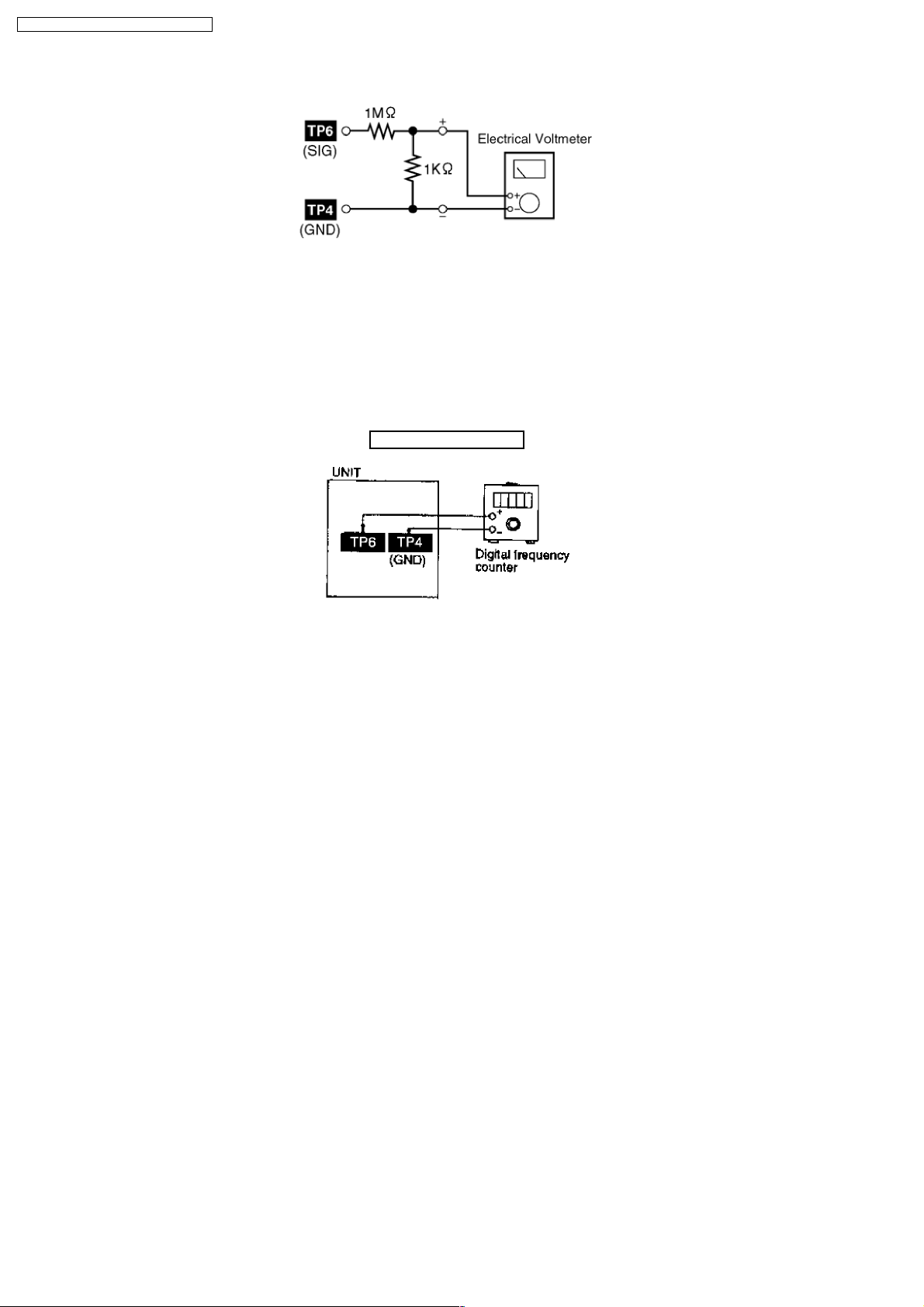

Fig. 12

15.2.6. Bias Frequency Check

1. Connect a digital frequency counter (Figure 13).

2. Set the function to “TAPE” position.

3. Insert a normal blank cassette tape (QZZCRA) and press “REC” mode on main unit.

4. Check that the output frequency is within the standard range.

Standard Value: 98 ±8 kHz

Fig. 13

64

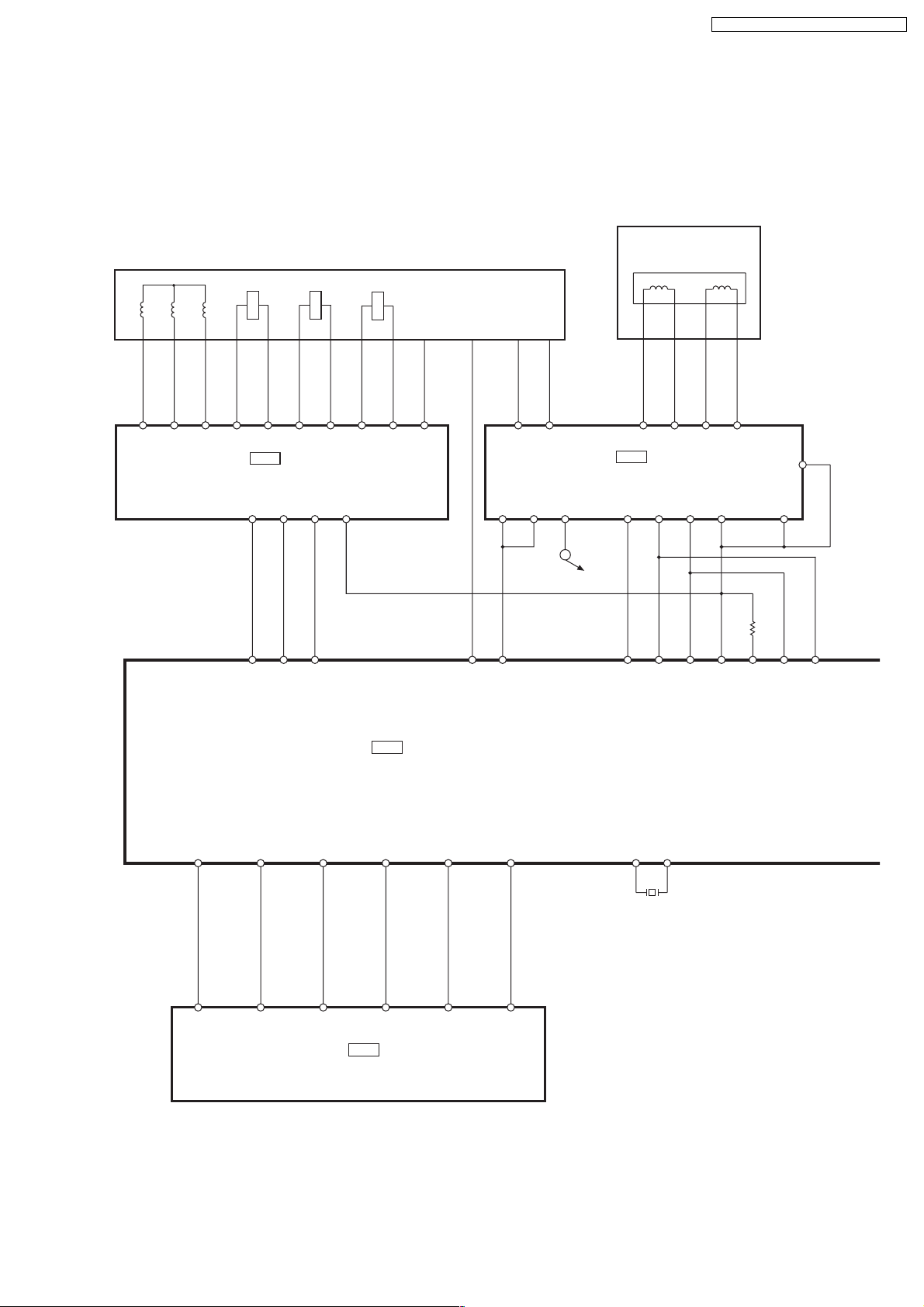

16 Block Diagram

TURNTABLE

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

OPTICAL PICK UP UNIT

ACTUATOR

FOCUS

COIL

TRACKING

COIL

PS

MUTE3

HALL3

HV-

HV+

H2-

H2+

EC

DRV1

HW+

H3+

ECR

MN2DS0003APH

AV DECODER

HALL3

HW-

H3-

IC8001

HALL3

HU-

COIL_V

COIL_W

2 4 7 91011121314

A3

A2

HU+

COIL_U

A1

H1+

C0GBF0000004

MOTOR DRIVE IC

24 23 22 21

72 79 76

H1-

IC8271

FG

FG

ACT T-

ACT T+

ACT F-

ACT F+

H-

SW

15

H-

FEED-

FEED+

18 17 1112 1314

VO3-

VO3+

MUTE12

MUTE3

27

LDCNT

9232

28

VO2+

IC8251

C0GBG0000044

MOTOR DRIVE IC

VIN3

VO2-

VIN1

34

VIN2

VO1+

OPIN+

VO1-

LDIN,

BIAS2,

1

TRIN

24~26

BIAS1

R

VHALF

139 146

140

AD1

AD2

VCOF/AD4

83

DRV6

DRV8

75 147

DRV0

DAC1

148 12881

PWM0

1,2,4,5,7,8,

10,11,13~15,

17,18,252,

254,256

2,4,5,7,8,

10,11,13,
42,44,45,
47,48,50,

51,53

MDQ0~MDQ15

221,223,224,

MDQ0~MDQ15

217,220,

226~228,

230,233,

237,238

22~26,

29~35

MA0~MA11

MA0~MA11

249,251

15,39

DQM0,DQM1

LDQM,UDQM

C3ABPG000067

64M SDRAM

BA0,BA1

234,232

20,21

BA0,BA1

IC8051

NWE,NCAS,NRAS,NCSM

248,245,

244,240

16~19

NWE,NCAS,NRAS,NCSM

MCK

243

38

CLK

OSCO

166 165

X8621

OSCI

65

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

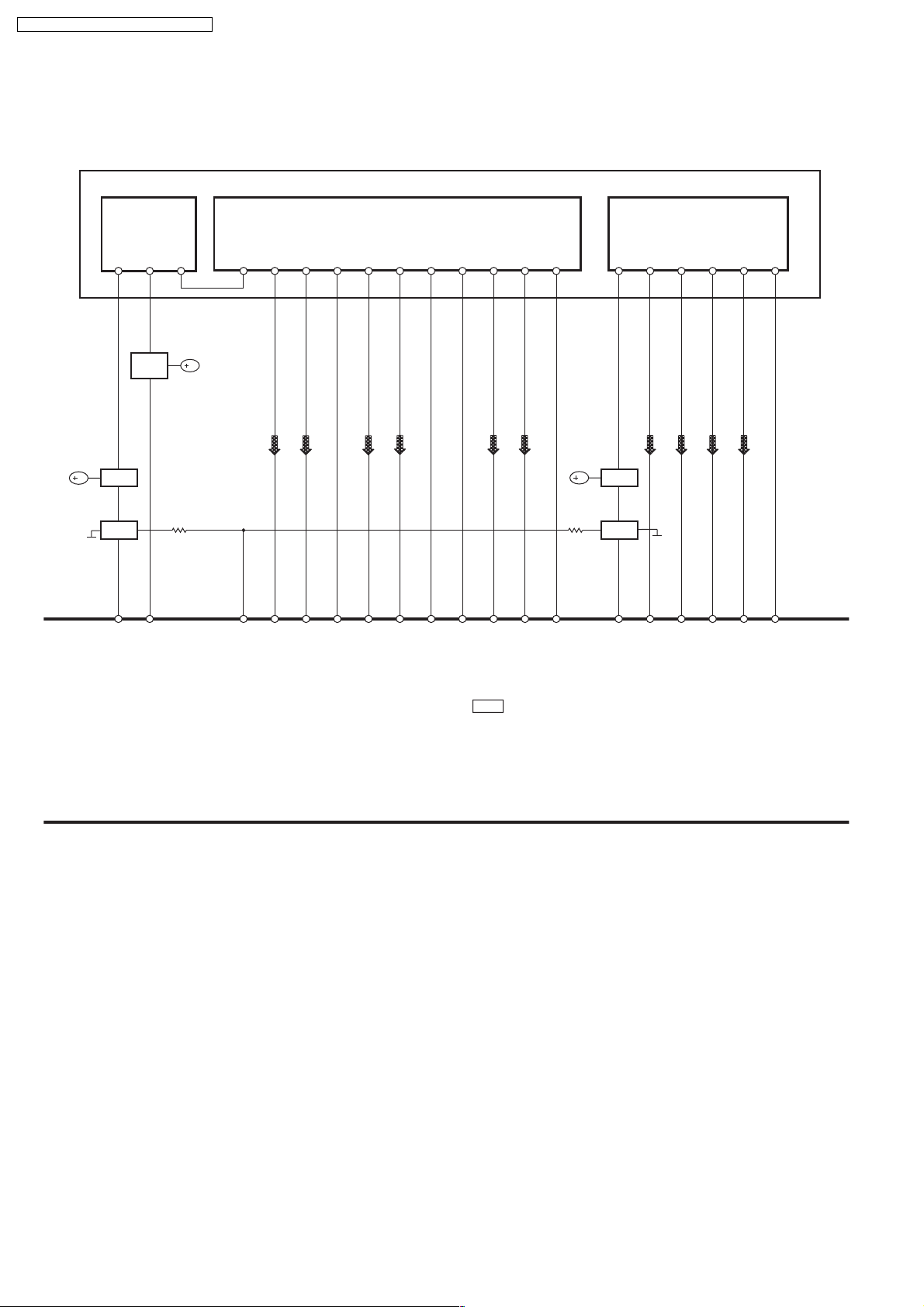

OPTICAL PICKUP UNIT

HIGH FREQUENCY

MODULATOR

LD-IN

3.3V

SWITCH
(SUPPLY

LD-OUT

B

235

QR8571

CONTROL)

DVD MODULATOR

LD

T2

T1

MON

F2

F1

RFN

RFP

15 5 4 8 13 12 11 10 7 6

T4

CD MODULATOR

T3

14

GAIN H/L

LD

F1

F

E

11 4 8 6 10 2

F2

MON

Q8552

SWITCH

B

Q8551

SWITCH

LPC01

143

AD0

VIN2

DRV3

VIN1

LPC1

VIN8

VIN7

RFINN

VIN4

RFINP

IC8001

MN2DS0003APH

AV DECODER

82

VIN3

Q8562

SWITCH

B

Q8561

SWITCH

125129 133130134135 136137 138 126123 131 132 110 111124 78

VIN5

DRV7

LPC02

VIN9

VIN10

VIN6

LPC2

66

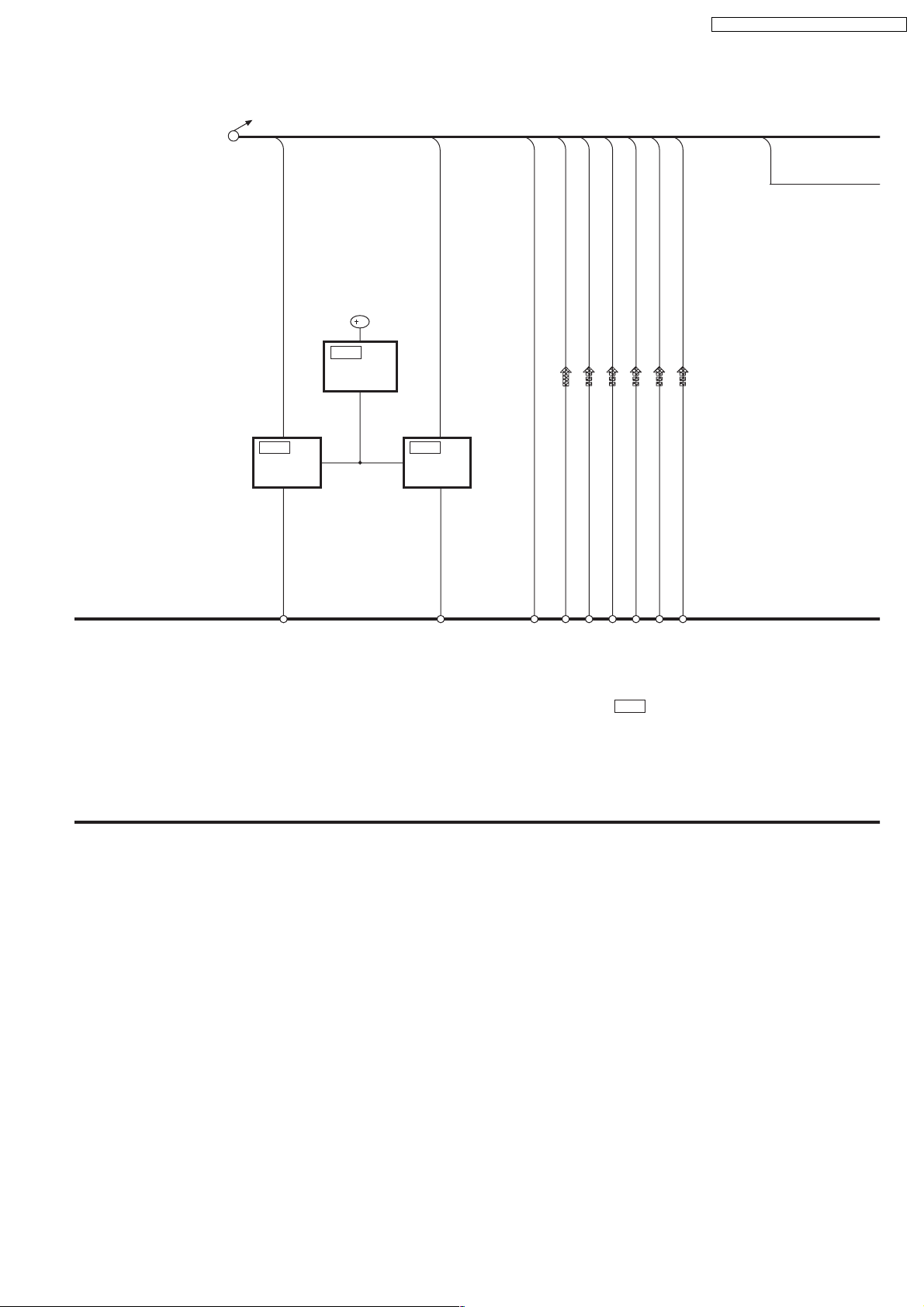

TO MAIN BLOCK

D

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

OP_CPU-CLK

IC8691

C0JBCA000066

AND GATE
LOGIC IC

P3

B

IC8111

C0CBCBD00018

POWER
SUPPLY IC

OP_CPU-STAT

IC8695

C0JBCA000066

AND GATE
LOGIC IC

6968

P2

OP_CPU-CMD

70 177

P1

Y/PY/G

CB/PB/B

DAC1OUT

DAC2OUT

CR/PR/R

DAC3OUT

AUDIODIGITAL

149 151 152 156 158

IECOUT

Y_OUT

DAC4OUT

C_OUT

DAC5OUT

MIXL(R)

IC8001

MN2DS0003APH

AV DECODER

67

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

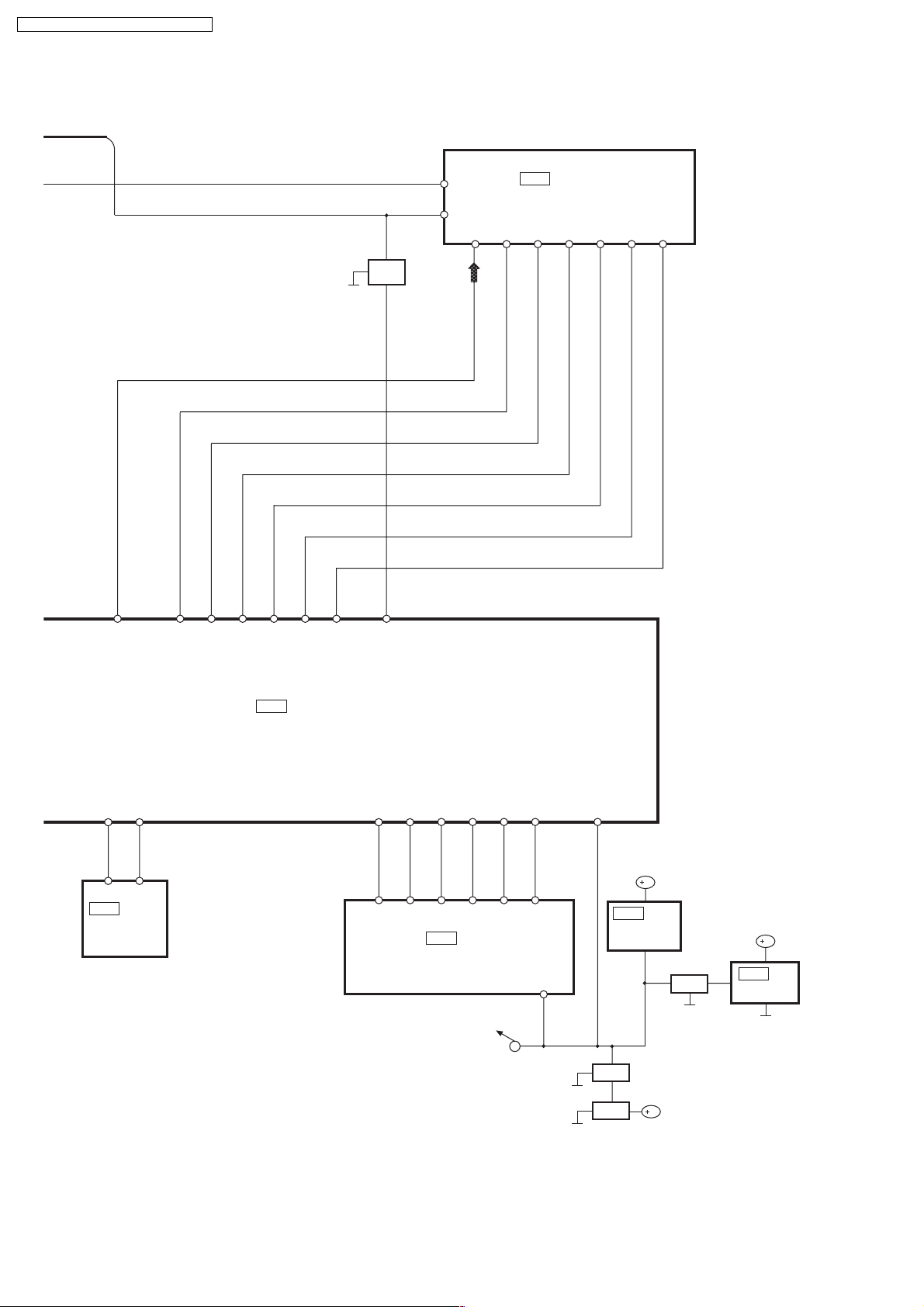

ZFLAG

171 57 56 53 163 170 169

P11

P12

ADOUT3

P15

DACCK

SRCK

LRCK

QR8420

AUDIO
MUTING
SWITCH

55

7(8)

VOUTL(R)

11

ZEROR

2

P13

DATA

13

IC8421

C0FBBK000035

A/D CONVERTER

MDI

MC

14 15

ML

SCK

BCK

LRCK

13

16

P9

P8

59 60

65

SCL

IC8611

C3EBGC000055

EEPROM IC
(NOT SUPPLIED)

SDA

IC8001

MN2DS0003APH

AV DECODER

23~25,27,32,

33,36,37,39~42,

46,47,50,51

25~18,

EXADT0~EXADT15

30,43,
31,45,

48,17,

8~1

16,9,10

A0~A15

EXADR16~EXADR20

22

21

11

A16~A20

IC8651

RFKFMH81T160

16M FLASH ROM

NEXWE

XWE

NEXOE

52 38

28 26

XOE

NEXCE

192~195,
197~200,

203,204,

206~208,

210~212

29~36,
38~45

XCE

R

FDT0~FDT15

DQ0~DQ15

XRESET

12

NRST

73

IC8601

C0EBE0000384

VOLTAGE
DETECTING IC

Q8560

SWITCH

Q8550

SWITCH

B

B

Q8605,

Q8606

SWITCH

IC8605

C0EBA0000031

RESET IC

B

68

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

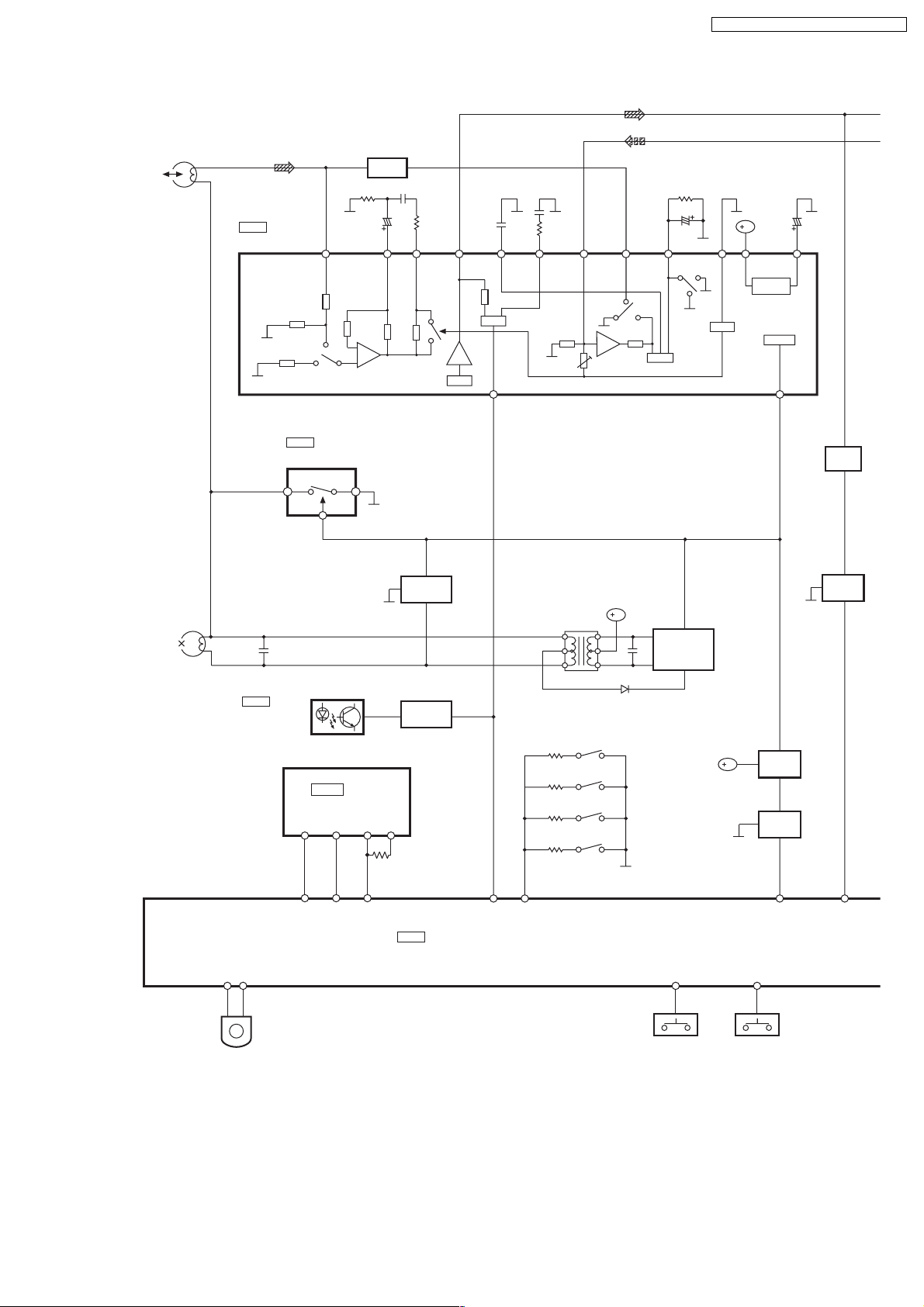

(DECK 2)

R/P HEAD

(DECK 2)

ERASE HEAD

LCH

IC1001

AN7326K

P/B REC AMP

C1AA00000612

ANALOG SWITCH

2

IC1000

22(1)

PB LIN(R)

4

FILTER

B

20(3)

PB L EQ(R)

Q1317

BEAT PROOF

LEVEL SWITCH

19(4)

PB LOUT(R)

MUTE

18

ALC LOW OUT

TPS

TPS OUT

6

17

TPS

GAIN ADJ

16(7)

REC

L1301

LIN(R)

15(8)

REC

L OUT(R)

REC AMP (L)

B

ALC

14

ALC

Q1309,
Q1310,
Q1312

BIAS

SWITCH

13

NOR/CRO SW

LOGIC

12

VCC

REJECTION

RIPPLE

SWITCH

10

RF

PB/REC SW

9

Q1101

(Q1201)

MUTING
SWITCH

Q1302

DECK

MUTING

CONT

21(2)

PB L NF(R)

3

IC971

CNB13030R2AU

INTERRUPTER

JOG_A

JOG_B

76

75

VR601

VOLUME JOG

IC2802

C3EBDG000052

EEPROM
(NOT SUPPLIED)

32442356

25

E_CLK

EDA

E_CS

Q1306,Q1307

SWITCH

IC2801

C2CBJG000403

MICROPROCESSOR

90

89

DECK_AD2

DECK_AD1

S971

(MODE)

S972

(HALF)

S974

(R_RECIN_H)

S975

(F_RECIN_H)

D1301

92

KEY SW KEY SW

S608~S617

KEY2

B

97

S602~S607,S618

Q1304

Q1303

KEY1

SWITCH
(REC:H)

SWITCH

78

REC

80

DMT

69

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

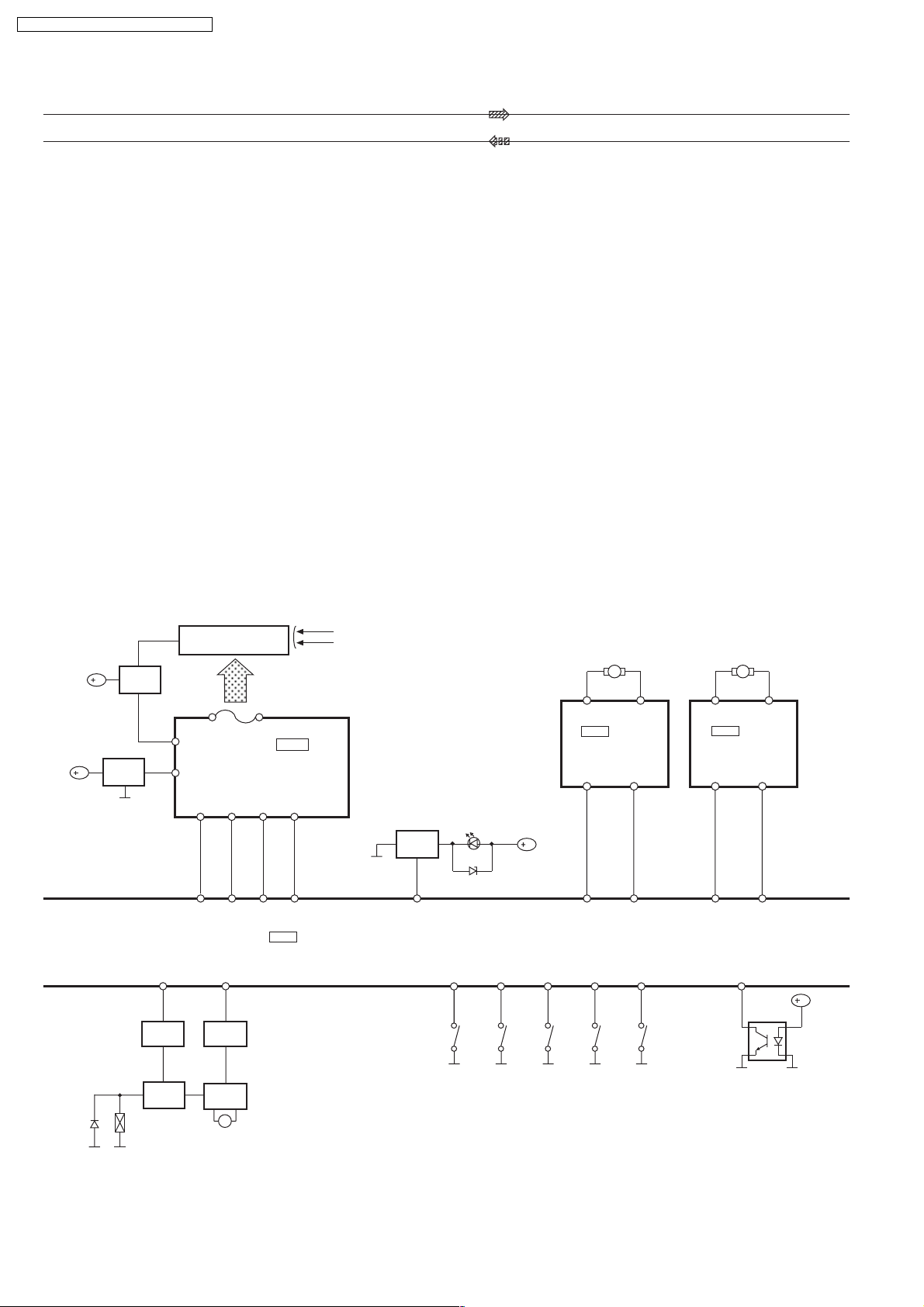

D971

B

B

Q2827

REGULATOR

Q601,
Q602

DRIVER

SOLENOID

FL

Q2818

PLUNGER

Q1315

11,52

83

SWITCH

SWITCH

4,1

DIG00,
DIG03

VCC1,2

PLUNGER

5

87

FL DISPLAY

15~23
25~51

SEG00~SEG35

RST

88

FL_RST

82

Q2817

MOTOR
SWITCH

SWITCH
(MOTOR

SUPPLY)

Q1314,Q1316

FL601

6

MOTOR

M

CS

FL_CS

2,3

64~53

DIG01,DIG02

8

85

TRANSFORMER

IC601

C0HBB0000039

DIG04~DIG15

FL DISPLAY

DATA7CLK

84

FL_DA

FL_CLK

IC2801

C2CBJG000403

MICROPROCESSOR

FROM

Q603

SWITCH

86

LED_CONTROL

CHANGE

S5

D617~D620

CHANGE_SW

21

D611~D614

PLAY

RM11

UP/DOWN MOTOR

M

4

OUT1

IC11

C0GAG0000007

UP/ DOWN
MOTOR DRIVER

F_IN

7

2

R_IN

9

OUT2

RM21

UP/DOWN MOTOR

M

4

OUT1

IC21

C0GAG0000007

LOADING
MOTOR DRIVER

F_IN

7

2

R_IN

9

OUT2

B

26

20

UP/DOWN F

PLAY_SW

100

S2

S1

STOCK

1

ST_SW

S4

OPEN

4

OPEN_SW

BOTTOM

S3

UP/DOWN R

BOTTOM_SW

22

3

OP/CL_FWD

5

2

POSITION

SENSOR

OP/CL_REV

Q1

B

70

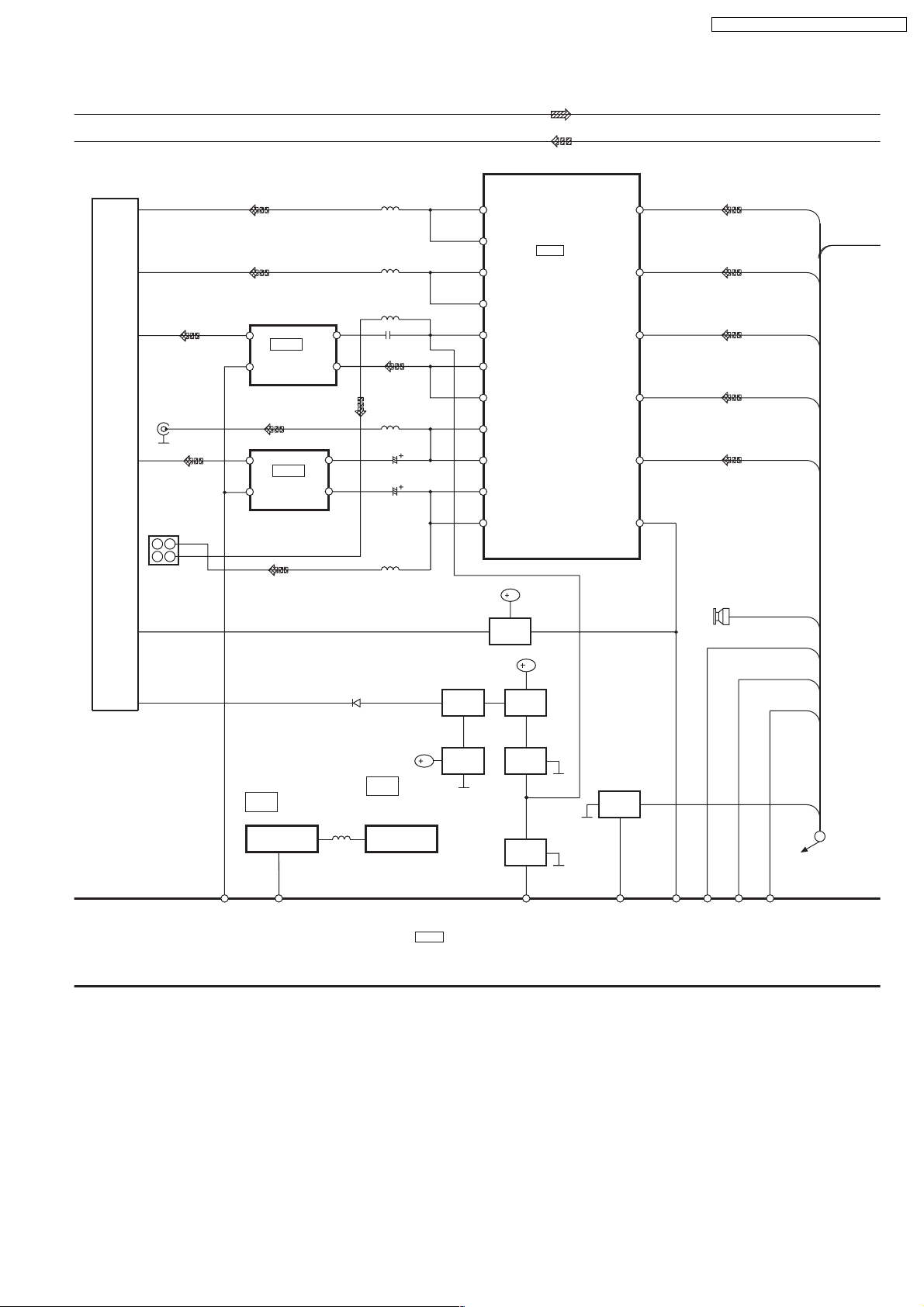

JK2805
AV OUT

BLUE IN

GREEN IN

RED IN

VOUT_VIN

JK2802

VIDEO OUT

JK2802

S.VIDEO OUT

G Y

C

2

OUT

1

SW

2

OUT

1

SW

IC2809

C1AB00001731

VIDEO
SWITCH IC

IC2810

C1AB00001731

VIDEO
SWITCH IC

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

22

CbOUT

21

CbSAG

25

CYOUT

24

CYSAG

4

IN2

6

IN1

6

IN1

4

IN2

33

COUT

19

CrOUT

18

CrSAG

31

VOUT

30

VSAG

28

YOUT

27

YSAG

IC2808

C9ZB00000431

VIDEO IC

CYIN

CBIN

CRIN

MUTE2

2

CIN

6

YIN

12

14

16

15

C_OUT

MIX_L(R)

Y_OUT

Y/PY/G

CB/PB/B

CR/PR/R

RGBCTL

FUNCSW

46

IC2803,

IC2804

C0DBAJG00002

REGULATOR

VMIX_CTL

68

DVDPCONT

D2813

IC2805~

IC2807

C0DBEFG00003
C0DBZHG00016
C0DBZHE00011

REGULATOR

Q2821

Q2819

SWITCH

Q2820

SWITCH

B

IC2801

C2CBJG000403

MICROPROCESSOR

B

SWITCH

Q2822

Q2823

Q2805

B

SWITCH

SWITCH

SWITCH

47

WIDE1

Q2826

MUTING
SWITCH

44

DVD_MUTE

JK2803

OPTICAL

AUDIODIGITAL

OP_CPU-CLK

OP_CPU-STAT

OP_CPU-CMD

ZFLAG

D

TO DVD
BLOCK

37

45

RGBH

36

OP_CPU_CLK

OP_CPU_STAT

35

OP_CPU_CMD

71

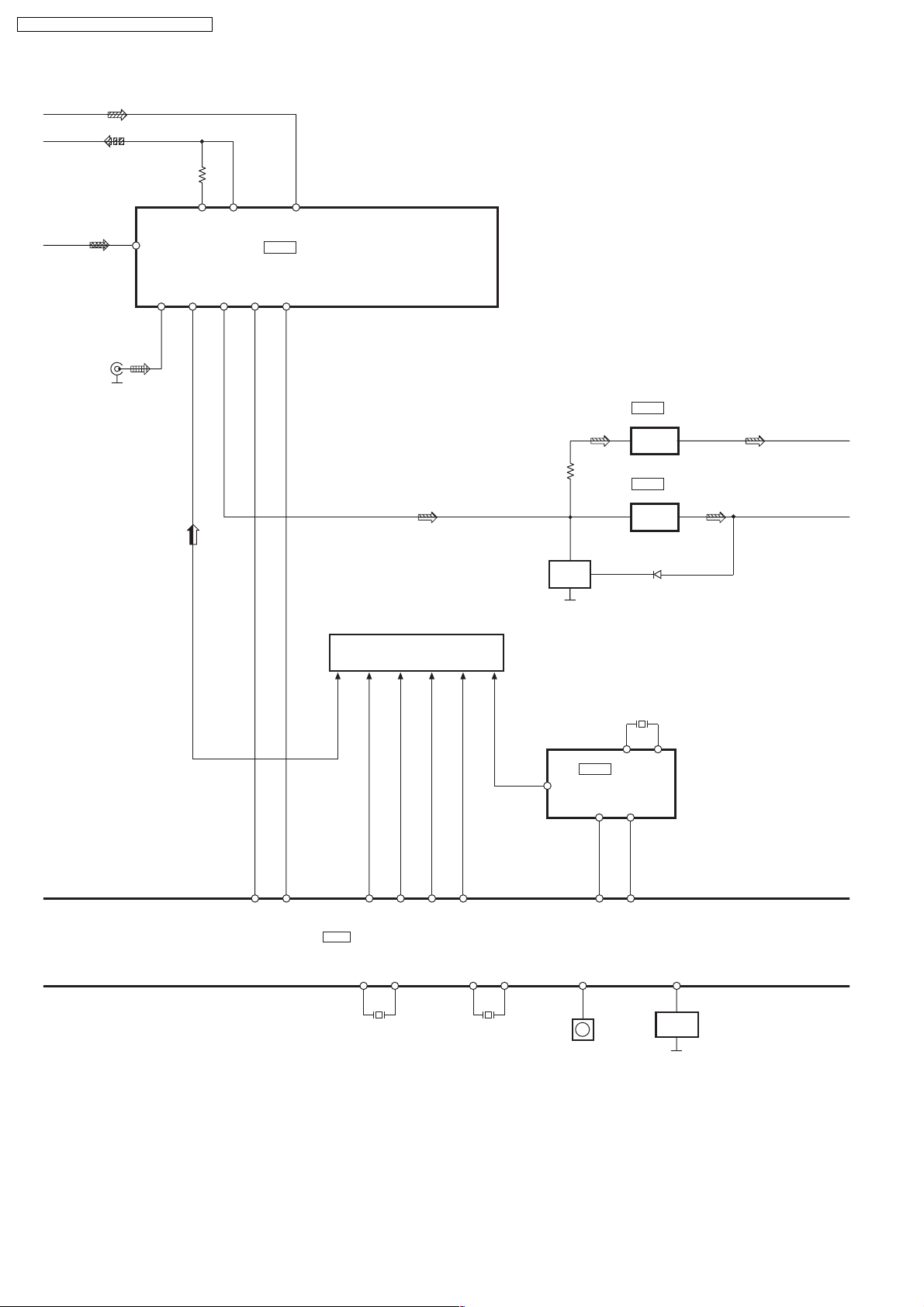

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

6(7)

JK2801

AUX

A1(A2)

10(11)

4(3)

1(2)

GOUT1

(GOUT2)

OUT1

B1

(B2)

24(23)

(OUT2)19DATA20CLK

C1

(C2)

8(9)

FVN1

(FVN2)

12(13)

D1

(D2)

IC2812

C1BB00000822

ASP IC

IC2814

K1A4558FEL

OP AMP

IC2813

C0AABB000085

OP AMP

Q2101

(Q2201)

SWITCH

TUNER PACK

D2101

(D2201)

X2803

8

9

XIN

IC2811

2

C1BB00000715

MPXIN

RDS

RDDA

14

48

49

ASP_CLK

ASP_DATA

29

30

TU_SCL

IC2801

C2CBJG000403

MICROPROCESSOR

TU_SDA

XOUT13XIN

15

X2802

27

TU_SD

28

TU_ST/DO

XCIN10XCOUT

11

X2801

74

RDS_DATA

RMT

18

Z602

REMOTE SENSOR

15

73

RDCL

RDS_CLK

XOUT

Q2803

12

RESET

SWITCH

/RESET

72

Q2816

Q2810

LEVEL

SWITCH

Q2811

LEVEL

SWITCH

MUTE

SWITCH

JK2801

SUBWOOFER

OUT

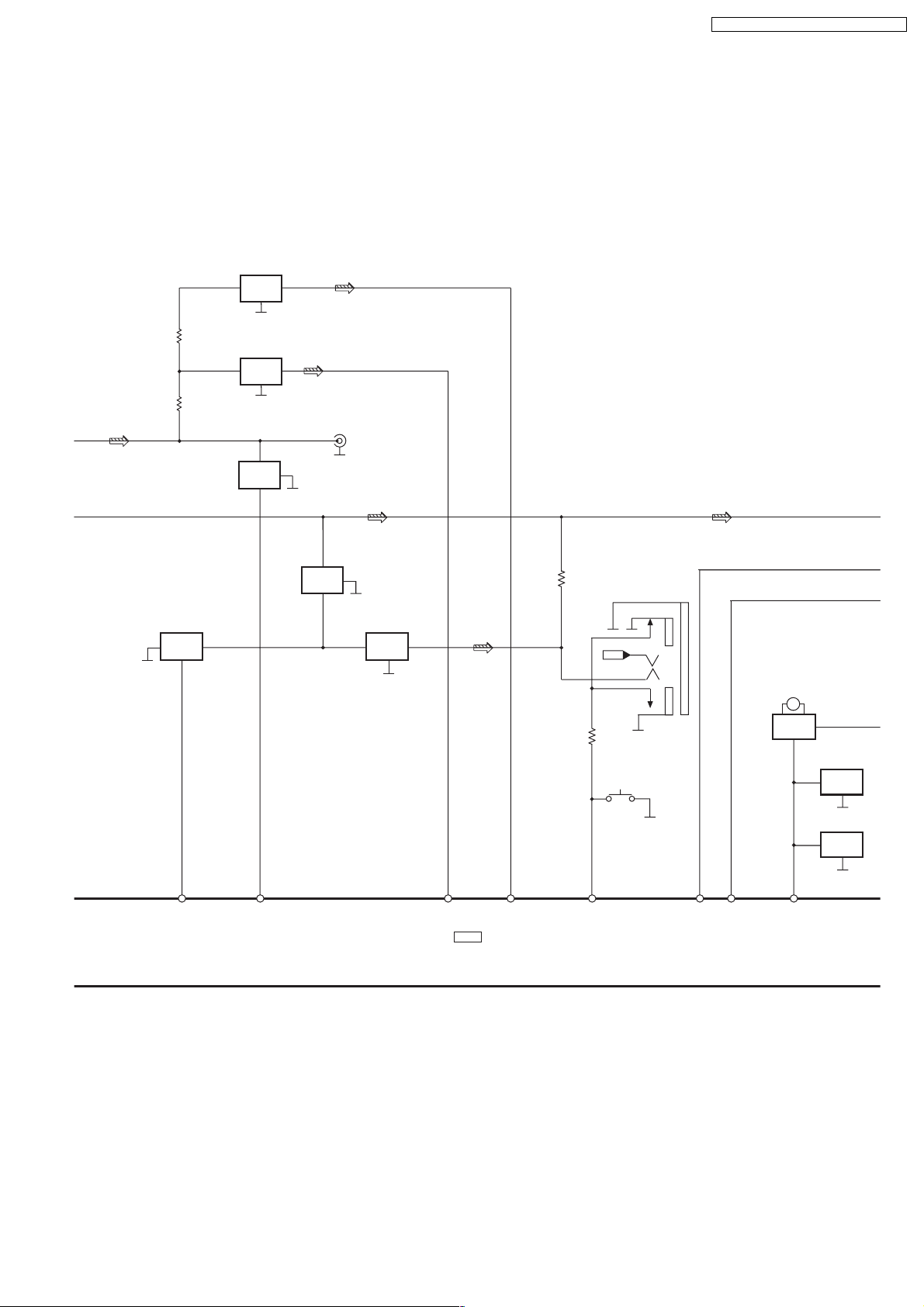

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

Q2812

SWITCH

43

HP_MUTE

42

SUB_MUTE

Q2102

(Q2202)

SWITCH

Q2103(Q2203)

SWITCH

51

SW1

IC2801

C2CBJG000403

MICROPROCESSOR

JK2804

HEADPHONE

RCH

MOTOR

M

FAN
DRIVER
SUPPLY

Q2806~

Q2809

S1901

TAPE EJECT

50

SW2

91

KEY3 (TAPE EJECT)

71

19

SYNC

MUTE_H

72

DCDET

Q611

DC DETECT

SWITCH

Q5809,Q5808

SWITCH

73

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

SIGNAL LINES

( ) Indicates Pin No. of Right Channel

: MAIN SIGNAL LINE
: FM/AM SIGNAL LINE

: CD-DA SIGNAL LINE

: AUX SIGNAL LINE

: TAPE PLAYBACK SIGNAL LINE
: TAPE RECORD SIGNAL LINE

Note : Signal Lines are applicable to the Left Channel only.

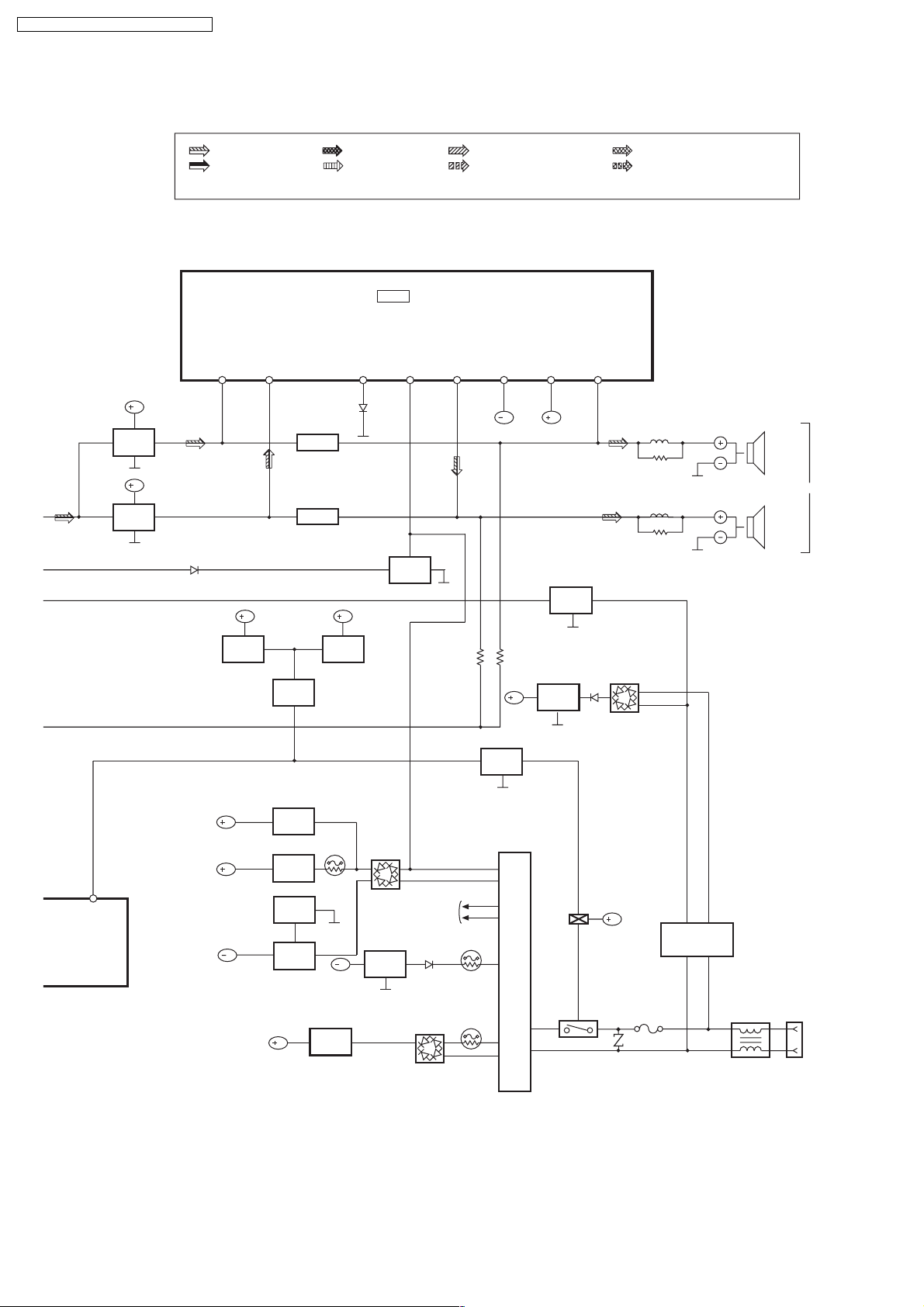

IC5801

RSN314H41A-P

POWER HIC

: DVD (AUDIO) SIGNAL LINE
: DVD (VIDEO) SIGNAL LINE

LO_L(R) IN

11(10)

FILTER

FILTER

Q5101

(Q5201)

Q5102

(Q5202)

HI_L(R) IN

14(13)

B

SWITCH

B

SWITCH

D5819

B

Q2814

SWITCH

Q2813

SWITCH

Q5806

B

B

70

PCONT

B

REGULATOR

Q5801

SUB+B

REGULATOR

Q5807

SWITCH

Q5802

-9V

REGULATOR

Q2815

SWITCH

FP5801

MUTE6AC_DET

8

D508

B

D5801

Q5901

VOLTAGE

B

REGULATOR

5(7)

LO_L(R) OUT

OUT+_L(R)

3

B

OUT+_L(R)

2

B

HI_L(R) OUT

1(4)

HI_L(R)

JK5801

LO_L(R)

Q5810

SWITCH

Q5902

SWITCH

T5901

TO FL

DISPLAY

FP5902

D5902

-VP

Q5903

SWITCH

D5917

D5909~D5912

B

T5902

SUB

TRANSFORMER

Q5904

REGULATOR

B

POWER TRANSFORMER

Q5803~Q5805

SWITCH

B

D5904~D5907

FP5901

RL5901

Z5901

F1

L5901

JK5901

AC INLET

74

17 Schematic Diagram

(All schematic diagrams may be modified at any time with the
development of new technology.)

Notes:

S1 Stock Switch
S2 Play Switch
S3 Bottom Switch
S4 Open Switch
S5 Change Switch
S602 ADV SUR Switch
S603 OPEN CLOSE Switch
S604 DISC 5 Switch
S605 DISC 4 Switch
S606 DISC 3 Switch
S607 DISC 2 Switch
S608 Power Switch
S609 Disc Check Switch
S610 Disc_change Switch
S611 Re_master Switch
S613 Tuner/ Aux Switch
S614 DVD/ CD Switch
S615 Stop Switch
S616 Tape Switch
S617 Rec Switch
S618 Disc 1 Switch
S971 Mode Switch
S972 Half Switch
S973 ATS/CR02 Switch
S974 Recinh_r Switch
S975 Recinh_f Switch
S1901 Tape Eject Switch

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

· The voltage value and waveforms are the reference voltage

of this unit measured by DC electronic voltmeter (high
impedance) and oscilloscope on the basis of chassis.
Accordingly, there may arise some error in voltage values
and waveforms depending upon the internal impedance of
the tester or the measuring unit.

No mark ...Playback <> ...FM
(( )) ...CD () ...AM

· Importance safety notice:

Components identified by

mark have special
characteristics important for safety. Furthermore, special
parts which have purposes of fire-retardant (resistors), high­quality sound (capacitors), low-noise (resistors), etc. are
used. When replacing any of components, be sure to use
only manufacturer’s specified parts shown in the parts list.

Caution!

IC, LSI and VLSI are sensitive to static electricity.
Secondary trouble can be prevented by taking care during

repair.

· Cover the parts boxes made of plastics with aluminium

foil.

· Put a conductive mat on the work table.

· Ground the soldering iron.

· Do not touch the pins of IC, LSI or VLSI with fingers

directly.

75

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

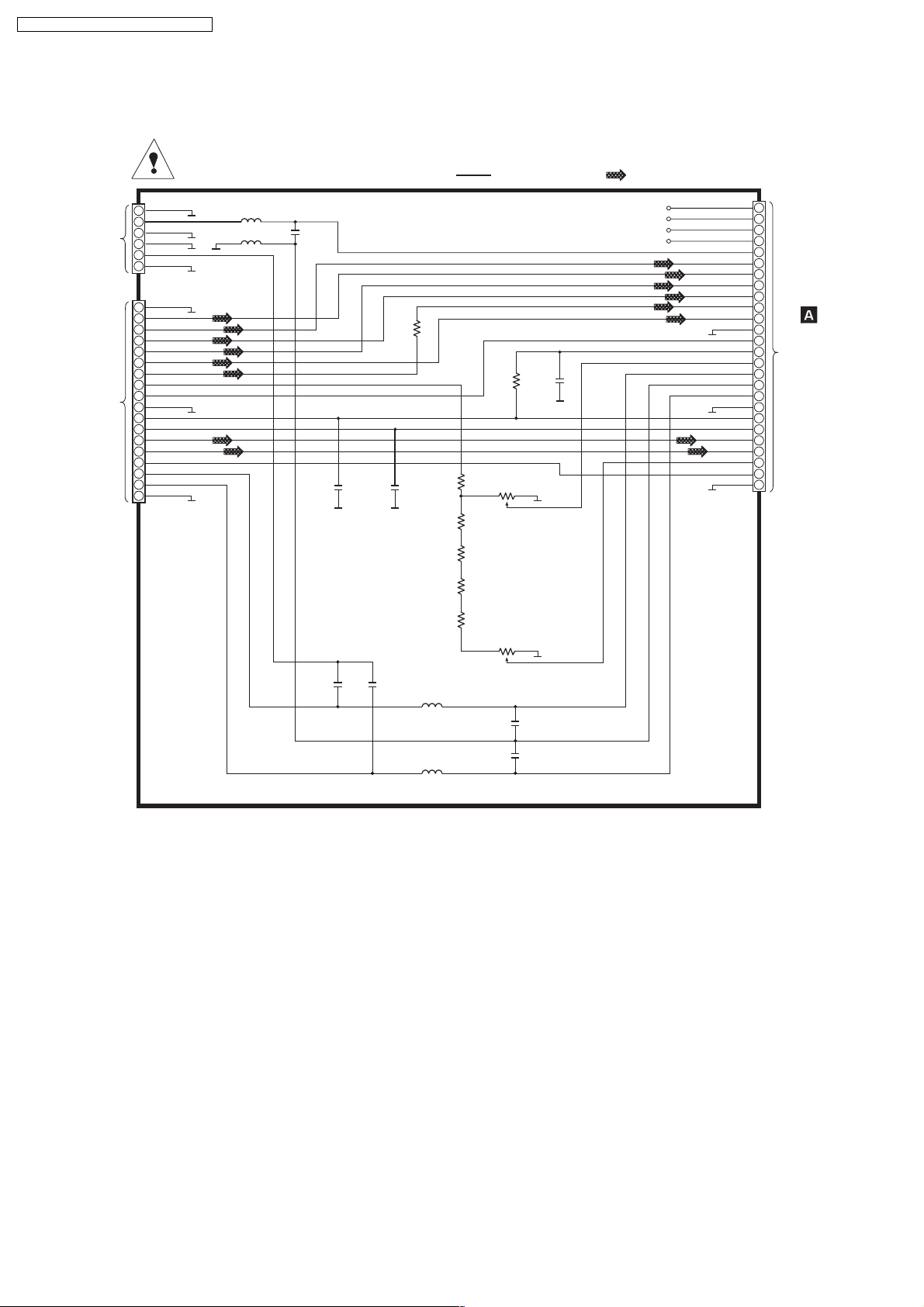

17.1. Optical Pickup Circuit

SCHEMATIC DIAGRAM - 1

TO
HFM
PCB

TO
LDU
PCB

OPTICAL PICKUP UNIT CIRCUIT

1
2
3
4
5
6

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18

GND
VCC
GND
GND
OUT
GND

GND
TB
TA
TC
TD
FE1
FE2
IM
RF
GND
VREF
VCC
SUB2
SUB1
SW
LD (CD)
LD (DVD)
LDGND

L4

J0JBC0000105

L3

J0JBC0000105

C8

0.1

: +B SIGNAL LINE : CD-DA SIGNAL LINE

T+

26

F+

25

HFM

GND (IM)

VREF2(RF-)

PIN (DVD)

LD (CD)

LD GND

LD (DVD)

GND (OEIC)

VREF1

VCC
SUB2
SUB1

PIN(CD)

GND (IM)

FE2
FE1

SW

F-

TA
TB
TD
TC

RF

T-

24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

TO
DVD
MODULE
(IN/OUT)
CIRCUIT
(FP8501) ON
SCHEMATIC
DIAGRAM-2

TO ACT

R2

0

R4

C2

0

0.1

6.8K

R1

0

R3

0

R5

0

R6

0

R7

C1

0.1

C3

0.1

VR1

6.8K

VR2

6.8K

C5

22PC622P

L2

J0JCC0000307

L1

J0JBC0000105

C7

0.1

C4

0.1

76

17.2. (A) DVD Module Circuit

SCHEMATIC DIAGRAM - 2

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

TO

SPINDLE

PCB

FP8271

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

DVD MODULE (IN/OUT) CIRCUIT

COIL_W
COIL_V
COIL_U
H+
HU+
HU­HV+
HV­HW+
HW­H­SW(GND)
SW
FEED­FEED+

TC8271
TC8272
TC8273
TC8274
TC8275
TC8276
TC8277
TC8278
TC8279
TC8280
TC8281
TC8282
TC8283
TC8284
TC8285

R8281 100

R8282 100

TRV-INNER-SW DV2

LB8271

ERJ3GEY0R00V

LB8272

ERJ3GEY0R00V

LB8273

ERJ3GEY0R00V

: +B SIGNAL LINE : CD-DA SIGNAL LINE

NC

1

A3

2

NC

3

4

A2

IC8271

C0GBF0000004

MOTOR DRIVE IC

C8275

0.1

C8284

0.01

C8285

0.01

C8286

0.01

NC

5

6

NC

A1

7

FIN

GND

8

H1+

9

H1-

10

11

H2+

H2-

12

H3+

13

14

H3-

IC8271

RNF

GSW

VCC

ECR

FG2

CNF

28

Vm

27

26

25

FG

24

23

PS

EC

22

FIN

3029

21

FR

CP8273

20

19

CP8272

18

SB

17

C8287

0.1

BR

16

15

VH

TO
OPTICAL
PICKUP
UNIT
CIRCUIT
ON
SCHEMATIC
DIAGRAM-1

FP8501

T+

26

F+

25

F-

24

T-

23

HFN

22

TA(DVD)

21

TB(DVD)

20

TD(DVD)

19

TC(DVD)

18

FE2(DVD/CD)

17

FE1(DVD/CD)

16

GND

15

RF

14

VREF2(RF-)

13

PIN(DVD)

12

LDCD

11

LDGND

10

LDDVD

9

GND(OEIC)

8

VREF1

7

VCC

6

SUB2

5

SUB1

4

PIN(CD)

3

SUBSEL

2

GND(VRCD)

1

TP8251
TP8253
TP8254
TP8252
TP8502
TP8514
TP8515
TP8517
TP8516
TC8504
TC8503

TP8519
TP8518
TP8511
TP8520

TP8510

TP8501
TC8501
TP8525
TP8524
TP8521
TC8502
TP8500

C8504 0.1

TRDRVDV2

FODRVDV2

MUTE12 DV2

IC8251

C0GBG0000044

MOTOR DRIVE IC

LB8512 ERJ3GEY0R00V

LB8513 ERJ3GEY0R00V

LB8511 ERJ3GEY0R00V

LB8514 ERJ3GEY0R00V

LB8506 D0GB152JA002

LB8505 J0JCC0000091
LB8504 J0JCC0000091
LB8503 ERJ3GEY0R00V

LB8501 ERJ3GEYJ222V

R8501 0

BIAS1

1

VIN1

2

VIN2

3

4

OPIN+

OPIN-

5

OPOUT

6

GND(PRE)

7

FIN

VCC(CH1.2)

8

MUTE12

9

GND(CH1.2)

10

VO2-

11

VO2+

12

VO1-

13

14

VO1+

IC8251

VCC(CH3.4)

GND(CH3.4)

LDCNT

MUTE3

TRIN

BIAS2

LDIN

VIN3

PREVCC

MUTE4

VO3-

VO3+

VO4-

VO4+

28

27

26

25

24

23

22

FIN

3029

21

20

19

18

17

16

CP8252

15

CP8251

77

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

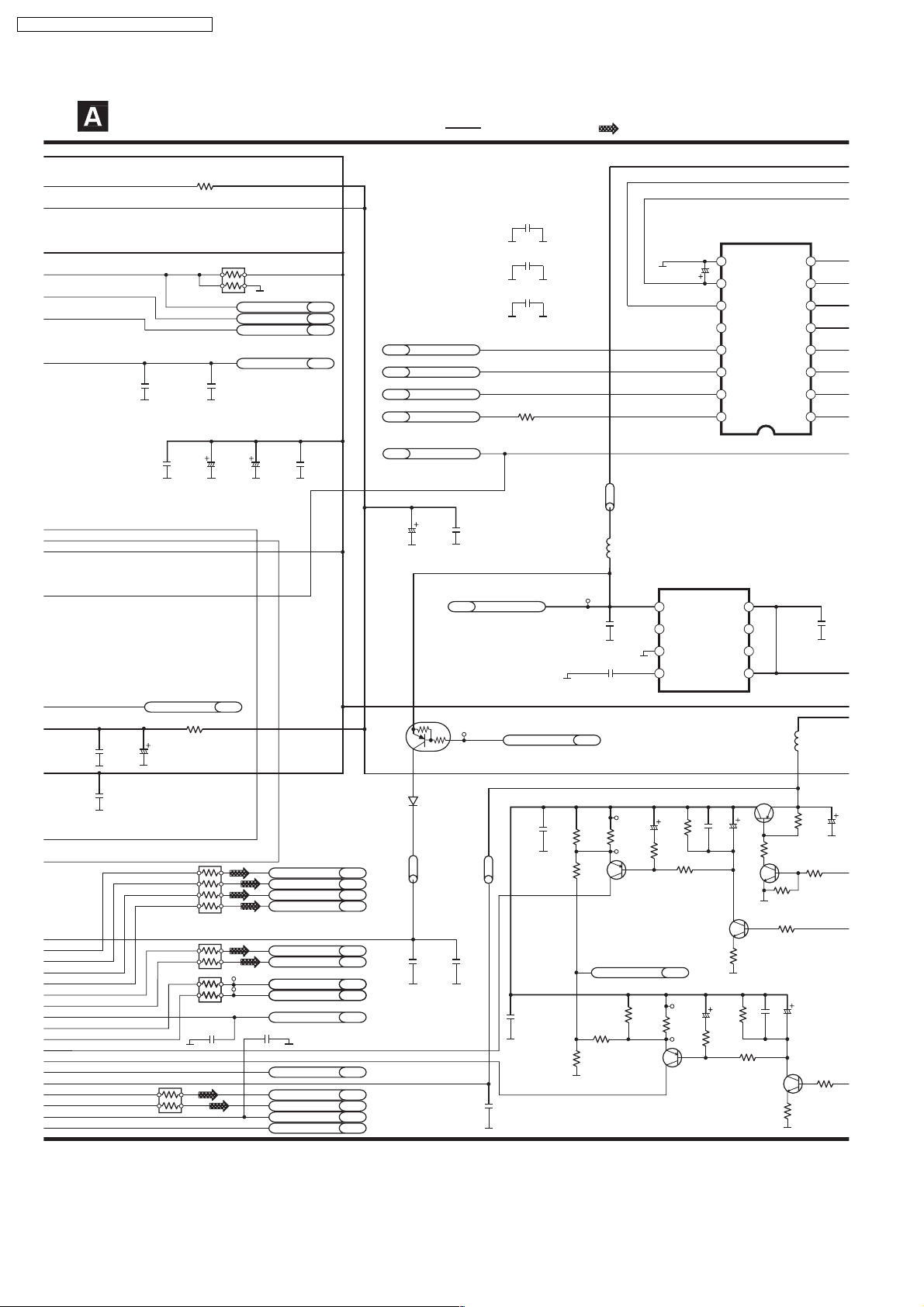

SCHEMATIC DIAGRAM - 3

C8255

0.1

DVD MODULE (IN/OUT) CIRCUIT

R8271 0.39

RA8271

(10K x 2)

FG DV2
MUTE3 DV2
SPDRV DV2

VHALF DV2

C8261

C8252
16V22

0.1

C8288

0.1

C8274

C8272

0.1

6.3V33

TRSDRV DV2

R8251 6.8

C8251

6.3V220

C8253

0.1

C8271
16V47

SBO3DV2

SBT3DV2

STBDACDV2

ADAC-CLKDV2

PNRSTDV2

C8273

0.1

QR8571

UNR511V00L

SWITCH

(SUPPLY CONTROL)

CP8571

QR8571

: +B SIGNAL LINE

C8423

0.1

C8424

0.1

C8456

0.1

R8421

0

J0JCC0000091

G1C220KA0055

D+3.3VDV2

HFMON DV2

LB8420

L8420

TP8111

: CD-DA SIGNAL LINE

C8112

1

C8113

470P

C0FBBK000035

9
C8425
10V10

10

11

12

13

14

15

16

IC8111

C0CBCBD00018

POWER SUPPLY IC

1

VO

2

NC

IC8111

3

GND

4

CN

Q8550

2SB1219AHL

SWITCH

IC8421

A/D CONVERTER IC

AGND

VCOM

ZEROR

ZEROL

IC8421

MDI

MC

ML

SCK

VIN

8

7

NC

6

NC

Cont

5

VOUTR

VOUTL

VCC

VDD

DGND

LRCK

DATA

BCK

C8111

0.1

L8550

G1C100KA0055

8

7

6

5

4

3

2

1

C8254

0.1

RA8503
(56 x 2)

RA8501
(56 x 2)

RA8502
(56 x 4)

RA8504
(56 x 2)

C8506

100P

CP8502
CP8501

C8505

220P

VIN1 DV2
VIN2 DV2
VIN4 DV2
VIN3 DV2

VIN8 DV2
VIN7 DV2

RFINP DV2
RFINN DV2

LPC1 DV2

VREFH DV2

VIN6 DV2
VIN5 DV2
LPC2 DV2

RAM_CD DV2

D8571

MA2J72800L

LB8507

J0JCC0000091

C8502

0.1

LB8502

J0JHC0000045

C8501
10V10

C8503

TP8523

C8561

0.1

R8567

51

R8568

47K

C8551

0.1

R8559

15K

0.1

C8563

6.3V47

R8566

56

TP8522

R8565

2SB09700RL

2SD1819A0L

AD0 DV2

R8557

51

R8558

47K

Q8552

2SB09700RL

SWITCH

2.2

Q8562

SWITCH

Q8560

SWITCH

R8556

R8563

1K

R8564

10

TP8513

C8553

6.3V47

56

TP8512

R8555

2.2

16V10

C8562

C8564 1

R8562

2SD1819A0L

330

R8553

R8554

Q8551

2SD1819A0L

1K

22

SWITCH

R8550

7.5K

R8560

1K

R8570

100K

R8561

Q8561

SWITCH

C8554 1

R8552

330

0

C8550

6.3V33

R8569

12K

Q8560

C8552
16V10

R8551

0

Q8550

78

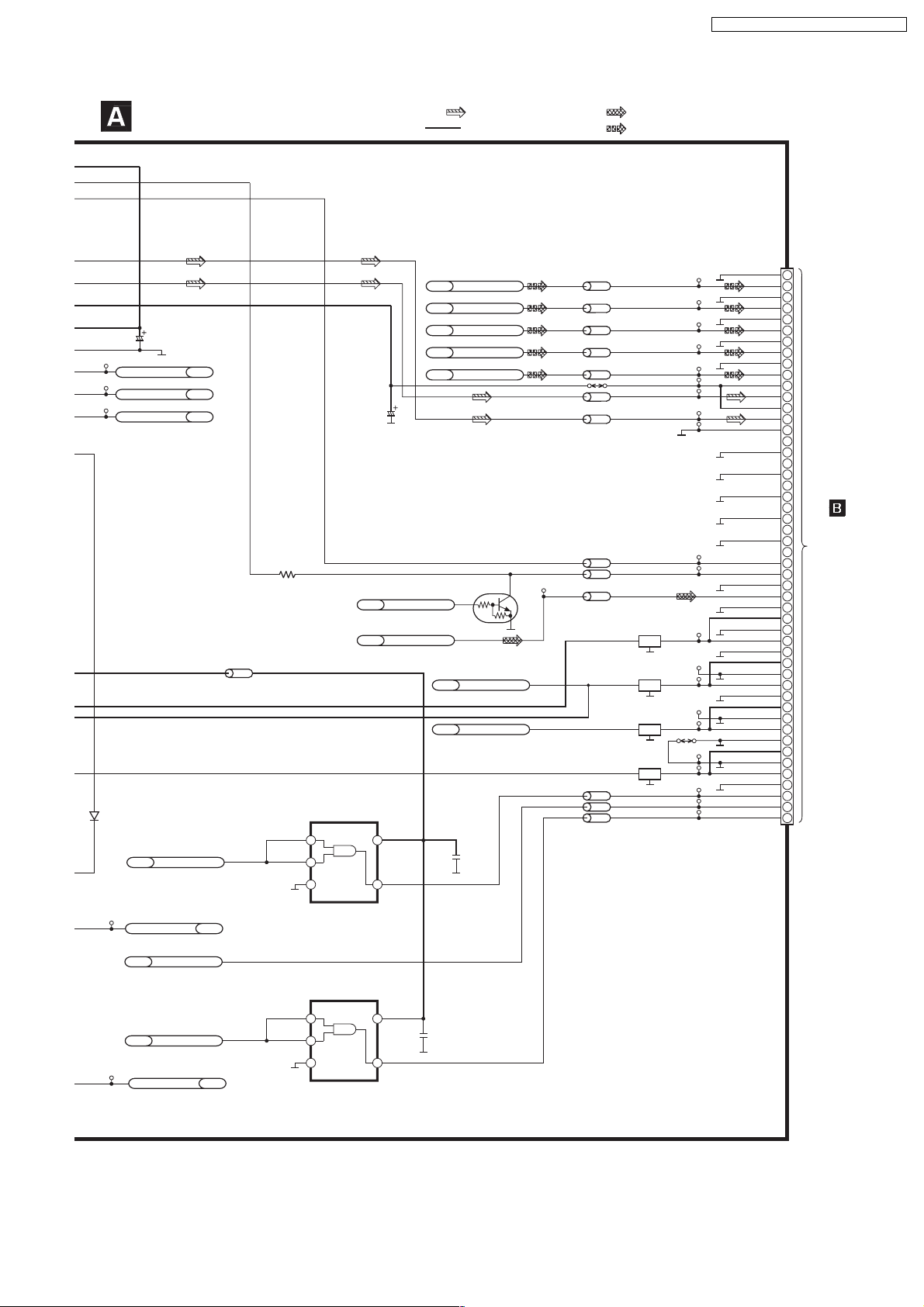

SCHEMATIC DIAGRAM - 4

DVD MODULE (IN/OUT) CIRCUIT

C8421

10V1

CP8422

CP8423

CP8421

D8550

MA2S11100L

LRCK DV2

DMIXOUT

SRCK DV2

OP_CPU-CLKDV2

DV2

LB8690

J0JCC0000091

R8420

2.2K

C0JBCA000066

AND GATE LOGIC IC

2

3

IC8691

GND

C8420

6.3V330

VCC

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

: MAIN SIGNAL LINE
: +B SIGNAL LINE

Y/PY/GDV2

CB/PB/BDV2

CR/PR/RDV2

YDV2

CDV2

QR8420

UNR521100L

AUDIO MUTING

SWITCH

QR8420

AMUTDV2

AUDIODIGITALDV2

A+5VDV2

D+1.2VDV2

51

4

C8691

0.1

LB8303 TC8303J0JCC0000119

LB8304 TC8304J0JCC0000119

LB8305 TC8305J0JCC0000119

LB8301 TC8301J0JCC0000119

LB8302

K8421

LB8421 TC8423

LB8422 TC8424

LB8423 TC8431ERJ3GEY0R00V
LB8424 TC8432

TC8491 J0JCC0000119

LB8491

LB8691 TC8691D0GB101JA002
LB8692 TC8692
LB8693 TC8693

: DVD AUDIO SIGNAL LINE
: DVD VIDEO SIGNAL LINE

J0JCC0000119

J0JCC0000119

J0JCC0000091

FL8103

F1H0J1050022

FL8102

F1H0J1050022

FL8101

F1H0J1050022

FL8104

F1J1E1040022

D0GB101JA002
D0GB101JA002

TC8302J0JCC0000119
TC8421

TC8422

TC8105

TC8104
TC8103

TC8102
TC8101

K8100

TC8108
TC8107

VGND

Y/PY/G

VGND

CB/PB/B

VGND

CR/PR/R

VGND

VGND

ADAC5V

MIX-L

ADAC5V

MIX-R

ADACGND

ADACGND

ADACGND

ADACGND

ADACGND

CNT

ADACGND

A-REF

ZFLAG&AMUTE

DGND

AUDIODIGITAL

DGND

D+5V

DGND

D+5V

DGND

A+5V

AGND

A+5V

AGND

D+1.2V

DGND

D+1.2V

DGND

M+9V

MGND

M+9V

MGND

OP_CPU-CLK
OP_CPU-CMD
OP_CPU-STAT

Y

C

FL

FR

SL

SR

SW

FP8101

1

2
3

4

5
6

7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22

TO

23

MAIN

24

(AUDIO-OUT1)

25

CIRCUIT

26

(PS4001) ON

27

SCHEMATIC

28

DIAGRAM-11

29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

CP8561

CP8551

LPCO2 DV2

OP_CPU-CMDDV2

OP_CPU-STATDV2

LPCO1 DV2

IC8695

C0JBCA000066

AND GATE LOGIC IC

VCC

2

3

GND

51

C8695

0.1

4

79

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

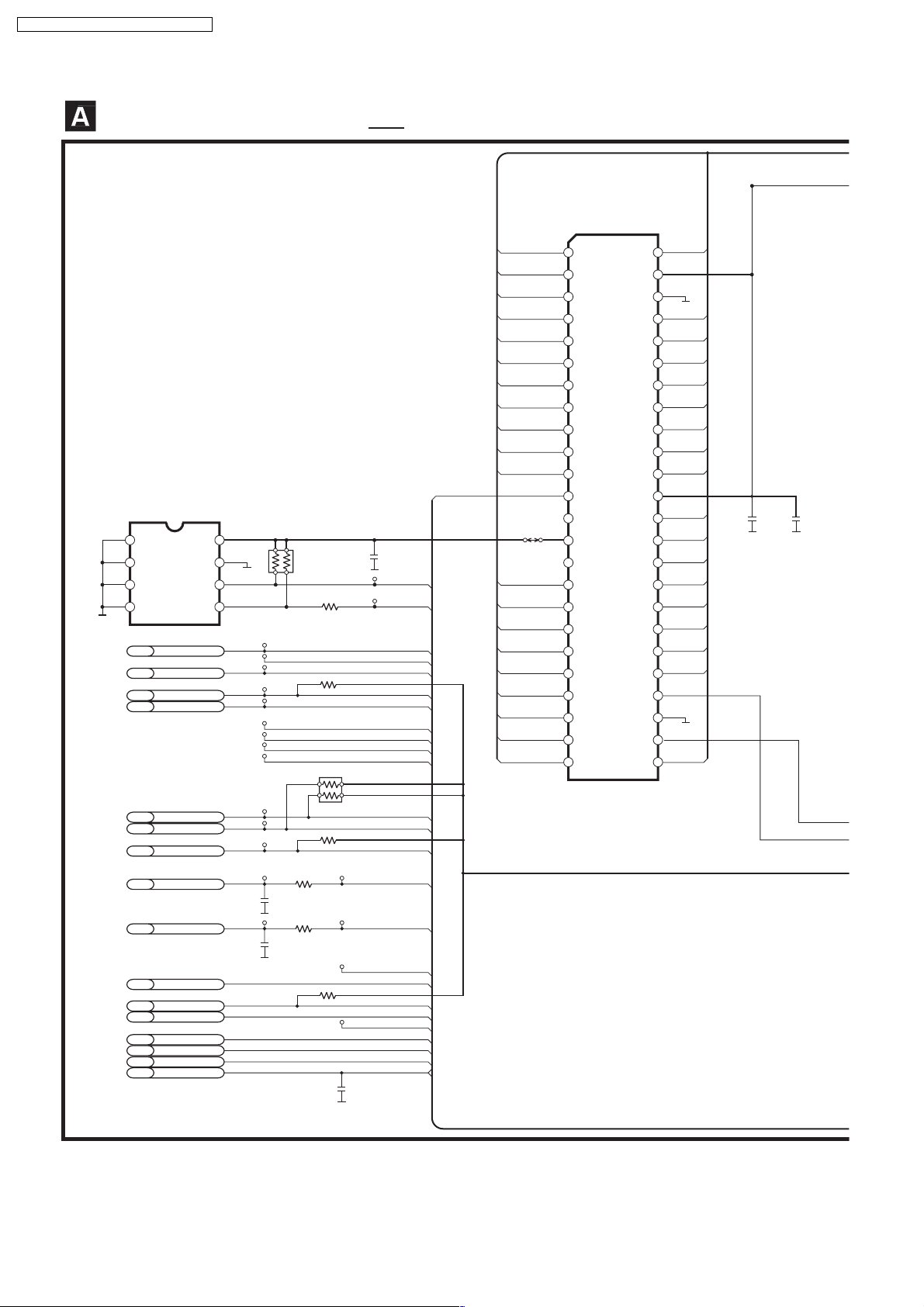

SCHEMATIC DIAGRAM - 5

DVD MODULE (DV2) CIRCUIT

IC8611

C3EBGC000055

EEPROM IC

(NOT SUPPLIED)

1

A0

2

A1

IC8611

3

A2

4

GND

8

VCC

RA8611

(4.7K x 2)

7

WP

6

SCL

5

SDA

STBDACI/O

AMUTI/O

SBT3I/O

SBO3I/O

CP8021
CP8022
CP8023

CP8024
CP8025

CP8027
CP8028
CP8029
CP8030

R8021 10K

RA8021

(10K x 2)

R8611

100

C8611

0.1

CP8612

CP8611

: +B SIGNAL LINE

PNRST

SCL

SDA

STBDAC
RSTCNT

AMUT

SBT3

SBO3

WIDE_L

RGBH

CLKSEL

YC_H

EXADT15

EXADT14

EXADT13

EXADT12

EXADT11

EXADT10

EXADT9

EXADT8

EXADR19

EXADR20

NEXWE

EXADR18

EXADR17

EXADT7

EXADT6

EXADT5

EXADT4

EXADT3

EXADT2

EXADT1

K8651

IC8651

RFKFMH81T160

16MB (FLASH IC)

1

A15

A14

2

3

A13

A12

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

DQ15/A-1

A11

A10

A9

A8

A19

A20

XWE

XRESET

NC

WP/ACC

RDY/XBSY

A18

A17

A7

A6

A5

A4

A3

A2

A1

A16

XBYTE

VSS

DQ7

DQ14

DQ6

DQ13

DQ5

DQ12

DQ4

VDD

DQ11

DQ3

DQ10

DQ2

DQ9

DQ1

DQ8

DQ0

XOE

VSS

XCE

EXADR16

48

47

46

FDT15

45

FDT7

44

FDT14

43

FDT6

42

FDT13

41

FDT5

40

FDT12

39

FDT4

38

37

FDT11

C8651

36

FDT3

35

FDT10

34

FDT2

33

FDT9

32

FDT1

31

FDT8

30

FDT0

29

28

27

26

EXADT0

25

A0

C8652

0.1

0.1

OP_CPU-CLKI/O

OP_CPU-STATI/O

OP_CPU-CMDI/O

TRSDRVI/O

SPDRVI/O

HFMONI/O

TRV-INNER-SWI/O

MUTE3I/O

RAM_CDI/O
MUTE12I/O

FGI/O

PNRSTI/O

CP8031
CP8032

CP8033

CP8242 CP8241

C8241

0.1

CP8244 CP8243

C8242

0.1

R8022 10K

R8241

22K

R8242

7.5K

CP8035

R8023 47K

CP8036

C8031

0.1

CPU-CLK

CPU-STAT

CPU-CMD

DRV0

DRV1

M+9V/12VCTL

HFMON

TRV-I-SW

MUTE3
FGENB

RAM_CD

MUTE12

PNRST

FG

80

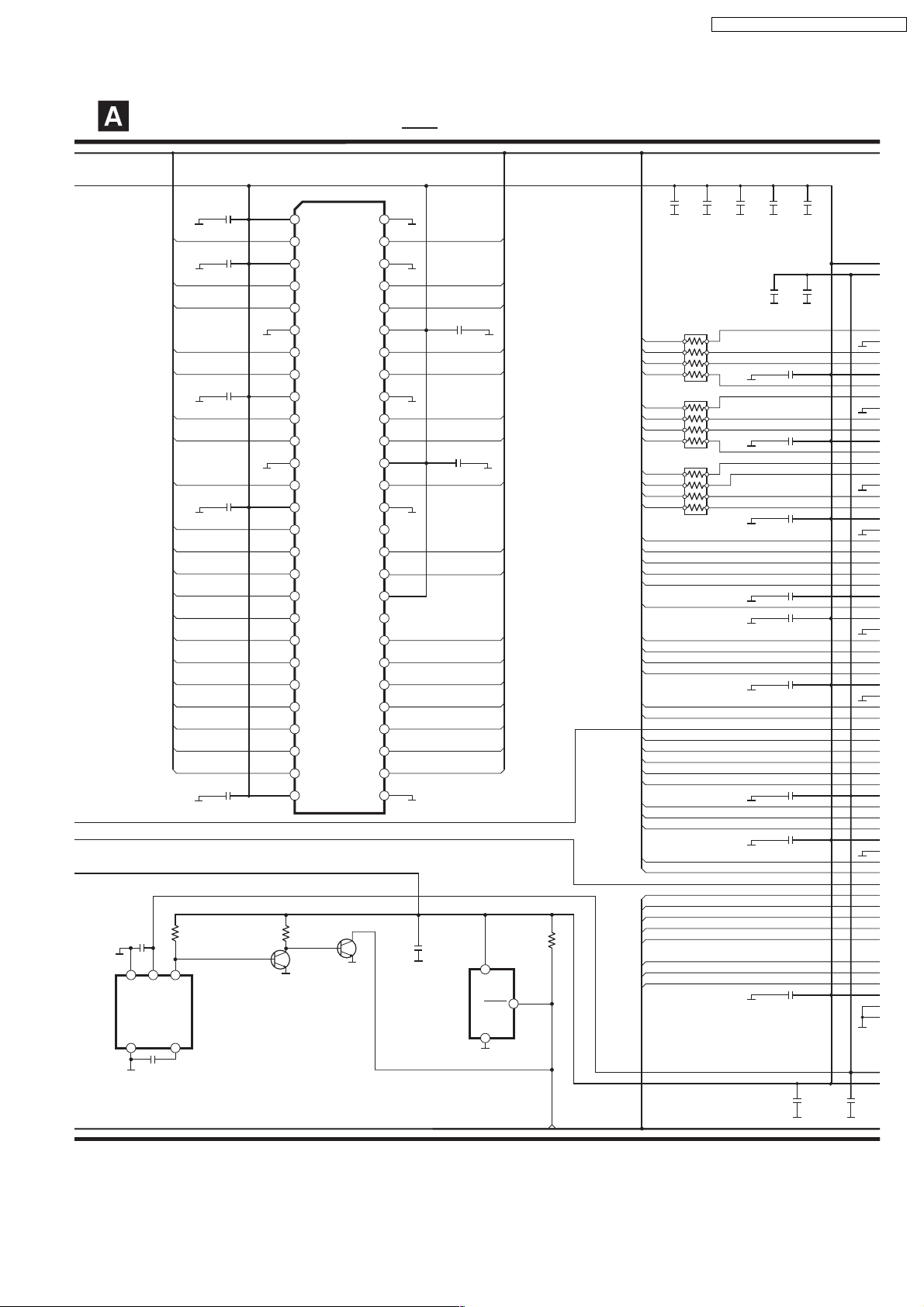

SCHEMATIC DIAGRAM - 6

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

DVD MODULE (DV2) CIRCUIT

C8051

C8605

0.1

3

4

GND

NC

C8606

0.22

VDD

MDQ0

MDQ1

MDQ2

MDQ3

MDQ4

MDQ5

MDQ6

MDQ7

DQM0

NWE

NCAS

NRAS

NCSM

BA0

BA1

MA10

MA0

MA1

MA2

MA3

12

OUT

Cd

5

R8605

100K

1

C8052

0.1

C8053

220P

C8054

1

C8055

1

Q8605 Q8606

2SD1819A0L

SWITCH

IC8605

C0EBA0000031

RESET IC

1

VDD

2

DQ0

3

VDDQ

4

DQ1

5

DQ2

6

VSSQ

7

DQ3

8

DQ4

9

VDDQ

10

DQ5

11

DQ6

12

VSSQ

13

DQ7

14

VDD

15

LDQM

16

/WE

/CAS

17

18

/RAS

19

/CS

20

BA0

21

BA1

22

A10/AP

23

A0

24

A1

25

A2

26

A3

27

VDD

R8606

10K

2SD1819A0L

IC8051

SWITCH

54

VSS

53

DQ15

52

VSSQ

51

DQ14

50

DQ13

49

VDDQ

48

DQ12

47

DQ11

46

VSSQ

45

DQ10

44

DQ9

43

VDDQ

42

DQ8

41

VSS

40

NC

39

UDQM

CLK

38

37

CKE

36

NC

35

A11

34

A9

33

A8

32

A7

31

A6

30

A5

29

A4

28

VSS

C8601

0.1

C0EBE0000384

VOLTAGE DETECTING IC

IC8601

: +B SIGNAL LINE

MDQ15

MDQ14

MDQ13

C8057
2200P

MDQ12

MDQ11

MDQ10

MDQ9

C8056

0.1

MDQ8

DQM1

CLK

MA11

MA9

MA8

MA7

MA6

MA5

MA4

3

VDD

RESET

GND

1

C3ABPG000067

64MB SDRAM IC

R8601

1K

2

PNRST

IC8051

C8028

1

MDQ5
MDQ10
MDQ4
MDQ11

MDQ3
MDQ12
MDQ2
MDQ13

MDQ1
MDQ14
MDQ0
MDQ15

EXADR20
NEXWE
EXADT0
EXADT4
EXADT8

EXADT12

EXADR16
EXADR18
EXADT14
EXADT10

EXADT6
EXADT2

EXADT1
EXADT5
EXADT9
EXADT13
EXADR17

EXADR19
EXADT15
EXADT11

EXADT7
EXADT3

STBDAC
RSTCNT
AMUT
SBT3
SBO3

SCL
SDA
WIDE_L

C8027

0.1

RA8013
(82 x 4)

RA8012
(82 x 4)

RA8011
(82 x 4)

C8026

C8023

C8024

1

2200P

1

C8025

C8022

0.1

0.1

C8003 2200P

C8004 0.1

C8005

0.1

C8006 0.1

C8007

0.1

C8008

0.1

C8009 0.1

C8010

0.1

C8011

1

C8012

0.1

C8013

0.1

81

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

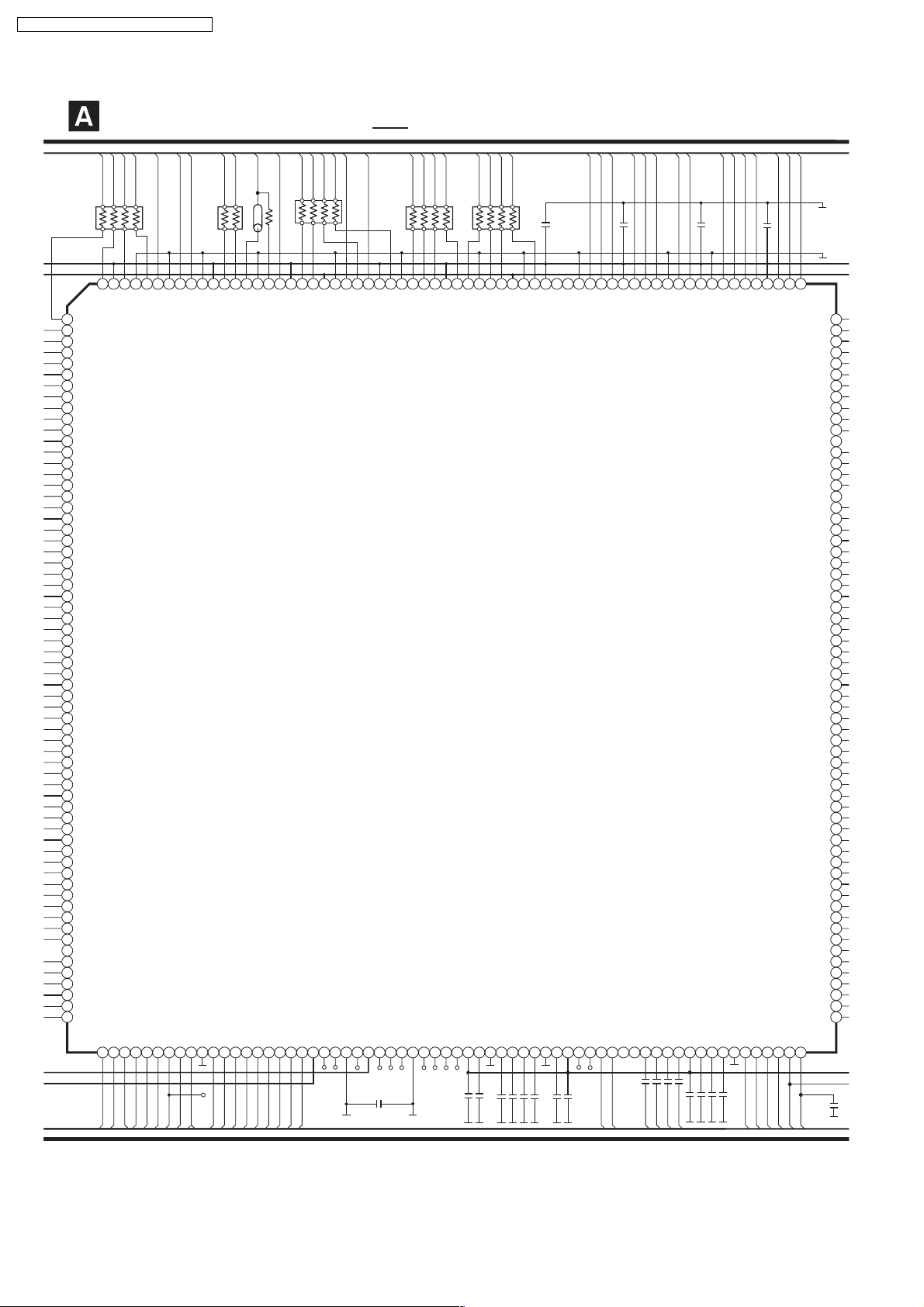

SCHEMATIC DIAGRAM - 7

DVD MODULE (DV2) CIRCUIT

MDQ9

MDQ6

RA8014
(82 x 4)

255

256

MDQ6

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

VDD33

MDQ9
MDQ5
VSS
MDQ10
MDQ4
VDD33
MDQ11
MDQ3
VSS
MDQ12
MDQ2
VDD33
MDQ13
MDQ1
MDQ14
VSS
MDQ0
MDQ15
VDD33
VSS
EXADR20
NEXWE
EXADT0
EXADT4
EXADT8
VDD12
EXADT12
VDD33
VSS
EXADR16
EXADR18
EXADT14
EXADT10
VDD33
VSS
EXADT6
EXADT2
NEXCE
EXADT1
EXADT5
EXADT9
EXADT13
EXADR17
VDD12
EXADR19
EXADT15
EXADT11
VDD33
VSS
EXADT7
EXADT3
NEXOE
P15
P14
P13
P12
P11
P10
P9
P8
P7
VDD33
MMOD
VSS

P6P5P4P3P2P1P0FGNRST

65 66 67 68 69 70 71 72 73

MDQ8

254

MDQ8

MDQ7

253

VSS

DQM1

MDQ7

DQM1

VSS

DQM0

DQM0

NWE

248249250251252

RA8015
(22 x 2)

247

NWE

74

VSS

VSS

246

VDD33

DRV0

75

NCAS

245

76

NCAS

DRV1

NRAS

244

77

24379242

NRAS

DRV2

78

LB8011

CLK

NCSM

ERJ3GEYJ220V

R8011 0

24082239

241

VSS

MCK

MCKI

NCSM

DRV3

DRV4

DRV5

DRV6

80

81

MA9

(82 x 4)

RA8016

238

VDD33

DRV7

83

MA9

DRV8

237

84

MA11

MA11

VDD33

MA8

236

85

MA10

235

VDD12

P16

86

BA0

2348823389232

BA0

VSS

P17

VSS

87

BA1

MA8

MONI7

: +B SIGNAL LINE

MA7

MA0

MA6

RA8017

(82 x 4)

231912309222993228942279522696225

BA1

VSS

MA7

MA0

MA10

VDD33

MN2DS0003APH

VDD12

MONI6

MONI5

MONI4

VSS

90

MONI3

MA1

MA6

MONI2

2249822399222

MA1

VDD33

IC8001

DV2.1 LSI

MONI1

MONI0

97

MA5

MA5

AVDDD

MA2

221

VSS

MA2

PLFIL1

AVSSD

100

MA4

220

101

MA3

RA8018

(82 x 4)

219

218

MA4

VDD12

VREFH7

VREFM7

102

103

217

VSS

MA3

VREFL7

CCAPA

104

216

105

C8021

215

VDD33

AVSSC

106

0.1

214

DQM2

CDATA

107

213

212

VSS

DQM3

AVDDC

ANAMONI1

108

109

FDT0

FDT15

211

210

MDQ16

MDQ31

ANAMONI2

RFINN

110

111

FDT1

C8020 0.1

209

VDD33

MDQ17

RFINP

VIN6RF

112

FDT14

208

113

FDT2

207

MDQ30

MDQ18

VIN5RF

VIN4RF

114

FDT13

206

115

205

VSS

MDQ29

VIN3RF

VIN2RF

116

FDT3

204

117

FDT12

203

MDQ19

MDQ28

VIN1RF

AVDDB

118

C8019 1

202

201

VDD33

VREFH5

119

120

FDT4

200

199

VSS

MDQ20

VREFM5

VREFL5

121

122

FDT11

198

MDQ27

AVSSB

123

FDT5

197

MDQ21

LPC1

124

FDT10

C8018 0.1

196

VDD33

MDQ26

LPC01

LPC2

125

FDT6

195

126

FDT9

194

MDQ22

MDQ25

TRCDATA3
TRCDATA2
TRCDATA1
TRCDATA0

DAC5OUT

DAC4OUT

DAC3OUT
DAC2OUT

DAC1OUT

VCOF/AD4

LPC02

VREFH

127

FDT7

193

MDQ23

MDQ24

VSS
VDD33
TRCST

TRCCLK
EXTRG1

SDATA
EXTRG0
SCLOCK

VSS

VDD33

IECOUT
ADOUT0
ADOUT1
ADOUT2

VSS

VDD12

ADOUT3

SRCK

LRCK
EXTCK
VDD33

OSCO

OSCI

VSS
DACCK
AVSSG
AVDDG

AVSSE

AVDDE

AVSSF

COMP

IREF1

VREF

AVDDF

PWM0
PWM1

AVSSH

VREFH10

AD0

VREFL10

AVDDH

AD1

AD2

VIN1
VIN2
VIN3
VIN4
VIN5
VIN6
VIN7
VIN8
VIN9

VIN10

VHALF

128

192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129

RGBH

KMODE

CLKSEL

CPU-STAT

CPU-CLK

YC_H

CPU-CMD

FG

CP8001

PNRST

DRV0

DRV1

M+9/12VCTL

MUTE3

HFMON

FGENB

RAM_CD

TRV-I-SW

MUTE12

CP8002

CP8003

TP8220

C8207

TP8219

0.1

TP8218

TP8217

TP8216

TP8215

82

TP8214

TP8213

C8211 0.033

C8203 0.1

C8212 0.1

C8213 0.1

C8214 0.1

C8204 0.1

C8216 0.018

C8215 5600P

TP8211

TP8212

RFINN

RFINP

C8221 0.1

C8222 0.1

C8223 0.1

VIN2

VIN3

VIN4

C8224 0.1

C8205 0.1

C8225 0.1

VIN1

C8226 0.1

C8227 0.1

LPC1

LPC01

LPC2

LPC02

VHALF

VREFH

C8229

1

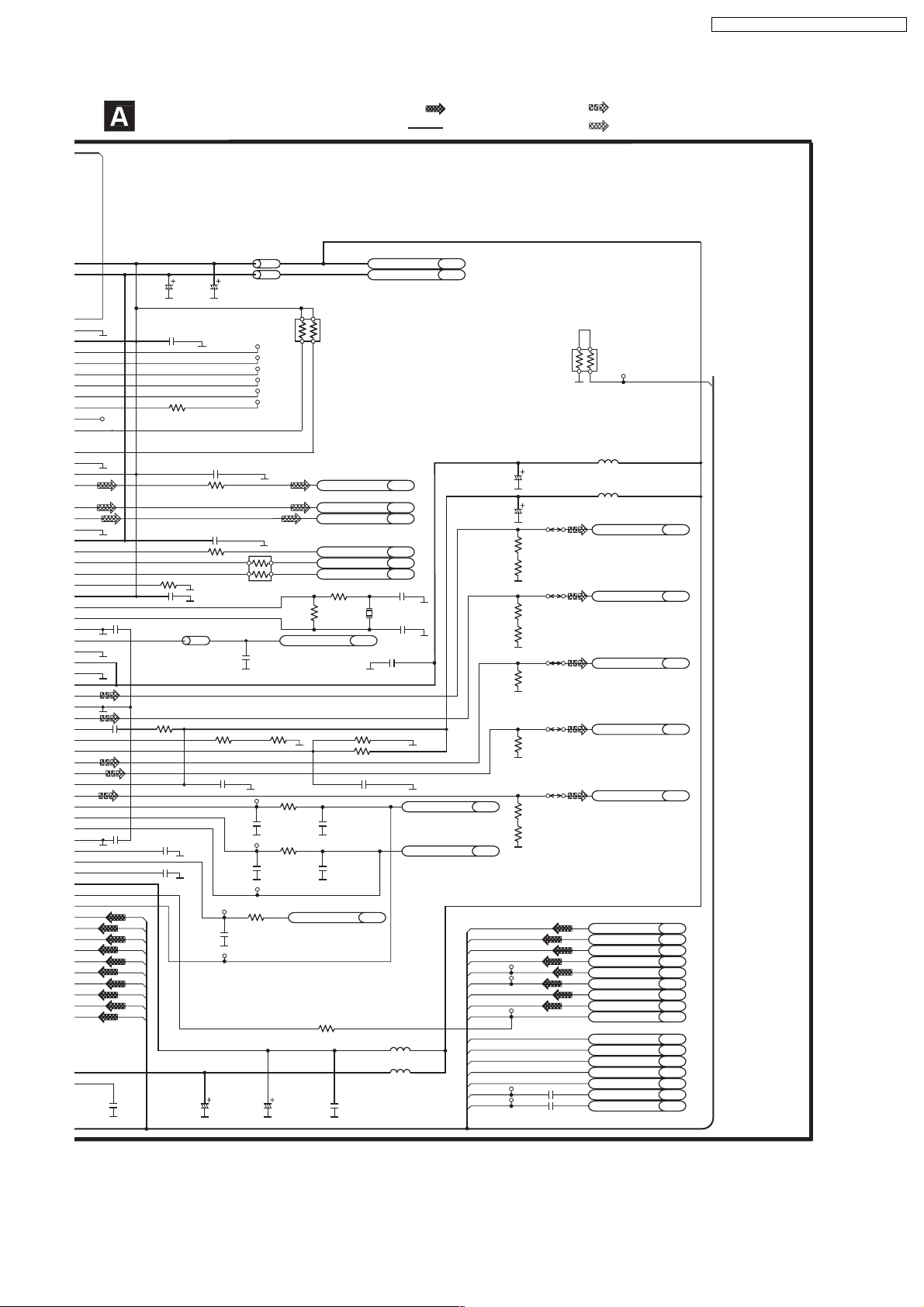

SCHEMATIC DIAGRAM - 8

DVD MODULE (DV2) CIRCUIT

FDT8

LB8001

J0JHC0000045

C8002
4V330

C8001

6.3V100

LB8002

J0JHC0000045

D+3.3V I/O
D+1.2V I/O

: CD-DA SIGNAL LINE
: +B SIGNAL LINE

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

: DVD VIDEO SIGNAL LINE
: DVD AUDIO SIGNAL LINE

CP8040

C8307 0.1

C8312 1

C8017

0.1

R8041

R8401

C8014

R8315 6.8

33

R8404 100

C8015 1

R8402 100

47K

0.1

LB8401

D0GB151JA008

C8400

15P

CP8047
CP8046
CP8045
CP8044
CP8043
CP8041

RA8031

(4.7K x 2)

RA8401
(100 x 2)

AUDIODIGITAL I/O

R8622

R8621

X8621

1M

H0J270500064

ADAC-CLK I/O

R8312 1KR8313 24K R8314 0

R8311 2.4K

ADOUT1
ADOUT2 I/O

DMIXOUT I/O

SRCK I/O

LRCK I/O
470

C8622 5P

C8621 39P

C8304 1

RA8032

(4.7K x 2)

CP8034

KMODE

L8302

J0JCC0000079

C8302

6.3V33

I/O

C8301

6.3V220

R8325

160

R8326

R8321

160

R8322

10

R8341

82

R8335

K8325

10

K8321

K8341

K8335

82

L8301

G1C100KA0055

CR/PR/R I/O

CB/PB/B I/O

C I/O

Y I/O

C8208 0.1

C8228

1

VIN1
VIN2
VIN3
VIN4
VIN5
VIN6
VIN7
VIN8
VIN5
VIN6

C8234 0.1

C8232 0.1

C8201

6.3V100

C8303 0.1

CP8233

C8233
4700P

CP8231

CP8235

C8235

1000P

CP8236

C8237
1000P

CP8234

C8202

6.3V100

R8233

15K

R8235

8.2K

R8236

8.2K

C8236
1000P

C8238

820P

R8232

C8206

1

C8311 0.1

AD0 I/O

10K

L8202

J0JCC0000079

L8201

G1C100K00020

FODRV I/O

TRDRV I/O

VIN1
VIN2
VIN3
VIN4
VIN5
VIN6
VIN7
VIN8
VHALF

VREFH
LPC02
LPC2
LPC01
LPC1
RFINP
RFINN

R8331

R8332

CP8204
CP8203

TP8201

CP8202
CP8201

K8331

82

0

C8218

1

C8217

1

Y/PY/G I/O

VIN1 I/O
VIN2 I/O
VIN3 I/O
VIN4 I/O
VIN5 I/O
VIN6 I/O
VIN7 I/O
VIN8 I/O

VHALF I/O

VREFH I/O
LPC02 I/O

LPC2 I/O

LPC01 I/O

LPC1 I/O

RFINP I/O

RFINN I/O

83

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

17.3. (B) Main Circuit

SCHEMATIC DIAGRAM-9

MAIN CIRCUIT

JK2801

RIGHT CH

AUX

LEFT CH

SUB WOOFER

OUT

JK2802

G

S.VIDEO_OUT

VIDEO_OUT

2
4

C

Y

CN2808

FAN-

1

TO

FAN+

FAN

2

TO TUNER

PACK T1

ENG07802QF

1
3

FAN DRIVER SUPPLY

R2920

56K

R2919

10K

C2888
16V33

Q2806

CN2804

C2909

100P

C2920

0.047

Q2806

2SB0621AHA

Q2807

B0ACCK000005

R2922

10K

B0ACCK000005

R2921

4.7K

R2924

820K

C2889

0.1

10

9

TU_FM_DET

8

TU_R

7

TU_ST_DO

6

TU_L

5

TU_SD

4

TU_SDA

3

TU_SCL

2
1

C2922

0.047

R2925

D2809

R2923

5.6K

100

D2810

C2004

C2005

C2895

C2895
1000P

1000P

: +B SIGNAL LINE

C2204
1000P

C2104
1000P

1F

1F

C2911

C2919

0.047

C2914

270P

C2917

270P

Q2807,Q2808,Q2809

KTC3875GRTA

FAN DRIVER SUPPLY

C2892

6.3V100

R2927

27

R2926

56K

R2928

56K

Q2809

C2890 100P

C2891 16V47

L2817

100uH

C2896

100P

270P

C2916

22P

L2823

2.2uH

C2893

6.3V220

R2929

R2930

R2203

18K

R2103

18K

C2910

22P

L2821

2.2uH
C2912

330P

C2913

22P

L2822

2.2uH

C2915

330P

C2918

330P

Q2808

B0ACCK000005

10K

820K

C2897

50V4.7

D2811

: DVD (VIDEO) SIGNAL LINE
: AUX SIGNAL LINE
: FM/AM SIGNAL LINE
: MAIN SIGNAL LINE

AUXR

R2204

1.2K

R2104

1.2K

C2894
50V2.2

TU_FM_DET

TU_ST_DO

AUXL

YOUT

SUB_W

COUT

VOUT

DCDET

OP_LEV

MD+10V

TU_R

TU_L

TU_SD
TU_SDA
TU_SCL

+9V

TAPE_EJECT

HP_SW

BP1
MOTOR
PLUNGER
FLD_CLK

FLD_DA
LED_CTL

FLD_RST
FLD_CS
DECK_AD1
DECK_AD2

KEY2

KEY1
VREF+

PLAY_SW
STOCK_SW

OP_CL_REV
OP_CL_FWD
OPEN_SW
POSITION

DVREF+

SYS6V

R2020

C2848

10V22

0

R2899

22K

R2900

12K

C2817 100P

C2816 100P

C2818 100P

C2819 100P

D2801

1SS380TE-17

1SS380TE-17

10V1000P

C2847

0.01

KEY3

C2820 470P

D2802

C2843

C2846

50V2.2

C2814

470P

R2878 10K

R2879 10K
R2880 10K
R2881 10K
R2882 10K

R2883 10K

C2824
10V22

R2898

680

D2803

B0ACCK000005

R2861 47K
R2860 10K
R2859 10K

C2815

470P

C2829 100P

C2830 100P

L2801

3.3uH
C2842

0.1

C2998

0.1

C2811 100P
C2812 100P
C2813 470P

R2862 1K
R2863 100
R2864 100
R2869 100
R2870 100
R2002 100
R2867 100
R2868 100
R2865 100
R2866 100
R2871 100
R2872 100

R2873 1.8K
R2874 10K

R2875 6.8K
R2876 100

C2821 0.01

C2823 0.01

C2822 470P

C2828 100P

C2827 100P

R2884 10K

R2885 10K

R2886 10K

C2841

6.3V100

C2845

50V1

KRC103STA

C2826 100P

C2825 100P

R2887 22K

C2844

100P

Q2803

SWITCH

R2877

1K

R2897

47K

84

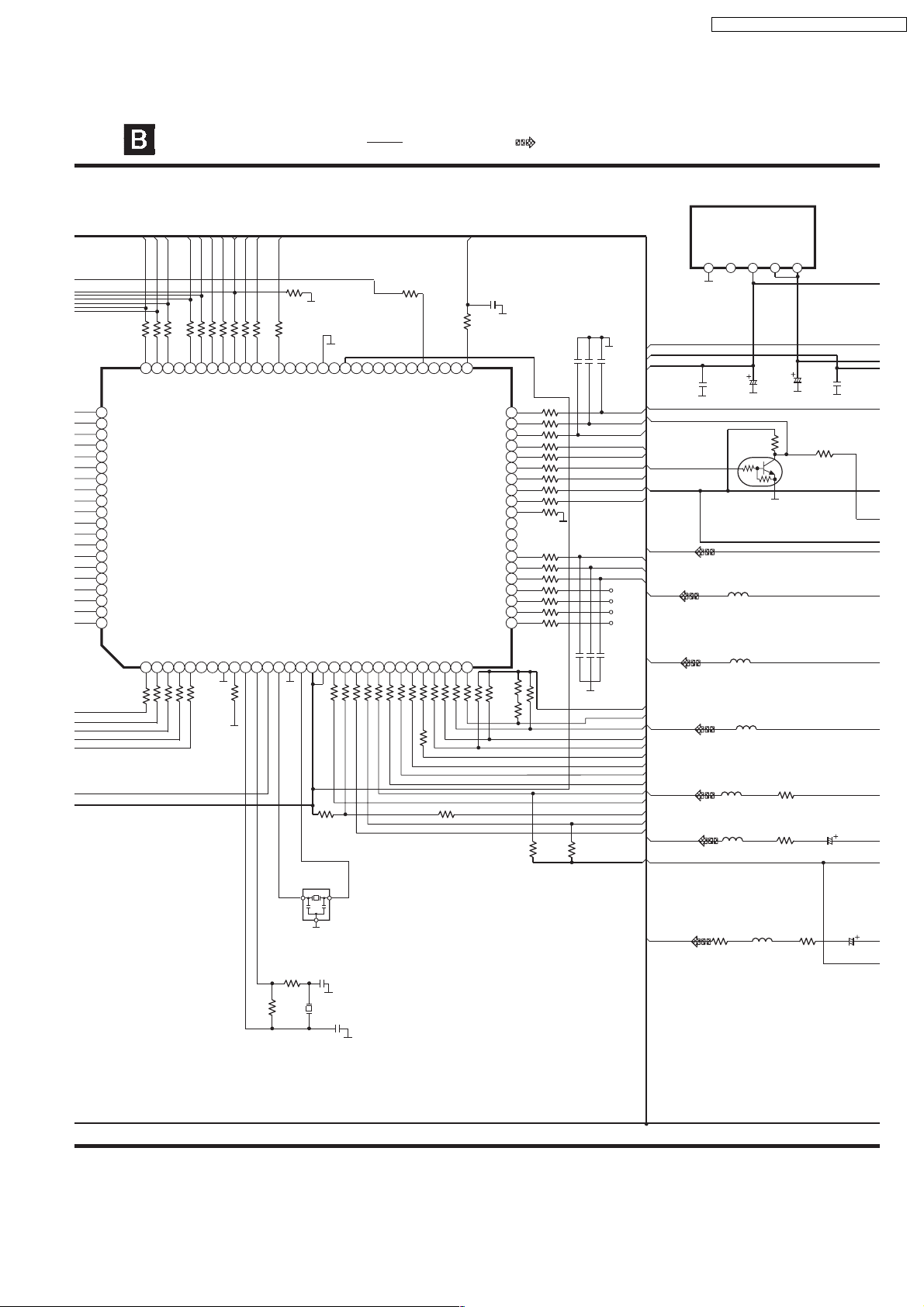

SCHEMATIC DIAGRAM-10

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

DWT


R2858 1K

R2857 1K

DMT

81

BP1
MOTOR

82

PLUNGER

83

84

FLD_CLK

85

FLD_DA

86

LED CONTROL
FLD_RST

87

88

FLD_CS

89

DECK_AD1
DECK_AD2

90
91

KEY3 (TAPE_EJECT)

92

KEY2

93

DES3 (DVD)

94

DES2

95

DES1 (TUNER/RDS/SCART)

96

AVSS

97

KEY1

98

Vref

99

AVcc
PLAY_SW

100

ST_SW

2

1

1K

R2801

R2802 1K

MAIN CIRCUIT

REC

JOG_A

JOG_B

DCDET

MUTE_H

RDS_CLK

RDS_DATA

R2850 1K

R2849 100

R2853 100

R2854 100

R2856 1K

77

787980

REC


OP/CL_REV

OP/CL_FWD

3

R2803 1K

75

76

JOG_A

JOG_B

MC_SW

OPEN_SW

POSITION

MBP1

4

67

5

R2804 1K

R2805 1K

R2851 1K

R2852 1K

74

73

72

DCDET

RDS_DO

RDS_CLK

MBP2

BYTE

CMVss

9

8

R2808 10K

71

Xcin

10

MUTE_H

PCONT

DVDPCONT

R2050

82K

R2847 1K

R2848 1K

68

70

69

67

NC

NCNCNC

PCONT

DVDPCONT

C2CBJG000403

Xcout

/RESET

Xout

12

14

11

13

H2B100500004

65

66

IC2801

MICRO-P

Vss

Xin

16

15

X2802

IN OUT

GND

64

Vcc

17

R2824

62

63

VssNCVcc

NMI

RMT

19

18

R2809 1K

22K

59

61

60

NCNCNCNCNC

SYNC

UP/DOWN R

CHANGE_SW

21

22

20

R2812 1K

R2813 1K

R2811 1K

R2810 10K

: +B SIGNAL LINE

R2015

100K

57

56

55

58

NC

BOTTOM_SW

EDA

E_CLK

E_CS

24

26

25

23

R2814 1K

R2815 1K

R2816 1K

R2825 470

R2843

1K

54

53

52

KA_CLK

KA_DATA

DEMOCTL

PROGRESSIVE

UP/DOWN F

TU_SD

TU_ST/DO

27

28

29

R2818 1K

R2058 0

R2819 1K

R2817 1K

SW_LEV1

C2810

100P

51

SW1

KA_LATCH

SW2

ASP_CLK

ASP_DATA

WIDE1

VMIX_CTL

RGBH

DVD_MUTE

HP_MUTE

SUB_MUTE

EPM

OP_CPU_CLK

OP_CPU_STAT

OP_CPU_CND

BUSY

CLK
RxD

TU_CE (TxD)

TU_SCL

TU_SDA

30

R2821 1K

R2820 1K

R2823 10K

R2822 10K

NC

NC

R2008

R2012

: DVD (VIDEO) SIGNAL LINE

R2842 1K

50

R2841 1K

49

R2840 1K

48

R2839 1K

47

R2838 1K

46

R2837 1K

45

R2836 1K

44

R2835 1K

43

R2834 1K

42

R2833 330

41
40
39
38

R2831 1K

37

R2830 1K

36

R2829 1K

35

R2005 1K

34

R2006 1K

33

R2007 1K

32

R2828 1K

31

10K

0

R2009 10K

R2827

R2826

4.7K

10K

C2805 100P

C2806 100P

C2804 100P

ASP_DATA

VMIX_CTL

DVD_MUTE

HP_MUTE

SUB_MUTE

OP_CPU_CLK

OP_CPU_STAT

OP_CPU_CMD

C2803 100P

C2802 100P

C2801 100P

VREF+

TU_SDA

TU_SCL

TU_ST_DO

TU_SD

UP_DOWN_F

E_CLK

BOTTOM_SW

CHANGE_SW

UP_DOWN_R

DVREF+

SW_LEV2
ASP_CLK

WIDE1

RGBH

E_CS
E_DA

RMT

SYNC

D+1.2V
D+5V
A+5V

C2864

DVDPCONT
SC_WIDE

WIDE1

A+5V

COUT

VOUT

YOUT

CY_G_OUT

CB_B_OUT

CR_R_OUT

VMIX_CTL

V_Y_OUT

C0DBZHE00011

REGULATOR IC

5

C2863

16V470

0.1

UNR221200L

J0JBC0000015

J0JBC0000015

J0JCC0000186

L2814

J0JBC0000015

L2815

J0JBC0000015

R2061

0

IC2807

4321

C2862
16V47

R2912

2.2K

Q2805

SWITCH

L2811

L2812

L2813

R2917

75

R2910

75

L2816

J0JBC0000015

R2911

75

C2861

0.1

R2918

75

C2993

6.3V470

C2992

6.3V470

R2896

10M

R2895

330K

X2801
32KHz

C2840

18P

C2839

22P

85

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

SCHEMATIC DIAGRAM-11

MAIN CIRCUIT

IC2806

C0DBZHG00016

REGULATOR IC

4321

5

C2860

10V220

L2809

22

L2810

J0JBC0000015

R2914

R2916

75

R2915

75

C2886

0.1

R2913

75

IC2809

C1AB00001731

VIDEO SWITCH IC

Vcc

3

IC2809

2

OUT

1

SW

C2887 0.1

Vcc

3

2

OUT

IC2810

1

SW

IC2810

C1AB00001731

VIDEO SWITCH IC

C2879

6.3V22

75

C2881

6.3V1000

C2882

6.3V1000

C2883

6.3V1000

C2859

16V10

C2880

IN2

GND

IN1

GND

0.1

6.3V1000

IN2

IN1

C2878

C2884

C2997

0.1

4

5

R2080

6

C2996

6.3V1000

4

5

C2995

6.3V1000

6

0.01

0

IC2805

C0DBEFG00003

REGULATOR IC

4321

5

C2858

0.1
R2909

1K

R2901

100

C2885

6.3V1000

R2908

390

C2857

6.3V470

L2803

G0A200D00002

L2840

G0A200D00002

34

VCC2

COUT

33

32

GND2

31

VOUT

30

VSAG

29

GND2

28

YOUT

YSAG

27

26

GND2

25

CYOUT

24

CYSAG

23

GND2

22

CbOUT

21

CbSAG

20

GND2

19

CrOUT

18

CrSAG

: - B SIGNAL LINE
: +B SIGNAL LINE

L2807

G0A200D00002

R2904

33K

C2853

C2856

0.1

16V47

C2854

R2905

100K

C2850

0.1

1

VCC1

2

CN

MUTE1

3

4

VN

5

YC-MIX

6

YN

7

BIAS

8

GND1

VIDEO IC

IC2808

9

NC

C9ZB00000431

10

GND1

NC

11

CYN

12

13

CLP

14

CbN

MUTE2

15

16

CrN

17

GND2

10

C2875

C2876

C2852

1

1

6.3V820P

R2906

2.2K

R2907

2.2K

D2807

B0BC7R500001

G0ZZZ00001930

C2849

6.3V820P

D2805

B0BC7R500001

C2871

0.01

C2873

6.3V22

L2911

0.39uH

C2874

1

L2806

G0A101ZA0028

D2806

L2802

R2902

8.2K

R2903

2.2K

C2872

0.1

C2994

22P

: DVD (VIDEO) SIGNAL LINE
: MAIN SIGNAL LINE

IC2803

C0DBAJG00002

REGULATOR IC

B0JCPC000004

5

IC2803

4

IC2804

C0DBAJG00002

REGULATOR IC

5

D2804

B0JCPC000004

4

DVD_MUTE

R2003

R2001

IC2804

0

10K

D+1.2V

C2867

100P

1

2

3

Q2826

KRC102STA

RGBH

MUTING SWITCH

MIXR

MIXL
A+5V(ADAC5V)

L2805

G0A200D00002

1

2

C2855

25V330

3

C2851

25V330

C2865 1000P

R2033 0

R2057

Q2826

C2868

C2869 100P

L2804

G0A200D00002

0

100P

MUTE_H

OP_LEV

DCDET
PCONT

SYNC
TGND

MD_GND1

SYS6V

SUB+B

OPAMP_R
OPAMP_L

YGND
SGND

+9V

-9V

MO+10V

MO_GND

MO+9V

+7.5V

+12V

OP_CPU_STAT
OP_CPU_CMD

OP_CPU_CLK

MO_GND

MO+9V

MO_GND

M+9V

DGND

D+1.5V

DGND

D+1.5V

AGND

A+5V

AGND

A+5V

DGND

D+5V

DGND

D+5V

DGND

AUDIDDIGITAL

DGND

ZFLAG_AMUTE

ADACGND

CNT

ADACGND

ADACGND

ADACGND

ADACGND

ADACGND

MIXR

ADAC5V(A+5V)

MIXL

ADAC5V

VGND

VGND

CR/PR/R

VGND

CB/PB/B

VGND

Y/PY/G

VGND

12
11
10

9
8
7
6
5
4
3
2
1

12
11
10

9
8
7
6
5
4
3
2
1

1
2
3
4
5
6
7
8
9

10

11

12

13

14

15

16

17
18
19

20

21

22

23

24

SW

25

26

27

28

SR

29

30

SL

31

32

FR

33

34

FL

35

36

37

38

39

40

C

41

42

Y

43

44

45

46

47

48

49

50

CN2801

TO
POWER CIRCUIT
(CP5802) ON
SCHEMATIC
DIAGRAM-18

CN2802

TO
POWER CIRCUIT
(CP5803) ON
SCHEMATIC
DIAGRAM-18

CN2803

TO
DVD MODULE (2)
CIRCUIT
(FP8101) ON
SCHEMATIC
DIAGRAM-4

86

HEADPHONE

TO
CD LOADING
CIRCUIT
(CN1) ON
SCHEMATIC
DIAGRAM-21

TO
PANEL CIRCUIT
(CN602) ON
SCHEMATIC
DIAGRAM-14

L2818

100uH

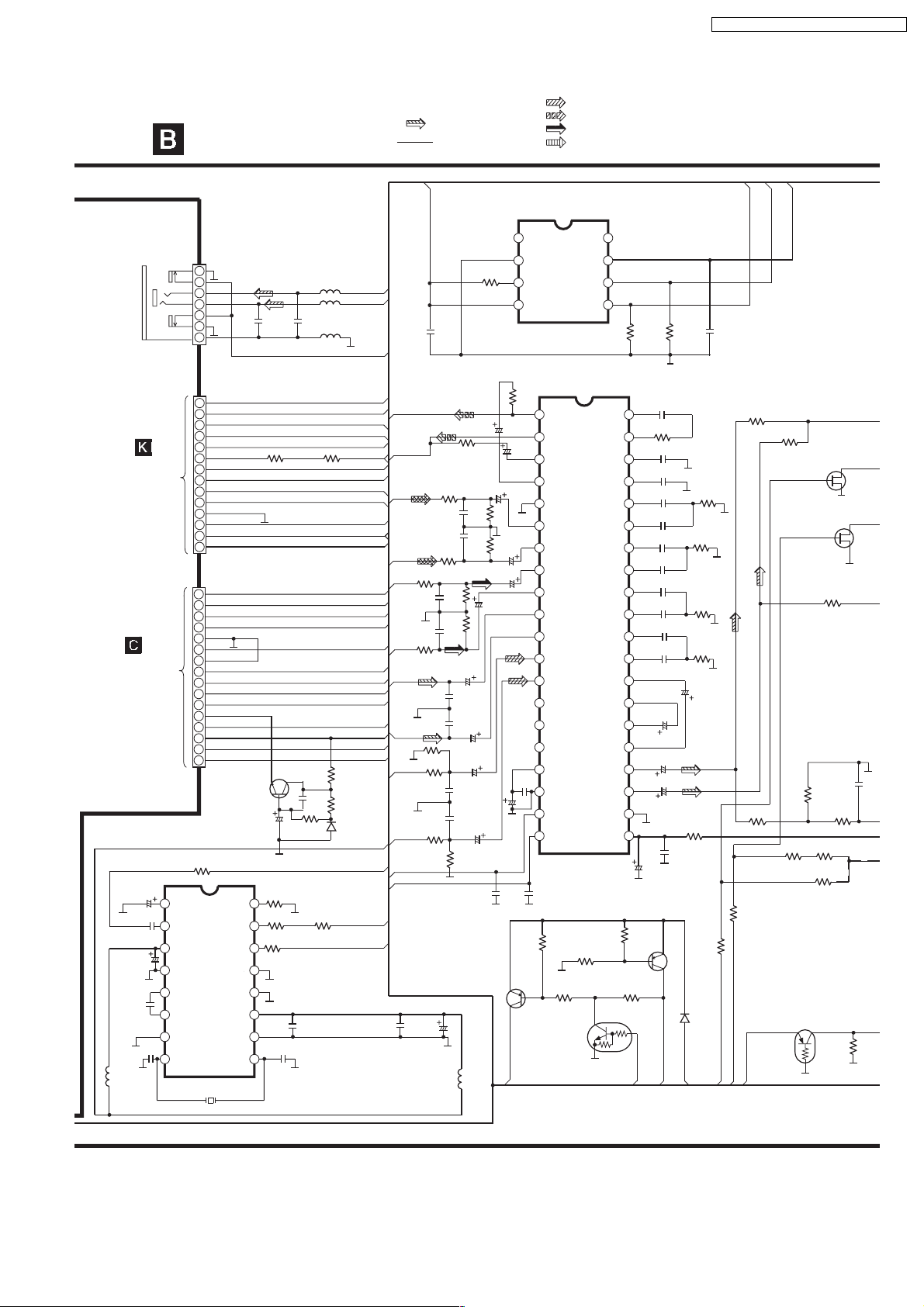

SCHEMATIC DIAGRAM-12

MAIN CIRCUIT

JK2804

7
6
2
3
4

C2201

C2101

0.047

0.047

R2935 220

Q2827

50V1

C2237

R2932

100K

16

R2933

1K

15

R2934

1K

14

13

12

11

C2907

0.01

10

C2904

9

C2900

330P

C2901
50V10

C2902

560P

C2899

50V10

C2903

47P

5
1

CN2806

PLAY SW

14

STOCK SW

13

LOAD R

12

LOAD F

11

OPEN SW

10

LED

9

POSITION SENS

8

BOTTON SW

7

UP/DOWN R

6

UP/DOWN F

5

DGND

4

CRIS SWITCH

3

PGND

2

+7.5V

1

CN2805

KEY1

1

KEY2

2

JOG_A

3

JOG_B

4

5

RMT

6

PGND

7

FLD_RST

8

FLD_CS

9

FLD_CLK

10

FLD_DA

11

D+5V

12

VREF+

13

+7.5V

14

LED_CTL

15

DCDET

16

Q2827

KTC32030YTA

REGULATOR

R2931

1K

1

2

3

IC2811

4

C1BB00000715

RDS IC

5

6

7

8

X2803

H0H433400001

47P

L2101

J0JBC0000019

L2201

J0JBC0000019

L2820

J0JBC0000019

R2035 100

C2235

0.01

R2994

150

R2247

0

HP_L

HP_R

HP_SW

PLAY_SW

STOCK_SW

OP_CL_REV

OP_CL_FWD

OPEN_SW

DVREF+

POSITION

BOTTON_SW

UP_DOWN_R

UP_DOWN_F

CHANGE_SW

PGND

+7.5V

KEY1

KEY2
JOG_A
JOG_B

RMT

FLD_RST

FLD_CS

FLD_CLK

FLD_DA

VREF+

+7.5V

LED_CTL

DCDET

R2246

0

R2992

82

D2815

B0BC5R600003

VREF+

TU_FM_DET

RDS_CLK

RDS_DATA

C2906
1000P

C2832

220P

REC_LIN

REC_RIN

MIXL

MIXR

R2108

TU_L

C2108

C2208
1000P

TU_R

AUXL

AUXR

R2112 0

PB_LOUT

PB_ROUT

ASP_DATA
ASP_CLK

C2905

6.3V47

10K

1000P

R2208

5.8K

E_DA

C2110

100P

C2210

100P

R2111

C2112

100P

C2212

100P

R2211

: MAIN SIGNAL LINE

: +B SIGNAL LINE

R2890 4.7K

C2105
16V10

R2205

0

R2106

C2107 16V10

8.2K

C2106

220P

1.8K

R2107

C2206

220P

R2206

8.2K

0

0

KTA1504GRTA

L2819
100uH

1.5K

R2109

1.5K

R2209

C2111
16V10

C2211
16V10

C2113
16V10

16V470P

C2213
16V10

R2212

0

C2928

Q2815

SWITCH

R2207

C2926

47P

1.8K

C2109
16V10

C2209
16V10

C2207
16V10

IC2802

C3EBDG000052

IC EEPROM

(NOT SUPPLIED)

8

7

IC2802

6

5

C1BB00000822

R2105

0

1

FVN1

2

FVN2

C2205
16V10

3

GOUT2

4

GOUT1

5

GND1

A1

6

7

A2

8

B1

IC2812

9

B2

10

C1

11

C2

12

D1

13

D2

14

E1

15

E2

16

MC

17

FL

C2925

0.1
18

GND2

19

DATA

20

CLK

C2927

47P

R2961

470K

R2960

4.7K

Q2813

KRC102STA

SWITCH

DVREF+

: TAPE PLAYBACK SIGNAL LINE
: TAPE RECORD SIGNAL LINE
: FM/AM SIGNAL LINE
: AUX SIGNAL LINE

1

2

3

4

R2888

R2889

22K

C2214

R2113

2.2K
C2114

4700P

C2215

4700P
C2216

0.015
C2115

0.015

C2116

0.015

C2217

0.015
C2218

0.15

C2117

0.15

C2118

C2219

C2220
16V10

C2120

50V0.47

C2221
16V10

C2930

0.1

Q2814

SWITCH

1

0.15

0.15

C2119
16V10

VREF+

C2831

0.022

R2936

R2937

3.3K

R2938

3.3K

C2939

3.3K

R2988

10

R2952

D2812

1SS380TE-17

SYS6V

3.3K

IC2812

ASP IC

R2957

10K

22K

40

SUR2

39

SUR1

38

TRE1

37

TRE2

36

MD12

35

MD11

34

MD21

33

MD22

32

BASS22

31

BASS21

30

BASS11

29

BASS12

28

TOUT1

27

TOUT2

26

RVN2

25

RVN1

24

OUT1

23

OUT2

22

GND3

21

VCC

C2929

16V470P

KTA1504GRTA

R2958

470K

Q2814

R2959

1K

PCONT

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

E_CS

E_CLK

VREF+

R2114

12K

R2213

12K

Q2810

B1CABA000002

LEVEL SWITCH

Q2811

B1CABA000002

LEVEL SWITCH

R2242 0

C2122

47K

0

Q2812

R2953

2.7K

R2954

2.7K

1000P

R2116

1.8K

R2956

56K

1K

R2245 0

R2951

SW_LEV2

SW_LEV1

1K

HP_MUTE

R2115

R2082

KRA102MTA

MUTE SWITCH

87

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

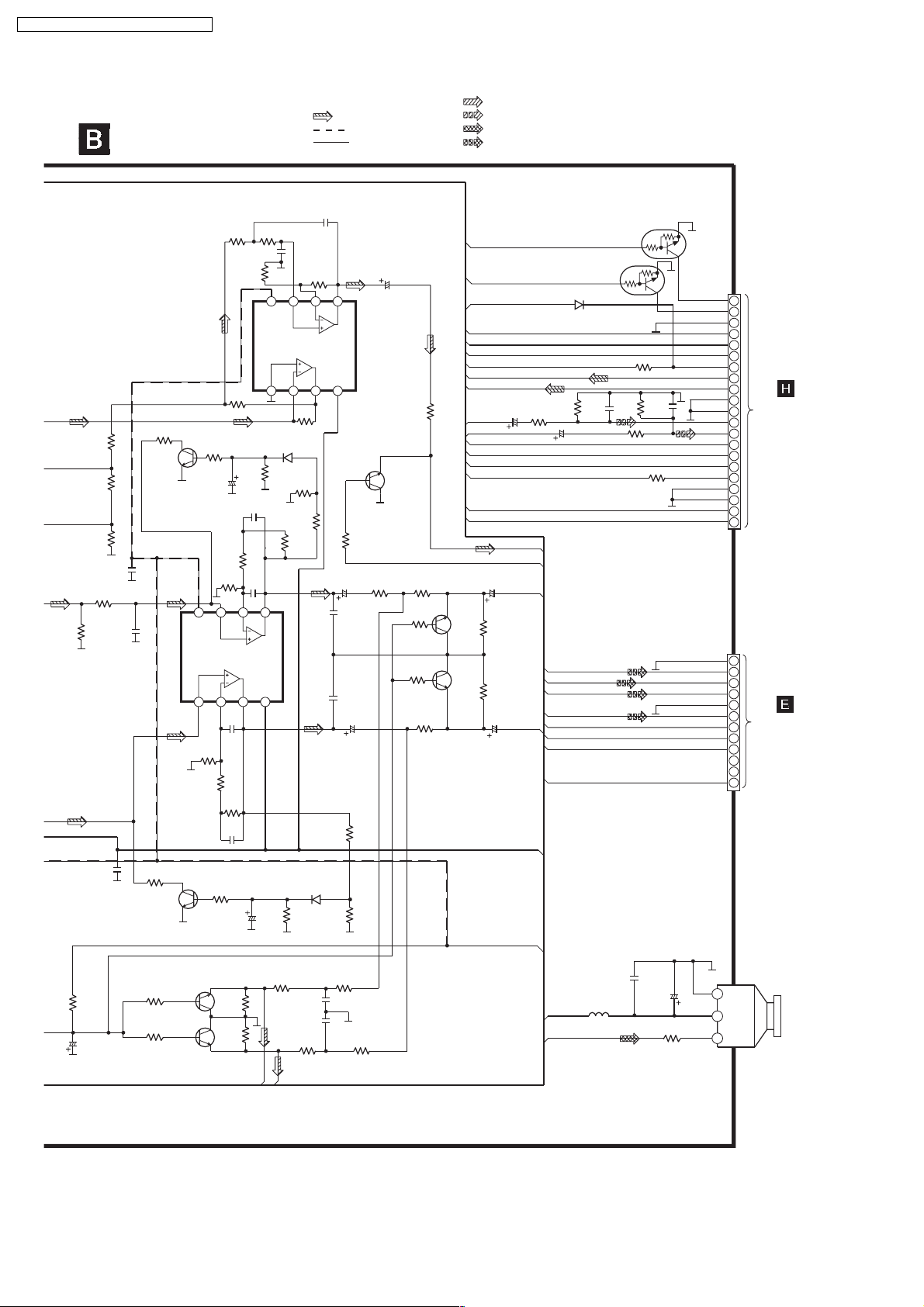

SCHEMATIC DIAGRAM-13

MAIN CIRCUIT

R2220

10K

Q2201

KTC3875GRTA

R2121

10K

Q2101

SWITCH

Q2103,Q2203

AMPLIFIER

R2240 1K

R2241 1K

Q2201

SWITCH

C0AABB000085

R2119

Q2203

Q2103

R2214

47K

R2940

820

R2941

1K

R2942

1.5K

C2935

0.01

R2215

1.8K

C2223
1000P

C2936

0.01

KTC3875GRTA

B1ABGC000005

R2955

27K

C2937

50V4.7

R2948

R2943

R2221

1K

C2229
16V10

R2218

22K

R2217

4.7K

4

IC2813

OP AMP IC

678

5

C2126

47P

R2118

4.7K

22K

R2120

39K

C2127

0.027

R2122

1K

C2128
16V10

R2230

3.3K

R2131

3.3K

12K

1K

R2946

5.6K

R2222

100K

C2228

0.027

C2227

47P

R2945

12K

C2933

0.082

4

IC2814

KIA4558FEL

OP AMP IC

678

5

R2944

D2201

MA2J72800L

R2223

4.7K

R2224

12K

R2219

39K

123

MA2J72800L

R2123

100K

R2229

39

R2130

HP_L

HP_R

12K

C2230
1000P

C2129
1000P

D2101

C2233
3300P

C2132
3300P

39

C2932

R2947

3.3K

0.082

C2231
16V10

R2125

12K

R2124

4.7K

R2228

123

: MAIN SIGNAL LINE

: +B SIGNAL LINE
: +B SIGNAL LINE

C2934
16V10

R2949

100

Q2816

Q2816

B1ABGC000005

MUTE SWITCH

R2950

1K

R2034

R2225

0

R2227

R2128

1K

C2130

16V10

39

R2129

39

R2126

1K

Q2202

1K

R2226

100K

Q2102

R2127

100K

1K

Q2202,Q2102

B1ABGC000005

AMPLIFIER

: TAPE PLAYBACK SIGNAL LINE
: TAPE RECORD SIGNAL LINE
: DVD (AUDIO) SIGNAL LINE
: DVD (VIDEO) SIGNAL LINE

KRC101STA

PLUNGER

MOTOR

DCDET

DECK_AD2
MO+10V
DECK_AD1
+9V
PB_LOUT
PB_ROUT

REC_LIN
REC_RIN
REC
BP1
DMT
DVREF+

TAPE_EJECT

SUB_MUTE

C22312
50V3.3

C2131

50V3.3

C2103
16V10

SUB_W

OPAMP_R

OPAMP_L

R2101

+9V

-9V

Q2817

KRC101STA

MOTOR SWITCH

D2814

B0ACCK000005

R2102

1.8K

82K

C2203 16V10

CB_B_OUT
CR_R_OUT
CY_G_OUT

V_Y_OUT
RGBH
SC_WIDE
+12V

A+5V

D+5V

AUDIODIGITAL

PLUNGER SWITCH

G0C4R7K00004

Q2818

C2102

330P

L2824

R2011 10

R2202

1.8K

R2201 82K

R2062 0

C2924

0.1

C2202

330P

C2923
50V4.7

R2081

0

PLUNGER_L

MOTOR_L
MD GND1

DECK_AD2

MO+18V

DECK_AD1

PB_LOUT

PB_ROUT

SGND

REC_LIN

REC_RIN

REC

BP1

DMT

DVREF+

TAPE_EJECT


VGND
CB_B_OUT
CR_R_OUT
CY_G_OUT

CHASGND

V_Y_OUT

RGBH

SC_WIDE

+12V

A+5V

+9V

3

2

1

CN2807

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

16

17
18

19
20
21

CN2809

1

2

3

4

5

6

7

8

9
10
11
12

GND

VCC

OUTPUT

JK2803

TO
DECK CIRCUIT
(CN1305) ON
SCHEMATIC
DIAGRAM-17

TO
SCART TERMINAL
CIRCUIT
(CN2812) ON
SCHEMATIC
DIAGRAM-15

OPTICAL

88

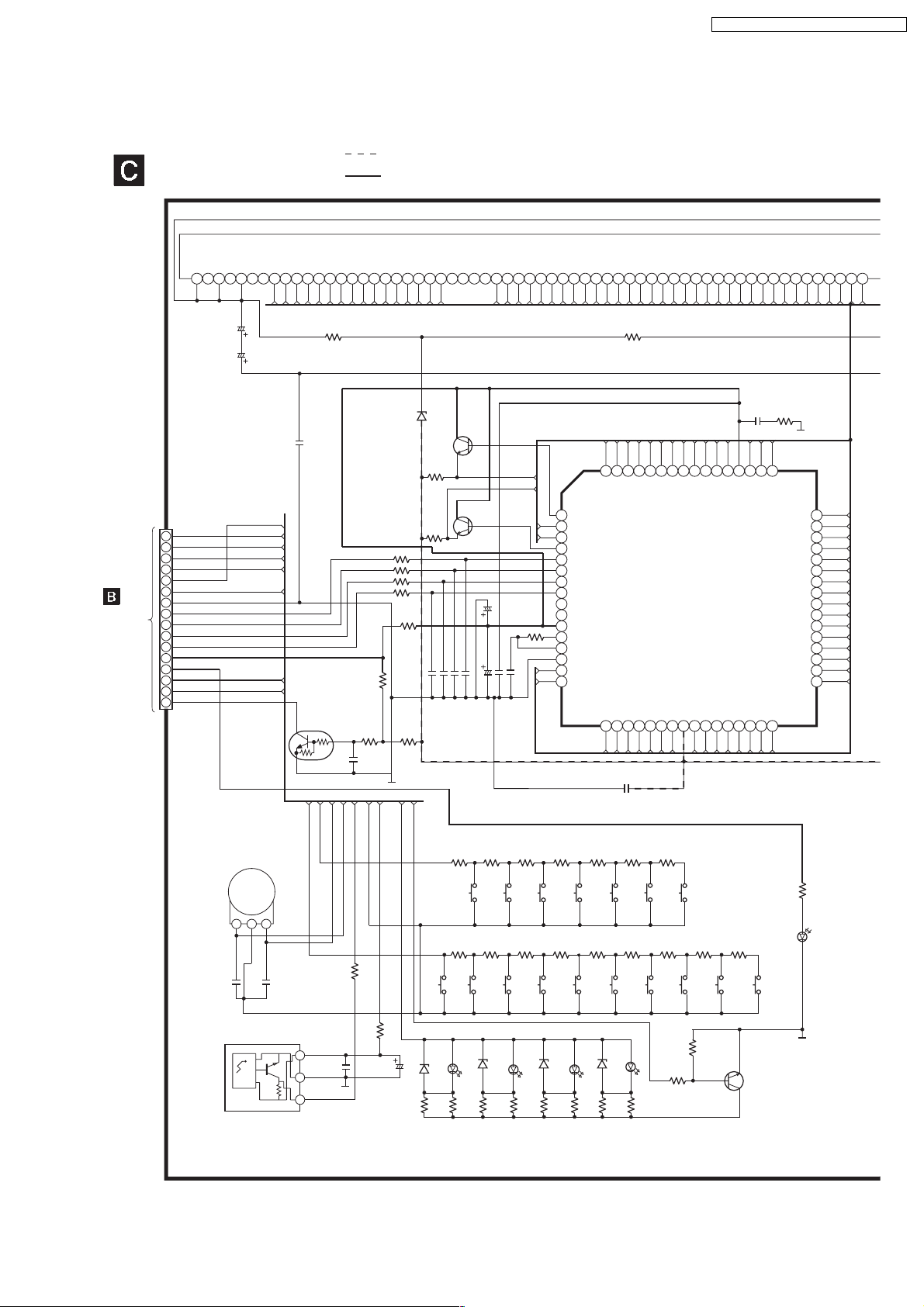

17.4. (C) Panel Circuit & (E) Scart Circuit

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

SCHEMATIC DIAGRAM-14

PANEL CIRCUIT

23456

1

F1NPF1NPF1

C621

50V22P

C622

50V22P

1
2
3
4

-VREF

5

RMTOUT

6

CN602

DGND

7

FL_RST

8

FL_CS

9

FL_CLK

10

FL_DAT

11

D+5V

12

VREF

13
14
15
16

EVEJ1F42124B

VOLUME JOG

C601
100P

TO
MAIN CIRCUIT
(CN2805) ON
SCHEMATIC
DIAGRAM-12

: -B SIGNAL LINE
: +B SIGNAL LINE

FL601

A2BB00000125

8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61

7

1G2G3G4G5G6G7G8G9G

C638

-VREF
KEY1
KEY2

VOL_JOG1
VOL_JOG2

RMT_OUT

GND

LOAD7.5V

LED_CTL

DCDET

VR601

123

C602
100P

Z602

B3RAD0000073

11G

10G

12G

13G

14G

15G

16G

R621

150

KTC3875GRTA

D601

1

R617

5.6K

Q611

KEY1

VDD

3

GND

2

RMT_OUT

1

KEY2

VOL_JOG2

C603

0.01

C657

1

VOL_J0G1

R618

100

R653

1K

-VREF

RMT_OUT

R619

47

6.3V47P

UDZSTE176R2B

R623

100K

R624
100K

R625 1K
R626 1K
R627 1K
R628 1K

R670

0

C628 100P

C627 100P

R652

33K

VREF

LED_CTL

LOAD7.5V

S608

POWER

C604

D611

D620

B3AEA0000041

UDZSTE178R2B

R6321KR6311KR6331KR6341KR6371KR6381KR636

Q601,Q602

FL DRIVER

Q601

Q602

C625 0.01

C626 1000P

C630 6.3V100P

KRC107STA

DC DETECT SWITCH

R601

R602

1K

1K

S602

ADV SUR

R607

R608

1K

1K

S609

DISC_CHECK

D619

B0BC8R100004

P1P2P3P4P5P6P7P8P9

4G
1G

DIG03

1

3G

DIG02

2

2G

DIG01

3

DIG00

4

RESET

5

CS

6

SCK

7

SDATA

8

P1

R603

1.2K

R609

1.2K

S604

S611

RE_MASTER

D618

9

P0

10

VCC1

11

XOUT

12

XIN

13

VSS

14

P36

SEG35

15

P35

SEG34

16

R604

1.8K

S605

DISC5

DISC4

R610

1.8K

S612

SP/LP

D613

B3AEA0000041

B0BC8R100004

C633

6.3V100P

R629 10K

C631 100P

C629 1.0

Q611

S603

OPEN/CLOSE

S610

DISC_CHANGE

D612

B3AEA0000041

P11

P10

P12

P13

P14

P15

R622

150

5G6G7G8G9G

DIG04

DIG05

DIG06

DIG07

C0HBB0000039

SEG33

SEG32

SEG31

SEG30

17 18 19 20 21 22 23 24 25

C634

1000P

R606

R605

2.7K

2.2K

S606

S607

DISC3

DISC2

R612

R611

2.7K

2.2K

S613

S614

DVD/CD

TUNER/AUX

D617

D614

B0BC8R100004

B3AEA0000041

R635

820

820

P16

10G

DIG08

DIG09

SEG29

R616

4.7K

R613

4.7K

P17

P18

11G

12G

DIG11

DIG10

IC601

FL DISPLAY

SEG28

SEG27VpSEG26

S618

DISC1

S615

STOP

R645

4.7K

R644

820

13G

565758596061626364

P19

DIG12

R614

6.8K

14G

55

26

P20

54

DIG13

SEG25

27

S616

P21

15G

DIG14

SEG24

TAPE

P22

P23

P24

P25

C6321R671

P1P2P3

16G

52

SEG1

VCC2

DIG15

SEG00

SEG23

SEG22

SEG21

SEG20

285329

3051315032

R615

10K

REC

S617

KTC3875GRTA

P26

49

SEG2

Q603

SWITCH

P27

0

SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18

SEG19

R643

1K

SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9

D616

P28

P29

P30

P31

48
47
46
45
44
43

P10

42

P11

41

P12

40

P13

39

P14

38

P15

37

P16

36

P17

35

P18

34

P19

33

B3AAA0000583

P32

P33

P34

P4
P5
P6
P7
P8
P9

89

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

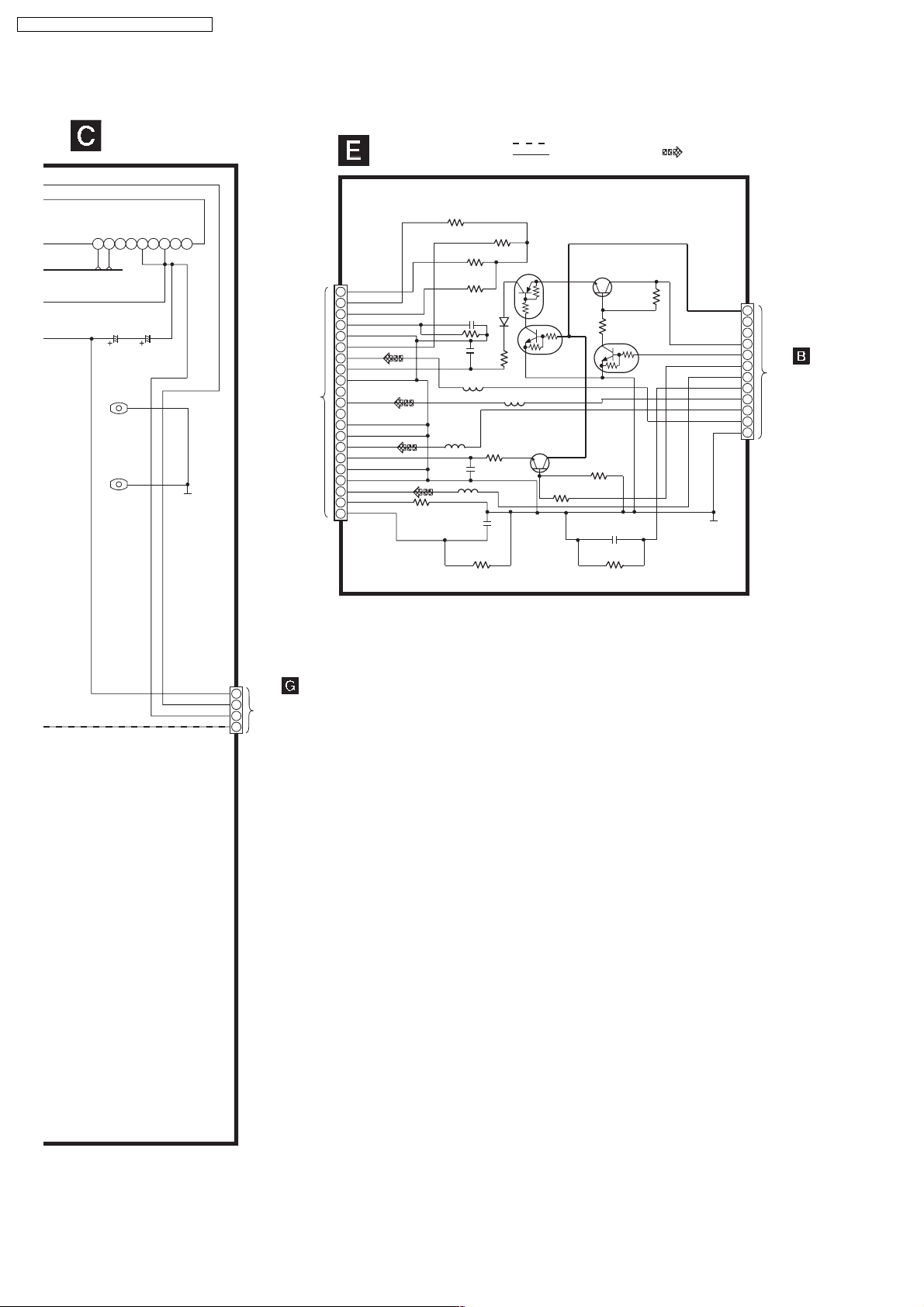

SCHEMATIC DIAGRAM-15

PANEL CIRCUIT

62 63 64 65 66 67 68 69 70

K9ZZ00000424

K9ZZ00000424

P35

50V22P

P36

C624

E601

E602

F2NPF2

C623

50V22P

F2

AV OUT

JK2805

SCART CIRCUIT

AUDIOOUT(B)

1

AUDIOIN(B)

2

AUDIOOUT(A)

3

GND(AUDIO)

4

RETURN(B)

5

AUDIOIN(A)

6

BLUEIN

7

FUNCSW

8

RETURN(G)

9

NC

10

GREENIN

11

NC

12

RETURN(R)

13

RETURN

14

REDIN_CN

15

RGBCTL

16

GNDVIN/OUT

17

GNDRGBCTL

18

VOUT_VIN

19

VIN
SHIELDGND

R2986 75

20
21

R2990

10K

R2987

10K

R2984

1K

R2985

1K

C2981 0.1

R2997 0

C2982

R2989

100P

470

L2825

J0JCC0000120

J0JCC0000120

L2827

J0JCC0000120

L2828 J0JCC0000120

C2983

100P

C2984

100P

R2998

0

R2983

10

: - B SIGNAL LINE
: +B SIGNAL LINE

UNR211500L

Q2819

D2813 B0ACCK000005

Q2820

L2826

Q2821

KTC3199GRTA

SWITCH

R2993

1.5K

Q2819

SWITCH

Q2822

KTC3205YTA

SWITCH

R2995

22K

Q2823

R2991

2.7K

C2985

0.1

R2999

0

Q2820,Q2823

KRC107STA

SWITCH

R2996

18K

: DVD (VIDEO) SIGNAL LINE

CN2812

A+5V

12

NC

11

NC

10

+12V

9

SC_WDE

8
7
6
5
4
3
2
1

TO
MAIN CIRCUIT
(CN2809) ON
SCHEMATIC
DIAGRAM-13

RGB_CTRL

V_Y_OUT

CHASGND

CY_G_OUT

CR_R_C_OUT

CB_B_OUT

VGND

DGND

4

F1

3

F2

2

Vp

1

CN601

/WR601

TO
TRANSFORMER
CIRCUIT
(CN5901) ON
SCHEMATIC
DIAGRAM-20

90

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

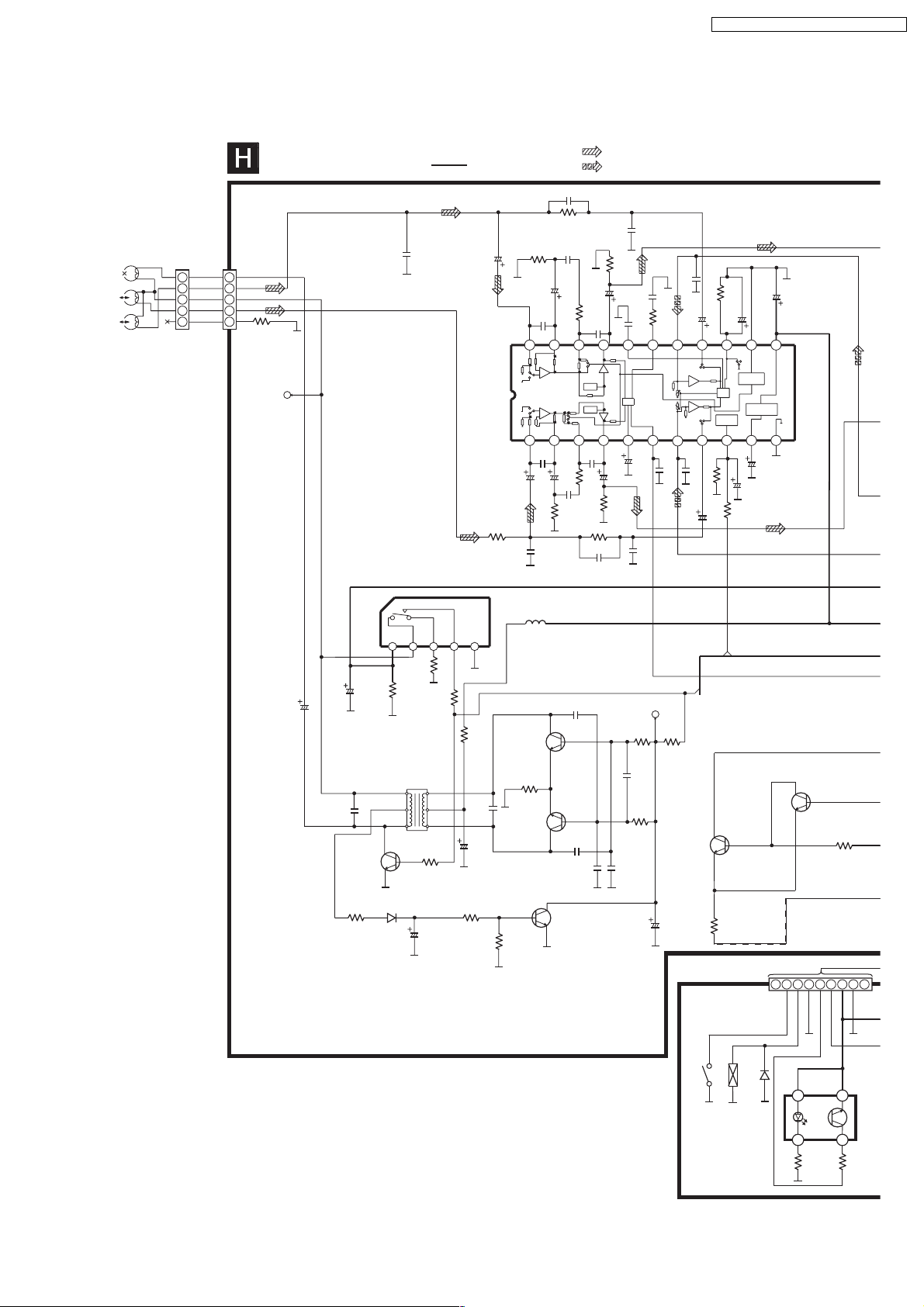

17.5. (H) Deck Circuit, (I) Tape Eject Circuit & (J) Deck Mechanism Circuit

SCHEMATIC DIAGRAM-16

: TAPE PLAYBACK SIGNAL LINE
: TAPE RECORD SIGNAL LINE

C1122

18K

C1107
1500P

20

PB
L EQ

Mute

Mute

PB
R EQ

3

C1207
1500P

1.5K

R1202

C1206

R1203 18K

C1205

470P

Q1309, Q1310

BIAS SWITCH

C1316

0.001

C1317

0.001

C1314

0.0022

Q1312

SWITCH

C1106

19

4

50V2.2

10K

R1204

0.01

50V2.2

PB
L out

PB
Rout

C1301

R1104

TPS

50V0.1

C1315

0.0022

10K

ALC
LOW
OUT

IC1001

TPS

5

R1329

4.7K

C1312

R1327

4.7K

C1311
16V47

C1303

0.033

C1302

C1222

0.0033

0.033

1718

6

0.01

TP3

TPS
GAIN
ADJ

TPS
Out

470

R1302

C1371

RECH1

R1328

15K

16

REC
Lin

REC AMP (L)
REC AMP (R)

REC
Rin

7

0.01

C1123

C1208

R1321

270P

C1108

PB

PB

C1223

16V10

47

4.7M

R1303

C1304

50V4.7

16V10

14

15

13

REC

ALC

Nor/Cro

Lout

SW

Rec

Rec

PB

NOR/Chro

LOGIC

ALC

RIPPLE

REJECTION

REC/PB

Rec

LOGIC

PB/REC

REC

SW

Rout

10

911

8

270P

C1305
16V33

R1304 22K

10K

R1305

RECH1

Q1307

B1ABCF000011

SWITCH

CS971

C1307

10V220

12

Vcc

GND

RF

C1308
16V22

B1ABCF000011

1

3

2

PL

HALF

MODE

Q1306

SWITCH

4

5

PL_GND

PHOTO_T

R1320

100K

6

RECINH_F

R1334

22K

1

2
3

: +B SIGNAL LINE

C1101

50V1

R1061

0

C1202

0.001

RLQB470JTD-D

R1333

4.7

C1318

0.047

C1319

16V100

10K

R1331

7.5K

Q1312

R1332

R1101

C1103

16V100

PB
Lin

PB
Rec

Rec
PB

1

50V1

C1201

L1302

Q1309

R1330

4.7

33

C1121

0.001

PB
Rin

C1221

0.001

C1105 470P

R1103

C1104

0.027

R1102

1.5K

2122

PB
L NF

­+

PB AMP (L)

PB AMP (R)

+

­PB

R NF

2

C1203

16V100

C1204

0.027

33

R1201

B1AAGC000006

Q1310

B1ABCF000011

DECK CIRCUIT

C1102

CP1301

5
4
3
2
1

5

PBLIN

4
3

PBRIN

2
1

R1062

0

TP6

C1324

50V1

16V47

BEAT PROOF LEVEL SWITCH

C1321

0.0047

C1323

1000P

IC1001

AN7326K

P/B REC AMP IC

C1AA00000612

ANALOG SWITCH IC

VCC

12 435

R1338

4.7K

Q1317

2SD2114K1V

Q1317

D1301

R1337

B0ACCK000005

10K

IC1000

H=OFF

R1063

0

L1301

7L1A62N
6

5
4

R1335

C1320

1.5K

50V1

7

VREF+

8

VREF-

9

CR02

91

)

2

SOLENOIDSOLENOID

IC971

D971

S973

(ATS/CrO

CNB13030R2AU

PHOTO INTERRUPTER

MA2C16500E

31

R972

820

R973

39K

24

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

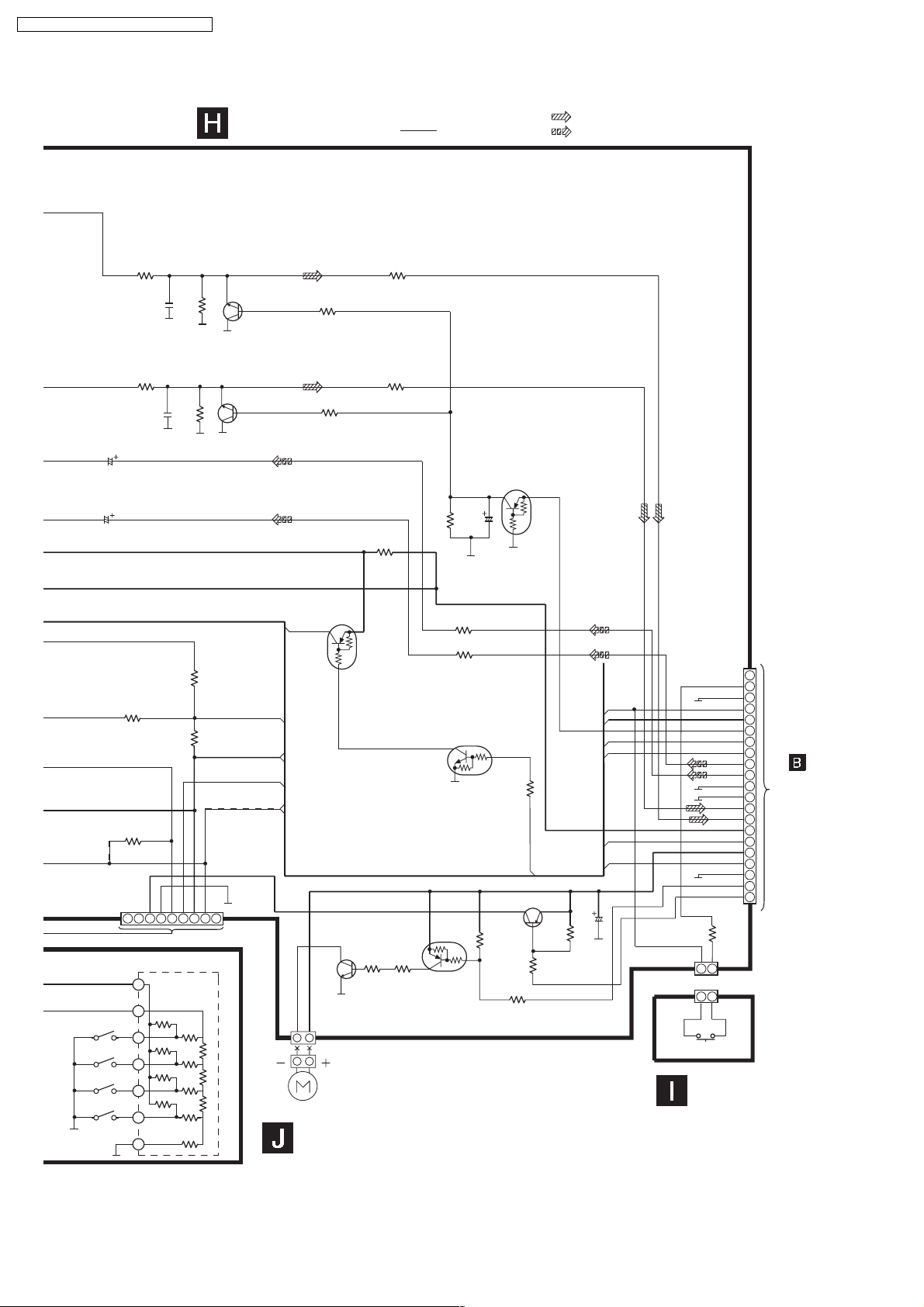

SCHEMATIC DIAGRAM-17

DECK CIRCUIT

: +B SIGNAL LINE

: TAPE PLAYBACK SIGNAL LINE
: TAPE RECORD SIGNAL LINE

C1109

50V3.3

C1209

50V3.3

S975

(F.REC.INH.)

S971

(MODE)

S974

(R.REC.INH.)

S972

(HALF)

R1319

12K

R1322

82K

R1105

R1205

2.2K

1

2

3

4

5

6

7

2.2K

C1110

0.0068

C1210

0.0068

TPS

GND2

PLVCC

Z971

RGSD12A144ST

4.7K

4.7K

4.7K

4.7K

R1106

R1206

100K

R1318

10K


100K

50K

50K

50K

50K

50K

R1371

VREF+

22K

VREF-

987654321

25K 25K 25K

Q1101

Q1101,Q1201

2SD2114K1V

MUTING SWITCH

Q1201

B1GDCFGH0002

AN6

VREF+

AN7

VREF-

CP1902

R1109

1K

R1107

1K

R1209

1K

R1207

1K

R1309

470

Q1304

SWITCH (REC:H)

RECH1

PLVCC

Q1316

R1341

R1374

470

470

Q1316

2SD09650RA

21

21

WR1903

SWITCH

DECK MECHANISM
CIRCUIT

B1GDCFJJ0002

DECK MUTING SWITCH

C1310

R1313

50V0.1

10K

R1110

33K

R1210

33K

Q1303

B1GBCFGH0001

SWITCH

Q1314

B1GDCFGH0002

MOTOR SUPPLY SWITCH

Q1314

R1342

47K

Q1302

R1314

1K

Q1315

R1343

3.3K

R1345

1K

RECH

R1344

27K

KTA12710YTA

C1326

Q1315

SWITCH

16V10

VREF­VREF+

BP
RECH

AN7

AN6

CN1305

9V_GND

VREF-

VREF+

DMT

REC

REC Rin

REC Lin
AF_GND
AF_GND

PB Rout

PB Lout

9V (DV9)

AN7

MOTOR_9V

AN6

MOTOR

PLUNGER

2

WR1308B
WR1308A

2

21
20
19
18
17
16

BP

15
14
13
12
11
10

9

8

7

6

5

4

3

2

1

TAPE_EJECT

MOTOR_GND

R1380

0

1

1

S1901

TAPE EJECT

TAPE EJECT
CIRCUIT

TO
MAIN
CIRCUIT
(CN2807) ON
SCHEMATIC
DIAGRAM-13

92

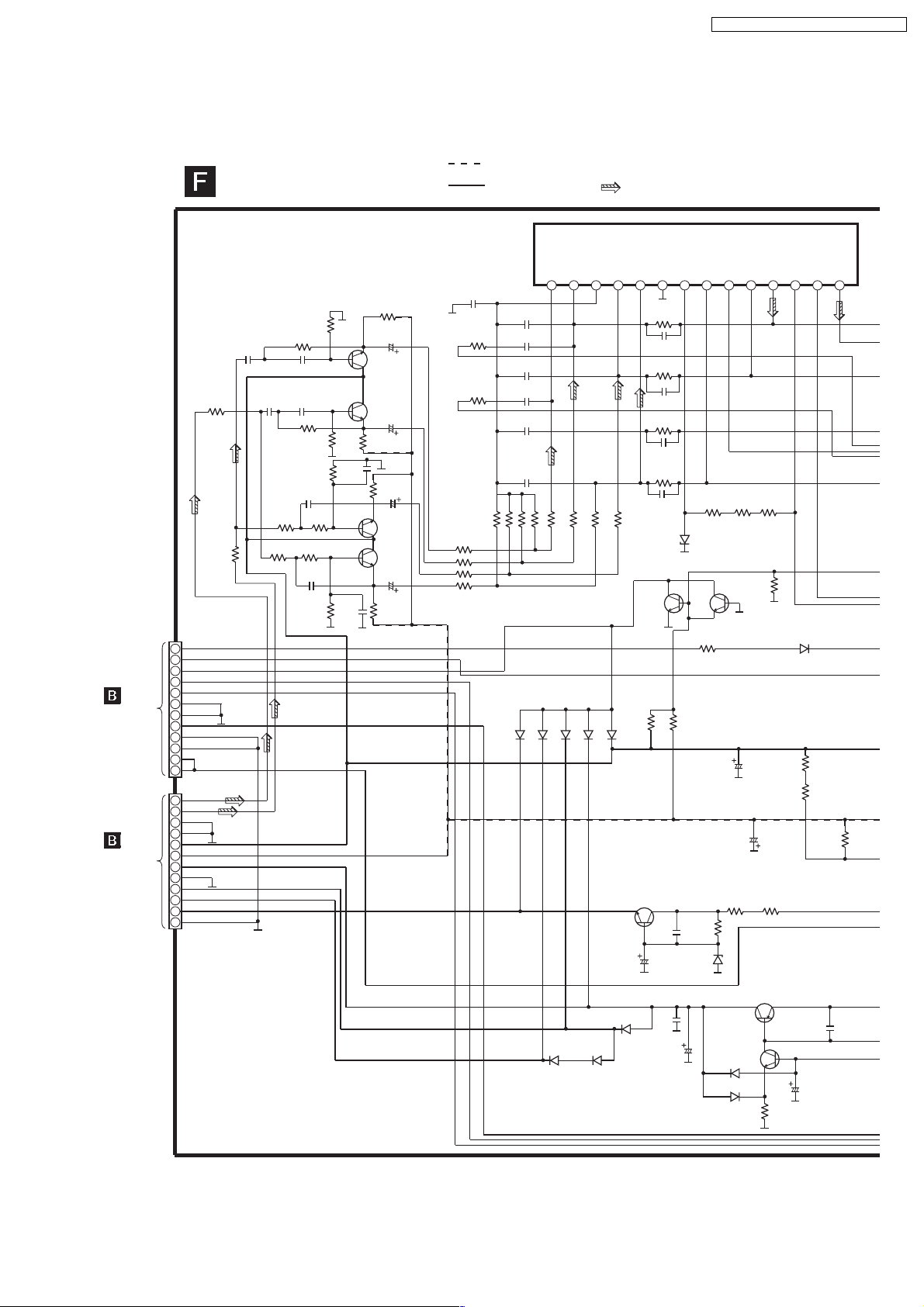

17.6. (F) Power Circuit

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

TO
MAIN CIRCUIT
(CN2801) ON
SCHEMATIC
DIAGRAM-11

TO
MAIN CIRCUIT
(CN2802) ON
SCHEMATIC
DIAGRAM-11

SCHEMATIC DIAGRAM-18

POWER CIRCUIT

Q5101,Q5201

KTC3199GRTA

SWITCH

R5151 3.9K

C5151
6800P

C5152 6800P

C5251
6800P

R5102

R5202

220

6.8K

CP5802

CP5803

12
11
10

9
8
7
6
5
4
3
2
1

12
11
10

9
8
7
6
5
4
3
2
1

MUTE_H
OP_LEV
DCDET
PCONT
SYNC

PGND
SYS6V

SUB+B

OPAMP_R
OPAMP_L
SGND
SGND
+9V

-9V
M0+10V
M_GND
M0+9V
+7.5V
+12V

R5201

220

R5101

R5152

18K

C5252

Q5201

6800P

R5251 3.9K

R5252

18K

R5104

33K

C5102

0.033(E/EG)

0.033(EB)

R5103

6.8K

6.8K

R5203

6.8K

C5202

0.033

R5204

33K

R5253

2.7K

C5103
5600P

R5105

Q5202

C5203
5600P

2.7K

R5153

2.7K

C5153

50V1

Q5101

C5253

50V1

C5104

50V2.2

Q5102

C5204
50V2.2

R5205

2.7K

C5817

0.01

R5262

4.7K

R5162

4.7K

R5154 820

R5254 820
R5106 1.5K
R5206 1.5K

Q5102,Q5202

KTC3199GRTA

SWITCH

: -B SIGNAL LINE
: +B SIGNAL LINE

14

C5254

820P

C5258

0.1

C5105

820P

C5158

0.1

C5154

820P

C5205

820P

R5156 8.2K

R5155 15K

R5255 15K

R5107 15K

R5207 15K

Q5808, Q5809

KTC3199GRTA

D5806

D5807

B0AACK000004

B0AACK000004

D5817

B0EAKM000117

HI_LIN

HI_RIN

13

R5256 8.2K

SWITCH

D5805

D5804

B0AACK000004

B0AACK000004

: MAIN SIGNAL LINE

RSN314H41A-P

IN GND

LO_LIN

11 10

12

R5208 6.8K

R5108 6.8K

Q5809

R5822

47K

D5803

B0AACK000004

Q5806

2SD0592ARA

REGULATOR

C5816
16V47

D5815

B0EAKM000117

D5816

B0EAKM000117

Q5803

KTC3199GRTA

SWITCH

IC5801

POWER AMP IC

LO_RIN

GND

-VCCN

LO_ROUT

AC DET

LO_LOUT

HI_ROUT

R5824

R5827

100K

330

R5819

D5819

B0AACK000004

R5805

390

R5806

2.7K

27

Q5803

C5811

16V100

-VCC

C5812

0.01

987654321

R5257

82K

C5255

15P

R5109

82K

C5106

15P

R5157

82K

C5155

15P

R5209

82K

R5826

C5206

15P

D5818

MTZJ1SBTA

R5825

330

330

Q5808

R5831

3.3K

R5823

47K

C5807

16V10

C5810
16V10

R5820

27

R5821

C5815

3.9K

0.01

D5809

MTZJ13BTA

Q5804

KTA1046

SWITCH

C5814

0.01

C5813
16V10

D5813

B0AACK000004

D5814

B0AACK000004

R5818

330

+VCC

R5810

2.7K

HI_LOUT

93

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

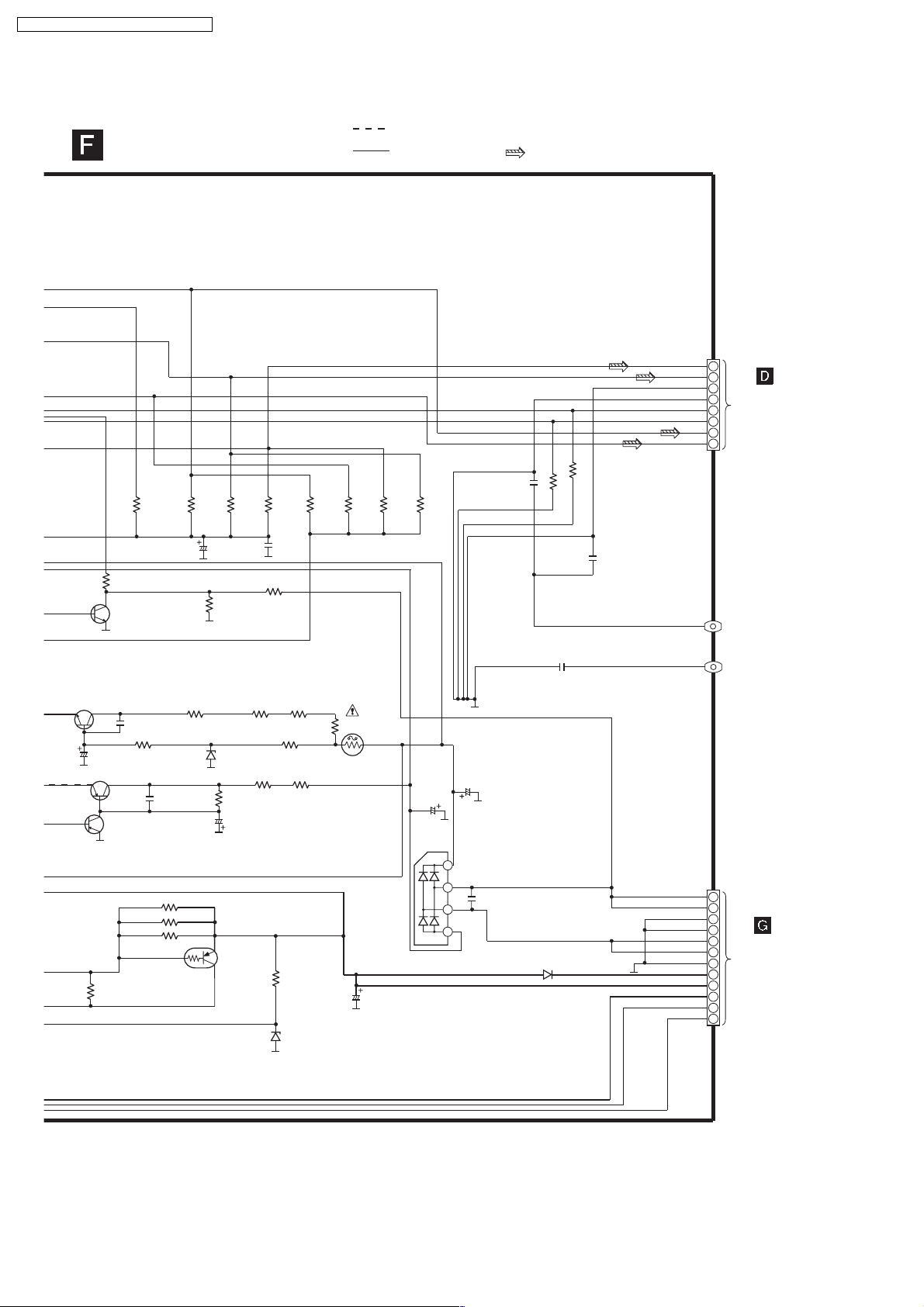

SCHEMATIC DIAGRAM-19

POWER CIRCUIT

6.3V470(E/EG)
10V 220(EB)

Q5810

SWITCH

R5804

150

Q5802

KTA1046

-9V REGULATOR

C5808

0.01

R5811 2.2
R5812 2.2
R5813 2.2

KRA110MTA

R5258

390K

C5821

R5829

22K

R5833

2.7
D5808

B0BA9R60000(E/EG)

B0BC9R000008(EB)

R5809

3.3K

C5809
50V10

Q5805

SWITCH

R5158

100K

R5830

10K

Q5810

B1AAGC000007

Q5801

KTC2026

SUB +B REGULATOR

C5805

0.01

C5806

16V100

Q5802

Q5807

Q5807

B1ACCF000039

SWITCH

R5815

10K

R5110

180K

R5210

68K

C5820
1000P

R5828

12K

R580210R5832

R5803

3.3K

R580815R5807

R5814

1.2K

B0BA9R600002(E/EG)

R5259

22K

2.7
R5801

27

D5812

MTZJ15BT(EB)

2.2

R5159

22K

C5804

25V3300

FP5801
400mA

R5211

10K

: -B SIGNAL LINE
: +B SIGNAL LINE

R5111

10K

50V3300

C5803

50V3300

1

2

3

D5801

4

B0FBAM000012

C5802

C5801

0.1

: MAIN SIGNAL LINE

C5101
1000P

R5834 0.18

C5819

0.01

D5812

B0EAKM000117

R5835 0.18

C5201
1000P

LO_R

LO_L

LO_R_GND

LO_L_GND
HI_R_GND

HI_L_GND

HI_R

HI_L

PGND
PGND

PGND

SUB+B

SYS6V

PCONT

SYNC

1
2
3
4
5
6
7
8

S1

1

S1

2
3
4

S1

5

S1

6
7

+B

8

9
10
11
12

H5804

TO
SPEAKER
CIRCUIT
(CN5805) ON
SCHEMATIC
DIAGRAM-20

E5802

SNE1004-2

E5801

SNE1004-2

CN5801

TO
TRANSFORMER
CIRCUIT
(H5902) ON
SCHEMATIC
DIAGRAM-20

94

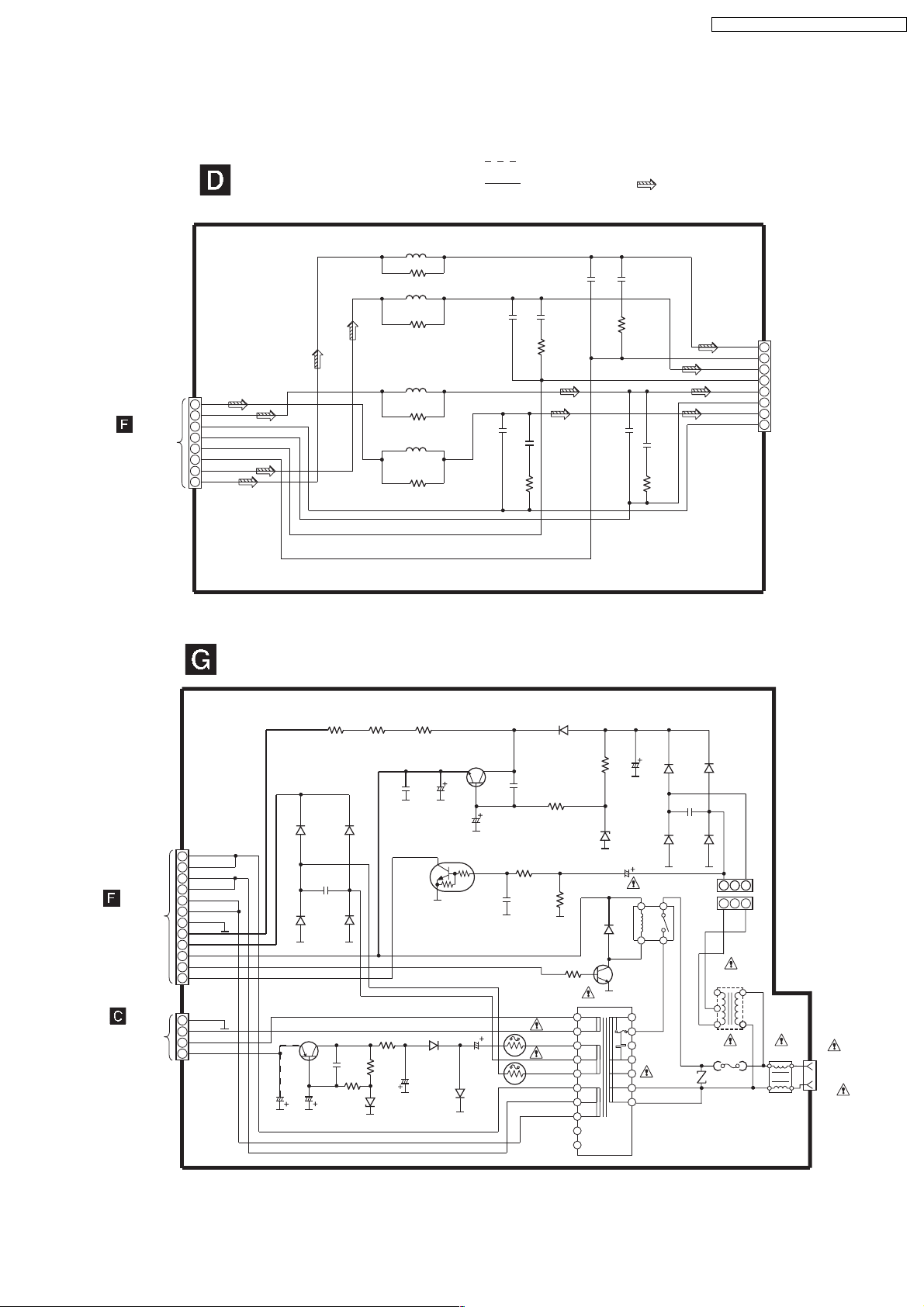

17.7. (D) Speaker Circuit & (G) Transformer Circuit

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

TO
POWER CIRCUIT
(H5804)
ON SCHEMATIC
DIAGRAM-19

SCHEMATIC DIAGRAM-20

SPEAKER CIRCUIT

CN5805

LO_R

1

LO_L

2

LO_R_GND

3

LO_L_GND

4

HI_R_GND

5

HI_L_GND

6

HI_R

7

HI_L

8

L5102

0.7uF

R5160 10

L5201

0.7uF

R5260

10

L5101

0.7uF

R5112

10

L5202

0.7uF

R5212

10

C5207

0.047

C5256

0.047

C5208

0.047

R5213

10

: -B SIGNAL LINE
: +B SIGNAL LINE

C5156

0.047

C5257

0.047

R5261

10

R5161

10

C5107

0.047

: MAIN SIGNAL LINE

C5157

0.047

C5108

0.047

R5113

10

HI_L

HI_L_GND

HI_R

HI_R_GND

LO_L

LO_L_GND

LO_R

LO_R_GND

+

-

+

-

+

-

+

-

JK5801

SPEAKERS

TO
POWER CIRCUIT
(CN5801) ON
SCHEMATIC
DIAGRAM-19

TO
PANEL CIRCUIT
(CN601/WR601)
ON SCHEMATIC
DIAGRAM-15

H5902

CN5901

TRANSFORMER CIRCUIT

S1

1

S1

2
3
4

S1

5

S1

6
7

+B

8

SUB+B

9

SYS6V

10

PCONT

11

SYNC

12

PGND

4

FL1

3

FL2

2

-VP

1

D5904

B0EAKM000117

D5905

B0EAKM000117

Q5901

2SB0621AHA

-VP VOLTAGE REGULATOR

Q5901

C5904

100V10

50V47

C5905

R591418R591310R5912

C5917

D5906

B0EAKM000117

C5906

0.1

D5907

B0EAKM000117

R5902

R5904

150

4.7K

R5903

4.7

D5903

B0BA03100002

0.01

C5903

10

0.01

C5916

KRC102MTA

D5902

B0EAKM000117

C5902

100V100

Q5904

2SD21370PA

REGULATOR

50V47

C5915

50V47

Q5903

C5908

Q5903

SWITCH

C5901

50V100

D5901

B0EAKM000117

C5914

0.01

R5906

10K

0.01

Q5902

B1AAGC000007

SWITCH

FP5902

1A

FP5901

4A

D5917

B0EAKM000117

R5911

150

R5907

10K

R5905

3.3K

17
16
15
14
13
12
11
10

R5908

820

D5913

B0BA6R600008

D5908

B0AACK000004

T5901

G4C6AFK00005

9
8

C5912

16V1000P

C5907
50V4.7

RL5901

K6B1AEA00003

31

42

Q5902

1
2
3
4
5

ERZV10V511CS

6

...E/EG

7

...EB

D5911

B0EAKM000117

D5912

B0EAKM000117

Z5901

C5909

0.01

CN5909A

CN5909B

D5909

B0EAKM000117

D5910

B0EAKM000117

RTPIH3E002

250V 800mA

FC2

123123

123

T5902

321
4
5

F1

FC1

L5901

RLQZ371

1

2

JK5901

3

4

EB...230-240V/50Hz

E/EG...230V/50Hz

AC IN

95

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

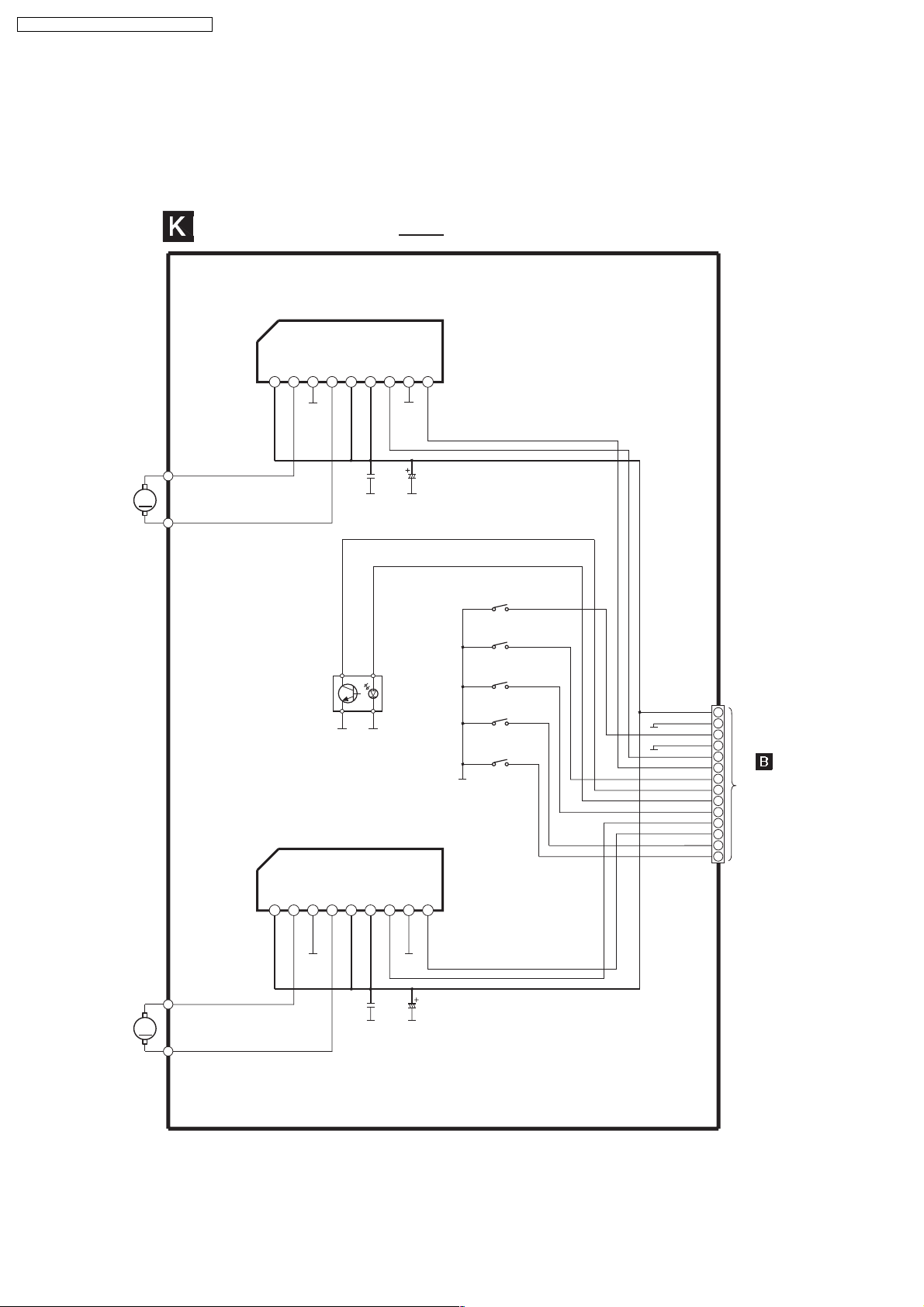

17.8. (K) CD Loading Circuit

SCHEMATIC DIAGRAM-21

RM11

UP/DOWN

MOTOR

M

CD LOADING CIRCUIT

IC11

C0GAG0000007

UP/DOWN MOTOR DRIVE

VREF

OUT2

RNF

123456789

Q1

B3NAA0000068

SENSOR

VREF

123456789

OUT1VMVCC

IC21

C0GAG0000007

LOADING MOTOR DRIVE

OUT2

RNF

OUT1VMVCC

C11

0.01

F_IN

C12

16V100P

F_IN

GND

GND

R_IN

R_IN

: +B SIGNAL LINE

S5

CHANGE

S3

BOTTOM

S4

OPEN

S1

STOCK

S2

PLAY

+7.5V

PGND

CR16 SWITCH

DGND

UP/DOWN F

UP/DOWN R

BOTTOM SW

POSTION SENS

LED

OPEN SW

LOAD F

LOAD R

STOCK SW

PLAY SW

CN1

1
2
3
4
5

TO

6

MAIN CIRCUIT

7

(CN2806) ON

8

SCHEMATIC

9

DIAGRAM-12

10
11
12
13
14

RM21

LOADING

MOTOR

M

C21

0.01

C22

16V100P

96

18 Printed Circuit Board

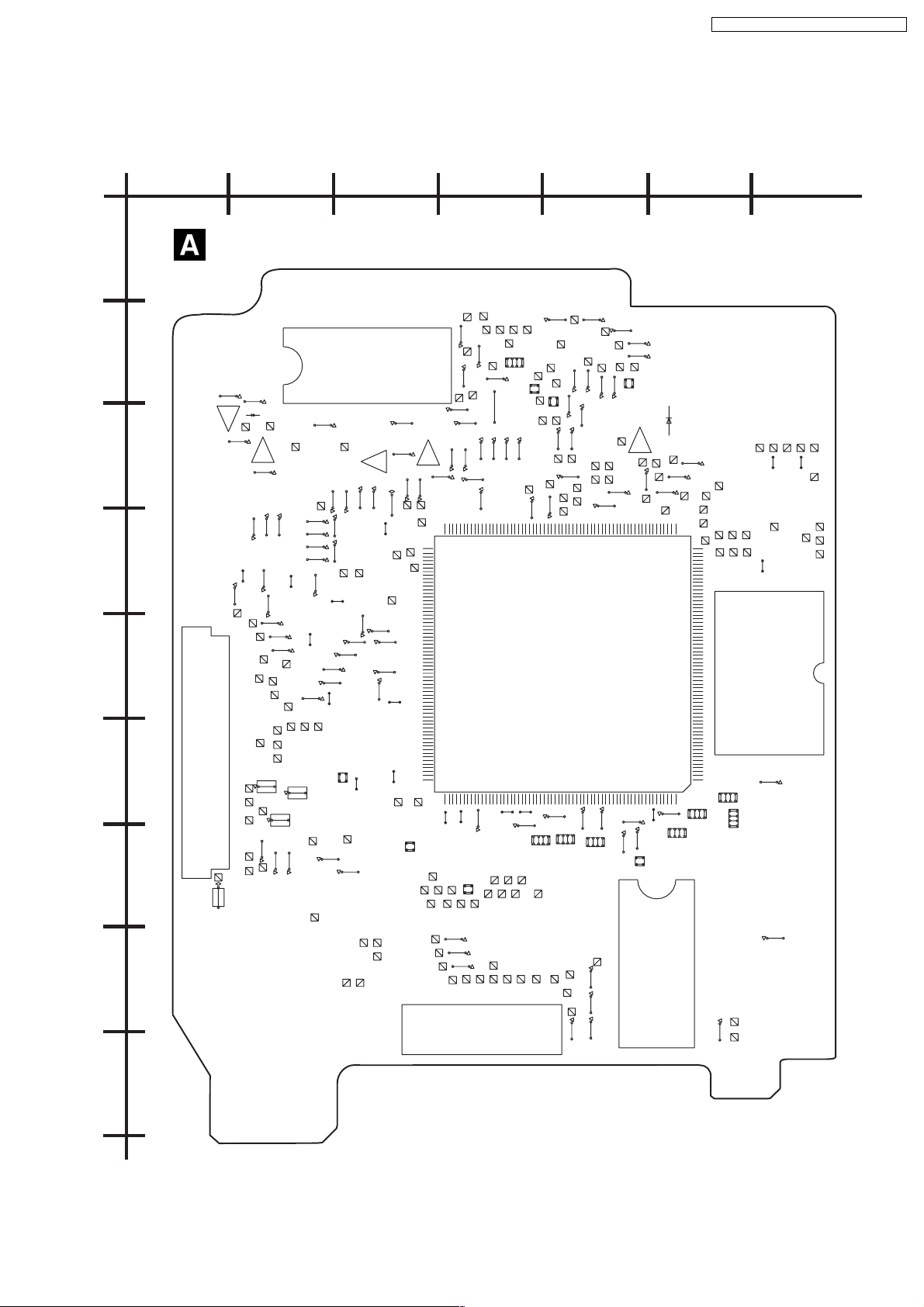

18.1. (A) DVD Module P.C.B. (Side: A & B)

ABCDEFG

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

1

2

3

4

5

6

7

8

DVD MODULE P.C.B (REP3654W)

TP8514

TP8254

TP8517

Q8560

TC8303

FP8101

1

5

10

15

20

25

30

35

40

45

50

TC8107

R8570

TP8513

R8560

Q8550

LB8303

TC8304

TC8305

TC8301
TC8421

TC8429

TC8105
TC8103

TC8101

TC8691
TC8692
TC8693

FL8104

R8569

D8550

R8550

R8312

K8331

TC8423

TC8424

TC8428

TC8432

C8311

R8331

R8332

LB8305

TC8425

FL8103

TC8104

FL8101

LB8691

TP8523

TP8522

R8311

LB8304

LB8301

TC8427

TC8431

LB8692

28

1

CP8233

K8335

TC8302

TC8426

FL8102

LB8693

C8261

TP8512

C8238
C8237

C8236

C8235

K8321

LB8302

TC8422

TC8108

TC8430

R8335

R8326

R8325

K8100

R8233

CP8236

K8341

R8321

R8322

K8325

RA8401

TC8102

C8456

CP8426

IC8251

Q8561

C8233

R8236

R8235

CP8234

R8402

CP8422

30

29

C8234

CP8204

R8341

CP8425

CP8421

C8232

CP8235

R8315

C8312

LB8401

R8401

C8400

CP8424

C8253

R8562

C8229

R8232

CP8203

CP8231

R8404

TC8491

Q8551

R8551

R8561

CP8561

CP8040

RA8031

TL8037

TC8271

TC8272

TC8273

FP8271

15

14

LB8514

LB8507

C8227

R8552

CP8551
TP8201

128

129

192

193

R8041

TL8031

TL8035

TL8038

TL8034

LB8271

LB8272

LB8273

TC8274

TC8275

TO SPINDLE PCB

LB8512

LB8511

TP8251

C8225

C8226

C8018

TL8032

TL8033

TP8515

TP8253

TP8502

LB8513

TP8252

C8224

C8205

C8019

RA8032

CP8034

TC8276

C8502

C8501

C8223

C8020

CP8046

TC8277

TC8278

TP8511

TP8516

RA8502

TC8504

RA8504

TC8503

CP8502

C8222

TP8212

C8022

CP8047

CP8045

CP8042

TC8280

TC8282

TP8500

C8221

CP8202

C8021

RA8018

CP8043

CP8044

TC8284

TP8519

RA8501

CP8501

TP8211

C8204

CP8041

TC8283

C8503

TC8501

TP8520

TP8518

C8218

C8207

TP8213

C8203

TP8214

IC8001

C8023

RA8017

TC8279

TC8285

TC8281

151051

TC8502

TP8510

LB8506

C8217

TP8217

TP8218

TP8216

R8282

LB8502

TP8521

TP8501

LB8505

C8506

CP8201

TP8215

C8013

C8024

RA8016

C8286

LB8504

C8504

CP8036

TP8219
TP8220

C8025

RA8015

CP8271

C8284

C8285

R8501

LB8501

C8505

TP8525

LB8503

RA8503

QR8571

C8012

LB8011

C8026

1

29

14

TP8524

CP8571

R8242

CP8243

R8011

IC8271

CP8035

C8242

CP8033

C8028

C8027

D8571

CP8244

R8241

CP8032

CP8031

65

256

RA8014

CP8242

C8241

CP8241

64

1

RA8013

28

30

15

CP8030

CP8001

CP8027

CP8023

24

25

RA8011

C8287

CP8028

CP8022

RA8012

CP8029

CP8611

CP8021

CP8273
CP8272

TC8001

K8002

CP8612

K8651

IC8651

C8652

C8275

TC8002

TC8003

TC8004

K8004

TC8005

TC8000

1

48

9

PbF

(SIDE A)

97

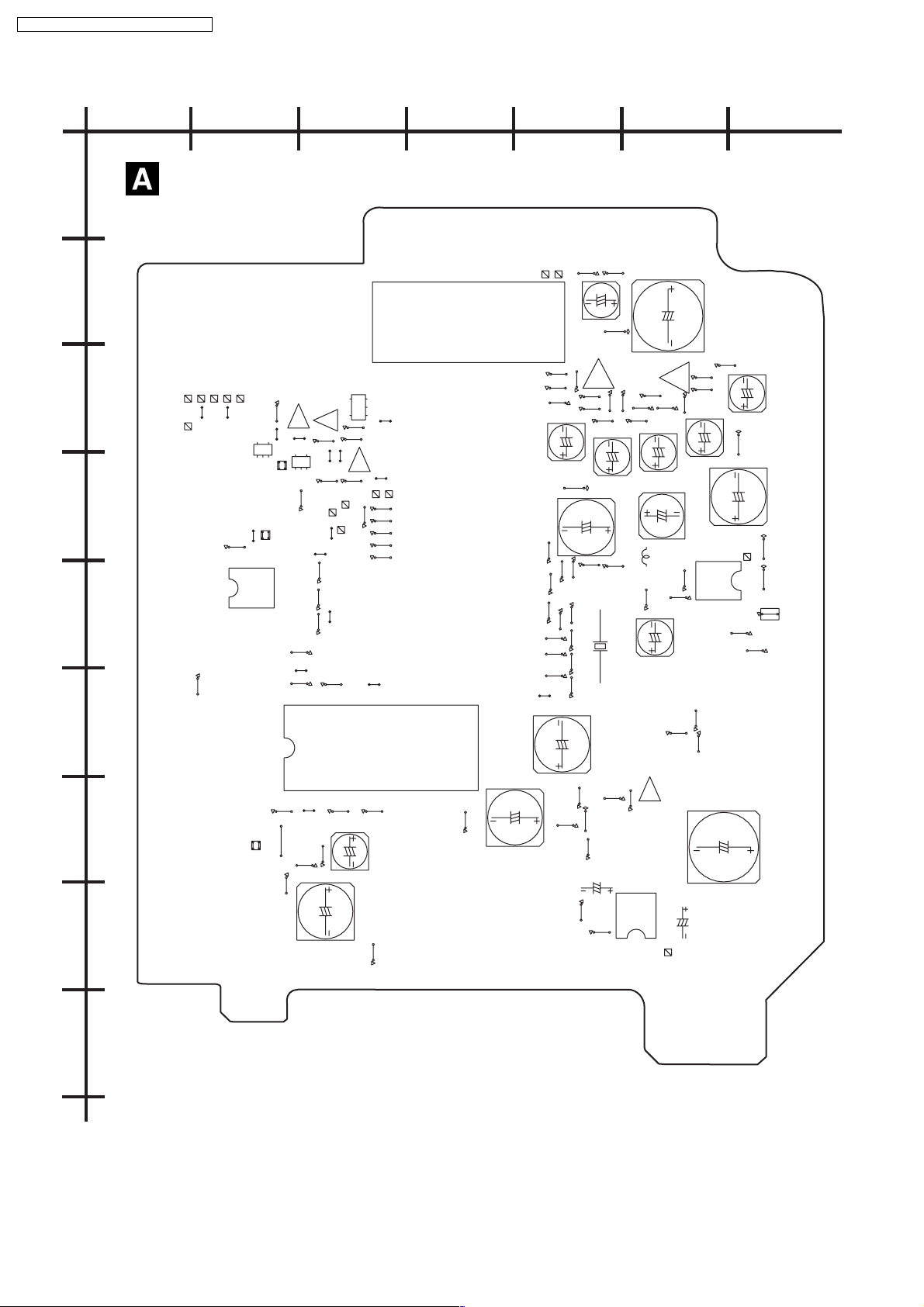

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

ABCDEFG

1

2

3

4

5

6

7

8

DVD MODULE P.C.B (REP3654W)

FP8501

TO OPTICAL PICKUP UNIT

Q8605

5

4

3

12

C8011

CP8025

C8052

R8606

C8031

C8010

C8009

C8008

C8006

C8057

C8271

R8022

CP8026

CP8024

R8021

C8007

C8053

C8274

IC8605

4

5

C8606
R8605

C8601

R8601

C8272

3
2
1

C8605

IC8601

R8023

CP8002

C8212

C8213

C8211

C8214
C8215
C8216

C8056

IC8051

C8054

R8281

CP8003

28

C8002

C8055

TC8011

TC8006

TC8010

K8009

C8651

TC8008

TC8009

K8007

IC8691

C8611

8

1

TC8007

5
12

RA8021

RA8611

R8611

IC8611

RA8271

PbF

4
3

5

4

C8051

LB8690

Q8606

C8695

C8691

IC8695

C8005

C8004
C8003

54

1

R8271

C8273

C8288

CP8251

2620151051

C8014

C8015

C8016

C8017

CP8252

R8554
C8554

R8553

C8552

C8206

C8208

C8303

C8304

C8307

C8001

LB8002

C8228

R8314

C8621

C8622

LB8001

C8425

C8254

C8252

Q8552

R8555

R8558
R8559

C8202

R8313

R8621

X8621

R8622

LB8420

C8423

R8421

C8551

C8553

C8424

L8420

C8255

R8251

R8556

L8202

R8563

R8557

C8564

C8302

QR8420

R8420

9

IC8421

16

C8251

Q8562

R8564

C8562

C8201

L8201

L8302

8

1

CP8423

R8565

LB8491

C8111

R8568

C8563

C8113

C8421

C8561
R8566
R8567

4

IC8111

5

LB8423

LB8424

C8420

C8301

TP8111

LB8421

C8550

L8550

1

8

LB8422

L8301

C8112

K8421

9

(SIDE B)

98

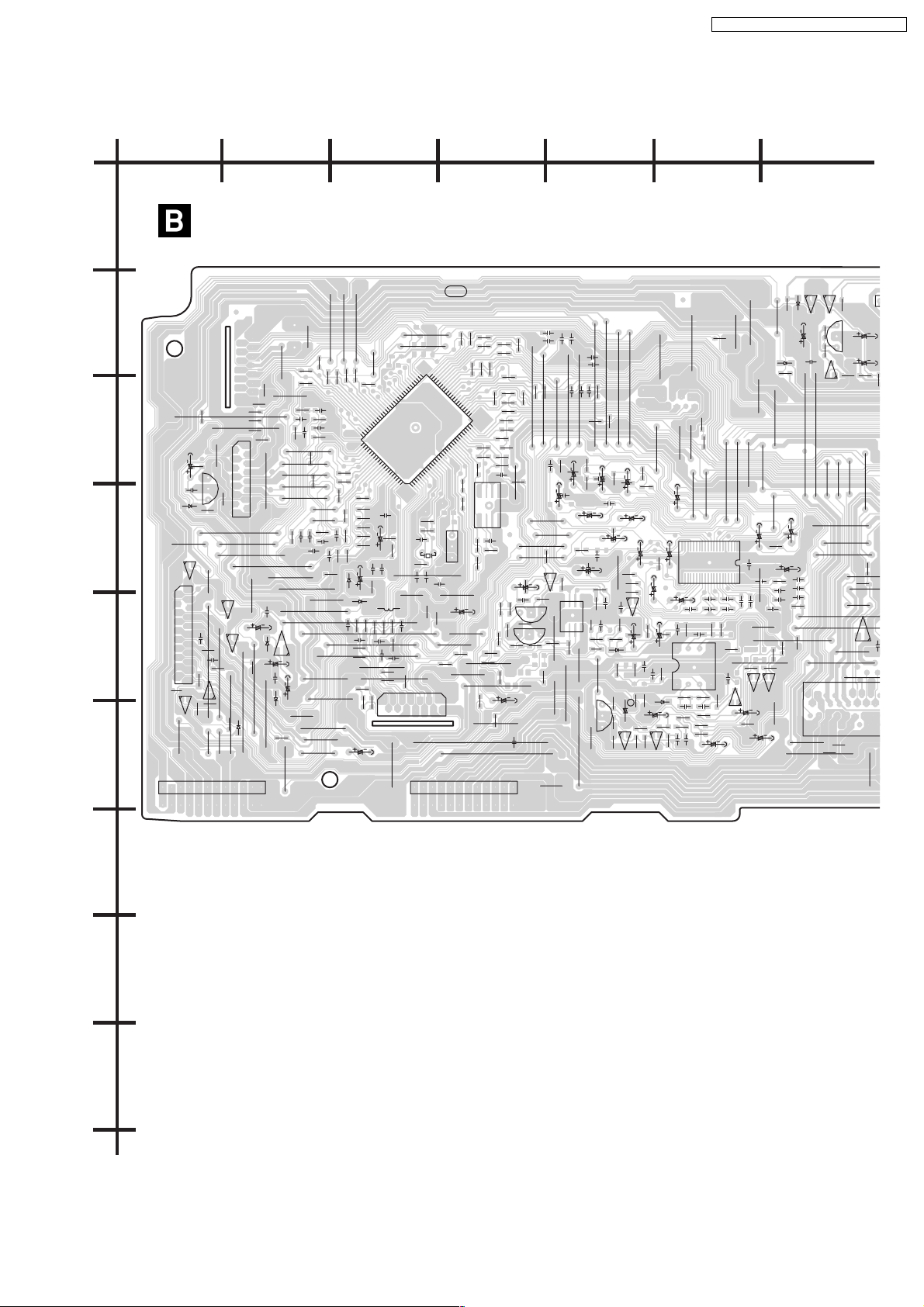

18.2. (B) Main P.C.B.

ABCDEFG

1

MAIN P.C.B (REPX0410A)

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

2

3

4

5

6

CN2807

R2957

Q2815

12

CN2801

C2237

C2235

D2815

W2233

Q2818

2
4
6
8

10

11

12

13

14

15

16

17

18

19

20

21

Q2814

E

C

W2078

B

Q2806

E

C

B

E

W2086

W2226

W2227

Q2826

W2362

15

14

12

R2057

R2926

R2929

W2162

17

16

W2087

W2016

19

18

R2001

W2808

21

23

22

20

C2888

C2894

R2920

B

25

24

W2161

C

26

R2003

E

29

27

28

W2092

C

TO

1

R2928

W2

W21

C2865

W25

313

31

30

32

D2811

R2900

C2929

W2101

R2034

R2922

C2205

D2810

R2205

C2106
C2868

C2869
R2106

Q2808

C2891

C2890

W2647

R2107

CN2803

W2168

W2013

Q2807

B

E

E

C

C

R2921

R2923

C

B

Q2809

W2648

W2085

W2300

W2299

1

5

9

3

7

11

2

6

10

4

8

R2033

PbF

R2838
R2837

R2818

R2889

R2888
C2831

1243

C2103

R2101

R2831

R2007

R2828
R2821

R2820

R2819

R2822

C2934

R2951

R2940

R2948

R2245

W2229

R2952

R2942

R2941

W2018

C2936

R2058

C2932

S

S

R2839

R2005

W2156

W2501

W2157

R2949

Q2810

G

G

R2943

C2806

C2810

R2830

W2502

Q2816

R2954

D

Q2811

D

R2953

W2024

C2112

W2102

R2950

E

C

R2833

W2158

B

W2155

W2079

C2804

W2288

R2209

C2208

C2110

C2111

R2945

IC2814

5678

R2944

C2805

W2503

R2213

W2228

C2801

W2428

C2209

R2211

W2080

W2500

C2927

C2802

C2211

C2926

1243

Q2812

R2208

R2109

C2925

W2017

C2803

W2643

R2823

R2947

R2214

R2215

R2242

C2108

C2212

R2946

W2426

C2928

C2210

C2230

E
C

B

R2829

W2644

C2109

C2933

R2009

W2645

R2207

R2111

W2081

C2223

R2224

D2201

R2116

R2123

R2956

Q2103

C2206

C2213

R2938

R2223

C2937

R2241

E

C

W2646

C2113

R2937
R2936

B

E

N

C2207

C

R2108

C2120

B

Q2201

R2115

R2124

R2240

R2131

R2206

C2220

C2229

R2220

R2222

C2935

R2125

C2130

R2230

Q2203

C2122

E

C

W2083

W2289

R2939

C2231

R2118

D2101

R2129

B

W2504

R2008

W2124

R2012

W2082

W2225

W2224

C2107

20

C2221

IC2812

21

C2119

C2117
C2118

C2219

C2227

R2219

C2228

14

23

R2221

IC2813

58

76

R2119

R2120

C2127

C2126

R2122

R2228

R2225

R2229

R2126

C2232

C2233

C2132

R2130

R2015

R2218

R2121

Q2101

C2217
C2218

R2217

R2955

W2220

W2429

C2129

C2128

W2021

C2823

C2824

C2842

R2898

R2802

R2803

C2827

CN2806

R2827

R2876

C2821

L2801

W2498

R2886

14

13

C2830

12

W2355

100

R2883

W2361

R2804

R2805

11

IC2801

W2094

C2826

W2295

R2826

10

W2144

51

1

R2896
R2895

C2840

X2801

R2808

C2839

C2844

R2897

W2359

12

CN2802

W2145

W2285

W2286

C2813

R2862
C2814

R2863

R2864

R2869

W2642

W2713

W2712

W2077

W2149
W2069

C2817

W2358

W2499

W2212

W2033

R2850

R2878

W2152

R2852

C2819

R2851

R2002

R2867

R2868

R2879

C2825

R2885

R2849

R2866

C2816

R2880

D2802

W2287

R2848

R2872

R2871

D2801

C2828

R2884

R2035

C2203

80

81

R2875

R2874
R2882
R2873
R2881

R2877

R2847

C2843

R2801

C2829

R2887

R2935

W2142

R2853

W2146

R2856

W2035

R2050

R2020

R2857

R2861

W2025

R2899

W2231

CN2805

1

2

3

4

R2994

W2296

5

6

Q2827

7

8

E

9

10

C

11

12

B

13

14

R2246

R2992

15

16

W2291

W2292

W2066

W2639

B

R2961

W2067

C

E

Q2817

E

C

Q2813

C2202

R2102

W2297

W2022

B

B

E

C

W2427

R2958

W2232

W2357

D2812

B

E

C

1
3
5
7
9

C2102

R2202

R2062

B

R2960

9 876543211011

R2860

W2075

C2845

R2959

R2854

W2150

R2859

W2293

C2822

W2070

D2803

W2151

Q2803

C

B

C2848

C2847

D2814

R2201

W2294

E

C2846

W2230

C2811

R2858

W2034

W2074

R2865

R2011

R2870
W2147

W2148

C2815

W2076

C2812

W2073

C2818

C2820

W2234

50

C2998

3579

R2824

R2817

2468

9 876543211011

X2802

1

3

2
1

W2360

W2015

R2812

C2841

W2153

R2843

R2810

R2809

W2071
W2020

W2711

R2842

R2835

31

30

R2841
R2840

R2834

R2815

R2816

R2814

IC2802

5678

C2832
R2890

R2813

R2811

R2082

R2114

W2154

R2825

W2640

R2836

R2006

W2091

40

C

B

W2430

1

E

R2226

W2160

W2159

C2930

C2214

C2115

C2116

R2227

E

C

Q2202

C2105

R2988

B

C2131

W2084

W2223

W2571

C2216

R2127

E

R2105

C

C2215

R2128

B

W2026

W2290

W2450

R2113
C2114

Q2102

W2014

7

8

9

99

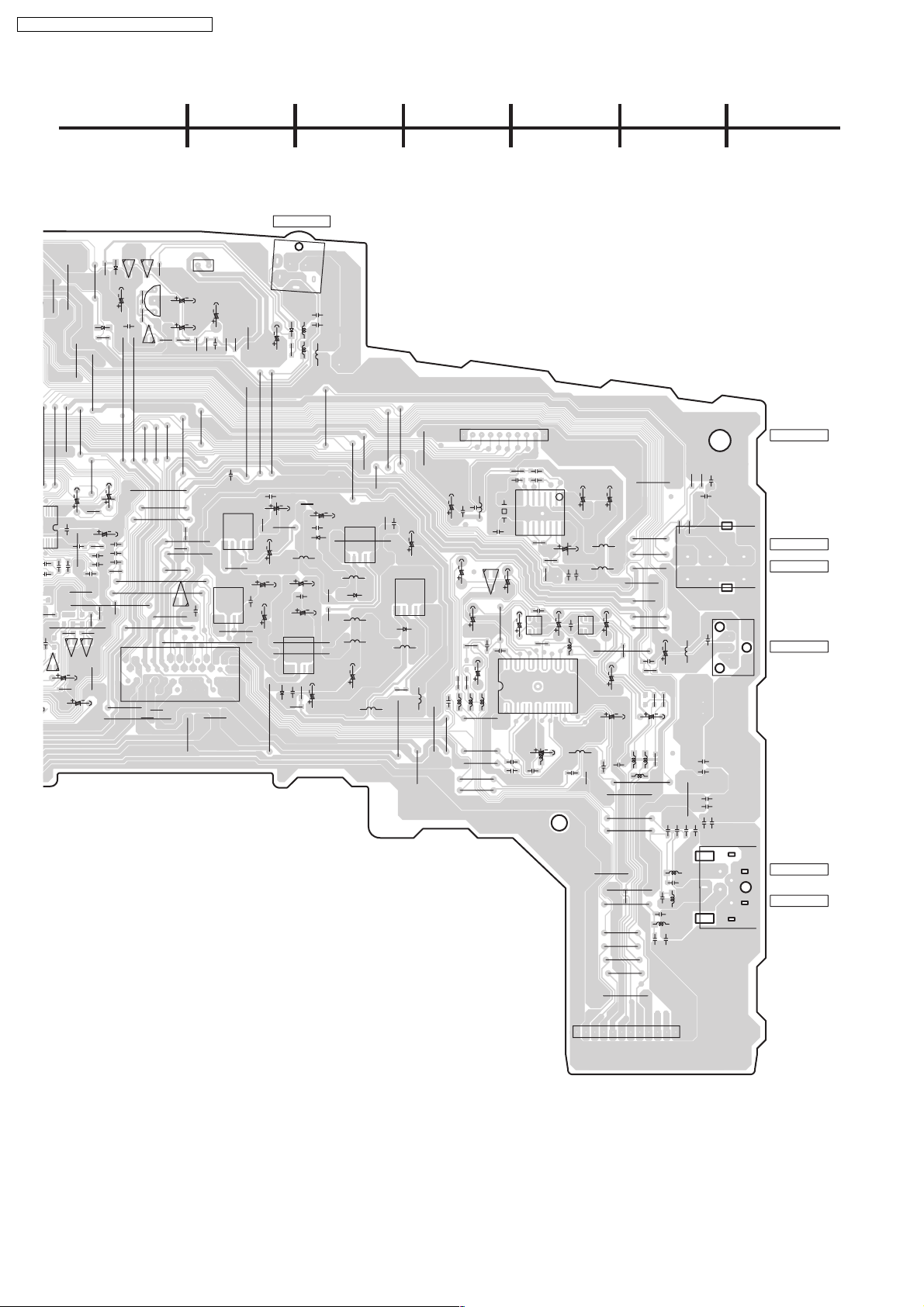

SA-PM39DE / SA-PM39DEB / SA-PM39DEG

GHI JKL M

HEADPHONE

217
218

2955

2220

101

C2128

B

W2091

40

C

W2430

1

E

R2226

W2160

W2159

C2930

C2214

C2115

C2116

R2227

E

C

Q2202

W2084

C2105

R2988

B

C2131

W2223

W2571

R2127

R2105

C2216

B

E

C

W2026

D2811

R2900

W2290

W2450

C2929

R2113

C2114

C2215

W2101

R2128

Q2102

W2014

R2922

R2034

C2205

C2106

C2869
R2106

D2810

C2891

R2205

C2868

R2107

E

C

Q2808

C2890

W2647

CN2803

1

2

W2168

W2013

B

W2648

3

4

Q2807

R2921

R2923

Q2809

W2300

W2299

5

7

6

8

R2033

B

E

C

C

B

W2085

9

11

10

R2926

Q2806

E

C

B

R2929

E

W2086

W2226

W2162

W2227

Q2826

W2362

17

13

15

14

12

16

R2057

W2087

W2808

W2016

21

19

18

20

22

C2888

C2894

R2920

R2001

B

23

24

C

25

W2161

R2003

E

27

26

28

CN2808

TO FAN

R2928

W2089

W2163

C2865

W2507

33

29

31

30

32

W2092

1

W2141

34

3

1

7

C2858

R2908

C2862

JK2804

C2892

W2506

C2856

W2008

R2909

6

C2857

W2217

D2805

2

D2809

R2925

L2807

C2859

C2861

C2860

IC2806

32415

C2850

R2902

L2101

L2201

R2907

R2903

5

C2101

C2201

C2853
D2807

C2851

4

L2820

C2852

W2012
W2019

W2222

W2218

R2906

R2904

W2221

IC2803

32415

L2806

D2806

L2803

L2840

C2849

W2167

L2804

W2037

R2905

W2236

C2854

W2237

IC2804

D2804

L2802

R2901

W2099

W2213

C2855

32415

L2805

W2100

CN2804

TO T1 TUNER PACK (ENG07802QF)

1

2345678910

C2895

C2897

C2896

Q2805

E

C2882

C2995

R2914

C2880

C2881

R2915

R2916

L2812

L2811

L2810

C2871

W2097

W2216

W2023

W2096

W2009

W2098
W2011

C2900

R2931

C2903

C2902

8

L2817

IC2811

X2803

9

C2904

R2934

C2905

R2933

B

C

C2878

C2996

W2166

C2992

C2997

12

IC2810

456

3

R2911

R2247

C2883

IC2808

117

C2873

C2874

L2911

C2872

C2994

C2901

C2899

16

R2932

L2818

L2819

C2907

C2906

IC2809

456

12

C2886

3

C2884

L2816

1834

C2885

C2879

L2809

C2875

C2876

R2912

W2303

R2061

C2887

W2298

W2214

W2219

R2080

W2432

W2176

W2095

W2173

W2174

W2215

L2813
L2815

W2068

W2175

W2090

W2170

W2093

W2007

W2006

W2169

W2171
W2172

C2867

R2081

C2993

L2814

R2913

R2910

W2304

C2910

L2821

C2912

C2923

R2917

C2916

R2104

R2204

C2204

C2104

R2203

R2103

SW

L

GG G

C2924

L2824

C2004

C2005

C2922

W2570

C2909

C2918

C2917

C2915

C2914

L2822

C2913

V

L2823

C2911

C2919

4-C

3-Y

C2920

JK2801

JK2803

1
2
3

JK2802

2-G

1-G

R

AM/FM

AUX

SUB-WOOFER

OPTICAL OUT

S-VIDEO OUT

VIDEO OUT

2

C2893

R2927

C2889

R2919

R2924

R2930

W2431

W2505

C2866

IC2805

32415

W2302

C2863

IC2807

C2864

32415

W2010

37

45

41

49

35

39

47

43

38

46

42

50

36

40

48

44

W2301

100

1

23456789101112

CN2809
