Digital Video Camcorder

Operating Instructions

Models No. PV-DV202-K

PV-DV402-K

[ PV-DV402-K shown ]

Mini

Before attempting to connect, operate or adjust this product, please read these instructions thoroughly.

For assistance, please call : 1-800-561-5505 or visit us at www.panasonic.ca

DV202_402-K.p 1-4.p65 02/06/06, 13:301

LSQT0566A

Things You Should Know

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to fill in the information below. The serial number is on the tag located on the underside of your Palmcorder. Be sure to retain this manual as your convenient Palmcorder information

Date of Purchase

Dealer Purchased From

Dealer Address

Dealer Phone No.

Model No.

Serial No.

source.

Safety Precautions

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

Mini

Your

Palmcorder is designed to record and play back in Standard Play (SP) mode and Long (LP) mode. It is recommended that only cassette tapes that have been tested and inspected for use in VCR machines with the

Mini

mark be used.

CAUTION : TO PREVENT FIRE OR SHOCK HAZARD AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

WARNING : DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

This symbol warns the user that uninsulated

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

The above markings are located on the appliance bottom cover.

DV202_402-K.p 1-4.p65 02/06/06, 13:302

Important Safeguards

1. Read Instructions — All the safety and operating instructions should be read before the unit is operated.

2. Retain Instructions — The safety and operating instructions should be retained for future reference.

3. Heed Warnings — All warnings on the unit and in the operating instructions should be adhered to.

4. Follow Instructions — All operating and maintenance instructions should be followed.

5. Cleaning — Unplug this video unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry cloth for cleaning.

6. Attachments — Do not use attachments not recommended by the video product manufacturer as they may be hazardous.

7. Water and Moisture — Do not use this video unit near water — for example near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories — Do not place this video unit on an unstable cart, stand, tripod, bracket, or table. The video unit may fall, causing serious injury to a child or adult, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video unit. Any mounting of the unit should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. Ventilation — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video unit and to protect it from overheating. These openings must not be blocked or covered. Never place the video unit on a bed, sofa, rug, or other similar surface, or near or over a radiator or heat register. This video unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10. Power Sources — This video unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For video units intended to be operated from battery power, or other sources, refer to the operating instructions.

11. Grounding or Polarization — This video unit may be equipped with either a polarized 2-wire AC (Alternating Current) line plug (a plug having one blade wider than the other) or 3-wire grounding type plug, a plug having a third (grounding) pin.

The 2-wire polarized plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

The 3-wire grounding type plug will fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

12. Power-Cord Protection — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords of plugs, convenience receptacles, and the point where they exit from the unit.

13. Outdoor Antenna Grounding — If an outside antenna or cable system is connected to the video unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Part 1 of the Canadian Electrical Code, in USA Section 810 of the National Electrical Code, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT

ELECTRIC SERVICE EQUIPMENT

NEC

NATIONAL ELECTRICAL CODE

(NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

14. Lightning — For added protection of this video unit receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video unit due to lightning and power-line surges.

Before Use

DV202_402-K.p 1-4.p65 02/06/06, 13:303

Important Safeguards

15. Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading — Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. Objects and Liquids — Never push objects of any kind into this video unit through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind onto the video unit.

18. Servicing — Do not attempt to service this video unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service — Unplug this video unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If any liquid has been spilled into, or objects have

fallen onto, the video unit. c. If the video unit has been exposed to rain or water. d. If the video unit does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions, as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician to

restore the video unit to its normal operation. e. If the video unit has been dropped or the cabinet

has been damaged. f. When the video unit exhibits a distinct change in

performance — this indicates a need for service.

20. Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21. Safety Check— Upon completion of any service or repairs to this video unit, ask the service technician to perform safety checks to determine that the video unit is in safe operating order.

Precautions

USE & LOCATION

• TO AVOID SHOCK HAZARD ... Your Palmcorder and power supply should not be exposed to rain or moisture. Do

not connect the power supply or operate your Palmcorder if it gets wet. Your Palmcorder has been designed for outdoor use, however, it is not designed to sustain direct exposure to water, rain, sleet, snow, sand, dust, or direct splashing from a pool or even a cup of coffee. This action could permanently damage the internal parts of your Palmcorder. Do not attempt to disassemble this unit. There are no user serviceable parts inside. Unplug your Palmcorder from the power supply before cleaning.

• DO NOT AIM YOUR PALMCORDER AT THE SUN OR OTHER BRIGHT OBJECTS

• DO NOT LEAVE THE PALMCORDER WITH THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY CAUSE

DAMAGE TO THE INTERNAL PARTS OF THE EVF

• DO NOT EXPOSE YOUR PALMCORDER TO EXTENDED HIGH TEMPERATURE ... Such as, direct sunlight,

inside a closed car, next to a heater, etc... This action could permanently damage the internal parts of your Palmcorder.

• AVOID SUDDEN CHANGES IN TEMPERATURE ... If the unit is suddenly moved from a cold place to a warm

place, moisture may form on the tape and inside the unit.

• DO NOT LEAVE YOUR PALMCORDER OR THE POWER SUPPLY TURNED ON WHEN NOT IN USE.

• STORAGE OF YOUR PALMCORDER ... Store and handle your Palmcorder in a manner that will not subject it to

unnecessary movement (avoid shaking and striking). Your Palmcorder contains a sensitive pick-up device which could be damaged by improper handling or storage.

CARE

• TO CLEAN YOUR PALMCORDER ... Do not use strong or abrasive detergents when cleaning your Palmcorder

body.

• TO PROTECT THE LENS ... Do not touch the surface of the lens with your hand. Use a commercial Palmcorder

lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating.

• TO PROTECT THE FINISH OF YOUR PALMCORDER ... Before handling your Palmcorder, make sure your hands

and face are free from any chemical products, such as suntan lotion, as it may damage the finish.

DV202_402-K.p 1-4.p65 02/06/06, 13:304

Table of Contents

Things You Should Know ................................................................................................ 2

Important Safeguards ..................................................................................................... 3

Precautions .....................................................................................................................4

Before Using ....................................................................................................................6

• Easy Cassette Eject/Insertion .................................................................................... 7

Quick Guide ................................................................................................................... 11

Supplying Power ........................................................................................................... 14

Setting the Clock ........................................................................................................... 16

Using the Palmcorder Menu ......................................................................................... 17

Before Use

Camera Recording ........................................................................................................ 18

• Simple Recording .................................................................................................. 18

• Digital PhotoShot Mode ........................................................................................ 20

• Zoom ..................................................................................................................... 21

Special Effect Features................................................................................................. 23

Advanced Settings ........................................................................................................ 28

Playback Your Recordings ........................................................................................... 32

Special Effect Features................................................................................................. 34

Digital Features ............................................................................................................. 40

Editing Features ............................................................................................................ 44

Card Features ................................................................................................................49

PC Connection

• Transferring Your Images (Windows) ..................................................................... 56

• PHOTOVU/MPEG4 Movie Messenger System..................................................... 60

• Transferring Your Images (i.LINK) (Windows) ....................................................... 74

• PHOTOVU/MPEG4 Movie Messenger System (i.LINK) ....................................... 75

• Palmcorder USB Device Driver/SD Drive ............................................................. 77

• Palmcorder File Converter .................................................................................... 80

• Web Camera (For Windows XP users/For Windows 98SE, Me, 2000 users) ...... 82

• Warning Indications .............................................................................................. 91

PC Connection

• Transferring Your Images (Macintosh) ................................................................... 92

Palmcorder Accessory System ...................................................................................94

Notes On Operations .................................................................................................... 95

Specifications ................................................................................................................ 96

Before Requesting Service .......................................................................................... 97

On-Screen Displays (OSD) ........................................................................................... 99

Warranty....................................................................................................................... 101

MENU OSD ................................................................................................................... 102

Electronic Viewfinder/LCD Monitor Indications ........................................................ 107

Index of Controls .........................................................................................................111

Index ............................................................................................................... Back Cover

Camera VCR

Special Features

For Your Information

DV202_402-K.p 5-10.p65 02/06/06, 13:305

Before Using

This Operating Instructions book is designed for use with models PV-DV202-K and PV-DV402-K. The PV-DV402-K is the model used for illustrative purposes.

Features may vary, so please read carefully.

Differences between models

Model Number

LCD Monitor

MagicVu IR Filter (0Lux)

MIC IN EXTERNAL

A/V Input S-VIDEO Input/

Output ArcSoft Software

63.5 mm (2.5 inch) Liquid Crystal Display

Unpack your Palmcorder

1 pc. AC Adaptor (PV-DAC11-K) with AC Cable and DC Cable

PV-DV202-K

1 pc. 8 MB Memory Card (RP-SD008BMK0)

88.9 mm (3.5 inch) Liquid Crystal Display

1 pc. Battery Pack (CGR-D08/ CGR-D08R)

PV-DV402-K

YES

1 pc. A/V Cable (LSJA0280)

1 pc. Lens Cap (LSYF0521) with Lens Cap Strap (LSGQ0066)

1 pc. IR Remote Control (LSSQ0294) with Battery (CR2025)

Microsoft, Windows and Windows Media are registered trademarks of Microsoft in the United States and other countries.

Macintosh, iMac, iBook, PowerBook, Power Macintosh, Power Mac, and Mac are trademarks or registered trademarks of Apple Computer, Inc.

Pentium is a registered trademark.

Intel i.LINK is a trademark. PHOTOVU/MPEG4 Movie Messenger System is a registered trademark. IBM is a registered trademark of IBM Company. MultiMediaCard is a registered trademark. SD is a trademark.

1 pc. USB Cable (K1HA05CD0001)

1 pc. CD-ROM of Driver Software for Windows 98SE/Me/2000/XP and Macintosh; USB Device Driver for Windows 98SE/Me/2000/ XP; PHOTOVU/MPEG4 Movie Messenger System for Windows 98SE/Me/2000/XP; Built-in SD Drive for Macintosh; ArcSoft Software (PV-DV402-K only) for Windows 95/98SE/Me/2000/XP and Macintosh (LSFT0491(PV-DV202-K)/ LSFT0492 (PV-DV402-K))

1 pc. Shoulder Strap (LSFC0016)

1 pc. Audio Adaptor (LSJP0831)

DV202_402-K.p 5-10.p65 02/06/06, 13:306

Before Using

Mini

Record Speed/Playback Time

Use only those tapes having the logo indicating the 6.35 mm digital standard.

Record Speed/

Cassette type

AY-DVM30EA

AY-DVM60EA

AY-DVM80EA 80 minutes 120 minutes

Playback time

30 minutes

60 minutes

45 minutes

90 minutes

Easy Cassette Eject/Insertion

• If the Palmcorder is connected to a power source, the cassette can be inserted and ejected without turning the Palmcorder on.

4PUSH

2TAPE EJECT

Erase Protection

Cassettes have a sliding record tab to ensure recordings are not accidentally erased.

1 To prevent accidental erasure:

Slide the tab to the left (open).

record tab

2 To record again:

Slide the tab to the right (close).

Before you begin

• Connect the Palmcorder to a power source. (pp. 14, 15)

1 Press LCD-OPEN to unlock the LCD

monitor, and swing it fully open.

Before Use

2 Slide TAPE EJECT to open the

Cassette Compartment Cover.

3 Insert a cassette record tab up,

1LCD-OPEN

Cassette Compartment Cover

window side facing out.

4 Press PUSH CLOSE to close the

Cassette Compartment Cover.

• To remove the cassette...

Slide TAPE EJECT to open the Cassette Compartment Cover and pull the cassette tape straight out.

Note

• When inserting the cassette, make sure it is facing in the right direction and then push it in completely.

DV202_402-K.p 5-10.p65 02/06/06, 13:307

Before Using

Attaching the Shoulder Strap

1 Undo the two strap ends from their

buckles.

2 Thread the strap ends through the

Strap Attachment Rings.

3 Reinsert the strap ends through their

buckles.

• Make sure the straps are not twisted.

Hand Strap

Adjust the length of the Hand Strap to the size of your hand as illustrated.

Adjust the Length

1 Loosen the strap from the Buckle and

create a loop.

2 Pull the strap firmly through the

Buckle to shorten or lengthen the

strap.

Lens Cap

Attaching the Lens Cap Strap:

Thread the Lens Cap Strap through the Strap Attachment Ring as shown.

Hand Strap

DV202_402-K.p 5-10.p65 02/06/06, 13:318

Attaching the Lens Cap Cord to the Hand Strap:

Remove the Hand Strap from the front clasp and thread the Strap through the loop in the Lens Cap Cord. Reattach the Hand Strap.

Before Using

Using the Built-in Light

To brighten the natural colours in a scene.

Before you begin

• Connect the Palmcorder to a power source. (pp. 14, 15)

• Set POWER to CAMERA or M-CARD.

1 Hold down LIGHT for more than

0.7 seconds to turn ON or OFF.

•“

” will appear on the screen.

Built-in Light

Note

• Using Light reduces battery time.

• Provide adequate ventilation if using

Light in a hot environment for a long time.

• Set LIGHT to OFF when not in use.

• If light bulb needs to be replaced, take

the Palmcorder to your nearest authorized Servicentre.

Caution

This light becomes hot during operation. Make sure nothing covers the light during operation.

Remote Control

You can operate the major functions of your Palmcorder from up to approximately 5 m (16 feet) away (indoors). Aim the IR Remote Control toward the front of the Palmcorder and press the desired buttons (Remote Sensor is located under the lens).

To operate Camera functions:

Set POWER to CAMERA.

1LIGHT

Before Use

○○○○

Remote Sensor

Controlled Functions

• Rec/Pause (p. 18)

• Tele (Zoom) (p. 21)

• Wide (Zoom) (p. 21)

• Date/Time (p. 107)

• Reset (p. 45)

• PhotoShot (p. 20)

• Display On TV (p. 39)

• Counter/Time Code (p. 108)

• Audio Dubbing (p. 44)

• Record (p. 48)

• Menu (pp. 17, 45)

• Play (pp. 32, 48)

DV202_402-K.p 5-10.p65 02/06/06, 13:319

To operate VCR functions:

Set POWER to VCR.

• FF/Search (p. 34)

• REW/Search (p. 34)

• Pause/Select (pp. 16, 17, 36, 48)

• Stop/Set (pp. 16, 17, 32, 48)

• Slow/Frame Advance (Forward)

(pp. 35, 36)

• Slow/Frame Advance (Backward) (pp. 35, 36)

• Index Search (Forward) (pp. 36, 37)

• Index Search (Backward) (pp. 36, 37)

• Speaker Volume (p. 33)

Before Using

Replace the Battery

1 While pressing the tab in the direction of the arrow (A)

with your fingernail, pull out the Battery Tray (B).

2 Insert the battery into the Battery Tray with the + mark

facing up. Do not reverse the polarity.

3 Insert the Battery Tray.

Replace battery with Panasonic PART NO. VSBW0004 (CR2025) only. Use of another battery may present a risk of fire or explosion. Caution: Battery may explode if mistreated. Dispose of used battery properly. Keep away from children. Do not recharge, disassemble or dispose of in a fire.

Remote Controlling Two Palmcorders

You can control any two Panasonic Palmcorders with one Remote control. In order for the remote to distinguish between the two units, it is necessary to set one of the Palmcorders to VCR 2. On the remote, press VCR 1 or VCR 2 to control the desired Palmcorder.

For VCR 2 :

Press these buttons at the same time.

Note

• When the Palmcorder and remote are not set to the same mode (VCR1 or VCR2), “CHECK REMOTE MODE (REMOTE)” will appear.

For VCR 1 :

Press these buttons at the same time.

1 Set POWER to VCR or CAMERA.

• The POWER Lamp lights red.

• Be sure POWER is fully turned to

VCR or CAMERA position.

2 Press MENU to display the VCR or

CAMERA mode menu screen.

3 Rotate JOG KEY to select SET-UP in

the CAMERA mode menu screen or

PLAY MODE in the VCR mode menu

screen, then press JOG KEY to display the CAMERA SET-UP or VCR PLAY MODE menu screen.

4 Rotate JOG KEY to select REMOTE ,

and then press JOG KEY to select VCR 2 (Menu OSD: pp. 103, 105). Leave the other Palmcorder set to VCR1.

5 Set the Remote Control to VCR 1 or

VCR 2 to correspond with the

Palmcorder you wish to control. (See above left.)

• After replacing the Remote Control Battery, the remote will default to VCR 1.

DV202_402-K.p 5-10.p65 02/06/06, 13:3110

Quick Guide

Insert the Battery Pack

Protection Film

Note

• Remove the Protection Film before use.

Before you begin

• Charge the Battery. (p. 14)

1 Insert the Battery Pack and slide

it up until it locks with a click.

Insert Cassette

These Palmcorders are equipped with the Easy Cassette Eject System so it is easy to insert or remove tapes, even when on a tripod. (p. 7)

Before Use

1 Press LCD-OPEN to unlock the LCD

monitor, and swing it fully open.

(PV-DV402-K shown)

5 Press PUSH CLOSE mark to

close the Cassette Compartment Cover.

DV202_402-K.p 11-14.p65 02/06/06, 13:3111

2 Set POWER to VCR or

CAMERA.

3 Slide TAPE EJECT to open

the Cassette Compartment Cover.

4 Insert a cassette record tab

up, window side facing out.

• Make sure the record tab is closed. (p. 7)

Quick Guide

Camera Recording

When the LCD monitor is fully open, the Viewfinder automatically turns OFF.

1 Set POWER to

CAMERA.

4 Press REC/PAUSE to start recording.

Press REC/PAUSE again to pause

recording.

To Watch Playback in the LCD (Liquid Crystal Display)

When the LCD monitor is fully open, the Viewfinder automatically turns OFF.

180°

90°

2 Adjust the Vision Adjustment

Control to your eyesight.

Viewfinder

180°

90°

LCD Monitor

3 Press LCD-OPEN to unlock

the LCD monitor. Swing it fully

open and adjust the angle.

Before you begin

• Charge the Battery. (p. 14)

1 Set POWER to VCR.

2 Press LCD-OPEN to unlock the LCD

monitor. Swing it fully open and adjust the angle.

3 Press (REW)

to rewind the tape.

DV202_402-K.p 11-14.p65 02/06/06, 13:3112

4 Press (PLAY) to start

playback.

5 Press (STOP) to stop

playback.

Quick Guide

Insert Memory Card*

*Memory Card: MultiMediaCard or SD Memory Card (p. 95)

• Be sure to insert the Memory Card before using the Card PhotoShot. (p. 49)

Below is a list of memory cards which can be used in this Palmcorder.

Memory Card

SD Memory Card (RP-SD008BMK0) (supplied) MultiMediaCard (SanDisk brand) MultiMediaCard (optional) (p. 94)

SD Memory Card write protection switch

A write protection switch is located on the SD Memory Card. Sliding the switch to the “LOCK” position prevents writing on or formatting the card.

Write protection Switch

1 Set POWER to OFF.

Before you begin

• Charge the Battery. (p. 14)

Capacity

8 MB 8 MB, 16 MB 8 MB

2 Slide DOOR OPEN to open

M-CARD door.

3 Insert the Memory Card and hold

in place until you hear a click.

To remove the Memory Card...

4 Close the M-CARD Door.

Before Use

Press here to eject the card.

About the M-CARD Lock Switch

POWER

M-CARD Lock

Note

• By sliding M-CARD Lock to LOCK, you can prevent POWER from accidentally entering the M-CARD position when changing POWER to CAMERA.

DV202_402-K.p 11-14.p65 02/06/06, 13:3113

When inserting the Memory Card

Note

• When inserting the Memory Card, insert with the cropped corner down as shown in the illustration above.

cropped corner

Supplying Power

Charge the Battery Pack on the AC Adaptor

1 Connect and plug in the Power Cord

as shown.

• POWER Lamp will light.

• Remove the DC Cable, if attached,

from the adaptor.

2 Attach the Battery as shown to

POWER Lamp

charge.

• CHARGE Lamp lights up. It goes out when charging is complete (approx. 1 hour). Expect approx. 1 hour 30 minutes of operation (EVF usage) when fully charged.

3 Remove the Battery.

CHARGE Lamp

Note

About the Flashing of the CHARGE Lamp

• Charge the Battery within an ambient temperature range of 10 °C (50 °F) and 30 °C (86 °F).

• If charging is done in extreme low or high temperatures, Battery charge time increases.

CHARGE Lamp flashes when...

• The Battery is being charged, but charging is taking longer than normal.

• Charging is not possible. Remove the Battery once, wait a short time, then re-attach it

for charging.

Slide the Battery out and then lift up.

Insert the Battery Pack

1 Insert the Battery Pack and slide it up

until it locks with a click.

DV202_402-K.p 11-14.p65 02/06/06, 13:3114

Remove the Battery Pack

BATT RELEASE

1 Tilt Viewfinder upward. 2 Remove the Battery Pack and slide

the Battery downward while sliding the

BATT RELEASE.

Supplying Power

Battery Care

Caution:

• Charge only with specified charger.

• Charge the Battery within an ambient

temperature range of 10 °C (50 °F) and 30 °C (86 °F).

• The Battery may be warm after charging or just after use. This is normal.

• Do not use an insufficiently charged or worn out Battery.

• If charging is done in extreme low or high temperatures, Battery charge time increases.

Safety precautions:

• Do not place the Battery near, or dispose of in fire.

• Do not directly connect (short circuit) the positive (+) and negative (–) terminals.

• Never attempt to disassemble or reassemble the

Battery.

ATTENTION:

A lithium ion/polymer battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

Use AC Adaptor

BATT RELEASE

DC IN Terminal

To avoid damage to the Battery:

• Do not drop or jar the Battery.

• Use the Battery with specified models only.

• If the Battery is used in extremely high

temperatures, a safety device will automatically prevent operation.

To ensure longer battery life:

• While not in use, remove Battery from the Palmcorder and AC Adaptor and store in a cool, dark, dry place. If you leave the Battery in

the Palmcorder or on the AC Adaptor, the Battery will no longer be rechargeable.

• Keep the Battery terminals clean.

1 Slide the Battery downward while

sliding BATT RELEASE to remove the Battery Pack. (p. 14)

2 Insert the DC Cable into the DC IN

Terminal.

3 Connect the other end of the DC

Cable to the AC Adaptor as shown.

4 Plug in the AC Adaptor.

• The POWER Lamp on the AC Adaptor lights up.

Before Use

POWER

DC Cable (Supplied)

Lamp

DV202_402-K.p 15-17.p65 02/06/06, 13:3115

Note

• When not in use, unplug the AC Adaptor from the AC outlet. (AC Adaptor consumes 1 W of electric power when plugged into an AC outlet even when not in use.)

DC Output Connector

Setting the Clock

Set the Date and Time

The date and time is calculated, including leap year, up to DEC 31 2089.

2, 3, 4

JOG KEY

1MENU

EXAMPLE:

YEAR

MONTH

: 2002

PUSH

: JAN

PUSH

Push

Rotate

Before you begin

• Connect the Palmcorder to a power

source. (pp. 14, 15)

• Set POWER to CAMERA or VCR.

1 Press MENU to display the Camera or

VCR mode menu screen. (p. 17)

[ CAMERA MENU ]

[ VCR MENU ]

2 Rotate JOG KEY to select DISPLAY

SETTING , and then press JOG KEY

to display the DISPLAY SETTING menu screen.

3 Rotate JOG KEY to select CLOCK-

SET , and then press JOG KEY to set

to ON. (Menu OSD: pp. 103, 106)

• The DATE/TIME SETTING menu is displayed.

MONTH

Note

• To make corrections, Press JOG KEY repeatedly to move back to an item and correct.

• A built-in Battery maintains clock operation. If the Palmcorder is not connected to a power source for a few months, the built-in battery may discharge and “CLOCK BATTERY” indication appears. (p. 99)

: FEB

DV202_402-K.p 15-17.p65 02/06/06, 13:3116

4 Rotate JOG KEY to select YEAR, then

press JOG KEY to fix and move to the

next item. Likewise, set the month, day, hour, and minutes.

When DATE/TIME setting is completed, press MENU three times to start the clock and exit.

Using the Palmcorder Menu

The Palmcorder features three menu displays: one for CAMERA mode (recording), one for M-CARD (Memory Card Photo Mode) and one for VCR mode (Playback). (pp. 102~106)

• While the Menu screen is displayed, you cannot record on or play a tape.

• While recording, the Menu screen cannot be displayed.

• During playback, the Menu screen can be displayed.

Before you begin

• Connect the Palmcorder to a power

source. (pp. 14, 15)

• Set POWER to CAMERA or VCR.

2, A, B, C

JOG KEY

1, D

CAMERA Main menu

1 : D. FUNCTION

CAMERA FUNCTION menu is displayed. To select D.FUNCTION, D.ZOOM, or PROGRESSIVE.

2 : ADJUST

CAMERA ADJUST menu is displayed. To select PROG. AE or CINEMA.

3 : REC MODE

CAMERA REC-MODE menu is displayed. To select REC-SPEED, AUDIO-REC, INDEX, SHUTTER, SELF-REC, WIND-CUT, or ZOOM-MIC.

4 : SET-UP

CAMERA SET-UP menu is displayed. To select REMOTE, BEEP, or MAGICVU (PV-DV402-K only).

5 : DISPLAY SETTING

DISPLAY SETTING menu is displayed. To select DISPLAY, C.RESET, DATE/ TIME, or CLOCK-SET.

6 : LCD/EVF SETTING

LCD/EVF SETTING menu is displayed. To select LCD BRIGHTNESS, LCD COLOR or EVF BRIGHTNESS.

7 : PHOTO TITLE

PHOTO TITLE menu is displayed. To select TITLE or MODE.

Displaying the MENU

1 Press MENU to display the CAMERA

or VCR menu (according to the POWER setting).

2 Rotate JOG KEY to select a menu

item.

Setting the MENU Items (EX. VCR Mode menu)

APress JOG KEY to set your selection. BRotate JOG KEY to select a menu

item.

CPress JOG KEY to set your selection.

• The “●” mark indicates selection.

DPress MENU twice to exit the menu.

VCR Main menu

1 : PLAY FUNCTION

VCR PLAY FUNCTION menu is displayed. To select D. FUNCTION, D.EFFECT, or D.ZOOM.

2 : REC MODE

VCR REC MODE menu is displayed. To select REC-SPEED, AUDIO-DUB, AUDIO-REC (PV-DV402-K only), or AV-JACK (PV-DV402-K only).

3 : PLAY MODE

VCR PLAY MODE menu is displayed. To select INDEX, AUDIO, REMOTE, or B.SEARCH.

4 : MULTI SETTING

MULTI SETTING menu is displayed. To select SPEED.

5 : DISPLAY SETTING

DISPLAY SETTING menu is displayed. To select DISPLAY, C.RESET, DATE/ TIME, or CLOCK-SET.

6 : LCD/EVF SETTING

LCD/EVF SETTING menu is displayed. To select LCD BRIGHTNESS, LCD COLOR or EVF BRIGHTNESS.

Before Use

DV202_402-K.p 15-17.p65 02/06/06, 13:3117

Camera Recording

Simple Recording

Remove the lens cap and clip it to the hand strap.

Clip here

EVF

REC/PAUSE mode

POWER Lamp

1, 5

POWER

Before you begin

• Connect the Palmcorder to a power source. (pp. 14, 15)

• Insert a cassette with the record tab closed. (p. 7)

1 Set POWER to CAMERA.

• The POWER Lamp lights red.

• Be sure POWER is fully turned to the

CAMERA position.

2 With the Viewfinder Eye Cup held up

against your eye, adjust the Vision Adjustment Control to your eyesight.

• Adjust the EVF Brightness of the Viewfinder if necessary. Please refer to “To adjust the LCD/ EVF BRIGHTNESS or COLOR” on page 19.

3 Set to REC-SPEED “SP” or “LP” in

the CAMERA Mode Menu. (Menu OSD: p. 102)

4 Press REC/PAUSE to start recording.

•“REC” is displayed on the screen.

Press REC/PAUSE again to pause recording.

5 Set POWER to OFF when finished.

• To remove the cassette, slide TAPE EJECT.

2Vision

Adjustment Control

3MENU

4REC/PAUSE

WARNING:

• Do not leave the Palmcorder with the EVF aimed directly at the sun as this may cause damage to the internal parts of the EVF.

• Do not lift, or carry, the Palmcorder by the EVF or the LCD Monitor.

DV202_402-K.p 18-22.p65 02/06/06, 13:3118

• When the Palmcorder is aimed at excessively bright objects, or bright lights, a vertical bar may appear in the picture. This is a normal characteristic of the CCD pick-up device. Try to avoid this whenever possible.

To conserve power

After 5 minutes, the Record/Pause mode will automatically change to Standby mode. To resume recording, set POWER to OFF and then ON again.

Camera Recording

Using the LCD Monitor

The LCD (Liquid Crystal Display) monitor can be used while recording.

1LCD-OPEN

180°

90°

To adjust the LCD/EVF BRIGHTNESS or COLOR

1 Press LCD-OPEN to unlock the LCD

monitor.

2 Swing the LCD monitor fully open

and adjust the viewing angle.

• The LCD monitor will automatically turn on.

• When the LCD monitor is completely closed, it will shut off automatically to save power.

• Adjust the LCD Brightness and/or colour of the LCD monitor if necessary. Please refer to “To adjust the LCD/EVF BRIGHTNESS or COLOR” below.

3 Start recording.

Note

• Using the LCD monitor will reduce battery operating time.

• Close the LCD monitor completely when not in use.

Camera

1, 5

2, 3, 4

JOG KEY

EVF/LCD

DV202_402-K.p 18-22.p65 02/06/06, 13:3119

1 Press MENU to display the main menu

screen.

2 Rotate JOG KEY to select LCD/EVF

SETTING from the main menu screen.

(Menu OSD: pp. 103, 106)

3 Press JOG KEY to display the LCD/

EVF SETTING screen.

4 Press JOG KEY to select LCD

BRIGHTNESS, LCD COLOR, or EVF BRIGHTNESS, then rotate JOG

KEY to adjust.

5 Press MENU twice to exit this mode.

Camera Recording

Digital PhotoShot Mode

Use this feature to record a seven second (approx.) still image on the tape from the current camera picture. Audio is also recorded for on-the-spot narration. Or, you can add narration later with the Audio Dubbing feature to make an interesting slide show, etc. (p. 44)

1POWER

2PHOTOSHOT

Progressive PhotoShot Mode

With the progressive PhotoShot Function, you can record still pictures with higher resolution than with the normal PhotoShot Function.

PHOTOSHOT

3, 4

JOG KEY

1POWER

2MENU

1 Set POWER to CAMERA. 2 Press PHOTOSHOT in Record/Pause

mode. “PHOTO” will appear in the EVF or the LCD monitor.

EVF/LCD

Note

• If SHUTTER on the menu screen is set to ON, a sound effect similar to the shutter of a film camera will be heard when PHOTOSHOT is pressed.

• When PHOTOSHOT is pressed, the playback image takes approx. 7 seconds to process. After that, the Camera mode screen will be displayed.

1 Set POWER to CAMERA. 2 Press MENU to display the CAMERA

mode menu screen.

3 Rotate JOG KEY to select

D.FUNCTION , and press JOG KEY

to display the CAMERA FUNCTION menu screen.

4 Rotate JOG KEY to select

PROGRESSIVE , and press JOG KEY to select ON or OFF.

• Press MENU twice to exit.

•“P” will appear in the EVF or the

LCD monitor.

5 Press PHOTOSHOT in Record/Pause

mode.

EVF/LCD

DV202_402-K.p 18-22.p65 02/06/06, 13:3120

Note

• This function may not work with D.E.I.S., D.ZOOM and D.FUNCTION functions.

Zoom

You can gradually zoom in for close ups or zoom out for wide angle shots.

Camera Recording

1 Set POWER to CAMERA.

2POWER

ZOOM

1POWER

3REC/PAUSE

Zoom Microphone Function

Along with the zooming operation, the microphone’s directional angle and sensitivity are varied for recording sounds.

3, 4, 5

JOG KEY

1POWER

2 Zoom slowly:

by lightly pressing the “T” (Telephoto) or the “W” (Wide Angle) side of the POWER ZOOM.

Zoom quickly:

by applying more pressure.

3 Start recording.

Note

• The zooming speed ranges from a slow 17 seconds to a fast 1.5 seconds according to the amount of pressure applied to the POWER ZOOM.

1 Set POWER to CAMERA. 2 Press MENU to display the CAMERA

mode menu screen.

3 Rotate JOG KEY to select REC

MODE , then press JOG KEY to

display the CAMERA REC-MODE menu screen.

Camera

2MENU

DV202_402-K.p 18-22.p65 02/06/06, 13:3121

4 Rotate JOG KEY to select ZOOM-MIC

in the CAMERA REC-MODE menu. (Menu OSD: p. 103)

5 Press JOG KEY to select ON.

• Press MENU twice to exit.

•“Z.MIC” will appear on the screen.

Note

• The Zoom Microphone Function may not work effectively if the surrounding noise is too loud.

Camera Recording

Recording Check

To playback the final few seconds of the last recorded scene in the REC/PAUSE mode.

1RECORDING CHECK

Recording Still Pictures

You can record still pictures of any desired duration together with sound.

1, 2STILL

Self Recording

Rotate the LCD monitor 180 degrees so it faces the same direction as the lens to record yourself.

3, 4

JOG KEY

2MENU 5REC/

PAUSE

1POWER

180°

1 Press RECORDING CHECK

briefly in the REC/PAUSE mode. The [CHK] indication appears.

After checking, the Palmcorder returns to the REC/PAUSE mode.

• For Recording Check, the Palmcorder must be in the same mode (SP or LP) as was used for recording, otherwise the playback picture is distorted.

1 While in RECORD mode, press STILL

and hold for 2 seconds to capture a

still picture. The captured still picture will be recorded together with sound.

2 Press STILL once again to release

the still picture. The camera will resume recording real-time pictures.

1 Set POWER to CAMERA. 2 Press MENU to display the CAMERA

mode menu screen.

3 Rotate JOG KEY to select REC

MODE , then press JOG KEY to

display the CAMERA REC-MODE menu screen.

4 Rotate JOG KEY to select SELF-

REC , and then press JOG KEY to

select MIRROR.

• The picture in the LCD monitor will appear reversed.

5 Start recording.

DV202_402-K.p 18-22.p65 02/06/06, 13:3122

Special Effect Features

CINEMA Mode

You can record a picture compatible with a wide-screen TV equipped with an S2 picture terminal.

3, 4

JOG KEY

1POWER

1 Set POWER to CAMERA. 2 Press MENU to display the CAMERA

mode menu screen.

3 Rotate JOG KEY to select ADJUST ,

then press JOG KEY to display the CAMERA ADJUST menu screen.

2MENU

5REC/PAUSE

Backlight

Use when recording a subject that is darker than the surrounding scene, in a shadowed area, or when the light source is behind your subject.

1POWER

4 Rotate JOG KEY to select CINEMA ,

and then press JOG KEY to select ON.

• A black strip will appear at the top and bottom of the picture.

• Press MENU twice to exit.

•“CINEMA” will appear on the screen.

EVF/LCD

5 Start recording.

1 Set POWER to CAMERA. 2 Press BACK LIGHT to activate the

Backlight feature.

• The Indicator “ EVF or LCD monitor.

” will appear in the

3 Press BACK LIGHT again to cancel

the Backlight feature.

EVF/LCD

Camera

2, 3BACK LIGHT

DV202_402-K.p 23-27.p65 02/06/06, 13:3123

Note

• The Indicator “ EVF or LCD monitor when OFF is selected in the DISPLAY menu.

” will not appear in the

Special Effect Features

Program AE

The Auto Exposure feature can be used to make quality recordings in a variety of scene situations.

Note

• When MagicVu (PV-DV402-K only) is ON, Program AE and H.S.S. cannot be set in the menu.

2AUTO/MANUAL

4, 5

JOG KEY

3MENU 1POWER

(No display)

SPORTS

PORTRAIT

LOW-LIGHT

SPOT-LIGHT

SURF&SNOW

Note

SPORTS mode

• The recorded images will not be so blurred when they are viewed later using slow or still picture playback.

• When playing back a sports mode

recording, the movement may appear slightly jerky.

• Do not use this mode when recording under fluorescent, mercury, or sodium lighting. These types of lights will affect the colour and brightness of the images.

• A vertical band of light might appear when recording objects that are brightly illuminated or highly reflective.

• If the amount of light is insufficient, the SPORTS “ EVF or the LCD monitor.

• The image may flicker if this mode is used indoors.

” indicator will flash in the

1 Set POWER to CAMERA. 2 Hold down AUTO/MANUAL for more

than 0.7 seconds so that the “MNL”

indication appears in the EVF or the LCD monitor.

3 Press MENU to display the menu

screen.

4 Rotate JOG KEY to select ADJUST ,

and then press JOG KEY to display the CAMERA ADJUST menu screen.

5 Rotate JOG KEY to select

PROG.AE , then press JOG KEY

repeatedly to select one of the five

modes shown below.

6 Repeat steps 2~5 to select OFF to

cancel this feature.

Mode

For recording fast action scenes. For recording only subjects in the

foreground, while ignoring subjects in the background.

For recording in extreme low light conditions.

Recording in situations where subjects are under a spotlight(s).

For recording in locations with a high degree of “Dazzle,” such as snow slopes and the seashore.

PORTRAIT mode

• The image may flicker if this mode is used indoors.

LOW-LIGHT mode

• Scenes recorded in extremely low light levels may turn out dark.

SPOT-LIGHT mode

• If the recorded subject is extremely bright, the picture may appear whitish.

SURF&SNOW mode

• If the recorded subject is extremely bright, the picture may appear whitish.

• It is not possible to select the SPORTS mode or PORTRAIT mode together with the MagicPix mode in the Digital function camera menu.

Indication

DV202_402-K.p 23-27.p65 02/06/06, 13:3124

Special Effect Features

Audio/Video Fade In/Out

You can make smoother scene transitions for a more professional look.

1, 3, AFADE

2, BREC/

PAUSE

MagicVu IR Filter (0 Lux) (PV-DV402-K only)

MagicVu allows you to record video in total darkness. You can select the colour of image: B/W, green, or blue. (Menu OSD: p. 103)

Fade In

Starting the first scene with “fade in” is very effective.

1 In REC/PAUSE mode, hold down

FADE until the picture fades out.

2 Press REC/PAUSE to start

recording.

3 Release FADE and the picture will

gradually fade in.

Fade Out

Use to create a soft ending or (together with fade in) for a soft transition from one scene to the next.

ADuring recording, hold down FADE

until the picture fades out.

BPress REC/PAUSE to pause the

recording.

1 Set POWER to CAMERA. 2 Slide MAGICVU/0LUX to ON.

• A black and white image appears.

•“MAGICVU” will appear on the

screen.

Camera

2MAGICVU/

0LUX

4, 5JOG

KEY

3MENU

1POWER

DV202_402-K.p 23-27.p65 02/06/06, 13:3125

3 Press MENU to display the menu

screen.

4 Rotate JOG KEY to select SET-UP ,

and then press JOG KEY to display the CAMERA SET-UP menu screen.

5 Rotate JOG KEY to select MAGICVU ,

and then press JOG KEY repeatedly to select B/W, BLUE, or GREEN.

• Press MENU twice to exit.

• To cancel this feature, slide

MAGICVU/0LUX to OFF.

Note

• The subject can be up to 3 m (10 feet)

away.

Special Effect Features

Picture in Picture (PinP)

You can display a PinP (still image) screen on the Main Picture.

Note

• PinP position is fixed at the bottom right of the screen.

1 Set POWER to CAMERA. 2 Press MENU to display the menu

screen.

3 Rotate JOG KEY repeatedly to select

Main Picture

Picture in Picture (PinP still image)

PHOTOSHOT

3, 4JOG

KEY

1POWER

D.FUNCTION , then press JOG KEY

to display the CAMERA FUNCTION menu screen.

4 Press JOG KEY to select PinP .

• Press MENU twice to exit this menu.

•“PinP” will appear in the EVF or the

LCD monitor.

5 Aim at the scene you wish to place as

PinP, then press (CAMERA STILL) to freeze the image.

2MENU

7REC/

PAUSE

5, 6, 7

CAMERA STILL

DV202_402-K.p 23-27.p65 02/06/06, 13:3126

6 Press (CAMERA STILL) again to

place the frozen image as PinP.

7 Press REC/PAUSE to record a scene

with PinP image.

• Press PHOTOSHOT to record a

scene with PinP image in PhotoShot mode.

• Press (CAMERA STILL) again to

remove PinP image.

Special Effect Features

Photo Title

You can use PhotoShot images stored on a Memory Card to record a WIPE or MIX effect on a cassette.

Note

When Photo Title is set to ON, the selected image and Title will appear before each recording is made.

WIPE : The Photo title is replaced with the

current scene in a wiping motion.

MIX : The photo title is replaced with the

current scene in a gradual mixing effect.

2, 3, 4

JOG KEY

1POWER

2MENU

Before you begin

• Connect the Palmcorder to a power source. (pp. 14, 15)

• Set POWER to OFF before inserting a recorded Memory Card. (pp. 49, 50)

1 Set POWER to CAMERA. 2 Press MENU to display the CAMERA

menu screen. Then rotate and press JOG KEY to select PHOTO TITLE .

3 Rotate and press JOG KEY to select

and set MODE and then TITLE . 1st : Select and set MODE (WIPE or

MIX).

2nd : Select and set TITLE to “SET”.

•“PLEASE WAIT” appears on-screen.

• The Multi image screen is displayed.

4 Rotate and press JOG KEY to select

and set an image.

•“PLEASE WAIT” is displayed while image is processed. Then, “PHOTO TITLE SET” is displayed for approx. 3 seconds, and the screen goes back to the Camera mode screen.

• After Photo Title is performed, Digital Function turns off.

5 Press REC/PAUSE to start recording

with Photo Title.

• WIPE or MIX screen is displayed at the beginning of the recording. Then the Photo Title setting will be cleared automatically.

Camera

5REC/

PAUSE

DV202_402-K.p 23-27.p65 02/06/06, 13:3127

Advanced Settings

White Balance

Auto White Balance (“AWB”) automatically maintains optimum colour balance in most lighting conditions. However, when using Digital Functions, etc., you may get better results by using the manual adjustment.

3, 4, A, B

JOG KEY

1 Set POWER to CAMERA. 2 Hold down AUTO/MANUAL for more

than 0.7 seconds so that the “MNL”

indication appears in the EVF or the LCD monitor.

3 Press JOG KEY repeatedly until

“AWB” appears in the EVF or LCD monitor.

1POWER

2AUTO/MANUAL

Mode

Automatically maintains optimum colour balance in most lighting

AWB

conditions. When the source illumination is a

halogen lamp. When shooting outdoors on a

sunny day. The White Balance setting that

was previously set manually.

Note

• When ZOOM is set to 10X or higher, White Balance cannot be adjusted.

Description

4 Rotate JOG KEY to select other

modes. (See mode chart at left.)

• Hold down AUTO/MANUAL for more than 0.7 seconds to cancel the setting.

* For manual White Balance

adjustment:

A. Rotate JOG KEY to select “ ” .

B. Point the Palmcorder at a white

object (full-screen) and hold JOG KEY down until “ flashing.

• If “

” indication flashes when the

Palmcorder is turned on, the previous manual White Balance setting is in effect.

In the following cases, the “ indication flashes:

• The flashing indicates that the previously adjusted White Balance setting is still kept. This setting will be kept until White Balance is adjusted again.

• Correct White Balance may not be attainable manually in poor lighting conditions.

” indication stops

”

DV202_402-K.p 28-31.p65 02/06/06, 13:3228

Advanced Settings

Auto Focus

The Palmcorder automatically adjusts the focus over the entire zoom range.

Manual Focus

Use Manual Focus (MF) when recording ...

• a subject through glass.

• a scene where the subject is far from the

Palmcorder and there are objects in the foreground.

• a subject with distinct horizontal stripes.

• a subject not centred in the Viewfinder.

• subjects with shiny surfaces.

• an obliquely angled subject.

• a bright, flat subject such as a white wall.

• in low light situations.

• a scene with fast motions, like a golf swing.

Re-focusing may be required

• when your Palmcorder is aimed at a new scene.

1 Set POWER to CAMERA. 2 Hold down AUTO/MANUAL for more

than 0.7 seconds so that the “MNL”

indication appears in the EVF or the LCD monitor.

3 Press FOCUS so that the “MF”

(Manual Focus) indication appears in the EVF or the LCD monitor.

4 Press and hold POWER ZOOM, “T”

side (Telephoto), until the lens is at

maximum zoom in.

4, 6POWER

ZOOM

5M.FOCUS

DIAL

5 Turn M.FOCUS DIAL until the picture

is in focus.

• It may be necessary to back away from the subject to focus the image properly.

1POWER

6 Press POWER ZOOM to “W” or “T”

as desired.

• The subject will remain in focus over

2AUTO/

MANUAL

3FOCUS

the entire zooming range.

• It may be necessary to back away from the subject to focus the image properly.

Note

• DISPLAY (Menu OSD: p.103) must be set to on for MF, AE, W.BALANCE, or BACK LIGHT to be displayed on the LCD or EVF.

Camera

Macro Focus (for close-ups)

Press the “W” side of POWER ZOOM to the maximum wide angle position.

Auto Focus will function with the subject as close as 25 mm (1 inch) in front of the lens.

DV202_402-K.p 28-31.p65 02/06/06, 13:3229

Advanced Settings

High Speed Shutter

To record high speed motion (e.g. tennis stroke) with improved STILL or SLOW MOTION playback when watching the tape on this Palmcorder.

Auto Shutter

In the AUTO mode (no indication in the EVF and LCD monitor), the Palmcorder will automatically adjust the shutter speed (up to 1/350).

• AUTO mode is automatically selected whenever the POWER Switch is set to CAMERA.

Manual Selection

1 Set POWER to CAMERA. 2 Hold down AUTO/MANUAL for more

3, 4

JOG KEY

1POWER

than 0.7 seconds so that the “MNL”

indication appears in the EVF or the LCD monitor.

3 Press JOG KEY repeatedly to display

the shutter speed.

2AUTO/MANUAL

Note

• For proper colour reproduction, it is recommended that you use this feature outdoors. For indoor High Speed Shutter recording, additional halogen or tungsten light should be provided. Fluorescent light will degrade the picture quality.

• This feature requires ample light. More light is required for the fastest shutter speeds.

• The Auto Focus system may not operate properly in insufficient light when using the High Speed Shutter.

• When PROG.AE is ON, you cannot manually select the shutter speed.

• When MagicVu (PV-DV402-K only) is ON, Program AE and H.S.S. cannot manually select the shutter speed.

• When MagicPix is ON, H.S.S. cannot manually select the shutter speed.

4 Rotate JOG KEY to choose one of the

following shutter speeds.

• Hold down AUTO/MANUAL for more than 0.7 seconds to cancel the setting.

EVF/LCD

DV202_402-K.p 28-31.p65 02/06/06, 13:3230

Advanced Settings

Adjusting the Iris Manually

Normally, the Palmcorder adjusts the exposure automatically. However, when the background is extremely bright, or when the subject is backlit, you can compensate by adjusting the iris manually.

3, 4

JOG KEY

1POWER

2AUTO/MANUAL

EVF/LCD

Iris Setting

1 Set POWER to CAMERA. 2 Hold down AUTO/MANUAL for more

than 0.7 seconds so that the “MNL”

indication appears in the EVF or the LCD monitor.

3 Press JOG KEY repeatedly so that

Iris setting indication appears in the EVF or the LCD monitor.

4 Rotate JOG KEY to adjust the iris;

• When a value closer to “CLOSE” is selected, the image becomes darker.

• When a value closer to “OP+18dB” is selected, the image becomes brighter.

• Hold down AUTO/MANUAL for more than 0.7 seconds to cancel the setting.

Note

• The value to which +dB is attached indicates a gain value. If this value is too large, the quality of the image deteriorates.

• Depending on ZOOM magnification, the iris value may not be displayed correctly.

• If you are using Program AE mode, you cannot adjust the iris. If the iris is adjusted manually, the above modes will be cancelled.

Camera

WIND-CUT

You can reduce sound distortion caused by wind hitting the microphone.

3, 4

JOG KEY

1POWER

2MENU

5REC/PAUSE

DV202_402-K.p 28-31.p65 02/06/06, 13:3231

1 Set POWER to CAMERA. 2 Press MENU to display the CAMERA

mode menu screen.

3 Rotate JOG KEY to select REC

MODE , then press JOG KEY to

display the CAMERA REC-MODE menu screen.

4 Rotate JOG KEY to select WIND-

CUT , and then press JOG KEY to

select ON.

• Press MENU twice to exit.

•“WIND-CUT” will appear in the

EVF or LCD monitor.

5 Start recording.

Playback Your Recordings

Playback using the LCD Monitor

You can also use the LCD monitor to playback your recording.

1POWER

180°

90°

2LCD-OPEN

4PLAY

3REWIND SEARCH

5STOP

Before you begin

• Connect the Palmcorder to a power source. (pp. 14, 15)

• Insert a recorded cassette.

1 Set the POWER to VCR.

• The POWER lamp lights red.

• Be sure POWER is fully turned to the

VCR position.

2 Press LCD-OPEN to unlock the LCD

monitor and swing open.

3 Press (REWIND/SEARCH) to

rewind the tape.

4 Press (PLAY) to start playback. 5 Press (STOP) to stop playback.

• When the tape reaches its beginning during rewind or rewind search, it will stop automatically.

Note

• When a tape recorded in LP mode on another digital video camera is played back on this unit, the picture may appear mosaic.

• Using the LCD monitor reduces battery operating time.

• You can place the Palmcorder on a table, etc. for viewing. Rotate the LCD Monitor 180° and swing it up against the Palmcorder body as shown.

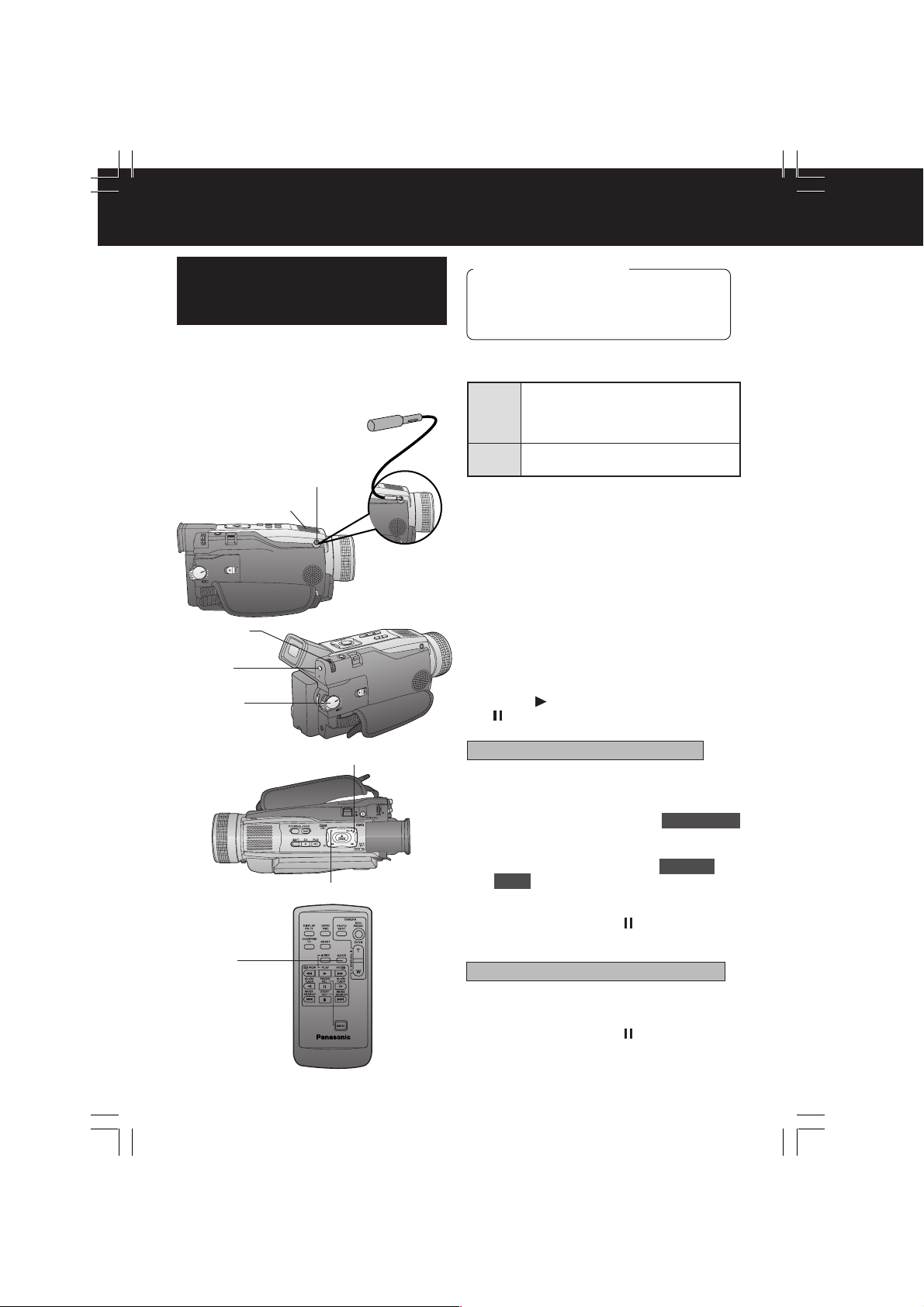

Connecting Earphone (not supplied)

PHONE Jack

DV202_402-K.p 32-35.p65 02/06/06, 13:3232

You can connect earphones (not supplied) to the PHONE Jack.

Playback Your Recordings

Repeat Playback

EVF/LCD

Adjusting the Volume

EVF/LCD

1PLAY

1, 2

VOLUME

Built-in Speaker

1 Press PLAY for more than 5 seconds

in STOP mode.

• The Palmcorder will go into Repeat Playback mode when the tape reaches its end.

• The letter “R EVF and LCD monitor.

” will appear in the

2 Turn the Palmcorder OFF to exit the

Repeat Playback mode.

1 Rotate VOLUME to adjust the volume

of the built-in speaker in PLAY mode.

• The volume setting screen appears.

2 Press “T” to increase the volume or

press “W” to decrease the volume.

VCR

Blank Search

You can go directly to a blank portion of tape and start recording exactly where you left off.

3, 4, 5

JOG KEY

2MENU 1POWER

EVF/LCD

DV202_402-K.p 32-35.p65 02/06/06, 13:3233

1 Set POWER to VCR. 2 Press MENU to display the VCR

mode menu screen.

3 Rotate JOG KEY to select PLAY

MODE , then press JOG KEY to

display the VCR PLAY MODE menu screen.

4 Rotate JOG KEY to select B.SEARCH

in the VCR PLAY MODE menu. (Menu OSD: p. 105)

5 Press JOG KEY to select ON.

•“BLANK” will appear on the screen.

Special Effect Features

Note

• Sound is muted during all special effects.

Rapid Visual Search

BPLAY

ADuring playback, hold down

(FAST FORWARD/SEARCH) or (REWIND/SEARCH).

The search will continue for as long as the button is held down.

BPress (FAST FORWARD/

SEARCH) or

once for a continuous rapid visual search.

A, BREWIND/

EVF/LCD

A, BFAST FORWARD/

Press

Note

• When executing a rapid visual search, the picture may become bluish for an instant or mosaic. This is normal during this mode.

STILL Picture

1 Press (PAUSE) during playback.

1, 2PAUSE

2 Press (PLAY) or (PAUSE) to

release.

2PLAY

Note

• To protect the tape and video heads, your Palmcorder’s operating modes will revert as follows: STILL STOP (after 3 minutes.)

(REWIND/SEARCH)

(PLAY) to release.

Fast Forward/Rewind Check

Monitor normal picture playback during fast forward or rewind.

BREWIND/

AFAST FORWARD/

DV202_402-K.p 32-35.p65 02/06/06, 13:3234

AHold down (FAST FORWARD/

SEARCH) during fast forward.

BHold down (REWIND/SEARCH)

during rewind.

• The picture will appear for as long as the button is held down.

Special Effect Features

Note

• Sound is muted during all special effects.

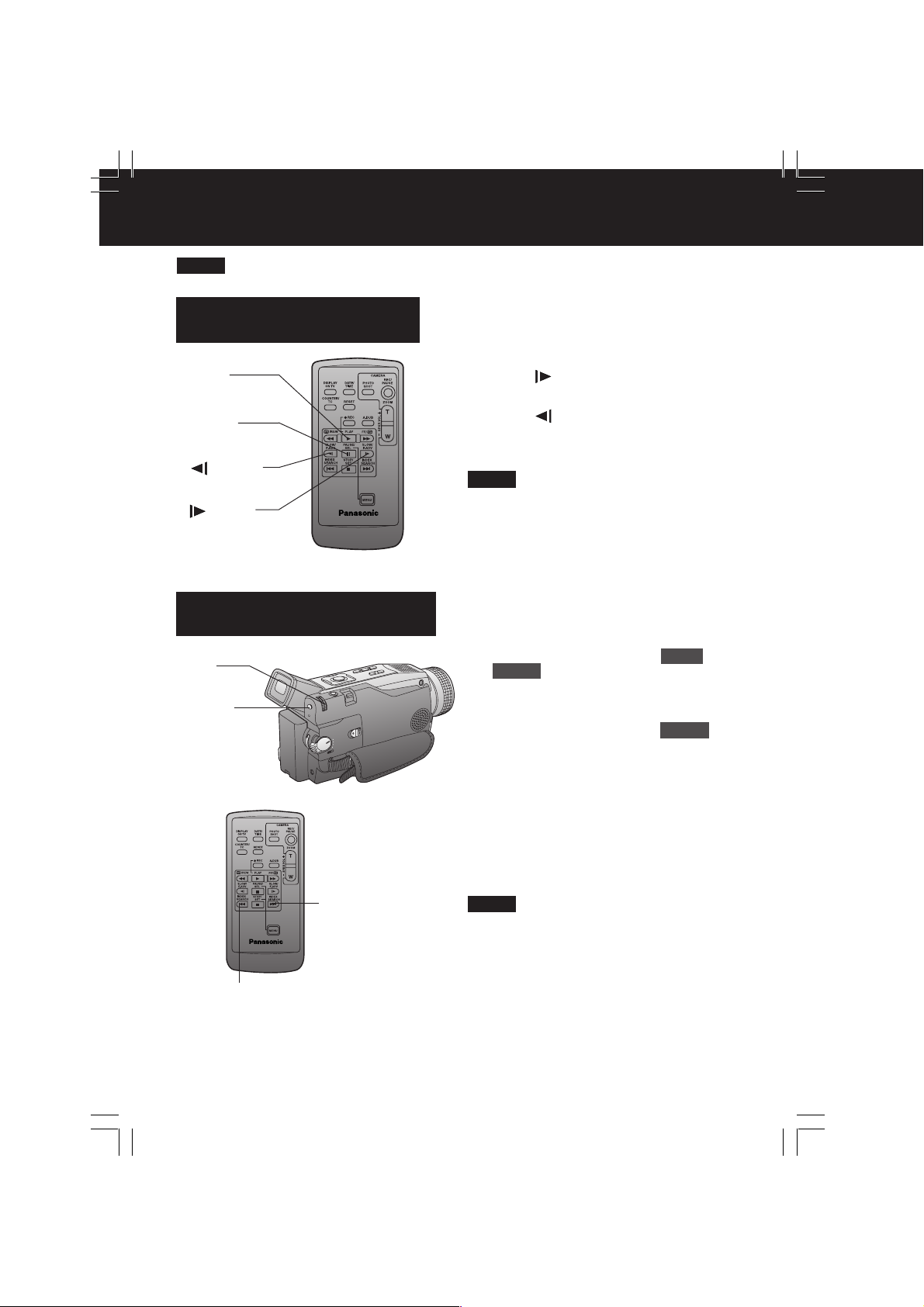

Slow Motion Playback (Remote Control Only)

2PLAY

1 Forward Slow:

Press SLOW/F.ADV during play.

Reverse Slow:

Press

SLOW/F.ADV during play.

1 SLOW/

F.ADV

1 SLOW/

F.ADV

Variable Speed Search

2, 3

JOG KEY

1PLAY

2 Press PLAY to release. (During

reverse slow motion playback, time code indication may not change regularly.)

Note

• Palmcorder will automatically STOP when in slow motion for more than 10 minutes.

• During slow motion playback, picture may move up and down. This is normal.

• When you start or stop slow motion playback, the picture may become bluish for an instant.

1 Press (PLAY) to start playback. 2 Press JOG KEY for about 1 second. 3 Rotate JOG KEY to adjust the

playback speed.

• Rotate JOG KEY clockwise for forward playback.

• Rotate JOG KEY counterclockwise for reverse playback.

To return to normal playback:

Press normal speed.

Note

• The Variable Speed Search function

• The review playback at the 1X speed is

• During the Variable Speed Search (at a

• During the Variable Speed Search, sound

(PLAY). Playback will continue at

offers a choice of six playback speeds (1/5X (LP mode: 1/3X), 1X, 2X, 5X, 10X, 20X) both in forward and reverse directions.

playback in reverse direction.

speed other than 1X), mosaic-like patterns will appear in the picture.

is muted.

VCR

DV202_402-K.p 32-35.p65 02/06/06, 13:3235

Special Effect Features

Note

• Sound is muted during all special effects.

Frame by Frame Advance (Remote Control Only)

1 Press PAUSE during playback.

3PLAY

1PAUSE

2 SLOW/

F.ADV

2 SLOW/

F.ADV

Index Search (Photo/Scene) (Remote Control Only)

2, 3

JOG KEY

1MENU

4INDEX SEARCH

(fast forward)

4INDEX SEARCH

(rewind)

2 Press SLOW/F.ADV to do a frame

by frame advance.

Press

by frame reverse.

SLOW/F.ADV to do a frame

3 Press PLAY to release.

Note

• If you hold down SLOW/F.ADV, you can see a continuous series of still images at a slower speed than normal slow mode.

• During frame by frame advance, a few frames may move automatically, and the picture may become bluish for an instant.

1 Press MENU to display the VCR

mode menu screen.

2 Rotate JOG KEY to select PLAY

MODE , and press JOG KEY to

display the VCR PLAY MODE menu screen.

3 Rotate JOG KEY to select INDEX ,

and press JOG KEY to select PHOTO or SCENE.

• Press MENU twice to exit.

4 Press INDEX SEARCH fast forward

or rewind on the remote control to

advance or rewind the tape to playback a PhotoShot scene. To view the next PhotoShot, INDEX SEARCH must be pressed again.

Note

• The picture quality will deteriorate slightly.

• The tape remaining indicator will not

appear while the PHOTOSHOT feature is used.

• In the Photo/Scene Index Search mode,

the shutter sound effect may not be able to be heard even when SHUTTER is set to ON.

• Photo Index Search may fail to detect a

recorded PhotoShot image if the image is 3 seconds or less.

DV202_402-K.p 36-39.p65 02/06/06, 13:3236

Special Effect Features

Note

• Sound is muted during all special effects.

Jog Frame by Frame Search (Palmcorder Only)

JOG KEY

Index Forward/Reverse Search (Remote Control Only)

Search for a particular scene by using the electronic index marks placed at the beginning of each recording.

2, 3

JOG KEY

1MENU

BINDEX SEARCH

(fast forward)

BINDEX SEARCH

(rewind)

Top Scan

If you hold down INDEX SEARCH for more than 2 seconds, the Palmcorder will scan for scenes (or PhotoShots) and playback the first few seconds of each.

To cancel this function, press PLAY or STOP.

Note

• Search will not work if there is a succession of PhotoShots.

During Still mode, rotate JOG KEY to advance or reverse the picture one frame at a time.

1 Press MENU to display the VCR

mode menu screen.

2 Rotate JOG KEY to select PLAY

MODE , then press JOG KEY to

display the VCR PLAY MODE menu screen.

3 Rotate JOG KEY to select INDEX ,

and then press JOG KEY to select PHOTO or SCENE. (Menu OSD: p. 105)

• Press MENU twice to exit.

A Place the Palmcorder in the VCR

STOP mode.

B Press INDEX SEARCH fast forward or

rewind for the number of recordings

(indexes) forward or back you want to view. The Palmcorder will advance or rewind to the desired recording and automatically start playback.

• The number of times you pressed the button is displayed in the EVF and the LCD monitor if you set INDEX on the VCR menu to SCENE. (Menu OSD: p. 105) (e.g., if you press the button three times,

“S3” will appear.)

• If the interval between scenes is less than

1 minute, index search may not operate properly.

• Response time from pressing the button and the change in the scene number is quite slow. Do not press INDEX SEARCH rapidly and continuously.

• During Reverse Index Search mode, playback will not begin when a tape rewinds all the way to the beginning.

VCR

DV202_402-K.p 36-39.p65 02/06/06, 13:3237

Special Effect Features

Strobe Multi Mode

In Strobe Multi Mode, you can select the rate at which a succession of still screens are captured from the playback picture.

1 Set POWER to VCR. 2 Press MENU to display the menu

screen.

3, 4

JOG KEY

1POWER

2MENU

5MULTI

5PLAY

3 Rotate and press JOG KEY to select

and set MULTI SETTING .

4 Press JOG KEY repeatedly to set

desired speed.

Strobe Speeds

FAST

NORM

SLOW

• Press MENU twice to exit.

9 screen capture time

Every 0.3 seconds

Every 0.6 seconds

Every 1.0 seconds

5 Press (PLAY) to start playback.

Press (MULTI) at the point you want

to start capturing.

• A succession of 9 screens will be captured, and playback will stop.

EVF/LCD

Note

• A Multi Image Playback screen cannot be output from the DV terminal or Digital Still Image terminal.

• A Multi screen will have slightly lower image quality.

DV202_402-K.p 36-39.p65 02/06/06, 13:3238

• Press Press (STOP) to stop playback.

(PLAY) to start playback.

Special Effect Features

View Recording/Playback on your TV

[ TV with AUDIO/VIDEO IN Jacks ]

A/V OUT

Back of TV

Audio In Video In

A/V Cable (Supplied)

To Audio In

[ TV with S-VIDEO IN Jacks ]

For best Chrominance and Luminance, use the S-Video connection if available on your TV.

To Video In

Before you begin

• When using S-VIDEO Connector, insert the DC Cable into the DC IN Terminal. (PV-DV402-K only) (p. 15)

1 Set POWER to CAMERA or VCR.

To view what the Palmcorder is recording or to playback a tape on your TV.

Note

• For PV-DV402-K users:

When using VCR mode, first set to AV-JACK “OUT/PHONES” in the VCR Mode Menu. (Menu OSD: p. 104)

2 Turn your TV ON and set it to LINE

INPUT or S-VIDEO.

Check your TV operating instructions for further information.

3 Start playback or begin a recording.

• Make sure the Palmcorder and TV are turned off while connecting.

• Please connect the A/V Cable securely.

VCR

DC Cable (Supplied)

Audio In S-Video In

AV Cable (Supplied)

To Audio In

S-Video Cable (Not supplied)

DV202_402-K.p 36-39.p65 02/06/06, 13:3239

S-VIDEO OUT (PV-DV402-K only)

A/V OUT

Back of TV

To S-Video In

Note

(Remote Control Only)

You can display the various EVF and LCD indications on your TV by pressing DISPLAY ON TV on the remote control. Press again to remove the indications.

DISPLAY ON TV

Digital Features

Digital Zoom

This feature is useful when you want to record close-up shots of subjects located beyond a normal zoom range of 1X to 10X magnification. With the digital zooming feature, you can select a magnification of 25X, or even up to 700X.

Note

• Other Digital Functions are turned off automatically when the EIS and Digital Zoom are selected.

EVF/LCD

Zoom In (“T”)

D.ZOOM

Zoom Out (“W”)

5POWER

ZOOM

3, 4

JOG KEY

1POWER

2MENU

5REC/PAUSE

CAMERA mode

1 Set POWER to CAMERA. 2 Press MENU to display the CAMERA

MENU screen.

3 Rotate JOG KEY to select

D.FUNCTION , then press JOG KEY

to display the CAMERA FUNCTION menu screen.

4 Rotate JOG KEY to select D.ZOOM ,

then press JOG KEY to select D.ZOOM1 or D.ZOOM2.

D.ZOOM1 : from 10X to 25X D.ZOOM2 : from 10X to 700X OFF : Turn off D.ZOOM

• Press MENU twice to exit.

5 Press REC/PAUSE to start

recording and press POWER ZOOM to zoom in or zoom out.

• The magnification level is always displayed in the EVF or the LCD monitor when DISPLAY is set to ON. (Menu OSD: pp. 103, 105)

6 Repeat steps 2~4 to select OFF to

cancel this feature.

Note

• The normal optical zoom functions from 1X to 10X.

• As magnification increases, resolution significantly

• Because the image is enlarged digitally, the picture may become distorted when higher magnification levels are used.

• When the level falls below 10X, the normal zooming function will resume.

• Focus distance becomes 1.2 m (4 feet) if the lens is in full telephoto.

decreases.

DV202_402-K.p 40-43.p65 02/06/06, 13:3240

Digital Features

Digital Zoom (Continued)

3, 4

JOG KEY

2MENU

1POWER

5PLAY

MagicPix Images

Colour recording of video or still images onto the Mini DV tape in low lighting. (pp. 43, 102)

Note

• MagicPix cannot be used with still images on the Memory Card. (See “Card PhotoShot” on page 49.)

3, 4

JOG KEY

2MENU

VCR mode

1 Set POWER to VCR. 2 Press MENU to display the VCR

MENU screen.

3 Rotate JOG KEY to select PLAY

FUNCTION , then press JOG KEY

to display the VCR PLAY FUNCTION menu screen.

4 Rotate JOG KEY to select D.ZOOM ,

then press JOG KEY to select ON.

• Press MENU twice to exit.

5 Press (PLAY) to start playback.

• The centre portion of the image doubles in size.

6 Repeat steps 2~4 to select OFF to

cancel this feature.

Digital Features

1 Set POWER to CAMERA. 2 Press MENU to display the menu

screen.

3 Rotate JOG KEY to select

D.FUNCTION , and then press JOG

KEY to display the CAMERA

FUNCTION menu screen.

1POWER

EVF/LCD

DV202_402-K.p 40-43.p65 02/06/06, 13:3241

4 Rotate JOG KEY to select

D.FUNCTION , and then press JOG

KEY repeatedly to select MAGICPIX.

• Press MENU twice to exit.

5 To cancel the Digital Function, press

JOG KEY repeatedly to select OFF.

Digital Features

Dual Digital Electronic Image Stabilization System (D.E.I.S.)

This feature helps compensate for any unintentional hand or body movement. It can be used in both the Recording and Playback (VCR) modes.

Note

• Other Digital Functions are turned off automatically when the EIS and Digital Zoom are selected.

NORMAL

EIS ON

1, A

POWER

CAMERA mode

1 Set POWER to CAMERA. 2 Press EIS to stabilize the picture.

• Picture flicker may be observed when taping under fluorescent lighting conditions.

• The EIS indicator flashes when the light level is inadequate.

• Turn D.E.I.S. OFF during recording when using a tripod.

3 Press REC/PAUSE to start recording. 4 Press EIS again to cancel.

• Be sure that D.E.I.S. is turned off when not needed.

D.E.I.S. may not function when...

• Palmcorder movement is too extreme.

• Recording a subject with distinct horizontal or vertical stripes.

• Recording in low light situations.

• Recording a subject under a great

amount of fluorescent light.

• Recording a scene with very fast motions.

3REC/PAUSE

BPLAY

2, 4, C, DEIS

DV202_402-K.p 40-43.p65 02/06/06, 13:3242

VCR mode

A Set POWER to VCR. B Press (PLAY) to start playback. C Press EIS to stabilize the picture. D Press EIS again to cancel.

• Be sure that D.E.I.S. is turned off

when not needed.

Note

• When using D.E.I.S in VCR mode, the image size is slightly larger.

Other Digital Functions

Use the following features to add interest and professionalism to your recordings or playback. Select from twelve special effects.

Digital Features

1 Set POWER to CAMERA or VCR. 2 Press MENU to display the menu

screen.

3, 4, 5

JOG KEY

2MENU

1POWER

Types of Digital Functions

MIRROR

Symmetrical image from the current camera picture.

STROBE

The recording appears as a sequence of still frames.

MOSAIC

The picture appears in a mosaic pattern.

SLIM

The picture is expanded vertically.

TRAIL

The subject being recorded creates a trail when in motion.

STRETCH

The picture is expanded horizontally. MAGICPIX (Not available during playback)

Colour recording of video or still images onto the Mini DV Tape in low lighting. (p. 41)

• Only Manual Focus is available.

WIPE

Successive scenes are separated in a way which simulates the drawing of a curtain.

MIX

The current scene is mixed in with the following scene during scene changes.

PinP

PinP (Still image) is displayed on the Main Picture.

Digital Effects

(Playback only)

SEPIA

The picture is played back in sepia, a brownish colour, giving it an antique look.

MONO (Monotone)

The picture is played back in black-andwhite.

3 Rotate JOG KEY to select

D.FUNCTION in the CAMERA mode

menu screen or PLAY FUNCTION in the VCR mode menu screen, then press JOG KEY to display the CAMERA FUNCTION or VCR PLAY FUNCTION menu screen.

4 Rotate JOG KEY to select

D.FUNCTION , and then press JOG

KEY repeatedly to select one of the

Digital Functions listed on the left.

5 To cancel the Digital Function, press

JOG KEY repeatedly to select OFF.

Note

• The EIS and Digital Zoom features are turned off automatically when one of the Digital Functions listed at left is selected.

To use the WIPE function

a.In Camera mode, set the “D.FUNCTION”

item in the main menu screen to “WIPE”. (Menu OSD: p. 102)

b.Press REC/PAUSE to start recording. c.Press REC/PAUSE to pause the

recording. The last scene will be memorized.

d.Press RECORD/PAUSE to start

recording again. The new scene will take the place of the memorized scene.

To use the MIX function

a.In Camera mode, set the “D.FUNCTION”

item in the main menu screen to “MIX”. (Menu OSD: p. 102) Then, perform steps b-d above.

The memorized scene and the new scene will appear mixed as the scene changes from one to the other.

Note

• When Photo Title is set, WIPE/MIX mode becomes Photo Title. When Photo Title is finished, Digital Function turns OFF.

Digital Features

DV202_402-K.p 40-43.p65 02/06/06, 13:3243

Editing Features

Audio Dubbing using the External (PV-DV402-K only) or Built-in Microphone

The original sound can be replaced with new sound using the built-in Palmcorder microphone or an external microphone (PV-DV402-K only).

External Microphone Jack (PV-DV402-K only)

Built-in Microphone

External Microphone with M3 connector (not supplied) (RP-VK18)

3JOG KEY 3MENU 1POWER

2PLAY

Before you begin

• Connect the external Microphone (if used) (PV-DV402-K only).

• Turn on the Palmcorder.

• Insert a pre-recorded tape to be dubbed.

The AUDIO-REC setting in CAMERA MENU mode should be as follows:

The original sound is recorded

12 bit

16 bit

• Select 12 bit if you do not want the original sound to be completely replaced during an audio dub.

• If you dub over a tape which has both 12 bit and 16 bit audio recordings on it, keep in mind that the original 16 bit audio portion will be completely replaced.

on ST (Stereo) 1, and the new sound will be recorded on ST (Stereo) 2.

The original sound is replaced with the new sound.

1 Set POWER to VCR.

• With the Remote Control, you can set the Palmcorder to stop automatically at a specific point on the tape. See “Memory-Stop Editing” on page 45.

2 Press (PLAY). Then press

(PAUSE) where you want dubbing to

begin.

When using the Palmcorder only

2PAUSE

3A.DUB

DV202_402-K.p 44-48.p65 02/06/06, 13:3244

3 Press MENU to display the VCR mode

menu screen. Rotate JOG KEY to select REC MODE ,

then press JOG KEY to display the VCR REC MODE menu screen.

Rotate JOG KEY to select AUDIO-

DUB , and then press JOG KEY to

select ON.

• The Palmcorder will go to Stand By mode, and “A.DUB appears in the EVF or the LCD monitor. Go to step 4.

When using the Remote Control only

” indication

3 Press A.DUB on the Remote Control.

• The Palmcorder will go to Stand By mode, and “A.DUB appears in the EVF or the LCD monitor. Go to step 4.

” indication

Editing Features

4, 5PAUSE

To listen to the desired audio sound, set the AUDIO setting of the VCR mode MENU (Menu OSD: p. 105) as follows:

AUDIO:The following selections are available for 12 bit AUDIO dubbed recordings only (sound recorded in SP mode only).

Set this position to listen to the

ST 1

original sound. Set this position to listen to the

ST 2

audio dubbed sound. Set this position to listen to both

the original sound and the audio

MIX

dubbed sound.

Note

• 16 bit dubbed sound completely erases the original 16 bit recorded sound.

• If you dubbed using 12 bit AUDIO recording and then selected AUDIO-MIX in the menu for playback, the sound will be stereo regardless of the AUDIO-OUT setting.

• If you recorded in LP mode, you cannot use the A.DUB feature.

4 Press (PAUSE) to start Audio

Dubbing. “A.DUB ” indication appears.

• Connect the Palmcorder to the TV in order to monitor the sound. (p. 39)

Only NTSC (National Television Standards Committee) recorded tapes can be audio dubbed. The following screen appears if the tape was not recorded in NTSC format.

5 Press (PAUSE) to stop Audio

Dubbing.

• If the microphone used for dubbing gets too near the speaker of your TV, a howling noise (feedback) may occur.

• If the tape position is in or was started in a blank section, you cannot use the A.DUB feature.

Editing Features

Memory-Stop Editing (Remote Control Only)

You can set an automatic Dubbing stop point.

DRESET

AMENU

DV202_402-K.p 44-48.p65 02/06/06, 13:3245

APress MENU to display the VCR

menu screen.

BRotate JOG KEY to select DISPLAY

SETTING , and then press JOG KEY

to display the DISPLAY SETTING menu.

CRotate JOG KEY to select DISPLAY ,

and then press JOG KEY to set to MEMORY.

DPress MENU two times to exit MENU

mode. Then, press RESET on the remote control to reset the Counter Memory to M 0:00:00.

Now, rewind to the editing start point, and continue with steps 2-5. The tape will now stop automatically at “M 0:00:00”.

Editing Features

Copying your Tapes to S-VHS or VHS Cassette

Source (Playing) Palmcorder

DC Cable (Supplied)

A/V Cable (Supplied)

S-Video Cable (not supplied)

VHF Connecting Cable (not supplied)

Recording: VCR (Rear)

Audio In

S-VIDEO OUT (PV-DV402-K only)

A/V OUT

(To View)

Video In

Before you begin

• Connect both Palmcorder and VCR to their power sources.

• Connect the Palmcorder to a VCR as illustrated left.

• Turn ON both units.

• Set the recording VCR’s Input Signal Selector to LINE.

• Set the Palmcorder POWER to VCR.

• Before using S-VIDEO Connector,

insert the DC Cable into the DC IN Terminal. (PV-DV402-K only) (p. 15)

1 Insert a pre-recorded tape

into the source (playing) Palmcorder and a blank tape, with record tab in place, into the target VCR (Recorder).

Note

• For PV-DV402-K users:

To use S-VIDEO OUT and A/V OUT Connectors, first set to AV-JACK “OUT/PHONES” in the VCR Mode Menu. (Menu OSD: p. 104)

2 Press (PLAY) on the Palmcorder.

When the tape reaches the point from which you want to start dubbing, press

PAUSE.

3 Place the VCR into REC/PAUSE

mode. (See VCR manual.)

To Audio In

To Video In

To S-Video In (If there is S-Video In)

Monitor with your TV

• Turn the TV ON and select its VCR channel (either CH3 or CH4).

• Set the VCR/TV Selector on the recording VCR to VCR.

DV202_402-K.p 44-48.p65 02/06/06, 13:3246

4 Simultaneously, press PAUSE on

both units to begin copying.

5 Press STOP on both units when

copying is completed.

S-Video In

Note

• For technical reasons, dubbing a tape may reduce its quality.

• Press DISPLAY ON TV on the Palmcorder Remote Control to eliminate EVF/LCD Monitor indications.

• If the Time Code is displayed in the EVF or LCD monitor, it cannot be reset.

• Only the DATE/TIME, when displayed, will be recorded on the tape.

CAUTION:

Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

Editing Features

Copying S-VHS or VHS Cassette to your Tapes (PV-DV402-K only)

Source (Recording)

DC Cable (Supplied)

A/V Cable (Supplied)

S-Video Cable (not supplied)

To Audio Out

Palmcorder

S-VIDEO IN

A/V IN

(To View)

VHF Connecting Cable (not supplied)

Source VCR (Rear)

Audio Out

Video Out

Before you begin

• Connect both Palmcorder and VCR to their power sources.

• Connect the Palmcorder to a VCR as illustrated left.

• Turn ON both units.

• Before using S-VIDEO Connector,

insert the DC Cable into the DC IN Terminal. (p. 15)

1 Insert a pre-recorded tape

into the source (playing) VCR and a blank tape with recorded tab closed in place into Palmcorder.

2 Press MENU to display VCR MENU

screen.

3 Rotate JOG KEY to select REC

MODE , then press JOG KEY to

display the VCR REC MODE menu screen.

4 Rotate JOG KEY to select AV-JACK ,

then press JOG KEY to set to IN.

•“LINE-IN” is displayed on the EVF and LCD monitor. (p. 109)

5 Press PLAY on the VCR. When

the tape reaches the point from which you want to start dubbing, press

PAUSE.

Editing Features

S-Video Out

To Video Out

Note

• OSD functions are not displayed on the TV monitor.

• Do not connect A/V with S-Video on a different unit. The picture and sound may be abnormal.

• If both S-Video Cable and A/V Cable are used, the picture will come from the S-Video Cable.

• Do not connect the A/V Cable and S-Video Cable to other devices.

• If a recording is made by the VCR while the counter is displayed, it cannot be reset.

• Depending on the input signal, the closed caption signal may not be able to be recorded normally.

DV202_402-K.p 44-48.p65 02/06/06, 13:3247

To S-Video Out (If there is S-Video Out)

6 Hold down (REC) and (PLAY)

and then pause the Palmcorder.

7 Simultaneously, press (PAUSE) on

both units to begin copying.

8 Press (STOP) on both units when

copying is completed.

CAUTION:

Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

Editing Features

Copying from Digital Equipment (dubbing)

High quality digital-to-digital copying can be accomplished if both Palmcorders incorporate the DV Input/Output (i.LINK) Connector (DV Interface cable (i.LINK) is not supplied).

Source (Playing) Palmcorder

DV Input/Output (i.LINK) Connector

Recording Palmcorder

DV Interface Cable (i.LINK) (optional) (PV-DDC9-K)

3, 4, 5

PAUSE

3, 4PLAY

6STOP

4REC

3, 4, 5

PAUSE

4REC

3, 4

6STOP

PLAY

Before you begin

• Connect both Palmcorders to their power sources.

• Connect the two Palmcorders using the DV Interface cable (i.LINK) (4-pin to 4-pin).

• Turn both Palmcorders ON.

1 Insert a pre-recorded tape into the

source (playing) Palmcorder, and set

POWER to VCR.

2 Insert a blank tape with the record

tab closed into the target (recording) Palmcorder and set POWER to VCR.

Note

• For PV-DV402-K users:

To use the Recording Palmcorder, first set to AV-JACK “OUT/PHONES” in the VCR Mode Menu. (Menu OSD: p. 104)

3 Press (PLAY) on the source

Palmcorder. When the tape reaches the point from which you want to start dubbing, press (PAUSE).

4 Hold down REC and press (PLAY)

on the target (recording) Palmcorder.

Press

the starting point of the dub.

(PAUSE) to pause the tape at

5 Simultaneously, press (PAUSE) on

both units to begin dubbing.

6 Press (STOP) on the recording

unit, and then press (STOP) on the playing unit to end dubbing.

Note

• When two Palmcorders are used for dubbing, it is recommended that the Remote Control VCR1 or VCR2 setting be used to avoid improper-operation.

• When two Palmcorders are connected using the DV Interface cable (i.LINK) (not supplied), a Video Editing Controller cannot be used.

CAUTION:

Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

DV202_402-K.p 44-48.p65 02/06/06, 13:3348

Card Features

Card PhotoShot

You can record still images to a Memory Card.

Warning

• Memory Card will not work when DV Interface Cable (i.LINK) is connected.

3PHOTOSHOT 2JOG KEY

1POWER

M-CARD Lock

2MENU

Image Resolution and Capacity (supplied 8MB Memory Card)

REC

Mode

FINE NORMAL

• The number of images given for each mode applies when all images are taken in same mode.

• You can change recording modes at any time before capturing an image.

• The number of images that can be captured may differ depending on the subject. After capturing an image, the number may not decrease, or it may decrease by two. This is normal.

Note

• 1280 x 960 PhotoShot image is interpolated from 640 x 480 image.

• Some artifacting, softened edges or picture noise may occur in Fine (1280 x 960) Mode.

• Progressive PhotoShot is not available when capturing to card (only tape). Therefore, 640 x 480 Progressive PhotoShot to Tape may produce better results in some circumstances, especially when capturing moving subjects.

• PhotoShot capture time for Fine Mode (1280 x 960) is approximately 20 seconds, and for Normal Mode (640 x 480) is approximately 7~10 seconds.


Resolution

1280 x 960

640 x 480

Capacity

Approx. 30 images Approx. 70 images

Before you begin

• Connect the Palmcorder to a power source. (pp. 14, 15)

• Set POWER to OFF before inserting a Memory Card. (p. 13)

1 Slide the M-CARD Lock Switch to

unlock, then set POWER to M-CARD.

• The POWER lamp lights red.

• Be sure POWER is fully turned to

M-CARD position.

•“PLAY: PUSH PLAY KEY” is displayed for 10 seconds. (p. 51)

2 Press MENU to display CARD

SETTING menu, then press JOG KEY to select NORMAL or FINE .

• Press MENU to exit this menu.

3 Press PHOTOSHOT to record an

image.

• The PhotoShot image is recorded to the Memory Card.

• When SHUTTER is set to ON (Menu OSD: p. 102), still pictures are recorded with a visual shutter effect and click sound. If set to OFF, the still image will be displayed only.

Warning

• While “PROCESSING” is displayed, DO NOT turn off the Palmcorder or unplug the AC Adaptor (supplied) because this

will cause irreversible damage to the memory.

Card Features

DV202_402-K.p 49-52.p65 02/06/06, 13:3349

Card Features

Cautions for the Memory Card

• While Memory Card data is being read, do not remove it, turn off the power, or subject unit to vibrations and/or shocks.

• Do not leave the Memory Card in a place with high temperature, a place exposed to direct sunlight, or a place where electromagnetic waves and static electricity can be generated.

• Electromagnetic waves, static electricity, malfunction of the Digital Video Palmcorder or of the Memory Card itself could erase the data recorded on it. To prevent the loss of picture data, we recommend that you make a backup copy on the computer.

• Do not bend or drop the Memory Card as this could damage it or the captured contents.

• Do not touch the connector on the rear edge of the Memory Card with your fingers and take care that no dirt, dust or water enters it.

• Do not affix other labels to the Memory Card face or back as Card insertion/removal may become impossible.

Recording images From a Tape

You can record still images from a cassette tape to a Memory Card.

Warning

• Memory Card will not work when DV Interface Cable (i.LINK) is connected.

4PHOTOSHOT

2POWER

3PAUSE

Before you begin

• Connect the Palmcorder to a power source. (pp. 14, 15)

• Set POWER to OFF before inserting a Memory Card. (p. 13)

1 Repeat steps 1 and 2 on page 49. 2 Set POWER to VCR. 3 Press (PLAY) to start playback of

the cassette tape. And then, press (PAUSE) to select an image.

4 Press PHOTOSHOT to record the

desired image to the Memory Card.

• When PHOTOSHOT is pressed in PLAY or SLOW mode, the screen goes to STOP mode.

• To playback the images of the Memory Card, see page 51.

• When Variable Speed Search is done (p. 35), this feature cannot be used.

3PLAY

DV202_402-K.p 49-52.p65 02/06/06, 13:3350

5 Repeat steps 3~4 to record another

image to the Memory Card.

Card Features

Playback Still Images

You can view the images on the Memory Card.

3, 4

JOG KEY

1POWER

M-CARD Lock

2M-PLAY

M-STOP

Before you begin

• Set POWER to OFF before inserting a recorded Memory Card. (pp. 49, 50)

1 Slide the M-CARD Lock Switch to

unlock, then set POWER to M-CARD.

•“PLAY: PUSH PLAY KEY” is displayed for 10 seconds.

2 Press (M-PLAY) to display the Multi

playback screen.

•“PLEASE WAIT” appears on-screen.

• Rotate JOG KEY to scroll through

Multi image screen pages (6 images per page) and select an image.

• The selected image is underlined in green.

“PLEASE WAIT” is displayed.

• Press MENU to display CARD

SETTING menu screen.

• Press Card PhotoShot REC Mode. (p. 49)

(M-STOP) to return to the

Card Features

Note

• If the file number is changed, the Palmcorder cannot read the file data.

• This product is compliant with DCF (Design rule for Camera File System). Images saved on the Memory Card using other Digital Still Cameras that are compliant with DCF can be viewed on this product.

Warning

• While “PLEASE WAIT” is displayed, DO NOT turn off the Palmcorder or unplug the AC Adaptor (supplied) because this

will cause irreversible damage to the memory.

DV202_402-K.p 49-52.p65 02/06/06, 13:3351

3 Press JOG KEY to display the

selected image as a full-size screen.

•“PLEASE WAIT” appears on-screen.

4 Rotate JOG KEY to select BACK

(previous image), MULTI (Multi Image screen), or NEXT (next image).

• Press

Multi Playback screen.

(M-STOP) to return to the

Card Features

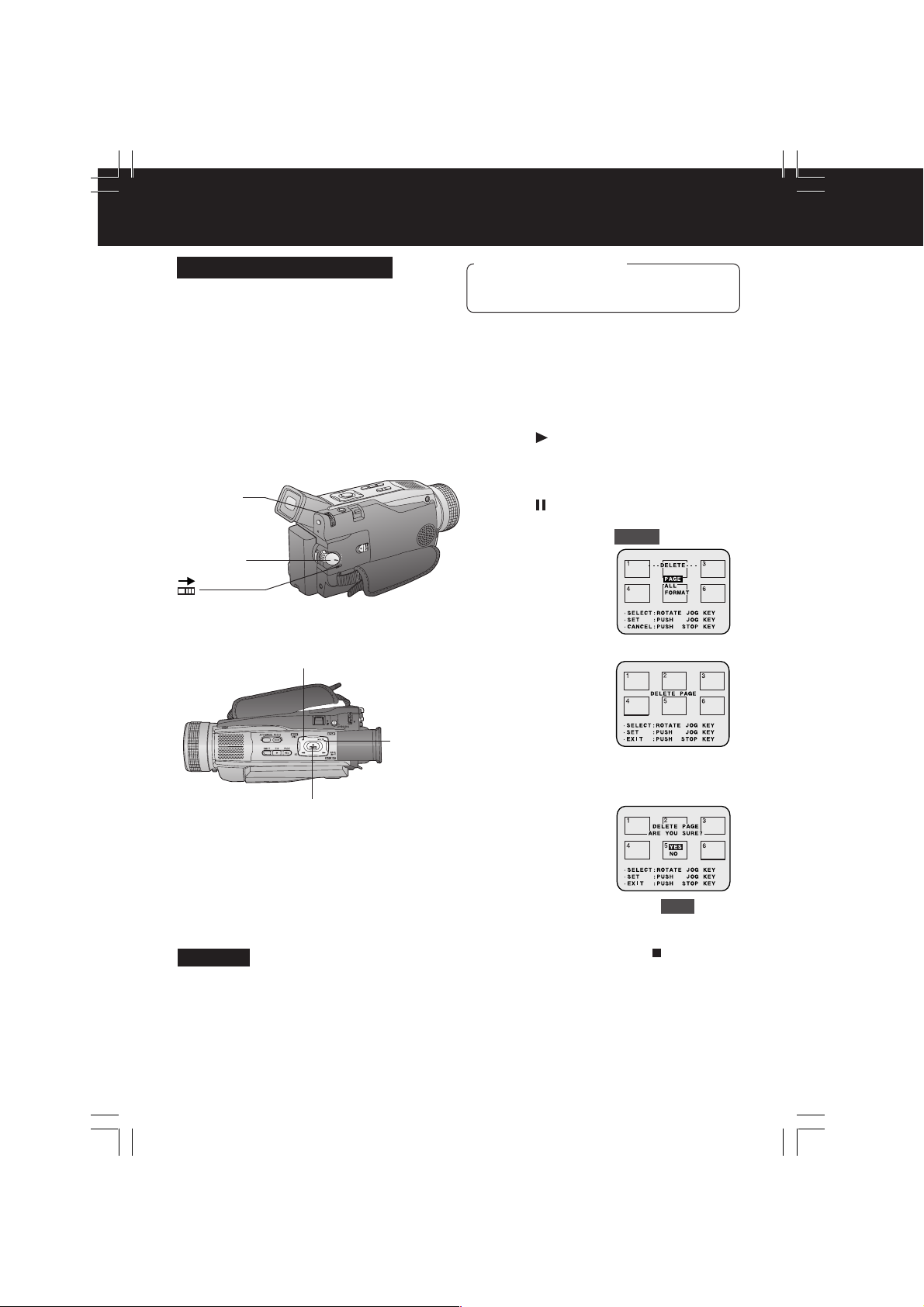

Delete Specific Images

You can delete unwanted images and increase the remaining image memory.

Warning:

Once deleted, images cannot be restored.

DELETE PAGE

Delete specific images from a page.

DELETE ALL

Delete all images. (p. 53)

FORMAT

Delete all data. (p. 54)

3, 4, 5

JOG KEY

1POWER

M-CARD Lock

3M-DEL

Before you begin

• Set POWER to OFF before inserting a recorded Memory Card. (pp. 49, 50)

1 Slide the M-CARD Lock Switch to

unlock, then set POWER to M-CARD.

•“PLAY: PUSH PLAY KEY” is displayed for 10 seconds.

2 Press (M-PLAY) to display the Multi

playback screen.

•“PLEASE WAIT” appears on-screen.

3 Press (M-DEL) to display the

DELETE menu, then rotate and press JOG KEY to select PAGE .

• DELETE PAGE menu is displayed.

M-STOP

Warning

• While deleting image, DO NOT turn off the Palmcorder or unplug the AC Adaptor (supplied) because this

will cause irreversible damage to the memory, resulting in reduced image storage capacity.

DV202_402-K.p 49-52.p65 02/06/06, 13:3352

2M-PLAY

4 Rotate and press JOG KEY to select

and set the image to be deleted.

• The selected image is underlined in pink.

5 Rotate JOG KEY to select YES , and

press JOG KEY to delete the selected

image.

• To cancel delete, press or rotate and press JOG KEY to select NO.

•“PLEASE WAIT” appears on-screen during deletion.

• To delete other images, repeat steps 4~5.

(M-STOP)

Card Features

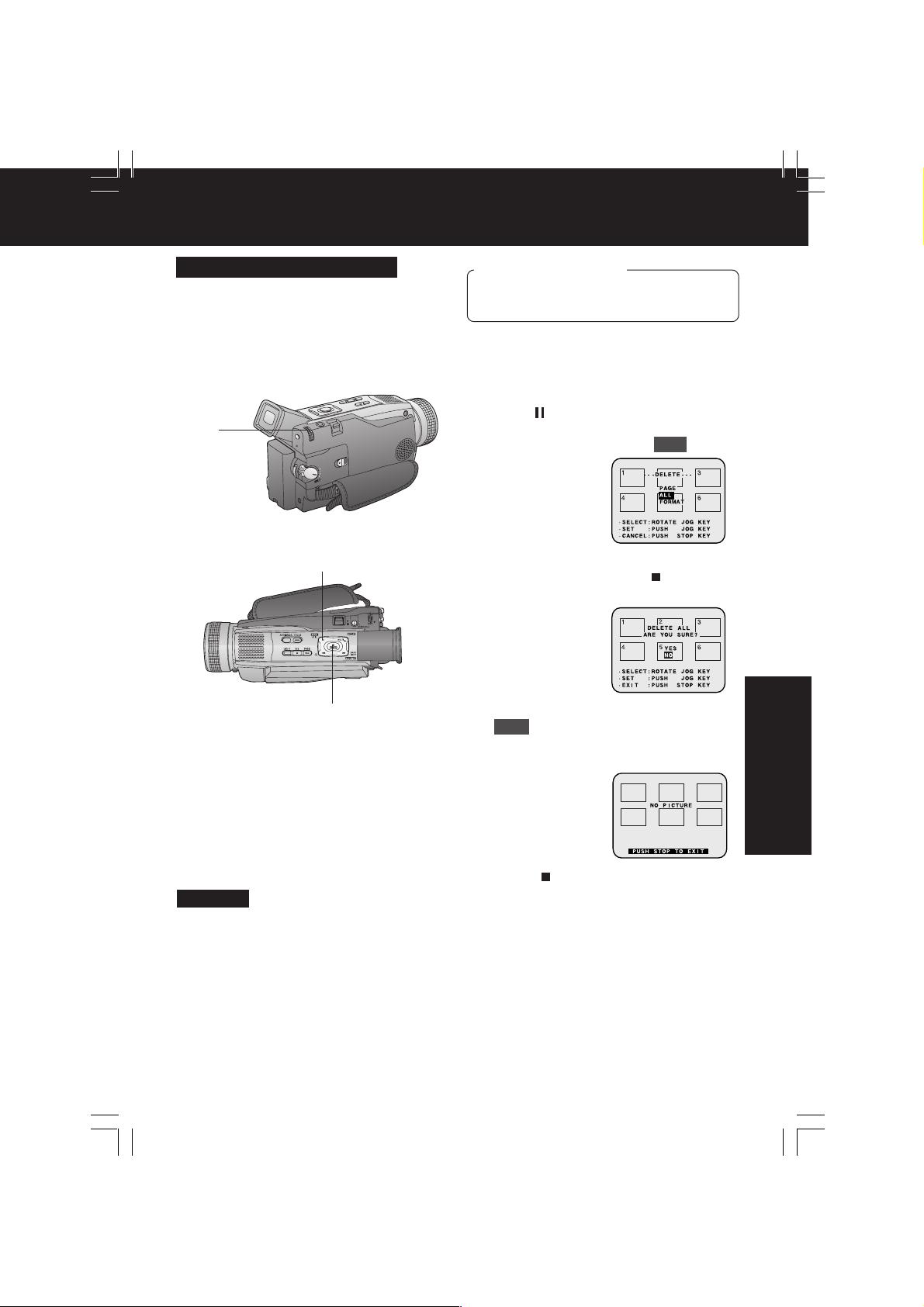

Delete All Image Pages

You can delete all images from the Memory Card easily with this operation.

Warning:

Once deleted, images cannot be restored.

2, 3

JOG KEY

2M-DEL

M-STOP

Before you begin

• Set POWER to OFF before inserting a recorded Memory Card. (pp. 49, 50)

1 Do steps 1 and 2 on page 52. 2 Press (M-DEL) to display the

DELETE menu. Then, rotate and press JOG KEY to select ALL .

• The screen below is displayed.

• To cancel delete, press (M-STOP)

or rotate and press JOG KEY to select NO.

Card Features

3 Rotate and press JOG KEY to select

YES .

•“PLEASE WAIT” is displayed on the screen, and then “NO PICTURE” is displayed.

Warning

• While deleting image, DO NOT turn off the Digital Video Camcorder or unplug the AC Adaptor (supplied) because this

will cause irreversible damage to the memory, resulting in reduced image storage capacity.

DV202_402-K.p 53-55.p65 02/06/06, 13:3353

• Press Card PhotoShot REC Mode screen. (p. 49)

(M-STOP) to return to the

Card Features

Format the Memory Card

You can easily format your Memory Card using this operation.

Warning:

Formatting permanently removes all image data.

2, 3

JOG KEY

2M-DEL

M-STOP

Before you begin

• Set POWER to OFF before inserting a recorded Memory Card. (pp. 49, 50)

1 Do steps 1 and 2 on page 52. 2 Press (M-DEL) to display the

DELETE menu, then rotate and press JOG KEY to select FORMAT .

• The screen below is displayed.

• To cancel format, press

or rotate and press JOG KEY to select NO.

(M-STOP)

3 Rotate and press JOG KEY to select

YES .

•“PLEASE WAIT” is displayed on the screen as all image data is deleted from Memory Card. Deletion is complete when “NO PICTURE” is displayed.

Warning

• While deleting image, DO NOT turn off the Palmcorder or unplug the AC Adaptor (supplied) because this

will cause irreversible damage to the memory, resulting in reduced image storage capacity.

DV202_402-K.p 53-55.p65 02/06/06, 13:3354

• Press Card PhotoShot REC Mode screen. (p. 49).

(M-STOP) to return to the

Card Features

DPOF Setting

You can select the images to be printed, the number of prints, and other print-related information (DPOF setting) on a Memory Card. “DPOF” stands for Digital Print Order Format, and since printing data can be added to images on the Memory Card, the Memory Card can be used with any system that provides DPOF.

VARIABLE:

You can select images recorded on the Memory Card and set the number of prints desired.

ALL1:

The number of prints recorded on the Memory Card is collectively set to 1.

ALL0:

The currently set number of prints is set to 0.

3, 4, 5, 6

JOG KEY

2MENU

Before you begin

• Set POWER to OFF before inserting a recorded Memory Card. (pp. 49, 50)

1 Do steps 1 and 2 on page 52. 2 Press MENU to display the CARD

SETTING menu screen.

3 Rotate JOG KEY to select DPOF , then

press JOG KEY to select ON.

4 Rotate JOG KEY to select VARIABLE ,

then press JOG KEY to select ON.

• DPOF SETTING menu screen is displayed on the screen.

5 Rotate and press JOG KEY to select

the picture.

• The selected image is underlined in green.

• The cursor moves to “D-000”.

6 Rotate and press JOG KEY to set the

number of prints.

• The “

• When printing one each of all the

” mark is displayed.

The “ ” mark indicates pictures for which 1 or more prints have been set.

pictures, select “ALL1”; if not all the pictures are printed, select “ALL0”.

Card Features

Print mark is based on DPOF (Digital Print Order Format).

DV202_402-K.p 53-55.p65 02/06/06, 13:3355

7 Repeat steps 5 and 6 to set the other

pictures.

Transferring Your Images (Windows)

You can transfer images from your Palmcorder tape to your PC (Personal Computer).

System Requirements (for Palmcorder USB Device Driver/PHOTOVU MPEG4 Movie Messenger System and ArcSoft Software (PV-DV402-K only)

• IBM PC/AT or compatible

• Pentium ll Processor: 266 MHz or more

• RAM: 64 MB or more

• CD-ROM drive (for installation)

• Mouse or other pointing device

• Windows 95 (for ArcSoft Software only)/98SE/

Me/2000/XP preinstalled PC with USB port

• 2 MB minimum available hard disk space (for Palmcorder USB Device Driver)

• 15 MB minimum available hard disk space (for PHOTOVU/MPEG4 Movie Messenger System)

• 10 MB minimum available hard disk space (for Palmcorder File Converter)

• Minimum 120 MB of free hard disk space for Motion picture transfer from DV tape to PC (for PHOTOVU/MPEG4 Movie Messenger System)

• 235 MB minimum available hard disk space (for ArcSoft Software)

Satisfy the conditions recommended by Microsoft for Windows XP.

Palmcorder USB Device Driver/Web Camera/SD Drive

Install Palmcorder USB Device Driver. You can transfer motion/still picture to your PC using Movie Messenger, Web Camera or SD Drive via USB. Using this driver allows data communication between the Memory Card and PC.

PHOTOVU/MPEG4 Movie Messenger System

Install PHOTOVU/MPEG4 Movie Messenger System. You can transfer motion/still pictures to your PC from a Mini DV Tape via USB and i.LINK.

Palmcorder File Converter

Install File Converter. You can convert the JPEG data of your PC into the DCF (Design rule for Camera File System) data, and transfer this data to your Palmcorder via USB. Using this driver allows data communication between the Memory Card and PC.

ArcSoft Software (PV-DV402-K only)*

Install ArcSoft Software 2002.

PhotoImpression 3.0: Easy-to-use photo editing program to edit, enhance, retouch

or add special effects to any image. Also offers creative solutions for making greeting cards, and calendars.

Panorama Maker 3.0: Easy-to-use photo-stitching program seamlessly combines

multiple photos into a single panoramic picture.

PhotoPrinter 2000 Pro: Program to layout images in multiple sizes quickly and

effortlessly to create a collage or photo album, all on one page.

PhotoBase 3.0: Create albums of image, video, audio, and other electronic

files for easy viewing, retrieval, and management.

You can edit still picture using the software.

* For information on ArcSoft Software:

TEL : 1-510-440-9901 Web Site : www.arcsoft.com FAX : 1-510-440-1270 E-mail : support@arcsoft.com

• High colour (16 bit) or more (for ArcSoft Software)

• Video card that supports 16 bit colour at 800 x 600 monitor resolution (for Palmcorder USB Device Driver, PHOTOVU/MPEG4 Movie Messenger System, and Palmcorder File Converter)

• Microsoft Windows Media Player 6.4 (for Windows 2000 users: Microsoft Windows Media Player 7.1) or later (for PHOTOVU/ MPEG4 Movie Messenger System) * If Windows Media Player 6.4 (for

Windows 2000 users: Windows Media Player 7.1) or later is not installed in your PC, Please download and install Windows Media Player from the Microsoft Home Page: http://www.microsoft.com/

DV202_402-K.p 56-61.p65 02/06/06, 13:3356

Transferring Your Images (Windows)

Software Installation (Windows 95 (for ArcSoft Software only)/98SE/Me/2000/XP)

Caution

• Please install Palmcorder USB Device Driver first before connecting the Palmcorder and your PC using USB Cable. Once Palmcorder USB Device Driver is installed, you must restart your computer for installation to take effect.

• Restarting the computer not only applies to Driver installation, but must be done whenever “Restarting Windows” is displayed after software or driver install/uninstall.

1 Turn on the PC (Personal Computer) and start up Windows. 2 Insert the supplied Software CD-ROM into the CD-ROM drive. 3 Click the icon you want to install. Please install the Palmcorder USB Device Driver

first and follow the instructions listed under “Caution”.

Palmcorder USB Device Driver

• For Movie Messenger

• For Web Camera

• For SD Drive : Click

PHOTOVU/MPEG4 Movie Messenger System : Click

Palmcorder File Converter : Click

ArcSoft Software : Click (PV-DV402-K only)

4 Follow the instructions as they appear on your PC screen.

Note

• If a window does not appear automatically, click the “Start” button on your desktop and then click “Run”. When the Run box is open, type in “D:\InstMenu.exe” where “D:” is the drive letter of your CD; then click “OK”.

• If you attempt to install the next Software before the previous Software installation is completed, “Error” may appear. In this case, click [OK] and install the next Software from the menu.

PC Connection

DV202_402-K.p 56-61.p65 02/06/06, 13:3357

Transferring Your Images (Windows)

Notes on PHOTOVU/MPEG4 Movie Messenger System operation

• For PHOTOVU/MPEG4 Movie Messenger System, do not connect the i.LINK and USB terminals to the Palmcorder at the same time.

• Make sure Palmcorder power is not shut off during use as your PC system may become

unstable. Therefore, the AC Adaptor should be used as the power source. (Be especially careful when recording in M-CARD or CAMERA mode as the power eventually shuts off automatically if a tape is inserted.)

• For PHOTOVU/MPEG4 Movie Messenger System, if the play, stop, fast forward, and rewind functions are operated using the Palmcorder buttons, the image may not be captured properly. Use Palmcorder Operation Buttons displayed on the PC screen.

Verifying the driver (Windows 98SE/Me/2000/XP)

Note

• Verify the driver while Palmcoder is connected to the computer.

PHOTOVU/MPEG4 Movie Messenger System (VCR Mode)

[ This screen is an example (Windows 2000) ]

1 Click “Start,” “Settings,” and

“Control Panel.”

2 Double-click on “System”, verify

[Panasonic Digital Palmcorder] is displayed in [Universal Serial Bus controllers] of [Device Manager].

Palmcorder USB Device Driver/Web Camera (CAMERA Mode)

[ This screen is an example (Windows 2000) ]

1 Click “Start,” “Settings,” and

“Control Panel.”

2 Double-click on “System”, verify

[USB Video Camera for Panasonic Digital Palmcorder] is displayed in [Imaging Device] of [Device Manager].

DV202_402-K.p 56-61.p65 02/06/06, 13:3358

Transferring Your Images (Windows)

Palmcorder USB Device Driver/SD Drive, Palmcorder File Converter (M-CARD Mode)

[ This screen is an example (Windows 2000) ]

1 Click “Start,” “Settings,” and

“Control Panel.”

2 Double-click on “System”, verify

[USB Storage Device Controller]* is displayed in [Universal Serial Bus controllers] of [Device Manager].

* If you are using Windows 98SE,

[MATSUSHITA USB Storage Device Controller] will be displayed.

Uninstalling Application Software

[ This screen is an example (Windows 2000) ]

1 Click “Start,” “Settings,” and

“Control Panel.”

PC Connection

DV202_402-K.p 56-61.p65 02/06/06, 13:3359

2 Double-click on “Add/Remove

Programs” in the “Control Panel.”

3 Select the application software you

want to remove, and then click [Change/Remove]*.

* If you are using Windows 98SE or Me,

click [Add/Remove].

PHOTOVU/MPEG4 Movie Messenger System

Connection (for PHOTOVU/MPEG4 Movie Messenger System)

USB Terminal

USB Cable (supplied)

1 Turn on your PC.

2 Set the Palmcorder POWER to VCR.

For Windows XP users

3 Connect the Palmcorder to your PC (Windows) using the USB Cable (supplied).

•“CAPTURE” appears in the EVF or the LCD monitor.

• The “Found New Hardware Wizard” screen of Windows is displayed.

The following message is displayed. However, testing by the manufacturer has confirmed functionality of this palmcorder with Windows XP/2000. Click [Continue Anyway] and proceed.

Follow the instructions as they appear on your PC screen.

1 32

Note

• For extended use, the AC Adaptor should be used as a power source.

DV202_402-K.p 56-61.p65 02/06/06, 13:3360

PHOTOVU/MPEG4 Movie Messenger System

For Windows 2000 users

3 Connect the Palmcorder to your PC (Windows) using the USB Cable (supplied).

•“CAPTURE” appears in the EVF or the LCD monitor.

• The “Found New Hardware” screen of Windows is displayed.

• When the Palmcorder and PC (with Windows 2000) are connected via USB, a

message, such as the one below, is displayed.

The following message is displayed. However, testing by the manufacturer has confirmed functionality of this palmcorder with Windows XP/2000. Click [Yes] and proceed.

Note

• For extended use, the AC Adaptor should be used as a power source.

For Windows 98SE/Me users

3 Connect the Palmcorder to your PC (Windows) using the USB Cable (supplied).

•“CAPTURE” appears in the EVF or the LCD monitor.

Note

• For extended use, the AC Adaptor should be used as a power source.

To disconnect USB Cable safely (Windows 2000/XP)

If USB Cable is disconnected while computer is on, error message may appear. In such a case click [OK] and close the dialog box. By following the steps you can disconnect the cable safely.

[ This screen is an example (Windows 2000) ]

1 Double-click the icon in the task

tray.

2 Select [Panasonic Digital

Palmcorder] and click [Stop].

3 Verify [Panasonic Digital

Palmcorder] is selected and click [OK].

4 Click [OK].

• You can safely disconnect the cable.

Note

• Some OS, such as Windows 98SE or Me, may not show the icon indication that you may safely disconnect in task tray. (OS may be set not to show) Close PHOTOVU/MPEG4 Movie Messenger System, then disconnect the USB Cable.

DV202_402-K.p 56-61.p65 02/06/06, 13:3361

PC Connection

PHOTOVU/MPEG4 Movie Messenger System

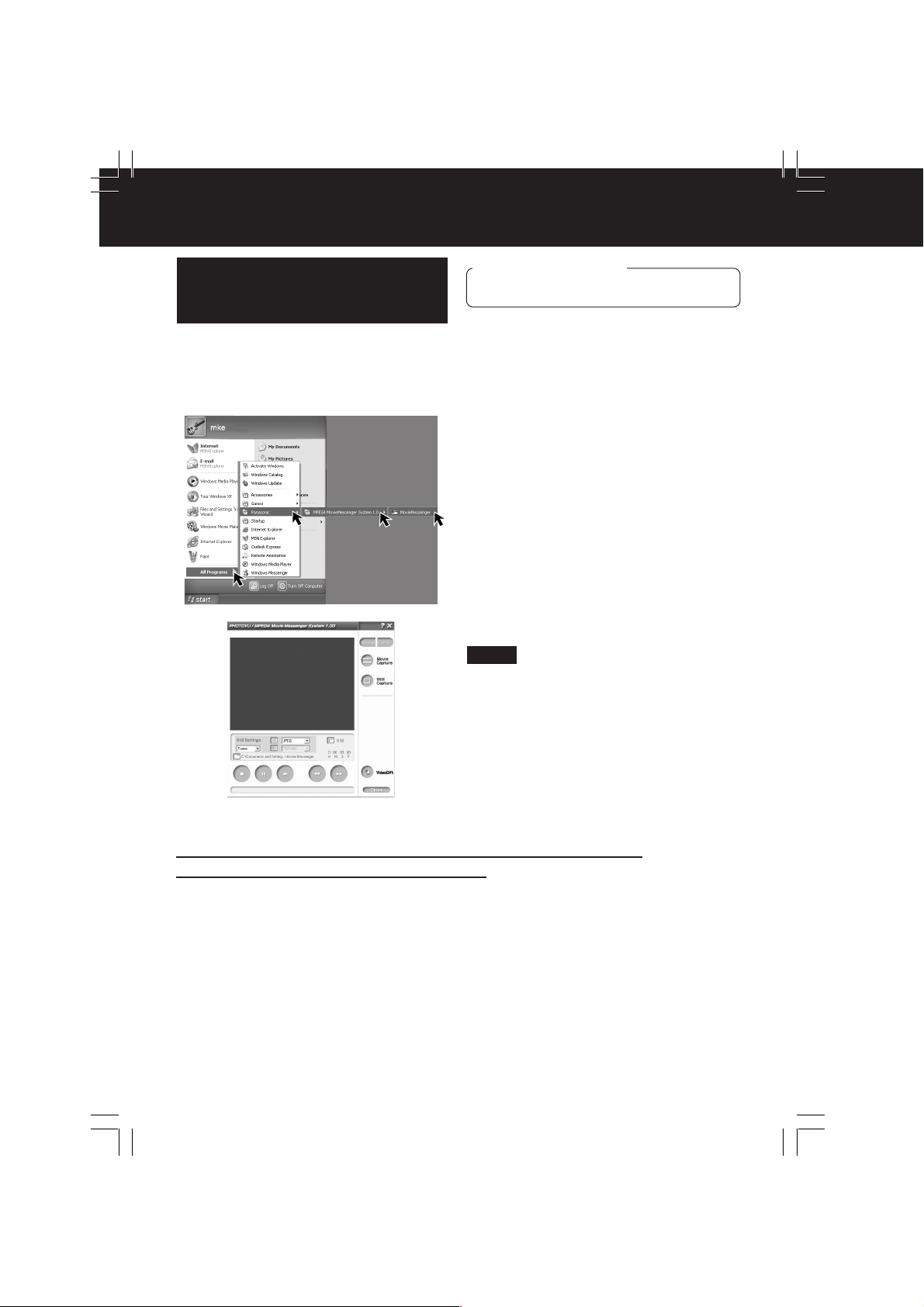

Running the PHOTOVU/ MPEG4 Movie Messenger System*

* PHOTOVU: You can transfer Still images

from your Palmcorder tape to a PC. MPEG4 Movie Messenger System: You can transfer Motion images from your Palmcorder tape to a PC.

Before you begin

• Insert a recorded tape. (p. 11)

1 Set Palmcorder POWER to VCR. 2 Connect the Palmcorder to your PC

using the USB Cable (supplied) or DV Interface Cable (i.LINK) (not supplied). (pp. 60, 61, 74)

3 Click on “Start,” “(All) Programs,”

“Panasonic,” “MPEG4 MovieMessenger System 1.00,” then “MovieMessenger.”

4 “PHOTOVU/MPEG4 MovieMessenger

System 1.00” is opened.

Note

Refer to Help on program for information about application operations and Error messages.

While PHOTOVU/MPEG4 Movie Messenger System is running, do not perform the following operations...

The PC system may become unstable.

• Change the screen area or colour pallet in the Display Properties window.

• Turn the Palmcorder power switch ON or OFF while connecting the Palmcorder to your

PC using the USB Cable or DV Interface Cable (i.LINK).

• Change the Palmcorder power switch (VCR/CAMERA). *You must first close the application.

• Connect/disconnect the DV Interface Cable (i.LINK).

• Connect/disconnect the USB Cable.

DV202_402-K.p 62-65.p65 02/06/06, 13:3362

PHOTOVU/MPEG4 Movie Messenger System

Using Tape Image Data (USB)

By connecting the Palmcorder and PC with the USB Cable, you can transfer Motion images and Still images saved on the DV Tape directly to your PC.

Note

• Detail mode cannot be used with a USB connection.

• Deactivate your PC ScreenSaver or this application may shutdown during image capture.

3Movie Capture

3Still

Capture

USB

2PLAY4STOP

To capture Still images

3 Click on [Still Capture] at the

point you wish to capture an image.

• Repeat step 3 to continue capturing

images.

• Captured Still images are saved to the PC, and you can playback the saved images on the View Manager. (p. 64)

Before you begin

• Insert a recorded tape. (p. 11)

• Make Palmcorder-PC connections.

(pp. 60, 61)

• Turn your PC on. (p. 60)

• Set Palmcorder POWER to VCR.

1 Repeat steps 1~4 on page 62 to

run the PHOTOVU/MPEG4 Movie Messenger System.

Note

• When the USB Cable is connected, the input display will automatically become USB. If it is not USB, please confirm the connection. Then, close and restart the software.

2 Click (PLAY) on PC screen to

playback the DV tape.

• The playback screen cannot be viewed on the PC. Please use the LCD monitor on the Palmcorder for confirmation.

To capture Motion images

3 Click on [Movie Capture] at the

start point you wish to capture a Motion image.

•“Now capturing a movie” is displayed.

4 Click STOP to end capture.

•“Now Searching...” is displayed.

• The DV Tape is rewound to the point

at which the capture was started. The Motion image is then transferred to the PC.

•“Data transfer is now in progress” is displayed on the PC screen.

• The maximum capture time is approx. 30 seconds. Capture stops automatically at the end of 30 seconds.

Note

• Motion images cannot be captured if data contains the following...

• A change between 12 bit and 16 bit.

• A change between SP and LP mode.

• During transfer to the PC, the Motion

images will not be displayed on the PC screen.

• Transfer takes from about 30 to 50 seconds for every 1 second of the Motion image when using USB connection.

PC Connection

DV202_402-K.p 62-65.p65 02/06/06, 13:3363

5 To capture other Motion images, repeat

steps 3~4.

PHOTOVU/MPEG4 Movie Messenger System

Playing back the saved Motion and Still images

You can play back the saved Motion images and Still images (p. 63) for confirmation.

2VideoGift

3View

Manager

4All

4Picture

1 Repeat steps 1~4 on page 62 to run

the PHOTOVU/MPEG4 Movie Messenger System.

2 Click [VideoGift] to display the

VideoGift screen.

• The image captured last is displayed in the VideoGift screen.

Caution for Windows 2000 users

• If “Unable To Locate DLL” warning

indication is displayed, please see page 91.

3 Click [View Manager] to display the

View Manager screen.

To view Motion images

4 Click on [Movie].

• The first frame of each Motion image will be displayed as a list.

5 Double click on the desired Motion

image to display the playback screen.

• Click playback.

to start Motion image

4Movie

All:

Still image, Motion image and Sound data are displayed.

Picture:

Still image data (*.BMP, *.JPG) is displayed.

Movie:

Motion Image data (*.AVI, *.WMV) is displayed.

Sound:

Sound image data (*.WAV) is displayed.

For Internet:

The data (*.WMV, *.JPG) is displayed.

DV202_402-K.p 62-65.p65 02/06/06, 13:3364

Note

• You can also playback a motion image by simply pointing at the thumbnail with your mouse. Duration Rec Time, and size are displayed as well. (Only size for still images.)

To view Still images

4 Click on [All] or [Picture] to display

the Still image list.

5 Double Click on the desired image to

open it.

Note

• If the image cannot be opened, please refer to the software Help menu.

PHOTOVU/MPEG4 Movie Messenger System

VideoGift Screen

You can use these features using the VideoGift Screen.

6 7 8

Slider

Drag the pointer of the playback start position.

Movie Mode

You can display motion images.

Open Movie

You can open folders containing video files (*.AVI, *.WMV).

Open Audio

You can open folders containing audio files (*.WAV). Valid only when the file is opened in the VideoGift screen.

View Manager

You can open the View Manager screen.

Org. View

You can play original moving image: (Uncompressed moving image.)

Save

You can save the compressed images (*.WMV) to your hard disk.

Preview

You can preview the compressed motion image.

Slider

Drag the pointer of the playback end position.

Settings

You can open the “Compression Settings” screen. (p. 70)

E-mail

You can attach the compressed image to your e-mail.

Uploader (PV-DV402-K only)

You can upload edited moving images and still images to the PictureStage home page.

Exit

Exits VideoGift screen.

Still Mode

You can display still images.

Slider

When several still images are opened in the VideoGift screen, a slide show of the images can be done.

Add Image

You can open the folder containing a desired still image to add images.

Slide Edit

A collection of still images can be edited as a slide show.

PC Connection

DV202_402-K.p 62-65.p65 02/06/06, 13:3365

PHOTOVU/MPEG4 Movie Messenger System

Using the VideoGift Screen

VideoGift

3View

Manager

4All

4Picture

4Movie

1 Repeat steps 1~4 on page 62 to run

the PHOTOVU/MPEG4 Movie Messenger System.

2 Click [VideoGift] to display the

VideoGift screen.

• The image captured last is displayed in the VideoGift screen.

Caution for Windows 2000 users

• If “Unable To Locate DLL” warning indication is displayed, please see page 91.

3 Click [View Manager] to display the

View Manager screen.

Using a Motion Image on the VideoGift Screen

4 Click on [Movie] to display a Motion

image list on the View Manager screen.

5 Click on [Movie Mode] on the

VideoGift screen.

6 Select the Motion image from the

View Manager screen, then drag and drop the image to the “VideoGift” screen.

• By clicking [Open Movie], you can add the saved motion images on your PC hard disk. You can also select the file by dragging and dropping from Windows Explorer.

• You can use the VideoGift features (p. 65) on the VideoGift screen.

Using a Still Image on the VideoGift Screen

5Still Mode

5Movie Mode

6Open Movie

6Add Image

DV202_402-K.p 66-68.p65 02/06/06, 13:3466

4 Click on [All] or [Picture] to display a

Still image list on the View Manager screen.

5 Click on [Still Mode] on the VideoGift

screen.

6 Select the Still image from the View

Manager screen, then drag and drop the image to the “VideoGift” screen.

• When clicking [Add Image], you can add the saved still images on your PC hard disk.

• If selecting a frame from a motion image, See “Selecting a Frame from a Motion Image” on page 71.

• You can use the VideoGift features (p. 65) on the VideoGift screen.

PHOTOVU/MPEG4 Movie Messenger System

Setting the Mail Software

It is possible to set the mail software to start up automatically when [E-Mail] of VideoGift is clicked.

Note

The e-mail Software must support MAPI (Messaging Application Programming Interface). Below are some e-mail Software programs which support MAPI: Microsoft Outlook, Microsoft Outlook Express, Netscape Messenger:

• Outlook(R) Express 5x, Outlook97, Outlook98, Outlook2000

• Outlook Express 4x

• Other MAPI applications [Netscape(R)

Messenger 4.5x, and so on]

1 Repeat steps 1~4 on page 62 to run

the PHOTOVU/MPEG4 Movie Messenger System.

2 Click [VideoGift] to display the

VideoGift screen.

• The image captured last is displayed in the VideoGift screen.

Caution for Windows 2000 users

• If “Unable To Locate DLL” warning indication is displayed, please see page 91.

3 Click [Settings] to display the

Compression Settings/Mailer Settings screen.

4 Click to set the mail software.

• The mail software installed in the computer will be displayed.

• You can select Outlook Express or other software.

Note

• If selecting software other than Outlook Express and Microsoft Outlook, click [Other]. From the file dialog box, select the executable file (*.exe) of the mail software application and then click [Open].

PC Connection

DV202_402-K.p 66-68.p65 02/06/06, 13:3467

3, 5Settings

5 Click [Settings] to close the

Compression Settings/Mailer Settings screen.

PHOTOVU/MPEG4 Movie Messenger System

Attaching captured Motion and Still images to your e-mail

You can easily transfer and compress your Motion images as attachments to your e-mail.

2VideoGift

4, 4E-Mail

Before you begin

• Insert a recorded tape. (p. 11)

• Make Palmcorder-PC connections.

(pp. 60, 61)

• Turn your PC on. (p. 60)

• Set Palmcorder POWER to VCR.

1 Repeat steps 1~4 on page 62 to run

the PHOTOVU/MPEG4 Movie Messenger System.

2 Click [VideoGift] to display the

VideoGift screen.

• The image captured last is displayed

in the VideoGift screen.

Caution for Windows 2000 users

• If “Unable To Locate DLL” warning

indication is displayed, please see page 91.

Attaching Motion images to e-mail

3 Repeat steps 4~6 on page 66 to

select a Motion Image.

• If sending a portion of a Motion image, see “Sending a Portion of a Motion Image” on page 69.

• To compress a Motion image, see “Setting the Size and Quality of Motion and Still Image” on page 70.

Note

• Refer to Help for information about application operations and Error messages.

• If your e-mail software is not supported by MAPI, pressing the [E-Mail] button will automatically open the folder containing the compressed file. To attach, drag and drop the file into your e-mail.

DV202_402-K.p 66-68.p65 02/06/06, 13:3468

4 Clicking on [E-Mail] will convert the

selected image to WMV format.

Note

• Follow the instructions as they appear on your PC screen.

Attaching Still images to e-mail

3 Repeat steps 4~6 on page 66 to

select a Still Image.

• To compress a Still image, see “Setting the Size and Quality of Motion and Still Image” on page 70.

4 Clicking on [E-Mail] will convert the

selected image to WMV format.

Note

• Follow the instructions as they appear on your PC screen.

PHOTOVU/MPEG4 Movie Messenger System

Sending a Portion of a Motion Image

7E-Mail

6Preview

Slide-Show Edit

A collection of still images can be edited as slides.

7Uploader

(PV-DV402-K only)

4Slide Edit

1 Repeat steps 1~4 on page 62 to run

the PHOTOVU/MPEG4 Movie Messenger System.

2 Click [VideoGift] to display the

VideoGift screen.

• The image captured last is displayed in the VideoGift screen.

Caution for Windows 2000 users

• If “Unable To Locate DLL” warning indication is displayed, please see page 91.

3 Select a Motion image. (Continue with

steps 4~6 on page 66 to specify the portion to be played.)

4 Drag pointer to start position. 5 Drag pointer to end position.

6 Click [Preview]. (To set size/quality,

do steps 4 and 5 on page 70.)

• To save the image to your PC, click [Save].

7 Click [E-Mail] and then send the

e-mail message or click [Uploader] (PV-DV402-K only) to upload to the PictureStage Home Page. (pp. 68, 72)

1 Repeat steps 1~4 on page 62 to run

the PHOTOVU/MPEG4 Movie Messenger System.

2 Click [VideoGift] to display the

VideoGift screen.

• The image captured last is displayed in the VideoGift screen.

Caution for Windows 2000 users

• If “Unable To Locate DLL” warning indication is displayed, please see page 91.

3 Select the Still images.

(See steps 4~6 on page 66.)

• The selected Still images are displayed on the VideoGift screen.

PC Connection

DV202_402-K.p 69-73.p65 02/06/06, 13:3469

4 Click on [Slide Edit] on the VideoGift

screen.

• The “Slide-show Edit” screen is displayed.

5 Edit slides.

• Use “Help” for detailed instructions.

PHOTOVU/MPEG4 Movie Messenger System

Setting the Size and Quality of Motion and Still Image

1 Repeat steps 1~4 on page 62 to

run the PHOTOVU/MPEG4 Movie Messenger System.

6Preview

6Save 6Uploader

(PV-DV402-K only)

Size of Compressed File


Quality

High

Normal

Low

352 x 288 pixels 176 x 144 pixels

3000 KB/min

3000 KB/min 2000 KB/min

2000 KB/min 1000 KB/min

1000 KB/min

Image Size

6E-Mail

1000 KB/min

600 KB/min 360 KB/min

4Settings

2 Click [VideoGift] to display the

VideoGift screen.

• The image captured last is displayed in the VideoGift screen.

Caution for Windows 2000 users

• If “Unable To Locate DLL” warning indication is displayed, please see page 91.

3 Select a Motion or Still image.

(See steps 4~6 or 4~6 on page 66.)

• The selected Motion or Still image is displayed on the VideoGift screen.

4 Press [Settings] to display the

“Compression Settings” screen.

5 Set the Image Size and Quality.

• See “Size of Compressed File” to the left.

6 Click [Save] to save the compressed

image to your PC. Click [Preview] to view the

compressed Motion Image. Click [E-mail] to send the e-mail

message. Click [Uploader] to upload to the

PictureStage Home Page. (PV-DV402-K only)

DV202_402-K.p 69-73.p65 02/06/06, 13:3470

Image Size

You can select the image size (352 x 288 or 176 x 144).

Quality

You can select the image quality (High, Normal, Low).

PHOTOVU/MPEG4 Movie Messenger System

Selecting a Frame from a Motion Image

This screen is displayed when an individual frame from a moving image file is to be added as a still image.

1 Repeat steps 1~4 on page 62 to

run the PHOTOVU/MPEG4 Movie Messenger System.

2 Click [VideoGift] to display the

VideoGift screen.

• The image captured last is displayed in the VideoGift screen.

Caution for Windows 2000 users

• If “Unable To Locate DLL” warning indication is displayed, please see page 91.

3View

Manager

5Still Mode

4Movie

9Preview

2VideoGift

9E-Mail

9Save 9Uploader

(PV-DV402-K only)

3 Click [View Manager] to display the

View Manager screen.

4 Click on [Movie] to display a Motion

image list on the View Manager screen.

5 Click on [Still Mode] on the VideoGift

screen.

6 Select the Motion image from the

View Manager screen, then drag and drop the image to the “VideoGift” screen.

• The “Select Frame” screen is displayed.

7 Drag the pointer to select a

desired frame.

8 Click [OK]. 9 Click [Save] to save the compressed

image to your PC. Click [Preview] to view the

compressed Motion Image. Click [E-mail] to send the e-mail

message. Click [Uploader] to upload to the

PictureStage Home Page. (PV-DV402-K only)

PC Connection

DV202_402-K.p 69-73.p65 02/06/06, 13:3471

PHOTOVU/MPEG4 Movie Messenger System

Uploading the image to PictureStage Home Page (PV-DV402-K only)*

You can upload edited moving images and still images to the PictureStage Home Page.

4Uploader

Before you begin

• Attain internet access.

• Before using this feature, you must

become a registered member of PictureStage. For details on installation, settings, etc., please visit http://www.picturestage.com/ (current as of Dec. 28, 2001).

1 Repeat steps 1~4 on page 62 to

run the PHOTOVU/MPEG4 Movie Messenger System.

2 Click [VideoGift] to display the

VideoGift screen.

• The image captured last is displayed in the VideoGift screen.

Caution for Windows 2000 users

• If “Unable To Locate DLL” warning indication is displayed, please see page 91.

3 Select a Motion or Still image to

upload to PictureStage Home Page. (See steps 4~6 or 4~6 on page 66.)

• The selected Motion or Still image is displayed on the VideoGift screen.

• If editing the image, see “Sending a Portion of a Motion Image”, “Setting the Size and Quality of Motion and Still Image”, “Slide-Show Edit” on pages 69 and 70.

4 Click on [Uploader] on the VideoGift

screen.

• The “Converting animation.” screen is displayed.

• When you click the [Uploader], PictureStage Uploader opens, and a temp folder containing WMV (compressed) files opens at the same time. Files can be dragged and dropped from this folder.

(Continued on next page.)

* PictureStage Home Page

PictureStage is a service whereby, through the uploading of images captured on this unit to the internet, data can be stored, albums can be created, images can be voluntarily and freely shared and exchanged with a third party, etc.

DV202_402-K.p 69-73.p65 02/06/06, 13:3472

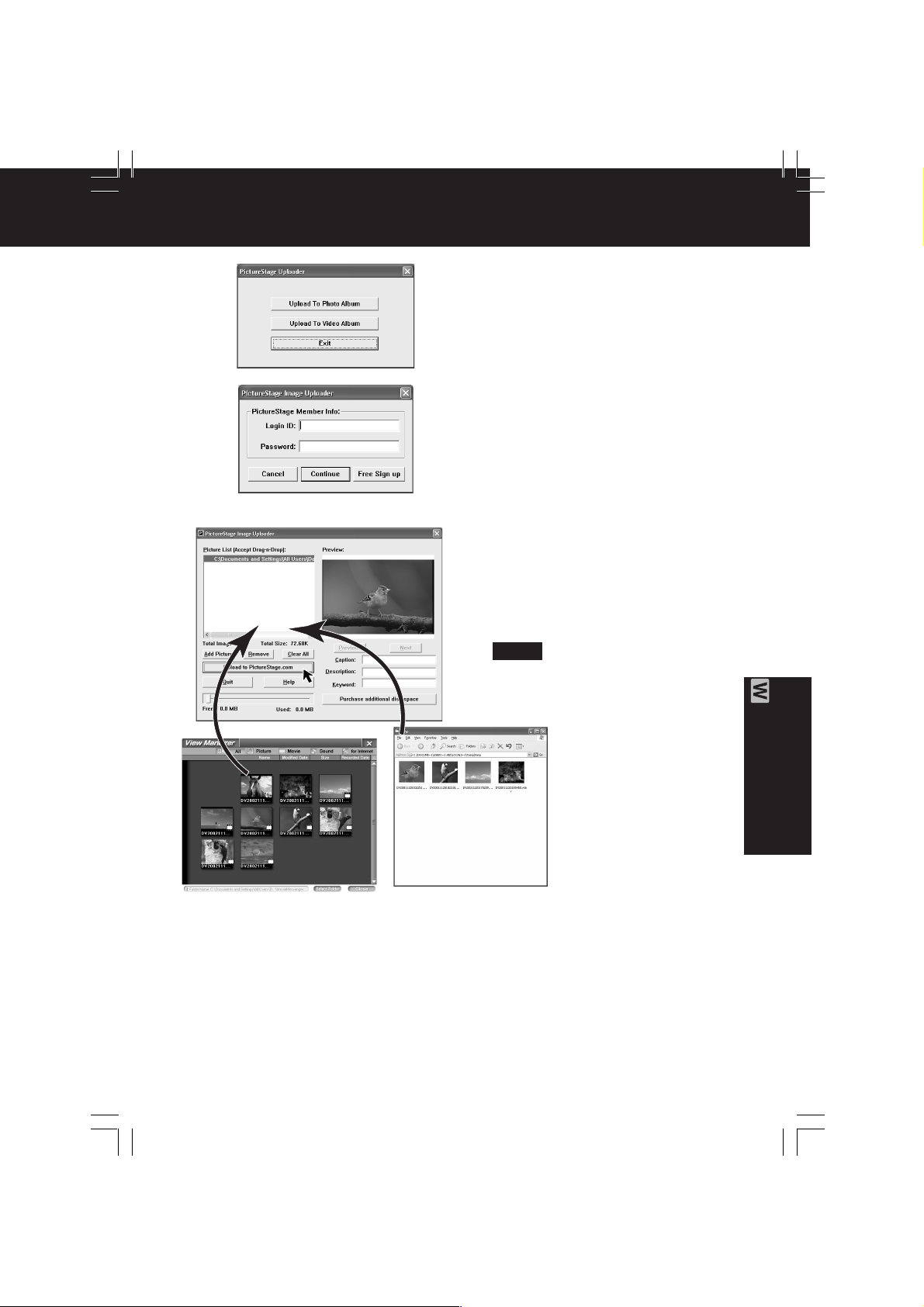

PHOTOVU/MPEG4 Movie Messenger System

5 Click [Upload To Photo Album] to

upload the Still Image or [Upload To Video Album] to upload the Motion Image.

• The “PictureStage Image (Video) Uploader” screen is displayed.

• Click [Exit] to exit uploader.

6 Enter your login ID and password,

and then click [Continue].

• Click [Free Sign up] if you have no login ID. The PictureStage Home

Page opens and there you can get a login ID and password.

7 Click [View Manager] to display the

View Manager screen, and then click [for Internet] on the View Manager screen to display files that can be uploaded.

• You can select the image from the View Manager screen, then drag and drop the image to the PictureStage Image (Video) Uploader screen.

Note

• You can also drag and drop files from Windows Explorer.

• You can also drag and drop files from temp folder.

PC Connection

DV202_402-K.p 69-73.p65 02/06/06, 13:3473

8 Click [Upload to PictureStage.com]

on the PictureStage Uploader to

upload the files.

• For details on PictureStage Uploader, see the PictureStage Uploader operating manual.

Transferring Your Images (i.LINK) (Windows)

PC Connection with DV Interface Cable (i.LINK)

A video clip can be transferred directly to your PC (Personal Computer) via a DV Interface Cable (i.LINK) (not supplied) using products and software from a number of video editing software companies.

Using products from video editing software companies allows you to capture and edit video clips using the DV Interface (i.LINK).

Our DVC being OHCI compliant should have no problem working with any OHCI compliant Firewire Card/video - Editing software package.

PC Connector

DV Input/Output (i.LINK) Connector

DV Interface Cable (i.LINK) (6-to-4 pin) (not supplied)

Note

• PC must be equipped with an i.LINK terminal.

• During Palmcorder playback, do not disconnect the DV Interface Cable (i.LINK) or turn

the Palmcorder off as this may cause a PC hang-up error.

• For PHOTOVU/MPEG4 Movie Messenger System, do not use 2 i.LINK terminals on your PC at the same time.

• PHOTOVU/MPEG4 Movie Messenger System i.LINK (DV) operates normally with Windows 98SE or later operating system.

• PHOTOVU/MPEG4 Movie Messenger System i.LINK connection may not work with some DV Interface boards. In this case, use the software included with the board.

• 1394 (i.LINK) interface must conform to OHCI (Open Host Controller Interface Specification).

DV202_402-K.p 74-76.p65 02/06/06, 13:3474

PHOTOVU/MPEG4 Movie Messenger System (i.LINK)

Using Tape Image Data

By connecting the Palmcorder and PC with the DV Interface Cable (i.LINK), you can transfer Motion images and Still images saved on the DV Tape directly to your PC.

Note

• If PHOTOVU/MPEG4 Movie Messenger System does not work, please refer to note on page 74.

• Deactivate your PC ScreenSaver or this application may shutdown during image capture.

3Normal

4Movie

Capture

STOP

2PLAY

How to insert the DV Interface Cable (i.LINK)

Before you begin

• Insert a recorded Tape. (p. 11)

• Make Palmcorder-PC connections.

(p. 74)

• Turn your PC on.

• Set Palmcorder POWER to VCR.

• Run the Software after the DV

Interface Cable (i.LINK) has been connected to the Palmcorder.

1 Repeat steps 1~4 on page 62 to

run the PHOTOVU/MPEG4 Movie Messenger System.

Note

• When the DV Interface Cable (i.LINK) is connected, the input display will automatically become DV. If it is not DV, please confirm the connection. Then, close and restart the software.

• When using Windows XP, “Windows Movie Maker” may open automatically. If so, close “Windows Movie Maker“ and “Movie Messenger”, and open “Movie Messenger” again.

2 Click (PLAY) button on PC screen

to playback the DV tape.

• Please use the LCD monitor on the Palmcorder or PC screen for confirmation.

To capture Motion images

[When selecting Normal]

PC Connection

ASet Palmcorder POWER to VCR. BConnect the Palmcorder to your PC

using the DV Interface Cable (i.LINK).

CStart up the PHOTOVU/MPEG4

Movie Messenger System.

How to remove the USB Cable or DV Interface Cable (i.LINK)

AClose the PHOTOVU/MPEG4 Movie

Messenger System.

BRemove the DV Interface Cable

(i.LINK) from the Palmcorder.

CSet Palmcorder POWER to OFF.

DV202_402-K.p 74-76.p65 02/06/06, 13:3475

3 Click on [Normal] . 4 Click on [Movie Capture] at the

point you wish to capture a Motion image. Click on [STOP] to end capture.

• The image is transferred to the PC in real time.

• The maximum capture time is approx. 3 minutes.

• When capturing data containing changes between 12 bit and 16 bit and/or between SP and LP mode, a separate file will be made for each mode.

• Please refer to pages 64~73 for other functions.

(Continued on next page.)

PHOTOVU/MPEG4 Movie Messenger System (i.LINK)

3Normal

6STOP

5, 7, 5Select

To capture Still images

[When selecting Detail]

3 Click on [Detail].

3, 3Detail

4Movie

Capture

4Still

Capture

[When selecting Detail]

Note

• Detail mode lets you specify the start and end frames for the video segment you want to capture and save.

3 Click on [Detail]. 4 Click on [Movie Capture] at the

point you wish to capture a Motion image.

• The screen to select the start frame is displayed.

5 Select the start frame for the

segment to be captured select one frame, and click [Select].

•“Now Searching...” is displayed, and the DV tape is rewound to the point at which the capture was started.

•“Now capturing a movie.” is displayed.

6 Click on [Stop] to end capture.

• The screen to select the end frame is displayed.

7 Select the end frame for the segment

to be captured, select one frame, and

click [Select].

•“Saving a file...” is displayed.

• The image is transferred to the PC in

real time.

To capture Still images

[When selecting Normal]

4 Click on [Still Capture] at the point

you wish to capture images.

• The screen to select frames is displayed.

5 Select the frame for the segment to be

captured select frames, and click

[Select].

• Repeat steps 4 and 5 to continue capturing images.

• Captured Still images are saved to the PC, and you can playback the saved images on the View Manager. (P. 64)

DV202_402-K.p 74-76.p65 02/06/06, 13:3476

3 Click on [Normal]. 4 Click on [Still Capture] at the point

you wish to capture an image.

• Repeat step 4 to continue capturing

images.

• Captured Still images are saved to the PC, and you can playback the saved images on the View Manager. (P. 64)

Palmcorder USB Device Driver/SD Drive

Connection (for Palmcorder USB Device Driver/SD Drive)

USB Terminal

USB Cable (supplied)

1 Turn on your PC. 2 Set the Palmcorder POWER to M-CARD.

For Windows XP users

3 Connect the Palmcorder to your PC (Windows) using the USB Cable (supplied).

•“CONNECT WITH PC” appears in the EVF or the LCD monitor.

• The “Found New Hardware Wizard” screen of Windows is displayed.

The following message is displayed. However, testing by the manufacturer has confirmed functionality of this palmcorder with Windows XP/2000. Click [Continue Anyway] and proceed.

Follow the instructions as they appear on your PC screen.

1 32

Note

• When connecting for the first time using Windows XP, the OS installation CD may be required. Follow the instructions as they appear on your PC screen.

• For extended use, the AC Adaptor should be used as a power source.

DV202_402-K.p 77-79.p65 02/06/06, 13:3477

PC Connection

Palmcorder USB Device Driver/SD Drive

For Windows 2000 users

3 Connect the Palmcorder to your PC (Windows) using the USB Cable (supplied).

•“CONNECT WITH PC” appears in the EVF or the LCD monitor.

• The “Found New Hardware” screen of Windows is displayed.

• When the Palmcorder and PC (with Windows 2000) are connected via USB, a

message, such as the one below, is displayed.

The following message is displayed. However, testing by the manufacturer has confirmed functionality of this palmcorder with Windows XP/2000. Click [Yes] and proceed.

Note

• For extended use, the AC Adaptor should be used as a power source.

For Windows 98SE/Me users

3 Connect the Palmcorder to your PC (Windows) using the USB Cable (supplied).

•“CONNECT WITH PC” appears in the EVF or the LCD monitor.

Note

• For extended use, the AC Adaptor should be used as a power source.

To disconnect USB Cable safely (Windows Me/2000/XP)

If USB Cable is disconnected while computer is on, error message may appear. In such a case click [OK] and close the dialog box. By following the steps you can disconnect the cable safely.

[ This screen is an example (Windows 2000) ]

1 Double-click the icon in the task

tray.

2 Select [USB Storage Device

Controller]* and click [Stop].

3 Verify [USB Storage Device

Controller]* is selected and click [OK].

4 Click [OK].

• You can safely disconnect the cable.

* If you are using Windows Me, [USB

Disk] will be displayed.

Note

• Some OS, such as Windows 98SE, may not show the icon indication that you may safely disconnect in task tray. (OS may be set not to show) After the [ACCESS] display disappears from the EVF or LCD monitor you may disconnect the USB

Cable.

DV202_402-K.p 77-79.p65 02/06/06, 13:3478

Palmcorder USB Device Driver/SD Drive

Using Memory Card Image Data

By connecting the Palmcorder and PC with the USB, you can transfer Still images saved on the Memory Card directly to your PC.

Before you begin

• Install the Palmcorder USB Device Driver. (p. 57)

• Set POWER to OFF before inserting a recorded Memory Card. (pp. 49, 50)

• Make Palmcorder-PC connections. (pp. 77, 78)

• Turn your PC on. (p. 77)

For Windows 98SE/Me/2000 users

1 Connect the Palmcorder to your PC

using the USB Cable (supplied).

(pp. 77, 78)

•“PLEASE WAIT”, “CONNECT WITH PC”, and “STORAGE” appears in the EVF or the LCD monitor.

2 Open My Computer. 3 Click [Removable Disk].

• You can view images stored on the Memory Card and also save them to your hard disk.

PC Connection

Note

• Please do not change file or folder names on the PC. The images on the Memory Card may not be able to be viewed on the Palmcorder.

• When “ACCESS” is displayed in the EVF or LCD monitor, please do not remove the Memory Card or USB Cable, or turn off the power as data may be damaged.

DV202_402-K.p 77-79.p65 02/06/06, 13:3479

For Windows XP users

1 Connect the Palmcorder to your PC

using the USB Cable (supplied).

(pp. 77, 78)

• The “Removable Disk” screen is displayed.

•“PLEASE WAIT”, “CONNECT WITH PC”, and “STORAGE” appears in the EVF or the LCD monitor.

2 Click on [Open folder to view files

using Windows Explorer] and then [OK].

• You can view images stored on the Memory Card and also save them to your hard disk.

Palmcorder File Converter

Using Palmcorder File Converter

You can convert the JPEG data of your PC into DCF (Design rule for Camera File System) data, and transfer this data to your Palmcorder via USB.

1 Set Palmcorder POWER to M-CARD. 2 Connect the Palmcorder to your PC

using the USB Cable (supplied).

(pp. 77, 78)

3 Click on “Start,” “(All) Programs,”

“Panasonic,” “Palmcorder,” then “File Converter 3.0.”

4 Select and click “To resize the

image” or “To convert format for Panasonic Digital Palmcorder.”

• To resize the image:

The size of images captured with the Palmcorder can be increased or decreased to make them suitable for Internet and E-mail use.

• To convert format for Panasonic Digital Palmcorder:

Images can be converted to JPEG format and to file names that can be played back on the Palmcorder.

DV202_402-K.p 80-81.p65 02/06/06, 13:3480

When selecting “To resize the image”

5 Select the size for the image you

want to change. Then, click on “File select” and select the file to be converted.

Note

• When User Select is selected, you can specify a size within a range of 2048 x 1536 ~ 64 x 48 pixels.

(Continued on next page.)

Palmcorder File Converter

6 Select the folder to which the

converted file is to be saved.

• The Conversion results screen is displayed.

7 Use “Help” for detailed instructions.

When selecting “To convert format for Panasonic Digital Palmcorder”

5 Select the file to be converted.

DV202_402-K.p 80-81.p65 02/06/06, 13:3481

PC Connection

6 Select the drive to which the

converted file is to be saved.

• The Conversion results screen is displayed.

7 Use “Help” for detailed instructions.

Web Camera

Before Using Web Camera* Features

Web Camera*

MSN Messenger and NetMeeting are software that can be linked and used together. Using the Palmcorder and the Internet, you can communicate with others by having picture and sound similar in fashion to a videophone.

Please read this first

• To use the Web Camera feature, Microsoft’s Windows Messenger, MSN Messenger Service, and Windows NetMeeting are required.

• For this feature, both parties must have Windows XP. For this feature, both parties must have Windows 98SE/Me/2000.

• MSN Messenger Service, Windows Messenger and Windows NetMeeting are registered trademarks of America Microsoft Corporation in the United States and other countries.

• Communication quality and assured connectability are dependent upon the congestion conditions of your Internet provider (ISP) and MSN Messenger Service, etc. This product does not guarantee assured communication quality.

Conditions for Use

• You have direct dial-up connection access to the Internet. You and the other person(s) are in the same Network (LAN).

• Microsoft MSN Messenger Service 4.5 or later/Windows NetMeeting 3.01 or later is installed. For Windows XP users, Windows Messenger 4.5 or later is installed.

• It is convenient if the person you want to access is already a registered member of Windows Messenger or MSN Messenger Service.

For Windows XP users

Connect the Palmcorder to the PC.

Connect to the provider with dial-up

network.

Connect to provider with exclusive

connection software.

Windows Messenger is running.

Select the person to call (invite).

Start

DV202_402-K.p 82-84.p65 02/06/06, 13:3482

For Windows 98SE/Me/2000 users

Connect the Palmcorder to the PC.

Connect to the provider with dial-up

network.

Connect to provider with exclusive

connection software.

MSN Messenger Service is running.

Select the person to call (invite).

NetMeeting runs.

Start

Connection (for Web Camera)

Lch (White)

Web Camera

To MIC Terminal

AV OUT

A/V Cable (supplied)

Audio Adaptor (supplied)

USB Terminal

USB Cable (supplied)

1 Turn on your PC. 2 Set the Palmcorder POWER to CAMERA.

For Windows XP users

3 Connect the Palmcorder to your PC (Windows) using the USB Cable (supplied).

•“Found New Hardware Wizard” is displayed.

The following message is displayed. However, testing by the manufacturer has confirmed functionality of this palmcorder with Windows XP/2000. Click [Continue Anyway] and proceed.

Follow the instructions as they appear on your PC screen.

1 32

PC Connection

•“CONNECT WITH PC” and “WEB CAM” are displayed in the EVF and LCD monitor. A gray box is also displayed. The image within the box can be used with communication.

• Place the Palmcorder so that you are in the picture.

• To confirm if the connection between the Palmcorder and PC is correct, please refer to “Audio Tuning Wizard” on page 86.

Note

• When connecting for the first time using Windows XP, the OS installation CD may be required. Follow the instructions as they appear on your PC screen.

4 Go to step 5 on page 84.

DV202_402-K.p 82-84.p65 02/06/06, 13:3483

Web Camera

For Windows 2000 users

3 Connect the Palmcorder to your PC (Windows) using the USB Cable (supplied).

•“Found New Hardware” is displayed.

•“CONNECT WITH PC” and “WEB CAM” are displayed in the EVF and LCD monitor.

A gray box is also displayed. The image within the box can be used with communication.

• Place the Palmcorder so that you are in the picture.

• To confirm if the connection between the Palmcorder and PC is correct, please refer to “Audio Tuning Wizard” on page 86.

• When the Palmcorder and PC (with Windows 2000) are connected via USB, a

message, such as the one below, is displayed.

The following message is displayed. However, testing by the manufacturer has confirmed functionality of this palmcorder with Windows XP/2000. Click [Yes] and proceed.

4 Go to step 5 below.

For Windows 98SE/Me users

3 Connect the Palmcorder to your PC (Windows) using the USB Cable (supplied).

•“CONNECT WITH PC” and “WEB CAM” are displayed in the EVF and LCD monitor. A gray box is also displayed. The image within the box can be used with communication.

• Place the Palmcorder so that you are in the picture.

• To confirm if the connection between the Palmcorder and PC is correct, please refer to “Audio Tuning Wizard” on page 86.

Note

• When connecting for the first time using Windows 98SE or Me, the OS installation CD may be required.

4 Go to step 5 below.

5 Connect the A/V Cable (supplied) to the Audio Adaptor (supplied).

• For PCs with no built-in mic, connecting the A/V Cable (supplied) to the Audio Adaptor (supplied), the Palmcorder replaces the mic.

• If the speaker and mic are in close proximity, howling may occur.

Note

• Do not disconnect the USB Cable while in use. This could be a source of trouble. For more details, please read the corresponding Help file.

• Close the application, then disconnect the USB Cable.

DV202_402-K.p 82-84.p65 02/06/06, 13:3484

Web Camera (For Windows XP users)

For Windows Messenger (Windows XP only)

When Windows Messenger is newly installed or when running for the first time, the following settings become necessary. For more details, please read the corresponding Help file.

Note

• Once settings are performed, they are not required from the second time the software is run.

Before you begin

• Be sure you have Internet connection.

• Referring to pages 83~84, connect the Palmcorder and PC.

Confirm that equipment is connected correctly by running the [Audio Tuning Wizard]. (p. 86)

Caution

• If you are having problems signing in to Windows Messenger when using Internet connection please refer to the Windows Messenger Support Center web-site on www.microsoft.com

• This feature can be used only if both parties have Windows XP. For Windows Messenger, please refer to the Microsoft Home Page: http://www.microsoft.com/ http://www.msn.com/

1 Turn on your PC. 2 Click on “Start,” “All programs,”

“Windows Messenger.”

•“Windows Messenger” screen is opened.

DV202_402-K.p 85-87.p65 02/06/06, 13:3485

3 Click on [About Windows

Messenger] in the [Help] menu.

• Confirm that your version (Windows Messenger) is 4.5 or later.

Note

• If you have a version older than 4.5, please download the latest version (4.5 or later) from the Microsoft Home Page: http://www.microsoft.com/ http://www.msn.com/

• For download and installation instructions, please refer to Help on the Home Page.

4 The first time Windows Messenger is

run, etc., the Setup screen is displayed.

Click [Click here to sign in].

Please carefully read the contents and then proceed.

PC Connection

Web Camera (For Windows XP users)

5 Type in your E-mail address and

password.

• Yo u ’ll need to get a hotmail address. If you do not have one, click on [Get a .NET Passport]. Please carefully read the displayed contents and then proceed.

There are times when a Version Upgrade screen will be displayed. However, if you are using Windows Messenger 4.5 or later, there is no need to upgrade.

6 Click on [Audio Tuning Wizard] in the

[Tools] menu.

Note

• You can set the volume for playback or mic volume, etc.

• Also, confirm that the Palmcorder and PC are connected correctly.

The person you wish to access also needs to perform steps 1~6.

7 Select [File] -> [Add a Contact] to

• Please enter the same e-mail address that the other person has registered with Windows Messenger.

• After registering the e-mail address of the person you wish to access, click on [Send E-Mail] and have the person register your e-mail address as well.

DV202_402-K.p 85-87.p65 02/06/06, 13:3586

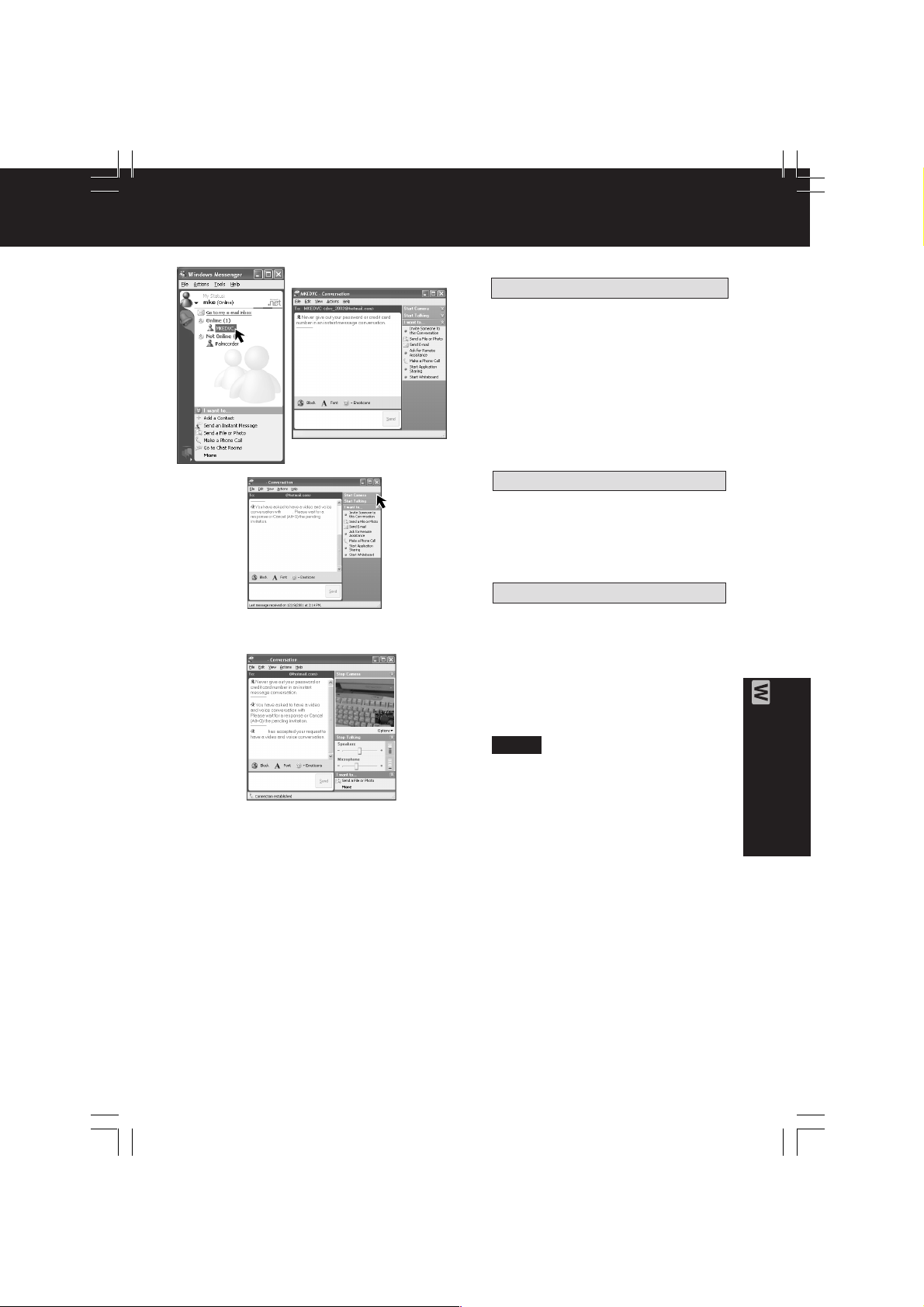

You cannot call a person who is not signed-on to Windows Messenger.

Web Camera (For Windows XP users)

8 The person calling (inviting) side

Double-click a person to call from

those currently [on-line].

•“xxxx-conversation” screen is

displayed.

9 The person calling (inviting) side

Click [Start Camera] in the

“xxx-conversation” screen.

• A message inviting the other person

is displayed.

The invited person side

A message asking if the person accepts or declines is displayed. Click [Accept] on the screen.

• To ignore the invitation, click

[Decline].

At this point you may proceed with a voice/video conversation.

Note

• For other information about Windows

Messenger, please refer to Help.

PC Connection

DV202_402-K.p 85-87.p65 02/06/06, 13:3587

When access is finished, close Windows Messenger, then set Palmcorder POWER to OFF. Finally, disconnect the USB Cable.

Web Camera (For Windows 98SE/Me/2000 users)

For MSN Messenger Service and Windows NetMeeting (Windows 98SE/Me/2000)

When MSN Messenger Service is newly installed or when run the first time, the following settings become necessary. For more details, please read the respective Help file.

Note

• Once settings are performed, they are not required from the second time the software is run.

Before you begin

• Be sure you have Internet connection.

• Referring to pages 83~84, connect the Palmcorder and PC.

Confirm that equipment is connected correctly by running the [Audio Tuning Wizard]. (p. 89)

Caution

• If you are having problems signing in to MSN Messenger Service and Windows NetMeeting when using Internet connection please refer to the MSN Messenger Service and Windows NetMeeting Support Center web-site on www.microsoft.com

• For MSN Messenger Service and Windows NetMeeting, please refer to the Microsoft Home Page: http://www.microsoft.com/ http://www.msn.com/

1 Turn on your PC. 2 Download the latest version MSN

Messenger Service (4.5 or later) and Windows NetMeeting (3.01 or later)

from the Microsoft Home Page: http://www.microsoft.com/ http://www.msn.com/

• For download instructions, please refer to Help on the Home Page.

3 Install the MSN Messenger Service.

• Follow the instructions on the screen.

4 The first time MSN Messenger Service

is run, etc., the Setup screen is displayed.

Click [Click here to sign in].

Please carefully read the contents and then proceed.

DV202_402-K.p 88-91.p65 02/06/06, 13:3588

5 Type in your Sign-in name and

password.

• Yo u ’ll need to get a hotmail address. If you do not have one, click on [Get one here]. Please carefully read the displayed contents and then proceed.

There are times when a Version Upgrade screen will be displayed. However, if you are using MSN Messenger Service 4.5 or later, there is no need to upgrade.

Web Camera (For Windows 98SE/Me/2000 users)

6 Click on [Audio Tuning Wizard] in the

[Tools] menu.

Note

• You can set the volume for playback or mic volume, etc.

• Also, confirm that the Palmcorder and PC are connected correctly.

The person you wish to access also needs to perform steps 1~6.

7 Select [Tools] -> [Add a Contact] to

• Please enter the same e-mail address that the other person has registered with MSN Messenger Service.

• After registering the e-mail address of the person you wish to access, click on [Send E-Mail] and have the person register your e-mail address as well.

DV202_402-K.p 88-91.p65 02/06/06, 13:3589

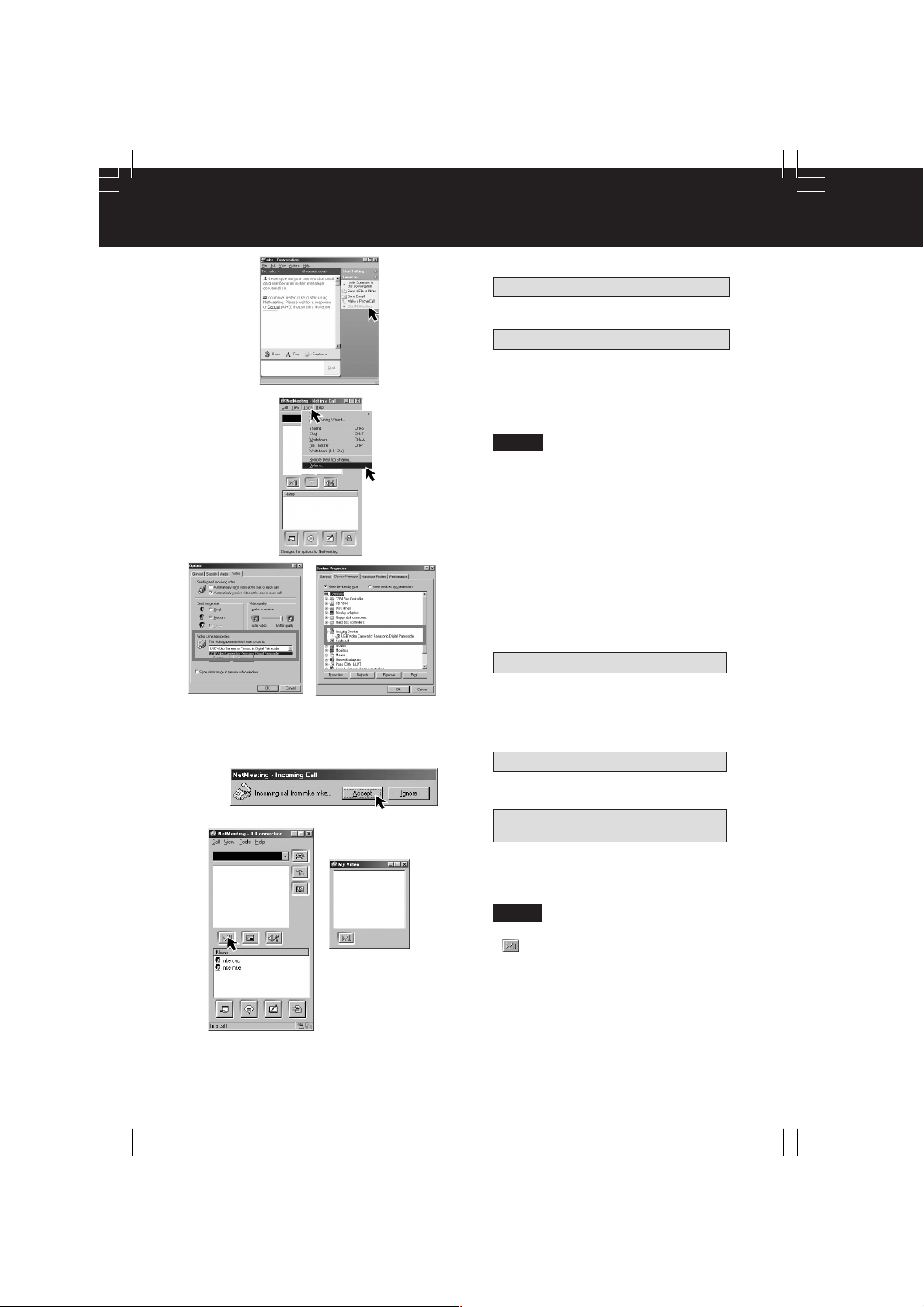

You cannot call a person who is not signed-on to MSN Messenger Service.

8 The person calling (inviting) side

Double-click a person to call from

those currently [on-line].

•“xxxx-conversation” screen is displayed.

PC Connection

Web Camera (For Windows 98SE/Me/2000 users)

9 The person calling (inviting) side

Click [Start NetMeeting] in the

“xxx-conversation” screen.

The invited person side

The Instant Message screen appears and a confirmation message is displayed. Click on [Accept].

The NetMeeting screen is automatically opened.

Note

The first time Windows NetMeeting is run, etc., the Setup screen is displayed. Please carefully read the contents and then proceed.

The user information, etc. is input.

Following the directions, please complete the settings.

Click on [Options] in the [Tools] menu

to confirm Video Camera Properties.

• If Video is not recognized in Video Camera Properties, select Control Panel, System, Device Manager, and finally Image Device for confirmation.

The invited person side

A message asking if the person accepts or declines is displayed. Click [Accept] on the screen.

• To ignore the invitation, click [Decline].

The person calling (inviting) side

“Incoming-Call” screen is displayed.

Click on [Accept].

The invited person side The person calling (inviting) side

The real-time live picture displayed in the video camera is displayed on both yours and the other person’s window screen.

Note

• If the picture is not displayed, click

several times on the screen.

• For other information about MSN Messenger Service and Windows NetMeeting, please refer to Help.

When access is finished, close MSN Messenger Service and Windows NetMeeting, then set Palmcorder POWER to OFF. Finally, disconnect the USB Cable.

DV202_402-K.p 88-91.p65 02/06/06, 13:3590

Windows 2000

Warning Indications

In Windows 2000, startup PHOTOVU/ MPEG4 Movie Messenger System. Clicking on [VideoGift] may cause the type of error to occur to the left. If so, please perform the following instructions.

Download and install Media Player (7.1 or later), go to http://www.microsoft.com/windows/ mediaplayer (current as of Dec. 28, 2001).

•“Windows Media. com: Download” is opened.

Click [Download Now!] on the screen.

• The “File Download” screen is displayed.

Then, follow the instructions on the screen.

DV202_402-K.p 88-91.p65 02/06/06, 13:3591

PC Connection

Transferring Your Images (Macintosh)

You can transfer images from your Palmcorder Memory Card to your Macintosh.

System Requirements (for Built-in SD Drive/ArcSoft Software (PV-DV402-K only)

• Mac OS 9.0~9.1

• Mac OS 8.6~9.1 (for ArcSoft Software)

• iMac, iBook or Power Macintosh USB port or Power Mac

• RAM: 64 MB or more

• CD-ROM drive (for installation)

Even if system requirements are met, there is no guarantee that the included software will work on all personal computers.

G3 with

Connection

• USB Port

• Mouse or other pointing device

• 210 MB minimum available hard disk space (for ArcSoft Software)

• High colour (16 bit) or more (for ArcSoft Software)

USB Terminal

USB Cable (supplied)

1 Turn on your PC. 2 Set the Palmcorder POWER to M-CARD. 3 Connect the Palmcorder to your Macintosh using the USB Cable (supplied).

Note

• For extended use, it is recommended that you use the AC Adaptor as a power source.

DV202_402-K.p 92-93.p65 02/06/06, 13:3892

Transferring Your Images (Macintosh)

Using Built-in SD Drive

ArcSoft applications Installation (PV-DV402-K only)

• For information on ArcSoft applications: TEL : 1-510-440-9901 FAX : 1-510-440-1270 Web Site : http://www.arcsoft.com E-mail : support@arcsoft.com

Before you begin

• Set POWER to OFF before inserting a recorded Memory Card. (pp. 49, 50)

1 Set the Palmcorder POWER to

M-CARD.

2 Connect the Palmcorder to your

Macintosh using the USB Cable

(supplied). (p. 92)

•“PLEASE WAIT”, “CONNECT WITH PC”, and “STORAGE” is displayed on the LCD monitor.

3 Double click the “Untitled” icon.

• You can view images stored on the Memory Card and also save them to your hard disk.

4 Follow the instructions as they appear

on your Macintosh section screen.

Note

• Please do not change file or folder names on the PC. The images on the Memory Card may not be able to be viewed on the Palmcorder.

• When “ACCESS” is displayed in the EVF or LCD monitor, please do not remove the Memory Card or USB Cable, or turn off the power as data may be damaged.

1 Turn on the Macintosh. 2 Insert the supplied Software

CD-ROM into the CD-ROM Drive.

PC Connection

DV202_402-K.p 92-93.p65 02/06/06, 13:3593

3 Double click the “Panasonic” icon.

Double click the “ArcSoft” Folder.

4 Double click the “Panorama Maker

Installer,” “PhotoBase Installer,”

“PhotoImpression Installer,” and “PhotoPrinter Pro Installer.”

5 Follow the instructions as they appear

on your Macintosh section screen.

Palmcorder Accessory System

Accessory #

PV-DAC11A-K

CGR-D08A/1B

CGR-D16A/1B

CGP-D28A/1B

CGR-D53A/1K

PV-DDC9-K

Figure

Description

AC Adaptor with AC Cable and DC Cable

800mAH / 1 h 30 min, Battery Pack

1600mAH / 3 h, Battery Pack

2800mAH/ 5 h, Battery Pack

5300mAH / 9 h, Battery Pack

DV Interface Cable (i.LINK) (4-pin to 4-pin)

PV-DRC9-K

PV-MM8-K

BN-SDCAPE/1B

BN-SDABPE/1B

PV-DCC11-K

DV202_402-K.P 94-95.p65 02/06/06, 13:3594

IR Remote Control

8 MB MultiMediaCard

SD USB Reader/Writer (compatible with MultiMediaCard)

SD PCMCIA Adaptor (compatible with MultiMediaCard)

Car Battery Cord

Notes On Operations

About the Memory Card (MultiMediaCard and SD Memory Card)

• Model PV-DV202-K/PV-DV402-K can be used with either a MultiMediaCard or a SD Memory Card.

• Both of these exterior Memory Cards (MultiMediaCard and SD Memory Card) are lightweight and removable.

• Both Memory Cards (MultiMediaCard and SD Memory Card) are offered in a variety of memory sizes, so you can purchase a higher capacity Memory Card if desired.

Approximate Brightness Values

Your Palmcorder has been designed for normal scene illumination of 150 footcandles (1500 lx). However, the Palmcorder may be used at F1:1.8, if illumination is more than

0.5 footcandles (5 lx). The table below shows the colour temperature for reference.

PALMCORDER SETTINGS

(Amber Filter Range)

- - - - - - - - - - - - -

“OUTDOOR”

- - -

“AUTO”

“INDOOR”

- - -

- - - - - - - - - - - - -

(Blue Filter Range)

CONDITIONS

• Fair weather, blue sky

• Slightly cloudy sky

• Cloudy or rainy sky

• Sunlight in clear weather at

midday

• Average sunlight in clear weather

• Sunlight 2 hours after sunrise

and before sunset

• Sunlight 40 min. after sunrise

and before sunset

• Sunlight 30 min. after sunrise

and before sunset

• Sunlight 20 min. after sunrise

and before sunset

KELVIN COLOUR TEMPERATURE

— 10,000

— 8,000

— 7,000 — 6,500

— 6,000 — 5,500

— 5,000

— 4,500

— 4,000

— 3,500

— 3,200

— 2,800

— 2,000

ARTIFICIAL LIGHT SOURCENATURAL LIGHT

• Colour television

• Fluorescent lamp (Daylight)

• Camera flash bulb

• Blue lamp for photography

• Fluorescent lamp (White)

• Normal flash bulb

• Fluorescent lamp (Off-white)

• Tungsten lamp for

photography

• Halogen lamp

• Iodine lamp

• Tungsten lamp

• Acetylene lamp

• Kerosene lamp

• Candlelight

COLOUR TINT MIXTURE

Bluish

Whitish

For Your Information

Yellowish

Reddish

DV202_402-K.P 94-95.p65 02/06/06, 13:3595

Specifications

Power Source: Palmcorder: 7.2 V DC (Battery)

AC Adaptor: 110/120/220/240 V AC, 50/60 Hz Battery: Lithium-Ion Type DC 7.2 V

Power Consumption: Palmcorder : 7.2 V/7.8 V DC 6.5 W (Max. 9.5 W)

AC Adaptor : 18 W

Digital Interface USB/i.LINK (IEEE1394) Video Signal: EIA Standard (525 lines, 60 fields) NTSC colour signal Video Recording System: 2 rotary heads, helical scanning system Audio: 12 bit (32 kHz) 4 tracks

16 bit (48 kHz) 2 tracks

Pick-Up System and Device: One integral colour filter Charge Coupled Device

(CCD)

Lens: 10:1 zoom lens, F1:1.8 with auto iris control

Focal length: 3.6 mm - 36 mm Power zoom function Lens filter diameter: 43 mm

Viewfinder: 5.3 mm (0.21 inch) Liquid Crystal Electronic

Viewfinder

LCD Monitor: 63.5 mm (2.5 inch) Liquid Crystal Display (PV-DV202-K)

88.9 mm (3.5 inch) Liquid Crystal Display (PV-DV402-K)

Minimum Illumination Required: 5 lx (F1:1.8) 0.5 footcandles

0 lx (MAGICVU/0LUX ON) (PV-DV402-K only)

Memory (Still image) MultiMediaCard/SD Memory Card

640 x 480 pixels (NORMAL mode) 1280 x 960 pixels (FINE mode)

Image Storage (supplied Approx. 70 images (NORMAL mode) 8 MB Memory Card) Approx. 30 images (FINE mode)

Image Format JPEG (Design Rule for Camera File System) Operating Temperature: 32 °F~104 °F (0 °C~40 °C) Operating Humidity: 10 %~75 % Weight: Palmcorder : (PV-DV202-K/402-K)

AC Adaptor : 0.16 kg

Dimensions: Palmcorder : (PV-DV202-K/402-K)

AC Adaptor : 70 (W) x 45 (H) x 115 (D) mm

7.8 V DC (AC Adaptor)

1 W (when not in use.)

0.58 kg

1.28 Ibs.

0.35 Ibs.

74 (W) x 88.5 (H) x 185 (D) mm 2-7/8 (W) x 3-1/2 (H) x 7-5/16 (D) inch

2-3/4 (W) x 1-3/4 (H) x 4-1/2 (D) inch

Weight and dimensions shown are approximate. Designs and specifications are subject to change without notice.

DV202_402-K.p 96-100.p65 02/06/06, 13:3596

Before Requesting Service

Cleaning Care for Video Heads

(a) Video Head Cleaning: Normally, your Palmcorder will not

require head cleaning. However, it is possible that the heads may become clogged due to dust in the air, playing damaged tapes, long term use, etc. If “NEED HEAD CLEANING” appears for 5 seconds in the EVF or LCD monitor, the heads may require cleaning.

Clogged Video Head

Tape Operations Caution

• When you go from function to function (PLAY, FF, REW etc.), please note that the unit

will not accept a new function operation until the previous operation is complete.

• The POWER Button and all function buttons, (PLAY, FF, REW, etc.) are only operational

after the tape has been completely loaded.

Lens Hood Area Operation Caution

When the following accessories are attached and the zoom is set to maximum wide angle, the four corners of the sceen may appear darker:

• Wide or Telephoto conversion lens (optional).

• A filter (optional), etc. and then the lens hood.

• Two filters (optional).

(b) Cleaning the Heads: It is recommended that head cleaning be performed by a qualified service technician. Please contact your nearest Panasonic Servicenter. An alternate solution is to obtain a head cleaning cassette. Please use Panasonic cleaning cassette (AY-DVMCLA). Be sure to follow the cleaning instructions carefully. Excessive use of the head cleaning cassette could shorten video head life. Use this cassette only when a head clogging symptoms occur.

Refer servicing to qualified service personnel.

DV202_402-K.p 96-100.p65 02/06/06, 13:3597

For Your Information

Before Requesting Service

If you have a problem with your Palmcorder, it may be something you can correct yourself. Check the list below for symptoms and corrections.

Symptom

No picture in the EVF or LCD Monitor...

Video cassette cannot be inserted...

Video cassette cannot be removed...

No operation starts when operation buttons are pressed...

Recording cannot be done...

Auto Focus does not operate...

Sound from microphone cannot be monitored...

Sound cannot be heard...

Correction

• Make sure the Power Source is connected. (pp. 14, 15)

• Make sure the POWER is set to VCR or CAMERA. (pp. 18, 32)

• Check the Dew Indicator. (p. 99)

• Make sure the Battery is fully charged.

(p. 14)

• Make sure all necessary cables are connected correctly and firmly. (p. 15)

• Make sure the Lens Cap is removed. (p. 18)

• Make sure the Power Source is connected.

(pp. 14, 15)

• Insert the cassette record tab up, window side facing out. (p. 11)

• Make sure the Power source is connected. (pp. 14, 15)

• Check the Dew Indicator. (p. 99)

• Make sure the record tab is closed. (p. 7)

• Check the Battery Indication. (p. 107)

• Make sure FOCUS is set to AUTO. (p. 29)

• Make sure the unit is ON and set to

CAMERA mode. (p. 18)

• Make sure the unit is set to REC or REC/ PAUSE mode.

• Make sure the Audio on the VCR MENU is set to ST1. (pp. 45, 105)

DV202_402-K.p 96-100.p65 02/06/06, 13:3598

On-Screen Displays (OSD)

The following warning displays appear in the EVF and the LCD monitor.

Indications

Condition

If the Palmcorder is in CAMERA mode without a cassette inserted,

“

” will flash and “TAPE NOT INSERTED” will appear for

5 seconds. Recording will not start.

If the Palmcorder is in CAMERA mode or Audio dub mode or Rec mode in VCR mode (PV-DV402-K) with the cassette sliding record tab opened, “ ” will flash and “CHECK REC TAB” will appear for 5 seconds. Recording will not start.

When Audio dub is performed and the recording is other than NTSC format, “ 5 seconds.

When the tape is about to end in REC mode, “ END” will flash and “TAPE END” will appear for 5 seconds.

When an incompatible tape is detected, “INCOMPATIBLE TAPE” will appear for 5 seconds.

If the video heads require cleaning, “NEED HEAD CLEANING” will appear for 5 seconds.

When the Palmcorder and remote are not set to the same mode (VCR1 or VCR2), “CHECK REMOTE MODE (REMOTE)” appears for 5 seconds. It also appears when the Palmcorder is first turned on.

When an AUDIO DUB is attempted on a pre-recorded LP tape, “CANNOT REC LP-MODE” will appear for 5 seconds.

If excessive moisture condenses in the unit, “WARNING” will flash, “DEW DETECTED” will appear, and the Palmcorder will automatically turn OFF in 15 seconds. In this case, wait until the indicator no longer flashes when your Palmcorder is turned ON again.

When a battery recharge is necessary, “WARNING” will flash, “LOW BATTERY” will appear, and the Palmcorder will automatically turn OFF in 15 seconds. (p. 107)

When the built-in lithium clock battery is discharged, “CLOCK BATTERY” will appear. To re-charge the lithium clock battery, connect the AC Adaptor to the Palmcorder. Recharging takes approx. 4 hours. Reset the clock after charging.

” will flash and “CANNOT REC” will appear for

For Your Information

DV202_402-K.p 96-100.p65 02/06/06, 13:3599

On-Screen Displays (OSD)

Indications Condition

If you play a tape recorded in a format other than NTSC or you try to copy copy-protected data, “INCOMPATIBLE DATA” will appear.

When a still image is transferred from a tape to an already full Memory Card, or when setting is DPOF, “NO SPACE LEFT” appears.

If the Palmcorder is in M-CARD mode or Photo Title (CAMERA mode) and the DV Interface Cable (i.LINK) is connected, “DISCONNECT DV CABLE” appears. In this case, remove the DV Interface Cable (i.LINK) from the Palmcorder.

In M-CARD mode, this display appears if the SD Memory Card Lock Switch is in the Lock position.

100

DV202_402-K.p 96-100.p65 02/06/06, 13:35100

Panasonic PV-DV402K Operating Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
