Panasonic PV-DV101, PV-DV51 User Manual

Specifications and Main Features

There are three model numbers available for this device PV-DV51 and PV-DV101 that can come under both Standard Play and Long Play.
The product is compatible with 6.35 mm digital standard cassettes that include AY-DVM30EA , AY-DVM60EA, and AY-DVM80.
The device consumes supply from an AC Adaptor that has both AC and DC cables.
For the device to fully charge it requires around 1 hour and 30 minutes using EVF.
The device is equipped with an LCD Monitor alongside an Electronic Viewfinder. Using this model the user can utilize Optical and Digital Zoom.
Some of the features of this device include Dual Digital Electronic Image Stabilization System, audio dubbing via built in microphones, Various playback modes, Focus features, special effects including Mirror, Strobe, Picture in Picture PinP, and Sepia,
The built in feature that is allowed with the device is programmable auto exposure alongside time and date.
Optional remote control is also available with this device alongside AV cables and other links.

It takes AY-DVM30EA around 30 minutes to record in SP mode and 45 minutes in LP mode.
AY-DVM60EA: 60 minutes (SP), 90 minutes (LP)
AY-DVM80EA: 80 minutes (SP), 120 minutes (LP)
EVF And LCD Monitor: If it shows TAPE NOT INSERTED, then what must be done?
If these indications are shown then it means the Palmcorder is in CAMERA mode with no cassette inserted. Check to see if cassette is inserted correctly or not.

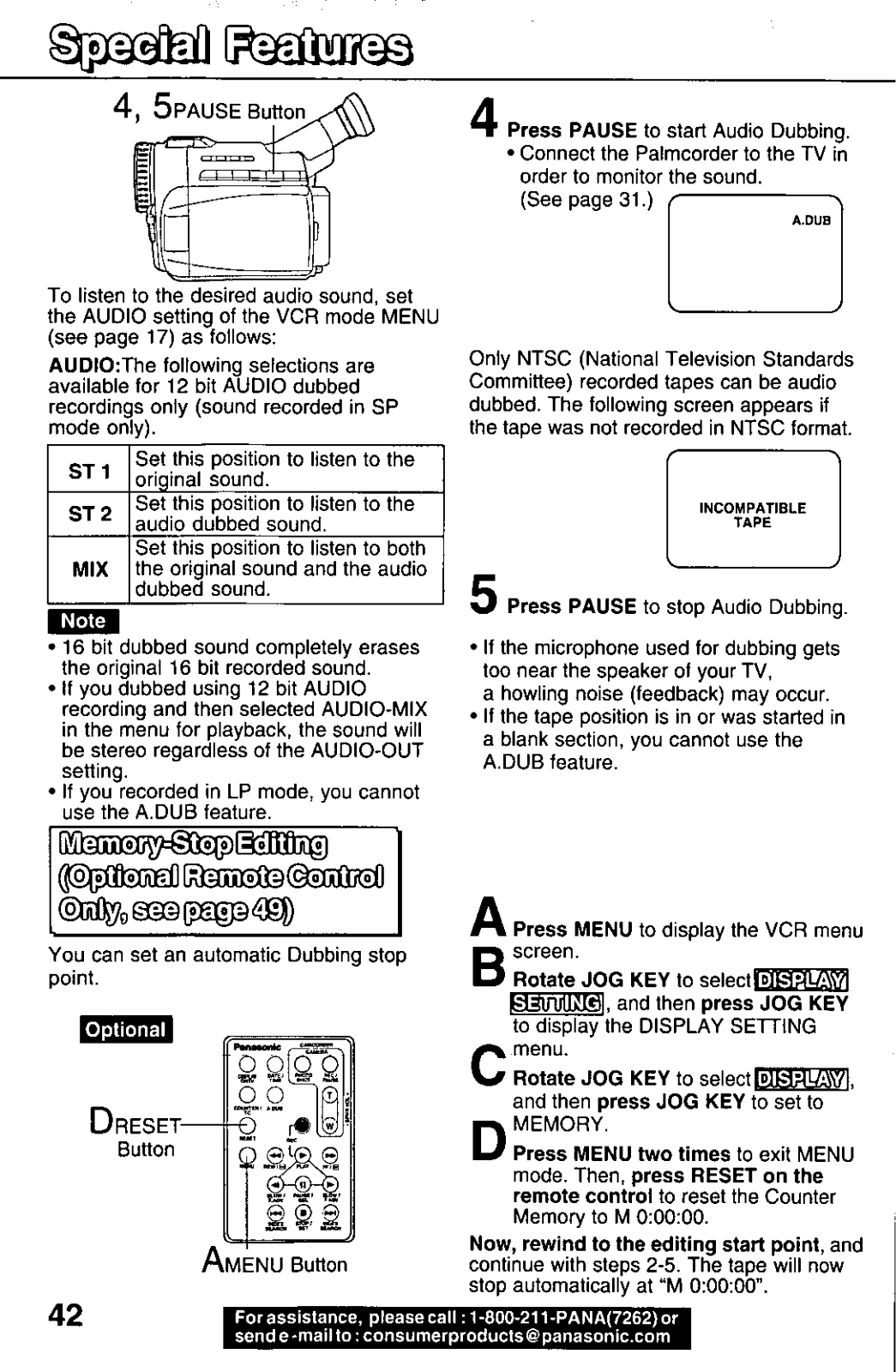

Audio Adjustment During Playback: Is it possible to make audio adjustments mid-way while the device is being played back?
Yes, you can adjust the playback volume by Digging in the VOLUME KEY mid way on the playback.
Palmcorder CGR DBP8A Battery Charge: What kind of a battery can it take and what are the means to recharge it?
The Palmcorder acceptes a CGR-DBP8A type of battery. Use the mentioned AC Adaptor to charge the battery and make sure that the battery is charged between the range of 32 degrees Fahrenheit to 104 degrees Fahrenheit.
Image Electronic Stabilizing System Dual Inverse: What features assist in stabilizing a video while recording it?
The Dual Digital Electronic Image Stabilization System (D.E.I.S) assists to obtain minimum effect due to unintended hand or body movement, while performing body changes.
Charging The Low Battery Palmcorder: So as soon as the LOW BATTERY warning appears, what needs to be done?
For the Palmcorder to shut down, charge the battery at once or change it to a fully charged battery.
