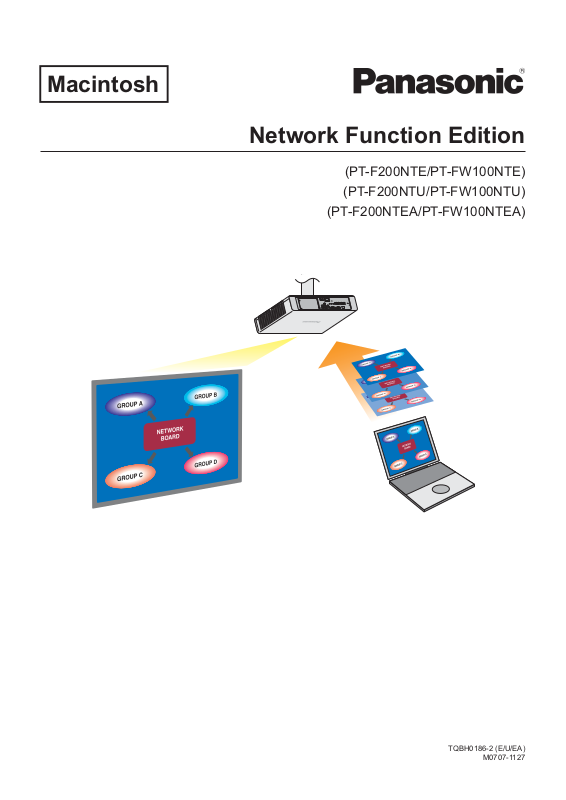

Panasonic PT-F200NTE, PT-F200NTU, PT-F200NTEA, PT-FW100NTE, PT-FW100NTEA User Manual

...

Macintosh

Network Function Edition

(PT-F200NTE/PT-FW100NTE)

(PT-F200NTU/PT-FW100NTU)

(PT-F200NTEA/PT-FW100NTEA)

TQBH0186-2 (E/U/EA)

M0707-1127

Contents

Software Licensing Agreement …………………… 3 Notes on Using Wireless Connection …………… 4 Request Regarding Security ……………………… 6

Software Installation ………………………………… 9

System requirements ……………………………………………… 9

Connecting with wireless LAN …………………… 11

Easy Wireless Set Up …………………………………………… 11

Detailed settings ………………………………………………… 11

Connecting with Wired LAN ……………………… 16

Selecting the connection method ………………… 17

Other operations for connection ………………… 18

Operations when password entry is required for connection Adding and deleting connections ……………………………… 18

…18

Various projection methods ……………………… 21

Menu description ………………………………………………… 21

What you can do with Wireless Manager mobile edition 4.5

…7

Check your computer ……………………………… 8

Necessary environment for computers to be connected ……… 8

Contents on Provided CD-ROM ………………………………… 10

Wireless Manager ME 4.5 ……………………………………… 10

Connection error messages …………………………………… 14

Connecting through the access point ………………………… 15

Searching by projector’s ID …………………………………… 19 Canceling the connection ……………………………………… 20

Live mode …………………………………………………………… 22

Useful Functions …………………………………… 23

Setting options ……………………………………… 24

Setting option window …………………………………………… 24

Transmission ……………………………………………………… 24

Network setting of the projector ………………… 27

Displaying the Network Menu …………………………………… 27

Wired LAN settings ……………………………………………… 28 Default wired LAN settings ……………………………………… 28

Changing the network number ………………………………… 29 [User] settings …………………………………………………… 29

IP address settings ……………………………………………… 29 Wireless settings ………………………………………………… 30

Using WebBrowser ………………………………… 35

Before using the WebBrowser control ………………………… 35

Accessing from the WebBrowser ……………………………… 36

Software Uninstall …………………………………… 43

Shutter function …………………………………………………… 23

Key setting ………………………………………………………… 25 Other ……………………………………………………………… 26 Version information ……………………………………………… 26

Default settings of [USER1]-[USER3] ………………………… 31

Changing the projector name …………………………………… 32 Password setting ………………………………………………… 32 Network standby ………………………………………………… 33 Live mode cut-in …………………………………………………… 33 Verifying settings ………………………………………………… 34 Returning to the Initial Settings ………………………………… 34

Monitor information window …………………………………… 37 Projector control window ………………………………………… 38 Detailed settings window ……………………………………… 39

Wireless Manager ME 4.5 ………………………………………… 43

Glossary ……………………………………………… 44 Frequently Asked Questions ……………………… 46

Software Licensing Agreement

Use of this Software is governed by the terms defined in this Software Licensing Agreement.

Article 1 License

Licensee is granted the right to use this software, including the information recorded or described on the CD-ROM and in the instruction manual and any other media provided to the Licensee (collectively “Software”), but all applicable rights to copyright or intellectual property in the Software are not transferable to the Licensee.

Article 2 Use by a Third Party

Licensee may not transfer or allow any third party, to use or copy the Software, whether free of charge or not.

Article 3 Restrictions on Copying the Software

Licensee may make a single copy of the Software in whole or in part solely for backup purposes. However this excludes those copied using this software.

Article 4 Computer

Licensee may install and use the Software on more than one computer owned or managed by Licensee. However, such use is restricted to only applications involving the projector.

Article 5 Reverse Engineering, Decompiling or Disassembly

Licensee may not reverse engineer, decompile or disassemble the Software. Matsushita shall not be bound by warranty for any defects in the Software caused by Licensee’s reverse engineering, decompiling or disassembly of the Software. Furthermore, Matsushita or its distributors or dealers will not be responsible for any damage to the Licensee caused by Licensee’s reverse engineering, decompiling or disassembly of the Software.

Article 6 After-sales Service

If a problem should occur with the Software while Licensee is using the Software, Licensee should notify Matsushita of the problem by telephone or letter. Matsushita shall undertake to notify Licensee of whether the problem is a known error in the program (“bug”), or whether the way in which the Software is to be used should be modified. Furthermore, the Software is subject to revision without prior notice.

Article 7 Indemnification

Matsushita’s liability with respect to this Software is limited to the conditions defined in Article 6 herein. Matsushita or any of its distributors or dealers shall not be liable for any damage suffered by Licensee, either directly or through claims from a third party, arising from or in connection with Licensee’s use of the Software. Furthermore, Matsushita makes absolutely no warranty for the use of this Software for any purpose other than for applications associated with the projector with which this Software is bundled.

Article 8 Export Control

Licensee agrees not to export or re-export the Software to any county other than the country of purchase of the projector in any form without the appropriate export licenses under the regulations of the country where Licensee resides or of any other country as may be required by such export or re-export.

Wireless Manager uses the following software: Portion of this software are based in part on the work of the Independent JPEG Group

Please note the following.

• Panasonic cannot be held liable for any direct or indirect damages resulting from the use or malfunction of this projector.

• Panasonic cannot be held liable for damages arising from data corruption or loss as a result of using this projector.

Notes on Using Wireless Connection

Wireless connection function of the projector uses radio waves in the 2.4 GHz band. A radio station license is not required, but be sure to read and fully understand the following items before use.

Do not use near other wireless equipment.

The following equipment may use radio waves in the same band as the projector. When the projector is used near these devices, radio wave interference may make communication impossible, or the communication speed may become slower.

• Microwave ovens, etc.

• Industrial, chemical and medical equipment, etc.

• In-plant radio stations for identifying moving objects such as those used in factory manufacturing lines, etc.

• Designated low-power radio stations

If at all possible, avoid the use of cellular phones, TV sets or radios near the projector.

Cellular phones, TV sets, radios and similar devices use different radio bands from wireless communication or the transmission and reception of these devices. However, radio waves from the projector may produce audio or video noise.

Wireless communication radio waves cannot penetrate steel reinforcements, metal, concrete,

etc.

Communication is possible through walls and floors made from materials such as wood and glass (except glass containing wire mesh), but not through walls and floors made from steel reinforcements, metal, concrete, etc.

Avoid using the projector in locations prone to static electricity.

If the projector is used in a location prone to static electricity, such as on a carpet, the wireless LAN or wired LAN connection may be lost. If this happens, eliminate the source of static electricity or electromagnetic noise and reconnect to the wireless LAN or wired LAN. In rare cases static electricity or electromagnetic noise may make it impossible to establish a connection to the LAN. If this happens, press the power button on the remote control or on the projector to power off the projector temporarily. After the cooling fan stops operating (after the power monitor on the projector changes from orange to red), power on the projector and reconnect to the LAN.

the projector, so there is no effect on

Using the projector outside the country

It is forbidden to take the projector outside the country or region where you purchased it, so use it only in the said country or region. Also, note that depending on countries or regions there are restrictions on the channels and frequencies at which you can use the wireless LAN.

Notes on Using Wireless Connection (cont.)

Channels that can be used

The channels (frequency range) that can be used differ according to the country or region. Refer to the table below.

Country or region Standard Channels used

Japan ARIB STD-T66

China SRRC

England, Germany, France, Spain, Italy, Belgium, Austria, Sweden, Norway, Denmark, Switzerland, Holland, Finland, Portugal, Greece, Thailand, South Korea

Singapore IDA

Australia,

New Zealand

Malaysia SIRIM

United States FCC part 15

Taiwan DGT

ETSI 300.328

1 - 13

C-Tick

1 - 11

Frequency band

(Center frequency)

2,412 MHz 2,472 MHz

2,412 MHz 2,462 MHz

Wired LAN

Use straight or crossover LAN cable that is compatible with category 5 or above.

※1: Use category 5e or above when using 1000BASE-T. ※2: Whether straight cable, crossover cable or both can be used varies depending on the system configuration. For details,

consult your system administrator.

Request Regarding Security

When using this product, be sure to implement sufficient security measures as security breaches of the type described below are conceivable.

Possible Security Breaches

• Leakage of your private information via this product

• Illegal operation of this product by a malicious third-party

• Harm to or cessation of operation of this product by a malicious third-party

Security Measures

• Make sure the password is as hard to guess as possible.

• Change the password periodically.

• Matsushita Electric Industrial Co., Ltd. and its affiliated companies never directly ask customers for their password. Do not give out your password even if directly asked by a third-party representing themselves as Matsushita Electric Industrial Co., Ltd.

About Wireless LANs

With a wireless LAN, information is exchanged between a PC or other such equipment and an access point using radio waves rather than using a LAN cable. The advantage of a wireless connection is that it is possible to freely connect to the LAN as long as you are within range for radio transmissions. On the other hand, because the radio waves can travel through obstacles (such as walls) and are available everywhere within a given range, problems of the type listed below may occur if security-related settings are not made.

Surreptitious monitoring of transmitted data

A malicious third-party may intentionally intercept and monitor transmitted data including the content of e-mail and personal information such as your ID, password, and/or credit card numbers.

Illegal system entry

A malicious third-party may access your personal or corporate network without authorization and engage in the following type of behavior.

• Retrieve personal and/or secret information (information leak)

• Spread false information by impersonating a particular person (spoofing)

• Overwrite intercepted communications and issue false data (tampering)

• Spread harmful software such as a computer virus and crash your data and/or system (system crash)

Since most wireless LAN devices (wireless LAN card or access point) are equipped with security features to take care of these problems, you can reduce the possibility of these problems occurring when using this product by making the appropriate security settings for the wireless LAN device.

Some wireless LAN devices may not be set for security immediately after purchase. To decrease the possibility of occurrence of security problems, before using any wireless LAN devices, be absolutely sure to make all security-related settings according to the instructions given in the operation manuals supplied with them. Depending on the specifications of the wireless LAN, a malicious third-party may be able to break security settings by special means. Please contact Panasonic if you need help taking care of security settings or other such.

Panasonic asks customers to thoroughly understand the risk of using this product without making security settings, and recommends that the customer make security settings at their own discretion and responsibility.

What you can do with Wireless Manager mobile edition 4.5

Network Transmission

You can connect the projector to a computer via the wireless LAN or the wired LAN, and send moving and still images. Refer to page 11 for details on how to connect.

<Live mode> (See page 22)

Used for normal presentations.

<WebBrowser control> (See page 35)

The following operations are possible when using WebBrowser control.

• Setting and adjusting the projector

• Displaying the projector status

• Sending an e-mail message when a projector error occurs

<One-click Connection> (See page 26)

You can connect to the projector by double-clicking or using drag-and-drop.

<Live mode cut-in function> (See page 33)

During the live mode, a different computer can interrupt and project images in the live mode.

Check your computer

Necessary environment for computers to be connected

• First, check your computer to see whether or not it has a wired LAN or a built-in wireless LAN※ function.

※LAN : “Glossary” (See page 44)

• Before connecting the projector to the computer, be sure to check the following settings.

• Operation is not guaranteed for all wireless LAN cards and built-in wireless LAN adapters.

Wireless LAN

Check 1

• Is your wireless LAN switched on?

Check 2

• Have you logged in as the [Admin (administrator)]?

Check 3

•

When security (firewall) software and utilities for network cards are installed, these may prevent connection of the projector.

Wireless LAN settings

Logon user’s settings

Computer’s settings

Wired LAN

Check

• Is your wired LAN switched on?

Wired LAN settings

Software Installation

System requirements

The computer must meet the following requirements in order to use the supplied software.

OS: Mac OS X v10.4

Mac OS X v10.5 CPU: 800 MHz PowerPC G4 or faster, or 1.8 GHz Intel Core processor or faster RAM: 256 MB or more (512 MB or more recommended) Empty hard disk capacity: 60 MB or more Hardware conditions: CD or DVD drive (for software installation and viewing the user’s manual) LAN terminal (10BASE-T/100BASE-TX/1000BASE-T) An 802.11 b/g built-in wireless LAN adapter must be installed and running properly. However, some 802.11 b/g wireless LAN may not allow a 802.11 g connection to projectors. WebBrowser:

Safari 2.0 or later

※

Operation is not guaranteed for all computers that meet the above conditions.

※ Only for MacBook and MacBook Pro computers with built-in Intel Core 2 Duo processor.

For the latest information, please see our Web site. http://panasonic.co.jp/pavc/global/projector/

Software Installation (cont.)

Contents on Provided CD-ROM

Set the provided CD-ROM into the CD/DVD-ROM drive.

• Quit all running programs. Otherwise, installation may not be possible.

• [Admin (administrator)] authority is required for installation.

Wireless Manager ME 4.5

This software is used to send screen images from a computer to the projector via a wireless LAN or a wired LAN.

Set the provided CD-ROM into the CD/DVD-ROM drive of a computer.

Double-click [WMmac4.5.dmg] in the CD/DVD-ROM drive.

[WMmac] appears on the desktop.

The user’s manual (Index.pdf) is on the CD/DVD-ROM disc. Double-click it to view it.

Double-click [Wireless Manager.pkg].

Installation begins. Follow the instructions on the screen and install the software.

• When a window for inputting a [Name] and [Password] appears, input the [Admin (administrator)]’s name and password.

• Install Wireless Manager ME 4.5 in the [Applications] folder (./Applications).

Connecting with wireless LAN

Easy Wireless Set Up

Detailed settings

Select the projector to connect from the computer.

Click the install target or [ ] in the Dock.

When the <Network Adapter Selection> window appears

ヂ Select the adapter from the list and click [OK]. If the confirmation dialog box appears, click [Yes]. ッ Set the icon and user name, and click [OK].

• For details on how to connect, refer to page 17.

• Only the built-in adapter appears on the <Network Adapter Selection> window.

Connecting with wireless LAN (cont.)

The projectors that can be connected are displayed on the <Select Access Port> window.

ヂ

ヅ

ッ

ツ

ドナニヌ

ヂ Network

When you specify the network number (See page 29) set on the projector from one of [1], [2], [3], [4], and [U (USER)] the selected network number are displayed in [Projector Name]. The initial value for both the computer and the projector is [1] ※1-2 (See page 13)

ッ ID (See page 19) Display projector’s ID. ツ Mode (See page 22) Display projector’s mode or style.

ヅ Available mode and functions

Unavailable modes/functions among [Live mode], [Multi live mode], and [One shot] are displayed with [ them.

テ The number of people connected to this projector デ The status of this projector ト [

] appears when password entry is needed for

connection. (See page 18)

※1

, projectors that are presently switched on in

※2

] overlaid on

テ

デ

ト

ド Connection message (See page 14)

Blinks when connection is not possible. Click to display information on resolving the issue.

ナ Connectability

When you click [Connectability], the projector name and ID are displayed at top left of the projector screen. If the projector name and ID are displayed correctly, the message “Projector is available.” will appear on the computer screen.

ニ Designate (See page 18) Designate projectors to be connected when ヂ is set to [U]. ヌ ID Search (See page 19)

When you click [ID Search], a search for the projector of the specified ID is carried out from among the projectors that are presently switched on, from all network numbers other than [U].

Connecting with wireless LAN (cont.)

In [Network], select the same network number as is displayed in the [WIRELESS

LAN] menu of the projector to connect.

Projectors powered on in the chosen network group are listed.

Select the desired projectors, and click [OK].

[ ] appears in the menu bar and a connection is established with the projector. (“Menu description” ĺSee page 21)

• Easy Wireless Set Up cannot be made between the projector and the computer. (See page 46)

• Automatic connection setting (See page 26)

※1

• In the following situation, connections other than [U] are not possible.

- When not installed in the [Applications] folder

• Depending on the computer and wireless LAN card used, Easy Wireless Set Up may not be possible. If this is the case,

the [Network] setting of <Select Access Port> window will be switched to [U] automatically. For details of the connection procedure, first close Wireless Manager ME 4.5, and then refer to page 15.

※2

• The initial network number for both the projector and Wireless Manager ME 4.5 is [1]. These numbers must match for the

connection. To check the network number, refer to the network menu of the projector.

• Although WEP (Wired Equivalent Privacy)

network numbers [2] through [4], so set [2] through [4] if security is to be emphasized.

• Important image data is protected because AES

even if [ENCRYPTION] is set to [NONE].

• Other network adapters may not be usable under Easy Wireless Set Up connections.

• Connections to other networks connected through the wireless LAN card are broken under Easy Wireless Set Up

connections.

※

is not set for network number [1], WEP (Wired Equivalent Privacy)※ is set for

※

encryption processing takes place in advance for all network numbers,

※ “Glossary” (See page 45)

Connecting with wireless LAN (cont.)

Connection error messages

If a wireless LAN connection cannot be established, click the [ ] button in the bottom left of the <Select Access Port> window to display information on resolving the issue as shown below.

Connecting with wireless LAN (cont.)

Connecting through the access point

You can make the setting for infrastructure mode※ (connection through the access point※); however, confirm to your system administrator on network settings before changing any settings. ※“Glossary” (See pages 44 - 45)

ヂ Projector settings

Turn on the projector and press the [NETWORK] button on the remote control.

Select [USER 1]- [USER 3] from [WIRELESS LAN] at the network menu and press

the [ENTER] button.

Set the details of network and select [OK].

As for network setting items, see pages 29 - 31. Confirm to your system administrator on network settings before changing any settings.

The projector’s MAC address※ can be checked with [STATUS] in the network menu of the projector unit. (“Verifying settings”ĺ see page 34) ※“Glossary” (See page 44)

ッ Computer settings

Turn on the computer.

Make the network setting according to your system administrator.

When the user does not have the [Admin (administrator)] authority, the [Admin (administrator)]’s name and password are required to make network settings.

Connect to your access point.

Start Wireless Manager ME 4.5, click [Wireless LAN] on the <Network Adapter

Selection> window and select the network adapter connected to the access port.

A confirmation message appears asking whether to switch the projector to the network or not. Select [No].

Select the desired projector on the <Select Access Port> window and click [OK].

[ ] appears in the menu bar and a connection is established with the projector. (“Menu description” ĺSee page 21)

If the projector is not displayed, click [Designate] followed by [ADD], then enter the IP address set in the projector using the <Access Port Registration> window, and click [REGISTER]. (See page 18)

If you are unable to connect to the wireless LAN through the access point even after performing the steps in “ヂ Projector settings,” contact the manufacturer of the access point.

+ 34 hidden pages
