Panasonic PT-AE700E User Manual

PT-AE700E

Home Cinema Projector

High Definition

Further advances

Bringing the ultimate big-screen experience to your home.

The latest advances in projector technology deliver

a new level of film-like realism and impact.

The PT-AE700 is the most impressive home cinema projector ever from

Panasonic. Compact enough to sit on a bookshelf, it is packed with advanced

features designed to bring you a whole new level of home theatre enjoyment.

Dynamic contrast is now 2,000:1, by far the best in its product class, so the picture is

sharp and clear even in a well-lit room. In addition, the new integrated cinema quality

circuitry includes a Dynamic Iris optical system that constantly adjusts the brightness and

gamma characteristics in real time, so the picture is always optimal and transitions between

scenes are more natural. Its innovative colour correction system incorporates Cinema colour

Management technology to ensure faithful colour reproduction. This cinema-quality

integrated circuitry brings you on-screen colours just as you would see them in a movie

theatre. Finally, the PT-AE700 comes with the advanced Smooth Screen technology that

brought great acclaim to the AE500. It effectively eliminates the screen door effect

that some LCD projectors are susceptible to, so the images you see on the

screen are natural and lifelike.

Ecology-Conscious Design

Panasonic works from every angle to minimize
environmental impact in the product design, production
and delivery processes, and in the performance of the
product itself over its life cycle. The PT-AE700 Series
reflects the following ecological considerations.

THE LATEST ADVANCES IN PROJECTOR TECHNOLOGY DELIVER A NEW LEVEL OF FILM-LIKE REALISM AND IMPACT

HIGH DEFINITION HOME CINEMA PROJECTOR

PT-AE700

Enjoy big-screen excitement and Hollywood picture
quality in your living room.

The PT-AE700 makes it possible to enjoy a home cinema

projector in new ways. You can use it in a larger room and with a

bigger screen than was practical with earlier LCD projector models. And

its compact and lightweight design gives you plenty of flexibility. Joystick

controlled vertical and horizontal lens shift adds further convenience. Unlike

digital keystone correction, which can add distortion to the on-screen image, the

new system is purely optical. It allows you to compensate for distortion when the

projector is situated at an angle to the screen while maintaining superb clarity and

picture fidelity. A newly developed 2x optical zoom lens allows you to adjust the

image size to match the setup layout and screen dimensions. With its

combination of convenient features and unmatched performance, the

PTAE700 brings the home cinema projector to a new level, and offers a

substantially larger screen size than either a CRT, LCD or plasma

display.

• Lead-free solder is used to mount components to the printed circuit boards.

• No halogenated flame retardants are used in the cabinet.

• No styrofoam is used in the packing materials.

• Lead-free glass is used for the lens.

• The packing case and operating manual are made from recycled paper.

• Lamp power switching further reduces power consumption.

ENJOY BIG-SCREEN EXCITEMENT AND HOLLYWOOD PICTURE QUALITY IN YOUR LIVING ROOM

New technology and features deliver film picture

New integrated cinema quality circuitry for enhanced expressiveness

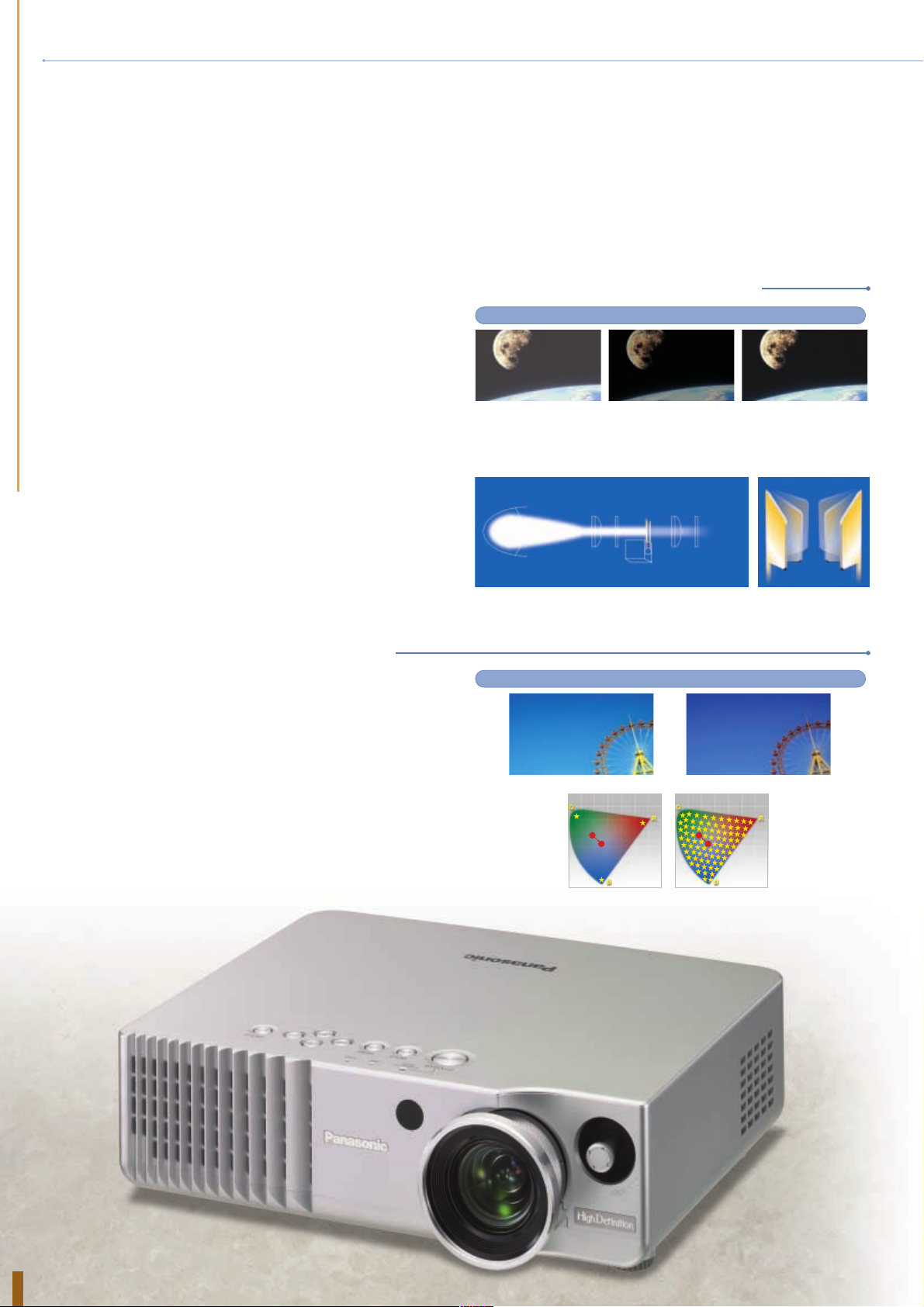

Dynamic Iris and light-interlocked dynamic gamma deliver amazingly high contrast of 2000:1

A new Dynamic Iris optical system incorporates AI technology to
control the light volume and gamma curve in real time. Gamma
correction is possible in every single scene. In conjunction with
lamp control, the world’s first Iris with scene-tracking capability
delivers a dynamic contrast of 2,000:1, so the picture is sharp and
clear even in a well-lit room. Superb brightness is achieved at the
same time, broadening the dynamic range. The dynamic gamma is
interlocked with the light source, so scene changes are smooth and
natural, and contribute to sufficient brightness in dark scenes. The
AI can detect as many as 3,000,000,000 combinations of scenes by
utilizing histogram analysis. An amazing response speed is achieved
by interlocking it with the light source rather than the lens.

Without lamp power control or
dynamic gamma correction blacks
and other colours appear lifeless.

Precise colour portrayal with deeper blacks

With lamp power control but without
dynamic gamma correction, blacks
and other colours are lackluster and
drab. Blacks and other dark portions
are not washed out, however whites
and bright portions are dim and dull.

Lamp Dynamic Iris

To three
LCD panel

With Dynamic iris and dynamic
gamma correction, the fine-tuned
image sustains the brilliance of
bright colours resulting in a truer
image over a wider livelier range.

Cinema Colour Management technology

The innovative colour correction system incorporates Cinema
Colour Management (CCM) technology, enabling free control of
colours. Until the development of CCM, it has been difficult to
reflect the colourist’s intentions, because correcting one colour
affected certain others. With CCM technology, individual correction
of approximately 1,070,000,000 colours without affecting other
colours is possible. Colour control usually includes control of
contrast, but CCM technology goes even further and controls
brightness too. CCM is a true breakthrough and moves colour
correction closer to the process used for motion pictures.

Adjust pin-pointed colours without affecting others

3-axis colour correction CCM colour correction

Conventional
3-axis colour correction

Adjusting colour A to B
changes the hues of the
surrounding colours.

The Iris opens and closes actual
time according to image signal.

A

B

A

B

AE700:
1,070,000,000 (approx.)
colour correction

Adjusting colour A to B has
no effect on the
surrounding colours.

NEW TECHNOLOGY AND FEATURES DELIVER FILM PICTURE QUALITY WITH LIFELIKE IMAGES

HIGH DEFINITION HOME CINEMA PROJECTOR

PT-AE700

quality with lifelike images

Extremely detailed, lifelike images thanks to advanced technology and functionality

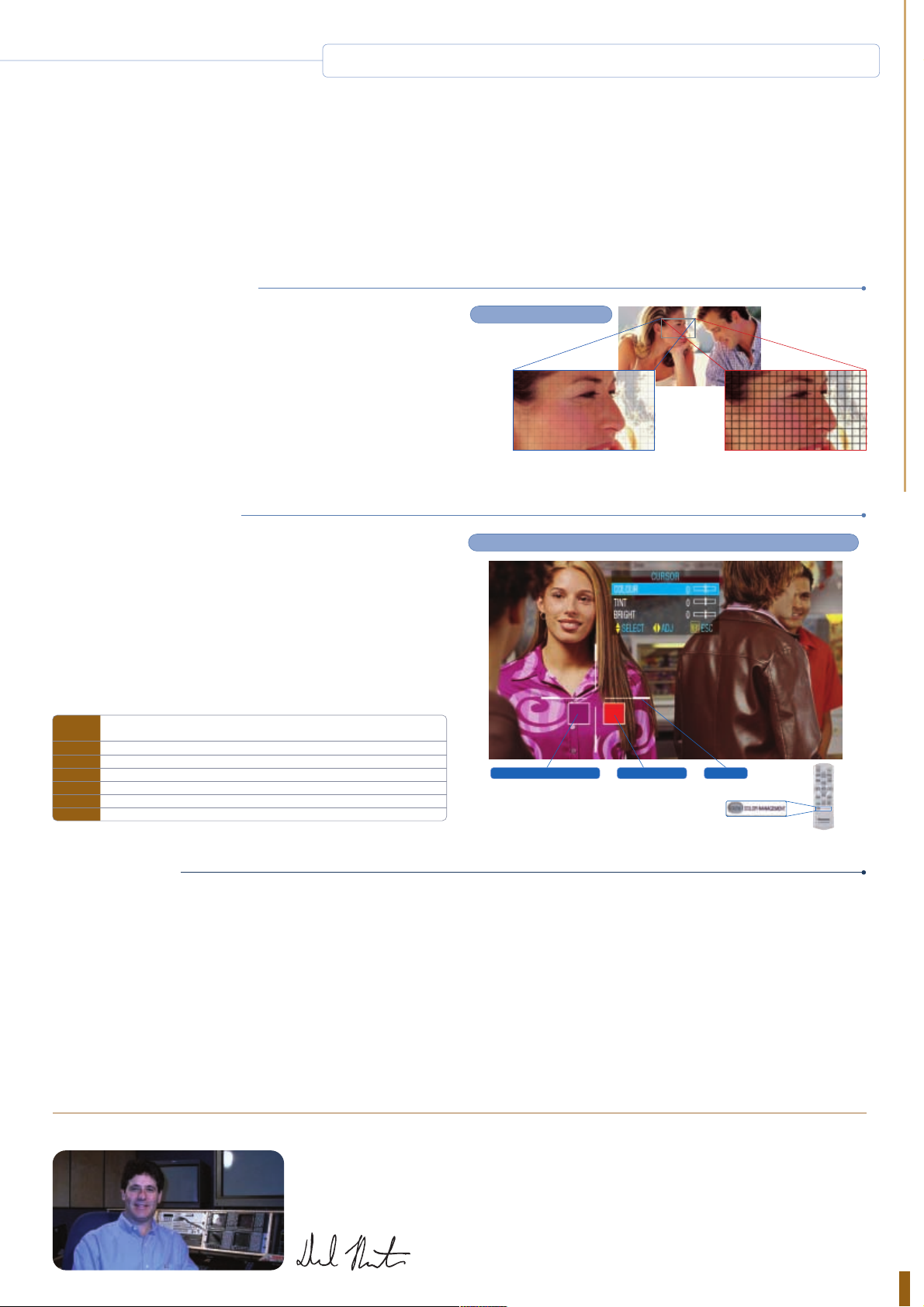

Smooth Screen technology

Smooth Screen technology effectively reduces the “chicken wire
effect”—the black lines between pixels that mar the images of
conventional LCD home cinema projectors. The high-definition
picture of the PT-AE700 is remarkably smooth and film-like, and at
the same time amazingly sharp and detailed.

For film-like realism

User equalizing function

By making use of our CCM technology, you can decide precisely how
the PT-AE700 presents your images. With 2,401 picture quality
settings to choose from, contrast, brightness and gamma level are
widely adjustable across 7 picture modes. Furthermore, up to three
sets of adjustments can be stored in memory, enabling users to
bring back the exact image settings they would like at any time.
Whether you are watching a movie, a live music performance or a
sports event, the PT-AE700 will project the scene exactly how you
want to see it.

For watching movies. The projected image will be refined.

Cinema 1

This mode was especially tuned to the look of Hollywood movies.
For watching movies. The projected image will be clear and have high contrast.

Cinema 2

For watching movies. The projected image will be deep and rich.

Cinema 3

For watching video sources such as music or sports programs.

Video

For watching various image sources.

Normal

For watching in a brightly lit room.

Dynamic

To reproduce the colour of the image faithfully from the image source.

Natural

Other features

10-bit full digital processing and 10-bit gamma correction

Accurate reproduction of subtle variations in brightness or hue is realized
using 10-bit full digital processing and 10-bit gamma correction, which
quadruple the number of displayable colours to over 1 billion (with 1,024
gradations).

New Dynamic Sharpness Control

The new Dynamic Sharpness Control circuit adjusts the video signal
waveforms based on the difference in brightness of adjacent pixels for a
sharp, clear picture that is relatively unaffected by signal noise.

Progressive Cinema Scan (3/2 Pulldown) and HD IP

Progressive Cinema Scan (3/2 Pulldown) interlace/progressive conversion
technology automatically detects when the input signal is derived from filmed

PT-AE700: Smoothly textured images, as
in a movie theatre

You can adjust the colours while viewing the projected image.

Colour before adjustment Adjusted colour Cursor

A colour correction of 8 points can be made to
the image source by a simple remote control
operation.

material. HD IP enables the AE700 to convert signals recorded at a higher
quality than conventional models.

Conventional: “chicken wire” effect

Wide, high-definition LCD panel for sharp, detailed images

A wide 1280x720 pixels high-definition LCD panel generates the sharp
images of PT-AE700. Its three-layer construction realizes 2.76 million pixels,
giving a beautifully detailed picture of exceptional fidelity—especially from
superior video sources such as high definition digital satellite/terrestrial
broadcasts.

New UMP Lamp delivers 1,000 lumens

The new UHM lamp delivers a superb brightness of 1,000 lumens. Enjoy
beautiful pictures that are not affected by ambient lighting.

NEW TECHNOLOGY AND FEATURES DELIVER FILM PICTURE QUALITY WITH LIFELIKE IMAGES

Applying the latest technologies to get closer to the artistic sense of a top Hollywood colourist

In the movie world, each creator has a personal definition of the perfect image. During development of the PT-AE700, to realize
an image on screens at home true to the intentions of all creators, Panasonic consulted with top Hollywood colourist Mr. David
Bernstein. Panasonic developed and equipped the PT-AE700 with new, unique integrated cinema quality circuitry and core image
optimizers to meet the strict demands of colourists. We incorporated into the PT-AE700 the artistic creativity of David Bernstein,
who has an unrivaled sense of picture-quality colour coordination. Thereby was born the PT-AE700, an LCD projector with a
stunning picture reproduction that is truly worthy of the accolade "Hollywood picture quality."

David Bernstein is a top Hollywood colorist, referred to as a “Golden Eye,“ whose expertise is evident in the telecine* process for
numerous successful films. David Bernstein is featured courtesy of Ascent Media.
* Telecine: The process of turning a film into a video.

Advanced features enable projection of a stunning

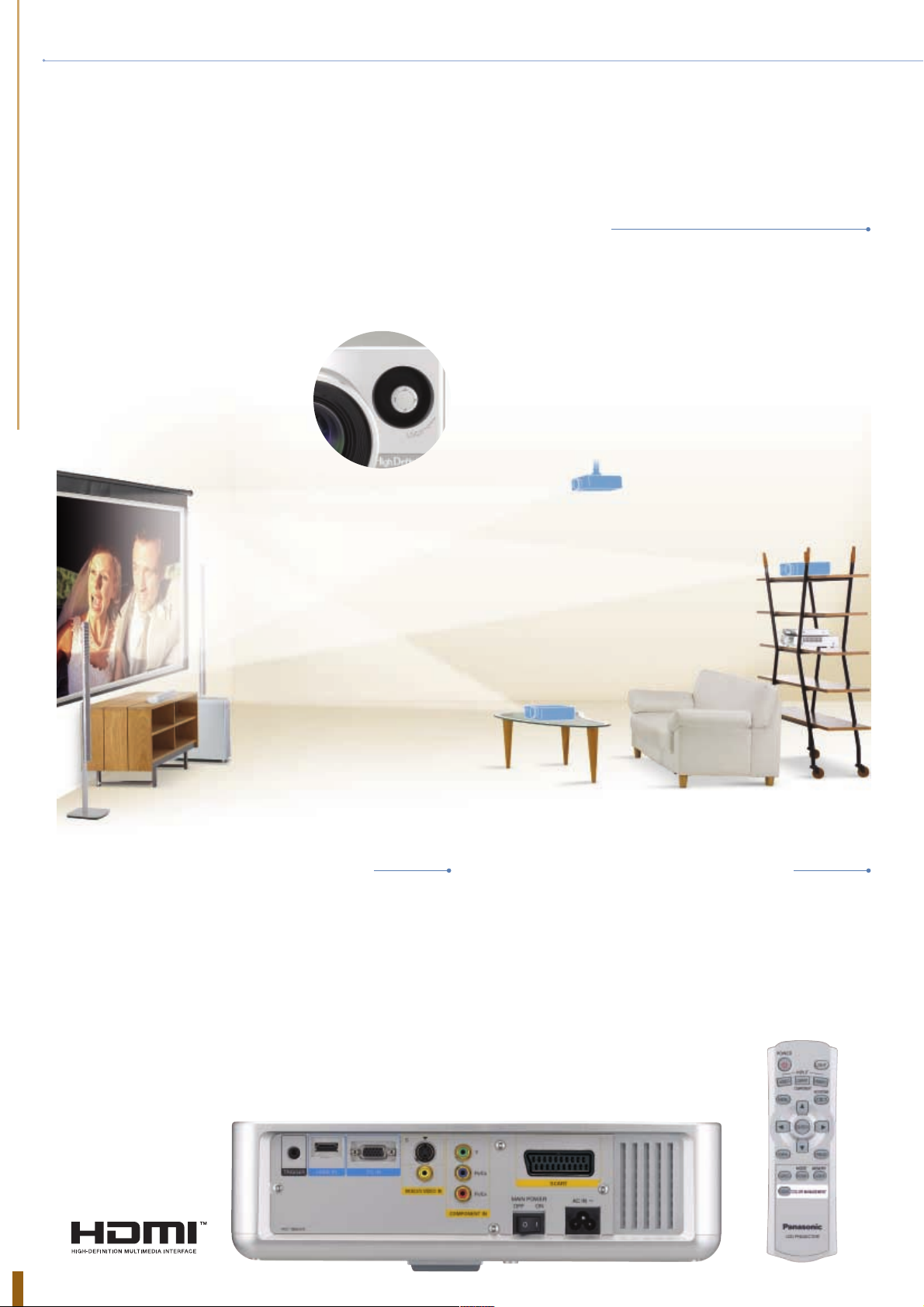

Vertical and horizontal lens shift and 2x optical zoom lens for easy set up

Vertical and horizontal lens shift

Vertical and horizontal lens shift enables screen position
adjustment without moving the projector. A simple joystick
operation moves the lens within the projector housing allowing the
projector to be positioned anywhere.
Suspended from the ceiling or placed on a
shelf or table, there will be no
deterioration of image because the lens is
physically repositioned. This with lens shift
provides total freedom of placement so
the AE700 fits perfectly into your home.

2x optical zoom lens

A newly developed 2x optical zoom lens offers a wide range of throw
distances to provide a generous variety of suitable projector
locations. It can project a 100-inch picture from as little a distance
as 3 meters to as far as an amazing 6 meters. Whether the
projector is situated on a table in front of viewers, mounted on the
ceiling above them or placed on a bookshelf behind them, it
produces the same dynamic large-screen picture. At any distance
from the screen in any type of room, the 2x optical zoom lens offers
all viewers alike the same stunning images.

A variety of terminals including HDMI input

The PT-AE700 works well with DVD or video players, PCs, game
machines, and other equipment. It has an HDMI input that is
compatible with all high-definition digital sources. The component
video input terminals allow you to enjoy all the quality of rich
images from high-end progressive scan DVD players. The PC IN
terminal can be used to connect game machines or PCs. Other
terminals include composite video, S-Video and many more. The
PT-AE700 also has a trigger terminal, so switching the screen on
and off may be simply achieved by merely powering the projector on
and off.

ADVANCED FEATURES ENABLE PROJECTION OF A STUNNING PICTURE IN ANY TYPE OF ROOM AND SETUP SITUATION

Quiet operation of 26 dB* and front exhaust

For full enjoyment a new quiet fan cuts distracting noise to a
whispering 26 dB*. Light leakage is reduced by using twin blades.
As the exhaust fan is on its front, the projector only needs a narrow
site.
* In low mode

HIGH DEFINITION HOME CINEMA PROJECTOR

PT-AE700

picture in any type of room and setup situation

SPECIFICATIONS

Power supply: 100–240 V AC, 50/60 Hz
Power consumption: 180 W (Approx. 3 W in standby mode with fan stopped)
Optical system: Dichroic mirror separation/prism synthesis system
LCD panel*

Lens: Manual zoom (1 - 2.0) / Manual focus

Lamp*
Screen size:
Colours: Full colour (16,777,216 colours)
Colour system: PAL, PAL-M, PAL-N, PAL 60, SECAM, NTSC, NTSC 4.43
Screen aspect ratio: 16:9 (4:3 compatible)
Brightness: 1,000 lumens
Centre-to-corner
uniformity ratio: 85%
Contrast: 2,000:1*
Resolution:
Scanning frequency: RGB: Horizontal: 30–70 kHz, Vertical: 50–87 Hz

Optical axis shift: Horizontal and Vertical*
Keystone correction range
Installation: Ceiling/desk, front/rear (menu selection)

*1: The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with very high-precision technology to provide the finest possible image. Occasionally, a few pixels may remain turned on

*2: The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended use. The length of time that it takes for the lamp to

*3: In AI mode *4: Refer to the Projection range drawing below for details. *5: Excluding protrusion

1

: Panel size: 0.7˝ (diagonal) (16:9 aspect ratio)

3

: 130 W UHM™ lamp

(bright) or turned off (dark). Please note that this is an intrinsic characteristic of the manufacturing technology that affects all products using LCD technology.

break or fail to illuminate varies greatly depending on individual lamp characteristics and usage conditions.

Display method: Transparent LCD panel (x 3, R/G/B)
Drive method: Active matrix
Pixels: 921,600 (1280 x 720) x 3, total of 2,764,800 pixels
Pixel configuration: Stripe

F 1.9 - 3.1, f 21.7 mm - 43.1 mm

1,016–7,620 mm (40–300 inches) diagonally, 16:9 aspect ratio

3

(full on/full off)

RGB: 1280 x 720 pixels (1920 x 1080 pixels with compression)

BPR: 480i (525i): fH 15.75 kHz; fV 60 Hz

YP

S-Video/Video: fH 15.625 kHz; fV 50 Hz (PAL, SECAM, PAL-N)

: Horizontal: approx. ±30°

576i (625i): fH 15.63 kHz; fV 50 Hz
480p (525p): fH 31.5 kHz; fV 60 Hz
576p (625p): fH 31.25 kHz; fV 50 Hz
720p (750p): fH 45 kHz; fV 50 Hz
720p (750p): fH 45 kHz; fV 60 Hz
1080i (1125i): fH 33.75 kHz; fV 60 Hz
1080i (1125i): fH 28.125 kHz; fV 50 Hz

fH 15.75 kHz; fV 60 Hz (NTSC, NTSC 4.43, PAL-M, PAL 60)

4

Language:
Terminals: HDMI IN: 19-pin x 1

VIDEO IN: RCA pin x 1, 1.0 Vp-p, 75Ω

Power cord length: 3 m
Cabinet material: ABS/PC
Dimensions*
(W x H x D): (13-3/16˝ x 3-23/32˝ x 10-5/8˝)
Weight: 3.6 kg (7.9 lbs.)
Operating environment

Remote Control Unit: Power supply: 3 V DC (UM-4 (AAA) battery x 2)

Supplied accessories

5

English, French, German, Spanish, Italian, Chinese, Japanese, Korean, Russian

PC (RGB) IN: D-sub HD 15-pin (female) x 1

COMPONENT IN: RCA pin (Y, P

S-VIDEO IN:
TRIGGER (out): M3 jack, (stereo mini)

SCART IN: 21-pin x 1

335 x 95 x 270 mm

: Temperature: 0°–40°C (32°–104°F)

Humidity: 20%–80% (no condensation)

Operation range: Approx. 7 m when operated from

Dimensions 43 x 135 x 22 mm
(W x H x D): (1-11/16˝ x 5-5/16˝ x 7/8˝)
Weight: 70 g (2.5 oz.) (including batteries)

: Power cord, Wireless remote control unit,

Batteries for remote control (UM-4 x 2),
AV cable (3 m/9.9´)

R, G, B: 0.7 Vp-p (1.0 Vp-p for Sync on G), 75Ω
HD/VD/SYNC: TTL, high impedance
(positive/negative polarity)

Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75Ω

When the power is turned on during projection: 12 V
When the power is turned off: 0 V

B/CB, PR/CR) x 1,

Y: 1.0 p-p, 75Ω

B/PR (CB/CR): 0.7 Vp-p, 75Ω

P

directly in front of the signal receptor)

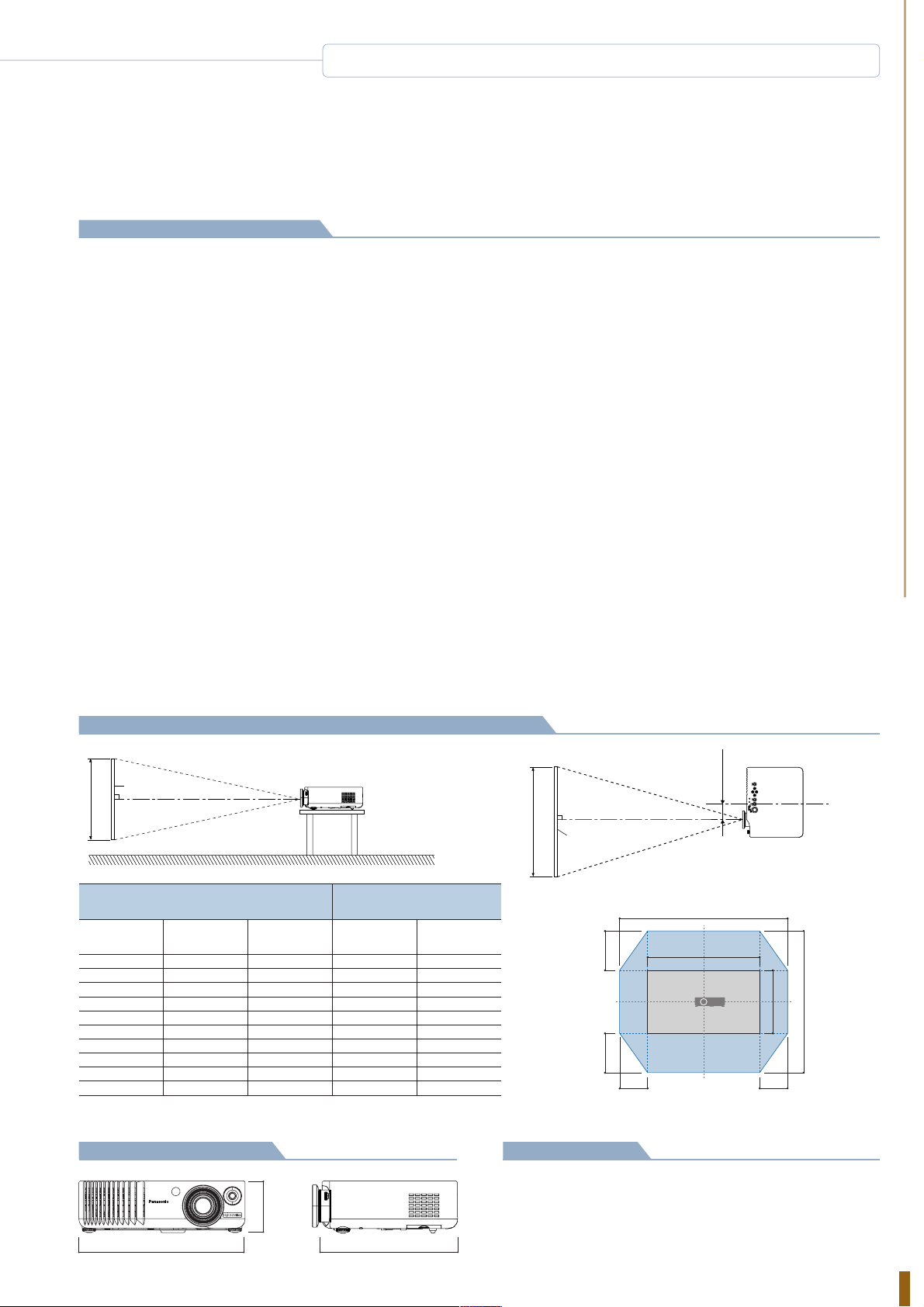

SPECIFICATIONS, IMAGE SIZE / PROJECTION DISTANCE, DIMENSIONS, OPTIONS

IMAGE SIZE / PROJECTION DISTANCE

Screen

SH

Diagonal

length

1.01 m (40˝)

1.27 m (50˝)

1.52 m (60˝)

1.77 m (70˝)

2.03 m (80˝)

2.28 m (90˝)

2.54 m (100˝)

3.05 m (120˝)

3.81 m (150˝)

5.08 m (200˝)

Screen size (16:9)

0.50 m (1´7˝)

0.62 m (2´)

0.75 m (2´5˝)

0.87 m (2´10˝)

1.00 m (3´3˝)

1.12 m (3´8˝)

1.24 m (4´)

1.49 m (4´10˝)

1.87 m (6´1˝)

2.49 m (8´2˝)

Height

(SH)

L

Width

(SW)

0.89 m (2´11˝)

1.11 m (3´7˝)

1.33 m (4´4˝)

1.55 m (5´1˝)

1.77 m (5´9˝)

1.99 m (6´6˝)

2.21 m (7´3˝)

2.66 m (8´8˝)

3.32 m (10´10˝)

4.43 m (14´6˝)

Projection distance (L)

Wide

(LW)

1.2 m (3´11˝)

1.5 m (4´11˝)

1.8 m (5´10˝)

2.1 m (6´10˝)

2.4 m (7´10˝)

2.7 m (8´10˝)

3.1 m (10´2˝)

3.7 m (12´1˝)

4.6 m (15´1˝)

6.2 m (20´4˝)

Telephoto

(LT)

2.4 m (7´10˝)

3.1 m (10´2˝)

3.7 m (12´1˝)

4.3 m (14´1˝)

4.9 m (16´)

5.5 m (18´)

6.2 m (20´4˝)

7.4 m (24´3˝)

9.3 m (30´6˝)

12.4 m (40´8˝)

SW

Screen

Projection range

0.63 V

0.63 V

DIMENSIONS OPTIONS

82.9 mm

(3-1/4 )

L

L: Projection distance
SH: Image height
SW: Image width

1.5 H

1.0 H

Screen

Projection range

0.25 H 0.25 H

1.0 V

2.26 V

95 mm

23

/32")

(3-

335 mm (13-3/16") 270 mm (10-5/8")

Ceiling mount bracket: ET-PKE700

Replacement lamp unit: ET-LAE700

Screen: ET-SRW90CT

90˝ (16:9), W x H: 2.0 x 1.8 m (6.6´ x 5.9´)

Please contact Panasonic or your dealer for a demonstration.

Weights and dimensions shown are approximate. Specifications are subject to change without notice.

This product may be subject to export control regulations. UHM is a trademark of Matsushita Electric

Industrial Co., Ltd. Digital Light Processing, DLP, DLP logo and the DLP medallion are trademarks of Texas

Instruments. VGA and XGA are trademarks of International Business Machines Corporation. All other

trademarks are the property of their respective trademark owners. Projection images simulated.

PT-AE700EA1-04AUG70K Printed in Japan.
