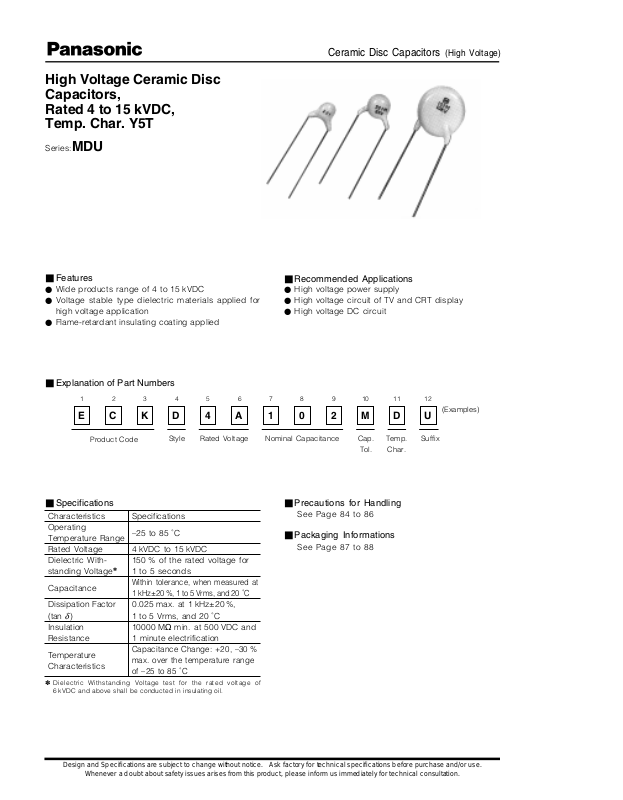

Ceramic Disc Capacitors

High Voltage Ceramic Disc

Capacitors,

Rated 4 to 15kVDC,

Temp. Char. Y5T

Series:

MDU

■

Features

●Wide products range of 4 to 15kVDC

●Voltage stable type dielectric materials applied for

high voltage application

●Flame-retardant insulating coating applied

■

Explanation of Part Numbers

123456789101112

ECKD4A102MDU

■

Recommended Applications

●High voltage power supply

●High voltage circuit of TV and CRT display

●High voltage DC circuit

(High Voltage)

(Examples)

Product Code

■

Specifications

Characteristics Specifications

Operating

Temperature Range

Rated Voltage 4kVDC to 15kVDC

Dielectric With- 150% of the rated voltage for

standing Voltage

Capacitance

Dissipation Factor 0.025 max. at 1kHz±20%,

(tan d) 1 to 5Vrms, and 20ûC

Insulation 10000MΩ min. at 500VDC and

Resistance 1 minute electrification

Temperature

Characteristics

✽Dielectric Withstanding Voltage test for the rated voltage of

6kVDC and above shall be conducted in insulating oil.

Design and Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.

✽

Whenever a doubt about safety issues arises from this product, please inform us immediately for technical consultation.

Style Rated Voltage

Ð25 to 85ûC

1 to 5 seconds

Within tolerance, when measured at

1kHz±20%, 1 to 5Vrms, and 20ûC

Capacitance Change: +20, Ð30%

max. over the temperature range

of Ð25 to 85ûC

Nominal Capacitance Temp.

■

Precautions for Handling

See Page 84 to 86

■

Packaging Informations

See Page 87 to 88

Cap.

Tol.

Char.

Suffix

Ceramic Disc Capacitors

■

Dimensions in mm (not to scale) ■Typical Temperature Characteristics

+
+

■

Ratings and Characteristics

Rated

Voltage

4kVDC 470 ±20 8.5 7.0 7.5±2.0 0.65

6kVDC 470 ±20 11.5 8.0 10.0±2.0 0.80

8kVDC

10kVDC 330 ±20 11.5 9.0 10.0±2.0 0.80

15kVDC 330 ±20 11.5 10.0 10.0±2.0 0.80

Part Number

ECKD3G101MDU

ECKD3G151MDU

ECKD3G221MDU

ECKD3G331MDU

ECKD3G471MDU

ECKD3G681MDU

ECKD3G102MDU

ECKD3G152MDU

ECKD3G222MDU

ECKD3J101MDU

ECKD3J151MDU

ECKD3J221MDU

ECKD3J331MDU

ECKD3J471MDU

ECKD3J681MDU

ECKD3J102MDU

ECKD3J152MDU

ECKD3J222MDU

ECKD3K101MDU

ECKD3K151MDU

ECKD3K221MDU

ECKD3K331MDU

ECKD3K471MDU

ECKD3K681MDU

ECKD3K102MDU

ECKD3K152MDU

ECKD4A101MDU

ECKD4A151MDU

ECKD4A221MDU

ECKD4A331MDU

ECKD4A471MDU

ECKD4A681MDU

ECKD4A102MDU

ECKD4C101MDU

ECKD4C151MDU

ECKD4C221MDU

ECKD4C331MDU

ECKD4C471MDU

ECKD4C681MDU

ECKD4C102MDU

Capacitance Dimensions in mm

Nominal Cap. Tolerance

(pF) (%)

100 ±20 7.0 7.0 7.5±2.0 0.65

150 ±20 7.0 7.0 7.5±2.0 0.65

220 ±20 7.0 7.0 7.5±2.0 0.65

330 ±20 8.0 7.0 7.5±2.0 0.65

680 ±20 9.5 7.0 10.0±2.0 0.65

1000 ±20 11.5 7.0 10.0±2.0 0.65

1500 ±20 13.5 7.0 10.0±2.0 0.65

2200 ±20 16.0 7.0 10.0±2.0 0.65

100 ±20 8.0 8.0 10.0±2.0 0.65

150 ±20 8.0 8.0 10.0±2.0 0.65

220 ±20 8.0 8.0 10.0±2.0 0.65

330 ±20 10.5 8.0 10.0±2.0 0.80

680 ±20 13.0 8.0 10.0±2.0 0.80

1000 ±20 15.0 8.0 10.0±2.0 0.80

1500 ±20 17.5 8.0 10.0±2.0 0.80

2200 ±20 21.5 8.0 10.0±2.0 0.80

100 ±20 8.0 9.0 10.0±2.0 0.65

150 ±20 8.0 9.0 10.0±2.0 0.65

220 ±20 8.5 9.0 10.0±2.0 0.65

330 ±20 10.0 9.0 10.0±2.0 0.65

470 ±20 11.5 9.0 10.0±2.0 0.80

680 ±20 13.5 9.0 10.0±2.0 0.80

1000 ±20 16.5 9.0 10.0±2.0 0.80

1500 ±20 18.5 9.0 10.0±2.0 0.80

100 ±20 8.0 9.0 10.0±2.0 0.65

150 ±20 8.5 9.0 10.0±2.0 0.65

220 ±20 9.5 9.0 10.0±2.0 0.65

470 ±20 13.0 9.0 10.0±2.0 0.80

680 ±20 15.0 9.0 10.0±2.0 0.80

1000 ±20 16.5 9.0 10.0±2.0 0.80

100 ±20 8.0 10.0 10.0±2.0 0.65

150 ±20 9.0 10.0 10.0±2.0 0.65

220 ±20 10.0 10.0 10.0±2.0 0.65

470 ±20 13.5 10.0 10.0±2.0 0.80

680 ±20 15.0 10.0 12.5±2.0 0.80

1000 ±20 19.0 10.0 12.5±2.0 0.80

D max. T max. F d
