Page 1
-150°C Cryogenic Freezer
MDF-C2156VANC
-150°C VIP® PLUS
Cryogenic Freezer
Features:
• Ideally suited for ultra low and cryogenic storage in
laboratories, long-term preservation and storage of
blood, specimens and components
®
• VIP
Panasonic… the new name for SANYO
www.panasonic.com/biomedical
PLUS technology maximizes storage capacity over
conventionally insulated models
Page 2
-150°C Cryogenic Freezer
–80°C
Hexagonal crystal
Cubic crystal
Why Freeze to –152°C?
Recrystallization Mechanism (Artist’s Concept)
Warm Zone
MTR-155H
–170 to +30°C
MDF-1155
ULT-Freezer Backup Kits
CVK-UB2/UB2(I): LCO2 Backup Kit for MDF-793/593/393
CVK-UBN2/UBN2(I): LN
2 Backup Kit for MDF-793/593/393
CVK-A: Built-in LCO
2 Backup Kit for MDF-793/593/393/192
CVK-AT2: LCO
2
Backup Kit for MDF-1155
CVK-ATN2: LN
2 Backup Kit for MDF-1155
(I) version for North America only
–80°C
Hexagonal crystal
Cubic crystal
Why Freeze to –152°C?
Recrystallization Mechanism (Artist’s Concept)
CVK-UB2/UB2(I): LCO2 Backup Kit for MDF-793/593/393
CVK-UBN2/UBN2(I): LN
2 Backup Kit for MDF-793/593/393
CVK-A: Built-in LCO
2 Backup Kit for MDF-793/593/393/192
CVK-AT2: LCO
2 Backup Kit for MDF-1155
CVK-ATN2: LN
2 Backup Kit for MDF-1155
(I) version for North America only
Panasonic MDF series cryogenic freezer maintains uniform temperature of -150°C for stable, long-term preservation of cells and tissue.
Panasonic VIP® PLUS Cryogenic Series -150°C ultra-low temperature freezer achieves more storage capacity than a conventionally insulated
freezer without increasing footprint.
-150ºC VIP® PLUS Cryogenic Freezer
Model Number
MDF-C2156VANC-PA
Volume
(cu.ft.)
8.2
231 L
Exterior Dimensions
(w x f-b x h)
68.1" x 30.1" x 39.8"
1730 x 765 x 1010 mm
Storage
(2"/ 51 mm boxes)
150 105 15,000
The newly developed refrigeration system and freezer structure offers a quiet environment.
Cryopreservation allows for storage of
biological materials at ultra low temperatures, while minimizing the level of freezing damage to cells.
An important factor to consider when
preserving cells or tissue at cryogenic
temperatures is to prevent amorphous
ice crystals from recrystallizing within
and outside the cells. These ice crystals
increase the degree of freezing damage
to cells.
-130°C is the recrystallization point of
pure water in the ultra-low temperature
zone. This is the temperature at which
amorphous ice crystals recrystallize.
Comparison of temperature distribution in a liquid nitrogen freezer (vapor phase) and Panasonic’s MDF-C2156VANC
mechanically refrigerated cryogenic freezer. Graph shows temperatures at different locations within the chamber. This
data demonstrates that 100% of the MDF-C2156VANC storage space maintains uniform storage temperatures safely
below -130ºC, while temperature in LN2 vapor system is dependent on storage location.
Uniform Cryogenic Temperatures
±5ºC uniformity in a mechanically refrigerated design promotes better top-tobottom uniformity than liquid nitrogen
vapor-phase storage, without the concern
of cross-contamination often associated
with liquid nitrogen liquid phase storage.
Thus samples maintained in an ultra-low
temperature freezer at -150ºC, far lower
than the recrystallization point, can be
semi permanently preserved.
Such preservation maintains vitrification
without further crystallization within and
outside cells.
Other recent findings show that preserving cattle sperm at -135°C is insufficient,
and that superconductivity experiments
require temperatures of at least -148ºC.
2 -150 °C VIP® PLUS Cryogenic Freezers www.panasonic.com/biomedical
VIP® PLUS Design
Patented revolutionary vacuum insulation
cabinet construction reduces wall thickness and achieves more storage capacity
than a conventionally insulated freezer
without increasing the footprint.
• This design prevents the insulation
layers from distortion and cracking
that can occur over time due to
temperature differences inside and
out, and creates the most efficient
insulation material available today.
Storage
(3"/76 mm boxes)
Storage
(2ml vials in boxes)
Voltage, Power
Connection
208/ 230V
NEM A 6 -15
• The newly developed refrigeration
system and the freezer structure offer
a quiet experimental environment.
• Achieves 50% higher energy
conservation than conventionally
insulated model.
• Moisture condensation at the top
edges of the cabinet due to differences
in temperature inside and out causes
frost and icing problems, which may
reduce heat insulation efficiency and
obstruct door movements. These
obstructions are prevented by a
"warm zone" which prevents frost
and condensation
from forming on
the gasket and
mullion without
affecting interior
temperature.
Warm Zone
Page 3
Panasonic-Designed Refrigeration
Specications
Model
Temperature range
Maximum cooling
performance
Exterior dimensions
(W x D x H)
Interior dimensions
(W x D x H)
Net weight
Eective capacity
Access port
Compressor
Refrigerant
Alarm
Remote alarm
contact
MDF-C2156VAN
-125 C to -150 C (1 C increments)
-150 C (Ambient Temp. 30 C)
1730 x 765 x 1010
(68.1” x 30.1” x 39.8”)
760 x 495 x 615
(29.9” x 19.5” x 24.2”)
Approx. 318kg
231L (8.2 cu.ft.)
40mm diameter, 1 location
Hermetic type, Output: 1100W
(high stage side), 1100W (low
stage side)
HFC
High/Low temperature, Power
failure, filter check, Self
diagnosis, Door check, Part
replacement notification
Allowable contact capacity,
DC 30V, 2A
Reliability
2 backup system as stan-
• Setting screen
• Data logging function
Recording of internal temperature for 1 month or 1
week period
Recording of history of door opening/closing (more
than 2 minutes)
Innovative Control Panel
• Graphic LCD panel with pop-up menu func-
tion on control panel provides more visual
display and allows intuitive operation.
Evolutionary Design
™
Evolution Series -
Graphic display (LCD)
Warning indicator (Lit even when there is a power outage)
Setting input
Popup menu selection
Setting item
Current value
Message
Date/time
Warning information display
Status display
Door display
Buzzer halt;
Alarm test when held pressed
for a long time

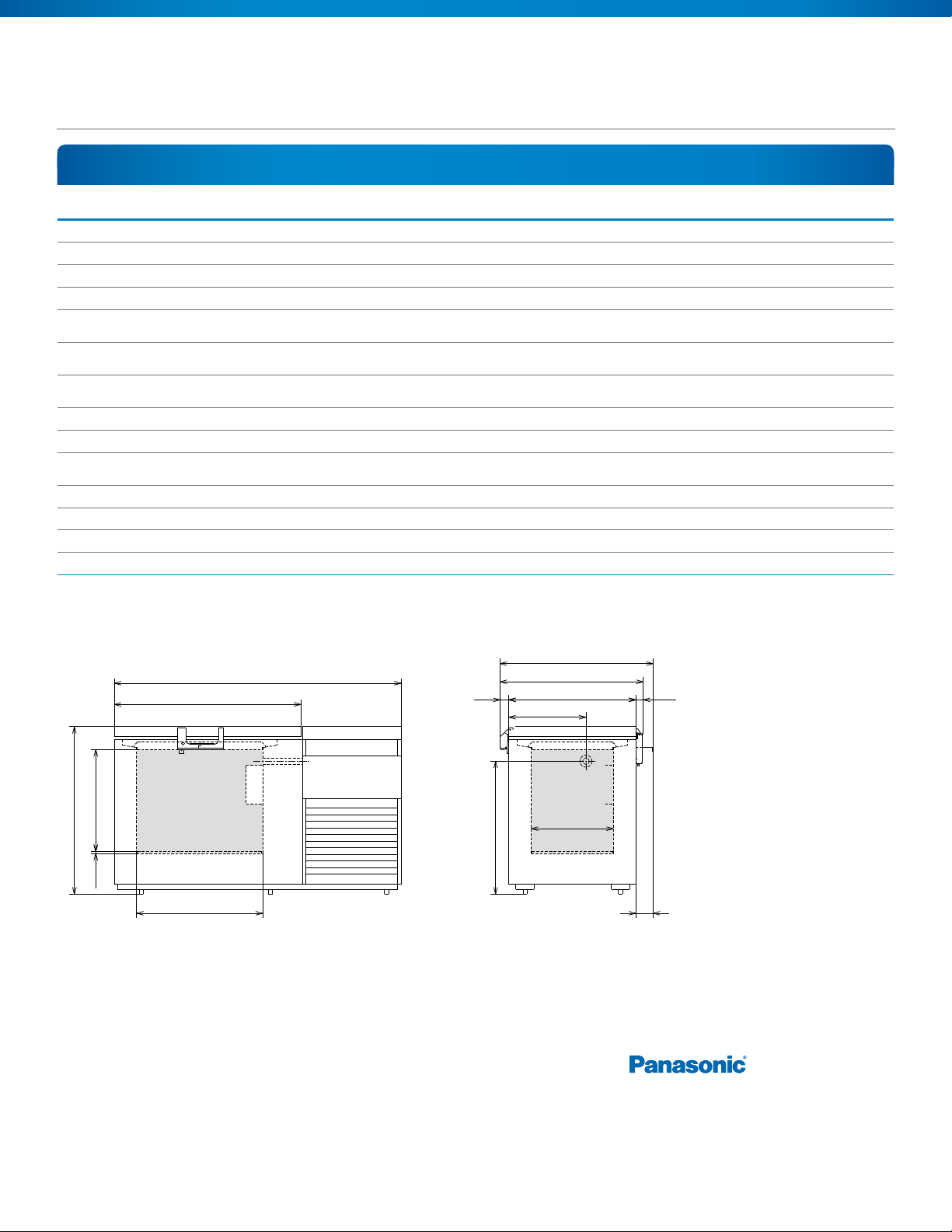

Dimensions [Unit : mm (inch)]
Specications
Model
Temperature range
Maximum cooling
performance
Exterior dimensions
(W x D x H)
Interior dimensions
(W x D x H)
Net weight
Eective capacity
Access port
Compressor
Refrigerant
Alarm
Remote alarm
contact
Accessories
MDF-C2156VAN
-125 C to -150 C (1 C increments)
-150 C (Ambient Temp. 30 C)
1730 x 765 x 1010
(68.1” x 30.1” x 39.8”)
760 x 495 x 615
(29.9” x 19.5” x 24.2”)
Approx. 318kg
231L (8.2 cu.ft.)
40mm diameter, 1 location
Hermetic type, Output: 1100W
(high stage side), 1100W (low
stage side)
HFC
High/Low temperature, Power
failure, filter check, Self
diagnosis, Door check, Part
replacement notification
Allowable contact capacity,
DC 30V, 2A
1 set of keys, 1 scraper,
Connecting tube for LN
2 backup
system,
*Appearance and specifications are subject to change without notice.
Pull-down characteristics
Time (hour)
Options
Inventory rack
IR-210C
Recorder mounting
bracket (for MTR-155H)
Temperature (°C)
40
20
0
–20
–120
–40
–140
–60
–160
–80
–100
0 2 204 6 8 10 181612 14
Reliability
2 backup system as stan-
• Setting screen
• Data logging function
Recording of internal temperature for 1 month or 1
week period
Recording of history of door opening/closing (more
than 2 minutes)
Innovative Control Panel
• Graphic LCD panel with pop-up menu func-
tion on control panel provides more visual
display and allows intuitive operation.
Evolutionary Design
™
Evolution Series -
1730 (68.1)
1125 (44.3)
53
(2.1) (1.8)
465 (18.3)
924 (36.4)
765 (30.1) 46
864 (34.0)
Graphic display (LCD)
Warning indicator (Lit even when there is a power outage)
Setting input
Popup menu selection
Setting item
Current value
Message
Date/time
Warning information display
Status display
Door display
Buzzer halt;
Alarm test when held pressed
for a long time
Central air temp.
in cabinet
Ambient temp.
30°C, No-load
Designed by Panasonic specifically for
rugged cryogenic temperature applications in a laboratory environment; CFCfree refrigerants only.
Microprocessor Temperature
Control With Digital Design
Precise setting and temperature control.
The temperature inside the freezer can
be set and monitored easily by means
of precise microprocessor temperature
control with an LCD graphic display. The
controller utilizes a platinum RTD sensor
which is extremely precise and durable.
Performance Data
Pull-down characteristics
40
20
0
–20
–40
–60
–80
–100
–120
Temperature (°C)
–140
–160
0 2 204 6 8 10 181612 14
Time (hour)
Central air temp.
in cabinet
Ambient temp.
30°C, No-load
Pull-up characteristics
0
–20
–40
–60
–80
–100
–120
Temperature (°C)
–140
–160
0 6543 7 8 921 121110
Time (hour)
Built-In Temperature & Power
Failure Alarms (Lamp/Buzzer)
Status Alert monitors ambient and system conditions continuously and notifies
of any abnormalities before a problem
can occur. In case of power failure or an
irregular rise in temperature, a rechargeable, high capacity battery-operated indicator lamp and alarm will be activated.
Innovative Control & Monitoring
• Graphic LCD panel with pop-up menu
• Data logging function records of
• Graphic display (LCD)
function on control panel provides
a precise visual display and allows
intuitive operation.
internal temperature for one month or
one week period.
• Warning indicator (Lit even during power outage)
• Warning information
• Status display
• Door display
Mechanical Freezer Preservation
Lowers LN2 consumption and mitigates
safety concerns, reduces cost of ownership, minimizes chance of cross-contamination among stored samples as all
samples are stored in vapor phase.
Built-in LN2 Backup
The MDF-C2156VANC is equipped
with LN
backup system as standard to
2
prepare for any contingency. The built-in
LN
back-up system is self activated if a
2
power outage occurs. This feature helps
ensure that the contents will be protected in the event of any power failure
or mechanical trouble.
• Setting input
• Buzzer silence: Hold for alarm test
An Ideal Freezing Environment
with VIP® PLUS Design
In ultra-low temperature freezers, effective insulation is critical. VIP
superior performance in insulating properties providing unsurpassed uniformity
in the chamber- top to bottom, side to
side, front to back.
MDF-C2156VANC
Cryogenic Preservation Applications
• Cancer Research: Tumor Cells
• Blood Banking: HLA, Red Cells
• Bone Marrow Preservation: Skin, Bone, Heart
Valves, Corneas, Musculoskeletal Tissues
• Microbiology: Viruses, Bacteria, Cell Culture
• Genetic Engineering - Cultures
• HLA: (Lymphocytes) Organ Transplant
• IVF: (Embryo, Sperm) Human Infertility
• Sperm & Fertilized Ovum (Bull, Goat, Horse,
Pig, Chicken) Preservation
• Plant Cell Preservation
• Monoclonal Antibody Preservation
• Pharmaceutical: Cultures
• Repositories: Cell Cultures
®
PLUS offers
3
Page 4
Dimensions [Unit : mm (inch)]
Specications
Model
Temperature range
Maximum cooling
performance
Exterior dimensions
(W x D x H)
Interior dimensions
(W x D x H)
Net weight
Eective capacity
Access port
Compressor
Refrigerant
Alarm
Remote alarm
contact
Accessories
MDF-C2156VAN
-125 C to -150 C (1 C increments)
-150 C (Ambient Temp. 30 C)
1730 x 765 x 1010
(68.1” x 30.1” x 39.8”)
760 x 495 x 615
(29.9” x 19.5” x 24.2”)
Approx. 318kg
231L (8.2 cu.ft.)
40mm diameter, 1 location
Hermetic type, Output: 1100W
(high stage side), 1100W (low
stage side)
HFC
High/Low temperature, Power
failure, filter check, Self
diagnosis, Door check, Part
replacement notification
Allowable contact capacity,
DC 30V, 2A
1 set of keys, 1 scraper,
Connecting tube for LN
2 backup
system,
*Appearance and specifications are subject to change without notice.
Options
Inventory rack
IR-210C
Recorder mounting
bracket (for MTR-155H)
MDF-S30150
Chart paper
KM-1700
Ink pen
DF-38FP
SANYO DAQ
(Data Acquisition) system
MTR-480/
MTR-2000
• Setting screen
Recording of internal temperature for 1 month or 1
week period
Recording of history of door opening/closing (more
than 2 minutes)
53
(2.1) (1.8)
495 (19.5)
465 (18.3)
802 (31.6)
105 (4.1)
924 (36.4)
765 (30.1) 46
864 (34.0)
Strip chart recorder
MTR-155H
Graphic display (LCD)
Setting item
Current value
Message
Date/time
Warning information display
Status display
Door display
Buzzer halt;
Alarm test when held pressed
for a long time
Specications
Model
Temperature range
Maximum cooling
performance
Exterior dimensions
(W x D x H)
Interior dimensions
(W x D x H)
Net weight
Eective capacity
Access port
Compressor
Refrigerant
Alarm
Remote alarm
contact
Accessories
MDF-C2156VAN
-125 C to -150 C (1 C increments)
-150 C (Ambient Temp. 30 C)
1730 x 765 x 1010
(68.1” x 30.1” x 39.8”)
760 x 495 x 615
(29.9” x 19.5” x 24.2”)
Approx. 318kg
231L (8.2 cu.ft.)
40mm diameter, 1 location
Hermetic type, Output: 1100W
(high stage side), 1100W (low
stage side)
HFC
High/Low temperature, Power
failure, filter check, Self
diagnosis, Door check, Part
replacement notification
Allowable contact capacity,
DC 30V, 2A
1 set of keys, 1 scraper,
Connecting tube for LN
2 backup
system,
*Appearance and specifications are subject to change without notice.
Options
Inventory rack
IR-210C
Recorder mounting
bracket (for MTR-155H)
MDF-S30150
Chart paper
KM-1700
Ink pen
DF-38FP
SANYO DAQ
(Data Acquisition) system
MTR-480/
MTR-2000
Strip chart recorder
MTR-155H
Warning information display
Status display
Door display
Buzzer halt;
Alarm test when held pressed
for a long time
Specifications
-150ºC VIP® PLUS Cryogenic Freezer
Description
Model Number MDF- C 2156VA NC - PA
Temperature Range -125°C to -150°C (1°C increments)
Max Cooling Performance -150°C (ambient temp 30 °C)
Uniformity ±5°C at -150° C (empty chamber, ambient temp 24°C)
Capacity
Exterior Dimensions (w x f-b x h)
Interior Dimensions (w x f- b x h)
Net Weight Approx. 699lbs (318kg)
Access Port 40mm diameter, 1 location
Compressor
Refrigerants CFC Free
Alarm High/ Low temperature, power failure, lter check, self diagnosis, lid check
Remote Alarm Contact Allowable contact capacity DC 30 V, 2A
Power Requirements 208V-230V, 1 phase, 60 Hz NEMA 6 -15R (15 Amp) Receptacle
DIMENSIONS [mm (inch)]
1730 (68.1)
1125 (44.3)
615 (24.2)
1010 (39.8)
8.2 cu.f t.
231 liters
68.1” x 30.1” x 39. 8”
1730 x 765 x 1010 mm
29.9” x 19.5” x 24.2”
760 x 49 0 x 615 mm
Hermetic type, 1100W (high stage side)
1100W (low stage side)
924 (36.4)
864 (34.0)
53
(2.1) (1.8)
765 (30.1) 46
465 (18.3)
802 (31.6)
495 (19.5)
11.5
(0.5)
760 (29.9)
105 (4.1)
Panasonic Healthcare Company of North America
1300 Michael Drive, Suite A, Wood Dale, IL 60191
Toll Free USA (800) 858-8442, Fax (630) 238-0074
www.panasonic.com/biomedical
© Panasonic Printed in USA 2012.02 JK
JK201202V1
Loading...
