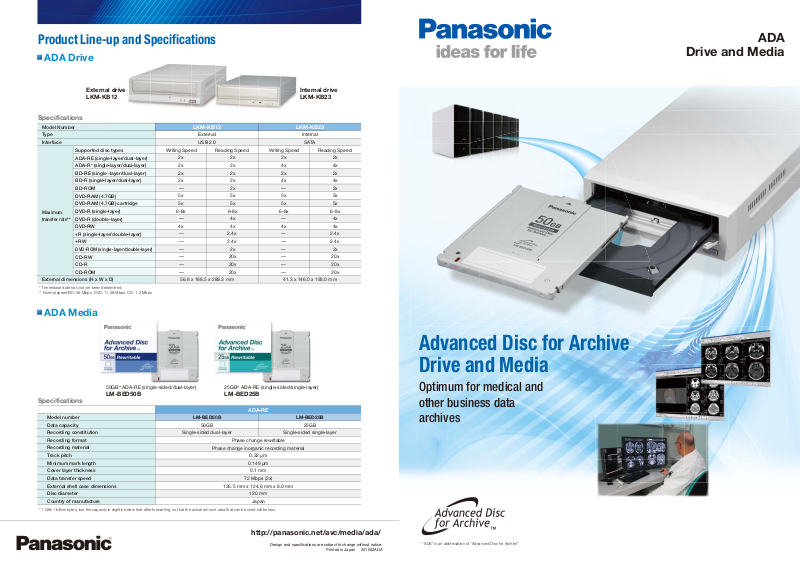

Panasonic LKM-KB12 User Manual

Product Line-up and Specifications

External

ADA

ADA Drive

External drive LKM-KB12

Specifications

Model Number

Type

Interface

Supported disc types

ADA-RE (single-layer/dual-layer)

ADA-R* (single-layer/dual-layer)

BD-RE (single -layer/dual-layer)

BD-R (single-layer/dual-layer)

BD-ROM

DVD-RAM (4.7GB)

DVD-RAM (4.7GB) cartridge

Maximum

transfer rate**

External dimensions (H x W x D)

* The release date has not yet been determined. ** Normal speed BD: 36 Mbps, DVD: 11.08 Mbps, CD: 1.2 Mbps

DVD-R (single-layer)

DVD-R (double-layer)

DVD-RW

+R (single-layer/double-layer)

+RW

DVD-ROM (single-layer/double-layer)

CD-RW

CD-R

CD-ROM

LKM-KB12

External

USB 2.0

Writing Speed

—

6-8x

—

56.8 x 168.5 x 289.3 mm

Reading Speed

6-8x

2.4x

20x

Internal drive LKM-KB23

LKM-KB23

KM-KB

Internal

Writing Speed

—

6-8x

—

41.3 x 146.0 x 193.0 mm

Drive and Media

SATA

Reading Speed

6-8x

2.4x

20x

ADA Media

50GB* ADA-RE (single-sided/dual-layer)

LM-BED50B

Specifications

Model number

Data capacity

Recording constitution

Recording format

Recording material

Track pitch

Minimum mark length

Cover layer thickness

Data transfer speed

External shell case dimensions

Disc diameter

Country of manufacture

* 1 GB=1 billion bytes, but the capacity is slightly below that after formatting, so that the actual amount area that can be used will be less.

LM-BED50B

50GB

Single-sided dual-layer

25GB* ADA-RE (single-sided/single-layer)

LM-BED25B

ADA-RE

Phase change rewritable

Phase change inorganic recording material

0.32 µm

0.149 µm

0.1 mm

72 Mbps (2x)

135.5 mm x 124.6 mm x 8.0 mm

120 mm

Japan

LM-BED25B

25GB

Single-sided single-layer

Advanced Disc for Archive Drive and Media

Optimum for medical and other business data archives

http://panasonic.net/avc/media/ada/

Design and specifications are subject to change without notice.

Printed in Japan 201002ADA

* “ADA” is an abbreviation of “Advanced Disc for Archive”
