Panasonic KX-RC22 User Manual
Specifications and Main Features
- Model Number: KX-RC22
- Power Input: 4 AA Batteries for DC 6V
- Connectivity: RS-232C
- Operating Temperature: 5 °C to 35 °C
- Humidity: 20% – 80% RH
- Storage Temperature: -20 °C to 60 °C
- Physical (L x W x H) : 115mm W x 173mm D x 35 mm H (4.57 X 6.81 X 1.38)
- Weight : 0.225 Kg
- Battery Life: About 100 days by sending data 4 times at 20 degree Celsius.

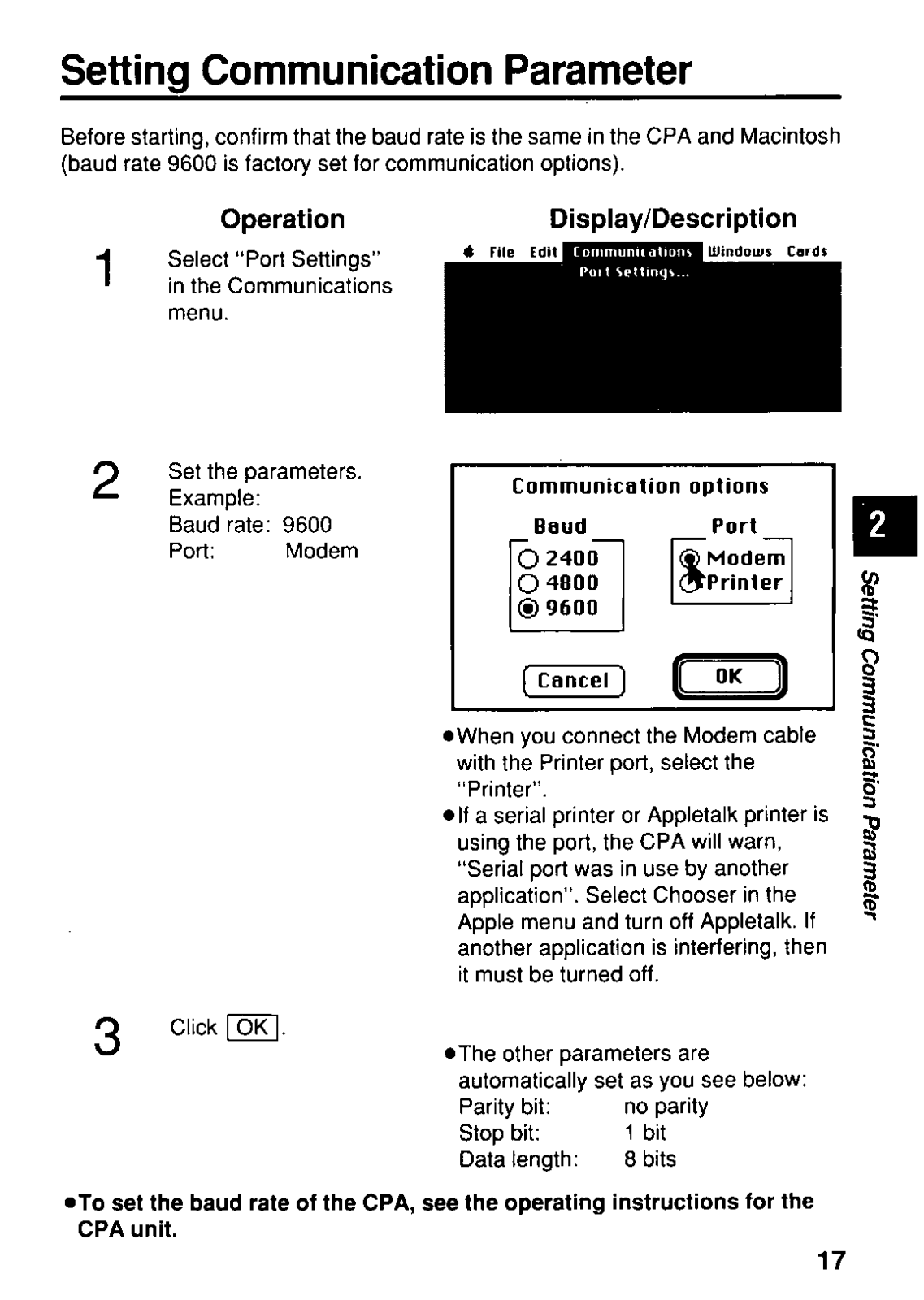

- Transmission Speed (Baud Rate): 2400, 4800 or 9600 ranges
- Coding System: Read Input group: ASCII, 8 bit Read graphics units.
- Encoding System: Parity: No, Stop Bits: 1, Capacity: 8 Bit data capacity.
- Software functional capabilities includes but not limited to:
- Uses Quicken to create QIF files for Import.
- Allows a Merchant to send CPA CHECK transactions to a Macintosh in QIF file format.
- Allows Macintosh users to backup CPA files to disk.
- Allows multiple CPA CHECK files to be consolidated.

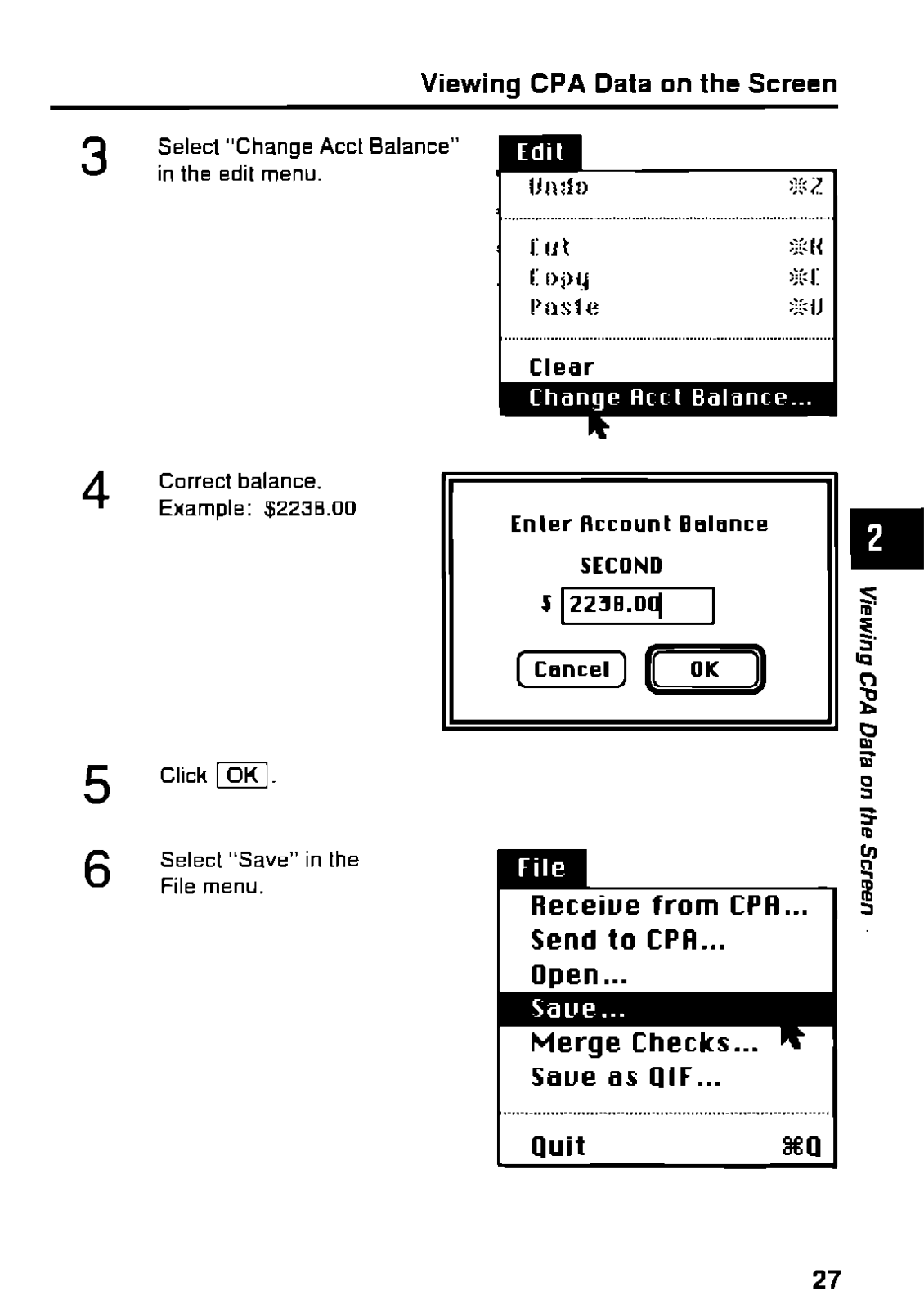

- Displays several CPAs data in Macintosh on the screen.
- Provides CPA connection to Macintosh Hub from their devices.
Frequently Asked Questions
- Q: What can work under the device KX-RC22 and where is it used?.
A: Paul Robotics accountants devices and orders them from a mac pro.
- Q: How is the Macintosh linked with the KX-RC22?

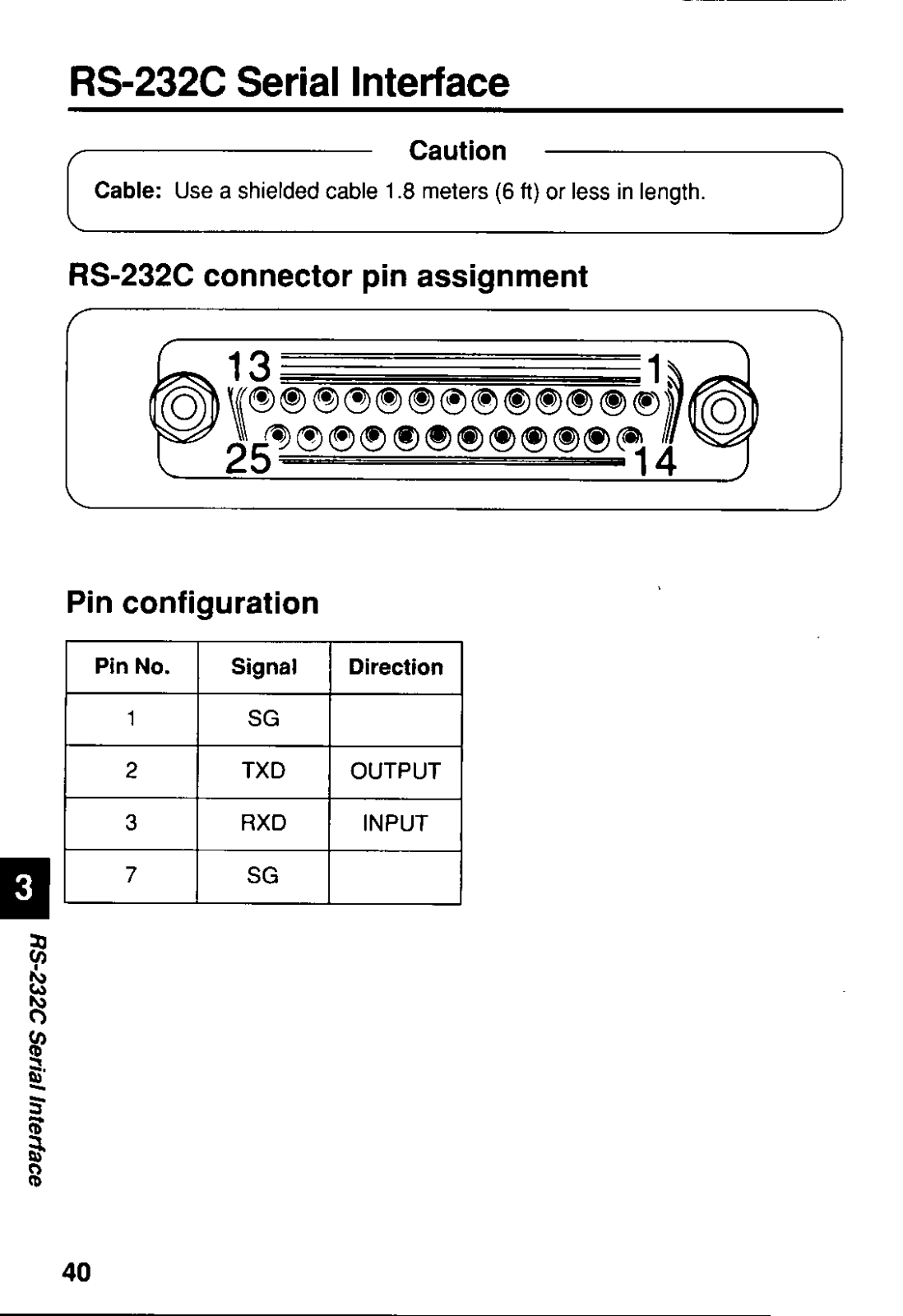

A: It is linked through RS-232C Serial Interface.
- Q: The KX-RC22 runs on what sort of batteries?
A: It runs on four "AA" batteries.
- Q: The power indicator fails to light up. What do I do?
A: Make sure batteries are correctly placed or that old batteries are replaced with new ones.
- Q: Is transferring data from CPA to devices other than macintosh allowed?
A: The interface adaptor has special engineering to work on Macintosh computers.
- Q: The NEXUS boost communicates with which devices?
A: The nexus boost, by default is set to 9600 baud rate.
- Q: Battery life – How long will it last with continuous usage?
A: Battery can last for 100 days if used regularly.
- Q: What files can not be transferred between the macintosh and CPA?
A: QIF files cannot be transferred onto the CPA from a Macintosh but only created and then made part of the CPA data to be sent.
- Q: What are some considerations I should be aware of regarding battery usage?
A: When replacing batteries, take care not to mix the old and new ones, do not insert them with incorrect polarity and take all batteries out if they are not needed.
