Introduction

Congratulations on purchasing a Panasonic printer.

This printer is a versatile, high quality 24-pin dot matrix printer which is designed to meet the needs of your office. This printer has been factory set to operate with most of the popular software packages.

Your application software should control the printer functions. In most cases, there will be no need to

change the initial printer settings.

Features

Printer Emulation:

Setup Disk:

Super Quiet Mode:

Fonts:

Printing Speed:

Paper Handiing:

Tear Off:

Paper Parking:

Cut Sheet Feeder Option

(KX-PT12):

Buffer Chip Option

(KX-P44):

Epson LQ-850 and IBM Proprinter X24E

A Printer-Driver for Windows Ver. 3.1, Initial Setup program and Command Reference program

Reduces printing noise

3 Draft (Pica, Elite, Micron) 4 LQ (Courier, Bold PS, Prestige, Script)

Draft — 192 characters per second (12 cpi) LQ — 64 characters per second (12 cpi)

Friction and Push Tractor

Advances fanfold paper’s perforation to tear position

Allows single sheets/envelopes to be used without removing/wasting fanfold paper

Provides fast and automatic feeding of single sheets

A 32K chip is available to expand your unit’s memory capacity from 14K to 46K

Cautions

Operating Environment

This printer can be installed in any normal office environment.

No special wiring or cooling is required.

• Do not use the printer under the following conditions: — Extremely high or low temperature

[temperature range: 10~35’C (50-95T)]

— Extremely high or low humidity

{humidity range: 30-80% RH)

— Areas of poor ventilation

[a minimum of 4" (10 cm) clearance on all sides is necessary to insure proper ventilation] — Areas of high dust concentration — Areas with chemical fume concentration — Areas with extreme vibration or when placed on an unstable or unlevel surface — Power Consumption:

(MAX—150 W, Stand by—5.66 W, Selftest—35.4 W)

Precautions

The following precautions are recommended to extend the life of the printer.

• Keep ail liquids away from the printer.

• Do not place books, paper, or other items on top of the printer.

• Do not operate the printer without paper and a ribbon cassette installed.

• Avoid prolonged use without allowing the printhead time to cool.

• Do not obstruct the movement of the printhead while in operation.

• If the printer is not going to be used tor an extended period, unplug the power cord.

Unpacking

Having unpacked the printer, make sure none of the contents shown below are missing or damaged. Report damages or shortages to the store from which the unit was purchased.

8

-------------------------------------------------------------------------------------^

• This Setup Disk contains a Printer-Driver

for Windows Ver. 3.1 P. 25), an

Initial Setup program ( P. 28) and a

Command Reference program

(p. 54).

• To use this Setup Disk you need to have

an IBM-PC or a Compatible computer.

Note: * It is recommerKled that you save the original carton and packing materials for proper shipping

arnj transporting of the printer.

Assembling the parts

O Fold the smoked plastic cover, and remove

the protective paper.

Protective paper

Tab

Smoked plastic cover

e Return the smoked plastic cover to its original position.

Insert the platen knob into the hole on the right side of the printer and rotate it slowly until it slips

onto the shaft. Push the platen knob onto the platen shaft to secure.

Unpacking

0)

Qi)

:x

00

a

o

(5

-<

o c

s

S'

3.

Parts of the Printer

Pressing this switch will select the font style.

( DS* p. 37)

@ ON LINE switch

This switch opens and closes the com munication line with the computer.

€> TEAR OFF switch

Pressing this switch will advance or reverse

the paper for tearing off. ((S’ P. 39)

O LF/FF switch

Pressing this switch advances the paper one

line at a time. Holding this switch advances

the paper to the first print line of the next page. {^ P. 39)

0 LOAD/PARK switch

Pressing this switch will load or park the paper. ( os* P. 40)

10

These indicators identify which Font has been selected. (o®* P. 37)

O ON LINE indicator

This indicator is lit when the printer is in the ON LINE mode, and is out in the OFF LINE mode.

0 SUPER QUIET indicator

This indicator is lit when the printer is in the

SUPER QUIET mode. (While pressing the ON LINE switch, press the TEAR OFF switch.) (os* P. 38)

This indicator is lit when the power is on and

paper is installed. It blinks when paper is not

- installed.

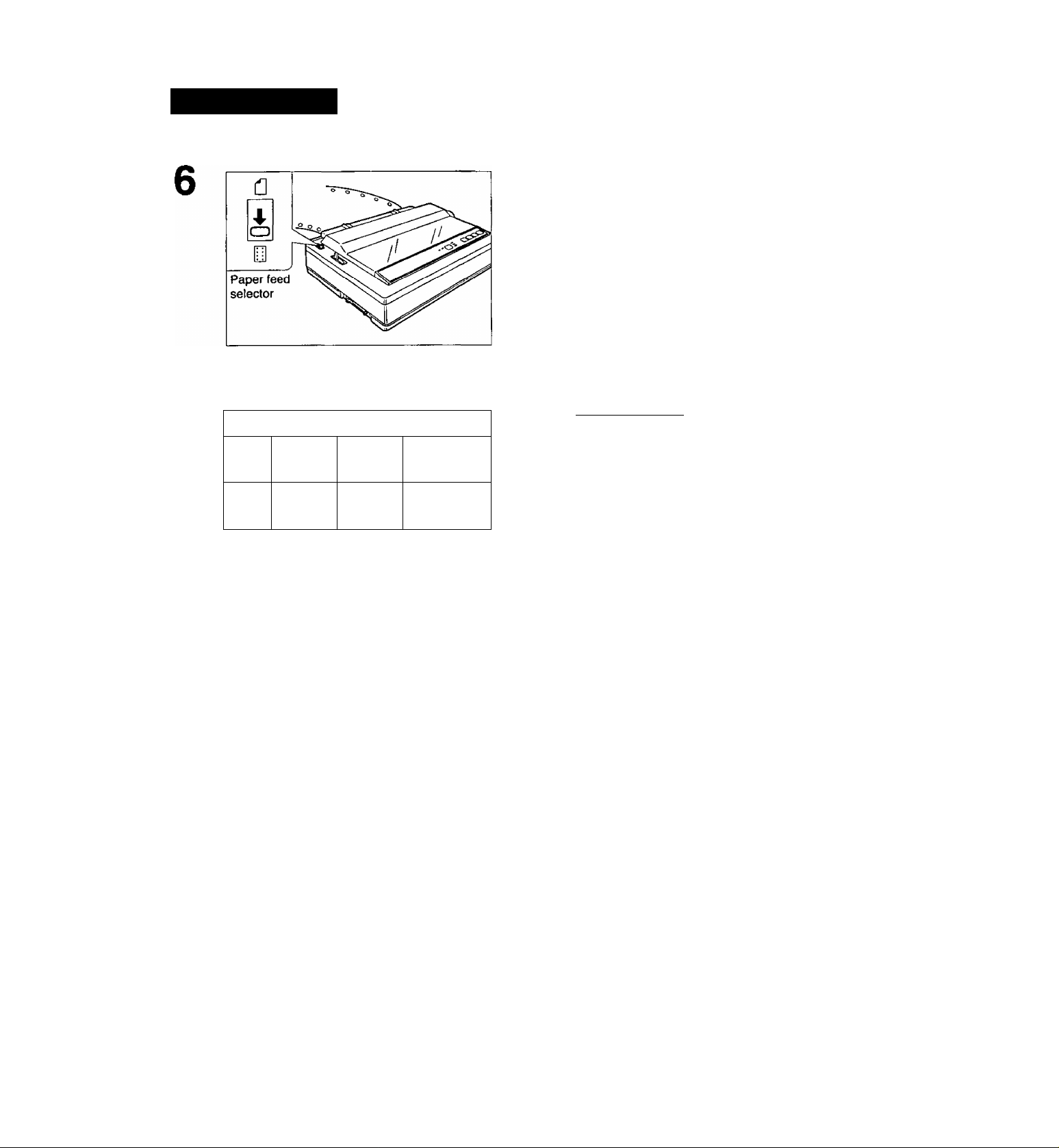

Paper Feed Selector

Parts of the Printer

“ fl” (Friction) Single sheets

and envelopes

“ II ” (Tractor) Fanfold paper

Top cover —

Frame ground —

terminal {P. 12)

Head Gap Lever

Adjusts the gap between the platen and the printhead. The lever moves in increments of

0.0028 inch (0.07 mm).

Paper support ( “S’ P. 23)

Centronics parallel interface connector ( “^ P. 12)

. c - -

Position .

1 or 2

3, 4, 5 and 6

Used for

Thinner sheets Thick or multiple

sheets, envelopes

Power switch

( D3*P. 13)

Tractors

Nameplate

Serial No. Label

AC power cord

( BS" P. 13)

11

Connecting to a Computer

1

Attach the parallel interface cable from your computer and secure the

printer clips.

Note;

• tf you do not have a parallel interface cable, you will need to purchase one from your local computer store or dealer.

If the cable has a frame ground wire, connect it to the frame ground ter minal.

12

Connecting to a Computer

Plug printer into a grounded 3 prong

AC socket.

When the power is supplied to the printer, the power indicator on the control panel will tight.

• To prevent the cable from possibly dis connecting from the printer, route the cable through the cable support which Is

located on the bottom of the unit

13

Ribbon Cassette

Installing the Ribbon Cassette

1

Turn the power on.

The carriage will automatically move to the ribbon exchange area.

Note:

• The printer allows the ribbon cassette to be installed only in this area.

Fold the smoked plastic cover forward.

Raise the smoked plastic cover.

Caution:

• The printhead may be hot, use caution when cover is open.

14

Ribbon Cassette

Move the head gap lever to the (-1-) position.

Rotate the knob on the ribbon

cassette to remove any slack.

O Slip the ribbon between the ribbon

mask and the printhead nose.

15

Ribbon Cassette

Replace the smoked plastic cover.

@ Press down on rear of the cassette

until the wing tab snaps into place.

Adjust the head gap lever for the thick ness of paper you are using.

Position

1 or 2 Thinner sheets 3,4, 5 and 6 Thick or multiple sheets or

envelopes

Use for

16

Removing the Ribbon Cassette

Ribbon Cassette

Turn the power on.

The carriage will automatically move to the

ribbon exchange area.

Note:

• The printer allows the ribbon cassette

to be installed only in this area.

Fold the smoked plastic cover

forward.

Raise the smoked piastic cover.

Caution:

• The printhead may be hot, use caution when cover is open.

17

Ribbon Cassette

Move the head gap lever to the (+) position.

Spread the wing tab and lift up the

cassette.

18

Installing Paper

Your Panasonic printer offers two paper handling choices: — Fanfold paper (Tractor push mode) — Single sheets and envelopes (Friction mode)

Fanfold Paper (Tractor Push Mode)

O Turn the power on.

The PAPER OUT Indicator will flash indicat ing that paper is not installed in the printer.

@ Adjust the head gap lever for the

thickness of paper you are using.

Position Use for

1 or 2

3, 4, 5 and 6

Thinner sheets Thick or multiple sheets

Set the paper feed selector to the “ I ” position.

O Fold the smoked plastic cover

forward.

O Remove the top cover.

19

Installing Paper

O Unlock the tractors by pulling the

tractor clamping ievers forward.

Q Siide the tractors to accommodate

the approximate width of the

paper being used.

In most applications, you will find that the 0 indicator on the tear bar is a useful tool for predetermining your left most print position.

Open the tractor covers.

Align the paper sprocket holes

with the tractor pins making sure

the paper is straight.

O Close the tractor covers.

20

8

ON LINE

TEAR OFF

LF/FF

LOAD 1 PARK 1

Installing Paper

O Adjust the tractors to remove any

slack.

@ Lock the tractor clamping levers.

Press [ LOAD/PARK ).

This will load the paper to the first print line.

1

Note: : i

• Do not use (LF/FF) to load paper.

10

Replace the top cover and the smoked plastic cover.

If the ON LINE Indicator is not lit, press [ ON LINE ] to get ready to print.

21

Installing Paper

Single Sheets and Envelopes (Friction Mode)

O Turn the power on.

The PAPER OUT indicator will flash indicat ing that no paper is installed in the printer.

@ Adjust the head gap lever for the

thickness of paper you are using.

Position

1 or 2 Thinner sheets 3, 4, 5 and 6

Set the paper feed selector to the “ Q ” position.

O Fold the smoked plastic cover

forward.

Thick sheets or envelopes

Use for

22

0 Raise the top cover to the single

sheet feed position.

This is done by inserting the side pins of the top cover into the slots on the upper cabinet.

Installing Paper

Paper support

Paper guides

O Rotate the paper support.

O Separate the paper guides to the

approximate width of your paper or envelope.

O Repiace the smoked piastic cover.

& insert a sheet of paper through the

paper guides and behind the piaten.

The paper will automatically be loaded to the first print line.

Nòte:

• To disable Auto Load, turn Auto Load O^F in the Initial Setup Mode on disk. (I®* P.28)

• Auto Load is disabled, press

{ LOAD/PARK] to automatically load

paper to the first print line.

If the ON LINE indicator is not lit, press [ ON LINE] to get ready to print.

23

Printer-Driver Selection

This procedure is the final step before printing and Is performed in your application software program. The steps will vary, depending on the software program. Consult your software package for proper procedures. The Panasonic KX-P2023 will be your first choice. However, if the Panasonic KX-P2023 printer is not listed in your software, you must select an alternative from the following table.

Printer-Driver Selections (in order of priority)

Panasonic KX-P2023 Panasonic KX-P1123 Panasonic KX-P1124

Epson LQ-850

Epson LQ series

IBM Proprinter X24E

IBM Proprinter X24 *

If selecting the IBM Proprinter X24E or IBM Proprinter X24 in your software, printer emulation must

also be changed in the initial setup mode, (i^ P. 28-36)

24

Installing a Printer-Driver (Windows Ver. 3.1)

If you are using Windows Ver. 3.1, please use a Printer-Driver for Windows Ver. 3.1 of the

attached Setup Disk.

Before you use the Setup Disk, it is recommended that you make a back-up copy and store the original in a safe place.

Note:

• Use the DISKCOPY command of the operating system to make a back-up copy. Refer to your

DOS manual for further information.

• Type A:\INSTALL [J] to copy the programs from your Setup Disk onto your hard drive. This procedure automatically creates a directory called 2023 and copies alt of the programs from your Setup Disk onto your hard drive.

In “Main Group*’, select

1

“Print Manager”.

In “Options”, select “Printer Setup”.

Click Add »

In “List of Printers”, select “Install Unlisted or Updated

Printer”.

Click Install...

Default Printer —

xxxxxxxxxxxxxx

Installed Printer:

xxxxxxxxxxx

Set As Default Printer |

Default Printer —

XXXXXXXXXXXXXX

r Installed Printer;

XXXXXXXXXXX

Set As Default Printer

Printers

Cancel

Connect...

Setup... ~

Remove~

Add » .1

Help

Printers

Cancel

I Connect..,

I Setup." I RemovT I Add»

[ Help

List of Printers:

Install Unlisted or Updated Printer

Install...

25

Installing a Printer-Driver (Windows Ver. 3.1)

Insert the disk.

Click OK .

The printer diriver of KX-P2023 is

shown in a dialog box.

List of Printers;

Panasonic KX-P2023

Ciick OK

Add Unlisted or Updated Printer

8

Ciick Set As Defauit Printer

FI

L OK

I Cancel j Help

Click Close .

10 11 Exit the “Print Manager’

26

Self Test

The printer has a self test feature which allows you to test the printer.

Load a sheet of paper (fanfold or single

1

sheet), then turn the power off.

(1^ P. 19-23)

While pressing [Xf7Ff ] , turn the power on, then release.

Draft

! ./0123456789:

! ./0123456789: ;

’( y*-^ ./01234 56789; ; <

’( )++ ./0123456789: ;

./01234 56789: ;<->

Courier

!"#$%&'()’*+,- ./0123456789:

!"#$%&'()*+,-./0123456789:; "#$%&'{)*+,- ./0123456789:;< #$%&’()*+,-./0123456789:;<= $%&*()*+,-./0123456789:;<=>

Prestige

‘ ./0123456789:

! '*#$%&' ()* + ,-./01234 56789:;

'()*+,-, / 0123456789 :; <

( i^i^^^-/aiza4_56789 : ;< =

If the printer is functioning properly, you may turn the power off during the self test, or you may run the entire test, (approximately 20 minutes.)

; < = >? @ a b c d e f gh ij k lm n o p

<->?@ABCDEFGHIJKLMNOPQ

->?@ABCDEFGHIJKLMNOPQR >?^ABCDEFGH1JKLMN0PQRS

2GABCDEFGHIJKLMN0PQR5T

;< = >? 0ABCDEFGHIJKLMNOP < = >?0ABCDEFGHIJKLMNOPQ = > ? 0ABCDEFGHIJKLMNOPQR

>?@ABCDEFGHIJKLMNOPQRS

?@ABCDEFGHIJKLMNOPQRST

;<^>?@ABCDEFGHIJKLMN0P

<=>?@ABCDEFGHIJKLMNOPQ

-> 70ABCDEFGHIJKLMNOPQR > ?@ABCDEPGHIJKLMNOPQRS ?@ABCDEFGHIJKLMNOPQRST

27

Using Setup Disk

The printer allows you to select 17 Initial Setup items shown in the table below. You can select all these items by using the Setup Disk.

(fi

o

Q.

(D

Emulation

Epson* ................Epson LQ-850

IBM

.....................

Character aet (P. 68)

Italic* (Epson only) Graphic character set 1 Graphic character set 2

Code page (P. 68)

PC-437 (USA)* PC-850 (Multilingual)

PC-860 (Portugal)

PC-863 (Canada-French) PC-865 (Norway) PC-857 (Turkey)

International character set (P. 73)

USA* France

®

Germany U.K. Denmark 1

Font

Draft*

(D

Courier Prestige

Pitch

10 cpi*

(D

12 cpi

15 cpi

Zero font

0* (Normal zero)

0 (Slashed zero)

Page length

11 inches* 12 inches

14 inches 8 inches

11 ^ inches 8 inches

♦ denotes setting when shipped from factory.

IBM Proprinter X24E

Sweden Italy Spain 1 Japan Norway

Bold PS Script

17 cpi 20 cpi P.S

Denmark 2 Spain 2 Latin America Korea LEGAL

Auto LF

(D

ON

......................

OFF*

..................

Auto CR

ON

......................

®

OFF*

..................

(This setting is effective only in the IBM

mode.)

Skip perforation

ON

......................

OFF*

..................

Alternate Graphic Mode (A.G.M.)

ON

......................

OFF*

..................

(This setting is effective only in the IBM mode.)

Cut Sheet Feeder (C.S.F.)

Enable Disable* [C.S.F. option (KX-PT12) is installed.]

Graphic direction

Uni*.....................Uni-directional printing

Bi

........................

(Uni-directional printing will provide precise vertical alignment when printing graphics such as tables.)

Super quiet

©

ON

......................

OFF*

..................

Download

Enable

©

Disable* [Buffer Chip option (KX-P44) is installed.]

Auto load

ON*.....................Enabled

OFF

....................

(This setting is effective only when using the single sheets and envelopes.)

CR+LF CR only

LF, VT, ESC+“J”+CR LF, VT. ESC+“J” only

1 inch skip No skip

AGM is ON AGM is OFF

Bi-directional printing

Super Quiet is ON Super Quiet is OFF

Disabled

28

Using the Setup Disk

This Setup Disk can only be used in an iBM-PC or a compatible computer.

Before you use the Setup Disk, it is recommended that you make a back-up copy and store the original in a safe place.

This printer has been factory set to operate with most of the popuiar software packages. In

most cases there wiii be no need to change the initiai setup items. Refer to page 28 to verify

that the factory settings meet your requirements. If no changes are required, you should be

ready to print.

Note:

• Use the DISKCOPY command of the operating system to make a back-up copy. Refer to your

DOS manual for further information.

• Type A:\INSTALL0 to copy the programs from your Setup Disk onto your hard drive. This procedure automatically creates a directory called 2023 and copies all of the programs from your Setup Disk onto your hard drive.

Running the initial Setup program

^ Insert your setup disk into either drive A or B.

<For DOS> <For WINDOWS>

Type A: (or B:) and

o

press [ Enter).

Type SETUP

3

Press ( Enter ] .

4

Screen 1 [SELECT COUNTRY] will be displayed (for first time installation).

The screen default to a USA setting. If you do not have to Screen 1 change this setting, touch

Enter to confirm your country

and advance to screen 2.

If you must select a country

other than USA, refer to page 30, step1.

Note:

• If you have previously saved your

initial setup settings to disk, screen 1 [SELECT COUNTRY] will not be displayed. If you need to select another country, press F4 and screen 1 will be displayed.

< < Panasonic KX-P2023 Setup Utility (xxxxxxxxxxx)

[SELECT COUNTRY] - for appropriate FACTORY settings

t T ], I X ] —> Select country [Enter] —> Confirm country

[ESC] - -> Exit to DOS

Select Run from the File menu.

o

£

Type A:\SETUP (or B:\SETUP)

3

^ Click I OK I (or Press ( Enter )).

4

USA BELGIUM

CHILE

DENMARK FINLAND FRANCE GERMANY ITALY NORWAY PORTUGAL SPAIN SWEDEN TURKEY

UK OTHER COUNTRY

u

CO

(t>

c

*o

o

Q. (D

29

Using the Setup Disk

Setting and saving the Initial Setup items

U

CO

(D

c

■o

o

a (D

H Press [t] or (J].

Select the desired country.

Note; If the name of your country

does not exist on the screen, select OTHER COUNTRY.

Press [ Enter ].

The country will be set and screen 2 will be displayed.

Press (D or

Select the desired item. A brief description accom panies each item.

Press @ or e.

Select the desired setting.

If you want to change the settings of more items, perform steps 3 and 4.

Screen 1

< < Panasonic KX-P2023 Setup Utility (xxxxxxxxxxx)

[SELECT COUNTRY] - for appropriate FACTORY settings

USA

BELGIUM CHILE DENMARK FINLAND FRANCE GERMANY ITALY NORWAY PORTUGAL SPAIN SWEDEN TURKEY UK OTHER COUNTRY

[ t] ,[i ] [Enter] [ESC]

—> Select country —> Confirm country —> Exit to DOS

Screen 2

« Panasonic KX-P2023 Setup Utility (xxxxxxxxxx) »

Item Setting Item Emulation EPSON Character set Code page International char. Font DRAFT Pitch Zero font NORMAL Page length Auto LF

Select emulation

EPSON Allows KX-P2023 to Operate like another printer. Be sure to select a printer driver in your application software that supports the emulation selected.

« KEY OPERATION »

[ T ], [ i ] —> Select item

[«-],[->) - -> Select setting

[Enter] --> Confirm all settings

ITALIC USA A.G.M

USA 10 CPI Super quiet OFF

11 INCH OFF

IBM

Auto CR OFF Skip perforation

C.S.F mode Graphic direction UNI

Download Auto load ON

[FI] - -> Reset to FACTORY settings

[F4] —> SELECT COUNTRY mode

(ESC}--> Exit to DOS

Setting OFF

OFF DISABLE

DISABLE

30

Moves the cursor one line up/down Changes the setting

[Enter] Displays a message which confirms

settings

[FI]

Resets the current settings to FACTORY settings

[F4]

Returns to screen 1

[ESC] Exits to DOS

g Press [ Enter].

Screen 3 will be displayed.

Press [y] or (^.

“Y”: All the items will be set

“N”: The display will return

to screen 2.

Press [y] or .

and screen 4 will be displayed.

Using the Setup Disk

Screen 3

Are you sure ? (Y/N)

Screen 4

‘N’

g Press (3 or

‘N’

All the settings will be sent to the printer and screen 5 will be displayed.

The current settings won’t be sent to the printer and screen 2 will be displayed.

All the settings will be saved on the disk and screen 6 will be displayed.

The settings won’t be saved on the disk and screen 6 will be displayed.

Do you want to save your settings to the printer ? (Y/N)

Screen 5

U>

(D

O Q.

(D

31

Using the Setup Disk

Press [y] or ® •

Screen 6

*Y”: All the settings

will be printout and screen 7 will be displayed.

‘N”: The current settings

won’t be printout and screen 7 will be displayed.

Do you want a printout of the printer settings ? (Y/N)

Paper must be installed.

Screen 7

10 Press [y] or

“Y”: You have exited the

Initial Setup program.

“N”: The display will return

to screen 2.

(/) (D

O Q.

(D

32

Using the Control Panel

The Control Panel allows you to set only Emulation, Auto Line Feed, Cut Sheet Feeder, Graphic direction and Page length. ( ^ P. 35)

Load a sheet of paper (p. ig~23), and

turn the power off.

^ Entering Initial Setup Mode While pressing (XOAD/PARK]

turn

the power on.

Both font indicators and Super Quiet in dicator will be blinking. The current settings will be printed auto

matically.

^ Selecting the Item (Ex; Emulation) Press and release [ FONT I.

Select the desired item according to the status of the FONT indicators (on, off, blink ing). Each time you press FONT, you will advance to the next item. (OS* p. 35)

■O

3^

Si

SL

CO

» c

o

Q.

(D

33

Using the Control Panel

^ Setting the Item’s Status

(Ex; Epson/IBM)^

_________

Press and release [ ON LINE ].

Tochange the item’s status, press ON LINE. The item’s status will change each time you press ON LINE, (o®* P.35)

If you want to change the settings of some

more items, perform steps 2 and 3.

■

o

■p

CO

m

u

CO

CD

O Q. CD

ON LINE

TEAR OFF

LF/FF

LOAD 1 PARK 1

^ Exiting Initial Setup Mode

Press ( LOAD/PARKl.

Font indicators will go off and the current

conditions will print.

34

Using the Control Panel

EXAMPLES

1. While pressing [ LOAD/PARK], turn the power on.

2. Press [ FONT] until font indicators reflect the item you wish to change.

3. Press (ON LINE) if you wish to make a change to that item’s status.

Emulation: Press (FONT ] once.

Epson Mode

O • I font I aSUPEflOUtET O #

-----------------------

lUNE

I SUPER QUIET

. POWER

*■ Press [ON LINE ] -——* IBM Mode

Auto LF: Press [ FONT ] twice.

Off

--------------------------------------

^3 On unE

□

□ SUPER QUIET • O»SUPER QUIET

. POWER

. Press [ ON LINE ]

C.S.F.: Press [ FONT] 3 times.

Disable---------------------------------► Press [ON LINE]

• •

»SUPER QUtET .POWER

G. direction: Press [ FONT ] 4 times.

Uni-directional

0^0^

[Z\

✓ \

--------------------

»SUPER QUIET . POWER

► Press [ON LINE ]

-----------------

-------------

* On

► Enable

► Bl-dlrectional

°X

»SUPER QUIET .POWER

»SUPER OUET .POWER

1 SUPER OUtET

- POWER ’ PAPER OUT

» SUPER OUET , POWER

■o

u

CO

<t>

c

o a

(D

Page length: Press [ FONT] 5 times.

11"

--------------------------

»SUPER QUIET

.P(^n

-

Press [ON LINE]

-------------------- 14"

Press (ON LINE ] --------------► 11^/3'

FONT indicators condition:

• =Iight is lit O =light is out ^ =iight is blinking

ON LINE indicator condition:

■i =light is lit □ ^[z]^=light is blinking

^0*^0

y \

o

»SUPER QUIET .POWER

/

»ONLINE

\

ISUPEROUtT

-POWER

"paper OUT

35

Using the Control Panel

Resetting All Current Settings to the Factory Settings

Follow the instructions below: If there is paper loaded, you will automatically get a printout of the current settings.

While pressing ( LOAD/PARK], turn the power on, then release.

Make sure that both FONT indicators are blinking.

2.

(D

O Q.

(D

Press ( TEAR OFF ).

All the current settings will be reset to the Factory settings.

Press ( LOAD/PARK).

NLINE

TEAR OFF

LF/FF

LOAD 1

1

/ /

A printout will verify the current setting. You have exited the Initial Setup Mode.

36

Selecting a Character Font

• Press and release [ FONT)

You can select any one of the character fonts by pressing the FONT switch on the Control Panel. The combination of FONT indicators show the current character font status, as shown below.

EXAMPLES

o o

• •

/ s.

P]

o

ISUPEROUIET .POWER

I SUPER QUIET .POWER

ISUPEROWET .POWER

.POWER

PAPER OUT

ION LINE

ISUPEROUIET

POWER

’paper OUT

=PROGRAM

=Courier

=Pres t ige

=Bold PS

=Sc^pt

(O

<D

■D

5'

<D

• =light is lit. 0 =light is out p =light is blinking.

Note:

• When the power is turned off, font will reset to default setting. If you want to save a font selection as your default, you may do so by using the Initial Setup disk. ( os* P. 30)

• When both font indicators are off, the font commands from your software program will control your printer.

37

Super Quiet Mode

The Super Quiet mode is a useful feature for further reducing print noise. Your printer has the capability of saving this feature by using the Initial Setup disk. ( bS" P. 28-32)

Turning on the Super Quiet mode:

• While pressing [ON LINE] , press [ TEAR OFF]

The Super Quiet indicator is on.

Turning off the Super Quiet mode:

• While pressing [ON LINE] , press [ TEAR OFF]

The Super Quiet indicator is off.

(D T)

3.

5'

(D

38

Feeding Paper

You can adjust the paper position by using the control panel switches when the printer is in the OFF LINE mode or when the printer is not printing in the ON LINE mode.

Line Feed/Form Feed LF/FF

With paper installed, pressing [ LF/FF 1 once advances the paper one line. Holding [ LF/FF 1 will move the printhead to the center of the printer and advance the paper.

Note:

• Fanfold paper will advance to the top of the next page. When using a cut sheet feeder or single sheets, the current sheet of paper will be ejected.

Tear Off TEAR OFF

With fanfold paper installed, this function allows you to advance your paper to the tear position. After

tearing off the page you can return your paper to the first printing line.

1

Press! TEAR OFF] to advance the paper to the tear bar.

Fold the rear part of the smoked plastic cover forward.

(O

2.

s'

<D "0

5*

<D

39

Feeding Paper

Tear off the page.

Press (TEAR OF^ to reverse the paper back to the first print line.

<o

IS.

5'

<D "0

5'

(D

Replace the smoked plastic cover.

Note:

• If (TEAR OFF ] is not pressed a second time, the printer wiil automatically reverse to the first

print line upon receiving data from the computer.

Paper Parking LOAD/PARK

This function aiiows you to use single sheets or envelopes without removing or wasting your fanfold paper.

Tear off the printed page(s) of the fanfold paper being used.

1

Press ( LOAD/PARK] to reverse the fanfold

paper to the park position.

40

Feeding Paper

Move the paper feed selector to “ Q

(Friction mode).

Load a single sheet or an envelope.

{DS* P. 22 “Single Sheets and Envelopes") When you are finished printing, remove the sheet (or envelope) from the printer.

O Lower the top cover for fanfold paper.

0 Replace the smoked plastic cover.

S2,

5’

ua

(D

■D 2,

5’

41

Feeding Paper

Move the paper feed selector to

(Tractor Push mode).

Press [ LOAD/PARK] to reload the fanfold paper to the first print line.

S2. 5’

(Q

** (D

“0

5‘

<D

NLINE

TEAR OFF

LF/FF

LOAD 1

1

/

42

Epson LQ-850 Mode

This printer has the software commands of Epson LQ-850 mode. More detailed information has been

stored in the Command Reference program on the Setup Disk, {ns" P. 54)

Font Selection

Function

Selects print quality

Selects print typeface

Selects sub/superscript printing ESC “S" n

Releases sub/superscript printing ESC “r

ESC V n

ESC “k" n n=0:

Character Pitch Selection

Function

Sets pica pitch (10 cpi) printing Sets elite pitch (12 cpi) printing* Sets micron (15 cpi) printing

Sets compressed (17 cpi) printing*

Releases compressed printing

ESC “P" ESC “M" ESC “g"

SI or ESC SI DC2

Name

Parameter

Draft font

n=0: n=1:

LQ font

Courier font n=2: Courier font n=3: Prestige font n=4:

Script n=6:

Bold PS font n=0:

Superscript n=1:

Subscript

Parameter

Sets/Reieases proportional spacing

Sets programmable pitch/

highlighting based on the value

of n

ESC “p" n

ESC n

n=

0: Release

n=

1: Set

(0^ng255)DEC Bit

Pitch Elite Pica

0

1

PS

2

Compressed Emphasized ON OFF

3 4

Double printing 5 Double width 6

Italic

Underlining ON OFF

7

* When elite and compressed pitches are set simultaneously, subsequent output is printed in

20 cpi (up to 160 cpi).

ON OFF ON OFF

43

Epson LQ-850 Mode

Character Highlight Selection

Function

Sets emphasized printing ESC “E”

Releases emphasized printing ESC “P Sets/Releases double high printing

Sets single-line double wide printing SO or ESC SO Releases single-line double wide

printing

Sets/Releases double wide printing

Sets outline and shadow printing ESC "q" n n=0: Release

Sets double strike printing ESC “G" Releases double strike printing ESC “H" Sets/Release underlining

ESC “w” n n=0: Release

DC4

ESC "W” n

ESC n n==0:

Name Parameter

n=1; Set

n=0: Release n:=1: Set

n=1: Outline n=2: Shadow n=3: Outline with Shadow

Release

n=1: Set

CO

o

(5

o

o 3

3

Q>

3

a

CO

Sets/Releases score

ESC T 3 0 1 di d2

Word Processing Mode Selection

Function Name Parameter

Sets Word Processing mode

Sets character dots spacing

ESC “a" n n=0: Selects left alignment mode.

ESC SP n

di=1 Underline di=2 di=3 Overscore

d2=0 Cancel the score line d2=1

d2=2 d2=5 d2=6 Double broken line

n=1: n=2: Selects right alignment mode. n=3: Selects justification mode

(0^n^127)DEC

Strikethrough

selected by di

: Single continuous line

Double continuous line Single broken line

Selects centering mode.

44

Character Set Selection

Epson LQ-850 Mode

Function

Sets Italic printing

Releases Italic printing ESC “5”

Sets international character set

Selects graphic Character Set 1 Selects graphic Character Set 2

Selects alternate character set

ESC “4”

ESC “R” n

ESC “r

ESC “6”

ESC T n

Bit Image (Graphics) Mode Selection

Function

Sets 8-pin image standard density

(60 dpi)

ESC “K” ni n2 Data

Name

Parameter

n=0 USA n=8: Japan n=1 France n=2

Germany n=10: Denmark 2

n=3 England n=11: Spain 2 n=4 Denmark 1 n=5 Sweden n=6 Italy n=7 Spain 1

n=0

Italic

n=1

Graphic character set

n=2

User-defined characters

n=9: Nonway

n=12: Latin

America n=13: Korea n=64:

Legal

Parameter

Sets 8*pin image double density ESC “L" ni n2 Data

(120 dpi)

Sets 8-pin image double density/ ESC “Y" ni n2 Data

double speed (120 cpi)

Sets 8-pin bit image quadruple

density (240 dpi)

Sets bit image mode selection

Reassigns graphics mode density

ESC “Z” ni n2 Data

ESC m ni n2 Data

ESC “?" n m

8-pin Dots/Inch 24-pin Dots/inch

m=0: 60 m=32: m=1: 120 m=33: m=2: 120D m=38: m=3: 240 m=39: m=4: 80 m=40: m=6: 90

n=75: Reassign (ESC “K” ni n=76: Reassign (ESC “L” ni n=89: Reassign (ESC “Y” ni n=90: Reassign (ESC “Z" ni m is same as m of “Sets bit image

mode selection"

60

120

90

180

360

n2)

na)

n2)

na)

45

Epson LQ-850 Mode

Paper Feed Selection—Amount

Function Name

Sets paper feed to Ve inch (3.2 mm) Sets paper feed to Ve inch (4.2 mm) Sets paper feed to "/eo inch

Sets paper feed to "/leo inch

Sets paper feed to "/360 inch

Paper Feed Selection

Function Name

Feeds paper one line Feeds paper to next top of form Executes paper feed of "Лео inch

for one line

Executes reverse paper feed of

"/180 inch for one line

Page Format Selection

ESC “0" ESC “2” ESC “A" n ESC “3” n ESC “+" n

LF

FF ESC “J" n

ESC “j” n

Parameter

(02n^l27)DEC (0Sn^255)DEC

(0^n^255)oEC

Parameter

(0Sns255)oEC

(0ёп^255)оЕС

Function Name

Sets page length in inches ESC “C” 0 n Sets page length in lines

Sets left margin

Sets right margin ESC “Q” n

Sets skip perforation

Releases skip perforation ESC “0"

ESC “C" n

ESC r n 0Sns78: Pica

ESC “N" n

Tabuiation—Horizontal

Function Name

Sets horizontal tab Releases horizontal tab Executes horizontal tab

ESC “D” ni ... nx 0

ESC “D" 0 HT

Parameter

(0Sn^22)oEC (1 gn^127)0EC

0^n^93: Elite 0^n^117: Micron 0 ^ n g 133: Compressed

2^n^80: Pica 3^n^96: Elite 3én^120: Micron 4^n^137: Compressed

(1 gn^127)oEC

Parameter

(1 SXS32)

46

Tabulation—Vertical

Epson LQ-850 Mode

Function

Sets vertical tab Releases vertical tab ESC “B” 0 Executes vertical tab Sets VFU channel ESC T n

Sets VFU tabulation Releases VFU tabulation ESC "b” m 0 (0^m^7)

ESC "B” ni ... nx 0

VT

ESC "b" m ni 02 ... nx 0

. Name

(1^x^16)

{0SnS7)DEC (0gm^7){lsxg16)

Carriage Controi

Function

Prints, then backspaces one

character

Prints a tine, then returns carriage CR Unidirection mode (single line) Sets/Releases single direction

printing

BS

ESC ESC “U" n n=0: Release

Name

n=1: Set

- " Parameter *

Parameter

Sets/Releases half speed printing

Moves the print position to an

absolute horizontal position

Moves the print position to a

relative horizontal position

Data Control

Function Name Parameter

Clears data in line buffer Selects printer remotely

Deselects printer remotely Deletes last printable character

Sets MSB on

Sets MSB off

Cancels MSB setting

ESC "s" n

ESC “$” ni n2

ESC T ni n2

CAN

DC1

DC3 DEL

ESC “>” ESC “=” ESC “r

n=0: Release n=1: Set

CO

0

1

0»

3 o

o

3

fi>

3 a CO

47

Epson LQ-850 Mode

Download Character Selection

Function Name Parameter

Defines download font

Selects ROM CG ESC “%” n n=0: Select ROM Character Selects download CG

ESC “&” 0 n m do di d2

Data

Generator

n=1:

Select download CG

Copies internal ROM CG font into ESC 0 n 0

download CG

Miscellaneous

Function Name Parameter

Initializes the printer

Cut Sheet Feeder control

ESC ESC EM n

Courier font

n=0: n=2: Courier font n=3: Prestige font n=4: Script n=6:

Bold PS font

n=“R": Eject a sheet n=“0": Cut Sheet Feeder mode is

OFF

n=“4”: Cut Sheet Feeder mode is

ON

48

IBM Proprinter X24E Mode

This printer has the software commands of IBM Proprinter X24E mode. More detailed information has

been stored in the Command Reference program on the Setup Disk. ( bs* P. 54)

Font Selection

Function Name Parameter

Selects print quality ESC “I" n

n=0: Internal Draft 10 cpi font n=2: Internal LQ 10 cpi font n=3: Internal Proportional LQ font n=4: Download Draft 10 cpi font n=6: Download LQ 10 font n=7: Download Proportional

LQ font n=8; Internal Draft 12 cpi font n=10: Internal LQ 12 cpi font n=12: Download Draft 12 cpi font n=14: Download LQ 12 cpi font n=16: Internal Draft 17 cpi font n=18: Internal LQ 17 cpi font n=20: Download Draft 17 cpi font n=22: Download LQ 17 cpi font

Selects print typeface ESC “k" n

Selects subscript printing Selects superscript printing

Releases sub/superscript printing

ESC “S” n

ESC “T

n=0: Courier font n=2: Courier font n=3: Prestige font n=4: Script n=6: Bold PS font

n=0: Superscript n=1: Subscript

Character Pitch Selection

Function Name Parameter

Sets elite pitch (12 cpi) printing ESC Sets compressed (17 cpi) printing SI or ESC SI

Releases elite and compressed

printing

Sets/Releases proportional spacing ESC “P" n n=0: Release

DC2

n=1: Set

D>

(D

o

3

a

3

a

w

49

IBM Proprinter X24E Mode

Character Highlight Selection

Fuifictlon

Sets emphasized printing ESC “E" Releases emphasized printing Sets double strike printing Releases double strike printing

Sets single-tine double wide printing Releases single-line double wide DC4

printing

Sets/Releases double wide printing

Sets double high & double wide

printing 0 Unchanged

ESC “P ESC “G” ESC “H"

SO or ESC SO

ESC “W" n

ESC T 4 0 0 0 m3 m4

Name Parameter

n=

0: Release

n=

1: Set

m3 Line feed Character height

1

Unchanged Single-tine

2

Unchanged Double-high 16 Single Unchanged 17 Single Single-high 18 Single Double-high 32

Double Unchanged 33 Double Single-high 34 Double Double-high

Unchanged

Sets/Releases underlining ESC n

Sets/Releases overlining

ESCV n

Character Set Selection

Function Name Parameter -

Setects alternate Character Set 1 Selects alternate Character Set 2 ESC “6"

Changes the current code page

ESC "7"

ESC T 4 0 0 0 ni n2 ni=00H and ri2=00H:

m4

=0: No change

m4

=1; Single-wide

m4=2: Double-wide

n=

0: Release

n=

1: Set

n=

0: Release

n=

1: Set

Current ni=0lH and ri2-B5H: USA ni=03H and ri2=52H: ni=03H and ri2=5CH; ni=03H and n2=5FH: Canada French ni=03H and ri2=6lH: Norway

ni=03H and ri2=59H: Except the above; Download font

Multilingual

Portugal

Turkey

50

Bit Image (Graphics) Mode Seiection

IBM Proprinter X24E Mode

Function

Sets 8-pin image standard density

(60 dpi)

Sets 8-pin image double density

(120 dpi)

Sets 8-pin image double density/

double speed (120 dpi) Sets 8-pin image quadruple density

(240 dpi)

Sets bit image mode selection

(A.G.M. mode only)

Sets bit image mode selection

Name

ESC “K" ni n2 Data

ESC "L" m n2 Data

ESC “Y” ni n2 Data

ESC “Z” ni n2 Data

ESC m ni n2 Data

ESC T “g” ni n2 m Data

Parameter

8-pin Dots/Inch

m=0

60 m=32: 60

m=1

120 m=33: 120

m=2

120D m=38: 90

m=3

240 m=39: 180

m=4

80

m=6

90

8-pin DotsTInch 24-pin Dots/Inch

m=0

60 m=8: 60

m=1

120 m=9: 120

m=2

120D m=11: 180

m=3

240 m=12; 360

24-pin Dots/Inch

m=40: 360

Paper Feed Selection—

Function

Sets paper feed to Vs inch (3.2 mm) Sets paper feed to V72 inch

(2.5 mm)

Executes line spacing set by

ESC “A" n

Sets paper feed to V72 inch

(or Vso inch in A.G.M. mode)

Sets paper feed to V216 inch

(or V180 inch in A.G.M. mode)

Selects the base line feed unit for

ESC “3” and ESC “J"

Sets/Release automatic line feed

Amount

Name

ESC “0" ESC “1”

ESC “2"

ESC “A” n

ESC “3” n

ESC T T 4 0 0 0 0 n n=180

ESC “5" n

(O^ns

î255)dec

(0^n^255)DEC

n=216

n=0: n=1 :

Viso inch base unit V216 inch base unit

Release Set

Parameter

51

IBM Proprinter X24E Mode

Paper Feed Selection

Function Name Parameter

Feeds paper one line Feeds paper to next top of form FF

LF

i

Executes one-line paper feed of ESC “J” n

%i6 inch

(or'^/i8o inch in A.G.M. mode)

(0gng255)oEC

Page Format Control

Function Name Parameter

Sets page length in inches ESC “C" 0 n Sets page length in lines ESC “C" n Sets left and right margins ESC "X" m 02

Sets skip perforation ESC “N” n

Releases skip perforation

Sets top of form

ESC “0” ESC “4”

(1 Sn s255)dec (1 sn ^255)dec Pica: 1^ni^78 3^n2^80

Elite: 1^01^93 4^02^96 Comp.: 1 ^ni S133 5^02^137

(0^n^255)oEC

Tabulation—Horizontal

Function Name Parameter

Sets horizontal tab ESC “D" ni n2 ...nx 0 (1 SXS32)

Releases horizontal tab

ESC “D" 0

0)

o

D)

O O

o

B 3

D> 3 Q. CO

Executes horizontal tab HT

Tabulation—Vertical

Sets vertical tab Releases vertical tab ESC “B” 0 Executes vertical tab Returns to default tabs ESC “R"

52

Function Name Parameter

ESC “B” ni n2 ... nx 0 (1 gx^64)

VT

Carriage Control

IBM Proprinter X24E Mode

Function

Prints, then backspaces on

character

Prints a line, then returns carriage CR

Sets/Release single direction

printing

Moves the print position to a relative

horizontal position (ri^iao inch)

BS

ESC “U” n

ESC “d” ni n2

Name

Data Control

Function

Clears data in line buffer Selects printer remotely Deselects printer remotely

CAN DC1 ESC “Q" 36

Name

Down Load Character Selection

Function

Defines download font ESC "=” ni n2 35 Ai A2

Data

Name

Parameter

n=0: Release n=1: Set

Position: ni+(256xn2)

Parameter

Miscellaneous

Function

Prints continuously from All

Character Chart

Prints one character from All

Character Chart

Sets OFF LINE mode ESC “j” Resets to initial state

ESC T ni n2

ESC

ESC T “K” ni 0 m 36 pi p2

Name

Parameter

Total count: n2x256+ni

53

Command Reference Program

The Command Reference program allows you to display the detailed explanation of each software

command on the screen. Each displayed explanation can be printed out if required. Before you use the Setup Disk, it is recommended that you make a back-up copy and store the original

in a safe place.

• Um the DISKCOPY commiand of fhe operating system to make a back-up copy. Refer to your

DOS manual lor further Information,

• Type A:\INSTA1X [j] to copy the programs from your Setup Disk onto your hard drive. This procedure automaticalty creates a directory called 2023 and copies all of the programs from your Setup Disk onto your hard drive.

Insert your setup disk into either drive A or B.

1

<For DOS>

Type

2

Screen 1 will be displayed.

A: (or B:) and [Enter).

CMDREF

[ Enter ].

Screen 1

« Panasonic KX-P2023 command reference utility (xxxxxxxxxxx) »

- - SELECT EMULATION - -

EPSON

IBM

<For WINDOWS>

Select

Select Run from the File menu.

2

Type

3

Click

4

54

[T)/[i]

(Enter)

tE]

Select emulation Set emulation Exit to DOS

0 Press [t]or[J].

Select an emulation.

Press [ Enter).

The emulation will be set and screen 2 will be displayed.

Press [Pg.Up] / [ Pg.Down)

8

Select a command.

Command Reference Program

Screen 2

« Panasonic KX-P2023 command reference utility (xxxxxxxxxxx) »

-- SELECT COMMAND (EPSON)

FONT SELECTION

ESC+Y+n Seter^s print quality ESC+'k'+n ESC+‘S’+1 Selects subscript printing ESC+’S'+O Selects superscript printing ESC+T Releases sub/superscript printing

CHARACTER PITCH SELECTION

ESC+’P’ ESC+’M’ ESC+'g' Sets micron (15 cpi) printing SI ESC+SI DC2 ESC+’p’+1

[T]/[i] Select command [Pg.UpJ/[Pg Down] : Go to previous/next category [Enter] View command description [Esc] [E]

Selects print font style

Sets pica pitch (10 cpi) printing Sets elite pitch (12 cpi) prining

Sets compressed (17 cpi) printing Sets compressed (17 cpi) printing Releases compressed printing Sets proportional spacing

SELECT EMULATION mode Exit to DOS

[T]/[4.] [PgUp]/

[Pg.Down]

Moves the cursor one line up/down Moves the cursor to the first command of

the previous/next item

[Enter] Displays the explanation of the command [Esc]

m

Returns to screen 1 Exits to DOS

55

Command Reference Program

Screen 3

Press [ Entef).

The screen will show the detailed explanation of the command.

If you want to print out this explanation, press Enter key again.

If you want to exit this program, go to step 10.

« Panasonic KX-P2023 command reference utility (xxxxxxxxxxx) » ESC+’x’+n Selects print quality <PRINTQUALITY>

Selects print quality

Name: ESC X Dec.: 27 Hex.: IB

Comment: ‘The following values of n can

n=0: Draft font n=1: LQ font

( T j / ( i ] : Text scroll-down/up [Pg.Up] / [Pg.Down]; Go to previous/next command [Esc] ; SELECT COMMAND mode [Enter] ; Print current command description [E] : Exit to DOS

[T]/[4]

[Pg.Up]/ [Pg.Down]

[Esc] Returns to screen 2 [Enter]

[E]

120 n

78 n

Scrolls the text one line down/up Displays the explanation of previous/next

command

Prints the detailed explanation of the command

Exits to DOS

n

be used:

-_END--

[EPSON]

10

Press fYl-

You have exited the Command Reference program.

56

Periodic Maintenance

The printer does not require any routine maintenance. However, reasonable care of the printer will extend its life. The following periodic measures are recommended:

• Cleaning the unit is the most important action the user can perform. The frequency of cleaning is dependent upon the environment.

— Turn the power OFF.

— Clean the case and covers with a soft cloth. Use any mild commercial cleaner on the cloth, do

not spray directly on to the printer.

— Remove the top and the smoked plastic covers. Vacuum or dust the inside area of the unit. Be

very careful not to damage the printhead ribbon cable or the carriage drive belt. — The platen should be cleaned with denatured alcohol only. — The carriage guide bar can be lubricated with a very light oil. Contact your Authorized Panasonic

Service Center for advice on lubrication.

Ribbon Cassette

A single ribbon permits the printing of approximately 3 million total draft characters. When the printing starts to fade, gently push the counter spring in the ribbon cassette hole with the tip of a ballpoint pen or other object. Once the ribbon cassette is mounted onto the carriage and printing is performed for a short time, the characters will become darker.

Note:

• Do not re-ink the ribbon until printing starts to fade. If the ribbon has too much ink, the characters may smear when printed.

• If the ribbon begins to catch, snag, or tear from the printhead, your printer requires servicing.

Self Test

After re-inking the ribbon, to make sure that the characters are no longer smearing you may perform steps 1 ~3 of “Self Test", P. 27)

57

(O

0)

(D

zs

fid

3

o

(D

o

c £

(V CO 3

o o

"

Troubleshooting

Most problems associated with the printer can be traced to improper setup, installation, or cabling.

The following table 5.1 will assist the user in identifying and correcting some of the more common

problems. If you need additional help, contact the store from which the unit was purchased.

(O

5'

(D 3

0) 3

o

(D

o

c

£

<D

U)

o

a

3

Symptom Possible Cause

Ink smears Head gap lever is not in the

proper position

Printout is faint Head gap lever is not in proper

position

Head moves but does not print Ribbon is not installed correctly

Head gap lever is not in proper

position Printer does not power up Power is on but printer does not

print

Carriage stops moving, all indicators start blinking

Paper wrinkles when using

tractor feed

Printer can't load single sheet in Friction mode

Cut Sheet Feeder does not work

Unexpected characters appear in printing

KX-P44 (buffer chip) is installed but cannot download

Printout is double-spaced Auto LF is ON

Keeps printing on the same line

Wrong character set printed

Table 5.1 Troubleshooting

No AC power

Printer is not ON LINE

Interface cable is not properly

connected

Out of paper

Printhead has become

overheated

Path of printhead is blocked

No reverse tension on paper

Cut Sheet Feeder is Enable

Cut Sheet Feeder is Disable

Emulation is set incorrectly

Download is Disable

Computer is not sending a LF

command

Wrong character set selected

Probable Solution

Move the lever toward the lower position (+) until ink doesn’t smear (ns* P. 11)

Set the lever to the proper

position { CS" P. 11)

Re-insert ribbon (03=* P. 14-16)

Set the lever to the proper position (OS’ P. 11)

Check power cord { c®* P. 13)

Press ON LINE switch

Secure connection ( P. 13)

Install new paper

(0®* P. 19-23) Allow the printhead some time to

cool down. The printer will automatically resume printing

Clear the path, turn the power off, then back on to resume

printing

Set paper supply lower than

printer

Set Cut Sheet Feeder to Disable when not using the Cut Sheet

Feeder ( P. 28-35)

Set Cut Sheet Feeder to Enable

{P. 28-35)

Check printer driver of your

software package and set

emulation accordingly

(P. 28-35)

Set Download to Enable

(13= P.28-32)

Set Auto LF to OFF

(13= P. 28-35)

Set Auto LF to ON

(13= P. 28-35)

Set the character set as required

(13= P. 28-32)

58

Printer Specifications

Power requirements:

Frequency:

Current:

Interface: Centronics parallel Print fonts: 3 Draft (Pica, Elite, Micron)

Software emulation: Epson LQ-850

Buffer: 14K (standard), additional 32K (optional KX-P44) Character sets: 96 ASCII characters,

Dot configuration:

Refer to the nameplate located on the rear of the printer.

4 Letter Quality (Courier, Bold PS, Prestige, Script)

IBM Proprinter X24E

96 Italic ASCII characters, 38 International characters — 14 countries,

158 IBM-PC special characters Vi27 inch (0.2 mm) dot diameter

Matrix (Hor. X Ver) 9 x 24

Draft LQ

30x24

Dot pitch (Hor.) Vi20"

(0.21 mm) (0.07 mm)

(Ver.) 1/180"

(0.14 mm)

Maximum number of Pica [10 cpi (characters per inch)]

characters per line (cpI):

Printing speed [characters

per second (cps)]:

Printing direction:

Line feed time:

Paper Feed:

Operating environment:

Storage environment:

Elite (12 cpi) Micron (15 cpi) Compressed (17 cpi) 137 cpi Elite compressed (20 cpi) Pica elongated (5 cpi) Elite elongated (6 cpi) 48 cpi Micron elongated (7.5 cpi) Compressed elongated (8.5 cpi) Elite compressed elongated (10 cpi) 80 cpi

Micron Elite Draft 240 cps 192 cps Letter Quality 80 cps 64 cps

Text printing: Bi-Directional Bit Image printing: Uni-Directional & Bi-Directional

Approx. 100 msec [with 1/fe inch (4.2 mm) line feeding)]

Push Tractor feed (with fanfold paper) Friction feed (with single sheets or envelopes)

Temperature: 10'С-Зб'С {50*F~95*F} Humidity: 30-80% RH (Please allow the printer to stabilize at room temperature within the operating temperature range before operation)

Temperature: -20*C-60*C {^T~140*F} Humidity: 10-90% RH

1^60"

1/180"

(0.14 mm)

80 cpi 96 cpi

120 cpi 160 cpi

40 cpi 60 cpi

68 cpi

Pica

160 cps

53 cps

(Continued)

59

Printer Specifications

Head service life: Ribbon:

Detectors:

Dimensions:

Mass {Weight}:

Approx. 200 miiiion strokes in draft mode Cassette seamless fabric ribbon

Biack ribbon cassette KX-P145: Life expectancy (in Draft mode) (roiiing ASCII)

Approx. 3 million

Paper out detector Overheat detector

434 (W) X 314 (D) X 134.5 (H) mm {17.1" X 12.4" X 5.3'T

Approx. 4.8 kg {10.6 lbs)

60

Paper Specifications

Paper which may be used with this unit must be within the specifications provided below.

Fanfold Paper

Width: 4 ~ 10 inches (102 ~ 254 mm) Quality and number of sheets:

Type of paper

Fine-quality paper 1 Non-carbon 2-4 Multi-layered with carbon

(* only for the last sheet)

Note:

• In multi-layered paper with carbon, the carbon Is equivalent to a sheet of paper.

• “Weight in pounds” represents the weight of 500 [17x22 inches (423x559 mm)] sheets.

• The printer will handle multipart papers up to 0.013 inch (0.32 mm). Up to 4 copies of 14 lb. chemical release paper can be used.

Sheets

2 11 - 14 (17*)

Single Sheets

Width: 4 - 11.7 inches (102 - 297 mm)

Height: 5 ~ 14.3 inches (127 ~ 363 mm)

Weight in pounds (g/m^): 14-24 lbs (53 - 90 g/m^)

In lbs

16-24

11 - 14(17*)

Weight

Ing/m^

60-90 41 - 53 (64*) 41 - 53 (64*)

Note:

• Paper should be within operating temperature and humidity ranges at least 24 hours prior to use.

Envelopes

#6 and #10 size envelopes are recommended. Since envelopes vary in size, paper weight and construction, we cannot guarantee print quality and paper handling for all types of envelopes.

Note:

• To optimize print quality, printing should not occur in areas where the edges overlap.

61

Paper Specifications

Printing Area

Fanfold paper

o o o o o o o o o o o o

l-O

o

:^F

Paper perforations

o

o o o o o o

Nnttngaiea

'o

IQ

lo

|0 'o

lo

|0 lo

lo

|0

lo

IQ

Fanfold Paper A B 0.7" (17.8 mm)

1"(25.4 mm)

c 0.33" (8.38 mm)

D

A: Value A indicates the area near the paper perforations where

the quality may not be optimum,

B : Value B indicates the maximum distance between the sprockets

and first printable character. (When the left tractor is set on the

left end and the margin is set to 0.)

C: Value C indicates the area from thè top edge gf the paper to the

top of the first printed character.

D: Value D indicates the position where paper out is detected and

printing may not be optimum.

1"(25.4 mm)

Single Sheets and Envelopes

62

Single Sheets and Envelopes

B 1.5" (38 mm)

c

D

0.33" (8.38 mm) 1"(25.4 mm)

B: Value B indicates the minimum distance between the edge of

the paper and the first printable character. (When the left paper guide is set to the left end and the margin is set to 0.)

C: Value C indicates the area from the top edge of the paper to

the top of the first printed character.

D: Value D indicates the position where paper out is detected and

printing may not be optimum. (When printing on envelopes, do

not print on area where edges overlap. Print quality may not be

optimum.)

Interfacing

Parallel Interfacing

Communication with a computer is accomplished through a parallel interface based on the Centronics standard.

Specifications:

• data transfer speed: 1000 cps minimum

• synchronization: external STROBE pulse

• logic levels: TTL (Transistor-Transistor-Logic) levels

• handshaking: BUSY and ACK signals

• connector type: 57-30360 (AMPHENOL) or equivalent

• cable: use a shielded cable (6'571.95 meters) or less in length. When the printer is processing data, the BUSY signal is high. THe printer will not accept new data

from the computer. After the processing is completed, the BUSY signal goes low. (The BUSY signal

is also high when the printer is OFF LINE). When the busy signal occurs, the ACK signal goes low indicating to the computer that the data has been processed and the printer is ready to accept more

data. This handshaking routine occurs each time a character is sent to the printer.

BUSY SLOT

ON LINE LOW HIGH LOW

OFF UNE

PAPER OUT

Printer Status signals

HIGH LOW HIGH

18 1

LOW HIGH

oooooooooooooooooo oooooooooooooooooo

i36

Parallel Interface Connector (Printer side)

Signal

11

Return

aide

1 19 STB

2 3 21 DATA 2

4 22 5 23 6 24 DATA 5 7 8 26 DATA 7 9

10 28 ACK

12

20

25 DATA 6

27

29

Signal

DATAI

DATA3

DATA 4

DATA 8

BUSY

PO

Direc

tion

Input

Output

SIngal

13 SLOT 14

15 16 17

18 +5 V 31 30 PRIME 32 33 34 35 36

' PO

LOW LOW

Return

aide

Signal

AUTO FEED XT Input

SG FG

ERROR Output

SG

ERROR

HIGH

LOW

DIrec-*

tion

Output

Input

Pin Configuration (Parallel)

63

Interfacing

Connector pin signals

STB...STROBE

• This is a synchronizing input signal to read data into the printer.

• This signal is normally high. Data is read in when it is low.

DATA1-DATA8

• These are the input signals which carry the 8 data bits of information.

• The signal is read in synchronization with the STROBE pulse. A high level indicates a logical “1”.

ACK...ACKNOWLEDGE

• This is an output signal to the computer indicating that the printer is ready to receive the next data. When the condition becomes true, the signal goes low.

• The ACK signal is automatically sent whenever the printer is switched ON LINE and the BUSY signal drops from high to low.

BUSY

• This output signal indicates the status of the printer cannot receive data.

• The signal is high under the following conditions:

1. receive buffer full

2. printer is processing data

3. printer is OFF LINE

4. printer is in an error condition

PO...PAPER OUT

• This output signal indicates the absence of paper and goes high during a “Paper Out” condition.

SLCT...SELECT

• This output signal is high in the ON LINE state and low when OFF LINE.

• The printer enters the ON LINE state:

1. When the printer is turned on

2. when PRIME is received

3. when the RESET command is received

4. when the ON LINE switch is pressed

• The printer enters the OFF LINE state:

1. when the printer is out of paper

2. when the printer is switched OFF LINE

AUTO FEED XT (AFXT)

• While this input signal is low, one line feed (LF) command will be added to each carriage return (CR).

• Auto LF setting in the Function mode can alter the response by the printer to an AFXT signal. If auto

LF is ON, the printer will perform a CR+LF regardless of the level of the AFXT signal. When auto LF is OFF, automatic action is disabled.

64

Interfacing

SG...SIGNAL GROUND

• The twisted pair return wires (pins 19-30) are connected to signal ground.

FG...FRAME GROUND

• Frame ground is the same as chassis ground.

+5V

• This is for evaluation only. It should not be used to supply power for external equipment.

PRIME

• This input signal is normally high and goes low to reset the printer. It can be received anytime during printer operation.

ERROR

• This output signal is normally high, and goes low when an error occurs. An error condition can be caused by:

1. a “Paper Out” condition

2. the printer is OFF LINE

3. an overload condition exists

Timing Diagram

Timing Chart (When normal printing code is received)

T1...0.5 ps (Min) T2...1|iS (Min) T3...0.5 ps (Men) T4...5 ps (Max)

T5...1 ms or less when buffer is not full

1 s or less when buffer is full

65

Initialization

The printer is initialized under the following conditions: — the AC power is turned on — the PRIME signal is received — the RESET PRINTER command is received — the clear buffer function is used

When the printer is initialized, the following conditions are set: — the print buffer is cleared — the receive buffer is cleared (not cleared by RESET PRINTER command) — the download character buffer is cleared (not cleared by PRIME signal in IBM Proprinter X24E

mode or by RESET PRINTER command) — horizontal tabs are set every 8 columns — vertical tab settings are cleared — all modes set by control and escape commands will be cleared — present form position is designated as top of form — the Self Test mode is cleared — the Control Panel settings are read and set — Control Panel settings are not changed by PRIME signal or RESET PRINTER command* — the printhead goes to the home position

Some software packages send PRIME signal at the beginning of their programs. Print modes set

by the Control Panel will not change.

User Clear Function

This function initializes the printer from the Control Panel. This feature is very useful when you want to clear the receive buffer (information recently sent from the computer and is currently printing) without changing the Control Panel.

1. Press [ ON LINE] to stop the printing and enter the OFF LINE mode,

2. While pressing [ FONT ] , press [ON LINE] to clear the data in the receive buffer.

3. Press ( ON LINE) to re-enter the ON LINE mode.

66

Hex Dump

In this mode, all data received from the computer is printed in hex code instead of the normal ASCII characters. Function codes for the printer (CR, LF, HT, etc.) are not executed. This mode is very useful to debug programs.

To enter the Hex Dump mode:

While pressing [ FONT) , turn the power on.

To release the Hex Dump mode:

Turn the power off, then back on.

67

Character Set Tables

Epson Italic Character Set (USA)

0 IS 32 48 64 80 96 112 120

Oaa

Hax.01

NUL SP 0 O P

0 0 1 1

2 2 3 3 4 4 6 6 6 7 7 7 G w S B BS

9 9 10 A LF 11 BVTESC K 12 C FF 13 14 15F51 /

DC1 DC2'2 B R b DC3«3 c S C s OC3 3 c S C s OC4$4

S % 5 E u e

CAN

HT EM

D CR E SO

4 5 6 7 B 0 A B

2 3

t

1 A

0

&

F V f V

6

H

3

(

9

)

J

•

<

L \

M

-

> N n 7

O 0 DEL SI / O

Q a

T

d

g h X

X

1 Y i

z

i

k

(

11FF <

m(CR

1

144

160 178 192

P d

t DC4

u

SP

1

cx:t DC2

s

% 5 E u G Ü

s 6

w BEL 7

BS CAN(8 H X ti X HT EM

y

z LF

{

-

)

•

VT ESC K

-

SO

208

D

C

P

0 0 1 A

Q a

2 B R

A

T

D

F V 1 V

w

G

Y i

9 1

J z

1 1 1

L

M

=

]

> N n

—

224

E

b

a t

9

i k

m

0 NUL

Epson Graphic Character Set 2 (USA)

240

F

P q

r

w

y z

{

1

J

-

Note:

• Set 1 is the same one which 80h~9Fh is

switched to 00h~1 Fh.

Epson Character Set 2 (Multilingual)

Dkl 0 IS 32 48 64 80 98 112

hlflO I.01

NUL

0 0

1 1

2 2

3 3

4 4 DC4$4 5 5 % 5 e u e u

S 6 & 6

7 7

8 8 BS CAN(8

9 9

10 A LF J z

11 B VT

12 c FF < L \ 1 1 1 13 0 CR

14

15

0C1

DC2

DC3 #

HT

EM

ESC

E S O F SI /

4

2 3

SP 0 0

1

1 A

2 B 3 c S C s

D

F

7

G w

H

1

»

>

+

K

M

-

> N n

7

O

5 6

P

a

Q

R

b

T

d

V t V A 0

g

X h

Y i

i

k i

(

m

1

0

Note:

• Set 1 is the same one which 80h~9Fh is switched to OOh-IFh.

128

7

P P

q

f

1 ä 0

w

*

y

7

}

-

DEL

8 9

Ü se

6

& Ö

ä

?

A

e

A

i

Ä

A

144

E

«

i> N A

Ü

y

0

LI

0

E

0

X

/

160 178 192 208

A

B C 0 E F

A

t

6 e Ö

Ü

-

ft

A A i

a

A A I p

0

o

¿

• 1 [r

~l

1

T

1 r

1

i

4

i

<< >>

1

Epson Character Set 2 (Portugal)

224

240

L

Ö

-

s

_L

o

1

P

=

e

Ö

-

LL

A

L r

ir

0

E Ö

1

I

J

r

1

■ 1

1 t

■

i

11

0

§

+

p

•

t>

-

Ü

Cl

•

Ü

1

3

y

t

Y

m

SP

Dec. 0 16 32 48 ! 64

Hex.01

0 0

1 1jDC1 2 2 3

3

Tj 4 DC4$4

5 5 % 8 6 & 6 F V f V 7 7 iT 8 a BS CAN

9 0

LL

A LF

10

11 BVTESC

12 c FF < L 13 0 CR 14

LL

IS

Ll

2 i 3 4 5

NUL

SP 0 0 , P

1

DC2

DC3 «

(

EM

)

n

•

rr

SO

SI / 7

80 96 112 128

1 A !0a

2 B R b r A

3 C S C s A 6 , u

T

D E u

5

w

G

B H X

. I Y i

! 9

J [7 K

. (

! \

M

-

> N ''

m

1

O

■

144

7

6

8 , 9

E

P

lL

8 1Ai

q

E 6

d 1 a Ti Ti e u A

Ö1

A Ü a

w

lz

z A

(

)

-

i

A )

E

1 ^

(

0 e

1

A pt A

Ü

Cl —>

=t

Cl

0

g h X

i k

1 1

n

o

160 176 192

A

B C

a

1 F-TT

I

N

LA

g ¿

1

J

0

1

T

2 2

1 ”

□r

i

«

T

»

LL

ZC

r F

-

P

"TT

L TT

-

L ■ t

F

I

r

\\

r

I

1r

T

208

T

t L

W

224

240

E ' F

L

a I

±

P

r

It

r

I

<3

4

F

■f

M

I

-

<t>

8

I . i

Ü

S

■r

-

"

3

0

t

■

n

SP

68

Character Set Tables

Epson Character Set 2 (Canada-French)

Note:

• Set 1 is the same one which 80h-9Fh is switched to OOh-1 Fh.

Epson Character Set 2 (Norway)

Ok, 0 10 32 48* 04

Hb l

0 1 .2 3 4:

0 NU L SP 0

0

1

DC1

1 1 A

■ 9

c

D CR

E SO

BS

HT

LF

VT

FF

DC2 •

DC3 #

CAN

EM

ESC

s

(

)

•

-

2 2

3 3

4 4 DC4

S 5 % 5 E S 6 5 6 F V

7 7 7

B

S S

10 A

n e

12

13

14 15 F SI /

00 08 112 120 144

5 0 7 . 0

P

0

2

e

3

c

4

0 T d t

G

B H X h

9 1 Y 1

J 2

K

<

L \ 1 1 I £i1

M

=

> N

0

a

5 C

u

w

(

1

''

P c

a

q

b

r

$

a u

(

V

w

g

X

y z

i k

{

m

}

-

n

0 A

0

4 fE 6

A

A 0

A 6

A

C

A

A Pi <<

i 0

1

•

E A

ee

6 u

0 a

U

i ¿ 0

u

0

f

100 17B

A

1

I

t

n

N

-

p

3

r~

-1

i

i r

_u

1

O

IK 200 224

c 'e;' ,F.‘

B

L

III

-

T1

L

1

fr

t

r

JL

J

ir

T

1

ir

I t

1

IL

•

a

t

p

T

r

TT

n £

r

L

I

0

1

F

+

p

-

t

«

e

.

n

r

5

- "

■

i

0

t

m

n

SP

Epson Character Set 2 (Turkey)

P g

u

q

f

A /E 6

A a n

V

A

w

f A 1

A 0 1“

y

Au~l

Z

i

{

1 ¥

)

-

A§« J

144

100 176IK208 224

A

E aa 1

N

6 U 6 U

0 ¿

1

T

1TJ

1

»

3

Ok: 0 10 324304 SO 98 112 128

Hox.01

0 0 NUL SP 0 0 1 1

-2 2 3 3

4 4 DC4$4 D T d t 5 5 % 5 E u e a A 0 0 & 6 7 7 0 8 BS

9 0 10 11 B 12 c

13 D

14 E SO > N n

15

OC1 OC2 OC3 «

CAN

HT EM)9 1 Y i

A LF

VT

ESC

FF

CH

F ■ SI

4

2 3

t 1

(

•

+ K

- =

/ 7

s 0 7 0 0 A B p

A

Q a

R

2 B 3 C s C s A 6 u

7 8 H X h X

<

b

F V

1

w

Q

g

J 2

i

k

[

L \ 1 1 1 E

M

m

)

0 D DEL A

Note:

• Set 1 is the same one which 80h-9Fh is switched to OOh- 1 Fh.

i

- —

=

-

T1 1

3

T r

3T

1

i,r

X

JL

±

c

I

[f

L ■

L

ii

T TT

-

1

L

1

t

■

D E F

Q 1»

P

r

II

K £

tz

I 0

F

F T

«

e

n

r

fi >r

-

a

t

n

240

±

r

1

+

-

•

" 2

■

SP

69

Character Set Tables

IBM Character Set 2 (USA)

Note:

• Set 1 is the same one which 03h~06h and 15h are switched to NUL, and 80h~9Fh is switched to OOh-IFh.

IBM All Character Chart (USA)

SP 0 0

1 A

I

2 G

i

3 C

4 D

$

% 5 E

6 F

&

7 G

8

(

9

)

<

- = > N

7

/

64

4

H

1 J K L

M

0

112 12S 144 160 176

60 96

6 7

5 P

P

Q a

q

R b r

C s

s T d t u e u

V f V

w

g

X h X Y i

y

2

z

i

k

[

{ 1

\

1

m

J

»

-

n

c

0

8 9 A 8

E 8

<?

Ü ee i

4 /E Ü 8 Ö Ü

Ö (1 - —

8 8

Ö

i Ü

Ü 0

t

6

V c

6

¡—

Ö

~l

8

Cl

I

9

T

i e

T

1 ¥

« J

Ä pt

>>

A

/

N S

i

Dec.

0 16 32 43

Hsx. 0 1 2 3

0

0 0

1 1 0

e

2 2

e

3 3 4 4

5

*

6

e

•

7 7

e a Q T

O

s

9

10 A

B

11 8

12

c 9

13 D

14 E A

0

F

15

► 4

I

!!

n

§

2^

1

-

- *

L

▼

-

71

J

i7r

J _u

J.

192 208

C D E

L

11

±

T

TT

it

-

1

I:

t

[f

1

r

r.

■

=

t

JL

1

7,r

±

i

224

240

F

o

-

±

p r

K i

r

L

I

a

1

M

t

-

*

•

e ii

r

e •r

»

-

t

0

€ a

n SP

IBM Character Set 2 (Multilingual)

48

1 1

P 3 s

% 5

)

>

- =

/

2

4

9

> 7

64 80 06 112

4 6 6

P

0

A 0 a

R b r

B C s

T

D

E u e F V 1 V

7

G w H X ti

1 Y J z K

1

L \ 1 1

M

1

N n

O o

C s d t

g

i i

k

m

Hex. 0

0 0

1 1

2 2

3 3 4 4

5

5 6 6

7

8 8 BS

9 9

A

10

B

11 12 C 13

D

14 E

F SI

15

0 16 32

1 2 3

NUL SP 0

DC1 DC2

V

DC4

♦ *

§

* & 6

CAN(8

HT

LF VT ESC

FF < CR SO

Note:

• Set 1 is the same one which 03h-06h and 15h are switched to NUL, and 80h~9Fh is switched to OOh-IFh.

7

P q

u

w

X

y z

i

)

-

144

128

0 A

6

E ä

c

BB i

0 6 /E Ö a 6 a 0 ä 6 a Ü 8

U 0

i

6

y

6

Ö

ä Cl

I 0

I £

0

1 A

-

A/»

176 192 206

160

B C D

Ü A

- — £ Ö A

N

A A 0

i

3

7

]

1

T

1 7?

1

2

T

i

<<

¥

JL

_L

g ( A i 11

[r

JL

11

JL

ir

0

L

0

J

1

■

224

E F

3 Ö

P

6

£ £ Ö

Ö

1

F

j

P

Cl

r

LJ

y

Y

1

) m

240

—

IBM All Character (Multilingual)

3 4

2

SP 0 O

1 A

1

2 B

P 3 C

4 D

$

%

5

8 6 F

7 8 H

(

9

)

+ K

< L

-

= > N

7

64

E

G

1

J

M

0

60 98

5 S 7

P

0 a

R b

C s

S

T d t

u e u

V 1 V

w

g

X h X

Y

i

z

i k

[ \ 1 1

m

1

n

0

112 128 144 160 176

8 9 A B

£ g

P

C

ee

Ü

/E d

6

g 6 Ü g 6 n

g Ö

g 0 a

Ü Q A

f

g

y

g 0 9 g

Cl

0

i E

0

A

*

A

/

i

N A

C

“1

T T

i « ¥ >>

P

f

w

y 2

(

} 1

c

A

c

J

i=jr J

i

1

Dec . 0 16 32 46

1

Hex. 0

0

±

i tl

§ +

•

• >

9

i

SP

0 0

1

2 2

3 3

4 4

6 5

6 6 7 a

9 9 10 11 B 12 C 9 L 13 0 14 E' 15

1

9

#

*

•

7

8 0 T

o

A

B

cf

j> P

0

F

¥

-4

I

jl

H

s

I

1

-

A

▼ 1

192 206

C 0 E

L

d 6

J_

O

£ Ö

£ i)

1

g

A I P

11

I

J

fr.

r

1

T

[ ■

JL

1

ir

'W

a

224

240

F

-

±

P

—

i

H

Ö

s +

F

•

P 0

Ö

•

u

*

y Y

-

■ SP

70

Character Set Tables

IBM Character Set 2 (Portugal)

P Q

0

q

& 0 u

a

i

u

A 6

A и a

w

i ё 1 £

у

ё

t

i

{ 1 0 E

i

}

-

A PI

A

144

1B0 17B 192 20B

£ A

A i

6 n — к

U

0 0

Cl

i

LI

0

L

_L

-

N

I

-

Q

T1

b

я

¿

J

[Г

JL

•f

i г

L

J

■J-

L ■

ii

=

i

JL

«

d

1Г

»

J. -

Д

T

-

1

I

0 IB 32 4B04SO 9B 112 12B

Dtc.

НШ. 0 1 2 3 4 5 В 7 8 9 A 8 C D E F

NUL SP 0 О P

0 0

1

1 DCl 2 3 4 4 5 9 0 7 7 S В BS 9 9

10 A 11 ВVTESC 12 c 13 14 £ SO 15

DC2

2

e #

Э

# DC4$4 * « & 6

e

HT

LF

FF < L \

D CR

F SI /

1 1 A 0

% 5 E

§

( }

•

+ К

-

2 В 3 С S

7 Q w В H X n X 9 1 Y

> N 7

a

R b Г ё Ё d

C

T d t

D

и

e

F V ( V

g

.

J z

i к

(

1

M

m

1

Л

n

О о

Note:

• Set 1 is the same one which ОЗн-Обн and 1 5h are switched to NUL, and 80h-9Fh is switched

to00H-1FH.

ТГ

J

1

IBM All Character (Portugal)

IL

— JL

i.r _L

C

L

[r

r L ■

208

D E F

il

T ТГ

1

-

f

IT

I

t

I

224

240

4

a

±

p r £

к £

г

£

О

4

p

t

-

Ф

•

e

0

г

s >r

- -

i

0

t

Ш

n

SP

224

240

В

a

±

ft

г

iL

к £

f

I

0

<

F

p

T

X

-

Ф 9

•

il

Г

e >r

-

I

0

£

Ш

n SP

□k. 0IB3248B4

Hex. 0 1 2

0 0 0►SP 0 0 1 1 0

•

2 2

V

3

3 4

4

•

*

S S

4

. s

В

4

7

8 В fl T

О

9 9

10 A

e 11 В 12 С

9

13 D P 14

E

P

0

F

15

3

i

1 A 0 a

•4 2 В R b Г ё Ё

i 11 #

3 4

$

% 5 E и e u A

§ A 6

7

1

a

{

1

9

)

-* •

-

<

L

-

"

A > N n

▼ /

7 О 0

80 9B 112 12B 144

4

c S C a A 6 u 0 T d t

F G

H X h

( Y i J z К L \ 1 1

M

5 В P

V

w

1

)

7

P q

t

V A

w

g

X 6

у

z 6 LI ~l

i

к

{

m

)

-

0

в 9 A В

Ё A

9 й A \

0 n — 1

б

6 0 a

LI

(

i

Ё

0

(

t

£

й

1 LI

A R «

A 6

1B0 17B 192

:

ё

N

-

9

-

¿

J

6

1

T

i f

1

T

ПГ

1

J

»

JL

IBM Character Set 2 (Canada-French)

IBM All Character (Canada-French)

71

Character Set Tables

IBM Character Set 2 (Norway)

Note:

• Set1 is the same one which ОЗн-Обн and 15h are switched to NUL, and 80h~9Fh is switched

to00H~1FH.

IBM All Character (Norway)

Dk . 0 10 32 48 04

Hex. 0 1 2 3

0 0 0

1

1 0

2' 2

3 3

4

4 #

s В

e «

7 7 e e D T g

9 A

10

11

В

12

C9L

13 D 14 E A > N

F

15

SP 0 О

►

1

9

t 2 В

9

!!

#

s

H

% 5 E и e u

S

4

& 6 F

•

I

(

0

1

)

В

-

• + К

-

- =

«

0

▼

1

80 90 112 120 144 100

4

1 A Q a

3 С S C s i й u

4 D T d

7 G w

H

В 9 1 Y i

J 2

<

L \

M

?

0 о

7

5 0

P

R

V

X b X

[

1

6

8 9 A в

P

c

0

Ч

b Г

6 7 E d

t & й fl - — L

b

f V

b (i a

w

9

6

у z 4 и

i

к

i

{

1 I

1

m

1 0

)

n

6 A Pi

A

D

Ё 4

ffi

t>

u Q

у

6

9

E

/

i

N

¿

(~ “1

1

T

1

T

i

<<

о

170 192 208

C D E F

L

X

-

:

-

Tl

i

J

ff

rit

T if

J

1

JL

J

ПГ

X

_L

-

Ж

T

TT

■ti

F

f

X

г

1

■

1

I

Ш

224

a a

p

г г

n

I

0

и

X

Ф e n 5

-

0 C n

240

±

4

-

.

-

г

m

DEL

IBM Character Set 2 (Turkey)

Note:

• Set 1 is the same one which ОЗн-Обн and 1 5h are switched to NUL, and 80h-9Fh is switched to00H«1FH.

IBM All Character (Turkey)

Otc. 0 10 32 48 04

H«x. 0 1 2 3 4

0 0 0

1 1 0

2 2 3 3 4 4 #

s s 0 0 7 7

0 8 D T

9 9

A

10 11

6

12 C9L

13 0

14

E

15 F

SP 0 0 P

►

1 1 A

•4

•

I

[j

#

s

H

4

% 5 E и e u A

s

4

A

*

I

(

О

1

)

в

-

+ К

-

«

- =

A > N

Л 0

w

/

80 90 112 128

S 0 7 0 9

P C

A

Q

q

2 В R b Г 3 c S C s & 4

T

D

d 1

F V f

6 7

G

8 H X h X 9 1 V

J z

<

L \ 1 1 I

M1m

?

0 0

w

£

V

w

9

i

у

z 6

i к

{

)

-

n

0 A9»

0 (

4 /Е 6

& 0

к Q 6

9 A

« 0

i

1

A9« J

144

100

m 192 208 224 240

A

в

C 0 E F

L

-

Б

J 1

1

1TГ

7

_U

JL

11

X

T

IT

1r

-

—

L

F

ir

ZL

Г

1

r

Г ■

=

t

JL

7

1Г

X

w

Ё i

U

0

n

N

6

u

9

1¿- Ф

l~ ~l

0

<t

T

c

V

1

Q

P r г

К

z

О

Ц

T

в n 6 лГ

- 0

C

n

±

r

1

•

.

2

■

SP

72

International Character Set

Character Set Tables

USA

FFtANCe

GEHMANY

U.K,

DENMARK!

SWED04

ÌTALY

SPAIMI

JAPAN

NORWAY 9

DENMARK 0 10

SPAINO

LATIN AMERICA

KOREA

LEGAL

36o

n

36d 64o 91o

23n 24h 40H sen 5Ch SOh

#

0

1

2

3 E

4 1

5

6

7 Pt

8

11 i

12

13

64

0

$

#

à

$

I

S

§

0

S

o 0

s

a

f

É A 0 A LI é

»

s 0

0

$

»

0

s

a

t

É /E 0

t

É /E 0

s

à

s

#

à

$

#

0

$

#

$

§

( »

À

1

"

j

[

i

Ì

[ "

S2d 93b 94d 98t> 123d 1240 12So 1260 ISSO 157o

5Eh

7Bh 7Cm TDh 7Em 9Bm

60h

\

f

0 0

\

'

1

§

]

1

{

1

é ù è

à ò ù

(

1

) ~

}

A s e à

à t à u

f\

;

{

i 8 ó

1 8

J

è i

) -

i -

ó IJ

)

t

\ é LI à ò

N

¿

¥

]

A A

N

i

N

L

4»=

1 {

-

"V"

£e 0 à ù 0 0

Cl é

ce 0 à ù 0 0

Ù é

'

é

é Ù

'

o

H

*1

90h

-

P

-

Ì O 0

-

Ì

$

Ì

u

i

-

Ì

TM

(t

*2

¥

Note:

* 1 These characters can be changed only in the Epson LQ-850 mode. In

the IBM Proprinter X24E mode, International Character Set is set to

USA and it can not be changed.

*2 These characters are effective in both Graphic Character Set 2 of the

Epson LQ-850 and IBM Proprinter X24E modes.

73

Proportional Spacing Tables

ASCII Character

Epson Mode Characters

ASCfl

Char.

code

SPACE

32 33 1 18

■

34

«

35 36

$

37

% X 38 8 36 39 18 40

(

41

)

42 43 X

44

-

45 46 18 47 / 48 0 X

1

49 50 2 X

51 3 X

4

52 53

5

54

6 55 7 X 56

8 57

9 58 18 59 18 12

<

60

=

61

>

62 63

7 X

64

0 X

Normal

X

X X X

24 16 24 16

X

18

X

X X X

X X

X X X

Wkfth

Script

20

12

20 20

24 24 12

20

12

20

12

20 20

20 20 20 20

20

12

20

20 24

ASCII

Char.

code

65

X

X X

X

X X

№ B X

67

X 69 70

G

71 72 73 1

74 75 K X 76 L X 77 M 78 N 36 79

W P X

81

Q

82

FI 83 S 84 85 u

X V

87

w

X X X

eg Y X 90

91

92 \ 93 94 X 20 95 96 18 12 97

Wld№

Normal Script

A

X

c

X

D

X 24

E F X 24

X 24

H

X 24

24

X

J

42

X

0

X 24 X 24 X

X 24

T

42

X 24

42

z X 20

24

1

30 20 24

1

_

X 24

X 20

a

ASCfl

Char.

code

24 24 24 24

16

20

24 24 28 24 24 24

24

28

28 24 24

16

b

98

C

99

d

IX

101 e

102 1 24 16 103

0

104 h

i

105

IX

j

107

k

108 1 109 m 110 n

111 0

112

p

113

q

r

114

5

'Its

116

117 U 118 119 120

121

122

123

124 125 126

127 9

I

V

w

N

y

Z

i

}

-

Width

Normal

X X X X

X

X 16 24 16

X 18 42

X

X 20 24 16

X 36 42

X 36

X 24 16 18 24 16

X

X 20

Script

24

X 24 20

24 24 12

24

12 2B 24 20 24 24

20

24

28

20

24 20

12

20

Compressed PS width is of Normal PS.

IBM Mode Characters

ASCn

Char.

code

32 SPACE

X 34 35 #

X

%

37

X

39

40

41 42 X

43 *

A4

45 46

47 / 46 0 49

X 2

51 3 X

52 4 53 S X

54 6

55 7

X 8 X

57

Width

Normal] Script

1 X

s X

8 X

( )

9

ASCII

code

X

X X

X

18

X X

X X X X

X

X X

X

58 X 59 60 < X

61

62 > X 63 64 65 A 42 66 e 67 68 0 42 69 E 70 F X 71 72 H 42 73 1 74 75 K 42 76 77 M 42 70 N 79 0 42 №

81 Q

82 FI 83 S

Char.

Normal] Script

7

0

c

G

J

L

P X

Width

X

X X

42 42

X

42

24

X

42

42 42

X

ASCII

Char.

coda

84 T

85 86 V 42 87 w

X X

89 Y

X z

91

92 \

93

94

95

96

97 a

96 b

99

IX d

101 102 1 24 103 104 h 105 i

IX 107 108 109 m

Normal] Script

u 42

[

1

C X

e

g

i h

Unit: 1/^0 inch (0.07 mm)

Wkfth

42

42 42

42

X X X X X X X

30

X

36

X

X 36 18 18

X 18 42

ASCII

code

110 n X 111 112 113 114 f X 115 8 X 116 1 117 118 V X 119 120 n X

121

122 123 124 125 126 X

Cher.

Normal] Script

0 p

q

U

w

y

z X

(

i

1

Wkfth

X

36

X

24

X

42

X

X X

X

Compressed PS width is of Normal PS.

74

Unit; i/äeo inch (0.07 mm)

Special Characters

Epson Mode Characters

Proportional Spacing Tables

Asca

code

36 4B 64

91

92 92 92 93 94

123 124 124 125 126 126 126 129

130

131

132 133 134 135 136 137 138

Char.

0 0

$

•

0

w

tl

o

« o

t

TM

c

Ü

b ä

b

ä

?

b

6 0

i

Wktth

Nonnat

30 30 20 30 24 36 18 12 42 30 20 30 36 36 30 20 30 30 20 36 36 24 36 30 30 20 30 30 20 30 20 30 20 30 30 20 30

Script

20

20 16 24

28

20 24 24

20

24

24 20

20

ASCn

139 140 141 142 143 144 145 146 147 148

149

160 151 152

153

154

155

156

157 158 159 160

161

162 163

164 ft

Char.

1 t

A 36 A

E 36 sa 42 /E

6 30

& 30

t 30

Cl 36

u

y

Ö C) 42

4

i

¥

Pi 42

/

ä 30

6 30

Ü

Width

Normal

18 IS

i

18

36

42

36 36 36

30 30 36

30

1

18

36 36

Compressed PS width is of Normal PS.

Epson Mode Characters (Multilingual)

Script

12

12 24 24 24 28 28 20 20 20 24 24 24 24 28 20 20 24 18 20 20 12 20 24 24

Asca

165 166

167 166 169 170

171

172 173 174 175 224 225 226 227 228

229

230

231

232 233 234 235 236 237 238

i

X

width

36 30 20 30 20

30 30 20 30 30 20 30 30 20 30 30 20 30 30 20 30 30 20

X X 20

X X 20 X X

X

X X

Char.

r^i B

Q ¿ 30 20

"■

2

-

a

p

r

K L

o

li

6

n

5

e X 20

ASCn

Char.

ScriptNormal

24

20

20 20

20

24 20

coda

239 240

241 242 243 246 247 248 249 •

2» 251 252 253 254 255

n

a

± 2

*

1

•

SP

Unit: 1/360 inch (0.07 mm)

Wkffli

Normal Script

X

20

X

X 20

20

X X 20

20

X X 20 X 20 X 20 X 20 X 20 X 20

20

X X 2Q

20 ■

Asai

code

35

48 92 93

125 126 128 129 130

131

132 133

134 135 136 137 138 139

140 141 142 143 144 145 3d 146

147

148

149 150 151

Char.

R

0

m

1

TM

c

Ü

6 i

b b b

b

b b

i

A A

E

/E

6

6 Ö Ü Ü

•

1 (

Normal

42 28 30 42 26 30 30 20 36 36 36 30 20 30 20 30 20 30 30 20 30 20 30 30 20 30 18 12 18 18 12 36 36 36 42 26 42 28 30 30 20 30 36 36

width

Script

20

24 24 24

20

12

24 24 24

20

20 24 24

ASCII

coda

152 153 154 155 156 157 158 159 160

161

162 163 164 165 166 167 168 169 170

171

172 173 174 175

181

162 183 164 189 190

Char.

y

Ö 36

Cl 42 0 30 E 30

0

X /

A 30

i 18 6 30 Ü

ft 36

, N

i

g ¿

«

T 30 i

4

i

-

A A A

O

C 30 ¥

Compressed PS width is i/& of Normal PS.

Normal

36

36 30 30

36

36 30 30 30 36 30

30 30 30 30 36 36 36 36

36

Width

Script

24 24

26

20 20 24

20

12

20

24 24 24 20 20 20 24

20

20 20 20 20 20 24

24

24 20 24

ASCU

coda

198 199 207 208 209 210

211

212 213 214 215 216 221 222 224 225 226 227 226 229

2X

231

232

2X 234 235

2X 237

2X

239

Char.

&

A

D

6 D

E

E E

1 ( 24

i

I 24 1

i 24

Ö

ß

Ö Ö

0

1*

P

t> Ü 42

Ü 0

y Y *

Width

Normal Script

X 20

24

X X

20

24

X X 24

24

X

36 24

24

X

12

18

16

24

16 16

18 12

16

24

X X 20

24

X

24

X X 20

24

X

X 20

24

X X 24

28 42 28 42 28

24

X

24

X 30 20 18 12

Unit: 1/Ö60 inch (0.07 mm)

ASca

coda

240

241

242 243 244

245

246

247

248

249

2X 251 252

253

254

255

Char.

=

4

§ ♦

-

• 1

n 24 2

m

SP

width

Normal

X X 20 X X 20 X X X X X X 20 X 20

24 16

X X 20 X

Script

20

20 20

16

20

75

Proportional Spacing Tables

Epson Mode Characters (Portugal)

Normal Script

a

9

§

Ä ¥

0 30

t

i

c

Width

30 20 30 20 30 20 42 28 36 36 24

36

36 30 20 30

30 20

30 20 36

36

30 20 30 20

36 30

ASCn

Char.

cods

136 6 30 20 137 138 30 20

24

12

24

20

24

26 20

24

24 24 24

24 20

139 1 24

140 141 i 142 A 143 A 144 145 146 t 147 Ö 30 148 Ö 30 20 149 Ö 150 Ü 42 28 151 Ü 36 24 152 i 24 153 Ö 36 24 154 155 156 E 157 Ü 42 158 Pi 42 26

1S9 Ö 36

160 A 30 161 162 163 Ü 164 165

Asca

Char.

cods

36 48 64

/E

91 91

92 92 0 36 92 0 92 18 92

w 42 28

93 A 93

94

H

123 c 36 123 i 123 ea 42 124 124 a 124

« 36

125 ä 30 20 125

lU

126 128

c

129 Ü 36 130 131 & 132 & 30 20 133 Ö 30 20 134 A 135

Compressed PS width is ^/2 of Normal PS.

Width

Normal

Script

36

6 36 24

18 12 36 36 36

A

36

30 20

Ü 42 20

4

30 20 30 20

i

18 12

Ö 30 20

36

6

36 24

N

36 24

ASCn

Char.

cods

24

16

24 24 24 24 24

20

16

26

24

20

24

166 167 166 169 Ö

■■

170 171 i 172 173 174 175 224 225 226 227 n 228 I 229 a 30 230

M

231 T

0

232 233

234 Q

235 6 236 30

237 238 € 30 20

r>

239 240 30 20 241 ± 242 30 243

Width

Normal Script

30

9

9 30 20

30 20

¿

36 30 30 20

7

30 20 30 20

i

•

30 20

-

30 20

a

30 20

8

30

r

30 20 30 20 30 20

30 20

8

30 20 30 20 30 20

30

30 20

£

30 20

Normal Script

+

•

Width

30 20 30 20 30 20 30 20 30 20

30 20 30 20 30 20 30 20

Asai

Char.

coda

20

24 20

20

20 20

20

246 247

« 248 249

*

250

251 30 20

n

252

2

253 254

■

255 SP

Unit: 1/Seo inch (0.07 mm)

Epson Mode Characters (Canada-French)

Ncamal

*

i

¥

¿

0 36

( 0 0

t

Wld№

Script

30 20 30 20 24 36 42 26 18 12 36 36 36 36 16 12

36 30 20 30 20

30 20 42 26 18 12 30 20 30 20 36 24 30 20

3D

36 36

30 20

ASCII

Char.

code

a

28

16

24

24 24 24 24

26 24

24

24 20

24 24

132

A

132

133 ä 30

134

H

135

f

136 6 30 137

6 30 20 138 e 30 139 i

i

140

141 _

142 A 143

§

144 145 £ 146 £ 36 24 147 6 148 36

I

149 150 0 151 Ü 36

□

152 153 6 154

Ü 42 26 155

4 156 E

157

U 42 158 Cl 42 159

/

160

'

Width

Normal

30 36

30 20 30 20

16 12

18 12 30 36 30 20 36 24 36

30 20

24 36

30 36

30 20 30 20

30 20

IB

Script

Asat

Char.

cods

35 Pt 42 46 0

64 & 91 91 A 91 /E 91

92 0

92 N

92 0

92

92 w 42

93 A

93

123 123 8 123 aa 123 124 124 124 6

124

0

124

® 36

125

TM

126 128

c

129 Ü 36 24 130 6

Compressed PS width is of Normal PS.

ASCII

Char.

cods

20 24

20

20 24

24

16 24 24

20 24

28 28

12

161

0

162

163 Ü 36 24 164

’

165

3

166

167

I

166 169 170 171

i

172

1

173

i

174

175 224

a 30

225

p

r

226 227

K 30

228 I

a

229 230

9

231 t 232 233 e 234 n 235 s 30

-

236 237 236

width

Normal Script

12

16

20

30

30 20 30 20

24

16 30 20 24

16

30 20

30

20 30 20

30 20 30 20

30 20

20 30 20 30 20

20 30 20 30 20 30 20 30 20 30 20 30 20 30 20

20 30 20 30 20 30 20

ASCII

Char.

code

n

239

■■

240

241

JC 30 20 242 243 30 246 +

-

247 248 249 •

•

250

V“

251 252 n 253 2 30 254

■

255

SP 30

width

Normal

30 30

30

30 20 30 30 20 30 20 30 30 20 30 20

30 20

Script

20

20 20

20

Unit: 1/Ö60 inch (0.07 mm)

76

Epson Mode Characters (Norway)

Proportional Spacing Tables

ASC»

Char.

code

48 0 30 20 64

§ 91 * 24 92 ¥

92 36

m

92 93 36 94

11 123 o 124

» 36

125

t 126 30

TM

126 128

C 129

Ü 130 4 30 20

131

6

132

&

133 ä 30 20 134

6 135

t 136 A 30 20

137

A 138 A 30 20 139 I 18 12 140 I IB 12

141

t 18 12 142 A 36 143 A 36 24 144 145 as 42 28

width

Normal Script

30 20

36

42

30 20 36 24

30 20

36 36 36 24

30 20 30

30 20 30 20

30 20

36

ASCII

Char.

coda

146

;e

147

0 30 20

16 24 24

28 24

24

20 24 24

20

24

148

0 30 20 149 Ö 30 20 150 Ü 36 24

151 Cl 36

152

¥ 153

Ö 36 154

Ü 42 28 155 0 30 156

E 30 20 157

O 36 158 PI 42 159

f

160 d 30 20

161 f IS 12

162 A 30 163 Ü 36

164 ft 36 24

N

165 166 0 30 20 167 0 30 168

L

-

169 170 30 171

7 30 20

172

i

i 30

173 174 -

0

175 224

a 30

width

Normal Script

28

42

24

36 24

24

20

24 28

30

20

20 24

24

36

20 30 20 30 20

20

30 20

20 30 20 30 20

20

ASCII

Char.

code

225

ß 226 227

228 t 30

a

229 230

V

231 T 30

232 « 233 e 30 234

n

s

235

-

236

237

<p

238 f.

n

239

B

240

241 ±

242 30 243 30 20 246 247 248 30 20

•

249

•

250

251 30

n

252 253 2 30 254

■

255 SP 30 20

Normal Script

r

It 30

*

-

width

30 30 20

30 20 30

30 20

30 20 30 20 30 30 30 20 30 20 30 30 20

30 20 30

30 20

20

20 20

20

20 20

20

20 20

20

Compressed PS width is of Normal PS.

Epson Mode Characters (Turkey)

Normal Script

■ 30 20

i

Width

30 30 20 30 24 36

42 28

30 20 36

36 36

30

18

ASCII

Char.

code

20

20 16 24 12

20

24

20 24 24 24 20

20 20

20

20 20 12

140 I 18 12

141

1 18 12

142 A 36

A

143 144

E 36 145 as 42 146

/E 42 28

147

6 148

6 30 20 149

6 150

0

151

Ü 36

152 1

153

Ö

154

0

155

4 156 E 30 20 157 ¥

158

?

159

t 160 A 30 20

1

161 162 Ö 30 20

163 Ü 36

164 ft

N

165 166 d 36 24

ASCII

Char.

coda

O

36 48

0

64

§ *

91

0

92 92 18

w

92 93 30

94

tl

123 o 36

0

124 124 125 t 30 20 126 30

tu

126 128

C

129 Ü 36 130 A 30

131 a 30 20

132

a 30 133 A 30 134

a 30 20 135

? 136 6 30 20

137 « 138

A 30 139

width

Normal Script

24 24

36

24 28

30 20

24

36

24

18 36 24 42 28 30

20

24

36 36 24 30 20

18 12

24 24

36

24

36

Normal Script

i

-

Wktth

36 30 20 30 20 30 20 30 20

30 20 30 20 30 30 20 30 30 20

30

30 30 20

30 20

36 30 30 20

30 20 30

ASCII

Char.

code

167 168 169

-

170 171

? 172 30 20 173

i

174 -

-

175

a

224 225 p 226 r 227

It 30 20 228 z 229 o 30 20 230

M

231 I 232 4> 30 20 233 e 234

u 30 20 235 5 236 237 238

c 30

n

239 240 s 241

t 30 20

Unit: 1/^0 inch (0.07 mm)

Asai

Char.

coda

24

20

20 24

20

242 243 s 30 20 246 ♦ 247 248 249 • 250 251 252 253 254 ■ 255 SP

Normal Script

>

-

•

vT

.

I

width

30 20

30 20 30 20 30 20 30 20 30 30 20 30 30 20 30 20

30 20

20

Compressed PS width is 1/^ of Normal PS.

Unit: 1/Ö60 inch (0.07 mm)

77

Proportional Spacing Tables

IBM Mode Characters

ASCII

Char.

code

0 1 2 3 4 30 5 6 7 8 a 9

10 в 30

11

12 13 14 15 30 16 17 16 30 19 20

21 « 30

22 30 23 30 24 30 25 26 30 27 30 28 29 30 30 A 30

31

127

Normal Script

0 30

•

*

* 30

•

0

d" 30

9

P 30

a

¥

4

1! 11

L

▼

a 30

width

30 30 30

30

30 30 30

30

30 30

30

ASCII

Char.

code

128 129 Ü 36 130 ó 30

131 á 30

132 й 30 133 к 134 135 136 é 137 6 30 138 к 139

140 141 1 142 A 143 144

145 146 /Е 42 147 ó 148 6 30 149 Ö 150

151 ü

152 153 Ö 42 154 Ü 155 30 156 £ 157 ¥ 158 Pts 159 160 á

Normal Script

9

ä 30 9

í

A

Ё

9

ú

y

/

Width

42

30

30 30

30 18 18 18 42 42 36 42

30

30 36 36

30

42

30 30 42 30 30

Asai

Char.

code

161 162 ó 30 163

164 ñ

165 166 a 30 167 g 30 168 ¿ 30 169 30 170 171 7 30 172 173

174

175 224

225 226 г 36 227 л 36 228 I 229 <J 36

230

231 T 30

232 Ф 42 233

234

235 s 30 236 237 238 239 240 241 ± 30

Normal Script

í

Ú

Ñ 42

■’ T

1

-

- 42

a 30

ß

Ц

Q 42

n 42

»

Ф

£ n 30

в

width

16

36 36

30

30 30 42

36

42

36

30 42 30

30

ASCU

Char.

code

242 243 6 30 246 247 248 30 249 250

251

252 n 30 253 2 30 254 255

Normel Script

+

-

*

Г

■ 30

SP 30

width

30

30 30

30 30 30

Compressed PS width is of Normal PS.

Unit: i/Seo inch (0.07 mm)

IBM Mode Characters (Multilingual)

Asai

Char.

code

0 0 30 1 30 2 3 4 5 6 * 30 7 8 9

10 в 30 11 12 13

14 15 30 16 17

18 19

20 21 § 30 22 30 23 30

24

25 30 26 30 27 30

28 29

30 A 31

127

12B

Normal Script

•

9

•

*

'

0

О

d 30

9

>

fl

► 4

I!

1

*

L 30

< >

▼

О 30

9

Width

30 30 30 30

30 30 30

30 30 30 30 30

30

30 30 30

42

ASCII

Char.

code

Ü 36

129 130 é 30

131 á 30

132 к 133 к 30 134 к 30 135

Í

á 30

136 137

é 138 é 30 139 140

141 1

Ä

142 143 A 144

É 36

145 8Э

УЕ

146 147 6

Ö

148 149

Ö

ii

150

151 ü 36

152

y

153 Ö 42

154

ü 42

o

155 156 E

157 0

X

158 159 160 á 30

161

162

Width

Normal

í 18 í

/

í 6 30

30

18 18 42 42

42 42 30 30 30 36

36

30 30 42 30 30

18

Script

ASCII

Char.

code

163 Ú 36

164 ñ 36

Ñ 42

165 166 a 30

167 Q 30

168 ¿ 30

169 30 170 30 171 2 30 172 30

i

173

«

174 175

A

181

A 42

182

Á

183 184 О 189 C 30

¥

190

&

198

A

199

О

207 208 ó 36

D 42

209 210 e 36

Ё 36

211

212 É 36

1 18

213 214 ( 24

Í 24

215

I 24

216

221

1 i 24

222 224 ó 42

Compressed PS width is i/& of Normal PS. Unit: 1/Ö60 inch (0.07 mm)

Width

Normal Script

30 42 42 42

42 30

30 30 42 30

30

Asai

code

225 226 ó 42 227 Ö 42 228 6 30 229 ó 42 230 231 232 233 234 235 236 237 238 239 240 241 242 30 243 244 245 246 247 30 246 249 250 •

251 30

252 253 254 255 SP 30

78

Char.

Normal Script

3

IJ

b

Ú 42 Ú Ú 42

у

“

±

7

1

§ ♦

■

Э

'

width

36

30 36 42

42

36 42 30 30 30 30

30 30 30 30

30 30 30

IBM Mode Characters (Portugal)

Proportional Spacing Tables

Asca

Char.

coda

0 0 30

1 30 2 3 4 ♦ 5 6 * 30 7 8 9

10 B 30

II

12 13 14 15 30 16 17

IS 30 19 20

21 § 30

22 23 24 25 30 26 27

2S

29 30

31

Normal

•

D

O

d 30

9

P

fl

►

!!

1

‘ *

■*

L 30

* *

A

▼

WWth

30 30 30 30

30 30

30

30 30 30 _

30 30

30 30 30

30 30

30 30 30

Script

ASCII

Char.

coda

127 30 128 129 Ü 36 130 6 30

131

132 & 30 133 134 135 136 6 30 137 138 Ö 30 139 140 Ö

141 1

142 Ä 143 144 145 146 £ 147 148 Ö 149 Ö 150 Ü

151 Cl

152 1 153 Ö 154 155 156 £ 157 Ü 158

Normal Script

9

ä

A 36 1

1 24

Ä

A

Ö

0 42

4

Pts

Width

42

30

36

42 18 42 42 36 42 36 30 30 30 42 36 24 42

30 30 42 42

ASCII

<^iar.

code

159 6 42 160

161

162 d 163 0 36 164 6 165 166 a 167 Q 30 168 169 170 30

171 y 30

172 173 174 • 175 224 225 226 r 36 227 K 228 t 42 229 0 230

231 T 30

232 « 233 0 42 234 n 235 s 30 236 30 237 238 c 30

Normal

ä

(

N

c 30

Ö

i 30

i

-

a 30

ß

M

4>

width

30 18 30

36 42 30

42

30 42 42

36

36 36

42

Script

ASCO

Char.

code

239 n

240

241 242 30

243 246 247 246 249

250 251 252 n

253 2 30 254

255 SP 30

Normal Script

O

± 30

*

-

•

■r

■ 30

Width

30 30

30 30 30 30 30 30 30 30

Compressed PS width is ^/5 of Normal PS.

IBM Mode Characters (Canada-French)

Normal Script

*

-*

Width

30

30 30

30

30 30 30 30 30 30 30 30 30 30 30 30 30

30 30 30 30

30

ASCU

Char.

code

▼

31 127 30 128

Q

129 Ü 36 130 30 131 ä 30 132 A 42 133 ä 30 134

H

135

c 6

136 137 6 30 138 30 139 i 18 140 i 141

=

142 A 143

§

144 145 £ 146 147 6

£

148 149 i 24 150 Ü 151 11

o

152 153 Ö 154

Cl 42

155

4

156 E 157

(J

__

Asai

Char.

code

0 0

1 o 30

2 • 3 30

4

«

5 6 30 7 8 Q 30

O

9

B

10

11

d*

12

9

13

P

14

fl

0

15 16

»■

17

< t

18

M

19

n

20 21 § 22 30

23 30

24

25

26

27

28 L 30

,,

29

30 ▲ 30

Compressed PS width is ^/z of Normal PS.

Width

Normal Script

30

42

30 30 30

18 30

42

30

36

36 36 30 36

36 36 30 42

30 30 30

Asai

Char.

Normal

158 Cl 42 159

/

160 i 30

161

162 6 30 163

Ü 36

■

164 165 166 3 30

_

167

1

168

--

169 170 30

171

y 30

172

T

3

173

7

174

-

175

224

a 30

225

p

226 r 36 227

K 36

226 I 42

229 a 36 230

p

231

X 30

232 <• 42 233

e

234

n 42

235

6 30

236

“

Unit: i/ä60 inch (0.07 mm)

Width

30

30 30

30 24

30

30 30 42 42

36

42

30

Script

Asca

coda

237 230 e 30 239 n 30 240

241 242 243 246 30 247 248 30 249 250 251 252 253 2 254 255

Unit: 1/^0 inch (0.07 mm)

Char.

Normal Script

a ± 30

<•

•

r

n

■ 30

SP 30

width

42

30

30 30

30

30 30 30 30 30

79

Proportional Spacing Tables

IBM Mode Characters (Norway)

Asca

Char.

code

0 1 30 2 3 4 * 5 6 7 8 9

10 8 30 11 12

13

14

15

16

17

18

19

20 21

22

23 24

25

26

27 28 29

30 31

Nonnal

0 30

• ¥ 30

* «

'

fl

o

tf 30

9

P 30

fl

0

»■

<

M

Tt

§ 30

* * 30

L 30

■ > A ▼

width

30

30 30 30 30 30 30

30

30 30 30 30 30 30 30

30 30

30 30 30

Script

Asai

Char.

code

127 128 129 130 131 132 ä 30 134 135 136 137 138 139 140 140 141 ( 142 143 144 145 42 146 147 Ö 148 149 Ö 150 151 152 153 154 155 156 157 158

Kormal Script

Cl Q

Ü

6 30 &

ä

&

f

6

4 30

ä 30

i 1

Ä A

/E

Ö

0

Ü

y

Ö

Ü

4>

E

0

Pis

Width

30 42 36

30

30 30 30 30

10 18 10 42 42 36

42 30 30 30 36 36 36 42 42 30 30 42 42

Asai

Char.

code

159 160 161 \ 18 162 6 30 163 \J 164 165 166 a 30 167 9 30 168 ¿ 169 30 170 171 I 30 172 7 173 174 175 224 a 30 225 226 r 36 227 228 E 229 o 36 230 36 231 I 30 232 <6 42 233 e 234 235 6 236 237 238

Normal

/ i 30

ft 36

N 42

i

-

0

p

n

n 42

-

A

£

Width

30

36

30

30 30 42

30

36

36 42

42

30 30 42 30

Script

ASCII

code

239 n 240 s 241 242 243 246 247 248 249 250 251 252 n 253 254 255

Char.

Normal Script

± 30 2 30

*

-

•

^г

2 30

■ 30

SP 30

Width

30 30

30 30 30 30 30 30 30 30

Compressed PS width is of Normal PS.

IBM Mode Characters (Turkey)

ASCU

10

11

12 13 14 15 16 17 18 19 20

21

22 23

24

25 26 27 28 29 30

31

127

0

1

2 3 4 5 6 7 6 9

Char.

Normal

0 30

•

W

•

A

•

S

o

8 30

cf 30

9

P 30

Jl

0

e

•4 *

1! H

§ 30

*

-

L

A

T

Ü 30

width

30 30 30 30 30 30 30 30 30

30

30 30 30 30 30 30 30

30 30 30 30 30 30 30 30 30 30

Script

ASCII

code

128 129 130

131

132 134

135 136 137 138 139 140 140 141 142 143 144 145 146 147 148 149 150

151

152 153 154 155 156 157 158 159 160

Char.

9

s «

0 Ü

Ü

e

&

ä

ä ä

?

6 e 6

i

I

i

A

A £

6 Ö 6

u Ü

1

4 E

V $

?

ä

Width

Normal Script

42 36 30 30 30 30 30 30 30 30 30 18 18 18 42 42 36 42 42 30 30 30 36 36 24 42 42 30 30 30 36 30 30

Asai

Char.

code

161 162 6 30 163 Ü 36 164 ft 36 165 166 G 167 36 168 ¿ 169 170 30 171 172

173

174 175

224 225 226 r 227 1C 36 228 I 229 0 36 230 231 t 232 42 233 e

234 42 235 h 236 30 237 238 239 n 240 241

Normal

1 18

r

T

* 30

-

a 30 p

M

</>

Z

s ±

Unit: 1/560 inch (0.07 mm)

width

42 42

30 30

42 42

36 36

42

36 30

42

30

42 30 30 30 30

Script

ASCII

Char.

code

242 243 246 247 248 249 250

r

251

252 n 253 2 30 254 255

SP 30

width

Nonnal Script

+

-

•

■ 30

30 30 30 30 30 30 30 30 30

Compressed PS width is i/5 of Normal PS.

80

Unit: 1/560 inch (0.07 mm)

Glossary

ASCII: “ASCII” is an acronym for “American Standard Code for Information Inter

change”. In ASCII, each character has a unique code.

BASIC:

Baud (baud rate):

Bidirectional printing:

Binary:

Bit:

Buffer:

Byte:

Character set:

Code page:

BASIC is a commonly used microcomputer programming language.

Baud is a unit of data transmission speed between computer devices. Can be, but not necessarily, equal to bits per second.

Processing speed is increased by bidirectional printing. That is, the printer prints right-to-left as well as in the normal left-to-right manner.

Binary is a numbering system using the two digits of zero (0) and one (1).

Bit is an abbreviation for “binary digit (0~1)”, and is the smallest unit of information used by a printer or computer.'

Buffer is an area of memory which stores data temporarily.

Byte is the unit of information used by a printer or computer. One byte is

equivalent to eight (8) bits.

Character set is the set of characters, numbers, and symbols available for printing.

The computer system stores characters and numbers as a numerical data. The Code page is a table which is used to change them into the numerical data.

Control codes:

cpi:

cpI:

cps:

Control codes are commands from the computer to the printer that are non-printable characters. They are used to control printer functions.

"cpi” is an abbreviation for “characters per inch", and means the maximum number of characters printed in one horizontal inch.

“cpi” is an abbreviation for “characters per line”, and means the maximum number of characters printed on one line.

“cps” is an abbreviation for “characters per second", and means the number of characters printed in one second.

CR (Carriage Return): “CR” is a control code that returns the printhead to the left margin.

Decimal (Dec.):

Default:

Decimal is a numbering system composed of 10 digits 0,1,2, 3, 4, 5, 6, 7,

8 and 9.

Default has two meanings: one indicates the previously set condition or settings executed when the power is turned on, reset or Initialized; and the other indicates the original settings when shipped from the factory.

81

Glossary

Double strike printing:

Double high printing:

Double wide printing:

Download character:

Draft:

Emphasized printing;

Emulation:

Double printing is a print quality enhancing mode which uses a double strike

with two passes of the printhead, feeding the paper 1/180" (0.14 mm)

between the first and second pass (in Epson mode only).

Double high printing makes the height of a character twice that of a normal one.

Double wide printing makes the width of a character twice that of a normal

one.

Download character is a character which the user can design.

Draft is one of two print qualities available on this printer. Draft mode uses

a minimum number of dots per character to maximize printing speed.

Emphasized printing is a print quality enhancing mode done in one pass of the printhead at half speed, allowing horizontally adjacent dots to be printed producing a darker character.

Emulation means to operate like another printer. KX-P2023 can emulate the Epson LQ-850 or the IBM Proprinter X24E.

Escape (ESC) sequence:

Fanfold paper:

FF (Form Feed):

Font:

FORTRAN:

Hexadecimal: Hexadecimal is a numbering system using the 16 digits, 0,1, 2, 3, 4, 5, 6,

Initialization:

“ESC” is a control code that begins most printer commands. The characters which follow the "ESC” are interpreted as the command, rather than char acters to print.

Fanfold paper has regularly sprocket holes on the left and right sides and pages are separated by a perforation between each sheet. May also be known as computer paperor tractor paper.

“FF” is a control code that advances the paper one page.

Font is a style and size of type designated by a family name.

FORTRAN is one of many computer programming languages, which is used primarily in scientific applications.

7, 8, 9, A, B, C, D, E and F.

Initialization means to reset the printer to the initial start up condition.

82

Interface:

Interface is the connection between the two separate systems, such as the computer and the printer. A parallel interface transfers data one character or code at a time, and a serial interface transfers data one bit at a time.

I/O: “I/O” is the symbolic notation for “Input/Output”.

LF (Line Feed): “LP is a control code that advances the paper one line.

LSB: “LSB” is an acronym for “Least Significant Bit”, and means the rightmost

position in a binary number.

MSB: “MSB” is an acronym for “Most Significant Bit", and means the leftmost

position in a binary number.

Glossary

OFF LINE:

ON LINE:

Overline printing:

Parallel interface:

Parity:

PASCAL:

Perforation:

Pitch:

OFF LINE is the condition in which the printer can not communicate with the

computer.

ON LINE is the condition in which the printer can communicate with the

computer.

Overline printing produces a continuous line above the characters, using the first pin of the printhead.

Synchronized 8 bit transmission of data from the computer to the printer. (B®" P. 82 “Interface".)

Parity is a method for a computer and printer to check the accuracy of data

transfer.

PASCAL is a commonly used microcomputer programming language.

Perforation indicates the tear position on the fanfold paper, (ts* P. 62)

Pitch is the number of characters which will print in one inch. Pitch is equivalent to characters per inch (cpi).

Platen:

Printer drivers:

Proportional spacing (PS):

Platen is the rubber roller which is a backing for the paper when printing.

Most of today’s off the shelf software programs use printer drivers to control printer functions. These drivers contain the software codes your software program uses to access printer features. With the printer driver installed, you will seldom need to know any of the KX-P2023 commands.

Proportional spacing is a printing method of adjusting the space in which a

character is printed.

83

RAM: RAM is an acronym for “Random Access Memory”. It is the part of the

printer’s memory in which data is stored, control codes or download char

acters are to be printed. RAM is cleared when the printer is turned off.

ROM: ROM is an acronym for “Read Only Memory”. It is the part of the printer's

memory in which predefined characters and operating information for the printer are stored. ROM is not cleared when the printer is turned off.

Self test:

Shielded Cable:

String concatenation:

Super Quiet mode:

Self test Is a method for testing the operation of the printer, P. 27)

Shielded cable is a cable wrapped with a special metal around its wires. This guards against radio interference.

This is the joining of two or more bytes of data into a single command.

Super Quiet mode is a helpful feature which reduces printing noise.

Unidirectional printing: The printer prints left-to-hght only. Printing speed is slow compared with

bidirectional printing. This print method permits better vertical alignment.

84

Index

Acknowledge..............................................64

Alternate Graphic Mode (A.G.M.)

Auto CR......................................................28

AutoLF........................................................28

Auto Load

Bi-directional Printing

Bold PS

Buffer.................................................6,59,81

Cable Characters sets

Character Per Line Clear Buffer

Codepage..............................................28, 81

Connecting Control Panel

Courier ........................................6, 28, 37, 59

Current Settings Cut Sheet Feeder

..................................................

...........................

.......................................

..........................................................

..........................................

Epson Mode ......................................68

IBM Mode...........................................70

....................................

................................................

.....................

........................................

..................................

..............

6, 28, 37, 59

10, 28, 33, 34, 37

28

28, 81

63 59

59 66

12

36

28, 87

Factory Settings..........................................36

Fanfold paper

FONT.............................................. 28, 37, 82

FONT switch Form Feed Frame ground

Friction..................................................11,22

Graphic Direction

Bi-directional printing Uni-directiona! printing

Head gap lever...........................................11

Head service life

Hex Dump ..................................................67

Initialization ..........................................66, 82

Initial Setup Mode ......................................28

Interfacing ...................................... 59, 63, 82

International Character Set Italic Character Set

...........................

.........................................

...........................................

...................................

........................................

.........................................

.....................................

11,19, 59, 82

11,12,65

....................

.................

10,37

39, 82

28 28, 81 28, 84

60

28, 73

28

Detectors....................................................60

Dot configuration........................................59

Dot matrix ..................................................59

Download

Elite Emulation

..................................................

............................................................

.........................................

Epson LQ-850 Mode

IBM Proprinter X24E Mode .... 6, 28, 49

.................

28

59 6, 59, 82 6, 28, 43

LF/FF switch

Line Feed..............................................39, 83

LOAD/PARK LOAD/PARK switch

Maintenance

Micron ........................................................59

..........................................

...............................................

....................................

...............................................

10,39

40

10

57

85

□

ON LINE switch...........................................10

ON LINE indicator Operating environment

Overheat Detector.......................................60

Page length.................................................28

Paper..........................................................61

installation...........................................19

specifications

Paper Feed

Friction Mode

Tractor Mode Paper Feeding Paper feed selector

Paper Out Detector.....................................60

Paper Parking

Paper support.............................................11

Paper thickness..........................................11

Parallel Interface connector

Parts of the Printer .....................................10

Pica ............................................................59,

Pitch .......................................................59, 83*

Platen knob.................................................10

Power Requirements

Power switch..........................................10,13

POWER/PAPER OUT indicator

Precautions...................................................7

Prestige........................................6, 28, 37, 59

Prime Signal

Print Buffer .................................................66

Print Font

Print Speed..............................................6,59

Printer-Driver

Printing Area...............................................62

Printing direction Proportional Spacing Tables

....................................................

.......................................

.................................

....................................

.................................................

................................

..................................

............................................

....................................

.............................................

............

..................................

................

..............................................

...............................................

.........................................

......................

22, 59 19, 59

11, 13, 60

10

7

61

59

39

11

38

59 10

66 59

24, 83

59 74

Script

.........................................................

Self Test Setup Setup Disk

Single sheet....................................22, 61, 62

Site Requirements......................................7

Skip perforation ........................................28

Smoked plastic cover Software Commands

Specifications Strobe Signal (STB) Super Quiet mode

Tear Off

Top cover..............................................10,11

Tractor clamping levers

Troubleshooting..........................................58

Unpacking User clear function

Zero Font ...................................................28

...............................................

........................................................

.............................................

Initial Setup program .........................28

Command Reference program

.................................

Epson Mode.......................................43

IBM Mode...........................................49

.............................................

...................................

................................

.....................................................

.............................

..................................................

.....................................

27, 57

8, 28

.........

38,84

28

12

54

10

59 64

39 20

8

66

Re-inking Ribbon Ribbon cassette

86

.........................................

....................................

14, 57

57

Options and Supplies

KX-PT12 Auto Cut Sheet Feeder (Single bin)

This option allows you to automatically load 50 cut sheets (20 lbs) of paper into the printer.

KX-P44 32K Buffer Chip

This option allows you to download custom-designed characters, or can be used to expand the printer’s receive buffer.

KX-P145 Ribbon Cassette (Black)

This ribbon is useful for 3 million characters.

^ Each of the above options has its own Installation and instruction Manuals.

FOR USERS IN CONTINENTAL UNITED STATES ONLY

TECHNICAL SUPPORT CALLS

If you have read this manual and tried the troubleshooting procedures and you are still having difficulty please contact the store from which the unit was purchased.

You may also call the technical support telephone number which is operational during east coast business hours (9:00 AM to 5:00 PM).

The technical support number is: 1-800-222-0584

(Options and supplies: 1 -800-346-4768)

87

Panasonic Communications & Systems Company, Computer Products Division Division of Matsushita Electric Corporation of America

Two Panasonic Way, Secaucus, New Jersey 07094

Panasonic Sales Company Division of Matsushita Electric of Puerto Rico, Inc.

San Gabriel Industrial Park, 65th Infantry Avenue KM. 9.5 Carolina, Puerto Rico 00630

Matsushita Electric of Canada Limited

5770 Ambler Drive, Mississauga, Ontario, L4W 2T3

Matsushita Electric Industrial Co., Ltd.

Central P.O. Box 288, Osaka 530-91, Japan

PJQX6551ZA S1292H0 [M]

Panasonic KX-P2023 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Features

Cautions

Operating Environment

Precautions

Unpacking

Assembling the parts

Unpacking

Parts of the Printer

Parts of the Printer

Connecting to a Computer

Ribbon Cassette

Installing the Ribbon Cassette

Turn the power on.

Fold the smoked plastic cover forward.

Raise the smoked plastic cover.

Turn the power on.

Raise the smoked piastic cover.

Installing Paper

Fanfold Paper (Tractor Push Mode)

O Turn the power on.

Set the paper feed selector to the “ I ” position.

O Remove the top cover.

Single Sheets and Envelopes (Friction Mode)

Printer-Driver Selection

Installing a Printer-Driver (Windows Ver. 3.1)

In “Options”, select “Printer Setup”.

Click Add »

Click Install...

Installing a Printer-Driver (Windows Ver. 3.1)

Self Test

Using Setup Disk

Running the initial Setup program

^ Insert your setup disk into either drive A or B.

<For DOS> <For WINDOWS>

Screen 1 [SELECT COUNTRY] will be displayed (for first time installation).

Select Run from the File menu.

Type A:\SETUP (or B:\SETUP)

^ Click I OK I (or Press ( Enter )).

Setting and saving the Initial Setup items

H Press [t] or (J].

Press [ Enter ].

Press (D or

Press @ or e.

g Press [ Enter].

Press [y] or (^.

Press [y] or .

g Press (3 or

Press [y] or ® •

10 Press [y] or

Using the Control Panel

turn

^ Selecting the Item (Ex; Emulation) Press and release [ FONT I.

^ Setting the Item’s Status

(Ex; Epson/IBM)^

Press and release [ ON LINE ].

Resetting All Current Settings to the Factory Settings

Selecting a Character Font

• Press and release [ FONT)

Super Quiet Mode

Turning on the Super Quiet mode:

• While pressing [ON LINE] , press [ TEAR OFF]

Turning off the Super Quiet mode:

• While pressing [ON LINE] , press [ TEAR OFF]

Feeding Paper

Line Feed/Form Feed LF/FF

Tear Off TEAR OFF

Press! TEAR OFF] to advance the paper to the tear bar.

Fold the rear part of the smoked plastic cover forward.

Paper Parking LOAD/PARK

Epson LQ-850 Mode

Font Selection

Character Pitch Selection

Character Highlight Selection

Character Set Selection

Bit Image (Graphics) Mode Selection
