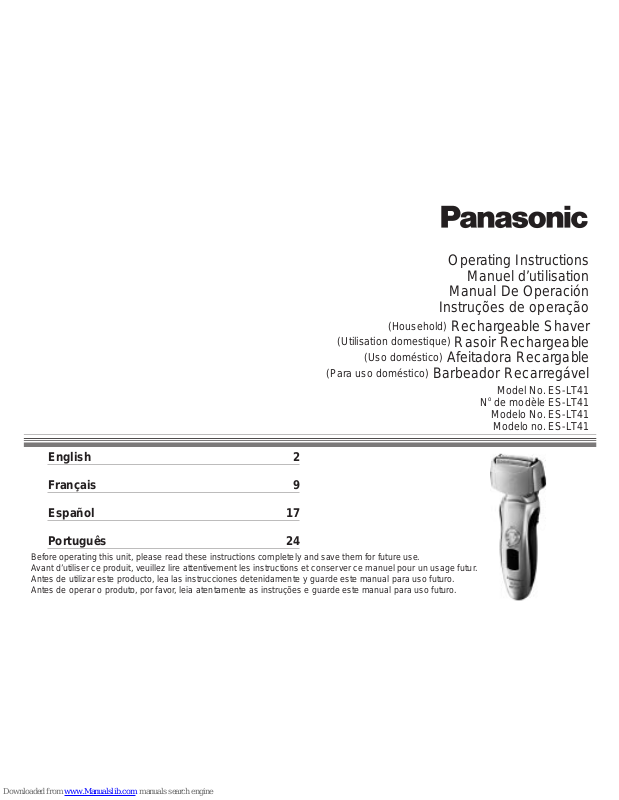

Panasonic ES-LT 41 User Manual

Operating Instructions

Manuel d’utilisation

Manual De Operación

Instruções de operação

(Household)

Rechargeable Shaver

(Utilisation domestique)

Rasoir Rechargeable

(Uso doméstico)

Afeitadora Recargable

(Para uso doméstico)

Barbeador Recarregável

Model No. ES‑LT41

de modèle ES‑LT41

Modelo No. ES‑LT41

Modelo no. ES‑LT41

English 2 Français 9 Español 17 Português 24

Before operating this unit, please read these instructions completely and save them for future use. Avant d’utiliser ce produit, veuillez lire attentivement les instructions et conserver ce manuel pour un usage futur. Antes de utilizar este producto, lea las instrucciones detenidamente y guarde este manual para uso futuro. Antes de operar o produto, por favor, leia atentamente as instruções e guarde este manual para uso futuro.

English

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance.

DANGER

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.

2. Charger unit is not for immersion or for use in shower.

3. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.

4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.

5. Unplug this appliance before cleaning.

6. Do not use an extension cord with this appliance.

WARNING

To reduce the risk of burns, ﬁre, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children or invalids.

2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

3. Nev

er operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces.

5. Never drop or insert any object into any opening.

6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

7. Do not use this appliance with damaged shaving blades and/or foil, as it has the potential to result in facial injury.

8. Always attach plug to appliance ﬁrst, then to outlet. To disconnect, turn all controls to “off” then remove plug from outlet.

SAVE THESE INSTRUCTIONS

English

Thank you for choosing a Panasonic shaver. With our WET/ DRY technology, you can enjoy using your Panasonic shaver dry or in the shower or bath for gentle and easy shaving. Please read all instructions before use.

Important

This shaver has a built‑in rechargeable battery. Do not throw into ﬁre, apply heat, or charge, use, or leave in a high temperature environment.

Before use

This WET/DRY shaver can be used for wet shaving with shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean it in water. The following is the symbol of Wet sha

ver. The symbol means that the hand‑held part may be

used in a bath or shower.

Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.

Using the shaver

Caution

The outer foil is very thin and can be damaged if not used correctly. Check that the foil is not damaged before using the shaver. Do not use the shaver if the foil is damaged as you will cut your skin.

Terminate the usage when there is abnormality or failure. Do not share your shaver with other people.



•

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Char

ging

the shaver

Never use the adaptor in the bathroom or shower room. Do not use any power cord or adaptor other than this adaptor (RE7‑51). Plug in the adaptor into a household outlet where there is no moisture and handle it with dry hands. Hold the adaptor when disconnecting it from the household outlet. If you tug on the power cord, you may damage it. The supply cord cannot be replaced. If the cord is damaged, the adaptor should be scrapped. Recommended ambient temperature f

or charging is 15‑35 °C (59‑95 °F). The adaptor is intended to be correctly oriented in a vertical or ﬂoor mount position.

Cleaning the shaver

Warning

Disconnect the power cord from the shaver before cleaning it in water to prevent electric shock.

Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged. If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time. Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water. Do not use thinner, benzine, alcohol or other chemicals.

•



•



•

English

: Finger rest ; Trimmer < Trimmer handle

E Adaptor (RE7‑51)

= Power cord > Appliance plug

F Travel pouch

Using the lock ring

Use the lock ring to lock or unlock the power switch.

1. Rotate the lock ring until it clicks.

Unlock the power switch:

When shaving, washing the shaver, lubricating the shaver.

Lock the power switch:

When carrying the shaver.

Charge

Charging the shaver

Insert the appliance plug into the shaver.

Plug in the adaptor into a household outlet.

Turn the shaver off before attaching. Charging is completed after approx. 1 hour.

•

If the shape of the plug does not ﬁt the power outlet, use an attachment plug adaptor of the proper conﬁguration.

You cannot operate the shaver while charging.

•

Storing

the shaver

Store the shaver in a place with low humidity after use. Do not store the shaver where it will be exposed to direct sunlight or other heat sources. Disconnect the power cord when storing the shaver. Do not bend the power cord or wrap it around the shaver.

Parts identiﬁcation

















 









a b













A Protective cap B Outer foil section

1 Foil frame 2 System outer foil 3 System outer foil release

buttons

C Inner blades D Main body

4 Foil frame release buttons

5 Pivot action selector 6 Lock ring 7 LCD panel

a. Battery capacity b. Sonic vibration ( ) c. Charge status ( ) d. Clean ( )

8 Appliance socket 9 Power switch [0/1]



•

English

Reading the LCD panel when charging

The percentage of available

battery capacity

After charging is completed

The indicators glow.

The percentage of the

available battery capacity will

increase as charging

progresses.

The indicators blink once

every second.

10 minutes after charging is completed

The indicators blink once every 2 seconds.

Recommended ambient temperature for charging is 15‑35 °C (59‑ 95 °F). The battery may degrade the performance or may not charge under extreme low or high temperatures. The indicators will blink twice every second when there is a problem with charging. When charging the shaver for the ﬁrst time or when it has not been in use for more than 6 months, the indicators may not glow. It will eventually glow if kept connected.

•

Shave

Using the shaver

Rotate the lock ring and press the power switch.

Page 4

Hold the shaver as illustrated above and shave.

Start out shaving by applying gentle pressure to your face. Stretch your skin with your free hand and move the shaver back and forth in the direction of your beard. You may gently increase the amount of pressure as your skin becomes accustomed to this shaver. Applying excessive pressure does not provide a closer shave.

Caution

If you press the power switch for more than 2 seconds, the sonic vibration cleaning mode is activated.

Page 6

You cannot shave in this mode. Do not place your ﬁngers on the power switch while using the shaver. This may cause the shaver to turn off or enter the sonic vibration cleaning mode. Place your ﬁngers on the ﬁnger rest while using the shaver.

•

English

Pivot action selector

Use to select “SOFT” (soft) or “LOCK” (lock). You can change the pivot action whether the shaver is turned on or off.

Using the trimmer

Slide the trimmer handle up. Place at a right angle to your skin and move downwards to trim your sideburns.

Reading the LCD panel when using

While using

When the battery capacity is

low

Approximate amount of

battery charge is displayed as

0 ‑ 100 (%).

“10%” appears and the charge

status indicator ( ) blinks

when pressing the power

switch.

You can shave 1 to 2 times after “10%” appears.

(This will differ depending on usage.)

•

A full charge will supply enough power for approx. 14 shaves of 3 minutes each.

•

Clean

Cleaning the shaver

We recommend that you clean your shaver with the sonic vibration cleaning mode when the clean indicator ( ) appears on the LCD panel.

1. Disconnect the power cord from the shaver.

2. Apply some hand soap and some water

to the outer foil.

3. Rotate the lock ring to unlock the power

switch.

4. Press the power switch for more than 2

seconds to activate the sonic vibration cleaning mode.

The sonic vibration indicator ( ) appears on the LCD panel. After about 20 seconds, it will be automatically turned off, or you can turn it off by pressing the power switch.

5. Remove the outer foil section and press the power switch for more than 2 seconds to activate the sonic vibration cleaning mode and clean it with running water.

6. Wipe off any drops of water with a dry

cloth.

7. Dry the outer foil section and the shaver

completely.

8. Attach the outer foil section to the

shaver.

•

English

Replacing the system outer foil and the inner blades

system outer foil once every year inner blade once every two years

Replacing the system outer foil

1. Press the foil frame release buttons and lift the outer foil section upwards.

2. Press the system outer foil release buttons and pull down the system outer foil.

3. Align the foil frame mark ( ) and the system outer foil mark ( ) and securely attach together.

The system outer foil cannot be reversely attached. Always insert the system outer foil to the foil frame when attaching to the shaver.

4. After turning the foil frame mark ( ) to the front, securely attach the outer foil section to the shaver until it clicks.

•

2 3

Replacing the inner blades

1. Press the foil frame release buttons and lift the outer foil section upwards.

2. Remove the inner blades one at a time.

Do not touch the edges (metal parts) of the inner blades to prevent injury to your hand.

3. Insert the inner blades one at a time until they click.

•

2 3



Replacement

parts

Replacement parts are available at your dealer or Service Center.

Replacement parts for ES‑LT41

System outer foil and inner blades

WES9013

System outer foil WES9087 Inner blades WES9068



English

Removing the built-in rechargeable battery

ATTENTION: A lithium ion battery that is recyclable powers the product you have purchased. Please call 1‑800‑8‑BATTERY for information on how to recycle this battery.

Remove the built‑in rechargeable battery before disposing of the shaver. Do not dismantle or replace the battery so that you can use the shaver again. This could cause ﬁre or an electric shock. Replace it at an authorized service center. The battery replacing service is available only in the United States of America.

Disconnect the power cord from the shaver when removing the battery. Perform steps 1 to 4 and lift the battery, and then remove it.









•

FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLLFREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-332-5368. IN CANADA, CONTACT PANASONIC CANADA INC. AT THE ADDRESS OR TELEPHONE NUMBER ON THE BACK PAGE.

Speciﬁcations

Power source

See the name plate on the adaptor.

(Automatic voltage conversion) Motor voltage 3.6 V DC Charging time 1 hour

This product is intended for household use only.

Français

CONSIGNES DE SÉCURITÉ IMPORTANTES

Lors de l’utilisation d’un appareil électrique, il faut toujours prendre des précautions de base, y compris les suivantes: Lisez toutes les instructions avant d’utiliser cet appareil.

DANGER

An de réduire tout risque d’électrocution:

1. Ne touchez pas un appareil qui est tombé dans l’eau. Débranchez-le immédiatement.

2. N’immergez ni n’utilisez le chargeur dans la douche.

Ne placez ni ne rangez l’appareil là où il peut tomber

ou être précipité dans une baignoire ou un évier. Ne déposez ou n’échappez pas dans l’eau ou dans un autre liquide.

4. Débranchez toujours cet appareil de la prise électrique immédiatement après usage, excepté pendant la charge.

5. Débranchez cet appareil avant de le nettoyer.

6. N’employez pas de rallonge avec cet appareil.

MISES EN GARDE

An de réduire le risque de brûlures, d’incendie, d’électrocution ou de blessures corporelles:

1. Une grande vigilance est nécessaire lorsque cet appareil est utilisé par des enfants ou des personnes handicapées, sur eux ou en leur présence.

2. Utilisez cet appareil uniquement pour son usage prévu, comme le décrit le présent manuel. N’utilisez pas d’accessoires qui ne sont pas recommandés par le fabricant.

3.N’utilisez

jamaiscetappareilsilecordonoulache

est endommagé, s’il ne fonctionne pas correctement, s’il est tombé, endommagé ou tombé dans l’eau. Retournez l’appareil à un centre de réparation pour le faire inspecter et réparer.

4. Gardez le cordon éloigné des surfaces chauffées.

5. Ne faites jamais tomber ou n’insérez pas un objet dans les ouvertures de l’appareil.

6. N’utilisez pas à l’extérieur, dans des endroits où des aérosols (pulvérisateurs) sont utilisés ou là où de l’oxygène est administré.

7. N’utilisez pas ce rasoir avec des lames de rasage et/ ou une grille endommagées, car il pourrait provoquer des blessures au visage.

8.Brancheztoujourslacheàl’appareilenpremier,

puis pour débrancher, commutez toutes les commandes sur “arrêt”.

CONSERVEZ LES PRÉSENTES INSTRUCTIONS

Français

Nous vous remercions d’avoir choisi un rasoir Panasonic. Grâce à la technologie MOUILLÉ/SEC, vous pouvez proter de votre rasoir Panasonic au sec, sous la douche ou dans un bain pour un rasage facile et en douceur. Veuillez lire toutes les instructions avant utilisation.

Important

Ce rasoir comporte une batterie rechargeable intégrée. Ne pas jeter au feu, appliquer de chaleur ou charger, utiliser ou laisser dans un environnement où la température est élevée.

Avant utilisation

Ce rasoir est utilisable sur peau sèche ou peau mouillée avec du gel de rasage. Vous pouvez utiliser ce rasoir étanche sous la douche et le nettoyer sous l’eau. Le symbole suivant indique un rasoir mouillé. Ce

symbole

signiequelapartiedurasoirquiesttenueàlamainpeut

être utilisée dans un bain ou sous la douche.

Essayez le rasage mouillé au gel pendant un minimum de trois semaines et vous verrez la différence! Il vous faudra un peu de temps pour vous habituer à votre rasoir Panasonic sec/mouillé car votre peau et votre barbe ont besoin d’un mois environ pour s’adapter à une nouvelle méthode de rasage.

Utilisation du rasoir

Attention

La grille de protection est très ne et peut être endommagée en cas d’utilisation incorrecte. Vériez que la grille n’est pas endommagée avant d’utiliser le rasoir. N’utilisez pas le rasoir si la grille est endommagée car vous pourriez vous couper la peau.



Cessez l’utilisation en cas de comportement anormal ou de panne. Ne partagez pas votre rasoir avec d'autres personnes. Cet appareil n’a pas été conçu pour être utilisé par des personnes (enfants y compris) souffrant d’un handicap physique, sensoriel ou mental, ou ne disposant pas de l’expérience et des connaissances nécessaires à une utilisation sûre, à moins qu’elles aient reçu toutes les consignes requises par la personne responsable de leur sécurité

quantàl’utilisationdel’appareil.Surveillezlesenfants,andevous

assurer qu’ils ne jouent pas avec l’appareil.

Chargement du rasoir

Ne jamais utiliser l’adaptateur dans la salle de bain ou la douche. Ne pas utiliser de cordon d’alimentation ou d’adaptateur différent de celui-ci (RE7-

51). Branchez l’adaptateur dans une prise secteur qui n’est pas humide et manipulez-le en ayant les mains sèches. Tenez l’adaptateur lorsque vous le débranchez de la prise secteur. Si vous tirez le cordon d’alimentation, vous risquez de l’endommager. Il n’est pas possible de remplacer le cordon d’alimentation. Si le cordon est endommagé, l’adaptateur doit être mis au rebut. La température ambiante recommandée pour le chargement est 1535 °C (59-95 °F). Il convient de placer l’adaptateur à la verticale ou sur le plancher.

Nettoyage du rasoir

Avertissement

Déconnectez le cordon d’alimentation du rasoir avant de nettoyer ce dernier dans de l’eau, an de ne pas vous électrocuter.

Veillez à ce que les deux lames soient insérées. Si une seule lame est insérée, le rasoir peut être endommagé. Si vous nettoyez le rasoir à l’eau, n’utilisez ni d’eau salée ni d’eau chaude. Ne laissez pas le rasoir dans l’eau trop longtemps. Ne nettoyez le logement qu’avec un chiffon doux légèrement imbibé d’eau du robinet ou d’eau du robinet savonneuse. N’utilisez pas de solvant, de benzine, d’alcool ou d’autres produits chimiques.

•



•



•
